BRAF inhibitors suppress apoptosis through off-target inhibition of JNK signaling

Research Article
  • Cited 30
  • Views 2,066
  • Annotations
Cite this article as: eLife 2013;2:e00969 doi: 10.7554/eLife.00969

Abstract

Vemurafenib and dabrafenib selectively inhibit the v-Raf murine sarcoma viral oncogene homolog B1 (BRAF) kinase, resulting in high response rates and increased survival in melanoma. Approximately 22% of individuals treated with vemurafenib develop cutaneous squamous cell carcinoma (cSCC) during therapy. The prevailing explanation for this is drug-induced paradoxical ERK activation, resulting in hyperproliferation. Here we show an unexpected and novel effect of vemurafenib/PLX4720 in suppressing apoptosis through the inhibition of multiple off-target kinases upstream of c-Jun N-terminal kinase (JNK), principally ZAK. JNK signaling is suppressed in multiple contexts, including in cSCC of vemurafenib-treated patients, as well as in mice. Expression of a mutant ZAK that cannot be inhibited reverses the suppression of JNK activation and apoptosis. Our results implicate suppression of JNK-dependent apoptosis as a significant, independent mechanism that cooperates with paradoxical ERK activation to induce cSCC, suggesting broad implications for understanding toxicities associated with BRAF inhibitors and for their use in combination therapies.

https://doi.org/10.7554/eLife.00969.001

eLife digest

Over 50% of melanomas, a highly lethal form of skin cancer, carry mutations in a gene called BRAF. The BRAF gene encodes an enzyme that helps to regulate the proliferation of cells, but mutations in this gene lead to the excessive proliferation that is seen in cancer. Clinical trials have shown that a drug called vemurafenib can be used to treat patients who carry the mutated BRAF genes and go on to develop melanoma, but around one fifth of these patients developed another type of skin cancer called cSCC (cutaneous squamous cell carcinoma).

The cSCC tumors often develop in areas where the sun has damaged the patient’s skin, and it is thought that their growth is then accelerated by vemurafenib activating another enzyme, ERK, which causes the excessive proliferation of skin cells. Vin et al. have now found that vemurafenib might also cause cSCC tumors by blocking another signaling pathway. The experiments were performed in human cells and also in mice, and the results were then verified in human cSCC samples.

Cells that are exposed to UV radiation usually die, but when treated with vemurafenib, some 70% of the cells that would have died instead survived. The stress from the UV radiation activates the JNK signaling pathway, which causes the irradiated cells to die. However, Vin et al. found that cSCC cells had very low levels of JNK signaling because treatment with vemurafenib had the unintended effect of inhibiting three enzymes that are needed to fully activate the JNK signaling pathway.

Vin et al. estimate that suppression of JNK signaling and cell death is responsible for about 17.6 to 40% of the effect on cSCC growth seen in melanoma patients, with activation of the ERK pathway accounting for the rest. These unexpected findings suggest that combining vemurafenib treatment with radiation or chemotherapy should be done with caution as these effects could affect their efficacy. It also suggests that future drugs should be designed in a way that avoids these types of effects by making sure they do not inhibit important ‘off-target’ enzymes.

https://doi.org/10.7554/eLife.00969.002

Introduction

BRAF inhibitors (BRAFi) have revolutionized the treatment of melanoma (Flaherty et al., 2010; Chapman et al., 2011; Sosman et al., 2012; Falchook et al., 2012; Hauschild et al., 2012; Long et al., 2012). Their clinical use is associated with the development of keratinocytic tumors including cSCC (Flaherty et al., 2010; Chapman et al., 2011; Sosman et al., 2012; Hauschild et al., 2012; Falchook et al., 2012; Long et al., 2012). Mechanistic studies of this have centered on paradoxical ERK activation, which is most evident in BRAF-wild-type, RAS-mutant cells, as the primary mechanism (Karreth et al., 2009; Halaban et al., 2010; Hatzivassiliou et al., 2010; Heidorn et al., 2010; Poulikakos et al., 2010). This is supported by the findings that RAS mutations are significantly enriched in cSCC arising in patients treated with vemurafenib relative to sporadic cSCC (Oberholzer et al., 2011; Su et al., 2012), and by the low rate of cSCC in patients treated with combined BRAFi and MEK inhibitor (MEKi) (Flaherty et al., 2012). In one model, drug binding relieves the autoinhibition of BRAF whereupon it is recruited to the membrane by activated RAS and dimerizes with CRAF, driving MEK-dependent ERK activation (Heidorn et al., 2010). Other studies show ERK hyperactivation resulting from drug-induced CRAF transactivation (Hatzivassiliou et al., 2010; Poulikakos et al., 2010) and modulation of RAS spatiotemporal dynamics (Cho et al., 2012). Inhibitor-induced KSR1-BRAF dimers modulate the activity of ERK (McKay et al., 2011) and also affect MEK signaling by activating KSR1 kinase activity (Brennan et al., 2011; Hu et al., 2011). These models all highlight the importance of CRAF in driving MEK-dependent hyperactivation of ERK.

Because of the rapid development of these cSCC on BRAFi therapy and the enrichment for RAS mutations, pre-existing genetic lesions are likely present prior to therapy, which are then ‘unmasked’ following initiation of BRAFi therapy. The fact that many arise in sun-damaged skin suggests that prior chronic UV exposure is an important predisposing event (Su et al., 2012).

We instead hypothesized that vemurafenib and PLX4720 could also affect the susceptibility of cells to apoptosis and in so doing, contribute to the acceleration of tumor development. We studied the acute ultraviolet radiation (UVR) response because this is the most important environmental risk factor in the development of skin cancer and because many BRAFi-induced cSCC arise in sun-damaged areas (Su et al., 2012). PLX4720 and vemurafenib share structural features (Tsai et al., 2008; Bollag et al., 2010) and have similar activities, as is the case in our studies.

Results

BRAFi suppress stress-induced, JNK-dependent apoptosis

We performed our initial studies using cSCC (SRB1, SRB12, COLO16) and keratinocyte (HaCaT) cell lines. Cells treated with 1 kJ/m2 of UVB (FS40 lamp) undergo apoptosis within 24 hr (Figure 1A–D). Surprisingly, this apoptosis was suppressed by at least 70% in cells concomitantly treated with 1 μM PLX4720 (Figure 1A–D) compared to control DMSO-treated cells as measured by FACS for Annexin V+; TMRE (tetramethylrhodamine)-low cells (Figure 1E, Figure 1—figure supplement 1A–C). Similar results were obtained using doxorubicin as the inducer of apoptosis, and similar suppression of apoptosis was obtained using 1 μM PLX4720 in all cells (Figure 1—figure supplement 2A,B). Importantly, these cells have no oncogenic RAS or BRAF mutations (Table 1), and PLX4720 conferred no significant proliferative advantage to the tested cells (Figure 1—figure supplement 3) even when used at concentrations that inhibit the proliferation of BRAFV600E melanoma cell lines (Tsai et al., 2008).

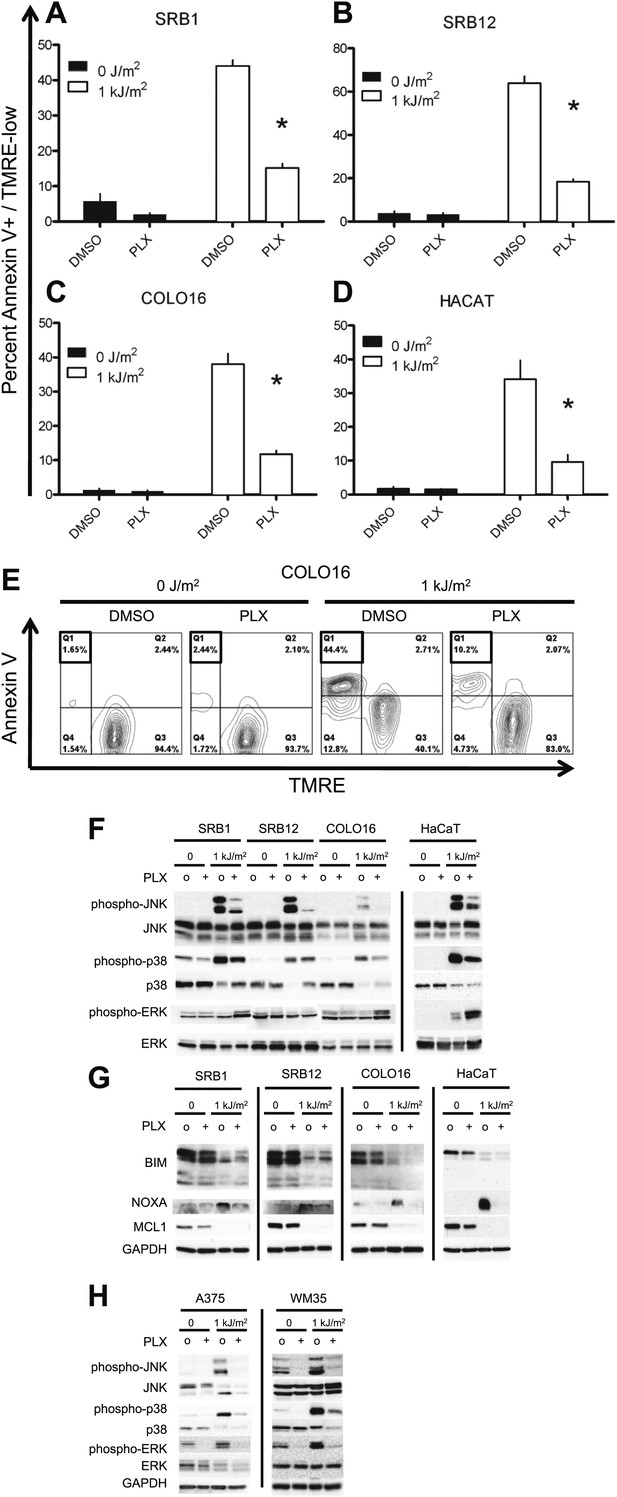

Figure 1 with 3 supplements see all
PLX4720 suppresses UV-induced apoptosis.

The cSCC and HaCaT cell lines were either unirradiated or irradiated with 1 kJ/m2 of UVB in the absence (‘o’, 1:2000 DMSO) or presence (‘+’) of 1 μM PLX4720 and isolated for FACS analysis and protein extracts 24 hr later. (A) SRB1, (B) SRB12, (C) COLO16, and (D) HaCaT cells show at least 70% suppression of apoptosis in the presence of PLX4720 as measured by FACS for Annexin V+, TMRE-low cells (n = 6 for each cell line, ‘*’ denotes statistical significance at p<0.05). (E) A representative FACS plot for COLO16 is shown. Annexin V+, TMRE-low cells are contained in the upper left quadrant (boxed), which was significantly populated in UV-irradiated cells, but not in the absence of UV, or in the presence of PLX4720. (F) Western blots probed for the MAP kinases demonstrated strong phospho-JNK and phospho-p38 induction following irradiation and significant suppression by PLX4720. Phospho-ERK was slightly induced following irradiation, and at 24 hr, paradoxical hyperactivation in the presence of PLX4720 was observed, particularly in SRB1 and HaCaT cells. (G) Western blots showed that BIM was not upregulated in these BRAF-wild-type cells, consistent with intact ERK signaling. MCL1 was downregulated by irradiation and not modulated by PLX4720, whereas NOXA expression was strongly induced in irradiated cells and suppressed by PLX4720. (H) Western blots of BRAFV600E melanoma cell lines, A375 and WM35, demonstrated suppression of UV-mediated induction of phospho-JNK and phospho-p38 by PLX4720 at 24 hr. As expected, phospho-ERK is shut down in PLX4720-treated cells.

https://doi.org/10.7554/eLife.00969.003
Table 1

Lack of BRAF and RAS mutations in cSCC and HaCaT cell lines

https://doi.org/10.7554/eLife.00969.007
ALK_F1174LIV_T3520CAGALK_F1245C_T3734G
ALK_F1245VI_T3733GABRAF_G464EVA_G1391ATC
BRAF_G466R_G1396CABRAF_K601E_A1801G
BRAF_V600EAG_T1799ACG_FCTNNB1_S45APT_T133GCA
CTNNB1_T41APS_A121GCSEGFR_Y813C_A2438G
GNAS_R201SC_C601ATKRAS_G12SRC_G34ACT
KRAS_Q61EKX_C181GATMET_H1112_A3335GT
MET_Y1248HD_T3742CGPIK3CA_A1046V_C3137T
PIK3CA_C420R_T1258CPIK3CA_E110K_G328A
PIK3CA_E418K_G1252APIK3CA_F909L_C2727G
PIK3CA_H1047RL_A3140 GTPIK3CA_H701P_A2102C
PIK3CA_N345K_T1035APIK3CA_Q060K_C178A
PIK3CA_R088Q_G263APIK3CA_S405F_C1214T
TNK2_R99Q_G296ABRAF_G466EVA_G1397ATC
BRAF_V600LM_G1798 TACTNNB1_S37APT_T109GCA
CTNNB1_S45CFY_C134GTAEGFR_G719_G2155TA
EGFR_L858R_T2573GEGFR_T790M_C2369T
EPHA3_K761N_G2283FGFR2_S252W_C755G
FOXL2_C134W_C402GKIT_K642E_A1924G
KIT_R634W_C1900TKIT_V560D_T1679A
KIT_V825A_T2474CKIT_Y553N_T1657A
KRAS_G12DAV_G35ACTMET_N375S_A1124G
NRAS_G12SRC_G34ACTPIK3CA_E453K_G1357A
PIK3CA_E545AGV_A1634CGTPIK3CA_H1047RL_A3140 GT..1.
PIK3CA_K111N_G333CPIK3CA_M1043V_A3127G
PIK3CA_P539R_C1616GBRAF_E586K_G1756A
BRAF_G469EVA_G1406ATCCTNNB1_S33APT_T97GCA
CTNNB1_S37CFY_C110GTAEGFR_L861_T2582AG
EGFR_T854I_C2561TFGFR2_N549KK_T1647GA
FRAP_R2505P_G7514CFRAP_S2215Y_C6644T
IDH2_R172MK_G515 TAJAK2_V617F_G1849T
KIT_L576P_T1727CKIT_N566D_A1696 G
KRAS_A146PT_G436CANRAS_G12DAV_G35ACT
KRAS_Q61HHE_A183CTGKRAS_G13SRC_G37ACT
NRAS_G13DAV_G38ACTNRAS_Q61HHQ_A183TCG
PDGFRA_N659Y_A1975TPDGFRA_V561D_T1682A
PIK3CA_E545KQ_G1633ACPIK3CA_H1047Y_C3139T
PIK3CA_Q546EK_C1636 GAPIK3CA_Y1021HN_T3061CA
RET_M918T_T2753CAKT1_G173R_G517C
AKT2_E17K_G49ABRAF_G469R_G1405CA
BRAF_L597R_T1790GBRAF_V600_G1800
CTNNB1_G34EVA_G101ATCEGFR_S720P_T2158C
GNA11_Q209LP_A626 TCIDH1_R132CGS_C394TGA
IDH2_R140LQ_G419 TAIDH2_R140W_C418T
IDH2_R172S_G516TKIT_D816HNY_G2446CAT
KIT_V559ADG_T1676CAGKRAS_G10R_G28A
KRAS_Q61LPR_A182TCGMET_H1112Y_C3334T
MET_M1268T_T3803CMET_T1010I_C3029T
NRAS_A146T_G436ANRAS_Q61EKX_C181GAT
PDGFRA_D842V_A2525TPDGFRA_D842_G2524TA
PDGFRA_N659K_C1977APIK3CA_E542KQ_G1624AC
PIK3CA_G1049R_G3145CPIK3CA_M1043I_G3129ATC
PIK3R1_D560Y_G1678TPRKAG2_N488I_A1463T
AKT2_G175R_G523CAKT3_G171R_G511A
ALK_F1174L_C3522AGALK_I1171N_T3512A
ALK_R1275QL_G3824ATBRAF_D594GV_A1781 GT
CTNNB1_D32HNY_G94CATFBWX7_R465C_C1393T
FBWX7_R479QL_G1436ATFBWX7_R505HLP_G1514ATC
FGFR3_G370C_G1108TGNAQ_Q209H_A627T
IDH2_R140W_C419TIDH2_R172GW_A514 GT
KIT_N822KNK_T2466GCAKRAS_G13DAV_G38ACT
PDPK1_D527E_C1581GPIK3CA_E542VG_A1625TG
PIK3CA_E545D_G1635CTPIK3CA_T1025SA_A3073TG
PIK3CA_Y1021C_A3062GPIK3R1_N564K_C1693AG
PRKAG1_R70Q_G209AAKT1_E17K_G49A
AKT1_K179M_A536TBRAF_V600EAG_T1799ACG_R
CDK4_R24C_C70TCDK4_R24H_G71A
CTNNB1_D32AGT_A95CGVFBWX7_R465HL_G1394AT
FGFR3_G697C_G2089TFGFR3_K650MT_A1949 TC
FGFR3_R248C_C742TFGFR3_S371C_A1111T
FGFR3_Y373C_A1118GGNAS_R201H_G602A
IDH1_R132HL_G395ATKIT_N822YHD_A2464TCG
MET_R988C_C2962TMET_Y1253D_T3757 G
NRAS_G13SRC_G37ACTNRAS_Q61RPL_A182GCT
PIK3CA_Q546LPR_A1637TCGTNK2_E346K_G1036A
PIK3CA_H1047RL_A3140 GTALK_F1245C_T3734G
  1. The listed gene mutations were screened by Sequenom INT16/20 panel (Characterized Cell Line Core, MD Anderson Cancer Center) and HRAS was sequenced by Sanger sequencing. All examined loci were wild-type in the cSCC cell lines SRB1, SRB12, COLO16, and keratinocyte cell line HaCaT. The PIK3R1_M326I_G978 polymorphism was found in the SRB12 cell line.

Because the p38 and JNK stress-activated MAP kinases are well-established critical mediators of UV-induced apoptosis (Derijard et al., 1994; Chen et al., 1996; Tournier et al., 2000; Hildesheim et al., 2004), we explored the status of JNK and p38 activation by assessing phospho-JNK and phospho-p38 levels by Western blot (Figure 1F). Phospho-JNK levels in particular were highly upregulated upon UV irradiation and were significantly suppressed by treatment post-radiation with 1 μM PLX4720 in cSCC and HaCaT cell lines (Figure 1F). Similar effects were seen with 1 μM vemurafenib (data not shown) and in cells stressed with doxorubicin (Figure 1—figure supplement 2C). Importantly, ERK signaling remained intact, as evidenced both by the paradoxical activation of ERK (upregulation of phospho-ERK) and by the failure to upregulate BIM levels (Figure 1F,G). This pro-apoptotic BCL2 family member is upregulated by inhibition of ERK signaling (Collins et al., 2005) and in BRAFV600E melanoma cells treated with vemurafenib (Paraiso et al., 2011). Since NOXA is a downstream effector of UV-induced apoptosis (Naik et al., 2007), we examined its expression and found that NOXA expression is induced by UV irradiation and suppressed by PLX4720 in all cell lines (Figure 1G), suggesting that inhibition of NOXA expression may be a mechanism of PLX4720-induced suppression of apoptosis. Finally, we examined the expression of the antiapoptotic BCL2 family member MCL1 because it is downregulated by UV exposure (Figure 1G), but as previously reported (Paraiso et al., 2011), unaffected by PLX4720 (Figure 1G).

To test the generality of these effects in cells in which ERK activity is suppressed by BRAFi, we extended our analysis to the BRAFV600E melanoma cells A375 and WM35. As expected, phospho-ERK expression was strongly suppressed by PLX4720 (Figure 1H). Phospho-JNK and phospho-p38 were significantly upregulated following UV-irradiation (Figure 1H), showing that signaling to JNK and p38 is intact in BRAFV600E melanoma cells. Here again, there was significant suppression of both phospho-p38 and phospho-JNK induction by PLX4720 (Figure 1H), and similar effects were seen with vemurafenib (data not shown).

We next examined the responses of primary normal human epidermal keratinocytes (NHEKs) to vemurafenib. UV-induced apoptosis was significantly suppressed (approximately 70%) by vemurafenib in these cells (Figure 2A, Figure 1—figure supplement 1D), and the UV-induced upregulation of phospho-JNK and phospho-p38 was likewise suppressed most significantly at 6 and 24 hr (Figure 2B). As in the cSCC and HaCaT cell lines, activation of ERK was observed following exposure to vemurafenib (Figure 2B). The presence of cleaved caspase-3 correlated with high levels of apoptosis in the UV-treated cells and its absence with rescue by vemurafenib at 24 hr post-irradiation (Figure 2C). In probing members of the BCL2 family, we found similar results to those in the cSCC and HaCaT cell lines. BIM and MCL1 were unaffected by vemurafenib but NOXA induction at 24 hr post-UV irradiation was diminished by vemurafenib (Figure 2C). The advantage of using primary cells is that p53 is intact. In NHEKs, p53 is stabilized by 24 hr post-UV irradiation and this is unaffected by vemurafenib (Figure 2C). However, since BCL2 family members can be modulated by JNK (Tournier et al., 2000; Haeusgen et al., 2011) and p53 (Oda et al., 2000) in apoptosis, the inhibition of NOXA expression by PLX4720 and vemurafenib (Figures 1G and 2C) likely reflects p53-independent regulation of NOXA given that p53 is mutant in HaCaT (Lehman et al., 1993) cells, p53 is undetectable in SRB12 cells, and p53 levels do not change with radiation in SRB1, COLO16, or HaCaT cells, (Figure 2—figure supplement 1). PUMA, BAX, BCL2, BCL-XL, and BCL2A1 expression were unchanged following irradiation and were unchanged by PLX4720 or vemurafenib exposure (data not shown, Figure 2—figure supplement 2). We conclude from our results that vemurafenib and PLX4720 suppress UV-induced apoptosis by inhibiting JNK signaling and NOXA induction in BRAF and RAS WT cells.

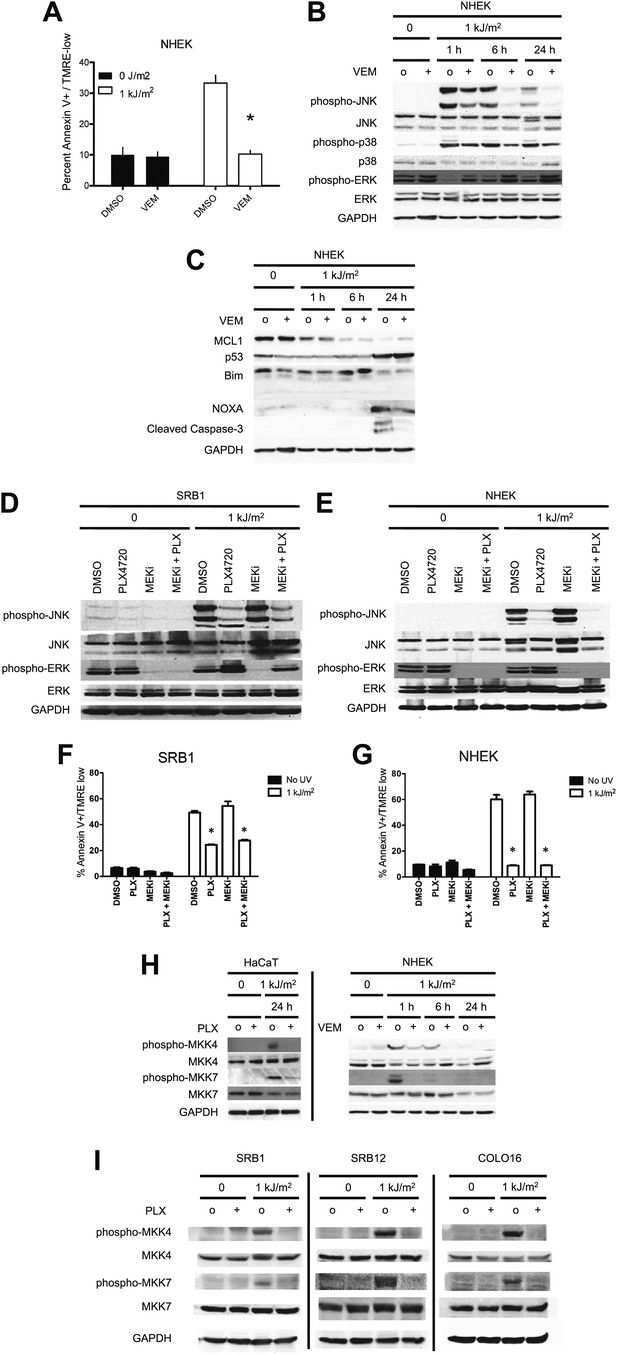

Figure 2 with 2 supplements see all
Vemurafenib and PLX4720 suppress apoptosis and JNK signaling in primary human keratinocytes and cSCC cells independently of MEK/ERK signaling.

Normal human epidermal keratinocytes (NHEKs) were irradiated with 1 kJ/m2 of UVB in the absence (‘o’, 1:2000 DMSO) or presence (‘+’) of 1 μM vemurafenib and isolated for FACS analysis and protein extracts 24 hr later. (A) Apoptosis was significantly suppressed (70%) in the presence of vemurafenib as measured by FACS for Annexin V+, TMRE-low cells (n = 6, ‘*’ denotes statistical significance at p<0.05). (B) Western blot analysis showed induction of phospho-JNK and phospho-p38 within 1 hr following irradiation, which persisted for at least 24 hr and which was suppressed by vemurafenib at all time points. (C) MCL1 and BIM expression was not significantly modulated by vemurafenib; however, NOXA induction, which occurred at 24 hr, was reduced by vemurafenib. In these primary cells, p53 protein was stabilized by 24 hr and vemurafenib did not affect overall levels. Suppression of apoptosis, as measured by cleaved caspase-3 levels, was observed in the presence of vemurafenib-treated irradiated cells, consistent with the FACS results. To test the relevance of MEK signaling, cSCC (SRB1) and NHEK cells were irradiated with 1 kJ/m2 of UVB in the absence (‘o’, 1:2000 DMSO) or presence of 1 μM PLX4720 singly or in combination with 0.6 μM (NHEK) or 1.2 μM (SRB1) AZD6244 (MEKi) and isolated for FACS analysis and protein extracts 24 hr later. (D) SRB1 and (E) NHEK cells showed induction of phospho-JNK at 24 hr following irradiation, by Western in the presence (lane 7) and absence (lane 5) of MEKi. The addition of MEKi to PLX4720 did not affect the suppression of JNK activation (compare lanes 6, 8) despite potent suppression of phospho-ERK. (F) SRB1 and (G) NHEK cells exhibited a strong suppression of UV-induced apoptosis by PLX4720 (Annexin V+, TMRE-low cells; n = 6, ‘*’ denotes statistical significance at p<0.05) that was likewise unaffected by the addition of MEKi. To test whether upstream kinases in the JNK pathway were inhibited, MKK4 and MKK7 activation was probed in cells. (H) Both phospho-MKK4 and phospho-MKK7 were induced in HaCaT and NHEK cells following irradiation, and this was suppressed in the presence of 1 μM PLX4720 and vemurafenib, respectively. (I) In all cSCC cell lines, SRB1, SRB12, COLO16, phospho-MKK4 and phospho-MKK7 are strongly induced following irradiation, and this is suppressed in all lines by 1 μM PLX4720.

https://doi.org/10.7554/eLife.00969.008

BRAFi suppress JNK activity through off-target inhibition of ZAK, MKK4, MAP4K5

Although BRAFi-induced JNK inhibition is observed in BRAF-WT as well as BRAFV600E cells (Figure 1F,H, 2B), with opposite effects on ERK signaling, we sought to further demonstrate that JNK inhibition and paradoxical ERK activation are independent and separable. We treated SRB1 and NHEK cells with the MEK inhibitor (MEKi) AZD6244 and PLX4720 singly and in combination with and without UV irradiation. While MEKi effectively abrogated ERK phosphorylation and activation (Figure 2D,E), this left PLX4720-mediated suppression of UV-induced JNK activation (Figure 2D,E) and apoptosis (Figure 2F,G) unaffected in both SRB1 and NHEK cells.

Because JNK and p38 isoforms are not significantly inhibited by PLX4720 or vemurafenib directly, (Tsai et al., 2008; Bollag et al., 2010) we probed the phosphorylation status of MKK4 and MKK7 (MAP2K7), the two proximal kinases that synergistically phosphorylate JNK and that are required for JNK activation (Tournier et al., 2001; Haeusgen et al., 2011). The phosphorylation of both MKK4 and MKK7, corresponding to their activation, was significantly upregulated in control UV-irradiated cells and inhibited by PLX4720 in all cSCC cell lines, HaCaT, and NHEK cells (Figure 2H,I).

We then performed a kinome screen of PLX4720 and vemurafenib against a panel of 38 kinases reported to be upstream of JNK (Keshet and Seger, 2010; Haeusgen et al., 2011) and other kinases previously tested against PLX4720 and vemurafenib (Tsai et al., 2008; Bollag et al., 2010) using a quantitative competitive binding assay (Davis et al., 2011) at four concentrations (50 nM, 200 nM, 1 μM, 10 μM). We extended previously reported results obtained on this platform (Davis et al., 2011) by testing a wider concentration range and by additionally testing vemurafenib. Reported biochemical IC50s for vemurafenib (Bollag et al., 2010) and PLX4720 (Tsai et al., 2008) against multiple kinases including BRAFV600E, MAP4K5, SRMS, and BRK were quantitatively similar to the estimated Kd, confirming the validity of this assay (Tables 2 and 3). We confirmed that ZAK and MKK4 (MAP2K4) have high binding affinities comparable to that of the intended target, BRAF (estimated Kd below 50 nM) for both PLX4720 (Davis et al., 2011) and vemurafenib, and confirmed activity against MAP4K5 (Bollag et al., 2010) (Tables 2 and 3). To demonstrate an effect on activity, in vitro kinase assays were performed (Figure 3A–C) and revealed biochemical IC50s of 187 ± 5 nM, 460 ± 41 nM, and 354 ± 26 nM for ZAK, MKK4, and MAP4K5, respectively. All of these values are within the range of reported correspondences between binding assays and activity-based assays and with reported data (Anastassiadis et al., 2011; Davis et al., 2011). Importantly, at 1 μM vemurafenib used in our experiments, the residual activity of ZAK, MKK4, and MAP4K5 kinases, was 18.9 ± 0.5%, 29.6 ± 1.1%, and 25.7 ± 0.6%, respectively.

Table 2

Quantitative competitive binding assays reveal additional kinase targets of PLX4720

https://doi.org/10.7554/eLife.00969.011
Gene NameEntrez gene SymbolPercent control (50 nM)Percent control (200 nM)Percent control (1000 nM)Percent control (10 μM)Calculated estimate of IC50 (nM)Published biochemical IC50 (nM)
ASK1MAP3K589989710014,179.29
ASK2MAP3K694100100100
BLKBLK9178321446.56
BRAF(V600E)BRAF38193.90.132.0413
BRKPTK647142.40.230.38130
DLKMAP3K12959810092
FGRFGR6938112.5153.47
HPK1MAP4K110010010047
LZKMAP3K13941009675
MAP3K1MAP3K1961009284
MAP3K15MAP3K1594979159
MAP3K2MAP3K2100938741
MAP3K3MAP3K394979875
MAP3K4MAP3K410010010065
MAP4K2MAP4K2981009967
MAP4K3MAP4K3100959056
MAP4K4MAP4K4929910046
MAP4K5MAP4K5961006381257.42
MEK3MAP2K310010010064
MEK4MAP2K448272.60.0537.96
MEK6MAP2K68210010047
MINKMINK1891009855
MKK7MAP2K710010010084
MLK1MAP3K9100100100100>10,000>5000
MLK2MAP3K101008210076
MLK3MAP3K11100100100100
MST1STK41009384556709.79>5000
OSR1OXSR1100949542
PAK1PAK193978322
RIPK1RIPK199878550
SRMSSRMS1.90.550.0500.64
STK39STK3910010010059
TAK1MAP3K790888549
TAOK1TAOK1879489657532.57>5000
TAOK2TAOK2921009351
TAOK3TAOK3100989658
TNIKTNIK97897924
ZAKZAK2040.70.19.47
  1. Quantitative competitive binding assays were performed for a group of kinases previously tested against PLX4720 as well as a group of MAP kinases upstream of JNK. Published biochemical IC50s for PLX4720 are listed (see main text) for comparison and demonstrate good quantitative correspondence between estimated Kd from binding assays and biochemical IC50s. ZAK and MKK4 (MAP2K4) were very tightly bound by PLX4720 with estimated Kd below 50 nM. Bold text indicates the kinases tested for inhibition by PLX4720 with in-vitro kinase assays.

Table 3

Quantitative competitive binding assays reveal additional kinase targets of vemurafenib

https://doi.org/10.7554/eLife.00969.012
Percent control (50 nM)Percent control (200 nM)Percent control (1000 nM)Percent control (10 μM)Calculated estimate of IC50 (nM)Published biochemical IC50 (nM)
ASK1MAP3K590949710011,972.22>1000
ASK2MAP3K6949810074
BLKBLK9666300.55518.03547
BRAF(V600E)BRAF63255.40.564.7831
BRKPTK663286.90.3568.04213
DLKMAP3K1298976692
FGRFGR6549131.6149.2663
HPK1MAP4K195886715
LZKMAP3K13100999374
MAP3K1MAP3K198848981
MAP3K15MAP3K15841008491
MAP3K2MAP3K291918983
MAP3K3MAP3K3879710094
MAP3K4MAP3K495928746
MAP4K2MAP4K299829546
MAP4K3MAP4K380908224
MAP4K4MAP4K4969283232842.34>1000
MAP4K5MAP4K562334.10.158.2151
MEK3MAP2K3100969854
MEK4MAP2K4194.10.20.056.82
MEK6MAP2K6919787214080.69>1000
MINKMINK1100100916614,761.44>1000
MKK7MAP2K797959485
MLK1MAP3K910093974113,979.88>1000
MLK2MAP3K1092968778
MLK3MAP3K119810010077
MST1STK499835112
OSR1OXSR11001008998
PAK1PAK199989146
RIPK1RIPK1921009973
SRMSSRMS249.60.75011.1518
STK39STK391001009766
TAK1MAP3K793888688
TAOK1TAOK1911009779
TAOK2TAOK29892957011,770.83>1000
TAOK3TAOK39298928015,468.75>1000
TNIKTNIK95946611
ZAKZAK91.80.250.054.03
  1. Quantitative competitive binding assays were performed for a group of kinases previously tested against vemurafenib as well as a group of MAP kinases upstream of JNK. Published biochemical IC50s for vemurafenib are listed (see main text) for comparison and demonstrate good quantitative correspondence between estimated Kd from binding assays and biochemical IC50s. ZAK and MKK4 (MAP2K4) were very tightly bound by vemurafenib with estimated Kd below 50 nM. Bold text indicates the kinases tested for inhibition by vemurafenib with in-vitro kinase assays.

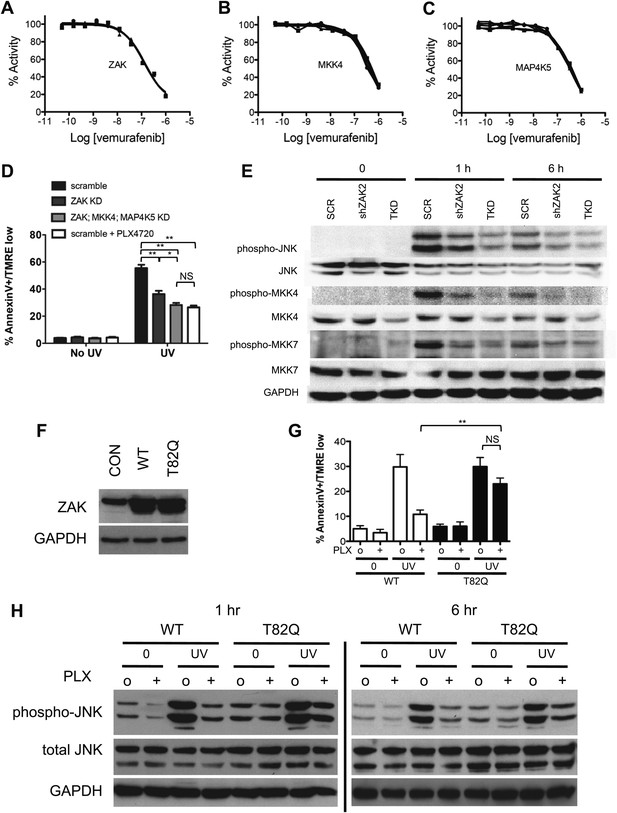

Figure 3 with 4 supplements see all
PLX4720 and vemurafenib suppress apoptosis and JNK signaling through inhibition of off-target kinases.

(A–C) In-vitro kinase assays for ZAK, MKK4, and MAP4K5 were performed across a 10-point concentration range from 0.05 to 1000 nM in triplicate, revealing significant inhibition of kinase activity within the nM range for vemurafenib. (D) Lentiviral shRNA knockdown of ZAK singly or in combination with MKK4 and MAP4K5 (triple knockdown, ‘TKD’) was performed revealing potent suppression of apoptosis as measured by FACS for Annexin V+, TMRE-low cells (n = 5, ‘*’ denotes statistical significance at p<0.05, ‘**’ at p<0.01, ‘NS’ is not significant) at 24 hr following single dose UVB irradiation at 720 J/m2. ZAK knockdown and triple knockdown cells exhibit 70% and 94% suppression of apoptosis, respectively, relative to PLX4720-treated cells expressing a non-suppressing shRNA control (scramble, ‘SCR’). (E) Western blots of lysates obtained at 1 and 6 hr post-UV irradiation show potent induction of phospho-MKK4, phospho-MKK7, and phospho-JNK which are all suppressed with progressively increasing effect in ZAK single knockdown (‘shZAK2’) and triple knockdown (‘TKD’) HaCaT cells. (F) Western blots of HaCaT cells electroporated with pcDNA3-wild-type (WT) ZAK and the gatekeeper mutant pcDNA3-(T82Q) ZAK show equivalent expression. (G) HaCaT cells overexpressing ZAK (WT) and ZAK (T82Q) were irradiated with a single dose of UVB irradiation at 720 J/m2 in the absence (‘o’) and presence (‘+’) of 1 μM PLX4720 and apoptosis measured by FACS for Annexin V+, TMRE-low cells (n = 4, ‘**’ at p<0.01, ‘NS’ is not significant) at 24 hr. ZAK (WT) cells are sensitive to PLX4720-mediated suppression of apoptosis (bar 3 vs 4), but drug-treated ZAK (T82Q)-expressing cells undergo significantly more apoptosis than drug-treated ZAK (WT) cells (bar 4 vs 8), with bypass of PLX4720-induced suppression as compared to drug-treated ZAK (WT) cells (paired t-test, p=0.005). (H) Western blots of ZAK (WT) and ZAK (T82Q)-expressing HaCaT cells at 1 hr and 6 hr post-irradiation show that phospho-JNK activation is intact in both cell lines in the absence of drug (lanes 3, 7), but that drug-treated ZAK (T82Q)-expressing HaCaT cells have significantly more phospho-JNK activation at both 1 and 6 hr post-irradiation, as compared to drug-treated ZAK (WT)-expressing cells (lane 4 vs 8).

https://doi.org/10.7554/eLife.00969.013

To examine the requirements for ZAK, MAP4K5, and MKK4 in activating JNK activation and apoptosis more directly, we performed lentiviral shRNA knockdown experiments in HaCaT cells. HaCaT cells with knockdown of ZAK (‘shZAK2’) showed a strong suppression of ZAK protein expression (Figure 3—figure supplement 1A) and of UV-induced apoptosis, showing 70% suppression of apoptosis relative to that achieved by PLX4720 in control (‘SCR’) cells (Figure 3D, Figure 3—figure supplement 1A). An additional clone of shRNA against ZAK (‘shZAK1’) showed similar results (Figure 3—figure supplement 1B,C), demonstrating that even greater knockdown of ZAK can account for nearly the entire effect of PLX4720 on JNK activation and apoptosis. Western blots show significant suppression of phospho-MKK4/MKK7 in shZAK2 knockdown cells (Figure 3E). Triple knockdown cells (‘TKD’) with combined shRNA knockdown of ZAK, MKK4, and MAP4K5 kinases, as confirmed by Western (Figure 3E, Figure 3—figure supplement 1A), showed comparable suppression of apoptosis to that of drug-treated control cells (Figure 3D, Figure 3—figure supplement 1B) and substantial suppression of phospho-MKK4/MKK7 induction (Figure 3E). Furthermore, single knockdown of MKK4 and MAP4K5 (Figure 3—figure supplement 2A), only partially suppresses UV-induced apoptosis or phospho-JNK induction in HaCaT cells (Figure 3—figure supplement 2B,C). Knockdown of ZAK alone was able to account for 91.3% of the suppression of UV-induced apoptosis in a distinct cell line, SRB1 (Figure 3—figure supplement 3A,B), with corresponding suppression of phospho-JNK induction (Figure 3—figure supplement 3C). As knockdown of ZAK alone can account for up to 93.7% of the effect of PLX4720 treatment, we conclude that the potent inhibition of JNK activation and resultant apoptosis by PLX4720 and vemurafenib is due to the off-target inhibition of ZAK principally, with smaller additional contributions from inhibition of MKK4 and MAP4K5, which abrogates the activation of the two kinases essential for JNK phosphorylation and activation: MKK4 and MKK7 (Figures 2H–I,3D–E, Figure 3—figure supplement 4). Consistent with our findings, ZAK has been shown to be critically important for JNK activation upstream of MKK4 and MKK7 (Wang et al., 2005) and doxorubicin-induced apoptosis (Sauter et al., 2010; Wong et al., 2013).

Expression of gatekeeper mutant ZAK reverses BRAFi-mediated apoptosis suppression

Our biochemical and shRNA data showed that knockdown of ZAK suppressed phospho-JNK activation and apoptosis (Figure 3D–E, Figure 3—figure supplements 1,3) and that the degree of knockdown correlated with the degree of JNK and apoptosis suppression. To show that PLX4720 suppresses apoptosis primarily through direct action on ZAK in cells, we employed a chemical-genetic approach by engineering a gatekeeper mutant ZAK (T82Q). Gatekeeper mutant kinases, in which the threonine (T) is replaced by a larger amino acid, in our case glutamine (Q), are often rendered insensitive to small molecule inhibitors and are an important mechanism of drug resistance (Daub et al., 2004; Whittaker et al., 2010). We overexpressed equivalent amounts of ZAK (T82Q) wild-type ZAK (WT) in HaCaT cells (Figure 3F), and compared their UV responses.

Whereas ZAK (WT) cells were sensitive to PLX4720-mediated suppression of apoptosis (Figures 1D and 3G), drug-treated ZAK (T82Q)-expressing cells underwent 2.13-fold more apoptosis than drug-treated ZAK (WT) cells (bar 4 vs 8; p=0.005), corresponding to 76.9% of the levels of apoptosis in untreated cells (bars 3, 7 vs 8; p=0.08) (Figure 3G). The effects on apoptosis corresponded to higher levels of phospho-JNK, even in drug-treated cells expressing the ZAK (T82Q) mutant as compared to drug-treated ZAK (WT)-expressing cells at both 1 hr and 6 hr post-irradiation (lane 4 vs 8; Figure 3H). Sustained activation of JNK is necessary for apoptosis (Tobiume et al., 2001; Kamata et al., 2005; Ventura et al., 2006), and our results show that PLX4720-treated ZAK (T82Q)-expressing cells retain higher activation across 1–6 hr as compared to PLX4720-treated ZAK (WT) cells.

Vemurafenib suppresses JNK activity and apoptosis in cSCC arising in treated patients

We then explored whether vemurafenib or PLX4720-mediated suppression of JNK and apoptosis is relevant in vivo. We first examined cSCC arising in patients treated with vemurafenib and compared them to sporadic cSCC that were histologically similar, arising in individuals never treated with vemurafenib (Figure 4A–E). Phospho-JNK and cleaved caspase-3 expression were assessed by immunohistochemistry and then quantified following normalization by unit area (mm2) of tumor tissue (malignant keratinocytes) only (Figure 4A–D, Figure 4—figure supplement 1). Sporadic cSCC arising in patients never treated with vemurafenib (n = 15) contained substantially greater expression of phospho-JNK (p=0.013; Figure 4A,E) and cleaved caspase-3 (p=0.042; Figure 4C,E) as compared to lesions arising in vemurafenib-treated patients (n = 16; Figure 4B,D,E). Therefore, we found significant reductions in phospho-JNK and cleaved caspase-3 expression in human cSCC suggesting that suppression of JNK activity and apoptosis occur in vivo in patients treated with vemurafenib.

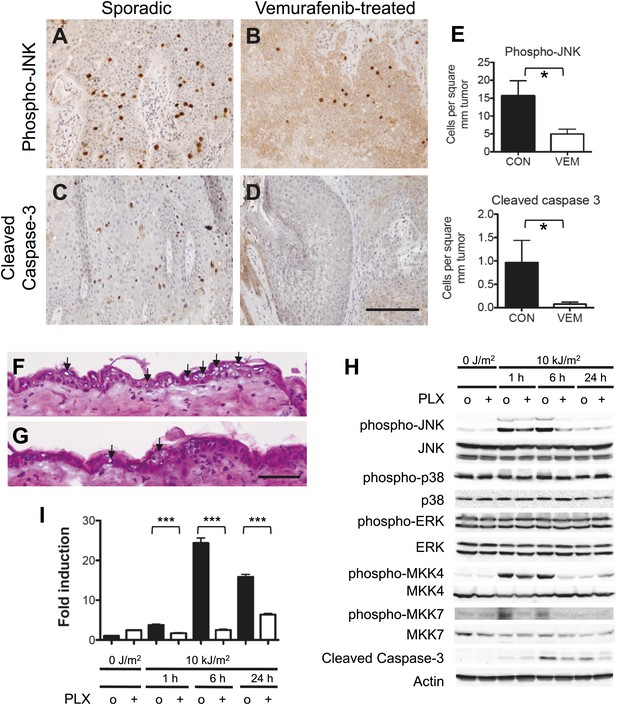

Figure 4 with 1 supplement see all
Vemurafenib and PLX4720 suppress apoptosis and JNK signaling in vivo.

(A–D) cSCC samples from vemurafenib-treated patients and non-treated patients were analyzed by immunohistochemistry for phospho-JNK and cleaved caspase-3 expression. cSCC arising in vemurafenib-treated patients show decreased expression of phospho-JNK (B) and cleaved caspase-3 (D) as compared to sporadic cSCC in patient never treated with vemurafenib (A and C). Scale bar is 100 μm. (E) Comparisons of stained cells normalized to mm2 of tumor area revealed significant suppression of both phospho-JNK and cleaved caspase 3 expression in vemurafenib-treated cSCC (‘*’, p<0.05). (F and G) Hematoxylin-stained cryosections of skin harvested at 24 hr post-irradiation showed extensive apoptosis (arrowheads) with vacuolated blebbed cells and clumped pyknotic nuclei in control-treated mice (F) and significantly fewer apoptotic cells in PLX4720-treated mice (G). Scale bar is 50 μm. (H–I) Vehicle-treated (‘o’) and PLX4720-treated (‘+’) mice were unirradiated or irradiated once, and epidermis was harvested at 1 hr, 6 hr, and 24 hr post-irradiation. (H) Significant UV-induced upregulation of both phospho-JNK and phospho-p38 were observed within 1 hr, with significant suppression of phospho-JNK in PLX4720-treated mice by 6 hr and minimal suppression of phospho-p38. Phospho-ERK levels remained constant. The upstream regulators of JNK, MKK4 and MKK7, were both significantly activated within 1 hr of irradiation, and potently suppressed in PLX4720-treated mice. Cleaved caspase-3 levels increased within 6 hr and were suppressed in PLX4720-treated mice. (I) Noxa was induced most significantly at 6 hr and was potently suppressed by PLX4720 at all time points (‘***’, p<0.001).

https://doi.org/10.7554/eLife.00969.018

BRAFi suppress acute UVR-induced epidermal apoptosis in vivo

We then probed the acute, in vivo, short-term UV response in skin by pre-treating C57BL/6 mice with PLX4720 administered by oral gavage 40–80 mg/kg twice a day for 2–4 days (Tsai et al., 2008). Following depilation, mice were irradiated once using a solar simulator (Oriel) with 10 kJ/m2 UVB. The skin was harvested at 1 hr, 6 hr, and 24 hr post-irradiation. Consistent with our other results, we found significant apoptosis of epidermal keratinocytes in irradiated mouse skin that was suppressed by PLX4720 treatment (12.7 ± 0.4 apoptotic cells/mm vs 4.9 ± 0.3 apoptotic cells/mm skin, [n = 3 pairs], p<10−5; Figure 4F,G), a finding corroborated by cleaved caspase-3 levels, which were induced within 6 hr of irradiation and suppressed in PLX4720-treated mice (Figure 4H). As expected, phospho-JNK and phospho-p38 were significantly upregulated following UV irradiation and phospho-JNK was significantly suppressed by PLX4720 (Figure 4H). The upstream kinases MKK4 and MKK7 were likewise activated by UV radiation and suppressed by PLX4720 at 1 and 6 hr post-irradiation, confirming the importance of this mechanism of PLX4720-induced JNK signaling suppression in vivo. Finally, Noxa mRNA expression, as measured by qPCR, was strongly induced by UV exposure, a response significantly dampened by PLX4720 treatment (Figure 4I).

BRAFi accelerates UVR-driven cSCC development in Hairless mice

We also used the Hairless mouse model of squamous cell carcinoma to assess whether PLX4720 would affect UV-driven tumor development. This is particularly relevant since it appears that UV exposure is an important initiating event in BRAFi-accelerated cSCC (Su et al., 2012). Unlike the DMBA/TPA model, in which lesions almost universally harbor Hras mutations (Brown et al., 1990), the Hairless model has a very low frequency of Ras mutation in papillomas and carcinomas (van Kranen et al., 1995), more similar to sporadic human cSCC. The cohorts (n = 5 each) were identically irradiated thrice weekly (12.5 kJ/m2 per week UVB) for 72 days before starting on PLX4720 treatment vs vehicle control. Within 20 days of administration of drug, hyperkeratotic papules were visible on the backs of PLX4720-treated animals (Figure 5A,B), which steadily grew into cSCC over the following several weeks (Figure 5C,D). Within this period of 150 days (78 days of drug treatment), control-treated mice had not yet developed any visible lesions (Figure 5E). When we quantified the effects of each of these drug treatments, we found significant decreases in both phospho-JNK expression (p=0.046; Figure 5F,G,J) and cleaved caspase 3 expression (p=0.019; Figure 5H–J) in PLX4720-treated mice as compared to control-treated mice. Importantly, we sequenced the entire coding regions for Ras (Hras, Kras, Nras) and found no mutations in any of the tumors in PLX4720-treated mice, as compared to one of 14 papillomas and carcinomas in a cohort of control-treated chronically-irradiated Hairless mice (Figure 5—figure supplement 1).

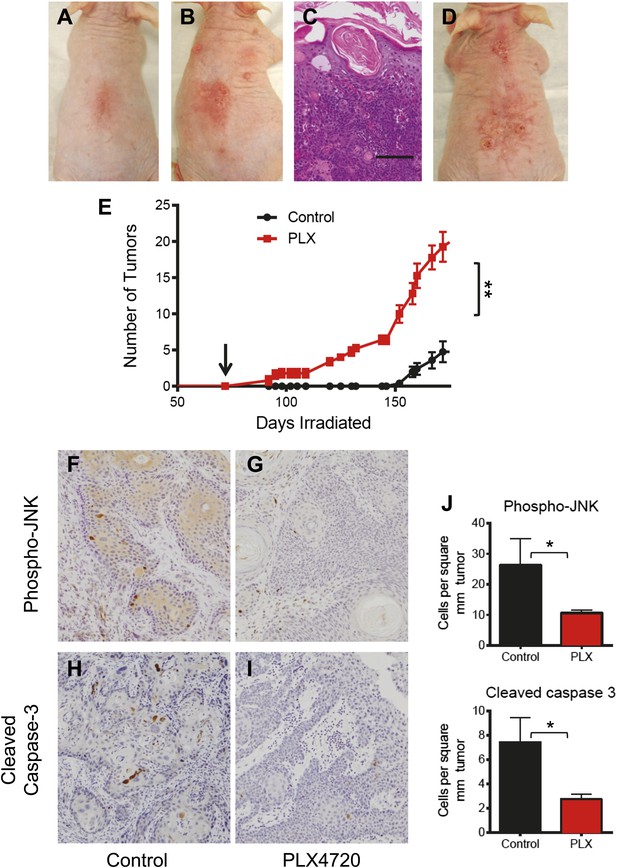

Figure 5 with 1 supplement see all
PLX4720 and JNK inhibition dramatically accelerate cSCC development in the UV-driven Hairless mouse model.

(A–E) Chronically-irradiated Hairless mice were treated with PLX4720 (n = 5), or vehicle (n = 5) starting at day 72 (arrow, E). Tumors were induced within 20 days of PLX-4720 treatment (B), whereas only erythema was seen in control animals (A). The tumors in PLX4720-treated mice progressed to well-differentiated cSCC (C, scale bar 75 μm), steadily increasing in size and number (D, day 132). (E) Even at 150 days (78 days of drug treatment), only PLX4720-treated mice had tumors and the differences in tumor number persisted throughout (‘**’, p=0.0026). (F–J) cSCC from mice were harvested and assessed for phospho-JNK and cleaved caspase 3 expression by immunohistochemistry. Tumors from PLX4720-treated animals showed significantly lower levels of phospho-JNK (G) and cleaved caspase 3 (I) as compared to control-treated animals (F and H). Differences in these parameters were significant across all comparisons (J, ‘*’, p<0.05).

https://doi.org/10.7554/eLife.00969.020

Paradoxical ERK activation and off-target JNK inhibition cooperate to accelerate tumor growth

While the effects of these BRAFi on JNK-dependent apoptosis is clear and independent of ERK activity, the relative contribution of paradoxical ERK activation vs JNK pathway inhibition to tumorigenesis has not been precisely addressed (Figure 6A). To accomplish this, we took advantage of the fact that paradoxical ERK activation requires intact CRAF (Hatzivassiliou et al., 2010; Heidorn et al., 2010; Poulikakos et al., 2010) (Figure 6A). We used isogenic, matched WT and Craf-deficient (Craf−/−) mouse embryonic fibroblasts (MEFs) and transformed them with adenovirus E1A and human HRASG12V to enable anchorage-independent growth (Figure 6—figure supplement 1). These Craf−/− cells do not exhibit strong paradoxical MEK or ERK activation, consistent with previous reports (Poulikakos et al., 2010) (Figure 6—figure supplement 1A). Wild-type and matched Craf-deficient MEFs were plated in soft agar assays (Su et al., 2012) and treated with PLX4720. Both WT and Craf-deficient MEFs exhibited a significant colony formation advantage in the presence of drug (Figure 6B–D). Based upon this analysis, we estimated that the effect of paradoxical ERK activation to be 60% and other effects, including inhibition of JNK activity, to account for the rest (40%) of the total colony growth advantage (Figure 6D). To assess the role of JNK signaling directly, we used HRASG12V-transformed HaCaT cells with (‘TKD’) and without (‘SCR’) triple lentiviral knockdown of ZAK, MAP4K5, and MKK4 (Figure 3D,E), to perform similar colony formation assays to assess responses to PLX4720 treatment (Figure 6E). Drug treatment conferred a significant colony formation advantage in both sets of cells, which exhibit equivalent paradoxical ERK activation (Figure 6—figure supplement 1B). Yet, untreated TKD HaCaT cells produced more colonies than SCR HaCaT cells suggesting that JNK pathway suppression results in an advantage in the absence of drug and paradoxical ERK activation (Figure 6E). Drug-treated SCR and TKD HaCaT cells, had elevated colony counts to similar levels, as expected, because both lines would experience similar degrees of both paradoxical ERK activation and JNK inhibition, and TKD cells (knocked down for ZAK, MAP4K5, MKK4) are unlikely to experience any further suppression of JNK signaling (Figure 3D). Based on this, we estimated the effect of JNK pathway inhibition to be 17.6% (Figure 6E). When combined with the MEF experiment, we estimate that the effect of JNK inhibition contributes approximately 17.6–40% of the total effect of PLX4720-accelerated colony formation (Figure 6D,E). Importantly, although we can quantify these individual contributions, it is clear in many contexts in cancer that hyperproliferation and inhibition of apoptosis are highly cooperative (Hanahan and Weinberg, 2011), and our data do not preclude the possibility that one or both are individually required.

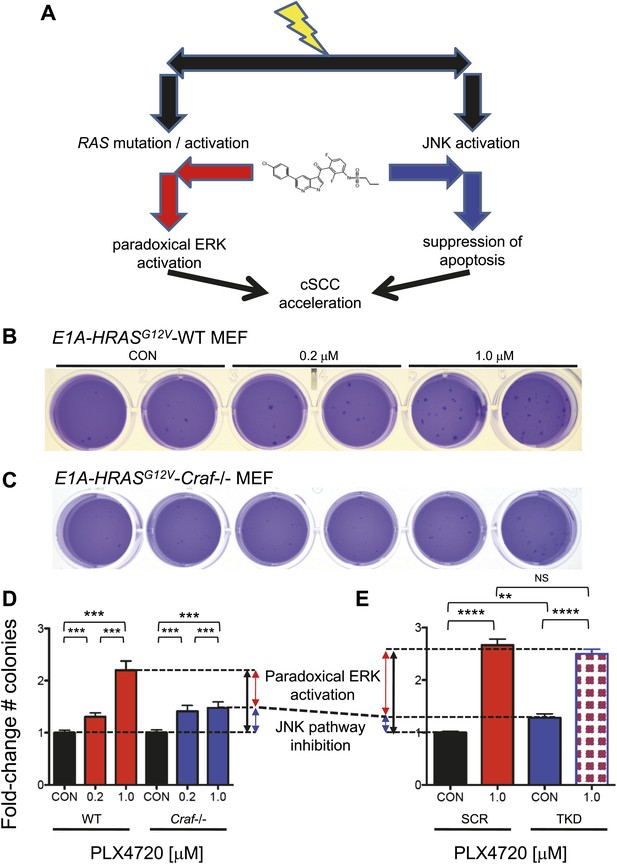

Figure 6 with 3 supplements see all
Paradoxical ERK activation and JNK pathway inhibition make significant and separable contributions to BRAFi-induced growth.

(A) We envision two separable, parallel mechanisms by which PLX4720 and vemurafenib contribute to cSCC development. Drug-induced paradoxical ERK activation and inhibition of JNK signaling occur in parallel, but the former depends on intact CRAF. (B and C) Representative soft agar colonies of E1A and HRASG12V-transformed wild-type (WT) (B) and Craf−/− (C) MEFs, following exposure to 0.2 μM and 1.0 μM PLX4720 over 4–6 weeks show significant colony-forming advantages conferred by BRAFi. (D) The fold-change in colony counts of transformed wild-type (WT) (n = 22 replicates) and Craf−/− (n = 14 replicates) MEFs demonstrate a dose-dependent increase in colonies, particularly for WT MEFs. The difference between colony formation advantages conferred by 1.0 μM PLX4720 in WT vs Craf−/− MEFs was interpreted to reflect the contribution of paradoxical ERK signaling (red arrow), which depends upon Craf, and is 60% of the total effect (black arrow), with the remainder composed of other effects including JNK inhibition (blue arrow). All differences between each MEF population were significant (‘***’, p<0.001) (E) The fold-change in colony counts of transformed HaCaT cells with (‘TKD’) and without (‘SCR’) triple lentiviral shRNA knockdown of ZAK, MAP4K5, and MAP2K4, show significant differences between 1.0 μM PLX4720-treated and control-treated conditions (‘****’, p<10−10). Importantly, untreated TKD cells had a significant advantage over untreated SCR HaCaT cells (‘**’, p<0.01), which we interpreted to be the contribution of JNK signaling inhibition, of 17.6% (blue arrow). Drug-treated SCR and TKD cells both had a similar degree of total colony formation advantage (averaged as black arrow), as expected, since the TKD cells are not expected to have any additional suppression of JNK signaling in the presence of drug (‘NS’, p=0.17, Figure 3D). Therefore, the colony counts for these two distinct systems (D and E), when taken together, show that JNK pathway inhibition accounts for approximately 17.6–40% and paradoxical ERK activation accounts for approximately 60–82.4% of the total effects of PLX4720 on tumor growth.

https://doi.org/10.7554/eLife.00969.022

Dabrafenib and vemurafenib differ significantly in their off-target effects and risk of cSCC

The recently updated combination trial of the BRAFi dabrafenib and MEKi trametinib shows a low 7% cSCC rate in 54 patients, (Flaherty et al., 2012) suggesting that combined MEK inhibition can reduce, but not eliminate cSCC formation, nevertheless reinforcing a role for paradoxical ERK activation (Su et al., 2012). However, clinical trial data on dabrafenib alone at 150 mg PO BID, shows an overall aggregated cSCC rate of 6.1% (Falchook et al., 2012; Hauschild et al., 2012; Long et al., 2012) vs 22% for vemurafenib at 960 mg PO BID in several hundred patients (Flaherty et al., 2010; Chapman et al., 2011; Sosman et al., 2012; Menzies et al., 2013). We interpreted this as being reflective of differences between vemurafenib and dabrafenib, as opposed to unequivocal proof that paradoxical ERK activation is the only mechanism involved. To explore this further, we used similar assays to assess the effects of dabrafenib on apoptosis, JNK signaling, and colony formation. In stark contrast to vemurafenib, dabrafenib has little effect on apoptosis and JNK signaling at doses that are biologically equivalent based upon growth inhibition of BRAFV600E melanoma cells and human pharmacokinetic data (Falchook et al., 2012; Gowrishankar et al., 2012) (Figure 6—figure supplement 2A). Peak serum concentrations of dabrafenib at 150 mg PO BID in humans (Falchook et al., 2012) are over 50-fold lower (1.55 μM) than mean sustained serum levels of vemurafenib (86 μM) at 960 mg PO BID (Flaherty et al., 2010), and the GI50 for the A375 melanoma cell line is less than 0.01 μM for dabrafenib (Greger et al., 2012) vs 0.50 μM for PLX4720 (Tsai et al., 2008). Even at 0.05 μM, dabrafenib did not significantly impact UV-induced phospho-JNK upregulation or apoptosis in HaCaT and SRB1 cells (Figure 6—figure supplement 2B–E). We profiled dabrafenib activity against ZAK, MKK4, and MAP4K5, and found that ZAK is a significant off-target kinase for dabrafenib as well, but at 0.01 μM, over 64% of activity is retained (Figure 6—figure supplement 2F). Neither MKK4 nor MAP4K5 is substantially inhibited by dabrafenib up to 1 μM (Figure 6—figure supplement 2F).

Using transformed WT and Craf-deficient MEFs in soft agar assays, we also showed that dabrafenib enhanced colony formation in WT MEFs, but not in Craf-deficient MEFs (Figure 6—figure supplement 3). Our results suggest that while both dabrafenib and vemurafenib cause equivalent paradoxical ERK activation in BRAF-wild-type cells (Figure 6—figure supplement 1A–B), only vemurafenib confers a significant colony formation advantage in Craf-deficient cells that have no significant paradoxical MEK/ERK activation, implicating off-target effects as a key difference between the two drugs with respect to cSCC development (Menzies et al., 2013).

Discussion

We have discovered an unexpected and novel effect of the BRAFi PLX4720 and vemurafenib in inhibiting apoptosis in vitro and in vivo through the ERK-independent suppression of JNK signaling (Tournier et al., 2000). Our studies implicate the off-target binding and inhibition of these compounds to ZAK primarily (Figure 3—figure supplements 1–3), with additional contributions of MKK4 (MAP2K4) and MAP4K5 inhibition, thus implicating inhibition of JNK signaling at all three upstream tiers of MAP kinase signaling (Figure 3—figure supplement 4). Although MKK4 knockdown alone could suppress UV-induced apoptosis and phospho-JNK induction by up to 27.3% (Figure 3—figure supplement 2), this is expected, given that ZAK signals through MKK4 and MKK7 (Gross et al., 2002) (Figure 2H,I,3E,4H) and MKK4 is important (with MKK7) for full JNK activation (Tournier et al., 2001; Haeusgen et al., 2011). Additionally, UV-mediated induction of NOXA is suppressed in cell lines, primary NHEKs, and in vivo, indicating that this BCL2 family member may be a critical effector of apoptosis in this context (Figures 1G and 4I). In chronically-irradiated Hairless mice, development of well-differentiated papillomas and cSCC is substantially accelerated by PLX4720 treatment without the need for Ras mutation and with a dramatic reduction in latency by at least 10 weeks (Figure 5E, Figure 5—figure supplement 1).

While there is enrichment for RAS mutations in human cSCC arising in vemurafenib-treated patients vs controls (Oberholzer et al., 2011; Su et al., 2012), up to 30–40% of these lesions do not have RAS mutations. Our novel mechanism of BRAFi-mediated apoptosis suppression is the off-target inhibition of several kinases in the JNK pathway, which is independent from, and compatible with, paradoxical ERK–dependent mechanisms (Su et al., 2012) (Figure 6A). Importantly, our approach (Figure 6B–E) has not only allowed us to quantify the contribution of the effect on apoptosis (17.6–40%) vs paradoxical ERK activation (60–82.4%), but also shows that the growth advantage conferred by BRAFi in BRAF-WT cells is not accounted for entirely by paradoxical ERK activation. Our results have also shown that there are significant differences between the BRAFi vemurafenib and dabrafenib (Figure 6—figure supplements 2,3) with respect to these off-target effects in cells (even though their relative selectivities for BRAF over ZAK are similar) and this may, in part, explain why they differ in rates of cSCC (Flaherty et al., 2010; Chapman et al., 2011; Falchook et al., 2012; Hauschild et al., 2012; Long et al., 2012; Sosman et al., 2012). At present it is unclear why ZAK appears to be a common off-target kinase and whether structural similarities with other kinases may explain this (Sauter et al., 2010; Wong et al., 2013).

ZAK has been previously studied in the context of bacterial toxin and doxorubicin-mediated cytokine signaling (Jandhyala et al., 2008; Sauter et al., 2010; Stone et al., 2012; Wong et al., 2013), cardiac (Huang et al., 2004) and ischemic stress responses (Su et al., 2012), and in cellular responses to ionizing radiation (Gross et al., 2002; Tosti et al., 2004; Vanan et al., 2012). It is widely expressed across tissues including epidermis, but most prominently in heart, liver, and muscle (Abe et al., 1995; Miyata et al., 1999; Liu et al., 2000; Bloem et al., 2001; Gross et al., 2002; Su et al., 2004), and has purported tumor suppressive roles in lung cancer (Yang et al., 2010) and tumor promoting ones in partially transformed mouse skin epidermal cells (Cho et al., 2004). ZAK is a MAP3K that is upstream of both JNK and p38 signaling (Gross et al., 2002; Tosti et al., 2004; Jandhyala et al., 2008; Cheng et al., 2009; Stone et al., 2012; Wong et al., 2013) and signals to JNK through MKK4 and MKK7 (Gross et al., 2002) (Figures 2H,I,3E,4H). Accordingly, macrophages derived from ZAK-deficient mice have profound defects in activation of both JNK and p38 signaling following doxorubicin exposure (Wong et al., 2013). In the setting of UV-induced apoptosis as we have examined here, JNK activity is the major driver of apoptosis (Derijard et al., 1994; Chen et al., 1996; Tournier et al., 2000), also by virtue of the fact that phospho-p38 induction by UV is inconstant (Figures 1F,H,2B,4H); although where it is induced, PLX4720/vemurafenib treatment suppresses it (Figure 1F (SRB1, HaCaT cells), Figures 1H,2B). These results are consistent with the model (Figure 3—figure supplement 4) that ZAK signals to both JNK and p38, but is principally necessary for activating JNK in stress-induced apoptosis.

Because off-target kinases in the JNK pathway are affected by vemurafenib/PLX4720, one expects that these kinases would be affected in all cells regardless of BRAF status. Indeed, melanoma cells expressing BRAFV600E also exhibit suppression of JNK activity following irradiation (Figure 1H). However, in BRAFV600E-expressing melanoma cells, the effect of blocking BRAF activity alone clearly dominates, because these cells are exquisitely dependent upon BRAF activity (Tsai et al., 2008). Therefore, although off-target kinases are inhibited, the cellular context of dependence on particular kinases is still highly relevant and likely dictates the outcome.

Our findings suggest a tumor suppressive role for JNK signaling in the context of drug-induced cSCC, though the role of JNK in cancer is highly context-dependent and is partly related to differing functions of the individual isoforms and partial redundancy (Tournier et al., 2000). Nonetheless, there is ample in vivo evidence showing that JNK can function in a tumor suppressive role. Genetically-engineered mice lacking Jnk1 and Jnk2 have increased (She et al., 2002) and decreased (Chen et al., 2001) susceptibility, respectively, to chemical carcinogenesis in skin, though these mice also have opposite defects in epidermal differentiation (Weston et al., 2004). In mouse models, lack of Jnk1/2 activity suppresses Ras-driven tumorigenesis in lung (Cellurale et al., 2011) and promotes it in Ras-driven and Trp53-deficient breast cancer models (Cellurale et al., 2010, 2012). In the context of Pten-deficiency, loss of Jnk1/2 or Mkk4/Mkk7 promotes aggressive prostate adenocarcinoma (Hubner et al., 2012). Importantly, the effects of JNK on cancer are not always tumor cell autonomous, as JNK activity supports a pro-tumorigenic inflammatory microenvironment in hepatocellular carcinoma (Das et al., 2011).

Our results have important clinical implications and suggest careful consideration of combining certain BRAFi with therapeutic modalities that induce apoptosis such as radiation or chemotherapy, particularly with respect to off-target tissues (keratinocytes in skin). We have shown that off-target inhibition of kinases, even at higher IC50s, can contribute biologically significant effects, particularly if they are in the same pathway. Finally, our results show that kinase inhibitors must be considered in terms of their entire spectrum of activity, which can dramatically affect pathways distinct from those affected by inhibition of the intended target.

Materials and methods

Ethics statement

Request a detailed protocol

All studies were conducted under institutionally-approved IRB (LAB08-0750) and ACUF (06-09-06332) protocols for the protection of human and animal subjects, respectively.

Cell lines

Request a detailed protocol

Cutaneous SCC cell lines (SRB1, SRB12, COLO16) were obtained from Jeffrey N Myers (MD Anderson), HaCaT cells from Norbert Fusenig (German Cancer Research Center), and WM35 and A375 melanoma cell lines from Michael Davies (MD Anderson). The cell lines were validated by STR DNA fingerprinting using the AmpFℓSTR Identifiler kit according to manufacturer instructions (Applied Biosystems, Grand Island, NY). The STR profiles were compared to known ATCC fingerprints (ATCC.org), to the Cell Line Integrated Molecular Authentication database (CLIMA) version 0.1.200808 (http://bioinformatics.istge.it/clima/) and to the MD Anderson fingerprint database. The STR profiles matched known DNA fingerprints (HaCaT) or were unique (SRB1, SRB12, COLO16). The cells were cultured in DMEM/Ham’s F12 50/50 (Cellgro) supplemented with 10% Fetal Bovine Serum (FBS) (Sigma), glutamine, and Primocin (Invivogen). NHEKs (Lonza) were cultured in media according to manufacturer’s instructions. Irradiation was performed using an FS40 sunlamp dosed by an IL1700 radiometer. Following irradiation, cells were treated with PLX4720 (Plexxikon), vemurafenib (Selleck Chemicals) or DMSO (1:2000).

Antibodies

Primary antibodies (Cell Signaling) used for Western blot analysis included p53 (2527P, clone 7F5), phospho-/total p44/42 MAPK (4370S, cloneD13.14.4E/9102S), phospho-/total p38 MAPK (4511S, clone D3F9/9212S), phospho-/total JNK (4668S, clone 81E11/9252S), BIM (2933, clone C34C5), MCL1 (5453P, clone D35A5), cleaved caspase-3 (9661L, clone D175), phospho-/total MKK7 (4171S/4172S), phospho-/total MKK4 (9156S/9152S), phospho-/total MEK (9121S/9122), MAP4K5 (ab56848; Abcam) and NOXA (mA1-41000; Thermo Scientific). GAPDH (21,182, clone 14C10; Cell Signaling) and beta-actin (A5060; Sigma) were probed to ensure even loading of protein samples. Immunohistochemistry was performed for phospho-JNK (V7931; Promega) and cleaved caspase-3 (Cell Signaling as above). Antibody against ZAK was generously provided by R Ruggieri (Feinstein Institute for Medical Research).

Flow Cytometry

Request a detailed protocol

TMRE (Invitrogen) was used as a measure of mitochondrial membrane potential, Annexin V-FITC or Annexin V-APC (Invitrogen) as a probe for apoptosis, and Sytox Blue (Invitrogen) as an indicator for dead cells. At 24 hr post-irradiation, floating and adherent cells were collected and stained with TMRE, Annexin V and Sytox Blue. Data was collected and analyzed using a flow cytometer (Fortessa, Becton Dickinson) and FlowJo Software (Tree Star). Data were calculated and charts were plotted using GraphPad Prism 5 software.

Western blot analysis

Request a detailed protocol

Cell were lysed in standard buffers with protease inhibitors (Roche) and phosphatase inhibitors (Santa Cruz) with extracts run on SDS/polyacrylamide gels and transferred to Immobilon-P transfer membrane (Millipore). Blots were blocked in TBST (10 mM Tris-HCL pH8, 150 mM NaCl, 0.5% Tween) with milk or BSA, probed with primary antibodies, corresponding HRP-conjugated secondary antibodies, and signals detected using ECL kit (Amersham).

Immunohistochemistry and histology

Request a detailed protocol

Cutaneous squamous cell carcinomas biopsied from patients treated with or without BRAF-inhibitor were obtained either under clinical trials (Roche) or separate IRB approval (LAB08-0750). Staining levels were quantified by counting positively labeled cells and dividing by the total area of the tumor tissue within each sample. To measure tumor areas, all samples were photographed, tumor cells outlined, and total pixel numbers calculated using included image analysis tools in Adobe Photoshop and standardized to a hemacytometer to convert to mm2. To measure apoptosis in irradiated skin, pyknotic or dyskeratotic epidermal keratinocytes were counted and normalized to length (mm) of epidermis.

Kinase activity profiling

Request a detailed protocol

PLX4720 and vemurafenib were prepared in DMSO and tested in duplicate at four concentrations (50 nM, 200 nM, 1000 nM, 10 μM) against a panel of 38 kinases using a quantitative competitive binding assay (KINOMEscan, San Diego, CA). Average percent inhibition was reported. Estimated Kd values were derived by averaging pointwise estimates calculated using a transformed Hill equation at each concentration of drug. In vitro kinase assays were performed using human full-length ZAK (MBP substrate, ATP 2.5 μM), amino acids 33-end MKK4 (JNK1 substrate, ATP 0.1 μM), and full length MAP4K5 (MBP substrate, ATP 10 μM) (Reaction Biology). Assays for BRAFV600E and ASK1 against vemurafenib were run in parallel revealing IC50s of 31.6 ± 2.9 nM for BRAFV600E and no significant inhibition of ASK1, as previously reported (Bollag et al., 2010).

Lentiviral knockdown experiments

Request a detailed protocol

Lentiviral shRNA knockdown was accomplished using standard lentiviral methods using 293T cells and psPAX2/pVSV.G packaging plasmids. shRNA clones against ZAK (clones V2LHS_239842, V3LHS_336769), MKK4 (clones V3LHS_646205, V3LHS_386825A), and MAP4K5 (clones 196277A, 334084), as well as a non-silencing shRNA were obtained from Open Biosystems in the GIPZ vector. Following transduction, cells were puromycin-selected and FACS sorted to obtain cells with high-level suppression. Degree of mRNA suppression was quantified by qPCR using Taqman probes using internally controlled (2-color, same well) GAPDH probes to ensure proper normalization.

ZAK overexpression

Request a detailed protocol

ZAK (T82Q) mutant was generated in the pcDNA3 mammalian expression vector. HaCaT cells were electroporated using the Neon transfection system 24 hr prior to irradiation. Transfection efficiencies were estimated to be 70–80% by GFP fluorescence.

Mouse experiments

Request a detailed protocol

Wild-type C57BL/6 mice, 5–8 weeks old, were pretreated with PLX4720 in 5% DMSO in 1% methylcellulose for 2–4 days at 40–80 mg/kg twice a day or control 5% DMSO in 1% methylcellulose by oral gavage. The mice were shaved and depilated (Nair) 24 hr prior to irradiation with a solar simulator (Oriel) dosed at 10 kJ/m2 of UVB. Epidermis was harvested and protein extracts run on Western blots and probed as above. For chronically-irradiated Hairless mice, 3–4 week old males were irradiated thrice weekly for a total weekly dose of 12.5 kJ/m2 UVB (solar simulator, Oriel). At 72 days, PLX4720 treatment was started using drug-impregnated chow (Plexxikon) with vehicle chow in the control cohort.

Soft agar assays

Request a detailed protocol

Following plating of bottom agar (0.6% Bacto Agar) with media and appropriate amounts of drug, 2500 to 10,000 cells per well (transformed WT, Craf−/− MEFs; transformed HaCaT SCR and TKD cells) were embedded in top agar (0.3%) and plated in 24-well plates. Control or drug-treated media was replaced every 48 hr for 4–6 weeks. The plates were stained with 1% crystal violet and colonies counted by bright-field microscopy.

Statistical analysis

Request a detailed protocol

All data are represented as means ± SEM. All experiments were performed in triplicate at least. Student’s t-test was used for comparison between two groups. p≤0.05 was considered significant.

References

  1. 1
    Molecular cloning of a novel serine/threonine kinase, MRK, possibly involved in cardiac development
    1. S Abe
    2. T Yagi
    3. S Ishiyama
    4. M Hiroe
    5. F Marumo
    6. Y Ikawa
    (1995)
    Oncogene 11:2187–2195.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Suppression of skin tumorigenesis in c-Jun NH(2)-terminal kinase-2-deficient mice
    1. N Chen
    2. M Nomura
    3. QB She
    4. WY Ma
    5. AM Bode
    6. L Wang
    et al. (2001)
    Cancer Res 61:3908–3912.
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
    Deficiency of c-Jun-NH(2)-terminal kinase-1 in mice enhances skin tumor development by 12-O-tetradecanoylphorbol-13-acetate
    1. QB She
    2. N Chen
    3. AM Bode
    4. RA Flavell
    5. Z Dong
    (2002)
    Cancer Res 62:1343–1348.
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71

Decision letter

  1. Roger Davis
    Reviewing Editor; University of Massachusetts Medical School, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “BRAF inhibitors suppress apoptosis through off-target inhibition of JNK signaling” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 2 reviewers, one of whom is a member of our Board of Reviewing Editors.

The Reviewing editor and the other reviewer discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

The authors investigate the contribution of non-ERK driven squamous cell cancers in melanoma patients treated with BRAF inhibitors. The clinical observation is that the incidence of SCC increases in patients treated with vemurafenib, which has been attributed to paradoxical increased RAF signaling due to the unrestrained activity of CRAF. Here they show that vemurafenib also inhibits a number of other serine threonine kinases including ZAK, which regulates JNK signaling. Expression of a ZAK mutant that cannot be inhibited by vemurafenib blocks this effect. The authors also demonstrate that dabrafenib has a different spectrum of kinase inhibition, suggesting that SCC may be less prevalent in patients treated with this inhibitor.

1) Overall the experiments in this manuscript are clearly presented and support the authors’ conclusions. They have used cell lines from human cancers and genetically engineered mice to great advantage. The use of many different cell lines in different parts of the manuscript is helpful but does lead to some question of whether all of the observations can be observed in at least 1 or 2 of the cell lines.

2) It has previously been reported (Davis et al. Nat. Biotech. (2011) 29, 1046) that ZAK, MKK4, BRK, SRMS etc bind to Raf inhibitors, including PLX-4720. The competitive binding assay presented for PLX-4720 appears to duplicate the previously published report. The authors should make it clear in the text what is new and what has been published previously.

3) Conclusions regarding the relative importance of ZAK, MKK4, and MAP4K5 are unclear. Moreover, the shRNA studies are poorly described. There are a number of questions concerning these studies:

a) The shRNA sequences are not described.

b) The ZAK and MAP4K5 antibody used for the shRNA analysis is not described.

c) The ZAK knockdown in Figure 3–figure supplement 1 appears clear, but the knockdown of MAP4K5 is unclear – this needs to be quantitated. Also, the extent of the MKK4 knockdown should be presented.

d) shRNA studies are described for ZAK and a triple KD of ZAK, MKK4, and MAP4K5. The effect of single knockdown of MKK4 or MAP4K5 using two different shRNA (each) should be shown. Without these data, conclusions concerning the relative roles of ZAK, MKK4, and MAP4K5 cannot be made.

4) ZAK is a poorly studied protein kinase. It would be helpful to the reader if information concerning ZAK tissue expression was presented.

5) SP600125 is an inhibitor of a large fraction of the kinome, including JNK. It is difficult to interpret any findings using this drug (see Phil Cohen’s publication in BJ).

https://doi.org/10.7554/eLife.00969.026

Author response

1) Overall the experiments in this manuscript are clearly presented and support the authors’ conclusions. They have used cell lines from human cancers and genetically engineered mice to great advantage. The use of many different cell lines in different parts of the manuscript is helpful but does lead to some question of whether all of the observations can be observed in at least 1 or 2 of the cell lines.

We chose to replicate our results using ZAK knockdown in a different cell line (SRB1) by introducing two ZAK shRNA clones into these cells and demonstrating a similar diminution of JNK activity and apoptosis following UV exposure. These are now placed in Figure 3–figure supplement 3 and cited in the text in the Results section (“BRAFi suppress JNK activity through off-target inhibition of ZAK, MKK4, MAP4K5”).

2) It has previously been reported (Davis et al. Nat. Biotech. (2011) 29, 1046) that ZAK, MKK4, BRK, SRMS etc bind to Raf inhibitors, including PLX-4720. The competitive binding assay presented for PLX-4720 appears to duplicate the previously published report. The authors should make it clear in the text what is new and what has been published previously.

The binding assay used is the identical platform to that described in Davis et al. (2011), though their presented results were restricted to an estimate of Kd based upon one screening drug concentration of 10 micromolar. In our paper, we extended the panel of kinases (listed in Table 2), replicated some of the assays described in Davis et al., but included lower concentrations of drug to get a better estimated Kd, and included vemurafenib, to verify that both drugs had similar effects on the kinases of interest. The other kinases we profiled were selected on the basis of literature supporting a role in signaling to JNK and ones that had been shown to bind or be inhibited by PLX4720/vemurafenib previously as controls. This is now more completely described in the main text in the Results section (“BRAFi suppress JNK activity through off-target inhibition of ZAK, MKK4, MAP4K5”).

3) Conclusions regarding the relative importance of ZAK, MKK4, and MAP4K5 are unclear. Moreover, the shRNA studies are poorly described. There are a number of questions concerning these studies:

a) The shRNA sequences are not described.

This is now clearly described in the Materials and methods section.

b) The ZAK and MAP4K5 antibody used for the shRNA analysis is not described.

This is now clearly described in the Materials and methods section.

c) The ZAK knockdown in Figure 3–figure supplement 1 appears clear, but the knockdown of MAP4K5 is unclear – this needs to be quantitated. Also, the extent of the MKK4 knockdown should be presented.

This is now done using Image J densitometry controlled against the GAPDH loading control. The degree of knockdown is described in detail in Figure 3–figure supplement 1. In TKD cells, MKK4 is knocked down by 72.9% (lanes 1 vs. 3, Figure 3E) and MAP4K5 by 54.6% (Figure 3–figure supplement 1A).

d) shRNA studies are described for ZAK and a triple KD of ZAK, MKK4, and MAP4K5. The effect of single knockdown of MKK4 or MAP4K5 using two different shRNA (each) should be shown. Without these data, conclusions concerning the relative roles of ZAK, MKK4, and MAP4K5 cannot be made.

This is now shown in Figure 3–figure supplement 2. In short, single KD of either MAP4K5 or MKK4 only partially suppresses apoptosis and phospho-JNK induction. At least 71.9% knockdown was achieved for two MKK4 and MAP4K5 shRNA clones (Image J densitometry). The effect on apoptosis and phospho-JNK suppression is greater with MKK4 knockdown (up to 27.3%). This is however, completely expected, since MKK4 is important for full activation of JNK activity and ZAK has been shown to be upstream of MKK4 (Figures 2H, I, 3E), thus implying that the effect of ZAK induction proceeds, at least in part, through MKK4. Consistent with this, we have also shown that ZAK knockdown and drug treatment suppresses phospho-MKK4 induction following irradiation (Figures 2H, I, 3E). This is now discussed in the main text in the Discussion section.

4) ZAK is a poorly studied protein kinase. It would be helpful to the reader if information concerning ZAK tissue expression was presented.

This is now included in the main text in the Discussion section.

5) SP600125 is an inhibitor of a large fraction of the kinome, including JNK. It is difficult to interpret any findings using this drug (see Phil Cohen’s publication in BJ).

We agree that SP600125 lacks the degree of specificity for JNK that would be desirable. We have therefore elected to remove these data from the paper given this problem. Parenthetically, we tried multiple JNK inhibitors in-vivo and were unable to consistently obtain pharmacodynamic evidence for specificity and in-vivo action.

https://doi.org/10.7554/eLife.00969.027

Article and author information

Author details

  1. Harina Vin

    Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    HV, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Sandra S Ojeda and Grace Ching
    Competing interests
    The authors declare that no competing interests exist.
  2. Sandra S Ojeda

    Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    SSO, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Harina Vin and Grace Ching
    Competing interests
    The authors declare that no competing interests exist.
  3. Grace Ching

    Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    GC, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Harina Vin and Sandra S Ojeda
    Competing interests
    The authors declare that no competing interests exist.
  4. Marco L Leung

    1. Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    2. Graduate School of Biomedical Sciences at Houston, University of Texas, Houston, United States
    Contribution
    MLL, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Vida Chitsazzadeh

    1. Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    2. Graduate School of Biomedical Sciences at Houston, University of Texas, Houston, United States
    Contribution
    VC, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. David W Dwyer

    Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    DWD, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  7. Charles H Adelmann

    Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    CHA, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  8. Monica Restrepo

    Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    MR, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  9. Kristen N Richards

    1. Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    2. Department of Dermatology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    KNR, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  10. Larissa R Stewart

    1. Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    2. Department of Dermatology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    LRS, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  11. Lili Du

    Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    LD, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  12. Scarlett B Ferguson

    Division of Medicinal Chemistry, College of Pharmacy, University of Texas, Austin, United States
    Contribution
    SBF, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  13. Deepavali Chakravarti

    1. Graduate School of Biomedical Sciences at Houston, University of Texas, Houston, United States
    2. Department of Biochemistry and Molecular Biology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    DC, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  14. Karin Ehrenreiter

    Max F Perutz Laboratories, Vienna, Austria
    Contribution
    KE, Provided critical advice and input on use of Craf−/− cells, Conception and design, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  15. Manuela Baccarini

    Max F Perutz Laboratories, Vienna, Austria
    Contribution
    MB, Provided critical advice and input on use of Craf−/− cells, Conception and design, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  16. Rosamaria Ruggieri

    Center for Oncology and Cell Biology, Feinstein Institute for Medical Research, Manhasset, United States
    Contribution
    RR, Provided critical advice and input on use of anti-ZAK antibody, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  17. Jonathan L Curry

    Department of Pathology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    JLC, Acquisition of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  18. Kevin B Kim

    Department of Melanoma Medical Oncology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    KBK, Identification of appropriate patient samples, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  19. Ana M Ciurea

    Department of Dermatology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    AMC, Identification of appropriate patient samples, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  20. Madeleine Duvic

    1. Graduate School of Biomedical Sciences at Houston, University of Texas, Houston, United States
    2. Department of Dermatology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    MD, Identification of appropriate patient samples, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  21. Victor G Prieto

    Department of Pathology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    VGP, Identification of appropriate patient samples, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  22. Stephen E Ullrich

    1. Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    2. Graduate School of Biomedical Sciences at Houston, University of Texas, Houston, United States
    Contribution
    SEU, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  23. Kevin N Dalby

    Division of Medicinal Chemistry, College of Pharmacy, University of Texas, Austin, United States
    Contribution
    KND, Conception and design, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  24. Elsa R Flores

    1. Graduate School of Biomedical Sciences at Houston, University of Texas, Houston, United States
    2. Department of Biochemistry and Molecular Biology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    ERF, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  25. Kenneth Y Tsai

    1. Department of Immunology, University of Texas MD Anderson Cancer Center, Houston, United States
    2. Graduate School of Biomedical Sciences at Houston, University of Texas, Houston, United States
    3. Department of Dermatology, University of Texas MD Anderson Cancer Center, Houston, United States
    Contribution
    KYT, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    kytsai@mdanderson.org
    Competing interests
    The authors declare that no competing interests exist.

Funding

American Skin Association

  • Kenneth Y Tsai

Elsa U Pardee Foundation

  • Kenneth Y Tsai

University of Texas MD Anderson IRG Program

  • Kenneth Y Tsai

DX Biosciences Cancer Research Fund

  • Kenneth Y Tsai

National Cancer Institute (CA16672)

  • Kenneth Y Tsai

National Institutes of Health (GM059802, CA167505)

  • Kevin N Dalby

Welch Foundation ((F-1390))

  • Kevin N Dalby

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors acknowledge the assistance of Trellis Thompson in initial cell culture experiments, Sherie Mudd, Humaira Khan, Hafsa Ahmed, and Patricia Sheffield for histology, Nasser Kazimi and Omid Tavana for assistance in UV radiation experiments, Haiching Ma, Sean Deacon, Gideon Bollag, Chao Zhang, Zhiqiang Wang, and R Eric Davis for experimental advice and reagents, and the South Campus Vivarium for mouse maintenance. KYT acknowledges Ronald P Rapini for departmental support as well as Tyler Jacks, Gordon B Mills, Patrick Hwu, and Jeffrey N Myers for critical discussions and mentorship. KYT acknowledges the funding support of DX Biosciences Cancer Research Fund, MD Anderson Cancer IRG Program, American Skin Association, Elsa U Pardee Foundation, institutional funds, and NCI CA16672 (FACS, Characterized Cell Line, and DNA Analysis Facility Cores). This paper is dedicated to the memories of Lee ‘Sarge’ Englet and Thomas C R Huang.

Ethics

Human subjects: All human samples were archived tissue specimens made available for study through University of Texas MD Anderson Cancer Center IRB approved protocol LAB08-0750 (KYT). Informed consent specifically for these samples was not necessary due to the fact that they were de-identified, archived FFPE specimens.

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#06-09-06332) of the University of Texas MD Anderson Cancer Center. Every effort was made to minimize suffering.

Reviewing Editor

  1. Roger Davis, University of Massachusetts Medical School, United States

Publication history

  1. Received: May 20, 2013
  2. Accepted: October 1, 2013
  3. Version of Record published: November 5, 2013 (version 1)

Copyright

© 2013, Vin et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,066
    Page views
  • 270
    Downloads
  • 30
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Human Biology and Medicine
    Kasparas Petkevicius et al.
    Research Article Updated
    1. Evolutionary Biology
    2. Human Biology and Medicine
    Jonathan Stieglitz et al.
    Research Article Updated
