Juxtaposition of heterozygous and homozygous regions causes reciprocal crossover remodelling via interference during Arabidopsis meiosis

  1. Piotr A Ziolkowski
  2. Luke E Berchowitz
  3. Christophe Lambing
  4. Nataliya E Yelina
  5. Xiaohui Zhao
  6. Krystyna A Kelly
  7. Kyuha Choi
  8. Liliana Ziolkowska
  9. Viviana June
  10. Eugenio Sanchez-Moran
  11. Chris Franklin
  12. Gregory P Copenhaver
  13. Ian R Henderson Is a corresponding author
  1. University of Cambridge, United Kingdom
  2. Adam Mickiewicz University, Poland
  3. University of North Carolina at Chapel Hill, United States
  4. University of North Carolina School of Medicine, United States
  5. University of Birmingham, United Kingdom
Research Article
Cited
9
Views
2,205
Comments
0
Cite as: eLife 2015;4:e03708 doi: 10.7554/eLife.03708

Abstract

During meiosis homologous chromosomes undergo crossover recombination. Sequence differences between homologs can locally inhibit crossovers. Despite this, nucleotide diversity and population-scaled recombination are positively correlated in eukaryote genomes. To investigate interactions between heterozygosity and recombination we crossed Arabidopsis lines carrying fluorescent crossover reporters to 32 diverse accessions and observed hybrids with significantly higher and lower crossovers than homozygotes. Using recombinant populations derived from these crosses we observed that heterozygous regions increase crossovers when juxtaposed with homozygous regions, which reciprocally decrease. Total crossovers measured by chiasmata were unchanged when heterozygosity was varied, consistent with homeostatic control. We tested the effects of heterozygosity in mutants where the balance of interfering and non-interfering crossover repair is altered. Crossover remodeling at homozygosity-heterozygosity junctions requires interference, and non-interfering repair is inefficient in heterozygous regions. As a consequence, heterozygous regions show stronger crossover interference. Our findings reveal how varying homolog polymorphism patterns can shape meiotic recombination.

https://doi.org/10.7554/eLife.03708.001

eLife digest

The genomes of plants and animals consist of several long DNA molecules that are called chromosomes. Most organisms carry two copies of each chromosome: one inherited from each parent. This means that an individual has two copies of each gene. Some of these gene copies may be identical (known as ‘homozygous’), but other gene copies will have sequence differences (or be ‘heterozygous’).

The sex cells (eggs and sperm) that pass half of each parent's genes on to its offspring are made in a process called meiosis. Before the pairs of each chromosome are separated to make two new sex cells, sections of genetic material can be swapped between a chromosome-pair to produce chromosomes with unique combinations of genetic material.

The ‘crossover’ events that cause the genetic material to be swapped are less likely to happen in sections of chromosomes that contain heterozygous genes. However, in a whole population of organisms, the exchange of genetic material between pairs of chromosomes tends to be higher when there are more genetic differences present.

Here, Ziolkowski et al. sought to understand these two seemingly contradictory phenomena by studying crossover events during meiosis in a plant known as Arabidopsis. The plants were genetically modified to carry fluorescent proteins that mark when and where crossovers occur. Ziolkowski et al. cross-bred these plants with 32 other varieties of Arabidopsis. The experiments show that some of these ‘hybrid’ plants had higher numbers of crossover events than plants produced from two genetically identical parents, but other hybrid plants had lower numbers of crossovers.

Ziolkowski et al. found that crossovers are more common between heterozygous regions that are close to homozygous regions on the same chromosome. The boundaries between these identical and non-identical regions are important for determining where crossovers take place. The experiments also show that the heterozygous regions have higher levels of interference—where one crossover event prevents other crossover events from happening nearby on the chromosome. In future, using chromosomes with varying patterns of heterozygosity may shed light on how this interference works.

https://doi.org/10.7554/eLife.03708.002

Introduction

Sexual reproduction via meiosis is highly conserved within eukaryotes and allows recombination of genetic variation within populations (Barton and Charlesworth, 1998). During meiosis homologous chromosomes pair and undergo crossover recombination, which together with independent chromosome segregation and gamete fusion increases genetic diversity between progeny (Barton and Charlesworth, 1998; Villeneuve and Hillers, 2001). Meiotic crossovers form via the repair of DNA double-strand breaks (DSBs) generated by the SPO11 endonuclease (Bergerat et al., 1997; Keeney et al., 1997). Nucleolytic resection of DSBs generates 3′ single-stranded DNA (ssDNA), which is bound by the RAD51 and DMC1 recombinases (Bishop et al., 1992; Shinohara et al., 1992). The resulting nucleoprotein filament then invades a homologous chromatid to form a heteroduplex intermediate (Hunter and Kleckner, 2001). The invading ssDNA 3′-ends undergo DNA synthesis using the homologous duplex as a template and after second-end capture forms double Holliday junctions (dHJs) (Szostak et al., 1983; Schwacha and Kleckner, 1995). The dHJs can then be resolved as crossovers, which are cytologically evident as chiasmata (Page and Hawley, 2003; Janssens et al., 2012). Chiasmata hold chromosomes together and ensure that homologous pairs segregate to opposite cell poles, so that gametes inherit a balanced chromosome number (Page and Hawley, 2003).

Crossover numbers are under tight control, with many eukaryote species experiencing 1–2 per chromosome, despite large variation in genome size (Villeneuve and Hillers, 2001; Smukowski and Noor, 2011; Henderson, 2012; Mercier et al., 2014). In Arabidopsis ∼200 DSBs form per meiosis and proceed to form strand invasion intermediates, of which ∼10 are repaired as crossovers, with the excess being repaired as non-crossovers, or via intersister recombination (Giraut et al., 2011; Ferdous et al., 2012; Lu et al., 2012; Sun et al., 2012; Yang et al., 2012; Drouaud et al., 2013; Wijnker et al., 2013; Qi et al., 2014). 80–85% of wild type crossovers are dependent on the ZMM pathway (MSH4, MSH5, MER3, HEI10, ZIP4, SHOC1, PTD) and show interference, that is, they are spaced further apart than expected at random (Copenhaver et al., 2002; Higgins et al., 2004, 2008a; Chen et al., 2005; Mercier et al., 2005; Chelysheva et al., 2007, 2010, 2012; Macaisne et al., 2008). The remaining minority of crossovers are non-interfering and require MUS81 (Berchowitz et al., 2007; Higgins et al., 2008b). However, as chiasmata are still observed in msh4 mus81 double mutants, additional crossover pathways must exist (Higgins et al., 2008b). The majority of interhomolog strand invasion intermediates are dissolved by the FANCM helicase, which acts with the MHF1 and MHF2 co-factors (Crismani et al., 2012; Knoll et al., 2012; Girard et al., 2014). Mutations in FANCM, MHF1 and MHF2 cause dramatic increases in non-interfering crossovers (Crismani et al., 2012; Knoll et al., 2012; Girard et al., 2014). It is presently unclear whether non-interfering crossovers occurring in fancm are generated by the same pathway as in wild type, as a direct test of MUS81 dependence is precluded by fancm mus81 lethality (Crismani et al., 2012; Knoll et al., 2012). Both crossovers and non-crossovers can be accompanied by gene conversion events, which in the case of non-crossovers form via the synthesis-dependent strand annealing pathway (Allers and Lichten, 2001; McMahill et al., 2007; Lu et al., 2012; Sun et al., 2012; Yang et al., 2012; Drouaud et al., 2013; Wijnker et al., 2013; Qi et al., 2014).

Meiotic recombination is sensitive to DNA polymorphism between homologous chromosomes, that is, heterozygosity. For example, insertion-deletion (indel) and single nucleotide polymorphisms (SNPs) suppress crossovers at the scale of hotspots (kb) in fungi, plants and mammals (Dooner, 1986; Borts and Haber, 1987; Jeffreys and Neumann, 2005; Baudat and de Massy, 2007; Cole et al., 2010). This is thought to occur due to heteroduplex base-pair mismatches inhibiting recombination, following interhomolog strand invasion. Large scale chromosome rearrangements, such as inversions or translocations, also suppress crossovers (Schwander et al., 2014; Thompson and Jiggins, 2014). Despite the inhibitory effects of polymorphism on crossovers, nucleotide diversity and population-scaled recombination estimates are positively correlated in many plant and animal genomes (Begun and Aquadro, 1992; Hellmann et al., 2003; Spencer et al., 2006; Gore et al., 2009; Paape et al., 2012; Cutter and Payseur, 2013). For example, linkage disequilibrium-based crossover estimates and sequence diversity (π) are positively correlated in Arabidopsis at varying physical scales (Figure 1A and Table 1) (Cao et al., 2011; Choi et al., 2013). Multiple processes contribute to these relationships. For example, positive or negative directional selection can reduce diversity at linked sites, with a greater effect in regions of low recombination, known as hitchhiking and background selection (Hill and Robertson, 1966; Hudson and Kaplan, 1995; Nordborg et al., 1996; Smith and Haigh, 2007; Cutter and Payseur, 2013; Campos et al., 2014). These phenomena will cause regions of low recombination under selection to have low diversity, consistent with data in Drosophila (Aguade et al., 1989; Begun and Aquadro, 1992; Wiehe and Stephan, 1993; Campos et al., 2014). Recombination may also be mutagenic and increase diversity, for example via mismatch repair enzymes showing a mutational bias for A:T > G:C transversions (Duret and Galtier, 2009; Webster and Hurst, 2012; Glémin et al., 2014).

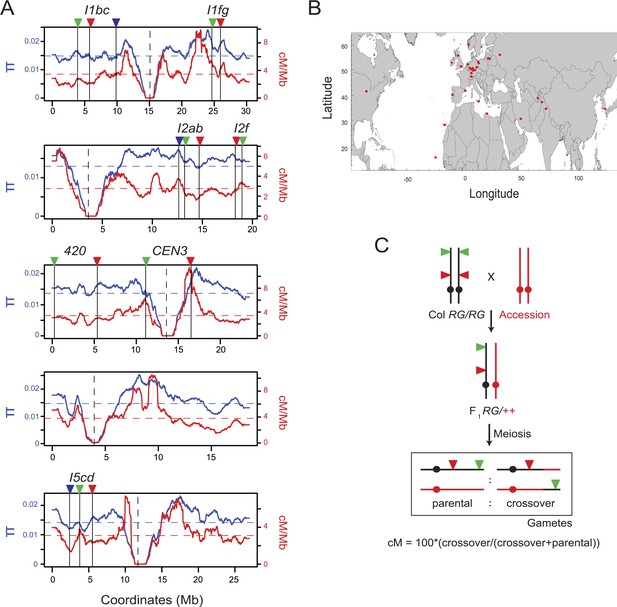

Testing for crossover modification by Arabidopsis natural variation.

(A) Historical crossover frequency (red, cM/Mb) and sequence diversity (π, blue) along the physical length of the Arabidopsis thaliana chromosomes (Mb) (Cao et al., 2011; Choi et al., 2013). Mean values are indicated by horizontal dotted lines and centromeres by vertical dotted lines. The fluorescent crossover intervals analysed are indicated by solid vertical lines and coloured triangles. (B) Map showing the geographical origin of the Arabidopsis accessions studied, indicated by red points. (C) Genetic diagram illustrating the experimental approach with a single chromosome shown for simplicity. Fluorescent crossover reporters (triangles) were generated in the Col background (black) and crossed to accessions of interest (red) to generate F1 heterozygotes. Following meiosis the proportion of parental:crossover gametes from F1 heterozygotes was analysed to measure genetic distance (cM) between the fluorescent protein encoding transgenes.

https://doi.org/10.7554/eLife.03708.003
Table 1

Correlations between historical recombination and sequence diversity at varying physical scales

https://doi.org/10.7554/eLife.03708.004
Scale (π)Chr1Chr2Chr3Chr4Chr5
5 kb0.5210.3010.5450.5750.541
10 kb0.5560.3050.5650.6020.562
50 kb0.6570.3810.5790.6920.619
100 kb0.6990.5630.6010.7440.646
500 kb0.7410.5280.6150.8410.653
1 Mb0.6390.5040.6830.8460.624
Scale (θ)Chr1Chr2Chr3Chr4Chr5
5 kb0.5370.2980.5570.5850.553
10 kb0.5690.3030.5760.6100.572
50 kb0.6620.3820.5920.6990.623
100 kb0.7100.5730.6170.7520.650
500 kb0.7540.5340.6350.8440.655
1 Mb0.6470.5040.6970.8490.635
  1. Spearman's rank correlation between historical crossover frequency estimates from LDhat and sequence diversity (θ and π) at varying physical scales (Cao et al., 2011; Choi et al., 2013). Adjacent windows of the indicated physical size were used for correlations.

Here we use natural variation in Arabidopsis to directly investigate the influence of heterozygosity on meiotic recombination. Extensive evidence exists for cis and trans modification of crossover frequency by plant genetic variation (Barth et al., 2001; Yao and Schnable, 2005; Yandeau-Nelson et al., 2006; Esch et al., 2007; McMullen et al., 2009; López et al., 2012; Salomé et al., 2012; Bauer et al., 2013). We define trans modifiers as loci encoding diffusible molecules that control recombination on other chromosomes, and elsewhere on the same chromosome, as exemplified by mammalian PRDM9 (Baudat et al., 2010; Berg et al., 2010; Myers et al., 2010; Parvanov et al., 2010; Fledel-Alon et al., 2011; Sandor et al., 2012; Kong et al., 2013). We define cis modification as variation that influences recombination only on the same chromosome, for example, the inhibitory effects of high SNP density, inversions and translocations (Dooner, 1986; Borts and Haber, 1987; Jeffreys and Neumann, 2005; Baudat and de Massy, 2007; Cole et al., 2010; Schwander et al., 2014; Thompson and Jiggins, 2014). Regional patterns of chromatin and epigenetic information can also cause significant cis effects, for example loss of either H2A.Z deposition or DNA methylation alters crossover frequency in Arabidopsis (Colomé-Tatché et al., 2012; Melamed-Bessudo and Levy, 2012; Mirouze et al., 2012; Yelina et al., 2012; Choi et al., 2013).

In this study we crossed Arabidopsis lines carrying fluorescent crossover reporters generated in a common background (Col-0) to 32 diverse accessions. We observed extensive variation in F1 hybrid recombination rates, with both significantly higher and lower crossovers than homozygous backgrounds. We further analysed Col × Ct F2 recombinant populations using three independent crossover reporter intervals (420, CEN3 and I2f). We did not detect trans modifiers in these crosses, but observed a novel cis modification effect caused by heterozygosity. Specifically, juxtaposition of heterozygous and homozygous regions is associated with increased crossover frequency in the heterozygous region and a reciprocal decrease in the homozygous region. To investigate this phenomenon mechanistically we repeated analysis in mutants where the balance of interfering and non-interfering crossover repair is altered (fancm, zip4 and fancm zip4). This analysis demonstrates that remodelling of crossovers across heterozygosity/homozygosity junctions is dependent on interference. We also show that the non-interfering repair is less efficient in heterozygous regions. As a consequence, interference measurements are stronger in heterozygous regions. Our findings show how varying polymorphism patterns can differentially influence meiotic recombination along chromosomes.

Results

Heterozygosity extensively modifies crossover frequency in Arabidopsis

To test the effect of heterozygosity on meiotic recombination we crossed transgenic Arabidopsis with fluorescent crossover reporters generated in the Col-0 background to 32 diverse accessions that represent global genetic diversity within this species (Figure 1, Tables 2, 3) (Melamed-Bessudo et al., 2005; Berchowitz and Copenhaver, 2008; Yelina et al., 2013). The 5 intervals tested (I1b, I1fg, I2f, 420 and CEN3) range from 0.67–5.40 megabases (Mb), represent 11.5% of the genome (14.34 Mb) in total and are located in sub-telomeric, interstitial and centromeric regions (Figure 1A and Table 2). The intervals vary in experimental recombination rate, with the centromeric interval CEN3 being the lowest (2.11 cM/Mb) and the sub-telomeric interval I2f being the highest (13.02 cM/Mb) (Table 2). As Arabidopsis male meiosis shows elevated sub-telomeric recombination, this likely contributes to the high I2f crossover frequency, which is measured in pollen (Giraut et al., 2011). Low recombination in CEN3 is also expected, as the centromeric regions are heterochromatic and known to show suppressed crossover frequency (Figure 1A) (Copenhaver et al., 1999; Giraut et al., 2011; Salomé et al., 2012; Yelina et al., 2012). To asses relative heterozygosity levels we analysed pairwise sequence differences relative to Col-0 using the 19 genomes dataset, which was generated from a subset of the accessions used in our crosses (Gan et al., 2011). CEN3 shows the highest heterozygosity levels, followed by the interstitial and sub-telomeric intervals (Table 2). Therefore, the regions analysed represent diverse chromosomal environments with varying levels of recombination and inter-accession sequence polymorphism.

Table 2

Fluorescent crossover reporter intervals

https://doi.org/10.7554/eLife.03708.005
IntervalChrMethodT-DNA 1T-DNA 2MbLocationcM/Mb (Col-0)cM/Mb (F1)Heterozygosity
I1b1Pollen3,905,441-YFP5,755,618-dsRed21.85Interstitial4.254.051.93 (3.16)
I1c1Pollen5,755,618-dsRed29,850,022-CFP4.09Interstitial4.55N/A2.80 (3.16)
I1fg1Pollen24,645,163-YFP25,956,590-dsRed21.31Interstitial6.206.022.52 (3.16)
I2a2Pollen12,640,092-CFP13,226,013-YFP0.59Interstitial5.19N/A2.33 (3.30)
I2b2Pollen13,226,013-YFP14,675,407-dsRed21.45Interstitial3.09N/A1.53 (3.30)
I2f2Pollen18,286,716-dsRed218,957,093-YFP0.67Sub-telomeric13.0217.411.43 (3.30)
4203Seed256,516-GFP5,361,637-dsRed25.11Sub-telomeric3.702.931.19 (3.37)
CEN33Pollen11,115,724-YFP16,520,560-dsRed25.40Centromeric2.112.386.69 (3.37)
I3b3Pollen498,916-CFP3,126,994-YFP2.63Sub-telomeric5.99N/A1.11 (3.37)
I3c3Pollen3,126,994-YFP4,319,513-dsRed21.19Sub-telomeric4.01N/A1.64 (3.37)
I5c5Pollen2,372,623-CFP3,760,756-YFP1.39Interstitial4.01N/A1.01 (3.27)
I5d5Pollen3,760,756-YFP5,497,513-dsRed21.74Interstitial3.20N/A1.56 (3.27)
  1. The interval name is listed together with chromosome, method of scoring and location of the flanking T-DNAs together with the fluorescent proteins they encode. Interval cM/Mb values from Col-0 homozygous are listed (Col-0), in addition to the mean cM/Mb observed across all F1 crosses (F1). Heterozygosity values were calculated using pairwise comparison of polymorphism data from the 19 genomes project to the Col reference (Gan et al., 2011), and the mean value for the interval shown, in addition to the mean chromosome value in parentheses.

Table 3

Genetic distance in F1 heterozygotes

https://doi.org/10.7554/eLife.03708.006
AccessionLocationI1bI1fgI2f420CEN3TotalP
Tsu-0Tsushima, Japan6.66.36.914.59.443.7<2.00 × 10−16
Hi-0Hilversum, Netherlands6.86.96.913.69.643.8<2.00 × 10−16
Wil-2Vilnius, Lithuania6.16.96.115.910.145.0<2.00 × 10−16
Kn-0Kaunas, Lithuania7.46.68.015.58.746.2<2.00 × 10−16
Ler-0Gorzow, Poland6.68.27.612.311.946.6<2.00 × 10−16
Ws-0Vassilyevichy, Belarus6.77.710.213.09.046.6<2.00 × 10−16
No-0Nossen, Germany7.47.96.714.111.447.4<2.00 × 10−16
Wu-0Wurzburg, Germany7.66.39.514.011.448.8<2.00 × 10−16
Zu-0Zurich, Switzerland7.57.113.412.29.950.10.0438
Po-0Poppelsdorf, Germany7.27.99.115.810.951.00.000484
Ct-1Catania, Italy7.88.77.215.912.151.79.27 × 10−08
Oy-0Oystese, Norway7.78.48.515.712.552.80.969
Rsch-4Rschew, Russia7.96.810.715.212.453.10.505
Col-0Columbia, USA8.08.28.818.011.554.5
Sf-2San Feliu, Spain8.28.87.418.612.355.30.724
KasKashmir, India6.98.613.213.813.355.8<2.00 × 10−16
KondPugus, Tajikistan7.18.115.813.711.456.2<2.00 × 10−16
Edi-0Edinburgh, Scotland8.08.013.413.313.656.3<2.00 × 10−16
Bay-0Bayreuth, Germany8.68.311.318.611.558.3<2.00 × 10−16
Mt-0Martuba, Libya9.67.813.220.69.660.8<2.00 × 10−16
ShaPamiro-Alaya, Tajikistan7.87.520.07.018.660.90.0012
C24Columbia, USA8.88.518.512.114.161.9<2.00 × 10−16
Bur-0Burren, Ireland6.79.121.914.717.870.2<2.00 × 10−16
Cvi-0Cape Verde Islands9.110.011.312.627.670.7<2.00 × 10−16
Can-0Las Palmas, Canary Isles7.88.522.112.431.482.2<2.00 × 10−16
CoCoimbra, Portugal11.113.8
Nw-0Neuweilnau, Germany14.714.4
Mh-0Szczecin, Poland14.910.1
Wl-0Wildbad, Germany17.09.5
Bu-0Burghaun, Germany28.98.8
CIBC5Ascot, United Kingdom13.211.3
RRS7North Liberty, USA17.211.7
F1 cM mean7.67.911.515.012.954.8
cM StDev0.80.94.83.64.99.3
  1. The accessions crossed to are listed with their geographic location. Genetic distance (cM) data is shown for the five fluorescent intervals, in addition to a summed total. Also shown are the mean and standard deviation for all F1s. A generalized linear model (GLM) was used to test for significant differences between total recombinant vs non-recombinant counts between replicate groups of Col-0 homozygotes and F1 heterozygotes. Tests were performed for genotypes where data from all five tested intervals had been collected.

The crossover reporter systems utilize fluorescent proteins encoded by linked, heterozygous transgenes that are expressed from the pollen-specific LAT52, or seed-specific NapA promoters (Melamed-Bessudo et al., 2005; Francis et al., 2006; Yelina et al., 2013). Fluorescent measurements of gametes or progeny are used to asses segregation of the transgenes through meiosis and thereby measure crossover rates (Melamed-Bessudo et al., 2005; Berchowitz and Copenhaver, 2008; Yelina et al., 2013). Previously, we developed flow cytometry protocols to increase scoring-throughput using fluorescent pollen, allowing up to 80,000 gametes to be scored per individual plant (Yelina et al., 2012, 2013). To increase throughput when measuring fluorescent seed we adapted CellProfiler image analysis software, allowing us to rapidly score ∼2000 seed per individual (Figure 2A–F) (Carpenter et al., 2006). This method gives recombination measurements not significantly different from manually collected data (Figure 2F, Figure 2—source data 1) (generalized linear model (GLM), hereafter GLM, p = 0.373). To test for significant differences between recombinant and non-recombinant counts using replicate groups we used a GLM assuming a binomial count distribution. Replicate heterozygous F1 individuals were analysed for each cross and 13,264,943 gametes were scored in total, to provide an extensive survey of the influence of polymorphism heterozygosity on crossover frequency (Figure 3 and Table 3).

Figure 2 with 1 supplement see all

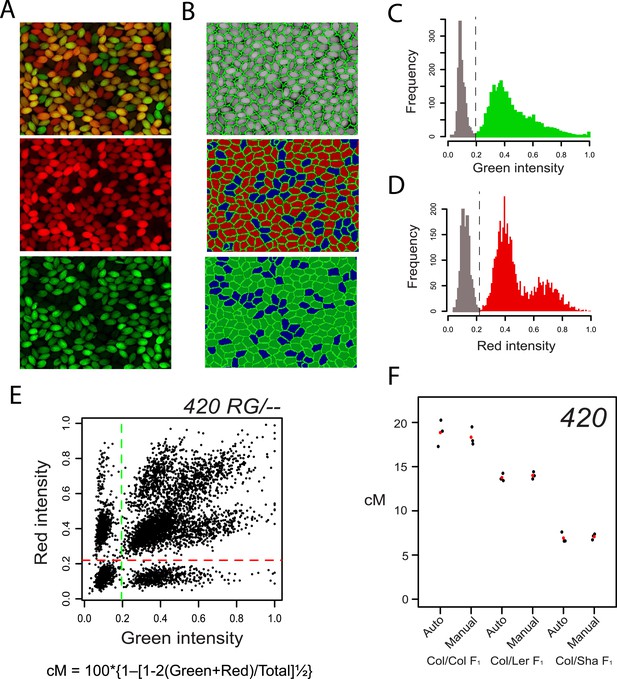

High-throughput measurement of crossover frequency using image analysis of fluorescent seed.

(A) Combined red and green, red alone and green alone fluorescent micrographs of seed from a self-fertilized 420/++ plant. (B) CellProfiler output showing identification of seed objects by green lines and scoring of red and green fluorescence shown by shading. Blue shading shows an absence of colour. (CD) Histograms of seed object fluorescence intensities, with coloured and non-coloured seed divided by vertical dotted lines. (E) Plot of seed object red vs green fluorescence intensities, with each point representing an individual seed. The red and green dashed lines show the colour vs non-colour divisions indicated in (CD). The formula used for cM calculation is printed below. (F) 420 cM measurements from replicate plants of the indicated genotypes (Col/Col F1, Col/Ler F1, Col/Sha F1) are shown by black dots with mean values indicated by red dots. Data generated by automatic and manual scoring are plotted alongside one another. Measurements made by the different methods were not significantly different as tested using generalized linear model (GLM). See Figure 2—source data 1.

https://doi.org/10.7554/eLife.03708.007

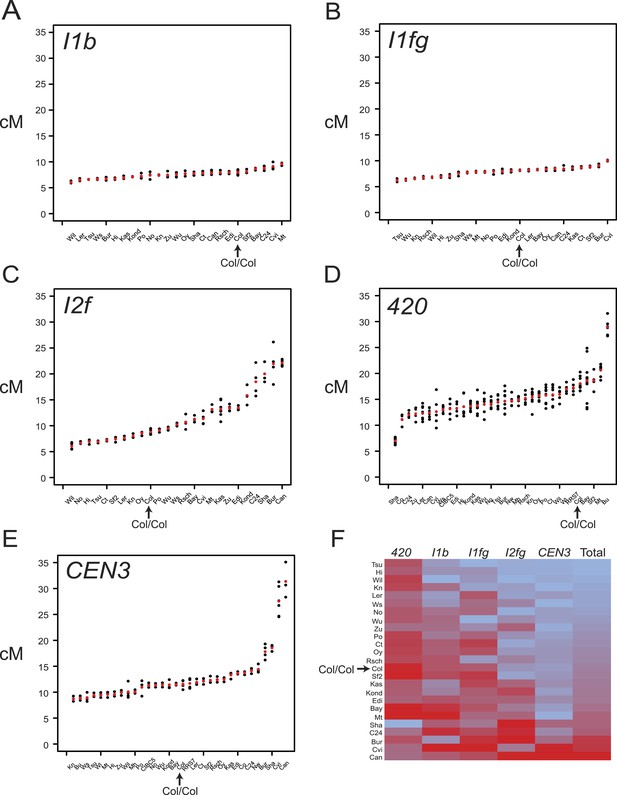

Variation in F1 hybrid crossover frequency.

(AE) Genetic distance (cM) measurements for fluorescent crossover intervals I1b, I1fg, I2f, 420 and CEN3 with individual replicates (black dots) and mean values (red dots) for the crosses labelled on the x-axis. See Figure 3—source data 1–5. (F) Heatmap summarising crossover frequency data for F1 crosses with data from all five intervals. Accessions are listed as rows and fluorescent intervals listed as columns. The heatmap is ordered according to ascending ‘Total’ cM (red = highest, blue = lowest), which is the sum of the individual interval genetic distances. GLM testing for significant differences between total recombinant vs non-recombinant counts between replicate groups of Col-0 homozygotes and F1 heterozygotes was performed, for genotypes where data from all five tested intervals were collected (Table 3). Col/Col homozygous data are labelled and highlighted with an arrow in each plot.

https://doi.org/10.7554/eLife.03708.010

We observed substantial variation in crossovers between F1 crosses, although the interstitial intervals varied less than those in sub-telomeric and centromeric locations (Figure 3A–E, Figure 3—source data 1–5). F1 heterozygotes showed both significantly higher and lower total recombination compared to Col homozygotes (Figure 3 and Table 3) (GLM with 113° of freedom p < 2.0 × 10−16). F1 genetic distances and polymorphism levels within the intervals were poorly correlated, consistent with previous observations (Table 4) (Barth et al., 2001; Gan et al., 2011; Salomé et al., 2012). This weak correlation may be partially explained by unknown structural rearrangements. For example, the Shahdara (Sha) accession has a sub-telomeric inversion (3–5.1 Mb) on chromosome 3 relative to Col (Loudet et al., 2002; Simon et al., 2008; Salomé et al., 2012), and Col/Sha F1s show consistently low crossovers in 420, which overlaps the inversion (Figure 3D and Table 3). Hence the contribution of unknown structural polymorphisms to variation in recombination rates could be significant. Further evidence of the complex effect of polymorphism is evident from the CEN3 interval, which spans the repetitive and structurally diverse centromeric region of chromosome 3 (Figure 1A) (Copenhaver et al., 1999; Clark et al., 2007; Ito et al., 2007; Cao et al., 2011; Gan et al., 2011; Horton et al., 2012; Long et al., 2013), and showed high variability in F1 crossover frequency (Figure 3E and Table 3). Unexpectedly, some of the most diverged crosses, for example two accessions from Atlantic islands Cvi-0 and Can-0, showed highest CEN3 crossovers (Figure 3E and Table 3) (Ito et al., 2007). 10 of 26 F1s showed significantly higher summed crossover frequency compared with Col homozygotes, consistent with previous reports that recombination can increase in heterozygous backgrounds in Arabidopsis (Barth et al., 2001) (Figure 3F and Table 3). Both cis and trans modification of crossovers by genetic variation has been observed in plants (Barth et al., 2001; Yao and Schnable, 2005; Yandeau-Nelson et al., 2006; Esch et al., 2007; McMullen et al., 2009; López et al., 2012; Salomé et al., 2012; Bauer et al., 2013). Therefore, the variation in F1 crossover frequency observed here is likely caused by complex interactions between cis and trans modifying effects.

Table 4

F1 heterozygosity levels relative to Col-0

https://doi.org/10.7554/eLife.03708.016
AccessionChr 1I1bI1fgChr 2I2fChr 3420CEN3Chr 4Chr 5
Bur-03.351.863.623.601.513.581.576.203.893.16
Can-03.752.993.513.920.923.981.028.275.344.24
Ct-12.621.672.292.611.853.350.966.913.233.36
Edi-03.301.913.643.260.913.051.345.483.423.81
Hi-02.431.591.871.801.502.581.074.622.692.46
Kn-03.151.782.853.352.183.581.496.693.763.40
Ler-03.101.612.663.622.243.431.137.393.873.53
Mt-03.021.771.163.491.573.171.075.703.952.71
No-03.252.282.713.361.273.521.217.143.513.56
Oy-03.481.682.103.050.582.941.236.162.952.72
Po-02.451.781.192.360.672.870.795.992.532.59
Rsch-42.941.841.173.361.223.091.055.373.893.22
Sf-23.611.944.243.542.063.741.308.243.813.58
Tsu-03.371.682.363.691.393.981.148.783.693.05
Wil-23.561.992.453.772.113.811.567.554.443.34
Ws-03.251.933.543.681.583.301.306.653.703.41
Wu-03.132.531.953.140.673.501.227.413.363.15
Zu-03.101.852.023.831.433.190.965.843.383.64
Mean3.161.932.523.301.433.371.196.693.633.27
Correlation (cM)0.13 (p = 0.61)0.47 (p = 0.05)−0.29 (p = 0.23)0.06 (p = 0.81)0.28 (p = 0.26)
  1. Accessions sequenced as part of the 19 genomes project were analysed (Gan et al., 2011) and heterozygosity calculated as the sum of SNPs and indel lengths divided by the length of region (kb). Correlations were between heterozygosity within the interval measured and F1 cM measurements.

Modification of crossover frequency by juxtaposition of heterozygosity and homozygosity

To investigate the extent of cis and trans modification of crossover frequency by heterozygosity we generated a 420 Col × Ct recombinant F2 population (n = 139) (Figure 4A). We selected F2 individuals that were heterozygous for linked T-DNAs expressing red and green fluorescent proteins and Col/Ct heterozygous within 420, but genetically mosaic elsewhere in the genome (Figure 4A,E). The 420/++ Col/Ct F2 population showed significantly greater variation in recombination rates than Col/Col homozygotes (F-test p = 0.0129) (Figure 4D, Figure 4—source data 1). We genotyped 51 Col/Ct markers throughout the genome and tested for their association with 420 crossover frequency using QTL analysis. We detected no association using markers on chromosomes 1, 2, 4 or 5 (Figure 4B). However, on chromosome 3 itself homozygosity (Col/Col or Ct/Ct) outside of 420 was associated with high recombination (FDR corrected chi-square test p = 3.29 × 10−31) (Figure 4B,E–F and Table 5). For each marker we used the heterozygous and homozygous counts in the hottest quartile vs the coldest quartile to construct 2 × 2 contingency tables and performed chi-square tests, followed by FDR correction for multiple testing (Table 5).

Figure 4 with 1 supplement see all

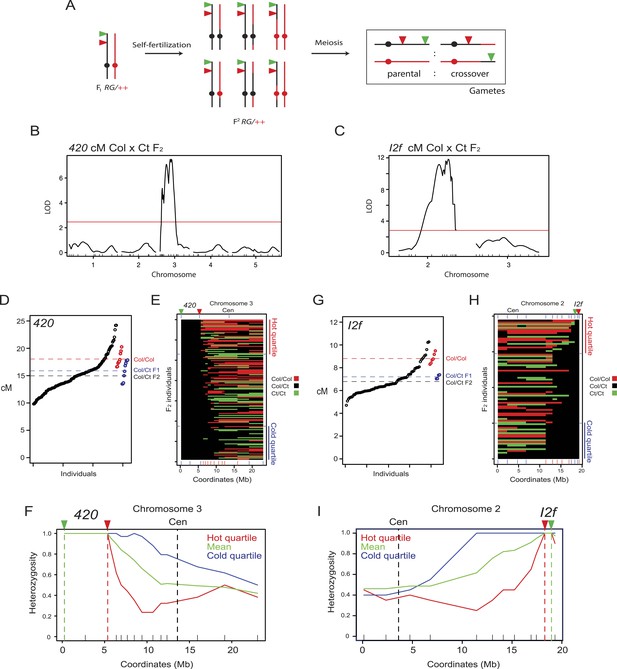

Modification of crossover frequency by juxtaposition of heterozygosity and homozygosity.

(A) Diagram illustrating chromosome 3 genotypes (black = Col, red = Ct) in RG/++ F1 individuals and their F2 progeny. A single chromosome is shown for simplicity. Gametes or progeny are analysed for patterns of fluorescence following meiosis to measure genetic distance. (B) The program Rqtl was used to test for association between Col/Ct genotypes and 420 cM in a 420/++ F2 population. The logarithm of odds (LOD) score is plotted along the 5 chromosomes with the positions of markers shown along the x-axis by ticks. The red horizontal line shows the 5% genome-wide significance threshold calculated with Hayley-Knott regression and by running 10,000 permutations. (C) As for (B) but analyzing Col/Ct markers on chromosomes 2 and 3 for an I2f/++ F2 population. (D) 420 cM measurements from Col/Ct 420/++ F2 (black), Col/Col homozygotes (red) and Col/Ct F1 (blue) individuals. Mean values are indicated by horizontal dotted lines. See Figure 4—source data 1. (E) Chromosome 3 genotypes shown for 420/++ F2 individuals ranked by crossover frequency. Each horizontal row represents a single F2 individual. X-axis ticks show marker positions, and which are coloured red when they showed significantly higher homozygosity in the hottest vs coldest quartiles (FDR-corrected chi square test). Fluorescent T-DNAs are indicated by triangles, in addition to the centromere (Cen). (F) Heterozygosity along chromosome 3 in the hottest (red), coldest (blue) 420 F2 quartiles and the mean (green). The locations of reporter T-DNAs and the centromeres are indicated by vertical dashed lines. (GI) As for (DF) but for interval I2f. See Figure 4—source data 2.

https://doi.org/10.7554/eLife.03708.017
Table 5

Chromosome 3 genotype counts from hot and cold quartile 420/++ Col/Ct F2 individuals

https://doi.org/10.7554/eLife.03708.022
Marker coordinates (bp)Hot quartile HETHot quartile HOMCold quartile HETCold quartile HOMFDR p value
2590003403401
27180003403401
53520003403401
637500021133404.36 × 10−04
694800017173311.05 × 10−04
767400015193312.12 × 10−05
849500012223403.65 × 10−07
94040008263313.79 × 10−08
106950008263041.36 × 10−06
1164900011232774.36 × 10−04
1235600011232774.36 × 10−04
15949000132123114.48 × 10−02
19165000171721130.591
23040000132117170.591
  1. The number of 420/++ Col/Ct F2 individuals showing Col homozygosity (HOM) or Col/Ct heterozygosity (HET) for the indicated marker positions, in either the hottest or coldest F2 quartile. The p value was obtained by performing a chi square test between homozygous and heterozygous marker genotype counts in the hottest and coldest quartiles (2x2 contingency table), followed by FDR correction for multiple testing.

To test an additional chromosome for the effect of heterozygosity/homozygosity juxtaposition we measured recombination in an I2f Col × Ct F2 population (n = 78) (Figure 4G–I). The I2f interval is 0.67 Mb and located sub-telomerically on the long arm of chromosome 2 (Figure 1A and Table 2). The I2f/++ Col/Ct F2 population also showed significantly greater variation in recombination rates than Col/Col homozygotes (F-test, p = 0.04) (Figure 4G, Figure 4—source data 2). We performed QTL analysis for Col/Ct markers on chromosomes 2 and 3 and again observed a significant effect on the same chromosome and no trans effect from chromosome 3. An identical trend to that seen for 420 was observed, with the highest recombination F2 quartile showing significantly greater marker homozygosity (both Col/Col and Ct/Ct) outside I2f on chromosome 2 (FDR corrected chi-square test p = 1.44 × 10−10) (Figure 4C,G–I and Table 6). The most distal marker showing a significant difference between hot and cold quartiles was of comparable megabase distance for 420 (10.60 Mb) and I2f (10.12 Mb).

Table 6

Chromosome 2 genotype counts from hot and cold quartile I2f/++ Col/Ct F2 individuals

https://doi.org/10.7554/eLife.03708.023
Marker coordinates (bp)Hot quartile HETHot quartile HOMCold quartile HETCold quartile HOMFDR p value
132,0009118121
2,346,0007138121
4,748,0008129111
6,789,0007131190.63
11,443,0005152006.26 × 10−05
13,036,0007132003.32 × 10−04
14,117,0009112001.30 × 10−03
15,240,0009112001.30 × 10−03
16,909,0001372000.0262
17,439,0001642000.238
18,287,0002002001
18,960,0002002001
19,311,0001822000.764
  1. The number of I2f/++ Col/Ct F2 individuals showing Col homozygosity (HOM) or Col/Ct heterozygosity (HET) for the indicated markers, in either the hottest or coldest F2 quartile. The p value was obtained by performing a chi square test between homozygous and heterozygous marker genotype counts in the hottest and coldest quartiles (2 × 2 contingency table), followed by FDR correction for multiple testing.

To test whether the effect of heterozygosity/homozygosity juxtaposition is dependent on chromosomal location we measured crossovers in a CEN3 Col × Ct F2 population (n = 121) (Figures 4A and 5C, Figure 4—figure supplement 1, Figure 4—source data 3). As for 420 and I2f, CEN3 F2 recombination rates were significantly more variable than Col/Col homozygotes (F-test p = 0.01268) (Figure 4A, Figure 4—figure supplement 1). We genotyped 9 Col/Ct markers on chromosome 3 and observed that 5 markers in proximity to CEN3 were significantly more homozygous in the hottest compared to the coldest F2 quartile (FDR corrected chi-square test p = 1.14 × 10−07) (Figure 4D–F, Figure 4—figure supplement 1 and Table 7). The physical extent of the effect was less (2.62 Mb) on the long arm of chromosome 3 for CEN3 than observed for 420 and I2f, potentially due to heterozygosity effects acting independently from both arms across the centromere. Together this shows that juxtaposition of heterozygous and homozygous regions in various chromosomal locations can modify local crossover frequency.

Figure 5 with 1 supplement see all

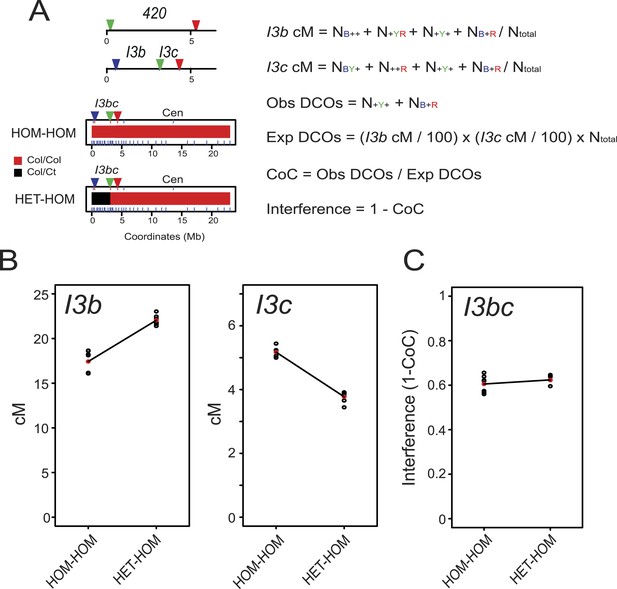

Juxtaposition of heterozygous and homozygous regions triggers reciprocal crossover remodelling.

(A) Schematic diagram illustrating the physical location of 420 and I3bc transgenes expressing fluorescent proteins in seed and pollen. Beneath are diagrams illustrating the locations of Col/Col homozygous (red) and Col/Ct heterozygous (black) regions along chromosome 3. Positions of Col/Ct genotyping markers are indicated by blue ticks along the axis of the chromosome. Printed alongside are formulae for the calculation of genetic distance (cM) and crossover interference using I3bc. Counts of pollen with different combinations of fluorescence are indicated. For example, NBYR indicates the number of pollen with blue, yellow and red fluorescence. (B) I3b and I3c genetic distance (cM) measured in HOM-HOM and HET-HOM plants as illustrated in (A). See Figure 5—source data 1. (C) As for (B) but showing calculation of crossover interference (1-CoC). See Figure 5—source data 2.

https://doi.org/10.7554/eLife.03708.024
Table 7

Chromosome 3 genotype counts from hot and cold quartile CEN3/++ Col/Ct F2 individuals

https://doi.org/10.7554/eLife.03708.028
Marker coordinates (bp)Hot quartile HETHot quartile HOMCold quartile HETCold quartile HOMFDR P
259000161417131
2718000161418121
5352000191117131
7674000201012180.129
849500023713170.0389
940400026416140.0308
111157243003001
165205603003001
2100800027314160.00477
2207600023712180.0308
2304000024610200.00477
  1. The number of CEN3/++ Col/Ct F2 individuals showing Col homozygosity (HOM) or Col/Ct heterozygosity (HET) for the indicated markers, in either the hottest or coldest quartile. The p value was obtained by performing a chi square test between homozygous and heterozygous marker genotype counts in the hottest and coldest quartiles (2 × 2 contingency table), followed by FDR correction for multiple testing.

Juxtaposed heterozygous and homozygous regions show reciprocal changes in crossover frequency

We reasoned that if heterozygous regions increase recombination when juxtaposed with homozygous regions, then the linked homozygous regions may show compensatory decreases, due to crossover interference (Copenhaver et al., 2002; Zhang et al., 2014a). To test this idea we constructed a three-colour pollen FTL interval termed I3bc that overlaps the 420 seed interval on chromosome 3 (Figure 5 and Table 2). Three-colour FTL configurations allow simultaneous measurement of crossover frequency in adjacent intervals and measurement of crossover interference (Berchowitz and Copenhaver, 2008; Yelina et al., 2013) (Figure 5—figure supplement 1). To calculate interference, the observed double crossover (DCO) classes (N-Y- + NB-R) are compared to the number expected in the absence of interference: (I3b cM/100) × (I3c cM/100) × Ntotal (Figure 5A). The Coefficient of Coincidence (CoC) is calculated by dividing Observed DCOs by Expected DCOs, and interference strength calculated as 1-CoC (Figure 5A).

I3bc wild type genetic distance was greater than that measured from 420 self-fertilization data, as expected due to increases observed in sub-telomeric regions in male meiosis (Table 2Figure 5—source data 1) (Giraut et al., 2011). I3b crossover frequency was also higher than I3c, consistent with a telomeric gradient in male crossover frequency (Figure 5B and Table 2) (Giraut et al., 2011). We compared crossovers in plants that were entirely Col homozygous (HOM-HOM) vs plants that were Col/Ct heterozygous within I3b, but Col/Col homozygous in I3c and for the rest of chromosome 3 (HET-HOM) (Figure 5A). Dense genotyping markers were used to confirm the location of homozygous and heterozygous regions (Figure 5A). We observed that I3b crossovers significantly increased in HET-HOM compared to HOM-HOM plants, and there was a reciprocal decrease in I3c crossovers (Figure 5B, Figure 5—source data 2) (both GLM p < 2.0 × 10−16). Together this is consistent with reciprocal crossover changes in juxtaposed heterozygous and homozygous regions being driven by crossover interference.

Reciprocal crossover remodeling across heterozygosity/homozygosity junctions requires interference

The effect of heterozygosity/homozygosity juxtaposition on crossovers extends over megabase distances, which is similar to the scale of crossover interference in Arabidopsis (Copenhaver et al., 2002; Giraut et al., 2011; Salomé et al., 2012). We therefore next used mutations in meiotic recombination pathways to analyse the genetic requirements of these effects. Specifically, we generated plants carrying the linked chromosome 3 fluorescent crossover reporters 420 and CEN3 (420-CEN3), with varying Col/Ct genotype and that were wild type, fancm or fancm zip4 (Figure 6Figure 6—figure supplement 1). Crossover frequency in 420 and CEN3 can be scored in the same individuals, as these intervals use fluorescent proteins expressed in seed and pollen respectively. In fancm DSBs that would normally be repaired as non-crossovers enter a non-interfering pathway leading to a substantial increase in crossovers, although the interfering pathway remains active (Crismani et al., 2012). In fancm zip4 only non-interfering crossovers occur, due to mutation of the ZMM gene ZIP4 (Chelysheva et al., 2007; Crismani et al., 2012). In wild type, both interfering and non-interfering pathways are active, but interfering crossovers predominate and constitute ∼85% of total crossovers (Copenhaver et al., 2002; Higgins et al., 2004; Mercier et al., 2005). Therefore, by comparing genetic distances in wild type, fancm and fancm zip4, where the relative proportions of interfering and non-interfering repair vary dramatically, we can investigate the sensitivity of different recombination pathways to heterozygosity.

Figure 6 with 1 supplement see all

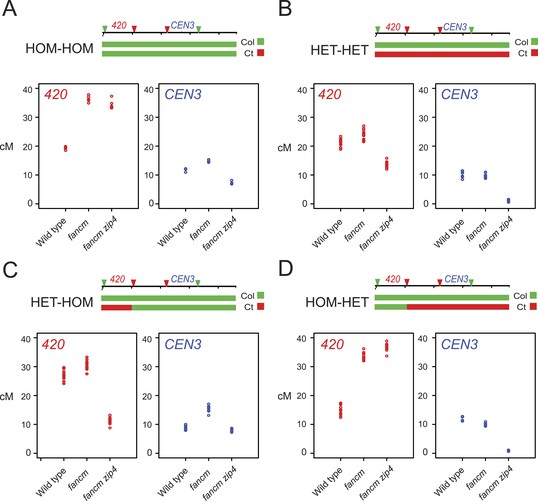

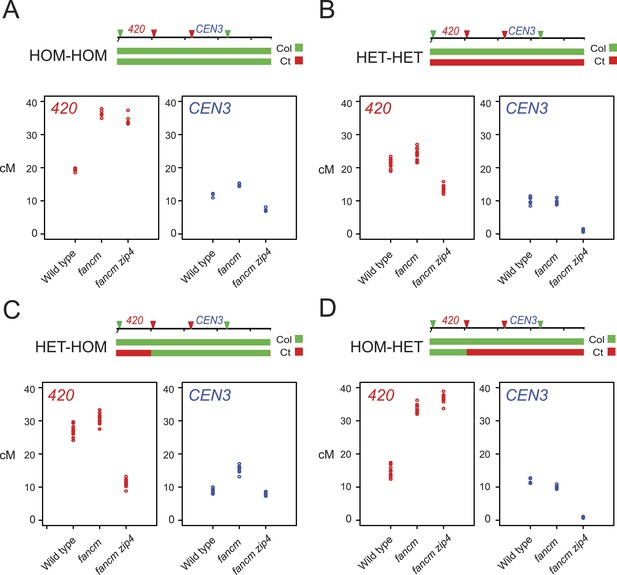

Genetic requirements of crossover remodelling via juxtaposition of heterozygous and homozygous regions.

(AD) Replicate measurements of 420 (red) and CEN3 (blue) genetic distances (cM) are plotted in wild type, fancm and fancm zip4. See Figure 6—source data 1, 2. Chromosome 3 genotypes of the plants analysed are indicated above the plots (green = Col and red = Ct), for example, HET-HOM indicates heterozygous within 420 and homozygous outside.

https://doi.org/10.7554/eLife.03708.029

When chromosome 3 is Col/Col homozygous (HOM-HOM) genetic distance in the 420 interval significantly increased in fancm and fancm zip4 mutants compared with wild type (both GLM p < 2.0 × 10−16) (Figure 6A, Figure 6—source data 1), consistent with repair of the majority of DSBs via a non-interfering crossover pathway (Crismani et al., 2012). However, the CEN3 interval experienced a smaller yet significant increase in genetic distance in fancm and decreased in fancm zip4 (both GLM p < 2.0 × 10−16), indicating that non-interfering crossover repair is less efficient in this region (Figure 6A, Figure 6—source data 2). We next generated plants that were Col/Ct heterozygous (HET-HET) on chromosome 3 and observed that the previous increase in 420 crossovers was strongly suppressed in fancm and fancm zip4 (GLM p = 1.24 × 10−06 and p < 2.0 × 10−16), whereas wild type Col/Ct were slightly but significantly higher than wild type Col/Col (GLM p = 0.0126) (Figure 6A–B). CEN3 crossovers were also significantly suppressed by Col/Ct heterozygosity in fancm and nearly eliminated in fancm zip4 compared to Col/Col (both GLM p < 2.0 × 10−16) (Figure 6A–B). Together this indicates that the non-interfering crossover repair pathway that predominates in fancm and fancm zip4 is less efficient in heterozygous regions and particularly within the centromeric region, which shows high polymorphism levels (Table 2).

We next tested the effect of juxtaposing heterozygous and homozygous regions in fancm and fancm zip4 mutants. We first generated lines that were Col/Ct heterozygous within 420 and Col/Col homozygous outside (HET-HOM) (Figure 6—figure supplement 1). As expected, wild type HET-HOM lines show a significant increase in 420 and a reciprocal decrease in CEN3 crossovers compared to wild type HOM-HOM (both GLM p < 2.0 × 10−16) (Figure 6A,C), indicating compensatory changes between the two intervals in the HET-HOM lines. As the HET-HOM lines are heterozygous within 420, this again inhibited crossovers in fancm compared to fancm HOM-HOM (GLM p = 2.38 × 10−15) (Figure 6A,C). HET-HOM lines in fancm zip4 showed lower 420 crossovers than wild type HOM-HOM (GLM p < 2.0 × 10−16), which demonstrates that the interfering pathway is required for the heterozygosity-homozygosity juxtaposition effect (Figure 6A,C). We also generated HOM-HET lines that were homozygous within 420 and heterozygous outside, which significantly reduced 420 crossovers compared to wild type HOM-HOM as expected (GLM p = 7.60 × 10−11) (Figure 6A,D). HOM-HET lines in fancm and fancm zip4 showed high 420 crossovers comparable to HOM-HOM, as the non-interfering crossover repair active in these backgrounds is efficient in homozygous regions (Figure 6A,D). CEN3 genetic distance was again strongly suppressed in fancm and fancm zip4 HOM-HET lines compared with HOM-HOM (both GLM p < 2.0 × 10−16), consistent with heterozygosity inhibiting non-interfering crossover repair (Figure 6A,D). Together these data demonstrate that juxtaposition of heterozygous and homozygous regions causes reciprocal changes in crossover frequency via interference.

Total chiasmata are maintained when heterozygosity is varied

As we observed regional changes in crossover frequency with varying patterns of heterozygosity, we next sought to test whether total recombination events were different. When homologous chromosomes align on the metaphase-I plate, crossovers can be cytologically visualized as chiasmata (Sanchez-Moran et al., 2002). To estimate the number of crossovers per meiotic nucleus we performed chromosome spreads of pollen mother cells (PMCs), followed by fluorescence in situ hybridization using a 45S rDNA probe (Figure 7, Figure 7—source data 1). We counted total chiasmata in metaphase-I nuclei in Col/Col homozygotes, Ct/Ct homozygotes and Col/Ct F1 heterozygotes. In addition, we counted chiasmata in recombinant 420-CEN3 lines showing high (HET-HOM, 27.96 cM) and low (HOM-HET, 13.83 cM) 420 crossover frequency (Figure 7C,D). Adjacent chiasmata count categories were combined to give a minimum expected value of five for the purposes of a chi-square test with 8° of freedom. This test gave no significant differences in chiasmata between the genotypes (p = 0.3365) (Figure 7). Together this is consistent with homeostatic maintenance of crossover numbers, despite local crossover changes caused by juxtaposition of heterozygous and homozygous regions.

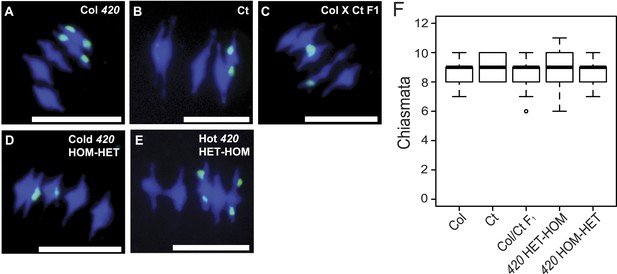

Total chiasmata frequencies are stable between Col, Ct and recombinant lines.

(AE) Metaphase-I chromosome spreads from anthers from (A) Col/Col 420, (B) Ct/Ct, (C) Col × Ct F1, (D) a Col × Ct 420 (HOM-HET) cold recombinant line and (E) a Col × Ct 420 hot (HET-HOM) recombinant line. DNA is stained with DAPI (blue) and labelled with a 45S rDNA probe (green). Scale bars = 10 μM. (F) Boxplot showing total number of chiasmata per nucleus for each genotype. See Figure 7—source data 1.

https://doi.org/10.7554/eLife.03708.033

Crossover interference increases in heterozygous regions

Our analysis of 420-CEN3 recombination rates implicated interference as driving crossover changes across homozygosity/heterozygosity junctions. We therefore sought to directly measure interference in lines with varying heterozygosity. We generated I3bc lines that varied in Col/Ct genotype and that were wild type, fancm, zip4 or fancm zip4 (Figure 8—figure supplement 1). We first compared I3bc plants that were Col/Col homozygous (HOM-HOM) with Col/Ct heterozygotes (HET-HET). In wild type, genetic distances did not significantly change between HOM-HOM and HET-HET (GLM p = 0.352 and p = 0.666), but crossover interference significantly increased (GLM p < 2.0 × 10−16) (Figure 8A,B, Figure 8—source data 1). Consistent with previous observations, fancm and fancm zip4 showed a significant reduction and an absence of interference respectively, in a HOM-HOM background (GLM p < 2.0 × 10−16 and p = 4.94 × 10−16) (Figure 8A, Figure 8—source data 2) (Crismani et al., 2012; Yelina et al., 2013). In HET-HET plants the crossover frequency increases seen in fancm and fancm zip4 were again greatly suppressed, or eliminated, relative to HOM-HOM, as observed previously for 420-CEN3 (GLM both p < 2.0 × 10−16) (Figure 8B). Unexpectedly, interference measurements significantly increased in both fancm and fancm zip4 mutants in a HET-HET background compared to HOM-HOM (GLM p < 2.0 × 10−16 and p = 4.94 × 10−16) (Figure 8B). We propose that in the absence of the ZMM pathway alternative repair pathways exist which are differentially sensitive to polymorphism and interference. Multiple, redundant repair pathways are consistent with the residual crossovers observed in msh4 mus81 double mutants (Higgins et al., 2008b). Finally, we measured I3bc cM in zip4 mutants alone (HOM-HOM) and observed significantly decreased crossovers compared with wild type HOM-HOM (GLM p < 2.0 × 10−16) (Figure 8E, Figure 8—source data 1). Importantly, zip4 genetic distances were further significantly reduced when comparing HOM-HOM to HET-HET backgrounds (GLM p = 1.79 × 10−10 and p = 1.53 × 10−9) (Figure 8E). This provides additional evidence that the non-interfering repair pathway remaining in zip4 is inefficient in heterozygous regions. Interference measurements using I3bc are reliant on the relatively rare double crossover classes (N-Y- + NB-R) (Figure 5A). Due to low zip4 fertility it was difficult to obtain sufficient DCO counts to make reliable interference measurements, although the observed counts are consistent with an absence of interference in this mutant (Figure 8—source data 4).

Figure 8 with 1 supplement see all

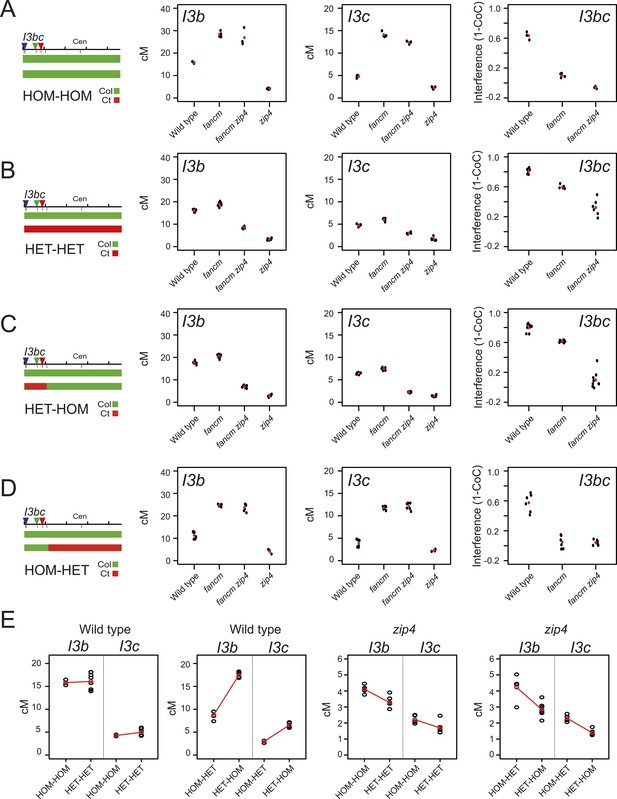

Crossover interference increases when heterozygous and homozygous regions are juxtaposed.

(AD) Replicate measurements of I3b and I3c genetic distances (cM), and I3bc crossover interference are plotted in wild type, fancm, fancm zip4 and zip4. Black dots represent replicate measurements with mean values indicated by red dots. Chromosome 3 genotypes of the plants analysed are indicated above the plots (green = Col and red = Ct), for example, HET-HOM indicates heterozygous within I3bc and homozygous outside. See Figure 8—source data 1, 2. (E) I3b and I3c genetic distances (cM) are plotted in wild type and zip4 mutants with varying patterns of heterozygosity, labelled as for (AD). Mean values between samples are connected with red lines. See Figure 8—source data 3, 4.

https://doi.org/10.7554/eLife.03708.035

To test the effects of heterozygosity/homozygosity juxtaposition we next generated lines that were Col/Ct heterozygous within I3bc and Col/Col homozygous outside (HET-HOM). As expected, wild type I3b and I3c genetic distances both significantly increase in HET-HOM lines relative to HOM-HOM (GLM both p < 2.0 × 10−16), consistent with our previous 420 experiments, and this was associated with a significant increase in crossover interference (GLM p < 2.0 × 10−16) (Figure 8A,C). As shown earlier, we observed that Col/Ct (HET-HOM) heterozygosity suppressed the crossover increases seen in fancm and fancm zip4 (GLM p < 2.0 × 10−16), with the same significant increases in crossover interference strength (GLM p < 2.0 × 10−16 and p = 4.94 × 10−16) (Figure 8A,C). The reciprocal situation was observed in HOM-HET plants where I3bc was Col/Col homozygous and the rest of the chromosome Col/Ct heterozygous. I3b and I3c genetic distances were significantly decreased in wild type HOM-HET compared with wild type HOM-HOM plants (GLM both p < 2.0 × 10−16) (Figure 8A,D). HOM-HET fancm and fancm zip4 plants showed high crossovers, as the non-interfering pathway is efficient in the homozygous I3bc interval (Figure 8A,D). We also generated HET-HOM zip4 lines, which unlike wild type showed significantly lower I3b and I3c cM than HOM-HOM zip4 (GLM both P= p < 2.0 × 10−16) (Figure 8E). This again demonstrates that crossover remodelling at heterozygosity/homozygosity junctions requires interference and that non-interfering repair is inefficient in heterozygous regions.

As an independent test of the effect of heterozygosity on crossover interference we analysed four three-colour FTL intervals distributed throughout the genome (Figure 1A and Table 2). We measured crossover frequency and interference in Col/Col homozygotes vs Col/Ler F1 heterozygotes using meiotic pollen tetrads (Tables 8, 9). This approach is possible as the FTL crossover reporter system was generated in the qrt1-2 mutant background, where sister pollen grains remain physically attached as meiotic tetrads (Berchowitz and Copenhaver, 2008). We scored a total of 49,801 tetrads for Col/Col (an average of 6225 per interval) and 42,422 tetrads for Col/Ler (an average of 5302 per interval) (Tables 8, 9). Compared to Col/Col, genetic distance significantly decreased in Col/Ler for six of the eight intervals measured and the remaining two intervals were not significantly changed (Table 8). To calculate interference strength we compared cM values in each interval from tetrads that had a crossover in the adjacent interval, to the same intervals in tetrads lacking a crossover in the adjacent interval, and detected significant positive interference in all cases (Table 9) (Berchowitz and Copenhaver, 2008). The resulting interference ratios were then compared between Col/Col and Col/Ler using Fisher's combined probability test, which revealed a significant increase in interference strength in Col/Ler (χ2.001[16] = 39.26) (Table 9). Therefore, the effect of heterozygosity increasing the interference strength is evident in both Col × Ct and Col × Ler crosses.

Table 8

Tetrad FTL cM data in Col/Col and Col/Ler backgrounds

https://doi.org/10.7554/eLife.03708.041
Col/ColCol/Ler
IntervalPDNPDTcM*PDNPDTcM*
1b397637428.05 ± 0.29439526526.58 ± 0.25
1c302211169518.62 ± 0.04315618189119.73 ± 0.04
2a678724303.06 ± 0.15592002832.28 ± 0.13
2b658226354.48 ± 0.18579604073.28 ± 0.16
3b436322255719.37 ± 0.3527582105613.99 ± 0.38
3c618557365.53 ± 0.21357622383.28 ± 0.22
5c535616665.58 ± 0.21545806765.51 ± 0.20
5d535816645.56 ± 0.21554025944.94 ± 0.20
  1. *

    Map distance in cM (±S.E.).

  2. Significant difference in map distance in the heterozygous Col/Ler background compared to the same interval in the Col/Col homozygous background.

Table 9

Tetrad FTL crossover interference data in Col/Col and Col/Ler backgrounds

https://doi.org/10.7554/eLife.03708.042
Col/ColCol/Ler
IntervalW/o adj. CO*w/ adj. CO*R1W/o adj. CO*w/ adj. CO*R2
1b10.69 ± 0.403.31 ± 0.303.239.78 ± 0.371.22 ± 0.188.04§
1c20.61 ± 0.457.92 ± 0.762.622.13 ± 0.463.52 ± 0.506.29§
2a3.20 ± 0.161.18 ± 0.302.752.42 ± 0.140.37 ± 0.216.55
2b4.65 ± 0.191.74 ± 0.442.683.41 ± 0.160.53 ± 0.306.44
3b20.84 ± 0.376.95 ± 0.822.314.73 ± 0.402.92 ± 0.765.05
3c7.65 ± 0.301.90 ± 224.034.28 ± 0.300.66 ± 0.186.46
5c5.87 ± 0.233.23 ± 0.471.825.85 ± 0.222.35 ± 0.432.49
5d5.85 ± 0.233.22 ± 0.481.825.29 ± 0.222.07 ± 0.382.56
  1. *

    Map distances in cM (±S.E.) for intervals with and without adjacent crossovers (CO).

  2. Ratios of map distances for intervals with and without adjacent crossovers in homozygous Col/Col (R1) and heterozygous Col/Ler (R2) backgrounds.

  3. Significant difference in map distances in intervals when adjacent interval does or doesn't have a CO.

  4. §

    Significant difference between R2 and R1.

Discussion

We demonstrate reciprocal crossover increases and decreases when heterozygous and homozygous regions are juxtaposed and further demonstrate that this process requires crossover interference. The mechanism of interference is presently unclear, but a Beam-Film model has been developed where crossovers are patterned via forces similar to mechanical stress and which predicts experimental data (Kleckner et al., 2004; Zhang et al., 2014a, 2014b). In this model each chromosome begins with an array of precursor interhomolog strand invasion events, one of which becomes crossover designated via a stress-related force (Designation Driving Force DDF). This causes a local reduction and redistribution of stress in both directions that dissipates with increasing distance (Kleckner et al., 2004; Zhang et al., 2014a, 2014b). At the point where stress increases sufficiently precursor events can again become crossover designated. Any remaining precursors then mature into other fates including non-crossovers and non-interfering crossovers (Kleckner et al., 2004; Zhang et al., 2014a, 2014b).

We considered the effect of juxtaposition of heterozygous/homozygous regions in the context of the Beam-Film model (Kleckner et al., 2004; Zhang et al., 2014a, 2014b). Detection of heterozygosity most likely occurs downstream of interhomolog strand invasion and the formation of base pair mismatches. Therefore, we assume that the initial distribution of meiotic DSBs is unchanged in homozygous or heterozygous states. Mismatches are observed to have a local inhibitory effect on meiotic crossovers (Dooner, 1986; Borts and Haber, 1987; Jeffreys and Neumann, 2005; Baudat and de Massy, 2007; Cole et al., 2010). Therefore, one possibility is that mismatched precursors in heterozygous regions are slowed in maturation and trigger feedback mechanisms that cause further DSBs, for example via ATM/ATR kinase signalling (Carballo et al., 2008; Lange et al., 2011; Zhang et al., 2011; Kurzbauer et al., 2012; Garcia et al., 2015). As a consequence, heterozygous regions would receive more ‘late’ DSBs, leading to more precursors and a higher chance of receiving a crossover designation event. An increased chance of crossover designation would lead to spreading of interference into adjacent homozygous regions causing reciprocal crossover decreases. An alternative model is that mismatched precursors are more sensitive to crossover designation and thus heterozygous regions have a higher chance of an interfering crossover, leading to similar effects. These potential models could be distinguished by measurement of non-crossover (NCO) levels, which should increase in heterozygous regions if more DSBs occur. Our data also demonstrate that non-interfering repair is less efficient in heterozygous regions, which will further contribute to the changes we see across homozygosity/heterozygosity junctions.

Sequence polymorphism has been observed to suppress crossover recombination at the hotspot (kilobase) scale in diverse eukaryotes (Dooner, 1986; Borts and Haber, 1987; Jeffreys and Neumann, 2005; Baudat and de Massy, 2007; Cole et al., 2010). For example, at the mouse A3 hotspot an indel polymorphism within an inverted repeat overlaps a crossover refractory zone (Cole et al., 2010). However, this zone forms significant numbers of non-crossovers, indicating that the repeat/indel does not inhibit DSB formation, but inhibits downstream progression to crossover recombination (Cole et al., 2010). In yeast addition of SNPs to the MAT-URA3 hotspot decreased crossovers and increased the frequency of gene conversions, further indicating that polymorphism can inhibit crossovers at fine-scale (Borts and Haber, 1987). Finally, intragenic mapping of the maize Bronze hotspot demonstrated that transposon insertions suppress crossovers more strongly than single nucleotide changes (Dooner, 1986; Fu et al., 2001; Dooner and He, 2008), again consistent with progression to crossover repair being inhibited by local sequence polymorphisms. Several heteroduplex joint molecules with distinct properties form during meiosis, including displacement-loops and dHJs (Keeney and Neale, 2006). It is possible that these joint molecules and their interactions with recombinases are sensitive to base-pair mismatches. The mismatch repair protein MutS directly recognizes mismatched base-pairs and serves as a paradigm for this type of function (Lamers et al., 2000; Obmolova et al., 2000).

The reciprocal crossover changes we observe when heterozygous regions are juxtaposed with homozygous regions are reminiscent of other homeostatic effects characterized during meiosis (Hillers and Villeneuve, 2003; Martini et al., 2006; Robine et al., 2007; Libuda et al., 2013; Thacker et al., 2014). For example, multiple levels of interference have been detected in mice (de Boer et al., 2006; Cole et al., 2012), Zip3 foci with distinct timing and properties are observed in budding yeast (Serrentino et al., 2013), and ‘upstream’ DSB patterns are altered in ‘downstream’ ZMM mutants (Thacker et al., 2014). As plants, fungi and mammals share the presence of interfering and non-interfering crossover repair pathways similar effects over heterozygosity/homozygosity junctions may be generally important (Stahl et al., 2004). However, when assessing the significance of such effects it is also important to consider how outcrossing vs selfing will influence patterns of homozygosity and heterozygosity within different species. Together our data show how varying patterns of sequence polymorphism along chromosomes can have a significant effect on distributions of meiotic recombination.

Materials and methods

Measuring crossovers using two-colour fluorescence microscopy of seed and flow cytometry of pollen

Flow cytometry of pollen can be used to rapidly measure meiotic segregation of heterozygous transgenes encoding distinct colours of fluorescent protein (Yelina et al., 2012, 2013). cM were calculated from flow cytometry data using the formula:

cM=100×(R5/(R3+R5)),

Where R5 is a number of green-alone fluorescent pollen grains and R3 is a number of green and red fluorescent pollen grains (Yelina et al., 2012, 2013). We previously observed that the number of red-alone pollen exceeded that of green-alone pollen when lines heterozygous for both eYFP and dsRed (eYFPDsRed/++) were analysed (Yelina et al., 2012, 2013). Using pulse-width/SSC (side scatter) analysis and back-gating we demonstrated that the excess counts come primarily from non-hydrated pollen (Yelina et al., 2012, 2013). Therefore to avoid this artifact we multiply the green-alone counts by two to obtain the number of recombinant pollen.

To increase measurement throughput using fluorescent seed we adapted CellProfiler image analysis software (Carpenter et al., 2006) (Figure 2). This program identifies seed boundaries in micrographs and assigns a RFP and GFP fluorescence intensity to each seed object (Figure 2A–B). Three pictures of the seed are acquired at minimum magnification (×0.72) using a charge coupled device (CCD) camera; (i) brightfield, (ii) UV through a dsRed filter and (iii) UV through a GFP filter (Figure 2A). As seed are diploid, there are nine possible fluorescent genotypes when a RFP-GFP/++ heterozygote is self-fertilized, in contrast to four possible states for haploid pollen (Yelina et al., 2013) (Figure 2E). Histograms of seed fluorescence can be used to classify fluorescent and non-fluorescent seed for each colour (Figure 2C–D). Although it is possible to distinguish seed with one vs two T-DNA copies, there is greater overlap between the groups (Figure 2C–E). Therefore, we use fluorescent vs non-fluorescent seed counts for crossover measurement. Using this method it is possible to score 2000–6000 meioses per self-fertilized individual. When plants have been self-fertilized, genetic distance is calculated using the formula:

cM=100×(1[12(NG+NR)/NT]1/2),

Where NG is a number of green-alone fluorescent seeds, NR is a number of red-alone fluorescent seed and NT is the total number of seeds counted. During generation of 420/++ F2 populations we selected for individuals that are heterozygous for transgenes expressing red and green fluorescent proteins (RFP-GFP/++). The majority of these individuals receive a chromosome with linked RFP and GFP transgenes over a non-transgenic chromosome (RFP-GFP/++) (Figure 2—figure supplement 1). In a minority of cases F2 plants receive recombined RFP-+ and +-GFP chromosomes (Figure 2—figure supplement 1). In the progeny of these individuals the fluorescent seed classes representing parental and crossover genotypes are reversed (Figure 2—figure supplement 1). As R+/+G plants also have variable heterozygosity/homozygosity patterns within 420 depending on crossover positions we excluded these plants from further analysis.

To test whether recombinant and non-recombinant counts were significantly different between replicate groups we used a GLM. We assumed the count data is binomially distributed:

YiB(ni,pi),

where Yi represents the recombinant counts, ni are the total counts, and we wish to model the proportions Yi/ni. Then:

E(Yi/ni)=pi,

and

var(Yi/ni)=pi(1pi)ni.

Thus, our variance function is:

V(μi)=μi(1μi),

and our link function must map from (0,1) → (−∞, ∞). We used a logistic link function which is:

g(μi)=logit(μi)=logμi1μi=βX+εi,

where ειN(0,σ2). Both replicates and genotypes are treated as independent variables (X) in our model. We considered p values less than 0.05 as significant.

Measuring crossovers and interference using three-colour flow cytometry of pollen

Measurements of interference within the I3bc interval were carried out as described previously with minor modifications (Yelina et al., 2013). Inflorescences were collected in polypropylene tubes and pollen was extracted by vigorous shaking in 30 ml of freshly prepared pollen sorting buffer (PSB: 10 mM CaCl2, 1 mM KCl, 2 mM MES, 5% wt/vol sucrose, 0.01% Triton X-100, pH 6.5). The pollen suspension was filtered through a 70 µM cell strainer to a fresh 50 ml polypropylene tube and centrifuged at 450×g for 3 min. The supernatant was removed and the pollen pellet washed once with 20 ml of PSB without Triton. The pollen suspension was centrifuged at 450×g for 3 min and the supernatant discarded and the pollen pellet resuspended in 500 µl of PSB without Triton. A CyAn ADP Analyser (Beckman Coulter, California, USA) equipped with 405 nm and 488 nm lasers and 530/40 nm, 575/25 nm and 450/50 nm band-pass filters was used to analyse the samples. Polygons were used for gating pollen populations and for each sample eight pollen class counts were obtained (Figure 5—figure supplement 1). I3b and I3c genetic distances were calculated using the following formula:

Ntotal=(N-Y-+NB-R+N-YR+NB--+NBY-+N--R+NBYR+ N---)
I3b cM=(N-Y-+NB-R+N-YR+NB--)/Ntotal
I3c cM=(N-Y-+ NB-R+NBY-+N--R)/Ntotal,

where N-Y-, NB-R, N-YR, NB--, NBY-, N--R, NBYR, and N--- are pollen grain counts in each of the eight populations (Figure 5—figure supplement 1). For example, NBYR is the number of pollen that were blue, yellow and red fluorescent.

Crossover interference was calculated using the following formulas:

Observed DCOs=(N-Y-+NB-R),
Expected DCOs=(I3b cM/100)×(I3c cM/100)×Ntotal,
Coefficient of Coincidence=Observed DCOs/Expected DCOs,
Interference=1CoC.

At least three biological replicates, constituting 3–5 individual plants were analysed for each sample (Yelina et al., 2013). Statistical tests for genetic distances were performed as described above using a GLM. To test for significant differences in interference we compared observed and expected double crossovers using the same approach.

Generation of fancm and fancm zip4 Col/Ct mapping populations with varying heterozygosity

Col-0 420 and Ct-1 lines were crossed to fancm-1 zip4-2 double mutant lines in the Col-0 background (Crismani et al., 2012) (Figure 6—figure supplement 1). The resulting F1 plants were crossed together and progeny identified that were fancm zip4 heterozygous, and 420/++ Col/Ct heterozygous on chromosome 3. Chromosome 3 genotypes were tested in all cases using 13 Col/Ct indel markers (Supplementary file 1). These plants were self-fertilized and 420 homozygous individuals identified (all seed were red and green fluorescent) that were also Ct homozygous outside of 420 and that were fancm zip4 heterozygous (Figure 6—figure supplement 1 and Figure 8—figure supplement 1). These plants were then crossed to CEN3 or I3bc in wild type, fancm and fancm zip4 mutants to obtain scorable progeny with a HOM-HET genotype (Figure 6—figure supplement 1). The selfed progeny of 420/++ Col/Ct fancm zip4 heterozygous plants were also selected for plants with no fluorescent T-DNAs and either chromosome 3 in a Ct homozygous state, or with Ct homozygosity within 420 and Col homozygosity outside (Figure 6—figure supplement 1). These plants were crossed with doubly marked 420-CEN3 or I3bc lines in either wild type, fancm or fancm zip4 mutant backgrounds to obtain HET-HET and HET-HOM scorable plants respectively (Figure 6—figure supplement 1 and Figure 8—figure supplement 1). Equivalent genetic crosses were performed during analysis of I3bc (Figure 8—figure supplement 1). At least three independent lines were generated and analysed for each combination, apart from HOM-HET 420-CEN3 where two were analysed.

To genotype zip4-2 (Salk_068052) the following primers were used:

zip4-2-F 5′-TTGCTACCTTGGGCTCTCTC-3′

zip4-2-R 5′-ATTCTGTTCTCGCTTTCCAG-3′

LBb1.3 5′-ATTTTGCCGATTTCGGAAC-3′

The resulting PCR products were ∼680 bp for wild type (zip4-2-F + zip4-2-R) and ∼340 bp for zip4-2 mutant (zip4-2-F + Lbb1.3) (Crismani et al., 2012).

To genotype the fancm mutation we amplified using the following primers:

fancm1dCAPsF1 5′-ACAATATATGTTTCGTGCAGGTAAGACATTGGAAG-3′

fancm1dCAPsR1 5′-CACCAATAGATGTTGCGACAAT-3′

The resulting PCR product was digested with MboII, which yields a ∼215 bp product for wild type and ∼180 bp for fancm (Crismani et al., 2012).

Chiasmata counting

Chiasmata counting was performed as previously described (Sanchez-Moran et al., 2002).

References

  1. 1
    Reduced variation in the yellow-achaete-scute region in natural populations of Drosophila melanogaster
    1. M Aguade
    2. N Miyashita
    3. CH Langley
    (1989)
    Genetics 122:607–615.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
    Crossover interference in Arabidopsis
    1. GP Copenhaver
    2. EA Housworth
    3. FW Stahl
    (2002)
    Genetics 160:1631–1639.
  30. 30
  31. 31
  32. 32
  33. 33
    Genetic fine structure of the BRONZE locus in maize
    1. HK Dooner
    (1986)
    Genetics 113:1021–1036.
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    Deleterious background selection with recombination
    1. RR Hudson
    2. NL Kaplan
    (1995)
    Genetics 141:1605–1617.
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
    The molecular biology of meiosis in plants
    1. R Mercier
    2. C Mézard
    3. E Jenczewski
    4. N Macaisne
    5. M Grelon
    (2014)
    Annual Review of Plant Biology, 10.1146/annurev-arplant-050213-035923.
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
    Variation in chiasma frequency among eight accessions of Arabidopsis thaliana
    1. E Sanchez-Moran
    2. SJ Armstrong
    3. JL Santos
    4. FC Franklin
    5. GH Jones
    (2002)
    Genetics 162:1415–1422.
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
  106. 106
  107. 107
  108. 108
  109. 109
    Analysis of a genetic hitchhiking model, and its application to DNA polymorphism data from Drosophila melanogaster
    1. TH Wiehe
    2. W Stephan
    (1993)
    Molecular Biology and Evolution 10:842–854.
  110. 110
  111. 111
  112. 112
  113. 113
  114. 114
  115. 115
  116. 116
  117. 117
  118. 118

Decision letter

  1. Detlef Weigel
    Reviewing Editor; Max Planck Institute for Developmental Biology, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

[Editors’ note: this article was originally rejected after discussions between the reviewers, but the authors were invited to resubmit after an appeal against the decision.]

Your full submission, “Heterozygosity promotes interfering and inhibits non-interfering crossovers during Arabidopsis meiotic recombination”, has been evaluated by Detlef Weigel (Senior editor), a Reviewing editor, and two peer reviewers, and the decision was reached after discussions between the reviewers. We regret to inform you that your work will not be considered further for publication.

There were two types of concerns. First, the reviewers were not convinced that heterozygosity generally increases crossovers (independently of genetic background and physical location in the genome), and that crossovers were recruited from homozygous regions of the genome to adjacent heterozygous regions. Similarly, the reviewers found that the mutant analysis was not fully developed. Second, there was agreement that, while your findings are provocative, they are not appropriately framed vis à vis alternative explanations for the observed relationships between recombination rates and diversity along genomes.

Reviewer #1:

The authors argue that recombination may be recruited from homozygous regions to nearby heterozygous regions. Overall I found the results interesting but I have some significant concerns about the presentation and interpretation of the results.

One of my major concerns about the article is that the authors frame it as a possible explanation for the positive correlation between crossover frequency and diversity that is seen across a number of the species examined to date. However, there is relatively good support, in population genetics literature, for the idea that this pattern reflects the fact that linked selection (e.g. hitchhiking and background selection) have effects over relatively large physical regions in regions of low crossing over (see Cutter and Payseur 2013). The authors do not seem to mention this dominant, and relatively well supported, group of hypotheses and instead seem to frame the positive correlation as an empirical observation in search of a mechanistic hypothesis (that they provide). Obviously these hypotheses are not mutually exclusive, and so this does not rule out the idea that the authors' mechanistic explanation could also play a role. The authors need to be much clearer about the background to these observations, if they are to contribute to the larger debate about determinants of levels of polymorphism.

Along these lines it is not totally clear to me whether the observations could possibly explain a bulk of the correlation between recombination and polymorphism in many species. Much of the broad variation in recombination rates, in many systems, is explained by proximity to centromeres and telomeres (presumably a mechanistic constraint). Thus a lot of the variation in broad-scale recombination rates is not tied to polymorphism, but rather to large-scale chromosomal architecture. Once again the authors' proposed mechanism could contribute to the strength of the correlation, but this argument does suggest that this contribution may be somewhat minor.

The authors state, in the Abstract, that “using recombinant populations we show that heterozygous regions attract crossovers from homozygous regions on the same chromosome at the megabase scale”, and in one of the subsection of the Results that “Heterozygosity recruits crossovers over homozygous regions”.

I apologize if I've missed something, but I do not think the authors’ results actually demonstrate this. To my reading of these statements it sounds like the authors are saying that the extra recombination events in heterozygous regions come at the expense of fewer recombination events in the homozygous regions. But I do not see any results supporting for the second part of this statement, i.e. measuring recombination rates in homozygous regions. The authors' statements are one possible explanation of the results, but another is that the homozygous regions promote recombination with no “cost” to themselves. The authors may have evidence in favor of their hypothesis, perhaps this is the argument being made in the subsection headed “Differential sensitivity of interfering and non-interfering crossover repair to polymorphism”, but I found it hard to follow.

One concern I had was that recombination may be increased over broad chromosomal regions due to homozygosity in a specific region, because the individual would have reduced heterozygosity for structural rearrangements. This increase in recombination would not be associated with either parental allele, but with homozygosity itself. Presumably the authors have thought this through, and perhaps these lines are known to have no structural variation of suitable size in these regions, but it is worth clarifying this point.

At the end of the subsection headed “Modification of crossover frequency by Arabidopsis natural variation”, the authors state: “therefore, in many cases heterozygosity promotes Arabidopsis recombination relative to homozygosity, which is inconsistent with a purely suppressive effect of polymorphism.” I don't think this is correct as stated. The authors have shown that when Col is crossed to other lines the F1s sometimes have higher recombination rates than Col homozygotes. However, this could be because the other lines crossed to harbor recombination modifiers that increase recombination rates. For the authors claim that heterozygosity promotes recombination to be true they would need to show that the F1s often have higher recombination rates than either of the parental lines.

Reviewer #2:

This paper presents evidence for three conclusions.

1) In one well-studied test interval, in a particular heterozygous state, the frequency of crossovers is higher when the region adjacent to the test interval is homozygous rather than heterozygous. This is a “cis” effect. This is shown in Figure 4 and in the non-mutant background of Figure 7 (compare panels A and C).

There are some limitations to this observation. First, it is shown for only one interval. Second, interval is sub-telomeric and thus likely not to be representative of most of the genome. Third, it is shown for only one pair of lines (Col vs. Ct).

It is also important to note that in this test interval, there is no difference in crossover level between the homozygous and full F1 hybrid strains (Figure 7 compare panels A and B in the non-mutant case). Thus, there is no general effect of heterozygosity to increase the number of crossovers. This is also seen in the overall evaluation of Col/Col vs Col/Ct F1's. Thus, the identified phenomenon is some type of unusual cis interaction which may or may not be widely general.

The basis for this cis interaction proposed by the authors does not seem to make sense to me. This is in part because it seems to invoke result (2) below in an inappropriate way and in part because the statement is made that crossovers are “recruited” from homozygous regions. But this conclusion cannot be drawn. There was no analysis of the effects of a heterozygous region on a flanking homozygous region.

It seems that this conclusion of some type of “competition” between homozygous and heterozygous regions is drawn largely from Figure 6. But the results in this Figure do not support this conclusion. What this figure shows is that when the test region is homozygous and the flanking region is heterozygous, the level of crossovers is reduced in the test region as compared to the case where the test region is heterozygous and the flanking region is homozygous. This does not imply that there is a reciprocal effect of heterozygosity to reduce crossovers in the homozygous region. There is no control to show what the frequency of crossovers is in a fully homozygous case where there is no heterozygous region adjacent to the test region. There is also no control to show what happens if the Col/Col homozygous test region is flanked by the same homozygous region as when the test region is heterozygous (i.e. Ct/Ct).

Finally, the authors suggest that the cis phenomenon is general because some F1 hybrid strains show higher levels of recombination than one particular reference homozygous strain. However, this finding is just as easily explained by general genetic background effects on the recombination process rather than anything to do with heterozygosity at the DNA level, as the authors admit. Thus, this is not really supporting evidence.

2) The authors show that heterozygosity is accompanied by a change in the sensitivity of crossovers to fancm and zip4 mutations. The analysis is not rigorously correct because there was no test of a zip4 mutation by itself; the only test was in a fancm zip4 background.

The most important point is that this is a general characteristic of heterozygosity: it is observe in a pure F1 hybrid. Thus there is no reason to link this phenomenon to the cis effect, as the authors seem to do.

A second important point is that the total frequency of crossovers in the F1 hybrid is the same as in the homozygous reference strain. Thus, there is no “recruitment of crossovers” as the authors also seem to suggest.

Finally, comparison implies a likely situation is that there is a change in the proportion of recombination events that are “interfering crossovers” and versus crossovers that arise as a minority population from the “non-crossover” pathway. To put it another way, in the wild type case, there is an increase in crossovers and a decrease in non-crossovers (more of which turn into crossovers in fancm than in wild type). The basis for this effect is unclear. However, it is strongly reminiscent of crossover homeostasis where a reduction in DSBs leads to a differential loss of non-crossovers as compared to crossovers. Since it is unlikely that heterozygosity will be recognized at the DSB level (although this is not totally excluded given diverse indications of trans effects on DSBs in yeast), it would instead imply that there is a reduced chance that a DSB actually giving a recombination intermediate that could lead to a crossover or non-crossover. This is entirely possible since heterozygosity could be sensed at the time of establishment of such an interaction or concomitant with crossover/non-crossover decision making.

3) The authors show that an F1 hybrid appears to have increased crossover interference as compared to the homozygous reference strain. There are two problems with this result and linking it to other results. First, this is a different hybrid from the one tested for all other phenomena. Second, there is no evidence that this effect is the result of heterozygosity at the DNA level rather than some trans-acting strain background effect. Third, in this hybrid the total crossover level is lower than in the reference homozygote; thus, this is not related to the finding that F1 hybrids can exhibit higher levels of recombination.

That being said: there is a possible way that this result could be relevant to the sub-telomeric effect described above. In Arabidopsis, as in several other organisms, interference distance goes with physical chromosome length. Thus, in the hybrid, increased interference per Mb (which is what is assayed) could result from a decrease in physical chromosome length. Furthermore, the cis effect described in the results in prior sections could be explained if the longer length characteristic of the homozygous region can spread into the adjacent sub-telomeric region, thus increasing physical length, decreasing interference per Mb and thus increasing crossovers per Mb.

Given the above considerations, the statements in the Summary need some amendment, as follows:

A) “We… found hybrids with higher recombination than homozygotes, demonstrating that polymorphism can promote crossovers”. If this is a reference to the finding of F1 hybrids with higher recombination, it is not accurate. There is no basis for the conclusion that the higher recombination is due to DNA polymorphism rather than trans-acting genetic effects. The cis effect is not evidence. Moreover, in the Col/Ct F1 hybrid used for most of the analysis, recombination frequencies are generally not higher than in Col/Col and in the Col/Ler hybrid used for interference analysis, recombination frequencies are lower than in the Col/Col homozygote.

B) “Using recombinant populations we show that heterozygous regions attract crossovers from homozygous regions on the same chromosome at a megabase scale”. This is definitively not shown by these data (see discussion in point 1 above).

C) “We demonstrate that this polymorphism cis-effect is dually mediated by promotion of interfering crossovers and inhibition of non-interfering crossovers in heterozygous regions”. This is not correct. As discussed in detail for point (2) above, the changes in interfering and non-interfering crossovers are not specific to the cis effect: they are a general feature of the heterozygous cases analyzed (even assuming no general genetic background issues). Furthermore, the observation does not imply two mechanistically distinct effects as the above statement suggests. Rather, there is a change in the distribution of undifferentiated recombination intermediates into crossover versus non-crossover outcomes.

D) “This reveals an unanticipated mechanism whereby DNA polymorphism can recruit crossovers, contribute to positive correlations between recombination and diversity and influence the action of selection.” For this reviewer, there is no positive correlation between recombination and diversity shown in this paper, as described in detail above. The F1 hybrid data are not evidence. Hybrids can have higher or lower levels than a particular reference homozygote. A F1 hybrid strain shows a higher proportion of interfering crossovers among total crossovers but no difference in total crossover levels. And the one case in which crossover levels are increased in a heterozygous region is not shown to involve “recruitment” of crossovers to the heterozygous region from a homozygous region. There is a cis effect in which presence of an adjacent homozygous region increases crossovers in the heterozygous test region, but this is an increase above the level seen in the heterozygous region in the pure F1 hybrid, so it does not represent a simple effect of DNA polymorphism. Finally, there is no mechanism revealed. There is the finding that F1 hybrids have altered crossover/non-crossover ratios, but this does not increase the overall level of crossovers, so the “mechanism” alluded to does not increase crossing-over.

E) The Discussion culminates with the following point:

“We propose that detection of sequence mismatches occurs during strand invasion or heteroduplex/dHJ formation and differentially inflluences the activity of interfering and non-interfering recombination proteins coincident with crossover/non-crossover repair choice. Therefore, as interfering and non-interfering repair pathways compete for DSBs, their activities are simultaneously modulated by heterozygosity, causing the cis effect.”

There are several problems, touched on above, which converge here. (i) There is not really a competition between interfering and non-interfering pathways. There is a crossover designation process and the leftovers become mostly non-crossovers but occasionally become crossovers, and the level of those latter crossovers are increased by fancm (as the authors of the fancm study state). (ii) Most importantly, the relevant effect does not cause the cis effect—it is seen in a pure F1 hybrid. The cis effect must come from something else. (iii) There is no reason to think that the crossover/non-crossover choice is made during dJH formation; all that can happen at this stage is that the process can be degraded to give fewer crossovers and more non-crossovers, which is the opposite of the effect observed here.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled “Heterozygosity promotes interfering and inhibits non-interfering crossovers during Arabidopsis meiotic recombination” for further consideration at eLife. Your revised article has been favorably evaluated by Detlef Weigel (Senior editor) and three reviewers. The manuscript is improved, but there are still concerns whether your interpretation of the data goes too far. Therefore, we are asking you to rewrite the manuscript as much as possible to be a fair description of the unsuspected phenomena, without making too many claims regarding crossovers being attracted from one kind of region to another. In other words: please accommodate the reviewers' comments as much as possible. We realize that there are differences in interpretation of the data between you and specifically reviewer 2, but we felt that the phenomenon is important enough that it deserves prominent publication. One of our board members also stated that the “phenomenon is interesting, but the point is not to find a model (it does not add much to invoke the beam film model, since there is no way to know if it is late DSBs and/or mismatches, and the authors are certainly far from understanding the molecular mechanism) but to validate the general principle.”

Detlef Weigel has made specific comments in the manuscript, as attached.

Reviewer #1:

Over all I found the manuscript to be much improved in terms of it presentation of its results, and the addition of the new analyses made the findings a more general statement of the effect of heterozygosity on recombination patterns. I note, however, that the other reviewer's original concerns were much more substantive than mine. As such, I view their opinion as carrying more weight than mine in this appeal.

The last paragraph of the Discussion is problematic:

“We propose that the biological function of the heterozygosity cis-effect is to recruit crossovers to variable regions of the chromosomes, acting as a feed-forward mechanism to increase diversity.”

“… meiotic recombination has been selected to promote…”

Arguments about the evolution of recombination modulators are very slippery (as recombination unlinks the fate of the modifier and the recombinant haplotype it creates). As such these proposals are unsupported speculation, perhaps changing “propose” to “speculate” would help. Arabidopsis thaliana has not been a selfing lineage for very long (like most selfers), and the authors' argument does not seem super convincing evolutionary mechanism for outcrossers (as homozygosity runs will be broken up across generations, by segregation). So their explanation seems somewhat shaky.

In outbred organisms very long blocks of homozygosity are rare. The authors should caution that they know little about how long a block of homozygosity is needed to promote this effect, so the importance of this effect in other systems (e.g. mammals) is unclear.

In general the authors have done a better job of acknowledging other likely contributors to the recombination/heterozygosity relationships. Except for:

“However, the cis-effect is unlikely to explain all of this relationship and genetic hitchhiking, background selection and recombination associated mutagenesis may play important roles”.

The contribution of these other effects has been subject to quantitative investigation for over a decade. While the authors’ findings are very interesting, it is a disservice to use “all” and “may” in this way. I'd say that the contribution of linked selection is much more established than their mechanism, and should be acknowledged as such.

Reviewer #2:

Suggestion:

Title: Adjacent homozygous and heterozygous regions reciprocally enhance and suppress crossing-over in an interference-mediated process.

Summary: Analysis of meiosis in mosaically-hybrid Arabidopsis lines reveals that a heterozygous region suppresses crossing-over in an adjacent homozogous region while, reciprocally, the homozygous region increases crossing-over in the adjacent heterozygous region. This interplay requires crossover interference: it is absent in a fancm zip4 background where crossovers occur but interference is absent. Two new features specific to recombination in heterozygous regions are also revealed: an effective increase in crossover interference and a decreased effect of a fancm mutation, which normally increases crossovers that do not exhibit interference. Potential mechanisms and evolutionary implications are discussed.

Part I. Summary. The authors have identified an interesting phenomenon that takes place at the junctions between homozygous and heterozygous regions, particularly when one of the involved regions is sub-telomeric: the frequency of recombination (crossing-over) in the homozygous region goes down while the frequency of recombination in the heterozygous region goes up (relative to the fully homozygous and fully heterozygous cases, respectively). This phenomenon implies reciprocal interplay between the two regions. This phenomenon applies specifically to junction regions. Fully heterozygous regions exhibit almost the same recombination frequency as fully homozygous regions, at least in the situation examined here. This could be of genetic/evolutionary significance, although that would depend, particularly since the role of crossing-over for evolution is hotly debated. It is not 100% clear whether the phenomenon applies generally throughout the genome and/or why it is particularly prominent in sub-telomeric regions.

The authors go on to suggest a specific mechanism for this phenomenon. One point is clear: this phenomenon requires crossover interference. In a mutant situation where there are crossovers, but no interference, the phenomenon is absent. This is interesting and sensible because crossover interference is, by its nature, a process in which adjacent regions communicate with one another.

Beyond this point, however, the authors’ assertions regarding mechanism are not supported by the data.

1) The authors say that non-interfering COs are suppressed in heterozygous regions. This features prominently in the Title and Summary. This is not shown in this paper. What is shown is that the COs which occur in a fancm background (which do not exhibit interference) are reduced in heterozygous regions. There is no evidence that these COs are occurring by the same molecular mechanism as the “canonical non-interfering COs” that arise in wild type meiosis.

2) The authors show that interference, as classically defined, appears to be stronger in heterozygous regions than in homozygous regions. This is also an interesting observation, which is documented not only for the specific situation analyzed in detail, but more broadly. This is the first time that interference has been examined in heterozygous situations, as far as I know.

However, further consideration of the implications of this finding have some problems: (a) the phenomenon of increased interference may not mean what the authors think it means; and (b) the authors wish to say that this increased interference is responsible for the interplay between heterozygous and homozygous regions. This is a possible model. But I think it is wrong and there is actually evidence in the paper against it.

The strongest direct argument against the authors’ model is that the reciprocal interplay between heterozygous and homozygous regions is observed in a situation where crossovers in the two regions exhibit the level of interference characteristic of the homozygous region (Figure 6F and 8; details below).

More generally: it is clear that, at junctions, crossovers go down in homozygous regions and go up in heterozygous regions, relative to the pure homozygous or pure heterozygous cases, respectively, and that interference is required (above). The question is: what is the basis for this asymmetry? In my opinion, the underlying effect could be that there are more DSBs (or total inter-homolog interactions) in heterozygous regions. More DSBs means more COs, which means more interference emanating from that region across the border to the homozygous region which means fewer COs in the homozygous region than in the pure homozygous case. Oppositely, fewer DSBs in homozygous regions means fewer COs which means less interference emanating from than region across the border to the heterozygous region which means fewer COs in the heterozygous region than would be observed in the pure heterozygous case.

This model is further supported by two interrelated considerations. (1) Fully heterozygous regions show the same level of COs as fully homozygous regions (Figures 7, 8 wild type cases) even though there is more interference. Clearly there must be some other effect that counterbalances the apparent increase in interference. (2) The apparent increase in interference could, in principle, reflect either of two effects (Zhang et al., 2014 PLoS Genetics and PNAS): (a) an increase in the distance over which interference spreads; or (b) a decrease in the “strength” of CO-designation. The first would imply a more robust process in the heterozygous case, which seems peculiar a priori; the second would imply a less robust process in the heterozygous case, which makes more sense. (3) If phenomenologically increased CO interference reflects model (b), then the level of COs can be restored by increasing the number of DSBs.

By my alternative model, the phenomenological increase in interference in heterozygous regions is actually irrelevant (as shown by the data mentioned above). The real effect would be more DSBs.

Another problem with the authors' model is that it requires that the “increased interference in a heterozygous region” spreads across the boundary into the homozygous region and that the “decreased interference in a homozygous region” spreads across the boundary into the heterozygous region. This is a priori unlikely if the basis for the altered interference is heterozygosity per se.

It would actually not be so difficult to provide at least some evidence for more DSBs/interactions in heterozygous regions (e.g. by Dmc1 focus analysis). However, this opens up another can of worms and is beyond the scope of the current presentation.

The basic point is that it is not proven that there is a role for increased interference in heterozygous regions in the observed junction phenomenon and there seems to be evidence against it.

Importantly also: the documentation, description and presentation in this paper requires significant improvement as described below. There are problems of logic, vocabulary, data, controls, explanation and interpretation. This paper is not really readable by a general audience in its present form.

There is redundancy in the comments below, for which I apologize, but hopefully this is useful.

Part II. Specific Issues with Title and Summary.

The title says: “Heterozygosity promotes interfering and inhibits non-interfering crossovers during Arabidopsis meiotic recombination”. I do not think that either of these conclusions is warranted.

(i) The latter conclusion, that heterozygosity inhibits non-interfering crossovers, is wrong because it is based on the assumption that the extra COs that arise in a fancm mutant (and do not exhibit interference) are biochemically the same as the extra COs that arise in wild type (and are defined as “non-interfering COs”). Heterozygosity does decrease the COs seen in a fancm mutant (Figures 7, 8), but this cannot be extrapolated to wild type.

(ii) Heterozygosity does, phenomenologically, increase CO interference. This is an interesting observation. But the interpretations placed on it are not proven and, in my opinion, are not correct. This finding could perhaps be interpreted as “promoting the interfering CO pathway” (as in the Title). However: (a) In comparisons between fully homozygous and fully heterozygous regions, the frequency of COs is essentially the same (Figures 7AB, 8AB). This cannot be explained by an increase in CO interference alone. It implies some other effect. (b) The observation of increased CO interference by CoC analysis can be explained either by an increase in the “spreading distance” of the interference signal or by a decrease in the strength of CO-designation; both effects decrease the CoC at short inter-interval distances (See Zhang et al PLoS Genetics 2014 and PNAS 2014). If the relevant effect is to decrease the strength of CO-designation the observed effect is actually not promoting the interfering CO pathway but making it worse. (c) The fact that CO number does not change in a fully heterozygous region even though interference effectively increases (a, above) suggests/implies the existence of another effect, which could/should be upstream of any recombination fate decision. Most simply: if there is a decrease in the efficiency of CO-designation, the resultant decrease in COs can be overcome by an increase in the frequency of DSBs (or DSB-mediated pre-CO interactions). Perhaps mismatched chromatin structure has such an effect, maybe especially in sub-telomeric regions which might be influenced by pre-DSB homologous pairing interactions.

The end of the Summary says: “Using recombinant populations we show that heterozygous regions attract crossovers from homozygous regions on the same chromosome at the megabase scale. Interference inhibits formation of adjacent crossovers over similar physical scales, and we demonstrate that this polymorphism cis-effect is dually mediated by promotion of interfering crossovers and inhibition of non-interfering crossovers in heterozygous regions. This reveals an unanticipated mechanism whereby DNA polymorphism can recruit crossovers, contribute to positive correlations between recombination and diversity and influence the action of selection.”

I do not agree with any of these statements. Let us first define “polymorphism cis effect”. What was analyzed were constructs in which recombination was assayed in a sub-telomeric test region, which could be homozygous or heterozygous, and had an adjacent internal region that could be homozygous or heterozygous. Assuming experimental problems (below) can be ignored, what is observed (assayed region underlined) is, essentially, the following: (a) the frequency of COs is lower in HOM-HET than in HOM-HOM; and (b) the frequency of COs in HET-HOM is higher than in HET-HET. That is, an adjacent heterozygous region decreases COs in a homozygous region relative to what would have been seen in a fully homozygous situation while an adjacent homozygous region increases COs in a heterozygous region relative to what would have been seen in a fully heterozygous situation. But… HOM-HOM and HET-HET both show the same frequency of COs as one another (see Figures 6CD, 7 and 8 for the clearest examples). [There is one exception (Figure 8; see below) which I will simply ignore]. This is not: “heterozygous regions attract crossovers from homozygous regions on the same chromosome at the megabase scale”. There is no attraction; this is not a zero-sum game; the effect is reciprocal, not unidirectional; and stating the result in this way is not accurate and is prejudicial to thinking. “Recruitment” to heterozygous regions is simply wrong. So what is the explanation for the observed effects? The paper also shows (Figures 7, 8) that this interplay is not observed in a fancm zip4 double mutant where there are still COs, but of a variety that does not set up interference. Fine. Interference is required. And if everything were the same in HOM and HET regions, there would be no effect of having one next to the other, so just saying that there is interference is not enough. There has to be some asymmetry. The authors seem to think that the difference is that interference is “stronger” in HET regions and “weaker” in HOM regions. If this were true, and if that effect crossed the border between the two regions, COs in HET regions would tend to decrease COs in HOM regions relative to the effect from normal HOM interference; oppositely, HET regions will experience less interference from an adjacent HOM region than from an adjacent HET region. However: I do not think that this is correct. To reiterate some of the points made above:

(A) This model assumes that interference specific to HOM or HET can cross a HET/HOM border. This is a priori unlikely. Furthermore, there is data in the paper, which says that you can see the diagnostic reciprocal effects on CO levels in three-factor crosses where the HOM-type CO interference level is observed (Figures 6F and 8; see below).

(B) An alternative explanation is the same one required to explain interference patterns above (and thus is more likely): more DSBs in HET regions vs HOM regions. More DSBs in HET regions will imply more COs. More COs means more interference signals, which means fewer COs in the adjacent region. Oppositely, in HOM regions, fewer COs means fewer interference signals which implies more COs in the adjacent region.

To return to the Summary: “we demonstrate that this polymorphism cis-effect is dually mediated by promotion of interfering crossovers and inhibition of non-interfering crossovers in heterozygous regions. This reveals an unanticipated mechanism whereby DNA polymorphism can recruit crossovers, contribute to positive correlations between recombination and diversity and influence the action of selection.” Inhibition of non-interfering COs is not shown (above).

Enhanced interference in heterozygous regions (which is apparently what the authors mean by “promotion of interfering COs”) is not relevant. The likely relevant effect (more DSBs and thus more COs in HET regions) is not mentioned or discussed as a possibility.Thus: there is, therefore, no “unanticipated mechanism”, and no effect in which “DNA polymorphosms recruit COs and thus increasing genetic diversity in hybrid situations”.

Instead: what has been shown? There is a phenomenon that is observed when HOM and HET regions are side-by-side. A “junction” phenomenon, if you will. There is a reciprocal interplay in which COs are decreased in HOM regions and increased in HET regions and this interplay requires interference. This is likely correct, although there are a lot of technical issues pertaining to the data (below). NB that this is specific to adjacent HET/HOM regions, because HOM/HOM and HET/HET recombination are very similar. Thus, this is not a general effect of global heterozygosity, but an effect specific to juxtaposed HET/HOM regions (junctions). Thus any evolutionary implications must derive from this specific situation, not from heterozygosity in general.

The basis for this effect, about which the authors are quite specific in the title and the Summary, is probably not what the authors think it is, as described above. To repeat (again): There is no data on interplay between HET regions and “non-interfering COs” in wild type, only in a mutant situation that might be different. The observed increase in interference is real and per se interesting, but this does not imply a more robust interfering CO pathway; it could as easily and more probably imply a weaker pathway. And regardless of that point, the increase in interference in HET regions is not responsible for the “junction interplay”, as described above. This leaves the actual basis for the asymmetry between the two types of regions to be determined, but increased DSBs is an attractive possibility, which is not considered (described above).

It is also notable that most of the data come from analysis of a sub-telomeric interval(s) which could be special for any number of reasons. This maybe ok, but should be discussed more.

The above considerations address the paper on the assumption that all data are valid and conclusions fully supported by the observations. But there are quite a few issues that need to be addressed before one is really sure that these criteria are met. These are discussed below. Maybe I'm just slow. But for me, this paper was extremely difficult to read and understand. This is, in part, because the underlying effects and issue are complicated. But in addition, there are a variety of problems with presentation and analysis and interpretation and logic/assumptions. Important experimental details are absent or buried or written “in plant language”. There is a mixture of ideas and experiments. There is a historical/narrative presentation, rather than a consideration of the data per se irrespective of how the authors came to some ideas. This latter feature makes it extremely difficult to think about what could be going on.

Part III: More comments of various types.

1) It is a well-established fact that heterozygous lines may have higher or lower recombination rates than (more) homozygous lines. This is reiterated by the authors, in considerable detail. As the authors state, these could reflect differences in the natures of the diffusible molecules produced, which the authors call “trans” effects.

There is a major vocabulary problem. In opposition to trans, there is cis. There a major confusion with regard to the word “cis”, which is used in two different ways at different places in the paper. The most general way is in opposition to “trans” as defined above. That is: the effects of heterozygosity per se, irrespective of differences in diffusible factors. However, the word cis can/is also used to refer to the effect of the nature of one region on events in an adjacent region on the same bivalent, that is an effect that is in cis along a given chromosome. The two different uses make reading this paper really difficult. For example: “dual cis effects” probably uses the word “cis” in the first sense; and “cis effects of heterozygosity” probably uses the word in the second sense.

2) There is additionally what appears to be a fundamental experimental problem. The entire paper (after Figure 4) presents the “genotypes” of tester bivalents, and analyzes events on those bivalents, without ever discussing anywhere that I could find in the text what is known about the other chromosomes in those same cells and whether variations in trans-acting factors might be relevant or controlling for such variations in any way. The problem begins with Figure 4D, E and its relatives. It is stated that the pattern described in that figure, which involves the presence of homo/heterozygosity adjacent to a heterozygous test interval, is independent of the nature of the homozygous region. But this is not correct. Genotypes at the top of the pattern tend to have Col/Col (red) while genotypes at the bottom tend to have Ct/Ct (green). This is seen also in the other analyzed sub-telomeric interval (Figure 4GH). This should be specifically investigated. More generally, there has to be some attempt to deal with this as a general issue for all experiments. Perhaps this was actually done by analyzing multiple lines with the same critical genotype but, necessarily, different complements of information on other chromosomes. Are these the multiple data points in various figures? If so, it is just not obvious in the text of the paper or the figures or figure legends and the reader should not have to go searching for it. If not, this issue remains as an underlying problem throughout the paper. There are arguments against trans effects as a big issue in several places, but they are never made in the paper.

Summary: this issue has to be specifically addressed for Figure 4 in order to draw the conclusion in that figure and it needs to be discussed as an issue in all other cases.

3) The paper makes many comparisons among different regions without much emphasis on the fact that things are different or why. Of course part of the difference between the CEN interval and the 420 interval is the location; but also there is the fact that CEN is measured in male meiosis where in Arabidopsis, there are more COs, and they are more sub-telomeric. 420, which is sub-telomeric, is measured in female meiosis, where CO rates are generally lower and COs tend to be LESS sub-telomeric. It is frustrating that the authors did not discuss how these differences, particularly the M/F differences, might affect their results and/or interpretation. To the only partly initiated, it seems like apples and oranges.

4) At the most general level, this paper is among the first, in a plant system, to consider cis effects in either sense defined above. In the first category of cis, there is a long history of studies on the effects of basepair mismatches on recombination, both biochemically (they are sensed by RecA and RecA homologs, in combination with mismatch repair proteins, such that the ongoing strand exchange is rejected) and genetically, where recognition of mismatches by the mismatch repair system is known, in meiosis, to specifically eliminate crossovers (e.g. Hunter and Borts). I actually don't know whether anyone has examined DSB levels in heterozygous regions. I am not aware of any previous study that examines either interference or the effects of fancm-type or similar mutations in heterozygous regions. I am also not aware of any other studies that address cis effects in the second sense. So, as phenomena, the reported observations will be of interest to the meiosis field.

5) To set a baseline, it is easiest to begin with consideration of general properties of heterozygous regions. The authors make two new findings.

A) Fancm mutations have different effects on CO frequency in heterozygous versus homozygous regions. However: the interpretation of this finding in the paper is incorrect. The authors assume that the COs that emerge specifically in a fancm mutant are going by the same “non-interfering crossover pathway” that is argued to exist at a low level in wild type cells. If this were true, then effects seen in fancm mutant backgrounds would also be occurring in wild type. As stated above, this is possible, but it is not known and is not shown by this paper.

More specifically: is generally agreed (e.g. by Mercier and supported indirectly by yeast studies) that there is a set of DSB-initiated intermediates, among which a subset are specified to be “interfering COs”, ie Zip4-dependent COs that show classical interference. The remaining interactions are then matured to other fates, mostly non-crossovers and inter-sister events but also, at a low level to COs. These are the “non-interfering COs”. In a fancm mutant, the fates of the interactions that are not specified to be “interfering COs” are different, with a much larger proportion becoming COs than in the wild type case. The reason for this is unclear, but presumably is some modulation of biochemistry. What is shown in this paper is that, in a fancm mutant, the level of “extra” COs that arise in heterozygous regions is less than in homozygous regions. This does not speak to what might or might not be going on in wild type.

Another problem with this analysis is that wild type, fancm and fancm zip4 strains are analyzed but zip4 single mutant strains are not. This is not acceptable for a properly controlled analysis, although I understand that it did not seem “relevant” in the context of what the authors were trying to address. Moreover, the missing mutant might actually be directly informative about what is going on in a wild type background.

There is the always-underlying issue of possible trans variations; however, it can be argued that a consistent picture emerges in several types of constructs that should (apparently?) have different types of trans effects.

B) The authors find that heterozygous regions show higher levels of (phenomenological) CO interference than homozygous regions. This is shown by a three-factor cross for one sub-telomeric region for Col/Ct heterozygosity and by a different method for a broader range of heterozygous lines. The latter analysis suggests that it is general.

This is an interesting and novel finding. It implies that, as an observational fact, within a heterozygous region, if there is a CO in one region, the probability that a CO will occur nearby is reduced even more than in the normal homozygous case.

[As summarized above: there are two ways to think about what this means in reality. The “normal” way might be to think that the interference signal spreads out for a longer distance in the heterozygote. However, there is another way to think about it. The same result can be obtained if there is a reduced propensity for a recombinational interaction to be specified to be a crossover. This is shown by the “beam-film” model (or any scenario involving designation of a CO and spreading interference) by shifts in CoC curves to the left or to the right according to variations in CO-desigation probability, with a constant “interference distance”.] This is an intriguing finding per se. Its significance for other phenomena is more complicated, as discussed above.

6) The authors spend a lot of time discussing situations in which they believe that events in a heterozygous region are influenced by events in a homozygous region, and/or vice versa. First, comments on Figures 4-6:

Figure 4A. The left part shows that a pure homozygous line, heterozygous for the red and green tester markers, is produced by crossing a marked Col/Col line with an unmarked accession line (top) and then that when this line is selfed to give an F2, various types of progeny can result.

Comment. The authors show only cases in which the R and G markers are in cis, which implies that during selfing, there has been no crossing-over between them. This may be the majority of outcomes. However, the criterion for selection of F2 progeny to analyze was heterozygosity for R and G. By fluorescence, this implies that there is one copy of each. For all of the examples shown, R and G are “in cis” to one another. But 15% of meioses will give a crossover between the two markers; and if the appropriate products unite (R+G- with R-G+), the resulting F2 seed will ALSO have only one copy of each marker. This may be rare (15% x 15%). Nonetheless, such cases would be scored as having the highest recombination rates if they were not somehow identified and removed from further analyses. Do the authors know from genotyping whether their F2s include such cases and if so, which ones are they among the 139?

Other “missing information”: (i) Were the F2's obtained from a single F1? Or from multiple F1's with results pooled? (ii) Is it completely obvious that the fluorescence detection could distinguish RRG and RGG from RG genotypes? This is clearly a critical point and it does not seem to be addressed explicitly, though I might have missed it.

Minor presentation issue: the meaning of the box on the right is obscure without working at figuring it out. Apparently it means that when the F2s are taken through meiosis, they may generate recombinants, but this is hardly obvious in the cartoon or the legend. (Again assuming that they started out with the cis configuration.)

Figure 4B. In this figure, the authors select a set of F2s that are heterozygous at the R and G markers. They then ask, at each of 51 other positions, whether the frequencies of the two parental alleles is different from what you expect from an absence of correlation with the selected “phenotype”. What is detected is a deviation from expectation for chromosome 3 (the chromosome on which phenotype is selected).

Comment: We can start with the fact that this analysis is essentially not described at all in the paper. The non-plant reader would have no idea what is going on from the half a sentence in the text.

If I have understood correctly, this analysis appears to have a fundamental flaw. If you select for F2's that are heterozygous for R and G, most of these will have the cis configuration, meaning that they have not undergone a CO between R and G on that chromosome in the previous meiosis. Since there must be at least one CO, there will be a CO somewhere else on chromosome 3. And there will be a non-random tendency for marker disposition to occur just because there is already a selection that restricts localization on this chromosome specifically. More specifically: since the average per chromosome is just a little above one, and since the CO is not sub-telomeric at the marked end, it will tend to occur at non-random position (or positions if there are 2 COs) away from the marked end, e.g. towards the middle of the chromosome. This effect explains the peak in the graph, which is centered in the middle of chromosome 3: it reflects the non-random consequences of having the CO in a non-random position along the marked chromosome. If this interpretation is correct: this data do not provide evidence for a cis effect. There is only the fact that you have pre-selected a population that, by its nature, will have a non-random arrangement of markers along chromosome 3.

Two further points: (i) 139 is a very small number of F2s from which to draw a conclusion. (ii) There should be a control showing that if you look at the entire population, you do not see any peak. Of course, given the basis for the peak (above), the control will show that it is specific to the selected sub-population, which is not really any help, but still, if such analysis is to be shown, the control must be there.

Figure 4C. Figure 4C shows the recombination frequencies in the 420 interval observed for the 139 F2's. The conclusion is that the range is greater than for the Col/Col wild type strain or for a Col/Ct F1 full genome heterozygote. This is likely true, but it is hardly surprising under any model. It likely reflects trans effects as well as cis effects. It is unclear why this is valuable information, unless it sets the stage for later panels.

Minor point: it is not appropriate to compare the rank plot for the 139 F2s with averages and ranges for Col/Col and Col/Ct. The ranges for the two compared lines are a statistical measure; they do not give the same impression as the rank plots. Thus one is comparing “apples and oranges”. The rank plots for the two comparison lines should also be shown, and then the averages and ranges for all three sample sets should be compared.

Figures 4D, E, G, H; Figure 5. Figure 4D displays the natures of the 139 F2s, shown from top to bottom in rank order of recombination frequency in the 420 interval, with respect to whether the markers indicated on the X-axis are heterozygous (black), homozygous Col, or homozygous Ct. This plot shows a gradient of “black”, emanating from the test interval towards the end of the chromosome, to greater and greater distances from bottom to top. The authors interpret this data as follows: “However, we detected a significant association on chromosome 3 itself, where the hottest F2 quartile had significantly higher homozygosity outside 420, compared to the coldest quartile. This cis-effect was observed when the rest of the chromosome was either Col or Ct homozygous, indicating that it is non-allele specific and caused by polymorphism per se, rather than by specific sequence variants.”

The restatement of the result above does not accurately describe the entire picture. The fact that the black portion emanates from the selected region is not mentioned (and is presumably significant). An accurate restatement of the result, which admits to all interpretations, is that F2s with higher 420 recombination tend to be homozygous for flanking material while F2s with lower 420 recombination tend to be heterozygous. Moreover, the “extra heterozygosity” towards the bottom of the rank plot tends to occur specifically adjacent to the 420 region. The term “cis effect” should not be used, as this is an interpretation. It has become lab jargon for the phenomenon the authors think is going on, but it is confusing given the various versions of this phenomenon (including its reciprocity), as well as the fact that there should be a formal description of the data, not an interpretive one. Better to call it a “junction phenomenon” or Hom-Het interplay.

More importantly, contrary to what the authors say, there is a clear tendency for more “red” at the top and more “green” at the bottom, not only in Figure 4D but in the corresponding figure for the other sub-telomeric region in Figure 4G. This would likely appear in an appropriate plot, although a larger data set may be required to see it with very strong statistical significance. It suggests that having more Col information promotes a higher frequency of COs in general versus more Ct information. This is directly supported by the fact that, overall, Col/Col recombination rates are higher than Col/Ct recombination rates genome-wide (Figure 4C). This has to be dealt with.

Also importantly: the authors cannot, in principle, say that they see a cis effect unless they do a control to show that the sample subset of 139 F2s have similar frequencies of recombination throughout the genome and that there are or are not any associations of recombination with homozygosity, and/or Col vs Ct content on a genome-wide basis. I appreciate that this is not trivial. But the authors' hoped-for conclusion is not trivial either. It cannot be made from this figure without more supporting (or contradicting) data.

Secondarily (perhaps): there are general uncertainties. (i) There is the possible problem that the hottest F2s might have their markers in trans, with unknown consequences. (ii) The top-ranked F2 in the 4D data set is very pecuIiar. It appears to be Col for the entire length of one chromosome and to have had a single CO exactly at the border of the marked region in the other. How is this possible? (iii) As in Figure 4B, there could be unknown effects from selecting the subset of F2s that did not have a CO in the sub-telomeric region. Are there markers all the way to the end of the chromosomes or are sub-telomeric crossovers going to be missed (which is a problem for the analysis since many COs will be there specifically in the selected population, thus biasing the sample. There is actually a hint of such a problem in the fact that the observed “effect” is absent for the centromere (a central marker) and weak for an interstitial marker. One interpretation is that observation of an effect is a consequence of selecting a sub-telomeric region for analysis (rather than being an actual phenomenon is specific to such regions). The authors have only presented data saying whether each F2 is homozygous or heterozygous for the markers tested. But in principle, they could figure out the exact arrays of markers on the two chromosomes of the F2 and thus were crossovers occurred in the preceding F1 cross(es). While perhaps difficult, this might reveal additional informative information to further guide interpretation.

Overall, data in Figures 7/8 tend to ameliorate concerns as to the validity of the authors' conclusions from Figure 4/5. But the concerns are still real and valid for presentation of this data.

Figure 6A-C. Panels A-C show that two lines that are heterozygous for 420 and Ct/Ct for all or most of rest of the chromosome exhibit higher 420-region recombination than a line that is homozygous Col/Col in 420 and heterozygous for the rest of the chromosome. The authors think that the relevant difference is that heterozygosity adjacent to homozygous 420 depresses recombination in 420. They use this data to argue that the presence of homozygosity adjacent to heterozygous 420 “increases” recombination, and thus “eliminates the cis effect”.

First: this is not “eliminating the cis effect”. It is a different type of cis effect. It is not clear that the authors appreciate that they are seeing reciprocal effects. They are totally focused on the effects of heterozygous regions on homozygous regions.

In any case, without controls, there are several hypotheses that are equally consistent with the data. What is the relevant difference(s)? Heterozygosity in 420? Col/Col in 420? Heterozygosity or Ct/Ct in the rest of the chromosome? Some combination of the two? There is no way to know without more lines with different genotypes. What is needed (minimally) is Heterozygous 420 plus homozygous Col/Col and fully homozygous Col/Col. (Homozygous Ct/Ct is desirable but difficult to construct). No conclusion can be drawn without controls. This is just not acceptable. To a first approximation, this data should be omitted.

And to repeat: it is assumed that the only relevant differences among the different lines is on the chromosome of interest. But all of the chromosomes are different in the different strains. Is there evidence that the variations are not due to trans effects.

Another thing that is very unclear is why these particular lines were picked for testing. Both of the HL lines chosen for 6 A/B seem to be the rare type in the top quartile in Figure 4; most of the lines in this quartile are homozogous Col/Col outside of 420. Why were these chosen rather than the more common type; or, better, why not test both types? And specifically, exactly which of the 139 F2s are HL1 and HL2? It is not obvious.

Figure 6 D, E, F. This figure shows a 3-factor cross in which there are two intervals that comprise most of the single 420 interval in (AB). (DE) shows that HOM adjacent to HET results in an increase COs in the HET region and that HET adjacent to HOM results in a decrease in COs in the HOM region. This points to the reciprocal effect shown further in Figures 7/8. (F) shows that, despite these changes, there is no change in interference between the two intervals. To anticipate later results, this implies that the nature of interference in the HOM region predominates (below).

Figures 7 and 8. Figures 7 and 8 have three components (1) They provide information about fancm effects and interplay of heterology with fancm recombination. These were discussed above. [The observed effects pertain specifically to heterozygous regions regardless of what is or is not adjacent to them. They do not say anything about what is going on in wild type non-interfering COs.] (2) They provide more data for wild type (FANCM+) strains in several situations. (3) They show that interference is required for the so-called “cis effects”. The exposition in the paper was hard to follow. Here is my own restatement of the situation.

Issue (2). Figure 7. For the 420 interval, there are four CO frequencies: HOM/HOM 18cM; HOM/HET 15cM; HET/HET 21cM; HET/HOM 28cM. It is unclear what the multiple data points represent. If these are multiple different lines (and thus different “trans” effects, then the data, are more meaningful). Just looking at these numbers, some conclusions emerge:

Adjacent HET reduces COs in HOM (in HOM/HET 15cm relative to HOM/HOM 18cm). This is the effect emphasized above.

Oppositely, however, adjacent HOM increases COs in HET (in HET/HOM 28cM vs HET HET 21cM). So the effects are reciprocal, which is not emphasized enough.

For the CEN interval, HOM/HOM 12cM; HOM/HET 12cM; HET/HET 10cM; HET/HOM 9cM. Clearly the centromere behaves differently, for whichever reasons, as suggested by Figure 5 data.

Figure 8 addresses the same to issues above, but for a three-factor cross specifically in the sub-telomeric interval and with the addition of interference analysis.

Left interval: HOM/HOM 16cM; HOM/HET 11cM; HET/HET 16cM; HET/HOM 18cM.

Right interval: HOM/HOM 5cM; HOM/HET 4cM; HET/HET 5cM; HET/HOM 6cM.

In this case:

The left interval behave as the interval in Figure 7, which is the sum of left and right in Figure 8.

HET reduces COs in HOM: HOM/HOM 16cM; HOM/HET 11cM; HOM increases COs in HET: HET/HOM 18cM; HET/HET 16cM.

The right interval behaves oppositely, but with small effects;

HET increases COs in HOM: HOM/HOM 5cM; HET/HOM 6cM;

HOM reduces COs in HET: HOM/HET 4cM; HET/HET 5cM.

The right interval is small. Apparently the “left side dominates”. I have no idea what this means.

Figure 8. Interference is also analyzed in the wild type background. NB: there is nowhere in this paper (except the Methods) a description of what the interference metric is, even on the figure. Axis must be labeled (1-CoC) and this must be explained in the text.

Results: HOM/HOM 0.6; HOM/HET 0.6cM; HET/HET 0.8; HET/HOM 0.8.

(a) HET/HET has “more interference” than HOM/HOM, the effect discussed above Importantly, this is despite the fact that the frequencies of COs in both intervals are the same in these two situations! This would not be expected if the only difference were in interference. Thus, in the pure heterozygous situation, there must be two effects, one that increases COs plus interference that decreases COs, e.g. more DSBs and counterbalancing interference increase. (b) The two reciprocal “mixed” cases are not the same. HOM/HET looks like HOM/HOM while HET/HOM looks like HET/HET. Formally, the nature of the left interval dominates, as also seen with respect to effects on CO levels (above).

Overall, it seems that the ability of a HET region to depress COs in a HOM region does not depend on having a HET-type CO interference process.

Figure 8: In the larger/left interval, where canonical reciprocal effects are observed: HET reduces COs in HOM: HOM/HOM 16cM; HOM/HET 11cM; and for interference, HOM/HET looks like HOM/HOM. HOM increases COs in HET: HET/HOM 18cM; HET/HET 16cM and for interference, HET/HOM looks like HET/HET, and the same is seen in Figure 6D, E, F. This figure compared a HOM/HOM situation with a HET/HOM and found them to have the same (HOM) interference. And the “canonical” reciprocal effects are observed.

7) The last item is the interplay between fancm and CO interference, keeping in mind that the information does not tell us anything about what is going on in FANCM+ (and thus the general cases of heterozygosity seen in nature).

One expectation is that if more COs are coming from the fancm-revealed process, there will be less interference. This expectation is met in Figure 8. More or less, there is plenty of interference in all four strains in FANCM+. And more or less, in both HOM/HET and HOM/HOM, where the entire test region is homozygous and the fancm mutation is having its full effect, there is a big reduction in interference. Whereas, in both HET/HOM and HET/HET, where the entire test region is heterozygous and there are fewer extra COs in the fancm mutant, interference is less reduced. And the zip4 mutation, in the fancm background, has the expected effects in all cases, reducing interference because it decreases the fraction of “interfering” COs. These results provide more support for the nature of the fancm interplay with heterozygosity (discussed in 2 above).

The authors also ask about variations in the “interplay” of fancm with HET/HOM differences. The underlying idea (which I finally realized after many hours) is that in fancm zip4 there are still COs but they do not show interference, so one can ask if the variations in 420 according to what is adjacent are still seen. If no, then interference is required.

The data for 420 in Figure 7 are:

HOM/HOM 35cM HET/HET 12cm HET/HOM 10cM HOM/HET 35cm. Most importantly, since HOM/HET = HOM/HOM, there is no transmission of information from HET to HOM if interference is absent, which implicates interference in the process (in accord with the suggestions above). The reciprocal case: HET/HET 12cm HET/HOM 10cM seems to run against all rules, with HET increasing COs in the adjacent HET, but again, maybe this is a small effect and/or can be ignored. The fact that HET/HET << HOM/HOM is explained by the fact that there are fewer COs from the fancm pathway in heterozygous regions (above).

Similarly in Figure 8: for left and right regions

HOM/HOM 25, 12cM; HET/HET 8, 3.5; HET/HOM 7.5, 2.5cM HOM/HET 22, 12cm. These data are clear and very useful in showing that interference is relevant.

8) A final point on statistics: p-values are given everywhere as Chi-square p-values, but it seems the authors are comparing means, not comparing a result against an expectation. Is this a typo? Is it a different kind of test, or did they really use a Chi-square? (If the latter, they need to justify and clarify what the expectation was, otherwise give p-values for something that compares distributions, e.g. a T-test).

Reviewer #3:

There is no question that the manuscript of Ziolkowski et al. is of interest as it is challenging current views of crossover control, not only in plants.

I also read the thoughtful comment and valuable suggestions of both reviewers with great interest. I think that many of the points raised by the reviewers the authors were able to address in their response, especially by the inclusion of new experimental data.

I have to say that the main conclusion that interfering crossovers are enhanced in heterozygous regions is for me as for the other reviewers counterintuitive. Also, the model the authors bring forward at the end, that recombination intermediates are stabilized by mismatch recognition is quite special. Therefore it is of course important to take other explanations into account.

There is one thing that worries me a bit and that is quality of the sequence data available for the different Arabidopsis cultivars. Do heterozygous region really attract crossovers from homozygous regions in hybrids? As the authors state themselves, these sequences were aligned by short read technology and so the occurrence of inversions and of duplication in the range from hundreds to hundred-thousands of bps might be dramatically underestimated. Thus, changes above the nucleotide level were not taken into account by the authors. Nevertheless these changes might drastically influence recombination patterns.

Nevertheless, all in all, the authors supply us in the revised version with enough hard data that in my opinion strengthen their hypothesis to the point that it should be considered (and challenged) by the community. Also, it might well be that such a mechanism is exceptional and restricted to self-fertilizing species like Arabidopsis. But this would be still interesting.

https://doi.org/10.7554/eLife.03708.044

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

There were two types of concerns. First, the reviewers were not convinced that heterozygosity generally increases crossovers (independently of genetic background and physical location in the genome), and that crossovers were recruited from homozygous regions of the genome to adjacent heterozygous regions.

We have added substantial new data to the paper to directly address these concerns. To address the question of generality of the heterozygosity cis-effect:

i) In Figure 4 we present new data showing the cis-effect on chromosome 2 (I2fg Col x Ct), demonstrating that it is not restricted to chromosome 3. We have also observed the cis-effect in both sub-telomeric (420, I2fg) and centromeric (CEN3) chromosome regions (Figures 4 and 5).

ii) We present new data showing the cis-effect in a Col x Ler cross, demonstrating that this phenomenon is not specific to Col x Ct (Figure 5).

To address the question of crossover recruitment from homozygous to heterozygous regions:

i) We have performed three-colour flow cytometry that measures crossovers in adjacent regions. This has directly shown compensatory crossover changes in adjacent intervals when heterozygosity is varied (Figure 6D-6F).

ii) Three-colour experiments have been performed with fancm and fancm zip4 mutants to measure crossover interference (Figure 8). This demonstrates that the heterozygosity cis-effect is associated with an increase in crossover interference, as predicted by our model.

Similarly, the reviewers found that the mutant analysis was not fully developed.

We agree with Reviewer 2 that analysis of a zip4 mutant alone would be of interest. We have attempted to analyse zip4 using flow cytometry but saw variable and inconsistent effects. We believe this is an artefact caused by gamete inviability and a corresponding loss, or alteration, of pollen fluorescent properties (Chelysheva et al., 2007, PLoS Genet.). Therefore, we are reluctant to use these data to draw conclusions. The major advantage of analysis in fancm and fancm zip4 is that fertility is restored due to a large increase in non-interfering crossovers, allowing us to collect high quality fluorescence data in backgrounds with dramatically altered levels of interfering and non-interfering crossover repair (Crismani et al., 2012, Science). Importantly, we see significant differences between fancm and fancm zip4, which allows us to make inferences about the contribution of the interfering crossover pathway to the cis- effect. Finally, our new I3bc three-colour data allows measurement of crossover interference, which has also been completed in fancm and fancm zip4 mutants and supports the model that heterozygosity promotes interfering and inhibits non-interfering crossovers.

Second, there was agreement that, while your findings are provocative, they are not appropriately framed vis à vis alternative explanations for the observed relationships between recombination rates and diversity along genomes.

We appreciate the need to more fully discuss literature relevant to the relationship between recombination and sequence diversity. To strengthen this aspect of the paper we have added analysis of historical recombination and genetic diversity based on maps we published previously to Figure 1 (Choi et al., 2013, Nat Genet). These maps were generated using SNP data from 80 Eurasian accessions sequenced by the Weigel laboratory as part of the 1,001 genomes project (Cao et al., 2011, Nat Genet). Here we show that recombination and diversity are positively correlated at multiple scales and add new plots to show their striking relationship in the chromosome arms. In the Introduction and Discussion we have expanded on factors that could influence this relationship, including background selection and genetic hitchhiking, which will cause regions of low recombination under directional selection to have low diversity. We also discuss the potential for recombination-associated mutagenesis. We believe the heterozygosity cis-effect contributes to the positive relationship between recombination and sequence diversity, together with these other forces.

Reviewer #1:

The authors argue that recombination may be recruited from homozygous regions to nearby heterozygous regions. Overall I found the results interesting but I have some significant concerns about the presentation and interpretation of the results.

One of my major concerns about the article is that the authors frame it as a possible explanation for the positive correlation between crossover frequency and diversity that is seen across a number of the species examined to date. However, there is relatively good support, in population genetics literature, for the idea that this pattern reflects the fact that linked selection (e.g. hitchhiking and background selection) have effects over relatively large physical regions in regions of low crossing over (see Cutter and Payseur 2013). The authors do not seem to mention this dominant, and relatively well supported, group of hypotheses and instead seem to frame the positive correlation as an empirical observation in search of a mechanistic hypothesis (that they provide). Obviously these hypotheses are not mutually exclusive, and so this does not rule out the idea that the authors' mechanistic explanation could also play a role. The authors need to be much clearer about the background to these observations, if they are to contribute to the larger debate about determinants of levels of polymorphism.

We thank the reviewer for these comments, which helped place our data in a firmer context. To address these important points we have added new analysis showing a positive correlation between historical crossover and sequence diversity in Arabidopsis (Figure 1) and extensively rewritten the paper to include reference to the relevant literature, as described above.

Along these lines it is not totally clear to me whether the observations could possibly explain a bulk of the correlation between recombination and polymorphism in many species. Much of the broad variation in recombination rates, in many systems, is explained by proximity to centromeres and telomeres (presumably a mechanistic constraint). Thus a lot of the variation in broad-scale recombination rates is not tied to polymorphism, but rather to large-scale chromosomal architecture.

We strongly agree with the reviewer that chromosomal location plays a major role in determining recombination rates. For example, the sub-telomeric interval I2fg shows higher recombination (13.02 cM/Mb) than the centromeric CEN3 interval (2.11 cM/Mb). CEN3 is largely heterochromatic, which is known to be inert for recombination and we have previously shown that DNA methylation in this region is important for normal crossover patterns (Yelina et al., 2012, PLoS Genetics). The high rate of I2fg recombination also derives from the fact that the sub -telomeric regions are highly recombining during male meiosis and I2fg measures fluorescent pollen (Giraut et al., 2012, PLoS Genet). Therefore, chromosomal location exerts a significant effect on recombination rates when comparing between intervals. However, comparing variation within a single interval between crosses controls for these differences. We have further discussed differences in interval location and chromosome architecture in the F1 recombination Results section.

Once again the authors' proposed mechanism could contribute to the strength of the correlation, but this argument does suggest that this contribution may be somewhat minor.

We agree that the cis-effect is one of a number of forces that could influence diversity and its relationship to recombination. In the revised manuscript we have framed this question and the relevant literature more clearly.

The authors state, in the Abstract, that “using recombinant populations we show that heterozygous regions attract crossovers from homozygous regions on the same chromosome at the megabase scale, and in one of the subsection of the Results that “Heterozygosity recruits crossovers over homozygous regions”.

I apologize if I've missed something, but I do not think the authors’ results actually demonstrate this. To my reading of these statements it sounds like the authors are saying that the extra recombination events in heterozygous regions come at the expense of fewer recombination events in the homozygous regions. But I do not see any results supporting for the second part of this statement, i.e. measuring recombination rates in homozygous regions. The authors' statements are one possible explanation of the results, but another is that the homozygous regions promote recombination with nocostto themselves. The authors may have evidence in favor of their hypothesis, perhaps this is the argument being made in the subsection headed “Differential sensitivity of interfering and non-interfering crossover repair to polymorphism”, but I found it hard to follow.

To provide direct evidence for this model we have performed three-colour fluorescent pollen analysis shown in Figure 6D-6E. Three-colour analysis allows simultaneous measurement of crossovers in adjacent intervals and calculation of crossover interference (Yelina et al., 2013, Nat. Prot.). For these experiments we constructed the I3bc interval, which overlaps with the fluorescent seed interval 420, but consists of three FTL T -DNAs expressing blue, green and red fluorescent proteins. The I3bc system was generated in a Col background, and for these experiments we crossed with the Ct accession. Specifically, we generated plants that were Col/Ct in I3b and Col/Col over the rest of chromosome 3 including I3c, and compared to pure Col/Col homozygotes. We observed that when I3b was Col/Ct heterozygous genetic distance increased and decreased in the adjacent homozygous I3c interval. These compensatory crossover changes provide direct support for the model that heterozygous regions can promote crossovers at the expense of adjacent homozygous regions.

One concern I had was that recombination may be increased over broad chromosomal regions due to homozygosity in a specific region, because the individual would have reduced heterozygosity for structural rearrangements. This increase in recombination would not be associated with either parental allele, but with homozygosity itself. Presumably the authors have thought this through, and perhaps these lines are known to have no structural variation of suitable size in these regions, but it is worth clarifying this point.

We agree that structural variation between accessions could contribute to variation in F1 hybrid recombination rates. Indeed, we see clear evidence of such effects in the 420 Col/Sha F1 data. 420 overlaps a ∼2.5 Mb inversion previously mapped between Col and Sha (Salome et al., 2012; Heredity, Loudet et al., 2002, Theor. Appl. Genet; Simon et al., 2008, Genetics). Consistent with this we observe that Col/Sha inversion heterozygosity strongly suppresses 420 cM in this cross. Importantly, a Col x Ct genetic map generated alongside the Col x Sha map did not show evidence of similar inversions (Simon et al., 2008, Genetics). Therefore, in our 420 Col/Ct experiments we think that inversions of comparable effect do not exist. However, the true extent of inversions or other structural rearrangements are unknown between all of the crosses analysed. However, the fact that we see the same heterozygosity cis-effect in three crossover reporter intervals and two backgrounds reduces the chance that structural variation is confounding our analysis.

At the end of the subsection headed “Modification of crossover frequency by Arabidopsis natural variation”, the authors state:therefore, in many cases heterozygosity promotes Arabidopsis recombination relative to homozygosity, which is inconsistent with a purely suppressive effect of polymorphism.I don't think this is correct as stated. The authors have shown that when Col is crossed to other lines the F1s sometimes have higher recombination rates than Col homozygotes. However, this could be because the other lines crossed to harbor recombination modifiers that increase recombination rates. For the authors claim that heterozygosity promotes recombination to be true they would need to show that the F1s often have higher recombination rates than either of the parental lines.

We agree that the F1 observations do not demonstrate that heterozygosity attracts crossovers. Therefore, we have modified the text to state that variation between F1 recombination rates is likely caused via a combination of cis and trans modification by polymorphism.

Reviewer #2:

This paper presents evidence for three conclusions.

1) In one well-studied test interval, in a particular heterozygous state, the frequency of crossovers is higher when the region adjacent to the test interval is homozygous rather than heterozygous. This is a “cis” effect. This is shown in Figure 4 and in the non-mutant background of Figure 7 (compare panels A and C).

There are some limitations to this observation. First, it is shown for only one interval.

To provide evidence for the generality of the heterozygosity cis-effect we have added new data showing the same phenomenon at a further sub-telomeric interval I2fg on chromosome 2, in a Col x Ct F2 population (Figure 4). This demonstrates that the cis-effect is not chromosome specific. For both 420 and I2fg the cis- effect acts over similar megabase distances. We have also observed the effect in a CEN3 Col x Ct F2 further reinforcing our model (Figure 5). Although the strength of the effect was weaker for CEN3 this is likely to be due to the cis-effect acting independently from both chromosome arms. Finally, we have added new data showing the cis-effect in a 420 Col x Ler F2 population (Figure 5). The effect was weaker in the Col x Ler cross relative to Col x Ct. However, we have unpublished data that strong trans recombination modifiers are segregating in Col x Ler, and not in Col x Ct (PAZ and IRH unpublished observations). We are in the process of mapping these loci, but this explains why it is harder to see the cis-effect in this cross. We have also added new three-colour I3bc data using Col x Ct populations (Figures 6 and 8). This interval overlaps 420 and provides an independent confirmation of the cis-effect in this region, and additionally shows that crossover interference increases in heterozygous regions.

Second, interval is sub-telomeric and thus likely not to be representative of most of the genome.

Although the strongest cis-effect was observed when measuring sub-telomeric intervals (420 and I2fg), the effect extended for most of the chromosome arm. We have also seen a significant cis-effect at CEN3, which demonstrates that different chromosomal regions, not just the sub-telomeres, are sensitive to the cis-effect (Figure 5).

Third, it is shown for only one pair of lines (Col vs. Ct).

We have added new data from a 420 Col x Ler F2 population showing the cis-effect, thereby demonstrating that this is not specific to Col x Ct crosses, as discussed above (Figure 5).

It is also important to note that in this test interval, there is no difference in crossover level between the homozygous and full F1hybrid strains (Figure 7 compare panels A and B in the non-mutant case). Thus, there is no general effect of heterozygosity to increase the number of crossovers. This is also seen in the overall evaluation of Col/Col vs Col/Ct F1's. Thus, the identified phenomenon is some type of unusual cis interaction which may or may not be widely general.

We agree that the F1 data does not demonstrate the heterozygosity cis-effect. We believe that variation in crossover rate between crosses is due to a combination of cis and trans modifying effects. The cis-effect is only evident though analysis of F2 populations. We have modified the manuscript to make this clear.

The basis for this cis interaction proposed by the authors does not seem to make sense to me. This is in part because it seems to invoke result (2) below in an inappropriate way and in part because the statement is made that crossovers arerecruitedfrom homozygous regions. But this conclusion cannot be drawn. There was no analysis of the effects of a heterozygous region on a flanking homozygous region.

It seems that this conclusion of some type ofcompetitionbetween homozygous and heterozygous regions is drawn largely from Figure 6. But the results in this Figure do not support this conclusion. What this figure shows is that when the test region is homozygous and the flanking region is heterozygous, the level of crossovers is reduced in the test region as compared to the case where the test region is heterozygous and the flanking region is homozygous. This does not imply that there is a reciprocal effect of heterozygosity to reduce crossovers in the homozygous region. There is no control to show what the frequency of crossovers is in a fully homozygous case where there is no heterozygous region adjacent to the test region.

We have directly addressed this concern via analysis of the I3bc three-colour FTL interval. This interval overlaps 420 and allows measurement of crossover frequency in adjacent regions. When the I3b interval was Col/Ct heterozygous it showed increased crossover frequency at the expense of the adjacent I3c Col/Col homozygous region. This clearly demonstrates that the cis-effect involves compensatory interactions between heterozygous and homozygous regions (Figure 6).

There is also no control to show what happens if the Col/Col homozygous test region is flanked by the same homozygous region as when the test region is heterozygous (i.e. Ct/Ct).

As the FTL T- DNAs were generated in the Col accession to perform a Ct/Ct analysis in the test region would require extensive introgression, most likely in excess of 8 generations, of the FTLs into a Ct background. Even after extensive backcrossing it would be extremely difficult to remove all linked Col/Col sequences in proximity to the FTLs.

Finally, the authors suggest that the cis phenomenon is general because some F1 hybrid strains show higher levels of recombination than one particular reference homozygous strain. However, this finding is just as easily explained by general genetic background effects on the recombination process rather than anything to do with heterozygosity at the DNA level, as the authors admit. Thus, this is not really supporting evidence.

As discussed earlier we have revised the text in reference to our F 1 data to state that these data are most likely explained via a combination of cis and trans modification effects.

2) The authors show that heterozygosity is accompanied by a change in the sensitivity of crossovers to fancm and zip4 mutations. The analysis is not rigorously correct because there was no test of a zip4 mutation by itself; the only test was in a fancm zip4 background.

The most important point is that this is a general characteristic of heterozygosity: it is observe in a pure F1 hybrid. Thus there is no reason to link this phenomenon to the cis effect, as the authors seem to do.

As discussed earlier we agree that analysis of a zip4 mutant would be of great interest. However, the major advantage of analysis in fancm and fancm zip4 is that fertility is high due to a large increase in non-interfering crossovers, allowing us to collect high quality flow cytometry fluorescence data in backgrounds with dramatically altered levels of interfering and non-interfering crossover repair (Crismani et al., 2012, Science). Importantly, we see significant differences between fancm and fancm zip4, which allows us to make inferences about the contribution of the interfering pathway to the cis-effect.

A second important point is that the total frequency of crossovers in the F1 hybrid is the same as in the homozygous reference strain. Thus, there is norecruitment of crossoversas the authors also seem to suggest.

Total recombination at I3bc is similar between Col/Col and Col/Ct F1 heterozygotes. However, we show that crossover interference in fact increases in Col/Ct heterozygotes (Figure 8). This is further consistent with our Col x Ler F1 tetrad data, which reached the same conclusion based on analysis of 4 independent 3-colour intervals. Together these observations are consistent with our model that non-interfering crossover repair is inhibited by heterozygosity and interfering crossover repair is promoted by it. This causes the strength of interference to increase, as a greater number of events will be generated from the interfering pathway in heterozygous regions. We acknowledge that our F1 data alone does not directly support the conclusion that heterozygosity attracts recombination.

Finally, comparison implies a likely situation is that there is a change in the proportion of recombination events that areinterfering crossoversand versus crossovers that arise as a minority population from thenon-crossoverpathway. To put it another way, in the wild type case, there is an increase in crossovers and a decrease in non-crossovers (more of which turn into crossovers in fancm than in wild type).

The basis for this effect is unclear. However, it is strongly reminiscent of crossover homeostasis where a reduction in DSBs leads to a differential loss of non-crossovers as compared to crossovers. Since it is unlikely that heterozygosity will be recognized at the DSB level (although this is not totally excluded given diverse indications of trans effects on DSBs in yeast), it would instead imply that there is a reduced chance that a DSB actually giving a recombination intermediate that could lead to a crossover or non-crossover. This is entirely possible since heterozygosity could be sensed at the time of establishment of such an interaction or concomitant with crossover/non-crossover decision making.

We thank the reviewer for these insightful comments, which we agree with. Regarding whether polymorphism can influence DSB frequency, we think this is formally possible as CTT and A-rich motifs associate with hotspots (Choi et al., 2013, Nat. Gen.; Wijnker et al., 2013, eLife), and therefore mutation of these sequences may alter recruitment of the recombination machinery. Equally, as pointed out by the reviewer, trans variation could also act to globally alter DSB formation. Due to an absence of clear trans effects in our Col x Ct QTL analysis, we think trans modifiers are not a major factor in these populations. We favor a model where polymorphism is detected downstream of homologous strand invasion via base pair mismatches. We are currently unable to define where in the pathway this effect is occurring, though our mutant analysis indicates differences in the sensitivity of interfering and non-interfering repair to sequence polymorphism. This could occur, as the reviewer suggests, at the crossover/non-crossover decision point. We have elaborated on these ideas in the Discussion and added a model to Figure 9 to develop these ideas further.

3) The authors show that an F1 hybrid appears to have increased crossover interference as compared to the homozygous reference strain. There are two problems with this result and linking it to other results. First, this is a different hybrid from the one tested for all other phenomena.

Our new I3bc data shows the same phenomena for Col x Ct crosses (Figure 8), demonstrating this effect is shared between Ler and Ct crosses.

Second, there is no evidence that this effect is the result of heterozygosity at the DNA level rather than some trans-acting strain background effect. Third, in this hybrid the total crossover level is lower than in the reference homozygote; thus, this is not related to the finding that F1 hybrids can exhibit higher levels of recombination.

As discussed earlier we have revised the manuscript to ensure our interpretation of the F1 data is in line with the reviewer’s points.

That being said: there is a possible way that this result could be relevant to the sub-telomeric effect described above. In Arabidopsis, as in several other organisms, interference distance goes with physical chromosome length. Thus, in the hybrid, increased interference per Mb (which is what is assayed) could result from a decrease in physical chromosome length. Furthermore, the cis effect described in the results in prior sections could be explained if the longer length characteristic of the homozygous region can spread into the adjacent sub-telomeric region, thus increasing physical length, decreasing interference per Mb and thus increasing crossovers per Mb.

The reviewer raises a very interesting idea. Our current understanding of genome-wide patterns of polymorphism between accessions is largely generated from short-read technology, which can underestimate structural variation. It is very possible that the mechanism described by the reviewer could explain some of the effects we observe, however, without more accurate knowledge of structural polymorphisms between the accessions we are not able to draw reliable conclusions here. We have added these ideas to the Discussion.

Given the above considerations, the statements in the Summary need some amendment, as follows:

A)We… found hybrids with higher recombination than homozygotes, demonstrating that polymorphism can promote crossovers. If this is a reference to the finding of F1 hybrids with higher recombination, it is not accurate. There is no basis for the conclusion that the higher recombination is due to DNA polymorphism rather than trans-acting genetic effects. The cis effect is not evidence. Moreover, in the Col/Ct F1 hybrid used for most of the analysis, recombination frequencies are generally not higher than in Col/Col and in the Col/Ler hybrid used for interference analysis, recombination frequencies are lower than in the Col/Col homozygote.

As discussed we have moderated our statements on the F1 data and the contribution of cis and trans effects. We agree that the F1 data do show lower genetic distances in many cases relative to the homozygotes. However, our new I3bc experiments in Figure 6 clearly support our conclusion that heterozygosity can promote recombination relative to adjacent homozygous regions.

B)Using recombinant populations we show that heterozygous regions attract crossovers from homozygous regions on the same chromosome at a megabase scale. This is definitively not shown by these data (see discussion in point 1 above).

As discussed earlier we have directly addressed this point with our new I3bc experiments.

C)We demonstrate that this polymorphism cis-effect is dually mediated by promotion of interfering crossovers and inhibition of non-interfering crossovers in heterozygous regions. This is not correct. As discussed in detail for point (2) above, the changes in interfering and non-interfering crossovers are not specific to the cis effect: they are a general feature of the heterozygous cases analyzed (even assuming no general genetic background issues). Furthermore, the observation does not imply two mechanistically distinct effects as the above statement suggests. Rather, there is a change in the distribution of undifferentiated recombination intermediates into crossover versus non-crossover outcomes.

These points are related to those discussed above. We agree with the reviewer that the cis-effect could act via the crossover/non-crossover decision mechanism and have added these ideas to the Discussion.

D)This reveals an unanticipated mechanism whereby DNA polymorphism can recruit crossovers, contribute to positive correlations between recombination and diversity and influence the action of selection.For this reviewer, there is no positive correlation between recombination and diversity shown in this paper, as described in detail above.

To address this we have added new data to Figure 1 showing a strong positive correlation between historical recombination and sequence diversity in Arabidopsis.

The F1 hybrid data are not evidence. Hybrids can have higher or lower levels than a particular reference homozygote. A F1 hybrid strain shows a higher proportion of interfering crossovers among total crossovers but no difference in total crossover levels. And the one case in which crossover levels are increased in a heterozygous region is not shown to involverecruitmentof crossovers to the heterozygous region from a homozygous region.

We believe our I3bc analysis directly addresses this point and shows that heterozygous regions increase crossover frequency at the expense of linked homozygous regions (Figure 6).

There is a cis effect in which presence of an adjacent homozygous region increases crossovers in the heterozygous test region, but this is an increase above the level seen in the heterozygous region in the pure F1 hybrid, so it does not represent a simple effect of DNA polymorphism. Finally, there is no mechanism revealed. There is the finding that F1 hybrids have altered crossover/non-crossover ratios, but this does not increase the overall level of crossovers, so themechanismalluded to does not increase crossing-over.

We have clearly demonstrated that crossover interference is strongly influenced by the presence of heterozygosity. We agree with the reviewer that the most likely mechanism would be for the cis-effect to act via crossover/non-crossover choice. However, further work will be required to prove which step of meiotic recombination is influenced.

E) The Discussion culminates with the following point:

“We propose that detection of sequence mismatches occurs during strand invasion or heteroduplex/dHJ formation and differentially inflluences the activity of interfering and non-interfering recombination proteins coincident with crossover/non-crossover repair choice. Therefore, as interfering and non-interfering repair pathways compete for DSBs, their activities are simultaneously modulated by heterozygosity, causing the cis effect.”

There are several problems, touched on above, which converge here.

i) There is not really a competition between interfering and non-interfering pathways. There is a crossover designation process and the leftovers become mostly non-crossovers but occasionally become crossovers, and the level of those latter crossovers are increased by fancm (as the authors of the fancm study state).

We agree with this model and hope the manuscript and Discussion section now more accurately reflect these ideas.

ii) Most importantly, the relevant effect does not cause the cis effect—it is seen in a pure F1 hybrid. The cis effect must come from something else.

We agree that F1 crossover variation is likely to be caused by a combination of cis and trans effects. However, analysis of F2 and backcross populations has allowed us to demonstrate the cis-effect being caused by varying patterns of heterozygosity.

iii) There is no reason to think that the crossover/non-crossover choice is made during dJH formation; all that can happen at this stage is that the process can be degraded to give fewer crossovers and more non-crossovers, which is the opposite of the effect observed here.

We agree and favor a promotive effect of heterozygosity at an early meiotic stage, most likely coincident with ZMM designation. However, we also cannot rule out that mismatches in dHJs might also differentially influence resolvases. Therefore, to be inclusive of these ideas we would like to keep consideration of alternative mechanisms in the Discussion.

[Editors’ note: the author responses to the re-review follow.]

Thank you for resubmitting your work entitledHeterozygosity promotes interfering and inhibits non-interfering crossovers during Arabidopsis meiotic recombinationfor further consideration at eLife. Your revised article has been favorably evaluated by Detlef Weigel (Senior editor) and three reviewers. The manuscript is improved, but there are still concerns whether your interpretation of the data goes too far. Therefore, we are asking you to rewrite the manuscript as much as possible to be a fair description of the unsuspected phenomena, without making too many claims regarding crossovers being attracted from one kind of region to another. In other words: please accommodate the reviewers' comments as much as possible. We realize that there are differences in interpretation of the data between you and specifically reviewer 2, but we felt that the phenomenon is important enough that it deserves prominent publication. One of our board members also stated that thephenomenon is interesting, but the point is not to find a model (it does not add much to invoke the beam film model, since there is no way to know if it is late DSBs and/or mismatches, and the authors are certainly far from understanding the molecular mechanism) but to validate the general principle.”

Thank you for this guidance. We included the model in response to peer-review evaluations from a prior version of the manuscript. We agree that presenting the model is not critical to the central thesis of the paper and have removed the figure.

Detlef Weigel has made specific comments in the manuscript, as attached.

We appreciate Detlef’s attention to detail and have made the changes that he suggested.

Reviewer #1:

Over all I found the manuscript to be much improved in terms of it presentation of its results, and the addition of the new analyses made the findings a more general statement of the effect of heterozygosity on recombination patterns. I note, however, that the other reviewer's original concerns were much more substantive than mine. As such, I view their opinion as carrying more weight than mine in this appeal.

The last paragraph of the Discussion is problematic:

We propose that the biological function of the heterozygosity cis-effect is to recruit crossovers to variable regions of the chromosomes, acting as a feed-forward mechanism to increase diversity.”

… meiotic recombination has been selected to promote…

Arguments about the evolution of recombination modulators are very slippery (as recombination unlinks the fate of the modifier and the recombinant haplotype it creates). As such these proposals are unsupported speculation, perhaps changingpropose” tospeculatewould help. Arabidopsis thaliana has not been a selfing lineage for very long (like most selfers), and the authors' argument does not seem super convincing evolutionary mechanism for outcrossers (as homozygosity runs will be broken up across generations, by segregation). So their explanation seems somewhat shaky.

We acknowledge these uncertainties and have removed these points from the Discussion. As discussed below we have also included a statement on the relevance of different mating-systems for these phenomena.

In outbred organisms very long blocks of homozygosity are rare. The authors should caution that they know little about how long a block of homozygosity is needed to promote this effect, so the importance of this effect in other systems (e.g. mammals) is unclear.

This is an important point, which we have addressed by adding the following sentence to the Discussion where we consider the potential generality of our observations: “However, when assessing the significance of such effects it is also important to consider how outcrossing versus selfing will influence patterns of homozygosity and heterozygosity within species.”

In general the authors have done a better job of acknowledging other likely contributors to the recombination/heterozygosity relationships. Except for:

However, the cis-effect is unlikely to explain all of this relationship and genetic hitchhiking, background selection and recombination associated mutagenesis may play important roles”.

The contribution of these other effects has been subject to quantitative investigation for over a decade. While the authors’ findings are very interesting, it is a disservice to useallandmayin this way. I'd say that the contribution of linked selection is much more established than their mechanism, and should be acknowledged as such.

We have removed this sentence from the Discussion, though description of the important and well-established role linked selection plays in driving correlations between recombination and diversity remains in the Introduction, including references to several key publications.

Reviewer #2:

Suggestion:

Title: Adjacent homozygous and heterozygous regions reciprocally enhance and suppress crossing-over in an interference-mediated process.

Summary: Analysis of meiosis in mosaically-hybrid Arabidopsis lines reveals that a heterozygous region suppresses crossing-over in an adjacent homozogous region while, reciprocally, the homozygous region increases crossing-over in the adjacent heterozygous region. This interplay requires crossover interference: it is absent in a fancm zip4 background where crossovers occur but interference is absent. Two new features specific to recombination in heterozygous regions are also revealed: an effective increase in crossover interference and a decreased effect of a fancm mutation, which normally increases crossovers that do not exhibit interference. Potential mechanisms and evolutionary implications are discussed.

Part I. Summary. The authors have identified an interesting phenomenon that takes place at the junctions between homozygous and heterozygous regions, particularly when one of the involved regions is sub-telomeric: the frequency of recombination (crossing-over) in the homozygous region goes down while the frequency of recombination in the heterozygous region goes up (relative to the fully homozygous and fully heterozygous cases, respectively). This phenomenon implies reciprocal interplay between the two regions. This phenomenon applies specifically to junction regions. Fully heterozygous regions exhibit almost the same recombination frequency as fully homozygous regions, at least in the situation examined here. This could be of genetic/evolutionary significance, although that would depend, particularly since the role of crossing-over for evolution is hotly debated. It is not 100% clear whether the phenomenon applies generally throughout the genome and/or why it is particularly prominent in sub-telomeric regions.

We thank the reviewer for this suggestion and have changed the title to: “Juxtaposition of heterozygous and homozygous chromosomal regions during meiosis triggers reciprocal crossover remodeling via interference”. We have also extensively rewritten the manuscript to emphasize that we report a junction phenomenon caused by juxtaposition of heterozygous and homozygous regions. We believe sub-telomeric regions show this effect most prominently as interference is acting from one direction only, though we have also detected a weaker, yet significant, effect across the centromere of chromosome 3, where interference acts from both arms.

The authors go on to suggest a specific mechanism for this phenomenon. One point is clear: this phenomenon requires crossover interference. In a mutant situation where there are crossovers, but no interference, the phenomenon is absent. This is interesting and sensible because crossover interference is, by its nature, a process in which adjacent regions communicate with one another.

We are glad the reviewer agrees that our mutant analysis supports a role for crossover interference in mediating these heterozygosity/homozygosity junction effects. To provide further support for the role of interference we have added analysis of I3bc crossovers in a zip4 (interference defective) single mutant with varying heterozygosity (Figure 8E), which further supports a role for crossover interference in these phenomena.

Beyond this point, however, the authors’ assertions regarding mechanism are not supported by the data.

1) The authors say that non-interfering COs are suppressed in heterozygous regions. This features prominently in the Title and Summary. This is not shown in this paper. What is shown is that the COs which occur in a fancm background (which do not exhibit interference) are reduced in heterozygous regions. There is no evidence that these COs are occurring by the same molecular mechanism as thecanonical non-interfering COsthat arise in wild type meiosis.

We acknowledge that we do not formally know whether the non-interfering repair that predominates in fancm is biochemically equivalent to the non-interfering repair that occurs in wild type. We have now explicitly stated this uncertainty in the second paragraph of the Introduction. As discussed above we have also added analysis of zip4 single mutants, where only non-interfering repair is operating. Our observations are again consistent with non-interfering repair being less effective in heterozygous regions. Specifically, zip4 crossover frequency is significantly decreased by heterozygosity, which is not observed in wild type where interfering repair predominates (Figure 8E).

2) The authors show that interference, as classically defined, appears to be stronger in heterozygous regions than in homozygous regions. This is also an interesting observation, which is documented not only for the specific situation analyzed in detail, but more broadly. This is the first time that interference has been examined in heterozygous situations, as far as I know.

We are glad the reviewer appreciates the novelty of these findings.

However, further consideration of the implications of this finding have some problems: (a) the phenomenon of increased interference may not mean what the authors think it means; and (b) the authors wish to say that this increased interference is responsible for the interplay between heterozygous and homozygous regions. This is a possible model. But I think it is wrong and there is actually evidence in the paper against it.

The strongest direct argument against the authors’ model is that the reciprocal interplay between heterozygous and homozygous regions is observed in a situation where crossovers in the two regions exhibit the level of interference characteristic of the homozygous region (Figure 6F and 8; details below).

More generally: it is clear that, at junctions, crossovers go down in homozygous regions and go up in heterozygous regions, relative to the pure homozygous or pure heterozygous cases, respectively, and that interference is required (above). The question is: what is the basis for this asymmetry? In my opinion, the underlying effect could be that there are more DSBs (or total inter-homolog interactions) in heterozygous regions. More DSBs means more COs, which means more interference emanating from that region across the border to the homozygous region which means fewer COs in the homozygous region than in the pure homozygous case. Oppositely, fewer DSBs in homozygous regions means fewer COs which means less interference emanating from than region across the border to the heterozygous region which means fewer COs in the heterozygous region than would be observed in the pure heterozygous case.

This model is further supported by two interrelated considerations. (1) Fully heterozygous regions show the same level of COs as fully homozygous regions (Figures 7, 8 wild type cases) even though there is more interference. Clearly there must be some other effect that counterbalances the apparent increase in interference. (2) The apparent increase in interference could, in principle, reflect either of two effects (Zhang et al., 2014 PLoS Genetics and PNAS): (a) an increase in the distance over which interference spreads; or (b) a decrease in thestrengthof CO-designation. The first would imply a more robust process in the heterozygous case, which seems peculiar a priori; the second would imply a less robust process in the heterozygous case, which makes more sense. (3) If phenomenologically increased CO interference reflects model (b), then the level of COs can be restored by increasing the number of DSBs.

By my alternative model, the phenomenological increase in interference in heterozygous regions is actually irrelevant (as shown by the data mentioned above). The real effect would be more DSBs.

Another problem with the authors' model is that it requires that theincreased interference in a heterozygous regionspreads across the boundary into the homozygous region and that thedecreased interference in a homozygous regionspreads across the boundary into the heterozygous region. This is a priori unlikely if the basis for the altered interference is heterozygosity per se.

It would actually not be so difficult to provide at least some evidence for more DSBs/interactions in heterozygous regions (e.g. by Dmc1 focus analysis). However, this opens up another can of worms and is beyond the scope of the current presentation.

The basic point is that it is not proven that there is a role for increased interference in heterozygous regions in the observed junction phenomenon and there seems to be evidence against it.

We thank the reviewer for these considerations of the potential mechanistic basis for the effects of heterozygosity-homozygosity juxtaposition. Although we have limited data to distinguish between these potential models we have added consideration of them to the Discussion, including the idea that heterozygous regions could receive higher DSB numbers via feedback signaling. Specifically, we have considered the phenomenon we observe in the context of the Beam-Film model for crossover interference as suggested (Zhang et al., 2014, PLoS Genetics).

Importantly also: the documentation, description and presentation in this paper requires significant improvement as described below. There are problems of logic, vocabulary, data, controls, explanation and interpretation. This paper is not really readable by a general audience in its present form.

There is redundancy in the comments below, for which I apologize, but hopefully this is useful.

We apologize for these issues, which we have attempted to remedy as described in detail below.

Part II. Specific Issues with Title and Summary.

The title says:Heterozygosity promotes interfering and inhibits non-interfering crossovers during Arabidopsis meiotic recombination. I do not think that either of these conclusions is warranted.

(i) The latter conclusion, that heterozygosity inhibits non-interfering crossovers, is wrong because it is based on the assumption that the extra COs that arise in a fancm mutant (and do not exhibit interference) are biochemically the same as the extra COs that arise in wild type (and are defined asnon-interfering COs). Heterozygosity does decrease the COs seen in a fancm mutant (Figures 7, 8), but this cannot be extrapolated to wild type.

(ii) Heterozygosity does, phenomenologically, increase CO interference. This is an interesting observation. But the interpretations placed on it are not proven and, in my opinion, are not correct. This finding could perhaps be interpreted aspromoting the interfering CO pathway(as in the Title). However: (a) In comparisons between fully homozygous and fully heterozygous regions, the frequency of COs is essentially the same (Figures 7AB, 8AB). This cannot be explained by an increase in CO interference alone. It implies some other effect. (b) The observation of increased CO interference by CoC analysis can be explained either by an increase in thespreading distanceof the interference signal or by a decrease in the strength of CO-designation; both effects decrease the CoC at short inter-interval distances (See Zhang et al PLoS Genetics 2014 and PNAS 2014). If the relevant effect is to decrease the strength of CO-designation the observed effect is actually not promoting the interfering CO pathway but making it worse. (c) The fact that CO number does not change in a fully heterozygous region even though interference effectively increases (a, above) suggests/implies the existence of another effect, which could/should be upstream of any recombination fate decision. Most simply: if there is a decrease in the efficiency of CO-designation, the resultant decrease in COs can be overcome by an increase in the frequency of DSBs (or DSB-mediated pre-CO interactions). Perhaps mismatched chromatin structure has such an effect, maybe especially in sub-telomeric regions which might be influenced by pre-DSB homologous pairing interactions.

As described above we have changed the title of the paper and acknowledged the uncertainty concerning the biochemical basis of non-interfering repair in wild type versus mutant backgrounds. We have also elaborated on the potential mechanistic basis of the effects we observe in the Discussion.

The end of the Summary says: “Using recombinant populations we show that heterozygous regions attract crossovers from homozygous regions on the same chromosome at the megabase scale. Interference inhibits formation of adjacent crossovers over similar physical scales, and we demonstrate that this polymorphism cis-effect is dually mediated by promotion of interfering crossovers and inhibition of non-interfering crossovers in heterozygous regions. This reveals an unanticipated mechanism whereby DNA polymorphism can recruit crossovers, contribute to positive correlations between recombination and diversity and influence the action of selection.

I do not agree with any of these statements.

We acknowledge this and have removed these statements from the Summary.

Let us first definepolymorphism cis effect. What was analyzed were constructs in which recombination was assayed in a sub-telomeric test region, which could be homozygous or heterozygous, and had an adjacent internal region that could be homozygous or heterozygous. Assuming experimental problems (below) can be ignored, what is observed (assayed region underlined) is, essentially, the following: (a) the frequency of COs is lower in HOM-HET than in HOM-HOM; and (b) the frequency of COs in HET-HOM is higher than in HET-HET. That is, an adjacent heterozygous region decreases COs in a homozygous region relative to what would have been seen in a fully homozygous situation while an adjacent homozygous region increases COs in a heterozygous region relative to what would have been seen in a fully heterozygous situation. But… HOM-HOM and HET-HET both show the same frequency of COs as one another (see Figures 6CD, 7 and 8 for the clearest examples). [There is one exception (Figure 8; see below) which I will simply ignore]. This is not:heterozygous regions attract crossovers from homozygous regions on the same chromosome at the megabase scale. There is no attraction; this is not a zero-sum game; the effect is reciprocal, not unidirectional; and stating the result in this way is not accurate and is prejudicial to thinking.Recruitmentto heterozygous regions is simply wrong.

So what is the explanation for the observed effects? The paper also shows (Figures 7, 8) that this interplay is not observed in a fancm zip4 double mutant where there are still COs, but of a variety that does not set up interference. Fine. Interference is required. And if everything were the same in HOM and HET regions, there would be no effect of having one next to the other, so just saying that there is interference is not enough. There has to be some asymmetry. The authors seem to think that the difference is that interference isstrongerin HET regions andweakerin HOM regions. If this were true, and if that effect crossed the border between the two regions, COs in HET regions would tend to decrease COs in HOM regions relative to the effect from normal HOM interference; oppositely, HET regions will experience less interference from an adjacent HOM region than from an adjacent HET region. However: I do not think that this is correct. To reiterate some of the points made above:

(A) This model assumes that interference specific to HOM or HET can cross a HET/HOM border. This is a priori unlikely. Furthermore, there is data in the paper, which says that you can see the diagnostic reciprocal effects on CO levels in three-factor crosses where the HOM-type CO interference level is observed (Figures 6F and 8; see below).

(B) An alternative explanation is the same one required to explain interference patterns above (and thus is more likely): more DSBs in HET regions vs HOM regions. More DSBs in HET regions will imply more COs. More COs means more interference signals, which means fewer COs in the adjacent region. Oppositely, in HOM regions, fewer COs means fewer interference signals which implies more COs in the adjacent region.

To return to the Summary:we demonstrate that this polymorphism cis-effect is dually mediated by promotion of interfering crossovers and inhibition of non-interfering crossovers in heterozygous regions. This reveals an unanticipated mechanism whereby DNA polymorphism can recruit crossovers, contribute to positive correlations between recombination and diversity and influence the action of selection.Inhibition of non-interfering COs is not shown (above). Enhanced interference in heterozygous regions (which is apparently what the authors mean bypromotion of interfering COs) is not relevant. The likely relevant effect (more DSBs and thus more COs in HET regions) is not mentioned or discussed as a possibility. Thus: there is, therefore, nounanticipated mechanism, and no effect in whichDNA polymorphosms recruit COs and thus increasing genetic diversity in hybrid situations.

Instead: what has been shown? There is a phenomenon that is observed when HOM and HET regions are side-by-side. Ajunctionphenomenon, if you will. There is a reciprocal interplay in which COs are decreased in HOM regions and increased in HET regions and this interplay requires interference. This is likely correct, although there are a lot of technical issues pertaining to the data (below). NB that this is specific to adjacent HET/HOM regions, because HOM/HOM and HET/HET recombination are very similar. Thus, this is not a general effect of global heterozygosity, but an effect specific to juxtaposed HET/HOM regions (junctions). Thus any evolutionary implications must derive from this specific situation, not from heterozygosity in general.

The basis for this effect, about which the authors are quite specific in the title and the Summary, is probably not what the authors think it is, as described above. To repeat (again): There is no data on interplay between HET regions andnon-interfering COsin wild type, only in a mutant situation that might be different. The observed increase in interference is real and per se interesting, but this does not imply a more robust interfering CO pathway; it could as easily and more probably imply a weaker pathway. And regardless of that point, the increase in interference in HET regions is not responsible for thejunction interplay, as described above. This leaves the actual basis for the asymmetry between the two types of regions to be determined, but increased DSBs is an attractive possibility, which is not considered (described above).

It is also notable that most of the data come from analysis of a sub-telomeric interval(s) which could be special for any number of reasons. This maybe ok, but should be discussed more.

We acknowledge the issues raised by the reviewer relating to the interpretation of our data. To address this we have removed mention of the words ‘attract’ and ‘recruit’ from the manuscript in reference to the effects we observe. We now express these ideas explicitly in terms of juxtaposition of heterozygous and homozygous regions and that the reciprocal changes in crossover frequency are mediated via interference. We further explore possible causes in the Discussion, including increases in DSBs in heterozygous regions.

The above considerations address the paper on the assumption that all data are valid and conclusions fully supported by the observations. But there are quite a few issues that need to be addressed before one is really sure that these criteria are met. These are discussed below. Maybe I'm just slow. But for me, this paper was extremely difficult to read and understand. This is, in part, because the underlying effects and issue are complicated. But in addition, there are a variety of problems with presentation and analysis and interpretation and logic/assumptions. Important experimental details are absent or buried or writtenin plant language. There is a mixture of ideas and experiments. There is a historical/narrative presentation, rather than a consideration of the data per se irrespective of how the authors came to some ideas. This latter feature makes it extremely difficult to think about what could be going on.

We again apologise for these issues in the clarity of our presentation, which we have addressed as described below.

Part III: More comments of various types.

1) It is a well-established fact that heterozygous lines may have higher or lower recombination rates than (more) homozygous lines. This is reiterated by the authors, in considerable detail. As the authors state, these could reflect differences in the natures of the diffusible molecules produced, which the authors call “trans” effects.

There is a major vocabulary problem. In opposition to trans, there is cis. There a major confusion with regard to the word “cis”, which is used in two different ways at different places in the paper. The most general way is in opposition totransas defined above. That is: the effects of heterozygosity per se, irrespective of differences in diffusible factors. However, the word cis can/is also used to refer to the effect of the nature of one region on events in an adjacent region on the same bivalent, that is an effect that is in cis along a given chromosome. The two different uses make reading this paper really difficult. For example:dual cis effectsprobably uses the word “cis” in the first sense; and “cis effects of heterozygosityprobably uses the word in the second sense.

We acknowledge the confusion caused by our previous use of ‘cis’ and ‘trans’. To clarify this we have explicitly stated our distinction between cis and trans modification of recombination in the Introduction. “We define trans modifiers as loci encoding diffusible molecules that control recombination on other chromosomes, and elsewhere on the same chromosome, as exemplified by mammalian PRDM9 (Baudat et al., 2010; Berg et al., 2010; Fledel-Alon et al., 2011; Kong et al., 2013; Myers et al., 2010; Parvanov et al., 2010; Sandor et al., 2012). We define cis modification as variation that influences recombination only on the same chromosome, for example, the inhibitory effects of high SNP density, inversions and translocations (Baudat and de Massy, 2007; Borts and Haber, 1987; Cole et al., 2010; Dooner, 1986; Jeffreys and Neumann, 2005; Schwander et al., 2014; Thompson and Jiggins, 2014).” We therefore restrict later usage of these terms within the context of these definitions. We have also removed many previous uses of the word ‘cis’ and instead described the observed phenomenon in terms of the juxtaposition of heterozygous and homozygous regions.

2) There is additionally what appears to be a fundamental experimental problem. The entire paper (after Figure 4) presents thegenotypesof tester bivalents, and analyzes events on those bivalents, without ever discussing anywhere that I could find in the text what is known about the other chromosomes in those same cells and whether variations in trans-acting factors might be relevant or controlling for such variations in any way. The problem begins with Figure 4D, E and its relatives. It is stated that the pattern described in that figure, which involves the presence of homo/heterozygosity adjacent to a heterozygous test interval, is independent of the nature of the homozygous region. But this is not correct. Genotypes at the top of the pattern tend to have Col/Col (red) while genotypes at the bottom tend to have Ct/Ct (green). This is seen also in the other analyzed sub-telomeric interval (Figure 4GH). This should be specifically investigated. More generally, there has to be some attempt to deal with this as a general issue for all experiments. Perhaps this was actually done by analyzing multiple lines with the same critical genotype but, necessarily, different complements of information on other chromosomes. Are these the multiple data points in various figures? If so, it is just not obvious in the text of the paper or the figures or figure legends and the reader should not have to go searching for it. If not, this issue remains as an underlying problem throughout the paper. There are arguments against trans effects as a big issue in several places, but they are never made in the paper.

Summary: this issue has to be specifically addressed for Figure 4 in order to draw the conclusion in that figure and it needs to be discussed as an issue in all other cases. There is the always-underlying issue of possible trans variations; however, it can be argued that a consistent picture emerges in several types of constructs that should (apparently?) have different types of trans effects.

This is an important point and we present several lines of evidence that argues against the presence of significant trans modifiers (as defined above) of recombination segregating in the Col x Ct recombinant populations. First in Figure 4B we present QTL analysis for 420 recombination rate in a Col x Ct F2 population that shows an absence of significant associations on the chromosomes other than the one being measured (chromosome 3). To extend this we performed additional QTL analysis for I2f recombination rate in an independent Col x Ct F2 population (Figure 4C). Here again a significant association was only detected on chromosome 2 where recombination is measured, and not on chromosome 3. This clearly demonstrates that lack of reciprocal trans effects between chromosomes 2 and 3 in these crosses. To further mitigate against potential weak trans modification effects from other chromosomes in experiments where we derive recombinant genotypes for analysis, e.g. HET-HOM (Figures 5, 6 & 8), at least 3 independently derived lines were analysed for each condition (apart from HOM-HET 420-CEN3 where two were analysed). Generation of independent lines means that they will be Col/Ct mosaic throughout the genome in different ways in each case, minimizing the confounding effect of any potential trans modifiers. Further detail has been provided on generation of these lines in the Materials and methods and in Figure 7–figure supplement 1 and Figure 8–figure supplement 1 where crossing schemes are diagrammed.

3) The paper makes many comparisons among different regions without much emphasis on the fact that things are different or why. Of course part of the difference between the CEN interval and the 420 interval is the location; but also there is the fact that CEN is measured in male meiosis where in Arabidopsis, there are more COs, and they are more sub-telomeric. 420, which is sub-telomeric, is measured in female meiosis, where CO rates are generally lower and COs tend to be LESS sub-telomeric. It is frustrating that the authors did not discuss how these differences, particularly the M/F differences, might affect their results and/or interpretation. To the only partly initiated, it seems like apples and oranges.

The reviewer raises valid points concerning regional variation in crossover patterns along chromosomes, and also variation between male and female meiosis. A major difference between 420 and CEN3 is that the former is located in gene-rich euchromatin and the later located in repeat-rich heterochromatin. This is important, as we have previously shown distinct effects in these intervals when epigenetic information (DNA methylation) is altered (Yelina et al., 2012, PLoS Genetics). This is also reflected in the lower recombination rate observed in CEN3 relative to 420, consistent with general recombination suppression observed in heterochromatic regions. As we observe that these regions show different responses to recombination mutants (fancm and fancm zip4, Figure 6) it is likely that this reflects an interaction with chromatin. These differences are discussed in the Results section ‘Heterozygosity extensively modifies crossover frequency in Arabidopsis’.

The reviewer also raises the pronounced differences observed in Arabidopsis sub-telomeric regions between male and female meiosis (Giraut et al., 2011, PLoS Genetics). They are correct that our analysis of the sub-telomeric interval 420 represents a mixture of male and female meiosis, due to collection of seeds from self-fertilized plants. However, we complement this with analysis of the sub-telomeric I2f and I3bc intervals, which are analysed in pollen and therefore measure exclusively male meiosis. Importantly, the conclusions reached from 420 versus I2f/I3bc are concordant, indicating that these sex differences are not a major problem for our analysis.

4) At the most general level, this paper is among the first, in a plant system, to consider cis effects in either sense defined above. In the first category of cis, there is a long history of studies on the effects of basepair mismatches on recombination, both biochemically (they are sensed by RecA and RecA homologs, in combination with mismatch repair proteins, such that the ongoing strand exchange is rejected) and genetically, where recognition of mismatches by the mismatch repair system is known, in meiosis, to specifically eliminate crossovers (e.g. Hunter and Borts). I actually don't know whether anyone has examined DSB levels in heterozygous regions. I am not aware of any previous study that examines either interference or the effects of fancm-type or similar mutations in heterozygous regions. I am also not aware of any other studies that address cis effects in the second sense. So, as phenomena, the reported observations will be of interest to the meiosis field.

We are pleased that the reviewer appreciates the novelty of our study and its interest to the meiosis field. We have added further discussion of the known interactions between recombination and base-pair mismatches to the Discussion.

5) To set a baseline, it is easiest to begin with consideration of general properties of heterozygous regions. The authors make two new findings.

A) Fancm mutations have different effects on CO frequency in heterozygous versus homozygous regions. However: the interpretation of this finding in the paper is incorrect. The authors assume that the COs that emerge specifically in a fancm mutant are going by the samenon-interfering crossover pathwaythat is argued to exist at a low level in wild type cells. If this were true, then effects seen in fancm mutant backgrounds would also be occurring in wild type. As stated above, this is possible, but it is not known and is not shown by this paper.

More specifically: is generally agreed (e.g. by Mercier and supported indirectly by yeast studies) that there is a set of DSB-initiated intermediates, among which a subset are specified to beinterfering COs, ie Zip4-dependent COs that show classical interference. The remaining interactions are then matured to other fates, mostly non-crossovers and inter-sister events but also, at a low level to COs. These are thenon-interfering COs. In a fancm mutant, the fates of the interactions that are not specified to beinterfering COsare different, with a much larger proportion becoming COs than in the wild type case. The reason for this is unclear, but presumably is some modulation of biochemistry. What is shown in this paper is that, in a fancm mutant, the level ofextraCOs that arise in heterozygous regions is less than in homozygous regions. This does not speak to what might or might not be going on in wild type.

Another problem with this analysis is that wild type, fancm and fancm zip4 strains are analyzed but zip4 single mutant strains are not. This is not acceptable for a properly controlled analysis, although I understand that it did not seemrelevantin the context of what the authors were trying to address. Moreover, the missing mutant might actually be directly informative about what is going on in a wild type background.

As discussed earlier we have now acknowledged the uncertainty of whether non-interfering repair occurs via the same biochemical pathway in wild type and fancm backgrounds in the Introduction. We have also added zip4 single mutant data, which is further consistent with our model (Figure 8E). Specifically, that crossover frequency in zip4 is further decreased by heterozygosity, indicating that non-interfering repair is less efficient in this situation.

B) The authors find that heterozygous regions show higher levels of (phenomenological) CO interference than homozygous regions. This is shown by a three-factor cross for one sub-telomeric region for Col/Ct heterozygosity and by a different method for a broader range of heterozygous lines. The latter analysis suggests that it is general.

This is an interesting and novel finding. It implies that, as an observational fact, within a heterozygous region, if there is a CO in one region, the probability that a CO will occur nearby is reduced even more than in the normal homozygous case.

[As summarized above: there are two ways to think about what this means in reality. Thenormalway might be to think that the interference signal spreads out for a longer distance in the heterozygote. However, there is another way to think about it. The same result can be obtained if there is a reduced propensity for a recombinational interaction to be specified to be a crossover. This is shown by thebeam-filmmodel (or any scenario involving designation of a CO and spreading interference) by shifts in CoC curves to the left or to the right according to variations in CO-desigation probability, with a constantinterference distance.] This is an intriguing finding per se. Its significance for other phenomena is more complicated, as discussed above.

We are pleased the reviewer finds our results interesting and novel. We have added further detail to the Discussion to take into account the proposed ideas for the potential cause of these effects.

6) The authors spend a lot of time discussing situations in which they believe that events in a heterozygous region are influenced by events in a homozygous region, and/or vice versa. First, comments on Figures 4-6:

Figure 4A. The left part shows that a pure homozygous line, heterozygous for the red and green tester markers, is produced by crossing a marked Col/Col line with an unmarked accession line (top) and then that when this line is selfed to give an F2, various types of progeny can result.

Comment. The authors show only cases in which the R and G markers are in cis, which implies that during selfing, there has been no crossing-over between them. This may be the majority of outcomes. However, the criterion for selection of F2 progeny to analyze was heterozygosity for R and G. By fluorescence, this implies that there is one copy of each. For all of the examples shown, R and G arein cisto one another. But 15% of meioses will give a crossover between the two markers; and if the appropriate products unite (R+G- with R-G+), the resulting F2 seed will ALSO have only one copy of each marker. This may be rare (15% x 15%). Nonetheless, such cases would be scored as having the highest recombination rates if they were not somehow identified and removed from further analyses. Do the authors know from genotyping whether their F2s include such cases and if so, which ones are they among the 139?

The reviewer is correct that ‘trans’ R+/+G 420 lines arise at the expected frequencies. In the seed of these individuals the fluorescent classes representing parental and crossover genotypes are reversed. As R+/+G plants also have variable heterozygosity/homozygosity patterns within 420 depending on crossover positions in the previous generation we excluded these plants from further analysis. To clarify this point we have added additional text to Materials and Methods and we present analysis of RG/++ and R+/+G seed in Figure 2–figure supplement 1. As this shows it is straightforward to identify these individuals and exclude them from further analysis.

Othermissing information: (i) Were the F2's obtained from a single F1? Or from multiple F1's with results pooled? (ii) Is it completely obvious that the fluorescence detection could distinguish RRG and RGG from RG genotypes? This is clearly a critical point and it does not seem to be addressed explicitly, though I might have missed it.

i) As discussed earlier ∼3 independent lines were analysed for recombinant genotypes to minimize potential confounding effects from other chromosomes, although it is important to restate that our QTL analysis did not detect such loci in Col x Ct populations. ii) Although it is possible to distinguish seed with one versus two copies of fluorescent transgenes, there is a greater degree of overlap between classes than between fluorescent and non-fluorescent seed (Figure 2E). Therefore we only use divisions between fluorescent and non-fluorescent seed to calculate genetic distance. This is possible using the formula: cM = 100 × {1 – [1-2(NG+NR)/NT] ½}. Where NG is a number of green only fluorescent seeds, NR is a number of red only fluorescent seed and NT is the total number of seeds counted. This information is included in the Materials and methods section.

Minor presentation issue: the meaning of the box on the right is obscure without working at figuring it out. Apparently it means that when the F2s are taken through meiosis, they may generate recombinants, but this is hardly obvious in the cartoon or the legend. (Again assuming that they started out with the cis configuration.)

We have modified this diagram to make its meaning easier to comprehend (Figure 4A).

Figure 4B. In this figure, the authors select a set of F2s that are heterozygous at the R and G markers. They then ask, at each of 51 other positions, whether the frequencies of the two parental alleles is different from what you expect from an absence of correlation with the selectedphenotype. What is detected is a deviation from expectation for chromosome 3 (the chromosome on which phenotype is selected).

Comment: We can start with the fact that this analysis is essentially not described at all in the paper. The non-plant reader would have no idea what is going on from the half a sentence in the text.

We have added the following description to the text to explain the statistical test we used here: “For each marker we used the heterozygous and homozygous counts in the hottest quartile versus the coldest quartile to construct 2x2 contingency tables and performed chi-square tests, followed by FDR correction for multiple testing (Table 5).”

If I have understood correctly, this analysis appears to have a fundamental flaw. If you select for F2's that are heterozygous for R and G, most of these will have the cis configuration, meaning that they have not undergone a CO between R and G on that chromosome in the previous meiosis. Since there must be at least one CO, there will be a CO somewhere else on chromosome 3. And there will be a non-random tendency for marker disposition to occur just because there is already a selection that restricts localization on this chromosome specifically. More specifically: since the average per chromosome is just a little above one, and since the CO is not sub-telomeric at the marked end, it will tend to occur at non-random position (or positions if there are 2 COs) away from the marked end, e.g. towards the middle of the chromosome. This effect explains the peak in the graph which is centered in the middle of chromosome 3 - it reflects the non-random consequences of having the CO in a non-random position along the marked chromosome. If this interpretation is correct: this data do not provide evidence for a cis effect. There is only the fact that you have pre-selected a population that, by its nature, will have a non-random arrangement of markers along chromosome 3.

Two further points: (i) 139 is a very small number of F2s from which to draw a conclusion. (ii) There should be a control showing that if you look at the entire population, you do not see any peak. Of course, given the basis for the peak (above), the control will show that it is specific to the selected sub-population, which is not really any help, but still, if such analysis is to be shown, the control must be there.

We agree with the reviewer that our selection scheme imposes a significant bias on the location of crossovers within the F2 population on the selected chromosome. Due to our selection strategy for ‘cis’ configuration RG/++ plants, crossovers are excluded within the measured interval. As a consequence of this there will be a bias in the location of additional crossovers elsewhere on the selected chromosome, both due to this selection and due to inherent variation in the chance of recombination between chromosomal regions. However, this alone cannot explain the observed association between patterns of heterozygosity on the selected chromosome and recombination rate within the measured interval. Furthermore, we independently confirm this effect using independent experiments in Figures 5, 6 and 8 where we use defined recombinant lines instead of F2 populations.

Figure 4C. Figure 4C shows the recombination frequencies in the 420 interval observed for the 139 F2's. The conclusion is that the range is greater than for the Col/Col wild type strain or for a Col/Ct F1 full genome heterozygote. This is likely true, but it is hardly surprising under any model. It likely reflects trans effects as well as cis effects. It is unclear why this is valuable information, unless it sets the stage for later panels.

As discussed above we did not detect significant trans effects via QTL analysis in these populations and our use of independently derived recombinant lines in later experiments will mitigate against any undetected weak effects from other chromosomes.

Minor point: it is not appropriate to compare the rank plot for the 139 F2s with averages and ranges for Col/Col and Col/Ct. The ranges for the two compared lines are a statistical measure; they do not give the same impression as the rank plots. Thus one is comparingapples and oranges. The rank plots for the two comparison lines should also be shown, and then the averages and ranges for all three sample sets should be compared.

We have now presented the data for the F2 and control Col/Col and Col/Ct lines identically in these figures.

Figures 4 D, E, G, H; Figure 5. Figure 4D displays the natures of the 139 F2s, shown from top to bottom in rank order of recombination frequency in the 420 interval, with respect to whether the markers indicated on the X-axis are heterozygous (black), homozygous Col, or homozygous Ct. This plot shows a gradient ofblack, emanating from the test interval towards the end of the chromosome, to greater and greater distances from bottom to top. The authors interpret this data as follows:However, we detected a significant association on chromosome 3 itself, where the hottest F2 quartile had significantly higher homozygosity outside 420, compared to the coldest quartile. This cis-effect was observed when the rest of the chromosome was either Col or Ct homozygous, indicating that it is non-allele specific and caused by polymorphism per se, rather than by specific sequence variants.

The restatement of the result above does not accurately describe the entire picture. The fact that the black portion emanates from the selected region is not mentioned (and is presumably significant). An accurate restatement of the result, which admits to all interpretations, is that F2s with higher 420 recombination tend to be homozygous for flanking material while F2s with lower 420 recombination tend to be heterozygous. Moreover, theextra heterozygositytowards the bottom of the rank plot tends to occur specifically adjacent to the 420 region. The term “cis effectshould not be used, as this is an interpretation. It has become lab jargon for the phenomenon the authors think is going on, but it is confusing given the various versions of this phenomenon (including its reciprocity), as well as the fact that there should be a formal description of the data, not an interpretive one. Better to call it ajunction phenomenonor Hom-Het interplay.

As described above we have now more clearly described the statistical test used to detect this association in the Results section. We have also rewritten the text to describe the observed phenomenon in terms of heterozygosity/homozygosity junction effects and avoided describing this as a ‘cis effect’.

More importantly, contrary to what the authors say, there is a clear tendency for moreredat the top and moregreenat the bottom, not only in Figure 4D but in the corresponding figure for the other sub-telomeric region in Figure 4G. This would likely appear in an appropriate plot, although a larger data set may be required to see it with very strong statistical significance. It suggests that having more Col information promotes a higher frequency of COs in general versus more Ct information. This is directly supported by the fact that, overall, Col/Col recombination rates are higher than Col/Ct recombination rates genome-wide (Figure 4C). This has to be dealt with.

Although this association on chromosome 3 would be consistent with the presence of a weak ‘trans’ modifier in this region, when we performed a QTL analysis for the I2f interval on chromosome 2 using an F2 population derived from the same parents no significant effect was detected on chromosome 3 (Figure 4C). This provides evidence that this weak association is not caused by the presence of a general trans modifier on chromosome 3.

Also importantly: the authors cannot, in principle, say that they see a cis effect unless they do a control to show that the sample subset of 139 F2s have similar frequencies of recombination throughout the genome and that there are or are not any associations of recombination with homozygosity, and/or Col vs Ct content on a genome-wide basis. I appreciate that this is not trivial. But the authors' hoped-for conclusion is not trivial either. It cannot be made from this figure without more supporting (or contradicting) data.

This is addressed directly by our QTL analysis in Figures 4B and 4C, which did not detect significant trans modification effects.

Secondarily (perhaps): there are general uncertainties.

i) There is the possible problem that the hottest F2s might have their markers in trans, with unknown consequences.

We have addressed this point earlier (see Figure 2–figure supplement 1).

ii) The top-ranked F2 in the 4D data set is very pecuIiar. It appears to be Col for the entire length of one chromosome and to have had a single CO exactly at the border of the marked region in the other. How is this possible?

As this is a gene-rich euchromatic region it shows relatively high levels of recombination (e.g. Salome et al., 2012, Heredity) and therefore it is not unlikely that we would recover crossovers in this interval.

iii) As in Figure 4B, there could be unknown effects from selecting the subset of F2s that did not have a CO in the sub-telomeric region. Are there markers all the way to the end of the chromosomes or are sub-telomeric crossovers going to be missed (which is a problem for the analysis since many COs will be there specifically in the selected population, thus biasing the sample. There is actually a hint of such a problem in the fact that the observedeffectis absent for the centromere (a central marker) and weak for an interstitial marker. One interpretation is that observation of an effect is a consequence of selecting a sub-telomeric region for analysis (rather than being an actual phenomenon is specific to such regions). The authors have only presented data saying whether each F2 is homozygous or heterozygous for the markers tested. But in principle, they could figure out the exact arrays of markers on the two chromosomes of the F2 and thus were crossovers occurred in the preceding F1 cross(es). While perhaps difficult, this might reveal additional informative information to further guide interpretation.

Overall, data in Figures 7/8 tend to ameliorate concerns as to the validity of the authors' conclusions from Figure 4/5. But the concerns are still real and valid for presentation of this data.

For 420 the first T-DNA is located 256,516 bp from the telomere, for I3bc the first T-DNA is located 498,916 bp from the telomere and for I2f the last T-DNA is located 741,196 bp from the chromosome end. Based on chromosome average recombination rates these terminal intervals would be estimated to have genetic distances of ∼0.95, ∼1.85 and ∼2.41 cM. Hence, crossovers would be expected in these regions but at relatively low overall frequency. For the largest interval between I2f and the end of the chromosome we included an additional marker in our analysis at 19,311,521 bp and observed a small number of crossovers (2) (Figure 4 and Table 6). Importantly, these crossovers resulted in F2 individuals with heterozygosity between I2f and the telomere that showed high crossover frequency, further consistent with juxtaposition of heterozygosity and homozygosity increasing recombination.

Figure 6A-C. Panels A-C show that two lines that are heterozygous for 420 and Ct/Ct for all or most of rest of the chromosome exhibit higher 420-region recombination than a line that is homozygous Col/Col in 420 and heterozygous for the rest of the chromosome. The authors think that the relevant difference is that heterozygosity adjacent to homozygous 420 depresses recombination in 420. They use this data to argue that the presence of homozygosity adjacent to heterozygous 420increasesrecombination, and thuseliminates the cis effect.

First: this is noteliminating the cis effect. It is a different type of cis effect. It is not clear that the authors appreciate that they are seeing reciprocal effects. They are totally focused on the effects of heterozygous regions on homozygous regions.

In any case, without controls, there are several hypotheses that are equally consistent with the data. What is the relevant difference(s)? Heterozygosity in 420? Col/Col in 420? Heterozygosity or Ct/Ct in the rest of the chromosome? Some combination of the two? There is no way to know without more lines with different genotypes. What is needed (minimally) is Heterozygous 420 plus homozygous Col/Col and fully homozygous Col/Col. (Homozygous Ct/Ct is desirable but difficult to construct). No conclusion can be drawn without controls. This is just not acceptable. To a first approximation, this data should be omitted.

And to repeat: it is assumed that the only relevant differences among the different lines is on the chromosome of interest. But all of the chromosomes are different in the different strains. Is there evidence that the variations are not due to trans effects.

Another thing that is very unclear is why these particular lines were picked for testing. Both of the HL lines chosen for 6 A/B seem to be the rare type in the top quartile in Figure 4; most of the lines in this quartile are homozogous Col/Col outside of 420. Why were these chosen rather than the more common type; or, better, why not test both types? And specifically, exactly which of the 139 F2s are HL1 and HL2? It is not obvious.

We acknowledge the complications of these backcrossing experiments and have therefore removed them from the final version of the manuscript. We have added additional I3bc experiments (Figure 5), which address these issues directly and demonstrate that juxtaposition of heterozygous and homozygous regions causes reciprocal increases in recombination in the heterozygous region and reduces them in the homozygous region (Figure 5). We further show this effect is mediated via interference via analysis in zip4, fancm and fancm zip4 mutant backgrounds (Figures 6 and 8).

Figure 6 D, E, F. This figure shows a 3-factor cross in which there are two intervals that comprise most of the single 420 interval in (AB). (DE) shows that HOM adjacent to HET results in an increase COs in the HET region and that HET adjacent to HOM results in a decrease in COs in the HOM region. This points to the reciprocal effect shown further in Figures 7/8. (F) shows that, despite these changes, there is no change in interference between the two intervals. To anticipate later results, this implies that the nature of interference in the HOM region predominates (below).

Figures 7 and 8. Figures 7 and 8 have three components (1) They provide information about fancm effects and interplay of heterology with fancm recombination. These were discussed above. [The observed effects pertain specifically to heterozygous regions regardless of what is or is not adjacent to them. They do not say anything about what is going on in wild type non-interfering COs.] (2) They provide more data for wild type (FANCM+) strains in several situations. (3) They show that interference is required for the so-called “cis effects. The exposition in the paper was hard to follow. Here is my own restatement of the situation.

Issue (2). Figure 7. For the 420 interval, there are four CO frequencies: HOM/HOM 18cM; HOM/HET 15cM; HET/HET 21cM; HET/HOM 28cM. It is unclear what the multiple data points represent. If these are multiple different lines (and thus different “trans” effects, then the data, are more meaningful). Just looking at these numbers, some conclusions emerge:

Adjacent HET reduces COs in HOM (in HOM/HET 15cm relative to HOM/HOM 18cm). This is the effect emphasized above.

Oppositely, however, adjacent HOM increases COs in HET (in HET/HOM 28cM vs HET HET 21cM). So the effects are reciprocal, which is not emphasized enough.

As discussed the use of independently derived recombinant lines in each case should mitigate against any potential trans effects. Our QTL analysis additionally argues against the existence of such modifiers in Col x Ct crosses as described above (Figures 4B and 4C). We have rewritten the text to emphasize the reciprocal nature of these effects.

For the CEN interval, HOM/HOM 12cM; HOM/HET 12cM; HET/HET 10cM; HET/HOM 9cM. Clearly the centromere behaves differently, for whichever reasons, as suggested by Figure 5 data.

The CEN3 interval is expected to behave differently by nature of it being highly heterochromatic, as discussed earlier.

Figure 8 addresses the same to issues above, but for a three-factor cross specifically in the sub-telomeric interval and with the addition of interference analysis.

Left interval: HOM/HOM 16cM; HOM/HET 11cM; HET/HET 16cM; HET/HOM 18cM.

Right interval: HOM/HOM 5cM; HOM/HET 4cM; HET/HET 5cM; HET/HOM 6cM.

In this case:

The left interval behave as the interval in Figure 7, which is the sum of left and right in Figure 8.

HET reduces COs in HOM: HOM/HOM 16cM; HOM/HET 11cM; HOM increases COs in HET: HET/HOM 18cM; HET/HET 16cM.

The right interval behaves oppositely, but with small effects;

HET increases COs in HOM: HOM/HOM 5cM; HET/HOM 6cM;

HOM reduces COs in HET: HOM/HET 4cM; HET/HET 5cM.

The right interval is small. Apparently theleft side dominates. I have no idea what this means.

The dominance of the ‘left’ interval (I3b) is likely to reflect the telomeric gradient of increasing recombination in Arabidopsis male meiosis (Giraut et al., (2011) PLoS Genetics). As I3b is closer to the telomere, and we are measuring male meiosis, it shows a higher recombination rate than I3c (Table 2).

Figure 8. Interference is also analyzed in the wild type background. NB: there is nowhere in this paper (except the Methods) a description of what the interference metric is, even on the figure. Axis must be labeled (1-CoC) and this must be explained in the text.

Results: HOM/HOM 0.6; HOM/HET 0.6cM; HET/HET 0.8; HET/HOM 0.8.

(a) HET/HET hasmore interferencethan HOM/HOM, the effect discussed above Importantly, this is despite the fact that the frequencies of COs in both intervals are the same in these two situations! This would not be expected if the only difference were in interference. Thus, in the pure heterozygous situation, there must be two effects, one that increases COs plus interference that decreases COs, e.g. more DSBs and counterbalancing interference increase. (b) The two reciprocalmixedcases are not the same. HOM/HET looks like HOM/HOM while HET/HOM looks like HET/HET. Formally, the nature of the left interval dominates, as also seen with respect to effects on CO levels (above).

Overall, it seems that the ability of a HET region to depress COs in a HOM region does not depend on having a HET-type CO interference process.

Figure 8: In the larger/left interval, where canonical reciprocal effects are observed: HET reduces COs in HOM: HOM/HOM 16cM; HOM/HET 11cM; and for interference, HOM/HET looks like HOM/HOM. HOM increases COs in HET: HET/HOM 18cM; HET/HET 16cM and for interference, HET/HOM looks like HET/HET, and the same is seen in Figure 6D, E, F. This figure compared a HOM/HOM situation with a HET/HOM and found them to have the same (HOM) interference. And thecanonicalreciprocal effects are observed.

We have added a more detailed explanation of our interference calculations to the section where we first describe I3bc. We have also changed the axis labels to ‘Interference (1-CoC)’. Additionally we have added the formulae used to calculate interference to Figure 5A. We agree that our observations are consistent with the model of increased DSBs being recruited to heterozygous regions and have added these ideas to the Discussion.

7) The last item is the interplay between fancm and CO interference, keeping in mind that the information does not tell us anything about what is going on in FANCM+ (and thus the general cases of heterozygosity seen in nature).

We have rewritten the manuscript to make it clear that the non-interfering crossovers observed in fancm may not be biochemically the same as those observed in wild type.

One expectation is that if more COs are coming from the fancm-revealed process, there will be less interference. This expectation is met in Figure 8. More or less, there is plenty of interference in all four strains in FANCM+. And more or less, in both HOM/HET and HOM/HOM, where the entire test region is homozygous and the fancm mutation is having its full effect, there is a big reduction in interference. Whereas, in both HET/HOM and HET/HET, where the entire test region is heterozygous and there are fewer extra COs in the fancm mutant, interference is less reduced. And the zip4 mutation, in the fancm background, has the expected effects in all cases, reducing interference because it decreases the fraction ofinterferingCOs. These results provide more support for the nature of the fancm interplay with heterozygosity (discussed in 2 above).

The authors also ask about variations in theinterplayof fancm with HET/HOM differences. The underlying idea (which I finally realized after many hours) is that in fancm zip4 there are still COs but they do not show interference, so one can ask if the variations in 420 according to what is adjacent are still seen. If no, then interference is required.

The data for 420 in Figure 7 are:

HOM/HOM 35cM HET/HET 12cm HET/HOM 10cM HOM/HET 35cm. Most importantly, since HOM/HET = HOM/HOM, there is no transmission of information from HET to HOM if interference is absent, which implicates interference in the process (in accord with the suggestions above). The reciprocal case: HET/HET 12cm HET/HOM 10cM seems to run against all rules, with HET increasing COs in the adjacent HET, but again, maybe this is a small effect and/or can be ignored. The fact that HET/HET << HOM/HOM is explained by the fact that there are fewer COs from the fancm pathway in heterozygous regions (above).

Similarly in Figure 8: for left and right regions

HOM/HOM 25, 12cM; HET/HET 8, 3.5; HET/HOM 7.5, 2.5cM HOM/HET 22, 12cm. These data are clear and very useful in showing that interference is relevant.

We are glad the reviewer agrees that these data support a role for crossover interference in the observed phenomena.

8) A final point on statistics: p-values are given everywhere as Chi-square p-values, but it seems the authors are comparing means, not comparing a result against an expectation. Is this a typo? Is it a different kind of test, or did they really use a Chi-square? (If the latter, they need to justify and clarify what the expectation was, otherwise give p-values for something that compares distributions, e.g. a T-test).

As our recombinant data is count-based we considered a t-test to be inappropriate. We have added further description of our statistical testing to the Materials and methods section as follows. To test whether recombinant and non-recombinant counts were significantly different between groups of replicates we used a generalized linear model (GLM) and assumed that the count data is binomially distributed:

YiB(ni,pi)

where Yi represents the recombinant counts, ni are the total counts, and we wish to model the proportions Yi/ni. Then:

E(Yi/ni)=pi,

and

var(Yi/ni)=pi(1pi)ni.

Thus, our variance function is:

V(μi)=μi(1μi),

and our link function must map from (0,1) -> (-∞, ∞). We used a logistic link function which is:

g(μi)=logit(μi)=logμi1μi=βX+εi,

where ειN(0,σ2). Both replicates and genotypes are treated as independent variables ((X)) in our model. We considered P values less than 0.05 as significant.

Reviewer #3:

There is no question that the manuscript of Ziolkowski et al. is of interest as it is challenging current views of crossover control, not only in plants.

I also read the thoughtful comment and valuable suggestions of both reviewers with great interest. I think that many of the points raised by the reviewers the authors were able to address in their response, especially by the inclusion of new experimental data.

We are pleased the reviewer found our findings of interest and that our new experimental data has addressed previous concerns.

I have to say that the main conclusion that interfering crossovers are enhanced in heterozygous regions is for me as for the other reviewers counterintuitive. Also, the model the authors bring forward at the end, that recombination intermediates are stabilized by mismatch recognition is quite special. Therefore it is of course important to take other explanations into account.

We agree that currently there are several possibilities for the mechanistic basis of our observations. We have attempted to include those that we consider most likely in the Discussion, including several of those raised by the reviewers.

There is one thing that worries me a bit and that is quality of the sequence data available for the different Arabidopsis cultivars. Do heterozygous region really attract crossovers from homozygous regions in hybrids? As the authors state themselves, these sequences were aligned by short read technology and so the occurrence of inversions and of duplication in the range from hundreds to hundred-thousands of bps might be dramatically underestimated. Thus, changes above the nucleotide level were not taken into account by the authors. Nevertheless these changes might drastically influence recombination patterns.

The reviewer raises a valid point concerning our knowledge of structural polymorphisms between the accessions analysed. We provide clear evidence of their effect in the suppression of 420 crossovers in Col/Sha F1 hybrids, as Sha is known to contain a large inversion overlapping this region (Figure 3D). However, the extent of similar inversions or other structural polymorphisms likely remains underestimated. To acknowledge this fact we have added the following sentence to the Results section ‘Heterozygosity extensively modifies crossover frequency in Arabidopsis’: “Hence the contribution of unknown structural polymorphisms to variation in recombination rates could be significant.”

Nevertheless, all in all, the authors supply us in the revised version with enough hard data that in my opinion strengthen their hypothesis to the point that it should be considered (and challenged) by the community. Also, it might well be that such a mechanism is exceptional and restricted to self-fertilizing species like Arabidopsis. But this would be still interesting.

We have added a sentence to the Discussion acknowledging the importance of considering mating system (selfing versus outcrossing) in applying these findings to other systems: ‘However, when assessing the significance of such effects it is also important to consider how outcrossing versus selfing will influence patterns of homozygosity and heterozygosity within different species.’

https://doi.org/10.7554/eLife.03708.045

Article and author information

Author details

  1. Piotr A Ziolkowski

    1. Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    2. Adam Mickiewicz University, Poznań, Poland
    Contribution
    PAZ, Designed and performed all experiments and analysed data, except Col x Ler tetrad and chiasmata counting, and participated in preparation of the manuscript
    Competing interests
    The authors declare that no competing interests exist.
  2. Luke E Berchowitz

    1. Department of Biology and the Carolina Center for Genome Sciences, University of North Carolina at Chapel Hill, Chapel Hill, United States
    2. Lineberger Comprehensive Cancer Center, University of North Carolina School of Medicine, Chapel Hill, United States
    Contribution
    LEB, Designed, performed and analysed Col x Ler tetrad experiments, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  3. Christophe Lambing

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    CL, Performed the chiasmata experiments, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  4. Nataliya E Yelina

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    NEY, Participated in data acquisition and analysis of CEN3 F1 data, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  5. Xiaohui Zhao

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    XZ, Performed statistical analyses, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  6. Krystyna A Kelly

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    KAK, Performed statistical analyses, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  7. Kyuha Choi

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    KC, Contributed to data analysis, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  8. Liliana Ziolkowska

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    LZ, Aided PAZ in data acquisition, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  9. Viviana June

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    VJ, Aided PAZ in data acquisition, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  10. Eugenio Sanchez-Moran

    School of Biosciences, University of Birmingham, Birmingham, United Kingdom
    Contribution
    ES-M, Performed the chiasmata experiments, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  11. Chris Franklin

    School of Biosciences, University of Birmingham, Birmingham, United Kingdom
    Contribution
    CF, Performed the chiasmata experiments, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
  12. Gregory P Copenhaver

    1. Department of Biology and the Carolina Center for Genome Sciences, University of North Carolina at Chapel Hill, Chapel Hill, United States
    2. Lineberger Comprehensive Cancer Center, University of North Carolina School of Medicine, Chapel Hill, United States
    Contribution
    GPC, Designed, performed and analysed Col x Ler tetrad experiments, read and approved the final manuscript
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-7962-3862
  13. Ian R Henderson

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    IRH, Designed experiments, collected F1 data, analysed data and wrote the manuscript
    For correspondence
    irh25@cam.ac.uk
    Competing interests
    The authors declare that no competing interests exist.

Funding

Royal Society (University Research Fellowship)

  • Ian R Henderson

Gatsby Charitable Foundation (2962)

  • Ian R Henderson

National Science Foundation (NSF) (MCB-1121563)

  • Gregory P Copenhaver

Ministry of Science and Higher Education, Republic of Poland (605/MOB/2011/0)

  • Piotr A Ziolkowski

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Research was supported by a Royal Society University Research Fellowship and Gatsby Charitable Foundation Grant 2962 to IRH, and United States National Science Foundation grant MCB-1121563 to GPC. We thank Raphaël Mercier for providing fancm and zip4 mutations and genotyping information and Avi Levy for the 420 line. PAZ was supported by Polish Mobility Plus Fellowship 605/MOB/2011/0. We thank the editor and reviewers for insightful comments.

Reviewing Editor

  1. Detlef Weigel, Reviewing Editor, Max Planck Institute for Developmental Biology, Germany

Publication history

  1. Received: June 17, 2014
  2. Accepted: March 26, 2015
  3. Accepted Manuscript published: March 27, 2015 (version 1)
  4. Version of Record published: April 23, 2015 (version 2)

Copyright

© 2015, Ziolkowski et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,205
    Page views
  • 560
    Downloads
  • 9
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
