The CUL4-DDB1 ubiquitin ligase complex controls adult and embryonic stem cell differentiation and homeostasis

  1. Jie Gao
  2. Shannon M Buckley
  3. Luisa Cimmino
  4. Maria Guillamot
  5. Alexandros Strikoudis
  6. Yong Cang
  7. Stephen P Goff
  8. Iannis Aifantis Is a corresponding author
  1. New York University School of Medicine, United States
  2. University of Nebraska Medical Center, United States
  3. Sanford-Burnham Medical Research Institute, United States
  4. Howard Hughes Medical Institute, Columbia University, United States
Research Article
Cited
4
Views
2,084
Comments
0
Cite as: eLife 2015;4:e07539 doi: 10.7554/eLife.07539

Abstract

Little is known on post-transcriptional regulation of adult and embryonic stem cell maintenance and differentiation. Here we characterize the role of Ddb1, a component of the CUL4-DDB1 ubiquitin ligase complex. Ddb1 is highly expressed in multipotent hematopoietic progenitors and its deletion leads to abrogation of both adult and fetal hematopoiesis, targeting specifically transiently amplifying progenitor subsets. However, Ddb1 deletion in non-dividing lymphocytes has no discernible phenotypes. Ddb1 silencing activates Trp53 pathway and leads to significant effects on cell cycle progression and rapid apoptosis. The abrogation of hematopoietic progenitor cells can be partially rescued by simultaneous deletion of Trp53. Conversely, depletion of DDB1 in embryonic stem cell (ESC) leads to differentiation albeit negative effects on cell cycle and apoptosis. Mass spectrometry reveals differing protein interactions between DDB1 and distinct DCAFs, the substrate recognizing components of the E3 complex, between cell types. Our studies identify CUL4-DDB1 complex as a novel post-translational regulator of stem and progenitor maintenance and differentiation.

https://doi.org/10.7554/eLife.07539.001

eLife digest

Stem cells can develop into other types of cells via a process called “differentiation”. When a stem cell divides in two, it typically produces another stem cell and a cell that goes on to differentiate. Hematopoietic stem cells (or HSCs) are found in the bone marrow and give rise to all blood cells throughout the life of an organism. It is therefore crucial that they divide correctly to maintain the balance between renewing their numbers and making new types of cells.

Many studies have investigated how stem cells are maintained, but there are still major gaps in our knowledge. Recent research suggested that the cell’s “ubiquitin-proteasome system” might be important for regulating stem cell division. This system rapidly degrades proteins, thereby regulating protein abundance in cells. Enzymes known as E3 ligases form part of this system, and recognize proteins to be marked for destruction with a small protein tag.

Gao et al. have now observed that a component of an E3 ligase called DDB1 is highly expressed in hematopoietic stem cells. Further experiments revealed that genetically engineered mice that lack DDB1 in their population of blood cells die soon after they are born and have fewer blood cells. Gao et al. next inhibited the production of DDB1 in adult mice. This stopped the adult mice’s hematopoietic stem cells from dividing, and the mice died because their bone marrow couldn’t produce new blood cells. These results show that DDB1 is necessary for stem cells to renew their numbers and differentiate into blood cells in both developing and adult animals.

Next, Gao et al. investigated the how DDB1 regulates stem cell division, and discovered that a protein called p53, which is a key player in controlling cell division, is regulated by DDB1. Under normal conditions, p53 levels are kept low in cells. However, in the absence of DDB1, the levels of p53 rise, which triggers the death of the hematopoietic stem cells.

Further experiments revealed that not all dividing cells undergo cell death with the loss of DDB1. Instead, Gao et al. found that rapidly dividing embryonic stem cells differentiate when DDB1 is lost but do not die. These findings suggest that specific components of the ubiquitin ligase complex play a key role in deciding a stem cell’s fate. In the future, identifying these components will further our understanding of the decision of stem cells to differentiate.

https://doi.org/10.7554/eLife.07539.002

Introduction

Stem cells posses the unique properties of self-renewal and the capacity to differentiate to multiple cell types. In the case of hematopoietic stem cells (HSC) they are rare and specialized cells, which are able to give rise to all blood lineages. The balance between HSC self-renewal and differentiation needs to be tightly regulated in order to keep the HSC pool size as well as to constantly replenish mature blood cells (Orkin and Zon, 2008). HSC function is governed extrinsically by cytokines (Zsebo et al., 1990; de Sauvage et al., 1996) and developmental signals (Stier et al., 2002; Zhang et al., 2003) and intrinsically by transcription factors (Wilson et al., 2004; Tothova et al., 2007; Reavie et al., 2010), cell cycle regulators (Cheng et al., 2000) and metabolic pathways (Nakada et al., 2010).

However, little is known about how HSCs are regulated at the post-translational level. The ubiquitin-dependent proteasome degradation system (UPS) is a primary mechanism that controls protein turnover and activation. UPS acts via three sequential enzymes: an E1 ubiquitin activating enzyme, an E2 ubiquitin conjugating enzyme and an E3 ubiquitin ligase (Crusio et al., 2010). Among these three enzymes, E3 ubiquitin ligases confer substrate specificity. An E3 ubiquitin ligase is a multi-subunit complex that recognizes and binds specific target proteins via substrate recognizing subunits. In HSCs, it has been shown that Fbw7, an E3 ubiquitin ligase member, governs quiescence of HSCs (Matsuoka et al., 2008; Thompson et al., 2008). Itch and c-Cbl, other two E3 ubiquitin ligases, have been reported to negatively regulate HSC homeostasis and function (Rathinam et al., 2008; Rathinam et al., 2011). In other stem cell systems, it has been shown that Huwe1, a HECT domain containing E3 ubiquitin ligase, regulates proliferation and differentiation of neural progenitor cells as well as embryonic stem cells (ESC) (D'Arca et al., 2010). Protein levels of OCT4 and NANOG, transcription factors required for pluripotency, are modulated in an ubiquitin-dependent manner (Xu et al., 2009; Ramakrishna et al., 2011; Buckley et al., 2012), suggesting key roles of E3 ligase complexes for ESC differentiation. Recently we mapped the ubiquitinated protein landscape in mouse ESC and identified critical UPS members regulating ESC pluripotency and differentiation (Buckley et al., 2012).

DNA damage binding protein 1 (Ddb1), a component of the Cullin4-containing E3 ubiquitin ligase, was originally identified as a protein involved in the nucleotide excision repair pathway. DDB1 heterodimerizes with DDB2 and shows high affinity for UV-induced DNA damage sites (Batty et al., 2000). Once bound to a damaged site, the CUL4-DDB1 complex ubiquitinates DDB2 and targets it for degradation, facilitating subsequent repair events (Sugasawa et al., 2005). The CUL4-DDB1ligase is a multi-component complex. Through its C-terminus, CUL4A or CUL4B binds to the RING finger protein to interact with the E2 conjugating enzyme. On its N-terminus, CUL4A or CUL4B binds to DDB1 to recruit CUL4-DDB1 associated factors (DCAF), a family of WD40 repeat proteins which confer substrate specificity (Angers et al., 2006; He et al., 2006; Higa et al., 2006). The CUL4-DDB1 ligase has been shown to target several substrates for ubiquitin dependent degradation. The list of substrates include the DNA replication licensing factor Cdt1 (Higa et al., 2003; Hu et al., 2004), the cell cycle inhibitor p27Kip1 (Bondar et al., 2006) and Cdkn1aCip1 (Abbas et al., 2008; Nishitani et al., 2008), the histone methyltransferase PR-Set7 (Oda et al., 2010; Tardat et al., 2010), and Epe1, a JmjC domain-containing histone demethylase in fission yeast (Braun et al., 2011). More recently it has been found that the CUL4-DDB1 complex can be modulated by binding of the drug, lenalidomide leading to degradation of lymphoid transcription factors IKZF1 and IKF3 in multiple myeloma cells (Fischer et al., 2014; Kronke et al., 2014). These findings suggest that the CUL4-DDB1 ligase complex has numerous substrates that it affects a variety of cellular functions, and that the complex can be altered with targeted therapeutics. Intriguingly, germline Cul4a deleted mice are viable and display no gross abnormality (Liu et al., 2009), possibly due to redundancy with Cul4b, whereas Ddb1 deletion is embryonic lethal and embryos are not seen past E12.5 (Cang et al., 2006). Conditional inactivation of Cul4a in the skin leads to resistance to UV-induced skin carcinogenesis (Liu et al., 2009). Specific deletion of Ddb1 in brain results in elimination of neuronal progenitor cells, hemorrhages in brain, and neonatal lethality (Cang et al., 2006). DDB1 also plays a role in ESC self-renewal, and silencing of Ddb1 led ESC to differentiate (Buckley et al., 2012).

To investigate the role of the DDB1 in hematopoietic stem cells, we inactivated the Ddb1 gene in hematopoietic stem and progenitor cells (HSPC) and at different developmental stages. Here we report that Ddb1 loss impairs HSPC function in both the adult bone marrow and the fetal liver. More specifically, Ddb1 deletion leads to induction of DNA damage, rapid induction of apoptosis, and Trp53 response, resulting in bone marrow failure and acute lethality. However, deletion of Ddb1 had no effect on resting mature lymphoid cells and whereas in proliferating embryonic stem cells (ESC) silencing of Ddb1 led to loss of pluripotency without effects on cell survival. Our results demonstrate CUL4-DDB1 is a novel regulator of stem cell homeostasis.

Results

Fetal hematopoiesis is absolutely dependent on Ddb1 function

To study the role of distinct ubiquitin ligases in the biology of HSCs, we initially performed a meta-analysis of genome-wide expression in lineage-Sca1+cKit+ (LSK) cells, a population enriched for HSCs, and found several E3 ligases among the top 20% highly expressed genes, including the already reported HSC regulators Fbw7 (Thompson et al., 2008), Cul1, Itch (Rathinam et al., 2011) and c-Cbl (Rathinam et al., 2008) (Figure 1a). Both genes of the Cul4DDB1 complex were also highly expressed in LSKs (Figure 1a), suggesting that this E3 complex could be important in early hematopoiesis. We further examined the expression of Ddb1 in long-term HSCs (LT-HSC, CD150+CD48-LSK) and downstream progenitor populations. It was found that Ddb1 was expressed at a low level in quiescent LT-HSCs, and significantly upregulated in multipotent progenitors (MPP, CD150-CD48+LSK), a proliferating progenitor subset. Ddb1 expression remained constant in later progenitor populations (Figure 1b). The expression pattern of Ddb1 suggests its potential role in hematopoiesis.

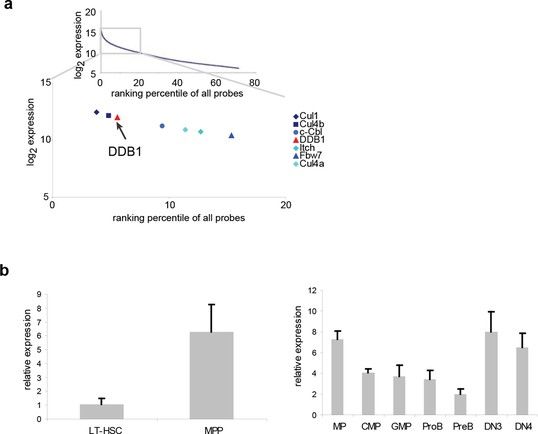

Ddb1 is highly expressed in the hematopoietic system.

(a) Expression ranking of Cul4-Ddb1 components in LSKs compared to all probes available in microarray. Microarray was performed on LSK cells. The expression value of all probes were ranked from high to low. (b) Quantitative PCR of Ddb1 in hematopoietic populations.

https://doi.org/10.7554/eLife.07539.003

To investigate the importance of Ddb1 function in hematopoiesis, we generated Ddb1f/f::Vav1Cre+ mice. The Vav1 promoter drives the expression of Cre recombinase in entire hematopoietic compartment during embryonic development (~E13.5) from HSC and progenitors to mature cells. Efficient deletion of Ddb1 in bone marrow was confirmed by qPCR (Figure 2a). Ddb1f/f::Vav1Cre+ mice were born at normal frequencies and were indistinguishable from littermates. However, Ddb1f/f::Vav1Cre+ animals died rapidly after birth (Figure 2b). Peripheral blood analysis at day 7 showed that Ddb1f/f::Vav1Cre+ mice had significantly decreased counts of white blood cells, red blood cells and platelets compared to littermates (Figure 2c,d). Moreover, the cellularity and size of thymus and spleen were significantly reduced (Figure 2e,f). When analyzed by flow cytometry, lineage-Sca1+cKit+ (LSK) cells, a population enriched for HSCs, and cKit+ progenitors were undetectable (Figure 2g). Mature lymphoid (CD4+CD8+ in thymus, B220+IgM+ in spleen) and myeloid (Gr1+Mac1+ in spleen) cells were severely reduced (Figure 2h). Since Vav1Cre expression starts as early as embryonic day 13.5 (E13.5) (Stadtfeld and Graf, 2005), we hypothesized that the pan-cytopenia in Ddb1f/f::Vav1Cre+ neonates was due to defects initiated during fetal hematopoiesis. Analysis of E16.5 fetal liver of Ddb1f/f::Vav1Cre+ mice showed that the deletion of Ddb1 in fetal hematopoietic cells led to reduction of the LSK and cKit+ progenitors, as well as mature CD19+ B-lymphoid and Gr1+ myeloid cells (Figure 2i). Interestingly, the distribution of LT-HSC and MPP was skewed with higher frequency of LT-HSC and lower frequency of MPP cells (Figure 2i). Genome-wide gene expression analysis revealed that Ddb1-deficient LSKs up-regulated genes associated with stem cell identity (Mecom, Thy1, Angpt1) and down-regulated genes associated with differentiation (Figure 2j,k), consistent with the phenotypic enrichment of the HSC population. Overall, our data demonstrate that Ddb1-deletion leads to cytopenia and neonatal lethality, confirming that Ddb1 expression is absolutely required for fetal hematopoiesis.

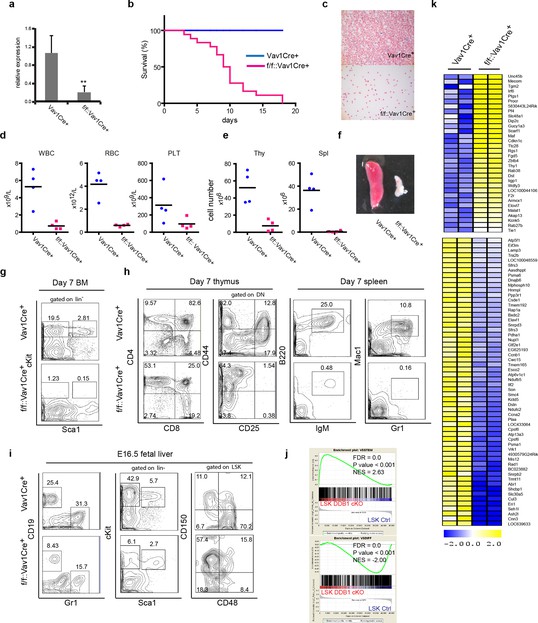

Abrogation of fetal hematopoiesis in Ddb1f/fVav1Cre+ mice.

(a) Quantitative PCR of Ddb1 in control and Ddb1f/f::Vav1Cre+ mice. (b) Survival curves of control and Ddb1f/f::Vav1Cre+ mice (n = 18 per group). (c) Giemsa staining of peripheral blood smears from 7-day old mice. (d) Peripheral blood counts in 7-day old mice (n = 4 per group). WBC: white blood cells (p=0.0054). RBC: red blood cells (p=0.0007). PLT: platelets (p=0.10). Black bar indicates average. (e) Total cell numbers in thymi (p=0.0050) and spleens (p=0.0016) of 7-day old mice (n = 4 per group). Black bar indicates average. (f) Representative pictures of spleens from 7-day old mice. (g) Representative FACS plots of bone marrow of 7-day old mice. (h) Representative FACS plots of thymi and spleens of 7-day old mice. (N=3). (i) Representative FACS plots of fetal livers at embryonic day 16.5. (n=3) (j) Gene set enrichment analysis (GSEA) of gene expression analysis performed on fetal LSKs at embryonic day 16.5. (k) Heatmap of gene expression analysis performed on fetal LSKs at embryonic day 16.5. *p<0.05. **p<0.01. ***p<0.001.

https://doi.org/10.7554/eLife.07539.004

Deletion of Ddb1 in adult hematopoietic cells leads to bone marrow failure

To circumvent the neonatal lethality of Ddb1f/f::Vav1Cre+ mice, we turned to the Mx1Cre strain that can be induced to delete the target gene. In Ddb1f/f::Mx1Cre+mice, Ddb1 was deleted in hematopoietic compartment of adult mice by injecting polyinosine-polycytidine (polyI:C) to induce interferon α response. The floxed allele of Ddb1 was recombined efficiently after polyI:C injection in all hematopoietic tissues including the bone marrow (Figure 3a). As a result, the Ddb1 protein was undetectable in polyI:C injected Ddb1f/f::Mx1Cre+ bone marrow (Figure 3b). Strikingly, all Ddb1f/f::Mx1Cre+ animals died within 3 weeks post Ddb1 deletion (Figure 3c). To investigate the cause of the lethality, we analyzed Ddb1 deficient mice 7 days after polyI:C injection. Peripheral blood counts showed that the Ddb1 loss resulted in significant reduction in the total number of white blood cells and platelets (Figure 3d). No reduction was found in red blood cells, however enucleated red blood cells have a half-life of approximately 40 days suggesting DDB1 deficient mice succumb to hematopoietic failure prior to red blood cell turnover. Ddb1f/f::Mx1Cre+ bone marrow hypo-cellularity was evident from histological examination (Figure 3e), which was mostly accounted by cellularity decrease of myeloid lineage (Figure 3f,g). To understand the kinetics of Ddb1 deletion effects, we analyzed HSC and progenitor cells at different time points after Ddb1 deletion. cKit+ progenitors (both MP and LSK) were decreased in cell number at day 5 and further more at day 7 (Figure 3h,i). We used the SLAM markers (CD150 and CD48) to further characterize the long-term HSCs (LT-HSC, CD150+CD48-LSK), short-term HSCs (ST-HSC, CD150+CD48+LSK) and multipotent progenitors (MPP, CD150-CD48+LSK) populations. It was found that the frequencies of LT-HSC, ST-HSC and MPP subsets were distorted upon Ddb1 deletion, as there was a significant relative over-representation of LT-HSCs (Figure 3h), similar to the findings in fetal hematopoiesis. In terms of cell number, MPPs, but not ST- and LT-HSCs, were decreased at day5, which was followed by the decrease of all HSPCs subsets at day7 (Figure 3h). This data suggest that Ddb1 deletion has a greater impact on proliferative populations, in agreement to the expression analysis presented earlier. Together, these results demonstrate that the deletion of Ddb1 leads to acute loss of proliferating HSPCs and their downstream progeny, resulting in bone marrow failure and lethality.

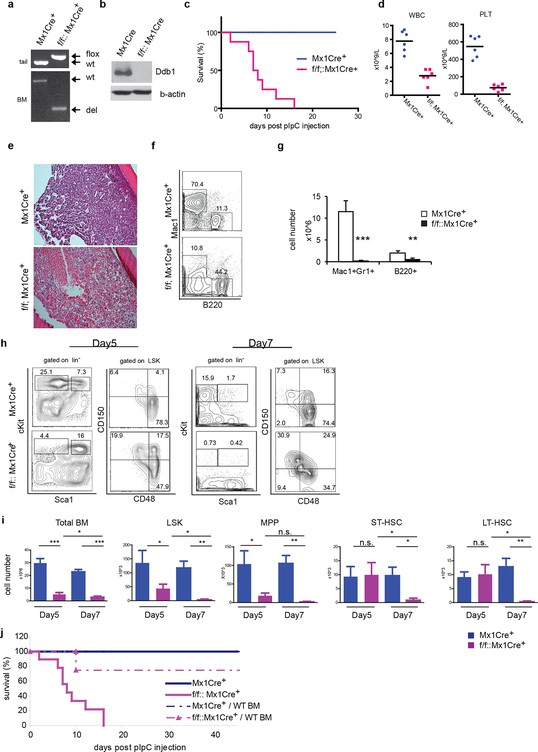

Deletion of Ddb1 in Ddb1f/f::Mx1Cre+ mice leads to bone marrow failure and acute lethality.

(a) PCR on genomic DNA from tail or polyI:C injected bone marrow to detect wild type (wt), “floxed” (flox) and recombined (del) alleles of Ddb1 locus. (b) Western blot of bone marrow cells from polyI:C injected animals. (c) Survival curve of mice after polyI:C injection (n = 8 per group). (d) Peripheral blood counts 7 days after polyI:C injection (n = 6 per group). (WBC and PLT p=<0.0001). Black bar indicates average. (e) H&E staining of tibia sections 7 days after polyI:C injection. (f) Representative FACS plots of bone marrow cells. (g) Cellularity of bone marrow 7 days after poly:C injection. N=5 per group. (h) Representative FACS plots of bone marrow cells after polyI:C injection. (i) Cell numbers of total bone marrow and stem and progenitor cell populations in mice after polyI:C injection (n = 5 per group). *p<0.05. **p<0.01. ***p<0.001. (j) Non-polyI:C injected Ddb1f/f::Mx1Cre+ mice were lethally irradiated and transplanted with wild type bone marrows. Eight weeks after engraftment, DDB1 deletion was induced by polyI:C injection. Survival of these chimera mice (N= 4 per group) was followed and compared to polyI:C injected Ddb1f/f::Mx1Cre+ mice.

https://doi.org/10.7554/eLife.07539.005

The Cre recombinase under control of the Mx1 promoter is also expressed in other IFNα-responsive tissues besides hematopoietic cells, including the liver, lungs, and heart (Kuhn et al., 1995), however no gross abnormality was found in Ddb1f/f::Mx1Cre+ mice at the time-point of the analysis (data not shown). To further establish that Ddb1 deficient mice died of bone marrow failure, we transplanted wild type bone marrow cells into lethally irradiated non-polyI:C injected Ddb1f/f::Mx1Cre+ and control mice. Eight weeks after bone marrow transplant, polyI:C was injected into the transplanted recipient mice to induce Ddb1 deletion. In this case, the majority of chimeric Ddb1f/f::Mx1Cre+ mice survived significantly longer than Ddb1 deficient mice (Figure 3j), strongly suggesting that the acute lethality observed in polyI:C injected Ddb1f/f::Mx1Cre+ mice is due to bone marrow ablation.

Ddb1 deficiency impairs differentiation of hematopoietic stem and progenitor cells

Next, we further addressed the function of the DDB1-deleted progenitors and stem cells both in vitro and in vivo Initially, methylcellulose cultures and CFU-S assays were performed to test the differentiation function of DDB1 deficient HSPCs. Strikingly, DDB1 deficient bone marrow cells from polyI:C injected Ddb1f/f::Mx1Cre+ animals were not able to form colonies in cytokine-supplemented in vitro culture as well as in spleens of host mice (Figure 4a,b). Identical results were obtained when we deleted Ddb1 in progenitor cells using a Cre-expressing retrovirus (Figure 4c). These data reveal that Ddb1 deletion impairs differentiation ability of the HSC and progenitor cells. HSC function is assayed by bone marrow transplantation (BMT). To this end, we transplanted DDB1 deficient bone marrow cells and littermate control cells into lethally irradiated recipient mice. All mice receiving Ddb1 deficient cells died within 3 weeks post BMT while those receiving control cells had a normal life span (Figure 4d), indicating that Ddb1 deficient cells are not able to repopulate the hematopoietic system.

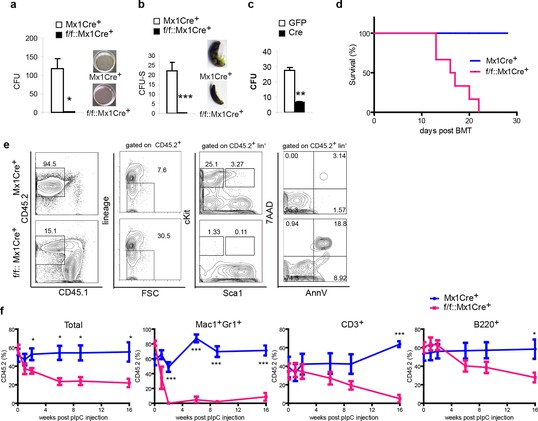

Ddb1 deletion impairs the differentiation of hematopoietic stem and progenitor cells.

(a) Colony numbers and representative images from methylcellulose assay with bone marrow cells from polyI:C injected mice. (b) Colony numbers and representative images from CFU-S assay with bone marrow cells from polyI:C injected mice. (c) Bone marrow progenitor cells of Ddb1f/f::Mx1Cre+ mice were infected with retrovirus expressing either control GFP or Cre recombinase. Colony numbers were scored in methylcellulose assays. (d) Survival curve of recipient mice after bone marrow transplantation (n = 6 per group). Donor cells were from Ddb1f/f::Mx1Cre+ or control mice injected with polyI:C. (e) Representative FACS plots of bone marrow cells in recipient mice 7 days post Ddb1 deletion. Donor cells were from non polyI:C injected mice, and Ddb1 deletion was induced in recipient mice 8 weeks after engraftment. (f) Chimerism of peripheral blood in recipient mice (n=5 per group). Donor cells were a mixture at 50:50 ratios of wild type CD45.1+ cells and Ddb1f/f::Mx1Cre+ CD45.2+ cells (or control CD45.2+ cells). Ddb1 deletion was induced in recipient mice 8 weeks after engraftment. *p<0.05. **p<0.01. ***p<0.001

https://doi.org/10.7554/eLife.07539.006

To rule out non-cell autonomous effects of Ddb1 deletion (i.e. effects in HSC niches), we transplanted cells from non-polyI:C injected Ddb1f/f::Mx1Cre+mice into lethally irradiated wild type recipient mice. Eight weeks after engraftment, polyI:C was injected into the recipients to induce the Ddb1 deletion in hematopoietic cells of the recipients. DDB1-deficient cells (CD45.2+) lost representation (Figure 4e). Similar to non-transplant settings, cKit+ progenitors and stem cells derived from DDB1 deficient donor cells were significantly reduced and more apoptotic as shown by AnnexinV/7AAD staining (Figure 4e). These results further prove that the effects of Ddb1 deletion on HSPC are cell-autonomous.

Next, we performed competitive BMT. Ddb1f/f::Mx1Cre+ and control bone marrow cells (CD45.2+) were mixed with equal number of wild type counterparts (CD45.1+) and transplanted into lethally irradiated recipients. Eight weeks after engraftment, polyI:C was injected into the recipients to induce Ddb1 deletion. Peripheral blood of the recipients was analyzed at different time points after the Ddb1 deletion. Control cells maintained CD45.2+ chimerism through out the time course of the analysis. However, DDB1-deficinet cells were not able to compete with wild type counterparts (Figure 4f). DDB1-deficient myeloid cells (Mac1+Gr1+) were significantly reduced compared to wild type cells as early as 2 weeks after the Ddb1 deletion. DDB1-deficient lymphoid cells (CD3+ and B220+) were also reduced with slower kinetics (Figure 4f). These data suggest that Ddb1 deletion specifically targets expanding progenitors and highly proliferating cells inhibiting the stem and progenitor populations to replenish the hematopoietic system.

Ddb1 phenotypes are partially dependent on Trp53 pathway activity

To gain further insights into DDB1-mediated mechanisms of action, we examined apoptosis status on whole tibia section by TUNEL analysis. We found that DDB1-deficient bone marrow displayed significant apoptosis (Figure 5a). More specifically, we found that DDB1-deficient progenitors (both LSKs and MPs) were more apoptotic as shown by the AnnexinV staining, but not lineage+ cells (Figure 5b). In line with these results, DDB1-deficient progenitor cells had elevated protein levels of phospho-Trp53, the activated form of Trp53. In addition, cyclin-dependent kinase inhibitor 1A (Cdkn1aCip1), a transcription target of Trp53, was accumulated at the protein and mRNA levels (Figure 5c,d). Signs of DNA damage were also observed in Ddb1-deficient LT-, ST-HSCs and MPPs, but not in lineage+ cells, as revealed by γH2Ax staining, a marker for double strand DNA breaks as well as by 53BP1 foci (Figure 5e,f). Collectively these results demonstrate that Ddb1 deletion leads to DNA damage, rapid apoptosis and Trp53 pathway activation in HSPCs.

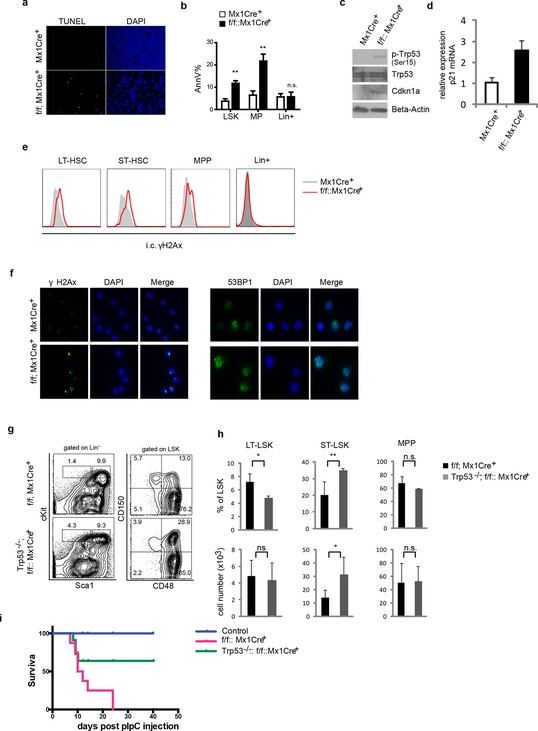

Ddb1 deletion induces DNA damage and apoptosis in progenitor cells.

(a) TUNEL staining on tibia sections after polyI:C injection. (b) Percentage of AnnexinV+ cells gated on different populations after polyI:C injection. Western blot (c) and qPCR (d) in lineage negative bone marrows after polyI:C injection. (e) Histogram of intracellular γH2Ax staining gated on HSPC sub-populations and lineage positive cells after polyI:C injection. (f) Immunofluoresence staining of γH2Ax and 53BP1 on flow-sorted LSK cells after polyI:C injection. (g) Representative FACS plots of bone marrow cells 5 days post polyI:C injection. (h) Frequency and absolute number of progenitor cells (n = 4 per group). One of 2 independent experiments was shown. *p<0.05. **p<0.01. ***p<0.001. n.s. p>0.05. (i) Survival curves of control, Trp53-/-::Ddb1f/f::MxCre+ mice, and Ddb1f/f::MxCre+ mice (n = 5 per group, one independent experiment). Age matched littermates on a mixed 129xC57BL/6 background were used for g-i.

https://doi.org/10.7554/eLife.07539.007

To access whether Ddb1 hematopoietic phenotypes were dependent on Trp53 activity, we generated Trp53-/-::Ddb1f/f::Mx1Cre+ mice and examined stem and progenitor subsets. In the hematopoietic system, Trp53 deletion partially rescued the Ddb1-/- phenotype (Figure 5g,h,i). Both the percentage and absolute number of ST-HSC (CD150+CD48+LSK), but not LT-HSC and MPP, were increased in Trp53-/-::Ddb1f/f::Mx1Cre+ compared with Ddb1f/f::Mx1Cre+animals (Figure 5g,h). These results suggest that Trp53 activation takes place in response to Ddb1 deletion but this activation does not account for the full spectrum of the phenotype.

DDB1 is dispensable for the maintenance of mature T cells

Next, we examined whether the abrogated hematopoiesis resulted from Ddb1 silencing was specific for stem/progenitor cells. To this end, Ddb1 was conditionally deleted in mature T cells using the Cd4Cre+ strain. In this mouse model, Cre recombinase expression initiates at the CD4+CD8+T-lymphocyte stage of development, a population characterized by minimal cell proliferation. DDB1 was efficiently deleted at protein and mRNA levels in total thymocytes (Figure 6a,b). The residual Ddb1 expression in total thymocytes could be attributed to the existence of DN cells in which the Cre recombinase was not expressed. We then examined T cell profiles in thymi and peripheral lymphoid tissue of Ddb1F/F::Cd4Cre+ mice. We found that these mice had normal thymocyte numbers (Figure 6c), and normal CD4/CD8 cell profiles (Figure 6d), confirming our hypothesis that Ddb1 deletion in mature/resting T cells did not affect T cell development. To test this hypothesis further, we stimulated peripheral CD4+ cells using anti-CD3/CD28 treatment in vitro. When activated, the control T cells entered cell cycle, incorporated BrdU, an analogue of thymidine which is incorporated during DNA synthesis, and underwent several rounds of cell division as shown by the dilution of CFSE labeling. Strikingly, the DDB1 deficient CD4+ cells failed to proliferate (Figure 6e). Instead, more AnnexinV positive cells were found in the culture of DDB1-deficient CD4+ cells (Figure 6f), suggesting induction of cell death. Furthermore, we labeled anti-CD3/CD28 treated cells with EdU, an alternative of BrdU and easier for detection by immunoflourescence, and found that there were once more significantly fewer cells incorporating EdU when Ddb1 was deleted (Figure 6g,h), suggesting Ddb1 deletion interferes with cell cycle progression. Combination of BrdU and DAPI labeling clearly showed that, when stimulated to proliferate, DDB1 deficient resting cells were unable to enter S phase of the cell cycle. Consistent with this result, the Cdkn1acip1 protein, a potent CDK and cell cycle inhibitor, was accumulated in DDB1-deficient cells at the protein level, but not mRNA level (Figure 6i,j). When proteasome-dependent protein degradation was inhibited by MG132, Cdkn1acip1 was significantly accumulated in control cells, however less protein accumulation following proteasome inhibition was seen in DDB1-deficient cells (Figure 6i), demonstrating that Cdkn1acip1 degradation is dependent on DDB1 function. To prove direct interaction, Cdkn1acip1 was co-immunoprecipitated with Cul4 and DDB1 complex (Figure 7a), suggesting that Cdkn1acip1 is indeed a substrate of Cul4aDDB1. In contrary, p27kip1, another cell cycle inhibitor and suggested DDB1 substrate (Bondar et al., 2006), was not co-immuno-precipitated with the CUL4DDB1 complex (Figure 7b). The above observation led us to test the hypothesis whether DDB1-deficiect phenotype in HSPCs can be restored by silencing Cdkn1acip. To this end, Cdkn1a-/- mice were crossed to Ddb1f/f::Mx1Cre+ and polyI:C was administered. We did not observe the restoration of stem or progenitor cell numbers (Figure 7c). Overall, these data demonstrate that DDB1 function is dispensable for resting T-lymphocyte homeostasis but becomes pivotal when cells enter S phase of the cell cycle.

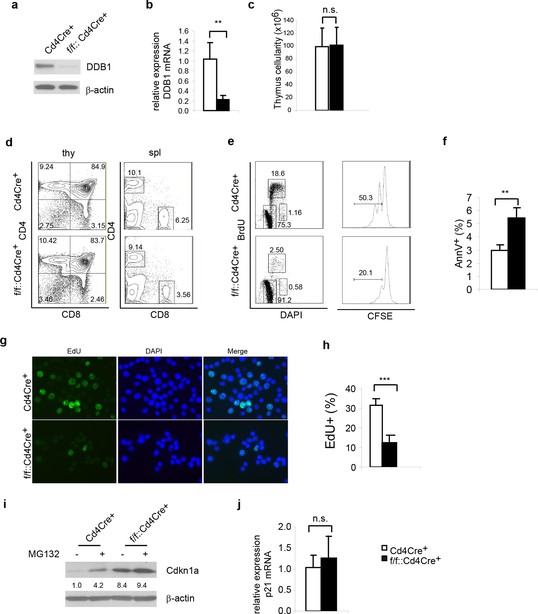

Ddb1 deletion is dispensable for mature T cells.

(a) Western blot of DDB1 expression in total thymocytes. (b) Relative Ddb1 mRNA expression in thymocytes. (c) Total cell number of thymus of 6-week old mice (n = 4). (d) Representative FACS plots of thymus and spleen. (e) Spleen CD4+ cells were sorted and stimulated with 1 μg/ml anti-CD3/CD28 in vitro. BrdU incorporation and CFSE dilution was analyzed. (Anti-CD3/CD28 treated CD4+ cells were stained for AnnexinV+ by FACS and percentage of AnnexinV+ cells was shown. (f) Anti-CD3/CD28 treated CD4+ cells were stained for AnnexinV+ by FACS and percentage of AnnexinV+ cells was shown. (g) Anti-CD3/CD28 treated CD4+ cells were labeled and stained with EdU. (h) Percentage of EdU+ cells was shown. More than 300 cells were included in each analysis. (i) Spleen CD4+ cells were treated with 10 μM MG132 for 2 hr and Western blot was performed. Relative Cdkn1acip1 protein levels normalized to β-actin were indicated below the corresponding lanes. (j) qPCR was performed on spleen CD4+ cell. Representative results of two independent experiments were shown. *p<0.05. **p<0.01. ***p<0.001. n.s. p>0.05.

https://doi.org/10.7554/eLife.07539.008

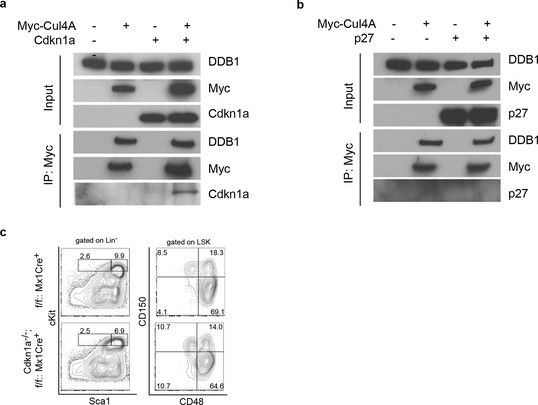

Interaction of Cdkn1acip1 but not p27kip1 with the Cul4-DDB1 complex

(a) 293T cells were transiently co-transfected with plasmids expressing Myc-tagged Cul4a and Cdkn1acip1. Forty-eight hours post transfection, cells were harvested and lysed. Protein lysates were immunoprecipitated with anti-Myc antibody, and Western blotted for Cdkn1acip1 and DDB1. (b) Similarly as described in (a), p27kip1 was tested for co-immunoprecipitation with the Cul4a-DDB1 complex. (c) Representative FACS analysis of bone marrows after polyI:C injection. Age matched littermates on a mixed 129xC57BL/6 background were used from 2 independent experiments (n = 3–4 per group).

https://doi.org/10.7554/eLife.07539.009

DDB1 is required for embryonic stem cell pluripotency

Due to the striking consequences of loss of DDB1 on the HSPC proliferation and survival, but not on definitive differentiated populations, we sought to determine the effects of Ddb1 on an additional stem cell population, and more specifically in embryonic stem cells (ESC). ESC are highly proliferative and can differentiate into cell lineages of all three germ layers. We recently reported that pluripotency and differentiation of mouse embryonic stem cells (ESC) are regulated at the post-translational level by the ubiquitin-proteasome systems (UPS). Ddb1 was identified as one of the regulators essential for ESC self-renewal in a large interference RNA (siRNA) screen against USP members. Depletion of Ddb1 resulted in loss of ESC self-renewal and pluripotency (Buckley et al., 2012). Here, we further validated the loss-of-function effects of Ddb1 on ESC using two distinct shRNAs. Consistent with our previous findings, silencing Ddb1 by shRNAs led to loss of ESC colony morphology (Figure 8a) and down-regulation of pluripotency factors Nanog and Oct4, and up-regulation of genes associated with mesoderm (Meox1), ectoderm (Gfap), and endoderm (Sox17) early differentiation (Figure 8b,c). However, we did not observe aberrant cell cycle or significant change in rates of apoptosis in these cells (Figure 8d,e). Similar to ESC differentiated in the presence of retinoic acid, total Trp53 protein increased following silencing of Ddb1 (Figure 8c). These data demonstrate that DDB1 is essential for ESC pluripotency and self-renewal without being accompanied by increased apoptosis or defects in cell cycle kinetics.

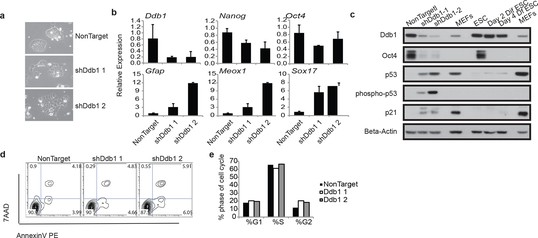

ESC loss of self-renewal after silencing of Ddb1

(a) Bright field picture of ESC colony 4 day post retroviral transfection. (b) Relative expression of pluripotency genes Oct4, and Nanog and genes representing endoderm (Sox17), mesoderm (Meox1) and ectoderm (GFAP) by qRT-PCR 4 days post selection. (c) Western blot of ESC 4 day post infection or differentiated in the presence of retinoic acid for up to 4 days. (d) Representative FACS blot of Annexin V positive cells. (n=3) n.s.: p>0.05. (e) Representative of cell cycle analysis. (n=3) n.s.: p>0.05.

https://doi.org/10.7554/eLife.07539.010

DDB1 interacts with distinct DCAF proteins in a cell type specific manner

The different roles of DDB1 in distinct cell types suggested that cellular contexts are important for DDB1 function. One possibility is that the CUL4-DDB1 complex utilizes distinct DCAFs in different cells. To this end, we sought to identify DDB1-interacting proteins. We identified interacting proteins in three distinct cell types. The different cell types expressed DDB1 protein at similar levels (Figure 9a). First, DDB1-interacting proteins were identified in ESC by targeting DDB1 in tandem with StrepII/Flag tags in the Col1A locus and generating a doxycycline-inducible ESC cell line (Figure 9b,d). We also transiently expressed DDB1 in tandem with HA/Flag tags in 293T cells, and stably transduced DDB1 in tandem with Strep/Flag tags in a promyelocytic leukemia cell line capable of hematopoietic differentiation (HL60) (Figure 9c). Interacting proteins were identified using liquid chromatography-tandem mass spectrometry (LC-MS/MS). We identified 140 proteins in ESC, 110 proteins in 293T, and 128 in HL60 cells (Supplementary file 1). Interestingly very little overlap was found between subsets except CUL4A and proteins that make up the 26S proteasome. Another subset of proteins identified in ESC and 293T analyses were known proteins found in CUL4DDB1 complexes (CUL4B, CUL4B, VprBP, DDA1) (Figure 10a,b). Interaction of VprBP and DDB1 was validated in 293T cells (Figure 10d). One subset of proteins that was of importance was the DCAF proteins since they are the substrate recognizing proteins in the CUL4DDB1 complex (Lee and Zhou, 2007). In ESC we identified DCAF11, DCAF15, DCAF4, DCAF8, whereas in the hematopoietic cell line HL60 only DCAF7 was identified suggesting that differing complexes between cell types maybe responsible for the loss of DDB1 phenotype in different cell types (Figure 7a,c). To determine the DCAF proteins that responsible for the ESC DDB1-loss phenotype, we performed an RNAi screen targeting 15 known protein-members of the Cul4DDB1 complex in ESC. Utilizing a reporter Nanog-GFP cell line as a marker of pluripotency we identified that of the DDB1-interacting DCAF proteins found in ESC silencing of DBA1, VprBP, and DCAF11 led to ESC differentiation (Figure 10e). Furthermore, depletion of DDA1, VprBP, and DCAF11 led to down-regulation of transcripts associated with ESC pluripotency (Figure 10g) and lead to morphology changes consistent with differentiation (Figure 10f). To determine if silencing of these DCAFs (DDA1, VprBP or DCAF11) in HSPC is also able to affect differentiation and/or maintenance, we transduced bone marrow-purified HSPC (LSK) cells with retroviruses expressing shRNAs against the selected DCAF genes. Interestingly, DDA1 silencing had no effect on colony formation in methylcellulose cultures, whereas a mild reduction in colonies was seen when VprBP was silenced. On the other hand, silencing of DCAF11 lead to a significant (greater than 50%) reduction in colony formation (Figure 10h). shRNA silencing was confirmed to be greater than 60% with all shRNAs (Figure 10i). These findings are consistent with the levels of DCAF11 expression in both LSK and Lineagenegc-Kit+ HSPC (Figure 10j). These findings suggest that different phenotypes in ESC, HSPC, and T-lymphocytes could be attributed to distinct substrate recognition by DDB1-associated DCAFs.

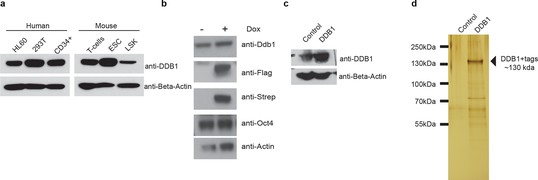

Tagged expression of DDB1 in ESC.

(a) Western blot of DDB1 in different cell types. (b-c) Western blot of total protein and immunoprecipitated of tagged-DDB1 following Doxycycline induction in ESC (b) and HL-60 (c). (d) Silver staining of eluted tagged protein used for one mass spectrometry experiment in ESC.

https://doi.org/10.7554/eLife.07539.011

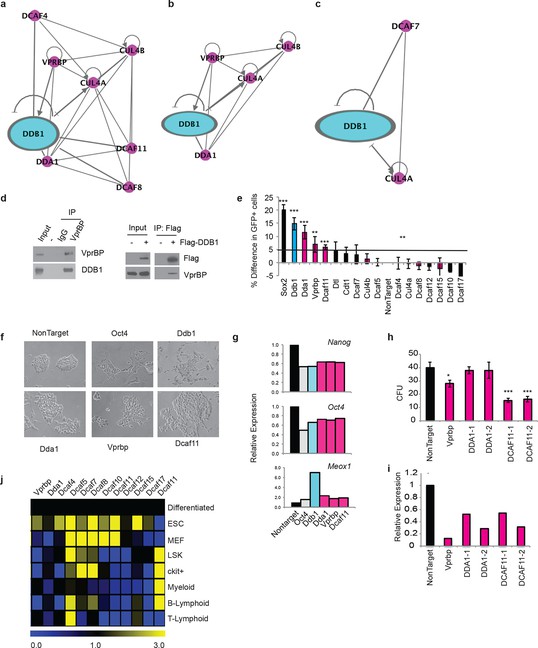

DDB1 interacts with VprBP and DCAF11 in ESC and are required for ESC self-renewal.

(a-c) Ingenuity generated network of protein interactions of CUL4-DDB1 complex in (a) ESC, (b) 293T, and (c) HL-60. pink; DDB1 associated proteins (d) (left) immunprecipitation in 293T of endogenous VprBP protein followed by blotting for DDB1. (right) Transfection of Flag-DDB1 in 293T followed by immunopercipitation. (e-g) Nanog-GFP ES cells were transfected with pools of siRNAs under conditions of self-renewal and analyzed by FACS 72 hrs post-transfcetion. (e) Nanog-GFP expression. (n=3) (pink= proteins identified in ESC mass spectrometry analysis; blue=DDB1) (f) Bright field images of ESC colonies. (g) Representative experiment of relative expression of Nanog, Oct4, and Meox1. (n=3) (h) colony-forming units of LSK transduced with shRNAs. (i) Representative experiment of relative expression of following shRNA silencing. (j) Quantitative PCR of DCAFs in ESC and hematopoietic populations. (Differentiated= ESC differentiated for 48 hrs with retinoic acid). *p<0.05. **p<0.01. ***p<0.001.

https://doi.org/10.7554/eLife.07539.012

Discussion

In this study we identify Ddb1 as a critical regulator of stem cell homeostasis both in embryonic pluripotent and hematopoietic stem cells. Conditional ablation of Ddb1 in adult and fetal HSPCs, using the Mx1Cre and Vav1Cre strains respectively, led to a complete loss of progenitors and stem cells, cytopenia, and acute lethality. Furthermore, increased levels of apoptosis and DNA damages were associated with acute Ddb1 inactivation in HSPCs, suggesting that Ddb1 regulates a wide range of cellular functions essential for the maintenance of hematopoiesis. Strikingly, inactivation of Ddb1 in resting lymphocytes (using the CD4Cre strain) had no significant effects. Whereas, silencing DDB1 in embryonic stem cells leads to loss of pluripotency and self-renewal devoid of alterations in cell cycle or cell survival. These observations demonstrate that Ddb1 is essential for stem cell self-renewal and differentiation in both HSPC and ESC. Previous studies demonstrate that the mechanism of CUL4-DDB1 differs depending on the cell type (Bondar et al., 2006; Cang et al., 2006; Tardat et al., 2010; Kronke et al., 2014). Our studies suggest that Ddb1 deletion affects hematopoietic progenitors by triggering DNA damage and Trp53 response, leading to the rapid induction of apoptosis. Knockdown of DDB1 in ESC by shRNA is not as efficient as Cre- mediated genetic deletion. However, the DDB1 knockdown clearly is sufficient to affect ES cell pluripotency and lead to differentiation (with no effects on apoptosis). At the same time, when DDB1 was silenced (by the same shRNAs) in 293T cells these cells underwent rapid apoptosis, even if the knockdown was not 100% (data not shown). Similarly, silencing of DDB1 in Lineagenegc-Kit+ progenitors also lead to cell death and absence of colony formation in CFU assays (data not shown). Additionally, deleting DDB1 in the early embryo is lethal, however the embryos survive till around E12.5 far past the point of the proliferation of the inner cell mass, suggesting proliferation and differentiation during early embryogenesis could be DDB1-independent (Cang et al., 2006).

Ddb1 shows an intriguing pattern of expression during hematopoiesis. It is one of the highest expressed genes in the multipotent progenitor (MPP) fraction, and is induced as the quiescent HSCs differentiate. It is expressed in all progenitor populations with the highest levels in progenitors of T cells. Several substrates of CUL4-DDB1 complex have been reported. Interestingly, it appears that there is tissue specificity for the various CUL4-DDB1 substrates. CDT1 and p27Kip1 appear to be targeted by the complex in both brain and fibroblasts (Bondar et al., 2006; Cang et al., 2006). c-JUN and Cdkn1acip1 are degraded by the CUL4-DDB1 complex in skin cells (Cang et al., 2007). More recently, PR-set7, a methyltransferase regulating replication origins, was found to be also a substrate for the CUL4-DDB1 ligase (Tardat et al., 2010). Ddb1 deletion resulted in accumulation of the Cdkn1acip1, a CDK and cell cycle inhibitor, protein in bone marrow progenitor populations and T lymphocytes. On the other hand, we failed to demonstrate p27kip1 stabilization in Ddb1-deleted hematopoietic cells (data not shown). Moreover, there was no detectable interaction between p27kip1 and the CUL4-DDB1 complex. In addition, we failed to detect in Ddb1-deleted progenitor cells accumulation of CDT1, a licensing factor of DNA replication (Hu et al., 2004), or PR-set7 (Tardat et al., 2010). However, co-silencing Cdkn1a with Ddb1 did not rescue HSPC homeostasis, which suggests it is unlikely that DDB1 exerts its function solely by regulating Cdkn1acip1 turnover in HSPC. Indeed DNA damage and acute induction of cell death were observed upon Ddb1 deletion. Trp53 pathway silencing partially restored HSPC cell number in Ddb1-deleted animals. It is likely that DDB1 controls a broader spectrum of cellular functions, through its interaction with additional novel protein substrates and the proteasome itself (data not shown). However, it should be noted that mice with mixed background were used for Trp53 and Cdkn1a rescue experiments. The phenotype could be strain-dependent due to variation in MHC alleles. More conclusive results would require crossing mice into pure background.

There are findings suggesting that DDB1 can exert its function independent of CUL4A/B (Lv et al., 2010). However, DDB1 mainly functions as an adapter protein for the CUL4-DDB1 complex. The specificity of the complex comes from the DCAF family of proteins that recognize specific substrates. Expression of DCAF proteins is cell-type specific and as we have shown pluripotent and adult stem cell populations vary in expression. Mass spectrometry analysis of DDB1 interacting proteins in ESC, 293T, and HL60 cell lines demonstrate differential binding to specific DCAF proteins suggesting different substrates in these different cellular contents that may correlate with the different phenotypes. Some of the previous identified substrates have been associated with cell cycle control and DNA damage, however Kronke et al. demonstrates that two lymphoid transcription factors (IKZF1 and IKZF3) are also targeted for degradation by CUL4-DDB1 complexes utilizing CRBN, a member of the DCAF family, as the substrate recognizing protein of the complex (Kronke et al., 2014). Although in our mass spectrometry analysis we did not identify CRBN as an interacting partner, we found in hematopoietic (primitive myeloid) cells that DCAF7 interacted with the CUL4-DDB1 complex whereas Vprbp and DCAF11 were found to interact with DDB1 and silencing in ESC mimicked the loss of DDB1 phenotype. Interestingly, in multiple myeloma cells treatment with lenalidomide increased ubiquitination and subsequent degradation of IKZF1 and IKZF3, demonstrating that small molecules can modulate the CUL4-DDB1-DCAF complex.

Materials and methods

Animals

Ddb1f/f mice and their genotyping were previously reported (Long et al., 2001; Zhang et al., 2001). Ddb1f/f::Mx1Cre+ animals were on C57BL/6 background, and were injected with 10 μg polyI:C per gram of body weight every two days for total two or three injections and analyzed 3 days from last injection depending on the experiments. For mice transplanted with Ddb1f/f::Mx1Cre+ bone marrow, host mice got three polyI:C injections every two days. Ddb1f/fCD4Cre+ mice were analyzed at 4–6 weeks of age. Trp53-/- and Cdkn1acip-/- were purchased from Jackson Laboratory and on a mixed 129xC57BL/6 background, and crossed with Ddb1f/f::MxCre+ to obtain Trp53-/-::Ddb1f/f::MxCre+ and Cdkn1acip-/-::Ddb1f/f::MxCre+ mice respectively. Thus generated double knockout mice and littermates were on a mixed 129xC57BL/6background). All animal experiments were done in accordance to the guidelines of the NYU School of Medicine. The breeding schemes for Trp53-/-::Ddb1f/f::MxCre+ double knockout mice were as follows:

F1xF1: Trp53+/-::Ddb1f/+::MxCre+x Trp53+/-::Ddb1f/+::MxCre-

F2xF2: Trp53+/-::Ddb1f/f::MxCre+x Trp53+/-::Ddb1f/f::MxCre-

F3: Trp53-/-::Ddb1f/f::MxCre+, or Trp53+/+::Ddb1f/f::MxCre+

Littermates were selected for experiments. The breeding schemes for obtaining Cdkn1a-/-:Ddb1f/f::MxCre+ double knockout mice were similar as above.

Antibodies and FACS analysis

Antibody staining and FACS analysis was performed as previously described (Aifantis et al., 1999). All antibodies were purchased from BD-Pharmingen or e-Bioscience. We used the following antibodies: c-kit (2B8), Sca-1 (D7), Mac-1 (M1/70), Gr-1 (RB6-8C5), NK1.1 (PK136), TER-119, CD3 (145-2C11), CD19 (1D3), CD4 (RM4-5), CD4 (H129.19), CD8 (53–6.7), CD25 (PC61), CD44 (IM7), CD45.1 (A20), CD45.2 (104), CD150 (9D1), CD48 (HM481), AnnexinV, 7-AAD. Bone marrow lineage antibody cocktail includes: Mac-1, Gr-1, NK1.1, TER-119, CD3, CD19. For DAPI staining, briefly, the cells were first treated with Fix and Perm reagents according to manufacturer’s instruction (Invitrogen), then resuspended in PBS with 5 μg/ml RNaseA and 2 μg/ml DAPI. γH2Ax staining, TUNEL analysis (Millipore) and BrdU staining (BD Pharmingen) were performed according to manufacturer’s instruction respectively. The following antibodies were used for Western blot analysis: Ddb1 (Invitrogen), Cdkn1a (C-19) (Santa Cruz) and phospho-Trp53 (Ser15) (Cell signaling) and β-actin (Millipore). DCAF1 antibody was previously described (McCall et al., 2008).

RT-PCR

Total RNA was isolated using the RNeasy Plus Mini Kit (Qiagen) and cDNA was synthesized using the SuperScript First-Strand Kit (Invitrogen). Quantitative PCR was performed using iQ SYBR Green Supermix and an iCycler (Bio-Rad) using the primer sequences (Tm=60°C used for all primers).

Methylcellulose assay and bone marrow transplantation

Total bone marrow from polyI:C injected Ddb1f/f::Mx1Cre+ or control mice were plated in duplicate (200,000 cells/35mm dish) into cytokine-supplemented methylcellulose medium (MethoCult 3434, Stem Cell Technologies), and the number and morphology of colonies were scored 7 days later. Alternatively, lineage negative bone marrow cells were isolated by using EasySep Kit (StemCell Technology), and infected with retrovirus expressing pMig-IRES-GFP or pMig-Cre-GFP (see below). Similarly for shRNA infection, Ckit+ enriched bone marrow cells (Automacs technology) where transduced with pLMP-Renilla, pLMP-VprBP, pLMP-DCAF11 or pLMP-DDA1). Forty-eight hours post infection, Lineage-GFP+ cells were sorted and 4,000 cells were plated in methylcellulose. For CFU-S assay, 100,000 bone marrow cells were injected into lethally irradiated (960 cGy) host mice (n=5 per group). Spleens were taken at day 8 and fixed in Bouin’s solution overnight and colonies were counted. For bone marrow transplantation, 2×105 bone marrow cells were transplanted by retro-orbital i.v. injections into lethally irradiated (960 cGy) BL6SJL recipient mice.

Microarray and gene set enrichment analysis

Duplicate of each sample was used. Three mice were pooled from each genotype for the DN3 microarray experiment. Microarray analysis was performed as previously described (Gao et al., 2009). Briefly, freshly isolated cells were sorted by surface marker expression, and total RNA was extracted using the RNeasy kit (QIAGEN, CA). In order to generate sufficient sample quantities for oligonucleotide gene chip hybridization experiments, we used the GeneChip Two-Cycle cDNA Synthesis Kit (Affymetrix, San Jose, CA) for cRNA amplification and labeling. The amplified cRNA was labeled and hybridized to the MOE430 Plus 2 oligonucleotide arrays (Affymetrix). The Affymetrix gene expression profiling data was normalized using the previously published Robust Multi-array Average (RMA) algorithm using the GeneSpring 7 software (Agilent, Palo Alto, CA). The gene expression intensity presentation was generated with MeV software (http://www.tm4.org). Microarray data were deposited under the GEO database with the accession number (GSE70658). Gene set enrichment analysis was performed using Gene Set Enrichment Analysis software (Mootha et al., 2003; Subramanian et al., 2007) (http://www.broadinstitute.org/gsea) using gene set as permutation type, 1,000 permutations and log2 ratio of classes as metric for ranking genes. The ‘stem’ and ‘diff’ gene set was from publication (Ng et al., 2009). Other gene sets used in the analysis were taken from gene sets already present in the MSig database of the Broad Institute.

ESC culture and siRNA

ESC were cultured and transfected with siRNA as previously described (Buckley et al., 2012). Human DDB1 cDNA in tandem with StrepII/Flag tags were cloned into pBS31 cloning vector (Hochedlinger et al., 2005; Beard et al., 2006). Plasmid (pBS31-N-SF-DDB1) was then nucleoporatated (Amaxa) along with FlpE plasmid into KH2 ESC. ESCs were selected with hygromycin for 10 days. Expression of tagged protein was confirmed by western blot following treatment with doxyclyine for 3 days.

Mass spectrometry of purified tagged proteins

293T cells were transfected with pCDNA-HA-Flag-DDB1 or pCDNA-HA-Flag. 48 hr post transfection cells were treated with 10 μM MG132 for 4 hrs prior to collection of cells. HL-60 were transduced with pMIG-N-SF-DDB1 and selected with puromycin for 5 days 48 hrs following transduction. pBS31-N-SF-DDB1 or pBS31-N-SF targeted ESCs were induced with 2 μM doxycycline (Sigma) for 3 days and cells were then treated with 10μM MG132 (Peptides International) for 2 hrs prior to collection of the cells. Cell pellets were resuspended in Lysis Buffer (100 mM Tris-HCl pH7.5, 150 mM NaCl, 1% Triton-X100, 1 mM EDTA, 2 mM MgCl2, and supplemented with Complete Mini protease inhibitors (Roche), and 10 mM N-elthylmaleimide (Sigma). Tagged proteins were bound to StrepTactin macroprep beads (IBA), and eluted per manufactuers instructions. Peptides were digested with trypsin and analyzed by LC-MS/MS. The MS/MS spectra were searched against NCBI database using a local MASCOT search engine (V.2.3).

Statistical analysis

The means of each data set were analyzed using the Student’s t test, with a two-tailed distribution and assuming equal sample variance.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    DDB1 is essential for genomic stability in developing epidermis
    1. Y Cang
    2. J Zhang
    3. SA Nicholas
    4. AL Kim
    5. P Zhou
    6. SP Goff
    (2007)
    Proceedings of the National Academy of Sciences of the United States of America 104:2733–2737.
    https://doi.org/10.1073/pnas.0611311104
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    Genetic manipulation of hedgehog signaling in the endochondral skeleton reveals a direct role in the regulation of chondrocyte proliferation
    1. F Long
    2. XM Zhang
    3. S Karp
    4. Y Yang
    5. AP McMahon
    (2001)
    Development 128:5099–5108.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51

Decision letter

  1. Amy J Wagers
    Reviewing Editor; Harvard University, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled "CUL4-DDB1 ubiquitin ligase complex differentially controls adult and embryonic stem cell differentiation and homeostasis" for peer review at eLife. Your submission has been favorably evaluated by Sean Morrison (Senior editor), and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following reviewers have agreed to reveal their identity: Hui Zhang and Avinash Bhandoola.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript investigates the role of DDB1, a component of the CUL4 ubiquitin ligase complex, in hematopoietic precursor cells, T cells and ES cells. The authors provide evidence supporting cell context dependent functions and binding partners of DDB1 and discrete roles for this protein in the maintenance of hematopoiesis and hematopoietic progenitor cells, as well as the differentiation of pluripotent stem cells. Reviewers agreed that the work on fetal and adult hematopoiesis is comprehensive and of high quality, although one reviewer found the T cell and ES cell work to be a bit more superficial, with conclusions drawn in the first part of the study that were in some cases inconsistent with those in the latter half. It would be useful if the authors worked towards a more unified analysis and discussion, and included specific mention of hematopoietic stem cells in the title (as this would give a more accurate representation of the majority of the data in the paper). In addition, reviewers raised several issues related to the interpretation of experimental data that should be addressed in the revised manuscript.

Essential revisions:

1) The authors suggest that DDB1 may employ different DCAF proteins in different cells to control various cellular pathways. The concern with this interpretation is that the cell-based effects of DDB1 deletion on different cells may not only depend on its binding to different DCAF proteins. The exact cellular content in different cells may also play a role in defining the final outcome after DDB1 deletion.

2) Related to this, although Cul4A is prominent in the title and Abstract, its particular role is not really addressed experimentally, and it is possible that some of the described activities of DDB1 may be Cul4A (and even Cul4) independent. Also, as DDB1 binds to both CUL4A and CUL4B to function as an adaptor, it is unclear why the authors claim always that DDB1 functions through CUL4A, unless they have evidence that CUL4B does not play a role. Please consider reducing emphasis on Cul4A in the revised manuscript, changing terminology to include Cul4 or Cul4A/4B, and entertaining possible alternative models for DDB1 function in the Discussion.

3) Please provide the interacting proteins of Ddb1 in different cell types as a supplement.

4) In multiple places, the authors interpret the rapid loss of mature blood cells from the DDB1-deficient hematopoietic compartment as indicating that DDB1 specifically targets proliferating progenitors; however, it is likely given the rapidity of cell loss that Ddb1 deficiency also and independently impacts downstream cells. This notion is supported by the authors' observations of the effects of DDB1 loss in proliferating T cells. The authors should therefore temper their comments to be more in line with their data.

5) Please address the concern that Ddb1 reduction in the ES model appears much less robust than in the Cre-models used for analysis of hematopoiesis, making it difficult to determine whether the different phenotypic consequences in these models truly reflect differences in cellular context or gene dosage effects.

6) Similarly in the proteomic analyses, are the levels of DDB1 expression in the various cell types equivalent? Or is it possible that the reported differences in binding partners reflect differences in ddrb1 protein levels rather than differences in cellular context?

7) Finally, the notion that DDB1 is impacting fundamentally distinct cellular processes in HSPCs and ESCs is interesting; however, the authors' conclusion that this occurs through differential substrate recognition (subheading “DDB1 interacts with different DCAF proteins in specific cell types”) is somewhat problematic in that it is based on an interactome analysis performed in 293, HL60 and ESC. If cellular context is a key determinant of substrate interactions, then it may be misleading to extrapolate interactions in 293 and HL60 to T lymphocytes and HSPCs. It would be nice to see, at least, in vitro studies in HSPCs of the factors the authors implicated in ESCs (DDA1, VprBP, and DCAF11), some of which are also expressed in HSCs (i.e., VprBP and DCAF11). This would more specifically support the argument that the networks are molecularly different and thus underlie the functional differences in loss of Ddb1.

Minor points:

1) Figure 8c and Figure 9a: b-actin should be beta-actin.

2) Figure 2: no DDB1 deletion Western blots were presented in f/f, VavCre+ cells.

3) Figure 5c: total p53 should be included.

4) Figure 8: although abnormal cell cycle in DDB1 deficient cells were not observed, were p53 and phosphor-p53 and p21 induced?

5) Subheading “DDB1 interacts with distinct DCAF proteins in a cell type specific manner”, CUL4B is not a component of the CUL4A-DDB1 complex, it is an independent CUL4B-DDB1 complex. DDB1 binds to both CUL4A and CUL4B to form the core CRL4 complexes.

6) Statistical analyses are not indicated on the figures. These are essential and should be included and annotated in the legends and on the figures.

7) In Figure 2i, j, I didn't see enrichment of CD150 in the vav-Cre Ddb1 deleted LSK cells – is this correct, and if so, why do the authors think this marker was not enriched?

8) A possible alternative explanation for the loss of WBCs and platelets alongside maintenance of RBCs is that Ddb1 deletion causes a fate switch or differentiation bias prior to progenitor cell loss. It would be useful to address this possibility, experimentally or in the text.

9) Gate shown on Figure 4b appears to indicate Lin+ cells, but the subsequent analysis is for Lin-. It would make more sense to show the Lin- gate.

10) I'm unsure what the authors mean by "accumulation was stunted in DDB1-deficient cells" (subheading “DDB1 is dispensable for mature T cells”). What is "stunted" in this context? It looks to me like the p21 levels are higher in cells prior to treatment, but the levels still go up with MG132 (Figure 6i).

11) The frequencies of CD150+CD48- LT-HSCs appear to vary dramatically in the ddb1-deficient mice in different experiments (compare Figure 3h (20-30%), with Figure 5g (6%) and Figure 7c (8%); yet the error bars in Figure 5h are quite small. Does this reflect different time points of analysis?

12) What accounts for the survival of a subset (60%) of p53 null ddb1-deficient mice? (Figure 5i). Is the hematopoietic compartment intact in these animals? Do they eventually succumb?

13) Flow cytometric analysis for phospho-Kap1 in addition to γH2AX in could perform a clearer indication of DNA damage.

14) The Materials and methods refer to statistical analysis of Ddb1 expression in patient samples. Was this included in the manuscript?

15) γH2AX staining by itself is not a very reliable indication of DNA damage. It is not essential, but if the authors can include a second measure of damage, this would be useful.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "CUL4-DDB1 ubiquitin ligase complex differentially controls adult and embryonic stem cell differentiation and homeostasis" for further consideration at eLife. Your revised article has been favorably evaluated by Sean Morrison (Senior editor) and a Reviewing editor. The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1) Regarding Essential Revision point #5, this caveat should also be included in the manuscript as a discussion point.

2) Regarding Essential Revision point #6, the authors appear to have misunderstood the concern. They appear to have provided analysis of Ddb1 expression in untransfected cells, but the basal levels of Ddb1 are not the issue. Ddb1 levels must be shown also for the cells that were transfected with tagged-Ddb1 and used for the mass spectrometry analysis, as differences in Ddb1 in this setting could contribute to different results in the mass spectrum. Please add these data.

3) Regarding Essential Revision point #7, the new data on knockdown of dda1, dcaf11 and vprbp in HSPCs is very useful, but again, they need to include the relevant controls showing the degree of knockdown achieved for each of these targets in HSPCs and in ESCs to discriminate gene dosage from cell context effects.

4) Regarding the response to Minor point #11, the analysis of mice on a mixed background presents an issue for interpretation of the HSPC frequency and transplantation data. How do the authors control for this in their breeding and analysis scheme? The mixed background of the animals must be clearly noted in the Materials and methods and relevant figure legends, and any differences in background in the control versus experimental animals must be noted.

5) In the new Figure 8c, I do not see the upregulation of p21 in RA-differentiated ESC samples that the authors describe in the text.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "The CUL4-DDB1 ubiquitin ligase complex controls adult and embryonic stem cell differentiation and homeostasis" for further consideration at eLife. Your revised article has been favorably evaluated by Sean Morrison (Senior editor) and the Reviewing editor. The manuscript has been improved but there is one critical issue that we're concerned about and that needs to be addressed for the paper to be accepted:

In addressing the issue of "mixed backgrounds" in their response, the authors indicate that mice were bred as heterozygotes for the targeted alleles to generate control and experimental animals for the Trp53-/-::Ddb1f/f::MxCre+ and Cdkn1acip-/-::Ddb1f/f::MxCre+ experiments, and littermates of these F2 animals were used in all the experiments. As different inheritance of histocompatibility or other alleles could confound experimental outcomes with such a breeding scheme, it is very important to be explicit about the background of the breeders and progeny, and to state clearly how many times each experiment was performed and with how many independent donor mice. In this breeding scheme, even littermates can differ with respect to histocompatibility alleles, so it is critical to have a clear explanation from the authors for why the experiments were not confounded by such a difference. For example, comment on whether there might be any linkage between the targeted alleles and histocompatibility alleles, and whether MHC alleles differ among the backgrounds of the mice used in the breeding. This information should be added to the Materials and methods section, and the note in the legend "mice were mixed background" should explicitly state the backgrounds represented in the experimental mice, and the number of independent experiments performed for each assay.

https://doi.org/10.7554/eLife.07539.017

Author response

Essential revisions:

1) The authors suggest that DDB1 may employ different DCAF proteins in different cells to control various cellular pathways. The concern with this interpretation is that the cell-based effects of DDB1 deletion on different cells may not only depend on its binding to different DCAF proteins. The exact cellular content in different cells may also play a role in defining the final outcome after DDB1 deletion.

We absolutely agree with the reviewers that cellular context may also play a role in defining the final outcome of DDB1 deletion in different cell types. We have modified the text accordingly (subheading “DDB1 interacts with distinct DCAF proteins in a cell type specific manner”).

2) Related to this, although Cul4A is prominent in the title and Abstract, its particular role is not really addressed experimentally, and it is possible that some of the described activities of DDB1 may be Cul4A (and even Cul4) independent. Also, as DDB1 binds to both CUL4A and CUL4B to function as an adaptor, it is unclear why the authors claim always that DDB1 functions through CUL4A, unless they have evidence that CUL4B does not play a role. Please consider reducing emphasis on Cul4A in the revised manuscript, changing terminology to include Cul4 or Cul4A/4B, and entertaining possible alternative models for DDB1 function in the Discussion.

We thank the reviewer for making this very important point. We have made the suggested change: We have changed it to CUL4-DDB1 throughout the paper, and discussed the possibility of CUL4- independent function of DDB1 (paragraph three, Discussion). Consistent with this notion, Cul4a−/− mice (Cul4af/fEIIaCre) were viable and displayed no overt developmental abnormalities throughout their life span (Liu et al., Mol Cell 2009), including no overt hematopoietic phenotypes (our private communication).

3) Please provide the interacting proteins of Ddb1 in different cell types as a supplement.

We have added Supplementary file 1 with the interacting proteins to our revised manuscript.

4) In multiple places, the authors interpret the rapid loss of mature blood cells from the DDB1-deficient hematopoietic compartment as indicating that DDB1 specifically targets proliferating progenitors; however, it is likely given the rapidity of cell loss that ddb1 deficiency also and independently impacts downstream cells. This notion is supported by the authors' observations of the effects of DDB1 loss in proliferating T cells. The authors should therefore temper their comments to be more in line with their data.

We agree with the reviewer that it is also possible that rapid loss of progenitor cells could actually also impact their progeny cells. We have modified the text (subheading “Deletion of Ddb1 in adult hematopoietic cells leads to bone marrow failure”).

5) Please address the concern that Ddb1 reduction in the ES model appears much less robust than in the Cre-models used for analysis of hematopoiesis, making it difficult to determine whether the different phenotypic consequences in these models truly reflect differences in cellular context or gene dosage effects.

The reviewer is correct. It is true that knockdown DDB1 in ESC by shRNA is not as efficient as Cre-mediated genetic deletion. The difference is unfortunately limited by the methodology itself. However, the DDB1 knock-down clearly is sufficient to affect ES cell pluripotency and lead to differentiation (with no effects on apoptosis). At the same time, when DB1 was silenced (by the same shRNAs) in 293T cells these cells underwent rapid apoptosis, even if the knock-down was not 100% (data not shown). Similarly, silencing of DDB1 in Lineagenegc-Kit+ progenitors also lead to cell death and absence of colony formation in CFU assays (data not shown).

Additionally, it was previously published by Cang et al. that DDB1 knockout mice are embryonic lethal at around E12.5 far past the point of the proliferation of the inner cell mass, suggesting that loss of DDB1 does not lead to apoptosis in the population of cells where ESC are derived (Cang et al. Cell 2006).

6) Similarly in the proteomic analyses, are the levels of DDB1 expression in the various cell types equivalent? Or is it possible that the reported differences in binding partners reflect differences in ddrb1 protein levels rather than differences in cellular context?

This is a very good point that we have now addressed experimentally.

Ddb1 transcript and protein levels were high – and approximately equivalent – in all cell types used for mass spectrometry. Western blot analysis of the cell types has been added to Figure 9. Although we cannot exclude slight differences that stem from expression levels, we do not think that protein levels of expression are explaining the differences in interactions between DDB1 and associated proteins.

7) Finally, the notion that DDB1 is impacting fundamentally distinct cellular processes in HSPCs and ESCs is interesting; however, the authors' conclusion that this occurs through differential substrate recognition (subheading “DDB1 interacts with different DCAF proteins in specific cell types”) is somewhat problematic in that it is based on an interactome analysis performed in 293, HL60 and ESC. If cellular context is a key determinant of substrate interactions, then it may be misleading to extrapolate interactions in 293 and HL60 to T lymphocytes and HSPCs. It would be nice to see, at least, in vitro studies in HSPCs of the factors the authors implicated in ESCs (DDA1, VprBP, and DCAF11), some of which are also expressed in HSCs (i.e., VprBP and DCAF11). This would more specifically support the argument that the networks are molecularly different and thus underlie the functional differences in loss of Ddb1.

We would like to thank the reviewer for suggesting this interesting experiment. DDA1, Vprbp, and DCAF11 are all expressed at the transcript level in LSK progenitors, however due to obvious limitations in mass spectrometry we are unable to look at DDB1 interacting proteins in LSK (we usually get 50,000 LSK from each mouse). To address this question in HSPCs (LSK), we silenced Dda1, Vprbp, and Dcaf11 using RNAi (shRNAs) in colony forming (CFU) assays. I wanted to remind you here that deletion or silencing of DDB1 leads to a profound loss of colony forming ability of stem and progenitor cells (Figure 4). Interestingly, silencing of the specific DCAF genes (that showed strong phenotypes in ES cell differentiation, see Figure 10) in LSK led to varying and relatively mild effects on colony unit formation. For example, Ddda1 silencing had no effects on LSK differentiation, however, it was one of the strongest modulators of ES cell differentiation. Similarly, the effects of Vprbp silencing were negligible in LSKs but very significant in ES cells. We actually have studied hematopoiesis in Vprbp animals and found that its deletion does not significantly affects overall HSC differentiation (our unpublished data) supporting our CFU analysis demonstrated in Figure 10h. On the other hand, Dcaf11 silencing appears to affect both LSK and ES cell differentiation. These results are now presented in subheading “DDB1 interacts with distinct DCAF proteins in a cell type specific manner” and can be found in Figure 10.

Minor points:

1) Figure 8c and Figure 9a: b-actin should be beta-actin.

This change has been made.

2) Figure 2, no DDB1 deletion Western blots were presented in f/f, VavCre+ cells.

We have added qRT-PCR in f/f VavCre+ cells to demonstrate loss of Ddb1 in this mouse model (Figure 2a).

3) Figure 5c, total p53 should be included.

We have added total p53 western blot to Figure 5.

4) Figure 8, although abnormal cell cycle in DDB1 deficient cells were not observed, were p53 and phosphor-p53 and p21 induced?

We have now performed these experiments. We indeed see induction of both p21 and phospo-p53, which is similar to upregulation seem during differentiation of ESC. These findings have been added to the text as well as Figure 8.

5) Subheading “DDB1 interacts with distinct DCAF proteins in a cell type specific manner”, CUL4B is not a component of the CUL4A-DDB1 complex, it is an independent CUL4B-DDB1 complex (see above). DDB1 binds to both CUL4A and CUL4B to form the core CRL4 complexes.

We have now changed the text to the Cul4-DDB1 complexes to encompass all Cul-DDB1 complexes.

6) Statistical analyses are not indicated on the figures. These are essential and should be included and annotated in the legends and on the figures.

We have now added additional p-values that can be found in figures, as well, as in the figure legends.

7) In Figure 2i, j, I didn't see enrichment of CD150 in the vav-Cre Ddb1 deleted LSK cells - is this correct, and if so, why do the authors think this marker was not enriched?

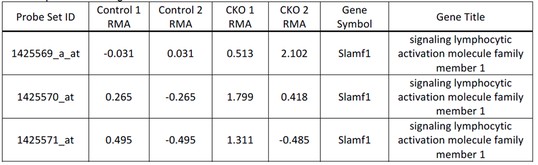

This is correct we didn’t see statistical significance in enrichment of CD150 in our microarray analysis. Although not significant 2 out of 3 probes had higher values (Author response image 1).

8) A possible alternative explanation for the loss of WBCs and platelets alongside maintenance of RBCs is that Ddb1 deletion causes a fate switch or differentiation bias prior to progenitor cell loss. It would be useful to address this possibility, experimentally or in the text.

DDB1 is localized in the nucleus, which probably why no effect is seen on enucleated RBCs. DDB1 would not have an effect on mature cells due to the lifespan of ~40 days for mature RBCs, and following DDB1 deletion mice succumb to hematopoietic failure prior to RBC turn over.

9) Gate shown on Figure 4b appears to indicate Lin+ cells, but the subsequent analysis is for Lin-. It would make more sense to show the Lin- gate.

As suggested by the reviewer, we have made this change to Figure 4.

10) I'm unsure what the authors mean by "accumulation was stunted in DDB1-deficient cells" (subheading “DDB1 is dispensable for mature T cells”). What is "stunted" in this context? It looks to me like the p21 levels are higher in cells prior to treatment, but the levels still go up with MG132 (Figure 6i)

We have changed the sentence to read:

“When proteasome-dependent protein degradation was inhibited by MG132, p21cip1 was significantly accumulated in control cells, however less protein accumulation following proteasome inhibition was seen in DDB1-deficient cells (Figure 6i), demonstrating that p21cip1 degradation is dependent on DDB1 function”.

Hopefully this change helps to clarify our point that DDB1-deficient cells have less p21 protein accumulation following inhibition of the proteasome, suggesting that DDB1 is important for the degradation of p21.

11) The frequencies of CD150+CD48- LT-HSCs appear to vary dramatically in the ddb1-deficient mice in different experiments (compare Figure 3h (20-30%), with Figure 5g (6%) and Figure 7c (8%); yet the error bars in Figure 5h are quite small. Does this reflect different time points of analysis?

Figure 5g and Figure 7c were analyzed at day 5, same as 3h left panel. Littermate controls were used in all the experiments. This difference could be due to different backgrounds of mice strains. DDB1f/f MxCre+ mice were on C57BL/6 background. After crossing to p53-/- or p21-/-, they are on mixed background.

12) What accounts for the survival of a subset (60%) of p53 null ddb1-deficient mice? (Figure 5i). Is the hematopoietic compartment intact in these animals? Do they eventually succumb?

We followed the mice for 4 months following deletion of DDB1, and they showed no signs of hematopoietic failure or anemia. This suggests that deletion of p53 can partially rescue the hematopoietic system and a population of hematopoietic stem cells escape p53 mediated cell death following deletion of DDB1.

13) Flow cytometric analysis for phospho-Kap1 in addition to γH2AX in could perform a clearer indication of DNA damage.

In order to measure DNA damage in addition to γH2AX staining, we have performed 53BP1 foci staining. These additional stainings have been added to Figure 5f, and further show increased DNA damage following deletion of Ddb1.

14) The Materials and methods refer to statistical analysis of Ddb1 expression in patient samples. Was this included in the manuscript?

We apologize for the omission, this was not included in the manuscript, and we have removed it from the methods in the text.

15 γH2AX staining by itself is not a very reliable indication of DNA damage. It is not essential, but if the authors can include a second measure of damage, this would be useful.

Please see answer to question #13 addressing staining for DNA damage.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

1) Regarding Essential Revision point #5, this caveat should also be included in the manuscript as a discussion point.

We have addressed the use of the CRE mouse model versus use of shRNAs in the Discussion. We hope this addresses the reviewers concerns.

2) Regarding Essential Revision point #6, the authors appear to have misunderstood the concern. They appear to have provided analysis of Ddb1 expression in untransfected cells, but the basal levels of Ddb1 are not the issue. Ddb1 levels must be shown also for the cells that were transfected with tagged-Ddb1 and used for the mass spectrometry analysis, as differences in Ddb1 in this setting could contribute to different results in the mass spectrum. Please add these data.

We apologize, we indeed misunderstood the reviewer’s concern. At the time prior to mass spectrometry we analyzed our samples for exogenous expression of DDB1. We now include protein expression data for HL-60 transduced cells and ESC induced to express DDB1 in updated Figure 9. As you see, in ES cells we achieve very mild – almost at wild-type levels – expression of exogenous DDB1. Despite this low expression, ESC-expressed DDB1 was found to interact with a significant number of DCAF proteins, even more that the DCAF proteins identified in HL60 cells where exogenous expression was higher. So we believe that it is unlikely that we simply had more DCAFs because we express DDB1 at higher levels. Moreover, the overall number of DDB1-interacting proteins identified by mass spec was very similar in all three populations (ESC=140, 293T=110, and HL-60=128).

3) Regarding Essential Revision point #7, the new data on knockdown of dda1, dcaf11 and vprbp in HSPCs is very useful, but again, they need to include the relevant controls showing the degree of knockdown achieved for each of these targets in HSPCs and in ESCs to discriminate gene dosage from cell context effects.

We apologize that this data was not included in Figure 10. At the time of plating cells for CFU assay a proportion of the cells were used for qRT-PCR to determine% of knockdown in LSK. We have added the qRT-PCR results in revised Figure 10i.

4) Regarding the response to Minor point #11, the analysis of mice on a mixed background presents an issue for interpretation of the HSPC frequency and transplantation data. How do the authors control for this in their breeding and analysis scheme? The mixed background of the animals must be clearly noted in the Methods and relevant figure legends, and any differences in background in the control versus experimental animals must be noted.

In all experiments presented in this manuscript we always utilize littermates as controls in order to safely interpret for analysis. Mice are always bred heterozygous for the targeted alleles to generate mice for both controls and experimental group. We have added this information in both the figures and the Methods.

5) In the new Figure 8c, I do not see the upregulation of p21 in RA-differentiated ESC samples that the authors describe in the text.

The editor is correct. We have removed this specific comment concerning p21 protein expression in differentiated ESC.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

In addressing the issue of "mixed backgrounds" in their response, the authors indicate that mice were bred as heterozygotes for the targeted alleles to generate control and experimental animals for the Trp53-/-::Ddb1f/f::MxCre+ and Cdkn1acip-/-::Ddb1f/f::MxCre+ experiments, and littermates of these F2 animals were used in all the experiments. As different inheritance of histocompatibility or other alleles could confound experimental outcomes with such a breeding scheme, it is very important to be explicit about the background of the breeders and progeny, and to state clearly how many times each experiment was performed and with how many independent donor mice. In this breeding scheme, even littermates can differ with respect to histocompatibility alleles, so it is critical to have a clear explanation from the authors for why the experiments were not confounded by such a difference. For example, comment on whether there might be any linkage between the targeted alleles and histocompatibility alleles, and whether MHC alleles differ among the backgrounds of the mice used in the breeding. This information should be added to the Methods section, and the note in the legend "mice were mixed background" should explicitly state the backgrounds represented in the experimental mice, and the number of independent experiments performed for each assay.

The only remaining issue at this point is the “mixed backgrounds” of the animal used for our Trp53 x Ddb1 and Cdkn1 x Dbb1 crosses and experiments. Initially, let me state that I absolutely agree with you and we now provide additional information regarding repetition of the experiment (Figure legend 5G-I and Figure 7c), breeding schemes (Materials and methods) and number of animals as you have requested (Figure legend 5G-I and Figure 7c). Let me add a few more words to clarify our experiments:

a) Maybe the way that we described the experiments was not optimal, but none of these experiments are transplantations, they are crossed mice in which we delete Ddb1 using pI- pC administration. So we don't expect any effects coming from MHC mismatch of donor versus host.

b) For the Cdkn1 x Dbb1 cross, we have actually seen no phenotypic rescue and make absolutely no claims or rescue in the text.

c) For the Trp53 x Ddb1 cross we have only a partial rescue and we clearly state that again, not over-interpreting any results. We recognize that littermates can also have slightly distinct backgrounds (some “more” 129 and others “more” BL6) and the only thing that we could do is to repeat our experiments several times and include a significant number of animals. This is what we have done and all information is added at our revised manuscript. We have addressed this in paragraph two, Discussion.

d) There is no evidence of linkage between mouse MHC clusters (Chromosome 17) and the Ddb1 (Chromosome 19) or Trp53 (Chromosome 11) genes.

https://doi.org/10.7554/eLife.07539.018

Article and author information

Author details

  1. Jie Gao

    1. Department of Pathology, New York University School of Medicine, New York, United States
    2. Perlmutter Cancer Center, New York University School of Medicine, New York, United States
    Contribution
    JG, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Shannon M Buckley
    Competing interests
    No competing interests declared.
  2. Shannon M Buckley

    1. Department of Pathology, New York University School of Medicine, New York, United States
    2. Perlmutter Cancer Center, New York University School of Medicine, New York, United States
    3. Department of Genetics, Cell Biology, and Anatomy, University of Nebraska Medical Center, Omaha, United States
    Contribution
    SMB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Jie Gao
    Competing interests
    No competing interests declared.
  3. Luisa Cimmino

    1. Department of Pathology, New York University School of Medicine, New York, United States
    2. Perlmutter Cancer Center, New York University School of Medicine, New York, United States
    Contribution
    LC, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  4. Maria Guillamot

    1. Department of Pathology, New York University School of Medicine, New York, United States
    2. Perlmutter Cancer Center, New York University School of Medicine, New York, United States
    Contribution
    MG, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  5. Alexandros Strikoudis

    1. Department of Pathology, New York University School of Medicine, New York, United States
    2. Perlmutter Cancer Center, New York University School of Medicine, New York, United States
    Contribution
    AS, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  6. Yong Cang

    Signal Transduction Program, Sanford-Burnham Medical Research Institute, La Jolla, United States
    Contribution
    YC, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  7. Stephen P Goff

    Department of Biochemistry and Molecular Biophysics, Howard Hughes Medical Institute, Columbia University, New York, United States
    Contribution
    SPG, Conception and design, Acquisition of data, Contributed unpublished essential data or reagents
    Competing interests
    SPG: Reviewing editor, eLife.
  8. Iannis Aifantis

    1. Department of Pathology, New York University School of Medicine, New York, United States
    2. Perlmutter Cancer Center, New York University School of Medicine, New York, United States
    Contribution
    IA, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    iannis.aifantis@nyumc.org
    Competing interests
    No competing interests declared.

Funding

National Cancer Institute

  • Iannis Aifantis

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank the NYU Genome Technology Center (supported in part by NIH/NCI P30 CA016087-30 grant) for expert assistance with micro-array experiments, and the NYU Flow Cytometry facility (supported in part by NIH/NCI 5 P30CA16087-31) for expert cell sorting, the NYU Histology Core (5P30CA16087-31), and the Transgenic Mouse Core (NYU Cancer Institute Center Grant (5P30CA16087-31). We would also like to thank Dr H Li and Dr T Liu at the Center for Advanced Proteomics Research, Rutgers New Jersey School of Medicine, and Dr B Ueberheide at the NYU School of Medicine Proteomics Resource Center supported by the Cancer Center Support Grant, P30CA016087 for selected mass spectrometry analysis. IA is supported by the National Institutes of Health (RO1CA133379, RO1CA105129, R21CA141399, RO1CA149655, and RO1GM088847), NYS Department of Health NY STEM (C028130), the Leukemia & Lymphoma Society (TRP grant), the V Foundation for Cancer Research, the Irma T. Hirschl Trust, and the Dana Foundation. JG was supported by the Lady Tata Memorial Trust and Molecular Oncology and Immunology training grant, and SMB was supported by the Helen L and Martin S Kimmel Stem Cell Postdoctoral fellowship and the NIH institutional training grant (1T32CA160002-01).

Ethics

Animal experimentation: All animal experiments were done in accordance to the guidelines of the NYU School of Medicine, and approved by the institutional animal care and use committee (IACUC) protocol (#130410-03).

Reviewing Editor

  1. Amy J Wagers, Reviewing Editor, Harvard University, United States

Publication history

  1. Received: March 17, 2015
  2. Accepted: November 26, 2015
  3. Accepted Manuscript published: November 27, 2015 (version 1)
  4. Version of Record published: January 6, 2016 (version 2)

Copyright

© 2015, Gao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,084
    Page views
  • 579
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Neuroscience
    Peter M LoCoco et al.
    Research Article Updated
