Sam68/KHDRBS1 is critical for colon tumorigenesis by regulating genotoxic stress-induced NF-κB activation

  1. Kai Fu
  2. Xin Sun
  3. Eric M Wier
  4. Andrea Hodgson
  5. Yue Liu
  6. Cynthia L Sears
  7. Fengyi Wan  Is a corresponding author
  1. Bloomberg School of Public Health, Johns Hopkins University, United States
  2. Bloomberg School of Public Health, John Hopkins University, United States
  3. Johns Hopkins University School of Medicine, United States
  4. Johns Hopkins Medical Institutions, United States
Research Article
  • Cited 8
  • Views 1,459
  • Annotations
Cite this article as: eLife 2016;5:e15018 doi: 10.7554/eLife.15018

Abstract

Nuclear factor kappa B (NF-κB)-mediated transcription is an important mediator for cellular responses to DNA damage. Genotoxic agents trigger a 'nuclear-to-cytoplasmic' NF-κB activation signaling pathway; however, the early nuclear signaling cascade linking DNA damage and NF-κB activation is poorly understood. Here we report that Src-associated-substrate-during-mitosis-of-68kDa/KH domain containing, RNA binding, signal transduction associated 1 (Sam68/KHDRBS1) is a key NF-κB regulator in genotoxic stress-initiated signaling pathway. Sam68 deficiency abolishes DNA damage-stimulated polymers of ADP-ribose (PAR) production and the PAR-dependent NF-κB transactivation of anti-apoptotic genes. Sam68 deleted cells are hypersensitive to genotoxicity caused by DNA damaging agents. Upregulated Sam68 coincides with elevated PAR production and NF-κB-mediated anti-apoptotic transcription in human and mouse colon cancer. Knockdown of Sam68 sensitizes human colon cancer cells to genotoxic stress-induced apoptosis and genetic deletion of Sam68 dampens colon tumor burden in mice. Together our data reveal a novel function of Sam68 in the genotoxic stress-initiated nuclear signaling, which is crucial for colon tumorigenesis.

https://doi.org/10.7554/eLife.15018.001

eLife digest

Cells use signaling pathways to detect and respond to harmful conditions by switching on genes that keep the cell healthy. One important pathway is the nuclear factor kappa B (NF-κB) signaling pathway, which is activated by many stimuli. These stimuli may come from infections from outside the cell or may originate inside the cell, as seen for DNA damage caused by irradiation, chemicals or rapid DNA replication in cancer cells.

Most of a cell’s DNA is located in the cell nucleus. However, NF-κB proteins are normally located outside the nucleus, in the cell’s cytoplasm. Damage to DNA triggers a signal from the nucleus to the cytoplasm. This signal activates the NF-κB proteins, which move into the nucleus and turn on genes that help the cell to recover from the damage. These genes include those that prevent the cell from self-destructing. In one step of the NF-κB activation process, chain-like molecules called polymers are made from a compound called poly(ADP-ribose), or PAR for short. However, few other details are known about how the damaged DNA in the nucleus signals to the cytoplasm.

A protein called Sam68, which is found in the cell nucleus, has been linked to DNA damage signaling. Fu, Sun et al. now present evidence that suggests that if mouse cells lack Sam68, they do not produce PAR polymers in response to DNA damage. In addition, these cells could not trigger the PAR-dependent signaling cascade that is essential for activating NF-κB and for turning on the protective genes. Consequently, cells that lacked Sam68 were extremely sensitive to agents that cause DNA damage, such as chemicals and irradiation.

The NF-κB pathway is regulated incorrectly in some cancers, but is also activated by DNA damage caused by cancer treatments. Therefore, Fu, Sun et al. also explored the role of Sam68 in cancer. Reducing the levels of Sam68 made human colon cancer cells more likely to self-destruct when they were exposed to DNA-damaging agents. Furthermore, removing Sam68 from mice that spontaneously grow colon cancer caused their tumors to develop more slowly than mice that retained Sam68 in their cells.

Overall, the findings presented by Fu, Sun et al. suggest that Sam68 regulates the signal from the nucleus to the cytoplasm that activates NF-κB proteins in response to DNA damage. Sam68 also appears to be important for helping colon cancer cells grow and survive. Future challenges will be to understand how Sam68 regulates the production of the PAR polymer in this response and to explore whether Sam68 can be targeted for treating cancer.

https://doi.org/10.7554/eLife.15018.002

Introduction

Nuclear factor kappa B (NF-κB) is a crucial transcription factor in a variety of pathophysiological conditions (Dietz and Bahr, 2004; Grilli et al., 1993; Harhaj and Dixit, 2012; Hayden and Ghosh, 2008; Natoli, 2010; Smale, 2011; Vallabhapurapu and Karin, 2009; Wan and Lenardo, 2010; Wertz and Dixit, 2010; Wertz et al., 2004). NF-κB responds to genotoxic threats (e.g. DNA damaging agents and γ-irradiation) via the activation of the inhibitor of NF-κB kinase (IKK) and NF-κB liberation from IκB proteins, similar to the canonical pathway activated by external stimuli (Janssens et al., 2005; Perkins, 2007; Scheidereit, 2006; Wu and Miyamoto, 2007). NF-κB signaling pathway has emerged as an important mediator for cellular responses to DNA damage, in particular NF-κB-conferred anti-apoptotic transcription facilitates the cell 'escape' from the lethal effects of DNA damage (Janssens et al., 2005; Perkins, 2007; Scheidereit, 2006; Wu and Miyamoto, 2007) and initiates cell cycle checkpoint control to promote cellular recovery from damage (McCool and Miyamoto, 2012; Miyamoto, 2011). Besides ataxia telangiectasia mutated (ATM) and IKKγ, two known crucial regulators of the genotoxic stress-activated NF-κB signaling pathway (Li et al., 2001; Piret et al., 1999), poly (ADP-ribose) polymerase 1 (PARP1) was recently revealed to be indispensable for the signaling cascade that links nuclear DNA damage recognition to cytoplasmic IKK activation (Stilmann et al., 2009). Sequential post-translational modifications, including phosphorylation, ubiquitination and SUMOylation, of these signaling regulators are critical for NF-κB activation following DNA damage (Huang et al., 2003; Mabb et al., 2006; Wu et al., 2006), in particular, PARP1-catalyzed poly (ADP-ribosyl)ation (PARylation) has emerged as a vital means for rapid assembly of the signaling complexes that are critical for DNA damage-initiated NF-κB activation (Mabb et al., 2006; Stilmann et al., 2009). Although these studies have considerably advanced our understanding of the cellular response to DNA damage, the genotoxic stress-initiated ‘‘nuclear-to-cytoplasmic’’ NF-κB signaling pathway remains poorly understood, in particular the early signaling networks linking DNA lesion recognition in the nucleus to subsequent activation of IKK and liberation of NF-κB in the cytoplasm.

Sam68 (Src-associated substrate during mitosis of 68 kDa, also named KH domain containing, RNA binding, signal transduction associated 1 [KHDRBS1], and encoded by KHDRBS1 gene), an RNA-binding protein that preferentially resides in the nucleus, plays versatile functions in an increasing number of cellular processes (Bielli et al., 2011; Cheung et al., 2007; Fu et al., 2013; Glisovic et al., 2008; Henao-Mejia et al., 2009; Huot et al., 2012; Iijima et al., 2011; Lukong and Richard, 2003; Matter et al., 2002; Paronetto et al., 2009; Rajan et al., 2008a, 2008b; Ramakrishnan and Baltimore, 2011; Richard, 2010; Sette, 2010; Yang et al., 2002). Through its KH (heteronuclear ribonucleoprotein particle K homology) domain, Sam68 is capable of binding single- and double-stranded DNA in addition to RNA (Lukong and Richard, 2003). Of note, Sam68 was identified as a PAR-binding protein in alkylating agent treated cells (Gagne et al., 2008) and a putative substrate of ATM, ATM and Rad3-related (ATR), and DNA-dependent protein kinase (DNA-PK) (Beli et al., 2012), which suggests that Sam68 could be an important molecule in the cellular response to DNA damage. Although emerging evidence suggests the involvement of Sam68 in multiple signaling pathways, it has not been extensively investigated yet whether Sam68, an almost strictly nuclear protein, participates in the signal communication network of nuclear-initiated signaling pathways. Moreover, aberrant expression of Sam68 has been acknowledged in multiple cancers and elevated Sam68 expression correlates with tumor progression and poor prognosis in cancer patients (Chen et al., 2012; Liao et al., 2013; Song et al., 2010; Zhang et al., 2009). Overexpression of Sam68 has been proposed as a prognostic marker (Chen et al., 2012; Liao et al., 2013; Song et al., 2010; Zhang et al., 2009), however, the precise function of Sam68 in cancer development and survival remains obscure.

Here we report that Sam68 is an important regulator in genotoxic stress-initiated early signaling in the nucleus, which leads to NF-κB activation. Sam68 deletion diminishes DNA damage-stimulated PARP1 activation and PAR production, as well as the PAR-dependent NF-κB signaling and transactivation of an array of anti-apoptotic genes. As a consequence, Sam68 knockout cells are hypersensitive to genotoxicity caused by γ-irradiation and DNA damaging chemicals. Moreover, downregulation of Sam68 substantially sensitizes human colorectal cancer cells to spontaneous and genotoxic stress-induced cell death and retards colon tumor growth and survival in genetically susceptible Apcmin716/+ mice. Hence our data reveal a crucial function of Sam68 in the genotoxic stress-initiated 'nuclear to cytoplasmic' NF-κB transactivation and the involvement of Sam68 in the development and survival of colon cancer.

Results

Sam68 is essential for DNA damage-induced NF-κB activation

To examine the potential role of Sam68 in nuclear-initiated NF-κB activation, we first compared the genotoxic stress-induced NF-κB signaling in immortalized wild-type and Sam68 knockout (KO) mouse embryonic fibroblasts (MEFs). As expected, Camptothecin (CPT), a DNA-damaging chemical that inhibits DNA topoisomerase I (Stilmann et al., 2009), stimulated a rapid degradation of IκBα, a prerequisite for NF-κB liberation and transactivation, in a dose- and time-dependent manner in wild-type MEFs (Figure 1A–B and Figure 1—figure supplement 1A). In contrast, DNA damage-induced IκBα degradation was remarkably attenuated in Sam68 KO MEFs (Figure 1A–B) and MEFs without poly(ADP-ribose)polymerase 1 (PARP1) (Figure 1—figure supplement 1B), a recently identified key nuclear regulator of DNA damage-induced NF-κB activation (Stilmann et al., 2009). Moreover, CPT treatment triggered remarkable nuclear translocation of NF-κB in wild-type MEFs (Figure 1C); additionally, the derived nuclear extracts formed high-affinity binding complexes with immunoglobin (Ig) κB double-stranded DNA, which was further confirmed by cold oligonucleotide competition and super shift assays (Figure 1D). In striking contrast, NF-κB nuclear accumulation and binding capacity to Ig κB DNA were almost abolished in the CPT-stimulated Sam68 KO MEFs (Figure 1C–D). To ascertain that Sam68 deficiency solely results in the impaired genotoxic stress-induced NF-κB activation in MEFs, we examined the NF-κB signaling in wild-type MEFs with Sam68 knockdown by small interference RNAs (siRNAs) and Sam68 KO MEFs supplemented with exogenous Sam68. CPT-triggered IκBα degradation was substantially reduced in Sam68-specific siRNA-expressing wild-type MEFs, compared to scrambled non-specific siRNA-transfected cells (Figure 1—figure supplement 1C), whereas ectopic expression of green fluorescent protein (GFP) tagged Sam68, but not GFP alone, markedly restored CPT-induced IκBα degradation in Sam68 KO MEFs (Figure 1—figure supplement 1D–E). Together, these results suggest that Sam68 could execute an essential function in the nuclear-initiated NF-κB signaling pathway.

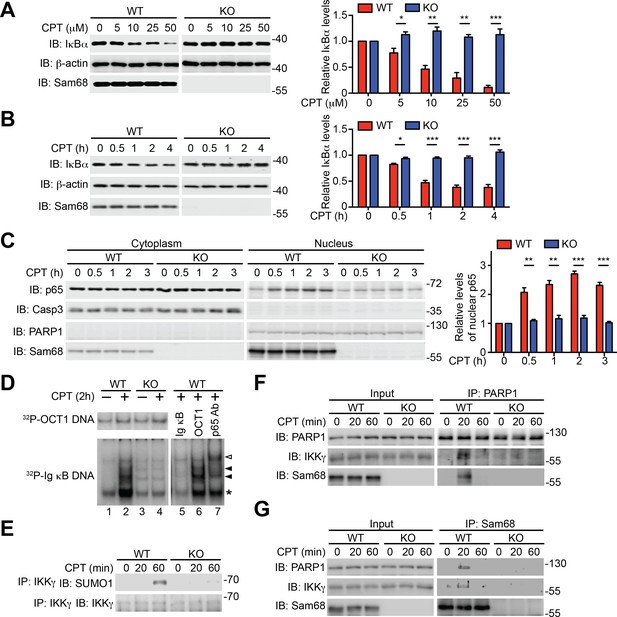

Figure 1 with 2 supplements see all
Sam68 is required for the nuclear-initiated NF-κB signaling in response to DNA damage.

(A and B) Whole cell lysates from wild-type (WT) and Sam68 knockout (KO) mouse embryonic fibroblasts (MEFs) treated with indicated concentrations of CPT for 2 hr (A) or 10 μM of CPT for indicated periods (B) were immunoblotted (IB) for IκBα and Sam68, with β-actin as a loading control. Right, the IκBα levels, normalized to β-actin and untreated controls, were quantified from three independent experiments. (C) Cytosolic and nuclear fractions derived from WT and Sam68 KO MEFs stimulated with 10 μM of CPT for indicated periods were IB for indicated proteins. Caspase-3 (Casp3) and PARP1 served as loading controls and cytosolic and nuclear markers, respectively. Right, the p65 levels in the nucleus, normalized to PARP1 and untreated controls, were quantified from three independent experiments. (D) Nuclear extracts of WT and Sam68 KO MEFs treated with (+) or without (−) CPT (10 μM, 2 hr) were analyzed by EMSA with 32P-labeled immunoglobin (Ig) κB or OCT1 oligonucleotides. In some cases, EMSA was performed in the presence of 100-fold unlabeled Ig κB or OCT1 oligonucleotide competitors (lanes 5–6) or p65 antibody (Ab) (lane 7). Ig κB DNA binding complexes are labeled with filled triangles, and the supershifted band and nonspecific band are labeled with an open triangle and an asterisk, respectively. (E) WT and Sam68 KO MEFs were stimulated with 10 μM of CPT for indicated periods, and immunoprecipitants (IP) with IKKγ antibody were immunoblotted for indicated proteins. (F and G) Whole cell lysates (Input) from WT and Sam68 KO MEFs stimulated with 10 μM of CPT for indicated periods were IB directly or after IP with PARP1 antibody (F) or Sam68 antibody (G) for indicated proteins. Data are representative of at least three independent experiments. Results in (A, B and C) are expressed as mean and s.e.m. *p<0.05, **p<0.01, ***p<0.001 by Student’s t tests.

https://doi.org/10.7554/eLife.15018.003

Sam68 participates in DNA damage-initiated early NF-κB signaling in the nucleus

Sam68 is an almost strictly nuclear protein; its nuclear import is conferred by a nuclear localization signal (NLS) in the C-terminus (Fu et al., 2013; Ishidate et al., 1997; Lukong and Richard, 2003). Consistently, the ΔC (deletion of C-terminal NLS) mutant of Sam68 switches its preferred subcellular localization to the cytoplasm, in contrast to the strict nuclear accumulation observed in wild-type Sam68 (Figure 1—figure supplement 1D). Sam68 KO MEFs reconstituted with wild-type Sam68, but not GFP control, displayed restored CPT-triggered NF-κB activation signaling including IκBα degradation, phosphorylation of p65, and p65 nuclear accumulation (Figure 1—figure supplement 1E–F). In contrast, supplementing with the Sam68 (ΔC) mutant failed to restore CPT-triggered IκBα degradation (Figure 1—figure supplement 1E), which indicates an indispensable role of the Sam68 nuclear function in DNA damage-initiated NF-κB activation. Indeed, CPT treatment-induced SUMOylation of IKKγ, a pivotal post-translational modification on IKKγ in the nucleus that subsequently leads to activation of IKKβ and liberation of NF-κB in the cytoplasm (Huang et al., 2003; Mabb et al., 2006), was substantially attenuated in Sam68 KO MEFs in comparison to wild-type controls (Figure 1E). Moreover, assembly of the PARP1-IKKγ signal complex has been established as a prerequisite for cytoplasmic NF-κB activation in the cellular response to genotoxic stresses (Gibson and Kraus, 2012; McCool and Miyamoto, 2012; Miyamoto, 2011). As expected, PARP1 complexed with IKKγ following CPT treatment, whereas there was no detectable PARP1-IKKγ interaction in the absence of genotoxic stress in wild-type MEFs (Figure 1F). In striking contrast, the CPT-induced PARP1-IKKγ interaction was abolished in Sam68 KO MEFs (Figure 1F). Moreover, strong inducible interactions among Sam68, PARP1, and IKKγ were observed in wild-type MEFs, at 20 min after CPT treatment (Figure 1F–G). Of note, immune-depletion of Sam68 using antibodies abolished the CPT-induced PARP1-IKKγ interaction in wild-type MEFs (Figure 1—figure supplement 2), suggesting that PARP1 interacts with Sam68 and IKKγ simultaneously. Hence our results suggest that Sam68 participates in the early nuclear signaling cascade in DNA damage-initiated NF-κB activation.

Sam68 controls DNA damage-induced PARylation

Beyond its indispensable role in DNA repair (Gibson and Kraus, 2012), emerging evidence demonstrates that PARP1-mediated PARylation is one of the most crucial post-translational modifications orchestrating DNA damage-initiated NF-κB signaling (Stilmann et al., 2009). The inducible Sam68-PARP1 interaction following genotoxic stress led us to examine whether Sam68 impacts DNA break-stimulated PAR synthesis. As expected, CPT treatment induced a wide array of PARylated proteins peaking at 20 min post stimulation in wild-type MEFs, which were diminished by one-hour pretreatment with two independent PARP inhibitors, Olaparib and PJ-34, thus confirming the PAR specificity (Figure 2A and Figure 2—figure supplement 1A). Strikingly, genotoxic stress-induced PAR synthesis was markedly dampened in Sam68 KO MEFs (Figure 2A and Figure 2—figure supplement 1A). Consistently, genotoxic stress-induced PARylation of the known PARP1 substrates including PARP1 itself, NBS1, and Ku70 was also substantially attenuated in Sam68 KO MEFs (Figure 2—figure supplement 1B). PAR that is synthesized after DNA damage can be rapidly degraded by PAR glycohydrolase (PARG), therefore we examined the possibility that PARG is hyper-activated in the absence of Sam68, thus degrading the formed PAR chains immediately after genotoxic stress. However, down-regulation of PARG by siRNA in Sam68 KO MEFs failed to restore CPT-induced PAR production to a similar level to that in wild-type MEFs (Figure 2—figure supplement 2), which suggests that the attenuated PAR formation in the absence of Sam68 is not caused by a rapid degradation of PAR chains. Furthermore, CPT and γ-irradiation stimulated PAR production was markedly reduced in primary colonic epithelial cells (CECs) derived from Khdrbs1-/- (Sam68 knockout) mice, compared to Khdrbs1+/- (Sam68 heterozygote) controls (Figure 2B–D), thus supporting the critical function of Sam68 in controlling DNA damage-stimulated PAR production.

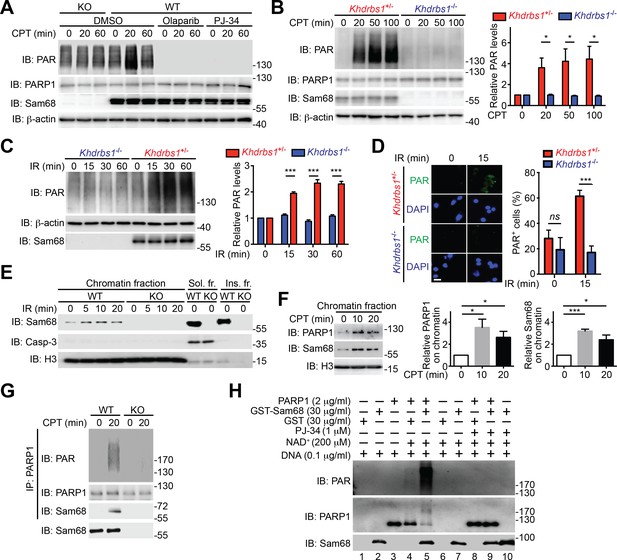

Figure 2 with 4 supplements see all
Sam68 facilitates PARP1-catalyzed PARylation in response to DNA damage.

(A) Wild-type (WT) and Sam68 knockout (KO) mouse embryonic fibroblasts (MEFs) pretreated with Olaparib (10 μM), PJ-34 (10 μM), or DMSO for 1 hr, were stimulated with 10 μM of CPT for indicated periods, and whole cell lysates were immunoblotted (IB) for indicated proteins, with β-actin as a loading control. (B and C) Primary colonic epithelial cells (CECs) isolated from Khdrbs1+/- and Khdrbs1-/- mice were stimulated with 10 μM of CPT (B) or 10 Gy of γ-irradiation (IR) (C). Whole cell lysates were derived at indicated periods post stimulation and IB as in (A). Right, the PAR levels, normalized to β-actin and untreated controls, were quantified from three independent experiments. (D) Immunofluorescence micrographs of PARylated proteins (PAR) in CECs treated as in (C), with nuclei counterstained by DAPI. Scale bar, 10 μm. Percentage of CECs (>100 cells from 5–8 random fields) with PAR staining was quantified (right). (E) WT and Sam68 KO MEFs were γ-irradiated (IR) at 10 Gy and the chromatin, soluble (Sol. fr.), and insoluble (Ins. fr.) subcellular fractions were derived at indicated time points post γ-irradiation and IB for Sam68, Caspase-3 (Casp-3), and Histone H3 (H3). (F) WT MEFs were stimulated with 10 μM of CPT for indicated periods and the chromatin fractions were derived and IB as in (E). Right, the Sam68 and PARP1 levels in the chromatin fractions, normalized to H3 and untreated controls, were quantified from three independent experiments. (G) Whole cell lysates from WT and Sam68 KO MEFs stimulated with 10 μM of CPT for 20 min, were IB directly or after immunoprecipitation (IP) with PARP1 antibody for indicated proteins. (H) Recombinant PARP1 protein was incubated in reaction buffer containing damaged DNA or with purified GST or GST-Sam68 protein in the presence or absence of NAD+ or the PARP1 inhibitor PJ-34, as indicated. The reaction mixture was separated by SDS-PAGE and subjected to IB with the PAR, PARP1, and Sam68 antibodies. Results in (B, C, D and F) are expressed as mean and s.e.m. ns, non-significant difference and , *p<0.05, ***p<0.001 by Student’s t tests. Data are representative of at least three independent experiments.

https://doi.org/10.7554/eLife.15018.006

Given the evidence that PARP1 is rapidly recruited to DNA damage sites (Krishnakumar and Kraus, 2010), we performed chromatin fractionation assays to examine the possibility that Sam68 can be recruited to DNA lesions. Remarkably, Sam68 was enriched in chromatin fractions in MEFs following γ-irradiation (Figure 2E) and CPT treatment (Figure 2F), and the kinetics of Sam68 enrichment was similar to that of PARP1 on damaged chromatin (Figure 2F), which supports the inducible interaction between Sam68 and PARP1 in the early DNA damage signaling (Figure 1F–G). Moreover, Sam68 and PARP1 were still substantially enriched in chromatin fractions in the PARP1-inhibited MEFs following γ-irradiation (Figure 2—figure supplement 3A), indicating that genotoxic stress-induced Sam68 enrichment in chromatin is not dependent on PAR formation. We further examined whether ectopic expression of PARP1 could rescue the defect in DNA damage-induced PAR formation caused by Sam68 loss. As expected, supplementing exogenous GFP-Sam68, compared to the GFP control, largely restored γ-irradiation-stimulated PAR production in Sam68 KO MEFs (Figure 2—figure supplement 3B). In contrast, PARP1 overexpression did not rescue the PAR chain formation in response to γ-irradiation under a Sam68 deleted condition (Figure 2—figure supplement 3B), which suggests that Sam68 is required for DNA damage-triggered PARP1 activation and is consistent with Sam68 being an essential upstream activator of PARP1.

DNA-dependent PARP enzymes, i.e. PARP1 and PARP2, are activated during the cellular response to DNA damage, of which PARP1 is the most robust enzyme that catalyzes >90% of PAR formation in cells (Krishnakumar and Kraus, 2010). In contrast to the genotoxic stress-induced Sam68-PARP1 interaction (Figure 1F–G and Figure 1—figure supplement 2D), no detectable interaction between Sam68 and PARP2 was observed under either unstimulated or damaged conditions (Figure 1—figure supplement 2D). Provided the crucial funciton of PARP1 in DNA damage responses, we therefore examined whether Sam68 impacts PARP1-conferred PARylation following DNA damage. In line with the vigorous PAR production in the presence of genotoxic stress (Figure 2A), immunoprecipitated PARP1 was associated with Sam68 and various PARylated target proteins in CPT-treated wild-type MEFs (Figure 2G). In contrast, the PARylated species were dramatically reduced despite an equal amount of PARP1 immunoprecipitated from Sam68 KO MEFs was used (Figure 2G). Conversely, supplementing with GFP-tagged Sam68, in comparison to a GFP control, markedly augmented the DNA damage-triggered PAR synthesis in CPT-treated Sam68 KO MEFs (Figure 2—figure supplement 3B), further supporting the key function of Sam68 in controlling DNA damage-initiated PARylation. To assess the direct impact of Sam68 on PARP1-catalyzed PAR production, we utilized recombinant PARP1 and Sam68 proteins in in vitro PARylation assays. DNA damage-activated PARP1 auto-modified itself with the addition of PAR moieties in the presence of nicotinamide adenine dinucleotide (NAD+) and DNA, as indicated by the formation of PARylated PARP1 species (Figure 2H and Figure 2—figure supplement 4A) and a corresponding reduction in unmodified PARP1 protein (Figure 2H and Figure 2—figure supplement 4B, compare lane 4 with lane 3). Strikingly, incubation of recombinant Sam68 protein, but not GST control, with PARP1 dramatically boosted PAR production, which was paralleled by a sharp loss of unmodified PARP1 protein (Figure 2H and Figure 2—figure supplement 4B, compare lane 5 with lane 4). Of note, the amount of Sam68 protein from the boosted PARylation reaction remained at a comparable level (Figure 2H, compare lane 5 with lane 7), thus ruling out the possibility that Sam68 is a substrate of PARP1 in vitro and indicating that Sam68 harbors a stimulatory function for DNA-dependent PARP1 activity. In the absence of PARP1, neither GST nor GST-Sam68 protein exhibited PARylation activity (Figure 2H, lanes 1, 2, 6, 7, and 10), indicating that Sam68 per se does not possess the enzymatic activity to transfer ADP-ribosyl polymers. Moreover, in the absence of damaged DNA, incubation of Sam68 and PARP1 failed to form detectable PAR chains from supplemented NAD+ (Figure 2—figure supplement 4C), which suggests that Sam68 stimulates DNA-dependent PARP1 activation and subsequent PAR production.

The Sam68-PARP1 interaction is critical for genotoxic stress-induced PARylation and NF-κB activation

Using various Sam68 truncates (Figure 3A), we sought to understand the key domain(s) in Sam68 needed for its interaction with PARP1. We detected the association of the full-length, ΔC, and ΔKH truncated Sam68 to PARP1, but not GFP control (Figure 3B and Figure 3—figure supplement 1A). In contrast, deletion of the N-terminal amino acids 1–102 (ΔN) of Sam68 almost abolished the association of Sam68 to PARP1 (Figure 3B and Figure 3—figure supplement 1A), suggesting that the N-terminal residues are critical for the Sam68-PARP1 interaction. Moreover, our pull-down assays using recombinant proteins demonstrated a direct Sam68-PARP1 interaction (Figure 3C). In contrast to the strong association between PARP1 and full-length Sam68, ΔN truncated Sam68 protein barely interacted with PARP1 (Figure 3C), which further supports the critical role of N-terminus of Sam68 for the Sam68-PARP1 interaction. To examine the functional importance of the Sam68-PARP1 interaction, we compared DNA damage-stimulated NF-κB signaling in Sam68 KO MEFs supplemented with full-length or ΔN mutant Sam68. Transient transfection of full-length Sam68, but not GFP control, significantly restored genotoxic stress-induced PARylation (Figure 3D and Figure 3—figure supplement 1C), assembly of the PARP1-IKKγ signaling complex (Figure 3D), cytoplasmic degradation of IκBα, and nuclear translocation of p65 (Figure 3—figure supplement 1C), consistent with our previous observation (Figure 1F–G,2G, and Figure 1—figure supplement 1E–F). In contrast, despite full-length Sam68 and Sam68 (ΔN) truncate sharing strict nuclear localization (Figure 3E), ectopic expression of Sam68 (ΔN) mutant failed to restore the DNA damage-triggered PARylation, PARP1-IKKγ signal complex assembly, IκBα degradation, and p65 nuclear accumulation (Figure 3D and Figure 3—figure supplement 1B–C). Moreover, we carried out in vitro PARylation assays using recombinant Sam68 and Sam68 (ΔN) proteins, to examine the role of the Sam68-PARP1 interaction for Sam68-stimulated PARP1 activation. Consistent with our previous observation (Figure 2H), incubation of Sam68 with PARP1 substantially enhanced PAR formation in the presence of damaged DNA and NAD+ (Figure 3—figure supplement 1D, compare lane 3 with lane 7). However, the stimulatory effect of Sam68 on PARP1 activation and PARylation under the same condition was dramatically impeded by Sam68 (ΔN) protein (Figure 3—figure supplement 1D, compare lane 7 with lane 11), suggesting that the Sam68-PARP1 interaction is essential for Sam68 to stimulate PARP1 activation. Therefore our results demonstrate that the N-terminus of Sam68 is important for the association between Sam68 and PARP1 and the Sam68-PARP1 interaction is critical for DNA damage-induced PARylation and PAR-dependent NF-κB signaling.

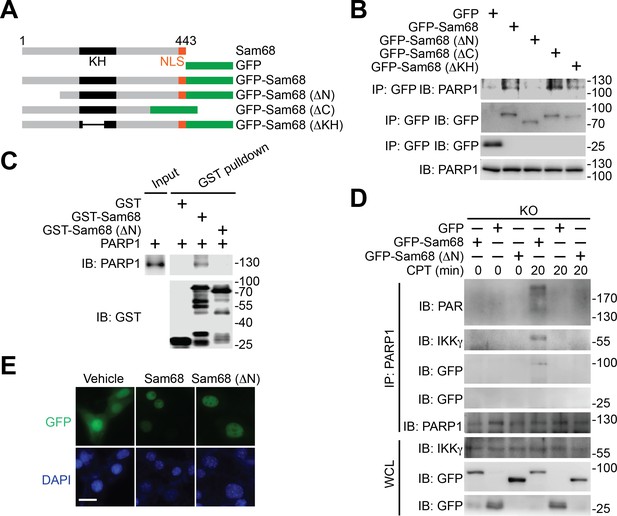

Figure 3 with 1 supplement see all
N-terminus of Sam68 is crucial for the Sam68-PARP1 interaction and genotoxic stress-induced NF-κB signalosome assembly.

(A) Schematic diagram of Sam68 protein (residues 1–443), full-length or indicated mutants (ΔN lacks residues 1–102, ΔC lacks 347–443, and ΔKH lacks 165–224) fused with GFP. KH, The hnRNP K homology (KH) domain and nuclear localization signal (NLS) are labeled in black and orange, respectively. (B) Whole cell lysates from HEK293T cells expressing indicated GFP or GFP-fusion proteins were IB directly or after IP with GFP antibody for indicated proteins. (C) Whole cell lysate (Input) containing recombinant PARP1 were IB directly or after pulldown with indicated GST or GST-fusion proteins for indicated proteins. (D) Sam68 KO MEFs expressing GFP, GFP-Sam68, or GFP-Sam68 (ΔN) proteins were stimulated with 10 μM of CPT for indicated periods, and the derived whole cell lysates (WCL) were IB directly or after IP with PARP1 antibody for indicated proteins. (E) Immunofluorescence micrographs of Sam68 KO MEFs expressing GFP (Vehicle), GFP-Sam68 (Sam68), or GFP-Sam68 (ΔN) proteins, with nuclei counterstained by DAPI. Scale bar, 10 μm. Data in (B–E) are representative of at least three independent experiments.

https://doi.org/10.7554/eLife.15018.011

Sam68 deletion impairs genotoxic stress-induced NF-κB signaling in mouse primary cells

To explore the relevance of Sam68 in primary cells, we examined the DNA damage-initiated NF-κB activation in CECs, known for their DNA damage-hypersensitivity, from Khdrbs1+/- and Khdrbs1-/- mice. CPT- and γ-irradiation-induced IκBα degradation rapidly occurred in Khdrbs1+/- CECs, but was significantly attenuated in Khdrbs1-/- cells (Figure 4A and Figure 4—figure supplement 1A). In parallel, γ-irradiation and CPT triggered p65 nuclear translocation in Khdrbs1+/- CECs, whereas the nuclear accumulation of p65 was nearly abolished in Khdrbs1-/- cells (Figure 4B–C and Figure 4—figure supplement 1B). Moreover, in Khdrbs1+/- CECs, γ-irradiation stimulated the SUMOylation of IKKγ and migration of IKKγ from the nucleus to the cytoplasm, both required signaling events for cytoplasmic NF-κB liberation (McCool and Miyamoto, 2012; Miyamoto, 2011); however, such signaling events was dampened in γ-irradiated Khdrbs1-/- cells (Figure 4C–D). These results, together with our findings that Sam68 deletion diminishes DNA damage-initiated PARylation in CECs (Figure 2B–D), suggest that Sam68 is essential in the nuclear-initiated NF-κB signaling in mouse primary cells.

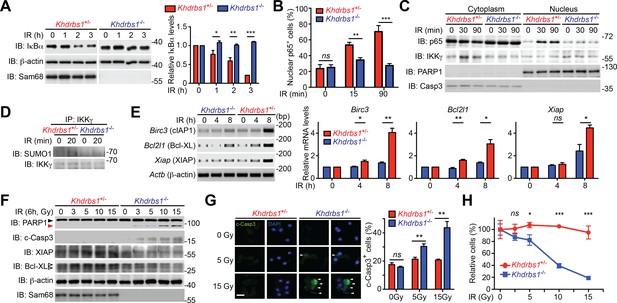

Figure 4 with 2 supplements see all
Sam68 deficiency attenuates NF-κB-mediated anti-apoptotic transcription in mouse colonic epithelial cells (CECs) under genotoxic stresses and sensitizes CECs to death.

(A) Whole cell lysates from primary Khdrbs1+/- and Khdrbs1-/- CECs treated with 10 Gy of γ-irradiation (IR) for indicated periods were immunoblotted (IB) for IκBα and Sam68, with β-actin as a loading control. Right, the IκBα levels, normalized to β-actin and untreated controls, were quantified from three independent experiments. (B) Isolated Khdrbs1+/- and Khdrbs1-/- CECs were treated with 10 Gy of IR for indicated periods, and fixed cells were stained for p65 and nuclei and subjected to immunofluorescence micrographs. Percentage of CECs (>100 cells from 5–8 random fields) with nuclear p65 staining was quantified. (C) Cytosolic and nuclear fractions derived from Khdrbs1+/- and Khdrbs1-/- CECs treated as in (B) were IB for indicated proteins. Cytosolic Caspase-3 (Casp3) and PARP1 served as loading controls and cytosolic and nuclear markers, respectively. (D) Whole cell lysates from Khdrbs1+/- and Khdrbs1-/- CECs stimulated with 10 Gy of IR for indicated periods, were IB for indicated proteins after immunoprecipitation (IP) with IKKγ antibody. (E) Total RNA was extracted from Khdrbs1+/- and Khdrbs1-/- CECs at indicated time points following IR (10 Gy) and mRNA profiles of Birc3, Bcl2l1, Xiap, and Actb were analyzed by semi-quantitative RT-PCR. Right, the relative expression levels of Birc3, Bcl2l1 and Xiap, normalized to Actb and untreated controls, were quantified from three independent experiments. (F) Khdrbs1+/- and Khdrbs1-/- CECs were γ-irradiated with indicated doses for 6 hr, and whole cell lysates were derived and IB for indicated proteins. c-Casp3, cleaved Caspase-3. The full-length and cleaved PARP1 are indicated by a black triangle and a red triangle, respectively; the two species of Bcl-XL proteins are labeled by open triangles. (G) Immunofluorescence micrographs of c-Casp3 in CECs treated as in (F), with nuclei counterstained by DAPI. Scale bar, 10 μm. Percentage of CECs (>100 cells from 5–8 random fields) with c-Casp3 staining was quantified (right). (H) Khdrbs1+/- and Khdrbs1-/- CECs were treated as in (F), and live cells following γ-irradiation were counted using a particle counter and normalized to the un-irradiated controls. Results in (A, B, E, G and H) are expressed as mean and s.e.m. ns, non-significant difference; *p<0.05; **p<0.01; ***p<0.001 by Student’s t tests. Data are representative of at least three independent experiments.

https://doi.org/10.7554/eLife.15018.013

Sam68 is pivotal for NF-κB-mediated anti-apoptotic transcription in mouse CECs

NF-κB-mediated transcription of a panel of anti-apoptotic molecules is an important factor for cell fate determination after DNA damage (Chen et al., 2015; Kim et al., 2005; Stilmann et al., 2009). Indeed, mRNA levels of Birc3 (encoding cellular inhibitor of apoptosis protein-1, cIAP1), Bcl2l1 (encoding B-cell lymphoma-like-1, Bcl-XL), and Xiap (encoding X-linked inhibitor of apoptosis protein, XIAP) were elevated in Sam68 sufficient CECs and MEFs post γ-irradiation (Figure 4E and Figure 4—figure supplement 2A). However, γ-irradiation-induced transcription of these genes was attenuated in Sam68 KO CECs and MEFs (Figure 4E and Figure 4—figure supplement 2A), in line with attenuated nuclear-initiated NF-κB signaling (Figure 4A–D). Moreover, XIAP and Bcl-XL protein levels were enhanced in Khdrbs1+/- CECs (Figure 4F) and wild-type MEFs (Figure 4—figure supplement 2B) following γ-irradiation, whereas such induction did not occur in Khdrbs1-/- CECs and MEFs (Figure 4F and Figure 4—figure supplement 2B). In contrast, cleavage of PARP1 and Caspase-3, two known biochemical hallmarks for apoptosis, were elevated in the γ-irradiated Khdrbs1-/-, but not Khdrbs1+/- CECs (Figure 4F–G), mirroring the inefficient anti-apoptotic gene expression in Khdrbs1-/- CECs (Figure 4E–F). Consistently, more Khdrbs1-/- CECs underwent cell death in response to γ-irradiation than Khdrbs1+/- controls, as reflected by an irradiation dose-dependent cell loss (Figure 4H). Thus our data suggest that Sam68 deficiency diminishes nuclear-initiated NF-κB signaling, thus dampening NF-κB-mediated anti-apoptotic gene transcription and promoting cells to undergo cell death.

Sam68 protein levels are elevated in colon tumors from Apcmin716/+ mice and human patients

It is widely accepted that massive intrinsic DNA damage occurs during rapid DNA replication and proliferation in cancer cells (Hanahan and Weinberg, 2011; Rouleau et al., 2010), and that the dysregulation of NF-κB and apoptosis play crucial roles in cancer development and progression (Townson et al., 2003; Zubair and Frieri, 2013). We therefore examined the relevance of Sam68 and DNA damage-initiated NF-κB signaling in Apcmin716/+ mice, a mouse model for human colon cancer (Wu et al., 2009). Colon adenomas spontaneously developed in Apcmin716/+ mice, as conveyed by staining with hematoxylin/eosin and the colon cancer marker β-catenin (Figure 5A). Interestingly, Sam68 levels were elevated in colon tumors, compared to adjacent normal tissue, from the tumor-laden Apcmin716/+ mice (Figure 5B and D). Moreover, the enhanced Sam68 expression coincided with elevated levels of PAR production, phosphorylated p65 (phosphor-p65, indicative of NF-κB activation), and Bcl-XL (anti-apoptotic transcriptional target of NF-κB) in colon tumors (Figure 5B–D). Similarly, in tissue samples derived from colon adenocarcinoma patients (Figure 5E and Figure 5—source data 1), Sam68 levels were substantially elevated in 16 (94.1%) out of 17 patients, when compared to adjacent normal tissue from the same patient (Figure 5G–H). Moreover, anti-apoptotic molecules Bcl-XL and XIAP were both upregulated at the transcriptional (5 [100%] out of 5 patients) and translational (16 [94.1%] out of 17 patients) levels in colon tumors, in comparison to normal tissue controls (Figure 5F–H). Furthermore, the elevated Sam68 levels positively correlated with increased PAR and phospho-p65 levels in human colon cancer samples (Figure 5H–I). Therefore these correlative results suggest that elevated Sam68 levels could facilitate PAR synthesis and PAR-dependent NF-κB signaling/transactivation of anti-apoptotic genes to counter intrinsic DNA damage in human and mouse colon tumor cells.

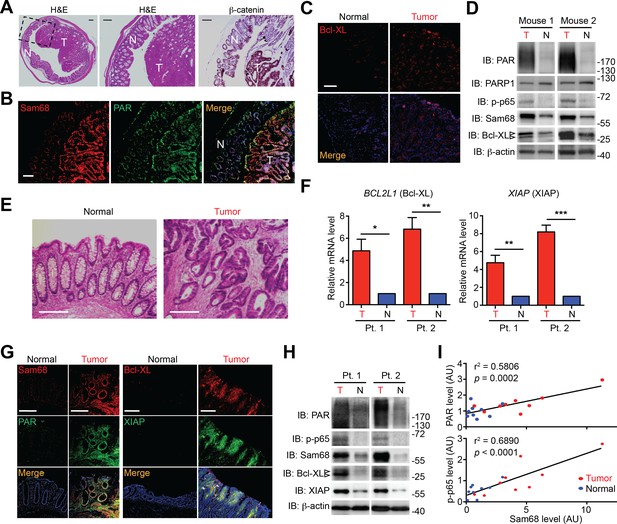

Sam68, PAR, and NF-κB-mediated anti-apoptotic transcription are elevated in mouse and human colon cancers.

(A and E) Hematoxylin and eosin (H&E) staining and β-catenin immunohistochemistry of colon sections from tumor-loaded Apcmin716/+ mice (A) and tissue sections of colon tumor or adjacent normal colon tissue from human cancer patients (E). Scale bars, 200 μm. N, normal tissue; T, tumor tissue. (B, C and G) Immunofluorescence micrographs of indicated proteins in colon sections from tumor-loaded Apcmin716/+ mice (B, C) or Normal and Tumor tissue derived from human colon cancer patients (G), with nuclei counterstained by DAPI. Scale bars, 100 μm. (D and H) Colonic epithelial cells were isolated from normal (N) or tumor (T) colon tissue from tumor-loaded Apcmin716/+ mice (D) or normal (N) and tumor (T) tissue derived from human colon cancer patients (Pt.) (H) and whole cell lysates were derived and immunoblotted for indicated proteins, with β-actin as a loading control. The two species of Bcl-XL proteins are labeled by open triangles. (F) Relative mRNA levels of BCL2L1 and XIAP, normalized to ACTB, from normal (N) and tumor (T) tissue derived from human colon cancer patients (Pt.). (I) Linear regression analysis of the levels of Sam68 protein versus PAR and phosphorylated p65 in CECs from normal (blue) and tumor (red) tissue derived from human colon cancer patients. AU, arbitrary unit. Results in (F) are expressed as mean and s.e.m. ns, non-significant difference; *p<0.05; **p<0.01; ***p<0.001 by Student’s t tests. Data in (A–H) are representative of at least three independent experiments.

https://doi.org/10.7554/eLife.15018.016

Sam68 is essential for colon tumor development and survival

To assess the impact of Sam68 in colon tumor development and survival, we examined colon adenoma development in Apcmin716/+ mice in the presence and absence of Sam68. Apcmin716/+; Khdrbs1+/- mice, compared to wild-type controls, spontaneously developed adenomas in the cecum and distal colon at 3 months of age, as conveyed by whole mount methylene blue staining (Figure 6A) and showed substantial increases in the size and load of tumors (Figure 6B). In contrast, colon tumor development, as reflected by both tumor size and tumor load, in Apcmin716/+; Khdrbs1-/- mice was dramatically reduced; albeit genetic deletion of Sam68 in Apcmin716/+ mice did not significantly affect tumor number (Figure 6B). These results illustrate an essential role of Sam68 in the colon tumor growth and survival in Apcmin716/+ mice.

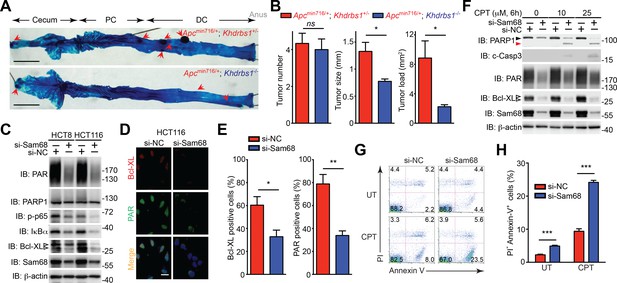

Figure 6 with 2 supplements see all
Sam68 plays a critical protective role for the survival of mouse and human colon cancers.

(A) Methylene blue (MB) staining of the colons (with cecum, proximal colon [PC], distal colon [DC], and anus indicated) derived from 3-month old Apcmin716/+; Khdrbs1+/- and Apcmin716/+; Khdrbs1-/- mice. Red arrows indicate colon tumors. Scale bar, 1 cm. (B) Quantification of tumor number, tumor size, and tumor load in the colons from Apcmin716/+; Khdrbs1+/- (n = 6) and Apcmin716/+; Khdrbs1-/- mice (n = 3) following MB staining. (C) HCT8 and HCT116 cells were transfected with nonspecific control (si-NC) or Sam68-specific (si-Sam68) small interference RNAs. 72 hr later, whole cell lysates were derived and immunoblotted (IB) for indicated proteins, with β-actin as a loading control. (D) Immunofluorescence micrographs of Bcl-XL and PARylated (PAR) proteins in the si-NC and si-Sam68 transfected HCT116 cells, with nuclei counterstained by DAPI. Scale bar, 20 μm. (E) Percentage of HCT116 cells (>100 cells from 5–8 random fields) with Bcl-XL and PAR staining was quantified. (F) HCT116 cells transfected with indicated siRNAs as in (C) were stimulated with indicated doses of Camptothecin (CPT) for 6 hr. Whole cell lysates were derived and IB for indicated proteins, with β-actin as a loading control. c-Casp3, cleaved Caspase-3. The full-length and cleaved PARP1 are indicated by a black triangle and a red triangle, respectively; the two species of Bcl-XL proteins are labeled by open triangles. (G) HCT8 cells transfected with indicated siRNAs as in (C) were left untreated (UT) or stimulated with 10 μM of CPT for 12 hr, followed by propidium iodide (PI)/Annexin V staining and flow cytometry analysis. (H) Percentages of apoptotic (PI- Annexin V+) HCT8 cells treated as in (G) were quantified. Results in (B, E, and H) are expressed as mean and s.e.m. ns, non-significant difference; *p<0.05; **p<0.01; ***p<0.001 by Student’s t tests. Data in (A and C–H) are representative of at least three independent experiments.

https://doi.org/10.7554/eLife.15018.018

We further examined whether Sam68 is essential for human colon cancer cell survival, knowing that Sam68 levels were elevated in colon cancer from human patients (Figure 5G–I). Indeed, knockdown of Sam68 by siRNAs significantly reduced PAR levels in human colon cancer-derived HCT8, HCT116, and T84 cell lines (Figure 6C–E and Figure 6—figure supplement 1A–C). Moreover, p65 phosphorylation and Bcl-XL expression were substantially attenuated in Sam68 knockdown cancer cells (Figure 6C–E and Figure 6—figure supplement 1A–C). Furthermore, genotoxic stress-dependent NF-κB activation, as indicated by p65 phosphorylation and ATM phosphorylation (Wu et al., 2006) (Figure 6—figure supplement 1D) and subsequent Bcl-XL expression (Figure 6F) were both significantly attenuated in Sam68 knockdown cancer cells. These results thus suggest a critical role of Sam68 in DNA damage-initiated and PAR-dependent NF-κB transactivation. Along with reduced anti-apoptotic transcription, Sam68 knockdown sensitized cancer cells to CPT- or γ-irradiation-induced apoptosis, as conveyed by the boosted cleavage of PARP1 and Caspase-3 (Figure 6F and Figure 6—figure supplement 2A–C). Of note, ectopic expression of IKKβ (SSEE), which constitutively activates NF-κB, substantially rescued the attenuated Bcl-XL expression and the DNA damage-induced apoptosis, as evidenced by reduced PARP1 and Caspase-3 cleavage, in Sam68 down-regulated HCT116 cells (Figure 6—figure supplement 2D), which supports that Sam68 knockdown affects genotoxic stress-induced NF-κB transactivation. Consistently, in contrast to controls, Sam68 knockdown triggered colon cancer cells to undergo spontaneous apoptosis and dramatically sensitized cancer cells to CPT- or γ-irradiation-induced cell death, as conveyed by Annexin-V staining (Figure 6G–H). These results thus demonstrate that downregulation of Sam68 lessens colon tumor development in Apcmin716/+ mice and sensitizes human colon cancer cells to genotoxic stress-induced apoptosis, in line with the indispensible role of Sam68 in the nuclear-initiated PARylation, NF-κB activation, and anti-apoptotic transcription in mouse and human colon cancer cells.

PARP1 and NF-κB transactivation are critical for colon tumor development and survival

To ascertain whether Sam68 deletion reduces colon tumor formation as a result of the defect in PARP1 activation and PARylation, we assessed the impact of the PARP inhibitor, Olaparib, on phosphor-p65 and Bcl-XL levels and colon tumor development in Apcmin716/+ mice. 8-week-old Apcmin716/+ mice (when visible colon adenomas start to form) were utilized to assess whether inhibiting PAR production and PAR-dependent NF-κB signaling and anti-apoptotic transcription prevents adenoma formation. Of note, five continuous daily intraperitoneal injections of Olaparib, in comparison to vehicle control, substantially reduced PAR production and levels of phosphorylated p65 and Bcl-XL in CECs derived from Apcmin716/+ mice (Figure 7A–B), indicative of the impact of PARP1 inhibition on PAR formation and NF-κB transactivation in vivo. Consistent with our observation (Figure 6A–B), the vehicle-treated Apcmin716/+ mice spontaneously developed adenomas in the cecum and distal colon (Figure 7C–D). In contrast, a 4-week treatment with Olaparib significantly retarded colon tumor development in Apcmin716/+ mice (Figure 7C–D). PARP1 inhibition by Olaparib, compared to the control, substantially reduced the tumor size and tumor load, albeit had no statistically significant impact on tumor number was observed in the tumor-laden Apcmin716/+ mice (Figure 7E). Thus genetic deletion of Sam68 and PARP1 inhibition exhibited similar effects on reducing colon tumor development in Apcmin716/+ mice, which supports the essential roles of Sam68 and PARP1 in mouse tumor growth in vivo.

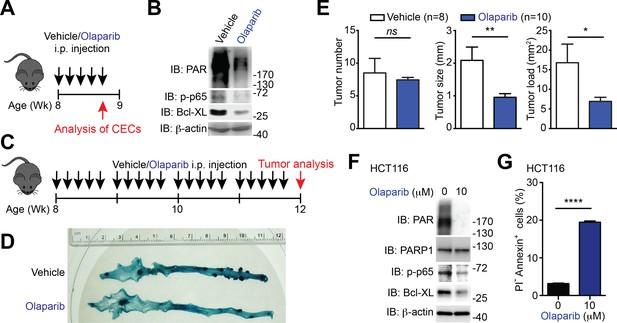

Figure 7 with 1 supplement see all
PARP1 inhibition reduces colon tumor development in mice and sensitizes human colon cancer cells to undergo apoptosis.

(A) PARP1 inhibition in Apcmin716/+ mice in vivo. 8-week-old Apcmin716/+ mice were intraperitoneally injected with vehicle control or Olaparib (50 mg/kg) once daily for 5 days, followed by euthanization and further analysis. (B) Colon epithelial cells (CECs) were isolated from vehicle- or Olaparib-treated Apcmin716/+ mice, treated as in (A), and whole cell lysates were derived and immunoblotted (IB) for indicated proteins, with β-actin as a loading control. (C) A schematic of the experimental timeline for the impact of PARP1 inhibition on colon tumor development in vivo in Apcmin716/+ mice. 8-week-old Apcmin716/+ mice were intraperitoneally injected vehicle control or Olaparib (50 mg/kg, once daily for 5 days × 4 weeks). Mice were euthanized to analyze tumor development in the colon. (D) Methylene blue (MB) staining of the colons derived from 12-week old Apcmin716/+ mice, post 4-week vehicle control or Olaparib treatment, as illustrated in (C). (E) Quantification of tumor number, tumor size, and tumor load in the colons from Apcmin716/+ mice treated with vehicle control (n = 8) and Olaparib (n = 10), following MB staining. (F) HCT116 cells were treated with indicated concentration of Olaparib for 72 hr. Whole cell lysates were derived and IB for indicated proteins, with β-actin as a loading control. (G) HCT116 cells were treated with Olaparib as in (F), and subjected to flow cytometry analysis of propidium iodide (PI)/Annexin V staining. Percentages of apoptotic (PI- Annexin V+) cells as indicated were quantified. Results in (E and G) are expressed as mean and s.e.m. ns, non-significant difference; *p<0.05; **p<0.01; ****p<0.0001 by Student’s t tests. Data in (B, D, F, and G) are representative of at least three independent experiments.

https://doi.org/10.7554/eLife.15018.021

We sought to examine whether down-regulation of PARP1 or NF-κB transactivation executes a similar function as down-regulation of Sam68 on human colon cancer cell survival. Similar to Sam68 knockdown (Figure 6C–E and Figure 6—figure supplement 1), PARP1 inhibition by Olaparib or PJ-34 treatment significantly reduced the basal PAR, phospho-p65, and Bcl-XL levels in HCT116 cells (Figure 7F and Figure 7—figure supplement 1A) as well as genotoxic stress-induced Bcl-XL expression (Figure 7—figure supplement 1B). In line with the attenuated NF-κB activation and anti-apoptotic transcription, Olaparib or PJ-34 treatment triggered colon cancer cells to undergo spontaneous apoptosis, as conveyed by Annexin-V staining (Figure 7G and Figure 7—figure supplement 1C–D), which mirrors the impact of Sam68 knockdown on the survival of these cell lines (Figure 6G–H). Moreover, PARP1 knockdown by siRNAs, similar to Sam68 knockdown (Figure 7—figure supplement 1E), substantially reduced PAR production and levels of phosphorylated p65 and Bcl-XL in HCT116 cells (Figure 7—-figure supplement 1F). In contrast, p65 knockdown attenuated only the levels of phosphorylated p65 and Bcl-XL, without affecting PAR production (Figure 7—figure supplement 1G), supporting the PAR-dependent NF-κB transactivation of anti-apoptotic genes. Importantly, down-regulation of PARP1 or p65 sensitized colon cancer cells to undergo spontaneous apoptosis (Figure 7—figure supplement 1F–G), which mirrors the effects of PARP1 inhibition (Figure 7G and Figure 7—figure supplement 1C–D) and Sam68 knockdown (Figure 6G–H and Figure 7—figure supplement 1E). Therefore, our results demonstrate the Sam68-PARP1-NF-κB-anti-apoptotic gene axis plays a crucial function for colon cancer survival.

Discussion

The NF-κB signaling pathway remains a very attractive avenue for pharmacological intervention, given its crucial function in human health and disease, particularly inflammatory diseases and cancers. In spite of the widespread use of chemotherapy and radiotherapy in current-day cancer treatments, the genotoxic stress-induced nuclear NF-κB signaling pathway that leads to NF-κB transactivation is still less defined, than NF-κB activation initiated from cell membrane stimuli (e.g. immune receptors). Herein, we report that Sam68 is a novel regulator participating in the early cellular responses to DNA damage; it does this by orchestrating the signaling cascade that links DNA lesion recognition in the nucleus to NF-κB liberation and activation in the cytoplasm (Figure 8). Following genotoxic stress, sophisticated cellular networks consisting of a variety of molecules and post-translational modifications, collectively termed as DNA damage responses (DDR), are crucial for cell-cycle checkpoint control, DNA repair, transcription, and apoptosis (Jackson and Bartek, 2009). Among these, DNA damage-initiated NF-κB signaling and transactivation of an array of anti-apoptotic molecules are pivotal in facilitating cells to 'escape' from the lethal effects of DNA damage (McCool and Miyamoto, 2012; Miyamoto, 2011). Our results demonstrate that Sam68 deletion impairs inducible IκBα degradation, NF-κB liberation, and subsequent anti-apoptotic gene expression in cells under genotoxic stress. Sam68 interacts with several established molecules including PARP1 and IKKγ in the nuclear-initiated NF-κB signaling pathway and facilitates assembly of the NF-κB activation signaling complex. More importantly, Sam68 plays an indispensable role in DNA damage-triggered PARP1 activation and PAR synthesis, thus controlling the PAR-dependent signaling complex assembly. This is distinct from leukemia related protein 16 (LRP16), a recently reported regulator of DNA damage-induced NF-κB activation, which binds to PARP1 and IKKγ in a PAR-dependent manner and therefore functions downstream of PARP1 and PAR production (Wu et al., 2015). Previously, PARP1 was proposed to be dispensable for ATM activation (Stilmann et al., 2009). Our results suggest that Sam68 is important for the activation of PARP1, as well as, ATM in DDR. In addition to the currently illustrated major impact of Sam68 on the PARP1/PAR-dependent signaling pathway that leads to NF-κB activation, Sam68 may contribute to NF-κB activation via a direct or indirect effect on the ATM-involved signaling cascade during the cellular response to DNA damage. Our results underscore a previously unknown function of Sam68, a versatile protein that preferentially resides in the nucleus, in the early nuclear signaling cascade following DNA damage. Furthermore, we previously reported that Sam68 is important for the promoter selectivity and transcriptional specificity of NF-κB in the nucleus (Fu et al., 2013). Sam68 could work at both initiating of NF-κB activation and controlling the NF-κB transactivation potential in the DNA damage-induced NF-κB signaling pathway; thus playing a critical role in the genotoxic stress-initiated “nuclear to cytoplasmic to nuclear” NF-κB activation. Of note, tumor necrosis factor/tumor necrosis factor receptor (TNF/TNFR) signaling was revealed to be important for a feed-forward response to DNA damage, supported by DNA damage-induced phosphorylation of several well-known components of TNF/TNFR signaling pathway including TRAF2, p62, RIP1, and CYLD (Beli et al., 2012). Moreover, Sam68 has been proposed to be crucial for the recruitment of RIP1 to the TNF receptor in TNF-triggered NF-κB signaling (Ramakrishnan and Baltimore, 2011). The involvement of Sam68 in both TNF/TNFR signaling and genotoxic stress-induced NF-κB signaling indicates that it could be a crucial molecule conferring the crosstalk between TNF/TNFR signaling pathway and DNA damage responses.

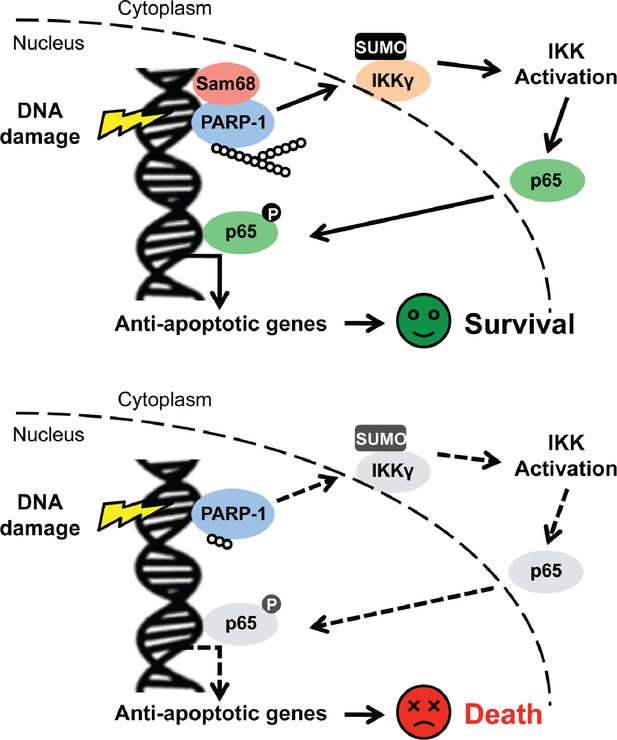

Schematic model representation of Sam68 functioning as an early signaling molecule in genotoxic stress-initiated NF-κB signaling pathway.
https://doi.org/10.7554/eLife.15018.023

We demonstrated that, compared to Khdrbs1+/- cells, Khdrbs1-/- CECs are hypersensitive to genotoxic stress, since Sam68 deletion abolishes the DNA damage-initiated NF-κB signaling and attenuates the inducible expression of anti-apoptotic genes. These results, along with the previous report that NF-κB-mediated anti-apoptotic transcription executes a protective function to CECs following γ-irradiation (Egan et al., 2004), highlight the pathophysiological relevance of the nuclear-initiated NF-κB signaling and transactivation in colonic cell survival from environmental acute DNA damage. Of note, nuclear-initiated NF-κB signaling plays a key role in cellular responses to intrinsic DNA damage, especially damage that occurs during rapid DNA replication and proliferation in cancer cells (Hayakawa et al., 2009; Horst et al., 2009; Kim et al., 2010; Koh et al., 2011; Kojima et al., 2004; Onizawa et al., 2009; Pouyet et al., 2010; Shaked et al., 2012; Stark et al., 2007; Wan et al., 2011; Williams et al., 2008). Aberrant NF-κB activation and elevated expression of NF-κB target genes, in particular those encoding anti-apoptotic molecules, have been acknowledged as key factors facilitating colon cancer survival and development (Song et al., 2014; Townson et al., 2003; Zubair and Frieri, 2013). Here we report that the levels of Sam68, phospho-p65 (indicative of NF-κB activation), anti-apoptotic molecules Bcl-XL and XIAP are all elevated in colon tumors in comparison to adjacent normal tissue derived from genetically susceptible Apcmin716/+ mice and human colon cancer patients. Of note, the positive correlation between Sam68 levels and PAR levels, as well as phospho-p65 levels in human colon cancers suggests that Sam68 could be essential for the development and survival of colon cancer, considering the pivotal function of Sam68 in orchestrating the intrinsic DNA damage-initiated NF-κB signaling and transactivation. In support of this notion, knockdown of Sam68, PARP1, and p65 in human colon cancer cells significantly reduces the basal and genotoxic stress-induced PAR production, NF-κB activation, and expression of anti-apoptotic molecules Bcl-XL and XIAP, thus leading to spontaneous and DNA damage-induced apoptosis in Sam68-downregulated colon cancer cells. Moreover, genetic deletion of Sam68 and inhibition of PARP1 markedly reduces the development and survival of colon tumors in Apcmin716/+ mice, further supporting the pivotal role of Sam68-conferred PAR-dependent NF-κB activation in colon tumorigenesis.

In spite of the crucial role of PARP1 in DNA damage-induced NF-κB activation, DNA repair, and other cellular responses, the precise mechanisms of the activation and regulation of PARP1 remains elusive. We show here that Sam68 deficiency significantly attenuates DNA damage-induced PARP1 activation and PAR production, which suggests that Sam68, as an early signaling regulator, governs the genotoxic stress-stimulated PARP1 activity. In particular, the PAR-dependent NF-κB signaling cascade is dampened in Sam68 deleted cells, as well as PARP1 knockout cells (Stilmann et al., 2009). Moreover, the reduction in anti-apoptotic gene expression and increase in genotoxic stress-induced apoptosis are observed in Sam68 knockout cells and PARP1 knockout cells (Stilmann et al., 2009), in line with the impeded PAR-dependent NF-κB signaling in these cells. Furthermore, Sam68 knockout and PARP1 inhibition both attenuates colon tumor development in Apcmin716/+ mice. Such similarity in the phenotypes of Sam68- and PARP1-deficient cells and animals in response to genotoxic stresses further supports the notion that Sam68 is a crucial regulator of PARP1 in cellular response to genotoxic stress. Elevated Sam68 levels correlate with tumor progression and poor prognosis in multiple cancer patients and overexpression of Sam68 has been proposed as a prognostic marker (Chen et al., 2012; Liao et al., 2013; Song et al., 2010; Zhang et al., 2009); however, the significance of Sam68 in tumorigenesis is still obscure. Here we report that Sam68 knockdown markedly sensitizes colon cancer cells to genotoxic stress-induced cell death and Sam68 knockout substantially retards colon tumor burden and survival in Apcmin716/+ mice, which highlights the pivotal function of Sam68 in tumor development and survival. Importantly, we establish proof-of-concept showing that manipulation of Sam68 sensitizes colon cancer to DNA damage-induced apoptosis. As a key early signaling regulator at the proxy of the nuclear-initiated NF-κB signaling pathway, Sam68 could provide a novel target for therapeutics for cancers and other human diseases associated with impaired DNA damage responses.

Materials and methods

Ethics statement

The human patient study was approved by the Johns Hopkins Institutional Review Board. All samples were obtained in accordance with the Health Insurance Portability and Accountability Act (HIPAA). All animal experiments were performed according to protocol number MO13-H349, approved by the Johns Hopkins University’s Animal Care and Use Committee and in direct accordance with the NIH guidelines for housing and care of laboratory animals.

Patient selection and sample acquisition

Colon tumors (adenomas and cancers) and paired normal tissues were collected from patients undergoing surgery at Johns Hopkins Hospital, as described previously (Dejea et al., 2014). Patients who received pre-operative radiation and/or chemotherapy or with a personal history of colitis-associated colon cancer were excluded.

Mice

Khdrbs1-/- (Sam68 knockout) mice and their gender-matched littermate Khdrbs1+/- (Sam68 heterozygote) mice (occasionally substituted with gender-matched littermate Khdrbs1+/+ [Sam68 wild-type] mice when Khdrbs1+/- ones were lacking, and referred as Khdrbs1+/- alone for simplicity) were produced using heterozygous breeding pairs, as previously described (Huot et al., 2012). Apcmin716/+ mice expressing a mutant gene encoding an adenomatous polyposis coli protein truncated at amino acid 716 were described previously (Su et al., 1992; Wu et al., 2009). Mice were maintained in a specific pathogen-free facility and fed autoclaved food and water ad libitum.

Cell culture, antibodies, and reagents

The following mouse embryonic fibroblasts (MEFs) were obtained from other institutions: wild-type and Sam68 knockout (KO) MEFs (Richard et al., 2005) from Stephan Richard (McGill University, Canada) and PARP1 KO MEFs (Tong et al., 2001) from Zhao-Qi Wang (Fritz Lipmann Institute, Germany), respectively. HEK293T, HCT8, HCT116, and T84 cell lines were purchased from ATCC (Manassas, VA) and the identities have been authenticated by short tandem repeat DNA profiling. All cells described above were regularly tested for mycoplasma contamination. Cells were cultured in DMEM medium containing 10% fetal calf serum, 2 M glutamine, and 100 U/ml each of penicillin and streptomycin. Antibodies used were: IκBα, Sam68, p65, IKKγ, GFP, PARP1, PARP2, GST from Santa Cruz Biotechnology (Dallas, TX); β-actin from Sigma-Aldrich (St. Louis, MO); PAR from Trevigen (Gaithersburg, MD); ATM, phospho-ATM, PARP1, phospho-p65, cleaved Caspase-3, Caspase-3, Ku70, Histone H3 from Cell Signaling Technology (Danvers, MA); XIAP form BD Biosciences (San Jose, CA); α-tubulin from EMD Millipore (Billerica, CA); Bcl-XL, cIAP1, NBS1 from GeneTex (Irvine, CA); SUMO1, kindly provided by Dr. M. Matunis (Johns Hopkins University). 4-[(3-[(4-cyclopropylcarbonyl)piperazin-4-yl]carbonyl)-4-fluorophenyl]methyl(2H)phthalazin-1-one (Olaparib) and N-(6-oxo-5,6-dihydrophenanthridin-2-yl)-N, N-dimethylacetamide-HCl (PJ-34) were purchased from Fisher Scientific (Pittsburgh, PA) and Enzo Life Sciences (Farmingdale, NY), respectively. Camptothecin (CPT), MG132, and 4',6-diamidino-2-phenylindole (DAPI) were obtained from Sigma-Aldrich. Recombinant PARP1 protein was obtained from Trevigen. The FLAG, FLAG-IKKβ (SSEE), GFP, GFP-Sam68, GFP-Sam68 (ΔC), GFP-Sam68 (ΔN), GFP-Sam68 (ΔKH), GST, GST-Sam68, and GST-Sam68 (ΔN) constructs were described previously (Fu et al., 2013).

RNA interference and transfection

Mouse Sam68 siGENOME SMARTpool siRNA (catalog number M-065115-01) was purchased from Thermo Scientific (Waltham, MA). Human Sam68 and p65 siRNAs were described previously (Fu et al., 2013). Human PARP1 and PARG siRNAs were purchased from Santa Cruz Biotechnology. Transient transfection of siRNA or plasmids into MEFs was performed using Lipofectamine 2000 or Lipofectamine RNAiMAX (Life Technologies, Grand Island, NY) according to the manufacturer's instructions.

Subcellular fractionation and electrophoretic mobility shift assays (EMSAs)

Subcellular fractionation was performed by differential centrifugation as previously described (Wan et al., 2007). EMSAs were carried out as described (Wan et al., 2007), and the reaction mixture was resolved on 6% DNA retardation gel (Life Technologies) in 0.25 × TBE buffer, and dried gels were visualized in a Fujifilm image reader FLA-7000 (Fujifilm Life Science, Valhalla, NY).

Immunoprecipitation and immunoblot

Immunoprecipitation and immunoblot assays were conducted as previously described (Hodgson et al., 2015). In brief, cells were harvested and lysed on ice by 0.4 ml of lysis buffer (50 mM Tris-HCl [pH 8.0], 150 mM NaCl, 1% NP-40 and 0.5% sodium deoxycholate, 1 × complete protease inhibitor cocktail [Roche Applied Science, Indianapolis, IN]) for 30 min. The lysates were centrifuged at 10,000 ×g at 4°C for 10 min. The protein-normalized lysates were subjected to immunoprecipitation by adding 10 mg/ml of the appropriate antibody, 30 μl of protein G-agarose (Roche Applied Science), and rotating for more than 2 hr in the cold room. The precipitates were washed at least four times with cold lysis buffer followed by a separation by SDS-PAGE under reduced and denaturing conditions. The resolved protein bands were transferred onto nitrocellulose membranes and probed by the Super Signaling system (Thermo Scientific) according to the manufacturer's instructions, and imaged using a FluorChem E System (Protein Simple, Santa Clara, CA).

Immunofluorescence microscopy

Immunofluorescence microscopy was performed as previously described (Hodgson et al., 2015). Briefly, cells were fixed with 4% paraformaldehyde in PBS and then mounted onto slides by Cellspin. After a 5-min permeabilization with 0.05% Triton X-100 in PBS, the fixed cells were stained with appropriate primary antibodies for 1 hr, and FITC- or AlexaFluor 594-conjugated secondary antibodies (Life Technologies) for 1 hr together with 1 µg/ml of DAPI for 5 min at 25°C. The slides were then rinsed with PBS three times and cover mounted for fluorescence microscopy.

Chromatin fractionation

Cells were harvested at indicated time points after γ-irradiation, and cell pellets were resuspended in the NETN buffer (20 mM Tris–HCl [pH 8.0], 100 mM NaCl, 1 mM EDTA, and 0.5% NP-40) and incubated on ice for 20 min. Supernatant after 3000 ×g for 10 min were collected as soluble fraction. Pellets were recovered and resuspended in 0.2 M HCl on ice for 30 min, and sonicated for 10 sec to release chromatin-bound proteins, and then the soluble fractions were neutralized with 1 M Tris–HCl (pH 8.5) and collected as chromatin fraction, and the pellets were collected as insoluble fraction for further analysis, as described previously (Liu et al., 2013; Wu et al., 2011).

Semi-quantitative reverse transcription PCR

Total RNA was isolated using Trizol reagent (Life Technologies) and treated with the TURBO DNA-free Kit (Life Technologies) to remove residual genomic DNA. Complementary DNA was synthesized using qScript cDNA SuperMix Kit (Quanta Biosciences, Gaithersburg, MD) according to the manufacturer's instructions. Gene specific products were amplified using MyTaq Rad Mix (Bioline USA, Taunton, MA) in a multiple conventional and gradient Veriti Thermal Cycler (Life Technologies) with the following primers: Birc3-f, 5'-GAAACCATTTGGCGTGTTCT-3'; and Birc3-r, 5'-TGGATCGCAATGATGATGTC -3'; Bcl2l1-f, 5'-AATGAACTCTTTCGGGATGGAG-3’; and Bcl2l1-r, 5'- CCAACTTGCAATCCGACTCA-3’; Xiap-f, 5'-CCATGTGTAGTGAAGAAGCCAGAT-3'; and Xiap-r, 5'-TGATCATCAGCCCCTGTGTAGTAG -3'; Actb-f, 5'-CACATCAAGAAGGTGGTG-3'; and Actb-r, 5'-TGTCATACCAGGAAATGA-3'.

In vitro PARylation assays

In vitro PARylation assays using recombinant His-PARP1 or immunoprecipitated endogenous PARP1 from MEFs were performed as previously described (Zaniolo et al., 2007). Briefly, PARP1 protein or immunoprecipitant was incubated for 20 min or 2 min at 30°C with GST or GST-Sam68 in a standard assay mixture containing 100 mM Tris-HCl (pH 8.0), 10 mM MgCl2, 10% (v/v) glycerol, 1.5 mM DTT, 10 μg/ml activated DNA (sonicated) and 200 μM NAD+. The reaction was terminated by the addition of SDS sample buffer (Life Technologies), and the boiled samples were subjected to SDS-PAGE. When indicated, the PARP inhibitor PJ-34 was added to the reaction mixture at a final concentration of 1 μM for 15 min prior to the reaction.

Isolation of primary colonic epithelial cells

Colonic epithelial cells (CECs) were isolated from mice as previously described (Hodgson et al., 2015). Briefly, after euthanizing mice, the entire colon was removed under aseptic conditions and washed twice with ice-cold PBS. After dividing the colon into 2–3 mm long fragments and transferring them into chelating buffer (27 mM trisodium cirtcrate, 5 mM Na2HPO4, 96 mM NaCl, 8 mM KH2PO4, 1.5 mM KCl, 0.5 mM DTT, 55 mM D-sorbitol, 44 mM sucrose, 6 mM EDTA, 5 mM EGTA [pH 7.3]) for 15 min at 4°C, CECs were then dislodged by repeated vigorous shaking. Tissue debris was removed by a 70-μm cell-strainer (Fisher Scientific, Suwanee, GA) and CECs were harvested by centrifugation at 4°C. The viability of CECs was confirmed by trypan blue staining and isolated CECs were cultured at 37°C for 1 hr for recovery, followed by indicated treatment.

γ-irradiation

The γ-irradiation on primary mouse cells and cell lines were performed using a 137Caesium source (dose rate 8 Gy/min).

Histology and immunohistology

After euthanizing mice, the colons were removed under aseptic conditions, washed once with ice-cold PBS, the terminal 0.5-cm piece of the colon was fixed in 10% buffered formalin for 24 hr, embedded in paraffin and 5-micron sections were cut and processed for Hematoxylin and Eosin (H&E) staining. For immunohistology, after euthanizing mice, the entire colons were excised under aseptic conditions and frozen in optimal cutting temperature (O.C.T.) media (Tissue-Tek, Elkhart, In). 5-micron frozen sections were cut using a Microm HM 550 Cryostat (Thermo Scientific), collected on coated slides, fixed in paraformaldehyde, washed with PBS, and blocked with appropriate sera in PBS. After incubating with appropriate antibodies, sections were washed and incubated with fluorescence dye-conjugated second antibodies and 1 µg/ml of DAPI. Stained sections were washed and mounted under a coverslip using Fluoro-gel with Tris Buffer (Electron Microscopy Sciences, Hatfield, PA) and examined using an Axio Observer fluorescence microscope (Zeiss, Oberkochen, Germany).

Quantification of colon adenomas in mice

The visualization and quantification of colon adenomas in mice were conducted as previously described (Wu et al., 2009). Briefly, mice were sacrificed at 3 months of age. Colon tissue was excised, cleaned with cold PBS, opened longitudinally, fixed in 10% neutral buffered formalin (3.7% formaldehyde, 1.2% methanol, 6.5 g/l sodium phosphate dibasic, 4.0 g/l sodium phosphate monobasic) at 25°C overnight, and stained with 0.2% (w/v) methylene blue solution. The adenomas were quantified and sized under dissecting scope. Average tumor size and tumor load per individual mouse were determined by averaging diameters of all tumors present and summing the areas of all tumors presented in a given mouse, as previously described (Grivennikov et al., 2012).

Statistical analyses

All statistical analysis was performed using GraphPad Prism version 6.0 (GraphPad Software, La Jolla, CA). Standard errors of means (s.e.m.) were plotted in graphs. Significant differences were considered: ns, non-significant difference; * at p<0.05; ** at p<0.01; *** at p<0.001; **** at p<0.0001 by unpaired Student’s t-test.

References

  1. 1
  2. 2
  3. 3
  4. 4
    Overexpression and cytoplasmic localization of Sam68 correlate with tumour progression and poor prognosis in patients with clinically N0 oral tongue cancer
    1. SW Chen
    2. Q Zhang
    3. AK Yang
    4. Z Li
    5. Y Zhong
    6. H Li
    7. Y Zeng
    8. SM Zhuang
    9. LP Wang
    10. LB Song
    (2012)
    Head Neck Oncology 4:61.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Increased nuclear factor-kB activation in human colorectal carcinoma and its correlation with tumor progression
    1. M Kojima
    2. T Morisaki
    3. N Sasaki
    4. K Nakano
    5. R Mibu
    6. M Tanaka
    7. M Katano
    (2004)
    Anticancer Research 24:675–681.
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    Sam68, the KH domain-containing superSTAR
    1. KE Lukong
    2. S Richard
    (2003)
    Biochimica Et Biophysica Acta (BBA) - Reviews on Cancer 1653:73–86.
    https://doi.org/10.1016/j.bbcan.2003.09.001
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    Reaching for the stars: Linking RNA binding proteins to diseases
    1. S Richard
    (2010)
    Advances in Experimental Medicine and Biology 693:142–157.
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79

Decision letter

  1. Johannes Walter
    Reviewing Editor; Harvard Medical School, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Sam68 is critical for colon tumorigenesis via regulating genotoxic stress-induced NF-κB activation" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Tony Hunter as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Sam68 is an RNA-binding protein primarily localized in the nucleus that under particular circumstances can shuttle to the cytoplasm. Sam68 has been implicated in several physiological and pathological processes, from HIV replication to tumor progression. Although Sam68 has previously been shown to regulate tumor cell viability and carcinogenesis, the molecular mechanisms by which Sam68 regulates these process are poorly understood. Moreover, Sam68 regulates NF-κB signaling, a critical pathway in the cellular response to DNA damage, yet whether Sam68 regulates carcinogenesis through the regulation of NF-κB signaling is unknown.

In the submitted manuscript, Fu et al. showed that Sam68 regulates ADP ribose (PAR) polymer production and the PAR-dependent NF-κB transactivation of anti-apoptotic genes. As such, Sam68-deficient cells are hypersensitive to genotoxicity caused by DNA damaging agents. Importantly, this finding correlates with the high levels of Sam68 found in human colon cancer and with the results in which genetic deletion of Sam68 leads to decreased colon tumor burden in the Minapc mouse model.

Altogether, the paper is well written, the figures are clear and the organization is logical. Furthermore, the mechanistic results are relatively novel and strongly support their conclusions. Overall, this manuscript will be a strong contribution to eLife.

Essential revisions:

1) The authors claim that GFP-Sam68 expression in Sam68 KO cells reconstitutes CPT-induced IκBα degradation (Figure 1—figure supplement 1D). The present data are not fully convincing. Further analyses, e.g. determination of p65 phosphorylation, NF-κB DNA binding activity or nuclear uptake are required to demonstrate that ectopic expression of Sam68 reconstitutes the PARP1/NF-κB axis in Sam68 KO cells.

2) In the first experiments (Figure 1B,C and D) cells were treated with 10 µM CPT, which is a typical concentration for cell culture experiments. However, later on the authors increase the CPT concentration to 100 µM (Figure 1E-G, Figure 2A,B,F,G), which might generate misleading results. Thus, these experiments have to be repeated with 10 µM CPT treatment.

3) The analysis of HCT116 cells indicates constitutive PARP1 and NF-κB activation. However, it has been shown previously by others that although HCT116 cells display a certain basal NF-κB activity, NF-κB can be significantly induced by genotoxic stress. Thus, it would be important to analyze if loss of Sam68 or PARP1 inhibitor olaparib treatment affects stimulus dependent NF-κB activation and subsequent Bcl-XL expression. Since ATM is the second crucial component of DNA damage induced NF-κB activation, the authors should also analyze if Sam68 affects ATM S1981 phosphorylation.

4) Figure 7—figure supplement 1. The effective concentrations of PJ-34 for PAR inhibition (panel A) (2, 10 and 25 µM) and apoptosis induction (panel C) (25 and 50 µM) do not agree. The authors need to address this discrepancy.

5) Most of the conclusions are based on Western blots. Although some of them are quite clear, others are not. It will be important for the authors to quantify their results from the three independent repeats and show that their results are significant. Furthermore, it will be nice if some of the independent repeats are placed in the supplemental information. at least for the critical experiments. If the blots cannot be readily quantified (because they were developed on film and/or are overexposed), duplicates of all key experiments should be shown in the supplement. Also, blots should be cropped less closely.

Specific points:

1) In Figure 5, the authors compare colon tumor tissue with adjacent normal colon tissue, both from mice and patient material and analyze different features of PARP1/NF-κB signaling. Although the observations fit with previous findings, these data are only correlative, which the authors should acknowledge.

2) Ramakrishnan and Baltimore (2011) showed that NF-κB activation induced by TNF but not IL-1 is greatly reduced in Sam68 knockout cells (via receptor proximal interaction, Sam68 was proposed to promote RIPK1 and cIAP1 recruitment). Could a similar mechanism play a role in the cytoplasmic ATM-dependent cascade that is co-required for DNA damage induced NF-κB activation?

3) The effect of CPT treatment (10 µM, 2 h) on IκBα expression differs between Figure 1A (lane 1 and 2) and Figure 1B (lane 1 and 4). It has to be clarified if 10 µM CPT is sufficient to induce IκBα.

4) The immunoblot analysis of IKKγ (Figure 4C) indicates that IKKγ is preferentially located in the nucleus, which is quite unusual. Is this also true for IKKα and IKKβ? Most likely, the blots are mixed up.

5) The authors could discuss that LRP16 has been described as a crucial regulator of DNA damage induced NF-κB activation, by binding to PARP1 and IKK (Wu et al. 2015). Could LRP16, as well as the Ku antigens, be mechanistically linked to Sam68?

6) Figure 2B: The figure caption must have been switched (-/- versus +/- Sam68).

7) Figure 3B: Why is the 'GFP only' signal around 27 kDa seen in all lanes?

8) Figure 7F and G: Olaparib is normally used in concentrations between 1 and 10 µM. The authors should explain why they use 20 µM in their experiments.

9) The Introduction is quite convoluted. In particular the first paragraph. It will be important to write this section more clearly for readers that are not that familiar with the topic.

10) Why does the ΔC mutant interact with PARP1 if it is located in the cytoplasm?

11) The authors demonstrated that Sam68 is required for PARP1 activation and PAR production. Taking into account that Sam68 appears to have many functions and may be involved in a variety of cellular processes, it would be interesting to better understand how SAM68 contributes to PARP1 activation. Is Sam68 recruited to DNA lesions, together with PARP1? Does loss of Sam68 affect recruitment of PARP1 to DNA lesions? Although these revisions are not deemed essential, they would certainly flesh out the mechanism. The authors are therefore encouraged to add such data if they have them or if they are readily obtainable.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Sam68/KHDRBS1 is critical for colon tumorigenesis by regulating genotoxic stress-induced NF-κB activation" for further consideration at eLife. Your revised article has been favorably evaluated by Tony Hunter as the Senior Editor, a Reviewing Editor, and one reviewer.

The authors have performed a number of new analyses, satisfying most of the issues that were raised. However, new results that are now included raise problems that have to be solved in a second round of revision:

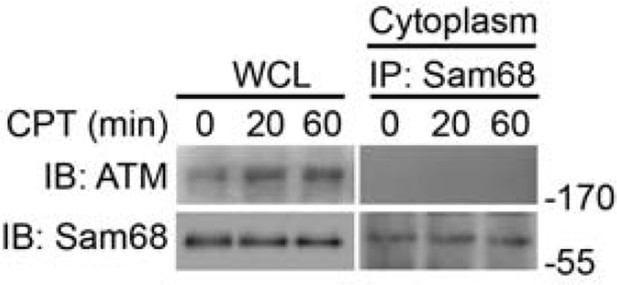

1) One control experiment that was asked for was to analyze ATM activation. They now show in Figure 6—figure supplement 1D that knockdown of Sam68 in HCT116 cells causes a significant attenuation of ATM phosphorylation. If Sam68 is needed for ATM activation, then this alone, without considering PARP1, could explain that Sam68 deletion blunts NF-κB activation by DNA damage.

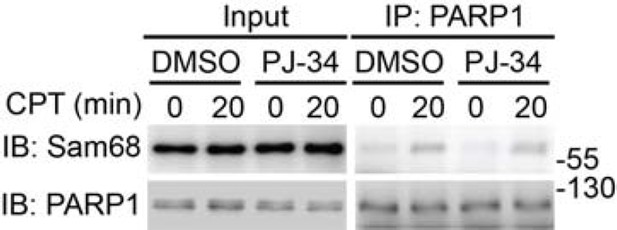

2) In Figure 7—figure supplement 1B they show that the PARP1 inhibitor Olaparib strongly reduces ATM phosphorylation in HCT116 cells. This observation is completely unexpected. The Stilmann et al. paper (cited in the manuscript) shows in Supplemental Figure 7 that two different PARP1 inhibitors did not affect ATM phosphorylation and that ATM phosphorylation was not affected by PARP1 knockout (Figure 6B, input). If the authors wish to maintain their claim that PARP1 activity is needed for ATM activation, they have to include further experiments, including the analysis of additional cell types. How would PARP1 control ATM activation? Thus, either additional experiments have to be performed or Figure 7—figure supplement 1B should be removed. The clarification of these points is important, since Olaparib has been approved as cancer drug. To my knowledge, it is not known that Olaparib blocks ATM activation.

3) The authors have shown no data to support their claim that IKKβ is degraded in the absence of Sam68 after CPT treatment. All they show is that its expression goes down. The reviewers did not notice this important point in the first round of review.

4) Size marker positions and the SUMOylated IKKγ signal. In Figure 1E this signal is slightly above 55 kDa (which is small considering the migration of unmodified IKKγ). In Figure 4D is at 70 kDa. Furthermore, in Figure 4—figure supplement 1B, the PARP1 signal in the nuclear fraction is extremely faint.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Sam68/KHDRBS1 is critical for colon tumorigenesis by regulating genotoxic stress-induced NF-κB activation" for further consideration at eLife. Your revised article has been favorably evaluated by Tony Hunter as the Senior editor and the Reviewing editor.

The manuscript has been improved but there is still one remaining issue. In the second round of review, point 1, it was noted: "If Sam68 is needed for ATM activation, then this alone, without considering PARP1, could explain that Sam68 deletion blunts NF-κB activation by DNA damage." In other words, the authors had not formally addressed whether the effect of Sam68 on NF-κB goes via ATM or PARP1, and they did nothing in the revision to address this point experimentally. Given that PARP1 is required for NF-κB signaling and they show that Sam68 is upstream of PARP1, their interpretation is reasonable. However, they should discuss the possibility that alternatively, or in addition, Sam68 may also be operating via the ATM branch. This is particularly relevant given that the published literature (Stillman et al., 2009) reports that PARP1 activity is not required for ATM activation (see point 2 in re-review). Please add a few sentences to the Discussion to make readers aware of these issues.

https://doi.org/10.7554/eLife.15018.027

Author response

Essential revisions:

1) The authors claim that GFP-Sam68 expression in Sam68 KO cells reconstitutes CPT-induced IκBα degradation (Figure 1—figure supplement 1D). The present data are not fully convincing. Further analyses, e.g. determination of p65 phosphorylation, NF-κB DNA binding activity or nuclear uptake are required to demonstrate that ectopic expression of Sam68 reconstitutes the PARP1/NF-κB axis in Sam68 KO cells.

We have conducted the suggested experiments and our results demonstrate that ectopic expression of Sam68 in Sam68 KO cells reconstitutes the DNA damage-induced p65 phosphorylation and p65 nuclear translocation, thus further supporting the claim that supplementing Sam68 reconstitutes DNA damage-induced NF-κB activation signaling in Sam68 KO cells. These results have been included in the revised Figure 1—figure supplement 1E.

2) In the first experiments (Figure 1B,C and D) cells were treated with 10 µM CPT, which is a typical concentration for cell culture experiments. However, later on the authors increase the CPT concentration to 100 µM (Figure 1E-G, Figure 2A,B,F,G), which might generate misleading results. Thus, these experiments have to be repeated with 10 µM CPT treatment.

We agree with the reviewers that treatment with high concentration of CPT might generate misleading results. As suggested, we have repeated the identified experiments with 10 μM of CPT treatment. The results with 10 μM of CPT treatment are comparable to those with 100 μM of CPT treatment, therefore we have included the repeated results with 10 μM of CPT treatment in the revised Figure 1E-G and Figure 2A,B,F,G.

3) The analysis of HCT116 cells indicates constitutive PARP1 and NF-κB activation. However, it has been shown previously by others that although HCT116 cells display a certain basal NF-κB activity, NF-κB can be significantly induced by genotoxic stress. Thus, it would be important to analyze if loss of Sam68 or PARP1 inhibitor olaparib treatment affects stimulus dependent NF-κB activation and subsequent Bcl-XL expression. Since ATM is the second crucial component of DNA damage induced NF-κB activation, the authors should also analyze if Sam68 affects ATM S1981 phosphorylation.

We appreciate that the reviewers pointed out that NF-κB can be significantly induced by genotoxic stress in HCT116 cells. Our additional experiments, as well as presented results, demonstrate that knockdown of Sam68 or PARP1 inhibitor Olaparib treatment attenuates genotoxic stress-induced NF-κB activation, as assayed by p65 phosphorylation (the revised Figure 6—figure supplement 1D and Figure 7—figure supplement 1B), and subsequent Bcl-XL expression (Figure 6F and the revised Figure 7—figure supplement 1C). Therefore, loss of Sam68 or PARP1 inhibitor Olaparib treatment affects both endogenous DNA damage and exogenous stimulus dependent NF-κB activation and subsequent Bcl-XL expression in HCT116 cells.

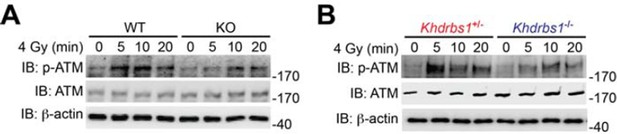

We have also analyzed whether Sam68 affects S1981 phosphorylation of ATM, the crucial component of DNA damage-induced NF-κB activation, in cellular response to genotoxic stress. Either knockdown of Sam68 or PARP1 inhibitor Olaparib treatment substantially attenuates DNA damage-induced ATM S1981 phosphorylation (the revised Figure 6—figure supplement 1D and Figure 7—figure supplement 1B). Thus these data, together with our presented results, further support the crucial role of Sam68 in the DNA damage-triggered NF-κB activation signaling in the nucleus.

4) Figure 7—figure supplement 1. The effective concentrations of PJ-34 for PAR inhibition (panel A) (2, 10 and 25 µM) and apoptosis induction (panel C) (25 and 50 µM) do not agree. The authors need to address this discrepancy.

We apologize for the discrepancy, which might be caused by the misleading PAR immunoblot image with a very short exposure. We have rerun the samples and our results show that the effective concentrations of PJ-34 for PAR inhibition (panel A) correlate well with apoptosis induction in HCT116 cells (panel C, now the revised Figure 7—figure supplement 1E).

5) Most of the conclusions are based on Western blots. Although some of them are quite clear, others are not. It will be important for the authors to quantify their results from the three independent repeats and show that their results are significant. Furthermore, it will be nice if some of the independent repeats are placed in the supplemental information. at least for the critical experiments. If the blots cannot be readily quantified (because they were developed on film and/or are overexposed), duplicates of all key experiments should be shown in the supplement. Also, blots should be cropped less closely.

As suggested by the reviewers, we have quantified most of our Western blot results from the three independent repeats, with statistical analyses, and included them in the revised Figures 1A-C, 2B-C,F, 4A, and E. We have also included the duplicates of certain key experiments in the supplement, including the revised Figure 2—figure supplement 1A, Figure 2—figure supplement 4B, Figure 3—figure supplement 1A, and Figure 6—figure supplement 2A.

Specific points:

1) In Figure 5, the authors compare colon tumor tissue with adjacent normal colon tissue, both from mice and patient material and analyze different features of PARP1/NF-κB signaling. Although the observations fit with previous findings, these data are only correlative, which the authors should acknowledge.

We appreciate that the reviewers pointed out that the PARP1/NF-κB signaling data in colon tumor tissue versus adjacent normal colon tissue are only correlative. The Results section on Figure 5 has been revised to acknowledge the point.

2) Ramakrishnan and Baltimore (2011) showed that NF-κB activation induced by TNF but not IL-1 is greatly reduced in Sam68 knockout cells (via receptor proximal interaction, Sam68 was proposed to promote RIPK1 and cIAP1 recruitment). Could a similar mechanism play a role in the cytoplasmic ATM-dependent cascade that is co-required for DNA damage induced NF-κB activation?

The reviewers’ interesting hypothesis stimulates more in-depth discussion about the distinct functions of Sam68 in multiple NF-κB activation signaling pathways. We showed that Sam68 interacts with PARP1 and IKKγ in the signaling complex after DNA damage; previous studies from the Miyamoto lab demonstrate that the translocation of IKKγ and ATM from the nucleus to the cytoplasm is essential for the cytoplasmic ATM-dependent cascade leading to NF-κB activation (Wu et al. Science 2006). Therefore, Sam68 could complex with the cytoplasmically translocated IKKγ-ATM complex and execute additional important functions for NF-κB activation and signaling in the cytoplasm. Based on our results from the subcellular fractionation experiments, we did not observe an obvious translocation of Sam68 from the nucleus to the cytoplasm during a 3-hour period following CPT treatment (Figure 1C). Moreover, in our pilot experiments, we failed to detect the interaction between ATM and Sam68, when conducting the immunoprecipitation/immunoblot assays using the cytoplasmic subcellular fraction derived from CPT-treated cells (see the Figure below). These results indicate that Sam68 might not execute an additional function in the cytoplasm via participating in the cytoplasmic ATM-dependent cascade for DNA damage-induced NF-κB activation. Instead, as supported by our presented results, Sam68 plays an important role in the early signaling cascade in the nucleus to facilitate the NF-κB-activating signaling complex assembly. The distinct roles of Sam68 in the different subcellular signaling cascades for NF-κB activation induced by DNA damage versus TNF receptor engagement could indicate the existence of stimulus-dependent post-translational modifications. We have included these considerations in the Discussion.

Author response image 1
Whole cell lysates (WCL) from wild-type MEFs stimulated with 10 μM of CPT for indicated periods were immunoblotted (IB) directly or after subcellular fractionation and immunoprecipitation (IP) with Sam68 antibody for indicated proteins.
https://doi.org/10.7554/eLife.15018.024

3) The effect of CPT treatment (10 µM, 2 h) on IκBα expression differs between Figure 1A (lane 1 and 2) and Figure 1B (lane 1 and 4). It has to be clarified if 10 µM CPT is sufficient to induce IκBα.

We appreciate the reviewers for pointing out the difference in the effect of CPT treatment (10 μM, 2h) on IκBα expression between Figure 1A and 1B. Our repeated experimental results (the revised Figure 1A) demonstrate that 10 μM of CPT treatment is sufficient to trigger IκBα degradation as well as additional signaling events that lead to NF-κB activation.

4) The immunoblot analysis of IKKγ (Figure 4C) indicates that IKKγ is preferentially located in the nucleus, which is quite unusual. Is this also true for IKKα and IKKβ? Most likely, the blots are mixed up.

We are sorry for the misleading IKKγ image in our original version. The reviewers were correct that the majority of IKKγ, as well as IKKα and IKKβ, are located in the cytoplasm in mouse primary colon epithelial cells (CECs), like other cell types. It is noteworthy that a substantial amount of IKKγ is located in the nucleus, albeit not profound as that in the cytoplasm. Slightly different distribution patterns of certain proteins in the subcellular localizations have been noticed in multiple cell types; therefore, we believe that the observed subcellular localization of IKKγ in mouse CECs is cell context-dependent. Consistently, our repeated experiments demonstrate that genotoxic stress induced IKKγ translocation from the nucleus to the cytoplasm is profound in Sam68-sufficient CECs, in contrast to the significantly attenuated IKKγ cytoplasmic translocation in Sam68-deleted cells (the revised Figure 4C), thus supporting the critical role of Sam68 in DNA damage-induced NF-κB activation signaling in the nucleus.

5) The authors could discuss that LRP16 has been described as a crucial regulator of DNA damage induced NF-κB activation, by binding to PARP1 and IKK (Wu et al. 2015). Could LRP16, as well as the Ku antigens, be mechanistically linked to Sam68?

As pointed out by the reviewers, Wu and colleagues recently reported that leukemia related protein 16 (LRP16) is a crucial regulator of DNA damage-induced NF-κB activation by binding to PARP1 and IKKγ (Wu et al., Nucleic Acids Res. 2015). The LRP16-PARP1 and LRP16-IKKγ interactions both depend on the PAR chain formation and the macro domain (which binds the terminal ADP-ribose of PAR) on the C-terminus of LRP16 is critical for such interactions, therefore the authors proposed that LRP16 functions downstream of PARP1-catalyzed PAR production and the affinity of LRP16 to PAR plays a critical role in facilitating the high-efficiency interactions of LRP16 with PARP1 and IKKγ to assemble the signaling complex that leads to NF-κB activation. In contrast, our results demonstrate that loss of Sam68 greatly impedes PARP1-catalyzed PAR production and the Sam68-PARP1 interaction is not PAR-dependent (see Author response image 2), therefore Sam68 functions upstream of PAR and the interactions of LRP16 with PARP1 and IKKγ in DNA damage-induced NF-κB signaling.

Author response image 2
Wild-type MEFs, pretreated with DMSO or PJ-34 (10 μM) for 1h, were stimulated with 10 μM of CPT for indicated periods.

Whole cell lysates (Input) were immunoblotted (IB) directly or after immunoprecipitation (IP) with PARP1 antibody for the indicated proteins.

https://doi.org/10.7554/eLife.15018.025

Moreover, the role of LRP16 in DNA damage-induced NF-κB activation is dependent on the Ku70/Ku80 complex that binds specifically to double strand breaks (DSBs) (Wu et al., Nucleic Acids Res. 2015). Ku70 and Ku80 are known PARP1 substrates and PARP1 and PARP1-catalyzed PARylation are required to recruit and/or retain Ku70/Ku80 complex at DSBs (Coute et al., J Cell Biol. 2011). In contrast, our results demonstrate that DNA damage-induced PARylation of PARP1 and Ku70 is substantially attenuated in Sam68 KO MEFs (Figure 2—figure supplement 1B), thus again supporting that Sam68 functions upstream of PARP1/PAR and Ku70/Ku80/LRP16 in DNA damage-induced NF-κB signaling.

As suggested, we have included this recent work on LRP16 in the revised Discussion.

6) Figure 2B: The figure caption must have been switched (-/- versus +/- Sam68).

Sorry for the mistake – it has been corrected now.

7) Figure 3B: Why is the 'GFP only' signal around 27 kDa seen in all lanes?

The signal around 25 kDa seen in all lanes was immunoglobin light chain recognized by the used GFP antibody. We have re-blotted the membrane with a different GFP antibody that exhibits cleaner and more specific GFP signal, and the improved image has been included in the revised Figure 3B.

8) Figure 7F and G: Olaparib is normally used in concentrations between 1 and 10 µM. The authors should explain why they use 20 µM in their experiments.

Besides the concentrations between 1 and 10 μM, 20 μM of Olaparib has also been used in some previous works, e.g. PNAS (2012) 109: 6590-6595 and Sci Rep. (2015) 5: 10129; we therefore used that dose in our original experiments. As suggested, we have repeated the experiments in Figure 7F and G with 10 μM of Olaparib, and the results are comparable to those using 20 μM treatment. Although 20 μM of Olaparib treatment does not cause misleading observations in our original experiments, it would be more appropriate to present the results generated from 10 μM of Olaparib treatment (please see the revised Figure 7F and G).

9) The Introduction is quite convoluted. In particular the first paragraph. It will be important to write this section more clearly for readers that are not that familiar with the topic.

We appreciate the reviewers’ suggestion and have revised the Introduction to make it clearer for readers that are not that familiar with the topic.

10) Why does the ΔC mutant interact with PARP1 if it is located in the cytoplasm?

As illustrated by the images in intact cells, Sam68 (ΔC) mutant and PARP1 are preferentially located in the cytoplasm and the nucleus, respectively, and they do not overlap (interact). It is noteworthy that nuclear proteins (including PARP1) and cytoplasmic proteins (including Sam68 (ΔC) mutant) were lysed together and subjected to immunoprecipitation/immunoblot, when we carried out the structural functional analyses to map the essential domain(s) in Sam68 that confers the Sam68-PARP1 interaction. In the lysed cells without nuclear boundary, Sam68 (ΔC) mutant and PARP1 were therefore available to each other under this condition. Because Sam68 (ΔC) mutant contains the required domain(s) to bind PARP1, we observed the “apparent” Sam68 (ΔC)-PARP1 interaction in the immunoprecipitation/immunoblot assays. Of note, similar to the pulldown assays using recombinant proteins, our immunoprecipitation/immunoblot assays only suggest that Sam68 (ΔC) mutant with the required domain(s) harbors the capability to interact with PARP1. However, in the truly intact cells, as pointed by the reviewers, Sam68 (ΔC) mutant and PARP1 are preferentially localized in the cytoplasm and the nucleus, respectively, and they do not interact, therefore ectopic expression of Sam68 (ΔC) mutant fails to reconstitute DNA damage-induced IκBα degradation in Sam68 KO cells (Figure 1—figure supplement 1D).

11) The authors demonstrated that Sam68 is required for PARP1 activation and PAR production. Taking into account that Sam68 appears to have many functions and may be involved in a variety of cellular processes, it would be interesting to better understand how SAM68 contributes to PARP1 activation. Is Sam68 recruited to DNA lesions, together with PARP1? Does loss of Sam68 affect recruitment of PARP1 to DNA lesions? Although these revisions are not deemed essential, they would certainly flesh out the mechanism. The authors are therefore encouraged to add such data if they have them or if they are readily obtainable.

We appreciate that the reviewers have suggested several very insightful experiments to further address the interesting question on how Sam68 contributes to PARP1 activation. While we have some preliminary results that could answer some of these questions and are actively following these directions, we feel that to fully answer these questions is out of the scope of our current study to illustrate a novel role of Sam68 in genotoxic stress-induced NF-κB activation and colon tumor survival. Once the essential role of Sam68 in early DNA damage signaling is established, we will be more than happy to fully elucidate the molecular mechanisms on how Sam68 contributes to PARP1 activation, globally and locally, in our follow-up studies.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The authors have performed a number of new analyses, satisfying most of the issues that were raised. However, new results that are now included raise problems that have to be solved in a second round of revision:

1) One control experiment that was asked for was to analyze ATM activation. They now show in Figure 6—figure supplement 1D that knockdown of Sam68 in HCT116 cells causes a significant attenuation of ATM phosphorylation. If Sam68 is needed for ATM activation, then this alone, without considering PARP1, could explain that Sam68 deletion blunts NF-κB activation by DNA damage.

As suggested, we have examined the impact of Sam68 knockout on DNA damage-induced ATM activation. Our results shown in Author response image 3 demonstrate that Sam68 deletion substantially attenuates DNA damage-triggered ATM activation, as indicated by ATM Ser1981 phosphorylation, in MEFs and mouse primary thymocytes, which, together with our other data in the manuscript, further support the essential role of Sam68 in early DNA damage signaling. Of note, one previous study from the Poirier laboratory showed that ATM possesses PAR-binding motifs thus interacting with PARP1 in DNA damage response and that ATM activation depends on DNA damage-triggered PARP1 activation and subsequent PAR production (Haince et al. J Biol Chem. 2007 282: 16441-16453). We speculate that the attenuated ATM activation could result from the defective PARP1 activation and PAR synthesis in Sam68 knockout cells that we have demonstrated in our other results included in the manuscript, although we could not rule out the possibility that Sam68 may regulates ATM activation directly. Therefore these results also support our claim that Sam68 is a key NF-κB regulator in genotoxic stress-initiated signaling pathway and crucial for DNA damage-stimulated PAR production and the PAR-dependent NF-κB activation.

Author response image 3

(A) Wild-type (WT) and Sam68 knockout (KO) mouse embryonic fibroblasts (MEFs) were γ-irradiated (IR) at 4 Gy and whole cell lysates were derived at indicated time points post IR and immunoblotted (IB) for the indicated proteins, with β-actin as a loading control. (B) Primary thymocytes isolated from Khdrbs1+/- and Khdrbs1-/- mice were IR at 4 Gy and whole cell lysates were derived at indicated time points and IB for the indicated proteins, with β-actin as a loading control. p-ATM, Ser1981 phosphorylated ATM.

https://doi.org/10.7554/eLife.15018.026

2) In Figure 7—figure supplement 1B they show that the PARP1 inhibitor Olaparib strongly reduces ATM phosphorylation in HCT116 cells. This observation is completely unexpected. The Stilmann et al. paper (cited in the manuscript) shows in Supplemental Figure 7 that two different PARP1 inhibitors did not affect ATM phosphorylation and that ATM phosphorylation was not affected by PARP1 knockout (Figure 6B, input). If the authors wish to maintain their claim that PARP1 activity is needed for ATM activation, they have to include further experiments, including the analysis of additional cell types. How would PARP1 control ATM activation? Thus, either additional experiments have to be performed or Figure 7—figure supplement 1B should be removed. The clarification of these points is important, since Olaparib has been approved as cancer drug. To my knowledge, it is not known that Olaparib blocks ATM activation.

We agree with the reviewers that since Olaparib has been approved as a cancer drug, it is important to examine the available data carefully and a substantial amount of future studies are needed to better understand the effect of Olaparib on DNA damage signaling, particularly in regards to ATM activation. However, the relationship between PARP1 and ATM activation is not the major claim of our current work, we have taken the reviewers’ and editors’ suggestion and removed Figure 7—figure supplement 1B panel from the revised manuscript. While we may not fully agree with the reviewers’ interpretation of the data shown in Figure 6B and Supplementary Figure 7 in the Stillmann paper (Stillmann et al. Mol Cell 2009 36: 365-378), the suggested removal of the Figure 7—figure supplement 1B panel will not affect our major conclusions. The differences in our observations and the Stillmann paper could be caused by a variety of factors, such as exposure time of the western blot, the antibodies being used, and likely the difference in the dose of IR used. The 80 Gy dose used by the Stillmann paper is substantially higher than the dose we used (10 Gy), which may result in a saturated DNA damage signal (including the activation of ATM). This could account for the lack of observed difference in the phosphorylation of ATM in the WT versus PARP1-/- MEFs (as well as the untreated versus PARP1 inhibitor-treated cells). We feel these points, combined with the previously mentioned evidence in the Haince paper which suggests that ATM activation is dependent on PAR production, are sufficient to support our data regarding the decrease in ATM activation following Olaparib treatment; however as this is not our main point and does not affect our overall conclusions, we have respectfully removed this data from the revised manuscript.

3) The authors have shown no data to support their claim that IKKΒ is degraded in the absence of Sam68 after CPT treatment. All they show is that its expression goes down. The reviewers did not notice this important point in the first round of review.

We assumed the concern is that we need to provide additional evidence further supporting our claim that IκBα is degraded in the presence of Sam68 after CPT treatment (as we do not currently show any data involving IKKΒ). Our additional experimental results show that CPT treatment induces significant decrease in the levels of IκBα in the DMSO vehicle control-pretreated WT MEFs, whereas the CPT-dependent reduction in IκBα levels is fully blocked by a pretreatment with MG132, a proteasome inhibitor. These data, consistent with numerous previous studies, strengthen our claim that IκBα is degraded after CPT treatment. We have included these results in the revised Figure 1—figure supplement 1A.

4) Size marker positions and the SUMOylated IKKγ signal. In Figure 1E this signal is slightly above 55 kDa (which is small considering the migration of unmodified IKKγ). In Figure 4D is at 70 kDa. Furthermore, in Figure 4—figure supplement 1B, the PARP1 signal in the nuclear fraction is extremely faint.

The separation time and gel percentages utilized for the experiments in Figures 1E and 4D could result in the slight difference in the migration of SUMOylated IKKγ relative to the size markers. We have applied the same size marker (70 kDa) to better illustrate the positions of the SUMOylated IKKγ bands in the revised Figures 1E and 4D. As suggested, we have replaced the PARP1 blot with a better-quality image in the revised Figure 4—figure supplement 1B.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The manuscript has been improved but there is still one remaining issue. In the second round of review, point 1, it was noted: "If Sam68 is needed for ATM activation, then this alone, without considering PARP1, could explain that Sam68 deletion blunts NF-κB activation by DNA damage." In other words, the authors had not formally addressed whether the effect of Sam68 on NF-κB goes via ATM or PARP1, and they did nothing in the revision to address this point experimentally. Given that PARP1 is required for NF-κB signaling and they show that Sam68 is upstream of PARP1, their interpretation is reasonable. However, they should discuss the possibility that alternatively, or in addition, Sam68 may also be operating via the ATM branch. This is particularly relevant given that the published literature (Stillman et al., 2009) reports that PARP1 activity is not required for ATM activation (see point 2 in re-review). Please add a few sentences to the Discussion to make readers aware of these issues.

As suggested, we have included the discussion about these important issues in the revised Discussion section (first paragraph).

https://doi.org/10.7554/eLife.15018.028

Article and author information

Author details

  1. Kai Fu

    Department of Biochemistry and Molecular Biology, Bloomberg School of Public Health, Johns Hopkins University, Baltimore, United States
    Contribution
    KF, Designed and conducted most experiments, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Xin Sun
    Competing interests
    The authors declare that no competing interests exist.
  2. Xin Sun

    Department of Biochemistry and Molecular Biology, Bloomberg School of Public Health, Johns Hopkins University, Baltimore, United States
    Contribution
    XS, Designed and conducted most experiments, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Kai Fu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2424-8011
  3. Eric M Wier

    Department of Biochemistry and Molecular Biology, Bloomberg School of Public Health, Johns Hopkins University, Baltimore, United States
    Contribution
    EMW, Helped with some experiments, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Andrea Hodgson

    1. Department of Biochemistry and Molecular Biology, Bloomberg School of Public Health, Johns Hopkins University, Baltimore, United States
    2. W. Harry Feinstone Department of Molecular Microbiology and Immunology, Bloomberg School of Public Health, John Hopkins University, Baltimore, United States
    Contribution
    AH, Helped with some experiments, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Yue Liu

    Department of Biochemistry and Molecular Biology, Bloomberg School of Public Health, Johns Hopkins University, Baltimore, United States
    Contribution
    YL, Helped with some experiments, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Cynthia L Sears

    1. W. Harry Feinstone Department of Molecular Microbiology and Immunology, Bloomberg School of Public Health, John Hopkins University, Baltimore, United States
    2. Department of Medicine, Johns Hopkins University School of Medicine, Baltimore, United States
    3. Department of Oncology, Sidney Kimmel Comprehensive Cancer Center, Johns Hopkins Medical Institutions, Baltimore, United States
    Contribution
    CLS, Contributed to human patient study, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  7. Fengyi Wan

    1. Department of Biochemistry and Molecular Biology, Bloomberg School of Public Health, Johns Hopkins University, Baltimore, United States
    2. Department of Oncology, Sidney Kimmel Comprehensive Cancer Center, Johns Hopkins Medical Institutions, Baltimore, United States
    Contribution
    FW, Conceptualized the study, Designed the experiments, Wrote the manuscript with input from all authors, Analysis and interpretation of data
    For correspondence
    fwan1@jhu.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9216-9767

Funding

National Cancer Institute (T32CA009110)

  • Eric M Wier

National Cancer Institute (R01CA151393)

  • Cynthia L Sears

National Institute of General Medical Sciences (R01GM111682)

  • Fengyi Wan

American Cancer Society (RSG-13-052-01-MPC)

  • Fengyi Wan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs. Johnny He, Anthony Leung, Michael Matunis, Stephane Richard, Bert Vogelstein, Zhao-Qi Wang, and Jihe Zhao for kindly sharing reagents and materials; Cory Brayton and Xin Guo for help with histological analyses; J Marie Hardwick for critical reading of the manuscript.

Ethics

Human subjects: The human patient study was approved by the Johns Hopkins Institutional Review Board. All samples were obtained in accordance with the Health Insurance Portability and Accountability Act (HIPAA).

Animal experimentation: All animal experiments were performed according to protocol number MO13-H349, approved by the Johns Hopkins University's Animal Care and Use Committee and in direct accordance with the NIH guidelines for housing and care of laboratory animals.

Reviewing Editor

  1. Johannes Walter, Harvard Medical School, United States

Publication history

  1. Received: February 5, 2016
  2. Accepted: June 29, 2016
  3. Version of Record published: July 25, 2016 (version 1)

Copyright

© 2016, Fu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,459
    Page views
  • 308
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, PubMed Central, Crossref.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Genetics and Genomics
    Stevephen Hung et al.
    Research Article
    1. Cancer Biology
    2. Human Biology and Medicine
    Nathalie Javidi-Sharifi et al.
