Non-invasive imaging of CSF-mediated brain clearance pathways via assessment of perivascular fluid movement with diffusion tensor MRI
The glymphatics system describes a CSF-mediated clearance pathway for the removal of potentially harmful molecules, such as amyloid beta, from the brain. As such, its components may represent new therapeutic targets to alleviate aberrant protein accumulation that defines the most prevalent neurodegenerative conditions. Currently, however, the absence of any non-invasive measurement technique prohibits detailed understanding of glymphatic function in the human brain and in turn, it’s role in pathology. Here, we present the first non-invasive technique for the assessment of glymphatic inflow by using an ultra-long echo time, low b-value, multi-direction diffusion weighted MRI sequence to assess perivascular fluid movement (which represents a critical component of the glymphatic pathway) in the rat brain. This novel, quantitative and non-invasive approach may represent a valuable biomarker of CSF-mediated brain clearance, working towards the clinical need for reliable and early diagnostic indicators of neurodegenerative conditions such as Alzheimer’s disease.https://doi.org/10.7554/eLife.34028.001
Our brain is bathed in cerebrospinal fluid, a clear liquid that ‘cushions’ the fragile organ. This liquid travels into the brain along special channels – the perivascular space – that surround certain blood vessels. As the fluid washes in and out of the brain, it takes with it potentially harmful molecules, such as the aggregates that build up to cause Alzheimer’s disease. If this brain-cleaning system becomes faulty, it could lead to neurodegenerative diseases. However, it is extremely difficult to measure the activity of this intricate and delicate system, and most studies so far have had to use invasive techniques that usually require brain surgery.
Now, Harrison et al. adapt a technique, called diffusion tensor magnetic resonance imaging (MRI), to visualise how the cerebrospinal fluid moves in the perivascular space in healthy rats. The non-invasive MRI method captures how the cerebrospinal fluid is driven into the brain when the blood vessels nearby expand and contract; as the vessels pulsate with each heartbeat, there is a 300% increase in the movement of the fluid in the perivascular space.
This approach could be applied to understand exactly how neurodegenerative diseases emerge when the cerebrospinal fluid stops to properly clean the brain. Ultimately, the method could be used to detect when the cleansing system starts to fail in people, which could help to treat patients before their brains accumulate too many harmful substances.https://doi.org/10.7554/eLife.34028.002
The recent identification of the glymphatic system and the dural lymphatic network provide exciting new perspectives on waste clearance mechanisms within the central nervous system (CNS) (Louveau et al., 2015; Iliff et al., 2012). According to the glymphatics hypothesis, cerebrospinal fluid (CSF) crosses from the subarachnoid space into the periarterial space where it swiftly flows towards the brain tissue. Fluid then passes into the parenchyma from the perivascular space, a transition mediated by aquaporin-4 (AQP4) channels that reside on the end feet of astrocytes. This periarterial inflow creates a convective flux of fluid across the parenchyma that exits via perivenous channels, carrying with it ‘waste products’ of brain metabolism. As such, the glymphatic pathway has been proposed to function as a ‘cleaning system’ of the brain. The exchange of CSF with interstitial fluid (ISF) is an established mechanism underlying the clearance of amyloid beta (Aβ), recognised as a leading molecular candidate to initiate Alzheimer’s disease (AD) (Iliff et al., 2012; Weller et al., 2008; Bakker et al., 2016; Xu et al., 2015; Tarasoff-Conway et al., 2015; Hawkes et al., 2014).
Despite evidence that aspects of the glymphatic pathway are preserved across species (Goulay et al., 2017; Ringstad et al., 2017; Dobson et al., 2017), key questions remain on the anatomy and function in the human brain and to what extent it contributes to pathology. Currently, however, these questions cannot be answered because there are no non-invasive techniques for assessment. The development of non-invasive methods to image CSF-mediated brain clearance pathways, such as the glymphatic system, would enable repeated and practical measurement to investigate this system in the human brain and the intact animal skull. This, in turn, may help fully characterise impairment of CSF-mediated clearance pathways with age (Kress et al., 2014), as well as the contribution to Aβ accumulation in AD. Ultimately, such methods could address the pressing clinical need for reliable and early biomarkers of AD, by identifying patients at risk of Aβ accumulation due to failing clearance mechanisms.
The perivascular space is a fluid filled compartment that surrounds selected blood vessels in the brain (Huffman et al., 2016). Perivascular channels form a central component of the glymphatic pathway that is said to drive rapid CSF-ISF exchange. Although the precise routes and fluid dynamics that underlie CSF-ISF exchange remain controversial (Holter et al., 2017; Hladky and Barrand, 2014; Brinker et al., 2014; Smith et al., 2017), several independent groups have identified perivascular channels as central to this pathway (Iliff et al., 2012; Bedussi et al., 2015; Lochhead et al., 2015; Rennels et al., 1985). As such, the perivascular space represents a promising target for non-invasive imaging biomarkers of CSF-ISF exchange. To date, perivascular function has been studied using only invasive methods: ex-vivo microscopy (Bedussi et al., 2015), two-photon imaging (Iliff et al., 2012) and contrast-enhanced MRI following intra-cranial/lumbar injection (Iliff et al., 2013a; Yang et al., 2013). In this work we introduce the first non-invasive method for the assessment of perivascular function using contrast-free MRI, and demonstrate use of the method in the rodent brain.
Despite recognition that the perivascular space facilitates CSF-ISF exchange, the nature of fluid movement within this channel is yet to be unambiguously determined. Broadly, the glymphatics hypothesis describes perivascular fluid movement as possessing coherent, bulk flow (Iliff et al., 2012). However, this has been questioned by other studies which propose that the fast distribution of CSF-tracers along the perivascular space can be explained by rapid dispersion of fluid/tracers via mechanical pulsations, with little bulk flow (Hladky and Barrand, 2014; Asgari et al., 2016). Given the current uncertainty, when considering non-invasive MRI techniques for assessment, diffusion MRI represents a prime candidate for initial application owing to its established sensitivity to water dispersion, together with evidence of sensitivity to bulk flow (non-plug e.g. laminar flow) from prior studies of the cerebral vasculature (Wells et al., 2017). That is, irrespective of whether perivascular fluid movement is dominated by bulk flow or rapid dispersion with little bulk flow, diffusion MRI sequences, if appropriately tuned, should yield sensitive and quantitative correlates of fluid movement, albeit non-specific to flow coherence.
In this study, we apply ultra-long echo time (TE), diffusion weighted MRI sequences to assess fluid movement within perivascular channels surrounding the middle cerebral artery (MCA) of the healthy rat brain. In addition, given evidence that cerebral arterial pulsation is a key mechanism that drives PVS fluid movement (Rennels et al., 1985; Iliff et al., 2013b), we investigate the dependence of the technique on vascular pulsatility through cardiac gating and modulation by the adrenoceptor agonist, dobutamine. This technique represents the first non-invasive biomarker of perivascular action, working towards new translational techniques to assess CSF mediated brain clearance pathways and their role in disease.
Non-Invasive imaging of perivascular channels
The ultra-long TE MRI sequence presented here is designed to attenuate the measured signal from the blood and parenchyma that immediately surround the perivascular space in order to minimise partial volume effects, which represent a potential confounder for assessment by MRI given the small size of this compartment. Figure 1A shows a b0 image of the axial slice through the ventral aspect of the rat brain. The subarachnoid CSF that bathes the Circle of Willis (CoW) can be clearly observed, with marked contrast between the blood vessels within the CoW and surrounding CSF. Bright tracts appear either side of both MCA branches (Figure 1A) which, due to the ultra-long echo time, must derive from fluid filled compartments of similar composition to the CSF in the subarachnoid space. This observation, together with the characteristic morphology that runs alongside and parallel to the MCA, is consistent with the description of the perivascular space as a fluid filled compartment that surrounds major blood vessels feeding the brain (Huffman et al., 2016). Indeed, the location of this compartment is highly consistent with direct assessment from a previous study (Figure 1B, adapted from Lochhead et al., [Lochhead et al., 2015]).
The precise definition of the perivascular (and ‘paravascular’) space is somewhat unclear, as highlighted in a number of recent articles (Hladky and Barrand, 2014; Brinker et al., 2014; Bedussi et al., 2017). Whether the fluid filled tracts around the MCA that we observe (Figure 1A) occupy a physically and functionally distinct ‘paravascular’ space as described by Iliff et al., (Iliff et al., 2012) forms a more continuous pathway with subarachnoid CSF as described by Bedussi et al (Bedussi et al., 2017)., or are well described by a perivascular space as proposed by Lochhead et al., (Lochhead et al., 2015) remains unknown. Irrespective of the precise anatomical bordering of the fluid filled tracts identified in this work, and despite these semantic differences, all the aforementioned studies have highlighted the movement of fluid that surrounds subarachnoid arteries as a key site of CSF-tracer inflow towards the parenchyma. Hence non-invasive assessment of fluid movement within this compartment represents a meaningful measure of CSF-ISF exchange pathway function.
Assessment of fluid movement using Multi-Direction diffusion weighted imaging

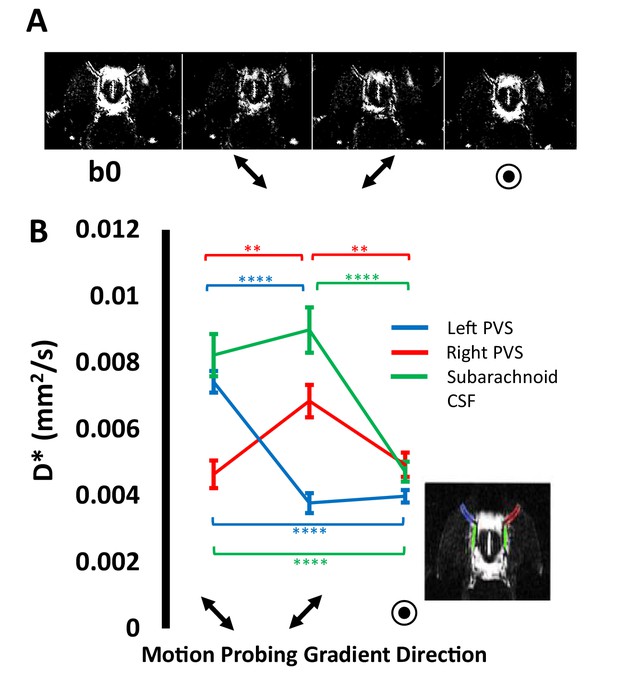

Application of a motion probing gradient (MPG) along the principle direction of the perivascular tracts located around the MCA was observed to markedly attenuate the signal from these tracts relative to when the MPG was applied perpendicular to their principle orientation (Figure 2A). Accordingly, across the 10 subjects, within the right perivascular space, the pseudo-diffusion coefficient (D*) parallel to PVS orientation was significantly greater than D* in either perpendicular direction (p<0.01 respectively). In a similar fashion, D* (parallel to principle direction of left PVS) was significantly greater than D* in either perpendicular direction [p<0.01]. (Figure 2B). These data demonstrate that the MRI sequence employed here can detect the directional dependence of fluid movement within the perivascular space (the principal directionality of which is parallel to their orientation), which verifies that they are sensitised to the movement of fluid within this compartment. Within the CSF in the subarachnoid space, it was observed that D* when the MPGs were applied in the in-plane orientation (i.e. parallel to the left or right branch of the MCA) were both significantly greater than D* in the through plane orientation [p<0.01]. This is consistent with the known direction of CSF movement in the rostral-caudal direction within this region from prior invasive studies (Iliff et al., 2013a; Lee et al., 2018).
Diffusion tensor imaging of CSF/Perivascular Fluid Movement
Having verified the sensitivity of the MRI sequence to fluid movement within the perivascular and subarachnoid space, MPGs were then applied in six different directions to generate a pseudo diffusion tensor image that reflects the directionality and magnitude of subarachnoid CSF and perivascular fluid movement.

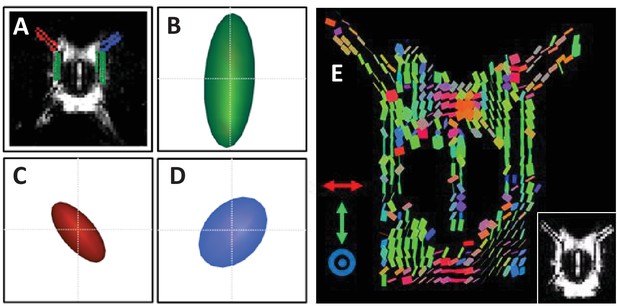

Figure 3 illustrates that, for the subarachnoid space ROI, the mean D* tensor ellipsoid (n = 6) was well aligned with the known principle direction of CSF movement (caudal-rostral, observed in several invasive studies of the rodent brain [Iliff et al., 2013a; Lee et al., 2018]). Likewise, Figure 3 illustrates that the principle direction of the mean D* tensor of the left and right perivascular space, respectively, was aligned with the orientation of the respective branch of the MCA. The D* tensors for each of the individual animals are shown in Figure 2—figure supplement 1, which show reasonable consistency with the directionality of the mean tensors shown in Figure 3. The magnitude of the D* tensors within this region were markedly reduced post-mortem, which demonstrates that a large component of the D* measurements reflects fluid movement driven by physiological perturbations such as cardiac and respiratory pulsation and secretion from the choroid plexus (Figure 3—figure supplement 1). This may also partially reflect the reported collapse of the PVS post mortem  (indeed visual inspection of the b0 images indicates a reduction in signal intensity within this region [data not shown]). Fractional anisotropy (SEM) within the right and left perivascular space and the subarachnoid space was 0.44 (±0.04), 0.36 (±0.04) and 0.6 (±0.02) respectively with mean diffusivity (SEM) calculated to be 0.0042 (±0.0003), 0.0052 (±0.0003), 0.0065 (±0.0007) mm2/s. Figure 3E shows a map of pseudo diffusion tensors for a single subject. The principal direction of the D* tensors in the perivascular tracts that surround the left and right MCA respectively can be seen to run parallel to the orientation of the MCA. Likewise, the principal orientation of the individual voxel D* tensors can be seen to run rostral-caudal in the mid-section of the CoW.
Cerebral arterial pulsation drives Non-invasive measures of perivascular fluid movement

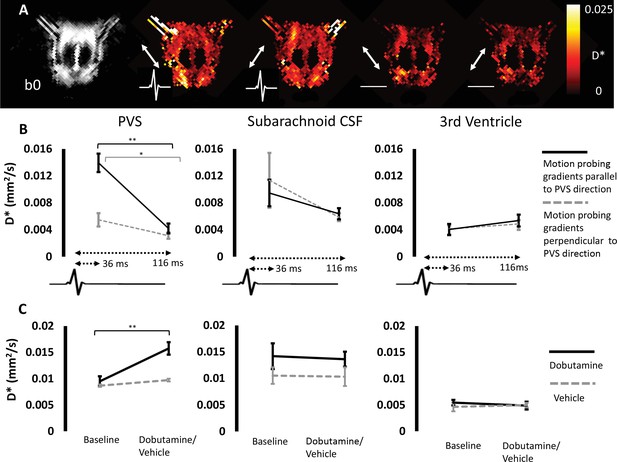

Previous studies have identified cerebral vascular pulsation to play a prominent role in perivascular fluid propulsion. To investigate this mechanism, MRI data were captured during both cerebral arterial pulsation and diastole using ECG gating with variable delays to image capture (36 ms and 116 ms from the r-wave to the centre of ‘diffusion’ weighting respectively). The results are shown in Figure 4, where a striking and highly directional dependence of D* on cerebral vascular pulsation was observed in the PVS [Figure 4]. D* in the PVS was ~300% greater during arterial pulsation relative to diastole when motion probing gradients were applied parallel to the principle orientation (p<0.01). We recorded a more moderate dependence (p=0.1) on the r-wave delay within the CSF ROI at the mid-section of the CoW (although visual inspection of the D* maps suggests that other regions within the subarachnoid CSF appeared to show greater changes with the r-wave delay). Minimal dependence of the D* measures on the r-wave delay was observed in the third ventricle (p=0.2).
Administration of the adrenoceptor agonist, dobutamine, increased heart rate from (354 ± 8 to 519 ± 17 bpm). A 65% increase in D* along PV channels was recorded (p<0.01) following dobutamine with comparatively little change after vehicle (Figure 4C). No significant changes were observed in the subarachnoid space ROI at the mid-section of the CoW following dobutamine (p=0.39, although visual inspection of the data suggests other regions within the subarachnoid CSF did show marked increases in D*). Dobutamine had minimal effect on D* within the third ventricle (p=0.30).
Together these data are concordant with previous invasive measures demonstrating that perivascular fluid movement is driven by cerebral vascular pulsation and that we are now able to capture this mechanistic dependence non-invasively using the techniques introduced here.
In this study, we introduce a novel MRI method to measure a distinct feature of brain physiology that, to date, has only be assessed using invasive methods – the movement of fluid in the perivascular space. The perivascular space serves as a preferential pathway for CSF-ISF exchange, an important mechanism supporting the clearance of potentially harmful molecules, such as Aβ, from the CNS. This non-invasive and translational method may have utility in AD research given evidence that Aβ accumulation (in late stage, sporadic AD) occurs not because of increased Aβ production but because of decreased rates of Aβ clearance (Mawuenyega et al., 2010). Thus, this technique may expedite greater understanding of how Aβ clearance mechanisms become impaired with ageing (Kress et al., 2014) and in turn reveal a new window in early AD pathogenesis in which to target future diagnostic and treatment strategies. The technique may have broader utility to a range of neurological conditions given reported associations between glymphatic function in, for example, stroke (Gaberel et al., 2014) and traumatic brain injury (Iliff et al., 2014).
The precise mechanisms that underlie CSF-ISF exchange are yet to be fully defined and this remains an active area of research. Accumulative evidence, however, has established cerebral vascular pulsation as an important mechanism underlying perivascular fluid movement (Rennels et al., 1985; Iliff et al., 2013b). Here, we have captured the action of cerebral arterial pulsation to drive perivascular fluid movement using non-invasive techniques (Figure 4). The measured D* showed a remarkable dependence on vascular pulsation with a ~300% increase recorded during arterial pulsation relative to diastole (Figure 4). Moreover, D* (non-gated) was found to markedly increase following adrenoceptor agonist, dobutamine. The non-invasive nature of this technique may enable future studies to investigate the mechanistic link between vascular pulsatility and PVS fluid movement in the healthy human brain, and its modulation by pathology as well as novel therapy.
In this study, D* estimates were captured using a b0 image and then with motion probing gradients applied at a single b-value, in different directions. Future studies may wish to examine the behaviour of the PVS signal over a greater range of b-values (and different values of δ and Δ) to examine whether, in combination with more advanced signal modelling, this may reveal more detailed insight into PVS fluid movement. Of note, a previous study aimed to correlate MRI measures of water diffusivity from the PVS to AD severity (Taoka et al., 2017). However, this earlier work presents limited evidence as to the contribution of the perivascular space to the measured MRI signal and hence that the parameters extracted from their measurements provide meaningful correlates of PVS fluid movement.
The expression of AQP4 appears to be mechanistically important in CSF-ISF exchange (Smith et al., 2017; Mestre, 2017). However, although genetic deletion of AQP4 was found to markedly decrease rates of small molecular weight tracer inflow from the CSF into the brain, it did not appear to affect the movement of tracers along para-arterial channels (Iliff et al., 2012). Thus, by extension, as the technique here is targeted to PVS fluid movement, it may not be sensitive to AQP4 related modulation of CSF-ISF exchange through genetic deletion of AQP4 in the rodent brain. Hence, future studies are required to fully elucidate the relationship between para/perivascular fluid movement, CSF-ISF exchange and AQP4 expression (Brinker et al., 2014). Furthermore, rates of glymphatic inflow have been linked to changes in extracellular space volume (Xie et al., 2013) and central noradrenaline activity (Benveniste et al., 2017) and how these factors may modulate measures of D* captured using the techniques presented here would be an interesting avenue of further study. Moreover, how the technique introduced here may be influenced by pathology is an important consideration. For example, the composition of the CSF and PV fluid may change in disease, in turn altering the relaxation times of this compartment (for example the presence of iron could reduce PVS T2). Whilst this may not confound measures of D*, as relaxation time changes will be accounted for by the acquisition of a b0 image at identical TR and TE, this may change contrast between the PVS and surrounding tissue and potentially lessen the SNR of the measurements. MR relaxometry studies targeted to the normal and enlarged PVS may be an interesting avenue of future investigation leading to novel biomarkers of PVS composition. Efforts are ongoing to investigate the sensitivity of the method to detect dysfunction of perivascular fluid movement associated with ageing and models of pathological conditions, with the knowledge that clinical translation of this non-invasive approach may be practically achievable in the near future.
Materials and methods
All experiments were performed in accordance with the UK Home Office’s Animals (Scientific Procedures) Act (1986). In total, 27 male Sprague Dawley rats were used in these experiments (n = 10 for multi-direction diffusion weighted imaging, n = 6 for diffusion tensor imaging, n = 5 for ECG gating, n = 6 for dobutamine). Anaesthesia was induced using 4% isoflurane in 0.4 L/min medical air and 0.1 L/min O2 and was maintained at 2% isoflurane whilst the animal was placed on a MRI compatible plastic probe. The head was secured using ear bars, a bite bar and a nose cone to minimise motion during the data acquisition. Once the probe was fixed in the scanner, isoflurane concentration was reduced to 1.75% in 0.4 L/min medical air and 0.1 L/min O2. Core body temperature was measured throughout using a rectal thermometer (Small Animal Instruments Inc.) and maintained at 37 ± 0.5°C using heated water tubing during the preparation and heated water tubing and warm air flow during the data acquisition period. Breathing rate was monitored throughout the acquisitions using a respiration pillow sensor (Small Animal Instruments Inc.). A scavenger pump was fixed inside the magnet bore to prevent build-up of isoflurane. For the multiple direction diffusion weighting, power analysis based on pilot data was used to estimate the number of animal required to detect a significant difference in D* when motion probing gradients are applied parallel to the perivascular tracts relative to D* when motion probing gradients are applied perpendicular to the perivascular tracts (assuming a normal distribution).
Magnetic resonance imagingRequest a detailed protocol
All imaging was performed using a 9.4T VNMRS horizontal bore scanner (Agilent Inc., Palo Alto, CA). A 72 mm inner diameter volume coil was used for RF transmission and signal was received using a 4 channel array head coil (Rapid Biomedical). The imaging gradient hardware was calibrated using a custom designed structural phantom, as previously described (O'Callaghan et al., 2014).
A key aspect of the MRI sequence was the use of a long TE to attenuate the signal from the surrounding arterial blood and tissue (T2 ~30 and 38 ms respectively at 9.4T [Wells et al., 2013]) relative to the MRI signal from CSF in the subarachnoid space and fluid in perivascular channels (T2 ~111 ms [Kuo et al., 2005]). In order to achieve this, a fast spin echo (FSE) sequence was employed (180° refocusing pulses) with an echo train length of 16 giving an effective echo time of 142 ms (thus the ultra-long TE is compatible with a multiple echo train FSE readout for SNR efficiency). Therefore, at this echo time, the signal from the grey matter tissue, blood and CSF will have decayed to ~2, 1 and 28% of the theoretical signal at TE = 0 respectively. In addition, the use of an ultra-long TE permits a long echo train per excitation (16 echoes) to increase the SNR efficiency of the acquisition (i.e. SNR per unit time). Finally, the use of a relatively long TR (5000 ms), further weights the measured MRI signal from CSF/interstitial fluid relative to surrounding blood/tissue. It should be noted that, as part of the FSE readout, phase encoding lines will be acquired at a range of different TEs and thus the eventual contrast in the image may deviate from that predicted by assuming a constant TEeff across all phase-encoding steps. Simulations (data not shown) indicate that this effect was minimal in the current study but future applications should consider this aspect of MRI image capture.
In this study, four separate sets of experiments were performed, that can be divided into ‘multiple direction diffusion weighted imaging’ (n = 10), ‘diffusion tensor imaging’ (n = 6), ‘ECG-gating (n = 5)’ and’ Dobutamine (n = 6)’.
Multiple direction diffusion weighted imaging (n = 10)Request a detailed protocol
An axial slice was positioned at the ventral aspect of the brain at the level of the Circle of Willis (CoW - see Figure 1). A series of scout images were acquired with the slice orientation and position manually altered in an iterative manner in order that the perivascular space around the MCA could be optimally visualised.
The angular orientation of the image was then changed so that the animals right perivascular tracts (surrounding the MCA in the axial slice) was aligned with the orientation of the frequency encoding (FE) imaging gradients. In doing so, the animals left perivascular tracts then become approximately aligned with the phase encoding (PE) imaging gradients (see Figure 2). This ensured that, when applying diffusion (or motion probing) gradients along the FE direction, the direction of diffusion weighting was parallel to the right perivascular tract and perpendicular to the left tract; and vice versa when applying diffusion gradients along the PE direction. As a result, the sensitivity for measuring differences in fluid movement along and across both tracts was maximised.
A fast-spin echo imaging sequence was acquired with the following sequence parameters: TR = 5 s, Echo Train Length = 16, effective TE = 142 ms, echo spacing = 10 ms, FOV = 25 × 25 mm, matrix size = 128 × 128, slice thickness = 0.8 mm or 1 mm, number of averages = 12. A b = 0 image was acquired with minimal diffusion weighting (b0) and then with separate acquisitions with the motion probing gradients applied in three principle directions (X, Y, Z) with a b-value of 107 s/mm2 (δ = 5 ms, Δ = 26 ms, G = 4.2 G/cm).
Regions of interest were manually drawn around the perivascular tracts surrounding the left and right MCA, as well as within the CSF of the subarachnoid space in the mid-section of the CoW from the b0 images. The subarachnoid space ROI was chosen because previous invasive measures have demonstrated rapid caudal-rostral CSF-tracer movement in this region (Gaberel et al., 2014; Mesquita et al., 2015). As such, data from this ROI can provide a degree of validation for the technique if the directionality of fluid movement is found to be consistent with the established caudal-rostral fluid movement. The pseudo-diffusion coefficient (D*) was then calculated for each direction of the applied motion probing gradients using the following equation:
where S is the measured signal at b = 107 s/mm2, S0 is the signal taken from the b0 image. In this work we choose to report the exponential decay coefficient as the pseudo diffusion coefficient (D*) since this is analogous to the Intra-voxel Incoherent Motion (IVIM) literature where in-vivo D* estimates reflect an unknown contribution from relatively coherent flow in large and/or directionally ordered vessels and isotropic fluid motion derived from randomly orientated vessels within a MRI voxel.
A paired t-test was applied to investigate (i) if D* was greater when the motion probing gradient was applied parallel to the principle direction of the perivascular tracts, relative to application in each of the orthogonal planes for the left and right perivascular channels respectively; (ii) if D* in the subarachnoid space ROI was significantly greater in the FE and PE directions than in the through plane slice selection direction.
Diffusion tensor imaging (n = 6)Request a detailed protocol
Images were acquired with no ‘diffusion weighting’ (b0) and then using motion probing gradients applied in 6 different directions (δ = 7.5 ms, Δ = 52 ms, G = 1.5 G/cm, b value ~100 s/mm2) respectively with the following sequence parameters: TR = 5 s, Echo Train Length = 16, effective TE = 142 ms, FOV = 30×15 mm, matrix size = 128×64, slice thickness = 1 mm, number of averages = 24.
Pseudo-Diffusion tensors were generated using a calculated b-matrix that incorporated the ‘diffusion’ weighting introduced by the imaging gradients. As described above, ROIs were drawn around the perivascular tracts that surround the animal’s left and right MCA, as well as the CSF in the subarachnoid space that resides in the mid-section of the Circle of Willis. For visualisation purposes, pseudo-diffusion tensor ellipsoids were generated using the fanDTasia routines in Matlab (Barmpoutis et al., 2007). For pseudo-diffusion tensor mapping, images were smoothed using an edge preserving filter and thresholded based on signal intensity, to remove signals that did not principally derive from fluid filled compartments and images were generated using the Explore DTI toolbox (Leemans et al., 2009). Maps were colour coded according to their principle orientation. In one animal, the diffusion tensor sequence was applied to the brain immediately post-mortem.
ECG gating (n = 5)Request a detailed protocol
In these experiments, a three lead electrode was used to measure ECG signals in the bore of the magnet. The diffusion weighted sequence was acquired with the following parameters: TR = 5 s, Echo Train Length = 16, effective TE = 142 ms, echo spacing = 10 ms, FOV = 25 × 25 mm, matrix size = 128 × 128, slice thickness = 1 mm, number of averages = 12, δ = 5 ms, Δ = 26 ms, diffusion gradient amplitude = 2.3 G/cm, b value ~45 s/mm2, diffusion gradients applied in two directions (in plane, parallel to the PVS around the left and right MCA respectively).
Image capture was gated to the ECG signal and image acquisition began either directly after the r-wave or with an 80 ms delay. Given that the diffusion weighting is applied during the first echo time at 72 ms, this results in a delay of 36 ms from the r-wave to the centre of diffusion weighting (i.e. the first 180° refocusing pulse) or 116 ms with the additional 80 ms delay. As Δ was 26 ms in these acquisitions, the ‘diffusion weighting’ was therefore applied between 23 and 49 ms from the r-wave and 103 and 129 ms from the r-wave respectively. Given previous recordings of pulse wave velocity in the mouse brain of 2.69 m/s (Di Lascio et al., 2014) and given an approximate distance from the heart to the MCA of 10 cm in ~400 g rats (together with the separation between adjacent r-waves to be ~150 ms) we define the separate acquisitions to therefore take place during cerebral arterial pulsation or diastole. It should be noted that due to the ECG gating employed in these experiments, the TR will vary slightly between successive echo trains, but given the minimum TR was 5 s and that the r-r interval in the rat is ~150 ms, this should introduce relatively little variation into the measured MRI signal. ROIs were drawn around the left and right PVS and within the mid-section of the subarachnoid space as before. In addition, ROIS were drawn within the third ventricle to examine the r-wave delay dependence on measures of D* within ventricular CSF. The average D* in the PVS (MPGs applied parallel and perpendicular to PVS orientation respectively) was taken for each rat and a paired t-test was used to investigate if D* (MPGs parallel to PVS orientation) was greater during arterial pulsation relative to diastole for each region.
Dobutamine (n = 6)Request a detailed protocol
Data were acquired in 6 male Sprague Dawley rats using the identical MRI sequence approach described above (‘ECG gating’) but with no ECG gating. Dobutamine (n = 3 subcutaneous bolus, 2 mg/kg (Buttrick et al., 1988) in saline ~0.6–0.8 ml) or saline vehicle (n = 3) was then delivered and the same acquisitions were performed after bolus infusion.
All the data has been deposited on Dryad (https://dx.doi.org/10.5061/dryad.121hs31).
Data from: Non-invasive imaging of CSF-mediated brain clearance pathways via assessment of perivascular fluid movement with diffusion tensor MRIAvailable at Dryad Digital Repository under a CC0 Public Domain Dedication.
Glymphatic solute transport does not require bulk flowScientific Reports 6:38635.https://doi.org/10.1038/srep38635
Lymphatic clearance of the brain: perivascular, paravascular and significance for neurodegenerative diseasesCellular and Molecular Neurobiology 36:181–194.https://doi.org/10.1007/s10571-015-0273-8
Tensor splines for interpolation and approximation of DT-MRI with applications to segmentation of isolated rat hippocampiIEEE Transactions on Medical Imaging 26:1537–1546.https://doi.org/10.1109/TMI.2007.903195
Paravascular channels, cisterns, and the subarachnoid space in the rat brain: a single compartment with preferential pathwaysJournal of Cerebral Blood Flow & Metabolism 37:1374–1385.https://doi.org/10.1177/0271678X16655550
Clearance from the mouse brain by convection of interstitial fluid towards the ventricular systemFluids and Barriers of the CNS 12:23.https://doi.org/10.1186/s12987-015-0019-5
A new look at cerebrospinal fluid circulationFluids and Barriers of the CNS 11:10.https://doi.org/10.1186/2045-8118-11-10
Mechanisms of fluid movement into, through and out of the brain: evaluation of the evidenceFluids and Barriers of the CNS 11:26.https://doi.org/10.1186/2045-8118-11-26
Impairment of glymphatic pathway function promotes tau pathology after traumatic brain injuryThe Journal of Neuroscience 34:16180–16193.https://doi.org/10.1523/JNEUROSCI.3020-14.2014
Brain-wide pathway for waste clearance captured by contrast-enhanced MRIJournal of Clinical Investigation 123:1299–1309.https://doi.org/10.1172/JCI67677
Cerebral arterial pulsation drives paravascular CSF-interstitial fluid exchange in the murine brainJournal of Neuroscience 33:18190–18199.https://doi.org/10.1523/JNEUROSCI.1592-13.2013
Impairment of paravascular clearance pathways in the aging brainAnnals of Neurology 76:845–861.https://doi.org/10.1002/ana.24271
In vivo measurements of T1 relaxation times in mouse brain associated with different modes of systemic administration of manganese chlorideJournal of Magnetic Resonance Imaging 21:334–339.https://doi.org/10.1002/jmri.20285
Quantitative Gd-DOTA uptake from cerebrospinal fluid into rat brain using 3D VFA-SPGR at 9.4TMagnetic Resonance in Medicine 79:1568–1578.https://doi.org/10.1002/mrm.26779
ConferenceExploreDTI: a graphical toolbox for processing, analyzing, and visualizing diffusion MR dataProceedings of the 17th Annual Meeting of International Society for Magnetic Resonance in Medicine.
Rapid transport within cerebral perivascular spaces underlies widespread tracer distribution in the brain after intranasal administrationJournal of Cerebral Blood Flow & Metabolism 35:371–381.https://doi.org/10.1038/jcbfm.2014.215
Clearance systems in the brain-implications for Alzheimer diseaseNature Reviews Neurology 11:457–470.https://doi.org/10.1038/nrneurol.2015.119
Measuring biexponential transverse relaxation of the ASL signal at 9.4 T to estimate arterial oxygen saturation and the time of exchange of labeled blood water into cortical brain tissueJournal of Cerebral Blood Flow & Metabolism 33:215–224.https://doi.org/10.1038/jcbfm.2012.156
MRI of cerebral micro-vascular flow patterns: a multi-direction diffusion-weighted ASL approachJournal of Cerebral Blood Flow & Metabolism 37:2076–2083.https://doi.org/10.1177/0271678X16660985
Deletion of aquaporin-4 in APP/PS1 mice exacerbates brain aβ accumulation and memory deficitsMolecular Neurodegeneration 10:015–056.https://doi.org/10.1186/s13024-015-0056-1
Evaluating glymphatic pathway function utilizing clinically relevant intrathecal infusion of CSF tracerJournal of Translational Medicine 11:107.https://doi.org/10.1186/1479-5876-11-107
Timothy E BehrensSenior Editor; University of Oxford, United Kingdom
Thomas W OkellReviewing Editor
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
Thank you for submitting your article "Non-invasive imaging of CSF-mediated brain clearance pathways via assessment of perivascular fluid movement with DTI MRI" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Sabine Kastner as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Matthias van Osch (Reviewer #2); Maiken Nedergaard (Reviewer #3).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
In this paper the authors discuss a novel non-invasive MRI-based technique for studying the flow of fluid in perivascular channels using a long echo time diffusion-weighted approach. They show data consistent with the motion of fluid in the expected directions along channels close to the circle of Willis in the rat brain. This method could potentially be used to study disruption of the flow of fluid along perivascular channels, with implications for the functioning of the glymphatics system. This is especially pertinent with respect to the recent interest in the clearing capacity of various substances (e.g. amyloid) from the brain in diseases such as in Alzheimer's and cerebral amyloid angiopathy. This could make it an important tool in studying a range of neurodegenerative diseases: its non-invasive nature would make it suitable for use in longitudinal studies, both in animal models and potentially in living humans.
The reviewers felt that generally the paper is well written and discusses an interesting idea with significant potential for studying this system, which has previously only been observed directly using invasive methods. However, the reviewers have a number of concerns that should be addressed prior to publication. Please note that if addressing these points will require taking the manuscript considerably beyond the 2,000 words allowed for a short report then the authors should request that the manuscript type be changed to a research article.
1) There is some concern about whether the proposed MRI-based metrics may be sensitive to changes other than glymphatic function (e.g. differences in cardiac pulsatility) which could potentially confound the measurement. It would be useful to see some additional data showing the dependence of the signal on the cardiac (and ideally also respiratory) cycles to help the reader interpret the data being presented here.
2) The claim that the derived diffusion metrics relate to glymphatic function would be significantly strengthened by the addition of experimental data showing an example of where these metrics are modified. This could be through a negative example such as a cisterna magna puncture or AQP4 inhibition. It would also be beneficial to combine the diffusion-based measurements with contrast-enhanced MRI to anatomically identify the perivascular space of the MCA, and thereby confirm the anatomical location. If the authors feel such experiments are not possible within the revision period, then additional discussion of signal interpretation, potential confounding effects and future experiments that could help confirm the sensitivity of the proposed method to glymphatic function would be required.
3) It would be informative for the authors to discuss how this method would perform in pathology. Especially, whether the T2 of CSF in perivascular spaces would be lower due to increased level of waste products including iron. Furthermore, the authors leave it quite open how they would apply this technique to study pathology. Would they focus more on FA or on the apparent diffusion coefficients? It feels that the current approach focuses a lot on the orientation of CSF-flow, which is perhaps only interesting as proof-of-concept evidence. Moreover, one might argue that fluctuations in CSF mobility in the perivascular spaces would be even more interesting than the mean diffusivity. A more elaborate discussion on this topic would be worthwhile.https://doi.org/10.7554/eLife.34028.015
1) There is some concern about whether the proposed MRI-based metrics may be sensitive to changes other than glymphatic function (e.g. differences in cardiac pulsatility) which could potentially confound the measurement. It would be useful to see some additional data showing the dependence of the signal on the cardiac (and ideally also respiratory) cycles to help the reader interpret the data being presented here.
This is an excellent suggestion, especially given evidence from earlier studies that ‘cerebral arterial pulsatility is a key driver of paravascular CSF influx’ (Iliff et al.,J Neurosci, 2013) or ‘This apparent convective tracer influx may be facilitated by transmission of the pulsations of the cerebral arteries to the microvasculature’ (Rennels et al., 1985). Thus, cardiac pulsation is expected to be an important mechanism responsible for fluid movement in the PVS.
Additional experiments (n=5) were performed with the acquisition gated to the heart beat using ECG signal measured in the MRI scanner. Images were captured during cerebral arterial pulsation (36ms delay from the r-wave to centre of ‘diffusion weighting’) and diastole (116ms delay from r-wave). The results are shown in Figure 4A, which demonstrates that arterial pulsatility is indeed a prominent driver of perivascular fluid movement and that we can capture this mechanism using the non-invasive techniques introduced here. Figure 4A shows maps of D*, where the PVS can be seen to ‘light up’ during arterial pulsation in a highly directional manner. D* along the PVS was found to be ~300% greater during arterial pulsation relative to diastole. These data suggest that PVS fluid movement is distinctly dependent on cerebrovascular pulsations relative to subarachnoid/ventricular CSF (which showed more subtle dependence on arterial pulsatility). Furthermore, as suggested by the reviewer, we performed the same measurements but gated to the respiratory cycle in a single animal (acquiring during the ‘inhale’ and resting period (non-ECG gated)). In doing so, D* (parallel to PVS orientation) was found to be highly similar [D*=0.0094 mm2/s (inhale) and 0.0086 mm2/s (resting period)] suggesting that the respiratory cycle has a very minor role in driving PV fluid movement relative to cerebral vascular pulsation.
This finding was robust across the 5 rats, where a highly significant dependence on arterial pulsatility was observed in the PVS (p=0.002, Figure 4). Conversely no differences in D* due to the ECG-gated delay (36 or 116ms) were observed in the 3rd ventricle (=0.4). We thank the reviewers for their suggestion which has led to an exciting result – the technique highlights the movement of fluid in the PVS as functionally distinct from subarachnoid and ventricular CSF, given the marked vascular pulsatility dependence observed (Figure 4). As discussed in the revised manuscript, this suggests that PVS fluid movement, as an enabling pathway for CSF-ISF exchange, is uniquely tied to vascular pulsatility and that we can capture this mechanistic link non-invasively. These new data have been incorporated into the revised manuscript and are presented in full within a new Figure (Figure 4). All the individual animal data the make up Figure 4 are shown in Figure 4—figure supplement 1.
2) The claim that the derived diffusion metrics relate to glymphatic function would be significantly strengthened by the addition of experimental data showing an example of where these metrics are modified. This could be through a negative example such as a cisterna magna puncture or AQP4 inhibition.
Following the reviewers’ comment, we sought to investigate whether the ‘diffusion’ metrics captured here would positively correlate to the increase in perivascular influx associated with dobutamine administration (Iliff et al., J.Neuroscience 2013). Additional experiments were performed in 6 rats with baseline measures (non-gated) taken and then repeated following administration of dobutamine (n=3) or vehicle (n=3). The results are shown in new Figure 4C, where a marked increase in D* along the PVS was recorded following dobutamine relative to vehicle. These new data are included in Figure 4 and, in addition, we now discuss these new findings and future experiments that would help further characterise sensitivity of the method to glymphatic function:
Discussion: “The precise mechanisms that underlie CSF-ISF exchange are yet to be fully defined and this remains an active area of research. Accumulative evidence, however, has established cerebral vascular pulsation as an important mechanism underlying perivascular fluid movement (Rennels et al., 1985; Iliff et al., 2013). […] The non-invasive nature of this technique may enable future studies to investigate the mechanistic link between vascular pulsatility and PVS fluid movement in the healthy human brain, and its modulation by pathology as well as novel therapy.”
Discussion: “The expression of AQP4 appears to be mechanistically important in CSF-ISF exchange (Smith et al., 2017; Mestre et al., 2017). […] Furthermore, rates of glymphatic inflow have been linked to changes in extracellular space volume (Xie et al., 2013) and central norepinephrine activity (Benveniste et al., 2017) and how these factors may modulate measures of D* captured using the techniques presented here would be an interesting avenue of further study.”
It would also be beneficial to combine the diffusion-based measurements with contrast-enhanced MRI to anatomically identify the perivascular space of the MCA, and thereby confirm the anatomical location. If the authors feel such experiments are not possible within the revision period, then additional discussion of signal interpretation, potential confounding effects and future experiments that could help confirm the sensitivity of the proposed method to glymphatic function would be required.

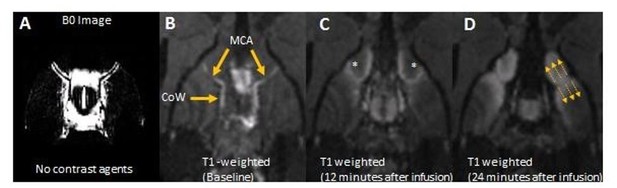

Following the reviewer’s comment, we have sought to compare the non-invasive approach introduced here with the more established contrast enhanced MRI technique. Author response image 1 shows dynamic T1-weighted data acquired using identical apparatus in our lab (male Sprague Dawley rat, 300g) following cisterna magna infusion of gadolinium. At baseline, the morphology of the MCA (bright in T1 weighted image at baseline) can be seen to closely match the orientation of the PV channels imaged using the non-invasive approach. At 12 minutes after gadolinium infusion, the tracer is localised in the tissue immediately surrounding both branches of the MCA (Author response image 1C, shown by ‘*’), highlighting the functional role of the PVS to facilitate CSF-ISF exchange. At 24 minutes post-infusion, the tracer has further egressed into the tissue outwards from the MCA (highlighted by the yellow dashed arrows). Thus, Author response image 1 provides further reassurance that we have correctly identified the PVS around the MCA for non-invasive assessment of PVS function in this study.
3) It would be informative for the authors to discuss how this method would perform in pathology. Especially, whether the T2 of CSF in perivascular spaces would be lower due to increased level of waste products including iron. Furthermore, the authors leave it quite open how they would apply this technique to study pathology. Would they focus more on FA or on the apparent diffusion coefficients? It feels that the current approach focuses a lot on the orientation of CSF-flow, which is perhaps only interesting as proof-of-concept evidence. Moreover, one might argue that fluctuations in CSF mobility in the perivascular spaces would be even more interesting than the mean diffusivity. A more elaborate discussion on this topic would be worthwhile.
Following the reviews comment, we now elaborate on this important issue in the Discussion. We agree with the reviewer that, especially given the new data acquired in Figure 4, that fluctuations in D* measured parallel to the PVS over the cardiac cycle may provide the most promising correlate to pathological disruption of PVS function. However, future studies are required to fully elucidate the DTI metrics derived from the techniques here that give the most meaningful insights into pathological processes.
Discussion: “Moreover, how the technique introduced here may be influenced by pathology is an important consideration. […] Efforts are ongoing to investigate the sensitivity of the method to detect dysfunction of perivascular fluid movement associated with ageing and models of pathological conditions.”https://doi.org/10.7554/eLife.34028.016
