Guy1, a Y-linked embryonic signal, regulates dosage compensation in Anopheles stephensi by increasing X gene expression

  1. Yumin Qi
  2. Yang Wu
  3. Randy Saunders
  4. Xiao-Guang Chen
  5. Chunhong Mao
  6. James Kite Biedler  Is a corresponding author
  7. Zhijian Jake Tu  Is a corresponding author
  1. Virginia Tech, United States
  2. Southern Medical University, China
  3. Biocomplexity Institute of Virginia Tech, Virginia Tech, United States
Research Advance
  • Cited 0
  • Views 621
  • Annotations
Cite this article as: eLife 2019;8:e43570 doi: 10.7554/eLife.43570

Abstract

We previously showed that Guy1, a primary signal expressed from the Y chromosome, is a strong candidate for a male-determining factor that confers female-specific lethality in Anopheles stephensi (Criscione et al., 2016). Here, we present evidence that Guy1 increases X gene expression in Guy1-transgenic females from two independent lines, providing a mechanism underlying the Guy1-conferred female lethality. The median level gene expression (MGE) of X-linked genes is significantly higher than autosomal genes in Guy1-transgenic females while there is no significant difference in MGE between X and autosomal genes in wild-type females. Furthermore, Guy1 significantly upregulates at least 40% of the 996 genes across the X chromosome in transgenic females. Guy1-conferred female-specific lethality is remarkably stable and completely penetrant. These findings indicate that Guy1 regulates dosage compensation in An. stephensi and components of dosage compensation may be explored to develop novel strategies to control mosquito-borne diseases.

https://doi.org/10.7554/eLife.43570.001

Introduction

Sex-determination by a pair of heteromorphic X and Y sex chromosomes is one of a diverse array of mechanisms used by sexually reproducing organisms. The Y chromosome is often sparse in genes while the X retains hundreds or thousands of genes. Thus, monosomy of the relatively gene-rich X chromosome in the heterogametic sex (XY) poses a dosage problem that needs to be resolved. Diverse mechanisms have evolved to address the sex chromosome gene dosage imbalance (Mank, 2013; Disteche, 2016; Graves, 2016; Gu and Walters, 2017; Lucchesi, 2018; Samata and Akhtar, 2018). In Drosophila melanogaster, to compensate for the X monosomy in males, a mechanism known as complete dosage compensation works by hyper-expressing the entire X chromosome to equalize gene expression with that of females having two X chromosomes.

Dosage compensation in Drosophila requires three critical components: sex specificity, X chromosome specificity, and chromosome-wide up-regulation of transcription. The X chromosome-wide up-regulation of transcription is mediated by a dosage compensation complex (DCC), or more specifically the Male-Specific Lethal (MSL) complex. The MSL complex is a ribonucleoprotein comprised of 5 protein subunits (MSL-1, MSL-2, MSL-3, MOF, MLE) and a lncRNA (Franke and Baker, 1999; Samata and Akhtar, 2018). Of all the protein subunits, it is only MSL-2 that has sex-specific expression and is restricted to males (Bashaw and Baker, 1995; Kelley et al., 1995). While transcribed in females, msl-2 translation is prevented by multiple mechanisms, all involving the female-specific sex-lethal (sxl) protein which is also the primary signal of sex-determination in Drosophila. Thus, the female sex-determination signal SXL also acts to inhibit MSL-2 expression and therefore suppresses dosage compensation in females. X-chromosome targeting by the MSL complex involves binding to what are called high-affinity sites (HAS), particularly sites that contain a 21 base GA-rich motif (Villa et al., 2016). Initial binding to these sites is followed by spreading of the MSL complex to sites associated with actively transcribed genes. The MSL complex is essentially a chromatin-modifying complex using the MOF protein subunit, a histone acetyltransferase, to acetylate histone 4 lysine 16 (H4K16ac), resulting in a chromatin conformation conducive to upregulation of X-linked genes (Smith et al., 2000; Smith et al., 2001).

As mentioned above, the master switch of sex-determination sxl also regulates dosage compensation in Drosophila (Schütt and Nöthiger, 2000). Loss-of-function sxl mutants cause female embryonic lethality in D. melanogaster, most likely due to mis-regulation of dosage compensation, thereby upregulating or overexpressing X chromosome genes in females (Cline, 1978). In other model species Bombyx mori and Caenorhabditis elegans, the master switches of sex-determination Fem/Masc and xo-lethal 1, also regulate dosage compensation, respectively, and loss of function of these genes results in sex-specific lethality (Miller et al., 1988; Kiuchi et al., 2014).

In Anopheline mosquitoes which have heteromorphic sex chromosomes, dosage compensation might be expected in the heterogametic sex, and dosage compensation was indicated for An. gambiae based on the analysis of published microarray data (Baker et al., 2011; Baker and Russell, 2011; Mank, 2013). Indeed, complete dosage compensation was recently demonstrated in An. stephensi and An. gambiae based on RNA-Seq analysis (Jiang et al., 2015; Rose et al., 2016). Complete dosage compensation has also recently been demonstrated for members of the An. gambiae species complex (Deitz et al., 2018). As described above, sex-determination and dosage compensation have been shown to be tightly linked. Y chromosome genes and M-factor candidates Guy1 and gYG2/Yob, confer female lethality in An. stephensi and An. gambiae, respectively (Criscione et al., 2016; Krzywinska et al., 2016) consistent with the hypothesis that mis-regulation of dosage compensation is responsible. In this work, we provide direct evidence that ectopically expressed Guy1 upregulates X-linked gene transcription in females, resulting in an imbalance of gene dosage and is the most likely cause of female-specific lethality. These findings directly link an embryonic signal expressed from a mosquito Y chromosome to the regulation of dosage compensation and support a mechanism of hyper-expression of X chromosome genes. Moreover, the stability and penetrance of the female-specific lethality conferred by the Guy1 transgene suggests that dosage compensation may be explored to develop novel strategies to control mosquito-borne diseases.

Results

Transgenic lines expressing Guy1 have produced male-only offspring for up to 60 generations

The transgenic Guy1-expressing lines used in this study have produced only transgenic male offspring for a cumulative 77 generations, consistent with previous results using other transgenic Guy1-expressing lines (Criscione et al., 2016). The nGuy1_2 line which expresses Guy1 utilizing its native promoter and 3’ UTR (Criscione et al., 2016) has been reared for 60 generations as of July 2018, while the new bGuy1tC line which utilizes the bZip1 early zygotic promoter has been reared for 17 generations. The bGuy1tC line construct has a Twin C-terminal tag (Schmidt et al., 2013) to facilitate transgenic protein detection and isolation, which does not appear to affect the phenotype. Not a single transgenic female has been detected in 9615 screened progeny (Table 1). These results from two independent transgenic lines demonstrate the complete penetrance and stability of the Guy1-conferred female lethality.

Table 1
Adult screening of Guy1-expressing lines nGuy1_2 and bGuy1tC demonstrate 100% female lethality.
https://doi.org/10.7554/eLife.43570.002
LineTM (%)TFWM (%)WF (%)Total progeny
nGuy1_21970 (35.5)01800 (32.5)1776 (32.0)5546
bGuy1tC1506 (37.0)01340 (32.9)1223 (30.1)4069
34760314029999615
  1. TM stands for transgenic male and WM stands for wild type male. TF stands for transgenic female and WF stands for wild type female.

    For these screening results line nGuy1_2 was at generation 59, 60 and line bGuy1tC was at generation 16, 17.

Genotyping of 1st instar larvae from transgenic Guy1-expresssing lines indicates late transgenic female hatching and lethality

A small percentage of transgenic females are observed as L1 larvae but die shortly after hatching (Criscione et al., 2016). In order to obtain a better understanding of the nature and timing of the female lethality, and to inform selection of time points for RNA-Seq, we observed L1 larvae from several time points (Table 2) that were not sampled previously (Criscione et al., 2016). We took advantage of our ability to identify all four possible genotypes, transgenic and non-transgenic (hereafter called wild type) male and female siblings, using the same strategy as done previously using two transgenic markers, one in the transgenic cassette and one in the X chromosome (Criscione et al., 2016). The majority of wild-type males and females, and transgenic males, hatched by 42 hr post-oviposition as hatching normally occurs. However, no transgenic females were observed until 58 hr post-oviposition, and they died within 24 hr. Furthermore, the number of transgenic females were only about 10% of the total expected transgenic females. These results indicate that the majority of transgenic females die at the embryonic stage or during/shortly after hatching, and some transgenic females hatch later than normally expected but die shortly afterwards.

Table 2
Monitoring 1st instar larvae indicates delayed transgenic female hatching and female lethality.
https://doi.org/10.7554/eLife.43570.003
Transgenic lineGenotype42 hr PO50 hr PO58 hr PO66 hr PO70 hr PO82 hr POAdults (%)
nGuy1_2TF002220200
WF169199201N/AN/AN/A168 (32.0)
TM181206209N/AN/AN/A175 (33.3)
WM189219222N/AN/AN/A182 (34.7)
bGuy1tCTF0016161200
WF159166166N/AN/AN/A122 (33.2)
TM162169170N/AN/AN/A136 (37.0)
WM139154154N/AN/AN/A110 (29.9)
  1. TF stands for transgenic female and WF stands for wild type female. TM stands for transgenic male and WM stands for wild-type male. PO stands for Post Oviposition.

    Numbers from 42 h – 82 h PO represent larval counts.

  2. N/A - after 58 hr all larvae had hatched and only transgenic female larvae were monitored for death.

    Similar experiments have been repeated more than three times for each line with essentially the same results.

The Guy1 transgene acts in dosage compensation and broadly upregulates X-linked genes in transgenic females

We proposed that mis-regulation of dosage compensation may be responsible for the observed transgenic female lethality (Criscione et al., 2016) because this has been implicated in other insects (mentioned above). The few late-hatching transgenic females surviving as L1 larvae offered an opportunity to examine gene expression on a genome-wide scale using RNA-Seq. We performed two independent experiments using L1 larvae: one experiment included four biological replicates each for female transgenic and wild-type samples from the nGuy1_2 line, and the other experiment included three biological replicates each for all four genotypes (male and female transgenic and wild type) from the nGuy1_1 line (Criscione et al., 2016). Spearman correlation analyses of gene expression of biological replicates are shown in Supplementary file 1 and PCA analyses are shown in Figure 1—figure supplement 1.

L1 larvae gene expression for nGuy1_2 transgenic and wild-type females is depicted in Violin Plots as log2(FPKM +1) (Figure 1, data shown in Supplementary file 2). In transgenic females, the median gene expression of X-linked genes is significantly higher than that of the autosomes (53.6 vs. 36.6, p=2.2e−16), whereas there is no significant difference found in wild-type females (35.4 vs. 36.9, p=0.31). One of the four transgenic female replicates (TF1) was excluded from the above analysis on the basis of PCA (Figure 1—figure supplement 1A). TF1 had a lower overall gene expression than the other replicates (Supplementary file 3). However, as shown in Table 3 and Supplementary file 3, the median gene expression of X-linked genes is significantly higher than that of the autosomes in all four replicates including TF1 (38.1 vs. 33.4, p=0.0012), TF2 (54.3 vs. 36.2, p<e−7), TF3 (53.0 vs. 36.1, p<e−7), and TF4 (54.1 vs. 34.7, p<e−7).

Figure 1 with 2 supplements see all

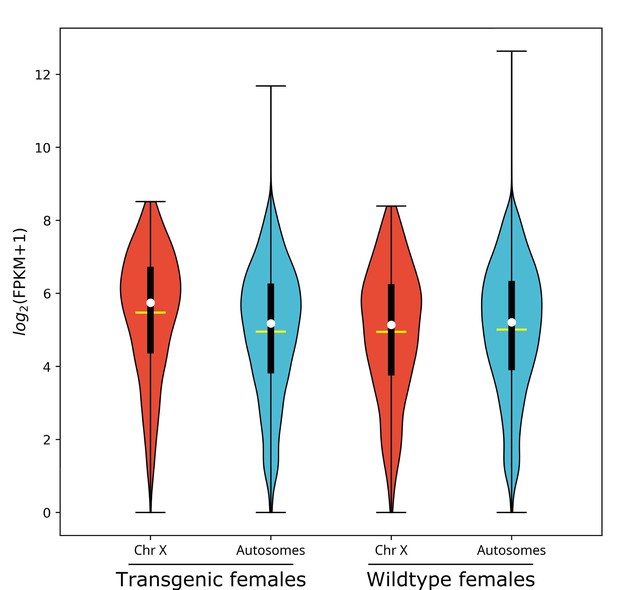

X chromosome median gene expression is up-regulated in Guy1 transgenic females of line nGuy1_2.

Violin plot shows gene expression as log2(FPKM +1) from the X chromosome and autosomes from transgenic and wild-type females. Transcripts under a relatively low expression level (FPKM <1) are excluded. The width of the violin plots shows the density of transcripts at different expression values. The white dot denotes the median of each group, while the yellow horizontal bar denotes the mean. The bottom and top of the vertical thick black bars represent the first and third quartiles, respectively. In transgenic females the median expression level of the X chromosome is significantly higher than the autosomes according to the two-tailed Wilcoxon tests, while no significant difference is seen in wild-type females. Median expression value comparisons between the X chromosome and autosomes for transgenic and wild-type females are 53.6 vs. 36.6 (p=2.2e−16), 35.4 vs. 36.9 (p=0.31), respectively. One of the four transgenic female replicates (TF1) was excluded from the above analysis on the basis of PCA (Figure 1—figure supplement 1). TF1 had a lower overall gene expression than the other replicates (Supplementary file 3). However, the median gene expression of X-linked genes is still significantly higher than that of the autosomes in TF1 (Table 3). An independent experiment validated these results in females, and for additional male samples included, there was no significant difference in the median gene expression between the X chromosome and autosomes in transgenic males or non-transgenic males (Figure 1—figure supplement 2). All median FPKM expression value comparisons with statistical significance can be found in Supplementary file 2.

https://doi.org/10.7554/eLife.43570.004
Table 3
The median level gene expression of genes on X chromosome and autosomes of individual replicates of line nGuy1_2.
https://doi.org/10.7554/eLife.43570.007
Sample*Chromosome XAutosomesP value
TF138.1212633.370740.0012021
TF254.3324736.235120.0000000
TF353.0011836.089710.0000000
TF454.1401434.742290.0000000
WF138.0714238.495410.7098231
WF236.1596336.889660.6335401
WF333.7451035.757360.2684612
WF430.9892032.896020.0860183
  1. *TF stands for transgenic female and WF stands for wild type female. Transcripts under a relatively low expression level (FPKM <1) are excluded. Results of different FPKM cutoffs are provided in Supplemental File S3.

    †The p values were calculated based on the two-tailed two-sample Wilcoxon rank sum test.

An independent experiment using three biological replicates each of all four genotypes including males from line nGuy1_1 yielded similar results for transgenic females either when analyzed as a group (Figure 1—figure supplement 2) (median expression of 44.7 vs. 31.6, p=5.4e−12, Supplementary file 2) or as individual replicates (Supplementary file 3). In this experiment, in males, no significant difference in median gene expression between X-linked and autosomal genes was observed (Figure 1—figure supplement 2, Supplementary file 2).

In order to quantify the number of differentially expressed genes on the X chromosome vs. the autosomes, and reveal any bias in X-linked gene upregulation, we used the DESeq2 R package (Love et al., 2014) to compare gene expression between Guy1 transgenic and wild-type groups (see Supplementary file 4 for DESeq2 Output). In transgenic females, there were 580 and 475 up-regulated genes on the X chromosome in two independent experiments, compared to 27 and 12 down-regulated genes, respectively (Figure 2, Figure 2—figure supplement 1A, Supplementary files 4 and 5). When considering the number of upregulated to down-regulated genes on the X chromosome vs. the autosomes, there is a clear bias toward upregulated X-linked genes in transgenic females for the two independent experiments (p=2.2e−16, p=2.2e−16) (Supplementary file 5). The ratio of upregulated to downregulated genes is ~68 and~29 times greater for the X chromosome compared to the autosomes in these two experiments, respectively. This bias is not seen in males (Supplementary file 5). In fact, this value is 0.69, suggesting that Guy1 may preferentially albeit slightly downregulate X-linked genes in transgenic males compared to wild-type males (p=0.0217). Of the 580 and 475 upregulated X-linked genes identified in the two experiments (Supplementary file 5), 382 genes were found in common between the two data sets (Supplementary file 4) and they encompass a broad functional range according to GO analysis (Figure 3). These 382 genes represent approximately 40% of the genes on the X chromosome and they are broadly distributed across the X chromosome (Figure 4). These results taken together, present strong evidence that Guy1 plays a role in dosage compensation by upregulating the expression of X-linked genes.

Figure 2 with 1 supplement see all

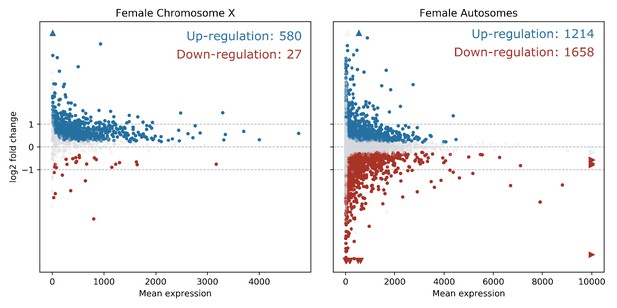

X chromosome genes are upregulated in Guy1 transgenic females of line nGuy1_2.

MA Plots show differentially expressed genes on the X chromosome and the autosomes in Guy1 transgenic female compared to wild-type female siblings. Each dot represents one gene. Blue dots denote upregulated genes, the red dots denote downregulated genes, and grey dots are not differentially expressed (BH-adjusted p>0.1). Colored arrows indicate values beyond the range of the plot. Genes are significantly upregulated on the X chromosome in transgenic females compared to the autosomes, which is supported by a Chi-square test (p=2.20e−16, Supplementary file 5). A repeat experiment with essentially the same results that also includes male samples is shown in Figure 2—figure supplement 1.

https://doi.org/10.7554/eLife.43570.008

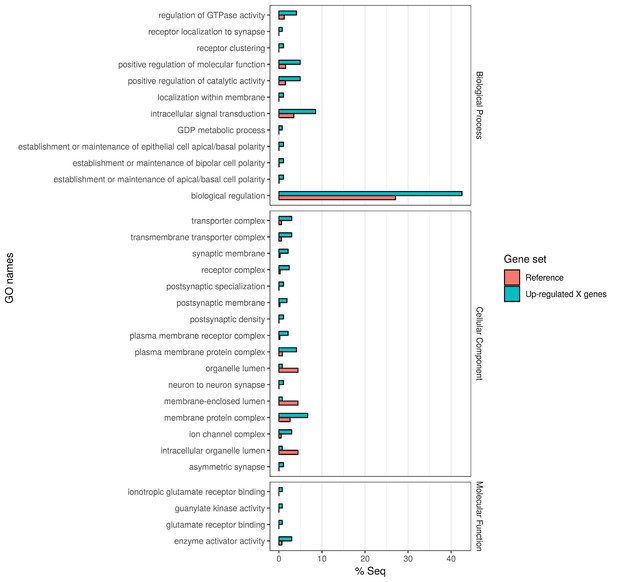

Gene Ontology enrichment of the 382 X chromosome genes that are upregulated in the Guy1-transgenic females from both nGuy1_1 and nGuy1_2 lines.

There are 475 and 580 upregulated X-linked genes identified by DESeq2 in the transgenic females from line nGuy1_1 and nGuy1_2, respectively (Supplementary file 4 and Supplementary file 5). Among these, 382 genes were found in common (Supplementary file 4). These 382 genes were mapped to GO names and a two-tailed Fisher’s exact test was performed to detect enrichment of GO names against AsteI2.2 transcripts under FDR of 0.05 using Blast2GO (V5.1.1) (Götz et al., 2008).

https://doi.org/10.7554/eLife.43570.010

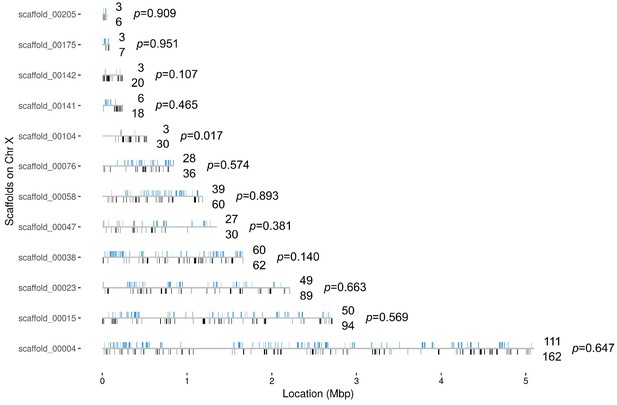

Distribution of the 382 X chromosome genes that are upregulated in the Guy1-transgenic females from both nGuy1_1 and nGuy1_2 lines.

There is not yet a chromosomal level assembly for Anopheles stephensi. The location (from start to end) of the 996 X genes are mapped on the 12 X-scaffolds (Supplementary file 4). Blue bars above the line indicates the position of genes that are upregulated and the number above the line indicates the number of upregulated genes in each scaffold. Black bars underneath the line indicates the position of other genes and the number below the line indicates the number of other genes in each scaffold. There are only seven X genes that are down-regulated in the Guy1-transgenic females from both lines (Supplementary file 4 sheet 4). The p-values show the results of a Chi-square test of each scaffold for deviation from the 382/996 ratio. We also broke scaffolds 00023, 00015, and 00004 into 2, 3, and 5 evenly divided segments, respectively, to perform the same Chi-square test. Segment 2 of scaffold_00004 showed a p-value of 0.09 while all other nine segments showed p-values between 0.34 and 0.99. Thus, although minor local biases exist, the 382 upregulated genes are widely distributed across the X chromosome.

https://doi.org/10.7554/eLife.43570.011

Discussion

Here, we provide evidence for potential link between sex-determination and dosage compensation. Extending from our previous work (Criscione et al., 2016), we generated multiple independent transgenic lines to ectopically express the An. stephensi M-factor candidate Guy1 from an autosome and were able to demonstrate a female-lethal phenotype with remarkable stability and complete penetrance.

Furthermore, we used RNA-Seq to establish that Guy1 is responsible for the upregulation of X-linked genes in transgenic females, and therefore is an initial regulator of dosage compensation. In other words, we have shown for the first time in a mosquito species that a primary embryonic signal expressed from the Y chromosome regulates dosage compensation by up-regulation of X-linked genes. However, it remains to be seen whether Guy1 suppression in males will result in a decreased expression of X-linked genes. Challenges remain to achieving and verifying Guy1 suppression as Guy1 transcription is narrowly restricted to the early embryonic stage. The 382 (~40%) upregulated X-linked genes encompass a broad functional range (Figure 3) and are widely distributed across the X chromosome (Figure 4). In transgenic males which have an extra copy of Guy1, there was not an observable phenotype or significant alteration in the X/A expression ratio, suggesting the dosage compensation mechanism is not dose-responsive with regard to Guy1 copy number. Dosage compensation is well-established in diverse organisms including Drosophila, nematodes, and vertebrates, and it has been shown in many cases that dosage compensation involves chromatin modification as a common theme to equalize expression in the heterogametic sex (Kiuchi et al., 2014; Strome et al., 2014; Marin et al., 2017; Richard et al., 2017; Davis et al., 2018). Therefore, it reasons that Guy1 plays a role either directly or indirectly in affecting this epigenetic system on a chromosome-wide basis as for Drosophila. Mosquito orthologs to the Drosophila MSL complex proteins have been reported (Zdobnov et al., 2002; Behura et al., 2011; Rose et al., 2016) but homologs to msl-1 were reported missing from Ae. aegypti and An. gambiae but present in Cu. quinquefasciatus, while homologs to msl-2 were found in all three of these species (Behura et al., 2011). BLAST using D. melanogaster protein sequences performed against An. stephensi databases (Vectorbase.org) shows the MOF and MLE homologs having the highest conservation, the MSL-3 homolog being highly divergent, and no significant matches for MSL-1 or MSL-2. Whether any of these homologs playa role in mosquito dosage compensation remains to be determined. A chromatin-remodeling mechanism or dosage compensation complex must use similar machinery to alter chromatin architecture and promote transcriptional up-regulation on a chromosome-wide scale. Going forward, major questions to be addressed are: what is the mechanism of X chromosome gene upregulation in males and how is Guy1 involved in this mechanism? Sequence analysis of the predicted 56 amino acid Guy1 protein suggests that it may be a DNA-binding protein and it could potentially participate in protein-protein interactions (Criscione et al., 2013; Criscione et al., 2016). It is possible that Guy1 or a Guy1-containing protein complex could bind the X chromosome directly to exert its effect. However, it is perhaps more likely that Guy1 serves as the initial signal for dosage compensation and downstream effector(s) is required to confer or sustain X upregulation, as Guy1 transcription is restricted to the early embryonic stage.

We have provided evidence for a mechanism that underlies the remarkably stable and penetrant female-specific lethality of the Guy1 transgene, namely the up-regulation of the X-linked genes in the females which already have two X chromosomes. Improved understanding of the fundamental biological mechanisms of sex-determination and dosage compensation will inform the development of novel genetic-based strategies for the control of mosquito-borne diseases, which may include sex-separation for male selection in sterile insect technique, or population suppression via induced female lethality. The Guy1 transgene, with its female-lethal phenotype, stability and penetrance, may be suitable for such strategies. Its effect may be enhanced using a CRISPR-Cas9 gene drive as previously proposed (Biedler et al., 2015) and recently demonstrated in An. gambiae caged populations (Kyrou et al., 2018). Thus, components of dosage compensation may be explored to develop novel strategies to control mosquito-borne diseases.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Gene
(Anopheles stephensi)
Guy1PMID: 23683123;
PMID: 27644420
JX174417;
AFS60403
Genetic reagent
(Anopheles stephensi)
X-linked CFP
(cyan fluorescent
protein) line
PMID: 20113372
Biological sample
(Anopheles stephensi,
Indian)
The transcriptome of
Guy1-transgenic
Anopheles stephensi
L1 instar (TaxID: 30069)
this paperPRJNA503140
(NCBI Sequence
Read Archive)
Recombinant
DNA reagent
bGuy1tC; nGuy1this paper;
PMID: 27644420
Recombinant
DNA reagent
piggyBac transformation
vector and helper
PMID: 11151299
Sequence-
based reagent
An. stephensi reference
genome (Version AsteI2);
An. stephensi transcripts
(Version AsteI2.2)
PMID: 25244985;
can also be accessed
at Vectorbase.org
Sequence-
based reagent
Strep-tag IIPMID: 17571060
Commercial
assay or kit
Quick-RNA Miniprep kitZymo ResearchR1054
Software,
algorithm
HISAT (V2.1.0)PMID: 25751142
Software,
algorithm
SAMtoolsPMID: 19505943
Software,
algorithm
MarkDuplicateshttps://broadinstitute.github.io/picard/
Software,
algorithm
StringTie (V1.3.3)PMID: 25690850
Software,
algorithm
Python scriptthis paper;
https://gist.github.com/yangwu91/
79b74035465978e
78d41af4236597ff1
Software,
algorithm
Matplotlib Python
Package
DOI:10.1109
/Mcse.2007.55
Software,
algorithm
GenomicAlignments R
package
PMID: 23950696
Software,
algorithm
DESeq2PMID: 25516281

Transgenic constructs and transgenic lines

Request a detailed protocol

The transgenic construct used to express Guy1 using its native promoter and 3’ UTR has been described as nGuy1 (Criscione et al., 2016). The nGuy1_1 and nGuy1_2 lines in this study have the same construct but with a different insertion site. Another construct we used in this study to generate line bGuy1tC is similar to the construct that utilized the bZip1 early zygotic promoter to generate line bGuy1C (Criscione et al., 2016) but has Twin C-terminal tags (Schmidt et al., 2013). Transgenic lines were generated using the piggyBac transformation method as described previously (Criscione et al., 2016).

Monitoring the time of Hatch and death of the Guy1 transgenic females

Request a detailed protocol

In order to be able to identify and monitor all four genotypes (Guy1-expressing transgenic and sibling wild-type males and females), crosses were set up as done previously to obtain progeny having fluorescent markers corresponding to each genotype: DsRed/CFP (Guy1 transgenic female), DsRed/- (Guy1 transgenic male), -/CFP (wild type female), -/- (wild type male) (Criscione et al., 2016). Here, transgenic is used to refer to the Guy1 transgene, not the CFP marker. Egg cups were placed into cages for 2 hr, then removed and allowed to incubate at 28°C. Time zero is when the egg cup was initially placed in the cage (oviposition) and times hereafter refer to time zero. Hatching was monitored at several time points starting shortly after when An. stephensi larvae normally hatch (approximately 42 hr post-oviposition). For the first time point at 42 hr, eggs and any hatched larvae were rinsed from the egg papers into a 15 ml conical tube and placed on ice for 10 min. First instar larvae (L1) were removed from the bottom using a pipette, placed on a wet filter paper in a petri dish and genotyped according to fluorescence, while the 15 ml conical tube was returned to incubation at 28°C. For subsequent time points at 50 hr and 58 hr, any hatched larvae were removed and genotyped. By 58 hr, all eggs had hatched. Subsequently, female larval death was monitored at 66 hr, 70 hr and 82 hr. As adults, male or female sex was confirmed. This experiment was separate than that used to collect L1 larvae for RNA-Seq (see below).

Screening of Guy1 transgenic lines

Request a detailed protocol

Eggs were hatched in water containing Sera Micron Fry Food with brewer's yeast. Larvae were reared to the pupal stage in water containing Purina Game Fish Chow. The pupae were picked up and screened for the presence of fluorescent marker and their sex were determined by the tail of pupae and the presence of testes. Pupae with different genotypes were placed into different cups and allowed to emerge. Pupae and adults were monitored every day until all larvae pupated and all adults emerged.

RNA-Seq of Guy1 L1 larvae

Request a detailed protocol

To ensure L1 instar of the appropriate age were collected, we monitored the hatching time of the four sibling genotypes (Table 2) and noticed a delay in hatching of the transgenic females, similar to what we observed previously for Guy1 transgenic lines (Criscione et al., 2016). In addition, only a small fraction of Guy1 transgenic females are observed to hatch, and they die within 24 hr of hatching. Thus, we collected all four genotypes within 4 hr after they hatched. We performed two RNA-Seq experiments; one included three biological replicates each of all four genotypes (line nGuy1_1), and the other included four biological replicates each of transgenic and wild-type females (line nGuy1_2). Each biological replicate contained approximately 10 pooled individuals. RNA was extracted using the Quick-RNA Miniprep kit (Zymo Research, Irvine, CA) according to the manufacturer’s protocol. Library prep and Illumina sequencing of the four genotypes was performed at the Virginia Biocomplexity Institute on the Virginia Tech campus in Blacksburg, VA. Libraries were sequenced for 75 cycles by an Illumina NextSeq to produce 400 million single reads.

RNA-Seq data analysis and statistical methods

Request a detailed protocol

RNA-Seq reads from four genotype groups, including female wild type, female transgenic, male wild type and male transgenic mosquito samples were aligned using HISAT (V2.1.0) (Kim et al., 2015) to the An. stephensi reference genome (Version AsteI2) (Jiang et al., 2014) separately. RNA-Seq datasets are deposited in NCBI with BioProject accession number PRJNA503140. The resulting BAM files were sorted and indexed by SAMtools (Li et al., 2009). MarkDuplicates from Picard tool kit (https://broadinstitute.github.io/picard/) was used to identify and remove PCR duplicates. StringTie (V1.3.3) (Pertea et al., 2015) was used to estimate the relative abundances of the reference transcripts (Version AsteI2.2), which were downloaded from VectorBase (Giraldo-Calderón et al., 2015). Transcript expression levels were estimated as Fragments Per Kilobase per Million mapped reads (FPKM). The FPKM-normalized expression matrix of the transcripts was generated from StringTie results by an in-house Python script (https://gist.github.com/yangwu91/79b74035465978e78d41af4236597ff1) (Wu, 2018; copy archived at https://github.com/elifesciences-publications/stringtie_FPKM.py). Spearman correlation analyses (https://www.rdocumentation.org/packages/psych/versions/1.80.12/topics/corr.test) of gene expression of biological replicates were performed (Supplementary files 1) to assess correlation within and between genotypes and to test whether the premise for DESeq2/EdgeR analyses was met. PCA analyses (https://www. rdocumentation.org/packages/DESeq2/versions/1.12.3/topics/plotPCA) were also performed to assess independent clustering of different genotypes (Figure 1—figure supplement 1). Transcripts with FPKM values less than 1, that is, under a relatively low expression level, were removed for generating Violin Plots using Matplotlib Python Package (Hunter, 2007). The Two-sample Two-tailed Wilcoxon rank sum test was applied to identify whether the median gene expression levels between the X chromosome and the autosomes for each group were statistically different (Supplementary files 2 and 3). In addition, a separate analysis was performed to identify differentially expressed genes between transgenic and wild-type siblings of the same sex (Supplementary files 4 and 5). A raw read counting matrix of the genes based on aforementioned BAM-formatted alignment files of all groups was generated using GenomicAlignments R package (Lawrence et al., 2013). We then used DESeq2 R package to estimate size factors and dispersion values for the groups according to the raw read counting matrix, and fitted a final generalized linear model using the size factors and dispersion values (Love et al., 2014), which gave estimates of log fold change for each gene (Supplementary file 4). The design formula for differential expression analysis was set to ‘~Group’, where ‘Group’ was a column in the sample sheet indicating four groups as described above. As a result, a p value for log fold change of each gene between groups was reported. In addition, a Benjamini-Hochberg (BH) adjusted p value for each gene was calculated to report a false positive rate (FDR). To determine whether the number of up-regulated genes was significantly higher for the X chromosome compared to the autosomes, a Pearson’s Chi-square test was applied. A Chi-square test was also used to assess whether the chromosomal distribution of the 382 upregulated X chromosome genes showed apparent bias (Figure 4).

References

  1. 1
  2. 2
  3. 3
    The msl-2 dosage compensation gene of Drosophila encodes a putative DNA-binding protein whose expression is sex specifically regulated by Sex-lethal
    1. GJ Bashaw
    2. BS Baker
    (1995)
    Development 121:3245–3258.
  4. 4
  5. 5
    Exploring the Sex-Determination Pathway for Control of Mosquito-Borne Infectious Diseases. Genetic Control of Malaria and Dengue
    1. JK Biedler
    2. BA Hall
    3. XF Jiang
    4. Z Tu
    (2015)
    Z. N Adelman, editors. Elsevier, Oxford: Academic Press.
  6. 6
    Two closely linked mutations in Drosophila melanogaster that are lethal to opposite sexes and interact with daughterless
    1. TW Cline
    (1978)
    Genetics 90:683–698.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
    Structure, function and evolution of sex-determining systems in Dipteran insects
    1. C Schütt
    2. R Nöthiger
    (2000)
    Development 127:667–677.
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43

Decision letter

  1. Detlef Weigel
    Senior Editor; Max Planck Institute for Developmental Biology, Germany
  2. Yukiko M Yamashita
    Reviewing Editor; University of Michigan, United States
  3. Flaminia Catteruccia
    Reviewer; Harvard School of Public Health, United States
  4. Christine M Disteche
    Reviewer; University of Washington, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Guy1, a Y-linked embryonic signal, regulates dosage compensation in Anopheles stephensi by increasing X gene expression" for consideration by eLife. Your article has been reviewed by Detlef Weigel as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Flaminia Catteruccia (Reviewer #1); Christine M. Disteche (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission

Summary:

This study by Tu and colleagues builds upon their prior finding published in eLife that showed Guy1 as a strong candidate for a male-determining factor. In this Research Advance, they now demonstrate that Guy1 regulates dosage compensation in the mosquito and that up-regulation of X chromosome genes underlies the mechanism of Guy1-conferred female lethality. All reviewers agreed that this is an important study that addresses fundamental questions regarding sex determination and dosage compensation in mosquitos.

Essential revisions:

A key concern is the exclusive reliance on mean gene expression (MGE) to generate major conclusions. The reviewers agreed that it is advisable to provide additional, independent validation (this does not mean simple repetition of the same experiments). One suggestion was to perform dsRNA injections (or an inducible CRISPRi system, although quite challenging) could be performed to target Guy1 in males. If Guy1 is responsible for dosage compensation, X-linked genes should decrease in expression. However, the reviewers noted that RNAi might not be feasible based on the authors' previous paper.

Therefore, the reviewers suggest the following:

1) If the authors can provide independent validation to their ideas, the reviewers would like to see such data incorporated.

2) Alternatively, recognizing the difficulty of such experiments, if no independent validation is feasible, reasonable arguments for their conclusion (without additional experimental data) would be acceptable. In such a case, depending on the strength of such arguments, it may be advisable to adjust the strength of the conclusion (weaken the statements, provide caveats etc.).

https://doi.org/10.7554/eLife.43570.022

Author response

Essential revisions:

A key concern is the exclusive reliance on mean gene expression (MGE) to generate major conclusions. The reviewers agreed that it is advisable to provide additional, independent validation (this does not mean simple repetition of the same experiments). One suggestion was to perform dsRNA injections (or an inducible CRISPRi system, although quite challenging) could be performed to target Guy1 in males. If Guy1 is responsible for dosage compensation, X-linked genes should decrease in expression. However, the reviewers noted that RNAi might not be feasible based on the authors' previous paper.

Therefore, the reviewers suggest the following:

1) If the authors can provide independent validation to their ideas, the reviewers would like to see such data incorporated.

2) Alternatively, recognizing the difficulty of such experiments, if no independent validation is feasible, reasonable arguments for their conclusion (without additional experimental data) would be acceptable. In such a case, depending on the strength of such arguments, it may be advisable to adjust the strength of the conclusion (weaken the statements, provide caveats etc.).

We agree that determining the effect of successful Guy1 inhibition in males will provide additional evidence to the current study. However, as the reviewers pointed out, an inducible CRISPRi system is quite challenging and RNAi is equally difficult, given that Guy1 transcripts are only detected in a narrowly restricted time window during the early embryonic stage. Even if RNAi knockdown of Guy1 was feasible, it would still be very difficult to identify the surviving individuals in which Guy1 had been successfully knocked down, again because Guy1 transcripts disappear regardless of treatments after 12-16 hours post egg deposition. Therefore, we concentrated on evaluating the effect of ectopic expression of Guy1 on the transcription of X-linked genes in females. To rule out position effect, we used two transgenic lines with independent insertion sites, nGuy1_1 and nGuy1_2 (Criscione et al., 2016), both of which express Guy1 from its native promoter. In both lines, we showed that the median level gene expression (MGE) of X-linked genes is significantly higher than autosomal genes in Guy1-transgenic females while there is no significant difference in MGE between X and autosomal genes in wild type females. Moreover, we did not exclusively rely on median gene expression (MGE). We also showed that Guy1 significantly up-regulates 580 (in line nGuy1_2) and 475 (in line nGuy1_1) of the 996 X-linked genes in transgenic females, suggesting a chromosome-wide effect (Figure 2, Figure 2—figure supplement 1A). Therefore, we found two separate lines of evidence supporting Guy1’s influence on the X chromosome in transgenic females that was not observed in other genotypes: (1) an increase in X chromosome MGE; and (2) a large increase in the proportion of upregulated genes on the X chromosome relative to the autosomes. Furthermore, the 382 X-linked genes that are up-regulated in both transgenic lines showed a chromosome-wide distribution (newly added Figure 4). Taken together, we presented strong evidence from two independent Guy1-expression lines that support the chromosome-wide up-regulation of X chromosome genes by Guy1. We respectfully suggest that the evidence sufficiently supports our conclusion that Guy1 is responsible either directly or indirectly for increasing X gene expression, which underlies dosage compensation in Anopheles stephensi. However, we completely agree with the reviewers that it is also important to demonstrate a decrease in the expression of X-linked genes in males as a result of Guy1 inhibition. Therefore, we added the following in the second paragraph of the Discussion section as necessary caveats: “However, it remains to be seen whether Guy1 suppression in males will result in a decreased expression of X-linked genes. Challenges remain to achieving and verifying Guy1 suppression as Guy1 transcription is narrowly restricted to the early embryonic stage”. We also modified the Abstract accordingly.

https://doi.org/10.7554/eLife.43570.023

Article and author information

Author details

  1. Yumin Qi

    1. Department of Biochemistry, Virginia Tech, Blacksburg, Virginia, United States
    2. Fralin Life Science Institute, Virginia Tech, Blacksburg, Virginia, United States
    Contribution
    Formal analysis, Investigation, Methodology, Writing—original draft
    Contributed equally with
    Yang Wu
    Competing interests
    No competing interests declared
  2. Yang Wu

    Department of Pathogen Biology, School of Public Health, Southern Medical University, Guangdong, China
    Contribution
    Data curation, Software, Formal analysis, Investigation, Methodology, Writing—original draft
    Contributed equally with
    Yumin Qi
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1207-5566
  3. Randy Saunders

    1. Department of Biochemistry, Virginia Tech, Blacksburg, Virginia, United States
    2. Fralin Life Science Institute, Virginia Tech, Blacksburg, Virginia, United States
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Xiao-Guang Chen

    Fralin Life Science Institute, Virginia Tech, Blacksburg, Virginia, United States
    Contribution
    Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  5. Chunhong Mao

    Biocomplexity Institute of Virginia Tech, Virginia Tech, Blacksburg, Virginia, United States
    Present address
    Biocomplexity Institute & Initiative, University of Virginia, Charlottesville, VA, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology
    Competing interests
    No competing interests declared
  6. James Kite Biedler

    1. Department of Biochemistry, Virginia Tech, Blacksburg, Virginia, United States
    2. Fralin Life Science Institute, Virginia Tech, Blacksburg, Virginia, United States
    Contribution
    Formal analysis, Validation, Investigation, Writing—original draft, Writing—review and editing
    For correspondence
    jbiedler@vt.edu
    Competing interests
    No competing interests declared
  7. Zhijian Jake Tu

    1. Department of Biochemistry, Virginia Tech, Blacksburg, Virginia, United States
    2. Fralin Life Science Institute, Virginia Tech, Blacksburg, Virginia, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Project administration, Writing—review and editing
    For correspondence
    jaketu@vt.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4227-3819

Funding

National Institutes of Health (AI105575)

  • Zhijian Jake Tu

National Institutes of Health (AI121284)

  • Zhijian Jake Tu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by NIH grants AI105575 and AI121284 to ZT and by the Virginia Experimental Station. We thank Robert Harrell of the Insect Transgenic Facility at the University of Maryland for embryonic injections and for generating some of the transgenic lines. The X-linked CFP line was provided by Anthony James of the University of California, Irvine. We thank Clément Vinauger from the Virginia Tech Department of Biochemistry for help with statistical analysis.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (IACUC #16-067) of the Virginia Tech.

Senior Editor

  1. Detlef Weigel, Max Planck Institute for Developmental Biology, Germany

Reviewing Editor

  1. Yukiko M Yamashita, University of Michigan, United States

Reviewers

  1. Flaminia Catteruccia, Harvard School of Public Health, United States
  2. Christine M Disteche, University of Washington, United States

Publication history

  1. Received: November 16, 2018
  2. Accepted: March 16, 2019
  3. Accepted Manuscript published: March 19, 2019 (version 1)
  4. Version of Record published: March 29, 2019 (version 2)

Copyright

© 2019, Qi et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 621
    Page views
  • 112
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Kendall J Lough et al.
    Research Article
    1. Developmental Biology
    Rodrigo M Young et al.
    Research Article
