Predominance of cis-regulatory changes in parallel expression divergence of sticklebacks

  1. Jukka-Pekka Verta  Is a corresponding author
  2. Felicity C Jones  Is a corresponding author
  1. Max-Planck-Ring, Germany
  2. University of Helsinki, Finland
Research Article
  • Cited 2
  • Views 1,337
  • Annotations
Cite this article as: eLife 2019;8:e43785 doi: 10.7554/eLife.43785

Abstract

Regulation of gene expression is thought to play a major role in adaptation, but the relative importance of cis- and trans- regulatory mechanisms in the early stages of adaptive divergence is unclear. Using RNAseq of threespine stickleback fish gill tissue from four independent marine-freshwater ecotype pairs and their F1 hybrids, we show that cis-acting (allele-specific) regulation consistently predominates gene expression divergence. Genes showing parallel marine-freshwater expression divergence are found near to adaptive genomic regions, show signatures of natural selection around their transcription start sites and are enriched for cis-regulatory control. For genes with parallel increased expression among freshwater fish, the quantitative degree of cis- and trans-regulation is also highly correlated across populations, suggesting a shared genetic basis. Compared to other forms of regulation, cis-regulation tends to show greater additivity and stability across different genetic and environmental contexts, making it a fertile substrate for the early stages of adaptive evolution.

https://doi.org/10.7554/eLife.43785.001

Introduction

The ability of organisms to rapidly adapt to new environments can be both facilitated and constrained by the underlying molecular basis and mechanisms operating at the genomic level. There have been significant advances in our understanding of the genomic basis of adaptive evolution including that adaptation is often polygenic and involves loci that are predominantly intergenic and putatively regulatory (Brawand et al., 2014; Grossman et al., 2013; Jones et al., 2012). Transcriptional regulation of gene expression can be controlled through cis-acting regulatory elements that are linked to their target gene alleles (e.g. promotors, enhancers), or through trans-acting mechanisms such as transcription factors whose action typically impacts both target alleles.

During rapid adaptation, selection may favor master regulator genes that trigger concerted changes in many downstream genes within a gene regulatory network through trans-acting mechanisms. This view has theoretical backing and has been demonstrated in multiple examples (Cooper et al., 2003; Stern and Orgogozo, 2009). Alternatively, selection may favor the modularity and tighter linkage offered by cis-acting mechanisms under the following scenarios: moderate changes to single alleles in a tissue-specific manner, rather than systemic changes to gene expression; or frequent out-crossing or hybridisation (Carroll, 2008). Cis- and trans-regulatory mechanisms are not mutually exclusive and adaptation is expected to promote co-evolution between cis- and trans-acting mechanisms so that optimal gene expression levels are reached and maintained (Fraser et al., 2010). Interdependence of cis- and trans-regulatory mechanisms has been hypothesized to act as a barrier for gene flow and contribute to incipient speciation: incompatible regulatory factors fail to promote optimal gene expression levels in hybrid progeny (Landry et al., 2007a; Landry et al., 2005).

Given their different properties, it stands to reason that different evolutionary scenarios and selection contexts may alternatively favor trans- and cis-acting mechanisms in the early stages of intraspecific adaptive divergence (Coolon et al., 2014; Fraser et al., 2010; Hart et al., 2018; Lemos et al., 2008; Stern and Orgogozo, 2009). In this context, divergent adaptation to local environments often occurs in the face of ongoing gene flow. The shuffling effects of recombination will tend to dissociate co-evolved factors and selection may be more efficient on the larger effect haplotypes carrying multiple such factors that are maintained by linkage-disequilibrium. Thus, the advantage of a rapid adaptive response mediated via a small number of trans-regulatory mutations in a gene regulatory network, may shift to favor cis-regulatory architecture where co-evolved mutations are more closely linked to each other and the gene whose expression they regulate. Parallel evolution provides a powerful context to explore the relative importance of cis- and trans- regulation in the early stages of intraspecific adaptive divergence. Using independent biological replicates of the evolutionary process it is possible to ask whether the same phenotype has evolved via the same or different molecular underpinnings. While regulatory changes seem to predominate in adaptation of natural populations we know little about the extent and parallelism in gene expression and its cis- and trans-regulation.

The threespine stickleback fish is an excellent system to address these questions. Following the retreat of the Pleistocene ice sheet 10–20 k years ago, the parallel evolution of freshwater ecotypes from ancestral marine forms has occurred repeatedly and independently in thousands of populations across the Northern Hemisphere (Bell and Foster, 1994). Considerable evidence points toward an important role for gene regulation in this adaptive divergence. Firstly, forward mapping and functional dissection have identified mutations in cis-regulatory elements underlying the parallel loss of major morphological traits (bony armor plates Colosimo et al., 2005; O'Brown et al., 2015) and pelvic spines Shapiro et al., 2004; Chan et al., 2010). Further, whole genome sequencing of marine and freshwater sticklebacks from multiple populations revealed that repeated parallel evolution of freshwater ecotypes from marine ancestors involves reuse of pre-existing genetic variation at ~81 loci across the genome that are repeatedly involved in parallel evolution (Jones et al., 2012). These loci are predominantly intergenic and thus may act through regulatory mechanisms.

During adaptation to their divergent environments marine and freshwater sticklebacks have evolved differences in numerous morphological, physiological and behavioral traits. Two key divergent traits include their anadromous (migratory marine) versus resident-freshwater life histories and the ability to live in fresh- and saltwater. For this adaptation, the gill’s role in osmoregulation and respiration is likely to be particularly important (e.g. through regulation of ion channel genes, Evans et al., 2005). In saline water, fish counteract water loss and ion gain by ion exclusion. In freshwater, fish compensate against ion loss and water gain by ion uptake. Expression changes in osmoregulatory genes has been linked to freshwater adaptation by anadromous ancestors in sticklebacks and other fish (Gibbons et al., 2017; Velotta et al., 2017). Further, previous studies have shown that freshwater adaptation in sticklebacks and other fish is associated with changes in gene expression plasticity (Gunter et al., 2017; McCairns and Bernatchez, 2010; Whitehead, 2010). The genetic basis of these gene expression differences is not known but leads to the prediction that loci showing parallel divergence in gene expression levels show parallel and environmentally insensitive mechanisms of gene regulation in independently evolved marine and freshwater ecotypes.

Here, we study the evolution of gene expression and its cis- and trans- regulation in the gills of threespine sticklebacks as a model for regulatory evolution during early stages of parallel adaptive divergence with gene flow. Using freshwater-resident and anadromous marine sticklebacks from rivers in Scotland (3) and Canada (1), we ask to what extent parallel divergent adaptation to marine and freshwater environments involves parallel expression divergence in the gills under standardized laboratory conditions. We explore whether parallel differentially expressed genes are found more frequently near previously identified adaptive loci and whether they show molecular signatures of natural selection. We then dissect the cis- and trans- regulatory basis of gene expression differences using allele-specific expression analysis of marine-freshwater F1 hybrids and their parents. We ask whether cis- or trans- regulatory changes predominate in the early stages of adaptive divergence with gene flow, and, by comparisons across marine and freshwater ecotypes from four independently evolving river systems examine the degree of parallelism in cis- and trans- architecture. Finally, by rearing F1 siblings in different water salinity conditions, we explore the extent to which the degree of cis- and trans-regulation of divergently expressed genes is influenced by the environment.

Results

Stickleback gill transcriptome assembly

We analyzed gene expression in the gill of marine and freshwater ecotype pairs each collected and derived from four river systems in Scotland and Canada (Figure 1a, Supplementary file 1). Gills of mature and reproductively active first-generation lab-raised female and male fish were dissected and their transcriptomes analyzed using strand-specific RNA-seq. We built a reference-guided assembly (Trapnell et al., 2012) of the stickleback gill transcriptome based on RNA-seq reads from 10 freshwater and 10 marine fish from 4 marine and four freshwater strains (Supplementary file 2). The stickleback gill transcriptome contains 29295 transcribed loci, 17304 of which are multi-transcript loci with 171620 different transcripts combined. This is considerably more than Ensembl gene build 90 for the stickleback genome (22456 loci, 29245 transcripts), likely because of the higher sequencing coverage of the current dataset compared to the low coverage EST libraries used to inform gene annotations of Ensembl’s genebuild (Kingsley et al., 2004). The number of transcripts per locus is highly skewed with a median of 3 and a small number of loci, including genes with immune function, with very high numbers of splice forms (Figure 1—figure supplement 1). The transcriptome includes 7147 novel transcribed loci that do not overlap with any transcript in Ensembl gene build v90. Of these novel loci, candidate coding regions with complete open-reading frames and likelihood scores > 20 were identified for 1018 using TransDecoder (Haas et al., 2013). At the locus level our assembly shows very high sensitivity (Sn = 81%) with few false negatives (fSn = 100%) and moderate specificity reflective of the appreciable number of novel coding regions we detected relative to the Ensembl gene build 90 (Sp = 59%, fSp = 69%). Considering the raw FPKM data 21399 (73%) of loci were expressed at FPKM >= 1 in at least one of the 20 marine and freshwater fish analyzed, and 16195 (55%) in more than 10 individuals. Hierarchical clustering of expression levels revealed that the gill transcriptome can be characterized by five major groups of loci based on their average expression level (Figure 1—figure supplement 2) with the most highly expressed group of genes showing strong enrichment for biological processes with the respiratory function of the gill including mitochondrial respiration, ATP synthesis coupled proton transport and cytoplasmic translation (Appendix 1).

Figure 1 with 6 supplements see all
Freshwater and marine sticklebacks show parallel expression divergence among a largely non-parallel evolving transcriptome.

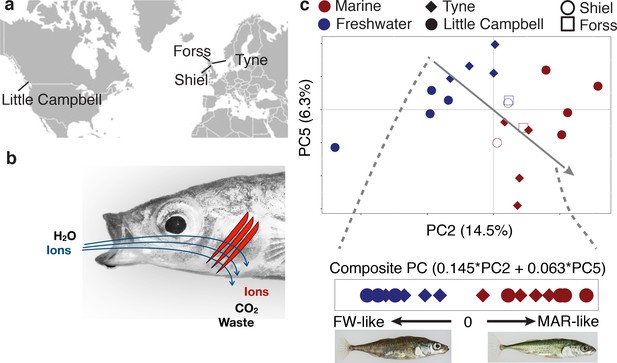

(a) Marine and freshwater strains sampled from four different river systems (b) The gill is a multifunctional organ with roles in osmoregulation, respiration and waste excretion. In freshwater gills uptake ions (blue), while in saline water ions are excreted (red). (c) Principal components analysis of normalized expression levels separates marine (red) from freshwater (blue) ecotypes along a composite PC axis (gray line). PCA is calculated based on a sample-size balanced set of Tyne and Little Campbell samples (solid symbols), onto which Forss and Shiel individuals are projected (open symbols).

https://doi.org/10.7554/eLife.43785.002

Detecting parallelism in marine-freshwater transcriptome divergence in a largely non-parallel evolving transcriptome

We hypothesized that selection for divergent adaptation to marine and freshwater habitats could drive parallel divergence in gene expression in multiple independently evolving marine-freshwater ecotype pairs of distinct geographic origin. To test this hypothesis, we first investigated the major sources of covariation in the freshwater and marine transcriptomes using Principal Component Analysis (PCA).

While the first major axis of variation separates individuals by river system (24% variation explained, Figure 1—figure supplement 3), we identified PC2 and PC5 as major axes of variation (14.5% and 6.3% PVE, respectively, Figure 1c) that separate marine and freshwater transcriptomes. We defined a composite PC axis that captures parallel divergence in the transcriptomes of freshwater and marine ecotypes by summing the eigenvalue-weighted loadings from PC2 and PC5 (Figure 1c). The loadings of each transcript on this composite PC were used as a measure of each transcript’s individual contribution to parallel transcriptome divergence. Parallel transcriptome divergence is highly correlated with river-specific measures of marine-freshwater transcriptome divergence (log of marine/freshwater expression fold change in the River Tyne and Little Campbell Rivers, Figure 1—figure supplement 4). Similar to the only 0.01% parallel genetic divergence observed at the genomic DNA level (Jones et al., 2012), here parallel divergence of gene expression between marine and freshwater ecotypes reared under common environmental conditions represents only a small proportion of transcriptome variation. From here on we refer to loci with the highest contribution toward parallel marine-freshwater expression divergence (top or bottom 1% composite PC loadings, median FDR over outliers 2.6%, N = 586 transcripts, Figure 1—figure supplement 5) as ‘parallel diverged loci’. Similar results were obtained from a differential expression analysis using a Cufflinks linear model (see Appendix 1, Figure 1—figure supplement 6).

The parallel diverged loci show an enrichment in gene ontology processes and molecular functions associated with gill ion exchange, osmoregulation and blood traits (Supplementary file 3). Among the overrepresented categories were multiple processes involved in ion transmembrane transport, suggesting that the parallel diverged transcripts function in regulating osmolarity through ion exchange. Top ranking genes include Na-Cl cotransporter (slc12a10), Basolateral Na-K-Cl Symporter (slc12a2), cation proton antiporter 3 (slc9a3.2), Potassium Inwardly-Rectifying Voltage-Gated Channel (kcnj1a.3), potassium voltage-gated channel (KCNA2), Epithelial Calcium Channel 2 (trpv6), Sodium/Potassium-Transporting ATPase (atp1a1.4), aquaporin 3a (aqp3a), and carbonic anhydrase 2 (ca2) — genes known to play a role in osmoregulation in fish and other organisms. We also note that our analyses identified differentially expressed novel loci that have no overlap with gene annotations from the Ensembl gene build. These results are consistent with our hypothesis that adaptive expression divergence influences physiological functions of the gill associated with a transition to permanent freshwater environment.

Natural selection on parallel expression divergence

To explore the role of natural selection in parallel expression divergence, we used adaptive loci identified in a previously published study (Jones et al., 2012) and analyzed newly generated whole genome sequence data of six unrelated fish of each ecotype from both the River Tyne and Little Campbell River for molecular signatures of selective sweeps.

Transcripts with parallel expression divergence are distributed across all 21 chromosomes (Figure 2a), and more proximal to genomic regions undergoing parallel marine-freshwater adaptive divergence at the DNA sequence level than expected by chance (identified in Jones et al., 2012), randomization test, p<<0.025; Figure 2b–c). More than 13% of transcripts with parallel expression divergence were found within 10 kb of regions of parallel genetic divergence; and nearly 40% within 75 kb (Figure 2c), consistent with the hypothesis that the predominantly intergenic marine-freshwater adaptive loci identified in Jones et al. (2012) contain regulatory elements contributing to parallel marine-freshwater divergence in expression. We found similar results when we calculated parallel genetic divergence (CSS) based on the whole genome sequences generated in this study (Appendix 1, Figure 2—figure supplement 1).

Figure 2 with 3 supplements see all
Genes with parallel marine-freshwater expression divergence are proximal to genomic regions underlying marine-freshwater adaptive divergence and show molecular signatures of natural selection.

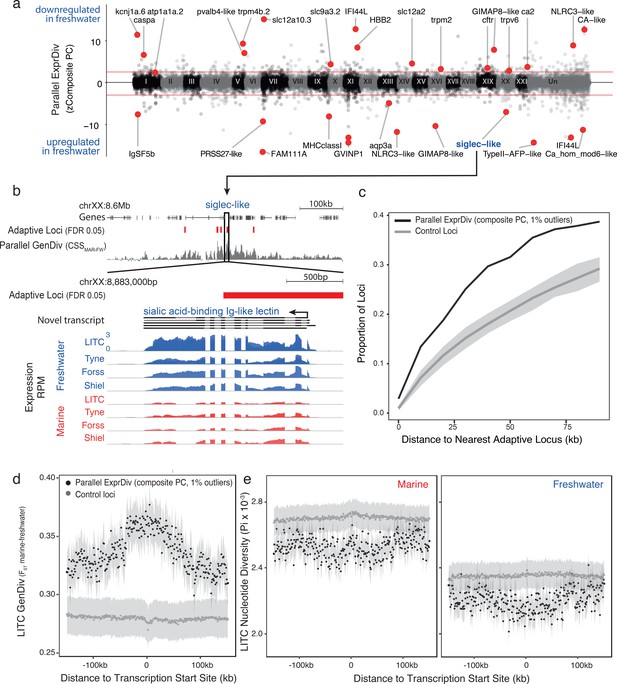

(a) Z-standardized composite PC loadings (zComposite PC) for each analyzed transcript across the genome highlighting transcripts with strong parallel marine-freshwater divergence in gene expression. Red lines correspond to the upper and lower 1% composite PC quantiles. Genes highlighted with red points have putative roles in ion transport and osmoregulation (kcnj1a.6, atp1a1a.2, pvalb4, trpm4b.2, slc12a1, slc12a10.3, slc9a3.2, trpm2, trpv6, cftr, ca2, CA-like, aqp3a), calcium homeostasis (FAM111A, ca_hom_mod6-like), respiration (HBB2), cold temperature adaptation (TypeII AFP), jaw, gill and skeletal morhpogenesis (caspa, FAM111a), and immune system function (IFSF5b, caspa, PRSS27, MHCclassI, GVINP1, IFI44L (x2), GIMAP8-like (x2), NLRC3-like (x2), siglec). (b) An example highlighting the proximity of parallel differentially expressed genes to adaptive loci is a novel transcript coding for a sialic-acid binding Ig-like lectin. This gene shows strong parallel expression divergence among freshwater and marine ecotypes from all four river-systems and overlaps a previously identified adaptive locus with a signature of parallel marine-freshwater genomic divergence (CSS FDR 0.05, Jones et al., 2012) (c) Across the genome, loci with strong parallel expression divergence (loci in the upper and lower 1% quantiles of composite PC, black line) are more proximal to adaptive loci identified in Jones et al. (2012) than randomly sampled ‘control’ loci (gray line). Gray shading shows 95% confidence intervals from 100 random samples of 586 transcripts. (d and e) In marine and freshwater fish from the Little Campbell River (LITC), loci with strong parallel expression divergence show molecular signatures of natural selection (d, increased genetic divergence FST; and e, decreased nucleotide diversity, Pi) centered around their transcription start sites (black points) compared to control loci (expressed loci showing non-parallel expression divergence). Points represent mean values of 1 kb sliding windows and gray shading shows the standard error of the mean.

https://doi.org/10.7554/eLife.43785.009

Natural selection is expected to reduce the diversity of a local genomic region leaving detectable molecular signatures of selection such as increased genetic divergence (FST) and reduced diversity (Pi) around adaptive loci (Nielsen et al., 2005). We calculated genetic divergence and nucleotide diversity flanking transcription start sites (TSSs). In Little Campbell fish, we observed a reduction in nucleotide diversity (Pi) within each ecotype around the TSSs of transcripts with parallel expression divergence (Figure 2f–g). Reduced within-population diversity was accompanied by increased genetic divergence (FST) that was centered on TSSs with a slight upstream bias (Figure 2e). In contrast, although we observed a slightly increased FST around the TSSs of transcripts with parallel expression divergence in the River Tyne, we did not detect a reduction in nucleotide diversity relative to other transcripts (Figure 2—figure supplement 2), possibly due to concurrent selective sweeps on different haplotype backgrounds (also referred to as soft sweeps) in this younger population. Analysis of parallel differentially expressed transcripts defined using parametric tests gives similar results (Appendix 1, Figure 2—figure supplement 3). Combined, these results provide evidence for natural selection acting on parallel differentially expressed transcripts in the gill.

Expression divergence between stickleback ecotypes is predominantly due to cis-regulatory changes

We hypothesized that the observed molecular signatures of selection around genes with divergent expression results from natural selection acting on cis-regulatory elements controlling gene expression levels. To investigate the role of cis-regulation, we compared the level of gene expression divergence in the gill transcriptomes of marine and freshwater parents to the level of allele-specific expression (ASE) in their reproductively mature F1 hybrid offspring using laboratory reared freshwater and marine strains from four independent river systems (Tyne, Forss, Shiel and Little Campbell).

Since F1 hybrids carry a marine and freshwater copy of each chromosome within a shared trans environment in each cell, any marine or freshwater allele-specific bias in transcript expression can be attributed to cis-acting regulatory elements, rather than trans-acting factors. We sequenced the parental genomes and identified coding-regions containing polymorphisms that were fully informative for allele-specific dissection (where the parents of a given cross were homozygous for alternate alleles, Figure 3—figure supplement 1, Figure 3—figure supplement 2). We classified regulatory divergence into cis-acting (allele-specific), trans-acting (non allele-specific) categories, or a combination of the two, based on the allele-specificity and magnitude of expression divergence in F1 hybrids compared to marine and freshwater parents (Figure 3a–cSupplementary file 4) (Landry et al., 2005; Wittkopp et al., 2004). Since we are interested in genetic variation in natural populations, we used first-generation wild-derived parents and analyzed four F1 offspring per parental pair, in order to account for the different genetic backgrounds of each offspring. Considering all expressed loci in the gill, 3807 (13%), 4472 (15%), 7716 (26%) and 10102 (34.5%) non-sex-biased genes could be assayed for cis- vs trans-mediated expression in at least one F1 individual from Tyne, Shiel, Forss and Little Campbell, respectively.

Figure 3 with 4 supplements see all
Expression divergence between marine-freshwater ecotype pairs is predominantly due to cis-regulatory divergence.

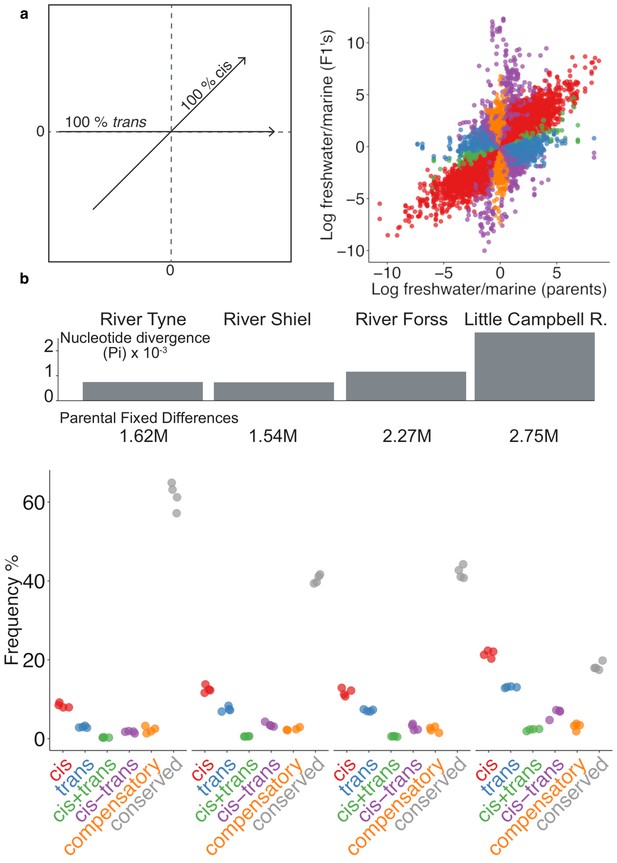

(a) Regulatory divergence is categorized in six categories by comparison of the expression log2-ratio of the marine and freshwater parent to marine- and freshwater- allele-specific expression log2-ratio within an the F1 offspring (Landry et al., 2005). Individual data-points correspond to allele-specific expression values (y-axis) for each gene in each of four F1s relative to their parents (x-axis). Genes are colored according to their classification into different genetic architectures of expression divergence (red cis, blue trans, green cis+trans, purple cis-trans, gold compensatory, gray conserved. ‘Ambiguous’ and ‘conserved’ classes are omitted for clarity.) (b) cis-regulation is the predominant regulatory mechanism underlying gene expression divergence in all four river systems. Points show the overall frequency of regulatory divergence types, relative to the number of analyzed transcripts for each F1 offspring analysed. The proportion of expression divergence caused by cis-regulatory divergence, scales positively both with nucleotide divergence (gray bars) and the number of fixed differences (numbers beneath bars) between the marine and freshwater parents. ‘Ambiguous’ class is omitted for clarity.

https://doi.org/10.7554/eLife.43785.013

In each ecotype-pair, marine-freshwater expression differences are predominantly driven by divergence in cis-regulation (Figure 3b, Figure 3—figure supplement 3), with the degree of cis-divergence scaling positively with the degree of genetic divergence (measured either as the number of fixed differences or mean per site nucleotide divergence between the parents) between marine and freshwater ecotypes from each river system. Across the four river systems, from ~350 to ~2000 transcripts were classified as cis-diverged (with Little Campbell River fish showing the highest number,~2000, or ~20%, of cis- divergence. See also Figure 3—figure supplement 4).

Loci with parallel expression divergence are enriched for cis-regulation

We next tested whether particular types of gene expression regulation were more likely to contribute to marine-freshwater expression divergence that has evolved in parallel in multiple river systems. We used ‘parallel diverged loci’ defined by the composite principal component described above that also show marine-freshwater expression differences in the same direction between the parents of our crosses and contain fully informative SNPs to allow for allele-specific analysis. After filtering, 181 and 68 parallel diverged loci were testable in Little Campbell and Tyne, respectively. Loci with parallel divergence in expression showed a significant excess of cis-regulation (16–26% and 11–12% above average in Tyne and Little Campbell F1 offspring respectively) and cis+trans regulation (above average), compared to random expectations obtained by 1000 random draws of equal size from all genes that showed expression divergence between ecotypes (see Materials and methods) (Figure 4). In contrast, the overrepresentation of trans-acting divergence was lower, between 6–16% and 0–2%, respectively, and not different from random expectation in all F1s.

Genes with parallel marine-freshwater divergence in expression are enriched in cis-regulatory divergence.

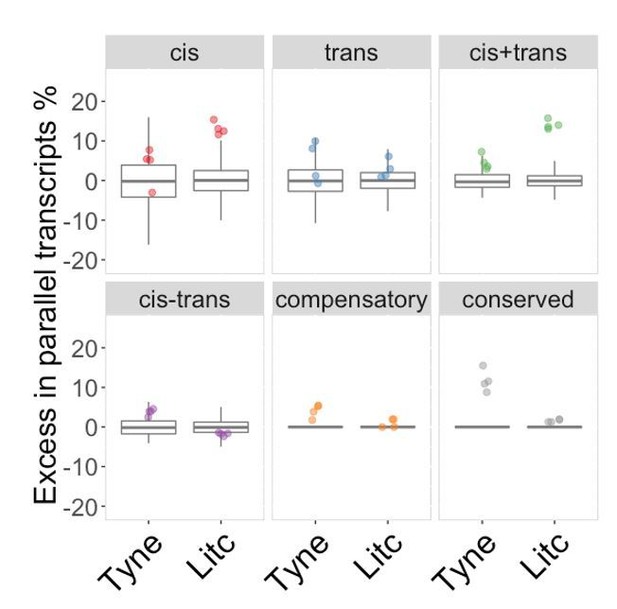

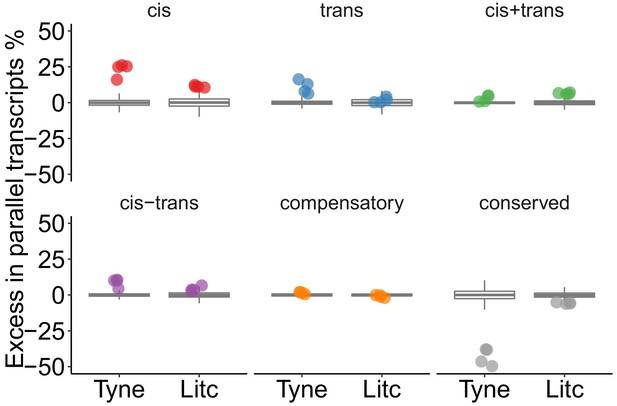

Overrepresentation of expression regulation types associated with parallel evolving transcripts, compared to the overall frequency of regulatory divergence between freshwater and marine ecotypes. Points represent the observed values in four F1's per cross. Box-plots represent the random expectation based on 1000 samples of the corresponding number from transcripts showing expression divergence between ecotypes. Horizontal bar in box-plot corresponds to median, box includes 50% and whiskers 99.3% of random expectation.

https://doi.org/10.7554/eLife.43785.018

In parallel diverging transcripts, ecotype-pairs from both rivers further showed a significant excess of cis- and trans-regulation of expression divergence acting in the same direction (divergence in cis+trans co-regulation). Theory and experiments predict that directional selection on expression levels favors the accumulation of cis- and trans-regulatory changes that have the same direction of effect and act in a cooperative manner toward greater expression divergence (Fraser et al., 2010; Orr, 1998). The observed excess of cis+trans regulation in the transcripts that contribute to parallel expression divergence, is consistent with directional selection, as opposed to genetic drift, which should influence amplifying (cis+trans) and canceling (cis-trans) divergence equally (Fraser et al., 2010). Notably, the candidate genes slc12a2, atp1a1.2, trpv6 and aqp3a that are involved in teleost ion homeostasis were among the parallel diverged transcripts influenced by cis+trans acting regulatory divergence.

We next explored the extent of parallelism in the strength (magnitude) of cis- and trans-regulation among the four populations and stratified loci by their degree of contribution to parallel expression divergence (composite PC loading). For each F1 individual at each locus, we quantified cis-divergence following Wittkopp et al. (2008) as the F1 allele-specific expression ratio, and from there, quantified trans-divergence by subtracting the F1 allele-specific expression ratio from the parental expression ratio (Wittkopp et al., 2008). For each river system, we then averaged the cis-divergence and trans-divergence values for each locus across each of the four offspring to obtain a measure of the mean degree of cis- and trans-divergence per locus (see Appendix 1). We analyzed this data with a sliding cut-off, which results in loci with nested extremes of contribution to parallel marine-freshwater expression divergence as measured by the loadings on the composite principal component axis. Overall, we see high correlations between river systems in the degree of cis- and trans- divergence of loci with parallel expression divergence (left and right ends of composite PC axis). However, the pattern is not symmetrical. Parallel divergent loci that are upregulated in freshwater show strong positive correlations among populations in their quantitative extent of both cis- and trans-divergence (Figure 5). This correlation is lost in loci that do not contribute to parallel expression divergence (composite PC loadings close to zero) and is less consistent among parallel divergent loci downregulated in freshwater fish. We then estimated the mean effect size (magnitude) of cis- and trans- divergence for subsets of loci and represented them in bins along the parallel expression divergence (composite PC loading) axis. Again, we found that the magnitude of cis- and trans-divergence is not symmetrical: divergently expressed genes upregulated in freshwater fish show greater effect size in both cis- and trans- components than their freshwater downregulated counterparts (Figure 5c, Figure 5—figure supplement 1).

Figure 5 with 1 supplement see all
The degree of parallelism (correlation) in the magnitude of cis- (a) and trans-divergence (b) of marine-freshwater expression divergence among different river systems at loci with increasingly parallel divergent expression (composite PC loadings).

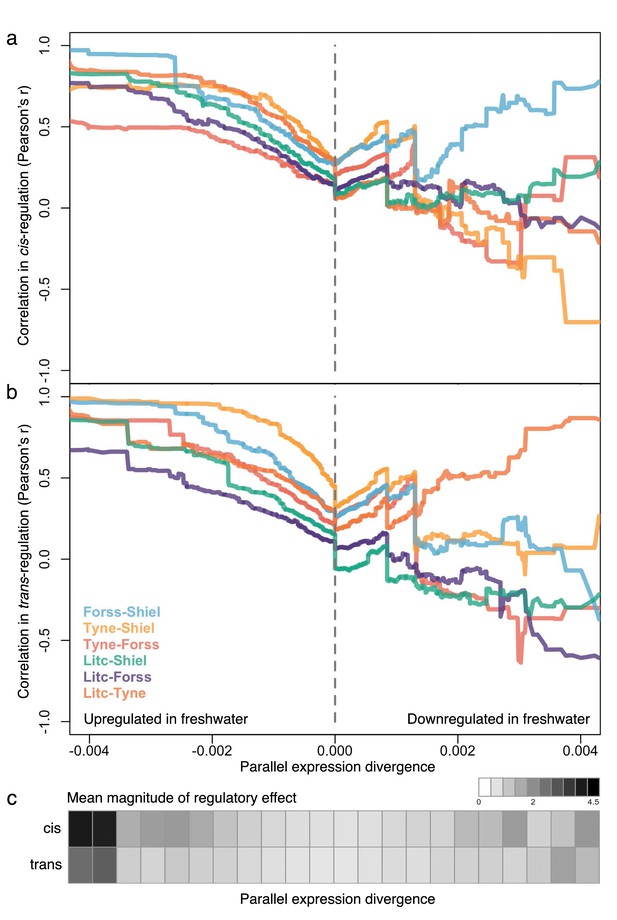

Parallel divergent genes that are upregulated in freshwater (strong negative loading on composite PC) show high correlation in their degree of cis- and trans-divergence among populations. In contrast, loci that have not diverged in parallel (PC loadings close to zero) and loci that are parallel downregulated in freshwater are not highly correlated in the magnitude of cis- and trans- divergence. For each population pair, Pearson correlation coefficients, r, were calculated for subsets of loci defined by an increasingly extreme positive or negative threshold on the composite PC loading scores. (c) The mean absolute magnitude of cis- and trans- divergence across populations in subsets of loci defined by bins of parallel expression divergence (composite PC). For both cis- and trans-divergence, higher magnitude effects (darker gray shades) are seen at parallel divergent loci that are upregulated in freshwater. Means and standard errors of effect size per population are shown in Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.43785.019

Cis-regulatory divergence is additive and insensitive to genetic and environmental context

In order to evaluate the possible factors that may facilitate cis-divergence as a predominant source of parallel regulatory differences, we investigated: the mode of inheritance of different regulatory classes; the consistency of regulatory divergence in different genetic backgrounds; and the consistency of regulatory divergence in different water salinities (a major environmental contrast between freshwater and marine ecosystems).

The mode of inheritance of a given trait, including expression traits, may have a direct impact on the rate of adaptation (Lemos et al., 2008). Among the modes of inheritance, additivity is associated with the greatest efficiency of bi-directional selection, because the contribution of each allele can be seen by selection (Hartl and Clark, 1997). To investigate this, we quantified the dominance/additivity ratio following Gibson et al. (2004) by taking the ratio between the mid-parental normalized read counts and the deviation from this mid-point in F1 hybrids. Taking into account all four F1-parent comparisons, cis-regulatory divergence showed the strongest level of additivity (Figure 6a), consistent with evolutionary potential for fast allele-frequency changes at cis-regulatory elements. These findings are consistent with previous studies showing that cis-divergence is linked to higher additivity of between-species expression differences (Lemos et al., 2008; McManus et al., 2010), except that here, we observed such divergence already among marine-freshwater ecotypes pairs with on-going gene flow, highlighting the role of cis-regulation in adaptive divergence even in nascent population pairs.

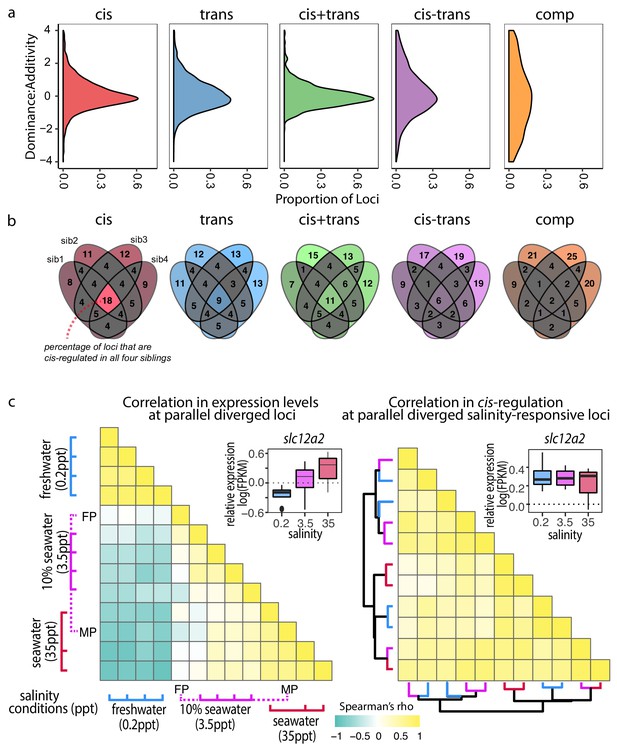

Figure 6 with 2 supplements see all
Cis-regulatory changes are additive and insensitive to genetic and environmental contexts compared to other regulatory classes.

(a) Density estimates of dominance-additivity ratio of each locus assigned to the respective regulatory classes (data represents all four F1 – parent comparisons of Little Campbell). A ratio of zero indicates additivity, ±1 full dominance, and values > 1 or <-1 imply over- or underdominance. The slight bias towards negative values indicates tendency of stronger dominance of low-expressed allele (irrespective of ecotype). (b) Sharing of regulatory divergence between siblings as a proxy for the level of epistasis associated with each regulatory class in Little Campbell. The type of regulation observed for each gene is compared among siblings (overlapping ovals) with numbers representing percent of loci shared between siblings (rounded to integer). Color scale ranges from gray (low) to colored (high). Cis-regulatory divergence tended to be most stable across genetic backgrounds indicating that cis-acting divergence is least influenced by epistasis. (see also data for River Tyne shown in supplement figure). (c) While the expression levels of parallel diverged transcripts are sensitive to water salinity (left triangle) the degree of cis-regulation of these loci is insensitive to water salinity (right triangle). Pairwise Spearman’s correlation (rho) in expression levels (left triangle) and allele-specific-expression ratio (right triangle) of parallel diverged loci in marine x freshwater F1 siblings acclimated to different salinity conditions. A negative correlation (cyand) indicates salinity-responsive genes were up-regulated (or show allele-specific-expression bias) in one salinity and down-regulated (or show allele-specific-expression bias in the opposite direction) in another, while a positive correlation (yellow) indicates that expression profiles and allele-specific expression profiles were similar between individuals. Expression levels of an example locus, slc12a2, are shown as an inset above each heatmap. slc12a2 expression increases under seawater conditions, but cis-regulatory control of this expression is stable across different salinities. Rows and columns of the right heatmap are ordered based on euclidean distance and the dendogram shows that cis-regulation does not cluster by salinity. Colors of dendrogram branches refer to salinity in parts per thousand (0.2-blue, 3.5-pink, 35ppt-red). MP, FP refer to marine and freshwater parents.

https://doi.org/10.7554/eLife.43785.021

Adaptation is expected to favor non-epistatic alleles that confer a stable phenotype irrespective of the genetic background (Stern and Orgogozo, 2009). By using first-generation wild-derived parents in the crosses for this experiment we have maintained meaningful levels of genetic variation similar to those present in natural populations. The unique combination of parental genetic variation passed on to each F1 offspring enables us to explore the stability of gene expression regulation under different genetic backgrounds. We hypothesized that non-epistatic regulatory divergence should be consistent across siblings due to tight linkage, while epistatic regulatory divergence will leave a pattern of low correlation within the classes of regulatory divergence among F1 siblings. To quantify the level of epistasis in different classes of regulatory divergence we compared the reproducibility of regulatory divergence across siblings of the same F1 family. Our results, consistent in both Tyne and Little Campbell crosses, show that cis-regulatory divergence tends to be most stable across genetic backgrounds (Figure 6b and Figure 6—figure supplement 1) making it a favorable substrate for adaptive divergence.

We next explored the stability in gene regulation under different environmental salinity conditions. Previous studies have reported changes in gene expression plasticity in association with freshwater adaptation (Gibbons et al., 2017; Velotta et al., 2017). We analyzed adult gill transcriptomic and cis-regulatory responses to water salinity using full-sib F1 hybrids raised under three different salinity conditions (0.2 ppt (freshwater), 3.5 ppt (approximately equivalent to 10% sea water) and 35 ppt (marine salinity, see Materials and methods for more information).

A total of 2542 transcripts were differentially expressed between at least two salinity treatments (FDR 1%), consistent with major changes in gill structure and function upon salinity acclimation (Hwang et al., 2011). Differences between salinity treatments were mostly driven by freshwater acclimation (0.2 ppt), which elicited a response markedly different from both standard husbandry conditions (3.5 ppt) and typical marine salinity (35 ppt) (Figure 6c, Figure 6—figure supplement 2). We observed that an unexpectedly high proportion of parallel diverged transcripts also showed an effect of salinity on expression level (97 of 586, hypergeometric test p<4.3e-6), suggesting a large proportion of the parallel diverged transcripts in the gill are involved in physiological responses to water salinity.

Plasticity in expression of a given genotype in different environments can be mediated by either cis or trans-regulatory mechanisms. Focusing on the 97 transcripts with parallel expression divergence that showed a salinity response, we asked whether the regulatory control of these loci is sensitive to salinity conditions. We first calculated an expression profile for each F1 sibling by scaling the FPKM expression of each transcript to the average expression level across all individuals and then compared the profiles using Spearman correlation to capture the strength and direction of correlation in expression profiles among salinity treatments. F1's raised in similar salinities tended to have high positive correlation coefficients while the expression profiles of individuals raised in freshwater tended to be negatively correlated (opposite expression) with expression in individuals raised in salt (Figure 6c, left triangle).

Then, using allele-specific expression as a proxy for cis-regulatory divergence we investigated the stability of cis-regulation of expression across the salinity treatments. Despite the observed plastic response of gene expression (Figure 6c, left triangle), the degree of cis-divergence of salinity-responsive genes with parallel expression divergence was highly correlated across salinities (Figure 6c, right triangle), indicating that the observed salinity response was not caused by cis-regulatory divergence but largely due to trans-acting regulation that influenced the expression of both alleles in similar magnitude. Based on these results we hypothesize that cis-regulatory changes provide a mechanism for genetic assimilation of plastic responses into heritable variation (Waddington, 1942) where the effects of regulatory alleles are independent of the environment.

Discussion

Regulation of gene expression is thought to play a major role in adaptation, yet relatively little is known about the patterns and predictability of adaptive regulatory mechanisms in the early stages of intra-specific adaptive divergence that evolve in the face of on going gene-flow. We characterized parallel expression divergence in the threespine stickleback gill transcriptome - an organ with important respiratory and osmoregulatory functions - and dissected the cis- and trans- regulatory architecture in four marine-freshwater ecotype pairs in order to infer the rules and patterns shaping genome evolution and influencing rapid adaptation in natural populations.

We found that when sticklebacks are reared under the same standard husbandry conditions, parallel transcriptomic divergence involves only a few hundred genes each with relatively small effect on expression divergence, similar to the small proportion of the genome that shows parallel adaptive divergence at the DNA sequence level (Jones et al., 2012). Parallel divergently expressed genes are proximal to adaptive loci identified from signatures of parallel divergence at the sequence level, and support a role for the reuse of ancient standing genetic variation in the parallel adaptive divergence of gene expression. We also observed a large proportion of loci with marine-freshwater divergent expression that was unique to a local river system (see Appendix 1) indicating there is room for drift and/or local adaptation to play a major role shaping the evolution of divergent gene regulation and gene expression in any given river system. The transcripts showing strongest parallel expression divergence are associated with genes involved in gill ion transport and osmoregulation, a key physiological trait in marine-freshwater divergence, and in agreement with studies in other fish (Velotta et al., 2017). Through population genomic analysis, we show how natural selection on divergently expressed genes is shaping the evolution of the genome - strong molecular signatures of selection (elevated FST, reduced Pi) were detected around the transcription start sites of parallel divergently expressed genes.

We see overwhelming evidence for the importance of cis-regulatory divergence underlying marine-freshwater gene expression divergence through analysis of allele-specific expression in F1 hybrids relative to their marine and freshwater parents. The predominance of cis-divergence was observed in marine-freshwater ecotypes from four independent river systems, in analysis of all informative transcripts genome wide, and enriched in the set of loci identified as having evolved parallel marine-freshwater divergence in expression across rivers.

Many studies have reported that cis-regulatory differences contribute strongly to divergence in gene regulation over long evolutionary divergence scales (Coolon et al., 2014; Emerson et al., 2010; He et al., 2016; Lemmon et al., 2014; Lemos et al., 2008; Prud'homme et al., 2007; Stern and Orgogozo, 2009). The stickleback ecotype pairs studied here diverged from each other within the last 10–20 k years (approximately 10–20 k generations) following the retreat of the Pleistocene ice sheet, indicating that strong cis-regulatory divergence can also evolve in relatively short timescales. Instead of fixed rules governing the major modes of regulatory divergence, the genetic basis of adaptive regulatory changes will likely depend of the genetic architecture of the trait under selection. For example during maize domestication, while cis-regulatory divergence did not dominate, it did contribute to stronger magnitude regulatory changes over a relatively short evolutionary time-span (Lemmon et al., 2014). It should also be noted that while we observe an association between nascent ecotype divergence and cis-regulatory divergence, within population cis-regulatory variation can be initially produced through non-adaptive processes, for example relaxed purifying selection (Steige et al., 2017). While adaptation via re-use of ancient standing genetic variation is important in sticklebacks and may explain some part of the predominance of cis-regulatory changes, we also found that the extent of genomic divergence varied substantially between the parallel evolving stickleback ecotype-pairs we studied, and the proportion of cis-regulatory divergence scaled positively with this genomic divergence. This suggests that much of the genetic differences that accumulate in the early stages of adaptive divergence with gene flow translate to cis-regulatory differences. Mutation-accumulation experiments have shown that genetic drift, which promotes random regulatory changes, is biased toward trans-acting divergence due to a larger trans-mutational target size (Landry et al., 2007b). Since most expression changes between freshwater and marine ecotypes, however, tended to be due to divergence in cis-, this points toward a stronger contribution of selection rather than drift.

Our results further indicate that reinforcing cis and trans-acting regulatory divergence that act in a manner to amplify one another, although rare, has an important contribution to early ecotype divergence with gene flow. Overrepresentation in cis+trans coevolution seemed to grow with increasing genetic and expression divergence between lineages, which is notable in the context of incipient ecological speciation. Given enough evolutionary time, the accumulation of amplifying cis+trans regulatory divergence independently in diverging populations may lead to the evolution of genetic (Bateson-Dobzhansky-Muller) incompatibilities. Because recombination between coevolved cis- and trans-regulatory factors disrupts their combined phenotypic effects, it is expected that selection would favor linkage disequilibrium between the coevolved regulatory factors (Verta et al., 2016). Association between increasing proportion of divergence in cis+trans regulation and genome-wide divergence as seen here suggests that selection against recombination between coevolved regulatory factors may contribute to increased genetic divergence as adaptation proceeds and thus shape the genomic landscape of incipient speciation.

Parallel adaptive divergence of marine and freshwater ecotypes provides biological replicates of the evolutionary process which we can interrogate to identify common patterns governing the molecular basis of adaptation. We not only identified parallelism across marine-freshwater ecotype pairs in the predominance of cis- divergent gene expression, but also parallelism in the quantitative extent of both cis- and trans- regulation of divergently expressed loci. This strong parallelism was particularly notable in parallel divergently expressed genes that are upregulated in freshwater ecotypes, and considerably less strong and less predictable in parallel divergently expressed genes that are downregulated in freshwater. Similar to the underlying shared genetic basis of freshwater adaptation due to the parallel reuse of standing genetic variation, our results suggest we can not only predict that freshwater populations are likely to carry the same alleles at adaptive loci across the genome, but also that the magnitude and extent of cis- and trans- upregulation of divergently expressed genes is likely to be shared among freshwater populations. It is possible that there are fewer molecular mechanisms available to freshwater fish to ‘turn on’ gene expression and more diverse mechanisms to ‘turn-off’ gene expression. Coinciding with the stronger parallelism in genes upregulated in freshwater, we observed a tendency for the cis- and trans-regulatory effect size to be of larger magnitude than the cis- and trans-regulatory effects of genes downregulated in freshwater. It is plausible that this larger effect size enables selection to be more efficient and contributes to the observed stronger parallelism. Further, the marine ecotype is thought to be the ancestral state in threespine sticklebacks and has been evolving in a comparatively stable marine environment for millions of years. Under this evolutionary context, freshwater populations have a comparatively smaller effective population size with reduced access to pre-existing adaptive standing genetic variation, and have been subject to more recent and potentially stronger selection pressures than their marine ecotype counterparts. Thus, marine ecotypes have more opportunity to evolve via soft sweeps on standing genetic variation. Combined this evolutionary context is likely to have influenced which molecular mechanisms of gene expression regulation are visible, and efficiently respond to selection, resulting in relatively few paths to evolve adaptive upregulation of gene expression in freshwater populations compared to marine.

We note that our results contrast with a recent study by Hart et al. (2018) who reported a predominance of, and parallelism in, the trans-regulatory control of marine-freshwater divergent gene expression in the pharyngeal tooth plate. One possible biological explanation for this might be differences in the multifunctional (pleiotropic) functional roles of the gill and its likely complex genetic architecture compared to dental tissue with a less pleiotropic functional role and more simple genetic architecture involving a few large effect loci upstream of other factors (Cleves et al., 2014) that cause a dominant trans-regulatory signal in the allele-specific expression assay.

Our results indicate that parallel evolving divergence may converge on cis-regulatory changes driven in part by a higher level of additivity and lower level of epistasis of cis-regulatory factors. Known as the effect of ‘Haldane's sieve’, the fixation of beneficial recessive alleles are hindered due to its phenotype being hidden from selection (Haldane, 1927). When alternative alleles are favored in their respective environments, as seem to be the case in sticklebacks, additive alleles have the highest likelihood of becoming fixed in both populations as both alleles can rise quickly to a high frequency. Cis-regulatory variation also tended to have a lower level of epistasis within populations compared to other types of regulatory effects. Epistatic regulatory alleles tend to have different phenotypic effects depending on the genetic background, therefore inducing unpredictable fluctuation in expression levels. Hence, parallel evolution of gene expression seems to favor non-epistatic regulatory alleles that have similar effects on expression levels independently of the genetic background.

In addition to promoting divergence in expression levels that is independent of genetic backgrounds, adaptation-with-gene-flow is predicted to promote reduced expression plasticity, especially in cases where selection is strong (Stern and Orgogozo, 2009). Toward this end, our results indicate that divergence in cis-regulation may play a particularly important role in the evolution of reduced plasticity. Since plasticity is known to be involved in the divergent adaptation of marine and freshwater sticklebacks we investigated the sensitivity of gene expression and its cis- and trans-regulation to environmental salinity. Genetic assimilation involves the heritable encoding and loss of plasticity of a once plastic trait (Waddington, 1942). Previous studies have found evidence for genetic assimilation in gill gene expression evolution between stickleback ecotypes (McCairns and Bernatchez, 2010). While we found a strong component of plasticity in gene expression among siblings raised in different salinities, the cis-regulation of this gene expression was stable and insensitive to differences in the environmental conditions. From this we infer that the observed plasticity in expression is likely mediated via trans-regulation, and hypothesize that the stable divergence in cis-regulation component may serve as a mechanism for genetic assimilation.

The importance of cis-regulatory divergence underlying parallel marine-freshwater expression differences has implications for our understanding of genome function in natural populations in the early stages of adaptive divergence. The loci with parallel expression divergence that are predominantly regulated by cis-acting changes are dispersed throughout the genome but proximal to previously identified adaptive loci. We observed signatures of selection around their transcription start sites likely to be a result of natural selection acting on cis-regulatory elements. We show that cis-regulatory divergence acts in an additive manner and is robust to both different environmental contexts, and potential epistasis caused by differences in genetic background. Comparing across marine-freshwater ecotype pairs from independent river systems, we observed parallelism and large magnitude effect sizes for cis-regulation of divergently expressed loci upregulated in freshwater. These features make cis-divergence a well-poised target for natural selection and may explain parallelism in the predominance and quantitative extent of cis-divergence in the early stages intraspecific adaptive divergence. Combined our study highlights how natural selection on adaptive cis-divergence is a likely contributor to the dispersed genomic landscape of adaptation in sticklebacks.

Data access

Data has been deposited to the Sequence Read Archive under the accession PRJNA530695. All scripts used in data analysis are available at https://github.com/jpverta/verta_jones_elife_2019.git (Verta, 2019; copy archived at https://github.com/elifesciences-publications/verta_jones_elife_2019).

Materials and methods

Establishing common garden strains

Request a detailed protocol

We captured freshwater-resident and anadromous marine sticklebacks from Little Campbell River, Canada, and Rivers Tyne, Forss and Shiel, Scotland, with wire-mesh minnow traps. Sampling locations are given in Supplementary file 1. We identified freshwater resident and anadromous marine ecotypes based on their lateral plates. Most freshwater-resident populations of sticklebacks are low-plated, whereas anadromous marine forms exhibit complete lateral plating (Bell and Foster, 1994). Consistently, in most cases the large majority of fish captured in freshwater were low-plated and anadromous marine fish captured near the mouth of the river/lake were fully plated. We generated within-ecotype crosses via in vitro fertilization of gravid females with males within ecotypes and transported the fertilized eggs to a common-garden environment at the Max-Planck campus in Tübingen in reverse-osmosis water supplemented with Instant Ocean salt to 3.5 ppt (~10% sea water salinity). No significant mortality occurred during transfer. The Max Planck Society holds neccessary permits to capture and raise sticklebacks. All animal experiments were done in accordance to EU and state legislation and avoiding unneccessary harm to animals.

Fish used for the study

Request a detailed protocol

The fish used as ‘pure ecotypes’ and ‘parents’ were lab-reared but direct descendants of wild-caught individuals with the exception of one Tyne freshwater male individual, which was descendant of multi-generation lab-raised individuals. The first-generation lab-grown fish were raised in the lab from egg to adult and then crossed to produce F1’s. In our study, we refer to ‘parents’ as the actual parents of the ‘F1’s’ analysed.

Compared to plants, transgenerational inheritance of epigenetic changes is minimal in vertebrates, and we attribute expression differences observed in the ‘pure ecotype’/‘parent’ as well as the ‘F1’ generations to genetic differences. While we cannot rule out the possible contribution of transgenerational plasticity (e.g. maternal effects from wild caught fish) contributing to expression differences among the lab-reared ‘parents’, we note that this would not influence allele specificity of F1 hybrid offspring expression. If anything, our results are therefore likely to be conservative underestimates of the role of divergent cis-regulation of expression. Further, we argue that compared to organisms such as placental mammals with prolonged in utero development, the influence of transgenerational plasticity on gene expression of externally fertilized and reared sticklebacks is likely to be much weaker.

The fish were raised in individual 100 liter tanks with 40–50 fish per tank in 3.5 ppt salinity and alternating light cycle of 16 hr light and 8 hr darkness of 6 months. No significant mortality occurred during captivity. Fish were raised with a diet of fry (freshly hatched artemia), juvenile (artemia, Daphnia and cyclops) and adult food (bloodworm, white mosquito larvae, artemia, mysis shrimp and Daphnia) until adults. We selected four fish from independent field crosses per ecotype from Little Campbell River and River Tyne strains, and one fish per ecotype from Shiel and Forss strains. Exception to this was one Tyne freshwater male fish that was the progeny of unrelated lab-raised freshwater parents, which was included to complete the sampling. We in-vitro crossed one marine female and one freshwater male for each strain, and raised the F1 individuals in identical conditions as the parents until they were reproductively mature (each cross in individual tank).

For the Tyne cross, we separated the F1 clutch into three at 3 months of age and transferred the F1s into separate 100 liter tanks with 3.5 ppt water. We added either 0.2 ppt or 35 ppt water in increments of 20 l at a time twice a week over the course of 1 month to acclimate fish in two of the tanks to different water salinities. After 1 month of acclimation all water in the two tanks was changed to either 0.2 or 35 ppt. We raised the fish in 0.2, 3.5 or 35 ppt water for additional three months until reproductive maturation.

Sample preparation and RNA-sequencing

Request a detailed protocol

We harvested gill tissue for all strains and F1s, all staged as adults and reproductively active (gravid females and males exhibiting mating coloring). We flash-froze gills on liquid nitrogen and stored in −80°C until used for mRNA-extraction. We disrupted gill tissue with a pestle on liquid nitrogen and extracted mRNA using Dynabeads mRNA direct kit (Invitrogen) and following manufacturer’s instructions, followed by DNase treatment with the Turbo DNA-free kit (Ambion). We verified mRNA quality using Agilent BioAnalyzer.

We used 150 ng of mRNA to construct strand-specific RNA-seq libraries using the TruSeq Stranded RNA-seq kit (Illumina). We verified library yield using Qubit and size distribution using BioAnalyzer. We optimized library construction protocol to result in mRNA insert size distribution centered on 290 base pairs. We pooled the libraries in equimolar amounts and sequenced in pools of eight samples on a HiSeq-3000 instrument, producing 150 bp paired-end reads (Supplementary file 2). We included replicate sequencing libraries in different lanes of the same run and different runs of the same instrument in order to measure the effect of batch on final data (none observed).

Gill transcriptome assembly from RNA sequencing

Request a detailed protocol

We verified read quality with FastQC software (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/) and trimmed the reads of sequencing adapters using TrimGalore (http://www.bioinformatics.babraham.ac.uk/projects/trim_galore/).

We aligned RNA-seq reads from pure strains to the UCSC stickleback genome reference (‘gasAcu1’) with STAR aligner (Dobin et al., 2013). We opted for running STAR in two-pass mode, gathering novel splice junctions from all pure-strain samples for the second alignment pass. After experimenting with alternative parameters, we opted for the following: --outFilterIntronMotifs RemoveNoncanonicalUnannotated --chimSegmentMin 50 --alignSJDBoverhangMin 1 --alignIntronMin 20 --alignIntronMax 200000 --alignMatesGapMax 200000 --limitSjdbInsertNsj 2000000.

We followed the Cufflinks2.2 pipeline (Trapnell et al., 2012) for reference-guided transcriptome assembly and transcript and isoform expression level testing. We used Cufflinks2 to assemble aligned RNA-seq reads into transcripts, using Ensembl gene models for stickleback (version 90) as guide and the following parameters: --frag-bias-correct gasAcu1.fa --multi-read-correct --min-isoform-fraction 0.15 --min-frags-per-transfrag 20 --max-multiread-fraction 0.5. We produced a single merged transcriptome assembly based on all pure strains using CuffMerge and used this in all subsequent analyses for all samples.

Finally, we used CuffDiff to test expression differences between male and female fish from freshwater and marine ecotypes of Tyne and Little Campbell river (combined). Transcripts with sex-dependent expression at FDR 10% (N = 278) were excluded from analysis of genetic architecture of expression divergence (see below), but included in all other analyses where the number of male and female fish were balanced across the experimental contrast.

Principal component analysis

Request a detailed protocol

We summarized read counts over transcript models using the Cufflinks function CuffQuant with ‘fr-firststrand’ strand-specific RNAseq library type and other settings as default and normalized read counts to total library sizes using CuffNorm. We subsequently transformed the read data with the DESeq2 (Love et al., 2014) function varianceStabilizingTransformation so that the variance in read counts was independent of the mean, following the steps outlined in the DESeq2 manual. We used the R (Ihaka and Gentleman, 1996) function prcomp with the option scale = FALSE to calculate PCA on expression level co-variances using data from all transcripts. We calculated the PCA based on a balanced set of four freshwater and four marine ecotypes from both Tyne and Little Campbell, and projected the single ecotypes from Forss and Shiel to principal components 2 and 5 using the R function scale. We verified the absence of batch effects in the RNA-seq data by PCA analysis of a replicate sequencing library sequenced on different lanes of the same run and on different runs. Technical variation was much smaller than biological variation.

As described in the main text, a combination of principal components 2 and 5 best described freshwater-marine divergence in transcriptomes in our dataset. We therefore defined a composite principal component by summing principal components 2 and 5, weighing each with the percentage of variation explained. Finally, we extracted principal component 2 and 5 loadings for each transcript and used the identical approach to calculate transcript loadings on the composite principal component. This procedure produced a loading value for each transcript that described the importance of that transcript in parallel freshwater-marine expression divergence.

We calculated a False Discovery Rate (FDR) for the detection of loci with parallel expression divergence. Since no standard way exists to test the significance of single PCA loadings in the context of the overall PCA, we used the following approach inspired by Linting et al. (2011).

The procedure has the following steps: (i) for each outlier gene shuffle the sample labels while keeping all other data as original, (ii) re-calculate PCA and composite PC, (iii) store the composite PC loading from the permutation, (iv) shuffle through all possible combinations of sampling two groups of 8 individuals from 16 and perform steps i-iii for each composite PC outlier to produce a null distribution of composite PC loadings, (v) calculate Z-score and p-value for observing a loading higher than the permuted null and (vi) correct for multiple testing (FDR).

The procedure tests the null hypothesis that the composite PC loading of a given gene is not significantly higher compared to composite PC loadings calculated from non-structure data (i.e. where the sample identities have been shuffled). The approach produces an FDR for each tested gene, in our case composite PC outlier at 1% threshold. We report the median FDR over all composite PC outliers (2.6%) and mean (5.1%).

Gene ontology analysis

Request a detailed protocol

Tests for enrichment of genes involved in specific biological processes, molecular functions and cellular components among top ranking differentially expressed genes was performed using GOrilla (Eden et al., 2009). Genes were sorted by CuffDiff differential expression q-values or by composite PC loading score and, because stickleback genes are largely unannotated for gene ontologies, were mapped to mouse orthologs (the vertebrate with the highest GO annotation quality (ref: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC2241866/) using a REST command to access the Ensembl precomputed ortholog database. We tested for significant enrichment of gene ontologies (biological processes, molecular functions, and cellular compartments) with p-values less than 1 × 10−5 (Supplementary file 3). A similar approach using both human and zebrafish orthologs revealed enrichment in many of the same gene ontologies (not shown).

DNA preparation and sequencing

Request a detailed protocol

We extracted genomic DNA from fin clips of six unrelated fish per ecotype (six females of each ecotype from Little Campbell, three males and three females of each ecotype from Tyne) using standard lysis buffer and proteinase-K digestion, followed by SPRI bead extraction with Ambion magnetic beads. We verified DNA quality on agarose gel and quantified DNA concentration using Qubit.

We fragmented 700 ng of gDNA with Covaris instrument and selected 300–500 bp DNA fragments for library construction using double-sided SPRI selection. We constructed DNA-sequencing libraries using a custom protocol that includes DNA end-repair, A-tailing and Illumina TruSeq adapter ligation, followed by six cycles of PCR amplification. We verified library fragment size using BioAnalyzer and quantified library concentrations using Qubit. Libraries were sequenced with Illumina HiSeq-3000 instrument to an estimated whole-genome coverage of 10-40X (Supplementary file 5).

DNA-sequencing read processing, alignment and SNP discovery

Request a detailed protocol

We verified DNA-sequencing read quality using FastQC and trimmed adapter sequences using TrimGalore. We aligned DNA-seq reads to the stickleback reference genome sequence (‘BROAD S1’ Jones et al., 2012) using BWA mem (Li, 2013).

We used the Broad Institute Genome Analysis Tool Kit (GATK) (McKenna et al., 2010) to call Single Nucleotide Polymorphisms (SNPs) in genomic resequencing data, following the DNA-seq best practices (as in June 2016). We ran GATK HaplotypeCaller individually for each sample and defining parameters -stand_call_conf 30 -stand_emit_conf 10 --emitRefConfidence GVCF -variant_index_type LINEAR -variant_index_parameter 128000. The step was followed by joint genotyping using GenotypeGVCFs after which we excluded indels from the analysis. The final step was VariantQualityScoreRecalibration (VQSR). Samples from each ecotype-pair as well as each controlled cross were analyzed together (but separately from other ecotype-pairs or controlled crosses) from GenotypeGVCFs -step onwards. Because stickleback lacks a set of known variant sites, we opted for using a hard-filtered set of SNPs as ‘true’ set of SNPs (with prior = 10). We used the GATK SelectVariants tool to extract a training set that fulfilled the following thresholds: QD >30, FS <60, MQ >40, MQRankSum >−12.5 and ReadPosRankSum>-8. After inspection of VQSR tranche plots, we selected the 99.9% quality tranche for downstream analysis, which captured 1.66M and 3.52M SNPs with transition/transversion ratios of 1.14 and 1.18 for Tyne and Little Campbell population genomic analyses respectively, and 2.27M, 1.62M, 2.75M, 1.54M SNPs with transitition/transversion ratios ranging from 1.16 to 1.17 for parents of the four crosses (strains from Forss, Tyne, Little Campbell, Shiel) used in allele-specific expression analysis.

Population genetic analyses

Request a detailed protocol

Population genetic analyses were based on a set of six freshwater and six marine fish from both Tyne and Little Campbell River. From the GATK variant calling analysis (described above) we identified over 3.5 million SNPs in the Little Campbell populations and over 1.6 million SNPs in Tyne. We calculated per-site statistics for Weir and Cockerham's FST (Weir and Cockerham, 1984) and average pairwise-nucleotide diversity (Pi) genome-wide, and for 400 kilobase (kb) regions centered on transcription start sites (TSSs) using VCFtools (version 0.1.14) (Danecek et al., 2011) allowing for a maximum of 4 missing genotypes per SNP for calculation of FST and a maximum of 2 missing genotypes per SNP for calculation of Pi, corresponding to a maximum of 20% missing genotypes in each case. Negative FST values were rounded to zero. CSS score was calculated based on Pi and following (Jones et al., 2012) in 10 kb non-overlapping windows across the genome. We used the 10 kb windows to assign genome regions as having strongest level of parallel genetic divergence between Tyne and Little Campbell freshwater and marine ecotypes, keeping the top 1% windows with the highest CSS score.

We used custom R scripts to calculate FST and Pi in 1 kb windows centered on transcription start sites (TSSs, as reported by CuffLinks). We used custom R scripts and the R package GenomicRanges to compare the genomic cordinates of transcripts showing parallel expression divergence to the cordinates of the genomic windows showing high CSS values. We calculated the average distance between CSS outlier windows and transcripts in increments of 10 kb and compared the average distance to distances calculated based on 1000 randomized sets of transcripts.

Allele-specific expression analysis

Request a detailed protocol

We defined a set of high-confidence SNPs for allele-specific expression (ASE) analysis, based on genomic resequencing of parent fish used in controlled crosses (above). We then used GATK FastaAlternateReferenceMaker to mask the stickleback reference genome in the corresponding position with Ns in order to avoid preferential mapping of reference SNP alleles. We aligned RNA-seq reads from each F1 and the parents onto the N-masked reference genomes using STAR and parameters as described above, with the exception that we allowed for only uniquely mapping reads (--outFilterMultimapNmax 1). No significant preferential mapping of reference SNPs was observed after these steps.

We selected SNPs where the genotypes of the parents were covered by at least 10 DNA sequencing reads in each parent and where the genotypes of the parents were homozygous for different alleles. These SNP positions were assigned as informative for allele-specific analysis in each cross. Expression levels for allele-specific analyses were represented as read counts overlapping informative SNP positions. We generated allele-specific read counts for F1's and parents with the GATK ASEReadCounter tool and enabling default filters (Castel et al., 2015). We verified that parents had more than 99% counts assigned to right genotypes and excluded the few SNPs where the RNA-seq reads indicated that both alleles were expressed in a parent that should be homozygous. We combined all individuals in each cross (parents and F1's) in one data frame and normalized read counts between individuals to the total library size using DESeq2 function estimateSizeFactors in order to have equal power across F1s. We then filtered for SNP positions covered by more than 10 reads in at least one F1 in order to avoid underpowered tests of allele-specific expression at loci showing no or very low expression. Finally, we intersected the SNP-based results with transcript models from our reference-guided assembly using the R package GenomicRanges, assigning each informative SNP position to an expressed locus and exon.

We tested for ASE in each informative SNP position using a binomial exact test in R and an FDR level of 10% (Storey, 2002). Normally the null hypothesis of binomial test is 0.5, in our case meaning that 50% of the RNA-seq reads represented either marine or freshwater parent alleles. Our approach takes into account a possible residual effect of preferential mapping of reference allele reads by calculating the null-hypothesis for the binomial test based on the ratio of all reference reads over all alternative reads per each F1 following (Buil et al., 2015). The null hypothesis calculated this way was between 0.5 and 0.52, indicating that the residual effect of preferential mapping of reference alleles, if detected, was small. Finally, the results for the ASE test were converted from reference allele versus alternative allele format into marine parent versus freshwater parent by comparing to the genotypes of the parents.

Following ASE testing, we tested for analogous expression difference between parents in the corresponding SNP positions, again using binomial exact test and FDR of 10%. We tested for difference in allele-expression ratio versus parental expression ratio with Fisher's exact test. We then compared ASE significance, ASE sign and ASE magnitude to parental expression difference in order to dissect parental expression differences into divergence classes following (Landry et al., 2005), outlined in Supplementary file 4. We verified that our results were robust toward sequencing depth by down-sampling to 30 million RNA-seq reads per sample (Figure 3—figure supplement 4).

Given that the median number of assembled transcript isoforms per gene (locus) is 3, and the mean number of ASE informative SNPs tagging a given gene (locus) range from 2.0 to 6.2, we concluded that the level of evolutionary divergence between marine and freshwater stickleback strains used in our study was insufficient to dissect the cis- vs trans- genetic architecture underlying expression divergence at the transcript (isoform) level (see Supplemental Note for more information). We instead analyzed ASE at the gene (locus) level, classifying cis-/trans- architecture of each gene into one divergence class based on the SNP that showed the highest statistical support (see above).

We performed concordance analysis for validating the reproducibility of allele expression levels and divergence classes on SNPs assigned to the same exon and the same transcript (Supplemental Note). For the final classification of transcripts to divergence types, we ordered informative SNPs per transcribed locus per F1 by the product of the p-values of the three tests (above) and selected the SNP that had the lowest product of p-value as a representative SNP for that transcript, per F1. We selected this approach among alternatives after taking into account the high concordance of allele expression levels, relatively complex isoform expression patterns, analysis sensitivity, statistically balanced approach, and parsimony in biological explanation of expression divergence (Appendix 1).

A small number of SNPs showed monoallelic expression in F1's where RNA-seq reads overlapping one of the parent alleles were not observed (e.g. 1129 SNPs in Little Campbell River cross). Analysis of RNA-seq read coverage indicated that these SNP positions had lower coverage specifically of the alternative allele, and this effect was not observed when evaluated based on all SNPs or subsets of SNPs e.g. assigned as cis-diverged. This indicated that the cases of monoallelic expression are likely caused by mappability issues, and that the issue was specific to SNPs showing monoallelic expression. Although including these SNPs did not impact the results in a significant way we decided to exclude SNPs showing monoallelic expression in F1s or parents from the analysis.

We summarized the frequencies of transcripts assigned to divergence classes for each F1 using custom R scripts, excluding transcripts that showed differential expression between sexes at FDR 10%. We then assigned transcripts to two classes according to whether or not they showed parallel expression divergence in PCA and differential expression analysis. We tested for over-representation in divergence classes using a randomization test. For the purposes of calculating the background frequencies of genetic architectures, we defined a set of differentially expressed genes between each ecotype-pair based on PC one loadings (10% outliers, median FDR per outlier 13.5–14.5%, see Supplementary analysis 1).

Salinity response

Request a detailed protocol

A clutch of Tyne marine x freshwater F1 siblings were raised in standard laboratory 3.5 ppt salinity until 3 months old, separated into three groups and acclimated to over 4 months. At reproductive maturity, we analyzed the gill transcriptomes of four F1s from each salinity using RNA-seq.

For testing the effect of salinity acclimation on gene expression in F1 gills, we estimated transcript-level expression using CuffQuant and normalized counts for each sample to total library sizes using CuffNorm. We then imported the gene count tables into R and tested for expression differences between salinity treatments using contrasts and an FDR level of 1%, as implemented in DESeq2.

For analysis of expression profiles, we imported FPKM values from CuffLinks into R. The FPKM values were highly correlated with normalized expression values from DESeq2 VarianceStabilizingTransformation, and allow for a more intuitive interpretation. We sub-set the data to only include the transcripts showing differential expression between at least one contrast and parallel expression divergence (N = 97). We then log-transformed and normalized the expression of each transcript to the average expression level across all samples to produce an expression profile that represent expression in a given sample relative to others (for that transcript). We then compared the profiles of samples with Spearman correlation. A correlation approaching one indicates that expression profiles tended to be similar relative to other samples. In contrast, a correlation approaching −1 indicated that sample profiles were mirror-images of one another. Finally, we clustered the samples based on euclidean distance and visualized the sample similarity profiles using the pheatmap R function.

For analysis of allele-specific expression in salinity treatments, we imported allele-specific counts over informative SNPs (as defined above) into R and transformed the counts into log-fold change of marine over freshwater allele. We identified one of the samples acclimated to 35 ppt as having outlier allelic expression levels very different from all other samples and excluded the sample from further analysis. We intersected the SNPs with transcripts that exhibited salinity response and parallel expression divergence (N = 11 transcripts). We measured the similarity of fold-change expression differences between alleles across samples with Spearman correlation, analogous to FPKM counts.

Appendix 1

Hierarchical clustering of expression

The gill transcriptome can be characterized by 5 major groups of loci (Figure 1 – figure supplement 2) comprising 766 highly expressed genes (2.6%) showing strong enrichment for biological processes including mitochondrial respiration, ATP synthesis coupled proton transport and cytoplasmic translation, 4337 moderately expressed genes (14.8%) enriched for metabolic processes such as mRNA processing and RNA splicing, and functions such as cadherin mediated cell adhesion, 6950 lowly expressed genes (23.7%) enriched with genes involved in protein modification and chromatin modification processes, 5565 low or partially expressed genes (19.0%) enriched in genes involved in developmental processes and regulation of developmental processes, and 11677 predominantly unexpressed genes (39.9%).

Defining parallel expression divergence using a parametric test

For parametric testing of parallel expression differences between ecotypes, we combined samples from Little Campbell and Tyne and tested for differential expression using CuffDiff, specifying the parameter -dispersion-method per-condition. We imported the results tables into R and selected transcripts that were tested and where the q-value was less than 0.2. We additionally required that the mean expression difference between freshwater and marine ecotypes was of the same sign in Tyne and Little Campbell.

With a false discovery rate of 20%, we identified 120 loci that showed both significant differences in mean and consistent direction (sign) of divergence between ecotype strains from different river systems. The differentially expressed genes tended to have large composite PC loadings (Figure 1—figure supplement 6). Top ranking genes include Na-Cl cotransporter (slc12a10), Basolateral Na-K-Cl Symporter (slc12a2), cation proton antiporter 3 (slc9a3.2), Potassium Inwardly-Rectifying Voltage-Gated Channel (kcnj1a.3), potassium voltage-gated channel (KCNA2), Epithelial Calcium Channel 2 (trpv6), Sodium/Potassium-Transporting ATPase (atp1a1.4), aquaporin 3a (aqp3a) — genes known to play a role in osmoregulation in fish and other organisms. This set of differentially expressed loci also include a microRNA (mir-182), 31 loci that are annotated in previous Ensembl gene builds but have unknown function inferred from protein homology to other organisms, and 30 entirely novel loci that have no overlap with gene annotations from Ensembl gene build 90.

We opted to concentrate on the PCA-based results in the main text because we believe the analysis captures better the essence of parallel expression divergence; many small expression differences. We believe the PCA approach is more sensitive in characterizing parallel expression differences mainly because small expression differences would require a much larger sample size to be detected using a parametric linear model.

We used CuffDiff also for testing of ecotype-specific expression divergence specifying the same parameters as above. For this analysis, freshwater-marine expression differences were tested separately for Tyne and Little Campbell and the results were compared using R. Transcripts that were differentially expressed in both ecotype-pairs with FDR 20% and where the ecotype difference was of the same sign were assigned as ‘parallel’, whereas if the signs were opposite the transcripts were assigned as ‘anti-parallel’.

Overall, 719 differentially expressed transcripts (FDR 20%) were identified using a parametric analysis, the majority of which (N = 515) had marine-freshwater differential expression unique to Little Campbell compared to N = 157 uniquely differential in Tyne strains. Consistent with largely river system-specific ecotype expression divergence only four percent of loci (N = 29) show parallel expression divergence in both rivers (significant differential expression and identical sign of expression difference in both Tyne and Little Campbell) while 2.5% (N = 18) show anti-parallel expression divergence (significant differential expression and opposite sign of expression difference).

CSS based on Tyne and Little Campbell population data

We calculated a Cluster Separation Score (CSS) in 10 kb non-overlapping windows across the genome following (Jones et al., 2012). The CSS score reflects parallel genetic divergence between freshwater and marine fish irrespective of their geographic origin. We assigned the genomic windows with the extreme 0.5% CSS values as regions showing the strongest signal of parallel genetic divergence (449 windows). More than 26 percent of the transcripts evolving in parallel between Tyne and Little Campbell were situated within 10 kb of regions of parallel genetic divergence (randomization test, p<<0.025, Figure 2—figure supplement 1), which is two times more than what was observed for the global set of regions showing parallel genetic divergence (main text).

SNP concordance analysis

We performed SNP concordance analysis to validate the reproducibility of allele expression levels between SNPs assigned to same exons and to different exons of the same transcript. Our assumption for this analysis was that individual SNPs assigned to the same exons should show correlated levels of ASE as well as concordant class of genetic divergence (cis, trans etc.) when compared within the same F1 individual. It is worth to note that the divergence class also depend on expression levels assigned to the SNP position in parents, which we ignored for simplicity in this analysis.

SNPs assigned to same exons and showing identical type of genetic divergence (concordant SNPs) tended to have strongly correlated ASE levels (Appendix 1—figure 1a). SNPs assigned to same exons but showing different classes of genetic divergence (discordant SNPs) were almost 50% rarer compared to concordant SNPs and, as expected, showed lower level of correlation in ASE and overall smaller allelic differences (Appendix 1—figure 1b). Concordant and discordant SNPs within exons showed overall similar distribution among divergence classes, indicating that discordant calls influenced all classes equally (not shown).

Appendix 1—figure 1

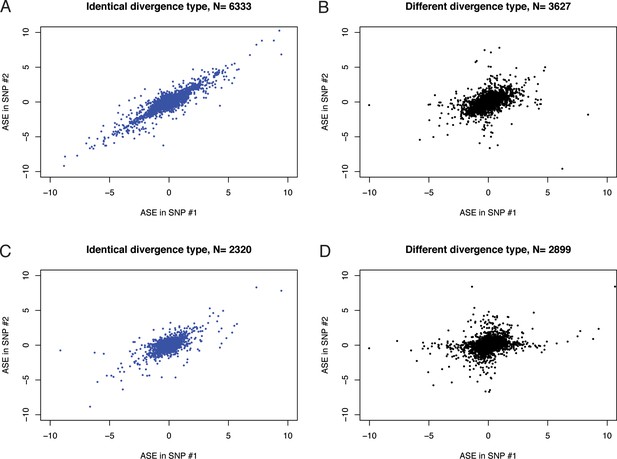

Correlation of ASE (log-fold change of RNA-seq counts of marine over freshwater allele) in different pairs of SNPs was used to perform concordance analysis.

(a) SNPs assigned to same exons and showing identical type of genetic divergence (concordant SNPs). (b) SNPs assigned to same exons but showing different classes of genetic divergence (discordant SNPs). (c) SNPs assigned to different exons of the same transcript and showing identical type of genetic divergence. (d) SNPs assigned to different exons of the same transcript and showing different type of genetic divergence.

https://doi.org/10.7554/eLife.43785.031

SNPs assigned to the same transcript but different exons had a correlated level of ASE in cases where the divergence class assigned to both exons were the same (Appendix 1—figure 1c). Cases where the exons showed different divergence class showed a lower correlation in ASE (Appendix 1—figure 1d). These results are consistent with previous studies demonstrating variable levels of ASE along genes and between exons (Skelly et al., 2011). Different exons of the same transcript that show different levels of ASE suggest that ASE effects are specific to single isoforms rather than all isoforms assigned to the same transcript. Through our RNA-seq analysis we identified over 162000 known and new isoforms distributed to 29296 transcribed loci (on average over five isoforms per transcribed locus).

In our final analysis, we opted to classify each transcript into one divergence class, based on the SNP that showed the highest statistical support (see Materials and methods). The justification for this choice was based on the following considerations:

  1. Individual SNPs assigned to the same exon tended to show similar ASE levels and divergence types, indicating that dissection of divergence architecture was generally robust to different SNPs within exons. Discordance in divergence types for SNPs assigned to the same exon influenced all divergence types equally and therefore is not expected to bias the results.

  2. SNPs assigned to the same transcript but different exons showed different divergence types in roughly half of the cases, and the levels of ASE on the SNP loci were less correlated. This suggests that different exons may experience varying levels of ASE, likely because of alternative isoform expression, as has been demonstrated before (Skelly et al., 2011). Visual inspection of expression tracks in candidate genes for variable ASE identified multiple instances of putative alternative isoform expression (example in Appendix 1—figure 2). Any procedure that would not distinguish different exons, for example averaging expression levels across SNPs, would therefore suffer from low sensitivity as loci not showing ASE would cancel the signal from loci showing ASE.

  3. We discarded the option of averaging ASE levels for SNPs assigned to the same exon because different transcripts and ecotype-pairs showed markedly different densities of SNPs. Averaging would therefore influence transcripts and ecotype-pairs unequally.

Appendix 1—figure 2

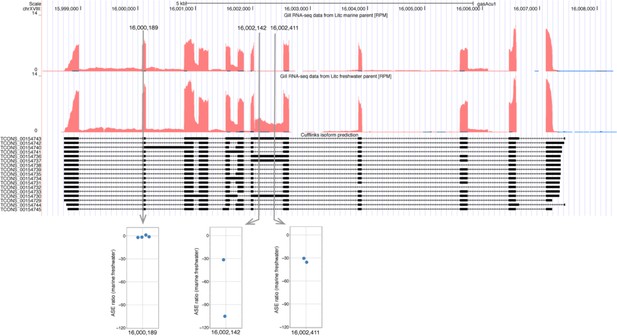

Candidate transcript for alternative isoform expression.

This example illustrates that SNPs in different regions of the same transcript can show varying levels of ASE associated with alternative splice forms. Expression level is represented by RPM (Reads [mapping to position] Per Million [reads mapped overall]) and corresponds to red track in Little Campbell marine (upper) and freshwater (lower) parents. CuffLinks isoform predictions are represented below expression tracks. The marine and freshwater alleles are distinguished by three SNPs mapping to two exons. SNP at position chrXVIII:16000189 shows similar expression level of both alleles and hence no ASE. SNPs at positions 16002142 and 16002411 map to an alternatively spliced region of the transcript where expression is observed in freshwater allele but not in marine allele, and hence the SNPs show ASE towards freshwater.

https://doi.org/10.7554/eLife.43785.032

Analysis of power for cis/trans test

In the approach we employed for testing the genetic architecture of expression variation (Landry et al., 2005), expression difference is tested between alleles of F1’s and between parent fish using a binomial test. Then the expression ratios of alleles (within F1’s) are compared to the expression ratios of the alleles between the parents.

  • Cis regulation necessitates that there is expression difference between the alleles within F1’s as well as between parents, and that the ratio of allele 1 versus allele two expression is conserved in F1’s and parents.

  • Trans regulation necessitates that there is expression difference between the parents and that the ratios of allele 1 versus allele two expression is not conserved between the parents and F1’s (this is the definition of trans - that is expression difference not co-segregating with alleles (Wittkopp et al., 2004).

We used simulated data and estimated the power to detect genetic effects under two scenarios:

  • all divergence between parents is in cis

  • all divergence between parents is in trans

By simulating count differences between parents based on the distribution of observed data, we defined threshold values for minimal parental difference where cis and trans tests result in significant outcomes. The difference in power proved out to be small; cis test would result in significant outcome with a minimum parental difference of 5 counts, trans test with seven counts. Theoretically there is a gap in parental difference between 5–7 counts where a cis test could result in significant outcome but trans test would fail to detect differences. In our observed data, 1144 genes fall into this category in Tyne and 1402 in Little Campbell. These genes are assigned mainly into the ‘conserved’ category of divergence classes. The large majority of genes assigned as cis or trans have higher parental difference than 5 or 7, indicating that the genes falling into the category of 5–7 parental difference are indeed ‘conserved’ in regulation and that the difference in power does not influence the overall frequencies of cis and trans regulated genes. Indeed, we observe from the attached analysis that trans-regulated genes tend on average to have larger parental difference compared to cis-regulated genes, and that this difference is observed with parental differences where our tests have equal power to detect differences (parental difference >>7).

Comparison of subtraction-based methods to estimate the magnitude of cis and trans divergence

We use a variant of the subtraction method to calculate average cis and trans divergence in the analysis in Figure 5. Overall, the categorization method of Landry et al. (2005) and the subtraction method result in high concordance; genes categorized as cis based on Landry et al. (2005) test show high cis estimates and low trans estimates using the subtraction method, and vice versa for genes assigned as trans.

Some problems with subtraction-based approaches has been articulated in a recent publication (Fraser, 2019). In summary, when estimating trans divergence based on cis-acting variation, statistical errors in cis-estimation can be automatically negatively correlated with the errors in trans-estimation. If this is the case, we expect that the estimates for cis and trans divergence would be negatively correlated with each other. Fraser (2019) suggests a simple solution to this problem: by estimating cis-divergence in one F1 and trans-divergence in another, the errors are uncorrelated and the method is unbiased.

We compared our subtraction method used in Figure 5 to the one proposed by Fraser (called ‘cross replicate correlation’). For genes assigned as cis or trans, both methods showed low correlation between cis and trans estimates for individual genes (which is desired). Estimates of cis and trans divergence were highly correlated using the two approaches (Supplementary analysis 3).

https://doi.org/10.7554/eLife.43785.030

References

  1. 1
    The Evolutionary Biology of the Threespine Stickleback, 571
    1. MA Bell
    2. SA Foster
    (1994)
    Oxford; New York: Oxford science publications, Oxford University Press.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
    Principles of Population Genetics, 116
    1. DL Hartl
    2. AG Clark
    (1997)
    Sunderland: Sinauer associates .
  26. 26
  27. 27
    Ion regulation in fish gills: recent progress in the cellular and molecular mechanisms
    1. PP Hwang
    2. TH Lee
    3. LY Lin
    (2011)
    American Journal of Physiology-Regulatory, Integrative and Comparative Physiology 301:R28–R47.
    https://doi.org/10.1152/ajpregu.00047.2011
  28. 28
    R: a language for data analysis and graphics
    1. R Ihaka
    2. R Gentleman
    (1996)
    Journal of Computational and Graphical Statistics : A Joint Publication of American Statistical Association, Institute of Mathematical Statistics, Interface Foundation of North America 5:299–314.
  29. 29
  30. 30
    New genomic tools for molecular studies of evolutionary change in threespine sticklebacks
    1. DM Kingsley
    2. B Zhu
    3. K Osoegawa
    4. PJ de Jong
    5. J Schein
    6. M Marra
    (2004)
    Behaviour 141:1331–1344.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    Testing natural selection vs. genetic drift in phenotypic evolution using quantitative trait locus data
    1. HA Orr
    (1998)
    Genetics 149:2099–2104.
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    A direct approach to false discovery rates
    1. JD Storey
    (2002)
    Journal of the Royal Statistical Society: Series B 64:479–498.
    https://doi.org/10.1111/1467-9868.00346
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    Estimating f-statistics for the analysis of population structure
    1. BS Weir
    2. CC Cockerham
    (1984)
    Evolution; International Journal of Organic Evolution 38:1358–1370.
  57. 57
  58. 58
  59. 59

Decision letter

  1. Juliette de Meaux
    Reviewing Editor; University of Cologne, Germany
  2. Diethard Tautz
    Senior Editor; Max-Planck Institute for Evolutionary Biology, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Predominance of cis-regulatory changes in parallel expression divergence of sticklebacks" for consideration by eLife. Your article has been reviewed by three reviewers and the evaluation has been overseen by a Reviewing Editor and Diethard Tautz as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised version of your manuscript for resubmission.

Summary:

This manuscript describes an original and informative study characterizing the extent of parallel expression divergence in stickleback gills and its genetic architecture. Using a mixture of parental originating from freshwater and marine environments and some F1 hybrids, the authors describe the cis-/trans- acting basis of transcription change, showing that cis-acting change overlap with genomic regions carrying population genetics signatures of adaptation. They further investigate patterns of dominance, epistasis and plasticity affecting genes with parallel expression divergence and conclude that cis-regulatory variants are best suited to be the preferred basis of adaptive evolution in gene transcription levels. Finally, the authors observe that cis-regulation makes a predominant contribution to the genetic assimilation of plastic responses into heritable variation. In this study, genes were also identified that are excellent candidates for evolved adaptive changes in cis-regulation that can be the subject of future studies.

The stickleback system is arguably the best platform to investigate the role of gene expression variation in parallel adaptation because of the many examples of repeated adaptation to freshwater as well as the large body of previous work documenting signatures of selection at the genomic level. This novel piece of work informs the community about the pattern and process by which gene expression changes contribute to adaptive phenotypic change. We therefore believe it has the potential to be eventually suitable for publication in eLife. However, we have noted three crucial shortcomings that should be addressed in a much revised version as well as two important aspects that are not sufficiently considered in the present manuscript. These can be summarized in 5 major points, three of which warrant essential revisions.

Essential revisions:

Point 1. The analysis of enrichment in cis-regulatory variation among genes showing parallel expression divergence was not properly tested. While cis-regulatory variation appears to be pervasive, and therefore an important component of the adaptation of gene expression, the question of the universe against which this enrichment is tested is crucial. The authors tested the proportion of cis-regulatory changes detected in genes with parallel expression change against the whole set of genes with analyzable ASE (e.g. expressed and with SNPs allowing assignment of parental origin), most of which show no parental difference. Instead, we believe the right test would be to compare parallel-divergence genes to random genes with a significant parental expression difference (regardless of whether it is parallel or not). Since the conclusion that parallel divergent genes are more cis than random genes is the titular claim of the paper, this question is crucial and the authors may have to re-formulate their conclusions.

Point 2. The unconventional use of PCA to identify the parallel-diverged genes also raised questions. We wondered why you did not use a linear model of the type: expression ~ river x ecotype or expression ~ ecotype/river. The robustness of your approach against random patterns of gene expression variation is not known. Choosing 1% of the tail of the distribution is a rather blind approach that could be better supported with a permutation approach. We believe you should produce an estimate of the proportion of false positives among the 586 genes you identify as showing a parallel expression change. Here again, depending on the proportion of false positives, your conclusions may have to be revised.

Point 3. An inherent difficulty in cis-/trans- studies is that the two sources of variation differ in the respective power with which significant differences can be identified. In F1, alleles are always expressed in the same cell, by contrast with adult parental fishes. Cis-/trans frequencies can be computed. A potential solution is to infer the proportion of parental expression variance that is associated with a detectable cis-acting change in hybrids.

Point 4. The possibility that epigenetic differences could explain some proportion of the ASE reported here should be discussed, since the parents of the F1 grew up in the wild.

Point 5. Finally, we wondered whether the authors have deliberately chosen to omit references to studies of gene expression completed in plant systems. Back in 2014, a study conducted in maize reported that cis-acting variants are enriched in genomic segments carrying signatures of selection (Lemmon et al., 2014), in Arabidopsis species specific functions were enriched in derived cis-acting changes (He et al., 2016) and in Capsella grandiflora, cis-acting changes were associated with relaxed selection (Steige et al., 2017). It seems the authors should refer to the broader body of literature dissecting the genetic basis of expression changes associated with adaptation. Placing their finding into the broader context of the field will give greater resonance to this work, beyond the boundaries of the fish community.

https://doi.org/10.7554/eLife.43785.037

Author response

Essential revisions:

Point 1. The analysis of enrichment in cis-regulatory variation among genes showing parallel expression divergence was not properly tested. While cis-regulatory variation appears to be pervasive, and therefore an important component of the adaptation of gene expression, the question of the universe against which this enrichment is tested is crucial. The authors tested the proportion of cis-regulatory changes detected in genes with parallel expression change against the whole set of genes with analyzable ASE (e.g. expressed and with SNPs allowing assignment of parental origin), most of which show no parental difference. Instead, we believe the right test would be to compare parallel-divergence genes to random genes with a significant parental expression difference (regardless of whether it is parallel or not). Since the conclusion that parallel divergent genes are more cis than random genes is the titular claim of the paper, this question is crucial and the authors may have to re-formulate their conclusions.

We begin by summarising the motivation for this test: we are asking what the relative proportion of different regulatory categories underlying parallel gene expression divergence, compared to the overall frequencies of those regulatory categories.

The reviewers recommend the background comprise “random genes with a significant parental expression difference (regardless of whether it is parallel or not)”. We understand the concern raised by the reviewers however, we do not believe that the test proposed in the review the is the best way to proceed. As per our test (please see Supplementary file 4), the proposed procedure leads to an undesirable situation where the background set includes all genes except those assigned to “conserved” or “compensatory” (since by definition these classes show no parental difference). Such a background set would not align with the intended purpose of the analysis, as we are interested in knowing what is the over-representation of regulatory categories in parallel diverged genes above the overall genetic architectures?

To illustrate this point we have performed the suggested analysis using the background set as per comment 1, and arrive at the results shown in Author response image 1.

Author response image 1
Genes with parallel marine-freshwater divergence in expression are enriched in cis-divergence.

Overrepresentation of expression regulation types associated with parallel evolving transcripts, compared to genes with significant parental expression divergence (regardless of whether it is parallel or not). Points represent the observed values in four F1's per cross. Box-plots represent the background expectation.

https://doi.org/10.7554/eLife.43785.033

The first thing to draw your attention to is that the background distributions are no longer meaningful for “compensatory” and “conserved” classes (box plots at zero) because the background set is required to contain genes that show significant expression divergence between the parents, which by definition these categories do not contain. Secondly, in the Tyne, genes with parallel expression divergence are not over-represented in cis, but in genes assigned to “conserved”, as well as those assigned as “compensatory” classes. As noted above, the comparison is invalid because by definition the background set cannot contain genes assigned as “conserved” or “compensatory”.

To accommodate the recommendation that the background set of genes to which genes with parallel expression divergences are compared should comprise only genes that are differentially expressed between ecotypes, we re-analyzed the data following the steps below:

i) We performed principal components analyses (PCAs) between freshwater and marine ecotypes separately for Little Campbell and Tyne.

ii) We defined a set of differentially expressed genes between ecotypes based on principal component 1 loadings, which is the major principal component separating the ecotypes (10% outliers, median FDR 13.5-14.5% (Tyne and Little Campbell respectively), see response 2 for calculation).

iii) We used the principal component 1 outliers, which are differentially expressed between ecotypes (and therefore fulfil the requirement in the reviewer’s comment), as the background set of genes to which genes with parallel expression divergence were compared.

Using set of differentially expressed genes between ecotypes as the background set, we provide the results in Figure 4, which leads to similar conclusion as in our initial analysis: genes with parallel expression divergence are enriched with cis-regulation compared to the background set of diverged genes.

The above analysis has now been included in the main text (replacing the original analysis). We have modified the text and Figure 4 to accommodate these changes.

Point 2. The unconventional use of PCA to identify the parallel-diverged genes also raised questions. We wondered why you did not use a linear model of the type: expression ~ river x ecotype or expression ~ ecotype/river. The robustness of your approach against random patterns of gene expression variation is not known. Choosing 1% of the tail of the distribution is a rather blind approach that could be better supported with a permutation approach. We believe you should produce an estimate of the proportion of false positives among the 586 genes you identify as showing a parallel expression change. Here again, depending on the proportion of false positives, your conclusions may have to be revised.

It is a misunderstanding that we did not use a linear model to identify genes with parallel expression divergence. We have indeed performed such analysis and refer to it in the results (full analysis in the supplementary note under the section: Defining parallel expression divergence using a parametric test). The genes identified using the linear model largely overlaps the set of genes identified using PCA (Figure 1—figure supplement 6).

We opted to concentrate on the PCA results in the main text for the following reasons:

i) We believe the PCA results are more sensitive than linear modelling.

ii) We believe PCA captures better the essence of parallel expression divergence (many small expression differences).

Our understanding is that PCA is more sensitive in characterizing parallel expression differences mainly because small expression differences would require a much larger sample size to be detected using a linear model. We corrected the text emphasizing that the fact that the two approaches give concordant results.

Following the reviewers' suggestion, we calculated an FDR for the parallel expression divergence we observed (result: median FDR = 2.6% ). Since we are unaware of any standard way to test the significance of single PCA loadings in the context of the overall PCA, we used an approach inspired by: Linting, van Os and Meulman, (2011).

The procedure has the following steps:

i) For each outlier gene, shuffle the sample labels while keeping all other data as original.

ii) Re-perform PCA and calculate the composite PC axes describing significant ecotype divergence.

iii) Store the composite PC loadings from the permutation.

iv) Perform steps i-iii for all possible combinations of dividing the 16 samples to two groups of 8 samples (6435 unique combinations) for each composite PC outlier to produce a null distribution of composite PC loadings.

v) Calculate Z-score and P-value for observing a loading higher than the permuted null.

vi) Correct for multiple testing (FDR).

The procedure tests the null hypothesis that the composite PC loading of a given gene is not significantly higher compared to composite PC loadings calculated from non-structured data (i.e. where the sample identities have been shuffled). This approach produces an FDR for each composite PC outlier. In the main text, we report the median FDR over all composite PC outliers (2.6% ).

Figure 1—figure supplement 5 has been added to the revised manuscript. Panel a represents sorted composite PC loading for all genes and illustrate 1% cutoffs for extreme values with a dotted line. Panel b represents the FDR values for the 586 transcripts designated as composite PC outliers.

This information was added to the manuscript.

Point 3. An inherent difficulty in cis-/trans- studies is that the two sources of variation differ in the respective power with which significant differences can be identified. In F1, alleles are always expressed in the same cell, by contrast with adult parental fishes. Cis-/trans frequencies can be computed. A potential solution is to infer the proportion of parental expression variance that is associated with a detectable cis-acting change in hybrids.

The reviewers point out a difference in power that exists when cis regulation is calculated from allelic ratios within offspring and trans regulation from parental ratios minus cis. This can make comparisons between cis and trans (e.g. the relative proportion of cis- and trans-) problematic. The reviews suggest using a model to estimate the proportion of variance in parental expression difference that can be explained by cis-acting differences in F1s.

With the exception of the analysis in Figure 5, we estimate cis and trans divergence based on an alternative approach that has been widely used, and where one does not use subtraction to estimate trans divergence (Hartl et al., (2005). Also note that based on a power analysis of simulated data, we observe very little difference in statistical power between (this alternative) cis and trans tests.

We use a variant of the subtraction method to calculate average cis and trans divergence in the analysis in Figure 5. In this analysis we do not make comparisons between cis- and trans- categories but rather within each category study the parallelism (correlation) in magnitude of their effects among different populations. For this reason, we believe the analysis and conclusions presented in the analyses in Figure 5 are unaffected by potential biases in the differential power to detect cis and trans regulation.

Overall, the categorization method of Landry et al., and the subtraction method result in high concordance; genes categorized as cis based on Landry et al. test show high cis estimates and low trans estimates using the subtraction method, and vice versa for genes assigned as trans.

Some problems with subtraction-based approaches has been articulated in a recent publication (Fraser, (2019). In summary, when estimating trans divergence based on cis-acting variation, statistical errors in cis-estimation can be automatically negatively correlated with the errors in trans-estimation. If this is the case, we expect that the estimates for cis and trans divergence would be negatively correlated with each other. Fraser, (2019) suggests a simple solution to this problem: by estimating cis-divergence in one F1 and trans-divergence in another, the errors are uncorrelated and the method is unbiased.

We compared our subtraction method used in Figure 5 to the one proposed by Fraser (called “cross replicate correlation”). For genes assigned as cis or trans, both methods showed low correlation between cis and trans estimates for individual genes (which is desired). Estimates of cis and trans divergence were highly correlated between the two approaches.

We have added this information to Appendix 1.

Point 4. The possibility that epigenetic differences could explain some proportion of the ASE reported here should be discussed, since the parents of the F1 grew up in the wild.

This is a misunderstanding. The parents were indeed raised in the lab in identical environment to the F1’s, as explained in the Materials and methods section. We revised the Materials and methods section for clarity.

Point 5. Finally, we wondered whether the authors have deliberately chosen to omit references to studies of gene expression completed in plant systems. Back in 2014, a study conducted in maize reported that cis-acting variants are enriched in genomic segments carrying signatures of selection (Lemmon et al., 2014), in Arabidopsis species specific functions were enriched in derived cis-acting changes (He et al., 2016) and in Capsella grandiflora, cis-acting changes were associated with relaxed selection (Steige et al., 2017). It seems the authors should refer to the broader body of literature dissecting the genetic basis of expression changes associated with adaptation. Placing their finding into the broader context of the field will give greater resonance to this work, beyond the boundaries of the fish community.

We regret that we had missed references to this valuable literature and have added discussion of these studies to the manuscript.
