Loss of centromere function drives karyotype evolution in closely related Malassezia species

  1. Sundar Ram Sankaranarayanan
  2. Giuseppe Ianiri
  3. Marco A Coelho
  4. Md Hashim Reza
  5. Bhagya C Thimmappa
  6. Promit Ganguly
  7. Rakesh Netha Vadnala
  8. Sheng Sun
  9. Rahul Siddharthan
  10. Christian Tellgren-Roth
  11. Thomas L Dawson Jnr
  12. Joseph Heitman  Is a corresponding author
  13. Kaustuv Sanyal  Is a corresponding author
  1. Molecular Mycology Laboratory, Molecular Biology and Genetics Unit, Jawaharlal Nehru Centre for Advanced Scientific Research, India
  2. Department of Molecular Genetics and Microbiology, Duke University Medical Center, United States
  3. The Institute of Mathematical Sciences/HBNI, India
  4. National Genomics Infrastructure, Science for Life Laboratory, Department of Immunology, Genetics and Pathology, Uppsala University, Sweden
  5. Skin Research Institute Singapore, Agency for Science, Technology and Research (A*STAR), Singapore
  6. Department of Drug Discovery, Medical University of South Carolina, School of Pharmacy, United States
Research Article
Cite this article as: eLife 2020;9:e53944 doi: 10.7554/eLife.53944
8 figures, 5 tables, 10 data sets and 2 additional files

Figures

Figure 1 with 1 supplement
Genome assembly and karyotype diversity in representative Malassezia species.

The genomes of (AM. globosa, (BM. slooffiae, and (C) M. furfur were sequenced and assembled in this study, whereas the genome assembly of (D) M. sympodialis was reported earlier (Zhu et al., 2017) and is shown for comparison. In each panel, bar plots represent the assembled chromosomes of the indicated Malassezia species, with the telomeres and the ribosomal DNA (rDNA) marked as dark gray and blue bars, respectively. Telomere-repeat motifs are shown at the 5′- and 3′-ends of the Chr1 in each species. Electrophoretic karyotypes of M. globosa (Mg) and M. sloffiiae (Msl), are shown in (A) and (B), respectively, with chromosome sizes estimated from the genome assembly. Chromosomes of Saccharomyces cerevisiae (Sc) served as size markers. The chromosome containing the rDNA (marked with an ‘r’), in M. globosa, co-migrates with Chr3. This was assessed by chromoblot hybridization using unique sequences from Chr3, Chr4, Chr5, and Chr6 as probes (regions indicated by red arrowheads). Chromosomes of similar size (denoted in red) migrate together in the gel and appear as a doublet band (i.e. MgChr3–MgChr5, MslChr2–MslChr3, and MslChr5–MslChr6).

Figure 1—figure supplement 1

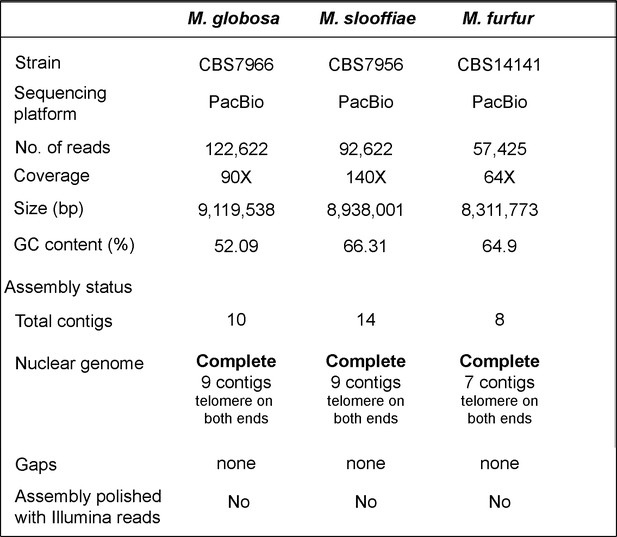

Statistics of the genome assemblies of M. globosa, M. slooffiae, and M. furfur generated in this study.
Figure 1—figure supplement 1—source data 1

Statistics of the genome assemblies of M. globosa, M. slooffiae, and M. furfur generated in this study.

https://cdn.elifesciences.org/articles/53944/elife-53944-fig1-figsupp1-data1-v2.docx
Figure 2 with 1 supplement
Kinetochores cluster and localize at the nuclear periphery in M. sympodialis.

(A) Schematic of the kinetochore organization of M. sympodialis. Gray boxes indicate proteins absent in M. sympodialis. The outer kinetochore protein Mtw1 (a component of Mis12C) served as the kinetochore marker in the present study. (B) Line diagram representation of Mtw1 tagged with GFP at the N- terminus. Immunoblot analysis of whole-cell lysates prepared from the untagged M. sympodialis strain (ATCC42132) and from GFP-Mtw1 expressing cells (MSY001) probed with anti-GFP antibodies and anti-PSTAIRE antibodies. PSTAIRE served as a loading control. Relative intensity values normalized to PSTAIRE are indicated below each lane. (C) Logarithmically grown MSY001 cells expressing GFP-Mtw1 were fixed and stained with DAPI (blue) and anti-GFP antibodies (pseudo-colored in red). Scale bar, 2.5 µm. (D) Cell cycle stage-specific localization dynamics of GFP-Mtw1. Scale bar, 2.5 µm.

Figure 2—figure supplement 1

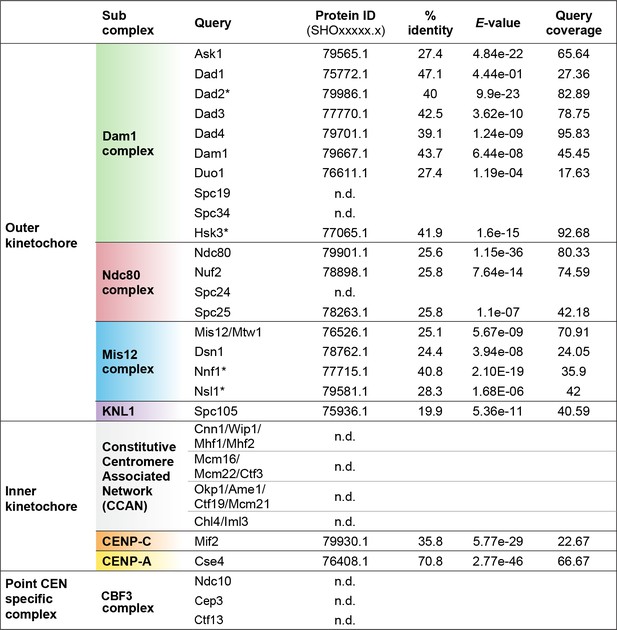

Identification of kinetochore proteins in M. sympodialis by BLAST.

Putative homologs of the indicated proteins in M. sympodialis were identified by BLAST analysis using corresponding protein sequences of C. neoformans as the query. An asterisk (*) indicates cases where corresponding protein sequences from Ustilago maydis were used as query. To detect proteins of the CBF3 complex, protein sequences of Ndc10, Cep3, and Ctf13 from S. cerevisiae were used as query. ‘n.d.’ indicates homolog not detected.

Figure 2—figure supplement 1—source data 1

Identification of kinetochore proteins in M. sympodialisby BLAST.

Putative homologs of the indicated proteins in M. sympodialis were identified by BLAST analysis using corresponding protein sequences of C. neoformans as the query. Asterisk (*) indicates cases where corresponding protein sequences from Ustilago maydis were used as query. To detect proteins of the CBF3 complex, protein sequences of Ndc10, Cep3, and Ctf13 from S. cerevisiae were used as query. ‘n.d.’ indicates homolog not detected.

https://cdn.elifesciences.org/articles/53944/elife-53944-fig2-figsupp1-data1-v2.docx
Figure 3 with 3 supplements
Localization of Mtw1 to single-peaks identifies centromeres on each of the eight chromosomes of M. sympodialis.

(A) GFP-Mtw1 ChIP-seq reads were mapped to each chromosome. The x-axis indicates chromosomal coordinates (in kb) and the y-axis indicates read depth. ‘Input’, reads from total DNA; ‘IP,’ reads from immunoprecipitated sample; CEN, Mtw1-enriched regions derived by subtracting input reads from those of the IP sample (peak values 0–2500). Additional peaks observed in both IP and input tracks on Chr5 are from the rDNA locus. (B) A 13 kb-window of the Mtw1 enrichment profile (CEN, represented as peaks and heat-map in two different tracks, red) plotted along with the GC content (%GC, blue) and regions of transcription (RNA-seq, green). Numbers in the topmost track in every panel indicate chromosomal coordinates (in kb). The scales for the y-axis are as follows: CEN (0–8000), %GC (0–75), RNA-seq reads (0–1500). Gray arrows in each panel indicate predicted ORFs based on RNA-seq data with arrowheads indicating the direction of transcription of the corresponding gene, also marked as ‘+’ and ‘–’ in the axis label. (C) Fold difference in Mtw1 and histone H3 enrichment at CEN8, as compared to a non-centromeric control region (190 kb away on the right of CEN1) by qPCR analysis. Schematic of a 4-kb region of Chr8 with the CEN8 core (yellow box) is depicted below the graph. Blue lines indicate regions assayed by PCR: core-region corresponding to the GC trough; L1 and R1, 750 bp away from the core; L2, 1500 bp away from the core; and a non-centromeric control region (190 kb away from centromere in Chr1). The x-axis indicates regions across the CEN8 probed by PCR and the y-axis indicates fold difference in the enrichment of Mtw1 and histone H3 as compared to the control region. Error bars indicate standard deviations (SD). Values from three experiments, each performed with three technical replicates, were used to generate the plot. (D) Logo of the consensus DNA sequence identified from M. sympodialis centromeres, graphically represented with the size of the base corresponding with the frequency of occurrence.

Figure 3—source data 1

Source raw data for Figure 3C (ChIP-qPCR for GFP-Mtw1 and Histone H3 across MsyCEN8).

https://cdn.elifesciences.org/articles/53944/elife-53944-fig3-data1-v2.xlsx
Figure 3—figure supplement 1

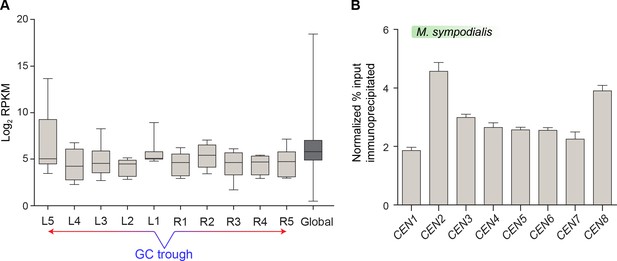

Mtw1-enriched regions in M. sympodialis contain transcriptionally active genes.

(A) Normalized read counts (RPKM) for transcripts from ORFs flanking the centromere as compared with the genome average RPKM value calculated from RNA-seq data of M. sympodialis (ATCC42132). The x-axis represents ORFs labeled L1–L5 and R1–R5, with L1 and R1 being proximal to the GC trough of the centromere. The genome average considered for comparison is labeled as global. The y-axis represents Log2 RPKM values. (B) ChIP-qPCR assays validating the enrichment of Mtw1 at the centromeres identified by ChIP-sequencing analysis. The x-axis indicates individual CEN regions assayed with primers mapping to the chromosomal GC troughs (see Supplementary file 1 for primer sequences) and the y-axis indicates enrichment of Mtw1 over a centromere-unlinked control region as ‘normalized % input immunoprecipitated’. Values from three experiments, each performed with three technical replicates, were used to generate the plot. Error bars indicate standard deviations (SD).

Figure 3—figure supplement 1—source data 1

Source raw data for Figure 3—figure supplement 1B (ChIP-qPCR for GFP-Mtw1 across all M. sympodialis centromeres).

https://cdn.elifesciences.org/articles/53944/elife-53944-fig3-figsupp1-data1-v2.xlsx
Figure 3—figure supplement 2
Sequence features of centromeres in M. sympodialis.

(A) The genome of M. sympodialis was scanned for matches to the 12-bp AT-rich motif using a 500 bp sliding window. Hit counts (y-axis) were plotted against the chromosomal coordinates (x-axis, in kb). Red asterisks near the line corresponding to maximum enrichment in every chromosome mark the regions predicted as centromeres. (B) Comparison of the maximum motif counts in a 500-bp window in each M. sympodialis chromosome (y-axis) estimated with the position weight matrix (PWM) of the 12 bp motif (blue bars, labeled real) and a scrambled version of the matrix (orange bars, labeled shuffled). The x-axis indicates individual chromosomes in M. sympodialis. (C) A dot-plot generated by plotting sequences that include 5 kb flanking the Mtw1-enriched regions in M. sympodialis against themselves is depicted. The coordinates of regions used in M. sympodialis are: CEN1, 781716–791716; CEN2, 350852–360852; CEN3, 232777–242777; CEN4, 413320–423320; CEN5, 120251–130251; CEN6, 97796–107796; CEN7, 426611–436611; and CEN8, 19905–29905.

Figure 3—figure supplement 3
Enrichment of the 12-bp motif at the centromere core in M. sympodialis.

The sequences corresponding to the Mtw1-enriched regions in Chr1 (with the AT-rich core region highlighted in pink) are taken as being representative of M. sympodialis centromeres. The sequences corresponding to the 12-bp motif shown in Figure 3D are highlighted. Red and blue boxes highlight the forward and reverse orientation of motif occurrence.

Figure 4 with 2 supplements
Centromeres in M. furfur, M. slooffiae, and M. globosa map to global GC troughs on each chromosome.

(A) Schematic of epitope tagging of CENP-A with 3xFLAG at the C-terminus. (Bottom) Immunoblot analysis using whole-cell lysates prepared from the untagged wild-type M. furfur (CBS14141) cells and CENP-A-3xFLAG expressing cells (MF001) probed with anti-FLAG antibodies and anti-PSTAIRE antibodies. PSTAIRE served as the loading control. (B) Abundance of CENP-A at each of the predicted M. furfur centromeres by qPCR analysis of DNA immunoprecipitated with anti-FLAG affinity gel in MF001 cells expressing CENP-A-3xFLAG. The x-axis indicates individual CEN regions assayed with primers that are homologous to the GC troughs on each chromosome that were predicted to be centromeres (see Supplementary file 1 for primer sequences). The non-centromeric control sequence maps to a region 1.3 Mb away from predicted CEN1. The y-axis indicates enrichment of CENP-A estimated as the percentage of input immunoprecipitated. (C) Abundance of CENP-A across MfCEN7 by ChIP-qPCR analysis in MF001 cells. A schematic representation of a 2-kb region is shown below the graph. The yellow bar indicates the centromere core of CEN7 corresponding to the GC trough. Blue bars indicate regions analyzed by qPCR: L1 and R1, which are 750 bp away from the centromere core. ‘Control’ refers to a region 1.3 Mb away from CEN1. CENP-A enrichment is plotted along the y-axis as the percentage of input immunoprecipitated. (D, E) Comparison of the relative abundance of histone H3 compared to histone H4 at the predicted centromeres to a non-centromeric control locus in M. slooffiae (D) and M. globosa (E), respectively. Enrichment was estimated as the percentage of input immunoprecipitated with histone H3 and histone H4 antibodies and their ratio is plotted as relative enrichment (y-axis). The x-axis indicates centromeres in each species and these were assayed with primers homologous to GC troughs (i.e. predicted centromeres) in each chromosome (see Supplementary file 1 for primer sequences). The control region that is unlinked to the centromere corresponds to a locus 630 kb away from CEN1 in M. slooffiae and 416 kb away from CEN2 in M. globosa. (F) The relative abundance of histone H3 compared to histone H4 across MslCEN1 as determined by qPCR analysis of the DNA immunoprecipitated using histone H3 and histone H4 antibodies. A schematic of the MslCEN1 locus is shown below the graph. The yellow bar indicates the CEN1 core region corresponding to the GC trough. Blue bars indicate regions analyzed by qPCR: L1 and L2 map to regions 750 bp and 1.5 kb to the left of the CEN1 core; R1 maps to a region 750 bp to the right of the CEN1 core. The control region corresponds to a locus 630 kb away from the CEN1 core. The ratio of enrichment of histone H3 to that of histone H4 is plotted as the relative enrichment (y-axis). (G) The relative abundance of histone H3 compared to histone H4 across MgCEN2 by qPCR analysis of the DNA immunoprecipitated using histone H3 and histone H4 antibodies. A schematic of a 5-kb region containing MgCEN2 is shown below the graph. The yellow bar indicates the CEN2 core region corresponding to the GC trough. Blue bars indicate regions analyzed by qPCR: L1 and L2 indicate regions 750 bp and 1.5 kb to the left of the CEN2 core; R1 and R2 indicate regions 750 bp and 1.5 kb to the right of the CEN2 core. The control region corresponds to a locus 416 kb away from the CEN2 core. The ratio of enrichment of histone H3 to that of histone H4 is plotted as the relative enrichment (y-axis). Values from three experiments, each performed with three technical replicates, were used to generate the plots in panels (B–G). Error bars indicate standard deviations (SD). Statistical significance was tested by one-way ANOVA: *, significant at p<0.05, *** , significant at p<0.001.

Figure 4—source data 1

Source raw data for Figure 4B (ChIP-qPCR for CENP-A-3xFLAG across all M. furfur centromeres).

https://cdn.elifesciences.org/articles/53944/elife-53944-fig4-data1-v2.xlsx
Figure 4—source data 2

Source raw data for Figure 4C (ChIP-qPCR for CENP-A and Histone H3 across MfCEN7).

https://cdn.elifesciences.org/articles/53944/elife-53944-fig4-data2-v2.xlsx
Figure 4—source data 3

Source raw data for Figure 4D (ChIP-qPCR for Histone H3 and Histone H4 across all M. slooffiae centromeres).

https://cdn.elifesciences.org/articles/53944/elife-53944-fig4-data3-v2.xlsx
Figure 4—source data 4

Source raw data for Figure 4E (ChIP-qPCR for Histone H3 and Histone H4 across all M. globosa centromeres).

https://cdn.elifesciences.org/articles/53944/elife-53944-fig4-data4-v2.xlsx
Figure 4—source data 5

Source raw data for Figure 4F (ChIP-qPCR for Histone H3 and Histone H4 across MslCEN1).

https://cdn.elifesciences.org/articles/53944/elife-53944-fig4-data5-v2.xlsx
Figure 4—source data 6

Source raw data for Figure 4G (ChIP-qPCR for Histone H3 and Histone H4 across MgCEN2).

https://cdn.elifesciences.org/articles/53944/elife-53944-fig4-data6-v2.xlsx
Figure 4—figure supplement 1

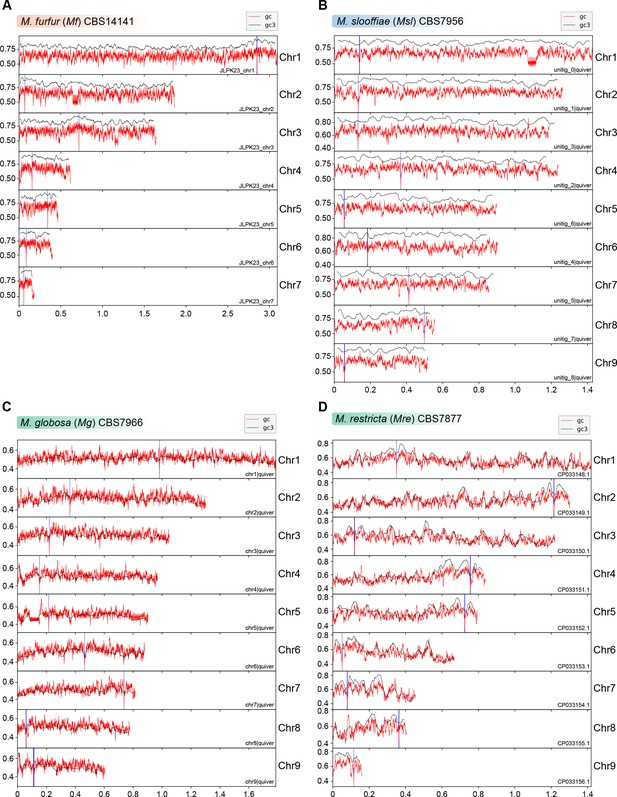

Putative centromeres of M. furfur, M. slooffiae, M. globosa, and M. restricta map to global GC troughs in each chromosome.

(A–D) Graphs indicating the GC content (red lines) and GC3 content (black lines) of each chromosome of M. furfur, M. slooffiae, M. globosa, and M. restricta. The GC3 content is measured by estimating the G or C content at the third position in each codon of all genes across a chromosome (Lynch et al., 2010; Zhu et al., 2017). Position of putative centromeres mapping to chromosomal GC minima are marked in blue. The x-axis indicates chromosomal coordinates in Mb.

Figure 4—figure supplement 2

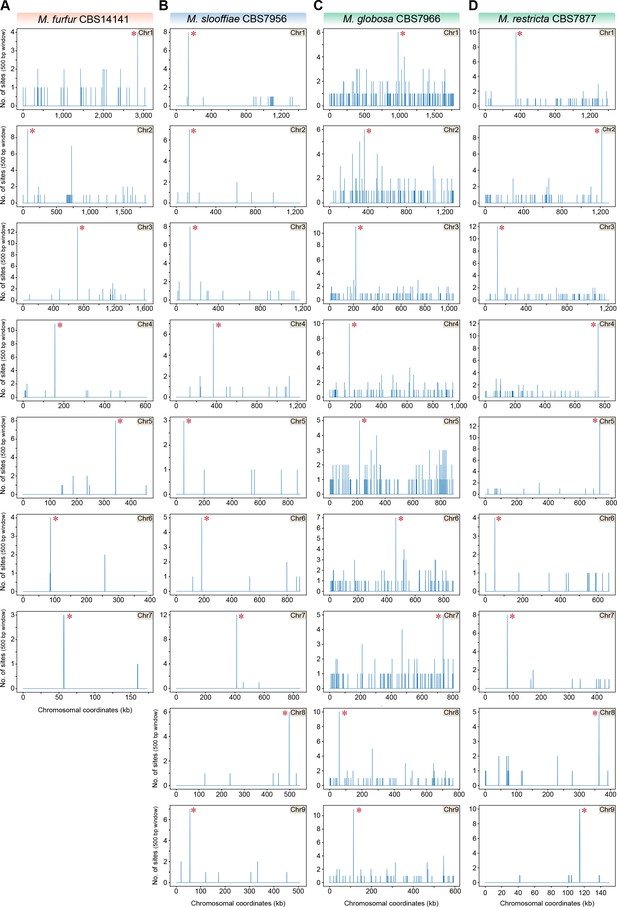

The 12-bp AT-rich motif is enriched at the putative centromeres of M. furfur, M. slooffiae, M. globosa, and M. restricta.

(A–D) The genomes of M. furfur, M. slooffiae, M. globosa, and M. restricta were scanned for matches to the 12-bp AT-rich motif using a 500-bp sliding window. Hit counts (y-axis) were plotted against the chromosomal coordinates (x-axis, in kb) for each of the above species. Red asterisks near the line corresponding to maximum enrichment in every chromosome or scaffold mark the regions predicted as centromeres in each species.

MgCEN2 and MslCEN5 map to a synteny breakpoint in M. sympodialis.

(A, B) Circos plots depicting the gene synteny blocks that are conserved between M. globosa and M. sympodialis chromosomes and between M. slooffiae and M. sympodialis chromosomes. Tracks from outside to inside represent the positions of centromeres and telomeres, GC content (plotted as blue and red lines indicating GC content below or above genome average, calculated in 0.4-kb non-overlapping windows), and colored connectors indicate regions of conserved gene synteny between the two species. (C, D) Linear chromosome plots depicting syntenic regions between Chr2 of M. globosa and Chr5 of M. slooffiae with chromosomes of M. sympodialis. GC content (in %) is shown as red/blue lines above each chromosome. Circular labels mark the gene synteny breakpoints. The synteny breakpoint at MgCEN2 and MslCEN5 is marked as III. The regions on MsyChr2 and MsyChr4 where the homologs of ORFs flanking the breakpoint are located are marked II and IV, respectively. Labels I and V indicate gene synteny conservation on the other side of the fusion points II and IV on MsyChr2 and MsyChr4 as compared to M. globosa and M. slooffiae chromosomes, respectively. (E, F) Zoomed-in image of the gene synteny breakpoint at MgCEN2 and MslCEN5, representing the conservation of genes flanking these centromeres in M. sympodialis chromosomes at the ORF level.

Figure 6 with 1 supplement
Inactivation of CEN8 and CEN9 of M. slooffiae and M. globosa in MfChr3 resulted in reduction in chromosome number in M. furfur.

(A, B) Circos plots depicting the gene synteny blocks that are conserved between the M. slooffiae or M. globosa chromosomes and the M. furfur chromosomes. Tracks from outside to inside represent positions of centromeres and telomeres, GC content (plotted as blue and red lines indicating GC content below or above genome average, calculated in 0.4-kb non-overlapping windows), and colored connectors indicate regions of conserved gene synteny between each pair of two species. (C) Linear chromosome plot depicting the regions that show synteny between Chr3 of M. furfur and Chr3, Chr4, Chr7, Chr8, and Chr9 of M. slooffiae. GC content (in %) is shown as red/blue lines above each chromosome. Regions corresponding to MslCEN8 and MslCEN9 in MfChr3 are marked I and II, respectively. (D) Linear chromosome plot depicting the conservation of gene synteny between Chr3 of M. furfur and Chr1, Chr4, Chr8, and Chr9 of M. globosa. Regions corresponding to MgCEN9 and MgCEN8 in MfChr3 are marked I and II, respectively.

Figure 6—figure supplement 1
Loss of AT-content in regions corresponding to CEN8 and CEN9 of M. slooffiae and M. globosa in MfChr3.

(A, B) Zoomed-in view of regions marked I (A) and II (B) in Figure 6C, corresponding to inactivated MslCEN8 and MslCEN9 in M. furfur, respectively, along with the regions of gene synteny are represented. GC content (in %) is shown as a red/blue line diagram above each chromosome. (C, D) Zoomed-in view of the regions marked I (C) and II (D) in Figure 6D, corresponding to inactivated MgCEN9 and MgCEN8 in M. furfur, respectively, along with the regions of gene synteny are represented. GC content (in %) is shown as red/blue lines above each chromosome.

Figure 7 with 4 supplements
Karyotype evolution by loss of centromere function in Malassezia species.

(A) Phylogenetic relationships between the Malassezia species analyzed in this study are represented and their chromosome numbers are shown. Species representing each clade are color-coded on the basis of previous reports (Theelen et al., 2018). The chromosome numbers for M. slooffiae and M. globosa are based on results from this study. In the case of M. sympodialis, M. restricta, and M. furfur, the chromosome numbers are based on previous reports (Boekhout and Bosboom, 1994; Senczek et al., 1999; Zhu et al., 2017). For M. dermatis, M. nana, M. vespertilionis, and M. japonica, the number of chromosomes were estimated from the predicted number of centromeres. The nodes corresponding to the ancestral state for Clade A and Clade B are labeled ‘Anc. A’ and ‘Anc. B’, respectively. Green and red circles indicate the origins of karyotypes that have eight and seven chromosomes, respectively, from an ancestral state of nine chromosomes. (B) Schematic of the centromere loss by breakage and the resulting reduction in chromosome number as observed in M. sympodialis (represented as the current state). A karyotype with nine chromosomes (as shown for M. globosa) is depicted as the ancestral state. (C) Proposed model of centromere inactivation observed in M. furfur as a consequence of fusion of AnChr8 and AnChr9 to the AnMfChr3 equivalent, resulting in a seven-chromosome configuration. The fusion product corresponding to extant MfChr3 is represented as the current state.

Figure 7—figure supplement 1

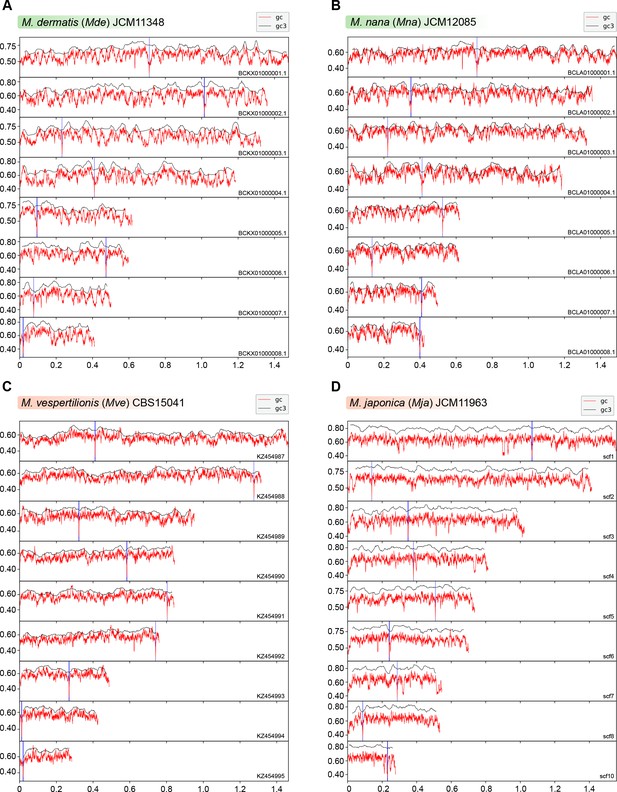

Putative centromeres of M. dermatis, M. nana, M. vespertilionis, and M. japonica map to global GC troughs in each chromosome.

(A–D) Graphs indicating the GC content (red lines) and GC3 content (black lines) of each chromosome of M. dermatis, M. nana, M. vespertilionis, and M. japonica. The positions of putative centromeres mapping to chromosomal GC minima are marked in blue. The x-axis indicates chromosomal coordinates in Mb.

Figure 7—figure supplement 2
The 12-bp AT-rich motif is enriched at the putative centromeres of M. dermatis, M. nana, M. vespertilionis, and M. japonica.

The genomes of M. dermatis, M. nana, M. vespertilionis, and M. japonica were scanned for matches to the 12-bp AT-rich motif using a 500 bp sliding window. Hit counts (y-axis) were plotted against the chromosomal coordinates (x-axis, in kb) for each of the above species. Red asterisks near the line corresponding to maximum enrichment in every chromosome or scaffold mark the regions predicted as centromeres in each species.

Figure 7—figure supplement 3

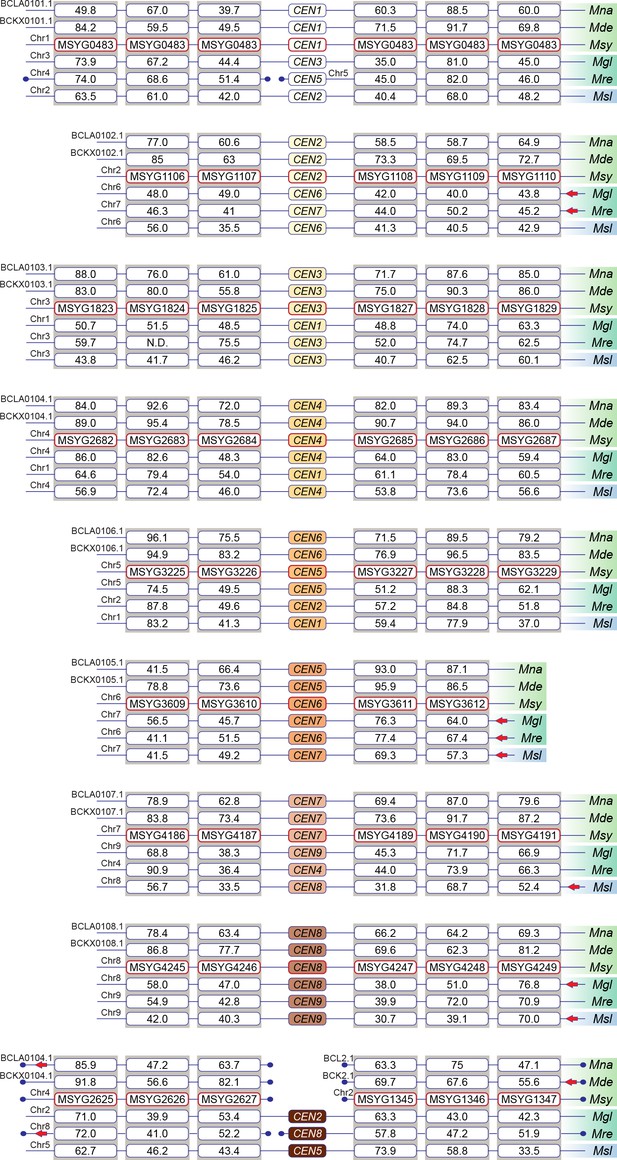

All of the predicted centromeres of M. sympodialis, M. nana, and M. dermatis belong to gene synteny blocks that are also conserved in species containing nine chromosomes.

The gene order and synteny of ORFs flanking the centromeres of six Malassezia species, which are representative of clades B and C, analyzed by BLAST analysis using the protein sequences from M. sympodialis as query. Species included are: Mna, M. nana; Mde, M. dermatis; Msy, M. sympodialis; Mgl, M. globosa; Mre, M. restricta; and Msl, M. slooffiae. Chromosome/scaffold numbers are indicated at the start of every track. Boxes represent ORFs with the numbers inside them indicating percentage identity from BLAST analysis. Broken lines marked with a filled circle towards the ends indicate gene synteny breakpoints. Red arrows indicate inverted orientation of the scaffold/chromosome.

Figure 7—figure supplement 4

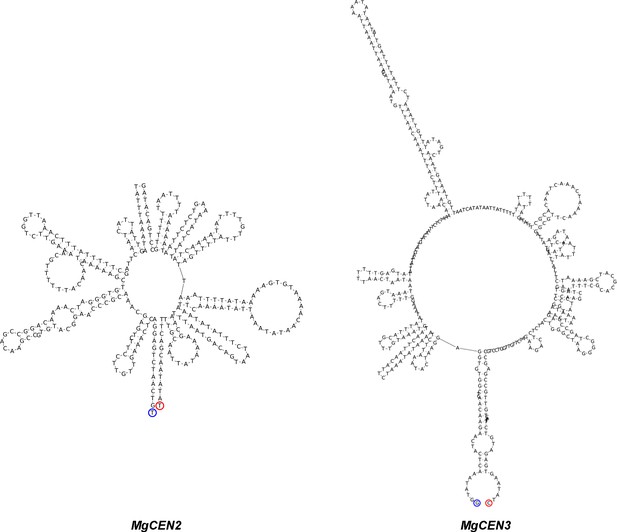

MgCEN2 and MgCEN3 are predicted to form secondary structures.

The secondary structure of the centromere cores of MgCEN2 and MgCEN3 predicted by the ViennaRNA, generated using Geneious 9.0 (Lorenz et al., 2011). Blue and red circles mark the 5′- and the 3′- DNA ends, respectively.

Author response image 1
Figure corresponding to the generation of antibodies against CENP-A in Malassezia species.

(A) A line diagram of MfCENP-A indicating the peptide sequence (EANYASSASA) at positions 75-84 aa used for generation of antibodies in rabbit. (B) Detection of the peptide epitope by antibodies before and after purification by ELISA. For this assay, 50 ng peptide was coated in each well and probed with varying dilutions of the antisera (1:4000, 1:32000, 1:64000). Absorbance at 450 nm was recorded after the addition of stopping solution and absorbance values are plotted for each sample in the y-axis. NC- no antigen control, (C–E) whole cell extracts from M. globosa (Mg, CBS7966 strain), M. sympodialis (Msy, ATCC42132 strain) and M. furfur (Mf, CBS14141 strain) were probed with pre-immune sera, purified CENP-A antisera, and histone H3 antisera in various dilutions as indicated. Lane L denotes the protein molecular weight markers. Both pre-immune sera and the purified antibodies were tested at a dilution of 1:200 while histone H3 antibodies were used at 1:2500 dilution.

Tables

Table 1
Coordinates of centromeres and their GC content in M. sympodialis.

Coordinates and length of Mtw1-enriched regions in comparison with those of the core centromeres in M. sympodialis.

Chromosome numberCore centromereFull-length centromere
CoordinatesLength (bp)%GCCoordinatesLength (bp)
StartEndStartEnd
1786,541787,06152016.4784,833788,5993767
2355,760355,8418120354,218357,4863269
3237,534238,686115215.6235,615239,9404326
4418,202418,72852615.2415,985420,6564672
5125,056125,22016418123,219127,2844066
6101,950102,50255214.4100,342105,2514910
7431,542431,98744513.2430,028433,1943167
824,69425,56487018.422,33427,4765143
  1. Genome average GC content (in %): 58.5.

Table 2
Coordinates, length, and GC content (in %) of the centromeres predicted in M. furfur, M. globosa, M. slooffiae, and M. restricta.
Chr./scaffoldCENCore centromere% GC
genome
StartEndLength (bp)% GC
M. furfur
CBS14141
Chr1CEN12,850,1352,850,40226815.764.9
Chr2CEN268,76368,93116815.4
Chr3CEN3717,557718,08452822.9
Chr4CEN4155,897156,30140518.3
Chr5CEN5342,885343,37248821.5
Chr6CEN686,11286,83272127
Chr7CEN756,89457,33944520.9
M. globosa
CBS7966
Chr1CEN1981,894982,24234917.752.05
Chr2CEN2362,480362,80732725.9
Chr3CEN3219,647220,12147427.2
Chr4CEN4152,635152,99435918.3
Chr5CEN5215,437215,59515817
Chr6CEN6464,007464,11410732.4
Chr7CEN7736,701737,01531418.1
Chr8CEN859,47259,81734519.7
Chr9CEN9114,080114,53545523.5
M. slooffiae
CBS7956
Chr1CEN1138,919139,4655472666.31
Chr2CEN2132,717133,19347723.1
Chr3CEN3367,665368,17751323.8
Chr4CEN4130,942131,50156027
Chr5CEN5183,442183,98154028.5
Chr6CEN6411,984412,55256927.4
Chr7CEN754,30754,88958330
Chr8CEN8497,637498,14951324
Chr9CEN955,94856,47953226.7
M. restricta
CBS877
Chr1CEN1347,813348,40659429.755.73
Chr2CEN287,19087,80661733.3
Chr3CEN31,101,4941,102,08359033.9
Chr4CEN4754,356754,98963434.2
Chr5CEN6621,177621,86368731.7
Chr6CEN7390,657391,28663035.1
Chr7CEN8362,842363,38154032
Chr8CEN9117,021117,60358332.8
Chr9CENR70,30670,91360836.3
Table 3
Synteny of centromeres across all of the Malassezia species analyzed in this study.
Clade CClade B1Clade B2Clade A
M. slooffiae
(9 Chr)
M. dermatis
(8 Chr)
M. nana
(8 Chr)
M. sympodialis
(8 Chr)
M. globosa
(9 Chr)
M. restricta
(9 Chr)
M. vespertilionis
(9 Chr)
M. japonica
(9 Chr)
M. furfur
(7 Chr)
CEN2CEN1CEN1CEN1CEN3CEN5 partialCEN6CEN8CEN4
CEN6CEN2CEN2CEN2CEN6CEN7CEN9CEN4 partialCEN2 partial
CEN3CEN3CEN3CEN3CEN1CEN3CEN7 partialCEN6 partialCEN3 partial
CEN4CEN4CEN4CEN4CEN4CEN1CEN1CEN2CEN7 partial
CEN1CEN6CEN6CEN5CEN5CEN2CEN4CEN7CEN1
CEN7CEN5CEN5CEN6CEN7CEN6CEN5 partialCEN5 partialCEN6
CEN8CEN7CEN7CEN7CEN9CEN4CEN2CEN9 partialInactivated
CEN9CEN8CEN8CEN8CEN8CEN9CEN8CEN1Inactivated
CEN5BPBPBPCEN2CEN8 partialCEN3CEN3 partialCEN5
  1. ‘BP’ indicates the presence of a gene synteny break. ‘Inactivated’ indicates centromere inactivation resulting from sequence divergence and erosion of AT-richness.

Table 4
Coordinates, length, and GC content (in %) of the centromeres predicted in M. dermatis, M. nana, M. vespertilionis, and M. japonica.
Chr./scaffoldCENCore centromere% GC
genome
StartEndLength (bp)% GC
M. dermatis
JCM11348
BCKX01000001.1 (Scf1)CEN1711,456711,97852322.859.05
BCKX01000002.1 (Scf2)CEN21,014,2811,014,97769731.7
BCKX01000003.1 (Scf3)CEN3232,065232,79573129.3
BCKX01000004.1 (Scf4)CEN4409,839410,63179329.5
BCKX01000005.1 (Scf5)CEN594,52095,01849918.2
BCKX01000006.1 (Scf6)CEN6473,487474,33484830.4
BCKX01000007.1 (Scf7)CEN776,36176,97561526
BCKX01000008.1 (Scf8)CEN817,89318,54064826.4
M. nana
JCM12085
BCLA01000001.1 (Scf1)CEN1715,036715,59255727.857.95
BCLA01000002.1 (Scf2)CEN2349,428350,12069333
BCLA01000003.1 (Scf3)CEN3220,773221,34557327.9
BCLA01000004.1 (Scf4)CEN4410,594411,38779433.2
BCLA01000005.1 (Scf5)CEN5524,594525,10551224.8
BCLA01000006.1 (Scf6)CEN6133,647134,32467833.6
BCLA01000007.1 (Scf7)CEN7408,363409,06770534.2
BCLA01000008.1 (Scf8)CEN8398,756399,42366832.5
M. vespertilionis
CBS15041
KZ454987.1 (Scf1)CEN1410,820411,34052115.756.6
KZ454988.1 (Scf2)CEN21,275,5091,276,23873025.8
KZ454989.1 (Scf3)CEN3322,361323,27791738.2
KZ454990.1 (Scf4)CEN4583,450584,31987028.9
KZ454991.1 (Scf5)CEN5802,843804,042120028.8
KZ454992.1 (Scf6)CEN6739,896740,55866322.3
KZ454993.1 (Scf7)CEN7268,699269,62692828.8
KZ454994.1 (Scf8)CEN810,98511,86588128
KZ454995.1 (Scf9)CEN919,04719,72467829.1
M. japonica
JCM11963
BCKY01000001.1 (Scf1)CEN11,068,0501,068,61456425.162.35
BCKY01000002.1 (Scf2)CEN2139,423139,92049720.3
BCKY01000003.1 (Scf3)CEN3350,068350,60353524.3
BCKY01000004.1 (Scf4)CEN4380,877381,43956224.2
BCKY01000005.1 (Scf5)CEN5507,632508,23059824.5
BCKY01000006.1 (Scf6)CEN6240,968250,55058223.7
BCKY01000007.1 (Scf7)CEN7286,711287,23452324.9
BCKY01000008.1 (Scf8)CEN887,31487,87355923.9
BCKY01000010.1 (Scf10)CEN9230,906231,45653024.1
Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifierAdditional
information
Biological sample (Malassezia globosa)CBS7966CBSWild-type strain
Biological sample (Malassezia slooffiae)CBS7956CBSWild-type strain
Biological sample (Malassezia furfur)CBS14141CBSWild-type strain
Biological sample (Malassezia sympodialis)ATCC42132ATCCWild-type strain
Biological sample (Saccharomyces cerevisiae)BY4741Wild-type strain
(MATa his3Δ1 leu2Δ0 met15Δ0 ura3Δ0)
Genetic reagent (Malassezia sympodialis)MSY001This studyM. sympodialis (ATCC42132) cells expressing GFP-Mtw1
Genetic reagent (Malassezia furfur)MF001This studyM. furfur (CBS14141) cells expressing CENP-A-3xFLAG
RecombinantDNA reagentPlasmid pGI3(Ianiri et al., 2017b)Vector backbone for Agrobacterium-mediated transconjugation
RecombinantDNA reagentPlasmid pAIM1(Ianiri et al., 2016)Plasmid with NAT marker, used as template for PCR
RecombinantDNA reagentPlasmid pVY7(Kozubowski et al., 2013)Plasmid with GFP, used as template for PCR
RecombinantDNA reagentPlasmid pMHR04This studyConstruct used to tag MsyMtw1 with GFP tag at the amino-terminus
RecombinantDNA reagentPlasmid pMF1This studyConstruct used to tag MfCENP-A with 3xFLAG tag at the carboxyl terminus
AntibodyAnti-GFP (mouse monoclonal)Roche11814460001IF (1:100)
WB (1:3000)
AntibodyAnti-PSTAIRE (mouse monoclonal)AbcamCat. no. 10345WB (1:5000)
AntibodyAnti-mouse IgG HRP (goat polyclonal)AbcamCat. no. ab97023WB (1:10,000)
AntibodyAnti-H3 (rabbit polyclonal)AbcamCat. no. ab1791ChIP (5 μL per
500 μL IP fraction)
AntibodyAnti-H4 (rabbit polyclonal)AbcamCat. no. ab10158ChIP (5 μL per
500 μL IP fraction)
AntibodyAnti-FLAG (M2) (mouse monoclonal)SigmaCat. no. F1804WB (1: 2500)
OtherGFP-trap beadsChromoTekCat. no. gta-20ChIP (20 μL per
500 μL fraction)
OtherBlocked agarose beadsChromoTekCat. no. bab-20ChIP (20 μL per
500 μL fraction)
OtherProtein-A sepharose beadsSigmaCat. no. P3391ChIP (20 μL per
500 μL fraction)
OtherM2 anti-FLAG affinity gelSigmaCat. no. A2220ChIP (20 μL per
500 μL fraction)
OtherLysing enzymes from
Trichoderma harzianum
SigmaCat. no. L1412Enzyme to prepare spheroplasts
OtherZymolyase 20TMP biomedicalsCat. no. 320921Enzyme to prepare spheroplasts
OtherChitosanaseSigmaCat. no. C0794Enzyme to prepare spheroplasts
OtherSensiFAST SYBR No ROX KitBiolineCat. no. BIO-98020qPCR assay reagent
Chemical compound, drug2-mercaptoethanolHiMediaCat. no. MB041
Software, algorithmGeneious 9.0Biomatters Ltd.
Software, algorithmSyMap(Soderlund et al., 2011)
Software, algorithmPhylloGibbs-MP(Siddharthan, 2008)
Software, algorithmCircos(Krzywinski et al., 2009)
Software, algorithmSatsuma(Grabherr et al., 2010)
Software, algorithmEasyfig(Sullivan et al., 2011)
Software, algorithmGET_HOMOLOGUES(Contreras-Moreira and Vinuesa, 2013)
Software, algorithmIQ-TREE v1.6.5(Nguyen et al., 2015)
Software, algorithmiTOL v4.3.3(Letunic and Bork, 2019)
Software, algorithmSMRTPortal v2.3PacBio, Menlo Park, CA, USA
Software, algorithmFijiNational Institutes of Health
Software, algorithmIllustratorAdobe Systems
Software, algorithmExcelMicrosoft
Software, algorithmWordMicrosoft
Sequence-based reagentList of primers used in this studySigmaIn Supplementary file 1

Data availability

The Mtw1 ChIP sequencing reads reported in this paper have been deposited under NCBI BioProject (Accession number PRJNA509412). The genome sequence assemblies of M. globosa, M. slooffiae, and M. furfur have been deposited in GenBank with accession numbers SAMN10720087, SAMN10720088, and SAMN13341476 respectively.

The following data sets were generated
  1. 1
    NCBI BioSample
    1. SR Sankaranarayanan
    2. G Ianiri
    3. MA Coelho
    4. MH Reza
    5. BC Thimmappa
    6. P Ganguly
    7. RN Vadnala
    8. S Sun
    9. R Siddharthan
    (2019)
    ID SAMN10720088. Genome assembly of Malassezia slooffiae.
  2. 2
    NCBI BioSample
    1. SR Sankaranarayanan
    2. G Ianiri
    3. MA Coelho
    4. MH Reza
    5. BC Thimmappa
    6. P Ganguly
    7. RN Vadnala
    8. S Sun
    9. R Siddharthan
    (2019)
    ID SAMN10720087. Genome assembly of Malassezia globosa.
  3. 3
    NCBI BioSample
    1. SR Sankaranarayanan
    2. G Ianiri
    3. MA Coelho
    4. MH Reza
    5. BC Thimmappa
    6. P Ganguly
    7. RN Vadnala
    8. S Sun
    9. R Siddharthan
    (2019)
    ID SAMN13341476. Genome assembly of Malassezia furfur.
  4. 4
    NCBI BioProject
    1. SR Sankaranarayanan
    2. G Ianiri
    3. MA Coelho
    4. MH Reza
    5. BC Thimmappa
    6. P Ganguly
    7. RN Vadnala
    8. S Sun
    9. R Siddharthan
    (2020)
    ID PRJNA509412. Identification of centromeres in Malassezia sympodialis.
The following previously published data sets were used
  1. 1
    NCBI Genome
    1. L'Oreal
    2. Morand Stanislas
    (2018)
    ID 413940. Malassezia restricta CBS 7877 genome, complete sequence.
  2. 2
  3. 3
    NCBI BioProject
    1. RIKEN Center for Life Science Technologies
    2. Division of Genomic Technologies
    (2016)
    ID PRJDB3735. Genome sequencing of Malassezia nana JCM 12085.
  4. 4
    NCBI BioProject
    1. RIKEN Center for Life Science Technologies
    2. Division of Genomic Technologies
    (2016)
    ID PRJDB3732. Genome sequencing of Malassezia dermatis JCM 11348.
  5. 5
    NCBI BioProject
    1. RIKEN Center for Life Science Technologies
    2. Division of Genomic Technologies
    (2016)
    ID PRJDB3733. Genome sequencing of Malassezia japonica JCM 11963.
  6. 6
    NCBI BioProject
    1. JM Lorch
    2. JM Palmer
    3. KJ Vanderwolf
    4. KZ Schmidt
    5. ML Verant
    6. TJ Weller
    7. DS Blehert
    (2017)
    ID PRJNA393681. Malassezia vespertilionis strain:NWHC:44797-103 Genome sequencing and assembly.

Additional files

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
