MYC regulates ribosome biogenesis and mitochondrial gene expression programs through its interaction with host cell factor–1

  1. Tessa M Popay
  2. Jing Wang
  3. Clare M Adams
  4. Gregory Caleb Howard
  5. Simona G Codreanu
  6. Stacy D Sherrod
  7. John A McLean
  8. Lance R Thomas
  9. Shelly L Lorey
  10. Yuichi J Machida
  11. April M Weissmiller
  12. Christine M Eischen
  13. Qi Liu
  14. William P Tansey  Is a corresponding author
  1. Department of Cell and Developmental Biology, Vanderbilt University School of Medicine, United States
  2. Department of Biostatistics, Vanderbilt University Medical Center, United States
  3. Center for Quantitative Sciences, Vanderbilt University Medical Center, United States
  4. Department of Cancer Biology, Thomas Jefferson University, United States
  5. Center for Innovative Technology (CIT), Vanderbilt University, United States
  6. Department of Chemistry, Vanderbilt University, United States
  7. Department of Oncology, Mayo Clinic, United States
  8. Department of Biochemistry, Vanderbilt University School of Medicine, United States
Research Article
  • Cited 0
  • Views 9,801
  • Annotations
Cite this article as: eLife 2021;10:e60191 doi: 10.7554/eLife.60191

Abstract

The oncoprotein transcription factor MYC is a major driver of malignancy and a highly validated but challenging target for the development of anticancer therapies. Novel strategies to inhibit MYC may come from understanding the co-factors it uses to drive pro-tumorigenic gene expression programs, providing their role in MYC activity is understood. Here we interrogate how one MYC co-factor, host cell factor (HCF)–1, contributes to MYC activity in a human Burkitt lymphoma setting. We identify genes connected to mitochondrial function and ribosome biogenesis as direct MYC/HCF-1 targets and demonstrate how modulation of the MYC–HCF-1 interaction influences cell growth, metabolite profiles, global gene expression patterns, and tumor growth in vivo. This work defines HCF-1 as a critical MYC co-factor, places the MYC–HCF-1 interaction in biological context, and highlights HCF-1 as a focal point for development of novel anti-MYC therapies.

eLife digest

Tumours form when cells lose control of their growth. Usually, cells produce signals that control how much and how often they divide. But if these signals become faulty, cells may grow too quickly or multiply too often. For example, a group of proteins known as MYC proteins activate growth genes in a cell, but too much of these proteins causes cells to grow uncontrollably.

With one third of all cancer deaths linked to excess MYC proteins, these molecules could be key targets for anti-cancer drugs. However, current treatments fail to target these proteins. One option for treating cancers linked to MYC proteins could be to target proteins that work alongside MYC proteins, such as the protein HCF-1, which can attach to MYC proteins.

To test if HCF-1 could be a potential drug target, Popay et al. first studied how HCF-1 and MYC proteins interacted using specific cancer cells grown in the laboratory. This revealed that when the two proteins connected, they activated genes that trigger rapid cell growth. When these cancer cells were then injected into mice, tumours quickly grew. However, when the MYC and HCF-1 attachments in the cancer cells were disrupted, the tumours shrunk. This suggests that if anti-cancer drugs were able to target HCF-1 proteins, they could potentially reduce or even reverse the growth of tumours.

While further research is needed to identify drug candidates, these findings reveal a promising target for treating tumours that stem from over-abundant MYC proteins.

Introduction

MYC oncogenes (c-, L-, and N-) encode a family of related transcription factors that are overexpressed in a majority of cancers and responsible for ~100,000 cancer-related deaths in the United States each year (Schaub et al., 2018). Capable of acting as both transcriptional activators and repressors, MYC proteins (hereafter 'MYC') dimerize with their obligate partner MAX (Blackwood and Eisenman, 1991) to bind and regulate the expression of thousands of genes connected to the cell cycle, protein synthesis, metabolism, genome stability, apoptosis, and angiogenesis (Tansey, 2014). Fueled by reports that experimental inactivation of MYC promotes tumor regression in mice (Alimova et al., 2019; Beaulieu et al., 2019; Giuriato et al., 2006; Jain, 2002; Soucek et al., 2013), there is considerable interest in the idea that MYC inhibitors could form the basis of broadly effective anticancer therapies. MYC itself, however, is widely viewed as undruggable (Dang et al., 2017), meaning that effective strategies to pharmacologically inhibit MYC will most likely come from targeting the co-factors with which it interacts to drive and sustain the malignant state (Brockmann et al., 2013; Bryan et al., 2020).

The interactome of MYC has been extensively interrogated (reviewed by Baluapuri et al., 2020). One effective strategy for prioritizing which of these interaction partners to study has been to focus on those that interact with conserved segments of the MYC protein, which are referred to as ‘MYC boxes’ (Mb) (Meyer and Penn, 2008). In addition to the highly conserved basic helix-loop-helix domain that interacts with MAX, six evolutionarily conserved MYC boxes have been described (Baluapuri et al., 2020). On average, MYC boxes are around 15 amino acid residues in length, and although it is clear that they each mediate multiple protein–protein interactions (Kalkat et al., 2018), a number of predominant interactors have been described for most of these segments: Mb0, for example, interacts with the general transcription factor TFIIF to stimulate transcription (Kalkat et al., 2018), MbI interacts with the ubiquitin ligase SCFFBW7 to control MYC protein stability (Welcker et al., 2004), MbII interacts with the STAGA component TRRAP (McMahon et al., 1998) to regulate histone acetylation (Kalkat et al., 2018), and MbIIIb interacts with the chromatin-associated protein WDR5 (Thomas et al., 2015) to facilitate its recruitment to ribosomal protein genes (Thomas et al., 2019). The two remaining MYC boxes are less well understood, but MbIIIa is important for tumorigenesis (Herbst et al., 2005) and recruitment of HDAC3 to chromatin (Kurland and Tansey, 2008), and MbIV interacts with the ubiquitous chromatin-associated protein host cell factor (HCF)–1 (Thomas et al., 2016).

HCF-1 is an essential nuclear protein (Goto et al., 1997) that is synthesized as a 2035 amino acid precursor and proteolytically cleaved by O-GlcNAc transferase (OGT) (Capotosti et al., 2011) into a collection of amino- (HCF-1N) and carboxy- (HCF-1C) terminal fragments that remain associated. HCF-1 was first identified through its ability to assemble into a multiprotein–DNA complex with the herpes simplex virus transactivator VP16, but was later shown to function in uninfected cells as a co-factor for cellular transcription factors, and as part of the Sin3 and MLL/SET histone modifying complexes (Wysocka and Herr, 2003). The interaction of HCF-1 with VP16 is likely direct and is mediated by a tetrapeptide ‘EHAY’ motif in VP16 that binds to a region within the HCF-1N fragment known as the VP16-induced complex (VIC) domain (Freiman and Herr, 1997). This four residue HCF-1-binding motif (HBM)—consensus (D/E)-H-x-Y—is present in other viral and cellular transcription factors that interact directly with the HCF-1 VIC domain, including key cell cycle regulators such as the E2F family of proteins (Tyagi et al., 2007).

We identified HCF-1 as a MYC-associated protein through proteomic approaches, and demonstrated that the interaction occurs through the VIC domain of HCF-1 and an atypical HBM within MbIV that carries the sequence 'QHNY' (Thomas et al., 2016). Mutation of these four HBM residues to alanine disrupts the interaction of MYC with HCF-1 in vitro and reduces the ability of MYC to promote murine fibroblast tumor growth in nude mice (Thomas et al., 2016).

The small and well-defined interaction point between MYC and HCF-1, and the importance of this interaction to tumorigenesis, raise the possibility that the MYC–HCF-1 nexus could be a viable venue for discovery of novel anti-MYC therapies. If that venue is to be pursued, however, we need to place this interaction in biological context, identify the gene networks that are under its control, and determine whether the MYC–HCF-1 interaction is required for tumor initiation, maintenance, or both. Here we use a combination of loss- and gain-of function approaches to interrogate the role of the MYC–HCF-1 interaction in the context of a canonically MYC-driven cancer—Burkitt lymphoma. We demonstrate that the interaction between MYC and HCF-1 is directly involved in controlling the expression of genes linked to ribosome biogenesis, translation, and mitochondrial function. We define the impact of modulation of this interaction on cell growth, metabolism, and global gene expression patterns. And we show that disrupting the MYC–HCF-1 interaction promotes rapid and persistent tumor regression in vivo. This work reveals how MYC executes a core arm of its pro-tumorigenic gene expression changes, defines HCF-1 as a tumor-critical MYC co-factor, and provides proof-of-concept for a new way to inhibit MYC in the clinic.

Results

Bidirectional modulation of the MYC−HCF-1 interaction

To understand the role of HCF-1 in MYC function, we sought to use separation-of-function mutations in MYC that modulate interaction with HCF-1 in a predictable way. We therefore introduced a number of mutations in the atypical HBM of MYC (QHNY) that we expected to decrease—or increase—interaction with HCF-1, based on properties of prototypical HBM sequences (Freiman and Herr, 1997; Figure 1A). We substituted the MYC HBM for the canonical HBM from VP16 (VP16 HBM); we also mutated the invariant histidine of the HBM to glycine in the MYC (H307G) and VP16 (VP16 HBM:H307G) contexts, or we changed all four HBM residues to alanine (4A). A mutation in the separate WDR5-binding motif (WBM; Thomas et al., 2015) was our specificity control. We transiently expressed these full-length FLAG-tagged MYC proteins in 293T cells and measured their ability to interact with endogenous HCF-1 in a co-immunoprecipitation (co-IP) assay (Figure 1B). As expected, the 4A mutation disrupts the MYC–HCF-1 interaction, as do both histidine to glycine substitutions—confirming the essentiality of this core HBM residue to the MYC–HCF-1 association. In contrast, replacing the MYC HBM with the canonical VP16 sequence increases the amount of HCF-1 recovered in the co-IP. The enhanced binding of the VP16 HBM MYC mutant to HCF-1 is also observed in vitro using purified recombinant MYC (Figure 1—figure supplement 1A) and in vitro translated HCF-1VIC (Figure 1—figure supplement 1B). Based on these data, we conclude that the MYC HBM is an authentic HBM, and that its variation from the canonical HBM sequence leads to a tempered interaction with HCF-1. We also conclude that we can use the 4A and VP16 HBM mutations to probe the significance of the MYC–HCF-1 interaction through both loss- and gain-of-function approaches.

Figure 1 with 2 supplements see all

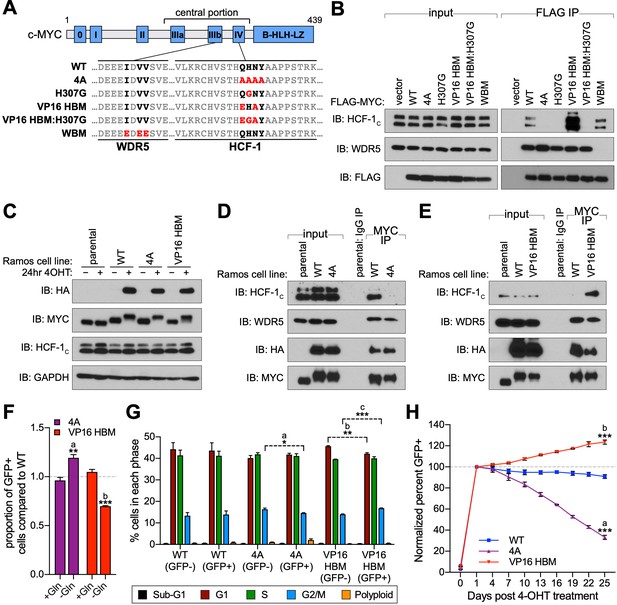

A gain- and loss-of-function system to study the MYC–host cell factor (HCF)–1 interaction.

(A) Schematic of MYC, depicting the location of the six MYC boxes (Mb0–MbIV). MbIIIb carries a WDR5-binding motif (WBM). MbIV contains an HCF-1-binding motif (HBM). Residues relevant to the WBM or HBM are in bold, and residues mutated in this study are in red. (B) FLAG-tagged full-length MYC proteins carrying the mutations described in (A) were transiently expressed in 293T cells, recovered by anti-FLAG immunoprecipitation (IP), and the input, or IP eluates, probed for the presence of HCF-1C, WDR5, or FLAG-tagged proteins by western blotting. (C) Western blot of lysates from parental (CRE-ERT2) or switchable Ramos cells (wild-type [WT], 4A, or VP16 HBM) ±20 nM 4-OHT for 24 hr. Blots were probed with antibodies against the HA tag, MYC, HCF-1C, and GAPDH. (D and E) Parental or switchable Ramos cells (WT, 4A, or VP16 HBM) were treated with 20 nM 4-OHT for 24 hr, lysates prepared, and IP performed using anti-IgG or anti-MYC antibodies. Input lysates and IP eluates were probed using antibodies against HCF-1C, WDR5, HA tag, and MYC by western blotting. All lines in these experiments express CRE-ERT2. (F) Switchable Ramos cell lines were pulsed with 20 nM 4-OHT for 2 hr to switch ~50% of cells, propagated for 3 days, and grown for 16 hr in media with or without glutamine. The impact of glutamine deprivation was measured by flow cytometry to determine the proportion of green fluorescent protein (GFP)-positive (switched) cells. For each of the mutants, the proportion of GFP-positive cells was normalized to that for WT cells. Shown are the mean and standard error for three biological replicates. Student’s t-test between +Gln and −Gln was used to calculate p-values; a = 0.0066, b = 0.0002. (G) Switchable Ramos cells were pulsed with 4-OHT as in (F), grown for 7 days, and cell cycle distribution determined by propidium iodide (PI) staining and flow cytometry, binning cells according to whether they expressed GFP (GFP+, switched) or not (GFP−, unswitched). Shown are the mean and standard error for three biological replicates. Student’s t-test between GFP− and GFP+ cells was used to calculate p-values; a = 0.033, b = 0.0041, c = 0.0006. (H) Switchable Ramos cells were pulsed with 4-OHT as in (F), and the proportion of GFP-positive cells measured by flow cytometry 24 hr after treatment and every 3 days following. For each of the replicates, the proportion of GFP-positive cells is normalized to that on day 1. Shown are the mean and standard error for three biological replicates. Student’s t-test between WT and each of the mutants at day 25 was used to calculate p-values; a = 0.000028, b = 0.00026.

The MYC–HCF-1 interaction stimulates proliferation of Burkitt lymphoma cells

To understand the cellular consequences of modulating the MYC–HCF-1 interaction, we engineered a system that allows us to express the 4A or VP16 HBM mutant MYC proteins as the sole form of MYC in a cell. We chose Ramos cells, a Burkitt lymphoma (BL)-derived line in which a t(8;14) translocation places one MYC allele under regulatory control of the immunoglobulin heavy chain enhancer (Figure 1—figure supplement 1C; Wiman et al., 1984). The untranslocated MYC allele is not expressed in these cells (Bemark and Neuberger, 2000). Because sequences encoding the MYC HBM are contained within exon 3, we used CRISPR/Cas9-triggered homologous recombination of the translocated MYC allele to integrate an exon 3 switchable cassette for wild-type (WT) MYC, 4A, or VP16 HBM mutants, and confirmed appropriate integration by Southern blotting (Figure 1—figure supplement 1D and E). In cells expressing an inducible CRE-ERT2 recombinase, treatment with 4-hydroxytamoxifen (4-OHT) results in the excision of exon 3 of MYC, bringing in place a modified exon 3 that carries an HA-epitope tag and drives expression of P2A-linked green fluorescent protein (GFP). Twenty-four hours after 4-OHT treatment, at least 85% of cells in each population are switched—as monitored by GFP expression (Figure 1—figure supplement 1F), and we observe the expected appearance of HA-tagged MYC proteins, which migrate more slowly due to the presence of the epitope tag (Figure 1C). Importantly, the exchanged MYC proteins are expressed at levels comparable to endogenous MYC (Figure 1C), are predominantly nuclear (Figure 1—figure supplement 2A and B), and behave as expected, with the 4A mutant showing reduced (Figure 1D), and the VP16 HBM mutant enhanced (Figure 1E), interaction with endogenous HCF-1. Also as expected, these mutations have minimal impact on the interaction of MYC with WDR5. Thus, we successfully generated a system for inducible, selective, and bidirectional modulation of the MYC−HCF-1 interaction in the context of an archetypal MYC-driven cancer cell line.

To monitor the contribution of the MYC–HCF-1 interaction to cell proliferation, we pulsed each of our engineered Ramos lines with 4-OHT for 2 hr to generate approximately equally mixed populations of switched and unswitched cells. Based on the ability of MYC to drive glutamine addiction (Jeong et al., 2014) and cell cycle progression (Pajic et al., 2000), we monitored how the GFP-positive switched cells in the population compared to their unswitched counterparts in terms of glutamine-dependency (Figure 1F), cell cycle profiles (Figure 1G), and proliferation (Figure 1H and Figure 1—source data 1). We see that 4A switched cells have a selective advantage over the WT switch in their ability to grow without exogenous glutamine (Figure 1F). This advantage is likely due to loss of the MYC–HCF-1 interaction, as the VP16 HBM mutant cells have a corresponding deficit in growth under glutamine-starvation conditions (Figure 1F). When assayed in media replete with glutamine, cell cycle profiles for the two mutants are modestly altered compared to their WT counterparts, including small but statistically significant changes in the proportion of cells in G2/M (Figure 1G), which again trend in opposite directions for the two MYC mutants—decreasing for the 4A-expressing cells and increasing for those that express the VP16 HBM mutant (Figure 1G). Finally, in long-term growth assays in complete media, we observe that 4A mutant cells are gradually lost from the culture over time, whereas there is a significant enrichment of VP16 HBM cells, compared to the WT control (Figure 1H and Figure 1—source data 1). The differences in representation of the two MYC mutants in these populations is unlikely due to apoptosis—we observe no differences in the proportion of sub-G1 cells between the different switches (Figure 1G)—but tracks with changes in cell doubling time (Figure 1—figure supplement 2C and D and Figure 1—source data 1), which are increased for the 4A, and decreased for the VP16 HBM mutant cells. The altered and opposing impact of the 4A and VP16 HBM mutations in these assays leads us to conclude that the MYC–HCF-1 interaction promotes the glutamine-dependency—and rapid proliferative status—of these BL cells in culture.

The MYC–HCF-1 interaction influences intracellular amino acid levels

As part of our survey of the impact of the MYC–HCF-1 interaction on Ramos cell processes, and because of its influence on glutamine dependency, we determined whether metabolite levels are altered in response to expression of the 4A or VP16 HBM MYC mutants. We performed global, untargeted, mass spectrometry-based metabolomics on switched cells using reverse-phase liquid chromatography (RPLC) and hydrophilic interaction liquid chromatography (HILIC) separation methods. We detected ~2000 metabolites with each approach (Figure 2A–F), and there is strong consistency among biological replicates (Figure 2—figure supplement 1A and B). In general, more metabolites are significantly changed, and with a greater magnitude, for the 4A than the VP16 HBM MYC mutant (Figure 2A–B and D–E and Figure 2—source data 1 and 2). For both mutants, significantly changed metabolites group into a variety of categories, with a particular enrichment for those related to amino acid and lipids (Figure 2C and F). Comparing the direction of individual metabolite changes for the 4A and VP16 HBM mutants (Figure 2—figure supplement 1C), we note that a significant portion of the metabolite changes detected by both the RPLC and HILIC methods are in the same direction for the two MYC mutants. In general, these shared metabolite changes fail to cluster strongly into biological pathways; the only significantly enrichment being glycerophospholipid metabolism (Figure 2—figure supplement 1D). Focusing on metabolite changes that occur in opposite directions for the 4A and VP16 HBM mutants, however, we observe significant enrichment in pathways linked to nitrogen and amino acid metabolism (Figure 2G). There is a clear anti-correlation between the impact of the 4A and VP16 HBM mutations on metabolites connected to aspartic acid (Figure 2H), and we observe that intracellular levels of glutamine (and associated metabolites) are increased in the 4A and decreased in the VP16 HBM mutant cells (Figure 2—figure supplement 1E and F). Notably, these changes in intracellular amino acid levels are not confined to aspartic acid and glutamine, but there is a general tendency for amino acid levels to be increased in 4A and decreased in VP16 HBM mutant cells, compared to the WT switch (Figure 2—figure supplement 1C and Table 1). Based on these data, we conclude that the MYC–HCF-1 interaction, directly or indirectly, plays a global role in influencing intracellular amino acid levels in this setting.

Figure 2 with 1 supplement see all

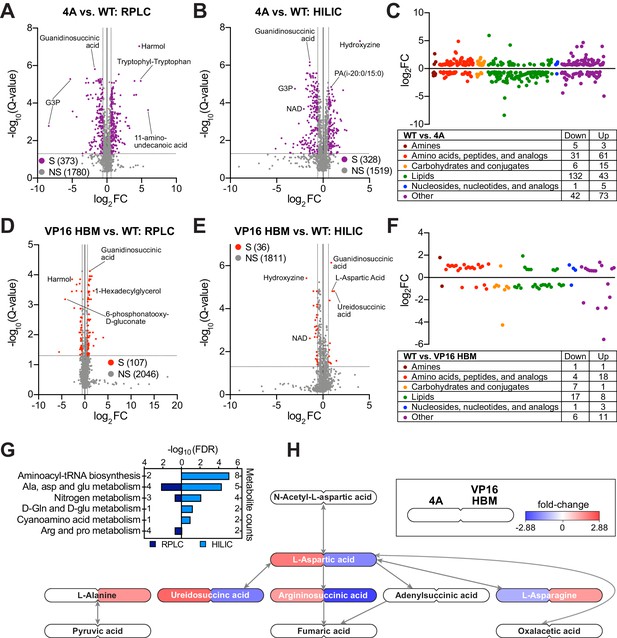

The MYC–host cell factor (HCF)–1 interaction influences intracellular amino acid levels.

(A and B) Volcano plots of metabolites detected by reverse-phase liquid chromatography (RPLC) (A) or hydrophilic interaction liquid chromatography (HILIC) (B) in wild-type (WT) and 4A switchable Ramos cells treated for 24 hr with 20 nM 4-OHT. Metabolites that were significantly (S) changed (false discovery rate [FDR] < 0.05 and |FC| > 1.5) with the 4A MYC mutant compared to WT are colored. Non-significant (NS) changes are in gray. Five biological replicates for WT and four biological replicates for 4A were used to calculate Q-values and fold-changes (FCs). Select metabolites are indicated. (C) Classification of metabolites that were significantly changed (FDR < 0.05 and |FC| > 1.5) with the 4A mutant compared to WT cells. (D and E) Volcano plots of metabolites detected by RPLC (D) or HILIC (E) in WT and VP16 HCF-1-binding motif (HBM) switchable Ramos cells treated for 24 hr with 20 nM 4-OHT. Metabolites that were significantly (S) changed (FDR < 0.05 and |FC| > 1.5) with the VP16 HBM MYC mutant compared to WT are colored. Non-significant (NS) changes are in gray. Five biological replicates for WT and VP16 HBM were used to calculate Q-values and FCs. Select metabolites are indicated. (F) Classification of metabolites that were significantly changed (FDR < 0.05 and |FC| > 1.5) with the VP16 HBM mutant compared to WT cells. (G) Annotated metabolites from Figure 2—figure supplement 1C that were changed in the opposite direction for the 4A and VP16 HBM mutants were independently subjected to pathway enrichment analysis. Pathways with FDR < 0.2 for either RPLC and HILIC are shown. (H) Metabolites (FDR < 0.05) in the ‘alanine, aspartate, and glutamate metabolism’ pathway that were impacted by the 4A (left) and VP16 HBM (right) MYC mutants. Node color represents the FC over WT. The remainder of the pathway is shown in Figure 2—figure supplement 1E and F.

Figure 2—source data 1

Ramos 4A and VP16 host cell factor (HCF)–1-binding motif reverse-phase liquid chromatography significant changes.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig2-data1-v2.xlsx
Figure 2—source data 2

Ramos 4A and VP16 host cell factor (HCF)–1-binding motif hydrophilic interaction liquid chromatography significant changes.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig2-data2-v2.xlsx
Table 1
Loss of the MYC–host cell factor (HCF)–1 interaction promotes amino acid accumulation.

Modulating the MYC–HCF-1 interaction alters intracellular amino acid levels. All data are derived from switchable Ramos cells treated with 20 nM 4-OHT for 24 hr. Amino acid levels were measured following separations by hydrophilic interaction liquid chromatography (HILIC). Q-values and fold-changes (FCs) were calculated between the mutants and wild-type (WT). Five biological replicates for WT and VP16 HCF-1-binding motif (HBM) and four biological replicates for 4A were analyzed. Q-value < 0.05 are highlighted in green, FC > 0 in red, and FC < 0 in blue. Confidence levels reflect the confidence in metabolite identification; L1 is validated, L2 is putative, and L3 is tentative. ND = not detected; NS = not significant.

4AVP16 HBMConfidence level
Q-valueFCQ-valueFC
Glycine2.52E-041.313.11E-05−1.48L3
L-alanine9.97E-051.62NSL2
L-arginine2.31E-021.18NSL1
L-asparagine6.67E-051.52.02E-03−1.23L2
L-aspartic acid1.24E-03−1.371.54E-052.01L2
L-cysteineNDND
L-glutamic acid2.53E-031.46NSL2
L-glutamine2.33E-051.469.38E-05−1.41L2
L-histidine8.70E-051.64NSL2
L-isoleucine1.10E-031.392.36E-02−1.21L2
L-leucine8.63E-041.332.55E-02−1.18L2
L-lysine1.66E-021.19NSL2
L-methionine6.51E-051.614.39E-03−1.27L2
L-phenylalanine4.71E-041.483.46E-02−1.22L2
L-proline1.01E-021.17NSL2
L-serine7.48E-051.59NSL1
L-threonine9.63E-051.541.25E-02−1.17L2
L-tryptophan1.56E-041.64NSL1
L-tyrosine1.22E-041.591.9E-02−1.18L2
L-valine4.41E-021.14NSL3

The MYC–HCF-1 interaction influences expression of genes connected to ribosome biogenesis and the mitochondrial matrix

Next, we used RNA-sequencing (RNA-Seq) to monitor transcriptomic changes associated with modulating the MYC–HCF-1 interaction. Twenty-four hours after switching, we observed changes in the levels of ~4000 transcripts in the 4A, and ~3600 transcripts in the VP16 HBM, cells compared to the WT switch (Figure 3—figure supplement 1A and Figure 3—source data 1 and 2). These changes are highly consistent among biological replicates (Figure 3—figure supplement 1B) and modest in magnitude (Figure 3A), congruous with what is typically reported for MYC (Levens, 2002; Nie et al., 2012). We confirmed for a representative set of genes that these changes are dependent on switching (Figure 3—figure supplement 1C). Gene ontology (GO) enrichment analysis revealed that transcripts decreased by introduction of the 4A mutant are strongly linked to ribosome biogenesis, tRNA metabolism, and the mitochondrial matrix (Figure 3B), while those that are induced have links to transcription, cholesterol biosynthesis, and chromatin. For the VP16 HBM MYC mutant, decreased transcripts cluster in categories mostly related to the centrosome and the cell cycle (Figure 3C). What is particularly striking, however, is that transcripts that are induced by the VP16 HBM protein have a pattern of clustering that is almost the exact opposite of those suppressed by the 4A mutant—including ribosome biogenesis, tRNA metabolism, and the mitochondrial matrix.

Figure 3 with 3 supplements see all

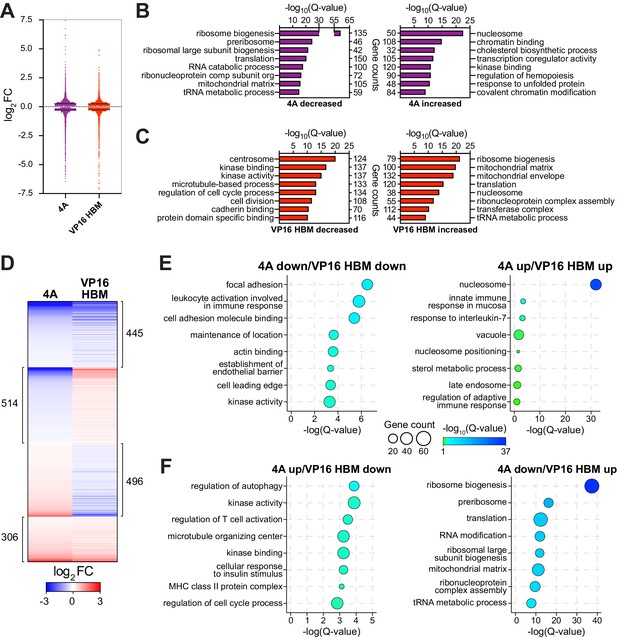

The MYC–host cell factor (HCF)–1 interaction influences the expression of genes involved in ribosome biogenesis and mitochondrial pathways.

Switchable Ramos cells were treated with 20 nM 4-OHT for 24 hr, RNA isolated, and RNA-Seq performed. (A) Scatterplot showing the distribution of log2FC of significant (false discovery rate [FDR] < 0.05) RNA-Seq changes with the 4A and VP16 HCF-1-binding motif (HBM) MYC mutants, compared to the wild-type (WT) switch. Solid lines represent the median log2FC for decreased (4A: −0.2858; VP: −0.2747) and increased (4A: 0.281; VP: 0.2558) transcripts compared to WT. For clarity, some data points were excluded; these data points are highlighted in Figure 3—source data 1 and 2. (B and C) Categories from the top eight families in gene ontology (GO) enrichment analysis of significant (FDR < 0.05) gene expression changes under each condition (B: 4A; C: VP16 HBM). (D) Heatmap showing the log2FC of significantly (FDR < 0.05) changed transcripts that are altered in expression in both the 4A and VP16 HBM mutants. Transcripts are clustered according to the relationship in expression changes between the 4A and VP16 HBM mutants, and ranked by the log2FC for the 4A mutant. Scale of heatmap is limited to [−3,3]. (E and F) Gene clusters in (D) were subject to GO enrichment analysis, and the top eight categories are shown for the correlative (E) or anti-correlative (F) clusters. The Q-value of categories is represented by bubble color, and the number of genes present in a category is represented by bubble size. The genes in these categories are identified in Figure 3—figure supplement 2A and B.

Figure 3—source data 1

Ramos 4A 24 hr RNA-Seq significant changes.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig3-data1-v2.xlsx
Figure 3—source data 2

Ramos VP16 host cell factor (HCF)–1-binding motif 24 hr RNA-Seq significant changes.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig3-data2-v2.xlsx
Figure 3—source data 3

Ramos 4A and VP16 host cell factor (HCF)–1-binding motif 24 hr RNA-Seq shared significant changes.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig3-data3-v2.xlsx

If anti-correlations between these gain- and loss-of-function mutants can be used to reveal MYC–HCF-1 co-regulated processes, the above data highlight protein synthesis and mitochondrial function as key points of convergence for the interaction of MYC with HCF-1. To explore this on a gene-by-gene basis, we compared individual gene expression changes that were either the same, or opposite, in direction for the 4A and VP16 HBM mutants (Figure 3D, Figure 3—figure supplement 1D and Figure 3—source data 3). Transcripts decreased by both mutations show modest enrichment in categories connected to immune signaling and cell adhesion (Figure 3E, left), whereas increased transcripts are primarily enriched in those encoding histones (Figure 3E, right). Turning to transcripts that change in opposite directions with each mutant, those that are induced by the 4A mutant are moderately enriched in categories relating to kinase function and the cell cycle (Figure 3F, left), while those that are reduced by the 4A mutant are strongly enriched in categories connected to ribosome biogenesis and the mitochondrial matrix (Figure 3F, right). The genes represented in each of these categories are shown in Figure 3—figure supplement 2A and B. This analysis confirms that reciprocal changes we observed for the GO categories in Figure 3B and C results from reciprocal changes in the expression of a common set of genes. From our data, we conclude that the MYC–HCF-1 interaction plays an important role in influencing the expression of genes that promote ribosome biogenesis and maintain mitochondrial function.

Finally, we interrogated our RNA-Seq data set for transcript changes that correlate with the widespread changes in amino acid levels that occur upon modulation of the MYC–HCF-1 interaction. Here we discovered that the accumulation of amino acids we observe with the 4A mutant is generally matched with a decrease in transcripts of cognate aminoacyl-tRNA synthetases (Figure 3—figure supplement 3A)—and vice versa for the decreased amino acid levels in the gain-of-function VP16 HBM mutant (Figure 3—figure supplement 3B). The reciprocal relationship of amino acid levels and tRNA ligase expression changes in response to the 4A and VP16 HBM mutants is consistent with the notion that defects in tRNA charging lead to compensatory changes in amino acid uptake (Guan et al., 2014; Harding et al., 2000), further reinforcing the concept that a key biological context in which MYC and HCF-1 function together is protein synthesis.

Ribosome biogenesis and mitochondrial matrix genes respond rapidly to HCF-1 depletion

As a challenge to the concept that ribosome biogenesis and mitochondrial matrix genes are controlled via the MYC–HCF-1 interaction, we asked whether expression of these genes is impacted by acute depletion of HCF-1, mediated via the dTAG method (Nabet et al., 2018). We used CRISPR/Cas9-triggered homologous recombination to integrate an mCherry-P2A-FLAG-FKBP12F36V cassette into the HCFC1 locus in Ramos cells; the effect of which is to amino-terminally tag HCF-1N with the FLAG epitope and FKBP12F36V tags, and to mark the population of modified cells by mCherry expression (Figure 4—figure supplement 1A). Because the HCFC1 locus resides on the X-chromosome, and because Ramos cells are derived from an XY patient, only a single integration event is needed. Tagged cells sorted by fluorescence-activated cell sorting display the expected shift in apparent molecular weight of HCF-1N and the appearance of an appropriately-sized FLAG-tagged species (Figure 4A). Addition of the dTAG-47 degrader results in the rapid and selective disappearance of the HCF-1N fragment; the HCF-1C fragment is largely unaffected by up to 24 hr of dTAG-47 treatment (Figure 4B). Consistent with the known functions of HCF-1 (Julien and Herr, 2003), treated cells display altered cell cycle profiles (Figure 4—figure supplement 1B), but appear to be able to complete at least one round of cell division, as notable deficits in proliferation are only evident 48 hr after dTAG-47 addition (Figure 4C and Figure 4—source data 1). These data reveal that the HCF-1N fragment is essential in Ramos cells, and that early time point analyses should be resistant to complicating effects of HCF-1N degradation on cell proliferation.

Figure 4 with 1 supplement see all

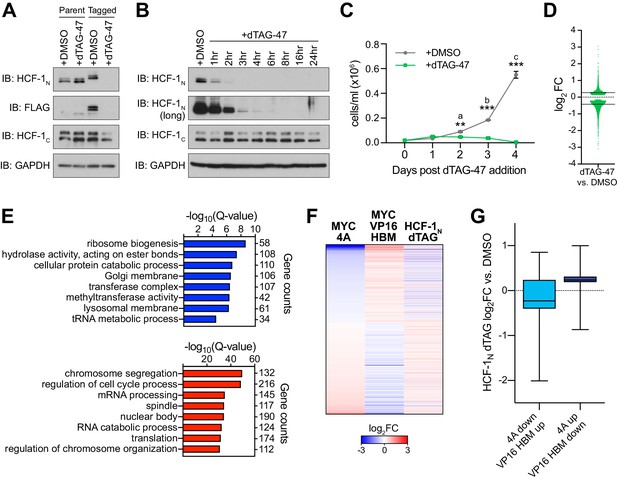

Genes regulated by the MYC−host cell factor (HCF)–1 interaction are impacted by loss of HCF-1.

(A) Western blot, comparing the effects of treating untagged parental cells or FKBPFV-HCF-1N Ramos cells with DMSO or 500 nM dTAG-47 for 24 hr. Blots for HCF-1N, FLAG tag, HCF-1C, and GAPDH are shown. (B) Western blot of lysates from FKBPFV-HCF-1N Ramos cells treated with 500 nM dTAG-47 for varying times, compared to cells treated with DMSO for 24 hr. Shown are short and long exposures of HCF-1N, and HCF-1C, with a GAPDH loading control. (C) Growth curve of FKBPFV-HCF-1N Ramos cells treated with DMSO or 500 nM dTAG-47. Cells were counted every 24 hr for 4 days after plating. Shown are the mean and standard error for three biological replicates. Student’s t-test was used to calculate p-values; a = 0.0029, b = 0.000051, c = 0.000040. (D) Scatterplot showing the distribution of log2FC in RNA-Seq comparing DMSO to 3 hr of 500 nM dTAG-47 treatment (degradation of HCF-1N). Solid lines represent the median log2FC for decreased (−0.425655) and increased (0.270428) transcripts. For clarity, one data point was excluded; this data point is highlighted in Figure 4—source data 2. (E) Gene ontology enrichment analysis of transcripts significantly (false discovery rate [FDR] < 0.05) decreased (top) and increased (bottom) in expression following treatment of FKBPFV-HCF-1N Ramos cells with dTAG-47 for 3 hr. Excluded from this analysis are transcripts that were significantly changed when parental Ramos cells were treated with dTAG-47 for 3 hr. (F) Heatmap showing the log2FC of transcripts with significantly (FDR < 0.05) changed expression, as measured by RNA-Seq, under the indicated conditions. Transcripts are clustered according to the relationship in expression changes between the 4A and VP16 HBM mutants, and ranked by the log2FC for the 4A mutant. Scale of heatmap is limited to [−3,3]. (G) Box-and-whisker plot showing the relationship between transcripts that are anti-correlated between the 4A and VP16 HBM MYC mutants, and significantly changed with the degradation of HCF-1N. Box denotes the 25th to 75th percentile, whiskers extend from minimum to maximum point, and middle line marks the median (4A down/VP16 HBM up: −0.2276; 4A up/VP16 HBM down: 0.2349).

Figure 4—source data 1

Raw data for host cell factor (HCF)–1N degradation growth curve.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig4-data1-v2.xlsx
Figure 4—source data 2

Ramos host cell factor (HCF)–1N degradation RNA-Seq significant changes.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig4-data2-v2.xlsx
Figure 4—source data 3

Ramos untagged RNA-Seq significant changes.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig4-data3-v2.xlsx

We performed RNA-Seq analysis 3 hr after addition of dTAG-47—a time point at which the majority of HFC-1N is degraded (Figure 4B). Despite the early time point, we identified ~4500 significant transcript changes associated with dTAG-47 treatment of sorted cells (Figure 4—figure supplement 1C and Figure 4—source data 2). These changes are equally divided between increased and decreased, although decreased transcripts are generally more impacted (larger median fold-change [FC]) than those that are induced (Figure 4D). Seventy-five of these differentially expressed genes are also altered in response to dTAG-47 treatment of unmodified Ramos cells (Figure 4—figure supplement 1D and E and Figure 4—source data 3) and were excluded from further analyses. GO enrichment analysis showed that transcripts reduced by HCF-1N degradation are similar in kind to those reduced by the 4A mutation in MYC—including ribosome biogenesis and tRNA metabolic processes (Figure 4E)—while those induced by HCF-1N degradation tend to be cell cycle-connected (Figure 4E and Figure 4—figure supplement 1F). We validated representative transcript changes by reverse transcription and quantitative PCR (RT-qPCR; Figure 4—figure supplement 1G). Importantly, many of the genes that are differentially expressed upon HCF-1N degradation are also differentially expressed in the presence of either the 4A or VP16 HBM mutants (Figure 4—figure supplement 1H), and we identified a union set of ~450 genes—oppositely regulated by the 4A and VP16 HBM mutants—the expression of which also changes when HCF-1N is destroyed (Figure 4F). Within this set, loss of HCF-1N tends to mimic the loss of interaction 4A mutant (Figure 4G). Moreover, within the cohort of transcripts that are reduced by both HCF-1N destruction and the 4A mutation, we see clear representation of genes connected to ribosome biogenesis and the mitochondrial matrix (Figure 4—figure supplement 1I and J). Although performing RNA-Seq at this early time likely underestimates the impact of loss of HCF-1N on the transcriptome, the presence of these ribosome biogenesis and mitochondrial matrix genes at the point of coalescence of all our RNA-Seq experiments strongly suggests that they are directly controlled by the MYC–HCF-1 interaction.

Most HCF-1 binding sites on chromatin are bound by MYC

To help identify direct transcriptional targets of the MYC–HCF-1 interaction, we next compared the genomic locations bound by MYC and HCF-1N in Ramos cells. We performed ChIP-Seq using an antibody against the amino-terminus of HCF-1 (Machida et al., 2009), and identified ~1900 peaks for HCF-1N (Figure 5—source data 1), the majority of which are promoter proximal (Figure 5A). These peaks occur at genes enriched in functions connected to HCF-1 (Minocha et al., 2019), including the mitochondrial envelope, the cell cycle, as well as ribonucleoprotein complex biogenesis (Figure 5B). Known (Figure 5C) and de novo (Figure 5—figure supplement 1A) motif analysis revealed that HCF-1N peaks are enriched in DNA sequences linked to nuclear respiratory factor (NRF)–1, as well as the Sp1/Sp2 family of transcription factors. Although linked to NRF-1, the ‘CATGCG’ motif is also a non-canonical E-box that MYC binds in vitro and in vivo (Blackwell et al., 1993; Haggerty et al., 2003; Morrish et al., 2003; Shi et al., 2014). Overlaying these data with our previous ChIP-Seq analysis of MYC in Ramos cells (Thomas et al., 2019), we see that 85% of these HCF-1N peaks are also bound by MYC (Figure 5D and Figure 5—source data 2). The relationship between MYC and HCF-1N at these sites is intimate (Figure 5E and F and and Figure 5—figure supplement 1B), and sites of co-binding tend to have higher signals for MYC (Figure 5G) and HCF-1 (Figure 5—figure supplement 1C) than instances where each protein binds alone. As expected from the strong coalescence of MYC and HCF-1N binding events, the properties of shared MYC–HCF-1N peaks are very similar to those of HCF-1N alone, in terms of promoter-proximity (Figure 5—figure supplement 1D), GO enrichment categories (Figure 5—figure supplement 1E), and motif representation (Figure 5—figure supplement 1F). We conclude that most HCF-1N binding sites on chromatin in Ramos cells occur at promoter proximal sites and that the majority of these sites are also bound by MYC.

Figure 5 with 1 supplement see all

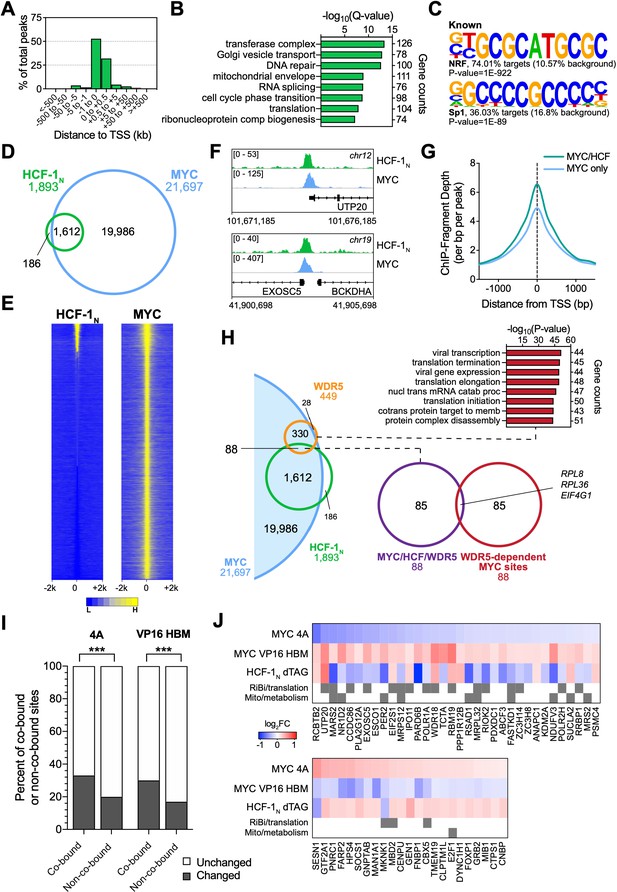

MYC is a widespread binding partner of host cell factor (HCF)–1 on chromatin.

(A) Distribution of HCF-1N peaks in Ramos cells in relation to the nearest transcription start site (TSS), as determined by ChIP-Seq. (B) Gene ontology (GO) categories strongly represented in genes nearest to HCF-1N peaks in Ramos cells. (C) Known motif analysis of HCF-1N peaks in Ramos cells. Two of the most highly enriched motifs are shown, as well as the percentage of target and background sequences with the motif, and the p-value. (D) Venn diagram showing HCF-1N and MYC peaks in Ramos cells, and the number of regions that overlap between the data sets. ChIP-Seq data for MYC are from GSE126207. (E) Heatmap of all MYC peaks in Ramos cells (from GSE126207) and the corresponding region in Ramos HCF-1N ChIP-Seq, representing the combined average of normalized peak intensity in ±2 kb regions surrounding the peak centers with 100 bp bin sizes. Ranking is by peak intensity in HCF-1N. (F) Example Integrative Genomics Viewer (IGV) screenshots of regions that have overlapping peaks for MYC and HCF-1N in Ramos cells. (G) Normalized MYC ChIP-Seq fragment counts where peaks overlap with HCF-1N (MYC/HCF), compared to where they do not overlap (MYC) in Ramos cells. Data are smoothed with a cubic spline transformation. (H) Venn diagram showing relationship between HCF-1N, MYC, and WDR5 peaks in Ramos cells, and the overlap between co-bound genes and genes for which WDR5 is responsible for MYC recruitment. GO enrichment analysis of genes co-bound by MYC and WDR5—taken from Thomas et al., 2019—is also shown. (I) The proportion of protein-coding genes that were co-bound by promoter-proximal MYC and HCF-1N by ChIP-Seq or an equal number of non-co-bound genes were compared to transcripts that were unchanged or significantly changed (false discovery rate [FDR] < 0.05) with the 4A and VP16 HCF-1-binding motif (HBM) mutants by RNA-seq. p-Value for the 4A mutant is 1.982 × 10−14 and 6.933 × 10−14 for the VP16 HBM mutant. (J) Heatmap showing genes that are co-bound by promoter proximal MYC and HCF-1N in Ramos cells, have anti-correlative gene expression changes between for the 4A and VP16 MYC mutants, and have significant gene expression changes with HCF-1N degradation. Genes that fall into GO categories relating to ribosome biogenesis or translation (RiBi/translation), and mitochondrial function or metabolism (Mito/metabolism) are highlighted.

Figure 5—source data 1

Ramos host cell factor (HCF)–1N annotated ChIP-Seq peaks.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig5-data1-v2.xlsx
Figure 5—source data 2

Annotated intersect of ChIP-Seq peaks for host cell factor (HCF)–1N and MYC in Ramos cells.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig5-data2-v2.xlsx

We previously reported that WDR5 has an important role in recruiting MYC to chromatin at a cohort of genes overtly linked to protein synthesis, including more than half of the ribosomal protein genes (Thomas et al., 2019). To determine whether these genes are also bound by HCF-1, we compared our HCF-1N and MYC ChIP-Seq data to those we generated for WDR5 in this setting. Interestingly, there is little overlap of binding sites for MYC, WDR5, and HCF-1N in Ramos cells, with just ~5% of MYC–HCF-1N co-bound sites also being bound by WDR5 (Figure 5H). Moreover, of the 88 sites bound by all three proteins, only three of these are sites where WDR5 has a functional role in MYC recruitment. Thus, despite the fact that both WDR5 and HCF-1 are often members of the same protein complex (Cai et al., 2010), and despite both of them having links to key aspects of protein synthesis gene expression, the two proteins associate with MYC at distinct and separate regions of the genome.

Finally, we overlaid the physical location of MYC and HCF-1N on chromatin with gene expression changes we had monitored in earlier experiments. Looking at genes displaying promoter proximal binding of MYC and HCF-1N—where clear gene assignments can be made—we see that approximately one-third of these genes are differentially regulated in the presence of either the 4A or VP16 HBM MYC mutants, and that this is significantly more than that predicted by chance alone (Figure 5I and Figure 5—figure supplement 1G). For the 4A mutant, a slightly greater proportion of co-bound genes are downregulated, while the opposite is true for the VP16 HBM mutant (Figure 5—figure supplement 1G). A relatively small cohort of MYC–HCF-1N co-bound genes are oppositely impacted by the 4A and VP16 HBM mutants (Figure 5—figure supplement 1G; ‘4A/VP’), but comparing these with those deregulated by depletion of HCF-1N (Figure 5J), we again see that a majority are connected to ribosome biogenesis and mitochondria, and that most are positively regulated by HCF-1 and the MYC–HCF-1 interaction. Together, these data strongly support the notion that ribosome biogenesis and mitochondrially connected genes are direct targets of the MYC–HCF-1 interaction.

MYC and HCF-1 bind chromatin independent of their ability to interact

It has been reported that deletion of MbIV from N-MYC reduces the ability of MYC:MAX dimers to bind DNA (Cowling et al., 2006). This phenotype is unrelated to the MYC HBM, however, as we determined that neither the 4A nor the VP16 HBM mutations have an overt impact on the binding of recombinant MYC:MAX dimers to DNA in vitro (Figure 6—figure supplement 1A and B).

To further explore whether the MYC–HCF-1 interaction influences the ability of either protein to engage its chromatin binding sites in cells, we performed ChIP-Seq for HCF-1N and MYC-HA in our switchable MYC cells that were treated with 4-OHT for 24 hr. Binding of HCF-1N to chromatin is largely unaffected by the 4A or VP16 HBM mutations (Figure 6A and Figure 6—figure supplement 1C), demonstrating that MYC does not recruit HCF-1 to chromatin. Binding of MYC is subtly altered by both the 4A and VP16 HBM mutations (Figure 6B and Figure 6—figure supplement 1D), but these changes are widespread and for the most part shared between the loss-of-function and gain-of-function MYC mutants (Figure 6—source data 1). Indeed, focusing on the top 140 significant changes, we see that the 4A and the VP16 HBM mutants both tend to have increased or expanded chromatin binding, compared to WT MYC (Figure 6C). Visual inspection of the ChIP-Seq data (Figure 6D and Figure 6—figure supplement 1E) confirms the subtlety of these effects and reinforces the concept that the binding of MYC (and HCF-1) to chromatin is not impacted in opposite ways by the 4A and VP16 HBM mutations. We further verified by ChIP-PCR—at genes flagged as direct targets in Figure 5 —that binding of MYC (Figure 6E) and HCF-1 (Figure 6—figure supplement 1F) is largely insensitive to the 4A and VP16 HBM mutations. Thus, although the HBM may play a modest role in chromatin targeting by MYC in cells, this is likely to be independent of the MYC–HCF-1 interaction. We conclude that MYC and HCF-1 interact to control the expression of ribosome biogenesis and mitochondrially connected genes through a co-recruitment-independent mechanism.

Figure 6 with 1 supplement see all

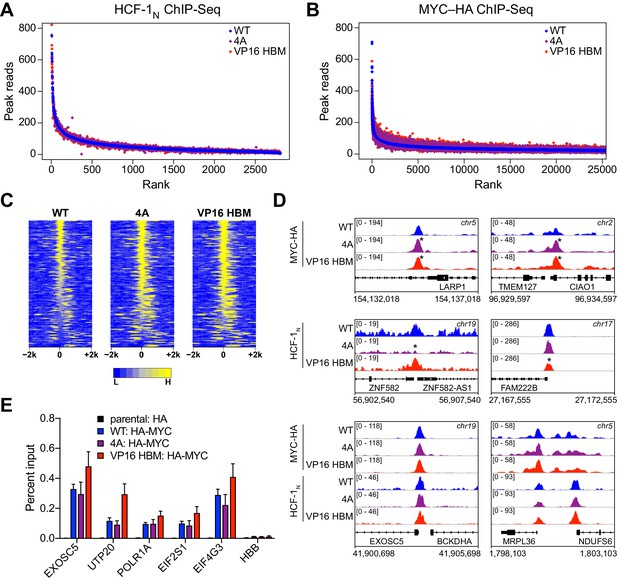

MYC and host cell factor (HCF)–1 bind chromatin independent of their ability to interact.

(A) Scatterplots of normalized average read counts for HCF-1N ChIP-seq peaks in wild-type (WT), 4A, or VP16 HCF-1-binding motif (HBM) switched cells. (B) As in (A) but showing normalized average read counts for MYC–HA ChIP-seq peaks. (C) Heatmap of the combined average normalized peak intensity in 100 bp bins for MYC-HA peaks that were significantly changed (false discovery rate [FDR] < 0.05 and |log2FC| > 0.7) for both the 4A and VP16 HBM mutants, and were within ±2 kb of a TSS. (D) Example IGV screenshots of regions that had significant (top) or non-significant (bottom) changes for MYC-HA or HCF-1N by ChIP-seq. Asterisks mark the peaks that were significantly changed compared to WT. (E) ChIP, using anti-HA antibody, was performed on parental or switchable Ramos cells treated for 24 hr with 20 nM 4-OHT. Enrichment of genomic DNA was monitored by qPCR using primers that amplify across peaks. HBB is a negative locus for HA-MYC. ChIP efficiency was measured based on the percent recovery from input DNA. Shown are the mean and standard error for three biological replicates.

Figure 6—source data 1

MYC-HA ChIP-seq peaks significantly (false discovery rate [FDR] < 0.05) affected by 4A and VP16 host cell factor (HCF)–1-binding motif mutants.

https://cdn.elifesciences.org/articles/60191/elife-60191-fig6-data1-v2.xlsx

The MYC–HCF-1 interaction is important for tumor engraftment and maintenance

The ability of MYC to regulate ribosome (van Riggelen et al., 2010) and mitochondrial (Morrish and Hockenbery, 2014) biogenesis are core aspects of its tumorigenic repertoire. We would expect, therefore, that disrupting the MYC–HCF-1 interaction would have a significant impact on the ability of Ramos lymphoma cells to establish and maintain tumors in vivo. To address this expectation, we tested the impact of the 4A MYC mutant on tumorigenesis in mice. Because this is such an aggressive tumor model (Thomas et al., 2019), we did not test the gain-of-function VP16 HBM mutant. In these experiments, we included a second, independent clone carrying the switchable 4A mutation (4A-1 and 4A-2); we also included a switchable ∆264 mutant (Thomas et al., 2019), which deletes residues in the carboxy-terminal half of MYC required for its nuclear localization, as well as interaction with WDR5, HCF-1, and MAX.

First, we assayed tumor engraftment by switching the engineered cells in culture and then injecting into the flanks of nude mice (Figure 7A). As expected, the WT to WT switched cells develop tumors rapidly in vivo (Figure 7B, Figure 7—figure supplement 1A, and Figure 7—source data 1), resulting in all mice reaching humane endpoints and being euthanized by 21 days post-injection (Figure 7C). In contrast, 4A-1, 4A-2, and ∆264 switched cells are significantly delayed, both in tumor growth (Figure 7B, Figure 7—figure supplement 1A, and Figure 7—source data 1) and mortality (Figure 7C). Although 4A-1, 4A-2, and ∆264 switched cells did form tumors, these appear to originate from the outgrowth of unswitched cells in the injected populations, as ~75% of cells in these tumors are in their unswitched state (Figure 7D). In this assay, therefore, the MYC–HCF-1 interaction is required for tumor growth, and there is little if any difference between disruption of the MYC–HCF-1 interaction and disabling the majority of the nuclear functions of MYC.

Figure 7 with 1 supplement see all

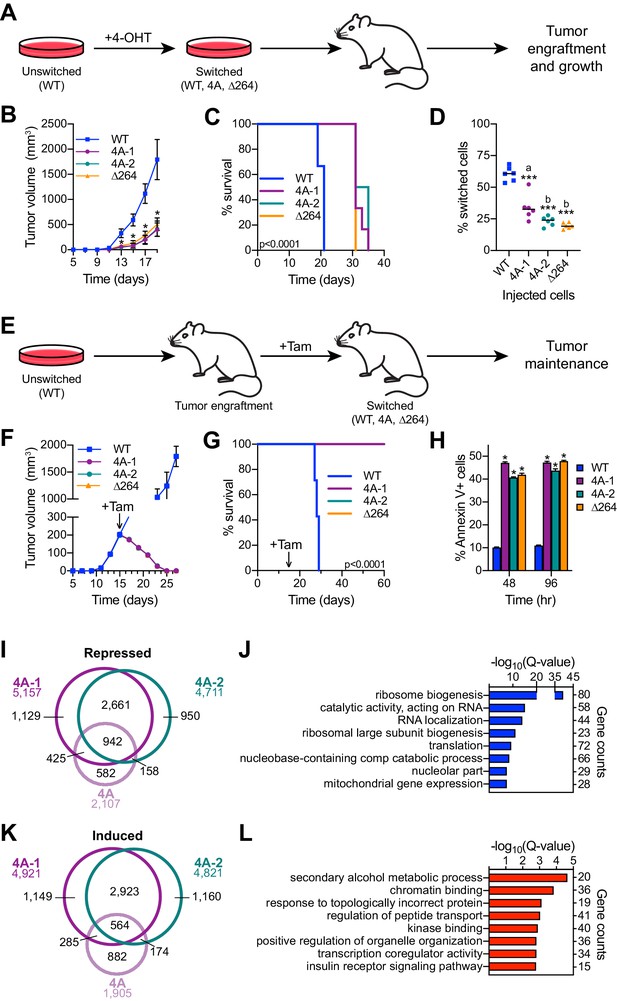

The MYC–host cell factor (HCF)–1 interaction is required for tumor engraftment and maintenance.

(A) Tumor engraftment schema: wild-type (WT), 4A-1, 4A-2, and ∆264 cells are switched in culture prior to injection into flank of nude mice to test the impact of the mutations on tumor engraftment and growth. (B) Average tumor volume over time following injection of switched cells. Shown are the mean and standard error for six mice each. Only days 5–19 are shown here; the full course of the experiment is depicted in Figure 7—figure supplement 1A. Student’s t-test between WT and each of the mutants was used to calculate p-value; *p<0.000043. (C) Kaplan–Meier survival curves of mice (n = 6 of each) injected with switched cells. Log-rank test was used to calculate p-value (<0.0001) from six biological replicates. (D) PCR assays of genomic DNA were used to determine the proportion of switched cells present in each tumor after sacrifice. Each dot represents an individual tumor, and the line indicates the mean for each group. Student’s t-test between WT and each of the mutants was used to calculate p-values; a = 0.0002, b < 0.0001. (E) Tumor maintenance schema: Unswitched WT, 4A-1, 4A-2, and ∆264 cells were injected into the flanks of nude mice. Tumors were grown until day 15, at which point mice received tamoxifen injections (one per day for 3 days) to induce switching of the cells. (F) Average tumor volume before and after cells were switched. The day at which tamoxifen (Tam) administration was initiated is indicated with an arrow. Shown are the mean and standard error for seven mice for WT and six mice for 4A-1, 4A-2, and ∆264 cells. (G) Kaplan–Meier survival curves of mice in the tumor maintenance assay (n = 7 for WT, and n = 6 for 4A-1, 4A-2, and ∆264). The day at which tamoxifen (Tam) administration was initiated is indicated with an arrow. Log-rank test was used to calculate p-value (<0.0001). (H) Annexin V staining and flow cytometry were performed on cells isolated from tumors at 48 and 96 hr following the first tamoxifen administration to determine the extent of apoptosis. Shown are the mean and standard error for four mice each. Student’s t-test between WT and each of the mutants was used to calculate p-value; *p<0.000001. (I) Venn diagram showing the relationship between transcripts significantly (false discovery rate [FDR] < 0.05) decreased in the 4A cell line and the 4A-1 and 4A-2 tumors. (J) Gene ontology (GO) enrichment analysis of transcripts significantly (FDR < 0.05) decreased in the 4A cell line and the 4A-1 and 4A-2 tumors. (K) Venn diagram showing the overlap of transcripts significantly (FDR < 0.05) increased in the 4A cell line and the 4A-1 and 4A-2 tumors. (L) GO enrichment analysis of transcripts significantly (FDR < 0.05) increased in the 4A cell line and the 4A-1 and 4A-2 tumors.

Next, we injected unswitched cells into the flanks of mice, allowed tumors to form, and then switched to each of the MYC variants by injecting mice with tamoxifen (Figure 7E). As we observed previously (Thomas et al., 2019), the ‘WT to WT’ tumors continue to grow rapidly after switching (Figure 7F, Figure 7—figure supplement 1B, and Figure 7—source data 1), and all mice had to be euthanized before 30 days (Figure 7G). For the 4A switches, however, tumors rapidly regressed (Figure 7F), and all mice survived—and were tumor free—for the 60-day duration of the experiment (Figure 7—figure supplement 1B and Figure 7—source data 1). Regression of the 4A tumors occurs at a pace that is virtually indistinguishable from the ∆264 mutant (Figure 7—figure supplement 1B and Figure 7—source data 1), and like the ∆264 scenario, is accompanied by high levels of apoptosis, as measured by Annexin V staining (Figure 7H), caspase activity (Figure 7—figure supplement 1C), and sub-G1 DNA content (Figure 7—figure supplement 1D). We conclude that the interaction of MYC with HCF-1 is essential for tumor maintenance in this context.

Finally, we performed RNA-Seq on tumor material excised 48 hr after switching (Figure 7—figure supplement 1E and Figure 7—source data 2). Thousands of differentially expressed genes were identified in the mutant switch tumors, many of which are shared between the 4A and ∆264 mutants—for both the decreased (Figure 7—figure supplement 1F) and induced (Figure 7—figure supplement 1G) directions. Common reduced transcripts are enriched in those connected to ribosome biogenesis, translation, and mitochondrial envelope (Figure 7—figure supplement 1H), whereas those that are induced are enriched for functions including transcription co-regulator activity, kinase binding, and the vacuole (Figure 7—figure supplement 1I). Many of these gene expression changes are likely due to indirect effects of tumor regression. To tease these changes apart from those more closely connected to the MYC–HCF-1 interaction, we overlaid tumor RNA-Seq with that generated for the 4A MYC mutant in vitro (Figure 3). Responses that were only observed in the tumor regression model were linked to fairly broad categories such as ‘protein binding’ or ‘mRNA metabolism’ (Figure 7—figure supplement 1J and K). Responses that were shared between the in vitro and in vivo systems were, in contrast, more extensive and specific. Indeed, more than 70% of the genes repressed in the 4A cell line are also repressed in either 4A-1 or 4A-2 tumors, and there is a common set of 942 genes that are shared between all three data sets (Figure 7I). These genes coalesce on those connected to ribosome biogenesis, translation, and the mitochondria (Figure 7J). The overlap of induced genes was less pronounced (30%; Figure 7K) and these genes are less clustered, although we do observe modest enrichment in categories connected to metabolism, chromatin binding, and transcription coregulator activity (Figure 7L). The recurring connections we observe between the MYC–HCF-1 interaction and ribosome biogenesis and mitochondrial function, both in vitro and in vivo, strongly support the notion that a major function of this interaction is to stimulate ribosome production and mitochondrial vigor, and that these actions are central for the ability of MYC to drive tumor onset and maintenance.

Discussion

The wealth of MYC interaction partners provides a rich resource for the discovery of novel ways to eventually inhibit MYC in the clinic. Unfortunately, the complexity of the MYC interactome also presents a barrier to prioritizing which co-factors to pursue. The highest priority co-factors should be those that play a critical role in the core tumorigenic functions of the protein, and where there is proof-of-concept that disrupting interaction with MYC would provide a therapeutic benefit in the context of an existing malignancy. Here we provide this information for HCF-1. We show that MYC interacts with HCF-1 via a non-canonical HBM, identify roles for the MYC–HCF-1 interaction in the control of genes involved in ribosome biogenesis, translation, and mitochondrial function, and show that loss of the MYC–HCF-1 interaction promotes frank and irreversible tumor regression in vivo. Although we do not yet know if a therapeutic window exists for targeting MYC through HCF-1, and we do not know if our findings will extend to other tumor types, this work, together with our previous study (Thomas et al., 2016), highlights HCF-1 as a critical MYC co-factor and one worth pursuing as means to inhibit MYC in cancer.

Through the use of mutations that bidirectionally modulate the interaction between MYC and HCF-1, inducible degradation of HCF-1N, and ChIP-Seq analyses, we identified a relatively small set of genes that we posit are direct targets of the MYC–HCF-1 interaction. It is possible that the multi-pronged strategy we took excludes some bonafide MYC–HCF-1 target genes. But this approach is important because we cannot exclude the possibility that MbIV interacts with multiple factors besides HCF-1. Indeed, we observed instances where the 4A and VP16 HBM mutations produce similar effects on MYC behavior, suggesting that they impact some common aspect of MYC function that is independent of HCF-1. Nonetheless, the genes surviving our stringent criteria can be considered high-confidence targets, and are particularly interesting because of their (i) biological clustering, (ii) connections to core pro-tumorigenic MYC activities, and (iii) ability to account for many of the overt consequences of modulating the MYC–HCF-1 interaction on metabolism and tumorigenesis. What is also interesting about this set of genes is that they appear to be regulated by MYC and HCF-1 through a co-recruitment-independent mechanism.

Among the direct targets of the MYC−HCF-1 interaction are genes that catalyze rate-limiting steps in both ribosome biogenesis (rDNA transcription by POLR1A) and translation (initiator tRNA binding to start codon by EIF2S1 [EIF-2α]) (Hershey, 1991; Laferté et al., 2006). MYC regulates ribosome biogenesis through controlling and coordinating the transcription of ribosomal DNA, ribosomal protein genes, and components in the processing and assembly of ribosomes (van Riggelen et al., 2010). Furthermore, regulation of tRNA ligases by MYC is considered an essential contributor to MYC-driven cell growth in Drosophila (Zirin et al., 2019). Interestingly, even with the direct MYC–HCF-targets classified as mitochondrially connected, we see that links to protein synthesis—MARS2, MRPS12, and MRPL32, for example—are specifically involved in the synthesis of mitochondrial proteins, including those required for oxidative phosphorylation. We conclude that, in the context of its relationship with MYC, HCF-1 is dedicated to promoting multiple aspects of biomass accumulation.

The notion that there are process-specific co-factors for MYC is not widely appreciated. MIZ-1 (Vo et al., 2016) and WDR5 (Thomas et al., 2019) are perhaps the best examples to date; our work here on HCF-1 further reinforces this concept. There are some particularly interesting parallels between the actions of WDR5 and HCF-1 as process-specific co-factors for MYC: both interact with MYC through conserved MYC boxes, both control the expression of relatively small cohorts of genes, both are required to interact with MYC to establish and maintain tumors, and both have clear links to biomass accumulation. Beyond this point, however, these parallels break down. There is little overlap of target genes regulated by the MYC–WDR5 and MYC–HCF-1 interactions, and whereas MYC and HCF-1 associate with predominantly control ribosome biogenesis, MYC and WDR5 work together to stimulate the expression of genes encoding structural components of the ribosome (Thomas et al., 2019). This division of labor between HCF-1 and WDR5 in different aspects of protein synthesis is particularly intriguing given that HCF-1 and WDR5 work together as part of multi-protein chromatin modifying complexes (Tyagi et al., 2007; Wysocka et al., 2003). Yet MYC interacts with each protein through separate MYC boxes, and indeed the way in which MYC interacts with WDR5 likely precludes WDR5 from assembling into canonical HCF-1-containing complexes (Thomas et al., 2015). We believe the separation of interaction surfaces allows MYC to access non-canonical functions of both WDR5 and HCF-1, and may have evolved to permit discrete regulation of the constituents of the ribosomes versus the factors required to assemble these constituents into ribosome particles. Indeed, because HCF-1 (Mazars et al., 2010), MYC (Chou et al., 1995), and the MYC–HCF-1 interaction (Itkonen et al., 2019) all have ties to the metabolic sensor OGT (Swamy et al., 2016), it is possible that this separation of function allows for rapid modulation of ribosome assembly by HCF-1 when the metabolic state of the cell declines, while at the same time ensuring that ribosome subunits are present for rapid recovery when metabolism ramps up.

The concept that HCF-1 is a biomass-specific co-factor for MYC can also account for our discovery that intracellular amino acid levels are increased when the MYC–HCF-1 interaction is disrupted. Impairment of ribosome biogenesis and translation can lead to an accumulation of amino acids and compensatory changes in the expression of their transporters (Guan et al., 2014; Scott et al., 2014). Of note, the way in which amino acid levels almost globally respond to changes in the MYC–HCF-1 interaction can also provide a simple explanation for how the MYC–HCF-1 interaction contributes to the glutamine addiction of Ramos cells. If MYC partners with HCF-1 to drive biomass accumulation, the net effect of this interaction will be to increase the demand for intracellular amino acids, with glutamine playing a particularly important role in the biosynthesis of multiple non-essential amino acids, including glutamate, arginine, proline, and alanine (Hosios et al., 2016). The ability of MYC to drive glutamine-addiction is a defining characteristic of its tumorigenic repertoire (Tansey, 2014), and is thought to result from the ability of MYC to promote glutaminolysis and induce the expression of amino acid transporters (Wise et al., 2008). But the accumulation of glutamine we observe upon disruption of the MYC–HCF-1 interaction, together with the specific role HCF-1 plays in MYC function, suggests that glutamine addiction might also be fueled by the well-established ability of MYC to stimulate protein synthesis (Iritani and Eisenman, 1999).

Our discovery that MYC and HCF-1 work together to regulate transcription via a co-recruitment-independent mechanism is surprising, but not without precedent. E2F transcription factors interact with HCF-1 through a canonical HBM to control the expression of genes connected to cell cycle progression, yet depletion of these proteins has little effect on the recruitment of either to chromatin (Iwata et al., 2013; Parker et al., 2014; Tyagi et al., 2007). Similarly, Drosophila Myc and HCF interact to activate transcription and control growth, but their respective interactions with chromatin are independent of one another (Furrer et al., 2010). A co-recruitment-independent mechanism may thus be a common way in which transcription factors interact with HCF-1 to modulate transcription. In imagining how this might occur, it is interesting to note that the biochemical context in which HCF-1 exists can be influenced by client proteins; its interaction with E2F1 drives association with SETD1A complexes, whereas its interaction with E2F4 favors binding to the SIN3A HDAC complex (Tyagi et al., 2007). Perhaps, therefore, the post-recruitment interaction of MYC and HCF-1 modulates transcription by promoting the ejection of inhibitory proteins like SIN3A from, or recruiting activating proteins like SETD1A to, HCF-1. Further experimentation will be required to determine the mechanism of action.

Finally, there are two additional cancer-relevant connections worth mentioning. First, the COSMIC database (Tate et al., 2019) identifies three cancer-associated mutations within the MYC HBM, all of which convert the subprime ‘QHNY’ motif to ‘EHNY’, which matches the perfect HBM consensus and closely resembles the gain-of-function VP16 HBM we used in this study. It is possible, therefore, that these rare mutations in MYC could contribute to disease progression via enhancement of the MYC–HCF-1 interaction. This is an intriguing idea, and one worth testing in a less aggressive in vivo model where increases in the tumorigenic potential of MYC can be visualized. Second, our demonstration that disrupting the MYC–HCF-1 interaction in the context of an existing tumor promotes its regression provides compelling proof-of-concept for the idea that inhibitors of this interaction could have utility as anticancer agents. Switching WT MYC to the 4A mutant caused rapid and widespread induction of apoptosis and was associated with changes in the expression of genes connected to ribosome biogenesis, translation, and the mitochondria, consistent with the idea that reduced expression of these MYC–HCF-1 target genes triggers the regression process (Hanahan and Weinberg, 2011; Pelletier et al., 2018). The small and well-defined nature of the HBM suggests that if structural information becomes available for the HCF-1 VIC domain, it could be possible to develop small molecule inhibitors that block the MYC–HCF-1 interaction. The most obvious concern with this strategy is that HCF-1 is not a MYC-specific co-factor, and that its interactions with other transcription factors may limit or prevent attainment of a therapeutic window. To our knowledge, MYC proteins and E2F3a are the only transcription factors that interact with HCF-1 via an ‘imperfect’ HBM, which we show here is sub-optimal for robust HCF-1 association. It might be possible to develop a therapeutic window by exploiting the non-canonical nature of the HBM in MYC, with the expectation that this interaction will be more sensitive than others that carry higher affinity HBM motifs. We note, however, that many of the factors with which HCF-1 interacts via an HBM are inherently pro-proliferative, with the E2F proteins in particular playing a predominant role in cancer initiation, maintenance, and response to therapies (Kent and Leone, 2019). We also note that HCF-1 has been reported to be overexpressed in cancer, and its overexpression can correlate with poor clinical outcomes (Glinsky et al., 2005). It is possible, therefore, that on-target collateral consequences of inhibiting the MYC–HCF-1 interaction could also have therapeutic benefit against malignancies.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
 Gene (Homo sapiens)MYCNAUniProt ID: P01106
 Gene (Homo sapiens)HCFC1NAUniProt ID: P51610
 Strain, strain background (Escherichia coli)Rosetta (DE3) Competent CellsMilliporeCat#: 70954
 Strain, strain background (Escherichia coli)XL1-Blue Competent CellsAgilent TechnologiesCat#: 200249
 Cell line (Homo sapiens)RamosATCCCat#: CRL-1596; RRID:CVCL_0597
 Cell line (Homo sapiens)Ramos Cre-ERT2Thomas et al., 2019NA
 Cell line (Homo sapiens)Ramos Cre-ERT2 MYC-WTThomas et al., 2019NA
 Cell line (Homo sapiens)Ramos Cre-ERT2 MYC-Δ264Thomas et al., 2019NA
 Cell line (Homo sapiens)Ramos Cre-ERT2 MYC-4AThis paperNASee section ‘Generation of switchable MYC allele Ramos cell lines’
 Cell line (Homo sapiens)Ramos Cre-ERT2 MYC-VP16 HBMThis paperNASee section ‘Generation of switchable MYC allele Ramos cell lines’
 Cell line (Homo sapiens)Ramos FKBPFV-HCF-1NThis paperNASee section ‘Generation of dTAG Ramos cell lines’
 AntibodyRabbit anti-HCF-1C polyclonalBethyl LaboratoriesCat#: A301-399A; RRID:AB_961012Western blotting (1:1000)
 AntibodyRabbit anti-HCF-1N polyclonalMachida et al., 2009NAWestern blotting (1:10,000), ChIP (6 μl)
 AntibodyRabbit anti-c-MYC (Y69) monoclonalAbcamCat#: ab32072; RRID:AB_731658Western blotting (1:10,000), IP (2 μg)
 AntibodyRabbit anti-HA (C29F4) monoclonalCell Signaling TechnologyCat#: 3724; RRID:AB_1549585Western blotting (1:4000), ChIP (5 μl),
IF (1:500)
 AntibodyRabbit anti-WDR5 (D9E1I) monoclonalCell Signaling TechnologyCat#: 13105; RRID:AB_2620133Western blotting (1:1000)
 AntibodyRabbit anti-IgG polyclonalCell Signaling TechnologyCat#: 2729; RRID:AB_1031062IP (2 μg), ChIP (0.8 μg)
 AntibodyMouse anti-FLAG (M2) monoclonal (HRP)Sigma-AldrichCat#: A8592; RRID:AB_439702Western blotting (1:10,000 or 1:50,000)
 AntibodyMouse anti-T7 monoclonal (HRP)MilliporeCat#: 69048; RRID:AB_11212778Western blotting (1:10,000)
 AntibodyMouse anti-GAPDH (GA1R) monoclonal (HRP)Thermo Fisher ScientificCat#: MA5-15738-HRP; RRID:AB_2537659Western blotting (1:50,000)
 AntibodyRabbit anti-GAPDH (D16H11) monoclonal (HRP)Cell Signaling TechnologyCat#: 8884; RRID:AB_11129865Western blotting (1:2500)
 AntibodyRabbit anti-α-Tubulin (11H10) monoclonal (HRP)Cell Signaling TechnologyCat#: 11H10; RRID:AB_10695471Western blotting (1:5000)
 AntibodyRabbit anti-histone H3 (D1H2) XP monoclonal (HRP)Cell Signaling TechnologyCat#: 12648; RRID:AB_2797978Western blotting (1:5000)
 AntibodyGoat anti-rabbit IgG polyclonal (HRP)Thermo Fisher ScientificCat#: 31463; RRID:AB_228333Western blotting (1:5000)
 AntibodyMouse anti-rabbit IgG monoclonal, light chain specific (HRP)Jackson ImmunoResearch LabsCat#: 211-032-171; RRID:AB_2339149Western blotting (1:5000)
 AntibodyGoat anti-rabbit IgG polyclonal (Alexa Fluor 594)Thermo Fisher ScientificCat#: A11012; RRID:AB_2534079IF (1:350)
 OtherAnti-FLAG M2 affinity gelSigma-AldrichCat#: A2220; RRID:AB_10063035IP (20 μl bed volume)
 OtherProtein A AgaroseRocheCat#: 11134515001IP/ChIP (20 μl bed volume)
 Recombinant DNA reagentpCRIS-mCherry-FLAG-dTAG-HCFC1This paperNASee section ‘Generation of dTAG Ramos cell lines’
 Recombinant DNA reagentpGuide-HCFC1-NThis paperNASee section ‘Generation of dTAG Ramos cell lines’
 Recombinant DNA reagentpX330-U6-Chimeric_BB-CBh-hSpCas9AddgeneCat#: 42230; RRID:Addgene_42230
 Recombinant DNA reagentMYC-WT targeting vectorThomas et al., 2019NA
 Recombinant DNA reagentMYC-4A targeting vectorThis paperNASee section ‘Generation of switchable MYC allele Ramos cell lines’
 Recombinant DNA reagentMYC-VP16 HBM targeting vectorThis paperNASee section ‘Generation of switchable MYC allele Ramos cell lines’
 Recombinant
DNA reagent
pGuide-MYC1This paperNASee section ‘Generation of switchable MYC allele Ramos cell lines’
 Recombinant DNA reagentpFLAG-C2Thomas et al., 2015NA
 Recombinant DNA reagentpFLAG-MYC WTThomas et al., 2015NA
 Recombinant DNA reagentpFLAG-MYC 4AThis paperNASee section ‘Transient transfection, western blotting, and immunoprecipitation’
 Recombinant DNA reagentpFLAG-MYC H307GThis paperNASee section ‘Transient transfection, western blotting, and immunoprecipitation’
 Recombinant DNA reagentpFLAG-MYC VP16 HBMThis paperNASee section ‘Transient transfection, western blotting, and immunoprecipitation’
 Recombinant DNA reagentpFLAG-MYC VP16 HBM H307GThis paperNASee section ‘Transient transfection, western blotting, and
immunoprecipitation’
 Recombinant DNA reagentpFLAG-MYC WBMThomas et al., 2015NA
 Recombinant DNA reagentpSUMO-MYC WT-FLAGThomas et al., 2015NA
 Recombinant DNA reagentpSUMO-MYC 4A-FLAGThis paperNASee section ‘In vitro binding assays’
 Recombinant DNA reagentpSUMO-MYC VP16 HBM-FLAGThis paperNASee section ‘In vitro binding assays’
 Recombinant DNA reagentpT7-IRES His-T7-HCF-1VICThis paperNASee section ‘In vitro binding assays’
 Recombinant DNA reagentpRSET-6XHis-MYC WTFarina et al., 2004NA
 Recombinant DNA reagentpRSET-6XHis-MYC 4AThis paperNASee section ‘Electrophoretic mobility shift assays’
 Recombinant DNA reagentpRSET-6XHis-MYC VP16 HBMThis paperNASee section ‘Electrophoretic mobility shift assays’
 Commercial assay or kitQ5 DNA PolymeraseNEBCat#: M0491
 Commercial assay or kitOneTaq DNA PolymeraseNEBCat#: M0480
 Commercial assay or kitGibson Assembly Cloning KitNEBCat#: E5510
 Commercial assay or kitLightShift Chemiluminescent EMSA KitThermo FisherCat#: 20148
 Chemical compound, drugDMSOSigma-AldrichCat#: D2650
 Chemical compound, drugdTAG-47Vanderbilt Institute of Chemical Biology Synthesis Core
 Software, algorithmPRISM 8GraphPadRRID:SCR_002798https://www.graphpad.com/scientific-software/prism/
 Software, algorithmFACSDiva 8.0BD BiosciencesRRID:SCR_001456https://www.bdbiosciences.com/en-us/instruments/research-instruments/research-software/flow-cytometry-acquisition/facsdiva-software
 Software, algorithmFlowJoFlowJoRRID:SCR_008520https://www.flowjo.com/
 Software, algorithmMetaboAnalyst 4.0Chong et al., 2019RRID:SCR_015539https://www.metaboanalyst.ca/
 Software, algorithmMetascapeZhou et al., 2019RRID:SCR_016620https://metascape.org/
 Software, algorithmDAVIDHuang et al., 2009a, Huang et al., 2009bRRID:SCR_001881https://david.ncifcrf.gov/

Primers and cloning

Request a detailed protocol

See Supplementary file 1 for primer sequences. PCRs were performed using either Q5 DNA Polymerase (NEB, Ipswich, Massachusetts, M0491) or OneTaq DNA Polymerase (NEB M0480). Gibson assemblies were performed using Gibson Assembly Cloning Kit (NEB E5510). More specific details about cloning steps can be found in the relevant sections.

Cell culture

Request a detailed protocol

293T cells were maintained in DMEM with 4.5 g/l glucose, L-Glutamine, and sodium pyruvate (Corning, Corning, New York, 10–013-CV), and supplemented with 10% fetal bovine serum (FBS, Denville Scientific, Metuchen, New Jersey, FB5001-H), and 1% penicillin/streptomycin (P/S, Gibco, Waltham, Massachusetts, 15140122). Ramos cells were obtained directly from the ATCC (Manassas, Virginia, CRL-1596) and maintained in RPMI 1640 with L-glutamine (Corning 10–040-CV), and supplemented with 10% FBS (Denville Scientific FB5001-H), and 1% P/S (Gibco 15140122). All cell lines used were confirmed as mycoplasma-negative; 293T cells were authenticated by STR profiling.

Antibodies

Rabbit anti-HCF1C polyclonal (Bethyl Laboratories, Montgomery, Texas, Cat# A301-399A); rabbit anti-HCF1N polyclonal (Machida et al., 2009); rabbit anti-c-MYC (Y69) monoclonal (Abcam, Cambridge, United Kingdom, Cat# ab32072); rabbit anti-HA (C29F4) monoclonal (Cell Signaling Technology, Danvers, Massachusetts, Cat# 3724); rabbit anti-WDR5 (D9E1I) monoclonal (Cell Signaling Technology Cat# 13105); rabbit anti-IgG polyclonal (Cell Signaling Technology Cat# 2729); mouse anti-FLAG (M2) monoclonal, HRP-conjugated (Sigma-Aldrich, St. Louis, Missouri, Cat# A8592); mouse anti-T7 monoclonal, HRP conjugated (Millipore, Burlington, Massachusetts, Cat# 69048); mouse anti-GAPDH (GA1R) monoclonal, HRP conjugated (Thermo Fisher Scientific, Waltham, Massachusetts, Cat# MA5-15738-HRP); rabbit anti-GAPDH (D16H11) monoclonal, HRP conjugated (Cell Signaling Technology Cat# 8884); goat anti-rabbit IgG polyclonal, HRP conjugated (Thermo Fisher Scientific Cat# 31463); mouse anti-rabbit IgG monoclonal, light chain specific, HRP conjugated (Jackson ImmunoResearch Laboratories, West Grove, Pennsylvania, Cat# 211-032-171); rabbit anti-histone H3 (D1H2) XP monoclonal, HRP conjugated (Cell Signaling Technology Cat# 12648); rabbit anti-α-Tubulin (11H10) monoclonal, HRP conjugated (Cell Signaling Technology Cat# 9099); goat anti-rabbit IgG polyclonal, Alexa Fluor 594 conjugated (Thermo Fisher Scientific A11012).

Generation of switchable MYC allele Ramos cell lines

Request a detailed protocol

Q5 site-directed mutagenesis of MYC-WT targeting vector from Thomas et al., 2019 was used to create MYC-4A (4A_F and 4A_R) and MYC-VP16 HBM (VP16 HBM_F and VP16 HBM_R). The pGuide plasmid described by Thomas et al., 2019 was used as a backbone to introduce the sgRNA sequence GCTACGGAACTCTTGTGCGTA (pGuide-MYC1) by Q5 site directed mutagenesis with the primers GUIDE MYC-1A and GUIDE MYC-1B.

For the generation of switchable cells, 10 million Ramos cells stably expressing CRE-ERT2 (Thomas et al., 2019) were electroporated (BioRad Gene Pulser II, 220 V and 950 μF) with 10 μg of relevant targeting vector (MYC-4A or MYC-VP16 HBM), 15 μg pGuide-MYC1, and 15 μg pX330-U6-Chimeric_BB-CBh-hSpCas9 (gift from Feng Zhang, AddGene plasmid #42230) (Cong et al., 2013). WT and ∆264 cell lines were the same as those used in Thomas et al., 2019. Cells were treated with 150 ng/ml puromycin (Sigma-Aldrich P7255) and 100 μg/ml hygromycin (Corning 30240CR), selecting for the switchable MYC cassette and CRE-ERT2 recombinase, respectively. Following selection, single cells, stained using propidium iodide (PI, Sigma-Aldrich P4864) for viability, were sorted by the Vanderbilt Flow Cytometry Shared Resource using a BD FACSAria III flow cytometer into a 96-well plate to generate clonal cell lines under puromycin and hygromycin selection. Individual clones were expanded, and initially validated by switching for 24 hr using 20 nM (Z)−4-Hydroxytamoxifen (4-OHT, Tocris, Minneapolis, Minnesota, 3412), and flow cytometry (see below) for GFP expression. Further validation was performed by western blotting after 24 hr 20 nM ±4 OHT (see below) and by sSouthern blotting (see below). The 4A cell line (4A-1) used for the majority of experiments is haploinsufficient for part of chromosome 11, approximately between co-ordinates 118,685,194 and 134,982,408. This region of the genome was excluded from genomic analyses. For all experiments, switching was performed by treatment with 20 nM 4-OHT for 2 or 24 hr (see relevant method or figure legend).

Generation of dTAG Ramos cell lines

Request a detailed protocol

To create pCRIS-mCherry-FLAG-dTAG-HCFC1, pCRIS-PITChv2-Puro-dTAG (BRD4) (gift from James Bradner, AddGene plasmid #91793) (Nabet et al., 2018) was first modified to remove the BRD4 homology arms and replace the 2XHA tags with a FLAG tag. This was done by Gibson assembly of the vector (Q5 amplification using pCRIS-HCFC1N_F and pCRIS_R), puromycin cassette (Q5 amplification using Puro-1 and Puro-FLAG_R), and FKBP12FV (Q5 amplification using FLAG-FKBP_F and pCRIS-FKBP_R). The resulting vector was again modified using Gibson assembly by combining the vector (Q5 amplification using pCRIS-HCFC1N_F and pCRIS-HCFC1N_R), an upstream 271 bp HCFC1 5’ homology arm (hg19 chrX:153236265–153236535, OneTaq amplification using HCFC1N_F and HCFC1N-5’Hom_R), mCherry (Q5 amplification using mCherry_F and mCherry_R), FKBP12FV (Q5 amplification using HCFC1-mCherry-FKBP_F and HCFC1-mCherry-FKBP_R), and a downstream 800 bp HCFC1 3’ homology arm (hg19 chrX:153235465–153236264, OneTaq amplification using HCFC1N-3’Hom_F and HCFC1N-3’Hom_R). The pGuide plasmid described by Thomas et al., 2019 was used as a backbone to introduce the guide RNA sequence CAGAAGCACCGCTGGCAAGT (pGuide-HCFC1-N) by Q5 site-directed mutagenesis with the primers HCFC1N-sgRNA_F and HCFC1N-sgRNA_R.

Fifteen micrograms of pGuide-HCFC1-N and 10 μg of pCRIS-mCherry-FLAG-dTAG-HCFC1 were electroporated (BioRad, Hercules, California, Gene Pulser II, 220 V and 950 μF) into Ramos cells, alongside 15 μg pX330-U6-Chimeric_BB-CBh-hSpCas9 (gift from Feng Zhang, AddGene plasmid #42230) (Cong et al., 2013) into 10 million Ramos cells. Because HCFC1 is on the X chromosome and Ramos cells are XY (Klein et al., 1975), only a single copy of HCFC1 is present for targeting using CRISPR/Cas9. Following electroporation, cells were expanded and a population of mCherry-positive cells, stained using Zombie NIR viability dye (BioLegend, San Diego, California, 423105), was sorted by the Vanderbilt Flow Cytometry Shared Resource using a FACSAria III flow cytometer (Becton Dickinson (BD), Franklin Lakes, New Jersey). This population of cells was expanded further before validation by western blotting. All experiments were conducted using this population and were treated with either DMSO (Sigma-Aldrich D2650) or 500 nM dTAG-47, which was synthesized by the Vanderbilt Institute of Chemical Biology Synthesis Core.

Transient transfection, western blotting, and immunoprecipitation

Request a detailed protocol

Q5 site-directed mutagenesis of pFLAG-MYC WT (Thomas et al., 2015) was used to generate the following plasmids: pFLAG-MYC 4A (4A_F and 4A_R), pFLAG-MYC H307G (H307G_F and H307G_R), pFLAG-MYC VP16 HBM (VP16 HBM_F and VP16 HBM_R), and pFLAG-MYC VP16 HBM H307G (VP16 HBM H307G_F and VP16 HBM H307G_R). pFLAG-MYC WBM is from Thomas et al., 2015. Plasmid (19 μg) was prepared with 0.25 M CaCl2, incubated for 10 min with 1× HBS (2× HBS: 140 mM NaCl, 1.5 mM Na2HPO4, 50 mM HEPES, pH 7.05), and then applied drop-wise to 293T cells. Cells were grown for 2 days before harvesting (see below).

Cell lysates for western blotting or immunoprecipitation (IP) were prepared by rinsing cells twice in ice-cold 1× PBS, and harvesting in Kischkel Buffer (50 mM Tris pH 8.0, 150 mM NaCl, 5 mM EDTA, 1% Triton X-100) + protease inhibitor cocktail (PIC, Roche, Basel, Switzerland, 05056489001). Cells were sonicated at 25% power for 10 s (Cole-Parmer, Vernon Hills, Illinois, GE 130PB-1), debris removed by centrifugation, and protein concentration determined using Protein Assay Dye (BioRad 500–0006) against a bovine serum albumin (BSA) standard. For western blotting, lysate was diluted in 5× Laemmli Buffer (375 mM Tris pH 6.8, 40% glycerol, 10% SDS, bromophenol blue, 2-Mercaptoethanol). For IP, the concentration of samples was balanced using Kischkel Buffer. Antibody or anti-FLAG M2 Affinity Gel (Millipore A2220) was added, and samples rotated overnight at 4°C. For unconjugated antibodies, 20 μl bed volume of Protein A Agarose (Roche 11134515001) was added the following day to each sample, and rotated for 2–4 hr at 4°C. Samples were then washed 4× with Kischkel buffer (2× 4°C and 2× at room temperature), and incubated in Laemmli buffer for 5 min at 95°C.

Protein from lysates and IPs were separated out by SDS-polyacrylamide gel electrophoresis (PAGE) in running buffer (25 mM Tris, 192 mM glycine, 0.2% SDS). Wet transfer to PVDF (PerkinElmer, Waltham, Massachusetts, NEF1002) was carried out in Towbin Transfer Buffer (25 mM Tris, 192 mM glycine, and 10% methanol). Membrane was blocked in 5% milk in TBS-T (20 mM Tris pH 7.6, 140 mM NaCl, 0.1% Tween-20), hybridized overnight in primary antibody (or 1 hr for HRP-conjugated), and for 1 hr in HRP-conjugated secondary antibody (if required). ECL substrates, SuperSignal West Pico (Pierce, Waltham, Massachusetts, 34080), Pico+ (Pierce 34580), and Femto (Pierce 34095) were used in various combinations for detection of bands by exposure to film.

Chromatin fractionation

Request a detailed protocol

Chromatin fractionation was performed, with slight modification, as described by Méndez and Stillman, 2000. Switchable MYC Ramos cells that had been treated for 24 hr with 20 nM 4-OHT were washed in ice-cold PBS, resuspended in 200 µl Buffer A (10 mM HEPES pH 7.9, 10 mM KCl, 1.5 mM MgCl2, 0.34 M sucrose, 10% glycerol, 1 mM DTT) + PIC + PMSF + 0.1% Triton X-100, and incubated on ice for 10 min. The resulting lysate was centrifuged 1300 × g for 5 min at 4°C, with the pellet (P1) containing the nuclei. The supernatant (S1) was centrifuged at 20,000 × g for 10 min at 4°C, giving pellet P2 and supernatant S2. P2 was discarded and S2 corresponding to the soluble portion of the total cell extract was diluted out in Laemmli buffer. P1 was gently washed in Buffer A, resuspended by pipetting up and down in Buffer B (3 mM EDTA, 0.2 mM EGTA, 1 mM DTT) + PIC + PMSF, and incubated on ice for 30 min. The lysed nuclei were centrifuged at 1700 × g for 5 min at 4°C to give soluble nuclear proteins (S3) and chromatin-bound proteins (P3). S3 was diluted out in Laemmli buffer. P3 was gently washed in Buffer B, resuspended in Laemmli buffer, and sonicated for 15 s at 25% power. All samples were incubated at 95°C for 3 min. Proteins were separated out by SDS-PAGE and transferred to PVDF, as described above, and probed for HCF-1C, HA, tubulin, and H3.

Immunofluorescence

Request a detailed protocol

Following a 24 hr treatment with 20 nM 4-OHT, 105 switchable MYC Ramos cells were attached to slides by CytoSpin (800 RPM, 3 min), fixed for 10 min with 3% methanol-free formaldehyde (Thermo Fisher Scientific 28908) diluted in PBS, and washed three times with PBS. Cells were permeabilized for 10 min with Permeabilization Solution (0.1% Triton X-100 in PBS), blocked for 1 hr with Blocking Solution (2.5% BSA in Permeabilization Solution), and incubated with Blocking Solution containing anti-HA antibody (1:500, Cell Signaling 3724) for 1 hr. Cells were washed three times with PBS and incubated with Blocking Solution containing Goat anti-Rabbit IgG Alexa Fluor 594 antibody (1:350, Thermo Fisher Scientific A11012) for 1 hr. Cells were then washed three times with PBS, and coverslips mounted with ProLong Gold Antifade Mountant with DAPI (Thermo Fisher Scientific P36941). Slides were imaged by wide-field fluorescent microscopy on a Nikon Eclipse Ti equipped with a Nikon Plan Apo λ 100×/1.45 Oil objective, Nikon DS-Qi2 camera, and Excelitas X-Cite 120LED illuminator using identical settings for each sample and representative images shown.

Flow cytometry and cell cycle analysis

Request a detailed protocol

Cells were filtered into 35 μm nylon mesh Falcon round bottom test tubes for flow cytometry, which was performed in the Vanderbilt Flow Cytometry Shared Resource. Single cells were gated based on side and forward scatter using the stated instruments.

To determine the proportion of switching of the switchable MYC allele Ramos cell lines, cells were fixed in 1% formaldehyde (FA, Thermo Fisher 28908) in PBS for 10 min at room temperature. The number of GFP-positive cells was determined using a BD LSR II flow cytometer.

For cell cycle analysis of the switchable MYC allele Ramos cell lines, cells were treated with 4-OHT for 2 hr, at which point the media was replaced. Cells were maintained for 7 days, at which point 1 × 106 cells were collected and fixed in 1% FA (Thermo Fisher 28908) in PBS for 10 min at room temperature, then washed 2× with PBS. Permeabilization and staining was done using cell cycle staining buffer (PBS, 10 μg/ml PI [Sigma-Aldrich P4864], 100 μg/ml RNAse A, 2 mM MgCl2, 0.1% Triton X-100) for 25 min at room temperature, then stored overnight at 4°C. PI staining of at least 10,000 single cells for each of the GFP-negative (GFP−) and GFP-positive (GFP+) populations was measured using a BD LSR Fortessa, and cell cycle distribution determined using BD FACSDIVA software.

For cell cycle analysis of the FKBPFV-HCF-1N Ramos cells, cells were treated with DMSO or 500 nM dTAG for 24 hr. One million cells were collected and fixed in ethanol overnight. After fixation, cells were stained overnight at 4°C in cell cycle staining buffer (PBS, 10 μg/ml PI [Sigma-Aldrich P4864], 100 μg/ml RNAse A, 2 mM MgCl2). PI staining of at least 10,000 single cells was measured using a BD LSR Fortessa, and cell cycle distribution determined using BD FACSDIVA software.

See section 'In vivo studies: Tumor formation and maintenance assays' for details regarding flow cytometry experiments conducted on cells extracted from mice tumors.

Southern blotting

Request a detailed protocol

Genomic DNA (gDNA) was prepared from parental and unswitched MYC switchable cells (WT, 4A, and VP16 HBM) (Miller et al., 1988). Briefly, cells were rinsed in ice-cold 1× PBS and resuspended in DNA extraction buffer (10 mM Tris pH 8.1, 400 mM NaCl, 10 mM EDTA, 1% SDS, 50 μg/ml proteinase K [PK, Macherey-Nagel, Düren, Germany, 740506]). Lysis was performed overnight in a rotisserie at 56°C, before gDNA was extracted using ethanol precipitation. Southern blot was performed similar to that described by Southern, 1975. gDNA (10 μg) was digested using XbaI (NEB R0145) and run out on a 1% agarose gel. DNA was transferred overnight to Hybond-N+ nylon membrane (GE Healthcare, Chicago, Illinois, RPN303B) by capillary action in transfer buffer (0.5 M NaOH, 0.6 M NaCl). The following day the membrane was immersed in neutralization buffer (1 M NaCl, 0.5 M Tris pH 7.4), UV cross-linked, and pre-hybridized overnight at 42°C in pre-hybridization buffer (50% formamide, 5× SSCPE [20× SSCPE: 2.4 M NaCl, 0.3 M Na citrate, 0.2 M KH2PO4, 0.02 M EDTA], 5× Denhardt’s solution (Invitrogen, Waltham, Massachusetts, 750018), 0.5 mg/ml salmon sperm DNA [Agilent, Santa Clara, California, 201190], 1% SDS). Templates for probe generation were prepared by Q5 amplification from MYC-WT targeting vector using primers GFP_F and GFP_R (GFP template) and from parental Ramos cell gDNA using primers 5’_F and 5’_R, followed by gel purification. Probes were prepared by random priming of corresponding PCR products (5’ and GFP templates) in the presence of [αP32]CTP (PerkinElmer BLU513H100UC). Unincorporated nucleotides were removed using a Sephadex G-50 column (GE Healthcare 28-9034-08). The membrane was incubated overnight at 42°C with probe in hybridization buffer (50% formamide, 5× SSCPE, 5× Denhardt’s solution [Invitrogen 750018], 0.1 mg/ml salmon sperm DNA [Agilent 201190], 1% SDS, 10% Dextran solution). Membrane was washed three times in 2× SSC/0.1% SDS (20× SSC: 3 M NaCl, 0.3 M Na Citrate, pH 7.0) and twice in 0.2× SSC/0.1% SDS, then exposed to a phosphor screen and developed using a phosphorimager (GE Healthcare Typhoon).

Chromatin immunoprecipitation and library preparation

Request a detailed protocol

Chromatin immunoprecipitation (ChIP) was performed, with slight modification, as described by Thomas et al., 2015. Cells were first treated with 20 nM 4-OHT for 24 hr, then cross-linked in 1% methanol-free FA (Thermo Fisher 28908) for 10 min and quenched using 0.125 mM glycine. The cells were then rinsed twice in ice-cold 1× PBS, and lysed in formaldehyde lysis buffer (FALB: 50 mM HEPES pH 7.5, 140 mM NaCl, 1 mM EDTA, and 1% Triton X-100) + 1% SDS + PIC (Roche 05056489001). Sonication was performed in a BioRuptor (Diagenode, Denville, New Jersey) for 25 min, 30 s on/30 s off, and debris removed by centrifugation. To enable ChIP efficiency to be determined by qPCR, a 1:50 (2%) sample of chromatin was removed (input) prior to antibody addition.

For anti-HA, anti-rabbit IgG or anti-HCF1N ChIP, antibody was added to chromatin prepared from 12 × 106 Ramos cells, and samples rotated overnight at 4°C. Protein A Agarose (Roche 11134515001), blocked with 10 μg BSA, was added to each sample and rotated at 4°C for 2–4 hr. Washes were performed with Low Salt Wash Buffer (20 mM Tris pH 8.0, 150 mM NaCl, 2 mM EDTA, 1% Triton X-100), High Salt Wash Buffer (20 mM Tris pH 8.0, 500 mM NaCl, 2 mM EDTA, 1% Triton X-100), Lithium Chloride Wash Buffer (10 mM Tris pH 8.0, 250 mM LiCl, 1 mM EDTA, 1% Triton X-100), and twice with TE (10 mM Tris pH 8.0, 1 mM EDTA). Input and ChIP sample crosslinking were reversed at 65°C overnight in 50 μl TE + 200 mM NaCl + 0.1% SDS + 20–40 μg PK (Macherey-Nagel 740506).

For sequencing, each biological replicate was generated by combining two to three independent ChIPs (anti-IgG from CRE-ERT2 parental cells, anti-HCF1N MYC-WT, 4A, or VP16 HBM cells, or anti-HA from CRE-ERT2 parental cells, MYC-WT, 4A, or VP16 HBM cells)—performed using the same antibody on the same chromatin. DNA was extracted with phenol:chloroform:isoamyl alcohol, followed by ethanol precipitation in the presence of glycogen (Roche 10901393001) or GlycoBlue (Invitrogen AM9516). Libraries were prepared using NEBNext Ultra II DNA Library Prep Kit for Illumina (NEB E7645S) and NEBNext Multiplex Oligos for Illumina (NEB Set 1 E7335, Set 2 E7500S, NEB Unique Dual Index E6440S). Additional AMPure clean-ups at the start and the end of library preparation were included. Sequencing was carried out by Vanderbilt Technologies for Advanced Genomics using 75 bp paired-end sequencing on Illumina NextSeq 500 for anti-IgG and anti-HCF1N ChIPs or 150 bp paired-end sequencing on Illumina NovaSeq for anti-HA. The total number of sequencing reads for each replicate is shown in Supplementary file 2.

For qPCR, samples (either input or ChIP) were brought up to a final volume of 200 μl using TE. Each reaction was performed in a final volume of 15 μl, containing 2× SYBR FAST qPCR Master Mix (Kapa, Wilmington, Massachusetts, KK4602), 300 nM of each primer, and 2 μl of diluted sample. Three technical replicates were performed for each sample, and the mean Ct of these was used for calculating percent input. The mean Ct value for input was adjusted using the equation Ct(input)-log2(50). Percent input was then calculated using the equation 100 × 2^(adjustedCt − Ct(ChIP)). Three biological replicates of ChIP-qPCR were performed using primers to amplify across the genes EXOSC5, UTP20, EIF2S1, POLR1A, EIF4G3, and HBB (β-Globin).

In vitro binding assays pSUMO-MYC WT-FLAG containing 6XHis- and FLAG-tagged full-length MYC (Thomas et al., 2015) was used for Q5 site-directed mutagenesis to substitute in the 4A (4A_F and 4A_R) and VP16 HBM (VP16 HBM_F and VP16 HBM_R) mutations. Rosetta cells Millipore 70954 were transformed with these plasmids, grown overnight, and induced the following day for 3 hr with 1 mM isopropyl β-d-1-thiogalactopyranoside (IPTG) at 30°C. Resulting cell pellets were resuspended in Buffer A (100 mM NaH2PO4, 10 mM Tris, 6 M GuHCl, 10 mM imidazole) + PIC (Roche 05056489001). Cells were sonicated 3× at 25% power for 10 s (Cole-Parmer GE 130PB-1), and debris removed by centrifugation; 150 μl bed volume Ni-NTA agarose (QIAGEN, Venlo, Netherlands, 30210) was added to the samples and rotated for 2 hr at 4°C. Beads were sequentially washed 1× with Buffer A, 1× with Buffer A/TI (1:3 Buffer A:Buffer TI), 1× with Buffer TI (25 mM Tris-HCl pH 6.8, 20 mM imidazole), and 1× with SUMO wash buffer (3 mM imidazole, 10% glycerol, 1× PBS, 2 mM DTT) + PIC (Roche 05056489001). Recombinant MYC was sequentially eluted twice from the beads using SUMO elution buffer (250 mM imidazole, 10% glycerol, 1× PBS, 2 mM DTT) + PIC (Roche 05056489001). The concentration of recombinant MYC was determined by resolving on a 10% SDS-PAGE gel alongside a BSA standard, and staining using Coomassie (50% methanol, 10% acetic acid, 0.1% w/v Coomassie Brilliant Blue).

HCF-1VIC (residues 1–380) from pCGT-HCF1VIC (Thomas et al., 2016) was cloned into pT7-IRES His-N (Takara 3290) using BamHI-HF (NEB R3136) and SalI-HF (NEB R3138), and Q5 site-directed mutagenesis was used to add an N-terminal T7 tag using the primers T7-HCF1_F and T7-HCF1_R. pT7-IRES His-T7-HCF-1VIC was in vitro transcribed/translated using the TnT Quick Coupled Transcription/Translation System (Promega, Madison, Wisconsin, L1171). Two milligrams of recombinant MYC and 12 μl of T7-HCF-1VIC were rotated overnight at 4°C in Kischkel buffer + PIC (Roche 05056489001). Anti-FLAG M2 Affinity Gel (Sigma-Aldrich), blocked with 10 μg BSA, was added to each sample and rotated for 2 hr at 4°C. Beads were washed 4× in Kischkel buffer + 2 μg/ml Aprotinin (VWR, Radnor, Pennsylvania, 97062–752) + 1 μg/ml Pepstatin (VWR 97063–246) + 1 μg/ml Leupeptin (VWR 89146–578), and incubated in 1× Laemmli buffer for 5 min at 95°C.

Electrophoretic mobility shift assays

Request a detailed protocol

MYC:MAX dimers were purified and prepared as described by Farina et al., 2004. pRSET-6XHis-MYC WT, a gift from Ernest Martinez, was used as a template for Q5 site directed mutagenesis to substitute in the 4A (4A_F and 4A_R) and VP16 HBM (VP16 HBM_F and VP16 HBM_R) mutations. The resulting plasmids, or pET-His-MAX, also from Ernest Martinez, were transformed into Rosetta cells (Millipore 70954), grown overnight, and induced the following day for 3 hr with 1 mM IPTG at 30°C. Resulting bacterial cell pellets were washed 1× with ice-cold wash buffer (10 mM Tris pH 7.9, 100 mM NaCl, 1 mM EDTA), then resuspended in lysis buffer (20 mM HEPES pH 7.9, 500 mM NaCl, 10% glycerol, 0.1% NP-40, 10 mM BME, 1 mM PMSF), and sonicated. Centrifugation was used to separate out the insoluble (pellet) and soluble (supernatant) fractions. For MAX, the recombinant protein is present in the supernatant and was then purified using Ni-NTA agarose (see below). For MYC samples, the supernatant was discarded, and the insoluble pellet was resuspended in E-buffer (50 mM HEPES pH 7.9, 5% glycerol, 1% NP-40, 10% Na-DOC, 0.5 mM BME), lysed using a Dounce homogenizer and B-pestle, and centrifuged. The pelleted inclusion bodies were lysed overnight in S-buffer (10 mM HEPES pH 7.9, 6 M GuHCl, 5 mM BME) by shaking at 25°C, and debris cleared by centrifugation.

Both the MAX supernatant and MYC supernatant from lysed inclusion bodies were adjusted to 5 mM imidazole. MYC and MAX were then bound to 75 μl bed volume Ni-NTA agarose (QIAGEN 30210). Successive washes were performed for 5 min each at 4°C: 3× with S-buffer + 5 mM imidazole, 3× with BC500 (20 mM Tris pH 7.9, 20% glycerol, 500 mM KCl, 0.05% NP-40, 10 mM BME, 0.2 mM PMSF) + 7 M urea + 5 mM imidazole, 1× with BC100 (20 mM Tris pH 7.9, 20% glycerol, 100 mM KCl, 0.05% NP-40, 10 mM BME, 0.2 mM PMSF) + 7 M urea + 15 mM imidazole, 1× with BC100 + 7 M urea + 30 mM imidazole. Elution was performed using BC100 + 7 M urea + 300 mM imidazole. Concentration of recombinant MYC and MAX was determined by running samples out on a 12% acrylamide gel alongside a BSA standard, and staining using Coomassie stain (50% methanol, 10% acetic acid, 0.1% w/v Coomassie Brilliant Blue).

For renaturation, 1.5 μg recombinant MAX was combined with 15 μg recombinant MYC (1:3 molar ratio), and brought up to a final volume of 150 μl using BC100 + 7 M urea. Dialysis was performed using a ‘Slide-A-Lyzer’ (Thermo Fisher 66383), with each dialysis step done for 2 hr stirring in the following solutions: BC500 + 0.1% NP-40 + 4 M urea at room temperature, BC500 + 0.1% NP-40 + 2 M urea at room temperature, BC500 + 0.1% NP-40 + 1 M urea at room temperature, BC500 + 0.1% NP-40 + 0.5 M urea at room temperature, BC500 at 4°C, and twice BC100 at 4°C. The product was centrifuged to remove debris, and BSA was added to a final concentration of 500 ng/μl.

Double-stranded labeled E-box probe (biotin group at the 3’ end) and unlabeled competitors were prepared with dsDNA buffer (30 mM Tris pH 7.9, 200 mM KCl), and incubated at 95°C for 5 min. The E-box sequence used was 5′-GCTCAGGGACCACGTGGTCGGGGATC-3′ and the mutant E-box sequence used was 5′-GCTCAGGGACCAGCTGGTCGGGGATC-3′ (IDT). Double-stranded probe and the specific and non-specific competitors were prepared by combining 25 μM of each strand in dsDNA buffer (30 mM Tris pH 7.9, 200 mM KCl). For the probe, the forward strand carried a 3’ biotin group; 20 fmol of labeled probe was bound to 0.55 pmol MYC:MAX or 0.06 pmol MAX:MAX dimers in the presence of 20 ng poly(dI-dC) (Thermo Fisher 20148E) in binding reaction buffer (15 mM Tris pH 7.9, 15% glycerol, 100 mM KCl, 0.15 mM EDTA, 0.075% NP-40, 7.5 mM BME, 375 ng/μl BSA) for 30 min at room temperature. For reactions involving unlabeled specific or nonspecific competitor, these were included in the binding reaction at a 100-fold excess over the biotinylated probe. EMSA gel loading solution (Thermo Fisher 20148K) was added to each sample and these were loaded onto a pre-run 6% polyacrylamide gel in 0.5× TBE (45 mM Tris, 45 mM boric acid, 1 mM EDTA). The gel was transferred to Hybond-N+ nylon membrane (GE Healthcare RPN303B) in 0.5× TBE for 30 min at 100 V. The remainder of the protocol was performed using LightShift Chemiluminescent EMSA Kit (Thermo Fisher 20148) according to manufacturer’s instructions.

RNA preparation, RT-qPCR, and RNA-Seq

Request a detailed protocol

Cell pellets were resuspended in 1 ml TRIzol (Invitrogen 15596026), and RNA was prepared according to the manufacturer’s instructions. For switchable MYC allele Ramos cells, cells were treated with 20 nM 4-OHT for 24 hr and harvested. Prepared RNA was submitted to GENEWIZ (South Plainfield, NJ) for DNAse treatment, rRNA depletion, library preparation, and 150 bp paired-end sequencing on Illumina HiSeq. For untagged or FKBPFV-HCF-1N Ramos cells, cells were treated with DMSO or 500 nM dTAG-47 for 3 hr, and prepared RNA was DNAse treated prior to submission to Vanderbilt Technologies for Advanced Genomics for rRNA depletion, library preparation, and 150 bp paired-end sequencing on Illumina NovaSeq 6000. The total number of sequencing reads for each replicate is shown in Supplementary file 2.

For validation of RNA-seq by reverse transcriptase qPCR (RT-qPCR), RNA was prepared as above and 1 μg converted to cDNA using M-MLV reverse transcriptase (Promega M1701) in the presence of random hexamers (Invitrogen N8080127), RNase inhibitor (Thermo Fisher Scientific N8080119), and dNTPs (NEB N0446S). The resulting cDNA was brought up to a final volume of 160 μl using water. qPCR was performed in a final volume of 15 μl, containing 2× SYBR FAST qPCR Master Mix (Kapa), 300 nM of each primer, and 2 μl of diluted sample. Three technical replicates were performed for each sample, and the mean Ct of these was used for calculating FC. The mean Ct value for the gene of interest (GOI) was normalized to GAPDH (ΔCt) using the equation Ct(GOI)-Ct(GAPDH). For switchable MYC allele Ramos cells, ∆∆Ct was calculated between treated (+4-OHT) and untreated (−4-OHT) cells. For FKBPFV-HCF-1N Ramos cells, ΔΔCt was calculated between dTAG-47-treated and DMSO-treated cells. FC was then calculated using the equation 2^(−∆∆Ct). Three biological replicates of RT-qPCR were performed. Primer sequences used are listed in Supplementary file 1.

Next-generation sequencing analyses

Request a detailed protocol

After adapter trimming by Cutadapt (Martin, 2011), RNA-Seq reads were aligned to the hg19 genome using STAR (Dobin et al., 2013) and quantified by featureCounts (Liao et al., 2014). Differential analysis were performed by DESeq2 (Love et al., 2014), which estimated the log2 FCs, Wald test p-values, and adjusted p-value (false discovery rate, FDR) by the Benjamini–Hochberg procedure. The significantly changed genes were chosen with the criteria FDR < 0.05. ChIP-Seq reads were aligned to the hg19 genome using Bowtie2 (Langmead et al., 2009) after adapter trimming. Peaks were called by MACS2 (Feng et al., 2012) with a q-value of 0.01. ChIP read counts were calculated using DiffBind (Stark and Brown, 2011) and differential peaks were determined by DESeq2 (Love et al., 2014). Peaks were annotated using Homer command annotatePeaks, and enriched motifs were identified by Homer command findMotifsGenome (http://homer.ucsd.edu/homer/). All genomics data were deposited at GEO with the accession number GSE152385. Reviewers may access these data with the token ‘enanoauyrpmfrmb’.

Details for the referenced MYC ChIP-Seq experiments from Thomas et al., 2019 are available in Tansey et al., 2019 (samples: GSM3593604–GSM3593606 and GSM3593616–3593618).

Cell growth and glutamine deprivation assays

Request a detailed protocol

To generate a growth curve and determine doubling time of the MYC mutants, switchable MYC cells were treated with 20 nM 4-OHT for 16 hr, and then grown for a further 24 hr. Cells were then plated at a density of 20,000 cells/ml, and counted 3 and 6 days later. Growth rate (GR) was determined through the equation GR = ln(N(7) − N(1))/144, where N(7) is the number of cells per milliliter on day 7, N(1) is the number of cells per milliliter on day 1, and 144 is the number of hours that elapsed between the two measurements. Doubling time (DT) was then determined by the equation DT = ln(2)/GR. To measure the impact of HCF-1N degradation on cell growth, FKBPFV-HCF-1N Ramos cells were plated at a density of 20,000 cells/ml with either DMSO or 500 nM dTAG-47. Cells were then counted every 24 hr for the following 4 days, without replacement of the compound or changing of the media.

To measure the impact of altering the MYC−HCF-1 interaction on cell growth, switchable MYC allele Ramos cell lines were treated with 20 nM 4-OHT for 2 hr to create a 50/50 mix of GFP-negative (WT) to GFP-positive (mutant) cells. Cells were sampled 24 hr later, and every 3 days following. Sampled cells were fixed in 1% FA in PBS for 10 min at room temperature, and the proportion of GFP-positive cells was determined using a BD LSR II flow cytometer at the Vanderbilt Flow Cytometry Shared Resource. To account for variation in the proportion of GFP-positive cells, each replicate was normalized to the proportion of GFP-positive cells at 24 hr post-treatment with 4-OHT.

To measure the impact of altering the MYC−HCF-1 interaction on glutamine dependence, switchable MYC allele Ramos cell lines were treated with 20 nM 4-OHT for 2 hr, and allowed to recover for 3 days. Cells were then split into RPMI 1640 without L-glutamine (Corning 15–040-CV), supplemented with 10% dialyzed FBS (Gemini Bio, West Sacramento, California, 100–108), and 1% P/S (Gibco 15140122), and grown for 16 hr with or without Supplementary file 2 mM glutamine (Gibco 25030081). Glutamine was added back to the cells that were deprived, grown for 3 days, and fixed in 1% FA in PBS for 10 min at room temperature. The proportion of GFP-positive cells was determined using a BD LSR II flow cytometer, and normalized to the proportion of GFP-positive cells prior to being grown with or without supplemental glutamine. For the 4A and VP16 HBM cells, the proportion of GFP-positive cells was normalized to that in WT for glutamine supplementation (Gln+) or deprivation (Gln−).

Metabolomics

Sample preparation

Request a detailed protocol

Global, untargeted metabolomics was performed on switchable MYC allele Ramos cell lines treated with 20 nM 4-OHT for 24 hr. Individual cell pellet samples were lysed using 200 µl ice cold lysis buffer (1:1:2, acetonitrile:methanol:ammonium bicarbonate 0.1 M, pH 8.0, LC-MS grade) and sonicated using a probe tip sonicator, 10 pulses at 30% power, cooling down on ice between samples. A bicinchoninic acid protein assay was used to determine the protein concentration for individual samples, and adjusted to 200 µg total protein in 200 µl of lysis buffer. Isotopically labeled standard molecules, Phenylalanine-D8 and Biotin-D2, were added to each sample to assess sample extraction quality. Samples were subjected to protein precipitation by addition of 800 µl of ice cold methanol (4× by volume), and incubated at −80°C overnight. Samples were centrifuged at 10,000 RPM for 10 min to eliminate precipitated proteins and supernatant(s) were transferred to a clean microcentrifuge tube and dried down in vacuo. Samples were stored at −80°C prior to LC-MS analysis.

Global untargeted LC-MS/MS analysis

Request a detailed protocol

For mass spectrometry analysis, individual samples were reconstituted in 50 μl of appropriate reconstitution buffer (HILIC: acetonitrile/ H2O, 90:10, v/v, RPLC: acetonitrile/H2O with 0.1% formic acid, 3:97, v/v). Samples were vortexed well to solubilize the metabolites and cleared by centrifugation using a benchtop mini centrifuge to remove insoluble material. Quality control samples were prepared by pooling equal volumes from each sample. During final reconstitution, isotopically labeled standard molecules, Tryptophan-D3, Carnitine-D9, Valine-D8, and Inosine-4N15, were spiked into each sample to assess LC-MS instrument performance and ionization efficiency.

High resolution (HR) MS and data-dependent acquisition (MS/MS) analyses were performed on a high resolution Q-Exactive HF hybrid quadrupole-Orbitrap mass spectrometer (Thermo Fisher Scientific, Bremen, Germany) equipped with a Vanquish UHPLC binary system and autosampler (Thermo Fisher Scientific, Germany) at the Vanderbilt Center for Innovative Technology. For HILIC analysis metabolite extracts (10 μl injection volume) were separated on a SeQuant ZIC-HILIC 3.5 μm, 2.1 mm ×100 mm column (Millipore Corporation, Darmstadt, Germany) held at 40°C. Liquid chromatography was performed at a 200 μl/min using solvent A (5 mM ammonium formate in 90% H2O, 10% acetonitrile) and solvent B (5 mM ammonium formate in 90% acetonitrile, 10% H2O) with the following gradient: 95% B for 2 min, 95–40% B over 16 min, 40% B held 2 min, and 40–95% B over 15 min, 95% B held 10 min (gradient length: 45 min). For the RPLC analysis metabolite extracts (10 μl injection volume) were separated on a Hypersil Gold, 1.9 μm, 2.1 mm × 100 mm column (Thermo Fisher) held at 40°C. Liquid chromatography was performed at a 250 μl/min using solvent A (0.1% formic acid in H2O) and solvent B (0.1% formic acid in acetonitrile) with the following gradient: 5% B for 1 min, 5–50% B over 9 min, 50–70% B over 5 min, 70–95% B over 5 min, 95% B held 2 min, and 95–5% B over 3 min, 5% B held 5 min (gradient length: 30 min).

Full MS analyses were acquired over a mass range of m/z 70–1050 using electrospray ionization positive mode. Full mass scan was used at a resolution of 120,000 with a scan rate of 3.5 Hz. The automatic gain control (AGC) target was set at 1 × 106 ions, and maximum ion injection time was at 100 ms. Source ionization parameters were optimized with the spray voltage at 3.0 kV, and other parameters were as follows: transfer temperature at 280°C; S-Lens level at 40; heater temperature at 325°C; Sheath gas at 40, Aux gas at 10, and sweep gas flow at 1.

Tandem mass spectra were acquired using a data-dependent scanning mode in which one full MS scan (m/z 70–1050) was followed by 2, 4 or 6 MS/MS scans. MS/MS scans were acquired in profile mode using an isolation width of 1.3 m/z, stepped collision energy (NCE 20, 40), and a dynamic exclusion of 6 s. MS/MS spectra were collected at a resolution of 15,000, with an AGC target set at 2 × 105 ions, and maximum ion injection time of 100 ms. The retention times and peak areas of the isotopically labeled standards were used to assess data quality.

Metabolite data processing and analysis

Request a detailed protocol

LC-HR MS/MS raw data were imported, processed, normalized, and reviewed using Progenesis QI v.2.1 (Non-linear Dynamics, Newcastle, UK). All MS and MS/MS sample runs were aligned against a quality control (pooled) reference run, and peak picking was performed on individual aligned runs to create an aggregate data set. Unique ions (retention time and m/z pairs) were grouped (a sum of the abundances of unique ions) using both adduct and isotope deconvolutions to generate unique ‘features’ (retention time and m/z pairs) representative of unannotated metabolites. Data were normalized to all features using Progenesis QI. Compounds with <25% coefficient of variance (%CV) were retained for further analysis. Variance stabilized measurements achieved through log normalization were used with Progenesis QI to calculate p-values by one-way analysis of variance (ANOVA) test and adjusted p-values (Q-values). Significantly changed metabolites were chosen with the criteria Q-value <0.05 and |FC| > 1.5.

Tentative and putative identifications were determined within Progenesis QI using accurate mass measurements (<5 ppm error), isotope distribution similarity, and fragmentation spectrum matching based on database searches against Human Metabolome Database (HMDB) (Wishart et al., 2013), METLIN (Smith et al., 2005), the National Institute of Standards and Technology (NIST) database (Salvat et al., 2016), and an in-house library. In these experiments, the level system for metabolite identification confidence was utilized (Schrimpe-Rutledge et al., 2016). Briefly, many annotations were considered to be tentative (level 3, L3) and/or putative (level 2, L2); in numerous circumstances a top candidate cannot be prioritized, thus annotations may represent families of molecules that cannot be distinguished. Data are available at the NIH Common Fund’s National Metabolomics Data Repository (NMDR) Web site, the Metabolomics Workbench, https://www.metabolomicsworkbench.org where it has been assigned Study ID (ST001429).

In vivo studies

Tumor formation and maintenance assays

Request a detailed protocol

Six-week-old athymic nude mice (female Foxn1nu/nu; Envigo, Indianapolis, IN) were injected subcutaneously into one flank with 107 switched or unswitched WT, ∆264, 4A-1 or 4A-2 cells at the Thomas Jefferson Research Animals Shared Resource Core (IACUC protocol #01770). Mice were maintained in groups for all experiments, unless they were the last surviving member of a cohort. 4A-1 and 4A-2 carry the same 4A mutation, but were independent clones obtained from the same population. To facilitate lymphoma cell seeding, mice received whole-body irradiation (6 Gy) 24 hr prior to cell injection. For tumor formation studies, lymphoma cells were treated in vitro with 4-OHT for 24 hr to induce the switchable MYC cassette and expanded for 2 days prior to being injected into mice. For tumor maintenance studies, mice were injected with unswitched cells and allowed to form palpable tumors. Once tumors reached approximately 200 mm3, mice received intraperitoneal injections of tamoxifen (2 mg in corn oil, Sigma-Aldrich T5648) once daily for three consecutive days to induce the switchable MYC cassette in vivo. Digital calipers were used to measure tumors and volumes calculated using the ellipsoid formula. Mice were sacrificed at humane endpoints based on tumor volume. Kaplan–Meier survival analyses were compared by log-rank tests to determine statistical significance. For lymphoma cell apoptosis evaluation, a cohort of mice with size-matched tumors prior to tamoxifen injection were sacrificed 48 and 96 hr following the first administration of tamoxifen. Flow cytometry (BD LSRII) at Thomas Jefferson University Flow Cytometry Shared Resource was used to measure fragmented (subG1) apoptotic DNA with propidium iodide (Sigma-Aldrich P4170), Annexin V/7AAD (BD Pharmingen 559763), and Caspase three activity (BD Pharmingen) in the lymphoma cells isolated from the tumors, as we previously reported (Adams et al., 2017) and as per manufacturer’s protocols. Two-tailed t-tests were used to determine significance when comparing two groups. All mouse experiments were approved by the Institutional Animal Care and Use Committee at Thomas Jefferson University and complied with state and federal guidelines.

Tumor gDNA analysis

Request a detailed protocol

To determine the proportion of cells that remain switched in the resulting tumors, gDNA was prepared from tumors using the PureLink Genomic DNA Mini Kit (Invitrogen K182002) according to manufacturer’s instructions. As described in Thomas et al., 2019, gDNA from 0% switched (switchable MYC WT cells grown in puromycin) and 100% switched (permanently switched clonal cells) was also prepared in this manner for normalization. The resulting gDNA was diluted down to 50 ng/μl, so that 2 μl (100 ng) was loaded per well for qPCR. qPCR was performed using 2× SYBR FAST qPCR Master Mix (Kapa, Wilmington, Massachusetts, KK4602) in a Bio-Rad CFX96 Real-Time System. For each primer set (MYCP-4 and MYCP-5; SNHG15_F and SNHG15_R) and each independent tumor replicate, an average of three qPCR wells (technical replicates) was used. MYCP-4 and MYCP-5 primer set only amplifies gDNA from unswitched cells, whereas SNHG15_F and SNHG15_R amplifies gDNA from both unswitched and switched cells. For each gDNA sample, ∆Ct was calculated as the difference between MYCP and SNHG15. gDNA from the 0% and 100% switched cells was used to calculate ∆∆Ct, which was then used to normalize the ∆Ct for the tumor gDNA to estimate the proportion of switched cells.

Tumor RNA-Seq

Request a detailed protocol

Tumors from mice sacrificed 48 hr after the first tamoxifen administration were submitted to GENEWIZ for RNA extraction, DNAse treatment, rRNA depletion, library preparation, and 150 bp paired-end sequencing on Illumina HiSeq. Four tumors for each WT, 4A-1, 4A-2, and ∆264 were submitted. The total number of sequencing reads for each replicate is shown in Supplementary file 2.

Pathway and GO analysis, and figure generation

Request a detailed protocol

Classification of annotated metabolites was extracted from HMDB (Wishart et al., 2018) and LIPID MAPS (Fahy et al., 2009). Metabolite pathway analyses were performed using MetaboAnalyst 4.0 (Chong et al., 2019), and GO analyses using Metascape (Zhou et al., 2019) or DAVID (Huang et al., 2009a; Huang et al., 2009b). Chord diagrams were created using Circos (Krzywinski et al., 2009), pathways using Cytoscape (Shannon et al., 2003), and bubble plots using ggplot2 (Wickham, 2016).

Statistical analysis and replicates for non-high throughput data

Request a detailed protocol

Unless otherwise stated, all experiments were conducted with at least three independent, biological replicates, and statistical tests were carried out using PRISM 8 (GraphPad).

Materials and resources mentioned here are available upon request.

Data availability

All genomics data were deposited at GEO with the accession number GSE152385. Metabolomics data are available at the NIH Common Fund's National Metabolomics Data Repository (NMDR) Web site, the Metabolomics Workbench, https://www.metabolomicsworkbench.org where it has been assigned Study ID (ST001429). Source data files have been provided for Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7.

The following data sets were generated
    1. Popay TM
    2. Tansey WP
    3. Sherrod SD
    4. Codreanu SG
    5. McLean JA
    (2020) Metabolomics Workbench
    MYC regulates ribosome biogenesis and mitochondrial gene expression programs through its interaction with Host Cell Factor-1.
    https://doi.org/10.21228/M8WD7R
    1. Popay TM
    2. Tansey WP
    3. Wang J
    4. Liu Q
    (2020) NCBI Gene Expression Omnibus
    ID GSE152385. MYC regulates ribosome biogenesis and mitochondrial gene expression programs through its interaction with Host Cell Factor-1.
The following previously published data sets were used
    1. Tansey WP
    2. Thomas LR
    3. Liu Q
    4. Wang J
    (2019) NCBI Gene Expression Omnibus
    ID GSE126207. Interaction with WDR5 recruits MYC to a small cohort of genes required for tumor onset and maintenance.

References

Decision letter

  1. Maureen E Murphy
    Senior and Reviewing Editor; The Wistar Institute, United States
  2. Martin Eilers
    Reviewer; University of Würzburg, Germany
  3. Elmar Wolf
    Reviewer; University of Würzburg, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This manuscript is focused on the relevance of the interaction between MYC and HCF1. While it has been known for quite some time that MYC and HCF1 associate in mammalian cells and in Drosophila, there is a lack of compelling evidence relating to the extent or the importance of this association, in particular its potential importance in MYC oncogenic activity. The present paper attempts to address these issues. The authors identify a short sequence (they term HBM) in MycBox4 that mediates association with HCF1 and furthermore devise a clever strategy to inducibly mutate this sequence in Ramos cells. By manipulating expression of the HBM mutant MYC as well as HCF1 itself they are able to characterize the effects on altering the MYC-HCF1 interaction at the level of proliferation, global gene expression, and tumor growth. Moreover, they examine genomic occupancy and binding overlap of wildtype MYC and HCF1. The results taken together make a good case for important regulatory and functional consequences of the interaction on a distinct subset of genes that are predominantly involved in ribosome biogenesis and mitochondrial and amino acid metabolism; often considered to be "core" activities of MYC.

Decision letter after peer review:

Thank you for submitting your article "MYC regulates ribosome biogenesis and mitochondrial gene expression programs through interaction with Host Cell Factor-1" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Martin Eilers as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Maureen Murphy as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Elmar Wolf (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

All reviewers agree this is a very interesting paper that validates the interaction between MYC and HCF1 as biologically relevant in a tumor model and provides a lot of interesting data on what the interaction may do. At the same time, all three reviewers make suggestions as to how to improve the impact of the paper and raise several new questions.

Reviewer #1:

This is a comprehensive and technically well-executed manuscript that validates an interaction between MYC and HCF1 that has been previously demonstrated by the authors. The data are interesting with respect to effects on gene expression, while the impact on cellular metabolism remain less clear. Potentially the most surprising aspect is that – while MYC and HCF1 co-bind to a number of promoters – this appears to largely independent of the effect on gene expression. Collectively, the data clearly validate the interaction as being biologically relevant but leave at this reviewer without a clear take-home message. The strongest data are the ones that document a dependence of established tumors on the MYC/HCF1 interaction, which in my view clearly warrant publication, I would have a number of specific comments.

1) The effect of the switch between mutants on cell growth is measured with an ultrasensitive cell competition; this is relevant, since there is no effect on the relative distribution on cell cycle phases, suggesting that the "real" effect may be subtle. The authors need to show straightforward growth curves and then use this together with the cell cycle phases distribution to calculate the length of each cell cycle phase.

2) The Z-normalization needs to be removed from changes in metabolite levels and, as presented, the data in Figure 2—figure supplement 1 are not informative, they are simply blue and red tiles.

3) It is not clear to this reviewer what the authors can conclude from the changes in steady-state levels of metabolites. Also, parameters like "pathway impact" seem very indirect conclusions. In the absence of flux data that they show that any of these pathways is affected, I would suggest to shorten or delete the metabolic data.

4) There must be a better way to represent the data shown in Figure 3D and E. I think the authors will agree that – just to give one example – dark blue lines between unnamed genes in the category "ribosome biogenesis" to unreadable individual genes are simply not informative

5) It is not clear to this reviewer why the authors Z-normalize their gene expression data and then do Go-term enrichment analyses. Why not simply rung GSEA analyses on them? This would allow a much simpler comparison with other datasets. for example, the effects of the mutations on the MYC (and other) Hallmark gene sets should be shown.

6) Figure 5G should be shown for an equal number of random non co-bound genes, which have the same expression levels as the median of the co-bound genes.

7) The tumor data for the VP16 replacement need to be shown. It may well be that the MYC/HCF1 interaction is attenuated in wildtype MYC to prevent excessive MYC function.

8) As the authors know very well, there is a view of MYC as a global regulator of RNAPII function. It is possible, therefore, that they overlook a global change in RNAPII function, and this may resolve some of the puzzles here. They should show one RNAPII ChIPseq (total, pS2, pS5) experiment that addresses the issue and stratify this for the different sets of genes they are interested in.

Reviewer #2:

In the manuscript "MYC regulates ribosome biogenesis and mitochondrial gene expression programs through interaction with Host Cell Factor-1" Tessa Popay and her colleagues from the Tansey lab describe that regulation of a distinct group of MYC target genes depends on interaction with HCF-1. In an elegant set of experiments, the authors constructed both, loss- and gain of function mutants of the MYC/HCF-1 interaction and characterized them in multiple assays.

1) Alanine substitutions in MBIV ("4A") abolish interaction to HCF-1. Other substitutions increase interaction (VP16HBM).

2) Switchable expression to 4A decreases RAMOS long term growth in vitro. VP16HBM increases.

3) 4A and VP16HBM changes amino acid metabolism.

4) Gene expression analysis demonstrated downregulation of RIBI and mitochondrial matrix genes after switch to 4A. Opposite observation after switch to VP16HBM.

5) Acute depletion of HCF-1: Downregulation od RIBI genes.

6) MYC and HCF-1 bind to a small common subset of target genes, which is different to MYC/WDR5 target genes but functionally similar.

7) Switch to 4a compromises tumor engraftment and inhibits tumorigenesis.

The topic of the paper is of general interest to scientists working on tumor biology and the function of MYC. The data is overall convincing and the paper is very nicely written. I support publication in eLife after few comments could be addressed:

1) The authors claim that the mutations in MBIV affect the "direct" interaction between MYC and HCF-1. This conclusion is supported by recombinantly expressed MYC and IVT HCF-1. I think, one cannot really conclude direct interaction by this assay, as the reticulocyte extract contains all other mammalian proteins. The authors should show direct interaction by other means (i.e. purified HCF-1) or tone down their statements (see also in Discussion). One would at least expect a Coomassie gel for MYC.

2) The authors should think of assays, which demonstrate that 4A/ VP16HBM MYC mutants are normal with the exception if binding HCF-1 (IF, Reporter assays, ChIP,.…). I think, this is important.

3) I like the heatmap shown in Figure 3—figure supplement 3C summarizing the RNA-seq results (maybe show in the main Figure? Maybe instead of the radar plots?). How do the authors interpret that about one third of all genes, which are regulated in respect to wildtype MYC, are regulated in the same direction? Interaction of MBIV to other binding partners? Maybe the authors want to discuss potential explanations?

4) The degron system seems to work very well – congratulations! Isn´t that an ideal system to support the authors conclusion "gene expression changes that result directly from the MYC-HCF-1 interaction occur through a mechanism that is independent of their recruitment to chromatin.", by doing MYC-ChIP-seqs after dTAG? That experiment is, however, not essential in my view.

Reviewer #3:

This highly interesting manuscript is focused on the relevance of the interaction between MYC and HCF1. While it has been known for quite some time that MYC and HCF1 associate in mammalian cells and in Drosophila, there is a lack of compelling evidence relating to the extent or the importance of this association, in particular its potential importance in MYC oncogenic activity. The present paper attempts to address these issues. The authors identify a short sequence (they term HBM) in MycBox4 that mediates association with HCF1 and furthermore devise a clever strategy to inducibly mutate this sequence in Ramos cells. By manipulating expression of the HBM mutant MYC as well as HCF1 itself they are able to characterize the effects on altering the MYC-HCF1 interaction at the level of proliferation, global gene expression, and tumor growth. Moreover, they examine genomic occupancy and binding overlap of wildtype MYC and HCF1. The results taken together make a good case for important regulatory and functional consequences of the interaction on a distinct subset of genes that are predominantly involved in ribosome biogenesis and mitochondrial and amino acid metabolism; often considered to be "core" activities of MYC. The authors state that these findings may provide leverage for inhibiting MYC. Overall, this is an impressive paper – the functional and biochemical data are extensive and convincing: the usage of CRISPR knock-ins is a particularly elegant and effective way to test the importance of the MYC-HCF1 interactions. In addition, the paper very well written and easy to follow.

Essential revisions:

One surprising finding of this study that is not explored or discussed in sufficient detail is that gene regulation by MYC-HCF1 occurs through a "co-recruitment independent mechanism". This conclusion is derived from their data that, although the MYC 4A HBM mutant no longer interacts with HCF1, both MYC and HCF1 binding to target genes is not appreciably affected. This was determined using ChIP-qPCR on a small number of targets (Figure 5I, J). This leaves the reader with no clear idea of the basis for the actual mechanism of cooperation and the authors offer scant guidance. It is certainly conceivable that MYC and HCF1 bind independently to targets and the HBM serves to stabilize or increase the affinity of interaction, modulate the relative positions of the bound proteins, or determine inclusion in a condensate. Importantly aside from the ChIP qPCR of a few targets, global binding data in (i) the presence of the MYC 4A mutant and (ii) the absence of HCF1 (dTAG) are not provided. It would be of considerably strengthen this paper to include analysis of gene tracks of MYC4A in presence and absence of HCF to determine whether there are shifts in the extent of binding or positioning of MYC and/or HCF peaks, changes in PolII distribution, and epigenetic alterations. Another explanation is that the MYC HBM sequence actually serves as a binding site for other co-factors, in addition to HCF1, which could impact MYC activity (see point 2 below).

1) Does the 4A mutation disrupt any other known interactions of MYC with other proteins? Carrying out a proteomic screen using WT vs 4A could identify other candidates.

2) All the experiments appear to be done using a single (EBV negative) BL line: Ramos. How broadly applicable is this interaction in terms of other lymphoma lines or tumor types?

3) What happens in the context of endogenous MYC? Is the HCF-MYC interaction still critical e.g. in normal B cells. This is particularly important to assess from a translational standpoint.

4) Are there documented mutations in patients in the MBIV HBM region that could potentially be gain-of-function (i.e. similar to the VP16 HBM)?

5) Figure 5: Was there a significant enrichment seen for canonical E-boxes? The NRF and Sp1 motifs are not particularly specific to MYC and I do not think that these sequences were found to bind MYC-MAX in the Blackwell et al. paper cited. Are the binding sites identified actually specific for dual binding by MYC and HCF1. In Figure 6, there is substantial overlap between gene expression changes in the tumor engraftment experiment when compared to the in vitro data. However, there are a lot of changes seen that are absent in the cell line. Is there a GO analysis for the in vivo specific signatures?

https://doi.org/10.7554/eLife.60191.sa1

Author response

Reviewer #1:

This is a comprehensive and technically well-executed manuscript that validates an interaction between MYC and HCF1 that has been previously demonstrated by the authors. The data are interesting with respect to effects on gene expression, while the impact on cellular metabolism remain less clear. Potentially the most surprising aspect is that – while MYC and HCF1 co-bind to a number of promoters – this appears to largely independent of the effect on gene expression. Collectively, the data clearly validate the interaction as being biologically relevant but leave at this reviewer without a clear take-home message. The strongest data are the ones that document a dependence of established tumors on the MYC/HCF1 interaction, which in my view clearly warrant publication, I would have a number of specific comments.

1) The effect of the switch between mutants on cell growth is measured with an ultrasensitive cell competition; this is relevant, since there is no effect on the relative distribution on cell cycle phases, suggesting that the "real" effect may be subtle. The authors need to show straightforward growth curves and then use this together with the cell cycle phases distribution to calculate the length of each cell cycle phase.

I disagree with the reviewer's contention that the experiment in Figure 1H represents an "ultrasensitive" competition assay. At day zero, the switched and unswitched cells are present in a 50:50 ratio that is same for the WT, 4A, and VP16 HBM cells. I do agree, however, that any competition assay will give an exaggerated impression of differences, compared to stand alone studies of each of the individual experimental arms. We now include, therefore, the requested straightforward growth curves—both as raw cell numbers (Figure 1—figure supplement 2C) and as calculated doubling times (Figure 1—figure supplement 2D). These new data clearly show that 4A cells double more slowly than WT, whereas VP16 HBM cells double more quickly. The difference is two to three hours in either direction. I do not think it is prudent to extrapolate these differences out to specific cell cycle phases, because this would be highly speculative and would add little to the story. The important point we make is that the growth differences between the WT, 4A, and VP16 HBM cells are real—and quantified—and we thank the reviewer for prompting us to include this experiment.

2) The Z-normalization needs to be removed from changes in metabolite levels and, as presented, the data in Figure 2—figure supplement 1 are not informative, they are simply blue and red tiles.

The heatmaps in Figure 2—figure supplement 1 are shown with Z-normalization as a way to represent the consistency among replicates. We have added statements to the text indicating this purpose. We have also included, with each of these heatmaps, a representation of log2FC so that the magnitude of the changes associated with the 4A and VP16 HBM mutants can be assessed.

3) It is not clear to this reviewer what the authors can conclude from the changes in steady-state levels of metabolites. Also, parameters like "pathway impact" seem very indirect conclusions. In the absence of flux data that they show that any of these pathways is affected, I would suggest to shorten or delete the metabolic data.

We have taken the reviewer's advice and shortened this section of the manuscript, including removal of the "pathway impact" figure and its associated text. We do feel that the connections to steady state amino acid levels are worth reporting, so we have revised this section to focus specifically on how these are altered in response to the 4A and VP16 HBM mutants.

4) There must be a better way to represent the data shown in Figure 3D and E. I think the authors will agree that – just to give one example – dark blue lines between unnamed genes in the category "ribosome biogenesis" to unreadable individual genes are simply not informative

In response to this comment, we have replaced the Circos plots in Figure 3 with bubble plots that represent GO categories, gene counts, and significance. This is a much more informative way of presenting the data. There is value to the Circos plots, however, because they allow individual genes in the categories to be represented. We have now included high resolution versions of these plots in new Figure 2—figure supplement 2; gene names can be visualized by zooming in. We would like to include the Circos plots as part of this story but if the reviewer feels strongly that these should be removed entirely, we will oblige.

5) It is not clear to this reviewer why the authors Z-normalize their gene expression data and then do Go-term enrichment analyses. Why not simply rung GSEA analyses on them? This would allow a much simpler comparison with other datasets. for example, the effects of the mutations on the MYC (and other) Hallmark gene sets should be shown.

I apologize for the confusion regarding Z-normalization. We do not Z-normalize gene expression data and then perform GO term enrichment analysis; we only Z-normalize for the heatmaps so that we can show variation among biological replicates. We have revised the text to make this point clear. I do not think there is anything wrong with using the GO term enrichment analysis here in Figure 3B, especially as we back up our conclusions by performing GO analysis on the specific gene sets that are regulated in the same, or opposing, ways by the 4A and VP16 HBM mutants (Figure 3E–F).

While these RNA-Seq data are being discussed, I point out that we added a new piece of validation data (not requested) in Figure 3—figure supplement 1C demonstrating that select gene expression changes we observe in the RNA-Seq are a bonafide consequence of switching (i.e., responsive to 4-OHT).

6) Figure 5G should be shown for an equal number of random non co-bound genes, which have the same expression levels as the median of the co-bound genes.

Excellent recommendation. We have performed this analysis and it is now included as Figure 5I in the revised manuscript. The analysis clearly shows that MYC–HCF-1 co-bound genes are significantly more affected by the 4A or VP16 HBM mutants than equivalently expressed genes that are not cobound.

7) The tumor data for the VP16 replacement need to be shown. It may well be that the MYC/HCF1 interaction is attenuated in wildtype MYC to prevent excessive MYC function.

As we note in the manuscript, the Ramos model is already very aggressive (see the tumor growth curves in Figure 7—figure supplement 1B), and it is not clear that we would be able to visualize an increase in tumor growth under these circumstances. We plan to test this mutant in other in vivo models in the future, particularly those with a slower rate of progression, so that we can test this idea that interaction with HCF is tempered to prevent excessive MYC function.

8) As the authors know very well, there is a view of MYC as a global regulator of RNAPII function. It is possible, therefore, that they overlook a global change in RNAPII function, and this may resolve some of the puzzles here. They should show one RNAPII ChIPseq (total, pS2, pS5) experiment that addresses the issue and stratify this for the different sets of genes they are interested in.

We have struggled with this comment, in large part because it is not at all clear what "puzzles" are being referred to here. I would argue that we have gone above and beyond what is typically done in terms of identifying these ribosome biogenesis and mitochondrial matrix genes as MYC-HCF-1 targets. We have a loss-of-function MYC mutant, a gain-of-function MYC mutant, HCF-1 degradation, and location on chromatin; all of which point to a very consistent set of genes. I think it could be interesting to look at the MYC–HCF-1 interaction and whether it influences the global functioning of MYC in the future, but I think that needs more than just an RNAPII ChIP and clearly extends beyond the scope of the current story.

Reviewer #2:

In the manuscript "MYC regulates ribosome biogenesis and mitochondrial gene expression programs through interaction with Host Cell Factor-1" Tessa Popay and her colleagues from the Tansey lab describe that regulation of a distinct group of MYC target genes depends on interaction with HCF-1. In an elegant set of experiments, the authors constructed both, loss- and gain of function mutants of the MYC/HCF-1 interaction and characterized them in multiple assays.

1) Alanine substitutions in MBIV ("4A") abolish interaction to HCF-1. Other substitutions increase interaction (VP16HBM).

2) Switchable expression to 4A decreases RAMOS long term growth in vitro. VP16HBM increases.

3) 4A and VP16HBM changes amino acid metabolism.

4) Gene expression analysis demonstrated downregulation of RIBI and mitochondrial matrix genes after switch to 4A. Opposite observation after switch to VP16HBM.

5) Acute depletion of HCF-1: Downregulation od RIBI genes.

6) MYC and HCF-1 bind to a small common subset of target genes, which is different to MYC/WDR5 target genes but functionally similar.

7) Switch to 4a compromises tumor engraftment and inhibits tumorigenesis.

The topic of the paper is of general interest to scientists working on tumor biology and the function of MYC. The data is overall convincing and the paper is very nicely written. I support publication in eLife after few comments could be addressed:

1) The authors claim that the mutations in MBIV affect the "direct" interaction between MYC and HCF-1. This conclusion is supported by recombinantly expressed MYC and IVT HCF-1. I think, one cannot really conclude direct interaction by this assay, as the reticulocyte extract contains all other mammalian proteins. The authors should show direct interaction by other means (i.e. purified HCF-1) or tone down their statements (see also in discussion). One would at least expect a Coomassie gel for MYC.

Excellent point. In response to this comment, we removed any mention of the interaction between MYC and HCF-1 being "direct" and added the Coomassie gel for recombinant MYC proteins as Figure 1—figure supplement 1A.

2) The authors should think of assays, which demonstrate that 4A/ VP16HBM MYC mutants are normal with the exception if binding HCF-1 (IF, Reporter assays, ChIP,.…). I think, this is important.

In response to this comment, we performed three additional sets of experiments, and include the new data in the revised manuscript. First, we carried out cellular fractionation assays (Figure 1—figure supplement 2A) and showed that both the A4 and VP16 HBM mutants reside within the nuclear fraction (P3), similar to wild-type MYC. Second, we performed immunofluorescence studies (Figure 1—figure supplement 2B) and showed that the A4 and VP16 HBM mutants are predominantly nuclear, again similar to wild-type MYC. Third, we performed ChIP-seq analysis (Figure 6 and Figure 6—figure supplement 1) and found that the localization of MYC on chromatin is largely unaffected by the 4A and VP16 HBM mutations; there are some changes, as we report, but these changes are subtle and trend in the same direction for the 4A and VP16 HBM mutants. In addition, and as included in the original submission, we show that the A4 and VP16 HBM MYC mutants retain DNA-binding capability in vitro (Figure 6—figure supplement 1), as well as the ability to interact with WDR5 (Figure 1D and Figure 1E). Finally, I point out that, although we cannot exclude the possibility that mutations in the HBM disrupt some unknown interaction partner or function of MYC, our focus on reciprocal changes emerging from parallel loss and gain of function approaches ameliorates many of the concerns that arise when a purely loss of function strategy is employed.

3) I like the heatmap shown in Figure 3—figure supplement 3C summarizing the RNA-seq results (maybe show in the main Figure? Maybe instead of the radar plots?). How do the authors interpret that about one third of all genes, which are regulated in respect to wildtype MYC, are regulated in the same direction? Interaction of MBIV to other binding partners? Maybe the authors want to discuss potential explanations?

We have now moved this heatmap into Figure 3, as requested. In response to reviewer #1 comment # 4 we also moved the Circos (radar) plots out of the main figure and into a new Supplemental figure. Our speculation for the common gene expression changes shared between the 4A and VP16 HBM mutants is that they both disrupt a function of MYC that is distinct from HCF-1. We have added text to the Discussion, as recommended by the reviewer, to make this point clear. We are grateful to the reviewer for prompting us to discuss this point in the manuscript, as it also strengthens our argument that the dual loss-of-function and gain-of-function approach we have taken allows us to pinpoint genes controlled via the MYC–HCF-1 interaction.

4) The degron system seems to work very well – congratulations! Isn´t that an ideal system to support the authors conclusion "gene expression changes that result directly from the MYC-HCF-1 interaction occur through a mechanism that is independent of their recruitment to chromatin.", by doing MYC-ChIP-seqs after dTAG? That experiment is, however, not essential in my view.

Thank you. The addition of the degron system for HCF-1 definitely strengthens the story, particularly in terms of the connections between MYC, HCF-1, and RiBi and mitochondrial gene expression programs. I am not convinced, however, that it would add much to the mechanism, beyond what we can deduce from the 4A and VP16 HBM mutants. And in fact, it could be misleading. It is entirely possible, for example, that loss of HCF-1 will alter the chromatin state of associated loci, influencing MYC recruitment in a very indirect way. In my opinion, the HBM point mutants are a much better way of asking whether contact between MYC and HCF-1 influences the recruitment of either protein to chromatin.

I realize, however, that we did not go far enough in our original studies to support our broad statements about a recruitment-independent mechanism, largely because we only looked at binding of MYC and HCF-1 to a handful of genes. We therefore went back and performed an entirely new set of MYC and HCF-1 ChIP-seq experiments in the WT, 4A, and VP16 HBM cells. The resulting data, which is now included in Figure 6 and Figure 6—figure supplement 1, shows that global chromatin binding by MYC and HCF-1 are largely unaffected by the 4A and VP16 HBM mutations; as stated earlier, there are some subtle changes for MYC, as we report in the manuscript, but these changes trend in the same direction for the 4A and VP16 HBM mutants. With these new data in hand, we can be confident that we have not missed critical genes where co-dependent recruitment oh MYC and HCF-1 occurs.

Reviewer #3:

This highly interesting manuscript is focused on the relevance of the interaction between MYC and HCF1. While it has been known for quite some time that MYC and HCF1 associate in mammalian cells and in Drosophila, there is a lack of compelling evidence relating to the extent or the importance of this association, in particular its potential importance in MYC oncogenic activity. The present paper attempts to address these issues. The authors identify a short sequence (they term HBM) in MycBox4 that mediates association with HCF1 and furthermore devise a clever strategy to inducibly mutate this sequence in Ramos cells. By manipulating expression of the HBM mutant MYC as well as HCF1 itself they are able to characterize the effects on altering the MYC-HCF1 interaction at the level of proliferation, global gene expression, and tumor growth. Moreover, they examine genomic occupancy and binding overlap of wildtype MYC and HCF1. The results taken together make a good case for important regulatory and functional consequences of the interaction on a distinct subset of genes that are predominantly involved in ribosome biogenesis and mitochondrial and amino acid metabolism; often considered to be "core" activities of MYC. The authors state that these findings may provide leverage for inhibiting MYC. Overall, this is an impressive paper – the functional and biochemical data are extensive and convincing: the usage of CRISPR knock-ins is a particularly elegant and effective way to test the importance of the MYC-HCF1 interactions. In addition, the paper very well written and easy to follow.

Essential revisions:

One surprising finding of this study that is not explored or discussed in sufficient detail is that gene regulation by MYC-HCF1 occurs through a "co-recruitment independent mechanism". This conclusion is derived from their data that, although the MYC 4A HBM mutant no longer interacts with HCF1, both MYC and HCF1 binding to target genes is not appreciably affected. This was determined using ChIP-qPCR on a small number of targets (Figure 5 I, J). This leaves the reader with no clear idea of the basis for the actual mechanism of cooperation and the authors offer scant guidance. It is certainly conceivable that MYC and HCF1 bind independently to targets and the HBM serves to stabilize or increase the affinity of interaction, modulate the relative positions of the bound proteins, or determine inclusion in a condensate. Importantly aside from the ChIP qPCR of a few targets, global binding data in (i) the presence of the MYC 4A mutant and (ii) the absence of HCF1 (dTAG) are not provided. It would be of considerably strengthen this paper to include analysis of gene tracks of MYC4A in presence and absence of HCF to determine whether there are shifts in the extent of binding or positioning of MYC and/or HCF peaks, changes in PolII distribution, and epigenetic alterations. Another explanation is that the MYC HBM sequence actually serves as a binding site for other co-factors, in addition to HCF1, which could impact MYC activity (see point 2 below).

We appreciate the reviewer's interest in knowing the mechanism of action through which the MYC– HCF-1 interaction promotes transcription of direct target genes. But the reality is that, if one excludes co-recruitment as a mechanism, there are very few, if any, solid leads to pursue. It could take many years to figure this out, and there is no clear experimental trajectory that we can take (at the moment) to be sure to get us there. What we can do, however, and as the reviewer suggests, is fortify our conclusion that the mechanism is indeed co-recruitment independent; which we have now done.

In response to this comment, we performed ChIP-seq for MYC and for HCF-1 in the WT, 4A, and VP16 HBM cells after switching. These data (now included as a new Figure 6 and Figure 6—figure supplement 1) clearly show that recruitment of HCF-1 to chromatin is not impacted by the 4A or VP16 HBM mutations. They also show that recruitment of MYC to chromatin is largely unaffected by these mutations. As reported in the manuscript, we do see some changes in the binding of MYC to chromatin when the HBM is mutated, but these are subtle, and trend in the same direction for both the 4A and VP16 mutants—excluding the MYC–HCF-1 interaction as being responsible. We thank the reviewer for challenging us to perform these experiments because they now provide a much more solid foundation for our statements that the mechanism through which MYC and HCF-1 function to control transcription is not at the level of co-recruitment.

Additionally, we have included a statement in the Discussion that this area needs further investigation. We also developed the discussion of how a similar "recruitment independent" precedent exists for HCF-1, and offer one possible scenario for how this could occur.

1) Does the 4A mutation disrupt any other known interactions of MYC with other proteins? Carrying out a proteomic screen using WT vs 4A could identify other candidates.

This comment is conceptually similar to that laid out in reviewer #2 comment #2. It is possible that the 4A mutation disrupts interaction of MYC with multiple factors besides HCF-1. But it is precisely this concept that led us to implement a combined loss-of-function and gain-of-function approach in this study, and focusing on reciprocal changes that occur between the 4A and VP16 HBM mutants. This concept also underlies our use of HCF-1 depletion as a way of further anchoring our findings to the MYC–HCF-1 connection. If another factor is involved, it would have to be sensitive the 4A and VP16 mutations in exactly the same reciprocal way as HCF-1, and its functioning would need to be sensitive to HCF-1 depletion. Again, we cannot formally exclude this possibility, but our comprehensive approach meets—and I would argue exceeds—the contemporary standard for validation of MYC co-factor.

2) All the experiments appear to be done using a single (EBV negative) BL line: Ramos. How broadly applicable is this interaction in terms of other lymphoma lines or tumor types?

That is correct; all of our experiments have been done in Ramos cells. Given all the work involved, it is not feasible to extend to other cell or tumor types in this study. But the reviewer makes an important point—we do not know if this interaction will extend to other tumor types. To address this comment, we have added a statement to the beginning of the introduction that makes this point clear.

3) What happens in the context of endogenous MYC? Is the HCF-MYC interaction still critical e.g. in normal B cells. This is particularly important to assess from a translational standpoint.

We do not know. I agree this is important from a translational standpoint. But looking in normal Bcells, or indeed in other tumor types as mentioned above, clearly is beyond the scope of the present study. I note that we refer specifically to this point in both the first and the last paragraph of the Discussion and state that we do not know if a therapeutic window could be achieved if MYC is targeted via the HCF-1 interaction.

4) Are there documented mutations in patients in the MBIV HBM region that could potentially be gain-of-function (i.e. similar to the VP16 HBM)?

Yes. There are three examples listed in the COSMIC database in which the HBM of MYC is mutated. Interestingly, all three of these convert the "QHYN" of MYC to "EHNY", which perfectly matches the high affinity HBM consensus. We now discuss this point in the last paragraph of the Discussion. We thank the reviewer for asking this provocative question.

5) Figure 5: Was there a significant enrichment seen for canonical E-boxes? The NRF and Sp1 motifs are not particularly specific to MYC and I do not think that these sequences were found to bind MYC-MAX in the Blackwell et al. paper cited. Are the binding sites identified actually specific for dual binding by MYC and HCF1. In Figure 6, there is substantial overlap between gene expression changes in the tumor engraftment experiment when compared to the in vitro data. However, there are a lot of changes seen that are absent in the cell line. Is there a GO analysis for the in vivo specific signatures?

As discussed earlier, we realize that we placed too much emphasis on the NRF-1 motif in the original version of the manuscript. We were simply reporting that it is enriched in our motif analysis of HCF-1 binding sites and that it is likely an E-box variant—which makes sense given that almost all the HCF-1 peaks are co-bound by MYC. Delving deeper into the significance of this variant or the quality of Eboxes in general in not warranted, especially now the we have ChIP-seq data demonstrating that MYC and HCF-1 bind chromatin independent of their ability to interact with one another. We went back and looked carefully at the Blackwell et al., paper and we were correct in our statement that the CATGCG motif is a MYC:MAX binding site. In that paper, they present both gel-shift analysis, as well as methylation interference analysis, which clearly shows binding to this site in vitro (the relevant probe is "M18" in Figures 2 and 3). In response to this comment, we have revised and simplified the text to avoid giving the wrong impression, and we have cited an additional three papers that establish the CATGCG motif as an authentic MYC binding motif.

In response to the question of whether there is a GO analysis for the in vivo specific signatures, these have now been added as Figure 7—figure supplement 1J and 1K.

https://doi.org/10.7554/eLife.60191.sa2

Article and author information

Author details

  1. Tessa M Popay

    Department of Cell and Developmental Biology, Vanderbilt University School of Medicine, Nashville, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4694-8804
  2. Jing Wang

    1. Department of Biostatistics, Vanderbilt University Medical Center, Nashville, United States
    2. Center for Quantitative Sciences, Vanderbilt University Medical Center, Nashville, United States
    Contribution
    Data curation, Formal analysis, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Clare M Adams

    Department of Cancer Biology, Thomas Jefferson University, Philadelphia, United States
    Contribution
    Conceptualization, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Gregory Caleb Howard

    Department of Cell and Developmental Biology, Vanderbilt University School of Medicine, Nashville, United States
    Contribution
    Investigation, Visualization
    Competing interests
    No competing interests declared
  5. Simona G Codreanu

    1. Center for Innovative Technology (CIT), Vanderbilt University, Nashville, United States
    2. Department of Chemistry, Vanderbilt University, Nashville, United States
    Contribution
    Resources, Investigation, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Stacy D Sherrod

    1. Center for Innovative Technology (CIT), Vanderbilt University, Nashville, United States
    2. Department of Chemistry, Vanderbilt University, Nashville, United States
    Contribution
    Resources, Investigation, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2346-230X
  7. John A McLean

    1. Center for Innovative Technology (CIT), Vanderbilt University, Nashville, United States
    2. Department of Chemistry, Vanderbilt University, Nashville, United States
    Contribution
    Resources, Funding acquisition, Methodology
    Competing interests
    No competing interests declared
  8. Lance R Thomas

    Department of Cell and Developmental Biology, Vanderbilt University School of Medicine, Nashville, United States
    Present address
    Oncocyte Corporation, Nashville, United States
    Contribution
    Conceptualization, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  9. Shelly L Lorey

    Department of Cell and Developmental Biology, Vanderbilt University School of Medicine, Nashville, United States
    Contribution
    Supervision, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Yuichi J Machida

    Department of Oncology, Mayo Clinic, Rochester, United States
    Contribution
    Resources, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  11. April M Weissmiller

    Department of Cell and Developmental Biology, Vanderbilt University School of Medicine, Nashville, United States
    Present address
    Department of Biology, Middle Tennessee State University, Murfreesboro, United States
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Christine M Eischen

    Department of Cancer Biology, Thomas Jefferson University, Philadelphia, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Writing - original draft, Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4618-8996
  13. Qi Liu

    1. Department of Biostatistics, Vanderbilt University Medical Center, Nashville, United States
    2. Center for Quantitative Sciences, Vanderbilt University Medical Center, Nashville, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  14. William P Tansey

    1. Department of Cell and Developmental Biology, Vanderbilt University School of Medicine, Nashville, United States
    2. Department of Biochemistry, Vanderbilt University School of Medicine, Nashville, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    william.p.tansey@vanderbilt.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3900-0978

Funding

Vanderbilt University (International Scholars Program)

  • Tessa M Popay

Robert J. Kleberg, Jr. and Helen C. Kleberg Foundation (Targeting MYC)

  • William P Tansey

Edward P. Evans Foundation (Grant in aid)

  • William P Tansey

NIH (CA200709)

  • William P Tansey

NIH (CA211305)

  • Lance R Thomas

NIH (CA148950)

  • Christine Eischen

NIH (CA119925)

  • April M Weissmiller

Rally Foundation (Childhood Cancer Research Fellowship)

  • April M Weissmiller

Rally Foundation (Open Hands Overflowing Hearts co-funded research fellowship)

  • April M Weissmiller

American Association for Cancer Research (Basic Cancer Research Fellowship)

  • April M Weissmiller

Herbert A. Rosenthal, MD '56 endowed Professorship in Cancer Research (Professorship)

  • Christine Eischen

Steinfort Family Fund

  • Christine Eischen

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Winship Herr for comments on the manuscript. For reagents we thank James Bradner, Feng Zhang, and Ernest Martinez. We thank the Vanderbilt Institute of Chemical Biology Synthesis Core for synthesis of dTAG-47. The VU Flow Cytometry Shared Resource is supported by the Vanderbilt Ingram Cancer Center (P30CA68485) and the Vanderbilt Digestive Disease Research Center (DK058404). VANTAGE is supported by the Vanderbilt Ingram Cancer Center, the Vanderbilt Digestive Disease Research Center, and the Vanderbilt Vision Center (P30EY08126). The Thomas Jefferson Flow Cytometry and Research Animals shared resource cores are supported by the Sidney Kimmel Cancer Center (NCI/NIH P30CA056036). This work was supported in part using the resources of the Center for Innovative Technology at Vanderbilt University. This work was supported by the Vanderbilt International Scholars Program (TMP), Robert J Kleberg, Jr., and Helen C Kleberg Foundation (WPT), Edward P Evans Foundation (WPT), the NCI/NIH (CA200709; WPT), the NCI/NIH (CA211305; LRT), the NCI/NIH (CA148950 CME), the Integrated Biological Systems Training in Oncology Training Program (T32 CA119925; AMW), the Rally Foundation for Childhood Cancer Research Fellowship (AMW), Open Hands Overflowing Hearts co-funded research fellowship (AMW), and the American Association for Cancer Research Basic Cancer Research Fellowship (AMW), the Herbert A Rosenthal, MD’ 56 endowed professorship in Cancer Research (CME), the Steinfort family fund (CME), and the Sidney Kimmel Cancer Center/Thomas Jefferson University (CME, CMA).

Ethics

Animal experimentation: All mouse experiments were approved (IACUC protocol #01770) by the Institutional Animal Care and Use Committee at Thomas Jefferson University and complied with state and federal guidelines.

Senior and Reviewing Editor

  1. Maureen E Murphy, The Wistar Institute, United States

Reviewers

  1. Martin Eilers, University of Würzburg, Germany
  2. Elmar Wolf, University of Würzburg, Germany

Publication history

  1. Received: June 19, 2020
  2. Accepted: December 5, 2020
  3. Version of Record published: January 8, 2021 (version 1)
  4. Version of Record updated: January 12, 2021 (version 2)

Copyright

© 2021, Popay et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 9,801
    Page views
  • 329
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Developmental Biology
    Rediet Zewdu et al.
    Research Article

    Cancer cells undergo lineage switching during natural progression and in response to therapy. NKX2-1 loss in human and murine lung adenocarcinoma leads to invasive mucinous adenocarcinoma (IMA), a lung cancer subtype that exhibits gastric differentiation and harbors a distinct spectrum of driver oncogenes. In murine BRAFV600E driven lung adenocarcinoma, NKX2-1 is required for early tumorigenesis, but dispensable for established tumor growth. NKX2-1-deficient, BRAFV600E driven tumors resemble human IMA and exhibit a distinct response to BRAF/MEK inhibitors. Whereas BRAF/MEK inhibitors drive NKX2-1-positive tumor cells into quiescence, NKX2-1-negative cells fail to exit the cell cycle after the same therapy. BRAF/MEK inhibitors induce cell identity switching in NKX2-1-negative lung tumors within the gastric lineage, which is driven in part by WNT signaling and FoxA1/2. These data elucidate a complex, reciprocal relationship between lineage specifiers and oncogenic signaling pathways in the regulation of lung adenocarcinoma identity that is likely to impact lineage-specific therapeutic strategies.

    1. Cancer Biology
    2. Cell Biology
    Margaret E Torrence et al.
    Research Article Updated

    The mechanistic target of rapamycin complex 1 (mTORC1) stimulates a coordinated anabolic program in response to growth-promoting signals. Paradoxically, recent studies indicate that mTORC1 can activate the transcription factor ATF4 through mechanisms distinct from its canonical induction by the integrated stress response (ISR). However, its broader roles as a downstream target of mTORC1 are unknown. Therefore, we directly compared ATF4-dependent transcriptional changes induced upon insulin-stimulated mTORC1 signaling to those activated by the ISR. In multiple mouse embryo fibroblast and human cancer cell lines, the mTORC1-ATF4 pathway stimulated expression of only a subset of the ATF4 target genes induced by the ISR, including genes involved in amino acid uptake, synthesis, and tRNA charging. We demonstrate that ATF4 is a metabolic effector of mTORC1 involved in both its established role in promoting protein synthesis and in a previously unappreciated function for mTORC1 in stimulating cellular cystine uptake and glutathione synthesis.
