Molecular structures of the eukaryotic retinal importer ABCA4

  1. Fangyu Liu
  2. James Lee
  3. Jue Chen  Is a corresponding author
  1. Laboratory of Membrane Biology and Biophysics, The Rockefeller University, United States
  2. Tri-Institutional Training Program in Chemical Biology, United States
  3. Howard Hughes Medical Institute, United States
Research Article
  • Cited 0
  • Views 1,656
  • Annotations
Cite this article as: eLife 2021;10:e63524 doi: 10.7554/eLife.63524

Abstract

The ATP-binding cassette (ABC) transporter family contains thousands of members with diverse functions. Movement of the substrate, powered by ATP hydrolysis, can be outward (export) or inward (import). ABCA4 is a eukaryotic importer transporting retinal to the cytosol to enter the visual cycle. It also removes toxic retinoids from the disc lumen. Mutations in ABCA4 cause impaired vision or blindness. Despite decades of clinical, biochemical, and animal model studies, the molecular mechanism of ABCA4 is unknown. Here, we report the structures of human ABCA4 in two conformations. In the absence of ATP, ABCA4 adopts an outward-facing conformation, poised to recruit substrate. The presence of ATP induces large conformational changes that could lead to substrate release. These structures provide a molecular basis to understand many disease-causing mutations and a rational guide for new experiments to uncover how ABCA4 recruits, flips, and releases retinoids.

Introduction

ABCA4, also known as the Rim protein or ABCR, is an ATP-binding cassette (ABC) transporter essential to vision. Over 800 mutations in the ABCA4 gene cause Stargardt disease, the most common form of inherited macular degeneration (Lin et al., 2016; Ran et al., 2014). Several other diseases, including age-related macular degeneration, autosomal-recessive retinitis pigmentosa, and cone-rod dystrophy, are also linked to defective ABCA4 (Allikmets et al., 1997). Currently, no cure nor effective treatment exists for these diseases. Understanding the structure and function of ABCA4 is important to uncovering the underlying mechanisms and facilitating therapy development.

The molecular properties of ABCA4 are unique and intriguing. It belongs to the large family of ABC transporters, which include thousands of ATP-powered pumps translocating different substrates across the membrane (Molday, 2015). Prokaryotic ABC transporters include both importers that bring substrates into the cytosol and exporters that move substrates out of the cytosol. In eukaryotes, however, the vast majority of ABC transporters are exporters. ABCA4 is an exception; it functions as an importer in photoreceptor cells, where light stimuli are translated into electric signals (Figure 1AIlling et al., 1997; Papermaster et al., 1982). In the dark, 11-cis retinal binds the inert opsin. Light catalyzes the isomerization of 11-cis retinal to all-trans retinal, which is subsequently released from the activated opsin. For photoreceptor cells to function continuously, all-trans retinal must be converted back to 11-cis retinal through a series of enzymatic reactions known as the visual cycle (Figure 1A). ABCA4 enables this process by moving all-trans retinal into the cytoplasm, likely in the form of its phosphatidylethanolamine (PE) conjugates, N-retinylidene-PE (Figure 1A). In addition, ABCA4 also clears excess trans and 11-cis retinal out of the disc lumen to prevent potential toxicity (Quazi and Molday, 2014; Weng et al., 1999).

Biochemical characterization of ABCA4.

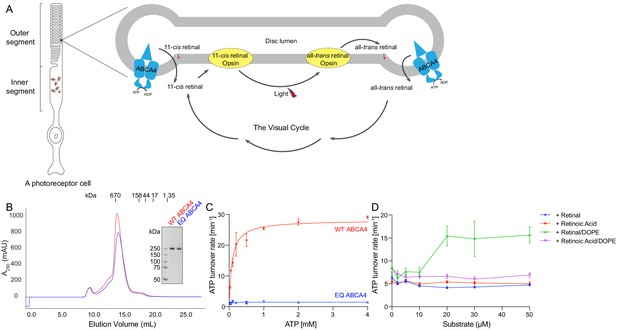

(A) An illustration showing a rod photoreceptor cell and a zoomed-in view of the outer segment disc, where ABCA4 is located. ATP-hydrolysis enables ABCA4 to transport all-trans retinal and 11-cis retinal from the disc lumen into cytosol. (B) Size exclusion profile of purified wild-type (WT) ABCA4 and the E1087Q/E2096Q mutant (EQ). (C) Basal ATPase activity measured in 0.06% digitonin at 28°C. Data points represent the means and standard deviations (SDs) of three measurements. The WT ABCA4 has a Km of 0.08 ± 0.01 mM and specific turnover rate of 28.1 ± 0.7 ATP per minute, corresponding to a maximal ATPase activity of 112.5 ± 2.8 nmol/mg/min. (D) The ATPase activity of purified ABCA4 as a function of all-trans retinal or all-trans retinoic acid in the presence or absence of 0.1 mg/mL 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE) and 100 µM ATP. Data points represent the means and SDs of three measurements from the same protein preparation.

Retinoids have been shown to bind to purified ABCA4 and stimulate its ATPase activity (Ahn et al., 2000; Sun et al., 1999). Transporter assays have demonstrated that ABCA4 actively transports N-retinylidene-PE across disc membranes (Quazi et al., 2012; Quazi and Molday, 2014). These studies provide direct evidence that ABCA4 is an ATP-driven importer, transporting N-retinylidene-PE from the luminal to the cytoplasmic side of the disc membrane in photoreceptor cells.

Although significant progress was made in understanding the physiological role of ABCA4, structural information is limited. Previously, the overall architecture of bovine ABCA4 was characterized by electron microscopy (EM) to 18 Å resolution (Tsybovsky et al., 2013). More recently, the structure of a related transporter, ABCA1, was determined to be 4.1 Å (Qian et al., 2017). ABCA1 is a lipid exporter sharing 51% sequence identity with ABCA4 but transports substrate in the opposite direction.

In this study, we used cryo-electron microscopy (cryo-EM) to determine the structures of human ABCA4 in two conformations. These structures, both determined at 3.3 Å resolution, reveal ATP-dependent conformational changes different from those observed in any other ABC transporters.

Results

Recombinant ABCA4 functions similarly to protein purified from native source

The wild-type (WT) ABCA4 and a double-mutant E1087Q/E2096Q (EQ) were overexpressed in mammalian cells and purified to homogeneity (Figure 1B). The E1087 and E2096 residues were conserved as the general bases catalyzing ATP hydrolysis. Mutation of the corresponding residues in many other ABC transporters abolished ATP hydrolysis but not ATP binding (Kim and Chen, 2018; Zhang et al., 2017; Zhang et al., 2018). The size-exclusion profiles of the purified EQ mutant and the WT protein are comparable, suggesting that the EQ mutant folds similarly to the WT protein (Figure 1B).

The ATPase activity of ABCA4 was measured in detergent solution as a function of ATP concentration (Figure 1C). The recombinant WT protein shows a Km of 80 ± 10 µM for ATP and a maximal hydrolysis activity of 28.1 ± 0.7 ATP per minute (or 112.5 ± 2.8 nmol/mg/min), comparable to those of the native protein purified from rod photoreceptor cells (75 ± 18 µM and 190 ± 36 nmol/mg/min, respectively) (Ahn et al., 2000). The EQ mutant, on the other hand, shows no measurable ATPase activity (Figure 1C). Also consistent with literature (Quazi and Molday, 2014), in the presence of PE, retinal stimulates the ATPase activity of WT ABCA4 by up to threefold (Figure 1D). No stimulation was observed with retinoic acid or in the absence of PE (Figure 1D). These data indicate that the recombinant ABCA4 exhibits biochemical properties very similar to the ABCA4 purified from native sources.

ABCA4 adopts an outward-facing conformation in the absence of ATP

The human ABCA4 is a single polypeptide of 2273 residues (Figure 2). It consists of two homologous halves, each containing a transmembrane domain (TMD), an exocytoplasmic domain (ECD), a cytoplasmic nucleotide binding domain (NBD), and a regulatory domain (RD) (Bungert et al., 2001). The structure of WT ABCA4 was determined by single-molecule cryo-EM in the absence of ATP and substrate to an overall resolution of 3.3 Å (Figure 2—figure supplement 1, Table 1). The EM density is of high quality (Figure 2—figure supplement 2), permitting de novo building of most residues, except for a few loops and a 134-residue region in ECD1 (Figure 2B, blue density). In addition, residues 118–137 and 479–496 were built as polyalanine as their side chain densities were invisible. The final model, consisting of 1941 residues, 14 lipids, 1 detergent molecule, and 14 sugar molecules, was refined to excellent stereochemistry (Table 1).

Figure 2 with 2 supplements see all

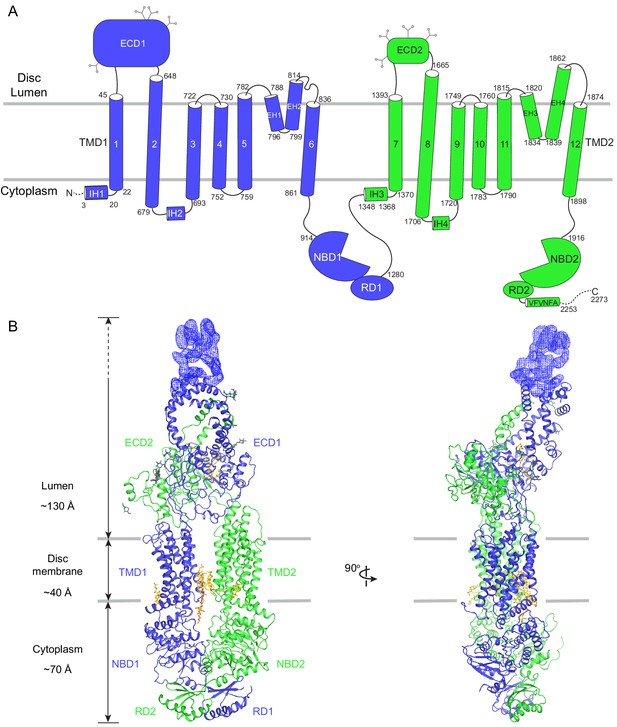

The overall structure of ABCA4 in the absence of ATP.

(A) The domain structure of ABCA4. The N- and C-terminal halves of the molecule are shown in blue and green. (B) Two orthogonal views of ABCA4 in ribbon presentation. Also shown is the electron microscopy density corresponding to residues 138–271 in ECD1. Ordered detergents, lipids, and N-linked glycans are shown as stick model. The position of the membrane is indicated by two gray lines.

Table 1
Summary of electron microscopy data and structure refinement statistics for wild-type ABCA4.
Data collection
MicroscopeTitan Krios (FEI)
Voltage (kV)300
DetectorK2 Summit (Gatan)
Pixel size (Å)1.03
Defocus range (μm)0.8–2.5
Movies5226
Frames/movie50
DDose rate (electrons/pixel/s)8
Total dose (electrons/Å2)75
Number of particles1,375,284
Model composition
Non-hydrogen atoms15,789
Protein residues1941
Lipids
Digitonin
14
1
Sugar molecules14
Refinement
Resolution (Å)3.3
Sharpening B-factor (Å2)−99.8
Root-mean-square deviations
Bond lengths (Å)0.006
Bond angles (°)1.185
Validation
Molprobity score2.16
Clashscore, all atoms18.86
Favored rotamers (%)97.10
Ramachandran plot (%)
Favored94.28
Allowed5.72
Outliers0.0

ABCA4 is an elongated molecule, extending approximately 240 Å across the lipid bilayer (Figure 2B). The two ECDs pack closely with each other, protruding 130 Å into the lumen (Figure 2B). The two TMDs adopt an outward-facing configuration, forming a large hydrophobic cavity that is continuous with both the luminal solution and, through a lateral opening, to the lipid bilayer itself. In the absence of ATP, the two NBDs are apart from each other and the two RDs form extensive interdomain interactions (Figure 2B). It was previously suggested that the highly specific localization of ABCA4 to the rim region of the disc membrane (Figure 1A) might be due to the large size of the ECD domains (Molday, 2015). The structure of ABCA4 supports this notion as the spacing between the flattened regions of the disc membranes (Nickell et al., 2007) may be insufficient to accommodate the elongated ECDs.

An extended groove of the ECDs

The luminal region, composed of 600 residues in ECD1 and 290 residues in ECD2, does not contain any known enzymatic or structural motifs of known function. However, more than 300 disease-causing mutations map to this region (Figure 3—figure supplement 1) (Human Gene Mutations Database: http://www.hgmd.cf.ac.uk), underscoring the essential nature of the ECDs.

In contrast to the rest of the molecule, where the N- and C-terminal halves have similar structures, pseudo twofold symmetry does not exist in the ECDs. Instead, the ECDs assemble to form one unit with a large extended hollow interior, accessible from the luminal space (Figure 3). The structure, as previously described for ABCA1 (Qian et al., 2017), can be separated into three layers: base, tunnel, and lid (Figure 3A). The base has a global fold docked onto the luminal surface of the two TMDs. The tunnel is an -helical barrel with an inner diameter of approximately 15 Å (Figure 3A, D). The density corresponding to the lid region does not permit amino acid assignment, suggesting that the lid region is flexible (Figure 3A, C). Nevertheless, it is clear that the interior of the lid is also hollow (Figure 3C). Strong densities that may correspond to lipid or detergent molecules were observed inside the extended groove in the base layer (Figure 3A, B, Figure 2—figure supplement 2).

Figure 3 with 1 supplement see all

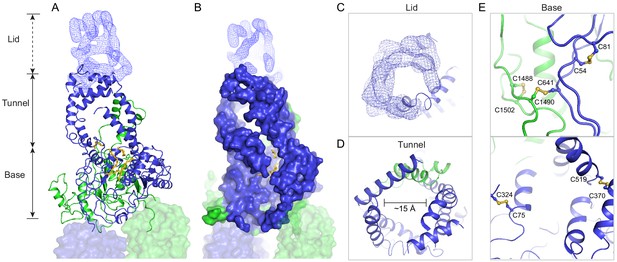

A three-tiered structure of the exocytoplasmic domains (ECDs).

(A) Ribbon and (B) surface representation of the ECDs, together with the electron microscopy (EM) density of the lid region. Bound detergents and lipids are shown as yellow sticks. (C) A luminal view of the lid; the EM density is shown as blue mesh. (D) A cross section of the tunnel region. (E) The ECDs are stabilized by inter- and intra-domain disulfide bonds.

Consistent with biochemical analysis (Bungert et al., 2001), the structure of the ECDs is stabilized by six disulfide bonds (Figure 3E). Seven missense mutations of the cysteines involved in disulfide bonding (C54Y, C75G, C519R, C641S, C1455R, C1488R, and C1490Y) have been identified in patients with retinal diseases (Fumagalli et al., 2001; Hu et al., 2019; Lewis et al., 1999; Rosenberg et al., 2007). Previously, mass spectrometry (Tsybovsky et al., 2011) and mutagenesis studies (Bungert et al., 2001) have identified multiple N-linked glycosylation sites in the ECDs. Densities corresponding to sugar moieties were observed on residues N98, N415, N444, N504, N1469, N1529, N1588, and N1662. It is likely that glycosylation plays an important role in the folding or trafficking of ABCA4,as missense mutations at positions 415, 504, and 1588 are linked to retinal diseases (Consugar et al., 2015; Khan et al., 2019; Kim et al., 2019).

Prokaryotic ABC importers often contain an extracytoplasmic binding protein that functions as a receptor for substrates (Davidson et al., 2008). Currently it is unknown if the ECDs of ABCA4 have an analogous function. Previously it was shown that isolated ECD2 binds to all-trans retinal (Biswas-Fiss et al., 2010), but how this interaction relates to the transport cycle remains unclear.

The transmembrane region contains a hydrophilic cleft

The structure of the TMD belongs to the newly classified type V fold (Thomas and Tampé, 2020) previously observed only in ABC exporters (Lee et al., 2016; Qian et al., 2017; Taylor et al., 2017; Bi et al., 2018). The two TMDs come in contact with each other through two helical turns at the cytoplasmic end of TM5 and TM11, burying only 124 2 surface per subunit (Figure 4A). The gap between the TMDs at the level of the inner leaflet is filled with ordered lipids (Figure 4A, B). Thus, the cytoplasmic gate of the transmembrane pathway is formed partially by residues in TM5 and TM11 and partially by lipid molecules. Mutations of many lipid-interacting residues are found in patients with vision diseases (Human Gene Mutations Database: http://www.hgmd.cf.ac.uk). These observations indicate that lipids form an integral part of the retinoid transport system, possibly by regulating the folding and function of ABCA4 (Figure 1, Ahn et al., 2000).

Figure 4 with 1 supplement see all

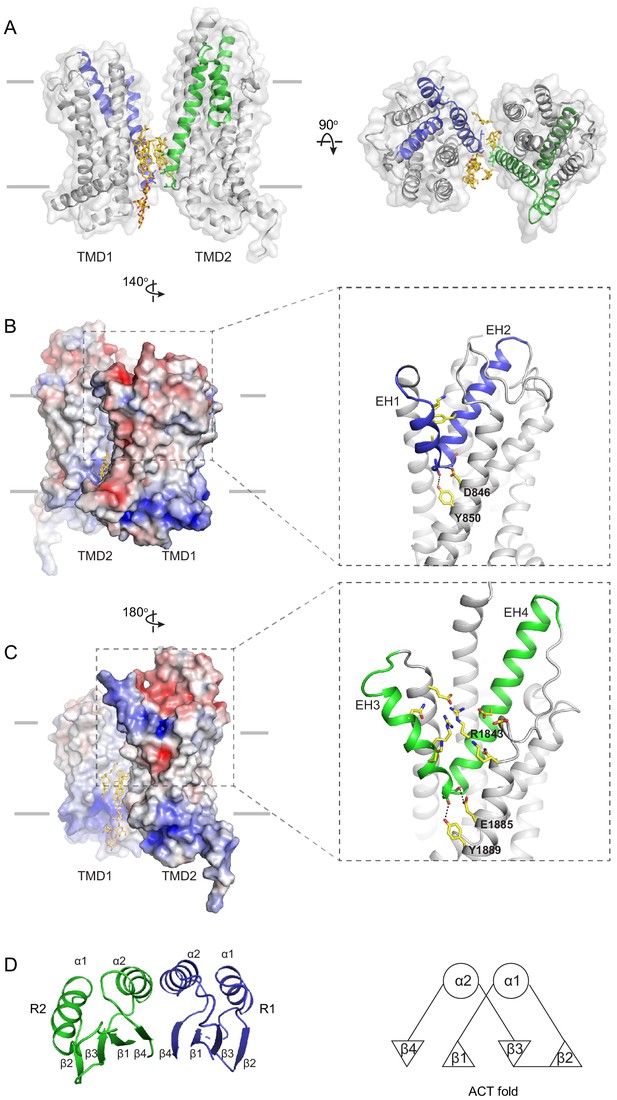

The structures of the transmembrane domains (TMDs) and regulatory domains (RDs).

(A) Two views of the TMDs. EH1, EH2, and TM5 are highlighted in blue, and EH3, EH4, and TM11 are in green. The side chain of residues making inter-subunit contacts is shown as stick model. Lipids are shown in yellow. (B) Electrostatic surface representation of the TMDs, calculated assuming a pH of 7 and a concentration of 0.15 M of both (+1) and (−1) ions. Scale: red, negative (−5 kT/e); blue, positive (+5 kT/e). The EH1-turn-EH2 insertion is highlighted as blue ribbon. (C) An orthogonal view of (B), highlighting the hydrophilic indentation formed by the EH3-turn-EH4 insertion. (D) The RDs exhibit the ACT-like fold with the βαββαβ topology. EH: exocytoplasmic helices.

A prominent feature of the type V fold is that each TMD contains two exocytoplasmic helices (EHs) forming a EH-turn-EH insertion halfway into the membrane (Figure 4B, C). Each EH exposes a helical end to the low dielectric membrane center, a thermodynamically unfavorable configuration. In ABCA4, this configuration is stabilized by an acidic residue and a tyrosine residue on the neighboring TM helices (Figure 4B, C). In TMD1, D846 and Y850 form hydrogen bonds with mainchain carbonyl oxygen and amide atoms of EH1 and EH2, respectively (Figure 4B, right panel). In TMD2, E1885 and Y1889 neutralize the ionizable atoms at the ends of EH3 and EH4 (Figure 4C, right panel). Mutating E1885 to lysine causes Stargardt disease (Rivera et al., 2000), likely due to folding defects. The EH3-turn-EH4 insertion leads to a large hydrophilic cleft on the surface of TMD2 (Figure 4C). A cluster of charged residues from EH3, EH4, and TM12, including the clinically relevant residue R1843 (Lewis et al., 1999; Rivera et al., 2000), are located as deep as 10 below the expected membrane surface (Figure 4C).

In some K+ or Cl- channels, helices with one end exposed to the membrane contribute to the binding and selection of conducting ions (Doyle, 1998; Faraldo-Gómez et al., 2004). Although the EH-turn-EH insertion is highly conserved in type V transporters, the functional significance of this motif is still unknown.

The RDs exhibit ACT-like folds

In the cytoplasm, the two NBDs and two RDs form a domain-swapped dimer (Figure 2B). RD1 crosses the dimer interface to interact with NBD2, and RD2 crosses back over to pack against NBD1. The two RDs have very similar structures; both exhibit a fold similar to the ACT domain (Figure 4D), which is a conserved structural motif that typically binds small regulatory molecules (Chipman and Shaanan, 2001; Grant, 2006). Sequence alignment indicates that the ACT fold is conserved among all members of the ABCA subfamily (Figure 4—figure supplement 1).

In the ABC transporter superfamily, the bacterial methionine importer MetNI also contains two RDs with ACT-like folds. The RDs of MetNI play an important role in ‘trans-inhibition’: at high intracellular concentration, methionine binds to the RDs to inhibit further uptake of methionine (Kadaba et al., 2008). For ABCA4, it was reported that an NBD1-R1 construct binds retinal with high affinity (Biswas-Fiss et al., 2012). Whether retinal binding is mediated through the ACT motif and the physiological relevance of such interaction remain to be investigated.

Structure of ABCA4 in the presence of ATP

To capture ABCA4 in its ATP-bound state, the structure of the hydrolysis-deficient mutant ABCA4-EQ was determined in the presence of 10 mM ATP-Mg2+ to 3.3 Å resolution (Figure 5, Figure 5—figure supplements 1 and 2, Table 2). Both 2D and 3D image classes from cryo-EM data show that most particles are in the NBD-dimerized configuration. The final model contains 2 ATP molecules, 8 lipid molecules, and 1920 residues. Similar to that of the WT protein, the lid region is highly mobile.

Figure 5 with 2 supplements see all

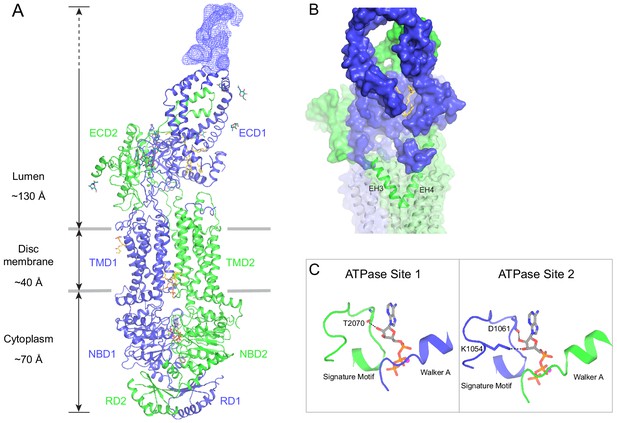

The structure of ABCA4 in the presence of ATP.

(A) Ribbon diagram of the ATP-bound ABCA4 EQ mutant, together with electron microscopy density of the lid region. (B) Surface representation of the exocytoplasmic domains. The EH3-turn-EH4 motif is shown in green ribbon; lipids are shown as stick model. (C) Structure of the two ATPase sites. ATP is shown as sticks. Dashed lines indicate the non-consensus hydrogen bonds stabilizing the ribose moiety. EH: exocytoplasmic helices.

In the presence of ATP and absence of substrate, ABCA4 exhibits a conformation very different from that of the ATP-free structure (Figure 5). The two NBDs form a closed dimer. The two TMDs are also in close contact, leaving no cavity at their interface (Figure 5A). The ECDs are positioned differently from that of the ATP-free form, placing the hollow channel directly above the EH3-turn-EH4 cleft (Figure 5B).

The ATP-binding signature motifs of ABCA4 deviate from the consensus LSGGQ sequence. The signature motif of NBD1 is LSGGM and that of NBD2 is YSGGN. In a typical ATPase site, Q in the LSGGQ signature motif positions the ribose moiety of ATP through an H-bond and van der Waals' contact (Davidson and Chen, 2004). In ABCA4, this role is fulfilled by the mainchain carboxyl group of T2070 in ATPase site 1 and the side chain of K1054 and mainchain carboxyl of D1061 in ATPase site 2 (Figure 5C). Consequently, the two ATP molecules are bound in a manner typical of ABC transporters.

ABCA4 binds and hydrolyzes GTP as effectively as ATP (Ahn et al., 2000; Illing et al., 1997). The structure indicates that both ATPase sites can bind GTP without steric hindrance. As rod photoreceptor cells contain similar levels of ATP and GTP (Biernbaum and Bownds, 1985), these observations suggest that ABCA4 might utilize either nucleotide to power retinal translocation.

Nature of the conformational changes

The large conformational changes of ABCA4 are initiated in the NBDs where two ATP molecules bind and stabilize a closed NBD dimer. Using the RD dimer as a reference, the two NBDs move like a pair of tweezers akin to that of the maltose transporter (Oldham et al., 2007Figure 6A, B). At the base of the tweezers, two short helices pin the two NBDs together from opposing sides of the molecule (Figure 6A, B, cylinders). One of the pinning helices (PHs) is formed by residues following RD1 and the other PH contains the C-terminal, highly conserved, VFVNFA motif (Fitzgerald et al., 2004; Patel et al., 2019). In the absence of ATP, each PH simultaneously interacts with the H loop of one NBD and the D loop of the other NBD (Figure 6A). Upon ATP-binding, the NBDs rotate toward each other, forming additional contacts with the RDs and PHs that are functionally important (Figure 6B). For example, in the ATP-bound conformation, D1102 in NBD1 forms a hydrogen bond with H2202 in RD2, and R2107 in NBD2 forms salt bridges with E1270 in PH1 (Figure 6B). Mutations D1102Y and R2107H, which disrupt these interactions, are observed in patients with vision diseases (Fritsche et al., 2012; Zernant et al., 2014). Notably, the R2107H mutation is the most frequent mutation found in African Americans (Zernant et al., 2014).

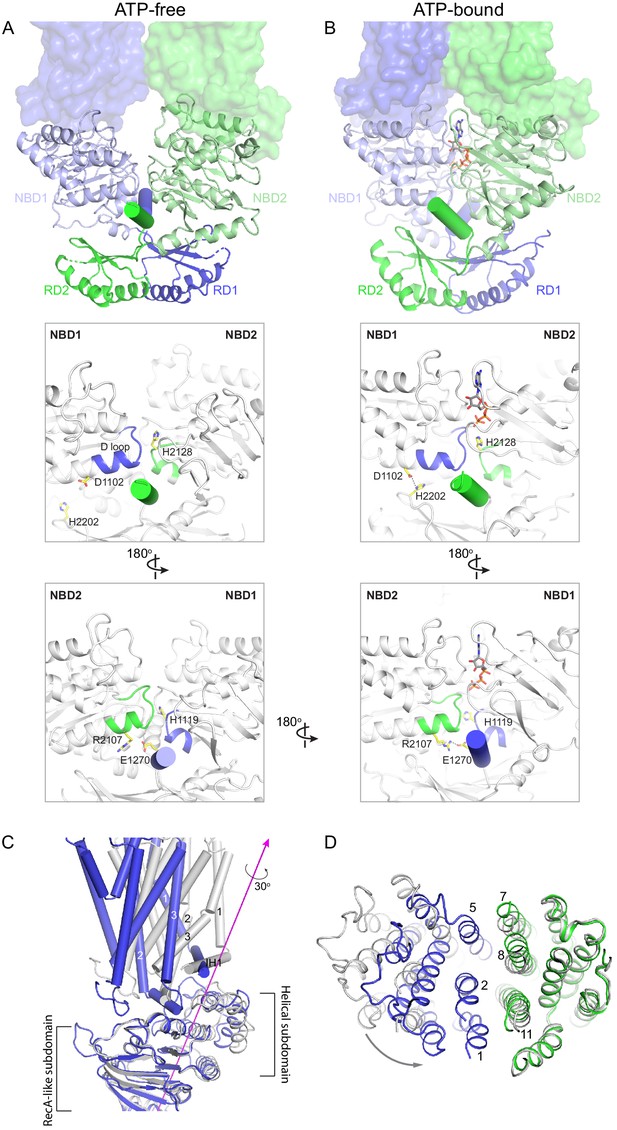

Conformational changes upon ATP binding.

(AB) The tweezer-like motion of the nucleotide binding domains (NBDs). Transmembrane domains (TMDs) are shown as surface representations; NBDs are displayed as ribbons. The two pinning helices are highlighted as cylinders. ATPs are shown as sticks. (C) The twisting motion of TMD1. The two structures are superpositioned based on NBD1. The ATP-bound form is shown in blue and ATP-free conformation in gray. The rotation axis of TMD1 and the helical subdomain is indicated in magenta. (D) Closing of the TM cavity upon TMD1 twisting. The structures are aligned based on TMD2. ATP-bound TMDs are shown in blue and green; ATP-free conformation is shown in gray.

How does NBD dimerization in the cytosol affect the TMDs to alter access of the translocation pathway? In opposing contrast to typical ABC transporters that are inward-facing when their NBDs are separated, the resting state of ABCA4 is outward-facing (Figure 2). Thus, the nature of the conformational change in ABCA4 is qualitatively different from the ‘rocker-switch’ motion described for many transporters (Abramson et al., 2003; Huang et al., 2003). Transition from the ATP-free to ATP-bound conformation involves two motions of the TMDs. The first is a movement in concert with the NBDs toward the molecular center, bringing the TMDs closer to each other. The second is a 30° twisting motion of TMD1 relative to the RecA-like subdomain (Figure 6C). The helical subdomain of NBD1 moves together with TMD1. This twisting motion, not seen in any other ABC transporter, places helices TM1 and TM2 within van der Waals’ contact with TM8 and TM11, closing the TM cavity completely (Figure 6D).

Discussion

Although a large body of clinical data indicates that ABCA4 plays a vital role in vision, we are still at an early stage in understanding its molecular mechanism. In this work, we present the structures of ABCA4 in two different conformations. These structures provide a molecular basis to understand why many clinically relevant mutations (Figure 3—figure supplement 1) could lead to misfolding or malfunction of ABCA4. They also reveal several intriguing features of ABCA4 that could be important to its function. For example, the ECDs contain an extended lipid-binding groove that changes its position in the presence of ATP. The EH3-turn-EH4 cleft, unique in ABCA4, seems well-positioned to lower the barrier for lipid headgroups to flip across the membrane. The ACT-fold of the RDs suggests that they may interact with small molecules to regulate the activity of ABCA4. Taken together, the structural information provides a molecular basis to design new experiments to uncover how ABCA4 recruits, flips, and releases retinoids and how these processes are regulated in the vision cycle.

The two structures of ABCA4 support an alternating access model for retinal import (Figure 7). In the resting state, ABCA4 adopts an outward-facing conformation, poised to recruit substrate from the exocytoplasmic side of the membrane. ATP binding induces a major conformational change that closes the transmembrane pathway to release substrate. ATP hydrolysis resets the transporter to begin a new cycle. Several lines of evidence support this working model. In the absence of ATP, N-retinylidene-PE and all-trans retinal bind ABCA4 with micromolar affinity (Beharry et al., 2004; Zhong and Molday, 2010) consistent with substrate recruitment to the outward-facing resting state. The addition of ATP, but not ADP, releases substrate (Beharry et al., 2004; Zhong and Molday, 2010), likely due to the closure of the TM cavity in the NBD-dimerized conformation (Figure 6). Many details of the ABCA4 transport cycle, such as whether an inward-facing conformation exists and how substrate is recruited and released, remain to be determined.

Figure 7 with 1 supplement see all

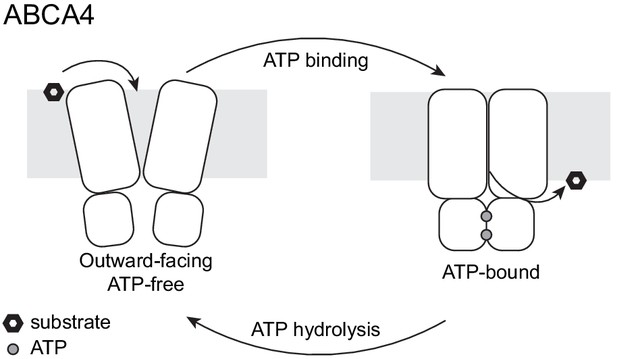

A working transport model.

For simplicity, the extracellular domains and the substrate-binding proteins are omitted from the schematic drawings.

As more ABC transporter structures become available, it is now evident that one cannot differentiate importers from exporters based on their structures. For example, the previously defined ‘type I exporter fold’ has now been observed in importers YbtPQ (Wang et al., 2020), IrtAB (Arnold et al., 2020), and ABCD4 (Xu et al., 2019). The structures of ABCA1 and ABCA4 are also very similar (Figure 7—figure supplement 1). Their TMDs are essentially superimposable, and the ECDs also share a common fold. The two structures differ significantly in the cytoplasmic region: ABCA1 does not exhibit the domain-swapped configuration as observed in ABCA4 (Figure 7—figure supplement 1); however, this difference is unlikely to be the determinant of their functional difference. The transport directionality of ABCA1 and ABCA4 is likely to be governed by when the substrates are recruited and released.

Materials and methods

Cell culture

Request a detailed protocol

Sf9 cells were cultured in Sf-900 II SFM medium (GIBCO) 5% FBS and 1% antibiotic-antimycotic. HEK293S GnTl-cells were cultured in Freestyle 293 (GIBCO) supplemented with 2% FBS and 1% antibiotic-antimycotic.

Mutagenesis

Mutations (E1087Q, E2096Q) were introduced using QuikChange Site-Directed Mutagenesis System (Stratagene).

Protein expression and purification

Request a detailed protocol

DNA encoding the human ABCA4 gene was synthesized and codon-optimized for expression in mammalian cells (BioBasic) and subcloned into a BacMam expression vector (Goehring et al., 2014) with a C-terminal green fluorescent protein (GFP) tag. The resulting plasmid was transformed to DH10Bac Escherichia coli cells to produce bacmid DNA. Recombinant baculoviruses were first generated in Sf9 cells using Cellfectin II reagents (Invitrogen). The resulting P1 viruses were amplified for two more generations. To express the recombinant proteins, P3 virus (10% v/v) was used to infect HEK293S GnTI- suspension cells at 3 × 106 cells/mL. Infected cells were cultured at 37°C for 12 hr before the temperature was decreased to 30°C. Protein expression was induced by adding 10 mM sodium butyrate at 30°C (Goehring et al., 2014). To purify the protein, cells were harvested after 48 hr post induction, resuspended in lysis buffer (50 mM HEPES pH 8, 2 mM MgCl2, 200 mM NaCl, 20% Glycerol), and supplemented with protease inhibitors (1 µg/mL leupepetin, 1 µg/mL pepstatin, 1 µg/mL aprotonin, 100 µg/mL trypsin inhibitor, 1 mM benzamidine, and 1 mM phenylmethylsulfonyl fluoride [PMSF]) and DNase (3 µg/mL). Membranes were solubilized with 1.25% (w/v) 2,2-didecylpropane-1,3-bis-β-D-maltopyranoside and 0.25% (w/v) cholesteryl hemisuccinate for 2 hr at 4°C. The cell lysates were centrifuged at 70,000 g for 1 hr, and the supernatant was applied to CNBR-activated Sepharose resin (GE Healthcare) conjugated with anti-GFP nanobodies (Kirchhofer et al., 2010). The resin was washed with buffer A (20 mM HEPES pH 8, 200 mM NaCl, 2 mM MgCl2, 0.06% digitonin) and then incubated with PreScission protease (5:1 w/w ratio) at 4°C for 3 hr to remove the C-terminal GFP tag. The protein was eluted with buffer A and further purified with gel filtration chromatography using a Superose 6 10/300 column (GE Healthcare) equilibrated with buffer A. The EQ ABCA4 sample was purified similarly except that 1 mM ATP was supplemented to the lysis buffer and buffer A.

EM data acquisition and processing

Request a detailed protocol

Protein eluted from the gel filtration column was concentrated to 6 mg/mL. The EQ ABCA4 sample was further incubated with ATP and MgCl2 (10 mM final concentration) on ice for 15 min. About 3 mM (final concentration) fluorinated Fos-choline-8 was added to samples right before freezing on Quantifoil R1.2/1.3 400 mesh Au grids using Vitrobot Mark IV (FEI). EM images were collected on a 300 kV Titian Krios (FEI) with a K2 Summit detector (Gatan) in super-resolution mode using Serial EM. The defocus ranged from 0.8 to 2.5 µm, and the dose rate was 8 e-/pixel/s.

For WT ABCA4, 5226 images were collected. The movie frames were first corrected for gain reference and binned by 2 to obtain a physical pixel size of 1.03 Å. Beam-induced sample motion was corrected using MotionCor2 (Zheng et al., 2017). CTF estimation was performed using Gctf (Zhang, 2016). In total, 1,375,284 particles were picked automatically using Gautomatch (http://www.mrc-lmb.cam.ac.uk/kzhang) and imported in cryoSPARC v2 (Punjani et al., 2017) for 2D classification. After 2D classification, 425,348 particles were selected for ab initio reconstruction in cryoSPARC. The best class (320,102 particles) was chosen for non-uniform (NU) refinement to yield a map of 3.64 Å. The half maps, masks, and particles from cryoSPARC were imported to RELION 3 (Scheres, 2012; Zivanov et al., 2018) through pyem suite (https://github.com/asarnow/pyem; Asarnow et al., 2019) for postprocessing and polishing. The polished particles were then imported to cryoSPARC for another round of NU refinement to yield a final map of 3.27 Å.

The EQ ABCA4 datasets were processed similarly with the following differences, and the best map was obtained by combining two separate datasets. For the first dataset, 6766 images were collected and 857,074 particles were picked by Gautomatch. 2D classification yielded 455,456 particles for ab initio reconstruction, and the best class (287,299 particles) was chosen for NU refinement to obtain a 3.57 Å map. Further postprocessing and polishing in RELION 3 yielded a map of 3.37 Å . For the second dataset, 2304 images were collected and 278,932 particles were picked. 2D classification yielded 121,894 particles for ab initio reconstruction, and the best class (46,432 particles) was chosen for NU refinement to obtain a 3.83 Å map. Further postprocessing and polishing in RELION 3 yielded a map of 3.52 Å . The best classes from both datasets (287,299 particles and 46,432 particles) were combined after polishing and imported into cryoSPARC to obtain a final map of 3.27 Å with NU refinement.

Model building, refinement, and analysis

Request a detailed protocol

Model building and refinement were carried out as previously described (Zhang and Chen, 2016). In brief, each dataset was randomly split into two halves, one half for model building and refinement and the other half for validation. Iterative model building and real space refinement were performed in Coot (Emsley et al., 2010) and Phenix (Afonine et al., 2018; Liebschner et al., 2019), respectively. The final model of WT ABCA4 includes 1941 residues: 3–117, 118–137 (polyalanine), 272–468, 479–496 (polyalanine), 497–873, 916–937, 947–1162, 1201–1277, 1340–1900, 1911–2172, and 2178–2253; 14 lipids, one detergent (digitonin), and 14 sugar molecules (10 2-acetamido-2-deoxy-beta-D-glycopyranose molecules and 4 beta-D-mannopyranose molecules). The final model of EQ ABCA4 includes 1920 residues: 3–117, 118–137 (polyalanine), 273–279 (polyalanine), 280–303, 308–331, 339–350, 362–448, 449–457 (polyalanine), 458, 459–468 (polyalanine), 498–502 (polyalanine), 503–881, 914–1164, 1199–1280, 1342–1902, 1916–2173, 2178–2252, 2 Mg2+, 2 ATPs, 8 lipids, and 14 sugar molecules. Structural model validation was done using Phenix and MolProbity (Chen et al., 2010). The local resolutions were estimated using RELION 3 (Scheres, 2012; Zivanov et al., 2018) by using half maps from cryoSPARC (Punjani et al., 2017).

Domain movements were analyzed with Dyndom (http://dyndom.cmp.uea.ac.uk/dyndom/). Figures were generated with PyMOL (Schrödinger, LLC) and UCSF Chimera (Pettersen et al., 2004).

ATPase assay

Request a detailed protocol

The basal ATPase activity (Figure 1C) was measured using an ATP/Nicotinamide adenine dinucleotide (NADH) consuming coupled method (Scharschmidt et al., 1979) in reaction buffer (50 mM HEPES pH 8.0, 150 mM KCl, 0.06% digitonin, 2 mM MgCl2, 60 µg/mL pyruvate kinase, 32 µg/mL lactate dehydrogenase, 9 mM phosphoenolpyruvate, 0.15 mM NADH). WT ABCA4 or EQ ABCA4 were diluted to 0.2 µM in reaction buffer. A control buffer was also prepared without ABCA4. Different concentrations of ATPs were added to initiate the reaction, and the fluorescence changes of NADH were recorded by a Tecan Infinite M1000 microplate reader at excitation wavelength of 340 nm and emission wavelength of 445 nm. To quantify the ATPase activity, mean values and standard deviation from three independent measurements were calculated. The values for Km and the specific turnover rates were determined by nonlinear regression of the Michaelis–Menten equation using GraphPad Prism 8. The maximal ATPase activities were calculated assuming a molecular weight of 256 kDa for human ABCA4.

Retinal stimulation of ATPase activity of ABCA4 (Figure 1D) was measured using a Transcreener ADP2 FI Assay (Bellbrook Labs) in kinetic mode according to the manufacturer’s recommendations. Reactions were assembled in triplicate in black, round-bottom, 384-well plates (Corning #5414) under dim red light. Also, 10 µL reactions were prepared by incubating ABCA4 with varying concentrations of all-trans retinal or all-trans retinoic acid for 15 min on ice, then adding ATP and 10 µL of ADP2 detection mix containing tracer and antibody. The final reaction mixture contains 50 nM ABCA4, 100 µM ATP, 20 mM HEPES, 75 mM NaCl, 3 mM MgCl2, 1 mM Dithiothreitol (DTT), 0.005% glyco-diosgenin (GDN), 0.001% Brij-35, 1% ethanol, and the concentration of substrate as indicated. Fluorescence changes were recorded by a Tecan Infinite M1000 microplate reader at excitation wavelength of 580 nm and emission wavelength of 620 nm. Standard curves mimicking the conversion of ATP to ADP were used to convert raw fluorescence measurements to ADP formation. The data were analyzed by GraphPad Prism 8.

Table 2
Summary of electron microscopy data and structure refinement statistics for EQ ABCA4.
Data collection
MicroscopeTitan Krios (FEI)
Voltage (kV)300
DetectorK2 Summit (Gatan)
Pixel size (Å)1.03
Defocus range (μm)0.8–2.5
Movies9070
Frames/movie50
Dose rate (electrons/pixel/s)8
Total dose (electrons/Å2)75
Number of particles1,136,006
Model composition
Non-hydrogen atoms15,513
Protein residues1920
Lipids
ATP
8
2
Mg2+2
Sugar molecules14
Refinement
Resolution (Å)3.3
Sharpening B-factor (Å2)−93.8
Root-mean-square deviations
Bond lengths (Å)0.007
Bond angles (°)0.898
Validation
Molprobity score2.10
Clashscore, all atoms12.42
Favored rotamers (%)97.99
Ramachandran plot (%)
Favored91.68
Allowed8.32
Outliers0.0

Data availability

The cryo-EM maps are deposited in the Electron Microscopy Data Bank (EMDB) under accession codes: EMD-23409, EMD-23410. The corresponding atomic models are deposited in the Protein Data Bank (PDB) under accession codes 7LKP and 7LKZ.

The following data sets were generated
    1. Liu F
    2. Lee J
    3. Chen J
    (2021) Electron Microscopy Data Bank
    ID EMD-23409. Structure of ATP-free human ABCA4.
    1. Liu F
    2. Lee J
    3. Chen J
    (2021) Electron Microscopy Data Bank
    ID EMD-23410. Structure of ATP-bound human ABCA4.
    1. Liu F
    2. Lee J
    3. Chen J
    (2021) RCSB Protein Data Bank
    ID 7LKP. Structure of ATP-free human ABCA4.
    1. Liu F
    2. Lee J
    3. Chen J
    (2021) RCSB Protein Data Bank
    ID 7LKZ. Structure of ATP-bound human ABCA4.

References

    1. Emsley P
    2. Lohkamp B
    3. Scott WG
    4. Cowtan K
    (2010) Features and development of coot
    Acta Crystallographica. Section D, Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
    1. Rosenberg T
    2. Klie F
    3. Garred P
    4. Schwartz M
    (2007)
    N965S is a common ABCA4 variant in Stargardt-related retinopathies in the danish population
    Molecular Vision 13:1962–1969.
    1. Scharschmidt BF
    2. Keeffe EB
    3. Blankenship NM
    4. Ockner RK
    (1979)
    Validation of a recording spectrophotometric method for measurement of membrane-associated mg- and NaK-ATPase activity
    The Journal of Laboratory and Clinical Medicine 93:790–799.

Decision letter

  1. David Drew
    Reviewing Editor; Stockholm University, Sweden
  2. Olga Boudker
    Senior Editor; Weill Cornell Medicine, United States
  3. David Drew
    Reviewer; Stockholm University, Sweden
  4. Konstantinos Beis
    Reviewer; Imperial College London, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Jue Chen and co-workers present two cryo-EM structures of the retinal importer ABCA4 in the apo and ATP-bound states. ABCA4 is an ABC importer with exporter fold, which transports retinal and toxic retinoids from the disc lumen to the cytosol. Overall, the cryo EM structures of the only known ABC importer in human, is an important accomplishment and reveals an interesting architecture with potentially novel mechanistic and physiological ramifications. This study further adds to the growing body of evidence that one cannot differentiate importers from exporters based on their structures.

Decision letter after peer review:

Thank you for submitting your article "Molecular structures of the eukaryotic retinal importer ABCA4" for consideration by eLife. Your article has been reviewed by three peer reviewers, including David Drew as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Olga Boudker as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Konstantinos Beis (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

Fangyu Liu and Jue Chen present two cryo-EM structures of the retinal importer ABCA4 in the apo and ATP-bound states. ABCA4 is an ABC importer with exporter fold, which transports retinal and toxic retinoids from the disc lumen to the cytosol. Overall, the cryo EM structures of the only known ABC importer in human is an important accomplishment and reveals an interesting architecture with potentially novel mechanistic and physiological ramifications.

Essential revisions:

While the reviewers appreciated the beautiful structural biology and well-written manuscript, we feel the current paper falls short on the functional characterization of the protein and a comparison of the structural features of ABCA4 with that of other ABC transporters, in particular ABCA1, which is an lipid exporter.

1) We think it is important to demonstrate that the preparation used for structural work is able to carry out substrate-dependent ATPase activity as expected I.e., stimulation of ATPase activity with N-retinylidene-PE and/or 11-cis-retinal or the all-trans isomers. Moreover, can stimulation of ATPase activity by substrate be discriminated from possible trans-inhibitory effects? e.g. by titrating the protein with a wide range of substrate concentrations

2) The proposed substrate binding site(s) were unclear. A paper was cited that concluded that retinal binds to the ECD domains, but it was unclear if retinal was retained in the current preparation, which should be able to be monitored spectroscopically. Please clarify. Furthermore, is retinal thought to be transported in addition to N-retinylidene-PE or this an allosteric site? If not, how would the substrate binding site in the ECD domain be coupled to the TMD interface? Is the thickness of the rim disc membrane bilayer known? If the idea is that lipid-like substrates are first recruited to the ECD (as implied by analogy to importers and retinal binding site in the ECDs), wouldn't these domains be too far from the membrane bilayer or could the lipid bilayer adjust to reach up to the ECD domains? We would recommend ConSurf analysis to show sequence conservation overlaid on the ABCA4 structure to provide support for the substrate recognition site(s) and import pathway. Also, please clarify the type of lipids modelled in TMD interface and how these were chosen, i.e., was the purified protein analyzed for bound lipids? Furthermore, please clarify if these lipids thought to represent the N-retinylidene-PE binding-site location?

3) We would like to see structural comparisons of ABCA4 to ABCA1 that would help to illuminate the structural interpretation leading to the proposed import mechanism. This is particularly important since ABCA1 appears to have the same overall fold and is an exporter, and not an importer. We are conscious a paper focusing on the general biology of ABCA4 vs. the "expert audience", however we are of the opinion that in balance this analysis would only strengthen the current paper overall.

– What is the relative positing of the TMDs in ABCA1 vs. ABCA4?

– In ABCA1 the TMDs are positioned far apart and this positioning has been suggested to be a detergent artefact. However, ABCA4 the TMDs are similarity positioned, which would provide support that these weak, open TMD interfaces are physiologically relevant. Indeed, the presence of lipids between the TMDs in ABCA1 suggests this arrangement could be a means to recruit lipid substrates to the most likely substrate-binding site. Is there any clear structural difference between ABCA1 and ABCA4 that would indicate their preference for different lipid substrates at the TMD interface?

– Is there any structural differences that would make ABCA1 a lipid exporter but ABCA4 a lipid importer?

– How does the ECDs from ABCA1 structurally compare to those from ABCA4? For instance, are the hydrophobic grooves in the ECD domain in ABCA1 similarity positioned to their location in ABCA4?

4) Points 1. and 2. would be clearly strengthened by specific ABCA4 mutants that were shown to either impacted substrate(s) binding and/or that could be used to probe the preferred orientation of ABCA4, i.e., it was unclear how it was concluded that the preferred conformation is outward-facing? Depending on the ability to provide further experimental support for the proposed substrate binding site(s) and the import pathway, we think the final mechanistic model should be appropriately adjusted, i.e., toned-down if necessary.

https://doi.org/10.7554/eLife.63524.sa1

Author response

Essential revisions:

While the reviewers appreciated the beautiful structural biology and well-written manuscript, we feel the current paper falls short on the functional characterization of the protein and a comparison of the structural features of ABCA4 with that of other ABC transporters, in particular ABCA1, which is an lipid exporter.

1) We think it is important to demonstrate that the preparation used for structural work is able to carry out substrate-dependent ATPase activity as expected I.e., stimulation of ATPase activity with N-retinylidene-PE and/or 11-cis-retinal or the all-trans isomers. Moreover, can stimulation of ATPase activity by substrate be discriminated from possible trans-inhibitory effects? e.g. by titrating the protein with a wide range of substrate concentrations

Because retinoids absorb strongly at 445 nm, the ATP/NADH-coupled assay cannot be used to measure the ATPase activity in the presence of substrate. Therefore, we had to establish a new assay, the Transcreener ADP2 FI Assay (Bellbrook Labs), to measure the ATPase activity as a function of substrate concentration. In the revision, we added a new Figure 1D showing that, consistent with literature, retinal stimulates the ATPase activity only in the presence of PE.

2) The proposed substrate binding site(s) were unclear. A paper was cited that concluded that retinal binds to the ECD domains, but it was unclear if retinal was retained in the current preparation, which should be able to be monitored spectroscopically. Please clarify.

There is a misunderstanding here. We did not mean to propose a specific substrate binding site. We have reworded the text to avoid such confusion.

To test if retinal was retained in the current preparation, the absorbances of the retinal and protein samples were measured over a range of wavelengths. It is clear that our preparations (both WT and EQ) do not contain any retinal.

Author response image 1

Furthermore, is retinal thought to be transported in addition to N-retinylidene-PE or this an allosteric site?

Retinal is thought to be transported in the form of N-retinylidene-PE, as transport of retinal requires PE (Quazi et al., 2012) and ABCA4 preferentially binds N-retinylidene-PE compared to free retinal (Beharry et al., 2004). We stated in the text: “ABCA4 enables this process by moving all-trans retinal into the cytoplasm, likely in the form of its phosphatidylethanolamine (PE) conjugates, N-retinylidene-PE.”

If not, how would the substrate binding site in the ECD domain be coupled to the TMD interface? Is the thickness of the rim disc membrane bilayer known? If the idea is that lipid-like substrates are first recruited to the ECD (as implied by analogy to importers and retinal binding site in the ECDs), wouldn't these domains be too far from the membrane bilayer or could the lipid bilayer adjust to reach up to the ECD domains? We would recommend ConSurf analysis to show sequence conservation overlaid on the ABCA4 structure to provide support for the substrate recognition site(s) and import pathway.

If the ECD functions to recruit the substrate, one can imagine it has to undergo large conformational change to deliver the substrate to the TMDs. Although there isn’t sufficient evidence to support this hypothesis, we still would like to discuss this possibility to stimulate future studies. We reworded the text to be clear:

“Prokaryotic ABC importers often contain an extracytoplasmic binding protein that functions as a receptor for substrates (Davidson et al., 2008). […] Previously it was shown that isolated ECD2 binds to all-trans retinal (Biswas-Fiss et al., 2010), but how this interaction relates to the transport cycle remains unclear.”

Also, please clarify the type of lipids modelled in TMD interface and how these were chosen, i.e., was the purified protein analyzed for bound lipids? Furthermore, please clarify if these lipids thought to represent the N-retinylidene-PE binding-site location?

We built lipid acyl chains, cholesterol, and digitonin based on the shape of the electron density. We don’t think these lipids represent the N-retinylidene PE binding site. Instead, we suggest that “lipids form an integral part of the retinoid transport system, possibly by regulating the folding and function of ABCA4”.

3) We would like to see structural comparisons of ABCA4 to ABCA1 that would help to illuminate the structural interpretation leading to the proposed import mechanism. This is particularly important since ABCA1 appears to have the same overall fold and is an exporter, and not an importer. We are conscious a paper focusing on the general biology of ABCA4 vs. the "expert audience", however we are of the opinion that in balance this analysis would only strengthen the current paper overall.

As requested, we added a figure comparing the structures of ABCA4 with ABCA1 in their apo forms (Figure 7—figure supplement 1). The structure of ATP-bound ABCA1 has not been published.

– What is the relative positing of the TMDs in ABCA1 vs. ABCA4?

In the apo form, the TMDs of ABCA1 and ABCA4 are positioned very similarly ( Figure 7—figure supplement 1).

– In ABCA1 the TMDs are positioned far apart and this positioning has been suggested to be a detergent artefact. However, ABCA4 the TMDs are similarity positioned, which would provide support that these weak, open TMD interfaces are physiologically relevant. Indeed, the presence of lipids between the TMDs in ABCA1 suggests this arrangement could be a means to recruit lipid substrates to the most likely substrate-binding site. Is there any clear structural difference between ABCA1 and ABCA4 that would indicate their preference for different lipid substrates at the TMD interface?

The TMDs of ABCA4 and ABCA1 are very similar. We do not think the lipids observed in the structure of ABCA4 represent the potential substrate binding site. Instead, we stated that:

“The gap between the TMDs at the level of the inner leaflet is filled with ordered lipids (Figures 4A and B). […] These observations indicate that lipids form an integral part of the retinoid transport system, possibly by regulating the folding and function of ABCA4”.

– Is there any structural differences that would make ABCA1 a lipid exporter but ABCA4 a lipid importer?

There isn’t a clear structural difference between ABCA1 and ABCA4 to correlate with their functions. We have added the following discussion to the manuscript:

“As more ABC transporter structures become available, it is now evident that one cannot differentiate importers from exporters based on their structures. […] The transport directionality of ABCA1 and ABCA4 is likely to be governed by when the substrates are recruited and released”.

– How does the ECDs from ABCA1 structurally compare to those from ABCA4? For instance, are the hydrophobic grooves in the ECD domain in ABCA1 similarity positioned to their location in ABCA4?

The hydrophobic groove of ABCA4 is larger than that of ABCA1 (Figure 7—figure supplement 1). Both are similarly positioned in the ATP-free form (Figure 7—figure supplement 1).

4) Points 1. and 2. would be clearly strengthened by specific ABCA4 mutants that were shown to either impacted substrate(s) binding and/or that could be used to probe the preferred orientation of ABCA4, i.e., it was unclear how it was concluded that the preferred conformation is outward-facing? Depending on the ability to provide further experimental support for the proposed substrate binding site(s) and the import pathway, we think the final mechanistic model should be appropriately adjusted, i.e., toned-down if necessary.

Unfortunately, no mutant of ABCA4 has been characterized to impact substrate binding. As suggested, we have toned down the presentation of the model (Discussion).
