Nanoscale binding site localization by molecular distance estimation on native cell surfaces using topological image averaging

  1. Vibha Kumra Ahnlide
  2. Johannes Kumra Ahnlide
  3. Sebastian Wrighton
  4. Jason P Beech
  5. Pontus Nordenfelt  Is a corresponding author
  1. Division of Infection Medicine, Department of Clinical Sciences, Faculty of Medicine, Lund University, Sweden
  2. Division of Solid State Physics, Department of Physics, Lund University, Sweden
Short Report
  • Cited 0
  • Views 352
  • Annotations
Cite this article as: eLife 2022;11:e64709 doi: 10.7554/eLife.64709

Abstract

Antibody binding to cell surface proteins plays a crucial role in immunity, and the location of an epitope can altogether determine the immunological outcome of a host-target interaction. Techniques available today for epitope identification are costly, time-consuming, and unsuited for high-throughput analysis. Fast and efficient screening of epitope location can be useful for the development of therapeutic monoclonal antibodies and vaccines. Cellular morphology typically varies, and antibodies often bind heterogeneously across a cell surface, making traditional particle-averaging strategies challenging for accurate native antibody localization. In the present work, we have developed a method, SiteLoc, for imaging-based molecular localization on cellular surface proteins. Nanometer-scale resolution is achieved through localization in one dimension, namely, the distance from a bound ligand to a reference surface. This is done by using topological image averaging. Our results show that this method is well suited for antibody binding site measurements on native cell surface morphology and that it can be applied to other molecular distance estimations as well.

Editor's evaluation

You have developed and validated a new method for measurement of nanoscale height of macromolecules that can be non-uniformly distributed on irregular surfaces. Such samples are common in biology, which will make this a valuable approach to achieve super-resolution results for samples where this would have not been possible previously.

https://doi.org/10.7554/eLife.64709.sa0

eLife digest

Antibodies play a key role in the immune system. These proteins stick to harmful substances, such as bacteria and other disease-causing pathogens, marking them for destruction or blocking their attack. Antibodies are highly selective, and this ability has been used to target particular molecules in research, diagnostics and therapies.

Typically, antibodies need to stick to a particular segment, or ‘epitope’, on the surface of a cell in order to trigger an immune response. Knowing where these regions are can help explain how these immune proteins work and aid the development of more effective drugs and diagnostic tools.

One way to identify these sites is to measure the nano-distance between antibodies and other features on the cell surface. To do this, researchers take multiple images of the cell the antibody is attached to using light microscopy. Various statistical methods are then applied to create an ‘average image’ that has a higher resolution and can therefore be used to measure the distance between these two points more accurately. While this approach works on fixed shapes, like a perfect circle, it cannot handle human cells and bacteria which are less uniform and have more complex surfaces.

Here, Kumra Ahnlide et al. have developed a new method called SiteLoc which can overcome this barrier. The method involves two fluorescent probes: one attached to a specific site on the cell’s surface, and the other to the antibody or another molecule of interest. These two probes emit different colours when imaged with a fluorescent microscope. To cope with objects that have uneven surfaces, such as cells and bacteria, the two signals are transformed to ‘follow’ the same geometrical shape. The relative distance between them is then measured using statistical methods. Using this approach, Kumra Ahnlide et al. were able to identify epitopes on a bacterium, and measure distances on the surface of human red blood cells.

The SiteLoc system could make it easier to develop antibody-based treatments and diagnostic tools. Furthermore, it could also be beneficial to the wider research community who could use it to probe other questions that require measuring nanoscale distances.

Introduction

The location of protein binding sites on cellular surfaces can have wide-ranging implications for various cellular processes, such as immune signalling, cell adhesion, cell migration, and phagocytosis. Antibody binding to pathogen surface proteins plays a crucial role in immunity (Lu et al., 2018), and epitope localization affects diverse immunological outcomes, such as antibody neutralizing ability (Law et al., 2008; Kwong et al., 2013; Salinas et al., 2019; Caoili, 2014; Ivanyi, 2014) or autoreactivity (Caoili, 2014; Cunningham, 2014). Even though monoclonal antibody (mAb) treatments have proven to be successful for a wide spectrum of diseases, there are very few monoclonal antibodies clinically available for the treatment of bacterial infections (Motley et al., 2019). Developing therapeutic mAbs against infections may require large-scale screening of highly conserved and functional epitopes (Martín-Galiano and McConnell, 2019). Antibody epitopes are typically identified using crystallography, mutagenesis, or crosslinking coupled mass spectrometry (Abbott et al., 2014). As of today, these methods are costly, time-consuming, and unsuitable for high-throughput analysis. Fast and efficient screening of epitope locations can be useful for the development of therapeutic mAbs and vaccines.

While averaging methods for nanometer-scale localization on microscopy data exist, these do not work for binding sites on proteins with heterogeneous expression on the cellular surface. Moreover, they are designed for identical (Szymborska et al., 2013; Laine et al., 2015) or spherical (Son et al., 2020) particles and are thereby not fitted for unaltered cells due to the existing biological variation of surface morphology.

In the present work, we have developed an imaging-based method for localization of binding sites with nanometer-scale precision. The location of a binding site is determined by calculating the average distance between the ligand channel and a reference signal channel using the averaged fluorescent signal along a cell contour. To assess the performance of this method, we analyse simulated images, demonstrating high accuracy for varying surface expression and morphology. By measuring the height of DNA probes on erythrocyte surfaces, we show that our method can accurately estimate molecular heights on spherical and non-spherical cells. Our presented results with structured illumination microscopy (SIM) data achieve an ~10 nm precision certainty. We apply the site localization method to determine known binding site locales on M protein that is unevenly expressed on the bacterial surface of Streptococcus pyogenes. Additionally, our method yields viable results when we perform site localization on widefield images with and without deconvolution. To sum up, our site localization method enables rapid determination of binding sites without the need for synthetic modification of cell surface morphology.

Results

Principles of site localization method

Binding site localization is based on resolving the axial distance between bound ligands and a reference surface. This is done by implementing an averaging method on high-resolution images. With this method, nanometer-scale precision is achieved by dimension reduction of surface data within an image plane.

A site localization measurement on antibody-coated bacteria is exemplified in Figure 1. Fluorescently conjugated wheat germ agglutinin (WGA) that binds bacterial peptidoglycan is used here for the reference region, and antibodies that bind to bacterial M protein are labelled with another fluorescent dye for imaging in a separate channel (Figure 1a). The example shows how our method handles the uneven distribution of M protein on bacterial surfaces (Figure 1b). The pipeline for the site localization method is shown in Figure 1b. For each image, bacteria are identified in the reference channel by fitting circles to an edge-detection-processed image. Each circle is isolated as a slightly larger mask and the data in the circle is polar transformed. An alignment of the reference position is performed by identifying peaks to each intensity profile. This way, the axial positions are normalized to the actual surface signal. The spatially corresponding data in the antibody channel is processed in the same manner, and the distance between the antibody and WGA signal is resolved through the averaging of multiple acquisitions of the same field of view. Altogether, a relative binding site is determined by resolving the distance between the reference and antibody channel using the cumulative measurement from multiple repeated images.

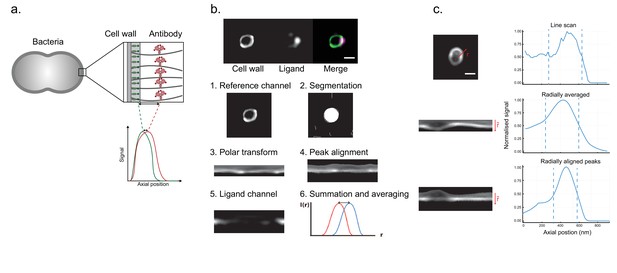

Binding site localization is based on resolving the distance between bound ligands and a reference surface.

(a) Site localization on bacterial surfaces. The illustration exemplifies a measurement with antibody-coated bacteria. Antibodies with red fluorescent dyes are bound to bacterial surface proteins. A bacterial cell wall is labelled with a green fluorescent dye. High-resolution images of single bacteria are acquired in the focal plane, and the fluorescent peak signal is averaged along the bacterial contour. The distance d is determined by resolving the difference between the fluorescent signal peaks. (b) Analysis pipeline for the site localization method. Structured illumination microscopy (SIM) images are shown at the top. S. pyogenes strain SF370 has been fixed, stained with Alexa Fluor 488-conjugated wheat germ agglutinin (WGA), and coated with antibody Fc fragments. The antibody fragments were stained with Fc-specific Alexa Fluor 647-conjugated F(ab’)2 fragments. The scale bar is 500 nm. The aim is to locate the antibody binding site by calculating the average distance between the antibody channel and a reference signal channel. (1) A raw image in the reference channel is shown. (2) Bacteria are identified by fitting circles to an edge-detection-processed image. (3) The data in each circle mask is isolated and transformed to polar coordinates. (4) An alignment of the reference position is performed by identifying peaks at each radial position. (5) The spatially corresponding data in the antibody channel is extracted. (6) The radially aligned peaks are then averaged. The peak distance between these intensity profiles should then correspond to the distance between the binding site and the bacterial peptidoglycan layer. (c) Representation of improved SNR by peak alignment for non-spherical particles Intensity profiles (right) for the reference channel is shown together with their respective image data (left). The signal along a single line for an oval-shaped bacterium is shown at the top. The intensity profile of a radial average is shown in the middle. An improved SNR is seen as a peak alignment is performed (bottom).

A strength of the method is that it can be used for particles with a non-spherical topology and uneven staining. It is evident that the signal precision is improved as the distortion of an ovoid bacterium is accounted for through axial normalization in polar coordinates (Figure 1c).

Site localization measurements on simulated images with various cell morphologies

To assess the performance of the site localization method, we generated simulated fluorescence images with variable surface staining and morphology. The images consisted of two channels created by sampling a fixed number of ‘photons’ from a spatial distribution. In the reference channel, the distribution was designed to emulate the spatial distribution of photons in a microscope for a cellular surface. In the target channel, a distribution based on the set of points in the reference channel at a chosen perpendicular distance was used. The perpendicular distance between the reference channel distribution and the target channel distribution was chosen to be 2 px corresponding to 41 nm using the pixel length of our N-SIM microscopy setup. In order to mimic the experimental process of acquiring repeated frames of each data point in a time series, for each chosen shape 100 time series were created with 10 frames each. The results, shown in Figure 2, indicate that a high accuracy can be achieved for various cell surface patterns. However, for certain shapes, the method yields a slightly larger distance than the true value (Figure 2b). The reported accuracy for site localization measurements on the simulations in relation to number of cells is assessed and presented in Figure 2c. To explore sources of uncertainty in site localization measurements, additional images were simulated to represent different types of labelling (Figure 2—figure supplement 1). As expected, the uncertainty is larger with secondary antibody labelling than with direct labelling. The site localization uncertainty also increases when the SNR is decreased. These results demonstrate the robustness of the site localization method for varying surface expression and morphology.

Figure 2 with 1 supplement see all

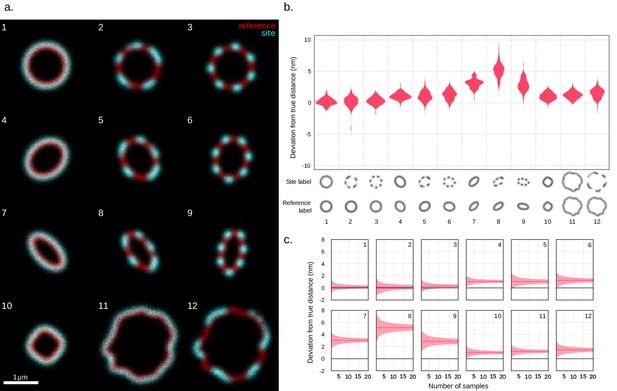

Validation of site localization method through simulated images with various cell morphologies.

(a) Examples of simulated images. The different shapes that the method was tested on are shown. From each of the 12 morphologies, 100 time series with 10 frames each were generated. Each frame consists of a set number of photons sampled from the shape’s spatial distribution. Before creating a time series, a random translation and rotation were applied to the distribution. The chosen shapes emulate various eccentricities and degrees of surface protein patchiness found, for example, in bacteria as well as the surface irregularity of larger cells. The 1 µm scale bar assumes a pixel length of 20.5 nm corresponding to that of the structured illumination microscopy (SIM) images, with this pixel length the simulated distance between the reference channel and the target channel is 41 nm. (b) Site localization results expressed as deviation from simulated distances. The deviations of the measured values from the simulated distances are shown in a violin plot grouped by shape. The mean distance deviations are in order from left to right [mean ± SD, median (IQR)]: 0.2 ± 0.5 nm, 0.1 (0.7) nm; 0.2 (1.0) nm; 0.3 ± 0.6 nm, 0.3 (0.8) nm; 1.1 ± 0.5 nm, 1.0 (0.7) nm; 1.0 ± 0.8 nm, 1.0 (1.1) nm; 1.2 ± 0.8 nm, 1.3 (1.1) nm; 3.0 ± 0.7 nm, 3.1 (0.9) nm; 5.1 ± 1.1 nm, 5.2 (1.3) nm; 2.9 ± 1.0 nm, 2.8 (1.2) nm; 1.0 ± 0.6 nm, 1.0 (0.7) nm; 1.2 ± 0.6 nm, 1.2 (0.8) nm; 1.5 ± 0.8 nm, 1.6 (1.1) nm. (c) Bootstrap of measured mean distances as a function of the number of time series used. The plots show an estimate of the 95% confidence interval of the mean of a number of measurements computed by percentile bootstrap with 50,000 resamples. As the number of measurements used in the calculation of the mean increases, the confidence interval narrows.

Validation of site localization method by measurement of DNA probes on cellular surfaces

In order to test the method in vitro, we performed site localization measurements on surface-tethered dsDNA probes of known lengths. Human erythrocytes were stained with membrane dye CellBrite Fix 488 and Alexa Fluor 647-conjugated dsDNA of varying length (Figure 3b). Images were acquired using an N-SIM microscope. To begin with, swelled spherical erythrocytes were analysed with the site localization method as well as with an existing method for determining molecular heights on spherical particles (Figure 3—figure supplement 1). The results show good agreement. Site localization was thereafter performed on non-spherical erythrocytes and show results equivalent to that of spherical cells (Figure 3c). We further tested the method’s capabilities by measuring the height of dsDNA with varying lengths on the surface of non-spherical red blood cells (Figure 3e). The measured heights are approximately half of the full length of the DNA strands. The measurements agree well with the predicted worm-like chain (WLC) model height for DNA strands, with a persistence length of 50 nm (Baumann et al., 1997), tethered to a surface and able to freely rotate. Altogether, we show that our method can accurately estimate molecular heights on spherical and non-spherical cellular surfaces.

Figure 3 with 2 supplements see all

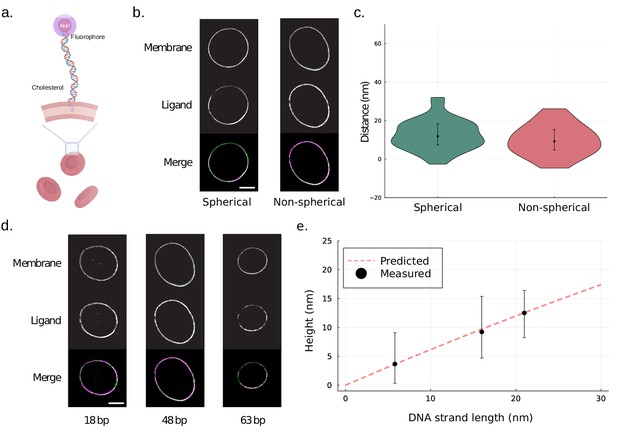

Site localization measurements of DNA probes on human red blood cells.

(a) A schematic illustrating the binding of DNA probe to red blood cells. Human red blood cells were coated with Alexa Fluor 647-conjugated dsDNA of varying lengths and a cholesterol anchor. (b) Representative structured illumination microscopy (SIM) images of spherical and non-spherical erythrocytes. Human erythrocytes were stained with membrane dye CellBrite Fix 488 and Alexa Fluor 647-conjugated dsDNA of length 48 bp. Scale bar is 2 µm. (c) Site localization method performs well for both spherical and non-spherical particles. The measured distances for 48 bp dsDNA probes on erythrocytes are shown in a violin plot. The resolved distance is [median (IQR), mean ± SD] 11.5 (11.6) nm, 11.4 ± 9.3 nm (n = 31) for DNA on the spherical cells and 9.2 (10.7) nm, 9.8 ± 8.1 nm (n = 33) for the non-spherical erythrocytes. Error bars indicate interquartile range. Additionally, the result for spherical cells was confirmed using an existing method for site localization on spherical objects (Figure 3—figure supplement 1). (d) Representative SIM images of DNA-coated erythrocytes. Human erythrocytes were stained with membrane dye CellBrite Fix 488 and Alexa Fluor 647-conjugated dsDNA of length 18 bp, 48 bp, and 63 bp. Scale bar is 2 µm. (e) Site localization measurements of DNA probes show good agreement with predicted worm-like chain (WLC) heights The measured heights of the DNA probes are plotted as a function of the fully extended length of the DNA strands. The measured height is [median (IQR), mean ± SD] 3.7 (8.8) nm, 5.1 ± 8.3 nm (n = 25) for 18 bp DNA, 9.2 (10.7) nm, 9.8 ± 8.1 nm (n = 33) for 48 bp DNA, and 12.5 (8.2)nm, 10.3 ± 10.5 nm (n = 30) for 63 bp DNA. Error bars indicate interquartile range. The dashed line represents predicted height based on modelling the DNA strand as a WLC with a persistence length of 50 nm free to move in a hemisphere above the surface.

Site localization measurement of binding sites on bacterial surface protein

Site localization measurements that were performed for ligands on bacterial M protein agree well with previously reported data. The antibody Fc binding site on M protein is located at the S region (Akesson et al., 1994), and a non-specific monoclonal IgG antibody (Xolair) is used for site localization of this binding. Additionally, a measurement is carried out for an M protein-specific mAb, Ab49 (Bahnan et al., 2021), with an epitope located in the B3-S region, that is, slightly further along the IgGFc binding region. For determining binding to the far end of M protein, we used fibrinogen that has two binding sites at the B1 and B2 region (Hauri et al., 2019). We thus expect the binding sites to be arranged in accordance with the schematic shown in Figure 4—figure supplement 1c. S. pyogenes strain SF370 was stained with Alexa Fluor 488-conjugated WGA and coated with Alexa Fluor 647-conjugated Xolair, Ab49, or fibrinogen (Figure 4a). Images of single bacteria were acquired using an N-SIM microscope. The median resolved distance is [median (IQR)] 5.6 (29.7) nm for the Xolair Fc binding site, 6.2 (29.8) nm for Ab49 Fab binding site, and 18.0 (49.3) nm for the two fibrinogen binding sites. The reported accuracy for site localization measurements on S. pyogenes in relation to number of biological replicates is assessed and presented in Figure 4—figure supplement 1. To further explore sources of uncertainty in site localization measurements, the antibody binding sites were measured with secondary antibody labelling and compared to direct labelling (Figure 4—figure supplement 2). The presented results are consistent with the arrangement of the binding sites as reported in the literature (Akesson et al., 1994; Bahnan et al., 2021; Hauri et al., 2019).

Figure 4 with 2 supplements see all

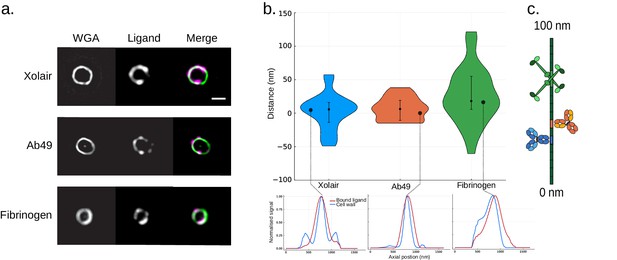

Site localization measurements of bound ligands on bacterial surface protein.

(a) Representative structured illumination microscopy (SIM) images of ligand coated bacteria. S. pyogenes strain SF370 has been fixed, stained with Alexa Fluor 488-conjugated wheat germ agglutinin (WGA), and coated with Alexa Fluor 647-conjugated Xolair (top), Ab49 (middle), or fibrinogen. Scale bar is 500 nm. (b) Binding site measurements of antibodies and fibrinogen on bacterial M protein The measured distances are shown in a violin plot. The resolved distance between the two channels is [median (IQR), mean ± SD] 5.6 (29.7) nm, 2.5 ± 26.7 nm (n = 41) for the Xolair Fc binding site, 6.2 (29.8) nm, 6.5 ± 16.8 nm (n = 28) for Ab49 Fab binding site, and 18.0 (49.3) nm, 26.2 ± 41.6 nm (n = 33) for the two fibrinogen binding sites. Error bars indicate the interquartile range. An intensity profile from a single bacterium is shown for each of the ligands below the violin plot. (c) A schematic illustrating the determined binding sites on M protein.

Site localization measurements using widefield and deconvolved images

By performing site localization measurements on widefield images, we show that our method can yield viable results even with conventional microscopy data. Moreover, deconvolution of the widefield images may yield an increase in precision. Widefield images were acquired with the same optical system (see SIM in previous section), with the exception of the light source used being LED-based instead of laser-based. Comparison of site localization measurements using SIM and widefield was performed on two sets of samples; fibrinogen- and Xolair-coated S. pyogenes. Widefield and SIM images were acquired on separate datasets. For the fibrinogen samples (Figure 5b), the median resolved distance between the two channels is [median (IQR)] 18.0 (49.3) nm with SIM data, 38.5 (71.0) nm with widefield data, and 40.1 (42.0) nm with deconvolved widefield data. For the Xolair samples (Figure 5d), the median resolved distance for the Xolair Fc binding site is 5.6 (29.7) nm with SIM data, 12.3 (76.5) nm with widefield data, and 14.2 (34.5) nm with deconvolved widefield data. This indicates that the site localization method performs well with widefield images and that the precision can be increased through deconvolution.

Figure 5 with 1 supplement see all

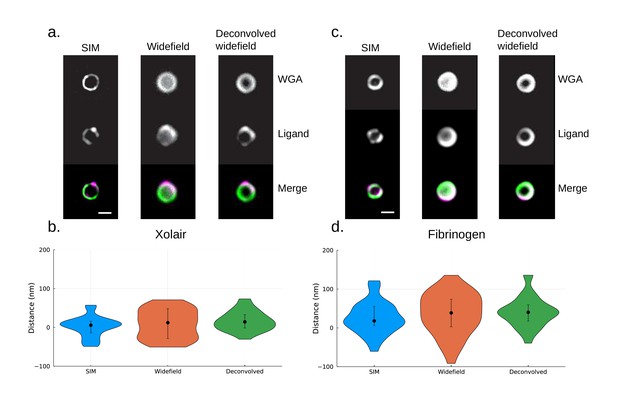

A comparison of site localization measurements using structured illumination microscopy (SIM), widefield, and deconvolved widefield images.

(a) Representative images of Xolair-coated bacteriaare shown at the top. Scale bar is 500 nm. S. pyogenes strain SF370 has been fixed, stained with Alexa Fluor 488-conjugated wheat germ agglutinin (WGA), and coated with Alexa Fluor 647-conjugated Xolair antibodies. (b) Site localization measurement of Fc binding site yields similar results with the widefield dataset. The resolved distance between the two channels is [median (IQR), mean ± SD] 5.6 (29.7) nm, 2.5 ± 26.7 nm (n = 41) with SIM data, 12.3 (76.5) nm, 8.7 ± 36.6 nm (n = 32) with widefield data, and 14.2 (34.5) nm, 17.0 ± 25.4 nm (n = 31) with deconvolved widefield data. Error bars indicate the interquartile range. (c) Representative images of fibrinogen-coated bacteria are shown at the top. S. pyogenes strain SF370 has been fixed, stained with Alexa Fluor 488-conjugated WGA, and coated with antibody Alexa Fluor 647-conjugated fibrinogen. Scale bar is 500 nm. (d) Site localization measurement of fibrinogen binding sites yields similar results with the widefield dataset. The resolved distance between the two channels is [median (IQR), mean ± SD] 18.0 (49.3) nm, 26.2 ± 41.6 nm (n = 33) with SIM data, 38.5 (71.0) nm, 35.9 ± 53.3 nm (n = 37) with widefield data, and 40.1 (42.0) nm, 41.1 ± 40.1 nm (n = 29) with deconvolved widefield data. Error bars indicate the interquartile range.

Discussion

The locations of protein binding sites on cellular surfaces are important for a wide range of cellular processes. In particular, how and where an antibody binds to pathogen surface structures is critical for the outcome of host-pathogen interactions. This is especially relevant for bacteria as they are known to target antibodies in many different ways (Nordenfelt et al., 2012; Nordenfelt and Björck, 2013). Knowing the location of the epitope greatly aids both mechanistic understanding and facilitates potential therapeutic development.

We have developed a method for imaging-based localization of binding sites on cellular surface proteins with nanometer-scale precision. Super-resolution techniques such as iPALM, STORM, and STED can in practice achieve an ~10 nm resolution but are costly imaging systems that typically require complex sample preparation. Here, an ~10 nm (~12 nm IQR, ~9 nm SD) precision is achieved with diffraction-limited microscopy images by dimension reduction of surface data within an image plane. Existing imaging-based averaging methods are designed for identical or spherical particles and therefore not suited for site localization on native cell surface morphology. This is made possible with our method through normalization of the axial positions of a reference surface.

To assess the performance of the site localization method, we analysed simulated images with variable staining and morphology. These results indicate that a 1 nm precision could be achievable under ideal conditions and show that the site localization method is highly accurate for varying topologies and inhomogeneous surface expression. To test our method in vitro, we measured the height of DNA probes on erythrocyte surfaces. These results validate that our method can accurately estimate molecular heights on spherical and non-spherical cells. Additionally, the results for spherical cells were confirmed using an existing method for site localization on spherical objects, showing good agreement. We have applied our site localization method to determine known binding site locales on M protein that is unevenly expressed on the bacterial surface of S. pyogenes. Our presented results show that this method is suited even for cells with non-spherical topology. However, it has proven difficult to perform site localization measurements on bacteria. This may be due to the small size of bacteria. We show that our method yields viable results with conventional microscopy and demonstrate that the precision may be increased by deconvolution of widefield images. Furthermore, our in silico experiments, as well as our in vitro experiments, indicate that the variation in the measurements can be minimized by increasing SNR and minimizing the biological variability, for example, by using directly conjugated antibodies instead of secondary labelling. We believe this method may be useful for rapid screening of epitope locales, and the implementation, written in the open-source language Julia, is provided on GitHub.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Streptococcus pyogenes)SF370ATCCCat# 700294
Biological sample (Homo sapiens)Venous blood (normal, adult)This paperFreshly taken from Homo sapiens
AntibodyXolair (humanized from mouse monoclonal)NovartisCat# 028268; RRID#:AB_2459636(500 μg/ml)
AntibodyAnti-streptococcal M protein; Ab49 (human monoclonal)Bahnan et al., 2021(10–μg/ml)
AntibodyAlexa Fluor 647 AffiniPure F(ab’)2 fragment goat anti-human IgG (Fab specific) (goat polyclonal)Jackson ImmunoResearch LaboratoriesCat# 109-606-097; RRID:AB_2337898(3 μg/ml)
AntibodyAlexa Fluor 647 AffiniPure F(ab’)2 fragment goat anti-human IgG (Fc specific) (goat polyclonal)Jackson ImmunoResearch LaboratoriesCat# 109-606-170; RRID:AB_2337902(3 μg/ml)
OtherAlexa Fluor 647 (Invitrogen)Thermo FisherCat# 820006
OtherCellBrite Fix Membrane stain 488Cat# 30090
Sequence-based reagentConjugated DNA_F 18 base pairThis paper, Son et al., 2020Oligonucleotide5′-Alexa647-N-AGCTGCGGTCAGATC-3′
Sequence-based reagentConjugated DNA_R 18 base pairThis paper, Son et al., 2020Oligonucleotide5′-Cholesterol-TEG-TCGACGCCAGTCTAG-3′
Sequence-based reagentConjugated DNA_F 48 base pairThis paper, Son et al., 2020Oligonucleotide5′-Alexa647-N-GATCTGACCGCAGCTATCT
Sequence-based reagentConjugated DNA_R 48 base pairThis paper, Son et al., 2020Oligonucleotide5′-Cholesterol-TEG-CTAGACTGGCGTCGATA
Sequence-based reagentConjugated DNA_F 63 base pairThis paper, Son et al., 2020OligonucleotideGACGTACTGCTATTGCTA GCGATTCCAT-
Sequence-based reagentConjugated DNA_R 63 base pairThis paper, Son et al., 2020Oligonucleotide5′-Cholesterol-TEG-ATGGAATCGCTAGC AATAGCAGTACGTCTACA TGAAGTCGTTGATTCGAC GCCAGTCTAGTAG-3′
Peptide, recombinant proteinFibrinogen from human plasma, Alexa Fluor 647Thermo FisherCat# F35200(20 μg/ml)
Peptide, recombinant proteinWheat germ agglutinin, Alexa Fluor 488Thermo FisherCat# W11261(1:250)
Peptide, recombinant proteinWheat germ agglutinin, Alexa Fluor 647Thermo FisherCat# W32466(1:250)
Peptide, recombinant proteinIdeSHansa Biopharma
Software, algorithmFluoroDistThis paper, GitHubhttps://github.com/nordenfeltLab/FluoroDist.jl (Kumra Ahnlide, 2022;
copy archived at swh:1:rev:053e516413277cf488ef9db1a24ce576e24d18f9)
Simulated fluorescence images with accurate surface distances
Software, algorithmRegisterQDGitHub, Greer, 2019https://github.com/Holylab/RegisterQD.jlImage registration with the QuadDIRECT optimization algorithm
Software, algorithmSite LocalizationThis paper, GitHubhttps://github.com/nordenfeltLab/SiteLocalizationBinding site localization on non-homogeneous cell surfaces using topological image averaging

Bacterial culturing conditions

Request a detailed protocol

S. pyogenes strain SF370 wildtype was cultured overnight in THY medium (Todd Hewitt Broth; Bacto; BD, complemented with 0.2% [w/v] yeast) at 37°C in an atmosphere supplemented with 5% CO2. Strain SF370 expresses M1 protein on its surface and is available through the American Type Culture Collection (ATCC 700294) (Ferretti et al., 2001). The bacteria were harvested at early log phase and washed twice with PBS.

Opsonization of bacteria

Request a detailed protocol

Xolair (omalizumab, Novartis) is a humanized monoclonal IgG that is IgE-specific, and thus only binds to M protein via Fc. Ab49 is an M protein-specific antibody (Bahnan et al., 2021). For secondary antibody labelling, both antibodies were treated with IdeS (Hansa Biopharma) (von Pawel-Rammingen et al., 2002), an enzyme that cleaves IgG at the hinge region, separating the F(ab’)2 from the Fc. The fibrinogen used here was isolated from human plasma and conjugated with Alexa Fluor 647 (Invitrogen).

Antibody conjugation

Request a detailed protocol

Direct conjugation of antibodies was done using the fluorescent dye Alexa Fluor 647 (Invitrogen). The desiccated dye was dissolved in DMSO at a concentration of 10 mg/ml. The antibodies were concentrated to a concentration of 2 mg/ml, and 1/10th of the final volume of sodium bicarbonate (1 M, pH 8.3) was added. The dye was added at a final concentration of 75 µg/mg of antibody. The antibodies were then incubated with the dye at room temperature (RT) for an hour. To remove any unbound dye, the antibodies were transferred to 50 kDa Amicon ultra filter columns (Merck Millipore). The antibodies were washed by adding PBS and centrifuging (12,000 × g). This was done three times to ensure all unbound dye had been removed. Conjugated antibody concentration and degree of labelling were assessed by using a DeNovix DS-11 FX spectrometer.

Fixation and staining of bacteria

Request a detailed protocol

Bacteria were sonicated (VialTweeter; Hielscher) for 0.5 min to separate any aggregates and incubated fixed in 4% paraformaldehyde for 5 min on ice. The bacteria were thereafter washed with PBS twice (10,000 × g, 2 min). SF370 wildtype was stained with Alexa Fluor 488-conjugated WGA. Bacteria were incubated with IdeS-cleaved Xolair, Ab49, or Alexa Fluor 647-conjugated Fibrinogen (Invitrogen). The antibody samples were stained with fluorescently labelled IgGFab- or IgGFc-specific F(ab’)2 fragments (Alexa Fluor 647-conjugated anti-human IgGFc or IgGFab; Jackson ImmunoResearch Laboratories). Samples were set on glass slides using ProLong Gold Antifade Mountant with No. 1.5 coverslips.

Red blood cell measurements

Request a detailed protocol

DNA height probes were synthesized by Integrated DNA Technologies and purified with HPLC and resuspended in Tris buffer with 1 mM EDTA. The two strands are composed of a forward oligonucleotide and a reverse oligonucleotide. The sequences can be found in Key resources table. Venous blood was taken from a human donor and washed with PBS three times (750 × g, 5 min). The red blood cell pellet was treated with TrypLE at 37°C for 15 min and thereafter washed once (750 × g, 5 min). The red blood cells were then resuspended in CellBrite Fix 488 membrane staining solution (1:200 of stock solution 1000X) and incubated for 15 min at RT. For swelling of cells, the staining was in a 70% isotonic solution. The cells were fixed in a solution of 4% paraformaldehyde and 0.2% glutaraldehyde at RT for 20 min. The cells were then washed twice (500 × g, 5 min) and resuspended in 500 µl PBS. 1 µl of DNA height probe was added to 3 µl of fixed red blood cells in 50 µl PBS. Samples were set on glass slides using ProLong Gold Antifade Mountant with No. 1.5 coverslips.

DNA height prediction

Request a detailed protocol

The DNA height prediction was performed by using a previously derived analytical expression for the probability distribution (p(r,t)) of the end-to-end distance in the WLC model (Murphy et al., 2004):

p(r,t)=4πA(t)r2(1r2)9/2exp(3t4(1r2))

where A is a normalization constant defined as

A(t)=4(3t4)3/2exp(3t4)π3/2(4+123t/4+15(3t/4)2)

and r and t are defined as

r=LLp,t=RL

where L is the contour length, Lp is the persistence length, and R is the end-to-end distance. The expected end-to-end length given a persistence length of 50 nm was calculated for each DNA strand length. The height was then obtained by finding the centre of mass of a rod with the calculated length tethered to a surface with one end allowed to rotate freely in a hemisphere (Son et al., 2020).

Simulation of fluorescence images

Request a detailed protocol

To generate the fluorescence images, plane curves with a parameterization were chosen. The curves that were not ellipses were chosen to be quadratic B-splines since this yields a continuous derivative and makes the necessary computations simple. To get closer to an arc-length parameterization, the curve was discretized by walking around the curve and at each point taking steps inversely proportional to the analytically determined magnitude of the gradient at that point. The photons for the reference channel were generated by sampling values from this discrete parameterization. To simulate the membrane width, an offset perpendicular to the gradient was sampled from a uniform distribution of the desired width. Another random offset was sampled from a two-dimensional normal distribution to simulate the effect of the point spread function. The target channel was simulated in the same way but with an additional offset in the direction normal to the gradient at the sampled point of the curve. When antibody labelling was simulated, a 15 nm offset was added in a random three-dimensional direction for each antibody. For all included simulations, an offset of 2 px was chosen, corresponding to a distance of 41 nm for a pixel length of 20.5 nm. The code was implemented in Julia and is available on GitHub (nordenfeltLab/FluoroDist.jl).

SIM image acquisition

Request a detailed protocol

Images of single bacteria were acquired using a Nikon N-SIM microscope with LU-NV laser unit, CFI SR HP Apochromat TIRF ×100 Oil objective (N.A. 1.49) and an additional ×1.5 magnification. The camera used was ORCA-Flash 4.0 sCMOS camera (Hamamatsu Photonics K.K.), and the images were reconstructed with Nikon’s SIM software on NIS-Elements Ar (NIS-A 6D and N-SIM Analysis). Fluorescent beads (100 nm) were imaged to measure and correct for chromatic aberration, as well as for the N-SIM grating alignment. Single cells were manually identified and imaged with 488 and 640 nm lasers in time series with 15–20 frames, depending on initial sample signal. For CSOP (Son et al., 2020) analysis, images of singles cells were acquired in 15 slices with step sizes of 50 nm.

Microscope calibrations

Request a detailed protocol

TetraSpeck 0.1 µm fluorescent microspheres are mounted on No. 1.5 coverslips using ProLong Gold Antifade Mountant in the same manner as the bacterial samples. These beads are used for the objective collar correction, SIM grating alignment, and measurement of SIM and widefield PSF. Images of the beads were acquired and chromatic aberration was corrected for by performing image registration (Holylab/RegisterQD.jl) and applying the found transform to all images.

Site localization analysis

Request a detailed protocol

A Circle Hough Transform (Illingworth and Kittler, 1987) and Canny Edge Detection (Canny, 1986) were used for circle fitting and edge detection, respectively. Images were filtered by SNR (approximately > 3) as calculated using

10log10(maximagemedianimage)

as an SNR estimate. The time series were cut as the SNR relative to the first time frame fell below a given percentage (typically 30%), which is set as an input to the code. A polar transformation of the found circle was performed on a bicubic interpolation of the image. The alignment of the peak intensity was performed by identifying a peak maximum using a sliding average. Labelling of the cell wall with two different fluorescent dyes should give a distance estimation of zero. The measured offset, shown in Figure 3—figure supplement 2 and Figure 5—figure supplement 1, is likely due to chromatic aberration at the imaging plane. This offset is used to correct for chromatic aberration in subsequent site localization measurements by correcting the position of the reference region prior to calculating distance to the ligand signal. To avoid attaining out-of-focus peaks in the ligand channel, peak identification was performed beyond the reference region. The number of bacteria, together with median (IQR) and mean ± SD, is given in the figure captions. The widefield images were deconvolved using the Richardson–Lucy algorithm (Richardson, 1972; Lucy, 1974) in 10 iterations. The analysis pipeline, written in Julia, is provided on GitHub (nordenfeltLab/SiteLocalization).

Data availability

Data has been made available on Dryad. The source code of the software developed in this study is available through Github: https://github.com/nordenfeltLab/SiteLocalization (copy archived at swh:1:rev:de1f827dbf03cd0a77ee5c03a7fd8c747541f7fb); https://github.com/nordenfeltLab/FluoroDist.jl (copy archived at swh:1:rev:053e516413277cf488ef9db1a24ce576e24d18f9).

The following data sets were generated
    1. Nordenfelt P
    2. Ahnlide Kumra V
    3. Kumra Ahnlide J
    4. Wrighton S
    5. Beech J
    (2022) Dryad Digital Repository
    Nanoscale binding site localization by molecular distance estimation on native cell surfaces using topological image aBinding Site Localization by Molecular Distance Estimation on Native Cell Surfaces Using Topological Image Averaging.
    https://doi.org/10.5061/dryad.h18931znn

References

  1. Conference
    1. Canny J
    (1986)
    IEEE Transactions on Pattern Analysis and Machine Intelligence
    A computational approach to edge detection. pp. 679–698.
    1. Illingworth J
    2. Kittler J
    (1987) The Adaptive Hough Transform
    IEEE Transactions on Pattern Analysis and Machine Intelligence PAMI-9:690–698.
    https://doi.org/10.1109/TPAMI.1987.4767964

Decision letter

  1. Michael L Dustin
    Reviewing Editor; University of Oxford, United Kingdom
  2. Olga Boudker
    Senior Editor; Weill Cornell Medicine, United States
  3. Michael L Dustin
    Reviewer; University of Oxford, United Kingdom
  4. Erdinc Sezgin
    Reviewer; Karolinska Institutet, Sweden

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Decision letter after peer review:

Thank you for submitting your article "Binding site localization on non-homogeneous cell surfaces using topological image averaging" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Michael L Dustin as the Reviewing Editor and Reviewer #1 and Erdinc Sezgin as Reviewer #2, and the evaluation has been overseen by Olga Boudker as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

You describe a method to measure nanoscale height of fluorophors above a surface that can be rendered with a distinct fluorophore, but doesn't need to be radially symmetric, as for recently published CSOP method. This was applied to measurement of S. pyogenes M protein.

There were a number of technical concerns about the calibration and validation of the method and the comparison to CSOP.

Essential revisions:

1. Since the major focus of this work is applying the method of spatially averaging of two fluorescent signals to non-spherical surfaces, it is critical that the image analysis method (using Hough transforms, edge detection, filtering, etc) be validated with known non-spherical objects to confirm that it is working as expected. Currently, it is unclear for what range of sizes and shapes the approach is accurate and what potential sources of error might be. Both experiments and simulated data could be used to evaluate performance of the analysis algorithm.

2. The authors indicate they use 100nm beads to correct for chromatic aberration, but chromatic aberrations can increase as the imaging plane moves away from the glass surface. Do the dual-labeling experiments shown in Figure 3 – Supplementary Figure 1 include correction of chromatic aberration based on the 100nm beads? Is so, then it appears that chromatic aberration needs to be corrected at the image plane rather than the glass surface. How is this difference observed in the dual labeling experiment accounted for in the image analysis procedure?

3. How does the reported accuracy depend on the number of cells averaged and the amount of fluorescent antibody on each cell? It would be interesting to see a plot of the height uncertainty per cell as a function of the antibody fluorescence intensity (as a proxy for amount of antibody). Since the reported ~5nm resolution is for averages across 37-55 independent cells, would averaging more cells give higher precision (and does averaging fewer cells give lower precision)?

4. How does fixation affect the measurements? Can the method be used on unfixed cells, and what is the localization uncertainty for unfixed samples? Also, is the uncertainty in localization of the ligand signal due to antibody fluctuations and labeling location included in the analysis?

5. In the comparison with CSOP (Son, PNAS, 2020), it would be helpful to first demonstrate both techniques on spherical objects, in order to confirm that the use of CSOP is consistent with published results and to evaluate how the new method compares for spherical objects (presumably it should be equivalent). There is also not a calibration test in the study. There should be a very well controlled calibration samples to evaluate the accuracy as well as dynamics range. The authors could use swelled spherical RBC with the same DNA based height standards examined in Son et al. in GUV. CSOP and the new method could then be fairly compared, calibrated and then applied to the same height standards on a biconcave RBC, which would test the new method on a non-spherical object.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your revised article "Nanoscale binding site localization by molecular distance estimation on native cell surfaces using topological image averaging" for consideration by eLife. Your article has been re-reviewed by the same 3 peer reviewers as in the initial review, including Michael L Dustin as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Olga Boudker as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Erdinc Sezgin (Reviewer #2).

The reviewers all felt that the efforts you have made are helpful, but still were not clear on the height accuracy of the experimental data needed to be useful for relevant measurements on biological molecules at surfaces,. These revisions may not require new experiments, but will require clarification of the data sets, some revisions to the simulated data shown, and additional analysis of the signal requirements and sources of error. The Reviewing Editor has drafted this to help you prepare a second revised submission.

Essential revisions:

You have provided additional simulations and experimental data in the revised manuscript, but you have not fully addressed the essential revisions as the most significant issue for any new method, the experimental validation, is not complete. Showing that an algorithm can obtain height measurements on simulated data demonstrates the performance of the algorithm but is not true experimental validation of the technique. Specifically, the authors need to confirm that molecules of known heights can be correctly measured with the claimed precision. Furthermore, the reported experimental height uncertainties are significantly different from the simulated uncertainties for variable shapes, which raises fundamental questions about other sources of error.

1. You have not shown that experimental measurements and the analysis algorithm can correctly capture the height of a known molecule (e.g. DNA) on a known surface (e.g. a sphere). The measurement of DNA height on the non-spherical surface of an RBC is not meaningful until you can show that you can accurately measure the height of that DNA on a known surface geometry. It is the equivalence of those two height measurements – one on a known surface and one on a variable surface – that would give confidence that you have a new methodology for obtaining accurate height measurements on non-spherical and non-uniform surfaces. One suggestion was to use a swelled erythrocyte in a 50% isotonic solution as a spherical object, but a more standard spherical object would be a GUV or uniform glass bead. But you need experimental data on spherical object comparing CSOP and Site Localization.

2. The simulations in Figure 2 are a useful addition to the manuscript and provide a quantitative characterization of the algorithm for idealized images, but the results in Figure 2 show uncertainties much less than that of most experimental measurements in the manuscript. For example, when you say the largest deviation from true distance was 10%, its not obvious what data this claim is based on. The worst case seems to be a 5 nm deviation from true distance, does this mean that the simulated structure was 50 nm in height? Percentage of deviations should be clearly shown and explained. Furthermore, what are the dominant sources of localization uncertainty if the contribution from patchy and non-spherical surfaces is normally much smaller than 5nm? The precision of fluorescence localization methods typically depends on the number of photons collected. Is that true for this method?

3. To report uncertainty in your height measurements, you use standard error of the mean rather than standard deviation, which is the more appropriate measure in our collective view. Since uncertainty in height measurement is based on molecular averages on an individual particle basis (affected by, e.g., number of photons collected for molecules on that particle, how thoroughly chromatic aberration is corrected, etc), measuring more particles does not correct those issues for non-random sources of error (e.g. chromatic aberration). It is also unclear to us how removing negative height values from the population of measurements is justified when calculating means if there is no independent reason to reject those measurements as invalid, wouldn't removing only the negative outliers skew the result and to larger errors in the absolute height? Regardless, were you to use standard deviation, rather than standard error of the mean, the reported uncertainty would be significantly larger, which would necessitate a effort to find sources of error and to reduce these as much as possible to make the method useable.

4. While the motivation to measure heights of molecules on patchy, non-spherical surfaces is a good one it should be made clear that CSOP is only valid for spherical objects and it should not be applied to non-spherical objects. There is no reason to show simulated data that CSOP fails on non-spherical objects as applying CSOP to a non-spherical object, even in a simulation, is not appropriate. The important comparison between CSOP and Site Location is that they should both achieve 1 nm measurement accuracy for height measurements on a spherical object, with Site Localization striving to preserve this accuracy on on non-spherical surfaces.

https://doi.org/10.7554/eLife.64709.sa1

Author response

Essential revisions:

1. Since the major focus of this work is applying the method of spatially averaging of two fluorescent signals to non-spherical surfaces, it is critical that the image analysis method (using Hough transforms, edge detection, filtering, etc) be validated with known non-spherical objects to confirm that it is working as expected. Currently, it is unclear for what range of sizes and shapes the approach is accurate and what potential sources of error might be. Both experiments and simulated data could be used to evaluate performance of the analysis algorithm.

We have performed extensive additional validation of our method. As the reviewers propose, we have used both new experimental data in terms of live red blood cell analysis of different shapes, as well as extensive simulations of different morphology and staining patterns. See new Figure 2. and new Figure 5., as well as Figure 3-supplementary note 1. We also made additional comparisons with the CSOP approach. The CSOP approach introduces large errors even with minor deviations from circular shapes (See new Figure 1—figure supplement 2). It is clear that our site localization approach works well for many different shapes (errors often between 0.2-1.0 nm for microscale objects) and that very eccentric, elongated shapes with patchy staining introduces the most errors in height estimation (about 5 nm for our simulated cells).

2. The authors indicate they use 100nm beads to correct for chromatic aberration, but chromatic aberrations can increase as the imaging plane moves away from the glass surface. Do the dual-labeling experiments shown in Figure 3 – Supplementary Figure 1 include correction of chromatic aberration based on the 100nm beads? Is so, then it appears that chromatic aberration needs to be corrected at the image plane rather than the glass surface. How is this difference observed in the dual labeling experiment accounted for in the image analysis procedure?

We have previously performed 2D chromatic aberration correction by measuring 100 nm beads at the glass surface, which was minimal. However, the reviewers are correct in that we appear to have additional chromatic aberration on the imaging plane, as can be seen in Figure 3—figure supplement 1. This has affected the approximation of absolute position, but not relative. We have decided to correct all data with this measured offset to approximate absolute position. This is done similarly to how Son et al. have corrected for chromatic aberration by measuring dual-stained beads.

3. How does the reported accuracy depend on the number of cells averaged and the amount of fluorescent antibody on each cell? It would be interesting to see a plot of the height uncertainty per cell as a function of the antibody fluorescence intensity (as a proxy for amount of antibody). Since the reported ~5nm resolution is for averages across 37-55 independent cells, would averaging more cells give higher precision (and does averaging fewer cells give lower precision)?

Having enough fluorescent intensity relative to the background is important to be able to get a height estimate. In the algorithm we always calculate a signal to noise ratio for each image. Since we do multiple measurements of the same field of view, we will also bleach the sample and reduce the SNR for each consecutive acquisition. In that sense, the method will always generate fluorescent intensity dependency data for every image analyzed, including where the boundary is for a good height estimate. The absolute boundary is variable, and can be determined by looking at the data, but we only account for measurements that have at least an SNR of 3, as calculated using our SNR estimate included in the provided code, in the first frame. We have added this information to the methods section.

The reported accuracy for site localization measurements in relation to number of cells is assessed and presented both for simulations (Figure 2) and experiments with S. pyogenes (Figure 4—figure supplement 1).

We have performed bootstrap analysis of the measurements as a function of replicates. This gives us an estimate of the 95% confidence interval of the mean of a number of measurements computed by percentile bootstrap. The results show at what rate and to what degree the confidence interval narrows as the number of measurements used in the calculation of the mean is increased. In general, 5-10 measurements are typically enough to yield a good height estimate, and more than 20 measurements only gives a small increase in certainty.

4. How does fixation affect the measurements? Can the method be used on unfixed cells, and what is the localization uncertainty for unfixed samples? Also, is the uncertainty in localization of the ligand signal due to antibody fluctuations and labeling location included in the analysis?

This is a good point that we expected to make a difference, but never got around to investigate. Fixation should not alter the surface protein structure, and antibodies typically bind well also to fixed proteins. However, especially the SIM imaging quality is decreased with live cells due to movement as SIM requires 15 images to generate one reconstructed SIM image. We have now tested the performance of the site localization method with live red blood cells. We exploit the fact that we have different shapes in the samples and combine that with the information from the new simulated data in Figure 2. Through this we could infer an expected error due to shape (up to 5 nm), and then we could compare that with the reported error (around 10 nm). It is difficult to assess the exact contribution of all biological and imaging factors, but it appears that live imaging could introduce an additional 5 nm/doubling of error in height estimate. Molecular fluctuations are not considered or accounted for in the analysis.

5. In the comparison with CSOP (Son, PNAS, 2020), it would be helpful to first demonstrate both techniques on spherical objects, in order to confirm that the use of CSOP is consistent with published results and to evaluate how the new method compares for spherical objects (presumably it should be equivalent). There is also not a calibration test in the study. There should be a very well controlled calibration samples to evaluate the accuracy as well as dynamics range. The authors could use swelled spherical RBC with the same DNA based height standards examined in Son et al. in GUV. CSOP and the new method could then be fairly compared, calibrated and then applied to the same height standards on a biconcave RBC, which would test the new method on a non-spherical object.

The reviewers make several good points here, which we have addressed with both experiments and simulations. We have made additional comparisons with the CSOP approach, and this is presented as a supplemental figure (see Figure 1—figure supplement 2). We find that CSOP performs well with spherical objects but not so well with objects with higher eccentricity and patchiness.

We really liked the idea of the red blood cell experiments and tried to do measurements with similar DNA height standards as Son et al. did. We established a method to do measurements directly in blood, and we were able to acquire images of high quality. However, it was apparent that most of the DNA probes interacted with the RBCs in unexpected ways. Some seemed to get stuck in the glycocalyx creating high intensity clusters on the cell surfaces, and others appeared to get internalized. GUVs are likely much more uniform, and have limited other interacting factors, but we wanted to try the method under as difficult conditions as possible. One of the DNA probes seemed to yield consistent behavior, so we acquired data using that to evaluate performance on live samples of different shapes. The DNA binding data showed that live imaging of different shapes introduced a slightly larger error (5-10 nm total error) than simulations (which would constitute perfect conditions). See Figure 5.

We agree that well-controlled calibration samples are important for careful evaluation of the method. For this purpose, we developed an algorithm to simulate images with known characteristics, and then used that to generate differently shaped and stained samples. The site localization algorithm were run on these images and allowed us to benchmark the method carefully, and pinpoint the limitations and strengths of our approach. See Figure 2. See also response to point 1.

References:

Son, S. et al. Molecular height measurement by cell surface optical profilometry (CSOP). Proc Natl Acad Sci USA 117, 14209–14219 (2020).

Raz, A. and Fischetti, V. A. Sortase A localizes to distinct foci on the Streptococcus pyogenes membrane. Proc Natl Acad Sci USA 105, 18549–18554 (2008).

Raz, A. et al. Streptococcus pyogenes Sortase Mutants Are Highly Susceptible to Killing by Host Factors Due to Aberrant Envelope Physiology. PLoS ONE 10, e0140784 (2015).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Essential revisions:

You have provided additional simulations and experimental data in the revised manuscript, but you have not fully addressed the essential revisions as the most significant issue for any new method, the experimental validation, is not complete. Showing that an algorithm can obtain height measurements on simulated data demonstrates the performance of the algorithm but is not true experimental validation of the technique. Specifically, the authors need to confirm that molecules of known heights can be correctly measured with the claimed precision. Furthermore, the reported experimental height uncertainties are significantly different from the simulated uncertainties for variable shapes, which raises fundamental questions about other sources of error.

1. You have not shown that experimental measurements and the analysis algorithm can correctly capture the height of a known molecule (e.g. DNA) on a known surface (e.g. a sphere). The measurement of DNA height on the non-spherical surface of an RBC is not meaningful until you can show that you can accurately measure the height of that DNA on a known surface geometry. It is the equivalence of those two height measurements – one on a known surface and one on a variable surface – that would give confidence that you have a new methodology for obtaining accurate height measurements on non-spherical and non-uniform surfaces. One suggestion was to use a swelled erythrocyte in a 50% isotonic solution as a spherical object, but a more standard spherical object would be a GUV or uniform glass bead. But you need experimental data on spherical object comparing CSOP and Site Localization.

We understand the reviewers' reasoning in that we need to validate the method experimentally for a known distance measurement. Therefore, we have performed high resolution imaging of DNA standards on fixed and swelled RBC. We have acquired data on spherical cells for comparing CSOP and Site Localization (Figure 3- Supplement 1) showing similar results and precision. Additionally, we show similar results with site localization for spherical and non-spherical RBC (Figure 3), thus validating that our method works for non-spherical cells.

We also previously validated and tested the method for nonuniform surfaces in the simulations (Figure 2), and through experiment with the bacteria samples. All data has been updated with the new considerations regarding uncertainty, and we report median with IQR by default.The bacteria have non-uniform expression of M protein and the relative binding sites are consistent with other reports.

We have had issues using CSOP. We have taken images with the same type of DNA standards in Z-stacks as described in their paper. However, we had issues getting reasonable results due to fitting and segmentation. After familiarising ourselves with all the parts of the CSOP analysis, we realised that we had to manually exclude the majority of our cells since CSOP is highly sensitive to single outliers in a z-stack. This exclusion is based on whether CSOP managed to find the cell in the majority of the stacks, and whether the axial circle found by CSOP fit reasonably to the data. In Author response image 1 we show an example of an included cell as well as an excluded cell for CSOP together with the relevant output from CSOP. In comparison, we did not have to manually curate raw data points for our SiteLoc algorithm. At least in our hands, SiteLoc, is much more robust. We do not include this in the manuscript, only that we achieve similar results for circular objects (Figure 3 – supplement 1).

Author response image 1
Example of data selection for CSOP analysis.

Finally, we further tested the method's capabilities by measuring the height of dsDNA with varying lengths on the surface of fixed red blood cells. These results show a good agreement to the predicted length of DNA strands tethered to a surface and able to move freely (Figure 3e).

2. The simulations in Figure 2 are a useful addition to the manuscript and provide a quantitative characterization of the algorithm for idealized images, but the results in Figure 2 show uncertainties much less than that of most experimental measurements in the manuscript. For example, when you say the largest deviation from true distance was 10%, its not obvious what data this claim is based on. The worst case seems to be a 5 nm deviation from true distance, does this mean that the simulated structure was 50 nm in height? Percentage of deviations should be clearly shown and explained. Furthermore, what are the dominant sources of localization uncertainty if the contribution from patchy and non-spherical surfaces is normally much smaller than 5nm? The precision of fluorescence localization methods typically depends on the number of photons collected. Is that true for this method?

Indeed, the simulated structure was 41 nm in height. However, we have chosen to omit the reference to deviation as a percentage. As the comment notes, keeping the deviation as a ratio would require further exposition and we do not believe that this would benefit the reader since the error isn’t proportional to the height of the structure.

The reviewers are right to note that precision of the method is affected by the number of photons collected. Since we wanted to test specifically that the method is capable of handling other shapes and patchy expression we chose to keep the total number of collected photons constant. In most real cases, patchy expression leads to lower total signal in addition to the difficulty of summing up the signal in a useful way. To better characterize the possible sources of error we added Figure 2—figure supplement 1 where we simulate an experiment using secondary antibody labeling, which would better resemble the experimental conditions originally presented in the manuscript, as well as lower signal (104 ”photons” sampled instead of 105).

3. To report uncertainty in your height measurements, you use standard error of the mean rather than standard deviation, which is the more appropriate measure in our collective view. Since uncertainty in height measurement is based on molecular averages on an individual particle basis (affected by, e.g., number of photons collected for molecules on that particle, how thoroughly chromatic aberration is corrected, etc), measuring more particles does not correct those issues for non-random sources of error (e.g. chromatic aberration). It is also unclear to us how removing negative height values from the population of measurements is justified when calculating means if there is no independent reason to reject those measurements as invalid, wouldn't removing only the negative outliers skew the result and to larger errors in the absolute height? Regardless, were you to use standard deviation, rather than standard error of the mean, the reported uncertainty would be significantly larger, which would necessitate a effort to find sources of error and to reduce these as much as possible to make the method useable.

We understand the reviewer's remark. Since many of the datasets we have acquired have a non-gaussian appearance, we have now decided to use the median of the population as the reported length estimate and thereof the interquartile range as the uncertainty of the measurements. (Figure 2,3,4,5).

Negative outliers were not removed from the datasets. To avoid obtaining out-of-focus peaks in the ligand channel, peak identification was performed beyond the reference region. This is why we did not acquire any negative values.

However, after considering the reviewers comments regarding how this can skew the data distribution, we have now not applied the function of peak identification beyond the reference region.

To identify sources of uncertainty and reduce these, we have performed in silico as well as in vitro experiments. These indicate that the variation in the measurements can be minimized by increasing the SNR and minimizing the biological variability by e.g. using directly conjugated antibodies instead of secondary labelling (Figure 2- supplement 1, Figure 4- supplement 1).

4. While the motivation to measure heights of molecules on patchy, non-spherical surfaces is a good one it should be made clear that CSOP is only valid for spherical objects and it should not be applied to non-spherical objects. There is no reason to show simulated data that CSOP fails on non-spherical objects as applying CSOP to a non-spherical object, even in a simulation, is not appropriate. The important comparison between CSOP and Site Location is that they should both achieve 1 nm measurement accuracy for height measurements on a spherical object, with Site Localization striving to preserve this accuracy on on non-spherical surfaces.

We understand the reviewers comment and have removed the figures showing results with CSOP on non-spherical and non-uniform cells. We now only use CSOP when we compare height measurement on perfectly spherical RBCs.

https://doi.org/10.7554/eLife.64709.sa2

Article and author information

Author details

  1. Vibha Kumra Ahnlide

    Division of Infection Medicine, Department of Clinical Sciences, Faculty of Medicine, Lund University, Lund, Sweden
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Software, Validation, Visualization, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
  2. Johannes Kumra Ahnlide

    Division of Infection Medicine, Department of Clinical Sciences, Faculty of Medicine, Lund University, Lund, Sweden
    Contribution
    Formal analysis, Methodology, Software, Validation, Visualization, Writing – review and editing
    Competing interests
    No competing interests declared
  3. Sebastian Wrighton

    Division of Infection Medicine, Department of Clinical Sciences, Faculty of Medicine, Lund University, Lund, Sweden
    Contribution
    Investigation, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3378-7925
  4. Jason P Beech

    Division of Solid State Physics, Department of Physics, Lund University, Lund, Sweden
    Contribution
    Investigation, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
  5. Pontus Nordenfelt

    Division of Infection Medicine, Department of Clinical Sciences, Faculty of Medicine, Lund University, Lund, Sweden
    Contribution
    Conceptualization, Funding acquisition, Project administration, Resources, Supervision, Writing – review and editing
    For correspondence
    pontus.nordenfelt@med.lu.se
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9481-9951

Funding

Vetenskapsrådet (2016-01071)

  • Pontus Nordenfelt

Knut och Alice Wallenbergs Stiftelse (2016.0023)

  • Pontus Nordenfelt

Cancerfonden (19 0444 Pj)

  • Pontus Nordenfelt

Royal Physiographic Society in Lund (2018)

  • Vibha Kumra Ahnlide

Vetenskapsrådet (2018-05795)

  • Pontus Nordenfelt

Vetenskapsrådet (2020-01511)

  • Pontus Nordenfelt

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Jonas Tegenfeldt and Elke Hebisch for support during the early phase of the method development. We also thank Oscar André for help with the blood assay. Figure 3a was created using Biorender.com. We thank Lund University Bioimaging Center (LBIC) for use of microscopes.

Ethics

Human subjects: Informed consent was retrieved for the collection of capillary blood from finger pricking.

Senior Editor

  1. Olga Boudker, Weill Cornell Medicine, United States

Reviewing Editor

  1. Michael L Dustin, University of Oxford, United Kingdom

Reviewers

  1. Michael L Dustin, University of Oxford, United Kingdom
  2. Erdinc Sezgin, Karolinska Institutet, Sweden

Publication history

  1. Received: November 9, 2020
  2. Accepted: January 13, 2022
  3. Version of Record published: February 24, 2022 (version 1)

Copyright

© 2022, Kumra Ahnlide et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 352
    Page views
  • 26
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Dillon Jevon et al.
    Research Article

    A developing understanding suggests that spatial compartmentalisation in pancreatic β cells is critical in controlling insulin secretion. To investigate the mechanisms, we have developed live-cell sub-cellular imaging methods using the mouse organotypic pancreatic slice. We demonstrate that the organotypic pancreatic slice, when compared with isolated islets, preserves intact β cell structure, and enhances glucose dependent Ca2+ responses and insulin secretion. Using the slice technique, we have discovered the essential role of local activation of integrins and the downstream component, focal adhesion kinase, in regulating β cells. Integrins and focal adhesion kinase are exclusively activated at the β cell capillary interface and using in situ and in vitro models we show their activation both positions presynaptic scaffold proteins, like ELKS and liprin, and regulates glucose dependent Ca2+ responses and insulin secretion. We conclude that focal adhesion kinase orchestrates the final steps of glucose dependent insulin secretion within the restricted domain where β cells contact the islet capillaries.

    1. Cell Biology
    2. Physics of Living Systems
    Sohyeon Park et al.
    Research Article Updated

    In addition to diffusive signals, cells in tissue also communicate via long, thin cellular protrusions, such as airinemes in zebrafish. Before establishing communication, cellular protrusions must find their target cell. Here, we demonstrate that the shapes of airinemes in zebrafish are consistent with a finite persistent random walk model. The probability of contacting the target cell is maximized for a balance between ballistic search (straight) and diffusive search (highly curved, random). We find that the curvature of airinemes in zebrafish, extracted from live-cell microscopy, is approximately the same value as the optimum in the simple persistent random walk model. We also explore the ability of the target cell to infer direction of the airineme’s source, finding that there is a theoretical trade-off between search optimality and directional information. This provides a framework to characterize the shape, and performance objectives, of non-canonical cellular protrusions in general.
