Immune dynamics in SARS-CoV-2 experienced immunosuppressed rheumatoid arthritis or multiple sclerosis patients vaccinated with mRNA-1273
Abstract
Background:
Patients affected by different types of autoimmune diseases, including common conditions such as multiple sclerosis (MS) and rheumatoid arthritis (RA), are often treated with immunosuppressants to suppress disease activity. It is not fully understood how the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2)-specific humoral and cellular immunity induced by infection and/or upon vaccination is affected by immunosuppressants.
Methods:
The dynamics of cellular immune reactivation upon vaccination of SARS-CoV-2 experienced MS patients treated with the humanized anti-CD20 monoclonal antibody ocrelizumab (OCR) and RA patients treated with methotrexate (MTX) monotherapy were analyzed at great depth via high-dimensional flow cytometry of whole blood samples upon vaccination with the SARS-CoV-2 mRNA-1273 (Moderna) vaccine. Longitudinal B and T cell immune responses were compared to SARS-CoV-2 experienced healthy controls (HCs) before and 7 days after the first and second vaccination.
Results:
OCR-treated MS patients exhibit a preserved recall response of CD8+ T central memory cells following first vaccination compared to HCs and a similar CD4+ circulating T follicular helper 1 and T helper 1 dynamics, whereas humoral and B cell responses were strongly impaired resulting in absence of SARS-CoV-2-specific humoral immunity. MTX treatment significantly delayed antibody levels and B reactivation following the first vaccination, including sustained inhibition of overall reactivation marker dynamics of the responding CD4+ and CD8+ T cells.
Conclusions:
Together, these findings indicate that SARS-CoV-2 experienced MS-OCR patients may still benefit from vaccination by inducing a broad CD8+ T cell response which has been associated with milder disease outcome. The delayed vaccine-induced IgG kinetics in RA-MTX patients indicate an increased risk after the first vaccination, which might require additional shielding or alternative strategies such as treatment interruptions in vulnerable patients.
Funding:
This research project was supported by ZonMw (The Netherlands Organization for Health Research and Development, #10430072010007), the European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement (#792532 and #860003), the European Commission (SUPPORT-E, #101015756) and by PPOC (#20_21 L2506), the NHMRC Leadership Investigator Grant (#1173871).
Editor's evaluation
The article by Verstegen et al. examines humoral and cellular immune response in two subgroups of SARS-CoV-2-experienced immunosuppressed patients receiving two doses of mRNA-1273 vaccine. Further understanding the barriers to seroconversion to COVID-19 vaccination in immunosuppressed populations and how best to overcome these challenges are of great importance. The report is well written, logical, focused and thorough.
https://doi.org/10.7554/eLife.77969.sa0Introduction
Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), the virus that causes coronavirus disease 2019 (COVID-19), has infected millions of individuals, resulted in >4 million deaths, and greatly disrupted societies worldwide (Dong et al., 2020). Recovered individuals mostly exhibit robust humoral and cellular SARS-CoV-2 immunity (Grifoni et al., 2020; Koutsakos et al., 2021; Mathew et al., 2020; Sekine et al., 2020; Thevarajan et al., 2020) and generate immunological memory. In addition, multiple effective vaccines have been deployed to induce immune-mediated protection against SARS-CoV-2 leading to a substantial risk reduction of developing severe disease. Several studies in healthy individuals demonstrated that the mRNA vaccines, BNT162b2 (Pfizer-BioNTech) and mRNA-1273 (Moderna), successfully induce SARS-CoV-2-specific humoral (Gaebler et al., 2021; Ma et al., 2020) and cellular immunity (Collier et al., 2021; Minervina et al., 2021; Oberhardt et al., 2021; Sahin et al., 2021) and are highly efficacious (>94%) in reducing transmissibility and induction of serious disease and hospitalization of most variants (Baden et al., 2021; Lyngse et al., 2021; Polack et al., 2020; Tenforde and Patel, 2021). In addition to long-lived antibodies, the efficacy of these vaccines greatly relies on the induction of memory B and T cells.
However, about 4% of the world’s population is affected by one of over 80 different types of autoimmune disease, including common conditions such as multiple sclerosis (MS) and rheumatoid arthritis (RA) (National Stem Cell Foundation, 2021). Autoimmune diseases are often treated with immunosuppressants which successfully suppress autoreactive immune responses (Burmester and Pope, 2017; Cronstein and Aune, 2020; Edwards et al., 2004; Edwards and Cambridge, 2006; Mulero et al., 2018; Wolinsky et al., 2020), but simultaneously also affect the functionality of the adaptive immune system during infection or vaccination, depending on the immunosuppressant that is used. The severity of COVID-19 in individuals on immunosuppressants varies from mild to severe, depending on the type of immunosuppressants (Gianfrancesco et al., 2020; Möhn et al., 2020; Sparks et al., 2021; Strangfeld et al., 2021) and other underlying risk factors (Baden et al., 2021; Chaudhry et al., 2021; Hughes et al., 2021; Möhn et al., 2020; Pablos et al., 2020; Sparks et al., 2021; Strangfeld et al., 2021; Williamson et al., 2020; Zabalza et al., 2021). It is not well understood how immunosuppressants affect the formation of protective immunological B and T cell memory upon SARS-CoV-2 infection or vaccination, in part because these patient groups were excluded from many phase 3 clinical trials. Failure to induce effective immunological memory could leave these patients at risk for symptomatic re-infections. As SARS-CoV-2-specific immunity may not be very long-lived and/or can be breached by novel variants, like omicron that has mutated antibody recognition sites, it is important to evaluate if treatment with immunosuppressants allows efficient induction of SARS-CoV-2-specific B and broad-protective T cell memory upon SARS-CoV-2 exposure and subsequent reactivation of memory cells upon SARS-CoV-2 antigen recall (Apostolidis et al., 2021; Felten et al., 2022; Goel et al., 2022; Haberman et al., 2022; Mahil et al., 2021). To assess the latter, ex vivo evaluation of SARS-CoV-2 immune dynamics in patients with autoimmune diseases treated with immunosuppressants following recovery of SARS-CoV-2 infection and subsequent vaccination is required. Recent studies demonstrated that a single dose of mRNA vaccine in SARS-CoV-2 experienced healthy individuals resulted in stronger and broader immune responses than with vaccination alone, the so-called hybrid immunity (Reynolds et al., 2021; Stamatatos et al., 2021; Tauzin et al., 2021; Wang et al., 2021a). It remains to be established whether SARS-CoV-2 experienced individuals treated with immunosuppressants also induce a similar recall response upon vaccination. In this study, we aim to understand if and how immunosuppressive medication may interfere with the formation of protective immunological memory against SARS-CoV-2 to refine and/or optimize vaccine strategies to generate long-lasting, protective immunological memory in individuals using immunosuppressants.
B cell-depleting anti-CD20 monoclonal antibody (anti-CD20) therapies such as ocrelizumab (OCR) and rituximab (RTX) are successfully used to treat multiple diseases including MS (Edwards et al., 2004; Edwards and Cambridge, 2006; Mulero et al., 2018; Wolinsky et al., 2020). However, B cells play a critical role in the formation of protective humoral immunity during viral infections. With help from cognate CD4+ T follicular helper cells (Tfh cells), B cells differentiate into memory B cells and plasmablasts or long-lived plasma cells that secrete class-switched, high-affinity antibodies upon antigen stimulation through infection or vaccination (Elsner and Shlomchik, 2020; Nutt et al., 2015; Verstegen et al., 2021). SARS-CoV-2 infection in otherwise healthy individuals has demonstrated that both B and Tfh cells are of great importance for the formation of a protective humoral immunity (Koutsakos et al., 2021; Mathew et al., 2020; Ng et al., 2020; Thevarajan et al., 2020; Wang et al., 2021b). However, the majority of patients on anti-CD20 therapies did not generate significant SARS-CoV-2-specific antibody titers following the natural infection (Koutsakos et al., 2021; Simon et al., 2021; Zabalza et al., 2021) or vaccination (Apostolidis et al., 2021; Deepak et al., 2021; van Kempen et al., 2022). A study in SARS-CoV-2 naïve anti-CD20-treated MS patients demonstrated that low vaccination-induced SARS-CoV-2 antibody titers correlate with reduced frequencies of circulating B cells (in line with anti-CD20-mediated B cell depletion) and low Tfh cells (Apostolidis et al., 2021). Interestingly, SARS-CoV-2 naïve anti-CD20-treated MS patients which induced the lowest antibody titers displayed the highest induction of activated CD8+ T cells after vaccination (Apostolidis et al., 2021; Brill et al., 2021; Gadani et al., 2021; Madelon et al., 2021). CD8+ T cells form an important second line of protection against severe illness and mortality, as they are essential for the viral clearance (Kundu et al., 2022; Tan et al., 2021). To date, it remains to be evaluated if patients treated with anti-CD20 induce enough immunological B and T cell memory upon primary infection to be efficiently recalled upon re-exposure and/or with targeted vaccination.
Methotrexate (MTX) is another widely used immunosuppressant, which is one of the most common and effective medications to treat RA (Burmester and Pope, 2017; Cronstein and Aune, 2020). MTX has broad immunomodulating functions affecting multiple arms of the immune system and has been shown to reduce circulating leukocytes numbers (neutrophils and lymphocytes), their proliferation capacity, T cell receptor (TCR) activation, T cell lytic capacity, inhibiting pro-inflammatory pathways, neutrophil recruitment, extracellular trap formation and cytokine expression by macrophages and increasing the number of regulatory T cells (Tregs) (Cronstein and Aune, 2020). Although the immune-modulatory function of MTX effectively mitigates effects of autoimmune inflammatory reactions and potentially contributes to reduced severity of COVID-19 (Sparks et al., 2021; Strangfeld et al., 2021), it has also been reported to reduce antibody titers after SARS-CoV-2 vaccination in SARS-CoV-2 naïve autoimmune patients (Deepak et al., 2021; Furer et al., 2021; Haberman et al., 2020; Spiera et al., 2021). In contrast to anti-CD20-treated MS patients, mRNA vaccination of SARS-CoV-2 naïve MTX-treated patients with immune-mediated inflammatory disease (IMID) did not induce activated CD8+ T cells following mRNA vaccination (Haberman et al., 2020). Proportions of spike-specific B cells, Tfh, and activated CD4+ T cells were reported to be induced to similar levels as observed in healthy individuals and IMID patients without MTX treatment although induction of antibody titers was less (Haberman et al., 2020). However, it is currently unknown whether MTX affects immunological memory formation after natural SARS-CoV-2 infection and/or B and T cell reactivation upon re-infection and/or vaccination.
To understand how immunosuppressive medications like OCR and MTX affect the induction of immunological memory and subsequent recall response, the humoral and cellular immune responses in SARS-CoV-2 experienced RA-MTX and MS-OCR patients were established and compared to SARS-CoV-2 experienced healthy individuals following the first and second dose of the Moderna mRNA vaccine. The immune dynamics of the recall response were elucidated by measuring SARS-CoV-2-specific antibody responses and deep-immune profiling of B and T cell responses in fresh peripheral blood. This study shows that OCR-treated MS patients exhibit a preserved recall response of CD8+ T cells following first vaccination compared to healthy controls (HCs) and a normal CD4+ Tfh1 and Th1 dynamics, whereas humoral and B cell responses were strongly impaired. In contrast, RA patients treated with MTX displayed a delayed induction of the humoral recall responses after the first vaccination, but antibody levels were comparable to HCs following a second vaccination. However, MTX treatment delayed and/or hampered CD4+ and CD8+ T cell reactivation as demonstrated by the absence of co-expression of multiple dynamic markers.
Materials and methods
Study participants and design
Request a detailed protocolDeep cellular immunological analysis was performed after SARS-CoV-2 vaccination as part of a national prospective longitudinal multi-arm multicenter cohort study focusing on the humoral response after SARS-CoV-2 vaccination in patients with the autoimmune disease treated with specific immunosuppressive medications. The study design and methods have been previously described (Wieske et al., 2022). This study was approved by the medical ethical committee (NL74974.018.20 and EudraCT 2021-001102-30, local METC number: 2020_194) and registered at Dutch Trial Register (Trial ID NL8900). Written informed consent was obtained from all study participants when enrolled. Participants were recruited between April 16, 2021, and May 20, 2021, at the MS Center Amsterdam, Amsterdam UMC, and the Amsterdam READE Rheumatology and Immunology Center and vaccinated between April 19, 2021, and July 1, 2021, with the mRNA-1273 (Moderna) vaccine at an interval of six weeks, according to the Dutch national vaccination guidelines. Peripheral blood was collected by venipuncture directly before the first vaccination (T0), 7–10 days after the first vaccination (T1), and 7–10 days after the second vaccination (T3). Antibody responses were measured directly before the first vaccination (T0), 7–10 (T1), and 42 days (T2) post first vaccination, and 7–10 (T3) and 28–56 days (T4) post second vaccination.
Included participants, aged ≥18 years, were eligible for vaccination conform to the Dutch national vaccination campaign. We included participants diagnosed with relapsing-remitting multiple sclerosis using OCR (MS-OCR) and participants with rheumatoid arthritis using methotrexate (RA-MTX). Participants had been diagnosed with relapsing-remitting MS and RA by a neurologist or rheumatologist, respectively. In addition, we recruited control participants (HC) who had no history of an immune-mediated disorder and did not use any form of systemic immunosuppressive therapy. All study participants had a prior SARS-CoV-2 infection proven by RT-PCR or antibody test. Exclusion criteria were immunosuppressive co-medication, incorrect diagnosis, withdrawal from informed consent, and a positive SARS-CoV-2 test less than 8 weeks before vaccination (Figure 1a). Baseline characteristics including comorbidities were collected from all study participants (Supplementary file 1). The severity of SARS-CoV-2 primary infection was defined as asymptomatic (no clinical symptoms), mild (no hospitalization), moderated (hospitalization), and severe (ICU admission). OCR therapy was scored as the time between last infusion and primary infection/first vaccination, and the number of past infusions. All RA participants used MTX at a stable dose for at least 6 months before SARS-CoV-2 primary infection.

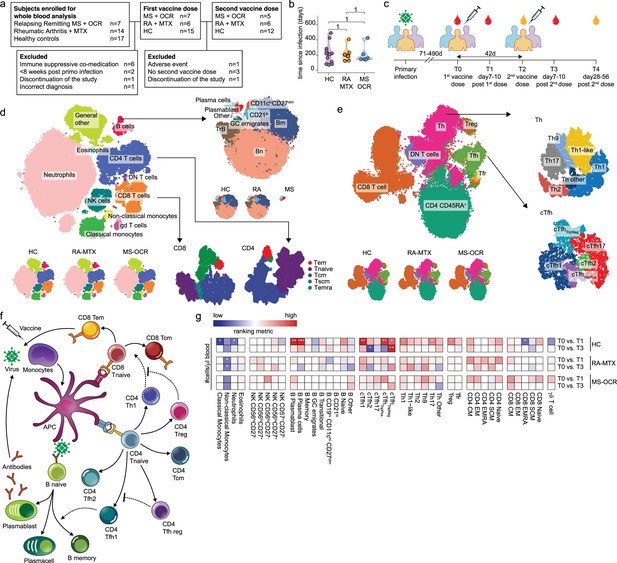

Dynamics of circulating immune populations after severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) mRNA vaccination.
(a) Overview of cohort (b) distribution of time since primary infection within the different groups and (c) longitudinal study design. SARS-CoV-2 mRNA vaccination was administrated in two doses to SARS-CoV-2 experienced RA patients on methotrexate (RA-MTX) treatment, MS patients on ocrelizumab (MS-OCR) treatment, and healthy controls (HCs). Whole blood (red) or serum (yellow) was collected at indicated time points. (d–e) UMAP and cluster identification from FlowSOM analysis of two high-dimensional flow cytometry panels. The UMAP is separated across groups and major adaptive immune populations were subclustered in individual projections. (f) Schematic overview of circulating immune populations and their interactions. (g) Representation of cell count of immune populations that are affected by first (T1) and second (T3) vaccination as compared to baseline (T0) in the different groups. Each immune population is represented by a single column of colored squares, and each time point-disease group combination is represented by a single row. Color squares represent the populations that are reduced (blue), increased (red), or not affected (white). Statistical significance was determined using a Wilcoxon signed-rank test with Bonferroni-Holm multiple comparison correction.
Whole blood flow cytometry
Request a detailed protocolFresh whole blood was used to measure cellular immune populations, essentially as described in Koutsakos et al., 2021; Thevarajan et al., 2020, using two human antibody panels (Supplementary file 2). Fresh whole blood (200 µl) was stained with the respective panel for 30 min at room temperature (RT) in the dark. Next, samples were lysed with BD FACS Lysing solution (BD Biosciences) for 10 min at RT in the dark, washed and subsequently fixed with 1% PFA for 20 min at 4°C in the dark, washed, and resuspended in PBS supplemented with 0.5% bovine serum albumin and 2 mM ethylenediaminetetraacetic acid. Count bright Plus Absolute Counting Beads (ThermoFisher) were added for calculating absolute cell numbers just before acquisition. Samples were acquired on a BD FACSymphony (BD).
RBD protein ELISAs
Request a detailed protocolDetection of IgG, IgM, and IgA directed to RBD were measured as described previously (Steenhuis et al., 2021; Vogelzang et al., 2020). RBD proteins were produced as described previously (Vogelzang et al., 2020). In short, MaxiSorp microtiter plates (Thermo Fisher Scientific) were coated with 1.0 mg/ml RBD-ST or 4.0 mg/ml monoclonal mouse anti-human IgM (MH15; Sanquin) in PBS overnight at 4°C. Subsequently, plates were washed with PBS-T and plasma samples were incubated for 1 hr at RT. After washing, 0.5 mg/ml HRP-conjugated monoclonal mouse anti-human IgG (MH16; Sanquin) or anti-human IgA (MH14; Sanquin) was added, diluted in PTG, and incubated for 1 hr. The ELISAs were developed with 100 µg/ml tetramethylbenzidine in 0.11 mol/l sodium acetate (pH 5.5) containing 0.003% (v/v) hydrogen peroxide (Merck). The reaction was stopped with 2 MH2SO4. Absorption at 450 and 540 nm was measured with a Synergy 2 microplate reader (Biotek, Winooski, VT). For IgM, the assay was finished using 0.5 mg/ml biotinylated RBD-ST (EZ-Link Sulfo-NHS-LC-Biotin; Thermo Fisher Scientific) in PTG and incubated for 1 hr at RT, followed by incubation for 30 min with streptavidin–poly-HRP (Sanquin). The antibody titers of the time points T0, T1, and T3 were determined in plasma (P) and for time point T2 in serum (S).
Computational flow cytometry analysis
Request a detailed protocolComputational analysis of data was performed using the Spectre R package (Ashhurst et al., 2021). Initially, samples were loaded in FlowJo v10 software (FlowJo) and cells were gated on single cells. Anomalies were then detected and removed using the flowAI R package (Monaco et al., 2016). An arcsinh transformation was performed, and data below the limit of detection were compressed to reduce the contribution of noise to the clustering process. To mitigate the presence of batch effects, samples were integrated using reciprocal principal component analysis (rPCA) from the Seurat toolkit for the cellular genomics (Hao et al., 2021), as implemented in Spectre. rPCA projects the data from one batch into the PCA space of another, where cells are then paired across datasets using a mutual nearest neighbor approach (Hao et al., 2021), allowing for normalization of expression levels. Here, we chose a single batch as the ‘reference’ batch, and integrated each other batch with the reference batch, to decrease the total runtime. For subset discovery, high-dimensional FlowSOM data analysis and visualization of flow cytometry data were performed with all the non-dynamic surface molecules as input. Cluster identities were annotated manually by three individuals independently: monocytes (FSCintCD14+), neutrophils (FSCintSSCintCD16hiCD10hi), eosinophils (FSChiSSChiCD16-), natural killer (NK) cells (CD56+), B cells (CD19+), CD4 T cells (CD3+CD4+), CD8 T cells (CD3+CD8+) and gamma-delta T cells (TCRgd+CD3+), circulating T follicular helper (cTfh) cells (CD3+CD4+CXCR5+), memory T helper (Th) cells (CD3+CD4+CD45RA-CXCR5-). The main circulating immune populations were then manually annotated in subclusters based on marker expression: monocytes (classical CD14+CD16- and non-classical CD14-CD16+), NK cells (CD56hiCD27-, CD56hiCD27+, CD56loCD27-, CD56loCD27+, CD57+CD27-), B cells (plasmablast CD27+CD38+CD138-, plasma cells CD27+CD38+CD138+, memory CD27dimCD38-, GC emigrates CD27dimCD10+, transitional CD38+CD10+, CD19hiCD11chiCD27dim, CD21lo, naïve CD27-CD38-), CD4+ T cells (central memory [CM] CD45RA-CD27+, effector memory [EM] CD45RA-CD27-, effector memory CD45RA+ [EMRA] CD45RA+CD27-, stem cell memory CD45RA+CD27+CD95+, naïve CD45RA+CD27+CD95-), CD8+ T cells (central memory [CM] CD45RA-CD27+, effector memory [EM] CD45RA-CD27-, effector memory CD45RA+ [EMRA] CD45RA+CD27-, stem cell memory CD45RA+CD27+CD95+, naïve CD45RA+CD27+CD95-). Lymphocytes from the T cell activation/exhaustion panel were clustered and plotted by UMAP and CD4+ T cell subsets were manually annotated based on marker expression: cTfh cells (cTfh1 CXCR3+CCR6-CCR4-, cTfh2 CXCR3-CCR6-CCR4+, cTfh17 CXCR3-CCR6+CCR4+, cTfhTriplePos CXCR3+CCR6+CCR4+, cTfhTripleNeg CXCR3-CCR6-CCR4-), memory Th cells (Th1 CXCR3+CCR6-CCR4-, Th1-like CXCR3+CCR6+CCR4-, Th2 CXCR3-CCR6-CCR4+, Th9 CXCR3-CCR6+CCR4-, Th17 CXCR3-CCR6+CCR4+), Treg CD127-CD25+CXCR5-, T follicular regulatory (Tfr) cells CD127-CD25+CXCR5+.
Statistical analyses
Request a detailed protocolSummary statistics, (connected) violin plots, stacked plots, volcano plots, and heatmaps were created in R. Statistical significance was assessed using Mann-Whitney or Wilcoxon signed-rank test using wilcox.test function in R and p-values were corrected for multiple comparison using the Bonferroni-Holm method (Holm, 1979). Adjusted p-values lower than 0.05 were considered statistically significant. The ranking metric used in the heatmaps is a score that combines fold-change and p-value and was calculated using -log10({adjusted p-value}) * sign({log2 fold-change}) (Xiao et al., 2014).
Results
SARS-CoV-2 experienced autoimmune cohort and study design
In the Target to B study (T2B!), 38 SARS-CoV-2 experienced individuals >18 years of age were recruited, of which 28 were selected, based on in- and exclusion criteria, to participate in a prospective cohort study to perform deep-immune profiling and evaluate dynamics of B and T cell responses in fresh peripheral blood between May 14, 2021, and July 9, 2021 (Wieske et al., 2022). The cohort consisted of 7 OCR-treated relapsing-remitting MS (MS-OCR) patients, 6 MTX-treated RA patients (RA-MTX), and 15 HCs (Figure 1a and Supplementary file 1). The median age, sex, and time since SARS-CoV-2 infection (Figure 1b) were comparable between all three groups, although the RA-MTX group had a slightly higher prevalence of comorbidities (Supplementary file 1). Most patients, except for one MS and one RA patient, did not require hospital admission during COVID-19 (Supplementary file 1). Patients received their first mRNA-1273 (Moderna) vaccination after full recovery from their SARS-CoV-2 infection, on average 210 (71–490) days post infection. One MS patient who experienced a severe adverse event after the first vaccination was excluded from the study (Figure 1a). The second vaccination was given ~42 days later, except for three HCs who, by recommendations of the Dutch national vaccination guidelines, did not wish to receive a second dose and one MS patient who discontinued the study. These participants were excluded from further analyses (Figure 1a and Supplementary file 1).
The breadth of the studied immune response in RA-MTX and MS-OCR patients
The effect of OCR and MTX on the dynamic of immunological recall responses was elucidated by measuring SARS-CoV-2-specific antibody responses and deep-immune profiling of cellular immune responses via high-dimensional flow cytometry analysis on fresh whole blood samples at baseline (T0), post first- (T1) and second vaccination (T3) and for antibodies, additionally in serum samples pre (T2) and post (T4) second vaccination (Figure 1c). Antibody secreting B cell populations, especially plasmablast and plasma cells, can only be studied with high accuracy in whole blood because these cells are highly vulnerable and may not survive freeze-thaw procedures. In total 38 unique flow cytometry markers (Supplementary file 2) were combined with a computational pipeline in the Spectre R package (Ashhurst et al., 2021), encompassing the rPCA (from Seurat) (Hao et al., 2021), FlowSOM (Van Gassen et al., 2015), and Flt-SNE (fast Fourier transform-accelerated interpolation-based t-stochastic neighborhood embedding) (Linderman et al., 2019) algorithms resulting in the identification of clusters representing major myeloid, innate, and lymphocyte lineages and their phenotype and activation status (Figure 1d–e and Figure 1—figure supplement 1a, b). In total, 42 different cell populations were identified, of which many function in complex interplay to combat viral infection (Figure 1f–g). A T cell activation panel was used to define clusters of memory CD4+ T cell subsets, CD8+ T cell phenotypes, and more in-depth analysis of dynamics markers previously associated with activated/responding T cells (Ellebedy et al., 2016; Geers et al., 2021; Habel et al., 2020; Koutsakos et al., 2021; McElroy et al., 2015; Mudd et al., 2022; Nguyen et al., 2021; Oja et al., 2020; Rha et al., 2021; Thevarajan et al., 2020), namely CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L ,and CD137 (Figure 1e and Figure 1—figure supplement 1c-e). The immunophenotype analysis demonstrated an absence of B cell populations which were largely depleted by OCR treatment in MS patients (Figure 1d). Interestingly, circulating plasmablast and plasma cells could still be observed in line with the absence of CD20 expression in these cell types (Figure 1d).
Different immune dynamics between first and second vaccination and between patient groups
To assess recall immune profiles in samples from SARS-CoV-2 experienced MS-OCR, RA-MTX, and HC following first and second COVID-19 vaccination, cell numbers per µl blood, and percentages of the 42 immune populations identified by FlowSOM were compared between the groups. Significant changes were observed in multiple immune populations following the first and second vaccination (Figure 1g and Figure 1—figure supplement 2a-c). Superior immune reactivity was observed in HC showing significantly larger antibody-secreting cell populations upon first and not second vaccination as well as significant changes in cTfh and Th cells (Figure 1g and Figure 1—figure supplement 2a-c). Substantial changes in the size of various adaptive immune populations were observed in RA-MTX and MS-OCR (Figure 1g).
To establish whether vaccination affected innate immune responses 7–10 days after vaccination, we compared the dynamics of classical monocytes, non-classical monocytes, neutrophils, and NK subsets (Figure 1g and Figure 1—figure supplement 3). The number of non-classical monocytes per μl blood was significantly reduced in RA-MTX following the both first and second vaccination, whereas in HC and MS-OCR a substantial reduction was observed (Figure 1g and Figure 1—figure supplement 3a-c). In addition, the number of neutrophils and classical monocytes per μl blood were significantly reduced in HCs following the first vaccination (Figure 1g and Figure 1—figure supplement 3a-c). No profound changes were observed in the proportion of various subsets of NK cells in all groups following both vaccinations (Figure 1—figure supplement 3d). In contrast, an increased expression of the activation marker CD38 was observed on a broad range of NK subsets in all groups following both vaccinations as compared to the baseline sample (Figure 1—figure supplement 3d). However, we may have missed the peak of innate immune response, which is typically observed 1–2 days after vaccination.
In contrast to the limited innate immune responses following vaccination, more dynamic changes were observed in the adaptive immune profile of the three patient groups, which warrants further in-depth analysis.
OCR and MTX treatment affect seroconversion and antibody recall dynamics
Convalescent humoral recall responses were analyzed by comparing RBD-specific IgG, IgM, and IgA antibodies between SARS-CoV-2 experienced HCs, RA-MTX, and MS-OCR patients before vaccination (T0) (Figure 2a–c and Figure 2—figure supplement 1a, b). Based on IgG titers, the majority of SARS-CoV-2 experienced RA-MTX (67%), MS-OCR patients (50%), and HC (58%) still had detectible antibody titers (antibody titers above the cutoff of 4 AU/ml levels; determined using 600 pre-COVID-19 outbreak samples as published before) (Steenhuis et al., 2021; Vogelzang et al., 2020; Figure 2a and Figure 2—figure supplement 1a, b). This indicates that autoimmune patients treated with MTX and OCR are capable of mounting SARS-CoV-2-specific humoral immunity following natural SARS-CoV-2 infection. Furthermore, antibody responses can be maintained for prolonged periods comparable to healthy individuals in most MTX and OCR-treated patients, albeit at slightly lower levels in MS-OCR patients (Figure 2b). Seroconversion and isotype switching was especially surprising for the MS-OCR group considering their treatment with B cell-depleting medication before their PCR-proven SARS-CoV-2 infection, as has been shown previously (Apostolidis et al., 2021; Moser et al., 2022; van Kempen et al., 2022).

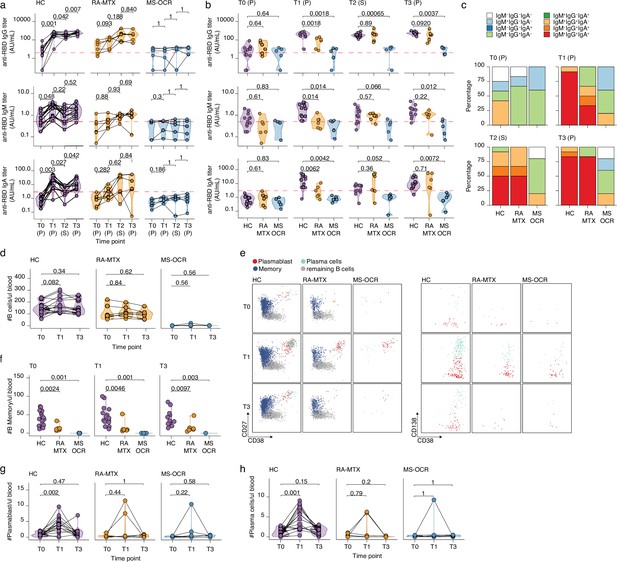

Antibody and circulating B cells responses of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) mRNA vaccinated SARS-CoV-2 experienced rheumatoid arthritis using methotrexate (RA-MTX) and multiple sclerosis using ocrelizumab (MS-OCR) patients.
(a–c) Results of ELISAs measuring antibody reactivity to RBD before vaccination (T0), 7 days after the first vaccination (T1), before second vaccination (T2), and 7 days after the second vaccination (T3) in SARS-CoV-2 experienced RA-MTX and MMS-OCR and healthy controls (HCs). The antibody titers of the time points T0, T1, and T3 were determined in plasma (P) and for time point T2 in serum (S). Anti-RBD IgG (top), anti-RBD IgM (middle), and anti-RBD IgA (bottom) levels are plotted longitudinally (a) or separated by groups across time points (b). (c) Percentage of participants seropositive for anti-RBD of the IgG, IgA, and/or IgM isotypes. (d) Count per µl of blood of total B cells. (e) Representative flow cytometry plots for the quantification of circulating B cell populations. Colors represent the populations that were identified by unbiased analysis. (f–h) Count per µl of blood of memory B cells (f), plasmablast (g), and plasma cells (h) before (T0) and 7 days after first (T1) and second vaccination (T3). Statistical significance was determined using a Wilcoxon signed-rank test (a, d, g, and h) or a Mann-Whitney test (b and f) with Bonferroni-Holm multiple comparison correction.
Vaccine-induced humoral recall responses were observed in SARS-CoV-2 experienced RA-MTX patients and HCs as 100% of the individuals seroconverted for IgG following the first vaccination (T1) and was maintained for the duration of the study ( Figure 4-figure supplement 1 b). However, the MTX treatment of RA patients had a major effect on the dynamics of the humoral immune response. Although RA-MTX patients displayed a slight increase in RBD IgG levels at day 7 post first vaccination (T1) (Figure 2a), they were significantly lower as compared to HC (Figure 2b). While by day 42 post first vaccination (T2), RA-MTX IgG levels had significantly increased to levels comparable to those observed in vaccinated HCs and a similar trend was observed for IgA and IgM (Figure 2a–b). Second vaccination of SARS-CoV-2 experienced RA-MTX patients did not result in a further increase of their antibody levels (T3) (Figure 2a) and levels remained comparable to vaccinated SARS-CoV-2 experienced HCs till at least 28–56 days post second vaccination (T4) (Figure 2b and Figure 2—figure supplement 1b). Together, this suggests a delayed SARS-CoV-2-specific antibody recall response in RA-MTX patients. No changes in antibody titers following both vaccinations were observed in SARS-CoV-2 experienced MS-OCR patients (Figure 2a and Figure 2—figure supplement 1b) and antibody levels for all isotypes remained significantly lower compared to vaccinated SARS-CoV-2 experienced HCs (Figure 2b). This indicates an impaired ability of SARS-CoV-2 experienced MS-OCR patients to recall the humoral immune response. In addition to variations in seroconversion and antibody levels in the MS-OCR group, a different isotype profile was observed compared to HCs (Figure 2c). Most notably, the combination of all three isotypes specific for RBD was not detected in any of the vaccinated SARS-CoV-2 experienced MS-OCR patients neither before nor after both vaccinations (Figure 2c). Although all three isotypes were detected in RA-MTX donors, the proportion was smaller as compared to HCs at T1 (HC 92%, RA-MTX 33.3%) and comparable pre- (T2; HC 50%, RA-MTX 50%) and post-second vaccination (T3; HC 83% RA-MTX 83%) (Figure 2c). Together, these data indicate that treatment with immunosuppressants MTX and OCR treatment resulted in different dynamics of the SARS-CoV-2-specific humoral recall immune response following vaccination of SARS-CoV-2 experienced RA and MS patients.
Reduced B cell recall dynamics following vaccination in SARS-CoV-2 experienced RA-MTX and MS-OCR patients
Next, the dynamics of immune populations that underpin the induction of humoral immunity, namely B cells, were defined (Figure 2d–h and Figure 2—figure supplement 1c, d). While HC showed an expected increase in the number and proportion of total B cells at 7 days post first vaccination (T1), this was not observed in RA-MTX patients and B cells were almost absent in MS-OCR patients, in line with the B cell-depleting function of OCR (Figure 2d). Additional differences were observed when specialized subpopulations were analyzed (Figure 2e–h and Figure 2—figure supplement 1c , d), including a significantly lower number of memory B cells in SARS-CoV-2 experienced MS-OCR and RA-MTX patients compared to HCs at all three time points (T0, T1, and T3) (Figure 2f and Figure 2—figure supplement 1c, d). Interestingly, although two RA-MTX patients and one MS-OCR patient displayed an increase in plasmablast and plasma cell numbers and proportions (Figure 2g–h and Figure 2—figure supplement 1d), no increase in plasmablasts and plasma cells were observed in the majority of the SARS-CoV-2 experienced RA-MTX and MS-OCR patients upon vaccination (Figure 2g–h). A significantly higher number and proportion of plasmablast and plasma cells were observed following the first but not second vaccination of SARS-CoV-2 experienced HCs (Figure 2g–h and Figure 2—figure supplement 1d), consistent with the relatively small rise in antibody levels following the second vaccination (Figure 2a). Others have also reported a larger antibody-secreting cell (plasmablast and plasma cells) population following first vaccination in SARS-CoV-2 experienced versus naïve healthy individuals, with a reversed antibody-secreting cell response following second vaccination (Samanovic et al., 2021). Since maximum antibody levels in HCs were reached at 7–10 days after first vaccination and RA-MTX patients were capable of reaching similar levels but only 42 days after first vaccination (Figure 2a–b), it seems that MTX treatment has mainly affected, potentially delayed, the dynamics of the B cell recall response following vaccination.
RA-MTX and MS-OCR patients display a CD4+ Tfh cell recall response of different quality
Tfh cells play a critical role in helping B cell activation and differentiation, antibody production, class switching, and somatic hypermutations which further strengthen overall antibody responses upon infection and vaccination (Figure 1e; Koutsakos et al., 2019). A small but significant increase in total CD4+ circulating Tfh cells per µl blood in HCs was observed following the first vaccination (Figure 3a). Through deep-immune profiling five CD4+ cTfh subsets were identified (Figure 1d, Figure 3b). While the number and proportion of most CD4+ cTfh subsets were remarkably similar between HC and both patients groups, a significantly smaller Tfh1 cell population was observed in RA-MTX and MS-OCR patients as compared to HC before vaccination (Figure 3—figure supplement 1a, b). This same population has been reported to correlate with more efficient B cells and humoral immunity after vaccination (Koutsakos et al., 2019). Interestingly, a significant increase in the number of CD4+ cTfh1, cTfhTripPos, and cTfhTripNeg cells was determined upon first vaccination in HC, whereas this population remained unchanged in the patient groups (Figure 3c).

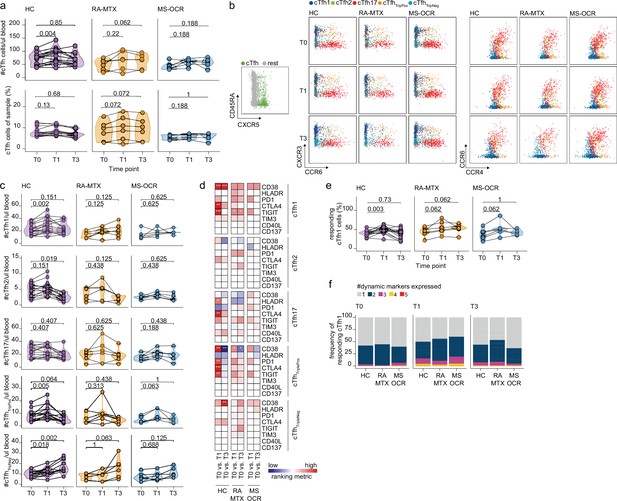

Circulating CD4+ T follicular helper (Tfh) cell responses of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) mRNA vaccinated SARS-CoV-2 experienced rheumatoid arthritis using methotrexate (RA-MTX) and multiple sclerosis using ocrelizumab (MS-OCR) patients.
(a) Count per µl of blood (top) and frequency (bottom) of circulating CD4+ Tfh (cTfh) cells before (T0) and 7 days after first (T1) and second vaccination (T3). (b) Representative flow cytometry plots for the quantification of cTfh cell populations. Colors represent the populations that were identified by unbiased analysis. (c) Number of cTfh1, cTfh2, cTfh17, cTfhTriplePos, and cTfhTripNeg cells before (T0) and 7 days after first (T1) and second vaccination (T3). (d) Heatmap representation showing the overlap in up- and down-regulated dynamic markers expression in cTfh cell subpopulations subsequent first (T1) and second (T3) vaccination as compared to baseline (T0) in the different groups. Each dynamic marker is represented by a single row of colored squares, and each time point-disease group combination is represented by a single column. Color squares represent the dynamic marker expression that is reduced (blue), increased (red), or not affected (white). (e) Frequency of responding cTfh1 cells before (T0) and 7 days after first (T1) and second vaccination (T3). (f) Stacked bar charts representing average fractions of cTfh1 cell co-expressing different dynamic molecule combinations. Statistical significance was determined using Wilcoxon signed-rank test (a, c, d, and e) with Bonferroni-Holm multiple comparison correction.
Next, the functional activation/exhaustion profile of the CD4+ cTfh cells upon vaccination was assessed. Expression of CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L, and CD137 (Figure 1—figure supplement 1b) on CD4+ cTfh subsets was used to verify activation upon vaccination. Only the proportion of CD38, HLA-DR, PD-1, CTLA-4, or TIGIT expressing cTfh cells significantly increased for one or several subsets (Figure 3d). Only limited overlap of these expression profiles was observed between SARS-CoV-2 experienced RA-MTX, MS-OCR patients and HCs following first and second vaccination (Figure 3d) indicating that both MTX and OCR affect the specific response profile of CD4+ cTfh subsets. Analysis of the proportion of responding cells (cells that upregulated one or more dynamic markers) demonstrated that the CD4+ cTfh1, cTfh17, and cTfhTripPos subsets are the most responsive after the first vaccination (Figure 3e and Figure 3—figure supplement 1c). The combined expression of these dynamic markers could be indicative of the quality of the response. A slightly higher combined expression of three dynamic markers on CD4+ cTfh1 cells following first vaccination was observed in MS-OCR patients compared to HCs, whereas the combined expression of multiple dynamic markers in RA-MTX patients was slightly lower compared to HCs (Figure 3f and Figure 3—figure supplement 1d). Overall, these data indicate that immunosuppressants MTX and OCR dampen a rise in total CD4+ cTfh cell numbers per µl blood following the first vaccination, however, they hardly affected the responding CD4+ cTfh1 cell populations, although the response in MS-OCR patients was of slightly higher quality compared to those observed in HC and RA-MTX patients.
Higher quality CD4+ Th1 recall response in MS-OCR patients
Next, the immune dynamics of the recall response of various Th cell effector memory subsets were investigated (Figure 4a and Figure 4—figure supplement 1). The number and proportion of Th was not different between all three groups before and after both vaccinations (Figure 4a). Th1 and Th1-like subsets are major players during viral infections as they are known to promote CD8+ T cell responses and are essential for the induction of memory CD8+ T cells (Deliyannis et al., 2002; Riberdy et al., 2000; Zhu and Paul, 2009; Figure 4b). Although the size of the Th1 population was comparable between HC and the patient groups, vaccination did promote the expansion of the Th1 cell population in HC only, which resulted in significantly more Th1 cells in HC after two vaccinations as compared to the patient groups (Figure 4c–d and Figure 4—figure supplement 1a, b). Furthermore, vaccination did not affect the size of the Th1-like population in the individual groups, however, after the first vaccination the size Th1-like cell population was significantly higher in HC where it only tended to be higher before vaccination (Figure 4e–f and Figure 4—figure supplement 1a, b).

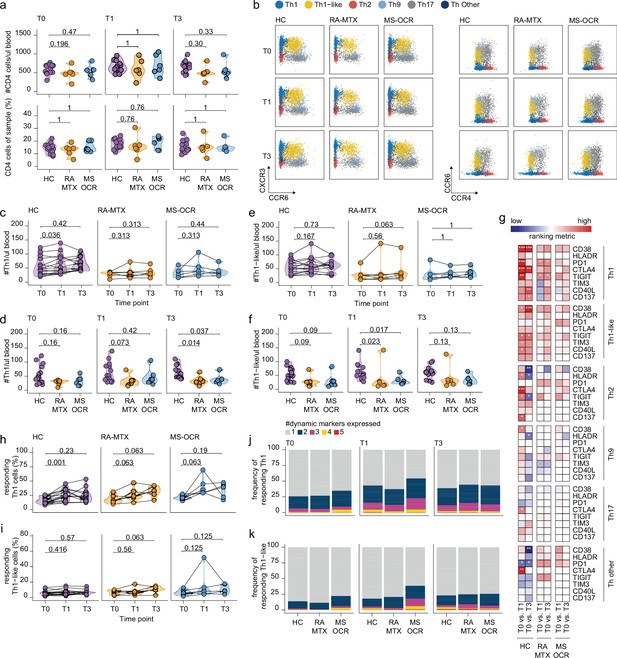

Circulating CD4+ T helper (Th) cell responses of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) mRNA vaccinated SARS-CoV-2 experienced rheumatoid arthritis using methotrexate (RA-MTX) and multiple sclerosis using ocrelizumab (MS-OCR) patients.
(a) Count per µl of blood and frequency of CD4+ T helper (Th) cells before (T0) and 7 days after first (T1) and second vaccination (T3). (b) Representative flow cytometry plots for the quantification of circulating Th cell populations. Colors represent the populations that were identified by unbiased analysis. (c–f) Count per µl of blood of Th1 (c and d) and Th1-like (e and f) cells before (T0) and 7 days after first (T1) and second vaccination (T3). (g) Heatmap representation showing the overlap in up- and down-regulated dynamic markers expression in Th cell subpopulations subsequent first (T1) and second (T3) vaccination as compared to baseline (T0) in the different groups. Each dynamic marker is represented by a single row of colored squares, and each time point-disease group combination is represented by a single column. Color squares represent the dynamic marker expression that is reduced (blue), increased (red), or not affected (white). (h–i) Frequency of responding Th1 (h) and Th-like cells (i) before (T0) and 7 days after first (T1) and second vaccination (T3). (j–k) Stacked bar charts representing average fractions of Th1 (j) and Th1-like (k) cells co-expressing different dynamic molecules combinations. Statistical significance was determined using a Mann-Whitney test (a, d, and f) and using a Wilcoxon signed-rank test (c, e, g–i) with Bonferroni-Holm multiple comparison correction.
Next, the response profile of CD4+ Th subsets was analyzed using the same eight dynamic markers as described for cTfh cells as a surrogate for antigen-induced recall (Figure 1—figure supplement 1b). Although all eight dynamic markers were significantly acquired by all of the CD4+ Th subsets following the first and/or second vaccination, activation of the Th1 subset was most superior (Figure 4g and Figure 4—figure supplement 1c). A profound increase in responding CD4+ Th1 cells was observed in all SARS-CoV-2 experienced groups after the first vaccination, which was significant for the HC (Figure 4h). In contrast, the responding CD4+ Th1-like cells remained absent in all groups after both vaccinations (Figure 4i). Nevertheless, a greater proportion of CD4+ Th1 and Th1-like responding cells in MS-OCR patients co-expressed three dynamic markers compared to HCs (Figure 4j–k, and Figure 4—figure supplement 1e). The other helper subsets did not show significant induction of the responding population following either the first or second vaccination (Figure 4—figure supplement 1d). Overall, these results indicate that MTX and OCR treatment had a limited effect on the quality of the CD4+ Th1 and Th1-like recall response after the first vaccination.
MS-OCR but not RA-MTX patients display high-quality CD8+ T cell recall and de novo responses following both vaccinations
CD8+ T cell responses play an important role in viral clearance and reduce disease severity. Therefore, the immune dynamics of various subset of the CD8+ T cell recall in SARS-CoV-2 experienced MS-OCR and RA-MTX patients were elucidated (Figure 5a and Figure 5—figure supplement 1).

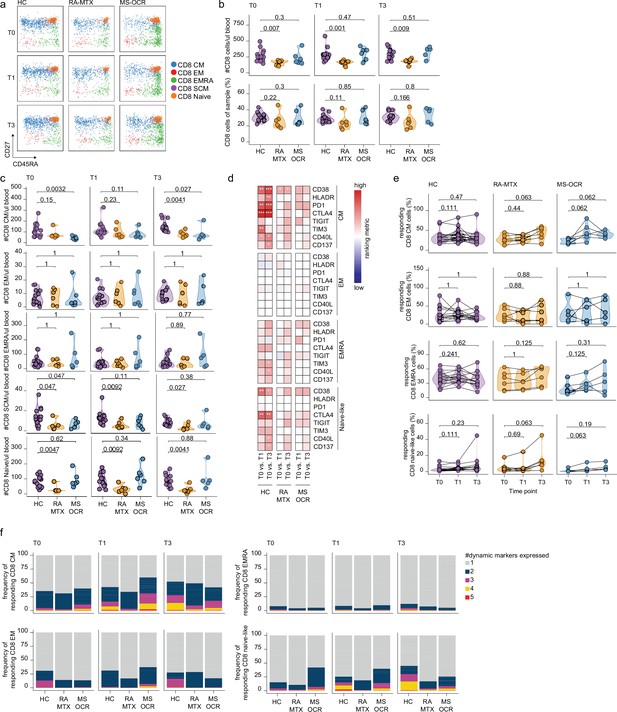

CD8+ T cell responses of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) mRNA vaccinated SARS-CoV-2 experienced rheumatoid arthritis using methotrexate (RA-MTX) and multiple sclerosis using ocrelizumab (MS-OCR) patients.
(a) Representative flow cytometry plots for the quantification of circulating CD8+ T cell populations. Colors represent the populations that were identified by unbiased analysis. (b–c) Count per µl of blood and frequency of total CD8+ T cells (a) and central memory (CM), effector memory (EM), effector memory CD45RA+ (EMRA), stem cell memory (SCM), naïve CD8+ T cells (c) before (T0) and 7 days after first (T1) and second vaccination (T3) in SARS-CoV-2 experienced RA-MTX patients, MS-OCR patients, and healthy control (HC). (d) Heatmap representation showing dynamic marker expression by CD8+ T cell subpopulations that are affected by first (T1) and second (T3) vaccination as compared to baseline (T0) in the different groups. Each dynamic marker is represented by a single row of colored squares, and each time point-disease group combination is represented by a single column. Color squares represent the populations that are significantly reduced (blue) or increased (red) or not affected (white). (e) Frequency of CD8 T cell subpopulations before (T0) and 7 days after first (T1) and second vaccination (T3). (f) Stacked bar charts representing average fractions of CD8 T cell subpopulations co-expressing different dynamic molecules combinations. Statistical significance was determined using a Mann-Whitney test (b and c) and using a Wilcoxon signed-rank test (d-e) with Bonferroni-Holm multiple comparison correction.
No significant changes in total CD8+ T cells numbers per µl blood were observed in MTX-RA, MS-OCR, and HCs after the first and second vaccination (Figure 5—figure supplement 1a), however, a significantly lower total CD8+ T cell number per µl blood was observed in RA-MTX patients compared to HCs (Figure 5b). The smaller total CD8+ T cell population in RA-MTX patients was mainly driven by fewer CD8+ Tnaïve cells compared to HCs throughout the duration of the study (Figure 5c and Figure 5—figure supplement 1c). In contrast, a trend for a lower proportion and the total number of CD8+ Tcm cells per µl blood was observed in MS-OCR patients versus HC (Figure 5c and Figure 5—figure supplement 1c). Nevertheless, MS-OCR patients display a substantial increase in CD8+ Tcm cell count per µl blood and proportions after the first vaccination (Figure 5—figure supplement 1c). No significant changes in other phenotypic CD8+ T cell subsets were observed in RA-MTX or MS-OCR patients following either vaccination (Figure 5—figure supplement 1b, c).
Next, the effect of OCR and MTX treatment on the response profile of CD8+ T cell subsets was analyzed using the same eight dynamic markers as described for CD4+ cTfh and Th cells. The expression of these markers was assessed on memory and naive CD8+ T cell populations in SARS-CoV-2 experienced individuals. Differences in the expression of dynamic markers on different CD8+ T cell subsets were observed between RA-MTX, MS-OCR, and HC donors. In RA-MTX patients, a significantly higher proportion of CD8+ Tcm cells expressed CD38 after the first vaccination, whereas a more dynamic recall response was observed after the second vaccination where a greater proportion of CD8+ Tcm cells exhibited expression of CD38, PD1, TIGIT, and CD40L (Figure 5d and Figure 5—figure supplement 1d). This was also reflected by the percentage of responding CD8+ Tcm cells, which markedly increased after the second vaccination (Figure 5e). However, co-expression of three or more dynamic markers was lower in RA-MTX patients versus HCs (Figure 5f and Figure 5—figure supplement 1e). Together these results indicate a lower quality (exemplified by lack of co-expression of multiple dynamic markers) and/or potentially delayed recall response following vaccination in RA-MTX patients. In contrast, a higher proportion of CD8+ Tcm cells in MS-OCR patients displayed expression of CD38, HLA-DR, and TIGIT already after the first vaccination (Figure 5d). In addition, a profound increase in the percentage of responding CD8+ Tcm cells was observed in MS-OCR patients after the first vaccination, of which substantially more cells co-expressed three to four dynamic markers following first vaccination compared to HCs (Figure 5f and Figure 5—figure supplement 1e), which is indicative of a high-quality recall response. The CD8+ Tcm response observed in MS-OCR patients following the first vaccination largely mimicked that of HCs except that more dynamic markers displayed an increased expression HC (Figure 5d and e), which was even more pronounced following the second vaccination in HC (Figure 5f and Figure 5—figure supplement 1e). This indicates a different dynamic of responding memory populations in MS-OCR patients versus HCs. Interestingly, the activation profile of CD8+ Tnaïve-like cells, which could be indicative of recruitment of de novo Tnaïve responses or Tscm responses, was also different between the patient groups. RA-MTX patients displayed a vast increase in the percentage of responding CD8+ Tnaïve-like cells after the second vaccination, whereas MS-OCR patients displayed an increase in the percentage of responding CD8+ Tnaïve-like cells after the first vaccination which remained higher after the second vaccination (Figure 5e). However, the CD8+ Tnaïve-like response in MS-OCR patients was of slightly lower quality compared to HCs, as indicated by the lower co-expression of four and five dynamic markers following both vaccinations (Figure 5f and Figure 5—figure supplement 1e). Co-expression of more than two dynamic markers was largely absent in the RA-MTX patients at all time points Figure 5f and Figure 5—figure supplement 1a.
These data demonstrate that especially MS-OCR patients, but not RA-MTX patients, display a strong CD8+ T cell recall response following the first vaccination, while in HCs this recall response is more pronounced following the second vaccination. The effect of both vaccinations on the CD8+ T cell responses in RA-MTX patients seems limited.
Discussion
The formation of immunological memory following infection and/or vaccination and the subsequent recall response is of great importance to prevent severe disease when re-exposed to the same pathogen. This study aimed to unravel the SARS-CoV-2 immunological recall potential in SARS-CoV-2-experienced patients using two frequently prescribed immunosuppressive medications OCR and MTX. As an alternative to re-exposure with SARS-CoV-2, the immunological recall was investigated following SARS-CoV-2 Moderna mRNA vaccination of SARS-CoV-2 experienced RA-MTX and MS-OCR patients. Results were compared to vaccinated SARS-CoV-2 experienced HCs. Our study provides a comprehensive analysis of the SARS-CoV-2 vaccine-induced recall immune response in SARS-CoV-2 experienced RA-MTX and MS-OCR patients. Despite the small group sizes, both immunosuppressants were shown to affect the vaccine-induced immunological recall response differently.
The quality (measured by the number per µl blood) and quality (measured by the percentage of responding cells and the co-expression of dynamic markers) of the SARS-CoV-2 vaccine-induced CD8+ T cell responses was established. Although MS-OCR patients had a smaller CD8+ Tcm population compared to HC before vaccination and upon second vaccination, substantial stronger quality of the CD8+ Tcm cell recall response in OCR-treated MS patients was observed compared to those of SARS-CoV-2 experienced HCs following first vaccination. Even though the percentage of responding cells remained high in MS-OCR patients following the second vaccination, HCs displayed responses of slightly higher quality. In general, the overall quality of the CD4+ Tfh1, Th1, and Th1-like recall response was still intact in SARS-CoV-2 experienced OCR-treated MS patients. The dynamic CD4+ Tfh1 recall response profile was somewhat surprising considering the lack of B cells and significantly smaller CD4+ Tfh1 population before vaccination. Mice studies previously demonstrated that B cells contribute to the CD4+ T cell activation (Bouaziz et al., 2007). However, others also observed CD4+ Tfh1 cells activation following SARS-CoV-2 vaccination of unexperienced OCR-treated MS patients (Apostolidis et al., 2021). One interesting observation was the lack of CTLA-4 expression in SARS-CoV-2 experienced MS-OCR patients. CTLA-4 is known to increase on activated T cells to inhibit their immune response, which could indicate that by day 7 post vaccination the recall immune response in HCs is already declining (Chikuma, 2017). Whether failure to induce CTLA-4 expression on CD4+ Tfh1 cells in MS-OCR patients is the result of a less tolerant immune system as part of the autoimmune disease or a direct result of missing B cells in the germinal response which may normally be responsible for the induction of CTLA-4 on CD4+ Tfh1 cells as part of a negative feedback loop remains to be established. In addition, the lack of B cell immunity in MS-OCR patients may have resulted in an altered Th response, which focused more on the activation of CD4+ Th1 responses, skewing the recall immune response to a preserved CD8+ T cell performance. This is in accordance with other studies where low antibody responses following SARS-CoV-2 vaccination of unexperienced MS-OCR patients are also correlated to superior CD8+ T cell responses (Apostolidis et al., 2021; Brill et al., 2021; Gadani et al., 2021; Madelon et al., 2021). In contrast to the T cell recall and despite the surprising presence of low SARS-CoV-2 antibody titers before vaccination, anti-CD20 treatment severely impaired the antigen-specific humoral and B cell recall responses following vaccination, which coincidenced with failure to increase antibody titers and/or seroconversion. OCR treatment is known to eliminate CD20+ B cell populations for prolonged periods (van Lierop et al., 2022), which likely hampered the formation of SARS-CoV-2-specific B cell memory in MS patients and indeed memory B cells were undetectable before vaccination. Together, OCR treatment deprived MS patients of an effective B cell recall response, which in part could explain the failure to induce any humoral immunity upon vaccination. It remains to be established why MS-OCR patients seroconverted following the initial infection and if these antibodies have had similar neutralizing qualities as those found in healthy individuals. One possibility is that OCR treatment mainly eradicated circulating CD20+ B cell populations, while B cells in secondary lymphoid organs may have been less affected (Kamburova et al., 2013).
MTX treatment in RA patients resulted in delayed immunological recall responses compared to HCs. This was best observed by the antigen-specific humoral immune response following the first vaccination. Despite inducing a rise in antibody titers by day 7, similar levels to SARS-CoV-2 experienced HCs were not reached till day 42 just before the second vaccination. Previous studies observed that de novo antibody titers following SARS-CoV-2 vaccination of MTX-treated RA patients were reduced compared to HCs (Deepak et al., 2021; Furer et al., 2021; Haberman et al., 2020; Spiera et al., 2021). Here, we show that recall humoral immunity is merely delayed. MTX is known to hamper the proliferation of lymphocytes (Cronstein and Aune, 2020), which could have affected the formation of memory B cells following the initial infection in RA patients and thereby the effectiveness of the recall response, hampering the formation of plasmablasts and plasma cells, which was indeed observed in most RA-MTX patients. Whether delayed humoral recall was the result of lower pre-existing B cell memory before vaccination and/or reduced proliferation and differentiation capacity of the B cells, both observed during the course of this study, remains to be established by measuring antigen-specific B cells in these patients over time. However, the immunosuppressive effect of MTX was most striking in the CD8+ T cell compartment. SARS-CoV-2 experienced RA-MTX patients had a significantly smaller total CD8+ T cell population which was mainly driven by a smaller than expected CD8+ Tnaïve population, whereas their CD8+ Tcm population seemed intact. In accordance with the suppressive activity of MTX and in contrast to MS-OCR patients, the memory CD8+ T cell populations in RA-MTX patients did not increase during the course of the study. In addition, responding CD8+ Tcm and Tnaïve populations only increased following the second vaccination. Furthermore, their ability to upregulate the co-expression of multiple dynamic responding markers was severely hampered in CD8+ Tcm cells, suggesting that the overall quality of the response was either compromised or delayed, as was observed for antigen-specific humoral recall immunity. A similar effect, albeit less strong, was observed in CD4+ Tfh1 and Th1 cells. Studies that included multiple additional time points are warranted to elucidate the possible explanations.
Of specific interest is the response of CD8+ Tnaïve cells in MS-OCR patients and HCs following the first vaccination. This indicates that next to immunological recall a novel CD8+ T cell response is generated, which could result in a broader immune response. Further investigation is warranted to establish whether these cells recruit novel clonotypes directed to similar epitopes as during the initial infection or CD8+ T cells directed against additional epitopes. The effect of both vaccinations on the CD8+ T cells response in RA-MTX patients seemed limited, however, it cannot be fully excluded that responses in CD8+ Tnaïve cells were delayed and not captured by the time points in this study.
Overall, this study demonstrated that MTX and OCR immunosuppressive therapies prevent the induction of a larger-than-expected humoral and cellular recall response that was previously observed in SARS-CoV-2 experienced HCs (Reynolds et al., 2021; Stamatatos et al., 2021; Tauzin et al., 2021; Wang et al., 2021a). Despite lacking humoral and B cell immunity, the MS-OCR patients did have a preserved reactive CD8+ T cell recall response. CD8+ T cells are known to form an important second-line defense. Although CD8+ T cells do not prevent infection, they have a key role in viral clearance which contributes to the resolution of symptoms (Kundu et al., 2022; Thevarajan et al., 2020) and robust CD8+ T cell immunity has been shown to result in overall milder symptoms in SARS-CoV-2 patients (Rydyznski Moderbacher et al., 2020; Tan et al., 2021). Furthermore, CD8+ T cells recognize conserved epitopes allowing for high cross-reactivity between different SARS-CoV-2 variants (Alison Tarke et al., 2021; Gao et al., 2022; GeurtsvanKessel et al., 2021; Keeton et al., 2021; Liu et al., 2022; Rowntree et al., 2022). While CD8+ T cells immunity will not prevent infection, high proportions of CD8+ T cells have been associated with clinically favorable outcomes (Kundu et al., 2022; Tan et al., 2021). Ongoing research in this area will be important, particularly in regard to immunosuppressed populations facing novel variants of concern. MTX treatment of RA patients also had impaired recall immune responses after vaccination. Despite a clear delay in the SARS-CoV-2-specific antibody response, further studies including more time points are required to confirm whether the lower response observed in the cellular arm of the immunological recall is delayed or remains impaired over time and how this affects the immune protection of individuals under MTX therapy when infected with new SARS-CoV-2 variants. Together, these findings indicate that SARS-CoV-2 experienced MS-OCR patients may benefit from vaccines that aim to induce a broad CD8+ T cell response. RA-MTX patients lack similar broad-protective cellular immune responses and are likely to benefit more from revaccination strategies with vaccines updated for new variants of concern to induce broad-protective antibody responses.
Limitations
We recognize that our study had several limitations. First, the analysis performed was limited to the relatively small number of patients available. This particularly prevented correlation. MS and RA patients in general have been careful during the first year of the pandemic not to get infected, so pre-infected patient numbers were relatively scares compared to the general population. Today most patients have been vaccinated before getting infected. Second, although we were able to perform deep-immune profiling on whole blood samples, allowing the detection of vulnerable antibody-secreting B cell populations, this prohibited antigen-specific staining of our immune cells. Instead, we studied a range of dynamic markers which are associated with activated/responding T cells and their co-expression is often associated with higher quality T cell responses (Koutsakos et al., 2021; Thevarajan et al., 2020). The expression of these markers on antigen-specific cells using AIM peptide stimulations and/or tetramer staining of acute timepoints have been show by others (Nguyen et al., 2021; Oja et al., 2020; Rha et al., 2021, Habel et al., 2020, Geers et al., 2021, Mudd et al., 2022). In addition, we linked the results of our deep-immune profiles to SARS-CoV-2 RBD-specific antibodies measurements. Third, since no MS or RA patients without medication were included, we could not rule out that the disease itself may had an effect on vaccine-induced immune response. Fourth, a comparison with unexperienced RA-MTX and MS-OCR patients and HCs would have been ideal, however, SARS-CoV-2 unexperienced RA-MTX and MS-OCR patients were among the first to be vaccinated under the Dutch national vaccination guidelines and could therefore not be recruited in time for this study. Finally, to understand the delayed dynamics of the cellular responses observed in RA-MTX patients, further studies including multiple time points post vaccination are warranted.
Data availability
All raw and processed data presented in this study are available at https://flowrepository.org/id/FR-FCM-Z52K.
-
flowrepositoryID FR-FCM-Z52K. All raw and processed flow cytometry data.
References
-
Efficacy and Safety of the mRNA-1273 SARS-CoV-2 VaccineThe New England Journal of Medicine 384:403–416.https://doi.org/10.1056/NEJMoa2035389
-
Review of the covid-19 risk in multiple sclerosisJournal of Cellular Immunology 3:68–77.https://doi.org/10.33696/immunology.3.080
-
Ctla-4, an essential immune-checkpoint for t-cell activationCurrent Topics in Microbiology and Immunology 410:99–126.https://doi.org/10.1007/82_2017_61
-
Methotrexate and its mechanisms of action in inflammatory arthritisNature Reviews. Rheumatology 16:145–154.https://doi.org/10.1038/s41584-020-0373-9
-
Effect of immunosuppression on the immunogenicity of mrna vaccines to sars-cov-2 : A prospective cohort studyAnnals of Internal Medicine 174:1572–1585.https://doi.org/10.7326/M21-1757
-
An interactive web-based dashboard to track COVID-19 in real timeThe Lancet. Infectious Diseases 20:533–534.https://doi.org/10.1016/S1473-3099(20)30120-1
-
Efficacy of B-cell-targeted therapy with rituximab in patients with rheumatoid arthritisThe New England Journal of Medicine 350:2572–2581.https://doi.org/10.1056/NEJMoa032534
-
B-cell targeting in rheumatoid arthritis and other autoimmune diseasesNature Reviews. Immunology 6:394–403.https://doi.org/10.1038/nri1838
-
Methotrexate hampers immunogenicity to BNT162B2 mRNA COVID-19 vaccine in immune-mediated inflammatory diseaseAnnals of the Rheumatic Diseases 80:1339–1344.https://doi.org/10.1136/annrheumdis-2021-220597
-
COVID-19 in ocrelizumab-treated people with multiple sclerosisMultiple Sclerosis and Related Disorders 49:102725.https://doi.org/10.1016/j.msard.2020.102725
-
A single dose of rituximab does not deplete B cells in secondary lymphoid organs but alters phenotype and functionAmerican Journal of Transplantation 13:1503–1511.https://doi.org/10.1111/ajt.12220
-
Serum iga, igm, and igg responses in covid-19Cellular & Molecular Immunology 17:773–775.https://doi.org/10.1038/s41423-020-0474-z
-
Recall response to COVID-19 antigen is preserved in people with multiple sclerosis on anti-CD20 medications - A pilot studyMultiple Sclerosis and Related Disorders 59:103560.https://doi.org/10.1016/j.msard.2022.103560
-
Ocrelizumab: a new milestone in multiple sclerosis therapyTherapeutic Advances in Neurological Disorders 11:1756286418773025.https://doi.org/10.1177/1756286418773025
-
The generation of antibody-secreting plasma cellsNature Reviews. Immunology 15:160–171.https://doi.org/10.1038/nri3795
-
Divergent SARS-CoV-2-specific T- and B-cell responses in severe but not mild COVID-19 patientsEuropean Journal of Immunology 50:1998–2012.https://doi.org/10.1002/eji.202048908
-
Safety and efficacy of the bnt162b2 mrna covid-19 vaccineThe New England Journal of Medicine 383:2603–2615.https://doi.org/10.1056/NEJMoa2034577
-
Dynamics of antibodies to SARS-CoV-2 in convalescent plasma donorsClinical & Translational Immunology 10:e1285.https://doi.org/10.1002/cti2.1285
-
Effectiveness of SARS-cov-2 mrna vaccines for preventing covid-19 hospitalizations in the united states: Clin infect diseffectiveness of sars-cov-2 mrna vaccines for preventing covid-19 hospitalizations in the united statesInfluenza and Other Viruses in the Acutely Ill IVY Network 1:e687.https://doi.org/10.1093/cid/ciab687
-
Longitudinal humoral response after SARS-CoV-2 vaccination in ocrelizumab treated MS patients: To wait and repopulate?Multiple Sclerosis and Related Disorders 57:103416.https://doi.org/10.1016/j.msard.2021.103416
-
COVID-19 in multiple sclerosis patients: susceptibility, severity risk factors and serological responseEuropean Journal of Neurology 28:3384–3395.https://doi.org/10.1111/ene.14690
-
Heterogeneity and plasticity of T helper cellsCell Research 20:4–12.https://doi.org/10.1038/cr.2009.138
Decision letter
-
Sarah SassonReviewing Editor; The Kirby Institute UNSW, Australia
-
Miles P DavenportSenior Editor; University of New South Wales, Australia
-
Sarah SassonReviewer; The Kirby Institute UNSW, Australia
In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.
Decision letter after peer review:
Thank you for submitting your article "Immune dynamics in SARS-CoV-2 experienced immunosuppressed rheumatoid arthritis or multiple sclerosis patients vaccinated with mRNA-1273" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, including Sarah Sasson as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen Miles Davenport as the Senior Editor.
The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.
Essential revisions:
1) Statistical Analysis: All 3 reviewers have concerns regarding the statistical analysis. Please ensure a Bonferroni correction has been performed where multiple comparisons have been undertaken. This will likely impact on the p-value determination and significance of some results. Please review the validity of a Wilcoxon signed-rank test in Figure 3f.
2) There is little evidence in the current literature that T cell responses alone can prevent SARS-CoV-2 infection. References to this should be modified in the text as highlighted by Reviewer 1.
3) The presented methodology is not sufficient for defining antigen-specific T cells. Contemporary methods for measuring antigen-specific T cells should be performed as highlighted by Reviewer 2 or references to antigen-specific T cells should be removed from the text.
4) The potential confounding effects of the underlying disease processes (that are divergent between groups) should be acknowledged in the Discussion.
Reviewer #1 (Recommendations for the authors):
This report is well-written, logically presented and highly focused on two patient populations: MS-OCR and RA-MTX. It provides a thorough mapping of immune responses and recalls adaptive immune responses in SARS-CoV-2 experienced patients undergoing mRNA vaccination. The Figures are clear and concise. Overall, it has the potential to contribute meaningfully to the field.
I have some concerns outlined below that should be addressed prior to publication.
1. Overall, the number of patients in the OCR and MTX is relatively small.
2. In the Abstract>Conclusion the authors state that the expanded CD8+ T cell population evident in OCR treated MS patients indicates that this patient group "still benefits" from vaccination. This statement needs to be interpreted in light of the fact that very little data exists to support that T cells alone can protect patients from COVID-19 in real-world clinical settings. This statement should be edited to reflect this complexity.
3. Similarly, the delayed kinetics in MTX lead the authors to state "repeat vaccination strategies should be supported", however, provide no evidence that such repeated strategies are able to overcome treatment with MTX. Indeed, other therapeutic interventions should also be considered and these may include: treatment interruptions, mixed vaccine strategies and synthetic monoclonal antibodies e.g. tixagevimab/cilgavimab.
4. Results: The differences in the CD8+ subset in OCR compared to HC appear overstated. In Figure 5e the proportion of CD8+ TCM and "naïve-like" cells appear to be incrementally different from HC (p=0.03). It is unclear if Bonferroni corrections have been made for comparisons between groups, but if not, these results are not likely to be statistically significant.
5. In regard to Point 4 the Methods>Statistics do not state a Bonferroni correction has been undertaken for multiple comparisons. This should be done for all analyses in order to determine statistical significance more accurately.
6. Discussion Line 475-479 "Although MS-OCR patients had a smaller CD8+ Tcm population compared to HC prior to vaccination, the quantity (measured by the number per µl blood) and quality (measured by the percentage of responding cells and the co-expression of dynamic markers) of the SARS-CoV-2 vaccine-induced CD8+ Tcm cell recall response in OCR-treated MS patients outperformed those of SARS-CoV-2 experienced HCs." Again, the comment regarding quantity appears overstated and this sentence should be revised.
7. Line 496-497 "skewing the recall immune response to a superior CD8+ T cell performance." Is overstated and not supported by the data. The data is more in keeping with preserved CD8+ T cell responses. This sentence should be revised.
8. Line 501 the word "remarkable" should be deleted.
9. Line 554 the word "exceptional" should be removed and replaced with "preserved" or similar.
10. Line 560 "These CD8+ T cells are therefore likely to provide MS patients with adequate protection from severe disease following infection with novel SARS-CoV-2 variants." Is highly speculative and not supported by the current literature. This sentence should be removed or revised.
11. Line 567 replace "could" with "may".
12. Line 554 OCR CD8+ response described as "exceptional". This should be revised.
13. Line 560-561 Authors postulate high CD8+ T cell responses will likely protect against COVID-19 but there is very little data to support this.
Reviewer #2 (Recommendations for the authors):
Hagen and colleagues used high-dimensional flow cytometry (38 markers total) to characterise the humoral and cellular immune response to prime-boost vaccination with the mRNA-1273/Moderna SARS-CoV-2 vaccine in healthy controls (HCs), and rheumatoid arthritis (RA) and multiple sclerosis (MS) patients on immunosuppressants, all of which had previously been infected with SARS-CoV-2.
These are important samples to study and this work adds to the body of literature exploring the impact of disease and/or immunosuppressant treatment on the immune response to COVID-19 vaccination. This data will be critical for identifying the best vaccine platforms for these patients, as well as appropriate vaccine regimens.
However, not all the authors' conclusions are supported by the data. For example, there is insufficient evidence to support a "superior recall response of CD8+ T central memory cells following first vaccination" in OCR-treated MS patients, as an invalid approach was used to define antigen-specific T cells (cells that upregulated one or more of the following markers relative to the pre-vaccination timepoint: CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L and CD137). Other conclusions need to be rephrased. For example, it is unclear whether "similar CD4+ T follicular helper 1 and T helper 1 dynamics" refers to the frequency or activation profile of these cells in OCR-treated MS patients, since Tfh1 cells showed a significant increase in number per μl of blood only in HCs, and not MS or RA patients, following first vaccination.
The main limitation of this paper is the small sample size. Thus, how well the findings will translate to other patients on immunosuppressants is unclear. Disease and treatment are also confounded, so the results could reflect a disease and/or treatment effect. The results indicate the frequency of different cell subsets and the expression of activation markers, but there is a lack of information on the frequency and activation state of antigen-specific T and B cells.
The authors examined the expression of eight dynamic markers (CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L and CD137) "as a surrogate to verify antigen specificity". They have then classed "responding cells" as those expressing one or more of these markers. These criteria are very lenient, and many of the identified cells will not be antigen-specific. To show antigen specificity, the authors could use tetramers or an AIM assay, for example. In Grifoni et al., Cell, 2020, they show that the frequency of SARS-CoV-2-specific CD4+ and CD8+ T cells in exposed COVID-19 individuals is generally < 1%, much lower than the frequencies of responding cells observed in this paper. The authors should perform one of the suggested assays or remove all references to antigen-specific T cells.
The authors have provided lots of detail in the text about the changes in cell frequencies and marker expression detected or not detected for each cell subset. However, this leads to the key points and the message being somewhat lost. Shortening the text and highlighting the main findings would make the paper more impactful.
The authors compare cell frequencies and dynamic marker expression at T3 (post-vaccine 2) with T0 (pre-vaccine 1), as they did not collect blood pre-vaccine 2 (T2). This makes it challenging to interpret the changes in response to the second vaccine, since cell frequencies and marker expression may differ at T2 relative to T0. The authors should be clear in the text when they are comparing T3 with T0.
In general, the effects of immunosuppressant treatment are confounded by the disease state. The authors should clarify this in the text.
The authors have defined Tfh cells as CXCR5+ CD4+ T cells. However, true Tfh cells are located in lymphoid tissues, and are PD-1+ ICOShi and express the transcription factor BCl-6 (as discussed in Tangye et al., Nat Rev Immunol, 2013). The authors should rename these populations as Tfh-like or cTfh to distinguish them from true Tfh cells.
What statistical test was used to identify changes in population frequency in Figure 1h,i? Was multiple testing correction performed? Were compositional effects considered in Figure 1i?
The Wilcoxon signed-rank test is not appropriate for Figure 3f.
Reviewer #3 (Recommendations for the authors):
The authors have performed a longitudinal study of vaccine responses in 6 individuals with rheumatoid arthritis treated with methotrexate (MTX) and 7 individuals with MS treated with CD20 depletion, all of whom have recovered from COVID-19. Their responses have been compared to 15 reasonably well-matched control individuals.
Their approach is an interesting one – few studies have specifically focused on individuals who have recovered from COVID-19 with these comorbidities. They have chosen to study the Moderna mRNA vaccine, another area where fewer studies have focused. These are all strengths and would add value to the literature as hypothesis-generating for future studies.
The authors have mentioned some of the weaknesses of the study in their conclusions. Namely:
The limited number of participants (further complicated by some of whom hadn't received both vaccine doses).
The fact that they describe their findings as a "recall" response, but this has only been demonstrated using surrogate markers of activation and not in an antigen-specific manner.
To these, I would add the further limitation that:
1. In my opinion, a substantial amount of statistical analysis has been performed on data from a limited number of patients. 13 quite complex multi-panel figures have been created from 13 participants. It is not clear whether any consideration of multiple comparisons has been undertaken.
2. Within the representative flow cytometry plots describing the Tfh subsets there appears to be considerable overlap between the phenotype of some of the subsets (except Tfh1 and Tfh17 which look distinct) which presumably feeds forward into the further analysis of these small populations.
3. I may have missed this in the analysis, but the conclusion regarding CD8 responses in patients with MS – they appear to have a very activated phenotype at T0 (prior to vaccination). Are there actually dynamic differences between baseline at T1 in naive/CM?
4. The study design doesn't allow us to look at the B cell phenotype at timepoint 2 of the RA patients treated with MTX who demonstrate slower kinetics of peak antibody concentration following initial immunisation.
5. One could argue that the study may have been improved if a single disease was studied (e.g. RA where both MTX and anti-CD20 are used rather than introducing a potential confounding effect of the disease process).
Line 116 – there already is a reasonable tranche of literature on this already (both rituximab and methotrexate).
Line 267 – worth mentioning in the methods how many pre-pandemic samples the authors have used to set the threshold for positivity on the serological assay, its sensitivity and specificity.
Using a sufficiently sensitive assay >98% of healthy individuals mount an antibody response to SARS-CoV-2. I found it odd that going into the study a greater percentage of individuals with RA on MTX has a humoral response vs healthy controls. Related to this the authors conclude the patients on MTX have a slower development of antibodies. To justify this, it would also be helpful to specify the precision of the assay, for example the %CV.
Line 271 – It's interesting that some MS patients on anti-CD20 mount humoral responses. What can be said about the relationship between the timing of previous B cell depletion and the timing of that original infection?
Figure 2A and B – I don't agree with the statistical approach to the comparison of timepoints and disease groups here. It looks like a Mann-witney test has been performed that has included the data points below the threshold of the assay. By definition, as the cutoff has been set with pre-pandemic controls, these samples must be negative, as they contain no specific antibodies. They can't be included with a numerical value, even if it is "arbitrary units".
Figure 3A – there does appear to be marked overlap between the defined populations of various Tfh subsets; they don't seem terribly distinct, with the exception of Tfh1 and Thf17. Are there confidence intervals for the gating used to define the various populations here? These populations are then used for further analysis downstream. I'd be concerned about the validity of that analysis.
Figure 5F – I don't fully understand the explanation offered about the differences between the mobilisation of CD8 cells here. For MS patients, they have a usually high frequency of naive-like CD8 T cells expressing activation markers – why is this? Do these significantly increase (i.e mobilised by the vaccine)? Similarly for CD8 CM cells.
Other considerations
– RA and MS are risk factors for severe disease and death from COVID-19; is their survivor bias in the cohort at large?
– There is a wide range of time from SARS-CoV-2 infection to vaccination – is this a potential confounding variable.
– I'd avoid the frequent use of the term "trends" when discussing such a small sample size is likely to be over-interpreting the data.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
Thank you for resubmitting your work entitled "Immune dynamics in SARS-CoV-2 experienced immunosuppressed rheumatoid arthritis or multiple sclerosis patients vaccinated with mRNA-1273" for further consideration by eLife. Your revised article has been evaluated by Miles Davenport (Senior Editor) and a Reviewing Editor.
The manuscript has been substantially improved but there are 3 significant remaining issues that need to be addressed, as outlined below:
1. The role of CD8+ T cells in clearing SARS-CoV-2 and improving the clinical course remains overstated in light of the current evidence. Of the supporting literature, the paper by Thevarajan et al. (Nat Med 202) is in fact a case report. Additionally, the paper by Tan et all (Cell Reports 2021) demonstrates an association between CD8+ T cell count and milder disease course but evidence of causation cannot be drawn from these.
The Abstract conclusion "Together, these findings indicate that SARS-CoV-2 experienced MS-OCR patients still benefit from vaccination by inducing a broad CD8+ T cell response which can contribute to milder disease outcome." Should be edited to: "Together, these findings indicate that SARS-CoV-2 experienced MS-OCR patients may still benefit from vaccination by inducing a broad CD8+ T cell response which has been associated with milder disease outcome." (or similar).
Line 770-772 "So even though CD8+ T cells will not prevent infection, they are therefore likely to provide MS patients with adequate protection from severe disease following infection with novel SARS-CoV-2 variants." This comment remains speculative and should be edited to: "While CD8+ T cells immunity will not prevent infection, high proportions of CD8+ T cells have been associated with clinically favorable outcomes. Ongoing research in this area will be important, particularly in regard to immunosuppressed populations facing novel variants of concern." (or similar).
2. Abstract Line 74-76: The statement "A delayed dynamics of vaccine-induced immunological recall in RA-MTX patients support repeated vaccine strategies to protect against future variants of concern, especially for these patients." is not supported by the data. Instead, the authors should highlight the delayed IgG kinetics in the MTX and how this might influence healthcare provider advice to affected patients regarding shielding (mask-wearing etc) and alternative strategies such as treatment interruptions or synthetic IgG products for vulnerable patients. it is unclear how repeated vaccines would impact the kinetics and this has not been shown in this paper.
3. References to "Antigen-specific" T cells have been retained in the manuscript despite no contemporary methods for measuring antigen-specific cells being used. Multi-parameter immunophenotyping is not an adequate replacement for such assays and reporting such data in the context of "antigen specificity" is not scientifically correct in the current context. Such assays can be performed on whole blood (ie the OX40/CD137 AIM assay). Other options include the use of ELISPOT or tetramers both of which could be performed on PBMCs. This data could be retained under a section on advanced immunophenotyping but should not be reported as a measurement of "antigen-specific cells."
https://doi.org/10.7554/eLife.77969.sa1Author response
Essential revisions:
1) Statistical Analysis: All 3 reviewers have concerns regarding the statistical analysis. Please ensure a Bonferroni correction has been performed where multiple comparisons have been undertaken. This will likely impact on the p-value determination and significance of some results. Please review the validity of a Wilcoxon signed-rank test in Figure 3f.
We have now performed a Bonferroni-Holms correction for all our multiple comparison analysis.
2) There is little evidence in the current literature that T cell responses alone can prevent SARS-CoV-2 infection. References to this should be modified in the text as highlighted by Reviewer 1.
We like to emphasize that we do not claim that CD8+ T cells can prevent infection, which is the role of neutralizing antibodies. However, there is sufficient evidence that CD8+ T cells contribute to milder disease outcomes, as shown by several studies. We have responded in more detail to the respective questions from Reviewer 1, namely points 2 and 10.
3) The presented methodology is not sufficient for defining antigen-specific T cells. Contemporary methods for measuring antigen-specific T cells should be performed as highlighted by Reviewer 2 or references to antigen-specific T cells should be removed from the text.
We understand the concerns of Reviewer two (point 1) and hope that our answer, including multiple detailed references to previous studies which confirmed the expression of these dynamic markers on antigen-specific T cells, has reassured the Reviewer that dynamic markers were selected with the greatest of care. We have also highlighted some of the challenges of antigen-specific assays and the advantages of our current approach. Unfortunately, no material is available to study the antigen-specific T cell response in an AIMS assay. As we cannot eliminate the slight possibility of bystander activation, we have now rephrased the antigen-specific wording throughout our manuscript by the antigen-induced recall.
4) The potential confounding effects of the underlying disease processes (that are divergent between groups) should be acknowledged in the Discussion.
We have now acknowledged this potential confounding effect in the limitations section of the manuscript.
Reviewer #1 (Recommendations for the authors):
This report is well-written, logically presented and highly focused on two patient populations: MS-OCR and RA-MTX. It provides a thorough mapping of immune responses and recalls adaptive immune responses in SARS-CoV-2 experienced patients undergoing mRNA vaccination. The Figures are clear and concise. Overall, it has the potential to contribute meaningfully to the field.
We thank the reviewer for the kind summary and for recognizing the importance of the study. We have addressed the reviewer's comments in a point-by-point form.
I have some concerns outlined below that should be addressed prior to publication.
1. Overall, the number of patients in the OCR and MTX is relatively small.
We agree with the reviewer that the number of patients in the OCR and MTX groups is relatively small. Our understanding from clinicians in the field is that both MS-OCR and RA-MTX patients have been very careful prior to vaccination not to get infected, hence the low numbers of infected patients before vaccination. We have attempted to increase our cohort, but patients have been very compliant with the vaccination strategies, hence no additional infected-vaccinated patients could be included in the study. In addition, considering that this group is so rare it will become less likely that any future information on recall responses in this specific pre-infected patient group will be gathered. We review this limitation in the “Limitations” section of the manuscript, which now reads:
“We recognize that our study had several limitations. Firstly, the analysis performed was limited to the relatively small number of patients available. This particularly prevented correlation. MS and RA patients in general have been careful during the first year of the infection not to get infected, so pre-infected patient numbers were relatively low compared to the general population. Today most patients have been vaccinated before getting infected.”
2. In the Abstract>Conclusion the authors state that the expanded CD8+ T cell population evident in OCR treated MS patients indicates that this patient group "still benefits" from vaccination. This statement needs to be interpreted in light of the fact that very little data exists to support that T cells alone can protect patients from COVID-19 in real-world clinical settings. This statement should be edited to reflect this complexity.
We apologize for the confusion this sentence may have caused. We agree with the Reviewer that CD8+ T cells are unlikely to prevent infection similarly as neutralizing antibodies. Instead, CD8+ T cells play a key role in clearing virus-infected cells, which limits viral replication and thereby results contributes to the resolution of the symptoms. In addition, robust CD8+ T cells responses have also been shown to result in overall milder symptoms for the patients. This has been demonstrated by several studies including:
Thevarajan et al., 2020, Nat Med; Moderbacher et al., 2020, Cell; Tan et al., 2021, Cell Rep
We have now clarified this in the Abstract, which now reads:
“Together, these findings indicate that SARS-CoV-2 experienced MS-OCR patients still benefit from vaccination by inducing a broad CD8+ T cell response which can contribute to milder disease outcome.”
3. Similarly, the delayed kinetics in MTX lead the authors to state "repeat vaccination strategies should be supported", however, provide no evidence that such repeated strategies are able to overcome treatment with MTX. Indeed, other therapeutic interventions should also be considered and these may include: treatment interruptions, mixed vaccine strategies and synthetic monoclonal antibodies e.g. tixagevimab/cilgavimab.
We agree with the Reviewer that multiple therapeutic intervention strategies could be relevant to improving the overall immune response in these patients. However, our study has focussed on their ability to form immune responses upon vaccination. The delayed immune response observed in RA-MTX patients in combination with reduced activation of CD8+ T cells, which others have shown to be crossreactive with variants of concern (Geers 2021 Sci Immunol), in combination with their ability to induce antibody responses means that these RA-MTX patients are likely to benefit most from their humoral immunity which needs to be more frequent updated when variants of concern emerge. We have now clarified our statement in the abstract, which now reads:
“A delayed dynamics of vaccine-induced immunological recall in RA-MTX patients support repeated vaccine strategies to protect against future variants of concern, especially for these patients.”
4. Results: The differences in the CD8+ subset in OCR compared to HC appear overstated. In Figure 5e the proportion of CD8+ TCM and "naïve-like" cells appear to be incrementally different from HC (p=0.03). It is unclear if Bonferroni corrections have been made for comparisons between groups, but if not, these results are not likely to be statistically significant.
We agree with the Reviewer that in the first draft of our manuscript the multiple comparisons corrections were not included. In the current version, we have implemented the Bonferroni-Holms correction for the two comparisons of the disease groups to the healthy control.
5. In regard to Point 4 the Methods>Statistics do not state a Bonferroni correction has been undertaken for multiple comparisons. This should be done for all analyses in order to determine statistical significance more accurately.
We agree with the Reviewer, we have now implemented the Bonferroni-Holms correction throughout the manuscript according to the reviewer’s suggestion.
6. Discussion Line 475-479 "Although MS-OCR patients had a smaller CD8+ Tcm population compared to HC prior to vaccination, the quantity (measured by the number per µl blood) and quality (measured by the percentage of responding cells and the co-expression of dynamic markers) of the SARS-CoV-2 vaccine-induced CD8+ Tcm cell recall response in OCR-treated MS patients outperformed those of SARS-CoV-2 experienced HCs." Again, the comment regarding quantity appears overstated and this sentence should be revised.
We agree with the Reviewer that the statement with regards to the quantity of the response was stronger than the data would suggest, we have now rephrased this sentence, which now reads:
“The quality (measured by the number per µl blood) and quality (measured by the percentage of responding cells and the co-expression of dynamic markers) of the SARS-CoV-2 vaccine-induced CD8+ T cell responses were established. Although MS-OCR patients had a smaller CD8+ Tcm population compared to HC before vaccination and upon second vaccination, substantially stronger quality of the CD8+ Tcm cell recall response in OCR-treated MS patients was observed compared to those of SARS-CoV2 experienced HCs following the first vaccination.
7. Line 496-497 "skewing the recall immune response to a superior CD8+ T cell performance." Is overstated and not supported by the data. The data is more in keeping with preserved CD8+ T cell responses. This sentence should be revised.
We agree with the Reviewer and have changed the sentence according to the Reviewer’s suggestion. The sentence now reads:
“In addition, the lack of B cell immunity in MS-OCR patients may have resulted in an altered Th response, which focused more on the activation of CD4+ Th1 responses, skewing the recall immune response to a preserved CD8+ T cell performance.”
8. Line 501 the word "remarkable" should be deleted.
We have deleted the word remarkable from the current manuscript.
9. Line 554 the word "exceptional" should be removed and replaced with "preserved" or similar.
We have replaced the word “exceptional” in the current manuscript with “preserved”. In line with the Reviewer’s suggestions regarding the CD8+ T cell response in MS-OCR patients, we have also rephrased the sentence in the abstract, which now reads
“OCR-treated MS patients exhibit a preserved recall response of CD8+ T central memory cells following first vaccination compared to healthy controls and a similar CD4+ circulating T follicular helper 1 and T helper 1 dynamics, whereas humoral and B cell responses were strongly impaired resulting in absence of SARS-CoV-2 specific humoral immunity.”
10. Line 560 "These CD8+ T cells are therefore likely to provide MS patients with adequate protection from severe disease following infection with novel SARS-CoV-2 variants." Is highly speculative and not supported by the current literature. This sentence should be removed or revised.
We respectfully disagree with the Reviewer. We like to emphasize that we do not claim that CD8+ T cells can prevent infection, which is the role of neutralizing antibodies. However, multiple studies have shown the importance of CD8+ T cell immunity in viral clearance and have demonstrated the key role of strong CD8+ T cell immunity before infection and/or during the acute phase of the infection in both resolution of symptoms and milder disease outcome, not only for SARS-CoV-2 (Thevarajan et al., 2020, Nat Med; Moderbacher et al., 2020, Cell; Tan et al., 2021, Cell Rep) but also for other respiratory infections including influenza especially in the absence of neutralizing antibodies (Sridhar 2013 Nat Med; Wang 2015 Nat Comm; Hayward 2015 Am J Resp Crit Care Med). Since MS-OCR patients were unable to produce strong humoral immunity, their protection against severe disease following SARS-CoV-2 infection will greatly depend on their ability to generate other correlates of protection of which CD8+ T cells seem to be the most potent. We, therefore, believe that these cells will play an important role in protecting these MS-ORC patients from severe disease in the future, not from the infection itself.
We have now further clarified this by rephrasing the relevant section, which now reads:
“Despite lacking humoral and B cell immunity the MS-OCR patients did have a preserved reactive CD8+ T cell recall response. CD8+ T cells are known to form an important second-line defense. Although CD8+ T cells do not prevent infection, they have a key role in viral clearance which contributes to the resolution of symptoms (Kundu et al., 2022; Thevarajan et al., 2020) and robust CD8+ T cell immunity has been shown to result in overall milder symptoms in SARS-CoV-2 patients (Rydyznski Moderbacher et al., 2020; Tan et al., 2021). Furthermore, CD8+ T cells recognize conserved epitopes allowing for high crossreactivity between different SARS-CoV-2 variants (Alison Tarke et al., 2021; Gao et al., 2022; GeurtsvanKessel et al., 2021; Keeton et al., 2021; Liu et al., 2022; Rowntree et al., 2021). So even though CD8+ T cells will not prevent infection, they are likely to provide MS patients with adequate protection from severe disease following infection with novel SARS-CoV-2 variants.”
11. Line 567 replace "could" with "may".
We have changed the word “could” to “may”.
12. Line 554 OCR CD8+ response described as "exceptional". This should be revised.
We agree with the reviewer that the word exceptional may have been too strong in this line. As also touched upon in point 9, we have changed it to “preserved”. The new sentence now reads:
“Despite lacking humoral and B cell immunity the MS-OCR patients did have a preserved reactive CD8+ T cell recall response.”
13. Line 560-561 Authors postulate high CD8+ T cell responses will likely protect against COVID-19 but there is very little data to support this.
See points 2 and 10.
Reviewer #2 (Recommendations for the authors):
Hagen and colleagues used high-dimensional flow cytometry (38 markers total) to characterise the humoral and cellular immune response to prime-boost vaccination with the mRNA-1273/Moderna SARS-CoV-2 vaccine in healthy controls (HCs), and rheumatoid arthritis (RA) and multiple sclerosis (MS) patients on immunosuppressants, all of which had previously been infected with SARS-CoV-2.
These are important samples to study and this work adds to the body of literature exploring the impact of disease and/or immunosuppressant treatment on the immune response to COVID-19 vaccination. This data will be critical for identifying the best vaccine platforms for these patients, as well as appropriate vaccine regimens.
However, not all the authors' conclusions are supported by the data. For example, there is insufficient evidence to support a "superior recall response of CD8+ T central memory cells following first vaccination" in OCR-treated MS patients, as an invalid approach was used to define antigen-specific T cells (cells that upregulated one or more of the following markers relative to the pre-vaccination timepoint: CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L and CD137). Other conclusions need to be rephrased. For example, it is unclear whether "similar CD4+ T follicular helper 1 and T helper 1 dynamics" refers to the frequency or activation profile of these cells in OCR-treated MS patients, since Tfh1 cells showed a significant increase in number per μl of blood only in HCs, and not MS or RA patients, following first vaccination.
The main limitation of this paper is the small sample size. Thus, how well the findings will translate to other patients on immunosuppressants is unclear. Disease and treatment are also confounded, so the results could reflect a disease and/or treatment effect. The results indicate the frequency of different cell subsets and the expression of activation markers, but there is a lack of information on the frequency and activation state of antigen-specific T and B cells.
We thank the Reviewer for recognizing the importance and relevance of our study. We do agree with the reviewer that due to the small sample size we may have to be a bit more careful with the phrasing that we have used as to not overinterpret or data. We have responded to the Reviewer in a point-by-point form below.
The authors examined the expression of eight dynamic markers (CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L and CD137) "as a surrogate to verify antigen specificity". They have then classed "responding cells" as those expressing one or more of these markers. These criteria are very lenient, and many of the identified cells will not be antigen-specific. To show antigen specificity, the authors could use tetramers or an AIM assay, for example. In Grifoni et al., Cell, 2020, they show that the frequency of SARS-CoV-2-specific CD4+ and CD8+ T cells in exposed COVID-19 individuals is generally < 1%, much lower than the frequencies of responding cells observed in this paper. The authors should perform one of the suggested assays or remove all references to antigen-specific T cells.
We thank the Reviewer for sharing their concern and hope to reassure the Reviewer that dynamic markers were selected with greatest of care.
As indicated in the limitations section of our manuscript we wished to understand the dynamics of the overall recall response in those patients we performed deep-immune profiling on whole blood samples, allowing the detection of vulnerable antibody-secreting B cell populations, but unfortunately, this prohibited antigen-specific staining of our immune cells, as this is technically challenging for whole blood analysis. Instead, we studied a range of dynamic markers which are associated with antigen induced reactivity and activation and their co-expression is often associated with higher quality T cell responses.
The co-expression of CD38 and HLA-DR is a key phenotype of activation of CD4+ and CD8+ T cells in response to viral infections, as per reports for Ebola (McElroy 2015 PNAS), influenza including tetramer (Ellebedy 2016 Nat Immunol, Nguyen 2021 Nat Comm) and SARS-CoV-2 (Thevarajan 2020 Nat Med, Koutsakos 2021 Cell Rep Med), co-expression of CD38 and HLA-DR on CD4+ and CD8+ T cells (assed as the frequency of CD38+HLADR+ CD8+ T cells) rapidly increase during the acute phase of infection and decline over time following resolution of the symptoms and have been previously demonstrated to be directly linked to virus-specific tetramer+ CD4+ and CD8+ T cells (Nguyen 2021 Nat Comm).
The expression of PD-1 has been linked to activation of CD4+ T cells during SARS-CoV-2 infection (Thevarajan 2020 Nat Med, Koutsakos 2021 Cell Rep Med), influenza infection (Tetramer+CD4+ T cells) (Nguyen 2021 Nat Comm) and vaccination (Koutsakos 2018 Sci Trans Med, Oja 2021 Euro J Immunol) and recently PD-1 was associated with highly functional antigen-specific (Tetramer+) CD8+ T cells in COVID-19 patients (Rha 2021 Immunity, Oja 2021 Eur J Immunol).
Similar, the combination of CD40L and CD137 has been well established as activation markers of antigen-specific CD4 T cell subsets (Oja 2021 Eur J Immunol) and antigen-specific stimulation of CD8+ T cells also increases the expression of CD137 (van de Sandt 2015 J Virol).
These studies have now been cited in the manuscript:
“A T cell activation panel was used to define clusters of highly specialized memory CD4+ T cell subsets, CD8+ T cell phenotypes, and more in-depth analysis of dynamics markers previously associated with antigen-specific reactivity and activation (Ellebedy et al., 2016; Koutsakos et al., 2021; McElroy et al., 2015; Nguyen et al., 2021; Oja et al., 2020; Rha et al., 2021; Thevarajan et al., 2020), namely CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L and CD137 (Figure 1e and Figure 1—figure supplement 1c,d).”
It is to be expected that other dynamic activation/exhaustion markers can also play a role, however, most studies are limited by their flow cytometry in terms of the number of dynamic markers that can be included in their panels (often limited to 8-14 markers in total). Additional dynamic markers which can be associated with activation or exhaustion, include TIGIT, CTLA-4, and TIM3 which are often studied in relation to various cancer therapies but are frequently overlooked in the virus-specific immune response. This also highlights a unique aspect of our study, as the FACS Symphony allowed us to expand our panels and include these additional markers and study their expression directly ex vivo in combination with the above mentioned and well-defined activation markers without the need for any in vitro manipulation.
We hope that the Reviewer will appreciate that we have carefully selected the dynamic markers based on confirmed antigen-specific markers which were previously confirmed in other studies while exploring the potential of additional markers of interest.
With regards to the AIMS assay, this assay uses either a limited number of peptides or a set of long overlapping peptides which could affect the cleavage of small 7-10 aa peptides and their presentation on HLA-class I molecules needed for CD8+ T cell activation, and could therefore result in a slight underestimate of the total antigen-specific CD8+ T cell response. Furthermore, T cell responses detected by peptide stimulation and functional readouts could also be affected by differences in antigen presentation. In addition, a recent study (Brodin 2022 Immunity) suggests the potential for bystander activation of T lymphocytes. We have therefore now removed all mention of antigen-specific T cells from the manuscript and replaced those with the antigen-induced recall.
The authors have provided lots of detail in the text about the changes in cell frequencies and marker expression detected or not detected for each cell subset. However, this leads to the key points and the message being somewhat lost. Shortening the text and highlighting the main findings would make the paper more impactful.
We agree with the Reviewer that the level of detail could be overwhelming for the reader. Based on the suggestion from the reviewer (first minor point) we have now simplified our analysis, limited the number of panels in the main figures, and reduced the level of detail in the text by limiting the description of B and T cell population to absolute numbers only which highlight our key findings.
The authors compare cell frequencies and dynamic marker expression at T3 (post-vaccine 2) with T0 (pre-vaccine 1), as they did not collect blood pre-vaccine 2 (T2). This makes it challenging to interpret the changes in response to the second vaccine, since cell frequencies and marker expression may differ at T2 relative to T0. The authors should be clear in the text when they are comparing T3 with T0.
We apologize to the Reviewer that this was not clear in the first draft of the manuscript. In all instances that we make cellular comparisons including T3, we compare to the baseline sample T0. Unfortunately, it was logistically impossible to perform the flow cytometry data acquisition on the day of the second vaccination.
In general, the effects of immunosuppressant treatment are confounded by the disease state. The authors should clarify this in the text.
We agree with the Reviewer that the disease state may by itself also have affected the outcome of the vaccination response, this has now been acknowledged in the limitations section of the manuscript
“Thirdly, since no MS or RA patients without medication were included, we could not rule out that the disease itself may had an effect on vaccine induced immune response.”
The authors have defined Tfh cells as CXCR5+ CD4+ T cells. However, true Tfh cells are located in lymphoid tissues, and are PD-1+ ICOShi and express the transcription factor BCl-6 (as discussed in Tangye et al., Nat Rev Immunol, 2013). The authors should rename these populations as Tfh-like or cTfh to distinguish them from true Tfh cells.
We agree with the Reviewer that true T follicular helper cells are located in secondary lymphoid tissues. We have renamed all instances of Tfh to cTfh.
What statistical test was used to identify changes in population frequency in Figure 1h,i? Was multiple testing correction performed? Were compositional effects considered in Figure 1i?
In the first draft of our manuscript, no multiple comparison corrections were performed. In the current version of our manuscript, we have implemented the Bonferroni-Holms correction for the comparisons of the two disease groups to the healthy control group.
The Wilcoxon signed-rank test is not appropriate for Figure 3f.
We agree with the Reviewer that Wilcoxon signed-rank test is not appropriate for figure 3f. We have deleted the test from the current manuscript. Due to the small group sizes, we have decided to just show the trends as, this has been addressed as a limitation of our study in the limitations section.
Reviewer #3 (Recommendations for the authors):
The authors have performed a longitudinal study of vaccine responses in 6 individuals with rheumatoid arthritis treated with methotrexate (MTX) and 7 individuals with MS treated with CD20 depletion, all of whom have recovered from COVID-19. Their responses have been compared to 15 reasonably well-matched control individuals.
Their approach is an interesting one – few studies have specifically focused on individuals who have recovered from COVID-19 with these comorbidities. They have chosen to study the Moderna mRNA vaccine, another area where fewer studies have focused. These are all strengths and would add value to the literature as hypothesis-generating for future studies.
The authors have mentioned some of the weaknesses of the study in their conclusions. Namely:
The limited number of participants (further complicated by some of whom hadn't received both vaccine doses).
The fact that they describe their findings as a "recall" response, but this has only been demonstrated using surrogate markers of activation and not in an antigen-specific manner.
To these, I would add the further limitation that:
We thank the Reviewer for recognizing the importance and relevance of our study. We have responded to the Reviewer in a point-by-point form below.
1. In my opinion, a substantial amount of statistical analysis has been performed on data from a limited number of patients. 13 quite complex multi-panel figures have been created from 13 participants. It is not clear whether any consideration of multiple comparisons has been undertaken.
We agree with the Reviewer that in the first draft of our manuscript the multiple comparisons corrections were not included. In the current version, we have implemented the Bonferroni-Holms correction for the comparisons of the two disease groups to the healthy control.
2. Within the representative flow cytometry plots describing the Tfh subsets there appears to be considerable overlap between the phenotype of some of the subsets (except Tfh1 and Tfh17 which look distinct) which presumably feeds forward into the further analysis of these small populations.
Although we agree with the Reviewer that looking at the representative flow cytometry plots the circulating Tfh subsets appear to have considerable overlap. However, for the annotation of the multiple Tfh cells, we have performed an unbiased clustering analysis, of which the results are depicted in figure 1e. This unbiased clustering analysis did place the multiple annotated Tfh cell subset in different meta clusters.
3. I may have missed this in the analysis, but the conclusion regarding CD8 responses in patients with MS – they appear to have a very activated phenotype at T0 (prior to vaccination). Are there actually dynamic differences between baseline at T1 in naive/CM?
The dynamic differences between baseline and 7-10 days after the first vaccination (T1) is summarized in the new figure 5d of the current manuscript. The change in the percentage of CD8+ T cells expressing one of the dynamic markers (CD38, HLA-DR, PD1, CTLA-4, TIGIT, TIM3, CD40L or CD137) is represented as a heatmap. All inductions are represented in red, whereas a reduced proportion would be depicted in blue. In the current figure, we significant differences are indicated with a * in this figure. What we hope the Reviewer appreciates is that there is a profound induction of dynamic marker expression in all but the effector memory CD8+ T cell subsets.
4. The study design doesn't allow us to look at the B cell phenotype at timepoint 2 of the RA patients treated with MTX who demonstrate slower kinetics of peak antibody concentration following initial immunisation.
Unfortunately, the study design indeed did not allow us to compare the B cell phenotype at timepoint 2 of the RA patients treated with MTX, which would, considering the results presented in the current manuscript, be an interesting time point to follow-up on. This has now been addressed in the limitation section of the manuscript:
“Finally, to understand the delayed dynamics of the cellular responses observed in RA-MTX patients further studies including multiple timepoints post vaccination are warranted.”
5. One could argue that the study may have been improved if a single disease was studied (e.g. RA where both MTX and anti-CD20 are used rather than introducing a potential confounding effect of the disease process).
Studying a single disease may have benefited the statistical analysis as it would have limited the number of multiple comparisons. However, the benefit of studying two disease-medication regiments side by side gave us the ability to highlight their unique differences in immune dynamics following vaccination.
Line 116 – there already is a reasonable tranche of literature on this already (both rituximab and methotrexate).
We have acknowledged the literature that describes this point.
Line 267 – worth mentioning in the methods how many pre-pandemic samples the authors have used to set the threshold for positivity on the serological assay, its sensitivity and specificity.
The serological assay used in this study has been used before (see reference in the text and the URL links below). We have included in the text the number (n=600) of pre-pandemic samples that have been used to set the threshold for positivity.
https://pubmed.ncbi.nlm.nih.gov/34026115/ https://pubmed.ncbi.nlm.nih.gov/33127820/
“Based on IgG titers, the majority of SARS-CoV-2 experienced RA-MTX (67%), MS-OCR patients (50%), and HC (58%) still had detectible antibody titers antibody titers above the cutoff of 4 AU/mL levels; determined using 600 pre-COVID-19 outbreak samples as published before (Steenhuis et al., 2021; Vogelzang et al., 2020) (Figure 2a and Figure 2—figure supplement 1a,b).”
Using a sufficiently sensitive assay >98% of healthy individuals mount an antibody response to SARS-CoV-2. I found it odd that going into the study a greater percentage of individuals with RA on MTX has a humoral response vs healthy controls. Related to this the authors conclude the patients on MTX have a slower development of antibodies. To justify this, it would also be helpful to specify the precision of the assay, for example the %CV.
We find that before vaccination 50% of the individuals had a strong antibody response (Figure 2—figure supplement 1a) and only slightly (not significant) higher in RA-MTX patients. The slower antibody response development observed in RA-MTX patients is mainly based on the continuous increase in Ab titers between T1 and T2 post vaccinations, reading a maximum antibody titer at T2. In contrast, HCs displayed a rapid increase in antibody titer following the first vaccination, reaching maximum titers already at T1 post-vaccination.
We can confirm that the sensitivity of our assay for IgG is >98%. To justify this, we have calculated the precision of the assay. The %CV of this assay is 6,2% using 217 samples.
Line 271 – It's interesting that some MS patients on anti-CD20 mount humoral responses. What can be said about the relationship between the timing of previous B cell depletion and the timing of that original infection?
We agree with the Reviewer that this is a very interesting question we have wondered ourselves. We have checked the timing of the previous B cell depletion and the timing of original infection in the individual patients and did not find a correlation, which may be due to the relatively small size of the patients included in the study. This is also why our group has studied this question in more detail. The paper can be found here (https://pubmed.ncbi.nlm.nih.gov/34847379/), where antibody responses following vaccination of MS patients without prior SARS-CoV-2 infection were studied with regard to the timing of their treatment.
Figure 2A and B – I don't agree with the statistical approach to the comparison of timepoints and disease groups here. It looks like a Mann-witney test has been performed that has included the data points below the threshold of the assay. By definition, as the cutoff has been set with pre-pandemic controls, these samples must be negative, as they contain no specific antibodies. They can't be included with a numerical value, even if it is "arbitrary units".
The threshold set for these assays is based on a statistical analysis of samples considered negative – in this case, pre-outbreak samples. This cut-off itself is therefore also only a statistical reality, representing a set chance (e.g. 95 or 99%) that a 'true negative' sample will yield a signal below the threshold. In other words, the assays do yield numerical values below the threshold, and as such can be included in e.g. comparison of timepoints
Figure 3A – there does appear to be marked overlap between the defined populations of various Tfh subsets; they don't seem terribly distinct, with the exception of Tfh1 and Thf17. Are there confidence intervals for the gating used to define the various populations here? These populations are then used for further analysis downstream. I'd be concerned about the validity of that analysis.
See point 2 above.
Although we agree with the Reviewer that looking at the representative flow cytometry plots the circulating Tfh subsets appear to have considerable overlap. However, for the annotation of the multiple Tfh cells, we have performed an unbiased clustering analysis, of which the results are depicted in figure 1e. This unbiased clustering analysis did place the multiple annotated Tfh cell subset in different meta clusters.
Figure 5F – I don't fully understand the explanation offered about the differences between the mobilisation of CD8 cells here. For MS patients, they have a usually high frequency of naive-like CD8 T cells expressing activation markers – why is this? Do these significantly increase (i.e mobilised by the vaccine)? Similarly for CD8 CM cells.
We are unsure if we understand correctly what the Reviewer means by “mobilization”. Does the Reviewer mean higher expression of dynamic markers on CM and Naïve-like CD8+ T cells in MS-OCR patients instead of HCs? We reason that the upregulation of dynamic markers on the CD8+ TCM population indicates reactivation of a previously established memory population, most likely during the initial SARS-CoV-2 infection, whereas the upregulation of the Tnaive-like population most likely indicates the recruitment of de novo CD8+ T cells which were not previously activated during natural infection. Indeed, a recent study indicates that vaccination is as a much better ability to activate spike-specific CD8+ T cells which are hardly activated during natural infection (Minervina 2022 Nat Immunol). The fact that the frequency of these responses is higher in MS-OCR compared to HCs indicates that they mount a more robust immune response upon vaccination.
Other considerations
– RA and MS are risk factors for severe disease and death from COVID-19; is their survivor bias in the cohort at large?
We have cited several studies in the introduction which have studied the risk for severe disease in both RA and MS patients:
“The severity of COVID-19 in individuals on immunosuppressants, varies from mild to severe, depending on the type of immunosuppressants (Gianfrancesco et al., 2020; Möhn et al., 2020; Sparks et al., 2021; Strangfeld et al., 2021) and other underlying risk factors (Baden et al., 2021; F et al., 2021; Hughes et al., 2021; Möhn et al., 2020; Pablos et al., 2020; Sparks et al., 2021; Strangfeld et al., 2021; Williamson et al., 2020; Zabalza et al., 2021).”
– There is a wide range of time from SARS-CoV-2 infection to vaccination – is this a potential confounding variable.
We agree with the Reviewer that there is a wide range between the time of infection and vaccination, however, this wide range is similar between the different groups included in the study. We have included this information to figure 1b as we agree with the Reviewer that this is valuable information to compare the nature and quality of the immune response subsequent vaccination.
– I'd avoid the frequent use of the term "trends" when discussing such a small sample size is likely to be over-interpreting the data.
We thank the reviewer for this observation. In an attempt to focus more on the key messages and less on the trends of less relevant populations we have now excluded the proportion of T and B cell populations from the main figures (data can still be found in the supplemental material) and we focus on the changes in the absolute numbers instead.
[Editors' note: further revisions were suggested prior to acceptance, as described below.]
The manuscript has been substantially improved but there are 3 significant remaining issues that need to be addressed, as outlined below:
We thank the Editor for the additional suggestions, which we have now addressed in the revised version of our manuscript.
1. The role of CD8+ T cells in clearing SARS-CoV-2 and improving the clinical course remains overstated in light of the current evidence. Of the supporting literature, the paper by Thevarajan et al. (Nat Med 202) is in fact a case report. Additionally, the paper by Tan et all (Cell Reports 2021) demonstrates an association between CD8+ T cell count and milder disease course but evidence of causation cannot be drawn from these.
The Abstract conclusion "Together, these findings indicate that SARS-CoV-2 experienced MS-OCR patients still benefit from vaccination by inducing a broad CD8+ T cell response which can contribute to milder disease outcome." Should be edited to: "Together, these findings indicate that SARS-CoV-2 experienced MS-OCR patients may still benefit from vaccination by inducing a broad CD8+ T cell response which has been associated with milder disease outcome." (or similar).
We agree and the sentence now reads “Together, these findings indicate that SARS-CoV-2 experienced MS-OCR patients may still benefit from vaccination by inducing a broad CD8+ T cell response which has been associated with milder disease outcome.” Following Editor’s suggestion.
Line 770-772 "So even though CD8+ T cells will not prevent infection, they are therefore likely to provide MS patients with adequate protection from severe disease following infection with novel SARS-CoV-2 variants." This comment remains speculative and should be edited to: "While CD8+ T cells immunity will not prevent infection, high proportions of CD8+ T cells have been associated with clinically favorable outcomes. Ongoing research in this area will be important, particularly in regard to immunosuppressed populations facing novel variants of concern." (or similar).
We agree and the sentence now reads “While CD8+ T cells immunity will not prevent infection, high proportions of CD8+ T cells have been associated with clinically favorable outcomes (Kundu et al., 2022; Tan et al., 2021). Ongoing research in this area will be important, particularly in regard to immunosuppressed populations facing novel variants of concern.” Following Editor’s suggestion.
2. Abstract Line 74-76: The statement "A delayed dynamics of vaccine-induced immunological recall in RA-MTX patients support repeated vaccine strategies to protect against future variants of concern, especially for these patients." is not supported by the data. Instead, the authors should highlight the delayed IgG kinetics in the MTX and how this might influence healthcare provider advice to affected patients regarding shielding (mask-wearing etc) and alternative strategies such as treatment interruptions or synthetic IgG products for vulnerable patients. it is unclear how repeated vaccines would impact the kinetics and this has not been shown in this paper.
We appreciate the Editors/Reviewers concerns and we have now adjusted the sentence accordingly, the new sentence now reads “The delayed vaccine-induced IgG kinetics in RA-MTX patients indicate an increased risk after the first vaccination, which might require additional shielding or alternative strategies such as treatment interruptions in vulnerable patients.”
3. References to "Antigen-specific" T cells have been retained in the manuscript despite no contemporary methods for measuring antigen-specific cells being used. Multi-parameter immunophenotyping is not an adequate replacement for such assays and reporting such data in the context of "antigen specificity" is not scientifically correct in the current context. Such assays can be performed on whole blood (ie the OX40/CD137 AIM assay). Other options include the use of ELISPOT or tetramers both of which could be performed on PBMCs. This data could be retained under a section on advanced immunophenotyping but should not be reported as a measurement of "antigen-specific cells."
We understand the Editor and Reviewers concerns regarding antigen-specificity. We have now removed all references to antigen-specific T cells from the manuscript.
Line 353-359 now reads: “A T cell activation panel was used to define clusters of memory CD4+ T cell subsets, CD8+ T cell phenotypes, and more in-depth analysis of dynamics markers previously associated with activated/responding T cells (Ellebedy et al., 2016; Koutsakos et al., 2021; McElroy et al., 2015; Nguyen et al., 2021; Oja et al., 2020; Rha et al., 2021; Thevarajan et al., 2020), namely CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L and CD137 (Figure 1e and Figure 1—figure supplements 1c-e).”
Line 486-489 now reads: “Next, the functional activation/exhaustion profile of the CD4+ cTfh cells upon vaccination was assessed. Expression of CD38, HLA-DR, PD-1, CTLA-4, TIGIT, TIM-3, CD40L, and CD137 (Figure 1—figure supplements 1b) on CD4+ cTfh subsets was used to verify activation upon vaccination.”
Line 494-496 now reads: “Analysis of the proportion of responding cells (cells that upregulated one or more dynamic markers) demonstrated that the CD4+ cTfh1, cTfh17 and cTfhTripPos subsets are the most responsive after the first vaccination (Figure 3e and Figure 3—figure supplements 1c).”
Line 528-529 now reads: “Next, the response profile of CD4+ Th subsets was analyzed using the same eight dynamic markers as described for cTfh cells (Figure 1—figure supplements 1b).”
Line 561-564 now reads: “Next, the effect of OCR and MTX treatment on the response profile of CD8+ T cell subsets was analyzed using the same eight dynamic markers as described for CD4+ cTfh and Th cells. The expression of these markers was assessed on memory and naïve CD8+ T cell populations in SARS-CoV-2 experienced individuals.”
We further clarified the selection of our markers in the limitations section of our manuscript which addresses the limitations of measuring antigen-specific T cell responses in our current analysis:
Line 730-738 now reads:
“Secondly, although we were able to perform deep-immune profiling on whole blood samples, allowing the detection of vulnerable antibody-secreting B cell populations, this prohibited antigen-specific staining of our immune cells. Instead, we studied a range of dynamic markers which are associated with activated/responding T cells and their co-expression is often associated with higher quality T cell responses (Koutsakos et al., 2021; Thevarajan et al., 2020). The expression of these markers on antigen-specific cells using AIM peptide stimulations and/or tetramer staining of acute timepoints have been show by others (Nguyen 2021 Nat Comm, Habel 2020 PNAS, Oja 2020, Rha 2021, Geers 2021 Sci Immunol, Mudd 2022 Cell).”
https://doi.org/10.7554/eLife.77969.sa2Article and author information
Author details
Funding
ZonMw (The Netherlands Organization for Health Research and Development) (#10430072010007)
- Taco W Kuijpers
- Filip Eftimov
- S Marieke van Ham
European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement (#860003)
- Taco W Kuijpers
- Filip Eftimov
- Theo Rispens
European Commission (SUPPORT-E, #101015756)
- C Ellen van der Schoot
European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement (#792532)
- Carolien E van de Sandt
NHMRC Leadership Investigator Grant (1173871)
- Katherine Kedzierska
PPOC (#20_21 L2506)
- S Marieke van Ham
- Anja ten Brinke
- C Ellen van der Schoot
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank the core facility at Sanquin: Simon Tol and Mark Hoogenboezem for providing technical assistance. We thank Albert Mosselaar, Vesna Melkebeek, and Luca Hensen for technical advice. We would like to thank ZonMw for the funding of the study and the T2B partners, including the patient groups and Health Holland for the support in this study. Funding: This research project was supported by ZonMw (The Netherlands Organization for Health Research and Development, #10430072010007). This project has received funding from the European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement (#860003). This study was supported by the European Commission (SUPPORT-E, #101015756) and by PPOC (#20_21 L2506). CESb has received funding from the European Union’s Horizon 2020 research, and innovation program under the Marie Skłodowska-Curie grant agreement (#792532). KK is supported by the NHMRC Leadership Investigator Grant to KK (1173871). FE and TWK report (governmental) grants from ZonMw to study immune response after Sars-Cov-2 vaccination in autoimmune diseases.
Ethics
Human subjects: This study was approved by the medical ethical committee (NL74974.018.20 and EudraCT 2021-001102-30, local METC nummer: 2020_194) and registered at Dutch Trial Register (Trial ID NL8900). Written informed consent was obtained from all study participants when enrolled. Participants were recruited between April 16th 2021 and May 20th 2021 at the MS Center Amsterdam, Amsterdam UMC and the Amsterdam READE Rheumatology and Immunology Center and vaccinated between April 19th 2021 and July 1st 2021 with the mRNA-1273 (Moderna) vaccine at an interval of six weeks, according to the Dutch national vaccination guidelines.
Senior Editor
- Miles P Davenport, University of New South Wales, Australia
Reviewing Editor
- Sarah Sasson, The Kirby Institute UNSW, Australia
Reviewer
- Sarah Sasson, The Kirby Institute UNSW, Australia
Version history
- Received: February 17, 2022
- Accepted: July 14, 2022
- Accepted Manuscript published: July 15, 2022 (version 1)
- Version of Record published: July 29, 2022 (version 2)
Copyright
© 2022, Verstegen et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 1,059
- Page views
-
- 303
- Downloads
-
- 7
- Citations
Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Immunology and Inflammation
The co-expression of inhibitory receptors (IRs) is a hallmark of CD8+ T-cell exhaustion (Tex) in people living with HIV-1 (PLWH). Understanding alterations of IRs expression in PLWH on long-term antiretroviral treatment (ART) remains elusive but is critical to overcoming CD8+ Tex and designing novel HIV-1 cure immunotherapies. To address this, we combine high-dimensional supervised and unsupervised analysis of IRs concomitant with functional markers across the CD8+ T-cell landscape on 24 PLWH over a decade on ART. We define irreversible alterations of IRs co-expression patterns in CD8+ T cells not mitigated by ART and identify negative associations between the frequency of TIGIT+ and TIGIT+ TIM-3+ and CD4+ T-cell levels. Moreover, changes in total, SEB-activated, and HIV-1-specific CD8+ T cells delineate a complex reshaping of memory and effector-like cellular clusters on ART. Indeed, we identify a selective reduction of HIV-1 specific-CD8+ T-cell memory-like clusters sharing TIGIT expression and low CD107a that can be recovered by mAb TIGIT blockade independently of IFNγ and IL-2. Collectively, these data characterize with unprecedented detail the patterns of IRs expression and functions across the CD8+ T-cell landscape and indicate the potential of TIGIT as a target for Tex precision immunotherapies in PLWH at all ART stages.
-
- Genetics and Genomics
- Immunology and Inflammation
Age-associated DNA methylation in blood cells convey information on health status. However, the mechanisms that drive these changes in circulating cells and their relationships to gene regulation are unknown. We identified age-associated DNA methylation sites in six purified blood-borne immune cell types (naive B, naive CD4+ and CD8+ T cells, granulocytes, monocytes, and NK cells) collected from healthy individuals interspersed over a wide age range. Of the thousands of age-associated sites, only 350 sites were differentially methylated in the same direction in all cell types and validated in an independent longitudinal cohort. Genes close to age-associated hypomethylated sites were enriched for collagen biosynthesis and complement cascade pathways, while genes close to hypermethylated sites mapped to neuronal pathways. In silico analyses showed that in most cell types, the age-associated hypo- and hypermethylated sites were enriched for ARNT (HIF1β) and REST transcription factor (TF) motifs, respectively, which are both master regulators of hypoxia response. To conclude, despite spatial heterogeneity, there is a commonality in the putative regulatory role with respect to TF motifs and histone modifications at and around these sites. These features suggest that DNA methylation changes in healthy aging may be adaptive responses to fluctuations of oxygen availability.
