We previously studied the regulation of aapA1/IsoA1, a member of the aapA/IsoA type I TA family recently identified in H. pylori (Arnion et al., 2017). Here, we studied the aapA3/IsoA3 module (Figure 1A; for sequence details see Figure 1—figure supplement 2). Like other TA systems of this family, the aapA3/IsoA3 locus codes for an antisense RNA, IsoA3 (80 nucleotides), encoded on the opposite strand of a small ORF, AapA3. The AapA3 peptide (30 amino acids) shares 60% sequence identity with the AapA1 peptide, whose ectopic expression is toxic in H. pylori (Arnion et al., 2017). Here, we first investigated whether aapA3 expression from the chromosome is toxic. For this purpose, we inactivated the antitoxin promoter by introducing two point mutations in its −10 box, while maintaining the amino acid sequence of the toxin (Figure 1B, pIsoA3* in all figures), as previously described for the IsoA1 promoter (Arnion et al., 2017). Insertion of these mutations on the chromosome was performed using a counter-selection cassette, which allows the generation of unmarked transformants (Dailidiene et al., 2006). Briefly, the TA locus of a streptomycin-resistant H. pylori 26695 strain (K43R) was replaced by the rpsL_Cj-erm double-marker cassette, giving rise to the streptomycin-sensitive ΔaapA3/IsoA3::rpsL_Cj-erm/K43R strain (Masachis and Darfeuille, 2018). Then, we performed gene replacement assays using PCR constructs carrying either a wild-type (WT) or an antitoxin-inactivated (pIsoA3*) TA locus. Strains that had undergone homologous recombination were selected on streptomycin. However, no transformants were obtained unless a non-sense or frameshift mutation was introduced in the aapA3 ORF. This result indicated that, in the absence of IsoA3 synthesis, the AapA3 toxin expression from its chromosomal locus is constitutive and too toxic to obtain a viable strain.

Figure 1 with 2 supplements see all

Download asset Open asset

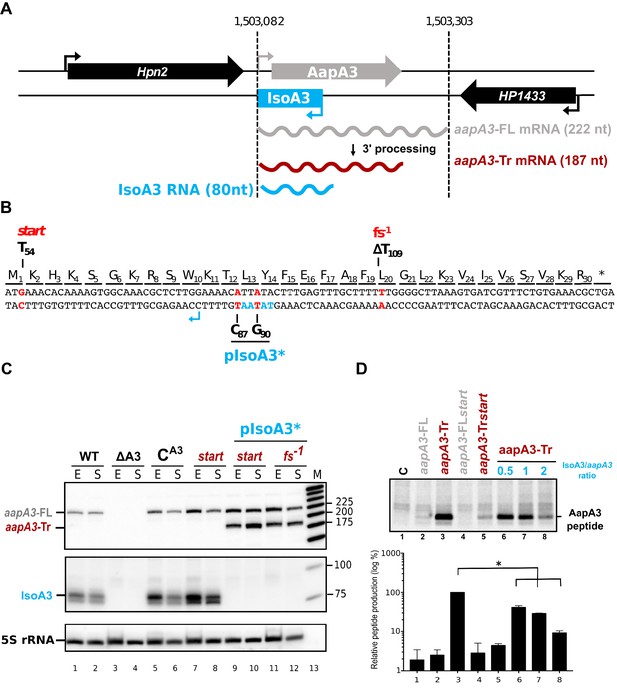

Total RNA of two strains carrying the mutations inactivating the Iso3 promoter and either a mutation at the start codon (start) or a −1 frameshift mutation leading to a premature stop codon (fs⁻¹) (Figure 1B) were analyzed by Northern Blot (Figure 1C). The absence of IsoA3 transcript (Figure 1C, lanes 9–12) confirmed the successful inactivation of the IsoA3 promoter. As a control, the complementation of the ΔaapA3/IsoA3::rpsL_Cj-erm/K43R strain (∆A3) with the WT aapA3/IsoA3 locus (C^A3) was successfully achieved with no change in the expression pattern (Figure 1C, compare lanes 5–6 with lanes 1–2). Two aapA3 mRNA species were detected in absence of IsoA3 expression (Figure 1C, lanes 9 to 12): a long transcript of 225 nt, which was denoted aapA3-FL (full-length) and a shorter transcript lacking the last 35 nt (aapA3-Tr). This latter was not detected in presence of IsoA3 RNA (Figure 1C, lanes 1, 2, 5–8) and corresponds to the truncated mRNA species previously described for the aapA1/IsoA1 homolog (Arnion et al., 2017). Translation assays demonstrated that only the truncated mRNA is efficiently translated in vitro (Figure 1D, lane 3). Translation of aapA3-FL (Figure 1D, lane 2) or of aapA3-FL containing a non-sense mutation in the start codon (Figure 1D, lane 4) was close to the translational background obtained in absence of exogenous mRNA (Figure 1D, lane 1). Importantly, Northern blot analysis revealed that the absence of IsoA3 leads to the accumulation of aapA3-Tr without affecting the amount of aapA3-FL (Figure 1C lanes 9–12), indicating that IsoA3 specifically targets aapA3-Tr in vivo. In vitro structure probing of the two AapA3 mRNA species further confirmed that IsoA3 only interacts with the aapA3-Tr mRNA (Figure 2, compare lanes 4–7 with 10–13). Base-pairing between both transcripts creates an extended RNA heteroduplex of 80 base-pairs (Figure 2, lane 4) that is translationally inert, as shown by in vitro translation assays (Figure 1D, lanes 6–8). Remarkably, none of the IsoA RNAs produced from the five other aapA/IsoA chromosomal loci (I, II, IV, V and VI) can replace the absence of IsoA3 expression demonstrating that their regulation is strictly module-specific, as previously suggested by in vitro translation assays (Sharma et al., 2010).

Figure 2

Download asset Open asset

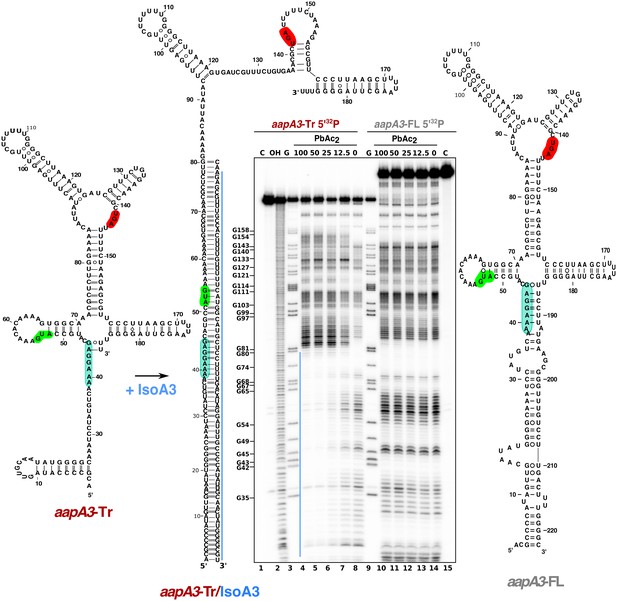

Altogether, these results show that IsoA3 represses aapA3 constitutive expression at the translational level by forming a stable RNA heteroduplex.

To identify the toxicity determinants of this TA locus, we next took advantage of the lethality induced by the chromosomal inactivation of the IsoA3 antitoxin to search for toxicity suppressors. To this end, we performed the same gene replacement assays as described above, using two PCR constructs carrying either a WT TA locus or two synonymous mutations inactivating the IsoA3 promoter (pIsoA3*). Two additional PCR fragments containing either a point mutation inactivating the start codon (start) or both mutations (start/pIsoA3*) were also used as controls (Figure 3A). Each PCR construct was transformed into the ΔaapA3/IsoA3::rpsL_Cj-erm/K43R H. pylori strain and Str^R transformants were selected on streptomycin-containing plates. For each transformation, the number of streptomycin-resistant colonies was determined and normalized to the total number of transformed cells (Figure 3B). As expected, inactivation of IsoA3 promoter led to a strong reduction (1.83 log-fold) in the fraction of Str^R cells compared to that obtained with the WT or double-mutant start/pIsoA3* constructs (Figure 3B). These results confirmed that in the absence of IsoA3, the chromosomal expression of AapA3 is highly toxic. Notably, the number of streptomycin-resistant colonies obtained with pIsoA3* was slightly higher than that obtained when no DNA was used (Figure 3B). The sequencing analysis revealed that the Str^R cells obtained in absence of DNA were all phenotypic revertants having mutated the rpsL_Cj gene (Masachis et al., 2018). In contrast, sequencing of the TA locus of approximately hundred pIsoA3* transformants revealed that all of them contained point mutations in the AapA3 ORF (Masachis et al., 2018). Thus, our genetic approach selected mutations that suppress toxicity allowing the generation of recombinant strains lacking antitoxin expression.

Figure 3 with 3 supplements see all

Download asset Open asset

Figure 3—source data 1

Raw data to determine the transformation efficiency in Figure 3B.

https://doi.org/10.7554/eLife.47549.010

Download elife-47549-fig3-data1-v2.xlsx

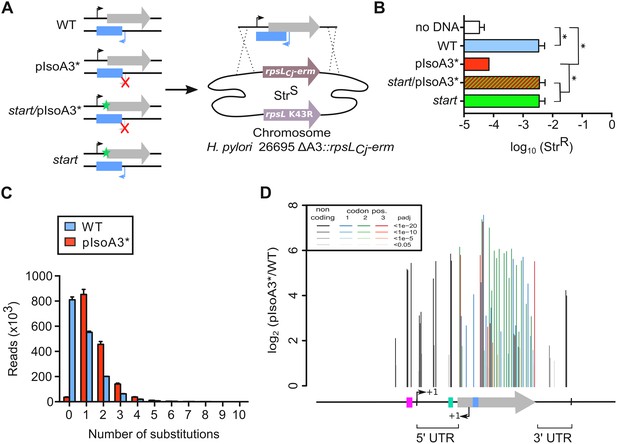

To explore the complete landscape of suppressors, we next scaled-up the transformation assay using the WT or pIsoA3* PCR products as DNA substrates. This approach, called FASTBAC-Seq, has been described recently (Masachis et al., 2018). Consistent with the above-mentioned first transformation assay, deep-sequencing data analysis showed that 97.7% of the pIsoA3* transformants contained mutations (Figure 3C). A strong mutation rate (51.2%) was also observed with the WT PCR product (Figure 3C), which results from an unanticipated technical artifact linked to PCR amplification (see Material and methods section). Analysis of the number of mutations per read in the complete sequencing dataset (all replicates combined) showed that more than half of the pIsoA3* transformed clones (51.8% out of ~5.1 million) were mutated at a single nucleotide position (Figure 3C). This result demonstrates that single point mutations are sufficient to abolish AapA3 toxin activity and/or expression. A low number of pIsoA3* transformants (2.3%) had a WT locus sequence (Figure 3C, pIsoA3* zero mutation), which can be explained by the sequencing error rate (around 1.5%) and/or suppressor mutations lying in regions outside the TA locus (i.e. outside the amplicon). Single-nucleotide mutations were mainly substitutions, which are favored by PCR biases. Only 4% were insertions and deletions (indels). Hierarchical clustering analysis revealed that the location and frequency of single substitutions were highly similar in the three biological replicates, indicating that the locus coverage was close to optimum (Figure 3—figure supplement 1). Contrary to substitutions (which were found in both coding and non-coding regions), the single-nucleotide indels were almost exclusively present in the AapA3 ORF, generating truncated or longer forms of the peptide. Moreover, in some cases, they were not present in all three replicates, reflecting their under-representation in the PCR products (Figure 3—figure supplement 1). Expectedly, the highest mutation densities (defined as the number of mutated nucleotides divided by the total number of nucleotides in the region of interest) were observed in the AapA3 ORF (53%), and in well-known regulatory regions such as the −10 box of the toxin mRNA (66.7%, Figure 3—figure supplement 1) and the SD sequence (42.8%) (Figure 3D). For the aapA3 −10 box, out of the six positions (5’-TAGGAT-3’), suppressor mutations were mostly found in the first two and last nucleotides (Figure 3—figure supplement 2). This result allowed us to determine the minimal functional aapA3 −10 box motif 5’-TANNNT-3’, which is in perfect agreement with the previously determined consensus sequence (Sharma et al., 2010). This result also confirmed that the arbitrarily-chosen False Discovery Rate cut-off (padj ≤0.05) was stringent enough to avoid false positives but permissive enough to allow the identification of suppressor substitutions. Remarkably, 17 mutations were unveiled in the 5’ and 3’ untranslated regions (UTR; Figure 3D). Several of these point mutations created mismatch pairing, probably destabilizing two terminal stem-loop located at both ends of the active mRNA (aapA3-Tr) (Figure 3—figure supplement 3). In the present work, we have focused our study to mutations lying around the RBS.

The genetic selection of suppressors allowed us to determine the minimal functional sequence of the toxin SD sequence. Among the seven positions (5’-AAAGGAG-3’), substitutions at the two central guanine nucleotides (positions +42 and +43) were the most frequently mutated in absence of antitoxin (Figure 4A), and one can deduce the minimal SD sequence to be 5’-AGG-3’ or 5’-GGA-3’. As expected from PCR biases (Beaudry and Joyce, 1992), although the transition G > A was preferentially enriched in both cases, the G > C and G > T transversion mutations were also selected. Strikingly, a less-frequent transversion mutation (A > T) was selected within the SD sequence at position +40 (A40T, Figure 4A). Moreover, another unique transversion upstream of the SD sequence was identified (A28C, Figure 4A). Strains containing these atypical mutations were constructed and further analyzed.

Figure 4 with 2 supplements see all

Download asset Open asset

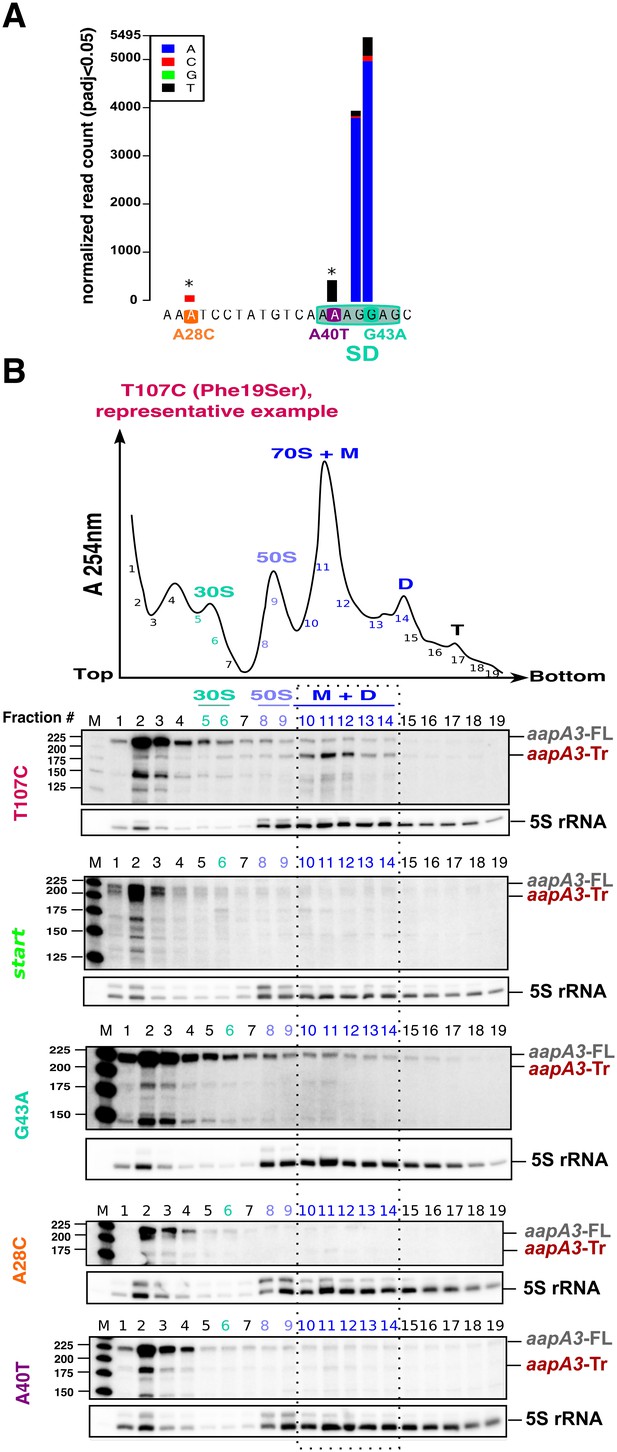

Due to their proximity to the SD sequence, we first tested whether these mutations could affect AapA3 translation in vivo. Due to the lack of AapA3-targeting antibodies, its translation was assessed indirectly by polysome fractionation coupled to Northern blot analysis. As a control, we used a suppressor mutation isolated during our FASTBAC-Seq selection, which suppresses the toxin activity but not its expression. We thus generated a strain containing the pIsoA3* mutations in combination with a mutation in the toxin ORF converting a phenylalanine at position 19 (of the peptide) into a serine (T107C, Figure 4B). Polysome fractionation of this strain confirmed that the toxin full-length mRNA (aapA3-FL) is mainly found in non-ribosomal fractions (only 3% present in polysomes, lanes 10 to 14 in Figure 4B; see Figure 4—figure supplement 1 for quantification), whereas the truncated isoform (aapA3-Tr) is associated with the monosome and disome fractions (73% present in these fractions; Figure 4B and Figure 4—figure supplement 1A). The absence of the aapA3-Tr form in heavier polysomes is probably due to the short length of the ORF (90 nt), which cannot accommodate more than two ribosomes. This result clearly confirmed that the aapA3-FL is indeed a translationally inert isoform, whereas the aapA3-Tr is translationally active. Hence, polysome fractionation is a powerful tool to study translation efficiency of toxin mRNAs in vivo.

We then analyzed the efficiency of toxin mRNA translation in strains containing a mutation either in the start codon (start) or in the SD sequence (G43A) (Figure 4B). In both cases, the active mRNA isoform (aapA3-Tr) was nearly absent from the polysome fractions. Instead, significant levels of aapA3-Tr mRNA degradation products were detected in the top of the gradient, which may arise from the lack of ribosome protection and/or the extended time of sample collection and treatment prior to RNA extraction. The strong degradation observed for the start strain impeded the quantification of aapA3-Tr. For the G43A strain, the relative amount of aapA3-Tr mRNA in translating fractions was strongly reduced (approximately 4%, lanes 10 to 14, Figure 4B and Figure 4—figure supplement 1E) compared to the T107C strain. This result confirmed that the single G43A mutation was sufficient to prevent ribosome binding, consequently impairing translation of the toxin. Remarkably, a similar result was observed for the A28C and A40T suppressor mutations. The A40T mutation had the strongest effect with only 7% of aapA3-Tr associated with translating ribosomes, compared to 19% for the A28C strain (Figure 4B and Figure 4—figure supplement 1C,D). In vitro translation assays (Figure 4—figure supplement 2C) further confirmed that the A28C and A40T suppressor mutations, like the G43A mutant, act by reducing AapA3 translation efficiency.

Together, these results demonstrate that a single mutation within the 5’ UTR, either inside or outside the SD sequence, is able to overcome antitoxin absence by impeding toxin translation.

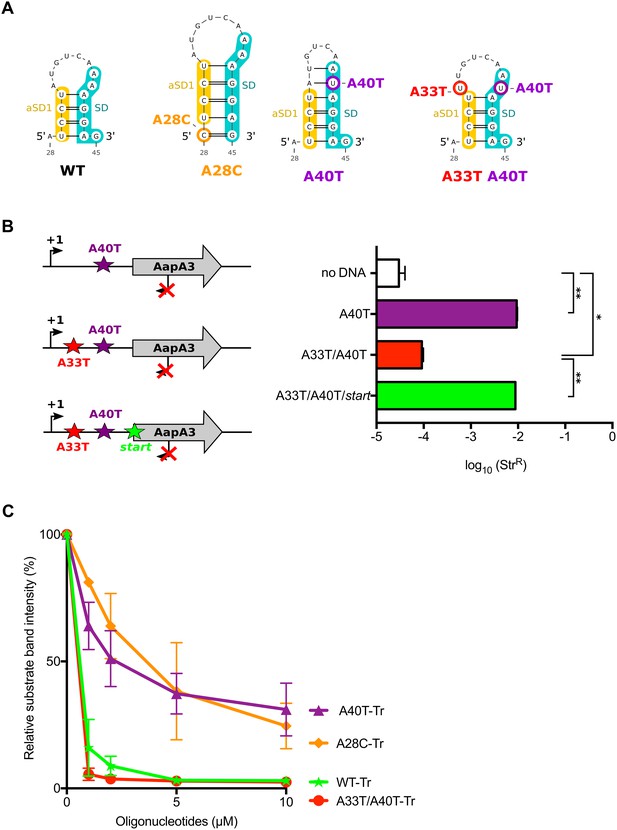

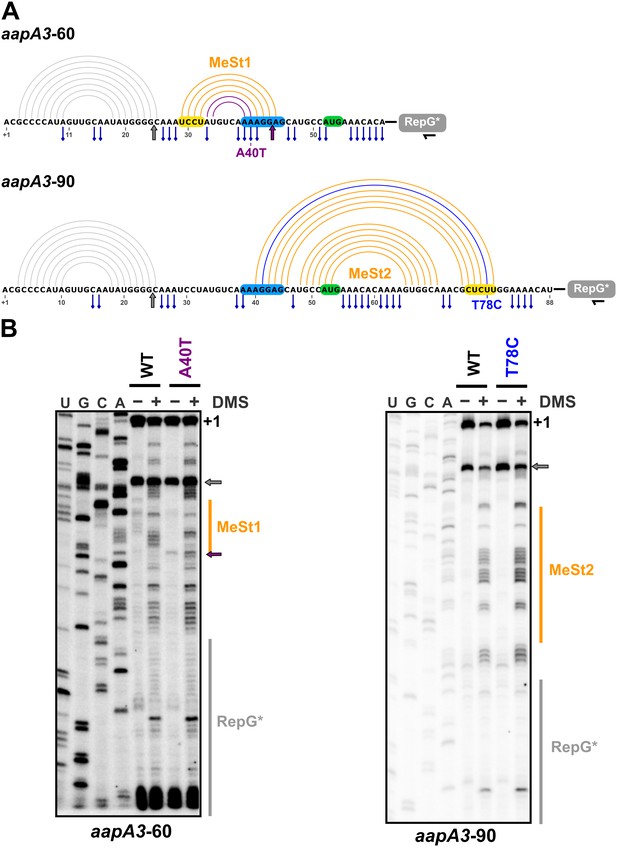

We next asked by which mechanism A28C and A40T mutations inhibit translation. Both substitutions lie in a single-stranded region upstream of the minimal SD sequence (5’-AGGA-3’), which may be crucial for translation initiation (Figure 2). However, in both cases, a unique type of transversion mutation was selected (i.e., A28T and A40C were not selected) suggesting that the mutations may act at the structure rather than at the primary sequence level. Indeed, secondary structure predictions with the RNAfold algorithm (Gruber et al., 2008) suggested that both mutations could stabilize a local hairpin in which the SD is sequestered by an upstream aSD sequence (anti-SD sequence 1 [aSD1], Figure 5A). Indeed, while the A28C suppressor transversion extended this hairpin by one G-C base-pair, the A40T mutation created two additional A-U base-pairs. To investigate whether this stabilization was responsible for the translation inhibition effect, we tested whether the combination of A40T and antagonist A33T mutations (see Figure 5A), which is expected to destabilize the stem-loop, restored a toxic phenotype. Due to this potential toxicity, a strain containing an additional mutation in the AapA3 start codon was also generated (A33T/A40T/start, Figure 5B). Transformation assay was performed as previously described (Figure 3A). As expected, the suppressor A40T mutation was not toxic (Figure 5B). However, a log-fold reduction of ~2 in the number of Str^R transformants was observed with the A33T/A40T construct (Figure 5B). This effect disappeared when the toxin start codon was mutated (A33T/A40T/start, Figure 5B) demonstrating that the toxicity comes from the AapA3 peptide synthesis. This approach could not be used to study the A28C suppressor mutation since the non-compensatory mutation would lie within the SD sequence. Therefore, we tested the SD accessibility for all mutants (A40T, A28C, A40T/A33T) in vitro by performing an RNase H/oligonucleotide assay (Figure 5C, and Figure 5—figure supplement 1). Compared to the WT and A33T/A40T mutant, a reduced oligonucleotide accessibility was observed in vitro for both A28C and A40T aapA3-Tr RNAs, demonstrating that both mutations inhibit toxin expression by reducing SD accessibility.

Figure 5 with 2 supplements see all

Download asset Open asset

Figure 5—source data 1

Raw data to determine the transformation efficiency in Figure 5B.

https://doi.org/10.7554/eLife.47549.018

Download elife-47549-fig5-data1-v2.xlsx

Figure 5—source data 2

Numerical values of the graph shown in in Figure 5C.

https://doi.org/10.7554/eLife.47549.019

Download elife-47549-fig5-data2-v2.xlsx

Altogether these results indicate that both suppressor mutations are preventing translation initiation by stabilizing the SD sequestration within a local RNA hairpin instead of acting at the sequence level.

A synonymous substitution (T78C) at amino acid position 9 (Ser), which converts a UCU to a UCC codon was also selected in our suppressor selection. The presence of such a mutation was intriguing as it is located 27 nt after the start codon and it does not affect the amino acid sequence. To understand its potential effect on toxin expression, we constructed a strain containing this mutation together with the pIsoA3* mutation. Northern blot analysis showed that the T78C strain contains similar amounts of both aapA3-FL and aapA3-Tr mRNA isoforms than the other A28C and A40T suppressor strains (Figure 4—figure supplement 2B). We next tested the translatability of AapA3 in vivo by performing polysome fractionation coupled to Northern blot analysis. The percentage of aapA3-Tr found in the monosome and disome fractions of the T78C strain (Figure 6A and Figure 4—figure supplement 1B) was much lower than that observed for the control T107C strain (34% vs 73%), but significantly higher than the one observed for the A28C and A40T suppressors (19% and 7%, respectively; Figure 4B). In vitro translation assays confirmed these results (Figure 4—figure supplement 2), demonstrating that the T78C suppressor acts by inhibiting AapA3 translation.

Figure 6 with 2 supplements see all

Download asset Open asset

Figure 6—source data 1

Numerical values of the graph shown in in Figure 6D.

https://doi.org/10.7554/eLife.47549.024

Download elife-47549-fig6-data1-v2.xlsx

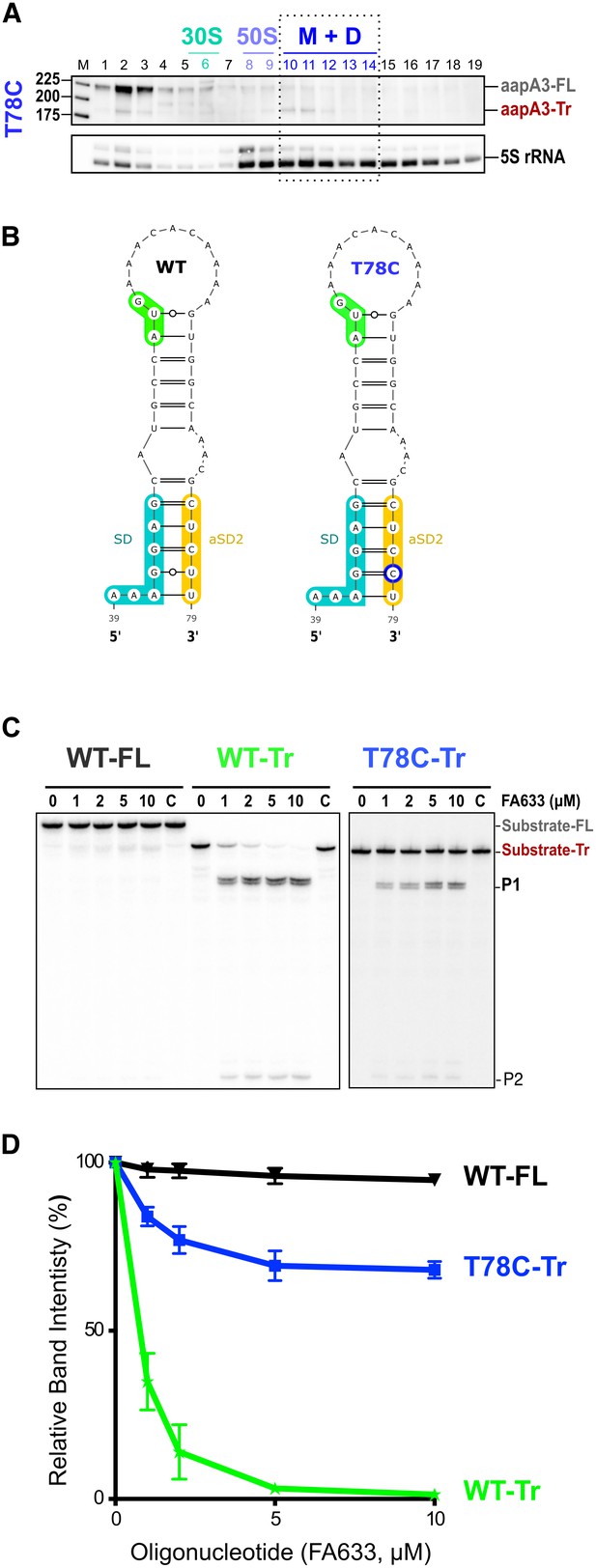

Secondary structure prediction revealed another putative SD-sequestering hairpin involving an aSD sequence (aSD2) embedded within the AapA3 ORF (Figure 6B). This hairpin is mutually exclusive from the aSD1-containing hairpin. As for the A28C and A40T suppressor mutations, the T78C transition was expected to stabilize the hairpin by replacing a G-U by a G-C pair. To address the accessibility of this region, an RNase H protection assay was performed, using the FA633 oligonucleotide (Figure 6C and Figure 6—figure supplement 1). Remarkably, a strong reduction in SD accessibility was observed in vitro for the T78C RNA compared to the WT (Figure 6C and D). Thus, a single hydrogen bond is sufficient to stabilize the sequestration of the SD sequence and to suppress toxicity. Importantly, despite being located within the AapA3 coding region, the T78C suppressor acts at the mRNA folding level.

Sequence conservation analysis of the AapA3 coding region in 49 H. pylori strains (Figure 6—figure supplement 2) revealed that the serine codon at position nine is one of the most highly conserved codons of the ORF, indicating a crucial role of this sequence, likely in the sequestration of the SD sequence. Only the UM066 strain (highlighted in pink in Figure 6—figure supplement 2) possesses a proline at this position, which probably abolishes peptide toxicity by disrupting the alpha-helix structure of the toxin (Masachis et al., 2018).

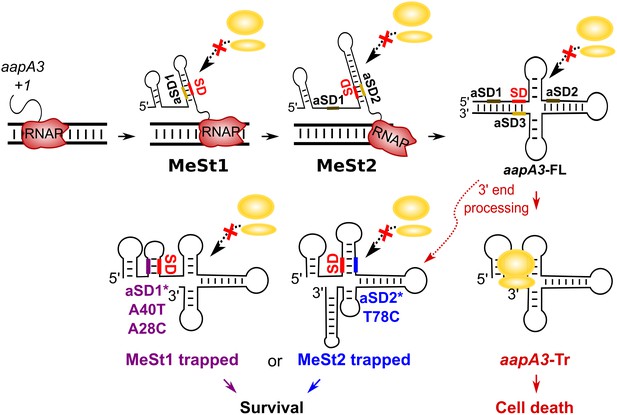

We have shown that mutations in aSD1 and aSD2 sequences suppress toxicity probably by stabilizing two mutually exclusive short hairpins that inhibit toxin translation (Figure 7). These stabilized hairpins are formed in the aapA3-Tr but not in the aapA3-FL RNA (Figure 7—figure supplement 1), explaining why they inhibit translation without affecting the stability of the full-length form. Interestingly, our FASTBAC-Seq approach revealed that, out of thirteen possible aSD sequences present in the aapA3 mRNA (Figure 7—figure supplement 1), only two (the two closest to the SD) could be mutated to suppress toxicity. Our results suggest that, in the WT context, these two hairpins are not stable enough and are exclusively formed transiently during transcription. We propose that they act as functional metastable structures (MeSt1 and MeSt2, Figure 7), that is they form co-transcriptionally and sequentially to prevent premature toxin expression before a third aSD (aSD3) traps the aapA3-FL mRNA into a highly stable and translationally inert conformation (Figure 7). To confirm the existence of these transient RNA structures, we performed in vivo DMS RNA footprinting on strains expressing truncated versions of the aapA3 mRNA, which are expected to mimic two different nascent transcripts. The pattern of methylation confirmed that both RNA hairpins, MeSt1 and MeSt2, are formed in vivo (Figure 8). Moreover, this experiment also confirmed that the A40T mutation stabilizes the MeSt1 hairpin. Finally, the existence of these structures is well supported by a co-variation analysis showing the occurrence of several compensatory mutations in these hairpins in numerous H. pylori strains (Figure 8—figure supplements 1 and 2).

Figure 7 with 1 supplement see all

Download asset Open asset

Figure 8 with 3 supplements see all

Download asset Open asset

To date, most studies on TA systems, including our previous work (Arnion et al., 2017), used artificial expression systems to characterize the effects of toxin expression. The use of such overexpression vectors is often a source of misinterpretations, as toxic proteins may not be found at such high concentrations under physiological conditions. To study the AapA3 toxin expression at the chromosomal level, we inactivated the endogenous IsoA3 antitoxin promoter as previously described for IsoA1 (Arnion et al., 2017). However, we were unable to obtain a viable strain without introducing additional mutations in the toxin-encoding gene. Suppressor mutations have been also reported in B. subtilis for two chromosomally encoded type I toxins with killer activity (txpA/RatA [Silvaggi et al., 2005] and bsrG/SR4 [Jahn et al., 2012]). Strikingly, lethality at the chromosomal level has not been reported for chromosomally-encoded TA loci in Gram-negative bacteria. Indeed, the killer activity observed for the plasmid-encoded hok/Sok TA system was even believed to be not conserved for the chromosomally-encoded homologs (Pedersen and Gerdes, 1999). Interestingly, most of the hok/Sok homologs (hokA, C and E) in Escherichia coli are inactivated by the presence of insertion elements located close to the toxin ORF (Pedersen and Gerdes, 1999). This observation, together with studies showing a differential expression of several TA systems in response to various stresses (e.g. temperature shift, oxidative stress, starvation) (Harms et al., 2018), suggests that chromosomally-encoded TA systems may not be involved in a bactericidal activity, but rather, in a reversible growth arrest in response to a specific stress. Conversely, our results clearly demonstrate that, in line with the bactericidal activity observed for the overexpressed AapA1 toxin (Arnion et al., 2017), the chromosomal expression of the AapA3 toxin is constitutive and lethal in absence of the IsoA3 antitoxin. Consequently, we took advantage of this lethality to select suppressors and developed the FASTBAC-Seq method to rapidly identify hundreds of intragenic suppressor mutations with nucleotide resolution (Masachis et al., 2018).

The FASTBAC-Seq method revealed a wide range of unanticipated cis-encoded toxicity determinants, affecting either the toxic activity of the protein (described in Masachis and Darfeuille, 2018), or its expression (this study). Among the mutations affecting the toxin mRNA expression, we identified five single-nucleotide substitutions able to inhibit the translation of the aapA3 mRNA without affecting its stability. Three of them were located in the SD sequence. The most highly enriched mutations substituted the guanines at positions 42 and 43 by either an adenine, a cytosine, or a uracil. This revealed 5’-AGG-3’ and 5’–GGA-3’ as the minimal functional SD motifs allowing AapA3 translation, in agreement with the previously identified H. pylori SD consensus sequence (5’-AAGGA-3’) (Sharma et al., 2010). The third mutation (A40T) was much less enriched, and remarkably, only the transversion from an adenine to a thymine was selected. Another transversion mutation (A28C) was selected 14 nt upstream of the SD sequence. The fact that only transversion mutations were selected at these two positions indicated that the nature of the substituted nucleotide was important, suggesting that they may not directly act at the sequence, but rather at the structure level. Indeed, our results demonstrated that the A28C and A40T mutations create respectively one or two additional base-pair(s) within a stem-loop structure formed by the pairing between the SD sequence and an upstream complementary aSD sequence (aSD1, 5’-UCCU-3’). Destabilizing the A40T-mutated stem by mutating the complementary nucleotide (A33T) restored toxicity, clearly showing that the A40T mutation, despite being located within the SD sequence, acts at the mRNA structural level and not at the sequence level.

Interestingly, the T78C mutation revealed the existence of a second aSD sequence (aSD2) located downstream the SD sequence, within the toxin coding region. This synonymous substitution (UCU→UCC, Ser codon at position 9) creates a perfect aSD sequence (5’-CUCCU-3’). Although this mutation could potentially create a rare codon reducing toxin translation efficiency, we did not favor this hypothesis since the less frequently used Ser codon in H. pylori is UCG (Lafay et al., 2000). Interestingly, synonymous mutations close to the translation initiation region (TIR) have been shown to influence gene expression by modulating the stability of mRNA folding rather than by acting at the codon usage level (Kudla et al., 2009). In addition, a strong codon bias has also been observed within the first 15 codons, which avoids tight mRNA structure close to the TIR region (Bentele et al., 2013; Bhattacharyya et al., 2018). Here, we showed that despite the presence of up to thirteen CU-rich sequences in the aapA3 mRNA, only mutations in the sequences closest to the SD could be selected, reflecting a distance-dependence of these translation regulatory elements. A similar aSD sequence (5’-UCCU-3’) has been identified in the coding sequence of the gnd gene in E. coli (Carter-Muenchau and Wolf, 1989). Interestingly, displacing this aSD sequence from its natural position (codon 66) to a more proximal position (codon 13) greatly increased its capacity to inhibit translation.

The three mutations studied here (A28C, A40T and T78C) act post-transcriptionally after the 3’-end processing by stabilizing SD-sequestering hairpin structures. Importantly, these suppressor mutations do not interfere with the folding pathway of the full-length mRNA, neither affecting its transcription, stability, nor its 3’-end maturation, indicating that they exclusively act on the active, truncated, aapA3 mRNA form (Figure 7). Interestingly, by using the KineFold software, these local hairpins were previously predicted to form during the co-transcriptional folding pathway of several aapA mRNAs (Arnion et al., 2017; Xayaphoummine et al., 2005). Now, our FASTBAC-seq approach reveals that these structures are functional, that is they transiently form during transcription to prevent toxin translation before the full-length transcript is completed. Indeed, stabilizing these hairpins inhibits translation of the aapA3-Tr form. This temporal control of gene expression is achieved through the sequential formation of two RNA hairpin structures that mask the SD sequence via CU-rich elements. In the full-length mRNA, these structures are replaced by a more stable one (aSD3) involving an LDI between both ends of the transcript. Similar to the hok mRNA, this final mRNA structure is so stable that its translational activation requires a 3’-end processing that removes the aSD3 sequence element. The highly stable structure of the aapA3-FL mRNA is also similar to the cloverleaf-like structure present in the 5’ UTR of the MS2 coliphage maturation gene (Groeneveld et al., 1995). Interestingly, in this case, it may take up to several minutes for the mRNA to be synthesized and properly folded (van Meerten et al., 2001), explaining the need of functional transient structural intermediates preventing premature gene expression.

The selection of three stabilizing mutations suggests that the thermodynamic stability of such SD-sequestering stem-loops in the WT context is not sufficient to inhibit the translation of the active aapA3 mRNA form. Instead, our results suggest that in the WT situation, these SD-sequestering hairpins (MeSt1 and MeSt2, Figure 7) are only transiently formed to co-transcriptionally impede premature toxin translation. This transient character is essential to ensure the proper transcription termination and folding of the full-length mRNA, and this is achieved by hierarchically increasing thermodynamic stabilities (Figure 8—figure supplement 3). Importantly, the suppressor mutations do not provide enough stabilization to impede the formation of the next most stable structure. Indeed, the A40T-mutated MeSt1 has an energy of −21.10 kcal/mol, while that of the WT MeSt2 is −29.30 kcal/mol (Figure 8—figure supplement 3). This may explain why the SD-sequestering mutations do not interfere with the co-transcriptional folding pathway and why the last SD-aSD3 pairing is finally formed in the mutants.

The importance of metastable structures in the aapA3 mRNA is attested by the strict conservation of the UCU Serine codon at position 9. As our results have shown, a synonymous UCC codon at this position (T78C mutation) would inhibit AapA3 toxin expression, rendering the TA locus non-functional and probably promoting its rapid loss. Our study represents the first in vivo evidence of the existence of sequential RNA metastable structures that avoid, directly but transiently, the co-transcriptional translation of a toxin-encoding mRNA.

The formation of metastable structures has been reported in several RNA-mediated regulatory pathways, including viral RNA replication (Repsilber et al., 1999), RNA catalysis (Pan and Woodson, 1998), RNA editing (Mazloomian and Meyer, 2015), and ribosome biogenesis (Sharma et al., 2018). They are usually described as folding intermediates that work in a hierarchical manner to help an RNA molecule reaching its functional conformation (i.e. the most thermodynamically stable conformation). A nice example of such metastable structures has been reported for the regulation of the hok/Sok type I TA system in E. coli. In this pioneering work, the authors showed that the formation of a metastable hairpin ensures the proper folding of the Hok mRNA into a translationally inert conformation (Møller-Jensen et al., 2001; Nagel et al., 1999). Although this metastable hairpin is located at the 5’ end of the mRNA, it does not directly mask the SD sequence. Instead, it favors a conformation in which the SD is sequestered by a downstream anti-SD. Other metastable structures are directly involved in the activation or inhibition of gene expression (Zhu and Meyer, 2015), as examplified by the structures in the Trp operon leader, the SAM riboswitch and the 5’ UTR of the MS2 phage (Zhu and Meyer, 2015). The metastable structures of aapA3 are more reminiscent of the latter example (van Meerten et al., 2001), except that in the case of MS2, the transient structure allows translation to occur before the cloverleaf-like structure is formed. Nevertheless, in both cases, a functional transient RNA structure exerts a temporal control of translation, either negatively or positively.

Although the coupling between transcription and translation in bacteria plays important roles in gene expression (Kriner et al., 2016), it can be harmful in the case of toxin-encoding mRNAs. Thus, the metastable RNA structures identified in the present study are essential to uncouple transcription and translation processes and allow the presence of type I TA systems on bacterial chromosomes. Although transient RNA structures can be predicted in silico (Meyer, 2017a), their in vivo characterization remains challenging. Several high-resolution methods have been recently devised for analyzing the co-transcriptional folding of regulatory RNAs, both in vitro (Uhm et al., 2018; Watters et al., 2016) and in vivo (Incarnato et al., 2017). These complementary techniques may be useful to analyze the formation of these metastable hairpins in real-time.

The H. pylori strain used in this study is the 26695 reference strain (Tomb et al., 1997). Strains were grown on Columbia agar plates supplemented with 7% horse blood and Dent selective supplement (Oxoid, Basingstoke, UK) for 24 to 48 hr depending on the strain. Liquid cultures were performed in Brain-Heart Infusion (BHI) medium (Oxoid) supplemented with 10% fetal bovine serum (FBS) and Dent. H. pylori plates and liquid cultures were incubated at 37°C under microaerobic conditions (10% CO₂, 6% O_2;84% N₂) using an Anoxomat (MART microbiology) atmosphere generator. Plasmids used for cloning were amplified in E. coli TOP10 strain, which was grown in Luria-Bertani (LB) media, supplemented either with kanamycin (50 μg.mL⁻¹), chloramphenicol (30 μg.mL⁻¹) or ampicillin (100 μg.mL⁻¹). For H. pylori mutant selection and culture, antibiotics were used at the following final concentrations: 20 μg.mL⁻¹ kanamycine (Sigma), 8 µg.mL⁻¹ chloramphenicol (Sigma), 10 μg.mL⁻¹ streptomycin and 10 μg.mL⁻¹ erythromycin.

Molecular biology experiments were performed according to standard procedures and the supplier’s recommendations. High-Purity Plasmid Miniprep Kit (Neo Biotech) and Quick Bacteria Genomic DNA extraction Kit (Neo Biotech) were used for plasmid preparations and H. pylori genomic DNA extractions, respectively. PCR were performed either with Dream Taq DNA polymerase (Thermo Fisher Scientific), or with Phusion High-Fidelity Hot Start DNA polymerase (Thermo Fisher Scientific) when the product required high-fidelity polymerase. Site-directed mutagenesis PCR was performed with the PfuUltra High-Fidelity DNA Polymerase (Agilent). All oligonucleotides used in this study are shown in Table 1.

For RNA extraction, bacterial growth was stopped at the desired OD_600nm by adding 650 μl cold Stop Solution (95% ethanol, 5% phenol pH 4.5) to 5 ml of culture, which was placed on ice. Cells were then centrifuged for 10 min at 3,500 rpm and 4°C, and the pellets were stored at −80°C. Cell pellets were resuspended in 600 μl Lysis Solution (20 mM NaAc pH 5.2, 0.5% SDS, 1 mM EDTA) and added to 600 µl hot phenol pH 5.2. After incubation for 10 min at 65°C, the mixture was then centrifuged for 10 min at 13,000 rpm and room temperature. The aqueous phase was next transferred to a phase-locked gel tube (Eppendorf) with an equal volume of chloroform and centrifuged for 10 min at 13,000 rpm and room temperature. Total RNA was then precipitated from the aqueous phase by adding 2.5 volumes of ethanol 100% and 1/10 vol of 3 M NaAc pH 5.2. After centrifugation for 30 min at 13,000 rpm and 4°C, the supernatant was discarded and the pellet was washed with 75% ethanol. Finally, the supernatant was discarded and the RNA pellet air-dried and resuspended in H₂O. For RNA half-life determinations, rifampicin (Sigma, prepared at 34 mg.ml⁻¹ in methanol) was added to the culture at a final concentration of 80 µg.ml⁻¹ and cells were harvested at the desired time points. A culture where rifampicin was replaced by the same volume of methanol served as a non-treated control.

For Northern blot analysis, 1 to 10 μg RNA were separated on an 8% polyacrylamide (PAA), 7M urea, 1X Tris Borate EDTA (TBE) gel. RNA was transferred to a nylon membrane (Hybond-N, GE Healthcare Life Science) by electroblotting in TBE 1X at 8V and 4°C overnight. Then, RNA was cross-linked to the membrane by UV irradiation (302 nm) for 2 min in a UV-crosslinker and hybridized with 5’-labeled (γ³²P) oligodeoxynucleotides in a modified Church Buffer (1 mM EDTA, 0.5 M NaPO₄ pH 7.2, 7% SDS) overnight at 42°C. Membranes were washed two times 5 min in 2X SSC, 0.1% SDS, and revealed using a Pharos FX phosphorimager (Biorad). For riboprobes, a DNA template containing a T7 promoter sequence was amplified by PCR from H. pylori 26695 genomic DNA as template. In vitro transcription was performed as described in the MaxiScript T7 Transcription Kit (Ambion) in the presence of 50 µCi of ³²P-α-UTP and 1 mM cold UTP and purified on a Sephadex G25 column (GE Healthcare). Hybridization was performed in the modified Church Buffer at 65°C and the membrane was washed two times 5 min in 2X SSC, 0.1% SDS at 65°C. For the detection of aapA3 mRNA species the ³²P-labeled primer FD38 was used. To detect the aapA3 mutants sequestering the SD region (where the primer FD38 binds), a riboprobe corresponding to the 5’ UTR of the mRNA was transcribed from a PCR fragment containing the T7 promoter and amplified with the FA170/FA11 primer pair. IsoA3 RNA was detected with a riboprobe corresponding to the aapA3-Tr RNA species transcribed from a PCR fragment containing the T7 promoter and amplified with the primer pair FA170/FA173.

For in vitro synthesis of the aapA3 and IsoA3 RNAs, DNA templates were amplified from H. pylori 26695 genomic DNA using primer pairs FA170/FA175 (aapA3-FL), FA170/FA173 (aapA3-Tr), and FD11/FD17 (IsoA3), each forward primer carrying a T7 promoter sequence (see primer list, Table 1). In vitro transcription was carried out using the MEGAscript T7 Transcription Kit (Ambion #AM1334) according to the manufacturer’s protocol. After phenol:chloroform extraction followed by isopropanol precipitation, the RNA samples were desalted by gel filtration using a Sephadex G-25 (GE Healthcare) column. For in vitro translation of the aapA3-FL and aapA3-Tr mRNAs, 0.5 µg of RNA was added to the E. coli S30 Extract System for Linear Templates Kit (Promega #L1030) as previously described (Sharma et al., 2010).

20 pmol of both aapA3-FL and aapA3-Tr transcripts were dephosphorylated with 10 U of calf alkaline phosphatase (CIP) at 37°C for 1 hr. RNA was isolated by phenol extraction and precipitated overnight at −20°C in the presence of 30:1 ethanol: 0.3M NaOAc pH 5.2 and 20 µg GlycoBlue. The dephosphorylated RNA was then 5’ end-labeled with 10 pmol ³²P-γ-ATP using the T4 polynucleotide kinase (PNK) for 30 min at 37°C. Unincorporated nucleotides were removed using a MicroSpin G-25 column and labeled RNA was purified on an 8% PAA gel containing 7 M urea and 1X TBE. Upon visualization of the labeled RNA, the band corresponding to the RNA species of interest was cut from the gel and eluted overnight at 4°C under shaking in 750 µl RNA elution buffer (0.3M NH₄Ac, 0.1% SDS, 1 mM EDTA). RNA was extracted by Phenol/Chloroform/Isoamyl alcohol (25:24:1 v/v), and precipitated by ethanol (2.5V), pellets were washed and resuspended in 50 µl H₂O and stored at −20°C.

Before use, each in vitro transcribed RNA was denatured by incubation at 90°C for 2 min in the absence of magnesium and salt, then chilled on ice for 1 min, followed by a renaturation step at room temperature for 15 min in 1X Structure Buffer (10 mM Tris-HCl pH 7.0, 10 mM MgCl₂, 100 mM KCl). Structure probing analyses were performed as described previously (Darfeuille et al., 2007; Sharma et al., 2007; Sharma et al., 2010), using 0.1 pmol of 5’ end-labeled RNA. To determine the secondary structure of RNA, 1 µl RNase T1 (0.01 U.μl-1; Ambion) was added to the labeled RNA and incubated in 1X Sequencing Buffer (20 mM Sodium Citrate, pH 5.0, 1 mM EDTA, 7M Urea) for 5 min at 37°C. Lead acetate (5 mM final concentration) digestions of both aapA3-Tr and aapA3-FL were done in the absence or in the presence of 2–10-fold excess of cold IsoA3 RNA. All reactions were stopped by adding 10 µl of 2X Loading Buffer (95% formamide, 18 mM EDTA, Xylene Blue and Bromophenol Blue. Cleaved fragments were then analyzed on an 8% denaturing PAA gel containing 7M urea and 1X TBE. Gels were dried for 45 min at 80°C, and revealed using a Pharos FX phosphorimager (Biorad).

Internally-labeled transcripts were in vitro-transcribed using the MAXIscript T7 Transcription Kit (Ambion #AM1312) in presence of 2.2 μM α-³²P-UTP according to the manufacturer’s protocol. Labeled RNA was purified on an 8% PAA gel containing 7 M urea and 1X TBE, eluted overnight at 4°C under shaking in 750 µl elution buffer (0.1 M NaOAc pH 5.2, 0.1% SDS). RNA was desalted and concentrated by ethanol precipitation, pellets were resuspended in 100 µl H₂O. Approximately 30 fmol of RNA were used for RNase H/oligonucleotide accessibility assays. Before use, each in vitro-transcribed RNA and DNA oligonucleotides were denatured as described for structure probing. Next, DNA oligonucleotides complementary to the region around the SD sequence (FA633 for WT and T78C (aSD2) mRNA; FA644 for A40T mRNA (aSD1); FA651 for the double mutant A33T/A40T mRNA (aSD1); and FA652 for A28C mRNA) were added to a final concentration of 0 to 10 μM. Reactions were adjusted to a final volume of 10 μl with H₂O and incubated for 30 min at 30°C in the presence or absence (control) of 0.25 U E. coli RNase H1 (Ambion #AM2293). Reactions were then stopped by addition of 10 μl of 2X Loading Buffer (95% formamide, 18 mM EDTA, Xylene Blue and Bromophenol Blue). Cleaved fragments were analyzed on an 8% denaturing PAA gel containing 7M urea and 1X TBE. Gels were dried 45 min at 80°C, and revealed using a Pharos FX phosphorimager (Biorad).

All mutant H. pylori strains listed in Table 2 were generated by chromosomal homologous recombination of PCR-generated constructs, introduced by natural transformation, as previously described (Masachis et al., 2018). In all cases, constructs contained ≈ 400 nt of the up- and downstream chromosome regions of the target gene, flanking the DNA fragment to be introduced (i.e. antibiotic resistance marker to generate deletions or a WT (for the complementation strain, C^A3) or mutated copy of the target gene). DNA fragments of interest were previously cloned in E. coli vectors to avoid H. pylori WT genomic DNA (gDNA) contamination (see ‘aapA3/IsoA3 locus sub-cloning in E. coli’ section below). Constructs were generated by PCR assembly of PCR products amplified from the plasmids listed in Table 3 with the oligonucleotides shown in Table 1. For strains H321, H322, H324 and H325, PCR assembly was performed to introduce the repG* sequence downstream of nt 60 or nt 90 of aapA3. WT or single point mutants (A40T and T78C) variants of aapA3 were used. Prior to transformation, H. pylori strains (number of cells corresponding to 1 OD_600nm) were grown on non-selective CAB plates. After 4 hr incubation at 37°C under microaerobic conditions, 1 μg of PCR assembly product was added to the cells and plates were incubated for another 16 hr. Transformed cells were then selected on plates supplemented with the appropriate antibiotics and incubated for 4–6 days until isolated colonies appeared. Genomic DNA from transformants was purified using the Quick Bacteria Genomic DNA extraction Kit and subjected to PCR and Sanger sequencing for mutant validation.

The counterselection cassette rpsL_Cj-erm was used to generate an H. pylori 26695 strain deleted for the aapA3/IsoA3 locus following the protocol described in Masachis and Darfeuille (2018). First, the 26695 H.. pylori strain used in this study was modified in order to become resistant to streptomycin. To this end, we introduced by homologous recombination a mutation (K43R) in the rpsL gene coding for the small S12 ribosomal protein (Masachis et al., 2018). Then, up- and downstream fragments of the locus were amplified with the primer pairs FA406/FA407 and FA408/FA409. These flanking regions (415 and 418 nt-long, respectively) allow chromosomal homologous recombination to occur. The internal primers (FA407 and FA408) were used to introduce a 3’- and 5’- rpsL_Cj-erm cassette homology tail, respectively, to allow subsequent PCR assembly. The rpsL_Cj-erm cassette was amplified from the pSP60-2 plasmid (Table 3) using the primer pair FA110/FA111. Then, the up- and downstream fragments were assembled with the rpsL_Cj-erm cassette by PCR assembly using the external primers (FA406/FA409) (see Figure 1—figure supplement 2 and primer list in Table 1). This construct (1294 nt-long) was used to perform natural H. pylori transformation by homologous recombination, as previously described (Bury-Moné et al., 2001). This process generated the strain that will serve as recipient in all our successive transformation experiments, ΔaapA3/IsoA3::rpsL_Cj-erm/K43R (Table 2).

Because H. pylori has a highly active homologous recombination machinery, a cloning step of the aapA3/IsoA3 locus in an E. coli vector was essential to avoid contamination with WT H. pylori gDNA of the PCR products used in the transformation assays. To this end, the aapA3/IsoA3 locus was split into two fragments amplified with the Phusion High-Fidelity Hot Start DNA Polymerase and the primer pairs FA406/FA386 (‘Up’ fragment of 638 nt containing 415 nt of homology region, the aapA3 promoter and the first 10 codons of the AapA3 ORF, Figure 1—figure supplement 2) and FA409/FA387 (‘Down’ fragment of 680 nt containing IsoA3 promoter, the rest of aapA3 mRNA and 418 nt of homology region, Figure 1—figure supplement 2). Note that the FA386 and FA387 primers have 25 nucleotides of overlap to allow PCR assembly. Each fragment was cloned in a separate pGEM-T (Promega) plasmid (Table 3) and transformed into One-Shot TOP10 chemically competent E. coli cells (see Experimental Models in the KEY RESOURCES TABLE and Table 4.

Plasmids and custom-designed overlapping oligonucleotides containing the desired mutations were used for site-directed mutagenesis PCR using the PfuUltra high-fidelity DNA polymerase. To inactivate the IsoA3 −10 box, two synonymous point mutations (adenines +87 and +90 from the toxin transcription start site [TSS] were mutated to guanine and cytosine, respectively) were introduced using the primer pair FA283/FA284 see Figure 1 for details). This strategy allowed us to preserve the toxin coding sequence while completely abolishing the transcription of the antitoxin, as previously shown (Arnion et al., 2017). To inactivate the toxin start codon, a single point mutation in the third codon position was introduced (guanine 54 was mutated to thymine) using the primer pair FA281/FA282 (see Figure 1 for details). WT or mutated fragments were amplified from the previously generated plasmids using the same primer pairs as those used for insert amplification prior to cloning. PCR assembly with 35 amplification cycles, the Phusion High-Fidelity Hot Start DNA Polymerase and the external primers FA406/FA409 was performed to generate the aapA3/IsoA3 locus variants (1294-nt amplicon) that were subsequently used as DNA substrates for H. pylori natural transformation. For the in vivo validation of the suppressor mutants studied here, the same protocol was used adapting the DNA oligonucleotides containing the desired mutations.

For the transformation assays aiming at the determination of the transformation efficiency as an indirect proof of the toxicity of the expression of a PCR construct, transformation patches (after 16 hr growth upon DNA addition) were recovered and resuspended in 1 mL BHI. Ten-fold serial dilutions adapted to each transformation case (10⁷, 10⁶ and 10⁵ for non-selective media; and 10⁴, 10³, 10² for selective media upon transformation with water or a toxic construct; and 10⁵, 10⁴, 10³ for selective media upon transformation with non-toxic constructs) were performed. Allelic replacement events were selected by the use of streptomycin-containing plates (selection of loss of the rpsL_Cj-erm cassette, Str^R). The number of Str^RCFU/total CFU was calculated, plotted and statistically analyzed by unpaired t (student)-test (GraphPad Prism software version 7).

Transformation assays to select toxicity suppressors were performed in three biological replicates using the wild-type (WT) or antitoxin promoter inactivated PCR-generated constructs (pIsoA3*). Upon transformation, all bacteria were recovered and serially diluted. Transformants were selected on streptomycin-containing plates by using optimized dilutions (nine plates/replicate of 10¹ dilution for pIsoA3* and three plates/replicate of 10³ dilution for WT). Three days after transformation, colonies were pooled (approximately 60,000 colonies per transformation) and genomic DNA was extracted. Next, the aapA3/IsoA3 locus was amplified with the primer pair FA395/FA396 (426-nt amplicon, Figure 1—figure supplement 2), which allows the introduction of the DNA adapters for Illumina paired-end sequencing. Importantly, to avoid amplification from phenotypic revertant clones (mutated in the rpsL gene), the FA395 and FA396 primers are nested to the ones used for locus deletion (FA407 and FA408, Figure 1—figure supplement 2), thus, binding to deleted regions that are re-introduced only upon recombination. For this PCR, the Phusion High-Fidelity Hot Start DNA polymerase (Thermo Fisher) and 35 amplification cycles were used. Finally, the samples were sent for sequencing at the Platforme GeT-PlaGe-, Genotoul Centre INRA, Toulouse, France. Sequencing was done on an Illumina MiSeq instrument in paired-end mode 2 × 250 nt (overlapping reads).

H. pylori strains were grown as described above. At an early exponential phase (OD_600nm <0.9), chloramphenicol (100 µg.mL-1) was added to the culture to stabilize translating ribosomes. After 5 min incubation at 37°C, cultures were quickly cooled by transferring them into pre-chilled flasks immerged in a dry ice/ethanol bath. Cultures were then centrifuged for 10 min at 3,500 rpm and 4°C and pellets were washed with Buffer A (10 mM Tris-HCl pH 7.5; 60 mM KCl; 10 mM MgCl₂) and frozen at −80°C. Then, pellets were resuspended in 500 µl of Buffer A containing RNasin Ribonuclease Inhibitor (Promega) and cells were lyzed with glass beads in a Precellys homogenizer (Bertin). Lysates were recovered and immediately frozen in liquid nitrogen. About 10 OD₂₆₀ units of lysate were layered onto 10–40% sucrose gradients in Grad-Buffer (10 mM Tris-HCl pH 7.5; 50 mM NH₄Cl; 10 mM MgCl₂; 1 mM DTT) and centrifuged at 35,000 rpm for 3.75 hr at 4°C in a SW41 Ti rotor. Gradients were analysed with an ISCO UA-6 detector with continuous OD monitoring at 254 nm. Fractions of 500 µl were collected and RNA was precipitated overnight at −20°C in the presence of 1 vol of ethanol containing 150 mM of sodium acetate (pH 5.2). RNA was extracted and subjected to Northern Blot analysis following the protocols described above.

H. pylori strains H321 (WT60), H322 (60_A40T), H324 (WT90), and H325 (90_T78C) were grown in BHI + 10% FBS medium at 37°C until OD_600nm reached 0.5. Aliquots of 25 ml were then pelleted by centrifugation at 3000 rpm for 15 min at room temperature. In vivo DMS modification was carried out as described in Incarnato et al. (2017) with minor modifications. Cell pellets were resuspended in 1 ml of structure probing buffer (50 mM HEPES-KOH pH 7.9; 100 mM NaCl; 3 mM KCl). DMS (Sigma Aldrich, cat. D186309) was diluted 1:3 in 100% ethanol to a final concentration of 3.52 M. Diluted DMS was added to bacteria to a final concentration of 200 mM. Samples were incubated with moderate shaking (800 rpm) at 25°C for 2 min, then immediately transferred to ice. DTT was added to a final concentration of 0.7 M to quench DMS, and samples were vigorously vortexed for 10 s. Bacteria were then pelleted by centrifugation at 13 000 rpm and 4°C for 30 s and supernatants were discarded. Pellets were then washed once with 1 ml Isoamyl alcohol (Merck, cat. 1009791000) to remove traces of DMS. After another centrifugation, pellets were snap-frozen in liquid nitrogen and stored at – 80°C. Total RNA was prepared as described above. Primer extensions were carried out as in Iost et al. (2019) with minor modifications. After denaturation at 90°C, 5 µg of total RNA and 0.2 pmoles of 5’ end-labeled primer (FD861) were annealed. Reverse transcriptions were performed with Superscript II (Invitrogen, cat. 18064–022) at 42°C for 30 min. The extension products were then separated on 6% polyacrylamide/7 M urea gels and detected by autoradiography using a Pharos FX phosphorimager (Biorad). Sequencing reactions were carried out as described in Darfeuille et al. (2007) using PCR amplified fragments.

Statistical analyses of the differential distribution of substitutions in the WT and pIsoA3* single-substitution sequences were carried out. To determine whether substitutions were enriched at particular positions in the pIsoA3* compared to WT sequences, a ‘positional’ analysis was conducted by summing together the counts of all sequences that showed a substitution at a given position, regardless of the identity of the substituted nucleotide. A ‘nucleotide-specific’ analysis comparing the amount of each individual sequence was also done to determine whether particular nucleotides were enriched at specific positions. As positions +87 and +90 were mutated to inactivate the IsoA3 promoter (see Figure 1B), for the ‘nucleotide-specific’ analysis all sequences showing a difference to the reference at one or both of these two positions were excluded from the pIsoA3* and WT datasets (11,319 pIsoA3* and 38,575 WT sequences, respectively), and the pIsoA3* reference was converted back to the WT reference in order to make data comparable between WT and pIsoA3* samples. Differential analyses were conducted following the protocol of Haas et al. (2013) using tools from the Trinity 2.2.0 (Haas et al., 2013) and DESeq2 1.10.1 packages (Love et al., 2014), taking into account variability among the three biological replicates. The sequence abundance estimation step was not performed; actual sequence counts were used. The four positions at each extremity of the 426-nt amplicon corresponding to pieces of the primers could not be included in the statistical analyses as there were no substitutions at these positions in any the WT and pIsoA3* replicates. Substitutions were considered as significantly over- or under-represented in the pIsoA3* vs. WT samples if the p-value adjusted for multiple testing (False Discovery Rate [FDR] calculated using the Benjamini-Hochberg [BH] method in DESeq2) was equal or lower than 5% (padj ≤0.05). Bar plots of normalized sequence counts and log2 ratios of fold change were drawn using R 3.2.0 (R Core Team, 2015. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria; http://www.R-project.org/). Similar ‘positional’ analyses were also carried out for single-insertion and single-deletion sequences to determine whether insertions or deletions were statistically enriched at particular positions in the pIsoA3* dataset.

For the ‘positional’ analysis, a heatmap and hierarchical tree clustering of samples according to sequence count patterns was also performed. This was based on TMM-normalized (trimmed mean of M values), median-centered, log2-transformed FPKM (fragment per kilobase per million reads mapped) values, computed according to the protocol and tools of Haas et al. (2013). The Pearson correlation coefficient was used as distance metric and average linkage was chosen as clustering method (options ‘--sample_dist sample_cor --sample_cor pearson --sample_clust average’ for the ‘analyze_diff_expr.pl’ utility script). A log2 cut-off of 0 and a p-value cut-off of 1 were set (options ‘-C 0 P 1’) in order to include all sequence positions in the map. The clustering script ‘PtR’ was manually edited to suppress the clustering by sequence (i.e. rows) and sort the positions by numerical order instead.

Depending on the type of statistical analysis, ‘position-specific’ or ‘nucleotide-specific’, there were statistically enriched substitutions in absence of antitoxin (padj ≤0.05) at 70 or 72 positions within the aapA3/IsoA3 locus, respectively (65 positions in common between the two analyses). Substitutions identified in only one of the analyses included (relative to aapA3 +1 TSS): i) positions −26 and −7 within the promoter region; ii) position +28 in the 5’ UTR; iii) positions +64 and +97 in the AapA3 ORF; and iv) positions +146 and +177 in the 3’ UTR. Such positions had generally a close-to-cut-off padj value, but not in all cases. For instance, position +28, which has been studied herein, had a highly significant padj value of 7.2 × 10⁻⁶.

To obtain further support for the proposed secondary structures, a phylogenetic analysis of nucleotide covariation in sequence alignments was carried out. A set of 107 AapA3 mRNA sequences from 55 Helicobacter genomes available in our T1TAdb database (https://d-lab.arna.cnrs.fr/t1tadb) was retrieved. Significantly mutated sequences (annotated as ‘ghost’ or with a ‘*’ in T1TAdb) were not considered. In addition, strains corresponding to different isolates of other strains were discarded to avoid redundancy (i.e. Rif1 and Rif2, corresponding to 26695, BM012B and BM012S, corresponding to BM012A, and BM013B corresponding to BM013A). Using MAFFT (Katoh and Toh, 2008), a structural alignment was generated for two different transcript lengths (45 and 80 nucleotides) representing respectively the nascent AapA3 transcript extending up to the metastable structure 1 or 2. MAFFT was run in the ‘X-INS-I’ mode (‘mafft-xinsi’) with pairwise structural alignments computed by MXSCARNA (Tabei et al., 2008) (‘--scarnapair’ option) and a maximum of 1000 iterations (‘--maxiterate 1000’ option). Alignments were then manually slightly corrected. We used the secondary structures of AapA3 subsequences determined in vivo by DMS footprinting (Figure 8), covariation was revealed by means of R-chie (Lai et al., 2012). Options ‘--rule1=7’ (to obtain base-pair covariation scores) and ‘--group1=4’ (to group covarying base-pairs into four classes of scores) were set for R-chie.
