Photoreceptor avascular privilege is shielded by soluble VEGF receptor-1

  1. Ling Luo  Is a corresponding author
  2. Hironori Uehara
  3. Xiaohui Zhang
  4. Subrata K Das
  5. Thomas Olsen
  6. Derick Holt
  7. Jacquelyn M Simonis
  8. Kyle Jackman
  9. Nirbhai Singh
  10. Tadashi R Miya
  11. Wei Huang
  12. Faisal Ahmed
  13. Ana Bastos-Carvalho
  14. Yun Zheng Le
  15. Christina Mamalis
  16. Vince A Chiodo
  17. William W Hauswirth
  18. Judit Baffi
  19. Pedro M Lacal
  20. Angela Orecchia
  21. Napoleone Ferrara
  22. Guangping Gao
  23. Kim Young-hee
  24. Yingbin Fu
  25. Leah Owen
  26. Romulo Albuquerque
  27. Wolfgang Baehr
  28. Kirk Thomas
  29. Dean Y Li
  30. Kakarla V Chalam
  31. Masabumi Shibuya
  32. Salvatore Grisanti
  33. David J Wilson
  34. Jayakrishna Ambati
  35. Balamurali K Ambati  Is a corresponding author
  1. University of Utah, United States
  2. The 306th Hospital of PLA, China
  3. University of Kentucky, United States
  4. University of Oklahoma Health Sciences Center, United States
  5. University of Florida-Gainesville, United States
  6. Istituto Dermopatico dell’Immacolata-IRCCS, Italy
  7. Genentech, United States
  8. University of Massachusetts Medical School, United States
  9. University of Florida, Jacksonville, United States
  10. Institute of Physiology and Medicine, Jobu University, Japan
  11. University of Luebeck, Germany
  12. Casey Eye Institute, Oregon Health & Science University, United States
Research Article
Cite this article as: eLife 2013;2:e00324 doi: 10.7554/eLife.00324
5 figures and 3 tables

Figures

Figure 1 with 4 supplements

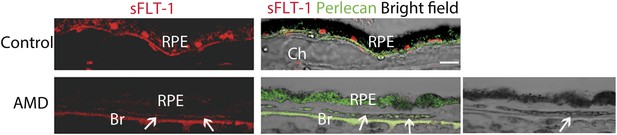

Soluble FLT-1 expression is reduced in the photoreceptors and RPE from AMD eyes.

(A) Representative immunostaining images show soluble FLT-1 expression was significantly decreased in an age-related macular degeneration (AMD) eye with choroidal neovascularization (CNV) (top, 80 years old, female) and retinal angiomatous proliferation (RAP) (bottom, 67 years old, female) compared with aged-matched controls (80 years old and 71 years old, respectively, females; black arrow heads point to the photoreceptors; red arrows point to the CNV or RAP lesions). (B) In situ hybridizations show the localization of sFlt-1 (purple/blue) in the photoreceptors and retinal pigment epithelium (RPE) layers in Balb/c mice. (C) Immunohistochemistry (IHC) staining shows sFLT-1 and VEGF expression in wild type mice. Higher relative expression of sFLT-1 to VEGF is observed in the photoreceptors. The magnified images (bottom) from the framed area showed that soluble FLT-1 is expressed in the basal side of the RPE layer. (D) Representative IHC image shows sFLT-1 is expressed in the basal side of the RPE layer in a young adult healthy human eye (25 years old, male). CC: choriocapillaris; IN: inner nuclear layer; IS: inner segment layer; ON: outer nuclear layer; OS: outer segment layer. Arrows point to the RPE layer. Scale bar: 10 µm.

https://doi.org/10.7554/eLife.00324.004
Figure 1—figure supplement 1

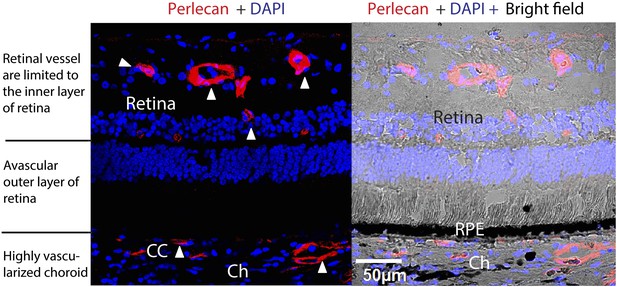

Avascularity of the outer retina (photoreceptors and RPE and BrM) surrounded by the inner retina with abundant vessels and the highly vascularized choroid in a normal human eye.

Red: perlecan staining of vessels; blue: DAPI. Arrow heads point to the vessels. BrM: Bruch's membrane; Ch: choroid; RPE: retinal pigment epithelium; CC: choriocapillaris.

https://doi.org/10.7554/eLife.00324.005
Figure 1—figure supplement 2

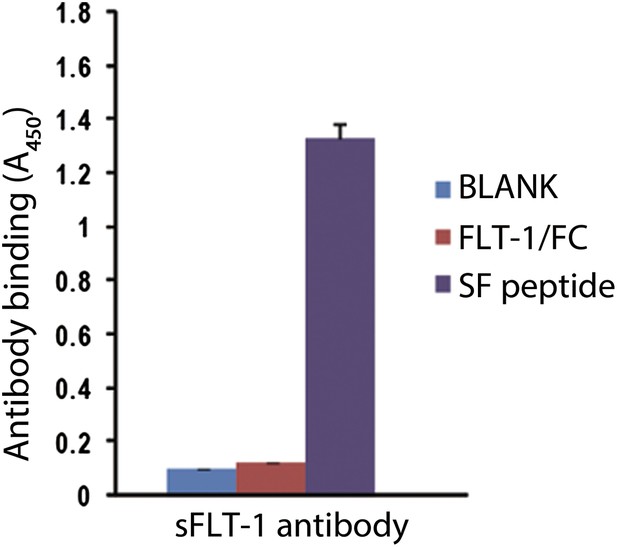

sFLT-1 antibody specifically binds to the unique motif of sFLT-1.

Results correspond to an ELISA in which wells are coated with: BLANK, 1% BSA; FLT/FC, a chimeric protein containing the extracellular region of FLT-1 and the human Fc fragment (R&D Systems, Minneapolis, MN); SF, the peptide utilized to immunize the rabbits to obtain sFLT-1 antibody (the peptide corresponding to a fragment of the unique C-terminal tail of sFLT-1).

https://doi.org/10.7554/eLife.00324.006
Figure 1—figure supplement 3
sFLT-1 expression is significantly decreased in RPE from an AMD eye with CNV (88 years old, female) compared with the age-matched control (89 years old, female).

The right bottom bright field images shows autofluorescence from degenerated RPE (green fluorescence blocks the dark pigment of RPE overlying CNV; arrows point to CNV). AMD: age-related macular degeneration; Br: Bruch's membrane; Ch: choroid; CNV: choroidal neovascularization; RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.007
Figure 1—figure supplement 4

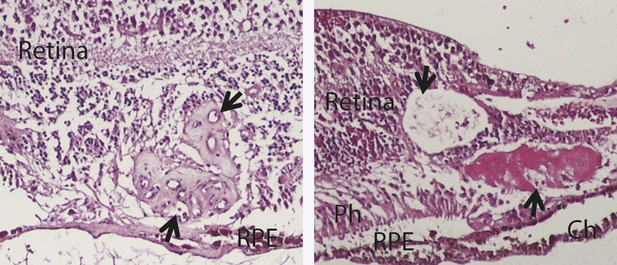

H&E staining images show the histology of two human RAP eyes (arrows point to the RAP lesion).

Ch: choroid; RAP: retinal angiomatous proliferation; RPE: retinal pigment epithelium; Ph: Photoreceptor layer.

https://doi.org/10.7554/eLife.00324.008
Figure 2 with 3 supplements
Suppression of sFLT-1 by neutralizing antibodies induces CNV while elevating levels of VEGF.

VEGF-A levels were tested by ELISA of retinal pigment epithelium (RPE)/choroid tissue lysates harvested immediately after CNV images were taken in vivo. (A and C) Subretinal injections of FLT-1 antibody induced CNV and increased VEGF-A levels in both wild type and Flt-1 tk−/− mice. (B and D) Representative FA (at a phase of 3 min after fluorescein injection) and OCT images. Arrows point to CNV. (E) ELISA for PlGF showed no significant difference 3 days after subretinal injections of FLT-1 neutralizing antibody and isotype control. CNV: choroidal neovascularization; FA: fluorescein angiography; OCT: optical coherence tomography.

https://doi.org/10.7554/eLife.00324.009
Figure 2—figure supplement 1

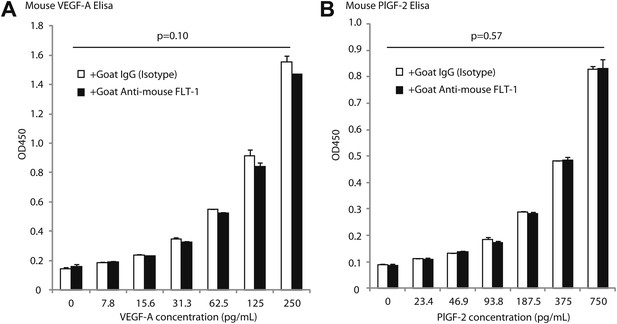

Goat anti-mouse FLT-1 neutralizing antibody does not affect ELISA assessment of mouse VEGF-A and mouse PlGF-2.

Goat anti-mouse FLT-1 neutralizing antibody or control goat IgG was added to the standard at 1 ng/ml. (A) Mouse VEGF-A ELISA. (B) Mouse PlGF-2 ELISA. p Values were calculated by paired Student t test (each average was paired). The presence of anti-FLT-1 antibody did not significantly affect ELISA readings of either cytokine.

https://doi.org/10.7554/eLife.00324.010
Figure 2—figure supplement 2

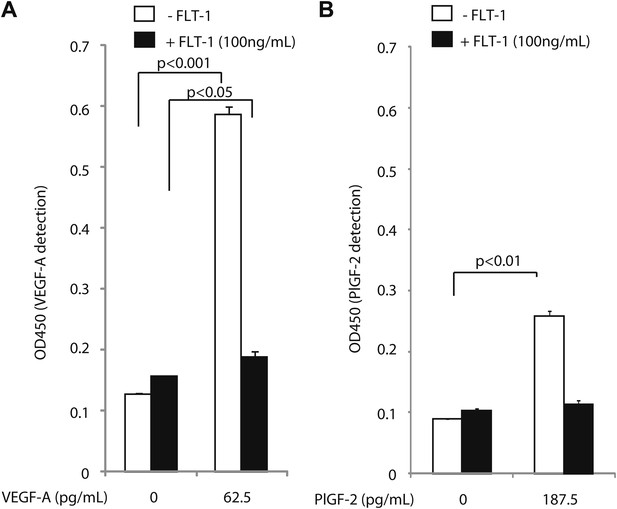

Excess recombinant FLT-1 inhibits VEGF-A and PlGF-2 detection.

Recombinant FLT-1 was added to each concentration of VEGF-A (A) or PlGF-2 (B) and abolished detection of VEGF-A and PlGF-2 over background levels, indicating that VEGF-A or PlGF-2 that is bound to FLT-1 is not detected by this assay.

https://doi.org/10.7554/eLife.00324.011
Figure 2—figure supplement 3

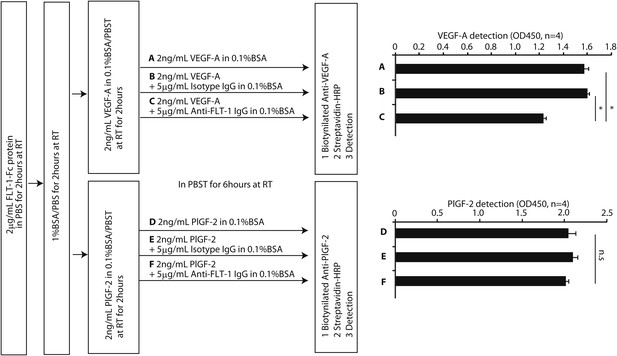

FLT-1 neutralizing antibody incubation resulted in release of VEGF-A from recombinant FLT-1 in vitro.

The design schema is shown on the left. A 2 mg/ml sample of mouse FLT-1-Fc protein (471-F1; R&D Systems, Minneapolis, MN) was immobilized on an ELISA plate. After blocking with 1% BSA, the plate was incubated in 2 ng/ml mouse VEGF-A (493-MV-005; R&D) or mouse PlGF-2 (465-PL-010; R&D) at room temperature (RT) for 2 hr. Then, each well was incubated in (A) 2 ng/ml mouse VEGF-A, (B) 2 ng/ml mouse VEGF-A + 5 mg/ml isotype IgG, (C) 2 ng/ml mouse VEGF-A + 5 mg/ml anti-FLT-1 IgG (AF471; R&D), (D) 2 ng/ml mouse PlGF-2, (E) 2 ng/ml mouse PlGF-2 + 5 mg/ml isotype IgG, or (F) 2 ng/ml mouse PlGF-2 + 5 mg/ml anti-FLT-1 IgG at RT for 6 hr. Using biotinylated anti-VEGF-A (BAF493; R&D) or biotinylated anti-PlGF-2 (BAF465; R&D) and streptavidin-HRP (DY998; R&D), VEGF-A or PlGF-2 was detected. The results (row C vs row F) show that FLT-1 neutralizing antibody desequestered VEGF-A but not PlGF-2 from FLT-1. *p<0.0001 by two-tailed Student t test.

https://doi.org/10.7554/eLife.00324.012
Figure 3 with 6 supplements
Subretinal adeno-associated viral delivery of short hairpin RNA targeting sFLT-1 induces VEGF-A and CNV.

VEGF-A levels from retinal pigment epithelium (RPE)/choroid tissues were tested by ELISA from tissue lysates harvested immediately after choroidal neovascularization (CNV) images were taken in vivo. (A) Western blot (top) and immunohistochemistry (IHC) staining of sFLT-1 results confirmed that sFLT-1 was knocked down by AAV.shRNA.sFlt-1.Gfp but not in controls at 4 weeks. (B) Subretinal AAV.shRNA.sFlt-1.Gfp induced CNV and VEGF-A compared to controls in wild type mice (4 weeks). CNV was observed in controls due to disruption of Bruch’s membrane by subretinal injection. (C) Representative fluorescein angiography (FA) and H&E staining images (40×) (arrows point to leakage or neovessels) show CNV is more extensive after AAV.shRNA.sFlt-1.Gfp treatment compared to controls. (D) CNV was not induced by subretinal AAV.shRNA.sFlt-1 when VEGF-A release was suppressed (4 weeks) by pCre in Vegfalox/lox mice compared with pNull control in which VEGF levels rose and CNV was induced. (E) IFN-γ levels increased in AAV.shRNA.sFlt-1.Gfp and AAV.shRNA.Gfp (4 weeks) compared with AAV.Gfp and phosphate buffered saline (PBS) in C57BL/6J mice. No significant difference was found among groups in the Tlr3−/− mice (4 weeks). (F) Subretinal AAV.shRNA.sFlt-1.Gfp induced VEGF-A and CNV (4 weeks) in Tlr3−/− mice. Representative FA images show the leakage in each group. VEGF-A levels were tested by ELISA using RPE/choroid complex samples. *p<0.05; **p<0.005; ***p<0.0005. NS: no significant difference. Scale bar: 10 µm.

https://doi.org/10.7554/eLife.00324.013
Figure 3—figure supplement 1

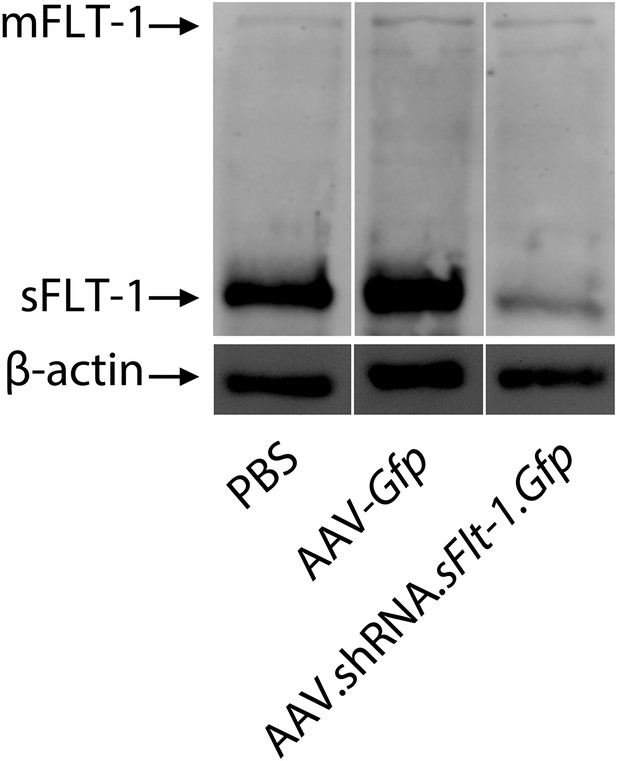

Western blot shows that AAV.shRNA.sFlt-1.Gfp specifically affects sFLT-1 but not mFLT-1.
https://doi.org/10.7554/eLife.00324.014
Figure 3—figure supplement 2

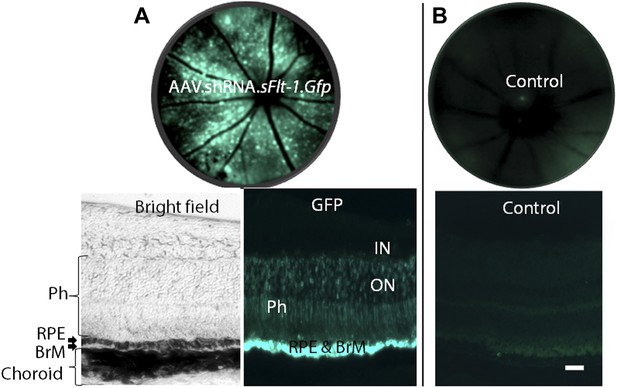

AAV.shRNA.sFlt-1.Gfp (A) transfected more than 3 out of 4 quadrants and targeted the photoreceptors, RPE, and BrM by subretinal injection (2 weeks). (B) Sham control.

The fundi are imaged by a Spectralis imager in vivo (top). Retinal cross-sections (bottom) are imaged by confocal microscopy. Green is GFP, blue is DAPI. Scale bar: 10 µm. BrM: Bruch's membrane; GFP: green fluorescent protein; IN: inner nuclear layer; ON: outer nuclear layer; Ph: photoreceptors; RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.015
Figure 3—figure supplement 3

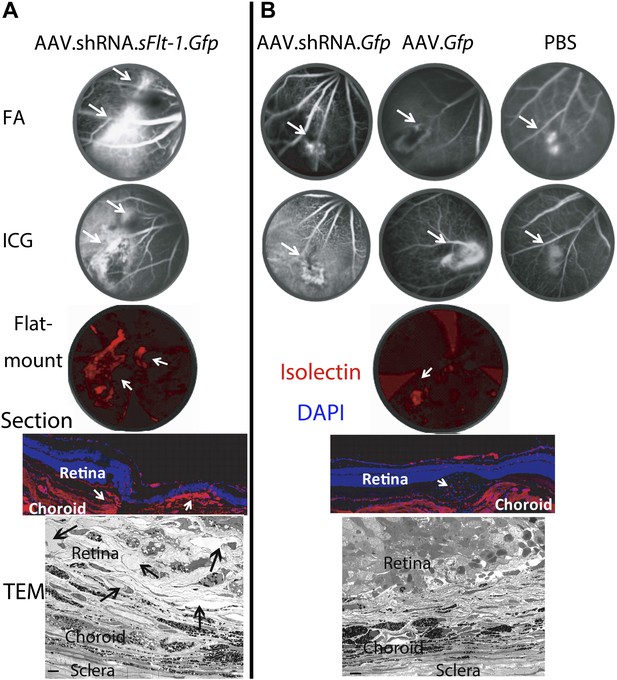

Representative images show different sizes of CNV in AAV.shRNA.sFlt-1.Gfp (A) and controls (B) at 4 weeks after subretinal injection.

FA and ICG images were taken in vivo. Representative immunohistochemistry staining on flat-mounts (4×) and cryosections (20×) and transmission electron microscopy images showed abundant neovessels (arrows) in AAV.shRNA.sFlt-1.Gfp but not control injection. Scale bar: 10 μm. CNV: choroidal neovascularization; FA: fluorescein angiography; ICG: indocyanine green.

https://doi.org/10.7554/eLife.00324.016
Figure 3—figure supplement 4
IHC staining of VEGF indicates that the VEGF decreased in the area of injection (arrows) but not in the non-injected area (arrow heads).

Top: VEGF; middle: VEGF + bright field; bottom: isotype control of VEGF. Scale bar: 10 µm. IHC: immunohistochemistry; RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.017
Figure 3—figure supplement 5

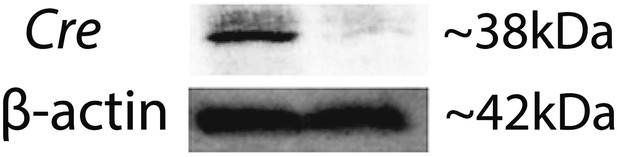

Western blot confirms Cre expression in Vegfalox/lox mice 10 days after pCre subretinal delivery (lane 1: pCre, lane 2: pNull).
https://doi.org/10.7554/eLife.00324.018
Figure 3—figure supplement 6

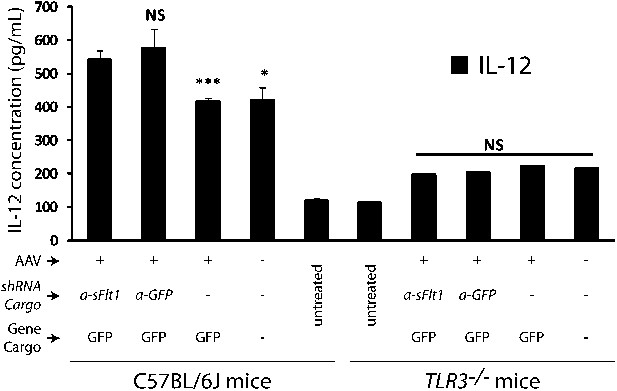

IL-12 levels increased in both AAV.shRNA.sFlt-1.Gfp and AAV.shRNA.Gfp treated mice (4 weeks) compared to AAV.Gfp and PBS control in the C57BL/6J mice.

No significant difference was found between each group of Tlr3−/− mice (4 weeks).

https://doi.org/10.7554/eLife.00324.019
Figure 4 with 9 supplements
Suppression of soluble Flt-1 by conditional Cre/lox-mediated Flt-1 gene ablation induced CNV.

(A) Western blot from the retinal pigment epithelium (RPE)/choroid tissue confirmed sFLT-1 knockdown by pCre. Subretinal injection of pCre induced CNV and increased VEGF-A levels in Flt-1lox/lox mice (2 weeks; arrows point to CNV). Representative FA images showed CNV lesions in both the pCre and pNull groups (left bottom). (B) Deletion of tomato fluorescence showed that Cre expression (mosaic pattern) was restricted to RPE in transgenic mT/mg vmd2-cre+ mice (at 4 weeks of age) and was restricted to photoreceptors in transgenic mT/mG iCre-75+ mice (at 4 weeks of age), respectively (arrows point to the location of Cre expression). (C) Representative FA and OCT (bottom) images showed in vivo that a homozygous RPE-specific Flt-1 knockout (Vmd2-cre+flt-1lox/lox) mouse (48 days old) developed CNV spontaneously without surgical injury, and a homozygous photoreceptor-specific Flt-1 knockout mouse (iCre-75+flt-1lox/lox) (30 days old) developed retinal angiomatous proliferation (RAP) spontaneously without surgical injury. The littermate controls without loxp were normal. (D) Representative IHC images (top panels) showed the retinal neovessels in the above Vmd2-cre+flt-1lox/lox (CNV) mouse at 3 months of age. The littermate controls without loxp were normal (red stained vessels). In situ hybridization (middle panels, blue stained sFlt-1) and IHC images (bottom panels, red stained sFLT-1) showed decreased expression of sFLT-1 RNA and protein in the RPE (Vmd2-cre+flt-1lox/lox) (arrows). (E) Representative IHC images (top panels) showed the retinal neovessels in the above iCre-75+flt-1lox/lox mouse (RAP) at 3 months of age. The littermate controls without loxp were normal (red stained vessels). In situ hybridization (middle panels, blue stained sFlt-1) and IHC images (bottom panels, red stained sFLT-1) showed decreased expression of sFLT-1 RNA and protein in the photoreceptors (iCre-75+flt-1lox/lox) (arrows). Scale bar: 100 µm. CNV: choroidal neovascularization; FA: fluorescein angiography; IHC: immunohistochemistry; IN: inner nuclear layer; OCT: optical coherence tomography; ON: outer nuclear layer; OS: outer segment layer.

https://doi.org/10.7554/eLife.00324.020
Figure 4—figure supplement 1

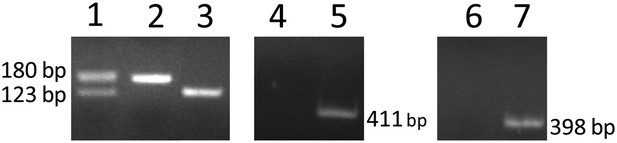

Genotyping of RPE-specific Flt-1 knockout mice (obtained by cross-breeding with Vmd2-cre+ mice and Flt-1lox/lox mice) with PCR.

Lanes 1–3: heterozygous (Flt-1lox/+), homozygous (Flt-1lox/lox), and wild type (Flt-1+/+), respectively. Lanes 4 and 5: cre and cre+, respectively. Lanes 6 and 7: rtTA and rtTA+, respectively. RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.021
Figure 4—figure supplement 2

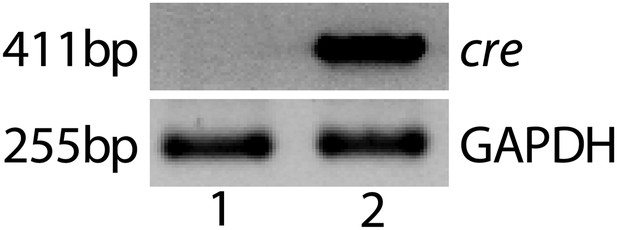

Representative RT-PCR shows Cre expression in a Vmd2-cre+ flt-1+/+ mouse (lane 2).

No Cre expression was observed in wild type mice (lane 1).

https://doi.org/10.7554/eLife.00324.022
Figure 4—figure supplement 3

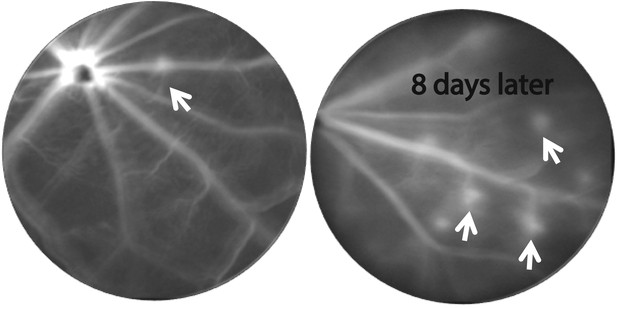

CNV progression in homozygous RPE-specific Flt-1 knockout (Vmd2-cre+flt-1lox/lox) mice.

Representative FA images (at same time after fluorescence injection) from a 38 day old mouse demonstrate that CNV lesions appear 8 days after initial imaging in previously non-fluorescent areas, indicating progression of CNV. CNV: choroidal neovascularization; FA: fluorescein angiography; RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.023
Figure 4—figure supplement 4

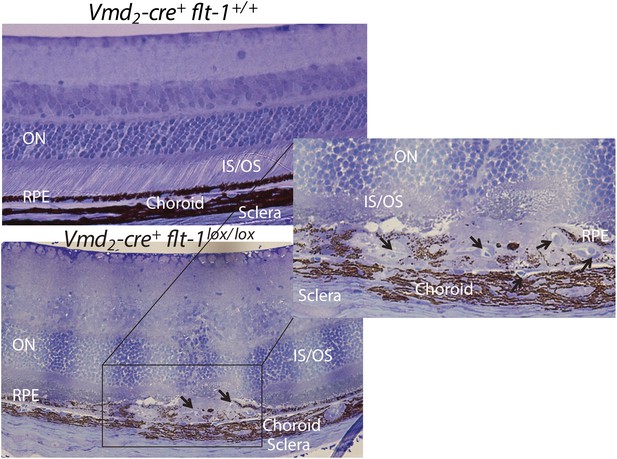

Representative toluidine blue staining images show CNV in a homozygous conditional Flt-1 knockout mouse (Vmd2-cre+flt-1lox/lox, 3 months old) compared to normal retinal morphology in a littermate control.

CNV: choroidal neovascularization; IS: inner segment layer; ON: outer nuclear layer; OS: outer segment layer; RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.024
Figure 4—figure supplement 5

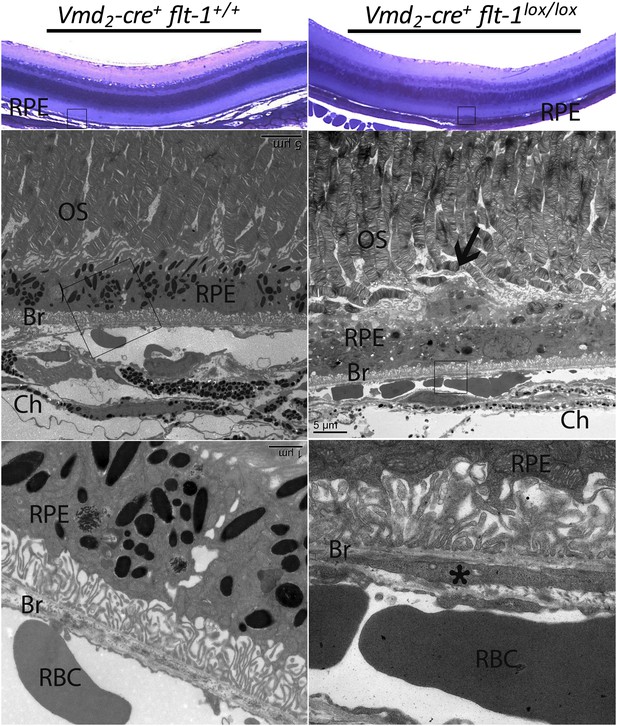

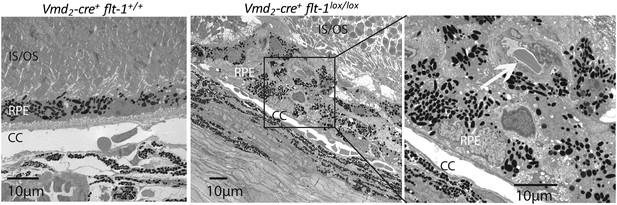

Representative TEM images show CNV in a homozygous conditional Flt-1 knockout mouse (Vmd2-cre+flt-1lox/lox) compared to normal retinal architecture in a littermate control.

CC: choriocapillaris; CNV: choroidal neovascularization; TEM: transmission electron microscopy; RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.025
Figure 4—figure supplement 6

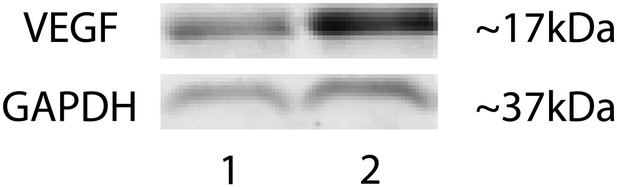

Representative western blot shows increased VEGF-A levels in the RPE/choroid of a Vmd2-cre+flt-1lox/+ mouse with CNV (lane 2) compared to a littermate control (Vmd2-cre+flt-1+/+) without CNV (lane 1).

CNV: choroidal neovascularization; RPE; retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.026
Figure 4—figure supplement 7
Early vascular changes with normal retinal structures occur in homozygous conditional Flt-1 knockout mice (Vmd2-cre+flt-1lox/lox).

Top panels: Toluidine blue staining images show the morphology of the retina. There are no significant changes in the retina structure. There is a bump (frame) in the RPE layer in a homozygous conditional Flt-1 knockout mouse (Vmd2-cre+flt-1lox/lox) compared to littermate control. Middle and bottom panels (magnified transmission electron microscopy images of the corresponding frames): There is an elongated profile (asterisk) within Bruch's membrane that is consistent with a tongue of endothelial cell cytoplasm by its electron density. There is a nucleus on the external side of the choriocapillary, and it is separated from the endothelial lining by a basement membrane. Bruch's membrane is intact. This is consistent with nascent choroidal endothelial changes preceding the development of frank CNV breaching Bruch's membrane. Br: Bruch's membrane; Ch: choroid; CNV: choroidal neovascularization; OS: outer segment layer; RBC: red blood cell; RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.027
Figure 4—figure supplement 8

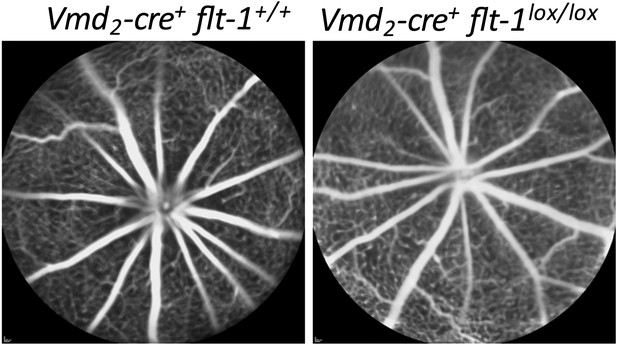

FA images show that no CNV has developed in homozygous conditional Flt-1 knockout mice (Vmd2-cre+flt-1lox/lox) at p21.

CNV: choroidal neovascularization; FA: fluorescein angiography.

https://doi.org/10.7554/eLife.00324.028
Figure 4—figure supplement 9

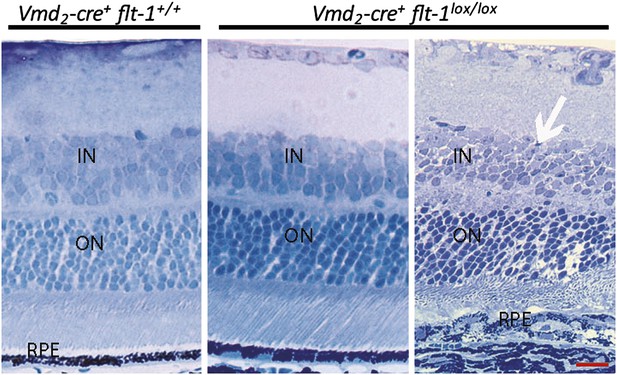

Toluidine blue staining images show the morphology of the retina at p28.

Most areas of retina are normal in Vmd2-cre+flt-1lox/lox mice. In a CNV lesion, the overlying neuronal outer nuclear layer is mainly intact. Scale bar: 10 µm. CNV: choroidal neovascularization.

https://doi.org/10.7554/eLife.00324.029
Representative IHC staining images show the ADAM10 expression in the inner layer of the retina.

IHC: immunohistochemistry; IN: inner nuclear layer; IP: inner plexiform layer; ON: outer nuclear layer; RPE: retinal pigment epithelium.

https://doi.org/10.7554/eLife.00324.032

Tables

Table 1

Demographic information for human globes

https://doi.org/10.7554/eLife.00324.003
NormalNormalNormalNormalNormalAMD (CNV)AMD (dry)AMDRAPRAPRAP
25/M71/M79/F80/F89/F80/F86/F88/F67/M86/F86/F
  1. All humans are Caucasians.

  2. AMD: age-related macular degeneration; CNV: choroidal neovascularization; F: female; M: male; RAP: retinal angiomatous proliferation.

Table 2

Transgenic mice with Cre/lox-mediated conditional gene ablation of Flt-1 in the retinal pigment epithelium (RPE) developed choroidal neovascularization (CNV) (<3 months old)

https://doi.org/10.7554/eLife.00324.030
homozygous (Vmd2-cre+ flt-1lox/lox)heterozygous (Vmd2-cre+ flt-1lox/+)littermate control (Vmd2-cre+ flt-1+/+)
Litter 11/1 mice, 2/2 eyesNANA
Litter 22/2 mice, 3/4 eyes5/7 mice, 9/14 eyes0/1 mouse 0/2 eyes
Litter 31/1 mouse, 2/2 eyes1/2 mice, 1/4 eyesNA
Litter 41/1 mouse, 2/2 eyes2/3 mice, 2/6 eyesNA
Litter 52/2 mice, 4/4 eyes1/2 mice, 1/4 eyes1/2 mice, 1/4 eyes
Litter 63/3 mice, 4/6 eyes1/2 mice, 1/4 eyes1/5 mice, 1/10 eyes
Litter 71/1 mouse, 1/2 eyes2/5 mice, 3/10 eyes0/3 mice, 1/6 eyes
Total11/11 mice (100%)12/21 mice (57%)2/11 mice (18%)
18/22 eyes (82%, p= 1.3E-6)17/42 (40%, p=0.009)2/22 eyes (9%)
Table 3

Transgenic mice with Cre/lox-mediated conditional gene ablation of Flt-1 in the photoreceptors developed retinal angiomatous proliferation (RAP) (<3 months old)

https://doi.org/10.7554/eLife.00324.031
homozygous (iCre-75+ flt-1lox/lox)heterozygous (iCre-75+ flt-1lox/+)littermate control (iCre-75+ flt-1+/+)
Litter 12/4 mice, 3/8 eyesNA0/1 mouse 0/2 eyes
Litter 21/1 mice, 1/2 eyes3/4 mice, 6/8 eyesNA
Litter 31/1 mouse, 2/2 eyes2/4 mice, 4/8 eyes0/1 mouse, 0/2 eyes
Litter 41/1 mice, 2/2 eyes1/2 mice, 1/4 eyes1/2 mice, 1/4 eyes
Litter 5NA1/1 mouse, 2/2 eyesNA
Litter 6NA0/1 mouse, 0/2 eyes0/1 mouse, 0/2 eyes
Total6/7 mice (86%)7/12 mice (58%)1/5 mice (20%)
8 /14 eyes (57%, p<0.05)13/24 (54%, p<0.05)1/10 eyes (10%)
