TRPV4 activation by TGFβ2 enhances cellular contractility and drives ocular hypertension
- Department of Ophthalmology and Visual Sciences, United States
- Department of Neurobiology, University of Utah, United States
- Department of Cell and Developmental Biology, SUNY Upstate Medical University, United States
- Department of Ophthalmology, Duke Eye Center, Duke University, United States
- Department of Biochemistry and Molecular Biology, SUNY Upstate Medical University, United States
- Department of Bioengineering, University of Utah, United States
Figures
Figure 1 with 1 supplement
TGFβ2 induces a fibrotic phenotype in primary trabecular meshwork (pTM) cells and increases expression and membrane insertion of the TRPV4 channel.
(A, B) Five-day TGFβ2 treatment (1 ng/ml) significantly altered expression of TGFβ pathway effectors, cytoskeletal machinery, and canonical fibrotic markers. (C) TGFβ2 treatment significantly increased TRPV4 and PIEZO1 expression, but not TREK1 and TRPC1 expression. Mean ± SEM shown. N = 4–8 experiments, each gene tested in 3–7 different pTM strains (see Table 1). Two-tailed one-sample t-test of TGFβ2-induced gene expression levels as a percent of control samples. (D) Isolation of membrane proteins from two separate pooled pTM samples suggests TGFβ2 treatment drives increased TRPV4 membrane insertion. N = 2 independent pooled samples, 3 pTM strains were pooled per sample. *p < 0.05, **p < 0.01.
-
Figure 1—source data 1
Uncropped images of the membrane and HRP-signal for the western blots shown in Figure 1 (labelled).
- https://cdn.elifesciences.org/articles/104894/elife-104894-fig1-data1-v1.pdf
-
Figure 1—source data 2
Uncropped images of the membrane and HRP-signal for the western blots shown in Figure 1.
- https://cdn.elifesciences.org/articles/104894/elife-104894-fig1-data2-v1.zip

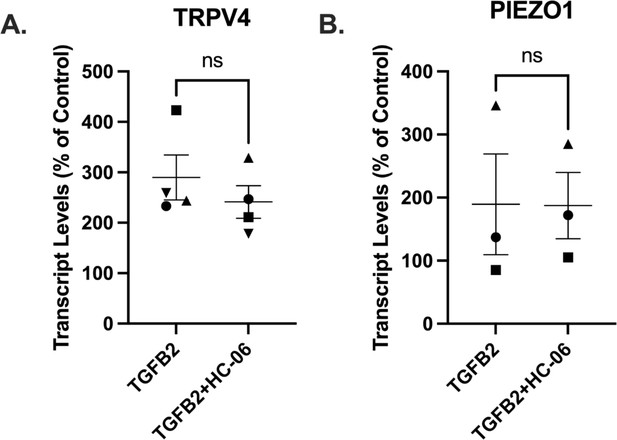

Figure 1—figure supplement 1
No significant difference was seen in (A) TRPV4 or (B) PIEZO1 expression between primary trabecular meshwork (pTM) samples treated with TGFβ2 (1 ng/ml) alone or TGFβ2 + TRPV4 antagonist HC-06 (5 µM) for 5 days.
N = 3–4 independent experiments. Within each gene, symbols indicate paired samples. Wilcoxon matched-pairs signed rank test and paired t-test used, respectively.
Figure 2
TRPV4-mediated Ca2+ influx is potentiated by 5-day TGFβ2 treatment.
(A) Five-day TGFβ2 treatment (1 ng/ml) increased TRPV4 agonist-induced (GSK101, 10 nM) Ca2+ influx in primary trabecular meshwork (pTM) cells compared to serum-free media alone treated cells tested on the same day (N = 5 pTM strains, n = 3–5 slides/condition/day, individual data points over mean ± SEM). Two-tailed one-sample t-test of TGFβ2-treated cell average GSK101 response as a percent of control samples from the same pTM strain on the same day. (B) Violin plots showing the distribution of GSK101-induced Ca2+ responses for each pTM strain tested in A. Thick dashed line indicates mean, while light dashed line indicates quartiles. (C) Representative traces showing TRPV4 agonist-induced Ca2+ influx (seen as an increase in F340/F380) in pTM (mean ± SEM of 4 representative cells/group), alongside example Fura-2-loaded pTM cells before (i), during (ii), and after (iii) GSK101 application. Scale bar = 50 µm. **p < 0.01.
Figure 3 with 1 supplement
TGFβ2-induced TRPV4 potentiation is not seen at a shorter period, regardless of treatment strength.
(A) TGFβ2 treatments for 24 hr at 1 ng/ml (N = 6 pTM strains, n = 3–5 slides/condition/day) or 5 ng/ml (N = 5 pTM strains, n = 3–5 slides/condition/day) did not show potentiation of GSK101-evoked TRPV4 Ca2+ influx (Figure 3—figure supplement 1) and were significantly lower than cells treated with TGFβ2 for 5 days at 1 ng/ml (5 days TGFβ2 results from Figure 2A). Individual data points over mean ± SEM. One-way ANOVA with Tukey’s multiple comparisons test, statistics for individual 1 day treatment groups compared to control groups shown in Figure 1. (B) Representative traces for GSK101 response following 24 hr TGFβ2 treatment, traces show mean ± SEM of 3–4 cells. (C) Average current density in response to GSK101 (24 hr control: n = 11 cells, 24 hr TGFβ2: n = 10 cells) shows generally increased current in TGFβ2-treated cells. Data show mean ± SEM (D, E). Violin plots of individual cell strains shown in A. Thick dashed line indicates mean, while light dashed line indicates quartiles. **p < 0.01, ***p < 0.001.

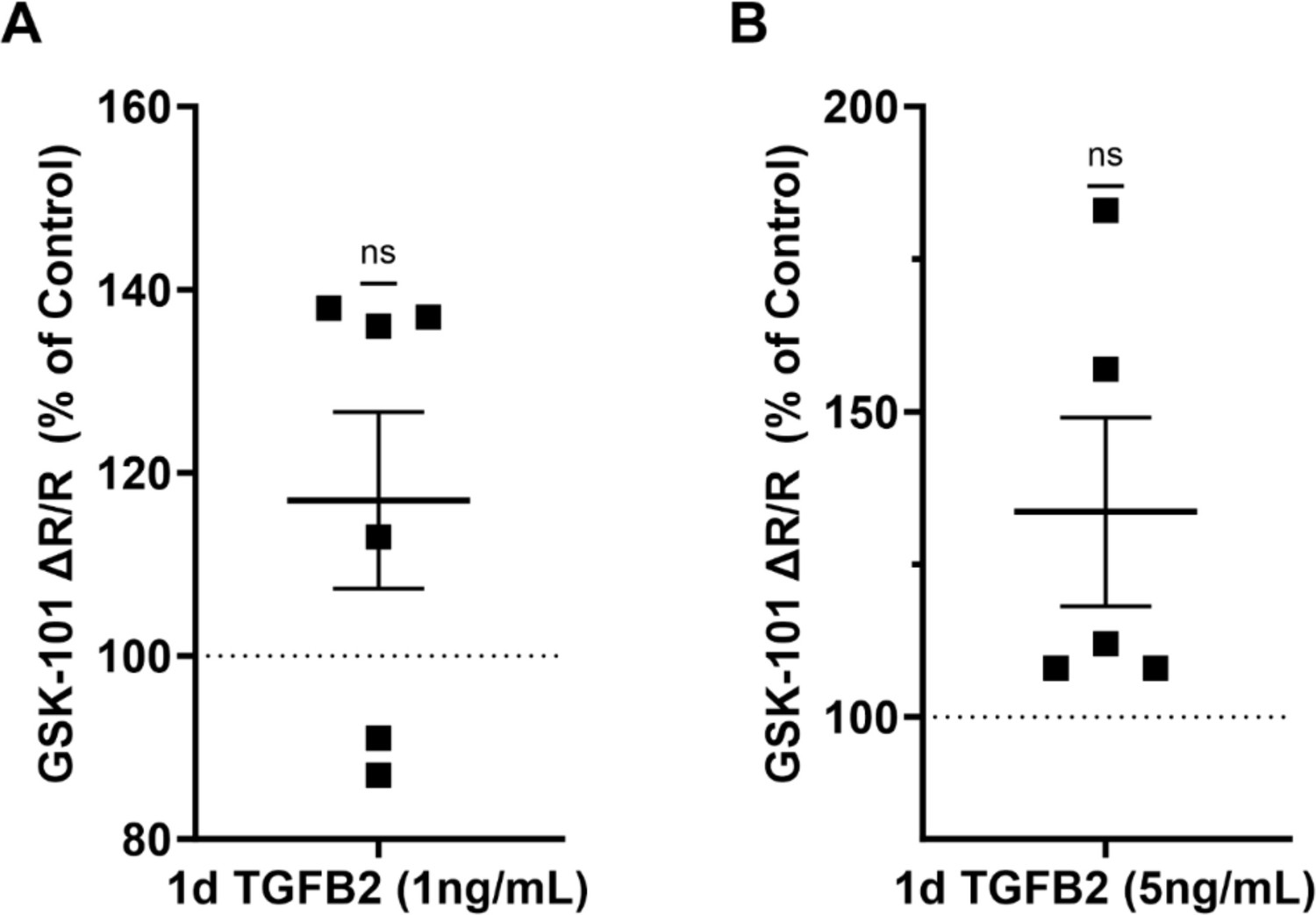

Figure 3—figure supplement 1
TGFβ2 concentrations of 1 ng/ml (A) and 5 ng/ml (B) did not significantly increase TRPV4-induced calcium influx with respect to control cells.
Individual statistical analysis of experiments shown in Figure 3A (1 ng/ml: p = 0.138, 5 ng/ml: p = 0.095), one sample t-test.
Figure 4 with 2 supplements
Effects of TRPV4 inhibition/activation on TGFβ2-induced contraction of trabecular meshwork (TM) cells.
(A) Representative longitudinal 24-well plate scans of collagen type I hydrogels seeded with primary TM (pTM) subjected to the different treatments (dashed lines outline size of contracted constructs). (B) Longitudinal quantification of hydrogel construct size compared to the control group at the 0 min time point. (C) Detailed comparisons between groups at each experimental time point. n = 6 hydrogels/group. One-way ANOVA with Tukey’s multiple comparisons test, data in (B, C) show individual data points over mean ± SD. One pTM strain shown: TGFβ2-induced contractility induction, HC-06-mediated rescue of hypercontractility, and GSK101-induced transient (15 min) contraction were consistent across (3/3) pTM strains tested (Figure 4—figure supplement 1). **p < 0.01, ***p < 0.001, ****p < 0.0001.

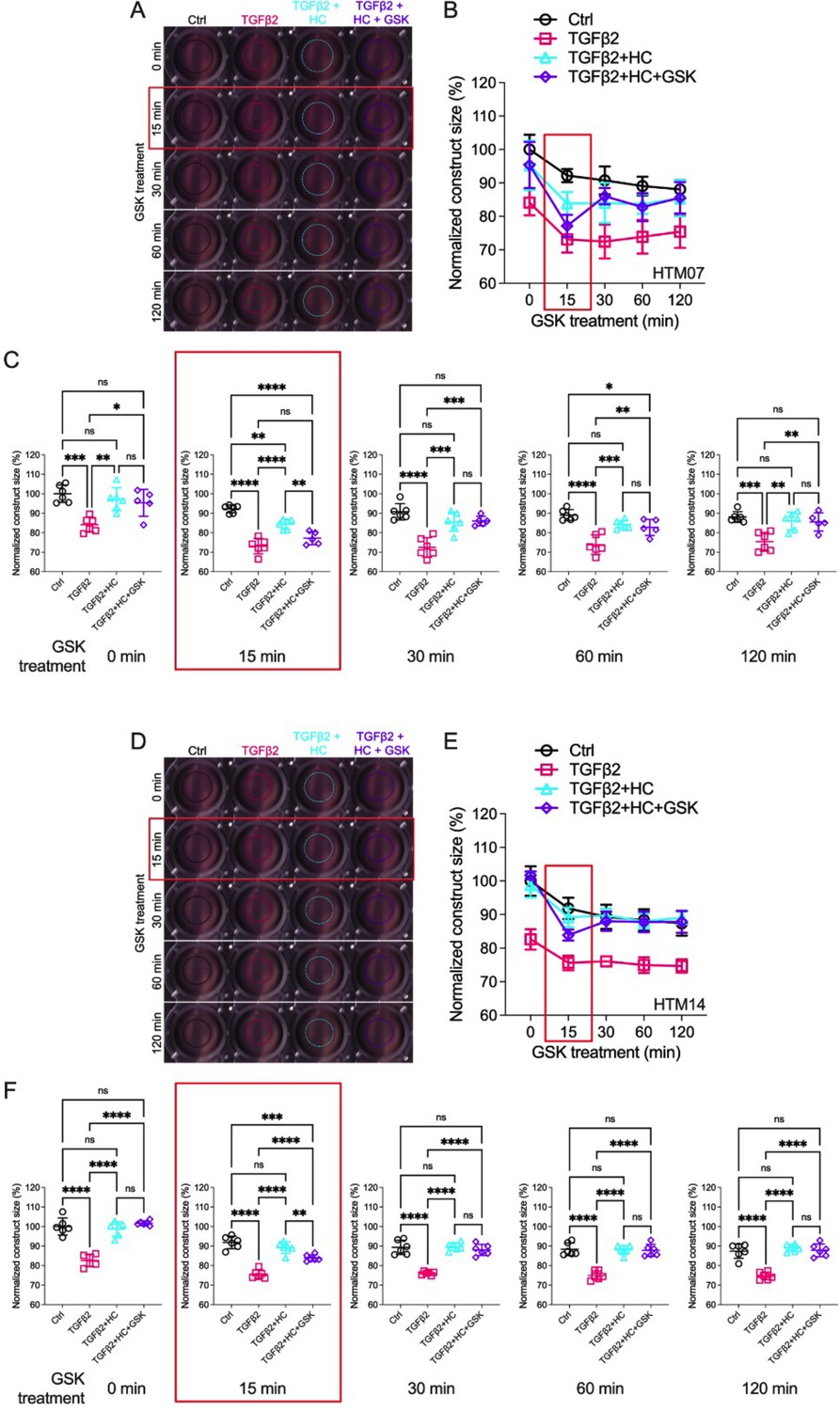

Figure 4—figure supplement 1
TRPV4 activation is obligatory for TGFβ2-induced trabecular meshwork (TM) cell contractions.
(A, D) Representative longitudinal 24-well plate scans of collagen type I hydrogels seeded with two distinct primary TM (pTM) strains (pTM 1: A–C, pTM 2: D–F) subjected to the different treatments as in Figure 4. (B, E) Longitudinal quantification of hydrogel construct size. (C, F) Detailed comparisons between groups at each experimental time point (N = 6 experimental replicates/pTM strain). One-way ANOVA with Tukey multiple comparisons test, data in (B, D) show individual data points over mean ± SEM. *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001.
Figure 4—figure supplement 2
Detailed view of primary trabecular meshwork (pTM) seeded collagen constructs used in Figure 4 and Figure 4—figure supplement 1.
High-resolution representative image of collagen gels used for contractility experiments without a circle around the periphery of the gel.
Figure 5 with 1 supplement
TRPV4 activation is necessary to maintain LV-TGFβ2-induced ocular hypertension (OHT).
(A) Intravitreal injection of LV-TGFβ2 (Week 1), but not LV-Control, elevates intraocular pressure (IOP) in WT mice (N = 5 eyes/group) as early as 1-week post-injection. Injection of TRPV4 antagonist HC-06, but not PBS, produced multiday IOP reduction in LV-TGFβ2-treated eyes. HC-06 and PBS injections did not affect IOP in LV-Control injected eyes. Two-way ANOVA with Bonferroni post hoc analysis (B) Direct comparison of the results of PBS and HC-06 injections in the eyes shown in A. Two-way ANOVA with Bonferroni post hoc analysis. (C) Intravitreal injection of LV-TGFβ2 in Trpv4−/− mice (N = 6 eyes/group) resulted in only mild OHT; plotted against WT eyes at matching timepoints (3 WT cohorts including the 5 WT eyes shown in A, B, N = 8–15 eyes/group). (D) Statistical comparison of the IOP values shown in C. The IOP in LV-TGFβ2 WT eyes was significantly elevated compared to the LV-TGFβ2 Trpv4−/− eyes from 2 weeks post-injection. LV-Control injected eyes in WT or Trpv4−/− eyes remain close to the baseline value and are not significantly different. Two-way ANOVA with Bonferroni post hoc analysis. (A, C) shows mean ± SEM. Data in (B, D) show individual data points over mean ± SEM, *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001.
-
Figure 5—source data 1
Source data for Lv-Control IOP and Lv-TFFb2 cohorts treated with HC-06.
- https://cdn.elifesciences.org/articles/104894/elife-104894-fig5-data1-v1.xlsx
-
Figure 5—source data 2
Source data for IOP data from WT and Trpv4 KO eyes treated with TGFβ2.
- https://cdn.elifesciences.org/articles/104894/elife-104894-fig5-data2-v1.xlsx
Figure 5—figure supplement 1
Expansion of Figure 5D.
Intraocular pressure (IOP) in LV-TGFβ2-injected eyes was significantly elevated compared to both LV-Ctrl injected WT and Trpv4−/− eyes, as well as LV-TGFβ2-injected Trpv4−/− eyes (N = 6 eyes/condition).
Figure 6 with 1 supplement
TRPV4 inhibition inhibits nocturnal intraocular pressure (IOP) elevation in control and TGFβ2 overexpressing eyes.
(A, B) Post-LV injection daytime (12–2:00 P.M) and nocturnal (9–10:00 P.M.) IOP compared in WT mice (N = 4–6 eyes/group) before drug treatment. LV-TGFβ2 eyes were elevated at daytime, but nocturnal ocular hypertension (OHT) was not significantly different between LV-Ctrl and LV-TGFβ2 eyes in two separate cohorts of mice measured under isoflurane anesthesia (A) or while awake (B). (C, D) Anesthesia had no significant effect on measured nocturnal IOP. One-way ANOVA with Tukey’s multiple comparisons test. (E, F) PBS-injected eyes did not exhibit changes in daytime or nighttime intraocular pressure; however, HC-06 injection reduced TGFβ2-induced IOP elevations during the day and LV-Ctrl and LV-TGFβ2 nocturnal IOPs (N = 4 eyes/group); two-way ANOVA with Bonferroni post hoc analysis. Figures show data points over mean ± SEM, *p < 0.05, **p < 0.01, ****p < 0.0001.
-
Figure 6—source data 1
Source data for nocturnal and diurnal IOP cohorts from control mice and animals treated with LV-TGFβ2.
- https://cdn.elifesciences.org/articles/104894/elife-104894-fig6-data1-v1.xlsx

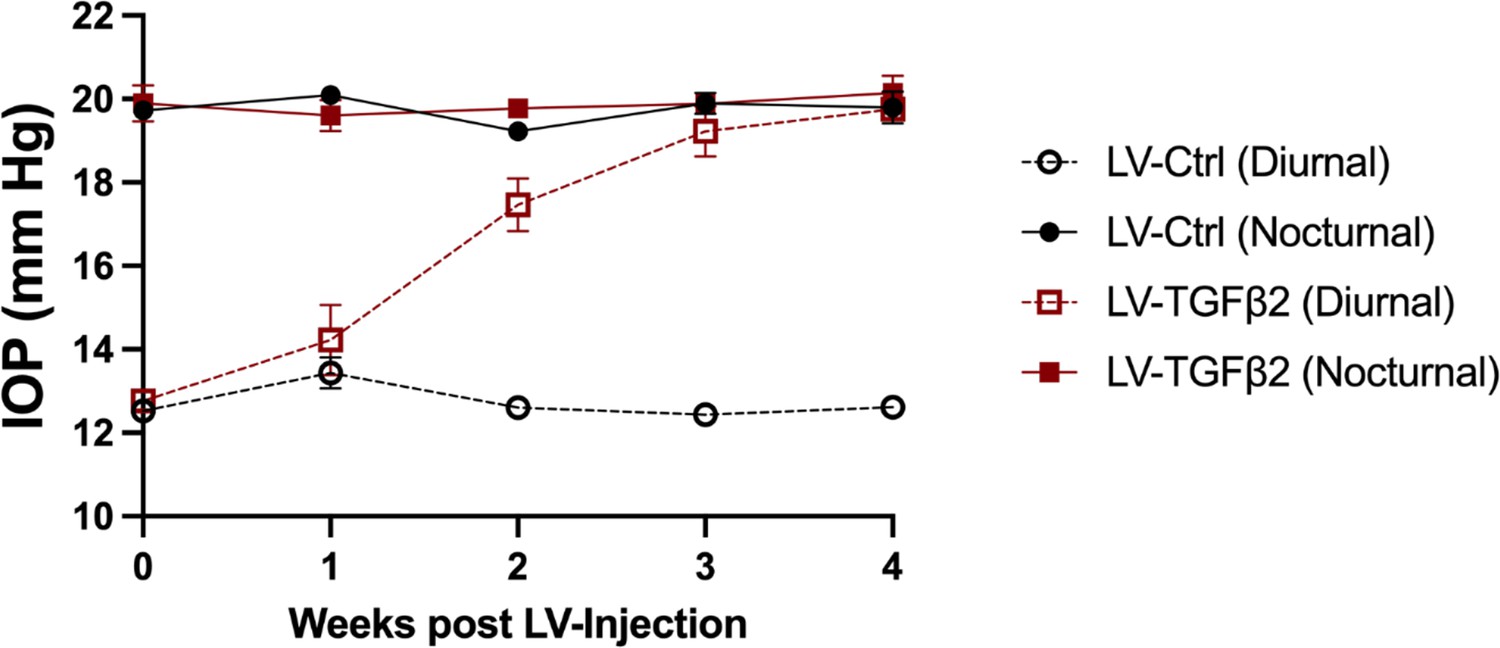

Figure 6—figure supplement 1
Nocturnal intraocular pressure (IOP) is not significantly affected by LV-TGFβ2 overexpression.
Expanded time series of IOP measured weekly from a second cohort of mouse eyes (Figure 6B) injected with LV-Ctrl (n = 6 eyes) or LV-TGFβ2 (n = 4 eyes). LV-TGFβ2 resulted in elevated diurnal IOP, which gradually approached the IOP seen in nocturnal measurements but did not further elevate IOP above nocturnal values. In this cohort, both diurnal and nocturnal measurements were made in awake animals.
Figure 7
TGFβ2–TRPV4 interactions in trabecular meshwork (TM) remodeling and ocular hypertension (OHT).
Chronic exposure to TGFβ2 induces upregulation of functional TRPV4 channels alongside the autoinhibitory canonical modulator SMAD7. TRPV4-mediated Ca2+ influx, canonical, and non-canonical TGFβ2 signaling stimulate the Rho/ROCK pathway to augment cytoskeletal contractility and stimulate extracellular matrix (ECM) release. Actomyosin contractility promotes outflow resistance and drives OHT and underpins a vicious feedforward TRPV4-dependent loop that maintains OHT. This figure was created using BioRender.com.
Author response image 1
Western blot, total protection extract from control and TGFb2-treated TM cells [Alomone antibody].
Tables
Table 1
Donor information for primary human trabecular meshwork (pTM) strains used in this study.
| Location | Donor age | Donor sex | Experiments used |
|---|---|---|---|
| Utah | 55 | M | PCR, Electrophysiology |
| Utah | 76 (a) | F | PCR, WB, Ca2+ Img. |
| Utah | 76 (b) | F | PCR, Ca2+ Img. |
| Utah | 78 | M | PCR, Ca2+ Img. |
| Utah | 64 (a) | F | PCR, WB, Ca2+ Img. |
| Utah | 64 (b) | F | PCR, Ca2+ Img. |
| Utah | 70 (a) | F | PCR, WB, Ca2+ Img., Electrophysiology |
| Utah | 70 (b) | F | PCR |
| Utah | 53 | M | Ca2+ Img. |
| Utah | 26 | M | Ca2+ Img., Electrophysiology |
| Utah | 73 | F | Ca2+ Img. |
| Utah | 56 | M | Ca2+ Img. |
| Utah | 73 | M | Ca2+ Img. |
| Utah | 80 | M | WB |
| SUNY | 39 | M | Contractility |
| SUNY | 50 | F | Contractility |
| SUNY | 56 | F | Contractility |
Table 2
Sequences, product size, and reference numbers for PCR primers used in this study.
| Gene | Forward | Reverse | Product length (bp) | NCBI reference number |
|---|---|---|---|---|
| GAPDH | CTCCTGTTCGACAGTCAGCC | GACTCCGACCTTCACCTTCC | 89 | NM_002046.5 |
| SMAD2 | GGGTTTTGAAGCCGTCTATCAGC | CCAACCACTGTAGAGGTCCATTC | 149 | NM_005901.6 |
| SMAD3 | CAAGTGGCCGCGTGTAAAAA | AGTCCAGAACAGCCGAGTTG | 181 | NM_005902.4 |
| SMAD7 | CTGCTCCCATCCTGTGTGTT | CCTTGGGTTATGACGGACCA | 120 | NM_005904.3 |
| TGFΒR2 | AACCTCTAGGCACCCTCCTC | AACCTCTAGGCACCCTCCTC | 100 | NM_001024847.3 |
| FSP1 | GCTTCTTCTTTCTTGGTTTGATCCT | AAGTCCACCTCGTTGTCCCT | 250 | NM_002961.3 |
| SNAIL1 | GGCTCCTTCGTCCTTCTCCTCTAC | CTGGAGATCCTTGGCCTCAGAGAG | 124 | NM_005985.4 |
| CCN2 | CCCCAGACACTGGTTTGAAG | CCCACTGCTCCTAAAGCCAC | 100 | NM_001901.3 |
| YAP1 | ACAGGGAAGTGACTTTGTACA | GCACTGAATATTGCACCCAC | 183 | NM_001130145. |
| FN1 | CTGAAAGACCAGCAGAGGCA | GTGTAGGGGTCAAAGCACGA | 110 | M10905.1 |
| SMA (ACTA2) | GTCACCCACAATGTCCCCAT | GGAATAGCCACGCTCAGTCA | 123 | NM_001141945.2 |
| MYOC | CCACGTGGAGAATCGACACA | TCCAGTGGCCTAGGCAGTAT | 118 | NM_000261.1 |
| TRPV4 | TCCCATTCTTGCTGACCCAC | AGGGCTGTCTGACCTCGATA | 217 | NM_021625.4 |
| PIEZO1 | GGCCAACTTCCTCACCAAGA | GGGTATTTCTTCTCTGTCTC | 106 | NM_001142864.3 |
| TREK1 | AGGGATTTCTACTTGGCGGC | CAAGCACTGTGGGTTTCGTG | 99 | NM_001017424.3 |
| TRPC1 | TGCGTAGATGTGCTTGGGAG | CGTTCCATTAGTTTCTGACAACCG | 107 | X89066.1 |
