The cerebellum linearly encodes whisker position during voluntary movement

  1. Susu Chen
  2. George J Augustine
  3. Paul Chadderton Is a corresponding author
  1. Imperial College London, United Kingdom
  2. National University of Singapore, Singapore
  3. Imperial-NUS Joint PhD program
  4. Nanyang Technological University, Singapore
  5. Institute of Molecular and Cell Biology, Singapore
Research Article
Cited
8
Views
2,043
Comments
0
Cite as: eLife 2016;5:e10509 doi: 10.7554/eLife.10509

Abstract

Active whisking is an important model sensorimotor behavior, but the function of the cerebellum in the rodent whisker system is unknown. We have made patch clamp recordings from Purkinje cells in vivo to identify whether cerebellar output encodes kinematic features of whisking including the phase and set point. We show that Purkinje cell spiking activity changes strongly during whisking bouts. On average, the changes in simple spike rate coincide with or slightly precede movement, indicating that the synaptic drive responsible for these changes is predominantly of efferent (motor) rather than re-afferent (sensory) origin. Remarkably, on-going changes in simple spike rate provide an accurate linear read-out of whisker set point. Thus, despite receiving several hundred thousand discrete synaptic inputs across a non-linear dendritic tree, Purkinje cells integrate parallel fiber input to generate precise information about whisking kinematics through linear changes in firing rate.

https://doi.org/10.7554/eLife.10509.001

eLife digest

Many animals actively move their whiskers back and forth to explore their surroundings and search for objects of interest. This behavior is important for navigation and the animals’ sense of touch. It relies on specialized circuits of cells in the brain to carry information about whisker movement patterns and process the touch signals. A region of the brain called the cerebellum is highly connected to these circuits, but its role in the voluntary movement of whiskers is not clear.

Chen et al. aimed to address this question by using a technique called patch clamping to measure the electrical activity of individual neurons in the mouse cerebellum. The experiments revealed that individual cells in the cerebellum called Purkinje cells track whisker movements in real time, and with virtually no delay, through both increases and decreases in their activity. Also, Chen et al. found that the patterns of electrical activity in these cells closely mimicked the positions of the whiskers as they moved. These results tell us that cells in the cerebellum use a simple code to represent whisker position during voluntary movement.

Chen et al.’s findings present the first experimental evidence that the cerebellum applies a type of code known as a linear code to represent the voluntary movements of whiskers. The next challenge is to find out how contact with whiskers alters movement-related signals in the cerebellum.

https://doi.org/10.7554/eLife.10509.002

Introduction

Tactile sensation is an active process whereby sensory information is acquired through self-initiated movement. Effective sensory processing therefore involves the interplay between motor and sensory systems, incorporating multiple feedback loops (Diamond et al., 2008; Matyas et al., 2010; Bosman et al., 2011). Rodents use coordinated whisker movements for tactile exploration and discrimination, rhythmically sweeping their whiskers back and forth to scan their surroundings. The rodent whisker system thus provides an attractive model to tackle questions related to active sensory processing (O'Connor et al., 2002; Crochet et al., 2011) and sensorimotor integration (Kleinfeld et al., 2006). Amongst multiple processing regions in the brain, the cerebellar cortex is a major site of sensorimotor integration, but little is known about its role in active whisking.

Of the many brain regions involved in whisking behavior, the trigeminal and facial nuclei of the brainstem, thalamus, and neocortex have received the most attention (Carvell and Simons, 1988; Lichtenstein et al., 1990; Carvell et al., 1996; Fee et al., 1997; Kleinfeld et al., 1999; Brecht et al., 2004; Yu et al., 2006; Leiser and Moxon, 2007; Herfst and Brecht, 2008; Diamond et al., 2008; Curtis and Kleinfeld, 2009; Hill et al., 2011; Crochet et al., 2011; Petreanu et al., 2012). Recently, physiological and anatomical studies have unveiled a whisking central pattern generator located in the reticular formation of the ventral medulla that produces rhythmic signals to muscles that generate whisking (Moore et al., 2013). The lateral hemispheres of the cerebellum, in particular lobule Crus I, are strongly implicated in these vibrissae sensorimotor loops (Shambes et al., 1978; Bosman et al., 2011; Proville et al., 2014). Growing evidence suggests synchronization of activity between the cerebellum and other whisker-related brain regions both under anesthesia and during active whisking in the awake state (O’Connor et al., 2002; Ros et al., 2009; Popa et al., 2013). Sensory-evoked responses are observed in Crus I following whisker stimulation (Shambes et al., 1978; Bower et al., 1981; Chadderton et al., 2004; Bosman et al., 2010), and whisker movements can be evoked by optogenetic activation of this lobule (Proville et al., 2014), but the principles by which cerebellar neurons encode features of whisking remain to be determined.

In this study, we set out to identify two key aspects of whisking behavior representation in Purkinje cells (PCs), the final stage of information processing and sole output of the cerebellar cortex. Firstly, which kinematic features are represented by PCs? Whisking is a rhythmic process characterized both by fast oscillatory forward and backward movements, as well as slower positional changes (Hill et al., 2011). Distinct brain regions make different functional contributions to the encoding of this behavior (Kleinfeld et al., 2006). For example, within the neocortex, the phase of whisking is strongly represented in primary somatosensory cortex (vS1, Curtis et al., 2009), whereas slower changes (e.g. the set point and amplitude of whisker movement) are more closely correlated with activity in primary motor cortex (vM1, Carvell et al., 1996; Hill et al., 2011). To understand how the cerebellum fits within the various nested loops of the rodent whisker system, it is necessary to establish the kinematic parameters that are most relevant in the modulation of cerebellar activity. Further, it is important to establish how salient features of whisking are encoded in the activity of single neurons. This information is essential if we are to understand the underlying computational principles of the cerebellar circuit. Changes in both the rate and timing of action potential firing may play a role in sensorimotor encoding (De Zeeuw et al., 2011), and it has been proposed that the cerebellum may serve a general function as a linear coding device (Fujita, 1982). However, these concepts have not been directly confirmed in the intact brain, and thus the cerebellar coding scheme(s) employed in the representation of whisker movement is unknown.

To address these issues, we have made patch clamp recordings from cerebellar PCs in awake, behaving mice to determine the influence of convergent sensory and motor input on the output patterns of the cerebellar cortex during natural whisking. PCs integrate hundreds of thousands of discrete synaptic inputs (Palkovits et al., 1977) across a complex non-linear dendritic tree (Llinás and Sugimori, 1980a, 1980b; Finch and Augustine, 1998; Roth and Häusser, 2001). Despite this complexity, our experiments demonstrate that single PCs accurately encode ongoing whisker movements via bidirectional modulation of simple spike firing rate in a linear manner. Our results establish the presence of a whisking coordinate system in the cerebellum and reveal the computational algorithm employed during sensorimotor processing.

Results

Purkinje cell spiking activity is altered during free whisking

We performed patch clamp recordings in Crus I of cerebellar cortex while using high-speed videography to track the whisker movements of awake head-fixed mice (Figure 1A–C). Mice spent variable amounts of time engaged in free whisking, spontaneously switching between periods of whisking and non-whisking behavior (mean whisking bout: 1.68 ± 0.04 s, range: 0.50 – 29.71 s; mean quiet period: 7.82 ± 0.25 s, range: 0.5 – 153.1 s). PCs (n = 70 from 47 mice) could be identified via classification of their two distinct spike waveforms - simple spikes (SS) and complex spikes (CS) - evident in both cell-attached and whole cell recordings (Figure 1C).

Figure 1 with 2 supplements see all
Alteration of Purkinje cell activity during free whisking.

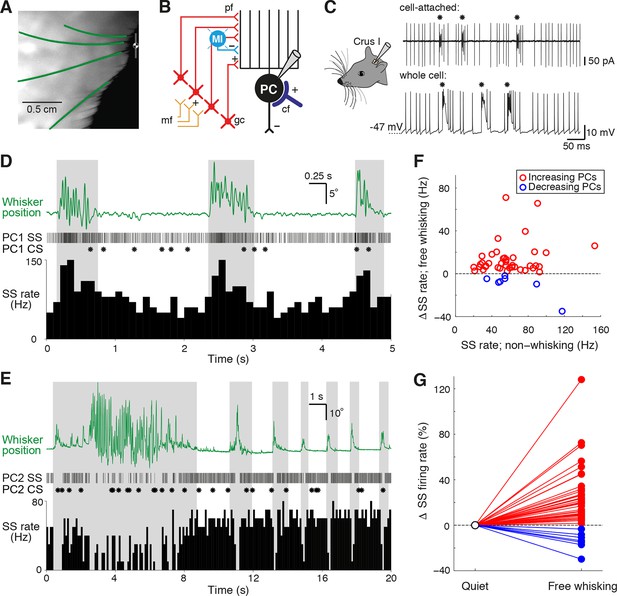

(A) Videography of a head-restrained mouse with four traced whiskers (from row C, labeled in green). (B) Simplified diagram of the cerebellar circuit (cf: climbing fiber; gc: granule cell; PC: Purkinje cell; pf: parallel fiber; mf: mossy fiber; MI: molecular layer interneuron). (C) PC electrical activity in awake behaving mice, acquired via cell-attached and whole cell patch clamp recordings. Asterisks highlight the incidence of complex spiking. (D) Observed behavior of PC that increased simple spike (SS) frequency during spontaneous whisker movements (gray shading), including (top) traced whisker position (green; upward deflections indicate protraction), (middle) corresponding SS and CS trains, and (bottom) SS instantaneous firing rate histogram (bin size: 100 ms). (E) Observed behavior of PC that decreased SS frequency during spontaneous whisking. (F) Scatter plot showing relative SS firing rate changes during whisking with respect to non-whisking baseline firing rates for all significantly modulated units (p<0.05, n = 47, Mann-Whitney-Wilcoxon test). Red and blue symbols indicate increasing (n = 40) and decreasing (n = 7) PCs, respectively. (G) Relative SS firing rate changes with respect to baseline firing rate between quiet wakefulness and free whisking for all modulated cells (red: increasing PCs, blue: decreasing PCs).

https://doi.org/10.7554/eLife.10509.003

Although tactile whisker stimulation can change the rate of both SS and CS (Bower and Woolston, 1983; Loewenstein et al., 2005; Bosman et al., 2010), it is not known whether free whisking also affects PC activity. We therefore compared PC firing rates during epochs of whisking and non-whisking behavior. In the absence of movement, PCs fired SSs at high frequencies (61.9 ± 3.7 Hz, range: 20.1 – 187.9 Hz, n = 70), while the basal rate of CSs was low (1.6 ± 0.1 Hz, range: 0.5 – 3.3 Hz, n = 70). These values are consistent with other recordings made from lateral cerebellar PCs in awake animals (Fu et al., 1997a, 1997b; Lang et al., 1999; Bosman et al., 2010). During bouts of free whisking, a large proportion of PCs (47 out of 70 cells, ~67%) exhibited significant changes in SS rate (p<0.05, Mann-Whitney-Wilcoxon test). While the majority of PCs (40/47) increased their firing rates (Figure 1D, Video 1), in some PCs (7/47) SS rates decreased during whisking (Figure 1E, Video 2). Whisker movement was associated with an overall enhancement of the activity of PCs (Figure 1F, G), although the direction and amplitude of SS rate change during whisking was not related to baseline SS firing rates (r = 0.06, p=0.69, n = 47). SS rate changes were therefore non-uniform in both magnitude and sign across the population, with individual PCs exhibiting changes ranging from +128% to -34% during whisking periods (Figure 1G). We also compared variability in the timing of simple spiking during periods of whisking and non-whisking behavior by measuring the coefficient of variation (CV) of SS firing. Overall, the CV was close to 1 both when mice were at rest (0.9 ± 0.1, range: 0.3 – 6.2, n = 70), and when they actively moved their whiskers (0.8 ± 0.1, range: 0.3 – 2.5, n = 70). Significant changes in SS variability occurred during free whisking in the majority of PCs that displayed rate modulation (44/47 PCs; see ‘Materials and methods’). Moreover, nearly one third (n = 20/70) of PCs demonstrated changes in SS firing regularity alone, suggesting that the temporal patterning of SS might independently encode whisker-related signals. In summary, SS activity – either rate, CV, or both - was altered in nearly all PCs (67/70).

Video 1
Increased simple spike activity during whisking.

SS activity of a single PC during 15 s of voluntary whisking behavior. Left: Movements of the ipsilateral whisker pad were recorded via high-speed infrared videography. Top: changes in whisker angle for three adjacent row-C whiskers. Bottom and Audio: Simultaneously recorded SS activity from Crus I PC (raster and audio 2x down-sampled for audiovisual clarity).

https://doi.org/10.7554/eLife.10509.006
Video 2
Reduced simple spike activity during whisking.

SS activity of a single PC during 10 s of voluntary whisking behavior. Left: Movements of the ipsilateral whisker pad were recorded via high-speed infrared videography. Top: Fluctuations in the angle of the C3 whisker. Bottom and Audio: Simultaneously recorded SS activity from Crus I PC (video slowed down 2x for audiovisual clarity).

https://doi.org/10.7554/eLife.10509.007

Locomotion can alter whisking behavior: whisker protraction is correlated with running speed (Sofroniew et al., 2014). During the course of our PC recordings, mice rarely ran on the treadmill (fraction of all whisking bouts spent running was 3.5%; Figure 1—figure supplement 1A). However, in recordings that included periods of locomotion (n = 10), whisker movements were more protracted (Figure 1—figure supplement 1B, C) and SS firing rates were elevated, independent of the sign of whisking-related modulation (Figure 1—figure supplement 1D; p=0.03, paired t test). These results indicate that running may influence both whisking behavior and whisker-driven SS activity in the cerebellum.

Significant differences in CS firing rates were also observed between whisking and non-whisking conditions in a large proportion of PCs (Figure 1—figure supplement 2B; 33 out of 70 cells, p<0.05, Mann-Whitney-Wilcoxon test). A common phenomenon in many regions of the cerebellar cortex is an inverse relationship between SS and CS rate changes during behavior (Graf et al., 1988; De Zeeuw et al., 1995; Barmack and Yakhnitsa, 2003; Badura et al., 2013). However, there was no consistent relationship between whisker-related changes in CS and SS frequency (Figure 1—figure supplement 2B; r = 0.13, p=0.57). Overall, whisker movements are associated with pronounced alterations in PC activity, indicating that external drive to Crus I changes activity within cerebellar circuits during bouts of whisking.

Purkinje cell simple spike discharges reliably track whisker movements

To define the relationship between whisker movement and PC simple spiking, we correlated whisker position with the incidence of SSs. Whisking bouts were aligned at their onset to compare the amplitude and duration of whisker movements with firing rate changes both in increasing (Figure 2A, B) and decreasing (Figure 2C) PCs. Remarkably, the changes in PC SS firing rate during whisking bouts closely mimicked whisker movement (compare upper and lower panels in Figure 2A), irrespective of the direction of the rate change (Figure 2B, C). Beyond an overall change in CS rate, there was no correspondence between the amplitude/duration of whisker movement and the incidence of CSs (Figure 2—figure supplement 1). Therefore, increases and decreases in SS, but not CS, rate are intimately related to changes in whisker position.

Figure 2 with 3 supplements see all
Purkinje cell simple spike discharges reliably track whisker movements.

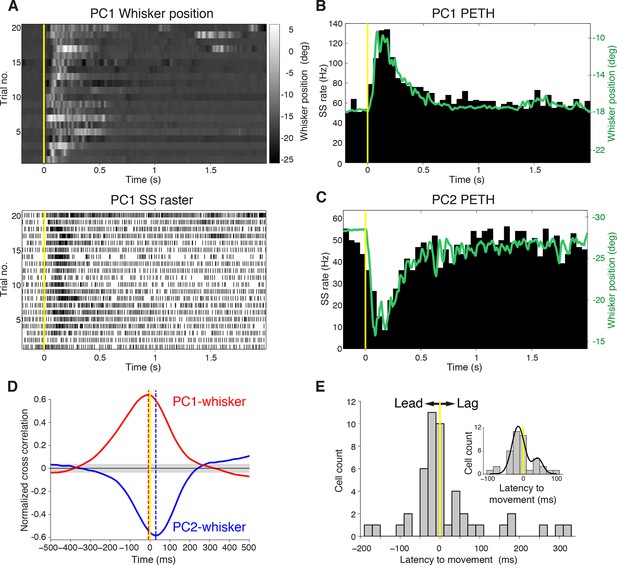

(A) Whisker movements and corresponding simple spike raster from a single PC across 20 epochs of free whisking. Neuron demonstrates increased SS frequency during movement. (B) Peri-event time histogram (PETH) for the same PC, obtained by averaging SS rate across trials illustrated in (A), overlaid with averaged whisker position (in green). Note the close relationship between SS firing rate change and mean whisker position. (C) PETH for a PC demonstrating reduced SS frequency during movement. The close relationship between SS firing rate change and mean whisker position is preserved. (D) Normalized cross-correlations between whisker position and SS discharge for exemplar PCs. The peak (red for PC1; shown in A, B) or trough (blue for PC2; shown in C) indicates the temporal relationship between whisker position and spiking. PC1 leads whisker movement by 8 ms (difference between red and yellow dashed lines), while PC2 lags movement by 27 ms (difference between blue and yellow dashed lines). Gray shade demonstrates 95% confidence interval. (E) Temporal relationship between whisker movement and SS discharge for all modulated PCs (bin size: 20 ms). More units show lead (negative latency to movement) than lag (positive latency to movement) with respect to behavior. Inset: zoomed-in histogram between -100 ms and 100 ms. Black line is best fit of two summed Gaussians.

https://doi.org/10.7554/eLife.10509.008

Timing of whisking-related changes in PC firing rates

Because Crus I receives both motor and sensory whisker-related inputs (Shambes, et al., 1978Bower et al., 1981; Proville et al., 2014; ), SS firing rate changes could reflect either efferent motor command, or re-afferent sensory input. To establish whether changes in PC activity reflect transitions to free whisking in a feed-forward (efferent) or feedback (re-afferent) manner, we determined the temporal relationship between neural activity and behavior. For this purpose, we calculated the cross-correlation between SS firing rate and whisker position, with the analysis centered on the time of whisking onset (Figure 2D). Robust correlations between whisker movement and SS discharge were observed with both large and small whisking-related changes in firing rate (Figure 2—figure supplement 2A,B), and in a manner that was largely independent of the latency between movement and change in firing rate (Figure 2—figure supplement 2C). Two-thirds of PCs (31/47) exhibited SS firing rate changes that preceded whisking onset by a mean of -34.6 ± 7.9 ms (Figure 2E), and no clear relationship was observed between the latency and magnitude of whisking related alterations in SS rate (Figure 2—figure supplement 2D). Temporal relationships were preserved when the cross-correlation was calculated based on whisking offset (Figure 2—figure supplement 3). On average, PC SS discharge led whisker movement by ~18 ms (n = 47) at the population level, implying that SS alterations in Crus I predominantly reflect efferent rather than re-afferent signals. However, the distribution of temporal correlations was broad (range: -178 ms to 324 ms), and non-unimodal (Figure 2E, Hartigan's dip test; p<0.001, n = 38), indicating that whisking behavior is represented on multiple timescales amongst neighboring PCs within Crus I. Delayed PC responses relative to whisking may result from additional processing of sensory-driven information and/or recurrent motor-related signals during free whisking. In addition, the transmission of whisker signals via parallel fibers (Wilms and Häusser, 2015) of distant granule cells may account for long latency PC responses within the cerebellar cortex.

Strong linear correlations between SS frequency and whisker position

To establish whether the activity of PCs in Crus I represents salient kinematic parameters of whisking, we directly quantified the relationship between PC SS firing rate and whisker position. Plotting whisker position as a function of SS frequency revealed strong linear correlations: linear regression analysis indicated significant correlations in over 60% of the PCs (R2 = 0.958 ± 0.005, p<0.05, ANOVA, n = 44 ). Two classes of encoding schemes were observed. Unidirectional PCs (Figure 3A) displayed linear changes in SS frequency within a range of positions corresponding to only forward or backward movements relative to the whisker resting point (defined as whisker angle during non-movement; see ‘Materials and methods’). These were the most common type of response (37/44) and were associated with either increases or decreases in SS rate. In bidirectional PCs, SS frequency both increased and decreased across the full range of movement (Figure 3B), with SS frequency encoding both protracted and retracted whisker positions (7/44 PCs). Across the PC population, we observed uni- and bidirectional PCs that encoded whisker position with both positive slopes (corresponding to increased SS rate during forward movements) and negative slopes (decreased SS rate during forward movements). To compare representation of whisker position across the population of PCs, SS firing rate was normalized with respect to the spontaneous firing rate and whisker position was normalized with respect to the whisker resting point. Notably, both classes of PC displayed almost perfect linear relationships (unidirectional: R2 = 0.950 ± 0.004; bidirectional: R2 = 0.959 ± 0.005) between relative SS firing rate change and whisker position (Figure 3C). In unidirectional cells, SS frequency at resting point often differed between bouts of movement and non-movement. Bidirectional PCs never exhibited such large baseline shifts in firing frequency and were capable of continuously representing whisker position through bouts of whisking and non-whisking via alteration of SS frequency.

Figure 3 with 2 supplements see all
Purkinje cell simple spike frequency linearly encodes whisker position.

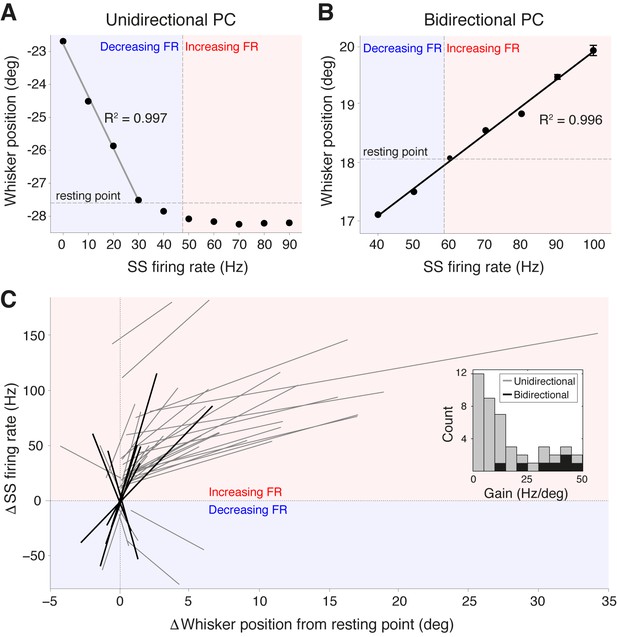

(A) Relationship between SS rate and whisker position for PC with strong linear tuning in the forward direction only (unidirectional PC). Linear regression was performed for whisker positions anterior of the resting point (horizontal dashed line). Vertical dashed line shows the cell’s spontaneous firing rate (FR). This cell showed linear reductions in SS frequency during forward movement. Blue and red shaded areas represent decreases and increases in SS FR, respectively. (B) Relationship between SS rate and whisker position for PC with strong linear tuning in both forward and backward directions (bidirectional PC). Linear fit encompassed the entire range of SS FR modulation. This cell showed increases in SS frequency during forward movement, and decreases in SS frequency during backward movement. (C) Summary of all unidirectional PCs (n = 37, gray lines) and bidirectional PCs (n= 7, black lines) with significant linear correlations between SS FR and whisker position (ANOVA, p<0.05, R2 > 0.86). FR change and whisker position were normalized with respect to spontaneous firing rate and resting point, respectively. Inset: distribution of gain, defined as the slope of individual linear fit, for both unidirectional (gray) and bidirectional (black) units. Note bidirectional PCs have higher gain values than unidirectional PCs on average, implying they are more sensitive to changes in whisker position during movement.

https://doi.org/10.7554/eLife.10509.012

While the gain of SS firing rate changes with respect to whisker position (slope of curves in Figure 3A–C) varied across cells (mean = 15.8 ± 2.1 Hz/degree), bidirectional PCs demonstrated significantly higher gain values in comparison to unidirectional PCs (bidirectional: 33.5 ± 4.4 Hz/degree, unidirectional: 12.5 ± 2.0 Hz/degree, p<0.001, Mann-Whitney-Wilcoxon test), indicating that bidirectional PCs are more sensitive to small-amplitude whisker movements (Figure 3C, inset). A strong inverse relationship was observed between the linear encoding range and the gain of individual PCs (Figure 3—figure supplement 1A) indicating that high-gain PCs linearly encode a relatively smaller portion of all possible whisker angles than low-gain PCs. However, the fraction of time that a whisker spent within a PC’s linear encoding regime was approximately constant across the population, with no relationship to PC gain (Figure 3—figure supplement 1B). This suggests that both high- and low-gain PCs make similar contributions to the linear encoding of whisker position within the cerebellar cortex. Taken together, these results demonstrate that individual PCs in Crus I represent whisker position linearly and within distinct ranges of movement. The high resting firing rate of individual PCs enables bidirectional representation through both increases and decreases in SS firing rate.

Cerebellar representation of whisker position does not depend on input from primary motor cortex

In the majority of PCs, whisker-related changes in SS lead, or are coincident with, movement (Figure 2D), indicating the dominance of efferent rather than re-afferent drive to the cerebellar cortex. We explored whether the contralateral primary motor cortex, a source of excitatory input to Crus I (Proville et al., 2014), could provide an efferent drive during voluntary whisking. We performed patch clamp recordings from PCs in Crus I while locally inactivating contralateral vM1 via muscimol injection (Figure 3—figure supplement 2A; see ‘Materials and methods’). Seven out of 15 PCs displayed significant SS firing rate modulation (Figure 3—figure supplement 2B; p<0.05, Mann-Whitney-Wilcoxon test) with a mean latency to whisker movement of -24.6 ± 11.9 ms (n = 7). Linear representation of whisker position by SS firing rate was preserved irrespective of vM1 inactivation (Figure 3—figure supplement 2C,D). Thus, inactivation of vM1 does not degrade the cerebellar representation of whisking, and whisker-related input to the cerebellum is derived from other cortical or subcortical processing stations.

Most Purkinje cells do not encode phase of whisking cycle via changes in SS activity

Whisking is a rhythmic process and neuronal firing locked to specific phases of the whisking cycle has been observed at multiple processing stations in the brain (Yu et al., 2006; Leiser and Moxon, 2007; Curtis and Kleinfeld, 2009; Crochet et al., 2011). To examine whether PCs also encode this parameter, rapidly varying phase information was extracted from whisking bouts by applying the Hilbert transform during epochs of rhythmic whisking (Figure 4A). The relationship between simple spiking and phase was then assessed within rhythmic whisking epochs to determine whether PCs were more likely to fire at a particular phase. Only PC recordings that coincided with longer periods of exploratory rhythmic whisking were included in this analysis (n = 31, see ‘Materials and methods’). In almost every cell (30/31; p>0.05, Kuiper test), no significant phase tuning was observed (Figure 4B,C). However, one PC did exhibit strong phase preference (modulation depth of 4.8) . In this cell, a reduction in SS rate was observed during whisking and the incidence of spiking preferentially occurred during whisker retraction (Figure 4C). Overall, the vast majority of PCs did not encode rhythmic variations in whisker position within individual whisking cycles, suggesting that phase information is represented by a small fraction of PCs.

Most Purkinje cells do not encode the phase of whisking cycle.

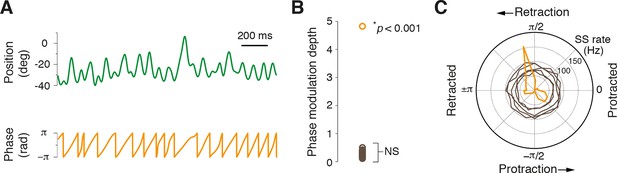

(A) Example of rhythmic whisker movement (green trace), and corresponding phase (orange) derived from the Hilbert transform of the raw position trace. (B) Modulation depth of phase tuning for population of PCs. Phase tuning is absent in SS patterns of all but one PC (NS; not significant, n = 30/31). (C) Polar plot depicts the phase tuning of five representative cells that did not demonstrate phase tuning (brown) and one strongly modulated PC (orange), which showed SS firing locked to mid-point of whisker retraction.

https://doi.org/10.7554/eLife.10509.015

Faithful reconstruction of whisker set point from single Purkinje cell activity

To quantify how well individual PCs represent whisker position, we attempted to reconstruct the trajectory of whisker movement from our recordings of SS activity. A transfer function between SS activity and whisker position was computed from a portion of each recording to capture the underlying linear characteristics of the system (n = 18 PC recordings longer than 300 s, see ‘Materials and methods’). Calculated transfer functions were applied to trains of SS activity from the remainder of the recording to test whether the transfer functions could predict the dynamics of whisker movement. Using spike train information from single PCs, it was possible to accurately recover the dynamics of whisker movements over many seconds (Figure 5A). In most PCs, the movement reconstruction derived from the transfer function was highly reminiscent of another kinematic parameter – the set point, which denotes the slowly varying midpoint between the protracted and retracted angles of a single whisking cycle. We therefore measured the correlation coefficient between reconstructed whisker position and set point derived from measurements of actual behavior to evaluate the quality of our decoding. Reconstructions based on PC SS activity were excellent predictors of actual whisker set points (Figure 5B; range of correlation coefficient: 0.23 – 0.89, mean = 0.57 ± 0.05, p<0.001, n = 18). Therefore, we conclude that single PCs reliably encode whisker set point, and that bidirectional changes in the frequency of simple spiking afford a linear representation of whisker trajectory during voluntary movement.

Reconstruction of set point trajectories from simple spike activity of single Purkinje cells.

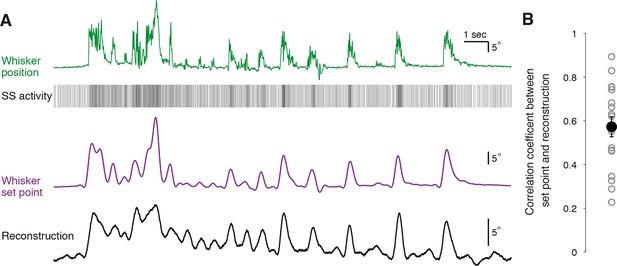

(A) Reconstruction of whisker movement from single PC SS train based on the calculated transfer function. Whisker set point information (purple) is accurately reconstructed (black trace, bottom) using SS activity from a single PC (down-sampled x3 for visual clarity), highlighting the strong linear relationship between simple spiking and slow whisker kinematics. Correlation coefficient value between reconstruction and set point is 0.78. (B) Correlation coefficients between whisker set point and linear reconstruction from individual PCs (gray open circles). Black filled circle: mean ± SEM across all cells (n = 18).

https://doi.org/10.7554/eLife.10509.016

Discussion

The rodent whisker system has been extensively studied as a model to understand active sensory processing. However, very little is known about the role of the cerebellum in whisking, despite the established importance of this brain structure for sensorimotor control (Wolpert et al., 1998). We have recorded PC activity in behaving mice and, for the first time, have shown that SS firing rates change during active whisker movement. Single PCs estimate slow changes in whisker position in real time via linear alterations in SS frequency to provide accurate information about movement trajectories to downstream neurons.

Linear coding via non-linear conductances

The computational algorithm by which the cerebellar cortex encodes sensorimotor input has been widely debated. Changes in rate (Walter and Khodakhah, 2009) and pauses in firing (De Schutter and Steuber, 2009) have been proposed as mechanisms of sensorimotor encoding. While indirect evidence has been found for both schemes, our recordings in behaving animals provide direct support for the proposal that the cerebellar cortex is optimized to perform as a linear coding device (Fujita, 1982; Walter and Khodakhah, 2006, 2009). The strong linearity of PC SS output is surprising given the range of non-linear ionic conductances present across the PC dendritic tree (Llinás and Sugimori, 1980a, 1980b) and suggests that non-linear dendritic conductances might compensate for non-linear synaptic integration within passive PC dendrites (Roth and Häusser, 2001), or alternatively are disengaged during free whisking. For cerebellar circuits, linear computation may provide the optimal means of performing pattern separation (Albus, 1971; Marr, 1969; Walter and Khodakhah, 2009), affording graded sensorimotor representations (Heiney et al., 2014) that are less prone to saturation, and increasing the dynamic range of the system. Both increases and decreases in firing rate are linear with respect to whisker position, suggesting that molecular layer inhibition plays a crucial role in maximizing the range of cerebellar operation (Park et al., 2012).

A whisking coordinate system in lateral cerebellum

The majority of PCs in Crus I represent changes in a simple parameter of whisking behavior, the set point, via SS rate changes. Because of the close and robust correspondence between SS rates and movements, we were able to reconstruct whisker trajectories with high accuracy using spike trains from individual cells (Figure 5). Several PCs converge onto single target neurons (Palkovits et al., 1977) in the deep cerebellar nucleus (DCN), ensuring that set point information is propagated downstream, where integration of PC signals (Person and Raman, 2012a) with different rate functions (Figure 3) could further extend the dynamic range of DCN neurons to movement. In this arrangement, convergence of positively and negatively modulated PC postsynaptic potentials could degrade set point representation, and therefore it seems likely that these two classes of PC have distinct cellular targets in the DCN (Person and Raman, 2012b).

In contrast to set point, phase information is only sparsely encoded in the cerebellar cortex (Figure 4). However, phase information may be reconstituted in the DCN via spatiotemporal convergence of weakly tuned PCs (De Zeeuw et al., 2011; Person and Raman, 2012b). Overall, our data indicate that whisker set point is represented by SS frequency in the majority of Crus I PCs and further suggest that additional phase tuning may restrict SS firing to precise times within the whisking cycle. It is unclear whether the signals we recorded correspond to single or multiple whisker movements. Tactile receptive fields of Crus I PCs can encompass multiple whiskers (Bosman et al., 2010), and a similar mapping of motor responses will be helpful to establish how these signals are integrated across the entire cerebellar cortex.

Dominance of efferent over re-afferent representation of whisking

Neurons in the cerebellar cortex potentially have access to discrete ‘motor’ and ‘sensory’ representations of whisking behavior: specifically, efferent copy of planned or current movement from cortical and sub-cortical centers, and re-afferent signals providing continuous sensory feedback from the trigeminal nuclei and sensory neocortex about the consequences of voluntary movement . Necessarily, sensory re-afferent signals are delayed with respect to movement (Bower et al., 1981) as they are required to propagate from the periphery, and whisker movements are themselves delayed with respect to muscle activity (by a few tens of milliseconds) owing to inertia (Berg and Kleinfeld, 2003). In our recordings, the majority of PCs exhibited changes in SS activity that preceded or were coincident with movement, consistent with a feed-forward as opposed to feedback representation of whisking in the cerebellum. The primary motor cortex does not provide the source of this efferent drive, as the cerebellar representation remains intact during transient vM1 inactivation. Processing stations in the midbrain and the brainstem are therefore likely candidates to provide information to the cerebellum about whisker position during voluntary movement.

Conclusions

The nervous system retains an internal representation of whisking in the cerebellum via a simple linear encoding regime. This grants a remarkable degree of flexibility to fine-tune and coordinate whisker movement by providing fast online feedback, and to disambiguate representations of self- and externally generated sensory signals (Wolpert et al., 1998). The resolution with which movement trajectories can be recovered from single neurons suggests that the cerebellar cortex may be an interesting alternative target for brain-machine interface devices that seek to restore movement via online decoding of neural signals (Kohler et al., 2009). By providing rapid information about current or future movement, the cerebellar machinery may circumvent long delays in cortical feedback loops, serving effective sensory processing and motor control during active whisking (Rahmati et al., 2014). Crucially, our findings confirm that by rendering an internal representation of the whisker system, PC spike train dynamics are highly informative about movement trajectories, facilitating active sensation and tactile exploration.

Materials and methods

Surgical procedures and animal handling

The care and experimental manipulation of animals was performed in accordance with institutional and United Kingdom Home Office guidelines. 47 C57BL/6 mice (4–8 weeks old) of both genders were used in this study. Animals were housed in a 12-hr reverse light-dark cycle and all experiments were carried out during the dark phase. Prior to recording, mice were anesthetized with 1–2% isoflurane under aseptic conditions, and a lightweight head-post was attached to the skull using glue (Histoacryl, Braun Corporation, USA) and acrylic dental cement (Kemdent, UK). A circular chamber was built with cement over the lateral hemisphere of the cerebellum to allow subsequent access for electrophysiological recording. A non-steroidal anti-inflammatory drug (Carprofen; 5 mg/kg) was provided via intra-peritoneal administration during surgery to support recovery. Implanted mice were given 2–5 days for recovery, during which time Buprenorphine (0.8 mg/kg) jelly was used for postoperative analgesia. On the day of the recording, mice were first anesthetized with isoflurane (1–2%), and a small craniotomy (1–1.5 mm) was drilled over lobule Crus I. The dura was removed with fine forceps and the craniotomy was covered with 1.5% low-melting point agar and a silicone-based sealant (Kwik-Cast; World Precision Instruments, USA). Ipsilateral whiskers were partially trimmed with one whisker row left untouched (row C or D). At least two hours following these procedures, habituation and recording sessions were started. Mice were carefully placed on a cylindrical treadmill and the head-post was gently loaded into a fixation clamp to painlessly immobilize the head. At least one hour of habituation was allowed for the mice to be acclimated to the recording environment. Habituated mice showed normal grooming, whisking, and locomotion behaviors on the treadmill. After removal of sealant and agar, recordings were performed in the dark in a single session lasting up to 3 hr.

In vivo electrophysiology

Whole cell and cell-attached patch clamp recordings were made from cerebellar PCs in awake mice using a Multiclamp 700B amplifier (Molecular Devices, USA). Recordings were made in Crus I (-7 ± 0.2 mm posterior, and 3.4 ± 0.3 mm lateral of bregma) at depths of 350–1500 μm from the pial surface using borosilicate glass pipettes (6–8 MΩ) filled with internal solution containing (in mM): 135 K-gluconate, 7 KCl, 10 HEPES, 10 phosphocreatine, 2 Mg-ATP, 2 Na2-ATP, and 0.5 Na2-GTP (pH 7.2, 280–290 mOsm). Purkinje cells were readily identified by their high spontaneous firing rates and the presence of complex spikes. Data were filtered at 10 kHz and digitized at 25 kHz using an ITC-18 interface (Instrutech Corporation, USA) and acquired on a computer using Axograph X software (www.axograph.com). In whole cell recordings, resting membrane potentials were recorded immediately after formation of whole cell configuration and series resistances ranged between 20 and 40 MΩ. No current was injected and membrane potentials were not corrected for liquid junction potentials.

Motor cortex inactivation

To transiently inactivate vM1, a small hole was made in the skull above contralateral vM1 (1 mm anterior and 1 mm lateral of bregma) and a guided cannula was inserted 500–600 μm from the pia and fixed with dental cement during head-post implant. The gamma-aminobutyric (GABA) agonist muscimol (ThermoFisher, USA) was administered (0.6 μl of 1μg/μl solution dissolved in 0.9% saline, delivered at a rate of 0.1 μl/min) via a Hamilton syringe into the guide cannula. In pilot experiments, extracellular population recordings (4 shank silicon probe; 4 x 2 tetrode, NeuroNexus, USA) were used to confirm that M1 multi-unit activity was completely abolished within 10 min of injection. For cerebellar recording, injections were made at the end of the habituation session. Electrophysiological recordings began 10 min after infusion and lasted up to 2 hr. Due to the long-lasting effect of muscimol (up to 3 hr), it was not possible to compare single PC activity before and after cortical inactivation.

Whisker tracking

Under infrared light illumination, whisker movements were filmed with a high-speed camera (Genie HM640; Teledyne Dalsa Inc, USA) operating at 250 frames per second. Video acquisitions were controlled by Streampix 6 software (Norpix, Canada) and externally triggered by TTL pulses generated via the ITC-18 in order to synchronize video and electrophysiological acquisition. Whisker positions were tracked offline using open source software (Clack et al., 2012) - http://whiskertracking.janelia.org - and transferred into a graphical user interface in MATLAB (Mathworks) for analysis. Whisker azimuth angles were measured along the medial-lateral axis (medial-lateral line: 0 degree, forward movement: increasing angle, backward movement: decreasing angle); protraction corresponded to increasing whisker angles. Because whiskers, especially those from the same row, move in synchrony, we used one of the traced whiskers for all the analysis, as changing whisker did not affect the results.

We excluded whisker epochs that were shorter than 500 ms and whisker twitches with single back-and-forth deflection smaller than 5 degrees. Whisking epochs were further separated into periods of rest and locomotion. Locomotion episodes were identified as treadmill movement lasting at least 100 consecutive frames (400 ms). The traced whisker position was first low-pass filtered at 30 Hz using a 4-pole Butterworth filter run in forward and reverse directions, and subsequently up-sampled to 1 kHz. Whisking set point was derived by low-pass filtering whisker angle at cutoff frequency 6 Hz. Rhythmic whisking epochs were isolated to determine phase information and cells with >20 s of rhythmic whisker movement were included to evaluate phase tuning. Whisker phase was defined as the angle of the Hilbert transform on band-pass filtered (6–30 Hz) whisker angle. A phase of zero corresponds to maximal protraction and a phase of ± π denotes maximal retraction in a whisk cycle.

Data analysis

Action potentials were detected offline automatically in Axograph X. SS and CS were sorted according to their distinct waveforms in MATLAB with a manual verification step. The clean separation of SS and CS was confirmed using Peri-CS SS-histograms (Zhou et al., 2014). In all PC recordings, histograms showed ~10 ms pauses in SS activity following a CS.

PCs were tested to determine if they exhibited significant changes in SS and CS firing rate between epochs of non-whisking and free whisking in air. On average, 40 episodes of whisking for each cell were used to quantitatively assess how whisking behavior modulated PC firing rate. Spike rates were calculated for individual whisking and non-whisking epochs as the total number of spikes divided by the duration of an epoch. Comparisons of the spike rates were made between quiet epochs and whisking epochs using a Mann-Whitney-Wilcoxon test where p<0.05 was recognized as a significant difference. Overall firing rates during whisking and non-whisking were calculated by averaging the spike rates of all epochs comprising the two respective conditions. To generate peri-event time-histograms, spike trains were aligned by the onsets of whisking bouts and averaged across trials. Corresponding whisking epochs were aligned at the onset and averaged to reveal the mean whisker movement within bouts.

Coefficient of variation (CV) of inter-simple spike-interval (ISI) was defined as the standard deviation of ISI divided by its mean, where a CV > 1 implies high variance and low regularity. To resolve whether ISI distributions during non-whisking and whisking epochs were significantly different, a 2-sample Kolmogorov-Smirnov test were performed where p<0.05 was deemed to be significant.

To determine SS instantaneous firing rates, we used a 100 ms wide rectangular window function and calculated a moving average with 1 ms steps. For cells showing significant SS firing rate modulations during whisking, we truncated spiking and whisker position data into 3-s segments centered on individual whisking onsets/offsets (1 s preceding- and 2 s post-onset/offset). To examine the temporal relationship between SS discharge changes and behavioral transitions, normalized cross-correlations between PC instantaneous firing rate and whisker position were computed for individual data segments and averaged across segments. The time at the nearest maxima/minima (peak/trough) above the upper/lower 95% confidence bounds in the normalized cross-correlation provided the temporal delay between the two signals. To test if the latency distribution was non-unimodal, we computed Hartigan’s Dip test on the empirical distribution from -100 ms to 100 ms (n = 38 cells) with 5 or 10 ms bin size.

To determine the directionality of PCs in encoding whisker position, a firing directionality ratio was calculated based on the normalized linear fitting curve for each cell by dividing the minimal value of firing rate change on one of the two directions (increase or decrease) by the other, giving an index value between zero and one. PCs with a ratio value of zero (n = 37 cells) were classified as unidirectional cells, whereas PCs with positive values were classified as bidirectional (n = 7; ratio range: 0.4–0.9).

To identify whether PCs SS rates were significantly modulated by the circular whisking variable phase, a 2-sample Kuiper test (p<0.05) was used to compare the distribution of phase information at all times with its distribution at spike times. We divided the phase information into 20 bins and calculated a histogram of the spike events. This histogram was then normalized by the amount of time spent in individual bin to generate values concerning firing rate. The modulation depth of phase was computed as the maximal firing rate minus the minimal firing rate divided by the mean firing rate.

All data are presented as mean ± SEM unless otherwise stated.

References

  1. 1
  2. 2
  3. 3
    Cerebellar climbing fibers modulate simple spikes in Purkinje cells
    1. NH Barmack
    2. V Yakhnitsa
    (2003)
    Journal of Neuroscience 23:7904–7916.
  4. 4
  5. 5
    Anatomical pathways involved in generating and sensing rhythmic whisker movements
    1. LWJ Bosman
    2. AR Houweling
    3. CB Owens
    4. N Tanke
    5. OT Shevchouk
    6. N Rahmati
    7. WHT Teunissen
    8. C Ju
    9. W Gong
    10. SKE Koekkoek
    11. CI De Zeeuw
    (2011)
    Frontiers in Integrative Neuroscience, 5, 10.3389/fnint.2011.00053.
  6. 6
  7. 7
  8. 8
    Congruence of spatial organization of tactile projections to granule cell and purkinje cell layers of cerebellar hemispheres of the albino rat: vertical organization of cerebellar cortex
    1. JM Bower
    2. DC Woolston
    (1983)
    Journal of Neurophysiology 49:745–811.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Phase relations of Purkinje cells in the rabbit flocculus during compensatory eye movements
    1. CI De Zeeuw
    2. DR Wylie
    3. JS Stahl
    4. JI Simpson
    (1995)
    Journal of Neurophysiology 74:2051–2064.
  19. 19
  20. 20
    Central versus peripheral determinants of patterned spike activity in rat vibrissa cortex during whisking
    1. MS Fee
    2. PP Mitra
    3. D Kleinfeld
    (1997)
    Journal of Neurophysiology 78:1144–1149.
  21. 21
  22. 22
    Relationship of cerebellar Purkinje cell simple spike discharge to movement kinematics in the monkey
    1. QG Fu
    2. D Flament
    3. JD Coltz
    4. TJ Ebner
    (1997a)
    Journal of Neurophysiology 78:478–491.
  23. 23
  24. 24
  25. 25
    Spatial organization of visual messages of the rabbit's cerebellar flocculus. II. complex and simple spike responses of Purkinje cells
    1. W Graf
    2. JI Simpson
    3. CS Leonard
    (1988)
    Journal of Neurophysiology 60:2091–2121.
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    Anatomical loops and their electrical dynamics in relation to whisking by rat
    1. D Kleinfeld
    2. RW Berg
    3. SM O'Connor
    (1999)
    Somatosensory & Motor Research 16:69–88.
  31. 31
    Flexible multi electrode brain-machine interface for recording in the cerebellum
    1. P Kohler
    2. CE Linsmeier
    3. J Thelin
    4. M Bengtsson
    5. H Jorntell
    6. M Garwicz
    7. J Schouenborg
    8. L Wallman
    (2009)
    Conference Proceedings : ... Annual International Conference of the IEEE Engineering in Medicine and Biology Society 2009:536–538.
    https://doi.org/10.1109/IEMBS.2009.5333498
  32. 32
    Patterns of spontaneous Purkinje cell complex spike activity in the awake rat
    1. EJ Lang
    2. I Sugihara
    3. JP Welsh
    4. R Llinás
    (1999)
    Journal of Neuroscience 19:2728–2739.
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    Quantitative histological analysis of the cerebellar nuclei in the cat. i. numerical data on cells and on synapses
    1. M Palkovits
    2. E Mezey
    3. J Hámori
    4. J Szentágothai
    (1977)
    Experimental Brain Research 28:189–209.
  43. 43
  44. 44
  45. 45
    Synchrony and neural coding in cerebellar circuits
    1. AL Person
    2. IM Raman
    (2012)
    Frontiers in Neural Circuits, 6, 10.3389/fncir.2012.00097.
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    The advantages of linear information processing for cerebellar computation
    1. JT Walter
    2. K Khodakhah
    (2009)
    Proceedings of the National Academy of Sciences of the United States of America 106:4471–4476.
    https://doi.org/10.1073/pnas.0812348106
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59

Decision letter

  1. David Kleinfeld
    Reviewing Editor; University of California, San Diego, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled "The cerebellum linearly encodes whisker position during voluntary movement" for peer review at eLife. Your submission has been favorably evaluated by Gary Westbrook (Senior editor), a Reviewing editor, and three reviewers, one of whom, Karel Svoboda (Reviewer 2), has agreed to reveal his identity.

Both the reviewers and the Reviewing editor find considerable merit in this work. The claim that cerebellar spiking may determine the set point is a novel and strong claim and perhaps, given some qualms about other issues, this part should receive greater emphasis. As the reviewers note, there are many issues that need to be settled, some that may require additional experiments.

1) The impact of locomotion on the cerebellar simple spiking needs to be clarified. As noted by the reviewers, in principle, this could be solved by comparing whisking during resting and during locomotion. In particular, it may well be that whisking touch signals are linked to locomotion through contact of the vibrissae in synchrony with each step.

2) The issue of timing of neuronal activity related to the onset of whisking is not properly dealt with, so that conclusions that this represents efferent signals (from M1?) versus afferent signals (from S1? brainstem?) are unfounded. As it stands, these claims need to be downplayed. Simple experiments, like transient inactivation M1 could be added.

3) The issue of control of the set-point needs to respect the bounded extent of whisking. It would be important to plot the change in whisker position as a function of the starting position. At starting positions near full protraction or retraction one would expect a contraction of the range. This issue may relate back to (1), as there is some evidence for protractions with running speed (Sofroniew and Svoboda 2015).

Note that the reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission. Please address the issues raised by the reviewers upon submission of a revised manuscript; the full set of comments from the reviewers are included below.

Reviewer #1:

This is an important contribution to the field because few active whisking studies have focused on cerebellum and because the findings are intriguing. The results do not definitely address the issue of efference versus re-afference but this can be done in subsequent work. I have a couple of points that the authors may be able to clarify. About 67% of cells showed SS activity related with whisking. Did the authors check the receptive fields of the cells and does this explain the lack of responsiveness in the remaining group?

Reviewer #2:

Although whisker movements have been extensively studied in the context of active sensation, the control of whisker position is not understood. The vibrissal motor cortex (vM1) has access to the facial muscles (e.g. low threshold for evoking movements with u-stimulation), but coding of variables related to whisker movement is weak and sparsely distributed. Also, I am not aware of behavioral experiments showing that vM1 is required for purposive whisker movements. Kleinfeld's group has made headway in identifying the cpg for rhythmic whisker movements, but this is likely only part of the story. The cerebellum is a core structure in sensorimotor integration and likely plays a role in control of whisker movements, but few measurements have investigated coding of whisker movement related variables in the cerebellum. This is where the present study makes a significant contribution. The authors find a strong representation of whisker set point in the simple spike (SS) rate of Purkinje neurons in Crus 1. Virtually every PC codes for the whisking set point (the position over which whiskers move back and forth). This is an interesting result. I have some concerns with key aspects of the secondary analysis and the framing of the study.

1) The authors argue that the cerebellar coding reflects an efferent signal. This conclusion is almost entirely based on latency analysis. First, latency arguments are dangerous. How is whisking onset defined on a trial-by-trial basis? This is critical because the threshold determined the relative timing of whicker movement and changes in SS activity! Whisker movements might lag the earliest re-afferent signals by 10 ms or more (because of inertia and drag whisker movements are expected to be delayed with respect to compression of the facial musculature). Second, the arguments based on known physiology in vS1 and vM1 and cortico-cerebellar interactions are likely off-base. The cerebellum receives short-latency sensory input and interacts with other motor-related structures in the brain stem. I would be surprised if interactions with vM1 or vS1 play important roles in the phenomena studied here. In addition, these hypothesis are easy to test. Simply transiently inactivate vS1 or vM1 and see what happens to the code! Third, millisecond time resolution requires analysis at the level of average PSTHs. A latency analysis needs to be done on a trial-by-trial basis. Why not do this using membrane potential?

2) Not clear if the classification into bidirectional and unidirectional makes a lot of sense. The authors need to show that the data really fall into two classes or form a continuum.

3) I don't understand the business about non-linear dendrites and linear encoding. The mystery is unclear. There is no modeling that deals with this issue.

4) It would be nice to learn how widespread the representation of whisking setpoint is.

Reviewer #3:

The authors address the correlation between Purkinje cell firing in Crus 1 and active whisker movements. They found that a large number of Purkinje cells shows (complex and/or simple spike) firing rate modulation during voluntary whisker movements. While the role, if any, of the complex spike rate modulation remains rather elusive, the authors found that simple spike firing is closely related to the set point of the whisker, with a linear encoding of the whisker angle. Although a few recent articles addressed this topic, the role of the cerebellum in the rodent whisker system remains largely unclear. This well-designed and executed study confirms the implication of cerebellar Purkinje cell activity in the whisker system. A number of points require attention before this manuscript could be accepted for publication:

1) Locomotion:

In this study, the mice are placed on a treadmill. There is quite some evidence that locomotion and whisking are tightly correlated. Nevertheless, the authors do not address this issue. To what extent do the authors think that locomotion-related changes in firing could be a (potentially) confounding factor?

2) Simple spike rate modulations (Figure 1F/G):

Although the approach taken by the authors to identify modulated Purkinje cells seems to be ok, they report Purkinje cells with minimal changes in simple spike firing (<5 Hz) as being significantly modulated. It would be good to give an indication of the variations during quiet and active phases, as well as in between rest and activity.

3) Latency to movement (Figure 2):

The authors compared the instantaneous SS firing rate by a sliding 100 ms window with the whisker movement. This approach yields a wide range of latencies, with a tendency of PCs to start SS modulation just before the onset of movement. I have three questions on this approach:

How constant were these latencies between different whisker bouts when recording from a single Purkinje cell?

And: some cells showed minimal SS firing rate modulation (see remark 2). Do the authors think that with such minimal modulation a reliable latency could be found? Is it possible to indicate the relation between modulation strength and latency?

And finally: was there also a relation between the end of a whisking bout and SS firing?

4) Whisker "resting point" and linear schemes (Figure 3):

Here the authors show that there is a linear relation between SS firing and whisker position. Whisker can move over a long range (see Figure 1, for example). This is a bit puzzling to me: if cells can modulate up to 50 Hz/degree, than their coding range has to be limited with respect to the tens of degree that a whisker can move. Second, the whisker resting position can change between different periods of rest (at least: in our hands it does). Did the authors observe a similar phenomenon and was this also reflected in their data?

https://doi.org/10.7554/eLife.10509.017

Author response

Both the reviewers and the Reviewing editor find considerable merit in this work. The claim that cerebellar spiking may determine the set point is a novel and strong claim and perhaps, given some qualms about other issues, this part should receive greater emphasis. As reviewers note, there are many issues that need to be settled, some that may require additional experiments.

1) The impact of locomotion on the cerebellar simple spiking needs to be clarified. As noted by the reviewers, in principle, this could be solved by comparing whisking during resting and during locomotion. In particular, it may well be that whisking touch signals are linked to locomotion through contact of the vibrissae in synchrony with each step.

We have separated our electrophysiological data into epochs of running and non-running behavior in order to resolve the impact of locomotion on Purkinje cell simple spiking. In general, our mice did not run very much during the course of recordings. Across our entire data set, mice ran for only 3.5% of whisking bouts (11/47 recordings; a total 94.6 s), so the vast majority of whisker-related modulation in SS rate was measured in non-running mice. We are therefore confident that the correlation between SS rate and whisker position is not a consequence of synchrony between locomotor and vibrissal movements. We have included two video sequences (Videos 1 and 2) that show the alteration of Purkinje cell SS activity during whisking bouts, in the absence of locomotion.

In a subset of recordings, we did observe locomotion during bouts of whisking, and here we have quantified the impact of running on whisking-related SS firing rates. This analysis suggests that firing rates in Crus I are elevated during locomotion. We have included this information in a new figure (Figure 1—figure supplement 1) and discuss these points in the Results (subsection “Purkinje cell spiking activity is altered during free whisking”, third paragraph).

2) The issue of timing of neuronal activity related to the onset of whisking is not properly dealt with, so that conclusions that this represents efferent signals (from M1?) versus afferent signals (from S1? brainstem?) are unfounded. As it stands, these claims need to be downplayed. Simple experiments, like transient inactivation M1 could be added.

We have undertaken additional analysis as suggested (see specific responses to Reviewers 2 and 3). We have also performed experiments to pharmacologically inactivate contralateral vibrissal motor cortex (via muscimol injection), in order to test the proposal that vM1 provides the source of efferent drive to the cerebellar cortex. These results indicate that motor cortex does not provide this drive, as inactivation of vM1 does not obviously degrade the cerebellar representation of whisker position. We have added these results to a new figure supplement (Figure 3—figure supplement 2), and have substantially revised our Discussion regarding the timing and origin of whisker-related signals in the cerebellum on the basis of these new data.

3) The issue of control of the set-point needs to respect the bounded extent of whisking. It would be important to plot the change in whisker position as a function of the starting position. At starting positions near full protraction or retraction one would expect a contraction of the range. This issue may relate back to (1), as there is some evidence for protractions with running speed (Sofroniew and Svoboda 2015).

We have addressed this issue by quantifying the range of whisker positions over which Purkinje cells linearly encode whisker position. We find a strong inverse relationship between the linear encoding range and gain of individual PCs. Therefore, high-gain neurons encode a relatively smaller proportion of overall whisking space than low-gain neurons. Interestingly, we have also quantified the fraction of time that whiskers spent within the linear encoding regime, and we found no correlation with PC gain. This suggests that PC gain may be set adaptively to match the ongoing dynamics of whisker movement. We have included this information in a new figure (Figure 3—figure supplement 1) and in the related part of the Results (subsection “Strong linear correlations between SS frequency and whisker position”, second paragraph).

Reviewer #1:

This is an important contribution to the field because few active whisking studies have focused on cerebellum and because the findings are intriguing. The results do not definitely address the issue of efference versus re-afference but this can be done in subsequent work. I have a couple of points that the authors may be able to clarify. About 67% of cells showed SS activity related with whisking. Did the authors check the receptive fields of the cells and does this explain the lack of responsiveness in the remaining group?

Unfortunately we were not able to measure the receptive fields of individual cells during the course of our recordings. As all recordings were performed in unanaethetised animals, we were unable to get close to the whisker pad and systematically test responses to individual whiskers with a stimulator (e.g. a piezo wafer) without potentially disturbing the animal. In the absence of active touch, whiskers move in synchrony (see Video 1; also Hill et al. 2011), therefore we are able to relate SS rate changes to whisking without necessarily knowing the identity of the whisker(s) providing input. The functional organization of whisker input in the cerebellum has been previously described: in Crus I and II, 75% of cells showed detectable changes in SS firing rate with tactile stimulation (Bosman et al. 2010). With this in mind, we suggest that between a quarter and third of Crus I PCs do not receive prominent whisker input, which is consistent with the fraction of cells that do not show whisking-related changes in SS rate. We now specifically address this point in the Discussion (subsection “A whisking coordinate system in lateral cerebellum”, last paragraph).

Reviewer #2:

Although whisker movements have been extensively studied in the context of active sensation, the control of whisker position is not understood. The vibrissal motor cortex (vM1) has access to the facial muscles (e.g. low threshold for evoking movements with u-stimulation), but coding of variables related to whisker movement is weak and sparsely distributed. Also, I am not aware of behavioral experiments showing that vM1 is required for purposive whisker movements. Kleinfeld's group has made headway in identifying the cpg for rhythmic whisker movements, but this is likely only part of the story. The cerebellum is a core structure in sensorimotor integration and likely plays a role in control of whisker movements, but few measurements have investigated coding of whisker movement related variables in the cerebellum. This is where the present study makes a significant contribution. The authors find a strong representation of whisker set point in the simple spike (ss) rate of Purkinje neurons in Crus 1. Virtually every PC codes for the whisking set point (the position over which whiskers move back and forth). This is an interesting result. I have some concerns with key aspects of the secondary analysis and the framing of the study.1) The authors argue that the cerebellar coding reflects an efferent signal. This conclusion is almost entirely based on latency analysis. First, latency arguments are dangerous. How is whisking onset defined on a trial-by-trial basis? This is critical because the threshold determined the relative timing of whicker movement and changes in ss activity! Whisker movements might lag the earliest re-afferent signals by 10 ms or more (because of inertia and drag whisker movements are expected to be delayed with respect to compression of the facial musculature).

We agree that measurement of latency can be problematic, especially as we are monitoring spontaneous movements rather than externally triggered behavior. For the peri-event time histogram plots, whisking onset was identified by frame-by-frame analysis of images of whisker position. However, to determine the temporal relationship between changes in whisker position and SS rate, we performed cross-correlation analysis to measure the average delay between these two signals. We have analyzed the variability of our latency measurement, using individual epochs of whisking and find that we can reliably measure the temporal delay between the two signals in both strongly and weakly modulated PCs (Figure 2—figure supplement 2; see our response to Reviewer 3).

We accept the point about inertia and drag on whisker movements, which we had not considered previously, and now refer to this directly in the Discussion (subsection “Dominance of efferent over re-afferent representation of whisking”).

Second, the arguments based on known physiology in vS1 and vM1 and cortico-cerebellar interactions are likely off-base. The cerebellum receives short-latency sensory input and interacts with other motor-related structures in the brain stem. I would be surprised if interactions with vM1 or vS1 play important roles in the phenomena studied here. In addition, these hypothesis are easy to test. Simply transiently inactivate vS1 or vM1 and see what happens to the code!

We have done these additional experiments, and confirm that we were indeed off-base. We recorded Purkinje cell activity following pharmacological inactivation of vM1 (via muscimol injection) to test whether motor cortex plays a causal role in the representation of whisker position in the cerebellum. We recorded the activity of 15 Purkinje cells in 9 mice following vM1 inactivation, and observed significant whisker-related changes in firing rate in 7 cells. In 6 of these cells, we measured a clear linear relationship between SS rate and whisker position. We include this information in a new supplementary figure (Figure 3—figure supplement 2), and have now reformulated our discussion about the potential sources of whisker drive to the cerebellum (Results subsection "Cerebellar representation of whisker position does not depend on input from primary motor cortex”; and Discussion subsection “Dominance of efferent over re-afferent representation of whisking”). We are grateful to the reviewer for raising the issue and suggesting this course of action!

Third, millisecond time resolution requires analysis at the level of average PSTHs. A latency analysis needs to be done on a trial-by-trial basis. Why not do this using membrane potential?

In our recordings, Purkinje cells were spontaneously active at high rates, with membrane potential essentially resting at threshold. As a result, we were unable to use membrane potential changes to determine movement onset, even with averaging.

2) Not clear if the classification into bidirectional and unidirectional makes a lot of sense. The authors need to show that the data really fall into two classes or form a continuum.

To determine the directionality of PCs in encoding whisker position, a firing directionality ratio was calculated based on the normalized linear fitting curve for each cell by dividing the minimal value of firing rate change on one of the two directions (increase or decrease) over the other, giving an index value between zero and one. We find that cells fall into two classes: PCs with a ratio value of zero (n = 37 cells) were classified as unidirectional cells, whereas PCs with positive values were classified as bidirectional (n = 7; range for bidirectional cells: 0.4 - 0.9). This information is now contained in the Materials and methods (subsection “Data analysis”, fourth paragraph).

3) I don't understand the business about non-linear dendrites and linear encoding. The mystery is unclear. There is no modeling that deals with this issue.

We apologize for the lack of clarity. The crux of our point is that Purkinje cells encode a key kinematic parameter in a strikingly linear manner. This means that whisker-driven synaptic input is integrated in such a way as to produce a linear spike rate modulation. Much in vitro work has revealed non-linear conductances in the dendrites and soma of Purkinje cells (e.g. Ca2+ activated potassium conductances, Ih, recurrent Na+ conductance), so we are highlighting that these conductances interact (or less likely, are not active) during whisking in order to maintain linear encoding. Our aim was not to explicitly model this phenomenon, but rather provide evidence from the behaving animal for a proposal that has been previously presented (e.g. Walter and Khodakhah, 2006, 2009). We have amended the text in order to clarify this point in the manuscript (Introduction, third paragraph).

4) It would be nice to learn how widespread the representation of whisking setpoint is.

We were not able to systematically map the location of set point-encoding PCs in this study, due to the difficulties of utilizing patch clamp recording for micro-mapping. However, all of our recordings were located in Crus I, with the coordinates -7 ± 0.2 mm posterior, and 3.4 ± 0.3 mm lateral of bregma. We have added this information to the Materials and methods (subsection “In vivo electrophysiology”).

Reviewer #3:

The authors address the correlation between Purkinje cell firing in Crus 1 and active whisker movements. They found that a large number of Purkinje cells shows (complex and/or simple spike) firing rate modulation during voluntary whisker movements. While the role, if any, of the complex spike rate modulation remains rather elusive, the authors found that simple spike firing is closely related to the set point of the whisker, with a linear encoding of the whisker angle. Although a few recent articles addressed this topic, the role of the cerebellum in the rodent whisker system remains largely unclear. This well-designed and executed study confirms the implication of cerebellar Purkinje cell activity in the whisker system. A number of points require attention before this manuscript could be accepted for publication:1) Locomotion:In this study, the mice are placed on a treadmill. There is quite some evidence that locomotion and whisking are tightly correlated. Nevertheless, the authors do not address this issue. To what extent do the authors think that locomotion-related changes in firing could be a (potentially) confounding factor?

To address this point, we have split our whisking bouts into periods of running and non-running. During most of our recordings, mice did not run, preferring to remain stationary on the treadmill for long periods. In total, locomotor bouts constitute only 3.5% of time spent whisking. Given the very small fraction of time mice spent running in our study, we do not believe that locomotion-related changes in firing are a significant confounding factor in our measurement of the relationship between whisking and SS activity. However, in 10 recordings, where we had at least 5 s of running combined with whisking, we were able to measure the influence of locomotion on SS rate changes.

Both the magnitude of SS rate alterations and the distribution of whisker angles were altered during locomotion. This indicates that locomotor signals can exert a direct influence on whisker-related SS activity in Crus I. Firing rates in Crus I were elevated during locomotion, and this was the case regardless of whether PCs showed increasing or decreasing responses during whisking alone. We have added a new supplementary figure (Figure 1—figure supplement 1) to include this information, and address the potential contribution of locomotor signals in the Results (subsection “Purkinje cell spiking is altered during free whisking”).

2) Simple spike rate modulations (Figure 1F/G):

Although the approach taken by the authors to identify modulated Purkinje cells seems to be ok, they report Purkinje cells with minimal changes in simple spike firing (<5 Hz) as being significantly modulated. It would be good to give an indication of the variations during quiet and active phases, as well as in between rest and activity.

We have now quantified variability within and between non-whisking and whisking epochs and include this information in the Results as follows:

“We also compared variability in the timing of simple spiking during periods of whisking and non-whisking behavior by measuring the coefficient of variation (CV) of SS firing. Overall, the CV was close to 1 both when mice were at rest (0.9 ± 0.1, range: 0.3 – 6.2, n = 70), and when they actively moved their whiskers (0.8 ± 0.1, range: 0.3 – 2.5, n = 70). Significant changes in SS variability occurred during free whisking in the majority of PCs that displayed rate modulation (44/47 PCs; see Materials and methods). Moreover, nearly one third (n = 20/70) of PCs demonstrated changes in SS firing regularity alone, suggesting that the temporal patterning of SS might independently encode whisker-related signals.”

3) Latency to movement (Figure 2):

The authors compared the instantaneous SS firing rate by a sliding 100 ms window with the whisker movement. This approach yields a wide range of latencies, with a tendency of PCs to start SS modulation just before the onset of movement. I have three questions on this approach:

How constant were these latencies between different whisker bouts when recording from a single Purkinje cell?

We measured the latency between movement and spiking using cross-correlation for individual whisking bouts, and now include this information as part of a new figure (Figure 2—figure supplement 2). While we observe some variability in the latencies between different bouts, our metric accurately captures the average temporal relationship between movement and spiking. Given that other sensorimotor input is likely to influence Purkinje cell activity in Crus I, it is unclear where the source(s) of this variability may arise.

And: some cells showed minimal SS firing rate modulation (see remark 2). Do the authors think that with such minimal modulation a reliable latency could be found?

We compared the distribution of latency estimates (calculated from individual whisking bouts) for strongly and weakly modulated Purkinje cells, and have included two example plots, and summary data in the new figure supplement. We find examples of similar variability for strongly and minimally modulated neurons and therefore conclude that our latency measures can accurately capture the temporal relationships of weakly modulated PCs. Overall, we have tried to address the issue in the manuscript by displaying the full range of measured values, i.e., we plot the relationship of latency with respect to peak coefficient value and modulation strength for the entire population (Figure 2—figure supplement 2; see also next point). Weakly modulated and/or longer latency responses during whisking may be expected in a subset of PCs given that the anatomical arrangement of parallel fibers could lead to propagation and dispersion of signals in time and space.

Is it possible to indicate the relation between modulation strength and latency?

We include this information in the same figure supplement – overall, we do not observe a strong correlation between modulation strength and latency.

And finally: was there also a relation between the end of a whisking bout and SS firing?

We generated cross-correlograms using whisking bouts centered on offsets and compared them with those generated previously using whisking bouts centered on onsets (Materials and methods). No significant differences were observed, and thus we conclude that the relationship between SS spiking and whisking is maintained throughout bouts of movement. This information is now included in Figure 2—figure supplement 3 and in the Results (subsection “Timing of whisking-related changes in PC firing rates”).

4) Whisker "resting point" and linear schemes (Figure 3):

Here the authors show that there is a linear relation between SS firing and whisker position. Whisker can move over a long range (see Figure 1, for example). This is a bit puzzling to me: if cells can modulate up to 50 Hz/degree, than their coding range has to be limited with respect to the tens of degree that a whisker can move.

Individual PCs exhibited considerable variability both in their gain, and the absolute range of whisker angles over which they were linear encoders. We looked into this issue by plotting gain vs. encoding range, and found a strong inverse relationship (R2 = 0.75) between the two. Therefore, high-gain PCs encode only a small range of whisker angles. This could indicate that high-gain PCs make a relatively smaller contribution to the representation of whisker position than low-gain PCs. However, when we quantified the fraction of time that a whisker spent within a PC’s linear encoding regime, we found that this was roughly constant across the population, with no relationship to PC gain (R2 = 0.05). In other words, we observed high-gain PCs when behavior was characterized by bouts of low amplitude whisker movement, and low-gain PCs when behavior was characterized by large movements. These data hint that the gain of whisker encoding may be subject to adaptive changes either within, or upstream of the cerebellar cortex. We have included this information in a new figure (Figure 3—figure supplement 1) and have discussed it in the Results (subsection “Strong linear correlations between SS frequency and whisker position“, second paragraph).

Second, the whisker resting position can change between different periods of rest (at least: in our hands it does). Did the authors observe a similar phenomenon and was this also reflected in their data?

We observed small changes in resting position. The average change was 7.1 ± 0.8 degrees across all of our recordings (n = 44). We looked to see if the change in resting position was reflected in the SS rate of neurons with high gain (>30 Hz/degree). In 4 out of 9 cells we found a significant linear correlation with resting position (p<0.05, ANOVA).

https://doi.org/10.7554/eLife.10509.018

Article and author information

Author details

  1. Susu Chen

    1. Department of Bioengineering, Imperial College London, United Kingdom
    2. Graduate School for Integrative Sciences and Engineering, National University of Singapore, Singapore
    3. Imperial-NUS Joint PhD program
    4. Lee Kong Chian School of Medicine, Nanyang Technological University, Singapore
    5. Institute of Molecular and Cell Biology, Singapore
    Contribution
    SC, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. George J Augustine

    1. Lee Kong Chian School of Medicine, Nanyang Technological University, Singapore
    2. Institute of Molecular and Cell Biology, Singapore
    Contribution
    GJA, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Paul Chadderton

    Department of Bioengineering, Imperial College London, United Kingdom
    Contribution
    PC, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    p.chadderton@imperial.ac.uk
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-6276-1011

Funding

Medical Research Council (Career Development Award, G1000512)

  • Paul Chadderton

National Research Foundation Singapore (CRP grant)

  • George J Augustine

National University of Singapore (Graduate School Scholarship)

  • Susu Chen

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Claudia Clopath and Troy Margrie for feedback on the manuscript, Ian Duguid and Marta Jelitai for advice and support with awake patch clamp recordings, and Daniel Hill for generous help with implementing the transfer function. This work was supported by a NUS Graduate School scholarship to SC, a CRP grant from the National Research Foundation of Singapore to GA, and a MRC Career Development Award to PC (G1000512).

Ethics

Animal experimentation: The care and experimental manipulation of animals was performed in accordance with the United Kingdom Animals (Scientific Procedures) Act (1986). Protocols were approved by the Animal Welfare and Ethical Review Board of Imperial College London and the UK Home Office, and were conducted under Home Office Project Licence (PPL 70/7205). All surgery was performed under general anesthesia, and every effort was made to minimize suffering.

Reviewing Editor

  1. David Kleinfeld, Reviewing Editor, University of California, San Diego, United States

Publication history

  1. Received: July 31, 2015
  2. Accepted: November 27, 2015
  3. Version of Record published: January 19, 2016 (version 1)

Copyright

© 2016, Chen et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,043
    Page views
  • 445
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
