A molecular portrait of maternal sepsis from Byzantine Troy

  1. Alison M Devault
  2. Tatum D Mortimer
  3. Andrew Kitchen
  4. Henrike Kiesewetter
  5. Jacob M Enk
  6. G Brian Golding
  7. John Southon
  8. Melanie Kuch
  9. Ana T Duggan
  10. William Aylward
  11. Shea N Gardner
  12. Jonathan E Allen
  13. Andrew M King
  14. Gerard Wright
  15. Makoto Kuroda
  16. Kengo Kato
  17. Derek EG Briggs
  18. Gino Fornaciari
  19. Edward C Holmes
  20. Hendrik N Poinar Is a corresponding author
  21. Caitlin S Pepperell Is a corresponding author
  1. McMaster University, Canada
  2. MYcroarray, United States
  3. School of Medicine and Public Health, University of Wisconsin-Madison, United States
  4. University of Wisconsin-Madison, United States
  5. University of Iowa, United States
  6. Tübingen University, Germany
  7. University of California, United States
  8. Biotechnology Center, University of Wisconsin-Madison, United States
  9. Lawrence Livermore National Laboratory, United States
  10. National Institute of Infectious Diseases, Japan
  11. Yale University, United States
  12. University of Pisa, Italy
  13. The University of Sydney, Australia
  14. Canadian Institute for Advanced Research, Canada
Short Report
Cited
2
Views
3,122
Comments
0
Cite as: eLife 2017;6:e20983 doi: 10.7554/eLife.20983

Figures

Figure 1 with 9 supplements
Calcified nodule found among the skeletal remains at Troy.

(A) Burial x24.177 (grave 14, cemetery in quadrat x24). Photo credit Gebhard Bieg, 2005. (B) Cross-section of nodule (sample no x24.177), photo credit: Pathologie Nordhessen 2009. Scale represents 1 cm. (C) Location of Troy. Modern day Turkey is shaded in gray.

https://doi.org/10.7554/eLife.20983.003
Figure 1—figure supplement 1

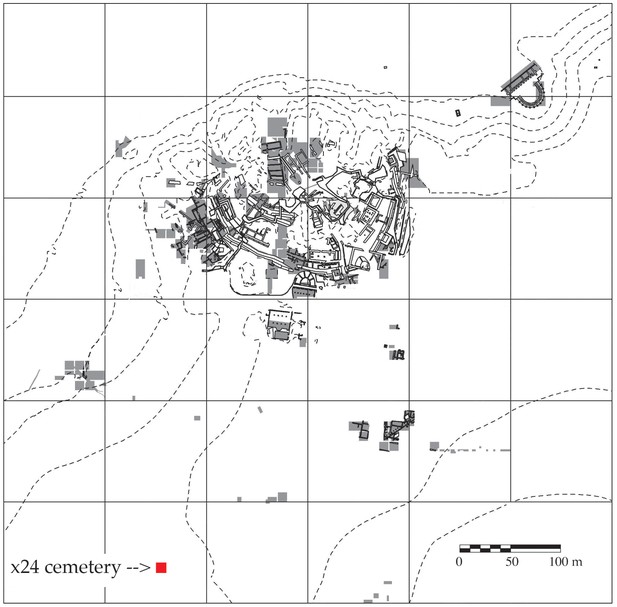

Map of Troy showing the cemetery in Grid Square x24 and areas of excavation 1988–2012.

Areas of excavation are in gray and the cemetery is marked with a red square. North is at the top of the plan.

https://doi.org/10.7554/eLife.20983.004
Figure 1—figure supplement 2

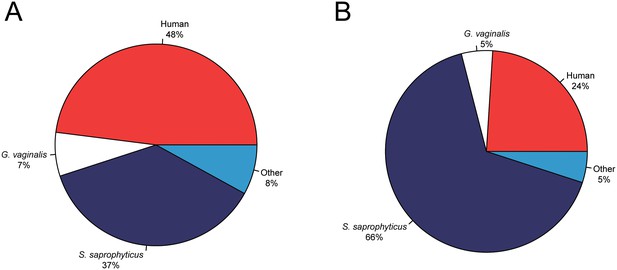

Metagenomic profiles of shotgun DNA libraries from nodules, based on BLAST analysis of all reads >35 bp length.

(A) Nodule one (Nod1_1h-UDG), 28,713,282 reads total (B) Nodule two (Nod2-UDG), 6,038,994 reads total.

https://doi.org/10.7554/eLife.20983.005
Figure 1—figure supplement 3

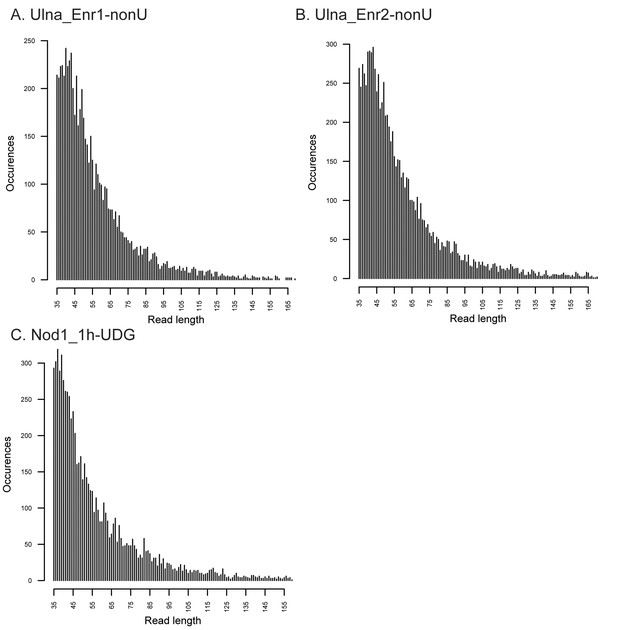

Fragment length distributions for non-UDG treated human mitochondrial assemblies.

These FLDs were generated from the Ulna enriched libraries (A + B) as well as the non enriched nodule (C) using mapDamage2 (Jonsson et al., 2013) from merged nonUDG data sets assembled to the human mitochondrial reference genome (Andrews et al., 1999), NCBI accession NC_012920.

https://doi.org/10.7554/eLife.20983.006
Figure 1—figure supplement 4

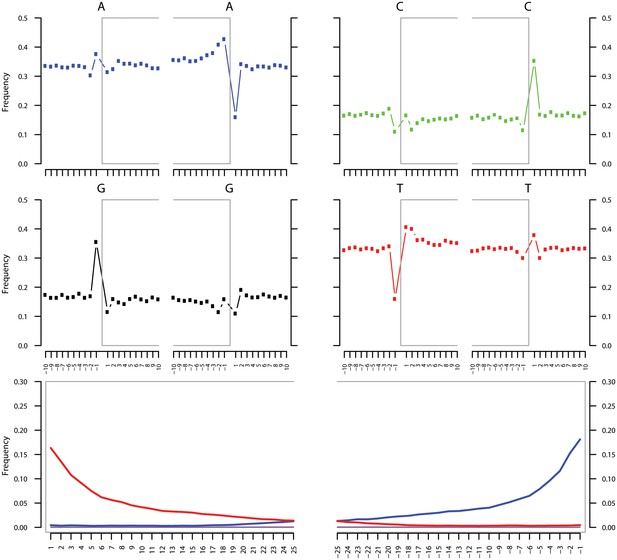

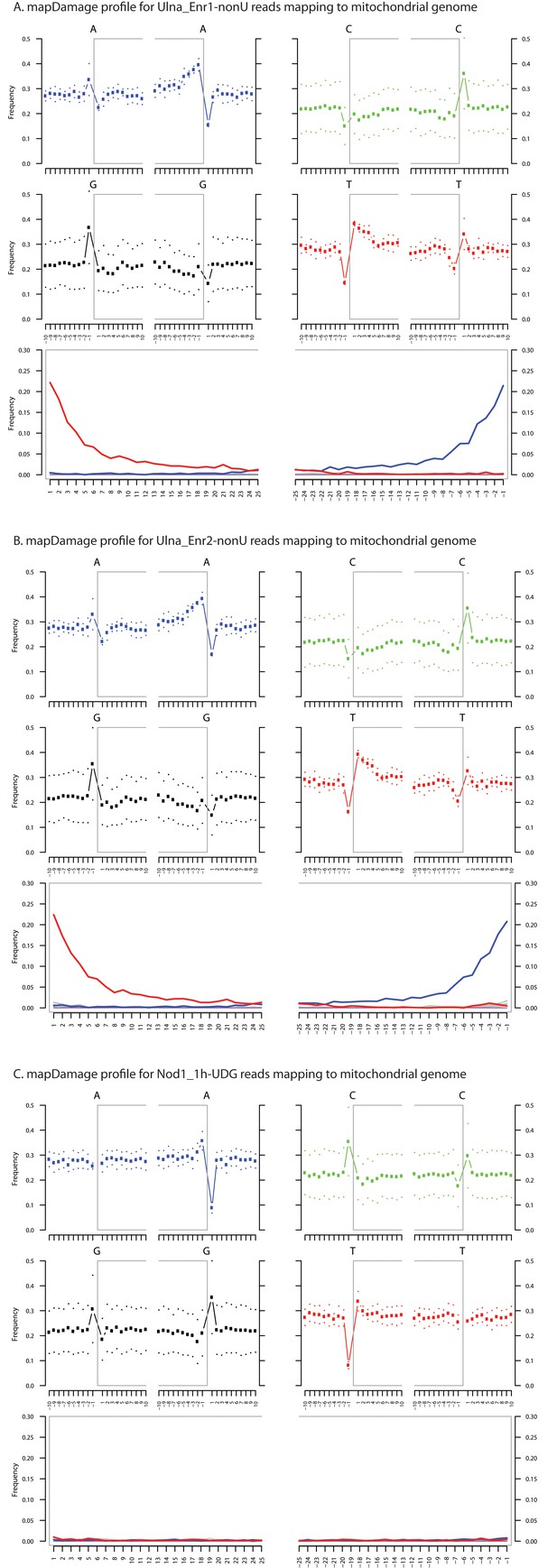

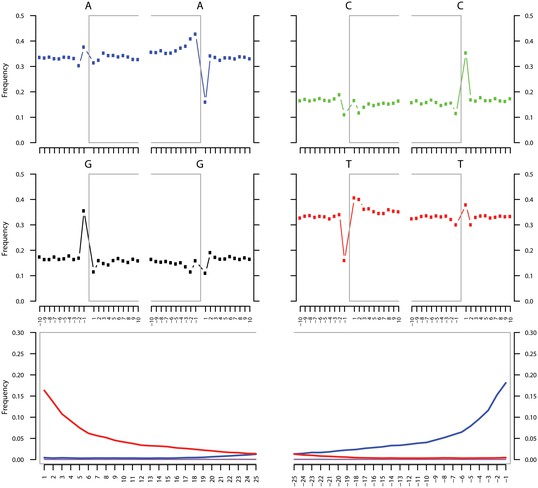

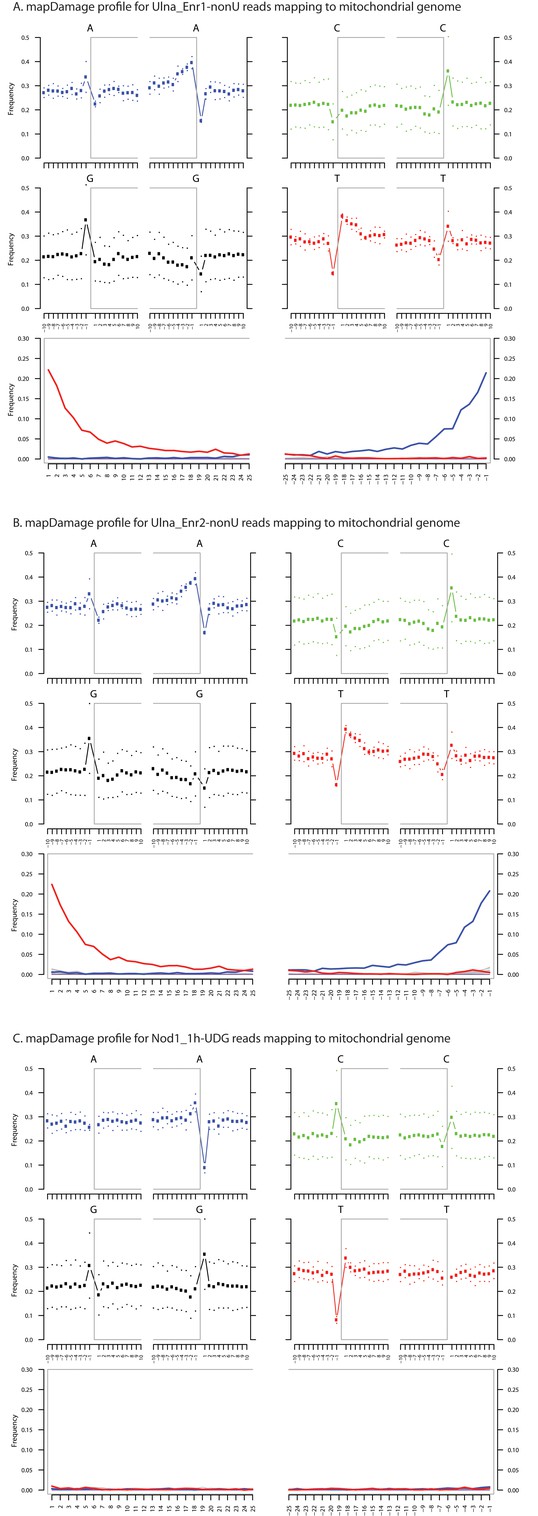

Ancient DNA damage assessment of human mitochondrial reads.

Damage profiles of non-UDG treated (‘nonU’) as well as UDG treated merged reads assembled to the human mitochondrial rCRS reference genome (NC_012920) for (A) Ulna_Enr1-nonU round one human mitochondrial enrichment, (B) Ulna_Enr2-nonU round 2, and (C) a Nod1_1h-UDG reads (which have been UDG treated). Damage profiles were generated using mapDamage2.(Jonsson et al., 2013).

https://doi.org/10.7554/eLife.20983.007
Figure 1—figure supplement 5

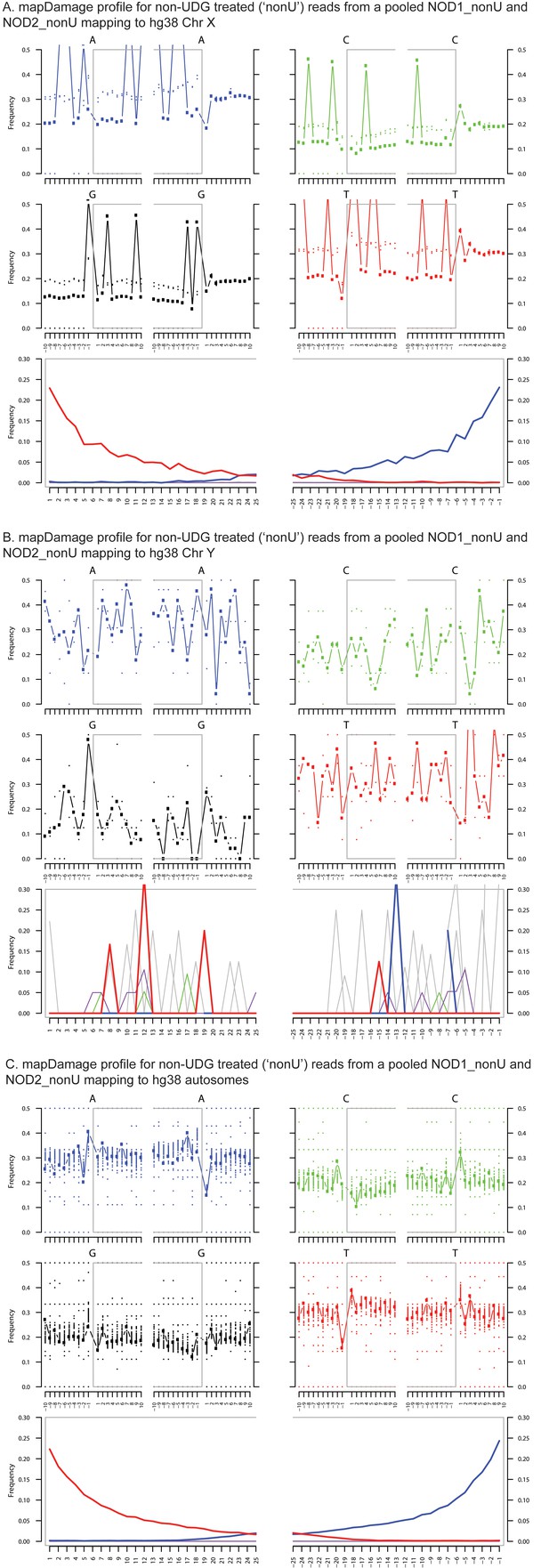

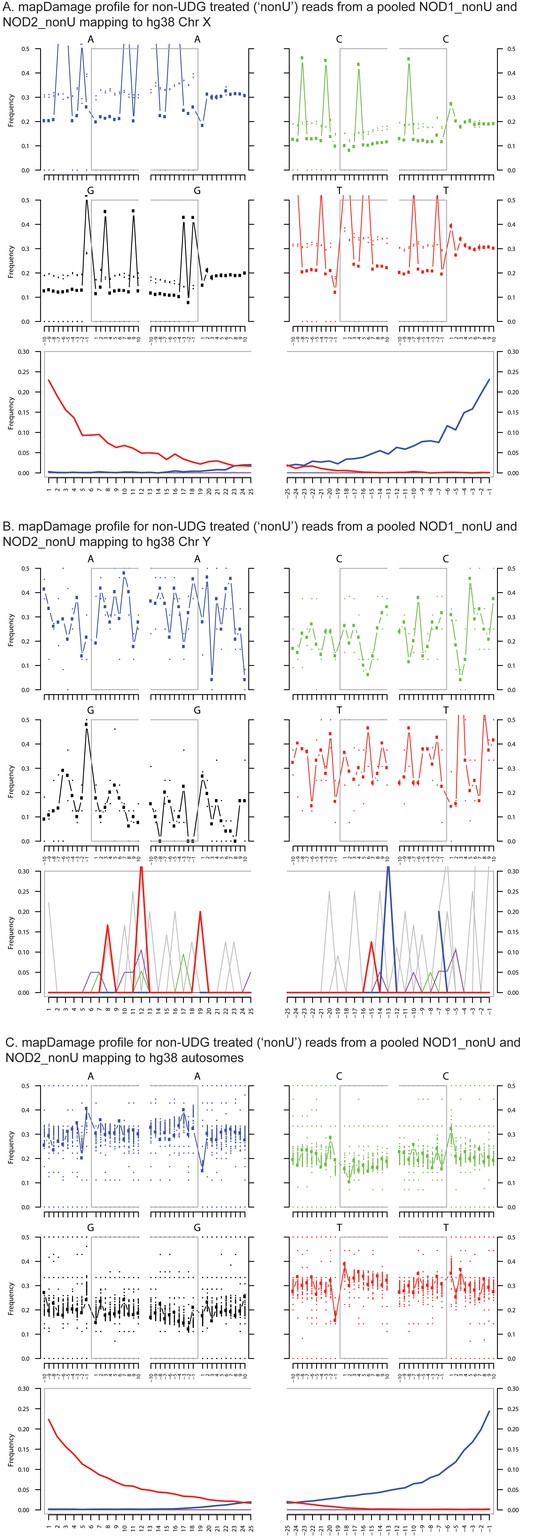

Ancient DNA damage assessment of reads mapped to hg38 chrX, chrY and autosomes.

Damage profiles generated using mapDamage2 (Jonsson et al., 2013) of non-UDG treated (‘nonU’) reads from the NOD1_nonU and NOD2_nonU data set (total of 1,468,381 trimmed and merged reads) with minimum 35 bp length and map quality 30, mapping to (A) hg38 chrX, and (B) hg38 chrY and C) hg38 autosomes.

https://doi.org/10.7554/eLife.20983.008
Figure 1—figure supplement 6

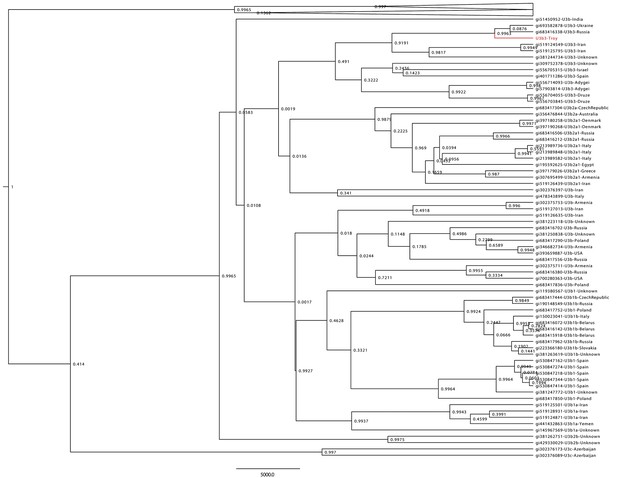

Haplogroup U3 Bayesian Maximum Clade Credibility tree.

Complete human mtDNA genomes assigned to haplogroup U3 (n = 137) were collected from GenBank and aligned with the Troy consensus sequence (highlighted in red). Tree was generated using BEAST v 1.856 and TreeAnnotator.57 Posterior probabilities are shown at nodes.

https://doi.org/10.7554/eLife.20983.009
Figure 1—figure supplement 7

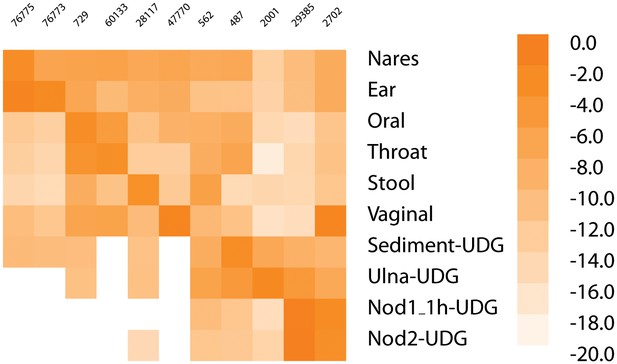

Heatmap of most common taxa in metagenomic samples.

The heatmap gives the log of the frequency of the most common taxa in each sample along the diagonal (if the most frequent is already shown, then second most frequent is added for that sample; Nares and Ear, Nod1_1h-UDG and Nod2-UDG). The taxa in order are - 76775, Malassezia restricta; 76773, Malassezia globosa; 729, Haemophilus parainfluenzae; 60133, Prevotella pallens; 28117, Alistipes putredinis; 47770, Lactobacillus crispatus; 562, Escherichia coli; 487, Neisseria meningitidis; 2001, Streptosporangium roseum; 29385, Staphylococcus saprophyticus; 2702, Gardnerella vaginalis.

https://doi.org/10.7554/eLife.20983.010
Figure 1—figure supplement 8

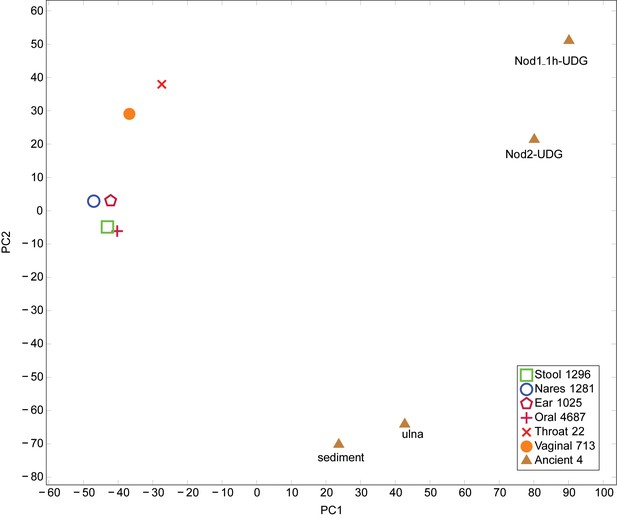

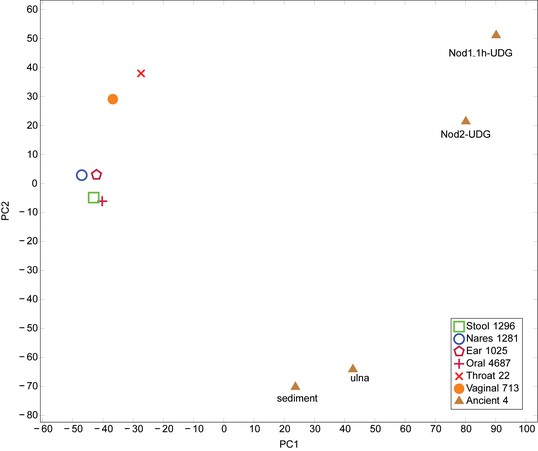

PCA of Human Microbiome Project and ancient metagenomic taxa.

Taxa were identified using LMAT. PCA performed using prcomp function in R. Legend indicates the origin of the category and the number of samples combined into each category. The first principal component axis separates the placental and ancient samples from the remaining samples. The second principal component axis separates the Sediment-UDG and Ulna-UDG data sets, which likely contain soil contamination, from the remaining samples.

https://doi.org/10.7554/eLife.20983.011
Figure 1—figure supplement 9

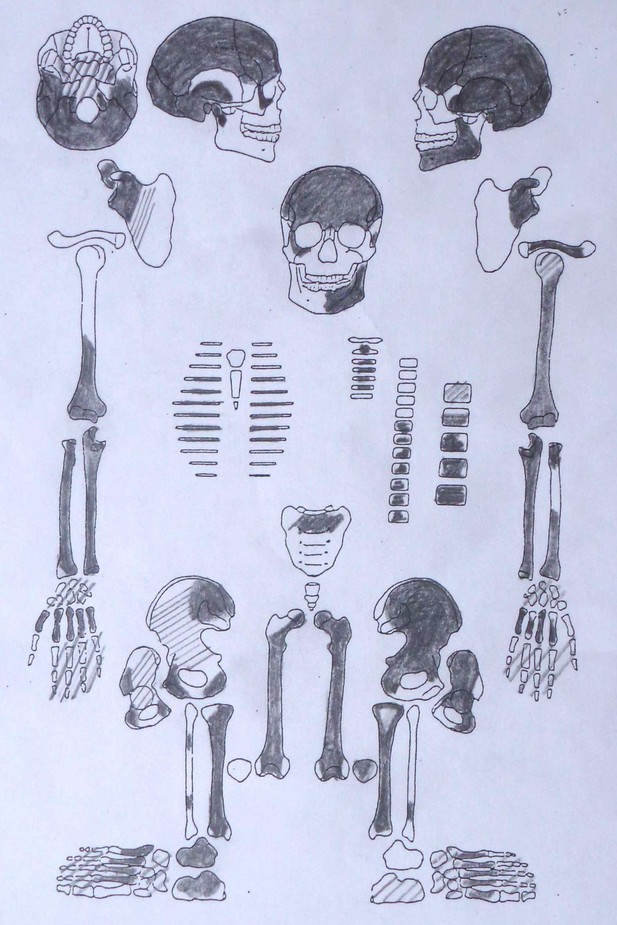

Sketch of skeletal preservation.
https://doi.org/10.7554/eLife.20983.012
Figure 2 with 2 supplements
SEM image of nodule at (A) 2000x and (B) 20,000x magnification.

Bacterial cells indicated with red arrow are between ~1 µm and 2 µm (within range expected for Staphylococcus). Extracellular polymeric substances (EPS) are indicated by yellow arrows.

https://doi.org/10.7554/eLife.20983.013
Figure 2—figure supplement 1

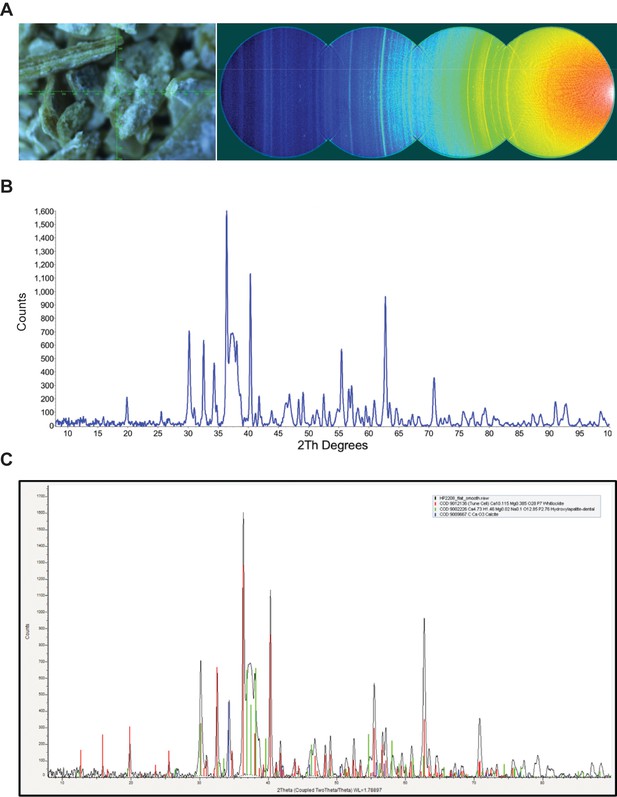

XRD analysis of nodule.

A) Video alignment and XRD frames. Left; crosshairs indicate the center of the region examined. Right; the four frames collected to obtain a 2θ range of 8–103°. At a low angle, air scatter from the main beam is evident. B) Background subtracted powder pattern. C) Search/match results.

https://doi.org/10.7554/eLife.20983.014
Figure 2—figure supplement 2
SEM image of nodule at 10,000x magnification.

Possible inflammatory (neutrophils) cells indicated by blue arrows.

https://doi.org/10.7554/eLife.20983.015
Figure 3 with 4 supplements
Phylogenetic analysis of Gardnerella vaginalis.

A maximum likelihood tree estimated using RAxML(Stamatakis, 2014) (Figure 3—source data 3) from a core alignment of G. vaginalis genomes (Figure 3—source data 1, Figure 3—source data 2). Branches are colored based on clades originally identified in Ahmed et al.(Ahmed et al., 2012) (green = clade 1, blue = clade 2, red = clade 3, purple = clade 4). Tips from modern G. vaginalis isolates are labeled based on sample source (H = healthy vagina, BV = bacterial vaginosis, HE = healthy endometrium, E = endometrium, U = unknown). Lighter colored branches have bootstrap values less than 100. Clinical phenotypes are interspersed throughout the phylogeny, and the Troy genome is not associated with a consistently pathogenic lineage of G. vaginalis. Inset: Recombinant fragments in G. vaginalis core genome identified by BratNextGen (Figure 3—source data 4) (Marttinen, 2012). Each circle represents one genome. Colored blocks represent recombinant fragments, and colors correspond to the clade designations in the phylogenetic tree. Plot made with Circos (Krzywinski et al., 2009).

https://doi.org/10.7554/eLife.20983.016
Figure 3—source data 1

Concatenated alignment of core genes in G. vaginalis.

https://doi.org/10.7554/eLife.20983.017
Figure 3—source data 2

G. vaginalis core genome alignment trimmed with Gblocks.

https://doi.org/10.7554/eLife.20983.018
Figure 3—source data 3

Maximum likelihood phylogenetic analysis of trimmed G. vaginalis alignment with RAxML.

https://doi.org/10.7554/eLife.20983.019
Figure 3—source data 4

Recombinant fragments detected with BratNextGen in trimmed G. vaginalis alignment.

https://doi.org/10.7554/eLife.20983.020
Figure 3—figure supplement 1
Ancient DNA damage assessment of G. vaginalis.

Damage profiles of non-UDG treated (‘nonU’) reads from a pooled NOD1_nonU and NOD2_nonU data set (total of 1,565,548 trimmed reads >24 bp) mapping to G. vaginalis strain ATCC 14019. Paired end reads were mapped using bwa (Li and Durbin, 2009) with default settings and duplicates were removed with samtools rmdup (Li et al., 2009). Damage profiles were generated using mapDamage2 (Jonsson et al., 2013).

https://doi.org/10.7554/eLife.20983.021
Figure 3—figure supplement 2

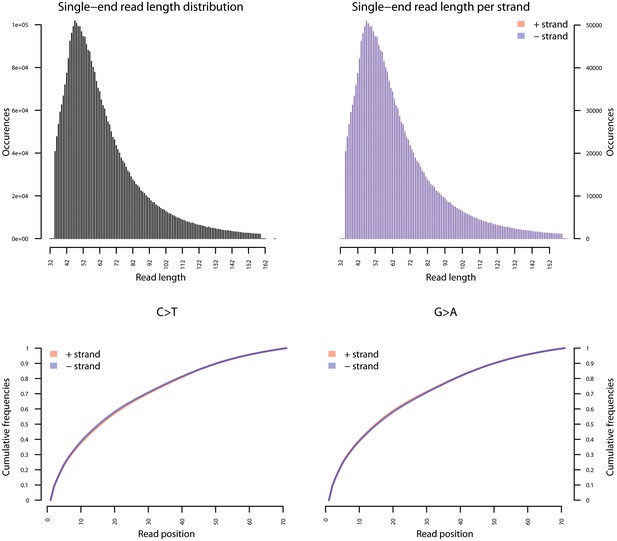

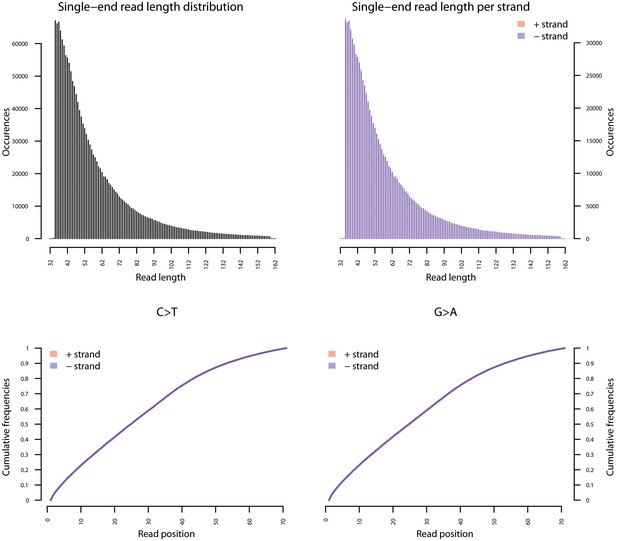

Fragment length distribution (FLD) for G. vaginalis ATCC 14019.

All nodule shotgun libraries (Nod1_1h-UDG, Nod1_1h-nonU, Nod2-UDG, Nod2-nonU) were pooled, reads were restricted to a minimum length of 35 bp and mapping quality of 30 and all duplicates removed both within and between libraries. The fragment length distribution of the remaining 1,658,978 reads was visualized using mapDamage2 (Jonsson et al., 2013).

https://doi.org/10.7554/eLife.20983.022
Figure 3—figure supplement 3

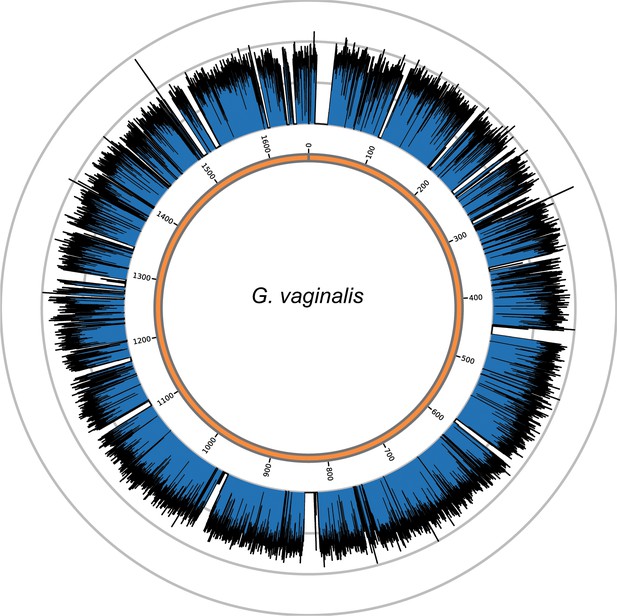

Genome coverage plots for pooled nodule shotgun libraries.

G. vaginalis (NC_014644), average coverage 57.0X. All reads were restricted to minimum length of 35 bp and minimum map quality 30 with all duplicates removed. Figures depict coverage of the genome in 100 bp blocks across references. Concentric grey circles demarcate increments of 50X coverage in both plots.

https://doi.org/10.7554/eLife.20983.023
Figure 3—figure supplement 4

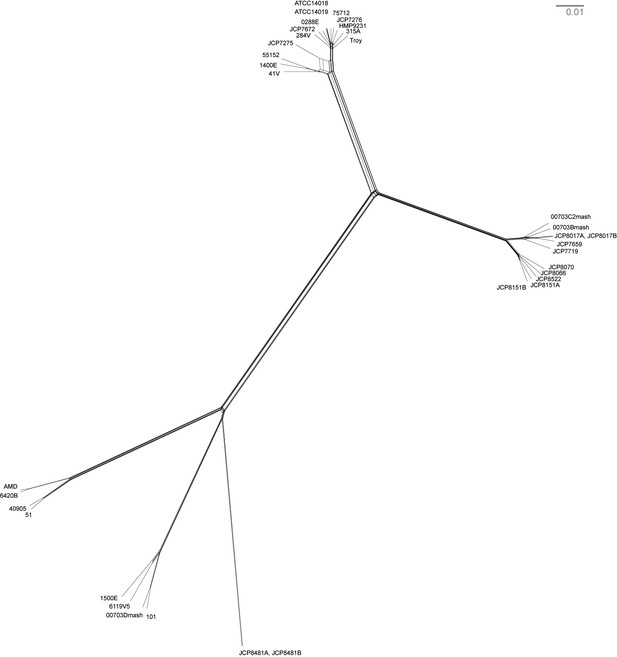

Neighbor net network of core genomes.

The network created in SplitsTree v 4 (Huson and Bryant, 2006) of Gardnerella vaginalis. The networks recapitulate the structure of maximum likelihood tree (Figure 3).

https://doi.org/10.7554/eLife.20983.024
Figure 4 with 6 supplements
Phylogenetic analysis of Staphylococcus saprophyticus.

(A) Maximum likelihood tree estimated using RAxML (Stamatakis, 2014) (Figure 4—source data 3) from an alignment of S. saprophyticus genomes (Figure 4—source data 1, Figure 4—source data 2). Bootstrap values less than 100 are labeled. Silhouettes indicate bacterial sample source. Isolates without silhouettes are from human clinical samples isolated from urine. Color corresponds to country of isolation as seen on the map. Full sample descriptions are in Supplementary file 1H. (B) Source countries of bacterial samples. (C) Neighbor-net network of S. saprophyticus plasmid sequences (Figure 4—source data 4) related to pSST1 created in SplitsTree4 (Huson and Bryant, 2006). The boxed inset is an enlarged version of the portion of the network from Clade P isolates. Some S. saprophyticus isolates do not encode pSST1-like plasmids, and therefore, they are not included in the network. Starts and stops of recombinant regions of the alignment can be found in Figure 4—source data 5.

https://doi.org/10.7554/eLife.20983.025
Figure 4—source data 1

S. saprophyticus whole genome alignment.

https://doi.org/10.7554/eLife.20983.026
Figure 4—source data 2

S. saprophyticus whole genome alignment trimmed with trimal.

https://doi.org/10.7554/eLife.20983.027
Figure 4—source data 3

Maximum likelihood phylogenetic analysis of trimmed S. saprophyticus alignment with RAxML.

https://doi.org/10.7554/eLife.20983.028
Figure 4—source data 4

S. saprophyticus plasmid alignment trimmed with trimal.

https://doi.org/10.7554/eLife.20983.029
Figure 4—source data 5

Recombinant fragments detected with BratNextGen in S. saprophyticus alignment.

https://doi.org/10.7554/eLife.20983.030
Figure 4—figure supplement 1

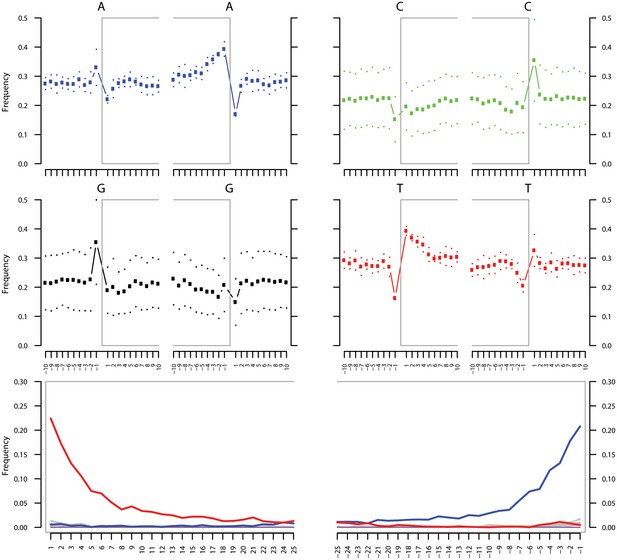

Ancient DNA damage assessment of S. saprophyticus.

Damage profiles of non-UDG treated (‘nonU’) reads from a pooled NOD1_nonU and NOD2_nonU data set (total of 1,565,548 trimmed reads >24 bp) mapping to S. saprophyticus strain ATCC 15305. Paired end reads were mapped using bwa (Li and Durbin, 2009) with default settings and duplicates were removed with samtools rmdup (Li et al., 2009). Damage profiles were generated using mapDamage2 (Jonsson et al., 2013).

https://doi.org/10.7554/eLife.20983.031
Figure 4—figure supplement 2
Fragment length distribution (FLD) for S. saprophyticus ATCC 15305.

All nodule shotgun libraries (Nod1_1h-UDG, Nod1_1h-nonU, Nod2-UDG, Nod2-nonU) were pooled, reads were restricted to a minimum length of 35 bp and mapping quality of 30 and all duplicates removed both within and between libraries. The fragment length distribution of the remaining 3,904,552 reads was visualized using mapDamage2 (Jonsson et al., 2013).

https://doi.org/10.7554/eLife.20983.032
Figure 4—figure supplement 3

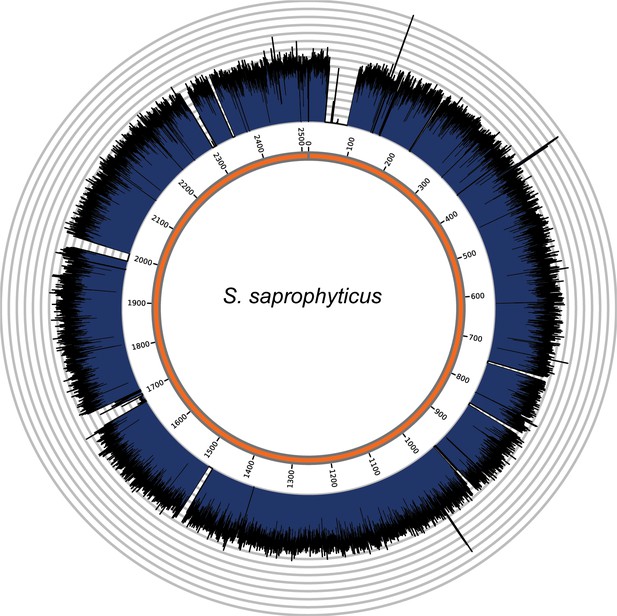

Genome coverage plots for pooled nodule shotgun libraries.

S. saprophyticus (NC_007350), average coverage 298.6X. All reads were restricted to minimum length of 35 bp and minimum map quality 30 with all duplicates removed. Figures depict coverage of the genome in 100 bp blocks across references. Concentric grey circles demarcate increments of 50X coverage in both plots.

https://doi.org/10.7554/eLife.20983.033
Figure 4—figure supplement 4

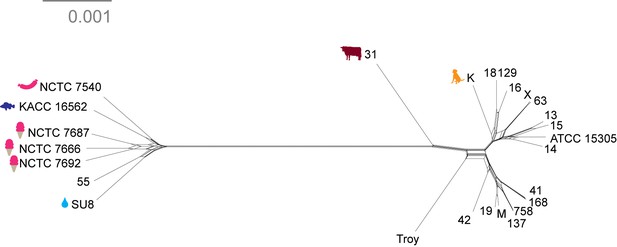

Neighbor net network of core genomes.

Networks created in SplitsTree v 4 (Huson and Bryant, 2006) of S. saprophyticus. The networks recapitulate the structure of maximum likelihood trees (Figure 4).

https://doi.org/10.7554/eLife.20983.034
Figure 4—figure supplement 5

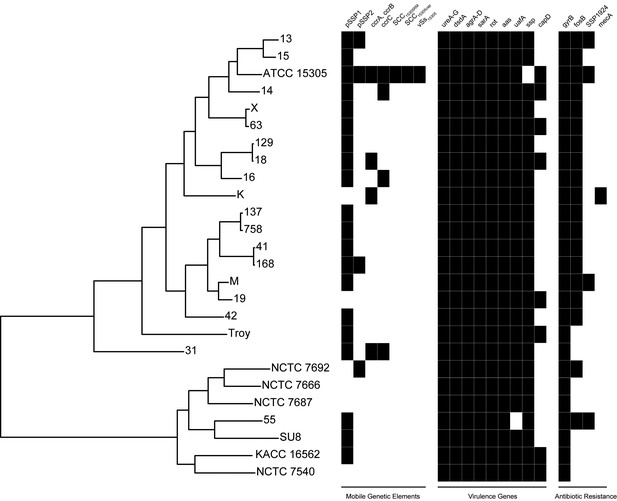

Presence of mobile genetic elements, virulence genes, and antibiotic resistance in S. saprophyticus.

Novobiocin resistance is conferred by a glycine at position 85 and lysine at position 140 (Vickers et al., 2007), which is present in all S. saprophyticus genomes examined here. SSP1924 and fosB confer streptomycin and fosfomycin resistance, respectively, and are encoded in vSs15305 in the ATCC 15305 reference genome (Kuroda et al., 2005). While none of the other isolates encode the entire genomic island, fosB and SSP1924 are found in isolates from both Clade P and Clade E. The canine isolate (K) harbors SCCmec containing mecA conferring methicillin resistance that has been identified in human clinical isolates of S. saprophyticus (Higashide et al., 2008).

https://doi.org/10.7554/eLife.20983.035
Figure 4—figure supplement 6

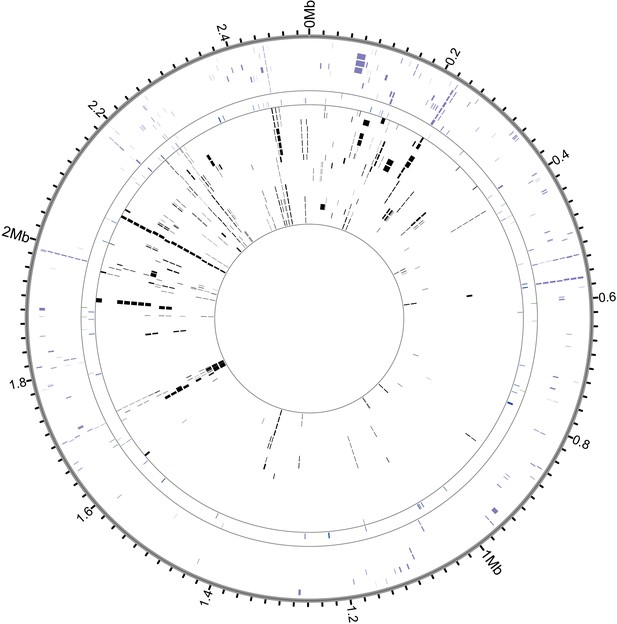

Recombinant regions detected by BratNextGen in S. saprophyticus.
