Mimicry complexes typically consist of multiple species that deter predators using similar anti-predatory signals. Mimics in these complexes are assumed to vary in their level of defence from highly defended through to moderately defended, or not defended at all. Here, we report a new multi-order mimicry complex that includes at least 140 different putative mimics from four arthropod orders including ants, wasps, bugs, tree hoppers and spiders. All members of this mimicry complex are characterised by a conspicuous golden body and an ant Gestalt, but vary substantially in their defensive traits. However, they were similarly effective at deterring predators - even mildly defended mimics were rarely eaten by a community of invertebrate and vertebrate predators both in the wild and during staged trials. We propose that despite the predominance of less defended mimics the three predatory guilds avoid the mimics because of the additive influence of the various defensive traits.https://doi.org/10.7554/eLife.22089.001
Many animals use bright colours to warn a potential predator that they can defend themselves. Wasps, for instance, are armed with a harmful sting and advertise this fact via their distinctive yellow and black stripes. Predators often learn to heed such warnings and avoid these unpalatable animals in future. As a result, animals that mimic another animal’s warning signals can reap the benefit of being left alone by predators even if they are otherwise undefended.
Textbooks on evolution are typically full of different examples of mimicry. However, the specifics of these examples are often poorly understood. Ninety years ago a famous Australian entomologist, Alexander Nicholson, suggested the existence of large groups of mimics in the Australian wildlife. More of these so-called “mimetic complexes” have recently been recognized among several species of insect, but not previously in ants.
Now, Pekár et al. have looked at all known ants and ant-like mimics in Australia and discovered over 140 species that use gold and black colours as a warning signal. Most of the species were ants, but the collection of mimics also includes wasps, spiders, true bugs and insects called treehoppers. Some of the mimics were less palatable than others, and they possessed a range of defences, including spines and foul-tasting chemicals.
Pekár et al. then looked in the guts of 12 species of predators in the wild, and found that very few of them ate the mimics. When mimics were offered to three different predators (specifically a lizard and two species of spider), most avoided the mimics regardless of whether they were palatable or unpalatable. Instead, the predators preferred to eat a spider that was not a member of the group of mimics because it lacked the gold colouration.
Further studies are now needed to continue to document the details of this and other mimetic complexes. For example, this includes revealing how the different defences protect the members of the complex from predators do not use vision to recognize their prey and so cannot see the warning colouration. All this is needed to understand evolutionary processes that have fascinated biologists for decades, and explain how such large mimetic complexes evolved and persisted in spite of the influence of the community of predators.https://doi.org/10.7554/eLife.22089.002
Mimicry complexes (i.e. a composite of several Müllerian and Batesian mimics) have long fascinated biologists for the theoretical and empirical challenges they pose. Classic Müllerian mimicry was thought to only include equally defended species (Müller, 1878), while Batesian mimicry (Bates, 1862) describes undefended species resembling defended models. In reality, this simplistic dichotomy (sensu Speed, 1999) represents the end-points of a mimetic spectrum that contains species that vary in their mimetic fidelity and/or their degree of defensiveness. A topic of considerable debate (Sherratt, 2008) is the putative influence that moderately defended mimics have on the stability of mimicry rings (i.e. a composite of several similar Müllerian mimics). Discrepancy in protection between two mimetic species may dilute the protection of a more defended species (Speed, 1999). Great tits (Parus major, Paridae, Passeriformes) for instance, attacked artificial models more often when less defended mimics were frequently encountered and food was restricted (Rowland et al., 2010). In direct contrast, associative learning mechanisms predict a mutualistic relationship between moderately and highly defended members of the ring (Rowland et al., 2007): wild caught great tits equally avoided four species of true bugs with varying levels of defence but which shared similar warning colours (Hodová Svádová et al., 2013).
Müllerian mimicry rings typically consist of a few closely related species (Symula et al., 2001; Williams, 2007; Alexandrou et al., 2011), with the exceptions of the species-rich mutillid wasp (Wilson et al., 2012, 2015), Heliconius butterfly (Mallet and Gilbert, 1995) and bumblebee (Williams, 2007) complexes. These complexes, despite being speciose, are taxonomically limited because their members often belong to only a single family or genus (Lepidoptera or Hymenoptera). The mutillid wasp complex is suspected of including species from other orders but this has not been formally presented (Wilson et al., 2012, 2015). A mathematical model suggests that mimicry complexes should be common in multispecies communities with distantly related taxa (Beatty et al., 2004). The general lack of data on multi-order mimicry complexes may represent an observer bias. For example, ants have been largely overlooked as Müllerian mimics, yet they are diverse, typically well defended through a range of defensive measures including a sting, noxious chemicals, spines, a thickened cuticle, mandibles and communal attack (Hölldobler and Wilson, 1990). There is also a rich diversity of invertebrate taxa that mimic ants.
Species within Müllerian rings thus far described use the same defensive traits. Heliconius butterflies, for instance, rely on their distastefulness while mutillid wasps have a venomous sting. The degree of distastefulness or level of venom toxicity within a mimicry ring is expected to vary among members. Experimental investigations, that started a hundred years ago (e.g. McAtee, 1912, 1932), have tended to focus on a single visually-oriented predatory guild and yet most environments contain a wide range of potential predators of mimics. For example, species that mimic ants may encounter several ant-averse and ant-eating predators (Pekár et al., 2011). In some microhabitats, such as leaf litter, the ant-eating predators (which often use chemical cues to recognise prey) and ant-adverse nonvisually-orienting predators are indeed more common than visually-orienting ones, thus exerting strong selection pressure on mimics to signal their unpalatability in sensory modalities other than visual. Thus one of the major outstanding questions regarding the contribution of mimics to the function of mimetic rings is evaluating the success of Müllerian and/or Batesian mimicry by analysing the selection pressure exerted by all predators in a given environment (Blumstein, 2006).
Here, we describe a novel diverse and species rich mimicry complex consisting of golden ant, wasp, true bug, treehopper, and spider mimics and we investigate hypotheses concerning their unpalatability and resulting efficacy against predation. Mimetic complexes are often composed of rings – groups of species that draw advantages from similar aposematic signals (Williams, 2007; Wilson et al., 2015). Thus, our first step was the identification of separate rings to understand how the mimicry complex evolved and is reinforced. We therefore tested whether the rings have a sympatric distribution, which would indicate a mutualistic relationship between mimics and whether mimics within a ring share common ancestry.
Our second step was to quantify the relationship between the proposed aposematic signal (golden/black colouration) and the level of noxiousness or distastefulness of the mimics that display the signal. Aposematic warning signals and distastefulness are expected to evolve together within a species (e.g. Ruxton et al., 2004) and thus, the strength of the distasteful stimulus should coincide with the conspicuousness of the warning signal (Speed and Ruxton, 2007). In this mimicry complex, we investigated whether there is a positive relationship between signal intensity and unpalatability across species as has recently been found among lady-bird beetles (María Arenas et al., 2015). This would mean that truly Müllerian mimics are expected to honestly signal their distastefulness but truly Batesian mimics display a conspicuous warning signal without the noxious stimulus. We tested these assumptions by correlating the size of the warning signal (golden/back colouration) with a measure of distastefulness derived from the sum of defences found in the mimics.
Our critical third step was to extend the scope of previous studies of mimicry complexes by experimentally testing the efficacy of the aposematic signal, and indeed the validity of the Müllerian mimicry claim, through staged predator-prey trials. Based on the broad diversity of defences used by mimics in this complex, we predict that predators should learn quickly to avoid mimics (Beatty et al., 2004), and that mimics should be protected from a range of predators.
Finally, we examined how the aposematic signal and the level of defensiveness interplay with a community of predators that rely on multiple sensory modalities. Mimicry complexes are typically characterised by a distinct colour pattern and hence experiments are often biased towards visual-oriented predators and usually vertebrates. In reality, the members of a complex are exposed to predators that use a variety of sensory modalities and foraging modes to detect and subdue their prey. We combined staged predatory trials with a dietary analysis of wild populations of a community of predators to test the hypothesis that more unpalatable species are attacked less frequently by a community of predators.
We uncovered a cross-order mimicry complex, consisting of at least 140 arthropod species including 126 ant species, seven spider species (and several forms), three species of true bugs, one mutillid wasp and one treehopper (Table 1). Members of the complex are all ant-like in appearance and characterised by a dorsal patch of golden coloration combined with blackish colouration (Figure 1, Video 1), which we recognise as an aposematic signal (RGB contrast: mean = 241.4, SD = 58.1, N = 55). Related non-mimetic species are typically uniformly black or brown.
The golden sheen is achieved by diverse modes. Among the hymenopteran representatives (ants and wasps), the golden sheen is generated only by pubescence of varying density (Figure 2). Consequently, this visual effect entirely disappears when they are submerged in ethanol. In contrast, true bugs and spiders use a combination of hairs and yellow pigmentation (in the exocuticle of the abdomen/gaster), while the treehopper appears to use only pigment as the golden shine is lost after death.

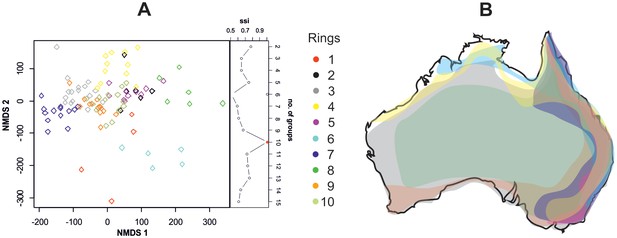

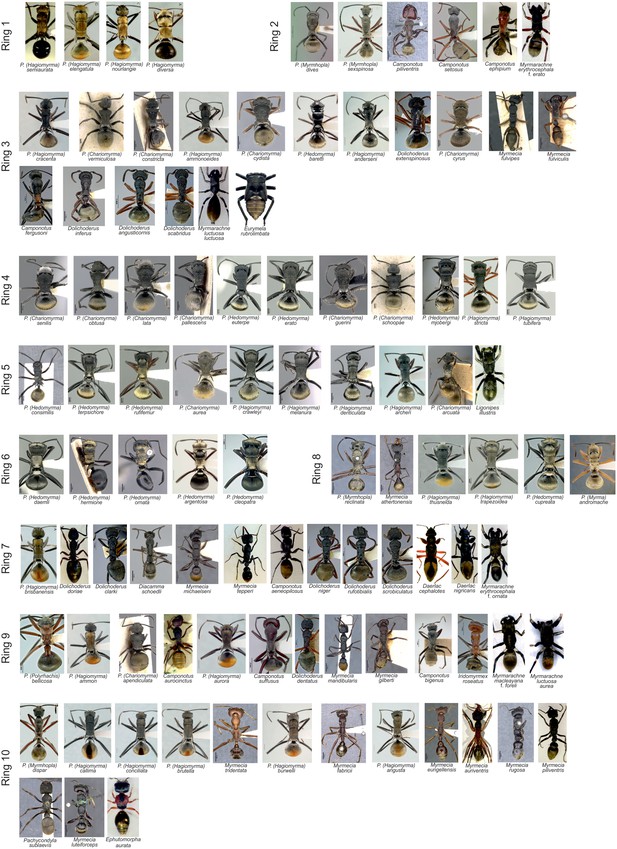

The cluster analysis suggested the existence of ten putative rings within the complex, according to variation in the dorsal colour pattern but the differences were rather small (Figure 3A). These rings were distributed across the Australian continent with a considerable overlap. For instance, rings in the east coast of Australia overlapped where species richness was the greatest (Figure 3B). However, the degree of sympatry in a ring was not related to colour pattern (estimated from 24 measures of the colour pattern, body size and area of golden patch) similarity (Mantel test, r = −0.03, p=0.79). We did not find a strong effect of phylogeny on the classification into rings (GLS, Pagel’s λ = 0.22, Figure 1). All this indicates that the splitting into ten putative rings was artificial and there is only one complex.

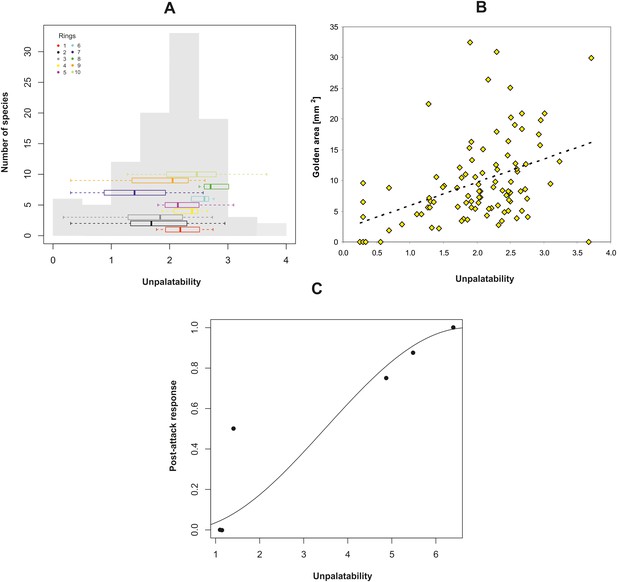

We determined the unpalatability of 100 species belonging to the golden mimicry complex. Because several complementary forms of defence are likely, we estimated total unpalatability for each mimic based on the sum of morphological, chemical, and behavioural defensive traits. Our analyses uncovered a spectrum of mimics from non-defended (Batesian) to highly defended (Müllerian) species. For instance, the spider and treehopper species had the lowest unpalatability score (i.e. sum of normalised measurements on defensive traits) and were therefore classified as Batesian mimics. Daerlac bugs, mutillid wasps and all ant species were unpalatable, but we found considerable variation in the degree of unpalatability ranging from quasi-Müllerian to unambiguously Müllerian, mimics. The index of unpalatability had an overall normal distribution (Shapiro-Wilk normality test, W = 0.98, p=0.21) with the highest frequency consisting of moderately-palatable species. Unpalatability varied in each ring but the variation was not significantly different among the ten rings suggested previously (Bartlett test, K26 = 11, p=0.09, Figure 4A) supporting further the existence of only one complex. We discovered that the absolute area of the golden colouration increased with unpalatability (controlling for the effect of phylogeny and body size: GLS, F1,91 = 21.1, p<0.0001, Figure 4B) supporting the hypothesis that the golden colour is an aposematic signal.
We quantified predation of mimics by the 12 most abundant predatory species that co-occurred with 13 sympatric mimetic species belonging to the complex (Table 2). We analysed gut content or faeces of these predators (553 spiders, 50 skinks, and 48 birds), representing three different guilds, using Next Generation Sequencing, which allows identification of prey to species. We found that individuals of all predatory species were positive for primers targeting the DNA of ants, spiders, and mutillid wasps. The frequency of captured mimics was not significantly different from their availability in the environment (X212 = 1.5, p=0.99) because mimics were very rare in the field. Only three mimetic species (Camponotus aeneopilosus, Myrmarachne erythrocephala, Myrmarachne luctuosa) were detected in the faeces/gut of predators. Visually-oriented and non-visually oriented euryphagous (ant-adverse) predators captured mimics at less than 4% frequency, whereas specialized ant-eating predators captured mostly Batesian mimics (Table 2). The overall attack rate estimated for all predators was marginally significantly negatively related to the unpalatability of mimics when it included two Batesian mimics (GAM, F3.8,4.6 = 3.8, p=0.045, Figure 5A).
We exposed five species of mimics (ants, spiders and bugs) of varying unpalatability (Table 3) and one non-mimic (spider) to one representative of each of three guilds of naïve predator species (euryphagous skink, ant-adverse spider, ant specialist spider). Eastern water skinks (N = 26) are visually-oriented generalist predators and captured (i.e. ate) non-mimetic spiders at significantly higher frequency than members of the mimetic complex such as ants, spiders and bugs (GEE-b, X25 = 125.8, p<0.0001, Figure 6). In accordance with our classification of unpalatability, we found a strong positive relationship between prey unpalatability and the post-attack response of skinks (GLM, F1,4 = 19.4, p=0.012, Figure 4C). Mimic or non-mimic spiders were immediately eaten, but skinks showed an adverse response to mimic ants and bugs. These prey were clearly distasteful because the skinks immediately cleaned their mouths and frequently spat the prey out.
We found similar patterns in the non-visually oriented ant-adverse Lampona spiders (N = 25), which captured non-mimic spiders significantly more frequently than all mimics (Cochran test, X25 = 104, p<0.0001, Figure 6), showing no differentiation between the mimics.
By contrast, the visually oriented ant-eating specialist Servaea spiders (N = 27) readily attacked and captured mimics as well as non-mimics. Although these spiders readily attacked the mimics they did appear to differentiate between their levels of defence (attack: GEE-b, X24 = 15763, p<0.0001, Figure 6). The most unpalatable ant was attacked at a significantly lower frequency than other mimics (contrasts, p<0.008) and moderately unpalatable ant species were captured at a significantly lower frequency than bug and spider mimics (contrasts, p<0.006).
In summary, euryphagous and ant-adverse predators were less likely to capture a mimic than a non-mimic while the ant-specialist attacked the ants and ant-mimics alike but the likelihood of attack varied according to the mimic’s actual unpalatability. There was no relationship between levels of unpalatability and the sum of predation pressure (K-values) exerted by the three predatory guilds (LM, F1,3 = 1.83, p=0.27, Figure 5B).
Ants have not been considered in Müllerian mimetic rings, which is perhaps surprising given their diversity and the number of known ant-mimics. The lack of ant fauna in mimetic rings possibly reflects an overall lack of conspicuous defensive coloration in ants. However, our study supports a species rich mimicry complex of golden coloured ant models and mimics, adding to the small number of documented large-scale complexes. Mimetic complexes (among several families of beetles) were first recognised by Nicholson (1927) for Australian insect fauna. Such complexes are presumably far more widespread than appreciated, but have only been subject to more intensive study relatively recently. Many more large-scale mimetic complexes among ants and other animals (particularly arthropods) are likely to be described in future.
The species richness of this golden complex exceeds those of fish or millipedes (Marek and Bond, 2009; Alexandrou et al., 2011) but is currently smaller than in mutillid wasp (Wilson et al., 2012, 2015), heliconid butterfly (Mallet and Gilbert, 1995) and bumblebee (Williams, 2007) complexes. The key members in the golden complex are ants but the complex is taxonomically broad and includes species with distant phylogenetic origins. Beside the species mentioned, it may include a few other groups, such as bees, flies, and cerambycid beetles, in which some species also have a golden colouration. This is in contrast to complexes of similar scale that only include members from a single order.
The distribution of the majority of the ten putative mimetic rings in the complex overlapped with at least one other ring. Although the cluster analysis distinguished rings, the distances between the rings were not large suggesting that the entire complex is just a single ring. Our findings are not unlike those from other complexes that include rings of different colour pattern, which overlap in geographic distribution (Williams, 2007; Wilson et al., 2012, 2015). An overlap of golden rings or actually their non-existence potentially suggests that the variable golden colour patterns produce similar aposematic signals.
Large mimetic complexes include taxa of close and distant phylogenetic origins (e.g., Linsley et al., 1961; Rodriguez et al., 2014) in which the colour pattern is not only a product of common ancestry but also of convergence. A shared ancestry is apparent for two species of Myrmarachne spiders (Pekár et al., 2017), three species of Daerlac bugs (Casis and Symonds, 2012), and several species of Polyrhachis ants (Robson et al., 2015). The majority though, including Camponotus, Diacamma, Pachycondyla, and Iridomyrmex ants, other spider species, Eurymela treehopers, and Ephutomorpha wasps, have converged on the same phenotype as evidenced by their isolation within lineages of non-mimetic colour patterns. The diversity and geographic pattern of the golden phenotype is likely a result of co-divergence as found in other complexes (e.g., Rodriguez et al., 2014).
Species in Müllerian rings described to date, e.g. heliconid butterflies, use a single defensive trait to teach predators that they are distasteful (e.g., Van Zandt Brower, 1958). The lesser-defended individuals in this context are less distasteful. Species in our golden complex use multiple defensive traits including a variety of structural and chemical defences. To understand how these traits interplay with the aposematic signal we created an index that summed all traits known to serve a defensive function. We acknowledge this approach is somewhat simplistic as various traits are differentially effective against various predators. For example, a thick cuticle is effective against arthropod predators but ineffective against vertebrates (Evans and Sanson, 2005). On the other hand, spines are effective against vertebrates but ineffective in the defence against arthropod predators (Mikolajewski et al., 2006). Different species of closely related predators may also use a variety of adaptations to deal with the defences of prey. For example, some spiders are able to catch ants even with a thick cuticle while others are not (Pekár and Toft, 2015). A true index of unpalatability requires an estimation of the total effectiveness of a combination of defensive structures, such as spines and thick cuticle and the toxicity of chemical compounds for each predator-prey combination. Estimates including spines and cuticle thickness may be relatively straight forward but information on the toxicity of chemical compounds is largely not available (see http://toxnet.nlm.nih.gov). Although our approach is simplistic, the positive relationship between the index of unpalatability and the response of skinks strongly suggests that the measure is a good proxy for unpalatability.

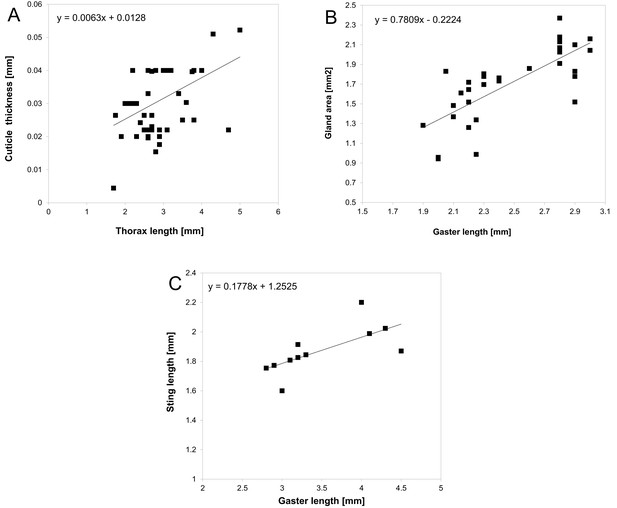

Some of the defensive traits were strongly correlated with body size. Body size alone is an anatomical constraint that may prevent predation, thus it is difficult to separate the effect of pure body size from the relative size of some defensive traits (e.g., spines). A strong correlation between body size and the size of defensive traits is natural, because larger spines, for example, require a larger body to support them. It is, however, the absolute size of defences not their relative size that is ecologically important (e.g., a skink will swallow larger spines with greater difficulty than smaller ones). Whatever their single effect is, all these traits together, add to an overall unpalatability of mimics.
Our study describes a new complex with a golden/black colour combination. This combination is somewhat similar to the classic aposematic yellow/black phenotype (Ruxton et al., 2004; Williams, 2007). Accordingly, our findings support the idea the coverage of golden colour acts as an honest signal of aposematism. All the predators in staged trials exhibited an aversion to the prey with the greatest coverage of golden colour. Furthermore, golden individuals were rarely found in the diet of natural populations of predators.
Honest signalling is further supported by the positive correlation between the extent of the golden colour and unpalatability, controlling for body size in the analyses via phylogenetic correlation or as a covariate. The theory of honest signalling, however, predicts such a relationship within rather than across species. However, recent evidence shows that this relationship can also exist across closely related aposematic species (Cortesi and Cheney, 2010; María Arenas et al., 2015). It remains to be tested what speciation process and selection forces have driven this pattern. Given the fact, that the complex is composed of many unrelated taxonomic groups that occur in different micro-habitats, the processes are likely to vary. It is necessary to investigate whether such a relationship between species holds for other known mimetic complexes.
Unlike the classic yellow/black combination, members of the golden complex are defined by a metallic golden sheen. This sheen reflects brightly under direct sunlight making the animals very conspicuous, at least to a human observer. Just how important this sheen is in deterring a predator over and above just a matt colour has yet to be determined for this system. In other systems though, reflective iridescence has a significant additive effect (e.g. Fabricant et al., 2014) so it is likely that the sheen enhances the detectability of the signal. A possible additional benefit, or even an alternative explanation, is that the sheen is important for reflecting harmful radiation and dissipating heat (Shi et al., 2015). Irrespective of the explanation the importance of this colour variant, further experimental investigation is warranted.
The aversion to prey with golden colour was apparent irrespective of the predator’s visual sensitivity. Visually- and non-visually orienting predators equally avoided the golden prey suggesting that golden mimics advertise their unpalatability via multiple sensory modalities. The non-visual predator still proportionally avoided the mimics despite not being able to detect the visual signal. This is an area of promising future investigation. Some non-visual predators potentially recognize mimics via the patterns of vibrations generated by their movements (Pekár et al., 2011). Predators typically use multisensory modalities to identify prey (Bro-Jørgensen, 2010) such as movement, shape and defensive chemicals they emit.
Our measure of unpalatability suggested that the highest proportion of individuals was moderately defended and defensiveness is distributed from highly defended to weakly defended. This is in agreement with previous claims that mimicry rings are dominated by moderately defended species (Sherratt, 2008). With a predominance of moderately defended prey, there is an expectation that their presence will erode the effectiveness of the model. Our findings, based on a limited number of mimics, multiple predatory guilds when taking into account, did not support this notion. Instead, all mimics investigated in our predator-prey trials experienced significantly lower mortality than the non-mimetic species, and this was irrespective of the coverage of gold. We found the skinks were more likely to attack the lesser-defended individuals but when the suite of predators was taken into account there was little variation in the overall predation pressure. This is potentially because some predators may not use the visual signal as a reference and are cuing in on other signals.
Diet analyses of several potential predators also showed predators of all guilds, including non-visually oriented predators, captured mimics with very low frequency. The predators that we used are known to feed on non-mimetic prey too (Jackson and Harding, 1982; Daniels, 1987; Platnick, 2000; Higgins et al., 2001; McGinley et al., 2015). Indeed, they fed on prey related to the mimics as evidenced by the positive results of designed primers targeting the mimics. We did not measure the availability of alternative prey so we do not have an absolute indication of relative encounter rates. However, birds learn to avoid both Müllerian models and mimics irrespective of the availability of alternative prey (Lindström et al., 2004). In addition, there are multiple species of ant and ant models distributed across the sampling habitat occupying both terrestrial and arboreal habitats. The majority of the species in the complex are also ants and ants are typically super abundant due to their sociality. So it seems likely the predators would see these animals on a regular basis.
Using a multi-disciplinary approach here, we faced several constraints. For example, measurements of mimic colour were based on photographs as we were unable to collect all mimics. To correct for inherent differences in illumination used during photographing mimics, the obtained RGB values were standardized but not linearised, and thus should be interpreted with caution. Similarly, the results of experiments with skinks must be interpreted with caution due to constrained randomisation used (Müllerian mimics first). The response of skinks could be affected by the constrained prey order (due to some kind of habituation). Yet, other predators used showed similar response to mimics as skinks, though the order of offered prey was fully randomised.
Here we present the first account of the golden mimetic complex, which we believe is an exciting model for future research. Our work to date is mainly descriptive, and it requires more explicit experimental approaches to generate robust conclusions about the evolution of this golden aposematic signal. For example, the relationship between the level of unpalatability and the quality of the golden signals needs rigorous testing with a greater number of mimics. This would also help in deciphering the role of less-defended mimics in the protection of the entire complex. Similarly, exploring the function of non-visual signals in deterring predators will elucidate how this mimicry ring works.
In conclusion, we present the first account of the golden mimicry complex. It consists of species that show considerable variation in their level and mode of defence, ranging from undefended Batesian mimics to highly defended Müllerian mimics, with most members of the complex somewhere in between. Our data suggest that all members of the golden mimicry complex receive quite similar net protection from a variety of predators presumably because they have a variety of defensive traits. We predict that mimetic complexes that incorporate a range of different forms of defence are not only more common than previously believed, but also more likely result in mutualism among the unequally defended members of the complex.
Arthropod species forming the complex were selected based on the presence of a golden colour pattern on the dorsal side of their body and body size falling within the range 3–15 mm. All Australian ants, and known ant-like mimics, were examined for a dorsal golden appearance. The specimens we examined were either field collected by the authors (Sydney, Blue Mountains, NSW outback, NSW eastern coast, Queensland eastern coast) or from museum collections (Australian Museum, Sydney). All other specimens we viewed were images from AntWiki (www.antwiki.org), Atlas of Living Australia (www.ala.org.au), or taxonomic papers (Ogata and Taylor, 1991; Shattuck and Barnett, 2006; McArthur, 2007; Kohout, 2010a, 2010b, 2012, 2013a, 2013b; Heterick and Shattuck, 2011; Casis and Symonds, 2012; Shattuck and Marsden, 2013).
The dorsal colour pattern was estimated from digital images of specimens (Figure 7) as performed in other studies on mimetic complexes (Wilson et al., 2012, 2015; Rodriguez et al., 2014). Field collected specimens (of 41 species) were killed by ethylacetate and arranged in their natural body position. Photographs were taken with a Canon Legria HF G10 against a white background and lit from above by two full spectrum light bulbs (Repti Glo 2.0 UVB, Eko Terra). Photographs of the remaining species (59 species) were obtained mostly from the personal collection of R. Kohout, followed by AntWiki, and Atlas of Living Australia. Prior to taking measurements all photographs were calibrated for the white and/or black colour within ImageJ to correct for different lighting conditions. The average value of each RGB colour component was estimated on the following body parts: dorsal side of head, appendages (femur II), pronotum, mesonotum, metanotum, petiole, first segment of the gaster, and the remaining segments of the gaster/abdomen in ants and wasps using ImageJ. Likewise, for hemipterans and spiders the average colour value of each RGB colour component of corresponding body parts (to that of ants) were examined including the pedipalps/chelicera, frontal third of prosoma, second third and last third of the prosoma, legs (femur III), the first half of the abdomen and the second half of the abdomen. In each species, we also measured the length of each body part (listed above) and an absolute area of the golden colouration on the dorsal side using ImageJ.
To assess colour pattern similarity among mimics and to find how many rings there are, we subjected 24 measures of the colour pattern, body size and area of golden patch of 100 mimics (Pekár et al., 2016) to the Non-Metric Multidimensional Scaling based on Bray-Curtis distance matrix. Because various body parts have different area and are thus differently conspicuous to predators, we used weighting of the measures by their relative size. Then we estimated the number of putative rings via k-means clustering using the vegan R package (Oksanen et al., 2013). This method used the simple structure index (ssi) as a partition criterion (Legendre and Legendre, 1998) as AIC is not available. Red Green Blue (RBG) contrast was estimated using 55 species of mimics. It was computed as the sum of differences in red, green, and blue values representing the golden and black colouration found on the body of mimics.

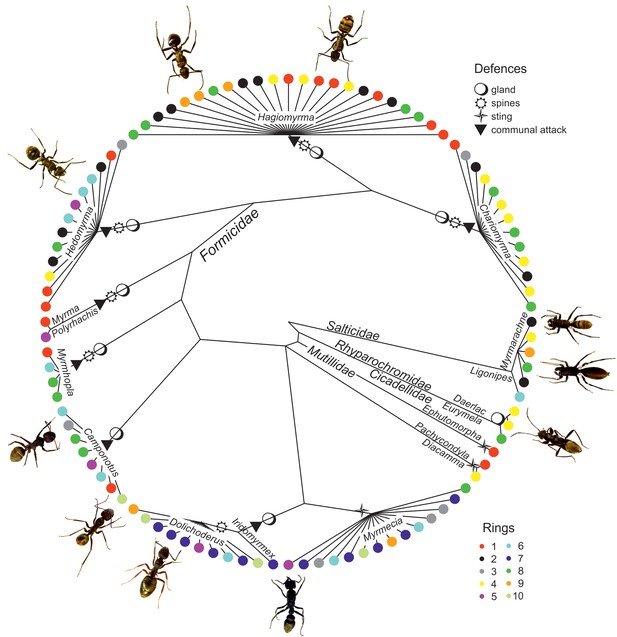

The phylogenetic relationship at the genus level among the golden mimics was reconstructed from a combination of published phylogenies (Moreau et al., 2006; Regier et al., 2010; Robson et al., 2015; Pekár et al., 2017). If species level phylogeny was not available, we used polytomic splitting at the species level. To test for phylogenetic inertia of classification to putative rings we used generalised least squares (GLS) with Pagel’s phylogenetic correlation structure (Paradis, 2006), in which low value of λ indicates low phylogenetic signal.
The mode by which the animals generated the golden colour (pigments or structural colours) was determined via microscopy. One specimen of each species from each genus (Ephutomorpha aurata, Camponotus aeneopilosus, Daerlac nigricans, Dolichoderus doriae, Polyrhachis ammon, P. vermiculosa, Ligonipes illustris, Myrmarachne luctuosa, Myrmecia tepperi, Eurymela rubrolimbata) was further examined via SEM. The golden gaster/abdomen was dried at a room temperature for 10 days, then mounted on a stub and coated with gold prior to viewing under a SEM Jeol JSM 648OLA. The presence of pigments on the gaster/abdomen was examined in ethanol-preserved specimens under Olympus stereomicroscope SZX9 and photographed with a digital camera mounted on the stereomicroscope.
The distribution of mimics across Australia was estimated using occurrence records from collections made by the authors, taxonomic papers (Ogata and Taylor, 1991; Shattuck and Barnett, 2006; McArthur, 2007; Kohout, 2010a, 2010b, 2012, 2013a, 2013b; Heterick and Shattuck, 2011; Casis and Symonds, 2012; Shattuck and Marsden, 2013), museum material deposited in the Australian Museum and Queensland Museum and records stored in the database of the Atlas of Living Australia. To test for an association between colour similarity and distribution overlap of species in each mimicry-ring in Australia we used a grid cell of 400 × 400 km. Within each grid occurrence of a species was classified as 1 (if present) or 0 (if not recorded) (Pekár et al., 2016). Then a distance matrix was created from the data using the Bray-Curtis method (Legendre and Legendre, 1998). Using the colour pattern data, we created a matrix and generated a distance matrix between species using Euclidean distance. To test a hypothesis that putative rings overlap in their geographic distribution, we studied the association between the geographical occurrence of mimics and colour similarity matrices by means of a Mantel test based on the Pearson correlation coefficient.
We estimated unpalatability in 100 mimics (workers and adults) from the complex using the following seven traits (xi): length of the sting, number of spines, total length of spines, size of mandibles, cuticle thickness, size of poison/pygidial gland, and performance of a communal attack (Pekár et al., 2016). Size, number of spines and size of mandibles were measured in one individual from each species. Cuticle thickness and size of the poison/pygidial gland could only be measured from freshly collected specimens. So we collected the mimics (workers in the case of ants) from a variety of places across Australia (Cairns, Townsville, Brisbane, Sydney, Blue Mountains, Broken Hill, Hay, Macquarie Port, Tweed Heads, Sunshine Coast, Hervey Bay, Agnes Water). In total, 75 specimens belonging to 41 species, eight genera, and four subfamilies were collected alive. Individuals were killed by freezing at −20°C. Cuticle thickness was measured by slicing the thorax (mesosoma) perpendicularly using a blade and then measuring it under a stereomicroscope to the nearest 0.01 mm. To measure the size of the gland, the gland was dissected from the gaster (thorax in bugs) using fine forceps, placed on a glass slide in a drop of water, and covered with a coverslip. The gland was approximately oval; thus the two perpendicular lengths of the gland were measured using an ocular ruler. We estimated gland area assuming a regular ellipsoid shape. We measured the sting length after pulling it from the abdomen using forceps. In each of these individuals we also measured the gaster/abdomen length, and thorax length. The ability to perform a communal attack (i.e. attack by several individuals) was taken from the literature and was assumed to be consistent throughout each genus. To estimate these traits for the remaining ant species that we failed to collect we used an interpolation based on proxy measures using 55 specimens: the size of both the poison/pygidial gland and sting length were regressed (using a linear model) from the size of the gaster, and cuticle thickness was regressed from the size of the thorax. These regression models (Figure 8) were then used to predict values for species we were unable to sample. The gland content varies among species of ants from different subfamilies: Formicinae ants possess formic acid (O'Rourke, 1950; Stumper, 1952), Dolichoderinae ants possess terpens, such as iridodial and dolichodial (Cavill, 1960; Cavill and Hinterberger, 1960), and Myrmeciinae ants possess indole (Jackson et al., 1990). The metathoracic scent gland in true bugs produces pungent pyrazines and alkenals (Millar, 2005). As the relative potency of these chemicals is unknown, we considered all these chemicals to be similarly noxious.
Various defensive traits measured here are not similarly effective against predators. Yet we assumed that their effect is similar because different predators adapted to deal with different defences of prey. We further assumed that the effect of these traits on predators is additive. So to quantify unpalatability (uj) of the jth mimic we summed the ith trait values, which were scaled by their maximal value due to difference in range: . We also computed a simple sum of defensive traits and found that the two measures are highly correlated (Pearson correlation, r = 0.72, p<0.0001). As the index of unpalatability includes more details we used it in all analyses. In order to test that the complex is dominated by moderately-defended species we used a Shapiro-Wilk test to test for a shape of a normal distribution of the unpalatability. To test whether the rings are composed of a similar range of unpalatable species, we used Bartlett test of variance homogeneity.

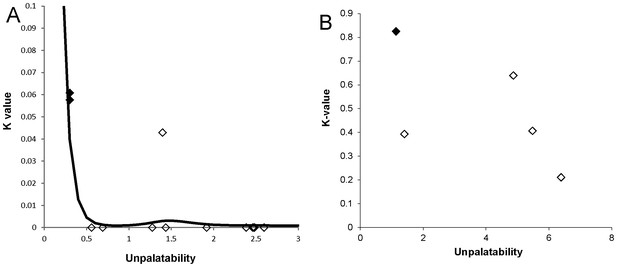

To test a hypothesis that unpalatability is related to the extent of gold colouration we used GLS to model the relationship between index of unpalatability and the absolute golden area (which is more ecologically relevant than relative area). The linear predictor included a quadratic term as the response was an area. A GLS model with Brownian motion model correlation structure was used to correct for the effect of phylogeny (Pekár and Brabec, 2012). To account for the fact that for some species, some defensive traits could not be measured (and were interpolated) we used weights that corresponded to the proportion of observed characteristics. Both variables were affected strongly by the body size so this measure needed to be included in the analysis. The body size had strong phylogenetic inertia (GLS, Pagel’s λ = 1.08), thus by controlling for phylogeny the body size effect was included too, therefore use of the body size as a covariate was not necessary.
We investigated the diet of several predators on the campus of Macquarie University, North Ryde, Sydney, Australia. The campus in addition to buildings, contains a patch of native forest, several rocky streams, and open green space interspersed with trees where the predators could have been collected and observed which would be very difficult or even impossible in the pristine forest where the selection have taken place. The predators included noisy miners, lizards (skinks), and a number of arthropods that occur on the trunks and the immediate vicinity of Eucalyptus trees, where the mimics occur (see Table 2). We sampled arthropods from under the bark of more than 50 trees and selected those that were predatory. Arthropods were immediately placed into 99% pure ethanol and then in a freezer at −20°C. Co-existing predators were selected among the most abundant species to represent three guilds according to their trophic strategy and prey detection modality: (1) visually-oriented euryphagous predators, (2) non-visually oriented ant-adverse predators, and (3) specialized ant-eating predators. We used the information of their gut content and data from the literature (Jackson and Harding, 1982; Platnick, 2000; Higgins et al., 2001; McGinley et al., 2015) to identify those that feed on prey related to the mimics. If more than 10% of individuals of a specific predator species were positive for primers designed for ants, the species was classified as ant-eating. Otherwise, the species was classified as euryphagous.
We collected 48 faecal samples from Eulamprus quoyii (Duméril et Bibron) (Eastern Water Skink, Scincidae, Squamata) and 48 samples from Manorina melanocephala Latham (Noisy Miner, Meliphagidae, Passeriformes) from across the Macquarie University campus during 2014 and 2015. These two predators were selected because they feed on arthropods, were most abundant among congeners and foraged on tree trunks. Eulamprus quoyii were collected from both rocky streams (human-altered) and forest-edge by noosing. Lizards typically defecated immediately upon capture and in some cases we gently massaged the abdomen to expel a faecal pellet. Manorina melanocephala faeces were collected at temporary feeding stations to avoid handling the birds. We lured birds to a large canvas (3 × 5 m) by placing small amounts of sweet cake near a water bowl and perches made from branches. The stations were monitored continuously. We sampled across a wide area in order to target specific family groups and the sampling was short enough to ensure that only droppings produced from previous meals were collected. We stored both the lizard and bird faecal samples individually in Eppendorf tubes in 80% ethanol in a −20°C freezer. This work was approved by the Animal Ethics Committee of Macquarie University (ARA 2014/031).
The gut of predators progressively degrades DNA through digestion (Sint et al., 2011). To account for the shortened DNA fragments we designed specific primers, which amplified fragments no longer than 300 bp (Deagle et al., 2006). This length is known to be a good compromise that increases the likelihood of amplification while still being long and variable enough to distinguish different prey taxa (Herbert et al., 2003; Zeale et al., 2011). A fragment of the COI gene was PCR amplified using LCO1490 (5´-GGTCAACAAATCATAAAGATATTGG-3´) and HCO2198 (5´-TAAACTTCAGGGTGACCAAAAAATCA-3´) primers (Folmer et al., 1994) from representatives of potential prey found across the Macquarie University campus (Hemiptera: Daerlac apicalis, D. cephalotes, D. nigricans; Formicidae: Myrmecia piliventris, M. tepperi, Camponotus aeneopilosus, Polyrhachis ammon, P. aurea, P. ornata, P. vermiculosa; Araneae: Myrmarachne luctuosa, M. erythrocephala) and predators (Araneae: Clubiona robusta L. Koch, Clubiona sp.; Euryopis umbilicata L. Koch, Euryopis sp.; Hemicloea sp. 1, Hemicloea sp. 2; Holoplatys planissima (L. Koch); Lampona murina L. Koch; Ocrisiona sp.; Sandalodes superbus (Karsch); Servaea incana (Karsch)).
Each PCR (20 μL total volume) consisted of 5 μL of DNA, 1 μL of each primer (10 μM), 0.4 μL of 10 mM dNTP´s, 2.2 μL of 25 mM MgCl2, 2 μL of 10x PCR buffer, 1 μL of bovine albumin serum (BSA), 0.3 μL of Taq Polymerase (5 u/μL), and 7.1 μL of DNA-free water. PCR conditions were as follows: initial denaturation at 94°C for 3.5 min; 38 cycles of 94°C for 1 min, 44°C for 1 min (annealing temperature), 72°C for 1.5 min; a final extension at 72°C for 7 min. PCR products were detected by electrophoresis in 2% GoldView-stained agarose gels. Amplified products were purified using the QIAquick PCR Purification Kit (Quiagen) and sequenced in both directions with BigDye Terminator v3.1 Sequence Kit (Applied Biosystems). Sequencing was carried out on an ABI Prism 3130 Genetic Analyzer (Applied Biosystems). Sequences were assembled in Sequencher 4.8 (Gene Codes Corporation, Ann Arbor, MI) and aligned using ClustalW (Thompson et al., 1994) implemented in MEGA 5.1 (Tamura et al., 2011). Based on sequence similarities/differences, group-specific primers, which would amplify DNA of mimics in the predator guts, were designed using Amplicon.b08 (Jarman, 2004). Four primer pairs were tested with all prey and predator specimens used in this study to ensure that the primers amplify DNA of the studied prey groups only: primers MyrmF and MyrmR amplified Myrmarachne spiders, DaerF and DaerR amplified Daerlac true bugs, FormF and FormR amplified Camponotus, Polyrhachis and Myrmecia ants, and BothmF and BothmR primers amplified Bothriomutilla mutillid wasps (for primer sequences see Table 4) and to reject cross-amplifications with the predators. The sequences of cytochrome c oxidase obtained from the studied predators and the mimics are deposited in GenBank (Accession numbers KX980351--KX980391).
DNA was extracted from 553 spider abdomens using DNeasy Blood and Tissue Kit (Qiagen) following the manufacturer’s animal tissue protocol with a change in final step when only 50 μL of elution buffer was used. DNA from fecal samples (50 samples of skinks and 48 samples of noisy miner) was extracted using the DNeasy mericon Food Kit (Qiagen) following manufacturer’s Small Fragment protocol. PCRs were performed using Multiplex PCR kit (Qiagen) under the following conditions: initial denaturation at 95°C for 15 min; 42 cycles of 94°C for 30 s, annealing temperature for 90 s (47.5°C when using Bothm primers, 43 and 45°C with the other primers), 72°C for 90 s; and a final extension at 72°C for 10 min. The reaction mixture total volume of 20 μL consisted of 10.6 μL of Multiplex PCR Master Mix, 1.8 μL of Q-Solution, 2.1 μL of RNase-free water, 0.5 μL of 10 μM forward and 0.5 μL of reverse primers, and 4.5 μL of DNA. PCR with Bothm primers was done separately whereas three remaining primer pairs were used in one multiplex reaction. PCR products were detected by electrophoresis in 2% GoodView-stained agarose gels. PCR was repeated for each sample and primer combination at least three times to exclude falsely negative results. In positive samples, PCR was repeated once again using primers modified with MID identifiers (i.e. multiplex identifiers, 10bp-long barcoding sequences). Each sample was thus marked with a unique combination of barcodes. PCR products were purified using a QIAquick PCR Purification Kit (Qiagen) according to the manufacturer’s protocols. The concentration of each PCR product was measured using NanoDrop 8000 UV-Vis Spectrophotometer (Thermo Scientific, Waltman, MA) and assessed comparing to 50 bp ladder (Fermentas). Five μL of 50 μg/μL PCR products was pooled into the same sterile vial and sent for sequencing.
Sequencing library was prepared using Ion Plus Fragment Library Kit and Ion PI Template OT2 200 Kit v3 (Thermo Fisher Scientific). Sequencing on the Ion Proton System was provided by the SEQme company (Dobříš, Czech Republic). Sequencing data were processed using the Galaxy platform (https://usegalaxy.org/), BioEdit 7.2.5 (Hall, 1999) and MEGA 5.10. Reads were split according to their MIDs resulting in files corresponding to individual predators. Then, forward and reverse primers were removed and sequences were filtered according to their length (<120 or 180 bp) to remove dimers or too short reads. The sequences were collapsed and rare haplotypes (containing <2 identical sequences) were removed. Furthermore, sequences with stop codons and indels causing frameshifts were also removed. Remaining haplotypes were clustered into molecular operational taxonomic units (MOTU) using jMOTU 4.1 (Jones et al., 2011) with a 4 bp cut-off (corresponding to 3% sequence divergence). Each MOTU was compared to the GenBank database using megablast and BOLD database and to the sequences of mimics obtained within this study. NGS produced 11 068 904 informative reads from all predators of which 614,273 reads belonged to the mimics.
Availability of mimics to the predators was estimated by visual search on the trunks and below bark of 20 gum trees randomly selected on the campus. On each tree, abundance of mimics was surveyed by one person up to the height of 2 m from the ground for a period of 30 min on a sunny day. All mimics were collected, brought to the laboratory and identified to species. To test a hypothesis that the frequencies of captured mimics by all predators and those available at the microhabitat of predators are similar we used Chi-square test.
In order to estimate the attack rate exerted by the whole community of predators as precisely as possible, we had to take into account two important variables that affect the predation: (1) the relative frequency (fij) of positively screened ith predator individual for each jth mimic; (2) the capture probability of araneophagous spider predator (Lampona), where body size is a strong predictor of the likelihood of predation. The capture probability was estimated for each spider predator and mimic (Pekár et al., 2016). This latter adjustment was necessary in order to take into account the fact that spiders could have captured juvenile Myrmarachne or Daerlac individuals, which are not golden mimics and could not be distinguished from adult specimens by molecular methods.
The functional model for the capture probability was obtained from data on eight spider species representing different guilds (Nentwig and Wissel, 1986). The logistic function was , where ratioij is the mimic/predator body size ratio. The ratio was estimated by measuring the body size of ten collected specimens of each predator and mimic. Then the overall pressure by the community of predators was estimated as a sum of all attack rates by means of the killing value, Kj (Varley and Gradwell, 1960): . To test whether natural mortality caused by predation is related to unpalatability of mimics we used nonparametric regression as the response variable had non-standard distribution, namely generalized additive model (GAM) from the mgcv package (Wood, 2011). We regressed log-transformed K-values (in order to stay within positive bounds) against unpalatability index.
For predation trials we selected five species of mimics found on the Macquarie University campus. The five species represented a gradient of unpalatability (Table 3) within the mimetic complex. We included examples of the most unpalatable to the least palatable mimics: the ants Polyrhachis ammon, Polyrhachis vermiculosa, and Camponotus aeneopilosus, the true bug Daerlac nigricans, and the spider Myrmarachne luctuosa. Based on their unpalatability, the ants and bugs were predicted to be Müllerian mimics, while the spider was predicted to be a Batesian mimic. Unpalatability was re-estimated for these five species using ten individuals from each species. All attributes as measured previously were re-measured with the addition of a behavioural measure. The behavioural measure was the frequency of biting in the field following agitation with forceps. The addition of an extra measure adjusted the previous estimated unpalatability (uj) but the relative relationship of unpalatability between species remained the same.
We used Eulamprus quoyii as our visually-oriented euryphagous vertebrate predator. At least 14 days prior to the experiment adult skinks were placed singly in a white container (70 × 50 × 40 cm) at constant temperature 26°C and L:D = 12:12 regime. They were fed regularly with three crickets (Acheta domestica) three times a week. The skinks were then starved five days prior to the predation trials. One day prior to the trial a layer of butter was applied to the sides of the white container to prevent arthropods from climbing the walls and escaping. At the start of a trial a lizard was left to settle down for a period of 5 min. A prey item was released into the container and the behaviour of the skink during the 5 min trial was recorded with a fixed video camera positioned above the container. Five minutes was deemed sufficient, as previous feeding trials with crickets have shown this species of lizard will attempt to capture prey within 1 min. If the potential prey survived it was removed, and the skink was left for 2 min to settle down. Another prey item was then released and so on until all five mimic prey types were used. As a non-mimic control, we used juveniles of the spider, Badumna insignis L. Koch, which was of a similar size to the other species but was not a mimic as it lacked golden colouration. At the end a cricket was released as a positive control. Results of trials were used in the analysis only if the cricket was captured.
The prey was offered to skinks using a constrained randomisation. There was randomisation within Müllerian mimics (ants) followed by randomisation within less defended mimics (Daerlac, Myrmarachne) and non-mimic prey (Badumna) because the predator must learn unpalatability by encountering the unpalatable models first. The learned aversion was necessary because skinks were collected in the wild a number of months prior to the trials and fed with crickets since then. We used 26 skinks in total. Ants, spiders and bugs were collected a few days prior to the trial. From the video footage we recorded whether prey was consumed or spat out.
The spider Lampona murina L. Koch was used as a nonvisually-oriented ant-adverse predator that will not capture ants but other spiders. Twenty-five late-instar juvenile Lampona spiders were collected from the bark of gum (Eucalyptus sp.) trees on the Macquarie University campus and kept individually in tubes (1 cm diameter, 10 cm long). Spiders were placed in a chamber set to 23°C and L:D = 16:8 regime. Spiders were fed with a clubionid spider once a week and provided with a moistened piece of gauze. Lampona was not fed seven days prior to a trial. During a trial, an individual from the five mimetic prey species and one non-mimic spider (Clubiona sp.) was released into the Petri dish in a random order (diameter 6 cm). The prey was offered to Lampona in a random order. Induction of learned aversion was not necessary because the spiders were collected from the field only a week prior to the experiment. If the prey was not captured within 30 min we replaced it with a new one until one prey was captured. If the prey was captured, another prey was offered seven days later. In each trial we recorded capture frequency of Lampona.
Finally, we used the spider Servaea incana (Keyserling) as a specialised ant-eating predator. Twenty-seven adult individuals of Servaea spiders were collected from gum trees on the Macquarie University campus and placed singly in a Petri dish (8 cm diameter) and kept at 23°C and L:D = 16:8. Spiders were fed with small crickets once a week and provided with a moistened piece of gauze. We did not feed Servaea for five days prior to a trial. One individual of a mimic prey species was released into the dish. The prey was offered to Servaea in a random order. Induction of learned aversion was not necessary because spiders were collected from the field only a week prior to the experiment. If the prey was not captured within 5 min we replaced it with a new one. If the prey was captured another prey was offered five days later. In each trial we recorded whether the prey was captured as well as the behaviour of Servaea and prey.
To compare the frequency of capture among used prey types for each predator, relative frequencies of prey capture from Eulamprus quoyi or Servaea experiments were subjected to generalised estimating equations (GEE) from the geepack package with a binomial error structure due to repeated use of the same skink individuals with different prey. The exchangeable association structure was used (Varley and Gradwell, 1960). To test whether the post-attack reaction of the skinks was related to prey unpalatability we used generalized linear model with binomial error structure (GLM) of scores of the post-attack reaction of the skinks and the unpalatability index. The post-attack reaction was ranked as follows: 0 if the mimic was eaten, one if it was eaten but the skink cleaned its mouth, and two if the skink spat out the mimic. The ranks were then scaled to 0–1 range.

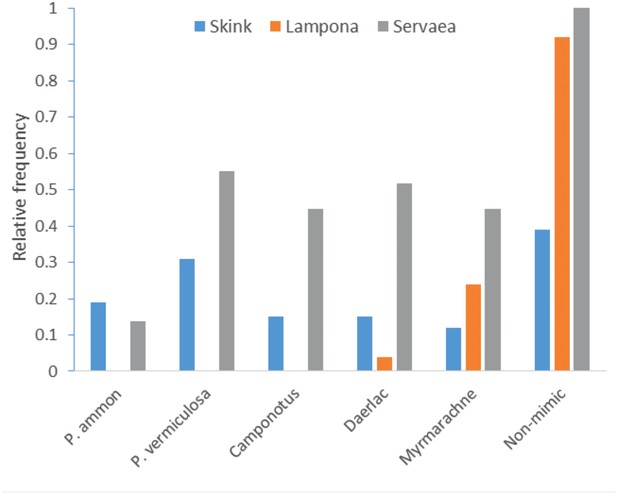

To compare the relative capture frequencies of Lampona on the prey species a Cochran Q test was used. To test whether overall mortality of prey is related to its unpalatability we used a general linear model (LM) of the sum of all probabilities of capture (pij) by the three predators and unpalatability index. The sum of capture rate was expressed as a killing value, Kj using the formula: .
All statistical analyses were performed in R (R Core Team, 2013). For each model, diagnostic plots were used to assess model adequacy, such as variance homogeneity and distribution of residuals.
XXXII. Contributions to an Insect Fauna of the Amazon Valley. Lepidoptera: HeliconidaeTransactions of the Linnean Society of London 23:495–566.https://doi.org/10.1111/j.1096-3642.1860.tb00146.x
Dynamics of multiple signalling systems: animal communication in a world in fluxTrends in Ecology & Evolution 25:292–300.https://doi.org/10.1016/j.tree.2009.11.003
The chemistry of ants. IV. Terpenoid constituents of some Dolichoderus and Iridomyrmex speciesAustralian Journal of Chemistry 13:514–519.https://doi.org/10.1071/CH9600514
The cyclopentanoid monoterpenesReviews of Pure and Applied Chemistry 10:169–183.
Conspicuousness is correlated with toxicity in marine opisthobranchsJournal of Evolutionary Biology 23:1509–1518.https://doi.org/10.1111/j.1420-9101.2010.02018.x
Aspects of the aquatic feeding ecology of the riparian skink Sphenomorphus quoyiiAustralian Journal of Zoology 35:253–258.https://doi.org/10.1071/ZO9870253
BioEdit: a user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NTNucleic Acids Symposium Series 41:95–98.
Barcoding animal life: cytochrome c oxidase subunit 1 divergences among closely related speciesProceedings of the Royal Society B: Biological Sciences 270:S96–S99.https://doi.org/10.1098/rsbl.2003.0025
Revision of the ant genus Iridomyrmex (Hymenoptera: Formicidae)Zootaxa 2845:1–174.
Handbook of Australian, New Zealand and Antarctic Birds, Volume 5, Tyrant-Flycatchers to ChatsMelbourne: Oxford University Press.
Contents of the pygidial gland of the ant Myrmecia nigricepsNaturwissenschaften 77:187–188.https://doi.org/10.1007/BF01131165
Intraspecific interactions of Holoplatys sp. indet., a New Zealand jumping spider (Araneae: Salticidae)New Zealand Journal of Zoology 9:487–510.https://doi.org/10.1080/03014223.1982.10423881
A review of the Australian Polyrhachis ants of the subgenera Myrmhopla Forel and Hirtomyrma subgen. nov. (Hymenoptera: Formicidae: Formicinae)Memoirs of the Queensland Museum 55:167–204.
A review of the distribution of the Polyrhachis and Echinopla ants of the Queensland wet tropics (Hymenoptera: Formicidae: Formicinae)Memoirs of the Queensland Museum 46:183–209.
A review of the Australian Polyrhachis ants of the subgenera Myrma Billberg, Myrmatopa Forel, Myrmothrinax Forel and Polyrhachis Fr. Smith (Hymenoptera: Formicidae: Formicinae)Memoirs of the Queensland Museum 56:25–59.
Revision of Polyrhachis (Hagiomyrma) Wheeler, 1911 (Insecta: Hymenoptera: Formicidae: Formicinae)Memoirs of the Queensland Museum 56:487–577.
A review of the Polyrhachis continua species-group of the subgenus Myrma Billberg (Hymenoptera: Formicidae: Formicinae) with keys and descriptions of new speciesAustral Entomology 40:13–46.
Numerical EcologyAmsterdam: Elsevier.
Why are there so many mimicry rings? Correlations between habitat, behaviour and mimicry in Heliconius butterfliesBiological Journal of the Linnean Society 55:159–180.https://doi.org/10.1111/j.1095-8312.1995.tb01057.x
A Müllerian mimicry ring in Appalachian millipedesProceedings of the National Academy of Sciences of the United States of America 106:9755–9760.https://doi.org/10.1073/pnas.0810408106
A key to Camponotus Mayr of AustraliaIn: R. R Snelling, B. L Fisher, P. S Ward, editors. Advances in Ant Systematics (Hymenoptera: Formicidae): Homage to E.O. Wilson - 50 Years of Contributions. Memoirs of the American Entomological Institute, 80. Gainesville: American Entomological Institute. pp. 290–351.
The experimental method of testing the efficiency of warning and cryptic coloration in protecting animals from their enemiesProceedings of the Academy of Natural Sciences of Philadelphia 64:281–364.https://doi.org/10.5962/bhl.title.55148
Effectiveness in nature of the so-called protective adaptations in the animal kingdom, as illustrated by the food habits of Nearctic birdsSmithsonian Miscellaneous Collections 85:1–201.
Natural history and display behaviour of Servaea incana, a common and widespread Australian jumping spider (Araneae : Salticidae)Australian Journal of Zoology 63:300–319.https://doi.org/10.1071/ZO15032
Pheromones of true bugs. The chemistry of pheromones and other semiochemicals IITopics in Current Chemistry 240:37–84.
Uber die vortheile der mimicry bei schmetterlingenZoologischer Anzeiger 1:54–55.
A new theory of mimicry in insectsThe Australian Zoologist 5:10–104.
vegan: Community Ecology Package. Rvegan: Community Ecology Package. R, package version 2.0-10.
Analysis of Phylogenetics and Evolution with RNew York: Springer.
Modern Analysis of Biological Data. 2. Linear Models with Correlation in RBrno: Masaryk University Press.
Revision of eastern australian ant-mimicking spiders of the genus Myrmarachne (Araneae, Salticidae) reveals a complex of species and formsZoological Journal of the Linnean Society In press.
A relimitation and revision of the Australasian ground spider family Lamponidae (Araneae: Gnaphosoidea)Bulletin of the American Museum of Natural History 245:1–328.https://doi.org/10.1206/0003-0090(2000)245<0001:ARAROT>2.0.CO;2
R: A language and environment for statistical computingR Foundation for Statistical Computing, Vienna, Austria.
Evolutionary transitions of complex labile traits: Silk weaving and arboreal nesting in Polyrhachis antsBehavioral Ecology and Sociobiology 69:449–458.https://doi.org/10.1007/s00265-014-1857-x
Australian species of the ant genus Diacamma (Hymenoptera: Formicidae)Myrmecological News 8:13–19.
Optimizing methods for PCR-based analysis of predationMolecular Ecology Resources 11:795–801.https://doi.org/10.1111/j.1755-0998.2011.03018.x
Batesian, quasi-Batesian or Müllerian mimicry? Theory and data in mimicry researchEvolutionary Ecology 13:755–776.https://doi.org/10.1023/A:1010871106763
Données quantitatives sur la sécrétion d'acide formique par les fourmisComptes Rendus Hebdomadaires Des Seances De l'Academie Des Sciences 234:149–152.
Molecular phylogenetic evidence for a mimetic radiation in peruvian poison frogs supports a Müllerian mimicry hypothesisProceedings of the Royal Society B: Biological Sciences 268:2415–2421.https://doi.org/10.1098/rspb.2001.1812
MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methodsMolecular Biology and Evolution 28:2731–2739.https://doi.org/10.1093/molbev/msr121
The distribution of bumblebee colour patterns worldwide: possible significance for thermoregulation, crypsis, and warning mimicryBiological Journal of the Linnean Society 92:97–118.https://doi.org/10.1111/j.1095-8312.2007.00878.x
Repeated evolution in overlapping mimicry rings among north American velvet antsNature Communications 3:1272.https://doi.org/10.1038/ncomms2275
Fast stable restricted maximum likelihood and marginal likelihood estimation of semiparametric generalized linear modelsJournal of the Royal Statistical Society: Series B 73:3–36.https://doi.org/10.1111/j.1467-9868.2010.00749.x
Taxon-specific PCR for DNA barcoding arthropod prey in bat faecesMolecular Ecology Resources 11:236–244.https://doi.org/10.1111/j.1755-0998.2010.02920.x
Merijn R KantReviewing Editor; University of Amsterdam, Netherlands
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]
Thank you for submitting your work entitled "The golden mimicry complex uses a spectrum of defences to deter a community of predators" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Tom Reader (Reviewer #1), and the evaluation has been overseen by Merijn Kant as Reviewing Editor and Ian Baldwin and Detlef Weigel as Senior Editors.
Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work at this time will not be considered for publication in eLife. We like, however, the work in principle, and would very likely consider a thoroughly revised version again. We would treat it as a new submission, but try to retain the same reviewers. Note that this is in line with eLife policy, to invite revision directly only when the requested additional analyses can be reasonable accomplished within about two months. We estimate that this will take considerably longer in this case.
The referees agreed that this complex and rich system is novel and fascinating, but also noted that the sheer complexity of the system is also its weakness for analytical purposes. However, the referees are also confident that a presentation more firmly rooted into clear testable hypotheses to create a more logical question-answer structure will provide the insight, analytical coherency and perspective necessary for reaching a wide audience – like that of eLife – with a convincing story. The following points were prevalent during the discussion among the referees:
1) Justification and robustness of the morphometric index. You used a morphometric index for perceptual variables without justifying or critically evaluating the key assumptions used for the weighing. This makes it very difficult to understand how meaningful and robust this methodology is. Hence the weighing needs more explicit justification and it will be helpful to explore the robustness of the methodology by using alternative weighing of different variables – such as an alternative relative scaling of the different types of defenses – to get a sense of the validity of the claims.
2) A structure rooted in the testing of clear hypotheses. Overall you did not use a compelling question-answer structure and your analyses are often not founded on explicit logical assumptions or observations (e.g. supported by literature) so results can often not be compared with the expectations. You need to show the reader which observations indicate which type of ecological processes more clearly to separate beliefs from real insights. As you can see in the separate referee reports, the referees were also quite critical on many of the individual analyses. Designing the manuscript around a hypothesis-based framework will probably also provide a much more convincing basis for making and justifying explicit analytical decisions; for discussing these and for evaluating their robustness.
Taken together, the referees do believe that this fantastic and complex data set may encompass an exciting story but extracting this story in a convincing manner will require the logical and analytical structure of the manuscript to be revised from top to bottom.
This exciting manuscript describes an extensive and novel mimicry complex. It is a very substantial study, employing a wide range of methods to unpick the biology of the mimicry complex. The work provides the research community with an excellent introduction to a new potential study system with which to address important evolutionary questions. I therefore think the study is novel, interesting to a wide audience, and important, and I applaud the authors for the huge effort required to collect the data. I especially like the use of next gen sequencing to identify real patterns of predation in the field (almost exactly what I was planning to do next year!). However, I am concerned that many of the conclusions are seriously flawed, and that some of the methods/rationale are not fully explained. I explain these concerns below.
1) Body size is a confounding variable in most of the analyses, and this diminishes the importance of many of the paper's conclusions. In the discussion, the authors briefly acknowledge the fact that body size might correlate with their measure of noxiousness. [Indeed, some of the components of noxiousness them ARE body size (subsection “Mimetic noxiousness”: missing values were taken from measures of body size).] The authors (rightly) point out that the absolute (as opposed to relative) size of defences such as spines may indeed matter to predators, so controlling for body size may reduce the information content of their noxiousness measure. However, body size matters to predators in many ways not directly related to the absolute size of defences: large prey have higher nutritional value and larger handling times, they may be unavailable to small predators because of anatomical constraints, they may be more likely to act as intraguild predators of small predators etc. So any relationship between predation and noxiousness (e.g. Figures 4D and 5A) may result from effects of body size other than those identified by the authors. The problems go beyond this: some of the interesting relationships identified in the results appear to be simple artefacts because of correlations with body size. For example, the relationship in Figure 4B shows an absolute measure of surface area (which obviously reflects body size) against noxiousness (which is known to reflect body size). Does this not just say that large animals have large surface areas? The authors have data on body size, so there is no difficultly in examining which relationships hold when body size effects are removed, either by expressing the constituent parts of noxiousness relative to body size, or by including body size as an alternative independent variable in the analysis. I agree with them that this will involve disposing of some of the useful biological information in the current noxiousness measure, and I would recommend displaying both kinds of analysis. If the relationships only hold when body size is not removed, the conclusion must be that any identified relationships involving noxiousness *may* (or may not) result from impacts of body size other than those related to the absolute size of spines, stings, venom glands etc.
2) The cluster analysis does not seem to be reported fully, and the groupings are not very obvious from Figure 3 (although the inset in Figure 1 helps a bit). How strong was the support for k = 10? Can you provide AIC scores for a range of models? The Manova doesn't really help in this respect, because any (arbitrary) partitioning of multivariate space would yield significantly different groupings. Which raw variables are important in distinguishing the clusters? How important is body size? I don't think it matters too much if the support for the clusters is weak: the existence of separate rings does not seem very important to the main points of interest in the paper. You might even ditch consideration of the rings altogether, or write a separate paper in which you consider the details.
3) Subsection “Mimicry and degree of noxiousness”. I don't see why the data suggest that "noxiousness promotes speciation", and Figure 4C seems only to confirm the idea that golden colours are (honestly) associated with defences: a genus with lots of (defended) golden species will have high mean noxiousness.
4) Some of the inferences and analysis are not very convincing.
A) Subsection “Predation pressure by a community of predators”: This analysis is not very convincing, because of small samples sizes, and the shape of the dataset. Which error structure does this model have? Given that the K value is 0 for most species, it seems unlikely that it is normal. Arguably it would be safer to use a Mann Whitney to compare the ranked k values for the least defended species (n = 2) with those for the more defended species.
B) The inferences made from the comparison of attack rates in Figure 6 are very dependent on the outcome for the non-mimics, for which there is no taxonomic replication (one species was chosen in each experiment). I don't find the pattern very convincing for this reason – is there a risk that the non-mimic was chosen (even subconsciously) because it was a particularly plausible prey species? Also, more specifically, since Lampona spiders were chosen because they are "ant-avoiders", does the pattern in the graph not just confirm that categorisation (i.e. the argument is circular)?
C) Subsection “Trials with selected predators” and Figure 5B: This is a very weak test (n = 4), and the data show no trend at all, so I would avoid even implying some support for your prediction here.
D) Subsection “Trials with selected predators”. Prey type is confounded by order in the skink experiment. Any effect of defence/mimicry could be simply the result of some kind of habituation. Did you really need to rely on learned aversion during the experiment? Since these are wild-caught predators, could you not have assumed that the skinks already had learned (or innate) avoidance of aposematism? Why did you change to the more obvious randomised design with the spiders as predators (spiders learn too!)?
5) The colour analysis is not fully explained. I am confused about the colour measurement (Materials and methods section). How many taxa were photographed by the authors, and how many species were evaluated from the literature? Surely variation in lighting and camera sensors creates problems for measurements made from the literature? More importantly, how are the average RGB values used in the analysis? What are the 26 variables used in the cluster analysis (Statistical analyses)? Do these include measures of area as well as mean RGB values? Why do you use only "golden area" in Figure 4, and how was this measured/defined? The microscopy is not dealt with very systematically, either in the Materials and methods or the Results. What exactly did you measure/classify for each specimen, and what are we supposed to take from Figure 2?
6) I note that it is fairly unusual in the literature to use "noxiousness" to include physical defences such as spines, as well as chemical and behavioural defences. But the authors' choice of term does seem consistent with a strict dictionary definition.
In this manuscript, Pekar and colleagues are describing the ecology of mimicry of a large assemblage of species displaying ant-like appearance in South-eastern Australia. The authors provide a wealth of ecological and morphological data to better understand the relationships between those species. The authors provide morphological measurements, estimates of noxiousness, and aim at confronting those to predatory data based on DNA sequencing from predator droppings and from behavioural experiments. The authors show that the rings are very speciose. They claim that the multiple ways of expressing defence, including distastefulness, venom and stingers, etc., contribute to equalling out the protection against a diverse set of predators, and lead to mutualistic interactions between the species participating in the mimicry ring.
The topic is interesting and understanding how highly speciose mimicry assemblages are formed is an important conundrum in the face of lab and theoretical results suggesting that mutualistic relationships are rare. I have not been convinced that the conclusions are unequivocally derived from the analysis of the data.
Firstly, the manuscript however is a composite account of all the kind of data obtainable on this mimicry ring, which together may hopefully help us form a better idea of the processes involved in this mimicry ring, but none of which is particularly convincing in its own right. The philosophy of this seems to be measuring as many things as we can, churning them into a multivariate analysis and taking this as a meaningful quantification of key ecological variables -morphology, defence/noxiousness, visual pattern, resemblance, etc. Unfortunately most of this is based on the postulate that if we measure many variables, they will together average out to something meaningful and hopefully not too far from the variation that is relevant to selection. I don't subscribe to this point of view. Resemblance is measured using a number of colour variables on different body parts, but it is impossible to understand how legitimate the absence of weighting is, in order for the composite measure to describe to morphological resemblance in a way that is relevant for predators. Similarly, noxiousness, an eminently perceptual notion, is "quantified" arbitrarily using size measurements of defence organs; although those don't necessarily correlate well with the perception of the noxious effects (tiny ants may have powerful venom, elongate mandibles may produce less painful a bite than short stubby mandibles, etc.). Generally, measurements are carried out on collection specimens or photographs, so I have less faith than the authors in the relevance of that to selection pressures in the wild. There is a hint of an effort to link perception with measurements, in Figure 4D, but it is based on 6 data points (actually 4, since defenceless insects bring no information here).
Secondly, what are the questions, really? This manuscript is lacking clear hypotheses to be tested with real data. For each of the methods used, I would like to have a clear hypothesis spelled out, derived from an identifiable prediction taken form the literature, or perhaps from observation, and which the authors can test. The main conclusions of the manuscript, as it stands, lack support and perspective, and are generally muddled and based on "feelings", because the manuscript is not actually answering clear questions for which the study systems is well suited. As I detail below, the manuscript has many instances where a question emerges out of the blue, with no support from the literature, or where the logic is mysterious, or where the conclusions don't easily derive from the results.
For instance it is not clear why defence and signal strength should be correlated in the first place, otherwise Batesian mimics should not exist. The expectations regarding the consequence of having a diversity of defence mechanisms are absent, so we can't really evaluate whether or not the assemblage studied is indeed influenced by the distribution and structure of the defence variations. Similarly, the community of predators is indeed rich and diverse but the expectations of having multiple predators with different diets and affected in very different ways by prey defences are unclear, so again how this influences the evolution of this mimicry assemblage is impossible to tell. The "rings" the authors describe are analysed in terms of their geographic overlap but we don't know what the expectations are under different possible scenarios producing those rings, or what might underlie their clustered distribution in the morphological space. The authors ask whether mimicry should promote species richness in a clade, but why should mimetic clade be more speciose? Again the foundations of that conjecture are quite unclear. Those are just examples, and the net result is a manuscript where none of the data provide compelling insight into the mechanisms involved in the convergent evolution in the mimicry assemblage under study.
On another note, I praise the authors for the effort on investigating the diet of predators and establishing that certain prey are indeed part of the each predator's diet. I thought this was a probably the most useful contribution from this manuscript to the literature on mimicry ecology and something which should promote more research in the future (perhaps using higher throughput methods). However limited in power, the per predator (or per dropping) quantification is ok and gives a hint to the prevalence of certain prey in a predator's ecology. I would however be more careful with relating this to frequencies of prey in the field. Furthermore, the urban park setting is probably quite different from the predator's ecology in more pristine conditions where mimicry has evolved in those groups.
In this paper, the authors identify 10 mimicry rings across 140 invertebrate taxa conduct a variety of tests (feeding trials and molecular gut content analyses) to determine how well-defended they are. Data collection and analyses are appropriate for the questions being addressed and I have no major issues with the paper.
[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]
Thank you for submitting your article "The golden mimicry complex uses a spectrum of defences to deter a community of predators" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Ian Baldwin as the Senior Editor. The reviewers have opted to remain anonymous.
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
Three new referees have evaluated your resubmitted manuscript. We agree that your paper is very interesting – albeit largely descriptive – and is based on an impressive dataset that reveals a fascinating system. Your study sheds valuable insights on some specific points: for example, that the color mimicry is attained through more than one mechanism so is convergent not just phylogenetically but in structural and pigmentary basis. Also, we appreciated the general conclusion that there seems to be no tighter association among sympatric species but that it is a continent-wide loose association. In addition we praise the approach and the usage of novel techniques to establish predation as well as the coherent presentation of the data. We are confident that this study will form the basis for more focused studies in the future.
Despite our largely positive opinion we still noted some issues that remain unsatisfactorily answered and we suggest a couple of additions. It will largely come down to reducing the strength of some claims and using more careful language. Please take the following issues seriously and note that eLife does not have any space limitations:
1) Your manuscript leaves too much the impression that mimicry studies started in the 21st century. In particular there were the huge studies of bird gut contents by McAtee in the early 20th century, used by him to deny the efficacy of mimetic protection. We propose a discussion of this point in subsection “Predation pressure by a community of predators”;
2) In relation to point 1 and subsection “Predation pressure by a community of predators”, we did not understand how the frequency of captured mimics of 13 species can be no different from their abundance in the environment, and yet only 3 of them were in fact captured at all? Some data and clarification is needed here;
3) We suggest you to refer and discuss the paper of Nicholson (1927, Australian Zoologist 5: 10-104), who was the first to suggest the same message as your study (on the basis of Australian insects), namely that mimicry extends to entire complexes of organisms, and is a phenomenon far more important and widespread than is appreciated even today;
4) You defined 'quasi-Batesian mimicry' as 'less defended mimics' (Introduction section), but to our understanding Speed 1993 defined it as 'unequally defended prey' under the assumption that less unpalatable mimics could raise the probability of attack on their more unpalatable models thereby (possibly) leading to the evolution of a polymorphism in the defended mimic. So it would be more accurate to say here that: "discrepancy in protection between two mimetic species may dilute the protection of a better defended species";
5) We feel you should acknowledge (in the Discussion) more explicitly that your study is a composite account of all the kind of variation of this mimicry ring that, however, does not allow for robust conclusions on the evolution of visual mimicry among the studied species i.e. how the different components of 'resemblance' and 'noxiousness' were selected for in different taxa, with different levels of association in different geographical areas. For example, there is no clear-cut difference in attack behavior of visual and non-visual predators and there is no significant difference in the proportion of 'mimetic' prey in the diet as compared to their abundance in the wild (sequencing data). Overall you need to indicate in your discussion more explicitly that your formal demonstration of visual mimicry among the different species is rather limited;
6) With respect to point 5 we also would like to encourage you to make some suggestions for how to unpick all this fascinating detail in the future;
7) The conclusions derived from the skink results need to be toned down since prey type is confounded by order in this experiment. Any effect of defence/mimicry could be simply the result of some kind of habituation. This needs to be indicated clearly in the discussion;
8) We noticed that there is some ambiguity in what is being inferred from the cross-species comparisons. For example in the Introduction section you write that warning signals and distastefulness are expected to evolve together and in subsection “Mimicry and degree of unpalatability” you report on a positive correlation between the golden coloration and unpalatability. However, the theory of honest signaling only predicts a correlation between signal intensity and unpalatability within a species. A correlation across species is interesting as an observed fact needing explanation, but it doesn't support any particular theory for the evolution of aposematic signals (we are aware of published papers which use cross-species comparisons to 'test' honest signaling theories, but they are wrong to do so). Hence these results need a different framing;
9) We ask you express more explicit caution with respect to the ranked intensities (subsection “Description of the mimetic complex”) since, as we understand it, the photographs were standardized to the same white point, but were not linearized (RGB pixel values are unlikely to be linearly related to radiance). This means that intensities may be rankable, but numerical differences can't be relied upon. Although this does not affect analyses of golden patch area, any RGB measures of signal intensity must have a large 'caution' attached to them. This could easily be addressed in the Discussion;
10) The hypothetical mimicry relying on non-visual component is interesting and is suggested by the behavior of non-visual predators but the data presented here do not formally demonstrate it. This should be indicated more explicitly in the discussion.
11) Finally the contribution of the mildly defended species to the overall protection gained by all members of the mimetic community is also not formally demonstrated. Also this should be acknowledged more explicitly in the discussion.https://doi.org/10.7554/eLife.22089.018
No external funding was received for this work.
We would like to thank very much P Lagos for help with the skink experiment; G Milledge, R Raven, D Smith, R White for providing access to spider or ant material; H Smith, G Corcobado, J Pekár, and M Pekár for help to collect spiders and ants in the field; G Cassis for identification of true bugs; R Kohout for access to ant pictures and advice on Polyrhachis taxonomy; D Noble for expert help while catching skinks and collecting faeces; D Birch (Macquarie University Microscopy Unit) for help with SEM photographs. The experiments with vertebrates were performed with the approval of the Macquarie University Animal ethics committee (AEC Reference No. 2013/033-3). We would like to thank the reviewers for their useful comments.
Animal experimentation: The experiments with vertebrates were performed with approval of the Macquarie University Animal ethics committee (AEC Reference No. 2013/033-3).
