Cryo-EM structure of the ATP-sensitive potassium channel illuminates mechanisms of assembly and gating

  1. Gregory M Martin
  2. Craig Yoshioka
  3. Emily A Rex
  4. Jonathan F Fay
  5. Qing Xie
  6. Matthew R Whorton
  7. James Z Chen  Is a corresponding author
  8. Show-Ling Shyng  Is a corresponding author
  1. Oregon Health and Science University, United States
Research Article
Cite this article as: eLife 2017;6:e24149 doi: 10.7554/eLife.24149
8 figures and 1 table

Figures

Figure 1 with 2 supplements
Purification and single-particle EM imaging of the SUR1/Kir6.2 KATP channel.

(A) Size exclusion chromatography (SEC) profile of affinity purified KATP channels on a Suprose 6 column showing peak elution at ~11.5 ml (the red rectangle). (B) Left: Blue native gel showing the size of the purified complex at ~1 mDa (arrow) corresponding to four SUR1 and four Kir6.2. Input: samples eluted from anti-FLAG M2 agarose beads; void: sample from the SEC void fraction; 11.5 ml: sample from the SEC 11.5 ml elution fraction. Right: SDS-PAGE of the 11.5 ml fraction showing SUR1 (lower band: core-glycosylated; upper band: complex-glycosylated) and Kir6.2 as the main proteins. A vertical line separates MW markers from the sample lane in the same gel. (C) Negative-stain two-dimensional class averages showing topdown views (1, 2) and side views (3, 4) of the channel complex. (D) A representative cryoEM micrograph of KATP channel particles imaged on an UltrAufoil grid. (E) Representative two-dimensional class averages of KATP channels.

https://doi.org/10.7554/eLife.24149.003
Figure 1—figure supplement 1

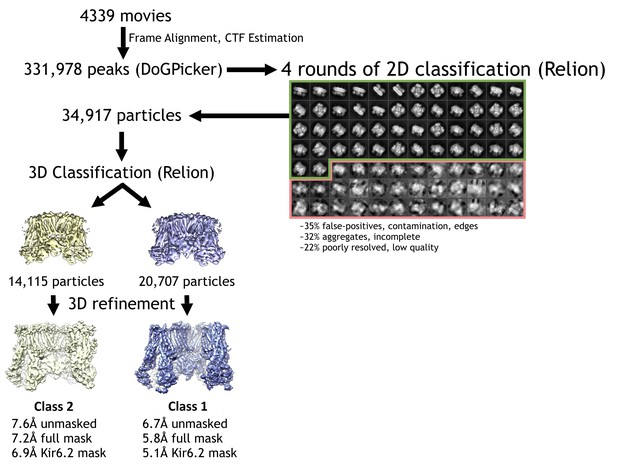

Cryo-EM data processing flowchart.
https://doi.org/10.7554/eLife.24149.004
Figure 1—figure supplement 2
Cryo-EM density map analysis.

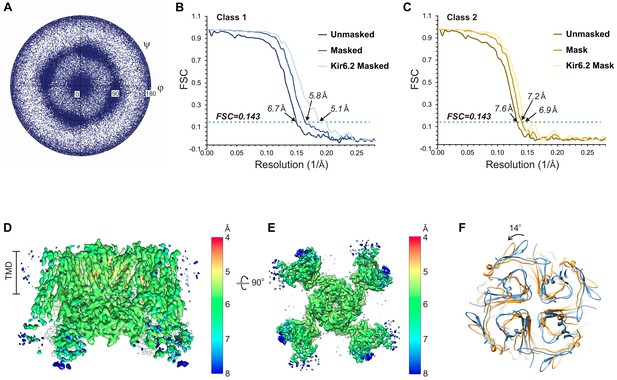

(A) Euler angle distribution plot of all particles included in the calculation of the final map. (B and C) Fourier shell coefficient (FSC) curves of unmasked and masked whole complex, as well as masked Kir6.2 maps showing resolutions corresponding to FSC = 0.143 for the two 3D classes. (D and E) 3D density map with colored local resolution viewed from the side (D) and the bottom (E). (F) Comparison of the cytoplasmic domain of Kir6.2 of the two 3D classes showing a counterclockwise rotation of ~14° of class 2 relative to class 1.

https://doi.org/10.7554/eLife.24149.005
Figure 2 with 4 supplements
Three-dimensional reconstruction of the KATP channel.

(A) Cryo-EM density map of the KATP channel complex at an overall resolution of 5.8 Å, viewed from the side. The four Kir6.2 subunits in the center are colored blue, SUR1 is in orange (TMD0), lavender (L0), green (TMD1/NBD1), and yellow (TMD2/NBD2). Gray bars indicate approximate positions of the lipid bilayer. (B) View of the complex from the cytoplasmic side. (C and D) Cross-sections of the density map. The planes where the sections 1 and 2 are made are shown in (A). (E) Model of SUR1 and Kir6.2 constructed from the EM density map viewed from the side. A Kir6.2 tetramer and only two SUR1 subunits are shown for clarity. (F) The model viewed from the extracellular side.

https://doi.org/10.7554/eLife.24149.006
Figure 2—figure supplement 1
Sequence and structure comparison between Kir6.2 and Kir3.2.

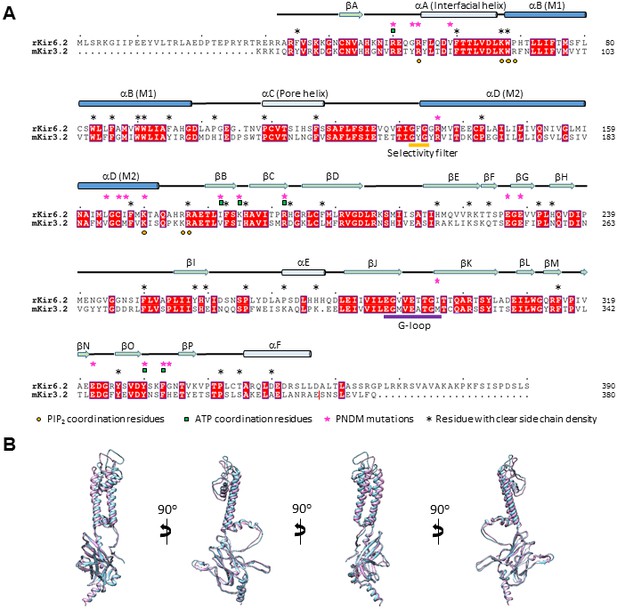

(A) Sequence alignment of rat Kir6.2 and mouse Kir3.2. Only the Kir3.2 sequence that was used to solve the structure in the PIP2-bound state is shown (PDB ID: 3SYA; residue 380 in mouse Kir3.2 is marked by a red vertical line on the right). Transmembrane helices in this and Figure 2—figure supplements 24 are colored dark blue. Kir6.2 sequence with no corresponding secondary structures shown at the top was not modeled due to lack of density in the map. (B) Superposition of the Kir6.2 structure and the structure of Kir3.2 (PDB ID: 3SYA) viewed from different angles. Blue: Kir6.2; lavender: Kir3.2.

https://doi.org/10.7554/eLife.24149.007
Figure 2—figure supplement 2

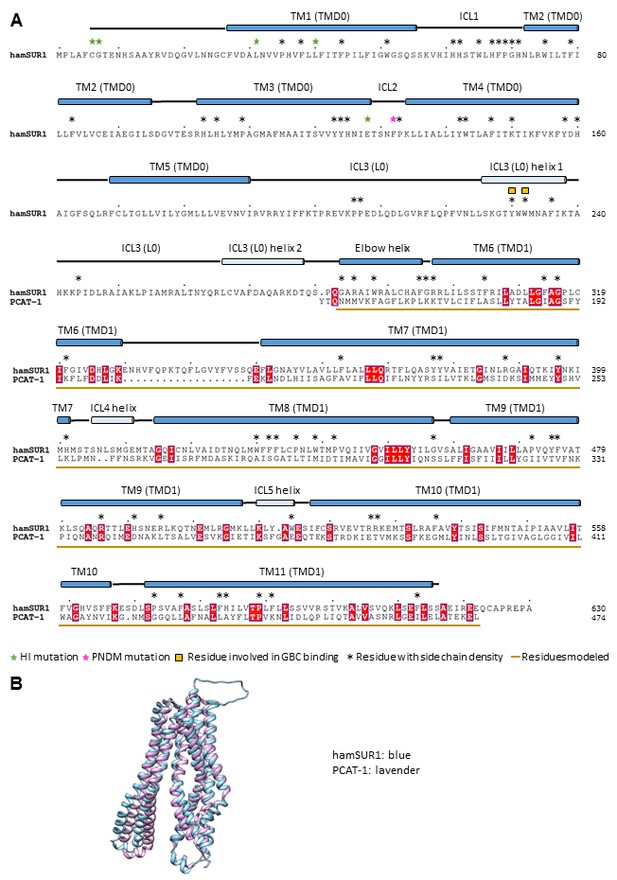

Sequence alignment and structure comparison between SUR1 TMD1 and a bacterial peptidase-containing ABC transporter PCAT-1 (PDB ID: 4RY2).

The structure 4RY2 of PCAT-1 was used for homology modeling of SUR1 TMD1 (a.a. 284–616). (A) Alignment of the hamster SUR1 sequence from 1 to 624 and the sequence of PCAT-1 in the crystal structure 4RY2. (B) Superposition of the PCAT-1 structure 4RY2 and the final model of TMD1 of SUR1.

https://doi.org/10.7554/eLife.24149.008
Figure 2—figure supplement 3
Sequence alignment and structure comparison between SUR1 NBD1 and the mouse P-glycoprotein NBD1 (PDB ID: 4MLM).

The NBD1 structure of the mouse P-glycoprotein (mPgp; PDB ID: 4MLM) was used for homology modeling of SUR1 NBD1. (A) Alignment of the hamster SUR1 sequence from 631–930 and the sequence of mPgp NBD1 in the crystal structure 4MLM. (B) Superposition of the mPgp-NBD1 and the final modeled NBD1 structure of SUR1.

https://doi.org/10.7554/eLife.24149.009
Figure 2—figure supplement 4

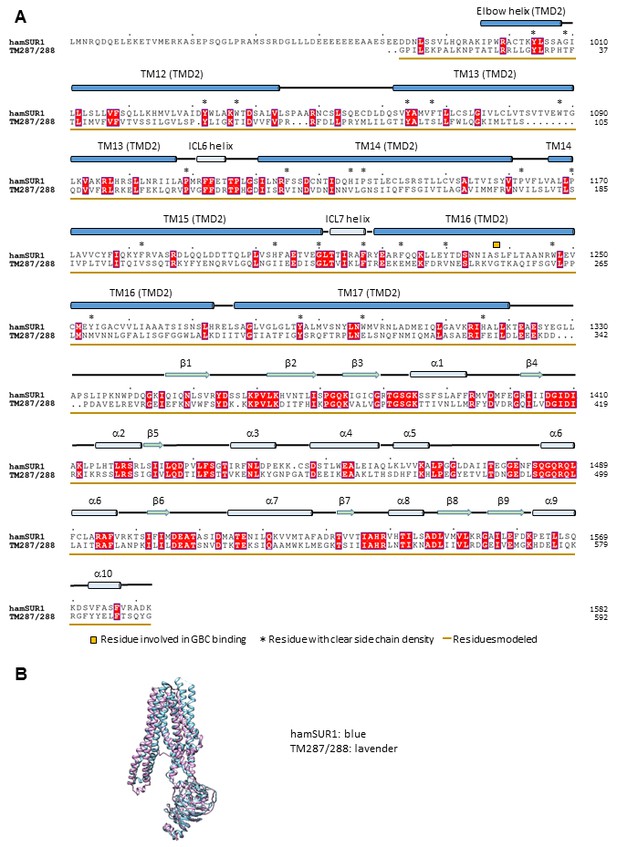

Sequence alignment and structure comparison between SUR1 TMD2-NBD2 and a bacterial ABC exporter TM287/288 (PDB ID: 4Q4H).

The structure 4Q4H of TM287/288 was used for homology modeling of SUR1 TMD2-NBD2. (A) Alignment of the hamster SUR1 sequence from 961 to 1982 and the sequence of TM287/288 in the crystal structure 4Q4H. (B) Superposition of the TM287/288 structure 4Q4H and the final modeled TMD2-NBD2 structure of SUR1.

https://doi.org/10.7554/eLife.24149.010
Kir6.2 in a closed conformation.

(A) Cryo-EM density map of Kir6.2 at 5.1 Å resolution. (B) Density of M1 and M2. Residues with clear side chain density are labeled. (C) A central slice through the density highlighting the ion permeation pathway. (D) View of the inner helix gate (F168) looking down the pore from the extracellular side. Kir3.2 apo (yellow, PDB ID: 3SYO) and Kir3.2-R201A+PIP2 (red, 3SYQ) structures were aligned to the region surrounding the gate. (E) Comparison of G-loop conformations of Kir6.2 and Kir3.2 (3SYO and 3SYQ) by alignment of the cytoplasmic domain; same coloring as in (D). The distance shown in (D) and (E) is between the main chains; the constriction should be even narrower due to side chains that should be protruding into the pore, as is seen in homolgous structures. Density depictions contoured to 2.5σ in (B, D, E).

https://doi.org/10.7554/eLife.24149.012
The ATP binding pocket.

(A and B) Overview of ATP site from the side and from the top. (C and D) Difference map calculated from model prior to ATP docking, contoured to 3σ. Residues surrounding the ATP density are labeled. Side chains of residues with supporting density are shown. The N-terminus from Kir6.2 subunit A is colored in cyan and R50 is labeled followed by (A). The adjacent subunit is colored in blue, and SUR1-L0 is colored lavender, with the K205 position labeled.

https://doi.org/10.7554/eLife.24149.013
Figure 5 with 1 supplement
The interface between TMD0 and the N-terminal segment of L0 with Kir6.2.

(A) Overall structure of the interface region, with TMD0 in orange, Kir6.2 in blue, and L0 in lavender. ECL: extracellular loop; ICL: intracellular loop; IF helix: interfacial (slide) helix. (B and C) Detailed view of the region boxed in red in (A) shown in ribbon (B) and surface (C) representations. ATP is docked as in Figure 3 and PIP2 was docked hypothetically using PIP2 bound Kir3.2 and Kir2.2 structures for placement. (D) A side view of the ICL2 showing close interactions with the Kir6.2 IF helix. E128 and F132, mutation of which alters channel Po and ATP sensitivity, are highlighted. (E) A top-down view of this region with both docked ATP (in the back) and PIP2 in view.

https://doi.org/10.7554/eLife.24149.014
Figure 5—figure supplement 1
Interactions between TMD0 and Kir6.2.

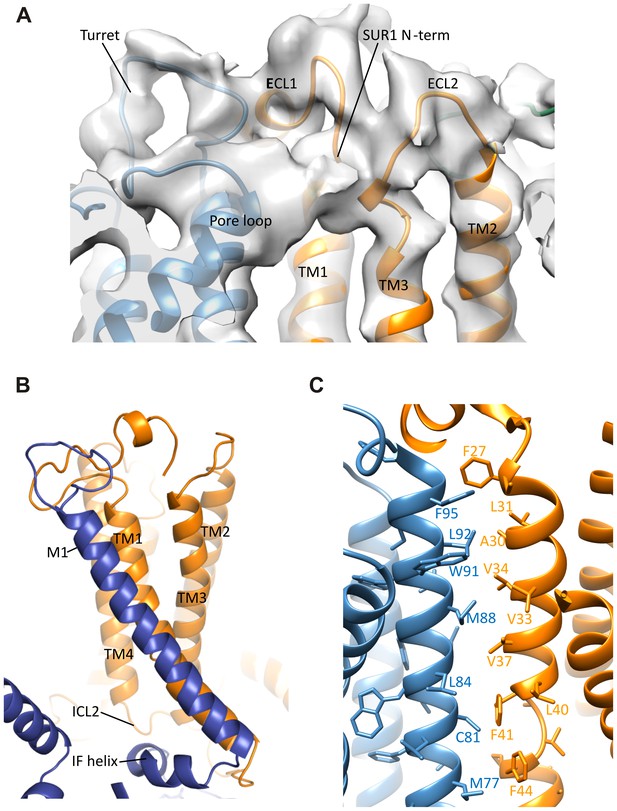

(A) Interactions of SUR1 N-terminus with the pore loop and turret of Kir6.2. Note continuous density extending from the pore loop to the N-term/extracellular loop 2 (ECL2) and from the turret to the short helical segment of ECL1. Map is displayed at 2.5σ. (B) The Kir6.2 M1-SUR1 TM1 interface showing the tight association of these two helices and interaction between ICL2 and the Kir6.2 N-terminal interfacial (IF) helix. (C) Possible hydrophobic interactions between M1 (blue, Kir6.2) and TM1 (orange, SUR1) helices.

https://doi.org/10.7554/eLife.24149.015
The SUR1-L0 connecting TMD0/Kir6.2 with the SUR1-ABC core.

(A) View of the L0 region from the side along the plane of the membrane; Kir6.2 density has been removed for clarity. The hairpin structure is outlined. (B) Slice through the N- and C-terminal segments of L0. (C) Model of L0 highlighting relation between Y230 and S1238 (marked red) in TM16, which are separated by ~20 Å (Cα to Cα). Side chain of Y230 is shown based on supporting density. The gray dashed line marks the approximate boundary of the inner leaflet of the lipid bilayer.

https://doi.org/10.7554/eLife.24149.016
SUR1 with a twisted ABC core conformation in saturating concentrations of GBC.

(A) Model of SUR1 with the various domains colored as in Figure 1, with each TM helix labeled. On the left, TMD1/NBD1 (green) is toward the front and TMD2/NBD2 (tan) is toward the back. (B) Cross-section of the SUR1 model, showing relative orientation of each of the 17 TM helices and a helix in L0. (C) Comparison of inward-facing ABC transporter structures: From left, C elegans Pgp (PDB code 4 F4C); mouse Pgp (4 M1M); hamSUR1. For each model, TMD2/NBD2 is colored tan. Lines on the side of the SUR1 NBDs denote the relative orientation of the NBD dimerization interface, demonstrating the observed twisting relative to other inward-facing structures.

https://doi.org/10.7554/eLife.24149.017
KATP channel gating model.

(A) Cartoon illustrating how changes in the ATP/ADP ratio upon feeding and fasting alter the equilibrium between the inward-facing and outward-facing states of the SUR1-ABC core and interactions of the channel with ATP and PIP2 to control channel activity. (B) Model of the hypothesized mechanism whereby GBC causes misalignment of the NBDs to prevent Mg-nucleotides activation of KATP channels. In both A and B, Kir6.2 transmembrane helices: green; Kir6.2 cytoplasmic domain: lime green; SUR1-TMD0/L0: magenta; SUR1-TMD1/2: blue; SUR1-NBDs: orange; GBC: yellow; ATP: red; PIP2: cerulean. Note the different states shown are not meant to reflect the actual conformational transitions.

https://doi.org/10.7554/eLife.24149.018

Tables

Table 1

Statistics of cryo-EM data collection, 3D reconstruction and model building.

https://doi.org/10.7554/eLife.24149.011

Data collection/processing

Microscope

Krios

Voltage (kV)

300

Camera

Gatan K2

Camera mode

Counting

Defocus range (µm)

1.2 ~ 3.5

Exposure time (s)

20

Dose rate (e-/pixel/s)

6

Magnified pixel size (Å)

1.72

Total dose (e-/Å2)

40

Reconstruction



Software

RELION

Symmetry

C4

Particles refined

27371

Resolution (unmasked, Å)

6.7

Resolution (masked, Å)

5.8

Resoultion (Kir6.2 masked, Å)

5.1

Map sharpening B-factor (Å2)

−250

Model Statistics



Map CC

0.95 (masked)

Resolution (FSC = 0.5, Å)

5 Å (via phenix model-map FSC)

MolProbity score

2.26

Cβ deviations

0

Ramachandran



Outliers

0.12%

Allowed

4.68%

Favored

95.20%

RMS deviations



Bond length

0.005

Bond angles

1.262
