Standardized mean differences cause funnel plot distortion in publication bias assessments

  1. Peter-Paul Zwetsloot  Is a corresponding author
  2. Mira Van Der Naald
  3. Emily S Sena
  4. David W Howells
  5. Joanna IntHout
  6. Joris AH De Groot
  7. Steven AJ Chamuleau
  8. Malcolm R MacLeod
  9. Kimberley E Wever  Is a corresponding author
  1. University Medical Center Utrecht, Netherlands
  2. Netherlands Heart Institute, Netherlands
  3. University of Edinburgh, United Kingdom
  4. University of Tasmania, Australia
  5. Radboud University Medical Center, Netherlands
https://doi.org/10.7554/eLife.24260
Share this article
Cite this article
  1. Peter-Paul Zwetsloot
  2. Mira Van Der Naald
  3. Emily S Sena
  4. David W Howells
  5. Joanna IntHout
  6. Joris AH De Groot
  7. Steven AJ Chamuleau
  8. Malcolm R MacLeod
  9. Kimberley E Wever
(2017)
Standardized mean differences cause funnel plot distortion in publication bias assessments
eLife 6:e24260.
https://doi.org/10.7554/eLife.24260
  2. Download BibTeX
  3. Download .RIS
7 figures, 4 tables and 4 additional files

Figures

Figure 1
Download asset Open asset
Hypothetical funnel plots in the absence (A) and presence (B) of bias.

The precision estimate used is the standard error (SE). Dashed lines indicate the summary effect estimate.

https://doi.org/10.7554/eLife.24260.002
Figure 2
Download asset Open asset
Step-wise illustration of distortion in SMD versus SE funnel plots.

(A) Depicted are simulated studies with a sample size of respectively 10 (large black circles), 25 (blue squares), 50 (red triangles), 100 (small green circles) and 200 (gold asterisks) subjects per group, and an SMD of zero. The SE of these studies (indicated by the dashed line for studies with n = 10) solely depends on their sample size, as SMD2 = 0 and therefore does not contribute to the equation for the SE. As expected, the SE decreases as the sample size increases. (B) Five data points from simulated studies with n = 10 and a stepwise increasing SMD are added to the plot. For these studies, the SMD2 contributes to the equation for the SE, and the SE will decrease even though the sample size is constant. The dotted line represents a hypothetical summary effect of SMD = 1 in a meta-analysis. Note that when assessing a funnel plot for asymmetry around this axis, the data points with an SMD < 1 have skewed to the upper left-hand region, whereas studies with an SMD > 1 are in the lower right region of the plot. This distortion worsens as the SMD increases. (C) Because the SMD is squared in the equation for the SE, the same distortion pattern is observed for negative SMDs. Thus, funnel plots will be distorted most when the study samples sizes are small and SMDs are either very positive or very negative. (D) The same deviation is observed for simulated studies with larger sample sizes, however, the deviation decreases as the sample size increases, because the sample size will outweigh the effect of SMD2 in the equation for the SE.

https://doi.org/10.7554/eLife.24260.003
Figure 3
Download asset Open asset
Reanalysis of data from Wever et al.

(A,B) and Zwetsloot et al. (C,D), with funnel plots based on raw mean difference (RMD; A,D) or standardized mean difference (SMD; B,D). Filled circles = observed data points; open circles = missing data points as suggested by trim and fill analysis.

https://doi.org/10.7554/eLife.24260.004
Figure 4 with 2 supplements
Download asset Open asset
Representative raw mean difference (RMD; A, C, E, G) and standardized mean difference (Hedges’ g SMD; B, D, F, H) funnel plots for simulated unbiased meta-analyses containing thirty (A–D) or 300 (E–H) studies with a small sample size (total study n = 12–30).

Simulations were performed without an intervention effect (Δμ = 0; A–B and E–F), or with an intervention effect (Δμ = 10; C–D and G–H). Δμ = difference in normally distributed means between control and intervention group. Representative funnel plots for studies with a large sample size (total study n = 60–320) are shown in Figure 4—figure supplement 1. Representative funnel plots for the comparison between Hedges’ g and Cohen’s d are shown in Figure 4—figure supplement 2.

https://doi.org/10.7554/eLife.24260.005
Figure 4—figure supplement 1
Download asset Open asset

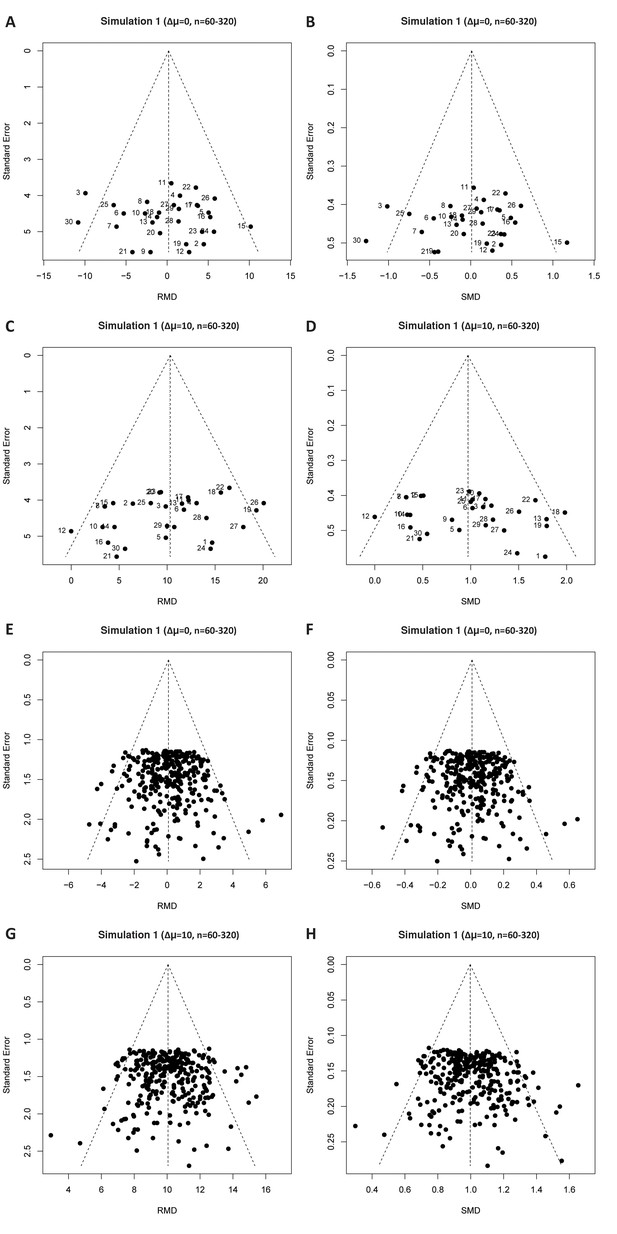

Simulation 1 funnel plots for large study sample sizes.
https://doi.org/10.7554/eLife.24260.006
Figure 4—figure supplement 2
Download asset Open asset

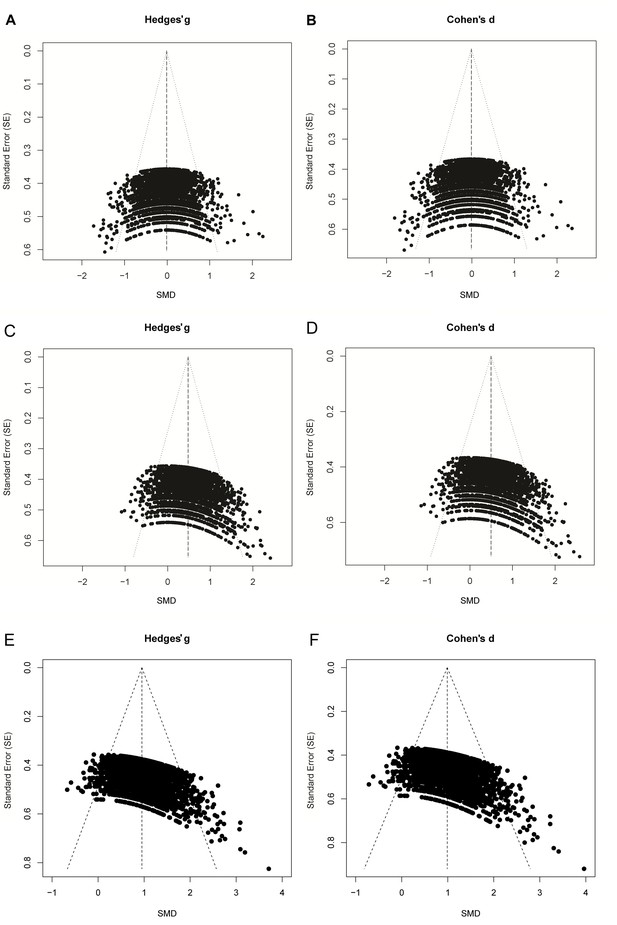

Funnel plots comparing Cohen’s d versus Hedges g.
