The last common ancestor of animals lacked the HIF pathway and respired in low-oxygen environments

  1. Daniel B Mills
  2. Warren R Francis
  3. Sergio Vargas
  4. Morten Larsen
  5. Coen PH Elemans
  6. Donald E Canfield
  7. Gert Wörheide  Is a corresponding author
  1. University of Southern Denmark, Denmark
  2. Ludwig-Maximilians-Universität München, Germany
  3. SNSB - Bayerische Staatssammlung für Paläontologie und Geologie, Germany
Research Article
Cite as: eLife 2018;7:e31176 doi: 10.7554/eLife.31176
6 figures, 1 video, 2 data sets and 4 additional files

Figures

Figure 1 with 1 supplement
HIF pathway overview.

(A) Schematic of HIF pathway, based on Semenza (2007), showing conservation of components. Red arrows indicate the characterised oxygen-dependent pathway, which is predicted to be absent in sponges and ctenophores. (B) Presence-absence matrix of components of the HIF pathway across metazoans and other opisthokont groups. Labels for all four sponge classes are shown in blue. Abbreviations are: Homoscl., Homoscleromorpha; Choano., Choanoflagellata. Presence (green) refers to a 1-to-1 or 1-to-many ortholog of a protein of defined function. Homolog (blue) refers to a sister group position in trees before duplications with different or unknown functions (usually many-to-many). Secondary loss (red) refers to the gene missing in the clade, but homologs are found in non-metazoan phyla. Multiple lineage-specific duplications are indicated by the letter ‘M’. Individual gene trees are shown in Figure 2, Figure 2—figure supplement 13.

https://doi.org/10.7554/eLife.31176.003
Figure 1—figure supplement 1

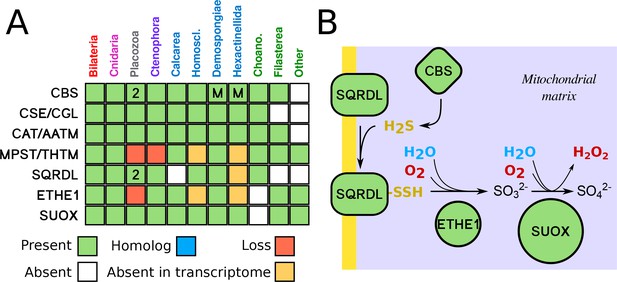

Sulfide metabolism pathway.

(A) Presence and absence of enzymes involved in metabolism of cysteine and sulfide. Labels for all four sponge classes are shown in blue. Abbreviations are: Homoscl., Homoscleromorpha; Choano., Choanoflagellata. Presence (green) refers to a 1-to-1 or 1-to-many ortholog of a protein of defined function. Homolog (blue) refers to a sister group position in trees before duplications with different or unknown functions (usually many-to-many). Secondary loss (red) refers to the gene missing in the clade, but homologs are found in non-metazoan phyla. (B) Schematic of sulfide oxidation pathway in the mitochondria.

https://doi.org/10.7554/eLife.31176.004
Figure 2 with 3 supplements

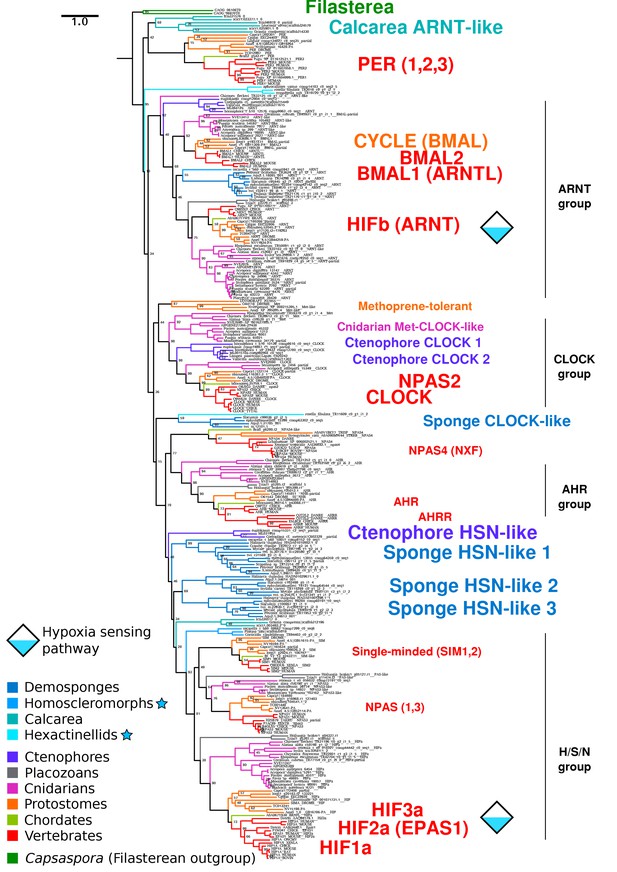

Complete bHLH-PAS tree.

Phylogenetic tree of bHLH-PAS proteins across metazoa, generated with RAxML using the PROTGAMMALG model. Bootstrap values of 100 are removed for clarity. Sponge classes represented only by transcriptomes are indicated by blue stars.

https://doi.org/10.7554/eLife.31176.005
Figure 2—figure supplement 1

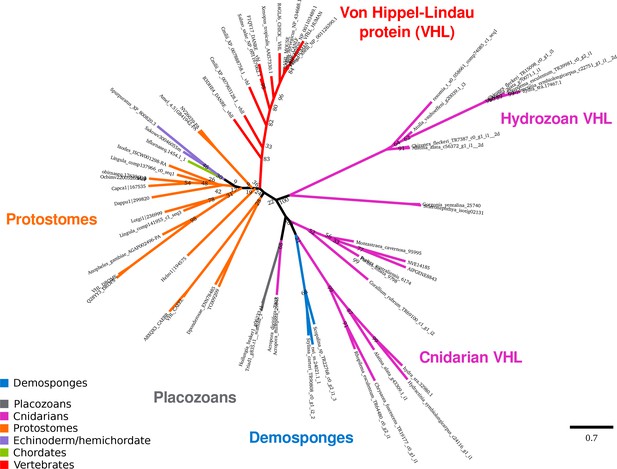

Von Hippel-Lindau protein tree.

Phylogenetic tree of VHL proteins across metazoa, generated with RAxML using the PROTGAMMALG model. Bootstrap values of 100 are removed for clarity.

https://doi.org/10.7554/eLife.31176.006
Figure 2—figure supplement 2

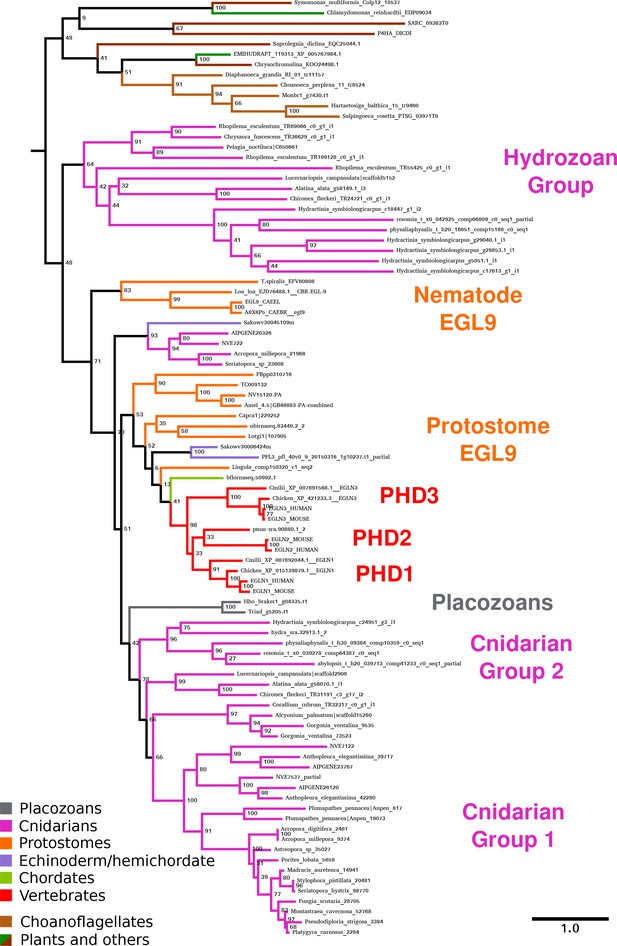

EGL9 protein tree.

Phylogenetic tree of EGL9 proteins across metazoa, generated with RAxML using the PROTGAMMALG model. Bootstrap values of 100 are removed for clarity.

https://doi.org/10.7554/eLife.31176.007
Figure 2—figure supplement 3

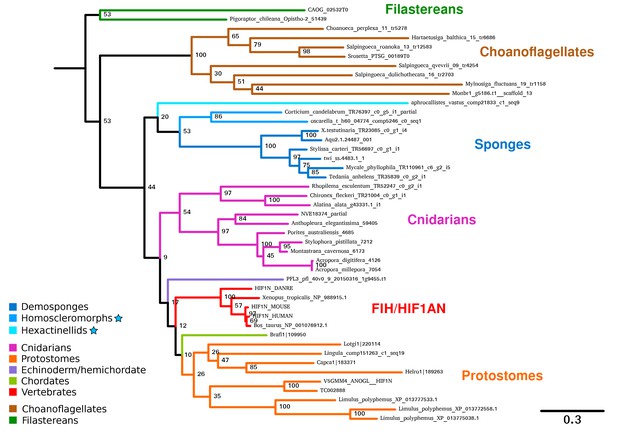

Factor-inhibiting-HIF tree.

Phylogenetic tree of FIH/HIF1AN proteins across metazoa, generated with RAxML using the PROTGAMMALG model. Bootstrap values of 100 are removed for clarity. Sponge classes represented only by transcriptomes are indicated by blue stars.

https://doi.org/10.7554/eLife.31176.008

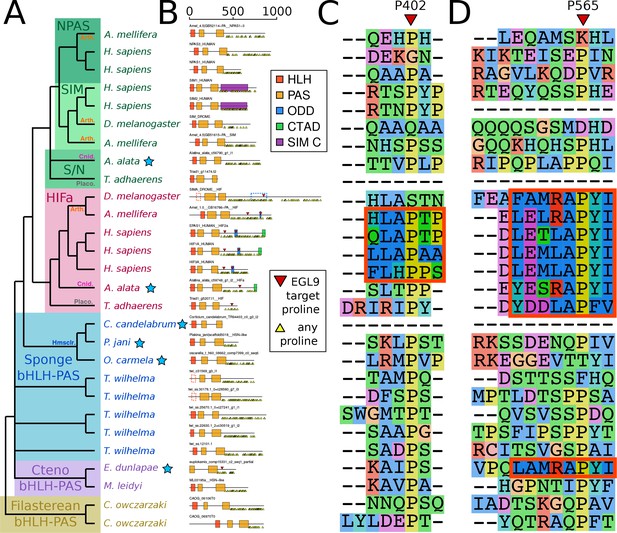

Domain organization of HIFa and related proteins.

(A) Schematic tree based on Figure 2. Blue stars indicate the sequence was derived from a transcriptome, rather than a genome. Abbreviations for certain phyla are: Arth, arthropods; Cnid, cnidarians; Placo, placozoans; Hmsclr, homoscleromorph sponges. (B) Domain organization of the proteins, identified by hmmscan against the PFAM database. Scale bar refers to length of the protein in amino acids. Some domains were not found, although were annotated in the SwissProt entries of the canonical proteins; these are shown as dashed lines. Prolines annotated as targets of EGL9 are shown in red triangles, while all prolines in the C-terminal domain of each protein are shown below each line as yellow triangles. (C) and (D), aligned positions surrounding P402 and P565 (in human HIF1a). The matching motifs are indicated by the red boxes.

https://doi.org/10.7554/eLife.31176.009

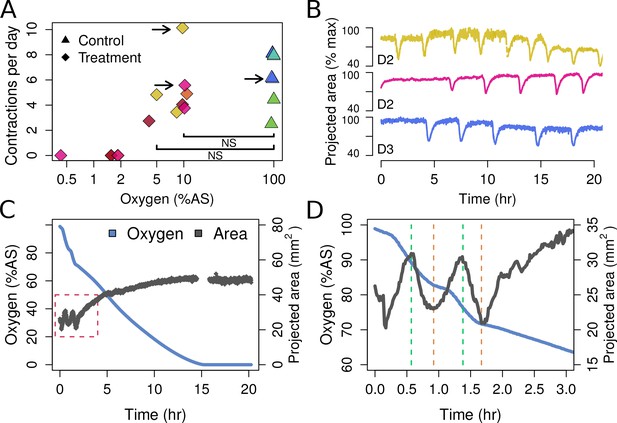

Contraction behavior.

(A) Contraction frequency (number of contractions per day) at different stable O2 levels. Each color shows a single individual across multiple treatment days; NS = not significant differences detected between the groups (i.e. 10% and 5% O2 vs. all control conditions). (B) Contraction traces of three representative sponges (shown by arrows in A) under normal O2 (blue) and hypoxia (yellow and magenta). (C) O2 levels and projected sponge area against time within a respiration vial, highlighting the changes in O2 uptake associated with sponge contraction cycles. O2 was measured, and the photos were taken, every 60 s. The gap at 15 hr was due to changes in ambient light. (D) Expansion of the red-box from part C to highlight the increased oxygen consumption during the contraction phases (between green and red lines).

https://doi.org/10.7554/eLife.31176.010

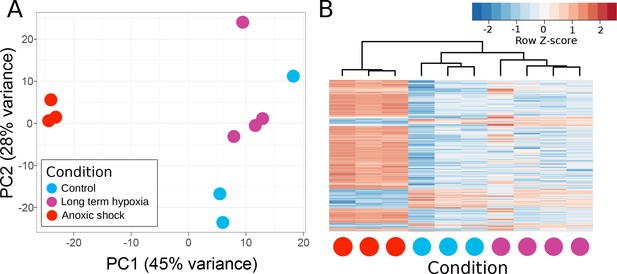

Principle components of T. wilhelma transcriptomes.

(A) PCA plot of variance of expressed genes, where each point represents the transcriptome from a single sponge specimen at the end of the experiment. Input data were normalized read-mapping counts per gene for each sample. Samples exposed to long term hypoxia were not significantly different (Adonis Pseudo-F = 1.6138, p=0.06) from controls. (B) Heatmap showing expression of the 739 differentially expressed genes across all samples and treatments. Red and blue intensities indicate differentially overexpressed and underexpressed genes, respectively.

https://doi.org/10.7554/eLife.31176.011

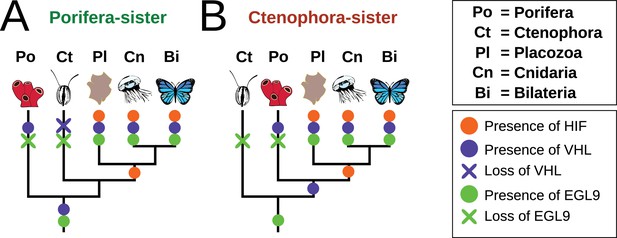

Summary schematic of the evolution and distribution of HIF pathway components in metazoans.

(A) Presence and predicted losses in a Porifera-sister topology and (B) Ctenophora-sister topology.

https://doi.org/10.7554/eLife.31176.013

Videos

Video 1
Experimental video of Tethya wilhelma contracting at 21.1 µM O2 (10% atmospheric saturation at T = 26°C and S = 32) over the course of 8 hr.
https://doi.org/10.7554/eLife.31176.012

Data availability

The following data sets were generated
  1. 1
    Data for paper
    1. Francis WR
    2. Mills DB
    3. Vargas S
    4. Wörheide G
    (2017)
    Publicly available at Bitbucket (https://bitbucket.org/).
  2. 2
    Raw sequence data
    1. Vargas S
    2. Francis WR
    3. Wörheide G
    (2017)
    Publicly available at the NCBI BioProject (accession no. PRJNA380886).

Additional files

Supplementary file 1

Genomes and transcriptomes used for searches and gene trees

https://doi.org/10.7554/eLife.31176.014
Supplementary file 2

Differentially expressed genes following the long-term hypoxia experiment

https://doi.org/10.7554/eLife.31176.015
Supplementary file 3

Differentially expressed genes following the shock experiment

https://doi.org/10.7554/eLife.31176.016
Transparent reporting form
https://doi.org/10.7554/eLife.31176.017
