Functional roles of Mg2+ binding sites in ion-dependent gating of a Mg2+ channel, MgtE, revealed by solution NMR

  1. Tatsuro Maruyama
  2. Shunsuke Imai
  3. Tsukasa Kusakizako
  4. Motoyuki Hattori
  5. Ryuichiro Ishitani
  6. Osamu Nureki
  7. Koichi Ito
  8. Andrès D Maturana
  9. Ichio Shimada  Is a corresponding author
  10. Masanori Osawa  Is a corresponding author
  1. The University of Tokyo, Japan
  2. Fudan University, China
  3. Nagoya University, Japan
  4. Keio University, Japan
Research Article
  • Cited 2
  • Views 1,078
  • Annotations
Cite this article as: eLife 2018;7:e31596 doi: 10.7554/eLife.31596

Abstract

Magnesium ions (Mg2+) are divalent cations essential for various cellular functions. Mg2+ homeostasis is maintained through Mg2+ channels such as MgtE, a prokaryotic Mg2+ channel whose gating is regulated by intracellular Mg2+ levels. Our previous crystal structure of MgtE in the Mg2+-bound, closed state revealed the existence of seven crystallographically-independent Mg2+-binding sites, Mg1–Mg7. The role of Mg2+-binding to each site in channel closure remains unknown. Here, we investigated Mg2+-dependent changes in the structure and dynamics of MgtE using nuclear magnetic resonance spectroscopy. Mg2+-titration experiments, using wild-type and mutant forms of MgtE, revealed that the Mg2+ binding sites Mg1, Mg2, Mg3, and Mg6, exhibited cooperativity and a higher affinity for Mg2+, enabling the remaining Mg2+ binding sites, Mg4, Mg5, and Mg7, to play important roles in channel closure. This study revealed the role of each Mg2+-binding site in MgtE gating, underlying the mechanism of cellular Mg2+ homeostasis.

https://doi.org/10.7554/eLife.31596.001

Introduction

Magnesium ions (Mg2+) are the most abundant divalent metal ions within cells. They bind to a number of proteins and nucleic acids, regulating a wide range of biological processes such as ATP utilization, enzyme activation, and maintenance of genomic stability (Hartwig, 2001; Cowan, 2002). In humans, abnormal Mg2+ homeostasis is reportedly associated with several diseases including cardiovascular disease, diabetes, and high blood pressure (Alexander et al., 2008).

Cellular Mg2+ homeostasis is maintained by a class of transmembrane proteins termed Mg2+ transporters. The MgtE family of Mg2+ transporters in bacteria, which operates as Mg2+ channels (Hattori et al., 2009), is homologous to the eukaryotic SLC41 family (Goytain and Quamme, 2005a2005b; Kolisek et al., 2008; Moomaw and Maguire, 2008; Sahni and Scharenberg, 2013). With respect to the role of the MgtE family in Mg2+ homeostasis, a Mg2+-sensor riboswitch upregulates the gene expression of MgtE in response to a decrease in intracellular Mg2+ levels (Dann et al., 2007); MgtE then restores and maintains the intracellular Mg2+ homeostasis. Our prior electrophysiological study of MgtE from Thermus thermophilus revealed that MgtE facilitates Mg2+ uptake across the cell membrane at intracellular Mg2+ concentrations lower than 5–10 mM, whereas at higher Mg2+ concentrations, MgtE does not allow further Mg2+ uptake (Hattori et al., 2009).

We have reported the crystal structure of full-length MgtE in the Mg2+-bound state, which revealed that it forms a homodimer comprised of an N-terminal cytoplasmic (CP) region (residues 1–263) and a C-terminal transmembrane (TM) region (residues 264–450) (Figure 1A) (Hattori et al., 2007b). The CP region consists of three parts, an N domain (residues 1–131), a cystathionine-β-synthase (CBS) domain (residues 132–245), and a plug helix (residues 246–263); the plug helix connects the latter with the TM region. The two subunits in the dimer are related by a crystallographic 2-fold symmetry, with the ion-conducting pore being formed along the axis of symmetry at the centre of the dimer in the TM region. The ion-conducting pore is closed at the CP side of the TM region, which is stabilized by the interactions with the C-termini of the plug helices (Figure 1—figure supplement 1). Thus, this portion appears to act as a gate for Mg2+ transport, with the structure obtained reflecting the closed MgtE state (Hattori et al., 2007b).

Figure 1 with 1 supplement see all

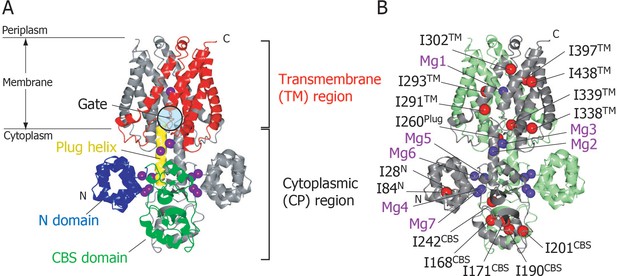

Structure of MgtE in the Mg2+-bound state.

(A) The MgtE dimer (PDB code:2ZY9) viewed in the membrane plane, with the N domain (blue), the CBS domain (green), the plug helix (yellow), and the TM region (red) highlighted in one subunit. Mg2+ ions are shown as purple spheres. The gate region is circled (see Figure 1—figure supplement 1). (B) Two subunits of the dimer are shown in green and grey, respectively. Ile Cδ1 atoms in the grey subunit are shown as red spheres. The Mg2+-binding sites in the dimer, Mg1-Mg7, are also labelled.

https://doi.org/10.7554/eLife.31596.002

In the crystal structure, seven crystallographically independent Mg2+-binding sites (Mg1–Mg7) can be identified, among which Mg1 is located on the 2-fold axis in the ion-conducting pore at the extracellular side of the TM region, whereas the other six sites are located in the CP region (Figure 1B). The Mg2+ ions bound to these sites coordinate with acidic residues, through at least one carboxylic group, and further bridge two different MgtE domains, either in the same or other subunits. Recently, the structural basis for ion selectivity was revealed through a high resolution crystal structure of the TM region, in which the Mg1 site accommodates a hydrated Mg2+ (Takeda et al., 2014). Electrophysiological investigation of MgtE Mg2+-binding site mutants indicated that every Mg2+-binding site in the CP region (Mg2–Mg7) contributes to the formation of the MgtE closed state (Hattori et al., 2009).

Although the structure of Mg2+-free full-length MgtE has not been reported, we have presented the crystal structure of the N-terminal 275 residues of MgtE, which includes the whole CP region (residues 1–263) in both the Mg2+-free and -bound states (Hattori et al., 2007b). A structural comparison of the two states suggests that Mg2+ binding alters the relative orientation of the N and CBS domains in each subunit, as well as changing the inter-helical angle between the plug helices of the two subunits. Recently, a nuclear magnetic resonance (NMR) analysis of the MgtE CP region in the Mg2+-free state, conducted by our laboratory, revealed that the N domain tumbles widely in space, and that it transiently approaches the CBS domain (Imai et al., 2012). Based on these results, we have proposed a structural mechanism for MgtE gating, in which Mg2+ binding to the CP region of MgtE allosterically alters the conformation of the plug helices, resulting in gate closure. However, the concentration of Mg2+ required to saturate each Mg2+-binding site remains unknown, as does the site(s) to which Mg2+-binding causes the changes in the structure and dynamics of each portion of MgtE, resulting in the closed MgtE state.

In the present study, we used solution NMR spectroscopy to investigate Mg2+-dependent changes in the structure and dynamics of full-length MgtE. Mg2+-titration experiments using the wild-type and mutant forms of MgtE revealed the functional roles of each Mg2+-binding site: Whereas the Mg1, Mg2, Mg3, and Mg6 sites exhibit a higher affinity for Mg2+ and stabilize the structure of the TM region, the Mg4, Mg5, and Mg7 sites play critical roles in changing the conformation and dynamics of the CP region including the plug helices, leading to channel closure. This study thus revealed the Mg2+-dependent gating mechanism of MgtE that underlies cellular Mg2+ homeostasis.

Results

Methyl-TROSY signals of Ile δ1 methyl groups as probes of the conformation and dynamics of MgtE

Full-length MgtE was overexpressed in Escherichia coli, solubilized in n-dodecyl-β-maltoside (DDM) micelles, and purified to homogeneity (Figure 2—figure supplement 1). Size exclusion chromatography analysis indicated an apparent molecular weight of approximately 160 kDa, suggesting that MgtE formed a dimer in the micelles (Figure 2—figure supplement 2).

In order to observe the solution NMR signals with sufficiently high resolution and sensitivity in such a large membrane protein, we elected to observe the methyl-TROSY spectra of Ile δ1 methyl groups in {u-2H, Ileδ1-[13CH3]}MgtE. This demonstrated that the fifteen Ile residues in full-length MgtE are widely distributed across the whole MgtE structure (Figure 1B), with I28 and I84 being located in the N-terminal domain; I168, I171, I190, I201, and I242 in the CBS domain; I260 in the plug helix; and I291, I293, I302, I338, I339, I397, and I438 in the TM region. Hereafter, each Ile residue is represented by its residue number and its location, such as I28N, I168CBS, I260Plug, and I291TM.

We next established the resonance assignments for twelve of the fifteen Ile δ1 methyl groups in the Mg2+-free and bound states, respectively, by comparing the methyl-TROSY spectra of fifteen individual Ile to Val mutants with that of the wild-type protein, in the absence and presence of 16 mM Mg2+ (Figure 2 and Table 1). The remaining three signals for I242CBS, I291TM, and I302TM were assigned only in the presence of 16 mM Mg2+, due to line broadening and/or degeneracy of the signals in the absence of Mg2+. It should be also noted that Mg2+-induced NMR spectral changes reflect the changes in the conformation and dynamics at each Ile site, but not the direct binding of Mg2+ to the Ile residues. This is because the distances between the Ile Cδ1 atoms and Mg2+ are longer than 8.0 Å in the crystal structure of the Mg2+-bound MgtE (PDB code: 2ZY9), which is sufficiently longer than the sum of the radii of a methyl group (1.6 Å) and a hydrated Mg2+ (4.8 Å).

Figure 2 with 2 supplements see all

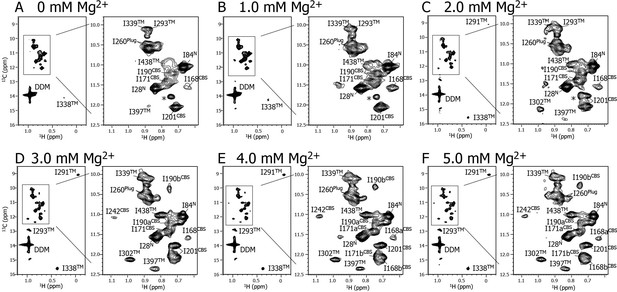

Mg2+ titration experiments monitored by NMR signals of the Ile δ1 methyl groups.

Methyl-TROSY spectra of {u-2H, Ileδ1-[13CH3]} MgtE reconstituted into DDM micelles in the presence of (A) 0, (B) 1.0, (C) 2.0, (D) 3.0, (E) 4.0, and (F) 5.0 mM Mg2+. The signal with an asterisk is unassigned.

https://doi.org/10.7554/eLife.31596.004
Table 1
Assignments of Ile δ1 methyl groups of full-length MgtE.

Chemical shifts for δ1 methyl groups in Ile residues in the Mg2+-free and bound states are shown. Labels a and b are used to discriminate two signals from a single Ile residue. 1H chemical shifts were referenced to external sodium 2,2-dimethyl-2-silapentane-5-sulfonate (0 ppm), and 13C chemical shifts were referenced indirectly. Spectral width (eight ppm) in the 13C dimension was subtracted from the 13C chemical shift of I338 owing to spectral aliasing.

https://doi.org/10.7554/eLife.31596.007
Methyl groupMg2+-free state (0 mM Mg2+)Mg2+-bound state (5.0 mM Mg2+)
1H (ppm)13C (ppm)1H (ppm)13C (ppm)
I280.72914.160.71414.13
I840.55913.630.52613.62
I168a0.53914.120.52614.14
I168b0.60614.62
I171a0.65113.990.64413.98
I171b0.60614.62
I190a0.62713.770.62113.77
I190b0.64112.83
I2010.60614.620.59914.33
I2420.8514.13
I2600.77113.130.76213.15
I291−0.17111.63
I2930.77312.660.85815.45
I3020.87214.68
I3380.1458.670.26410.16
I3390.79912.660.79812.65
I3970.77114.590.72814.92
I4380.67413.540.69313.58

Mg2+-induced changes in the conformation and dynamics of MgtE as probed by Ile NMR signals

Figure 2 shows a series of methyl-TROSY spectra at Mg2+ concentrations ranging from 0 to 5.0 mM. At 0 mM Mg2+ (Figure 2A), three markedly strong signals (I28N, I84N, and I260Plug) were observed, together with nine weak and/or broad signals (I168CBS, I171CBS, I190CBS, I201CBS, I293TM, I338TM, I339TM, I397TM, and I438TM). However, signals for I242CBS, I291TM, and I302TM were not observed.

As the Mg2+ concentration increased (Figure 2B–2F), different types of changes were observed, which are summarized in Figure 3. The three strong signals (I28N, I84N, and I260Plug; boxed in red in Figure 3) exhibited decreased intensities, whereas three new signals appeared for the three residues previously unobserved at 0 mM Mg2+ (I242CBS, I291TM, and I302TM; boxed in yellow in Figure 3). In addition, among the nine weak and/or broad signals, six signals exhibited chemical shift changes: I397TM and I438TM in a fast-to-intermediate exchange regime, and I201CBS, I293TM, and I338TM in a slow exchange regime (Figure 2, and cyan in Figure 3). The other three (I168CBS, I171CBS, I190CBS) of the nine weak and/or broad signals became split in the Mg2+-bound state (Figure 2, and magenta in Figure 3). Only the signal for I339TM exhibited no significant change.

Mg2+-concentration-dependent spectral changes in MgtE.

(A) Superposition of the methyl-TROSY spectra in the Mg2+-free state (0 mM; black) and the bound state (5.0 mM; green). Upon Mg2+ binding, (i) the residues whose signals broadened are boxed in red, (ii) the residues whose signals appeared or were sharpened are boxed in yellow, (iii) the residues exhibiting chemical shift changes are boxed in cyan, with an arrow indicating the direction of the chemical shift changes, and (iv) the residues for which two signals were observed (split signals) are boxed in magenta. The right panels show the 1H cross-sections for the I28N, I84N, and I260Plug signals at Mg2+ concentrations of 0, 1.0, 2.0, 3.0, 4.0, and 5.0 mM. (B) Mapping of the residues whose signals exhibited the Mg2+-dependent changes in (A) on the Mg2+-bound crystal structure (PDB code:2ZY9). Ile Cδ1 atoms are coloured as in (A), whereas the Ile Cδ1 atom of I339, which exhibited no significant change, is coloured grey.

https://doi.org/10.7554/eLife.31596.008

The NMR spectral changes apparently saturated at 4.0 mM Mg2+, above which the NMR spectra were essentially identical (see below for details). It has been reported that at Mg2+ concentration of 4 mM, or above, the MgtE channel closes (Hattori et al., 2009), suggesting that the NMR spectra at Mg2+ concentrations lower, or higher, than 4 mM reflect the open or closed states of MgtE, respectively.

Mg2+-concentration dependence of the NMR spectral changes

In order to investigate Mg2+-concentration dependence, the changes in the signal intensities and the chemical shifts for the well-resolved signals were plotted against Mg2+ concentration (Figure 4A and B). The plots showed sigmoid curves that were well-fitted with a Hill’s equation, resulting in the Mg2+ concentration reaching the half maximal values of the changes ([Mg2+]1/2) of 0.8–2.5 mM, with Hill coefficient (n) values of 1.8–7.6. These results indicate that Mg2+ binding to multiple sites cooperatively affects the conformation and dynamics of the Ile residues at different locations in the MgtE molecule.

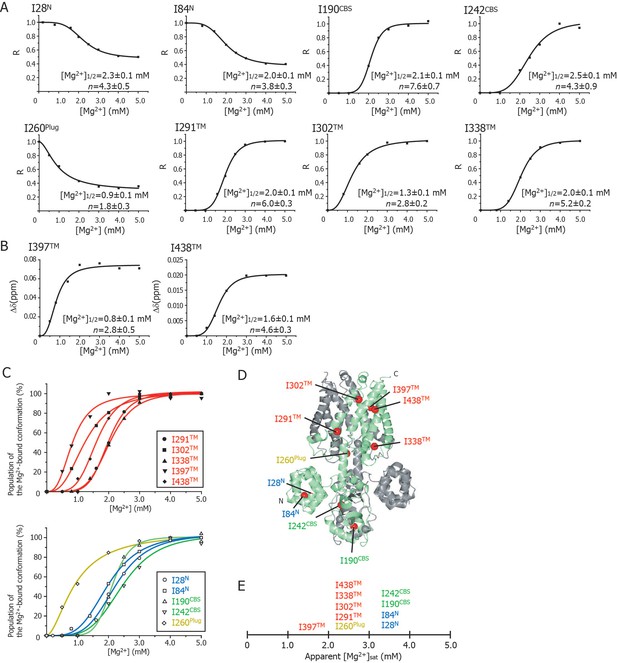

Cooperative effects of Mg2+ binding on Ileδ1 methyl signals.

(A) Normalized signal intensities (R) and (B) chemical shift changes (Δδ) of Ileδ1 methyl signals plotted against Mg2+ concentration ([Mg2+]). The solid lines represent the best fit curves of a Hill equation to the data. The estimated Mg2+ concentrations reaching the half maximal values of the changes ([Mg2+]1/2) and the Hill coefficients (n) are shown in each graph. (C) Superposition of the changes in the population of the Mg2+-bound conformation of the Ile δ1 methyl signals. The normalized changes in the chemical shift values and signal intensities in A and B were regarded as changes in the population of the Mg2+-bound conformation. The solid lines, coloured blue for the N domain, green for the CBS domain, yellow for the plug helix, and red for the TM region, represent the best fit curves of Hill equations to the data. The graphs of Ile residues in the TM and other regions are separated for clarity. (D) The positions of Ile residues (red) subjected to the analyses. (E) Apparent saturated Mg2+ concentrations, [Mg2+]sat at which the population of the Mg2+-bound conformation is above 90%. Apparent [Mg2+]sat is 3 mM for the Ile residues in the plug helix and the TM region, and 4 mM for the Ile residues in the N and CBS domains in the CP region.

https://doi.org/10.7554/eLife.31596.009

Figure 4C shows an overlay of the plots that normalize the change from the Mg2+-free state to the Mg2+-bound state; the Ile residues in the TM and other regions are shown in the upper and lower panels, respectively. Clearly, three Ile residues in the TM region (I302TM, I397TM, I438TM) and I260Plug experienced Mg2+-induced changes at Mg2+ concentrations of 0–2 mM, whereas the other Ile residues were affected at 2–3 mM Mg2+. The functionally more important Mg2+ concentrations are those at which the NMR spectral changes saturate (hereafter, referred to as [Mg2+]sat), above which each Ile residue adopts the closed MgtE conformation. The normalized plots in Figure 4C indicate that the apparent [Mg2+]sat values are 3 mM for the Ile residues in the plug helix and the TM region, and 4 mM for those in the N and CBS domains.

Role of each Mg2+ binding site in the Mg2+-induced conformational change in MgtE

Our previous electrophysiological investigation indicated that Mg2+-binding sites, Mg2, Mg3, Mg5 and Mg7 in the CP region contribute to the formation of the closed state, in addition to Mg1 in the TM region (Hattori et al., 2009). We then examined the role of the rest of Mg2+-binding sites, Mg4 and Mg6, in the MgtE channel activity. Although wild-type closed at 10 mM Mg2+ on the periplasmic side, D91A/D247A mutant for Mg4 and D95A mutant for Mg6 did not close even at 20 mM Mg2+, which is similar to D226N/D250A mutant for Mg5 analysed previously (Figure 5—figure supplement 1, panels A and B). Figure 5—figure supplement 1C summarizes the Mg2+-concentration dependence of the open probability of the wild-type and the Mg2+-binding site mutants of MgtE, which was shown in the current and previous study (Hattori et al., 2009). These results indicate that mutation of any one of the Mg2+-binding sites, Mg2-Mg7, prevents the formation of the conformation in the closed state. In other words, every Mg2+-binding site, Mg2-Mg7, is required for the Mg2+-dependent closure of MgtE channel.

In order to uncover the role of Mg2+ binding to each site in the structural changes related to channel closure, we prepared seven mutants in which, based on the MgtE crystal structure, each of the sites (Mg1 to Mg7) was disabled by mutation of its Mg2+-coordinated acidic residue(s), and investigated the effect of the mutations on the Mg2+-dependent NMR spectral changes (Figure 5). The locations of Mg1–Mg7 are indicated in the structure in Figure 1B, and are schematically depicted in Figure 6A. Since the spectra of these mutants in the Mg2+-free state are essentially identical to that of the wild-type, these mutations introduced no structural change in MgtE in the Mg2+-free state (Figure 5—figure supplement 2).

Figure 5 with 3 supplements see all

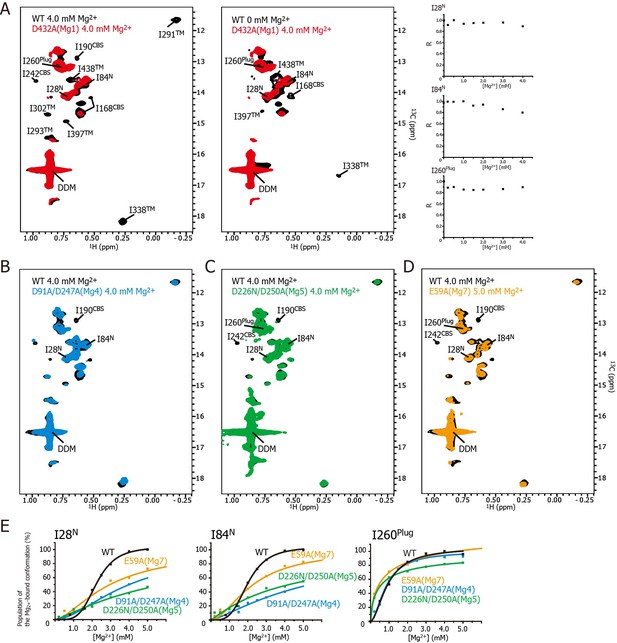

Effects of mutations at each Mg2+-binding site on the Mg2+-dependent conformational changes.

(A) Methyl-TROSY spectrum of the D432A mutant for Mg1 in the presence of 4.0 mM Mg2+ (red) superimposed on the spectrum of the wild-type (WT) protein (black) in the presence (left) and absence (middle) of 4.0 mM Mg2+. Normalized signal intensities (R) for I28N, I84N, and I260Plug in the Mg1 mutant were plotted against Mg2+ concentration ([Mg2+]). (B–D) Methyl-TROSY spectra of the D91A/D247A mutant of Mg4 (B, cyan), the D226N/D250A mutant of Mg5 (C, green), and the E59A mutant of Mg7 (D, orange) in the presence of 4.0–5.0 mM Mg2+, are overlaid on that of the wild-type (black) in the presence of 4.0 mM Mg2+. The signals differing from those in the wild-type are labelled. (E) The population of the Mg2+-bound conformation of I28N, I84N, and I260Plug plotted against Mg2+ concentrations ([Mg2+]). The solid lines are coloured black for the wild-type, cyan for the Mg4 mutant (D91A/D247A), green for Mg5 mutant (D226N/D250A), and orange for Mg7 mutant (E59A), respectively.

https://doi.org/10.7554/eLife.31596.010

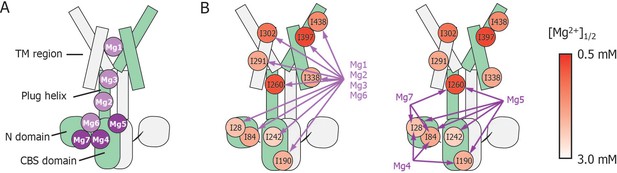

Schematic summary of the effects of mutations at each Mg2+-binding site on Mg2+-dependent changes in the conformation and dynamics.

(A) Positions of Mg2+-binding sites in one subunit. (B) Relationship between the Mg2+-binding sites and the Ile residues whose Mg2+-dependent changes of the NMR signal were affected by the mutations at each Mg2+-binding site. The mutated Mg2+-binding sites and the affected residues are connected with arrows. The Ile residues are coloured by the [Mg2+]1/2 values shown in Figure 4, as indicated.

https://doi.org/10.7554/eLife.31596.014

Figure 5A shows the methyl-TROSY spectra of the D432A mutant, in which the Mg2+-binding of Mg1 is impaired, in the presence of 4.0 mM Mg2+ (red), superimposed on the spectra of the wild-type MgtE in the presence (Figure 5A, left, black) or absence (Figure 5A, middle, black) of 4.0 mM Mg2+. The NMR spectra of the mutant (hereafter, referred to as the Mg1-binding mutant) differs from that of the wild-type in the presence of 4.0 mM Mg2+, as the signals for I190CBS, I201CBS, I242CBS, I291TM, I302TM, I338TM, I397TM, and I438TM did not appear in the former (Figure 5A). These differences in the signals from the CBS domain and the TM region suggest that, in the presence of a saturating amount of Mg2+, the conformation of these regions in the Mg1-binding mutant is different from that in the wild-type.

In addition, the markedly strong signal intensities seen for I28N, I84N, and I260Plug in the Mg1-binding mutant did not decrease as the Mg2+ concentration increased (Figure 5A, right), whereas those in wild-type MgtE significantly decreased in a Mg2+-dependent manner as shown in Figure 3A. These results indicate that, in the presence of 4.0 mM Mg2+, the conformation and dynamics of the N domain and the plug helix in the Mg1-binding mutant also differ from those of the wild-type MgtE.

In contrast, the spectrum of the Mg1-binding mutant in the presence of 4 mM Mg2+ is similar to that of the wild-type at 0 mM Mg2+ (Figure 5A, middle). The only differences are the missing of the signals for I168CBS, I338TM, I397TM, and I438TM, which were observed for the wild-type at 0 mM Mg2+. The missing of these signals is presumably caused by the exchange broadening between Mg2+-bound and unbound states for the sites Mg2-7 of the Mg1-binding mutant. These spectral comparisons strongly suggest that the mutation of the Mg1-binding site precludes the Mg2+-induced conformational changes in the whole MgtE molecule, as has been observed for the wild-type MgtE (Figure 6B, left).

Essentially the same spectra, seen for the Mg1-binding mutant (D432A), were observed for the Mg2- (E258Q), Mg3- (D259N), and Mg6- (D95N) binding mutants (Figure 5—figure supplement 3), suggesting that the mutation at the site Mg2, Mg3, or Mg6 also precludes the complete Mg2+-induced conformational changes in the whole MgtE molecule at 4 mM Mg2+. Therefore, the binding mutants for Mg2, Mg3, and Mg6 would all be expected to require higher Mg2+ concentration to saturate Mg2+-binding to all the sites that are not mutated.

These results indicate that Mg2+ binding to the Mg1, Mg2, Mg3, and Mg6 sites is required for the Mg2+-induced changes in the conformation and dynamics of the whole MgtE molecule (Figure 6B, left). Conversely, the Mg4- (D91A/D247A), Mg5- (D226N/D250A), and Mg7- (E59A) binding mutants exhibited Mg2+-induced spectral changes in the Ile residues in the TM region (I291TM, I302TM, I338TM, I397TM, and I438TM) identical to those seen in the wild-type protein, whereas the spectral changes for the Ile residues in the N domain (I28N and I84N), the CBS domain (I190CBS and I242CBS) and the plug helix (I260Plug) differed from the wild-type spectra (Figure 5B–D, respectively).

For the Mg4-binding mutant (D91A/D247A), the Mg2+-induced change in I190CBS, which was seen in the wild-type protein, was not observed (Figure 5B). The Mg2+ concentrations, at which the intensity changes of the I28N and I84N signals saturated, which reflects the population of molecules in the Mg2+-bound conformation, were significantly higher (>10 and >25 mM, respectively, estimated from curve fitting of the Hill’s equation) compared to 4 mM for the wild-type (Figure 5E). The changes in the other Ile residues were identical to those in the wild-type protein. These results suggest that Mg2+ binding to the Mg4-binding site affects the structure and dynamics of the N and CBS domains, as shown by I28N, I84N, and I190CBS (Figure 6B, right).

For the Mg5-binding mutant (D226N/D250A), the Mg2+-induced changes in I190CBS and I242CBS were not observed (Figure 5C). The Mg2+ concentrations, at which the intensity changes of the I28N, I84N and I260Plug signals saturated, were significantly higher (>30, >30, and >8 mM, respectively), than the wild-type (4 mM) (Figure 5E). In addition, this mutant exhibited lower cooperativity for I260Plug (n = 0.8) than that of the wild type (n = 1.8). These results suggest that Mg2+ binding to the Mg5 site elicits changes in the structure and dynamics of the N and CBS domains, as well as the plug helix, as shown by I28N, I84N, I190CBS, I242CBS, and I260Plug (Figure 6B, right).

For the Mg7-binding site mutant (E59A), the majority of the Ile signals, except for I28N, I84N and I260Plug, exhibited Mg2+-dependent changes that were identical to those in the wild-type (Figure 5D). The Mg2+ concentrations, at which the intensity changes of the I28N and I84N signals saturated, were significantly higher (>10 and>7 mM, respectively), than the wild-type (4 mM) (Figure 5E). This mutant also exhibited lower cooperativity for I260Plug (n = 0.6) than that of the wild type (n = 1.8). These results suggest that Mg2+ binding to the Mg7 binding site elicits changes in the N domain and the plug helix, as shown by I28N, I84N, and I260Plug (Figure 6B, right).

Overall, whereas Mg2+ binding to the Mg4-, Mg5-, and Mg7-binding sites does not affect Ile residues in the TM region, all affect the N domain Ile residues (Figure 6). Channel closure requires Mg2+ binding to all of the sites, Mg1–Mg7 (Hattori et al., 2009), suggesting that Mg2+ binding to the Mg4, Mg5, and Mg7 sites causes channel closure via Mg2+-dependent structural changes in the N domain.

Discussion

In this study, we characterized the effects of Mg2+ binding on the structure and dynamics of MgtE in a site-specific manner, by observing the NMR signals of Ile δ1 methyl groups that are distal to specific Mg2+-binding sites. Notably, the spectral changes do not reflect Mg2+-binding directly but rather indicate changes in the conformation and dynamics of Ile residues from which the Mg2+-binding effects could be inferred. Solution NMR method is known as one of the methods to solve the three-dimensional structure of relatively small proteins. For larger proteins, NMR spectral changes caused by the functionally related stimuli such as ligand binding reflect the changes in the conformation and dynamics that are related to their functions. Together with the high resolution crystal structure of Mg2+-bound, closed state of MgtE (Hattori et al., 2009), Mg2+-dependent changes of the methyl-TROSY spectra could provide the information which sites of MgtE change its structure and dynamics between the Mg2+-saturated, closed state and the Mg2+-free or partially bound, open state.

Mg2+-dependent changes in the structure and dynamics of MgtE

The purified MgtE protein showed Mg2+-dependent spectral changes that were mostly saturated at 4.0 mM Mg2+. Based on a previous electrophysiological result that MgtE closes at cytoplasmic Mg2+ concentrations above 5–10 mM (Hattori et al., 2009), the NMR spectrum of MgtE above 4 mM is likely to reflect the conformation of MgtE in its closed state. Although the crystal structure of MgtE in the Mg2+-free state is not available, current NMR spectra provides structural information regarding the Mg2+-free MgtE and its changes upon Mg2+-binding.

In the Mg2+-free state, the NMR signals for I242CBS, I291TM, and I302TM were very broad, whereas I28N, I84N, and I260Plug had sharp, strong signals (Figure 2A). Together with our previous paramagnetic relaxation enhancement study, indicating that the N domain undergoes free tumbling motions in the Mg2+-free state (Imai et al., 2012), these findings suggest that Mg2+-free MgtE has a conformational equilibrium with different kinetics between the TM/CBS region and N/Plug region. The conformational equilibrium is suppressed by Mg2+-binding, as evidenced by sharpening/appearance of the weak and/or broad signals, and by broadening of the very sharp signals for I28N, I84N, and I260Plug, resulting in the formation of the closed state of MgtE.

The effects of Mg2+ binding at each site on the conformation and dynamics of MgtE

Mg2+-titration experiments for the wild-type and mutant forms of MgtE indicated that all the Ile residues in the TM region (IleTM) were affected by Mg2+ binding to the Mg1, Mg2, Mg3, and Mg6 sites, whereas mutation of the Mg4-, Mg5-, or Mg7-binding sites did not affect the Mg2+-induced changes in the structure and dynamics of the TM region (Figures 5 and 6, and Figure 5—figure supplement 3). In addition to saturation of the changes for IleTM at 3 mM Mg2+ (Figure 4), Mg2+ binding to the Mg1, Mg2, Mg3 and Mg6 sites is suggested to saturate at 3 mM, which completes the Mg2+-dependent conformational changes in the TM region.

Based on the fact that mutation at the Mg1-, Mg2-, Mg3-, or Mg6-binding sites also affected Mg2+-dependent changes in Ile residues in the CP region, Mg2+ binding to these sites is required for the structural/dynamic changes in the CP region as well as in the TM region. It should be noted that the structural changes in the TM region seem to occur in two steps (Figure 4). The residues I302TM, I397TM, and I438TM, which lie in the proximity of Mg1 at the extracellular side of the TM region, change at lower Mg2+ concentrations. On the other hand, the residues I291TM and I338TM, which locate at the intracellular side of the TM region, change at the Mg2+ concentrations similar to the changes of the Ile residues in the N and CBS domains. The structural changes in two steps seem to reflect that the latter residues at the intracellular side of the TM region are also affected by the Mg2+-binding to the Mg2+ sites, Mg2, Mg3 and/or Mg6 in the intracellular domains.

Conversely, Mg2+ binding to the remainder of the sites, Mg4, Mg5, and Mg7, regulates Ile residues only in the CP region consisting of the N and CBS domains as well as the plug helix, with no effect on the TM region. Specifically, binding at Mg4 affects Ile residues in the N and CBS domains, binding at Mg5 affects Ile residues in the N and CBS domains, as well as the plug helix, and binding at Mg7 affects Ile residues in the N domain and the plug helix (Figures 5 and 6, and Figure 5—figure supplement 3). As shown in Figure 4, Mg2+-dependent changes in the Ile residues in the CP region saturate at 4 mM, strongly suggesting that Mg2+ binding to the Mg4, Mg5, and Mg7 sites saturates at 4 mM. This changes the conformation of the CP region including the N and CBS domains, resulting in the formation of the Mg2+-bound closed state, as observed in the crystal structure (Hattori et al., 2007b, Hattori et al., 2009).

Contribution of Mg4, Mg5, and Mg7 to gate closure

In the crystal structure of the full-length MgtE in the Mg2+-bound form (Hattori et al., 2007b, Hattori et al., 2009), Mg2+ bound at the Mg4 site forms a bridge between the N domain and the plug helix in the same subunit, whereas Mg2+ bound at the Mg5 and Mg7 sites forms inter-subunit bridges between the CBS domain and the plug helix, and between the N and CBS domains, respectively (schematically shown in Figure 7, right). Mg2+ binding to these sites neutralizes the electrostatic repulsion of the acidic residues forming the Mg2+-binding sites in the N and CBS domains and the plug helix, enabling the cooperative formation of a compact globular conformation in the closed state of MgtE.

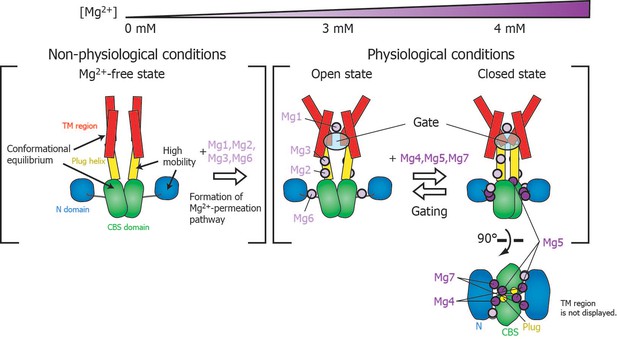

Roles for each Mg2+ binding site in the gating of MgtE.

In the Mg2+-free state, which MgtE does not adopt in physiological conditions, conformational equilibrium exists between the CBS domain and the TM region, whereas the N domain and the plug helix have high motional flexibility. Cooperative Mg2+ binding to Mg1, Mg2, Mg3, and Mg6 form the ion-conducting pore, whose gate is closed by cooperative Mg2+ binding to Mg4, Mg5, and Mg7. The Mg2+ bound at Mg4 forms a bridge between the N domain and the plug helix in the same subunit. The Mg2+ bound at Mg5 forms a bridge between the CBS domain in one subunit and the plug helix in the other subunit. The Mg2+ bound at Mg7 forms a bridge between the N domain in one subunit and the CBS domain in the other subunit. Together, these bound Mg2+ atoms may stabilize the domain orientations in close proximity to each other.

https://doi.org/10.7554/eLife.31596.015

The closed gate is formed and stabilized by the interaction between N424TM and L263Plug on the cytoplasmic side of the ion-conducting pore in the TM region (Figure 1—figure supplement 1) (Hattori et al., 2009). Thus, the I260Plug NMR signal, which is located in the C-terminal region of the plug helix, might serve as a good probe for the conformational change of the gate region. Although the fast motion of I260Plug is mostly suppressed at 3 mM (Figure 4), Mg2+ binding to Mg5 and Mg7, which affects I260Plug, saturates at 4 mM (Figure 6B). Therefore, the complete conformational change of I260Plug is likely to be achieved at 4 mM, which contributes to the stabilization of the closed gate.

Physiological relevance of MgtE gating

Figure 7 schematically summarizes a model of the Mg2+-dependent gating of MgtE. The present study revealed that gating of MgtE occurs at Mg2+ concentrations of 4 mM. Below this threshold, MgtE adopts an open state, and allows the transport of extracellular Mg2+ into cells; thus, the intracellular Mg2+ level is maintained higher than the threshold. Consequently, under physiological conditions, MgtE is not in the Mg2+-free state. Cooperative Mg2+ binding to the Mg1-, Mg2-, Mg3-, and Mg6-binding sites, which changes the conformation and dynamics of the TM region, saturates at 3 mM, suggesting that these sites are also constitutively Mg2+-bound at the physiological Mg2+ level, which is higher than 4 mM.

Electrophysiological results indicated that a mutation at Mg1 abolishes Mg2+ conductivity, whereas a mutation at either of the sites Mg2, Mg3, or Mg6 does not (Hattori et al., 2009 and Figure 5—figure supplement 1C). These results are apparently inconsistent with the current NMR data that the Mg2+-binding to the Mg1-, Mg2-, Mg3-, and Mg6-binding sites is cooperative, i.e., the loss of the Mg2+-binding ability at either of the Mg2-, Mg3-, or Mg6-binding site, should impair the Mg2+-binding affinity of the Mg1-binding site, and therefore, should abolish the ion conductivity. This inconsistency is presumably due to the differences in the experimental conditions on the Mg2+ concentration between NMR and electrophysiological experiments. Whereas the Mg2+ concentration is constant in an NMR sample solution, ranging from 0 to 5 mM, those in the electrophysiological experiments are 90 mM and 0.2 mM, respectively, on the extracellular and intracellular sides. Among the seven Mg2+-binding sites, the Mg1-binding site is the only one among the seven sites that lies at the extracellular side of the TM region of MgtE (Figure 1B). This suggests that, under the condition for the electrophysiological experiments, high Mg2+ concentration at 90 mM on the extracellular side seems to force the Mg1-binding site of the Mg2-, Mg3-, and Mg6-binding mutants to accommodate a Mg2+ ion, leading to the channel opening of these mutants, in spite of the cooperativity revealed by NMR.

The mutation at either of the Mg2-, Mg3-, or Mg6-binding sites prevents the channel closure in the presence of 10–20 mM Mg2+ (Figure 5—figure supplement 1). Therefore, the roles of the cooperative Mg2+ binding to the Mg1-, Mg2-, Mg3-, and Mg6-binding sites are likely to include the formation of an ion-conducting pore in the TM region mainly by the Mg1-binding site, and adjustment of the Mg2+-binding affinities of the Mg4, Mg5, and Mg7 sites, enabling the CP region to act as an Mg2+ sensor for gating in response to increases in intracellular Mg2+ levels above 4 mM. The functional roles of each of these Mg2+-binding sites therefore underlie the intracellular Mg2+ homeostasis mediated by MgtE.

Conclusion

NMR analysis in combination with a high resolution crystal structure has provided site-specific information on changes in the protein conformation and dynamics of MgtE in relation to its function. By translating this information to SLC41 family members, human orthologues of the prokaryotic MgtE protein (Goytain and Quamme, 2005a; Kolisek et al., 2008; Moomaw and Maguire, 2008; Sahni and Scharenberg, 2013), it may be possible to identify a binding site for a novel ligand, which could be used to develop a novel treatment for diseases caused by abnormal Mg2+ levels, including cardiovascular disease, diabetes, and high blood pressure (Alexander et al., 2008).

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Gene (Thermus thermophilus)MgtEdoi: 10.1107/S1744309107032332Uniprot ID: Q5SMG8
Strain, strain background (Escherichia coli)BW25113 ΔmgtA ΔcorA ΔyhiD DE3doi: 10.1038/emboj.2009.288
Recombinant DNA reagentpET28a-MgtEdoi: 10.1107/S1744309107032332

Plasmid construction and expression

Request a detailed protocol

We utilised a plasmid encoding full-length MgtE from T. thermophilus with an N-terminal His × 6 tag and an HRV-3C protease recognition site (Hattori et al., 2007a). The MgtE mutant constructs were generated through polymerase chain reaction-based mutagenesis. All MgtE proteins were expressed in E. coli C41 (DE3) cells. {u-2H, Ileδ1-[13CH3]}MgtE was expressed according to a previous study (Tugarinov et al., 2006).

Sample preparation

Request a detailed protocol

MgtE and its mutants were purified as follows. The harvested cells were suspended in a buffer containing 50 mM HEPES-NaOH (pH 7.0), 150 mM NaCl and 20 mM imidazole, supplemented with 1 mM phenylmethylsulfonyl fluoride and lysed by sonication followed by centrifugation at 1,750 × g for 10 min. The supernatants were then ultra-centrifuged at 100,000 × g for 30 min. The pellet was solubilized for 2 hr at 277 K with a buffer containing 50 mM HEPES-NaOH (pH 7.0), 150 mM NaCl, 40 mM n-dodecyl -D-maltoside) (DDM), and 20 mM imidazole. After centrifugation at 14,000 × g for 30 min, the supernatant was applied to a TALON column (Clontech, Mountain View, CA, USA). After washing the column with a buffer containing 50 mM HEPES-NaOH (pH 7.0), 150 mM NaCl, 1 mM DDM, and 20 mM imidazole, the protein was eluted with the same buffer supplemented with 150 mM imidazole. The N-terminal His × 6 tag was then cleaved using the HRV-3C protease. The cleaved His × 6 tag, undigested MgtE, and HRV-3C protease were removed by passing the sample through a HIS-select column (Sigma, St. Louis, MO, USA).

For the NMR experiments, the sample buffer was exchanged with NMR buffer (20 mM HEPES-NaOH (pH 7.2), 20 mM NaCl, 100% D2O). The pH value of the 100% D2O buffer was calibrated by adding 0.4 pH unit to the reading on the pH meter (Blanchard, 1984).

NMR spectroscopy

Request a detailed protocol

NMR spectra were observed at 313 K on Bruker Avance 500, 600, or 800 MHz spectrometers equipped with a cryogenic probe. For Mg2+-titration experiments, small aliquots of the NMR buffer containing 20–200 mM MgCl2 were added. The MgtE concentration was 200 μM, whereas the DDM was approximately 10 mM, estimated from the signal intensity of the DDM methyl signal in 1H 1D spectra.

The assignments of the Ile δ1 methyl-TROSY signals in the Mg2+-free and bound states were obtained by site-directed mutagenesis. We observed methyl-TROSY spectra for fifteen individual Ile mutants, in which each Ile residues was mutated to Val (i.e. I28V, I84V, I168V, I171V, I190V, I201V, I242V, I260V, I291V, I293V, I302V, I338V, I339V, I397V, or I438V). The spectra of these mutants were compared to those of the wild-type protein in the Mg2+-free and Mg2+-bound states, respectively. The missing signals in the spectra of the Ile mutants were assigned as the signals arising from the mutated Ile residues.

Chemical shift differences, Δδ, were calculated using the equation:

Δδ={(Δδ1H)+(Δδ13C/5.8)2}0.5

where Δδ1H and Δδ13C are the chemical shift differences in the 1H and 13C dimensions, respectively. The normalised factor (5.8) was determined from the ratio of the variance of methyl 1H and 13C chemical shifts, deposited in the Biological Magnetic Resonance Data Bank. The signal intensities of Ileδ1 methyl signals for a series of the titration spectra were normalised based on the intensity of the DDM methyl signal. The Mg2+ concentration reaching the half maximal values in the changes ([Mg2+]1/2) and Hill coefficients (n) were calculated using the equations

Δ=Δmax[Mg2+]n/([Mg2+]1/2n+[Mg2+]n)

or

Δ=1Δmax[Mg2+]n/([Mg2+]1/2n+[Mg2+]n)

where Δ and Δ’ are the changes in the chemical shift or the signal intensity of Ile δ1 methyl signals.

Patch-clamp analysis

Request a detailed protocol

The Mg2+-auxotrophic E. coli strain (BW25113 ΔmgtA ΔcorA ΔyhiD DE3) was transformed with each MgtE expressing plasmid, and maintained in growth medium supplemented with 100 mM MgSO4. E. coli giant spheroplasts were prepared as described previously (Hattori et al., 2009). Spheroplasts expressing wild-type and mutant forms of MgtE were plated on glass coverslips in a bath solution containing 200 mM N-methyl-D-glucamine, 90 mM MgCl2, 300 mM glucose and 10 mM HEPES (pH 7.2). Borosilicate pipettes (Harvard Apparatus, Kent, UK), with a resistance of 5–8 MΩ, were filled with a pipette solution (250 mM N-methyl-D-glucamine, 90 mM MgCl2, 300 mM glucose and 10 mM HEPES (pH 7.2). After gigal seal formation, a patch of membrane was excised and the bath solution was exchanged with a batch solution containing 290 mM N-methyl-D-glucamine, 0.2 mM MgCl2, 300 mM glucose and 10 mM HEPES (pH 7.2). The membrane patch voltage was clamped and currents were recorded using an Axopatch 200B amplifier (Axon CNS, Molecular Devices), coupled to an A/D converter (Axon CNS, Molecular Devices) and controlled by the pclamp10 software (Axon CNS, Molecular Devices). Currents were filtered at 2 kHz and sampled at 5 kHz.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Role of magnesium in genomic stability
    1. A Hartwig
    (2001)
    Mutation Research/Fundamental and Molecular Mechanisms of Mutagenesis 475:113–121.
    https://doi.org/10.1016/S0027-5107(01)00074-4
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16

Decision letter

  1. Olga Boudker
    Reviewing Editor; Weill Cornell Medical College, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Functional roles of Mg2+ binding sites in ion-dependent gating of a Mg2+ channel, MgtE, revealed by solution NMR" for consideration by eLife. Your article has been favorably evaluated by Richard Aldrich (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal their identity: Charles R Sanders (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision.

This is an interesting paper on the role of the binding of seven Mg(II) ions to the microbial MgtE channel, providing the apparent Mg(II) binding affinity as well as Hill coefficients informing on binding cooperativity. This was a technically challenging project in which a combination of sophisticated isotopic labeling methods and methyl-TROSY methods allowed NMR spectra to be acquired for some 15 assigned isoleucine residues (spread rather evenly throughout the protein). This took quite a lot of work for a >150 kDa detergent/intact channel complex. Binding was monitored examining the Mg(II)-concentration dependence of peak positions and/or intensity. Different peaks exhibited changes that led to different apparent Kd and Hill coefficients. Additional NMR studies conducted using Mg(II) ion binding site mutants, led to the realization that three of the Mg(II) sites form a distinct set of sites from the other 4 sites. In particular, the three sites are proposed to be responsible for stabilizing the open form of the channel, whereas the other 4 may help stabilize the channel but also exert other modulating effects, perhaps leading to channel closure at higher ion concentrations.

The reviewers agreed that the work is interesting and important. However, they felt that relating Mg(II) binding results to function would be critical to establish the role of the bound ions. In particular, it was pointed out that the binding data and structural inferences that suggest highly cooperative ion binding should be reconciled with existing functional data (e.g., Figure 2 of Nature Comm. 8: 148 (2017)), which show no cooperativity in the channel response to increased Mg(II) concentration. Furthermore, similar functional data on mutants targeting Mg(II) binding sites should help resolve the role of the groups of the sites. For example, mutations of sites 4, 5, and 7 should lead to a channel that does not close at elevated Mg(II) concentrations.

Reviewer #1:

The manuscript by Osawa et al. describes an elegant study of a bacterial magnesium channel MgtE (homologous to eukaryotic SLC41), which is responsible for the maintenance of the intracellular Mg levels. The channel is tightly regulated by Mg, and closes at Mg concentrations above 5 mM. Previous crystal structures showed that the dimeric channel contains one central Mg ion in the permeation pathway (Mg1) and 6 additional sites per subunit in three cytoplasmic regions: N-domain, CBS domain and plug helix. To address the role of the Mg binding sites, the authors employed Ile Methyl-TROSY NMR. They found that in the absence of Mg, N-domain and plug residue I260 showed high mobility. Titrating in Mg, led to changes of Ile peaks characteristics throughout the protein with EC50 varying between 0.8 and 2.5 mM, and with high Hill coefficients from 2 to 7. The authors mutated out each Mg binding site one at a time, and found Mg binding to sites Mg1, 2, 3 and 6 was essential for all conformational changes. In contrast, binding to sites Mg4, 5, and 7 was not essential for changes in TM regions, but was required for changes in N-domain, CBS domain, and plug helix (Mg 5 and 7). The authors construct a model whereby at low, but physiologically relevant Mg concentrations, Mg binds cooperatively to sites 1, 2, 3 and 6 to produce a conducting state; at higher concentrations Mg binds cooperatively to sites 4, 5 and 7, increasing interactions between N-domain and CBS and leading to channel closing. I found the work compelling even if there were some unresolved questions.

1) While the spectra of WT apo protein and Mg1 mutant in the presence of 4 mM Mg are similar as the authors state, they are not identical. The authors should discuss what are the differences and what might be their origin. In Discussion (subsection “The effects of Mg2+ binding at each site on the conformation and dynamics of MgtE”, first paragraph), the authors say that Mg binding to sites 1, 2, 3 and 6 affect Ile in TM region "cooperatively". The last term is ambiguous here. In particular, the TM Ile sites show Mg-dependent changes with different EC50s and Hill coefficients, such that, for example, I397 has EC50 of 0.8 (Nhill=2.8) while I338 has EC50 of 2 mM (Nhill=5.2). The latter residue shows sensitivity more similar to residues in the N- and CBS-domains. Therefore, while Mg binding to the sites might be cooperative, the structural changes in TM region may occur in two steps (with binding of Mg to the first and second sets of binding sites). This needs to be clarified.

2) According to Figure 5E, Mg4 mutations do not affect Mg-dependent changes of I260Plug, while both Mg7 and Mg5 mutations decrease cooperativity, but not affinity. Text in the sixth and seventh paragraphs of the subsection “Role of each Mg2+ binding site in the Mg2+-induced conformational change in MgtE” contradicts the figure (also Figure 6B, right).

3) The statement about cooperative binding to sites 4, 5, 7 is confusing. Binding to site 4 does not seem to affect the structural changes in the plug, while binding to sites 5 and 7 does.

4) Can the signal changes, such as the chemical shift changes and peaks' sharpening/appearance be interpreted in terms of changes of protein dynamics?

5) What kind of cooperative coupling is expected between the subunits in the dimer?

Reviewer #2:

This is an interesting paper on the role of the binding of seven Mg(II) ions to the microbial MgtE channel, providing the apparent Mg(II) binding affinity as well as Hill coefficients informing on binding cooperativity. This was a technically challenging project in which a combination of sophisticated isotopic labeling methods and methyl-TROSY methods allowed NMR spectra to be acquired for some 15 assigned isoleucine residues (spread rather evenly throughout the protein). This took quite a lot of work for a >150 kDa detergent/intact channel complex. Binding was monitored examining the Mg(II)-concentration dependence of peak positions and/or intensity. Different peaks exhibited changes that led to different apparent Kd and Hill coefficients. Along with the results of additional NMR studies conducted using Mg(II) ion binding site mutant, this led to the realization that three of the Mg(II) sites can regarded a distinct set of site from the other 4 sites. In particular, the three sites are proposed to be responsible for stabilizing the gated form of the channel, whereas the other 4 may help stabilize the channel but also exert other structural and/or dynamic roles in modulating Mg(II) channel function. Exactly what these other roles is was a little vague. This is an admirable and difficult study that significantly advances our understanding of Mg(II) channel structure and function. I especially admire the care with which they quantitative the Mg(II)-dependence of the very modest changes in NMR peaks positions/intensities.

This well written paper could be published essentially as is. However, the degree to which this NMR study established exactly what these two sets of Mg(II) binding events are doing in terms of channel function would be greatly enhanced by accompanying [Mg(II)]-dependent channel function measurements for both WT and the mutants they characterized by NMR. Such measurements are not reported in this paper. I would strongly encourage the authors to consider revising this paper to include the results of functional measurements (perhaps provided by expert collaborators). Without this, I view this paper as borderline in terms of providing enough new insight into MgtE channel function to justify publication in a journal with the stature of eLife.

Reviewer #3:

Magnesium is a ubiquitous ion necessary for many biological functions with several unique chemical properties that differentiate it from other divalent cations such as Calcium. These include a very high energy of dehydration, small ionic but very large hydrated radius. How ion channels and transporters move Mg2+ in and out of compartments is important to understanding both the molecular mechanisms and function of this ion. The authors of this study use solution-NMR to study the dynamics of the prokaryotic Mg2+ channel, MgtE. The size and helix content make this a challenging NMR target. Addressing this, the group used methyl-TROSY with specific labeling of isoleucines as reporters of channel dynamics in detergent micelles. Coupled with site directed mutagenesis of residues responsible for binding Mg2+ residues (determined from previous functional and structural studies), the authors initially titrate and then use a set Mg2+ concentration to study what role binding plays in the dynamics of MgtE.

The authors have used NMR in previous studies to begin to address MgtE dynamics using PRE. Further, they've characterized the function of MgtE. Working from these previous studies, the authors combine this information to derive a model that asks how the dynamics of the transmembrane region, N-domain, CBS, and net cytoplasmic portion are related to the known Mg2+ binding sites. They arrive at a model where 4 of 7 Mg2+ sites act on the transmembrane domains and Plug Helix, whereas the remaining 3 of 7 Mg2+ sites are principally focused on dynamics in the cytoplasmic domain. They propose a model based on the absence or presence of Mg2+ on channel function. This is a useful finding that advances our knowledge of how the structure, dynamics and function reveal the mechanisms of Mg2+ permeation in an ion channel.

Questions/concerns:

1) Physiological range – While 0.05% of dry weight mass of E. coli is Mg2+, and the estimated cellular concentrations are 30 mM, the free Mg2+ is estimated to be around 0.3 mM for E. coli. How does the model in Figure 7 account for this range and for the estimated binding affinities?

2) It is suggested that the authors establish an explicit correlation between the behavior of the NMR-derived Mg2+ binding behavior at the different Mg2+-binding sites of MgtE, and the know Mg2+ dependence of the channel open probability, as determined by electrophysiological methods (perhaps as part of Figure 5?).

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Functional roles of Mg2+ binding sites in ion-dependent gating of a Mg2+ channel, MgtE, revealed by solution NMR" for further consideration at eLife. Your revised article has been favorably evaluated by Richard Aldrich (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The main issue that the reviewers raised during the initial review was the lack of clear correspondence between the conformational responses of the protein to binding of Mg ions as detected by NMR and the functional behavior. The authors have addressed the criticism by providing functional data on mutations targeting every Mg binding site (either previously published or conducted specifically for this study). The data are succinctly summarized in the figure in their point-by-point response. What is still missing is putting these data in perspective of the current NMR study. In other words, how do these data agree (or disagree) with Figure 7? This is clearly a very complicated system, and perhaps not all data are expected to be in perfect correspondence, but key aspects should be addressed. For example, what is the role of sites 2, 3 and 5 if their mutations are not detrimental for channel opening but are for channel closing? I would have liked the authors to include the figure into the paper and discuss clearly to what extent their proposed model is or is not fully consistent with functional data.

https://doi.org/10.7554/eLife.31596.020

Author response

The reviewers agreed that the work is interesting and important. However, they felt that relating Mg(II) binding results to function would be critical to establish the role of the bound ions. In particular, it was pointed out that the binding data and structural inferences that suggest highly cooperative ion binding should be reconciled with existing functional data (e.g., Figure 2 of Nature Comm. 8: 148 (2017)), which show no cooperativity in the channel response to increased Mg(II) concentration.

The patch clamp analysis in our recent paper (Tomita et al. Nature Comm. 2017) indicated that open probability decreases in response to the elevation of the Mg2+ level. This is consistent with our NMR results that detect the Mg2+-dependent changes in the population of Mg2+-bound conformation of I260Plug (Figure 4C), which serves as a good probe for the conformational change of the gate region (N424TM and L263Plug).

The conformation of I260Plug is affected by the Mg2+-binding to Mg1, 2, 3, 5, 6 and 7 (Figure 6). The Mg2+-binding to these sites differentially affects the conformation of I260Plug, resulting in the small Hill coefficient value of 1.8 ± 0.3. This weak cooperativity might not be observed in the patch clamp analysis, due to the differences in the experimental conditions, such as high salt concentration, existence of the Mg2+-concentration gradient and membrane potential across the lipid bilayer for the patch clamp analysis, whereas low ion strength of 20 mM NaCl is suitable to detect the Mg2+-binding effects by NMR with high sensitivity.

Furthermore, similar functional data on mutants targeting Mg(II) binding sites should help resolve the role of the groups of the sites. For example, mutations of sites 4, 5, and 7 should lead to a channel that does not close at elevated Mg(II) concentrations.

Thank you very much for the suggestion. The functional data for the sites, 1, 2, 3, 5, and 7 were previously reported (Hattori et al., 2009), as follows:

Mg1-binding mutant, D432A, exhibited no channel activity.

Mg2-binding mutant, E258Q, did not close at 20 mM Mg2+.

Mg3-binding mutant, D259N, did not close at 20 mM Mg2+.

Mg5-binding mutant, D226N/D250A, did not close at 20 mM Mg2+.

Mg7-binding mutant, E59A, did not close at 10 mM Mg2+, but closed at 20 mM Mg2+.

Here, we have performed the functional experiments for the binding mutants for the sites 4 and 6 (Figure 5—figure supplement 1 in the revised manuscript), indicating that these mutants do not close at 20 mM Mg2+. We described this as follows, “We then examined the role of the rest of Mg2+-binding sites, Mg4 and Mg6, in the MgtE channel activity. Although wild-type closed at 10 mM Mg2+ on the periplasmic side, D91A/D247A mutant for Mg4 and D95A mutant for Mg6 did not close even at 20 mM Mg2+, which is similar to D226N/D250A mutant for Mg5 analysed previously (Figure 5—figure supplement 1). […] In other words, every Mg2+-binding site, Mg2-Mg7, is required for the Mg2+-dependent closure of MgtE channel.”

Reviewer #1:

[…] 1) While the spectra of WT apo protein and Mg1 mutant in the presence of 4 mM Mg are similar as the authors state, they are not identical. The authors should discuss what are the differences and what might be their origin.

As the reviewer pointed out, there are differences in these two spectra: the signals for I168CBS, I338TM, I397TM, and I438TM were observed for the WT apo protein (Figure 5A, middle, black), whereas they were not observed for the Mg1 mutant in the presence of 4 mM Mg2+(Figure 5 A, middle, red). As the signals for these residues were observed at different chemical shifts for the WT protein in the presence of 4 mM Mg2+ (Figure 5A, left, black), missing of these signals in the spectrum for the Mg1-binding mutant in the presence of 4 mM Mg2+ suggests that these signals were broadened due to the chemical exchange among multiple conformations, caused by the partial and inhomogeneous binding of Mg2+ to the sites Mg2-Mg7.

The description regarding the differences has been added as follows, “The only differences are the missing of the signals for I168CBS, I338TM, I397TM, and I438TM, which were observed for the wild-type at 0 mM Mg2+. The missing of these signals is presumably caused by the exchange broadening between Mg2+-bound and unbound states for the sites Mg2-7 of the Mg1-binding mutant.”

In Discussion (subsection “The effects of Mg2+ binding at each site on the conformation and dynamics of MgtE”, first paragraph), the authors say that Mg binding to sites 1, 2, 3 and 6 affect Ile in TM region "cooperatively". The last term is ambiguous here. In particular, the TM Ile sites show Mg-dependent changes with different EC50s and Hill coefficients, such that, for example, I397 has EC50 of 0.8 (Nhill=2.8) while I338 has EC50 of 2 mM (Nhill=5.2). The latter residue shows sensitivity more similar to residues in the N- and CBS-domains. Therefore, while Mg binding to the sites might be cooperative, the structural changes in TM region may occur in two steps (with binding of Mg to the first and second sets of binding sites). This needs to be clarified.

Thank you for the comment. The mutations at either site of Mg1, 2, 3, or 6 caused the similar changes in the NMR signals for the identical set of the Ile residues (Figure 5A and Figure 5—figure supplement 3), suggesting that the Mg2+-binding to either of these sites contributes to the structural changes of these Ile residues. However, as the reviewer pointed out, the structural changes in the TM region of the wild type protein seem to occur in two steps (Figure 4).

Whereas the residues I302TM, I397TM, and I438TM, which lie in the proximity of Mg1 at the extracellular side of the TM region, change at lower Mg2+ concentrations, the residues I291TM and I338TM, which locate at the intracellular side of the TM region, change at the Mg2+ concentrations similar to the changes of the Ile residues in the N and CBS domains. The structural changes in two steps seem to reflect that the latter residues at the intracellular side of the TM region are also affected by the Mg2+-binding to the intracellular domains.

Accordingly, we revised the Discussion, as follows,

“cooperatively” has been removed.

We have removed “appears to be cooperative and”.

We have added a paragraph, “It should be noted that the structural changes in the TM region seem to occur in two steps (Figure 4). […] The structural changes in two steps seem to reflect that the latter residues at the intracellular side of the TM region are also affected by the Mg2+-binding to the Mg2+ sites, Mg2, Mg3 and/or Mg6 in the intracellular domains.”

2) According to Figure 5E, Mg4 mutations do not affect Mg-dependent changes of I260Plug, while both Mg7 and Mg5 mutations decrease cooperativity, but not affinity. Text in the sixth and seventh paragraphs of the subsection “Role of each Mg2+ binding site in the Mg2+-induced conformational change in MgtE” contradicts the figure (also Figure 6B, right).

We are grateful for the reviewer’s comment. As the reviewer pointed out, the Mg5- and Mg7-binding mutants decreased the cooperativity of I260Plug. We revised the ninth paragraph of the subsection “Role of each Mg2+ binding site in the Mg2+-induced conformational change in MgtE” to state that Mg5 and Mg7 decreased the cooperativity of I260Plug, and line 274 to state that Mg7 also affects the plug helix. In addition, we revised the right panel of Figure 6B.

3) The statement about cooperative binding to sites 4, 5, 7 is confusing. Binding to site 4 does not seem to affect the structural changes in the plug, while binding to sites 5 and 7 does.

We agree with the reviewer’s comment and have revised the text as follows, “Although the fast motion of I260Plug is mostly suppressed at 3 mM (Figure 4), Mg2+ binding to Mg5 and Mg7, which affects I260Plug, saturates at 4 mM (Figure 6B).”

4) Can the signal changes, such as the chemical shift changes and peaks' sharpening/appearance be interpreted in terms of changes of protein dynamics?

Yes, they can be. Both signal line width and the way of the chemical shift changes reflect protein dynamics. Basically, a nuclear spin with a fast tumbling motion gives a sharp NMR signal, whereas a spin tumbling slowly gives a broad signal. The rate of the chemical exchange between conformations A and B as compared to difference in the resonance frequencies for the conformations A and B also affects the appearance of the signals (Cavanagh J. et al., “Protein NMR Spectroscopy (Second Edition) Principles and Practice ISBN: 978-0-12-164491-8).

5) What kind of cooperative coupling is expected between the subunits in the dimer?

The Mg2+ at the site 1 bridges the TM regions of the two subunits, forming the Mg2+-permeation pathway at the interface of the two subunits in the TM region. As described in the last paragraph of the subsection “The effects of Mg2+ binding at each site on the conformation and dynamics of MgtE”, the N domains tumble fast in the apo state, and they interact with the two CBS domains in the Mg2+-bound state. Mg2+ at the site 5 and 7 bridges the CBS domain in one subunit with the plug helix and the N domain of another subunit, respectively, which are assisted by Mg2+ at the site 4 and 6 that bridge the N and CBS domains in the same subunit. Thus, cooperative coupling is expected between the subunits in the dimer, which is achieved by the inter-subunit bridging by the Mg2+ at the sites 1, 5, and 7 directly (Figure 7).

Reviewer #2:

[…] This well written paper could be published essentially as is. However, the degree to which this NMR study established exactly what these two sets of Mg(II) binding events are doing in terms of channel function would be greatly enhanced by accompanying [Mg(II)]-dependent channel function measurements for both WT and the mutants they characterized by NMR. Such measurements are not reported in this paper. I would strongly encourage the authors to consider revising this paper to include the results of functional measurements (perhaps provided by expert collaborators). Without this, I view this paper as borderline in terms of providing enough new insight into MgtE channel function to justify publication in a journal with the stature of eLife.

We appreciate time and effort by the reviewer #2, as well as the positive response regarding our manuscript. As stated in the manuscript, we previously reported the [Mg2+]-dependent channel function measurements for the wild type and the Mg2+-binding mutants for the sites, 1, 2, 3, 5 and 7 (Hattori et al., 2009). The functions are summarized as follows:

Mg1-binding mutant, D432A, exhibited no channel activity.

Mg2-binding mutant, E258Q, did not close at 20 mM Mg2+.

Mg3-binding mutant, D259N, did not close at 20 mM Mg2+.

Mg5-binding mutant, D226N/D250A, did not close at 20 mM Mg2+.

Mg7-binding mutant, E59A, did not close at 10 mM Mg2+, but closed at 20 mM Mg2+.

Here, we have added the data for the [Mg2+]-dependent channel function for the rest of the binding mutants for the site 4 (D91A/D247A) and 6 (D95N), both of which have not closed at 20mM Mg2+ (Figure 5—figure supplement 1). These data are consistent with our NMR results that the binding mutants for the site 4 and 6 exhibited incomplete spectral changes at 4 mM Mg2+ (Figure 5B and Figure 5—figure supplement 3C).

We thank the reviewer #2 for the recommendation of the additional experiments. We have added expert collaborators, Drs. Tsukasa Kusakizako, Koichi Ito, and Andrés D. Maturana, to the list of co-authors.

Reviewer #3:

[…] Questions/concerns:

1) Physiological range – While 0.05% of dry weight mass of E. coli is Mg2+, and the estimated cellular concentrations are 30 mM, the free Mg2+ is estimated to be around 0.3 mM for E. coli. How does the model in Figure 7 account for this range and for the estimated binding affinities?

Thank you very much for the comment on the important point. The Mg2+ concentration for the MgtE channel closure is proposed to be 4 mM, which is 10-fold higher than the cellular free Mg2+ level. Recently, we reported that ATP binding to the CBS domain of MgtE decreases the Mg2+-concentration for the MgtE gating (Tomita et al. Nature Comm. 2017), suggesting that the gating seems to occur at the Mg2+ concentration as low as 2-3 mM Mg2+ in the presence of ATP. However, the Mg2+ concentration is still much higher than the cellular free Mg2+ level.

Under the cellular Mg2+ level at 0.3 mM, the population of the Mg2+-bound conformation of I397TM, which lie in the proximity of the site Mg1, is about 0.1 (Figure 4), suggesting that MgtE exhibits Mg2+ conductivity at the Mg2+ level. When extracellular Mg2+ level is elevated and the excessive amount of Mg2+ enters into E. coli cells, the gate of MgtE is supposed to close.

2) It is suggested that the authors establish an explicit correlation between the behavior of the NMR-derived Mg2+ binding behavior at the different Mg2+-binding sites of MgtE, and the know Mg2+ dependence of the channel open probability, as determined by electrophysiological methods (perhaps as part of Figure 5?).

We are grateful for the reviewer’s suggestion. The open probability of the wild type MgtE is about 0.4, 0.2, and 0 at the Mg2+ concentrations of 0, 5, 20 mM Mg2+, respectively (Hattori et al.. 2009). In addition, the Mg2+ binding mutant Mg1 does not show the conductance, whereas the Mg2+ binding mutants, Mg2, 3, 5, and 7 do not close at 20 mM Mg2+. Here, we have executed patch clamp analyses for the Mg2+ binding mutants, Mg4 and 6, which also do not close at 20 mM Mg2+. The open probabilities of the wild type and mutants are plotted (Figure 5—figure supplement 1C).

As shown in Figure 5 and Figure 5—figure supplement 3, the NMR spectra for the Mg2+-binding mutants, Mg2, 3, and 5 in the presence of 4-5 mM Mg2+ exhibit high similarity to the spectrum of the wild type in the absence of Mg2+, rather than that of the wild type in the presence of 5 mM Mg2+, indicating that these mutants do not form a structure in the closed state, in the presence of 4-5 mM Mg2+.

Other Mg2+-binding mutants, Mg4, 6, and 7 in the presence of 4-5 mM Mg2+ provided NMR spectra, which are similar to that of the wild type protein in the presence of 5 mM Mg2+. However, the NMR signals from the CBS domain, particularly I190CBS, which lie at the interface between two CBS domains in the dimer, were not observed. This NMR data suggest that the relative orientation of the two CBS domains of these mutants are not fixed even in the presence of 4-5 mM Mg2+. Since the gate exists at the top of the plug helices on the CBS domains, the fluctuation of the relative orientation of the two CBS domains cannot stabilize the closed gate.

Therefore, the NMR-derived structural information on the Mg2+-binding mutants, Mg2-7, in the presence of saturating amount of Mg2+, is consistent with the electrophysiological data, in which the mutants Mg2-7 do not close in the presence of 20 mM Mg2+.

The differences in the Mg2+ concentrations for the NMR-derived conformational change (4-5 mM) and the electrophysiological experiments (20 mM) are due to the differences in the experimental conditions, such as low ion strength of 20 mM NaCl for the high sensitivity of the NMR spectra; high salt concentration, existence of the Mg2+-concentration gradient and membrane potential across the lipid bilayer for the patch clamp analysis.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The main issue that the reviewers raised during the initial review was the lack of clear correspondence between the conformational responses of the protein to binding of Mg ions as detected by NMR and the functional behavior. The authors have addressed the criticism by providing functional data on mutations targeting every Mg binding site (either previously published or conducted specifically for this study). The data are succinctly summarized in the in their point-by-point response. What is still missing is putting these data in perspective of the current NMR study. In other words, how do these data agree (or disagree) with Figure 7? This is clearly a very complicated system, and perhaps not all data are expected to be in perfect correspondence, but key aspects should be addressed. For example, what is the role of sites 2, 3 and 5 if their mutations are not detrimental for channel opening but are for channel closing? I would have liked the authors to include the into the paper and discuss clearly to what extent their proposed model is or is not fully consistent with functional data.

Thank you very much for raising the important point again, which should have been appropriately addressed in the previous revision. Accordingly, we have added the figure from the previous response to the manuscript as Figure 5—figure supplement 1C.

We have addressed the correspondence between the conformational responses of the protein to binding of Mg ions as detected by NMR (summarized in Figure 7) and the functional behavior of the Mg2+-binding mutants shown in Figure 5—figure supplement 1 and other reported data (Hattori et al., 2009), as follows:

“Electrophysiological results indicated that a mutation at Mg1 abolishes Mg2+ conductivity, whereas a mutation at either of the sites Mg2, Mg3, or Mg6 does not (Hattori et al., 2009 and Figure 5—figure supplement 1C). […] The functional roles of each of these Mg2+-binding sites therefore underlie the intracellular Mg2+ homeostasis mediated by MgtE.”
