Quantitative regulation of the dynamic steady state of actin networks

  1. Angelika Manhart  Is a corresponding author
  2. Téa Aleksandra Icheva
  3. Christophe Guerin
  4. Tobbias Klar
  5. Rajaa Boujemaa-Paterski
  6. Manuel Thery
  7. Laurent Blanchoin  Is a corresponding author
  8. Alex Mogilner  Is a corresponding author
  1. New York University, United States
  2. Université Grenoble-Alpes/CEA/CNRS/INRA, France
  3. Hôpital Saint Louis, Institut Universitaire d’Hematologie, UMRS1160, INSERM/AP-HP/Université Paris Diderot, France
Research Article
  • Cited 3
  • Views 986
  • Annotations
Cite this article as: eLife 2019;8:e42413 doi: 10.7554/eLife.42413

Abstract

Principles of regulation of actin network dimensions are fundamentally important for cell functions, yet remain unclear. Using both in vitro and in silico approaches, we studied the effect of key parameters, such as actin density, ADF/Cofilin concentration and network width on the network length. In the presence of ADF/Cofilin, networks reached equilibrium and became treadmilling. At the trailing edge, the network disintegrated into large fragments. A mathematical model predicts the network length as a function of width, actin and ADF/Cofilin concentrations. Local depletion of ADF/Cofilin by binding to actin is significant, leading to wider networks growing longer. A single rate of breaking network nodes, proportional to ADF/Cofilin density and inversely proportional to the square of the actin density, can account for the disassembly dynamics. Selective disassembly of heterogeneous networks by ADF/Cofilin controls steering during motility. Our results establish general principles on how the dynamic steady state of actin network emerges from biochemical and structural feedbacks.

https://doi.org/10.7554/eLife.42413.001

Introduction

Dynamic actin networks play important roles in cell migration (Rottner and Stradal, 2011), morphogenesis (Hopmann and Miller, 2003), immune response (Vargas et al., 2016) and intracellular pathogen motility (Reed et al., 2014). The architecture and geometry of the actin networks are tightly controlled in these essential cellular processes, and defects in this control cause pathologies, such as ageing disorders (Amberg et al., 2011). Here, we focus on the steady state dynamics of branched filament arrays that are initiated by the Arp2/3 complex (Rotty et al., 2013) and activated by WASP family proteins (Krause and Gautreau, 2014), which are instrumental in lamellipodial extension (Krause and Gautreau, 2014), pathogen propulsion (Reed et al., 2014), endo- and exocytosis (Li et al., 2018).

In many cellular processes, the branched actin networks are polarized and appear in a state of dynamic equilibrium: at their leading edge, barbed filament ends are oriented forward and polymerize, elongating the network, while throughout the network a net disassembly takes place, gradually thinning the network out and limiting the network to a finite equilibrium length. As a result, the network exists in a ‘global treadmilling state’ (Borisy and Svitkina, 2000; Pollard and Borisy, 2003; Carlier and Shekhar, 2017; Koestler et al., 2013) – as opposed to the well-characterized treadmilling of individual filaments. Important examples of such networks are flat lamellipodia at the leading edge of cells migrating on flat surfaces (Rottner and Stradal, 2011; Barnhart et al., 2011; Ofer et al., 2011; Raz-Ben Aroush et al., 2017; Rottner and Schaks, 2019) and in 3D extracellular matrix (Fritz-Laylin et al., 2017) and cylindrical actin tails propelling intracellular pathogens (Theriot et al., 1992; Rosenblatt et al., 1997; Lacayo et al., 2012; Reed et al., 2014), endosomes and lysosomes (Taunton et al., 2000).

In what follows, we call the distance from the leading to trailing edge as network length, and the characteristic dimension of the leading edge – network width. Both the length and width of the dynamic network are important physiological parameters (Carlier and Shekhar, 2017) that have to be regulated. For example, the width of the actin tails is usually approximately equal to the size of the pathogen or organelle, which is being propelled by the tail, and the length, presumably, has to be sufficient for the tail to be enmeshed with the host cell cytoskeletal scaffold. The width and length of lamellipodia probably have to be sufficient to fit into the geometry of the extracellular matrix and to accommodate other cytoskeletal elements, such as stress fibers.

Assembly and disassembly play central roles in determining actin network length (Theriot et al., 1992; Ofer et al., 2011). Yet, while assembly is relatively well studied (Rottner and Schaks, 2019), systems-level understanding of disassembly is lacking. In keratocytes’ cytoplasmic fragments, the lamellipodial length, L, is simply determined by the time necessary for the disassembly, characterized by rate 1/τ to largely degrade the lamellipodial network assembled at the leading edge. So, if the actin network growth rate is V, then LVτ (Ofer et al., 2011). Similarly, in Listeria’s actin tail, the network density decreases exponentially, with a constant rate, and the tail’s length is proportional to the pathogen’s speed (Theriot et al., 1992).

As demonstrated both in vivo and in vitro, proteins of the ADF/Cofilin family play a key role in the actin disassembly (Bamburg, 1999), debranching the network, severing the filaments (Blanchoin et al., 2014) and accelerating depolymerization at filaments’ ends (reviewed in Carlier and Shekhar (2017)). Microscopic details of the ADF/Cofilin-mediated kinetics of actin filaments at the molecular level are being clarified (Wioland et al., 2017), but so far there is little understanding about how the net rate of the network disassembly, rather than that of individual filaments, is determined by the geometry and architecture of the network and by the actin and ADF/Cofilin concentrations. Furthermore, spatio-temporal dynamics of ADF/Cofilin and its relation to the network disassembly remains obscure. Lastly, actin-network steering, linked to the regulation of network growth at the leading edge (Boujemaa-Paterski et al., 2017), is essential to understanding directional cell motility. However, how organization and dynamics of the bulk of the actin network affects the steering is unclear (Krause and Gautreau, 2014). In this study, we investigated how the geometry, architecture and density of a branched actin network, as well as the ADF/Cofilin concentration, affect the actin network dynamics, and found key parameters controlling the network length and steering.

In order to do that, we combined in vitro and in silico, approaches. In vitro reconstitution of bacteria and plastic beads propulsion (Frischknecht et al., 1999; Loisel et al., 1999; Bernheim-Groswasser et al., 2002; Akin and Mullins, 2008; Dayel et al., 2009; Achard et al., 2010; Kawska et al., 2012), and of lamellipodial network growth (Bieling et al., 2016; Boujemaa-Paterski et al., 2017) brought insights on how a minimal set of just two molecular actions – Arp2/3 complex-driven nucleation and barbed-end capping – can result in the actin leading edge organization and growth. In this study, we added ADF/Cofilin to the mixture of actin, Arp2/3 complex and capping protein in an experimental chamber with the nucleation promoting factor (NPF) Human WASp-pVCA, localized to micro-printed patterns on the surface. We generated a diversity of patterns and studied the impact of the geometry and actin density on the length of dynamic actin networks. We also used quantitative fluorescence imaging to measure the spatial and temporal behavior of the actin and ADF/Cofilin densities and their relations with the network length. Crucially, we varied independently three parameters – actin network density, ADF/Cofilin concentration and network width – and measured their effect on the network length.

Mathematical modeling was very successful in deciphering the data from in vitro experiments on the actin disassembly (Roland et al., 2008; Berro et al., 2010; Michalski and Carlsson, 2010, Michalski and Carlsson, 2011; Reymann et al., 2011; Stuhrmann et al., 2011; Tania et al., 2013). Most theoretical studies either considered the disassembly of individual filaments (Roland et al., 2008), or a first-order reaction of a continuous network density decrease (Ofer et al., 2011; Reymann et al., 2011; Stuhrmann et al., 2011), or treated the disassembly as a boundary condition (Raz-Ben Aroush et al., 2017). Pioneering theory of Michalski and Carlsson (2010), Michalski and Carlsson (2011) demonstrated how fragmentation of the network at the trailing edge resulted from stochastic accumulation of discrete disassembly events in the network. No studies so far quantitatively connected the dynamics of ADF/Cofilin accumulation in the actin mesh with the effective disassembly rate and the network length.

An intuitive and expected qualitative finding of our study is that equilibrium network length increases with actin density, and decreases with ADF/Cofilin concentration. The main insight of the study is quantitative: we found a novel, simple mathematical relation allowing the prediction of the actin network length from three parameters – actin network density, ADF/Cofilin concentration and network width – and measured their effect on the network length. Other novel findings are: 1) ADF/Cofilin is locally depleted from solution by binding to actin, which has profound effects on actin disassembly; 2) Network length depends on the network width; 3) ADF/Cofilin concentration can regulate the steering of heterogeneous actin networks.

Results

ADF/Cofilin action establishes equilibrium length of dynamic actin networks

We reconstituted branched actin networks (called LMs in the following) that resemble lamellipodia of motile cells by micro-printing rectangular patterns coated with nucleation-promoting factors (NPFs) on the ‘bottom’ of the experimental chamber. NPFs activated the Arp2/3 complex, which in turn generated filament branching, leading to the assembly and growth of the branched actin network at the rectangular network leading edge pattern (Figure 1A, Figure 1—figure supplement 1A). The thickness of the experimental chamber (‘bottom-to-top distance’) is only a few microns, so the actin networks lift off the NPF pattern, bump into the ‘top’, bend and then grow parallel to the bottom and top (Figure 1—figure supplement 1B). The networks were flat, similar to the lamellipodial networks: their thickness was but a few microns, an order of magnitude less than the width and length, on the order of tens of microns. Importantly, there is capping protein in the reaction mixture, limiting growth of individual actin filaments and keeping the actin networks compact, not extending laterally from the NPF pattern. With only actin, Arp2/3 complex and capping protein in the reaction mixture, the networks elongated steadily (Figure 1A). The networks’ elongation speed V was an increasing function of actin density (Figure 1B–C), in agreement with our previous study Boujemaa-Paterski et al. (2017). In Figure 1—figure supplement 1D and Figure 1—video 1, we report data suggesting that the higher NPF density both increases the actin density, and translates polymerization into the network elongation more effectively, without changing the rate of filament growth.

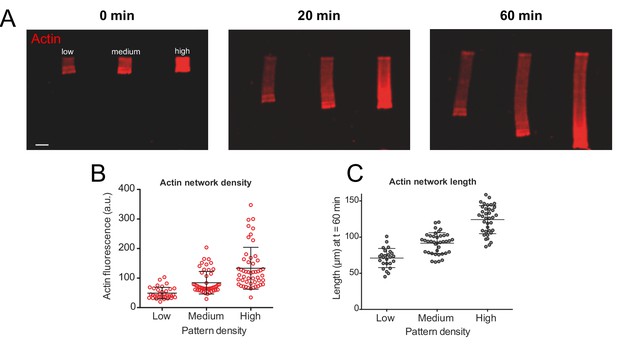

Figure 1 with 2 supplements see all
Actin density determines network growth speed.

(A) The growth kinetics of reconstituted lamellipodia (LMs) depend on the density of the grafted NPFs (Human WASp-pVCA). Conditions: 6 µM actin monomers Alexa-568 labeled, 18 µM profilin, 120 nM Arp2/3 complex, 20 nM capping proteins. LMs of variable actin filament density (low, medium, high) were initiated by bar-shaped patterns of different NPF-spot densities (see Figure 1—figure supplement 1) and their growth was followed using the fluorescence of the actin networks. Snapshots of the growing lamellipodium were taken 0, 20 and 60 min after addition of Alexa-568-labeled actin monomers. (B) Denser patterns generate denser actin networks. The network density was measured across the LMs (for low density networks, n = 25 from three experiments, for medium-density networks, n = 41 from three experiments and for high-density networks, n = 38 from three experiments). (C) Denser patterns generate longer actin networks. The lengths of the LMs were measured after 60 min and plotted according to the pattern density.

https://doi.org/10.7554/eLife.42413.002

Without ADF/Cofilin, the networks elongated steadily and did not disassemble – actin density along the networks changed only slightly (Figure 1A). Addition of ADF/Cofilin changed the networks’ dynamics: rather than growing steadily, the networks, after reaching a certain length, started to disassemble at the trailing edge, so that a dynamic steady state was reached in which the network length stayed roughly constant (Figure 2A, Figure 2—figure supplement 1). The equilibrium length depended on both actin density and ADF/Cofilin concentration. The addition of ADF/Cofilin did not have a significant effect on the growth rate of the networks, in contrast to the in vivo cases. The reason is that the total amount of actin in the in vitro chamber is vastly greater than the total network actin, and so the polymerizable actin monomer concentration is unaffected by the actin turnover related to the networks’ dynamics; in other words, actin does not have to be recycled. This has an important consequence for the in vitro global treadmill: the rate of the network growth depends on the conditions at the leading edge (actin density and architecture) but is unaffected by the network length. Thus, the equilibrium length of the treadmilling network is determined by the length-dependent disassembly only: the longer the network is, the faster is the disassembly at the trailing edge, and so the treadmilling length is determined by the dynamic stable equilibrium, in which the trailing edge disassembly rate is equal to the leading-edge growth rate. As the leading-edge growth rate is unaffected by ADF/Cofilin, our in vitro assay allows investigation of the effect of the ADF/Cofilin-mediated disassembly on the network length, without complications of feedbacks between disassembly and assembly.

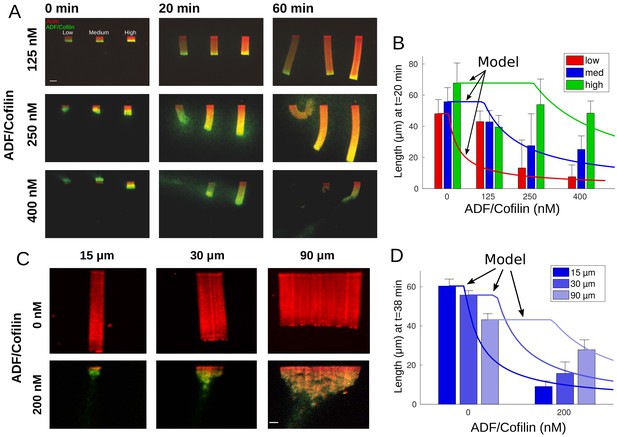

Figure 2 with 3 supplements see all
Actin network density and width set the equilibrium state of LMs.

(A) The growth kinetics of LMs in the presence of ADF/Cofilin. The experiment conditions are similar to Figure 1A but with addition of variable concentrations of ADF/Cofilin as indicated. Snapshots of the growing lamellipodium were taken 0, 20 and 60 min after addition of actin monomers. Actin monomers are Alexa-568 labeled (red), ADF/Cofilin is labeled with Alexa-488 (green). Scale bar is 15 µm. (B) The length of the actin networks as a function of the ADF/Cofilin concentrations were measured after 20 min. Colored bars (red for low, blue for medium and green for high actin density) at 20 min are averages (± standard deviations). Solid lines with corresponding colors are the model prediction according to Sec. Equilibrium length of actin network as a function of biochemical and geometric parameters. The horizontal lines for the model predictions indicate that the networks have not yet reached equilibrium (0 nM ADF/Cofilin, n = 33 for low, n = 41 for medium, n = 38 for high from three experiments; 125 nM ADF/Cofilin, n = 15 for low, medium and high from three experiments; 250 nM ADF/Cofilin, n = 26 for low, n = 27 for medium and n = 27 for high from three experiments; 400 nM ADF/Cofilin, n = 19 for low, medium and high from three experiments). (C) Growth of LMs from patterns of different sizes. Biochemical conditions are identical to Figure 2A and Figure 1A. Top panel, LMs in the absence of ADF/Cofilin were initiated from pattern of three different sizes (15 × 3, 30 × 3 and 90 × 3 µm2). Snapshots were taken at 36 min after addition of actin monomers (15 µm n = 50 from three experiments, 30 µm n = 59 from 11 experiments and 90 µm, n = 43 from 10 experiments). See Figure 2—video 1 for full dynamics. Bottom panel, LMs in presence of 200 nM ADF/Cofilin were initiated from pattern of three different sizes (15 × 3, 30 × 3 and 90 × 3 µm2). Snapshots were taken at 38 min after addition of actin monomers. Scale bar is 15 µm. See Figure 2—video 2 for the full dynamics. (D) Measured actin network lengths as a function of ADF/Cofilin concentration. Colored bars are the average length (±38 standard deviation) min after the addition of actin monomers. Lines show the model prediction of Sec. Equilibrium length of actin network as a function of biochemical and geometric parameters. Horizontal lines for the model predictions indicate that the networks have not yet reached equilibrium.

https://doi.org/10.7554/eLife.42413.005

Our data revealed that the equilibrium network length decreases with the ADF/Cofilin concentration and increases with the actin density (Figure 2A–B). Qualitatively, these results are very intuitive: higher ADF/Cofilin concentration increases the disassembly rate, hence the equilibrium between the leading edge growth and trailing edge disassembly is reached at shorter lengths. If the actin network is denser at the leading edge, it takes a longer time to break such network down; during this time, the steadily elongating network grows longer until the disassembly rate at the trailing edge balances the leading edge growth.

Spatio-temporal ADF/Cofilin dynamics and its local depletion

Initial simple model of the ADF/Cofilin dynamics

We wondered if these observations could be explained by a simple model: ADF/Cofilin binds to every spot of the growing actin network with a constant rate and does not have an effect on the network until a critical density of the bound ADF/Cofilin is reached, upon which the network disassembles instantly. It is reasonable to assume that ADF/Cofilin binding is a diffusion-limited reaction, and so its rate is proportional to the product of the ADF/Cofilin concentration in the solution, C0, and of the constant actin filament density, A. Indeed, when we analyzed the initial rate of binding of ADF/Cofilin near the leading edge for networks that had just started to grow (using various actin densities and at various ADF/Cofilin concentrations), we found that this rate is proportional to C0. We also found a strong correlation between the initial increase in bound ADF/Cofilin and the product C0×A (R=0.51,P<0.001, see Appendix 1 for details). This confirms that at least at the beginning of network growth, the ADF/Cofilin binding rate is indeed kBC0A, where kB is the binding constant.

If this rate stays constant, then the bound ADF/Cofilin density as a function of time and of distance y from the network leading edge is the solution of the equation tCB+VyCB=kBC0A, where V is the rate of actin network growth at the leading edge. Since newly polymerized actin is free of ADF/Cofilin, we can assume CB(y=0)=0. In dynamic equilibrium, this equation yields the solution CB(y,t)=kBC0AyV, which can be easily understood: an actin spot takes time y/V to drift a distance y from the leading edge. As ADF/Cofilin binds with rate kBC0A, by that time the bound ADF/Cofilin density reaches the value of kBC0AyV. Assuming that the network falls apart when a critical amount of ADF/Cofilin per actin filament, CB/A=γ, is reached, this yields an equilibrium network length of

L=γVkBC0.

This simple model predicts that the equilibrium network length is proportional to the ADF/Cofilin concentration in the solution, C0, in qualitative agreement with the data (compare Figure 2A–B). In Figure 2A–B, we also observe a clear correlation between the actin density and the network length. Since denser networks also grow faster (Figure 1C), our estimate is again in qualitative agreement with Figure 2A–B, however, it appears that the network growth rate increases only weakly with the actin density, while the equilibrium network length increases dramatically, when the actin filament density increases. Lastly, the simple model indicates that the equilibrium network length is independent of the network width.

Equilibrium network length increases with the network width

We tested this last prediction experimentally for networks of widths 15, 30 and 90 µm, and the result shows that this is not the case (Figure 2C–D, Figure 2—video 1, Figure 2—video 2). In fact, we observed that, while for all network widths their lengths decrease if ADF/Cofilin is added, wider networks are affected less. This suggests three potential factors that the simple initial model did not take into account: (1) ADF/Cofilin is unable to diffuse from the solution to the inner parts of the wider dense actin network. (2) There is a non-local mechanical effect that leads to an effective protection of wider networks against degradation. (3) Local depletion of ADF/Cofilin. As previously reported (Boujemaa-Paterski et al., 2017), actin monomers are locally depleted due to a sink of its concentration in the vicinity of the growing barbed ends; a similar effect could emerge for ADF/Cofilin.

To estimate the potential effect of the actin network on the ADF/Cofilin diffusion constant, we used the theory developed in Novak et al. (2009) and described in Appendix 1 to determine the effective diffusion constant of ADF/Cofilin inside the actin network. This calculation shows that the effect of even a dense actin network on the ADF/Cofilin diffusion coefficient is a reduction by a few percent only, that is the diffusion constant will be virtually unaffected by the actin network, ruling out the first factor. The second factor, a global mechanical structure of the network, is unlikely, since the average actin filaments are of sub-micron size, two orders of magnitude shorter than the network width, and long actin bundles are absent. Thus, we decided to investigate the third factor, local depletion of ADF/Cofilin.

Rate of ADF/Cofilin binding decreases with time

According to the simple initial model, the rate of ADF/Cofilin binding to an actin spot, kBC0A, should be constant, not changing with time. If we focus on such a spot drifting from the leading edge, we should measure a linear increase of the ADF/Cofilin density with the slope that does not depend on the time when the spot originates. We examined such an increase of the ADF/Cofilin density near the leading edge by making measurements at different starting times. We indeed found that the increase of the ADF/Cofilin density is linear with time; however, the rate of the increase decreased with starting time (Figure 3A–B), rather than remaining constant.

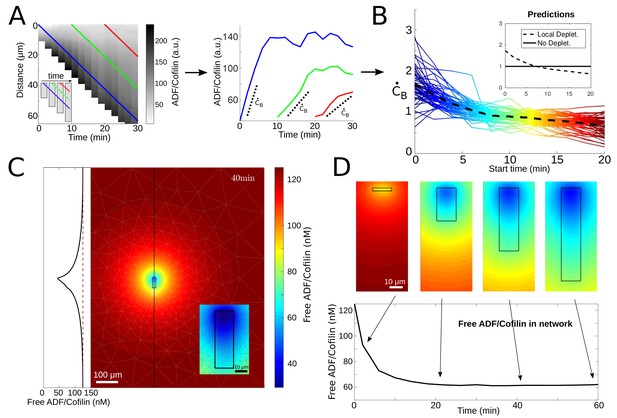

Figure 3 with 1 supplement see all
ADF/Cofilin dynamics.

(A) Measurement procedure. Left: Example kymograph of the bound ADF/Cofilin density as a function of space and time. Colored lines show three example paths in time and space along which the amount of bound ADF/Cofilin was measured. Inset: Schematic of the growing network at different time points, Right: The measurements of the bound ADF/Cofilin density along the paths shown on the left. Dotted lines show initial increase. (B) Normalized (to have mean one) values of the initial increase as a function of starting time for all networks. Colors represent different starting times, compare red, green and blue paths in the example network in Figure 3A. Inset: Predictions for local depletion and no local depletion of free ADF/Cofilin. (C) Simulation of (1 - 2). Snapshot at time t = 40 min showing the concentration of free ADF/Cofilin. Parameters: V = 1.16 µm/min, rB=0.5/min/µM, rU=0.31/min, A = 50 µM, C0=125nM. Inset left: Concentration of free ADF/Cofilin along the dotted line. Inset right: Zoom around the network. Colors represent concentration of free ADF/Cofilin. (D) Time snapshots of the same simulation showing the concentration of free ADF/Cofilin, colors as in Figure 3C. Below: Average amount of free ADF/Cofilin in the area covered by the network (black rectangle in Figure 3D).

https://doi.org/10.7554/eLife.42413.009

ADF/Cofilin is locally depleted by binding to the growing actin network

To confirm that the observed decrease of the ADF/Cofilin binding rate with time is due to the local ADF/Cofilin depletion, we analyzed the simplest model of the spatial-temporal ADF/Cofilin dynamics compatible with our observation. In the model, the densities of free ADF/Cofilin molecules diffusing in the solute and of ADF/Cofilin molecules bound to the network are CF(x,y,t) and CB(x,y,t), respectively. Since the experimental chamber’s depth in z-direction is much smaller than all characteristic dimensions in x- and y-directions, we use a 2D setting for modeling. In the simulations, an actin network of width W and length L(t)=V×t is positioned in the middle of the experimental chamber. The model consists of the following equations:

(1) tCB=VyCB+rBACFrUCB,
(2) tCF=DΔCFrBACF+rUCB.

Here Equations (1) and (2) describe the drift of bound and diffusion of free ADF/Cofilin molecules, respectively, and the reactions of ADF/Cofilin binding to and slow unbinding from actin filaments. Boundary and initial conditions, potential actin saturation effects and the numerical procedure for solving the model equations are discussed in Appendix 1.

The model does not describe actin disassembly, as we model the effect of ADF/Cofilin on actin filaments below in the next section. Thus, we either assume the actin density to be constant for rough estimates (the measurements show that the actin density changes relatively little along the network before plunging at the trailing edge, see Figure 3—figure supplement 1A), or equal to the measured function of the y-coordinate to compare with the data.

We can use Equation (2), with constant actin filament density A, to estimate roughly the local concentration of free ADF/Cofilin near the actin network and the rate of ADF/Cofilin binding at the leading edge (details in Appendix 1):

(3) CFC0D+WLCBruD+AWLrB,C˙BrBAC0DD+AWLrB.

When the network grows, its length L increases, and hence, as shown by these formulas, the local concentration of free ADF/Cofilin near the actin network decreases with time, and so does the rate of ADF/Cofilin binding at the leading edge, in agreement with the measurements (Figure 3B). This provides a demonstration of the local depletion of ADF/Cofilin due to the diffusion and binding to the network. Note that these calculations are but a rough order-of-magnitude estimate; to be more precise, we simulated the full 2D model (1) - (2) using parameters estimated from our data and taken from the literature (details in Appendix 1) and find a significant depletion effect near the network where the free ADF/Cofilin concentration drops by as much as 50% (Figure 3D).

To further test the model, we used the measurements of the actin density along the networks giving us functions A(y) for tens of the networks of various densities at a certain time after the actin growth was initiated, and simulated (1) - (2) with these functions. This allowed direct comparison of measured and predicted ADF/Cofilin concentrations along the network. Figure 3—figure supplement 1A–B shows that the model recapitulates the distance-dependent concentrations and relative amounts of bound ADF/Cofilin very well.

Equilibrium length of actin network as a function of biochemical and geometric parameters

Actin network fragmentation at the trailing edge

When one observes the time lapse data of actin network dynamics at the trailing edge, it becomes apparent that the network does not disassemble continuously, but rather small, micron-size, pieces of the network break off (Figure 4A). Thus, the network disassembles by macroscopic fragmentation. To capture this dynamics, we followed the theory introduced in Michalski and Carlsson (2010), Michalski and Carlsson (2011) and modeled the network as a 2D ensemble of edges connected by nodes. We emphasize that this representation is highly idealized, and the that the edges do not stand for individual filaments, but rather represent actin filaments arrays; similarly, nodes are not individual physical Arp2/3 complexes, but are abstracted crosslinking and/or branching points. We model the disassembling effect of ADF/Cofilin by removing the nodes with certain rate, P. Once a piece of the network becomes disconnected from the main body of the network due to this edge removal, we assume that this piece diffuses away and we delete it. Figure 4C illustrates how the model works.

Figure 4 with 1 supplement see all
Network fragmentation.

(A) Snapshots of experimental measurements of actin density (red) at three consecutive time points. The yellow arrow shows a hole in the network, the dotted outline and blue arrow the breakage of a large piece of network. The network width is 90 µm, the ADF/Cofilin concentration 200 nM, the bar is 10 µm. See Figure 4—video 1, right for the full time dynamics. (B) Simulation snapshots for three consecutive time steps. Colors and arrows as in Figure 4A, dotted lines show the shifted outline of the network in the previous time step. The same network width and speed and initial actin concentration as those measured for the network shown in Figure 4A, were used as model parameters in the simulation. See Figure 4—video 1, left for the full time dynamics. (C) Shown is the simulation setup. Effective nodes (branching and crosslinking points) are the vertices of the square lattice, while actin filaments are the edges of the square lattice. At every time step, the network is shifted in the growth direction. At each node, the breakage rate is a function of the local actin and global bound cofilin densities. The three circles show three different breakage events and their effects. (D) Comparison between the simulated equilibrium length and the analytical prediction using Equation (4) for different values of the initial actin density and exponent α. Inset: The fluctuating network lengths as functions of time for various values of initial actin density for α=2. (E) Comparison between the actin density in the stochastic fragmentation simulation (thin lines) and the analytical approximation (thick black line). (F) Fit of the predicted quadratic dependence of the network equilibrium length on the actin density to the measurements of the equilibrium network length (L) normalized by the network speed (V) and the average concentration of bound cofilin (CB). B, D, E: For details and parameters see Appendix 1.

https://doi.org/10.7554/eLife.42413.011

The key to the model behavior is setting rules that describe how the rate of breakage per node varies spatially. It is natural to assume that this rate is a function of local densities of filamentous actin and bound ADF/Cofilin. We also assume, for simplicity, that we can neglect a potentially complex effect of sequential biochemical reactions preceding the breakage events. Considering that both modeling and data shows that the bound ADF/Cofilin density changes little compared to actin near the trailing edge, we assume that the rate of breakage is a function of a spatially constant-bound ADF/Cofilin density. Thus, in the model, the rate of breakage (node disappearance) varies locally due to spatial variation of the local density of the actin network (we calculate the local density of the discrete network as a weighted average of the number of the network edges in the vicinity of a given node; details in Appendix 1). It is reasonable to assume that the node breakage rate would be a decreasing function of the actin filament density, as greater density of the actin filaments means also a greater density of the branching/crosslinking points, and effectively a number of such points per unit volume constitute a node.

Thus, we used the relation PCBβAα, where CB is the spatially constant concentration of bound ADF/Cofilin, A is the local density of the discrete network, and α and β are positive exponents that we varied in the simulations. We found that for many values of these exponents, the model was able to recapitulate several key features of the observed actin network disassembly (Figure 4B, Figure 4—video 1). Specifically, the modeled dynamic networks were fragmenting at the trailing edge and forming holes near the edge. Analogously to the observations, we found that the modeled networks, after an initial period of growth, reached an equilibrium length, around which the network length fluctuated stochastically (Figure 4D inset). The model also predicted correctly the relatively small variation of the actin density along the network length, with a sharp drop at the trailing edge (Figure 4E).

For comparison with data, it is useful to derive an analytical approximation of the discrete, stochastic model. In Appendix 1, we introduce continuous deterministic densities of actin filaments and of broken nodes in the network, derive differential equations for these densities and solve these equations. This continuous deterministic model allows deriving analytical expression for the equilibrium network length L as the function of three parameters, average bound ADF/Cofilin density, CB, initial actin network density, A0, and rate of the network growth at the leading edge, V:

(4) LVA0αCBβ.

Figure 4D shows excellent agreement between the analytical approximation (4) and the corresponding network simulations.

To determine the values of the exponents α and β, we examined all networks in the experiments that have reached equilibrium, measured the values of parameters L, V, A0 and CB (for CB we used the average across the network) for each network, and compared the actual equilibrium lengths to the ones predicted by Equation (4) based on the measured values of parameters V, A0 and CB. We found that for any α[1,3] and β[0.5,1.2], we had R2-values of over 0.7, and p<107. In the following we use β=1,α=2 (R2=0.72, p<108). Figure 4F shows the quadratic dependence of the equilibrium network length on the initial actin density. This fit suggests that rate of disassembly of the effective network nodes is proportional to the bound ADF/Cofilin density and inversely proportional to the square of the local actin density. We discuss implications of this finding below.

Balance between accumulation of ADF/Cofilin in longer networks and accumulation of network-breaking events predicts equilibrium network length

We can now combine the results from two models – for ADF/Cofilin binding and for network disassembly – to understand how the ADF/Cofilin dynamics and network fragmentation determine the equilibrium network length. In light of the relation

(5) LVA02CB,

all that remains is to use the model from the previous section to estimate the average density of bound ADF/Cofilin CB and substitute the value into Equation (5). In Appendix 1, we derived the following analytical estimate, based on the analysis of Equations (3) and (1):

(6) CBrBA0C0LV×DrBA0WL+D,

which provides an explicit formula for the average density of bound ADF/Cofilin as a function of the leading edge actin density, rate of the network growth at the leading edge, the network dimensions and initial ADF/Cofilin concentration. This estimate has a simple interpretation: The first factor gives the average amount of the bound ADF/Cofilin in the absence of depletion. This amount is proportional to the actin density, initial ADF/Cofilin concentration and network length because the ADF/Cofilin binding rate is proportional to the actin density and the initial ADF/Cofilin concentration. The factor L/V gives the characteristic time scale for ADF/Cofilin binding, that is longer/slower networks allow more time for ADF/Cofilin binding than shorter/faster networks. The second factor in Equation (6) represents a depletion factor, between 0 and 1, which shows by which fraction the local free ADF/Cofilin concentration near the network is decreased relative to the initial concentration C0. The larger the network (width W or length L or both are large), or the denser the network (A0 is large), the more ADF/Cofilin is depleted. Finally, faster diffusion reduces the effect of depletion.

Note that the estimated amount of bound ADF/Cofilin in Equation (6) depends on the equilibrium length L itself. Thus, the network equilibrium length is determined by the balance between two feedbacks (Figure 5A): the network length is shortened by higher ADF/Cofilin density, while the bound ADF/Cofilin density is increased by the network length. Mathematically, the first feedback is expressed by Equation (5) and effectively gives the bound ADF/Cofilin density as the decreasing function of the network length, while the second feedback is expressed by Equation (6) that gives the bound ADF/Cofilin density as the increasing function of the network length (Figure 5A). Together, these two equations constitute an algebraic system of equations for two variables – L and CB – that has a unique solution for each value of four parameters, A0,C0,V,W, given graphically by the intersection of two curves for the relations CB(L) given by Equation (6) and Equation (5), as shown in Figure 5A. In particular, since these two curves will always intersect, the network will reach some equilibrium length for any parameter combination. The effect of varying individual factors can now easily be understood (Figure 5B–D) and allows us to elucidate the experimental observations from Figure 2: Increasing the ADF/Cofilin concentration leads to more bound ADF/Cofilin and thereby shorter networks (Figure 5B). Increasing network density leads to less disassembly, and also to more depletion, and denser networks grow longer (Figure 5D). Figure 2B shows very good agreement between the model and the measurements. In the second experiment in Figure 2C–D, wider networks were less affected by ADF/Cofilin. The model suggests that this is because wider networks lead to more depletion and hence longer networks (Figure 5C), again in quantitative agreement with the measured lengths (Figure 2D).

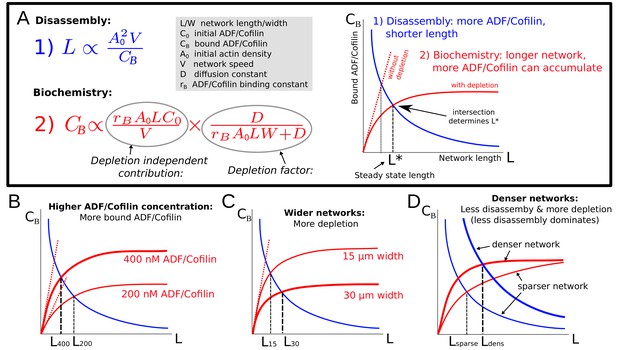

Model explanation.

(A) Explanation of the two effects determining equilibrium network length: Feedback 1 (Equation (5), blue equation and curve) shows the effect of the disassembly. Feedback 2 (Equation (6), red equation and curve) shows the effect of ADF/Cofilin binding dynamics. Right: The intersection of the two curves in the (L,CB) plane determines the equilibrium network length marked by L*. (B-D) Effect of varying the ADF/Cofilin concentration, the network width and the network density on the equilibrium network length.

https://doi.org/10.7554/eLife.42413.013

ADF/Cofilin regulates steering of heterogeneous networks

In Boujemaa-Paterski et al. (2017) we found that network heterogeneity – varying actin filament density along the network leading edge – induces network steering, in the sense that the heterogeneous network grows curved. We explained this effect by the observation that the denser part of the network grows faster than the less dense part. Since these two parts of the network are interconnected, the only way for two network parts of different lengths to stay connected is if they grow along the arc of a circle. Then the faster part with the long axis further from the circle’s center can grow longer, while advancing along the same arc length as the slower part (Figure 6D, left). This argument was purely geometric and implicitly assumed that the networks are plastic, bending freely. In fact, the networks are likely elastic or viscoelastic (Gardel et al., 2004a), which affects their bending behavior.

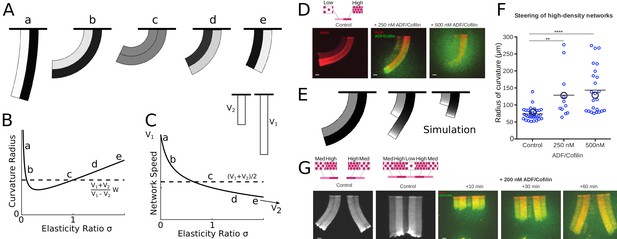

Figure 6 with 1 supplement see all
ADF/Cofilin controls the steering of heterogeneous actin network.

(A-C) Modeling steering without ADF/Cofilin. (A) Model predictions of how differences in density influence the curvature and length of the heterogeneous LM. Darker colors signify denser networks, in all cases the left LM grows half as fast as the right LM. (B,C) Dependence of the curvature radius and speed of the heterogeneous LM on the elasticity ratio σ. The dashed line shows reference values, a-e mark the examples shown in Figure 6A. (D-F) Influence of ADF/Cofilin on the heterogeneous LM for concentrations 0, 250 nM and 500 nM. D. A pattern was generated with an array of spots of two distinct densities (left: low density, right: high density) both coated with the same concentration of NPFs. The heterogeneous pattern induces the growth of a heterogeneous actin network that steers toward the actin network with the lower density (left panel). Addition of 200 nM ADF/Cofilin selectively disassembles the low-density networks (middle panel). Addition of 500 nM ADF/Cofilin fully disassembles the low-density actin network and disassembles partially the high-density network (right panel). Snapshots were taken at 30 min after the addition of the actin monomers. (E) Simulated network shapes and network densities, darker colors signify denser networks. (F) Measured curvature radius, experimental (small blue circles) and simulated (large black circles). For the simulations we calculated an average curvature radius. (G) ADF/Cofilin induces steering within heterogeneous actin networks. We generated complex patterns made of heterogeneous spots density (medium and high spot densities) that are connected (right) or not (left) by a low-density pattern. Addition of 200 nM ADF/Cofilin selectively disassembles the low-density actin network induces the steering of the medium/high heterogeneous actin networks. See Figure 6—video 1 for full time dynamics. (A-C), E: Details in Appendix 1.

https://doi.org/10.7554/eLife.42413.014

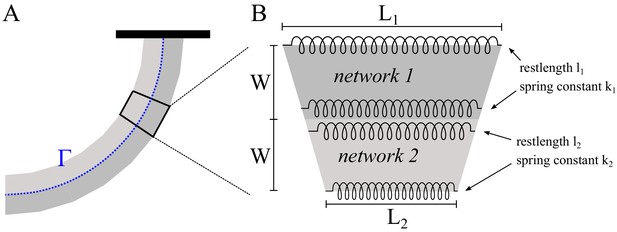

To simulate the steering heterogeneous network, we modeled the two networks as two elastic beams growing side-by-side. The networks had different densities and different growth speeds; we took the values of those parameters from the data (Figure 6D). We used the result from Gardel et al. (2004a) for random and isotropic actin network indicating that the network elasticity E scales with actin density A as EAτ,τ2.5. Note though that model predictions are not very sensitivecto the exact value of the exponent τ, and that a few different values of parameter τ were reported, including τ0.5 (Bieling et al., 2016) for branched actin networks, which are neither random nor isotropic (discussed in further detail in Appendix 1). We modeled the networks as two attached beams of width W, growing at speeds V1 and V2, with elastic moduli E1 and E2. In the absence of ADF/Cofilin we can assume that the densities and hence elasticities stay constant along the network. In Appendix 1 we demonstrated, that in mechanical equilibrium, the heterogeneous network forms a bent shape with constant radius of curvature R (Figure 6A–C):

(7) R=W(V1+V2V1-V2+(σ-1)V1σ-V24σ(V1-V2)),

growing with speed:

(8) Vh=V1+V22(V1V2)(V12σ2V22)2(V12σ2+6V1V2σ+V22)

Here σ=E2/E1 is the ratio of the elastic moduli. The dependencies of the curvature and heterogeneous network speed on parameter σ are depicted in Figure 6B and C, respectively. Note that if both networks have the same elastic properties, that is σ=1, the heterogeneous network elongates with the average speed slightly less than (V1+V2)/2, and the radius of curvature has the much simpler form R=W(V1+V2)/(V1-V2), an approximation that has been used in Boujemaa-Paterski et al. (2017). The steering direction (right or left) is solely determined by which part of the network grows faster – the heterogeneous network always steers towards the slower sub-network. Differences in elasticity, however, can influence the amount of steering in a complex way. Figure 6A–C shows that if one of the networks is very sparse (and hence weak elastically), the heterogeneous network becomes almost straight. There is a maximal steering curvature achieved for a certain elasticity ratio depending on the ratio of the speeds of the sub-network growth.

To asses the effect of ADF/Cofilin on heterogeneous networks, we used the model from the previous sections to calculate the equilibrium lengths of the two sub-networks and simulate the heterogeneous networks. Since the two sub-networks compete for the same pool of ADF/Cofilin, we need to adjust the depletion factor in Equation (6). As described in Appendix 1 we can determine two equilibrium lengths L1 and L2 of the sub-networks. Effectively both networks will reach longer lengths together than in isolation, since there is more local depletion of ADF/Cofilin in the combined network. In addition, the sparser network is affected more by the depletion, as the denser networks ‘uses up’ disproportionately more ADF/Cofilin. Also, the network densities are not constant along the sub-networks, thereby leading to varying elasticities along the network. In terms of the model, this means that the parameter σ becomes a function of the distance from the leading edge. Finally, the sparser sub-network has a trailing edge much closer to the leading edge than the dense one. Altogether, these factors mean that in the presence of ADF/Cofilin, the heterogeneous network will initially (closer to the leading edge) have the same curvature as without ADF/Cofilin. Further away the curvature decreases until the shorter sub-network fully disassembled, after which the longer sub-network is the only one remaining, and it continues to grow straight. Figure 6E shows that numerical simulations confirm these arguments and generate predictions for various ADF/Cofilin concentrations.

We imaged the curving heterogeneous networks (Figure 6D) and found that indeed increased ADF/Cofilin concentration straightens the combined network (Figure 6F) due to selective disassembly of the sparser sub-network and relieving the elastic constraint on the denser sub-network. The imaged network shapes appear qualitatively like the predicted shapes, and the measurements of the average curvatures give values similar to those predicted by the model (Figure 6F). Note, that the curvature changes very little on average when ADF/Cofilin concentration is increased from 250 to 500 nM because in both cases the sparser sub-network is almost completely disassembled.

An illustration that the effect of ADF/Cofilin can not only straighten, but also induce steering in heterogeneous networks, which grow straight in the absence of ADF/Cofilin, is given by the assay shown in Figure 6G and Figure 6—video 1. In this assay, the sparse sub-network was in the middle; two denser networks were at the sides of this central sub-network, and two more sparse sub-networks flanked the denser ones at the edges. Without ADF/Cofilin, such a combined network grew straight due to its mirror symmetry. Upon addition of ADF/Cofilin, the sparse sub-network in the middle was selectively disassembled, isolating the right and left heterogeneous networks from each other, which led to their steering away from each other.

Discussion

Summary of the results

We found that addition of ADF/Cofilin switched the actin networks’ steady length increase to a ‘global treadmilling’ regime, in which the networks, after an initial growth stage, reach a dynamic equilibrium, with the network growing at the leading edge and falling apart at the trailing edge, and its length fluctuating around a constant. We observed that at the trailing edge, the network was stochastically fragmented into little pieces, rather than depolymerizing microscopically. Experiments showed that the equilibrium network length decreases with ADF/Cofilin concentration, and increases with the actin density and growing speed. The novel and counter-intuitive observation that the equilibrium network length increases with network width motivated the formulation of a computational model for ADF/Cofilin dynamics and subsequent comparison between simulated and measured spatio-temporal distributions of ADF/Cofilin and actin filament density. This led to a new insight: ADF/Cofilin is locally depleted from the solution by binding to actin filaments, which has a profound effect on actin disassembly, explaining why wider treadmilling networks are longer. While the effect of local depletion of actin monomers due to binding to actin filaments was recently reported both in vitro (Boujemaa-Paterski et al., 2017) and in vivo (Dimchev et al., 2017), the effect of local depletion of an actin accessory protein is reported here for the first time, to the best of our knowledge. This points to the possibility that similar depletion effects of other actin-binding proteins could be important for actin network dynamics.

We find that a single rate of disassembly, proportional to the local bound ADF/Cofilin density and inversely proportional to the square of local actin network density, can reproduce all experimental results. As a result, we were able to describe the dynamic equilibrium of actin networks with a simple formula enabling us to predict the length of the actin network as a function of its width, actin filament density, ADF/Cofilin concentration and growth rate. Finally, we made the observation that the radius of curvature of heterogeneous networks increases with the ADF/Cofilin concentration. A model suggests that ADF/Cofilin mediated disassembly effectively changes the elasticity of the networks in a spatially graded way, which affects the network curvature of heterogeneous growing networks. Thus, ADF/Cofilin can locally regulate the steering of heterogeneous networks.

Relation to previous studies

Our observations and modeling results are in agreement with previous studies: ADF/Cofilin was observed to be distributed roughly uniformly across keratocyte’s and fibroblast’s lamellipodia, with a narrow ADF/Cofilin-free zone at the leading edge (Svitkina and Borisy, 1999). Similarly, in in vitro actin tails, the ADF/Cofilin density increased sub-linearly along the tail away from the leading edge, with the small ADF/Cofilin-free gap near that edge (Reymann et al., 2011). Just like our model, the theory in Michalski and Carlsson (2010) predicted an initial slow actin filament density decay followed by an abrupt decay at the edge of the tail. Such actin density behavior in lamellipodia of motile keratocytes was reported in Barnhart et al., 2011; Raz-Ben Aroush et al. (2017) and other experimental studies. The reason for this density behavior is the cooperative nature of network fragmentation, which accelerates non-linearly at low actin filament densities and leads to an abrupt falling apart of the network at the trailing edge (Michalski and Carlsson, 2010, Michalski and Carlsson, 2011).

Our model predicts that effective node-breaking events in the network take place on the scale of one per hundred seconds per micron. This is in agreement with measured severing times in vitro per micron of a filament of hundreds of seconds for 150 nM of ADF/Cofilin and tens of seconds for 1000 nM of ADF/Cofilin (Chin et al., 2016). The predicted proportionality of this rate to the ADF/Cofilin density is in agreement with the observation of the linear proportionality of the debranching to the ADF/Cofilin concentration at low concentrations (Blanchoin et al., 2000). Similar to Michalski and Carlsson (2010), we found that, remarkably, the properties of the actin networks with actin subunits switching between many chemical and physical states can be described by a single effective disassembly rate, proportional to a certain mean of the chemical transition, severing and debranching rates. Note that the explanation for the abrupt disassembly at the trailing edge is not the abrupt increase of the rate of the node removal beyond a threshold of the cofilin decoration, but rather two-stage nature of the disassembly. First, node removal ‘primes’ the network for the disassembly; second, the disassembly has an ‘avalanche’ character due to the positive feedback between the actin drop and node disappearance.

Just as Michalski and Carlsson (2011), our model predicts that the network’s width remains constant along the length, which we also observed. In vivo, this property of the lamellipodial networks is most clearly apparent in keratocytes’ lamellipodial fragments (Ofer et al., 2011). Actin comet tails of intracellular pathogens also sometimes appear to have a constant width (Akin and Mullins, 2008), while under other conditions the tails taper as they decay (Carlier et al., 1997). We have to note that most of the previous measurements showed more gradual decrease of the actin density in the actin tails (Lacayo et al., 2012; Cameron et al., 1999; Rosenblatt et al., 1997). Yet, a few in vitro reconstitutions (Loisel et al., 1999; Reymann et al., 2011) revealed the abrupt actin density drop at the trailing edge. Also, abrupt actin density decrease at the rear of the lamellipodia in keratocyte cells and fragments (Barnhart et al., 2011; Ofer et al., 2011) was observed.

Directly, the ‘macroscopic’ fragmentation into micron-sized pieces was only observed in in vitro reconstitution experiments (Reymann et al., 2011). Indeed, it would be hard to imagine breakage of the microns-size fragments from a few micron-long lamellipodia. However, it is not out of question that such fragmentation could take place at the trailing edge of longer, 10 µm long, lamellipodia. Imaging such a process is a challenging problem for the future. Note also that some of the images of the actin comet tails (for example, see Figure 1 in Cameron et al., 1999) show patchy tail density at the trailing edge, which could be interpreted as the disassembly through fragmentation. Our results also are relevant to the ‘microscopic’ fragmentation through breaking actin filaments into small oligomers inferred from in vivo data in Berro et al. (2010); Raz-Ben Aroush et al. (2017).

Previous modeling showed that the length of the treadmilling network is (i) proportional to the polymerization velocity, (ii) is inversely proportional to the ADF/Cofilin density, (iii) and scales linearly with actin concentration (Michalski and Carlsson, 2010). Fitting our theoretical predictions to our data agrees with these previous predictions, with the exception that the network length is proportional to the square of the actin filament density at the leading edge. The reason for the difference, most likely, is that in Michalski and Carlsson (2010), the network node breaking rate was proportional to the ADF/Cofilin density, and the node density scaled with the actin density. We suggest, similarly, that the network node (effectively, cross-linking and entanglement) density does scale with the actin density; however, the breaking (debranching and severing) rate is proportional to the ratio of the ADF/Cofilin to actin density, which is effectively the length density of ADF/Cofilin along actin filaments. Then, the ratio of the node density to the breaking rate per node, proportional to the square of the actin density divided by the ADF/Cofilin density, determines the network length.

Addition of ADF/Cofilin was shown to shorten Listeria actin tails (Carlier et al., 1997; Rosenblatt et al., 1997); proportionality of the Listeria actin tails’ lengths to the polymerization rate at the leading edge was demonstrated in Theriot et al. (1992), and proportionality of the lamellipodial length in motile keratocytes’ fragments to the actin growth rate at the leading edge was reported in Ofer et al. (2011). Interestingly, network length as a function of width was predicted to be linearly increasing and then saturating, but saturation happens when the width is on the order of 20 mesh sizes, on the micron scale (Michalski and Carlsson, 2011), and so this is unrelated to the effect that we report in this study.

Novelty of our findings and relevance to in vivo networks

We established a simple formula that allows estimating the network length, L, as a function of a wide range of geometric and biochemical parameters: Actin filament density at the leading edge, A0, speed of actin growth at the leading edge, V, width of the network, W, and initial ADF/Cofilin concentration, C0 (Figure 5, Figure 7):

L=k1A02VCB,CB=k2rBA0C0LV×11+rBA0WLD,

Here, CB is the density of ADF/Cofilin bound to the network, D is the ADF/Cofilin diffusion coefficient in the solute, rB is the ADF/Cofilin binding coefficient, k11s/µM is a parameter determining the magnitude of the effective debranching and/or severing rate, and k21/2 is a non-dimensional parameter.

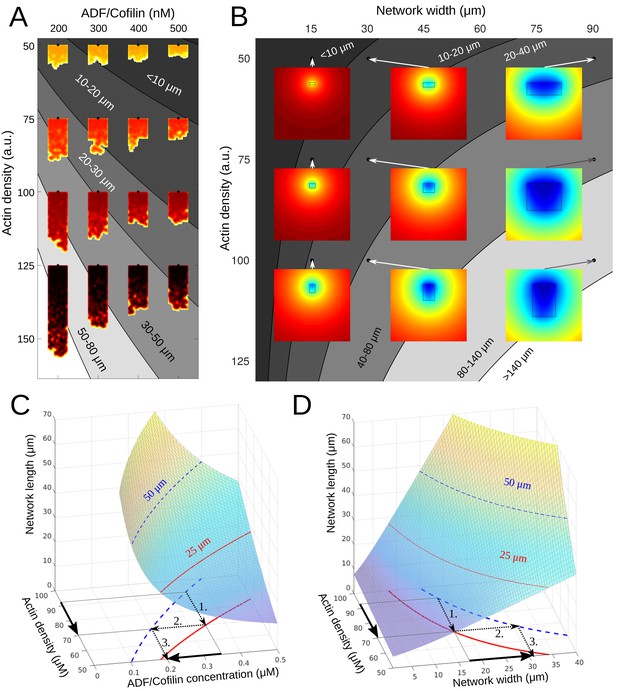

Phase diagram.

(A) Depicted are the predicted equilibrium networks lengths, if ADF/Cofilin concentration and actin density are varied. Gray colors represent regions of similar equilibrium network length. Shadings of red show actin density (black = high, yellow = low). The network shapes were calculated using the fragmentation model. (B) Depicted are the predicted equilibrium networks lengths, if network width and actin density are varied. Gray colors in the background represent regions of similar equilibrium network length. Colored insets show the simulated amount of free ADF/Cofilin (blue = low, red = high). (C-D) Depiction of how different combinations of control variables can lead to the same network length. See text for details.

https://doi.org/10.7554/eLife.42413.016

One consequence of these results is that there are different ways for a cell to achieve the same network length. For example, if the actin density drops and hence the network becomes shorter, there are two ways to re-establish the original network length (Figure 7A–D): either the ADF/Cofilin concentration has to be decreased, or the network has to become wider. In both cases, the procedure is as follows (compare arrows in Figure 7C–D): 1. The drop in actin density leads to a new, shorter equilibrium length, 2. Through intersection with the constant-network length-level curves an alternative parameter combination can be identified, which gives the original network length. 3. This gives the new (lower) ADF/Cofilin concentration in solution or new (higher) network width necessary to maintain the original network length. This dynamic equilibrium underlies the network’s ability to adapt to external changes. Indeed, cycles between low and high loads generate branched actin networks with different densities (Bieling et al., 2016). Our model explains how the system will respond to adjust its dimension according to these changes. Similarly, membrane tension affects the lamellipodium’s actin filament density (Mueller et al., 2017). The dynamic equilibrium model predicts how tension sensing will be counterbalanced to preserve the dimension of the growing network.

We found that diffusion of ADF/Cofilin in the solution and binding to the growing actin network can locally deplete the cytoplasmic ADF/Cofilin, which makes wider and denser actin networks grow longer (Figure 7B). Quantitatively, whether the depletion is significant or not, is determined by the magnitude of the non-dimensional quantity rBA0WLD: if this factor is smaller than 1 (e.g. when the network width and length are small enough), there is no significant depletion; otherwise, there is.

So, is the ADF/Cofilin depletion relevant in vivo? The following estimates give a clear positive answer. Using rB0.01/(s µM) (Tania et al., 2013), we estimated that rBA01-10/s (F-actin density is in the range of hundreds of μM for observed branched networks (Koestler et al., 2009; Urban et al., 2010), and D10 µm2/s (Tania et al., 2013). Thus, for actin tails propelling intracellular pathogens and organelles, for which W1 µm and L3 µm, we have: rBA0WLD0.3-3, and the depletion of ADF/Cofilin is moderate but present. This effect is even more pronounced for the branched networks in cells. For example, the characteristic dimensions of the lamellipodial network in fish keratocyte cell is WL10m, so rBA0WLD10100, and there is very significant depletion effect for ADF/Cofilin. Even for shorter lamellipodia in many other cells, with L1-4μmm, W10μmm, rBA0WLD140, and the depletion effect is not negligible.

In the limit when the depletion is in effect, we predict that CBk2DC0VW, and the length of the actin networks can be estimated by the simple formula:

Lk1k2A02V2WDC0.

The following parameter values then allow to estimate the length: For the rapidly growing actin comet tail and lamellipodial networks, V0.1μ µm/s (Theriot et al., 1992; Barnhart et al., 2011). The ADF/Cofilin concentration in many animal cells is on the order of tens of µM (Pollard et al., 2000). Then, for the actin comet tail (for which W1μ µm), we predict the length L10-20μ µm. Note that in two previous in vitro reconstitution studies (Loisel et al., 1999; Reymann et al., 2011), the observed tail length, when ADF/Cofilin was the only depolymerization factor, was on the order of 20 µm, in line with our estimate. For the actin tails observed in cells and in cell extracts, the length is a few-fold lower – on the order of a few microns – which is in agreement with a few-fold disassembly acceleration effect generated by molecular cofactors of ADF/Cofilin (see discussion below). Similarly, for the lamellipodial networks (for which W10μ µm), we predict the length L100μ µm, which is an order of magnitude longer than observed. This is a clear indication that the action of ADF/Cofilin molecular cofactors, in addition to possible nonlinear scaling of the ADF/Cofilin concentration effect must be in effect.

The clear in vivo relevance of the branched network steering is illustrated by recent observations that flat Arp2/3-governed sheets of branched actin regulate pathfinding of cells in 3D ECM (Fritz-Laylin et al., 2017). The question of how motile cells turn is attracting growing attention. A number of turning mechanisms were elucidated. As expected, chemotaxis-related biochemical pathways upstream of the actin network mechanics can regulate lamellipodial steering (Yang et al., 2016). However, mechanics, architecture and turnover of the network at the leading edge can lead to steering even in the absence of the upstream control. Examples of such mechanisms include Rac-Arpin nonlinear feedbacks regulating of the Arp2/3-branching activity (Dang et al., 2013), spatially graded thymosin β4 mediated control of the lamellipodial turning (Roy et al., 2001) and monomer-diffusion mediated steering of heterogeneous actin networks (Boujemaa-Paterski et al., 2017). Steering of intracellular pathogens by curving their actin tails depends on harnessing viscoelastic deformations of the actin tails and polymerization forces on the curved pathogen surface to generate actin growth asymmetries (Lacayo et al., 2012). Motile cell turning can also rely on alternating types of actin networks (Diz-Muñoz et al., 2016) and on crosstalk between actin and microtubule dynamics (Buck and Zheng, 2002). Lastly, cells also can steer from the rear of the networks, by actin-myosin contraction asymmetry mechanism (Nickaeen et al., 2017). Our findings add important additional control mechanism of tuning curvatures of the heterogeneous networks by ADF/Cofilin-mediated changes to network elasticity.

Model limitations and outstanding questions

Our experiments and modeling do not address the microscopic mechanism for the biological function of ADF/Cofilin, which is still debated. Our model is not explicitly microscopic and does not distinguish between ADF/Cofilin-mediated severing, acceleration of disassembly at filament ends and debranching (Chan et al., 2009) (reviewed in Blanchoin et al., 2014). Similarly, the model took into account neither ATP hydrolysis on actin subunits and preferential binding of ADF/Cofilin to ADP-actin (Blanchoin and Pollard, 1999), nor cooperativity of ADF/Cofilin binding (Hayakawa et al., 2014), nor ADF/Cofilin-induced structural change and destabilization of filaments (Pfaendtner et al., 2010; Suarez et al., 2011; Wioland et al., 2017). Due to technical limitations, we did not explore very high ADF/Cofilin concentrations, at which over-decoration by ADF/Cofilin can lead to filament stabilization (Andrianantoandro and Pollard, 2006), and rate of debranching can become a nonlinear function of ADF/Cofilin concentration (Chan et al., 2009). Thus, we observed neither non-monotonic dependence of the severing activity on ADF/Cofilin concentration (Andrianantoandro and Pollard, 2006; Pavlov et al., 2007), nor independence of the lengths of Listeria actin comet tails on high ADF/Cofilin concentrations (Rosenblatt et al., 1997). Even though our model did not account for all this microscopic complexity, the model predictions are remarkably efficient, pointing out two important factors: Hydrolysis is fast enough so that only a micron- or sub-micron-size region near the very leading edge is affected by the hydrolysis state of the actin network, which is negligible when we deal with networks longer than a few microns. Also, as we note above, on the more macroscopic scale of the whole network, the microscopic complexity can be effectively combined into one overall disassembly rate.

We also did not address the emerging molecular complexity of the disassembly process: in vivo, ADF/Cofilin often acts in synergy with the ADF cofactor actin-interacting protein 1 (AIP1), twinfilin, coronin and Srv2/adenylyl cyclase-associated protein (Kueh et al., 2008; Johnston et al., 2015). One of the obvious effects of the disassembly cofactors is acceleration of the disassembly process. Concerted action of Twinfilin, Coronin and Aip1, when added to cofilin, was demonstrated to accelerate the disassembly by a few-fold, up to an order of magnitude (Johnston et al., 2015; Chin et al., 2016). This would bring down the estimates of the actin networks’ lengths above to the observed values. One example of the extremely fast disassembly is actin patches in yeast, which are so small (micron scale) and have such a rapid dynamics (on the order of seconds) (Berro et al., 2010) that fast microscopic mechanisms employing additional molecular machinery, not accounted for in our study are likely involved. How the disassembly cofactors change the fragmentation scenario is also a great question for the future. One possibility is that these cofactors make the disassembly smoother: it was demonstrated that concerted action of Cofilin, Aip1 and Coronin first breaks filaments into small fragments, and then disassembles the fragments into monomers at such speed that effectively the disassembly is continuous (Johnston et al., 2015).

In addition, there are ADF/Cofilin-independent disassembly mechanisms, that is myosin-powered grinding of the actin network at the cell rear (Wilson et al., 2010). This synergy, added to complex nonlinear feedbacks between the branching, assembly and disassembly processes (Tania et al., 2013) and complex transport and partitioning of actin monomers and filaments in the cell (Vitriol et al., 2015; Raz-Ben Aroush et al., 2017) cause ADF/Cofilin to affect not only the disassembly, but also polymerization rate and network density. For example, higher ADF/Cofilin concentration can accelerate growth speed (Aizawa et al., 1996; Carlier et al., 1997). In the future, the in vitro and in silico studies will have to address these systems-level actin network dynamics. Last, but not least, cell actin networks integrate architectures other than Arp2/3-controlled branched lamellipodia and comet tails, and there is a delicate, incompletely understood dynamic balance between branched, bundled and other networks (Blanchoin et al., 2014). Dependence of the disassembly on network architecture was recently discovered (Gressin et al., 2015). Future models and experiments will have to investigate quantitative rules of the integrated global actin network dynamics.

Conclusion

Our study leads to the important general conclusion that the cell is able to control the dynamic actin network length by adjusting either geometric, structural, or biochemical parameters, as needed. For example, if the network’s width is dictated by the environment around the cell, then network’s length can be regulated by tuning ADF/Cofilin concentration (Figure 7A–D). On the other hand, if the ADF/Cofilin concentration has to be tuned for timely disassembly of other actin structures, then the branched network’s density or width can be changed in order to achieve necessary length (Figure 7A–D). In other words, there are multiple ways to set the dynamic balance of the biochemical and transport pathways regulating the global actin treadmill. This gives the cell sufficient flexibility in the control of the cytoskeletal geometry, without compromising requirements for mechanical and biochemical parameters to control multiple cytoskeletal functions.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSourceIdentifiersAdditional
information
Biol. sample
(Bovine)
Bovine ThymusSlaughterhouse,
SAINT EGREVE
Biol. sample
(Rabbit)
Rabbit Muscle
Acetone Powder
Pel-Freez
Biologicals
Cat# 41995–2
Strain, strain
background (E coli)
BL21(DE3)
p Lys S
MerckCat# 69451
Strain, strain
background (E coli)
Rosettas 2 (DE3)
p Lys S
MerckCat# 71403
Peptide, recomb.
protein
Mouse Capping
proteins
Uniprotα & β subunits,
P47754 and
P47757
Peptide, recomb.
protein
Human Profilin 1UniprotP07737
Peptide, recomb.
protein
Yeast cofilinUniprotQ03048
Peptide, recomb.
protein
Human WASp
pWA
UniprotP42768seq. 150–502 aa
Chem. compound,
drug
mPEG-Silane,
MW 30 k
Creative
PEGWorks
Cat# PSB-2014
Chem. compound,
drug
Alexa Fluor 488 C5
Maleimide
ThermoFisher
Scientific
Cat# A10254
Chem. compound,
drug
Alexa Fluor
568 NHS Ester
ThermoFisher
Scientific
Cat# A20003
Commercial
assay or kit
Glutathione
Sepharose 4B
GE Healthcare Life
Sciences
Cat# 17075605
Commercial
assay or kit
Ni Sepharose High
Performance
GE Healthcare Life
Sciences
Cat# 17526802
Software,
algorithm
Matlab code for a
standard numerical
algorithm to solve
the reaction-diffusion
equations
This paper;
Source code 1

Protein production and labeling

Request a detailed protocol

Actin was purified from rabbit skeletal-muscle acetone powder (Spudich and Watt, 1971). Actin was labeled on lysines with Alexa-568 (Isambert et al., 1995). Labeling was done on lysines by incubating actin filaments with Alexa-568 succimidyl ester (Molecular Probes). All experiments were carried out with 5% labeled actin. The Arp2/3 complex was purified from bovine thymus (Egile et al., 1999). Human WASp-pVCA (GST-WASp-pVCA) is expressed in Rosettas 2 (DE3) pLysS and purified according to Boujemaa-Paterski et al. (2017). Human profilin is expressed in BL21 DE3 pLys S Echerichia coli cells and purified according to Almo et al. (1994). Mouse capping protein is purified according to Falck et al. (2004).

Laser patterning

Request a detailed protocol

20 × 20 mm2 coverslips and cover glasses (Agar Scientific) were extensively cleaned, oxidized with oxygen plasma (3 mn at 30 W, Harrick Plasma, Ithaca, NY) and incubated with 1 mg ml-1 of Silane-PEG overnight. Patterns of the desired density and area were printed on Silane-PEG-coated surfaces using a pulsed, passively Q-switched laser (STV-E, TeamPhotonics) that delivers 300 ps pulses at 355 nm. The laser power is controlled with a polarizer (iLasPulse device, Roper Scientific). Following laser patterning, patterned coverslips were coated with a solution of NPF at a concentration of 500 to 1000 nM for 15 min. The excess of NPFs was washed out with G-buffer (5 mM Tris-HCl [pH 8.0], 0.2 mM ATP, 0.1 mM CaCl2 and 0.5 mM dithiothreitol (DTT)), and the surface was carefully dried.

Reconstituted LMs

Request a detailed protocol

Assembly of reconstituted LMs was initiated in polymerization chambers of 20 × 20 mm2 x 4.5 µm height by addition of the actin polymerization mix contained 6 µM actin monomers (containing 3% Alexa568-labeled actin), 18 µM profilin, 120 nM Arp2/3, 25 nM CP, in X buffer (10 mM HEPES [pH 7], 0.1 M KCl, 1 mM MgCl2, 1 mM ATP, and 0.1 mM CaCl2) and was supplemented with 1% BSA, 0.2% methylcellulose, 3 mM DTT, 0.13 mM 1,4-diazabicyclo[2.2.2]octane (DABCO), 1.8 mM ATP (Boujemaa-Paterski et al., 2017). When needed, the polymerization mix also included yeast cofilin purified according to Suarez et al. (2011) at a concentration of 125, 250, or 500 nM. We normalized the actin network fluorescence between assays using 0.2 µm TetraSpeck fluorescent beads (Molecular Probes).

Image acquisition

Request a detailed protocol

Image acquisition was performed using an upright Axioimager M2 Zeiss microscope equipped with an EC Plan-Neofluar dry objective (x20, NA 0.75), a computer controlled fluorescence microscope light source X-Cite 120PC Q (Lumen Dynamics), a motorized XY stage (Marzhauser) and an ORCA-ER camera (Hamamatsu). The station was driven by MetaMorph software (Universal Imaging Corporation). The growth rates were calculated using ImageJ software.

Mathematical modeling

Request a detailed protocol

Details about the mathematical modeling, analysis and simulation can be found in Appendix 1.

Appendix 1

Effective diffusion coefficient of ADF/Cofilin in the branched actin network

Here, we test the hypothesis whether wider networks are less affected by ADF/Cofilin because dense actin networks hinder diffusion, and this does not allow enough time for ADF/Cofilin to access the middle of a network. To do so, we used the theory developed in Novak et al. (2009), which examines how the presence of obstacles affects the effective diffusion constant of a particle. According to Novak et al. (2009), the ratio between the ADF/Cofilin diffusion constant in the cytosol, D, and the effective diffusion constant of ADF/Cofilin in the branched actin network, Deff, can be estimated as:

DeffD=(1ϕ/ϕc)μ1ϕ.

In the theory derived in Novak et al. (2009), the actin network is represented as a collection of long cylindrical obstacles/filaments, through which ADF/Cofilin molecules diffuse. This theory estimates the ratio of the diffusion coefficients as the function of three parameters: ϕ, ϕc and μ. Exponent μ=1.58 was estimated in Novak et al. (2009) based on characteristic dimensions of the cylindrical obstacles. Parameter ϕ reflects the effect of the actin volume fraction on diminishing the diffusion coefficient and is given as ϕ=1exp(V), where parameter V depends on the sum of volumes of individual obstacles per unit volume, and is determined by the number of filaments per unit area, f, the average orientation angle of the filaments, α=35, and the radii of actin filaments, rA = 3.5 nm, and of ADF/Cofilin molecules, rC = 1.58 nm, as follows:

(9) V=f(rA+rC)2πsinα.

Finally, parameter ϕc=0.942 characterizes the critically dense network, which completely obstructs the diffusion. A conservative estimate can be made by assuming a dense actin network with f=300/μm2. This gives estimates of V=0.042 and Deff=0.97D. Thus, the effect of even a dense actin network on the ADF/Cofilin diffusion coefficient is but a few per cent and can be neglected.

Determining initial ADF/Cofilin binding rate

To determine the ADF/Cofilin binding rate (see Sec. Spatio-temporal ADF/Cofilin dynamics and its local depletion in the main text), we used the experimentally measured concentrations of ADF/Cofilin and actin. We focused on the changes of bound ADF/Cofilin concentration at the beginning the network growth, since in this early stage we can neglect both ADF/Cofilin unbinding and depletion of free ADF/Cofilin. This means that we can assume that:

tCB+VyCBb(A,C0),

where b(A,C0) is the binding rate we would like to determine. Since we know the network growth speed, we can measure the increase of bound ADF/Cofilin C˙B in moving patches of actin, that is we can directly measure b(A,C0). First, we examined networks with similar actin densities A, and found a strong correlation (R=0.69, p<103) between the binding rate C˙B and initial concentration of ADF/Cofilin C0 (Appendix 1—figure 1A). Next, we examined networks in the experiments with similar initial ADF/Cofilin concentrations C0, but with varying actin densities A, and found a strong correlation between C˙B and the actin density A (R=0.69, p<105) (Appendix 1—figure 1B). Finally, we examined networks with varying values of parameters C0 and A, and found that indeed the binding rate C˙BAC0 (R=0.51, p<105, Appendix 1—figure 1C), justifying the use of the proposed mathematical form for the binding rate b(A,C0)=rBAC0 at the beginning of the network growth. In the main text, we show, by comparison with the data, that in fact the form b(A,C0)=rBACF, that is the rate of binding being limited by the local, not initial, concentration of free ADF/Cofilin, CF, leads to the model predictions that fit the data very well.

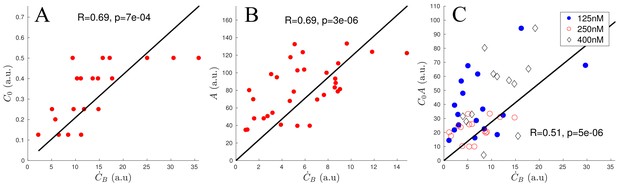

Appendix 1—figure 1
Scaling of ADF/Cofilin binding rate.

(A) Correlation of CB˙ and C0 using only networks with an actin density between 120 and 180 (a.u.). (B) Correlation of CB˙ and A using only networks with an initial ADF/Cofilin concentration between 200 and 250 nM. (C) Correlation of CB˙ and C0A using networks of varying initial ADF/Cofilin concentration and actin density.

https://doi.org/10.7554/eLife.42413.020

Spatio-temporal ADF/Cofilin model: details and simulation

Model

In this section, we provide details for the model of the ADF/Cofilin dynamics. All model parameters are gathered in Appendix 1—table 1 below. We simulate the model in 2D with (x,y)[B/2,B/2]×[B/2,B/2]R2, where B>0 is the size of the square-shaped domain. The density of free ADF/Cofilin molecules diffusing in the solute is denoted by CF(x,y,t), those bound to the actin network by CB(x,y,t). In the simulations, an actin network of width W and length L(t)=V×t is positioned at 𝒩=[W/2,W/2]×[0,L(t)]. The model consists of the following equations:

(10) tCB=VyCB+rBACFrUCB,
(11) tCF=DΔCFrBACF+rUCB,

with the initial conditions CF(x,y,0)=C0, CB(x,y,0)=0, and the boundary conditions:

CF(x,y,t)=C0x=±B/2ory=±B/2
CB(x,0,t)=0.
Appendix 1—table 1
Simulation parameters of ADF/Cofilin binding/unbinding model.
https://doi.org/10.7554/eLife.42413.021
Variables & parameters
NameMeaningValueComment
CFdiffusing ADF/Cofilinin µMsimulated
CBbound ADF/Cofilinin µMsimulated
Vnetwork growth speed1-2 µm/minmeasured
DADF/Cofilin diffusion constant600 µm2/minfrom Tania et al. (2013)
rBADF/Cofilin binding rate0.5/min/µMfrom Reymann et al. (2011)
rUADF/Cofilin unbinding rate0.31/minfrom Reymann et al. (2011)
Aactin density25-400 µMestimated in Boujemaa-Paterski et al. (2017)
C0initial ADF/Cofilin concentration125-500 nMexperimental set-up
Wnetwork width15-90 µmexperimental set-up
Bdomain length1 mmreflects experimental set-up
Δttime step for transport operator1.5 min

In the experiment, networks grow in a large, several square millimeter sized chambers, so that the total amount of ADF/Cofilin is not limiting, and moreover, over the time of the experiment, about 60 min, diffusion is not fast enough to diminish the ADF/Cofilin concentration in the solute farther than a few hundred microns from the growing network (for relevant estimates, see Boujemaa-Paterski et al. (2017). For this reason, we performed the simulations in the area one millimeter in size, smaller that the size of the whole experimental chamber, but large enough so that the concentration of free ADF/Cofilin at its boundary is almost identical to the initial ADF/Cofilin solute concentration. This justifies using Dirichlet boundary conditions also for CF, rather than no flux boundary conditions. For the actin density, we assume A(x,y,t)0 whenever (x,y)N. Within the network, we use two scenarios: The actin density is constant, or the actin density is a function of y only, that is A(x,y,t)=A(y), where we use the measured actin density along the network, averaged over its width and fitted using a smoothing spline. The smoothing avoids potential numerical problems when solving partial differential equations due to the roughness of the measured data. Finally, note that the macroscopic model does not account for an ATP-F-actin band, for which ADF/Cofilin has a much lower affinity. The reason is that such an ATP-F-actin band is very narrow (see Discussion for details).

We can roughly estimate the free ADF/Cofilin near the network and the rate of ADF/Cofilin binding to the network near the leading edge as follows. The flux of the free ADF/Cofilin to the network by diffusion, (C0CF)D, has to balance the "consumption" of the free ADF/Cofilin by binding to the network, that is

(C0CF)DWL(rBCFArUCB),

which leads to the first formula in Equation (3). The unbinding of ADF/Cofilin is very slow; besides, near the leading edge, CB0, and so we arrive at the second formula in Equation (3).

We note that ADF/Cofilin unbinding predicted by the model is slow; omitting the effect of ADF/Cofilin unbinding (i.e. setting rU=0 in the model) makes the fits to the data less perfect, however, the estimates of the overall amount of bound ADF/Cofilin changes little.

Actin saturation

In Equations (10)-(11) we asume that the binding rate is proportional to the actin density, irrespective of how much ADF/Cofilin is already bound within the network. A more accurate model would involve defining AF=AAD, where AD is the concentration of actin decorated with ADF/Cofilin, which is no longer available for further ADF/Cofilin molecules to bind, and AF is the F-actin density free of ADF/Cofilin. The new set of equations would then read

tCB+VyCB=rB(AAD)CFrUCB,
tCF=DΔCFrB(AAD)CF+rUCB,
tAD+VyAD=rB(AAD)CFrUCB

In the equations we used the known stoichiometry of one ADF/Cofilin molecule binding to one actin subunit (Kuhn and Bamburg, 2008). Furthermore, decorated actin follows the same transport dynamics and has the same boundary conditions as bound cofilin. Hence, we can conclude that in fact AD=CB. If we now look at the relative order of magnitudes of the three reaction terms (stripping away the physical-chemical dimensions), we find that rB×A×CF0.5×100×0.1=5, rB×CB×CF0.5×10×0.1=0.5 and rU×CB0.3×10=3. Here we use the estimate CB10 µM as shown in Figure 3—figure supplement 1A. We see that the term rB×CB×CF, which is responsible for the correction of term A by term AAD is an order of magnitude smaller than the other terms, which means that the saturation effect introduces but a small correction to the approximate simpler model. This correction can be, in principle, calculated by using regular perturbation theory, but respective biophysical insight from such exercise would be limited. We note, however, that such correction would have a significant effect for significantly higher concentrations of free ADF/Cofilin than those used in our experiments.

Quantitative estimates in Mogilner and Edelstein-Keshet (2002) show that in the case when profilin concentration is higher than both G-actin and ADF/Cofilin concentrations (in our case, there are 18 µM of profilin, 6 µM of G-actin, and less than 1 µM of ADF/Cofilin), a major part of G-actin is associated with ATP, while ADF/Cofilin has a very low affinity to ATP-G-actin. More specifically, at these concentrations, there is a sub-µM concentration of ADP-G-actin, only a few per cent of which is associated with ADF/Cofilin (most of the rest is associated with profilin), and so the order of magnitude of ADF/Cofilin concentration bound to G-actin is 10 nM, which is less than 10% of the total ADF/Cofilin concentration. Thus, binding of ADF/Cofilin to G-actin can be neglected.

Simulation

Parameters are summarized in Appendix 1—Table 1 To solve Equations (10), (11) numerically, we used a splitting scheme: At each timestep tn, we first solved the equations

tCB=rBACFrUCB,
tCF=DΔCFrBACF+rUCB,

on the interval [tn,tn+Δt] using a Finite Element Method (FEM) as implemented by the parabolic solver of Matlab's PDE toolbox. Since large density gradients can be expected only near the network, we used a triangular FEM-mesh that is much finer on and near the network than far away from it. Overall, the number of mesh triangles was between 2000 and 5000 for each simulation. The mesh itself was time-independent, avoiding having to re-mesh at each time step. Next, we employed a forward-Euler finite-difference scheme for the transport term tCB+VyCB, with shifting the calculated values of CB and subsequent interpolation onto the elements of the mesh.

Stochastic fragmentation model: details and simulation

In our discrete network model, we describe the network as a collection of nodes and edges in 2D. Each edge represents an array of actin filaments, each note represents cross-linking or branching points. Our discrete network model follows ideas presented in Carlsson (2007); Michalski and Carlsson (2010), Michalski and Carlsson (2011), however we allow our breakage rate to depend on local actin density and present a new analytical approximation (see Section Stochastic fragmentation model: details and simulation). At its fully connected state each inner node is connected to four edges. We represent the whole network as a graph, that is for each node, we track the nodes to which this given node is connected to. During each time step, the discrete network model is updated in four steps:

1. Remove individual nodes. Given an actin density A for a given node (step four below), we determine a breakage rate per node and time P=pAα, where parameter p is a constant. The node breakage follows a Poisson process with rate P, and we determine the probability of breakage at each time step as 1ePΔt.

2. Remove edges and network pieces. There are two ways edges can be removed: Individually - this happens if both nodes an edge is connected to are removed. On the other hand, a larger network piece could become disconnected as a consequence of step 1. We considered network segments to be disconnected if they have no connection to the leading edge (i.e. there is no path of edges connecting the given piece to the leading edge) and assume disconnected network pieces diffuse away quickly.

3. Grow network. This step simply adds rows of nodes and edges at the leading edge proportional to the network growth speed V.

4. Calculate local actin densities. In our model, the local actin density depends on the number of edges present, not the number of nodes, that is if a node is removed within an otherwise fully connected patch, the actin density would not be affected. To calculate the local actin density at a node, we count the number of missing edges within a square patch around the node with a of rnod=2 (in units of the edge length), that is we are considering the 24 nodes or 40 edges around the given node. Finally, the determined fraction of the unbroken edges was multiplied by the model parameter A0, the initial actin density.

Implementation and parameters

We performed numerical tests and found that as long as the node number along the leading edge, K, is larger than 20, the equilibrium length is barely affected by the choice of K (as noted also in Carlsson (2007). We therefore decided to use K=30, 60 and 180 for 15μm, 30μm and 90μm networks, respectively. We used the time step of Δt=1 min. For Figure 4D we varied the initial actin density A0 and the exponent α. For illustration purposes, we also changed the parameter p and used p=0.25, 2.5, 25 and 250 for α=0.5, 1, 1.5 and 2, respectively (otherwise the obtained network lengths would differ by orders of magnitudes, making the visualization less clear). For the simulation in main Figure 4B we used width = 90 µm, α=2, A0=100 µM, p=194 µM2/min, V=0.8 µm/min, for the comparison shown for the network in Figure 4E we used width = 15 µm, α=2, A0=400 µM, p=250 µM2/min, V=1.5 µm/min.

We represented the network as an undirected graph using Matlab routines, allowing to quickly determine connected components, which can be a time-consuming step. Edges that are connected to only one node can be represented as a loop, that is we formally connect both edge ends to the same node. Finally, if a node has two or three edges that are connected to only this node, this can be accounted for by assigning a weight of two or three to that edge. This is necessary to keep edges unique in the graph-based description. For example, a weight of two means that this edge counts twice when determining actin densities.

Derivation of analytical model of network fragmentation

In this section, we describe an analytical approximation of the network length and actin density along the network of the discrete network model of Sec. Stochastic fragmentation model: details and simulation. In the discrete network model, we describe the whole network as a collection of nodes and edges, representing branches and connecting actin filaments, respectively. At its fully connected state each (inner) node is connected to four edges. Each nodes is being broken with a probability P per node and time, that will depend on local properties of the network. An edge (i.e. actin filament segment) is removed only if either both of the nodes it is connected to are broken, or, if it is removed as part of a larger patch that is being disconnected.

Main result

The analytical results can be summarized as follows: If the breakage rate per node is P=cCBβAα, where CB is the (constant) concentration of bound ADF/Cofilin in the network, A(y) is the actin density, V is the network growth speed and c is a dimensional constant proportionality coefficient, then the equilibrium network length is given by:

L=VcA0αCBβ01(1r2)α(1r)(1+r(1r)2)dr.

Note that this integral is finite for any choice of α. If A0 is the initial actin density, then the actin density along the network in equilibrium is given by

A(y)=A0(1r(y)2),

where r(y), the fraction of broken nodes along the network, is the solution of the ordinary differential equation:

Vr=cCBβA0α1r(1r2)α(1+r(1r)2),r(0)=1.

Derivation

Let N0 be the initial number of the network nodes per area, R - the number of the broken nodes per area, and E - the number of the network edges per area. If initially each node was connected to four edges, then E0=2N0. Two factors contribute to the edge removal:

A The current connectedness of the network;

B The number of nodes that are being removed locally.

A: In the absence of removal of larger pieces of the network, the deletion of a node will only affect edges that are connected to this very node, and only if those edges are unconnected at the other ends. The expected number of such edges for an unbroken node is:

no.ofedgespernode×prob.thatthenodeattheotherendisbroken=4RN0.

We model continuous densities R and E using the following equations:

(12) R˙=P(N0R)(1+R/N0(1R/N0)2),
E˙=4RN0R˙.

The second equation is simply stating that the rate of edge removal is equal to the rate of the node removal times the expected number of edges connected to the node being removed. In the first equation, expression P(N0R) accounts for the node breakage with rate P. Factor (1+R/N0(1R/N0)2) in this equation accounts for the factor B: if the network connectedness is low, then per each removed node, more nodes could be removed. This factor is equal to one for very low density of broken nodes, and has to be an increasing function of the variable R/N0. Rather than using theoretical arguments to try to find this function, we simply used a few tens of simulations of the discrete stochastic model to estimate numerically the average number of the nodes removed for each randomly removed node at any given density of the broken nodes. The function (1+R/N0(1R/N0)2) approximated the numerical data well for 0<R/N0<0.7. For larger R/N0 the network is already largely falling apart. We found that using more complicated functions to approximate the behavior hardly affects the predictions of network length and density.

Adding transport effects

We introduce the space and time dependent fraction of broken nodes r=R/N0 and the rescaled actin density a=A/A0. Note that values of A and E are connected by the relation A=E/N0, where 1/N0 is the approximate edge length in 2D. Since both edges and nodes are being transported within the network at speed V, we can replace Equation (12) by the following PDE system for densities a(y,t) and r(y,t), where y is the distance along the network:

(13) tr+Vyr=P(1r)(1+r(1r)2)=:Pρ(r),
ta+Vya=2rρ(r)P,

with the boundary conditions a(0,t)=1, r(0,t)=0.

Explicitly calculating the network equilibrium length

In equilibrium, system (Equation (13)) takes the form:

(14) Vr=P(1r)(1+r(1r)2)=:Pρ(r),
(15) Va=2rρ(r)P.

Rewriting Equation (15) as a=(r2) shows that:

(16) a(y)=1r(y)2.

Using the separations of variables, we can rewrite Equation (14) and find the following equation for the equilibrium length L:

(17) V0r(y)1Pρ(r~)dr~=yV011Pρ(r)dr=L.

The final result depends on the choice of how the breakage rate P depends on the actin density A and the average amount of bound ADF/Cofilin CB. We assume CB to be constant and use the breakage rate in the form:

P=cCBβAα=cCBβ(A0a)α=cCBβA0α1(1r2)α,

where c is the proportionality constant. This implies that the equilibrium length is given by:

L=VcA0αCBβ01(1r2)αρ(r)dr.

The integral can be evaluated exactly:

L=Vc1CBβ{A02α=1A022743π12α=2

This is the formula used to compare the simulated equilibrium length to the calculated one in the main Figure 4D. Note that, given P, there are no free parameters, that is the lengths are determined exactly. As described in the main text, we used the measured equilibrium lengths, actin densities and amounts of bound ADF/Cofilin to determine exponents α and β, and found good agreement for α=2, β=1. This lead to main Equation (5) and is one of the ingredients used to calculate the equilibrium length below in Sec. Equilibrium lengths of homogeneous and heterogeneous networks.

Equilibrium lengths of homogeneous and heterogeneous networks

Homogeneous networks

First, we estimate the average amount of bound ADF/Cofilin CB in a network of a given length L. We use the estimate for the density of ADF/Cofilin in the solute in the vicinity of the network, derived in the main text (Equation (3)),

CFC0D+WLCBrUD+AWLrB.

Substitution of this expression into the equation for bound ADF/Cofilin (Equation (10)) yields:

tCB+VyCB=χ(L)rBAC0χ(L)rUCB,
CB(y=0)=0,

where we define the depletion factor χ(L) as:

χ(L)=DD+rBA0LW.

For a fixed network length L, this equation can be solved for any yVt:

CB(x,y,t)=rBAC0rU(1erUχ(L)yV).

In our case, rU0.3/min, V1.5 µm/min, L30 µm, D600 µm2/min, A100 µM, rB0.5 /min/µM, and so χ102. Hence we approximate the amount of bound ADF/Cofilin by the limit rU0, yielding:

CB(x,y,t)=rBAC0χ(L)yV.

The average amount of bound ADF/Cofilin, calculated as 1L0LCB(x,y,t)dy, is therefore given in Equation (6):

(18) CB=rBA0C0L2Vχ(L).

From the network fragmentation model (see Sec. Stochastic fragmentation model: details and simulation) and the data, we found that for a given amount of bound ADF/Cofilin CB, the network length is given by:

(19) L=κSV(rBA0)2CB,

where κS=0.067 min3 × µM is the proportionality constant found by fitting to the data. Solving Equations (18)-(19) for L and CB gives the equilibrium length L:

L=VC0D(VWκS(rBA0)2+[VWκS(rBA0)2]2+2D2κSrBA0C0).

This is the formula used for all equilibrium length predictions for Figure 2. Note that since the expression under the square root is always positive, the model predicts that the networks always reach an equilibrium length. Before the equilibrium length is reached, the length is simply given by L=Vt, which explains the plateaus in Figure 2B and Figure 2D: According to the model, the networks had not yet reached equilibrium length at t=20 min and t=38 min.

Heterogeneous networks

For heterogeneous networks we need to determine both equilibrium lengths L1, L2 for two sub-networks, that is we need to formulate Equations (18) and (19) separately for each sub-network. We denote by A0,1 and A0,2 the initial actin densities at the leading edge and by V1 and V2 the sub-network growth speeds. Since the networks are competing for the same pool of diffusing ADF/Cofilin, we assume that there is a common depletion factor, which we denote by χh(L1,L2) and model by the expression:

χh(L1,L2)=DD+rBW(A0,1L1+A0,2L2),

which takes into account the different densities and network lengths. Now we replace Equation (18) by:

(20) CB,1=rBA0,1C0L12V1χh(L1,L2),CB,2=rBA0,2C0L22V2χh(L1,L2),

and Equation (19) by:

(21) L1=κSV1(rBA0,1)2CB,1,L2=κSV2(rBA0,2)2CB,2.

All that remains is to solve the four Equations (20)-(21) for L1, L2, CB,1 and CB,2. We find the relation

L1V1A0,1=L2V2A0,2,

which helps to simplify the equations. The final result can be written as:

L1=V1C0D(V1WκS(rBA~12)2+[V1WκS(rBA~12)2]2+2D2κSrBA0,1C0),
L2=V2C0D(V2WκS(rBA~21)2+[V2WκS(rBA~21)2]2+2D2κSrBA0,2C0),

where we have defined the terms A~ij as:

A~ij2=A0,i2+VjViA0,jA0,iA0,j.

The expressions for the equilibrium lengths are very similar to the homogeneous network case - in fact if V1=V2 and A0,1=A0,2, they simplify to the case of one single network with width 2W.

Modeling the shape of heterogeneous networks

Modeling

In this section, we model the shape of a network consisting of two sub-networks having different actin densities and/or growth speeds. We start by assuming that their material properties are constant along the network. We denote by V1>V2 the growth speeds of sub-networks 1 and 2, respectively. As the network assembles, two sub-networks are effectively ‘glued’ together. In our simple model, we assume the sub-networks to be elastic. We model each sub-network segment by two springs, placed at a distance W (the network width) from each other (Appendix 1—figure 2 ). The springs at the interface Γ between the sub-networks are connected and forced to have the same length (representing the ‘glued’ together condition). The differences in sub-network growth speeds lead to different resting lengths l1 and l2, proportional to the respective speeds. To account for elastic effects, we assume that the differences in density lead to different elastic moduli E1 and E2, and hence to different spring constants k1E1/l1 and k2E2/l2. We call the length of the outermost and innermost spring L1 and L2 respectively; the length of the two springs at the interface therefore has to be (L1+L2)/2.

Appendix 1—figure 2
Modeling of heterogeneous, elastic networks.

(A) Schematic of the experimental set-up. Different shading is used for the two sub-networks. The curve Γ represents their interface. (B) Spring-based model of one network segment.

https://doi.org/10.7554/eLife.42413.022

Results

To obtain the equilibrium lengths of the sub-networks, we minimize the elastic energy of each segment, which is given by adding the potential energies for each of the four springs:

Epot=k12[(L1l1)2+(L1+L22l1)2]+k22[(L2l2)2+(L1+L22l2)2].

Minimization with respect to L1 and L2 gives:

L1=l1+k2(k1k2)δ(l1l2),L2=l2+k1(k1k2)δ(l1l2),

where δ=k12+6k1k2+k22. Using the basic proportionality theorem of elementary geometry of triangles, we find that the radius of curvature R of the interface curve Γ has to be:

R=WL1+L2L1L2=W(l1+l2l1l2+(k1k2)(k1l1k2l2)4k1k2(l1l2)).

To simplify interpretation, we denote by σ=E2/E1 the ratio of the elastic moduli and we use expressions: l1=V1Δt, l2=V2Δt, where Δt is the time step. This gives:

R=W(V1+V2V1V2+(σ1)V1σV24σ(V1V2)).

The speed of the interface is given by:

Vh=L1+L22Δt=V1+V22(V1V2)(V12σ2V22)2(V12σ2+6V1V2σ+V22).

These are the formulas used to calculate the curves shown in Figure 6B,C in the main text. Note that:

σ0Rσ
V1σ0vhσV2.

In other words, if one of the sub-networks is much stiffer that the other one, the heterogeneous network will become straight and grow with the speed of the stiffer sub-network.

The density-elasticity scaling

In the formula for the curvature radius (Equation (7)) derived above, one needs to know the ratio of network elasticities σ=E2/E1. In the literature, scaling laws between elasticity E and density A of the form EAτ have been proposed with exponents varying from τ=0.5 (Bieling et al., 2016) to τ=1.4 (Hinner et al., 1998) to τ=2.2 (Gardel et al., 2004b) to τ=2.5 (Gardel et al., 2004a). We measured the actin network densities for the heterogeneous networks without ADF/Cofilin in Figure 6D and found an average density ratio of 0.78±0.04 (mean±std) shown in Appendix 1—figure 3A-B and a curvature radius of R=75.3±17.9 (mean± Figure 6F. Using these numbers in Equation (7) we can express the network speed ratio V2/V1 as a function of the exponent τ, the resulting curve is shown in Appendix 1—figure 3C. We found that the speed ratio depends only mildly on τ and is roughly V2/V1=2/3. While we cannot measure the sub-network speed directly, we expect the ratio to be similar to the ratio of speeds of individually growing networks of corresponding patterns. Indeed, using the measurements from Figure 1C for low and high density patterns we find a ratio of 0.56, which is in the correct range. In all simulations shown in Figure 6 we used τ=2.5.

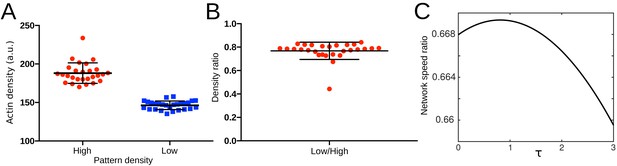

Appendix 1—figure 3
Density-elasticity scaling.

(A) Variation of the actin density in heterogeneous patterns in Figure 6D, control. (B) Actin density ratio in heterogeneous patterns generated by the low and high density patterns in Figure 6D, control. (C) Showing the calculated ratio of sub-network speeds V2/V1 as function of the scaling exponent τ. The relation is obtained from Equation (7) using an actin density ratio of 0.78 as measured in B as well as a curvature radius of 75 µm as measured in Figure 6F.

https://doi.org/10.7554/eLife.42413.023

Sub-network shapes

Since our discussion so far concerned local properties of the sub-networks, we can account for changes in density along the combined network simply by making the elasticity ratio σ, and hence the curvature κ, a function of arc length along the network s. Then, curve Γ(s) at the interface of the two sub-networks can be parametrized as sΓ(s)=(Γ1(s),Γ2(s)) (Appendix 1—figure 2), where:

Γ1(s)=0ysin(0zκ(w)dw)dz,Γ2(s)=0ycos(0zκ(w)dw)dz.

In case of constant material properties along each sub-network (as shown in Figure 6A in the main text), these expressions simplify to:

Γ1(s)=1cos(κs)κ,Γ2(s)=sin(κs)κ.

If actin densities vary along the sub-network, we can use the analytical approximation of the discrete model for network fragmentation described in Sec. Stochastic fragmentation model: details and simulation. In particular, we have to solve Equation (14) to obtain the density of broken nodes, after which we can use Equation (16) to obtain a formula for the actin density along the sub-network. To simplify the results, we use the following approximation of Equation (14):

(22) Vr=cCBA021(1r)2.

Using the notation introduced above in Sec. Equilibrium lengths of homogeneous and heterogeneous networks and the calculated equilibrium lengths L1 and L2, we obtain:

r1(s)=1(1s/L1)1/3,A1(s)=A0,1(1r12(s)),s<L1
r2(s)=1(1s/L2)1/3,A2(s)=A0,2(1r22(s)),s<L2.

Since L1>L2, we can approximate the elasticity ratio of the two sub-networks as:

(23) σ(s)={(A2(s)A1(s))2.5y[0,L2],elsewise.

These are the formulas used to calculate the network shapes shown in Figure 6E in the main text. As parameters, we used the density measurements from the ADF/Cofilin free case shown in Appendix 1—figure 3A for A0,1 and A0,2 and the speeds V1=2 µm/min and V2=1.33 µm/min. Note that in the figure, networks have been rotated to match the experimental set-up.

https://doi.org/10.7554/eLife.42413.019

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
    Network heterogeneity regulates steering in actin-based motility
    1. R Boujemaa-Paterski
    2. C Suarez
    3. T Klar
    4. J Zhu
    5. C Guérin
    6. A Mogilner
    7. M Théry
    8. L Blanchoin
    (2017)
    Nature Communications, 8, 10.1038/s41467-017-00455-1, 28935896.
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Scaling of F-actin network rheology to probe single filament elasticity and dynamics
    1. ML Gardel
    2. JH Shin
    3. FC MacKintosh
    4. L Mahadevan
    5. PA Matsudaira
    6. DA Weitz
    (2004)
    Physical Review Letters, 93, 10.1103/PhysRevLett.93.188102, 15525211.
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
    Advances in Experimental Medicine and Biology
    1. TB Kuhn
    2. JR Bamburg
    (2008)
    232–249, Tropomyosin and ADF/Cofilin as Collaborators and Competitors, Advances in Experimental Medicine and Biology, 644, Springer.
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
    The regulation of rabbit skeletal muscle contraction. I. biochemical studies of the interaction of the tropomyosin-troponin complex with actin and the proteolytic fragments of myosin
    1. JA Spudich
    2. S Watt
    (1971)
    The Journal of Biological Chemistry 246:4866–4871.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81

Decision letter

  1. Pekka Lappalainen
    Reviewing Editor; University of Helsinki, Finland
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands
  3. Pekka Lappalainen
    Reviewer; University of Helsinki, Finland
  4. R Dyche Mullins
    Reviewer; University of California, San Francisco, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Reconstitution of the equilibrium state of dynamic actin networks" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Pekka Lappalainen as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Anna Akhmanova as the Senior Editor. The following individual involved in review of your submission has also agreed to reveal their identity: R Dyche Mullins (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The effects of various actin-binding proteins on the dynamics of individual actin filaments have been extensively studied, but much less in known about how they regulate physiological networks of actin filaments. Earlier study by Boujemaa-Paterski et al., 2017, revealed that both width and density of the Arp2/3-nucleated networks affect their growth rate and steering in vitro. Here, Manhart et al., applied similar in vitro reconstitution and mathematical modeling approaches to study the effects of ADF/cofilin on the network dynamics. Most importantly, they reveal that: i). ADF/cofilin disintegrates the actin network into micron size fragments, ii). Local depletion of ADF/cofilin by binding to actin filaments results in wider networks growing longer, and iii). ADF/cofilin can control steering of heterogenous branched actin networks.

Although this study is an "extension" of a previous work, all three reviewers found it novel and interesting, and addressing issues that are often brought up but never directly examined, especially not in controlled conditions like here. However, the reviewers identified several important points that need to be addressed in the revised version of the manuscript. These are significant issues, but many of them are conceptual and could be handled without new experiments.

Essential revisions:

1) It seems that, as filaments become decorated by cofilin (eventually reaching saturation, or at least a steady-state level of decoration) the amount of F-actin available to drive further depletion decreases. This seems essential but is never taken into account, nor discussed. In Equations 1 and 2, the binding of cofilin stays proportional to A, which is the total (including already decorated) actin filament density. It is not clear that certain conclusions would hold without this extreme simplification. For instance, beyond a certain network length, the filaments would be saturated and no longer contribute to cofilin depletion. This issue should be thoroughly addressed.

2) The in vitro experiments were performed by using very thin experimental chambers to make the networks flat, similar to the lamellipodial actin filament networks. The 'lengths' of the reconstituted (lamellipodial) actin networks e.g. in Figure 2C are 50 – 90 um, whereas the 'length' of a lamellipodium in most migrating cells, apart from fish keratinocytes, is approximately 1-4 um. Moreover, the sizes of fragments disintegrating from the network (e.g. Figure 4) are often larger than the 'length' of a typical lamellipodium of a migrating cell. Thus, the authors should better discuss whether local depletion of ADF/cofilin by binding to actin filament networks can indeed have major effects on the disassembly/geometry of similar (lamellipodial) actin filament networks also in cells. Moreover, they should discuss whether similar stochastic fragmentation of actin filament networks into small pieces can also occur in cellular actin filament structures (which are much smaller in size, and where ADF/cofilin cooperates with many 'co-factors' such as Aip1 and Srv2/CAP in actin filament disassembly).

3) In their experiments, the authors used yeast cofilin and rabbit muscle actin. We know that this will be a lot less efficient at decorating and severing filaments than if they had used mammalian cofilin. This may explain why such long networks were observed. Moreover, the authors may be in a regime where the filaments are mostly far from cofilin saturation, which would partially validate the crude approximation they make regarding the depletion of cofilin (neglecting the decrease in the number of available sites for cofilin binding on actin filaments; see point 1 above). Therefore, this aspect should be discussed.

4) There are some elements of the mathematics that don't quite make sense. For example, Equation 7 describes the network curvature, using a parameter, "kappa", which is usually defined as the inverse of the radius of curvature. The units of kappa should, therefore, be 1/µm. According to Equation 7, however, the units for kappa are µm. This issue also appears in Figure 6B, where the y-axis is labeled "Curvature Radius" but the units of the dashed line are clearly 1/µm.

More generally, the mathematical modeling assumes that stiffness varies as A^2.5 (subsection “ADF/Cofilin regulates steering of heterogeneous networks”, second paragraph), a result that is derived from the study of random, entangled or crosslinked actin networks. Others have reported a very different concentration dependence for branched actin networks assembled under the sort of boundary conditions used here, namely A^0.5. This much weaker dependence on concentration is consistent with the assumptions made in the previous paper (Boujemaa-Paterski, 2017), and mentioned in the aforementioned paragraph. The authors have the opportunity to use their curvature measurements to independently judge the concentration dependence of the stiffness of branched actin networks.

Minor points follow.

Reviewer #1:

1) The authors state in the 'Discussion' that by using their formulas they can estimate the lamellipodial length in motile cells of intermediate size. Given that their equations do not include other actin filament disassembly factors (e.g. Aip1, coronin, Srv2/cofilin, twinfilin), and other F-actin binding proteins that affect filament disassembly (tropomyosins, filament cross-linking proteins), this does not seem feasible. Therefore, the authors should either omit this part of the discussion or alternatively provide better explanation for how these additional factors were taken into account in these estimations.

2) Many figures are quite complex and thus somewhat difficult to follow. For example, Figure 3 would benefit if the authors would try to simplify it (e.g. by moving any 'non-essential' panels to supplementary information, and by providing more information about each panel in the legend). Moreover, especially the chapters 'Rate of ADF/cofilin binding decreases with time' and 'ADF/cofilin is locally depleted by binding to the growing actin network' would benefit from extensive rewriting to make the conclusions better accessible to a 'non-specialist' reader.

3) ADF/cofilin binds both F-actin and G-actin. Was this taken into account in simulations performed in this study?

4) Definition of the error bar is missing from the legend to Figure 4A.

Reviewer #2:

1) In the simulations (Figure 3D) the amount of free ADF/cofilin in the network decreases only. Is that because the model assumes that the number of binding sites on actin remains constant (see essential point 1)?

2) Subsection “ADF/Cofilin is locally depleted by binding to the growing actin network”, third paragraph; Depletion is computed by considering the global balance over the whole network, in order to describe what happens near the leading edge. This cannot be right, since there are important local variations.

3) In Figure 3A, the initial slopes decrease, but the green curve also seems to plateau much lower than the blue curve. How can that be?

4) Since this work deals with the establishment of steady-state, this aspect should be documented a bit more. The authors mention the increase of the network length, which goes on regularly without ADF/cofilin but reaches and equilibrium length in the presence of ADF/cofilin. The authors should show measurements of L as a function of time.

5) The experimental observation regarding the actin profile, which is relatively constant and plunges only near the trailing edge is somewhat surprising. It can be reproduced by the model, which (as the authors clearly state) crudely simplifies the action of cofilin: network nodes are removed beyond a certain threshold of decoration. The authors discuss (…subsection “Relation to previous studies”, second paragraph) that this is consistent with previous reports on debranching at low cofilin concentrations, however it is well established in the literature that the maximum severing is reached for intermediate levels of cofilin decoration. Also, I believe previous reports on the actin-based propulsion of beads or droplets generally find a more progressive decrease in actin density. This should be discussed more.

6) Some statements in the text are exaggerated: e.g., "this provides a direct demonstration…" (a model matching experimental data does not provide a direct demonstration that the hypothesis is what is actually going on), or, "we made the novel observation that heterogeneous networks grow curved" (already reported in Boujemaa-Paterski, 2017).

Reviewer #3:

1) The title is misleading and should be changed. Firstly, "equilibrium" suggests that the authors are studying a thermodynamic equilibrium rather than a quasi-steady state network treadmilling that carries on for as long as the ATP in the system remains high. Secondly, the title suggests that the novelty of the paper lies in the "reconstitution" of steady-state actin network turnover. As the authors note, this has been reconstituted many times before. The novelty lies in the quantitative approach and some of the mechanistic details that emerge from it.

2) I cannot find any information on the nucleation promoting factor that is patterned on the glass surface and used to generate branched actin networks in this study. In the text and figure captions the molecule is simply described as "an NPF." I don't see it in the Materials and methods either. It might be buried somewhere in the manuscript, but it should be prominent in text and noted in all of the captions for figures containing experimental data. This is important for several reasons: (1) different NPFs have different cellular functions and stimulate different rates of nucleation and polymerization, and (2) it is unclear which domains are in the construct (full-length protein? PWCA? WCA?). In a previous paper (Bougemaa-Paterski, 2017) the authors described their immobilized NPF construct as a GST-pWCA. If this is the same construct, the dimeric nature of the GST would also be significant.

3) Figure 1 demonstrates that micro-patterns with different densities of (an unknown construct of an unknown) NPF promote different velocities of network growth. The result is striking and believable but should be described in more detail. For example, what are the relative densities of the micro-patterned NPFs corresponding to "low," "medium," and "high" densities?

4) On a related note, I disagree with the authors' explanation for the correlation between network density and velocity. They state that: "higher NPF density that causes greater actin density and a moderate depletion of monomeric actin in the vicinity of the growing barbed ends, also leads to an optimization of the micro-architecture of the network, which translates polymerization into the network elongation more effectively for denser networks". I see no evidence to support this claim in either this paper or their previous work (Boujemaa-Paterski, 2017). My (admittedly biased) interpretation is based on the fact that we recently demonstrated that NPF's have a potent polymerase activity that accelerates elongation of nearby filaments. This results in a growth velocity that is directly proportional to the NPF surface density.

https://doi.org/10.7554/eLife.42413.025

Author response

Essential revisions:

1) It seems that, as filaments become decorated by cofilin (eventually reaching saturation, or at least a steady-state level of decoration) the amount of F-actin available to drive further depletion decreases. This seems essential but is never taken into account, nor discussed. In Equations 1 and 2, the binding of cofilin stays proportional to A, which is the total (including already decorated) actin filament density. It is not clear that certain conclusions would hold without this extreme simplification. For instance, beyond a certain network length, the filaments would be saturated and no longer contribute to cofilin depletion. This issue should be thoroughly addressed.

We appreciate the insightful comment. We have addressed the issue in the new subsection called “Actin saturation” in the Appendix. Here we formulate a more detailed model in which we distinguish between decorated and free F-actin, where only the latter is available for the binding of ADF/Cofilin. This can be seen as a correction of the model in the main text where the total Factin is available for binding. By examining the relative magnitudes of the different terms, we found that this correction is in fact an order of magnitude smaller than the other terms at the concentrations of ADF/Cofilin used in our experiments. Thus, for our data, saturation of the actin filaments with cofilin plays a negligible role justifying the use the simplified model presented in the main text.

2) The in vitro experiments were performed by using very thin experimental chambers to make the networks flat, similar to the lamellipodial actin filament networks. The 'lengths' of the reconstituted (lamellipodial) actin networks e.g. in Figure 2C are 50 – 90 um, whereas the 'length' of a lamellipodium in most migrating cells, apart from fish keratinocytes, is approximately 1-4 um. Moreover, the sizes of fragments disintegrating from the network (e.g. Figure 4) are often larger than the 'length' of a typical lamellipodium of a migrating cell. Thus, the authors should better discuss whether local depletion of ADF/cofilin by binding to actin filament networks can indeed have major effects on the disassembly/geometry of similar (lamellipodial) actin filament networks also in cells. Moreover, they should discuss whether similar stochastic fragmentation of actin filament networks into small pieces can also occur in cellular actin filament structures (which are much smaller in size, and where ADF/cofilin cooperates with many 'co-factors' such as Aip1 and Srv2/CAP in actin filament disassembly).

Let us first note that, depending on the conditions, we do see very short – on the order of 10 micron long – networks, which are comparable to the length of the keratocyte lamellipodia. Second, we have estimated the effect of local depletion on actin tails and lamellipodia-like structures in the Discussion, and there is a clear prediction of the depletion effect. Perhaps these estimates were not well organized; we now organize them better in the section ‘Novelty of our findings and relevance to in vivo networks’. Even for very short lamellipodia, the depletion effect is there.

Stochastic fragmentation: Directly, the ‘macroscopic’ fragmentation was only observed in in vitro reconstitution experiments (Reymann et al., 2011). It would be indeed hard to imagine breakage of microns-size fragments from 1-4 um-long lamellipodia. However, it is not out of the question that such fragmentation could take place at the trailing edge of longer, ~ 10 μm long, lamellipodia. The problem is that it is hard to imagine how such process could be imaged in vivo. This is the problem for the future. Note though that some of the images in the literature – consider, for example, Figure 1 of (Cameron et al., 1999) – clearly show patchy actin comet tails, which could be interpreted as the disassembly through fragmentation. Another point is that ‘microscopic’ fragmentation through breaking actin filaments into small pieces was inferred in a few studies. How disassembly co-factors change the fragmentation scenario is a great question for the future. One possibility is that these co-factors make the disassembly smoother: it was demonstrated that concerted action of Cofilin, Aip1 and Coronin first breaks filaments into small fragments, and then disassembles the fragments into monomers at such speed that effectively the disassembly is continuous (Johnston et al., 2015).

We revised relevant parts of the Discussion accordingly.

3) In their experiments, the authors used yeast cofilin and rabbit muscle actin. We know that this will be a lot less efficient at decorating and severing filaments than if they had used mammalian cofilin. This may explain why such long networks were observed. Moreover, the authors may be in a regime where the filaments are mostly far from cofilin saturation, which would partially validate the crude approximation they make regarding the depletion of cofilin (neglecting the decrease in the number of available sites for cofilin binding on actin filaments; see point 1 above). Therefore, this aspect should be discussed.

We thank the reviewers for pointing out this possibility. We previously determined the Kd of yeast cofilin for muscle actin to be below 300 nM (Suarez et al., 2011) where the Kd of human cofilin is between 3 and 4 µM (published recently in Chin, Jansen and Goode, 2016). For the debranching activity, probably the most relevant activity for this study, yeast cofilin was at least as efficient as human cofilin, so, while this is an interesting possibility, we do not think that the long networks observed in some of the condition are due to the use of yeast cofilin. In any case, we revised parts of the Discussion to clarify these points.

4) There are some elements of the mathematics that don't quite make sense. For example, Equation 7 describes the network curvature, using a parameter, "kappa", which is usually defined as the inverse of the radius of curvature. The units of kappa should, therefore, be 1/µm. According to Equation 7, however, the units for kappa are µm. This issue also appears in Figure 6B, where the y-axis is labeled "Curvature Radius" but the units of the dashed line are clearly 1/µm.

We thank the reviewer for pointing out the typos. We corrected them both in the text and in the figures. Now the dimension of the radius of curvature is µm, as it should be.

More generally, the mathematical modeling assumes that stiffness varies as A^2.5 (subsection “ADF/Cofilin regulates steering of heterogeneous networks”, second paragraph), a result that is derived from the study of random, entangled or crosslinked actin networks. Others have reported a very different concentration dependence for branched actin networks assembled under the sort of boundary conditions used here, namely A^0.5. This much weaker dependence on concentration is consistent with the assumptions made in the previous paper (Boujemaa-Paterski, 2017), and mentioned in the aforementioned paragraph. The authors have the opportunity to use their curvature measurements to independently judge the concentration dependence of the stiffness of branched actin networks.

This is a very good point, and we discuss it in detail in the new subsection “The density-elasticity scaling” in the Appendix. We measured the densities of the sub-networks for heterogeneous networks in the control case (Appendix 1—figure 3) and used the measurements to calculate the dependence of the ratio of the growth speeds of the sub-networks on the scaling exponent τ in the relation ∝𝐴. We made two observations: 1) the speed ratio depends only very mildly on the value of τ, and 2) the predicted speed ratio is in the correct range. Observation 1 shows that one would have to measure the speed ratio with very high accuracy to calculate τ from the data, which is not possible with the data at hand.

When reviewing the literature, we could not find report(s) of τ = 0.5, but we found reported values ranging from 1.4 to 2.5 (we added references to respective studies). As we said (and added the data in the Appendix), the results depend very little on the value of τ, and even for the value of 0.5. The model agrees well with the data.

Minor points follow.

Reviewer #1:

1) The authors state in the 'Discussion' that by using their formulas they can estimate the lamellipodial length in motile cells of intermediate size. Given that their equations do not include other actin filament disassembly factors (e.g. Aip1, coronin, Srv2/cofilin, twinfilin), and other F-actin binding proteins that affect filament disassembly (tropomyosins, filament cross-linking proteins), this does not seem feasible. Therefore, the authors should either omit this part of the discussion or alternatively provide better explanation for how these additional factors were taken into account in these estimations.

We realized, thanks to the reviewer, that parts of the Discussion were not clear on this point. We are not, of course, proposing that we can calculate the length of the actin networks in cells exactly. What we do is extrapolating our findings on in vivo situation and looking at respective predictions. The results (limited even for just ADF/Cofilin, without other factors, because the action of ADF/Cofilin does not scale linearly with its concentration) give reasonable estimates of the networks’ lengths, which are still longer than usually observed networks in vivo. This estimate points exactly to the importance of the additional disassembly co-factors, as the reviewer points out. For example, we predict the network length of tens of microns, which agrees with in vitro reconstitutions (Loisel, 2000; Reymann, 2011), but is longer than a few micronslong lamellipodia in vivo and micron-sized yeast endocytic networks. There are some indications from studies of Goode’s lab that effects of the disassembly co-factors accelerate the disassembly by a few-fold to an order of magnitude, which would bring our estimates to the observed range. We revised the Discussion accordingly.

2) Many figures are quite complex and thus somewhat difficult to follow. For example, Figure 3 would benefit if the authors would try to simplify it (e.g. by moving any 'non-essential' panels to supplementary information, and by providing more information about each panel in the legend). Moreover, especially the chapters 'Rate of ADF/cofilin binding decreases with time' and 'ADF/cofilin is locally depleted by binding to the growing actin network' would benefit from extensive rewriting to make the conclusions better accessible to a 'non-specialist' reader.

We moved parts of Figure 3 to a new supplementary figure and improved the description in the captions. We also split up the very busy Figure 5 into two separate Figures 5 and 7.

We also re-wrote the chapters 'Rate of ADF/cofilin binding decreases with time' and 'ADF/cofilin is locally depleted by binding to the growing actin network' to make them better accessible.

3) ADF/cofilin binds both F-actin and G-actin. Was this taken into account in simulations performed in this study?

This is an important question, which we neglected to discuss; we are grateful to the reviewer for drawing attention to it. Quantitative estimates in our study (Mogilner and Edelstein-Keshet, 2002) show that in the case when profilin concentration is higher than both G-actin and ADF/Cofilin concentrations (in our case, there are 18 μM of profilin, 6 μM of G-actin, and less than1 mM of ADF/Cofilin), a major part of G-actin is associated with ATP, while ADF/Cofilin has a very low affinity to ATP-G-actin. More specifically, at these concentrations, there is a sub-μM concentration of ADP-G-actin, only a few per cent of which is associated with ADF/Cofilin (most of the rest is associated with profilin), and so the order of magnitude of ADF/Cofilin concentration bound to G-actin is ~ 10 nM, which is less than 10% of the total ADF/Cofilin concentration. The bottom line is that binding of ADF/Cofilin to G-actin can be neglected. We added a few sentences to this effect in the Appendix.

4) Definition of the error bar is missing from the legend to Figure 4A.

We added the definition in the figure legend.

Reviewer #2:

1) In the simulations (Figure 3D) the amount of free ADF/cofilin in the network decreases only. Is that because the model assumes that the number of binding sites on actin remains constant (see essential point 1)?

As we explain above, decoration of some F-actin with ADF/Cofilin has only small, negligible, effect on the results. Rather, the decrease of the free ADF/cofilin in the immediate vicinity of the network with time is due to the local ADF/cofilin depletion. Qualitatively, the explanation is as follows: initially, when the network is small, ADF/cofilin starts binding to F-actin starting to decrease the local ADF/cofilin concentration. Diffusion brings more ADF/cofilin to the network, and the balance between ADF/cofilin binding to F-actin and diffusion influx define the local ADF/cofilin concentration. As the network keeps growing, the sink for the free ADF/cofilin increases, further decreasing the local free ADF/cofilin concentration. Eventually, this decrease of the local free ADF/cofilin concentration slows down because the older part of the actin network binds ADF/cofilin at lower rates.

2) Subsection “ADF/Cofilin is locally depleted by binding to the growing actin network”, third paragraph; Depletion is computed by considering the global balance over the whole network, in order to describe what happens near the leading edge. This cannot be right, since there are important local variations.

These calculations are not exact; they are by no means intended to replace the accurate numerical calculation of the cofilin densities, which we do numerically. These calculations are rough estimates of the average free cofilin concentration in the vicinity of the actin network. These estimates indeed ignore the local variations of the cofilin concentration (the latter are clearly seen in the accurate numerical results shown in the figures); however, because of diffusion, the local variations of the cofilin concentration is relatively limited (numerical calculation demonstrates that the s.t.d. of the free cofilin concentration is about 35% of the mean). The rough estimate is very useful because it allows obtaining analytical insight about the magnitude of the depletion effect. We added a few words to the main text to explain this issue.

3) In Figure 3A, the initial slopes decrease, but the green curve also seems to plateau much lower than the blue curve. How can that be?

Figure 3A shows the bound ADF/cofilin density at a given material point of the actin network, starting from the appearance of such point at the leading edge. The ‘blue’ point is the first to appear, when the actin network is very short. Therefore, the local depletion effect is very weak, and the rate of ADF/cofilin binding is high. With time, the network grows, the depletion effect strengthens, and the rate of binding decreases; eventually, the bound ADF/cofilin density on the ‘blue’ point plateaus. The ‘green’ point appears later, when the depletion effect is already pronounced. Thus, the initial binding rate is lower, and over time the accumulation of the ADF/cofilin is less, hence the lower plateau. Perhaps origin of the confusion is this: the plateau is not due to the kinematic balance between the binding and unbinding of ADF/cofilin (the unbinding is very slow). Rather, the plateau is the accumulated, integrated over time, bound ADF/cofilin. Also, the plateau, on average, is not truly flat, as it appears in the examples in Figure 3A. The more characteristic situation is shown in the old Figure 3F (new Figure 3—figure supplement 1B).

4) Since this work deals with the establishment of steady-state, this aspect should be documented a bit more. The authors mention the increase of the network length, which goes on regularly without ADF/cofilin but reaches and equilibrium length in the presence of ADF/cofilin. The authors should show measurements of L as a function of time.

We prepared a new figure (Figure 2—figure supplement 1) documenting the growth behavior of the networks of different widths, with and without cofilin by measuring the network length as a function of time. This shows the dynamic steady state behavior in the presence of cofilin.

5) The experimental observation regarding the actin profile, which is relatively constant and plunges only near the trailing edge is somewhat surprising. It can be reproduced by the model, which (as the authors clearly state) crudely simplifies the action of cofilin: network nodes are removed beyond a certain threshold of decoration. The authors discuss (subsection “Relation to previous studies”, second paragraph) that this is consistent with previous reports on debranching at low cofilin concentrations, however it is well established in the literature that the maximum severing is reached for intermediate levels of cofilin decoration. Also, I believe previous reports on the actin-based propulsion of beads or droplets generally find a more progressive decrease in actin density. This should be discussed more.

Let us first note that in the model the nodes are removed not beyond a threshold, but with a rate smoothly dependent on the ADF/Cofilin and actin densities, so the nature of the observed abrupt actin density plunge is not abrupt node removal. Rather, it is that the first stage of the disassembly – node removal – leads to a slow density decrease, which later accelerates by the positive feedback between the actin drop and node disappearance. We are also not arguing with maximum severing being reached at intermediate levels of cofilin decoration. It could well be that at higher cofilin densities, and especially with additional disassembly co-factors, the density decrease is more gradual. Indeed, most of the previous measurements showed more gradual decrease of the actin density in the actin tails. However, in vitro reconstitutions (Loisel, 2000; Reymann, 2011) show the abrupt density decrease. Also, abrupt actin density decrease at the rear of the lamellipodia in keratocyte cells and fragments (Barnhart, 2011; Ofer, 2011) was observed. We revised the Discussion accordingly.

6) Some statements in the text are exaggerated: e.g., "this provides a direct demonstration…" (a model matching experimental data does not provide a direct demonstration that the hypothesis is what is actually going on), or, "we made the novel observation that heterogeneous networks grow curved" (already reported in Boujemaa-Paterski, 2017).

We toned down all such statements.

Reviewer #3:

1) The title is misleading and should be changed. Firstly, "equilibrium" suggests that the authors are studying a thermodynamic equilibrium rather than a quasi-steady state network treadmilling that carries on for as long as the ATP in the system remains high. Secondly, the title suggests that the novelty of the paper lies in the "reconstitution" of steady-state actin network turnover. As the authors note, this has been reconstituted many times before. The novelty lies in the quantitative approach and some of the mechanistic details that emerge from it.

We changed the title to: ‘Quantitative regulation of the dynamic steady state of actin networks’.

2) I cannot find any information on the nucleation promoting factor that is patterned on the glass surface and used to generate branched actin networks in this study. In the text and figure captions the molecule is simply described as "an NPF." I don't see it in the Materials and methods either. It might be buried somewhere in the manuscript, but it should be prominent in text and noted in all of the captions for figures containing experimental data. This is important for several reasons: (1) different NPFs have different cellular functions and stimulate different rates of nucleation and polymerization, and (2) it is unclear which domains are in the construct (full-length protein? PWCA? WCA?). In a previous paper (Bougemaa-Paterski, 2017) the authors described their immobilized NPF construct as a GST-pWCA. If this is the same construct, the dimeric nature of the GST would also be significant.

The NPFs were described in the Materials and methods sections. It is indeed the same WASp, GST-pVCA than in Boujemaa-Paterski et al., 2017. We use GST- construct because in previous study (Cory et al., Molecular Cell, 2003) we reported that the GST- construct had a similar activity than the WASp full length. In any case, we have defined as suggested by the reviewer the NPF in the text as Human WASp, GST-pWCA.

3) Figure 1 demonstrates that micro-patterns with different densities of (an unknown construct of an unknown) NPF promote different velocities of network growth. The result is striking and believable but should be described in more detail. For example, what are the relative densities of the micro-patterned NPFs corresponding to "low," "medium," and "high" densities?

This is illustrated in Figure 1—figure supplement 1C, where we have plotted the fluorescence of the WASp-GST-pWCA versus the pattern density Low, Medium, High.

4) On a related note, I disagree with the authors' explanation for the correlation between network density and velocity. They state that: "higher NPF density that causes greater actin density and a moderate depletion of monomeric actin in the vicinity of the growing barbed ends, also leads to an optimization of the micro-architecture of the network, which translates polymerization into the network elongation more effectively for denser networks". I see no evidence to support this claim in either this paper or their previous work (Boujemaa-Paterski, 2017). My (admittedly biased) interpretation is based on the fact that we recently demonstrated that NPF's have a potent polymerase activity that accelerates elongation of nearby filaments. This results in a growth velocity that is directly proportional to the NPF surface density.

To address this comment, we measured experimentally the rate of elongation of single actin filaments on the NPF patterns of different densities. We did not find any statistically significant difference in these rates for different NPF densities. For individual filaments, the rate of elongation is V = k_on*C*δ, where C is the local monomer concentration, and δ is the half-size of the monomer. Our previous estimates in (Boujemaa-Paterski, 2017) showed that for a small number of growing filaments, the local monomer concentration is not depleted, and so parameter C is independent of the NPF density. We conclude therefore that the rate of assembly for a single filament, k_on, is also independent of the NPF density. For the actin network, the rate of elongation is V = k_on*C*δ*Fi, where factor Fi combines potential geometric (angular order and entanglements of the leading network filaments) and mechanical (dependence of the force balance at the network edge and/or balance of actin growth and elastic recoil, both of which depend on density) effects. We observe that V goes up with density, while C was argued to be decreasing with density (in (Boujemaa-Paterski, 2017)), so the most logical conclusion would be that factor Fi increases with the NPF density. We added the data and this argument to the Appendix; in the main text we now write:

“In the appendix, we report data suggesting that higher NPF density that causes greater actin density could lead to an optimization of either micro-architecture or mechanics of the network, which translates polymerization into the network elongation more effectively for denser networks.”

https://doi.org/10.7554/eLife.42413.026

Article and author information

Author details

  1. Angelika Manhart

    1. Courant Institute of Mathematical Sciences, New York University, New York, United States
    2. Department of Biology, New York University, New York, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Téa Aleksandra Icheva
    For correspondence
    a.manhart@imperial.ac.uk
    Competing interests
    No competing interests declared
  2. Téa Aleksandra Icheva

    CytomorphoLab, Biosciences & Biotechnology Institute of Grenoble, Laboratoire de Physiologie Cellulaire & Végétale, Université Grenoble-Alpes/CEA/CNRS/INRA, Grenoble, France
    Contribution
    Data aquisition, Formal analysis
    Contributed equally with
    Angelika Manhart
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4737-1509
  3. Christophe Guerin

    CytomorphoLab, Biosciences & Biotechnology Institute of Grenoble, Laboratoire de Physiologie Cellulaire & Végétale, Université Grenoble-Alpes/CEA/CNRS/INRA, Grenoble, France
    Contribution
    Data aquisition, Formal analysis
    Competing interests
    No competing interests declared
  4. Tobbias Klar

    CytomorphoLab, Biosciences & Biotechnology Institute of Grenoble, Laboratoire de Physiologie Cellulaire & Végétale, Université Grenoble-Alpes/CEA/CNRS/INRA, Grenoble, France
    Contribution
    Data aquisition, Formal analysis
    Competing interests
    No competing interests declared
  5. Rajaa Boujemaa-Paterski

    CytomorphoLab, Biosciences & Biotechnology Institute of Grenoble, Laboratoire de Physiologie Cellulaire & Végétale, Université Grenoble-Alpes/CEA/CNRS/INRA, Grenoble, France
    Present address
    Department of Biochemistry, University of Zurich, Zurich, Switzerland
    Contribution
    Data aquisition, Formal analysis
    Competing interests
    No competing interests declared
  6. Manuel Thery

    1. CytomorphoLab, Biosciences & Biotechnology Institute of Grenoble, Laboratoire de Physiologie Cellulaire & Végétale, Université Grenoble-Alpes/CEA/CNRS/INRA, Grenoble, France
    2. CytomorphoLab, Hôpital Saint Louis, Institut Universitaire d’Hematologie, UMRS1160, INSERM/AP-HP/Université Paris Diderot, Paris, France
    Contribution
    Conceptualization, supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9968-1779
  7. Laurent Blanchoin

    1. CytomorphoLab, Biosciences & Biotechnology Institute of Grenoble, Laboratoire de Physiologie Cellulaire & Végétale, Université Grenoble-Alpes/CEA/CNRS/INRA, Grenoble, France
    2. CytomorphoLab, Hôpital Saint Louis, Institut Universitaire d’Hematologie, UMRS1160, INSERM/AP-HP/Université Paris Diderot, Paris, France
    Contribution
    Conceptualization, Supervision, Writing—original draft, Writing—review and editing
    Contributed equally with
    Alex Mogilner
    For correspondence
    laurent.blanchoin@cea.fr
    Competing interests
    No competing interests declared
  8. Alex Mogilner

    1. Courant Institute of Mathematical Sciences, New York University, New York, United States
    2. Department of Biology, New York University, New York, United States
    Contribution
    Conceptualization, Supervision, Writing—original draft, Writing—review and editing
    Contributed equally with
    Laurent Blanchoin
    For correspondence
    mogilner@cims.nyu.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9310-3812

Funding

H2020 European Research Council (741773)

  • Laurent Blanchoin

Agence Nationale de la Recherche (ANR-14-CE11)

  • Manuel Thery

Université Grenoble Alpes (Fellowship)

  • Téa Aleksandra Icheva

Army Research Office (W911NF-17-1-0417)

  • Alex Mogilner

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by grants from European Research council (741773 (AAA)) awarded to LB, Agence Nationale de la recherche (MaxForce, ANR-14-CE11) awarded to LB and MT. AI was supported by a fellowship from Université de Grenoble Alpes. AM and AM are supported by US Army Research Office grant W911NF-17-1-0417.

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Pekka Lappalainen, University of Helsinki, Finland

Reviewers

  1. Pekka Lappalainen, University of Helsinki, Finland
  2. R Dyche Mullins, University of California, San Francisco, United States

Publication history

  1. Received: September 27, 2018
  2. Accepted: February 26, 2019
  3. Version of Record published: March 14, 2019 (version 1)

Copyright

© 2019, Manhart et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 986
    Page views
  • 169
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Genetics and Genomics
    Maja Kneissig et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Adriana E Golding et al.
    Research Article Updated
