Convergent recruitment of TALE homeodomain life cycle regulators to direct sporophyte development in land plants and brown algae

  1. Alok Arun
  2. Susana M Coelho
  3. Akira F Peters
  4. Simon Bourdareau
  5. Laurent Pérès
  6. Delphine Scornet
  7. Martina Strittmatter
  8. Agnieszka P Lipinska
  9. Haiqin Yao
  10. Olivier Godfroy
  11. Gabriel J Montecinos
  12. Komlan Avia
  13. Nicolas Macaisne
  14. Christelle Troadec
  15. Abdelhafid Bendahmane
  16. J Mark Cock  Is a corresponding author
  1. Sorbonne Université, CNRS, Algal Genetics Group, Integrative Biology of Marine Models (LBI2M), Station Biologique de Roscoff (SBR), France
  2. Bezhin Rosko, France
  3. Institut National de la Recherche Agronomique (INRA), Institute of Plant Sciences Paris-Saclay (IPS2), CNRS, Université Paris-Sud, France
Research Article
Cite this article as: eLife 2019;8:e43101 doi: 10.7554/eLife.43101
6 figures, 1 table, 28 data sets and 11 additional files


The oro life cycle mutation corresponds to a TALE homeodomain transcription factor gene.

(A) Life cycles of wild type and oro mutant Ectocarpus. The wild type sexual cycle (upper panel) involves production of meio-spores by the diploid sporophyte via meiosis in unilocular (single-chambered) sporangia (US). The meio-spores develop as haploid, dioicous (male and female) gametophytes. The gametophytes produce gametes in plurilocular (multichambered) gametangia (PG), which fuse to produce a diploid sporophyte. Gametes that fail to fuse can develop parthenogenetically to produce a partheno-sporophyte, which can produce spores by apomeiosis or following endoreduplication to engender a new generation of gametophytes. PS, plurilocular sporangium (asexual reproduction). Gametes of the oro mutant (lower panel) are unable to initiate the sporophyte program and develop parthenogenetically to produce partheno-gametophytes. The mutation is recessive so a cross with a wild type gametophyte produces a heterozygous diploid sporophyte with a wild type phenotype. (B) Young gamete-derived parthenotes of wild type and oro strains. Arrowheads indicate round, thick-walled cells typical of the sporophyte for the wild type and long, wavy cells typical of the gametophyte for the oro mutant. Scale bars: 20 µm. (C) Representation of the interval on chromosome 14 between the closest recombining markers to the ORO locus (M_133_107 and M_133) showing the position of the single mutation within the mapped interval.

Figure 2 with 1 supplement
Phenotypic and genetic characterisation of sam life cycle mutants.

(A-C) The sam-1 mutant exhibits gametophyte-like morphological characteristics. Different stages of (A) wild type gametophyte (strain Ec32), (B) wild type partheno-sporophyte (strain Ec32) and (C) sam-1 mutant (strain Ec374). PG, plurilocular gametangia; PS, plurilocular sporangium; US, unilocular sporangium. (D) sam mutants exhibit a gametophyte-like photopolarisation response to unidirectional light. Letters above the boxplot indicate significant differences (Wilcoxon test, p-value<0.01). n, number of replicates; i, number of individuals scored. (E) Representative images of congo red staining showing that the sam-1 mutant protoplasts are resistant to treatment with sporophyte conditioned medium (SCM). GCM, control gametophyte conditioned medium. (F) Abortion of unilocular sporangia in sam-1, sam-2 or sam-3 mutant sporophytes. Images are representative of n = 19 (Ec17), n = 23 (Ec768), n = 20 (Ec833) and n = 14 (Ec361) unilocular sporangia. IUS, immature unilocular sporangium; MUS, mature unilocular sporangium. (G) Locations of the three sam mutations within the SAM gene. Scale bars: 20 µm (or 50 µm if indicated by 50).

Figure 2—figure supplement 1
Morphological characteristics of sam mutants.

(A–J) The sam-2 and sam-3 mutants exhibit gametophyte-like morphological characteristics. (A-E) sam-2 mutant (strain Ec364); F-J, sam-3 mutant (strain Ec793); A-D and F-I, different stages of early development from germination to young, branched germling; E and J, plurilocular gametangia. Size bars indicate 20 µm for all panels except C, D and I where the size bar indicate 50 µm. See Figure 2 for the equivalent developmental stages of wild type sporophytes and gametophytes.

Figure 3 with 1 supplement
Gene expression analysis.

(A) Abundance of ORO and SAM transcripts during different stages of the life cycle. Error bars, standard error of the mean (SEM); TPM, transcripts per million. (B) Quantitative reverse transcription PCR analysis of generation marker genes. The graphs indicate mean values ± standard error of transcript abundances for two gametophyte marker genes, Ec-23_004240 and Ec-21_006530, and two sporophyte marker genes, Ec-20_001150 and Ec-26_000310. Data from five independent experiments. *p≤0.05, **p≤0.01, ***p≤0.001, ****p≤0.0001. (C) Word cloud representations of the relative abundances (log2 gene number) of manually assigned functional categories in the set of genes that were differential regulated between the sporophyte and gametophyte generations (upper panel) and in the subset of those genes that encode secreted proteins (lower panel). Asterisks indicate functional categories that were significantly over- or under-represented in the two datasets. (D-E) Significantly overrepresented GO terms (D) and KEGG pathways (E) associated with generation-biased genes. (F) Expression patterns of the 200 most strongly generation-biased genes. oro, oro mutant; sam, sam mutant; imm, immediate upright mutant; GA: gametophyte; SP: sporophyte.

Figure 3—figure supplement 1

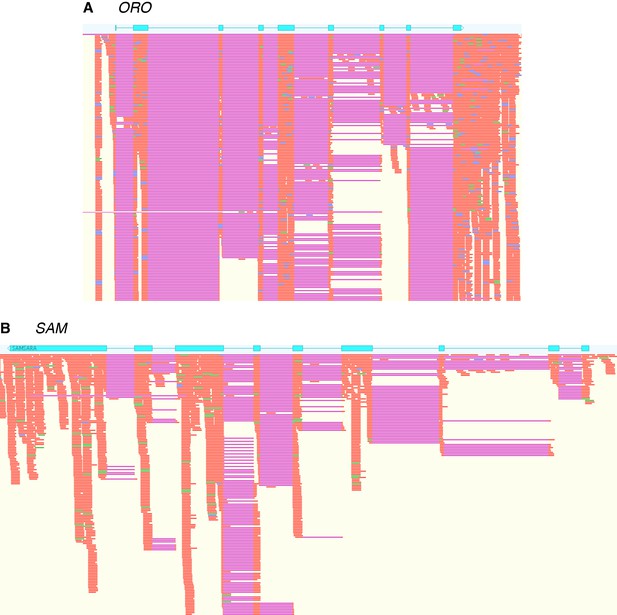

Evidence for the production of full-length ORO and SAM transcripts during the gametophyte generation.

Immature and mature male and female gametophyte Illumina RNA-seq data was mapped onto the ORO and SAM gene sequences using Tophat2. Blue boxes, ORO and SAM coding exons; orange, RNA-seq reads; purple, gaps introduce during mapping corresponding to introns.

Detection of ORO-SAM heterodimerisation in vitro using a pull-down assay.

(A) ORO and SAM constructs used for the pull-down experiments. (B) Pull-down assay between SAM and different versions of the ORO protein. (C) Pull-down assay between different versions of the SAM protein and full-length ORO protein. Note that all ORO proteins were fused with the HA epitope. FL, full-length; HD, homeodomain.

Figure 5 with 1 supplement
ORO and SAM conservation and domain structure.

(A) Unrooted maximum likelihood tree of ORO, SAM and Ec-04_000450 orthologues from diverse brown algal species and the raphidophyte Heterosigma akashiwo. (B) Domain structure of the ORO and SAM TALE homeodomain transcription factors. Conservation: strong (blue), less strong (orange), secondary structure: α-helix (green), β-strand (red). Q1-4, A1 and G1: regions rich in glutamine, alanine and glycine, respectively. (C) Conserved domains in ORO and SAM proteins. Cok, Cladosiphon okamuranus; Csi, Colpomenia sinuosa; Dvi, Desmarestia viridis; Dun, Dictyopteris undulata; Esp, Ectocarpus sp.; Hea, Heterosigma akashiwo; Hfu, Hizikia fusiformis; Iok, Ishige okamurai; Kcr, Kjellmaniella crassifolia; Pfa, Petalonia fascia; Pla, Punctaria latifolia; Sja, Saccharina japonica; Smu, Sargassum muticum; Sva, Sargassum vachellianum; Sdo, Scytosiphon dotyi; Slo, Scytosiphon lomentaria; Upi, Undaria pinnatifida.

Figure 5—figure supplement 1

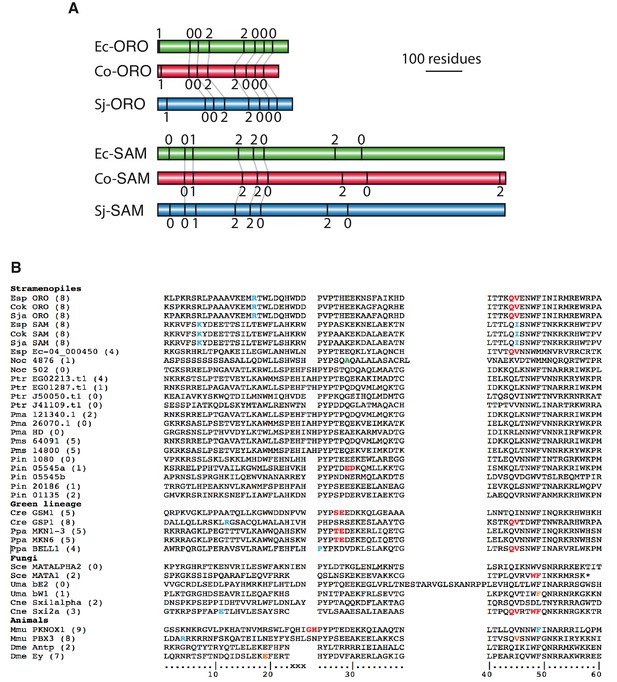

Intron conservation in homeobox genes.

(A) Conservation of introns in Ectocarpus (Ec), C. okamuranus (Co) and S. japonica (Sj) ORO and SAM genes. Schematic representation of the coding regions of ORO and SAM genes showing the positions and phase of introns. Conserved intron positions, based on sequence similarity, are indicated by grey lines. Intron boundaries at similar positions but not linked by a grey line are also likely to be ancestral but it is not possible to verify homology because these regions of the proteins are too diverged. Protein identifiers are Ec-ORO, Ec-14_005920; Co-ORO, Cok_S_s017_4976 .t2; Sj-ORO, SJ07622; Ec-SAM, Ec-27_006660; Co-SAM, Cok_S_s018_5094mod; Sj-SAM, SJ10977mod where the suffix ‘mod’ indicates that the original gene model has been modified (see Supplementary file 6). (B) Positions of homeobox introns in stramenopile homeobox genes, life cycle regulators from the green lineage, fungal mating type regulators and selected metazoan homeobox genes. Intron positions are colour coded according to phase: 0, red; 1, blue; 2, orange. The numbering at the bottom indicate the conserved 60 residues of the homeodomain and xxx indicates the three additional amino acids in TALE HD TFs. Numbers in brackets indicate the number of introns in the entire coding region of each gene. The asterisk indicates a stop codon. Esp, Ectocarpus sp.; Cok, Cladosiphon okamuranus; Sja, Saccharina japonica; Noc, Nannochloropsis oceanica; Ptr, Phaeodactylum tricornutum; Pmu, Pseudo-nitzschia multiseries; Cre, Chlamydomonas reinhardtii; Ppa, Physcomitrella patens; Sce, Saccharomyces cerevisiae; Uma, Ustilago maydis; Cne, Cryptococcus neoformans; Dme, Drosophila melanogaster. Note that Phytophthora infestans gene 05545 has two homeoboxes. Supplementary files.

Author response image 1
Abundance of ORO, SAM and Ec-04_000450 transcripts during different stages of the life cycle.

Error bars, standard error of the mean (SEM); TPM, transcripts per million.


Key resources table
Reagent type
(species) or
DesignationSource or referenceIdentifiersAdditional information
assay or kit
Commercial assay or kitQiagen RNeasy Plant mini kitQiagenQiagen:74903
Commercial assay or kitImPro-II Reverse Transcription SystemPromegaPromega:A3800
Commercial assay or kitMagneGSTTMPull-Down SystemPromegaPromega:V8870
Commercial assay or kitTNT Coupled Wheat Germ Extract SystemPromegaPromega:L4130
Commercial assay or kitClarityTM chemiluminescent detectionBioradBiorad:1705060S
Chemical compound, drugCongo redSigmaSigma:C6767-25G
Chemical compound, druganti-GST antibodyOzymeOzyme:91G1
RStudio Version 1.1.463RStudioRRID:SCR_000432http://www.rstudio.com/
GraphPad Prism5GraphPadhttp://graphpad.com/scientific-software/prism
Heatplus package for RBioconductor 10.18129/B9.bioc.Heatplushttp://bioconductor.org/packages/release/bioc/html/Heatplus.html
HectarDOI: 10.1186/1471-2105-9-393http://webtools.sb-roscoff.fr/root?tool_id=abims_hectar
BlastNational Center
for Biotechnology
MEGA7DOI: 10.1093/molbev/msr121https://www.megasoftware.net/
RAxMLDOI: 10.1002/0471250953.bi0614s51RRID:SCR_006086https://github.com/stamatak/standard-RAxML
SPINE-DDOI: 10.1080/073911012010525022http://sparks-lab.org/SPINE-D/
PSIPREDDOI: 10.1093/nar/gkt381RRID:SCR_010246http://bioinf.cs.ucl.ac.uk/psipred/

Data availability

All the sequencing data that has been generated by or used in this study is described in Supplementary file 9. SRA accession numbers are provided for all samples. Genbank accession numbers for the corrected ORO and SAM genes are provided in the results section.

The following data sets were generated
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    NCBI Genbank
    1. A Arun
    2. SM Coelho
    3. AF Peters
    4. S Bourdareau
    5. L Pérès
    6. D Scornet
    ID KU746822. Corrected ORO gene region.
  12. 12
The following previously published data sets were used
  1. 1
    NCBI Sequence Read Archive
    1. N Macaisne
    ID SRR3108628. GBP-3.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16

Additional files

Supplementary file 1

Ectocarpus strains used in this study.

Supplementary file 2

Congo red staining of wild type or sam-1 protoplasts following regeneration in sporophyte-conditioned medium (SCM) or gametophyte-conditioned medium (GCM).

Supplementary file 3

Analysis of genes that are differentially expressed in the gametophyte and sporophyte generations.

Supplementary file 4

Gene ontology analysis of the gametophyte versus sporophyte differentially regulated genes.

Supplementary file 5

Kyoto encyclopaedia of genes and genomes (KEGG) pathway analysis of the gametophyte versus sporophyte differentially regulated genes.

Supplementary file 6

TALE homeodomain transcription factors in brown algae and other stramenopiles.

Supplementary file 7

New microsatellite markers developed to map the ORO gene.

Supplementary file 8

Oligonucleotides used for the qRT-PCR analysis.

Supplementary file 9

Ectocarpus RNA-seq data used in this study.

Supplementary file 10

Manual functional assignments and Hectar subcellular targeting predictions for all Ectocarpus nucleus-encoded proteins
