Rapid decline of bacterial drug-resistance in an antibiotic-free environment through phenotypic reversion

Research Article
Cite this article as: eLife 2019;8:e47088 doi: 10.7554/eLife.47088
6 figures, 2 tables, 1 data set and 2 additional files

Figures

Figure 1 with 1 supplement

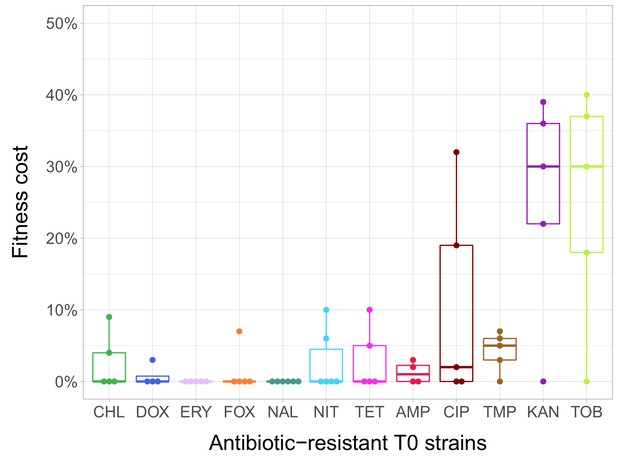

Fitness cost of antibiotic-resistant T0 strains.

The fitness of each strain was measured as the area under the bacterial growth curve recorded in an antibiotic-free medium. Fitness cost was calculated from the absolute fitness of T0 and wild-type strains using the following equation: 1-WT0/Wwild-type, where WT0 and Wwild-type indicate fitness of the T0 and wild-type strains, respectively. Strains adapted to two aminoglycosides – kanamycin (KAN) and tobramycin (TOB) – generally exhibit an especially high fitness cost, while adaptation to erythromycin (ERY) and nalidixic acid (NAL) evoked no measurable fitness cost. For all further analyses only the T0 strains exhibiting a significant fitness cost were used. For antibiotic abbreviations, see Table 1. Boxplots show the median, first and third quartiles, with whiskers showing the 5th and 95th percentiles of the fitness cost per antibiotic. Individual data points represent the median of three biological replicates (five technical measurements) for each of the 60 antibiotic-resistant strains (4–6 strain per antibiotic). Source file is available as Figure 1—source data 1.

https://doi.org/10.7554/eLife.47088.003
Figure 1—source data 1

Initial fitness cost of the T0 antibiotic-resistant strains.

Used to create the following figure: Figure 1.

https://doi.org/10.7554/eLife.47088.005
Figure 1—figure supplement 1

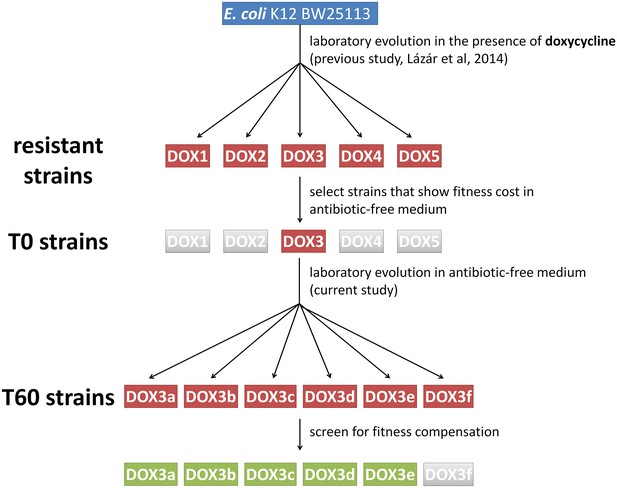

Schematic outline of the evolutionary experiments.

In our previous study (Lázár et al., 2014) we obtained 60 drug-resistant strains by adapting the Escherichia coli K12 BW25113 strain to increasing dosages of one of 12 antibiotics (see Table 1.). The figure depicts one representative example where we adapted the wild type strain to doxycycline (DOX) using five parallel evolving lines (DOX1-2-3-4-5). By screening the resistant strains, we selected only those (e.g. DOX3) that displayed significant fitness cost in antibiotic-free medium compared to the wild-type. We coined these strains T0. We initiated evolutionary experiments with T0 strains in the absence of antibiotic (six parallel populations per antibiotic-resistant strain, for example DOX3a-b-c-d-e-f). Detailed phenotypic and molecular analyses were performed only on those T60 lines that showed significant fitness compensation (green boxes).

https://doi.org/10.7554/eLife.47088.004

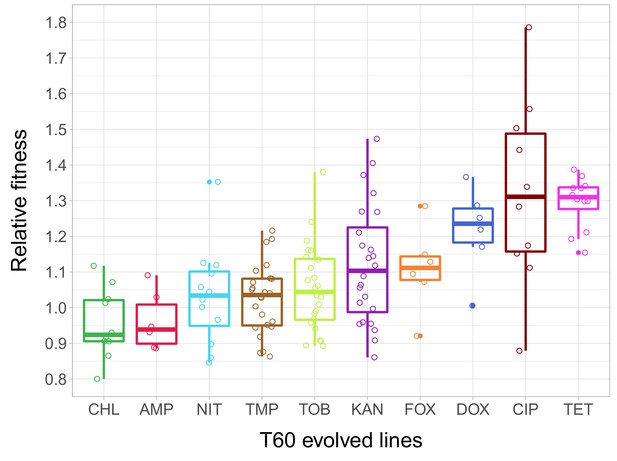

Relative fitness of the T60 evolved lines.

The figure shows the relative fitness of 6 parallel lines of 23 antibiotic-adapted strains (T0) after laboratory evolution in an antibiotic-free medium. Relative fitness was calculated by normalizing the T60 fitness to the fitness of the corresponding T0 antibiotic-resistant strain. Fitness was measured as the area under the growth curve in an antibiotic-free medium. Relative fitness varied significantly across populations initially resistant to different antibiotics (N = 138, p<0.0001, Kruskal–Wallis test). For antibiotic abbreviations, see Table 1. Boxplots show the median, first and third quartiles, with whiskers showing the 5th and 95th percentiles of the relative fitness of all T60 evolved lines originally adapted to different antibiotics. Individual data points represent the median relative fitness of each of the 138 T60 evolved lines (3 biological and five technical replicates per each). Source file is available as Figure 2—source data 1.

https://doi.org/10.7554/eLife.47088.006
Figure 2—source data 1

Fitness improvement reached following 60 day evolution in an antibiotic free environment.

Used to create the following figure: Figure 2.

https://doi.org/10.7554/eLife.47088.007

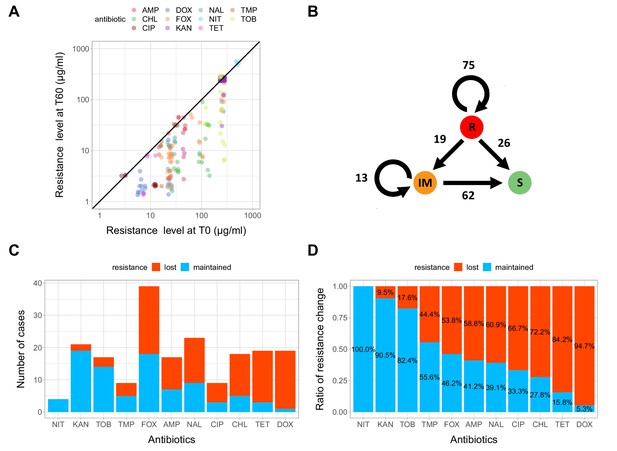

Impact of compensatory evolution on antibiotic resistance level.

(A) The figure depicts minimum inhibitory concentrations (log10-scale) of T0 and the corresponding T60 strains. Each of the 195 points represents an antibiotic-strain combination; the colors denote different antibiotics. Points below the black line (x = y) indicates cases with a decrease in antibiotic resistance level after compensatory evolution. For antibiotic abbreviations, see Table 1. Source file is available as Figure 3—source data 1. (B) The figure depicts qualitative changes in resistance level across 195 tested antibiotic-T60 line combinations. Using the CLSI resistance break-point cut-offs, we categorized each T60 and the corresponding T0 strains as being resistant (R), intermediate (IM) or susceptible (S) to each investigated antibiotic. Arrows indicate whether the resistance level was maintained (e.g. R->R) or reduced (e.g. R->S) during the course of laboratory evolution in the antibiotic-free medium. The numbers of antibiotic-T60 line combinations in each category are indicated on the arrows. Source file is available as Figure 3—source data 1. (C and D) The figures show the number of T60 lines with resistance maintained/lost to the range of antibiotics tested, as absolute number (3C) versus ratio (3D), respectively. Doxycycline (DOX) and tetracycline (TET) resistance was frequently lost (Fisher’s Exact test: odds ratio = 0.05, p<0.001 for DOX and odds ratio = 0.20, p<0.01 for TET), while aminoglycoside (kanamycin - KAN, tetracycline - TET) resistance was generally maintained in the T60 lines (Fisher’s Exact test: odds ratio = 14.29, p<0.001 for KAN, odds ratio = 6.5, p<0.01 for TOB). For antibiotic abbreviations, see Table 1. Source file is available as Figure 3—source data 1.

https://doi.org/10.7554/eLife.47088.008
Figure 3—source data 1

Changes of cross-resistance interactions following 60 day evolution in an antibiotic free environment.

Used to create the following figures: Figure 3A, B and C, 3D.

https://doi.org/10.7554/eLife.47088.009
Figure 4 with 1 supplement

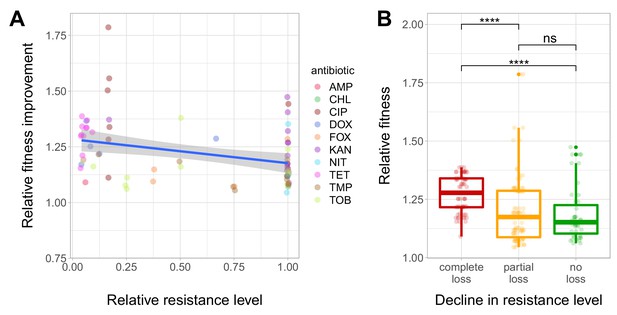

Fitness recovery and resistance loss after compensatory evolution.

(A) The scatterplot shows the relative resistance level and relative fitness improvement of individual T60 strains compared to the corresponding T0 strains (each data point is one strain, the colors indicate the antibiotic used in the analysis). Relative resistance was estimated by the minimum inhibitory concentration of the T60 line relative to that of the T0 line. There is a significant negative correlation between relative fitness improvement and relative resistance level (Spearman’s correlation test, ρ = −0.35, p=0.0031). Blue line with gray shaded area represents linear regression line with 95% confidence interval. For antibiotic abbreviations, see Table 1. Source file is available as Figure 4—source data 1. (B) Resistance loss as a function of relative fitness in antibiotic-free environment. The T60 strains were classified into three main categories based on their resistance-profiles: the resistance level declined against all tested antibiotics (complete), declined towards at least one antibiotic (partial), or the resistance level was maintained (no). Using the CLSI resistance break-point cut-offs (CLSI Approved Standard M100, 29th Edition), we categorized each T60 and the corresponding T0 strains as being resistant (R), intermediate (IM) or susceptible (S) to each investigated antibiotic. A decline in resistance was defined by transitions R->IM, R->S or IM->S. We observed a significant association between the relative fitness in the antibiotic-free medium and the decline in resistance level (Mann-Whitney U-test: **** indicates p<0.0001, ns indicates that the p value is non-significant). Boxplots show the median, first and third quartiles, with whiskers showing the 5th and 95th percentiles. Source file is available as Figure 4—source data 1.

https://doi.org/10.7554/eLife.47088.010
Figure 4—source data 1

Fitness recovery and resistance loss after compensatory evolution.

Figure 4—source data 1 was used to create the following figures: Figure 4A, 4B and Figure 4—figure supplement 1.

https://doi.org/10.7554/eLife.47088.012
Figure 4—figure supplement 1

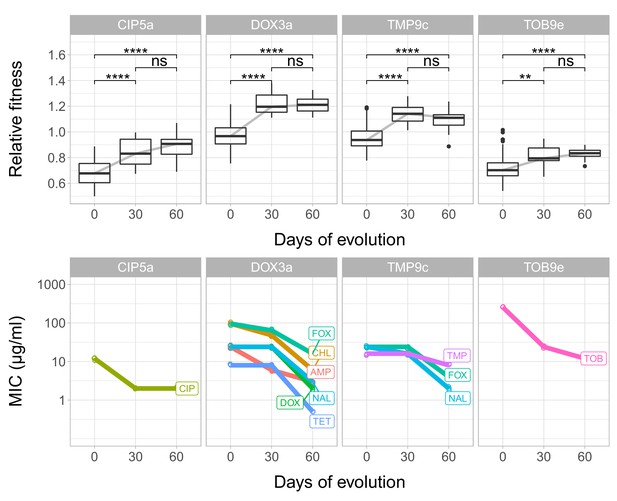

Fitness and resistance changes during laboratory evolution.

Each panel depicts a given T60 strain founded from ciprofloxacin- (CPR5a), doxycycline- (DOX3a) and tobramycin- (TOB9e) resistant lines. The top row depicts the changes in relative fitness across time points (0, 30, 60 days); the bottom row depicts changes in minimum inhibitory concentrations (MIC, y axis is transformed to log10-scale). MICs against different antibiotics are color-coded and labeled. MICs for different antibiotics were determined three times for each line at each time point (0, 30, 60 days), and we found no variation across replicates of the same combination. Boxplots show the median, first and third quartiles, with whiskers showing the 5th and 95th percentiles. ****/** indicates p<0.0001/0.01, ns indicates that the p value is non-significant (Mann Whitney U-test). We found that at certain time points, decline in resistance and fitness recovery are coupled to each other. Source file is available as Figure 4—source data 1.

https://doi.org/10.7554/eLife.47088.011
Figure 5 with 2 supplements

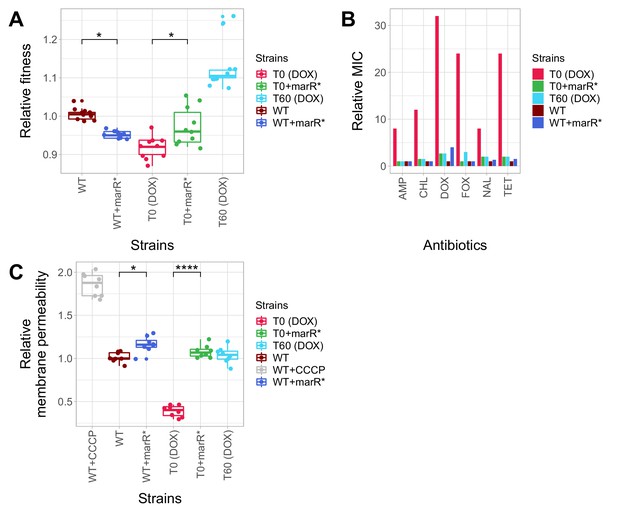

Phenotypic effects of a compensatory mutation in the marR promoter region.

The figure shows the (A) relative fitness, (B) relative resistance level and (C) Relative Hoechst probe accumulation (a proxy of membrane permeability) in the doxycycline-resistant T0 and the corresponding T60 strain harboring a compensatory mutation in the marR promoter region (marR*). Additionally, marR* was introduced into the wild-type and T0 genetic backgrounds as well, yielding WT + marR* and T0 + marR* strains, respectively. (A) Fitness was measured as the area under the growth curve in an antibiotic-free medium, and was normalized to wild-type fitness. Boxplots show the median, first and third quartiles, with whiskers showing the 5th and 95th percentiles (2 biological and five technical replicates per each genotype). We observed a significant variation in relative fitness across the strains (Tukey’s post-hoc multiple comparison tests, * indicates p<0.05). Source file is available as Figure 5—source data 1. (B) Resistance level of all five strains against six antibiotics. Minimum inhibitory concentration (MIC) was measured by the standard E-test assay, and was normalized to that of the wild-type strain. Only the T0 strain can be considered resistant to each antibiotic tested according to the CLSI resistance break-point cut-off. Source file is available as Figure 5—source data 1. (C) Membrane permeability across five strains. Membrane permeability was estimated by measuring the intracellular accumulation of a fluorescent probe (Hoechst 33342) in eight biological replicates per each strain or condition. Intracellular accumulation of the probe in the corresponding strains was normalized to that of the wild-type strain. Wild-type cells treated with a protonophore chemical agent (carbonyl cyanide m-chlorophenyl hydrazone, CCCP) served as a positive control, displaying an 88% larger membrane permeability value compared to that of the non-treated wild-type strain. T0 showed an exceptionally low level of Hoechst-dye accumulation compared to all other strains studied, while T0 + marR* displayed a 166% larger membrane permeability value compared to that of the T0 strain (Tukey’s post-hoc multiple comparison tests: **** indicates p<0.0001). Boxplots show the median, first and third quartiles, with whiskers showing the 5th and 95th percentiles. Source file is available as Figure 5—source data 1.

https://doi.org/10.7554/eLife.47088.013
Figure 5—source data 1

Relative fitness, relative MIC and relative Hoechst-dye accumulation of reconstructed mutant strains.

https://doi.org/10.7554/eLife.47088.016
Figure 5—figure supplement 1

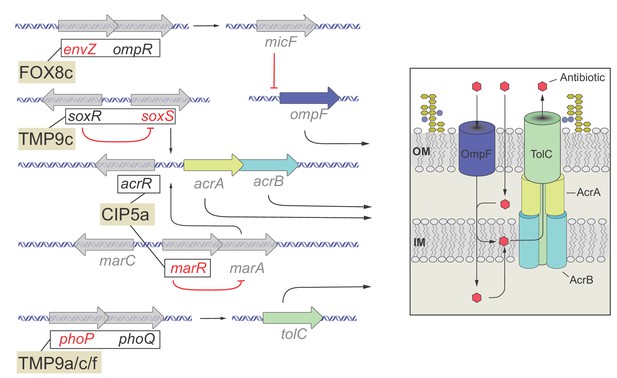

Functional relationship of resistance-conferring and compensatory mutations in representative evolved lines.

The figure depicts the functional relationship of selected T0 and T60 mutations in certain evolved lines. The genes are color-coded: gene names in black are mutated only in T0, gene names in red are mutated only in the T60, while gene names in gray are not mutated either in T0 or T60 and used only for illustrative purposes. Mutations found in genes with established functional relationship are connected with black lines within evolved lines (FOX8c, TMP9c, CIP5a, TMP9a/c/f). Connection between ompR-EnvZ (FOX8b): A cefoxitin-resistant T0 line carries a resistance-conferring mutation in the transcriptional regulatory protein OmpR. OmpR modulates the expression of major outer membrane protein genes, and forms a two-component regulatory system with the sensory histidine kinase EnvZ, a protein mutated in the corresponding T60 line. Connection between PhoQ/SoxR – PhoP/SoxS (TMP9c): A trimetoprim-resistant T0 lines carries a mutation in the sensory histidine kinase PhoQ and the redox–sensitive transcriptional activator SoxR, whereas the T60 line carried compensatory mutations in genes phoP (response regulator in two–component regulatory system with PhoQ) and soxS (superoxide response regulon transcriptional activator). Connection between AcrR-MarR (CIP5a): Mutation in the transcriptional repressor AcrR most likely confers ciprofloxacin-resistance in T0 through activating the AcrA/AcrB/TolC multidrug-efflux system, while a compensatory mutation appeared in MarR, that controls the activity of the mar regulon. The mar regulon is responsible for regulating several genes involved in antibiotic-resistance, including those that encode components of the AcrA/AcrB/TolC multidrug-efflux system. Source file is available as Supplementary file 1.

https://doi.org/10.7554/eLife.47088.014
Figure 5—figure supplement 2

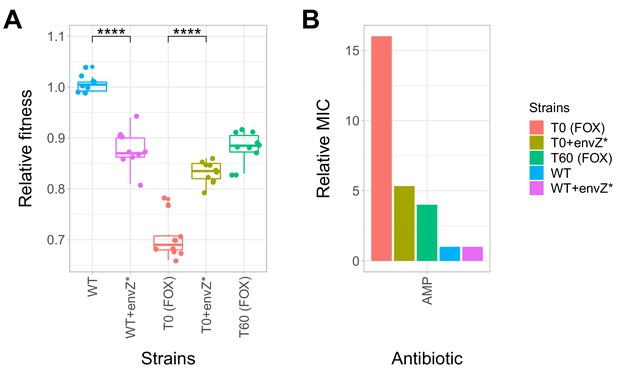

Effect of a compensatory mutation in envZ.

The figure shows the (A) relative fitness and (B) relative resistance level of the following strains: wild-type (WT) E. coli K-12 BW25113, a cefoxitin-resistant T0 strain, the corresponding T60 strain carrying the compensatory mutation in envZ (envZ*). Additionally, envZ* was introduced into the wild-type and T0 genetic backgrounds, yielding WT + envZ* and T0 +envZ* strains, respectively. (A) Fitness was measured as the area under the growth curve, and was normalized to wild-type fitness. Boxplots show the median, first and third quartiles, with whiskers showing the 5th and 95th percentiles (two biological replicates each). As expected, relative fitness showed significant variations across the strains (Tukey’s post-hoc multiple comparison tests, **** indicates p<0.0001). Source file is available as Figure 5—source data 1. (B) Resistance level of all five strains against ampicillin (AMP). Minimum inhibitory concentration (MIC) was measured by the standard E-test assay, and was normalized to that of the wild-type strain. Only the T0 strain can be considered resistant to each antibiotic tested according to the CLSI resistance break-point cut-off. Source file is available as Figure 5—source data 1.

https://doi.org/10.7554/eLife.47088.015

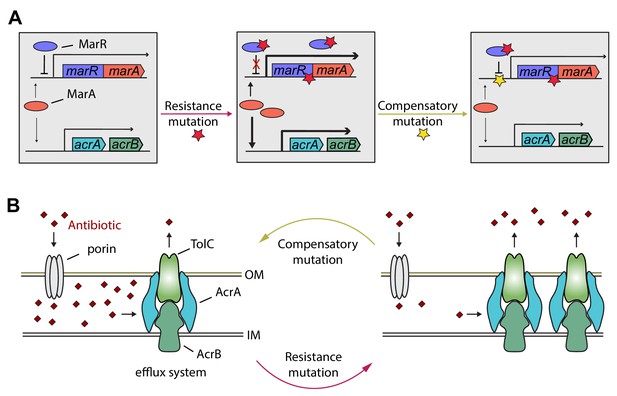

Hypothetical mechanism of compensation by a marR compensatory mutation.

The mar regulon participates in controlling several genes involved in resistance to antibiotics including the AcrA/AcrB/TolC multidrug efflux system (panel A). MarR is a transcriptional regulatory protein that controls the activity of the mar system in wild-type E. coli through the repression of marA. In response to antibiotic stresses (e.g. doxycycline or ciprofloxacin), marR is mutated (indicated by a red star), leading to increased expression of marA and, subsequently, other members of the mar regulon (Praski Alzrigat et al., 2017). However, the elevated activity of the mar regulon is harmful in antibiotic-free conditions, promoting the accumulation of further mutations. Our study indicates that this can be achieved by a compensatory mutation in the promoter region of the mar operon (indicated by a yellow star). The compensatory mutation putatively restores the activity of the mar regulon to the wild-type level (panel B). Source file is available as Supplementary file 1.

https://doi.org/10.7554/eLife.47088.017

Tables

Table 1
Antibiotics employed and their modes of actions.

Functional classification (molecular target) is based on previous studies (Girgis et al., 2009; Yeh et al., 2006). These antibiotics are widely used in clinical practice, are well-characterized and cover a wide range of modes of actions. For three-letter codes (abbreviations), the AAC's standard (https://aac.asm.org/content/abbreviations-and-conventions) was used.

https://doi.org/10.7554/eLife.47088.002
Antibiotic nameAbbreviationAntibiotic classMolecular targetEffectNumber of
T0 lines
displaying
significant
fitness cost
AmpicillinAMPPenicillinCell wallBactericidal1
CefoxitinFOXCephalosporinsCell wallBactericidal1
CiprofloxacinCIPQuinolonesGyraseBactericidal2
Nalidixic acidNALQuinolonesGyraseBactericidal0
NitrofurantoinNITNitrofurantoinMultiple mechanismsBactericidal2
KanamycinKANAminoglycosidesProtein synthesis, 30SBactericidal4
TobramycinTOBAminoglycosidesProtein synthesis, 30SBactericidal4
TetracyclineTETTetra-cyclinesProtein synthesis, 30SBacteriostatic2
DoxycyclineDOXTetra-cyclinesProtein synthesis, 30SBacteriostatic1
ChloramphenicolCHLChloramphenicolProtein synthesis, 50SBacteriostatic2
ErythromycinERYMacrolidesProtein synthesis, 50SBacteriostatic0
TrimethoprimTMPTrimethropimFolic acid biosynthesisBacteriostatic4
Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (Escherichia coli)K12 BW25113 (wild type)PMID: 25000950SRA project: SRX551437 (E. coli AB cross-resistance)
Strain, strain
background (Escherichia coli)
SRR1297006 to SRR1297184 (resistant strains)PMID: 25000950SRA project: SRX551437 (E. coli AB cross-resistance)
Chemical compound, drugETEST AMPICILLIN AM 256bioMérieuxS30-412253
Chemical compound, drugETEST CEFOXITIN FX 256bioMérieuxS30-412285
Chemical compound, drugETEST CIPROFLOXACIN CI 32bioMérieuxS30-412311
Chemical compound, drugETEST CHLORAMPHENICOL CL 256bioMérieuxS30-412309
Chemical compound, drugETEST
DOXYCYCLINE DC 256
bioMérieuxS30-412328
Chemical compound, drugETEST KANAMYCIN KM 256bioMérieuxS30-412382
Chemical compound, drugETEST NALIDIXIC-ACID NA 256bioMérieuxB30-516500
Chemical compound, drugETEST NITROFURANTOIN NI 512bioMérieuxB30-530400
Chemical compound, drugETEST TETRACYCLINE TC 256bioMérieuxS30-412471
Chemical
compound, drug
ETEST TOBRAMYCIN TM 256bioMérieuxS30-412479
Chemical compound, drugETEST TRIMETHOPRIM TR 32bioMérieuxS30-412483
Chemical compound, drugbisBenzimide H 33342 trihydrochlorideSigma-AldrichB2261-25MGPMID: 20513705
Chemical compound, drugcarbonyl cyanide-m-chlorophenyl hydrazone (CCCP)Life TechnologiesAC228131000PMID: 20513705
Recombinant DNA reagentpORTMAGE-3PMID: 26884157Addgene: Plasmid #72678
Software, algorithmRStudio (Version 1.1.463)R Core Team (2018).
R: A language and environment
for statistical computing. R Foundation for Statistical Computing, Vienna, Austria
http://www.r-project.org/
Software, algorithmggplot2 package (version 3.0.0)H. Wickham. ggplot2: Elegant Graphics for Data Analysis. Springer-Verlag
New York, 2016.
https://cran.r-project.org/web/packages/ggplot2/ggplot2.pdf

Data availability

Sequencing data have been deposited in the NCBI Sequence Read Archive (SRA) under the accession number of PRJNA529335.

The following data sets were generated
  1. 1
    NCBI Sequence Read Archive
    1. A Dunai
    2. R Spohn
    3. V Lázár
    4. A Györkei
    5. Z Farkas
    6. G Apjok
    7. G Boross
    8. B Szappanos
    9. G Grézal
    10. A Faragó
    11. L Bodai
    12. B Papp
    13. C Pál
    (2019)
    ID PRJNA529335. WGSS of antibiotic resistant E. coli strains evolved on antibiotic-free medium.

Additional files

Supplementary file 1

Mutations detected by whole genome sequencing.

This file contains the mutations acquired during 60 day evolution in an antibiotic free environment. This file was used to create Figure 5—figure supplement 1 and Figure 6.

https://doi.org/10.7554/eLife.47088.018
Transparent reporting form
https://doi.org/10.7554/eLife.47088.019
