ZP4 confers structural properties to the zona pellucida essential for embryo development

  1. Ismael Lamas-Toranzo
  2. Noelia Fonseca Balvís
  3. Ana Querejeta-Fernández
  4. María José Izquierdo-Rico
  5. Leopoldo González-Brusi
  6. Pedro L Lorenzo
  7. Pilar García-Rebollar
  8. Manuel Avilés  Is a corresponding author
  9. Pablo Bermejo-Álvarez  Is a corresponding author
  1. INIA, Spain
  2. Universidad de Vigo, Spain
  3. Universidad de Murcia and IMIB-Arrixaca, Spain
  4. Universidad Complutense de Madrid, Spain
  5. Universidad Politécnica de Madrid, Spain
Research Article
Cite this article as: eLife 2019;8:e48904 doi: 10.7554/eLife.48904
6 figures, 1 video, 2 tables and 3 additional files

Figures

Figure 1 with 1 supplement
Generation of ZP4 KO rabbits.

(A) A sgRNA was designed for a genomic target located at the beginning of the coding region. Upper sequence depicts wild-type sequence with the start codon underlined and CRISPR target sequence marked in bold letters. Examples of different indels obtained in F0 generation are depicted below. Both in-frame indels (i.e., multiple of three) and frame-disrupting (i.e., not multiple of three) were obtained. Only frame disrupting indels generate truly KO alleles by disrupting the ORF of ZP4. The KO allele involving a G insertion was selected to establish a line. (B) Wild-type and ZP4-null cumulus oocyte complexes following immunohistochemistry with an anti-ZP4 antibody.

https://doi.org/10.7554/eLife.48904.003
Figure 1—figure supplement 1

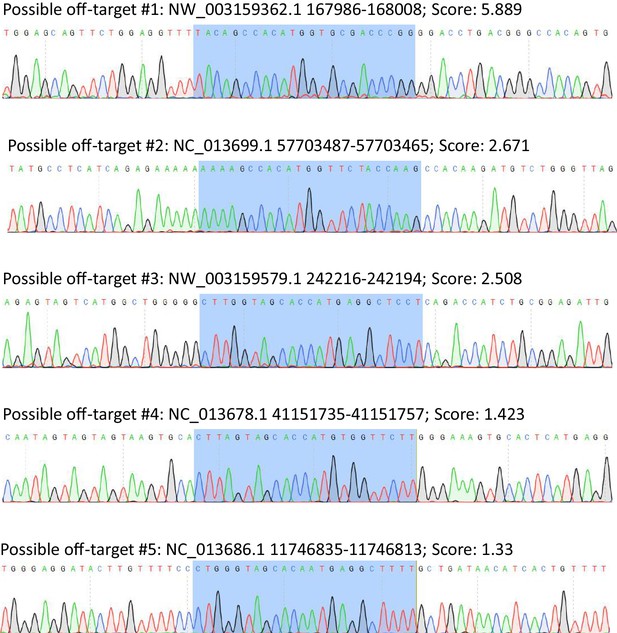

Sequencing of the five most probable off-target sequences, revealing no off-target genome editing.
https://doi.org/10.7554/eLife.48904.004
Figure 2 with 1 supplement
ZP4 ablation leads to severely impaired fertility.

(A) Number of pups delivered in WT, Hz and KO females. ZP4 ablation significantly impaired fertility: only one female out of 10 delivered a small litter of 4 pups, whereas ZP4 haploinsufficiency (Hz) did not affect fertility. (B–G) ZP4 disruption did not affect ovulation (B), cleavage (C) and blastocyst (D) rates, preantral (E) and antral (F) follicles counts or pronuclei formation rate (G). The number of females (A–B), embryos (C-D and G) and slides (E–F) analysed per group is indicated inside each column. Data are represented as mean ± SEM in all graphs. Statistical differences are based on ANOVA (p<0.05, (A–D) or t-test (p<0.05, (E–F). (H) Representative images of zygotes obtained from WT or KO females showing normal pronuclear formation (SYTOX green staining) in the presence (WT) or absence (KO) of ZP4 in ZP.

https://doi.org/10.7554/eLife.48904.005
Figure 2—figure supplement 1

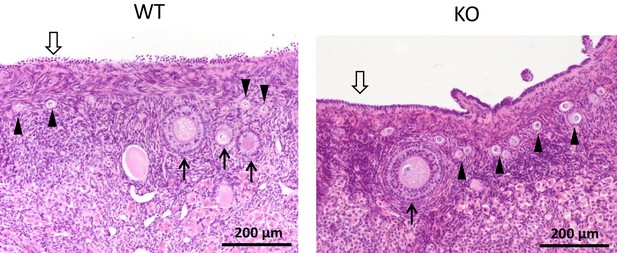

ZP4 ablation does not cause significant alterations in folliculogenesis.

Histological sections of WT and ZP4 KO ovaries stained with haematoxylin-eosin, showing an overtly normal histological structure of ZP4 KO ovaries. Arrowheads point primordial follicles, solid arrows ovarian follicles and empty arrow the germinal epithelium.

https://doi.org/10.7554/eLife.48904.006
ZP4 ablation impairs blastocyst development in vivo.

(A) Percentage of recovered embryos that had developed to the blastocyst stage by Day 4 post-mating. (B) Diameter (µm) of the blastocysts recovered on Day 4. The number of females (A) or blastocysts (B) analysed per group is indicated inside each column. In both graphs data are represented as mean ± SEM and statistical differences are based on t-test (p<0.05). (C) Representative picture of Day four embryos obtained from WT females. (D) Representative picture of Day 4 embryos obtained from KO females. Red arrows indicate the presence of zona pellucida in some of the structures recovered and yellow letters indicate different types of structures found: Two expanded –yet smaller than those from WT females- blastocysts without zona (B), a collapsed blastocysts (CB) where zona was dissolved displaying a crunched appearance, a smaller expanded blastocyst retaining zona and showing also some degree of mechanical deformation (BZ), and three degenerated embryos (Deg) showing crunched zonae likely due to mechanical damage. Blastomeres (indicating several rounds of cell division before developmental arrest prior to compactation) can be easily spotted on the degenerated embryo on right.

https://doi.org/10.7554/eLife.48904.007
ZP4 ablation leads to severely impaired in vivo development to expanded blastocyst.

(A) Recovery rate (embryos recovered/corpora lutea) on Day 6 was significantly reduced in KO females compared with WT counterparts. (B) Embryo diameter by Day 6 of in vivo development was significantly inferior in the few embryos recovered from KO females compared to WT counterparts. The number of females (A) or blastocysts (B) analysed per group is indicated inside each column. In both graphs data are represented as mean ± SEM and statistical differences are based on t-test (p<0.05). (C) Representative picture of Day 6 embryos recovered from a WT (left) or KO (right) female. Embryos were placed on 35 mm dishes. Yellow circles mark the location of the embryos inside the dishes. (D–E) Representative pictures of Day 6 embryos recovered from WT (D) or WT and KO (E) females. (E) ‘WB’ is a Day 6 blastocyst from the WT group, whereas the other structures were recovered from a KO female: KEB is an expanded blastocyst, KB a blastocyst showing a lesser degree of expansion and asterisks mark two degenerated embryos.

https://doi.org/10.7554/eLife.48904.008
ZP4-devoided zona show structural abnormalities.

(A) Representative pictures of cleaved embryos enclosed in ZP with (left) or without (right) ZP4 protein. ZP lacking ZP4 was significantly thinner than WT ZP. Hz females produced ZP overtly undistinguishable from WT counterparts. Data are represented as mean ± SEM and statistical differences are based on ANOVA (p<0.05). (B) Surface Electron Microscopy (SEM) pictures of ZP with (left) or without (right) ZP4 protein. In the absence of ZP4, ZP texture looks rougher and more fenestrated. (C) Fluorescent nanospheres permeability test in zygotes surrounded by ZP with (upper raw) or without (lower raw) ZP4 protein. WT and KO ZP blocked 100 nm particles, as fluorescence was restricted to the outer surface of ZP in both groups (right images). In contrast, all 9 ZP4-devoided ZP analyzed were permeable to 20–40 nm nanospheres, as green fluorescence inside ZP was evident (left and central images). No green fluorescence can be observed inside WT ZP, indicating that 20–40 nm nanospheres were efficiently blocked by a ZP containing ZP4. Statistical differences based on Chi-square test (p<0.05).

https://doi.org/10.7554/eLife.48904.009
Polymorphism leading to truncated human ZP4 protein can be found at gnomAD database.

Graphical representation of the human truncated proteins generated by the nine most frequent premature stop codon (PTCs) polymorphisms found in gnomAD database. Orange bars depicts P-type (trefoil domain), blue bars correspond to ZP domain, and red asterisks mark the position of the first amino acid affected by frame shift mutation (i.e., the end of the WT protein sequence).

https://doi.org/10.7554/eLife.48904.011

Videos

Video 1
WT and KO ZP exhibit different behavior when mechanical pressure is exerted by a blunt micromanipulation pipette.

WT ZP (upper embryo) handles easily the pressure quickly recovering its spherical shape. In contrast, ZP4-devoided ZP (lower embryo) is easily deformable, providing a poor protection to the embryo.

https://doi.org/10.7554/eLife.48904.010

Tables

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (Oryctolagus cuniculus)ZP4 KOThis articleGenerated by CRISPR (M and M), available upon request.
AntibodyGoat polyclonal anti-human ZP4Santa Cruz#sc-49586
RRID:AB2304934
(1:2000)
AntibodyImmPRESS Horse anti-goat IgG HRPVector Labs#MP-7405
RRID:AB2336526
(1X, ready-to-use reagent)
Recombinant DNA reagentPlasmid pMJ920Addgene#42234Jinek et al., 2013
R ecombinant DNA reagentPlasmid px330Addgene#42230Yang et al., 2014
Sequenced-based reagentPrimersThis articleTable 1 (ordered from Sigma)
Table 1
Details of primers used for sgRNA cloning into px330 vector (sgZP4, target sequence in bold), PCR template generation for sgRNA synthesis (T7sgZP4), and genotyping of target (GenoZP4) and off-target sequences (OffZP4 1–5).
https://doi.org/10.7554/eLife.48904.012
PrimerPrimer sequence (5´−3´)Fragment size (bp)GenBank accession no.
sgZP4CACCGGTAGCACCATGTGGCTGTTA AAACTAACAGCCACATGGTGCTACC-NC_013684.1
T7sgZP4GATCACTAATACGACTCACTATAGGG-TGCTGTCAGGGAGCTCAGTTTTAGAG-CTAGAAAT--
GenoZP4TGTTGCCCAACTTACCCCAG TCCCACCTGCATGCAAGAAA318NC_013684.1
OffZP4 1CAGCTGCAGTGGAAGAATGC
ACTGTAACGCAGCTTTGGGA
498NW_003159362.1
OffZP4 2AACAGACACCCAGAAGCACC
ACTGCCTTTTCCCACAAGCA
234NC_013699.1
OffZP4 3TCTCATCAGAGCTCCGTCCA
CTGGGAAACCACTCTCCGTC
395NW_003159579.1
OffZP4 4ACAACTGTTTCAGCTAACCTCT
GTTGAGTGGTCACCAAGCCT
313NC_013678.1
OffZP4 5GCCCAGGGTTAACACACAGT
TCCTCTTTGACCCCTCTCCC
264NC_013686.1

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files.

Additional files

Supplementary file 1

Tandem mass spectrometry proteomics analysis of WT or ZP4 KO solubilized ZPs showing the presence of all ZP proteins but ZP4 in ZP4 KO ZPs.

https://doi.org/10.7554/eLife.48904.013
Supplementary file 2

Polymorphism leading to premature stop codons (PTCs) found in gnomAD database, organized in order of decreasing allele count.

https://doi.org/10.7554/eLife.48904.014
Transparent reporting form
https://doi.org/10.7554/eLife.48904.015
