Developmentally regulated Tcf7l2 splice variants mediate transcriptional repressor functions during eye formation

  1. Rodrigo M Young  Is a corresponding author
  2. Kenneth B Ewan
  3. Veronica P Ferrer
  4. Miguel L Allende
  5. Jasminka Godovac-Zimmermann
  6. Trevor C Dale
  7. Stephen W Wilson  Is a corresponding author
  1. UCL, United Kingdom
  2. School of Bioscience, Cardiff University, United Kingdom
  3. FONDAP Center for Genome Regulation, Facultad de Ciencias, Universidad de Chile, Chile
  4. Division of Medicine, UCL, United Kingdom
Research Article
  • Cited 0
  • Views 374
  • Annotations
Cite this article as: eLife 2019;8:e51447 doi: 10.7554/eLife.51447

Abstract

Tcf7l2 mediates Wnt/β-Catenin signalling during development and is implicated in cancer and type-2 diabetes. The mechanisms by which Tcf7l2 and Wnt/β-Catenin signalling elicit such a diversity of biological outcomes are poorly understood. Here, we study the function of zebrafish tcf7l2 alternative splice variants and show that only variants that include exon five or an analogous human tcf7l2 variant can effectively provide compensatory repressor function to restore eye formation in embryos lacking tcf7l1a/tcf7l1b function. Knockdown of exon five specific tcf7l2 variants in tcf7l1a mutants also compromises eye formation, and these variants can effectively repress Wnt pathway activity in reporter assays using Wnt target gene promoters. We show that the repressive activities of exon5-coded variants are likely explained by their interaction with Tle co-repressors. Furthermore, phosphorylated residues in Tcf7l2 coded exon5 facilitate repressor activity. Our studies suggest that developmentally regulated splicing of tcf7l2 can influence the transcriptional output of the Wnt pathway.

Introduction

Wnt signalling has a broad array of biological functions, from regional patterning and fate specification during embryonic development to tissue homeostasis and stem cell niche maintenance in adult organs (van Amerongen and Nusse, 2009; Nusse and Clevers, 2017). Because of its relevance to such a diversity of processes, Wnt pathway misregulation is linked to a range of diseases such as cancer and diabetes, and neurological/behavioural conditions (Nusse and Clevers, 2017). Wnts can activate several intracellular pathways, and the branch that controls gene expression works specifically through β-catenin and the small family of T-Cell transcription factors (Tcfs; Cadigan and Waterman, 2012b).

In absence of Wnt ligand, intracellular β-catenin levels are kept low by a mechanism that involves its phosphorylation by GSK-3β and CK1α, which is mediated by the scaffolding of β-catenin by Axin1 and APC, in what is termed the destruction complex (MacDonald and He, 2012; Niehrs, 2012). Phosphorylated β-catenin is ubiquitilated and degraded in the proteasome (MacDonald et al., 2009; Niehrs, 2012). In this context, Tcf transcription factors actively repress the transcription of downstream genes by interacting with Groucho(Gro)/TLE co-repressors (Cadigan and Waterman, 2012b; Hoppler and Waterman, 2014). When cells are exposed to Wnt ligand, the destruction complex is disassembled and β-catenin is no longer phosphorylated and committed to degradation (MacDonald et al., 2009; Niehrs, 2012). This promotes the translocation of β-catenin to the nucleus where it displaces Gro/TLE co-repressors from interacting with Tcfs and activating the transcription of Wnt target genes (Cadigan and Waterman, 2012b; Hoppler and Waterman, 2014; Schuijers et al., 2014). Hence, Tcf proteins are thought to work as transcriptional switches that can activate transcription in the presence of Wnt ligands or repress transcription in their absence.

During development, ensuring appropriate levels of Wnt/β-catenin signalling is essential for many processes. For instance, during gastrulation, specification of the eyes and telencephalon can only occur when Wnt/β-catenin signalling is low or absent, and overactivation of the pathway in the anterior neuroectoderm mispatterns the neural plate leading to embryos with no eyes (Kim et al., 2000; Heisenberg et al., 2001; Kiecker and Niehrs, 2001; van de Water et al., 2001; Houart et al., 2002; Dorsky et al., 2003). Illustrating this, fish embryos mutant for axin1, a member of the β-catenin destruction complex, are eyeless because cells fail to phosphorylate β-catenin, leading to abnormally high levels of the protein, mimicking a Wnt active state (Heisenberg et al., 2001; van de Water et al., 2001). Similarly, it has been shown that tcf7l1a/headless mutants also mimic Wnt/β-catenin overactivation suggesting that it is necessary to actively repress Wnt/β-catenin target genes for regional patterning to occur normally (Kim et al., 2000; Young et al., 2019).

In vertebrates, Lef/Tcf transcription factors constitute a family of four genes: lef1, tcf7 (tcf1), tcf7l1 (tcf3) and tcf7l2 (tcf4). All contain a highly conserved β-catenin binding domain (β-catenin-BD) at the amino-terminal (N-terminal) end and a high mobility group box (HMG-box) DNA binding domain in the middle of the protein (Figure 1A; Cadigan and Waterman, 2012b; Hoppler and Waterman, 2014). All Lef/Tcf proteins bind the 5’-CCTTTGATS-3’ (S = G/C) DNA motif, but can also bind to sequences that diverge from this consensus (van de Wetering et al., 1997; van Beest et al., 2000; Hallikas and Taipale, 2006; Atcha et al., 2007). The fact that all Lef/Tcfs bind to the same motif has led to the notion that the functional specificity of Lef/Tcf proteins may be imparted by inclusion or exclusion of functional motifs by alternative transcription start sites or alternative splicing (Hoppler and Waterman, 2014).

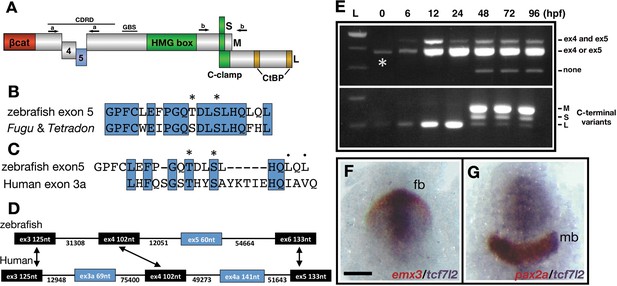

Figure 1 with 1 supplement see all
Description and expression of a new alternatively spliced exon in zebrafish tcf7l2.

(A) Schematic representation of variants of Tcf7l2 arising from different splice forms (not to scale). Labels 4 and 5 represent the region of Tcf7l2 coded by alternative exons 4 and 5. Short (S) Medium (M) and Long (L) C-terminal variants coded by alternative splice variants in the 5’ end of exon 15 are indicated. Red box, β-catenin (βcat) binding domain. Green boxes, High-Mobility Group (HMG) Box, which is the primary DNA interacting domain, and C-clamp DNA-helper binding domain. Yellow boxes, CtBP interaction domains. CDRD labelled line over exons 4 and 5 indicates the Context Dependent Regulatory Domain and Groucho Binding Site (GBS) marks the region of interaction with Groucho/Tle transcriptional co-repressors. Arrows indicate the position of primer sets ‘a’ and ‘b’ used for RT-PCR experiments in (E). (B–C) Alignment of the amino acid sequences coded by zebrafish, Takifugu rubripens and Tetradon tcf7l2 exon 5 (B) or human exon 3a (C). Identical amino acids marked by blue boxes. Asterisks over sequence mark putative phosphorylated amino acids. Dots over sequence indicate similar amino acids. (D) Schematic of the genomic region of zebrafish and human tcf7l2. Introns depicted as lines and exons as boxes. Blue exon boxes depict human tcf7l2 alternative exons 3a and 4a, and zebrafish alternative exon 5. Black exon boxes indicate equivalent exons in both species emphasised by arrows. Numbers under introns and within exons represent their nucleotide size (not to scale). (E) RT-PCR experiments performed on cDNA from embryos at stages indicated in hours post fertilisation (hpf). L, 1 Kb ladder. Top panel shows results of PCRs using primer set ‘a’ (indicated in Figure 1A, Materials and methods) amplifying the region of alternative exons 4 and 5. Middle band contains amplicons including either tcf7l2 exon 4 or exon 5. Bottom panel shows results of PCRs using primer set ‘b’ (indicated in Figure 1A, Materials and methods) amplifying the region of alternative exon 15. Asterisk shows maternal expression of tcf7l2. (F–G) Double in situ hybridisation of tcf7l2, in blue, and emx3 (F) or pax2a (G) in red. 10hpf flat mounted embryos, dorsal view, anterior up, posterior down; fb, prospective forebrain; mb, prospective midbrain. Scale Bar in (F) is 200 µm.

The region between the β-catenin-BD and the DNA binding domain of Lef/Tcf proteins, known as the context-dependent regulatory domain (CDRD), and the carboxy-terminal (C-terminal) end of the protein, are coded by alternatively spliced exons (Figure 1A; Young et al., 2002; Archbold et al., 2012; Cadigan and Waterman, 2012b; Hoppler and Waterman, 2014). The C-terminal region of Lef/Tcfs includes the C-Clamp domain and two CtBP interacting motifs (Figure 1A; Brannon et al., 1999; Valenta et al., 2003; Atcha et al., 2007; Hoverter et al., 2012; Hoverter et al., 2014). In certain contexts, the C-clamp domain helps DNA binding and increases the selectivity for certain gene promoters (Atcha et al., 2007; Wöhrle et al., 2007; Chang et al., 2008; Weise et al., 2010). The CDRD includes the domain of interaction with Gro/TLE co-repressors (Groucho Binding Site (GBS), Figure 1A; Cavallo et al., 1998; Roose et al., 1998; Daniels and Weis, 2005; Arce et al., 2009; Chodaparambil et al., 2014) and amino acids that can promote the dissociation of Lef/Tcfs from DNA, modify nuclear localisation or promote activation of transcription when phosphorylated by HIPK2, TNIK or NLK (Shetty et al., 2005; Mahmoudi et al., 2009; Hikasa et al., 2010; Ota et al., 2012). Exons 4 and 5 and the borders of exon7 and exon 9, which are included in the region of the CDRD, are alternatively spliced in tcf7l2 (Duval et al., 2000; Pukrop et al., 2001; Young et al., 2002). The inclusion of the border of exon nine can transform Tcf7l2 into a strong transcriptional repressor (Liu et al., 2005). Hence, splicing regulation in the CDRD could, similarly, be relevant to transcriptional output (Tsedensodnom et al., 2011; Koga et al., 2012). However, the function of the alternatively spliced exons 4 and 5 is still unknown. All the variations in Lef/Tcf proteins described above may contribute to their functional diversity, an idea that is supported by the fact that Lef/Tcfs control many different subsets of genes (Cadigan and Waterman, 2012b; Hrckulak et al., 2016).

Tcf7l2 has various known roles including a requirement during establishment of left-right asymmetry in the habenulae and for the maintenance of the stem cell compartment in colon and skin epithelia (Korinek et al., 1998; Nguyen et al., 2009; Hüsken et al., 2014). Additionally, polymorphisms located in introns in the genomic region that codes for human tcf7l2 exon 3a (Figure 1 C, D), segregate with acquisition of type-2 diabetes (Grant et al., 2006), and conditional knockdowns of tcf7l2 give rise to mice with phenotypes comparable to diabetic patients (Boj et al., 2012; Duncan et al., 2019). tcf7l2 has an alternative translation start site and alternative splicing in the CDRD and in exons that lead to shorter C-terminal ends (Duval et al., 2000; Young et al., 2002; Vacik et al., 2011). Overall, this suggests that many regulatory inputs could influence the transcriptional output of Tcf7l2.

In this study, we address the role of alternative splicing in mediating the functional properties of Tcf7l2 during early nervous system development. Our results show that alternative splicing of tcf7l2 significantly impacts the transcriptional repressor activity of the encoded protein. tcf7l2 splice variants have been characterised in humans and, to a lesser extent, in mice and zebrafish (Duval et al., 2000; Young et al., 2002; Prokunina-Olsson et al., 2009; Weise et al., 2010), but little information is available on different roles for the splice variants. In zebrafish, tcf7l2 is first expressed in the anterior neuroectoderm by the end of gastrulation (Young et al., 2002) and in this study, we show that at this stage, tcf7l2 is only expressed as long C-terminal variants that can include a newly identified alternative exon 5. We show that only zebrafish Tcf7l2 variants that include the coded exon five and comparable human Tcf7l2 variants effectively provide the repressive function required to promote eye specification. Moreover, only these variants are effective in repressing Wnt target gene promoters in luciferase assays, probably due to interaction with Gro/Tle co-repressors. We further show that two phosphorylated amino acids coded by exon 5 of Tcf7l2 are required for this interaction, and overall repressive function. Hence, our results suggest that alternative exon five in zebrafish tcf7l2 could play a critical role in mediating transcriptional repression of Wnt pathway target genes. Our data also suggest that through inclusion of the region coded by exon 5, Tcf7l2 could be part of a phosphorylation regulatory module that keeps the Wnt pathway in an ‘off’ state by phosphorylating β-catenin in the cytoplasm and Tcf7l2 in the nucleus.

Results

Characterisation of a novel tcf7l2 alternative splice variant

With the aim of addressing the functional roles of different tcf7l2 splice variants, we cloned the zebrafish splice forms in the CDRD (Figure 1A). This region of Tcf proteins is close to the fragment that interacts with Gro/TLE co-repressors (GBS, Figure 1A) and consequently alternative splice forms may affect transcriptional function by modulating interactions with Gro/TLE proteins (Duval et al., 2000; Young et al., 2002; Roose et al., 1998; Daniels and Weis, 2005). Using primers flanking the region containing putative alternative exons in the CDRD encoding region (Primer set-a, Figure 1A), we performed RT-PCR and cloned the resulting DNA fragments.

The amplified DNA contained a new exon not previously described in zebrafish or in any other species (Figure 1B, Figure 1—source data 1, accession number MN646677). This exon (tcf7l2 exon five hereafter) codes for a 20 amino acid stretch and is flanked by consensus splice acceptor and donor intron sequences. This region of human tcf7l2 also includes the alternatively spliced exons 3a and 4a (Figure 1D; Prokunina-Olsson et al., 2009). Zebrafish tcf7l2 exon five is similar in size to human tcf7l2 exon 3a but instead, lies in a genomic location that in the human gene would be positioned between exons 4 and 5, where alternative human exon 4a is located (Figure 1D). Although the protein sequence homology with other fish species is high (Figure 1BFigure 1—figure supplement 1A), the amino acid identity encoded by human exon 3a and zebrafish exon 5 is only 33% (Figure 1C). However, in both species, all neighbouring exons are the same size, show a high-degree of nucleotide and protein sequence homology, and are surrounded by long introns (Figure 1DFigure 1—figure supplement 1B). Moreover, both fish and human exons 5/3a encode residues that are putative CK1/PKA kinase phosphorylation sites (Figure 1B,C, asterisks).

RT-PCR experiments showed that splice variants that include alternative exon four are expressed maternally and zygotically (Figure 1E, upper panel, middle band labelled ‘4 or 5’, asterisk). Exon five is expressed zygotically and is included in tcf7l2 transcripts from six hpf (hours post fertilisation) onwards (Figure 1E, upper panel, top band labelled ‘4 and 5’). tcf7l2 splice variants that lack both exons 4 and 5 are only expressed from 48hpf onwards (Figure 1E, upper panel, lower band labelled ‘none’).

The inclusion of two alternative forms of exon 15 add a premature stop codon that leads to medium and short Tcf7l2 Ct variants (refered as exon 17 in Young et al., 2002). We characterised this region by analysing the alternatively spliced 5’ end of tcf7l2 exon 15 for the presence of long, medium or short splice variant C-terminal (Ct) coding ends (Primer set-b, Figure 1A,E, lower panel). Maternally, and until 24hpf, tcf7l2 is only expressed as transcripts that lead to long (L) Tcf7l2 variants (Figure 1E, bottom panel, lower band). From 48hpf onwards tcf7l2 is predominantly expressed as splice forms that code for medium (M) and short (S) Ct Tc7f7l2 variants, with L variants barely detectable (Figure 1E, bottom panel, top two bands).

We further assessed how the expression of exons 4 and 5 relate to alternative splice forms in exon 15 affecting the Ct domain of Tcf7l2 (Figure 2A). Before 48hpf, tcf7l2 is only expressed as splice forms that lead to long Ct variants, but from 48hpf, variants including exon four are expressed predominantly as medium variants, but also as short and long Ct-forms (Figure 2B-C). On the other hand, at 48hpf and onwards, transcripts including exon five are expressed only as medium or short Tcf7l2 Ct-variants and by 96hpf only as M variants (Figure 2C). The range of Tcf7l2 variants expressed as development proceeds is summarised in Supplementary file 1A-a and Supplementary file 1A-b.

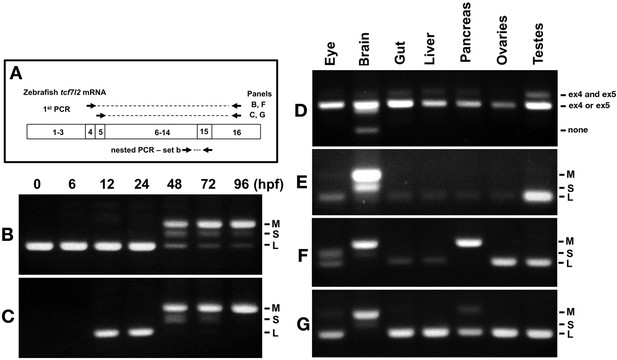

Expression of tcf7l2 alternative exons 4, 5 and 15 varies across development and in adult organs.

RT-PCR analysis of alternative exons 4, 5 and 15 of zebrafish tcf7l2 across development and in various adult organs. (A) Schematic representation of nested RT-PCR strategy used for panels B, C, F and G. (B–C) cDNA from embryos of ages indicated (hpf) was PCR amplified using a forward primer that anneals over exon 4 (B) or exon 5 (C) and a reverse primer that anneals to exon 16 common to all tcf7l2 mRNA variants. The product from this first PCR was then used as a template for a nested PCR using primer set ‘b’ (as in Figure 1A) that amplifies exon 15 and reveals the different possible Ct ends of Tcf7l2. This last PCR product is shown in these panels. M (Medium), S (short) and L (Long) C-terminal Tcf7l2 variant end. (D–E) RT-PCR experiments performed on cDNA of the indicated adult organs using primer set ‘a’ (Materials and methods) amplifying the region of alternative exons 4 and 5 (D) or using primer set ‘b’ (Materials and methods) amplifying the region of alternative exon 15 (E). (F–G) Same PCR amplification strategy used in panels (B–C) to detect the C-terminal Tcf7l2 variants associated with exons 4 or 5, but using the indicated adult organ cDNA as template in the 1st PCR reaction.

Given the functional relevance of Tcf7l2 in adult tissue homeostasis (Nusse and Clevers, 2017), we studied splicing events involving exons 4/5 and exon 15 in adult zebrafish eyes, brain, gut, liver, pancreas, ovaries and testis (Figure 2D-G). A summary of the RT-PCR results and Tcf7l2 variants expressed in adult organs based on this RT-PCR data is presented in Supplementary file 1B.

From here, we focus exclusively on tcf7l2 splice variants expressed as the anterior neuroectoderm is patterned during gastrula and early somite stages (6-12hpf).

tcf7l2 is broadly expressed in the anterior neural plate

The analyses above show that by early somite stage (12hpf), tcf7l2 is predominantly expressed as two long C-terminal isoforms, both which include exon 4. One that lacks exon 5 (4L-tcf7l2 variant from here onwards), which is expressed maternally and zygotically, and the other that includes exon five which is expressed zygotically (45L-tcf7l2 variants from here onwards).

From late gastrula stage, tcf7l2 is expressed in the anterior neural plate (Young et al., 2002), overlapping with tcf7l1a and tcf7l1b (Kim et al., 2000; Dorsky et al., 2003). At 10hpf, by the end of gastrulation, the expression of tcf7l2 overlaps rostrally with that of emx3 delimiting the prospective telencephalon (Figure 1F; Morita et al., 1995). The caudal expression of tcf7l2 in this region ends a few cell diameters anterior to the rostral limit of midbrain marker pax2a, suggesting it may extend beyond the diencephalon and include part of the prospective midbrain region (Figure 1G). Consequently, tcf7l2 is expressed throughout the rostral neural plate including the eye field during the stages when the neural plate becomes regionalised into discrete domains.

Zebrafish tcf7l2 exon five and human tcf7l2 exon 3a containing variants are able to restore eye formation upon loss of tcf7l1a/b function

Zygotic tcf7l1a/headlessm881/m881 mutants (Ztcf7l1a-/- from here onwards) show reduced eye size at 30hpf but later, growth compensation restores eye size (Figure 3G; Figure 1—source data 1; Young et al., 2019). However, Ztcf7l1a mutants are sensitised to further loss of Tcf repressor activity and when tcf7l1b, the paralogue of tcf7l1a, is knocked down by injecting 0.12pmol of a validated ATG morpholino (motcf7l1b Dorsky et al., 2003), the eye field is not specified (Figure 3D, Figure 1—source data 1, x-=99%, n=270, 3 experiments; Dorsky et al., 2003). To address whether there are any differences in the functional properties of tcf7l2 splice variants expressed at 12hpf (Figure 1E, Supplementary file 1A-b, we assessed their ability to restore eye formation in Tcf7l1a/Tcf7l1b abrogated embryos (Figure 3D). Ztcf7l1a-/- embryos were co-injected with 0.12pmol of motcf7l1b and 20pg of either 4L-tcf7l2 or 45L-tcf7l2 mRNA. Control overexpression of these tcf7l2 variants in wildtype or Ztcf7l1a+/- embryos did not induce any overt phenotype (not shown).

Figure 3 with 2 supplements see all
Alternative exon 5 of tcf7l2 impacts eye formation.

(A–F) Lateral views (anterior to left, dorsal up) of 28hpf live wildtype (A), tcf7l2 zf55/ zf55 (B), double tcf7l1a-/-/tcf7l2 zf55/ zf55 (C) and tcf7l1a-/- (D–F) zebrafish embryos with injected reagents indicated top right showing representative phenotypes. (D) 0.12 pmol motcf7l1b (E), 0.12 pmol motcf7l1b and 20 pg of 45L-tcf72 splice variant mRNA, (F) 1.25 pmol moSPtcf7l2. Scale bar in (A) is 200 µm. (G) Plot showing the volume of eyes (µm3) of 30hpf fixed embryos coming from a double heterozygous tcf7l1a/tcf7l2 mutant incross. Error bars are mean ± SD, only P values greater than 0.1 from unpaired t test with Welch's correction are indicated. Data in Supplementary file 1C. (H) Bars represent the percentage of tcf7l1a-/- embryos that develop eyes (with distinguishable lens and pigmented retina) coming from multiple tcf7l1a+/- female to tcf7l1a-/- males crosses, injected with 0.12 pmol of motcf7l1b (all bars) and co-injected with constructs stated on X axis: 10 pg of tcf7l1a mRNA (A) 20 pg of tcf7l2 mRNA splice variants 4L-tcf7l2 (B) 45L-tcf7l2, (C) MT-4L-tcf7l2 (D) MT-45L-tcf7l2 (E) MT-tcf7l2-AA (F) MT-tcf7l2-AS (G) MT-tcf7l2-TA (H) MT-tcf7l2-AA (I) htcf7l2-C (J) htcf7l2-3a (K) and htcf7l2-4a (L). Data for all these plots are included in Supplementary file 1E. Error bars are mean ± SD.

Exogenous 45L-tcf7l2 mRNA effectively rescued the eyeless phenotype in Ztcf7l1a-/-/tcf7l1b morphant embryos (Figure 3E, H, Supplementary file 1E, x-=89.1±3.4%, n=163 embryos, 3 experiments), whereas 4L-tcf7l2 mRNA did not (Figure 3H, Supplementary file 1E, x-=18.4±4.4%, n=146 embryos, 3 experiments). This suggests that only tcf7l2 splice variants that include exon 5 have the ability to repress the aberrant pathway activation upon loss of Tcf7l1a/Tcf7l1b function.

An alternative explanation for the poor restoration of eye formation by the 4L-Tcf7l2 variant could be that it is either not localised to the nucleus or has lower protein stability. To address this, we transfected HEK293 cells with constructs encoding N-terminal Myc tagged (MT) constructs of Tcf7l2. Both MT-Tcf7l2 variants were expressed and localised to the nucleus (Figure 3—figure supplement 1), suggesting that the lack of rescue with 4L-tcf7l2 mRNA is due to other differences in protein function. The MT-45L-Tcf7l2, but not MT-4L-Tcf7l2 variant was also able to restore eye formation in Ztcf7l1a-/-/tcf7l1b morphants to a similar extent as the untagged variant (Figure 3H, Supplementary file 1E, x-=70.9±3.9%, n=199 embryos, 3 experiments).

These results suggest that 45-Tcf7l2 but not 4L-Tcf7l2 variant can compensate for loss of Tcf7l1a/b function in eye specification.

To assess the function of human tcf7l2 alternative exons in the region of zebrafish tcf7l2 exon 5, we cloned long Ct human tcf7l2 splice variant cDNA including alternative exon 3a (3a-htcf7l2) or 4a (4a-htcf7l2), or excluding both exons (C-htcf7l2). 3a-htcf7l2 mRNA expression was able to restore eye formation in most Ztcf7l1a-/-/tcf7l1b morphant embryos (Figure 3H, Supplementary file 1E, x-=80.9%±11.6, n=129 embryos, 3 experiments). However, 4a-htcf7l2 mRNA restored eye formation less effectively (Figure 3E, Supplementary file 1E, x-=41.9±5.8%, n=197 embryos, 3 experiments), and the variant lacking both alternative exons failed to restore eye formation (Figure 3H, Supplementary file 1E, x-=3.6±4.4%, n=139 embryos, 3 experiments).

Eye formation is compromised in tcf7l1a mutants when Tcf7l2 lacks the region encoded by exon5

In the zf55 (exl) mutant allele of tcf7l2, the first intron of the gene is retained in the mRNA which knocks down expression of the protein generated by the tcf7l2 transcripts with reading frames starting in exon 1 (Muncan et al., 2007). We found that homozygous tcf7l2zf55 mutants do not show reduced eye size at 30hpf (Figure 3B,G, Supplementary file 1C, n = 14, data from one of three experiments yielding similar results). To assess if tcf7l2 repressor activity can functionally compensate for loss of tcf7l1a, we incrossed double heterozygous tcf7l1a+/m881/tcf7l2+/zf55 fish. However, we did not observe an obvious eye-size phenotype in Ztcf7l1a/tcf7l2 double homozygous mutants, with eye size in these mutants similar to Ztcf7l1a-/- eyes (Figure 3C,G. Supplementary file 1C, three experiments). Neither did injection of tcf7l2 ATG morpholino in Ztcf7l1a-/- embryos lead to any enhancement of the eye phenotype (not shown). These results suggest that the lack of severe eye phenotypes in tcf7l2 and Ztcf7l1a/tcf7l2 double homozygous mutants is not due to genetic compensation, as has been observed for some other genes (El-Brolosy et al., 2019; Ma et al., 2019).

To further explore if the 45L-tcf7l2 splice variant could play a role in eye formation, we used 1.25 pmol/embryo of a splicing morpholino (moSPtcf7l2) that targets the intron/exon splice boundary 5’ to exon 5 (Figure 3—figure supplement 2A). This Mo is predicted to force the splicing machinery to skip exon 5, such that only 4L-Tcf7l2 variants are translated. The efficacy of the moSPtcf7l2 was confirmed by RT-PCR, which shows that the cDNA fragment corresponding to 45L-tcf7l2 mRNA is absent in moSPtcf7l2 injected morphants, but the band corresponding to 4L-tcf7l2 mRNA is still present (Figure 3—figure supplement 2B). Sequencing of the putative 4L-tcf7l2 cDNA fragment showed that the exon4/6 splicing event in moSPtcf7l2 injected morphants is in frame and only leads to the expression of the 4L-tcf7l2 variant mRNA (not shown). As expected, Tcf7l2 protein was still present when detected by Western blot (Figure 3—figure supplement 2B).

Wildtype embryos injected with moSPtcf7l2 showed smaller eyes at 32hpf compared to control morpholino (moC) injected embryos (Figure 3—figure supplement 2C-E, n=10, Supplementary file 1F) and more dramatically, injection of moSPtcf7l2 in Ztcf7l1a-/- mutants led to a fully penetrant eyeless phenotype ( Figure 3F, H, Supplementary file 1D, x-=99%, n=128, three experiments). No eyeless phenotype was observed when moSPtcf7l2 was injected in sibling heterozygous embryos or when a scrambled control morpholino (moC) was injected in Ztcf7l1a-/- mutants (not shown). These results suggest that specific loss of exon5 coded sequence in Tcf7l2 can compromise its ability to promote eye formation. The eyeless phenotype in Ztcf7l1a-/-/moSPtcf7l2 is perhaps surprising given that Ztcf7l1a-/-/tcf7l2zf55/zf55 embryos showed no severe eye phenotype, and suggests that an appropriate balance in the levels of tcf7l2 splice variants may be required for the eye to form normally in tcf7l1a mutants.

Tcf7l2 splice variant including exon five coding sequence shows repressor activity in luciferase reporter assays

Given the diversity of biological outputs driven by Wnt/β-catenin signalling and mediated by Tcf transcription factors (Hoppler and Waterman, 2014), the function of Tcf7l2 variants could potentially be to activate or repress the transcription of different subsets of genes. To explore whether 4L and 45L-Tcf7l2 variants show differing promoter transactivation abilities, we performed luciferase reporter assays using the generic TOPflash reporter and known promoters of the Wnt pathway regulated genes, cdx1 (Hecht and Stemmler, 2003), engrailed (McGrew et al., 1999), cJUN (Nateri et al., 2005), lef1 (Hovanes et al., 2001) and siamois (Brannon et al., 1999). All the promoters of these genes used in the luciferase reporter assays contain consensus Tcf binding elements.

HEK293 cells were transiently transfected with the luciferase reporter construct and DNA encoding either: 1. the GSK-3β binding domain of mouse Axin2 Flag tag fusion (Flag-Ax2) construct which competes with GSK-3β leading to increased β-catenin levels and leads to Wnt pathway activation (Figure 4A–F; FlagAx-(501-560) in Smalley et al., 1999), or 2. a constitutively-active VP16-TCF7L2 fusion protein, which can induce the expression of Wnt-responsive promoters in absence of nuclear β-catenin (Figure 4G–L; Ewan et al., 2010). As expected, all the tested reporters showed a strong response to Flag-Ax2 or VP16-TCF7L2 transfection (Figure 4A–L, second bar in all plots, Supplementary file 1G and Supplementary file 1H). We then assessed whether Tcf7l2 splice variants with or without exon five could influence the luciferase reporter activation by co-transfecting Flag-Ax2 (Figure 4A–F, Supplementary file 1G) or VP16-TCF7L2 (Figure 4G–L, Supplementary file 1H) together with either 4L-tcf7l2 or 45L-tcf7l2 splice variants. 45L-Tcf7l2 variant expression led to reduced transactivation by FlagAx2 compared to 4L-Tcf7l2 on all the promotors we tested (Figure 4A–F, Supplementary file 1G). Moreover, 45L-Tcf7l2 also showed a greater ability to compete with VP16-TCF7L2, compared to 4L-Tcf7l2 when tested with all promotors except for cjun, which did not respond to any tcf7l2 variant co-transfection (Figure 4G–L, Supplementary file 1H). Our results suggest that Tcf7l2 variants including exon5 are either less able to activate transcription or are able to repress the transcription at certain promoters.

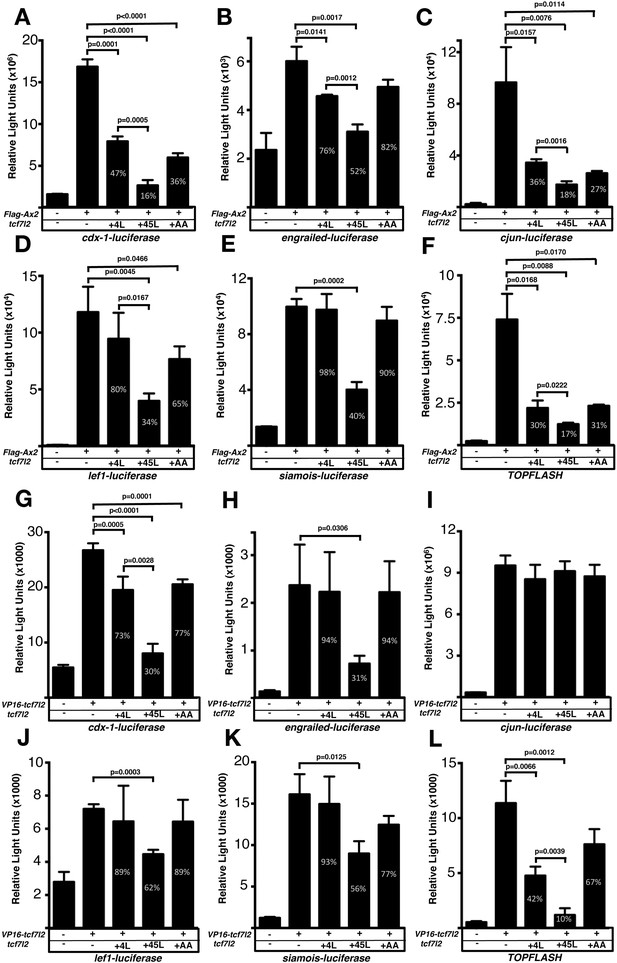

Exon five coding tcf7l2 variant represses Wnt activity induced by FLAG-Ax2 or VP16-TCF7L2 in luciferase assays.

Bar plots showing luciferase reporter assay results expressed in relative light units. HEK293 cells were transiently co-transfected with luciferase reporter constructs indicated beneath the X-axis, (A–F) FLAG-Ax2 (except for first bars), (G–L) VP16-TCF7L2 DNA (except for first bars) and 4L-tcf7l2 DNA (+4L; 3rd bars), or 45L-tcf7l2 DNA (+45L; 4th bars) or tcf7l2-AA DNA (+AA; 5th bars). Control experiments show only background luciferase activity with no transfected plasmids (1st bars). Figures in the bars indicate the percentage size of that bar relative to transfection with either FLAG-Ax2 or VP16-TCF7L2 alone (2nd bar). Error bars are mean ± SD n = 3 (experiments were performed twice), P values from unpaired t tests comparing FLAG-Ax2 or VP16- TCF7L2 control condition with tcf7l2 variant co-transfections. Comparisons with no statistical significance are not marked.

Inclusion of exon five encoded sequence enhances the interaction between Tcf7l2 and Tle3b

The region of Tcf7l2 encoded by exon five is located in the vicinity where Lef/Tcf proteins interact with Gro/TLE co-repressors (Roose et al., 1998; Brantjes et al., 2001; Daniels and Weis, 2005; Arce et al., 2009). Consequently, inclusion of exon five in tcf7l2 mRNA could potentially modulate repressor activity by modifying the interaction of Tcf7l2 with Gro/TLE proteins. Alternatively, inclusion of exon five could modify the capacity of Tcf7l2 to interact with transactivating β-catenin.

To address if the inclusion of exon5-encoded sequence can modulate the interaction between Tcf7l2 and Gro/TLE or β-catenin proteins, we performed yeast two-hybrid (Y2H) protein interaction experiments between 4L-Tcf7l2 and 45L-Tcf7l2 variants and Tle3b (the zebrafish orthologue of mammalian Tle3/Gro1), or β-catenin (Figure 5—figure supplement 1). Full-length Tle3b seemed to be either toxic or have transfection problems in the yeast strain, and so we used a C-terminal deletion of Tle3b (dC-Tle3b), which still includes the glutamine-rich domain that interacts with Tcf proteins (Daniels and Weis, 2005). Yeast co-transfected with β-catenin or dC-tle3b and 4L-tcf7l2 or 45L-tcf7l2 splice variants were able to grow in complete auxotrophic selective media (-L-A-H-W + Aureoblastinin), and also express the X-gal selection reporter (Figure 5—figure supplement 1). This suggests that both Tcf7l2 variants are able to interact with β-catenin and dC-Tle3b. However, this Y2H assay cannot reveal differences in the affinity of interactions between proteins.

To address possible differences in protein interactions between Tcf7l2 splice variants and β-catenin or Tle3b, we performed co-immunoprecipitation (co-IP) experiments using protein extracts from co-transfected HEK293 cells. Both Myc-tagged Tcf7l2 variants were efficiently immunoprecipitated by anti-Myc beads (Figure 5, right top blot) and showed a similar capacity to co-IP with β-catenin (Figure 5, right middle blot, second and third lanes). However, MT-45L-Tcf7l2 showed a significantly higher capacity to co-IP Tle3b compared to 4L-Tcf7l2 (Figure 5, right bottom blot, second and third lane). This suggests that the repressor activity of MT-45L-Tcf7l2 observed in our in vivo and luciferase reporter assays could be mediated by an enhanced interaction with Gro/TLE co-repressors.

Figure 5 with 1 supplement see all
Alternative exon 5 of tcf7l2 enhances affinity with Tle3b.

Protein input (left panel) and anti-Myc immunoprecipitation (IP) eluate western blot (right panel) showing co-inmunoprecipitation of β-Catenin or HA-tagged Tle3b. HEK293 cells were transiently transfected with HA tagged tle3b together with empty myc tag vector (1st lane), MT-4L-tcf7l2 (2nd lane), MT-45-tcf7l2 (3rd lane) and MT-AA-tcf7l2 (4th lane). Left panels show protein input before anti-Myc IP. Right panels show protein eluate from anti-Myc antibody coupled beads. Westernblots were probed with anti-Myc (tagged Tcf7l2 proteins, top panel), anti-βcatenin (middle panel) and anti-HA (tagged Tle3b protein, bottom panel) antibodies. Asterisk shows that the Tcf7l2 form containing exon five shows more intense binding with Tle3b than other Tcf7l2 forms.

Phosphorylated amino acids in the domain of Tcf7l2 encoded by exon five mediate transcriptional repressor function

Kinases are known to modulate Wnt signalling activity through phosphorylation of LRP6, β-catenin and Tcfs (Li et al., 2002; Davidson et al., 2005; Zeng et al., 2005; Sokol, 2011) and bioinformatic analysis using Netphos3.1 (cbs.dtu.dk/services/NetPhos; Blom et al., 2004) or GPS2.0 (gps.biocuckoo.org; Xue et al., 2008) predict that Tcf7l2 exon five coded Thr172 and Ser175 are putatively phosphorylated by GSK-3, CK1, PKA, and other kinases. GSK-3 and CK1 are known to regulate Wnt signalling by phosphorylating LRP6 co-receptor and β-catenin (Niehrs, 2012).

To address if amino acids in the Tcf7l2 exon five encoded region are phosphorylated, we performed mass spectrometry (MS) analysis. N-terminal MT-4L-tcf7l2 and MT-45L-tcf7l2 variants were cloned in frame to BioID2 (Kim et al., 2016), an optimised biotin ligase protein, and were transiently expressed in HEK cells treated with biotin. Steptavidin pulled-down proteins were used for liquid chromatography with tandem mass spectrometry analysis recovering 40% of Tcf712 amino acid sequence (Figure 5—source data 1). The recovered peptide containing exon 5-coded sequence, Asp151-Lys184 was phosphorylated (Supplementary file 1I).

To address the role of the putatively phosphorylated exon 5 coded amino acids in Tcf7l2, we generated an MT-45L-Tcf7l2 mutant version in which both Thr172 and Ser175 were replaced by alanines (MT-45L-Tcf7l2-AA), which cannot be phosphorylated. Unlike MT-45L-tcf7l2, expression of MT-45L-tcf7l2-AA (20pg mRNA per embryo) was unable to rescue the eyeless phenotype of Ztcf7l1a-/-/tcf7l1b morphant embryos (Figure 3H, Supplementary file 1E, x-=12.4±2.5%, n=117, three experiments). However, MT-45L-tcf7l2 mutant forms containing the mutant variants Thr172Ala (20pg MT-45L-tcf7l2-AS mRNA per embryo, Figure 3H, Supplementary file 1E, x-=76.6±0.5%, n=34, two experiments) or Ser175Ala (20pg MT-45L-tcf7l2-TA mRNA per embryo, Figure 3H, Supplementary file 1E, x-=77.9±17.9%, n=44, two experiments), were able to rescue the eyeless phenotype suggesting that repressor activity could be elicited through phosphorylation of either or both of amino acids Thr172 and Ser175. Furthermore, we generated a Thr172Glu/Ser175Glu phospho-mimicking MT-45L-Tcf7l1a mutant form of 45L-Tcf7l2 (MT-45L-Tcf7l2-EE). Expression of MT-45L-tcf7l2-EE (20pg mRNA per embryo) restored eye formation in 80.3±4.5% of Ztcf7l1a-/-/tcf7l1b morphant embryos (Figure 3H, Supplementary file 1E, n=48, three experiments).

Moreover, MT-45L-Tcf7l2-AA behaved like MT-4L-Tcf7l2 variants in luciferase reporter assays (Figure 4, fifth bar in all plots, Supplementary file 1 G and H), and also showed a reduced capacity to interact with Tle3b in co-IP experiments (Figure 5, right bottom blot, fourth lane). Of note, the MT-Tcf7l2-AA mutant variant showed a greater capacity to co-IP with β-catenin compared to MT-4L-Tcf7l2 or MT-45L-Tcf7l2 variants (Figure 5, right middle blot, fourth lane). These results suggest that phospho Thr172 and phospho Ser175 residues may regulate the ability of 45L-Tcf7l2 to repress target genes and consequently contribute, together with Tcf7l1a/Tcf7l1b function, to eye specification in zebrafish.

Discussion

In this study, we show that developmentally regulated splicing contributes to Wnt signalling regulation during patterning of the anterior neural plate and eyes. We show that there is extensive variety in splicing of zebrafish tcf7l2 throughout development and across adult tissues and that the exon five encoded region within Tcf7l2 influences its transcriptional repressor activity. Tcf repressor function is required for maintaining low levels of pathway activity during forebrain and eye specification. We show that long carboxy-terminal Tcf7l2 variants that include both exons 4 and 5 can restore eye formation in embryos with compromised tcf7l1a/b function and that specific knockdown of the 45L-Tcf7l2 variant in tcf7l1a mutants leads to embryos with no eyes. A similar specific human Tcf7l2 variant that includes the region encoded by the alternative exon 3a is also able to restore eye formation in tcf7l1a/b knockdown embryos, suggesting conservation in the role of splicing in mediating transcriptional repressor activity of Tcf7l2 proteins. Additionally, 45L-Tcf7l2 variants have less capacity to transactivate known Wnt target gene promoters in luciferase reporter assays and can out-compete constitutively transcriptionally active VP16-hTcf7l2 chimeric proteins. Liquid chromatography with tandem mass spectrometry results also suggests that the protein region coded by tcf7l2 exon five is phosphorylated and that the transcriptional repressor function of the 45L-Tcf7l2 variant requires this phosphorylation potentially for a more efficient interaction with Tle3b corepressor.

Tcf7l2 transcriptional repression function contributes to forebrain patterning

Like tcf7l1a and tcf7l1b, tcf7l2 is expressed in the anterior neural ectoderm, from where the eyes and forebrain develop (Kim et al., 2000; Young et al., 2002; Dorsky et al., 2003). However, their expression patterns are not completely identical as tcf7l2 expression does not include the area of strong expression of tcf7l1a and tcf7l1a in the presumptive telencephalon or the midbrain-hindbrain boundary (Dorsky et al., 2003). These differences could contribute to the non-redundant functions between Lef/Tcf transcription factors. Experimental manipulations or mutations that increase Wnt/β-catenin activity in the anterior neural plate during gastrulation generate embryos with no forebrain and eyes (Wilson and Houart, 2004). For instance, tcf7l1a is cell-autonomously required for eye field specification and zebrafish embryos lacking zygotic tcf7l1a/headlessm881 function have smaller eyes (Kim et al., 2000; Young et al., 2019). However, this phenotype is exacerbated when tcf7l1b is knocked down in tcf7l1a mutants leading to embryos with no eyes (Dorsky et al., 2003). The notion that active repression by Tcf7l1a/b transcription factors is required for neuroectodermal patterning is supported by the observation that overexpression of transcriptional dominant active VP16-tcf7l1a chimera also leads to eyeless embryos (Kim et al., 2000).

Eyes are smaller in wild-type embryos and absent in Ztcf7l1a-/- embryos in which tcf7l2 variants including exon5 have been knocked down. As only the 45L-Tcf7l2 variant, which includes exon5, can efficiently restore eye formation in Ztcf7l1a-/-/tcf7l1b morphant embryos, our results suggest that the exon five coding region can assign transcriptional repressor activity to Tcf7l2 and, as for Tcf7l1 proteins, this transcriptional repressive function contributes to forebrain patterning and eye formation. This conclusion is supported by 45L-Tcf7l2 variants having less transactivation capacity and greater repressor activity compared to 4L-Tcf7l2 and 45L-Tcf7l2-AA variants in luciferase reporter experiments; additionally, 45L-Tcf7l2 variants show greater association for Tle3b transcriptional co-repressor in co-IP experiments. Hence, the inclusion of exon5 in tcf7l2 variants could potentially influence the balance between activation versus repression transcription activity of Tcf7l2.

The lack of severe forebrain and eye phenotypes in single tcf7l1 mutants is at least in part due to the overlapping functional activities of different tcf genes and we assume the same is likely for the tcf7l2 mutant. However, we find no evidence that mutant mRNA triggered genetic compensation (El-Brolosy et al., 2019; Ma et al., 2019El-Brolosy and Stainier, 2017Rossi et al., 2015) is the reason that tcf7l2 mutants lack severe phenotypes. For instance, morpholino knockdown of tcf7l2 translation, which circumvents this mechanism, does not result in a severe eye phenotype. Given that, as for other Tcf genes (Cadigan, 2012a; Ramakrishnan et al., 2018), tcf7l2 specific splice variants seem to encode proteins with either repressor or activator roles, mutations that disrupt the balance between these functions may lead to phenotypes differing from complete gene abrogation. Potentially, misregulation of repressor function while maintaining the ability of the protein to activate transcription (as suggested by our experiments that specifically knockdown 45L-tcf7l2 variants with a splicing morpholino) might lead to forebrain respecification and small or no eye phenotypes that differ from complete loss of protein expression. Hence, the balance between the levels of Tcf transcriptional repressing versus activating variants may facilitate the correct subdivision of the telencephalic, eye and diencephalic territories of the neural plate.

Phosphorylation contributes to the balance of transcriptional activation-repression by mediating the function of Tcf7l2 as a transcriptional repressor

The context-dependent regulatory domain of Tcfs, which includes the region coded by tcf7l2 exon 5, can be acetylated, phosphorylated or sumoylated (Yamamoto et al., 2003; Shetty et al., 2005; Mahmoudi et al., 2009; Hikasa et al., 2010; Ota et al., 2012; Elfert et al., 2013). The importance of phosphorylation to the repressor activity of 45L-Tcf7l2 is suggested by the finding that the phosphorylation resistant 45-L-Tcf7l2-AA mutant form, in which both Thr172 and Ser175 amino acids are replaced by alanines, behaves as if lacking the region coded by exon five in all the functional assays we tested. Conversely, the phospho-mimicking EE-Tcf7l2 variant was able to restore eye development in Ztcf7l1a-/-/tcf7l1b morphant embryos suggesting that phosphorylation of either Thr172 or Ser175 is required for the repressive function of 45L-Tcf7l2 variants. Although our mass spectrometry analysis confirmed that the peptide encoded by zebrafish tcf7l2 exon five is phosphorylated, the resolution was not sufficient to discriminate whether the phosphorylation was on Thr172, Ser175 or both. However, mRNA overexpression of 45L-Tcf7l2-AS or 45L-Tcf7l2-TA mutant variants can restore eye formation in Ztcf7l1a-/-/tcf7l1b morphant embryos, suggesting that the phosphorylation of either amino acid is sufficient to enable the repressor activity of 45L-Tcf7l2.

Gro/TLE transcription co-repressors are displaced by β-catenin to allow Tcf-mediated transcriptional activation (Daniels and Weis, 2005; Arce et al., 2009; Chodaparambil et al., 2014), and although we find 45L-Tcf7l2 still interacts with β-catenin, the 45L-Tcf7l2-AA mutant variants show greater binding capacity. This raises the possibility that 45L-Tcf7l2 variants may co-exist as phosphorylated and un-phosphorylated pools with different repressor/activator activity. This may also help explain why overexpression of moderate levels of 45L-Tcf7l2 shows no overt effect in wildtype embryos, possibly because Tcf7l2 phosphorylation and not its protein levels alone may control the activation-repression balance of these variants and suggesting that the phosphorylation of 45L-Tcf7l2 is a permissive event.

It is widely accepted that Tcfs work as transcriptional switches, repressing transcription of downstream genes in absence of Wnt ligand, and activating gene transcription when Wnt signalling is active (Cadigan, 2012a; Ramakrishnan et al., 2018). In this context, the repressive function of Tcf7l2 may be part of an integrated pathway response when the Wnt pathway is not active. The ‘off’ state of Wnt signalling involves active phosphorylation of β-catenin by CK1α and GSK-3β kinases (MacDonald and He, 2012; Niehrs, 2012). Our findings support a model in which Tcf transcription factors could also be part of a kinase regulatory module that maintains the pathway in an ‘off’ state, not only in the cytoplasm by phosphorylating β-catenin, but also by promoting transcriptional repression through phosphorylation of Tcf7l2. Direct assessment of an in vivo functional role for phosphorylation of Tcf7l2, and potentially other Tcfs, will be required to address such a model.

The salience of resolving a role for phosphorylation in the regulation of transcriptional activation/repression is heightened given the relevance of Tcf7l2 in mediating colorectal cancer outcome due to imbalanced Wnt signalling. Indeed, one future avenue for investigation will be to identify proteins that interact with the phosphorylated and un-phosphorylated forms of Tcf7l2.

Functional modulation of Tcf7l2 through spatial and temporal regulation of splicing of alternative exons

The occurrence of widespread tissue-specific and developmentally regulated tcf7l2 splicing suggests that certain variants of Tcf7l2 are required for proper cell and tissue type specification during development, and for its various roles in organ physiology during adult life (Nusse and Clevers, 2017). For instance, we have previously shown that Tcf7l2 is required for the development of left-right asymmetry of habenular neurons (Hüsken et al., 2014) and at the stages during which habenular neurons are becoming lateralised, tcf7l2 splice variants transition from expressing long to only medium and short carboxy-terminal end variants. This is potentially significant as only long variants include a complete C-clamp DNA binding-helper domain and the C-terminal binding protein domains (Young et al., 2002). The C-clamp domain can direct Tcf7l2 to specific promoters (Hoverter et al., 2014). Consequently, absence of a whole C-clamp may bias the promoter occupancy of Tcf7l2 and shift the expression profile of Wnt target genes (Atcha et al., 2003; Atcha et al., 2007; Hecht and Stemmler, 2003; Hoverter et al., 2014).

Tcf7l2 is linked to type-2 diabetes outcome (Grant et al., 2006; Lyssenko et al., 2007; Prokunina-Olsson et al., 2009; Savic et al., 2011) and the strongest risk factor SNPs are located in introns near human tcf7l2 exon 3a (Grant et al., 2006). Perhaps surprisingly, only liver tissue-specific tcf7l2 knockouts in mice and no other organs (including pancreas), lead to metabolic outcomes mimicking type-2 diabetes (Boj et al., 2012; and see Bailey et al., 2015). Furthermore, a recent study in rats has shown that Tcf7l2 in habenular neurons regulates nicotinic acetylcholine receptor function, concomitantly impacting pancreatic function and glucose homeostasis (Duncan et al., 2019). At least in zebrafish, the brain appears to express predominantly medium and short C-terminal Tcf7l2 splice variants in combination with all kinds of splice variants in the region of alternative exons 4 and 5. It will be interesting to resolve the specific expression of tcf7l2 splice variants in the habenula and assess whether these have function in the regulation of nicotinic receptor function.

Although homologies between fish and human exons in the region of Tcf7l2 alternative exons 4/5 are uncertain and despite lack of overall sequence conservation, human tcf7l2 exon 3a and fish exon five have a similar size and share amino acids that are likely phosphorylated in zebrafish Tcf7l2 encoded exon five region. Moreover, human tcf7l2 variants including alternative exon 3a, and to a lesser extent exon 4, can restore eye formation in Ztcf7l1a-/-/tcf7l1b knockdown embryos. This suggests that the region encoded by human Tcf7l2 exon 3a, and possibly exon 4a, may have similar functions as zebrafish exon five and that alternative exons in this region may play an evolutionarily conserved role in the transcriptionally repressive capacity of Tcf7l2. Consequently, it will be interesting to assess if the expression levels of these human TCF7L2 exons are altered in type-2 diabetes patients carrying risk factor SNPs.

Given the importance of maintaining balanced Wnt/β-catenin pathway activity throughout development and tissue homeostasis, elucidating all mechanisms that impact Wnt signalling modulation is critical if we are to understand and develop ways to manipulate pathway activity when misregulated in pathological conditions. Our work adds weight to the idea that the regulation of alternative splicing and controlling the balance between repressor and activator functions of Tcf proteins play an important role in Wnt/β-catenin pathway regulation.

Materials and methods

Animal use, mutant and transgene alleles, genotyping and quantification of eye size

Request a detailed protocol

Adult zebrafish were kept under standard husbandry conditions and embryos obtained by natural spawning. Wildtype and mutant embryos were raised at 28°C and staged according to Kimmel et al. (1995). Fish lines used were tcf7l1am881 (Kim et al., 2000), tcf7l1bzf157tg (Gribble et al., 2009) and tcf7l2zf55 (Muncan et al., 2007). These three lines are likely to abrogate expression of proteins coded by the reading frame starting in exon 1. There is an alternative downstream transcription start site in mouse tcf7l2 (Vacik et al., 2011) and likely in other tcf genes too (unpublished observations). It is not known if transcripts from these alternative start sites have any functional roles in embryos carrying the mutations above.

Genomic DNA was isolated by HotSHOT method (Suppl. Materials and methods) and tcf7l1am881 and tcf7l2zf55 mutations were genotyped by KASP assays (K Biosciences, assay barcode 1145062619) using 1 µl of genomic DNA for 8 µl of reaction volume PCR as described by K Biosciences. Adult zebrafish organs were dissected as described in Supp. Materials and methods.

The sizes of eye profiles were quantified from lateral view images of PFA fixed embryos by delineating the eye using Adobe Photoshop CS5 magic wand tool and measuring the area of pixels included in the delineated region. The surface area was then transformed from px2 to µm2 and then to predicted eye volume as in Young et al. (2019). Embryos were scored as eyeless when no retinal tissue was observed. Even though in the rescue experiments there was variability in the size of the restored eyes, for the sake of simplicity, all embryos with distinguishable eyes were scored as having eyes. This binary categorisation made the rescued versus not-rescued eye phenotype more straightforward to score and less affected by subjective interpretation.

RNA extraction, reverse transcription and PCR

Request a detailed protocol

Total RNA was extracted from live embryos and adult zebrafish using Trizol (Invitrogen) and homogenised by pestle crushing and vortexing. SuperscriptII (Invitrogen) was used for reverse transcription under manufacturers’ instructions using oligo dT and 1 µg of RNA for 20 µg reaction volume. The following primers were used to amplify fragments of tcf7l2 cDNA: region exon4/5 (Set a-F TCAAAACAGCTCTTCGGATTCCGAG, Set a-R CTGTAGGTGATCAGAGGTGTGAG), region exon15 (Set b-F GATCTGAGCGCCCCAAAGA AGTG Set b-R CGGGGAGGGAGAAATCATGGA GG).

mRNA synthesis, embryo microinjection and morpholinos

Request a detailed protocol

tcf7l2 splice variant PCR fragments were cloned in pCS2+ or pCS2+MT expression vectors for mRNA synthesis. mRNA for overexpression was synthesised using SP6 RNA mMessage mMachine transcription kit (Ambion). One to two cell stage embryos were co-injected with 10 nl of 5 pg of GFP mRNA and morpholinos or in vitro synthesised mRNA at the indicated concentrations. Only embryos with an even distribution of GFP fluorescence were used for experiments. Morpholino sequences: motcf7l2ATG (5’-CATTTTTCCCGAGGAGCGCTAATTT-3’). Embryos injected with this morpholino fail to produce Tcf7l2 protein (Figure 3—figure supplement 1B; ).

moSPtcf7l2 (5’-GCCCCTGCAAGGCAAAGACGGACGT-3’). This splice-blocking morpholino leads to exon skipping to generate a Tcf7l2 protein lacking exon five derived amino acids (Figure S5). tcf7l1a-/- embryos injected with moSPtcf7l2 lack eyes, a phenotype not seen when the morpholino is injected into tcf7l1a+/- siblings. No equivalent genetic mutation that leads to loss of exon 5 of tcf7l2 exists but the loss of eye phenotype is consistent with other conditions in which the overall level of TCF-mediated repression is reduced (Dorsky et al., 2003).

moC (5’- CTGAACAGGCGGCAGGCGATCCACA −3’). This morpholino is a sequence scrambled version of moSPtcf7l2used as an injection control.

motcf7l1b (5’-CATGTTTAACGTTACGGGCTTGTCT-3’; Dorsky et al., 2003). tcf7l1am881/m881 embryos injected with motcf7l1b phenocopy the loss of eye phenotype seen in tcf7l1am881/m881/tcf7l1bzf157tg/zf157tg double mutants (Young and Wilson, unpublished).

In situ hybridisation and probe synthesis

Request a detailed protocol

Digoxigenin (DIG) and fluorescein (FLU)-labelled RNA probes were synthesized using T7 or T3 RNA polymerases (Promega) according to manufacturers’ instructions and supplied with DIG or FLU labelled UTP (Roche). Probes were detected with anti-DIG-AP (1:5000, Roche) or anti-FLU-AP (1:10000, Roche) antibodies and NBT/BCIP (Roche) or INT/BCIP (Roche) substrates according to standard protocols (Thisse and Thisse, 2008).

Luciferase reporter experiments

Request a detailed protocol

The following reporters were used: cdx1:luc (Hecht and Stemmler, 2003), engrailed:luc (McGrew et al., 1999), cJun:luc (Nateri et al., 2005), lef1:luc (Hovanes et al., 2001), siamois:luc (Brannon et al., 1999), and TOPflash (Molenaar et al., 1996). HEK cells were transfected according to standard methods and using the conditions described in Supp. Materials and methods.

Zebrafish protein extraction

Request a detailed protocol

Embryos were washed once with chilled Ringers solution, de-yolked by passing through a narrow Pasteur pipette, washed three times in chilled Ringers solution supplemented with PMF (300 mM) and EDTA (0.1 mM). Samples were briefly spun down, media removed, Laemlli buffer 1X was added at 10 µl per embryo and incubated for 10 min at 100°C with occasional vigorous vortexing before chilling on ice. Samples were loaded in polyacrylamide gels or stored at −20°C.

HEK293 cell line transfection, immunohistochemistry and co-immunoprecipitation

Request a detailed protocol

Authenticated HEK293 cells were purchased from ATCC and tested for mycoplasma by PCR. HEK293 cells were grown in six well plates and transfected with 4 µg of each DNA with lipofectamine 2000 (Invitrogen) for 6 hr according to manufacturers instructions.

For immunohistochemistry, cells were fixed 48 hr after transfection in 4% paraformaldehyde in PBS for 20 min at room temperature, washed with PBS, and permeabilized in 0.2% Triton X-100 in PBS for 5 min at room temperature. The protocol was followed as in Supp. Materials and methods.

For immunoprecipitation, cells were grown for 24 hr after transfection and then proteins were extracted following standard methods (Supp. Materials and methods). The eluate from antibody beads (30 µl) was loaded in 10% polyacrylamide gels and proteins were detected by Western blots (standard conditions) using anti-myc (1/20,000, SC-40, SCBT), anti-HA (1/10,000, 3F10, Roche) and anti-β-catenin (1/8000, Sigma, C7207), to detect the co-immunoprecipitated proteins. Antibodies used on Western blots in Figure 3—figure supplement 1B are anti human Tcf7l2 (N-20, SCBT) and anti-gamma tubulin (T9026, Sigma) HRP coupled secondary antibodies (1/2,000, sigma) were used and blots were developed using an ECL kit (Promega).

Mass Spectrometry experiments

Request a detailed protocol

Cell extract proteins were pulled down with streptavidin coated magnetic beads. The protein eluate was run on an SDS-PAGE gel and stained with Coomassie blue. Stained gels were cut, de-stained and Trypsin Gold, Mass Spectrometry Grade (Promega, Madison, USA) in 50 mM ammonium bicarbonate was added in each well containing dried gel pieces and incubated overnight at 37°C. Next day, 0.1% formic acid was added to stop the trypsinolysis and the eluted tryptic peptides were collected in MS glass vials, vacuum dried and dissolved in 0.1% formic acid for LC-MS/MS.

LC-MS/MS analysis was performed with an LTQ-Velos mass spectrometer (Thermo Fisher Scientific, U.K.). Peptide samples were loaded using a Nanoacquity UPLC (Waters, U.K.) with Symmetry C18 180umX20mm (Waters part number 186006527) trapping column for desalting and then introduced into the MS via a fused silica capillary column (100 μm i.d.; 360 μm o.d.; 15 cm length; 5 μm C18 particles, Nikkyo Technos CO, Tokyo, Japan) and a nanoelectrospray ion source at a flow rate at 0.42 μl/min. The mobile phase comprised H2O with 0.1% formic acid (Buffer A) and 100% acetonitrile with 0.1% formic acid (Buffer B). The gradient ranged from 1% to 30% buffer B in 95 min followed by 30% to 60% B in 15 min and a step gradient to 80% B for 5 min with a flow of 0.42 μl/min. The full scan precursor MS spectra (400–1600 m/z) were acquired in the Velos-Orbitrap analyzer with a resolution of r = 60,000. This was followed by data-dependent MS/MS fragmentation in centroid mode of the most intense ion from the survey scan using collision induced dissociation (CID) in the linear ion trap: normalized collision energy 35%, activation Q 0.25; electrospray voltage 1.4 kV; capillary temperature 200°C: isolation width 2.00. The targeted ions were dynamically excluded for 30 s and this MS/MS scan event was repeated for the top 20 peaks in the MS survey scan. Singly charged ions were excluded from the MS/MS analysis and XCalibur software version 2.0.7 (Thermo Fisher Scientific, U.K.) was used for data acquisition. Raw data were analysed using Proteome Discoverer (PD v1.3) with Mascot search engine and Swiss-Prot human and Zebrafish proteome database. Up to two trypsin missed cleavages were allowed, carbamidomethylation was set as a fixed modification, while methionine oxidation, phosphorylation of serine, threonine and tyrosine were set as variable modifications. Mass tolerance was set to eight ppm for the precursors and to 0.6 Da for the fragments.

Yeast two-hybrid assays

Request a detailed protocol

N-terminal deletions of the first 53 amino acids of tcf7l2 splice variants were cloned in pGBK. Full-length β-catenin and a C-terminal deletion of tle3b (NM_131780, complete reading frame after amino acid 210) were cloned in pGAD (Clontech). Combinations of plasmids to test two-hybrid interactions were co-transformed in Y2Gold yeast strain (Suppl. Materials and methods). Transformed yeast were plated on -Leu-Trp dropout selective media agar plates supplemented with X-gal. Positive blue colonies were streaked to an -Ade-His-Leu-Trp dropout selective media agar plates supplemented with Aureoblastidin A and X-gal (Clontech yeast two-hybrid manual).

Appendix 1

Supplementary materials and methods

Genotyping and adult tissue dissection

Genomic DNA was extracted from methanol or 4% paraformaldehyde fixed embryos by incubating in 25 µl of KOH 1.25M, EDTA 10 mM at 95°C for 30 min, and then neutralised with 25 µl of Tris-HCl 2M.

For tissue dissection, adult fish around a year old were culled by deep anesthetising in ice-cold 0.15% 2-phenotyethanol. Liver and pancreas tissue were isolated under a dissecting fluorescence microscope using Tg(fabp10:dsRed)gz4 (Dong et al., 2007) and Tg(XlEef1a1:GFP)s854 (Field et al., 2003) lines to distinguish liver and pancreas respectively. Other organs had clear anatomical boundaries and were easily dissected.

Luciferase Reporter HEK cell transformation and assay conditions

HEK293 cells were grown routinely in DMEM + 10% foetal bovine serum and penicillin/streptomycin (all Gibco from Thermo-Fisher/Invitrogen). White-sided, clear-bottomed 96 well plates (Corning) were seeded at 8,000 cells/well in 100 µl/well medium without antibiotics. All transfections were carried out with Transfectin (Bio-Rad) at a ratio of 3/1 (0.3 µl Transfectin/100 ng DNA). Competition assays were carried out using VP16-TCF4 as the constitutive TCF (Ewan et al., 2010). The following plasmid amounts were used: VP16-TCF4: 43.5 ng/well; 25 ng/well reporter plasmids; 25 ng/well TCF isoform +pcDNA; 6.5 ng/well pcDNA-lacZ totalling 100 ng/well DNA. Transfectin was pipetted into 12.5 µl/well OptiMEM (Gibco/Thermo-Fisher) and the appropriate amount of DNA (above) into another 12.5 µl/well OptiMEM. The two were mixed and complexes were allowed to form over 20 min. The complexes were applied to the cells for 4 hr after which the medium was removed and replaced with a fresh 100 µl/well medium. After 2 days incubation, the medium was removed the cells were lysed in 50 µl/well GLO Lysis buffer (Promega) over 20 min on slow shake. The lysate was then split into two 25 µl/well fractions. The luciferase assay was carried out with 25 µl/well Bright-GLO (Promega) and the lacZ transfection control assay with 25 µl/well Beta-GLO (Promega). All measurements were taken on a Fluostar plate reader (BMG) set to luminescence mode.

HEK293 cell immunohistochemistry and co-immunoprecipitation protocol

For immuno-histochemistry, following cell fixation and permeabilisation, samples were washed with PBS, blocked in 5% albumin, and then incubated at 4°C overnight in mouse anti-MYC antibody high-affinity 9E10 (SCBT) diluted 1:1000 in 1% albumin in PBS. Cells were washed with PBS and incubated at room temperature for 1 hr in Alexa Fluor 568 goat anti-mouse (Molecular Probes, Eugene, OR) diluted 1:1000 in 1% albumin in PBS. Samples were washed with PBS, incubated in DAPI (1:50,000) for 5 min at room temperature, washed again, and mounted.

For Co-IP, following transformation, 350 µl of Lysis Buffer 1 (below) was added and cells were resuspended off the plate by pipetting and lysed on ice for 1 hr gently mixing every 10 min. Samples were then centrifuged at 16.000 g for 15 min at 4°C, to enable removal of the supernatant and samples were then stored on ice. 70 µl of Lysis Buffer two was added to the pellet which was then sonicated three times for 5 cycles at 40% output (Branson 450 sonicator). Tubes were centrifuged at 16.000 g for 15 min at 4°C and the supernatant was collected and added to the supernatant of the previous centrifugation step. Proteins were quantified by BCA method (Sigma, BCA1).

Lysis Buffer 1: NaCl 150 mM, Tris-HCl 80mM pH7.2, NP-40 0.5%, Glycerol 20%. 10 µl of complete protease Inhibitor (Sigma, P-8340), 10 µl of phosphatase Inhibitor 1 (Sigma, P-2850) and 10 µl of phosphatase Inhibitor 2 (Sigma, P-5726) were added before protein extraction for each 1 ml of lysis buffer.

Lysis Buffer 2: NaCl 300 mM, Tris-HCl 20mM pH7.2, SDS 0.01%, Triton 1%, EDTA 2 mM, add 10 µl of complete protease Inhibitor (Sigma, P-8340), 10 µl of phosphatase Inhibitor 1 (Sigma, P-2850) and 10 µl of phosphatase Inhibitor 2 (Sigma, P-5726) were added before protein extraction for each 1 ml of lysis buffer.

For each Immunoprecipitation (IP) experiment condition 40 µl of anti-myc bead slurry (Sigma, A7470) was added to 500 µl of protein sample diluted to 1 µg/µl in IPP buffer (Lysis Buffer 1 but with 5 mM EDTA and no Glycerol), and incubated for 4 hr at 4°C in a small rotator mixer at 4 RPM. Beads were spun for 30 s in a top bench centrifuge, the supernatant removed, and 500 µl of IPP buffer added, and rinsed three times. Samples were centrifuged at 12000 g for 1 min at 4°C, the supernatant was removed and 40 µl of 1.5x Laemmli Buffer was added. Proteins were eluted from the beads by incubating at 95°C for 5 min.

Yeast Transformation

Fresh Y2Gold yeast colony was used to inoculate 3 ml of Yeast Peptone Dextrose Adenine (YPDA) liquid media for 8 hr and then 50 µl of the culture was used to inoculate 50 ml of YPDA and grow over night. The culture was grown until OD600 was 0.16 and then centrifuged at 700 g for 5 min at room temperature. The supernatant was discarded and the yeast resuspended in 100 ml of fresh YPDA liquid media. The culture was grown for 3 hr or until OD600 reached 0.4–0.5, and centrifuged at 700 g for 5 min at room temperature, supernatant was discarded and the yeast pellet was resuspended in 60 ml of water. Yeast were then centrifuged at 700 g for 5 min at room temperature, supernatant was discarded and yeast were resuspended in 3 ml of 1.1X TE/LiAc (Tris-HCl 1 mM, EDTA 1.1 mM, Li Acetate 110 mM, pH 7.5), centrifuged at 16000 g for 15 s, supernatant was discarded and yeast were resuspended in 1.2 ml of 1.1 TE/LiAc. Competent yeast were kept at room temperature and used within less than an hour.

For yeast transformation, herring testis DNA (10 µg/µl, Sigma, D-6898) was denatured at 100°C for 5 min and then chilled on ice. Cells were transformed by mixing 50 µg of herring testis DNA, 400 ng of bait and prey DNA (80 ng/µl), 50 µl of competent yeast, 500 µl of PEG/LiAc (40% Polyethilene glycol (Sigma, P-3640), Lithium Acetate 100 mM), vortexing and incubating at 30°C for 30 min mixing every 10 min. After this 20 µl of DMSO were added, cells were mixed by inversion, and heat shocked at 42°C for 15 min, mixing every 5 min. Cells were then chilled on ice for 2 min, centrifuged at 16000 g for 10 s, supernatant was discarded and yeast were resuspended in 200 µl of sterile TE 1X. All the yeast were plated on specific dropout selective agar plates (Materials and methods).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    XCtBP is a XTcf-3 co-repressor with roles throughout xenopus development
    1. M Brannon
    2. JD Brown
    3. R Bates
    4. D Kimelman
    5. RT Moon
    (1999)
    Development 126:3159–3170.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
    The human T-cell transcription factor-4 gene: structure, extensive characterization of alternative splicings, and mutational analysis in colorectal Cancer cell lines
    1. A Duval
    2. S Rolland
    3. E Tubacher
    4. H Bui
    5. G Thomas
    6. R Hamelin
    (2000)
    Cancer Research 60:3872–3879.
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Wnt Signaling in Development and Disease: Molecular Mechanisms and Biological Functions
    1. S Hoppler
    2. ML Waterman
    (2014)
    Evolutionary Diversification of Vertebrate TCF/LEF Structure, Function, and Regulation, Wnt Signaling in Development and Disease: Molecular Mechanisms and Biological Functions, Hoboken, John Wiley & Sons, Inc.
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
    A morphogen gradient of wnt/beta-catenin signalling regulates anteroposterior neural patterning in xenopus
    1. C Kiecker
    2. C Niehrs
    (2001)
    Development 128:4189–4201.
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
    Ectopic wnt signal determines the eyeless phenotype of zebrafish masterblind mutant
    1. S van de Water
    2. M van de Wetering
    3. J Joore
    4. J Esseling
    5. R Bink
    6. H Clevers
    7. D Zivkovic
    (2001)
    Development 128:3877–3888.
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86

Decision letter

  1. Lilianna Solnica-Krezel
    Reviewing Editor; Washington University School of Medicine, United States
  2. Didier Y Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The authors identify and characterize the function of tcf7l2 splice variants in zebrafish. They find that inclusion of a previously unidentified exon 5 is necessary and sufficient to confer transcriptional repression activity during neurectoderm patterning. Their data further show that the polypeptide encoded by exon 5 interacts with Tle corepressors in a phosphorylation-dependent manner, and suggest that this interaction mediates a general repressor function for Tcf7l2 that can be regulated in vivo. The authors propose that alternative splicing of tcf7l2 exon 5 in zebrafish, and partially homologous exons in other species including humans, can influence the balance between activation and inhibition of Wnt pathway activity.

Decision letter after peer review:

Thank you for submitting your work entitled "Developmentally regulated tcf7l2 splice variants mediate transcriptional repressor functions during eye formation" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and a Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Richard Dorsky (Reviewer #1).

There was a consensus among the reviewers that the manuscript addresses an important question of the mechanism of Tcf7l2 regulation of gene expression and provide an interesting data and model on the role of exon5 in conferring repressor activities to Tcf7l2, and its regulation by phosphorylation of residues encoded by exon5. However, both reviews noted similar weaknesses, especially that additional evidence for the repressor function should be provided, and relevance of the newly identified splice variant of tcfl72 has not been fully demonstrated in vivo. Moreover, the proposed role of Exon5 containing Tcf7l2 protein phosphorylation in promoting its repressor activity requires further experimental support. It was also felt that the amount of experimental effort needed to address these and other concerns raised by the reviewers would take longer than allowed for a revision. Therefore, it is with regret that I need to inform you that we cannot invite a revised manuscript at this time.

Reviewer #1:

In this manuscript by Young, et al., the authors identify specific splice variants of tcf7l2 in zebrafish that include a novel exon and encode isoforms with repressor activity. They show that these variants are expressed in the developing forebrain, and are necessary and sufficient to promote eye formation along with tcf7l1a/b. The authors conclude that Tcf7l2 function in vivo can thus be modified by inclusion of this exon, affecting the balance between activation and repression of Wnt targets.

While the general concept of alternative transcripts affecting Tcf7l2 activation vs. repression has already been explored (Vacik, Stubbs and Lemke, 2011), the work presented here is novel, convincing, and carefully executed. I believe the current findings will be of interest to the field, considering the important roles of Tcf7l2 in development and disease. However the study has several weaker areas that should be addressed to provide a more complete story:

1) Most importantly, the function of protein products including exon 5 need to be more fully characterized. While a compelling case is made for their increased repressor activity, these experiments were carried out in the presumed absence of high Wnt or ß-catenin activity. It is not clear whether exon 5-containing products can also activate targets efficiently in the presence of ß-catenin, a function important for understanding the role of Tcf7l2 isoforms in vivo. For example, Tcf7l1 proteins can function as activators in vitro, but no obvious in vivo role for this activity has been revealed by genetic loss-of-function experiments.

2) Related to the first point, it would be helpful to know whether repressor-specific splice variants are primarily expressed in regions or tissues with low Wnt/ß-catenin signaling. This would support their potential role in target gene repression, and provide a direction for future studies exploring regulation of alternative splicing.

3) The role of Tcf7l2 co-repressor binding domain phosphorylation is incompletely explored. To establish the relevance of their binding and functional assays, the authors should provide evidence that these phosphorylation events take place in vivo, ideally in some regulated manner.

4) It would be helpful if the authors could provide a more comprehensive model for how they think Tcf7l2 contributes to A/P neural patterning. In addition to the partially redundant functions of zygotically expressed Tcf7l1a and Tcf7l1b in zebrafish, maternally deposited tcf7l1a mRNA plays an important role. It appears that the most significant factor in A/P patterning is therefore the gross amount of repressor Tcf isoforms relative to Wnt activity. Do the authors believe that exon 5-containing Tcf7l2 isoforms further contribute to this balance, or are other models possible?

Reviewer #2:

The manuscript by Young and colleagues addresses the question of how the function of Tcf protein Tcf7l2 is altered as a result of alternative splicing.

To understand the contribution of different tcf7l2 splice variants to protein function the authors focused on the CDRD region of the protein, which is known to be alternatively spliced and likely to influence the transcriptional function of the protein. They found that in zebrafish, this region is encoded in part by a previously un-described exon 5. During early somitogenesis stages (12 hpf), two splice variants are expressed, one that includes exon 4 but not 5 (4L-tcf7l2) and one that includes both exons 4 and 5 (45L-tcf7l2). By in situ hybridization the authors show that tcf7l2 is expressed throughout most of the forebrain, including the eye field, from late gastrula stage, and by analyzing an available mutant they find that tcf7l2 homozygous mutant embryos have smaller eyes than normal. By misexpression experiments the authors show that only the protein encoded by 45L-tcf7l2 can rescue the eyeless phenotype of tcf7l1a-/-/tcf7l1b morphant embryos and that in vitro this protein represses transcription of Wnt target genes and appears to have a higher affinity to TLE. Finally the authors propose that two amino acid encoded by exon 5 are likely phosphorylated and this phosphorylation could be critical to the repressor activity of the 45L-Tcf7l2 variant.

Overall the manuscript addresses an important question in the context of a protein that is implicated in developmental processes as well as in cancer and type-2 diabetes. The manuscript is clearly written and the data are generally of high quality. However, there are several major concerns that weaken the overall strength of the work:

1) The authors propose that 45L-Tcf7l2 is the relevant form for repression of Wnt target genes during eye development. If so, then specific loss of function of this form (using the splice MO) should lead to at least the same eye phenotype as seen in tcf7l2 mutants. This is not the case, and the authors discuss the effects of the splicing MO only in the context of tcf7l1a-/- embryos.

2) The conclusion that 45L-Tcf7l2 functions as a repressor relies on its ability to interfere with the strong activation of luciferase by a Tcf7l2-VP16 chimeric protein. This does not prove that 45L-Tcf7l2 acts as a transcriptional repressor, and given that the transcriptional activity of Tcf7l2 variants is a key issue in this work, a more direct proof of repressor activity should be provided.

3) The co-immunoprecipitation experiments are aimed at addressing the differences in binding affinity of Tcf7l2 variants to TLE or β-Catenin. This is problematic given that co-IP is not a quantitative assay, hence it cannot fully support the conclusion of different affinities.

4) The authors propose that the differences between repressor activities of 4L-Tcf7l2 and 45L-Tcf7l2 are caused by phosphorylation of two amino acids in the region encoded by exon 5, and address this by mutating the two residues to Alanine. However, this is very circumstantial and no direct proof of phosphorylation is provided.

In summary, although the work proposes an important mechanism for regulating transcriptional activity of a TCF factor, I feel that the conclusions are not as strongly supported as they need to be for publication in a high-profile journal such as eLife and the contribution of the work is currently incremental.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled "Developmentally regulated tcf7l2 splice variants mediate transcriptional repressor functions during eye formation" for further consideration by eLife. Your revised article has been evaluated by Didier Stainier as the Senior Editor, a Reviewing Editor and two reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

In this manuscript by Young, et al., the authors identify and characterize the function of tcf7l2 splice variants in zebrafish. They find that inclusion of a previously unidentified exon, which they call exon 5, is necessary and sufficient to confer transcriptional repression activity during neurectoderm patterning. Their data further show that the polypeptide encoded by exon 5 interacts with Tle corepressors in a phosphorylation-dependent manner, and suggest that this interaction mediates a general repressor function for Tcf7l2 that can be regulated in vivo. The authors propose that alternative splicing of tcf7l2 exon 5 in zebrafish, and partially homologous exons in other species including humans, can influence the balance between activation and inhibition of Wnt pathway activity.

This is an extremely comprehensive study, including diverse genetic and biochemical approaches, that makes a clear and convincing case for the mechanistic regulation of a gene important for development and disease. The data are novel and are likely to be of interest to a wide audience. While similar mechanisms have been described for other Lef/Tcf family members, they have not been tested as rigorously.

In the revised version the authors have addressed several weak points that were present in the initial submission and improved the manuscript. The additional reporter assay for repressor function is more convincing and the identification of phosphorylated residues by mass spectrometry and their mutational analysis provides strong evidence to support the proposed mechanism that regulates the repressor function of Tcf7l2. The authors have also added data supporting relevance of their findings to human TCF proteins. There are only a few areas where the manuscript could be strengthened:

1) Inclusion of exon 5 is necessary to rescue the eyeless phenotype following loss of tcf7l1a/b, and the authors hypothesize that this is due to the increased affinity for Tle3 from phosphorylated residues in this isoform. However, the 4L and AA isoforms still retain some Tle3 binding affinity, and as pointed out in the Discussion the balance between activation and repression could depend on many factors. To more fully support their model, it seems like a relatively simple experiment would be to overexpress tle3 mRNA with the non-rescuing isoforms and test whether this changes their activity.

Whereas the above experiments are not considered as essential for the manuscript's acceptance, it would strengthen the model. Minimally, a fuller discussion of the concept that "the balance between the levels of Tcf transcriptional repressing versus activating variants" is required. In this discussion, it would be important to mention the observation from data not shown that expression of the 45L form in wild-type background did not cause an overt phenotype (subsection “Zebrafish tcf7l2 exon 5 and human tcf7l2 exon 3a containing variants are able to restore eye formation upon loss of tcf7l1a/b function”, first paragraph). Clearly, this balance might become critical only in certain genotypic scenarios.

2) The authors repeatedly describe tcf7l2 expression as being in the anterior neural ectoderm or in the forebrain. However, they do not distinguish between presumptive telencephalon and diencephalon. Both Figure 1F/G and images from Young et al., 2002, suggest that expression is primarily diencephalic, and while it may partially overlap with tcf7l1a/b it is not identical to these genes. These subtle differences in expression may help explain non-redundant functions of individual Lef/Tcf family members, in addition to their ability to act as transcriptional activators or repressors.

3) The reviewers think that Supplementary Figure 3 should be a main figure rather than supplemental.

https://doi.org/10.7554/eLife.51447.sa1

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

There was a consensus among the reviewers that the manuscript addresses an important question of the mechanism of Tcf7l2 regulation of gene expression and provide an interesting data and model on the role of exon5 in conferring repressor activities to Tcf7l2, and its regulation by phosphorylation of residues encoded by exon5. However, both reviews noted similar weaknesses, especially that additional evidence for the repressor function should be provided, and relevance of the newly identified splice variant of tcfl72 has not been fully demonstrated in vivo. Moreover, the proposed role of Exon5 containing Tcf7l2 protein phosphorylation in promoting its repressor activity requires further experimental support. It was also felt that the amount of experimental effort needed to address these and other concerns raised by the reviewers would take longer than allowed for a revision. Therefore, it is with regret that I need to inform you that we cannot invite a revised manuscript at this time.

The major changes between the original version of the manuscript and the new version are that we now show that exon5 coded Tcf7l2 variants can repress the luciferase reporter under high β-catenin activity conditions and add mass spectrometry evidence that amino acids in the exon5 coded region of Tcf7l2 are phosphorylated. We show that phosphomimicking amino-acids enable exon5 coded Tcf7l2 variants to retain full activity whereas non-phosphorylatable amino acids do not. Finally, we add new data showing that alternative exons in human Tcf7l2 have comparable activity to those in zebrafish suggesting evolutionary conservation of the role of splicing in mediating Tcf7l2 function. Below, we provide a more detailed description of our responses to the reviewer comments and the new data that is included in the paper.

We have addressed all the comments from reviewer 1 and three out of four major comments from reviewer 2. Below we describe the experiments that we have added to the manuscript and how they address the reviewers’ comments, and explain why one of the comments could not be addressed.

Reviewer #1:

[…] 1) Most importantly, the function of protein products including exon 5 need to be more fully characterized. While a compelling case is made for their increased repressor activity, these experiments were carried out in the presumed absence of high Wnt or ß-catenin activity. It is not clear whether exon 5-containing products can also activate targets efficiently in the presence of ß-catenin, a function important for understanding the role of Tcf7l2 isoforms in vivo. For example, Tcf7l1 proteins can function as activators in vitro, but no obvious in vivo role for this activity has been revealed by genetic loss-of-function experiments.

We have added a new dataset of luciferase reporter assays in conditions of high β-catenin activity. Tcf7l2 variants were co-expressed with the Flag-Ax2 construct that outcompetes the endogenous GSK-3β such that it cannot phosphorylate βcatenin, leading to an increase in the levels of β-catenin protein and concomitant downstream pathway activity (manuscript Figure 3A-F). In this experimental setup, exon 5 coding Tcf7l2 variants show less transactivation capacity compared to the variants that do not include exon5 on all the gene promotors we tested. This suggests that inclusion of the exon5 coded fragment in Tcf7l2 promotes its repressive function. We hope that these additional experiments are sufficient to address concerns raised by reviewer 1 (comment #1) and reviewer 2 (comment #2).

2) Related to the first point, it would be helpful to know whether repressor-specific splice variants are primarily expressed in regions or tissues with low Wnt/ß-catenin signaling. This would support their potential role in target gene repression, and provide a direction for future studies exploring regulation of alternative splicing.

We thank the reviewer 1 for pointing this out and agree with this suggestion. We have added additional text explaining how we envisage Tcf7l2 works in the context of Wnt and other Tcfs to contribute to AP neural patterning (subsection “Tcf7l2 transcriptional repression function contributes to forebrain patterning”, last paragraph).

3) The role of Tcf7l2 co-repressor binding domain phosphorylation is incompletely explored. To establish the relevance of their binding and functional assays, the authors should provide evidence that these phosphorylation events take place in vivo, ideally in some regulated manner.

Both reviewer 1 (comment #3) and reviewer 2 (comment #4) comment on the lack of direct evidence for the proposed phosphorylation in the Tcf7l2 exon5 coded region. To address this point, we have added the results from a mass spec experiment on pulled-down Tcf7l2 containing exon 5 expressed in HEK cells. We find that the trypsin fragment containing the region coded by tcf7l2 exon5 is phosphorylated. This result confirms phosphorylation of the amino acids we have studied in the region of Tcf7l2 coded by exon 5.

4) It would be helpful if the authors could provide a more comprehensive model for how they think Tcf7l2 contributes to A/P neural patterning. In addition to the partially redundant functions of zygotically expressed Tcf7l1a and Tcf7l1b in zebrafish, maternally deposited tcf7l1a mRNA plays an important role. It appears that the most significant factor in A/P patterning is therefore the gross amount of repressor Tcf isoforms relative to Wnt activity. Do the authors believe that exon 5-containing Tcf7l2 isoforms further contribute to this balance, or are other models possible?

We thank the reviewer 1 for pointing this out and agree with this suggestion. We have added additional text explaining how we envisage Tcf7l2 works in the context of Wnt and other Tcfs to contribute to AP neural patterning (subsection “Tcf7l2 transcriptional repression function contributes to forebrain patterning”, last paragraph).

Reviewer #2:

[…] 1) The authors propose that 45L-Tcf7l2 is the relevant form for repression of Wnt target genes during eye development. If so, then specific loss of function of this form (using the splice MO) should lead to at least the same eye phenotype as seen in tcf7l2 mutants. This is not the case, and the authors discuss the effects of the splicing MO only in the context of tcf7l1a-/- embryos.

As the reviewer predicts, injecting the tcf7l2 exon 5 specific splicing MO in wildtype embryos leads to reduced eye size. This result implies that exon5 coded stretch of the protein mediates the repressor function of Tcf7l2 and that consequently loss of this exon has a comparable effect on eye formation as observed due to reduced pathway repression seen in the tcf7l1a mutant condition. We have added this data to Figure 3—figure supplement 2C-E and elaborate on the interpretation of this result in the Discussion.

2) The conclusion that 45L-Tcf7l2 functions as a repressor relies on its ability to interfere with the strong activation of luciferase by a Tcf7l2-VP16 chimeric protein. This does not prove that 45L-Tcf7l2 acts as a transcriptional repressor, and given that the transcriptional activity of Tcf7l2 variants is a key issue in this work, a more direct proof of repressor activity should be provided.

In comment #2, reviewer 2 asked us to assess if tcf7l2 variants containing exon 5 were expressed in regions of low levels of Wnt activity. We agree that assessing the expression pattern of alternative exons would be a great contribution to this manuscript. However, given that exon 5 is only 60nt long, detecting this RNA fragment by in situ hybridisation is a technical challenge. We tried to detect exon 5 specific containing splice variants by in situ hybridisation using a sensitive fluorescent multiplexed technique (Molecular Instruments). However, we could not detect any signal over background. We think that the best way to address this issue may be by raising antibodies specific to exon 5-forms, a task that would be beyond the scope of this manuscript.

Please see our response to reviewer 1 comment #1.

3) The co-immunoprecipitation experiments are aimed at addressing the differences in binding affinity of Tcf7l2 variants to TLE or β-Catenin. This is problematic given that co-IP is not a quantitative assay, hence it cannot fully support the conclusion of different affinities.

We also thank reviewer 2 for this suggestion, and based on this we have toned down the interpretation of the interaction we see between Tcf7l2 exon 5 variants and Tle3b in the coIP experiments (subsection “Inclusion of exon 5 enhances the interaction between Tcf7l2 and Tle3b”, last paragraph).

4) The authors propose that the differences between repressor activities of 4L-Tcf7l2 and 45L-Tcf7l2 are caused by phosphorylation of two amino acids in the region encoded by exon 5, and address this by mutating the two residues to Alanine. However, this is very circumstantial and no direct proof of phosphorylation is provided.

Please see our response to reviewer 1 comment #3.

[Editors' note: the author responses to the re-review follow.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

[…] 1) Inclusion of exon 5 is necessary to rescue the eyeless phenotype following loss of tcf7l1a/b, and the authors hypothesize that this is due to the increased affinity for Tle3 from phosphorylated residues in this isoform. However, the 4L and AA isoforms still retain some Tle3 binding affinity, and as pointed out in the Discussion the balance between activation and repression could depend on many factors. To more fully support their model, it seems like a relatively simple experiment would be to overexpress tle3 mRNA with the non-rescuing isoforms and test whether this changes their activity.

We agree that the results from the experiment suggested by the reviewers would add relevant information to the manuscript and performed it. However, overexpression of both 10pg of tcf7l2-AA and 10pg of tle3b mRNA did not rescue eye formation in tcf7l1a-/-tcf7l1b morphants. Moreover, overexpression of 10pg of tle3b mRNA in tcf7l1a-/- mutants led to eyeless embryos. We did not explore why this phenotype arose but we speculate that it may be due to tle3b together with tcf7l1a having an impact on mesoderm or ectoderm patterning prior to eye formation. As this result does not inform our study, we do not include it in the manuscript.

Whereas the above experiments are not considered as essential for the manuscript's acceptance, it would strengthen the model. Minimally, a fuller discussion of the concept that "the balance between the levels of Tcf transcriptional repressing versus activating variants" is required. In this discussion, it would be important to mention the observation from data not shown that expression of the 45L form in wild-type background did not cause an overt phenotype (subsection “Zebrafish tcf7l2 exon 5 and human tcf7l2 exon 3a containing variants are able to restore eye formation upon loss of tcf7l1a/b function”, first paragraph). Clearly, this balance might become critical only in certain genotypic scenarios.

We have further elaborated on balance between activating and repressing variants in the Discussion, subsections “Tcf7l2 transcriptional repression function contributes to forebrain patterning”, second paragraph and “Phosphorylation contributes to the balance of transcriptional activation-repression by mediating the function of Tcf7l2 as a transcriptional repressor”, first paragraph.

2) The authors repeatedly describe tcf7l2 expression as being in the anterior neural ectoderm or in the forebrain. However, they do not distinguish between presumptive telencephalon and diencephalon. Both Figure 1F/G and images from Young et al., 2002, suggest that expression is primarily diencephalic, and while it may partially overlap with tcf7l1a/b it is not identical to these genes. These subtle differences in expression may help explain non-redundant functions of individual Lef/Tcf family members, in addition to their ability to act as transcriptional activators or repressors.

We agree with the reviewers and have further elaborated on the expression pattern of tcf7l2 in the anterior neuroectoderm (subsection “tcf7l2 is broadly expressed in the anterior neural plate”, last paragraph) and have also included details on how the differences in the expression between tcf7l2 and tcf7l1a/b could lead to functional specificity to the Discussion (first paragraph).

3) The reviewers think that Supplementary Figure 3 should be a main figure rather than supplemental.

We agree with the reviewers and Supplementary Figure 3 is now main Figure 2.

https://doi.org/10.7554/eLife.51447.sa2

Article and author information

Author details

  1. Rodrigo M Young

    Department of Cell and Developmental Biology, UCL, London, United Kingdom
    Present address
    Institute of Ophthalmology, UCL, London, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    rodrigo.young@ucl.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5765-197X
  2. Kenneth B Ewan

    School of Bioscience, Cardiff University, Cardiff, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6622-9009
  3. Veronica P Ferrer

    Department of Cell and Developmental Biology, UCL, London, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7687-6151
  4. Miguel L Allende

    FONDAP Center for Genome Regulation, Facultad de Ciencias, Universidad de Chile, Santiago, Chile
    Contribution
    Funding acquisition, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2783-2152
  5. Jasminka Godovac-Zimmermann

    Division of Medicine, UCL, London, United Kingdom
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6820-4128
  6. Trevor C Dale

    School of Bioscience, Cardiff University, Cardiff, United Kingdom
    Contribution
    Supervision, Funding acquisition, Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4880-9963
  7. Stephen W Wilson

    Department of Cell and Developmental Biology, UCL, London, United Kingdom
    Contribution
    Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    s.wilson@ucl.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8557-5940

Funding

Wellcome (088175)

  • Rodrigo M Young
  • Stephen W Wilson

Royal Society (International Joint Project)

  • Miguel L Allende
  • Stephen W Wilson

Medical Research Council (MR/L003775/1)

  • Stephen W Wilson

Wellcome (104682/Z/14/Z)

  • Stephen W Wilson

H2020 Marie Skłodowska-Curie Actions (Marie Curie Incoming International Fellowship)

  • Rodrigo M Young

National Fund for Scientific and Technological Development (1180606)

  • Miguel L Allende

Fund for Research Centres in Priority Areas

  • Miguel L Allende

Cancer Research UK (C1295/A15937H)

  • Kenneth B Ewan
  • Trevor C Dale

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank members of our lab, Florencia Cavodeassi and Mate Varga for stimulating discussions, the UCL fish facility team for fish care and Elke Ober, Richard Dorsky, Marian Waterman, Randy Moon and others for reagents; Masa Kai for advice on Western blot methods and Abdol Nateri for advice on HEK cell protein extraction. We also thank Lucia di Vagno, Graham W Taylor and Mark Crawford for mass spectrometry analysis. This study was generously supported by the MRC (MR/L003775/1 to SW and Gaia Gestri) and Wellcome Trust (088175, 104682/Z/14/Z SW and RY), a Marie Curie Incoming International Fellowship (RY), a Royal Society International Joint Project (SW and MA) and FONDAP (15090007) and FONDECYT (1180606) to MA.

Ethics

Animal experimentation: Ethical approval for zebrafish experiments was obtained from the Home Office UK according to the Animal Scientific Procedures Act 1986.

Senior Editor

  1. Didier Y Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Lilianna Solnica-Krezel, Washington University School of Medicine, United States

Publication history

  1. Received: August 28, 2019
  2. Accepted: November 24, 2019
  3. Version of Record published: December 12, 2019 (version 1)
  4. Version of Record updated: December 13, 2019 (version 2)

Copyright

© 2019, Young et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 374
    Page views
  • 50
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
