A CLC-ec1 mutant reveals global conformational change and suggests a unifying mechanism for the CLC Cl–/H+ transport cycle
- Department of Molecular & Cellular Physiology, Stanford University School of Medicine, United States
- NIH Center for Macromolecular Modeling and Bioinformatics, Beckman Institute for Advanced Science and Technology, Department of Biochemistry, Center for Biophysics and Quantitative Biology, University of Illinois at Urbana-Champaign, United States
- Stanford Synchrotron Radiation Lightsource, Stanford University, United States
- Department of Molecular Physiology and Biophysics, Vanderbilt University, United States
Figures
Figure 1
Key glutamate residues in CLC transporters.
(A) CLC-ec1 wild-type structure (PDB 1ots) showing the external and internal glutamate residues (Gluex and Gluin) in the two subunits of the homodimer. Chloride ions are shown as green spheres. Each subunit independently catalyzes Cl–/H+ exchange. The approximate transport pathways for these ions are indicated with green and blue arrows. The orange box frames the close-up view (shown in panel B) of the Cl–-binding sites along with Gluex. (B) Gluex conformations observed in CLC transporters. Three panels showing structures (top panels) and cartoon representations (bottom panels) depicting the three conformations (‘middle’, ‘up’, and ‘down’) adopted by Gluex in various CLC structures, WT (1ots), E148Q (1otu), and cmCLC (3org). The Sext and Scen anion-binding sites are labeled in the WT cartoon at left. (C) QQQ structure reveals a new conformation for Gluex. Structure and cartoon representations as in panel B. (D) Overlay of Gluex/Glnex conformations seen in QQQ (purple), E148Q (blue), WT (grey) and cmCLC (pink). (E) Overlays (stereoview) of WT (grey) and QQQ (purple) illustrate changes in positioning of conserved residues near Gluex.
Figure 2 with 2 supplements
Helices M-N-O-P move to widen the extracellular vestibule.
(A) Comparison of pore radius profiles of CLC-ec1 with Gluex in the ‘middle’ (WT), ‘up’ (E148Q), and ‘out’ (QQQ) positions. The pore-radius profile, calculated using HOLE, is aligned with the structure at left (E148Q) to indicate the position of the Sext and Scen anion-binding sites. (B) Two views of the CLC-ec1 E148Q structure, with ribbons highlighting helices M-N-O-P (helices located in the extracellular half of the protein) and F (located in the intracellular half). (C) Overlay of the CLC-ec1 QQQ structure (purple) with E148Q (blue) following structural alignment using segments of helices B, F, G, and I (residues 35–47, 153–164, 174–190, and 215–223). (D) Plot of the differences in Cα positions between WT CLC-ec1 and QQQ (purple) or between WT and E148Q (blue), based on the B-F-G-I structural alignment. The black bars indicate 17 of the 18 alpha helices. (Density for Helix A is absent in QQQ.) The locations of Glnex and Glnin are marked as solid-black circles and squares, respectively. The differences in the H-I and I-J linkers are not shown here but are discussed below and in Figure 5—figure supplement 2. (E) Zoomed-in view of the structural overlay between CLC-ec1 QQQ and E148Q, showing changes in the positions of conserved residues F190, F199, and F357 and the corresponding electron density from the QQQ structure determination. Additional views are shown in Figure 2—figure supplement 1. (F, G) Illustration of interatom distances at the extracellular bottleneck that are increased in QQQ (G) compared to E148Q (F). Comparisons of Cl– coordination distances are shown in Figure 2—figure supplement 2.
Figure 2—figure supplement 1

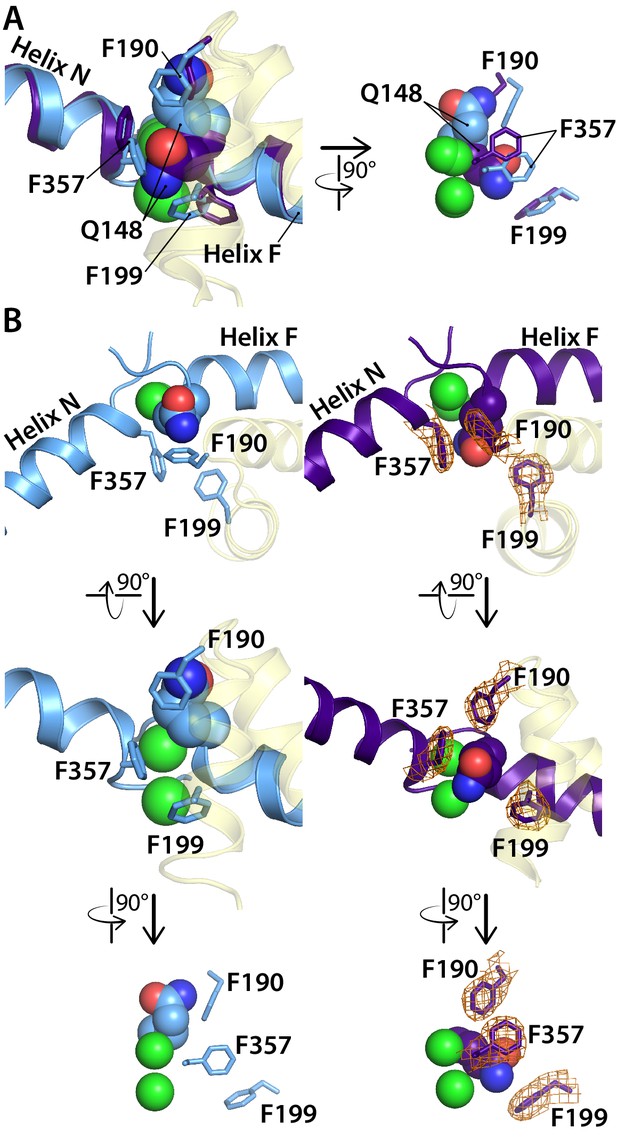

Comparison of the CLC-ec1 QQQ structure to the E148Q (Gluex to Gln) structure in the vicinity of the Sext binding site.
(A) Overlay of E148Q (blue) and QQQ (purple). Conserved residues F190, F199, and F357 are shown as sticks. (B) Side-by-side comparison of E148Q (left) and QQQ (right), with electron density shown (2Fo-Fc map at 1σ contour level) in QQQ for the repositioned residues F190, F199, and F357.

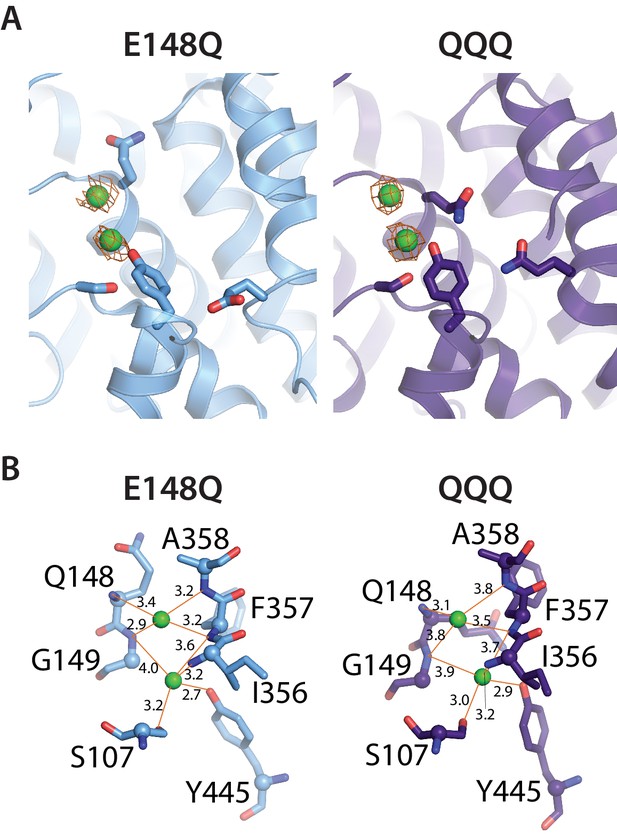

Figure 2—figure supplement 2
Cl– binding sites in QQQ CLC-ec1.
(A) 2Fo-Fc maps (1σ contour level) for QQQ and E148Q show electron density consistent with Cl– binding to both the Scen and Sext sites. (B) Close-up views of the Sext site in E148Q and QQQ, illustrating the increased protein/Cl–coordination distances in the QQQ mutant. The coordination distances at the Scen site are identical between E148Q and QQQ.
Figure 3 with 1 supplement
The intracellular constriction remains narrow in QQQ.
The inter-residue distance between S107 and Y445, conserved residues forming the intracellular constriction, is similar in WT and QQQ (grey and purple in top left panels and overlay below). The equivalent positions in the CLC-1 channel (green, top right panel) are separated by a greater distance, despite the similarity in Gluex conformation between CLC-1 and QQQ (overlay in bottom right panel).
Figure 3—figure supplement 1

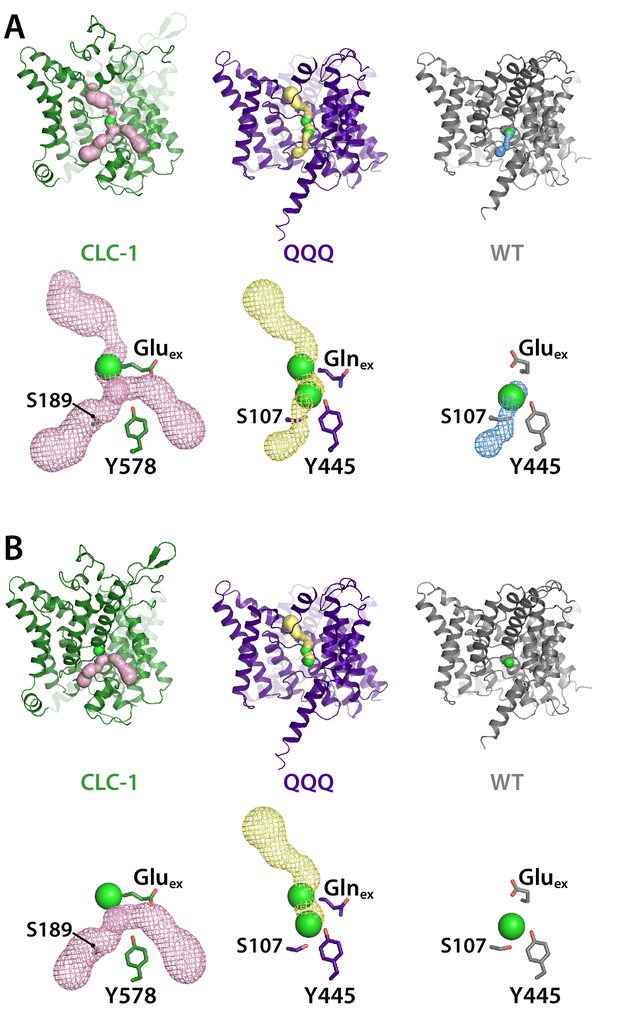

Pore profiles for CLC-1, QQQ, and WT CLC-ec1.
Pores were detected using Caver (Chovancova et al., 2012) with probe radius 0.9 Å (A) or 1.2 Å (B), starting from Scen (defined by the Cl– ion in 1ots).
The bottom panels in each section show mesh representations of the pores, with Gluex/Glnex and the intracellular Ser and Tyr residues shown in stick representation. Cl– ions at Sext (CLC-1 and QQQ) and Scen (QQQ and WT CLC-ec1) are shown space-filled.
Figure 4
Cl– binding and transport by QQQ and E148Q CLC-ec1.
(A) Cl– binding measured by ITC for QQQ (top panels) and E148Q (bottom panels), at pH 7.5. At left are shown representative data from ITC experiments. At right are shown representative size-exclusion chromatograms of samples before and after the ITC experiment (pre- and post-ITC chromatograms). The dotted line in the pre-ITC chromatogram represents the fraction that was collected for use in the ITC experiment. The sample was run again following the ITC experiment to confirm the sample was stable throughout the experiment. The summary tables show results for 3 experiments performed on 3 separate protein preparations. Averages (± SEM) for E148Q (Kd = 116 ± 6 µM) and QQQ (Kd, = 138 ± 26 µM) are not statistically different (p = 0.19). (B) Cartoon depiction of the Cl– flux assay. The Gluex mutants E148Q and QQQ catalyze downhill transport of Cl–. Bulk movement of Cl– is initiated by the addition of valinomycin, and extravesicular Cl– is quantified using a Ag·AgCl electrode. (C) At pH 7.5, Cl– transport through the CLC-ec1 QQQ mutant is ~2 fold faster compared to E148Q. The top panel shows representative primary data from the flux assay. The bar graph shows summary data, ± SEM, with n = 12 for each mutant (open circles, samples from 3 independent protein preparations). (D) At pH 4.5, favoring protonation of glutamate residues, Cl– transport through E148Q increases by 2-fold, to within 20% the Cl–-transport rates by QQQ. The bar graph shows summary data, ± SEM, with n = 12 for each mutant (open circles, samples from 3 independent preparations).
-
Figure 4—source data 1
Contains the source data for the transport rates shown in Figure 4C,D.
- https://cdn.elifesciences.org/articles/53479/elife-53479-fig4-data1-v2.xlsx
Figure 5 with 3 supplements
Cα difference distances matrices.
Color-blind friendly versions of these plots are shown in Figure 5—figure supplement 1. Difference distance matrix comparing WT CLC-ec1 (1ots) to QQQ reveals intramolecular rearrangements throughout the protein. Differences are between Cα residues on helices; differences in linker regions are discussed in Figure 5—figure supplement 2. (B) Comparison of WT to E148Q (1otu) or E203Q (2fec) reveals only minor (≤0.8 Å) changes. (C) Illustration of inverted topology repeat domains in CLC-ec1. Repeat 1 (Helices B-I, pink) is arranged pseudosymmetrically with Repeat 2 (teal). Helix R (grey) is not part of the repeat domains. Helix A, the N-terminal cytoplasmic helix, is also not part of the repeats; it is not resolved in the QQQ structure and not shown here. (D) Changes occur both within and between the inverted topology repeat domains. Matrices are the same as in panel A, laid out to focus on comparing changes within each Repeat domain (left and middle panels) or between the Repeat domains (right panel). Helices G-I (Repeat 1) and J-N (Repeat 2) move substantially relative to one another, while the equivalent sets (O-Q in repeat 2 and B-F in repeat 1) undergo more modest relative changes.
-
Figure 5—source data 1
Excel spreadsheet of difference distance matrices shown in Figure 5.
- https://cdn.elifesciences.org/articles/53479/elife-53479-fig5-data1-v2.xlsx
-
Figure 5—source data 2
Summary of RMSD values between inverted Repeat domains in WT and QQQ.
- https://cdn.elifesciences.org/articles/53479/elife-53479-fig5-data2-v2.xlsx
Figure 5—figure supplement 1

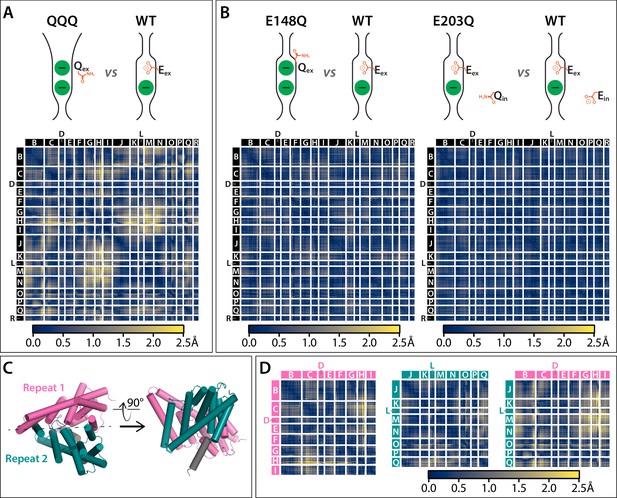

Cα difference distances matrices with color-blind friendly color palette.
(A) Difference distance matrix comparing WT CLC-ec1 (1ots) to QQQ reveals intramolecular rearrangements throughout the protein. (B) Comparison of WT to E148Q (1otu) or E203Q (2fec) reveals only minor (≤0.8 Å) changes. (C) Illustration of inverted topology repeat domains in CLC-ec1. Repeat 1 (Helices B-I, pink) is arranged pseudosymmetrically with repeat 2 (teal). Helix R (grey) is not part of the repeat domains. Helix A, the N-terminal cytoplasmic helix, is not resolved in the QQQ structure and not shown here. (D) Changes occur both within and between the inverted topology repeat domains. Helices G-I (repeat 1) and J-N (repeat 2) move substantially relative to one another, while the equivalent sets (O-Q in repeat 2 and B-F in repeat 1) undergo more modest relative changes.
Figure 5—figure supplement 2
Linker rearrangements in the QQQ structure are observed at the extracellular I-J linker and the intracellular H-I linker.
(A) Structural overlay of WT CLC-ec1 (1ots) and QQQ. The WT structure (one subunit) is shown in grey. Overlaid in purple is the structure of QQQ from residues 203 to 237, encompassing Helices H and I in addition to the H-I and I-J linkers. Expanded views show electron density for the I-J and H-I linkers. The I-J linker interacts with the Fab fragment in other structures, whereas no Fab fragment was used in determination of the QQQ structure. The relatively large movement of the H-I linker (residues 205–213) is consistent with known flexibility of this linker. Previously, it was shown that an inter-subunit cross-link at Q207C forms readily even though the residues are separated by ~15 Å across the dimer interface (Nguitragool and Miller, 2007). Movement of the H-I linker is not of functional significance, as the cross-link has no effect on transport activity (Nguitragool and Miller, 2007). (B) Views of the H-I linker in the context of the previous cross-linking results. In WT (grey) and QQQ (purple), residues Q207 on the two subunits are separated by 15 Å. In the Q207C structure (yellow, PDB 2r9h), in which the Q207C residues are cross-linked, the H-I linker is not visible, and thus the exact positioning of the disulfide bond is uncertain; however, the overall transporter structure (including E203, Gluin) is unaffected by the cross-link (Nguitragool and Miller, 2007).

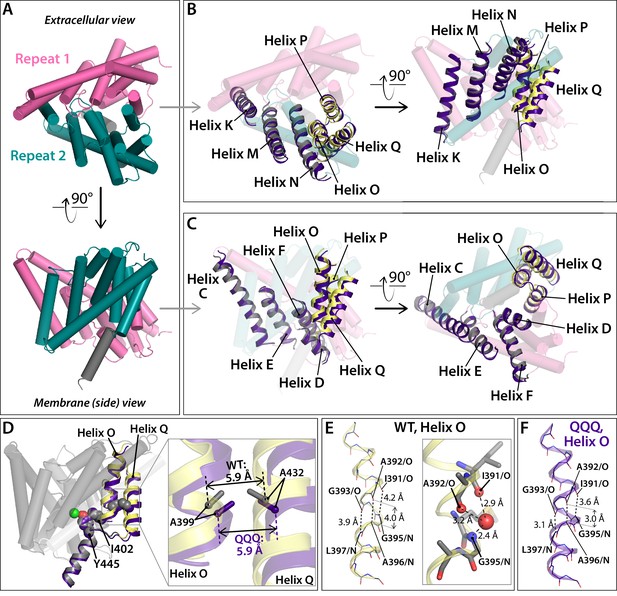

Figure 5—figure supplement 3
Conformational change at Helices O-Q.
(A) View of one CLC subunit, highlighting Repeat 1 in pink and Repeat 2 in teal. Helix R (not part of the repeats) is shown in grey. (B, C) Movement of Helices O-Q (part of Repeat 2) relative to Helices K, M, N (Repeat 2). The compared helices are shown in ribbon, with QQQ in purple and WT in gray (Helices K, M, N) or yellow (O–Q). Other helices (WT) are shown as transparent cylinders. (D) View of Helices O and Q indicating the positions of residues A399 (Helix O) and A432 (Helix Q), which when cross-linked cause transport inhibition. At left, the view of one subunit shows residues A399, A432, I402, and Y445 in spacefill. Residue I402 connects Helix O to the inner-gate residue Y445, and mutation of I402 to Ala alleviates inhibition by the 399–432 cross-link (Basilio et al., 2014). At right, the expanded view shows that the relative positioning of residues A399 and A432 is not significantly changed in QQQ compared to WT. (E) In WT CLC-ec1, Helix O kinks at a conserved glycine residue, G393. (F) In QQQ, the Helix straightens, and there is no water molecule observed near the 391–393 positions.
Figure 6 with 1 supplement
Conformational change at Helices G-I and repositioning of Glnin (Helix H).
(A) View of one CLC subunit, highlighting Repeat 1 in pink and Repeat 2 in teal. Helix R (not part of the repeats) is shown in grey. (B) Movement of Helices G-I (part of Repeat 1) relative to Helices K, M, N (Repeat 2). The compared helices are shown in ribbon, with QQQ in purple and WT in gray (Helices K, M, N) or yellow (G–I). Other helices (WT) are shown as transparent cylinders. The inset illustrates how the movement of Helix H away from Helix N creates space to avoid steric conflict with Glnex in the ‘out’ position. (C) Movement of Helices G-I relative to other helices in Repeat 1. The compared helices are shown in ribbon, with QQQ in purple and WT in gray (Helices C-E) or yellow (G–I). Other helices (WT) are shown as transparent cylinders. (D) Close-up view showing movement of Helix H (containing Glnin) away from Helix D. (E) Conformational change at Glnin moves it away from Q113. (F) Movement of Glnin to the hydrophobic core of the protein brings it to within 6 Å of Glnex. Electron density for Glnex, Glnin, and an intervening water molecule is shown in mesh.
Figure 6—figure supplement 1

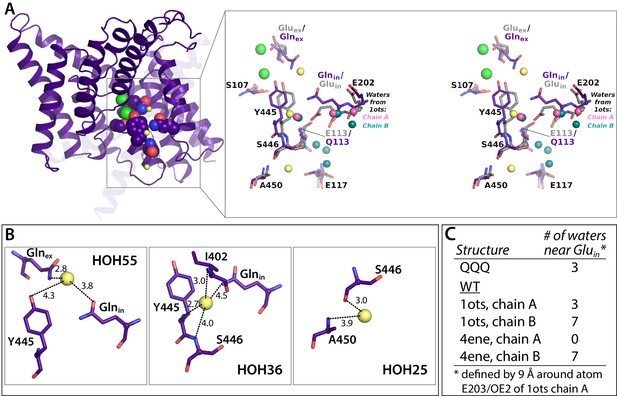

Crystallographic water molecules near Glnin.
(A) Left: 1 subunit of QQQ CLC-ec1. The three water molecules within 9 Å of Glnin (see panel C) are shown as yellow spheres. Glnex, Glnin, Cl– ions, and inner-gate residues Y445 and S107 are shown in spacefill. Right: zoomed in stereoview of the boxed region, showing QQQ (purple) overlaid with WT (1ots) CLC-ec1 (grey). Water molecules seen in subunits A and B of 1ots are shown in pink (three water molecules) and teal (seven water molecules) respectively. (B) Close-up views of the three crystallographic water molecules near Glnin in QQQ, showing distances of potential coordinating atoms. (C) Comparison of water molecules near Glnin/Gluin in QQQ, 1ots, and 4ene, a CLC-ec1 construct with trimmed N- and C-termini, which behaves functionally like WT (Lim et al., 2012). 1ots and 4ene have the highest resolution among the reported structures with WT sequences. Overall, the total number of modeled waters associated with the protein dimer in each structure is 110 (QQQ), 167 (1ots), and 52 (4ene). The higher number of water molecules in 1ots is due to the modeling of waters with less stringent parameters (more clashes of waters with protein atoms and the modeling of waters farther than 3.5 Å from the protein atoms). 1ots also has high R factors (Rwork = 0.26 and Rfree = 0.30).
Figure 7 with 2 supplements
DEER spectroscopy reveals that the QQQ conformation is similar to WT CLC-ec1 at low pH.
(A) Cartoon depiction of the hypothesis. At pH 7.5, the deprotonated Gluex and Gluin residues will adopt conformations observed in the WT CLC-ec1 crystal structure, while at pH 4.5 they will adopt conformations observed in the QQQ structure, promoting an overall conformational change that leads to widening of the extracellular vestibule. (B) – (F) DEER measurements on spin-labeled WT and QQQ CLC-ec1 (both in a cysteine-less background). WT CLC-ec1 exhibits pH-dependent changes in inter-subunit distance distributions for spin labels positioned on Helix N, O, P, or G. QQQ CLC-ec1 DEER measurements show little to no pH dependence and have distance distributions similar to those observed with WT at low pH. The lower panels illustrate the position of each labeled residue on the protein and the Cα inter-subunit distances observed in WT versus QQQ. pH-dependent changes at D417C were shown previously for WT (Khantwal et al., 2016). Data for samples with spin labels at residue 373, 385, 417, or 171 were acquired using the standard four-pulse protocol; data for the sample labeled at residue 374 were acquired using the five-pulse protocol (Figure 7—figure supplement 1).
Figure 7—figure supplement 1

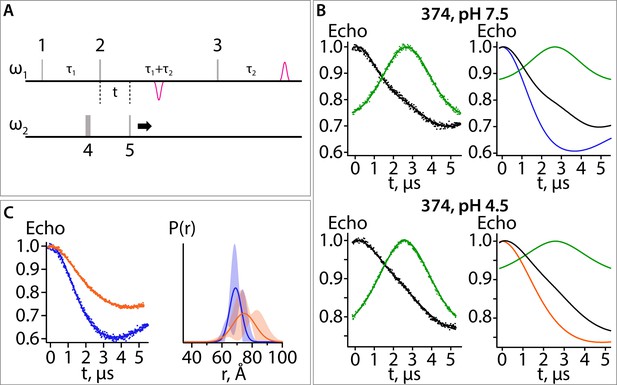

Five-pulse DEER experiment: breakdown of the fitting procedure.
(A) Diagram of the 5-pulse DEER experiment. Pulses 1–3 are at frequency 1 (ω1) and pulses 4 and 5 are at frequency 2 (ω2). Pulses 1–3 are square pulses of length 16, 32, and 32 ns, respectively. Pulse 5 is a 200 ns chirp pulse starting at 77 MHz and ending at 47 MHz from frequency 1. Pulse 4 is a 40 ns square pulse positioned 62 MHz from frequency 1. The time intervals, τ1 and τ2, are 2.8 and 2.9 μs, respectively. (B) Data for sample with spin label at position 374 at pH 7.5 (upper panels) and 4.5 (lower panels). The data shown in the left panels were collected with all five pulses (black) or with the amplitude of pulse five set to zero (green). The former experiment provides a combination of a pure five-pulse decay and a four-pulse artefact; the latter provides a measure of the four-pulse artefact. These data were analyzed to obtain the pure 5-pulse traces, shown as the blue and orange traces in the right panels. The 5-pulse experimental results (black) are a scaled sum of the pure 5-pulse traces (blue for pH 7.5; orange for pH 4.5) and the scaled 4-pulse artefact (green). The scaling factors are obtained as variables in the fitting routine. (C) On the left are the pure five-pulse data obtained from removing the four-pulse artefact, as described in (B). On the right are the single Gaussian distributions and confidence bands for the two conditions. These data are the same as those shown in Figure 7C.
Figure 7—figure supplement 2

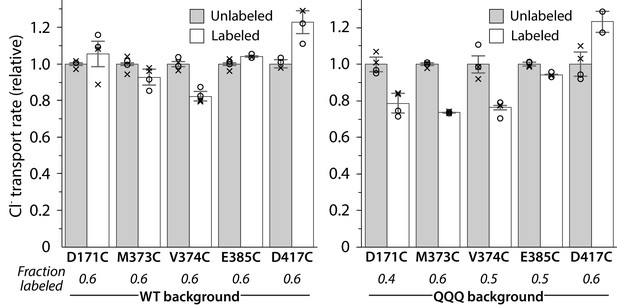

Activity of spin-labeled DEER samples.
Protein was reconstituted into liposomes before and after spin-labeling at the substituted cysteine residue. Unitary Cl– transport rates are shown for measurements from two reconstitution samples performed on the same protein preparation that was used for DEER measurements. Circles and crosses represent duplicate measurements from the first and second reconstitution sample, respectively. For D417C/QQQ, one sample was lost, so only one set of duplicates is shown. Error bars show either the measurement range (D417C/QQQ) or the range of the duplicate averages (all other samples). Turnover rates of labeled mutants are shown normalized to the turnover rate of the respective unlabeled sample.
-
Figure 7—figure supplement 2—source data 1
Contains the source data for the absolute values of the transport rates shown normalized in Figure 7—figure supplement 2.
- https://cdn.elifesciences.org/articles/53479/elife-53479-fig7-figsupp2-data1-v2.xlsx
Figure 8 with 3 supplements
Water pathways between Glnex and intracellular bulk.
(A) A simulation snapshot showing a continuous water pathway directly connecting Glnex to the intracellular bulk water in one of the subunits. (B) Zoomed in view of the water pathway. In this example, which represents the most frequently observed water pathway (89% of the water pathways), Glnin has rotated away from the position observed in the QQQ crystal structure to make room for the water pathway. The purple side chains show the residue positions observed in the crystal structure; the orange side chains show the residue positions in a representative simulation snapshot. Conserved residue E202 also rotates from its starting position. (C) Overall water occupancy map (density contoured at isovalue 0.35) for the side-chain configuration shown in panel B. (D) Water pathways between Glnex and the intracellular bulk water arise spontaneously throughout the 600-ns simulation. Each vertical line in the panels shows the occurrence of a Glnex/bulk-connecting water pathway at that time point, with the length of the line representing the number of water molecules in the shortest path. The number of water molecules needed to reach the bulk water follows a normal distribution dominated by 5–6 water molecules.

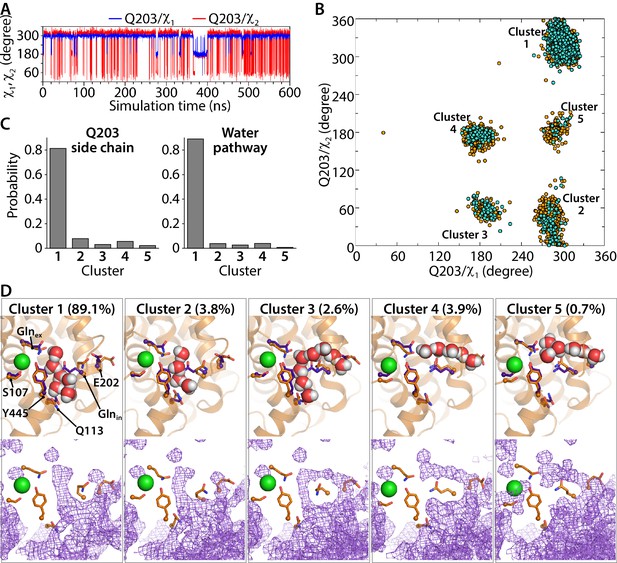

Figure 8—figure supplement 1
Water pathways and conformational dynamics of Glnin (Q203) side chain orientation.
(A) Traced dihedral angles of Q203 during the simulation of the CLC-ec1 QQQ mutant show that the Q203 side chain is flexible and undergoes dynamical changes over the course of the simulation. (B) 2D scatter map of Q203 dihedral angles reveals five main clusters of side-chain conformations sampled during the equilibrium simulation. Each dot represents one pair of the dihedral angles of Q203 from snapshots taken at 100-ps intervals in the simulation. The frames with continuous water pathways are shown in cyan. (C) The distribution of the side-chain conformations of Q203 over the trajectory (left panel) shows that Cluster 1 is most populated. This conformation also captures most of the water pathways (right panel) during the simulation. The water-pathway probability is normalized to the total number of water pathways. (D) Representative simulation snapshots with Glnin in different conformations, showing continuous water pathways between Glnex and the intracellular bulk. Clusters 4 and 5, representing less than 5% of the pathways, reach intracellular bulk water via an alternate pathway. Lower panels show the overall water occupancy maps for each cluster in the simulation. Density is contoured at isovalue 0.35.
-
Figure 8—figure supplement 1—source data 1
Zip file containing five MD snapshot pdb files representing the Cluster-1 through Cluster-5 water pathways shown in Figure 8—figure supplement 1.
- https://cdn.elifesciences.org/articles/53479/elife-53479-fig8-figsupp1-data1-v2.zip

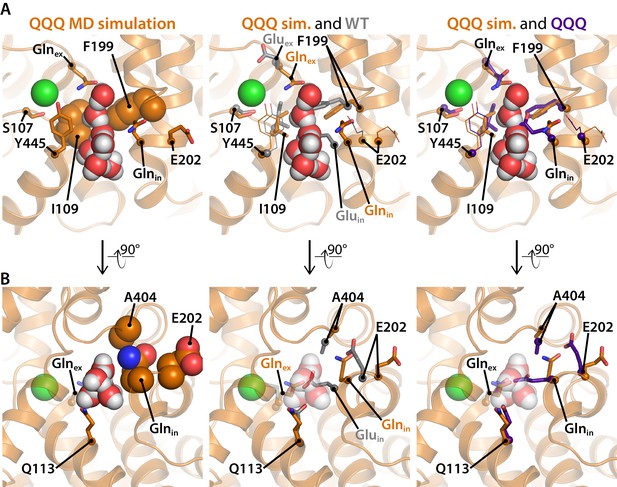

Figure 8—figure supplement 2
Residues of interest near the inner water pathway.
(A) The left panel shows that the inner water pathway is lined by F199 and I109; at the latter position, mutations were found to specifically inhibit the H+ branch of the CLC transport cycle (Han et al., 2014). S107 and Y445, located at the inner gate of the Cl–-permeation pathway, are shown for orientation. The middle and right panels show overlays to compare side-chain positioning in the simulation snapshot to side-chain position in the WT and QQQ crystal structures, respectively. Glnin and F199 side chains project into the water pathway and must rearrange to accommodate water entry into the cavity. (B) A rotated view of the inner water pathway shows tight packing of residues around Gluin/Glnin and the ‘interfacial pathway’ residues E202, and A404 (left panel). The same view with overlay of side chains from the WT crystal structure (middle panel) and the QQQ crystal structure (right panel) show that water entry requires rotation of Gluin/Glnin away from crystallographic conformations. The tight packing explains how substitutions of large residues for E202 or A404 (Lim et al., 2012; Han et al., 2014) would obstruct Gluin/Glnin from moving to accommodate the inner water pathway.
Figure 8—figure supplement 3

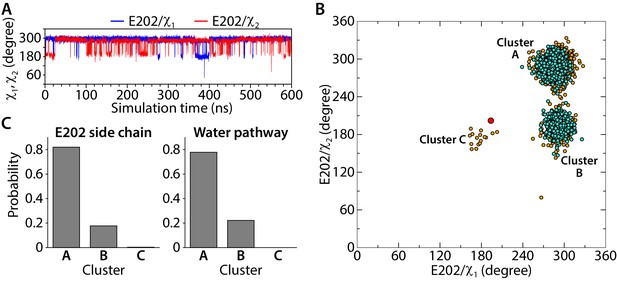

Conformational dynamics of the E202 side-chain orientation.
(A) Traced dihedral angles of E202 during the simulation of the CLC-ec1 QQQ. (B) 2D scatter map of E202 dihedral angles reveals 3 clusters of side-chain conformations sampled during the equilibrium simulation. Each dot represents one pair of the dihedral angles of E202 from snapshots taken at 100-ps intervals in the simulation. The frames with continuous water pathways are shown in cyan. The large red dot represents the starting position for E202, observed in the QQQ crystal structure. (C) The distribution of the side-chain conformations of E202 over the trajectory (left panel) and water pathways (right panel, normalized to the total number of water pathways). Water pathways are only observed when E202 is in the cluster A or B conformation, rotated away from its starting position.
Figure 9 with 1 supplement
Proton pumping by CLC-ec1 with neutralized Gluin (E203A).
(A) Cartoon depiction of the H+/Cl– flux assay. Extravesicular [Cl–] and [H+] are simultaneously measured using Ag·AgCl and pH electrodes, respectively. The experimental setup involves a 2-fold gradient for H+, such that any leak will involve movement of H+ out of the vesicles, and any H+ movement into the liposomes must occur via transport coupled to the Cl– gradient (pumping). (B) Representative Cl– and H+ traces (upper and lower panels, respectively) for CLC-ec1 mutants with a neutral residue at either Gluin (E203A) or Gluex (E148Q). (C) Summary data showing Cl– and H+ transport rates, average ± SEM. For E203A, n = 4 (samples from two independent protein preparations); for E148Q, n = 8 (samples from four reconstitutions done with protein from three preparations). (D) Cl–/H+ stoichiometry for E203A, with WT CLC-ec1 shown for comparison. Stoichiometry is determined from the ratio of the ion transport rates (panel C). WT samples are from experiments done on the same days as the E203A and mutant samples shown in Figure 9—figure supplement 1, with n = 10 (samples from five reconstitutions done with protein from four preparations).
-
Figure 9—source data 1
Contains the source data for the transport rates shown in Figure 9 and Figure 9—figure supplement 1.
- https://cdn.elifesciences.org/articles/53479/elife-53479-fig9-data1-v2.xlsx
Figure 9—figure supplement 1

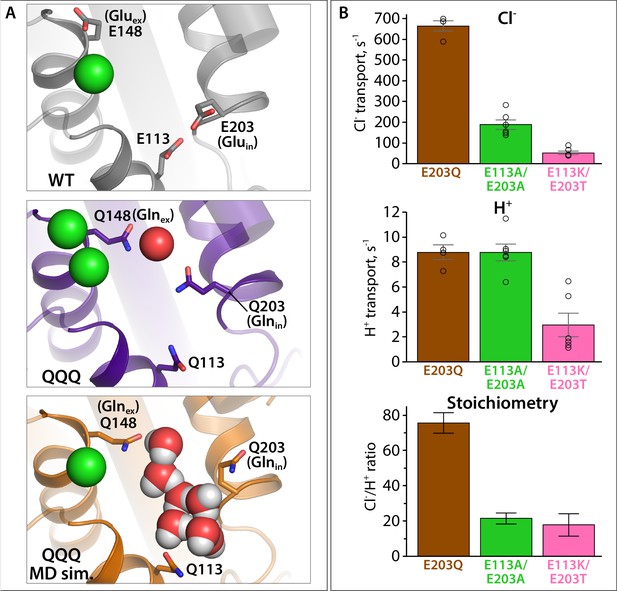

Proton pumping by CLC-ec1 variants with substitutions at Gluin and E113.
(A) Structural views showing positioning of Gluin/Glnin (E203/Q203) and E113/Q113 in WT CLC-ec1, QQQ, and in a simulation snapshot of QQQ. (B) Summary data showing Cl– and H+ transport rates, and Cl–/H+ coupling stoichiometry, averages ± SEM. For E203Q, n = 4 (samples from two independent protein preparations); for E113A/E203A and E113K/E203T, n = 6, with samples from two independent protein preparations.
Figure 10
Proposed new framework for the CLC Cl–/H+ transport cycle.
(A) Starting from state A, which reflects the structure seen in WT CLC-ec1, a single Cl– is bound, and Gluex is in the ‘middle’ position. Gluin and E113 are in a H-bonded configuration, restricting water access to the center of the protein. Moving clockwise, binding of Cl– from the intracellular side displaces Gluex by a ‘knock-on’ mechanism (Miller and Nguitragool, 2009), making it available for protonation from the extracellular side (State B). This protonation step generates state C, which reflects the structure seen in E148Q CLC-ec1, with Gluex in the ‘up’ conformation. A subsequent H+-induced conformational change generates a state D (captured in the QQQ mutant structure), which has an open extracellular vestibule and new positionings for Gluex and Gluin. Conformational dynamics of Gluin allows water pathways to connect Gluex directly to the intracellular bulk water, as in state E. From State E, deprotonation of Gluex promotes its return to the anion pathway, in competition with Cl– (state F). Binding of Cl– from the intracellular side, coordinated with inner-gate opening (Basilio et al., 2014) (reflected by the dotted lines) generates the original state A. (B) The updated transport model is consistent with Cl–/H+ exchange seen in transporters that do not have a titratable residue at the Gluin position, such as cmCLC. The upper panel shows a structural overlay of QQQ and cmCLC, highlighting the positions of the Thr and Lys residues occurring at the Gluin and E113 positions respectively. The lower panel is a cartoon depiction of the water pathway.
Author response image 1
Modeling results for expected distance distributions using MMM (left panels) or MDDS (right panels).
While neither method perfectly matches the width of the distance distribution, as expected (Alexander et al. (2013) PLoS One. 8(9):e72851), they support that the changes seen in the DEER data are reflective of the changes in the crystal structure.
Videos
Video 1
QQQ structure.
Glnex and inner-gate residues are shown as sticks. The pore profile detected using Caver with probe radius 1.2 Å, starting from Scen, is indicated in yellow.
Video 2
Dynamics of water pathways and the Glnin side chain in the QQQ mutant simulation.
Representative segment of the simulation (250.5–337.5 ns, Figure 8A) showing the dramatic hydration of the hydrophobic lumen by water penetration from the intracellular bulk. The Glnex (Q148) side chain is accessible to the intracellular bulk through the continuous water pathways spontaneously and frequently formed during the simulation. The water pathway conformations undergo dynamical changes in response to the side-chain orientations of Glnin. Protein helices are shown as orange ribbons. The Cl– ion at the Scen site is shown as a green sphere. Key amino acids in proximity of the water pathways or involved in Cl–-coordination are shown. See also Figure 8 and Figure 8 supplements.
Video 3
The inner water pathway.
Video shows the starting conformation of QQQ, with residues Glnex, Glnin, and E113Q shown as sticks. The same residues in the WT structure are then shown for comparison, along with the side-chain conformational changes that occur in the MD simulation to allow formation of water pathways from the intracellular side. The water pathway shown corresponds to Cluster 1 in Figure 8—figure supplement 1D.
Tables
Table 1
Data collection and refinement statistics. Values in parentheses are for highest-resolution shell
| QQQ | |
|---|---|
| Data collection | |
| Space group | I222 |
| Cell dimension | |
| a, b, c (Å) | 80.97, 120.44, 122.57 |
| α, β, γ (°) | 90.0, 90.0, 90.0 |
| Resolution (Å) | 28.64–2.62 (2.73–2.62) |
| Rmerge | 0.164 (0.817) |
| I/ σI | 8.4 (1.6) |
| Completeness % | 97.5 (83.1) |
| Redundancy | 7.4 (4.5) |
| Refinement | |
| Resolution (Å) | 39.26–2.62 (2.68–2.62) |
| Number of reflections | 17029 |
| Rwork/Rfree | 0.192/0.262 |
| (0.282–0.293) | |
| Number of atoms | |
| Protein | 3252 |
| Ions | 3 |
| Water | 55 |
| B-factors | |
| Protein | 64.9 |
| Ions | 83.9 |
| Water | 70.2 |
| r.m.s deviations | |
| Bond length (Å) | 0.005 |
| Bond angle (°) | 1.329 |
| Ramachandran favored | 96.3 |
| Ramachandran outliers | 0 |
Key resources table
| Reagent type (species) or resource | Designation | Source or reference | Identifiers | Additional information |
|---|---|---|---|---|
| Strain, strain background (Escherichia coli) | XL10 Gold | Agilent | 200314 | Chemically competent cells for DNA propagation |
| Recombinant DNA reagent | pASK-CLC-ec1 (plasmid) | PMID:14718478 | Plasmid containing CLC-ec1 | |
| Chemical compound, drug | n-Decyl-β-D-maltoside | Anatrace | D322 | High-purity detergent for protein purification |
| Chemical compound, drug | Lauryl Maltose Neopentyl Glycol (LMNG) | Anatrace | NG310 | High-purity detergent for protein purification |
| Chemical compound, drug | E. coli polar lipid extract | Avanti Polar lipids | 100600C | Lipids for protein reconstitution |
| Chemical compound, drug | Isethionic acid | Wako Chemicals | 350–15765 | Acid form of isethionate, used in transport assays |
| Chemical compound, drug | 1-Oxyl-2,2,5,5,-tetramethylpyrroline-3-methyl methanethio-sulfonate | Fisher Scientific | NC9859662 | Spin label for DEER spectroscopy |
| Sequence-based reagent | forward sequencing primer, pASK/CLC-ec1 | IDT | 5’-CCACTCCCTATCAGTG-3’ | |
| Sequence-based reagent | forward sequencing primer, CLC-ec1 internal | IDT | 5’-GGTGTCATTATGTCGACCATTATGTACCGG-3’ | |
| Software algorithm | XDS | PMID:20124692 | RRID:SCR_015652 | Data Processing |
| Software algorithm | AIMLESS | PMID:16369096 | RRID:SCR_015747 | Data Processing |
| Software algorithm | PHASER | PMID:19461840 | RRID:SCR_014219 | Structure determination |
| Software algorithm | Coot | PMID:20383002 | RRID:SCR_014222 | Structure refinement |
| Software algorithm | REFMAC | PMID:15299926 | RRID:SCR_014225 | Structure refinement |
| Software algorithm | HOLE | PMID:9195488 | Structure analysis | |
| Software algorithm | Caver | PMID:23093919 | Structure analysis | |
| Software algorithm | Pymol | Pymol | RRID:SCR_000305 | Structure analysis |
| Software algorithm | Adobe Illustrator | Adobe | RRID:SCR_010279 | Figure generation |
| Software algorithm | Microcal Origin | Microcal | RRID:SCR_002815 | ITC measurements |
| Software algorithm | pClamp 9.0 | Molecular Devices | RRID:SCR_011323 | Transport assays |
| Software algorithm | Igor Pro | Wavemetrics | RRID:SCR_000325 | Transport assays, difference distance matrices |
| Software algorithm | Matlab | Mathworks | RRID:SCR_001622 | DEER analysis |
| Software algorithm | PROPKA | PMID:26596171 PMID:21269479 | MD simulations | |
| Software algorithm | VMD | PMID:8744570 | RRID:SCR_001820 | MD simulations |
| Software algorithm | DOWSER | PMID:9162944 PMID:25328496 | MD simulations | |
| Software algorithm | CHARMM-GUI Membrane Builder | PMID:25130509 | MD simulations | |
| Software algorithm | NAMD2.12 | PMID:16222654 | MD simulations |
Table 2
Buffers used for Reconstitution and Flux Assays.
| Buffer R | Buffer F | Ion flux monitored | Protein-lipid ratio (µg/mg) | Protein per assay (µg) |
|---|---|---|---|---|
| Comparing turnover rates at pH 7.5 and 4.5 (Figure 4) | ||||
| 333 mM KCl, 55 mM Na-citrate, 55 mM Na2HPO4, pH 6.0 pH adjustments by adjustment buffers (10x) (after reconstitution): • 0.16 M citric acid, 0.42 M Na3PO4 (for pH 7.5) • 0.43 M citric acid, 0.29 M Na3PO4 (for pH 4.5) | 333 mM K-isethionate, 55 µM KCl, 55 mM Na-citrate, 55 mM Na2HPO4, pH 6.0 pH adjustments by adjustment buffers (10x): • 0.16 M citric acid, 0.42 M Na3PO4 (for pH 7.5) • 0.43 M citric acid, 0.29 M Na3PO4 (for pH 4.5) | Cl– | 0.4–0.8 | 0.4–0.8 |
| Testing H+ pumping of mutants (Figure 9; Figure 9—figure supplement 1) | ||||
| 300 mM KCl, 40 mM Na-citrate, pH 4.0 | 300 mM K-isethionate, 50 µM KCl, 2 mM Na-citrate, pH 4.3 | H+ and Cl– | 0.4–5.0 | 0.4–10 |
| Testing DEER samples (Figure 7—figure supplement 1) | ||||
| 300 mM KCl, 40 mM Na-citrate, pH 4.5 | 300 mM K-isethionate, 50 µM KCl, 2 mM Na-citrate, pH 4.5 | Cl– | 0.4 | 0.4–0.5 |
