Controlling motor neurons of every muscle for fly proboscis reaching

  1. Claire E McKellar  Is a corresponding author
  2. Igor Siwanowicz
  3. Barry J Dickson
  4. Julie H Simpson  Is a corresponding author
  1. Janelia Research Campus, Howard Hughes Medical Institute, United States
  2. Princeton Neuroscience Institute, Princeton University, United States
  3. Queensland Brain Institute, University of Queensland, Australia
  4. Dept. of Molecular Cellular and Developmental Biology, United States
9 figures, 20 videos, 4 tables and 1 additional file

Figures

Anatomy of the proboscis.

(A–C) Thick sagittal sections of fly heads with proboscis in various states of extension. Scale bars: 100 µm. Arrows, D: dorsal, A: anterior. (A) Muscles and other internal tissues stained with phalloidin (red). Cuticle and sclerites stained with calcofluor white (cyan). (B–C) Soft tissues digested away to reveal rigid external and internal cuticle. Magenta: locations of proboscis joints. Green: pharynx. Cyan: esophagus. (D) Lateral view of a feeding fly, showing proboscis touching surface near forelegs.

The fly proboscis as a model system for directed reaching.

(A) A fly extending the proboscis towards food on the surface of an experimental chamber (sagittal view). (B) A male fly (left) courting a female (right), extending his proboscis towards the female’s posterior. (C) Points used for measurement of angles of the head (connected by the longer lines) and rostrum (shorter lines). Scale bar: 200 µm. (D) Measurement of haustellum angle. (E–G) Angle of head (E), rostrum (F) and haustellum (G) in males feeding or courting on a flat surface. n = 15 flies per condition. T-test (unpaired) *p<0.05, **p<0.01, ***p<0.001, N.S.: not significant. (H–I) Proboscis extension in response to a low (H) or high (I) sucrose droplet presented to the legs of a tethered fly. Scale bar: 500 µm. (J–L) n = 28 males each presented with sucrose once in low position, once in high. T-test (paired). (J) Angle of target from the fly at frame of first leg contact, when target placed in low or high positions, where 90° would be directly ventral to the eye. (K) Mean reach angle: angle from the posterior-anterior axis of the fly to the proboscis tip, averaged over proboscis extension bout. (L) Aim deviation: reach angle minus target angle. (M–O) Joint angles scored 200 ms after beginning of PE: head (M), rostrum (N), haustellum (O).

Proboscis muscles.

(A) Frontal view of head with traced proboscis muscles, from clearing technique and segmentation software. Eyes removed at sides, and antennae removed, leaving two holes seen in upper center. Scale bar: 50 µm. (B) Schematics from different views as noted, showing proboscis muscles, brain, esophagus and pharynx. Pharynx superimposed for visibility (approximate outline: dotted line). D: dorsal, M: medial, A: anterior.

Figure 4 with 2 supplements
A collection of fly strains to genetically control every proboscis muscle.

Confocal stacks of split GAL4 lines showing the proboscis muscles (magenta) targeted by the motor neurons of the collection (left images; green). (Note: cuticular structures can also autofluoresce green). Scale bar: 50 µm. Gain and contrast adjusted. Right images: location of those muscles in the head schematic from Figure 3, at a reduced scale.

Figure 4—figure supplement 1
Sparse lines providing genetic access to specific proboscis motor neurons.

Confocal maximum projections of brains (above) and VNCs (below) of split GAL4 lines targeting proboscis motor neurons. Targeted neurons: green (GFP). Counterstain: magenta (nc82). Most lines contain a single motor neuron type in SEZ; a few contain more than one (numbers in Table 1, along with split GAL4s used). Gain and contrast adjusted. Scale bar: 50 µm.

Figure 4—figure supplement 2
Completeness of motor neuron coverage in split GAL4 collection.

(A) Example proboscis stained for muscles (phalloidin, red), genetically targeted motor neuron (mn9, GFP, green), and neuromuscular junctions (nc82, blue), to determine whether all synaptic sites on the appropriate muscle are occupied by the incoming green axon(s) in that line. (More examples of this staining are shown in Video 9 and in B). Frontal view, dorsal at top. (B) Partial stack projections cropped in the region of each muscle showing neuromuscular junction synapses (nc82, left panels within each group, magenta in overlay) and motor neuron terminals (GFP, middle panels, green in overlay). Gain and contrast adjusted. Scale bars: 50 µm.

Figure 5 with 1 supplement
Proboscis motor neuron collection: arbors in brain (subesophageal zone).

(A) Motor neurons from the split GAL4 lines in Table 1, segmented to show arbors in isolation. Colors match muscles in previous figures. Most motor neurons are segmented from split GAL4 combinations in which their arbors are clearly distinguishable, with the exception that mn3M, 8, 11V, 12D and 13 are segmented from stochastic staining in order to separate them from nearby cells. Single neurons from stochastic staining are superimposed upon their mirror images to show bilateral arbors, for comparison with the neurons segmented bilaterally. mn10 is shown unilaterally, since it was never found bilaterally in any split GAL4 combination. Scale bar: 50 µm. (B) Motor neurons colored according to whether their dendrites are primarily dorsal (magenta) or ventral (green). Magenta: 10, 11D, 11V, 12D, 12V (13: not shown). Rest: ventral.

Figure 5—figure supplement 1
Location of motor neuron dendrites relative to other cell types in brain.

Motor neuron confocal images (green) from brains computationally aligned with brains stained for other cell types in magenta: (A–H) sweet taste inputs (Gr64f-GAL4), (J) eye mechanosensory inputs (VT017251-LexA), (K) bitter taste inputs (Gr66a-GAL4), and (L–N) Hugin neurons (HUGS3-GAL4). Frontal view (‘front’) or sagittal view (‘side’) of confocal maximum projections, except single sections where noted. Each cell type stained individually for GFP then aligned and overlaid. Gain and contrast adjusted. Scale bar: 50 µm.

Figure 6 with 2 supplements
Muscle insertion sites predict function.

Sagittal view of proboscis, showing phalloidin-stained muscles (red) and calcofluor white-stained cuticle (cyan). Single optical slices from the planes shown in insets, from 300 µm vibratome sections. Dotted line: path of pharynx. Arrowheads: insertion sites of muscles that do contact the pharynx (A), and that do not (B), predicted to be involved in pumping vs. proboscis positioning, respectively. The salivary muscle 13 can be seen inserting at the junction of the salivary duct (hollow tube – open arrowheads) with the pharynx. 12V is out of the plane of view in (A) but its tendon inserts on the pharynx. Rest of muscle insertions shown in Figure 6—figure supplement 1. Scale bar: 50 µm.

Figure 6—figure supplement 1
Additional muscle insertion sites.

Sagittal view of proboscis, showing phalloidin-stained muscles (red) and calcofluor white-stained cuticle (cyan). (A,B) Single optical slices from the planes shown in insets, from 300 µm vibratome sections. Arrowheads: insertion sites of additional muscles that do not contact the pharynx, predicted to be involved in proboscis positioning. Scale bar: 50 µm.

Figure 6—figure supplement 2
Features of the alimentary canal.

(A,B) Vibratome horizontal sections of the head and proboscis cut at proximal (A) or distal (B) levels of the rostrum, stained for muscles (phalloidin, magenta) and connective tissue at muscle attachments (acetylated tubulin, green; also labels neurons). Some pump muscles (A, arrowhead) insert directly on the wall of the pharynx (dark vertical opening and tube at center, asterisk), and others use tendons (B, arrowhead) to insert onto the pharynx (B, asterisk). Note that the dark cavity of the pharynx is not simply a cylindrical tube but widens into complex cavities within the rostrum. Maximum projections of approximately horizontal ~200 µm slices in 7% agarose. (A) Is close to the head and shows parts of the compound eyes at the sides (grids of bright dots), and (B) Is close to the distal end of the rostrum, where the maxillary palps can be seen as two structures protruding from the anterior surface of the proboscis, filled with sensory neurons. (C) Frontal view of distal proboscis from whole cleared head prep, with labella in open position, showing how pseudotrachea (furrows; arrowhead) lead food to the opening of the pharynx (asterisk). Phalloidin imaged at higher gain to show muscles as well as cuticle. (D) Frontal view of the opening of the esophagus (asterisk) at the base of the rostrum inside the head. Muscles (phalloidin, magenta) and neuromuscular junctions (nc82, white). Arrowhead: circular muscles surround the esophagus, enabling peristalsis. Scale bars: 50 µm. Gain and contrast adjusted.

Figure 7 with 2 supplements
Motor control of the rostrum.

(A–E) CsChrimson activation of split GAL4s for rostrum motor neurons, compared to controls (unfilled), quantifying change in proboscis position from rest (total extension of proboscis at maximum movement divided by at rest; therefore no movement = 1) (A), change in rostrum angle from rest (B), change in haustellum angle from rest (C), change in rostrum angle from a protracted position during feeding (D), and change in haustellum angle from an extended position during feeding (E). (F–J) TNT silencing of split GAL4s for rostrum motor neurons, compared to controls, quantifying proboscis position at rest (F), rostrum angle at rest (G), haustellum angle at rest (H), change in rostrum angle from rest to feeding position (I), and change in haustellum angle from rest to feeding position (J). Bar: mean. Biological replicates, n = 14–16 flies/genotype. Asterisks: unpaired t-tests, experimental (colored) vs. each control (showing least significant), with multiple testing correction. *p<0.05, **p<0.01, ***p<0.001, no asterisk, not signficant. See Methods for further explanations of metrics shown. (K–L) Sagittal schematics of proboscis movements controlled by muscle 9 (green): protraction of rostrum and extension of haustellum (arrows). Muscle 9 origin: ventral wall of head. Muscle 9 insertion: internal part of rostrum cuticle (asterisk). Proboscis segments (dark gray) pivot around joints (magenta dots). (M–O) Proboscis movements controlled by muscles 1, 2D and 2V (colored): retraction of rostrum and haustellum (arrows). Muscle origins: posterior wall of head. (P–Q) Frontal view of whole-mount heads (blue) with segmented muscles (green, numbered) and the apodeme within the rostrum (white) that swings outward during rostrum extension, shown with rostrum retracted (P) or extended (Q). Scale bar: 50 µm.

Figure 7—figure supplement 1
Examples of rostrum muscle actions.

(A–B) Example mn9 phenotype: extension of both the rostrum and haustellum in response to CsChrimson activation (B), compared to resting proboscis before the stimulus (A). (C–D) Example retractor phenotype: retraction of the rostrum in response to CsChrimson activation of mn1 (D), compared to feeding position before the stimulus (dotted line) (C).

Figure 7—figure supplement 2
Raw joint angles, not normalized, for all motor neurons from Figures 79.

(A–B) CsChrimson activation of split GAL4s for the motor neurons shown, quantifying raw rostrum angle in a protracted position during feeding (A) and raw haustellum angle in an extended position during feeding (B). (C–D) TNT silencing of the same split GAL4s, quantifying maximum raw rostrum angle during feeding (C) and maximum raw haustellum angle during feeding (D). Bar: mean. Biological replicates, n = 14–16 flies/genotype. Asterisks: unpaired t-tests, experimental (colored) vs. each control (unfilled), showing least significant, with multiple testing correction. *p<0.05, **p<0.01, ***p<0.001, no asterisk, not significant.

Figure 8 with 1 supplement
Motor control of the haustellum.

(A–E) CsChrimson activation of haustellum split GAL4s, compared to controls (unfilled), quantifying change in proboscis position from rest (A), change in rostrum angle from rest (B), change in haustellum angle from rest (C), change in rostrum angle from a protracted position during feeding (D), and change in haustellum angle from an extended position during feeding (E). (F–J) TNT silencing of haustellum split GAL4, compared to controls, quantifying proboscis position at rest (F), rostrum angle at rest (G), haustellum angle at rest (H), change in rostrum angle from rest to feeding position (I), and change in haustellum angle from rest to feeding position (J). Bar: mean. Biological replicates, n = 14–16 flies/genotype. Asterisks: unpaired t-tests, experimental (colored) vs. each control (showing least significant), with multiple testing correction. *p<0.05, **p<0.01, ***p<0.001, no asterisk, not signficant. (K–L) Sagittal schematics of proboscis movement controlled by muscle 4 (blue): extension of haustellum (arrow). Muscle 4 location: near haustellum joint. Proboscis segments (dark gray) pivot around joints (magenta dots). (M–N) Proboscis movement controlled by muscle 3 (light blue): flexion of haustellum (arrow). Muscle 3 origin: anterior rostrum. Insertion: asterisk. (O–P) Haustellum mechanism. Lateral view of proboscis (blue) with segmented muscles (green, numbered) and a Y-shaped apodeme (red in composite, white below), from thick sections with haustellum partly flexed (O) or partly extended (P). Muscle 4 inserts on the free dorsal arm of the apodeme (asterisk). Muscle 2V inserts on the anterior apodeme arm (plus sign). Muscle 3 inserts in the haustellum (via tendons not stained here). Arrows: rotation of apodeme, controlling extension of haustellum. Scale bar: 50 µm.

Figure 8—figure supplement 1
Examples of haustellum muscle actions.

(A–B) Example mn4 phenotype: extension of the haustellum in response to CsChrimson activation (B), compared to resting proboscis before the stimulus (A). (C–D) Example mn3 phenotype: flexion of the haustellum in response to CsChrimson activation of mn3L (D), compared to proboscis in feeding position before the stimulus (C).

Motor control of the labella.

(A–C) Sagittal schematics of labellar movements controlled by muscles 7 and 6 (colored): abduction (B) and extension (C) of labella (arrows). Muscle origins: dorsal haustellum. Insertions: at labella (asterisks). Proboscis segments (dark gray) pivot around joints (magenta dots). (D–E) Example phenotype: extension of labella in response to CsChrimson activation of mn6 (E), compared to resting proboscis before the stimulus (D). (F–I) % flies showing labellar extension (F,H) or abduction (G,I) in response to CsChrimson activation (F,G) or TNT silencing (H,I) of motor neurons listed, compared to controls. Fisher’s exact test. Biological replicates, n = 16 flies/genotype. (J–N) CsChrimson activation of split GAL4s listed compared to controls (unfilled), quantifying change in proboscis position from rest (J), change in rostrum angle from rest (K), change in haustellum angle from rest (L), change in rostrum angle from a protracted position during feeding (M), and change in haustellum angle from an extended position during feeding (N). (O–S) TNT silencing of split GAL4s listed compared to controls, quantifying proboscis position at rest (O), rostrum angle at rest (P), haustellum angle at rest (Q), change in rostrum angle from rest to feeding position (R), and change in haustellum angle from rest to feeding position (S). Bar: mean. Biological replicates, n = 14–16 flies/genotype. Asterisks: unpaired t-tests, experimental (colored) vs. each control (showing least significant), with multiple testing correction. *p<0.05, **p<0.01, ***p<0.001, no asterisk, not signficant.

Videos

Video 1
Synchrotron x-ray video of proboscis extension.

Looping video of proboscis extension in a fly tethered with head glued, in a synchrotron x-ray beam, sagittal view, 1/100 speed. This example primarily shows movement of the rostrum (labeled magenta in the later portion of the video), pivoting around the joint marked by crosshairs, with little extension of the haustellum and labella (green).

Video 2
Proboscis joint movements in response to sucrose.

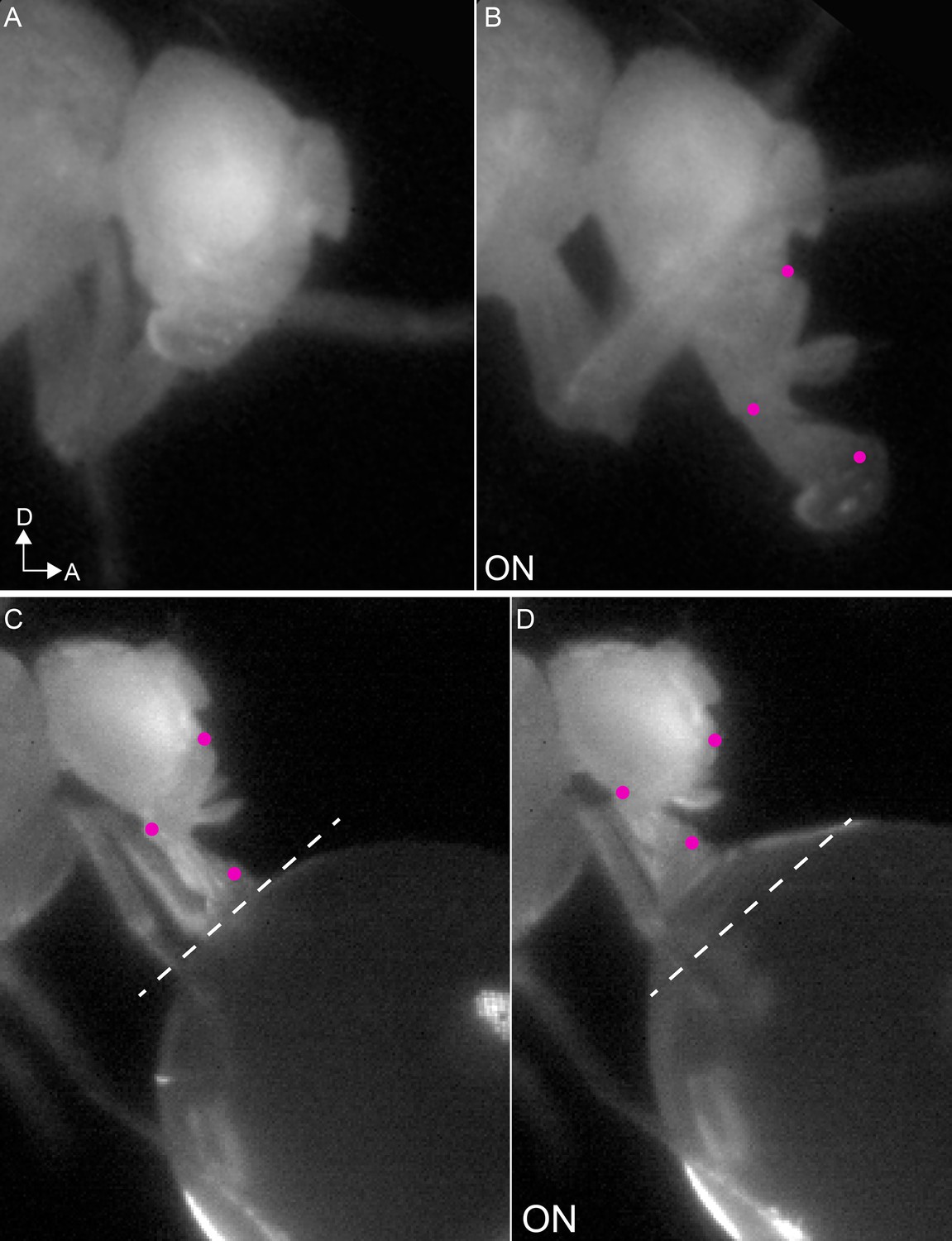

Sagittal view of a tethered fly (anterior: up) reaching the proboscis towards a droplet of sucrose presented to the legs. 1/30 speed. Magenta dots: approximate locations of two proboscis joints.

Video 3
Rostrum joint movement.

Proboscis movement restricted to rostrum joint by gluing haustellum (in or out) and head. Sagittal view of tethered fly, anterior: up, 1/3 speed. Magenta dot: approximate location of rostrum joint.

Video 4
Haustellum joint movement.

Proboscis movement restricted mainly to haustellum joint by gluing rostrum (in or out) and head. (Rostrum glued along one surface, not completely immobilized). Sagittal view of tethered fly, anterior: up, 1/3 speed. Magenta dot: approximate location of haustellum joint.

Video 5
Proboscis extension during feeding.

A wildtype male feeding from sucrose painted onto wall of chamber (bright region) extends the proboscis ventrally towards the food. 1/1 speed.

Video 6
Proboscis extension during courtship.

A male (left) courting a female (right) on a flat surface extends the proboscis anteriorly towards the female. 1/10 speed, wildtype flies.

Video 7
Proboscis reaching to targets in different locations.

Proboscis and head movements reaching towards a sucrose target in high or low (anterior or ventral) locations. Sagittal view of tethered fly, anterior: up, 1/1 speed.

Video 8
Head movement.

Head movement towards sucrose when both rostrum and haustellum joints are glued (not labella). Sagittal view of tethered fly, anterior: up, 1/3 speed.

Video 9
Confocal stack showing an example of raw data from the head clearing technique, first in composite then each channel individually.

Red: muscles stained with phalloidin. Green: GFP stain of several motor neuron types genetically targeted in this example, projecting to the rostrum. Blue: synapses stained with nc82.

Video 10
A fly head imaged by cuticle autofluorescence (gray) with proboscis pointing downwards and eyes cropped out of image at sides.

All muscles were stained with phalloidin (stain not shown), then traced in segmentation software to display every proboscis muscle in a different color, first overlaid, then individually. Last: approximate path of pharynx. (Pharynx is a more complex shape than shown here but is only visible as negative space with this staining, difficult to trace). The brain can be seen in dark gray within the head, with hook-shaped sclerites underneath it. Fat body and air sacs not shown.

Video 11
Each proboscis motor neuron type, isolated using segmentation software.

Cropped to show only SEZ at the bottom of brain. Hole at top: esophageal foramen.

Video 12
Translation through computational alignment of feeding command-like neuron ‘Fdg’ (magenta) with motor neurons 1, 9 and 11D (green) shown sequentially.

Motor neurons: confocal stacks. Fdg: manually segmented from a line with a broader expression pattern, NP883-GAL4. Central brain, with SEZ at bottom. Gain and contrast adjusted.

Video 13
Predicted mechanism of pumping food (blue) through the pharynx (white) by sequential activation of the seven muscles that insert on the pharynx wall (colored as in Figures 3 and 4).

Sagittal view of head.

Video 14
Behavioral phenotypes of rostrum protractor.

First part: activation of rostrum protractor (mn9) with CsChrimson, in frames noted, compared to CsChrimson control, beginning with the proboscis in the resting (retracted) position. Second part: silencing of mn9 with TNT, compared to TNT control, in a feeding assay where normal flies fully extend the proboscis towards a droplet of sucrose. Tethered males, sagittal view (dorsal up), 1/30 speed.

Video 15
Behavioral roles of rostrum retractor.

First part: activation of the main rostrum retractor (mn1) with CsChrimson, in frames noted, compared to CsChrimson control, beginning with the proboscis in the extended position during feeding. Second part: silencing of mn1 with TNT, compared to TNT control, in the resting proboscis position to demonstrate that mn1 silencing results in incomplete proboscis retraction. Tethered males, sagittal view (dorsal up), 1/30 speed.

Video 16
Mechanism of rostrum movement.

Head (blue), muscles involved in rostrum movement (green), and apodeme within rostrum (white). First part: schematic of rostrum movement (pivot point: red crosshairs). Muscles: 1 (long, at left), 2V and 2D (short, at left), and 9 (right). Dorsal up, anterior at right. Second part: same structures segmented from confocal images (sagittal view, maximum projection) with rostrum more retracted (left) or extended (right), showing direction of muscle action (arrows). Third part: same segmented structures in rotating views with rostrum more retracted followed by more extended.

Video 17
Behavioral roles of haustellum extensor.

First part: activation of haustellum extensor (mn4) with CsChrimson, in frames noted, compared to CsChrimson control, beginning with the proboscis in the resting (retracted) position. Second part: silencing of mn4 with TNT, compared to TNT control, in a feeding assay where normal flies fully extend the proboscis towards a droplet of sucrose. Tethered males, sagittal view (dorsal up), 1/30 speed.

Video 18
Behavioral roles of haustellum flexor.

First part: activation of one of the two m3 haustellum flexors (using line mn3M&7) with CsChrimson, in frames noted, compared to CsChrimson control, beginning with the proboscis in the extended position during feeding. Second part: silencing of mn3M&7 with TNT, compared to TNT control, in the resting proboscis position to demonstrate that mn3M&7 silencing results in incomplete proboscis retraction. Tethered males, sagittal view (dorsal up), 1/30 speed.

Video 19
Behavioral roles of labellar extensor.

First part: activation of labellar extensor (mn6) with CsChrimson, in frames noted, compared to CsChrimson control, beginning with the proboscis in the resting (retracted) position. Second part: silencing of mn6 with TNT, compared to TNT control, in a feeding assay. Labella marked in blue in certain frames to show difference in labellar angle. Tethered males, sagittal view (dorsal: up), 1/30 speed.

Video 20
Behavioral roles of labellar abductor.

First part: activation of labellar abductor (mn7) with CsChrimson, in frames noted, compared to CsChrimson control, beginning from the resting position (proboscis retracted, labella closed). Labella marked in blue in certain frames. Second part: silencing of mn7 with TNT, compared to TNT control, in a feeding assay where normal flies open the labella towards a droplet of sucrose. Tethered males, anterior view (dorsal up), 1/30 speed.

Tables

Table 1
Muscle names and the best split GAL4 lines that target their motor neurons.

Muscle names in different papers, plus our split GAL4s targeting each muscle, motor neurons present in those lines, and location of motor neuron dendrites, soma and which proboscis nerve the axon uses. In split GAL4 names, D = dorsal, V = ventral, M = medial, L = lateral. In almost every case, when the motor neurons were present, they occupied 100% of the NMJs on the relevant muscle, with the exceptions of 3 and 10, described in the text. Former 12–1 is more similar to 11 than to 12–2; renamed as 11V. 12D and 12V are named for proximity, not implying related function. Yellow: positioning muscles that do not insert on the pharynx. Green: pharyngeal muscles.

Miller, 1950Rajashekhar and Singh, 1994Flood et al., 2013Schwarz et al., 2017Muscle locationSplit GAL4AD split halfDBD split halfMNs in # proboscis sidesDend- ritesSomaNerve
1,lateral labial adductor m.retractor of rostrum1rostrummn1VT043075VT019731mn1 in 18/18ventventvent
2,maxillary retractor m.not investigated2–1rostrummn2DGMR11F07VT064563mn2D in 16/16ventventvent
not knownnot known2–2rostrummn2VVT064563GMR13E04mn2V in 12/12ventventvent
3flexor of labrum3rostrummn3M &1VT025784VT063630mn3M in 4/4 mn1 in 4/4ventdorsND
3flexor of labrum3rostrummn3M&7VT063630GMR75F02mn3M in 12/12 mn7 in 6/12ventdorsND
not knownflexor of labrumnot knownrostrummn3LVT031145GMR89F06mn3L in 10/10ventdorsdors
4,maxillary m.not investigated4rostrummn4GMR48H12GMR45G01mn4 in 10/10ventventvent
5,labral compressor m.not investigated5haustellummn5VT033616VT043145mn5 in 10/10ventdorsdors
6,palpal m.retractor of paraphysis6haustellummn6GMR18B07GMR81B12mn6 in 10/10ventventvent
7,palpal m.retractor of furca7haustellummn7VT014959VT001484mn7 in 9/10ventventvent
8,transverse labial m.transverse m. of haust.8haustellummn8 and 7VT027168VT015822mn8 in 15/16 mn7 in 7/16ventventvent
9,lateral pharyngeal m.protractor of fulcrum9rostrummn9VT061715VT005008mn9 in 12/12ventdorsdors
10,median pharyngeal m.median pharyngeal m.10rostrummn10GMR14H09VT020713mn10 in 6/12dorsdorsdors
11,pharyngeal m.dorsal pharyng. dilatorm.1111–1,11-2rostrummn11DVT020737GMR10B11mn11D in 10/10dorsdorsdors
12,cibarial m.ventral pharyng. dilatorm.12–112–1rostrummn11V and 12DVT050240GMR10E04mn11V in 21/22 mn12D in 21/22dorsdorsdors
12,cibarial m.not knownm.12–211–3rostrummn11V and 12DVT050240GMR10E04mn11V in 21/22 mn12D in 21/22dorsdorsdors
not knownnot known12–2rostrummn12VGMR80D06GMR75F02mn12V in 14/14dorsdorsdors
13,dorsal salivary m.not investigated13rostrummn13VT043700VT034258mn13 in 12/12 mn4 in 4/12dorsventvent
Table 2
Head stain results from 100 GAL4 lines.

Lines from Rubin (GMR) and Dickson (VT) collections, in attP2 landing site, showing motor neurons found in proboscis. Note: this clearing technique showed more motor neuron types than were previously known in two lines, GMR18B07 and GMR81B12 (Schwarz et al., 2017).

GAL4 lineMotor neurons in proboscisGAL4 lineMotor neurons in proboscisGAL4 lineMotor neurons in proboscis
GMR10B1111 or 12D,12VGMR32D10noneVT037554none
GMR10E042V,7,8,11,12GMR41G041 or 2?,6,7, 8, 9, 11, 12?VT0375831,6
GMR10E06noneGMR70E089VT0378591,4,7?
GMR11B041,2V,4,6,7,10,11,12,13GMR72D062VVT038335none
GMR11C059,11DGMR75F023M,7,12VVT039475none
GMR11D0311 or 12? (stochastic)GMR78E095,9,3?VT041887none
GMR11D042(D?),7,8GMR81B126,10,1 stochasticVT042739none
GMR11D09noneGMR89F063,5VT0430751
GMR11F071,2D,4,9,11,12VVT0008316,7,8VT0430881,7
GMR11F126VT0014843,7VT0431455,9,12V
GMR11G014,8VT0032291,4,11VT0431472V
GMR12E032VVT0050089VT0437002D,6,13
GMR13B023L,4VT0119651,6,7VT049356none
GMR13E042V, 8?VT01350611VT0494811,4,8,10
GMR13F07noneVT0136051,2V,6,7,9,10, (12 or 3),13VT049727none
GMR14H0910VT0149596,7,8VT05021711
GMR15E021,2D,2V,3L,4,5,6,7,12VVT0158221,7,8VT0502403,11,12
GMR15E10noneVT0179338VT0506634,6,7
GMR17D039,10VT0197311,7VT055404none
GMR18A08noneVT02071310VT056658none
GMR18B077(stochastic),8(stoch.),9,10(dim),11,12,12VVT02073711VT0571372D,2V
GMR18D09none (in brains, one stochastic MN)VT022244noneVT0572376,7,8
GMR18G021,2D,2V,4,5,6,7,8VT0237891,7,8,9VT0573796
GMR19A0611VT0257841,3VT0584881,4,7,13
GMR19G041,2D,2V,3L,4,5,7,10,11,12VVT0260268VT05978410,11,12
GMR20E076VT0271687,8VT0617159
GMR20E092D,2VVT0311452V,3VT0625531,6,7,13
GMR20G03noneVT03115711,12VVT0632191,6,13
GMR21A10noneVT0315624,12VVT063302none
GMR23C084VT0329122D,2V,4,8VT0636301,2V(stochastic),3,4,7,8
GMR24A06noneVT0336165VT0636352V
GMR27G069,10,11VT0342584,13VT0645632D,2V
GMR29F03noneVT0374927,8VT065306none
GMR32A111,3,4,5,6,7,8,9,10,11,12,13,12V
Table 3
Summary of motor neuron phenotypes from activation and silencing experiments (also informed by insertion site information). Asterisks: findings that were previously undescribed, or that differ from a previous study (Schwarz et al., 2017).
mnActivation phenotypesSilencing phenotypes
 1proboscis retraction*impaired proboscis retraction
 2D*rostrum retraction from extendedno phenotype (expected redundancy)
 2V*rostrum retraction from rest*impaired rostrum retraction
 3*haustellum flexion*impaired proboscis retraction
 4*haustellum extension*impaired haustellum extension
 6labellar extensionimpaired labellar extension
 7*labellar abduction*impaired labellar abduction
 9rostrum protract. and *haust. exten.impaired rostrum protract. and *haust. exten.
Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Antibodymouse mAb anti-bruchpilot (nc82)Developmental Studies Hybridoma BankCat#nc82; RRID:AB_2314865(1:50)
Antibodyrabbit anti-GFPThermo Fisher ScientificCat#A11122; RRID:AB_221569(1:500)
Antibodyrabbit anti-GFPThermo Fisher ScientificCat#A10262; RRID:AB_2534023(1:1000)
Antibodyrat mAb anti-FLAGNovus BiologicalsCat# NBP1-06712; RRID:AB_1625981(1:200)
Antibodyrabbit anti-HACell Signaling TechnologyCat# 3724S; RRID:AB_1549585(1:300)
Antibodymouse anti-V5AbD SerotecCat# MCA1360; RRID:AB_322378(1:300)
Antibodygoat anti-rabbit AlexaFluor-488Thermo Fisher ScientificCat#A11034; RRID:AB_2576217(1:500)
Antibodygoat anti-chicken AlexaFluor-488Thermo Fisher ScientificCat#A11039; RRID:AB_142924(1:500)
Antibodygoat anti-mouse AlexaFluor-488Thermo Fisher ScientificCat #A11001; RRID:AB_2534069(1:500)
Antibodygoat anti-mouse AlexaFluor-568Thermo Fisher ScientificCat#A11031; RRID:AB_144696(1:500)
Antibodygoat anti-rabbit Alexa Fluor-488Thermo Fisher ScientificCat#A32731; RRID:AB_2633280(1:1000)
Antibodygoat anti-mouse Cy3Jackson ImmunoresearchCat#115-166-003; RRID:AB_2338699(1:250)
Antibodygoat anti-rat AlexaFluor-568Thermo Fisher ScientificCat #A11077; RRID:AB_2534121(1:500)
Antibodygoat anti-rat AlexaFluor-633Thermo Fisher ScientificCat#A21094; RRID:AB_141553(1:500)
Chemical compound, drugTexas Red-X PhalloidinLife TechnologiesCat#T7471
Chemical compound, drugCalcofluor WhiteSigma-AldrichCat#F3543
Chemical compound, drugCongo RedSigma-AldrichCat#C676
Chemical compound, drugAlexa Fluor 633 PhalloidinLife TechnologiesCat#A22284
Chemical compound, drugAll-trans retinalToronto Research ChemicalCat# R240000
Genetic reagent Drosophila melanogasterCanton SBloomington Stock CenterRRID:BDSC_64349
Genetic reagent (D. melanogaster)Rubin and VT GAL4 lines listed in Table 2Jenett et al., 2012; Pfeiffer et al., 2010; Tirian and Dickson, 2017N/A
Genetic reagent (D. melanogaster)Split GAL4 lines targeting proboscis muscles, listed in Table 1This paperN/ASplit GAL halves from G. Rubin and B. Dickson (Jenett et al., 2012; Pfeiffer et al., 2010; Tirian and Dickson, 2017)
Genetic reagent (D. melanogaster)10XUAS-IVS-mCD8::GFP in su(Hw)attP5 (pJFRC2)Gerald Rubin (Pfeiffer et al., 2010)N/A
Genetic reagent (D. melanogaster)20XUAS-CsChrimson-mCherry in su(Hw)attP5Insertion from Vivek Jayaraman, construct from Klapoetke et al., 2014N/A
Genetic reagent (D. melanogaster)UAS-TeTxLC.TNTSweeney et al., 1995N/A
Genetic reagent (D. melanogaster)pBPhsFlp2::PEST in attP3;; pJFRC201-10XUAS-FRT > STOP > FRT-myr::smGFP-HA in VK00005Nern et al., 2015N/A
Genetic reagent (D. melanogaster)pJFRC240-10XUAS-FRT > STOP > FRT-myr::smGFP-V5-THS-10XUAS-FRT > STOP > FRT-myr::smGFP-FLAG in su(Hw)attP1Nern et al., 2015N/A
Genetic reagent '
(D. melanogaster)
VT017251-LexAHampel et al., 2017N/A
Genetic reagent (D. melanogaster)HUGS3-GAL4Melcher and Pankratz, 2005N/A
Genetic reagent (D. melanogaster)Gr64f-GAL4 [737-5];Gr64f-GAL4 [737-1]Dahanukar et al., 2007N/A
Genetic reagent (D. melanogaster)Gr66a-GAL4 (II)Dunipace et al., 2001N/A
Genetic reagent (D. melanogaster)NP883-GAL4Flood et al., 2013N/A
Genetic reagent (D. melanogaster)NP5137-GAL4Flood et al., 2013N/A
Software, algorithmAdobe PhotoshopAdobe Systems (www.adobe.com/products/photoshop.html)RRID:SCR_014199
Software, algorithmAdobe IllustratorAdobe Systems (https://www.adobe.com/products/illustrator.html)RRID:SCR_010279
Software, algorithmComputational Morphometry ToolkitJefferis et al., 2007RRID:SCR_002234
Software, algorithmLabViewNational Instruments (www.labview.com)RRID:SCR_014325
Software, algorithmImageJhttps://imagej.nih.gov/ij/RRID:SCR_003070
Software, algorithmIcyhttp://icy.bioimageanalysis.org/RRID:SCR_010587
Software, algorithmgVisionGus Lott (http://gvision-hhmi.sourceforge.net/)N/A
Software, algorithmG*Powerhttp://www.gpower.hhu.de/RRID:SCR_013726
Software, algorithmVVDViewerhttps://github.com/takashi310/VVD_ViewerN/A

Additional files

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Claire E McKellar
  2. Igor Siwanowicz
  3. Barry J Dickson
  4. Julie H Simpson
(2020)
Controlling motor neurons of every muscle for fly proboscis reaching
eLife 9:e54978.
https://doi.org/10.7554/eLife.54978
