Humans disrupt access to prey for large African carnivores

  1. Kirby L Mills  Is a corresponding author
  2. Nyeema C Harris  Is a corresponding author
  1. Applied Wildlife Ecology Lab, Ecology and Evolutionary Biology Department, University of Michigan, United States
Research Article
  • Cited 0
  • Views 227
  • Annotations
Cite this article as: eLife 2020;9:e60690 doi: 10.7554/eLife.60690

Abstract

Wildlife respond to human presence by adjusting their temporal niche, possibly modifying encounter rates among species and trophic dynamics that structure communities. We assessed wildlife diel activity responses to human presence and consequential changes in predator-prey overlap using 11,111 detections of 3 large carnivores and 11 ungulates across 21,430 camera trap-nights in West Africa. Over two-thirds of species exhibited diel responses to mainly diurnal human presence, with ungulate nocturnal activity increasing by 7.1%. Rather than traditional pairwise predator-prey diel comparisons, we considered spatiotemporally explicit predator access to several prey resources to evaluate community-level trophic responses to human presence. Although leopard prey access was not affected by humans, lion and spotted hyena access to three prey species significantly increased when prey increased their nocturnal activity to avoid humans. Human presence considerably influenced the composition of available prey, with implications for prey selection, demonstrating how humans perturb ecological processes via behavioral modifications.

Introduction

Wildlife can adaptively respond to their environment by modifying their diel activity and partitioning time to maximize survival and limit exposure to risks, producing a species’ temporal niche (Bennie et al., 2014; Vinne et al., 2019). Prey commonly employ predator avoidance strategies along the temporal niche axis (Kohl et al., 2019), which is contrasted by predators selecting for temporal activity patterns that maximize hunting success and minimize competitive encounters (Cozzi et al., 2012; Dröge et al., 2017). As a result, large carnivores are predominantly nocturnal while ungulates often exhibit more diurnal behavior, although neither exclusively so. However, pervasive human pressures disrupt individual behaviors that facilitate coexistence of predator and prey populations alike (Wolf and Ripple, 2016; Shamoon et al., 2018; Xiao et al., 2018; Sévêque et al., 2020). How human-induced responses of many species cascade to alter the dynamics of predation and other ecological interactions at the community level remains understudied (Guiden et al., 2019).

The fear of humans can suppress spatiotemporal activity in both carnivores and herbivores with cascading impacts to lower trophic levels (Dorresteijn et al., 2015; Gaynor et al., 2018; Suraci et al., 2019a). Specifically, human presence engenders shifts in diel activity patterns across guilds, altering their temporal niche to incorporate avoidance of human encounters (Gaynor et al., 2018; Frey et al., 2020). Human activities concentrated in the day and predator activity at night reduce the availability of temporal refugia for prey from risky encounters, and can constrain species’ abilities to optimize activity along the temporal niche axis (Kohl et al., 2019; Vinne et al., 2019). As predator and prey species alter their diel activity to adaptively respond to human presence, predator-prey temporal overlap and resulting encounter rates are likely to be changed (Patten et al., 2019), thus altering predator access to a suite of prey resources (Figure 1). Such perturbations to predator-prey dynamics can have cascading impacts that alter population regulation, habitat structure, and various ecosystem processes, such as carbon storage, herbivory, and seed dispersal (Pringle et al., 2007; Terborgh et al., 2008; Asner et al., 2009; Schmitz et al., 2018; Atkins et al., 2019).

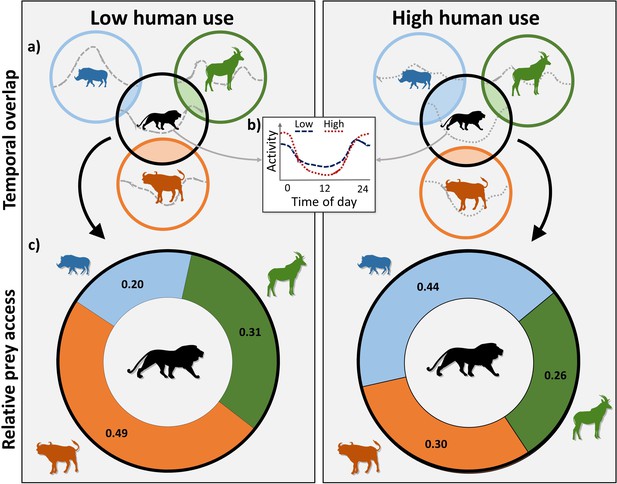

Conceptual framework illustrating the community-level effects of human presence on predator-prey temporal interactions.

(a) Circles represent the temporal niche occupied by each species (three prey and one predator), and shaded regions indicate temporal overlap between the predator and a prey species (i.e. shared temporal niche space). Dotted lines within each circle depict the species’ temporal activity distribution. (b) The diel activity patterns of both predators and prey are expected to shift in response to human presence, generally increasing nocturnal activity to avoid humans during the day. (c) As wildlife diel activity changes, so does predator access to individual prey. Human-induced shifts can lead to intensified or relaxed predation pressures on an individual prey species depending on the diel responses of the prey compared to the predator and other sympatric prey.

If wildlife modify their temporal niche to avoid pressures associated with human presence, predators and prey will exhibit increased nocturnal activity at both the species and guild levels (Gaynor et al., 2018). If all species respond to humans similarly, human avoidance further predicts: (1) intensified predator-prey overlap overall and (2) a greater diversity of prey species available to predators as previously diurnal species adopt nocturnal behaviors. Increasing the diversity of accessible prey would likely result in diminished predation rates on individual species, given that prey selection by carnivores is influenced in part by prey species’ availability relative to other sympatric prey and the diversity of the prey community (Sinclair et al., 2003; Owen-Smith and Mills, 2008). However, avoidance of humans may not be ubiquitous across species given that species have different vulnerabilities to humans (Tablado and Jenni, 2017). Thus, the prevalence of human avoidance among species is likely to determine the nature of community-level predator-prey outcomes.

Here, we evaluated the effects of human presence on the diel activity of predators and prey and consequential differences in predator-prey relationships using a novel method to assess predator-prey overlap at a community scale. We executed a systematic camera survey spanning 13,100 km2 of the W-Arly-Pendjari (WAP) complex in West Africa across 21,430 trap-nights, obtaining detections of both wildlife and humans. We used occupancy modeling to determine areas of low and high human use within the study area and evaluate spatially explicit responses in species’ behavior and potential alterations to trophic interactions. Specifically, we tested for differences in diel activity patterns and nocturnal behaviors for 3 large carnivores (African lions, spotted hyenas, and African leopards) and 11 ungulate species between areas of low and high human presence. We also evaluated the effects of human presence on the overall temporal overlap (Δ) between each predator and its prey, as well as assessed differences in the relative overlap between predators and each individual prey species. We determined: (i) how carnivores and ungulates adjusted their temporal niche in response to human presence and (ii) how apex predator access to prey species was influenced by human presence.

Previous works often investigate temporal overlap of predators and prey in a pairwise manner (Linkie and Ridout, 2011; Ramesh et al., 2012; Patten et al., 2019). However, such an approach does not consider the overall composition of resources available to predators and the relative contributions of individual prey species. Higher order interactions beyond pairwise predator-prey relationships likely contribute to determining community structure and coexistence among species (Levine et al., 2017). We combatted these limitations by extending beyond pairwise comparisons to consider predator-prey interactions at the community level. We aggregated temporal activity among ungulates, providing a more ecologically realistic depiction of overlap between predators and their prey. Specifically, we used bootstrapped kernel density distributions of predator and prey diel activity to calculate the overlap between each predator-prey pair relative to the overall available prey (percent area under the predator diel curve, PAUC). PAUC values were generated by aggregating prey activity curves and then scaling the prey activity (kernel density estimates) to each predator. PAUC represents a metric of relative prey access for the apex predator, as it provides insight into the times of day that encounters between the predator and prey species are most likely to occur based on the temporal activity of both. In this new approach to assess the spatially explicit temporal responses of predators and their prey to humans, we elucidate the community-level effects of humans on trophic interactions and their implications for ecosystem regulation by large carnivores.

Results

Our camera survey yielded 786 and 10,325 detections of apex predators and ungulates, respectively, over 21,430 trap-nights throughout our West African study system (Supplementary file 1). Spotted hyenas are the dominant predator in the system with six times more detections than either African lions or leopards. Warthog, reedbuck, and bushbuck were the most commonly observed ungulates, each detected over 1000 times.

We obtained 350 detections of humans in 69 out of 204 surveyed 10-km2 grid cells, leading to a naive human occupancy of 0.34. Accounting for imperfect detection, model selection resulted in four competing top models (ΔAICc < 2) for human occupancy (Supplementary file 2). Detection of humans primarily varied among years and sites and was higher in non-savanna habitat (top model goodness-of-fit p-value = 0.327). Human occupancy was pervasive, but heterogeneous within the study area (Figure 2a; Ψ- = 0.54 SE 0.41), ranging from 0.0006 to 1 with highest frequencies near these extremes (Figure 2b). Using the mean value of occupancy as a pressure threshold, we designated 108 of 204 grid cells as having high human use (occupancy > 0.54). Humans exhibited mostly diurnal activity with 80.3% of detections occurring between sunrise and sunset (Figure 2c).

Figure 2 with 1 supplement see all

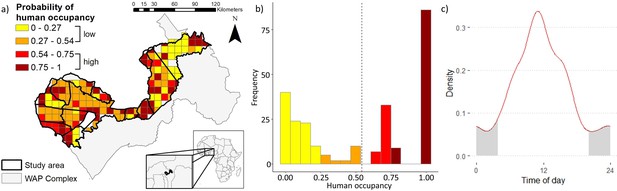

Results of spatial and temporal human use within the W-Arly-Pendajri protected area complex in Burkina Faso and Niger, West Africa.

(a) Map of study area within the W-Arly-Pendjari complex with surveyed 10-km2 grid cells. Color depicts estimated levels of human occupancy within the study area, averaged across years for grid cells surveyed in multiple years. (b) Corresponding frequencies of grid-level human occupancy for 3 survey years, with dotted line depicting mean human occupancy (0.54). (c) Human diel activity kernel density distribution from camera detections.

Human avoidance responses

Human presence generated marked modifications in the temporal niches of sympatric wildlife, with both guilds exhibiting human avoidance behaviors overall. Carnivores and ungulates showed significantly different diel activity patterns between low and high human use (carnivores p-value=0.017; ungulates p-value<0.001; Figure 3). Over two-thirds (10 out of 14) of the mammal species in the study exhibited significant differences in their diel activity patterns in response to human presence (African leopards, spotted hyenas, and eight ungulates; Figure 3). Ungulates overall were 7.1% (95% CI ± 1.7%) more active at night in high human areas, while carnivores showed a slight but non-significant increase in night-time activity of 3.9% (±5.7%). Specifically, we observed significantly higher nocturnal activity with high human use for reedbuck (+12.3 ± 4.8%), duiker (+7.4 ± 4.4%), bushbuck (+6.9 ± 3.6%), and warthog (+4.5 ± 1.9%); and significant decreases for kob (−5.3 ± 4.2%) and aardvark (−15.0 ± 8.1%; Figure 4). In contrast, five ungulate species and all three carnivores showed no significant differences in nocturnality. After testing the sensitivity of our results to the human occupancy threshold selected, we found that increasing or decreasing the low vs. high human occupancy threshold by ±0.1 did not alter our interpretation of species’ differences in diel activity (Supplementary file 3). The only change we observed was detecting significance when reducing the threshold from 0.54 to 0.44 for two species: African leopard and roan antelope. Our results highlight that most species respond to human occurrence by modifying their behaviors and reducing their realized temporal niche to incorporate more night-time activity, potentially altering predator-prey encounter rates.

Figure 3 with 1 supplement see all

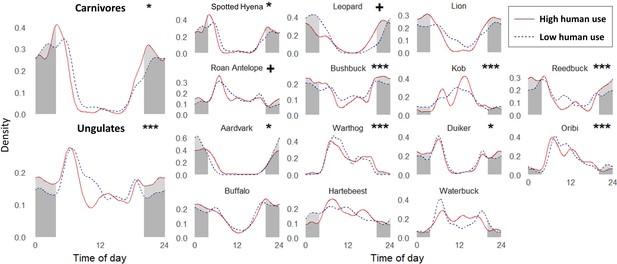

Temporal activity kernel density curves for large carnivores (top row) and ungulates in areas of low and high human use (threshold human occupancy = 0.54).

Nocturnal diel periods (2 hr after sunset to 2 hr before sunrise) are shaded using the average times of sunrise and sunset during our study period, and lighter shading represents the diel-specific nocturnal activity that is different between low and high human areas. Significance levels for bootstrapped randomization test of differences in diel distributions between human zones: *<0.05, **<0.01, ***<0.001. Plus signs (+) represent species with p-values<0.1 which achieved significance when the human occupancy threshold was adjusted ±0.1 (Supplementary file 3).

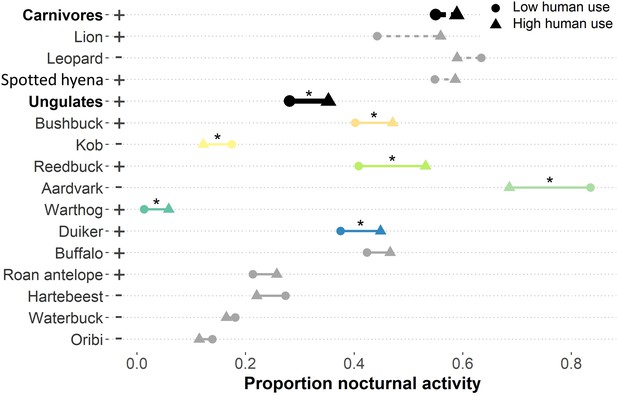

Proportion of activity during the nocturnal diel period (2 hr after sunset to 2 hr before sunrise) between low and high human zones for large carnivores (dashed lines) and ungulates (solid lines).

Increases and decreases in nocturnality from low to high human use areas are indicated by plus (+) and minus (–) labels next to species’ names, respectively. Stars (*) above colored lines indicate species that showed significant differences in nocturnal activity between human zones based on bootstrapped 95% CIs of nocturnality, and the colors of those species’ lines correspond to species colors used in Figure 5.

Changes in predator-prey overlap

Differences in diel activity among species did not result in significant differences in individual predators’ temporal overlap (Δ) with prey when we aggregated their prey species (Figure 3—figure supplement 1). However, high human use areas showed lower mean overlap of African lions with their prey by 0.08 (Δhigh = 0.718, 95% CI ± 0.08; Δlow = 0.797 ± 0.11). In contrast, African leopards may be experiencing some benefit from human use, as their temporal overlap with prey was 0.17 higher where human activities were high (Δhigh = 0.699 ± 0.12; Δlow = 0.529 ± 0.11). Spotted hyenas appear to be robust to human occurrence, showing almost no differences in total overlap with prey due to humans (Δhigh = 0.638 ± 0.03; Δlow = 0.625 ± 0.04).

Human occurrence restructures access to specific prey

African lions and spotted hyenas experienced similarly distinct differences in the composition of accessible prey due to human presence using the 95% CIs of the average difference in percent area under the predator activity curve (ΔPAUC), our novel method for assessing predator-prey temporal overlap in a community context (Figure 5a). Specifically, humans generated significant differences in overlap of these predators with 4 out of 11 prey species: bushbuck (ΔPAUClion = +1.49, 95% CI ± 1.14%; ΔPAUChyena = +1.51 ± 0.73%), reedbuck (ΔPAUClion = +1.99 ± 1.34%; ΔPAUChyena = +1.88 ± 0.87%), duiker (ΔPAUClion = +1.56 ± 1.31%; ΔPAUChyena = +0.84 ± 0.73%), and kob (ΔPAUClion = -2.24 ± 1.58%; ΔPAUChyena = -1.45 ± 0.88%) (Figure 5b). All three species to which predator access increased significantly also exhibited increased night-time activity as a human avoidance strategy. In contrast, kob was less active at night in high human areas and experienced lower overlap with African lions and spotted hyenas (Figure 4). Additionally, African lion and spotted hyena access to two prey species showed near significant differences (buffalo ΔPAUClion = +1.33 ± 1.41%; ΔPAUChyena = +0.87 ± 0.97%; and waterbuck ΔPAUClion = -1.66 ± 1.73%; ΔPAUChyena = -1.67 ± 1.71%).

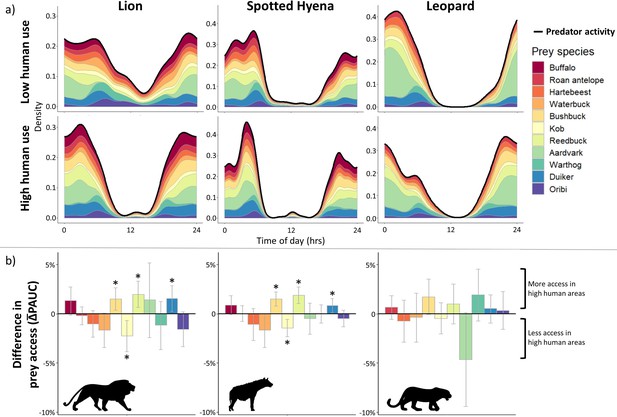

Differences in prey access between human activity zones for African lions, spotted hyenas, and African leopards from new temporally explicit community analysis.

Buffalo was not included as prey for leopard. (a) Temporal overlap heatmaps representing the relative contributions of each prey species to the overall available prey base scaled to predator activity curve (solid black line) over the 24-hr cycle. Density values are calculated from kernel density temporal curves for predators and prey species. (b) Mean differences in prey access based on species-specific area under the predator activity curve (ΔPAUC) between areas of low and high human pressure, averaged among 10,000 parametric bootstrap replicates. Error bars represent bootstrapped 95% confidence intervals of ΔPAUC, with asterisks (*) designating significant differences in predator access to prey species.

All three apex predators showed comparable differences in access to all prey between human use levels (Figure 5b). However, differences in African leopard access to prey items were not significant based on 95% CIs, with only aardvark (ΔPAUCleopard = -4.6 ± 4.7%) and bushbuck (ΔPAUCleopard = 1.7 ± 1.8%) access nearing significance (Figure 5). We suspect this is due to leopards’ differential response to human presence (-4.6 ± 19.1% change in nocturnality) compared to African lions (+11.9 ± 16.3%) and spotted hyenas (+3.7 ± 6.5%; Figure 4), although these differences are non-significant.

Although overlap with total available prey did not differ for any predator, human presence increased the variation in species-specific prey accessibility (PAUC estimates) for African lions (Fligner-Killeen test, p-value=0.03), indicating lower diversity of available prey and therefore more access to certain prey species compared to others where human presence was high (Figure 5b). African leopards and spotted hyenas showed no significant differences in access variability as a response to humans.

Discussion

Wildlife responses to human activities have the potential to reshape natural ecological processes and trophic dynamics (Hebblewhite et al., 2005; Dorresteijn et al., 2015; Suraci et al., 2019a). When anthropogenic pressures are heterogeneous, the resultant dynamism promotes many adaptive strategies to manage and mitigate threats including behavioral shifts in diel activity that redefine species’ temporal niches (Muhly et al., 2011; Carter et al., 2012; Gaynor et al., 2018; Frey et al., 2020). Such shifts in diel activity may lead to increased prey vulnerability to nocturnal predators, thus altering probabilities of encounter and diets in consumers (Figure 1). We found that over two-thirds of the assessed species exhibited different overall diel activity patterns as a response to humans in the study area. Most species showed more nocturnal activity, consistent with previous works and supporting our hypothesis of human avoidance (Carter et al., 2012; Gaynor et al., 2018). Valeix et al., 2012 and Suraci et al., 2019b similarly found reduced diurnal activity near human settlements in African lions in Makgadikgadi Pans National Park, Botswana, and Laikipia, Kenya, respectively, likely to reduce risks of human encounters. Human presence appears to be limiting temporal refugia from risks for many species and driving increases in ungulate activity when predators are also active, possibly decoupling anti-predator behaviors from predation risks (Dröge et al., 2019; Smith et al., 2019). Patten et al., 2019 also presented evidence of human avoidance driving increased predation risks in North American white-tailed deer (Odocoileus virginianus).

Heterogeneity in species’ responses to human presence, however, indicates different sensitivities to humans among the carnivores and ungulates in our study system. Some species did not exhibit differences in nocturnality as expected (e.g. kob and aardvark). These species may be benefitting from the observed human avoidance in many sympatric species that potentially reduces risks of predation and competition, commonly referred to as a human shield response (Berger, 2007; Muhly et al., 2011). For example, Atickem et al., 2014 reported mountain nyala (Tragelaphus buxtoni) leveraging predator avoidance of humans during the day as a temporal refuge in Ethiopia. The ability to exploit human presence as a shield from predatory or competitive encounters may be due to the life history traits of a species that reduce sensitivity to humans, such as body size, energetic requirements, dispersal abilities, social structure, or foraging strategies (Blumstein et al., 2005; Tablado and Jenni, 2017). Similarly, these species’ temporal niches may be constrained by inherent characteristics that were evolved for diurnal activity, making night-time activity more costly despite refuge from human pressures and limiting their adaptive capacity to avoid humans (Monterroso et al., 2013). In contrast, the amount of wildlife persecution (i.e. trophy hunting and poaching) in the system may induce stronger human-avoidance behaviors in hunted species. For instance, Vanthomme et al., 2013 attributed the negative associations of 10 mammals with human disturbances in Gabon to hunting avoidance behaviors, contrasted by six species in the study showing positive associations. Although the mechanisms driving differential responses to humans were not explicitly investigated here, our study demonstrates non-uniform responses of large mammals to human presence. As such, future work can assess the drivers of species-specific responses and sensitivities to humans.

We showed that human presence modified the availability of prey species relative to the overall pool of available prey, which is an important driver of prey selection in apex predators, and thus provide new insights into community-level repercussions of human sympatry with wildlife (Sinclair et al., 2003; Owen-Smith and Mills, 2008). While we expected overall predator-prey overlap and the diversity of available prey to be higher due to human avoidance, the combination of human avoidance and human shield strategies observed in our system resulted in little difference in overall overlap but substantial differences in apex predator access to individual prey species. Specifically, our new community-level approach to predator-prey temporal overlap revealed that prey species experienced intensified overlap with predators when they increased their nocturnal temporal niche (e.g. duiker, reedbuck, bushbuck) to avoid humans, while overlap was lessened for species that did not (e.g. kob). For African lions, this resulted in a lower diversity of available prey, likely intensifying predation pressures on a smaller subset of species which could contribute to destabilizing trophic dynamics (Gross et al., 2009). This highlights increasing concerns for the persistence of the now Critically Endangered West African lions that are suffering from prey depletion (Henschel et al., 2014). The predators in our study are largely opportunistic night-time hunters, and temporal overlap is often strongest between predators and their preferred prey species (Hayward and Slotow, 2009; Linkie and Ridout, 2011; Ramesh et al., 2012; Dou et al., 2019). Thus, we expect that species experiencing the highest overlap with apex predators relative to other prey to be integrated into the predators’ diets in higher proportions, and consequently expect varied prey selection by predators between low and high human use areas. Buffalo are a common prey item of African lions in other systems, and our results suggest they may be vulnerable to intensified selection by lions due to human presence increasing access to buffalo in our study area (Davidson et al., 2013). Our approach implemented in this study may therefore be useful for anticipating herbivore population declines as a result of intensified predation pressures, as well as potential resulting feedbacks into predator population stability especially for endangered species such as the West African lion (Owen-Smith et al., 2005). Additionally, human disturbance can increase the predation rates and carcass abandonment by large carnivores as well as alter mesopredator foraging behaviors, potentially increasing mortality rates on preferred prey species and providing augmented carrion resources that may be detrimental to scavenger populations (Smith et al., 2015; Prugh and Sivy, 2020). As such, disturbances to predator-prey relationships potentially lead to alterations in predators’ diets with consequences for ungulate and mesopredator community regulation and nutrient distribution (Schmitz et al., 2010; Owen-Smith, 2019).

Although protected areas are the primary strategy for biodiversity conservation worldwide, human exploitation of protected areas is pervasive and in many cases, necessary for the sustenance of human populations (Jones et al., 2018; Geldmann et al., 2019). By accounting for imperfect detection to understand human space use, we contribute to a more comprehensive understanding of human impacts within coupled human-natural ecosystems that is imperative to effectively manage for the conservation of ecological processes, biodiversity, and human needs. However, human activities observed in our study system may not impact species uniformly. Because we aggregated a variety of human activities to depict human use, there might be activity-specific responses by wildlife that were not captured. Humans exploit resources in national parks in many ways including livestock herding, resource gathering, subsistence poaching, hunting, and recreation, all of which impact the system and wildlife to varying degrees (Everatt et al., 2019; Geldmann et al., 2019; Harris et al., 2019). Indeed, Harris et al., 2019 found differential impacts of human activities on wildlife behavior in WAP, suggesting species in this system do not respond to all humans uniformly. However, limited sample sizes of many human activity categories currently preclude more detailed analyses using an occupancy framework. Overall, human impacts encompass a variety of disturbances that impact ecosystems, both in our study and more broadly, and thus disentangling the responses of wildlife to specific human pressures may facilitate designing more effective conservation interventions (Jones et al., 2018; Nickel et al., 2020). Our results are also suggestive of the potential ecological effects of changes to human activity in natural areas, which could result from fluctuations in tourism, infrastructure development, policy changes, and other local or global processes.

Our results demonstrate prevalent disruptions to wildlife temporal activity patterns from human presence, leading to overall reductions in diurnal activity and modified community dynamics. Because both carnivores and ungulates serve fundamental roles in regulating African ecosystems via predation and herbivory, respectively, the pervasiveness of their responses to human occurrence demonstrates the capacity for humans to disrupt essential ecological processes that facilitate coexistence among wildlife, in this case reshaping predator-prey interactions. As the human footprint continually expands, spatial refugia from anthropogenic disturbance become more limited, stimulating an increasing need to exploit temporal partitioning to avoid human pressures. We show that the community-level implications of these behavioral modifications must be considered in light of complex higher-order interactions that govern mechanisms of coexistence among predators and their prey.

Materials and methods

Study area

Request a detailed protocol

We conducted our study in the W-Arly-Pendjari (WAP) protected area complex that spans 26,515 km2 in the transboundary region of Burkina Faso, Niger, and Benin (0°E-3° E, 10°N-13°N; Figure 2a). The complex contains 5 national parks (54% of total area), 14 hunting concessions (40%), and 1 faunal reserve (6%). Our study area within WAP comprised three national parks and 11 hunting concessions in Burkina Faso and Niger across ca. 13,100 km2 (Figure 2a). Trophy hunting of many ungulate species and African lions (Panthera leo) is permitted in hunting concessions, while all hunting is illegal in the national parks and reserves in the complex. Other human activities in the park include livestock herding, resource extraction, recreation, and poaching (Sogbohossou et al., 2011; Miller et al., 2015; Harris et al., 2019). Recently, Harris et al., 2019 reported 4 large carnivore species (African lion, African leopard Panthera pardus, spotted hyena Crocuta crocuta, and cheetah Acinonyx jubatus) and 17 ungulate species belonging to the superorder Ungulata in the three national parks included in our study area from an extensive camera trap survey. Cheetahs were detected only once, while wild dogs (Lycaon pictus) were not reported in the survey area. WAP has an arid climate and consists predominantly of Sudanian and Sahel savannas, with savanna accounting for ca. 90% of the habitat cover in the study area (Lamarque, 2004; Mills et al., 2020). We conducted our survey in the drier northern portion of WAP during the dry season with average monthly rainfall ranging from 0 to 1 mm in February to 42–91 mm in June (Fick and Hijmans, 2017). Although our study design may limit inferences to dry season conditions, evidence suggests that large African herbivores show similar overall temporal activity distributions as seasons change (Owen-Smith et al., 2010).

Camera survey

Request a detailed protocol

We systematically deployed 238 white-flash and infrared motion-sensor cameras (Reconyx [Holmen, WI] PC800, PC850, PC900) within 10 × 10 km grid cells across our study area to assess effects of human presence on diel activity within the wildlife community. A single unbaited camera was placed within 2 km of the centroid in a total of 204 sampled grid cells over three survey seasons from January to June in 2016–2018 (Figure 2—figure supplement 1). Camera stations within cells that were surveyed in multiple years were not necessarily placed in the same location both years, but they were placed within the same 2 km buffer and are considered representative of the grid cell each year. Species identifications from camera images were validated by two members of the Applied Wildlife Ecology (AWE) Lab at the University of Michigan. We excluded false triggers, unidentifiable images, research team, and park staff from analyses. To ensure robustness in our analyses, we combined all remaining human images into a single ‘Human’ categorization representing a variety of human activities observed in WAP (e.g. livestock herding, resource gathering, recreation, poaching, and hunting). Our work is not human subjects research requiring IRB review, although we remain grateful to authorities granting permission for our research and their efforts to manage coupled human-natural ecosystems. (see Figure 2—figure supplement 1, Mills et al., 2020 and Harris et al., 2019 for additional methods on camera deployment and image processing). Due to limited detections for some species, we aggregated survey data from all 3 years into a single dataset. We accounted for temporal variation in human space use during the subsequent modeling process, and previous work suggests little annual variation in wildlife activity (Mills et al., 2020). We created independence of species triggers using a 30-min quiet period between detection events using the ‘camtrapR’ package in R 3.5.1 (http://www.r-project.org) (Niedballa et al., 2016), and we assumed detections to be a random sample of each species’ underlying activity distribution (Linkie and Ridout, 2011).

Human occupancy models

Request a detailed protocol

We constructed single-season, single-species occupancy models to designate WAP into areas of low and high human use. We chose to use single-season models to assess the overall distribution of human space use across the study area, as opposed to multi-season occupancy models which also estimate extinction/colonization rates that is not necessary for our objectives. Instead, we included the year as covariate in single-species models to assess temporal variation in human occupancy patterns. Occupancy models account for spatial heterogeneity in human presence across the study area, facilitating investigation into the behavioral responses of sympatric wildlife. We separated detection/non-detection data for humans into 2-week observation periods, which were modeled as independent surveys to account for imperfect detection. Our occupancy models first modeled the detection process (p) using covariates expected to influence detection while holding occupancy (Ψ) constant, and then modeled human occupancy by incorporating grouping variables among which Ψ may vary.

The global detection model included covariates related to survey design and the environment that we expected to influence the detection of humans: % savanna habitat (SAV), survey year (YR), trap-nights (TN), camera type (CAM), management type (MGMT), and site (i.e. one of 14 individual parks or concessions; SITE). MGMT was a binary variable that distinguished national parks from hunting concessions. Human occupancy was modeled with only grouping variables: MGMT, YR, and SITE. We included YR as a covariate to account for temporal variation in site use or detection, as cells surveyed in multiple years were considered separate sites for our single-season model. A grid cell surveyed in multiple years could, therefore, have different levels of occupancy between surveys. Variables included in the top performing occupancy and detection model(s) are considered those which best described the spatial variation in human detection and site use. We evaluated the support for all combinations of detection and occupancy covariates using the Akaike information criterion corrected for small sample sizes (AICc). We selected the top-performing detection and occupancy models as those with ΔAICc <2 compared to the lowest AICc model. We assessed goodness-of-fit of the top-performing models using 1000 parametric bootstraps of a χ2 test statistic appropriate for binary data and estimated the ĉ statistic to ensure the data were not over-dispersed (Fiske and Chandler, 2017). We created all detection and occupancy models using the ‘unmarked’ package and conducted model selection using the ‘MuMIn’ package in R (Fiske and Chandler, 2011; Bartoń, 2019).

We extracted cell-specific latent occupancy probabilities, representing probabilities of site use by humans because the 10-km2 grid cells do not meet the assumption of closure, from the top-performing (lowest AICc) occupancy model corrected for imperfect detection (MacKenzie et al., 2016). From those estimates, we categorized grid cells as either low or high human use. We delineated the threshold for human use using the mean value of human occupancy. We chose to use the mean occupancy as the threshold value because of the bimodal distribution of occupancy values and to facilitate comparisons between similar sample sizes of low and high human use grid cells (Figure 2b). We also conducted a sensitivity analysis to evaluate the selected threshold by repeating our analyses using thresholds ± 0.1, as described in the following section.

Temporal analyses

Request a detailed protocol

Using detection timestamps from our camera survey, we compared the temporal activity patterns for apex predators (lions, leopards, and spotted hyenas) and sympatric ungulates between areas of low and high human use. We included 12 ungulate species: savanna buffalo (Syncerus caffer brachyceros), roan antelope (Hippotragus equinus koba), western hartebeest (Alcelaphus buselaphus major), waterbuck (Kobus ellipsiprymnus defassa), Buffon’s kob (Kobus kob kob), Bohor reedbuck (Redunca redunca), bushbuck (Tragelaphus sylvaticus), aardvark (Orycteropus afer), warthog (Phacochoerus africanus), oribi (Ourebia ourebi), red-flanked duiker (Cephalophus rufilatus), and common duiker (Sylvicapra grimmia). We excluded four ungulate species from analysis in our study: topi (Damaliscus korrigum jimela) and red-fronted gazelle (Eudorcas rufifrons) due to few detections (<50), and elephant (Loxodonta africana) and hippopotamus (Hippopotamus amphibius) due to large body sizes that make them uncommon prey items for large carnivores. Duiker species were aggregated due to difficulty distinguishing the two in camera trap images, resulting in 11 total ungulate species in our analyses. Previous work in this system supports estimation of prey availability from camera trap data in that predator space use is heavily influenced by prey availability as estimated from camera trap detections (Mills et al., 2020). Further, temporal activity overlap between species directly influences the strength of interspecific interactions (Kronfeld-Schor et al., 2017).

We used kernel density estimation to produce diel activity curves representing a species’ realized temporal niche in both human use zones for each of the 14 species. We first tested for differences in these activity distributions between low and high human use areas for all individual species and for each guild (representing the overall available prey base and predation pressures) by calculating the probability that two sets of circular observations come from the same distribution with a bootstrapped randomization test (Ridout and Linkie, 2009). Significant differences in temporal activities were evaluated as p-value<0.05. We conducted a sensitivity analysis by adjusting the human occupancy threshold ±0.1 and repeating this test for all species and both guilds to ensure robustness of our results (Supplementary file 3).

Using 10,000 parametric bootstraps of the temporal distribution models, we then calculated the area under the diel activity curves to determine the proportion of each species’ activity that occurred during nocturnal hours (2 hr after sunset to 2 hr before sunrise). We used the sunrise (05:41) and sunset (18:06) times from the median date of our surveys (April 4, 2018) at the survey area centroid to define nocturnal hours. To test if wildlife nocturnality differed in response to human presence, we compared the bootstrapped 95% confidence intervals (CIs) of the difference in nocturnality for each species and overall guilds between low and high human areas where a significant difference was observed when the CI did not overlap 0.

We used the coefficient of overlap (Δ) to quantify the total temporal overlap between each apex predator and their associated prey from circular activity distributions. Buffalo were excluded from the prey list of African leopards due to large body size. All other prey species were aggregated to produce a single diel activity curve of all prey for comparison to predator activity. We chose the specific estimator based on the minimum sample size of detections for both guilds to contrast human use levels (Δ1 if N < 75, Δ4 if N > 75). Values of Δ range from 0 to 1 where 0 represents no temporal overlap and 1 represents complete overlap or identical temporal niche between predators and their prey. We used 10,000 bootstrapped estimates to extract the bias-corrected 95% CIs of Δ. We compared CIs of Δ between human use levels for each species to assess differences in predator-prey overlap in response to human occurrence. Non-overlapping CIs between human use levels indicated that the overall temporal overlap of predators with their prey was significantly altered by human presence. Temporal analyses were conducted using the ‘activity’ and ‘overlap’ packages in R (Ridout and Linkie, 2009; Rowcliffe, 2019).

Predator access to prey

Request a detailed protocol

After determining overlap between predators and their prey as well as shifts induced by humans, we determined the implications for predator access to prey. To our knowledge, we developed a new method to assess species-specific prey access for predators that is temporally explicit over the diel period, enabling assessment of differences in the composition and diversity of accessible prey for predators resulting from responses to humans in both guilds. We first combined (i.e. stacked) the bootstrapped temporal kernel density curves for individual prey to produce a total diel activity curve for prey, but this time maintaining each species’ contributions to overall prey activity. We then multiplied each prey species’ proportional contribution to prey activity at a given point in the diel cycle by the corresponding kernel density activity value of each respective apex predator. This method produced a discrete area under the predator temporal activity curve for each prey species of a given apex predator (percent area under curve, PAUC), where each prey species’ value represents the relative temporal overlap between the apex predator and that prey species throughout the day. We used these PAUC values to assess whether predator access to individual prey species, relative to all available prey, were different between low and high human areas by calculating the difference in prey access (ΔPAUC) for each predator/prey combination between areas of low and high human use. To determine if prey access significantly differed between human presence levels, we compared bootstrapped estimates and 95% CIs of ΔPAUC. Finally, we used a Fligner-Killeen test for homogeneity of variance to determine how the diversity of each predator’s accessible prey differed in association with human presence based on PAUC values. Lower variance in prey access represents more evenness (i.e. more diversity) in access across prey items, while higher variance indicates prey access is higher for a subset of species compared to others.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Les Grands Mammifères du Complexe WAP
    1. F Lamarque
    (2004)
    Montpellier, CIRAD-ECOPAS.
  32. 32
  33. 33
  34. 34
    Occupancy Estimation and Modeling: Inferring Patterns and Dynamics of Species Occurrence (First Edition)
    1. DI MacKenzie
    2. J Royle
    3. J Nichols
    4. K Pollock
    5. L Bailey
    6. J Hines
    (2016)
    Elsevier Inc.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Estimating overlap of daily activity patterns from camera trap data
    1. MS Ridout
    2. M Linkie
    (2009)
    Journal of Agricultural, Biological, and Environmental Statistics 14:322–337.
    https://doi.org/10.1198/jabes.2009.08038
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67

Decision letter

  1. Lauren A O'Connell
    Reviewing Editor; Stanford University, United States
  2. Christian Rutz
    Senior Editor; University of St Andrews, United Kingdom
  3. John Heydinger
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This study examines differences in predator and prey temporal activity patterns in areas of high or low human use by combining occupancy models, temporal activity kernel density estimates, and other statistical tests to examine potential differences. Overall, the study is relevant to conservation efforts and understanding human-wildlife interactions. The work provides a new perspective of predator-prey temporal overlap from a community perspective that will be of broad interest to a wide range of researchers.

Decision letter after peer review:

Thank you for submitting your article "Humans disrupt access to prey for large African carnivores" for consideration by eLife. Your article has been reviewed by Christian Rutz as the Senior Editor, a Reviewing Editor, and two reviewers. The following individual involved in the review of your submission has agreed to reveal their identity: John Heydinger (Reviewer #1).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this decision letter to help you prepare a revised submission.

The editors have judged your manuscript to be of interest, but as described below, feel that a major re-write is required before it can be published – we would therefore like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This paper examines differences in predator and prey temporal activity patterns in areas of high or low human use by combining occupancy models, temporal activity kernel density estimates, and other statistical tests to examine potential differences. Overall, the paper is well-written and informative and the questions being asked are relevant to conservation efforts and understanding human-wildlife interactions. The work provides a new perspective of predator-prey temporal overlap from a community perspective that will be of broad interest to a wide range of researchers.

Essential revisions:

There are a few critical underlying issues that need to be addressed in a major re-write. These include a lack of clarity concerning how temporal and spatial dynamics interact, the methods for assessing and assigning human occupancy, and the need for greater environmental information.

1) Language around temporal and spatial dynamics should be more precise.

The Abstract reads: "We assessed human-induced changes to wildlife diel activity" but the paper is not about changes, it is about different levels of diel activity in grid cells with different levels of human occupancy. This may seem pedantic, but it is central to the claims of the paper. Changes in wildlife diel activity would take a baseline of diel activity within a grid cell and then examine the temporal differences following changes in human occupancy within that same grid cell. For example, if (using a two week period) a grid cell had two weeks during which human occupancy was 0.6 and that was followed by two weeks in which human occupancy was 0.2, and one assessed diel activity of wildlife in relation to those different levels of human occupancy within the same space, then you would be assessing changes in animal diel activity. The approach compares differences in diel activity between different geographic areas but then makes claims about changes in diel activity. Our question is: what has changed? You say that "over two-thirds of species altered their diel activity in response to human presence" but it would be more accurate to say that ungulate diel activity differed in areas of low versus high human occupancy. Based on the approach to human occupancy (lumping together observations in two-week periods) one could look at changes in human occupancy and then look at changing diel activity within the same grid cell. This would be interesting because you could examine if there was a lag-time in diel activity following changes in human occupancy; if so, what was this lag? The fourth paragraph of the Results section reads, "we evaluated the effects of human presence on diel activity…and consequential alterations to predator-prey relationships", save the word "alterations" (which assumes a baseline) this is what the paper does, not assess changes. The paper does not "test for shifts" but for differences.

This confusion around changes versus differences gets to a central problem with the paper's language, which reads as if low human occupancy is the norm and high human occupancy is a departure. This may not be intentional, but it is pervasive. The reader is left with the understanding that a certain level of human occupancy is 'natural' or perhaps desirable. However, hominids and wildlife have been coexisting in this region for tens of thousands of years. Without an historical baseline for human occupancy one cannot really assess 'change' -- only that different human occupancy levels yield different diel activities. To assess change you need to have a baseline. If low human occupancy is considered a baseline, the paper needs to tell us why.

Human activity levels may have changed significantly in your study area during the recent COVID-19 anthropause. Perhaps you can add a sentence or two how this, based on your present findings, may have affected animals' diel activity patterns?

2) Assessment of human occupancy.

It remains unclear how human occupancy was arrived at and whether the method was appropriate. There are a couple issues. (i) The paper says that all human images were combined into a single 'Human' categorization (subsection “Camera survey”). Was this done regardless of the number of people in an image? Surely there is a substantive difference between the presence of 30 people and 2 people for the occupancy model. (ii) We are not sure if a relative occupancy model is appropriate; it may be, but is it really useful to compare the relative human occupancy of a grid cell in the far south-western portion of the study area with a grid cell in the far north-eastern portion? (iii) The paper mentions that different human activities could have different effects on wildlife diel activity, but this may be so central to the argument that it warrants more than a passing mention. Was there really no difference in diel activity in hunting versus non-hunting grid cells? Because only a certain time of year was examined, is it possible to compare between hunting and non-hunting seasons? We were unconvinced that all human activities could be treated similarly. If there is literature on this it warrants a mention.

Please provide further details on how the human use camera data are organized in the occupancy model. Why did you use a single-season versus multi-season model? It looks like there could be differences in site locations between years, and/or sites only surveyed in one, two, or all three years. How was this all accounted for? Isn't it possible that, by using multi-season models, a site could have change from low human use to high human use or vice versa over the three years? Please also justify using mean value of human occupancy as the pressure threshold. Did you test other occupancies? What happens if one defines the pressure threshold occupancy >0.27? or based on median occupancy? Or mode? You shifted the threshold from 0.54 to 0.44 at one point (subsection “Human avoidance responses”) – why?

For the human use data, are humans only using this area during the day (i.e., are all the photos from the day)? We think that some of the activity, especially illegal activity such as poaching, would be taking place at night. Please present the percentage of photos during the day/night. Similarly, do you think that the camera traps provide a good idea on how much humans are using an area? Do you think this differs between areas where human presence is legal versus illegal? For example, those conducting illegal activities would be more likely to watch for cameras and avoid walking in front of them versus those conducting legal activities.

For both the human and wildlife data, what is the justification for grouping data from three years over 200 sites? Would there not be differences in either, based on season, year, or other factors? Particularly for the wildlife temporal data, would you expect there to be site differences in temporal patterns due to environmental factors, or perhaps seasonal differences due to rainfall or other factors? Please include justification for grouping all of these data together.

3) Environmental information.

Data collection was limited to the dry season without discussion about differences between dry and wet season. This does not undermine the approach, but would seem to limit the claims to the dry season (particularly pertinent if one discusses downstream issues of ecosystem function).

Prey accessibility: the study area lies along a transition zone between savannah and forest. You account for differences in environment when analyzing camera images, however, in terms of prey availability, is prey movement (as recorded by cameras) analogous to prey availability across different ecosystems within the study area? Related is the unexamined assumption that prey movement (as captured by cameras) is a robust proxy of prey availability. This may be supported by the literature, but if so, please make it explicit.

A map providing the different types of ecosystems would be helpful. It seems that human occupancy and wildlife activity would be influenced by ecosystem type, but maybe we are wrong. If ecosystem type had little influence, please say so.

4) Overall conclusions for management.

Can you address the management implications of these findings? What can be done differently by management to protect these species given the research findings from this study?

5) Ethics approval.

We could not find any mention in the manuscript that this work received institutional ethical approval, and noticed that you indicated in the online form that no human and animal subjects were used. While we appreciate that the study was observational in nature, the placement and servicing of camera traps may have caused disturbance to wildlife, and images were collected and processed of humans without their consent. Please provide details of ethical review and approval, as well as of any other relevant permit paperwork.

https://doi.org/10.7554/eLife.60690.sa1

Author response

Summary:

This paper examines differences in predator and prey temporal activity patterns in areas of high or low human use by combining occupancy models, temporal activity kernel density estimates, and other statistical tests to examine potential differences. Overall, the paper is well-written and informative and the questions being asked are relevant to conservation efforts and understanding human-wildlife interactions. The work provides a new perspective of predator-prey temporal overlap from a community perspective that will be of broad interest to a wide range of researchers.

Thank you very much for your review and positive feedback. We are very happy to hear that our work will interest readers.

Essential revisions:

There are a few critical underlying issues that need to be addressed in a major re-write. These include a lack of clarity concerning how temporal and spatial dynamics interact, the methods for assessing and assigning human occupancy, and the need for greater environmental information.

1) Language around temporal and spatial dynamics should be more precise.

The Abstract reads: "We assessed human-induced changes to wildlife diel activity" but the paper is not about changes, it is about different levels of diel activity in grid cells with different levels of human occupancy. This may seem pedantic, but it is central to the claims of the paper. Changes in wildlife diel activity would take a baseline of diel activity within a grid cell and then examine the temporal differences following changes in human occupancy within that same grid cell. For example, if (using a two week period) a grid cell had two weeks during which human occupancy was 0.6 and that was followed by two weeks in which human occupancy was 0.2, and one assessed diel activity of wildlife in relation to those different levels of human occupancy within the same space, then you would be assessing changes in animal diel activity. The approach compares differences in diel activity between different geographic areas but then makes claims about changes in diel activity. Our question is: what has changed? You say that "over two-thirds of species altered their diel activity in response to human presence" but it would be more accurate to say that ungulate diel activity differed in areas of low versus high human occupancy. Based on the approach to human occupancy (lumping together observations in two-week periods) one could look at changes in human occupancy and then look at changing diel activity within the same grid cell. This would be interesting because you could examine if there was a lag-time in diel activity following changes in human occupancy; if so, what was this lag? The fourth paragraph of the Results section reads, "we evaluated the effects of human presence on diel activity…and consequential alterations to predator-prey relationships", save the word "alterations" (which assumes a baseline) this is what the paper does, not assess changes. The paper does not "test for shifts" but for differences.

This confusion around changes versus differences gets to a central problem with the paper's language, which reads as if low human occupancy is the norm and high human occupancy is a departure. This may not be intentional but it is pervasive. The reader is left with the understanding that a certain level of human occupancy is 'natural' or perhaps desirable. However, hominids and wildlife have been coexisting in this region for tens of thousands of years. Without an historical baseline for human occupancy one cannot really assess 'change' -- only that different human occupancy levels yield different diel activities. To assess change you need to have a baseline. If low human occupancy is considered a baseline, the paper needs to tell us why.

We have modified the language throughout the manuscript to reflect the nature of our findings more accurately, as requested. We have changed any instances where we previously implied humans caused changes in diel activity and replaced those with discussion of differences in diel activity between areas of high and low activity.

We agree that comparing changes in human occupancy and associated changes in wildlife diel activity within each grid cell would be a compelling analysis. However, we would face challenges with obtaining adequate sample sizes for each species per grid cell per year combination to assess those changes. For example, African lions were only observed in multiple observation periods in 10 grid cells, and we would only be able to assess changes if human occupancy also changed within those same 10 grid cells. To maintain the strength of our findings, we have decided not to alter our analytical approach and instead revise the language within the paper to address the reviewers’ concerns. We will be returning to the system for camera surveys during the 2021-2022 field season and look forward to incorporating these analyses after obtaining more data.

These changes can been seen in the Abstract, Introduction, Results section, Discussion section and Materials and methods section.

Human activity levels may have changed significantly in your study area during the recent COVID-19 anthropause. Perhaps you can add a sentence or two how this, based on your present findings, may have affected animals' diel activity patterns?

Unfortunately, we do not have the data available to analyze if any changes in human activity occurred due to the COVID pandemic, as our research group was unable to complete a camera survey in this system for the 2020 season. So, an analysis of the effects of the COVID pandemic on human presence in the system is not feasible at this time. Given the relevance of human activity changes in the system to this study, we have added the following considerations to the Discussion section: “Our results are also suggestive of the potential ecological effects of changes to human activity in natural areas, which could result from fluctuations in tourism, infrastructure development, policy changes, and other local or global processes.”

2) Assessment of human occupancy.

It remains unclear how human occupancy was arrived at and whether the method was appropriate. There are a couple issues. (i) The paper says that all human images were combined into a single 'Human' categorization (subsection “Camera survey”). Was this done regardless of the number of people in an image? Surely there is a substantive difference between the presence of 30 people and 2 people for the occupancy model. (ii) We are not sure if a relative occupancy model is appropriate; it may be, but is it really useful to compare the relative human occupancy of a grid cell in the far south-western portion of the study area with a grid cell in the far north-eastern portion? (iii) The paper mentions that different human activities could have different effects on wildlife diel activity, but this may be so central to the argument that it warrants more than a passing mention. Was there really no difference in diel activity in hunting versus non-hunting grid cells? Because only a certain time of year was examined, is it possible to compare between hunting and non-hunting seasons? We were unconvinced that all human activities could be treated similarly. If there is literature on this it warrants a mention.

i) We did consider detection of humans regardless of the number of people appearing in the images because occupancy models consider only presence-absence data within an observation period, regardless of the number of individuals or detections that occur within that period. Also, the number of individuals observed in human detections did not exceed 8. Therefore, the occupancy estimates represent the probabilities that humans use a particular grid cell, as described in subsection “Human occupancy models”. The primary use of occupancy models here is to account for the imperfect detection of humans and gauge the probability that they used grid cells in which they were not directly observed. All grid cells where humans were observed on camera, therefore, had occupancies of 1 because humans did use that site. We understand that the term “intensity of use” may have led to confusion surrounding this interpretation and have removed that phrase from the manuscript in the 2 places it appeared (Discussion section and subsection “Human occupancy models”).

ii) Our study was designed to capture the heterogeneity in human presence across the study area in WAP in order to understand human impacts on sympatric wildlife behavior. Our occupancy models account for spatial variation in human presence, facilitating comparisons of human use among grid cells throughout the study area. We have added the following sentence to subsection “Human occupancy models” for clarification: “Occupancy models account for spatial heterogeneity in human presence across the study area, facilitating investigation into the behavioral responses of sympatric wildlife.”

iii) Regarding the responses of wildlife to different human activities, we have added the following to the Discussion section: “Indeed, Harris et al., (2019) found differential impacts of human activities on wildlife detections rates in WAP, suggesting species in this system do not respond to all humans uniformly. However, limited sample sizes of many human activity categories currently preclude more detailed analyses using an occupancy framework.” Regarding hunting pressures specifically, our research group does not currently have access to data surrounding hunting rates on species in the study area and so any questions surrounding sensitivities to hunting would be highly speculative. Also, the survey period took place during the legal hunting season, preventing any comparisons between hunting and non-hunting seasons. Recent work from these camera surveys in the NPs of WAP indicated that hunting was the least common direct human activity, so we do not have evidence of heavy poaching pressure in the study area (Harris et al., 2019). While we do expect that some human activities may be more impactful than others, we do not think that this detracts from the broader patterns of wildlife activity responses to overall human activity that are the result of this study. Similarly, it is common practice to include an aggregated metric of human pressures as evidence in many rigorous ecological studies (e.g., Rich et al., 2016; Suraci et al., 2019; Creel et al., 2019) because, if significant, that can lead to further scrutiny to discriminate relative impacts by type.

Please provide further details on how the human use camera data are organized in the occupancy model. Why did you use a single-season versus multi-season model? It looks like there could be differences in site locations between years, and/or sites only surveyed in one, two, or all three years. How was this all accounted for? Isn't it possible that, by using multi-season models, a site could have change from low human use to high human use or vice versa over the three years? Please also justify using mean value of human occupancy as the pressure threshold. Did you test other occupancies? What happens if one defines the pressure threshold occupancy >0.27? or based on median occupancy? Or mode? You shifted the threshold from 0.54 to 0.44 at one point (subsection “Human avoidance responses”) – why?

We chose to use a single-season occupancy model because we were primarily concerned with the level of utilization of human throughout the study area, but less interested in the changes human use from year to year. We added the following to the Results section: “We chose to use single-season models to assess the overall distribution of human space use across the study area, as opposed to multi-season occupancy models which also estimate extinction/colonisation rates that is not necessary for our objective. Instead we included year as covariate in single species models to assess temporal variation in human occupancy patterns.”

We captured the potential for yearly changes in human use by including year as a covariate in the single-season model. Thus, the single-season model does allow for a given grid cell to change in occupancy level from one year to the next if it was surveyed twice, and so it is possible that a single grid cell be classified as high human use one year and low human use the next year. We have added the following to subsection “Human occupancy models” to increase clarity: “A grid cell surveyed in multiple years could, therefore, have different levels of occupancy between surveys.”

We chose to use the mean human occupancy value (0.54) as a threshold because of the bimodal distribution of human occupancy values (Figure 2), and to facilitate comparison of wildlife diel activity patterns between low and high human areas by allocating roughly equal numbers of grid cells to both categories. We have added the following sentences to subsection “Human occupancy models”: “We chose to use the mean occupancy as the threshold value because of the bimodal distribution of occupancy values and to facilitate comparisons between similar sample sizes of low and high human use grid cells (Figure 2B). We also conducted a sensitivity analysis to evaluate the selected threshold by repeating our analyses using thresholds ± 0.1, as described in the following section.”

We tested for sensitivity of our results to this selected threshold to ensure it was not biasing out results, which is mentioned in the Results section. We had added to this line for clarity: “After testing the sensitivity of our results to the human occupancy threshold selected, we found that increasing or decreasing the low vs. high human occupancy threshold by ±0.1 did not alter our interpretation of species’ differences in diel activity (Supplementary file 3).” This sensitivity testing information is also included in the Materials and methods section. We tested sensitivity over a range of thresholds 0.54 ± 0.1 because this appeared to be a reasonable range of threshold values based on the bimodal distribution of human occupancy estimates, and the consideration of maintaining sample sizes of grid cells in each human designation to facilitate comparisons. Likewise, using the median (0.67) rather than the mean (0.54) did not change our results and only changed the human use designation of 9 grid cells (4% of sample size) from high to low, though that is not explicitly included in the manuscript. Because the majority of human occupancy estimates occurred near 0 or 1, our choice of threshold does not appear to substantially impact our results.

For the human use data, are humans only using this area during the day (i.e., are all the photos from the day)? We think that some of the activity, especially illegal activity such as poaching, would be taking place at night. Please present the percentage of photos during the day/night. Similarly, do you think that the camera traps provide a good idea on how much humans are using an area? Do you think this differs between areas where human presence is legal versus illegal? For example, those conducting illegal activities would be more likely to watch for cameras and avoid walking in front of them versus those conducting legal activities.

The majority of human detections occurred during the day. We have added information on human diel use in the Results section: “Humans exhibited mostly diurnal activity with 80.3% of detections occurring between sunrise and sunset.” We have also added the diel activity curve from human detections in Figure 2C.

While some amount of illegal activity may account for the night-time detections, we expect that the much higher intensity of activity during the day would be driving the overall effects on wildlife diel patterns. It is also possible that illegal activities might be less likely to be caught on camera, though this has not been tested in our system, however, activities that are illegal (e.g., poaching) are illegal throughout the study area. The illicit nature of these activities makes monitoring efforts difficult, and camera surveys provide a systematic monitoring effort and are conducive to occupancy analysis, as completed here, that accounts for the imperfect detection of humans in the system.

For both the human and wildlife data, what is the justification for grouping data from three years over 200 sites? Would there not be differences in either, based on season, year, or other factors? Particularly for the wildlife temporal data, would you expect there to be site differences in temporal patterns due to environmental factors, or perhaps seasonal differences due to rainfall or other factors? Please include justification for grouping all of these data together.

We do not expect that annual variation of the human and wildlife data to impact the validity or interpretation of our results, because we explicitly examined differences in wildlife temporal activity in relation to human space use across the complex. We do account for any differences in human occupancy and detections over different years by including year as a covariate, as stated in subsection “Human occupancy models”. If there are environmental variables that are also affecting human use between years, our modeling framework would capture that variation in estimating human occupancy. Because we associate wildlife diel activity to those human use levels, we are also incorporating any indirect effects of the environment’s temporal variation on wildlife diel patterns. Further, it is largely accepted that the primary factors driving wildlife diel patterns are predation risks, thermoregulation, and foraging needs (Cozzi et al., 2012; Kohl et al., 2019; Veldhuis et al., 2020), as mentioned in the Introduction. Though climatic variables may vary from year to year and influence thermoregulatory needs and foraging availability for herbivores, we expect that any changes to diel patterns due to these variables would impact the entire system (e.g., drought) and so any changes in wildlife diel patterns would be observed in both low and high human areas and thus not bias our results.

Because our occupancy model selection results do indicate that year is important in human use variation, our estimates of human occupancy and designations of low and high human areas account for temporal variation in human use. Further, limited sample sizes for multiple species (for example, lions, leopards, hartebeest; see Supplementary file 1) compelled us to group the data from all three years. Finally, previous work that used a single-season occupancy model to estimate large carnivore space use in the study area showed no indication that survey year was important in explaining carnivore site use. We have included the following in the Materials and methods section to justify this decision: “Due to limited detections for some species, we aggregated survey data from all 3 years into a single data. We accounted for temporal variation in human space use during the subsequent modeling process, and previous work suggests little annual variation in wildlife activity (Mills et al., 2020).”

3) Environmental information.

Data collection was limited to the dry season without discussion about differences between dry and wet season. This does not undermine the approach, but would seem to limit the claims to the dry season (particularly pertinent if one discusses downstream issues of ecosystem function).

We have added the following statement to subsection “Study area”: “Though our study design may limit inferences to dry season conditions, evidence suggests that large African herbivores show similar overall temporal activity distributions as seasons change (Owen-Smith et al., 2010).”

Prey accessibility: the study area lies along a transition zone between savannah and forest. You account for differences in environment when analyzing camera images, however, in terms of prey availability, is prey movement (as recorded by cameras) analogous to prey availability across different ecosystems within the study area? Related is the unexamined assumption that prey movement (as captured by cameras) is a robust proxy of prey availability. This may be supported by the literature, but if so, please make it explicit.

We have shown in a previous study that predator space use in this system is strongly associated with prey availability as measured by prey capture success at camera traps (Mills et al., 2020), supporting the use of camera data as a proxy for prey availability. Further, higher movement of wildlife inherently increases the likelihood of encounters with sympatric species and temporal overlap between species increases the strength of interspecific interactions. Using camera data to estimate prey availability for inference into predator-prey interactions has been well-established in the literature (e.g., Murphy et al., 2018, Burton et al., 2012). We have added the following justification in subsection “Temporal analyses”: “Previous work in this system supports estimation of prey availability from camera trap data in that predator space use is heavily influenced by prey availability as estimated from camera trap detections(Mills et al., 2020). Further, temporal activity overlap between species are directly influences the strength of interspecific interactions (Kronfeld-Schor et al., 2017).”

A map providing the different types of ecosystems would be helpful. It seems that human occupancy and wildlife activity would be influenced by ecosystem type, but maybe we are wrong. If ecosystem type had little influence, please say so.

The habitat of the study area is about 90% savanna habitat, with the little remaining area represented by mostly riparian forest (~6%), wetland/floodplain (~3%). There are no grid cells with less than 63% savanna habitat. We have also searched the literature and were unable to find any substantial evidence for differences in large mammal diel activity patterns between habitat types (see Owen-Smith et al., 2020). Because of the majority savanna habitat at the scale of 10-km grid cells and a lack of literature supporting differences in wildlife diel patterns between habitat types, we do not expect that our results are substantially influenced by habitat types.

We have added the following information to to the Discussion section: “…, with savanna accounting for ca. 90% of the habitat cover in the study area (Mills et al., 2020).”

4) Overall conclusions for management.

Can you address the management implications of these findings? What can be done differently by management to protect these species given the research findings from this study?

We have added the following text to the Discussion section: “This highlights increasing concerns for the persistence of the now Critically Endangered West African lions that are suffering from prey depletion,”; and “Our approach implemented in this study may therefore be useful for anticipating herbivore population declines as a result of intensified predation pressures, as well as potential resulting feedbacks into predator population stability especially for endangered species such as the West African lion.”; and consideration of the implications of the COVID pandemic, as mentioned earlier,: “Our results are also suggestive of the potential ecological ramifications of the COVID-19 pandemic that substantially limited human presence in WAP following this study. This global reduction in human use of natural areas may lead to changes in predator-prey interactions and other fundamental ecological processes.”

5) Ethics approval.

We could not find any mention in the manuscript that this work received institutional ethical approval, and noticed that you indicated in the online form that no human and animal subjects were used. While we appreciate that the study was observational in nature, the placement and servicing of camera traps may have caused disturbance to wildlife, and images were collected and processed of humans without their consent. Please provide details of ethical review and approval, as well as of any other relevant permit paperwork.

We consulted with the University of Michigan Institutional Review Board, which has determined that a full ethical review was not necessary for using human images in our study in part from working in public spaces with no expectation of privacy and government permit approving camera research. We have included the following statement in our Materials and methods section: “Our work is not human subjects research requiring IRB review, though we remain grateful to authorities granting permission for our research and their efforts to manage coupled human-natural ecosystems.”

https://doi.org/10.7554/eLife.60690.sa2

Article and author information

Author details

  1. Kirby L Mills

    Applied Wildlife Ecology Lab, Ecology and Evolutionary Biology Department, University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing, Processed and curated camera trap images
    For correspondence
    kimills@umich.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7693-9629
  2. Nyeema C Harris

    Applied Wildlife Ecology Lab, Ecology and Evolutionary Biology Department, University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Investigation, Visualization, Project administration, Writing - review and editing, Processed and curated camera trap images
    For correspondence
    nyeema@umich.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5174-2205

Funding

Detroit Zoological Society

  • Nyeema C Harris

University of Michigan (Office of Research)

  • Nyeema C Harris

Department of Afroamerican and African Studies, University of Michigan (STEM Initiative)

  • Nyeema C Harris

German Society of Mammalian Biology

  • Nyeema C Harris

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank administrators in Ministries of Environment in Burkina Faso (OFINAP and DGEF) and Niger (DGE/EF) especially B Doamba and Y Harissou for logistical support as well as private concessionaires in Burkina Faso for wildlife management efforts and access to properties in WAP. We extend our sincerest appreciation to all park managers and the field team, especially I Gnoumou and YI Abdel-Nasser that assisted with data collection. We thank the AWE Lab for comments on manuscript drafts, assistance with image identification, and data management specifically S Gámez, M Lyons, J VanZoeren, and R Malhotra. We also thank B Dantzer and J Suraci for their valuable comments on the manuscript. We also acknowledge the University of Michigan (UM) African Studies Center - STEM initiative, UM Office of Research, the German Society of Mammalian Biology, and the Detroit Zoological Society for financial support.

Senior Editor

  1. Christian Rutz, University of St Andrews, United Kingdom

Reviewing Editor

  1. Lauren A O'Connell, Stanford University, United States

Reviewer

  1. John Heydinger

Publication history

  1. Received: July 3, 2020
  2. Accepted: November 2, 2020
  3. Version of Record published: November 18, 2020 (version 1)

Copyright

© 2020, Mills and Harris

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 227
    Page views
  • 18
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Ecology
    2. Evolutionary Biology
    Naïma Jesse Madi et al.
    Research Article

    Microbes are embedded in complex communities where they engage in a wide array of intra- and inter-specific interactions. The extent to which these interactions drive or impede microbiome diversity is not well understood. Historically, two contrasting hypotheses have been suggested to explain how species interactions could influence diversity. 'Ecological Controls' (EC) predicts a negative relationship, where the evolution or migration of novel types is constrained as niches become filled. In contrast, 'Diversity Begets Diversity' (DBD) predicts a positive relationship, with existing diversity promoting the accumulation of further diversity via niche construction and other interactions. Using high-throughput amplicon sequencing data from the Earth Microbiome Project, we provide evidence that DBD is strongest in low-diversity biomes, but weaker in more diverse biomes, consistent with biotic interactions initially favoring the accumulation of diversity (as predicted by DBD). However, as niches become increasingly filled, diversity hits a plateau (as predicted by EC).

    1. Ecology
    2. Evolutionary Biology
    Susanne RK Zajitschek et al.
    Research Article

    Biomedical and clinical sciences are experiencing a renewed interest in the fact that males and females differ in many anatomic, physiological, and behavioral traits. Sex differences in trait variability, however, are yet to receive similar recognition. In medical science, mammalian females are assumed to have higher trait variability due to estrous cycles (the 'estrus-mediated variability hypothesis'); historically in biomedical research, females have been excluded for this reason. Contrastingly, evolutionary theory and associated data support the 'greater male variability hypothesis'. Here, we test these competing hypotheses in 218 traits measured in >26,900 mice, using meta-analysis methods. Neither hypothesis could universally explain patterns in trait variability. Sex-bias in variability was trait-dependent. While greater male variability was found in morphological traits, females were much more variable in immunological traits. Sex-specific variability has eco-evolutionary ramifications including sex-dependent responses to climate change, as well as statistical implications including power analysis considering sex difference in variance.
