SUV39 SET domains mediate crosstalk of heterochromatic histone marks

  1. Alessandro Stirpe
  2. Nora Guidotti
  3. Sarah J Northall
  4. Sinan Kilic
  5. Alexandre Hainard
  6. Oscar Vadas
  7. Beat Fierz
  8. Thomas Schalch  Is a corresponding author
  1. Department of Molecular Biology, Faculty of Science, University of Geneva, Switzerland
  2. Institute of Chemical Sciences and Engineering (ISIC), Ecole Polytechnique Fédérale de Lausanne (EPFL), Switzerland
  3. Leicester Institute for Structural and Chemical Biology, University of Leicester, United Kingdom
  4. Department of Molecular and Cell Biology, University of Leicester, United Kingdom
  5. University Medical Center, University of Geneva, Switzerland
  6. School of Pharmaceutical Sciences, Faculty of Science, University of Geneva, Switzerland
Research Article
Cite this article as: eLife 2021;10:e62682 doi: 10.7554/eLife.62682
5 figures, 3 tables and 5 additional files

Figures

Figure 1 with 1 supplement
The catalytic domain of Clr4 senses the H3K14ub mark.

(A) Domain organization of the Clr4 protein. CD: chromodomain; NT: N-terminal domain; SET: Su-var39/enhancer of zeste/trithorax domain; KMT: lysine methyltransferase domain. (B) Methyltransferase time course on H3K14ub versus unmodified H3 peptides shows strong stimulation of full-length Clr4 and the isolated KMT domain by H3K14ub. Peptide concentration was held constant at 20 μM, 3H-SAM was used as methyl donor with 20 nM enzyme. CBB: Coomassie Brilliant Blue. (C) Stimulation of methyltransferase activity of Clr4 (20 nM) comparing indicated substrates with unmodified H3 peptide by radiometric filter binding assay with 3H-SAM as methyl donor. (D) Michaelis–Menten kinetics of SAH production of the Clr4 KMT domain on unmodified versus H3K14ub peptides. Measured using TR-FRET competition assay (Cisbio EPIgeneous Methyltransferase Assay kit). (E) Ubiquitin competition assay demonstrates the specificity of Clr4 for ubiquitin and shows that covalent linkage in cis is required for activation. (C–E) Error bars indicate standard error of the mean, N = 3 unless indicated.

Figure 1—figure supplement 1
H3K14ub activates Clr4 enzymatic activity.

(A) Scheme for synthesis of ubiquitinated peptides. (B, C) Reverse-phase HPLC chromatography and electrospray ionization mass spectrometric (ESI-MS) analysis of ubiquitinated, purified peptides P1″ (B) and P2″ (C). (D) Protein preparations analyzed by SDS-PAGE that were used for activity assays in Figure 1B and C. (E, F) Full-size images for data shown in Figure 1B. (G) Representation of data in Figure 1C as rates derived from 3H incorporation by filter binding and scintillation counting. (H) Methyltransferase assays with indicated Clr4 truncation constructs on ubiquitinated versus unmodified H3 peptides. Measured using a TR-FRET competition assay (Cisbio EPIgeneous Methyltransferase Assay kit). (I) Protein preparations analyzed by SDS-PAGE that were used for activity assays in Figure 1D and E and Figure 1—figure supplement 1H. Asterisk indicates a contaminating band.

Figure 2 with 1 supplement
H3K14ub binding stabilizes residues 243–262 on Clr4.

(A) Differences in Clr4 hydrogen/deuterium exchange (HDX) rates upon binding of H3 and H3K14ub peptides are shown for each analyzed peptide. Values are plotted as the product of [deuteration percentage] * [number of deuterons] to minimize the influence of peptide length on the results. Domain diagram indicates the regions showing stabilization upon interaction with H3 peptides in general (cyan) and more specifically with H3K14ub (blue). (B) Uptake plot for two peptides representative of regions showing differences in HDX rate of Clr4 upon peptide binding. (C) Surface representation of Clr4 structure (PDBID:6BOX) and cartoon representation of ubiquitin (PDBID:1UBQ). UBR: ubiquitin binding region. (D) Differences in ubiquitin HDX rates for the H3-K14ub peptide in the absence and presence of Clr4. Results are shown as in (A). (E) Uptake plot for peptide 25–43 of ubiquitin linked to H3K14 showing a marked reduction in HDX rate at 30 s and 300 s incubation time in deuterated buffer.

Figure 2—figure supplement 1
H3K14ub binding stabilizes residues 243–262 on Clr4.

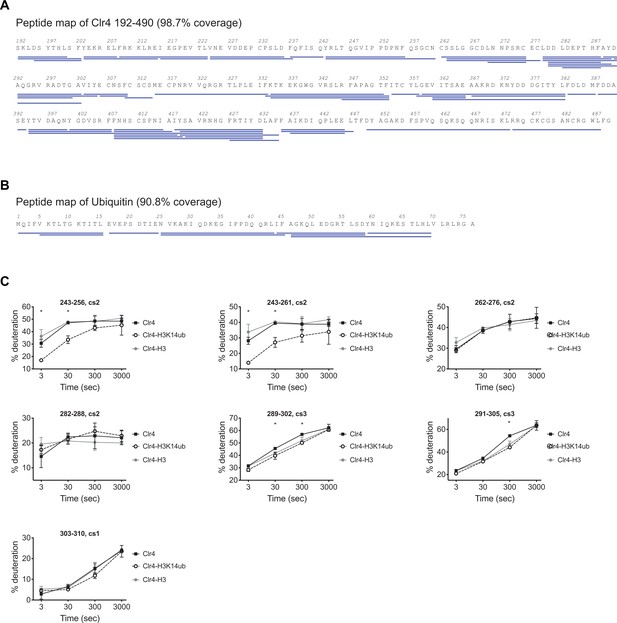

(A) Peptide map of Clr4 peptides used for hydrogen deuterium exchange mass spectrometry (HDX-MS) analysis of Clr4. (B) Peptide map showing peptides used for the HDX-MS analysis of H3K14ub dynamics. (C) Selection of Clr4 peptides comparing the deuteration levels for Clr4 alone (Clr4) or when in complex with H3K14ub peptide (Clr4-H3K14ub) or with H3 unmodified peptide (Clr4-H3). Values shown as percentage deuteration compared to a theoretical maximal level.

Figure 3 with 1 supplement
Mutants in the Clr4-H3K14ub interface are defective for substrate binding.

(A–C) Thermodynamic parameters of H3K14ub substrate binding to wild-type and mutant Clr4KMT proteins were measured using isothermal titration calorimetry (ITC). Heat rates (top panel) were integrated and plotted as a binding isotherm (bottom panel). Fit to a one-site model is shown as a solid line where fitting was possible. (D) Overview and detail view of superimposition of Clr4-3FA crystal structure (shades of teal) to wild-type Clr4 (yellow) (PDBID:6BOX) indicate absence of major differences in global folding. Residues 243–262 are colored in blue. Mutated residues (orange) and SAH co-factor are shown in stick representation. (E) Superposition of mutated region in stick representation for Clr4-3FA (orange) and Clr4 (gray) (PDBID:6BOX). (F) Methyltransferase kinetics of wild-type and Clr4KMT mutants measured by detection of 3H incorporation on SDS-PAGE gels shows loss of stimulation by H3K14ub for GS253 and 3FA mutants. To observe sufficient signal, differing enzyme concentrations of 20 and 200 nM were used for H3K14ub and H3 peptides, respectively. (G) Michaelis–Menten kinetics for Clr4 wild-type, 3FA, and GS253 mutants measured using the Promega MTase-Glo methyltransferase assay. Error bars correspond to standard error of mean based on three or four measurements.

Figure 3—figure supplement 1
Clr4F3A folds similarly to Clr4.

(A) Representative protein preparations of Clr4 mutants analyzed by SDS-PAGE and Coomassie Brilliant Blue staining that were used for isothermal titration calorimetry (ITC) and activity assays in Figure 3. (B) Detail of Clr4-3FA electron density map in the region containing the mutations F256A/F310A/F427A. (C) Stimulation by H3K14ub and H3K18ub is shown as relative rates of 3H incorporation quantified by filter binding and scintillation counting using the same experimental setup as in Figure 1C. Error bars indicate standard error of mean.

Clr4 mutants lose heterochromatin.

(A) Serial dilution growth assays of wild-type and the Clr4 mutants. Strains were assessed for growth on PMG media, PMG-ura to monitor imr1L::ura4+ expression, and PMG+FOA to monitor silencing of imr1L::ura4+. Expression of otr1R::ade6+ was tested on PMG containing low adenine. (B) Immunoblot for FLAG-Clr4 on cell lysates from clr4 mutant strains. Asterisk indicates a non-specific band. (C) Co-IP experiment to assess the stability of the CLRC complex in clr4-GS253 and clr4-3FA mutants. (D) Changes in steady-state transcript levels in clr4 mutant strains relative to wild-type cells were measured by RT-qPCR for centromeric dg, dh repeats, and tlh1 transcripts at telomeres. act1 was used as an internal standard for all measurements. (E) ChIP for wild-type and indicated mutant strains against FLAG-Clr4 and H3K9me2 at centromeric dg, dh repeats, and telomeric tlh1. Enrichment was normalized to clr4Δ. (F) ChIP for H3K9me1, H3K9me2 and H3K9me3, and RNA polymerase II at centromeric dh repeats. act1 was used as an internal standard for all measurements. Mean and standard errors in (D–F) were calculated from a minimum of three independent biological replicates.

Figure 5 with 1 supplement
Conservation and mechanistic model of H3K14ub stimulation in the SUV39 methyltransferase family.

(A) Methyltransferase rates of human G9a and human SUV39H2 and Arabidopsis SUVH4 on indicated substrates were determined by quantifying 3H-methyl incorporation using filter binding assays. Error bars correspond to standard error of mean. (B) Schematic of how H3K14 ubiquitylation licenses H3K9me2/3 deposition and how H3K14ac specifically prevents this. (C, D) Overview and detail view of the Clr4-H3K14ub model calculated with HADDOCK using restraints obtained by HDX-MS and mutagenesis.

Figure 5—figure supplement 1
Conservation and mechanistic model of H3K14ub stimulation in the SUV39 methyltransferase family.

(A) SDS-PAGE of protein preparations used for methyltransferase assays in Figure 5A. (B) Methyltransferase activity of human G9a and SUV39H2 versus indicated H3 peptides. Measured using the TR-FRET competition assay (Cisbio EPIgeneous Methyltransferase Assay kit). (C) Representation of data in Figure 5A as rates for SUV39 proteins derived from 3H incorporation by filter binding and scintillation counting. Standard errors of the mean were calculated from the indicated number of replicates. (D) Multiple sequence alignment of representative fungal species that show conservation in the UBR (green shaded region). (E) Motifs identified by Hidden Markov Model search (JACKHMMER [Potter et al., 2018]) with S. pombe Clr4, human SUV39H2, human G9A, and Arabidopsis SUVH4 sequence covering the regions corresponding to the Clr4 UBR.

Tables

Table 1
Enzyme kinetics.
Clr4KMTSubstrateKM(µM)kcat(min–1)kcat/KM(mM–1 min–1)Figure
WTH3(1–21)28.1 ± 8.00.277 ± 0.0249.86 ± 2.18Figure 1D
WTH3K14ub0.329 ± 0.0600.809 ± 0.0292456 ± 405Figure 1D
WTH3(1–19)124 ± 260.713 ± 0.0855.75 ± 0.59Figure 3G
WTH3K14ub0.234 ± .0.0683.85 ± 0.2916459 ± 3,796Figure 3G
3FAH3(1–19)76.8 ± 17.50.406 ± 0.0455.29 ± 0.68Figure 3G
3FAH3K14ub4.00 ± 1.602.49 ± 0.32623 ± 180Figure 3G
GS253H3(1–19)121 ± 290.548 ± 0.0714.53 ± 0.52Figure 3G
GS253H3K14ub10.4 ± 1.23.83 ± 0.21370 ± 25Figure 3G
  1. Values represent fitting estimates and corresponding standard error.
