Disturbed retinoid metabolism upon loss of rlbp1a impairs cone function and leads to subretinal lipid deposits and photoreceptor degeneration in the zebrafish retina

  1. Domino K Schlegel
  2. Srinivasagan Ramkumar
  3. Johannes von Lintig
  4. Stephan CF Neuhauss  Is a corresponding author
  1. Department of Molecular Life Sciences, University of Zurich, Switzerland
  2. Department of Pharmacology, School of Medicine, Case Western Reserve University, United States
Research Article
  • Cited 0
  • Views 415
  • Annotations
Cite this article as: eLife 2021;10:e71473 doi: 10.7554/eLife.71473

Abstract

The RLBP1 gene encodes the 36 kDa cellular retinaldehyde-binding protein, CRALBP, a soluble retinoid carrier, in the visual cycle of the eyes. Mutations in RLBP1 are associated with recessively inherited clinical phenotypes, including Bothnia dystrophy, retinitis pigmentosa, retinitis punctata albescens, fundus albipunctatus, and Newfoundland rod–cone dystrophy. However, the etiology of these retinal disorders is not well understood. Here, we generated homologous zebrafish models to bridge this knowledge gap. Duplication of the rlbp1 gene in zebrafish and cell-specific expression of the paralogs rlbp1a in the retinal pigment epithelium and rlbp1b in Müller glial cells allowed us to create intrinsically cell type-specific knockout fish lines. Using rlbp1a and rlbp1b single and double mutants, we investigated the pathological effects on visual function. Our analyses revealed that rlbp1a was essential for cone photoreceptor function and chromophore metabolism in the fish eyes. rlbp1a-mutant fish displayed reduced chromophore levels and attenuated cone photoreceptor responses to light stimuli. They accumulated 11-cis and all-trans-retinyl esters which displayed as enlarged lipid droplets in the RPE reminiscent of the subretinal yellow-white lesions in patients with RLBP1 mutations. During aging, these fish developed retinal thinning and cone and rod photoreceptor dystrophy. In contrast, rlbp1b mutants did not display impaired vision. The double mutant essentially replicated the phenotype of the rlbp1a single mutant. Together, our study showed that the rlbp1a zebrafish mutant recapitulated many features of human blinding diseases caused by RLBP1 mutations and provided novel insights into the pathways for chromophore regeneration of cone photoreceptors.

Introduction

The gene RLBP1 encodes the cellular retinaldehyde-binding protein (CRALBP), a soluble 36 kDa protein involved in the vertebrate visual cycle. CRALBP belongs to the CRAL-TRIO family of proteins and contains a CRAL-TRIO domain common to several lipid-binding proteins (Panagabko et al., 2003). In mammals, CRALBP is expressed in the retinal pigment epithelium (RPE) and Müller glial cells (MGCs). It is known to bind 11-cis-retinal (11cisRAL) in the RPE and both 11cisRAL and 11-cis-retinol (11cisROL) in the retina (Saari et al., 1982). It is also able to bind 9-cis-retinal but not 13-cis-retinal (Saari and Bredberg, 1987). CRALBP facilitates both the isomerohydrolase reaction mediated by RPE65 and the oxidation of the product, 11cisROL, to 11cisRAL (Saari et al., 2001; Saari et al., 1994; Stecher et al., 1999; Winston and Rando, 1998). Also, CRALBP prevents unwanted side reactions or premature photoisomerization of the unstable chromophore 11cisRAL (McBee et al., 2001).

Mutations in RLBP1 have been associated with a group of autosomal recessive retinal diseases comprising autosomal recessive retinitis pigmentosa (Maw et al., 1997), Bothnia dystrophy (Burstedt et al., 1999), Newfoundland rod–cone dystrophy (Eichers et al., 2002), retinitis punctata albescens (RPA) (Morimura et al., 1999), and fundus albipunctatus (Katsanis et al., 2001). These retinal disorders differ in certain aspects of the disease such as time of onset, severity, and progression. However, they all cause prolonged dark adaptation and night blindness in early childhood. Upon progression, the involvement of the macula and RPE is possible, resulting in loss of central vision and legal blindness at the age of 20–40 (Burstedt and Golovleva, 2010). Another interesting common feature in patients with RLBP1-associated disease is a characteristic fundus appearance with homogeneously distributed, punctate white-yellow deposits. It was found that impaired CRALBP function can be caused by pathogenic mutations that either tighten or weaken the interaction of CRALBP with 11cisRAL (Golovleva et al., 2003). The crystal structure of wild-type and mutant CRALBP provided insights into the accompanying molecular changes within the protein (He et al., 2009).

The involvement of cone photoreceptors at later stages of the disease makes it imperative to elucidate the role of CRALBP in visual pigment regeneration. While visual pigment regeneration in rods is very well established (e.g., reviewed in Kiser et al., 2014), the processes involved in 11cisRAL recycling in cones are less well understood. Besides the canonical visual cycle, a Müller glia cell-dependent intraretinal visual cycle has been proposed (Fleisch et al., 2008; Collery et al., 2008; Wang et al., 2009; Xue et al., 2015; Sato and Kefalov, 2016) as well as recycling pathways via light-dependent mechanisms both in the RPE and MGCs (Kolesnikov et al., 2021; Morshedian et al., 2019; Kaylor et al., 2017; Babino et al., 2015). Together, these pathways might meet the demand for chromophore supply of cones during bright daylight illumination and prevent competition between cone and rod photoreceptor for the unique chromophore.

Interestingly, mammalian RLBP1, the gene encoding CRALBP, is expressed not only in RPE cells but also in Müller glia cells (MGCs) (Bunt-Milam and Saari, 1983). Therefore, CRALBP was implicated in the pathways for visual pigment regeneration in both cell types. Findings from morpholino-knockdown in zebrafish larvae supported this idea (Fleisch et al., 2008; Collery et al., 2008). However, the exact mechanisms underlying these complementary pathways and the role of CRALBP therein are still debated (Kolesnikov et al., 2021; Ward et al., 2020; Zhang et al., 2019; Morshedian et al., 2019; Kiser et al., 2019; Kiser et al., 2018).

In contrast to mammals, the zebrafish eyes harbor duplicates of Cralbp and express rlbp1a in RPE cells and rlbp1b in MGCs in a nonoverlapping pattern (Fleisch et al., 2008; Collery et al., 2008). In the current study, we exploited the fish to target Cralbp in an intrinsically cell-specific manner and investigated the contributions of the RPE and the MGC to cone visual pigment regeneration. The cone-dominant retina of the zebrafish and the practically exclusively cone-driven retinal responses in larval stages (Branchek, 1984; Bilotta et al., 2001) facilitated the investigation of cone-specific defects upon knockout of either rlbp1 paralog in larvae up to 5 days postfertilization (dpf). Moreover, our model has the advantage over previous morpholino-mediated knockdown studies in that we could assess the progression of the disease beyond 5 dpf. Importantly, our fish model recapitulated the key characteristics of the human disease, including progressive retinal thinning and the appearance of subretinal lipid deposits, resembling the yellow-white dots in patient fundi.

Results

Generation of intrinsically cell-specific KO lines using CRISPR/Cas9

The nonoverlapping expression pattern of rlbp1a and rlbp1b in the zebrafish retina allowed us to target each Cralbp separately and to create intrinsically cell-specific knockout (KO) lines. The rlbp1a−/− line harbors a 19 bp deletion in exon four causing a frameshift and an early stop codon. The rlbp1b−/− line displays an in-frame 18 bp deletion in exon 4 (see Methods Table 2 for sequences). Both KOs were confirmed in retinal sections using immunohistochemistry with a CRALBP antiserum (Figure 1). In wild types, CRALBP immunofluorescence is present in the RPE cells and the MGCs. In rlbp1a−/−, the staining is only present in MGCs, while in rlbp1b−/−, staining is restricted to the RPE. Double-KO animals were generated by crossing the two single-mutant lines. The loss of Cralbp proteins in the retina of double-KO was confirmed by immunohistochemistry. Both single-KO lines had reduced levels of mRNA of the targeted gene, indicative of nonsense-mediated decay (Figure 1B and C). Notably, the expression of the respective paralogs was not increased. Therefore, transcriptional adaptation, often observed in zebrafish knockout models (Rossi et al., 2015), through upregulation of the paralogs, was not observed for Cralbps.

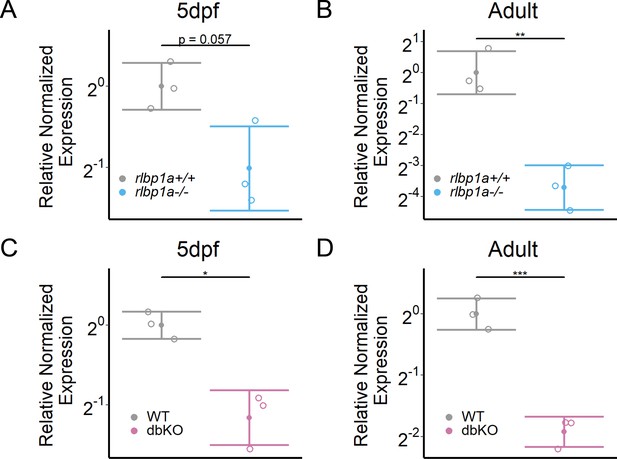

Protein and gene expression in Cralbp-knockout (KO) lines.

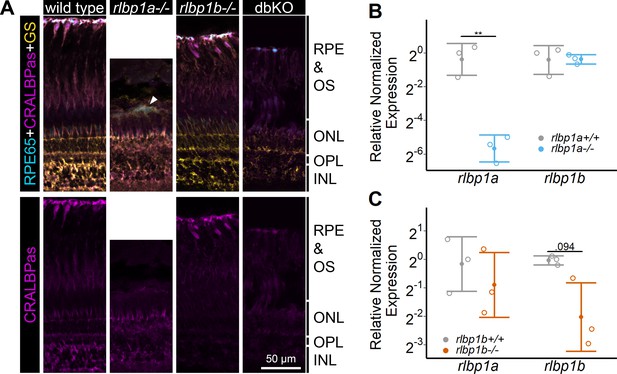

(A) Immunohistochemical staining with cellular retinaldehyde-binding protein (CRALBP) antiserum (CRALBPas, magenta) and RPE65 (cyan) and glutamine synthetase (GS, yellow) as counterstain for RPE and Müller glia, respectively, on cryosections of adult retinas. In rlbp1a−/−, the layer containing RPE and outersegments is reduced in thickness and very disturbed, the white arrow indicates a remaining RPE65-positive cell. Bottom row showing CRALBPas channel, only. (B, C) Relative normalized expression of rlbp1a and rlbp1b in the eyes of the respective single-KO lines. Individual samples are shown with mean ± standard deviation (SD). (B) rlbp1a expression was reduced in rlbp1a−/− eyes [t(4) = 7.39, p = 0.003], while rlbp1b mRNA levels were comparable to wild type [t(4) = −0.06, p = 0.955]. (C) In rlbp1b−/−, rlbp1a expression was similar to wild type [t(4) = 0.849, p = 0.444], but rlbp1b mRNA levels were twofold reduced [t(4) = 2.84, p = 0.094]. Statistics: t-test comparing KO vs. wild type for each target with Benjamini–Hochberg correction for multiple testing. Significance: **p < 0.01. Abbreviations: double-knockout (dbKO), retinal pigment epithelium (RPE), outer segment (OS), outer nuclear layer (ONL), outer plexiform layer (OPL), and inner nuclear layer (INL). See Figure 1—source data 1 for expression data.

Chromophore regeneration through 11-cis-retinyl esters is dependent on Cralbpa

To assess the effect of rlbp1a knockout on ocular retinoids, we determined their concentrations and composition in adult eyecups and 5 dpf whole larval extracts of mutants and controls. The term 11cisRAL always refers to protein-bound (e.g., by opsin or Cralbp) and free 11cisRAL in our experiments. Representative high-performance liquid chromatography (HPLC) traces are shown in Figure 2—figure supplement 1.

Adult eyecups were collected under ambient light. Dark-adapted (DA) larvae were divided into several groups (n = 100 larvae per group) that were subjected to different light conditions: DA, ambient light (ambient), 30 min bleach at 20’000 lux (30 min bright light [BL]), 1 hr bleach at 20’000 lux (1 hr BL), 1 hr bleach, and 1 hr redark adaptation (1 h reDA).

Chromophore levels in heterozygotes were comparable to wild types (Figure 2A, top panel). In rlbp1a−/− adults, 11cisRAL concentration was about threefold reduced when compared to wild-type siblings (Figure 2A, top panel). In DA rlbp1a−/− larvae, 11cisRAL levels were halved relative to wild type (Figure 2B, top panel). In line with previous reports (Babino et al., 2015), wild-type larvae maintained high levels of 11cisRAL even upon prolonged exposure to BL (Figure 2B, top panel). After one hour of redark adaptation, wild-type larvae regenerated the chromophore to levels of dark-adapted animals. In rlbp1a−/− larvae, ambient illumination caused a steep decline of 11cisRAL when compared to controls. After 1 hr of BL bleach, 11cisRAL levels were further reduced. Upon redark adaption, rlbp1a−/− larvae regenerated 11cisRAL to only 57% of the level observed in dark-adapted larvae.

Figure 2 with 1 supplement see all
Ocular retinoid content.

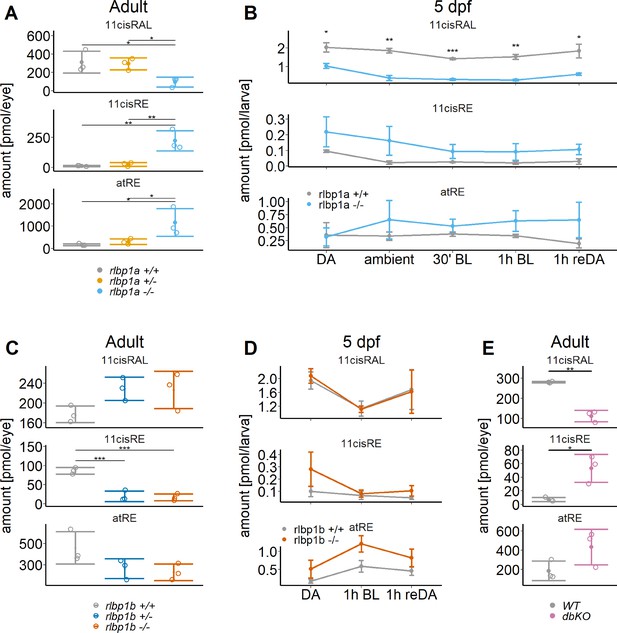

Retinoid content of adult eyes (A, C, E) or whole larvae (B, D), determined by high-performance liquid chromatography (HPLC) analysis. (A, C, E) Adults: samples were collected in ambient light. For each knockout (KO) line, 11cisRAL, 11cisRE, and atRE levels were determined. Data from n = 3 individual samples per genotype are shown with their respective mean ± standard deviation (SD). (A) rlbp1a-KO line: one-way analysis of variance (ANOVA) revealed a significant effect of genotype on the amount of retinoids for 11cisRAL [F(2,6) = 6.215, p = 0.035], 11cisRE [F(2,6) = 17.328, p = 0.003], and atRE [F(2,6) = 6.526, p = 0.031]. (C) rlbp1b-KO line: genotype had an effect on 11cisRE levels (one-way ANOVA) [F(2,6) = 40.774, p < 0.001], but less so on 11cisRAL [F(2,6) = 3.378, p = 0.104] and atRE [F(2,6) = 3.676, p = 0.091]. (E) double-KO line. 11cisRAL is reduced in dbKO [t(4) = 10.2, p = 0.0005]. The retinyl esters 11cisRE [t(4) = −3.84, p = 0.018] and atRE [t(4) = −2.04, p = 0.112] accumulate (Student’s t-test). (B, D) Larvae: single-KO larvae (n = 3 samples per genotype and condition, where one sample equals 100 larvae per condition and genotype) were collected after exposure to different light conditions (DA: dark-adapted; ambient: ambient light; 30’ BL: 30 min exposure to bleaching light at 20’000 lux; 1 hr BL: 1 hr exposure to 20’000 lux; 1 hr reDA: 1 hr at 20’000 lux after wich the larvae were allowed to redark adapt for 1 hr). Samples were collected in three independent experiments per KO line and data for 11cisRAL, 11cisRE, and atRE levels are shown as mean ± SD and the main effect of genotype on the amount of retinoids was calculated with two-way ANOVA. (B) In rlbp1a−/− larvae11cisRAL levels are reduced [F(1,28) = 85.51, p < 0.001] whereas retinyl esters 11cisRE [F(1,28) = 9.84, p = 0.004] and atRE [F(1,28) = 4.133, p = 0.052] are slightly elevated. (D) 11cisRAL regeneration in rlbp1b−/− larvae is not affected [F(1,16) = 0.003, p = 0.96] and 11cisRE levels are comparable to rlbp1b+/+ larvae [F(1,16) = 2.246, p = 0.153]. The amount of atRE is slightly elevated [F(1,16) = 6.05, p = 0.026]. Pairwise comparisons to the respective control were performed with Benjamini–Hochberg correction for multiple testing. Significance levels are indicated by asterisks. p ≥ 0.05 is not shown. *p < 0.05, **p < 0.01, ***p < 0.001. See Figure 2—source data 1 for retinoid measurements.

We also determined the concentration of 11cisREs which are Rpe65 dependently produced in the fish and serve as a reservoir for chromophore precursors under photopic conditions (Babino et al., 2015). Eyes of adult rlbp1a−/− fish displayed significantly higher 11cisRE concentrations than their wild type and heterozygous siblings (Figure 2A, middle panel). We observed a similar trend in larval samples. However, the effect was not as pronounced as in the adult eye (Figure 2B, middle panel). Illumination with BL led to a decrease in 11cisRE in both wild type and rlbp1a−/− larvae (Figure 2B, middle panel). Based on this observation and the reduced chromophore concentration in rlbp1a−/− larvae we assume that the esters were hydrolyzed upon light exposure but were not utilized for 11cisRAL production. Instead, we observed an increased concentration of atRE in rlbp1a−/− adult fish (Figure 2A, bottom panel) and a slight increase upon light exposure in rlbp1a−/− larvae (Figure 2B, bottom panel).

Together, our biochemical analyses showed that rlbp1a−/− adult and larval fish display a significant reduction of 11cisRAL concentration under all light conditions and an accumulation of 11-cis and atRE.

Effects of Cralbpb on chromophore regeneration

Expressed in MGCs, rlbp1b was implicated as a critical component of the proposed intraretinal visual cycle (Xue et al., 2015; Sato et al., 2017). Therefore, we investigated putative effects brought up by the rlbp1b knockout on ocular retinoid concentrations and composition. We detected comparable amounts of 11cisRAL in rlbp1b−/−, rlbp1b+/−, and wild-type siblings (Figure 2C, top panel). The eyes of the rlbp1b−/− and rlbp1b±fish displayed lower 11cisRE and atRE levels than the wild-type control siblings (Figure 2C, middle and bottom panel).

We next challenged larval eyes with BL illumination. Subsequently, we extracted retinoids and subjected them to HPLC analysis. We observed that genetic disruption of rlbp1b did not alter 11cisRAL concentrations in DA, bleached, and bleached and redark-adapted rlbp1b−/− larvae when compared to controls (Figure 2D, top panel). Also, retinyl ester levels at this stage were not significantly altered (Figure 2D, middle and bottom panel).

In adult double mutant fish, we found a reduction in 11cisRAL levels (Figure 2E, top panel). Additionally, these fish displayed high levels of RE (Figure 2E, middle and bottom panel).

In conclusion, rlbp1b deficiency did not affect ocular retinoid concentration in such a dramatic fashion as observed in rlbp1a-deficient eyes. Additionally, the double mutant displayed decreased 11cisRAL and elevated RE concentrations when compared to wild-type controls. This pattern of alterations in ocular retinoid content was comparable to that found in rlbp1a−/− fish.

Cone-specific retinal function in larvae is dependent on Cralbpa

To investigate the contribution of the two Rlbp1 genes on cone photoreceptor responses, we measured DA white-light electroretinogram (ERG) in 5 dpf larvae. At this developmental stage, ERG responses are exclusively cone driven in zebrafish (Branchek, 1984; Bilotta et al., 2001). As a readout for retinal function, we used the b-wave amplitude generated by ON-bipolar cells. Maximum amplitude was assessed after stimulation with increasing light intensities within a range of five log units. Representative traces can be found in Figure 3—figure supplement 1 .

We found a significant effect of genotype on b-wave amplitude in the rlbp1a-mutant line. In rlbp1a−/− larvae, amplitudes were significantly reduced when compared to heterozygous and wild-type siblings (Figure 3A). Knockout of rlbp1b did not affect ERG responses under the applied conditions (Figure 3B).

Figure 3 with 1 supplement see all
Cone-specific retinal function, dark-adapted responses.

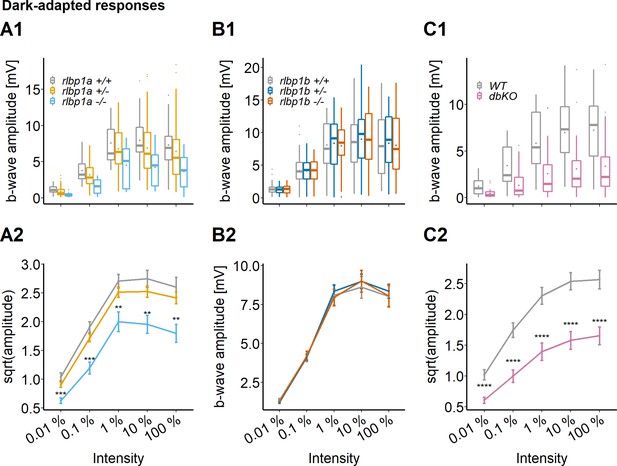

ERG responses at 5 days postfertilization (dpf). Responses were probed in the different knockout (KO) lines at five increasing light intensities under dark-adapted conditions. (A1–C1) Data are shown as boxplots of the b-wave amplitude with the box depicting the interquartile range (IQR), whiskers are 1.5 × IQR, mean is shown as diamond, median as horizontal line in the box and outliers are points outside of 1.5 × IQR. Data were collected in N ≥ 3 independent experiments and from total n ≥ 18 larvae per genotype (A: rlbp1a-KO line) or n ≥ 43 larvae per genotype (B: rlbp1b-KO line) or n ≥ 29 larvae per genotype (C: double-KO line). (A2–C2) Data are shown as mean ± standard error of the mean (SEM). (A) Respones of the rlbp1a-KO line. (A2) Repeated-measures analysis of variance (ANOVA) revealed a significant effect for genotype [F(2,435) = 33.649, p < 0.001]. (B) Respones of the rlbp1b-KO line. (B2) Repeated-measures ANOVA did not reveal any significant effect of genotype on amplitude [F(2,915) = 0.185, p = 0.83]. (C) Responses of double-KO and wild types. (C2) Repeated-measures ANOVA revealed a significant effect for genotype [F(1,290) = 99.808, p < 0.001]. Statistical analysis was performed on data in (A2, C2) after square root transformation to mitigate the impact of outliers. Pairwise comparisons between wild type (WT) and mutants at each light intensity were computed and corrected for multiple testing using the Benjamini–Hochberg correction. Significance levels of pairwise comparisons depicted as asterisks: **p < 0.01, ***p < 0.001, ****p < 0.0001. See Figure 3—source data 1 for b-wave amplitudes.

To explore the functional consequences of Cralbpa deficiency during prolonged photopic illumination, we measured light-adapted ERG responses with constant background illumination (LA) (Figure 4A, left panel). In addition, we determined cone responses directly after a 1 hr bleach with BL (Figure 4A, middle panel). These conditions paralleled our retinoid analysis protocol. To investigate recovery of rlbp1a−/− larvae after such an intense bleach, we redark-adapted larvae for 1 hr after the bleach (reDA) (Figure 4A, right panel). The prolonged illumination reduced the sensitivity in mutant and wild-type larvae when compared to the DA state. For comparison, the dotted line represents the mean DA b-wave amplitude of wild types at 0.01 % light intensity.

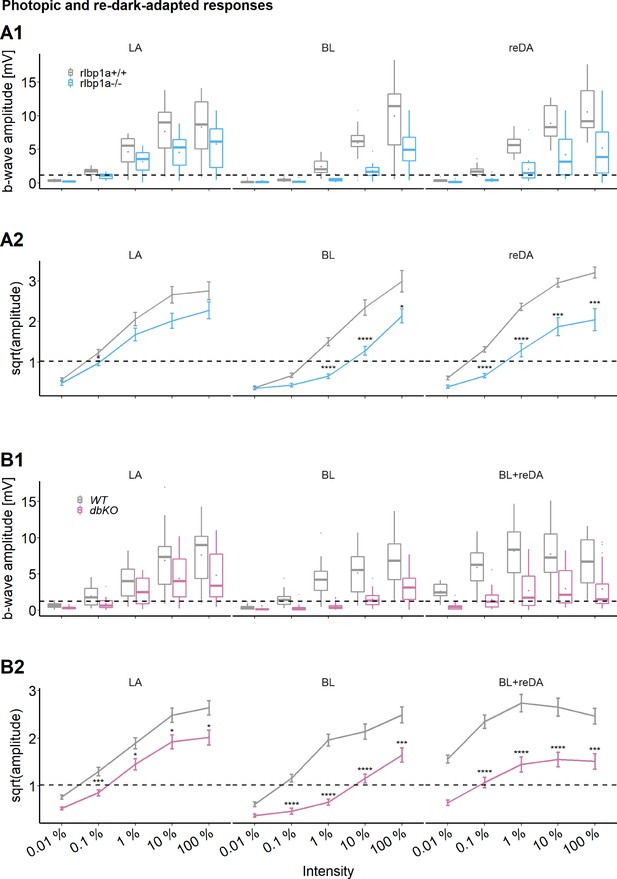

Cone-specific retinal function, photopic and redark-adapted responses.

Photopic and redark-adapted electroretinogram (ERG) responses at 5 days postfertilization (dpf). (A1, B1) Data are shown as boxplots of the b-wave amplitude with the box depicting the interquartile range (IQR), whiskers are 1.5 × IQR, mean is shown as diamond, median as horizontal line in the box and outliers are points outside of 1.5 × IQR. Responses were probed at five increasing light intensities and under different background illumination. LA: light-adapted, no dark adaptation before measurements and background illumination during recordings. BL: recordings immediately after 1 hr exposure to bleaching light at 20’000 lux. reDA: recordings after bleaching and 1 hr redark adaptation. Dotted lines depict the mean responses of wild-type controls after dark adaptation at 0.01 % light intensity to illustrate the shift in sensitivity under photopic conditions. Data were collected in N ≥ 3 independent experiments and from total n = 15 larvae per genotype and light condition (A: rlbp1a-knockout [KO] line), or n ≥ 20 larvae per genotype and light condition (B: double-KO line). (A2, B2) Data are shown as mean ± standard error of the mean (SEM). (A2) Left panel: light-adapted responses of rlbp1a−/− vs. rlbp1a+/+. Repeated-measures analysis of variance (ANOVA) revealed a significant effect for genotype on b-wave amplitude [F(1,112) = 13.476, p < 0.001]. Middle panel: responses after a bleach. Effect of genotype: [F(1,84) = 47.908, p < 0.001]. Right panel: responses after bleach and redark adaptation. Effect of genotype: [F(1,112) = 81.267, p < 0.001]. (B2) Left panel: light-adapted responses of dbKO vs. wild type (WT). Effect of genotype: [F(1,236) = 32.633, p < 0.001]. Middle panel: responses after a bleach. Effect of genotype: [F(1,172) = 125.858, p < 0.001]. Right panel: responses after bleach and redark adaptation. Effect of genotype: [F(1,168) = 106.625, p < 0.001]. Statistical analysis was performed on data in (A2, B2) after square root transformation to mitigate the impact of outliers. Only intensity levels where wild-type values were above the dark-adapted threshold were considered in the analysis. Pairwise comparisons between WT and mutants at each light intensity were computed and corrected for multiple testing using the Benjamini–Hochberg correction. Significance levels of pairwise comparisons depicted as asterisks: *p < 0.05, ***p < 0.001, ****p < 0.0001. See Figure 4—source data 1 for b-wave amplitudes.

The responses of rlbp1a−/− were diminished under all light conditions when compared to wild types. The sensitivity was shifted approximately one log unit and the maximum amplitude remained below wild-type levels in all illumination conditions examined. Notably, the responses of cone photoreceptors were not completely absent in the mutant, even after exposure to bright bleaching light. Also, we observed substantial recovery of retinal function following redark adaptation, albeit with reduced sensitivity.

This prompted us to investigate the possibility that rlbp1b compensates for the lack of rlbp1a. Therefore, we repeated the experiments with double-KO larvae. Again, we found a one log unit shift in sensitivity and reduced maximum amplitudes in DA double-KO responses (Figure 3C). Also under photopic conditions (Figure 4B), the phenotype was similar to the one seen in rlbp1a−/−. However, immediately after a strong bleach, but also following redark adaptation, the sensitivity shifted more than one log unit in double-KO compared to the respective wild-type controls. Interestingly, responses were severely attenuated but still recordable at 100 % light intensity in the bleach condition.

Together, our analyses demonstrated that cone function depends on RPE-expressed Cralbpa. We observed no pronounced changes of cone responses in DA Cralbpb-deficient larval eyes and only a minor additive effect in the double mutant under the applied conditions.

Knockout of RPE-expressed Cralbpa leads to subretinal lipid deposits and age-dependent photoreceptor degeneration

Histological examination of rlbp1a−/− larvae at 5 dpf revealed an overall normal stratification of the different retinal layers (Figure 5A and B). In the ventral retinal periphery, we found fewer rod outer segments (Figure 5, black arrows), indicating either slower development or an early loss of rod outer segments (OSs). This observation is further supported by the decrease in rhodopsin mRNA levels at this age Figure 6A. The thickness of the outer nuclear layer (ONL), containing the photoreceptor nuclei, was unchanged (Figure 5G1). However, already at this developmental stage, round subretinal lesions became detectable that appeared colorless upon staining with Richardson’s solution (Figure 5B2 and H1). This phenotype became more apparent at 34 dpf (Figure 5C, D and H2) and in 6-month-old fish (Figure 5E, F and H3). The lesions appeared to increase not only in number but also in size. Occasionally, we detected these structures in wild-type siblings (Figure 5C2). However, these tended to be smaller and sparser.

Accumulation of subretinal lipid deposits, dysmorphic outer segments, and age-dependent retinal thinning in rlbp1a-knockout (KO).

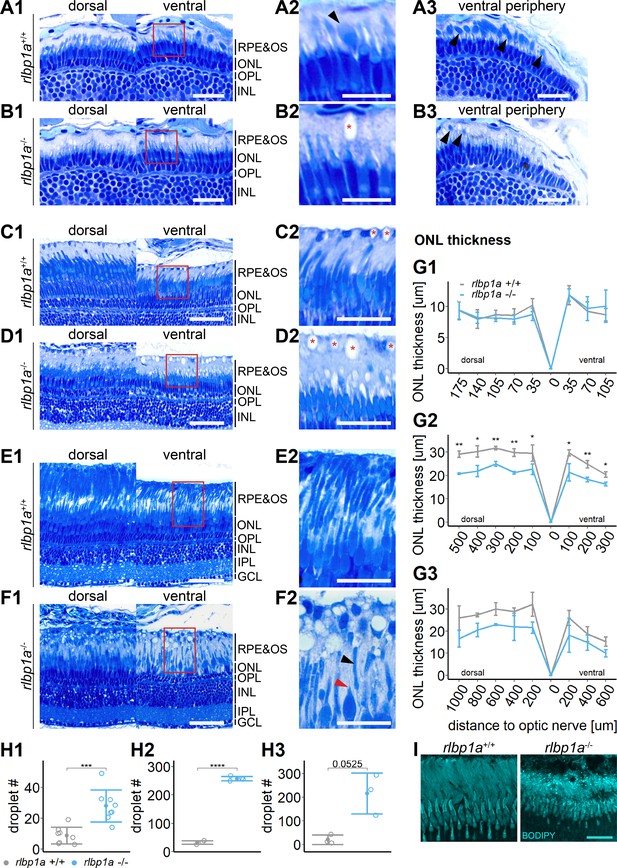

(A1–F1) Central retinal semithin plastic sections (dorsal and ventral of the optic nerve) of rlbp1a+/+ and rlbp1a−/− 5 dpf larvae (A, B), 1-month-old juveniles (C, D), and adults (E, F). (A2–F2) Closeup of area in red box. Subretinal lipid deposits in rlbp1a−/− retinas are found already at 5 days postfertilization (dpf) and increase in number and size with age. Occasionally, these structures are found in wild-type controls, but are usually smaller in size. Black arrows: rod outer segments. Red star: subretinal lipid deposits. Red arrow: missing cone outer segment. (A3, B3) Ventral peripheral retina. Black arrows indicate rod outer segments. These are less abundant, but not completely absent in KO retinas. (G) Quantification of outer nuclear layer (ONL) thickness central retinal sections in 5 dpf (G1), 1-month-old (G2), and adult (G3) retinas. Data are from n ≥ 3 biological replicates per genotype and age. Shown is the mean ± standard deviation (SD) at specified distances from the optic nerve (dorsal and ventral). Effect of genotype on ONL thickness (repeated-measures analysis of variance [ANOVA]) at 5 dpf (G1) [F(1,16) = 0.029, p = 0.87], at 1 month (G2) [F(1,4) = 144.518, p < 0.001], and in adults (G3) [F(1,4) = 18.642, p = 0.012]. Pairwise comparisons of rlbp1a−/− vs. rlbp1a+/+ by region were calculated with Benjamini–Hochberg correction for multiple comparisons. (H) Quantification of the number of lipid droplets in 5 dpf (H1), 1-month-old (H2), and adult (H3) retinas. Comparison of rlbp1a−/− vs. rlbp1a+/+ was performed using t-test: (H1) [t(10.5) = −4.61, p < 0.001], (H2) [t(4.87) = −43.2, p < 0.001], and (H3) [t(2.21) = −3.83, p = 0.0525]. Individual data points (open circles) from n ≥ 3 biological replicates per genotype and age are shown with mean ± SD. (I) Staining for neutral lipids with BODIPY TR methyl ester confirms disturbed outer segment morphology and accumulation of lipid droplets in the subretinal space of rlbp1a−/− retina. The example shows adult retinas of the respective genotype. Significance levels depicted as asterisks: *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. Scale bars: (A1, A3, B1, B3) 20 μm, (A2, B2) 10 μm, (C1–F1) 50 μm, (C2–F2) 25 μm, and (I) 10 μm. See Figure 5—source data 1 for measurements in G and H.

rhodopsin mRNA expression.

Relative normalized expression of rhodopsin in the eyes of the respective knockout (KO) lines. Rhodopsin mRNA levels in the rlbp1a-KO line are reduced at (A) 5 days postfertilization (dpf) [t(3.13) = 2.95, p = 0.057] and (B) in adults [t(4) = 6.43, p = 0.003]. (C) Similar to the rlbp1a-KO, rhodopsin mRNA levels are reduced in double-KO at 5 dpf [t(2.93) = 5.22, p = 0.015] and (D) adults [t(3.99) = 9.35, p < 0.001]. Individual samples (open circles) are shown with mean ± standard deviation (SD). Statistics: t-test comparing double-KO vs. wild type. *p < 0.05, **p < 0.01, ***p < .001. See Figure 6—source data 1 for expression data.

Importantly, we also found that already at 34 dpf, the OSs of both rods and cones were severely shortened, dysmorphic, or sometimes completely absent (Figure 5D). The double-KO (Figure 7) largely recapitulated the findings in rlbp1a−/− fish. In adults, it appeared that rod outer segments were slightly better preserved in double-KO than in the rlbp1a−/− single mutant (compare Figures 5F, 7F). Analysis of rhodopsin mRNA expression revealed lower expression at 5 dpf and in adults in both rlbp1a−/− single and double-KO. However, the reduction of rhodopsin mRNA expression in rlbp1a−/− adults was ~ fourfold whereas in the double-KO it was roughly twofold Figure 8B,D. Also, even though the number of white lesions was comparable to the single-KO, they appeared slightly smaller in the double-KO. Notably, these subretinal lesions were rare (Figure 8) and ONL thickness was maintained (Figure 8E) in rlbp1b+/+ and rlbp1b−/− fish.

Accumulation of subretinal lipid deposits, dysmorphic outer segments, and age-dependent retinal thinning in double-knockout (KO).

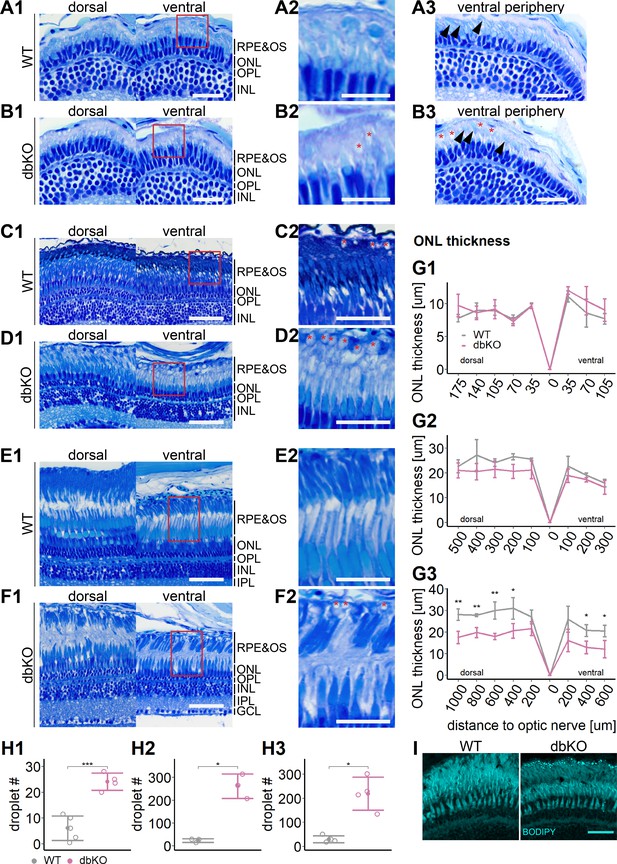

(A1–F1) Central retinal semithin plastic sections (dorsal and ventral of the optic nerve) of wild type (WT) and double-KO 5 days postfertilization (dpf) larvae (A, B), 1-month-old juveniles (C, D), and adults (E, F). (A2–F2) Closeup of area in red box. Subretinal lipid deposits in double-KO retinas are found already at 5 dpf and increase in number with age. Occasionally, these structures are found in wild-type controls. Black arrows: rod outer segments. Red star: subretinal lipid deposits. (A3, B3) Ventral peripheral retina. Black arrows indicate rod outer segments. These are less abundant, but not completely absent in double-KO retinas. (G) Quantification of outer nuclear layer (ONL) thickness in 5 dpf (G1), 1-month-old (G2), and adult (G3) retinas. Data are from n ≥ 3 biological replicates per genotype and age. Shown is the mean ± SD at specified distances from the optic nerve in central retinal sections (dorsal and ventral). Effect of genotype on ONL thickness (repeated-measures analysis of variance [ANOVA]) at 5 dpf (G1) [F(1,7) = 3.701, p = 0.096], at 1 month (G2) [F(1,4) = 4.459, p = 0.102], and in adults (G3) [F(1,6) = 44.074, p < 0.001]. Pairwise comparisons of dbKO vs. WT by region were calculated with Benjamini–Hochberg correction for multiple comparisons. (H) Quantification of the number of lipid droplets throughout a central retinal section in 5 dpf (H1), 1-month-old (H2), and adult (H3) retinas. Comparison of double-KO vs. wild type was performed using t-test: (H1) [t(6.94) = −6.72, p < 0.001], (H2) [t(2.08) = −7.65, p = 0.015], and (H3) [t(3.25) = −5.39, p = 0.0102]. Individual data points (open circles) from n ≥ 3 biological replicates per genotype and age are shown with mean ± standard deviation (SD). (I) Staining for neutral lipids with BODIPY TR methyl ester confirms accumulation of lipid droplets in the subretinal space of the double-KO retina. The example shows adult retinas of the respective genotype. Significance levels depicted as asterisks: *p < 0.05, **p < 0.01, ***p < 0.001. Scale bars: (A1, A3, B1, B3) 20 μm, (A2, B2) 10 μm, (C1–F1) 50 μm, (C2–F2) 25 μm, and (I) 10 μm. See Figure 7—source data 1 for measurements in G and H.

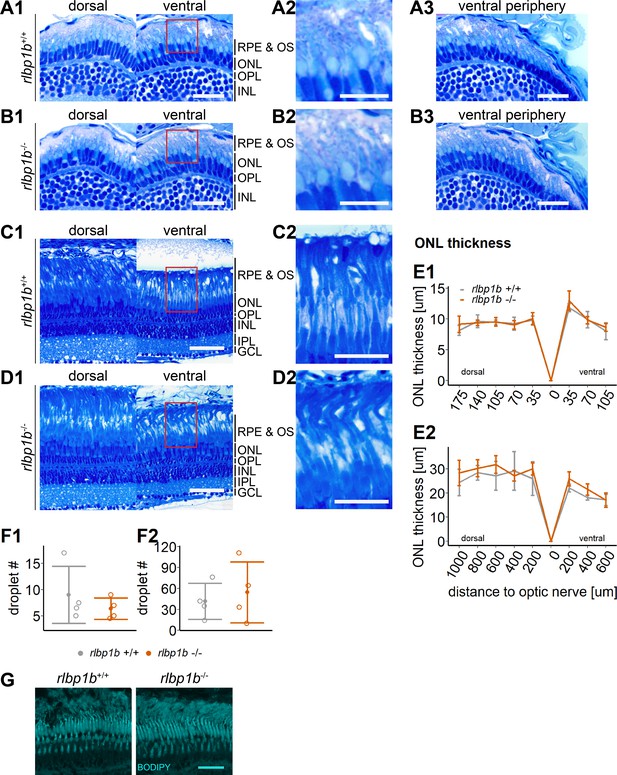

Normal retinal morphology and no accumulation of subretinal lipids in rlbp1b-knockout (KO).

(A1–D1) Central retinal semithin plastic sections (dorsal and ventral of the optic nerve) of rlbp1b+/+ and rlbp1b−/− 5 days postfertilization (dpf) larvae (A, B), and adults (C, D). (A2–D2) Closeup of area in red box. (A3, B3) Ventral peripheral retina. (E) Quantification of outer nuclear layer (ONL) thickness in 5 dpf (E1) and adult (E2) retinas. Data are from n ≥ 3 biological replicates per genotype and age. Shown is the mean ± standard deviation (SD) at specified distances from the optic nerve in central retinal sections (dorsal and ventral). Effect of genotype on ONL thickness (repeated-measures analysis of variance [ANOVA]) at 5 dpf (E1) [F(1,8) = 0.881, p = 0.38] and in adults (E2) [F(1,6) = 1.278, p = 0.30]. (F) Quantification of the number of lipid droplets throughout a central retinal section in 5 dpf (F1) and adult (F2) retinas. Comparison of rlbp1b−/− vs. rlbp1b+/+ was performed using t-test: (F1) [t(3.84) = 0.904, p = 0.42] and (F2) [t(4.86) = −0.503, p = 0.64]. Individual data points (open circles) from n ≥ 3 biological replicates are shown per genotype and age with mean ± standard deviation (SD). (G) Staining for neutral lipids with BODIPY TR methyl ester reveals a healthy adult retina in both rlbp1b+/+ and rlbp1b−/−. Scale bars: (A1, A3, B1, B3) 20 μm, (A2, B2) 10 μm, (C1, D1) 50 μm, (C2, D2) 25 μm, and (G) 10 μm. See Figure 8—source data 1 for measurements in E and F.

RPE cells form lipid droplet-like structures called retinosomes (Imanishi et al., 2004a; Imanishi et al., 2004b; Palczewska et al., 2010; Orban et al., 2011). They serve as storage sites for retinyl esters and can be visualized with lipophilic dyes, similar to other lipid droplets. The high concentration of RE in rlbp1a−/− and the location of the lesions between photoreceptor OS and the RPE layer, led us to investigate the possibility that the observed structures were enlarged retinosomes in the RPE.

To test this, we stained cryosections with BODIPY TR methyl ester, a lipophilic dye that stains neutral lipids and endomembranous structures like mitochondria and photoreceptor OS. Indeed, we found an increased amount of very bright spherical structures positive for BODIPY staining in the subretinal space in rlbp1a−/− and double-KO retinas (Figures 5 and 7). These droplets were rarely present in wild types (Figures 5, 7, 8G) and rlbp1b−/− fish (Figure 8G).

Discussion

Our results showed that cones in the zebrafish retina rely on RPE-expressed Cralbpa for chromophore regeneration and retinal function. We found that the knockout of rlbp1a impaired cone-driven ERG responses and led to disturbed OS morphology of both rods and cones and age-dependent thinning of the photoreceptor nuclear layer. HPLC analysis of rlbp1a−/− revealed an accumulation of retinyl esters and a reduction in 11cisRAL that was associated with this visual impairment. To our knowledge, we present the first animal model that recapitulates both the age-dependent retinal thinning and the appearance of subretinal lesions that are commonly found in patients suffering from RLBP1 mutations.

Our data indicate that in early stages, the lack of 11cisRAL (Figure 2A, B and E, top panel) is most likely the primary cause for the reduction in cone-mediated retinal function in the rlbpa1−/− fish. However, at later stages, the disturbed OS morphology and the loss of photoreceptors are likely to contribute to a deterioration of vision in these fish. In addition, it seemed that the integrity of both rods and cones is affected in rlbp1a−/− and double-KO fish. The elevated retinyl ester levels in rlbp1a−/− and double-KO zebrafish (Figure 2A, B and E, middle and lower panel) display as enlarged retinosomes found upon histological examination. ONL thinning appeared, concomitant with the increased number of enlarged retinosomes, only with age. It is interesting to note, that chromophore regeneration was not completely blocked but only attenuated in Cralbpa deficiency. This was true not only for rlbp1a−/−, but also for the double-KO.

These findings are consistent with the prolonged dark adaptation in patients with Bothnia dystrophy (Burstedt et al., 2003), and in mouse models (Saari et al., 2001; Lima de Carvalho et al., 2020). Previously, Stecher et al., 1999 proposed that CRALBP facilitates the hydrolysis of 11cisRE. More recently, it was reported that the 11cisRE pool in the zebrafish RPE is mobilized in a light-dependent manner to meet the high demand for chromophore under bright daylight conditions (Babino et al., 2015). We now demonstrated that the mobilization of the 11cisRE pool is Cralbpa dependent and plays a critical role for cone visual pigment regeneration. Interestingly, we found that 11cisRE concentrations also declined in the absence of Cralbpa upon light exposure. This result raises the possibility that 11cisRE hydrolysis can occur Cralbpa independently. Thus, Cralbpa may be mainly required to assist the oxidation of 11cisROL to 11cisRAL, as earlier proposed by Saari et al., 1994. Additionally, Cralbpa may act as a chaperone for chromophores in the RPE and prevent the light-dependent isomerization of the released 11-cis-ROL diastereomer to the trans-diastereomer of retinol in the RPE. The latter would be reesterified by LRAT (lecithin retinol acyltransferase), an enzyme that has a high capacity for RE production. This reaction sequence would explain the increase in atRE concentration in illuminated rlbp1a−/− larvae.

As an acceptor of 11-cis-retinoids RPE-expressed Cralbpa is found at a convergence point for potentially all chromophore producing pathways of the RPE. Besides its well-known function in the classical visual cycle downstream of RPE65 and its role in the light-dependent 11cisRE mobilization described in this study CRALBP was also shown to support photic chromophore regeneration by RGR in bovine RPE (Zhang et al., 2019). On the other hand, knockout of MGC-expressed rlbp1b in zebrafish did not affect 11cisRAL content, nor morphology and only marginally affected retinal function in the double-KO in BL conditions. This observation excludes that the MGC-expressed Cralbp carries out the same function in chromophore regeneration as its counterpart in the RPE. Accordingly, it was previously shown that 11cisRE was mostly present in retinosomes of the RPE (Babino et al., 2015). However, we do not close out that Cralbpb may play different roles in the visual cycle. For instance, Kiser et al., 2018 suggested that CRALBP in MGCs could serve as a chromophore storage site by binding 11-cis-retinoids. Also, RGR in MGCs was implicated in light-dependent chromophore regeneration (Morshedian et al., 2019) and Cralbpb may drive this reaction during BL conditions. In this line of thought our measurements of 11cisRAL in the rlbp1b-KO could be masked by RGR-bound retinoids and provide an explanation for the more severe phenotype in double-KO, despite the apparently normal amounts of 11cisRAL in rlbp1b-KO. Further research is needed to explore the role of Cralbpb in the zebrafish retina.

Early work in mice failed to reproduce the progressive loss of photoreceptors as well as the characteristic fundus findings seen in patients (Saari et al., 2001). A more recent study (Lima de Carvalho et al., 2020) reported ONL thinning in Rlbp1−/− mice between 8 and 12 months of age. Such changes may have gone unnoticed in earlier studies on Rlbp1−/− mice due to the younger age of animals at examination (5.5 months). Also in patients, the onset of degenerative processes can vary between individuals. Our zebrafish model recapitulates the early impairment of rods and subsequent cone dysfunction that culminates in photoreceptor degeneration at a relatively early age. Therefore, it resembles more closely an early-onset form of CRALBP-associated diseases, such as RPA or Bothnia dystrophy.

The white-yellow fundus lesions in patients with CRALBP-associated disease are usually found upon imaging the central retina, including the macular region and optic disc (Burstedt and Golovleva, 2010). The lesions appear to be restricted in size towards the center. Interestingly, the white dots are often reported to be absent in the macula (Demirci et al., 2004; Naz et al., 2011) or at least the fovea (Dessalces et al., 2013). The white dots are not present at an early age (Gränse et al., 2001) and only become prominent in the teens and early adulthood, and slowly disappear with age (Burstedt et al., 2001). The macular sparing suggests that these structures are more likely to be associated with rod photoreceptors. Based on the localization of these structures between the photoreceptor and RPE layer upon OCT imaging and the fact that other visual cycle defects (e.g., mutations in RDH5, RPE65) result in a similar punctate fundus appearance, we suggest that they could represent retinyl ester-filled, enlarged retinosomes, similar to the ones we found in the zebrafish retina. If this and their association with rod photoreceptors, as mentioned above, holds true, it is curious, that despite an accumulation of retinyl esters, Rlbp1−/− mice were not reported to have enlarged retinosomes or similar structures. So, why does the cone-dominant zebrafish produce this phenotype? First, considering cone density, the larval retina nicely mimics the environment of foveal cones, even if rods are not completely absent. At this age, the accumulation of retinyl esters was not very pronounced yet and the number of lesions was much lower than in older retinas. On the other hand, juvenile and adult retinas of zebrafish are cone rich but contain roughly 40 % of rods that are regularly interspersed throughout the retina (Fadool, 2003) in contrast to the localized distribution in humans. The older zebrafish retina, therefore, resembles more the outer macular region. Complementary pathways for cones are thought to help them compete for available chromophores with the more abundant rod photoreceptors in the human retina. The density of rods peaks just outside of the macular region. This is likely to exacerbate the need for alternative and larger chromophore sources. The dramatic increase of enlarged retinosomes at the age of 1 month seems therefore in line with the hypothesis that the white puncta are associated with the presence of rods. It seems likely, that the different visual cycle pathways in RPE and MGC would be fine-tuned according to the type of cells they are in contact with. In line with this idea, single-cell transcriptomic analysis of the human retina and RPE (Voigt et al., 2019a; Voigt et al., 2019b) revealed differences in peripheral and macular gene expression. Based on these datasets (Kiser and Palczewski, 2021) suggested higher importance for MGC-expressed RLBP1 in the peripheral retina compared to the fovea. The MGC-mediated cycle may become more important in later stages with the increase of rod contribution as it was previously suggested in Fleisch et al., 2008. This could explain the absence of an ERG phenotype in rlbp1b−/− larvae and the only subtle changes in the capacity of double-KO (compared to rlbp1a−/−) to respond to strong bleaching lights and to recover thereafter. It remains to be determined whether the knockout of rlbp1b will have a more pronounced effect on retinal function at later stages when rods are more abundant. But it is worthwhile to mention that Cralbpb influenced the retinyl ester storage in adult rlbp1b−/− and double-KO in the present study.

Differences in density and distribution of photoreceptors and the expression pattern or activity of visual cycle proteins could in part explain the discrepancies between different animal models with mutations in CRALBP. Also, the differences in 11cisRE content between species might add to this. In addition, the light environment to which the photoreceptors are exposed during life (nocturnal vs. diurnal species) may contribute to the phenotype. Together, these species-specific differences may provide an explanation for the absence of subretinal lipid droplets in mouse eyes.

In conclusion, knockout of RPE-expressed rlbp1a in zebrafish recapitulates the functional impairment and degenerative phenotype in RLBP1 disease. Importantly, our model shows an increase in retinyl esters and enlarged retinosomes, providing an explanation for the yellow-white fundus lesions commonly found in RLBP1 patients (see Figure 9 for a graphical overview of our working model). It is therefore an excellent model not only to further dissect the disease mechanism, but also to develop potential cures for RLBP1-associated disease.

Retinoid metabolism in healthy and Cralbpa-deficient retinas.

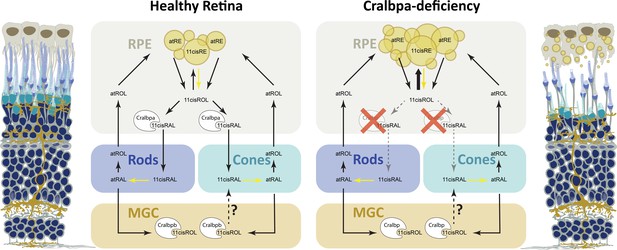

Illustration of a healthy (leftmost) and Cralbpa-deficient (rightmost) retina with the three neural layers (nuclei in dark blue). Rod and cone photoreceptors are depicted with dark blue or turquoise outer segments, respectively. Both retinal pigment epithelial (RPE) cells (gray-brown) and Müller glia (yellow-brown) contact photoreceptors and are potential sources for chromophore. Between the illustrations, schematics for retinoid metabolism in healthy and Cralbpa-deficient retinas are shown with black arrows indicating the sequence of reactions or transport/diffusion (for simplicity, enzymes or transport proteins other than Cralbp are not shown). In healthy retinas, Cralbpa facilitates the generation of 11cisRAL from both atRE (via the canonical visual cycle) and 11cisRE (through light-dependent hydrolysis, yellow arrow). Therefore, lack of RPE-expressed Cralbpa leads to a reduction of 11cisRAL (gray, dotted arrows) and an accumulation of retinyl ester (bold, black arrow), which manifests as an increased number of enlarged retinosomes in RPE cells (yellow circles in schematic and illustration on the right). Both rod and cone outer segment morphology is affected and with age the outer nuclear layer is thinning and the RPE may become atrophic. The contribution of Müller glial cell-expressed Cralbpb to chromophore regeneration is smaller than expected and the enzymes involved as well as the retinoid species supplied to photoreceptors (11cisRAL/11cisROL?) remain to be further investigated.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Danio rerio)rlbp1aEnsembl (GRCz11)Ensembl (GRCz11): ENSDARG00000045808
Gene (Danio rerio)rlbp1bEnsembl (GRCz11)Ensembl (GRCz11): ENSDARG00000012504
Strain, strain background (Danio rerio)Zebrafish: wild type TüKIT, European Zebrafish Resource Center (EZRC)#1,173
Strain, strain background (Danio rerio)Zebrafish: wild type ABKIT, European Zebrafish Resource Center (EZRC)#1,175
Genetic reagent (Danio rerio)rlbp1a-19bpThis papermutant lineMethods: CRISPR/Cas9 mutagenesis; line available at corresponding author’s lab
Genetic reagent (Danio rerio)rlbp1b-18bpThis papermutant lineMethods: CRISPR/Cas9 mutagenesis; line available at corresponding author’s lab
Sequence-based reagentrlbp1a_target_oligoThis paperCRISPR target oligoMethods, Table 1; Table 2 ordered at Microsynth
Sequence-based reagentrlbp1b_target_oligoThis paperCRISPR target oligoMethods, Table 1; ordered at Microsynth
Sequence-based reagentrev_oligoThis paperCRISPR reverse oligoMethods, Table 1; ordered at Microsynth
Sequence-based reagentrlbp1a_sThis paperPCR primerMethods, Table 1; ordered at Microsynth
Sequence-based reagentrlbp1a_asThis paperPCR primerMethods, Table 1; ordered at Microsynth
Sequence-based reagentrlbp1b_sThis paperPCR primerMethods, Table 1; ordered at Microsynth
Sequence-based reagentrlbp1b_asThis paperPCR primerMethods, Table 1; ordered at Microsynth
Sequence-based reagentrlbp1aThis papersense and antisense qPCR primerMethods, Table 3; ordered at Microsynth
Sequence-based reagentrlbp1bThis papersense and antisense qPCR primerMethods, Table 3; ordered at Microsynth
Sequence-based reagentrhoThis papersense and antisense qPCR primerMethods, Table 3; ordered at Microsynth
Sequence-based reagentactb1This papersense and antisense qPCR primerMethods, Table 3; ordered at Microsynth
Sequence-based reagentrpl13aNM212784sense and antisense qPCR primerMethods, Table 3; ordered at Microsynth
Sequence-based reagentg6pdThis papersense and antisense qPCR primerMethods, Table 3; ordered at Microsynth
AntibodyCRALBPas (rabbit antiserum)gift from Dr. John Saari, University of Washington, Seattle, WA(1:300)
Antibodyglutamine synthetase GS (mouse monoclonal)MerckMab302(1:200)
AntibodyRPE65 (guinea pig polyclonal)gift from Dr. Christian Grimm, University of Zurich, Zurich, Switzerland(1:100)
Peptide, recombinant proteinCas9-GFPgift from Dr. Christian MosimannMJ922
Chemical compound, drugCellTrace BODIPY TR methyl esterThermo Fisher ScientificC34556(1:200)
Commercial assay or kitTechnovit 7,100Kulzer14,653
Commercial assay or kitReliaPrep RNA Tissue Miniprep SystemPromegaZ6111
Commercial assay or kitSuperScript III First-Strand Synthesis SuperMixThermo Fisher Scientific18080400
Commercial assay or kitSsoAdvanced Universal SYBR Green SupermixBio-Rad Laboratories172–5270
Commercial assay or kitMEGAshortscript T7 Transcription KitThermo Fisher ScientificAM1354
Commercial assay or kitMegaclear KitThermo Fisher ScientificAM1908
OtherEntellan newMerck107,961
OtherTissue Freezing Medium clearElectron Microscopy Sciences, Hatfield, PA72,593
Software, algorithmFiji ImageJSchindelin et al., 2012
Software, algorithmR baseR Development Core Team, 2020. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. URL https://www.R-project.org/.
Software, algorithmrstatixKassambara, 2020. rstatix: Pipe-Friendly Framework for Basic Statistical Tests. R package version 0.6.0. https://CRAN.R-project.org/package=rstatixR package
Software, algorithmggplot2Wickham, 2016.R package
Software, algorithmggpubrKassambara, 2020. ggpubr: ‘ggplot2’ Based Publication Ready Plots. R package version 0.4.0. https://CRAN.R-project.org/package=ggpubrR package
Software, algorithmAdobe InDesignAdobe
Software, algorithmAdobe IllustratorAdobe
Table 1
Target oligos (underlined: gene-specific sequence; bold: tracerRNA overlap) for single guide RNA (sgRNA) synthesis and genotyping primers.
NameSequence 5′–3′LengthExon
rlbp1a_target_oligoGAAATTAATACGACTCACTATAGGAGCTCAGAGGAATAATCAGTTTTAGAGCTAGAAATAGC62 bp4
rlbp1b_target_oligoGAAATTAATACGACTCACTATAGGCAGGCCAAGGAGATGAGGGTTTTAGAGCTAGAAATAGC62 bp4
rev_oligoAAAGCACCGACTCGGTGCCACTTTTTCAAGTTGATAACGGACTAGCCTTATTTTAACTTGCTATTTCTAGCTCTAAAAC79 bp
rlbp1a_sGTTAGCATGCTTCATTGAGG20 bp4
rlbp1a_asCGGATGAACCTCACAAGC18 bp4
rlbp1b_sTGAACGAAACAGATGAGAAGAG22 bp4
rlbp1b_asTCTGGCCACGTCAAACTTG19 bp4
Table 2
Wild-type sequences of rlbp1a and rlbp1b in the target region and the corresponding mutated sequence (underlined: target sequence; dashes: deletion).
Mutation sequences 5′–3′:
rlbp1aCGTCAGCTGTGAAGGAGCTCAGAGGAATAATCAAGGAGAAGGCAGAGACT
rlbp1a −19 bpCGTCAGCTGTG-------------------TCAAGGAGAAGGCAGAGACT
rlbp1bCCATGATTAAAGACAAGGCAGGCCAAGGAGATGAGGTGGCCAAAACTGTG
rlbp1b −18 bpCCATGATTAAAGACA------------------AGGTGGCCAAAACTGTG
Table 3
primers for real-time polymerase chain reaction (PCR).
GeneSense 5′–3′Antisense 5′–3′
rlbp1aGTCAAACCCCTGATGAAGAGCGTGATCTTGCCGTCATATTTGG
rlbp1bCTGCGTGCCTACTGTGTAATCCATCACATGCACAGCCTTAAACC
rhoGGTCGCTTGTAGTACTGGCATGTAACGCGACCAGCC
actb1CAGACATCAGGGAGTGATGGTTGGCAGATCTTCTCCATGTCATCCCAG
rpl13aTCTGGAGGACTGTAAGAGGTATGCAGACGCACAATCTTGAGAGCAG
g6pdCTGGACCTGACCTACCATAGCAGAGGCTTCCCTCAACTCATCACTG

Zebrafish maintenance

Request a detailed protocol

Zebrafish (Danio rerio) were kept at 26°C under a 14 hr/10 h light/dark cycle and bred by natural spawning. Embryos were raised at 28°C in E3 embryo medium (5 mM NaCl, 0.17 mM KCl, 0.33 mM CaCl2, 0.33 mM MgSO4) and staged according to development in days post fertilization (dpf). The wild types used for CRISPR/Cas9 mutagenesis were of the Tü (for the rlbp1a line) and AB (for the rlbp1b line) strain or Tü:AB hybrid (double-KO resulting from a cross between the rlbp1a and rlbp1b lines). All zebrafish protocols complied with internationally recognized guidelines for the use of zebrafish in biomedical research and experiments were approved by local authorities (Kantonales Veterinäramt TV4206).

CRISPR/Cas9 mutagenesis

Request a detailed protocol

Generation of stable homozygous KO lines for rlbp1a and rlbp1b was achieved by using the CRISPR/Cas9 approach. Oligos for single guide RNA (sgRNA) synthesis were designed using the CHOPCHOP web application (https://chopchop.cbu.uib.no/): 5′-GGAGCTCAGAGGAATAATCA-3′ and 5′-GGCAGGCCAAGGAGATGAGG-3′ were chosen for rlbp1a and rlbp1b, respectively. Synthesis of sgRNAs was achieved by polymerase chain reaction (PCR) using a high fidelity Phusion polymerase (New England Bio Labs., Ipswich, MA) and in vitro transcription of the product: Target-specific oligos (target_oligo) were synthesized (Microsynth AG, Balgach, Switzerland) containing a T7 promoter site, the above target-specific sequence, and part of the tracerRNA sequence. A second, partially overlapping, oligo (rev_oligo) was synthesized (Microsynth AG, Balgach, Switzerland) to contain the reverse tracerRNA sequence. After PCR and cleanup, the dsDNA was in vitro transcribed (MEGAshortscript T7 Transcription Kit, Ambion, Thermo Fisher Scientific, Waltham, MA) and the resulting sgRNA was purified (Megaclear Kit, Ambion, Thermo Fisher Scientific, Waltham, MA) and precipitated using ethanol.

Injection mixes containing 400 ng/µl sgRNA, 1000 ng/µl Cas9-GFP (MJ922; kind gift of C. Mosimann), and 300 mM KCl were incubated for 10 min at 37 °C to allow for ribonucleoprotein complex formation. One-cell stage embryos were injected with 1 nl of injection mix and raised to adulthood. Injected F0 fish were outcrossed with wild types and the offspring were genotyped using primers designed around the target region (see Table 1) to check for successful germline transmission. F1 animals carrying the same mutation (−19 bp in rlbp1a and −18 bp in rlbp1b, see Table 2) were incrossed to obtain homozygous mutants (F2).

Immunohistochemistry

Request a detailed protocol

Whole larvae or adult eyes were fixed in 4 % formaldehyde for 30 min at room temperature (RT). After washing with 1× phosphate-buffered saline (PBS), the tissue was cryo-protected in 30 % sucrose overnight at 4 °C. Samples were embedded in Tissue Freezing Medium clear (EMS-72593, Electron Microscopy Sciences, Hatfield, PA). Samples were sectioned at 12 µm thickness using a Cryostar NX50 (Thermo Fisher Scientific, Waltham, MA) and collected on SuperFrost Plus Adhesion Slides (Thermo Fisher Scientific, Waltham, MA). Sections were spread across multiple slides and wild-type controls were collected next to heterozygous and/or homozygous samples on the same slide to achieve equal conditions during staining and washing steps for all genotypes. Sections were stored at least once overnight at −80 °C. Before staining, the slides were dried for 30 min at 37 °C. Sections were bleached in 10 % H2O2 solution in PBS for 30 min at 65 °C. Slides were washed with 1× PBS and mounted on a Shandon Sequenza Slide Rack (Thermo Fisher Scientific, Waltham, MA). Slides were incubated with blocking solution (10 % normal goat serum, 1 % BSA in 0.3 % PBS Triton X-100) for 2 hr at RT and with primary antibodies overnight at 4 °C. Samples were washed with 1× PBS and secondary antibodies were applied for 1.5 hr at RT in darkness. After washing with 1× PBS, samples were stained with CellTrace BODIPY TR methyl ester (1:200 in PDT [1 % dimethyl sulfoxide, 0.1 % Triton X-100 in PBS], cat# C34556, Thermo Fisher Scientific, Waltham, MA) for 20 min at RT and washed again with 1× PBS. Finally, samples were covered with Mowiol (Polysciences, Warrington, PA, USA) containing DABCO (1,4-diazo-cyclo[2.2.2] octane, Sigma-Aldrich, Steinheim, Germany) and imaged with a TCS LSI confocal microscope (Leica Microsystems, Heerbrugg, Switzerland) using ACS APO 40.0 × 1.15 OIL objective (11507901). Rabbit CRALBP antiserum (1:300, kindly provided by Dr. John Saari, University of Washington, Seattle, WA) was used to detect Cralbpa and Cralbpb. Mouse anti-glutamine synthetase (GS, 1:200, Mab302, Merck KGaA, Darmstadt, Germany) was used to stain Müller glia cells and guinea pig anti-RPE65 (1:100, kindly provided by Dr. Christian Grimm, University of Zurich, Zurich, Switzerland) for RPE cells. Secondary antibodies were goat anti-guinea pig, anti-rabbit, and anti-mouse IgG conjugated to Alexa 488, 568, or 647 (1:500, Molecular Probes, Thermo Fisher Scientific, Waltham, MA). Images were adjusted for brightness and contrast using ImageJ Fiji software (Schindelin et al., 2012).

Real-time PCR

Request a detailed protocol

Both eyes of n = 50 larvae per sample or one adult eye per sample were collected and in total three biological replicates were used for each genotype. RNA was isolated using the ReliaPrep RNA Tissue Miniprep System (Promega, Madison, WI). SuperScript III First-Strand Synthesis SuperMix (Thermo Fisher Scientific, Waltham, MA) with a mix of oligo dT primers and random hexamers was used for reverse transcription of the RNAs. Primers used for real-time PCR are summarized in Table 3. Real-time PCR was performed using SsoAdvanced Universal SYBR Green Supermix (catalog #172-5270, Bio-Rad Laboratories, Hercules, CA) on a Bio-Rad CFX96 C1000 Touch Thermal Cycler (Bio-Rad Laboratories, Hercules, CA) using 1 ng template cDNA. Relative normalized expression was calculated by normalizing to the wild-type samples and using actb1, rpl13a, and g6pd as reference genes.

Semithin sections

Request a detailed protocol

Whole larvae and adult eyes were fixed at least overnight in 4 % formaldehyde at 4 °C and embedded in Technovit 7,100 (Kulzer, Wehrheim, Germany). Using a microtome (LeicaRM2145, Leica Microsystems, Nussloch, Germany) samples were sectioned at 3 µm thickness and stained in Richardson’s solution (1 % methylene blue, 1 % borax) for 5 s, washed for 10 min in ddH2O, and coverslipped with Entellan mounting medium (Merck, Darmstadt, Germany). Images were acquired on an Olympus BX61 microscope (Olympus, Shinjuku, Tokyo, Japan) and adjusted for brightness and contrast using Fiji ImageJ (Schindelin et al., 2012). Quantifications were performed on whole retinal sections using Fiji ImageJ. Filenames were randomized to mask the genotype during quantification. ONL thickness was measured dorsally and ventrally every 35 µm (5 dpf), every 100 µm (1 month), and every 200 µm (adults), starting at the optic nerve. Lipid droplets were counted manually with the Cell Counter plugin.

Samples for retinoid analysis and light treatments

Request a detailed protocol

Adult zebrafish eyes were collected in ambient room light and immediately frozen in liquid nitrogen and stored at −80 °C before HPLC analysis. For retinoid measurements in zebrafish larvae, light treatments were performed similar to previously described methods (Babino et al., 2015). Samples were grouped according to light condition: overnight DA, DA and exposure to ambient light (ambient), DA and 30 min bleach (30 min BL), DA and 1 hr bleach (1 hr BL), and DA, 1 hr bleach followed by 1 hr redark adaptation (1 hr reDA). Zebrafish larvae (n = 100 per group) were sequentially placed in darkness overnight and immediately collected for HPLC analysis or subjected to indicated light treatments. For light treatments, larvae were placed into open 6 cm Petri dishes wrapped with aluminum foil and exposed to either ambient room light or a strong bleaching light with 20’000 lux using a KL 1500 HAL halogen cold light source (Schott, Mainz, Germany) for the indicated time (30 min or 1 hr). Data are the results of three independent experiments for each age group and KO line.

Electroretinography

Request a detailed protocol

Standard white-light electroretinography (ERG) was performed as described (Makhankov et al., 2004), with adaptations. For DA ERG, 5 dpf larvae were placed in darkness for at least 1 hr before measurements. Larvae were sacrificed before the removal of one eye for measurements. For ERG on single mutants, offspring of heterozygous crosses were used and the trunks were used for genotyping after measurements. Five stimulations of 100 ms duration and with increasing light intensity (100 % corresponding to 24’000 µW/cm2) were applied with an interstimulus interval of 15’000 ms. For light-adapted ERGs, an additional background illumination of 20 µW/cm2 was applied and larvae were not DA before measurements. For bleaching experiments, larvae were exposed to BL from a KL 1500 HAL halogen cold light source (as described in light treatments for retinoid analysis) for 1 hr before measurements. To reduce the number of larvae as well as resources for genotyping, we did not directly use double-heterozygous incrosses for double-KO ERGs. Instead, we incrossed wild-type siblings from such a cross to yield closely related offspring as control and double-KO fish were incrossed to yield homozygous mutant offspring. Measurements were blinded by allocating wild type and double-KO larvae to wells of a 24-well plate according to a random key. For experiments including different light conditions, larvae were derived from the same clutch for all light conditions, but measurements were derived from individual retinas, due to the invasive nature of our protocol.

HPLC analysis of retinoids

Request a detailed protocol

For retinoid extraction, a whole eye from wild type and mutant adult zebrafish or 100 zebrafish mutant larvae were transferred to 2 ml Eppendorf microcentrifuge tubes (Eppendorf, Hamburg, Germany). 200 µl of 2 M hydroxylamine (pH 8) and 200 µl of methanol were added and eyes or larvae were homogenized and incubated for 10 min at RT. Then, 400 µl of acetone was added to the homogenate and the mixture was vortexed. Retinoids were then extracted with 500 µl of hexanes by vortexing vigorously. For phase separation, the mixture was centrifuged at 5000 × g for 1 min at RT. The upper organic phase was collected and transferred into a fresh tube. This was repeated and the collected organic phases containing the retinoids were dried using the SpeedVac system (Vacufuge Plus, Eppendorf, Hamburg, Germany). The dried samples were reconstituted in hexanes and used for HPLC separation. Retinoid analyses were performed using normal phase Zorbax Sil (5 mm, 4.6 3 150 mm) column (Agilent Technologies, Santa Clara, CA, USA). The retinoids were eluted by stepwise gradient starting with 0.5 % ethyl acetate in hexane over 15 min, followed by 20 min of 10 % ethyl acetate in hexane with a continuous flow rate of 1.4 ml/min. Finally, the column was equilibrated for 10 min with 0.5 % ethyl acetate in hexane. For molar quantification of retinoids, the HPLC was scaled with authentic standard compounds purchased by Toronto Chemicals (Toronto, Canada).

Statistical analysis

Request a detailed protocol

The number of biological replicates is defined in the figure legends as ‘n’. It describes the number of individual larvae/fish used in the study. In Figure 2B and D, it refers to samples consisting of a pool of 100 larvae, each. Statistical analysis was performed as indicated in the figure legends using R base (R Development Core Team, 2020. R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. URL https://www.R-project.org/.) and the rstatix package (Kassambara, 2020. rstatix: Pipe-Friendly Framework for Basic Statistical Tests. R package version 0.6.0. https://CRAN.R-project.org/package=rstatix). Data were plotted using ggplot2 (H. Wickham. ggplot2: Elegant Wickham, 2016.) and ggpubr (Kassambara, 2020. ggpubr: ‘ggplot2’ Based Publication Ready Plots. R package version 0.4.0. https://CRAN.R-project.org/package=ggpubr) packages.

Final figures were assembled using Adobe InDesign and the illustration in Figure 9 was created in Adobe Illustrator.

Data availability

All data generated or analysed during this study are included in the manuscript. Source data files for all figures have been provided.

References

    1. Burstedt MS
    2. Sandgren O
    3. Holmgren G
    4. Forsman-Semb K
    (1999)
    Bothnia dystrophy caused by mutations in the cellular retinaldehyde-binding protein gene (RLBP1) on chromosome 15q26
    Vestigative Ophthalmology & Visual Science 40:995–1000.
    1. Morimura H
    2. Berson EL
    3. Dryja TP
    (1999)
    Recessive mutations in the RLBP1 gene encoding cellular retinaldehyde-binding protein in a form of retinitis punctata albescens
    Vestigative Ophthalmology & Visual Science 40:1000–1004.
  1. Software
    1. R Development Core Team
    (2020) R: A language and environment for statistical computing
    R Foundation for Statistical Computing, Vienna, Austria.
  2. Software
    1. Wickham H
    (2016)
    ggplot2: Elegant Graphics for Data Analysis
    Springer-Verlag New York.

Decision letter

  1. Dan Larhammar
    Reviewing Editor; Uppsala University, Sweden
  2. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  3. Xesus Abalo
    Reviewer; Royal Institute of Technology (KTH), Sweden
  4. Gennadiy Moiseyev
    Reviewer

Our editorial process produces two outputs: i) public reviews designed to be posted alongside the preprint for the benefit of readers; ii) feedback on the manuscript for the authors, including requests for revisions, shown below. We also include an acceptance summary that explains what the editors found interesting or important about the work.

Acceptance summary:

In mammals the cellular retinaldehyde binding protein, CRALBP, is expressed in the pigment epithelium (RPE) and in Müller glial cells in the retina. Zebrafish has two copies of the gene, each expressed in one of the cell types. By knocking out each gene with CRISPR/Cas9, the authors could show that it is the copy expressed in the RPE that is essential for turnover of retinal and for cone function. Thus, the zebrafish gene duplication suggests that the RPE role of CRALBP is the important one also in humans, implying the RPE as target for future gene therapy in humans with mutations in CRALBP.

Decision letter after peer review:

Thank you for submitting your article "Disturbed retinoid metabolism upon loss of rlbp1a impairs cone function and leads to subretinal lipid deposits and photoreceptor degeneration in the zebrafish retina" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Didier Stainier as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Xesus Abalo (Reviewer #1); Gennadiy Moiseyev (Reviewer #2).

The reviewers have discussed their reviews with one another, and the Reviewing Editor has drafted this to help you prepare a revised submission.

All three reviewers and the reviewing editor are impressed and very positive. Here are some of the general comments from the reviewers: The experiments have been well-designed and for the most part well-executed. The results and the conclusions extracted from them are totally sound. The manuscript is written clearly and carefully, the discussion is well-structured and touches each single point. A major strength is the continuity of the reliable, rigorous and meticulous work. The graphical abstract is beautiful in many ways; stylish, informative, complete.

The reviewers and I have a number of comments and suggestions, all of which can probably be taken care of by adding clarifications and comments in the text. Some in silico work can probably be done rather quickly and easily if the information is not yet available, especially regarding the presumed ohnology of the two genes and the possible consequences of amino acid differences between them.

I apologize that the comments may not quite follow the chronology of the manuscript's text (this happens when comments from three reviewers are merged).

Essential revisions

1) Is it clear that rlbp1a and b resulted from the teleost WGD ('ohnologs') and thus had identical sequences also in regulatory regions before starting to diverge from one another after the gene duplication? Synteny and paralogon investigations should resolve this if it hasn't been done already.

2) Lines 92-93: What is the degree of protein sequence identity between the two paralogs in zebrafish? Would the differences be likely to affect substrate binding affinity and interactions with other proteins? In silico modelling might give clues by incorporating information from human mutations.

3) Please provide additional explanation about the measurement and interpretation of 11-cis retinaldehyde (11cisRAL) levels. The text refers to "11cisRAL" as the aldehyde that binds to CRALBP. However, it is unclear whether the measurements of "11cisRAL" refer to the total of 11-cis isomer covalently bound as visual pigment (in cones and rods) in addition to the non-covalently bound 11cisRAL. It will be important for the paper to make absolutely clear what was measured, and to interpret the measurements appropriately, according to whether or not covalently bound retinaldehyde was included. If the measurements did include rhodopsin and cone opsins, then a term distinct from "11cisRAL" should be employed throughout the paper.

4) After mutagenesis by CRISP-Cas9, could first 3 exons of the rlbp1a-/- or rlbp1b-/- still be translated into a semi-functional peptide? How could you assess that?

5) Lines 134 and 608: Some justification is needed to explain why the eyes were collected "in ambient light". Were any controls done to determine whether the retinoid levels differed for eyes collected under dark-adapted conditions?

6) Lines 154-156: The authors need to clarify their reasoning for deducing "that the esters were hydrolyzed upon light exposure but not utilized". Given that Figure 2B (bottom) shows that atRE levels had increased by at least as much, is it not instead likely that retinoid recycled from the retina has been re-routed to atRE rather than to 11cisRE? How can you distinguish ester hydrolysis from reduced ester synthesis? The same considerations apply to the statement on lines 428-9 in the Discussion.

7) In the sentence "rlbp1a was essential for cone photoreceptor function and chromophore metabolism", does this mean that the rlbp1a-KO does not affect rods and scotopic vision?

8) In Figure 1C, can one say that the rlbp1b-/- is really a KO? Its expression is four orders of magnitude higher than 1a in the 1a k/o. The p-value is very high and non-significant.

9) In Figure 2, there is considerable variability in the measurements of retinoid content in WT adult animals. Between panels A, C and E, the mean WT levels differ markedly: for 11cisRAL (312, 177 and 280); for 11cisRE (12.7, 86.1 and 7.2); and for atRE (168, 460 and 187). These differences would benefit from explanation. Are these WT values significantly different from each other? Would it be better to use the WT grand means in the tests of significance for the knockouts?

10) How critical is the role of Cralbpb in the MGC? The authors suggest that these cells could serve as a storage of 11-cis-retinoids. Could the authors elaborate a little this suggestion and how it might be explored? Along a similar line, which studies would the authors consider to investigate if 11cisRAL can be taken up by cones from the MGC (the question mark in the Graphical abstract)? In addition, if the MGC transform 11cisROL in 11cisRAL but the second is not transported back to the photoreceptors, what do the MGCs do with it? A storage for bright light conditions? It would be interesting to see the authors discuss this.

11) The morphology in Figure 5 (and the consecutive ones) suggests a stronger effect of the rlbp1a-KO in the ventral retina as compared to the dorsal. If this is the case, why could it be, and which implications could it have?

12) The first sentence of the discussion says "Our results showed that cones in the zebrafish retina rely on RPE-expressed Cralbpa for chromophore regeneration and retinal function" and summarizes the results, but as this has been extensively suggested, it would perhaps be better to focus more on the lack of effect of Cralbpb in MCG on chromophore regeneration. An important novelty is the use of a subfunctionalized teleost model to study RLBP1-KO related diseases.

13) If cralbp1a is completely KO but there is still some chromophore regeneration, what explanation for this can the authors suggest?

14) What do the authors speculate that could happen with the Retinomotor circadian movements? Would the Cralbp1a-KO fish have a similar response as for the dark-adapted retina? Could these movements be altered, therefore altering the circadian chromophore mobilisation and pigment regeneration and contributing to the accumulation of the small oil droplets/retinosomes in the RPE?

15) For the insertion of the sgRNA and Cas-GFP, the authors used the injection methods. Did they try or consider using electroporation, working very well for isolated mammalian cells?

16) In Figure 1A, the CRALBPas images are rather faint, probably due to poor contrast between background autofluorescence and the real signal, especially the two dbKO images. Presumably a negative control photo exists that could be added to help distinguish between the autofluorescence (due to the fixative, for example) and the real signal.

17) Figure 3: These 5 dpf b-wave signals seem huge, at ~10 mV. For comparison, Bilotta et al., (2001) reported ~50 µV for the b-wave in 8 dpf animals, so your values are 200x higher. If the scale was meant to show "µV" then the signals would be around 5x smaller than theirs. Ideally, the reader should have access to some samples of b-wave records (rather than just measured amplitudes), in order to judge the quality of the recordings, so please provide this. As a minimum, a panel of dark-adapted ERG traces should be presented as a Supplementary Figure.

18) Before the authors can state that "We observed no pronounced changes of cone responses in Cralbpb-deficient larval eyes" they need to illustrate rlbp1b KO responses in Figure 4. At present, the double KO plots in panel B2 ("BL", and "BL+reDA") appear to show considerably greater attenuation than for the rlbp1a KO plots in panel A2, strongly suggesting an effect of Cralbpb. To make the above statement, it is necessary to present the data.

19) The authors used CRALBP antiserum to detect both Cralbpa and Cralbpb. Presumably it is difficult to generate specific antibodies if the two proteins are highly identical. Instead ISH with riboprobes specific against each paralog could be used. If the coding regions are too similar,the 3´UTR could be used. The authors have surely considered these options so a comment would be appropriate.

20) The option of generating a dKO Cralbp1a/RPE65 would be an interesting next step continuing with this research line to investigate correlation between the RPE65 genes (the are three paralogs) and rlpb1a. This could be interesting to see a key protein not in transporting but to convert all-trans retinal back to 11-cis retinal, widening the spectrum of diseases to be analysed.

21) Discussion mentions (line 495 onwards) studies that use single-cell transcriptomics. The authors are encouraged to embrace this option in the near future. It would be interesting to see the transcriptome also of the KOs with spatial resolution, and using ISS or SCRINSHOT spatial mapping for specific transcripts in intact sections in situ.

https://doi.org/10.7554/eLife.71473.sa1

Author response

Essential revisions

1) Is it clear that rlbp1a and b resulted from the teleost WGD ('ohnologs') and thus had identical sequences also in regulatory regions before starting to diverge from one another after the gene duplication? Synteny and paralogon investigations should resolve this if it hasn't been done already.

We performed an initial synteny analysis. The two zebrafish paralogues are located on chromosomes 7 and 25 while the human ortholog maps to chromosome 15. Both zebrafish genes are localized adjacent to ABHD2 gene paralogs. Agreeably, the human RLBP1 gene is flanked by an ABHD2 gene as well. In fact, it will be interesting to determine regulatory sequences that confer RPE and MG specific expression the two zebrafish cralbp genes. Such analyses are within the scope of our future studies.

2) Lines 92-93: What is the degree of protein sequence identity between the two paralogs in zebrafish? Would the differences be likely to affect substrate binding affinity and interactions with other proteins? In silico modelling might give clues by incorporating information from human mutations.

Protein sequence identity between Cralbpa and Cralbpb is ~80% (see Author response image 1). Based on structural predictions the overall fold of the proteins is conserved. In humans, two mutations are described that affect retinoid binding of CRALBP: M226K abolishes retinoid binding, whereas R234W tightens the binding of the lipid. The mutations are located within the CRAL-TRIO domain that is highly conserved in the two zebrafish paralogs. However, form in silico models we cannot predict the affinity of the two CRALBP isoforms for 11-cis-retinol/al. Thus, we do not want to exclude that subtle differences between the paralogs modulate the binding affinity for the retinoid or the interaction of the paralogs with other proteins including Rpe65 and Rdh5. These visual cycle proteins have been previously suggested to interact with CRALBP in the RPE and are not expressed in Müller glia cells. Future studies are warranted to unravel such cell-specific protein-protein interactions.

Author response image 1

3) Please provide additional explanation about the measurement and interpretation of 11-cis retinaldehyde (11cisRAL) levels. The text refers to "11cisRAL" as the aldehyde that binds to CRALBP. However, it is unclear whether the measurements of "11cisRAL" refer to the total of 11-cis isomer covalently bound as visual pigment (in cones and rods) in addition to the non-covalently bound 11cisRAL. It will be important for the paper to make absolutely clear what was measured, and to interpret the measurements appropriately, according to whether or not covalently bound retinaldehyde was included. If the measurements did include rhodopsin and cone opsins, then a term distinct from "11cisRAL" should be employed throughout the paper.

We agree with the reviewers that our terminology is misleading. In our experiments we cannot distinguish between opsin bound, CRALBP bound and free 11-cis-retinal since we treated ocular tissues with hydroxylamine prior to extraction. Thus, we changed the text as follows, see lines 115-116 of the revised manuscript:

“The term 11cisRAL always refers to protein-bound (e.g. by opsin or Cralbp) and free 11cisRAL in our experiments.”

4) After mutagenesis by CRISP-Cas9, could first 3 exons of the rlbp1a-/- or rlbp1b-/- still be translated into a semi-functional peptide? How could you assess that?

In both lines, the introduced mutations leave the initial exons unaffected. The initial exons encode a coiled coil domain with non-defined function. However, the CRAL-TRIO domain that confers the lipid/retinoid binding properties of the proteins follows downstream of the target site and putative mutant variants lack this domain. Additionally, the mutation in the rlbp1a-KO line leads to an early stop codon in the putative mRNA transcript. Our immunostainings showed that no protein or only very little protein is produced from the mutant gene loci, indicating that putative mutant protein variants are rapidly degraded. Together, these features of our targeting strategy strongly indicate that we are dealing with functional null alleles for both CRALBP genes.

5) Lines 134 and 608: Some justification is needed to explain why the eyes were collected "in ambient light". Were any controls done to determine whether the retinoid levels differed for eyes collected under dark-adapted conditions?

We collected the adult zebrafish eyes in ambient light to measure each intermediate of the visual cycle. We would expect that 11-cis-retinal and retinyl esters are the predominant intermediates in dark-adapted eyes. Additionally, our fish room setup makes it difficult to dark-adapt adult fish for a prolonged period of time. For the investigation of the consequences of different light conditions, we used larval fish which can be easily maintained in petri dishes that can be transferred to the dark room.

6) Lines 154-156: The authors need to clarify their reasoning for deducing "that the esters were hydrolyzed upon light exposure but not utilized". Given that Figure 2B (bottom) shows that atRE levels had increased by at least as much, is it not instead likely that retinoid recycled from the retina has been re-routed to atRE rather than to 11cisRE? How can you distinguish ester hydrolysis from reduced ester synthesis? The same considerations apply to the statement on lines 428-9 in the Discussion.

We perfectly agree with this concern of the reviewers. Our statement is an assumption and not an experimentally proven fact. Therefore, we rephrased the paragraphs and now state in lines 141-143 of the revised manuscript that:

“Based on this observation and the reduced chromophore concentration in rlbp1a-/- larvae we assume that the esters were hydrolyzed upon light exposure but not utilized for 11cisRAL production”.

And in lines 282-283:

“This result raises the possibility that 11cisRE hydrolysis can occur Cralbpa-independently.”

Moreover, we indicate the other possibility that these esters stem from retinol that was released from bleached photoreceptors.

7) In the sentence "rlbp1a was essential for cone photoreceptor function and chromophore metabolism", does this mean that the rlbp1a-KO does not affect rods and scotopic vision?

In fact, we have no reasons to assume that rods are unaffected by the mutation. However, we only tested cone photoreceptor function in our study. Regarding retinoid metabolism, we cannot differentiate between rods and cones with our biochemical measurements since we used whole larval or whole eye (adult) samples.

Morphologically, we observed that rods are also affected, possibly from an early age on (see e.g. Figure 5A3 vs. 5B3). This is further supported by the low levels of rhodopsin gene expression both in larvae and adults of the rlbp1a-KO and double-KO lines (see Figure 8). In the abstract we already state that “these fish developed retinal thinning and cone and rod photoreceptor dystrophy”.

Additionally we now emphasize the rod defect also in the sentence line 255 of the revised manuscript:

“We found that the knockout of rlbp1a impaired cone-driven electroretinogram (ERG) responses and led to disturbed outer segment morphology of both rods and cones and age-dependent thinning of the photoreceptor nuclear layer.”

8) In Figure 1C, can one say that the rlbp1b-/- is really a KO? Its expression is four orders of magnitude higher than 1a in the 1a k/o. The p-value is very high and non-significant.

A knockout does not necessarily manifest at the transcriptional level. It is not unusual to observe mRNA expression from mutant alleles. Irrespective of the transcript levels, at least with the antiserum that we have at our disposal, we observe no protein in Müller glia cells in our rlbp1b-KO fish.

9) In Figure 2, there is considerable variability in the measurements of retinoid content in WT adult animals. Between panels A, C and E, the mean WT levels differ markedly: for 11cisRAL (312, 177 and 280); for 11cisRE (12.7, 86.1 and 7.2); and for atRE (168, 460 and 187). These differences would benefit from explanation. Are these WT values significantly different from each other? Would it be better to use the WT grand means in the tests of significance for the knockouts?

This can be explained by technical variability due to (photo and thermal) isomerization during sample collection and processing, but also by the fact, that zebrafish and their eyes are growing throughout adulthood, so that the retina doesn’t reach a finite size with a precisely defined retinoid content at a specific age. Among other things, strain-to-strain variability could impact the extent of growth and therefore also the absolute amount of retinoids in the eye. Therefore, we felt that by using wild type siblings (or age-matched cousins in case of the double-KO) as controls, we could better control for age- and, importantly, strain-related variation and focus on the differences attributable to the genetic manipulation. Rather than comparing absolute amounts of retinoids in the adults between the different lines one could express the values as fold change or percentages of the wild type of each respective line. The results for the adults are presented in Author response image 2 as log2 fold change:

Author response image 2

10) How critical is the role of Cralbpb in the MGC? The authors suggest that these cells could serve as a storage of 11-cis-retinoids. Could the authors elaborate a little this suggestion and how it might be explored? Along a similar line, which studies would the authors consider to investigate if 11cisRAL can be taken up by cones from the MGC (the question mark in the Graphical abstract)? In addition, if the MGC transform 11cisROL in 11cisRAL but the second is not transported back to the photoreceptors, what do the MGCs do with it? A storage for bright light conditions? It would be interesting to see the authors discuss this.

The precise role of Cralbpb in the MGC remains to be further investigated and we can only speculate on its function. In zebrafish, 11cisRE was mostly found in retinosomes in the RPE and was largely absent from MGC (see Babino et al., 2015). Thus, we conclude that MGCs do not store chromophore precursors in such form. However, MGCs express Cralbpb that can bind 11-cis-retinoids (e.g. produced by RGR?) and may deliver it to cone photoreceptors when needed. There is a whole host of novel gene targeting strategies available for zebrafish and mice. It will be fascinating to use this technology to unravel the role of Cralbp in MGCs and to elucidate the putative mechanism how cones benefit from this source for chromophore.

11) The morphology in Figure 5 (and the consecutive ones) suggests a stronger effect of the rlbp1a-KO in the ventral retina as compared to the dorsal. If this is the case, why could it be, and which implications could it have?

Photoreceptor degeneration does not occur uniformly in all parts of the retina. This has been reported in many mouse models of retinal degeneration. Whether this phenotype is related to differences in photoreceptor density and distribution and/or environmental factors such as light remains to be investigated. Additionally, we cannot exclude that the precise location and angle of the sections contribute to the apparent differences between ventral and dorsal regions in Figure 5, 6, and 7.

12) The first sentence of the discussion says "Our results showed that cones in the zebrafish retina rely on RPE-expressed Cralbpa for chromophore regeneration and retinal function" and summarizes the results, but as this has been extensively suggested, it would perhaps be better to focus more on the lack of effect of Cralbpb in MCG on chromophore regeneration. An important novelty is the use of a subfunctionalized teleost model to study RLBP1-KO related diseases.

We prefer to begin the discussion as it is. However, we now discuss the contribution of rlbp1b in a sentence further below in the discussion lines 299-300 in the revised manuscript:

“On the other hand, knockout of MGC-expressed rlbp1b in zebrafish did not affect 11cisRAL content, nor morphology and only marginally affected retinal function in the double-KO in bright light conditions.”

13) If cralbp1a is completely KO but there is still some chromophore regeneration, what explanation for this can the authors suggest?

This phenomenon is also known from mouse models and human patients, which exhibit prolonged, but not absent regeneration even though CRALBP is expected to be absent from both RPE and MGCs. It is also known, that retinoids can diffuse without the involvement of any retinoid binding proteins. Of course, their transport is greatly facilitated by proteins such as CRALBP, but not entirely dependent on them.

14) What do the authors speculate that could happen with the Retinomotor circadian movements? Would the Cralbp1a-KO fish have a similar response as for the dark-adapted retina? Could these movements be altered, therefore altering the circadian chromophore mobilisation and pigment regeneration and contributing to the accumulation of the small oil droplets/retinosomes in the RPE?

These are very interesting thoughts, but this seems beyond the scope of the current study.

15) For the insertion of the sgRNA and Cas-GFP, the authors used the injection methods. Did they try or consider using electroporation, working very well for isolated mammalian cells?

In zebrafish, injections in 1-cell stage embryos is an established technique that works very well in our hands. Electroporating zebrafish embryos is not quite as trivial as it might be for other cellular systems, at least in our experience.

16) In Figure 1A, the CRALBPas images are rather faint, probably due to poor contrast between background autofluorescence and the real signal, especially the two dbKO images. Presumably a negative control photo exists that could be added to help distinguish between the autofluorescence (due to the fixative, for example) and the real signal.

Indeed, formaldehyde fixed retinal tissue of fish has intrinsic autofluorescence. We always treated the controls and mutants with the same settings and adjustments during acquisition and processing of the images. Thus, the reviewers and readers of the paper should be able to appreciate the differences between the samples. However, we acknowledge that the settings might not have been optimal and the signal is relatively faint when we reduce the background signal as can be appreciated on the BandC adjusted Figure 1. We have attached another figure to this letter as an example showing a 5 dpf wild type and double-KO section (see Author response 3).

Author response image 3

17) Figure 3: These 5 dpf b-wave signals seem huge, at ~10 mV. For comparison, Bilotta et al., (2001) reported ~50 µV for the b-wave in 8 dpf animals, so your values are 200x higher. If the scale was meant to show "µV" then the signals would be around 5x smaller than theirs. Ideally, the reader should have access to some samples of b-wave records (rather than just measured amplitudes), in order to judge the quality of the recordings, so please provide this. As a minimum, a panel of dark-adapted ERG traces should be presented as a Supplementary Figure.

We appreciate the suggestion to include dark-adapted ERG traces and have added a Supplementary figure with representative traces of the different mutant lines and noted this on lines 179-180. In our setup, we use the eye cup preparation which yields better signal compared to the original technique published by Bilotta et al., (2001), where measurements were performed in whole larvae. On top of that, we expect, that the precise configuration of the setup can account for some differences. Our measurements are, however, consistent with multiple publications from our lab in recent years.

18) Before the authors can state that "We observed no pronounced changes of cone responses in Cralbpb-deficient larval eyes" they need to illustrate rlbp1b KO responses in Figure 4. At present, the double KO plots in panel B2 ("BL", and "BL+reDA") appear to show considerably greater attenuation than for the rlbp1a KO plots in panel A2, strongly suggesting an effect of Cralbpb. To make the above statement, it is necessary to present the data.

This is a good point. However, we do not state that there is no effect, but that the effect is rather mild. Admittedly, we only measured ERG responses of rlbp1b-KO larvae in the dark-adapted state (we clarified this by adding “dark-adapted” to the statement above, line 210 of the revised manuscript), since we knew from the retinoid measurements in larvae, that 11cisRAL concentration is not affected by the mutation even after bright light exposure (BL and BL+reDA conditions). Therefore, we directly set out to investigate retinal function in the double mutant. As pointed out in question (3), the 11cisRAL that we measured could be both free or protein-bound. The possibility remains that our measurements of 11cisRAL were masked by RGR-bound retinoids. The latter effect may also explain the more severe phenotype in double-KO despite the apparently normal amounts of 11cisRAL in rlbp1b-KO. We added the following paragraph to the discussion lines 306-311 of the revised manuscript:

“Also, RGR in MGCs was implicated in light-dependent chromophore regeneration (Morshedian et al., 2019) and Cralbpb may drive this reaction during bright light conditions. In this line of thought our measurements of 11-cis-retinal in the rlbp1b-KO could be masked by RGR-bound retinoids and provide an explanation for the more severe phenotype in in double-KO, despite the apparently normal amounts of 11-cis-retinal in rlbp1b-KO.”

19) The authors used CRALBP antiserum to detect both Cralbpa and Cralbpb. Presumably it is difficult to generate specific antibodies if the two proteins are highly identical. Instead ISH with riboprobes specific against each paralog could be used. If the coding regions are too similar,the 3´UTR could be used. The authors have surely considered these options so a comment would be appropriate.

A gene knockout does not necessarily result in mRNA decay and an in situ hybridization with labelled ribo-probes would not be an appropriate method to confirm it.

20) The option of generating a dKO Cralbp1a/RPE65 would be an interesting next step continuing with this research line to investigate correlation between the RPE65 genes (the are three paralogs) and rlpb1a. This could be interesting to see a key protein not in transporting but to convert all-trans retinal back to 11-cis retinal, widening the spectrum of diseases to be analysed.

We agree, this is a fantastic idea and we hope that such a mutant fish line will be soon available.

21) Discussion mentions (line 495 onwards) studies that use single-cell transcriptomics. The authors are encouraged to embrace this option in the near future. It would be interesting to see the transcriptome also of the KOs with spatial resolution, and using ISS or SCRINSHOT spatial mapping for specific transcripts in intact sections in situ.

Again, this is a promising approach and we will apply it if we can secure enough funding to continue our project.

https://doi.org/10.7554/eLife.71473.sa2

Article and author information

Author details

  1. Domino K Schlegel

    Department of Molecular Life Sciences, University of Zurich, Zürich, Switzerland
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6194-4695
  2. Srinivasagan Ramkumar

    Department of Pharmacology, School of Medicine, Case Western Reserve University, Cleveland, United States
    Contribution
    Formal analysis, Investigation, Methodology, Visualization, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Johannes von Lintig

    Department of Pharmacology, School of Medicine, Case Western Reserve University, Cleveland, United States
    Contribution
    Conceptualization, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Stephan CF Neuhauss

    Department of Molecular Life Sciences, University of Zurich, Zürich, Switzerland
    Contribution
    Conceptualization, Funding acquisition, Methodology, Project administration, Resources, Supervision, Writing - review and editing
    For correspondence
    stephan.neuhauss@mls.uzh.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9615-480X

Funding

Schweizerische Nationalfonds (31003A_173083)

  • Stephan CF Neuhauss

National Eye Institute (EY028121)

  • Johannes von Lintig

National Eye Institute (EY020551)

  • Johannes von Lintig

Robert und Rosa Pulfer Stiftung

  • Domino K Schlegel

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank John Saari for providing the CRALBP antiserum and Christian Grimm for the RPE65 antibody. We thank Martin Walther and Hannah Kämper for help with genotyping and excellent fish care. The latter was supported by Heidi Möckel and Kara Kristiansen. This work was supported by Robert und Rosa Pulfer-Stiftung and SNF 31,003 A_173083. The von Lintig laboratory is supported by grants from the National Eye Institute (EY028121 and EY020551).

Ethics

Holding and experimental permits have been granted by the Zurich cantonal veterinary office (TV4206).

Senior Editor

  1. Didier YR Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Dan Larhammar, Uppsala University, Sweden

Reviewers

  1. Xesus Abalo, Royal Institute of Technology (KTH), Sweden
  2. Gennadiy Moiseyev

Publication history

  1. Preprint posted: June 18, 2021 (view preprint)
  2. Received: June 20, 2021
  3. Accepted: October 20, 2021
  4. Accepted Manuscript published: October 20, 2021 (version 1)
  5. Version of Record published: November 11, 2021 (version 2)

Copyright

© 2021, Schlegel et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 415
    Page views
  • 83
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Rawan AlSubaie et al.
    Research Article Updated

    Projections from the basal amygdala (BA) to the ventral hippocampus (vH) are proposed to provide information about the rewarding or threatening nature of learned associations to support appropriate goal-directed and anxiety-like behaviour. Such behaviour occurs via the differential activity of multiple, parallel populations of pyramidal neurons in vH that project to distinct downstream targets, but the nature of BA input and how it connects with these populations is unclear. Using channelrhodopsin-2-assisted circuit mapping in mice, we show that BA input to vH consists of both excitatory and inhibitory projections. Excitatory input specifically targets BA- and nucleus accumbens-projecting vH neurons and avoids prefrontal cortex-projecting vH neurons, while inhibitory input preferentially targets BA-projecting neurons. Through this specific connectivity, BA inhibitory projections gate place-value associations by controlling the activity of nucleus accumbens-projecting vH neurons. Our results define a parallel excitatory and inhibitory projection from BA to vH that can support goal-directed behaviour.

    1. Cell Biology
    2. Neuroscience
    Angela Kim et al.
    Research Article Updated

    Insulin-induced hypoglycemia is a major treatment barrier in type-1 diabetes (T1D). Accordingly, it is important that we understand the mechanisms regulating the circulating levels of glucagon. Varying glucose over the range of concentrations that occur physiologically between the fed and fuel-deprived states (8 to 4 mM) has no significant effect on glucagon secretion in the perfused mouse pancreas or in isolated mouse islets (in vitro), and yet associates with dramatic increases in plasma glucagon. The identity of the systemic factor(s) that elevates circulating glucagon remains unknown. Here, we show that arginine-vasopressin (AVP), secreted from the posterior pituitary, stimulates glucagon secretion. Alpha-cells express high levels of the vasopressin 1b receptor (V1bR) gene (Avpr1b). Activation of AVP neurons in vivo increased circulating copeptin (the C-terminal segment of the AVP precursor peptide) and increased blood glucose; effects blocked by pharmacological antagonism of either the glucagon receptor or V1bR. AVP also mediates the stimulatory effects of hypoglycemia produced by exogenous insulin and 2-deoxy-D-glucose on glucagon secretion. We show that the A1/C1 neurons of the medulla oblongata drive AVP neuron activation in response to insulin-induced hypoglycemia. AVP injection increased cytoplasmic Ca2+ in alpha-cells (implanted into the anterior chamber of the eye) and glucagon release. Hypoglycemia also increases circulating levels of AVP/copeptin in humans and this hormone stimulates glucagon secretion from human islets. In patients with T1D, hypoglycemia failed to increase both copeptin and glucagon. These findings suggest that AVP is a physiological systemic regulator of glucagon secretion and that this mechanism becomes impaired in T1D.
