Perception of an object’s global shape is best described by a model of skeletal structure in human infants
- Neuroscience Institute, Carnegie Mellon University, United States
- Department of Psychology, Emory University, United States
Figures
Figure 1

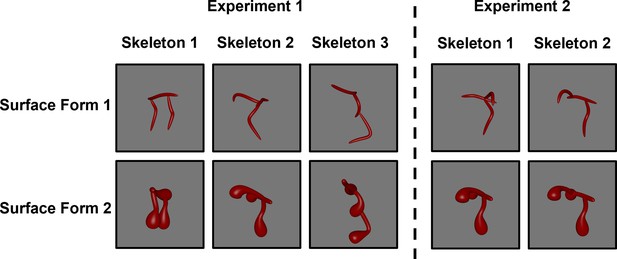

Screen shots of the stimuli used in Experiment 1 (left) and Experiment 2 (right).
Objects were presented as rotating videos during habituation and test phases.
Figure 2
Experimental design and results for (top) Experiment 1 and (bottom) Experiment 2.
(A, D) Illustration of the experimental procedure administered to infants and the computational models in (A) Experiment 1 and (D) Experiment 2. Infants and models were habituated to one object and then tested with objects that consisted of either the same or different shape skeleton. Both types of test objects (counterbalanced order) differed in their surface forms from the habituation object. (B, E) Mean looking times for (B) Experiment 1 and (E) Experiment 2. For the habituation phase, results are shown for the first four and last four trials. For the test phase, results are shown for the two types of test objects (i.e. same and different skeletons; 3 test trials each). Error bars represent SE. (C, F) Classification performance for infants and models for (C) Experiment 1 and (F) Experiment 2. Error bars represent bootstrapped confidence intervals, and the dashed line represents chance performance.
Figure 3
Experimental design and results for the surface form classification task used with the computational models.
(A) Illustration of the experimental procedure administered to models. (B–C) Classification performance of models on stimuli from (B) Experiment 1 and (C) Experiment 2. Error bars represent bootstrapped confidence intervals and dashed lines represent chance performance.
Figure 4
Examples of autoencoder reconstructions using objects from Experiment 1 (top) and Experiment 2 (bottom) for all models except FlowNet.
FlowNet reconstructions are not possible because it requires multiple frames as input. For the Skeletal model, the inset displays the original input image. Each reconstruction was created by feeding a random frame from the habituation object video to each model immediately following its habituation to said video.
Figure 5
Dissimilarity matrices for each computational model in Experiment 1.
Dissimilarity for each object pair was calculated as the error from an autoencoder following habituation to one object and testing on a second object. Internal values of each cell in the matrix indicate the error between habituation and test objects. Error-values are normalized to the end of habituation. Dissimilarity matrices are asymmetrical because the error value changes depending on which object the model was habituated to. The object adjacent to each row is the habituation object, and the object adjacent to each column is the test object.
Figure 6
Dissimilarity matrices for each computational model in Experiment 2.
Dissimilarity for each object pair was calculated as the error from an autoencoder following habituation to one object, and testing on a second object. Internal values of each cell in the matrix indicate the error between habituation and test objects. Error-values are normalized to the end of habituation. Dissimilarity matrices are asymmetrical because the error value changes depending on which object the model was habituated to. The object adjacent to each row is the habituation object, and the object adjacent to each column is the test object.
