Functional profiling of long intergenic non-coding RNAs in fission yeast

  1. Maria Rodriguez-Lopez
  2. Shajahan Anver
  3. Cristina Cotobal
  4. Stephan Kamrad
  5. Michal Malecki
  6. Clara Correia-Melo
  7. Mimoza Hoti
  8. StJohn Townsend
  9. Samuel Marguerat
  10. Sheng Kai Pong
  11. Mary Y Wu
  12. Luis Montemayor
  13. Michael Howell
  14. Markus Ralser
  15. Jürg Bähler  Is a corresponding author
  1. University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, United Kingdom
  2. The Francis Crick Institute, Molecular Biology of Metabolism Laboratory, United Kingdom
  3. Charité Universitätsmedizin Berlin, Institute of Biochemistry, Germany
  4. The Francis Crick Institute, High Throughput Screening, United Kingdom

Abstract

Eukaryotic genomes express numerous long intergenic non-coding RNAs (lincRNAs) that do not overlap any coding genes. Some lincRNAs function in various aspects of gene regulation, but it is not clear in general to what extent lincRNAs contribute to the information flow from genotype to phenotype. To explore this question, we systematically analysed cellular roles of lincRNAs in Schizosaccharomyces pombe. Using seamless CRISPR/Cas9-based genome editing, we deleted 141 lincRNA genes to broadly phenotype these mutants, together with 238 diverse coding-gene mutants for functional context. We applied high-throughput colony-based assays to determine mutant growth and viability in benign conditions and in response to 145 different nutrient, drug, and stress conditions. These analyses uncovered phenotypes for 47.5% of the lincRNAs and 96% of the protein-coding genes. For 110 lincRNA mutants, we also performed high-throughput microscopy and flow cytometry assays, linking 37% of these lincRNAs with cell-size and/or cell-cycle control. With all assays combined, we detected phenotypes for 84 (59.6%) of all lincRNA deletion mutants tested. For complementary functional inference, we analysed colony growth of strains ectopically overexpressing 113 lincRNA genes under 47 different conditions. Of these overexpression strains, 102 (90.3%) showed altered growth under certain conditions. Clustering analyses provided further functional clues and relationships for some of the lincRNAs. These rich phenomics datasets associate lincRNA mutants with hundreds of phenotypes, indicating that most of the lincRNAs analysed exert cellular functions in specific environmental or physiological contexts. This study provides groundwork to further dissect the roles of these lincRNAs in the relevant conditions.

Introduction

Genomes produce pervasive and diverse non-coding RNAs. How much genetic information is transacted by this non-coding ‘dark matter’ remains a matter of debate. A substantial but poorly understood portion of transcriptomes consists of long intergenic non-coding RNAs (lincRNAs). lincRNAs are longer than 200 nucleotides, lack long open reading frames, and do not overlap any neighbouring coding regions. While not all lincRNAs may be functional, several have well-defined roles in gene regulation and some other cellular processes. Different lincRNAs can control gene expression at different levels, from transcription to translation, and either in cis (acting on neighbouring genes) or in trans (acting on distant genes) (Fauquenoy et al., 2018; Popadin et al., 2013; Rinn and Chang, 2012; Schlackow et al., 2017; Ulitsky and Bartel, 2013; Yamashita et al., 2016). Although lincRNAs show little sequence conservation between species, functional principles seem to be conserved which can help us to understand their biology (Ulitsky, 2016). Specific lincRNAs have been implicated in complex human diseases (Batista and Chang, 2013 Kumar et al., 2013). For example, Xist exerts a tumour-suppressive function (Yildirim et al., 2013), TUNA is associated with neurological function and Huntington’s disease (Lin et al., 2014), and lincRNA1 delays senescence (Abdelmohsen et al., 2013). Moreover, lincRNAs are emerging as diagnostic molecular markers as they can be easily detected in blood and could provide more readily accessible drug targets than proteins (Bester et al., 2018; DeWeerdt, 2019; Kim et al., 2016).

Despite these efforts and insights based on studying selected lincRNAs, the systematic picture remains incomplete as the importance of most lincRNAs is unknown. Functional analyses of lincRNAs are challenging given their profusion, poor annotation, low expression, and limited methodology (Bassett et al., 2014; Cao et al., 2018; Kopp and Mendell, 2018). Knowledge of lincRNA function is therefore scarce even in well-studied organisms, highlighting the need for more systematic approaches. Large-scale genetic studies of lincRNAs and other non-coding RNAs have emerged, starting to provide a more global picture on their functions and contributions to phenotypes (Balarezo-Cisneros et al., 2021; Bester et al., 2018; Huber et al., 2016; Joung et al., 2017; Liu et al., 2017; Parker et al., 2018; Tuck et al., 2018; Wei et al., 2019). These findings suggest that many lincRNAs play specialized roles in specific conditions and, therefore, need to be analysed in the relevant conditions.

The fission yeast, Schizosaccharomyces pombe, is a potent genetic model system to study gene regulation and lincRNA function in vivo (Atkinson et al., 2018; Fauquenoy et al., 2018; Marguerat et al., 2012; Yamashita et al., 2016). Although only the most highly expressed lincRNAs show purifying selection (Jeffares et al., 2015), their regulation is often affected by expression quantitative trait loci (Clément‐Ziza et al., 2014). Notably, transposon insertions in up to 80% of non-coding regions of the S. pombe genome can affect fitness (Grech et al., 2019). RNA metabolism of fission yeast is similar to metazoan cells. For example, RNA interference (RNAi), RNA uridylation, and PABPN1-dependent RNA degradation are conserved from fission yeast to humans, but absent in budding yeast. Genome-wide approaches by us and others have uncovered widespread lincRNAs in fission yeast (Atkinson et al., 2018; Eser et al., 2016; Rhind et al., 2011; Wilhelm et al., 2008). Nearly all S. pombe lincRNAs are polyadenylated and transcribed by RNA polymerase II (Marguerat et al., 2012). Transcription of lincRNAs starts from nucleosome-depleted regions upstream of positioned nucleosomes (Atkinson et al., 2018; Marguerat et al., 2012), and the regulation of some lincRNAs involves specific transcription factors such as Gaf1 (Rodríguez-López et al., 2020). Most S. pombe lincRNAs are cryptic in cells growing under standard laboratory conditions, being suppressed by RNA-processing pathways such as the nuclear exosome, cytoplasmic exonuclease, and/or RNAi (Atkinson et al., 2018; Zhou et al., 2015), but they become induced during starvation or sexual differentiation (Atkinson et al., 2018). A substantial portion of lincRNAs are actively translated (Duncan and Mata, 2014), raising the possibility that some of them code for small proteins. A few S. pombe lincRNAs have been functionally analysed: meiRNA, mamRNA, nam1, and rse1 control meiotic differentiation (Andric et al., 2021; Ding et al., 2012; Fauquenoy et al., 2018; Touat-Todeschini et al., 2017; Yamashita et al., 2016), SPNCRNA.1164 regulates the atf1 transcription factor gene in trans during oxidative stress (Leong et al., 2014), several lincRNAs activate the downstream fbp1 gene during glucose starvation (Oda et al., 2015), prt controls pho1 expression (Ard et al., 2014; Shah et al., 2014), and nc-tgp1 inhibits the tgp1 gene by transcriptional interference (Ard et al., 2014).

Most S. pombe lincRNAs may not function under benign laboratory conditions when they are typically very lowly expressed (Atkinson et al., 2018; Marguerat et al., 2012). Phenomics approaches seek to rigorously characterize phenotypes associated with many gene variants under diverse conditions (Brochado and Typas, 2013; Rallis and Bähler, 2016). Such broad, high-throughput (HTP) phenotyping is an effective approach to uncover functional clues for unknown genes. For example, while only 34% of all budding yeast gene-deletion mutants display a growth phenotype under the standard condition, 97% of these mutants show suboptimal growth in at least one condition when assayed under a large number of chemical or environmental perturbations (Hillenmeyer et al., 2008). We have established a sensitive, reproducible platform for HTP colony-based assays to determine cellular fitness under diverse conditions (Kamrad et al., 2020b). Here we take advantage of this potent approach to broadly investigate phenotypes of 150 lincRNAs (12.6% of the 1189 lincRNAs; Atkinson et al., 2018), using deletion and/or overexpression mutants, supplemented with HTP microscopy and flow cytometry assays of deletion mutants. Colonies of a representative set of 238 coding-gene mutants were phenotyped in parallel for functional comparison. Using these different assays, we collected quantitative data for over 1.1 million unique colonies and over 5.7 million cells in a wide range of conditions. This study reveals hundreds of novel lincRNA-associated phenotypes and provides a framework for follow-on studies.

Results and discussion

Experimental strategy for functional profiling of lincRNAs

We focused on lincRNAs, rather than other types of non-coding RNAs, because (1) they are poorly characterized in general but emerge as varied regulatory factors; (2) they can be deleted without directly interfering with coding gene function; and (3) they are more likely to function in trans as RNAs than antisense or promoter-associated ncRNAs which can affect neighbouring or overlapping genes via their transcription (Ard et al., 2017). For functional profiling, we selected 150 S. pombe lincRNA genes that produce well-defined transcripts and are well-separated from neighbouring coding regions (over ~200 bp), based on genome browser views of RNA-seq data. We established efficient HTP methods to genetically manipulate these lincRNAs. For deletions, we applied a CRISPR/Cas9-based method (Rodríguez-López et al., 2016); this approach allowed us to knock out the precise regions transcribed into lincRNAs without inserting any markers or other alterations, thus avoiding indirect physiological effects. For overexpression, we applied restriction-free cloning to express the lincRNAs from a plasmid under the control of the strong, inducible nmt1 promoter (Maundrell, 1993). Gene overexpression (‘gain of function’) provides complementary phenotype information to gene deletion (Prelich, 2012); moreover, any phenotype caused by a lincRNA that is ectopically expressed from a plasmid points to a function that is exerted over a distance (in trans) via the lincRNA itself rather than via its transcription or other local effects. We managed to delete 141 different lincRNAs (111 of which with at least two independent guide RNAs) and to overexpress 113 lincRNAs, with 104 lincRNAs being both deleted and overexpressed. These lincRNAs ranged in length from ~90 to 5100 nucleotides and in GC content from 25% to 46%, with means of 820 nucleotides and 34% GC content, respectively. These lincRNAs are distributed across the entire nuclear genome (Figure 1A). Information for all deletion and overexpression strains analysed is available in Supplementary file 1.

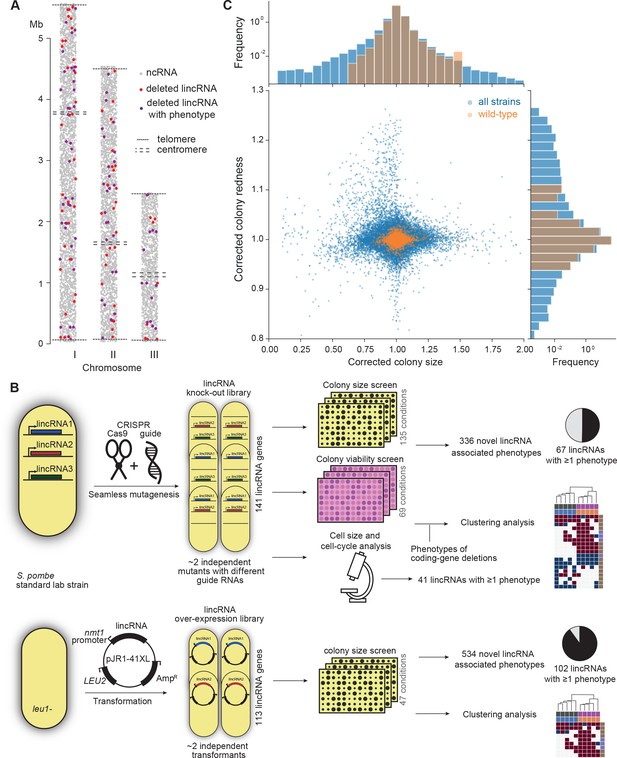

Figure 1 with 3 supplements see all
Phenomics assays of long intergenic non-coding RNA (lincRNA) mutants.

(A) Representation of all non-coding RNAs across the three S. pombe chromosomes (Atkinson et al., 2018). lincRNAs analysed in this study are shown in red (if they showed no phenotypes) or purple (if they showed phenotypes in at least one condition), with all other non-coding RNAs in grey. (B) Schematic overview of experimental design and workflow for phenotyping and data analyses. (C) Colony size (growth) and redness (viability) provide orthogonal readouts with strong biological signals. These two readouts are not correlated (rPearson = –0.022). Both methods are highly reproducible with overall coefficients of variation of 0.050 and 0.007 for size and redness, respectively (based on 3514 wild-type control colonies across all plates). The lower relative distribution spreads of control values (wild-type vs. entire dataset) indicates a strong biological signal. Fractions of unexplained variance were 0.56 for size and 0.40 for redness.

To provide functional context for the lincRNA deletion-mutant phenotypes, we also assayed 238 coding-gene mutants from the S. pombe gene-deletion library using prototrophic mutants after crossing out the auxotrophic mutants (Malecki and Bähler, 2016). These mutants broadly cover the Gene Ontology (GO) slim Biological Process categories (Lock et al., 2019), ageing-related genes (Rallis et al., 2014; Sideri et al., 2014), as well as 104 ‘priority unstudied genes’ (Wood et al., 2019; Supplementary file 1).

Figure 1B provides an overview of the colony- and microscopy-based phenomics assays for the deletion and overexpression mutants. To determine fitness-related traits from colony-based assays, we applied pyphe, our Python package for phenomics analyses (Kamrad et al., 2020b). Strains were arrayed randomly around a control grid at a density of 384 colonies per plate. We assayed the deletion or overexpression strains in response to diverse environmental factors such as different nutrients and drugs as well as oxidative, osmotic, heavy-metal, protein-homeostasis and DNA-metabolism stresses (Figure 1—figure supplement 1), including some combined factors which can reveal additional phenotypes by non-additive effects that are not evident from single conditions (Rallis et al., 2013). For drugs and stressors, we applied low and high doses, where wild-type cell growth is normal or inhibited, respectively, to uncover both sensitive or resistant mutants. For the deletion mutants, we measured colony size to determine cell growth across 149 different nutrient, drug, and stress conditions (Supplementary file 1). For 68 of these conditions, we also measured colony redness using the phloxine B dye, which stains dead cells and thus provides a measure for viable cells in colonies: bright red colonies have higher portions of viable cells than dark red colonies (Kamrad et al., 2020b; Lie et al., 2018). Cell growth and viability provided complementary functional information and produced strong biological signals (Figure 1C). For the overexpression mutants, we assayed cell growth across 47 conditions (Supplementary file 1). All colony-based phenotyping was performed in at least three independent biological repeats per condition and strain, with a median number of nine independent repeats per lincRNA, and at least two technical repeats (independently printed colony) for each biological repeat.

Overall, we collected >1,100,000 phenotype data points for cell growth and >350,000 data points for cell viability. We established a normalization procedure based on control grids to correct for known variations between and within plates which effectively reduces noise in the data (Figure 1C, Figure 1—figure supplement 2A; Kamrad et al., 2020b). Together with the high number of replicates, this normalization provided the statistical power to confidently measure growth differences as small as 5%, thus supporting the detection of subtle lincRNA mutant phenotypes (Figure 1—figure supplement 2B). Although control conditions measured in the same batch tended to be more similar, the batch effects remained much smaller than the biological signals (Figure 1—figure supplement 2C). Thus, our colony-based phenotyping assays produce robust and reproducible results with high sensitivity. For the lincRNA deletion mutants, we also screened for cell-size and cell-cycle traits using HTP microscopy and flow cytometry analyses (Figure 1B). These assays added >20,000 phenotype datasets (microscopic fields analysed), with over 5.7 million cells analysed across 338 samples. Information for all phenotyping conditions is provided in Supplementary file 1.

Phenotyping of deletion mutants in benign conditions

We screened for phenotypes of the lincRNA and coding-gene deletion mutants under benign, standard laboratory conditions using rich and minimal growth media. We looked for mutants showing a significant difference in colony growth and/or colony viability compared to wild-type cells. Among the 141 lincRNA mutants tested, 5 and 10 mutants grew slower than wild-type cells in rich and minimal media, respectively, while 1 mutant grew faster in minimal medium (Figure 2A, Supplementary file 2). Among the 238 coding-gene mutants tested, 26 and 48 mutants grew slower in rich and minimal media, respectively, while 4 mutants each grew faster in rich and minimal media, 3 of which in both media (Figure 2A, Supplementary files 3 and 4). Among the total of 51 coding-gene mutants growing slower in our assays, 49 have previously been associated with the phenotype ontology ‘abnormal vegetative cell population growth’ (Harris et al., 2013), thus validating our assay for this phenotype. With respect to colony viability, three lincRNA mutants showed lower viability than wild-type cells, two in rich medium and one in minimal medium (Figure 2B, Supplementary files 2 and 3). Among the coding-gene mutants, 103 and 42 mutants showed higher or lower viability, respectively, in either or both benign conditions (Figure 2B, Supplementary files 2 and 3). In conclusion, ~2–7% of the lincRNA mutants showed growth or viability phenotypes compared to ~11–43% of the coding-gene mutants, respectively. These results suggest that coding-gene mutants are more likely to have phenotypes in standard growth conditions. The results also illustrate that colony-viability assays can uncover phenotypes for many additional mutants not evident from colony growth assays (Kamrad et al., 2020b; Lie et al., 2018).

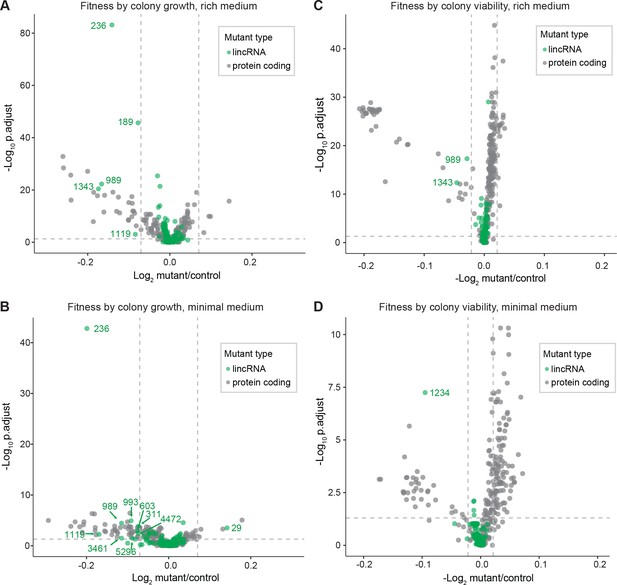

Colony growth and viability of deletion mutants in benign conditions.

(A) Volcano plot for colony size of long intergenic non-coding RNA (lincRNA) mutants (green) and coding-gene mutants (grey) growing in rich medium (top graph) and minimal medium (bottom graph). The dashed lines show the significance thresholds. Strains with lower fitness (smaller colonies) are <0 on the x-axis, and those with higher fitness are >0. We applied a significance threshold of 0.05 after Benjamini–Hochberg correction for multiple testing and a difference in fitness of abs(log2(mutant/wild type))> log2(0.05) to call hits based on colony size; this difference is similar to the median coefficient of variation (CV). (B) Volcano plot for colony viability (phloxine B redness score) of lincRNA mutants (green) and coding-gene mutants (grey) growing in rich medium (top graph) and minimal medium (bottom graph). The dashed lines show the significance thresholds. Strains showing lower fitness (redder colonies) are above zero on the x-axis, and those with higher fitness are below zero. We determined quantitative redness scores and applied a significance threshold of 0.05 after Benjamini–Hochberg correction and an effect size threshold of abs(log2(mutant/wild-type))> log2(0.015) to identify colonies that are more or less red than wild-type colonies. The labels indicate the identity of the significant lincRNA genes.

We examined additional, cellular phenotypes in rich medium for 110 lincRNA deletion mutants. Abnormal cell length or altered duration of cell-cycle stages point to defects in the cell-division cycle. Using HTP microscopy, we determined the length and proportion of binucleated cells; these cells are fully grown and in G1/S phases of the cell cycle. In addition to wild-type cells, we used small wee1-50 and large cdc10-129 cell-cycle mutants as controls (Nurse and Hayles, 2019). Binucleated wild-type cells showed a median length of 9.7 µm, consistent with published data for ethanol-fixed cells (Heisler et al., 2014). Two lincRNA mutants were significantly shorter than wild-type cells and four were longer (Figure 3A and B, Figure 3—figure supplement 1A, Supplementary file 2). Thus, these lincRNAs may be involved in the coordination of cell growth and division. Two of the size mutants, SPNCRNA.989Δ and SPNCRNA.236Δ, also showed strong slow-growth phenotypes (Figure 3C), but no anomalies in cell-cycle phases (Figure 3D, Figure 3—figure supplement 2A and B). We independently validated the cell-length phenotypes of these two mutants by measuring calcofluor-stained cells growing in rich liquid medium fixed with formaldehyde. This analysis confirmed the shortened average length of SPNCRNA.989Δ cells (11.7 ± 0.89 µm; n = 114) and extended median length of SPNCRNA.236Δ cells (12.7 ± 0.92 µm; n = 155) compared to wild-type cells (12.1 ± 0.75 µm; n = 129). These two mutants showed a range of other phenotypes and are further discussed below. We also detected phenotypes pointing to defects in transitions between cell-cycle phases: 22 and 5 lincRNA mutants showed significantly reduced and increased proportions of binucleated cells, respectively, compared to the 13.2% binucleated wild-type cells (Figure 3D, Figure 3—figure supplement 1). Four mutants showed both aberrant cell lengths and proportions of binucleated cells: SPNCRNA.819Δ cells were shorter and had fewer binucleates, while SPNCRNA.323Δ, SPNCRNA.412Δ, and SPNCRNA.934Δ cells were longer and had more binucleates (Figure 3A and C). We validated these microscopy data with HTP flow cytometry, with the results showing a good correlation (Figure 3—figure supplement 2C). We conclude that several lincRNAs are involved in regulating cell-size and/or cell-cycle progression.

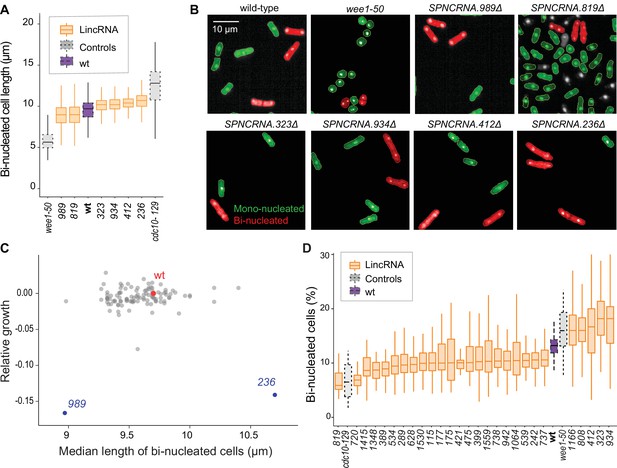

Figure 3 with 2 supplements see all
Cell-size and cell-cycle traits of long intergenic non-coding RNA (lincRNA) mutants.

(A) lincRNA deletion mutants showing ≥5% difference in median cell size (pWilcoxon<0.05), compared to wild-type (wt) cells and the conditional cell-size mutants wee1-50 and cdc10-129, captured at 60 min after release to permissive temperature. The sizes of binucleated cells were measured in 63 microscope fields using high-throughput microscopy. (B) Representative cells from (A), with binucleated cells in red. (C) Plot of cell growth vs. cell length of binucleated cells for all lincRNA mutants analysed here. The data on log2 growth of mutant relative to wild-type cells in rich medium are from the colony-based screen (Figure 2A). The length data of binucleated cells grown in rich medium are from the high-throughput microscopy (A). (D) lincRNA deletion mutants showing ≥20% difference in percentage of binucleated cells (pWilcoxon<0.05) compared to wt cells as in (A). The median proportion of binucleated cells was quantified from the proportion of binucleated cells in each microscope field, captured for each lincRNA mutant using high-throughput microscopy.

Phenotyping of deletion mutants in multiple nutrient, drug, and stress conditions

We assayed for colony size (growth) phenotypes of the lincRNA and coding-gene mutants in the presence of various stresses or other treatments, relative to the same mutants growing in benign conditions and normalized for wild-type growth (Materials and methods). To this end, we applied the same significance thresholds as for benign conditions. Among the 141 lincRNA mutants tested, 60 (43%) showed growth phenotypes in at least one condition (Supplementary files 2 and 3). Together, these 60 mutants showed 211 growth phenotypes across conditions, with 69 of the 145 conditions producing phenotypes in at least one mutant (Figure 4A). The 211 hits included 150 resistant and 61 sensitive phenotypes (i.e. mutants showing larger or smaller colonies, respectively, in assay conditions compared to the control condition, each relative to wild-type). Seven lincRNA mutants showed growth phenotypes in at least five conditions, with SPNCRNA.236Δ showing the most phenotypes, being resistant in 26 and sensitive in two conditions (Supplementary files 2 and 3). Among all conditions, the most phenotypes were triggered by 0.075% MMS (causing DNA damage; 13 hits) and Brefeldin A (inhibiting protein transport from endoplasmic reticulum to Golgi; 18 hits).

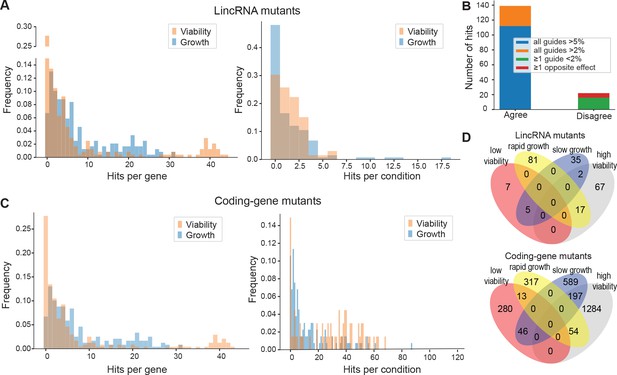

Colony growth and viability of deletion mutants in diverse conditions.

(A) Distributions of significant hits per mutant (left) or per condition (right) for long intergenic non-coding RNA (lincRNA) mutants with altered colony growth (blue) or viability (orange) compared to wild-type cells. (B) Plot showing the number of growth phenotype hits agreeing or disagreeing between independently generated lincRNA mutants. (C) Distributions of significant hits per mutant (left) or per condition (right) for coding-gene mutants with altered colony growth (blue) or viability (orange) compared to wild-type cells. (D) Top Venn diagram: numbers of lincRNA mutants that showed phenotypes for colony growth (rapid or slow) and/or viability (low or high) in 67 conditions. Bottom Venn diagram: numbers of coding-gene mutants showing a phenotype for both colony growth and viability in 67 conditions.

Due to possible off-target mutations introduced by CRISPR/Cas9, we generated independent deletion mutants using different guide RNAs targeting the same lincRNA gene. These independent mutants generally produced highly similar growth phenotypes (Figure 4B). Of the 161 phenotypes associated with lincRNAs represented by two or more independent mutants, 112 phenotypes agreed between the corresponding mutants (all mutants showed median effect sizes [MES] > 5%), and 27 hits showed a similar trend (MES > 2%). In 16 cases, at least one guide RNA showed no phenotype (MES < 2%), and in only 6 cases did the guide RNAs show opposite effects (Figure 4B). These results indicate that any secondary effects from CRISPR/Cas9-based gene deletions did not affect the consistency of our phenotype results in the vast majority of cases.

Among the 238 coding-gene mutants tested, 223 (93.7%) showed growth phenotypes in at least one condition, 104 of which represent priority unstudied genes that have remained entirely uncharacterized (Wood et al., 2019). Together, these 223 mutants showed 1924 growth phenotypes across conditions, with 119 of the 145 conditions tested producing phenotypes in at least one mutant (Figure 4C, Supplementary files 3 and 4). The 1924 hits included 651 resistant and 1273 sensitive phenotypes.

We also assayed for colony-viability phenotypes of the lincRNA and coding-gene mutants across stress or other treatments relative to mutant cells growing in benign control conditions, normalized for wild-type growth. To this end, we applied the same quantitative redness scores and significance thresholds as for the benign conditions. Among the 141 lincRNA mutants tested, 25 (17.7%) differed in viability in at least one condition compared to wild-type cells (Supplementary file 2). Together, these 25 mutants showed 98 phenotype hits across conditions, with 45 of the 67 conditions tested producing phenotypes in at least one mutant (Figure 4A). The 98 hits included 86 resistant and 12 sensitive phenotypes (higher and lower viability than wild-type, respectively). Two lincRNA mutants, which were sensitive in the benign condition, caused ~56% of the hits, all resistant, in conditions that partially suppressed this sensitive phenotype: SPNCRNA.989Δ (31 hits) and SPNCRNA.1343Δ (24 hits) (Supplementary file 2). These lincRNAs are discussed further down. Among all conditions, the highest number of hits with viability phenotypes were observed in rich medium with 0.5 M KCl or with 0.005% MMS (six hits each) and in minimal medium with canavanine (five hits).

Among the 238 coding-gene mutants tested, 172 (72.3%) showed viability phenotypes in at least one condition. Together, these 172 mutants showed 1874 phenotype hits across conditions, with 57 of the 67 conditions tested producing phenotypes in at least one mutant (Figure 4C, Supplementary files 3 and 4). The 1874 hits included 1535 resistant and 339 sensitive phenotypes.

We then explored the relationships between colony growth and viability for the 67 conditions used to measure both phenotypes. The lincRNA mutants produced 140 growth phenotypes and 98 viability phenotypes, but in only 24 instances were both phenotypes associated with the same mutant (Figure 4D). The coding-gene mutants showed 1216 growth phenotypes and 1874 viability phenotypes, with only 310 instances where both phenotypes were associated with the same mutant (Figure 4D). A large excess of high-viability phenotypes was evident for coding-gene and, even more so, for lincRNA mutants (Figure 4D). Thus, slowly growing mutants did often show higher viability rather than lower viability, especially in coding-gene mutants. Together, these results further highlight that the colony-viability assays produce orthogonal phenotype information to the colony growth assays and can uncover many additional phenotypes (Kamrad et al., 2020b; Lie et al., 2018).

The lincRNAs that showed phenotypes were distributed across the genome (Figure 1A). They were not enriched in any particular gene expression patterns, showing diverse responses to genetic or physiological perturbations (Figure 1—figure supplement 3A). The lincRNAs associated with phenotypes were of similar length as those without phenotypes, but they tended to have a higher GC content (Figure 1—figure supplement 3B). This result raises the possibility that the GC content reflects or even determines the likelihood of lncRNA function.

In conclusion, substantial proportions of the lincRNA mutants showed growth (43%) and/or viability (18%) phenotypes in some stress conditions, and the majority of coding-gene mutants showed phenotypes in these conditions (72–94%). With respect to viability phenotypes, much larger proportions of both lincRNA and coding-gene mutants were resistant (87.8% and 81.9%, respectively). This bias could partly reflect that many mutants are growing somewhat more slowly in benign conditions (Figure 2A), a trade-off that may render them more resilient to stresses (López-Maury et al., 2008). Together, these analyses show that phenomics assays can effectively uncover functional clues not only for protein-coding genes but also for many lincRNAs.

Integrated analyses of functional signatures from deletion mutants

Using unsupervised clustering, we mined the rich deletion-mutant phenotype data to explore functional profiles for both protein-coding and lincRNA genes. For the phenotype calling described above, we wanted to identify functional clues and gene-environment interactions with high confidence (i.e. low false discovery rate). Here, using a less conservative analysis, we applied a multivariate, global approach by converting effect sizes to a modified z-score to indicate the deviation from the expected phenotype value in units of standard deviations from the wild-type control in the same condition. Several conditions involved the same stressor, for example, the same drug used at different doses (Supplementary file 1). We aggregated such related conditions and used the strongest median response for each mutant and set of conditions (Materials and methods). The protein-coding mutants generally showed stronger phenotypes than the lincRNA mutants as measured by the magnitude of the effect sizes (Figure 5—figure supplement 1A). To compare phenotypes across the two types of mutants, we discretized the data, classing mutants as either sensitive (–1), resistant ( + 1), or similar (0) to their fitness in the corresponding control condition (Figure 5—figure supplement 1B, Supplementary file 5). Thresholds were chosen at ±1.5 standard deviations for both growth and viability data, which resulted in ~23% of all data points classed as non-zero in each dataset. We limited this analysis to 41 sets of aggregated ‘core’ conditions in which all mutants were phenotyped (Supplementary file 5).

Applying this analysis, most lincRNA mutants showed few or no phenotypes across the 41 core conditions, while 16 lincRNA mutants showed strong phenotype profiles across many conditions. Such uneven distribution in the phenotype numbers associated with lincRNAs indicates that the data reflect biology rather than technical noise. In total, 194 mutants showed a phenotype in five or more sets of conditions, including the 16 lincRNA mutants, and these mutants were used for hierarchical clustering. Clear patterns were evident, and we divided the genes into three main clusters (Figure 5A, Figure 5—figure supplement 1C, Supplementary file 5). Clusters 1, 2, and 3 contained 2, 10, and 4 lincRNAs, respectively, providing an opportunity to infer function through ‘guilt by association’ with known protein-coding genes in the same clusters. This approach was somewhat limited because only 115 of the 178 protein-coding genes in the clusters had known or inferred biological roles. Using the AnGeLi tool (Bitton et al., 2015), we identified functional enrichments for the clusters as described below.

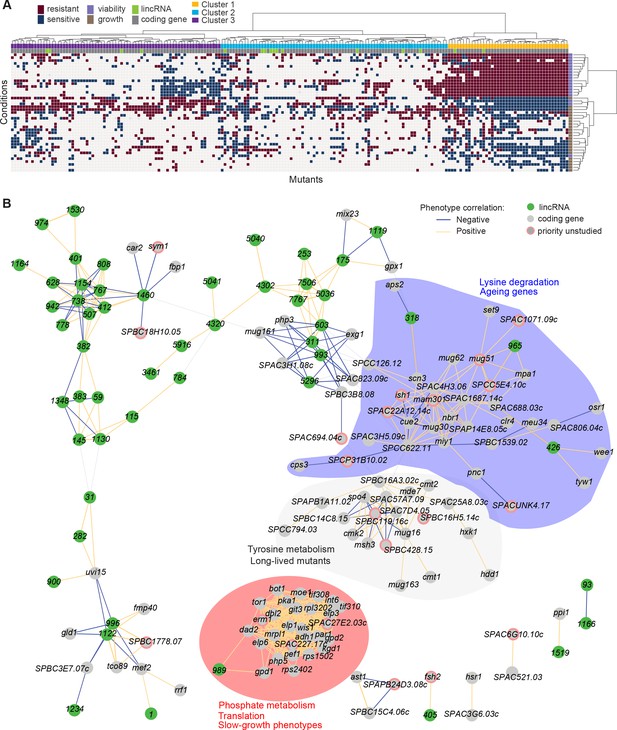

Figure 5 with 3 supplements see all
Functional signatures in long intergenic non-coding RNA (lincRNA) phenotype profiles.

(A) Hierarchical clustering of discretized data for 16 lincRNA mutants (green) and 178 coding-gene mutants (grey), as indicated above the columns. Clustering was limited to the core conditions where phenotypes for all mutants were available, including growth phenotypes (brown) and viability phenotypes (purple), as indicated to the right of rows. Only mutants with at least five hits across the 41 conditions are shown. Resistant (dark red) and sensitive (dark blue) phenotypes are indicated for corresponding mutant-condition combinations. Hierarchical clustering of both mutants and conditions was performed with the Ward method using Euclidean distances. Based on the dendrogram, the genes were divided into three clusters indicated in different colours (top row). A detailed version of this cluster specifying the conditions and mutants is provided in Figure 5—figure supplement 1C. (B) Cytoscape gene network representing phenotype correlations between lincRNA and coding-gene mutants. Yellow and blue edges show positive and negative phenotype correlations, respectively. The lincRNAs are shown in green and the protein-coding genes in grey, including a pink border if their function is unknown. Clusters discussed in the main text are highlighted in colour.

Cluster 1 showed the most defined phenotype signature, characterized by many mutants displaying higher viability in 15 stress conditions, lower viability in the benign conditions and in canavanine A, and slow growth in benign conditions and several drugs tested, including hydrogen peroxide and antimycin A (Figure 5A, Figure 5—figure supplement 1C, Supplementary file 5). This cluster was enriched in various GO categories related to protein localization/transport, cellular respiration, phosphate metabolism, and protein translation (the latter including five cytosolic/mitochondrial ribosomal subunits, six translation factors, and three subunits of the elongator complex). The cluster also included nine genes involved in nutrient- or stress-dependent signalling (Supplementary file 5). With respect to phenotype ontology (Harris et al., 2013), this cluster was enriched in multiple terms related to cytoskeleton aberrations, abnormal respiration and translation, as well as altered cell growth and stress sensitivity. Indeed, 80% of the mutants in this cluster have previously been associated with decreased cell population growth, and 87% are associated with increased sensitivity to chemicals. These enrichments validate our phenotype data.

Cluster 1 contained the two lincRNAs, SPNCRNA.989 and SPNCRNA.1343, which accounted for ~56% of the colony-viability phenotypes among the lincRNA deletion mutants. When overexpressed, however, they generated just 1–2 hits, much fewer than average (see below). This pattern suggests that these lincRNAs may function in cis, regulating nearby genes. Notably, both lincRNAs are located upstream of genes regulated by the Pho7 transcription factor (Schwer et al., 2017), which functions during phosphate starvation and other stresses (Carter-O’Connell et al., 2012): SPNCRNA.989 and SPNCRNA.1343 are divergently expressed to atd1 and tgp1, respectively (Figure 5—figure supplement 2). SPNCRNA.1343 partially overlaps with the nc-tgp1 RNA that regulates phosphate homeostasis by repressing the adjacent tgp1 gene via transcriptional interference; deletion of SPNCRNA.1343 has been shown to increase tgp1 expression by inhibiting nc-tgp1 expression (Ard et al., 2014; Ard and Allshire, 2016; Garg et al., 2018; Shah et al., 2014; Yague-Sanz et al., 2020). Inspection of the region upstream of SPNCRNA.989 suggested a regulatory mechanism similar to tgp1, with divergent transcripts towards atd1 likely driven by a bidirectional promoter from the nucleosome-depleted region upstream of SPNCRNA.989 (Figure 5—figure supplement 2). These patterns suggest that additional Pho7-regulated genes, like atd1, are controlled via upstream RNAs, similar to the tgp1, pho84, and pho1 genes that respond to phosphate limitation (Carter-O’Connell et al., 2012). The similar phenotypes of SPNCRNA.989Δ and SPNCRNA.1343Δ mutants therefore suggest that these lincRNA deletions interfere with the expression of their neighbouring genes and thus with processes affected by this regulon. In spotting assays, the phenotypes of SPNCRNA.989Δ and SPNCRNA.1343Δ often differed from those of tgp1Δ and atd1Δ (Figure 5—figure supplement 3). These results are consistent with the lincRNA deletion leading to induction, rather than repression, of their coding-gene neighbours.

Cluster 2 contained a majority of genes that are not associated with any functional annotations, including 10 lincRNAs genes (Figure 5—figure supplement 1C, Supplementary file 5). This cluster was enriched for long-lived mutants and for genetic interactions (based on Biogrid data; Breitkreutz et al., 2007), meaning that the protein-coding genes within this cluster are approximately four times more likely to interact with each other than expected by chance. This cluster included seven genes involved in stress and/or nutrient signalling pathways and six genes for transcription factors functioning during stress/nutrient responses or in unknown processes. The phenotype data in this cluster were sparse and lacked a convincing functional signature across the coding and lincRNA genes.

Cluster 3 was characterized by most mutants showing rapid growth in VPA, formamide, and sodium orthovanadate, and many of these mutants also showed higher viability in benign conditions but lower viability in VPA. This cluster was enriched for long-lived mutants and for energy metabolism, including four genes each functioning in glycolysis and the TCA cycle. Intriguingly, one of the four lincRNA genes in this cluster, SPNCRNA.236, is located upstream the pyruvate-kinase gene pyk1, which is involved in the last step of glycolysis to generate pyruvate for the TCA cycle or fermentation. The finding that the SPNCRNA.236Δ mutant leads to a similar phenotypic signature as does deletion of glycolysis or TCA cycle genes raises the possibility that SPNCRNA.236 acts in cis to control pyk1 expression. Consistent with this idea, SPNCRNA.236Δ mutants grow slowly (Figure 2A) while increased activity of Pyk1 leads to faster growth (Kamrad et al., 2020a). However, SPNCRNA.236 also generates phenotypes in 11 conditions when overexpressed from a plasmid (Supplementary file 6), including faster growth in minimal medium, which is the opposite of the slower growth of the deletion mutant in the same condition. Thus, it is also possible that SPNCRNA.236 can act in trans.

We validated phenotypes of five lincRNA deletions from clusters 1 and 3 as well as deletions from neighbouring coding genes using serial dilution spotting assays under 13 conditions. Detection of subtle phenotypes involving 5% differences in growth is difficult with such spotting assays. Nevertheless, we could confirm 11 (84%) of the phenotypes detected by the HTP colony-based assays (Figure 5—figure supplement 3). We conclude that there is generally a good agreement between these different phenotyping assays.

To further explore our dataset, we discretized all deletion-mutant phenotypes, both from lincRNAs and coding genes (Supplementary files 2-4). Pearson correlations of phenotype profiles were then used for constructing a network that was visualized with Cytoscape (Shannon et al., 2003). The network included several distinct clusters. A large, tight cluster consisted mostly of protein-coding genes (Figure 5B, highlighted in red). This cluster, which was similar to cluster 1 (Figure 5A), included SPNCRNA.989 and was enriched for genes involved in phosphate metabolism and translation, and 89% of the mutants in this cluster displayed slow growth phenotypes (Figure 5B). Another large cluster was enriched for lysine metabolism with 18% of the mutants showing ageing-related phenotypes such as increased lifespan during quiescence (Sideri et al., 2014). This cluster also included three lincRNAs: SPNCRNA.318, SPNCRNA.426, and SPNCRNA.965 (Figure 5B, highlighted in blue). Network analysis of the whole phenotypic dataset revealed further connections between several lincRNAs and coding genes. For example, a negative phenotypic correlation was evident between SPNCRNA.1460 and fbp1 (Figure 5B, upper left); fbp1 is a key gene responding to glucose starvation that is regulated by upstream non-coding RNAs (Hirota et al., 2008; Hoffman and Winston, 1990 Oda et al., 2015). SPNCRNA.1460 is located upstream of scr1, encoding a transcriptional repressor that negatively regulates fbp1 (Tanaka et al., 1998; Vassiliadis et al., 2019). This link raises the possibility that SPNCRNA.1460 controls scr1 expression and, therefore, fbp1 expression. The same cluster also included car2, which is also implicated in carbon metabolism, and two priority unstudied genes, whose association suggests that they function in similar processes. Interestingly, some clusters consisted exclusively or mostly of lincRNAs (Figure 5B, upper left). Naturally, these clusters showed no functional enrichments, but they point to several lincRNAs acting in related cellular processes, possibly together.

Phenotyping of lincRNA overexpression mutants in multiple conditions

Gene overexpression provides complementary phenotype information to gene deletion (Prelich, 2012). We constructed strains that ectopically overexpressed 113 lincRNAs from a plasmid under the strong nmt1 promoter in minimal medium (Materials and methods). A real-time quantitative PCR (RT-qPCR) analysis of eight overexpression constructs showed that the lincRNAs were 35- to 2200-fold overexpressed relative to the empty-vector control strain, which expresses the lincRNAs at native levels (Figure 6—figure supplement 1A).

We then looked for differences in colony growth under benign conditions compared to empty-vector control cells. We also looked for growth phenotypes in the presence of various stresses or other treatments, relative to growth in benign control conditions and normalized for the growth of empty-vector control cells. In the benign condition, most lincRNA overexpression strains grew faster compared to the empty-vector control. This pattern may reflect an indirect effect of lincRNA transcription by increasing plasmid copy numbers and/or expression of the budding yeast LEU2 marker that is limiting for growth. Therefore, we normalized the colony growth of overexpression mutants in the stress conditions by the growth in the benign condition to correct for this potential bias. We used a more stringent significance threshold for the overexpression mutants than for the deletion mutants (Figure 6A) because ectopic overexpression of genes involves cell-to-cell variation in plasmid copy numbers, leading to higher phenotypic heterogeneity (Siam et al., 2004). Among the 113 lincRNA overexpression strains tested, 102 (90.3%) showed growth phenotypes in at least one condition (Figure 6A, Supplementary file 6). Together, these 102 overexpression strains showed 565 growth phenotypes across conditions. The 565 hits included 347 resistant and 218 sensitive phenotypes (i.e. mutants showing larger or smaller colonies, respectively, in the assay condition than in the control). 14 lincRNA overexpression strains showed more consistent phenotypes in 10 or more conditions, topped by SPNCRNA.335 that showed sensitive and resistant phenotypes in 12 and 3 conditions, respectively (Figure 6—figure supplement 1B). No clear pattern was evident between expression levels and phenotype hits, for example, lincRNAs without phenotypes when overexpressed showed similar fold-changes as a lincRNA showing 13 phenotypes (Figure 6—figure supplement 1A).

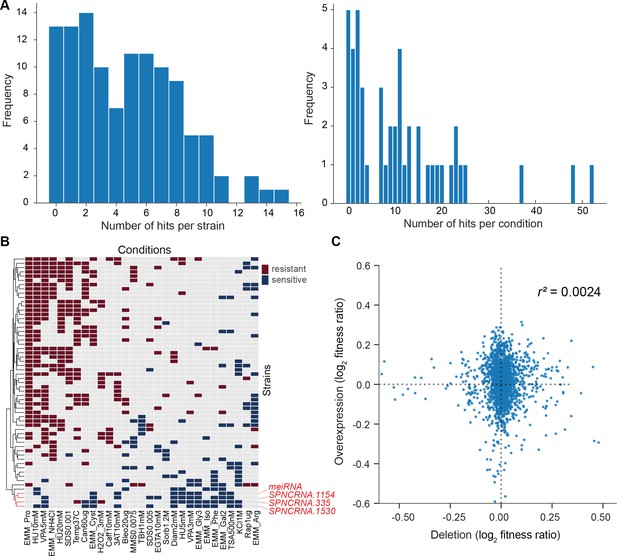

Figure 6 with 2 supplements see all
Growth phenotypes of long intergenic non-coding RNA (lincRNA) overexpression mutants in different conditions.

(A) Distributions of significant phenotype hits per strain (left) and condition (right) for lincRNA overexpression strains with altered growth under benign and stress conditions. Overall, 113 overexpression strains were phenotyped under 47 different conditions, based on 31 distinct environmental factors. We applied a significance threshold of p≤0.01, after correction for multiple testing, and a difference in fitness of ≥5% to call hits based on colony size. (B) Hierarchical clustering of discretized relative log2 median effect sizes for lincRNA overexpression strains (rows) using only the strains and conditions with at least five hits (59 mutants, 29 conditions). Resistant (red) and sensitive (blue) phenotypes are indicated for strain-condition combinations. The sub-cluster highlighted in red is discussed in the main text. (C) Comparison of phenotype data from lincRNA deletion vs. overexpression mutants. Plot showing maximum median effect sizes for 104 lincRNA mutants represented in both deletion and overexpression libraries, phenotyped under 22 shared conditions. The pairwise Pearson correlation coefficient is indicated. To aid visualization, 10 extreme outliers were removed out of 2288 data points.

With respect to the 47 conditions tested, 42 produced phenotypes in at least one mutant (Supplementary file 6). Over 80% of the 565 phenotypes came from only 21 of the 47 conditions, and ~24% of the phenotypes came from just three conditions: proline as a nitrogen source, 5 mM valproic acid (VPA), and 10 mM hydroxyurea (HU) (Figure 6—figure supplement 1C). Proline is a poor nitrogen source which causes nitrogen stress and slows growth (Davie et al., 2015). Notably, the expression of many lincRNAs is strongly induced under nitrogen starvation (Atkinson et al., 2018). Together with the results presented here, this indicates that several lincRNAs function during nitrogen stress. VPA is an inhibitor of histone deacetylases, and some lincRNAs are involved in histone modification (Rinn and Chang, 2012). Roles for lincRNAs in neurological disorders such as epilepsy are also emerging, and VPA can ameliorate epilepsy partly by repressing some of these lincRNAs (Hauser et al., 2018). HU inhibits DNA synthesis, and our findings suggest that several lincRNAs are involved in related processes. For example, some lincRNAs have been implicated in double-strand break repair (Bader et al., 2020). We propose that several lincRNAs can influence cellular growth in trans when ectopically overexpressed under conditions that affect certain cellular processes.

We looked for functional signatures in the lincRNA overexpression phenotypes using hierarchical clustering (Figure 6B). Unlike for lincRNA deletion mutants, this dataset did not provide the functional context from coding-gene mutants. We observed a conspicuous sub-cluster of four lincRNA overexpression strains that showed slower growth in many of the conditions (Figure 6B, highlighted in red). One of these four overexpressed lincRNAs was the well-characterized meiRNA that functions in the induction of meiosis (Watanabe and Yamamoto, 1994). In mitotically growing cells, meiRNA binds to Mmi1 via its DSR motif and is degraded by the nuclear exosome, while upon induction of meiosis, meiRNA binds to the RRM motif of Mei2, which in turn promotes meiosis (Yamashita, 2019). The other three lincRNAs in this sub-cluster contain motifs for potential Mei2 binding, including two DSR motifs. Moreover, like meiRNA, the other three lincRNAs are also de-repressed in nuclear-exosome mutants and during meiosis (Atkinson et al., 2018). Together, these findings raise the possibility that the three unknown lincRNAs in the sub-cluster also function in meiosis. To test this hypothesis, we deleted these three lincRNA genes, along with the meiRNA gene, in a homothallic h90 background (to allow self-mating). We then analysed meiosis and spore viability of these four deletion strains together with a wild-type control strain. While cell mating was normal in the deletion mutants (Figure 6—figure supplement 2A), meiotic progression was somewhat delayed in SPNCRNA.1154Δ and SPNCRNA.1530Δ mutants as well as, most strongly, in meiRNAΔ mutants (Figure 6—figure supplement 2B), with the latter reported before (Yamashita, 2019). Notably, all four deletion mutants showed significantly reduced spore viability compared to the control strain (Figure 6—figure supplement 2C). As predicted by the clustering analysis, these results indicate that SPNCRNA.1154, SPNCRNA.1530, and SPNCRNA.335 play roles in meiotic differentiation.

We compared the phenotype data from deletion and overexpression mutants. We obtained data for both types of mutants for 104 lincRNAs in 22 conditions, 18 of which showed phenotypes. Of these 104 lincRNAs, only 7 did not produce any phenotypes in any condition tested. Under the 18 conditions, a higher proportion of lincRNA overexpression mutants (86.5%) than deletion mutants (32.7%) produced phenotype hits in at least one condition. Moreover, lincRNA overexpression generally resulted in larger effect sizes, that is, stronger phenotypes, than did lincRNA deletion (Figure 6C). Similar trends have been reported for coding-gene mutants. For example, 646 and 1302 growth phenotypes are caused by deletion and overexpression mutants, respectively, of non-essential budding yeast genes (Yoshikawa et al., 2011), and 64 transcription factor genes of fission yeast show growth phenotypes when overexpressed but not when deleted (Vachon et al., 2013). Only a few lincRNAs showed phenotypes as both deletion and overexpression mutants. For example, SPNCRNA.236 showed rapid growth (resistant) phenotypes in both overexpression and deletion mutants in five conditions, while in the benign condition, the overexpression and deletion mutant showed rapid and slow growth, respectively (Supplementary files 2 and 6). In general, our phenotype data for lincRNA deletion and overexpression mutants showed little overlap and poor correlation (Figure 6C). These results illustrate the complementary information provided by these two types of mutants.

How might lincRNA overexpression result in more phenotypes than lincRNA deletion? Overexpression of a protein-coding gene can burden cells via resource-consuming translation or toxic protein levels (Bolognesi and Lehner, 2018; Moriya, 2015). Although overexpression of a single lincRNA should not affect resource allocation, it is possible that these AT-rich RNAs engage in non-specific molecular interactions. Recent findings indicate that RNAs are assembly prone and must be tightly regulated as they can promote paraspeckles, stress granules, and phase separation (Fox et al., 2018; Van Treeck et al., 2018). Such processes could trigger the overexpression phenotypes in certain physiological conditions, reflecting that lincRNAs are biologically active molecules. Nevertheless, the observed 565 phenotype hits amount to only 10.6% of the potential 5311 hits if overexpression of all 113 lincRNAs caused phenotypes in the 47 conditions tested (Supplementary file 6). Thus, overexpressed lincRNAs do not generally lead to any non-specific or toxic effects, and the observed phenotypes may, therefore, mostly reflect specific lincRNA functions. Given that many lincRNAs may function in specialized conditions (Atkinson et al., 2018; Cabili et al., 2011; Derrien et al., 2012; Hon et al., 2017; Pauli et al., 2012), deletion mutants will only reveal phenotypes when assayed in the relevant conditions. On the other hand, the ‘gain-of-function’ overexpression mutants may also reveal phenotypes in conditions where the lincRNAs do not normally function. Notably, phenotypes that are caused by lincRNAs being ectopically expressed from plasmids point to a function that is exerted in trans, via the lincRNA itself, rather than via its transcription or other cis effects. Our findings therefore raise the possibility that many of the lincRNAs tested can function over a distance.

Conclusions

We applied a phenomics approach to explore the functional importance of S. pombe lincRNAs, including colony-based and cellular assays of deletion mutants and colony-based assays of overexpression strains. A panel of deletion mutants of coding genes were screened in parallel for comparison and functional context. Together, these assays revealed phenotypes for 84 of 141 deleted lincRNAs, 229 of 238 deleted coding genes, and 102 of 113 overexpressed lincRNAs. This extensive phenotyping uncovers lincRNAs that contribute to cellular resistance or sensitivity in specific conditions, reflected by altered colony growth and/or viability, and lincRNAs that are involved in the size control and the cell-division cycle. Systematic screening for genetic interactions between lincRNA and coding-gene mutants (Dixon et al., 2008) could provide valuable clues about functional relationships. As expected, higher proportions of coding-gene mutants showed phenotypes, and these phenotypes tended to be stronger (larger effect sizes) than for lincRNA mutants. In benign conditions, the lincRNA mutants were ~3- and 30-fold less likely to show phenotypes for colony growth or viability, respectively, than coding-gene mutants. This difference was less pronounced in the nutrient, drug, and stress conditions, where many more lincRNA mutants revealed phenotypes, at only approximately two- to fourfold lower proportions than coding-gene mutants for colony growth or viability, respectively. Moreover, compared to lincRNA deletion mutants, the lincRNA overexpression strains were approximately twofold more likely to show phenotypes, which also tended to be stronger. As predicted from clustering of overexpression phenotypes, deletion mutants for three lincRNAs showed defects in meiotic differentiation. Together, these findings support the notion that most lincRNAs play specialized roles in specific conditions. The findings also indicate that lincRNAs in general have subtler functions than proteins, for example, in fine-tuning of gene expression. Accordingly, it was important that our HTP assays were highly sensitive to detect subtle phenotypes. We conclude that a substantial proportion of lincRNAs exert cellular functions under certain conditions, and many of which may act in trans as RNAs. This analysis provides a rich framework to mechanistically dissect the functions of these lincRNAs in the physiologically relevant conditions.

Materials and methods

Deletion and overexpression strain libraries

Request a detailed protocol

Using a CRISPR/Cas9-based approach and primer design tool for seamless genome editing (Rodríguez-López et al., 2016), we deleted 141 different lincRNA genes located across all the S. pombe chromosomes (Figure 1A; see Supplementary file 1 for coordinates). In total, 113 lincRNA genes were deleted in the 972 h- background, and 73 lincRNA genes were deleted in the 968 h90 background, the latter including 15 newly identified lincRNAs (Atkinson et al., 2018). 30 lincRNAs were deleted with one guideRNA (gRNA), 103 were deleted using two gRNAs, and 8 were deleted using three gRNAs. All lincRNA deletion strains were checked for missing open-reading frames by PCR, and for 20 strains we also sequenced across the deletion scars (Rodríguez-López et al., 2016). We rechecked all strains by PCR after arraying them onto the 384 plates to ensure that no errors occurred during the process. For the protein-coding deletion mutants, we generated a prototroph version of Bioneer V.5 deletion library (Kim et al., 2010) as described (Malecki and Bähler, 2016). Strains were arranged into 384-colony format using a RoToR HDA colony-pinning robot (Singer Instruments), including a 96-colony grid of wild-type 972 h- strains for plate normalization (Kamrad et al., 2020b). We selected a subset of genes to broadly cover all main GO categories, together with 91 uncharacterized genes. Supplementary file 1 provides information on the individual strains.

We generated ectopic overexpression constructs for 113 long intergenic lincRNAs using the nmt1 promoter (Maundrell, 1993). The full-length lincRNA sequences, as annotated in PomBase (Lock et al., 2019), were amplified by PCR using the high-fidelity Phusion DNA polymerase (NEB) and cloned into the pJR1-41XL vector (Moreno et al., 2000) using the CloneEZ PCR Cloning Kit (GenScript). All primer sequences used for cloning are provided in Supplementary file 1. Each plasmid was checked by PCR for correct insert size. We also checked inserts of the overexpression plasmids by Sanger sequencing in a 96-well plate format (Eurofins Genomics) using a universal forward primer (5′ CGGATAATGGACCTGTTAATCG 3′) for the pJR1-41XL plasmid upstream of the cloning site. This HTP sequencing produced reliable sequence data for 80 inserts, including full insert sequences for (62 plasmids and the first ~900 bp of inserts for 18 plasmids). Of these, only the insert for SPNCRNA.601 showed a sequence error compared to the reference genome, a T to C transition in position 559. Plasmids were transformed into S. pombe cells (h-, leu1-32), and leucine prototroph transformants were selected on solid Edinburgh Minimal Medium (EMM2) plates. An empty-vector control strain was created analogously. Of the 113 lincRNAs, 67 were represented by two independently cloned vectors (Supplementary file 1).

For eight lincRNA overexpression constructs and the empty-vector control strain, we carried out RT-qPCR assays to determine the expression of selected overexpressed lincRNAs relative to their native genomic expression (Figure 6—figure supplement 1A). For this, cells were grown in EMM2 to an OD600 of ~0.5. RNA was extracted with TRIzol reagent (Invitrogen) according to the manufacturer’s protocol, followed by DNase digestion (Invitrogen, Turbo DNase). RNA (1 µg) was reverse transcribed with SuperScript III reverse transcriptase and random hexamers (Invitrogen), according to the manufacturer’s recommendations. Then, 4 µl of a 1:5 dilution of the resulting cDNA was used to quantify the transcripts for a 10 µl reaction with 5 µl of Fast SYBR Green Master Mix (Applied Biosystems) and 250 nM of each primer in a QuantStudio 6 Flex instrument (Applied Biosystems) in the fast cycling mode, according to the manufacturer’s recommendations. Transcript levels of all samples were normalized to act1, and final lincRNA transcript levels were calculated relative to the empty-vector control. All primers used for the assay are listed in Supplementary file 1.

HTP phenotyping of deletion mutants on solid media

Request a detailed protocol

The deletion mutants were broadly phenotyped using a colony-based phenomics platform as described (Kamrad et al., 2021; Kamrad et al., 2020b). Mutants were assayed on solid media with a variety of 55 unique stressors using different concentrations and, in some cases, combinations of stressors. In total, we assayed 134 different conditions, with the viability dye phloxine B being included in 66 of these conditions. Figure 1—figure supplement 1 provides a description of the conditions used for phenotyping. Supplementary file 1 contains the concentrations of all the stressors used. Cells were grown for 24 hr on yeast extract supplement (YES) plates in 384-colony format containing a wild-type control grid, followed by pinning cells onto plates containing the stressors using reduced pressure (4% pinning pressure to transfer a small amount of biomass). Plates were wrapped in plastic to avoid drying out and incubated for ~40 hr at 32°C, unless stated otherwise, before image acquisition and phenotype assessment. Deletion strains were assayed with at least three independent biological repeats using two or more colonies (technical repeats) for each biological repeat. In most cases, we had two or more independently generated deletion strains for each lincRNA (using the same or different gRNAs), and we performed at least three biological repeats for each strain. The numbers of independent strains for each lincRNA are provided in Supplementary file 1 (sheet: lincRNA_metadata; column: n_independent_ko_mutants). The total numbers of repeats carried out for each condition after QC filtering are available in Supplementary file 2 (columns: observation_count).

Image acquisition and quantitation, data normalization and processing, as well as hit calling were performed using our pyphe pipeline, which is available here: https://github.com/Bahler-Lab/pyphe (Kamrad et al., 2020b). Images of plates were acquired with a flatbed scanner (Epson V800 Photo), controlled by pyphe-scan through SANE. Images for quantifying colony area (growth) were taken by transmission scanning using the --mode Grey argument. For quantifying redness/viability, images were taken by reflective scanning using --mode Color. Images were acquired at 300 or 600 dpi resolution. For colour images, to determine colony redness for viability, we used an opaque fixture to hold the plates in place, the white cover was installed in the scanner lid, and the scanner was covered by a cardboard box to prevent external light interfering with image acquisition. Images were inspected individually and excluded if one or more of the following applied: several colonies were missing due to pinning errors (usually in the corners), evidence of contamination, white background had not been inserted during colour scanning, and/or plate had slipped significantly during scanning so that a whole row/column of colonies was missing from the image. The overall number of excluded plates was low and generally did not result in significant data loss in the final dataset due to the large number of replicate plates. For image quantification, greyscale transmission images for colony area quantitation were analysed with the R package gitter (Wagih and Parts, 2014) using the following parameters: plate.format = 384, inverse="TRUE", remove.noise="TRUE", autorotate="TRUE". Images for which gitter failed (very few) were excluded from further analysis. Colour images for redness/viability quantification were analysed with pyphe-quantify using default parameters.

For data normalization and processing, an experimental design table was prepared for each dataset which listed for each plate the path to the data file produced during image quantification, plate layout information, the condition, as well as other metadata (e.g. batch number, replicate counter, and free-text comments). Data from all images of the same dataset were parsed and processed simultaneously using pyphe-analyse, producing a single data report table in tidy format per experiment, containing all data associated with a single measured colony on each line. For analysis of colony areas, the following parameters were used: --format gitter --load_layouts --gridnorm standard384 --rcmedian --check. For colony redness analysis, the options were -format pyphe-quantify-redness --load_layouts --rcmedian --check.

pyphe performs some automated quality control. Specifically, during grid normalization, missing reference grid colonies are flagged and all neighbouring colonies are set to NA. pyphe also checks data for negative and infinite fitness values (rare artefacts of normalization procedures). For the colony size datasets, additional quality control of the data was performed as follows: missing colonies (colony size 0 reported by gitter and fitness 0 reported by pyphe-analyse) were set to NA as these are pinning errors; colonies with a circularity (reported by gitter) below 0.85 were set to NA; plates with a coefficient of variation (CV) of >0.2 for wild-type controls were set to NA. For viability datasets, the only QC step was to exclude plates with a wild-type CV of >0.05.

For statistical analysis, tables reporting summary statistics and p-values for each lincRNA gene and condition were obtained with pyphe-interpret. Hits were called separately for control conditions (where we tested for difference in means between each lincRNA mutant and wild-type control in the same condition) and all other conditions (where we tested for difference in means between each lincRNA mutant in test condition vs. corresponding control condition). Welch’s t-test, which does not assume homogeneity of variances, was used, and the obtained p-values were corrected for multiple testing for each condition separately using the Benjamini–Hochberg method (Benjamini and Hochberg, 1995).

The dataset for clustering (Supplementary file 5, Figure 5) was derived from Supplementary files 2 and 4 by subtracting one from the MES and dividing by the standard deviation of the wild-type control for each condition. Conditions were then aggregated by choosing the strongest response across all repeats of the same stressor (the stressor is indicated in the ‘stress_description’ column in the knock-out_condition_metadata sheet of Supplementary file 1). As not all lincRNA mutants were phenotyped in all conditions, clustering was restricted to a set of 41 core stressors. lincRNA or coding-gene mutants with less than five responses were excluded, leaving 194 mutants in total, including 16 ncRNAs. The final dataset only contained 17 NA values which were imputed with 0. Hierarchical clustering was done with scipy (Virtanen et al., 2020) using the Ward method and the Euclidean distance metric. Clusters were obtained by cutting the dendrogram using the fcluster function with the ‘maxclust’ method. Functional enrichments in clusters 1–3 were analysed using AnGeLi (Bitton et al., 2015), with all protein-coding genes as background list.

Data for the phenotypic correlation network (Figure 5B) were generated from phenotypes for all lincRNA and coding-gene deletions using a ternary system: resistant, sensitive, and no phenotype encoded as 1, –1, and 0, respectively. The network was generated following general instructions (Contreras-López et al., 2018; Shannon et al., 2003). Briefly, we used Pearson correlations to calculate the network and filtered on absolute r values above 0.6 and adjusted p<0.01. Clustering of the network in Cytoscape was done using community clustering (GLay) from the clustermaker extension (Morris et al., 2011).

HTP microscopy and flow cytometry for cell-size and cell-cycle phenotypes

Request a detailed protocol

Strains, frozen in glycerol in 384-colony format, were revived in YES solid plates, resuspended into 150 μl of liquid YES in 96-well plates and incubated at 32°C for 16 hr. Then, 100 μl from these pre-cultures were added to 1.5 ml of preheated (32°C) liquid YES in 96 deep-well plates and incubated at 32°C for 8 hr. Cells were collected by centrifugation, cell pellets were resuspended in 70% ice-cold ethanol, and stored in the dark at 4°C until further processing. As cell-size and cell-cycle phenotype controls, we used two temperature-sensitive cell-cycle mutants: cdc10-129 and wee1-50. These mutants were grown in 50 ml YES at 25°C, centrifuged, and resuspended in 50 ml of prewarmed (37°C) YES and incubated for 4 hr at 37°C to block cell-cycle progression. After 4 hr, 1 ml of the samples was fixed for microscopy and flow cytometry. The remaining cells were centrifuged and resuspended in 50 ml of prewarmed YES (25°C), incubated at 25°C, and samples collected and fixed after 20 and 60 min. Over 80% of the 110 lincRNA mutants screened for cellular phenotypes were assayed in at least two independent biological repeats.

For cell-size and cell-cycle phenotypes, fixed cells were washed in 50 mM sodium citrate buffer, spun down at 3000 × g for 5 min, resuspended in 50 mM sodium citrate containing 0.1 mg/ml RNAse A, and incubated at 37°C for 2 hr. Cells were then spun down at 3000 × g for 5 min and resuspended in 500 μl of 50 mM sodium citrate +1 µM SYTOX Green (Thermo Fisher Scientific, cat. # S7020). Immediately prior to analysing samples using either HTP flow cytometry or HTP microscopy, cells in the deep well plates were sonicated for 40 s at 50 W (JSP Ultrasonic Cleaner model US21) to increase the efficiency of singlets.

For HTP image acquisition, cells were further stained with a 1:1000 dilution of CellMask Deep Red Plasma membrane dye (Thermo Fisher Scientific, cat. # C10046), according to the manufacturer’s instructions. Then, 2.5 µl of fixed and stained cells were transferred from 96-well plates into a poly-lysine-coated 384-well Perkin Elmer Cell Carrier Ultra imaging plate (PerkinElmer, cat. # 6057500), pre-filled with 25 µl of 1 µM SYTOX Green using a Biomek Fx robot. Cells were spun down for 3 min at 200 × g before imaging. Imaging was performed on a Perkin Elmer Opera Phenix microscope using a water immersion 63× lens to capture confocal stacks of 12 planes in both Alexa488 (SYTOX Green) and Alexa647 (CellMask) channels, with 63 microscopic fields being captured per sample. The images were projected and analysed using the associated Phenix software Harmony for the automated identification of mono- and binucleated cells and respective cell length. Features were exported for further analysis using R studio.

For HTP flow cytometry, 250 µl of cells were transferred into 96-well plates and 30,000 cells were measured in a Fortessa X20 Flow cytometer (BD Biosciences) using the HTS plate mode on the DIVA software and a 488 nm excitation laser to capture the SytoxGreen DNA staining. Populations of interest were gated as described (Knutsen et al., 2011) using the FlowJo software version 10.3.0. Features of interest (populations with different DNA content) were then exported for further analysis using R studio. The determined percentage of cells in each cell-cycle phase per sample was used to validate the HTP imaging data. For correlation with the HTP imaging (binucleated cells), S- and G1-phase cell populations were grouped together (Supplementary file 2).

Data analysis was carried out in R (v.3.5.2), using the package tidyverse for data manipulation, visualization, and statistical analysis. All tests were two-sided unless otherwise stated. For HTP imaging analysis, cell density was checked for each sample in the multi-well plate and given a score of 0–5, where 0 is very low to no density (<50 cells/well) and 5 is at too high density; samples scoring 0 and 5 were excluded from analysis. For cell-size analysis, the median cell size of binucleated cells for each mutant was used to calculate fold-changes relative to wild-type values, applying the Wilcoxon test to determine significant differences (p<0.05), only considering cells showing a ≥ 5% difference in size compared to wild-type cells. For cell-cycle analysis by HTP imaging, the percentage of binucleated cells per microscopic field (63 fields/sample) was used to calculate the median value per lincRNA mutant, followed by fold-change analysis calculated by normalizing the percentage of binucleated cells in each sample relative to wild-type values, applying the Wilcoxon test to determine significant differences (p<0.05), only considering cells showing a ≥20% difference in binucleated cells compared to wild-type.

HTP phenotyping of overexpression mutants on solid media

Request a detailed protocol

Overexpression strains were arrayed in 384 format together with the empty-vector control strain and a grid of the wild-type strain (972 h-) for normalization. Strains were revived from glycerol stocks in YES and grown for 2 days at 32°C. Colonies were then transferred to new YES plates, grown for 1 day, and pinned onto EMM2 (with NH4Cl but without amino acid supplements) with or without the specified drugs/supplements. YES medium contains thiamine that represses the nmt1 promoter and leucine that compromises the maintenance of the overexpression plasmid (which contains the LEU2 marker). We screened the lincRNA overexpression library for colony growth phenotypes in 47 conditions (Supplementary files 1 and 6). Each overexpression strain was represented by at least 12 colonies across three different plates and experiments were repeated at least three times. Each condition was assayed in three independent biological repeats, together with control EMM2 plates, resulting in at least 36 data points per strain per condition. Plates were incubated at 32°C if not stated otherwise for the condition. Plates were imaged as described for deletion mutants after 40 or 64 hr in order to capture as many hits as possible.

Image acquisition and quantification, data normalization and processing, as well as hit calling were performed using the pyphe pipeline as described above for greyscale transmission images to quantify colony sizes. During grid correction, 24,683 colonies were excluded due to missing grid colonies and 2539 missing colonies were set to ‘NA’ (pinning errors), and data from 290 of 2772 plates were discarded because they either showed a fraction of unexplained variance (FUV) above 1 or a control CV of >0.5. The final dataset contained 917,368 data points. The colonies which passed the above quality control steps were normalized with the grid first, and the resulting colony sizes were additionally normalized to the control condition (EMM2) for the conditions with stressors. All data from the pyphe analysis are provided in Supplementary file 6. The hits were defined by adjusted (Benjamini–Hochberg) p-values ≤ 0.01 and MES ≥5% compared to empty-vector control.

For clustering analyses, we first filtered the relative log2 MES data (relative to empty-vector control) for genes with five or more hits followed by conditions with five or more hits, resulting in 59 lincRNA mutants with MES data for 29 conditions. Then we discretized the data, classing mutants as either sensitive (–1), resistant (+1), or similar to their fitness in the corresponding control condition (0). We performed hierarchical clustering with the complete method using the Canberra distance metric and plotted the heatmap (Figure 6B) with the ComplexHeatmap r-package (Gu et al., 2016).

For correlation analyses between deletion vs. overexpression data, we filtered the phenotyping data for the 104 shared lincRNA mutants and the 22 shared stress conditions between the two mutant types. As the overexpression strains could only be assayed on minimal media while the deletion strains were mainly assayed on rich media, we matched conditions based on the added drug/stressor only, disregarding the media background. In case of multiple related conditions (e.g. same stress in different doses), the strongest response was used (maximum MES).

Phenotyping of meiotic differentiation for selected lincRNA mutants

Request a detailed protocol

We used CRISPR/Cas9 deletion mutants in the homothallic h90 background for the lincRNAs in the sub-cluster of Figure 6B: SPNCRNA.335, SPNCRNA.1154, SPNCRNA.1530, and meiRNA, along with a wild-type h90 control strain (968). The strains were grown in liquid YES medium at 32°C to an OD600 of ~0.5. Cells were washed 3× in EMM-N medium and resuspended in EMM-N to an OD600 of ~1.5. Cultures were then grown at 25°C in a shaking incubator at 180 rpm.

To assess meiotic differentiation, 1 ml samples were harvested at 24 and 72 hr after the medium change, centrifuged, and pellets resuspended in 70% ethanol at 4°C. For microscopy, 100 µl of ethanol-fixed cells were rehydrated in 50 mM sodium citrate and incubated overnight at 4°C. Cells were centrifuged for 5 min at 1500 × g, the pellets were resuspended in 10 µl of 50 mM sodium citrate, and 2 µl of cell suspension was spread onto a slide and mounted with DAPI containing mounting media. Cells were imaged using a Zeiss ApoTome.2 microscope with a Hamamatsu digital camera and 63× objective. At least 500 cells per sample were counted using Fiji (Schindelin et al., 2012) by differentiating between cells, zygotes, asci, or free spores. Mating efficiency was determined as described (Rodríguez-Sánchez et al., 2011), calculated as {[2× (number of zygotes + number of asci)] + ½ number of spores} divided by {[2× (number of zygotes + number of asci)]+ ½ number of spores + number of non- mating cells}.

To measure spore viability (Escorcia and Forsburg, 2018), 5 ml samples were harvested at 72 hr after the medium change, centrifuged, resuspended in 1 ml 0.5% glusulase solution (1:10 dilution of 5% glusulase in sterile H2O), and incubated for ~16 hr at 25°C. These glusulase suspensions were diluted at 1:5 to 1:20 in sterile H2O, and spore numbers were counted using a hemocytometer. For each strain, ~200 spores were plated onto three YES-agar plates and incubated at 32°C until colonies formed. The colony numbers were counted and divided by the number of spores plated to determine the proportion of viable spores. This entire procedure was repeated in three independent biological replicates.

Data availability

Data generated or analysed during this study are included in the manuscript and supporting files.

References

Decision letter

  1. Kevin Struhl
    Senior and Reviewing Editor; Harvard Medical School, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

[Editors' note: this paper was reviewed by Review Commons.]

https://doi.org/10.7554/eLife.76000.sa1

Author response

Reviewer #1 (Evidence, reproducibility and clarity (Required)):

The manuscript by Rodriguez-Lopez et al. describes the analysis of long intergenic noncoding RNA (lincRNA) function in fission yeast using both deletion and overexpression methods. The manuscript is very well presented and provides a wealth of lincRNA functional information for the field. This work is an important advance as there is still very little known about the function of lincRNAs in both normal and other conditions. An impressive array of conditions were assessed here. With a large scale analysis like this there is really not one specific conclusion. The authors conclude that lincRNAs exert their function in specific environmental or physiological conditions. This conclusion is not a novel conclusion, it has been proposed and shown before, but this manuscript provides the experimental proof of this concept on a large scale.

The lincRNA knock-out library was assessed using a colony size screen, a colony viability screen and cell size and cell cycle analysis. Additionally, a lincRNA over-expression library was assessed by a colony size screen. These different functional analysis methods for lincRNAs were than carried out in a wide variety of conditions to provide a very large dataset for analysis. Overall, the presentation and analysis of the data was easy to follow and informative. Some points below could be addressed to improve the manuscript.

There were 238 protein coding gene mutants assessed in parallel, to provide functional context, which was a very promising idea. But, unfortunately, the inclusion of 104 protein coding genes of unknown function restricted the use of the protein coding genes in the integrated analysis to connect lincRNAs to a known function using guilt by association.

Yes, the unknown coding-gene mutants did certainly not help to provide functional context through guilt by association. These mutants were included to generate functional clues for the unknown proteins and compare phenotype hits with unknown lincRNA mutants. Nevertheless, because the known coding-gene mutants included broadly cover all high-level biological processes (GO slim), we could make several useful functional inferences for certain lincRNAs as discussed.

The colony viability screen is not described well throughout the manuscript. Firstly, the use of phloxine B dye to determine cell viability needs to be described better when first introduced at the bottom of page 6. What exactly is this viability screen and red colour intensity indicating? Please define what the different levels of red a colony would indicate as far as viability. I assume an increase in red colour indicates more dead cells? So it is confusing that later the output of this assay is described as giving a resistant/sensitive phenotype or higher/lower viability. How can you get a higher viability from an assay that should only detect lower viability? Shouldn't this assay range from viable (no, or low red, colour) to increasing amounts of red indicating increasingly less viability? Figure 4D is also confusing with the "red" and "white" annotations. These should be changed to "lower viability" and "viable" or "not viable" and "viable".

The colony-viability screen is described in detail in our recent paper (Kamrad et al., eLife 2020). We have now better explained how phloxine B works to determine cell viability (p. 6). The reviewer’s assumption is correct: an increase in red colour indicates more dead cells. However, all phenotypes reported are relative to wild-type cells under the same condition. Many conditions lead to a general increase in cell death, but some mutants show a lower increase in cell death compared to wild-type cells. These mutants, therefore, have a higher viability than wild-type cells, i.e. they are more resistant than wild-type under the given condition. We have tried to clarify this in the text, including the legend of Figure 4. We agree that the ‘red’ and ‘white’ annotations in Figure 4D could be confusing. We have now changed these to ‘low viability’ and ‘high viability’. Again, this is relative to wild-type cells.

How are you sure that when generating the 113 lincRNA ectopic over-expression constructs by PCR that the sequences you cloned are correct? Simply checking for "correct insert size", as stated in the methods, is not really good practice and these constructs should be fully sequenced to be sure they contain the correct sequence and that constructs have not had mutations introduced by the PCR used for cloning. Without such sequence confirmation one cannot be completely confident that the data produced is specific for a lincRNA overexpression. Additionally, a selection of strains with the overexpression constructs should be tested by qRT-PCR and compared to a non-over-expressing strain to confirm lincRNA overexpression.

To minimize errors during PCR amplification, we used the high-fidelity Phusion DNA polymerase which features an >50-fold lower error rate than Taq DNA Polymerase. We had confirmed the insert sequences for the first 17 lincRNAs cloned using Sanger sequencing (but did not report this in the manuscript). We have now checked additional inserts of the overexpression plasmids by Sanger sequencing in 96-well plate-format using a universal forward primer upstream of the cloning site. This high-troughput sequencing produced reliable sequence data for 80 inserts, including full insert sequences for 62 plasmids and the first (~900 bp of insert sequences for 18 plasmids). Of these, only the insert for SPNCRNA.601 showed a sequence error compared to the reference genome: T to C transition in position 559. This mutation could reflect either an error that occurred during cloning or a natural sequence variant among yeast strains (lincRNA sequences are much more variable than coding sequences). So, in general, the PCR cloning accurately preserved the sequence information. We have added this information in the Methods (p. 27-28). Please note that lincRNAs depend much less on primary nucleotide sequence than mRNAs, and a few nucleotide changes are highly unlikely to interfere with lincRNA function.

Minor comments:

Page 4, lines 19-20 – "A substantial portion of lincRNAs are actively translated (Duncan and Mata, 2014), raising the possibility that some of them act as small proteins." This sentence does not make sense, lincRNAs can't "act as" small proteins, they can only "code for" small proteins. Wording needs to be changed here.

We agree and have changed the wording as suggested.

Figure 1A is a nice representation but what are the grey dots? Are they all ncRNAs including lincRNAs? This needs to be stated in the legend.

The grey dots represent all non-coding RNAs across the three S. pombe chromosomes as described by Atkinson et al., 2018. This has now been clarified in the legend.

How many lincRNAs are there in total in pombe and what percentage did you delete? These numbers should be stated in the text.

There are 1189 lincRNAs and we mutated ~12.6% of them. These numbers are now stated at the end of the Introduction, page 5.

It would be nice if Supplementary Figure 1 included concentrations or amounts of the conditions used. This info is buried in a Supplementary table and would be better placed here.

Supplemental Figure 1 provides a simple overview for the different conditions and drugs used. For most stresses and drugs, we used multiple different doses. So the figure would become cluttered if we indicated all these concentrations, detracting from the main message. Colleagues who are interested in the different concentration ranges used for specific conditions can readily obtain this information from Supplemental Dataset 1. We have now added a statement in this respect to the legend of Supplemental Figure 1.

Page 6, last sentence. What is a "biological repeat"? Three distinct deletion strains (ie three different deletion strains made by CRISPR) or one deletion strain used three times?

Biological repeat means that one deletion strain was assayed three times independently, each with at least two colonies (technical repeats). In most cases, we had two or more independently generated deletion strains for each lincRNA (using the same or different gRNAs), and we performed at least three biological repeats for each strain. The numbers of independent strains for each lincRNA are provided in Supplemental Dataset 1 (sheet: lincRNA_metadata, column: n_independent_ko_mutants). The total numbers of repeats carried out for each condition after QC filtering are available in Supplemental Dataset 2 (columns: observation_count). We have clarified this on p. 7, and the details are now provided in the Methods on p. 28-29 (deletion mutants) and p. 32 (overexpression mutants).

There is no mention in the manuscript of how other researchers can get access to the deletion strains and over-expression plasmids.

As is usual, all strains and plasmids will be readily available upon request.

Reviewer #1 (Significance (Required)):

The production of lincRNA deletion strains and overexpression plasmids, and their analysis under an impressive number of conditions, provides key resources and data for the ncRNA field. This work complements nicely the analysis of protein coding gene deletion strains and provides the tools and data for future mechanistic studies of individual lincRNAs. This work would be of interest to the growing audience of ncRNA researchers in both yeast and other systems.

Field of expertise:

Yeast deletion strain construction and analysis, RNA functional analysis

Referee Cross-commenting:

Reviewer #3 makes an important point that the stability of each lincRNA over expressed from plasmid is not known and therefore some lincRNAs may not be overexpressed as predicted. RT-qPCR would be required to assess lincRNA expression levels from the plasmids. It also appears that we both agree that it is important to determine the sequence of the cloned lincRNAs in the over expression plasmids.

See reply in response to Reviewer 3.

Reviewer #3 also makes an important point in his review that where it is predicted that a lincRNA deletion influences an adjacent gene in cis then the expression of that gene should be tested.

See reply in response to Reviewer 3.

Reviewer #2 (Evidence, reproducibility and clarity (Required)):

Summary:

The Rodriguez-Lopez manuscript from the Bahler lab present the phenotypical and functional profiling of lincRNA in fission yeast. This is the first large-scale, extensive work of this nature in this model organism and it therefore nicely complement the well-documented examples of lincRNA already reported in S. pombe.

The work is very solid using seamless genome deletion and overexpression followed by colony-based assay in respone to a very wide set of conditions.

Major comments:

Considering that this is a descriptive work by nature and that the experiments were properly conducted as far as I can judge, I don't have major issues with this paper.

To me the only thing that is missing is a gametogenesis assay, for two reasons: First, several reported cases of lincRNAs in pombe critically regulates meiosis, and second many of the analysed lincRNAs are upregulated durig meiosis. Figure 6B already points to three obvious candidates. I don't think it would take to much time to look at the deletion and OE in an h90 strain and see the effect of gametogenesis for the entire set or at least the 3 candidates from Figure 6.

If the already broad set of lincRNAs implicated in meiosis would grow, this would be another evidence that eukaryotic cell differentiation relies on non-coding RNAs even in simpler models.

We agree that this is a meaningful analysis to add. We have now deleted the three unstudied lincRNA genes, along with the meiRNA gene, from the sub-cluster of Figure 6B in the homothallic h90 background (to allow self-mating). We have analysed meiosis and spore viability of these four deletion strains together with a wild-type h90 control strain. These experiments indicate that cell mating is normal in the deletion mutants, but meiotic progression is somewhat delayed in SPNCRNA.1154, SPNCRNA.1530 and, most strongly, meiRNA mutants (the latter has been reported before (reviewed by Yamashita 2019)). Notably, we detected significant reductions in spore viability for all four deletion mutants compared to the control strain. These results point to roles of SPNCRNA.1154, SPNCRNA.1530, and SPNCRNA.335 in meiotic differentiation, as predicted by the clustering analyses. This is a nice addition to the manuscript. We now report these results on p. 23, with a new Supplemental Figure 10, and describe the experimental procedures in the Methods (p. 34-35).

Minor comments:

– A reference to the recent work of the Rougemaille lab on mamRNA is necessary

Reply: Yes, we now cite this reference in the Introduction (p. 4).

– A discussion of the possibility to perform large-scale genetic interactions searches (as done by Krogan for protein-coding genes) would add to the discussion of future plans.

We have added a sentence about the potential of SGA screens in the Conclusions

(p. 26).

Reviewer #2 (Significance (Required)):

The work unambiguously shows that most of the lincRNAs analyzed exert cellular functions in specific environmental or physiological contexts. This conclusion is critical because the biological relevance this so-called « dark matter » is still debated despite a few well-established cases. This is an important addition to the field and the deep phenotyping work already points to some directions to analyse some of these lincRNA in the context of cell cycle progression, metabolism or meiosis.

Referee Cross-commenting:

– I agree with the issues raised by referees 1 and 3 but I am concerned about the added value of a RT-qPCR. First, this is a significant amount of work considering the large set of targets. Second a more importantly, what you’ll end up with is a fold change. What will be considered as overexpression? Which threshold? This is why I prefer a biological read-out (a phenotype) because whatever the fold change, it tells us that there is an effect. It is very likely indeed that some targets are not overexpressed because of their rapid degradation. To me, this is the drawback of any large-scale studies.

– Also, looking at the expression of the adjacent gene in the case of a cis-effect is interesting though this is likely condition-dependent (because most phenotypes appear in specific conditions). So, what would be the conclusion if there is no effect in classical rich media?

– The sequence of the insert should be specified, I agree. Most likely, it is the sequence available from pombase (this is what I understood) but that should be clarified indeed.

Yes, the sequences of the inserts are available from PomBase, and we provide the primer sequences used for cloning in the Supplemental Dataset 1. We have now clarified this in the Methods (p. 27).

Reviewer #3 (Evidence, reproducibility and clarity (Required)):

In this work from the group of Jurg Bahler, the authors take advantage of the high throughput colony-based screen approach they recently developed (Kamrad et al., eLife 2020) to perform a functional profiling analysis on a subset of 150 lincRNAs in fission yeast. Using a seamless CRISPR/Cas9-based method, they created deletion mutants for 141 lincRNAs. In addition, the authors also generated strains ectopically overexpressing 113 lincRNAs from a plasmid (under the control of the strong and inducible nmt1 promoter).

The viability and growth of all these mutants was then assessed across benign, nutrient, drug and stress conditions (149 conditions for the deletion mutants, 47 conditions for the overexpression). For the deletion mutants, the authors also assayed in parallel mutants of 238 protein-coding genes (PCGs) covering multiple biological processes and main GO classes.

In benign conditions, deletion of 5 and 10 lincRNAs resulted in a reduced growth phenotype (rich and minimal medium, respectively). Morphological characterization by microscopy also revealed cell size defects for 6 lincRNA mutants (2 shorter, 4 longer). In addition, 27 mutants displayed phenotypes pointing defects in the cell cycle.

Remarkably, the nutrient/drug/stress conditions revealed more phenotypes, with 60 of the 141 lincRNA mutants showing a growth phenotype in at least one condition, and 25 mutants showing a different viability compared to the wild-type in at least one condition.

Also remarkable is the observation that 102/113 lincRNA overexpression strain displayed a growth phenotype in at least one condition, 14 lincRNAs showing phenotypes in more than 10 conditions.

The clustering analyses performed by the authors also provide functional insight for some lincRNAs.

Overall, this is an important study, well conducted and well presented. Together, the data described by the authors are convincing and highlight that most lincRNAs would function in very particular conditions, and that deletion/inactivation and overexpression are complementary approaches for the functional characterization of lncRNAs. This has been demonstrated here, in a very elegant manner.

I think this manuscript will be acknowledged as a pioneer work in the field.

Major comments:

1. Are the key conclusions convincing?

To my opinion, the key conclusions of this study are convincing.

2. Should the authors qualify some of their claims as preliminary or speculative, or remove them altogether?

No. The authors are careful in their claims and conclusions.

3. Would additional experiments be essential to support the claims of the paper? Request additional experiments only where necessary for the paper as it is, and do not ask authors to open new lines of experimentation.

This study is based on systematic lincRNA deletion/overexpression.

– For the deletion strains, I could not find any information about the control of the deletions. Are the authors sure that the targeted lincRNAs were indeed properly deleted?

Yes, we had carefully checked the correctness of the deletions using several controls as described by Rodriguez-Lopez et al. 2017. All deletion strains were checked for missing open-reading frames by PCR. For 20 strains, we also sequenced across the deletion scars. We re-checked all strains by PCR after arraying them onto the 384 plates to ensure that no errors occurred during the process. We have now specified this in the Methods (p. 27).

– For the overexpression, there is only a control of the insert size by PCR. Sanger sequencing would have been preferable to confirm that the targeted lincRNAs were properly cloned, without any mutation. In addition, the authors did not check that the lincRNAs were indeed overexpressed (at least in the benign conditions). Is the overexpression fold similar for all the lincRNAs? Do the 14 lincRNAs showing the most consistent phenotypes in at least 10 conditions display different expression levels than the other lincRNAs?

4. Are the suggested experiments realistic in terms of time and resources? It would help if you could add an estimated cost and time investment for substantial experiments.

– Validating the deletion strains requires genomic DNA extraction and then PCR. This is repetitive and tedious, but this control is important, I think. The time needed depends on the possibility of automating the process. I think this is feasible in this lab.

– Controlling the insert sequence into the overexpression vector requires plasmid DNA (available as it was used for PCR) and one/several primer(s), depending on the insert size. The sequencing itself is usually done by platforms.

– Analysing lincRNA overexpression at the RNA level requires yeast cultures, RNA extraction and then RT-qPCR. Again, the time needed depends on the possibility of automating the process.

We have now checked most overexpression constructs by Sanger sequencing of the inserts as described in response to Reviewer 1. Moreover, we have tested the overexpression levels for eight selected overexpression constructs using RT-qPCR analysis. These eight constructs feature the entire range of associated phenotypes hits, including 3 lincRNAs with the highest number of phenotypes in 14 conditions, 3 with no phenotypes, and 2 with intermediate numbers of phenotypes. The RT-qPCR results show that the lincRNAs were 35- to 2200-fold overexpressed relative to the empty-vector control strain (which expresses the lincRNA at native levels). No clear pattern was evident between expression levels and phenotype hits, e.g. lincRNAs without phenotypes when overexpressed showed similar fold-changes as a lincRNA showing 13 phenotypes. We present these results on p. 21/22 and in the new Supplemental Figure 9A, and describe the experiment in the Methods (p. 28).

As pointed out by Reviewer 2, these fold changes in expression are actually of limited value compared to the phenotype read-outs. The important result is that we detected phenotypes for over 90% of the overexpression strains, indicating that overexpression generally worked. Given that this is a large-scale study, there might be some lincRNA constructs that are faulty or are not overexpressed. It would not be realistic or meaningful to test all constructs. Any follow-on studies focusing on a specific lincRNAs will need to first validate the large-scale results as is common practice.

5. Are the data and the methods presented in such a way that they can be reproduced?

The methods are clearly and extensively explained. If necessary, the reader can find more details about the high-throughput colony-based screen approach in the original paper (Kamrad et al., eLife 2020); a very interesting technical discussions can also be found in the reviewers reports and in the authors response published alongside.

6. Are the experiments adequately replicated and statistical analysis adequate?

The experiments are replicated. However, I feel confused regarding the number of replicates used in each analysis.

In the first part of the Results, it is mentioned that all colony-based phenotyping was performed in at least 3 independent replicates, with a median number of 9 repeats per lincRNAs. In the Methods section, I read that for the high-throughput microscopy and flow cytometry for cell-size and cell-cycle phenotypes, over 80% of the 110 lincRNA mutants screened for cellular phenotypes were assayed in at least 2 independent biological repeats. For the overexpression, I read that each strain was represented by at least 12 colonies across 3 different plates and experiments were repeated at least 3 times. Each condition was assayed in three independent biological repeats, together with control EMM2 plates, resulting in at least 36 data points per strain per condition.

Perhaps I missed something. If not, could the authors clarify this? In addition, I suggest to indicate the number of replicates used for each lincRNA/condition/assay in Supplemental Dataset 2 (I could only find the information for the Flow Cytometry) and in Supplemental Dataset 6.

For all colony-based phenotyping, we performed at least three biological repeats, meaning that the strains were assayed three times independently, each with at least two colonies (technical repeats). In most cases, we had two or more independently generated deletion strains for each lincRNA, and we performed at least three biological repeats for each strain (hence the higher median number of nine repeats per lincRNA). The numbers of independent deletion strains for each lincRNA are provided in Supplemental Dataset 1 (sheet: lincRNA_metadata, column: n_independent_ko_mutants). The total numbers of repeats carried out for each condition after QC filtering are available in Supplemental Dataset 2 (columns: observation_count). We have now clarified this on p. 6, and the details are provided in the Methods on p. 28-29 (for deletion mutants) and p. 32 (for overexpression mutants). For the high-throughput microscopy and flow cytometry experiments, we performed the repeats as described in the text.

Minor comments:

1. Specific experimental issues that are easily addressable.

– The pattern of the SPNCRNA.1343 and SPNCRNA.989 mutants is consistent with the idea that these lincRNAs act in cis and that their deletion interferes with the expression of the adjacent tgp1 and atd1 genes, respectively. The authors could easily test by RT-qPCR or Northern Blot that the lincRNA deletion leads to the induction of the adjacent gene. Also, if the hypothesis of the authors is correct, the ectopic expression of these two lincRNAs in trans should not complement the phenotypes of the corresponding mutants. These experiments would reinforce the conclusion of the authors about the specific regulatory effect of the SPNCRNA.1343 and SPNCRNA.989 lincRNAs.

It would actually not be as easy as suggested to obtain conclusive results in this respect. For SPNCRNA.1343 and its neighbour, atd1, the mechanisms involved have already been shown in detail based on several mechanistic studies (Ard et al., 2014; Ard and Allshire, 2016; Garg et al., 2018; Shah et al., 2014; 2014; Yague-Sanz et al., 2020). But these studies did require multiple precise genetic constructs and specialized approaches to interrogate the complex regulatory relationships between the overlapping transcripts which can be both positive and negative. As correctly pointed out by Reviewer 2, we do not know the particular conditions where any cis-regulatory interactions take place, and a negative result would not be conclusive. We have interrogated our RNA-seq data obtained under multiple genetic and environmental conditions (Atkinson et al. 2018) to analyse the regulatory relationship between SPNCRNA.1343 and atd1 (studied before) as well as SPNCRNA.989 and tgp1 (proposed in our manuscript). Depending on the specific conditions, both of these gene pairs show positive or negative correlations in expression levels. So it is not possible to just perform the easy experiment as suggested to reach a clear conclusion.

– Is there any possibility that some nutrient/drug/stress conditions interfere with the expression from the nmt1 promoter?

This seems unlikely as this widely used promoter is known to be specifically regulated by thiamine. Consistent with this, we actually detected phenotypes for over 90% of the overexpression strains. But we cannot exclude the possibility that some conditions might interfere with nmt1 function.

– Supplemental Figure 7 refers to unpublished data from Maria Rodriguez-Lopez. Is this still allowed?

These are just control RNA-seq data from wild-type cells growing in rich medium. It does not seem that meaningful, but if required we could submit these data to the European Nucleotide Archive (ENA).

– Supplemental Figure 8 shows drop assays to validate the growth phenotypes revealed by the screen for lincRNAs of clusters 1 and 3. As admitted by the authors in the text, in most cases, the effects are quite difficult to see to the naked eye. Did the authors consider the possibility to use growth curves (for the lincRNAs/conditions they would like to highlight), which might be more appropriate to visualize weak effects?

We have tried a few experiments in liquid medium using our BioLector microfermentor. However, the doses need to be substantially changed for liquid media (in which cells typically are more sensitive than on solid media). So the situation with the altered conditions would become too confusing and could not be used as a direct validation of our results from solid media.

2. Are prior studies referenced appropriately?

Yes. The authors could have cited the work of Huber et al. (2016) Cell Rep. (PMID: 27292640) as another pioneer study where systematic lncRNA deletion was performed, even if in this case, these were antisense lncRNAs.

Agreed, we now cite this paper in the Introduction (p. 4).

3. Are the text and figures clear and accurate?

Overall, I found the text and figures clear.

Reviewer #3 (Significance (Required)):

Eukaryotic genomes produce thousands of long non-coding RNAs, including lincRNAs which are expressed from intergenic regions and do not overlap PCGs. Several lincRNAs have been extensively studied and characterized, showing that they function in different cellular processes, such as regulation of gene expression, chromatin modification, etc. However, beside these well documented lincRNAs, the function of most lincRNAs remains elusive. In addition, under the standard growth conditions used in labs, many of them are expressed to very low levels, and for the few cases for which it has been tested, the deletion and/or overexpression in trans often failed to display in a detectable phenotype.

High throughput approaches for lncRNA functional profiling are currently emerging. The lab of Jurg Bahler recently developed a high throughput colony-based screen approach enabling them to quantitatively assay the growth and viability of fission yeast mutants under multiple conditions (Kamrad et al., eLife 2020). Here, they take advantage of this approach to characterize mutants of 150 lincRNAs in fission yeast, including not only deletion mutants generated using the CRISPR/Cas9 technology, but also overexpression mutants, tested in 149 and 47 growth conditions, respectively. This systematic approach allowed the authors to reveal specific phenotypes for a large fraction of the lincRNAs, emphasizing the fact that they are likely to be functional in particular nutrient/drug/stress conditions, acting in cis but also in trans.

As I wrote in the summary above, I think that this study is important and constitutes a significant contribution in the lncRNA field.

My field of expertise: long non-coding RNAs, yeast, genetics.

Referee Cross-commenting:

I can see that reviewer #1 and I have raised the same concerns about the lack of insert sequencing for the overexpression plasmids, which is crucial to control that the correct lincRNAs were cloned and that no mutation has been introduced by the PCR. We are also both asking for RT-qPCR controls to show that the lincRNAs are indeed overexpressed. Again, this control is very important as many long non-coding RNAs are rapidly degraded by the nuclear and/or ctyoplasmic RNA decay machineries. So expressing a lincRNA from a plasmid, under the control of a strong promoter, does not guarantee increased RNA levels.

I see that reviewer #2 is asking for a gametogenesis assay. I think it should be limited to the 3 lincRNAs which belong to the same sub-cluster as meiRNA.

https://doi.org/10.7554/eLife.76000.sa2

Article and author information

Author details

  1. Maria Rodriguez-Lopez

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Supervision, Validation, Visualization, Writing - original draft, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2066-0589
  2. Shajahan Anver

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – review and editing
    Contributed equally with
    Cristina Cotobal, Stephan Kamrad and Michal Malecki
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7582-5125
  3. Cristina Cotobal

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Contribution
    Formal analysis, Investigation, Methodology, Validation, Visualization, Writing – review and editing
    Contributed equally with
    Shajahan Anver, Stephan Kamrad and Michal Malecki
    Competing interests
    No competing interests declared
  4. Stephan Kamrad

    1. University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    2. The Francis Crick Institute, Molecular Biology of Metabolism Laboratory, London, United Kingdom
    3. Charité Universitätsmedizin Berlin, Institute of Biochemistry, Berlin, Germany
    Contribution
    Data curation, Formal analysis, Investigation, Software, Visualization, Writing – review and editing
    Contributed equally with
    Shajahan Anver, Cristina Cotobal and Michal Malecki
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5957-4661
  5. Michal Malecki

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Present address
    Institute of Genetics and Biotechnology, Faculty of Biology, University of Warsaw, Warsaw, Poland
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Supervision, Writing – review and editing
    Contributed equally with
    Shajahan Anver, Cristina Cotobal and Stephan Kamrad
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1525-5036
  6. Clara Correia-Melo

    The Francis Crick Institute, Molecular Biology of Metabolism Laboratory, London, United Kingdom
    Contribution
    Investigation, Methodology, Visualization, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6062-1472
  7. Mimoza Hoti

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Contribution
    Investigation, Project administration
    Competing interests
    No competing interests declared
  8. StJohn Townsend

    1. University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    2. The Francis Crick Institute, Molecular Biology of Metabolism Laboratory, London, United Kingdom
    Contribution
    Formal analysis, Software, Writing – review and editing
    Competing interests
    No competing interests declared
  9. Samuel Marguerat

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Present address
    UCL Cancer Institute, Genomics Translational Technology Platform, London, United Kingdom
    Contribution
    Funding acquisition, Methodology, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2402-3165
  10. Sheng Kai Pong

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9940-1175
  11. Mary Y Wu

    The Francis Crick Institute, High Throughput Screening, London, United Kingdom
    Contribution
    Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2074-6171
  12. Luis Montemayor

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Contribution
    Validation
    Competing interests
    No competing interests declared
  13. Michael Howell

    The Francis Crick Institute, High Throughput Screening, London, United Kingdom
    Contribution
    Methodology, Supervision
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0912-0079
  14. Markus Ralser

    1. The Francis Crick Institute, Molecular Biology of Metabolism Laboratory, London, United Kingdom
    2. Charité Universitätsmedizin Berlin, Institute of Biochemistry, Berlin, Germany
    Contribution
    Funding acquisition, Supervision, Writing – review and editing
    Competing interests
    No competing interests declared
  15. Jürg Bähler

    University College London, Institute of Healthy Ageing and Department of Genetics, Evolution & Environment, London, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Project administration, Supervision, Writing - original draft
    For correspondence
    j.bahler@ucl.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4036-1532

Funding

Wellcome (095598/Z/11/Z)

  • Jürg Bähler

Biotechnology and Biological Sciences Research Council (BB/R018219/1)

  • Jürg Bähler

Biotechnology and Biological Sciences Research Council (BB/R009597/1)

  • Jürg Bähler

Boehringer Ingelheim Fonds

  • StJohn Townsend

Wellcome Trust Centre for Mitochondrial Research (FC001134)

  • Markus Ralser

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Sarah Aldous, Natalia Borbarán Bravo, Mike Jiang, Janina Karl, Patrycja Krawczyk, Sara Kurz, Kira Kyne, Shirley Liu, and Florence Young for help with deletion and overexpression constructs. This work was supported by a Wellcome Trust Senior Investigator Award (095598/Z/11/Z) and BBSRC Research Grants (BB/R018219/1 and BB/R009597/1) to JB. ST was supported by a Boehringer Ingelheim Fonds PhD Fellowship. The Francis Crick Institute receives its core funding from Cancer Research UK (FC001134), the UK Medical Research Council (FC001134), and the Wellcome Trust (FC001134).

Senior and Reviewing Editor

  1. Kevin Struhl, Harvard Medical School, United States

Publication history

  1. Received: December 1, 2021
  2. Accepted: December 2, 2021
  3. Version of Record published: January 5, 2022 (version 1)
  4. Version of Record updated: January 27, 2022 (version 2)

Copyright

© 2022, Rodriguez-Lopez et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,610
    Page views
  • 133
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Maria Rodriguez-Lopez
  2. Shajahan Anver
  3. Cristina Cotobal
  4. Stephan Kamrad
  5. Michal Malecki
  6. Clara Correia-Melo
  7. Mimoza Hoti
  8. StJohn Townsend
  9. Samuel Marguerat
  10. Sheng Kai Pong
  11. Mary Y Wu
  12. Luis Montemayor
  13. Michael Howell
  14. Markus Ralser
  15. Jürg Bähler
(2022)
Functional profiling of long intergenic non-coding RNAs in fission yeast
eLife 11:e76000.
https://doi.org/10.7554/eLife.76000

Further reading

    1. Computational and Systems Biology
    2. Genetics and Genomics
    Jayashree Kumar et al.
    Research Article Updated

    Splicing is highly regulated and is modulated by numerous factors. Quantitative predictions for how a mutation will affect precursor mRNA (pre-mRNA) structure and downstream function are particularly challenging. Here, we use a novel chemical probing strategy to visualize endogenous precursor and mature MAPT mRNA structures in cells. We used these data to estimate Boltzmann suboptimal structural ensembles, which were then analyzed to predict consequences of mutations on pre-mRNA structure. Further analysis of recent cryo-EM structures of the spliceosome at different stages of the splicing cycle revealed that the footprint of the Bact complex with pre-mRNA best predicted alternative splicing outcomes for exon 10 inclusion of the alternatively spliced MAPT gene, achieving 74% accuracy. We further developed a β-regression weighting framework that incorporates splice site strength, RNA structure, and exonic/intronic splicing regulatory elements capable of predicting, with 90% accuracy, the effects of 47 known and 6 newly discovered mutations on inclusion of exon 10 of MAPT. This combined experimental and computational framework represents a path forward for accurate prediction of splicing-related disease-causing variants.
