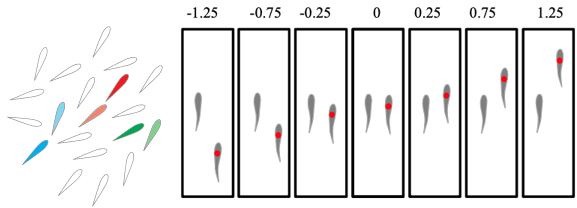

Mapping spatial patterns to energetic benefits in groups of flow-coupled swimmers

  1. Sina Heydari
  2. Haotian Hang
  3. Eva Kanso  Is a corresponding author
  1. Department of Aerospace and Mechanical Engineering, University of Southern California, United States
  2. Department of Physics and Astronomy, University of Southern California, United States
14 figures, 2 videos, 1 table and 1 additional file

Figures

Figure 1 with 4 supplements
Flow-coupled swimmers self-organize into stable pairwise formations.

(A) Inline (=0,ϕ=π/2), (B) diagonal (=L/2,ϕ=0), (C) inphase side-by-side (=L/2,ϕ=0), and (D) antiphase side-by-side (=L/2,ϕ=π) in computational fluid dynamics (CFD) (left) and vortex sheet (VS) (right) simulations. Power savings at steady state relative to respective solitary swimmers are reported in Figure 3. Parameter values are A=15, Re = 2πρAfL/μ=1645 in CFD, and fτdiss=2.45 in VS simulations. Corresponding hydrodynamic moments are given in Figure 1—figure supplement 4. Simulations at different Reynolds numbers and dissipation times are given in Figure 1—figure supplements 13.

Figure 1—figure supplement 1
Computational fluid dynamics (CFD) simulations of pairwise formations.

Vorticity field (left column) and flow agreement parameter 𝕍 (right column) in the wake of a pair of inline and inphase swimmers Reynolds number Re=206 (A), 308 (B), 411 (C), 1645 (D), respectively. The pitching amplitude of leader and follower is set to A=15, except in (A), where the follower is pitching at A=13.5.

Figure 1—figure supplement 2
Vortex sheet (VS) simulations of pairwise formations.

Snapshots of the swimmers (left column) and flow agreement parameter 𝕍 (right column) in the wake of a pair of swimmers in the VS model for dissipation time 2.45T (A), 3.45T (B), 4.45T (C), and 9.45T(D), respectively. The pitching amplitude is set to A=15, and the pitching frequency to f=1.

Figure 1—figure supplement 3
Computational fluid dynamics (CFD) and vortex sheet (VS) simulations at various flow properties.

(A) Separation distance versus time in a pair of swimmers in the CFD model for five values of Reynolds numbers ReA=206,308,411,822,1645 (Figure 1—figure supplement 1). (B) Separation distance versus time in a pair of swimmers in the VS model for five values of dissipation time τdiss=2.45T,3.45T,4.45T,9.45T, (Figure 1—figure supplement 2). Separation distance d is normalized by swimming speed U for each cases, respectively. In (A, B), the swimmers stabilize near d/UT=1. The pitching amplitude of leader and follower is set to A=15, except in ReA=206 , where the follower is pitching at A=13.5 to avoid collision.

Figure 1—figure supplement 4
Hydrodynamic moment acting on pairs of flapping swimmers.

(A) Inline (=0,ϕ=0), (B) diagonal (=L/4,ϕ=0), (C) inphase side-by-side (=L/2,ϕ=0), and (D) antiphase side-by-side (=L/2,ϕ=π) in computational fluid dynamics (CFD) (left) and vortex sheet (VS) (right) simulations. For each simulation, we show the active torque Ma exerted by the swimmers after a time tss, ensuring that steady state has been reached. The non-reciprocity in the effects of leader on follower in inline and diagonal configuration is apparent. In the side-by-side configurations, a simple shift of the data in the inphase flapping case and a simple mirror symmetry in the antiphase flapping case would show that flow coupling is reciprocal.

Emergent equilibria in pairwise formations.

(A) Time evolution of scaled streamwise separation distance d/UT for a pair of inline swimmers at ϕ=0. Depending on initial conditions, the swimmers converge to one of two equilibria at distinct separation distance. (B) At =L/2, d/UT changes slightly compared to inline swimming in (A). Importantly, a new side-by-side inphase equilibrium is now possible where the swimmers flap together at a slight shift in the streamwise direction. (C) Starting from the first equilibrium in (A), d/UT increases linearly as we increase the phase lag ϕ between the swimmers.

Hydrodynamic benefits and linear phase-distance relationship in pairwise formations.

(A) Change in cost of transport compared to solitary swimmers for the inline, diagonal, side-by-side inphase, and side-by-side antiphase formations shown in Figure 1. (B) Emergent formations in pairs of swimmers in computational fluid dynamics (CFD) and vortex sheet (VS) models satisfy a linear phase-distance relationship, consistent with experimental (Ramananarivo et al., 2016; Newbolt et al., 2019; Li et al., 2020; Kurt et al., 2021; Thandiackal and Lauder, 2023) and numerical (Kim et al., 2010; Peng et al., 2018; Heydari and Kanso, 2021; Arranz et al., 2022) studies. With the exception of the antiphase side-by-side formation, swimmers in these formations have a reduced average cost of transport compared to solitary swimming.

Prediction of relative equilibria in the wake of a solitary swimmer.

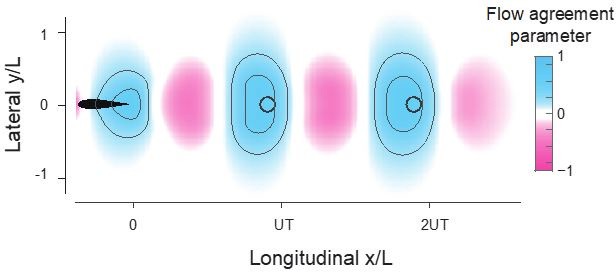

(A, B) Snapshots of vorticity and fluid velocity fields created by a solitary swimmer in computational fluid dynamics (CFD) and vortex sheet (VS) simulations and corresponding flow agreement parameter 𝕍 fields for a virtual follower at ϕ=0. Locations of maximum 𝕍 values (i.e. peaks in the flow agreement parameter field) coincide with the emergent equilibria in inphase pairwise formations (indicated by black circles). Contour lines represent flow agreement parameter at ±0.25, ±0.5. Thrust parameter 𝕋 is shown at =0 and =0.5L. A negative slope 𝕋/d indicates stability of the predicted equilibria. See also Figure 1—figure supplements 1 and 2.
