1. Cell Biology
Download icon

A bacterial sulfonolipid triggers multicellular development in the closest living relatives of animals

  1. Rosanna A Alegado
  2. Laura W Brown
  3. Shugeng Cao
  4. Renee K Dermenjian
  5. Richard Zuzow
  6. Stephen R Fairclough
  7. Jon Clardy  Is a corresponding author
  8. Nicole King  Is a corresponding author
  1. University of California, Berkeley, United States
  2. Harvard Medical School, United States
  3. Stanford University School of Medicine, United States
Research Article
Cite this article as: eLife 2012;1:e00013 doi: 10.7554/eLife.00013
4 figures and 3 tables

Figures

Figure 1 with 1 supplement
Rosette colony development in S. rosetta is regulated by A. machipongonensis.

(A) The original culture of S. rosetta, ATCC 50818, contains diverse co-isolated environmental bacteria and forms rosette colonies (arrowheads) rarely. (B) Treatment of ATCC50818 with a cocktail of antibiotics reduced the bacterial diversity and yielded an S. rosetta culture line, RCA, in which rosette colonies never formed. (Representative single cells indicated by arrows.) (C) Addition of A. machipongonensis to RCA cultures was sufficient to induce rosette development. Scale bar, 2 μm.

https://doi.org/10.7554/eLife.00013.003

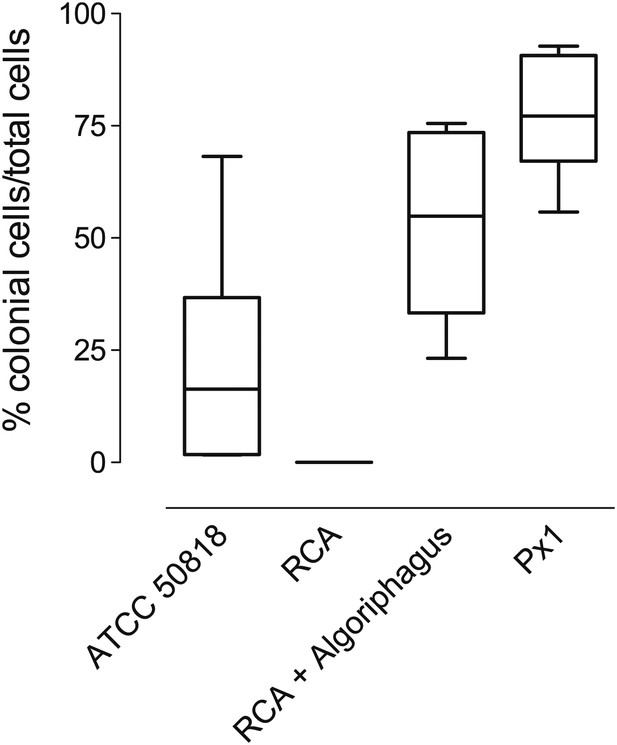

Figure 1—figure supplement 1
Frequency of rosette colonies in S. rosetta environmental isolate ATCC 50818, RCA with and without A. machipongonensis and a monoxenic line with A. machipongonensis feeder bacteria (Px1).

Altering bacterial diversity in S. rosetta cultures alters the frequency of rosette colonies. Data are the whisker-box plots of the frequency of colonial cells in ATCC 50818 and a monoxenic culture of S. rosetta fed only A. machipongonensis bacteria (Px1) for three experiments.

https://doi.org/10.7554/eLife.00013.004
Diverse members of the Bacteroidetes phylum induce rosette colony development.

A maximum likelihood phylogeny inferred from 16S rDNA gene sequences reveals the evolutionary relationships among A. machipongonensis, other members of the Bacteroidetes phylum, and representative γ-proteobacteria (γ), α-proteobacteria (α), and Gram-positive (+) bacteria. All 15 members of the Algoriphagus genus (Table 1), as well as six other species in the Bacteroidetes phylum, were competent to induce colony development (filled squares). In contrast, no species outside of Bacteroidetes and most of the non-Algoriphagus bacteria tested failed to induce rosette colony development (open squares). Scale bar, 0.1 substitutions per nucleotide position.

https://doi.org/10.7554/eLife.00013.006
Figure 3 with 15 supplements
RIF-1, a sulfonolipid that induces rosette colony development.

(A) Rosette colony development is induced by live A. machipongonensis and the sphingolipid-enriched lipid fraction (20 mg mL−1), but not by fresh medium, A. machipongonensis LPS (10 mg mL−1), PGN (50 mg mL−1), or LPS+PGN. Shown are the whisker-box plots of the % colonial cells/total cells under each condition in three independent experiments. (B) The molecular structure of RIF-1 deduced from MS and 1D- and 2D-NMR data. The RIF-1 structure, 3,5-dihydroxy-2-(2-hydroxy-13-methyltetradecanamido)-15-methylhexadecane-1-sulfonic acid, has two parts: a base (shown in red) that defines the capnine, and a fatty acid (shown in black). Features that distinguish RIF-1 from other known capnoids are shown with colored arrows: the 2-hydroxy on the fatty acid (black) and the 5-hydroxy on the capnine base (red).

https://doi.org/10.7554/eLife.00013.008
Figure 3—figure supplement 1
Separation of A. machipongonensis sphingolipids by thin layer chromatography (TLC).

Lipids enriched in sphingolipids were separated by TLC after visualization with ammonium molybdate in 10% H2SO4. Bands (1-12) as well as regions between bands (A-F) were tested for morphogenic activity. Region F possessed activity and was further purified.

https://doi.org/10.7554/eLife.00013.009

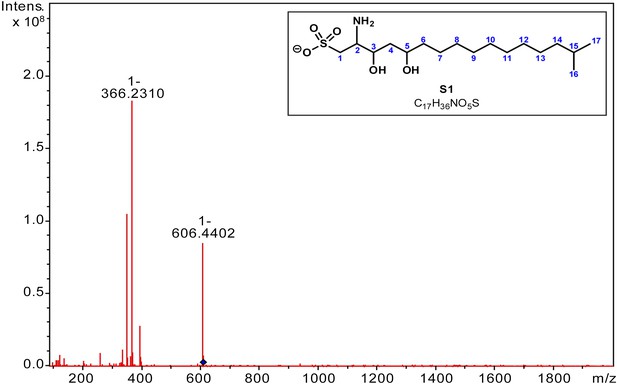

Figure 3—figure supplement 2
MS/MS analysis of RIF-1.

A major fragment derived from m/z = 606 (M-H) in the MS/MS spectrum of RIF-1 corresponds to amino-sulfonic acid S1. HRMS m/z calcd for C17H36NO5S (M-H): 366.23142. Found: 366.2310 (M-H)-.

https://doi.org/10.7554/eLife.00013.010

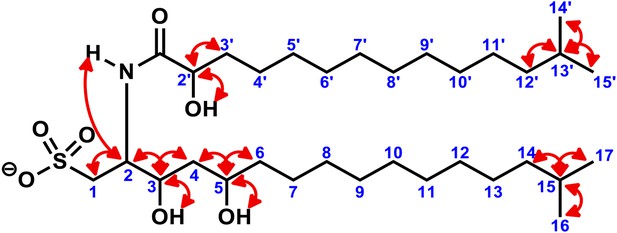

Figure 3—figure supplement 3
Key two-dimensional (2D) correlations of RIF-1: Observed COSY correlations.

Red double-head arrows show key 3J or 4J H-H correlations in the head regions (1 to 6 and 2′ to 3′) of the fatty acid and the capnine base and in the tail regions with geminal dimethyl groups (14 to 17 and 12′ to 15′).

https://doi.org/10.7554/eLife.00013.011

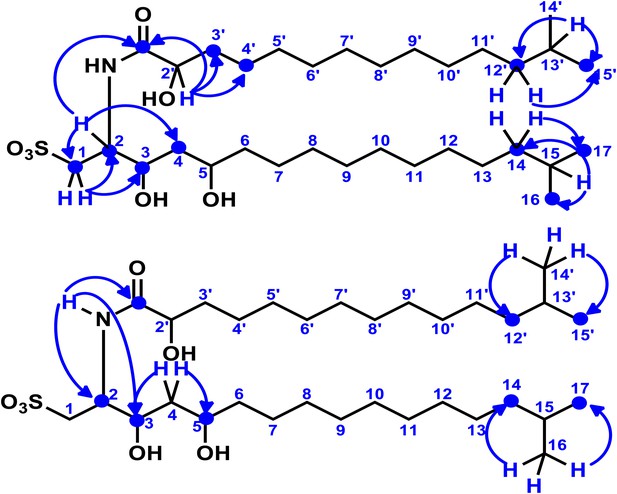

Figure 3—figure supplement 4
Key two-dimensional (2D) correlations of RIF-1: Observed HMBC spin system.

Blue single-head arrows show key 2J or 3J H-C correlations in the head and tail regions of the fatty acid and capnine base. The correlations between C-1′ and H-2/N-H demonstrated that the fatty acid and capnine base are joined through an amide bond.

https://doi.org/10.7554/eLife.00013.012
Figure 3—figure supplement 5
Key two-dimensional (2D) correlations of RIF-1: Observed TOCSY spin system.

Green bonds show two key spin systems in RIF-1 - HO-CH- in the fatty acid fragment and -CH2-CH(NH)-CH(OH)-CH2-CH(OH)-CH2- in the capnine base fragment.

https://doi.org/10.7554/eLife.00013.013

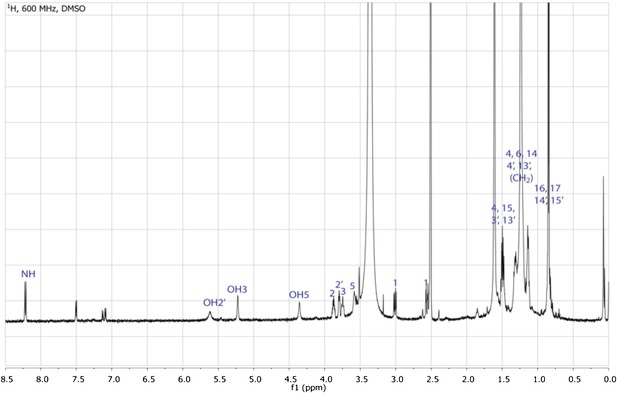

Figure 3—figure supplement 6
1H NMR spectrum of RIF-1.

The spectrum exhibits one NH (δH 8.21), three hydroxyl groups (δH 5.52, 5.20, and 4.31), five signals from 2.50-4.00 ppm (four methines connected to either nitrogen at δH-2 3.88 or oxygens at δH-2′ 3.80/δH-3 3.71-3.78/δH-5 3.53-3.61, and one methylene connected to sulfur at δH-1 2.56 & 3.01), twenty methylenes and four methyls (δH d, J = 6.6 Hz, 12H) in the high field region (δH 0.75-1.75 ppm).

https://doi.org/10.7554/eLife.00013.014

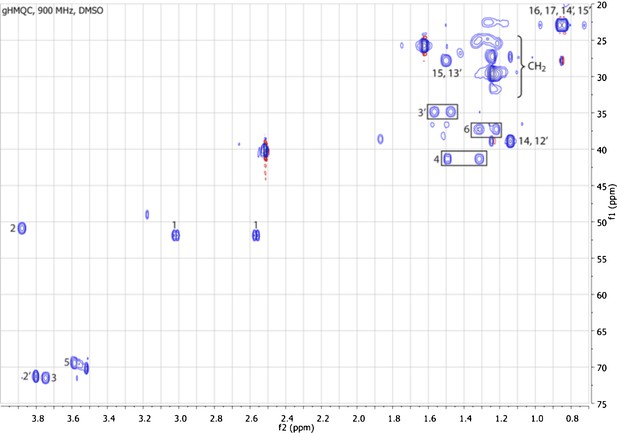

Figure 3—figure supplement 7
gHMQC spectrum of RIF-1.

The 1J H-C correlations demonstrate that 2 (δH 3.88, δC 50.89) is connected to a nitrogen; 2′, 3, and 5 (δH 3.80/δC 71.29, δH 3.71-3.78/δC 71.51, and δH 3.53-3.61/δC 70.20, respectively) are oxygenated; 1 (δH 3.01 and 2.56, δC 51.87) is adjacent to a sulfonic acid group; and all the other twenty methylenes and four methyls at high filed (δH 0.75-1.75/δC 22.00-42.00).

https://doi.org/10.7554/eLife.00013.015

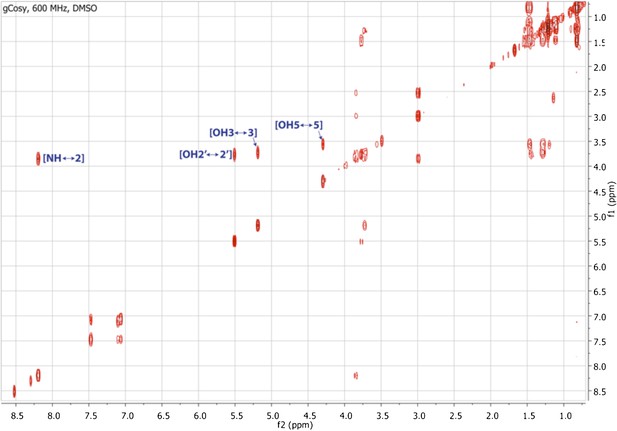

Figure 3—figure supplement 8
gCOSY spectrum of RIF-1.

Indicated are important H-H correlations between NH and H-2, 2′-OH and H-2′, 3-OH and H-3, and 5-OH and H-5.

https://doi.org/10.7554/eLife.00013.016

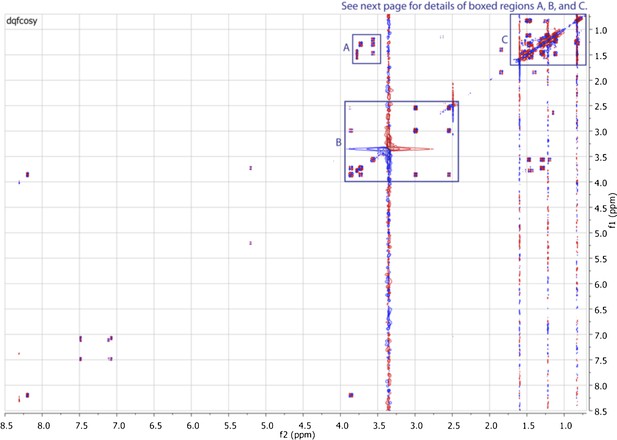

Figure 3—figure supplement 9
Expanded dqfCOSY spectrum of RIF-1.

In panel A (δH 1.15-1.65 ppm/δH 3.52-3.82 ppm), H-3 (δH 3.73) shows correlation to H-4a (δH 1.30), H-5 (δH 3.57) to H-4a/H-4b (δH 1.30/1.47), and H-5 to H2-6 (δH 1.20/1.29); H-2′ (∼δH 3.8) correlates to H2-3′ (δH 1.45 and 1.54). Panel B (δH 2.4-4.0 ppm/δH 2.4-4.0 ppm) demonstrates the correlations between H2-1 (δH 2.56/∼3.0) and H-2 (δH 3.88), and between H-2 and H-3. Panel C (δH 0.75-1.60 ppm/δH 0.75-1.60 ppm) exhibits correlations in the other methylenes and methyl groups.

https://doi.org/10.7554/eLife.00013.017

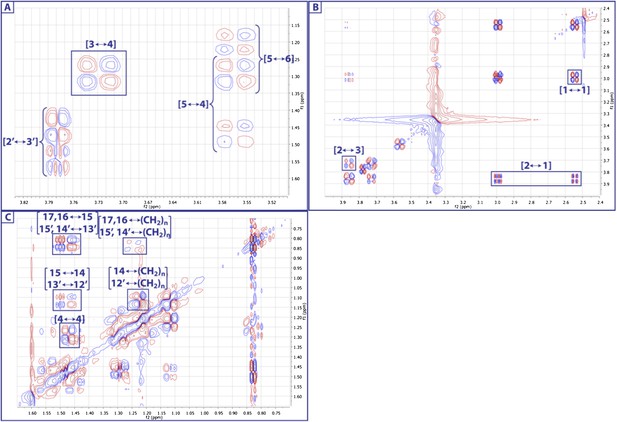

Figure 3—figure supplement 10
Expanded dqfCOSY spectra of RIF-1.

A dqfCOSY spectrum was collected in order to get a clear connectivity in the oxygenated region (1-position to 6-position) in the capnoid base fragment.

https://doi.org/10.7554/eLife.00013.018

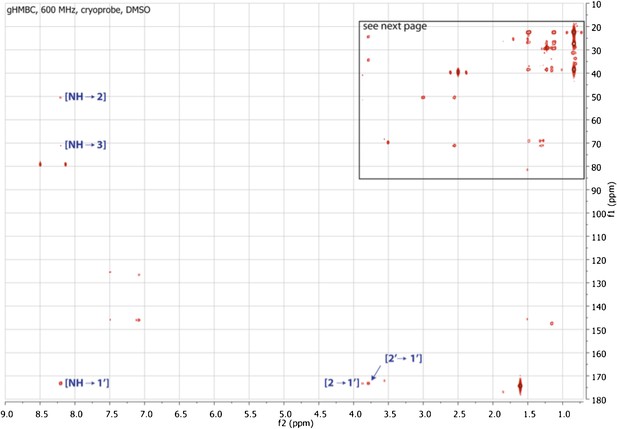

Figure 3—figure supplement 11
gHMBC spectrum of RIF-1.

Indicated are important 2J or 3J H-C correlations between NH/H-2/H-2′ and C-1′ (δC 173.23), and between NH and C-2/C-3 (δC 50.89/71.51). Based on the MS/MS analysis, the fatty acid fragment must be 2-hydroxy-13-methyltetradecanoyl, and the capnine base fragment must be 2-NH-3,5-dihydroxy-15-methylhexadecane-1-sulfonate. Hence, the planar structure of RIF-1 is determined as shown in Fig. 3 and Fig. 3 – Figure Supplements 3-5.

https://doi.org/10.7554/eLife.00013.019
Figure 3—figure supplement 12
Expanded gHMBC spectrum of RIF-1 (δH 0-4.00 ppm/δC 15.0-85.0 ppm).

Indicated are correlations between H-2 to C-4/C-1 (δC 41.36/51.87), between H-2′ and C-4′/C-3′ (δC 24.99/34.85), between H-1 and C-2/C-3 (δC 50.89/71.51), and between H-4 and C-5/C-3 (δC 70.20/71.51).

https://doi.org/10.7554/eLife.00013.020

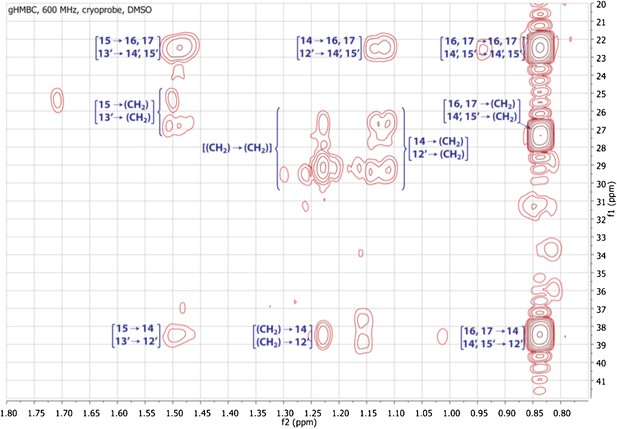

Figure 3—figure supplement 13
Expanded gHMBC spectrum of RIF-1 (δH 0.80-1.80 ppm/δC 20.0-40.0 ppm).

Key correlations are between H-16 and C-14/C-15/C-17 (δC 38.91/27.79/22.09), between H-17 and C-14/C-15/C-16 (δC 38.91/27.79/22.09), between H-14′ and C-12′/C-13′/C-15′ (δC 38.91/27.79/22.09), and between H-15′ and C-12′/C-13′/C-14′ (δC 38.91/27.79/22.09).

https://doi.org/10.7554/eLife.00013.021

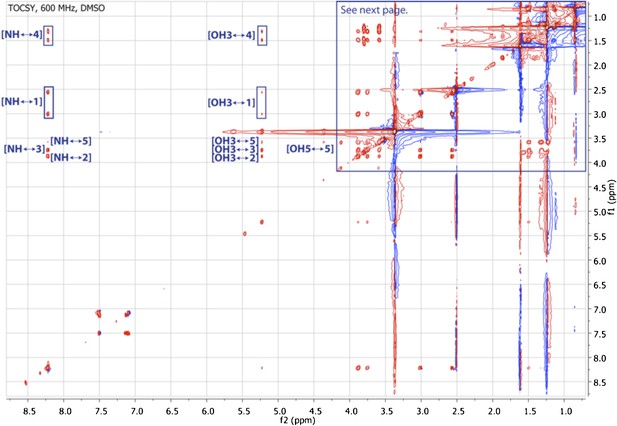

Figure 3—figure supplement 14

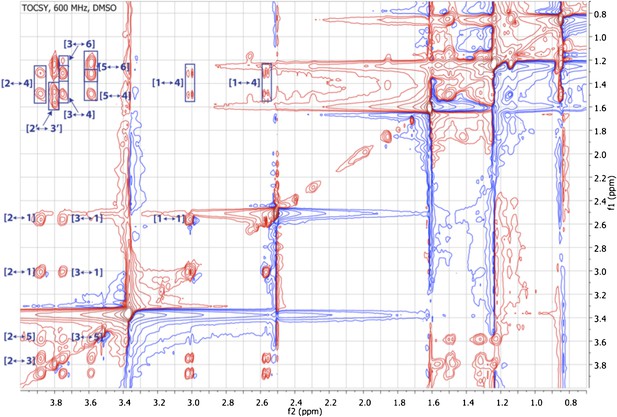

TOCSY spectrum of RIF-1.

The spectrum shows correlations from NH to H2-1 and H-5 through H-2, H-3 and H2-4, and from 3-OH to H-5 via H2-4 and H2-1 through H-3 and H-2.

https://doi.org/10.7554/eLife.00013.022
Figure 3—figure supplement 15
Expanded TOCSY spectrum of RIF-1 (δH 0.50-4.25 ppm/δC 0.50-4.25 ppm).

Another important spin system is clearly demonstrated by the TOCSY correlations between H-2′ and H2-3′/H-4′/H-5′ on the top left of the expanded spectrum.

https://doi.org/10.7554/eLife.00013.023
Figure 4 with 3 supplements
Purified RIF-1 is active at plausible environmental concentrations.

RIF-1 concentrations ranging from 10−2 to 107 fM induce rosette colony development in RCA cultures. Frequency of rosette colony development was quantified in RCA cultures 2 days after treatment with a dilution series of purified RIF-1. Data are mean ± s.e. from three independent experiments. Line indicates non-linear regression of the RIF-1 activity profile.

https://doi.org/10.7554/eLife.00013.025
Figure 4—figure supplement 1
Detection of purified RIF-1.

RIF-1 did not show absorbance at 210 nm (top panel), but the molecule (606 Da, M-H) was detected between 25 and 26 minutes (bottom panel).

https://doi.org/10.7554/eLife.00013.026

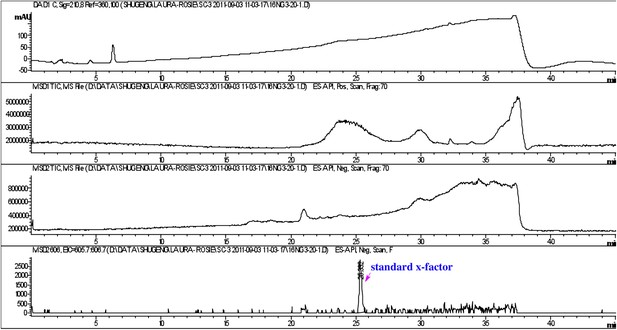

Figure 4—figure supplement 2

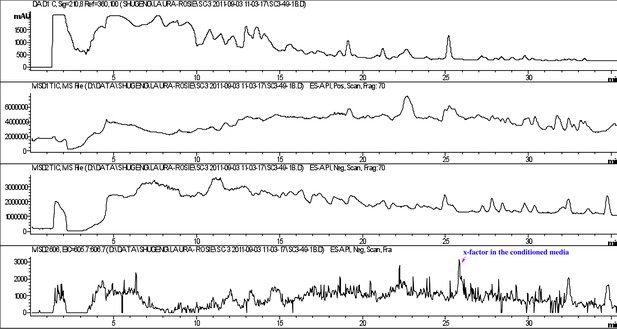

Detection of RIF-1 in the conditioned medium of A. machipongonensis.

RIF-1 (bottom panel) was detected in the conditioned medium after the broth was concentrated 250 times.

https://doi.org/10.7554/eLife.00013.027

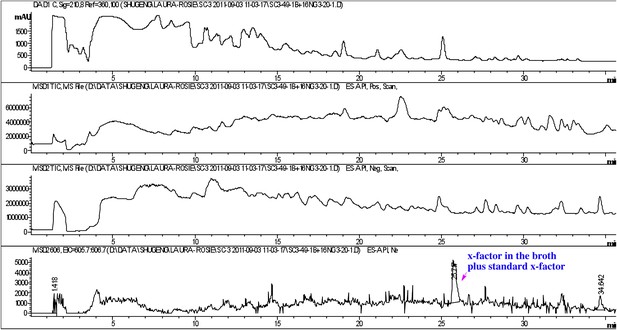

Figure 4—figure supplement 3
Co-injection of concentrated conditioned medium with purified RIF-1.

The peak of the RIF-1 in the conditioned medium was enhanced after the sample was spiked with purified RIF-1 (bottom panel).

https://doi.org/10.7554/eLife.00013.028

Tables

Table 1

Species tested for colony induction

https://doi.org/10.7554/eLife.00013.005
Species16S rDNA accession numberReferenceRosette colonies
Algoriphagus machipongonensis PR1NZ_AAXU00000000Alegado et al. (2012)+
Algoriphagus alkaliphilus AC-74AJ717393Tiago et al. (2006)+
Algoriphagus boritolerans T-22AB197852Ahmed et al. (2007)+
Algoriphagus mannitolivorans JC2050AY264838Yi and Chun (2004)+
Algoriphagus marincola SW-2AY533663Yoon et al. (2004)+
Algoriphagus ornithinivorans JC2052AY264840Yi and Chun (2004)+
Algoriphagus vanfongensis KMM 6241EF392675Van Trappen et al. (2004)+
Algoriphagus antarcticus LMG 21980AJ577141Nedashkovskaya et al. (2004)+
Algoriphagus aquimarinus LMG 21971AJ575264Nedashkovskaya et al. (2004)+
Algoriphagus chordae LMG 21970AJ575265Nedashkovskaya et al. (2004)+
Algoriphagus halophilus JC2051AY264839Yi and Chun (2004)+
Algoriphagus locisalis MSS-170AY835922Yoon et al. (2005a)+
Algoriphagus ratkowskyi LMG 21435AJ608641Bowman et al. (2003)+
Algoriphagus terrigena DS-44DQ178979Yoon et al. (2006)+
Algoriphagus winogradskyi LMG 21969AJ575263Nedashkovskaya et al. (2004)+
Algoriphagus yeomjeoni MSS-160AY699794Yoon et al. (2005b)+
Agrobacterium tumefaciens C58AE007870Wood et al. (2001)+
Aquiflexum balticum BA160AJ744861Brettar et al. (2004a)
Bacillus subtilis 168AL009126Kunst et al. (1997); Burkholder and Giles (1947); Spizizen (1958)
Bacteroides fragilis NCTC9343CR626927Cerdeno-Tarraga et al. (2005)
Belliella baltica BA134AJ564643Brettar et al. (2004b)
Caulobacter crescentus CB15AE005673Nierman et al. (2001)
Croceibacter atlanticus HTCC2559NR_029064Cho and Giovannoni (2003)
Cyclobacterium marinum LMG 13164AJ575266Raj and Maloy 1990)+
Cytophaga hutchinsonii ATCC 33406M58768Lewin (1969)+
Dyadobacter fermentans DSM 18053NR_027533Chelius and Triplett (2000)+
Echinicola pacifica KMM 6172NR_043619Nedashkovskaya et al. (2006)
Escherichia coli MG1655U00096Blattner et al. (1997)
Flavobacteria johnsoniae UW101CP000685Bernardet et al. (1996)
Flectobacillus major DSM 103M62787Raj and Maloy (1990)+
Listeria monocytogenes 10403SCP002002Edman et al. (1968)
Magnetospirillum magneticum AMB-1AP007255Matsunaga et al. (2005)
Microscilla marina ATCC 23134M123134Garrity (2010)
Oceanostipes pacificus HTCC2170CP002157Oh et al. (2011)
Robiginitalea biformata HTCC2501CP001712Cho and Giovannoni (2004)
Salinibacter ruber DSM13855CP000159Anton et al. (2002)
Sphingomonas wittichii RW1CP000699Miller et al. (2010)
Vibrio fischeri ES114CP000021Ruby et al. (2005)
Zobellia galactonovorans DsijNR_025053Barbeyron et al. (2001)+
Zobellia uliginosa ATCC 14397M62799Matsuo et al. (2003)+
  1. −: no rosette colonies observed; +: rosette colonies observed.

Table 2

Responses of RCA culture to various supplements

https://doi.org/10.7554/eLife.00013.007
TreatmentRosette coloniesInterpretation
Sea water
CM from ATCC50818+RIF-1 present in environmental isolate ATCC 50818
CM from RCARIF-1 is absent in RCA lines
Live A. machipongonensis (cell pellet)++RIF-1 is produced by A. machipongonensis
Heat killed A. machipongonensis (cell pellet)++RIF-1 is resistant to heat
A. machipongonensis CM+RIF-1 is released by live Algoriphagus
A. machipongonensis CM, boiled 10 min+RIF-1 is not labile
A. machipongonensis CM + Proteinase K+RIF-1 is not a protein
A. machipongonensis CM + DNAse+RIF-1 is not DNA
A. machipongonensis CM + RNAse+RIF-1 is not RNA
A. machipongonensis CM, MeOH extract+RIF-1 is an organic compound
A. machipongonensis cell pellet, MeOH extract++RIF-1 is present in the Algoriphagus cell envelope
A. machipongonensis cell pellet, Bligh-Dyer extract++RIF-1 is a lipid
Sphingomyelin (20 mg mL−1)Sphingomyelin does not induce rosette colony development
Monosialoganglioside (20 mg mL−1)Monosialoganglioside does not induce rosette colony development
Galactocerebroside (20 mg mL−1)Galactocerebroside does not induce rosette colony development
N-palmitoyl-DL-dihydrolacto cerebroside (20 mg mL−1)N-palmitoyl-DL-dihydrolacto cerebroside does not induce rosette colony development
  1. −: no induction; +: low induction; ++: high induction

  2. CM: conditioned medium; RCA: rosette colonies absent; RIF-1: rosette inducing factor 1.

Table 3

Table of NMR chemical shifts

https://doi.org/10.7554/eLife.00013.024
Positionδ 1H (multiplicity, J, #H)13C (δ, ppm)
NH8.21 (d, J=9.1 Hz, 1H)
13.01 (dd, J=14.2, 5.1 Hz, 1H)51.87
2.56 (dd, J=14.3, 3.6 Hz, 1H)
23.88 (ddd, J=13.0, 8.6, 4.5 Hz, 1H)50.89
33.78 – 3.71 (m, 1H)71.51
OH35.20 (d, J=4.2 Hz, 1H)
41.51 – 1.47 (m, 1H)41.36
1.33 – 1.29 (m, 1H)
53.61 – 3.53 (m, 1H)70.20
OH54.31 (d, J=3.5 Hz, 1H)
61.34 – 1.29 (m, 1H)37.27
1.24 – 1.20 (m, 1H)
7–131.21 – 1.27 (br s, 14H)22.5–29.6
141.16 – 1.11 (m, 2H)38.91
151.52 – 1.47 (m, 1H)27.79
16, 170.84 (d, J=6.6 Hz, 6H)22.09
1′173.23
2′3.80 (dd, J=6.6, 4.2 Hz, 1H)71.29
OH2′5.52 (d, J=5.0 Hz, 1H)
3′1.59 – 1.54 (m, 1H)34.85
1.50 – 1.45 (m, 1H)
4′?1.35 – 1.30 (m, 2H)24.99
5′–11′1.21 – 1.27 (br s, 14H)22.5–29.6
12′1.16 – 1.11 (m, 2H)38.91
13′1.52 – 1.47 (m, 1H)27.79
14′, 15′0.84 (d, J=6.6 Hz, 6H)22.09
