Requirement of Smurf-mediated endocytosis of Patched1 in sonic hedgehog signal reception

  1. Shen Yue
  2. Liu-Ya Tang
  3. Ying Tang
  4. Yi Tang
  5. Qiu-Hong Shen
  6. Jie Ding
  7. Yan Chen
  8. Zengdi Zhang
  9. Ting-Ting Yu
  10. Ying E Zhang  Is a corresponding author
  11. Steven Y Cheng  Is a corresponding author
  1. Nanjing Medical University, China
  2. Center for Cancer Research, National Cancer Institute, United States
Research Article
  • Cited 42
  • Views 2,592
  • Annotations
Cite this article as: eLife 2014;3:e02555 doi: 10.7554/eLife.02555

Abstract

Cell surface reception of Sonic hedgehog (Shh) must ensure that the graded morphogenic signal is interpreted accordingly in neighboring cells to specify tissue patterns during development. Here, we report endocytic sorting signals for the receptor Patched1 (Ptch1), comprising two ‘PPXY’ motifs, that direct it to degradation in lysosomes. These signals are recognized by two HECT-domain ubiquitin E3 ligases, Smurf1 and Smurf2, which are induced by Shh and become enriched in Caveolin-1 lipid rafts in association with Ptch1. Smurf-mediated endocytic turnover of Ptch1 is essential for its clearance from the primary cilium and pathway activation. Removal of both Smurfs completely abolishes the ability of Shh to sustain the proliferation of postnatal granule cell precursors in the cerebellum. These findings reveal a novel step in the Shh pathway activation as part of the Ptch1 negative feedback loop that precisely controls the signaling output in response to Shh gradient signal.

https://doi.org/10.7554/eLife.02555.001

eLife digest

Sonic hedgehog protein fulfils many vital roles in establishing the body plan of multicellular organisms during development. And in adult organisms it regulates the stem cells that maintain organs and tissues. In the embryo, Sonic hedgehog is secreted by certain cells to create a concentration gradient; cells then measure this concentration to work out where they are, which allows them to develop into the right sort of cells. However, many details of this process are not completely understood.

At the core of this process are the interactions between the Sonic hedgehog protein, a receptor called Patched1 that is found on plasma membranes, and another membrane protein called Smoothened. The job of Smoothened is to activate proteins that enter the cell nucleus and ‘switch on’ the pathway's target genes, which encode Patched1 and a number of other proteins. The role of Patched1, on the other hand, is to repress Smoothened. However, when sonic hedgehog binds to Patched1, the latter is unable to repress Smoothened.

Increasing the production of Patched1 is thought to serve two main roles: it prevents activation of the Sonic hedgehog pathway, and it prevents the Sonic hedgehog protein spreading to neighboring cells (by binding to it). But how is the level of Patched1 itself regulated? Yue et al. now report that two proteins, called Smurf1 and Smurf2, perform this regulation role in mammalian cells.

Smurf1 and Smurf2 are enzymes that attach a molecule called ubiquitin to proteins, setting in train a series of events that leads to the degradation of the protein. Yue et al. now show that Smurf1 and Smurf2 recognize a signal on Patched1 and perform a similar modification, causing the Patched1 to be internalized through an alternate pathway and degraded in lysosomes. This series of events ultimately allow the Sonic hedgehog pathway to be activated.

The work of Yue et al. exposes a critical enzymatic step that sorts unbound Patched1 receptors from those that are bound to Sonic hedgehog proteins. Further research is needed to determine if this signaling pathway can be manipulated for therapeutic purposes.

https://doi.org/10.7554/eLife.02555.002

Introduction

The secreted Sonic hedgehog (Shh) protein specifies spatial tissue patterns during development by providing positional cues embedded in its concentration gradient (Jiang and Hui, 2008; Robbins et al., 2012; Ryan and Chiang, 2012). During embryogenesis, neighboring progenitor cells in a developing field are able to discern incremental changes in the Shh signal strength and adopt their respective fate accordingly (Ribes and Briscoe, 2009; Balaskas et al., 2012). This ability requires a cell surface reception system that can transform the graded Shh signal into different levels of signaling output, but how this is accomplished is poorly understood. In the adult, Shh plays a crucial role in guiding the differentiation of tissue-specific stem cells (Jaks et al., 2008; Shin et al., 2011; Arwert et al., 2012), and inappropriate activation of Shh signaling could be the culprit that underlines neoplastic growth in the gut epithelium (Nielsen et al., 2004) or lead to outright cancers (Scales and de Sauvage, 2009; Stecca and Ruiz, 2010; Northcott et al., 2012).

At the cell surface, whereas a network of membrane proteins, including Hip1 (Chuang et al., 2003), Gas1 (Lee et al., 2001), Boc/iHog, and Cdo/Boi (Okada et al., 2006; Tenzen et al., 2006; Yao et al., 2006; Beachy et al., 2010), bind Shh and control the range and competence of its receiving cells, the core of Shh signal reception consists of Patched1 (Ptch1), a 12-pass membrane receptor that acts negatively on Smoothened (Smo), a G-protein-coupled, receptor-like signal transducer (Rohatgi and Scott, 2007b). Binding of Shh to Ptch1 alleviates the Ptch1 inhibition of Smo, allowing the signal to propagate to three Gli proteins, the transcriptional effectors of the pathway, and activate the expression of target genes, including pathway components Ptch1 and Gli1 themselves. Since Gli1 is a potent activator of Shh target genes, its induction by the ligand ensures that pathway activation will attain the intended effect in a positive feedback loop. On the other hand, induction of the inhibitory Ptch1 amounts to a negative feedback control, which was regarded crucial to the interpretation of the Shh gradient signal (Ribes and Briscoe, 2009). In effect, Ptch1 serves two roles in Shh signaling: first, it acts cell autonomously in suppressing the downstream pathway, and second, the excessive Ptch1 induced by Shh acts as a sink in limiting the spread of the ligand, thereby affecting the neighboring cells in a non-cell autonomous fashion (Chen and Struhl, 1996; Torroja et al., 2004). However, it is not clear what counteracts the induction of Ptch1 to achieve the precision of the regulation.

For many years, Ptch1 and Smo have been seen in punctate intracellular vesicles in both Drosophila and mammalian cells (Capdevila et al., 1994; Ramirez-Weber et al., 2000; Zhu et al., 2003; Li et al., 2012), and their trafficking between the cytoplasmic membrane and intracellular vesicles found to be crucial to the activation of the Hedgehog pathway (Denef et al., 2000; Incardona et al., 2000; Zhu et al., 2003; Nakano et al., 2004; Lu et al., 2006; Milenkovic et al., 2009; Li et al., 2012). It is known that ligand engagement of Drosophila receptor Ptc triggers its internalization and membrane presentation of Smo, but membrane trafficking of Ptch1 and Smo in mammalian cells has an added complexity in that Shh signals through the primary cilium (Huangfu et al., 2003; Corbit et al., 2005; Goetz and Anderson, 2009), a microtubule-based membrane protrusion that emanates from the interphase centrioles (Lefebvre and Rosenbaum, 1986; Pazour and Witman, 2003; Nachury et al., 2010). The prevailing model for mammalian Shh activation entails Ptch1 exiting from and Smo translocating into the primary cilium (Rohatgi et al., 2007a; Kovacs et al., 2008). Some data suggest that Smo trafficking through membranous compartments is controlled by small lipids and the sterol-sensing domain of Ptch1 (Martin et al., 2001; Bijlsma et al., 2006; Corcoran and Scott, 2006; Yavari et al., 2010). Since the structural framework of Ptch1 resembles that of bacterial amino acid transporters (Carstea et al., 1997), it is conceivable that Ptch1 controls Smo activity or trafficking through such a small molecular intermediate. However, little evidence is available to account for how Ptch1 internalization through endocytosis is regulated, and it is unclear whether ciliary trafficking and endocytosis are obligatorily coupled (Nachury et al., 2010).

Receptor endocytosis plays crucial roles in coordinating the strength and duration of many cell signaling systems (Piddini and Vincent, 2003; Polo and Di Fiore, 2006). At various steps of the endocytic pathway, from the plasma membrane to the endosomes, receptors can be sorted to the proteolytic lumens of lysosomes, leading to desensitization, or back to the plasma membrane for a rapid recovery of cellular responsiveness. In addition to the classical Clathrin-mediated endocytosis, recent advances indicate that membrane receptors are also internalized through lipid rafts (Le Roy and Wrana, 2005; Lajoie and Nabi, 2010), which are specialized membrane domains enriched in cholesterol and sphingomyelin and stabilized by Caveolin 1 (Cav-1) (Allen et al., 2007). Unlike the Clathrin-mediated endocytosis, cargos of caveolae were shown to be unloaded to late endosomes, thereby bypassing early endosomes (Quirin et al., 2008; Hayer et al., 2010; Sandvig et al., 2011). A major forward endocytic sorting signal is ubiquitination (Hicke and Dunn, 2003; Mukhopadhyay and Riezman, 2007; Hayer et al., 2010), and many HECT-domain E3 ligases have been implicated in the Ubiquitin control of endocytosis, including Smurf2 (Di Guglielmo et al., 2003; Metzger et al., 2012), which was first identified as a negative regulator of TGF-β/BMP signaling (Kavsak et al., 2000; Zhang et al., 2001). Here, we present evidence that Smurf1 and Smurf2 are the Ubiquitin E3 ligases that promote Ptch1 movement from lipid rafts to late endosomes for subsequent degradation in lysosomes. This movement is essential for Ptch1's clearance from primary cilia, Shh pathway activation, and the role of Shh in sustaining the proliferation of cerebellar granule cell precursors. In light of the negative feedback control of Shh signaling by Ptch1, this destruction system would allow the level of signaling output to be set precisely according to the level of the Ptch1 protein.

Results

Both PPXY-motifs deletion and endocytosis blockade cause Ptch1 to accumulate in lipid rafts

The C-terminal tails of Drosophila Ptc and mouse Ptch1 play an important role in determining its membrane distribution and stability, possibly through the highly conserved ‘PPXY’ motif (Lu et al., 2006; Kawamura et al., 2008), which is recognized by the WW domain frequently found in HECT-domain E3 ligases (Metzger et al., 2012). Mammalian Ptch1 contains an evolutionarily conserved C-terminal ‘PPXY’ motif and a second one in the third intracellular loop (Figure 1—figure supplement 1), whereas Ptch2 does not and is quite stable (Kawamura et al., 2008). Under a confocal microscope and in transfected murine embryonic fibroblasts (MEFs), Ptch1-GFP was primarily detected in punctate vesicles (Figure 1A), consistent with what was reported in COS and HeLa cells (Incardona et al., 2000; Karpen et al., 2001); a large proportion of these Ptch1-GFP vesicles were likely to be endosomes (see below and in Martin et al., 2001; Incardona et al., 2002). In light of the ubiquitination control of endocytosis, we suspected that the ‘PPXY’ motifs of Ptch1 might be the signal that regulates its turnover through endosomes and lysosomes. To test this hypothesis, we sought to determine how Ptch1 engages the endocytic pathway by focusing our attention at the rim of the plasma membrane, where treatment with conditioned medium (CM) from HEK293 cells expressing the N-terminal signaling fragment of Shh (ShhN) for 1 hr rendered some of the Ptch1-GFP vesicles also positive for Cav-1 (Figure 1A), a specific marker of lipid rafts. To quantify the colocalization, we sampled 10 randomly selected rim areas from different cells imaged for each data point and calculated the colocalization coefficient. The results indicated that ShhN almost doubled the colocalization coefficient between Ptch1-GFP and endogenous Cav-1 from 0.37 ± 0.04 to 0.68 ± 0.04 (Figure 1A,B). Blocking late endosome/lysosome passage with chloroquine (Chlq) and concanavalin A (ConA) or lysosomal proteolysis with leupeptin (Leu) showed similar effects (Figure 1A,B, Figure 1—figure supplement 2). In contrast, the mutant Ptch1Δ2PY-GFP that lacks both ‘PPXY’ motifs exhibited a higher level of colocalization with Cav-1 than its wildtype counterpart even without ShhN treatment (Figure 1A,B). Some of the Ptch1-GFP vesicles at the plasma rim were also positive for Clathrin heavy chain that marks the Clathrin-coated pits, but in contrast to the ligand-inducible enrichment in Cav-1 lipid rafts, the fraction of Ptch1-GFP in Clathrin-coated pits was affected neither by ligand treatment nor deletion of the ‘PPXY’ motifs (Figure 1C,D). To complement the confocal imaging experiments, we conducted a co-sedimentation experiment in a discontinuous sucrose density gradient and found that both Ptch1-FLAG and Ptch1Δ2PY-FLAG co-sedimented with Cav-1 in 20% and 25% buoyancy fractions (Figure 1E), indicating that when expressed exogenously, Ptch1-FLAG can find its way into Cav-1 positive lipid rafts even without Shh induction. Thus, both deletion of the ‘PPXY’ motifs and blocking endocytosis cause Ptch1 to accumulate in lipid rafts.

Figure 1 with 2 supplements see all

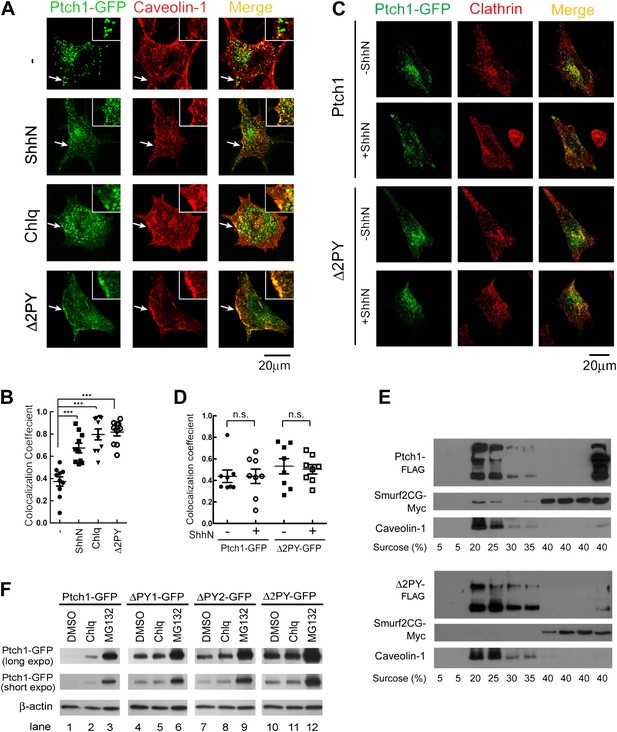

The PPXY motifs define sorting signals from lipid rafts to late endosomes.

(A) Confocal images showing colocalization of exogenously expressed Ptch1-GFP or Δ2PY (green) with native Cav-1 (red) at the rim of the plasma membrane, and (B) calculation of the colocalization coefficients in (A) in transfected MEFs. ShhN-CM and Chlq were added 1 hr prior to fixation. The chamber slides were chilled at 4°C for 20 min and then shifted to 37°C for another 20 min before fixation with 4% paraformaldehyde in PBS. The cells were then permeabilized with 0.5% Triton X-100 and stained with an antibody for Cav-1. (C) Representative images and (D) quantification of colocalization between Ptch1-GFP and clathrin heavy chain. MEFs were transfected with Ptch1-GFP or PtchΔ2PY-GFP, then treated with ShhN or Ctrl medium for 1 hr before fixation. (E) Western analyses of sucrose gradient fractions showing Ptch1-FLAG co-sedimented with Smurf2CG-Myc and Cav-1. Δ2PY was inefficient in bringing Smurf2CG-Myc into Cav-1 positive sedimentation fractions. (F) Western blot analyses of stabilities of Ptch1 and the ‘PPXY’ motif mutants in MEFs. Chlq or MG132 treatment was carried out for 4 hr. The confocal images were taken with a 63x objective, and the insets in 1A were digitally magnified. Bars represent mean ± standard deviation (SD). Statistical analyses were performed by two-tail Student's t test. ***p<0.001, and n.s., not statistically significant (p>0.05).

https://doi.org/10.7554/eLife.02555.003

Since an end point of endocytosis is degradation in lysosomes, we further asked if wildtype Ptch1 and ‘PPXY’ motif mutants accumulate differently in the presence of proteasomal or lysosomal blocker. When expressed in MEFs, Ptch1-GFP was an unstable protein; the bulk of which appeared to turnover via proteasomes as Ptch1-GFP accumulated to a very high level in the presence of MG132 (Figure 1F, compare lanes 1 and 3). A small portion of Ptch1-FLAG appeared to turnover via lysosomes as indicated by the moderate level of accumulation in the presence of lysosomal inhibitor Chlq (Figure 1F, lanes 1 and 2). In contrast, Ptch1 mutants lacking either one of or both ‘PPXY’ motifs were relatively stable when expressed in MEFs, although they could be induced to accumulate further by MG132 but not Chlq (Figure 1F, lanes 4–12). These results suggest that Shh promotes turnover of at least a portion of ectopically expressed Ptch1 via endosomes and lysosomes, but the entry point is likely the Cav-1 positive lipid rafts rather than the conventional clathrin-coated pits.

The ‘PPXY’ motifs define an endocytic sorting signals of Ptch1

To ascertain if the ‘PPXY’ motifs are the actual signal that sorts Ptch1 from lipid rafts to endosomes/lysosomes, we asked if Ptch1-GFP or Δ2PY-GFP could be identified in early endosomes, late endosomes, or lysosomes, which are marked by Rab5-RFP, Rab7-RFP, or Lamp1-RFP, respectively. In the absence of ShhN, Ptch1-GFP and Rab7-RFP could be readily detected together in punctate vesicles, and ShhN treatment drastically increased that colocalization as indicated by colocalization coefficient, which increased from 0.29 ± 0.03 to 0.51 ± 0.02 (Figure 2A,B). Similar colocalization between Ptch1-GFP and endogenous Rab7 was also observed under ShhN treatment using specific antibodies (Figure 2—figure supplement 1). We could not detect vesicles marked positively with both Ptch1-GFP and Lamp1-RFP or Ptch1-GFP and endogenous Lamp1-RFP without blocking lysosomal enzymes by leupeptin (Figure 2—figure supplement 2A), but colozalization between Ptch1-GFP and endogenous Lamp1 was revealed with the use of leupeptin (Figure 2C). We did not see Ptch1-GFP colocalizing with either transfected Rab5-RFP (Figure 2—figure supplement 2B) or endogenous Rab5 (Figure 2—figure supplement 3) without or with ShhN treatment. These observations are consistent with the notion that endocytic cargos of caveolae are unloaded directly to late endosomes, bypassing early endosomes (Quirin et al., 2008; Hayer et al., 2010; Sandvig et al., 2011). In contrast to Ptch1-GFP, Δ2PY-GFP was never found together with any of the three endosome/lysosome markers and ShhN treatment caused no statistically significant change thereof (Figure 2A–C, Figure 2—figure supplements 1 and 2), indicating that Shh is not able to induce Δ2PY to move beyond lipid rafts to enter late endosomes.

Figure 2 with 3 supplements see all

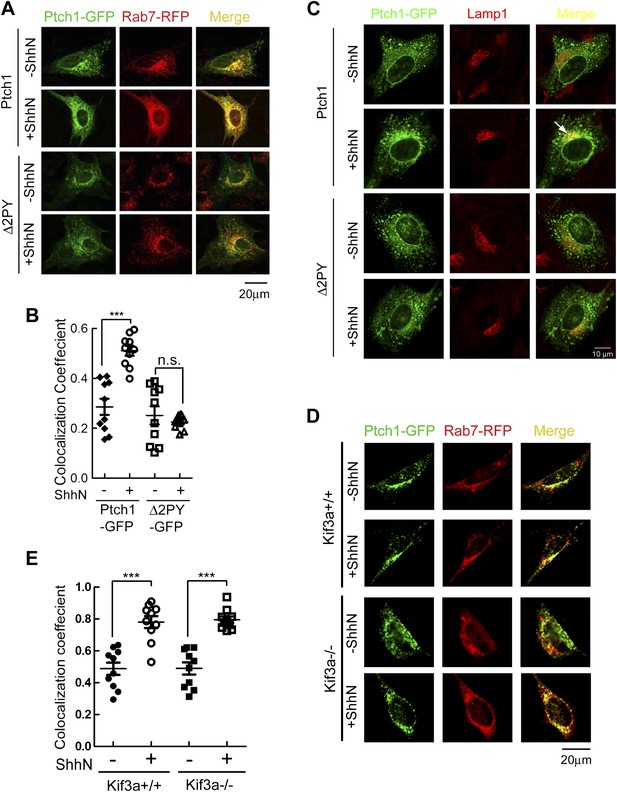

PPXY motifs are required for Shh-induced endocytosis of Ptch1.

(A) Confocal images showing colocalization of Ptch1-GFP or Δ2PY (green) with Rab7-RFP (red), and (B) calculation of the colocalization coefficients in (A) in transfected MEFs. (C) Confocal images showing localization of Ptch1-GFP or Δ2PY (green) in vesicles marked anti-Lamp1 (red) in the presence of 1 mg/ml leupeptin. (D) Confocal imaging and (E) calculation of colocalization coefficient of Ptch1-GFP and Rab7-RFP in Kif3a−/− and control MEFs. ShhN treatment was for 1 hr and the cells were processed as in Figure 1A. Statistical analyses were performed by two-tail Student's t test. ***p<0.001, and n.s., not statistically significant (p>0.05).

https://doi.org/10.7554/eLife.02555.006

The current paradigm stipulates that Shh induces Ptch1 exit from the primary cilium during signaling (Rohatgi et al., 2007a; Kovacs et al., 2008). This prompted us to ask if ciliary export or its structural integrity is prerequisite to endocytosis of Ptch1 by comparing the abilities of Ptch1-GFP to associate with Rab7-RFP in Kif3a−/− or otherwise isogenic control MEFs. Although Kif3a−/− MEFs do not make cilia (Chen et al., 2011), Ptch1-GFP could still proceed to late endosomes/lysosomes under the influence of ShhN unabatedly (Figure 2D,E), implying that Ptch1 endocytosis is downstream from or independent of ciliary trafficking.

Based on results from the above several lines of investigation, we conclude that the ‘PPXY’ motifs constitute sorting signals that direct Ptch1 to move into late endosomes for turnover in lysosomes. This sorting event likely takes place in Cav-1 positive lipid rafts since Δ2PY accumulates there in the absence of this signal.

Ptch1 endocytosis is required for the activation of Shh signaling

Ptc or Ptch1 endocytosis has been observed in cells from Drosophila to mammals for some time (Denef et al., 2000; Incardona et al., 2000, 2002; Martin et al., 2001; Torroja et al., 2004; Lu et al., 2006), but its role was primarily attributed to ligand sequestration or clearing (Incardona et al., 2000; Torroja et al., 2004). In Drosophila, the role of Ptc in ligand sequestration has been shown to be separable from that of signaling based on analyses of certain mutants (Chen and Struhl, 1996; Torroja et al., 2004). However, we observed that when re-expressed in Ptch1−/− MEFs, the ‘PPXY’ motif mutants accumulated in the primary cilium, in contrast to their wildtype counterpart; ShhN treatment effectively forced Ptch1-GFP to exit the primary cilium, but it was less effective against these mutants (Figure 3A,B). Ciliary accumulation of the ‘PPXY’ motif mutants is likely a consequence of their inability to endocytose, rather than a specific defect of ciliary export, since these mutants also accumulate in lipid rafts (Figure 1A,B) and blocking endocytosis with high concentration of leupeptin showed a similar effect without or with ShhN treatment (Figure 3—figure supplement 1). Combined with results from the stability experiment (Figure 1F), this observation indicated that these two ‘PPXY’ motifs play an equivalent role in regulating Ptch1 function in cilia. To support this notion, we made temporal measurements of endogenous Smo translocating into the primary cilium, which is an obligatory early event of Shh signaling and was reported as concurrent to the exit of Ptch1 therefrom (Rohatgi et al., 2007a). In Ptch1−/− MEFs, immunofluorescence staining showed that Smo was constitutively present in the primary cilium (Figure 3C), as expected (Corbit et al., 2005; Rohatgi et al., 2007a; Kovacs et al., 2008). Re-introducing Ptch1-GFP cleared Smo out of the primary cilium, but ShhN treatment allowed Smo to move back in to nearly its full extent within 4 hr (Figure 3C,D). Conversely, ShhN treatment triggered the ciliary export of Ptch1 at a rate comparable to that of Smo import (Figure 3C, and compare Figure 3D,E). Re-introducing Δ2PY, on the other hand, only allowed a substantially lower level of Smo to be imported back into cilia after ShhN treatment and Δ2PY was itself resistant to Shh-induced export (Figure 3C,E).

Figure 3 with 1 supplement see all

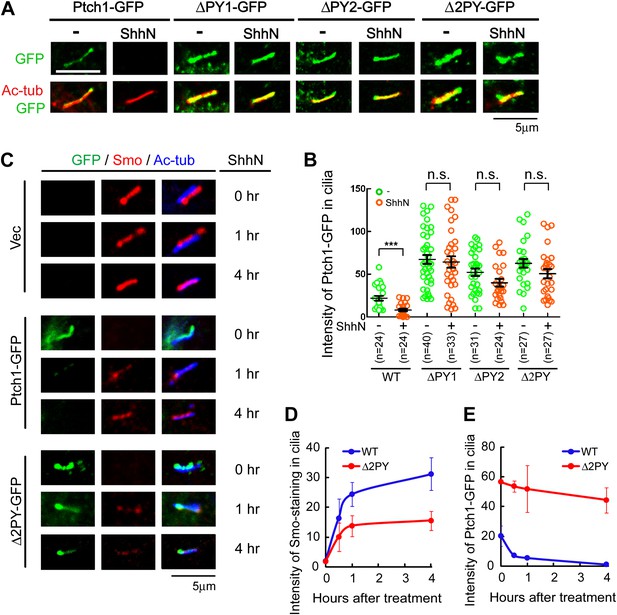

The ‘PPXY’ motifs regulate the opposing movements of Ptch1 out of and Smo into the primary cilium.

(A) Representative confocal images and (B) distribution of GFP fluorescence showing accumulation of the ‘PPXY’ motif mutants of Ptch1 in primary cilia in the absence or presence of ShhN. Two-tail Student's t test was used for statistical analysis. ***p<0.001, n.s., not significant (p>0.05). (C) Immunofluorescence of GFP as well as endogenous Smo (red) and acetylated tubulin (blue) staining in Ptch1−/− MEFs transfected with Ptch1-GFP or Δ2PY. (D) Quantification of anti-Smo staining and (E) GFP fluorescence as in (C). Only transfected GFP positive cells were counted for the ciliary localization of endogenous Smo. In all of the above experiments, transfected cells were grown to confluence and then serum-starved for 24 hr to allow for ciliogenesis. ShhN-CM treatment was for 24 hr, or as indicated.

https://doi.org/10.7554/eLife.02555.010

As a ligand-binding and inhibitory receptor, the functions of Drosophila Ptc are twofold; first acting through Smo, Ptc negatively regulates downstream pathway signaling cell autonomously, and second, through ligand sequestration Ptc suppresses Hh signaling in neighboring cells. To determine if Ptch1 endocytosis impinges on downstream pathway activation, we measured the ability of Ptch1-GFP or Δ2PY to confer Shh inducibility to the 8xGliBS-luc reporter in Ptch1−/− MEFs. When co-transfected with Ptch1-GFP, the 8xGliBS-luc reporter showed a robust inductive response to ShhN, resulting in a dose–response curve typical of a substrate-enzyme relationship; however, this reporter was barely induced by ShhN when it was co-transfected with Δ2PY (Figure 4A). The Shh signaling blockade imposed by Δ2PY could be by-passed by siRNA-mediated knockdown of Sufu (Figure 4B), a downstream negative regulator, suggesting that the blockade is pathway-specific and occurs upstream of Sufu function. So far all our evidence points to inability of the ‘PPXY’ motif mutants to undergo Shh-induced endocytosis rather than a defect in their intrinsic activity. Indeed, in Ptch1−/− MEFs, these mutants were equally effective as wildtype Ptch1 or cyclopamine in suppressing 8xGliBS-luc reporter independent of the Shh ligand (Figure 4C). Finally to address the effect of the ‘PPXY’ motifs deletion on the non-cell-autonomous function of Ptch1, we designed a ‘mixing’ experiment, in which Ptch1−/− MEFs re-expressing wildtype Ptch1-GFP or Δ2PY-GFP were mixed at 5 to 1 ratio with a line of stable NIH3T3 cells harboring the genomically integrated 8xGliBS-luc reporter (Chen et al., 2011). In the presence of limiting amount of ShhN (1:64 dilution of the conditioned medium), Δ2PY showed a robust inhibition of the ligand-induced reporter activity in the neighboring cells; however this effect was nullified at high ShhN concentration (1:16 dilution) (Figure 4D).

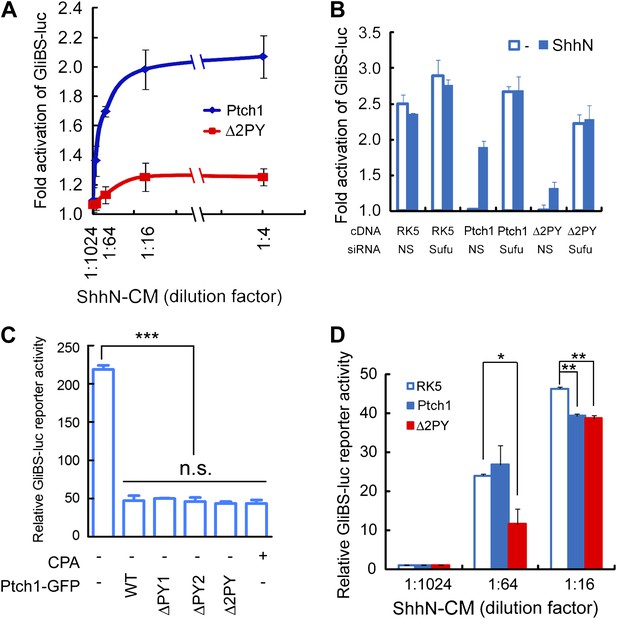

The ‘PPXY’ motifs are required for eliciting both cell and non-cell autonomous transcriptional responses to Shh.

(A) Luciferase assays for Ptch1 and the Δ2PY mutant in Ptch1−/− MEFs that were transfected together with the 8xGliBS-luc reporter construct. Each data point was obtained in triplicate and the error bars denote the standard error. (B) Rescuing Shh induction blockade imposed by Δ2PY using siSufu in Ptch1−/− MEFs. The experiment was set up as in (A) except that Sufu was knocked down by siRNA at the same time as cDNA transfection and 1:16 dilution of ShhN-CM was used. (C) Relative activities of the GliBS-luc reporter that was co-expressed with Ptch1 or the ΔPY mutants in Ptch1−/− MEFs without ShhN-CM treatment. The ΔPY mutants displayed same inhibitory effect as WT Ptch1. (D) Non-cell autonomous inhibition of GliBS-luc reporter in neighboring cells. Ptch1−/− MEFs transfected with Ptch1-FLAG, Δ2PY, or the vector control were mixed at 5:1 ratio with NIH3T3:GliBS-luc reporter cells. The cells were given ShhN-CM for 24 hr, and two-tail Student's t test was used for statistical analyses. *p<0.05, **p<0.01, ***p<0.001, and n.s., not significant (p>0.05).

https://doi.org/10.7554/eLife.02555.012

In summary, our data indicate that whereas Ptch1 engagement to the ligand may have a nominal effect of internalizing Shh, it can be also regarded as an interaction that allows Shh to induce Ptch1 clearance from the primary cilium, the site of Shh signaling, and this regulation equally impinges on both cell and non-cell autonomous signaling functions of Ptch1.

Smurf1 and Smurf2 are E3 ligases required for Shh signaling

Previously, the C-terminal domain of Drosophila Ptc was shown to be recognized by Nedd4 HECT-domain E3 ligase (Lu et al., 2006). We expressed mouse Nedd4 and Nedd4l together with Ptch1-FLAG in HEK293 cells, and found that neither one promoted Ptch1 degradation, and several other HECT-domain E3 ligases including Wwp1, Wwp2, Huwe1, Herc1, Herc3, Herc4, Herc6, Hecw1, and Hecw2 also showed no effect, but co-expression of Smurf1 or Smurf2 did (Figure 5A,B). Consistent with a specific role, the ligase deficient Smurf1CA and Smurf2CG mutants failed to influence Ptch1 stability (Figure 5B). Since the ‘PPXY’ motif mutants accumulated in cilia, we asked if knockdown of either Smurf or both with siRNAs could augment the ciliary localization of Ptch1-GFP. We found this was the case in NIH3T3 cells without (Figure 5C,D) or with ShhN treatment (Figure 5—figure supplement 1). Because Smurf2 is known to direct the TGF-β type I receptor and the μ opioid neuropeptide receptor to endocytic turnover (Di Guglielmo et al., 2003; Henry et al., 2012), we posited that Smurf1 and Smurf2 might be the enzymes that control Ptch1 endocytosis and chose them for further analysis.

Figure 5 with 1 supplement see all

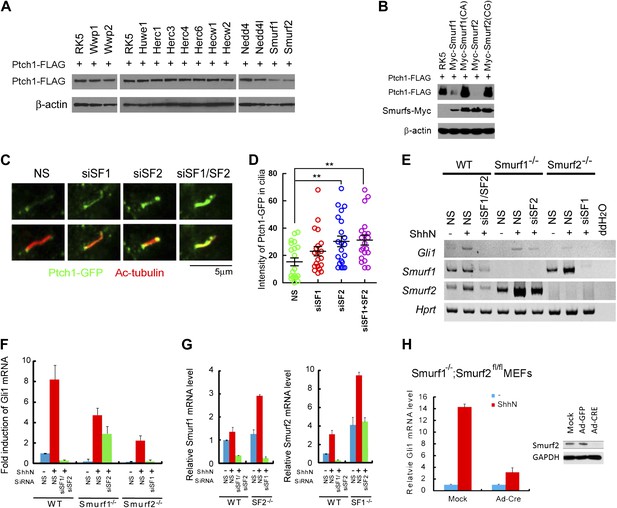

Smurf1 and Smurf2 are E3 ligases required for Shh signaling.

(A) Western analyses of Ptch1-FLAG in HEK293 cells that were co-transfected with cDNAs encoding a battery of HECT-domain E3 ligases as indicated, and (B) ligase deficient Smurf mutants. β-actin was used as a loading control. (C) Representative confocal images and (D) calculations of Ptch1-GFP fluorescence accumulated in primary cilia as the result of siRNA knockdown of Smurf1, Smurf2, or both in NIH3T3 cells. Primary cilia were marked by acetylated tubulin (red). (E) RT-PCR detection of Gli1, Smurf1, and Smurf2 mRNAs in wildtype (WT), Smurf1−/− , and Smurf2−/− MEFs transfected with non-silencing (NS) or Smurf-specific siRNAs as indicated. HPRT mRNA was used as an internal control. A representative gel image is shown here. (F) RT-qPCR quantification of fold induction of Gli1 mRNA from an experiment as in (E). Fold induction was calculated using Gli1 mRNA level normalized against that of Hprt for even loading and then against the normalized Gli1 mRNA level from cells transfected with NS siRNA and without ShhN treatment. (G) RT-qPCR analysis of relative levels of Smurf1 and Smurf2 mRNAs from the experiment in (F). (H) RT-qPCR detection of endogenous Gli1 mRNAs in Smurf1−/−;Smurf2fl/fl MEFs that were infected with either Ad-GFP (mock) or Ad-Cre for 12 hr, and then treated with either control or ShhN conditional medium for 72 hr. (I) Western analyses of endogenous Smurf2 in Smurf1−/−;Smurf2fl/fl MEFs from the experiment in (H).

https://doi.org/10.7554/eLife.02555.013

Smurf1 and Smurf2 share redundant functions during development as individually knockout Smurf1−/− or Smurf2−/− mice are healthy and fertile, but the embryos lacking both genes were not able to develop to term (Yamashita et al., 2005; Narimatsu et al., 2009; Blank et al., 2012). To assess the role of Smurfs in Shh signaling, we quantified the transcriptional responses of endogenous Gli1 by RT-PCR (Figure 5E) and RT-qPCR (Figure 5F) in MEFs with different Smurf genetic background, and found that silencing Smurf1 and Smurf2 simultaneously in wildtype MEFs completely abolished Shh induction of Gli1 (Figure 5E,F). MEFs that lack one of the two Smurf genes still mounted a considerable Gli1 transcriptional response to ShhN; however, silencing the remaining Smurf2 allele in Smurf1−/− or Smurf1 allele in Smurf2−/− MEFs, respectively, led to marked curtailment of Gli1 activation (Figure 5E,F). Expression of Smurfs showed a compensatory upregulation in response to the loss of the other Smurf in these MEFs as reported (Yamashita et al., 2005; Tang et al., 2011), but surprisingly, ShhN induced expression of both Smurfs (Figure 5E,G). During the course of this investigation, we generated Smurf1−/−;Smurf2fl/fl mice, which will be described in detail elsewhere. In Smurf1−/−;Smurf2fl/fl MEFs, Ad-cre infection-mediated ablation of conditional Smurf2fl alleles severely dampened the Gli1 transcriptional response to ShhN (Figure 5H,I). Similarly, two other Shh signaling responses, namely Shh-induced ciliary import of Smo and Gli3, were also affected (Figure 6A–C). Since we could rescue Shh induction of GliBS-luc responses in Ad-cre infected Smurf1−/−;Smurf2fl/fl MEFs (Smurfs null) by reintroducing wildtype Smurf1 or Smurf2 but not mutant Smurf1CA or Smurf2CG cDNA (Figure 6D), or by siRNA-mediated knockdown of Suppressor of fused (Sufu) (Figure 6E), an essential downstream negative regulator of Shh signaling, the observed defects of GliBS-luc induction have to be Smurfs and Shh pathway specific. Taken together, the above results show that simultaneous inactivation of both Smurf genes and removal of the ‘PPXY’ motifs of Ptch1 have congruent effects on various Shh signaling events, and indicate that a common Smurf function is required at a step upstream from the control of the ciliary import of Smo.

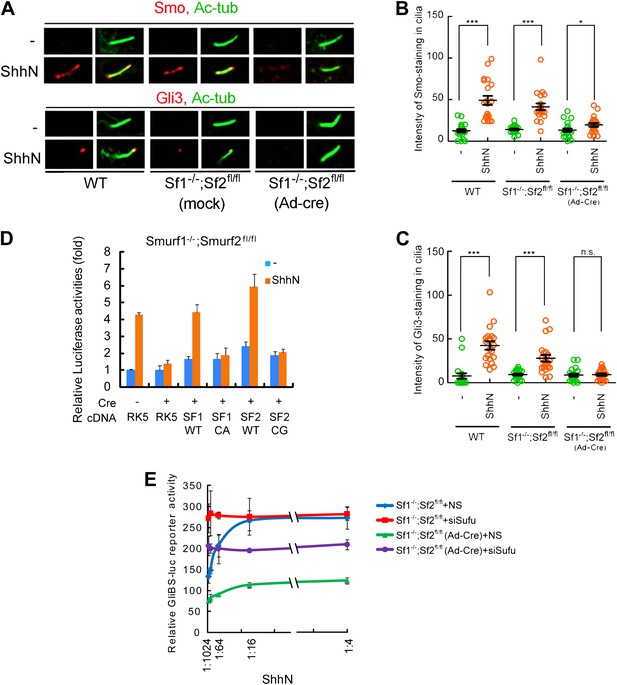

Smurf1 and Smurf2 are required For Shh signaling.

(A) Representative confocal images of Smo and Gli3 immunofluorescence staining in cilia of wildtype (WT), Smurf1−/−;Smurf2fl/fl, or Smurf1−/−;Smurf2fl/fl MEFs infected with Ad-Cre viruses. (B) Quantification of Smo and (C) Gli3 immunofluorescence staining in cilia of (A). In the above experiments, ShhN treatment was carried out for 24 hr, and the means and standard deviation were calculated from two independent experiments (n = 20). (D) GliBS-luc assays in Smurf1−/−;Smurf2fl/fl MEFs showing the deficiency of Shh induction associated with genomic ablation of both Smurfs can be rescued by re-introducing either wildtype Smurf1 or Smurf2 but not their corresponding mutants. (E) GliBS-luc reporter assays for the ability of siSufu to by-pass the requirement of Smurfs in Shh signaling. Smurf1−/−;Smurf2fl/fl MEFs were infected with Ad-cre and then transfected with siSufu or ns control. The cells were then treated with a series of dilutions of ShhN-CM before luciferase activities were assayed. Error bars denote standard deviations. Statistical analyses were performed by two-tail Student's t test. *p<0.05, **p<0.01, ***p<0.001, and n.s., not significant (p>0.05).

https://doi.org/10.7554/eLife.02555.015

Smurfs and Ptch1 colocalize and interact in lipid rafts

If Smurfs are the E3 ligases that recognize the endocytic sorting signals of Ptch1, these proteins should physically interact in lipid rafts. A number of evidence demonstrates that this is the case. First, in non-permeabilizing MEFs, we found exogenously expressed Ptch1-RFP colocalized with the ligase deficient, GFP-tagged Smurf2CG mutant in Cav-1 positive lipid rafts at the rim of the plasma membrane (Figure 7A). Although first identified as modulators of TGF-β/BMP signaling, Smurfs are preferentially localized in the nucleus (Kavsak et al., 2000) and play a crucial function in maintaining genomic stability (Blank et al., 2012). Serendipitously, we found that treatment with ShhN ligand or co-expression with Ptch1-RFP each caused Smurf2GFP to move from the nucleus to the cytoplasm (Figure 7B, Figure 7—figure supplement 1). In light of the Shh induction (Figure 5E,F), these results indicate that Shh signaling could increase the cytoplasmic pool of Smurfs. Third, fluorescence resonance energy transfer (FRET) analysis showed that Ptch1-CFP was localized in close proximity with Smurf1-YFP or Smurf2-YFP at punctate intracellular vesicles in MEFs (Figure 7C,D), and ShhN treatment enhanced this colocalization (Figure 7E). However, Δ2PY-CFP failed to generate FRET with Smurf2-YFP (Figure 7C,D). Theses result were further corroborated in the discontinuous sucrose gradient sedimentation experiment described earlier, in which the ligase-deficient Smurf2CG-Myc co-sedimented in the Cav-1-containing 20–25% sucrose fractions readily with Ptch1-FLAG, whereas Δ2PY was inefficient in bringing Smurf2CG-Myc into these fractions (Figure 1E). Finally, using co-immunoprecipitation, we demonstrated that Ptch1 specifically binds either Smurf1 or Smurf2, and Ptch1 mutants lacking either PY-1 or PY-2 motif can still bind Smurfs, albeit with reduced affinity; however, Δ2PY completely lacks affinity for either Smurf1 or Smurf2 (Figure 7F).

Figure 7 with 2 supplements see all

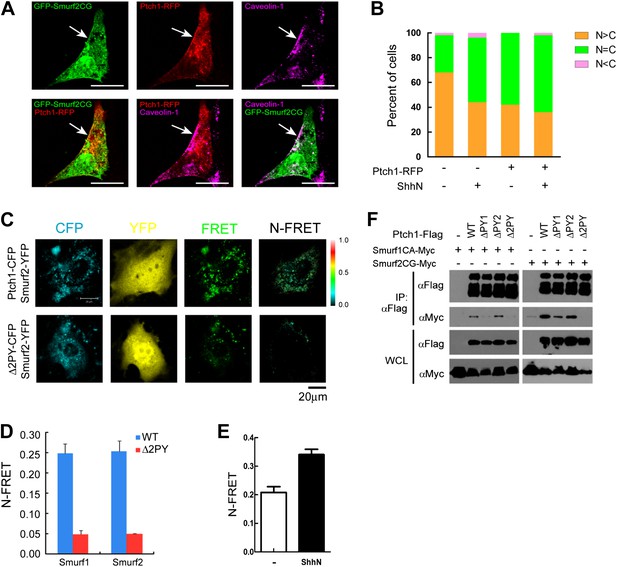

Colocalization and interaction between Ptch1 and Smurfs in Cav-1 positive lipid rafts.

(A) Confocal images showing colocalization of GFP-Smurf2CG and Ptch1-RFP in Cav-1 positive lipid rafts. The cells were not permeabilized before they were stained with anti-Cav-1, and the images were taken with a 63x oil lens. (B) Quantification of nuclear and cytoplasmic distribution of Smurf2GFP as in Figure 7—figure supplement 1. The percentage of mostly nuclear (N > C), even distribution (N = C), or mostly cytoplasmic (N < C) of Smurf2GFP pattern cells was calculated based images of 40 cells at each data point. (C) FRET analysis of Ptch1-CFP or Δ2PY-CFP interaction with Smurf1-YFP or Smurf2-YFP in transfected MEFs. Representative images of CFP, YFP, FRET fluorescence, and N-FRET are shown. (D) Quantification of N-FRET values using the sensitized emission method, which is expressed as means plus SD in the bar graph. (E) FRET analysis of Ptch1-CFP interaction with Smurf2-YFP in transfected MEFs that were treated with ShhN or control conditioned medium for 2 hr. Quantification of N-FRET values described in (D). (F) Co-immunoprecipitation analyses of FLAG-Ptch1 and the ‘PPXY’ motif mutants with Myc-tagged Smurf1CA or Smurf2CG ligase-deficient mutants. The immunocomplexes were precipitated using anti-FLAG, and blotted with anti-Myc.

https://doi.org/10.7554/eLife.02555.016

Smurfs are required for Ptch1 turnover and ubiquitin modification

To delineate the requirement of Smurfs for Shh-induced Ptch1 turnover, we took the advantage of the conditional Smurf1−/−;Smurf2fl/fl MEFs, and quantified the turnover rate of exogenously expressed Ptch1-FLAG following cyclohexamide treatment without or with removal of the Smurf2 alleles following Ad-cre infection. The results indicated that Ptch1-FLAG was indeed rendered stable against ShhN induced degradation by the removal of the Smurf2fl conditional alleles whereas the stability of Δ2PY was resistant to change in response to either ShhN treatment or eradication of Smurf’s function (Figure 8A–D). The induction by Shh is likely a function of ligand-binding, rather than a signaling outcome, as the loop2 mutant Ptch1 that lacks the ability to bind Shh (Briscoe et al., 2001) completely lost the capacity to respond to ShhN treatment in wildtype MEFs, although it was more stable in Smurf-null MEFs (Figure 8E,F). We further found that Shh-induced endocytic turnover of Ptch1 was not affected in Smo null MEFs (Figure 8G,H), suggesting that it is an upstream signaling event, independent of Smo function.

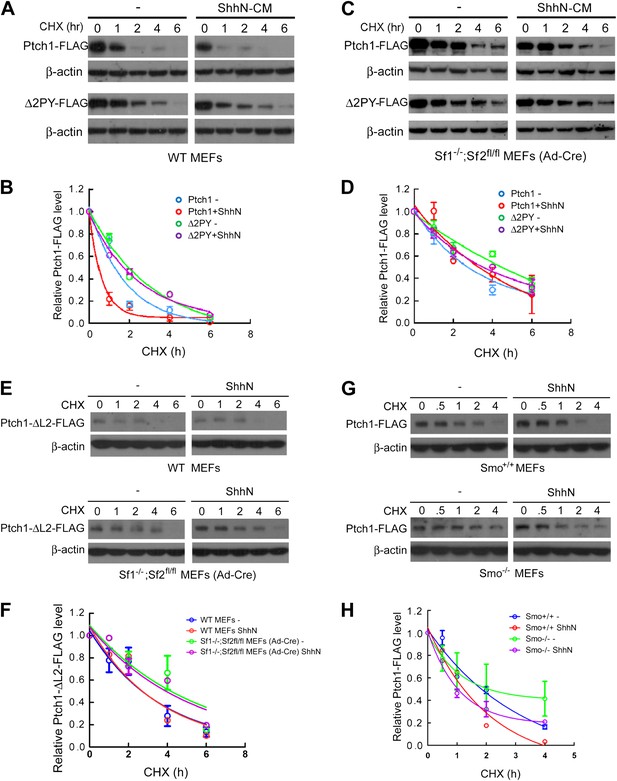

Smurfs are required for the Shh-induced endocytic turnover of Ptch1.

Western analysis of Ptch1-FLAG and Δ2PY-FLAG turnover rates (A) and quantification thereof (B) in WT MEFs. ShhN and CHX were added for duration as indicated. (C) Western analysis of Ptch1-FLAG and Δ2PY-FLAG turnover rates (C) and quantification thereof (D) in Smurf1−/−;Smurf2fl/fl MEFs infected with Ad-cre. (E) Western analysis of Ptch1-Δloop2-FLAG turnover rate and quantification thereof (F) in WT (upper) and Smurf1−/−;Smurf2fl/fl MEFs infected with Ad-cre (lower). (G) Western analysis of Ptch1-FLAG turnover rate and quantification thereof (H) in WT (upper) and Smo−/− MEFs (lower). Each data point denotes mean ± standard deviation from two independent experiments.

https://doi.org/10.7554/eLife.02555.019

To demonstrate the Ubiquitin E3 ligase activity of Smurfs on Ptch1, we assayed for the ability of Ptch1-FLAG or Δ2PY to be ubiquitinated by HA-tagged Ubiquitin (HA-Ub) in Smurf1−/−;Smurf2fl/fl MEFs. In these cells, Ptch1-FLAG was readily ubiquitinated, but the level of ubiquitination of Ptch1Δ2PY-FLAG was diminished (Figure 9A). More importantly, neither of the two forms of Ptch1 was ubiquitinated after the conditional Smurf2fl alleles were removed with Ad-cre, (Figure 9A). We were also able to demonstrate ubiquitination of Ptch1-FLAG that was produced and isolated from HEK293 cells in an in vitro reconstituted system, in which the level of ubiquitinated species was greatly enhanced by His6-Smurf2, but not the ligase-inactive His6-Smurf2CG purified from the insect expression system (Figure 9B), indicating a direct enzyme and substrate relationship. Although we were not able to detect mono-ubiquitination, the poly-ubiquitin chains on Ptch1 are likely of both K48 and K63 linkage, as re-expression of Smurf2-Myc in Smurf2 null cells enhanced Ptch1 ubiquitination in the presence of wt, KO, K48, or K63 ubiquitin (Figure 9C). Finally, ShhN treatment enhanced the level of high molecular weight ubiquitinated Ptch1 species in wildtype MEFs (Figure 9D), consistent with the ability of Shh to induce Ptch1 turnover (Figure 8).

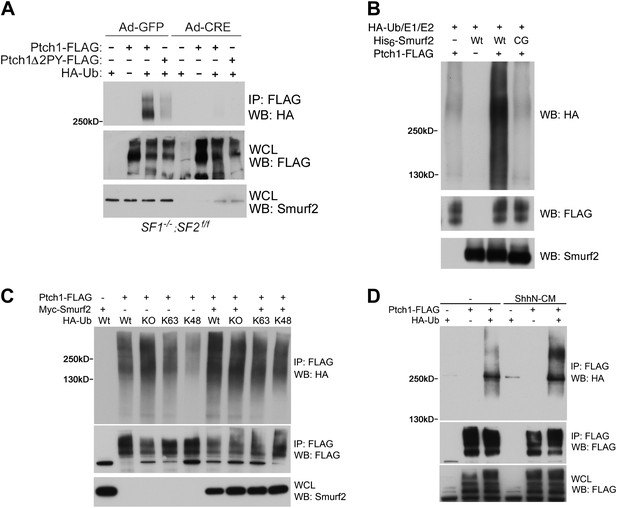

Smurfs are required for ubiquitin modification of Ptch1.

(A) Western analysis of ubiquitinated Ptch1-FLAG and Ptch1Δ2PY-FLAG in Smurf1−/−;Smurf2fl/fl MEFs infected with Ad-GFP or Ad-Cre. These MEFs were first infected with adenoviruses and then transfected with HA-Ub and the Ptch1 plasmids as marked. The exogenously expressed Ptch1 proteins were immunoisolated using anti-FLAG beads prior to analysis. (B) Western analysis of Ptch1-FLAG ubiquitination in vitro in a reconstituted system comprising purified recombinant His6-Smurf2 or the ligase-deficient His6-Smurf2CG from the baculovirus, HA-Ub, and an ATP regeneration system. Ptch1-FLAG was immunoisolated from HEK293 cells and the ubiquitination reaction was carried out on beads. The proteins were eluted prior to Western blot analysis. (C) Western analysis of ubiquitinated Ptch1-FLAG in Smurf2−/− MEFs that were also transfected with Wt, KO, K48, or K63 ubiquitin in the absence or presence of Myc-Smurf2. (D) Western analysis of ubiquitinated Ptch1-FLAG in WT MEFs treated with ShhN or control conditioned medium. Ptch1-FLAG in A-C was resolved by 6% SDS-PAGE, but a 4–12% gradient gel was used in D.

https://doi.org/10.7554/eLife.02555.020

Requirement of Smurfs in sustaining the proliferation of cerebellar granule cell precursors by Shh

Mice deficient in both Smurf1 and Smurf2 were reported embryonic lethal due to absence of planar cell polarity among other pleiotropic defects (Narimatsu et al., 2009). More than half of the double null embryos that we generated failed to gastrulate and those rare embryos that did escape seldom passed Theiler stage 13, thus precluding a thorough analysis of the neural tube phenotype where Shh function is well characterized. To address the physiological relevance of Smurf regulation of Ptch1 endocytosis, we examined the role of Smurfs in sustaining the proliferation of cerebellar granule cell precursors (GCPs), which has an absolute requirement for Shh. For this purpose, we cut cerebellar slices from P7 Smurf1−/−;Smurf2fl/fl pups and cultured them for 12 days in vitro as described (Kapfhammer, 2010). Anti-NeuN immunofluorescence staining revealed that the number of post-mitotic granule cells were severely reduced in slices infected with Ad-cre viruses (Figure 10A), suggesting that Shh signaling was compromised there. We also isolated GCPs from cerebella of normal P7 pups of the C57/B6 strain, and cultured them in vitro. In the presence of ShhN, GCPs grew healthily for at least 5 days, but siRNA knockdown of Smurf1 and Smurf2 simultaneously blocked GCP proliferation (Figures 10B, Figure 10—figure supplement 1A,C). To ascertain that the effect of Smurf knockdown was Shh-pathway specific, we repeated the above experiment using IGF1, which is capable of sustaining the proliferation of GCPs in lieu of Shh (Rao et al., 2004; Fernandez et al., 2010), and found that knockdown of Smurfs had no effect on IGF-1-induced GCP growth (Figure 10C, Figure 10—figure supplement 1B). Thus, these data unequivocally demonstrated that Smurf1 and Smurf2 share a critical role in supporting Shh signaling during cerebellar organogenesis.

Figure 10 with 1 supplement see all

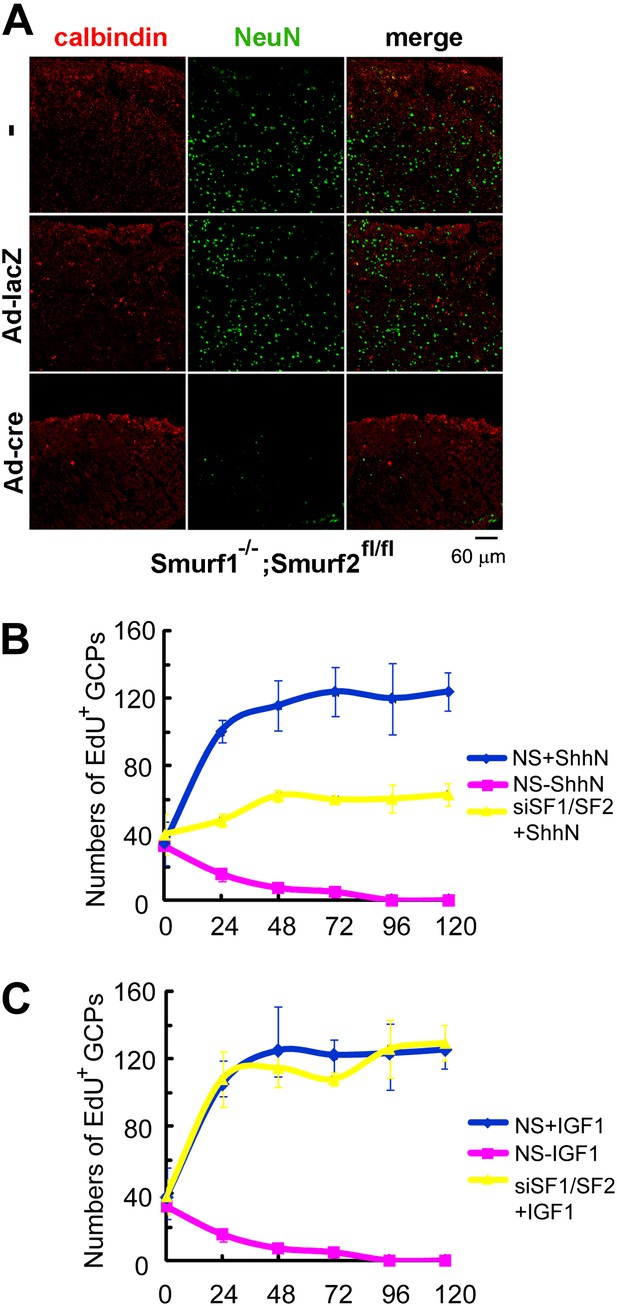

Requirements of Smurfs for Shh-induced organogenesis.

(A) Immunostaining of P7 cerebellar slices cultured in vitro with anti-calbindin (red) and anti-NeuN (green). The slices were first infected with control or cre-expressing adenoviruses for 24 hr and then continuously cultured for 12 days. Quantification of EdU incorporated GCPs in cerebellar slices cultured in the presence of ShhN from Figure 10—figure supplement 1A (B) or IGF-1 from Figure 10—figure supplement 1B (C), respectively. The data at each time point were derived from four separate fields, and the bars denote standard deviation.

https://doi.org/10.7554/eLife.02555.021

Discussion

Shh plays a fundamental role in setting up the body plan during embryogenesis, and is also critical in guiding stem cell differentiation for maintaining tissue homeostasis in the adult. Cell surface reception of Shh signaling is a multistep process that entails, but is not limited to, ligand engagement, reciprocal movements of Ptch1 exiting from and Smo translocating into the primary cilium, and activation of the G-protein-coupled Smo by still-controversial mechanisms (Ogden et al., 2008). The central task of this process is to sense and convert incremental changes in the Shh gradient into corresponding levels of signaling output, thereby allowing the positional cues to be executed. In this study, we extended our knowledge of the Shh signaling activation process by revealing a ubiquitination switch that regulates Ptch1 endocytosis, which is essential in clearing Ptch1 from its site of action in the primary cilium, and to ligand sequestration, as previously described (Incardona et al., 2000). Our data demonstrate that ubiquitination of Ptch1 mediated by the two ‘PPXY’ motifs is controlled by HECT-domain E3 ligases Smurf1 and Smurf2, which are induced by Shh (Figure 5E,G) and redistributed into the cytoplasm under Shh influence (Figure 7B, Figure 7—figure supplement 1). Shh also promotes the association of Ptch1 and Smurfs in intracellular vesicles (Figure 7E), most likely the Cav-1 positive lipid rafts (Figure 1A,B), as well as ubiquitination (Figure 9D) and endosomal entry (Figure 2A–C), leading to lysosomal turnover (Figures 1F, 8A–D). So, an increase in the Shh signal strength would cause a corresponding increase in both the production of Ptch1 and its rate of turnover en route from the primary cilium to the lipid rafts and to the endosomes/lysosomes. This regulatory scheme is reminiscent of an electronic amplification circuit, in which a feedback loop added to an open-loop amplifier has the effect of stabilizing the gain and increasing the linearity of the output signal to a given range, which can be controlled by adjusting the feedback strength. By analogy, Shh induction of Gli1 can be viewed as the open-loop amplifier, with Ptch1 providing the negative feedback. In this wiring logic, the graded Shh morphogenic signal can be stably transformed into stepwise output responses tailored for a predetermined cell fate specification. Without endocytosis, Ptch1 would accumulate in the primary cilium (Figure 1A,B, Figure 1—figure supplement 2, Figure 3—figure supplement 1), thus hampering Smo import and function. More importantly, without Ptch1 removal/degradation, the amplitude of Shh signaling would be restricted by the accumulation of newly synthesized inhibitory Ptch1. Oversupplied Ptch1 could also impact on signaling in neighboring cells through non-cell autonomous inhibition. So, Ptch1 endocytosis plays a crucial role in setting the output range of Shh signaling.

The presence of Ptc in membranous vesicles has long been noted in Drosophila and mammalian cells (Capdevila et al., 1994; Denef et al., 2000; Ramirez-Weber et al., 2000; Zhu et al., 2003), but its significance was not fully appreciated and regulation unknown. Ptc or Ptch1 is a 12-pass transmembrane protein, whose internal sequence spanning from IV to X transmembrane domains resembles the resistance, nodulation, division (RND) family of bacterial proton-driven transporter and the sterol-sensing domain found in SREBP and NPC1 (Carstea et al., 1997; Taipale et al., 2002). Substantial evidence in the literature suggests that Ptch1 inhibition of Smo occurs by way of small molecular intermediates that may be transported by Ptch1 through the membrane (Di Guglielmo et al., 2003; Bijlsma et al., 2006; Yavari et al., 2010). Perhaps it is not a coincidence that we found Ptch1 exits the primary cilium and enters the endocytic pathway via cholesterol and sphingomyelin-rich lipid rafts, whereas Smo was shown previously to enter the primary cilium via Clathrin-coated pits when induced by Shh (Chen et al., 2004; Kovacs et al., 2008). It is possible that Ptch1 and Smo are required to be sorted into different membranous compartments and to keep a mutually exclusive presence in the primary cilium, so that a cross-membrane imbalance of the small molecular intermediates is attained. The RND/sterol-sensing domain is critical to Ptch1 function as multiple inactivating mutations in this region have been found in Drosophila as well as in Gorlin syndrome patients (Martin et al., 2001; Strutt et al., 2001; Taipale et al., 2002). However, although certain RND mutants of Drosophila Ptc accumulate in endosomes (Martin et al., 2001; Strutt et al., 2001), this domain may be more important to Ptch1 function than to its endocytic turnover, since we found that combining a RND mutation with the 2-PY deletion did not alter the latter's impact on Ptch1 stability (data not shown).

Through cDNA-mediated screens, we have identified Smurf1 and Smurf2 as the E3 ligases responsible for generating the sorting signal for Ptch1 endocytosis. Although subsequent experiments indicated that deletion of one Smurf gene was not sufficient to inactivate Shh signaling, siRNA-mediated knockdown of either Smurf1 or Smurf2 was enough to dampen the 8xGliBS reporter response in transfected MEFs. This apparent discrepancy is likely to be reconciled by the mutual, compensatory upregulation of either of the two Smurf genes upon the loss of the other, resulting in the adaptation of single-Smurf-knockout MEFs for a robust Shh signaling response. On the other hand, such an adaptive response might not have been established in time under the conditions found in transiently transfected MEFs in response to siRNA-mediated knockdown. The observation of Shh induction of Smurf expression (Figure 5E,G) and cytoplasmic pivoting (Figure 7B, Figure 7—figure supplement 1) further implicated Smurfs in Shh signaling. Previously, Drosophila Ptc was shown to interact with and regulated by Nedd4 (Lu et al., 2006), another HECT-domain E3 ligase. In addition, the mouse Ptch1 was also shown to bind Nedd4, but this interaction triggers apoptosis through ubiquitination of Caspase 9 (Fombonne et al., 2012). It is likely that Ptch1 is regulated by multiple E3 ligases with different functional outcomes. Recently, Drosophila DSmurf was identified as a Ptc-interacting partner in a yeast 2-hybrid screen, and shown subsequently as a specific E3 ligase that regulates Ptc stability (Huang et al., 2013). However, DSmurf was shown to promote Ptc turnover in the presence of activated SmoSD, bind Smo, and prefer ligand-unbound Ptc as a substrate (Huang et al., 2013). We did not observe interaction between mammalian Smurfs and Smo by Co-IP experiments (Figure 7—figure supplement 2), and found that Shh induction of Ptch1 turnover proceeded unabatedly even in the absence of Smo (Figure 8G,H). In Huang et al., when ectopically expressed in the anterior compartment of the wing disc, activated SmoSD induced massive amount of Ptc; these two proteins could form a complex at the high levels, much like their mammalian counterparts do when overexpressed in HEK293 cells (Stone et al., 1996; Taipale et al., 2002). Perhaps, DSmurf could recognize this unnatural complex and triggers a proteasomes-mediated degradation, even specifically.

Smurf2 was shown previously to function in lipid rafts (Di Guglielmo et al., 2003), and the necessity of removing both Smurf1 and Smurf2 to reveal their requirement in Shh signaling strongly argues that this shared function has a deep root in evolution. In any event, our work presents a rather comprehensive view of the Shh pathway activation process. Considering two neighboring cells in a given Shh influence field (Figure 11), the cell that receives lower Shh input (upper cell) encounters a stronger feedback inhibition due to lower endocytic turnover of Ptch1, resulting in a lower level of Shh signaling output represented by Gli1. In the cell that receives higher Shh input (lower cell), although the synthesis of Ptch1 is induced, upregulation of Smurfs and the induction of colocalization in lipid rafts ensure a faster Ptch1 turnover such that the level of Ptch1 feedback inhibition is actually low, resulting in higher pathway activity. The endocytic turnover also has impact on the ligand sequestration role of Ptch1 through controlling the availability of the ligand ‘sink’ on cell surface. In this regard, the Smurf-mediated endocytosis of Ptch1 is an essential signaling event, and it is theoretically possible to block Shh function both cell and non-cell autonomously using Smurf inhibitors, thus opening a new route for Shh-targeted cancer treatment.

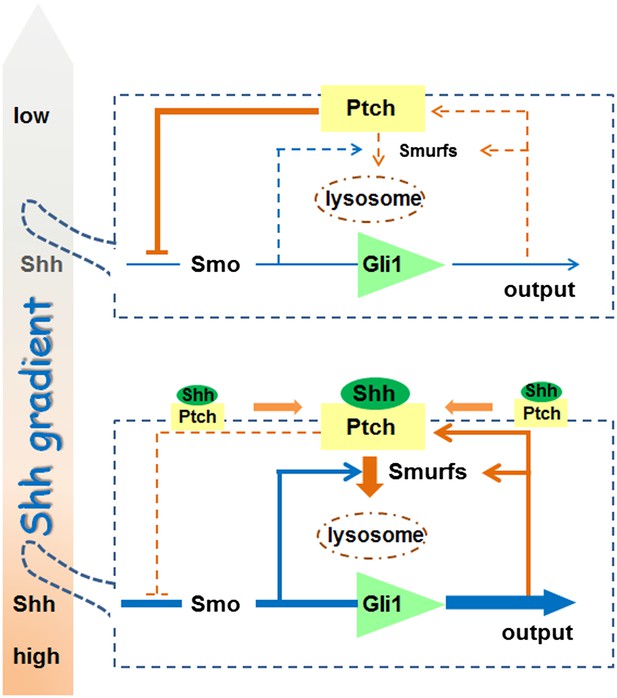

A model for the role of Smurf-mediated Ptch endocytosis in Shh signaling.
https://doi.org/10.7554/eLife.02555.023

Materials and methods

Animals

All mice were maintained and handled according to protocols approved by the Animal Care and Use Committee of the National Cancer Institute, NIH. The conditional Smurf2 knockout allele, Smurf2fl was generated by insertion of two loxP sites into introns flanking Exon 9 and 10 through homologous recombination. Further details of the construction will be described elsewhere.

Cells, plasmids, and siRNAs

Smurf1−/−, Smurf2−/−, and Smurf1−/−;Smurf2fl/fl MEFs were isolated from E14.5 embryos and cell immortalization was carried out according to the 3T3 protocol. NIH3T3:Gli-Luc-3T3 and Ptch1−/− MEFs were described previously (Chen et al., 2011). Full-length mouse Ptch1 cDNA was obtained from ATCC, and the FLAG, GFP, or RFP-tagged variants of which were generated by PCR and subcloned into the pRK5 vector. The ΔPY mutants of Ptch1 were generated using a PCR-based strategy. All PCR-amplified fragments were sequence verified. Plasmids for Myc-tagged Smurf1, Smurf1CA, Smurf2, Smurf2CG, GFP-tagged Smurf2, HA-tagged Ub, UbKO, UbK63 and UbK48 were described previously (Zhang et al., 2001; Yamashita et al., 2005, 2008; Tang et al., 2011; Blank et al., 2012). RFP-tagged Rab5, Rab7, and Lamp1 were acquired from Addgene. siRNAs specific for the mouse HECT family of E3 ligases and cDNAs encoding human HECT E3 ligases were purchased from QIAGEN (Germantown, MD).

Immunofluorescence staining

Approximately 0.6 × 105 cells per well were seeded in Lab-Tek chambered slides and cultured for 24 hr. The cells were transfected, allowed to recover for 24 to 36 hr, and then treated with ShhN-CM or other compounds, as indicated. For visualizing ciliary proteins, the transfected cells were starved in DMEM containing 0.5% FBS for 24 hr before other treatments. The cells were fixed with 4% paraformaldehyde for 10 min at 4°C, and standard procedures for immunostaining were followed. The primary antibodies used were rabbit anti-Caveolin-1 (1:1000; Sigma-Aldrich (St. Louis, MO)), rabbit anti-Clathrin heavy chain (1:200; Cell Signaling Technology (Danvers, MA)), rabbit anti-Rab5 (1:150, Cell Signaling Technology), rabbit anti-Rab7 (1:50, Cell Signaling Technology), rabbit anti-Lamp1 (1:150; Sigma), mouse anti-acetylated Tubulin (1:2000; Sigma), rabbit anti-Gli3 (1:500; R&D (Minneapolis, MN)), and rabbit anti-Smo (1:500; a gift from Dr Rajat Rohatgi). Alexa-coupled secondary antibodies were purchased from Life Technologies Corp.

Confocal microscopy and FRET

Confocal images were acquired on a Carl Zeiss LSM710 microscope. Colocalization coefficient was calculated using Zeiss ZEN2011 program, and quantification of the fluorescence intensity of Ptch1-GFP, Smo, and Gli3 in primary cilia was carried out using Image-Pro as described previously (Chen et al., 2011). For FRET analysis, MEFs were transfected with the plasmids encoding Ptch1-CFP or Δ2PY-CFP together with Smurf1-YFP or Smurf2-YFP. Confocal images were acquired with a 40 × objective lens. In track I, cells were excited with a 405-nm laser, and CFP signals were collected in channel II at 470–500 nm. FRET signals were collected in channel III at >530 nm. In track II, cells were excited with a 514-nm laser line, and YFP signals were collected in channel III at >530 nm. FRET efficiency between CFP and YFP, shown as N-FRET, was calculated using Zeiss ZEN2011 program, and the sensitized emission crosstalk coefficients were determined using control cells that expressed only CFP or YFP.

GliBS-luc reporter assay for non-cell autonomous inhibition of Ptch1

Ptch1−/− MEFs were transfected with Ptch1-GFP or Ptch1Δ2PY-GFP along with the Rellina control (15:1) using Lipofectamine Plus (Life technologies, Grand Island, NY)). These cells were then re-seeded with NIH3T3:GliBS-luc reporter cells at 5:1 ratio. After 24 hr, the cells were treated with ShhN-CM in different dilutions for additional 36 hr before the luciferase activities were assayed using the luciferase assay system on a GloMax-96 luminometer (Promega, Madison, WI). The firefly luciferase activity from the indicator cells was normalized against the Rellina luciferase activity to correct for transfection efficiency of Ptch1 constructs in the testing Ptch−/− MEFs as the measurement of non-cell autonomous inhibition by Ptch1.

Immunoprecipitation and immunoblotting

Transfected cells were lysed in modified RIPA buffer (50 mM Tris–HCl, pH 7.4, 150 mM NaCl, 1% vol/vol NP-40, 1% n-Dodecyl β-D-maltoside, 0.25% wt/vol sodium deoxycholate, 1 mM DTT, and 1 × Roche cOmplete Protease Inhibitor Cocktail) for 1 hr at 4°C. The lysate was clarified by centrifugation for 1 hr at 20,000×g. The protein concentration was determined using a bicinchoninic acid assay and equal amounts of total protein from each of the samples was supplemented with 6 × SDS loading buffer, incubated at room temperature for 1 hr, subjected to SDS-PAGE, followed by western blot analysis. To assay for interactions between exogenous Ptch1-FLAG and the Myc-Smurfs, transfected Ptch1-FLAG was immunopurified with anti-FLAG M2 agarose beads (Sigma) and subjected to SDS-PAGE, followed by western blotting with anti-Myc (Santa Cruz Biotechnology, Dallas, TX).

Ubiquitination assays

To assay for Ptch1 ubiquitination in vivo, Smurf1−/−/Smurf2flox/flox MEFs were infected with either Ad-GFP or Ad-Cre adenovirus for 24 hr, then transfected with Ptch1-FLAG or Ptch1Δ2PY-FLAG along with HA-Ub using Lipofectamine Plus (Invitrogen). The cells were lysed 24 hr later and Ptch1 and its mutant were isolated with anti-FLAG agarose beads and resolved by SDS-PAGE on 6% or 4–12% gradient gels. The ubiquitinated Ptch1 was then detected with anti-HA (Roche-Shanghai, China). To assay for Ptch ubiquitination in vitro, an ubiquitination assay was modified from a previously described procedure (Tang et al., 2011). Ptch1-FLAG was captured from transfected HEK293 cell lysates using anti-FLAG agarose. After a thorough wash, the Ptch1-bound agarose was divided into three aliquots. Empty anti-FLAG agarose was used as a control. The in vitro ubiquitination assay was performed by incubating either Ptch1-bound agarose or control agarose at 37°C for 1 hr with ubiquitin-activating enzyme UBE1, E2-conjugating enzyme UbcH5c, HA-Ub and ATP (all from Boston Biochem, Cambridge, MA) in the presence or absence of purified His6-Smurf2 or His6-Smurf2CG. After the incubation, the supernatant was removed, the agarose thoroughly washed, and the Ptch1-FLAG eluted using the FLAG peptide (Sigma). The eluted fraction was then subjected to Western blot analysis.

Sucrose gradient sedimentation

Sucrose equilibrium density gradient sedimentation experiments were performed as described (Coulombe et al., 2004). Briefly, HEK293 cells grown in 10 cm plates were transiently transfected with Ptch1-FLAG or Δ2PY-FLAG along with Myc-Smurf2CG. 48 hr after transfection, the cells were lysed in pre-chilled 2 ml MES buffer, which contains 25 mM MES (2-[N-morpholino]ethanesulfonic acid), pH 6.5, 150 mM NaCl, 1% Triton X-100, supplemented with 1 × Roche cOmplete Protease Inhibitor Cocktail and was set on ice for 1 hr. The lysates were mixed with equal volume of 80% (wt/vol) sucrose/MES solution and placed at the bottom of an ultracentrifuge tube. Tube was then overlaid in consecutive order with 2 ml each of 30%, 25%, 20%, and 4 ml of a 5% (wt/vol) sucrose/MES buffer. After centrifugation at 39,000 rpm for 16 hr at 4°C in an SW 41 Ti rotor on Beckman Optima L-100 XP ultracentrifuge, the gradient was separated into twelve 1 ml fractions taken from the top for Western blot analysis.

RT-PCR and quantitative real-time PCR

Total RNA was isolated from cultured cells using the RNAiso reagent (TaKaRa, Shiga, Japan), and reverse transcription was carried out using the PrimeScript RT reagent Kit (TaKaRa). Standard RT-PCR was carried out with the following primers: mouse Gli1 (5′-TCCAGCTTGGATGAAGGACCTTGT-3′ and 5′-AGCATATCTGGCACGGAGCATGTA-3′), mouse Smurf1 (5′-CTACCAGCGTTTGGATCTAT-3′ and 5′-TTCATGATGTGGTGAAGCCG-3′), mouse Smurf2 (5′-TAAGTCTTCAGTCCAGAGACC-3′ and 5′-AATCTCTTCCCTAGACACCTC-3′), and mouse HPRT (5′-TATGGACAGGACTGAAAGAC-3′ and 5′-TAATCCAGCAGGTCAGCAAA-3′). Real-time PCR was carried out using the FastStart SYBR Green Master mix (Roche) on a 7500 Real-Time PCR System (Applied Biosystems, Grand island, NY) with primers for mouse Gli1 (5′-GCTTGGATGAAGGACCTTGTG-3′ and 5′-GCTGATCCAGCCTAAGGTTCTC-3′) and mouse HPRT (5′-TATGGACAGGACTGAAAGAC-3′ and 5′-TAATCCAGCAGGTCAGCAAA-3′). Experiments were repeated at least three times, and samples were analyzed in triplicate.

Cerebellar slice culture

Cerebellar slice cultures were prepared as described (Kapfhammer, 2010). Briefly, sagittal sections (350 µm) were cut from cerebella of P7 Smurf1−/−;Smurf2fl/fl pups using a McIlwain tissue cutter under septic condition. Slices were transferred onto a permeable membrane (Millicell-CM, Millipore-China, Beijing, China) in a 6-well plate with 0.8 ml of culture medium (Neurobasal A medium with B27 supplement) and incubated at 37°C, 5% CO2. For adenovirus infection, the viral stock (3 × 1010 pfu/ml) was mixed with equal volume of type I collagen gel and applied as a drop on top of each slice, and 5 × 107 pfu of virus was also added in the culture medium. After 24 hr, the infected slices were washed and maintained in culture medium. The medium was changed every 2–3 days for a total of 12 days. Slices were then fixed in 4% paraformaldehyde overnight at 4°C and immunostained with anti-calbindin (1:500; Sigma) and anti-NeuN (1:100; Millipore).

GCP isolation and proliferation assay

Mouse cerebellar GCPs were isolated from 7-day-old pups according to a published protocol (Hatten and Shelanski, 1988). Briefly, cerebella were removed aseptically and incubated at 37°C for 5 min in trypsin/DNase buffer. Tissues were then triturated with fine Pasteur pipettes to obtain a single-cell suspension, overlaid on top of a step gradient of 35% and 65% Percoll (Pharmacia, GE Health-China, Shanghai, China) and centrifuged at 2,000×g for 10 min at 4°C. GCPs harvested from the 35% and 65% Percoll interface were further purified by depleting adherent cells with two consecutive 1-hr incubations in tissue culture dishes, then seeding them in Lab-Tek chambered slides coated with poly-D-lysine and Matrigel, and incubating them at 35°C, 5% CO2. GCPs were transfected with siRNAs using FugeneHD Transfection Reagent (Promega) after 1 hr incubation. Proliferation of transfected GCPs was evaluated using Click-iT EdU cell proliferation assays (Life Technologies) at different time points after ShhN-CM or IGF1 (100 ng/ml) treatment. GCPs were incubated with EdU (5-ethynyl-2′-deoxyuridine) for 12 hr before fixation and permeabilization. EdU detection was performed according to the manufacturer's instruction. Images were acquired on a Leica inverted fluorescence microscope (DMI 300B) with a 20 × objective lens. Quantification of EdU-positive GCPs was performed using the ImageJ software.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Subcellular localization of the segment polarity protein patched suggests an interaction with the wingless reception complex in Drosophila embryos
    1. J Capdevila
    2. F Pariente
    3. J Sampedro
    4. JL Alonso
    5. I Guerrero
    (1994)
    Development 120:987–998.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    Mouse cerebellar granule neurons arrest the proliferation of human and rodent astrocytoma cells in vitro
    1. ME Hatten
    2. ML Shelanski
    (1988)
    The Journal of Neuroscience 8:1447–1453.
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Cerebellar slice cultures
    1. JP Kapfhammer
    (2010)
    In: LC Doering, editors. Protocols for neural cell culture. Humana Press. pp. 285–298.
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
    Lipid rafts, caveolae, and their endocytosis
    1. P Lajoie
    2. IR Nabi
    (2010)
    International Review of Cell and Molecular Biology 282:135–163.
    https://doi.org/10.1016/S1937-6448(10)82003-9
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80

Decision letter

  1. Robb Krumlauf
    Reviewing Editor; Stowers Institute for Medical Research, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Requirement of Smurf-mediated endocytosis of Patched1 in Sonic Hedgehog signal reception” for consideration at eLife. Your article has been favorably evaluated by a Senior editor and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The following individuals responsible for the peer review of your submission have agreed to reveal their identity: Robb Krumlauf (Reviewing editor); Jin Jiang and Ben Allen (peer reviewers).

The Reviewing editor (Robb Krumlauf) and the other reviewers (Jin Jiang, Ben Allen, and a third anonymous reviewer) discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

The consensus view of all of the reviewers is that the work is potentially of significant interest and could represent an important advance in the field. However, each reviewer has substantial concerns that would need to be addressed before publication of the paper could be considered. This involves additional experimentation and major revisions to the text. There are also issues raised over interpretation of data and missing key citations. Under normal circumstances requests for such substantial revisions would lead to a decision to reject the paper, but in this case because the reviewers would like to see the paper published if their concerns are met we wish to offer the opportunity for a revision.

To aid the revision process in this case we provide the specific comments of all three reviewers.

Reviewer #1:

In this manuscript, Yue et al investigated the role of Smurf-mediated Ptch1 ubiquitination in the regulation of Shh signaling. They provided evidence that Shh promotes Ptch1 enrichment in the lipid rafts and that the PPXY sorting signals (PY motifs) in Ptch1 promotes endocytosis and degradation of Ptch1. They further showed that the PY motifs are required for Shh-induced ciliary exit of Ptch1 and optimal Hh pathway activation. They identified Smurf 1 and 2 as two E3 critical ligases that promote Ptch1 ubiquitination and degradation through the PY motifs. Interestingly, they found that the expression of Smurf1/2 is upregulated in response to Shh. By using FRET and CoIP, they provided evidence that Smurf and Ptch1 physically interact depending on the PY motifs. Finally, they showed that genetic ablation of Smurf1 and 2 specifically affected Shh-induced proliferation of GCPs. Overall, the experiments were well executed and the data are convincing. The work is complementary to a recent publication that mainly described a role of Smurf in targeting Drosophila Ptc (Huang et al., PLOS Bio 2013), and represents an important advance in the field, allowing one to compare and contrast the fly and mammalian systems. However, the authors should address the following concerns either by discussion or by additional experiments before publication is recommended.

1) Whereas the evidence for Smurf/PY-mediated Ptch1 endocytosis and degradation is strong, it is not so clear how this process is promoted by Shh. Although Shh-induced upregulation of Smurf could contribute, other mechanisms may exist. Have the authors examined whether Shh promotes the binding of Smurf to Ptch1? For example, does Shh treatment increase the FRET between GFP-Smurf2CG and Ptch1-RFP shown in Figure 9A-C? On the other hand, Smurf-mediated degradation of Ptch1 could be Shh independent, as suggested by Casali (Science Signaling, 2010). For example, Ptch1Δ2, which has the Shh binding domain deleted (Briscoe et al., Mol Cell 2001), might still be regulated by Smurf/PY. Furthermore, Huang et al suggested that Smurf prefers degrading ligand-unbound Ptc (Huang et al., PLOS Bio 2013). How could the authors reconcile their finding that Shh promotes Ptch1 degradation? Could they examine whether Ptch1Δ2 is degraded more or less effectively by Smurf than Ptch1 in the presence of Shh?

2) Huang et al argued that Smurf-mediated ubiquitination and degradation of Ptc are promoted by activated forms of Smo (SmoSD) in Drosophila (Huang et al., PLOS Bio 2013). Have the authors examined whether Shh promotes Ptch1 degradation through Smo? For example, does overexpression of mammalian SmoSD promote Smurf-mediated ubiquitination/degradation of Ptch1?

3) The authors showed that mutating the PY motifs or Smurf1/2 affected both Ptch1 ciliary exit and endocytosis. Is the failure of Ptch1 ciliary exit the result of defective endocytosis? Or could Shh induce Ptch1 ubiquitination in the primary cilium, which may directly regulate ciliary exit of Ptch1? Is there any evidence that Smurf1/2 can be found in the primary cilium with or without Shh treatment? In Figure 6C, can Shh trigger ciliary exit of Ptch1 in the absence of Smurf1/2? Does pharmacological blockage of Ptch1 endocytosis/degradation affect Ptch1 ciliary exit?

4) The effect of Δ2PY-GFP on Smo ciliary localization presented in Figure 4 does not match the quantification well, especially at 4 hours after Shh treatment where there is almost no difference in the ciliary Smo levels between Δ2PY-GFP and Ptch1-GFP (Figure 4C) while there is a 2-told difference in the quantification (Figure 4D). The authors need to provide a better image reflecting the quantification. Of note, it has been shown that Shh/Ptch1 regulates both the ciliary localization and conformation of Smo (Zhao et al., nature 2007). Have the authors examined whether Δ2PY-GFP affect mSmo conformation using FRET analysis?

Reviewer #2:

In this manuscript Yue et al. uncover a role for the Hect E3 ligases Smurf1 and Smurf2 in promoting Hedgehog-dependent changes in the subcellular localization of the Patched receptor that leads to their increased turnover. This Smurf1/2-mediated trafficking of Patched is also important for its exit from primary cilia during pathway activation. Using cultured cells including MEFs knockout for Smurf1&2, the authors show that this trafficking event is, in turn, important for the ciliary accumulation of Smoothened and for the activation of Gli-mediated transcription. The authors show that the Shh-promoted proliferation of granule cell progenitors requires Smurf1 and Smurf2, suggesting an important function of this regulatory mechanism in a well-characterized physiological context dependent on Hedgehog ligands.

This is an interesting manuscript that adds to our understanding of the molecular mechanisms underlying Hedgehog signaling. In particular, although it has been speculated that endocytic trafficking may be implicated in Patched and Smoothened localization, ciliary accumulation and signaling, the molecular mechanisms implicated in this process are poorly defined.

The strongest aspects of this manuscript are the loss of function experiments conducted with the Sf1-/-,Sf2fl/fl MEFs and GPCs. Indeed, the complete absence of Sf1 and Sf2 leads to a remarkable inhibition of Smo and Gli3 ciliary localization and blunting of Shh-promoted induction of Gli1 levels in MEFs. These results are strongly supported by the experiments in Figure 11 showing a reduction of neural progenitors in cerebellar slice cultures knockout for Sf1 and Sf2 and an inability of Shh to promote the in vitro proliferation of granule cell progenitors when Sf1 and Sf2 are knocked out. These experiments strongly support an important functional requirement of Smurf proteins for Hedgehog signal transduction.

In terms of mechanisms describing the function of Smurf proteins, the evidence presented in the manuscript are however disappointing in that they are too often not convincing, confusing or incomplete. For example, according to their model, Hedgehog ligands are shown to promote the localization of Patched in caveolae, a transitory localization that promote the Smurf dependent ubiquitination of Patched and its endosomal routing to the lysosomes where it is degraded. First of all, although scattered evidence suggests that caveosomes and endosomes may physically interact in specific contexts, the authors present their evidence supporting a role of Rab proteins and endosomal trafficking in promoting Patched exit from caveolae as a well defined and accepted mechanism. However, caveolae-mediated endocytosis is most often described to be separate from endosomal sorting. Although this could represent a novel sorting mechanism for cell surface receptors, the characterization of this process needs to be strengthened and better discussed.

Moreover, all of the evidence supporting the localization of Ptch in different subcellular fraction relies on overexpression experiments and on colocalization with overexpressed markers tagged with fluorescent proteins (especially important for Rab7). These experiments should be repeated using endogenous proteins and images obtained at higher resolution to more precisely follow the fate of Ptch trafficking and more convincingly support the implication of caveolae and/or endosomal trafficking.

In addition in my opinion the biggest question that is left unanswered is how ubiquitination of Patched by Smurf proteins contributes to its function. Do Smurfs lead to Patched mono-ubiquitination or to K63 or K48 ubiquitin chain conjugations? Is ubiquitination involved in Patched endocytosis per se or in its sorting from endosomes to lysosomes? Does Hedgehog ligand promote the interaction of Patched with Smurfs? Do Hedgehog ligands promote Patched ubiquitination?

There also seems to be a disconnection between the results obtained using the Ptch-d2PY mutant (when rescuing the Ptch1-/- MEFs) and the results obtained in the Sf1, Sf2 double KO cells. Indeed, whereas the Shh-promoted accumulation of Smo and Gli1 activation are blunted in the dKO cells, Smo accumulation is only reduced when the d2PY mutant is expressed (4C,D). Since the interaction between the d2PY mutant and Smurf proteins seems to be completely abolished (9E) how is this explained? If there is more Ptch1-d2PY in cilia, why do Smo enters at all?

Reviewer #3:

In the manuscript entitled “Requirement of Smurf-Mediated Endocytosis of Patched 1 in Sonic Hedgehog Signal Reception”, Yu et al. present evidence that Smurf1 and Smurf2 promote ubiquitination of PTCH1 resulting in endocytic turnover that is required for HH pathway activation. In particular, the authors provide significant experimental data examining the subcellular localization of PTCH1 and the role of two PPXY motifs in regulating PTCH1 localization turnover, and downstream effects on HH pathway function. While, overall the results appear to be of high quality, there are some issues with both interpretation of the data and proper acknowledgement of previous work that the authors must address.

Major comments:

1) There is an unfortunate lack of proper citation of previous work by other labs in this field. Two essential examples include the recent publication of work identifying a role for Smurfs in regulating Drosophila Ptc turnover (Huang et al., PLOS Biology, 2013), and work from Tom Kornberg that defined a role for the PPXY motif in regulating the turnover of vertebrate PTCH1 (Kawamura et al., JBC, 2008). These two papers directly impact the current study by Yue et al., and this work should be considered in the context of these previous studies.

2) In Figure 5, the authors utilize Ptch1-/- MEFs to address differences in the ability of PTCH1 and PTCH1Δ2PY to promote ligand-dependent signaling. However, the authors miss an opportunity to distinguish between the ligand-dependent and ligand-independent effects of PTCH1 in the HH pathway. They should use these cells and constructs to examine the ability of PTCH1 or PTCH1Δ2PY to antagonize SMO in the absence of ligand. That is, Ptch1-/- MEFs display constitutive HH pathway activation; however, re-expressing PTCH1 rescues this pathway activity. The question is whether PTCH1Δ2PY is equally effective? Do the authors observe equivalent antagonism of SMO in these cells? Or is PTCH1Δ2PY a more effective antagonist of SMO than wt PTCH1? These are straightforward questions to address since the authors have all the necessary tools and reagents in hand.

https://doi.org/10.7554/eLife.02555.024

Author response

Reviewer #1:

In this manuscript, Yue et al investigated the role of Smurf-mediated Ptch1 ubiquitination in the regulation of Shh signaling. […] However, the authors should address the following concerns either by discussion or by additional experiments before publication is recommended.

1) Whereas the evidence for Smurf/PY-mediated Ptch1 endocytosis and degradation is strong, it is not so clear how this process is promoted by Shh. Although Shh-induced upregulation of Smurf could contribute, other mechanisms may exist. Have the authors examined whether Shh promotes the binding of Smurf to Ptch1? For example, does Shh treatment increase the FRET between GFP-Smurf2CG and Ptch1-RFP shown in Figure 9A-C? On the other hand, Smurf-mediated degradation of Ptch1 could be Shh independent, as suggested by Casali (Science Signaling, 2010). For example, Ptch1Δ2, which has the Shh binding domain deleted (Briscoe et al., Mol Cell 2001), might still be regulated by Smurf/PY. Furthermore, Huang et al suggested that Smurf prefers degrading ligand-unbound Ptc (Huang et al., PLOS Bio 2013). How could the authors reconcile their finding that Shh promotes Ptch1 degradation? Could they examine whether Ptch1Δ2 is degraded more or less effectively by Smurf than Ptch1 in the presence of Shh?

We thank this reviewer for raising these very important issues. Our previous and new data indicate that Shh promotes the Smurf-mediated endocytosis of Ptch1 in several ways. First, Smurfs are preferentially localized in the nucleus in normal cells (Kavsak et al., Mol Cell 6:1365-75, 2000) and play important roles in maintaining the genomic stability (Blank et al, Nature Medicine 18:227-34, 2012). In the revised manuscript, we show that Shh promotes a re-pivoting of Smurf2 from the nucleus to the cytoplasm (Figure 7B, and Figure 7–figure supplement 1). Second, our data also show that Shh induces Smurfs expression (Figure 5E, 5G). So, these two events should lead to an increase of the effective cytoplasmic concentration of Smurfs. Third, as requested, we conducted a new FRET experiment and found that Shh indeed promotes the colocalization of Ptch1 and Smurf2 (Figure 7E). Fourth, we further add new data showing that ShhN treatment enhances the ubiquitin modification of Ptch1 (Figure 9D), consistent with our data showing that Shh promotes Ptch1 turnover (Figure 8).

In Huang et al, the authors ectopically expressed activated Smo mutants, SmoSD, in the entire A-compartment, which drastically increased the level of Ptc (Huang et al, Figure 4D). They argue that DSmurf prefers the ligand-unbound Ptc as a substrate because ectopic expression of DSmurf reduced Ptc staining selectively in the A compartment. However, comparing their Figure 4D and 4E, one could find that the intensity of Ptc staining at the A/P boundary was also reduced by DSmurf, notwithstanding the fact that Ptc is normally high at the boundary. On the other hand, since the authors did not examine the distribution of Hh in the disc that received the ectopically expressed SmoSD, it would be an unsupported assumption that the elevated Ptc in the A compartment was still in the unbound form. After all, the Hh ligand is normally restricted to the compartmental border by the high level of Ptc there. If the border stripe of high level Ptc was made to expand, Hh zone should expand with it. Furthermore, it is well known in the field that Ptc and Smo, when over-expressed, tend to form a nonphysiological complex (Stone et al, Nature 384:129, 1996, and Taipale et al, Nature 418:892, 2002).This raises a possibility that the nonphysiological Ptc-Smo complex could trigger an “unfolded protein response” of some sort that leads to the DSmurf-mediated destruction. This type of degradation is very different from the one that we describe in our manuscript, although both could be mediated by the Smurf E3 ubiquitin ligases, even specifically.

Notwithstanding the above analysis, assuming DSmurf does prefer the ligand unbound form of Ptc for degradation, this would put the site of DSmurf action in the A compartment, where Ptc level is low and Smo is in an inactive state. However, their data indicated that Smo has to be activated in order to promote Ptc degradation. In Huang et al, there is no data that either indicate or imply the source of the activated Smo for activating the Smurf-mediated Ptc turnover or to explain this conspicuous conflict.

We measured the turnover rate of the loop2 mutant of Ptch1 in wt MEFs, and found that the effect of Shh ligand induction was abolished (Figure 8E, 8F). We further quantified the turnover rate of Ptch1 in Smonull cells, and found that Shh still promotes Ptch1 turnover there (Fig.8G, 8H). Moreover, we did not detect interaction between Smo and Smurfs by co-IP experiments, even though Smurf was shown to bind Ptch1 readily (Figure7–figure supplement 2). So, these results demonstrate that Smurfs likely promote Ptch1 endocytic turnover through direct binding, rather than using Smo as an intermediate, as suggested by Huang et al. However, Smo probably still has a long term feedback role through enhancing downstream Smurf gene expression.

2) Huang et al argued that Smurf-mediated ubiquitination and degradation of Ptc are promoted by activated forms of Smo (SmoSD) in Drosophila (Huang et al., PLOS Bio 2013). Have the authors examined whether Shh promotes Ptch1 degradation through Smo? For example, does overexpression of mammalian SmoSD promote Smurf-mediated ubiquitination/degradation of Ptch1?

As stated above, we examined Ptch1 turnover in Smonull cells, and found that Shh still promotes Ptch1 turnover. We also found by Co-IP experiment that Ptch1 binds Smurf but Smo does not (Figure 7-figure supplement 2). These data strongly argue that Shh-induced, Smurfs-mediated Ptch1 endocytic turnover is independent of Smo.

3) The authors showed that mutating the PY motifs or Smurf1/2 affected both Ptch1 ciliary exit and endocytosis. Is the failure of Ptch1 ciliary exit the result of defective endocytosis? Or could Shh induce Ptch1 ubiquitination in the primary cilium, which may directly regulate ciliary exit of Ptch1? Is there any evidence that Smurf1/2 can be found in the primary cilium with or without Shh treatment? In Figure 6C, can Shh trigger ciliary exit of Ptch1 in the absence of Smurf1/2? Does pharmacological blockage of Ptch1 endocytosis/degradation affect Ptch1 ciliary exit?

It is our interpretation that Ptch1Δ2PY fails to exit cilia because of defective endocytosis. Despite an initial hypothesis, we found neither endogenous nor transfected Smurfs in the cilia with or without Shh treatment. Our data also show that the Shh-induced ciliary export of Ptch1 was compromised when Smurf1 and Smurf2 were knocked down with siRNAs (Figure 5–figure supplement 1). We further show that blocking Ptch1 endocytosis with Leupeptin also blocked its ciliary exit (this result were not included in the previous submission, but is now added as Figure 3–figure supplement 1 in the revised manuscript).

4) The effect of Δ2PY-GFP on Smo ciliary localization presented in Figure 4 does not match the quantification well, especially at 4 hours after Shh treatment where there is almost no difference in the ciliary Smo levels between Δ2PY-GFP and Ptch1-GFP (Figure 4C) while there is a 2-told difference in the quantification (Figure 4D). The authors need to provide a better image reflecting the quantification. Of note, it has been shown that Shh/Ptch1 regulates both the ciliary localization and conformation of Smo (Zhao et al., nature 2007). Have the authors examined whether Δ2PY-GFP affect mSmo conformation using FRET analysis?

We replaced the images in the old Figure 4C with better ones in the revision (new Figure 3C). By using a sophisticated FRET imaging approach, Zhao et al elegantly demonstrated that Hh induces phosphorylation and a conformational change of Smo c-tail that result in Smo dimerization and activation of downstream signaling. Their work also extended this observation to mammalian Smo. However, this regulation, albeit a likely key event in the Shh pathway activation, lies downstream to Ptch1 functions. Since we have demonstrated that Shh-induced Ptch1 endocytic turnover is independent of Smo, and analyzed extensively the ciliary trafficking of Smo, another well recognized key event of the Shh pathway activation, we felt that examining Δ2PY-GFP on mSmo conformation would be a repetition of an already well-addressed issue. In addition, setting up the FRET experiment on Smo conformation would not be a trivial endeavor, if one needs to do it properly. If this reviewer and the editors deem this FRET experiment absolutely essential, which we would respectfully disagree, we will perform as demanded, provided that we are granted additional time.

Reviewer #2:

In this manuscript Yue et al. uncover a role for the Hect E3 ligases Smurf1 and Smurf2 in promoting Hedgehog-dependent changes in the subcellular localization of the Patched receptor that leads to their increased turnover. […]

The strongest aspects of this manuscript are the loss of function experiments conducted with the Sf1-/-,Sf2fl/fl MEFs and GPCs. Indeed, the complete absence of Sf1 and Sf2 leads to a remarkable inhibition of Smo and Gli3 ciliary localization and blunting of Shh-promoted induction of Gli1 levels in MEFs. These results are strongly supported by the experiments in Figure 11 showing a reduction of neural progenitors in cerebellar slice cultures knockout for Sf1 and Sf2 and an inability of Shh to promote the in vitro proliferation of granule cell progenitors when Sf1 and Sf2 are knocked out. These experiments strongly support an important functional requirement of Smurf proteins for Hedgehog signal transduction.

In terms of mechanisms describing the function of Smurf proteins, the evidence presented in the manuscript are however disappointing in that they are too often not convincing, confusing or incomplete. For example, according to their model, Hedgehog ligands are shown to promote the localization of Patched in caveolae, a transitory localization that promote the Smurf dependent ubiquitination of Patched and its endosomal routing to the lysosomes where it is degraded. First of all, although scattered evidence suggests that caveosomes and endosomes may physically interact in specific contexts, the authors present their evidence supporting a role of Rab proteins and endosomal trafficking in promoting Patched exit from caveolae as a well defined and accepted mechanism. However, caveolae-mediated endocytosis is most often described to be separate from endosomal sorting. Although this could represent a novel sorting mechanism for cell surface receptors, the characterization of this process needs to be strengthened and better discussed.

We agree with this reviewer that caveolae was a recently recognized alternative route for internalization of membrane-bound ligand-receptor complexes, but this phenomenon was actually noted more than two decades ago. At that time, a term of “potocytosis” was coined to distinguish it from the Clathrin-mediated endocytosis (Anderson RG, Science 255:410-1, 1992; Gleizes PE, Eur. J. Cell Biology 71:144-53, 1996), because the cargo of potocytosis was thought to be emptied directly into the cytosol. Later studies demonstrated that caveolae-mediated internalization actually feeds into the conventional endocytic pathway, and “caveosomes”, which were previously regarded as independent organelles distinct from endosomes, were actually late endosomes modified by the accumulated Caveolin-1 therein (Hayer et al, J Cell Biol 191:615-29, 2010; Sandvig et al, Curr Opin Cell Biol 23:413-420, 2011). To clarify this issue, we made modifications in the Introduction and cited several key references.

Moreover, all of the evidence supporting the localization of Ptch in different subcellular fraction relies on overexpression experiments and on colocalization with overexpressed markers tagged with fluorescent proteins (especially important for Rab7). These experiments should be repeated using endogenous proteins and images obtained at higher resolution to more precisely follow the fate of Ptch trafficking and more convincingly support the implication of caveolae and/or endosomal trafficking.

Antibodies again mouse Ptch1 are not commercially available, precluding a direct visualization of the endogenous Ptch1, which is present at extremely low level in cells (Rohatgi et al Science). Fluorescence labeled Rab5, Rab7, and Lamp1 are widely used for marking early endosomes, late endosomes, and lysosomes, and the data in question were generated through confocal imaging on a newly acquired Zeiss LSM710 microscope. We have repeated the experiments in question using Ptch1GFP and antibodies against endogenous Rab5, Rab7, and Lamp1, respectively. The data are displayed in new Figure 2 and Figure 2–figure supplements 1 and 3. Signals from antibody staining of endogenous proteins were quite low, probably reflecting the low abundance of the interacting species or the low avidity of this commercial antibody, nevertheless, colocalization between Ptch1GFP and Rab7 poitive late endosomes was confirmed. We also showed colocalization between Ptch1GFP and Lamp1 positive lysosomes using leupeptin to block proteolysis. However, we were unable to detect colocalization between Ptch1GFP and early endosomes (Rab5) without or with ShhN treatment, confirming our previous finding that Ptch1 traverses from lipid rafts directly to late endosomes, bypassing early endosomes. Finally, the d2PY mutant was not colocalized with any of these vesicles. We want to emphasize that these confocal images presented were taken in z-stack using a 63x oil lens. Some images may appear fuzzy, particularly in colocalizing areas/vesicles. This is likely because only a very small fraction of cytoplasmic Ptch1 is channeled to the endocytic pathway; the bulk of forced expressed Ptch1 still turns over via proteasomes (Figure 1F).

In addition in my opinion the biggest question that is left unanswered is how ubiquitination of Patched by Smurf proteins contributes to its function. Do Smurfs lead to Patched mono-ubiquitination or to K63 or K48 ubiquitin chain conjugations? Is ubiquitination involved in Patched endocytosis per se or in its sorting from endosomes to lysosomes? Does Hedgehog ligand promote the interaction of Patched with Smurfs? Do Hedgehog ligands promote Patched ubiquitination?

In our humble opinion, elucidation of the type of Smurfs-mediated ubiquitin modification of Ptch1is certainly informative, but is nevertheless a mechanistic detail in our investigation. It is also extremely difficult to visualize monoubiquitination of Ptch1 under natural settings, given the size of this protein. We did however use mutant forms of ubiquitin and found that Smurf2 promotes Ptch1 to undergo both K63 and K48 ubiquitin chain-mediated ubiquitination (new Figure 9C). We further show that Shh-N promotes interaction of Ptch1 with Smurfs (new Figure 7E) and Ptch1 polyubiquitination (new Figure 9D). Because Ptch1 ΔPY is accumulated in Caveolin-positive lipid raft but not in late endosome (Figs.1A, 1B, and 2A, 2B), we believe that Smurf-mediated Ptch1 ubiquitination is involved in sorting of Ptch1 from lipid raft to late endosomes.

There also seems to be a disconnection between the results obtained using the Ptch-d2PY mutant (when rescuing the Ptch1-/- MEFs) and the results obtained in the Sf1, Sf2 double KO cells. Indeed, whereas the Shh-promoted accumulation of Smo and Gli1 activation are blunted in the dKO cells, Smo accumulation is only reduced when the d2PY mutant is expressed (4C,D). Since the interaction between the d2PY mutant and Smurf proteins seems to be completely abolished (9E) how is this explained? If there is more Ptch1-d2PY in cilia, why do Smo enters at all?

We replaced the d2PY images in old Figure 4C as well as those in old Figure 8B with new ones that better reflect the corresponding statistic graphs. We apologize for those images that may have exaggerated the difference. Judging from the data graphs, it is clear that the reduction in Smo ciliary localization and Gli1 activation caused by d2PY deletion is clearly in line with that by Smurfs knockdown (compare Figure 3D, time point 1-4 hours vs. Figure 6B, 6C).

With regard to the last question, the current paradigm of Ptch1 inhibiting Smo by preventing the latter entry into cilia is based on the observation that Smo moves in whereas Ptch1 moves out of cilia under the influence of Shh (Rohatgi et al, Science 317:372-8, 2007). However, there is no evidence to indicate that the presence of these two membrane receptors in the cilium is mutually exclusive. To the contrary, there are published studies reporting cyclopamine actually promotes Smo entry into the cilium, suggesting that Smo and Ptch1 can co-exist in cilia.

Reviewer #3:

In the manuscript entitled “Requirement of Smurf-Mediated Endocytosis of Patched 1 in Sonic Hedgehog Signal Reception”, Yu et al. present evidence that Smurf1 and Smurf2 promote ubiquitination of PTCH1 resulting in endocytic turnover that is required for HH pathway activation. In particular, the authors provide significant experimental data examining the subcellular localization of PTCH1 and the role of two PPXY motifs in regulating PTCH1 localization turnover, and downstream effects on HH pathway function. While, overall the results appear to be of high quality, there are some issues with both interpretation of the data and proper acknowledgement of previous work that the authors must address.

Major comments:

1) There is an unfortunate lack of proper citation of previous work by other labs in this field. Two essential examples include the recent publication of work identifying a role for Smurfs in regulating Drosophila Ptc turnover (Huang et al., PLOS Biology, 2013), and work from Tom Kornberg that defined a role for the PPXY motif in regulating the turnover of vertebrate PTCH1 (Kawamura et al., JBC, 2008). These two papers directly impact the current study by Yue et al., and this work should be considered in the context of these previous studies.

We have cited these two papers and discussed extensively the Huang’s recent publication.

2) In Figure 5, the authors utilize Ptch1-/- MEFs to address differences in the ability of PTCH1 and PTCH1Δ2PY to promote ligand-dependent signaling. However, the authors miss an opportunity to distinguish between the ligand-dependent and ligand-independent effects of PTCH1 in the HH pathway. They should use these cells and constructs to examine the ability of PTCH1 or PTCH1Δ2PY to antagonize SMO in the absence of ligand. That is, Ptch1-/- MEFs display constitutive HH pathway activation; however, re-expressing PTCH1 rescues this pathway activity. The question is whether PTCH1Δ2PY is equally effective? Do the authors observe equivalent antagonism of SMO in these cells? Or is PTCH1Δ2PY a more effective antagonist of SMO than wt PTCH1? These are straightforward questions to address since the authors have all the necessary tools and reagents in hand.

We did the experiment as requested and the results indicate that Δ2PY is equally effective as the wt Ptch1 in antagonizing Smo in Ptch1-/- MEFs (Figure 4C). This is different from the results obtained from Shh-induced signaling events.

https://doi.org/10.7554/eLife.02555.025
