Phenotypic complementation of genetic immunodeficiency by chronic herpesvirus infection

  1. Donna A MacDuff
  2. Tiffany A Reese
  3. Jacqueline M Kimmey
  4. Leslie A Weiss
  5. Christina Song
  6. Xin Zhang
  7. Amal Kambal
  8. Erning Duan
  9. Javier A Carrero
  10. Bertrand Boisson
  11. Emmanuel Laplantine
  12. Alain Israel
  13. Capucine Picard
  14. Marco Colonna
  15. Brian T Edelson
  16. L David Sibley
  17. Christina L Stallings
  18. Jean-Laurent Casanova
  19. Kazuhiro Iwai
  20. Herbert W Virgin  Is a corresponding author
  1. Washington University School of Medicine, United States
  2. Howard Hughes Medical Institute, United States
  3. Rockefeller University, United States
  4. Institut Pasteur, Centre National de la Recherche Scientifique, Unité de Recherche Associée, France
  5. Necker Hospital for Sick Children, France
  6. Necker Hospital for Sick Children, Imagine Institute, INSERM UMR 1163, France
  7. Paris Descartes University, France
  8. Kyoto University, Japan
Research Article
  • Cited 40
  • Views 2,507
  • Annotations
Cite this article as: eLife 2015;4:e04494 doi: 10.7554/eLife.04494

Abstract

Variation in the presentation of hereditary immunodeficiencies may be explained by genetic or environmental factors. Patients with mutations in HOIL1 (RBCK1) present with amylopectinosis-associated myopathy with or without hyper-inflammation and immunodeficiency. We report that barrier-raised HOIL-1-deficient mice exhibit amylopectin-like deposits in the myocardium but show minimal signs of hyper-inflammation. However, they show immunodeficiency upon acute infection with Listeria monocytogenes, Toxoplasma gondii or Citrobacter rodentium. Increased susceptibility to Listeria was due to HOIL-1 function in hematopoietic cells and macrophages in production of protective cytokines. In contrast, HOIL-1-deficient mice showed enhanced control of chronic Mycobacterium tuberculosis or murine γ-herpesvirus 68 (MHV68), and these infections conferred a hyper-inflammatory phenotype. Surprisingly, chronic infection with MHV68 complemented the immunodeficiency of HOIL-1, IL-6, Caspase-1 and Caspase-1;Caspase-11-deficient mice following Listeria infection. Thus chronic herpesvirus infection generates signs of auto-inflammation and complements genetic immunodeficiency in mutant mice, highlighting the importance of accounting for the virome in genotype-phenotype studies.

https://doi.org/10.7554/eLife.04494.001

eLife digest

The immune system protects an individual from invading bacteria, viruses and parasites, as well as malfunctioning or cancerous host cells. However, some people inherit genetic defects that cause part of the immune system to be missing or to not work properly. This is called a genetic immunodeficiency, and puts individuals at a higher risk of infection and disease.

The symptoms of immunodeficiencies can vary substantially between individuals, even when they have defects in the same gene. For example, only some of the individuals who have defects in both of their copies of a gene called HOIL-1—which has been linked to several roles in the body's immune response—are reported to suffer from an altered susceptibility to bacterial infections and chronic (persistent) inflammation. Gaining a clear understanding of the possible factors that influence such variations in the symptoms of genetic immune deficiencies could help to speed up their diagnosis, as well as helping to develop more effective treatments.

MacDuff et al. studied mice that had mutations in both copies of the mouse equivalent of the HOIL-1 gene. These mice, when raised in a clean barrier facility that reduces their exposure to viruses, were severely immunodeficient and died when infected by certain bacteria and parasites, including Listeria monocytogenes. However, they were able to tolerate infections with a herpesvirus or the bacterium that causes tuberculosis. The immunodeficiency to L. monocytogenes was linked to problems producing protective molecules called cytokines, which form a crucial part of the immune response. Unexpectedly, MacDuff et al. found that a chronic herpesvirus infection substantially protected these very immunodeficient animals from infection with Listeria monocytogenes, and the mice were able to efficiently produce protective cytokines.

Mice with two other distinct genetic deficiencies that affect their immune system were also better able to survive otherwise lethal bacterial infections if they had a long-term herpesvirus infection. Macduff et al. suggest that the chronic herpesvirus infection stimulates the immune system, and so allows it to compensate for the lack of cytokine production associated with various immunodeficiencies, including those caused by mutations in the HOIL-1 gene. This suggests that the presence of viruses or other long-term infections may be responsible for some of the variability seen in the symptoms of different individuals with the same genetic immunodeficiency. This is an important concept since essentially all humans have life-long chronic infections from various herpesviruses, as well as other viruses that form the human virome.

https://doi.org/10.7554/eLife.04494.002

Introduction

HOIL-1 (encoded by the RBCK1 gene), HOIP (RNF31) and SHARPIN form the linear ubiquitin chain assembly complex (LUBAC), which linearly ubiquitinates receptor signaling complex components such as NEMO to enhance NF-κB activation after engagement of immune receptors including TNF-R1, IL-1R, CD40, TLRs and NOD2 (Tokunaga et al., 2011; Tokunaga et al., 2009; Ikeda et al., 2011; Gerlach et al., 2011; Haas et al., 2009; Zak et al., 2011; Hostager et al., 2011; Boisson et al., 2012; Damgaard et al., 2012; Tian et al., 2007). Recently, HOIL-1/LUBAC was also shown to be important for activation of the NLRP3/ASC inflammasome in macrophages via linear ubiquitination of ASC (Rodgers et al., 2014). These data suggest that HOIL-1 plays multiple roles in inflammation and infection. In mice, SHARPIN deficiency results in auto-inflammation involving multiple organs including the liver, esophagus, lung and, most noticeably, chronic proliferative dermatitis of the skin (Seymour et al., 2007). The development and organization of secondary lymphoid organs and antibody isotype switching are also impaired in these mice (HogenEsch et al., 1999). Loss of HOIP catalytic activity in B cells results in the impaired development of B1 B cells and antibody responses to antigen (Sasaki et al., 2013). However, HOIL-1-deficient mice have not been analyzed extensively to date.

Sixteen patients with bi-allelic mutations in the gene encoding HOIL-1 have been reported (Boisson et al., 2012; Nilsson et al., 2013; Wang et al., 2013). Three patients exhibited cardiomyopathy, amylopectinosis, hyper-inflammation and mild immunodeficiency associated with an increased frequency of bacterial infections, whereas other patients presented with amylopectinosis and myopathy alone (Figure 1—figure supplement 1). The role of HOIL-1 in inflammation and immunity to infection in vivo is, therefore, uncertain.

Although there are multiple possible explanations for the variable clinical presentations of the reported patients including hypomorphic expression of HOIL-1 or effects of mutations on protein function, another possibility was that environmental factors alter the clinical presentation of HOIL-1 deficiency. In this study we define the function of HOIL-1 in murine immunity to infection and explore the potential role of the virome in determining HOIL-1 deficiency-associated phenotypes.

The bacterial microbiome and the virome regulate inflammation and immunity (Virgin, 2014; Virgin et al., 2009; Belkaid and Hand, 2014). Within the virome, herpesviruses persistently infect most humans, and exert significant effects on innate immunity in mice during experimental chronic infection, including increasing resistance to tumors and a range of pathogens (Barton et al., 2007; White et al., 2010; Yager et al., 2009; Nguyen et al., 2008; Haque et al., 2004). However, the potential effects of chronic infection on the phenotypic manifestations of immune deficiencies have not been considered.

In this study, we show that chronic herpesvirus infection can alter the presentation of several genetic immunodeficiencies in mice. We first found that, in naïve mice, HOIL-1 is essential during infection with Listeria monocytogenes, Toxoplasma gondii and Citrobacter rodentium and for efficient induction of pro-inflammatory cytokines that are known to be essential for resistance to lethal infection by hematopoietic cells during Listeria infection. In contrast, HOIL-1 knock-out (KO) mice, with null mutations in the Rbck1 gene that encodes HOIL-1, were resistant to infection with murine γ-herpesvirus 68 (MHV68) and Mycobacterium tuberculosis. Although HOIL-1 KO mice raised in a barrier facility did not display signs of auto-inflammation, chronic infection with MHV68 or M. tuberculosis resulted in elevated inflammatory cytokines circulating in the serum, similar to that observed in some patients with mutations in RBCK1 (HOIL1). Interestingly, latent infection with MHV68 rescued HOIL-1 deficient mice from lethality during Listeria infection and induced high levels of the protective cytokine, interferon-gamma (IFNγ). MHV68 latency also protected IL-6, Caspase-1 and Caspase-1;Caspase-11 deficient mice from Listeria-induced lethality, indicating that the ability of latent infection to complement a genetic immunodeficiency is not restricted to mutation of Hoil-1. These data indicate that chronic infections can modify the clinical presentations of genetic variations, thereby opening a new avenue for the analysis and interpretation of human genotype-phenotype association studies. We speculate that the protective effect of chronic herpesvirus infection is due to the stimulation of the function of the innate immune system in a manner that compensates for deficient early cytokine responses associated with multiple immunodeficiencies.

Results

HOIL-1 is essential during acute infection with Listeria monocytogenes, Citrobacter rodentium and Toxoplasma gondii

HOIL-1 KO mice (Tokunaga et al., 2009) were born at Mendelian ratios and, in contrast to SHARPIN-deficient mice, failed to develop TNFα-driven inflammatory skin disease (Ikeda et al., 2011; Gerlach et al., 2011; Tokunaga et al., 2011; Tokunaga and Iwai, 2012) and exhibited normal histology of lymphoid organs, liver, lung, and kidney, and the presence of Peyer's patches along the small intestine (not shown). Aged HOIL-1 KO mice exhibited deposits of material that stained with periodic acid-Schiff reagent and was resistant to digestion with diastase, similar to the amylopectin-like material observed in humans with HOIL-1 deficiency (Figure 1—figure supplement 2) (Boisson et al., 2012). Importantly, these barrier-raised mice showed minimal signs of baseline hyper-inflammation. In this regard, HOIL-1 KO mice exhibited normal numbers of lymphoid and myeloid cells in the spleen and thymus, normal complete blood counts (Figure 1—figure supplement 3A,B,D), and no detectable increase of tumor necrosis factor alpha (TNFα) or interleukin 6 (IL-6) in serum (discussed below). However, in the peritoneum, HOIL-1 KO mice contained about twofold more B cells, T cells and resident macrophages without changes in other cell types (Figure 1—figure supplement 3C). Expression of neighboring genes, Trib3 and Tbc1d20, was unaffected by disruption of the Rbck1 (Hoil1) gene (Figure 1—figure supplement 4).

To determine the requirement for HOIL-1 during the immune response to infection in vivo, we challenged HOIL-1 KO mice with a number of different pathogens. Strikingly, HOIL-1 KO mice were highly susceptible to even low dose infection with the facultative gram-positive intracellular bacterium, Listeria monocytogenes (Listeria), with 80%, 80% and 50% of mice succumbing to infection within 10 days of intraperitoneal (i.p.) inoculation with 105, 104 and 103 CFU, respectively (Figure 1A). Although bacterial burdens in the spleens and livers of control and HOIL-1 KO mice were similar 1 and 3 days post-infection with 105 CFU, bacterial CFUs were elevated in HOIL-1 KO mice by 6 days post-infection, indicating that HOIL-1 KO mice were unable to control and clear the bacteria (Figure 1B). Further, these mutant mice developed large inflammatory lesions in the liver, elevated liver enzymes in the serum, and widespread tissue destruction in the spleen (Figure 1—figure supplement 5, not shown).

Figure 1 with 5 supplements see all
HOIL-1 KO mice are highly susceptible to acute infection with Listeria monocytogenes, Toxoplasma gondii and Citrobacter rodentium.

(A) Survival of control (blue circles) and HOIL-1 KO (red squares) mice following i.p. inoculation with 105 (left panel; control n = 35, HOIL-1 KO n = 19), 104 (middle panel; control n = 15, HOIL-1 KO n = 15) or 103 (right panel; control n = 15, HOIL-1 KO n = 15) CFU Listeria strain EGD. (B) Listeria CFU in spleen and liver from control (blue circles) and HOIL-1 KO (red squares) mice infected with 105 CFU i.p. for 1 day (left panel), 3 days (middle panel) or 6 days (right panel). Each symbol represents an individual mouse and the mean log10 CFU is indicated. The dashed line indicates the limit of detection. (C) Survival of control (blue circles) and HOIL-1 KO (red squares) mice following inoculation with 5000 (left panel; control n = 17, HOIL-1 KO n = 5) or 100 (middle panel; control n = 10, HOIL-1 KO n = 10) tachyzoites T. gondii strain Pru-luc. (D) Log10 total flux (luciferase activity; photons per second) as a measure of parasite burden 8 days post-infection with 100 tachyzoites. Each symbol represents an individual mouse and the mean log10 is indicated. (E,F) Survival (E) and weight (F) of control (blue circles) and HOIL-1 KO (red squares) mice following oral gavage with 2 × 109 CFU C. rodentium. n = 20/group for survival and n = 10/group for weight. *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001. Statistical analyses were performed using logrank Mantel–Cox test (A, C and E), Mann–Whitney test (B), or t-test (D).

https://doi.org/10.7554/eLife.04494.006

HOIL-1 KO mice were also highly susceptible to infection with a relatively avirulent type II strain of the intracellular apicomplexan parasite Toxoplasma gondii (T. gondii) (Figure 1C). Despite infection with 5000 parasites resulting in lethality in only 20% of control mice, 100 parasites was sufficient to induce lethality in 100% of HOIL-1 KO mice. Quantification of parasite-encoded luciferase expression in vivo revealed that HOIL-1 KO mice failed to control T. gondii replication by 8 days post-infection (Figure 1D). HOIL-1 KO mice also succumbed to infection with the enteric gram-negative pathogen Citrobacter rodentium, whereas control mice were highly resistant (Figure 1E,F). These data indicated that loss of HOIL-1 expression confers profound immunodeficiency in barrier-raised mice.

HOIL-1 is essential in bone marrow-derived innate immune cells during acute Listeria infection

To define the role of HOIL-1 in immunity, we examined the response to Listeria in more detail. One patient with HOIL-1-associated immunodeficiency showed signs of recovery from hyper-inflammation after hematopoietic stem cell transplantation (Boisson et al., 2012). In mice, reciprocal bone marrow transplantation revealed that expression of HOIL-1 in radiation-sensitive hematopoietic cells was critical for resistance to Listeria (Figure 2A, Figure 2—figure supplement 1). We noted that control mice that received control bone marrow were slightly more susceptible to infection than non-irradiated control mice (compare with Figure 1A), suggesting that reconstitution does not fully restore the immune system of a lethally irradiated mouse to that of a non-irradiated animal. Despite this caveat, irradiated wild-type control mice that received HOIL-1 KO bone marrow and were challenged with 105 Listeria 8 weeks later succumbed to infection at the same rate as HOIL-1 KO mice that had received HOIL-1 KO bone marrow. HOIL-1 KO mice that received control bone marrow had an increased survival rate, but still succumbed more readily than control mice that received control bone marrow. These data indicate that, while HOIL-1 expression is essential in bone marrow-derived cells, HOIL-1 may also play a role in radiation resistant cells during Listeria infection.

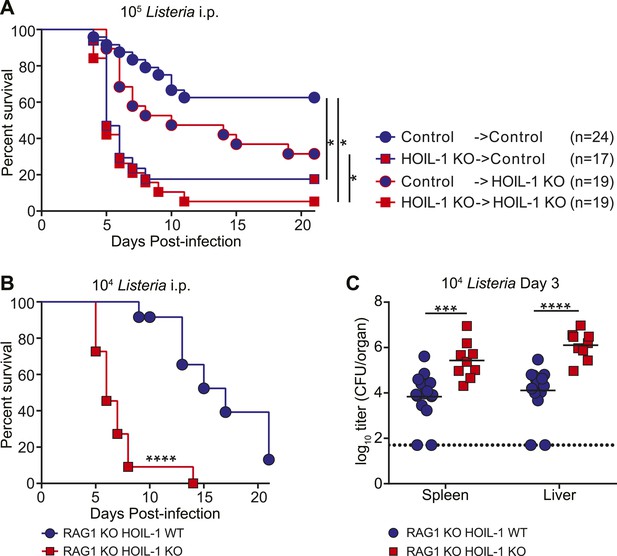

Figure 2 with 2 supplements see all
HOIL-1 is required in an innate immune cell compartment during Listeria infection.

(A) Survival of control and HOIL-1 KO reciprocal bone marrow chimeric mice following infection with 105 CFU Listeria. *p ≤ 0.0083; logrank Mantel–Cox test corrected for multiple comparisons. (B) Survival of RAG1 KO HOIL-1 WT (blue circles; n = 12) and RAG1 KO HOIL-1 KO (red squares; n=11) mice following infection with 104 CFU Listeria. (C) Listeria CFU in spleen and liver from RAG1 KO HOIL-1 WT (blue circles) and RAG1 KO HOIL-1 KO (red squares) mice infected with 104 CFU for 3 days. Each symbol represents an individual mouse and the mean log10 is indicated. For B and C, *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001; logrank Mantel–Cox test and Mann–Whitney test, respectively.

https://doi.org/10.7554/eLife.04494.012

To determine whether HOIL-1 deficiency resulted in a defect in innate or adaptive immunity, we bred the HOIL-1 KO mice onto a RAG1-deficient background. T and B cell-deficient RAG1 HOIL-1 double KO mice succumbed to infection significantly faster than RAG1 KO mice (Figure 2B), and exhibited elevated bacterial burden in the spleen and liver 3 days post-infection (Figure 2C), indicating that HOIL-1 plays an essential role in innate immunity during Listeria infection. Indeed, HOIL-1-deficient mice succumbed to infection at the same rate regardless of the presence or absence of the adaptive immune system (compare Figures 1A and 2B). Further, HOIL-1 KO mice immunized with a low dose of Listeria were capable of mounting a protective adaptive response to a high dose secondary challenge with Listeria 28 days later (Figure 2—figure supplement 2). We noted that 1000 CFU administered i.p. was a borderline dose required to successfully immunize control mice in our experiments, despite being sufficient to induce lethality in 50% of HOIL-1 KO mice (Figure 1A). Together, these data do not rule out a role for HOIL-1 in adaptive immunity, but show that HOIL-1 plays a major role in hematopoietic cells to foster innate immunity to Listeria infection.

HOIL-1 is required for efficient production of pro-inflammatory cytokines by macrophages in response to Listeria infection

Innate immunity to Listeria in mice depends on tissue-resident macrophages and CD8α+ dendritic cells responding to Listeria infection by secreting pro-inflammatory cytokines including TNFα, IL-12, and IL-6. These cytokines are each well recognized to be essential for survival after Listeria infection (Unanue, 1997; Williams et al., 2012) through their role in coordinating activation of NK cells, NKT cell and T cells to produce IFNγ required for the bactericidal activity of phagocytic cells. Therefore, to further define a role for HOIL-1 in the innate immune system, we determined whether HOIL-1 KO bone marrow-derived macrophages (macrophages herein) produced cytokines in response to Listeria infection with or without IFNγ treatment. Compared to control cells, HOIL-1 KO macrophages secreted only 50%, 20% and 10% of the expected levels of TNFα, IL-6 and IL-12p70 protein, respectively (Figure 3A). Consistent with a role for HOIL-1 in the activation of the NF-κB transcription factor following TLR stimulation, Listeria-infected HOIL-1 KO macrophages expressed decreased levels of Tnf, Il6 and Il12b mRNA (Figure 3B). The defects in cytokine transcript levels were of smaller magnitude than the decreases in secreted protein, particularly for Tnf, suggesting that HOIL-1 may also be involved in cytokine translation or secretion. However, HOIL-1 KO macrophages killed Listeria after activation with IFNγ as effectively as control cells, indicating the selectivity of HOIL-1 effects on macrophage function (Figure 3—figure supplement 1).

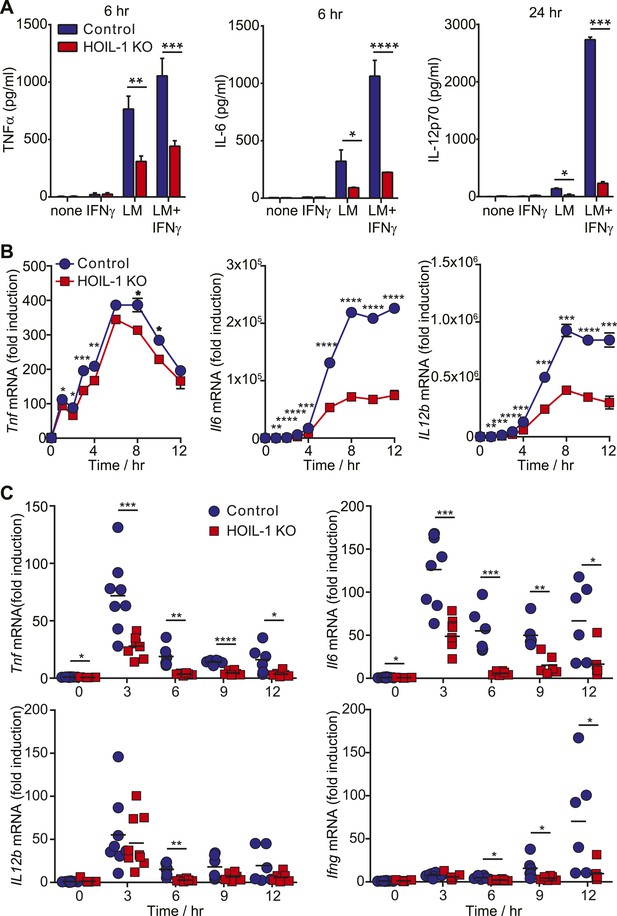

Figure 3 with 3 supplements see all
HOIL-1 is important for induction of pro-inflammatory cytokines following Listeria infection.

(A) TNFα (6 hr), IL-6 (6 hr) and IL-12p70 (24 hr) protein in macrophage culture supernatants following infection with Listeria (LM) ± IFNγ co-treatment. (B) Induction of Tnf, Il6 and Il12b transcripts in macrophages over 12 hr following infection with Listeria plus IFNγ. Data represent the mean ± SEM of macrophages derived from two mice per genotype analyzed in triplicate and are representative of at least three independent experiments. (C) Induction of cytokine transcripts in peritoneal cells over 12 hr following infection of control (blue circles) and HOIL-1 KO (red squares) mice with 105 Listeria. Each symbol represents an individual mouse. *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001. Statistical analyses were performed using t-test.

https://doi.org/10.7554/eLife.04494.015

We confirmed that induction of Tnf and Il6 mRNA was significantly impaired following Listeria infection in vivo by measuring cytokine transcripts in peritoneal cells from mice 3 to 12 hr after infection (Figure 3C). This reduction in cytokine transcripts could not be explained by a decrease in macrophage numbers (Figure 3—figure supplement 2). Surprisingly, Il12b transcript levels were similar in HOIL-1 KO mice, with a significant difference being detected at only 6 hr after infection. Similar decreases in Tnf and Il6 mRNA were observed in mice on the Rag1−/− background at 3 hr post-infection, confirming that these differences are due to a defect in innate immunity in the absence of HOIL-1 (Figure 3—figure supplement 3). We also noted that fewer NK cells and neutrophils were present in the peritoneum 6 hr after Listeria infection, suggesting delayed recruitment or proliferation of these cell types (Figure 3—figure supplement 2). These decreases in cytokine production and delayed cell recruitment likely synergize with defects in IL-1β and TNFα signaling observed by others (Tian et al., 2007; Haas et al., 2009; Tokunaga et al., 2009, 2011) to compromise antibacterial immunity, and may contribute to the impaired induction of Ifng mRNA observed by 12 hr (Figure 3C). These data indicate that HOIL-1 plays a critical role in coordinating essential early cytokine responses after Listeria infection.

HOIL-1 KO mice display enhanced control of murine gamma-herpesvirus 68 and Mycobacterium tuberculosis and a hyperinflammatory response to infection

The above data demonstrate that HOIL-1 KO mice have a severe immunodeficiency after certain types of infection. To assess the generality of this phenotype we infected HOIL-1 KO mice with murine γ-herpesvirus 68 (MHV68), a genetic relative of the common persistent human herpesviruses, Epstein–Barr virus and Kaposi's sarcoma-associated herpesvirus (EBV, KSHV) (Barton et al., 2011; Speck and Ganem, 2010). HOIL-1 KO mice survived MHV68 infection for at least 3 months. MHV68 replication was unaffected by HOIL-1 deficiency in cultured macrophages, and was suppressed only slightly in vivo (Figure 4—figure supplement 1). Despite normal establishment of latency as determined by the number of cells carrying MHV68 genome 28 days after infection (Figure 4—figure supplement 2), the efficiency of MHV68 reactivation from latency in explanted peritoneal cells was significantly impaired (approximately 50-fold, Figure 4A). Similarly, HOIL-1 KO mice failed to succumb to infection with M. tuberculosis over 70 days of infection, and in fact exhibited lower bacterial colony counts in the spleen while counts in the lung were no different than controls (Figure 4B). Thus HOIL-1 KO mice are fully able to control, and may have an enhanced ability to control, specific aspects of acute and chronic MHV68 and M. tuberculosis infection, in striking contrast to the immunodeficiency apparent after infection with Listeria, Toxoplasma, and Citrobacter.

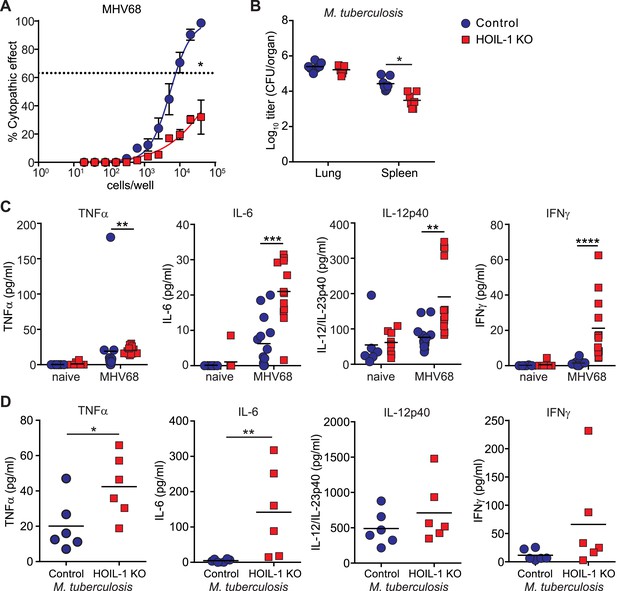

Figure 4 with 2 supplements see all
Enhanced inflammatory response and control of MHV68 and M. tuberculosis by HOIL-1 KO mice.

(A) Limiting dilution assay of peritoneal cells from control (blue circles) and HOIL-1 KO (red squares) mice infected with MHV68 for 28 days onto mouse embryonic fibroblast monolayers to measure the frequency of cells capable of MHV68 reactivation. The dashed line indicates 63.2%, which was used to determine the frequency of cells reactivating virus by the Poisson distribution. Data represent the mean from three independent experiments each with cells combined from three mice/group. *p ≤ 0.05. Statistical analyses were performed by calculating the number of control and HOIL-1 KO cells required for 63.2% of wells to contain complete cytopathic effect for each individual experiment by non-linear regression, then comparing these values by paired t-test. Preformed virus was not detected in disrupted samples (not shown). (B) M. tuberculosis titers in the lung and spleen of HOIL-1 KO (red squares) and control (blue circles) mice 70 days post-infection. *p ≤ 0.05. Statistical analyses were performed using t-test. (C) TNFα, IL-6, IL-12/IL-23p40 and IFNγ protein detected in serum from naïve or latently-infected (28 days) control (blue circles) and HOIL-1 KO (red squares) mice. Each symbol represents an individual mouse and the mean is indicated. *p ≤ 0.05, t-test with Welch's correction (IL-12/IL-23p40) or Mann Whitney test (TNFα, IL-6, IFNγ). (D) TNFα, IL-6, IL-12/IL-23p40 and IFNγ protein in serum from mice from (B). Each symbol represents an individual mouse. Data are combined from two independent experiments. *p ≤ 0.05, **p ≤ 0.01. Statistical analyses were performed using t-test (TNFα, IL-12p40) with Welch's correction (IFNγ) or Mann Whitney test (IL-6).

https://doi.org/10.7554/eLife.04494.003

Environmental control of HOIL-1 deficiency-associated phenotypes

The ability of HOIL-1 KO mice to effectively control chronic herpesvirus infection allowed us to test the hypothesis that persistent virus infection might alter two phenotypes, hyper-inflammation and immunodeficiency, in which HOIL-1 KO mice appear to differ from some reported patients with bi-allelic mutations in RBCK1 (HOIL1) (Boisson et al., 2012). Notably, patients with HOIL-1 deficiency and hyper-inflammation exhibited increased expression of IL-6 and TNFα in the serum and increased expression of mRNA for Il6 in blood cells (Boisson et al., 2012). We therefore examined the serum of MHV68-infected HOIL-1 KO mice for cytokines essential for resistance to Listeria but deficient in Listeria-infected HOIL-1 KO mice. As previously observed (Barton et al., 2007), latent infection of control mice with MHV68 was associated with an increase in circulating levels of TNFα, IL-6, IL-12 and IFNγ compared with uninfected mice (Figure 4C). In HOIL-1 KO mice, MHV68 latently resulted in small but significant increases in TNFα, IL-6 and IL-12p70 levels, and a more striking increase in IFNγ levels compared to latently infected controls. HOIL-1 KO mice chronically infected with M. tuberculosis also exhibited increased expression of both IL-6 and TNFα in serum at 70 days post-infection (Figure 4D). Therefore, there is an overlap between cytokines expressed in hyper-inflammatory patients and in chronically-infected HOIL-1 KO mice.

Latent infection with murine gamma-herpesvirus 68 protects HOIL-1 deficient mice from Listeria-induced lethality

MHV68 latency has been shown previously to induce symbiotic protection against Listeria infection in wild-type mice (Barton et al., 2007). Because expression of TNFα, IL-6 and IFNγ are essential for control of Listeria infection in mice (Kopf et al., 1994; Unanue, 1997; Williams et al., 2012), and were impaired in Listeria-infected HOIL-1 KO mice (Figure 3C), but elevated in MHV68-infected HOIL-1 KO mice, we considered whether chronic MHV68 infection could complement the profound immunodeficiency observed in Listeria-infected barrier-raised HOIL-1 KO mice. As observed previously (Barton et al., 2007), MHV68 latency, 1 month after infection, protected control mice from an otherwise lethal dose of Listeria (Figure 5A). MHV68 latency also protected HOIL-1 KO mice from a dose of Listeria at least 1000-fold higher than the LD50 for MHV68-negative mice (Figures 5A and 1A). Both control and HOIL-1 KO mice were still partially protected from Listeria challenge 6 months after MHV68 infection (Figure 5—figure supplement 1). A viral mutant capable of acute lytic infection but unable to efficiently establish latency (ORF73.stop) (Moorman et al., 2003) was unable to efficiently protect HOIL-1 KO or control mice from Listeria infection, demonstrating that latent MHV68 is required to complement HOIL-1-associated immunodeficiency to Listeria (Figure 5B).

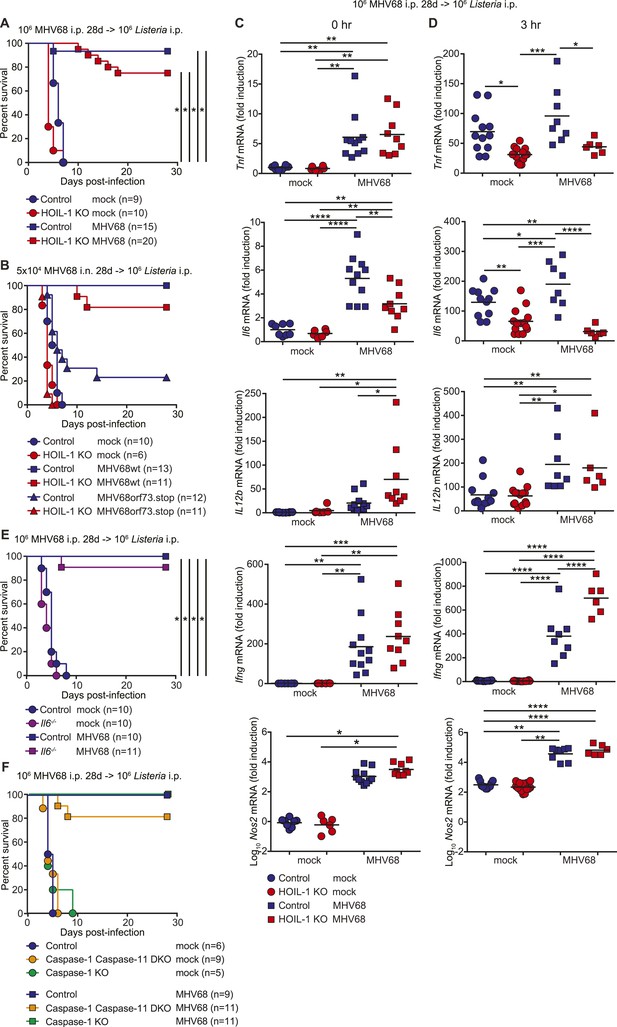

Figure 5 with 3 supplements see all
MHV68 latency rescues HOIL-1 KO, IL-6, Caspase-1 and Caspase-1;Caspase-11-deficient mice from Listeria-induced lethality.

(A) Survival of control (blue symbols; mock n = 9, MHV68 n = 15) and HOIL-1 KO (red symbols; mock n = 10, MHV68 n = 20) mice challenged with 106 CFU Listeria 28 days following mock infection (circles) or infection with 106 PFU MHV68 (squares). *p ≤ 0.0083; logrank Mantel–Cox test corrected for multiple comparisons. (B) Survival of control (blue symbols) and HOIL-1 KO (red symbols) mice challenged with 106 CFU Listeria 28 days following intranasal mock infection (circles) or infection with 5 × 104 PFU wild-type (squares) or ORF73.stop (triangles) MHV68. Significantly different groups were: control mock infected and control MHV68wt infected, control mock infected and HOIL-1 KO MHV68wt infected, control mock infected and HOIL-1 KO MHV68orf73.stop infected, HOIL-1 KO mock infected and control MHV68wt infected, HOIL-1 KO mock infected and HOIL-1 KO MHV68wt infected, control MHV68wt infected and control MHV68orf73.stop infected, control MHV68wt infected and HOIL-1 KO MHV68orf73.stop infected, HOIL-1 KO MHV68wt infected and control MHV68orf73.stop infected, HOIL-1 KO MHV68wt infected and HOIL-1 KO MHV68orf73.stop infected, control MHV68orf73.stop infected and HOIL-1 KO MHV68orf73.stop infected. *p ≤ 0.0033; logrank Mantel–Cox test corrected for multiple comparisons. (C) Cytokine transcript levels in peritoneal cells from mock (circles) and MHV68-infected (squares) control (blue symbols) and HOIL-1 KO (red symbols) mice (28 days post-infection). (D) Induction of cytokine transcripts in peritoneal cells from mock (circles) and MHV68-infected (squares) control (blue symbols) and HOIL-1 KO (red symbols) mice (28 days) 3 hr after infection with 105 Listeria. Each symbol represents an individual mouse. For (C) and (D), *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001. Statistical analyses were performed using one-way ANOVA. (E) Survival of control (blue symbols) and Il6−/− (purple symbols) mice challenged with 106 CFU Listeria 28 days following mock infection (circles) or infection with 106 PFU MHV68 (squares). *p ≤ 0.0083; logrank Mantel–Cox test corrected for multiple comparisons. (F) Survival of control (blue symbols), Caspase-1;Caspase-11 (orange symbols) and Caspase-1 (green symbols) –deficient mice challenged with 106 CFU Listeria 28 days following mock infection (circles) or infection with 106 PFU MHV68 (squares). *p ≤ 0.0033; logrank Mantel–Cox test corrected for multiple comparisons.

https://doi.org/10.7554/eLife.04494.019

Mechanism of virus-associated protection of HOIL-1 KO mice

To determine whether MHV68 latency rescued pro-inflammatory cytokine induction by HOIL-1 KO mice following Listeria infection, we quantitated cytokine transcripts in peritoneal cells from latently infected mice before (Figure 5C) and 3 hr after (Figure 5D) infection with Listeria. As predicted from the cytokine levels in the serum, MHV68 latency resulted in small but significant increases in Tnf, Il6 and Il12b transcripts prior to Listeria challenge (Figure 5C). While MHV68 latency did not rescue the induction of Tnf or Il6 transcripts in HOIL-1 KO mice following infection with Listeria, Il12b transcript levels were increased approximately twofold, and were comparable to levels in control mice. More significantly, Ifng and Nos2 (encoding iNOS) transcripts were elevated approximately 200-fold and 1000-fold, respectively, in latently infected control and HOIL-1 KO mice (Figure 5C), and further induced by 3 hr after infection with Listeria (Figure 5D). Ifng transcript levels were significantly higher in latently infected HOIL-1 KO mice following infection with Listeria than in control mice. These data suggest that MHV68 latency by-passes the requirement for TNFα and IL-6 during early Listeria infection by enhancing the induction of IFNγ and downstream effector molecules important for controlling Listeria infection.

To test whether peritoneal macrophages from latently infected HOIL-1 KO mice had an increased capacity to kill Listeria, we explanted peritoneal macrophages from mock or latently infected mice, infected them with Listeria, killed extracellular bacteria with gentamycin treatment, and compared the number of CFU at 6 hr to the number of CFU at the beginning of the experiment. As expected, cells from mock infected control mice exhibited mild listericidal activity and cells from latently infected control mice had an enhanced ability to kill Listeria (Figure 5—figure supplement 2, (Barton et al., 2007)). Macrophages from mock-infected HOIL-1 KO mice had a slightly impaired ability to control Listeria infection. However, MHV68 latency in HOIL-1 KO mice enhanced the ability of macrophages to kill Listeria, generating a capacity to kill similar to that observed with macrophages from control mice. Together, these data suggest that MHV68 latency induces an environment that enhances the ability of HOIL-1-deficient cells to kill and respond to Listeria.

Viral complementation of multiple genetic immunodeficiencies

To determine whether the viral complementation of immunodeficiency was unique to HOIL-1, we latently infected IL-6, Caspase-1-deficient and Caspase-1;Caspase-11-double-deficient mice (Kayagaki et al., 2013), which survive MHV68 infection but are all highly susceptible to Listeria infection (Figure 5—figure supplement 3) (Kopf et al., 1994; Sarawar et al., 1998; Edelson and Unanue, 2002; Tsuji et al., 2004; Sauer et al., 2011). IL-6, Caspase-1 and Caspase-1;Caspase-11-deficient mice were also protected from lethality following Listeria infection by chronic MHV68 infection (Figure 5E,F). These data indicate that the capacity of chronic MHV68 to reverse a significant immunodeficiency is not restricted to mutations in Rbck1 (Hoil1), and suggest that chronic viral infections may alter phenotypes of many host allelic variants.

Discussion

We report that HOIL-1 is essential during infection with Listeria, T. gondii and C. rodentium, but not with MHV68 or M. tuberculosis in mice. Expression of HOIL-1 was critical in innate, hematopoietic-derived cells during Listeria infection in vivo. The requirement of HOIL-1 for the induction of protective inflammatory cytokines, TNFα, IL-6 and IL-12, following infection of macrophages with Listeria in vitro is consistent with reports that LUBAC is required for efficient NF-κB activation following TLR engagement (Zak et al., 2011; Boisson et al., 2012), but not with a recent report that NF-κB activation following stimulation of TLR4 and TNF-R1 on macrophages by LPS and TNFα, respectively, is unaffected by HOIL-1 deficiency (Rodgers et al., 2014). These apparently conflicting results suggest that HOIL-1 and LUBAC may not only have cell-type specific functions (Boisson et al., 2012; Rodgers et al., 2014), but also stimulus-specific roles that vary between different cell types. This may be further highlighted by the excessive inflammatory response and enhanced control of MHV68 and M. tuberculosis infection—two pathogens that also infect macrophages—by HOIL-1-deficient mice. It has been proposed that low levels of viral reactivation during MHV68 latency are responsible for the low level of constant immune activation and cytokine production (Barton et al., 2007). It is paradoxical, then, that reactivation is almost undetectable in HOIL-1-deficient animals, and yet their inflammatory response is elevated. Since the negative regulator of NF-κB signaling, A20, binds to linear ubiquitin chains (Tokunaga et al., 2012; Verhelst et al., 2012), HOIL-1/LUBAC may also be important for recruiting A20 to receptor signaling complexes to turn off signaling. Therefore, receptor signaling may be sustained in cells in HOIL-1 KO mice, resulting in the increase in TNFα, IL-6 and IL-12, and ultimately IFNγ protein, observed in the serum of chronically infected mice. Decreased viral reactivation may be the result of this increased IFNγ, the inability of latently infected cells to response to a stimulus of reactivation or a combination thereof.

It is unclear why HOIL-1 KO mice are extremely susceptible to some pathogens, yet control other infections remarkably well. This might be due to HOIL-1/LUBAC having differential roles in transducing signals from different immune sensors stimulated by different infections. Other possibilities include a differential requirement for the innate immune system to hold the acute infection in check while an adaptive response is being generated, the speed at which the pathogen replicates, the tissues that it damages, and whether pathology during acute infection is mostly immune- or pathogen-derived. Further studies will be required to address these possibilities.

We further show that chronic infection with MHV68 rescued HOIL-1, IL-6, Caspase-1 and Caspase-1;Caspase-11-deficient mice from lethal Listeria infection, thereby masking the genetic immunodeficiency observed in MHV68-negative mice. As reported previously (Barton et al., 2007), MHV68 latency was associated with increased basal levels of pro-inflammatory cytokines TNFα, IL-6, IL-12 and IFNγ in the serum of wild-type animals, which were further increased in HOIL-1 KO mice. These cytokines appear to increase the activation status of the innate immune system such that their induction following Listeria infection is no longer as important as would be the case in a naïve mouse. Indeed, MHV68 infection did not enhance the transcription of Tnf, and only marginally enhanced the transcription of Il6 and Il12b even in control mice following Listeria infection, and did not rescue the defect in Tnf and Il6 induction observed in HOIL-1 KO mice. Conversely, transcription of Ifng and the effector molecule, iNOS (encoded by Nos2), was elevated in cells from latently infected mice and enhanced substantially by both HOIL-1 KO and control animals very rapidly following infection with Listeria. Macrophages require priming with IFNγ to induce IL-12 in response to Listeria infection. In a latently infected animal, IFNγ is already present and so IL-12 and additional IFNγ may be induced more rapidly. Furthermore, as reported previously for wild-type mice (Barton et al., 2007), MHV68 latency enhanced the ability of peritoneal macrophages from control and HOIL-1 KO mice to kill Listeria. Together, these data suggest that the constant presence of low levels of IFNγ driven by latent virus infection results in an increase in the basal expression levels of downstream effector molecules and the priming of cells for the enhanced immediate killing of Listeria upon infection, as well as for a more rapid further induction of IFNγ and its effector molecules in response to the bacterial challenge. In this sense, chronic virus infection sets the level of innate immunity to subsequent infection.

HOIL-1 KO mice bred in a high grade barrier facility failed to exhibit certain phenotypes of HOIL-1 deficient patients, specifically by not exhibiting baseline hyper-inflammation and by displaying a striking immunodeficiency out of proportion to that observed in some humans with bi-allelic mutations in RBCK1 (HOIL1). Most humans are infected life-long with multiple herpesviruses (Virgin et al., 2009; Virgin, 2014), and many also carry other chronic or latent infections such as tuberculosis. Importantly, we observed complementation of immunodeficiency to Listeria by chronic herpesvirus infection in four different strains of immunodeficient mice, revealing virus infection as one possible environmental factor that might alter the genotype-phenotype relationship for patients with mutations in immune system genes. HOIL-1 KO mice chronically infected with either a herpesvirus or M. tuberculosis also exhibited increases in some of the same cytokines reported in the serum of HOIL-1 deficient humans. At least three of the HOIL-1 mutant patients were infected with at least one herpesvirus (Boisson et al., 2012), and it is likely that other chronic infections were present. However, in the absence of data regarding the complete infection status of the HOIL-1 mutant patients, the relevance of the mouse studies to the human phenotypes is unclear. Nevertheless, perhaps the presence of the virome, and potentially variations in the virome or other chronic infections between people, confers significant phenotypic variation by complementing mutations in host genes responsible for innate immunity (Virgin, 2014).

The genes involved in immunity and inflammation are the most rapidly evolving in the mammalian genome (Lindblad-Toh et al., 2011; Casanova et al., 2013; Quintana-Murci and Clark, 2013). Survival from infection requires a trade-off between alleles that promote or limit inflammation to balance immunity vs immunopathology. We speculate that the virome or other chronic infections hide or enhance the effects of genetic variations in immune responsiveness by complementing chromosomal variations in immune response genes. As the nature of the virome changes in persons growing up in different cultural and economic environments, it is possible that the immunophenotype of the host changes, and the beneficial or deleterious effects of existing genetic variation are unmasked by removal of complementation provided by chronic virus infection. It is also plausible that the striking auto-inflammation observed in humans with a variety of immune defects could be due to even well controlled herpesvirus infection alone or in combination with other chronic infections. Our data suggest that analysis of the metagenome, including the virome, may be of value in linking human phenotype and genotype (Virgin, 2014; Virgin and Todd, 2011). Recent rapid advances in sequencing and analysis of the metagenome will make integration of data from the virome into human genetic studies practical (Virgin, 2014).

Materials and methods

Mice

HOIL-1 KO mice, with null mutations in the Rbck1 gene that encodes HOIL-1, have been described previously (Tokunaga et al., 2009). C57BL/6J mice or HOIL-1 WT littermates were used as wild type controls. Rag1−/− mice were purchased from The Jackson Laboratory (Bar Harbor, ME) and bred to HOIL-1 KO mice. Il6−/− mice were purchased from The Jackson Laboratory. Caspase 1;Caspase 11-deficient mice with or without a Caspase 11 transgene were kindly provided by Vishva Dixit, Genentec, San Francisco USA. All mice were housed and bred at Washington University in Saint Louis in specific pathogen-free conditions in accordance with Federal and University guidelines and protocols were approved by the Animal Studies Committee of Washington University under protocol number 20140244. Mice were inoculated between 8 and 11 weeks of age.

In vivo infections

L. monocytogenes wild type strain EGD was used for this study. Listeria glycerol stocks were stored at −80 °C, and thawed and diluted into PBS for intraperitoneal (i.p.) injection into mice. To determine tissue burden, spleens and livers were homogenized in 10 ml PBS containing 0.05% Triton X-100 and serial dilutions were plated on brain heart infusion agar plates. Listeria CFU were counted after overnight growth at 37°C. Small sections of spleen and liver were also fixed in 10% buffered formalin for histological analysis.

The type II Prugniaud strain of T. gondii expressing a firefly luciferase (PRU-Fluc-GFP, provided by J. Boothroyd, Stanford University, Palo Alto, CA) (Saeij et al., 2005) was used in all in vivo T. gondii experiments. Tachyzoites were grown by 2-day serial passage in human foreskin fibroblasts. For infections, freshly egressed parasites were filtered, counted, and injected i.p. into mice.

Mice were with inoculated orally with 2 × 109 CFU C. rodentium strain DBS100 (ATCC, Manassas, VA) from a fresh culture and monitored for morbidity and mortality.

MHV68 WUMS (ATCC VR1465), MHV68 ORF73.stop and γHV68 M3-Fluc were passaged and titered by plaque assay on NIH 3T12 cells. Virus stocks were stored at −80 °C, and thawed and diluted into PBS for i.p. or intranasal (i.n.) inoculation of mice. For experiments involving MHV68 ORF73.stop, i.n. inoculation with 5 × 104 CFU was performed due to the low titer of the virus stock. To determine γHV68 titers in tissues, organs were placed in 1 ml of complete DMEM and frozen at −80°C. Samples were thawed prior to disruption with silica beads and virus titration by plaque assay.

Before infection, exponentially replicating M. tuberculosis Erdman strain bacteria were washed in PBS + 0.05% Tween 80, and sonicated to disperse clumps. Mice were exposed to 8 × 107 CFU of M. tuberculosis in an Inhalation Exposure System (Glas-Col, Terre Haute, IN), which delivers ∼100 bacteria to the lung per animal. After 24 hr post infection, two mice per group were sacrificed, and lungs were harvested to determine infection efficiency, which was about 100 CFU/lung/mouse. Experimental mice were sacrificed 70 days after infection, and lungs and spleen were harvested for CFU, and serum was collected for cytokine analysis. Bacterial burdens were determined by plating serial dilutions of lung and spleen homogenates onto 7H10 agar plates and incubated at 37°C in 5% CO2 for 3 weeks prior to counting colonies.

MHV68 ex vivo limiting dilution assay for reactivation from latency and limiting dilution PCR for viral genomes

MHV68 reactivation from latency and preformed virus was assayed as described previously (Weck et al., 1996). Briefly, peritoneal exudate cells were plated in twofold serial dilutions (24-wells per dilution) onto permissive mouse embryonic fibroblast (MEF) monolayers and scored for cytopathic effect (CPE) 3 weeks later. Reactivation of lytic virus from a peritoneal cell leads to complete CPE of the MEF monolayer. To measure preformed infectious virus in the sample, parallel samples of cells were mechanically disrupted to kill the cells but keep any infectious virus intact. These samples were plated and scored as described above. Using the Poisson distribution, CPE in 63.2% of wells indicates that one reactivation event is likely to have occurred per well, and is used to determine the frequency of reactivating cells in the sample.

To determine the frequency of cells harboring viral genome, peritoneal cells were assayed by nested PCR for viral genome as described previously (Weck et al., 1999). The detection of PCR product in 63.2% of wells indicates that one genome was present per well.

Cells and infections

Primary bone marrow-derived macrophages were prepared as described previously (Hwang et al., 2012). Briefly, bone marrow was extracted from mouse femurs and allowed to differentiate in DMEM containing 10% FBS, 10% CMG14-12 cell-conditioned media as a source of M-CSF (Takeshita et al., 2000), 5% horse serum, 1 mM sodium pyruvate and 2 mM L-Glutamine for 7 days.

For cytokine and transcript analyses following Listeria infection of macrophages, adherent cells were scraped and seeded in tissue culture-treated plates in the absence of M-CSF. After 3 days, macrophages were infected with 106/ml Listeria in the presence or absence of 100 U/ml IFNγ. 2 hr post-infection, 50 U/ml Penicillin and 50 μg/ml streptomycin were added to kill the Listeria. Cell supernatants were harvested at indicated times and frozen at −80 °C prior to cytokine analysis. Cells were lyzed in TRI-Reagent for RNA extraction.

For Listeria growth/killing assays, macrophages were seeded in non-tissue culture treated dishes in the absence of M-CSF. After 1 day, cells were treated with 300 µ/ml IFNγ or untreated, and 48 hr later scraped replated on sterile coverslips. After 3 hr, cells were infected with 105/ml Listeria from an overnight standing culture and centifuged to synchronize the infection. 50 μg/ml gentamycin was added after 30 min to kill extracellular bacteria. At the indicated times, coverslips were washed with warm PBS, then lyzed in 10 ml cold water to release the bacteria. Serial dilutions were plated on brain heart infusion agar plates, and Listeria CFU were counted after overnight growth at 37°C.

For MHV68 growth analysis, adherent cells were scraped and seeded in tissue culture-treated plates in the presence of M-CSF. After 2 days, macrophages were treated with 0.1 U/ml IFNγ or untreated, and 12 hr later infected with MHV68 at a multiplicity of infection (MOI) of 0.05 for 1 hr with occasional rocking at 37°C and 5% CO2. Cells were washed once with medium and incubated in DMEM supplemented with 10% FBS and 2 mM L-glutamine (with or without 0.1 U/ml IFNγ) for the indicated period of time at 37°C and 5% CO2, before being frozen at −80 °C. Virus titers were determined by plaque assay following two freeze–thaw cycles.

Analysis of listericidal activity of peritoneal cells

Cells were flushed from the peritoneum of mice that had been mock infected or infected with MHV68 for 32 days with ice cold DMEM containing 10% FBS and 2 mM L-Glutamine. 5 × 105 cells were plated on glass coverslips in 24 well plates in duplicate wells per timepoint and allowed to adhere overnight. Non-adherent cells were washed away with warm medium, and the remaining cells were infected with 105 CFU Listeria from a overnight standing culture by spinocculation at 600×g for 10 min at room temperature, and then incubated at 37 °C and 5% CO2. 50 μg/ml gentamycin was added after 30 min to kill extracellular bacteria. Coverslips were washed in warm PBS prior to hypotonic lysis of the cells in ice cold water to release the bacteria. Serial dilutions were plated on brain heart infusion agar plates, and Listeria CFU were counted after overnight growth at 37°C.

Generation of bone marrow chimeric mice

Recipient mice were exposed to 1200 rad of whole body irradiation, and injected intravenously with 10 million whole bone marrow cells from donor mice. Mice were allowed to reconstitute for 8 to 10 weeks before Listeria challenge. Mice were bled at 7 weeks post-irradiation to determine percent chimerism. Genomic DNA was isolated from peripheral blood and analyzed by quantitative real-time PCR (qRT-PCR) for the presence of Rbck1/Hoil1 intron 7 (in control cells; 5′-ATG CTG GAG TAG AGG CTG GA-3′ and 5′-TGA CTG CTG CTT GGA GAG TG-3′), or the neomycin-resistance cassette (in HOIL-1 KO cells; 5′-CAA GAT GGA TTG CAC GCA GG-3′ and 5′-GCA GCC GAT TGT CTG TTG TG-3′). Rag2 was used as a normalization control (5′-GGG AGG ACA CTC ACT TGC CAG TA-3′ and 5′-AGT CAG GAG TCT CCA TCT CAC TGA-3′).

T. gondii Pru-luc in vivo luciferase imaging

Imaging was performed as described previously (Saeij et al., 2005). Briefly, mice were injected i.p. with 150 mg/kg D-Luciferin (Biosynth AG, Switzerland) and allowed to remain active for 5 min. Animals were subsequently anesthetized with 2% isoflurane for 5 min and then imaged with a Xenogen IVIS 200 machine (Caliper Life Sciences, Hopkinton, MA). Data were analyzed using Living Image software (Caliper Life Sciences).

Flow cytometry

Peritoneal exudate cells were harvested by peritoneal lavage with 10 ml ice cold FACS buffer (PBS supplemented with 2% FBS and 50 U/ml Penicillin and 50 µg/ml Streptomycin). Splenocytes were isolated by filtering through two 100 μm cell strainers into 10 ml ice cold FACS buffer. Residual red blood cells were lysed with Red Blood Cell lysis buffer (Sigma, St Louis, MO), counted and stained for flow cytometry.

Cells were incubated with FACS buffer plus 1% rat serum, 1% hamster serum and 1% Fc-block for 15 min. Surface staining was performed for 30 min at room temperature. Cells were then washed and fixed with 2% formaldehyde. Cells were analyzed on an LSRII or LSR Fortessa flow cytometer (BD, Franklin Lakes, NJ) and the data were analyzed using FlowJo software (Tree Star, Inc, Ashland, OR). The following antibodies were used: anti-CD3e (clone 145-2C11, Biolegend, San Diego, CA), anti-CD4 (clone RM4-5, BD Pharmingen), anti-CD8 (clone 53-6.7, Biolegend), anti-IgM (clone II/41, BD Pharmingen), anti-CD19 (clone 6D5, Biolegend), anti-NK1.1 (clone PK136, BD Pharmingen), anti-NKp46 (clone 29A1.4, eBioscience, San Diego, CA), anti-Ly6C (clone HK1.4, Biolegend), anti-Ly6G (clone 1A8, Biolgend, anti-CD11b (clone M1/70, BD Pharmingen), anti-F4/80 (clone BM8, Biolegend).

Cytokine analysis

Cytokines in mouse serum and cell supernatants were quantitated using a custom Procarta Immunoassay Kit (Affymetrix, Santa Clara, CA) and analyzed on a Bio-Plex 200 System (BioRad, Hercules, CA) or by ELISA (BD, Franklin Lakes, NJ), respectively, according to the manufacturers’ instructions.

Quantitative reverse transcriptase-PCR

Spleen sections were homogenized, and macrophages were lysed in TRI-Reagent (Sigma), and processed according to the manufacturer's instructions to isolate total RNA. RNA was isolated from peritoneal cells using RNeasy mini kit (Qiagen, Netherlands). RNA samples were treated with Turbo DNA-free DNase (Ambion, Austin, TX) prior to first strand cDNA synthesis with ImProm-II (Promega, Madison, WI) and random hexamer primers. Quantitative PCR was performed on a StepOnePlus machine using Power SYBR Green master mix (Applied Biosystems, Waltham, MA) and primers specific for ribosomal protein S29 (Rps29; 5′-AGC AGC TCT ACT GGA GTC ACC-3′ and 5′-AGG TCG CTT AGT CCA ACT TAA TG-3′), Rbck1/Hoil-1 (5′-ATT CGG CGG AAT GGA GAC GG-3′ and 5′-CTG GTT GGT CCT GGG CTT CG-3′), Trib3 (5′-CAC ACT GCC ACA AGC ACG GG-3′ and 5′-CAC GCA GGC ATC TTC CAG G-3′), Tbc1d20 (5′-TGA GGG AGG GCT CCT GAC TG-3′ and 5′-AGC AGC ACT TGC TGG TAG TCC-3′), Il12b (5′-GCA CGG CAG CAG AAT AAA TAT GAG-3′ and 5′-TTC AAA GGC TTC ATC TGC AAG TTC-3′), Tnf (5′-GGG TGA TCG GTC CCC AAA GG-3′ and 5′- CTG AGT GTG AGG GTC TGG GC-3′), Il6 (5′-GCC AGA GTC CTT CAG AGA GAT ACA-3′ and 5′-CTT GGT CCT TAG CCA CTC CTT C-3′), Ifng (5′-ATG AAC GCT ACA CAC TGC ATC-3′ and 5′-CCA TCC TTT TGC CAG TTC CTC-3′) and iNos (Nos2) (5′-GTT CTC AGC CCA ACA ATA CAA GA-3′ and 5′-GTG GAC GGG TCG ATG TCA C-3′). Transcript levels were analyzed using the ΔΔCT method, with Rps29 as the reference gene.

Histology

Tissues were fixed in 10% buffered formalin followed by 70% ethanol, paraffin embedded, sectioned and stained with Periodic acid-Schiff (PAS).

Mouse blood work

Alanine aminotransferase and aspartate aminotransferase were measured on a Liasys 330 (AMS Diagnostics, Weston, FL), complete blood counts were measured on a Hemavet 1700 (Drew Scientific, Waterbury, CT), and white blood cell differential counts were performed by Washington University Division of Comparative Medicine Animal Diagnostic Laboratory staff.

Statistical analyses

Statistical significance was determined using GraphPad Prism software. The specific tests performed are noted in the figure legends.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Absence of Peyer's patches and abnormal lymphoid architecture in chronic proliferative dermatitis (cpdm/cpdm) mice
    1. H HogenEsch
    2. S Janke
    3. D Boggess
    4. JP Sundberg
    (1999)
    The Journal of Immunology 162:3890–3896.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    Mature B cells are required for acute splenic infection, but not for establishment of latency, by murine gammaherpesvirus 68
    1. KE Weck
    2. ML Barkon
    3. LI Yoo
    4. SH Speck
    5. HW Virgin IV
    (1996)
    Journal of Virology 70:6775–6780.
  43. 43
    Macrophages are the major reservoir of latent murine gammaherpesvirus 68 in peritoneal cells
    1. KE Weck
    2. SS Kim
    3. HW Virgin
    4. SH Speck
    (1999)
    Journal of Virology 73:3273–3283.
  44. 44
  45. 45
  46. 46
  47. 47

Decision letter

  1. Stephen P Goff
    Reviewing Editor; Howard Hughes Medical Institute, Columbia University, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Complementation of genetic immunodeficiency by chronic herpesvirus infection” for consideration at eLife. Your article has been favorably evaluated by Stylianos Antonarakis (Senior editor), Stephen Goff (Reviewing editor), and 3 reviewers, one of whom, Bill Sugden, has agreed to reveal his identity.

The Reviewing editor and the reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

This paper presents a substantial body of work characterizing the responses to infection of mutant mice with HOIL1 deficiency. We were impressed with the extent of the work. As noted by the reviewers, the selectivity of the effects for some pathogens over others is of interest; and most important is the effect of preinfection with MHV68 on subsequent challenges by other pathogens. We summarize some of the key points of criticism here, before passing on the full detailed comments of the reviewers.

The first reviewer found the paper difficult to read. I too found it very dense and not as linear in presentation as I thought was possible. The experiments cover diverse situations and the responses depend on diverse cytokine levels that are introduced as the experiments are described; perhaps some overview of the plan would be helpful to have at the start of the results. And similarly a clearer summary of the authors' thinking on the cytokines' levels' roles in the outcome would be helpful.

In addition, he raises a substantial number of very specific issues that I think need to be addressed. Most cannot be dismissed simply, including issues of significance of some of the findings.

The second reviewer had two major issues. The first concerns the effects of MHV68 preinfection in a non-barrier mouse. This is raised because the human situation is obviously non-barrier, and human data might be available to provide information in this setting. While the requested human data would be helpful to have, I am less concerned here about the need to perfectly model the human situation, and comfortable that the barrier mouse findings stand as interesting even without that bearing on the human situation.

His second concern is an apparent discrepancy between the data and the claims (this is referring to data in Figure 5). This should be directly addressed and clarified.

The third reviewer was also supportive but felt many of the findings were unsurprising or predicted by previous work. I feel that there is adequate value to presenting data that might have been expected but in fact have not previously been obtained (as he notes, surprisingly so!). He also felt that there was insufficient explanation of mechanism of action. I think helpful here, as noted above, is for the authors to at least present a clearer case of what they think is the mechanism, even if the case is not proven. With the right caveats, this would make the paper's punchline much stronger, or at least clearer.

Reviewer #1:

This is an interesting study that examines the effect of HOIL1 deficiency on infection of mice with several strains of bacteria (Listeria monocytogenes, Citrobacter rodentium, and Mycobacterium Tuberculosis) a parasite (Toxoplasma gondii) and a herpesvirus that establishes a latent infection (murine gamma-herpesvirus 68-MHV68). The results show that the HOIL1 mutant mice are much more susceptible to infection with Listeria monocytogenes, Citrobacter rodentium, and Toxoplasma gondii than wild type mice, but have comparable susceptibility to Mycobacterium Tuberculosis and MHV68. Moreover, prior infection of HOIL1 mutant mice with MHV68 reduces their susceptibility to Listeria such that it is now comparable to wild type. Latent infection of IL6 mutant mice with MHV68 also reduces their susceptibility to Listeria infection.

The importance of this paper is that it highlights the increasing appreciation that prior viral infection (or bacterial infections) may greatly influence the outcome of subsequent infections and establishment of a hyperinflammatory environment, particularly in the context of immunodeficiency.

This is a difficult paper to read, as the differential experimental conditions are not clearly delineated in the text. For example, the measurement of cytokine proteins in serum is interspersed with measurement of transcripts, and it is not always evident in the text what is being measured. Likewise, some infections are in vivo, while others are in bone-marrow-derived macrophages. There is also use of Rag-/- mice as the background for HOIL1 mutation interspersed with use of the wild type background.

The major criticism is that, mechanistically, it is not clear why the HOIL1 animals are more susceptible to some infections but not others. The assumption is that it is relative level of induced cytokines, but this is never directly shown. Although it is stated that the Mycobacterium Tuberculosis and MHV68 infections established a hyper-inflammatory phenotype in HOIL1 mutant animals with significant induction of TNFα, IL6, IL12p40, and IFNγ, there is also significant induction of the inflammatory cytokines in wild type mice, albeit to a lower level. Increased expression of inflammatory cytokines is also observed in Listeria infected HOIL1 mutant mice, although in this case the levels are lower than those in wild type mice. It is important to note that in some cases the data may be statistically significant, but the differences are marginal.

Specific comments:

1) Figure 2–figure supplement 2 shows that immunized HOIL1 mutant mice are resistant to high dose secondary of Listeria. The data are only shown for day 3. Is this resistance maintained at the same level at later times?

2) It is important in the text to differentiate between small, and likely insignificant differences, versus larger ones. For example, in Figure 3: production of TNFα by HOIL1 mutant mice macrophages is only 2-fold lower than wild type mice infected with Listeria while there are greater differences in production of IL-6 and IL12p40.

3) Figure 3–figure supplement 1: what is the point of this figure? It appears that application of IFNγ has same effect on macrophages in both wild type and HOIL1 mutant, as the wild type do not kill Listeria in the absence of IFNγ.

4) Figure 3–figure supplement 2: it should be stated in text that there is no difference in IL12p40. Also the text should state clearly why the Rag-/- mouse background is used in Figure 3–figure supplement 2 and Figure 2B.

5) Figure 3–figure supplement 3 only shows data for Rag+/+ mice. Since the Rag-/- mice are also used, the data for non B and non T cells (e.g. macrophages, neutrophils and NK cells) should also be shown for the HOIL1 mutant mice on this background.

6) Figure 3C: it should be noted that the IL12p40 difference is only seen at one time point.

7) In the Results section, it is stated that fewer NK cells and neutrophils at 6 hours correlated with decreased expression of cytokine and IFNγ mRNA. However, there is no difference in the number of NK and neutrophils at 12 h and differences in cytokine and IFNγ mRNA are still present.

8) Figure 4: the impairment of reactivation of MHV68 is quite modest (∼2- fold) and it is not “very significant”, as stated in the Results section. Also the “enhanced control of MHV68 replication” in the HOIL1 mutant mice as measured by lower titers is only seen at two of the time points (Figure 4–figure supplement 1).

9) Figure 4C: given MHV68 infected wt mouse outlier, the data do not appear to be significant for TNFα.

10) The legend for Figure 4E is incorrect. It states that it is the same as 4D. However, from the text in the Results section, this appears to show the data for the mice infected with tuberculosis. What day of the infection is shown?

11) Figure 5: it should be clearly stated in the text that the MHV68 latency provided enhanced resistance to Listeria infection not only for the HOIL1 mutant and IL6 mutant mice, but also for the wild type mice. Also, from the data shown, one cannot state that the IL6 mutant mice had increased sensitivity to Listeria infection, as both the mutant and wild type mice showed the same survival curve due to the large inoculum of Listeria that is used.

Reviewer #2:

In this manuscript MacDuff et al. determine that barrier-raised Hoil-1-/- mice are more susceptible to certain pathogens such as L. monocytogenes, T. gondii and C. rodentium than wild type animals. They find a correlated decrease in the levels of inflammatory cytokines such as IL-6 and TNFα. The authors go on to infect the Hoil-1-/- mice with either MHV68 or M. tuberculosis and find that infection with either pathogen increases resistance to subsequent challenges with the other pathogens. They hypothesize that infection with MHV68 modifies the immune response of the Hoil-1-/- mice and that this phenomenon is mirrored in human patients with defective Hoil-1.

The authors present some potentially exciting findings. However, we find two substantive issues need to be addressed to support and clarify them.

1) The authors show that infection with MHV68 strengthens the immune response of the Hoil-1-/- mice to subsequent infection with other pathogens. It is essential to know what happens to non-barrier-raised subjects as human patients with Hoil-1 deficiencies are continuously exposed to pathogens. In this context the authors could, for example, look at the high-throughput sequencing data available for human Hoil-1 patients and determine if there are correlations between clinical symptoms and presence/absence of specific pathogens in those samples.

2) There exists a dissonance in the authors' proposal as to how infection with MHV68 or M. tuberculosis protects the Hoil-1-/- mice from subsequent pathogen challenges. While in the Discussion section the authors write “MHV68 latency was associated with increased basal levels of TNFα, IL-6, IL-12 and IFNγ…”, Figure 5C indicates that TNFα, IL-6 and IL-12 levels did not rise with MHV68 infection. The authors need both to address this discrepancy and explain how IFNγ levels are increasing in the Hoil-1-/- mice when they are infected with MHV68.

Reviewer #3:

MacDuff and colleagues use a Hoil-1-/- mouse model to examine the role of Hoil-1 in host-defense against bacterial, parasitic, and viral infections. Although the Hoil-1 knockout has been available since 2009, surprisingly, it has not yet been characterized with infection models in detail. By comparison, biallelic loss-of-expression and loss-of-function HOIL-1L deficiencies in humans causes a fatal disorder characterized by chronic auto-inflammation, invasive bacterial infections, and muscular amylopectinosis. Likewise, mice deficient in the LUBAC component sharpin have immune-deficiency. MacDuff et al. report that in barrier-housed mice, amylopectin-like deposits occur, but hyper-inflammation does not. Nonetheless, they are immunodeficient, and are highly susceptible to challenge with listeria, toxoplasma or citrobacter.

The authors show that Hoil-1 expression in bone-marrow-derived cells is important for protection from bacterial challenge, and for cytokine production. Hoil-1-/- mice survive at least 3 months of challenge with γ-68 herpesvirus (IP or intranasal), with similar levels of intraperitoneal pool of latent virus. By contrast, they observed that MHV68 reactivation from latently-infected peritoneal cells was impaired by Hoil-1-/- deficiency. Challenge with wildtype MHV68 or mycobacterium tuberculosis leads to enhanced production of IL-6, IL-12 and IFNγ in Hoil-1 deficient mice, and also higher levels of TNFα in MTB- treated Hoil-1 deficient mice. Mice infected with MHV68 for 28 days are protected from IP challenge with listeria, while MHV68orf73.stop, which does not establish latency, does not protect Hoil-1 knockout mice from listeria challenge.

A strength of the manuscript is that it raises many interesting issues, and highlights the role of LUBAC and inflammation in the host-response to infection. However, many of the results presented are incremental advances that are largely expected from the current literature. For instance, based on the phenotype of humans with Hoil-1 deficiency, it is not surprising that mice are highly susceptible to bacterial challenge (Figure 1). Likewise, although it is interesting that Hoil-1 expression in hematopoietic cells and even in the granulocyte lineage is important for control of listeria, it is not a particularly surprising result (Figure 2). That cytokine production is impaired in Hoil-1 knockouts in response to listeria is also a largely expected result (Figure 3). It is however interesting that Hoil-1 deficiency has protective effects on MHV68 infection and tuberculosis. While we are shown modest decreases in MTB loads in lung and spleen in Hoil knockouts, we are not shown whether MHV68 viral load is affected by Hoil-1 deficiency, but rather that similar levels of latently infected cells are present in the peritoneum, that MHV68 reactivates less efficiently with Hoil-1 deficiency, and that MHV68 results in increased pro-inflammatory cytokine production with hoil deficiency (Figure 4).

Perhaps because of this cytokine production that exists 28 days after viral inoculation, Hoil-1 mice are protected from listeriosis. While the results are interesting, a shortcoming of the paper is the lack of novel mechanistic insights. What is the intrinsic mechanism of how latent infection with γ68 protects mice from subsequent challenge with listeria? Is it a phenomenon that exists during acute herpesvirus infections? By analogy with human infectious mononucleosis, MHV68-infected mice are likely immune-stimulated by acute herpes virus infections at 28 days post-infection. Does protection from listeriosis persist at later timepoints following MHV68 infection (the situation in most humans with asymptomatic/chronic herpes virus infections), or is it merely a transient phenomenon of acute infection? Since Hoil-1 knockout mice survive for at least 3 months after MHV68 infection, repeating the experiments at that timepoint would add something to the study.

Importantly, the results presented in Figure 5 contrast with the phenotype of human Hoil-1 deficiency. For instance, one of the Hoil-1 deficient patients described in PMID 23104095 had recurrent cytomegalovirus (human herpesvirus 5) viremia, and even died of complications of cytomegalovirus infection. Other patients had documented herpesvirus infections by VZV, and “viral infections, such as roseola and chicken-pox, followed a regular course and triggered a less prolonged inflammatory response than the pyogenic bacterial infections”. It is also likely that Hoil-1 deficient human patients had additional chronic herpes viral infections, given that EBV, HHV6 and 7 are acquired within the first two years of life for most individuals. Despite these chronic herpes viral infections, they suffer from severe and recurrent bacterial infection. Thus, the results reported in the mouse model, while interesting, do not appear to be broadly applicable to human disease. Likewise, it is not clear why wildtype mice, become susceptible to listeria challenge after MHV68 infection, and to a lesser extent, upon infection by MHVorf73.stop (Figure 5B).

Overall, the manuscript is interesting and worthy of publication, and we commend the authors on a large body of work that was overall well-done. However, for the reasons described above, this paper may be more appropriate for another journal.

https://doi.org/10.7554/eLife.04494.023

Author response

We herein respond to comments and queries about our paper ‘Complementation of genetic immunodeficiency by chronic herpesvirus infection’. We believe that we have responded to all of the comments and that this has improved the manuscript.

Importantly, several new pieces of data have been added to address reviewer questions and potential mechanisms, including data showing that peritoneal macrophages from latently infected Hoil-1-/- mice have an enhanced ability to kill Listeria compared to macrophages from non-latently infected mice and that MHV68 latency rescues, in addition to IL-6 and Hoil-1 deficiency, Caspase1- and Caspase1/Caspase11-deficient mice from Listeria-induced lethality. Additionally we confirmed published findings that IL-6-deficient mice are more susceptible to Listeria infection than control mice, and extended our findings by showing that control and Hoil-1-/- mice that have been infected with MHV68 for six months are still partially protected from Listeria infection.

This paper presents a substantial body of work characterizing the responses to infection of mutant mice with HOIL1 deficiency. We were impressed with the extent of the work. As noted by the reviewers, the selectivity of the effects for some pathogens over others is of interest; and most important is the effect of preinfection with MHV68 on subsequent challenges by other pathogens. We summarize some of the key points of criticism here, before passing on the full detailed comments of the reviewers.

We thank the reviewers for their helpful comments and criticisms, and hope that the result is a substantially improved manuscript. The majority of the changes have been made to the text to improve readability and to clarify interpretation of the data. Some new experimental data has been added to address specific issues.

The first reviewer found the paper difficult to read. I too found it very dense and not as linear in presentation as I thought was possible.

The paper has been edited to include more description of the rationale for specific experiments as well as more description of the data and interpretation of the results.

The experiments cover diverse situations and the responses depend on diverse cytokine levels that are introduced as the experiments are described; perhaps some overview of the plan would be helpful to have at the start of the results.

We have clarified the summary of our approach and findings at the end of the Introduction section.

And similarly a clearer summary of the authors' thinking on the cytokines' levels' roles in the outcome would be helpful.

More discussion of possible mechanisms and the role of cytokines have been added to the Discussion section.

In addition, he raises a substantial number of very specific issues that I think need to be addressed. Most cannot be dismissed simply, including issues of significance of some of the findings.

The second reviewer had two major issues. The first concerns the effects of MHV68 preinfection in a non-barrier mouse. This is raised because the human situation is obviously non-barrier, and human data might be available to provide information in this setting. While the requested human data would be helpful to have, I am less concerned here about the need to perfectly model the human situation, and comfortable that the barrier mouse findings stand as interesting even without that bearing on the human situation.

His second concern is an apparent discrepancy between the data and the claims (this is referring to data in Figure 5). This should be directly addressed and clarified.

We have addressed this concern as discussed below.

The third reviewer was also supportive but felt many of the findings were unsurprising or predicted by previous work. I feel that there is adequate value to presenting data that might have been expected but in fact have not previously been obtained (as he notes, surprisingly so!). He also felt that there was insufficient explanation of mechanism of action. I think helpful here, as noted above, is for the authors to at least present a clearer case of what they think is the mechanism, even if the case is not proven. With the right caveats, this would make the paper's punchline much stronger, or at least clearer.

We have added a discussion of potential mechanism to the Discussion section and have added a new piece of data that addresses one aspect of potential mechanism. These new data show that, even though cultured Hoil-1 deficient bone marrow-derived macrophages primed with IFNγ are able to kill Listeria as effectively as wild-type cells, peritoneal macrophages from Hoil-1-/- mice showed a reduced capacity to kill Listeria (new Figure 5–figure supplement 2). In the setting of latent herpesvirus infection, this deficiency in Hoil-1-/- mice is corrected to a level commensurate with that observed in control mice that are not infected with the herpesvirus. Therefore the chronic herpesvirus infection provides the capacity for macrophages to control infection in vivo better than they would otherwise be able to do. We also now show that Caspase1-deficient and Caspase1/Caspase11-double-deficient mice, which others have reported to have increased susceptibility to Listeria infection, are protected by MHV68 latency. These data have been added to Figure 5.

Reviewer #1:

This is an interesting study that examines the effect of HOIL1 deficiency on infection of mice with several strains of bacteria (Listeria monocytogenes, Citrobacter rodentium, and Mycobacterium Tuberculosis) a parasite (Toxoplasma gondii) and a herpesvirus that establishes a latent infection (murine gamma-herpesvirus 68-MHV68). The results show that the HOIL1 mutant mice are much more susceptible to infection with Listeria monocytogenes, Citrobacter rodentium, and Toxoplasma gondii than wild type mice, but have comparable susceptibility to Mycobacterium Tuberculosis and MHV68. Moreover, prior infection of HOIL1 mutant mice with MHV68 reduces their susceptibility to Listeria such that it is now comparable to wild type. Latent infection of IL6 mutant mice with MHV68 also reduces their susceptibility to Listeria infection.

The importance of this paper is that it highlights the increasing appreciation that prior viral infection (or bacterial infections) may greatly influence the outcome of subsequent infections and establishment of a hyperinflammatory environment, particularly in the context of immunodeficiency.

This is a difficult paper to read, as the differential experimental conditions are not clearly delineated in the text. For example, the measurement of cytokine proteins in serum is interspersed with measurement of transcripts, and it is not always evident in the text what is being measured. Likewise, some infections are in vivo, while others are in bone-marrow-derived macrophages. There is also use of Rag-/- mice as the background for HOIL1 mutation interspersed with use of the wild type background.

We have expanded the rationale for the experiments and provided more description of the data presented and interpretation of the results.

The major criticism is that, mechanistically, it is not clear why the HOIL1 animals are more susceptible to some infections but not others. The assumption is that it is relative level of induced cytokines, but this is never directly shown.

We do not know why the Hoil-1-/- mice are less susceptible to MHV68 and Mtb. We speculate that it is because the Hoil-1-/- mice produce an enhanced inflammatory response to these infections including cytokines such as IFNγ that are known to play a role in controlling these infections. However, we are not able to experimentally demonstrate this since deletion of this cytokine and its receptors prevents establishment of quiescent latent infection with either organism, thereby complicating interpretation of studies as to how latent infection might alter host responses to a second infection. Some speculation as to potential mechanisms and relevant references have been added to the Discussion section.

Although it is stated that the Mycobacterium Tuberculosis and MHV68 infections established a hyper-inflammatory phenotype in HOIL1 mutant animals with significant induction of TNFα, IL6, IL12p40, and IFNγ, there is also significant induction of the inflammatory cytokines in wild type mice, albeit to a lower level. Increased expression of inflammatory cytokines is also observed in Listeria infected HOIL1 mutant mice, although in this case the levels are lower than those in wild type mice. It is important to note that in some cases the data may be statistically significant, but the differences are marginal.

The Results section has been expanded with increased description and discussion of the data.

Specific comments:

1) Figure 2–figure supplement 2 shows that immunized HOIL1 mutant mice are resistant to high dose secondary of Listeria. The data are only shown for day 3. Is this resistance maintained at the same level at later times?

This is an interesting question, and one that we have also pondered. However, the experiment is technically challenging, since 1000 CFU administered i.p. is a border-line dose for inducing protective immunity (you can see in the figure that some of the mice of both WT and mutant genotypes were not well protected), but around 50% of the Hoil-1-mutant mice die from this dose during acute infection (see Figure 1A). It may be possible to immunize with an attenuated strain (e.g. ActA-deficient), but this will require a significant amount of optimization to determine the required immunization dose (that does not kill the knock-out mice) and a suitable challenge dose with the wild-type Listeria strain. Since this a relatively minor point in the paper that addresses the adaptive immune response in Hoil-1-/- animals, whereas the rest of the paper focuses on the role of Hoil-1 in innate immunity, we feel that these experiments are properly beyond the scope of this particular manuscript. We estimate that it would take in the range of 3-4 months, and considerable expense, to work out the appropriate conditions and perform biological replicates to generate data suitable for publication.

2) It is important in the text to differentiate between small, and likely insignificant differences, versus larger ones. For example, in Figure 3: production of TNFα by HOIL1 mutant mice macrophages is only 2-fold lower than wild type mice infected with Listeria while there are greater differences in production of IL-6 and IL12p40.

The text has been edited accordingly.

3) Figure 3–figure supplement 1: what is the point of this figure? It appears that application of IFNγ has same effect on macrophages in both wild type and HOIL1 mutant, as the wild type do not kill Listeria in the absence of IFNγ.

We failed to make clear the reason that these data are important and have clarified this in the text. Defective IFNγ-induced killing of bacteria could have explained why Hoil-1-/- mice are more susceptible to Listeria, and these data indicate that this is not the case for cultured macrophages.

4) Figure 3–figure supplement 2: it should be stated in text that there is no difference in IL12p40. Also the text should state clearly why the Rag-/- mouse background is used in Figure 3–figure supplement 2 and Figure 2B.

More rationale, description and discussion of the data has been added.

5) Figure 3–figure supplement 3 only shows data for Rag+/+ mice. Since the Rag-/- mice are also used, the data for non B and non T cells (e.g. macrophages, neutrophils and NK cells) should also be shown for the HOIL1 mutant mice on this background.

The flow cytometry data for the Rag+/+ mice and the cytokine transcript data for the Rag-/- mice are controls that were included as supplemental information to strengthen and aid in interpreting the data shown in Figure 3. We do not believe that adding information about the dynamics of peritoneal cells in Rag-/- animals will add significantly to the overall conclusions or main points of the paper. We therefore defer to the Editor to determine whether addition of these data is necessary. For analysis of cells at 0, 6 and 12 hours post-infection, approximately 20 mice of each genotype will be required. Since these mice are bred Rag-/-Hoil+/- x Rag-/-Hoil+/- to generate WT and KO littermates and our current colony produces around 30 total pups per month, with 7-8 being WT and KO mice, we estimate that it will take 3-4 months and considerable expense to generate these data.

6) Figure 3C: it should be noted that the IL12p40 difference is only seen at one time point.

The text has been edited accordingly.

7) In the Results section, it is stated that fewer NK cells and neutrophils at 6 hours correlated with decreased expression of cytokine and IFNγ mRNA. However, there is no difference in the number of NK and neutrophils at 12 h and differences in cytokine and IFNγ mRNA are still present.

We agree and have altered the statement accordingly.

8) Figure 4: the impairment of reactivation of MHV68 is quite modest (∼2- fold) and it is not “very significant”, as stated in the Results section.

The viral reactivation defect, which was shown in panel B (now panel A), is closer to 50-fold. The LD-PCR, which does show about a 2-fold difference in the number of genome-positive cells as a measure of establishment of latency, has been moved into a supplemental to avoid confusion.

Also the “enhanced control of MHV68 replication” in the HOIL1 mutant mice as measured by lower titers is only seen at two of the time points (Figure 4–figure supplement 1).

It is stated in the text that “MHV68 replication… was suppressed slightly in vivo”, which refers to the lower titers only seen at two of the time points, and that “Hoil-1-/- mice are fully able to control, and may have an enhanced ability to control, specific aspects of acute and chronic MHV68 and M. tuberculosis infection”, which we believe to be accurate.

9) Figure 4C: given MHV68 infected wt mouse outlier, the data do not appear to be significant for TNFα.

While it is possible that the outlier is due to experimental error, we are unwilling to remove the data point without a clear rationale for doing so. The statistical significance is not lost by removing this point. The text has been edited to accurately reflect the small fold change.

10) The legend for Figure 4E is incorrect. It states that it is the same as 4D. However, from the text in the Results section, this appears to show the data for the mice infected with tuberculosis. What day of the infection is shown?

Thank you for picking up this typing error. It should have said 4C (now 4B) and has been modified. The time point is day 70, and this information is given in the legend and has been added to the main text for clarity.

11) Figure 5: it should be clearly stated in the text that the MHV68 latency provided enhanced resistance to Listeria infection not only for the HOIL1 mutant and IL6 mutant mice, but also for the wild type mice. Also, from the data shown, one cannot state that the IL6 mutant mice had increased sensitivity to Listeria infection, as both the mutant and wild type mice showed the same survival curve due to the large inoculum of Listeria that is used.

More description of the data has been included. The data showing that IL-6-/- mice have increased sensitivity to Listeria has been published by another group and the reference is provided. However, since this is an important point in the paper and only one reference exists, we have now confirmed that IL-6-/- mice are more susceptible to Listeria infection. These data are now provided in Figure 5–figure supplement 3.

Reviewer #2:

1) The authors show that infection with MHV68 strengthens the immune response of the Hoil-1-/- mice to subsequent infection with other pathogens. It is essential to know what happens to non-barrier-raised subjects as human patients with Hoil-1 deficiencies are continuously exposed to pathogens. In this context the authors could, for example, look at the high-throughput sequencing data available for human Hoil-1 patients and determine if there are correlations between clinical symptoms and presence/absence of specific pathogens in those samples.

We certainly would like to know the infection status of the HOIL-1 patients with various phenotypes. However, to our knowledge, high-throughput sequencing data or complete serologic data is not available for reported HOIL patients, and we have been unsuccessful in obtaining samples from the two groups that reported HOIL-1 patients with cardiomyopathy but without immunodeficiency. We hypothesize that the humans do not show quite such a striking immunodeficiency when compared to the SPF mice due to their constant exposure to pathogens, and hence latent infection of SPF mice with MHV68 may allow the mouse phenotype to more closely mimic the human phenotype. Notably patients reported to be immunodeficient also received immunosuppressive drugs to treat their auto-inflammation. We agree that the relevance of the present study to humans remains to be proven, and we have added a similar statement to the Discussion.

2) There exists a dissonance in the authors' proposal as to how infection with MHV68 or M. tuberculosis protects the Hoil-1-/- mice from subsequent pathogen challenges. While in the Discussion section the authors write “MHV68 latency was associated with increased basal levels of TNFα, IL-6, IL-12 and IFNγ…”, Figure 5C indicates that TNFα, IL-6 and IL-12 levels did not rise with MHV68 infection. The authors need both to address this discrepancy and explain how IFNγ levels are increasing in the Hoil-1-/- mice when they are infected with MHV68.

We appreciate that Figure 5C was difficult to interpret. We have added color, increased the size of the panels and split the data from T=0 and T=3 hours after Listeria infection into separate panels to help with visualization. Both Figure 4D (now 4C) and Figure 5C show that MHV68 latency is associated with increases in these cytokines in the serum and in peritoneal cells for both control and Hoil-1-/- mice (although IL-12 transcripts were not significantly elevated in WT mice compared to naïve mice). Significant findings are indicated above the symbols. We do not know why IFNγ levels are increased in Hoil-1-/- mice compared to controls when they are infected with MHV68. We have speculated as to the mechanisms in the Discussion.

Reviewer #3:

MacDuff and colleagues use a Hoil-1-/- mouse model to examine the role of Hoil-1 in host-defense against bacterial, parasitic, and viral infections. Although the Hoil-1 knockout has been available since 2009, surprisingly, it has not yet been characterized with infection models in detail. By comparison, biallelic loss-of-expression and loss-of-function HOIL-1L deficiencies in humans causes a fatal disorder characterized by chronic auto-inflammation, invasive bacterial infections, and muscular amylopectinosis. Likewise, mice deficient in the LUBAC component sharpin have immune-deficiency.

We have added a summary of the phenotypes of the Sharpin mutant mice to the Introduction and a comparison with the Hoil-1-deficient mice to the Results. Sharpin mutant mice have disorganized lymphoid organs that has been described as immunodeficiency, whereas Hoil-1-/- mice do not.

MacDuff et al. report that in barrier-housed mice, amylopectin-like deposits occur, but hyper-inflammation does not. Nonetheless, they are immunodeficient, and are highly susceptible to challenge with listeria, toxoplasma or citrobacter.

The authors show that Hoil-1 expression in bone-marrow-derived cells is important for protection from bacterial challenge, and for cytokine production. Hoil-1-/- mice survive at least 3 months of challenge with γ-68 herpesvirus (IP or intranasal), with similar levels of intraperitoneal pool of latent virus. By contrast, they observed that MHV68 reactivation from latently-infected peritoneal cells was impaired by Hoil-1-/- deficiency. Challenge with wildtype MHV68 or mycobacterium tuberculosis leads to enhanced production of IL-6, IL-12 and IFNγ in Hoil-1 deficient mice, and also higher levels of TNFα in MTB- treated Hoil-1 deficient mice. Mice infected with MHV68 for 28 days are protected from IP challenge with listeria, while MHV68orf73.stop, which does not establish latency, does not protect Hoil-1 knockout mice from listeria challenge.

A strength of the manuscript is that it raises many interesting issues, and highlights the role of LUBAC and inflammation in the host-response to infection. However, many of the results presented are incremental advances that are largely expected from the current literature. For instance, based on the phenotype of humans with Hoil-1 deficiency, it is not surprising that mice are highly susceptible to bacterial challenge (Figure 1). Likewise, although it is interesting that Hoil-1 expression in hematopoietic cells and even in the granulocyte lineage is important for control of listeria, it is not a particularly surprising result (Figure 2). That cytokine production is impaired in Hoil-1 knockouts in response to listeria is also a largely expected result (Figure 3).

Of the 16 Hoil-1 mutant patients reported to date, only three were reported to be immunodeficient, calling into question whether Hoil-1 deficiency results in immune-deficiency. This is now mentioned in the Introduction and Discussion. While it is true that decreased cytokine production is the expected result, a recent study by Rodgers MA et al., J Exp Med, 2014 found that Hoil-1 is not required for NFκB activation or NFκB-dependent gene expression in bone marrow derived macrophages following LPS or TNF α treatment. Our data show that Hoil-1 is required for efficient cytokine production by bone marrow derived macrophages following Listeria infection, suggesting that Hoil-1 is required for proper activation of NFκB in response to certain stimuli in these cells.

It is however interesting that Hoil-1 deficiency has protective effects on MHV68 infection and tuberculosis. While we are shown modest decreases in MTB loads in lung and spleen in Hoil knockouts, we are not shown whether MHV68 viral load is affected by Hoil-1 deficiency, but rather that similar levels of latently infected cells are present in the peritoneum, that MHV68 reactivates less efficiently with Hoil-1 deficiency, and that MHV68 results in increased pro-inflammatory cytokine production with hoil deficiency (Figure 4).

Perhaps because of this cytokine production that exists 28 days after viral inoculation, Hoil-1 mice are protected from listeriosis.

MHV68 viral load is minimally decreased in the absence of Hoil-1 as shown in Figure 4 and figure supplement 1B. We agree that it is likely that the increased cytokine production during MHV68 latency protects the mice from listeriosis. We have included more discussion of possible mechanism in the Discussion section.

While the results are interesting, a shortcoming of the paper is the lack of novel mechanistic insights. What is the intrinsic mechanism of how latent infection with γ68 protects mice from subsequent challenge with listeria? Is it a phenomenon that exists during acute herpesvirus infections?

Barton et al., Nature, 2007 showed that acute infection (after 1 week) does not confer protection against listeria in wild-type mice, and that a virus that can undergo acute replication, but does not establish latency effectively (MHV68 orf73.stop), also does not protect against listeria infection after 4 weeks. We have included data from experiments using the orf73.stop mutant virus in both wild-type and mutant mice (Figure 5B), which indicate that immune stimulation from the acute phase of infection is not responsible for the protection. However, we have not challenged Hoil-1-/- mice with Listeria during acute MHV68 infection. It is possible that the outcome would be different to that for wild-type mice.

As suggested by the Editor, we have included more discussion of possible mechanisms. It appears that MHV68 latency increases the basal activation state of the innate immune system, perhaps priming it to respond more rapidly to subsequent infections that also induce IFNγ and IFNγ-dependent effector mechanisms. For example, macrophages require IFNγ to make IL-12 in response to Listeria infection. In a latently infected animal, IFNγ is already present and so IL-12 is induced much more rapidly and IFNγ is further up regulated faster than in a non-latently infected animal.

A new piece of data that addresses one aspect of potential mechanism has also been added. Even though Hoil-1 deficient bone marrow-derived macrophages primed with IFNγ are able to kill Listeria as effectively as wild-type cells (shown in Figure 3–figure supplement 1), peritoneal macrophages from Hoil-1-/- mice showed a reduced capacity to kill Listeria (new Figure 5–figure supplement 2). As has been shown previously (Barton et al., Nature, 2007), peritoneal macrophages from latently-infected wild-type mice have an enhanced ability to kill Listeria. Peritoneal macrophages from latently infected Hoil-1-/- mice also showed an enhanced ability to kill Listeria when compared to cells from wild-type or Hoil-1-/- mice that are not latently infected. However, these cells do not kill Listeria as effectively as cells from latently infected wild-type mice. We speculate that the difference in listericidal activity of bone marrow-derived macrophages and peritoneal macrophages may reflect differences in the environment in the peritoneum of wild-type and mutant mice.

By analogy with human infectious mononucleosis, MHV68-infected mice are likely immune-stimulated by acute herpes virus infections at 28 days post-infection. Does protection from listeriosis persist at later timepoints following MHV68 infection (the situation in most humans with asymptomatic/chronic herpes virus infections), or is it merely a transient phenomenon of acute infection? Since Hoil-1 knockout mice survive for at least 3 months after MHV68 infection, repeating the experiments at that timepoint would add something to the study.

Both control and Hoil-1-/- mice are still partially protected from listeria infection 6 months after MHV68 infection, and these data are now in Figure 5–figure supplement 1.

Importantly, the results presented in Figure 5 contrast with the phenotype of human Hoil-1 deficiency. For instance, one of the Hoil-1 deficient patients described in PMID 23104095 had recurrent cytomegalovirus (human herpesvirus 5) viremia, and even died of complications of cytomegalovirus infection. Other patients had documented herpesvirus infections by VZV, and “viral infections, such as roseola and chicken-pox, followed a regular course and triggered a less prolonged inflammatory response than the pyogenic bacterial infections”.

We agree that this is an apparent difference, but MHV-68 is a γ-herpesvirus and HHV5 is a β-herpesvirus and the pathogenesis of the viruses may be quite distinct therefore. We have not challenged our mutant mice with a β-herpesvirus.

It is also likely that Hoil-1 deficient human patients had additional chronic herpes viral infections, given that EBV, HHV6 and 7 are acquired within the first two years of life for most individuals. Despite these chronic herpes viral infections, they suffer from severe and recurrent bacterial infection. Thus, the results reported in the mouse model, while interesting, do not appear to be broadly applicable to human disease. Likewise, it is not clear why wildtype mice, become susceptible to listeria challenge after MHV68 infection, and to a lesser extent, upon infection by MHVorf73.stop (Figure 5B).

We agree that it is possible that HOIL-1 mutant patients were infected with multiple herpesviruses, but have been unable to obtain samples with which to test this. The immunodeficiencies in the human patients were actually relatively mild, particularly given that they were on steroid treatments to suppress the auto-inflammation. The SFP mice appear to have a much more severe immunodeficiency than the humans, which is made less severe by MHV68 latency. We agree that it is difficult to directly compare humans with SPF mice. We used a γ-herpesvirus model for our mouse studies, but α-(i.e. VZV) or β-(i.e. HCMV)-herpesviruses may not produce the same phenotypes.

https://doi.org/10.7554/eLife.04494.024

Article and author information

Author details

  1. Donna A MacDuff

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    DAM, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Tiffany A Reese

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    TAR, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Jacqueline M Kimmey

    Department of Molecular Microbiology, Washington University School of Medicine, St Louis, United States
    Contribution
    JMK, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Leslie A Weiss

    Department of Molecular Microbiology, Washington University School of Medicine, St Louis, United States
    Contribution
    LAW, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Christina Song

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    CS, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Xin Zhang

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    XZ, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  7. Amal Kambal

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    AK, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  8. Erning Duan

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    ED, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  9. Javier A Carrero

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    JAC, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  10. Bertrand Boisson

    1. Howard Hughes Medical Institute, New York, United States
    2. St Giles Laboratory of Human Genetics of Infectious Disease, Rockefeller University, New York, United States
    Contribution
    BB, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  11. Emmanuel Laplantine

    Laboratory of Molecular Signaling and Cell Activation, Institut Pasteur, Centre National de la Recherche Scientifique, Unité de Recherche Associée, Paris, France
    Contribution
    EL, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  12. Alain Israel

    Laboratory of Molecular Signaling and Cell Activation, Institut Pasteur, Centre National de la Recherche Scientifique, Unité de Recherche Associée, Paris, France
    Contribution
    AI, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  13. Capucine Picard

    1. St Giles Laboratory of Human Genetics of Infectious Disease, Rockefeller University, New York, United States
    2. Study Center for Primary Immunodeficiency, Necker Hospital for Sick Children, Paris, France
    3. Laboratory of Human Genetics of Infectious Diseases, Necker Branch, Necker Hospital for Sick Children, Imagine Institute, INSERM UMR 1163, Paris, France
    4. Paris Descartes University, Paris, France
    5. Pediatric Hematology-Immunology Unit, Necker Hospital for Sick Children, Paris, France
    Contribution
    CP, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  14. Marco Colonna

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    MC, Conception and design
    Competing interests
    The authors declare that no competing interests exist.
  15. Brian T Edelson

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    BTE, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  16. L David Sibley

    Department of Molecular Microbiology, Washington University School of Medicine, St Louis, United States
    Contribution
    LDS, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  17. Christina L Stallings

    Department of Molecular Microbiology, Washington University School of Medicine, St Louis, United States
    Contribution
    CLS, Conception and design, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  18. Jean-Laurent Casanova

    1. Howard Hughes Medical Institute, New York, United States
    2. St Giles Laboratory of Human Genetics of Infectious Disease, Rockefeller University, New York, United States
    3. Laboratory of Human Genetics of Infectious Diseases, Necker Branch, Necker Hospital for Sick Children, Imagine Institute, INSERM UMR 1163, Paris, France
    4. Paris Descartes University, Paris, France
    5. Pediatric Hematology-Immunology Unit, Necker Hospital for Sick Children, Paris, France
    Contribution
    J-LC, Conception and design, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  19. Kazuhiro Iwai

    Department of Molecular and Cellular Physiology, Graduate School of Medicine, Kyoto University, Kyoto, Japan
    Contribution
    KI, Conception and design, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  20. Herbert W Virgin

    Department of Pathology and Immunology, Washington University School of Medicine, St Louis, United States
    Contribution
    HWV, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    virgin@wustl.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

Crohn's and Colitis Foundation of America (Genetics Initiative grant 274415)

  • Herbert W Virgin

Broad Foundation (IBD-0357)

  • Herbert W Virgin

National Institutes of Health (U19 AI109725)

  • Herbert W Virgin

Burroughs Wellcome Fund (Career Award for Medical Scientists)

  • Brian T Edelson

March of Dimes Foundation (Basil O'Conner Starter Scholar Research Award)

  • Brian T Edelson

Edward Mallinckrodt Jr Foundation (Private Grant)

  • Brian T Edelson

National Institutes of Health (R01 AI084887)

  • Herbert W Virgin

National Institute of Allergy and Infectious Diseases (5P01 AI061093)

  • Jean-Laurent Casanova

National Center for Research Resources (8UL1TR000043)

  • Jean-Laurent Casanova

National Institutes of Health (AI036629)

  • L David Sibley

National Institutes of Health (AI062832)

  • Javier A Carrero

Arnold and Mabel Beckman Foundation (Beckman Young Investigator Award)

  • Christina L Stallings

National Science Foundation (DGE-1143954)

  • Jacqueline M Kimmey

National Institute of General Medical Sciences (GM007067)

  • Jacqueline M Kimmey

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to acknowledge D Kreamalmeyer, JS Lee, Q Wang, CY Liu, Q Lu, M T Baldridge, T J Nice, the Washington University Department of Comparative Medicine Animal Diagnostic Laboratory and the Digestive Diseases Research Core Center for technical assistance, and ER Unanue for critical discussions and reading of the manuscript. We would like to thank Vishva Dixit and Genentec (San Francisco, CA) for providing the Caspase-1/Caspase-11 mutant mice containing a Caspase-11 transgene. HWV was funded by the Crohn's and Colitis Foundation Genetics Initiative grant #274415, Broad Foundation grant #IBD-0357, U19 AI109725 and R01 AI084887. BTE is supported by a Burroughs Wellcome Fund Career Award for Medical Scientists, a Basil O' Connor Starter Scholar Research Award from the March of Dimes Foundation, and a grant from the Edward Mallinckrodt Jr Foundation. JLC was funded by NIAID grant #5P01AI061093, NIH grant #8UL1TR000043 from the National Center for Research Resources and the National Center for Advancing Sciences, and the St. Giles Foundation. LDS was funded by grant # AI036629. JAC was funded by grant #AI062832. CLS is supported by a Beckman Young Investigator Award from the Arnold and Mabel Beckman Foundation. JMK is supported by a National Science Foundation Graduate Research Fellowship DGE-1143954 and the NIGMS Cell and Molecular Biology Training Grant GM007067.

Ethics

Animal experimentation: All mice were housed and bred at Washington University in Saint Louis in specific pathogen-free conditions in accordance with Federal and University guidelines and protocols were approved by the Animal Studies Committee of Washington University under protocol number 20140244.

Reviewing Editor

  1. Stephen P Goff, Howard Hughes Medical Institute, Columbia University, United States

Publication history

  1. Received: August 24, 2014
  2. Accepted: December 24, 2014
  3. Version of Record published: January 20, 2015 (version 1)

Copyright

© 2015, MacDuff et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,507
    Page views
  • 466
    Downloads
  • 40
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
