Deployment of a retinal determination gene network drives directed cell migration in the sea urchin embryo

  1. Megan L Martik Is a corresponding author
  2. David R McClay Is a corresponding author
  1. Duke University, United States
Research Article
Cited
4
Views
1,283
Comments
0
Cite as: eLife 2015;4:e08827 doi: 10.7554/eLife.08827

Abstract

Gene regulatory networks (GRNs) provide a systems-level orchestration of an organism's genome encoded anatomy. As biological networks are revealed, they continue to answer many questions including knowledge of how GRNs control morphogenetic movements and how GRNs evolve. The migration of the small micromeres to the coelomic pouches in the sea urchin embryo provides an exceptional model for understanding the genomic regulatory control of morphogenesis. An assay using the robust homing potential of these cells reveals a ‘coherent feed-forward’ transcriptional subcircuit composed of Pax6, Six3, Six1/2, Eya, and Dach1 that is responsible for the directed homing mechanism of these multipotent progenitors. The linkages of that circuit are strikingly similar to a circuit involved in retinal specification in Drosophila suggesting that systems-level tasks can be highly conserved even though the tasks drive unrelated processes in different animals.

https://doi.org/10.7554/eLife.08827.001

eLife digest

Within an animal embryo, groups of cells tend to move, or migrate, between different areas before they form into tissues and organs. These cell migrations are regulated by hundreds of genes, which must be expressed at the right time and in the right place. Cells use proteins called transcription factors to regulate the expression of genes. These proteins work together in circuit board-like networks called gene regulatory networks in order to drive different aspects of development, including cell migration.

The sea urchin is a useful model organism to study how animals develop. This is because these marine animals express many of the same genes as humans, but they can be easily manipulated and studied in the laboratory. In a developing sea urchin embryo, cells called the small micromeres move towards one end of animal and get incorporated into a pocket-like structure known as the coelomic pouch. From this pouch, these cells mature and eventually contribute to the adult germ cells (the precursors to the sperm and eggs).

Martik and McClay have now analyzed how small micromeres make their way to their final location in the coelomic pouch. Micromeres were labeled with a dye that fluoresces green so that they could be tracked under a microscope. This revealed that, like other moving cells, micromeres actively change their shape as they migrate. Furthermore, when micromeres were experimentally moved to abnormal locations in the sea urchin embryo, they were still able to actively home in on the coelomic pouch no matter their starting location.

Martik and McClay then identified five transcription factors expressed in the coelomic pouch in the sea urchin that are involved in this homing activity. Reducing the expression of any of these transcription factors was enough to hinder the ability of the micromeres to find their way to the coelomic pouch. Further experiments and analysis then revealed that these five transcription factors work together in a sub-circuit, which is in turn embedded in a larger gene regulatory network.

This sub-circuit that drives cell migration is unexpectedly similar to another circuit in the fruit fly Drosophila. Intriguingly, the sub-circuit in the fly controls eye development, which is unrelated to cell homing and migration. These observations raise the possibility that this circuit has been conserved as a unit over millions of years of evolution and redeployed in new networks under completely different circumstances. The data also suggest the possibility that additional conserved sub-circuits will be identified as more systems are analyzed in detail.

https://doi.org/10.7554/eLife.08827.002

Introduction

Much research has been done to understand the cell biology underlying the events of directed cell migration; however, how the events are encoded in the genome and how gene regulatory networks (GRNs) control this process are works in progress. Cell migration is the directed movement of a single cell or a collective group of cells through the early embryo or the adult body. Many different cell types undergo chemotaxis-dependent directed migration during development, including primordial germ cells (PGCs), Drosophila border cells, the zebrafish posterior lateral line, Drosophila tracheal cells, vertebrate neural crest cells, and vertebrate anterior mesoderm (Reig et al., 2014). The ability for cells to undergo directed migration towards a target location requires the use of different signal transduction mechanisms to remodel their actin cytoskeleton in a directed fashion such that they extend filopodia, lamellipodia, and blebs to create a polarized leading edge. In the sea urchin, a near complete developmental GRN describes the specification of endomesoderm (McClay, 2011; Peter and Davidson, 2011). Studies of this specification network have made the sea urchin a viable model for extending the study of how GRNs can explain control of complex cell behaviors (Saunders and McClay, 2014). The migration of the sea urchin small micromeres serves as a powerful experimental model for connecting the genomic regulatory control of morphogenesis to an upstream GRN.

Small micromere cells arise from an asymmetric cleavage of the micromeres at the embryonic fifth cleavage (Figure 1A). These cells divide once within the vegetal plate to produce eight cells (Pehrson and Cohen, 1986). The eight small micromeres migrate along with the growing archenteron during gastrulation until they reach the animal pole (Yajima and Wessel, 2012; Campanale et al., 2014). Post-migration, the small micromeres incorporate into the coelomic pouches, which are found on either side of the developing esophagus (Hyman, 1955; Pehrson and Cohen, 1986; Luo et al., 2012).

Small micromere movements during gastrulation.

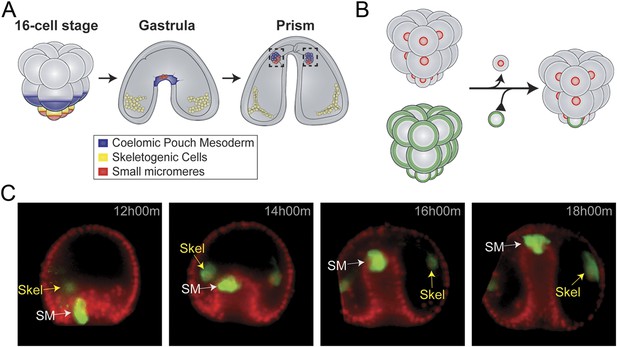

(A) The small micromeres arise at the vegetal pole at the asymmetric fifth cleavage from the micromere lineage (red). During gastrulation, they remain at the tip of the gut. They migrate through the top of the blastocoel and enter the posterior half of the coelomic pouches by prism stage. (B) To study small micromere movements and migration at a higher resolution, membrane-GFP-labeled micromeres were transplanted to a H2b-RFP-labeled host. (C) Small micromeres actively changed shape throughout gastrulation (extend filopodia and lamellipodia) until they reach the tip of the archenteron. Skeletogenic lineages are labeled as ‘Skel’, and small micromeres are labeled as ‘SM’. See also, Video 1.

https://doi.org/10.7554/eLife.08827.003

The coelomic pouches, a mesodermal sub-type, appear at the tip of the forming archenteron. Their specification is initiated early in development by Delta/Notch signaling (Sherwood and McClay, 1999; Sweet et al., 2002). During gastrulation, several other mesodermal cell types undergo epithelial-to-mesenchymal transitions (EMTs) into the blastocoel where they take on different roles in the embryo. The mesodermal cell sheet remaining at the tip of the archenteron at the end of gastrulation forms the two coelomic pouches on either side of the foregut (Figure 1A). Only those small micromeres that reach the left coelomic pouch, which will become the future adult rudiment, will survive until adulthood. During metamorphosis of the indirect developing sea urchin, the embryonic small micromeres incorporate into the adult rudiment's left somatocoel, which will later give rise to the gonads of the adult animal and possibly other tissues (Hyman, 1955).

Previous research has suggested that the small micromeres contribute to the adult PGCs; however, it has not been shown directly whether the small micromeres contribute to additional adult tissues or whether the only source of the adult PGCs are the small micromeres (Pehrson and Cohen, 1986; Voronina et al., 2008; Juliano et al., 2010a; Juliano et al., 2010b; Yajima and Wessel, 2010; Yajima and Wessel, 2012; Wessel et al., 2014). The possibility remains that the small micromeres go on to produce multiple cell types including, but not limited to PGCs (Yajima and Wessel, 2015).

Recent publications tracked small micromeres as they moved from the vegetal pole to the coelomic pouches (Yajima and Wessel, 2012; Campanale et al., 2014). In Yajima et al., it was observed that during gut invagination, the small micromeres did not change position relative to the adjacent mesoderm cells of the advancing archenteron. It was concluded that once they reach the tip of the archenteron, the small micromeres must actively migrate to the left and right coelomic pouches (Yajima and Wessel, 2012). Seemingly contradictory evidence from Campanale et al. described an active migration throughout gastrulation and post-gastrulation as they make their way to the coelomic pouch (Campanale et al., 2014). While both studies conclude that there is an active migration post-gastrulation, we clarified whether the small micromeres acquired their active movement before or after gastrulation. When removed from their endogenous location and placed ectopically, we find that the small micromeres are autonomous and active while migrating throughout gastrulation to make it ‘home’ to the coelomic pouch. Their active motility during gastrulation is essential for the ectopic small micromeres to undergo directed ‘homing’ migration to the coelomic pouch.

In order to understand this homing ability at a systems level, we took advantage of the robust homing nature of the small micromeres to determine the GRN at work during their migration. Using a homing assay to quantitatively score the ability of the coelomic pouch cells to direct movement of the small micromeres, we constructed a GRN that governs effector genes directly responsible for the homing mechanism. We find that a specific subcircuit composed of Pax6, Six3, Six1/2, Eya, and Dach1 that is canonically found in retinal development has been deployed for this distinct developmental process. Here, we describe a GRN for homing behavior and uncover a striking similarity of our morphogenesis GRN to the retinal determination gene network (RDGN).

Results

Underlying GRNs specify each of the coelomic pouch cell types (oral and aboral mesoderm) and the small micromeres early in development (Oliveri et al., 2006; Peter and Davidson, 2011; Materna et al., 2012). We sought to understand the robust nature of the small micromere migration and how that migratory event is transcriptionally controlled. Given the ability to experimentally move the small micromeres to ectopic locations, we first learned that the small micromeres had a remarkable ability to home to the coelomic pouches. Using that observation, we developed an assay to study how the small micromeres underwent a directed cell migration. The assay was also used to score for transcriptional regulation of the migration after perturbing specific transcription factors.

Small micromeres actively migrate throughout gastrulation

The mechanisms by which the small micromeres make their way to the coelomic pouch is a topic of debate: one paper cites an active migratory event while another a passive translocation during gastrulation (Yajima and Wessel, 2012; Campanale et al., 2014). We followed the migratory process at a higher cellular resolution using time-lapse to resolve the seemingly contradictory data on the movement of small micromeres during gastrulation.

Small micromeres were fluorescently labeled, so they could be uniquely followed throughout gastrulation allowing a finer analysis of their behavior than if those cells were not specifically identified (Figure 1B and Video 1). Host embryos were labeled by injection of histone2B-RFP mRNA and micromere-donor embryos with a membrane-GFP mRNA. At the 16-cell stage, one donor fluorescent micromere was transplanted to the vegetal pole where it replaced a surgically removed micromere (Figure 1B). Each fourth cleavage micromere gives rise to two lineages: the small micromere (the proposed primordial germ cell) and the large micromere (the skeletogenic mesoderm). The transplant surgery was performed at the 16-cell stage to ensure the survival of the small micromere daughters for two reasons. First, it assured that the small micromeres (which arise at fifth cleavage by an asymmetric division of the micromere) were not damaged by separation from the large micromeres during micromanipulation since they had not yet been born. Second, when the small micromeres appeared, their only initial connection to the embryo was via the spindle remnant to the large micromere—this attachment to the large micromere was crucial for the incorporation of the transplant into the host embryo. Both reasons for surgically transplanting the micromere ensured the re-establishment and survival of a high percentage of small micromeres in the host embryo (Table 1 shows scoring of transplant efficacy). At the beginning of gastrulation, this recombinant approach resulted in 8 fluorescent large micromere progeny and 2 fluorescent small micromeres (Figure 1C and Video 1). It was easy to distinguish the donor small micromere progeny from the large micromere progeny when the large micromeres fused with non-fluorescent host mesoderm cells to form the skeletal syncytium thereby greatly diluting their fluorescence (Figure 1C and Video 1).

Video 1
Movement of small micromeres throughout gastrulation.

Membrane-GFP labeled micromeres were transplanted to a H2b-RFP-labeled host. An image was acquired every 3 min for 6 hr starting at 12 hr post fertilization. Videos were projected from multiple z-stacks (every 3 μm, spanning the blastocoel of the embryo) using SoftWorx for DeltaVision. AVIs were then rotated and translated (due to swimming embryos) in FIJI. Frame rate = 5 frames per second.

https://doi.org/10.7554/eLife.08827.004
Table 1

Transplant efficacy for microsurgeries

https://doi.org/10.7554/eLife.08827.005
MicrosurgerySuccessful transplants (%)Failed transplants (%)
Ctrl host/Ctrl micromeres (Figure 5)51 ± 949 ± 9
Ctrl host/MO micromeres (Figure 5)40 ± 2060 ± 20
MO host/Ctrl micromeres (Figure 5)48 ± 1752 ± 17

Chimeric embryos made in this manner were examined over six hours of development to follow cell behavior. As seen in Figure 1C and Video 1, throughout invagination of the archenteron, the small micromeres were highly active. They underwent many cell shape changes, blebbing, and pseudopodia extensions as was also seen by Campanale et al. They extended filopodia and lamellipodia through the basal lamina surrounding the archenteron. Nevertheless, they retained an adhesion and were not displaced relative to the adjacent invaginating epithelial cells (Figure 1C and Video 1, 12 hr 00 min–18 hr 00 min).

When gastrulation was completed at 20 hpf (early prism stage), small micromere behavior changed in tandem with a change in the basal lamina. At a time corresponding to the end of gastrulation, laminin immunostaining indicated that the basal lamina was undergoing remodeling, as there were large gaps in the laminin component of the basement membrane at the tip of the archenteron (Figure 2A). Through those gaps, the small micromeres delaminated (Figure 2A), moved to the blastocoelar side of the remodeling basal lamina, and then actively migrated to the posterior end of the left or right coelomic pouch where they were then re-enveloped with a basal lamina layer by 2 dpf (Figure 2B). The migratory behavior of the small micromeres suggested that they underwent an EMT at the beginning of their migratory phase over the archenteron and to their coelomic pouch. These cells de-adhered, breached a basal lamina, changed shape, actively migrated within the blastocoel, and then rejoined an epithelium, demonstrating a number of EMT, and perhaps mesenchymal–epithelial transition (MET), properties.

Laminin remodeling at the tip of the archenteron facilitates migration of the small micromeres to the posterior end of the coelomic pouch.

(A) Once the micromeres reach the tip of the gut, they undergo an epithelial–mesenchymal transition (EMT). By immunostaining, we see that laminin (red), at the time, is reduced as the small micromeres (SM, green) breach the top of the gut. (B) Once they reach the posterior coelomic pouch, laminin (red) surrounds the small micromeres (green) and NSM to encapsulate the coelomic pouch (yellow dashed circle). (C, D) Ectopically placed small micromeres underwent an EMT coincident with the endogenous EMT event of the skeletogenic cells. Laminin (red) is absent both at the site of skeletogenic cell ingression (indicated by white arrows at the site of ingression) and at the site of ectopic small micromere (SM, green) ingression (indicated by a yellow arrow).

https://doi.org/10.7554/eLife.08827.006

Small micromeres ‘home’ to the coelomic pouches from ectopic positions

In many embryonic systems, cells home, or migrate in a directed fashion, from their place of origin to a distant target site. Since that movement is directed, in each case there must be a mechanism to provide guidance (Richardson and Lehmann, 2010; Yajima and Wessel, 2012; Campanale et al., 2014; Reig et al., 2014). Knowing that the small micromeres were actively changing cell shape then moving to a new location at the end of gastrulation, we tested to see if small micromeres would undergo a directed migration to the coelomic pouch when placed in an ectopic location. Normally, small micromeres start their trajectory at the vegetal pole, which is the most posterior location in the embryo and terminate in the coelomic pouches near the anterior end of the embryo. Accordingly, small micromeres were placed ectopically at varying locations along the anterior/posterior axis of 16- to 60-cell staged embryos, and the frequency of their ability to find their way to the coelomic pouch at 2 days post fertilization (dpf) was scored (Figure 3). Micromeres placed at the vegetal pole served as a control since that is their endogenous starting location. Donors placed in the endogenous location homed 86.6% (n = 213) of the time (Figure 3A). 13.4% of observed cases that were considered ‘no homing’ were instances where we could not find fluorescent small micromeres in the host embryo's coelomic pouch. Those that did not make it to the coelomic pouch became lost in the blastocoelar space, which we scored as ‘no homing’. Micromeres were then placed ectopically between the Veg1 and Veg2 tier and in the animal half between the An1 and An2 tier of presumptive ectodermal cells (scored together as equator), at the animal pole, or in the blastocoel. No matter where they were placed, the vast majority of small micromeres transplanted to ectopic positions anywhere in the embryo made it home (Equator = 93.7% (n = 74), Animal Pole = 78.6% (n = 11), Blastocoel = 78.6% (n = 11)) (Figure 3B–D). Interestingly, the majority of transplants were scored to be in the left coelomic pouch after homing suggesting a survival mechanism to ensure the proposed primordial germ cells make it onto adulthood to contribute to the gamete pool.

Figure 3 with 1 supplement see all

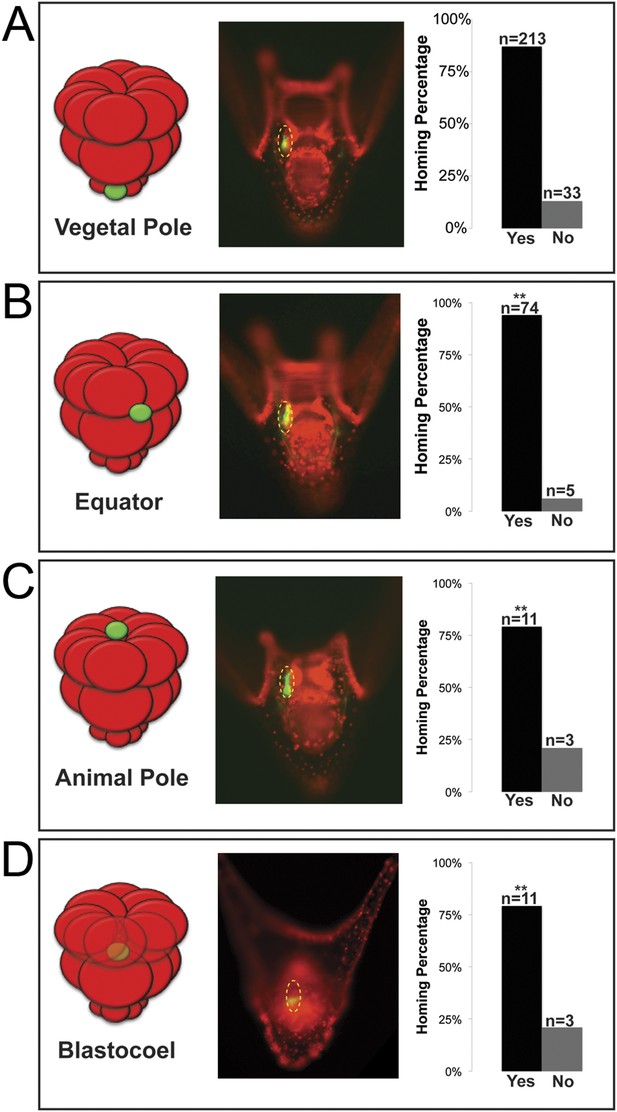

Ectopically placed micromeres are able to find their way to the coelomic pouches via a directed homing mechanism from any ectopic location.

(A) The endogenous, vegetal pole, (B) the equator (p < 0.004), (C) the animal pole (p < 0.004), or (D) inside of the blastocoel (p < 0.004). Illustrations on the left designate their ectopic placement (ectopic micromere = green, host embryo = red). Yellow dashed lines indicate the location of the whole coelomic pouch with the ectopically placed micromeres labeled in green. Graphs depict the percentage of embryos scored with the given ability to home (Yes vs No), ‘n’ equals the number of embryos scored with the phenotype, and p-values were calculated using a χ2 test. ‘**’ denotes a statistically significant (p < 0.05) p-value.

https://doi.org/10.7554/eLife.08827.007

Next, we wanted to see how the small micromeres homed. Did they move from the ectopic position within the plane of the epithelium, or did they ingress from the ectopic location into the blastocoel and find the coelomic pouch from there? If they did ingress into the blastocoel, were they first attracted to the endogenous small micromeres before migrating to the coelomic pouch mesoderm, or did the small micromeres autonomously move to the coelomic pouches? Could it be that the ectopically placed small micromeres precociously ingressed through the basement membrane and thus headed directly to their final destination? To see when and where the ectopic small micromeres found their way home, we transplanted differentially labeled micromeres to two different locations (one at the animal pole [Figure 3—figure supplement 1A] and one at the equator [Figure 3—figure supplement 1B]) to host embryos. We then assayed at intervals up to 24 hpf and saw that the ectopically placed micromeres arrived independently of the endogenous micromeres (Figure 3—figure supplement 1A,B).

The transplanted small micromeres remained at the ectopic site until the primary mesenchyme cells (PMCs) ingressed. At that time (9–10 hpf), the ectopic small micromeres also ingressed into the blastocoel (Figure 2C,D). Because the ectopic small micromeres ingressed at the time of skeletogenic cell ingression, we wondered whether isolated small micromeres could ingress on their own. By ectopically transplanting just 32-cell stage small micromeres (as opposed to the usual 16-cell stage micromere, which would result in large and small micromere cells) (Figure 2C), we observed the small micromeres autonomously invade through the laminin layer independent of large micromeres. The ectopic small micromeres breached the laminin layer (Figure 2D, yellow arrow) at the same time as the PMC EMT (Figure 2D, white arrows) suggesting that the small micromeres create the hole through which they breach and invade, even though the endogenous small micromeres actually breach the basement membrane about 6–8 hr later when they leave the tip of the archenteron.

Small micromeres home to coelomic pouch precursor cells

Once we learned that the ectopically placed small micromeres home to the coelomic pouch from any location in the embryo, we next investigated whether the signal to which they were responding was coming from the coelomic pouch mesoderm. The question was whether the small micromeres home directly to the coelomic pouch region or indirectly. First, to ask if the mesoderm is the lineage to which the small micromeres home, we knocked out Delta, a signal necessary for mesodermal specification (Sherwood and McClay, 1999; Sweet et al., 2002). The lack of mesoderm, indeed, had an effect on homing. In the experiment, Delta was knocked down in host embryos and control (unperturbed) micromeres were placed ectopically at the equator of those embryos (Figure 4A). The small micromeres did not home to any significant location in the embryo (coelomic pouches were non-existent in the KD) and became lost in the blastocoelar space as is seen in cases we deemed ‘no homing’ 65% of the time (n = 23, p < 0.0001) (Figure 4C). 35% of the time, there was an incomplete knockdown of the Delta signal resulting in a coelomic pouch and the small micromeres homed to that location. Further investigation of the cell types and sub-territories within the coelomic pouch allowed us to elaborate on the genomic control underpinning the homing mechanism.

Specification of the non-skeletogenic mesoderm (NSM) by Delta signaling is required for homing.

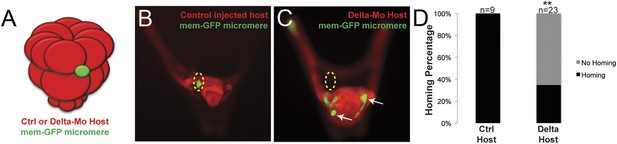

Control micromeres labeled with membrane-GFP were ectopically transplanted to either a control TMR (red) host or a Delta–MO TMR (red) host (A). When control micromeres were transplanted to a control host, homing of the small micromeres occurs 100% (n = 9) of the time (B). When NSM specification was blocked in a host embryo using a delta morpholino, homing of transplanted control micromeres was significantly reduced and only homed 53% of the time (n = 23, p < 0.0001) (C, white arrows). (D) The graph depicts the percentage of embryos (Control Host vs Delta Host) seen with the given ability to home (Black = Homing vs Gray = No Homing), ‘n’ equals the number of embryos scored in each case, and p-values were calculated using a χ2 test. ‘**’ denotes a statistically significant (p < 0.05) p-value.

https://doi.org/10.7554/eLife.08827.009

Coelomic pouch transcription factors affect small micromeres' ability to home

Next, we wanted to know which transcription factors within each territory of the final coelomic pouch (aboral or oral mesoderm) were upstream of the homing mechanism. We surveyed a list of known coelomic pouch and small micromere transcription factors, and genes found to maintain expression levels during homing were included in our list of potential upstream regulators. The genes further investigated were (1) oral coelomic pouch transcription factors FoxC, FoxF, PitX2; (2) aboral coelomic pouch transcription factors Dach1, Pax6, SoxE, Six3, Six1/2, and transcriptional co-activator Eya; and (3) small micromere transcription factors FoxC and Pitx2. Accession numbers are found in Table 2.

Table 2

Plasmids used in this study

https://doi.org/10.7554/eLife.08827.010
PlasmidFragmentAccession number
Dach1Full CDSKR181947
DeltaFull CDSKR181946
EyaFull CDSKR181945
FoxCFull CDSKR181944
FoxFFull CDSKR181943
Pax6Full CDSKR181942
PitX2Full CDSKR181941
Six3Full CDSKR181940
SoxEFull CDSKR181939

The experiment was to transplant a labeled micromere to a differentially labeled host embryo and assay the small micromeres' ability to home in either of the two perturbed scenarios: either with a morpholino-perturbed host embryo or morpholino-perturbed micromere transplant. For each transcription factor, we transplanted control micromeres to control hosts (a positive control for homing), perturbed micromeres transplanted to control hosts, and control micromeres transplanted to perturbed hosts. Transplants were done at the 16-cell stage and scored at two days post-fertilization. Transplant efficacy was also scored and can be found in Table 1. Only those transplants containing small micromere were scored for homing or no homing. Failed transplants were cases where no small micromeres were observed in the embryo.

One transcription factor, Forkhead family member FoxC, was found to affect small micromere homing when only knocked down in the micromere. FoxC is expressed in both the oral coelomic pouch mesoderm and the small micromeres; however, only when it was perturbed in the small micromere did it affect homing, and only 26% (n = 19, p < 0.001) of the time did the small micromeres successfully make it to the coelomic pouch (Figure 5A).

Figure 5 with 2 supplements see all

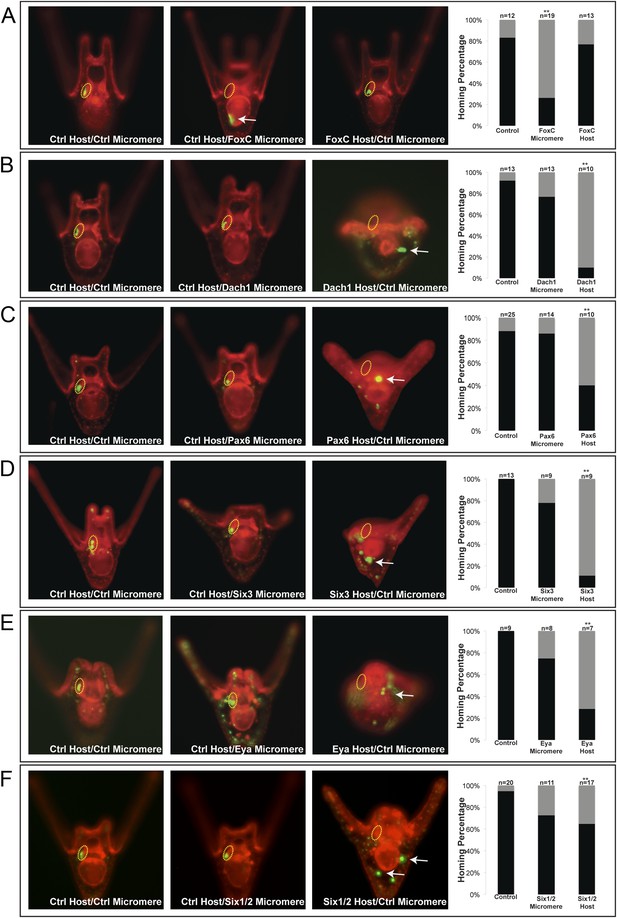

Homing is controlled by upstream transcription factors.

By selectively knocking down specific transcription factors in either an ectopically placed micromere or the host embryo, transcription factors for the homing were identified. (A) FoxC, a transcription factor expressed in the small micromeres and oral mesoderm was necessary for homing of the small micromere (n = 19, p < 0.001), but had no inhibitory effect on homing when knocked down in just the mesoderm (n = 13). (B) Dach1, an aboral mesoderm transcription factor, affected homing when knocked down in the mesoderm (n = 10, p < 0.0001) but did not affect homing when perturbed in the small micromere (n = 13). (C) Pax6, affected homing when knocked down in the mesoderm (n = 10, p < 0.004) but had no effect on homing when perturbed in the small micromere (n = 14). (D) Aboral mesoderm transcription factor, Six3 affected homing when knocked down in the mesoderm (n = 9, p < 0.00009) but had no effect homing when perturbed only in the small micromere (n = 9). (E) Aboral transcriptional co-activator, Eya, affected homing when knocked down in the mesoderm (n = 7, p < 0.002) but did not affect homing when perturbed in the small micromeres (n = 8). (F) Aboral transcription factor, Six1/2, affected homing when knocked down in the mesoderm, as well (n = 17, p < 0.02) and did not affect homing when knocked down in the micromere (n = 11). Yellow circles indicate the location of the coelomic pouch. White arrows indicate ‘lost’ micromeres. The graph depicts the percentage of embryos (Control Host vs MO micromere vs MO Host) seen with the given ability to home (Black-Homing vs Gray-No Homing), ‘n’ equals the number of embryos scored in each case p-values were calculated using a χ2 test. ‘**’ denotes a statistically significant (p < 0.05) p-value.

https://doi.org/10.7554/eLife.08827.011

The first coelomic pouch transcription factor we found to be involved in homing was a Ski/Sno family member, Dachshund1. When control micromeres were transplanted to a Dachshund1 morpholino perturbed host, the control small micromeres were only able to home in 10% (n = 10, p < 0.0001) of scored cases (Figure 5B). In contrast, when Dach1 was knocked down in the small micromeres only, and the host embryo was a control, homing ability was scored as successful in 77% of cases. We concluded that Dach1 was necessary in the targeted tissue for homing to occur.

Next, we found the paired box family transcription factor Pax6 was upstream of the small micromeres' ability to home. When control micromeres were transplanted to a Pax6 knockdown host, the small micromeres were only able to home 40% (n = 10, p < 0.004) of the time (Figure 5C). We then found the six family transcription factor, Six3, to regulate homing. When control micromeres were transplanted to a Six3 knockdown host, the small micromeres were able to home 11% (n = 9, p < 0.00009) of scored cases (Figure 5D). Next, we saw transcriptional co-activator and tyrosine phosphatase, Eya, to exhibit an effect on homing. When control micromeres were transplanted to an Eya knockdown host, small micromeres were able to home 28.5% of the time (n = 7, p < 0.002) (Figure 5E). Finally, we found another six family transcription factor, Six1/2, to affect homing. Control micromeres transplanted to a Six1/2 knockdown host were able to home 65% (n = 17, p < 0.02) of scored cases (Figure 5F). This effect is modest, but statistically significant relative to controls within that experiment. Transcription factors FoxF, SoxE, FoxC, and Pitx2 did not appear necessary for homing when perturbed in the coelomic pouch mesoderm (Figure 5—figure supplement 1).

It is important to note that when the same knockdowns are stained for endogenous vasa expression (labeling the small micromeres), small micromeres are still able to reach the coelomic pouches (Figure 5—figure supplement 2). We observe that the control endogenous small micromeres are within the coelomic pouches in tight clusters (Figure 5—figure supplement 2A) while the knockdowns exhibit various levels of disorganization (Figure 5—figure supplement 2B–H). Since the endogenous small micromeres normally home over a very short distance, the knockdown small micromeres, as might be expected, remain close to the coelomic pouches—they do not disperse from that vicinity, but they do not tightly cluster in the correct location. Also, at this time, there is prevalent cell rearrangement at the tip of the archenteron that leads to the fusion of the oral ectoderm and foregut endoderm (unpublished observations).

Thus of the eleven genes screened for homing behavior, only six were necessary for homing. We next wanted to better understand how the five coelomic pouch mesodermal transcription factors scored as necessary for homing might relate in the network circuit that runs in that tissue.

Perturbation analysis unveils a GRN circuit that controls homing

Each of the five transcription factors involved in controlling homing is expressed in the aboral coelomic pouch. Luo and Su showed that transcription factors Dach1, Eya, Six1/2, and Pax6 are co-localized in the aboral coelomic pouch (Luo et al., 2012). Six3 was found to be expressed in the aboral mesoderm early in development, and by double fluorescent in situ hybridization, we see six3 to also overlap with aboral marker, eya (Figure 6B) (Wei et al., 2011). Six3 was seen to be tightly apposed with vasa expression but is exclusive from small micromeres. Also, six3 expression is distinct from the oral, myosin, domain of expression (Figure 6A,C). Expression domains within the coelomic pouch are illustrated in Figure 6D. Luo and Su also noted that transcription factors Dach1 and FoxC are expressed in the oral coelomic pouch (Luo et al., 2012). Transcription factor FoxC, however, is expressed in both the oral coelomic pouch and the small micromeres at the time of small micromere homing (Luo et al., 2012).

Figure 6 with 1 supplement see all

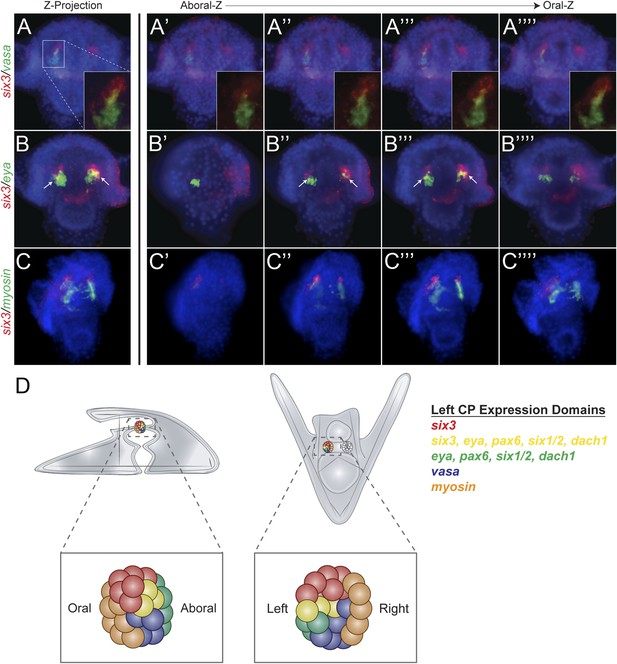

Expression domains within the coelomic pouch.

Double fluorescent in situ hybridization of six3 with vasa shows a tight apposition of their expression domains but a lack of co-localization (AA′′′′). Z projection of six3 and vasa is seen in (A), and individual Z sections are seen from aboral to oral most locations in the embryo in (A′A′′′′). Insets on panels AA′′′′ show a zoomed perspective of just the left coelomic pouch apposed expression of six3 and vasa. six3 and eya were seen to overlap in the aboral coelomic pouch in both the Z projection (B) and Z sections (B′′ and B′′′) but not in Z sections (B′ or B′′′′). myosin expression was seen to be in the most oral expression domain of the coelomic pouch, distinct of six3 (CC′′′′). An illustration demonstrating the expression domains observed in the coelomic pouch from our data and the data of Luo and Su, 2012 is displayed in (D) from both the lateral and oral views.

https://doi.org/10.7554/eLife.08827.014

To determine the order of expression of the transcription factors that could potentially act in a homing subcircuit, we first performed whole mount in situ hybridization on all five homing genes (dach1, pax6, eya, six1/2, and six3) at eight time points ranging from pre-hatched blastula (before small micromere migration along the archenteron) to early pluteus (after the small micromeres and coelomic pouches have coalesced) with a 2- to 4-hr step-time to establish relative timing of expression (Figure 6—figure supplement 1). By surveying this gene set, we conclude that their co-localization in the coelomic pouches and temporal expression patterns suggest that these transcription factors may be interacting (diagram, Figure 6D). To ask how or if these genes interact in a gene network to drive the morphogenetic cassette, we undertook a perturbation analysis to build a homing GRN upstream of the morphogenetic movement.

Each transcription factor was perturbed and the effect of that perturbation on the others was examined. When Dach1 was perturbed using a morpholino specific to the start of translation, we saw by in situ hybridization an increased expression of dach1 (indicating self repression). Knowing that dach1 is expressed in the endoderm earlier in development from our time course data, we concluded that the upregulation seen in the gut was a result of dach1 self-repression not only in the gut but also later in the coelomic pouch mesoderm expression. A down-regulation of six3 and a down-regulation of eya transcripts was also seen in the Dach1 perturbation. These data indicate that Dach1 positively regulates six3 and eya and inhibits the overexpression of itself by repression (Figure 7).

Figure 7 with 2 supplements see all

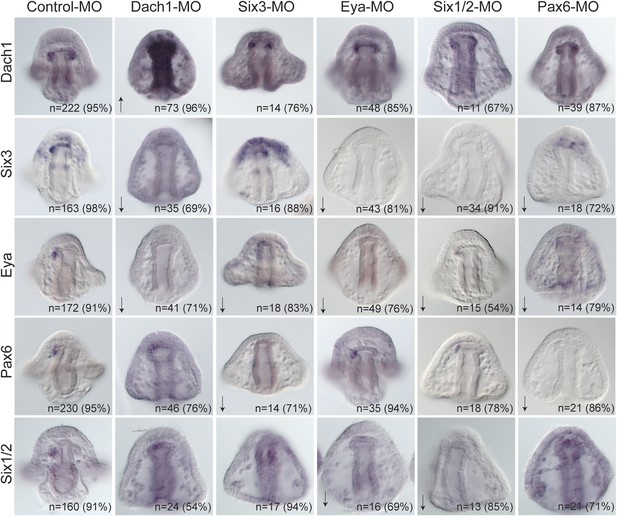

Perturbation analysis unveils regulatory linkages in a homing GRN.

Perturbations using a Dach1 morpholino (MO) showed Dach1 to be upstream of dach1, six3, and eya. A Six3-MO caused a downregulation of eya and pax6. Pertubations with an Eya-MO showed Eya to be upstream of six3, six1/2, and eya. Six1/2 is seen to be upstream of six3, eya, and six1/2. Finally, a Pax6-MO caused a downregulation of six3, eya, and pax6. Arrows represent up or downregulation seen for each panel. ‘n’ equals the total number of embryos scored, and the adjacent percentage designates the percent of embryos scored with the shown effect. Morpholino morphology phenotypes at 24 hpf and 48 hpf are presented in Figure 7—figure supplement 1. Unpublished morpholino data has been validated using a second, distinct morpholino (see Figure 7—figure supplement 2).

https://doi.org/10.7554/eLife.08827.016

When Six3 was perturbed using a start site morpholino, we saw a self up-regulation of six3 but only in the apical expression domain, a down-regulation of eya, and a down-regulation of pax6 transcripts. We conclude from these data that Six3 positively regulates eya and pax6 in the coelomic pouch mesoderm. Perturbing Eya in the same way showed a down-regulation of six3, six1/2, and a self-down-regulation of eya. Knowing that Eya is a transcriptional co-activator of Six1/2, Eya must positively regulate itself, six3, and six1/2 by co-acting with Six1/2. Next, Six1/2 was perturbed, and, as expected, regulatory interactions found reflected those found in the Eya knockdowns indicating that Eya and Six1/2 do, in fact, act synergistically as has been seen before (Heanue et al., 1999; Materna et al., 2013). Finally, Pax6 perturbation caused down-regulation of six3, eya, and itself. Pax6, therefore, positively regulates six3, eya, and itself (Figure 7).

When the network was laid out in a Biotapestry model, the subcircuit controlling the homing mechanism was readily discerned as a coherent feed-forward loop composed of multiple feedback loops that sustain its robust nature (Figure 8A) (Longabaugh et al., 2005). It also displayed a striking resemblance to another circuit well known in development: the RDGN. The Pax-Six-Eya-Dach RDGN is necessary for specification of retinal cell types in many systems (Purcell et al., 2005; Kozmik et al., 2007; Kumar, 2009; Salzer et al., 2010; Weasner and Kumar, 2012). The same five factors contribute to a coherent feed-forward circuit for Drosophila eye specification (Kumar, 2009) (Figure 8B). Few linkages between the eye and small micromere homing circuits are different (Figure 8).

Figure 8 with 1 supplement see all
Homing GRN subcircuit shows striking resemblance to Drosophila RDGN.

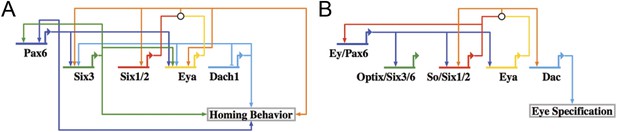

(A) The perturbation analysis was mapped as a Biotapestry network model. (B) A retinal gene network subcircuit extracted from Drosophila (Kumar, 2009) shows a very similar circuit with few regulatory linkage changes in comparison.

https://doi.org/10.7554/eLife.08827.019

Discussion

Our chimera experiments show that small micromeres home with high fidelity to the coelomic pouches no matter where they initially are placed in the embryo. That homing utilizes an autonomous EMT and a directed movement to the target site in the coelomic pouch. Results detail some of the complex morphogenetic movements of the small micromeres in their migratory trajectory. Perturbation analysis identified the transcriptional inputs upstream of the putative homing signal. Network analysis of the transcription factors necessary for homing signal production unveiled a stereotypical coherent feed-forward subcircuit that controls the attractive signal. That circuitry shows a striking similarity to the RDGN or Pax-Six-Eya-Dach Network.

That the same subcircuit is present and used for another purpose in Drosophila was an unexpected outcome. While it is possible that the similarity is due to convergent evolution, deployment of the same subcircuit in the two organisms for two very different purposes also suggests another possibility. Ancient subcircuit functions necessary for systems-level operations in networks may be employed as a unit as new networks evolve rather than build new systems level operations gene by gene. It isn't yet known whether evolution favors subcircuits of similar topology moving as a unit to perform similar functions in diverse cell types, but advances in systems-level studies should reveal the frequency of this phenomenon.

Small micromere homing is a complex directed cell migration mechanism

The data from the chimera experiments show that normally small micromeres retain an adhesion to adjacent cells during archenteron extension. When they arrive at the tip of the archenteron, they then leave the epithelium using an EMT through a laminin-containing basement membrane, migrate to the posterior end of the coelomic pouch, and transition back to an epithelium as they coalesce with the coelomic pouch. Ectopically placed small micromeres behave differently from the endogenous small micromeres in that they fail to retain epithelial adhesions through gastrulation and instead go through an EMT at the time PMCs ingress. The fact that the ectopically placed small micromeres lose adhesion and go through EMT independent of the timing of archenteron tip formation implies that there must be a non-autonomous cue to keep the endogenous small micromeres in place during gastrulation. Without that local cue, the small micromeres actively home from the beginning of gastrulation as seen with the behavior of ectopically placed small micromeres. Further, there must be a non-autonomous signal that is recognized by small micromeres when they reach the tip of the forming archenteron that cues them to initiate the EMT and migration. The behavior of the ectopic cells suggest that the migratory capacity can be activated at the beginning of gastrulation, but since they normally do not move from the epithelium until at the tip of the archenteron, another event may stimulate them to complete their journey to the coelomic pouches.

Observations of ectopically placed small micromeres also reveal that the cells undergo directed cell migration to get to the coelomic pouch mesoderm. The cells find their way to the coelomic pouch no matter their starting location. In other systems cells become polarized in response to a chemoattractant signal at the leading edge of the cell while the remainder of the cell is cued to receive inhibitory or repulsion signals responsible for increasing its sensitivity to its target location (as reviewed by Richardson and Lehmann, 2010; Reig et al., 2014). Small micromeres appear to take a fairly direct route to their eventual target no matter where they are initially placed. Since the normal route involves movement through part of the blastocoel, and since ectopic small micromeres also use the blastocoelar route, the putative homing signal likely is produced earlier than the end of gastrulation since the ectopic small micromeres move through the blastocoel to the correct target well before gastrulation is completed.

At present, it is only speculation that there is a chemoattraction mechanism at play. If it were chemoattraction, the cue must work at the individual cell level since single small micromeres respond to the cue when ectopically placed. The transcriptional regulation upstream of that putative signal offers approaches for its identification. Potentially, as an alternative hypothesis, the coelomic pouch NSM could be drawing the small micromeres to their final site by filopodia, since it is known that these cells as well as the small micromeres extend filopodia (Hardin, 1988; Campanale et al., 2014). These hypotheses will need to be explored further.

Control of morphogenetic movements at a systems level involves a series of subcircuits to drive complex cell behavior

The goal of determining upstream transcriptional regulation of the homing process requires connection of the aforementioned network (Figure 8A) to chemoattraction mechanisms (both attractant and repulsion) directly responsible for the directing migration. In addition, other subcircuits are necessary to drive the EMT, for reception of the putative signal, and for directed movement in response. Transcriptional control of directed cell migration is not well studied at a systems level. There are a few examples, however, that suggest the way these systems work. Findings in the tunicate, Ciona intestinalis, describe the distinct transcriptional regulation of a cellular module that drives migration of heart precursors. The heart GRN drives membrane protrusions and RhoGTPase signaling, tail retraction, adhesion, and polarity (Christiaen et al., 2008). One important feature of that study was that the cells constitutively expressed many of the factors required for these cell behaviors. It only took one or two factors to be under direct control of the developmental GRN to regulate the timing, directionality, onset, and termination of the heart cell precursors' journey. In the sea urchin, five different GRN subcircuits were shown to drive five different cellular components of an EMT (Saunders and McClay, 2014). It is highly likely, like Ciona heart cells, that the sea urchin developmental GRN will control directly expression of only a fraction of the proteins used for de-adhesion, motility, invasion of the basement membrane, altered cell polarity, and cell shape changes, all components of an EMT, while many other proteins in those processes will be constitutively expressed. Using small micromere homing as an assay, we were able to begin to unravel the intricacy of GRN subcircuits that control cell migration to a target site. This work thus demonstrates how morphogenesis can be controlled by conserved specification GRN subcircuits.

The small micromere homing example reveals something else in morphogenetic movement control. We tend to think of the result of the movement: the small micromeres become associated with the aboral coelomic pouch through homing. Yet, to accomplish that feat, both the cells that home and the target cells must enact a series of coordinated, but independent processes. Here, we found a set of genes that control the production of the putative homing signal. Being that the subcircuit is of coherent feed-forward topology, we suspect it will be found at the most distal part of a larger GRN; therefore, it will act downstream of the specification circuitry of the signal-producing cell type. Connecting that upstream subcircuit to the downstream signal(s) will provide a tool for explaining one component of the homing mechanism that we know to be transcriptionally controlled.

Deployment of a whole subcircuit controls distinct developmental processes

Recognizable RDGN components are deployed in a variety of developmental processes in different organisms. After pooling published data from three different fields of study (demosponge canal systems, vertebrate skeletal muscle, and mouse otic placodes), we were able to construct putative GRN models (Figure 8—figure supplement 1). Although each respective subcircuit is embedded in a larger specification GRN, when extracted as a subcircuit, it appears that the RDGN feed-forward topology has been deeply conserved (Torres et al., 1996; Heanue et al., 1999; Relaix and Buckingham, 1999; Xu et al., 1999; Ridgeway and Skerjanc, 2001; Kardon et al., 2002; Laclef et al., 2003; Riley and Phillips, 2003; Zheng, 2003; Ozaki, 2004; Silver, 2004; Relaix et al., 2013; Rivera et al., 2013). Only now that we have been able to make a complete RDGN subcircuit in the sea urchin, can we hypothesize about what evolutionary mechanism may be at play. With the same transcription factors involved in a similar feed-forward process in such a variety of tissues, we hypothesize that the RDGN subcircuit is ancient and has been repeatedly deployed as a unit to provide feed-forward control.

If this subcircuit is redeployed throughout evolution as a unit, as seems to be the case given the frequency of its presence, the mechanism that keeps it intact is unknown. Evolving as a modular unit must mean that the subcircuit serves as an indispensible or important component in a network full of modular components. The assembly of the coherent feed-forward circuit, once established, appears to remain intact in separate lineages for the same reason: that circuit must be critical for the GRNs in which it is embedded. Its presence raises the question of whether there are other ancient or more recent subcircuits that have evolved as modules. Since analysis of developmental GRNs is a relatively young field, it is possible that a number of ancient modular subcircuits evolve as units to assist in the diversification of cell types and morphogenesis. One obvious outcome of this mode of inheritance would be a contribution to robustness in developmental mechanisms. And perhaps once a subcircuit is particularly well integrated and suited for a given type of regulatory function, each of its members (in our case, transcription factors) might act as a constraint on the others because any reduction in integration would be less adaptive.

What is intriguing is how ancient the RDGN must be. It is a circuit that is used because it efficiently provides an excellent feed-forward circuit that stabilizes the process to which it is attached. It is best studied in retinal determination but its ancestral role is unknown and could equally well be directed cell migration.

Materials and methods

Adult animals and embryo culture

Adult Lytechinus variegatus were obtained from Reeftopia (Key West, FL, United States) or the Duke University Marine Lab (Beaufort, NC, United States). Gametes were obtained by injection of 0.5 M KCl into the adult coelom. Embryos were cultured at 23°C in artificial seawater (ASW).

Cloning of RDGN genes

The full-length coding sequences for NSM transcription factors, Delta, and RDGN genes were obtained by designing primers against a transcriptome data set. Nucleotide sequences were annotated and deposited on GenBank (Accession Numbers: Table 2).

Morpholino and mRNA microinjections

Morpholino antisense oligonucleotides were designed against the start site of translation by GeneTools. Morpholino sequences and concentrations are as listed in Table 3. Morpholinos were diluted in molecular-grade H20 and either FITC or TMR injectable dyes. Morpholino experiments were carried out on three biological triplicates, cultured at 23°C, and assayed by in situ hybridization. Phenotypes of morpholinos at 24 hpf and 48 hpf were imaged to show the overall health and morphology of knockdowns (Figure 7—figure supplement 1). Published morpholinos listed in Table 3 were verified using appropriate controls explained in the citation referenced. Two morpholinos were assayed to test the specificity of Six3, FoxF, and FoxC. Appropriate efficacy controls were also carried out previously for Six3, FoxF, FoxC, Delta, Six1/2, and Dach1 as is cited in Table 3. Previously unpublished morpholinos were validated by ordering a second, distinct morpholino to the start of translation or 5′ UTR and were verified using in situ hybridization (Figure 7—figure supplement 2). mRNA for injection was transcribed in vivo using Ambion mMessage mMachine. Concentrations for mRNA injections: 300 ng/μl Histone2B-GFP, 500 ng/μl Histone2B-RFP, 500 ng/μl membrane-RFP, and 300 ng/μl membrane-GFP. For injection, mRNAs were diluted in 20% glycerol in diethylpyrocarbonate-treated H2O.

Table 3

Morpholino anti-sense oligonucleotide sequences used in this study

https://doi.org/10.7554/eLife.08827.021
MASOMASO sequenceMorpholino typeWorking concentration
LvPax6-MO1GTTGACCTGGCATAGCAGCATTTACTranslation blocking1.2 mM
LvPax6-MO2CATGTCCCCGTGACCCATAGTTTTCTranslation blocking0.3 mM
LvEya-MO1GCGCTGAAGCTATTTGACATGCTGTTranslation blocking0.75 mM
LvEya-MO2GTTGAAACCTGTTTGACTGTAGGCCTranslation blocking1 mM
LvSix3-MOATGTTTCCGACTCCGTCCAAACCATTranslation blocking (Wei et al., 2009)0.75 mM
LvSix1/2-MOCCCAAGTCCGTGGCAAGGATAAGATTranslation blocking (Ransick and Davidson, 2012)0.5 mM
LvDach1-MOAGTAGGCGGTGGACTTCCCATTTTCTranslation blocking (Peter and Davidson, 2011)0.5 mM
LvFoxC-MOTGAAGCGTACATTGGCATGGATGTTTranslation blocking (Andrikou et al., 2015)0.75 mM
LvDelta-MOGTGCAGCCGATTCGTTATTCCTTTTranslation blocking (Sweet et al., 2002)0.4 mM
LvFoxF-MOTCTAATTGAGTCATCTGGAGAGTGTTranslation blocking (Andrikou et al., 2015)0.75 mM
LvSoxE-MOGCTCTAAACTCTCAGGGCTACTCATTranslation blocking0.75 mM
LvPitX2-MOACTGGTTCATCGCTGCTGATTAATTTranslation blocking0.6 mM
Control-MOCCTCTTACCTCAGTTACAATTTATATranslation blockingExptDependent

Microsurgeries

At 2.5 hpf, one micromere from an injected donor embryo was transplanted onto a differentially injected 16-cell host embryo in the place of one discarded host micromere or at an ectopic location. Microsurgery was performed with fine glass needles and Narishige micromanipulators. Detailed methods of injections and transplants were followed as previously described (Logan et al., 1999). Transplant efficacy was scored in Table 1.

Live image acquisition

At 11 hpf, embryos were de-ciliated in 2× hypertonic artificial seawater, mounted in 1× artificial seawater containing 10 μM p-methoxy-phenyl isoxazoline (Semenova et al., 2011) on a slide coated in 1% protamine sulfate and sealed with a combination of Vasoline, lanolin, and paraffinwax (also known as V.A.L.A.P.). Images were acquired using Coolsnap high-resolution CCD camera on the DeltaVision Elite with 40×/0.65–1.35 Oil UAPO40X0I3/340 DIC objective. Images were collected at 3-min intervals beginning at 12 hpf and ending at 18 hpf or later and projected as videos using SoftWorx for DeltaVision.

Immunostaining and fixed imaging

Embryos were fixed in 4% paraformaldehyde for 10 min, washed in PBST, blocked in 4% normal goat serum (in PBST) for 45 min, and incubated in polyclonal anti-Laminin antibody (1:250) (ab11575; Abcam [Cambridge, MA, United States]) and anti-GFP (1:2000) (ab13970; Abcam) overnight at 4°C. Embryos were then washed in PBST, incubated in a 1:200 dilution of either Cy2- or Cy3-conjugated secondary antibody, and finally, stained with Hoechst's (1:1000) (Molecular Probes [Eugene, OR, United States]) to label all nuclei. Images were acquired using Zeiss LSM 510 upright confocal with a 40×/1.4 Oil Plan-Apochromat objective. Z-slices were spaced 1.0 μm apart spanning the diameter of the embryo.

Whole mount in situ hybridization

RNA in situ hybridization was performed using Digoxigenin-11-UTP-labeled probes as previously described (McIntyre et al., 2013). Briefly, embryos were fixed in 4% paraformaldehyde overnight at 4°C, washed with ASW, and stored in methanol at −20°C. RNA probes were synthesized in vitro and used at 1 ng/μl. Hybridization took place at 60–65°C. Probes were visualized using alkaline phosphatase-conjugated anti-DIG antibody (1:1500, Roche [Indianapolis, IN, United States]). Finally, color was developed using NBT/BCIP (Roche). For double fluorescent in situ hybridization, a second probe (labeled with Fluorescein-12-UTP) was hybridized. Expression was visualized using the Tyramide Signal Amplification system (TSA-plus kit, Perkin Elmer [Waltham, MA, United States]). Embryos were visualized with a Zeiss Axioplan2 upright microscope.

Statistical analysis

GraphPad software was used to analyze a 2 × 2 contingency table with rows corresponding to the condition (controls and knockdown micromeres or controls and knockdown hosts) and columns corresponding to outcomes (‘homing’ or ‘no homing’). Chi-squared was then calculated, and a p-value was declared significant at a value of less than 0.05.

References

  1. 1
  2. 2
  3. 3
  4. 4
    The role of secondary mesenchyme cells during sea urchin gastrulation studied by laser ablation
    1. J Hardin
    (1988)
    Development 103:317–324.
  5. 5
  6. 6
    The invertebrates
    1. LH Hyman
    (1955)
    New York: McGraw-Hill.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    The molecular circuitry governing retinal determination
    1. JP Kumar
    (2009)
    Biochimica et Biophysica Acta 1789:306–314.
  12. 12
  13. 13
    Nuclear beta-catenin is required to specify vegetal cell fates in the sea urchin embryo
    1. CY Logan
    2. JR Miller
    3. MJ Ferkowicz
    4. DR McClay
    (1999)
    Development 126:345–357.
  14. 14
  15. 15
  16. 16
    Diversification of oral and aboral mesodermal regulatory states in pregastrular sea urchin embryos
    1. SC Materna
    2. A Ransick
    3. E Li
    4. EH Davidson
    (2012)
    Developmental Biology pp. 1–13.
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    LvNotch signaling mediates secondary mesenchyme specification in the sea urchin embryo
    1. DR Sherwood
    2. DR McClay
    (1999)
    Development 126:1703–1713.
  37. 37
  38. 38
    LvDelta is a mesoderm-inducing signal in the sea urchin embryo and can endow blastomeres with organizer-like properties
    1. HC Sweet
    2. M Gehring
    3. CA Ettensohn
    (2002)
    Development 129:1945–1955.
  39. 39
    Pax2 contributes to inner ear patterning and optic nerve trajectory
    1. M Torres
    2. E Gomez-Pardo
    3. P Gruss
    (1996)
    Development 122:3381–3391.
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49

Decision letter

  1. Marianne E Bronner
    Reviewing Editor; California Institute of Technology, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled “Deployment of a Retinal Determination Gene Network Drives Directed Cell Migration in the Sea Urchin Embryo” for peer review at eLife. Your submission has been favorably evaluated by Aviv Regev (Senior Editor), Marianne Bronner (Reviewing Editor), and three reviewers.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission

This is an interesting and valuable paper that examines the “homing” of small micromeres, which are likely primordial germ cells, to the coelomic pouches in sea urchins. The authors use elegant microsurgical approaches to demonstrate this homing behavior and to show its dependence on various transcription factors expressed in the coelomic pouches. Based on these genes and the regulatory interactions among them, the authors show that a genetic circuit previously associated mostly with retinal determination in Drosophila also functions in the coelomic pouches to direct the migration of sea urchin small micromeres. The paper makes an important contribution and should be published after certain revisions:

Essential revisions:

1) Circuit diagrams: There's a logical problem in the circuit diagrams shown. The diagrams indicate auto-repression of Dach1 and Six3. But the WMISH data show that the effect of Dach1 and Six3 knockdown is to activate expression of these genes in tissues other than coelomic pouches (Dach1 expression is activated in the gut and Six3 is up-regulated in the animal pole ectoderm). If Dach1 and Six3 are normally expressed only in the coelomic pouches, this must be a non-cell-autonomous effect. In any case, it's occurring in tissues other than coelomic pouches, and the circuit diagrams are misleading in that they represent an amalgamation of regulatory interactions that are not really occurring in the same cells. Also, since the coelomic pouches are a mixture of cell types, has it been shown clearly that Dach1, Six3, Eya, and Pax6 are expressed in the same cells of the pouch?

2) Quantification of effects on gene expression: Since some of the effects of the morpholino knockdown appear to be partial, based on the qualitative WMISH images shown (e.g., the effect Pax6 KD effect on Six3 expression), it would be valuable to confirm these qualitative results with QPCR. In some cases, no regulatory linkage is shown where it seems there may be an effect, based on the qualitative WMISH data (e.g., Pax6 expression seems somewhat fainter in the eya morphants than in controls). I realize that QPCR is problematical for genes that are expressed in multiple tissues if the effect one is interested in is restricted to just one tissue, but some of the genes studied seem to be expressed primarily in the coelomic pouches (at least at some stages) and could therefore be analyzed by QPCR or other quantitative methods.

3) Controls for morpholinos: What controls were carried out to confirm the specificity of the MOs? Two different MOs are listed for Pax6 and Eya, but only one for all others. For Pax6 and Eya, which specific experiments/data were based on MO1 and which were based on MO2? The authors should also include some DIC images showing the general morphology of their morphants, to help readers judge the health of the embryos and the possibility of non-specific effects. In Figure 5, the eya, six3, and dach1 morphants look as if they did not extend arms normally. Also, since these are translation-blocking MOs and there are no antibodies against the target proteins that can be used to assess MO effectiveness, the authors need to avoid statements based on negative results (lack of an effect), e.g., in the subsection “Coelomic pouch transcription factors affect small micromeres’ ability to home”: “Thus of the ten genes screened for homing behavior five were necessary and five had no effect if missing.”

4) Details of the anatomy: Where exactly within the coelomic pouches do the small micromeres end up? The posterior region? The aboral region? A diagram would have been very helpful here. What is their final position relative to the domains of expression of Dach1, Six3, Eya, and Pax6? Where are they positioned relative to the presumptive muscle cells? A more detailed description of the anatomy would have been very helpful, if these details are known.

5) The section of the Discussion that deals with circuit conservation/evolution is loose and speculative, and could be shortened.

6) The homing behavior of small micromeres is intriguing and may provide a great model to study cell migration. However, one major curiosity is whether the developmental mechanism used by the ectopic small micromeres is also used by endogenous small micromeres when they migrate during normal embryogenesis. For example, it is important to check whether any migration defects can be observed in endogenous small micromeres after Delta, Foxc, Dach1, Pax6, Six3, or Eya is knockdown (as in Figure 4 and Figure 5).

7) There is concern is the expression pattern of six3. In the legend of Figure 6–figure supplement 1, the authors described that: “six3's earliest detectable expression is at hatched blastula […] in the apical plate domain and the future coelomic pouch cells.” However, in Figure 6–figure supplement 1B, six3 expression is almost undetectable in blastula and gastrula stage (B1-B4) and this pattern is very different from a published work by Wei et al. (Development 136, p1179, 2009). Wei et al. clearly showed that the six3 gene identified from the California purple sea urchin is first expressed in the animal pole domain at the early blastula stage. The expression in the animal pole can be observed throughout gastrulation in addition to a second expression domain “in some secondary mesenchyme cells scattered throughout the blastocoel and at the tip of the archenteron.” In the subsection “Perturbation analysis unveils a GRN circuit that controls homing”, the authors mentioned “six3 was found to be expressed in the aboral mesoderm”, and cited Wei et al., 2011. However, whether six3 is expressed in the oral or aboral coelomic pouches or even in the small micromeres requires double staining of six3 with appropriate markers. Where six3 is expressed is important for interpretation of the data. In Figure 5D, it is intriguing that knockdown of six3 in both micromeres and the host affected homing. Therefore, it is possible that six3 is expressed in both small micromeres and the coelomic pouch mesodermal cells. One additional issue is that Luo and Su (PLoS Biology, 2012) showed that in addition to the three factors studied by the authors (dach1, eya and pax6), six1/2 is also expressed in the aboral coelomic pouch. I wonder whether the authors have investigated this obvious and putative player of the conserved RDGN network.

8) It is not clear the labeled red cells are migrating to their final site, or are drawn by static cells. This author showed some time ago that the embryo has very long processes that extend across the blastocoel even. Better documentation of the movement of the red cells is needed. What is present appears like a straight line – as might be suggested by a retracting process from a static cell instead of migration. The authors claim that the small blastomeres are not germ cells, or primordial germ cells, because the lineage of the line has not been documented. They conclude that the cells are multipotent but fail to provide such evidence needed for this conclusion.

9) Do any cells die? Better quantitation is necessary and they need to document cell death.

10) How can the authors distinguish if the MO is specifically testing homing, versus aspects of earlier development?

11) The methods for statistical analysis need to be described.

12) Issues with figures:

Figure 3–figure supplement 1 is confusing. The ectopic cell is labeled in red in 1A. However, it is not clear whether the red cells migrated into the coelomic pouches. An indication of coelomic pouches or counter stained the embryos with DAPI would help to see the location of coelomic pouches. Similar problem in B. The ectopic cell is now in green. I see there are two cells with green membrane and red nuclei. Are they ectopic or endogenous cells?

Figure 2D, it is not clear whether a micromere or a small micromere was transplanted? If a micromere is transplanted, how can the authors be sure the two cells breached the laminin layer (indicated with a yellow arrow) at 10 hpf are small micromeres but not large micromeres?

The authors provided data to validate unpublished morpholinos using a second morpholino against Eya and Pax6 in Figure 6–figure supplement 2. Please provide references if Six3 and Dach1 morpholinos used in this study have been published and validated before.

Clear development delay is seen in the morpholino-injected embryos presented in Figure 6. This may cause problem especially in the embryos stained with the six3 probe. Looking at the six3 expression pattern in Figure 6–figure supplement 1B4, six3 transcript is barely detected. At the similar stage (based on their similar morphology) showed in Figure 6, no expression of six3 is interpreted as downregulation. Please clarify the morpholino effect on developmental delay and their effects on six3 expression at a comparable developmental stage. Other issues concerning Figure 6: (1) six3 expression expands in six3 morphants, but the expansion is mostly seen in the apical plate. Therefore, the self-repression is in the apical plate not the coelomic pouches; (2) six3 expression seems upregulated in the hindgut of the eya morphants. Please confirm whether it is a consistent result.

Figure 3 presented percentages of the embryos showing small micromere homing. During normal embryogenesis, small micromeres migrate to the left or right coelomic pouches in a 5:3 ratio. Is there any left-right preference of the small micromere homing when they are transplanted at various positions?

Figure legend 2D: please indicate what the white and yellow lines are. Figure legend 3: (B) should be equator and (C) animal pole.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled “Deployment of a retinal determination gene network drives directed cell migration in the sea urchin embryo” for further consideration at eLife. Your revised article has been favorably evaluated by Aviv Regev (Senior Editor), Marianne Bronner (Reviewing Editor), and 3 reviewers. The manuscript has been improved but there are some remaining relatively minor issues that need to be addressed before acceptance, as outlined below. Please address the points raised by reviewers 2 and 3 in a revised manuscript:

Reviewer #2:

The authors have addressed most of my concerns and have added substantially to the manuscript. I believe the paper should be accepted for publication. I do have one small quibble: just because a MO was published previously does not mean that appropriate controls for specificity and efficacy were carried out. If so, then the authors point is well taken. If not, then the fact that someone was able to publish an experiment with the MO is irrelevant.

Reviewer #3:

The authors have answered most of my questions. One remaining issue is the exact expression domain of six3 in the coelomic pouches. The vasa signal in Figure 6 is extremely weak. It is difficult to judge whether there is an overlapping domain between six3 expression domain and vasa localization. The authors concluded that there is no overlapping and six3 is not expressed in the small micromeres. If this is the case, the authors need to explain the defect in homing when six3 was knockdowned in the small micromeres.

https://doi.org/10.7554/eLife.08827.022

Author response

Essential revisions:

1) Circuit diagrams: There's a logical problem in the circuit diagrams shown. The diagrams indicate auto-repression of Dach1 and Six3. But the WMISH data show that the effect of Dach1 and Six3 knockdown is to activate expression of these genes in tissues other than coelomic pouches (Dach1 expression is activated in the gut and Six3 is up-regulated in the animal pole ectoderm). If Dach1 and Six3 are normally expressed only in the coelomic pouches, this must be a non-cell-autonomous effect. In any case, it's occurring in tissues other than coelomic pouches, and the circuit diagrams are misleading in that they represent an amalgamation of regulatory interactions that are not really occurring in the same cells.

Dach1 is first expressed in the gut, and overexpression of dach1 in the gut may be a result of earlier auto-repression. However, we do see overexpression in the NSM as well, so we have decided to leave the self-repression of dach1 in the network. Six3 experiments were repeated, and the authors thank the reviewers for pointing out that the self-repression is only in the apical organ. This network linkage will be removed.

The notion that non-cell autonomous effects might be present cannot be ruled out, but since dach1 and six3 are both expressed in the coelomic pouch, and perturbation analyses indicate the subcircuit relationship, the simplest explanation for the circuit is that they interact autonomously within the coelomic pouches to control the homing mechanism.

Also, since the coelomic pouches are a mixture of cell types, has it been shown clearly that Dach1, Six3, Eya, and Pax6 are expressed in the same cells of the pouch?

Yes, Luo and Su, 2012 have clearly stated that dach1, six1/2, eya, and pax6 are co-expressed in aboral coelomic pouch NSM, and we review their results in the subsection “Perturbation analysis unveils a GRN circuit that controls homing”. However, they did not have data on six3 expression. These data were added (Figure 6), and it was seen that six3 overlaps with eya in the aboral coelomic pouch territory. The expression data therefore clarifies any concern over the possibility of these transcription factors being able to interact.

2) Quantification of effects on gene expression: Since some of the effects of the morpholino knockdown appear to be partial, based on the qualitative WMISH images shown (e.g., the effect Pax6 KD effect on Six3 expression), it would be valuable to confirm these qualitative results with QPCR. In some cases, no regulatory linkage is shown where it seems there may be an effect, based on the qualitative WMISH data (e.g., Pax6 expression seems somewhat fainter in the eya morphants than in controls). I realize that QPCR is problematical for genes that are expressed in multiple tissues if the effect one is interested in is restricted to just one tissue, but some of the genes studied seem to be expressed primarily in the coelomic pouches (at least at some stages) and could therefore be analyzed by QPCR or other quantitative methods.

As is stated by the reviewers, the genes in our network analysis are expressed in multiple territories; none of the genes are expressed exclusively in the coelomic pouch, although they co-localize there. qPCR is not as good as in situs if the genes in question are expressed in multiple territories. Transcription factor Six1/2, while in the aboral coelomic pouch mesoderm, also exhibits expression in the pigment cell NSM (Ransick, 2012). Both pax6 and eya are expressed in the aboral coelomic pouch as well as two lateral patches of apical ectoderm. We hypothesize this ectodermal territory to be a part of a later, neural (potentially retinal) network. Six3 is in the apical plate domain as well as the coelomic pouches. It is also expressed in the foregut endoderm later in development. Dach1 is expressed earlier in the gut endoderm, and it is not until late gastrula that expression in the coelomic pouches appears. Dach1 also appears in the early pluteus at the ends of the extending arms (unpublished observations).

That being said, we acknowledge the fact that the Pax6 in situ control was a poor representation of the normal, control expression, and a better representative of all the embryos scored replaced the picture (Figure 7).

3) Controls for morpholinos: What controls were carried out to confirm the specificity of the MOs? Two different MOs are listed for Pax6 and Eya, but only one for all others.

Pax6 and Eya MO were the only unpublished morpholinos in our network; therefore, we ordered two morpholinos to test their specificity and show they had the same effect. All other morpholinos were published in the purple sea urchin (Strongylocentrotus purpuratus), and our morpholinos were designed to the identical sequence site. The authors would like to thank the reviewers for addressing our oversight of not adding citations for these publications. References were added to the table of morpholino sequences (Table 3).

For Pax6 and Eya, which specific experiments/data were based on MO1 and which were based on MO2?

Both morpholinos were tested for their specificity by addressing the same knockdown analysis (Figure 7), and after determining they had the same effects, they were used interchangeably for further experimentation with similar outcomes in repeats of the same experiment.

The authors should also include some DIC images showing the general morphology of their morphants, to help readers judge the health of the embryos and the possibility of non-specific effects.

Thank you, these are included in a new figure. Morphant morphology was assayed at 24 and 48 hours and is presented in Figure 7–figure supplement 1.

In Figure 5, the eya, six3, and dach1 morphants look as if they did not extend arms normally.

The reviewers are right to point out that these morphants do not extend arms properly. A morpholino unrelated to this paper for Hedgehog (Hh) is also seen to have short arms (Walton, 2009). We know from the sea urchin endomesoderm GRN that Dach1 is upstream of Hh, so it would make sense that these phenotypes are similar. We have also seen that Dach1 is expressed in the early pluteus at the end of the extending arms (unpublished). Literature from other systems suggests that Eya is a co-activator of Dach1 (in addition to Six1/2) (Heanue, 1999). If this were true in the sea urchin, it would also suggest that Eya would have a similar phenotype. From our network analysis, Dach1 is also upstream of Six3. The source of the short-arm phenotype might stem from Dach1 regulation, but it is unclear, to date, what the mechanism is.

Also, since these are translation-blocking MOs and there are no antibodies against the target proteins that can be used to assess MO effectiveness, the authors need to avoid statements based on negative results (lack of an effect), e.g., in the subsection “Coelomic pouch transcription factors affect small micromeres’ ability to home”: “Thus of the ten genes screened for homing behavior five were necessary and five had no effect if missing.”

Thank you. We re-worded this sentence to now read: “Thus of the eleven genes screened for homing behavior, only six were necessary for homing”.

4) Details of the anatomy: Where exactly within the coelomic pouches do the small micromeres end up? The posterior region? The aboral region? A diagram would have been very helpful here. What is their final position relative to the domains of expression of Dach1, Six3, Eya, and Pax6? Where are they positioned relative to the presumptive muscle cells? A more detailed description of the anatomy would have been very helpful, if these details are known.

Small micromeres end their migration in the posterior coelomic pouch. We believe from our double in situ data (Figure 6) that they are preferentially located aborally within the posterior region, but we have not carried out DFISH for vasa with an exclusively oral coelomic pouch mesoderm marker. The dach1, eya, six1/2, and six3 expression is aboral to myosin expression and anterior to the final location of the small micromeres. We have added a diagram (Figure 6) to show the territories and have added sentences to the Results section (subsection “Perturbation analysis unveils a GRN circuit that controls homing”).

5) The section of the Discussion that deals with circuit conservation/evolution is loose and speculative, and could be shortened.

Thank you. The last section of the Discussion has been shortened, and the speculation on the evolution of the network has been tightened.

6) The homing behavior of small micromeres is intriguing and may provide a great model to study cell migration. However, one major curiosity is whether the developmental mechanism used by the ectopic small micromeres is also used by endogenous small micromeres when they migrate during normal embryogenesis. For example, it is important to check whether any migration defects can be observed in endogenous small micromeres after Delta, Foxc, Dach1, Pax6, Six3, or Eya is knockdown.

We did whole embryo knockdowns for each of the transcription factors in question and stained for vasa. The results are presented in Figure 5–figure supplement 2. We observe that the control endogenous small micromeres are within the coelomic pouches in tight clusters while the knockdowns exhibit various levels of disorganization. Since the endogenous small micromeres home over a very short distance, the knockdown small micromeres, as might be expected, remain close to the coelomic pouches – they do not disperse from that vicinity, but they do not tightly cluster in the correct location.

7) There is concern is the expression pattern of six3. In the legend of Figure 6–figure supplement 1, the authors described that: “six3's earliest detectable expression is at hatched blastula […] in the apical plate domain and the future coelomic pouch cells.” However, in Figure 6–figure supplement 1B, six3 expression is almost undetectable in blastula and gastrula stage (B1-B4) and this pattern is very different from a published work by Wei et al. (Development 136, p1179, 2009). Wei et al. clearly showed that the six3 gene identified from the California purple sea urchin is first expressed in the animal pole domain at the early blastula stage. The expression in the animal pole can be observed throughout gastrulation in addition to a second expression domain “in some secondary mesenchyme cells scattered throughout the blastocoel and at the tip of the archenteron.”

In situ time course was extended to include 6hpf (the time of six3 early blastula expression) and clarified this in the corresponding figure legend. We repeated in situs in later embryos with a new, freshly made probe, and confirm that we see a higher level of expression in the NSM compared to the apical plate. However, we feel our in situs now more closely reflect that of Wei, et al. (2009) with the inclusion of earlier stages and darker stained embryos from earlier than prism-staged embryos.

In the subsection “Perturbation analysis unveils a GRN circuit that controls homing”, the authors mentioned “six3 was found to be expressed in the aboral mesoderm”, and cited Wei et al., 2011. However, whether six3 is expressed in the oral or aboral coelomic pouches or even in the small micromeres requires double staining of six 3 with appropriate markers. Where six3 is expressed is important for interpretation of the data. In Figure 5D, it is intriguing that knockdown of six3 in both micromeres and the host affected homing. Therefore, it is possible that six3 is expressed in both small micromeres and the coelomic pouch mesodermal cells.

These experiments were done and can be seen in Figure 6. Double in situ hybridization was done with six3 and eya to show co-localization with the previously published aboral expression domain (Luo, 2012). We find that six3 expression does overlap with the aboral expression of eya, but also exhibits expression in more oral regions of the coelomic pouch. We also did DFISH with vasa, a small micromere marker (Figure 6). It was seen that six3 does not overlap in expression with the small micromeres, but the cells are immediately apposed.

One additional issue is that Luo and Su (PLoS Biology, 2012) showed that in addition to the three factors studied by the authors (dach1, eya and pax6), six1/2 is also expressed in the aboral coelomic pouch. I wonder whether the authors have investigated this obvious and putative player of the conserved RDGN network.

The authors would like to thank the reviewers for this suggestion. Six1/2 was added to the story: knockdown surgeries (Figure 5), expression pattern (Figure 6–figure supplement 1), incorporation into GRN (Figure 7), and morphology of morpholino (Figure 7–figure supplement 1). We hope that the addition of Six1/2 further completes the story and also solidifies our claims of this network being incredibly conserved among animals and processes.

8) It is not clear the labeled red cells are migrating to their final site, or are drawn by static cells. This author showed some time ago that the embryo has very long processes that extend across the blastocoel even. Better documentation of the movement of the red cells is needed. What is present appears like a straight line – as might be suggested by a retracting process from a static cell instead of migration.

True – it is possible that the NSM extend filopodia that retract and draw the small micromeres to the coelomic pouches, and we agree that this is a good point. Campanale et al. has published that the small micromeres extend filopodia, suggesting that they are searching for either a signal (chemotaxis) or other filopodia from the coelomic pouch NSM. From our time-lapse data on ectopic ingression (not shown), we see the ectopic small micromeres migrate in a directed fashion to the mesenchyme blastula vegetal plate where NSM is specified. From this data, we hypothesized that the likely mechanism is chemotaxis. However, to test this hypothesis would be out of the scope of this paper; it would require being able to selectively, and permanently remove all of the filopodia of the NSM or small micromere would be infeasible at this time. We added discussion points as to what other mechanisms might be at play.

The authors claim that the small blastomeres are not germ cells, or primordial germ cells, because the lineage of the line has not been documented. They conclude that the cells are multipotent but fail to provide such evidence needed for this conclusion.

We did not refute that the small micromeres are PGCs, and based on the work published in the Wessel lab, we believe that they normally do contribute to the PGC lineage. However, the possibility remains that small micromeres are a multipotent population that not only contributes to the PGCs but also give rise to other adult tissues. This is still an unanswered question, so we agree that calling them “multipotent progenitors” may seem unwarranted. We have changed “multipotent progenitors” to small micromeres in the few instances it was mentioned. Whether or not the small micromeres are multipotent is tangential to the story, so we decided to just remove the wording.

9) Do any cells die? Better quantitation is necessary and they need to document cell death.

Assuming the question of any cells die is meant to be for transplant efficacy, the percentage of embryos with failed transplants was documented along with the original scored surgeries. A “failed transplant” included transplants that did not incorporate into the host embryo at all (no green fluorescence present at 2dpf), transplants where the small micromere did not incorporate but the large micromere did (only skeletal elements were observed), and transplants that were obviously dead within the blastocoel (large, misshapen cells surrounded by cell debris). We listed average percentages of successful and failed transplants for each of the microsurgeries in a table we titled “Transplant Efficacy” (Table 1).

If reviewers are asking for the number of endogenous small micromeres that die, this was not scored.

10) How can the authors distinguish if the MO is specifically testing homing, versus aspects of earlier development?

The transcription factors tested were specifically picked for their later expression in the NSM just prior to the homing ability, so that early specification events would not be perturbed.

11) The methods for statistical analysis need to be described.

Details of the statistical analysis were added to the Materials and methods section. GraphPad software was used to analyze a 2x2 contingency table with groups corresponding to the condition (controls and knockdown micromeres or controls and knockdown hosts) and outcomes being “homing” or “no homing”. Chi-squared was then calculated, and a p-value was significant at a value of less than 0.05.

12) Issues with figures:

Figure 3–figure supplement 1 is confusing. The ectopic cell is labeled in red in 1A. However, it is not clear whether the red cells migrated into the coelomic pouches. An indication of coelomic pouches or counter stained the embryos with DAPI would help to see the location of coelomic pouches. Similar problem in B. The ectopic cell is now in green. I see there are two cells with green membrane and red nuclei. Are they ectopic or endogenous cells?

This figure was redone to include DAPI staining, and the ectopic cells are both green and the endogenously placed micromeres are both red. The authors hope that this clarifies any confusion of the figure.

Figure 2D, it is not clear whether a micromere or a small micromere was transplanted? If a micromere is transplanted, how can the authors be sure the two cells breached the laminin layer (indicated with a yellow arrow) at 10 hpf are small micromeres but not large micromeres?

For this experiment, only small micromeres were transplanted. The authors agree that if a micromere were transplanted, it would be unclear what was causing the breach in the laminin layer. This was clarified in the text (subsection “Small micromeres “home” to the coelomic pouches from ectopic positions”, last paragraph).

The authors provided data to validate unpublished morpholinos using a second morpholino against Eya and Pax6 in Figure 6–figure supplement 2. Please provide references if Six3 and Dach1 morpholinos used in this study have been published and validated before.

Six3 and Dach1 MO were both previously published and validated (Wei, 2009; Peter, 2011). This is now referenced in Table 3.

Clear development delay is seen in the morpholino-injected embryos presented in Figure 6. This may cause problem especially in the embryos stained with the six3 probe. Looking at the six3 expression pattern in Figure 6–figure supplement 1B4, six3 transcript is barely detected. At the similar stage (based on their similar morphology) showed in Figure 6, no expression of six3 is interpreted as downregulation. Please clarify the morpholino effect on developmental delay and their effects on six3 expression at a comparable developmental stage.

Good point. All embryos were fertilized, injected, and subsequently fixed at the same times. We do agree that it appears the morpholino injections for Dach1, Eya, and Six3 appear delayed, but we attribute this to their arm phenotype (observed in Figure 7–figure supplement 1).

Other issues concerning Figure 6: (1) six3 expression expands in six3 morphants, but the expansion is mostly seen in the apical plate. Therefore, the self-repression is in the apical plate not the coelomic pouches; (2) six3 expression seems upregulated in the hindgut of the eya morphants. Please confirm whether it is a consistent result.

(1) six3 expression expanded in the apical plate only is addressed in revision 1. We agree that the data does not show overexpression in coelomic pouches and have taken the linkage out of our circuit diagram; (2) six3 expression in the hindgut of Eya morphants was an artifact and after revisiting our slides, we were able to replace the picture with background staining in the gut with a more representative photo (Figure 7).

Figure 3 presented percentages of the embryos showing small micromere homing. During normal embryogenesis, small micromeres migrate to the left or right coelomic pouches in a 5:3 ratio. Is there any left-right preference of the small micromere homing when they are transplanted at various positions?

When scoring transplants, we have seen the small micromeres separate into the two coelomic pouches, however, this is rarely seen, and, interestingly, they almost always both end up in the left coelomic pouch. A sentence discussing this was added to the text (“Interestingly, the majority of transplants were scored to be in the left coelomic pouch after homing suggesting a survival mechanism to ensure the proposed primordial germ cells make it onto adulthood to contribute to the gamete pool”).

Figure legend 2D: please indicate what the white and yellow lines are.

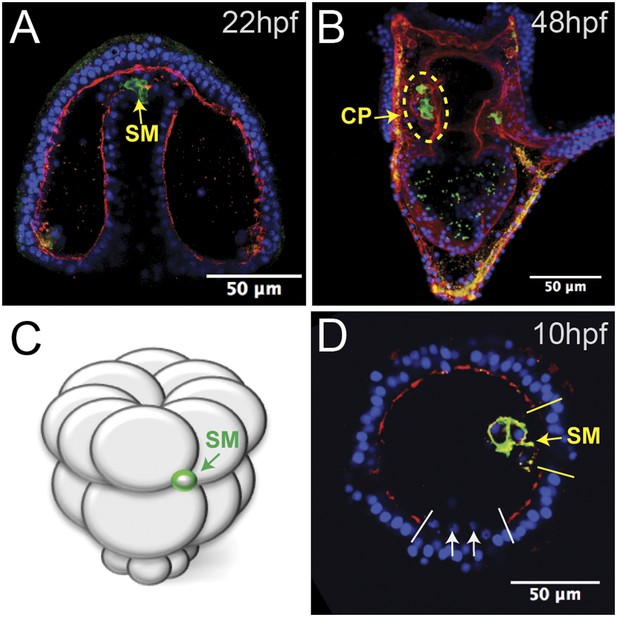

White lines indicate the endogenous site of laminin remodeling and PMC ingression. Yellow lines indicate the ectopic breach in laminin by the ectopic small micromeres. This was clarified in the figure legend.

Figure legend 3: (B) should be equator and (C) animal pole.

Thank you. This was corrected.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

[…] The manuscript has been improved but there are some remaining relatively minor issues that need to be addressed before acceptance, as outlined below. Please address the points raised by reviewers 2 and 3 in a revised manuscript:

Reviewer #2:

The authors have addressed most of my concerns and have added substantially to the manuscript. I believe the paper should be accepted for publication. I do have one small quibble: just because a MO was published previously does not mean that appropriate controls for specificity and efficacy were carried out. If so, then the authors point is well taken. If not, then the fact that someone was able to publish an experiment with the MO is irrelevant.

Citations referenced in Table 3 indicated the article in which the published morpholinos had been previously validated. To further emphasize this point, we expanded upon this in the Materials and methods section.

Reviewer #3:

The authors have answered most of my questions. One remaining issue is the exact expression domain of six3 in the coelomic pouches. The vasa signal in Figure 6 is extremely weak. It is difficult to judge whether there is an overlapping domain between six3 expression domain and vasa localization. The authors concluded that there is no overlapping and six3 is not expressed in the small micromeres. If this is the case, the authors need to explain the defect in homing when six3 was knockdowned in the small micromeres.

In order to clearly show the lack of co-localization of six3 and vasa, we added insets to figure panels (Figure 6A-A’’’’) at a higher magnification and without the DAPI channel (which we feel may have added to the apparent weakening of the original vasa signal). We feel it is now clear that the two territories are immediately apposed but remain distinct in location.

To further address whether Six3 has a homing role in the small micromere, we focused efforts on creating a larger “n” for “Six3-MO micromere” surgeries scored, which was relatively low prior to these additions (Figure 5D). We found that after increasing the number of scored cases, the effect of Six3 when knocked down in just the small micromere was statistically insignificant. From these data, we concluded that Six3 only has a role in homing in the NSM.

https://doi.org/10.7554/eLife.08827.023

Article and author information

Author details

  1. Megan L Martik

    University Program in Genetics and Genomics, Duke University, Durham, United States
    Contribution
    MLM, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    megan.martik@duke.edu
    Competing interests
    The authors declare that no competing interests exist.
  2. David R McClay

    Department of Biology, Duke University, Durham, United States
    Contribution
    DRM, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    dmcclay@duke.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institute of Child Health and Human Development (NICHD) (NIH RO1-HD-14483)

  • David R McClay

National Institute of Child Health and Human Development (NICHD) (NIH PO1-HD-037105)

  • David R McClay

The funder had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank members of the McClay lab and Dr Ryan Range for providing insightful feedback on the manuscript. Authors would also like to acknowledge the Gene Regulatory Networks for Development course at MBL for the stimulating discussions about evolution of gene networks, in particular, the RDGN. Support for this project was provided by NIH RO1-HD-14483 and NIH PO1-HD-037105.

Reviewing Editor

  1. Marianne E Bronner, Reviewing Editor, California Institute of Technology, United States

Publication history

  1. Received: May 19, 2015
  2. Accepted: September 23, 2015
  3. Accepted Manuscript published: September 24, 2015 (version 1)
  4. Version of Record published: October 27, 2015 (version 2)

Copyright

© 2015, Martik and McClay

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,283
    Page views
  • 310
    Downloads
  • 4
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading
