1. Developmental Biology

The Drosophila EGF domain protein uninflatable sets the switch between wrapping glia growth and axon wrapping instructed by Notch

  1. Marie Baldenius
  2. Steffen Kautzmann
  3. Rita Kottmeier
  4. Jaqueline Zipfel
  5. Christian Klämbt  Is a corresponding author
  1. Institut für Neuro- und Verhaltensbiologie, Germany
  2. Dezernat Forschungsmanagement, Universität zu Köln, Germany
  3. Klinik für Psychiatrie und Psychotherapie, LVR-Universitätsklinik Essen, Germany
https://doi.org/10.7554/eLife.105759.3
Share this article
Cite this article
  1. Marie Baldenius
  2. Steffen Kautzmann
  3. Rita Kottmeier
  4. Jaqueline Zipfel
  5. Christian Klämbt
(2026)
The Drosophila EGF domain protein uninflatable sets the switch between wrapping glia growth and axon wrapping instructed by Notch
eLife 14:RP105759.
https://doi.org/10.7554/eLife.105759.3
  2. Download BibTeX
  3. Download .RIS

eLife Assessment

This important study identifies a new key factor in orchestrating the process of glial wrapping of axons in Drosophila wandering larvae. The evidence supporting the claims of the authors is convincing and the EM studies are of outstanding quality. After the revision, the authors have addressed most of the concerns and the manuscript has been significantly improved. Both reviewers have agreed on the significance of the work. The work will be of interest to neuroscientists working on glial cell biology.

https://doi.org/10.7554/eLife.105759.3.sa0

Abstract

In the peripheral nervous system, sensory and motor axons are generally covered by wrapping glial cell processes. This neuron-glia interaction requires an intricate coordination of glial growth and differentiation. How this is controlled molecularly remains largely unknown. At the example of Drosophila larval nerves, we show that glial growth, which occurs without any cell division, is initially triggered by the FGF-receptor tyrosine kinase Heartless (Htl). In a screen for genes acting downstream of activated FGF-receptor, we identified the large membrane protein Uninflatable (Uif), which supports the growth of excessive plasma membrane domains but does not support glial axon wrapping. Uif is also known to inhibit Notch. Surprisingly, we find that Notch signaling is required in postmitotic wrapping glia. While compromised Notch signaling results in a reduced wrapping efficiency, gain of Notch activity in wrapping glia leads to a hyperwrapping phenotype. Thus, Notch signaling is both necessary and sufficient for glial wrapping in Drosophila larvae. In addition, Notch suppresses both uif and htl function and thus stabilizes the switch between glial growth and glial axon wrapping. Given the general conservation of signaling mechanisms controlling glia development in mice and flies, similar mechanisms may act in the mammalian nervous system to control final glial differentiation.

Introduction

The generation of the many cell types during development is governed by both intrinsic and extrinsic regulatory mechanisms. Extrinsic information on the status of the immediate neighbors is often conveyed by the evolutionary well-conserved transmembrane receptor Notch, which plays a decisive role in many developmental contexts (Henrique and Schweisguth, 2019; Ho et al., 2020; Sachan et al., 2024; Salazar et al., 2020). In addition, individual cell types often have to undergo discrete developmental steps once they have been specified. In the nervous system, this can be illustrated by the example of axon wrapping glial cells. These cells must first grow to a certain size before they can begin to differentiate. How such a switch is made is not yet well understood.

Axon wrapping glial cells are generally very large cells. In the peripheral nervous system (PNS), myelin-forming Schwann cells cover large segments of a single axon. Myelin formation is directed by the axon, and only large diameter axons are wrapped with myelin. Small caliber axons, in contrast, are covered by a simple glial wrap in the so-called Remak fibers. Here, a single non-myelinating Schwann cell covers many axons. In the PNS, myelin formation is initiated by a Neuregulin-dependent activation of the EGF-receptor (Michailov et al., 2004; Taveggia et al., 2005). Interestingly, neuregulin mutants become normally myelinated within the CNS, indicating that oligodendrocytes have evolved an independent mechanism of myelination control (Brinkmann et al., 2008). An alternative pathway that might act in oligodendrocytes is initiated by the Notch receptor, which can be activated by neuronally expressed F3/Contactin, a GPI-linked membrane protein of the Ig-domain family (Hu et al., 2003).

Within the fly nervous system, two main glial cell types are associated with axons (Bittern et al., 2021; Yildirim et al., 2022). Within the CNS, the ensheathing glia establishes a barrier around the CNS neuropil and also wraps axons that connect the neuropil with the periphery (Pogodalla et al., 2021). The ensheathing glial cells are formed during embryonic development through divisions of a single glioblast that also generates all astrocytes (Jacobs et al., 1989; Peco et al., 2016). The underlying asymmetric division of the glioblast is in part controlled by Notch (Peco et al., 2016). Together with the transcription factor Pointed, Notch directs the formation of astrocytes at the expense of the ensheathing glial lineage (Gabay et al., 1996; Klämbt, 1993; Peco et al., 2016). In glial cells, Pointed is a target of receptor tyrosine kinase (RTK) signaling (Klaes et al., 1994; Klämbt, 1993; Peco et al., 2016).

Within the Drosophila PNS, axon wrapping is mediated by the so-called wrapping glia (Kottmeier et al., 2020; Matzat et al., 2015; Stork et al., 2008). It follows a similar strategy as described for vertebrate Remak fibers. Wrapping glial cells are similarly large as their vertebrate counterparts, and a single cell covers more than a millimeter of axon length (Matzat et al., 2015). In adult stages, excessive differentiation of glial processes can be observed around large caliber motor axons, which eventually leads to the establishment of myelin-like structures (Rey et al., 2023).

The development of wrapping glial cells is in part controlled by RTK signaling, which is initiated by either the EGF-receptor, the FGF-receptor, or the Discoidin domain receptor (Corty et al., 2022; Franzdóttir et al., 2009; Kottmeier et al., 2020; Matzat et al., 2015; Shishido et al., 1997; Stork et al., 2014; Wu et al., 2017). In the developing adult visual system, the FGF-receptor Heartless initially controls proliferation and migration of the wrapping glial progenitor cells, which upon contact to axons stop their migration to then grow in size and differentiate (Franzdóttir et al., 2009; Sieglitz et al., 2013).

Glial cell development does not depend solely on RTK signaling. In Drosophila embryos, proper migration of postmitotic peripheral glial cells requires Notch activity (Edenfeld et al., 2007). Additional postmitotic Notch functions have been reported in the adult Drosophila CNS. Notch activity is needed in olfactory neurons innervating specific glomeruli for long-term memory formation, depending on presentation of Delta by projection neurons, as well as on neuronal activity (Ge et al., 2004; Kidd et al., 2015; Lieber et al., 2011; Zhang et al., 2013; Zhang et al., 2015). Moreover, since Notch is prominently expressed by postmitotic glial cells in the adult Drosophila CNS, it may be involved in glial differentiation (Allen et al., 2020; Davie et al., 2018; Li et al., 2022; Seugnet et al., 2011).

We have previously shown that in peripheral larval nerves, the FGF-receptor Heartless controls glial growth (Kottmeier et al., 2020). To gain a deeper understanding of how differentiation of wrapping glial cells is regulated, we initiated a genetic screen looking for genes that act downstream of activated heartless. In Drosophila, such suppressor screens have been used successfully many times (Macagno et al., 2014; Rebay et al., 2000; Therrien et al., 2000). Our screen led to the unexpected identification of the large transmembrane protein Uninflatable (Uif), which in epithelial cells localizes to the apical plasma membrane. Loss of uninflatable suppresses the phenotype caused by activated RTK signaling. In addition, we found that uif knockdown, as well as uif knockout larvae, show impaired glial growth. In contrast, an excess of Uninflatable leads to the formation of ectopic membrane processes that, however, fail to interact with axons. uninflatable is also known to inhibit Notch (Xie et al., 2012). Indeed, we could show that canonical Notch signaling is activated in wrapping glia by the unconventional ligand Contactin, where it is required and sufficient for axon wrapping. Moreover, Notch counteracts both uninflatable and heartless function. Thus, Uninflatable acts to switch the balance between glial growth induced by RTK signaling and wrapping of axons.

Results

The FGF-RTK Heartless triggers glial growth

The development of wrapping glial cells in Drosophila depends on the activity of several RTKs (Corty et al., 2022; Franzdóttir et al., 2009; Kottmeier et al., 2020; Matzat et al., 2015; Wu et al., 2017). Loss of the FGF-receptor Heartless specifically in wrapping glial cells causes a reduced complexity of wrapping glial cell processes in the PNS of third instar larvae (Kottmeier et al., 2020; Figure 1A and B). This is reflected in a reduced wrapping index which indicates the percentage of individually wrapped axons or axon fascicles (Matzat et al., 2015). While in control larvae, the wrapping index is around 0.18; it drops to 0.07 when heartless is specifically silenced in wrapping glia (Kottmeier et al., 2020).

Figure 1 with 1 supplement see all
Download asset Open asset
Heartless is required for wrapping glia development.

Confocal images of third instar larval filet preparations, stained for CD8::mCherry expression. The segmental nerves posterior to the ventral nerve cord are shown. Wrapping glial morphology is (A) not changed in control animals expressing (nrv2-Gal4) mock GFPdsRNA. (B) Differentiation of wrapping glial cells is affected following expression of a dominant negative form of Htl and thin wrapping glial cells are detected (arrowhead). (C) Expression of a constitutively active form of Htl [nrv2-Gal4; UAS- λhtl] leads to nerve bulges around the wrapping glial nuclei (C, arrowhead). Scale bars 100 µm. The white dashed lines indicate the level of sections shown in Figure 2.

In contrast, gain of heartless function that is caused by expression of λhtl (Michelson et al., 1998) specifically in the wrapping glia results in exuberant glial growth but does not trigger cell division (Figure 1C). Segmental nerves are swollen in an area that is demarcated by the position of the wrapping glial cell nucleus. To determine axonal wrapping, we prepared third instar larvae as open book filet preparations for electron microscopic analyses. This allowed us to analyze the nerve ultrastructure at positions indicated (Figure 1C). Far from the nerve bulge, only little remnants of a poorly differentiated wrapping glial cell can be detected (Figure 2A and B). In positions closer to the bulged nerve area, the wrapping glia ramifies. However, in many cases, glial processes rather grow along each other than around axons, resulting in fascicles surrounded by extensive glial cell processes (Figure 2C). These glial membrane formations become more evident as the diameter of the nerve gets larger (Figure 2D–G). In the central area of the nerve bulge, liquid-filled areas are detected with only a few thin glial cell processes (Figure 2H). In conclusion, expression of activated FGF-receptor Heartless triggers glial growth but does not instruct increased wrapping of axons.

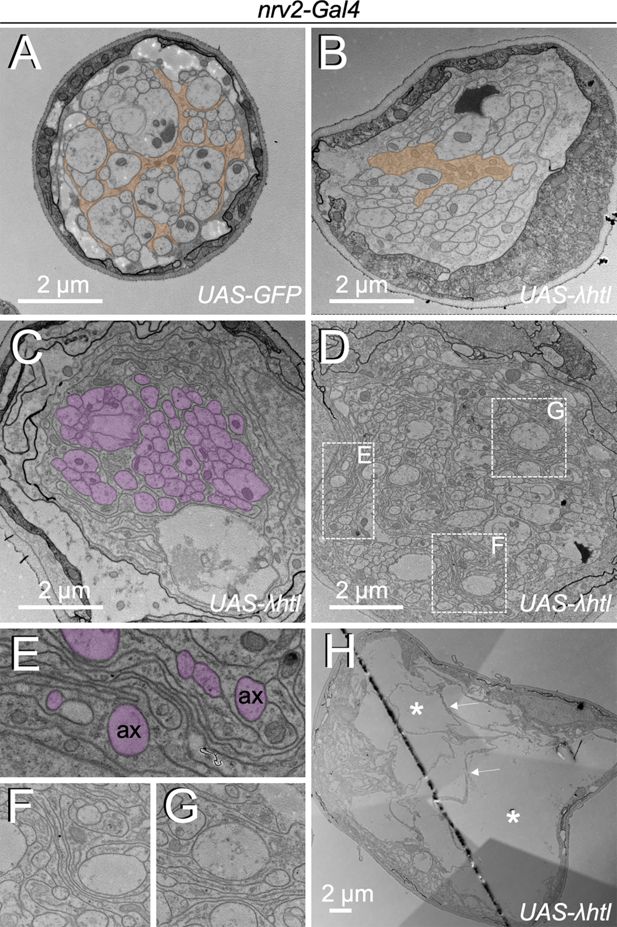

Figure 2
Download asset Open asset
Heartless controls growth of wrapping glia cells.

Electron microscopic images of segmental nerves from wandering third instar larvae. (A) Nerve of a control larva expressing GFP in wrapping glia sectioned 150 µm posterior to the ventral nerve cord. Normally differentiated wrapping glia can be seen. (B–H) Nerves of larvae expressing activated Heartless in wrapping glia [nrv2-Gal4; UAS-λhtl] sectioned at the positions indicated in Figure 1C. (B) Note the poorly differentiated wrapping glial cells distant from the nerve bulge. (C,D) At the beginning of the nerve bulge, excessive differentiation of wrapping glial cell processes starts to be detected that do not always grow around axons (magenta). (E–G) Higher magnifications of the boxed areas in (D). Note the formation of wrapping glial cell processes that do not contact axons (ax, magenta) but rather contact glial cell processes. (H) In the central area of the nerve bulge, liquid-filled vacuolar structures (asterisks) can be detected. Thin wrapping glial cell processes (arrows) span the bulged area.

Identification of genes acting downstream of heartless

In order to identify genes that are responsible for this excess in glial growth, we performed a wrapping glia-specific RNA interference (RNAi)-based suppressor screen in animals that concomitantly express activated Heartless and double-stranded RNA directed against individual genes (see Supplementary file 1 for all genes tested). For this, we generated a stable stock that allows Gal4-based expression of activated heartless in wrapping glia and also allows easy scoring of the wrapping glial shape [nrv2-Gal4/CyOweep; UAS-λhtl, repo4.3-stinger::GFP/TM6]. Virgins collected from this stock were crossed against males carrying the different UAS-dsRNA elements (Supplementary file 1). The offspring third instar larvae were assayed for the presence of nerve bulges under a UV-dissecting microscope (see Materials and methods, Figure 1—figure supplement 1 for classification scheme). repo4.3-stinger::GFP directs expression of nuclear GFP in all glial nuclei. Among those, the wrapping glial nucleus can be easily identified based on the large size and typical position (Figure 1—figure supplement 1).

To test the efficacy of the above screening settings, we first silenced genes known to be involved in FGF-receptor signaling (Ashton-Beaucage and Therrien, 2017; Brunner et al., 1994; Klämbt, 1993; Vincent et al., 1998). The activated Heartless RTK recruits the adaptor protein Stumps, which then signals via Son of sevenless (Sos), Ras85D, members of the MAPK cascade, the MAPKKK raf, the MAPKK Downstream of raf1 (Dsor1), the MAPK rolled (rl), and the transcription factor Pointed that can be phosphorylated by Rl. Knockdown of all these genes, except Raf, either fully or almost fully rescued the nerve bulging phenotype (Supplementary file 1, Figure 1—figure supplement 1). Full rescue (classified as 4): stumps, Ras85D, pnt; almost full rescue (classified as 3): Dsor1, rl, sos. These findings indicate that the screening works efficiently.

We next selected 2679 genes which we tested for their ability to suppress the λhtl-induced glial phenotype (Supplementary file 1). The different genes were chosen based on RNAseq data, glial expression, and their involvement in major signaling pathways (Avet-Rochex et al., 2014; Petri and Klämbt, unpublished). The knockdown of 2106 genes did not modify the nerve bulging phenotype, while knockdown of 105 genes caused a mild rescue and the knockdown of 97 genes a moderate rescue (classified as 1 or 2, respectively, see Figure 1—figure supplement 1; Supplementary file 1). Knockdown of 318 genes caused an almost complete or full rescue of the phenotype (classified as 3 or 4, respectively, see Figure 1—figure supplement 1; Supplementary file 1). Knockdown of the remaining 33 genes caused variable phenotypes or early lethality (Supplementary file 1).

We then tested additional UAS-dsRNA transgenes for the 318 genes whose knockdown efficiently rescued the nerve bulge phenotype in the initial screen. For 62 of these genes, we identified at least two independent UAS-dsRNA transgenes targeting independent regions of the mRNA that rescue the λhtl-induced nerve bulging phenotype (Supplementary file 2). For an additional 57 genes, a second but overlapping UAS-dsRNA construct was able to rescue the λhtl-induced nerve bulging phenotype (Supplementary file 3).

The above 119 candidates are likely to act in the wrapping glia. We therefore performed wrapping glia-specific knockdown experiments using the following stock [w; nrv2-Gal4/nrv2-Gal4; nrv2-Gal4, UAS-CD8::mCherry/TM6], where the presence of CD8::mCherry served as a proxy to determine the morphology of the wrapping glia. Indeed, knockdown of the majority of the 119 candidate genes caused wrapping glia differentiation defects (92 with phenotype, 7 no phenotype, 20 not tested, Supplementary files 2 and 3). In most cases, wrapping glial differentiation was impaired, similar to what has been noted upon loss of heartless activity (Kottmeier et al., 2020). Moreover, pan-glial knockdown of most of these genes caused lethality (Supplementary files 2 and 3), further supporting the notion that we identified genes relevant to glial development.

Among the group of candidate genes, most encode proteins involved in translation and protein stability (48/119), transcription and splicing (23/119), lipid metabolism and membrane dynamics (20/119). This further supports the notion that a main function of FGF-receptor signaling is to promote cellular growth of the wrapping glia.

Uninflatable is required for wrapping glial cell growth

uninflatable (uif) is among the 119 candidate genes that, when silenced, suppress the nerve bulging phenotype induced by activated heartless (Figure 3A–C). It encodes a large, single-pass transmembrane adhesion protein with 18 EGF-like repeats in its extracellular domain that specifically localizes to the apical membrane domain of epithelial cells (Zhang and Ward, 2009; Figure 3—figure supplement 1). Since uif null mutants die at late embryonic stages due to their inability to inflate their trachea properly (Zhang and Ward, 2009), we utilized CRISPR/Cas9 to generate uif deficient wrapping glial cells to independently verify the RNAi-based phenotype. Four different sgRNAs were generated, targeting different regions of the uif locus (Figure 3—figure supplement 1; see Materials and methods for details). Assuming that Cas9-induced double-stranded breaks will generate deletions or indels that will cause the formation of a correspondingly shortened open reading frame, we anticipate that the sgRNA targeting the second exon generates an almost null situation. In contrast, the sgRNA targeting Cas9 to the presumed cleavage site uifsgRNA CS or the one targeting a sequence 5’ to transmembrane domain might result in the formation of a secreted and not membrane-bound Uif protein. Finally, the sgRNA that targets sequences coding for the short cytoplasmic domain might allow the formation of an almost intact Uif protein.

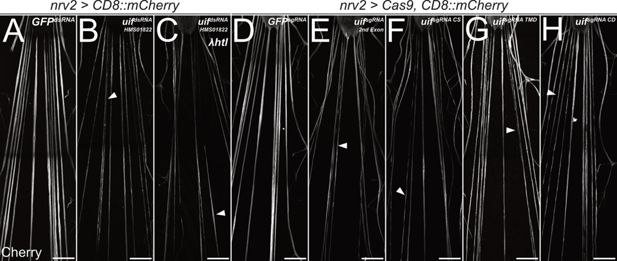

Figure 3 with 1 supplement see all
Download asset Open asset
uninflatable affects differentiation of wrapping glia.

Confocal images of third instar larval filet preparations, stained for CD8::mCherry expression. The segmental nerves posterior to the ventral nerve cord are shown. (A) Filet preparation of a control third instar larva. (B) uif knockdown in wrapping glial cells [nrv2-Gal4; UAS-uifdsRNA-HMS01822] impairs their development, which (C) cannot be rescued by co-expression of activated Htl. (D–H) Ubiquitous expression of (D) mock control GFPsgRNA, (E) uifsgRNA 2nd Exon, (F) uifsgRNA CS, (G) uifsgRNA TMD, or (H) uifsgRNA CD in Cas9-expressing larvae. All uif sgRNAs disrupt wrapping glial cell development, and wrapping glia appear thin and fragmented (arrowheads). n=5 larvae for all genotypes. Scale bars 100 µm.

Figure 3—source data 1

Excel file giving the number of axons in the analyzed nerves to calculate the wrapping index.

https://cdn.elifesciences.org/articles/105759/elife-105759-fig3-data1-v1.xlsx
Figure 3—source data 2

Excel file giving the number of axons in the analyzed nerves to calculate the wrapping index.

https://cdn.elifesciences.org/articles/105759/elife-105759-fig3-data2-v1.xlsx

When Cas9 is expressed ubiquitously together with any of these four sgRNA constructs in trans to an uif deficiency, development is arrested during early larval stages with defects in tracheal inflation, indicating the functionality of the sgRNA constructs ([w; UAS-Cas9/Df(2L)ED438; da-Gal4/UAS-uifsgRNA X], data not shown).

When Cas9 is expressed specifically in wrapping glial cells together with any of the four sgRNA constructs, wrapping glial cells appear thin and patchy, similar to what we noted following silencing of uif expression by RNAi ([+/+; UAS-Cas9/+; nrv2-Gal4,UAS-CD8::mCherry/UAS-uifsgRNA X], Figure 3). These data indicate that all parts of the protein are required in wrapping glial development, as even induction of a C-terminal mutation impairs morphology.

To further analyze the poorly differentiated wrapping glial cells, we initiated an electron microscopic analysis of nerves in third instar larval filet preparations. We took ultrathin sections 150 µm distal from the ventral nerve cord. As a control genotype, we utilized animals that expressed double-stranded RNA targeting GFP-encoding mRNA in all wrapping glial cells (UAS-GFPdsRNA). In cross sections, we found severely reduced glial cell processes (Figure 4A and B). Upon knockdown of uif, the wrapping index drastically decreases from 0.17 to 0.03 (Figure 4—figure supplement 1, n=3 larvae, 5–9 nerves per specimen, p=2.88 × 10–7).

Figure 4 with 1 supplement see all
Download asset Open asset
uif affects axonal ensheathment of wrapping glia.

(A+B, D–F) Electron microscopic cross sections of third instar larval abdominal peripheral nerves with wrapping glia-specific expression [nrv2-Gal4; R90C03-Gal80] of (A) GFPdsRNA mock control transgene and (B) uifdsRNA-HMS01822. Upon knockdown of uif, wrapping glial cell complexity is reduced. (C) Single plane of a confocal image of a third instar larval nerve stained for CD8::mCherry expression. Expression of uif::GFP in wrapping glial cells causes bulge formation, while outside the bulge, wrapping glia appear thin (arrowheads). The dashed lines indicate the plane of section in relation to the bulge of the images shown in (D, E). (D) Upon uif::GFP overexpression specifically in wrapping glia, glial morphology is reduced outside the bulge region. (E) Within the nerve bulge, wrapping glial membrane increases in size while most axons lack proper wrapping. (F) Close-up of the region indicated in (E). GFPdsRNA n=4 larvae, 4–7 nerves per specimen; uifdsRNA n=3 larvae, 5–9 nerves per specimen; uif::GFP n=3 larvae, 5–6 nerves per specimen. Scale bars 2 µm unless indicated otherwise.

To test how uif affects wrapping glial development, we performed overexpression studies. Gain of uif function in wrapping glia caused bulge formation around the wrapping glial nucleus (Figure 4C). Similar to what we had noted following expression of activated Heartless, more distal and proximal parts of the wrapping glia cell remained thin and did not fully develop (Figures 1C and 4C). Subsequent ultrastructural analysis revealed a reduced wrapping index outside of the bulge region where only little glial wrapping is observed and most axons are devoid of any glial cell contact (Figure 4D and Figure 3—source data 1). Within the nerve bulge, an excess of wrapping glial membranes can be seen (Figure 4E and F). These processes fail to wrap individual axons, which results in a significantly decreased wrapping index of 0.08 (Figure 4—figure supplement 1, p=2.56 × 10–9, n=3 larvae, 5–6 nerves per specimen). Interestingly, the excess glial cell processes form multilayered membrane stacks (Figure 4F). Thus, heartless appears to direct wrapping glial cell growth, while uif is needed for growth and stabilization of a specific, but still elusive, membrane compartment, possibly matching the apical domain of epithelial cells. To directly test this, we stained for the distribution of PIP2 and PIP3 using specific PH-domain sensors, but in contrast to a differential distribution of PIP2 and PIP3 in ensheathing glia (Pogodalla et al., 2021), we found no specific localization of these membrane lipids in wrapping glia.

Notch is required for wrapping glial cell differentiation

Importantly, although uif is needed for wrapping glial cell growth, it is not sufficient to instruct the wrapping of axons. Thus, Uif might define the wrapping glial cell interface required to wrap axons, and Uif interacting proteins organize subsequent wrapping. One of these interacting proteins is Notch. Uif can bind Notch and antagonizes the canonical Notch signaling pathway (Loubéry et al., 2014; Xie et al., 2012). Likewise, it has been reported that Notch negatively regulates uif transcription (Djiane et al., 2013). Thus, the interaction of Uif and Notch might set a switch triggering glia-axon interaction leading to axon wrapping.

To determine a possible role of Notch signaling during wrapping glia differentiation, we first silenced Notch expression by RNAi in wrapping glia of otherwise normal animals. Knockdown of Notch expression using three different dsRNA constructs targeting different sequences of the Notch mRNA specifically in wrapping glia resulted in the appearance of thin wrapping glial cells in larval filet preparations (Figure 5A–C). A similar phenotype was also induced by removing Notch expression using conditional CRISPR/Cas9-based knockout (Figure 5D and E) or in mutant Notchts1 animals (Shellenbarger and Mohler, 1975) that were kept at the restrictive temperature of 29°C during larval stages, only (Figure 5F and G). In contrast, upon expression of activated Notch (NICD), no significant changes of wrapping glial morphology could be detected using the confocal microscope (Figure 5—figure supplement 1).

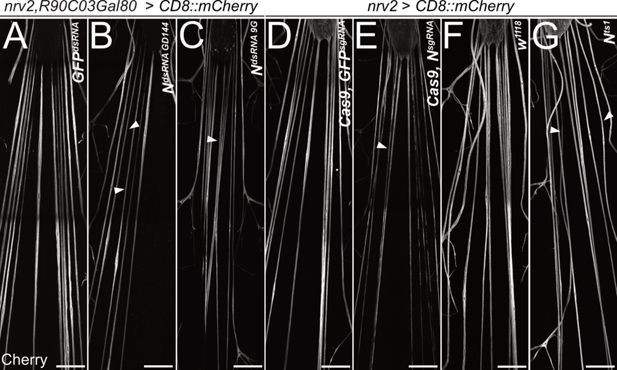

Figure 5 with 1 supplement see all
Download asset Open asset
Notch is required for wrapping glial development.

Filet preparations of wandering third instar larvae stained for CD8::mCherry expression. The segmental nerves just posterior to the ventral nerve cord are shown. (A) Control larvae expressing the mock control GFPdsRNA in wrapping glial cells specifically [nrv2-Gal4; R90C03-Gal80]. Upon expression of dsRNA targeting Notch mRNAs (B) NGD144, (C) N9G. (D) Control larva expressing sgRNA directed against the GFP open reading frame in [nrv2-Gal4; UAS-Cas9]. (E) Conditional knockout of Notch leads to dramatically altered morphology of wrapping glial cells. (F) Control larva cultured at the same temperature regime as the Nts1 larva shown in (G). Wrapping glial cells appear smaller compared to the control. Scale bars 100 µm.

Notch instructs axonal wrapping

To analyze the role of Notch signaling for wrapping glial differentiation in more detail, we performed an electron microscopic analysis. Upon expression of NotchdsRNA, the wrapping index drops significantly to 0.12 (Figure 6A, B, and D, p=0.00079; n=5, larvae with 7–9 nerves per specimen). In contrast, upon expression of the active form of Notch, NotchICD, we observed a dramatic and significant increase in the wrapping index to 0.28 (Figure 6C and D, p=0.014, n=5 larvae with 3–8 nerves per specimen). This indicates that the wrapping glia more efficiently enwraps axons compared to control larvae. Importantly, overexpression of Notch does not cause any bulge formation along the nerves as it is noted upon expression of the activated RTK Heartless (Figure 1C).

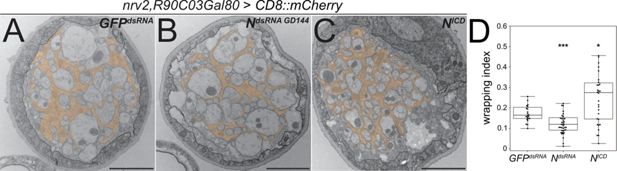

Figure 6 with 1 supplement see all
Download asset Open asset
Notch function affects axonal wrapping.

Electron microscopic images of segmental nerves from wandering third instar larvae sectioned 100 µm posterior to the ventral nerve cord. (A) Control nerve of an animal expressing dsRNA directed against GFP [nrv2-Gal4; R90C03-Gal80]. Axons are wrapped by processes of the wrapping glia. The entire nerve is engulfed by the perineurial glia and the subperineurial glia. For quantification of glial wrapping, see (D). (B) Upon expression of dsRNA targeting Notch mRNA (NGD144), glial wrapping is reduced. (C) Upon expression of an activated form of Notch (Nintra), glial wrapping is increased. (D) Quantification of wrapping index (WI). While Notch knockdown significantly decreases the WI (from 0.17 to 0.12, p=0.00079), activation of Notch signaling significantly increases glial wrapping and the WI (from 0.17 to 0.27, p=0.014). For statistical analysis, a t-test was performed for normally distributed data (Shapiro test), and Mann-Whitney U test was performed for not normally distributed data. GFPdsRNA n=4 larvae with 4–7 nerves each; NdsRNA n=5, larvae with 7–9 nerves each; NICD n=5 larvae with 3–8 nerves each. α=0.05, *p≤0.05, ***p≤0.001. Scale bars 2 µm.

Figure 6—source data 1

Excel file giving the number of axons in the analyzed nerves to calculate the wrapping index.

https://cdn.elifesciences.org/articles/105759/elife-105759-fig6-data1-v1.xlsx

In summary, these data clearly demonstrate that Notch is not only required for development of wrapping glial cells, but it is also sufficient to guide axon wrapping as gain of Notch function triggers extensive formation of glial processes, resulting in a hyperwrapping phenotype.

Notch signaling is active in some adult wrapping glial cells

The above data suggest that Notch is expressed by differentiated wrapping glia in the PNS. To directly test this, we utilized a CRIMIC-based transposon insertion into the first coding intron of the Notch locus (NotchCR00429-TG4.1) that carries a Trojan Gal4 element, which allows GAL4 expression under control of the endogenous Notch promoter (Diao et al., 2015; Lee et al., 2018). However, no Gal4 activity is associated with the NotchCR00429-TG4.1 insertion. To alternatively detect Notch activity, we utilized the common Notch activity reporter, GbeSu(H)-lacZ, where 3 copies of the Grainy head (Grh) protein binding element (Gbe) and 2 Suppressor of Hairless (Su(H)) protein binding sites drive lacZ reporter expression (Furriols and Bray, 2001). In larvae, Notch reporter activity was detected in neuroblasts of the brain lobes and the thoracic neuromeres but not in peripheral wrapping glia (Figure 6—figure supplement 1). In adults, however, Notch activity could be detected in ensheathing glial cells, as well as in peripheral wrapping glial cells (Figure 6—figure supplement 1).

The above-mentioned data do not demonstrate whether canonical Notch signaling acts in larval wrapping glia. We therefore suppressed expression of the gene Su(H), which encodes a transcription factor critically required for Notch-dependent gene expression, specifically in wrapping glia. In such knockdown larvae, overall wrapping glial morphology appeared impaired when analyzed using a confocal microscope (Figure 7—figure supplement 1). In an electron microscopic analysis, we could observe a clear reduction in the wrapping index (Figure 7A and B, Figure 4—figure supplement 1, WI = 0.075, p=4.21 × 10–11, n=4 larvae with 6–8 nerves per specimen). This finding indicates an involvement of Su(H) in wrapping glia development. Moreover, when we silenced the gene mastermind (mam), which encodes a further transcription factor involved in Notch signaling (Henrique and Schweisguth, 2019), we noted a severe impairment of glial morphology at the confocal microscope. Wrapping glial cells accompanying the abdominal nerves appeared thin and not well differentiated (Figure 7—figure supplement 1). Similarly, when looking at electron microscopic images, we noted a dramatic reduction in the wrapping index with a corresponding loss of glial complexity (Figure 7C, Figure 4—figure supplement 1, WI = 0.07, p=4.29 × 10–9, n=3 larvae with 5–9 nerves per specimen). In conclusion, these data indicate that canonical Notch signaling acts within larval wrapping glial cells to guide engulfment of axons.

Figure 7 with 3 supplements see all
Download asset Open asset
Knockdown of mam, Su(H), and contactin impairs axonal wrapping.

Electron microscopic cross sections of third instar larval abdominal peripheral nerves. Glial cell morphology is indicated in orange color. (A–C) Wrapping glia-specific [nrv2-Gal4; R90C03-Gal80] expression of GFPdsRNA as mock control, (B) Suppressor of Hairless (Su(H)) dsRNAHMS05748, or (C) mastermind (mam) dsRNAKK110687. Note reduced complexity of glial cell processes. (D) Neuron-specific [nSyb-Gal4] expression of LacZdsRNA as mock control and (E) Contactin (Cont) dsRNAGD12610 inserted on the third chromosome. Upon neuronal knockdown of Cont, glial wrapping of peripheral axons is impaired. Scale bars 2 µm.

Notch activation is not mediated by canonical ligands

Notch is generally activated by the transmembrane EGF-domain proteins encoded by Delta or Serrate. Both ligands, like the Notch receptor, are evolutionarily well conserved. To determine the expression of both genes, we again utilized insertion of Trojan Gal4 elements in either Delta or Serrate. While Serrate does not appear to be expressed in neurons, we noted some expression of Delta in peripheral sensory neurons and in very few CNS neurons (Figure 7—figure supplement 2). We then performed RNAi-based knockdown experiments specifically in neurons using the nSyb-Gal4 driver and found no effect on wrapping glial morphology at the light microscopic and the electron microscopic level (Figure 7—figure supplements 2 and 3, data not shown). These results were confirmed by a second dsRNA construct, as well as by sgRNA/Cas9-mediated, cell type-specific knockout experiments (Figure 7—figure supplement 3). In summary, these data suggest that during larval development of the peripheral wrapping glia, Notch is neither activated by Delta nor by Serrate.

In mice, F3/Contactin, a GPI-linked member of the Ig-domain superfamily, activates Notch during oligodendrocyte differentiation (Hu et al., 2003; Hu et al., 2003). F3/Contactin is well conserved during evolution and a homolog is encoded in the Drosophila genome. Drosophila Contactin binds Neuroglian and is an essential component of septate junctions which establish the occluding junctions in all epithelial cells and the glial blood-brain barrier (Faivre-Sarrailh et al., 2004; Izumi and Furuse, 2014; Peles and Salzer, 2000). In addition, single-cell sequencing data indicate that Contactin is also expressed by neurons (Davie et al., 2018). We therefore silenced Contactin expression in all neurons using the neuron-specific driver nSyb-Gal4. Such larvae survive, and in the third instar stage, a significant reduction in the wrapping index from 0.15 to 0.11 can be noted (Figure 7D and E, Figure 4—figure supplement 1), p=0,006, n=5 larvae with 10 nerves per specimen for both RNAi lines. Wrapping glia morphology is impaired, similar to what is noted upon knockdown of Notch and its downstream signaling components Su(H) and mam (Figures 6 and 7). This suggests that the non-canonical ligand Contactin acts in both flies and mammals to actively control wrapping glial differentiation and, moreover, indicates that additional ligands may exist to achieve full Notch activation.

Notch suppresses heartless and uninflatable during glial development

To further test whether Notch instructs glial axon wrapping downstream of heartless and uninflatable, we conducted epistasis experiments. Gain of the uif function results in nerve bulges (Figure 4C). When we concomitantly silenced Notch using RNAi, the nerve bulging phenotype is not changed (Figure 8A and B). However, when we co-expressed the intracellular domain of Notch, UAS-NICD, resembling the activated form of Notch, the bulging phenotype is rescued (Figure 8A and C). These data suggest that similar to the developing wing (Xie et al., 2012; Xie et al., 2012), Uninflatable suppresses Notch function.

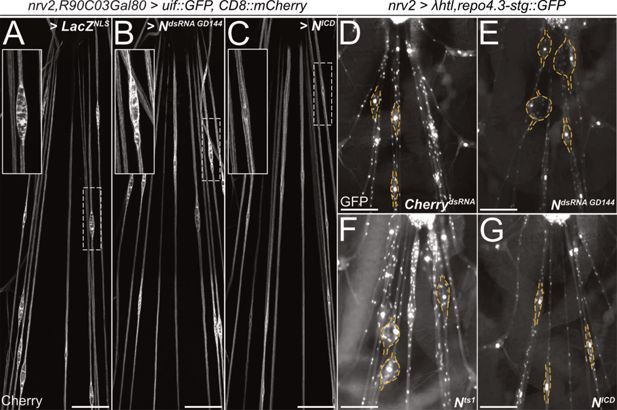

Figure 8
Download asset Open asset
Notch counteracts heartless and uninflatable function.

Squeeze preparations of wandering third instar larvae. The segmental nerves posterior to the ventral nerve cord are shown. (A–C) Larvae expressing uninflatable and CD8::mCherry in the wrapping glia. The nerve bulge shown in the white dashed box is enlarged. (A) Control larvae co-expressing LacZ. Uif expression results in nerve bulges. (B) Upon co-expression of NotchdsRNA (GD144), the nerve bulging phenotype is not suppressed. (C) Upon activation of Notch signaling by expression of NICD, the nerve bulging phenotype is suppressed. (D–G) Larvae expressing an activated Heartless receptor (λhtl) in the wrapping glia [nrv2-Gal4] carrying a repo3.4-stinger::GFP element leading to a panglial nuclear GFP expression. (D) Control larvae co-expressing dsRNA directed against mCherry. Note the prominent nerve bulges. (E) Upon co-expression of NotchdsRNA, the nerve bulging phenotype is enhanced. (F) Likewise, the nerve bulging phenotype is enhanced in a Notchts1 mutant background when the larvae are kept at the restrictive temperature. (G) Upon activation of Notch signaling by expression of NICD, the nerve bulging phenotype is significantly rescued. n=7 larvae for all genotypes. (A-C) Scale bars 100 µm, (D-G) Scale bars 75 µm.

Figure 8—source data 1

Excel file giving the number of axons in the analyzed nerves to calculate the wrapping index.

https://cdn.elifesciences.org/articles/105759/elife-105759-fig8-data1-v1.xlsx

Expression of a constitutively active FGF-receptor, λhtl, in wrapping glial cells results in prominent nerve bulging (Figure 8D). Upon co-expression of Notch dsRNA, the size of the λhtl-induced nerve bulges increases (Figure 8E). A similar enhancement of the bulging phenotype was noted when using the temperature-sensitive Notchts1 allele and an appropriate temperature regime (Figure 8F). In contrast, when we co-expressed NICD, we noted a suppression of the severity of the nerve bulging phenotype (Figure 8G). Thus, Notch function appears to counteract both uif and htl during glial development.

Model underlying wrapping glia development

We conclude the following model underlying wrapping glia development in the Drosophila PNS (Figure 9). Initially, the activity of the FGF-receptor Heartless triggers wrapping glial cell growth. The large transmembrane protein Uif is present in the wrapping glia and is needed to stabilize the formation of a specific membrane domain capable of interacting with axons. In addition, Uif suppresses Notch to inhibit precocious axon wrapping. As Heartless negatively regulates expression of Uif (Avet-Rochex et al., 2014), Notch becomes more and more active, which also contributes to the silencing of uif and htl. This then sets the switch to initiate axon wrapping by the wrapping glia (Figure 9).

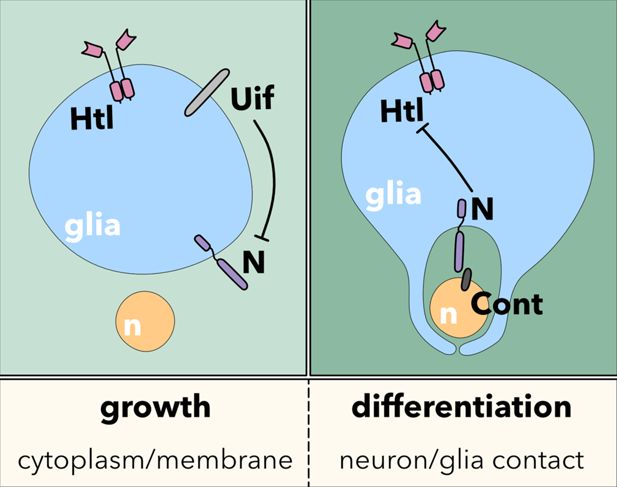

Figure 9
Download asset Open asset
Model.

The interplay of FGF-receptor, Uninflatable, and Notch signaling controls the switch between glial cell growth and glial cell differentiation, leading to extensive neuron-glia contact. For details, please see the text.

Discussion

Here, we present a model underlying cell growth and subsequent wrapping of axons by the wrapping glia in the larval PNS of Drosophila. In a first step, wrapping glia shows an enormous increase in its size, which is regulated by the RTK Heartless. The large transmembrane protein Uninflatable, which harbors an array of EGF domains in its extracellular domain, is needed to form excessive membrane domains capable of eventually wrapping axons. The last process is controlled by Notch, whose activation then orchestrates axon-glia interaction.

Wrapping glial development is initiated by the activation of RTK, including the FGF-receptor Heartless (Htl). In perineurial glia, RTK activity will trigger cell division, whereas in the remaining glial cells, RTK activity is used to support cell growth to subsequently allow differentiation (Avet-Rochex et al., 2012; Avet-Rochex et al., 2014; Franzdóttir et al., 2009; Read et al., 2009; Stork et al., 2014; Witte et al., 2009; Wu et al., 2017). This dual function of RTK signaling in controlling either proliferation, cell growth, or differentiation is accompanied by a switch in activating ligands, as well as the expression of additional regulator proteins that modulate RTK signaling strength (Franzdóttir et al., 2009; Ohm et al., 2024; Sieglitz et al., 2013).

Wrapping glial cells eventually have to cover all axons in the peripheral nerves to prevent degeneration of sensory axons (Kautzmann et al., 2025). In Drosophila larvae, wrapping glial cells can reach 2 mm in length and thus have an enormous size (Matzat et al., 2015). To achieve this, they block mitosis and instead undergo endoreplication (Unhavaithaya and Orr-Weaver, 2012; Von Stetina et al., 2018; Zülbahar et al., 2018). Here, we found that in larval peripheral wrapping glia, Htl supports this cell growth. This is corroborated by our suppressor screen, which identified many genes affecting translation. Similarly, we identified several genes that control metabolite transport across the wrapping glial membrane. Four of these genes are predicted to be involved in sugar/carbohydrate transport (CG3409, CG4797, CG5078, and CG6901).

Initially, wrapping glial cells form only very thin processes that in peripheral nerves follow the axon bundles (Matzat et al., 2015). Starting from second instar larval stages onward, glial cells extend processes that wrap around axon fascicles or single axons (Kautzmann et al., 2025; Matzat et al., 2015). This process requires the formation of membranes dedicated to axon-glia contact. Possibly, this is mediated by the large transmembrane protein Uninflatable that in epithelial cells is found specifically at the apical plasma membrane and in tracheal cells also can affect polyploidy (Zhang and Ward, 2009; Zhou et al., 2020).

Using existing antibodies (Zhang and Ward, 2009), Uninflatable cannot be detected in third instar larval nerves. Moreover, recent microarray data indicate that activated Heartless suppresses uif transcription (Avet-Rochex et al., 2014), which suggests that the amount of Uif present in wrapping glia decreases during larval development. Notably, Uif not only induces the generation of numerous membrane sheets, but it can also bind and inhibit Notch function (Loubéry et al., 2014; Xie et al., 2012). Thus, the inhibition of Notch by Uif is expected to gradually diminish during larval development. This antagonistic action of Uif will stabilize the switch from a glial cell growth phase to a subsequent phase with pronounced axon-glia interaction leading to axon wrapping.

During axon wrapping, Notch likely acts via its canonical signaling cascade. Although mutant analysis and RNAi-based knockdown studies clearly indicate a role of Notch in wrapping glia differentiation, we could detect Notch activity only in a subset of adult glial cells. This may be due to the fact that these glial cells form myelin-like structures (Rey et al., 2023) and thus require a different level of Notch activity.

Postmitotic functions of Notch have been reported in several instances. In the Drosophila nervous system, Notch is expressed strongly in axon-associated, postmitotic glial cells (Allen et al., 2020; Davie et al., 2018; Li et al., 2022; Seugnet et al., 2011). During embryogenesis, Notch is needed for the exact positioning of glial cells as they migrate along peripheral nerves (Edenfeld et al., 2007). Here, we show that in larval wrapping glia, Notch instructs axon wrapping. Thus, Notch promotes neuron-glia contact.

How could Notch signaling regulate axon-glia adhesion? The tight interaction of axons and glial cells calls for highly regulated adhesion of the two cell types. The transmembrane proteins of the Ig-domain superfamily Borderless and Turtle bind each other and mediate the differentiation of the wrapping glia in the developing eye (Cameron et al., 2013; Cameron et al., 2016; Chen et al., 2017). While Turtle is expressed on photoreceptor axons, Borderless is found on the wrapping glia. Interestingly, transcriptomic studies have indicated that in the developing eye, Borderless is downstream of Notch (Nfonsam et al., 2012).

Given our finding that Notch signaling is acting during axonal engulfment by the wrapping glia, we asked whether one of the canonical Notch ligands, Delta and Serrate (Henrique and Schweisguth, 2019), is responsible for Notch activation. However, neither Delta nor Serrate is broadly expressed in neurons, and moreover, neuronal knockdown of neither gene did result in a glial wrapping phenotype. In addition to these canonical ligands, the GPI-linked F3/Contactin protein has been suggested to activate Notch during myelin formation in oligodendrocytes (Hu et al., 2003). Here, Notch activation leads to a gamma-secretase-dependent nuclear translocation of NotchICD to upregulate expression of the myelin-related protein MAG and promote myelination. Quite similar, also in Drosophila, knockdown of contactin specifically in neurons causes a prominent defect in wrapping glial cell morphology. This surprising evolutionary conservation of the molecular control underlying the differentiation of wrapping glia suggests that Drosophila models may be useful to gain a deeper understanding of myelin biology.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Escherichia coli)E. coli OneShot TOP10InvitrogenC404003Chemically competent cells
Genetic reagent (D. melanogaster)UAS-CD8::mCherryBloomington Drosophila Stock CenterRRID:BDSC_27391
Genetic reagent (D. melanogaster)UAS-mCherrydsRNABloomington Drosophila Stock CenterRRID:BDSC_35785
Genetic reagent (D. melanogaster)w1118Bloomington Drosophila Stock CenterRRID:BDSC_3605
Genetic reagent (D. melanogaster)UAS-uifdsRNA HMS01822Bloomington Drosophila Stock CenterRRID:BDSC_38354
Genetic reagent (D. melanogaster)nSyb-Gal4Bloomington Drosophila Stock CenterRRID:BDSC_51635
Genetic reagent (D. melanogaster)UAS-htlDNBloomington Drosophila Stock CenterRRID:BDSC_5366
Genetic reagent (D. melanogaster)UAS-Cas9Bloomington Drosophila Stock CenterRRID:BDSC_58985
Genetic reagent (D. melanogaster)UAS-Su(H)dsRNA HMS05748Bloomington Drosophila Stock CenterRRID:BDSC_67928
Genetic reagent (D. melanogaster)nrv2-Gal4Bloomington Drosophila Stock CenterRRID:BDSC_6800
Genetic reagent (D. melanogaster)nrv2::GFPBloomington Drosophila Stock CenterRRID:BDSC_6828
Genetic reagent (D. melanogaster)UAS-NdsRNA 9GBloomington Drosophila Stock CenterRRID:BDSC_7077
Genetic reagent (D. melanogaster)DlMI04868-TG4.1Bloomington Drosophila Stock CenterRRID:BDSC_77753
Genetic reagent (D. melanogaster)U6-DlsgRNABloomington Drosophila Stock CenterRRID:BDSC_83095
Genetic reagent (D. melanogaster)NsgRNABloomington Drosophila Stock CenterRRID:BDSC_84168
Genetic reagent (D. melanogaster)U6-SersgRNSBloomington Drosophila Stock CenterRRID:BDSC_84169
Genetic reagent (D. melanogaster)UAS-GFPdsRNABloomington Drosophila Stock CenterRRID:BDSC_9331
Genetic reagent (D. melanogaster)UAS-H2B-mRFPBloomington Drosophila Stock CenterRRID:BDSC_94270
Genetic reagent (D. melanogaster)UAS-mamdsRNA KK110687Vienna Drosophila Resource CenterVDRC102091
Genetic reagent (D. melanogaster)UAS-NdsRNA GD144Vienna Drosophila Resource CenterVDRC1112
Genetic reagent (D. melanogaster)UAS-SerdsRNA GD14442Vienna Drosophila Resource CenterVDRC27172
Genetic reagent (D. melanogaster)UAS-ContdsRNA GD12610Vienna Drosophila Resource CenterVDRC28294
Genetic reagent (D. melanogaster)UAS-DldsRNA GD2642Vienna Drosophila Resource CenterVDRC37287
Genetic reagent (D. melanogaster)UAS-ContdsRNA GD12610Vienna Drosophila Resource CenterVDRC40613
Genetic reagent (D. melanogaster)N[ts]1Shellenbarger and Mohler, 1975
Genetic reagent (D. melanogaster)UAS-LacZNLSHummel et al., 2002
Genetic reagent (D. melanogaster)UAS-λhtlMichelson et al., 1998
Genetic reagent (D. melanogaster)UAS-NICDKlein, University of Düsseldorf
Genetic reagent (D. melanogaster)UAS-uif::GFPGonzalez-Gaitan, Loubéry et al., 2014
Genetic reagent (D. melanogaster)UAS-LacZdsRNASchirmeier, University of Dresden
Genetic reagent (D. melanogaster)GFPsgRNASchirmeier
Genetic reagent (D. melanogaster)uifsgRNA 2nd ExonThis workSee Figure 3—figure supplement 1
Genetic reagent (D. melanogaster)uifsgRNA CSThis workSee Figure 3—figure supplement 1
Genetic reagent (D. melanogaster)uifsgRNA TMDThis workSee Figure 3—figure supplement 1
Genetic reagent (D. melanogaster)uifsgRNA CDThis workSee Figure 3—figure supplement 1
Genetic reagent (D. melanogaster)nrv2-Gal4;R90C03-Gal80,UAS-CD8::CherryKottmeier et al., 2020
Genetic reagent (D. melanogaster)Gbe +Su(H)-lacZFurriols and Bray, 2001
Genetic reagent (D. melanogaster)repo4.3-stg-GFPThis workFigure 1
Antibodyanti-dsRed 1:1000Clontech Labs 3P632496IF(1:1000)
Antibodyanti-β-galactosidase (Mouse monoclonal)Developmental Studies Hybridoma Bank40-1aIF(1:10)
Antibodyanti-Repo (Mouse monoclonal)Developmental Studies Hybridoma Bank8D12IF(1:5)
Antibodyanti-HRP-DyLight 649 (Goat polyclonal)Dianova123-165-021IF(1:500)
Antibodyanti-GFP (Rabbit polyclonal)InvitrogenA6455IF(1:1000)
Antibodyanti-mouse 488 (Goat polyclonal)InvitrogenA10680IF(1:1000)
Antibodyanti-mouse 568 (Goat polyclonal)InvitrogenA11031IF(1:1000)
Antibodyanti-rabbit 488 (Goat polyclonal)InvitrogenA11008IF(1:1000)
Antibodyanti-rabbit 568 (Goat polyclonal)InvitrogenA11011F(1:1000)
Recombinant DNA reagentpUAST-dU63gRNA vector carrying a ubiquitous U6:3 promoterSchirmeier, University of Dresden
Sequence-based reagentUif2ndExon_gRNA2_fwThis worksgRNA for uif cleavage 3’ to signal sequenceGTCGTTTCAATATCAAGCACTCGT
Sequence-based reagentUif2ndExon_gRNA2_revThis worksgRNA for uif cleavage 3’ to signal sequenceAAACACGAGTGCTTGATATTGAAA
Sequence-based reagentUifCS_gRNA2_fwThis worksgRNA for uif cleavage 5’ to cleavage siteGTCGTGTTCTGCGTACCTCGGTAG
Sequence-based reagentUifCS_gRNA2_revThis worksgRNA for uif cleavage 5’ to cleavage siteAAATCTACCGAGGTACGCAGAACA
Sequence-based reagentUifTMD_gRNA4_fwThis worksgRNA for uif cleavage 5’ to transmembrane domainGTCGCGCTGTGTGGGCTCCTTTAC
Sequence-based reagentUifTMD_gRNA4_revThis worksgRNA for uif cleavage 5’ to transmembrane domainAAACGTAAAGGAGCCCACACAGCG
Sequence-based reagentUifCD_gRNA1_fwThis worksgRNA for cleavage of uif cytoplasmic domainGTCGCTACAATGAAACGTACATGA
Sequence-based reagentUifCD_gRNA1_revThis worksgRNA for cleavage of uif cytoplasmic domainAAACTCATGTACGTTTCATTGTAG
Software, algorithmFijiSchindelin et al., 2012

STAR methods

Experimental model and study participant details

Request a detailed protocol

All Drosophila work was conducted according to standard procedures. All fly stocks were kept at room temperature in plastic vials containing Drosophila standard food and dry yeast. Crosses were set up with male and virgin female flies in a ratio of 1:3 and kept at 25°C. Induction of Nts1 allele was performed by placing Stage 16 embryos at 29°C.

Method details

Request a detailed protocol
sgRNA generation
Request a detailed protocol

To generate flies carrying sgRNAs targeted to different regions of the uif gene, sgRNA sequences specifically designed for the target gene region of interest were integrated into the pUAST-dU63gRNA vector carrying a ubiquitous U6:3 promoter. To do so, sense and anti-sense oligonucleotides containing the respective sgRNA template sequence (uif2ndExon: TTCAATATCAAGCACTCGT; uifCS: TGTTCTGCGTACCTCGGTAG; uifTMD: CGCTGTGTGGGCTCCTTTAC; uifCD: CTACAATGAAACGTACATGA) were phosphorylated, annealed, and ligated into the vector. Flies were tested via single-fly PCR. The position of the different guide RNAs is indicated (Figure 3—figure supplement 1).

Heartless modifier screen
Request a detailed protocol

To test whether candidate genes can be linked to fibroblast growth factor (FGF) receptor signaling in wrapping glia, we utilized the nerve bulging phenotype caused by expression of a constitutively active Heartless (UAS-λhtl) in wrapping glia (nrv2-Gal4). The repo4.3-stinger::GFP reporter line labels all glial nuclei independent of Gal4, while nrv2-Gal4 was used to express UAS-λhtl. This strain was crossed against a collection of UAS-dsRNA lines. For screening, living larvae were mounted as live squeezed preparations to ensure best signal-to-noise ratio . Third instar wandering larvae were collected in ice-cold PBS. With their ventral side up, animals were transferred to a drop of silicon fat (KORALISON, medium viscosity, Kurt Obermeier GmbH) onto a microscope slide. To fix larvae in their position, they were covered with a coverslip and squeezed. Tracheae were oriented toward the microscope slide for visualization of the nervous system. About seven larvae per genotype were assessed using a Nikon fluorescence binocular (AZ-100).

Immunohistochemistry
Request a detailed protocol

For confocal analyses, at least six to ten animals including an equal ratio of both female and male animals were dissected. For experiments using the Nts1 allele, only hemizygous males were examined. For larval filet preparations, third instar wandering larvae were collected in ice-cold PBS. The larvae were placed on a silicon pad with their dorsal side facing up and secured at both ends using needles. They were then carefully opened along the dorsal midline using dissection scissors and stretched out with four needles. Gut, fat body, and trachea were removed. For adult brain preparations, adult flies were anesthetized with CO2 and briefly dipped in 70% ethanol. The head capsule was cut open with dissection scissors, and the tissue surrounding the brain was removed using forceps. Legs and wings were excised, and the thorax was opened dorsally. The ventral nerve cord was freed from the surrounding tissue to isolate the sample. After dissection, the samples were fixed by covering them with Bouin’s solution for 3 min at room temperature. This was followed by three quick buffer exchanges and three additional washes with PBT lasting 20 min each. Following blocking in 10% goat serum/PBT for 1 hr at room temperature, primary antibodies were applied and incubated overnight at 4°C. Then samples were washed three times with PBT for 20 min each and then incubated with secondary antibodies for 3 hr at room temperature. The tissues were covered with Vectashield mounting solution (Vector Laboratories) and stored at 4°C until imaging using a Zeiss LSM880 Fast-Airyscan microscope. Confocal images were analyzed using Fiji.

Electron microscopic analysis
Request a detailed protocol

For electron microscopy analyses, larvae were dissected in 4% PFA and fixed as filet preparations for 45 min at room temperature, which was followed by fixation in 4% paraformaldehyde (PFA) and 0.5% glutaraldehyde in 0.1 M P-buffer at 4°C overnight. The PFA was replaced by 2% OsO4 in 0.1 M P-buffer for 1 hr on ice (dark). Uranyl acetate staining was performed en bloc using a 2% solution in H2O for 30 min (dark). Following an EtOH series (50%, 70%, 80%, 90%, and 96%) on ice for 3 min each step, final dehydration was done at room temperature with 2×100% EtOH for 15 min and 2× propylene oxide for 15 min. Following slow epon infiltration, specimens were embedded in flat molds and polymerized at 60°C for 2 days. After trimming, ultrathin sections of segmental nerves about 150 µm distant from the tip of the ventral nerve cord were obtained using a 35° ultra knife (Diatome). Sections were collected on formvar-coated copper grids on which they were left to dry for at least 1 hr prior to imaging, which was performed with a Zeiss TEM 900 at 80 kV in combination with a Morada camera (EMSIS).

Quantification and statistical analysis

Request a detailed protocol

Statistical details of every experiment can be found in the figure legends, with n representing the number of examined animals. Normal distribution of values was performed using the Shapiro-Wilk test. To determine the level of significance, the t-test was applied for normally distributed data, while the Mann-Whitney U test was applied for not normally distributed data. Python was also used to generate all statistics and boxplots. For statistical analyses of EM data, the wrapping index was obtained by putting the number of individual wrapped axons or axon fascicles into relation to the number of all axons. A wrapping index of 1 implies that every single axon of the nerve is individually wrapped. All nerves that contained less than 76 or more than 82 axons were not included in the statistical analysis.

Data availability

Figure source data contain the numerical data used to generate Boxplot in Figure 6D, Figure 4—figure supplement 1, Figure 7—figure supplement 3. All Drosophila strains reported are available upon request to CK.

References

    1. Li H
    2. Janssens J
    3. De Waegeneer M
    4. Kolluru SS
    5. Davie K
    6. Gardeux V
    7. Saelens W
    8. David FPA
    9. Brbić M
    10. Spanier K
    11. Leskovec J
    12. McLaughlin CN
    13. Xie Q
    14. Jones RC
    15. Brueckner K
    16. Shim J
    17. Tattikota SG
    18. Schnorrer F
    19. Rust K
    20. Nystul TG
    21. Carvalho-Santos Z
    22. Ribeiro C
    23. Pal S
    24. Mahadevaraju S
    25. Przytycka TM
    26. Allen AM
    27. Goodwin SF
    28. Berry CW
    29. Fuller MT
    30. White-Cooper H
    31. Matunis EL
    32. DiNardo S
    33. Galenza A
    34. O’Brien LE
    35. Dow JAT
    36. Jasper H
    37. Oliver B
    38. Perrimon N
    39. Deplancke B
    40. Quake SR
    41. Luo L
    42. Aerts S
    43. Agarwal D
    44. Ahmed-Braimah Y
    45. Arbeitman M
    46. Ariss MM
    47. Augsburger J
    48. Ayush K
    49. Baker CC
    50. Banisch T
    51. Birker K
    52. Bodmer R
    53. Bolival B
    54. Brantley SE
    55. Brill JA
    56. Brown NC
    57. Buehner NA
    58. Cai XT
    59. Cardoso-Figueiredo R
    60. Casares F
    61. Chang A
    62. Clandinin TR
    63. Crasta S
    64. Desplan C
    65. Detweiler AM
    66. Dhakan DB
    67. Donà E
    68. Engert S
    69. Floc’hlay S
    70. George N
    71. González-Segarra AJ
    72. Groves AK
    73. Gumbin S
    74. Guo Y
    75. Harris DE
    76. Heifetz Y
    77. Holtz SL
    78. Horns F
    79. Hudry B
    80. Hung R-J
    81. Jan YN
    82. Jaszczak JS
    83. Jefferis GSXE
    84. Karkanias J
    85. Karr TL
    86. Katheder NS
    87. Kezos J
    88. Kim AA
    89. Kim SK
    90. Kockel L
    91. Konstantinides N
    92. Kornberg TB
    93. Krause HM
    94. Labott AT
    95. Laturney M
    96. Lehmann R
    97. Leinwand S
    98. Li J
    99. Li JSS
    100. Li K
    101. Li K
    102. Li L
    103. Li T
    104. Litovchenko M
    105. Liu H-H
    106. Liu Y
    107. Lu T-C
    108. Manning J
    109. Mase A
    110. Matera-Vatnick M
    111. Matias NR
    112. McDonough-Goldstein CE
    113. McGeever A
    114. McLachlan AD
    115. Moreno-Roman P
    116. Neff N
    117. Neville M
    118. Ngo S
    119. Nielsen T
    120. O’Brien CE
    121. Osumi-Sutherland D
    122. Özel MN
    123. Papatheodorou I
    124. Petkovic M
    125. Pilgrim C
    126. Pisco AO
    127. Reisenman C
    128. Sanders EN
    129. Dos Santos G
    130. Scott K
    131. Sherlekar A
    132. Shiu P
    133. Sims D
    134. Sit RV
    135. Slaidina M
    136. Smith HE
    137. Sterne G
    138. Su Y-H
    139. Sutton D
    140. Tamayo M
    141. Tan M
    142. Tastekin I
    143. Treiber C
    144. Vacek D
    145. Vogler G
    146. Waddell S
    147. Wang W
    148. Wilson RI
    149. Wolfner MF
    150. Wong Y-CE
    151. Xie A
    152. Xu J
    153. Yamamoto S
    154. Yan J
    155. Yao Z
    156. Yoda K
    157. Zhu R
    158. Zinzen RP
    159. FCA Consortium§
    (2022) Fly cell atlas: A single-nucleus transcriptomic atlas of the adult fruit fly
    Science 375:eabk2432.
    https://doi.org/10.1126/science.abk2432

Article and author information

Author details

  1. Marie Baldenius

    Institut für Neuro- und Verhaltensbiologie, Münster, Germany
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0009-0002-3765-9813

  2. Steffen Kautzmann

    Institut für Neuro- und Verhaltensbiologie, Münster, Germany
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing – review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0009-0003-6678-6608

  3. Rita Kottmeier

    1. Institut für Neuro- und Verhaltensbiologie, Münster, Germany
    2. Dezernat Forschungsmanagement, Universität zu Köln, Köln, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Writing – review and editing
    Competing interests
    No competing interests declared

  4. Jaqueline Zipfel

    1. Institut für Neuro- und Verhaltensbiologie, Münster, Germany
    2. Klinik für Psychiatrie und Psychotherapie, LVR-Universitätsklinik Essen, Essen, Germany
    Contribution
    Formal analysis, Investigation, Writing – review and editing
    Competing interests
    No competing interests declared

  5. Christian Klämbt

    Institut für Neuro- und Verhaltensbiologie, Münster, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing – original draft, Project administration, Writing – review and editing
    For correspondence
    klaembt@uni-muenster.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6349-5800

Funding

Deutsche Forschungsgemeinschaft (SFB 1348 B5)

  • Christian Klämbt

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are thankful to Robert Ward for sending antibodies, Stefanie Schirmeier and Marcos Gonzalez Gaitan for flies and DNA. We are grateful to Elena Rinne for help in generating guide RNA constructs and all our lab colleagues for support and discussions. This work was supported by the Deutsche Forschungsgemeinschaft through funds to CK (SFB 1348 B5).

Version history

  1. Preprint posted:
  2. Sent for peer review:
  3. Reviewed Preprint version 1:
  4. Reviewed Preprint version 2:
  5. Version of Record published:

Cite all versions

You can cite all versions using the DOI https://doi.org/10.7554/eLife.105759. This DOI represents all versions, and will always resolve to the latest one.

Copyright

© 2025, Baldenius et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 791
    views
  • 35
    downloads
  • 0
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Marie Baldenius
  2. Steffen Kautzmann
  3. Rita Kottmeier
  4. Jaqueline Zipfel
  5. Christian Klämbt
(2026)
The Drosophila EGF domain protein uninflatable sets the switch between wrapping glia growth and axon wrapping instructed by Notch
eLife 14:RP105759.
https://doi.org/10.7554/eLife.105759.3

Share this article

https://doi.org/10.7554/eLife.105759

Categories and tags

Research organism
