A mathematical model explains saturating axon guidance responses to molecular gradients

  1. Huyen Nguyen
  2. Peter Dayan
  3. Zac Pujic
  4. Justin Cooper-White
  5. Geoffrey J Goodhill Is a corresponding author
  1. The University of Queensland, Australia
  2. University College London, United Kingdom
Research Article
Cited
25
Views
1,068
Comments
0
Cite as: eLife 2016;5:e12248 doi: 10.7554/eLife.12248

Abstract

Correct wiring is crucial for the proper functioning of the nervous system. Molecular gradients provide critical signals to guide growth cones, which are the motile tips of developing axons, to their targets. However, in vitro, growth cones trace highly stochastic trajectories, and exactly how molecular gradients bias their movement is unclear. Here, we introduce a mathematical model based on persistence, bias, and noise to describe this behaviour, constrained directly by measurements of the detailed statistics of growth cone movements in both attractive and repulsive gradients in a microfluidic device. This model provides a mathematical explanation for why average axon turning angles in gradients in vitro saturate very rapidly with time at relatively small values. This work introduces the most accurate predictive model of growth cone trajectories to date, and deepens our understanding of axon guidance events both in vitro and in vivo.

https://doi.org/10.7554/eLife.12248.001

eLife digest

For your brain to work, millions of nerve cells have to be connected together precisely. To achieve this, growing nerve fibres navigate through the developing brain by following chemical cues. One important such cue is how the concentration of a chemical varies with distance across the brain. This variation is known as a chemical gradient. However we still don't fully understand exactly how nerve fibres use such gradients to steer themselves.

Nguyen et al. have built a mathematical model that accounts for the way that nerve fibres respond to chemical gradients, and showed that the model closely matched new experimental data on the growth of nerve fibres from the rat brain. The model implies that, under some conditions, nerve fibres turn surprisingly little in response to a chemical gradient.

Nguyen et al.’s model can now be used to predict nerve fibre responses in many other situations, and could help researchers to understand more about how the brain becomes wired up during development. The model could also reveal more about the conditions that are needed to cause nerve fibres to turn sharply in response to chemical gradients.

https://doi.org/10.7554/eLife.12248.002

Introduction

For the brain to function correctly, it must be wired correctly. Indeed, many neurodevelopmental disorders are likely the result of wiring defects (Yaron and Zheng, 2007; Geschwind and Levitt, 2007; Lin et al., 2009; Stoeckli, 2012). Axon guidance, where axons grow and navigate to their targets, occurs primarily via the sensing of molecular cues in the environment. A critical mechanism by which such cues act is believed to be concentration gradients, causing axons to be attracted or repelled in particular directions (Mortimer et al., 2008; Lowery and Van Vactor, 2009). However, despite major advances in understanding which molecules are involved in this process (Tessier-Lavigne and Goodman, 1996; Dickson, 2002; Chilton, 2006; Kolodkin and Tessier-Lavigne, 2011), an accurate quantitative model describing how axon trajectories are influenced by such guidance cues is still lacking.

In vivo, axon trajectories may potentially be influenced by many cues. In vitro assays allow individual influences, such as that from the concentration gradient of a single guidance factor, to be isolated and quantified. A substantial mystery posed by in vitro axonal chemotaxis assays is the relatively weak turning produced, even over long periods of time. The naive prediction that axons would promptly turn until they become fully aligned with the gradient turns out not to be true. In an early study of chemotactic responses of chick sensory neurons to a gradient of nerve growth factor in a diffusion chamber, only 60% of nerve tips were preferentially directed toward the gradient direction after 46 hr of growth (Letourneau, 1978). The growth cone turning assay over 1–2 hr produces average turning angles typically ranging from 10 to 25°, with high variability (Song et al., 1997; Höpker et al., 1999; Xiang et al., 2002; Ming et al., 2002; Thompson et al., 2011). A similarly weak response is observed in the Dunn chamber (Kent et al., 2010; Dudanova et al., 2012; Ruiz de Almodovar et al., 2011; Dudanova et al., 2010; Yam et al., 2009). More recent studies using microfluidic technologies over timescales ranging from hours to days have also elicited average axon turning angles only up to 10–15° (Wang et al., 2008; Morel et al., 2012; Taylor et al., 2015; Sloan et al., 2015). Why average turning angles are so small, and what this means for axon guidance in vivo, are unclear.

One of the key properties of in vitro axon growth that might explain this mystery is that it is often very straight (Katz et al., 1984; Katz, 1985). Axons are under mechanical tension from the pull of the growth cone (Bray, 1973; Bray, 1979), and this tension stimulates the elongation of the axon by stretching (Bray, 1984; Zheng et al., 1991). Traction forces generated in the growth cone arise from the coupling of the continuous retrograde flow of actin to the substrate through adhesion receptors (Franze and Guck, 2010; Betz et al., 2011; Athamneh and Suter, 2015). For reasons which are not clear, axons tend not to bend and follow the highly random movements of their growth cones. Rather, they usually form a straight line between their tip and a location where they are firmly attached to the substrate (i.e. a focal adhesion (Kaverina et al., 2002)). We call such locations anchor points; they can be at the soma, at a branch point, or at some other seemingly sporadic location along the axon. Although it is not clear how this tension leads to elongation, the growth cone advances largely in the stretch direction along the axon, resulting in relatively straight paths.

To determine quantitatively what effect this might have on axonal trajectories requires mathematical modelling. Growth cone movements were first analyzed in detail in (Katz et al., 1984; Katz, 1985). Subsequently, various phenomenological models have been built that differ as to how they treat stochasticity, and mechanisms for directional preference, namely turning or growth rate modulation. One set attempted to fit the dynamics of growth cone movement to a random walk with drift (Buettner et al., 1994; Odde and Buettner, 1995; Maskery et al., 2004; Pearson et al., 2011). Li et al. simulated trajectories by assuming the turning angle of the growth cone is in proportion to the angle between the neurite and the resultant filopodial tension (Li et al., 1995). In (Borisyuk et al., 2008), the axon growth angle depends on the tendency to turn toward the gradient angle and noise. The noise term is small (2–5°), leading to straight paths that resemble axon growth in the tadpole spinal cord. Another set of models has concentrated on how asymmetric receptor binding across the growth cone might be used as the basis of a turning signal (Goodhill et al., 2004; Xu et al., 2005; Mortimer et al., 2010), but without considering the consequence for whole trajectories. A third group of models considers the possibility that the velocity of the growth cone is influenced by an attractive gradient from the target cells, and chemoattractants and chemorepellants released from other growth cones and itself (Hentschel and Ooyen, 1999; Krottje and van Ooyen, 2007). However, none of these models has been closely compared with the details of experimentally measured trajectories in gradients, and parameters such as variability in step sizes, the distribution of instantaneous turning angles, and straightness of real paths, have not been addressed. Thus, the question of whether there is a model that can adequately capture all these characteristics of real trajectories remains open. Without such a model, it is difficult to determine if trajectories observed in vivo are in fact consistent with gradient guidance.

Here, we present a new computational model for axonal trajectories based on the combined influence of anchor points, a tendency to turn toward the gradient direction, and random noise. We found experimentally that the gradient had no effect on the step sizes; thus, we only model the turning angles. Critically, the model predicts rapid near saturation of average turning angles with time. To test this model quantitatively, we then introduce a new microfluidics assay for studying axonal response to gradients, and using timelapse imaging characterize the behavior of axons over several hours of growth in both attractive and repulsive gradients. We find that our model fits the behavior observed very closely. We then investigate by simulation the effect of increasing the number of anchor points, and find that this increases the average fidelity of turning but at the cost of higher variability. Together, this work both explains why turning response to gradient saturates so rapidly and reveals the quantitative principles that are required to reproduce accurately in vitro axonal trajectories in response to chemotactic gradients. The model identifies straightness as a limiting factor on how much axons can turn and suggests that the frequency of anchor points plays a key role in the axonal turning response to a gradient.

Results

A mathematical model of growth cone trajectories

We modelled three basic influences on the direction of axon growth: a tendency to grow straight, the effect of a chemotactic gradient, if present, and random movement noise. In a fixed coordinate system with arbitrary zero angle direction, we define θ(t) as the bearing of the growth cone at time step t, ϕ(t) as the angle of the vector connecting the growth cone to its anchor point, and Ψ as the gradient direction (terminology is summarized in Table 1). We define ‘bearing change’ as Δθ(t), the change in θ(t) at time step t, distinct from ‘turning angle’ ψturn, the total change in θ from the initial direction of growth over long periods of time. For simulations we identify each timestep as 5 min of real time. The model (Figure 1) is then

Table 1

Summary of model parameters (GC: growth cone).

https://doi.org/10.7554/eLife.12248.003
SymbolMeaning
θGC’s current bearing
ΦGC’s overall angle
ΨGradient direction
ΔθBearing change
ψturnTurning angle after 80 min
aPersistence strength
bBias strength
ξNoise in bearing change
σStandard deviation of ξ
sStep size every 5 min
LDistance from origin to GC
SStraightness index
rAnchoring rate

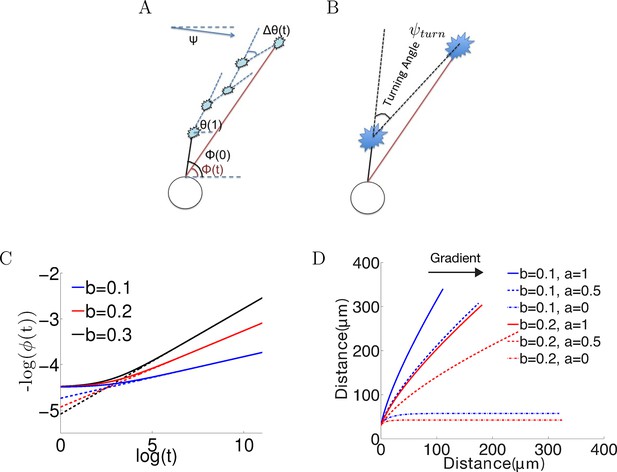

Model set-up and the noiseless case.

(A) The axon starts growing from the soma (black segment) at initiation angle ϕ(0). At each time point, the bearing is θ(t), and the bearing change between t and + 1 is Δθ(t). ϕ(t) is the angle of the vector connecting the current position of the growth cone with the anchor point. Ψ is the fixed gradient direction. (B) The turning angle ψturn at time t is the angle between the initial direction of growth, and the line joining the initial and current positions of the growth cone. (C) Simulation of the growth cone angle using Equation (1) in the noiseless case (ξ = 0) with the same a = 1 and different values of b. The dashed line is the power law ϕ(t)t-ba+b. In the long time limit, this law accurately describes the angle of the growth cone. (D) Simulations of the trajectories for different combinations of a and b in the absence of noise. Larger b leads to stronger turning. When a = 0, the growth cone very rapidly aligns with the gradient. The persistence term (t > 0) leads to incomplete turning.

https://doi.org/10.7554/eLife.12248.004
(1) θ(t)=a(ϕ(t),θ(t))+b(Ψ,θ(t))+ξ

where a scales persistence to move in the same direction as the overall direction of the axon, b scales the bias due to the gradient, and ξ is random noise in the bearing changes. The symbol ∠(x, y) denotes the signed angle between the unit vectors with angles x and y, and constrains the resultant angle to be between −π and π. The step size is the distance moved after one time step and will later be estimated empirically.

We consider first the noiseless case (ξ = 0) in long- and finite-time regimes, and then consider the effects of noise. Figure 1C shows the results of setting ξ = 0, with a fixed step size of s = 3 μm, and simulating the model for long times with the same a = 1 and different values of b (0.1, 0.2 and 0.3). Turning angles rapidly saturate, which can be understood analytically (see 'Materials and methods'): in the t limit, the growth cone angle follows a power law with respect to time ϕ(t)t(α-1) or log (ϕ(t)) = const + (α1) log(t) (where α = a/(a+b)) (Figure 1C). This relationship generally holds for t>exp(4)  4 h, meaning that for long times, the rate of change of angle decreases and this rate is determined by the power law exponent b/(a + b). Since comparison with empirical data (see later) shows that the biologically relevant regime is b ≪ a, the exponent is generally small. Thus, while ultimately axons in the model do eventually align with the gradient, this process takes an exceedingly long time. This explains the slow and decreasing change in the turning angle over time in the noiseless case.

The finite t regime of this equation is difficult to solve analytically, since ϕ(t) depends on the entire history of growth cone movements. Simulations using different combinations of a and b are shown in Figure 1D. For the cases of a0, after 150 time steps (12.5 hr of real time), the resultant turning angle was far from completely aligned with the gradient. Although the bias term bent the trajectory in the direction of the gradient, there was a straightening effect due to the persistence term, constantly pulling the growth cone toward the overall growth direction of the axon. As expected, the pull due to the gradient increased with larger b (Figure 1D). Thus, the persistence term prevented the axon from completely aligning with the gradient. Also apparent is that without noise, the trajectories were all very straight (with straightness index [see 'Materials and methods'] greater than 0.98). Thus, the microscopic constraint imposed by the persistence term leads to the macroscopic phenomenon of incomplete turning.

When we introduced Gaussian noise into the bearing changes (in radians) (ξ ~ N(0, σ), σ=π/4) with the same parameters and initial conditions as above for 1000 axons, the behavior was qualitatively similar: after an initial period of relatively rapid turning, turning angles tended to an almost steady state which was not aligned with the gradient even after a long time. However, the average final turning angle was even less than that of the noiseless case. This is because the noise created more random wandering of the growth cone, further reducing the directional effect of the gradient (Figure 2A–B). After 20–40 min, for b = 0.1, the turning angle distribution of the population was 7 ± 25° (mean ± std). Assuming a normal distribution of turning angles, this means that many of the axons were no longer roughly perpendicular to the gradient, and thus only continued to turn extremely slowly. Therefore, over time the influence of the gradient on the whole population of axons weakened. The persistence term also created a resistance against large turns due to the gradient. Increasing b/a increased the turning angle, but did not alter its rapid saturation with time (Figure 2C). Lastly, we examined the effect on the straightness by varying the standand deviation of the noise σ from 0 to π radians. As the steps became more noisy, the paths became less straight (Figure 2D).

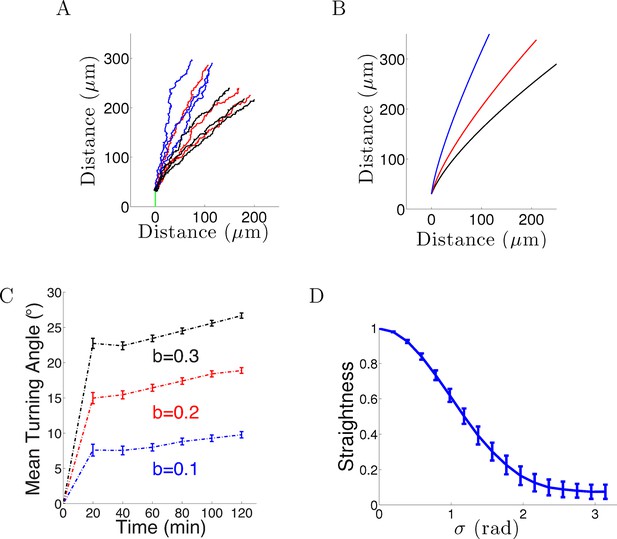

Model results with noise.

(A) Long-term behavior of growth cones: Simulation of 9 axons with fixed growth rate and noise in bearing changes (ξ  N(0, π/4) radians) starting at ϕ(0) = 90° subject to the gradient direction Ψ = 0 with persistence a = 1 and bias b = 0.1 (blue), b = 0.2 (red) and b = 0.3 (black) after 150 steps (12.5 hr of real time). (B) The trajectories with the same parameters without noise. (C) The turning angles over time (mean ± SEM) of 1000 axons for different values of b (0.1,0.2, 0.3) and a = 1. (D) Straightness (mean ± std) decreases as the noise variance increases.

https://doi.org/10.7554/eLife.12248.006

In summary, the noiseless case generated very straight axons and growth cone angles that followed power laws with respect to time in the long time limit. Similarly, in the noisy case, the rate of change of the average turning angle was initially rapid and then slowed down even more rapidly with time. In both cases, the persistence term was a limiting factor on how much and how fast the axons could turn. Thus, this model captures, at least qualitatively, the behavior that axons turn only slightly in gradients, and even for long times do not generally become completely aligned with the gradient.

Stable gradient generation for guidance assays

Having established the basic behaviour of the model, we then asked whether it could reproduce in detail real axon trajectory statistics. We therefore analyzed the trajectories of superior cervical ganglion neurons in a new microfluidics device (Figure 3A–C). This device generated linear gradients, by the mixing of high and low solutions of a chemotropic factor. The gradient was visualized using 40 kDa dextran-tetramethylrhodamine (Figure 3D), and gradients were stable for at least 20 hr (Figure 3E,F).

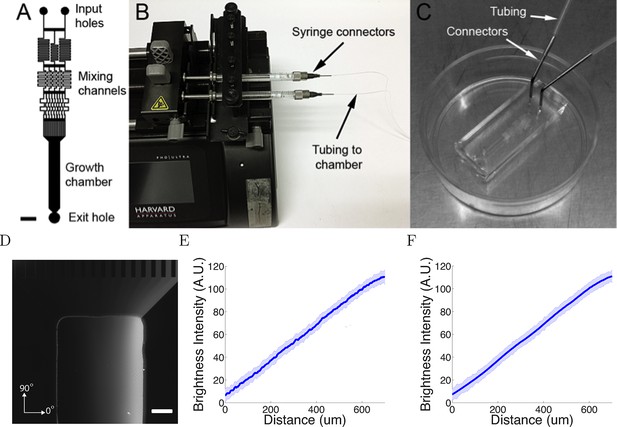

The microfluidic assay.

(A) The design of the chamber: the two solutions were pumped into the inlets and mix in the mixing channels before flowing into the growth chamber where the cells are plated. The mixing channels were of height 50 μm and width 50 μm. Scale bar 1 mm. (B, C) Photo of the experimental setup: two glass syringes attached to a Harvard pump injected the solutions into the chamber bonded on a 35 mm plastic plate. (D) Two solutions, one of which contained 0.1% (v/v) dextran fluorescently labelled with tetramethylrhodamine, were used to visualize the gradient. Brighter regions indicate higher concentrations. Scale bar 200 μm. (E, F) Line-scan measurements of fluorescence intensity across the device show a linear gradient which persists for at least 20 hr (t = 0h (E) and t = 20h (F) ). The shaded errorbars show standard deviations across 10 chambers.

https://doi.org/10.7554/eLife.12248.008

SCG neurons were guided in the microfluidic assay

We measured the response to nerve growth factor (NGF) gradients of axons from dissociated P1-P3 SCG neurons. We chose this model system because almost 100% of these neurons express the NGF receptor TrkA (Wetmore and Olson, 1995; Verge et al., 1992).

Three conditions were investigated: a control without flow or gradient, an attractive gradient of nerve growth factor (NGF), and a gradient of NGF with added KT5720, which converts attraction to repulsion by lowering levels of cAMP in the growth cone (Song et al., 1997). Cells were injected into the growing chambers and grown for 2 hr before gradient onset. In the control condition, cells were grown over several hours with 0.3 nM NGF. In the NGF gradient condition, two solutions of concentrations 0 nM and 10 nM NGF were pumped into the growing chamber through the two inlets. Previous work using Scatchard analysis estimated that Kd = 0.9 ± 0.3 nM (Wehrman et al., 2007) and showed that SCG neuronal outgrowth is severely inhibited at the saturating NGF concentration of 40 nM (Ohta et al., 1990). Given the healthy growth in our assay, it is clear that the concentration in the gradient condition was below saturation point. We analyzed trajectories for 300 axons per condition. These were obtained from 23 individual chambers in the control case, 27 chambers in the NGF gradient case, and 24 chambers in the NGF gradient plus KT5720 case. In most experiments, 2 chambers were run in parallel, so the total numbers of experiments in each case were 12, 15, and 13, respectively. For the measurement of turning angles, we selected only axons that started growing between 70° and 110° relative to the gradient (when present). An asymmetric concentration field of guidance cue across the growth cone leads to turning (Song et al., 1997; Hentschel and Ooyen, 1999; Xiang et al., 2002; Ming et al., 2002) and axons growing in this range experienced between 94% (i.e. sin 70°) to 100% (i.e. sin 90°) of the maximum possible concentration difference across the growth cone. Thus, we expected the impact of the gradient would be strongest on these axons (Figure 4A). We tracked the growth cones every 5 min for as long as possible until they collapsed or branched or collided with other cells, axons or the edges of the chamber. The SCG axons were clearly attracted in the NGF gradient (Figure 4B). When the protein kinase A inhibitor KT5720 was added to the high and low solutions at concentration 70 nM, attraction was converted into repulsion as previously described (Song et al., 1997; Forbes et al., 2012) (Figure 4B). These results confirm that the gradient in the microfluidic assay elicited a guidance response in SCG axons. From the timelapse imaging data, we then selected the subset of axons that did not branch or retract following growth for several hours in the attractive NGF gradient, and measured the turning angles of the population over time. The average turning angle reached the steady state quickly and did not increase significantly with time, matching the prediction of the model (Figure 4C).

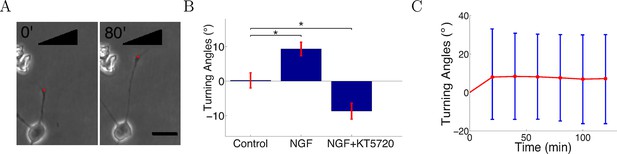

Turning in microfluidic gradients.

(A) Images of a representative axon initially almost perpendicular to the gradient at the beginning and end of the measurement after 80 min. Scale bar 20 μm. The red dots are the positions of the growth cone. (B) Summary of turning angles in the three conditions (mean ± SEM): control 0.2 ± 2.1° (n=120), NGF gradient (0–10 nM) 9.3 ± 1.9° (n=143), NGF gradient (0–10 nM) + KT5720−8.8 ± 2.2° (n=112). *: p < 0.01 t-test in both cases. (C) The means (red) and standard deviations (blue) of turning angles of 143 axons over time for the attractive case.

https://doi.org/10.7554/eLife.12248.010

The gradient did not affect axon branching

One possible way that the gradient could affect the axons is by causing biased branching [c.f. (Simpson et al., 2013)], or changes in branching rates. To test whether the NGF gradient changed the branch extension and retraction rates, we compared the number of branches per cell after 5 hr of growth and did not detect any difference (p = 0.9 Kolmogorov–Smirnov test, Figure 5A). We measured the intervals between successive branching events in the same cell in each condition and did not find any difference in the branching rate (p = 0.7 Kolmogorov–Smirnov test, Figure 5B). Similarly, the lifetimes of the branches were unaffected by the gradient (p = 0.2 Kolmogorov–Smirnov test, Figure 5C). We counted the number of branches pointing up and down the gradient per cell and did not find any difference (p = 0.8 Kolmogorov–Smirnov test, Figure 5D). Thus, the gradient had no effect on axon branching and retraction.

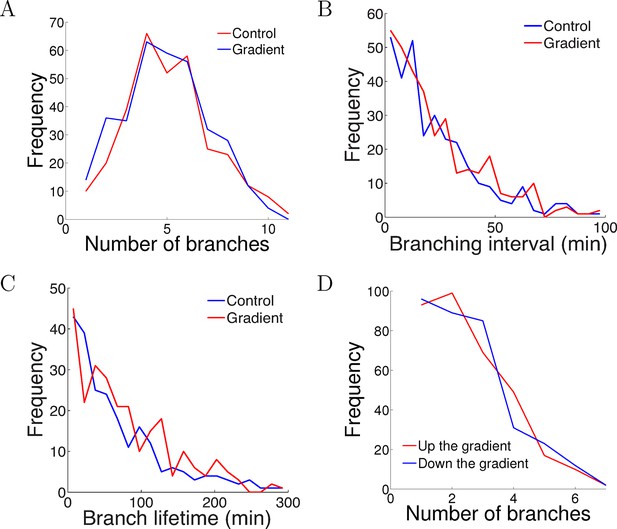

The gradient did not affect branch extension and retraction rates.

(A) Histogram of the number of cells with different numbers of branches after 5 hr of growth. The number (mean ± std) of branches per neuron in the control condition was 4.2 ± 1.8 (n=324 cells) and in the gradient condition was 4.4 ± 1.9 (n=297 cells), p = 0.9 Kolmogorov–Smirnov test. (B) The distribution of interval times between two successive branching events of the same cell. The interval (mean ± std) in the control condition was 23.1 ± 22.8 min (n=315 intervals) and in the gradient condition was 24.1 ± 23.5 min (n=287 intervals), p = 0.7 KS test. (C) Branch lifetime (mean ± std) in the control condition was 87 ± 79 min (n=245 branches) and in the gradient condition was 92 ± 81 min (n=213 branches), p = 0.2 KS test. (D) Histogram of the number of branches pointing up the gradient vs down the gradient (p = 0.8, KS test).

https://doi.org/10.7554/eLife.12248.012

Flow did not affect the statistics of steps

To test whether fluid flow in the chamber biased the statistics of the steps, axons growing in the gradient condition with fluid flow were divided into four quadrants with different relative angles to the fluid flow: two quadrants growing perpendicular to the flow, one quadrant growing with the flow, and the other growing against the flow (Figure 6A). Comparing the distribution of bearing changes between the four quandrants, and with axons from the control condition without any flow, showed no influence of the flow (p = 0.7 in Figure 6B and p = 0.4 in Figure 6C, Kruskal-Wallis test). The means of the bearing changes in quadrants 2 and 4 were non-zero, and the bearing changes accumulated over time to result in a non-zero average turning angle of the population. However, these differences in means were very small (approximately 1°), and there were no significant statistical difference among the distributions. Therefore, the positive turning angles in the NGF gradient (and negative turning angles in the NGF gradient + KT5720) were due to the effect of the gradient, not bias from the flow.

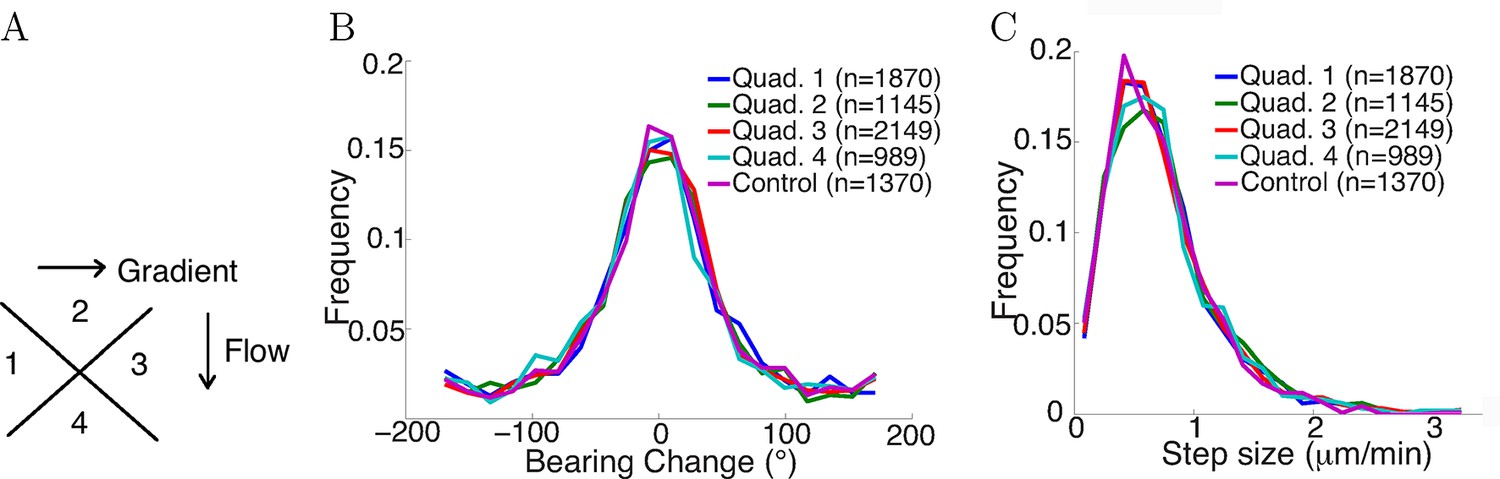

Flow did not affect step statistics.

(A) Axons growing in different directions were grouped into four quadrants. (B) Growth cones’ step sizes in different quadrants. n values refer to the number of steps in each quadrant. There was no significant difference between the quadrants (p = 0.7 Kruskal-Wallis test). (C) Grow cones’ bearing changes in different quadrants (p = 0.4 Kruskal-Wallis test).

https://doi.org/10.7554/eLife.12248.014

Growth cone trajectories were generally straight

Axon growth is shown in Videos 13 and Figure 7A–C. The growth cone often wandered quite randomly, but nevertheless usually the axon segment remained very straight from the growth cone to the cell body or last axon branch point (Figure 7A–C). This implies that often the entire axon segment was pulled sideways across the substrate (as can be seen directly in the movies). Thus, despite the irregular trajectory of the centre of the growth cone, the tension force on the growth cone from the axon was usually pointing directly back to the last anchor point, consistent with the assumptions of the model. To quantify this further, we measured the angle of this 20 μm segment and the angle to the anchor point ϕ and found them to be almost the same (Figure 7D,E). Thus, we can understand the term ϕ as the tension due to the most distal segment.

Axons were dragged by growth cones.

(A–C) Timelapse images of three example growth cones. Red arrows point to the putative anchor points and green arrows point to the growth cones. Time is shown in hours and minutes. (D) We measured the angle of the neck of the growth cone (the last 20 μm, black line) and the overall growth cone angle (blue line) after 1 hr from the start of the experiment. (E) The two angles were highly correlated, due to the straightness of the axon.

https://doi.org/10.7554/eLife.12248.016
Video 1
Timelapse images of an example growth cone.

One-minute interval phase contrast timelapse imaging of a growth cone in a microfluidic chamber.

https://doi.org/10.7554/eLife.12248.018
Video 2
Timelapse images of an example growth cone.

One-minute interval phase contrast timelapse imaging of a growth cone in a microfluidic chamber.

https://doi.org/10.7554/eLife.12248.019
Video 3
Timelapse images of an example growth cone.

One-minute interval phase contrast timelapse imaging of a growth cone in a microfluidic chamber.

https://doi.org/10.7554/eLife.12248.020

The trajectories (i.e. the locus of the centre of the growth cone) in three conditions are plotted in Figures 810. Note that these paths are not the same as the final image of the axon, which generally pointed straight back from the final position of the growth cone to the anchor point. Visually, the paths appear mostly straight with occasional large turns, consistent with a long tail for the bearing change distribution. The mean straightness index for the trajectories was S = 0.72 (Figure 11A).

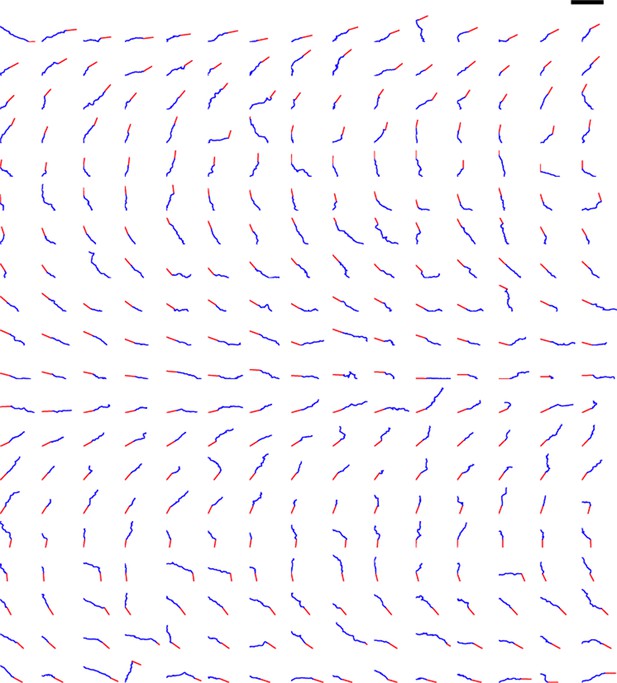

Trajectories of 300 axons growing over 80 min in the control condition, ordered by the initial angle.

The red segments indicate the initial direction of the axon and the blue segments show the traces of the growth cones’ trajectories. Scale bar = 100 μm.

https://doi.org/10.7554/eLife.12248.021

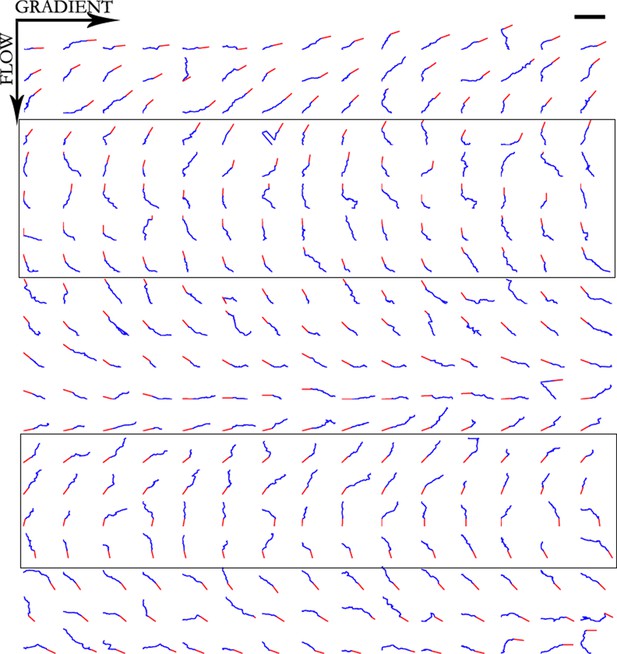

Trajectories of 300 axons growing over 80 min in the NGF gradient, ordered by the initial angle.

Only axons in the box were selected for turning angle measurements as they were almost perpendicular to the gradient, hence most affected by it. Scale bar = 100 μm.

https://doi.org/10.7554/eLife.12248.022

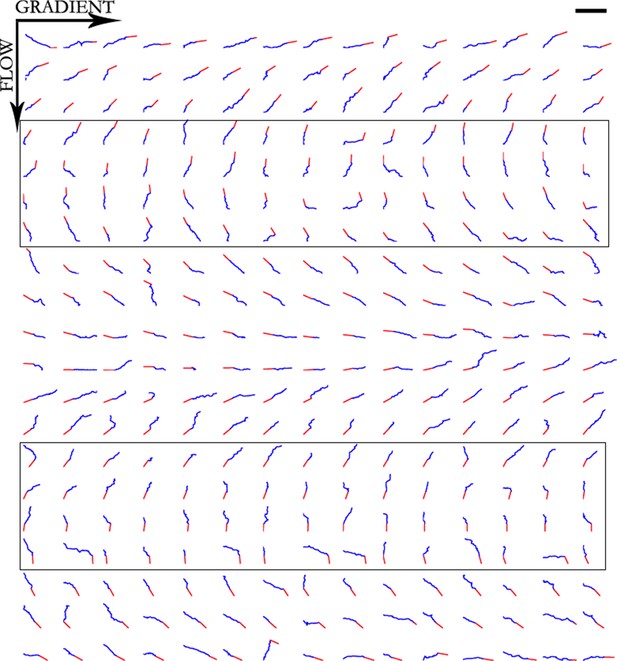

Trajectories of 300 axons growing over 80 min in the NGF gradient with 70 nM KT5720 added, ordered by the initial angle.

Only axons in the box were selected for turning angle measurements. Scale bar = 100 μm.

https://doi.org/10.7554/eLife.12248.023

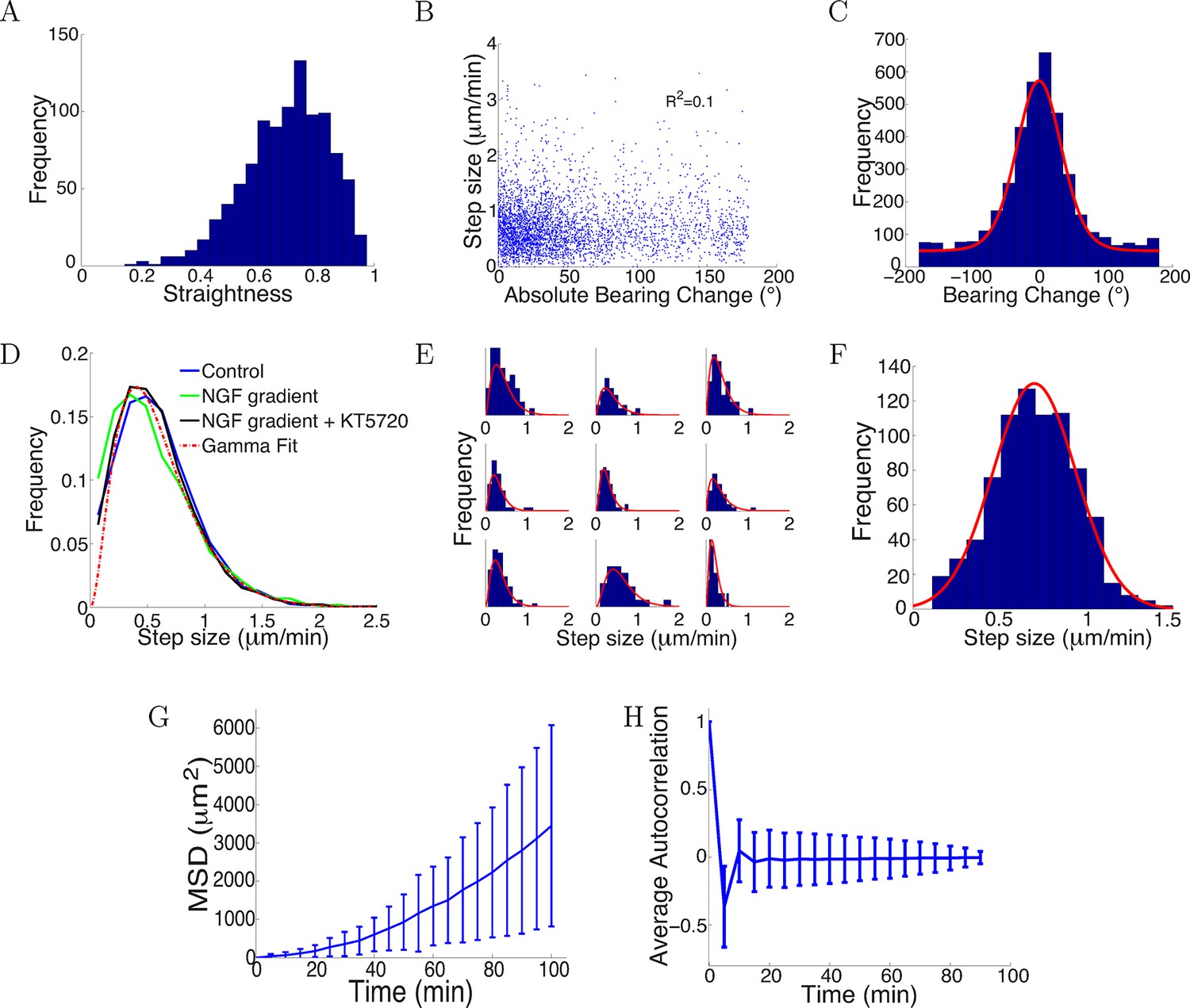

Trajectories were straight with step sizes and bearing changes independent of each other.

(A) Distribution of straightness indices of all paths with mean straightness of 0.72. (B) There was no correlation between bearing change and step size (R2 = 0.1, p = 0.7). (C) The distribution of bearing changes (blue) in radians in the control condition can be fitted to a mixture of two von Mises distributions (red) P(x)=0.5exp(3cos(x))2π I0(3)+0.03. (D) Step sizes in the control, attractive and repulsive gradients conditions were similar and well-fitted by the gamma distribution P(x x2 exp(−x/24) (red). (E) Step sizes of individual growth cones (blue) can be described by gamma distributions (red) (9 examples shown). (F) This distribution of the average step sizes (blue) of individual growth cones was well-fitted by a Gaussian distribution N(0.7, 0.24) (red). (G) Mean square displacement and standard deviation of 300 growth cones growing over 100 mins in the control condition was super-linear, indicating that growth cone trajectories were straighter than predicted by a simple random walk. (H) Autocorrelation of bearing changes (mean ± std) showed that successive bearing changes were anti-correlated.

https://doi.org/10.7554/eLife.12248.024

Step size and bearing change distributions were similar across conditions

There was little correlation between the bearing change magnitude and step size (Figure 11B). The distribution of bearing changes in radians was well fitted by a mixture of a von Mises and a uniform distribution (−π < x < π) (Figure 11C). That is there was a great deal of randomness in bearing changes, but with a peak in probability near the forward direction. Thus, growth cones tended to move in a straight line instead of turning uniformly randomly. This is inconsistent with the assumptions of several previous models (Buettner et al., 1994; Odde and Buettner, 1995; Maskery et al., 2004).

Accumulating across all the growth cones, the distributions of step sizes over 5 min were statistically indistinguishable across the three conditions (Kruskal-Wallis test p = 0.35), and were well fitted by a gamma distribution (Figure 11D). That is, the most likely step size was around 0.5 μm/min, but the distribution had a long tail, so that longer step sizes were also seen. The distribution of step sizes for each individual growth cone were also well fit by gamma distributions (Figure 11E). However, individual growth cones had idiosyncratic mean values. The distribution of these mean values could be well fitted by a Gaussian distribution (Figure 11F).

Nevertheless, the mean square displacement was clearly not linear, implying that a simple random walk is not suitable to describe the movement (Figure 11G). Successive steps were anti-correlated (Figure 11H), which was not accounted for in a previous model (Pearson et al., 2011). This helps the paths remain relatively straight: if successive steps were positively correlated, the paths would become more bent over time. Due to large noise in the bearing changes, bearing changes more than one step apart were uncorrelated.

Turning angles over time were well predicted by the model

Having established the key statistics of steps from the data, we now asked if the simple model in Equation (1) could replicate the observed trajectories and explain the phenomenon of saturated turning. We sampled the mean speed vmean of each growth cone from a truncated Gaussian distribution of mean 0.7 μm/min and standard deviation 0.24 μm/min. At each time point (5-min interval), the growth cone sampled a step size from the gamma distribution Γ(4u,vmean*u4) where u was a uniform random number. The bearing changes evolved according to Equation (1). We found that the random noise ξ in bearing changes (in radians) could be well fit by the mixture von Mises distribution

P(ξ) = cexp(d cos(ξ))2π I0(d) + (1-c)

where c and d are parameters to be fit. This distribution is not necessarily the same as that of the bearing changes in Figure 11F. As the bearing change is the sum of three random terms, its distribution is broader than the distribution of the noise term. To estimate the four free parameters a,b,c,d, we input the initiation angles ϕ(0) and used the model to generate the distribution of turning angles ψturn. We then estimated the likelihood function that the turning angle data was generated from the model with the given parameters L(ψturn|a,b,c,d,ϕ(0)) .

We found the values of a,b,c,d that maximized the likelihood (the parameters mostly likely to have generated our empirical turning angle data) were a = 0.7, b = 0.09, c = 0.75, d = 6. The statistics over 5000 simulated trajectories using these parameters are shown in Figure 12, and some example trajectories are shown in Figure 13. Similarly, we fitted the model to the control data and repulsive gradient and found b = 0.002 and b=−0.08, respectively, with other parameters remaining at very similar values as before. Notably, the simulated turning angles changed little over time (Figure 12A), consistent with our preliminary prediction and the data (Figures 1E, 4C). Thus, with realistic step sizes and bearing change noise distributions, the model was able to capture the phenomenon of saturated turning with quantitatively accurate means and variances over time. The distribution of turning angles and step sizes also closely matched the real data (Figure 12B,C). The simulated straightness distribution was also very smilar to the real distribution (p = 0.2, t-test) (Figure 12D). The model also captured the distribution of bearing changes, the mean square displacement and the anticorrelation between successive bearing change, which was a consequence of the persistence term straightening the paths (Figure 12D–F). If successive steps were positively correlated, the paths would become more bent over time. This correlation was rapidly lost beyond one time lag because of the large noise.

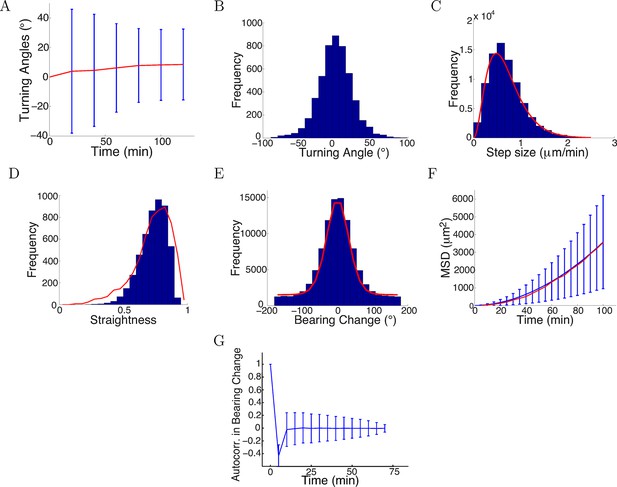

Model captured key statistics of trajectories.

(A) The evolution of simulated turning angles (mean ± std) of n=5000 growth cones over time in the attractive gradient condition. (B) Simulated turning angles after 16 steps (80 min) had mean 9.8° and standard deviation of 24.2°, similar to the empirical data in red in Figure 4B. (C) Distribution of simulated step lengths (blue), fitted with the empirical distribution (red). (D) Straightness of simulated trajectories (mean 0.75, blue), compared with empirical distribution (red) (p = 0.2, t-test). (E) Simulated bearing changes (blue) fitted with the mixture of von Mises distributions given in Figure 11D (red). (F) Mean square displacement of simulations (blue) and data (red). (G) Autocorrelation of simulated bearing changes.

https://doi.org/10.7554/eLife.12248.026
Simulated trajectories from three conditions.

(A) control, (B) NGF gradient, (C) NGF gradient + KT5720.

https://doi.org/10.7554/eLife.12248.028

Unlike previous models, we did not assume constant steps or a uniform distribution of bearing changes but rather derived these from empirical data. The model was then able to predict the evolution of the average turning angle over time, the straightness profile and the anticorrelation in bearing changes. Most importantly, it could explain the phenomenon of slow and saturated turning, due to a weak bias term relative to the persistence term. A microscopic factor in each step led to a macroscopic phenomenon of limited, variable turning and straight paths. This often overlooked feature of axon growth turned out to be critical in our model in limiting the overall turning. We also found little difference between the attractive and repulsive case, indicating that attractive and repulsive gradients employed similar mechanisms and could not reduce the variability of axon trajectories.

Multiple anchor points achieved sharp turns but also increased variability

The in vitro data we have presented here was well-fitted by assuming the only anchor point is where the axon emerges from the soma or the branch point. However, the in vivo environment is much more complex, and axons may establish anchor points with the substrate at multiple positions as they extend. We therefore investigated in the model what effect this would have on turning angles. We assumed that at each timestep, the probability of that point becoming a new anchor point was fixed, while leaving the evolution at each step as before. The average number of anchor points per timestep (i.e. 5 min) is denoted by r. We analyzed two cases: anchoring probabilistically at each time step (Figure 14A–C), and anchoring at regular intervals (Figure 14D–F). We simulated the trajectories for T = 150 timesteps with the same parameters as Figure 2A (a = 1, b = 0.1, ξ = 0 or ξ  (0, π/4) radians). In both cases, more anchor points led to sharp turns in the trajectories and larger mean turning angle (Figure 14G), since the growth cone now was more free from its initial position. However, it increased the variability in the turning (Figure 14G). Given the same rate of anchoring, whether the growth cone put down new anchor points probabilistically or regularly made little difference to the mean turning. We compared the mean square final angle ϕ(T)2 which is the sum of the bias ϕ(T)2 and the variance (ϕ(T)). Ideally, the growth cone should completely align with the gradient, that is ϕ(T)=0. Figure 14H shows the bias/variance trade off. Although more anchor points introduced larger variance in the final angle, they achieved greater turning, that is smaller ϕ(T). Figure 14I shows that in the case without movement noise (ξ = 0) and regular anchoring, the growth cone angle ϕ(t) also followed a power law in the large t limit, similarly to the case without anchoring (Figure 1C). However, the exponent of this power law was larger, demonstrated by a steeper slope between log(t) and log(ϕ(t)), meaning that the growth cone aligned with the gradient faster with more anchor points. Thus, increasing the rate of anchoring leads to stronger turning, but increases the variance of the responses.

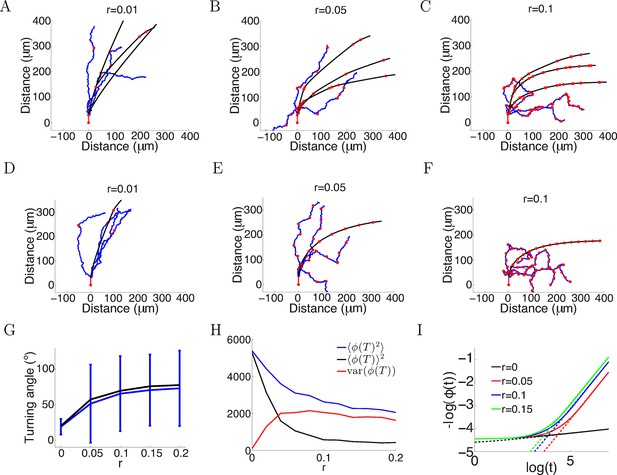

More variability with more anchor points.

(A–C) Trajectories of growth cones with probability of putting down a new anchor r= 0.01, 0.05, 0.1 at each timestep and the same parameters as Figure 2A (a = 1, b = 0.1, T = 150 timesteps). The black plots are without noise in the bearing changes, the blue plots are with noise ξ~N(0,π/4) radians in the bearing changes and the red dots are the anchor points. More anchor points lead to higher variability but also stronger turning. The means and standard deviations of turning angles and the values for the noiseless versus the noisy case in brackets for = 0.01, 0.05, 0.1 are 32 ± 9° (30 ± 36°), 55 ± 8° (49 ± 57°) and 67 ± 5° (60 ± 56°), respectively. (D–F) Trajectories of growth cones with the same rate of putting down new anchor points as A-C but at regular intervals. The means and standard deviations of turning angles and the values for the noiseless versus the noisy case in brackets are 27° (24 ± 17°), 57° (54 ± 51°), 69° (66 ± 51°). (G) The means and standard deviations of turning angles after 150 timesteps as a function of the anchoring rate at regular intervals in the noiseless and the noisy case. (H) The mean square of the final growth cone angle (in degrees) ϕ(T)2 for different anchoring rates r after 150 steps. ϕ(T)2 is the sum of the bias term ϕ(T)2 and the variance term var(ϕ(T)). Although more anchor points add more variance to the final angle (red curve), they achieve stronger turning ϕ(T)0 (black curve). (I) The evolution of ϕ(t) over time, for the case of anchoring at regular intervals and no noise in the movement (ξ = 0). With more anchor points, ϕ(t) also follows the power law but with steeper slope, meaning that ϕ(t)0 at a faster rate than the case without anchor points.

https://doi.org/10.7554/eLife.12248.029

Discussion

Here, we presented a model of axon trajectories in gradients and helped resolve the mystery of why axon turning angles in gradients saturate over time in vitro, revealing an important factor limiting axon turning. We found that the movement of the growth cone was strongly influenced by the axon’s tendency to maintain a straight trajectory forward, limiting the directional effect of the gradient and preventing the axon from aligning with the gradient even after a long time. Our model predicted that, averaged over a large population of axons, the initial rate of turning drops rapidly over a short period of time (20–40 min). The model shows that adding more anchor points can give the growth cone more flexibility and produce larger average turning, but also increases the variability. Thus, we predict that different substrates, producing different densities of anchor points, could result in different trajectories for the same the gradient conditions.

The application of forces to axons can induce rapid elongation without axonal thinning, and thus stretch can stimulate growth (Suter and Miller, 2011). Furthermore, stretch can also regulate the mode of growth. When axons are tightly bound to a sticky substrate, stretching only happens at the tip and axons elongate by tip growth. In contrast, if axons grow relatively unattached to the substrate, they will lengthen by stretching due to the pull of the growth cone (Chang et al., 1998; O'Toole et al., 2008), which appears to be the case in our experimental condition. The tension along the axon will cause stimulation of growth in the existing direction producing straighter trajectories. The stiffness of axons is also important (Rajagopalan et al., 2010), and stiffer axons will likely have higher persistence due to their more limited ability to bend.

This tension results from cytoskeletal coupling with adhesive interactions to the substrate and is critical to growth cone migration (Heidemann et al., 1997; Spire, 2009). Although anchor points are an abstraction in our model, their biological implementation may be focal adhesions. Only at these points is the axon firmly attached to the substrate. There is a number of ways in which anchor points could be investigated experimentally in future work. Axons could be stained for proteins such as integrins (Kaverina et al., 2002) to test whether their distribution is strongly localized to particular points along the axon. We also predict that applying force orthogonal to the direction of axon growth, for instance by using a pipette to puff liquid at different locations along the axon, would cause a deflection of the axon of a size related to the distance from the nearest anchor point. A similar experiment was performed using a glass needle to tow axons (O'Toole et al., 2008). It was observed that the distal region of the axon was free of the substrate, while the proximal region was firmly attached. In addition, it could be possible to determine the internal stress field of an axon, as has been done for growth cones (Betz et al., 2011): we would expect the stress to in general be different on the two sides of an anchor point. The density of anchor points will depend on the components of the extracellular matrix (ECM). In our experiments, on laminin, they appeared to be rare. This might be because adhesion points are expensive to produce and the axon can grow faster when it is not attached to the substrate (Chang et al., 1998). However, the biological factors governing when new anchor points are generated are unknown.

Tension is also dependent on cell type and two main properties of the substrate: stiffness and ECM components. Our data comes from peripheral nervous system (PNS) neurons growing on a laminin substrate that is hard rather than gel-like, and other cell types of different substrates might have different behaviours. Central nervous system (CNS) and PNS neurons have different sensitivities to substrate stiffness due to adaptation to their natural environments (Koch et al., 2012), and traction force in vitro increased on stiffer substrates (Koch et al., 2012). Substrates with different ECM components differentially promote growth cone motility and point contact formation. For example, growth cones are more highly motile and neurites extend more rapidly on laminin than fibronectin because point contacts have higher turnover rate (Robles and Gomez, 2006).

Overall, our work suggests that without many anchor points, cues additional to gradients may be necessary for axons to reliably find their targets in vivo (unless the motility noise is for some reason much lower in vivo than in vitro). These could include mechanical cues and axon-axon interactions. To understand such interactions, it is important to generate assays with realistic substrates suitable for different cell types. Recent 3D culture models, in which cells are grown with a protein scaffold, can capture some aspects of the tissue environments instead of hard surfaces (Cullen et al., 2007). It will be interesting to see how different ECM properties lead to changes in trajectories and whether they can facilitate more reliable turning.

In conclusion, we have presented a simple mathematical model which gives accurate quantitative predictions of the properties of axonal trajectories in a microfluidics-based in vitro gradient assay. The model identifies the key importance of anchor points in controlling turning and provides an explanation for why axonal turning in gradients in vitro tend to saturate rapidly at small turning angles. This model provides a predictive framework which can be used to test whether axonal trajectories observed in vivo can be explained purely in terms of gradient guidance, or whether additional guidance mechanisms are also required.

Materials and methods

Microfluidics chamber fabrication

The device was designed in AutoCAD 2013 based on the pattern in (Dertinger et al., 2001). The microfluidic master molds were prepared by standard soft photolithography techniques. The silicon wafer (M.M.R.C. Pty Ltd) was coated with a 50 μm thick layer of SU-8 2100 relief (MicroChem, Westborough, MA) with a spincoater (EVG). The master was printed onto high-precision photoplates (Konica-Minolta) with a photoplotter (EVG). Before replica moulding, the silicon master was silanized with vapour phase silane, under vacuum for 1 hr at room temperature to prevent polydimethylsiloxane (PDMS) adhering to the master.

PDMS base elastomer (Sylgard 184, Dow Corning, Midland, MI) and silicon elastomer curing agent in a 10:1 (m/m) ratio were thoroughly mixed and poured on the master to a depth of about 4 mm. The mold with PDMS was degassed in a vacuum chamber for 2 hr and baked at 80°C for 2 hr. The PDMS replica was then peeled from the silicon wafer and cut into individual chambers. Holes were cored in the PDMS chambers using a 0.75 mm corer (Harris Uni-Core). To bond the PDMS chamber to a plastic tissue-culture petri dish, the dish and the chamber were plasma treated at 100W at a pressure of 380 mTorr for 40 s. The plate was then covered with (3-Aminopropyl)triethoxysilane (APTES, Sigma-Aldrich) solution (5% APTES in 70% ethanol). The plastic dish was washed thoroughly with water, air dried, and the chamber was pressed onto the dish. To avoid air bubbles forming, the dish was filled with distilled water and degassed in the vacuum chamber for 10 min before use.

Primary superior cervical ganglion (SCG) cell culture

SCG neurons were harvested from postnatal day 1–3 Wistar rat pups. The SCGs were then cut into thirds, incubated in 0.25% trypsin (GIBCO) at 37°C for 30 min and then triturated through a flamed-polished Pasteur pipette for 5 min to dissociate individual cells. The growth solution was Opti-MEM solution (GIBCO) containing 1X penicillin/streptomycin, 10 μg/mL mouse laminin, 4% (v/v) fetal calf serum, 2% B-27 supplement (Life Technologies), and 0.3 nM NGF. The cells were suspended in the growth solution and injected in the microfluidic chamber using a 100-μL glass syringe (SGE Analytical Science).

Gradient generation and measurement

Two syringes were filled with either the high (10 nM) or low (0 nM) NGF solution. The high solution contained 0.1% (v/v) 40 kDa-dextran fluorescently labelled with tetramethylrhodamine to visualize the gradient. After the cells were seeded, the syringes containing the high and low solutions were connected to the chamber using polyethylene tubings. The chamber was moved to an incubated inverted microscope (Zeiss AxioObserver). The syringes were attached to a Harvard PHD pump and the flow rate was set at 10 μL/hr. After the flow had been started, fluorescent images of the chamber were taken in Zen software. Background intensity outside the chamber was subtracted from the images. The average brightness intensity and variations over time were then calculated across the chamber. A gradient of fluorescence confirmed that the NGF gradient had formed in the growth chamber. To generate a repulsive gradient, KT5720 (Alexis Biochemicals), a specific inhibitor of protein kinase A (PKA), was added into both the high and low solutions at a concentration of 70 nM.

Tracking growth cone trajectories

After the onset of the gradient, the axons were imaged every 5 min for 6 hr using Zeiss Zen software. After data acquisition, axons of 30 μm length, growing in all directions, that did not branch or retract in at least 80 min, were chosen for measurements. All axons were tracked manually using customized MATLAB software (The MathWorks) for as long as possible until they branched or retracted. A 5-min time interval was chosen because, for smaller intervals, variability in identifying the centre of the growth cone was larger than the net movement between frames. The point where the axon attaches to the cell body or the main branch was considered the anchor point.

The straightness index

The straightness index S is the inverse of tortuosity, and compares the overall net displacement G of a path with the total path length T (Codling et al., 2008). Consider a walk that starts at location (x0,y0), and after n steps of lengths lj (j = 1...n) finishes at (xn,yn). The straightness index is given by:

S = GT = (xn - x0)2+ (yn - y0)2j=1 nlj

This index is between 0 and 1, where 1 corresponds to movement in a straight line and 0 corresponds to a walk that returns to the origin. The closer this index is to 1, the straighter the trajectory is. Obviously, S depends on the time interval used for tracing but can be used to compare conditions, which all have the same time interval.

Modeling growth cone trajectories

All parameters of the model are summarized in Table 1. We consider a model which is a discretized random walk in which we separate the length and directions of the steps (Figure 1A). We discretized the axons at a timestep of 5 min, and, based on hypotheses we test later, only explicitly modelled the turning angles of the steps or ’bearing changes’. Δθ(t), the ‘bearing change’ at time t depends on the current bearing of the growth cone θ(t), the angle ϕ(t) of the vector connecting the growth cone to its anchor point, the gradient direction Ψ and the noise ξ according to Equation (1):

Δθ(t)=a (ϕ(t),θ(t))+b (Ψ,θ(t))+ξ,

where two parameters a and b scale the contributions of the first term representing persistence and the second term representing the bias due to the gradient. The symbol (x,y) denotes the angle difference x-y constrained to take values from −π to π. It is positive for an anticlockwise turn to get from y to x. As the bearing is biased by the gradient direction, the overall growth cone angle ϕ(t) will also be biased by the gradient, coupled through the above equation.

We first assume there is only one fixed anchor point where the axon initially grew out of the cell body or the main branch. We will later relax this assumption and allow the growth cone to put down new anchor points along its path. We denote the rate of anchor point deposition as r, which is the inverse of the average number of steps per new anchor point.

We first assume an initial direction of ϕ(0)=θ(0)=π2, a gradient direction of Ψ = 0, and a fixed step size s every 5 min. In the idealized noiseless case (ξ = 0) as t, the equation reaches a steady state when Δθ=0, that is:

θ(t)=a(ϕ(t)-θ(t))+b(0-θ(t)) = 0.

This gives:

θ(t) = aa+bϕ(t)=αϕ(t)

with α=aa+b. Defining L to be the distance of the growth cone from its original position, and using the geometry in Figure 1A, we have:

tan(ϕ(t+1))=L sin ϕ(t)+s sin(αϕ(t))L cos ϕ(t)+s cos(αϕ(t)) tan(ϕ(t)) + s sin(αϕ(t))L cosϕ(t) - L sin ϕ(t)s cos(αϕ(t)) L2cos2ϕ(t)

The approximation above is due to s ≪ L and ϕ(t) → Ψ = 0 as t → ∞. Using the Taylor expansion f(x0 + δx) ≈ f(x0) + δxf’(x0) and d tan−1(x)/dx = 1/(x2 + 1), we invert both sides of the above equation to obtain:

ϕ(t+1) tan-1tan ϕ(t) + s sin(αϕ(t))L cos ϕ(t) - L sin ϕ(t)s cos(αϕ(t))L2 cos2 ϕ(t)                      ϕ(t) + s sin(αϕ(t))L cosϕ(t) - L sin ϕ(t)s cos(αϕ(t)) L2 cos2 ϕ(t)  cos2 ϕ(t)                   ϕ(t) + s/L (sin (αϕ(t)) cos ϕ(t) - cos (αϕ(t)) sin ϕ(t))                                           ϕ(t) + s sin((α-1) ϕ(t))/L

At t, Δθ(t)0, meaning the growth direction aligns with the gradient, thus ϕ(t) 0 and Lst due to geometry (even for the a = 0 case), so the above equation can be simplified as

dϕ(t)dt (α-1)ϕ(t)t
dϕ(t)ϕ(t) (α-1)dtt
ln ϕ(t)=(α-1) ln t+const

Therefore, the long-term turning behaviour of axons in the model is given by the power law ϕ(t)t(α-1).

References

  1. 1
  2. 2
    Growth cones as soft and weak force generators
    1. T Betz
    2. D Koch
    3. Y-B Lu
    4. K Franze
    5. JA Kas
    (2011)
    Proceedings of the National Academy of Sciences of the United States of America 108:13420–13425.
    https://doi.org/10.1073/pnas.1106145108
  3. 3
  4. 4
  5. 5
    Branching patterns of individual sympathetic neurons in culture
    1. D Bray
    (1973)
    The Journal of Cell Biology 56:702–712.
  6. 6
    Mechanical tension produced by nerve cells in tissue culture
    1. D Bray
    (1979)
    Journal of Cell Science 37:391–410.
  7. 7
    Axonal growth in response to experimentally applied mechanical tension
    1. D Bray
    (1984)
    Developmental Biology 102:379–389.
  8. 8
  9. 9
    Transport and turnover of microtubules in frog neurons depend on the pattern of axonal growth
    1. S Chang
    2. VI Rodionov
    3. GG Borisy
    4. SV Popov
    (1998)
    The Journal of Neuroscience 18:821–829.
  10. 10
  11. 11
    Random walks models in biology
    1. AE Codling
    2. JM Plank
    3. S Benhamou
    (2008)
    Journal of the Royal Society Interface 5:813–834.
  12. 12
  13. 13
    Generation of gradients having complex shapes using microfluidic networks
    1. SKW Dertinger
    2. DT Chiu
    3. NL Jeon
    4. GM Whitesides
    (2001)
    Analytical Chemistry 73:1240–1246.
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    Axonal elongation as a stochastic walk
    1. MJ Katz
    2. EB George
    3. LJ Gilbert
    (1984)
    Cell Motility 4:351–370.
  27. 27
    How straight do axons grow?
    1. MJ Katz
    (1985)
    The Journal of Neuroscience 5:589–595.
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Chemotactic response of nerve fiber elongation to nerve growth factor
    1. PC Letourneau
    (1978)
    Developmental Biology 66:183–196.
  35. 35
    Axonal pathfinding: Extracellular matrix role
    1. Letourneau PC
    (2009)
    In: LR Spire, editors. Encyclopedia of Neuroscience, vol 1. Oxford: Academic Press. pp. 1139–1145.
  36. 36
    Computer model of growth cone behavior and neuronal morphogenesis
    1. GH Li
    2. C QIn
    3. LW Wang
    (1995)
    Journal of Theoretical Biology 174:381–389.
  37. 37
  38. 38
    Asymmetric modulation of cytosolic cAMP activity induces growth cone turning
    1. AM Lohof
    2. M Quillan
    3. Y Dan
    4. MM Poo
    (1992)
    The Journal of Neuroscience 12:1253–1261.
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    Axon guidance by growth-rate modulation
    1. D Mortimer
    2. Z Pujic
    3. T Vaughan
    4. AW Thompson
    5. J Feldner
    6. I Vetter
    7. GJ Goodhill
    (2010)
    Proceedings of the National Academy of Sciences of the United States of America 107:5202–5207.
    https://doi.org/10.1073/pnas.0909254107
  49. 49
    Time series characterization of simulated microtubule dynamics in the nerve growth cone
    1. DJ Odde
    2. HM Buettner
    (1995)
    Annals of Biomedical Engineering 23:268–286.
  50. 50
    Effect of nerve growth factor (nGF) on survival of superior cervical ganglion (sCG) transplanted into the third ventricle in rats japanese
    1. H Ohta
    2. M Nishizuka
    3. Y Arai
    4. H Saito
    (1990)
    Journal of Pharmacology 53:11–18.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
    The molecular biology of axon guidance
    1. M Tessier-Lavigne
    2. CS Goodman
    (1996)
    Science 274:1123–1133.
  66. 66
  67. 67
  68. 68
    Colocalization of NGF binding sites, trk mRNA, and low-affinity NGF receptor mRNA in primary sensory neurons: responses to injury and infusion of NGF
    1. VM Verge
    2. JP Merlio
    3. J Grondin
    4. P Ernfors
    5. H Persson
    6. RJ Riopelle
    7. T Hökfelt
    8. PM Richardson
    (1992)
    The Journal of Neuroscience 12:4011–4022.
  69. 69
    A microfluidics-based turning assay reveals complex growth cone responses to integrated gradientsof substrate-bound ECM molecules and diffusible guidance cues
    1. JC Wang
    2. X Li
    3. B Lin
    4. S Shim
    5. GL Ming
    6. A Levchenko
    (2008)
    Lab Chip 586:227–237.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
    Tensile regulation of axonal elongation and initiation
    1. J Zheng
    2. P Lamoureux
    3. V Santiago
    4. T Dennerll
    5. RE Buxbaum
    6. SR Heidemann
    (1991)
    The Journal of Neuroscience 11:1117–1125.
  78. 78
    A new direct-viewing chemotaxis chamber
    1. D Zicha
    2. GA Dunn
    3. AF Brown
    (1991)
    Journal of Cell Science 4:769–775.
  79. 79
    Ability of polymorphonuclear leukocytes to orient in gradients of chemotactic factors
    1. SH Zigmond
    (1977)
    The Journal of Cell Biology 75:606–616.

Decision letter

  1. Frances K Skinner
    Reviewing Editor; University Health Network, Canada

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "A mathematical model explains saturating axon guidance responses to molecular gradients" for consideration by eLife. Your article has been favorably evaluated by Eve Marder (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors present an interesting model to explain turning of growth cones as a function of a guidance cue gradient in vitro. At its core is a principle based on anchor points. All of the reviewers thought that this was interesting work of modeling and experimental interaction to understand why axons turn relatively weakly in response to attractant gradients. However, various aspects of the manuscript gave the reviewers pause, and need to be addressed. They are:

1) To confirm the biological basis and interpretation of the essential part of the model regarding anchor points. Specifically, to address the following questions:

A) Are or are not the authors’ own SCG neuron imaging data consistent with any stiffness, tension, drag or pull of the axon between an anchor point and the growth cone?

B) Do anchor points exist and interact with the mechanics of the axon in specific (and testable) ways?

If answers to the above cannot be definitive, then it should be made clear what experiments are motivated by the work. If not, the authors need to address whether such a model is still of use if anchors are an incorrect assumption.

In essence, the questions on the behavior of their SCG neurons or the question regarding the anchor point existence more generally need to be addressed with data.

2) To tone down overly strong statements. Specifically, see comments by reviewers# 2 and 3 below.

3) To address technical and manuscript issues (see comments from all reviewers below).

Reviewer #1:

Various aspects in the modeling were confusing/unclear.

1) In the “Modeling growth cone trajectories” section, it is not clear how θ(t)=a/a+b ϕ(t) equation comes about. Also, it does not make sense to compare 's' (fixed speed) and 'L' (distance of the growth cone) with s<<L as they are not equivalent in terms of units. Further down it is stated s approx Lt (which does make sense in terms of units). It can't be both.

2) At the end of the section “Modeling growth cone trajectories”, the power law is not clear to me – there seem to be an exponential (10^) aspect missing in the integration of the above equation?

3) In the second paragraph of the section “A correlated walk model of growth cone trajectories” (Results), 's' is used for a length – clearly there is some confusion in the presentation.

4) Figure 1C caption is a bit misleading to say 'different combinations of a and b' when a is fixed at 1.

Overall, I think Figure 1 should be expanded and/or modified. This would probably help together with the equations too, which need clarification. For example, I found the D part could/should illustrate the gradient in some way – it is there in the A part only? Perhaps there can be an additional panel that combines these in some way. Also, it would be nice to show part E for other a, b values. Maybe the authors can take the reader completely through with, say, two sets of a, b values, and then show several parameter value sets as done in parts C and D. I found it confusing as set down and had difficulty visualizing/thinking about the trajectory process. For B part, symbol for turning angles could be included/introduced from equations.

In essence, combine equations and figures more effectively and with a step through for one set of parameters, before showing a collection. Similarly, in Figure 2, the A part shows one set of parameters and the B part, 3 different sets of parameters.

I further think that it might be nice to see the full process for a set of parameters (a, b) with and without noise on the same plot (i.e., Figure 1D and 2A aspects).

In general, equation details need to be clarified, and the figures modified to better help the reader understand the model.

5) Figure 12 – in introducing more anchor points to the model, a parameter 'r' is introduced. However, I could not find it anywhere in the equations. Please explain/show how this is included in the modeling.

Reviewer #2:

Technical questions:

Growth cone angle and 'attractant gradient' are independent terms in equation (Athamneh and Suter, 20151). This surprised me, because I would have thought growth cone angle would move toward the attractant and thus be some function of attractant gradient. Could the authors provide some explanation of why they chose to model things this way?

Saturation of turning is explained nicely by a persistence term in the model, which the authors relate to the axon tension and the limited number of 'anchor points'. Another explanation that crossed my mind is that the receptors in the growth cone that sense the attractants themselves saturate. Could this possibility be addressed or ruled out, even as a discussion point?

Axon stiffness might also play a role in persistence. It would be nice if the authors could comment on this.

Finally, how do the concentrations of NGF relate to what is known about dose-response relationships of trkA receptors, e.g. do the gradients approach a saturating concentration?

Manuscript issues:

There are a number of labelling issues in later figures (e.g. missing axis label in Figure 12H, and reference to empirical distribution that was not plotted in Figure 10D). A thorough check of the figures and labelling would be a good idea.

The unit of replication 'n' is not defined. The authors should clearly state how many experiments generated this dataset and what the unit of replication is. Accordingly, statistical tests should state the number of degrees of freedom.

Issues of clarity/presentation:

This article should in principle appeal to a large cross-section of biologists, including developmental biologists with little or no mathematical background. Though the authors have done a good job of explaining what they did in words, it would help to be even clearer in places, e.g. the curves labels in Figure 12H are not very user-friendly. Reminding the reader of the meaning of terms a, b, r, σ, etc. would also help.

Some of the statements are unnecessarily strong (e.g. "Without such a model, it is impossible to determine if trajectories observed in vivo are in fact consistent with gradient guidance" or the statement in the Discussion that the paper "resolves" an outstanding question).It certainly helps resolve this question, but it raises more questions as I have outlined in these comments. Softer language will get the message across and is less likely to put off readers with preconceived ideas.

Reviewer #2 (Additional data files and statistical comments):

Please clearly state unit of replication and degrees of freedom in statistical tests.

Reviewer #3:

1) I am not convinced that the anchor point model is a good model for growth cone turning behavior. There is no evidence that growth cones perform stepwise turning with respect to an anchor point. In the Discussion, the authors describe: "New anchor points could be established when tension is too high, or when it becomes too energetically expensive to drag the neurite." However, I am not aware of published studies that show growth cones physically 'dragging' a neurite (please direct me to such evidence if incorrect). The anchor point idea indeed predicts that the axon between the growth cone and the nearest anchor point should be 'dragged' into the direction where the growth cone moves. Of course, if the anchor point is far away (paper quote: 'the in vitro data we have presented here was well-fitted by assuming the only anchor point is where the axon emerges from the soma'), then a lot of axon would need to be dragged indeed. What would the stiffness of that axon be? The authors acknowledge that the in vivo environment will be more 'complex', but only by assuming there may be more anchor points. Not surprisingly, a closer anchor point allows sharper turns and results in more variability. This simple conclusion is actually one of the major conclusions of the paper.

In summary, I think the anchor point model may be a good idea, but there is precious little evidence supporting it. I am with the authors that a simplification to an elegant in vitro system is a good approach and I would not look for further in vivo relevance, if the in vitro behavior were to fit the model. But if there is an in vivo or in vitro neurite that actually drags an axon between the growth cone and an anchor point, the reader really needs to be shown one. To my knowledge it is more likely that most axons, including in the SCG culture, lay behind the moving growth cone without experiencing any force or tensions required for provide feedback from a hypothetical anchor point. If there is no such feedback, the core of the model cannot be supported.

2) A key prediction of the anchor point model is the tension on the axon between the growth cone and the closest anchor. If such evidence exists for at least some instance, in vivo or in vitro, I can and should be convinced that the model is applicable. This is a true prediction of the core of the anchor point model. In contrast, the measurements provided on the turning speed and the 'saturation' of turning are not true predictions of the model more than they are the basic data the drove the generation of the model in the first place. For example, the authors describe this 'long-standing mystery' many times, use it to justify the model, and then present the data that was used to make the model in the first place as: 'the average turning angle reached the steady state quickly and did not increase significantly with time, matching the prediction of the model (Figure 4C)'. This is a clear case of a model that was made to fit the data. There is no true prediction of the model (one that would not have been possible before running the model) that is tested in the paper. The authors consistently use the wording 'predicted by the model' to describe an outcome of the anchor point model that fits data past or present. Again, I could and should be convinced when, for example, evidence for a real existing anchor point (even just in the SCG culture) were provided, predictions based on tension of the axon, its predicted stickiness to the substrate (as discussed by the authors), etc.

3) I read this study as a purely hypothetical model based on previous data and some new measurements in the SCG culture using a microfluidic device. Links to biology are present only in the Discussion and as speculations (e.g. focal adhesions), but neither integrated into the model, nor tested in experiments. As it stands, the anchor point model clearly reproduces some significant behavior or growth cone turning in vitro. However, the statements in the Abstract that ‘this model explains the long-standing mystery…’ and that ‘this work introduces the most accurate predictive model […] and deepens our understanding of axon guidance events both in vitro and in vivo’ appear to me quite dramatically overstated.

4) Manuscript issues:

In the section related to Figure 9, the authors measured the bearing angles, step sizes, and mean step sizes of individual growth cones and fitted all these parameters by different distributions. However, the explanations of what these different distributions mean in a biological context is inadequate.

In the subsection "SCG neurons were guided in the microfluidic assay", the authors took into consideration only the axons that made an angle between 70° and 110° with the gradient direction since they expected impact of the gradient would be strongest on these axons. The reason behind this expectation is not well explained. Also, although Figure 4A is referred after this expectation, Figure 4A does not show anything related to this.

Did the neurotrophin gradient majorly influence branching or retraction? Those events were discarded and not compared to the gradient control.

In the section "Modelling growth cone trajectories", "s" is referred as constant speed but in the section “A correlated walk model of growth cone trajectories” it is referred as length of a step.

To test whether fluid flow has any effect on statistics of the steps authors divided the axons in 4 quadrants but how this division helps understanding the effect of fluid flow is not clear.

In Figure 3, please indicate which directions are set as 0° and 90°. Also part E and F can be shown on the same graph.

https://doi.org/10.7554/eLife.12248.031

Author response

The authors present an interesting model to explain turning of growth cones as a function of a guidance cue gradient in vitro. At its core is a principle based on anchor points. All of the reviewers thought that this was interesting work of modeling and experimental interaction to understand why axons turn relatively weakly in response to attractant gradients. However, various aspects of the manuscript gave the reviewers pause, and need to be addressed. They are:

1) To confirm the biological basis and interpretation of the essential part of the model regarding anchor points. Specifically, to address the following questions:

A) Are or are not the authors’ own SCG neuron imaging data consistent with any stiffness, tension, drag or pull of the axon between an anchor point and the growth cone?

We are very grateful for the prompt to add material from our study showing this directly. We have added example frames from timelapse movies (Figure 7), and the movies themselves, that show directly that axons are firmly attached to the substrate at a fixed point and are dragged by the growth cone. Since the axons usually remain straight this implies tension in the axons. The literature is abundant with more general evidence that axons are indeed under tension, as we now cite more clearly (Athamneh and Suter, 2015; Betz et al., 2011; Franze and Guck, 2010; Heidemann, Lamoureux and Buxbaum, 1997; Lamoureux, Buxbaum and Heidemann, 1989; Suter and Miller, 2011).

B) Do anchor points exist and interact with the mechanics of the axon in specific (and testable) ways?

From the above movies it is clear that there are points on the axon which are attached to the substrate and do not move. Focal adhesions of axons and growth cones have been well studied in the literature (Katz, George and Gilbert, 1984; Robles and Gomez, 2006; Stoeckli, 2012). We have not definitively established that the anchor points in our assay are focal adhesions in this sense, but we venture it as a reasonable supposition.

If answers to the above cannot be definitive, then it should be made clear what experiments are motivated by the work. If not, the authors need to address whether such a model is still of use if anchors are an incorrect assumption.

We think the timelapse videos provide definitive evidence that anchor points exist (the red arrows point at the putative fixed anchor points). In the Discussion we now suggest experiments that could test this further.

2) To tone down overly strong statements. Specifically, see comments by reviewers# 2 and 3 below.

We have now done this in the Abstract, Introduction and Discussion as detailed below.

3) To address technical and manuscript issues (see comments from all reviewers below).

Please see detailed responses below.

Reviewer #1:

Various aspects in the modeling were confusing/unclear.

We apologise that various aspects of the modeling were confusing/unclear.

1) In the “Modeling growth cone trajectories” section, it is not clear how θ(t)=a/a+b ϕ(t) equation comes about.

We have now clarified this point in the section “A correlated walk model of growth cone trajectories”. In particular, in the idealized noiseless case (ξ=0), as t, the equation reaches a steady state and the growth cone angle stops changing. Mathematically:

a(ϕ(t)θ(t))+b(0θ(t))=0and therefore

θ(t)=aa+bϕ(t)Also, it does not make sense to compare 's' (fixed speed) and 'L' (distance of the growth cone) with s<<L as they are not equivalent in terms of units. Further down it is stated s approx Lt (which does make sense in terms of units). It can't be both.

In the section “Modelling growth cone trajectories”, we have clarified that “s denotes a fixed step length reflecting 5 minutes of growth”.

2) At the end of the section “Modeling growth cone trajectories”, the power law is not clear to me – there seem to be an exponential (10^) aspect missing in the integration of the above equation?

The equation in the section “Modelling growth cone trajectories” implies log(ϕ(t))=(α1)log(t)+constthus ϕ(t)~tα1. We have added this clarification.

3) In the second paragraph of the section “A correlated walk model of growth cone trajectories” (Results), 's' is used for a length – clearly there is some confusion in the presentation.

We apologise for this confusion. ‘s’ is the distance moved in 5 minutes, and we have now made this more explicit in the section “Modelling growth cone trajectories”.

4) Figure 1C caption is a bit misleading to say 'different combinations of a and b' when it a is fixed at 1.

The caption has been changed to “with the same a =1 and different values of b”.

Overall, I think Figure 1 should be expanded and/or modified. This would probably help together with the equations too, which need clarification (see above points). For example, I found the D part could/should illustrate the gradient in some way – it is there in the A part only?

We have added the gradient direction in 1D.

Perhaps there can be an additional panel that combines these in some way. Also, it would be nice to show part E for other a, b values. Maybe the authors can take the reader completely through with, say, two sets of a, b values, and then show several parameter value sets as done in parts C and D.

We appreciate this suggestion. On reflection, we actually removed 1E, since it really repeated information that was already present – a problem that would be exacerbated with the extra panels.

I found it confusing as set down and had difficulty visualizing/thinking about the trajectory process. For B part, symbol for turning angles could be included/introduced from equations.

We have added the symbol for turning angle in Figure 1B.

In essence, combine equations and figures more effectively and with a step through for one set of parameters, before showing a collection.

We hope with the clarification of the equations, Figure 1 is now clearer.

Similarly, in Figure 2, the A part shows one set of parameters and the B part, 3 different sets of parameters.

We apologise for this inconsistency. We now show three sets of a and b in 2A with a consistent color code.

I further think that it might be nice to see the full process for a set of parameters (a, b) with and without noise on the same plot (i.e., Figure 1D and 2A aspects).

As Figure 2A has now become quite dense, we have added 2B to demonstrate the case without noise.

In general, equation details need to be clarified, and the figures modified to better help the reader understand the model.

We hope the changes outlined above address these issues.

5) Figure 12 – in introducing more anchor points to the model, a parameter 'r' is introduced. However, I could not find it anywhere in the equations. Please explain/show how this is included in the modeling.

We apologise for this oversight, and have now added the definition of ‘r’ in both the Methods and the Results.

Reviewer #2:

Technical questions: Growth cone angle and 'attractant gradient' are independent terms in equation (Athamneh and Suter, 20151). This surprised me, because I would have thought growth cone angle would move toward the attractant and thus be some function of attractant gradient. Could the authors provide some explanation of why they chose to model things this way? We have added the following explanation to the section “Modelling growth cone trajectories”:

“As the bearing is biased by the gradient direction, the overall growth cone angle ϕ(t)will also be biased by the gradient, coupled through the above equation.”

Saturation of turning is explained nicely by a persistence term in the model, which the authors relate to the axon tension and the limited number of 'anchor points'. Another explanation that crossed my mind is that the receptors in the growth cone that sense the attractants themselves saturate. Could this possibility be addressed or ruled out, even as a discussion point?

We believe that we haven’t saturated the receptors since this would cause toxicity (or at least severe loss of neurite growth). According to Ohta et al., 1990, when [NGF] is high (>40 Kd, assuming Kd=0.9±0.3 nM from Wehrman, 2007), it leads to loss of neurite growth. Since our assays did not show poor growth, it suggests that the [NGF] was not saturating. In addition, assuming receptor occupancy = C/(C+Kd), then at one end of the chamber where [NGF]=20Kd, there will be 95% receptors occupied. This is still not a saturating level, and most of the chamber has [NGF] < 20Kd. Furthermore, persistence is inferred from the straightness profile of the trajectories and is sufficient to explain turning saturation even without receptor saturation.

We have added the following text in the section “SCG neurons were guided in the microfluidic assay”:

“Previous work using Scatchard analysis estimated that Kd= 0.9 ±0.3nM (Wehrman, 2007) and showed that SCG neuronal outgrowth is severely inhibited at the saturating NGF concentration of 40 nM (Ohta et al., 1990). Given the healthy growth in our assay, it is clear the concentration in the gradient condition was below saturation point.”

Axon stiffness might also play a role in persistence. It would be nice if the authors could comment on this.

Thank you for this important suggestion. We think that persistence does indeed depend on axonal stiffness, and speculate that higher stiffness will lead to higher persistence. We have added the following text in the second paragraph of Discussion:

“The stiffness of axons is also important (Rajagopalan, Tofangchi and Saif, 2010), and stiffer axons will likely have higher persistence due to their more limited ability to bend.”

Finally, how do the concentrations of NGF relate to what is known about dose-response relationships of trkA receptors, e.g. do the gradients approach a saturating concentration?

We used an estimate of Kd=0.6-1.2 nM for NGF as explained above, and the concentration we used was 10 nM, so 8-16 Kd. As explained above this is not a saturating concentration. We have added this clarification in the section “SCG neurons were guided in the microfluidic assay”.

Manuscript issues:

There are a number of labelling issues in later figures (e.g. missing axis label in Figure 12H, and reference to empirical distribution that was not plotted in Figure 10D). A thorough check of the figures and labelling would be a good idea.

We have carefully checked the labelling of all the figures in the resubmission. Figure 12H (now 14H) is hard to label because it has 3 different plots, however the meaning of the y axis is explained in the legend. We have added the reference distribution in Figure 10D (now 12D).

The unit of replication 'n' is not defined. The authors should clearly state how many experiments generated this dataset and what the unit of replication is. Accordingly, statistical tests should state the number of degrees of freedom.

We have now been clearer about the number of experiments and the replication units in the section “SCG neurons were guided in the microfluidic assay”:

“We analyzed trajectories for 300 axons per condition. These were obtained from 23 individual chambers in the control case, 27 chambers in the NGF gradient case, and 24 chambers in the NGF gradient plus KT5720 case. In most experiments, 2 chambers were run in parallel, so the total numbers of experiments in each case were 12, 15 and 13 respectively.”

The unit of replication is a growth cone. We have discussed degrees of freedom in the accompanying eLife Statistical Submission Form: the degree of freedoms in our pairwise t-tests and Kolmogorov–Smirnov-tests is the total number of samples in the 2 groups minus 2, and the degree of freedom in the Kruskal Wallis test in Figure 4 is the number of groups minus 1 (i.e: 4). Since these are simply standard results we don't think it would be useful to quote them in the main text. We are, of course, happy to do so though if you feel that we should.

Issues of clarity/presentation:

This article should in principle appeal to a large cross-section of biologists, including developmental biologists with little or no mathematical background. Though the authors have done a good job of explaining what they did in words, it would help to be even clearer in places, e.g. the curves labels in Figure 12H are not very user-friendly. Reminding the reader of the meaning of terms a, b, r, σ, etc. would also help.

We apologise for the lack of clarity. We have now included a table summary of all the parameters in Table 1. We have also expanded the figure captions in Figure 1, 2, 6. Figure 12H (now 14H) is hard to label because it has 3 different plots, however the meaning of the y axis is explained in the legend.

Some of the statements are unnecessarily strong (e.g. "Without such a model, it is impossible to determine if trajectories observed in vivo are in fact consistent with gradient guidance" or the statement in the Discussion that the paper "resolves" an outstanding question). It certainly helps resolve this question, but it raises more questions as I have outlined in these comments. Softer language will get the message across and is less likely to put off readers with preconceived ideas.

We have now softened such claims throughout the paper. For instance:

In the Abstract:

“This model provides a mathematical explanation for why average axon turning angles in gradients in vitro saturate very rapidly with time at relatively small values.”

In the Introduction:

“Without such a model, it is difficult to determine if trajectories observed in vivo are in fact consistent with gradient guidance.”

In the Discussion:

“Here we presented a model of axon trajectories in gradients which is intended to help resolve the mystery of why axon turning angles in gradients saturate over time in vitro.”

Reviewer #3:

1) I am not convinced that the anchor point model is a good model for growth cone turning behavior. There is no evidence that growth cones perform stepwise turning with respect to an anchor point. In the Discussion, the authors describe: "New anchor points could be established when tension is too high, or when it becomes too energetically expensive to drag the neurite." However, I am not aware of published studies that show growth cones physically 'dragging' a neurite (please direct me to such evidence if incorrect).

We apologise for not providing direct evidence for this from our data in the first version of the manuscript, but appreciate the opportunity now to do so. In particular we include a new figure (Figure 7) which shows frames from 3 of our timelapse movies, and these 3 movies are now included in their entirety in the paper. These show directly the phenomenon of `neurite dragging’. In particular they show that, while the movements of the growth cone are quite random, the axon is nevertheless generally directed straight back to the last anchor point (cell body or branch point). We feel that the addition of this data significantly strengthens the paper.

However, we accept that we have no evidence to support the particular sentence quoted by the reviewers, and have now removed this.

The anchor point idea indeed predicts that the axon between the growth cone and the nearest anchor point should be 'dragged' into the direction where the growth cone moves. Of course, if the anchor point is far away (paper quote: 'the in vitro data we have presented here was well-fitted by assuming the only anchor point is where the axon emerges from the soma'), then a lot of axon would need to be dragged indeed. What would the stiffness of that axon be?

We have not performed direct measurements of axon stiffness. However a clear implication from visual inspection of the new images and movies now included is that dragged axons must be quite stiff, since they stay fairly straight as they are being dragged.

The authors acknowledge that the in vivo environment will be more 'complex', but only by assuming there may be more anchor points.

We did not mean to imply that we think an increased number of anchor points is the only difference between the in vivo and in vitro cases: it is simply the parameter which we are focusing on in this paper. However, we have acknowledged in the Discussion that stiffness, cell-cell interactions, physical cues, ECM components are some other factors that can affect growth and might all be different in vivo.

Not surprisingly, a closer anchor point allows sharper turns and results in more variability. This simple conclusion is actually one of the major conclusions of the paper.

In summary, I think the anchor point model may be a good idea, but there is precious little evidence supporting it.

While we agree do not have direct evidence, we believe that the data we have now included significantly strengthens our case in this regard.

I am with the authors that a simplification to an elegant in vitro system is a good approach and I would not look for further in vivo relevance, if the in vitro behavior were to fit the model. But if there is an in vivo or in vitro neurite that actually drags an axon between the growth cone and an anchor point, the reader really needs to be shown one.

As described above, we have now done this.

To my knowledge it is more likely that most axons, including in the SCG culture, lay behind the moving growth cone without experiencing any force or tensions required for provide feedback from a hypothetical anchor point. If there is no such feedback, the core of the model cannot be supported.

We now provide additional citations to support the claim that the axon is under tension and this tension is related to the coupling to the substrate via adhesion sites (Athamneh and Suter, 2015; Betz et al., 2011; Franze and Guck, 2010; Heidemann, Lamoureux and Buxbaum, 1997; Lamoureux, Buxbaum and Heidemann, 1989; Suter and Miller, 2011).

2) A key prediction of the anchor point model is the tension on the axon between the growth cone and the closest anchor. If such evidence exists for at least some instance, in vivo or in vitro, I can and should be convinced that the model is applicable. This is a true prediction of the core of the anchor point model. In contrast, the measurements provided on the turning speed and the 'saturation' of turning are not true predictions of the model more than they are the basic data the drove the generation of the model in the first place. For example, the authors describe this 'long-standing mystery' many times, use it to justify the model, and then present the data that was used to make the model in the first place as: 'the average turning angle reached the steady state quickly and did not increase significantly with time, matching the prediction of the model (Figure 4C)'. This is a clear case of a model that was made to fit the data. There is no true prediction of the model (one that would not have been possible before running the model) that is tested in the paper. The authors consistently use the wording 'predicted by the model' to describe an outcome of the anchor point model that fits data past or present. Again, I could and should be convinced when, for example, evidence for a real existing anchor point (even just in the SCG culture) were provided, predictions based on tension of the axon, its predicted stickiness to the substrate (as discussed by the authors), etc.

We apologise if our claims seemed too strong – we have softened them. It is certainly true that we did not formulate the model ab initio: we were initially inspired by our experimental observations that axons tend to always point back to the last anchor point. This led us to write down equation 1 as the simplest description of the balance of forces acting on the growth cone. However, the derivation from this equation of the rapid saturation of turning with time was a complete surprise to us, and was not something we tried to engineer into our model. Thus, it’s not quite fair to say that it was `the basic data that drove the generation of the model’: indeed it was primarily the model that drew our attention to this particular aspect of the experimental data.

We do however agree that, for instance, some aspects of the step statistics were empirically derived, and we have therefore deleted a sentence from the Discussion, which made claims about what was predicted by the model, that we agree with the reviewer were too wide-ranging.

3) I read this study as a purely hypothetical model based on previous data and some new measurements in the SCG culture using a microfluidic device. Links to biology are present only in the Discussion and as speculations (e.g. focal adhesions), but neither integrated into the model, nor tested in experiments.

We do not completely agree with this. In fact there is a strong link between our model and our microfluidics data: in particular we propose biophysical principles guiding axon growth, and show that these principles can accurately predict axon trajectories in biological experiments. Precise measurements of the nature of the focal adhesions assumed in our model are left for future work.

As it stands, the anchor point model clearly reproduces some significant behavior or growth cone turning in vitro. However, the statements in the Abstract that ‘this model explains the long-standing mystery…’ and that ‘this work introduces the most accurate predictive model […] and deepens our understanding of axon guidance events both in vitro and in vivo’ appear to me quite dramatically overstated.

We have softened this statement, and other statements elsewhere in the paper. For instance in the Abstract, we now say:

“This model provides a mathematical explanation for why average axon turning angles in gradients in vitro saturate very rapidly with time at relatively small values.”

4) Manuscript issues:

In the section related to Figure 9, the authors measured the bearing angles, step sizes, and mean step sizes of individual growth cones and fitted all these parameters by different distributions. However, the explanations of what these different distributions mean in a biological context is inadequate.

We have amplified the interpretation in the Discussion section.

In the subsection "SCG neurons were guided in the microfluidic assay", the authors took into consideration only the axons that made an angle between 70° and 110° with the gradient direction since they expected impact of the gradient would be strongest on these axons. The reason behind this expectation is not well explained.

We have added a clarification in the section “SCG neurons were guided in the microfluidic assay”:

“An asymmetric concentration field of guidance cue across the growth cone leads to turning (Song, Ming and Poo, 1997; Höpker et al., 1999; Xiang et al., 2002; Ming et al., 2002) and axons growing in this range experienced between 94% (i.e. sin70°) to 100% (i.e. sin90°) of the maximum possible concentration difference across the growth cone. Thus we expected the impact of the gradient would be strongest on these axons (Figure 4A).”

Also, although Figure 4A is referred after this expectation, Figure 4A does not show anything related to this.

We have added the gradient direction in Figure 4A.

Did the neurotrophin gradient majorly influence branching or retraction? Those events were discarded and not compared to the gradient control.

We are very grateful to the reviewer for raising this very interesting point. We did originally analyse our data to answer this question, but since the answer was ‘no’ we did not include this data in the original manuscript. However we now realise this negative result is still an important piece of information to include, and it is now presented in a new figure (Figure 5). In particular we compared the number of branches in the control vs. gradient conditions, and the number of branches growing up or down the gradient, and did not detect a difference in either case. Similarly, the branching and retraction rates were unchanged. This is all now described in a new section entitled “The gradient did not affect axon branching”.

In the section "Modelling growth cone trajectories", "s" is referred as constant speed but in the section “A correlated walk model of growth cone trajectories” it is referred as length of a step.

We have changed “a constant speed” to “a fixed step size s every 5 minutes” in the section “Modelling growth cone trajectories”.

To test whether fluid flow has any effect on statistics of the steps authors divided the axons in 4 quadrants but how this division helps understanding the effect of fluid flow is not clear.

We added the following text in the section “Flow did not affect the statistics of steps”:

“To test whether fluid flow in the chamber biased the statistics of the steps, axons growing in the gradient condition with fluid flow were divided into 4 quadrants with different relative angles to the fluid flow: 2 quadrants growing perpendicular to the flow, one quadrant growing with the flow, and the other growing against the flow (Figure 6A). Comparing the distribution of bearing changes between the 4 quandrants, and with axons from the control condition without any flow, showed no influence of the flow (p = 0.7 in Figure 6B and p = 0.4 in Figure 6C, Kruskal-Wallis test).”

In Figure 3, please indicate which directions are set as 0° and 90°. Also part E and F can be shown on the same graph.

We have indicated the directions in 3D. We thought about the suggestion for panels 3E and 3F. On balance, we prefer to show them on separate graphs as they almost completely overlap, and would thus be hard to distinguish on the same graph.
