Resistome diversity in cattle and the environment decreases during beef production

  1. Noelle R Noyes  Is a corresponding author
  2. Xiang Yang
  3. Lyndsey M Linke
  4. Roberta J Magnuson
  5. Adam Dettenwanger
  6. Shaun Cook
  7. Ifigenia Geornaras
  8. Dale E Woerner
  9. Sheryl P Gow
  10. Tim A McAllister
  11. Hua Yang
  12. Jaime Ruiz
  13. Kenneth L Jones
  14. Christina A Boucher
  15. Paul S Morley
  16. Keith E Belk
  1. Colorado State University, United States
  2. Agriculture and Agri-Food Canada Research Centre, Canada
  3. University of Saskatoon, Canada
  4. University of Colorado Denver School of Medicine, United States
Research Article
Cite this article as: eLife 2016;5:e13195 doi: 10.7554/eLife.13195
7 figures, 2 tables, 1 data set and 3 additional files

Figures

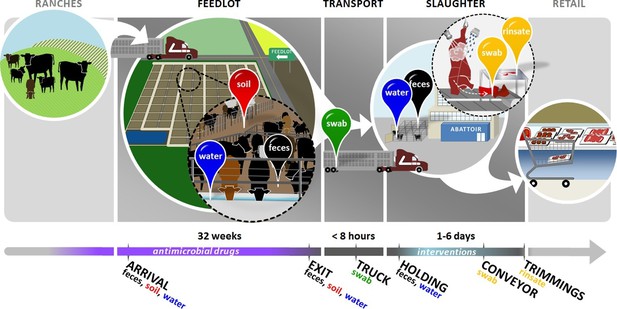

Overview of sampling design.

Cattle in this study were born on ranches and entered the feedlots between 3 and 12 months of age. In the feedlots, we collected pooled fecal (black pin), soil (red pin), and drinking water (blue pin) samples from 2 pens of cattle in each of 4 feedlots. These samples were collected once around the time that study cattle arrived in the feedlot ('arrival'), and then once when the same cattle had reached slaughter weight and were ready to exit the feedlot ('exit'). Study cattle were then loaded onto transport trucks for shipment to the abattoir. Pooled swabs (green pin) from the inside walls of the transport trucks were collected immediately after the cattle had been unloaded at the abattoir ('truck'). Cattle were then placed into a holding pen outside of the abattoir, where pooled fecal (black pin) and drinking water (blue pin) samples were collected ('holding'). Cattle then entered the abattoir, where they were humanely slaughtered and their carcasses disassembled into beef products for retail. At the end of this process, we collected swabs (yellow pin) from the conveyor belts used to move carcass parts ('conveyor'), as well as rinsates (yellow pin) of the carcass trimmings used to make ground beef ('trimmings'). See Figure 1—source data 1 for sampling details, including exact sampling dates for all 8 pens in this study.

https://doi.org/10.7554/eLife.13195.003
Figure 1—source data 1

Sample collection details, by location, sample matrix and pen.

https://doi.org/10.7554/eLife.13195.004

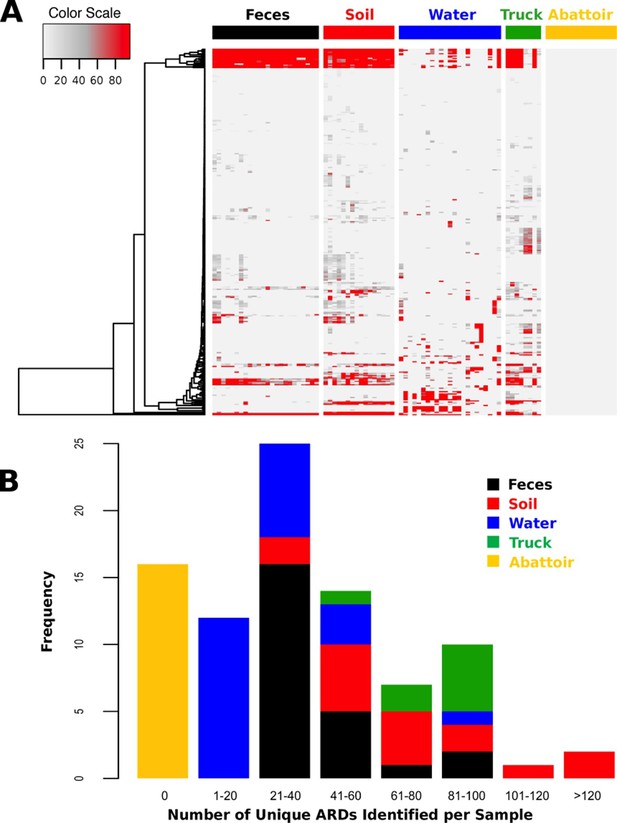

ARD abundance and frequency, by sample type.

(A) Heatmap of the 319 ARDs (rows) identified in 87 samples (columns) collected from the beef production system. Columns are grouped by sampling location but are unclustered. ARDs are clustered along rows using Euclidean distances with complete linkage. ARD names by row can be viewed in the source data for Figure 2. Color scale values indicate the number of normalized alignments per ARD per sample. (B) Histogram of unique ARDs identified per sample (N=87). See Figure 2—source data 1 for raw count matrix of ARDs by sample, which was used to produce heatmap and histogram.

https://doi.org/10.7554/eLife.13195.006
Figure 2—source data 1

Raw and normalized count matrix of ARDs (rows) identified by sample (columns).

https://doi.org/10.7554/eLife.13195.007

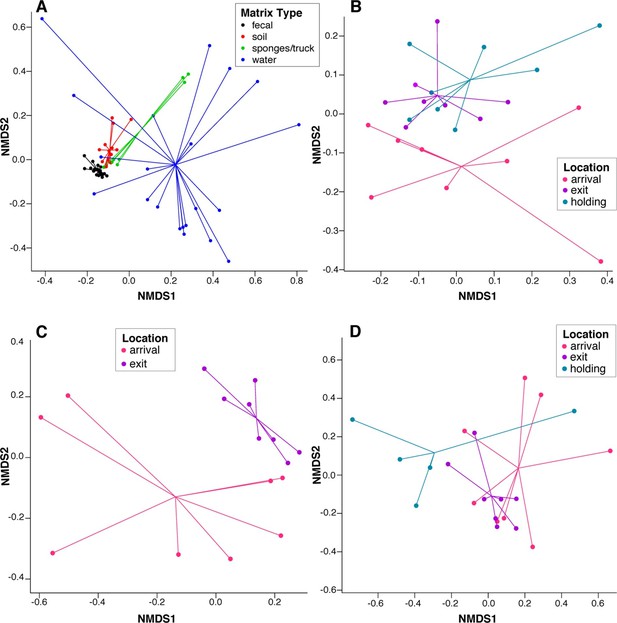

NMDS ordination plots of ARD composition, by sample type and location.

Non-metric multidimensional scaling (NMDS) ordination plots of pre-slaughter sample ARD composition, depicting significant sample separation by (A) matrix (Stress=0.13, R=0.41, p=0.001), and location within (B) feces (Stress = 0.10, R=0.03, p=0.04), (C) soil (Stress = 0.05, R=0.34, p=0.006) and (D) water (Stress=0.10, M=0.29, p=0.005).

https://doi.org/10.7554/eLife.13195.008

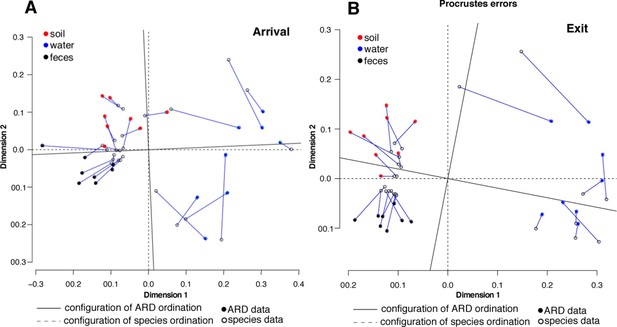

Procrustes analysis of ARD content (filled circles) and species composition (open circles) at arrival (A) and exit (B) using Hellinger transformation and NMDS ordination (Legendre and Gallagher, 2001).

Stress values for ARD ordination at arrival and exit were 0.08 and 0.03, respectively, and for microbiome species ordination at arrival and exit were 0.06 and 0.07, respectively. Soil (red), water (blue) and fecal (black) samples clustered significantly in the microbiome and resistome data. Procrustes configurations were correlated in the arrival and exit samples, but less so in the exit samples (M2 = 0.29 and 0.18, respectively).

https://doi.org/10.7554/eLife.13195.009

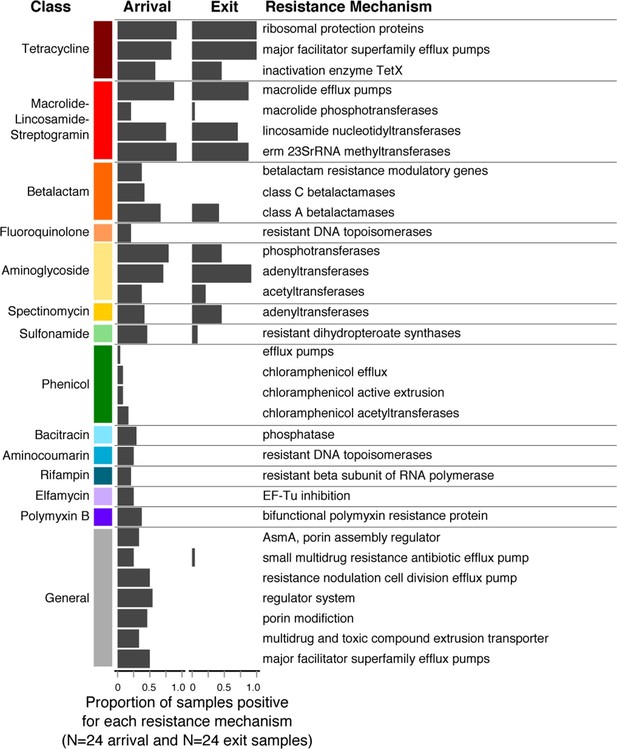

Changes in prevalence of resistance mechanisms during the feedlot period (arrival to exit).

Proportion of arrival (n=8 soil, 8 fecal, 8 water) and exit (n=8 soil, 8 fecal, 8 water) samples that contained at least one ARD in each resistance mechanism (n=33), grouped by resistance class.

https://doi.org/10.7554/eLife.13195.010

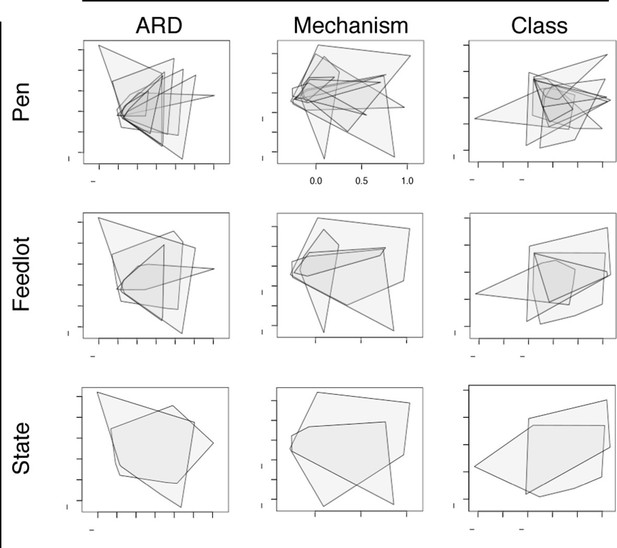

Non-metric multidimensional scaling (NMDS) ordination plots at the ARD, mechanism and class levels, visualized by pens (n=8), feedlots (n=4) and states (n=2).

In each NMDS plot, a polygon corresponds to one unit (i.e., pen, feedlot or state) and represents the convex hull for that unit (i.e. the smallest amount of space within the graph that contains all points (or samples) within that unit). To view results of NMDS ordination, as well as adonis and anosim statistics, see Figure 6—source data 1.

https://doi.org/10.7554/eLife.13195.012
Figure 6—source data 1

NMDS ordination, adonis, and anosim results at the ARD, mechanism and class levels, by pen, feedlot, and state variables.

https://doi.org/10.7554/eLife.13195.013
Figure 7 with 1 supplement

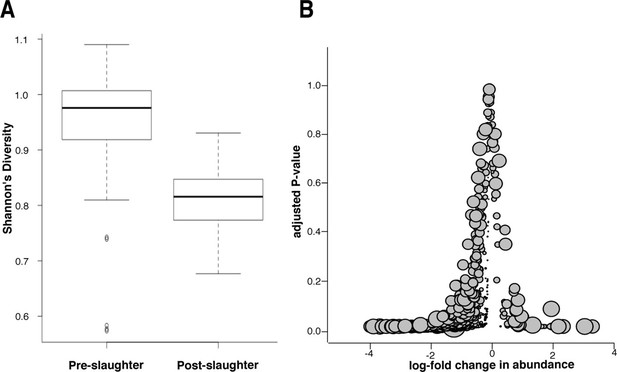

Microbiome changes from pre- to post-slaughter in all samples.

(A) Boxplot of Shannon’s diversity at the species level, pre- vs. post-slaughter across all sample matrices. Shannon’s diversity was significantly lower in post-slaughter samples when tested using Wilcoxon paired rank test (P<0.0001). See source data for Figure 7 (sheet 'Figure 7A') for Shannon’s Diversity Index by sample, which was used to produce boxplots. (B) Log2-fold change in abundance of genera from pre- to post-slaughter versus adjusted P–value, across all samples matrices. Dot size is proportional to the average abundance of the genus across all samples. For taxa table and counts used to produce model of log2-fold change in abundance, see Figure 7—source data 1 (sheet 'Figure 7B taxa table'); for model output, see Figure 7—source data 1 (sheet 'Figure 7B model output').

https://doi.org/10.7554/eLife.13195.014
Figure 7—source data 1

Shannon’s diversity, taxa table and model output for Figure 7.

Sheet 1 ('Figure 7A') includes sample metadata and Shannon's Diversity Index calculated at the species level. Sheet 2 ('Figure 7B taxa table') includes the taxa count matrix, by sample, that was used to model log2-fold changes in abundance for Figure 7B and Figure 7—figure supplement 1. Sheet 3 ('Figure 7B model output') shows model output for log2-fold change in abundance at the genus level across all pre- and post-slaughter samples. Sheet 4 ('Figure 7 supp. Model output') shows model output for log2-fold change in abundance at the genus level between pre- and post-slaughter swab samples.

https://doi.org/10.7554/eLife.13195.015
Figure 7—figure supplement 1

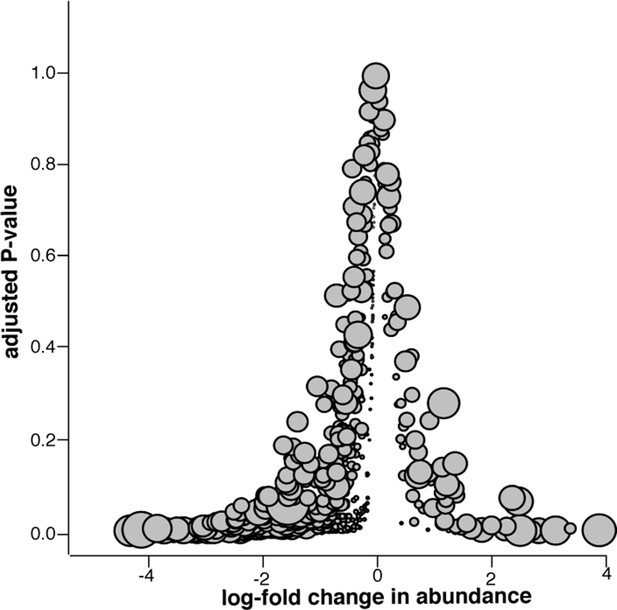

Microbiome changes from pre- to post-slaughter in swab samples only.

Log2-fold change in abundance of genera from pre- to post-slaughter versus adjusted P–value, using only swab samples. Dot size is proportional to the average abundance of the genus across all samples. See Figure 7—source data 1 (sheet 'Figure 7 supp. model output') to view model output for the genus-level analysis of log2-fold change in abundance for swab samples only.

https://doi.org/10.7554/eLife.13195.016

Tables

Table 1

Antimicrobial drug usage in the study population.

https://doi.org/10.7554/eLife.13195.005
Drug (dosage)Drug ClassPrimary Reason for UseNumber of Animals treated (%)
Pen APen BPen CPen DPen EPen FPen GPen H
Tylosin phosphate
(11 mg/kg diet dry matter)a
MacrolideLiver abscess prevention244
(100)
281
(100)
152
(100)
189
(100)
230
(100)
230
(100)
265
(100)
150
()
Tulathromycinb
(2.5 mg/kg BWc)
MacrolideBRDd Treatment15
(6.1)
16
(5.7)
12
(7.9)
3
(1.6)
19
(8.3)
3
(1.3)
8
(3.0)
5
(3.3)
Oxytetracyclinee
(20 mg/kg BW)
TetracyclineBRD Treatment1
(0.4)
1
(0.4)
43
(28.3)
9
(4.8)
6
(2.6)
2
(0.9)
13
(4.9)
10
(6.7)
Oxytetracycline and Flunixin meglumineb
(30 mg/kg BW and 2 mg/kg BW)
TetracyclineBRD Treatment0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
1
(0.4)
0
(0.0)
0
(0.0)
0
(0.0)
Danofloxacin mesylateb
(8 mg/kg BW)
FluoroquinoloneBRD Treatment0
(0.0)
4
(1.4)
1
(0.7)
0
(0.0)
4
(1.7)
7
(3.0)
2
(0.8)
0
(0.0)
Enrofloxacinb
(7.7 mg/kg BW)
FluoroquinoloneBRD Treatment0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
2
(0.8)
0
(0.0)
Ceftiofur sodiume
(1 mg/kg BW)
β-lactamBRD Treatment0
(0.0)
0
(0.0)
2
(1.3)
0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
Ceftiofur crystalline free acidb
(6.6 mg/kg BW)
β-lactamBRD Treatment0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
0
(0.0)
4
(1.5)
1
(0.7)
  1. aThis AMD was in all rations of all cattle for the duration of the feeding period

  2. bEach treated animal received a dose that persisted in target tissues at effective therapeutic concentrations for 3 days, according to the drug label.

  3. cBW = body weight

  4. dBRD = bovine respiratory disease

  5. eEach treated animal received a dose that persisted in target tissues at effective therapeutic concentrations for 1 day, according to the drug label.

Table 2

ARDs to critically important antimicrobials that were specifically searched for in all 87 samples.

https://doi.org/10.7554/eLife.13195.011
ClassificationGroupARD ID (database)Sample Type, LocationAlignment characteristics
Carbapenemasesbla(OXA)Bla)OXA-347:JN086160 (ARG-ANNOT)a
(Bla)OXA-235:JQ820240
(ARG-ANNOT)
1 x water, holding
1 x soil, arrival
1 x soil, arrival
100% nucleotide homology with reference across ≥ 80% of gene (≥ 1x coverage)
100% nucleotide homology to KSG, FGN and STFK motifs
bla(SME)Not identifiedNot identifiedNot identified
bla(IMI)Not identifiedNot identifiedNot identified
bla(NDM)Not identifiedNot identifiedNot identified
bla(GES)Not identifiedNot identifiedNot identified
bla(KPC)Not identifiedNot identifiedNot identified
bla(cphA)bcphA1_2_AYAY261377
(Resfinder)
3 x water, holding100% amino acid homology to reference (4 silent substitutions)
Extended-spectrum β-lactamasebla(TEM)(Bla)TEM-116:AY425988
(ARG-ANNOT)
1 x water, holding100% nucleotide homology with reference across ≥ 80% of gene (≥ 1x coverage)
bla(SHV)Not identifiedNot identifiedNot identified
bla(CTX-M)Not identifiedNot identifiedNot identified
bla(CMY)Not identifiedNot identifiedNot identified
Quinupristin-dalfopristin resistancevga/vatGQ205627.2.gene3 (CARD)
AND
(MLS)VgaD:GQ205627:1394-2971:1578
1 x soil, arrival100% nucleotide homology to Walker A and B motifs; silent substitution in RSGG motif
100% nucleotide homology to LβH hexapeptide repeat domain
Multi-drug resistance to PhLOPSA ccfr(MLS)CfrA:AM408573
(ARG-ANNOT)
4 x swab, truck (all in Texas)100% nucleotide homology with reference across ≥ 95% of gene (≥ 1x coverage)
  1. aNote that phenotypic resistance to carbapenems has not been confirmed for this ARD

  2. bbla(cphA) is a strict carbapenemase

  3. cConfers multi-drug resistance to phenicol, lincosamide, oxazolidinones (linezolid), pleuromutilins, and streptogramin A

Data availability

The following data sets were generated
  1. 1
    Beef Production Metagenome Raw sequence reads
    1. Microbial Ecology Group, Colorado State University
    (2015)
    Publicly available at the NCBI BioProject database (Accession no: PRJNA292471).

Additional files

Supplementary file 1

Sequencing, filtering and host removal statistics for all samples.

https://doi.org/10.7554/eLife.13195.017
Supplementary file 2

List of 319 ARDs identified across all 87 samples.

https://doi.org/10.7554/eLife.13195.018
Supplementary file 3

Resistance classification by class and mechanism

https://doi.org/10.7554/eLife.13195.019
