Modelling TFE renal cell carcinoma in mice reveals a critical role of WNT signaling

  1. Alessia Calcagnì
  2. Lotte kors
  3. Eric Verschuren
  4. Rossella De Cegli
  5. Nicolina Zampelli
  6. Edoardo Nusco
  7. Stefano Confalonieri
  8. Giovanni Bertalot
  9. Salvatore Pece
  10. Carmine Settembre
  11. Gabriel G Malouf
  12. Jaklien C Leemans
  13. Emile de Heer
  14. Marco Salvatore
  15. Dorien JM Peters
  16. Pier Paolo Di Fiore
  17. Andrea Ballabio  Is a corresponding author
  1. Telethon Institute of Genetics and Medicine, TIGEM, Italy
  2. Academical Medical Center, The Netherlands
  3. Leiden University Medical Center, The Netherlands
  4. Leiden University Medical Center, Netherlands
  5. European Institute of Oncology, Italy
  6. IFOM, The FIRC Institute for Molecular Oncology Foundation, Italy
  7. University of Milan, Italy
  8. Baylor College of Medicine, United States
  9. Texas Children Hospital, United States
  10. Federico II University, Italy
  11. University Paris 6, France
  12. IRCCS-SDN, Italy
Research Article
  • Cited 30
  • Views 2,064
  • Annotations
Cite this article as: eLife 2016;5:e17047 doi: 10.7554/eLife.17047

Abstract

TFE-fusion renal cell carcinomas (TFE-fusion RCCs) are caused by chromosomal translocations that lead to overexpression of the TFEB and TFE3 genes (Kauffman et al., 2014). The mechanisms leading to kidney tumor development remain uncharacterized and effective therapies are yet to be identified. Hence, the need to model these diseases in an experimental animal system (Kauffman et al., 2014). Here, we show that kidney-specific TFEB overexpression in transgenic mice, resulted in renal clear cells, multi-layered basement membranes, severe cystic pathology, and ultimately papillary carcinomas with hepatic metastases. These features closely recapitulate those observed in both TFEB- and TFE3-mediated human kidney tumors. Analysis of kidney samples revealed transcriptional induction and enhanced signaling of the WNT β-catenin pathway. WNT signaling inhibitors normalized the proliferation rate of primary kidney cells and significantly rescued the disease phenotype in vivo. These data shed new light on the mechanisms underlying TFE-fusion RCCs and suggest a possible therapeutic strategy based on the inhibition of the WNT pathway.

https://doi.org/10.7554/eLife.17047.001

Introduction

The MIT/TFE family of bHLH leucine zipper transcription factors includes the MITF, TFEB, TFE3 and TFEC genes, which are master regulators of cell homeostasis, growth and differentiation (Levy et al., 2006; Sardiello et al., 2009; Settembre et al., 2011). All family members are able to both homodimerize and heterodimerize with each other through their bHLH-LZ domain (Hemesath et al., 1994). These transcription factors bind a DNA sequence called the M-box and a non-canonical E-box sequence (TCATGTG, CATGTGA or TCATGTGA) (Hemesath et al., 1994; Aksan and Goding, 1998). A large body of evidence indicate that they play an important role in many cellular and developmental processes.

TFEB was found to regulate a large gene network, named Coordinated Lysosomal Expression and Regulation (CLEAR). This network includes many genes involved in lysosomal biogenesis and autophagy (Sardiello et al., 2009; Palmieri et al., 2011). Several studies have shown that TFEB responds to a variety of stimuli and stress conditions, such as starvation, and acts as a master regulator of the lysosomal-autophagic pathway and of cellular clearance (Ballabio, 2016Roczniak-Ferguson et al., 2012; Sardiello et al., 2009; Settembre et al., 2011, 2012; Settembre and Medina, 2015; Martina et al., 2014b). Recent data indicate that the TFEB and TFE3 genes regulate a similar set of genes and have partially redundant function (Martina et al., 2014a).

Renal cell carcinomas originate from the renal epithelium and include several subgroups defined according to their histological phenotype. The most frequent RCCs are papillary (15–20%), Clear Cells (65–70%) and cromophobe (5–10%) (Amin et al., 2002). In these categories, mutations in 12 different genes (VHL, MET, FH, FLCN, SDHB, SDHC, SDHD, TSC1, TSC2, PTEN, MITF and BAP1) have been associated with an increased susceptibility of developing RCC (Linehan and Ricketts, 2013). TFE-RCCs are a group of renal cell carcinomas caused by chromosomal translocations involving TFEB and TFE3 genes (Kauffman et al., 2014) and representing around 2% of all RCCs (Komai et al., 2009), and almost 12% of papillary type II RCCs (Linehan et al., 2015).

Recent TCGA analyses revealed that the gene fusions caused by chromosomal translocations involving TFEB and TFE3 are the only recurrent translocations in the kidney (Linehan et al., 2015; Malouf et al., 2014). In the case of TFEB, a recurrent chromosomal translocation t(6;11) (p21;q13) involves the promoter of the non-coding Alpha gene and the transcription factor EB (TFEB) (Argani et al., 2001, 2005). As a consequence, TFEB falls under the control of the strong Alpha gene promoter, resulting in a high (up to 60-fold) overexpression of a structurally normal TFEB protein (Kuiper et al., 2003). More recently, additional TFEB translocation partners were described, such as the KHDBRS2 (inv(6) (p21;q11)) (Malouf et al., 2014) and the CLTC (t(6;17) (p21;q23)) (Durinck et al., 2015) genes. Tipically, these tumors show nests of epithelioid cells with clear cytoplasm, known as clear cells (CCs), and clusters of small cells, usually around the multi-layered basement membrane (mBM) made up of hyaline material (Argani et al., 2005). Some cases presented with areas of a tubular or cystic structure covered by a single layer of flattened cuboidal to columnar cells with clear cytoplasm, mimicking clear cell RCC with cystic changes (Rao et al., 2012). Currently, TFEB translocation, overexpression and nuclear localization are considered as a diagnostic marker for the disease. Initially, these tumors were mainly observed in pediatric patients, but now they are considered relatively common in young adults (Komai et al., 2009). The mechanisms leading from TFE3/TFEB gene overexpression to kidney tumor development remain largely uncharacterized, thus the need for modeling these diseases in experimental animal systems for the identification of effective targeted therapies.

Here, we show the generation and characterization of two different transgenic mouse lines that overexpress TFEB specifically in the kidney in a constitutive and inducible manner, respectively, which recapitulate both the cystic changes and the cancer phenotype of the human pathology. An extensive molecular and biochemical characterization of kidneys, as well as of primary kidney cells, derived from these mice revealed a significant hyper-activation of the WNT pathway, suggesting that this signalling pathway plays an important role in TFEB-driven kidney cancer. Finally, the use of small molecules able to specifically inhibit the WNT pathway resulted in a significant rescue of both the cystic and cancer phenotypes. These data may open the way to a new therapeutic strategy for this type of tumors.

Results

Generation of the transgenic mouse lines

To study the mechanisms underlying tumor development in TFEB-fusion RCC, we generated a transgenic mice that specifically overexpress TFEB in the kidney. We crossed a previously generated Tfeb conditional overexpressing mouse line that carries Tfeb-3xFlagfs/fs under the control of a strong chicken beta-actin (CAG) promoter (Settembre et al., 2011), herein referred to as Tfebfs/fs, with the Cdh16Cre (Cadherin16Cre) mouse line, in which the Cre recombinase is specifically expressed in renal tubular epithelial cells starting from embryonic stage E12.5 (Shao et al., 2002).

In addition, to assess the effects of Tfeb overexpression during kidney development, we generated a second transgenic line by crossing the Tfebfs/fs mice with a mouse line that carries a tamoxifen-inducible CreErt2 element under the control of a Cdh16 promoter (Cdh16CreErt2promoter) (Lantinga-van Leeuwen et al., 2006) (Figure 1—figure supplement 1A). Cdh16Cre::Tfebfs and Cdh16CreErt2::Tfebfs double heterozygous mice were generated from these crossings (Figure 1—figure supplement 1B and C). We checked both the constitutive and inducible lines for renal Tfeb overexpression and confirmed that Tfeb mRNA levels were highly increased, and further increasing with time (Figure 1—figure supplement 1D). Consistently, immunoblot experiments revealed increased levels of Tfeb-3xFLAG protein in kidneys from Cdh16Cre::Tfebfs and Cdh16CreErt2::Tfebfs mice (Figure 1—figure supplement 1E).

Progressive cystic pathology in transgenic mouse lines

At sacrifice, kidneys from adult Cdh16Cre::Tfebfs and tamoxifen-treated Cdh16CreErt2::Tfebfs mice completely filled the abdominal cavity (Figure 1A). An increase in kidney size from Cdh16Cre::Tfebfs mice was observed starting at P12, with a sensible increase in size detected at P30 (Figure 1B). A striking increase in the Kidney to Body Weight (KW/BW) ratio was also observed at this stage (Figure 1C). A severe enlargement of the kidneys and a significant increase in the Kidney to Body Weight (KW/BW) ratio were also observed in Cdh16CreErt2::Tfebfs mice induced with tamoxifen at several developmental stages (P12, P14, P30) (Figure 1—figure supplement 2A and B). These abnormalities were less severe in mice induced at P30 (Figure 1—figure supplement 2B). Survival time of Cdh16Cre::Tfebfs mice was approximately 3 months (Figure 1D). Interestingly, a late induction of Tfeb overexpression in Cdh16CreErt2::Tfebfs mice resulted in a slower development of the phenotype, with less severe kidney enlargement and overall increase in the survival rate (Figure 1D). Renal function from Cdh16Cre::Tfebfs and Cdh16CreErt2::Tfebfs mice was severely affected, as observed by the strong increase in blood urea and albuminuria (Figure 1—figure supplement 2C). High-frequency ultrasound and histological analysis of kidneys from both Cdh16Cre::Tfebfs and Cdh16CreErt2::Tfebfs mice revealed the presence of a severe cystic disease (Figure 1E, Figure 1—figure supplement 2D and E). In Cdh16Cre::Tfebfs mice, small cysts arose mainly from the cortex and outer medulla at P12 and became significantly enlarged at P30. At P90, kidney architecture was completely disrupted by cysts (Figure 1F). Cdh16CreErt2::Tfebfs mice induced at P12 with tamoxifen and sacrificed at P90 showed a higher number of smaller cysts in both cortex and outer medulla (Figure 1F). Cysts were also observed in Cdh16CreErt2::Tfebfs induced at P14 and, to a lesser extent, at P30 (Figure 1—figure supplement 2E). Tubular epithelial cells lining the cysts showed high levels of cadherin 16, indicating the presence of Cdh16Cre-mediated Tfeb overexpression in these cells (Figure 1G). Histological analysis revealed that cysts from Cdh16Cre::Tfebfs mice were positive for AQP2 and THP and negative for megalin, indicating that they originate from collecting ducts and distal tubules and not from proximal tubules. Notably, the largest cysts were almost completely negative to all tubular markers, suggesting that they became undifferentiated. Conversely, cysts from Cdh16CreErt2::Tfebfs mice were positive to megalin and THP, indicating that they arose from proximal and distal tubules (Figure 1H, Figure 1—figure supplement 3). These differences in cyst origin have already been described in other polycystic kidney disease mouse models and have been attributed to intrinsic differences of specific renal segments at different developmental stages (Lantinga-van Leeuwen et al., 2007; Happé et al., 2009; Leonhard et al., 2016; Piontek et al., 2007).

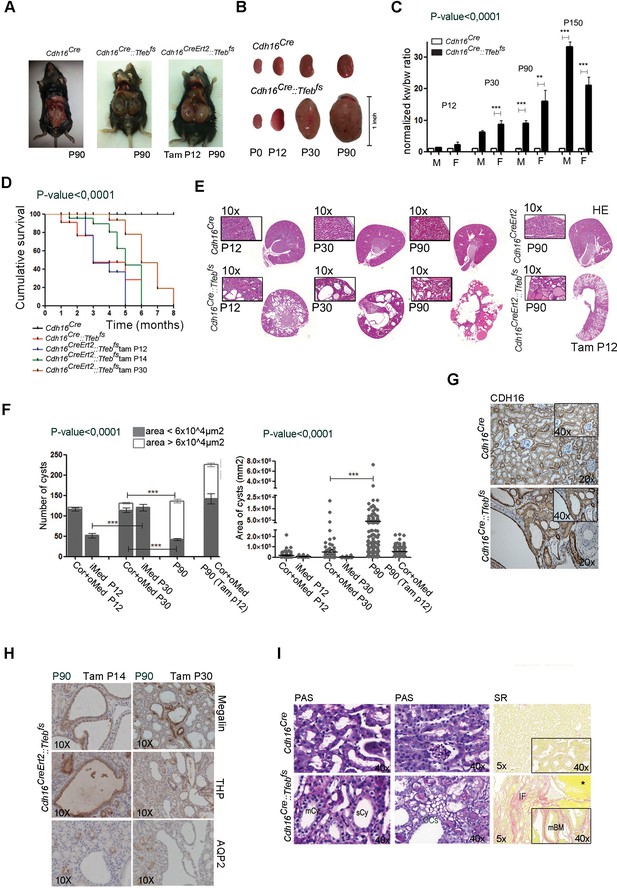

Figure 1 with 3 supplements see all
Tfeb overexpressing mice display cystic kidneys.

Morphological analyses were performed on Cdh16Cre and Cdh16Cre::Tfebfs, and on tam-treated Cdh16CreErt2 and Cdh16CreErt2::Tfebfs mice. (A) Representative images of the abdominal cavity at P90. (B) Kidney size at different stages (p=days post-natal). (C) Relative ratio of kidney-to-body weight (KW/BW). Data from males (M) and females (F) are shown separately as means of Cdh16Cre::Tfebfs to Cdh16Cre KW/BW ratio. Three-way Anova was applied (factors: gender, time, genotype). (D) Evaluation of the survival of Cdh16Cre::Tfebfs and tam-treated Cdh16CreErt2::Tfebfs mice. Mantel-Cox test was applied (Cdh16CreErt2::Tfebfs tam P12/tam P14 p-value 0.02; Cdh16CreErt2::Tfebfs tam P12/P30 p-value<0.0001). (E) Haematoxylin and Eosin (HE) staining of kidneys. Enlarged panels show cyst growth over time. (F) Number (left graph) and area (right graph) of kidney cysts in Cdh16Cre::Tfebfs, and Cdh16CreErt2::Tfebfs mice. Number of cysts is shown as an average (± SEM) with bars sub-divided according to the dimension of the cysts. Cyst areas are presented as independent values (dots) with lines representing the means. Three-way (cyst number) and two-way (cyst area) Anova was applied. Cor, cortex; oMed, outer medulla; iMed, inner medulla. (G) Cadherin16 (CDH16) staining of kidneys from P30 mice. (H) Megalin, THP and AQP2 stainings in P90 Cdh16CreErt2::Tfebfs mice. (I) PAS and Sirius Red staining. PAS staining shows the presence of single-layered or multi-layered cysts, and the presence of Clear Cells (CCs). SR staining shows areas of interstitial fibrosis, multi-layered basement membrane and protein casts. Asterisks, protein casts; sCy, simple Cysts; mCy, multilayered Cy; IF, Interstitial Fibrosis; mBM, multi-layered Basement Membrane. (*p<0.05, **p<0.01, ***p<0.001).

https://doi.org/10.7554/eLife.17047.002

Cysts were lined by either a single layer-flattened cuboidal epithelium (sCy), or by a multilayer epithelium (mCy), indicating a de-regulation of tubular cell proliferation (Figure 1I). We also noticed the presence of very enlarged cells with a clear cytoplasm, which are commonly known as Clear Cells (CCs) (Krishnan and Truong, 2002) (Figure 1I). Sirius Red staining showed the presence of fibrosis and protein casts and revealed a significant accumulation of collagen inside the affected kidneys, as well as the presence of regions surrounded by multi-layered basement membranes (mBM) (Figure 1I). Importantly, the presence of Clear Cells, fibrosis and mBMs are characteristic features of kidneys from human patients with TFEB-fusion RCC (Rao et al., 2012).

Identification of papillary renal cell carcinoma and of liver metastases

18F-FDG PET analysis showed a higher glucose consumption in the kidneys of transgenic animals compared to controls, indicating a higher rate of glucose metabolism and suggesting a neoplastic transformation (Figure 2A). Similarly with PET analysis, HE and Ki67 stainings of the kidneys of Cdh16Cre::Tfebfs mice revealed progressive hyperproliferation, which evolved into Ki67-positive neoplastic papillae at 5 months (Figure 2B). Neoplastic nodules, micropapillae and Hobnail-like cells, and mitotic spindles were detected at P12, 1 month, and 5 months, respectively (Figure 2C–F). Focal microcalcifications (Figure 2G), together with Clear Cells, and nests of neoplastic cells (Figure 2H) were also detected in Cdh16CreErt2::Tfebfs mice.

Kidney-specific Tfeb overexpression is associated with cancer development in Cdh16Cre::Tfebfs and Cdh16CreErt2::Tfebfs mice.

(A) 18F-FDG PET/CT scan on P30 Cdh16Cre::Tfebfs mice. (B) HE and Ki67 staining performed on Cdh16Cre::Tfebfs mice at P1, P12, P30 and 5 months. Beginning at P12 the increase in cyst size is associated with an increase in papillary proliferation that becomes completely neoplastic by 5 months. NP, Neoplastic Papillae. (CH) Representative images of neoplastic lesions at different stages: (C) neoplastic nodules (arrows) in P12 Cdh16Cre::Tfebfs mice; (D) micropapillae (arrows) and (E) hobnail-like cells (arrows) in P30 Cdh16Cre::Tfebfs mice; (F) mitotic spindles (arrows) in 5-month-old Cdh16Cre::Tfebfs mice; (G) microcalcifications (asterisk) in tam-treated Cdh16CreErt2::Tfebfs mice induced at P14 and sacrificed at 5 months; (H) neoplastic nests (NN) and clear cells (CCs) in tam-treated Cdh16CreErt2::Tfebfs mice induced at P12 and sacrificed at P90. (I) HE staining of neoplastic lesions invading the surrounding stroma (arrows) in Cdh16Cre::Tfebfs and in tam-treated Cdh16CreErt2::Tfebfs mice. (L) Liver metastases in 5 month-old Cdh16Cre::Tfebfs mice stained for HE, Ki67, PAX8 and CK7.

https://doi.org/10.7554/eLife.17047.006

Kidneys from both Cdh16Cre::Tfebfsand Cdh16CreErt2::Tfebfs mice presented numerous neoplastic lesions with both solid and cystic aspects, ranging from 0.102 to 2.93 mm and sometimes showing local invasion of the surrounding stroma (Figure 2I). Most importantly, liver metastases ranging from 0.9 to 3.8 mm, were found in both Cdh16Cre::Tfebfsand Cdh16CreErt2::Tfebfsmice. In Cdh16Cre::Tfebfs animals, they were detected starting from P90 with an incidence of 23% (5 cases out of 21 Cdh16Cre::Tfebfsmice older than 3 months). These metastases were positive for PAX8, that is a well-established marker for primary and metastatic RCC (Ozcan et al., 2012; Shen et al., 2012) and CDH16, which is a specific renal protein (Shen et al., 2012), while they were negative for the bile ducts and cholangiocarcinoma marker CK7 (Cytokeratin 7), consistent with their renal origin (Figure 2L).

TFEB overexpression results in the induction of the canonical WNT pathway

To characterize the molecular mechanisms and identify the relevant pathways leading from TFEB overexpression to tumor development, we performed transcriptome analysis on kidney samples from Cdh16Cre::Tfebfs and Cdh16Cre mice at P0 (GSE62977-KSP_P0 dataset) and at P14 (GSE63376-KSP_P14 dataset) (see Materials and methods) and found that Tfeb overexpression perturbed the kidney transcriptome in a statistically significant manner (Figure 3—source data 1 and 2, see also Materials and methods). Targeted analysis of the transcriptomic data revealed a significant induction of genes belonging to both ErbB and WNT signaling pathways. This was confirmed by real-time PCR performed on Cdh16Cre::Tfebfs mice at several developmental stages. Moreover, real-time PCR revealed an induction of Myc and Axin2 genes, which are, together with Ccnd1, well-established WNT direct gene targets (Clevers, 2006) (Figure 3A and B, Tables 1 and 2). Kidneys from Cdh16CreErt2::Tfebfs mice also had higher levels of all WNT-related genes that were identified in the constitutive line, and of many of the ErbB-related genes (Figure 3—figure supplement 1A and B).

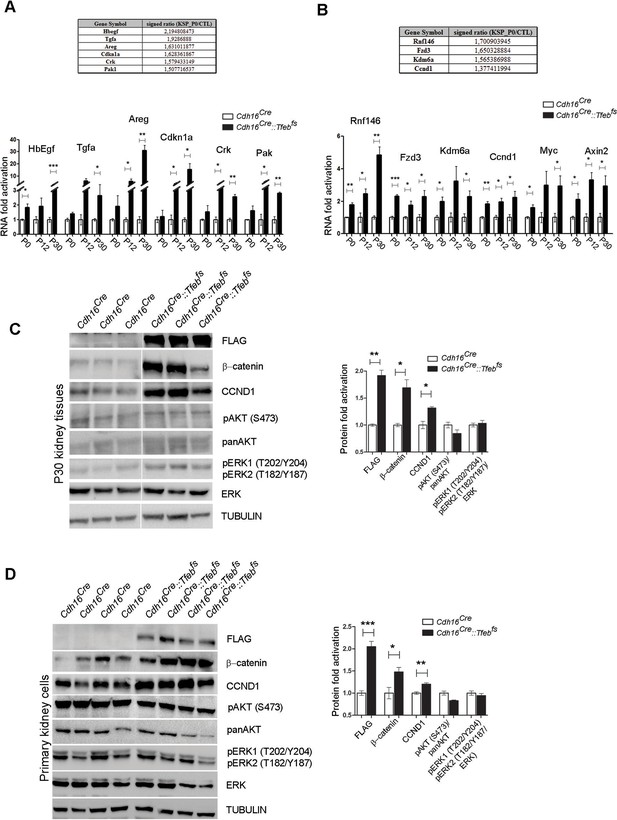

Figure 3 with 2 supplements see all
Activation of ErbB and WNT signaling pathways in kidneys from Cdh16Cre::Tfebfs mice.

Transcriptional and biochemical analyses were performed on Cdh16Cre and Cdh16Cre::Tfebfs mice. (A,B) Tables show the relative increase of genes related to the ErbB (A) and WNT (B) pathways in the microarray analyses performed on kidneys from P0 Cdh16Cre::Tfebfs mice. Graphs show real-time PCR validations performed on kidneys from Cdh16Cre::Tfebfs mice at different stages (P0, P12, P30). Data are shown as the average (± SEM) of at least three Cdh16Cre::Tfebfs mice normalized versus wild-type mice. (C,D) Immunoblot analyses performed on (C) P30 kidney tissues and (D) primary kidney cells isolated from Cdh16Cre::Tfebfs mice to evaluate ErbB and WNT activation status. Each replicate is a distinct biological sample. ErbB signaling was assessed by looking at phosphoAKT (Ser473) to total AKT ratio, and phosphoERK1 (T202/Y204)/ERK2(T185/Y187) to total ERK ratio; WNT signaling was assessed by quantifying β-catenin and CCND1 (Cyclin D1) protein levels. Graphs represent the densitometry quantification of Western blot bands. Values are normalized to actin when not specified and are shown as an average (± SEM) (*p<0.05, **p<0.01, ***p<0.001, two-sided, Student’s t test).

https://doi.org/10.7554/eLife.17047.007
Table 1

ErbB-related genes up-regulated in the microarray analyses. (A) List of six genes with a known role in ErbB signaling pathway which are significantly up-regulated (FDR≤0.05) following TFEB overexpression in KSP_P0 microarray dataset (GSE62977). (B) One gene with a known role in ErbB signaling pathway which are significantly up-regulated (FDR≤0.05) following TFEB overexpression in KSP_P14 microarray dataset (GSE62977).

https://doi.org/10.7554/eLife.17047.012
A
Probe set IDGene symbolGene titlesigned_ratio (KSP_P0/CTL)

1418350_at

Hbegf

heparin-binding EGF-like growth factor

2,194808473

1421943_at

Tgfa

transforming growth factor alpha

1,9286888

1421134_at

Areg

amphiregulin

1,631011877

1424638_at

Cdkn1a

cyclin-dependent kinase inhibitor 1A (P21)

1,628361867

1425855_a_at

Crk

v-crk sarcoma virus CT10 oncogene homolog (avian)

1,579433149

1450070_s_at

Pak1

p21 protein (Cdc42/Rac)-activated kinase 1

1,507716537

B
Probe set IDGene symbolGene titlesigned_ratio (KSP_P14/CTL)

1421134_at

Areg

amphiregulin

1,221605795

Table 2

WNT-related genes up-regulated in the microarray analyses. (A) List of four genes with a known role in WNT signaling pathway which are significantly up-regulated (FDR≤0.05) following TFEB overexpression in KSP_P0 microarray dataset (GSE62977). (B) List of 10 genes with a known role in WNT signaling pathway which are significantly up-regulated (FDR≤0.05) following TFEB overexpression in KSP_P14 microarray dataset (GSE63376).

https://doi.org/10.7554/eLife.17047.013
A

Gene symbol

signed ratio (KSP_P0/CTL)

Rnf146

1,700903945

Fzd3

1,650328884

Kdm6a

1,565386988

Ccnd1

1,377411994

 B

Gene symbol

signed ratio (KSP_P14/CTL)

Rhou

1,639718601

Plcg2

1,601227563

Gata3

1,358534898

Fbxw2

1,262750602

Mark2

1,248332335

Axin1

1,21985179

Tab1

1,217280695

Psmb3

1,211737817

Ndrg2

1,193338279

Chd8

1,185904267

Based on these results, we checked the activation of both ErbB and WNT signaling pathways. No evidence for an increase in the phosphorylation of AKT and ERK1/2 kinases (Arteaga and Engelman, 2014) was detected in P30 Cdh16Cre::Tfebfs kidneys or in primary kidney cells obtained from transgenic mice (Figure 3C and D), indicating that the ErbB pathway was not induced. Erk1/2 activation, as detected by pERK1/2, was observed only at late stages (Figure 3—figure supplement 2A). The same result was observed in P14 and P30 tam-treated Cdh16CreErt2::Tfebfs mice (Figure 3—figure supplement 2B and C). Conversely, we detected increased levels of total β-catenin and CCND1 in P30 renal tissues and primary kidney cells (Figure 3C and D) and increased levels of active β-catenin and of pLRP6 (Ser1490)/ LRP6 ratio in P30 and P90 renal tissues from Cdh16Cre::Tfebfsmice (Figure 4A and B) and in P14 and P30 tam-treated Cdh16CreErt2::Tfebfs mice (Figure 4—figure supplement 1). Moreover, β-catenin and active β-catenin staining of renal sections from Cdh16Cre::Tfebfs mice was significantly enhanced (Figure 4C). These results indicate the presence of a strong activation of the WNT signaling pathway in TFEB-overexpressing mice. Interestingly, the WNT pathway is known to play a role in renal cyst development (Vainio and Uusitalo, 2000; Rodova et al., 2002) and renal tumor formation, such as in VHL syndrome (Peruzzi and Bottaro, 2006) and Wilm’s tumor (Koesters et al., 1999; Zhu et al., 2000; Kim et al., 2000). To investigate the role of TFEB in WNT pathway activation, we performed luciferase assays using a TOP-FLASH Luciferase WNT-reporter on immortalized kidney cell lines (HEK293 and HK2) co-transfected with TFEB and with both β-catenin and TCF4 plasmids to stimulate WNT signaling. Luciferase activation was significantly higher in cells transfected with TFEB compared to controls without TFEB. No changes were observed when TFEB was transfected alone or only with β-catenin (Figure 5A and B). Together these data suggest that TFEB is able to enhance WNT pathway activation.

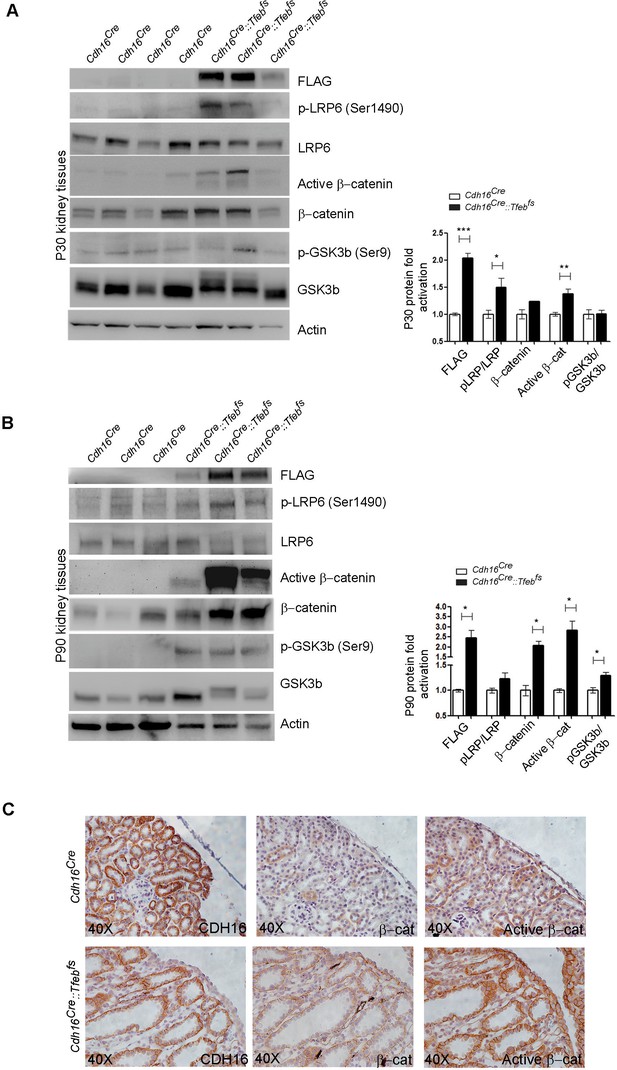

Figure 4 with 1 supplement see all
Molecular and histological analysis of WNT signaling.

(A,B) Western blot analysis performed on (A) P30 and (B) P90 kidneys from Cdh16Cre::Tfebfs mice to assess WNT signaling activation by looking at different proteins related to this pathway. Each replicate is a distinct biological sample. p-LRP6 (Ser1490)/LRP6, active β-catenin, β-catenin and p-GSK3β (Ser9)/GSK3β protein levels were quantified by densitometry analysis of the Western blot bands. Values are normalized to actin when not specified, and are shown as an average (± SEM) (*p<0.05, **p<0.01, ***p<0.001, two-sided Student’s t test). (C) Immunohistochemistry staining of CDH16, β-catenin and active β-catenin proteins performed on P30 kidney tissues from Cdh16Cre::Tfebfs mice.

https://doi.org/10.7554/eLife.17047.014

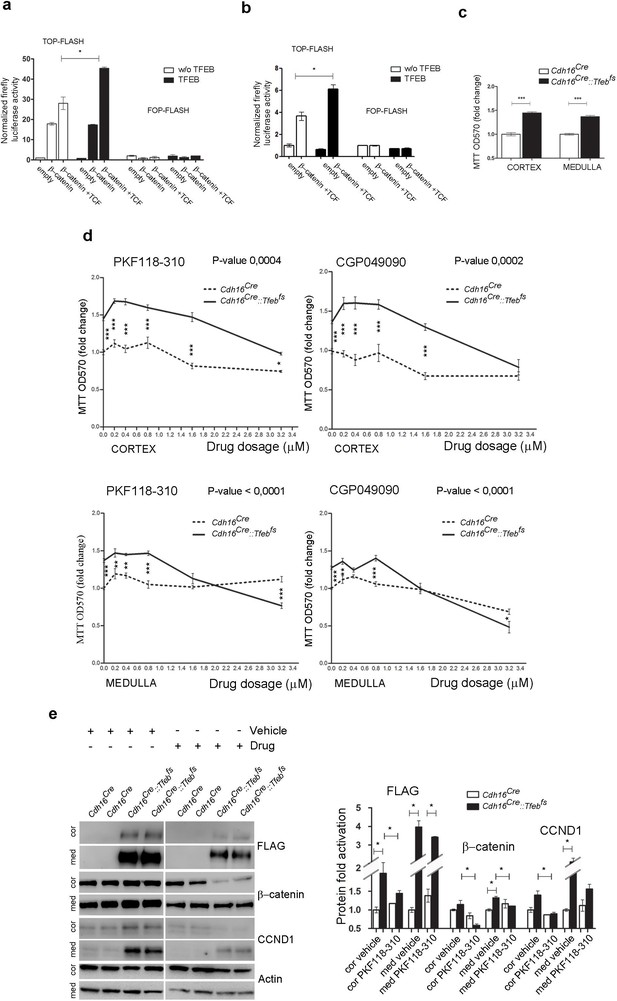

Inhibition of WNT signaling rescues the hyper-proliferative phenotype of kidney cells from Cdh16/Tfeb mice.

(A,B) Activity of the TCF/LEF reporter TOP-FLASH. Luciferase activity after co-transfection of β-catenin and TCF plasmids in HEK293 (A) and HK2 (B) cells with and without Tfeb overexpression. Values are shown as an average (± SEM) of each point in duplicate, normalized to the Renilla values and to the basal condition. Data are representative of three independent experiments. (C) MTT tetrazolium reduction assay (MTT) was used to evaluate proliferation of primary kidney cells derived from Cdh16Cre::Tfebfs mice. Values are shown as an average (± SEM) of each point in triplicate and normalized versus wild-type mice. Data are representative of three independent experiments. (D) MTT proliferation assays of primary kidney cells treated independently with two WNT signaling inhibitors, PKF118-310 and CGP049090, added at different dosages for 24 hr. 0 µm represents the basal proliferation of cells. Values are shown as means (± SEM) of three replicates per point normalized to the vehicle (DMSO), added at the same concentration, and versus the Cdh16Cre cells without drug treatment. Results are representative of three independent experiments. Two-way Anova was applied (factors: cell genotype, treatment). (E) Immunoblot analysis on primary kidney cells treated with Drug (PKF118-310) or Vehicle (DMSO) for 24 hr at 1.6 µM. Graphs show the densitometry quantifications of Western blot bands. Values are normalized to actin and are shown as averages (± SEM) (Cor, cortex; Med, medulla). (*p<0.05, **p<0.01, ***p<0.001).

https://doi.org/10.7554/eLife.17047.016

Treatment with WNT inhibitors ameliorate the disease phenotype

Primary kidney cells derived from the renal cortex and medulla of Cdh16Cre::Tfebfs mice showed significantly higher levels of proliferation compared to wild-type cells (Figure 5C). We tested whether this hyperproliferative phenotype was sensitive to WNT inhibition. Strikingly, cell proliferation was significantly dampened, in a dose-dependent way, by two small-molecules, PKF118-310 and CGP049090 that specifically inhibit the WNT pathway by disrupting the interaction between β-catenin and TCF4 (Avila et al., 2006) and are known to suppress cell proliferation in several types of cancers, both in vitro and in vivo (Wei et al., 2010; Wakita et al., 2001) (Figure 5D). Moreover, β-catenin and CCND1 protein levels were highly reduced after PKF118-310 treatment (Figure 5E).

Based on the results obtained in primary kidney cells, we tested whether WNT inhibition could ameliorate the disease phenotype in vivo. P21 Cdh16Cre::Tfebfs transgenic animals were treated with daily IP injections of PKF118-310 for 30 days. At the end of the treatment, they showed an almost complete rescue of both cystic and cancer phenotypes (Figure 6A). Indeed, treated animals showed nearly normal KW/BW ratios (Figure 6B) and a significant reduction of many parameters of cystic and neoplastic pathology, such as the number and size of cysts and neoplastic papillae, and levels of Ki67 (Figure 6C and D, Figure 6—figure supplement 1, Figure 6—source data 1). We confirmed that drug-treatment in Cdh16Cre::Tfebfs mice suppressed the WNT pathway both at the mRNA and protein levels, as shown by the reduction of the mRNA levels of the WNT direct gene targets Cyclin D1, Myc and Axin2 (Figure 6—figure supplement 2A), by the reduction of Cyclin D1 and MYC proteins (Figure 6—figure supplement 2B) and by the decrease of Cyclin D1-positive nuclei in Cdh16Cre::Tfebfs drug-treated mice (Figure 6—figure supplement 2C). Furthermore, WNT inhibition resulted in normalization of expression levels of the gene encoding the transmembrane Glycoprotein nmb (Gpnmb) (Figure 6E and F), a known marker of melanomas, gliomas and breast cancers, which is also overexpressed in TFE-fusion ccRCCs (Malouf et al., 2014; Zhou et al., 2012). Interestingly, this gene is a direct target of TFEB, based on promoter (Table 3) and ChiP-Seq analysis (Sardiello et al., 2009) (Table 4).

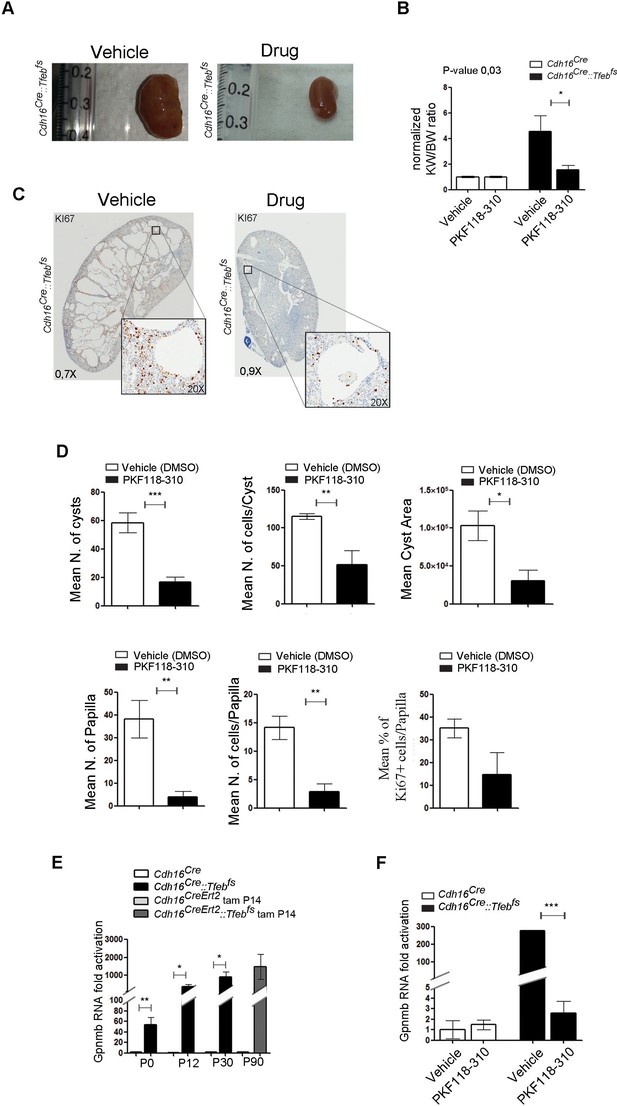

Figure 6 with 3 supplements see all
Treatment with WNT inhibitor attenuates cystic and neoplastic phenotypes.

Morphological, histological and biochemical analyses performed on Cdh16Cre::Tfebfs mice treated with Vehicle (DMSO) or Drug (PKF118-310). (A,B) Kidney images (A) and sizes (KW/BW) (B) from Cdh16Cre::Tfebfs mice injected intraperitoneally (IP) either with vehicle or drug at 0.85 mg/kg. KW/BW ratios are shown as means (± SEM) and values are normalized to the Cdh16Cre animals treated with vehicle. Two-way ANOVA was applied (factors: treatment, genotype). (C) Ki67 staining of kidneys from Cdh16Cre::Tfebfs mice after treatment with vehicle or drug. Insets are enlargements of a single cyst. (D) Quantification of several parameters related to cysts and papillae performed on kidney sections from vehicle- and PKF118-310-treated Cdh16Cre::Tfebfs mice. (E) Gpnmb mRNA fold activation in kidneys from Cdh16Cre::Tfebfs and tam-treated Cdh16CreErt2::Tfebfs mice at different stages. Values are shown as means (± SEM) of at least three mice and each group is normalized to the proper control (respectively Cdh16Cre and tam-treated Cdh16CreErt2). (F) Gpnmb fold activation in kidneys from Cdh16Cre::Tfebfs mice treated with vehicle or PKF118-310. Values are shown as means (± SEM) of at least three animals per group and are all normalized versus the Cdh16Cre mice treated with vehicle. (*p<0.05, **p<0.01, ***p<0.001, two-sided Student’s t test).

https://doi.org/10.7554/eLife.17047.017
Table 3

GPNMB expression profiles and CLEAR sites. (A) Differentially expression of Gpnmb transcript in KSP_P0 (GSE62977), in KSP_P14 microarray dataset (GSE63376) and in RCC dataset. (B) Sequence analysis of the CLEAR sites (i.e. the consensus TFEB binding sites) in the human and murine promoter region of Gpnmb.

https://doi.org/10.7554/eLife.17047.022
A

Probe set ID

Gene symbol

Gene title

Representative public ID

Ensembl

ratio (KSP_P0/CTL)

ratio (KSP_P14/CTL)

ratio (RCC/CTL)

1448303_at

Gpnmb

glycoprotein (transmembrane) nmb

NM_053110

ENSMUSG00000029816

10,61358979

4,926015853

141,4101213

B

Gene

Score

Sequence

Chrom

ABS start

ABS end

TSS_position

Gpnmb

0,8731563

GGGGCAAGTGACTC

chr6

49036518

49036531

1

Gpnmb

0,803943

ACATCACATGATCT

chr6

49036587

49036600

70

GPNMB

0,8484716

CCATCACATGATCC

chr7

23286328

23286341

13

Table 4

List of 11 genes shared between the KSP_P0 dataset and from an HeLa TFEB-overexpressing ChIP-Seq dataset.

https://doi.org/10.7554/eLife.17047.023
Gene symbolsigned_ratio (KSP_P0/CTL)chromosomestartstoppeak tagsdistance from 5' end of geneRefSeq IDsymbolIDABS distance

Elf3

1,881188134

chr1

2E+08

201978977

8

-712

NM_001114309

ELF3

ETS-related transcription factor Elf-3

712

Gna13

1,504591673

chr17

6E+07

63053379

8

-58

NM_006572

GNA13

guanine nucleotide-binding protein subunit

58

Ankrd12

1,599217835

chr18

9E+06

9137025

15

0

NM_015208

ANKRD12

ankyrin repeat domain 12 isoform 1

0

Atp6v1c1

1,658752808

chr8

1E+08

104033525

15

0

NM_001695

ATP6V1C1

V-type proton ATPase subunit C 1

0

Bhlhe40

2,03490115

chr3

5E+06

5021164

10

0

NM_003670

BHLHE40

class E basic helix-loop-helix protein 40

0

Gpnmb

10,61358979

chr7

2E+07

23286524

9

0

NM_002510

GPNMB

transmembrane glycoprotein NMB isoform b

0

Kdm6a

1,58385317

chrX

4E+07

44732628

33

0

NM_021140

KDM6A

lysine-specific demethylase 6A

0

Lats2

1,761917857

chr13

2E+07

21636098

22

0

NM_014572

LATS2

serine/threonine-protein kinase LATS2

0

Ppargc1a

2,713649997

chr4

2E+07

23891989

11

0

NM_013261

PPARGC1A

peroxisome proliferator-activated receptor gamma

0

Rnf146

1,700903945

chr6

1E+08

127588198

14

0

NM_030963

RNF146

ring finger protein 146

0

Usp2

2,284889961

chr11

1E+08

119252760

8

0

NM_004205

USP2

ubiquitin specific peptidase 2 isoform a

0

Autophagy is not required for disease progression

Considering the known role of TFEB as a master regulator of the lysosomal-autophagy pathway (Argani et al., 2001, 2005; Camparo et al., 2008; Davis et al., 2003), and the recent evidence indicating that activation of autophagy driven by MiT/TFE genes plays an important role in pancreatic cancer (Perera et al., 2015), we tested whether autophagy plays a role in TFE-tRCC development. We analyzed the expression levels of a well-characterized panel of TFEB target genes known to be involved in lysosomal biogenesis and autophagy in Cdh16Cre::Tfebfs mice. Surprisingly, no significant changes in the expression levels of these genes were detected in Cdh16Cre::Tfebfs compared to wild type mice, with a few exceptions (Figure 6—figure supplement 3A). Consistently, immunoblot analysis of the autophagy marker LC3 in kidneys from transgenic mice did not reveal any significant changes compared to control littermates (Figure 6—figure supplement 3B). Furthermore, to test the role of autophagy in the pathogenesis of TFE-tRCC we crossed Cdh16Cre::Tfebfs mice with autophagy-deficient Atg7flox/flox mice. No changes in kidney size or in the cystic phenotype were observed in TFEB overexpressing/autophagy-deficient double transgenic mice (Atg7flox/flox::Cdh16Cre::Tfebfs), herein referred to Atg7flox/flox::Cdh16Cre::Tfebfs, compared to Cdh16Cre::Tfebfs mice (Figure 6—figure supplement 3C–E). Interestingly, most of the double transgenic animals died at approximately 1 month of age, suggesting that the combination of TFEB overexpression with autophagy inhibition in the kidney is toxic. This may be due to the previously described increase in sensitivity to oxidative stress of kidney-specific autophagy-deficient mice (Liu et al., 2012). These results suggest that autophagy does not play a critical role in the development of TFE-tRCC phenotype.

Discussion

Kidney cancers associated with translocations of TFE genes represent a major unmet medical need (Argani et al., 2005; Komai et al., 2009; Malouf et al., 2014). Unfortunately, little is known about the mechanisms underlying this type of tumors.

In most cases, TFEB-tRCCs are associated to a well-characterized chromosomal translocation involving the TFEB gene and the non-coding Alpha gene, generating the alpha-TFEB fusion (t(6;11) (p21.2;q13) (Davis et al., 2003; Kuiper et al., 2003). Until recent reports, TFEB breakpoints were in all cases observed within a 289 bp cluster region (BCR) upstream exon 3, thus retaining the entire TFEB coding sequence (Davis et al., 2003; Argani et al., 2005; Inamura et al., 2012). As a consequence, the chromosomal translocation leads to a promoter substitution of the TFEB gene, and to a strong up-regulation of TFEB transcript and protein up to 60-times (Kuiper et al., 2003). Only recently, a new breakpoint was identified within exon 4, but the protein size appears to be the same as the wild-type protein (Inamura et al., 2012). In rare cases of RCCs, TFEB translocation partners were the KHDBRS2 (inv(6) (p21;q11)) (Malouf et al., 2014) and the CLTC (t(6;17) (p21;q23)) genes (Durinck et al., 2015). The situation of TFE3 chromosomal translocations appears to be more complicated. TFE3 was found to be involved in translocations with five known gene partners (i.e. PRCC, ASPSCR1, SFQP, NONO, CLTC) leading to the generation of fusion proteins. The identification of multiple TFE3-gene partners and the characterization of two TFE3-fusion proteins (TFE3-NONO, TFE3-SFQP) (Clark et al., 1997) strongly suggested that RCC is caused by TFE3, rather than by its partners (Kauffman et al., 2014). Indeed, TFE3 fusion protein resulted to be much more stable and transcriptionally active than the wild-type protein (Weterman et al., 2000). Together, these data suggest that the first step, and driving force, of the disease pathological cascade is the overexpression of active TFEB and TFE3 proteins, which is likely associated to an increase of their function as transcription factors.

Currently, there are no model systems to study the mechanisms underlying TFE-tRCC kidney tumors and to identify and test new therapeutic strategies. Until now, very limited data were available on the biological pathways involved in these tumors. Argani et al. (Argani et al., 2010) reported activation of the mTOR pathway in TFE-tRCC patients compared to ccRCCs, as shown by increased phosphorylation levels of the downstream mTOR target S6. Unfortunately, selective mTORC1 inhibition performed on patients with TFE-tRCCs did not improve the disease phenotype (Malouf et al., 2010). Up-regulation of the MET-tyrosine kinase receptor, which in turn activates HGF-signaling, was detected in TFE-tRCC patients by in vitro assays (Tsuda et al., 2007), but subsequent analyses on TFE3-renal samples failed to identify activated MET protein (Kauffman et al., 2014). The lack of mechanistic insights in TFE-tRCCs have hampered the identification of effective therapeutic strategies (Kauffman et al., 2014). Some patients with metastatic TFE3-tRCC have been treated with inhibitors of ErbB receptors and of the mTOR pathway. Unfortunately, most of these patients relapsed after an initial period of remission (Parikh et al., 2009; Wu et al., 2008).

The lack of knowledge of the mechanisms underlying TFE-tRCCs prompted us to generate transgenic mouse models that overexpress TFEB in the kidney, thus mimicking the human disease situation. We generated two transgenic mouse models overexpressing TFEB in the epithelial cells of the kidney in either a constitutive (Cdh16Cre::Tfebfs) or an inducible (Cdh16CreErt2::Tfebfs) manner. A severe renal cystic pathology associated with a significant increase in renal size was observed in these mice. In the constitutive model, cysts arose from the collecting ducts and distal tubules, whereas in the inducible one they derived from proximal and distal tubules.

We observed that cysts were either single- or multi-layered. Epithelial cells lining the mono-layered cysts often lost their cuboidal shape, becoming flattened. Further analyses revealed the presence of protein casts inside the cysts and multi-layered basal membranes in the regions surrounding the cysts, due to collagen deposition. Interestingly, the presence of fibrosis, mBMs and tubular or cystic structures covered by a single layer of flattened, cuboidal, and columnar cells is also observed in human patients affected by TFEB-tRCCs (Rao et al., 2012, 2013). Finally, in both types of transgenic lines, we observed the presence of highly enlarged cells with a clear cytoplasm, that closely resemble the 'Clear Cells' found in human patients with RCC (Rao et al., 2012).

Transgenic mice also displayed a higher glucose metabolism, as shown by PET-scan performed in P30 animals suggesting the presence of renal cancer. At P12, Cdh16Cre::Tfebfs mice already presented cystic changes together with neoplastic nodules that were Ki67-positive. The progressive hyper-proliferation of these nodules resulted in the development of micropapillae starting from P30, which evolved into neoplastic papillae in 5-month-old mice. Finally, liver metastases positive for PAX8 and CDH16 and neoplastic nests were observed in older animals. These data indicate that these newly generated transgenic lines bear all major histological and phenotypic features of human TFE-tRCC (Kauffman et al., 2014; Rao et al., 2012, 2013), thus representing excellent models to study this disease.

To identify the effect of TFEB overexpression on the kidney transcriptome, we performed microarray analysis on kidney samples from P0 Cdh16Cre::Tfebfs mice. Unexpectedly, transgenic mice did not show a significant induction of the autophagy machinery and crossing of these animals with an autophagy deficient Atg7flox/flox mouse line failed to revert the disease phenotype, thus suggesting that autophagy does not play an essential role in the pathogenesis of this disease.

Transcriptome analysis revealed a significant induction of genes involved in the WNT pathway, such as WNT direct target genes Ccnd1, Myc and Axin2 and WNT-related genes Fzd3, Rnf146 and Kdm6a. This transcriptional induction was consistent with increased protein levels of total β-catenin, active β-catenin, CCND1 and pLRP6 (Ser1490)/ LRP6 ratio. Furthermore, an induction of the phospho-GSK3β (Ser9)/ GSK3β ratio, an inactive form of the GSK3β kinase, was detected at later stages. Hyper-activation of the WNT pathway was also observed in cortical and medullary primary kidney cells derived from Cdh16Cre::Tfebfs mice. Most importantly, luciferase assays performed on HEK-293 and HK-2 cells revealed that TFEB overexpression resulted in a significant enhancement of WNT pathway activation.

WNT signalling is of central importance for the development of many organs and has been implicated in tumor pathogenesis at different sites such as skin (Robbins et al., 1996), brain (Zurawel et al., 1998), liver (de La Coste et al., 1998) and prostate (Voeller et al., 1998). Its activation requires the formation of the WNT signalosome, resulting from the binding of WNT ligands to Frizzled (Fzd) receptors. This mediates the interaction of Fzd with LRP5/6 proteins. Fzd-LRP5/6 hetero-oligomerization is required to sequester the β-catenin degradation complex, containing several kinases such as GSK3 and CK1. GSK3 is then able to phosphorylate LRP but not β-catenin. Active β-catenin translocates into the nucleus and activates its target genes, such as MYC, AXIN2 and CCND1 (Clevers, 2006), by interacting with the TCF4/LEF1 transcription factors (Voronkov and Krauss, 2013).

Interestingly, hyper-activation of the WNT pathway was recently detected in a melanoma cell line in which MITF, another member of the MiT/TFE family, was overexpressed, leading to an expansion of the endo-lysosomal compartment that in turn was able to concentrate and relocate the WNT signalosome/destruction complex and consequently to enhance WNT signaling (Ploper et al., 2015). In addition, several studies have linked alterations in the regulation of the β-catenin pathway to abnormalities of kidney development and function (Vainio and Uusitalo, 2000). Indeed, β-catenin is necessary for proper regulation of the PKD1 promoter (Rodova et al., 2002), that is mutated in 85% of patients with Autosomal Dominant Polycystic Kidney Disease (ADPKD). Furthermore, the WNT pathway is also known to play a role in renal tumor formation, such as in VHL syndrome (Peruzzi and Bottaro, 2006) and Wilm’s tumor (Koesters et al., 1999; Zhu et al., 2000; Kim et al., 2000). Mice lacking the Apc gene specifically in the kidney are prone to the development of cystic renal cell carcinomas (Sansom et al., 2005). Finally, cytoplasmic accumulation of β-catenin was observed in patients with TFE3-tRCC, suggesting the presence of a possible link between TFE-factors and WNT-signaling components (Bruder et al., 2007). Together these studies reveal a strong link between hyper-activation of WNT signaling and tumorigenesis in the kidney and reinforce our finding of WNT hyper-activation in TFEB transgenic mice as a critical step of the disease pathogenesis.

Based on this evidence, we postulated that treatment with WNT inhibitors had beneficial effects on TFE-tRCCs. To test this hypothesis, we treated primary kidney cells from Cdh16Cre::Tfebfs mice with two small molecules, PKF118-310 and CGP049090, able to inhibit the WNT pathway by disrupting the interaction between β-catenin and TCF-4 (Avila et al., 2006). Drug treatments significantly reduced the hyper-proliferation rate observed in cells from transgenic mice, bringing it to normal levels. Therefore, we sought to reproduce these data in vivo by treating Cdh16Cre::Tfebfs mice with WNT inhibitors. Administration of the PKF118-310 molecule or vehicle for 30 days resulted in a substantial reduction of several important parameters, such as kidney size, cyst number and size, Ki67 index and the number of neoplastic papillae. Moreover, drug-treated Cdh16Cre::Tfebfs animals showed a significant decrease in the mRNA levels of Gpnmb, a known marker of melanomas, gliomas and breast cancer, which was reported to be overexpressed in TFE-fusion ccRCCs (Malouf et al., 2014; Zhou et al., 2014). Interestingly, we also found that Gpnmb is a direct transcriptional target of TFEB (Sardiello et al., 2009).

This study provides direct evidence that overexpression of TFEB in the kidney is able to generate a severe cystic pathology associated with the development of kidney cancer and liver metastases, thus mimicking the cancer phenotype associated with human TFE-fusion ccRCCs chromosomal translocations. Thus, the transgenic mouse lines that we generated represent the first genetic animal models of renal cell carcinoma. The study of these mice revealed that WNT activation plays a crucial role in TFE-tRCCs and that WNT inhibitors can be used to rescue the phenotype of our transgenic mouse models, suggesting that targeting WNT signaling could be a promising therapeutic approach for the treatment of TFE-tRCC patients.

Materials and methods

Mouse models

Request a detailed protocol

Tfebfs/fs transgenic mice (generated by Dr. Settembre [Settembre et al., 2011]) were crossed with a kidney-specific Cdh16Cre (Cdh16, Cadherin 16) (Jackson laboratories RRID:IMSR_JAX:012237) and Cdh16CreErt2 (generated by Dr. Peters [Lantinga-van Leeuwen et al., 2006]) mice. The Atg7 conditional KO mice (Komatsu et al., 2005) (Atgflox/flox mice) was a generous gift from T.Eissa. Mice were crossed with Cdh16Creand Tfebfs/fs mice to obtain kidney-specific Atg7 deletion and TFEB overexpression (Atgflox/flox: :Cdh16Cre::Tfebfs). All mice used were maintained in a C57BL/6 background genotype. Cdh16Creand Cdh16Cre::Tfebfs mice were injected intra-peritoneally (IP) with tamoxifen at a dosage of 100 μg/g of mouse weight for three consecutive days to obtain an efficient recombination. For the Kidney to Body weight ratio experiments, we analyzed at least three animals per genotype/sex/condition, but often the number was higher than 5. Experiments were conducted in accordance with the guidelines of the Animal Care and Use Committee of Cardarelli Hospital in Naples and authorized by the Italian Ministry of Health.

Cell culture, transfections and plasmids

Request a detailed protocol

Primary kidney cells were obtained following the protocol described in Leemans et al. (Leemans et al., 2005). Briefly, kidneys were collected and uncapsulated. Tissue from the outer cortex and inner medulla was cut into approximately 1 mm3 pieces, and subsequently digested by 1 mg/ml collagenase type 1A (Sigma- Aldrich, Saint Louis, MO) at 37°C for 1 hr. After washing cells with PBS, primary TECs were grown to confluence in DMEM-F12 culture medium supplemented with 10% FCS, 100 IU/ml penicillin, 100 mg/ml streptomycin, 2 mM L-glutamine (Gibco; Invitrogen Corp.), 1% ITSe and 1% S1 hormone mixture (Sigma-Aldrich) and were cultured in 5% CO2 at 37 degrees. TECs were identified by characteristic cobblestone-shaped morphology. Tfeb overexpression was confirmed by FLAG immunoblot (Figure 2). HEK293 (CRL-1573, RRID:CVCL_0045) and HK2 (CRL-2190, RRID:CVCL_0302) cells were purchased from ATCC. The identity of these cells have been confirmed by STR profiling (http://web.expasy.org/cellosaurus/CVCL_00459) (http://web.expasy.org/cellosaurus/CVCL_0302). No mycoplasma contamination was detected in these cells. HEK293 cells were cultured in DMEM (Euroclone) supplemented with 10% FBS, 100IU/ml penicillin, 100 mg/ml streptomycin and 2 mM L-glutamine (Gibco; Invitrogen Corp.). HK2 cells were grown in DMEM-F12 (Invitrogen) supplemented with 5% FBS, 100 IU/ml penicillin, 100 mg/ml streptomycin, 2 mM L-glutamine (Gibco; Invitrogen Corp.) and 1% ITSe. Cells were grown at 5% CO2 at 37 degrees. Human full-length TFEB-FLAG was previously described (Settembre et al., 2011). The TopFlash and FopFlash plasmids (Upstate), the pCS2+MT-Myc-tagged β-CATENIN (full-length β-CATENIN), and the Evr2-Tcf1E plasmid (Tcf1E) were kindly provided by Dr. M. Plateroti.

Cells were transfected with Lipofectamine LTX and Plus reagent (Invitrogen) following the manufacturer’s protocol. Luciferase activity was measured 48 hr post-transfection using the Dual-Luciferase Reporter Assay System (Promega). To normalize transfection efficiency in reporter assays, the HEK293 and HK2 cells were co-transfected with a plasmid carrying the internal control reporter Renilla reniformis luciferase driven by a TK promoter (pRL-TK; Promega). Data are representative of three independent experiments and statistical significance was determined using Student's t-test. p<0.05 was considered as significant.

In vitro drug treatments and MTT proliferation assay

Request a detailed protocol

Cultured primary kidney cells derived from the cortex and medulla of Cdh16Cre and Cdh16Cre::Tfebfs mice were seeded in 96-well plates at the density of 5 × 10cells/well, maintained overnight at 37°C, and incubated in the presence of the test compounds at the different concentrations. PKF118-310 and CGP049090 were added at different dosages (0 µm, 0.2 µm, 0.4 µm, 0.8 µm, 1.6 µm, 3.2 µm) for 24 hr. 0 µm represents the basal proliferation of cells after 48 hr of plating. MTT assay was used to assess cell proliferation. Briefly, 5 mg of MTT powder was solubilized in 1 mL of PBS and filtered. Ten microliter of this solution was added to 100 μl of cell culture medium without phenol red. At the end of the incubation time, cells were washed twice with PBS and incubated with MTT-media solution to form formazan crystals. After 4 hr, media was removed and 100 μl/well of a solubilisation solution was added to the cells (2.1 mL HCl 10 N, 500 mL isopropanol) for 4 hr at 37°C to obtain a complete solubilization of the crystals. As a readout, absorbance of the 96-well plate was measured recording the Optical Density (OD) at 570 nm with a microplate spectrophotometer system. Results are representative of three independent experiments performed on three different Cdh16Cre and Cdh16Cre::Tfebfs mice. T-test is referred to cells without drug (0 µm) taken from Cdh16Cre::Tfebfs mice versus cells without drug (0 µm) taken from Cdh16Cre mice. Data are representative of three independent experiments, and statistical significance was determined using Student's t-test. p<0.05 was considered as significant.

In vivo drug treatments

Request a detailed protocol

P21 Cdh16Creand Cdh16Cre::Tfebfs mice were injected IP daily, from Monday to Friday, with the PKF118-310 drug at the dose of 0.85 mg/kg or with an equal amount of vehicle (DMSO). After 30 days from the beginning of the treatment, animals were sacrificed and kidneys were collected and weighted and processed for further analyses. Six animals for each group and genotype were collected.

Biochemical analysis

Request a detailed protocol

Plasma urea was measured using standardized clinical diagnostic protocols of the Academical Medical Center Amsterdam. Albumin (Bethyl Laboratories, Montgomery, TX) was measured in urines collected for 24 hr in metabolic cages and was analyzed by following the manufacturer’s instructions.

High-frequency ultrasound and PET/CT scan analyses

Request a detailed protocol

All the imaging procedures were performed with mice under general anesthesia. Anesthesia was produced in an induction chamber, saturated with 5% isoflurane (Iso-Vet 1000 mg/g Inhalation Vapor, Piramal Healthcare UK Ltd., Northumberland, UK) in oxygen (2 L/min) and subsequently maintained during all procedures with a conenose delivering isoflurane at 1.5% in oxygen at 2 L/min.

For High-frequency ultrasound, each mouse was placed in dorsal recumbency on a dedicated, heated, small animal table (VEVO Imaging Station 2, FUJIFILM VisualSonics, Inc., Toronto, Ontario, Canada) and hairs were removed with a small clipper and then with the application of a depilatory cream, and a pre-warmed ultrasound-coupling gel was applied to the skin to improve ultrasound transmission and reduce contact artefacts. A 40 MHz transducer (MS 550 D, FUJIFILM VisualSonics, Inc., Toronto, Ontario, Canada) was mounted on the dedicated stand of the imaging station, and B-mode and Color-Doppler mode images were obtained on the ultrasound equipment (VEVO 2100, FUJIFILM VisualSonics, Inc., Toronto, Ontario, Canada).

Positron emission tomography (PET) coupled with computed tomography (CT) was performed with a dedicated small animals PET/CT scanner (eXplore Vista, GE Healthcare), with a trans-axial field of view of 6.7 cm and an axial field of view of 4.8 cm. Animals, fasted overnight, were injected under general anesthesia in the lateral caudal vein with 300 µCi of [18F]-fluorodeoxyglucose (FDG). Mice were left to recover from anesthesia under a heating lamp and PET/CT acquisitions were started after 90 min of biodistribution. Static emission scans of 30 min with energy window of 250–700 keV were acquired. The PET datasets were reconstructed by 2D FORE/3D OSEM algorithm and corrected for random coincidences, scatter, physical decay to the time of injection (voxel size: 0.3875 × 0.3875 × 0.775 mm3). The mean specific uptake value (SUV) was obtained for each region of interest using the visualization and analysis software of the scanner (version 4.11 Build 701, MMWKS Image Software: Laboratorio de Imagen, HGUGM, Madrid, Spain).

Survival analysis

Request a detailed protocol

Survival curves were calculated for a period of 8 months on a total of 15 Cdh16Cre::Tfebfs mice, 10 Cdh16CreErt2::Tfebfs mice (tam P12), 12 Cdh16CreErt2 mice (tam P14) and 12 Cdh16CreErt2::Tfebfs mice (tam P30) grown in the same animal facility, all in same background (C57BL/6). Values were plotted by the product-limit method of Kaplan and Meier; statistical analyses were carried out applying the Log Rank (Mantel-Cox) test.

Quantitative real-time PCR

Request a detailed protocol

Total RNA was isolated from frozen samples lysed in Trizol (Life Technologies) using a TissueLyser (Qiagen) and following the recommended manufacturer’s protocol. Reverse transcription was performed using QuantiTect Rev Transcription Kit (Qiagen). Finally, real-time PCR was performed using SYBR Green (Roche Diagnostics) and performing the reaction in the LightCycler System 2.0 (Roche Applied Science). The parameters of real-time PCR amplification were defined according to Roche recommendations. To quantify gene expression, Gapdh mRNA expression was used as an internal reference. All the values are shown as fold activation respect to w-type levels. Data are representative of three independent experiments and statistical significance was determined using Student's t-test. p<0.05 was considered as significant.

The following primers were used in this study: Gapdh; forward (fw) tgcaccaccaactgcttagc, reverse (rev) tcttctgggtggcagtgatg; Tfeb; fw gcagaagaaagacaatcacaa, rev gccttggggatcagcatt; Ccnd1; fw ccttgactgccgagaagttgtg, rev gttccacttgagcttgttcacca; Axin2; fw gatgcatcgcagtgtgaagg, rev ggttccacaggcgtcatctc; Myc; fw ccagcagcgactctgaagaa, rev acctcttggcaggggtttg; Fzd3; fw gcatctgggagacaacatgg, rev caggtctggacgactcatctg; Rnf146; fw agcggaggagaaaagactgc, rev acatagccctttctcggtccg; Kdm6a; fw tgacagcggaggagagggag, rev ccttcatcctggcgccatct; Cdkn1a; fw gtctgagcggcctgaagatt, rev caatctgcgcttggagtgat; HbEgf; fw tccacaaaccagctgctacc, rev ccttgtggcttggaggagaa; Pak1; fw ttcctgaaccgctgtcttga, rev tcaggctagagaggggcttg; Areg; fw tattggcatcggcatcgtta, rev tgcacagtcccgttttcttg; Crk; fw cgcgtctcccactacatcat, rev tctcctattcggagcctgga; Tgfa; fw agtgcccagattcccacact, rev cgtacccagagtggcagaca; Gpnmb, fw tggctacttcagagccacca, rev ggcatggggacatctgctat.

Microarray hybridization

Request a detailed protocol

Total RNA (3 μg) was reverse transcribed to single-stranded cDNA with a special oligo (dT) 24 primer containing a T7 RNA promoter site, added 3' to the poly-T tract, prior to second strand synthesis (One Cycle cDNA Synthesis Kit by Affymetrix, Fremont, CA). Biotinylated cRNAs were then generated, using the GeneChip IVT Labeling Kit (Affymetrix). Twenty microgram of biotinylated cRNA was fragmented and 10 μg hybridized to the Affymetrix GeneChip Mouse 430A_2 microarrays for 16 hr at 45°C using an Affymetrix GeneChip Fluidics Station 450 according to the manufacturer's standard protocols.

For the analysis at P0, the total RNA was extracted from the kidney of three Cdh16Cre::Tfebfs mice and of two control Cdh16Cre mice. For the analysis at P14, total RNA was extracted from the kidney of three Cdh16Cre::Tfebfs P14 mice and three control Cdh16Cre P14 mice.

Microarray data processing

Request a detailed protocol

The data discussed in this publication have been deposited in NCBIs Gene Expression Omnibus (GEO) (Edgar et al., 2002) and are accessible through GEO Series accession number GSE62977 (KSP_P0 dataset) and GSE63376 (KSP_P14 dataset) (KSP, Kidney specific). Low-level analysis to convert probe level data to gene level expression was performed using Robust Multiarray Average (RMA) implemented using the RMA function of the Bioconductor project (Gentleman et al., 2004).

Statistical analysis of differential gene expression

Request a detailed protocol

For each gene, a Bayesian t-test (Cyber-t) (Baldi and Long, 2001) was used on RNA normalized data to determine if there was a significant difference in expression between Cdh16Cre::Tfebfs mice versus Cdh16Cre mice both at P0 (GSE62977-KSP_P0 dataset) and at P14 (GSE63376- KSP_P14 dataset). p-Value adjustment for multiple comparisons was done with the False Discovery Rate (FDR) of Benjamini-Hochberg (Klipper-Aurbach et al., 1995). The threshold for statistical significance chosen was FDR≤0.05. In the KSP_P0 dataset, we selected 361 probe-sets corresponding to 294 significantly induced genes (GSE62977). In the KSP_P14 dataset, we selected 729 probe-set corresponding to 628 genes (GSE63376).

(Immuno-) histological analysis

Request a detailed protocol

Formalin-fixed, paraffin-embedded kidney sections (4 µm) were analyzed using standard hematoxylin and eosin (HE) staining, periodic acid Schiff (PAS) staining, or Sirius Red (SR) staining. For immunohistochemistry procedures, sections were subjected to heat-mediated antigen retrieval procedure (10 mM citrate buffer pH 6.0) followed by 1 hr preincubation with normal goat serum (1:200; DakoCytomation, Glostrup, Denmark). After blocking of endogenous peroxidase activity for 15 min in 0.1% H2O2 in water, sections were incubated with primary antibodies diluted in 1% BSA in PBS. Following incubation with secondary antibody, immune reactions were revealed using NovaRed or diaminobenzidine chromogen and counterstained with hematoxylin, dehydrated, and mounted.

Primary antibodies: rabbit polyclonal anti-megalin (1:750, Pathology LUMC, Leiden, the Netherlands), goat polyclonal anti-uromodulin (1:4000, Organon Teknika-Cappel,Turnhout, Belgium), rabbit polyclonal anti-aquaporin-2 (1:4000 Calbiochem, Amsterdam, The Netherlands), rabbit polyclonal anti-β-catenin (1:500, Santa Cruz sc-7199, RRID:AB_634603), rabbit monoclonal anti-active β-catenin (1:800, Cell Signaling #8814, RRID:AB_11127203), rabbit polyclonal anti-cadherin16 (1:300, Novus NBP159248, RRID:AB_11046440), rabbit polyclonal anti-ATG7 (1:300, Santa Cruz sc-33211, RRID:AB_2062165), rabbit monoclonal anti-Ki67 (ABCAM ab16667, clone SP6, RRID:AB_302459, 1:200), a rabbit polyclonal anti-PAX8 antibody (Proteintech, 10336-1-AP, RRID:AB_2236705, 1:1000) and a mouse monoclonal anti-Cytokeratin 7 (Abcam, ab9021, RRID:AB_306947, 1:500). Secondary antibodies: anti-rabbit envision HRP (DakoCytomation, Glostrup, Denmark), rabbit-anti-goat HRP (1:100), power rabbit poly-HRP (Biocare Medical, M4U534L). For staining with Sirius Red, de-paraffinized sections were incubated in 0.2% phosphomolybdic acid hydrate for 5 min and 0.1% Sirius red for 90 min. Subsequently, sections were incubated for 1 min in saturated picric acid and then placed in 70% ethanol, dehydrated and mounted.

Quantitative histology

Request a detailed protocol

Histomorphometric analysis were conducted on PAS and Ki67-stained sections. For the cyst characterization, cyst number and area was calculated on PAS sections from three animals per genotype and group. Cysts were hand-annotated and measured in the outer and inner cortex, and the outer and inner medulla. Finally, they were sub-divided according to their size.

For the analyses performed on the drug- and vehicle-treated animals, the analysis was conducted on Ki67-stained sections. The number and size of the cysts were defined within the areas identified by the pathologist using ImageScope (Leica-Biosystems Nussloch GmbH).

Using the same method, the number of papillae was counted and the proportion of Ki-67 positive nuclei on the total number of nuclei within the papillae was calculated. For these analyses, a total of six Cdh16Cre::Tfebfs vehicle (DMSO)-treated and six Cdh16Cre::Tfebfs drug (PKF118-310)-treated animals were evaluated.

Antibodies and western blotting

Request a detailed protocol

Tissues were microdissected and disrupted using a TissueLyser (Qiagen). Cells or tissues were lysed by solubilisation in lysis buffer (50 mM Tris at pH 7.9, 1% Triton X-100, 0,1% Tween 20, 150 mM NaCl, 5 mMMgCl2, 10% glycerol) containing phosphatase (Roche) and protease (Sigma) inhibitors. Protein concentration was measured by the Bradford method. Samples were mixed with Laemmli lysis buffer, boiled and resolved by SDS-PAGE. Thereafter, proteins were blotted onto polyvinylidene fluoride (PVDF) membranes and blocked for 1 hr with non-fat 5% milk or 5% BSA diluted in 1X TBS, 0,1% Tween 20, according to the primary antibody protocol. Membranes were incubated with primary antibodies overnight. Visualization was made by incubation with corresponding HRP-labeled secondary antibodies (Calbiochem) followed by enhanced chemiluminescence (ECL) (Perkin Elmer, Waltham, MA). Membranes were developed using a Chemidoc UVP imaging system (Ultra-Violet Products Ltd) and densitometric quantification was performed in unsaturated images using ImageJ (NIH).

For Western blots, the following antibodies were used: anti-FLAG M2-HRP (Sigma, cat. A8592, RRID:AB_439702, 1:1000), anti-actin (Sigma, cat. A2066, RRID:AB_476693, 1:5000), anti-βtubulin (Sigma, cat. T8328, RRID:AB_1844090 1:1000), anti-Human/Mouse/Rat Pan-Akt (R&D, cat. MAB2055, RRID:AB_2224581, 1:500), Phospho-Akt (Ser473) (D9E) Cell Signaling, cat. #4060, RRID:AB_2315049, 1:1000), anti-human, mouse, and rat ERK1/ERK2 (R&D, cat.216703, RRID:AB_2140121, 1:2000), anti-Human/Mouse/Rat Phospho- ERK1(T202/Y204)/ERK2 (T185/Y187) (R&D, cat. AF1018, RRID:AB_354539 1:1000), anti-β-catenin (BD, cat. 610154, RRID:AB_397555 1:500), anti-active β-catenin (Cell Signaling, cat. #8814, RRID:AB_11127203 1:1000), anti-Cyclin D1 (Cell Signaling, cat. #2978, RRID:AB_10692801 1:1000), anti-LRP6 (Cell Signaling, cat. #3395, RRID:AB_1950408 1:1000), anti-phospho-LRP6 (Ser1490) (Cell Signaling, cat. #2568, RRID:AB_2139327 1:1000), anti-GSK3β (Cell Signaling, cat. #9315, RRID:AB_490890 1:1000), anti-phospho-GSK3β (Ser9) (Cell Signaling, cat. #9323, RRID:AB_2115201 1:1000), anti MYC (Cell Signaling, cat. #5605, RRID:AB_1903938 1:1000).

Statistical analysis

Request a detailed protocol

GraphPad Prism (GraphPad Software, San Diego, CA) was used for all statistical analysis. Statistical analyses of data were performed using Student’s t-test. One-way ANOVA and Tukey’s post-hoc tests were performed when comparing more than two groups relative to a single factor (time or treatment/genotype). Two-way and three-way ANOVA and Tukey’s post-hoc tests were performed when comparing more than two groups relative to two or more factors. Mantel-Cox test was used for the survival analysis. p<0.05 was considered significant.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    Mutational activation of the beta-catenin proto-oncogene is a common event in the development of Wilms' tumors
    1. R Koesters
    2. R Ridder
    3. A Kopp-Schneider
    4. D Betts
    5. V Adams
    6. F Niggli
    7. J Briner
    8. M von Knebel Doeberitz
    (1999)
    Cancer Research 59:3880–3882.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Inhibition of activin signaling slows progression of polycystic kidney disease
    1. WN Leonhard
    2. SJ Kunnen
    3. AJ Plugge
    4. A Pasternack
    5. SB Jianu
    6. K Veraar
    7. F El Bouazzaoui
    8. WM Hoogaars
    9. P Ten Dijke
    10. MH Breuning
    11. E De Heer
    12. O Ritvos
    13. DJ Peters
    (2016)
    Journal of the American Society of Nephrology, 10.1681/ASN.2015030287.
  35. 35
  36. 36
  37. 37
    Comprehensive molecular characterization of papillary renal-cell carcinoma
    1. WM Linehan
    2. PT Spellman
    3. CJ Ricketts
    4. CJ Creighton
    5. SS Fei
    6. C Davis
    7. DA Wheeler
    8. BA Murray
    9. L Schmidt
    10. CD Vocke
    11. M Peto
    12. AA Al Mamun
    13. E Shinbrot
    14. A Sethi
    15. S Brooks
    16. WK Rathmell
    17. AN Brooks
    18. KA Hoadley
    19. AG Robertson
    20. D Brooks
    21. R Bowlby
    22. S Sadeghi
    23. H Shen
    24. DJ Weisenberger
    25. M Bootwalla
    26. SB Baylin
    27. PW Laird
    28. AD Cherniack
    29. G Saksena
    30. S Haake
    31. J Li
    32. H Liang
    33. Y Lu
    34. GB Mills
    35. R Akbani
    36. MD Leiserson
    37. BJ Raphael
    38. P Anur
    39. D Bottaro
    40. L Albiges
    41. N Barnabas
    42. TK Choueiri
    43. B Czerniak
    44. AK Godwin
    45. AA Hakimi
    46. TH Ho
    47. J Hsieh
    48. M Ittmann
    49. WY Kim
    50. B Krishnan
    51. MJ Merino
    52. KR Mills Shaw
    53. VE Reuter
    54. E Reznik
    55. CS Shelley
    56. B Shuch
    57. S Signoretti
    58. R Srinivasan
    59. P Tamboli
    60. G Thomas
    61. S Tickoo
    62. K Burnett
    63. D Crain
    64. J Gardner
    65. K Lau
    66. D Mallery
    67. S Morris
    68. JD Paulauskis
    69. RJ Penny
    70. C Shelton
    71. WT Shelton
    72. M Sherman
    73. E Thompson
    74. P Yena
    75. MT Avedon
    76. J Bowen
    77. JM Gastier-Foster
    78. M Gerken
    79. KM Leraas
    80. TM Lichtenberg
    81. NC Ramirez
    82. T Santos
    83. L Wise
    84. E Zmuda
    85. JA Demchok
    86. I Felau
    87. CM Hutter
    88. M Sheth
    89. HJ Sofia
    90. R Tarnuzzer
    91. Z Wang
    92. L Yang
    93. JC Zenklusen
    94. J Zhang
    95. B Ayala
    96. J Baboud
    97. S Chudamani
    98. J Liu
    99. L Lolla
    100. R Naresh
    101. T Pihl
    102. Q Sun
    103. Y Wan
    104. Y Wu
    105. A Ally
    106. M Balasundaram
    107. S Balu
    108. R Beroukhim
    109. T Bodenheimer
    110. C Buhay
    111. YS Butterfield
    112. R Carlsen
    113. SL Carter
    114. H Chao
    115. E Chuah
    116. A Clarke
    117. KR Covington
    118. M Dahdouli
    119. N Dewal
    120. N Dhalla
    121. HV Doddapaneni
    122. JA Drummond
    123. SB Gabriel
    124. RA Gibbs
    125. R Guin
    126. W Hale
    127. A Hawes
    128. DN Hayes
    129. RA Holt
    130. AP Hoyle
    131. SR Jefferys
    132. SJ Jones
    133. CD Jones
    134. D Kalra
    135. C Kovar
    136. L Lewis
    137. J Li
    138. Y Ma
    139. MA Marra
    140. M Mayo
    141. S Meng
    142. M Meyerson
    143. PA Mieczkowski
    144. RA Moore
    145. D Morton
    146. LE Mose
    147. AJ Mungall
    148. D Muzny
    149. JS Parker
    150. CM Perou
    151. J Roach
    152. JE Schein
    153. SE Schumacher
    154. Y Shi
    155. JV Simons
    156. P Sipahimalani
    157. T Skelly
    158. MG Soloway
    159. C Sougnez
    160. A Tam
    161. D Tan
    162. N Thiessen
    163. U Veluvolu
    164. M Wang
    165. MD Wilkerson
    166. T Wong
    167. J Wu
    168. L Xi
    169. J Zhou
    170. J Bedford
    171. F Chen
    172. Y Fu
    173. M Gerstein
    174. D Haussler
    175. K Kasaian
    176. P Lai
    177. S Ling
    178. A Radenbaugh
    179. D Van Den Berg
    180. JN Weinstein
    181. J Zhu
    182. M Albert
    183. I Alexopoulou
    184. JJ Andersen
    185. JT Auman
    186. J Bartlett
    187. S Bastacky
    188. J Bergsten
    189. ML Blute
    190. L Boice
    191. RJ Bollag
    192. J Boyd
    193. E Castle
    194. YB Chen
    195. JC Cheville
    196. E Curley
    197. B Davies
    198. A DeVolk
    199. R Dhir
    200. L Dike
    201. J Eckman
    202. J Engel
    203. J Harr
    204. R Hrebinko
    205. M Huang
    206. L Huelsenbeck-Dill
    207. M Iacocca
    208. B Jacobs
    209. M Lobis
    210. JK Maranchie
    211. S McMeekin
    212. J Myers
    213. J Nelson
    214. J Parfitt
    215. A Parwani
    216. N Petrelli
    217. B Rabeno
    218. S Roy
    219. AL Salner
    220. J Slaton
    221. M Stanton
    222. RH Thompson
    223. L Thorne
    224. K Tucker
    225. PM Weinberger
    226. C Winemiller
    227. LA Zach
    228. R Zuna
    229. Cancer Genome Atlas Research Network
    (2016)
    The New England Journal of Medicine 374:135–145.
    https://doi.org/10.1056/NEJMoa1505917
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
    Renal cell carcinomas with t(6;11)(p21;q12) presenting with tubulocystic renal cell carcinoma-like features
    1. Q Rao
    2. XM Zhang
    3. P Tu
    4. QY Xia
    5. Q Shen
    6. XJ Zhou
    7. QL Shi
    (2013)
    International Journal of Clinical and Experimental Pathology 6:1452–1457.
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
    Beta-catenin mutations in human prostate cancer
    1. HJ Voeller
    2. CI Truica
    3. EP Gelmann
    (1998)
    Cancer Research 58:2520–2523.
  66. 66
  67. 67
    A mammalian two-hybrid system for adenomatous polyposis coli-mutated colon cancer therapeutics
    1. K Wakita
    2. O Tetsu
    3. F McCormick
    (2001)
    Cancer Research 61:854–858.
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
    Sporadic medulloblastomas contain oncogenic beta-catenin mutations
    1. RH Zurawel
    2. SA Chiappa
    3. C Allen
    4. C Raffel
    (1998)
    Cancer Research 58:896–899.

Decision letter

  1. Ralph DeBerardinis
    Reviewing Editor; UT Southwestern Medical Center, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Modelling TFE renal cell carcinoma in mice reveals a critical role of WNT signaling" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors and the evaluation has been overseen by a Reviewing Editor and Sean Morrison as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors describe a new mouse model of TFEB overexpression in the kidney to mimic renal tumors with translocation-induced gain of function of TFE transcription factors. TFEB overexpression results in cyst formation and neoplastic lesions in the kidney. Gene expression studies revealed dramatic induction of genes in the WNT signaling pathway in the affected kidneys, and inhibitors of this pathway significantly ameliorated disease in mice.

Essential revisions:

1) The mouse model should be described in more detail, particularly the prevalence and size of tumor nodules, whether the primary tumors display local invasion, and the incidence of metastasis to the liver.

2) The presence of apparent liver metastases from the renal tumors is significant but requires validation. Can the authors perform molecular or other analyses to confirm that the liver lesions arise from tumors in the kidney?

3) Figure 6: Please provide evidence by IHC or PCR that the WNT pathway has been suppressed in the drug-treated kidneys.

4) It is surprising that, based on expression analysis of a few markers, cysts appear to develop from different cell types in the inducible and non-inducible lines. The authors should provide an explanation for this unusual phenomenon, and ideally use additional markers to strengthen their conclusion.

https://doi.org/10.7554/eLife.17047.029

Author response

1) The mouse model should be described in more detail, particularly the prevalence and size of tumor nodules, whether the primary tumors display local invasion, and the incidence of metastasis to the liver.

We observed neoplastic nodules, starting from P12, in all KSPcdh16/Tcfeb and indKSPcdh16/Tcfeb mice (on a total of 43 analysed mice), with a size ranging from 0.102 to 2.93 mm and sometimes presenting local invasion of the surrounding stroma as shown by new Figure 2I. We identified liver metastases ranging from 0.9 to 3.8 mm, in both KSPcdh16/Tcfeb and indKSPcdh16/Tcfeb mice. Five mice out of a total of 21 KSPcdh16/Tcfeb mice analysed over three months of age (an incidence of 23%) developed liver metastases. This information has been included in the text.

2) The presence of apparent liver metastases from the renal tumors is significant but requires validation. Can the authors perform molecular or other analyses to confirm that the liver lesions arise from tumors in the kidney?

As already shown in Figure 2L, liver metastases were positive for PAX8, that is a well-established marker for primary and metastatic RCC (Ozcan A. et al., Arch Pathol Lab Med. 2012; Shen SS. et al., Arch Pathol Lab Med. 2012) and for KSP-CDH16, which is a specific renal protein, that is not expressed in other tissues (Shen SS. et al., Arch Pathol Lab Med. 2012). Indeed Ksp-Cdh16 promoter has been used to drive renal CRE-specific expression in this study and in a number of other studies (Shao X., J Am Soc Nephrol. 2002; Kai T., J Pathol. 2016). Liver metastases were instead negative for the bile ducts and cholangiocarcinoma marker CK7 (Cytokeratin 7), consistent with their renal origin (Figure 2L). This information has been included in the text. We also show that the KSP-CDH16 protein was detectable together with the FLAG on liver metastases by Western blot, while healthy hepathic tissue did not show any KSP-CDH16 protein expression (see figure below).

3) Figure 6: Please provide evidence by IHC or PCR that the WNT pathway has been suppressed in the drug-treated kidneys.

As suggested by the reviewer, to check if the WNT pathway was suppressed in drug-treated animals we quantified mRNA levels of the well-established WNT direct gene targets CyclinD1, c-Myc and Axin2 (Clevers 2006), which were significantly induced in the KSPcdh16/Tcfeb mouse model. We first validated their induction in vehicle-treated KSPcdh16/Tcfeb mice and subsequently demonstrated their suppression in drug-treated KSPcdh16/Tcfeb mice. Moreover, biochemical analysis showed a reduction of CyclinD1 and c-MYC proteins in drug-treated mice. Finally, IHC analysis showed a significant decrease of CyclinD1-positive nuclei in drug-treated mice. These data have been included in Figure 6—figure supplementary 2.

4) It is surprising that, based on expression analysis of a few markers, cysts appear to develop from different cell types in the inducible and non-inducible lines. The authors should provide an explanation for this unusual phenomenon, and ideally use additional markers to strengthen their conclusion.

We agree with the reviewer’s observation and have now included a discussion of this issue in the text. Previous studies on mouse models of polycystic kidney disease have shown that cysts may originate from different cell types (Latinga Van Leeuwen IS. et al., Hum Mol Genet. 2007; Happé H. et al., Hum Mol Genet. 2009; Leonhard WN. et al., J Am Soc Nephrol. 2016). These differences can be explained by different sensitivities to stimuli of different renal segments at different developmental stages (Latinga Van Leeuwen IS. et al., Hum Mol Genet. 2007; Happé H. et al., Hum Mol Genet. 2009; Leonhard WN. et al., J Am Soc Nephrol. 2016; Piontek K. et al., Nat Med. 2007). As part of a separate ongoing, and still unpublished study, Dr. Peters (co-author of our paper) crossbred iKsp-Pkd1del mice with LacZ reporter mice to visualize the pattern of Cre activity upon Tamoxifen administration. She showed that Tamoxifen at either P10,11,12 or at P18,19,20 results in a similar pattern of Cre activity, whereas the cystic phenotype is quite different. Notably, Pkd1 inactivation at P10 rapidly leads to severe cyst formation specifically in the region with the least Ksp-Cre activity, suggesting that this region of the nephron is especially sensitive to cyst formation during a developmental stage. By contrast, Pkd1 deficient cells from the inner medulla, rarely develop cysts. These experiments confirmed the previous indication that different renal segments have different sensitivities and that these vary over time.

https://doi.org/10.7554/eLife.17047.030

Article and author information

Author details

  1. Alessia Calcagnì

    Telethon Institute of Genetics and Medicine, TIGEM, Pozzuoli, Naples, Italy
    Contribution
    AC, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Lotte kors

    1. Telethon Institute of Genetics and Medicine, TIGEM, Pozzuoli, Naples, Italy
    2. Department of Pathology, Academical Medical Center, Amsterdam, The Netherlands
    Contribution
    Lkors, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Eric Verschuren

    1. Department of Pathology, Leiden University Medical Center, Leiden, The Netherlands
    2. Department of Human Genetics, Leiden University Medical Center, Leiden, Netherlands
    Contribution
    EV, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Rossella De Cegli

    Telethon Institute of Genetics and Medicine, TIGEM, Pozzuoli, Naples, Italy
    Contribution
    RDC, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Nicolina Zampelli

    Telethon Institute of Genetics and Medicine, TIGEM, Pozzuoli, Naples, Italy
    Contribution
    NZ, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Edoardo Nusco

    Telethon Institute of Genetics and Medicine, TIGEM, Pozzuoli, Naples, Italy
    Contribution
    EN, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  7. Stefano Confalonieri

    1. Molecular Medicine Program, European Institute of Oncology, Milan, Italy
    2. IFOM, The FIRC Institute for Molecular Oncology Foundation, Milan, Italy
    Contribution
    SC, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  8. Giovanni Bertalot

    Molecular Medicine Program, European Institute of Oncology, Milan, Italy
    Contribution
    GB, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  9. Salvatore Pece

    1. Molecular Medicine Program, European Institute of Oncology, Milan, Italy
    2. Department of Oncology and Hemato-Oncology, University of Milan, Milan, Italy
    Contribution
    SP, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  10. Carmine Settembre

    1. Telethon Institute of Genetics and Medicine, TIGEM, Pozzuoli, Naples, Italy
    2. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    3. Jan and Dan Duncan Neurological Research Institute, Texas Children Hospital, Houston, United States
    4. Medical Genetics, Federico II University, Naples, Italy
    5. Medical Genetics, Department of Medical and Translational Sciences, Federico II University, Naples, Italy
    Contribution
    CS, Conception and design, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  11. Gabriel G Malouf

    1. Department of Medical Oncology Groupe Hospitalier Pitie-Salpetriere, University Paris 6, Paris, France
    2. Assistance Publique Hopitaux de Paris, University Paris 6, Paris, France
    3. Faculty of Medicine Pierre et Marie Curie, University Paris 6, Paris, France
    4. Institut Universitaire de Cancerologie GRC5, University Paris 6, Paris, France
    Contribution
    GGM, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  12. Jaklien C Leemans

    Department of Pathology, Academical Medical Center, Amsterdam, The Netherlands
    Contribution
    JCL, Conception and design, Acquisition of data, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  13. Emile de Heer

    Department of Pathology, Leiden University Medical Center, Leiden, The Netherlands
    Contribution
    EdH, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  14. Marco Salvatore

    IRCCS-SDN, Naples, Italy
    Contribution
    MS, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  15. Dorien JM Peters

    Department of Human Genetics, Leiden University Medical Center, Leiden, Netherlands
    Contribution
    DJMP, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  16. Pier Paolo Di Fiore

    1. Molecular Medicine Program, European Institute of Oncology, Milan, Italy
    2. IFOM, The FIRC Institute for Molecular Oncology Foundation, Milan, Italy
    3. Department of Oncology and Hemato-Oncology, University of Milan, Milan, Italy
    Contribution
    PPDF, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  17. Andrea Ballabio

    1. Telethon Institute of Genetics and Medicine, TIGEM, Pozzuoli, Naples, Italy
    2. Department of Molecular and Human Genetics, Baylor College of Medicine, Houston, United States
    3. Jan and Dan Duncan Neurological Research Institute, Texas Children Hospital, Houston, United States
    4. Medical Genetics, Federico II University, Naples, Italy
    5. Medical Genetics, Department of Medical and Translational Sciences, Federico II University, Naples, Italy
    Contribution
    AB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    For correspondence
    ballabio@tigem.it
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1381-4604

Funding

Fondazione Telethon (TGM11CB6)

  • Andrea Ballabio

European Research Council (250154)

  • Andrea Ballabio

National Institutes of Health (R01-NS078072)

  • Andrea Ballabio

Associazione Italiana per la Ricerca sul Cancro (IG 2015 Id 17639)

  • Andrea Ballabio

Associazione Italiana per la Ricerca sul Cancro (IG 11904)

  • Salvatore Pece

Associazione Italiana per la Ricerca sul Cancro (14404)

  • Pier Paolo Di Fiore

Associazione Italiana per la Ricerca sul Cancro (MCO 10.000)

  • Salvatore Pece
  • Pier Paolo Di Fiore

Ministero della Salute

  • Salvatore Pece
  • Pier Paolo Di Fiore

Fondazione Antonio Carlo Monzino

  • Pier Paolo Di Fiore

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank A De Matteis, D Bagley and G Diez-Roux for critical reading of the manuscript, L D’Orsi, D Ricca, C Luise, G Jodice and A C Salzano for technical support, R Andolfi for animal handling, A Carissimo for statistical analysis, L Auletta for imaging analyses and M Plateroti for the β-catenin and TCF4 plasmids. This work was supported by grants from the Italian Telethon Foundation (TGM11CB6), the European Research Council Advanced Investigator grant no. 250154 (CLEAR) (AB); US National Institutes of Health (R01-NS078072) (AB), the Associazione Italiana per la Ricerca sul Cancro (AIRC) (AB) (IG 2015 Id 17639), the Associazione Italiana per la Ricerca sul Cancro (AIRC - IG 11904 to SP; 14404 to PPDF; and MCO 10.000 to PPDF and SP), MIUR (the Italian Ministry of University and Scientific Research), the Italian Ministry of Health to SP and PPDF and the Monzino Foundation to PPDF.

Ethics

Animal experimentation: Experiments were conducted in accordance with the guidelines of the Animal Care and Use Committee of Cardarelli Hospital in Naples and authorized by the Italian Ministry of Health, approved protocol number: 75/2014-B.

Reviewing Editor

  1. Ralph DeBerardinis, UT Southwestern Medical Center, United States

Publication history

  1. Received: April 18, 2016
  2. Accepted: August 15, 2016
  3. Version of Record published: September 26, 2016 (version 1)

Copyright

© 2016, Calcagnì et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,064
    Page views
  • 477
    Downloads
  • 30
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Chromosomes and Gene Expression
    Xiao Ling Li et al.
    Research Article Updated

    Long noncoding RNAs (lncRNAs) are often associated with polysomes, indicating coding potential. However, only a handful of endogenous proteins encoded by putative lncRNAs have been identified and assigned a function. Here, we report the discovery of a putative gastrointestinal-tract-specific lncRNA (LINC00675) that is regulated by the pioneer transcription factor FOXA1 and encodes a conserved small protein of 79 amino acids which we termed FORCP (FOXA1-Regulated Conserved Small Protein). FORCP transcript is undetectable in most cell types but is abundant in well-differentiated colorectal cancer (CRC) cells where it functions to inhibit proliferation, clonogenicity, and tumorigenesis. The epitope-tagged and endogenous FORCP protein predominantly localizes to the endoplasmic reticulum (ER). In response to ER stress, FORCP depletion results in decreased apoptosis. Our findings on the initial characterization of FORCP demonstrate that FORCP is a novel, conserved small protein encoded by a mis-annotated lncRNA that regulates apoptosis and tumorigenicity in well-differentiated CRC cells.

    1. Cancer Biology
    Hang Ruan et al.
    Research Article Updated

    To better understand a role of eIF4E S209 in oncogenic translation, we generated EIF4ES209A/+ heterozygous knockin (4EKI) HCT 116 human colorectal cancer (CRC) cells. 4EKI had little impact on total eIF4E levels, cap binding or global translation, but markedly reduced HCT 116 cell growth in spheroids and mice, and CRC organoid growth. 4EKI strongly inhibited Myc and ATF4 translation, the integrated stress response (ISR)-dependent glutamine metabolic signature, AKT activation and proliferation in vivo. 4EKI inhibited polyposis in ApcMin/+ mice by suppressing Myc protein and AKT activation. Furthermore, p-eIF4E was highly elevated in CRC precursor lesions in mouse and human. p-eIF4E cooperated with mutant KRAS to promote Myc and ISR-dependent glutamine addiction in various CRC cell lines, characterized by increased cell death, transcriptomic heterogeneity and immune suppression upon deprivation. These findings demonstrate a critical role of eIF4E S209-dependent translation in Myc and stress-driven oncogenesis and as a potential therapeutic vulnerability.
