Oral transfer of chemical cues, growth proteins and hormones in social insects

  1. Adria C LeBoeuf  Is a corresponding author
  2. Patrice Waridel
  3. Colin S Brent
  4. Andre N Gonçalves
  5. Laure Menin
  6. Daniel Ortiz
  7. Oksana Riba-Grognuz
  8. Akiko Koto
  9. Zamira G Soares
  10. Eyal Privman
  11. Eric A Miska
  12. Richard Benton  Is a corresponding author
  13. Laurent Keller  Is a corresponding author
  1. University of Lausanne, Switzerland
  2. Arid Land Agricultural Research Center, USDA-ARS, United States
  3. Instituto de Ciências Biológicas, Universidade Federal de Minas Gerais, Brazil
  4. University of Cambridge, United Kingdom
  5. Ecole Polytechnique Fédérale de Lausanne, Switzerland
  6. The University of Tokyo, Japan
  7. University of Haifa, Israel
  8. Wellcome Trust Genome Campus, United Kingdom
https://doi.org/10.7554/eLife.20375
Share this article
Cite this article
  1. Adria C LeBoeuf
  2. Patrice Waridel
  3. Colin S Brent
  4. Andre N Gonçalves
  5. Laure Menin
  6. Daniel Ortiz
  7. Oksana Riba-Grognuz
  8. Akiko Koto
  9. Zamira G Soares
  10. Eyal Privman
  11. Eric A Miska
  12. Richard Benton
  13. Laurent Keller
(2016)
Oral transfer of chemical cues, growth proteins and hormones in social insects
eLife 5:e20375.
https://doi.org/10.7554/eLife.20375
  2. Download BibTeX
  3. Download .RIS
6 figures, 1 table and 3 additional files

Figures

Figure 1 with 2 supplements
Download asset Open asset

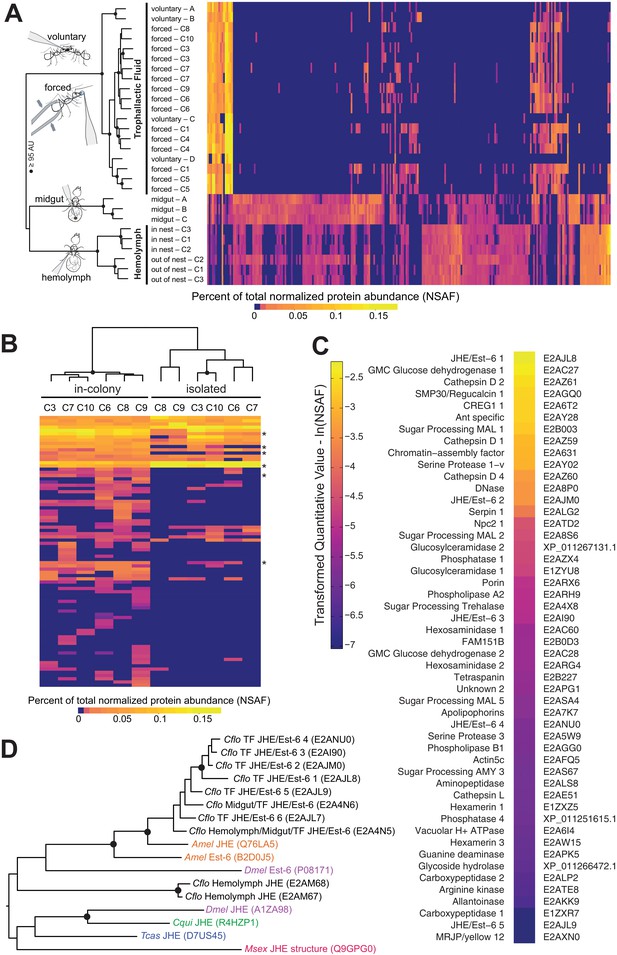

Proteomic characterization of Camponotus floridanus trophallactic fluid.

(A) Heat map showing the percentage of total molecular weight-normalized spectra assigned to proteins from voluntary TF, forced TF, midgut, or hemolymph fluids (normalized spectral abundance factor, NSAF [Zybailov et al., 2006]). C1-C10 indicate colony of origin. Forced trophallaxis samples are pooled from 10 to 20 ants, hemolymph from 30 ants, and the contents of dissected midguts from five ants each. Voluntary and midgut samples were collected from ants of multiple colonies; multiple samples are differentiated by letters. Approximately unbiased (AU) bootstrap probabilities for 10,000 repetitions are indicated by black circles where greater or equal to 95%. (B) Trophallaxis samples from the same ants, in-colony and group-isolated. Trophallactic fluids were sampled first upon removal from the colony, then after 14 days of group isolation (20–30 individuals per group). Values were compared by spectral counting, and the dendrogram shows approximately unbiased probabilities for 10,000 repetitions. Along the right side, asterisks indicate Bonferroni-corrected t-test significance to p < 0.05 between in-colony and isolated TF. Approximately unbiased (AU) bootstrap probabilities for 10,000 repetitions are indicated by black circles where greater or equal to 95%. (C) The most abundant proteins present in TF sorted by natural-log-scaled NSAF value. The UniProt ID or NCBI ID is listed to the right. (D) A dendrogram of proteins including all proteomically observed juvenile hormone esterases (JHE)/Est-6 proteins in C. floridanus, the orthologs in D. melanogaster and A. mellifera, and biochemically characterized JHEs. Each protein name is followed by the UniProt ID. C. floridanus JHE/Est-6 proteins are listed with the fluid source where they have been found. Names are color-coded by species. Bootstrap values >95% are indicated with a black circle. JHE/Est-6 6 (E2AJL7) is identified by PEAKS software but not by Scaffold and consequently is not shown in the proteomic quantifications in panels (A–C).

https://doi.org/10.7554/eLife.20375.003
Figure 1—figure supplement 1
Download asset Open asset

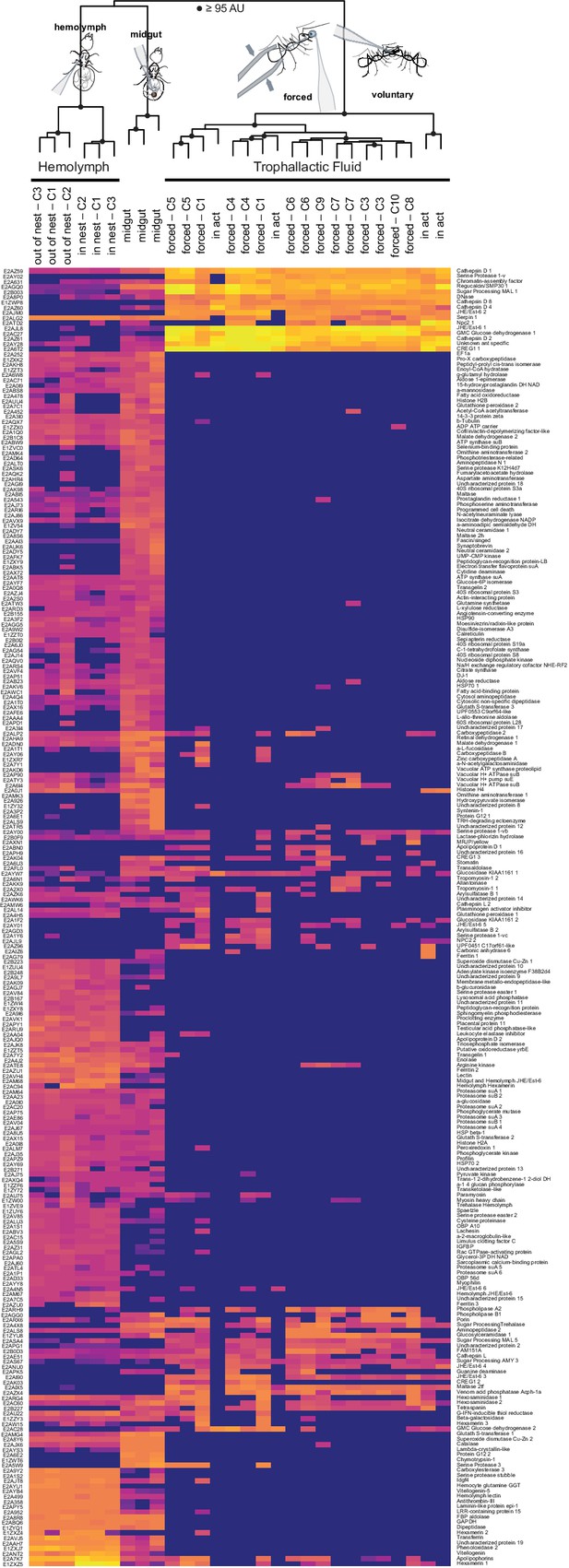

Proteomic characterization of C. floridanus trophallactic fluid.

Heat map showing the percentage of total molecular weight-normalized spectra assigned to proteins from voluntary TF, forced TF, midgut, or hemolymph fluids (normalized spectral abundance factor, NSAF [Zybailov et al., 2006]. C1-C10 indicate colony of origin. Forced trophallaxis samples are pooled from 10 to 20 ants, hemolymph from 30 ants, and the contents of dissected midguts from five ants each. Voluntary and midgut samples were collected from ants of multiple colonies. Approximately unbiased bootstrap probabilities for 10,000 repetitions are indicated by black circles where greater or equal to 95%. UniProt IDs are listed to the left and protein names to the right.

https://doi.org/10.7554/eLife.20375.004
Figure 1—figure supplement 2
Download asset Open asset

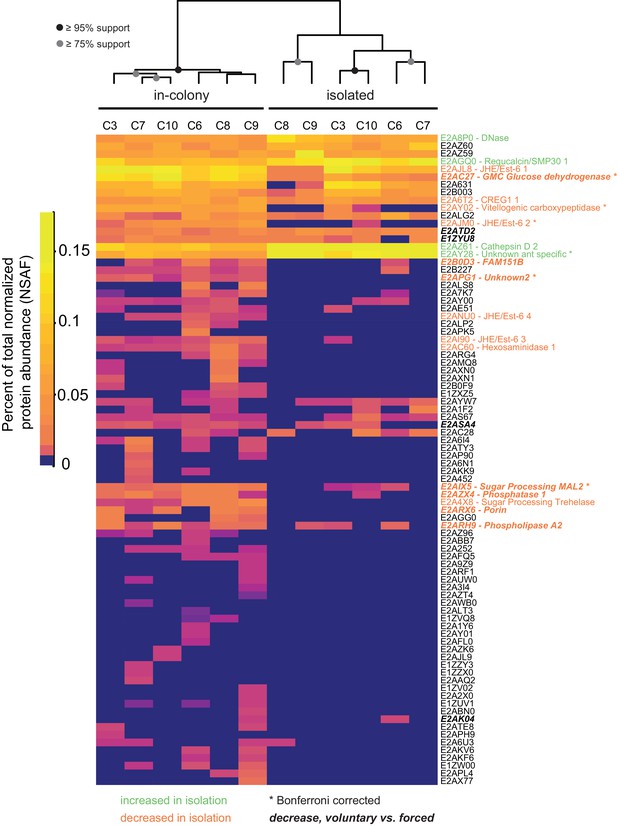

Social isolation influences trophallactic fluid content.

Trophallaxis samples from the same ants, in-colony and group-isolated. Trophallactic fluid of ant workers sampled when first removed from the colony, then after 14 days of group isolation (~20–30 individuals per group). Values were normalized using spectral counting and the dendrogram shows approximately unbiased probabilities for 10,000 repetitions. Along the right side, UniProt IDs are shown. Proteins that significantly decreased in abundance in isolation are shown in orange, and proteins that increased in abundance are shown in green (t-test p < 0.05). Asterisks indicate Bonferroni-corrected t-test significance. Names in bold italics indicate proteins that significantly decreased in abundance in voluntary samples (socially isolated, starved then fed) relative to forced TF samples (in-colony) from data shown in Figure 1A and Figure 1—figure supplement 1. Approximately unbiased (AU) bootstrap probabilities for 10,000 repetitions are indicated by black circles where greater or equal to 95% and grey circles where greater or equal to 75%.

https://doi.org/10.7554/eLife.20375.005
Figure 2
Download asset Open asset

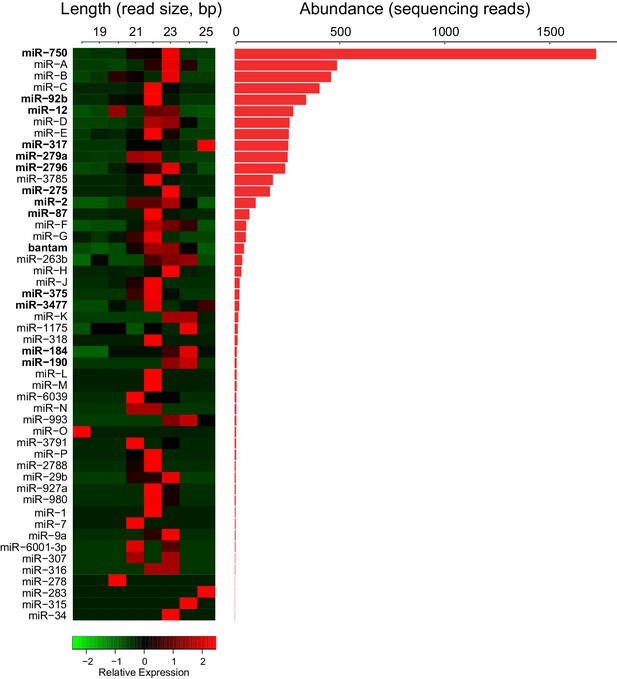

Trophallactic fluid of C. floridanus contains microRNAs.

Left: heatmap showing the length of reads assigned to each C. floridanus microRNA (miRNA) found in TF. MiRNAs should exhibit a consistent read size typically between 18 and 22 base pairs. Right: histogram indicating read abundance. miRNA names were assigned through homology to A. mellifera where possible. Letters were assigned for novel miRNAs. Bold miRNA names indicate miRNAs whose homologs were also observed in royal and/or worker jelly in A. mellifera (Guo et al., 2013). Source data in Figure 2—source data 1.

https://doi.org/10.7554/eLife.20375.006
Figure 3 with 1 supplement
Download asset Open asset

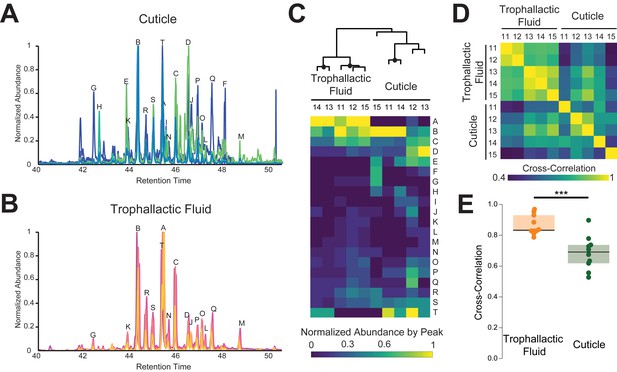

Trophallactic fluid of C. floridanus contains cuticular hydrocarbons.

(A–B) Gas chromatography-mass spectrometry profiles in the retention time window for cuticular hydrocarbons (C28–C37), from hexane extracts of whole body (A) and from trophallactic fluid (B). Samples were extracts from whole body and trophallactic fluid for five groups of 20–38 ants. Each group of ants is from a different colony, C11-C15. Different colonies are shown in distinct colors. Source data in Figure 3—source data 1. The abundant component (peak A) found in TF samples but not on the cuticle was a cholesterol-like molecule that insects cannot synthesize but must receive from their diet. Three molecules outside this window were found only in TF and not on the cuticle: *-tricosene, oleic acid, ethyl oleate (Table 1). All have been reported to be pheromones in other insect species (Wang et al., 2011; Le Conte et al., 2001; Mohammedi et al., 1996; Choe et al., 2009). (C) A hierarchically clustered heatmap of the dominant peaks in the range of retention times for long-chain cuticular hydrocarbons. The dendrogram shows approximately unbiased probabilities for 10,000 repetitions. Approximately unbiased bootstrap values > 95% are indicated with black circles. Letters along the right correspond to individual peaks in (A) and (B). (D) Normalized pair-wise cross-correlation values for each TF and body hydrocarbon profile for each of the five colonies. Source data in Figure 3—source data 2. (E) Normalized pair-wise cross-correlation values between TF hydrocarbon profiles and between body hydrocarbon profiles indicate that the TF hydrocarbon profiles are significantly more similar than are body hydrocarbon profiles. Median values and interquartile ranges are shown. t-test, p<0.0003.

https://doi.org/10.7554/eLife.20375.007
Figure 3—source data 1

Peak lists for cuticular and trophallactic fluid long chain hydrocarbons form GC-MS experiments for five different colonies of C.floridanus.

C11, 20 ants, 9.5 µL of TF; C12, 38 ants, 20 µL; C13, 34 ants, 11 µL; C14, 26 ants, 11.5 µL; C15, 35 ants, 9 µL.

https://doi.org/10.7554/eLife.20375.009
Figure 3—source data 2

Cross-correlation matrix for panels 3D-E.

https://doi.org/10.7554/eLife.20375.010
Figure 3—figure supplement 1
Download asset Open asset

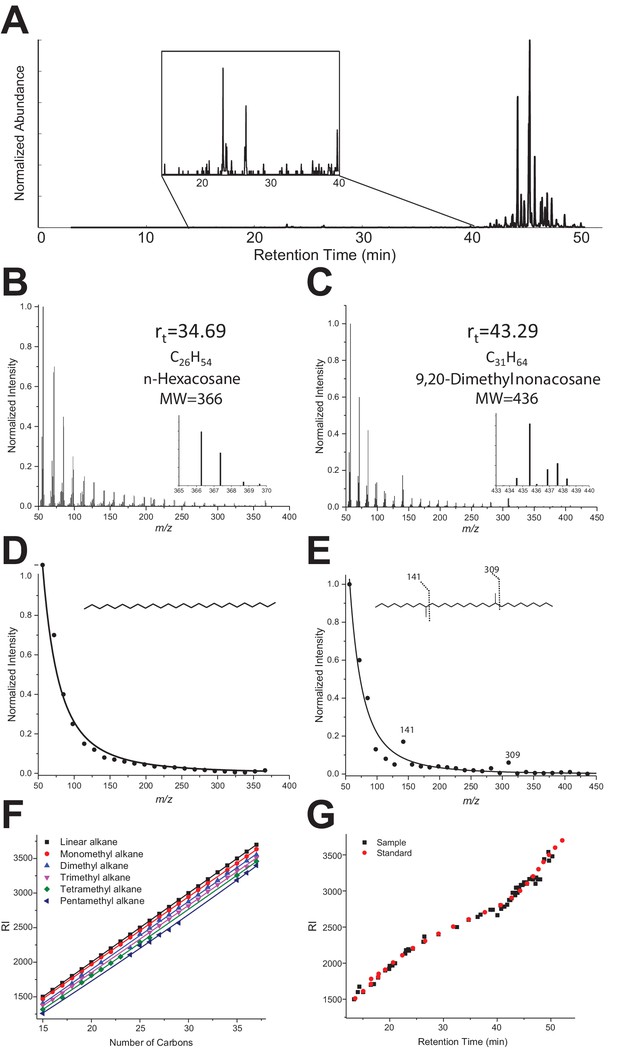

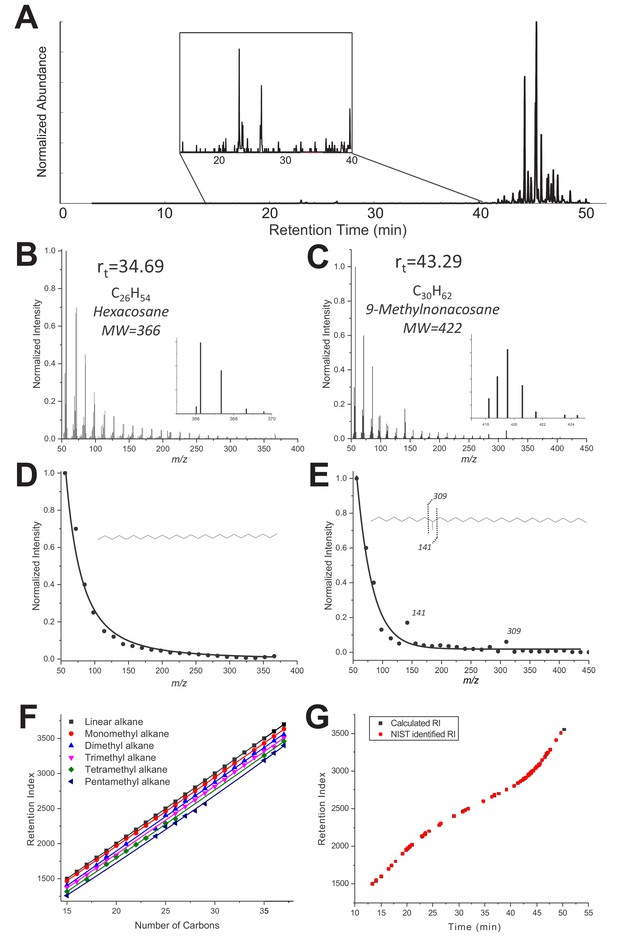

(A) Typical GC-MS chromatogram of a TF sample from C. floridanus, showing the main hydrocarbons C28-C37 eluting after 40 min. The insert shows the region with minor hydrocarbons and other components C15-C28. (B–C) GC-MS Mass spectra of a linear alkane (C26, elution time 34.69 min, panel B) and a methylated alkane (C30, Rt 43.29 min, panel C). (D-E) Extracted MS spectra were fitted with an exponential decay equation with their proposed structure based on enhanced fragment ions (m/z 141 and 309 in the case of 9-methylnonacosane). (F) RI values vs. number of carbons extracted from the NIST Chemistry WebBook library, depending on the number of methyl branches: linear (black), monomethyl (red), dimethyl (blue), trimethyl (pink), tetramethyl (green) and pentamethyl (dark blue) alkanes. (G) Retention index values calculated for each compound listed in Table 1 are based on the elution time and RIs of a hydrocarbon ladder from C8-C40 (black) overlaid with NIST RI values reported in the NIST database for the identified hydrocarbons (red).

https://doi.org/10.7554/eLife.20375.008
Figure 4
Download asset Open asset

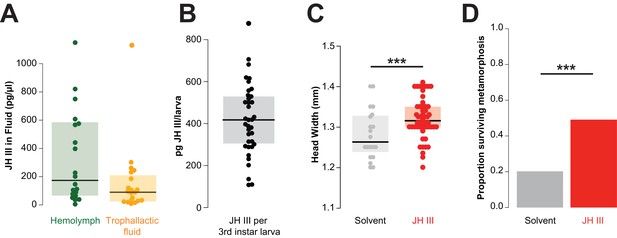

Juvenile hormone passed in trophallactic fluid increases larval growth and rate of pupation in C. floridanus.

(A) JH titer in trophallactic fluid and hemolymph (n = 20; each replicate is a group of 30 workers). Source data in Figure 4—source data 1. (B) JH content of third instar larvae. Source data in Figure 4—source data 2. (C) Head width of pupae raised by workers who were fed food supplemented with JH III or solvent. General linear mixed model (GLMM) testing effect of JH on head width with colony, replicate and experiment as random factors, ***p < 9.01e−06. Source data in Figure 4—source data 3. (D) Proportion of larvae that have undergone metamorphosis when workers were fed food supplemented with JH III or solvent only. Binomial GLMM testing effect of JH on survival past metamorphosis with colony and experiment as random factors, ***p < 7.39e−06. Median values and interquartile ranges are shown in panels (A–C). Panels (C) and (D) are data from three separate experiments where effects in each were individually significant to p<0.05. Source data in Figure 4—source data 4.

https://doi.org/10.7554/eLife.20375.012
Figure 4—source data 1

Hemolymph and trophallactic fluid Juvenile hormone titers for 20 pooled samples of each fluid.

https://doi.org/10.7554/eLife.20375.013
Figure 4—source data 2

Juvenile hormone titers for 37 individual third instar larvae.

https://doi.org/10.7554/eLife.20375.014
Figure 4—source data 3

Head-width measurements for panel 4C.

https://doi.org/10.7554/eLife.20375.015
Figure 4—source data 4

Metamorphosis or death counts for panel 4D.

https://doi.org/10.7554/eLife.20375.016
Figure 5 with 1 supplement
Download asset Open asset

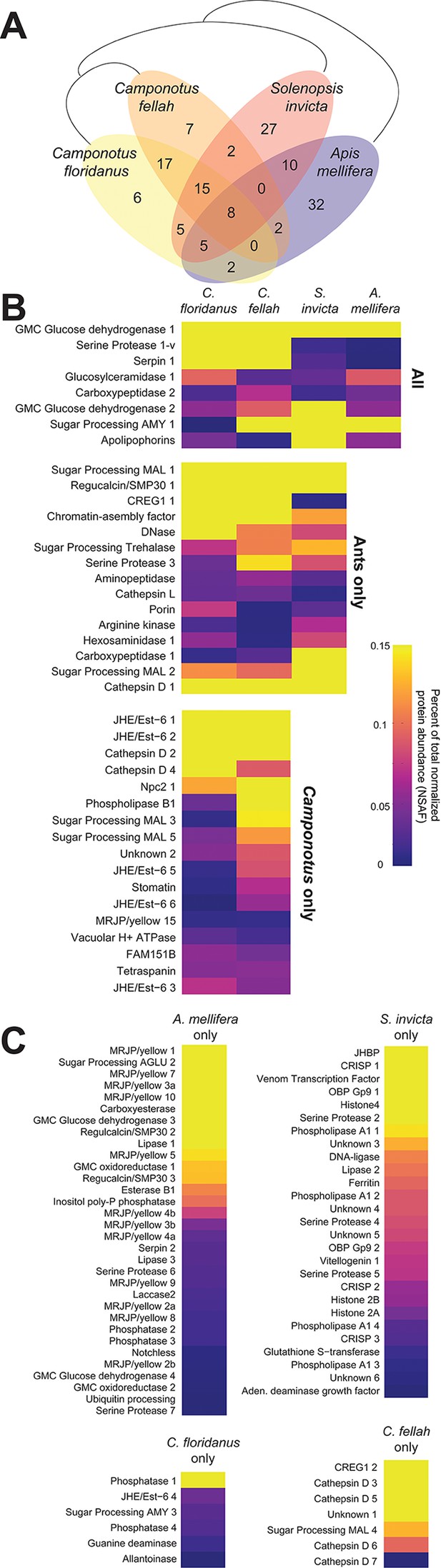

Proteins in trophallactic fluid across social insect species.

(A) Venn diagram indicating the number of species-specific and orthologous proteins detected in TF from the indicated species, whose phylogenetic relationships are shown with black lines. (B) Heat maps showing the percentage of total molecular-weight normalized spectra in TF samples assigned to the proteins in each given species, averaged over all in-colony samples for that species. Samples sizes: C. floridanus (n = 15), C. fellah (n = 6), S. invicta (n = 3), A. mellifera (n = 6). (C) Species-specific TF proteins. The 26 TF ortholog groups found in two or three species, but not the most closely related ones (e.g., A. mellifera and S. invicta, or S. invicta and only one of the two Camponotus species) are indicated in Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.20375.017
Figure 5—source data 1

A table of all orthologous proteins and their predicted functions, identifiers, known D. melanogaster orthologs, presence of annotated secretion signals and average NSAF values when present in TF.

A complete orthology across the four species can be found in Supplementary file 3.

https://doi.org/10.7554/eLife.20375.018
Figure 5—figure supplement 1
Download asset Open asset

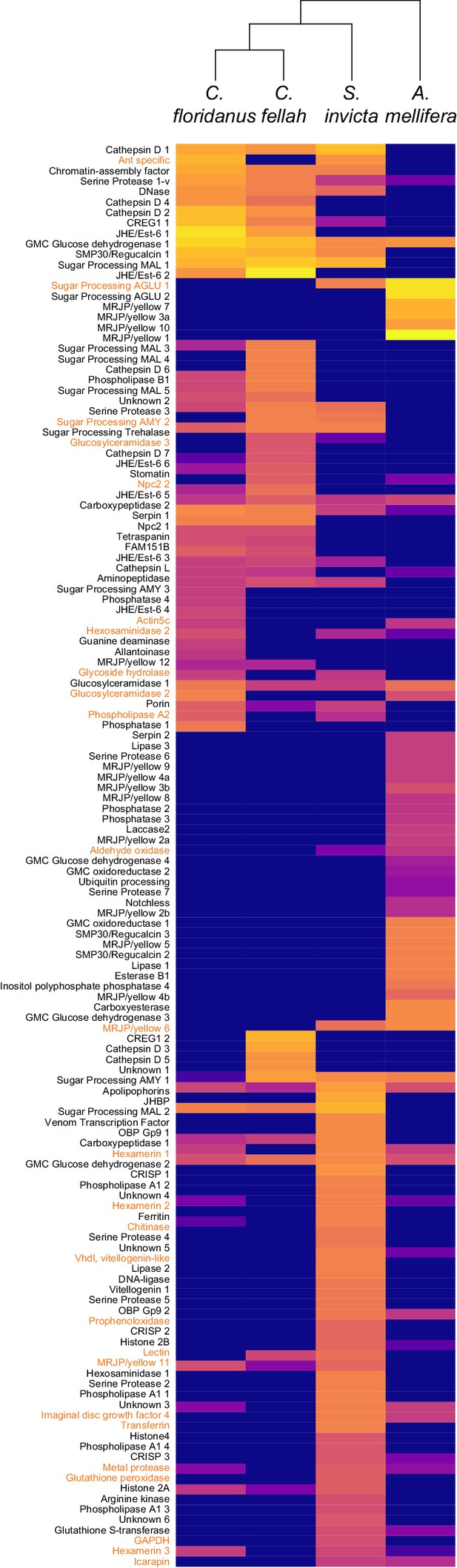

Heat map showing the percentage of total molecular-weight normalized spectra in trophallactic fluid samples assigned to each protein in three ant species and the European honey bee, averaged over all in-colony samples for that species.

Sample sizes: C. floridanus (n = 15), C. fellah (n = 6), S. invicta (n = 3), A. mellifera (n = 6). The 26 protein ortholog groups whose presence/absence in TF was inconsistent with phylogeny (e.g., present in only C. floridanus and A. mellifera) are shown in orange. Protein names are shown on the left. Identifiers can be found in the table in Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.20375.019
Author response image 1
Download asset Open asset

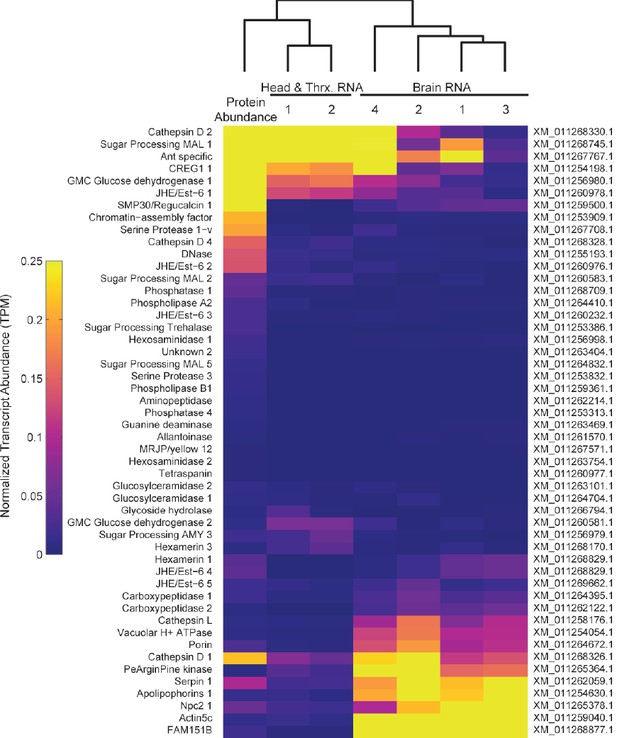

Heatmap comparing TF protein abundance with RNA expression of the same genes in brain, head and thorax samples from RNA-Seq datasets (Simola et al. Genome Research 2013).

Expression values are calculated as transcripts per million (TPM) reads, and normalized for presentation on the same scale as proteomic data from Figure 5 (NSAF).

Tables

Table 1
Table of all components identified by GC-MS in TF of C. floridanus.

Molecules marked with black dots (•) were found only in TF and not on the cuticle. Peak ID corresponds to Figure 3.

https://doi.org/10.7554/eLife.20375.011
Rt (min)MWProposed MFProposed structureRI(a)Peak ID
13.35212C15H32Pentadecane1500
14.05226C16H345-methylpentadecane1541
15.05226C16H34Hexadecane1600
16.47240C17H36Heptadecane1700
17.06254C18H387-methylheptadecane1742
17.83254C18H38Octadecane1800
19.15268C19H40Nonadecane1900
19.89295C21H44*-trimethyloctadecane1950
19.97256C16H32O2n-Hexadecanoic acid1956
20.17282C18H34O2Hexadecenoic acid, ethyl ester1970
20.50284C18H36O2Ethyl palmitate1992
20.62282C20H42Eicosane2000
20.98268C18H36OOctadecanal2020
22.89280C18H32O2Linoleic acid2125
23.03282C18H34O2Oleic acid2137●
23.46308C20H36O2*-Octadecadienoic acid, ethyl ester (possibly Ethyl linoleate)2155
23.59310C20H38O2Ethyl oleate2165●
24.30310C22H46Docosane2200
26.27322C23H46*-tricosene2279●
26.56324C23H48Tricosane2300
29.08338C24H50Tetracosane2400
30.76352C25H522-methyltetracosane2461
31.05350C25H50*-pentacosene2472
31.26350C25H50*-pentacosene2480
31.80352C25H52Pentacosane2500
34.69366C26H54Hexacosane2600
36.37380C27H564-methylhexacosane2658
36.91378C27H54*-heptacosene2675
37.70380C27H56Heptacosane2700
39.19394C28H585-methylheptacosane2755
40.63394C28H58Octacosane2800
41.36422C30H62*-trimethylheptacosane2835
41.88408C29H604-methyloctacosane2860
42.23406C29H58*-nonacosene2877
42.47422C30H622,10-dimethyloctacosane2889G
42.70408C29H60Nonacosane2900H
42.90422C30H62*-dimethyloctacosane2918
43.29422C30H629-methylnonacosane2938
43.36422C30H627-methylnonacosane2942
43.51422C30H625-methylnonacosane2951
43.79436C31H647,11-dimethylnonacosane2968
43.90422C30H623-methylnonacosane2976E
43.96436C31H645,9-dimethylnonacosane2980K
44.12450C32H66*-trimethylnonacosane2991
44.42436C31H643,7-dimethylnonacosane3008B
44.74450C32H663,7,11-trimethylnonacosane3036Q
45.01464C33H683,7,11,15-tetramethylnonacosane3056
45.05436C31H64*-methyltriacontane (likely 4-)3060R
45.30434C31H62*-hentriacontene3074
45.45450C32H664,10-dimethyltriacontane3088S
45.54386C27H46OCholesterol-like3090A
45.70436C31H64Hentriacontane3100M
46.00464C33H68*-dimethylhentriacontane (likely 9,13)3139C
46.56464C33H685,9-dimethylhentriacontane3187D
46.69492C35H72*-pentamethyltriacontane (possibly 7,11,15,19,23)3199J
46.93478C34H70*-trimethylhentriacontane (likely 3,7,11-)3223O
47.15492C35H725,9,11,15-tetramethylhentriacontane3245N
47.59492C35H72*-trimethyldotriacontane or *-tetramethylhentriacontane3289P
48.78506C36H74*-Trimethyltritriacontane (possibly 9,13,17)3412L
49.67520C37H76*-trimethyltetratriacontane3500
50.28534C38H78*-tetramethyltetratriacontane3554

Additional files

Supplementary file 1

RNA of microorganisms present in trophallactic fluid.

https://doi.org/10.7554/eLife.20375.020
Supplementary file 2

Proteomic experiments included in this study.

https://doi.org/10.7554/eLife.20375.021
Supplementary file 3

Orthology matrix across four social insect species.

https://doi.org/10.7554/eLife.20375.022
