Sub-synaptic, multiplexed analysis of proteins reveals Fragile X related protein 2 is mislocalized in Fmr1 KO synapses

  1. Gordon X Wang  Is a corresponding author
  2. Stephen J Smith
  3. Philippe Mourrain
  1. Stanford University School of Medicine, United States
  2. Allen Institute for Brain Science, USA
  3. INSERM 1024, Ecole Normale Supérieure, France
Tools and Resources
  • Cited 1
  • Views 752
  • Annotations
Cite as: eLife 2016;5:e20560 doi: 10.7554/eLife.20560

Abstract

The distribution of proteins within sub-synaptic compartments is an essential aspect of their neurological function. Current methodologies, such as electron microscopy (EM) and super-resolution imaging techniques, can provide the precise localization of proteins, but are often limited to a small number of one-time observations with narrow spatial and molecular coverage. The diversity of synaptic proteins and synapse types demands synapse analysis on a scale that is prohibitive with current methods. Here, we demonstrate SubSynMAP, a fast, multiplexed sub-synaptic protein analysis method using wide-field data from deconvolution array tomography (ATD). SubSynMAP generates probability distributions for that reveal the functional range of proteins within the averaged synapse of a particular class. This enables the differentiation of closely juxtaposed proteins. Using this method, we analyzed 15 synaptic proteins in normal and Fragile X mental retardation syndrome (FXS) model mouse cortex, and revealed disease-specific modifications of sub-synaptic protein distributions across synapse classes and cortical layers.

https://doi.org/10.7554/eLife.20560.001

Introduction

Synapses are central to neural circuit function and dysfunction, but their compositional diversity (there are hundreds of distinct protein species) and structural compactness (they average a single micron in size) have prevented their complete molecular analysis (Emes and Grant, 2012; Heuser and Reese, 1977; O'Rourke et al., 2012; Chen et al., 2008; Sheng et al., 2012). Many techniques have been developed to visualize synaptic proteins through the nanometer localization of single proteins. These include structured illumination microscopy (SIM; which can locate sub-cellular structures to ~100 nm resolution) (Gustafsson et al., 2008; Gustafsson, 2000), fluorescence localization microscopy (PALM/STORM; which can examine sub-cellular to single molecules at 10–50 nm resolution) (Watanabe et al., 2011; Dani et al., 2010), stimulated emission depletion microscopy (STED; which can be used to visualize sub-cellular to sub-synaptic structures at 10–50 nm resolution) (Wijetunge et al., 2014; Willig et al., 2006, 2007) and electron microscopy (EM; which can be used to locate single molecules at 1–5 nm resolution) (Dani et al., 2010; Specht et al., 2013; Micheva and Beaulieu, 1995; Kubota et al., 2007). These methods can resolve molecules with exquisite precision, but they are time consuming and struggle with both spatial coverage and molecular depth. This current work introduces a new computational method (SubSynMAP: SUB-SYNaptic, Multiplexed Analysis of Proteins) that quantifies the nanometer distribution of multiplex proteins across large regions of the brain with synapse population specificity.

SubSynMAP is a novel combination of previously developed volumetric super-resolution imaging of deconvolution array tomography (ATD) (Wang and Smith, 2012; Micheva and Smith, 2007), EM ratified computation synapse classification (Collman et al., 2015; Wang et al., 2014), and a new synapse alignment procedure. It builds protein localization profiles of the average synapse that reveals the multiplexed, functional distributions of dozens of proteins. ATD uses a combination of physical sectioning and deconvolved wide-field imaging to generate an unparalleled combination of acquisition speed, volumetric resolution (100 nm by 100 nm by 50–70 nm) and molecular multiplexing (Wang and Smith, 2012; Micheva and Smith, 2007). Using ATD, different populations of synapses can be classified from large regions of the cortex based on molecular markers (Wang et al., 2014; Micheva et al., 2010; Allen et al., 2012; Hiu et al., 2016). These EM verified algorithms can be used to extract different classes of synapses (excitatory, inhibitory and their subclasses) at large numbers (>1 million) with low error rates (false positive 5%, false negative 12% – for more on antibody verification and error rates see 'Methods') (Wang et al., 2014; Allen et al., 2012; Hiu et al., 2016). Moreover, these algorithms return the molecular features of each synapse organized around a spatial vector that defines the presynaptic bouton to post-synaptic density (Wang et al., 2014; Allen et al., 2012; Hiu et al., 2016) (see Figure 1E).

Figure 1 with 1 supplement see all
Multiplexed visualization of synaptic proteins in AT.

(A) Representative maximum (max) projections (25 µm by 20 µm by 1.5 µm) of PSD95, SYN and VGluT1. Scale bar = 5 µm. (B) Up-sampled view of the highlighted regions in panel (A) that represents a volume of 1.5 µm x 1.5 µm x 1.5 µm. Scale bar = 500 nm. (C–E) Composite 3D rendering and rotational perspectives of PSD95 and SYN, and PSD95, SYN and VGluT1 volumes highlighted in panel (B). Scale bar = 500 nm. (D) Arrow heads point to putative synapses revealed by the structured localization of synaptic proteins. (E) Expanded panel of the central synapse in panel (C) (Yellow box). Red arrow illustrates a synaptic axis drawn from the center of mass of a PSD95 punctum to a SYN punctum. Scale bar = 250 nm.

https://doi.org/10.7554/eLife.20560.002

This synaptic-vector is made possible because proteins within presynaptic and post-synaptic compartments are spatially localized in relation to their function (Heuser and Reese, 1977; Chen et al., 2008; Dani et al., 2010; De Camilli, 1983; Hunt et al., 1996). While individual synapses can vary greatly in their structure and molecular composition, on average, the synapse remains an ordered structure with a specific distribution of protein populations (Heuser and Reese, 1977; Chen et al., 2008; Dani et al., 2010; De Camilli, 1983; Hunt et al., 1996). These protein distributions are dictated by their functions (Park et al., 2012). Thus, the presynaptic proteins required for transmitter release, such as bassoon (BSN), are on average located closer to the active zone; andproteins that are required to load transmitter into vesicles, such as vesicular glutamate transporter 1 (VGluT1), are distributed broadly within the presynaptic vesicle pool (Dani et al., 2010; Micheva et al., 2010; El Mestikawy et al., 2011). In the post-synapse, transmitter receptors, such as ionotropic glutamate receptor 2 (GluR2), are localized to the synaptic cleft, and post-synaptic regulatory molecules, such as fragile x mental retardation protein (FMRP), are situated further away from the cleft (Chen et al., 2008; Dani et al., 2010; Dosemeci et al., 2007; Bear et al., 2004).

To make possible the analysis of the spatially multiplexed proteome of the synapse, we demonstrate SubSynMAP, a method that aligns and integrates tens of thousands of individual synapses within a brain region. This method extracts the averaged protein distributions within molecularly defined synapses drawn from large populations, and allows for the sub-synaptic visualization of multiplexed proteins. For example, in accordance to previous EM and STORM measurements (Dani et al., 2010; Mineur et al., 2002), BSN and VGlut1 distributions pre-synaptically peaked 25 and 60 nm, respectively, from the cleft, whereas GluR2 peaked 20 nm post-synaptically from the cleft. These spatial distributions are also useful for the characterization of novel proteins within specific synapse populations. We found that FMRP is distributed both pre- and post-synaptically, while its autosomal homologs FXR1 and FXR2 are predominantly distributed post-synaptically. Interestingly, in fragile X mental retardation 1 knock out mice (Fmr1 KO), a well-accepted model of FXS (Bear et al., 2004; Bassell and Warren, 2008; Graziano et al., 2008) in whichFMRP is no longer expressed, we found that synaptic FXR2 distribution is disrupted while FXR1 remains unperturbed. This suggests that proper synaptic FXR2 localization requires FMRP and a FXR2 deficit could be part of the pathophysiology of FXS synapse dysfunction.

Results

Computational alignment of synapse populations reveals the probability distribution of synaptic proteins

ATD provides exquisite volumetric resolution of spatially registered synaptic proteins (Wang and Smith, 2012). These punctate protein data allow for the recognition and classification of synapses based on the colocalization and spatial orientation of known pre- and post-synaptic proteins (Figure 1 and Figure 1—figure supplement 1) (Wang et al., 2014). Specific synaptic proteins can be used to define synaptic axes with a defined orientation (post-synaptic to presynaptic) by connecting centers of mass from post-synaptic density protein 95 (PSD95) to presynaptic synapsin-1 (SYN) for glutamatergic synapses (Figure 1E), and post-synaptic gephyrin (GPHN) to presynaptic vesicular GABA transporter (VGAT) for GABAergic synapses. The centers of mass are calculated from segmented puncta objects as defined by a thresholded, three-dimensional (3D) connected component analysis (see 'Methods'). Centers of mass are used in our calculations to facilitate computation of the over 9 million protein puncta collected across the 13 synaptic proteins in our ATD volumes (Figure 1—figure supplement 1; see 'Methods' for further description of the datasets).

These synaptic vectors, which are oriented in many directions in the tissue volumes (Figure 2A), are computationally aligned into one coordinate system, creating a registered synaptic volume (Figure 2B and C, see 'Methods'). This volume contains the aligned centers of all protein puncta located within a 1 μm radius of the origin (PSD95 weighted center) of each synaptic vector (Figure 2C and D). The raw 3D histograms of these protein volumes reveal distinct pre- and post-synaptic orientation (Figure 3—figure supplement 1 and Video 1). To facilitate the interpretation and analysis of these volumes, two-dimensional (2D) histograms are created by rotationally projecting all the centers of a single protein into a 2D plane. The bins of these 2D histograms are half slices of a spherical shell (Figure 3A). Rotational projection is used to insure that the distance of all centers from the origin is maintained in the histogram (Figure 3A). Moreover, these histograms are generated as a half distribution because there is no rotational constraint along the synaptic axis (Figure 3B). Thus, to better conceptually the full synaptic distribution of the protein, this half distribution is mirrored to create a full distribution (Figure 3B).

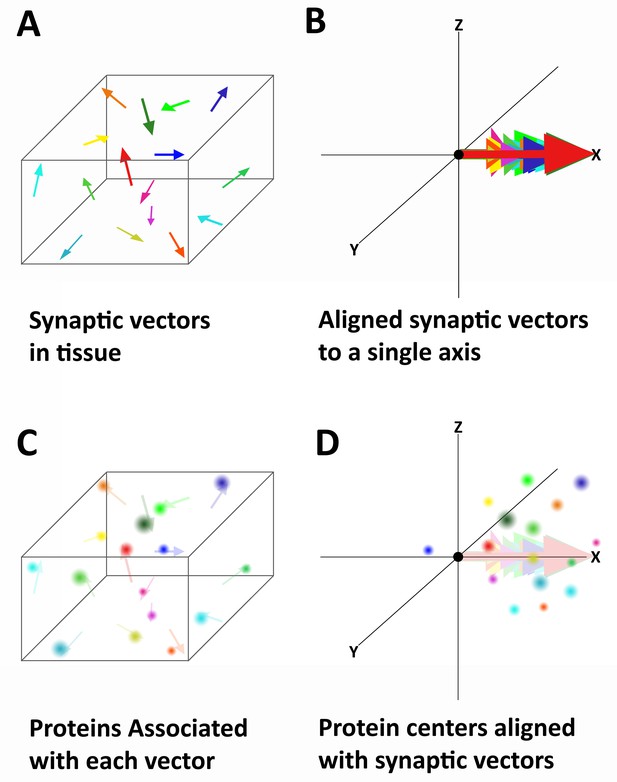

Alignment of synaptic axes into a single spatial coordinate system.

(A) Diagrammatic representation of the random orientation of synaptic axes in normal cortical tissue. (B) All the axes are translated to a single origin and then computationally rotated on to a single axis. This creates a single space in which all of the synapses are aligned along the synaptic axis. (C) Proteins associated with each synapse are disorganized in space, but have a structured relationship with the synaptic axis. This is difficult to see in tissue because the synapses are not ordered. (D) Once the synapses are aligned, the proteins associated with each synapse are also aligned and any non-random structure of their relationship to the synaptic axis is revealed.

https://doi.org/10.7554/eLife.20560.004
Figure 3 with 1 supplement see all

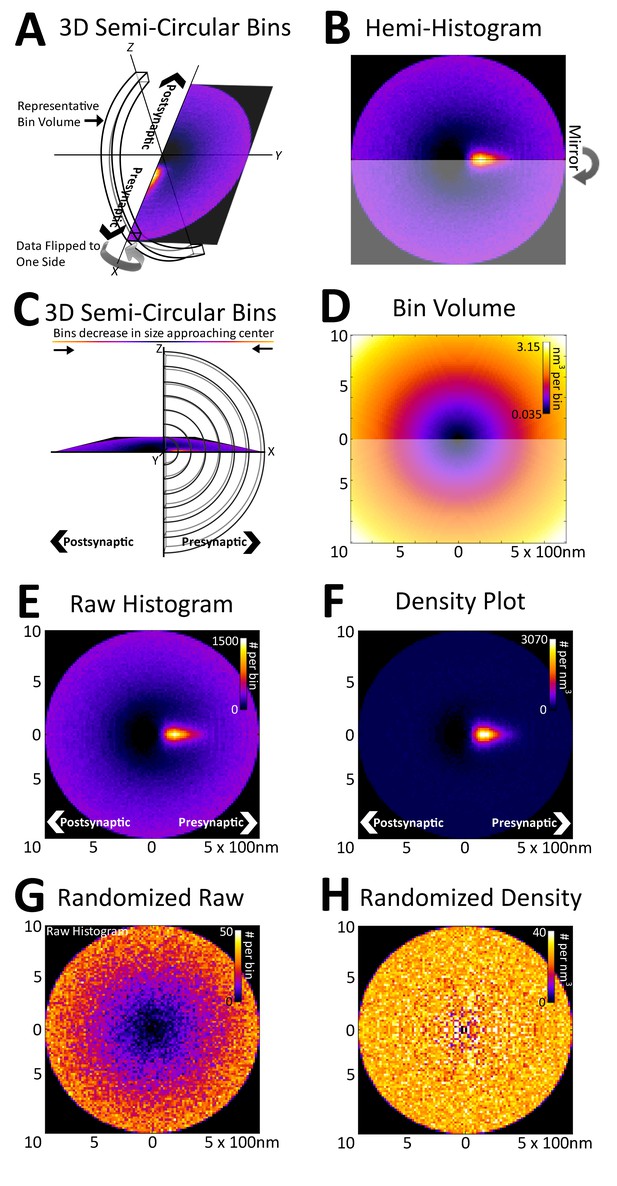

Registration of synapses reveals a nanometer-resolution probability distribution of synaptic proteins.

(A) Protein centers from registered synapses are summed using bins that are slices of spherical shells to maintain the distance of each center to the origin. As there is no rotational invariance along the x-axis, the data are binned into a hemi-histogram. (B) This hemi-histogram is then mirrored to provide a better representation of the full synapse. (C) A profile view of the bins further depicts the size change of the bins as they move from the center. (D) A graphical depiction of bin volumes moving from the center of the figure. (E) This raw 2D histogram is generated for all the VGluT1 centers within a 1 µm radius sphere around the central PSD95 (origin) of VGluT1 class synaptic axes (n = 36,997). (F) The raw histogram is normalized by the calculated volume of each bin to create the density histogram. The density histogram represents the probability of a VGluT1 center landing in that location in the average synapse of that population. (G) The relationship of VGluT1 centers to their associated synaptic axes is randomized and the resulting histogram is plotted, which looks very much like (D). (H) The density histogram created from these randomized data shows no probability bias, thus creating a flat and featureless image.

https://doi.org/10.7554/eLife.20560.005
Video 1
Histograms of SubSynMAP data.

3D visualization of VGluT1, GluR2, VGluT1 and GluR2 composite and of randomized VGluT1 data. The bins of the 3D histograms are of equal volume, 10 nm3. Note that the random data produces a sphere and the composite VGluT1 and GluR2 showed pre and post-synaptic alignment.

https://doi.org/10.7554/eLife.20560.007

Due to the rotational nature of the projection into 2D, the volume of each histogram bin increases as a function of its distance from the origin (Figure 3C and D). This means that the probability that a protein center falls randomly into any given bin increases as a function of the bin's distance from the origin (Figure 3E). Thus, to remove this effect, the histogram is normalized with the bin volumes to create a density histogram in which the random probability that a protein center will land within a bin is equal across all bins (Figure 3F, see 'Methods'). The density histogram reveals the probability that a protein center will be found at a position in a given synapse of that population. Thus, this distribution is representative of the functional spatial-range of a synaptic protein and defines quantitatively the potential transit area of that protein within the average synapse of a given class.

As an example, in Figure 3, vesicular glutamate transporter 1 (VGluT1) protein centers from nearly 40,000 classified VGluT1 class synapses of layer 4 mouse somatosensory cortex (for classification, see 'Methods') are binned into a density histogram. VGluT1 is one of two presynaptic glutamate transporters that are essential to the loading of glutamate into cortical synaptic vesicles, the other being VGluT2 (Fremeau et al., 2001; Kaneko and Fujiyama, 2002; Siksou et al., 2007). The presynaptic localization of VGluT1 is reflected by the histogram (Figure 3E and F). Moreover, the histogram is also able to resolve the exclusion of VGluT1 from the post-synaptic zone, which is demonstrated by the below background dark area in the post-synaptic region (Figure 3E and F). To further confirm the fidelity of the method in characterizing synaptic protein distributions, the association of the VGluT1 centers and their synaptic axes were randomized. The resulting random raw histogram appears similar to the bin volume histogram (Figure 3D and G), as the probability that a center will falls within a bin in an unbiased dataset is solely dependent upon the volume of the bin, thus the resulting normalized density histogram is flat and featureless (Figure 3H).

Empirical protein probability distributions reveal nanometer localization differences of synaptic proteins

Density histograms, such as the one in Figure 3F, can be converted to a probability histogram by dividing the number of protein centers per bin by the number of synapses. This generates an estimated percent probability that a protein center can be found at a position in space in the average synapse of that class; for example, a probability that VGluT1 proteins will be found in VGluT1 class synapses in layer 4 (Figure 4A). The shape of the VGluT1 empirical probability distribution in Layer 4 VGluT1 synapses is asymmetrical in regards to the synaptic axis (PSD95 to SYN), with a wider distribution along the axis and a narrower distribution perpendicular to it (Figure 4A). This is likely to reflect a distribution of synaptic vesicles in which the major pool of vesicles, in excitatory synapses, resides axially behind the active zone (Heuser and Reese, 1977; Park et al., 2012; Mineur et al., 2002). To further simplify the visualization and statistical comparison of these distributions, the 2Dprobability histograms are rotationally projected to a one-dimensional (1D) plot (Figure 4A). In this plot, the origin is the PSD95 centers of the nearly 40,000 VGluT1 synapses registered in the dataset. The putative synaptic cleft (red dashed line, Figure 4)is 50 nm from the origin, as estimated from previous EM and super-resolution measurements (Dani et al., 2010; Mineur et al., 2002). Assessing the plot, the VGluT1 distribution dips in the post-synaptic zone, demonstrating the expected anti-correlation of VGluT1 localization to the post-synapse. Furthermore, the distribution peaks at ~125–200 nm from PSD95 or about 75–150 nm from the cleft (Figure 4A). These measurements corroborate previous analysis of presynaptic vesicle pools using EM (Mineur et al., 2002) or super-resolution microscopy, demonstrating that this method provides an accurate visualization of protein distribution in synapses.

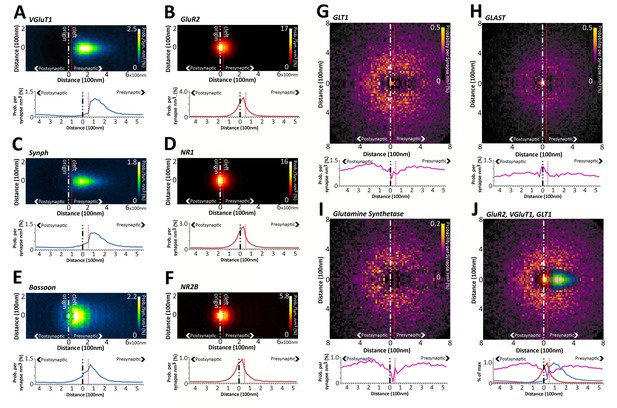

Quantitative differences in the nanometer distribution of synaptic proteins in layer 4 VGluT1 synapses.

Volume-normalized 2D probability plots were generated from 36,997 classified VGluT1 synapses in Layer 4 of mouse cortex. Each channel reveals specific information regarding the distribution of those proteins in relation to the synaptic axis. The 2D distributions are further reduced to a 1D distribution to ease the visual and statistical comparison of the data. The dashed red line represents the putative location of the synaptic cleft. The y-axis scale is in percentage points, because density is converted to percent probability by dividing the number of protein centers per bin by the number of synapses. This generates an estimated percent probability that a protein center can be found at a position in space in the average synapse of that class. (A–F) Pre- and post-synaptic protein distributions are clearly differentiated. The distributions of presynaptic vesicular proteins (VGluT1 and SYNPH) are significantly different from those of the presynaptic active zone protein BSN. (G–J) Astrocytic proteins are distributed as halos surrounding the synapse center. (J) The exclusion at the center of the GLT1 halo fits the distribution of the presynaptic and postsynaptic proteins nicely.

https://doi.org/10.7554/eLife.20560.008

Using this method, we demonstrate that glutamate receptors of both the AMPA and NMDA subtype (GluR2 and NR1), which reside in the post-synaptic active-zone membrane, have a distribution that peaks near the synaptic cleft, where they are expected to reside (Figure 4B,D,F). More importantly, while the empirical glutamate receptor distributions are similar to each other, they are significantly different from the empirical presynaptic protein distributions (Figure 4A–F, Chi-square test p < 0.01, see 'Methods'). Moreover, while the empirical distribution of presynaptic vesicular proteins VGluT1 and synaptophysin (SYNPH) are similar (Figure 4A and C,p > 0.05); they are significantly different from the empirical distribution of the presynaptic structural protein bassoon (BSN) (Figure 4A,C,E, p < 0.01). BSN is an important cytoskeletal component of vesicle priming, which was demonstrated by both EM and STORM to be located near the active zone (Dani et al., 2010; Mineur et al., 2002). Thus, our method can reveal with statistical significance the fine-scale distributional differences of synaptic proteins, and can correlate those variations with their function, in for example the vesicle pool or the active zone.

Peri-synaptic astrocytes also play an important regulatory role in synaptic function. This technique is able to visualize astrocytic proteins, which typically form ‘halos’ around the pre- and post-synapse (Figure 4G–J), exactly where peri-synaptic astrocytic processes reside (Amara and Fontana, 2002). Interestingly, the astrocytic proteins glial glutamate transporter 1 (GLT1) and glutamine synthetase (GS) both show dips in the synaptic cleft region (Figure 4G and I), whereas glutamate aspartate transporter (GLAST) presents a peak at the cleft (Figure 4H). This suggests that GLAST, in comparison to GLT1, is more localized to the cleft. This result points to a currently unknown functional separation of the two major cortical, astrocytic-glutamate transporters.

Multiplexed analysis of empirical synapse protein distribution across synapse classes and cortical layers demonstrates the stability of cortical synapses across layers and classes

This fine-scale analysis, coupled with the spatial and molecular coverage of this technique, allows us the opportunity to quantify whether shared, synaptic proteins are distributed similarly between synapse classes and cortical layers. In Figure 5, the distribution of L4 proteins in nearly 100,000 synapses were analyzed across two glutamatergic synapse classes (VGluT1 and VGluT2) and one inhibitory synapse class. VGluT1 represents the majority of cortical–cortical synapses and VGluT2 defines the majority of thalamocortical synapses in the cortex (Fremeau et al., 2001; Kaneko and Fujiyama, 2002; Herzog et al., 2001). It is satisfying to see in our datasets that in both Layers 4 and 5, VGluT1 synapses have little VGluT2 protein and vice versa (Figure 5A and B and Figure 5—figure supplement 1A and B). This demonstrates the fidelity of the synapse classification and the accuracy of the protein visualization. A point that is further validated by the near-random distribution of VGluT1 and VGluT2 proteins in inhibitory synapses (Figure 5C and Figure 5—figure supplement 1C), which illustrates that even for a densely expressed protein, such as VGluT1 (Figure 1), the method is robust and accurate enough to reveal the lack of association between that protein and the inhibitory synaptic axes.

Figure 5 with 1 supplement see all

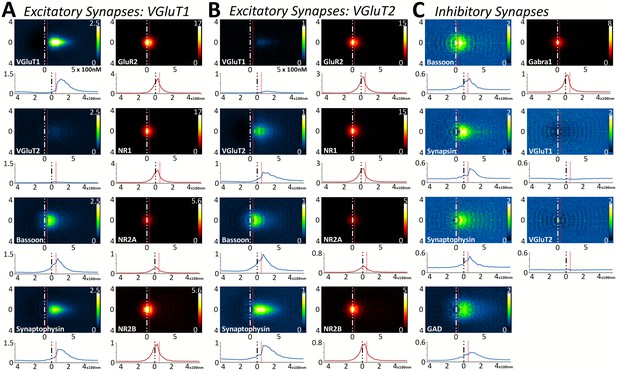

Multiplexed analysis of synaptic protein distribution across Layer 4 synapse classes.

(AB) Probability distribution of proteins in glutamatergic synapses. (A) Probability distributions of proteins surrounding VGluT1 (n = 36,997). (B) Probability distributions of proteins surrounding VGluT2 (n = 6047). (C) Probability distribution of proteins in GABAergic synapses (n = 8100). Note that VGluT1 synapses have low levels of VGluT2, and VGluT2 synapses have low levels of VGluT1. Inhibitory synapses do not have VGluT1 or VGluT2. In fact, the dip in the center of histogram reveals that VGluT1 is anti-correlated with inhibitory synapses. Source data for the histograms in this figure can be found in Figure 5—source data 1.

https://doi.org/10.7554/eLife.20560.009

Upon quantifying the distributional differences of proteins across Layers 4 and 5 of these three synapse classes, there are no significant differences between the two layers when comparing the same protein within the same synapse class (Figure 5 and Figure 5—figure supplement 1, p > 0.01). This is also true of the cross-class comparison between VGluT1 and VGluT2 synapses within the same cortical layer (Figure 5A and B and Figure 5—figure supplement 1A B, p > 0.01). This demonstrates that the overall synapse architecture of excitatory synapses remains stable between classes and layers, and that inhibitory synapse architecture is stable between layers as well.

Interestingly, this population-level analysis of excitatory and inhibitory synapses also uncovers the stability of some common elements: BSN distribution is not different between inhibitory and excitatory synapses (Figure 5, Figure 5—figure supplement 1, p > 0.01). However, we found that this is not true for all proteins shared by both synapse classes. For example, SYNPH distribution is significantly different depending upon whether it is within an inhibitory or an excitatory presynaptic terminal (Figure 5, Figure 5—figure supplement 1, p < 0.01). This suggests that the structure of the presynaptic release architecture remains similar across the two synapse types (as demonstrated by BSN), but the structure of the synaptic vesicle pools differs between inhibitory and excitatory synapses (as demonstrated by SYNPH and consistent with previous findings in both EM (Khanmohammadi et al., 2015) and electrophysiology [Moulder et al., 2007]).

Layer-specific sub-synaptic localization of FMRP

We validated the use of our method on novel synaptic proteins by generating insight into the physiology of synapses in fragile X syndrome (FXS). FXS is a leading cause of congenital mental retardation that is mediated by the loss of FMRP, an RNA-binding protein that inhibits activity dependent translation in dendrites (Darnell et al., 2011; Huber et al., 2002). Canonically, FMRP is considered to be a post-synaptic protein, but recent reports also suggest that it can be detected in presynaptic terminals (Christie et al., 2009; Akins et al., 2012). In our analysis, FMRP is indeed localized post-synaptically in both VGluT1 and VGluT2 synapse classes across Layers 4 and 5 (Figure 6A and B). Moreover, the empirical distribution of post-synaptic FMRP, unlike that of the post-synaptic glutamate receptors, peak away from the synaptic cleft (Figure 6A and B), which concurs with its role as a post-synaptic regulatory molecule (Darnell et al., 2011; Huber et al., 2002). Interestingly, in Layer 4 synapses only, a second FMRP peak can be detected presynaptically (Figure 6A and B, black arrows). This peak is not pronounced in the empirical distribution of Layer 5 synapses (Figure 6A and B), which suggests that although post-synaptic FMRP localization is a general feature, the bulk of presynaptic FMRP is directed to Layer 4 rather than to Layer 5.

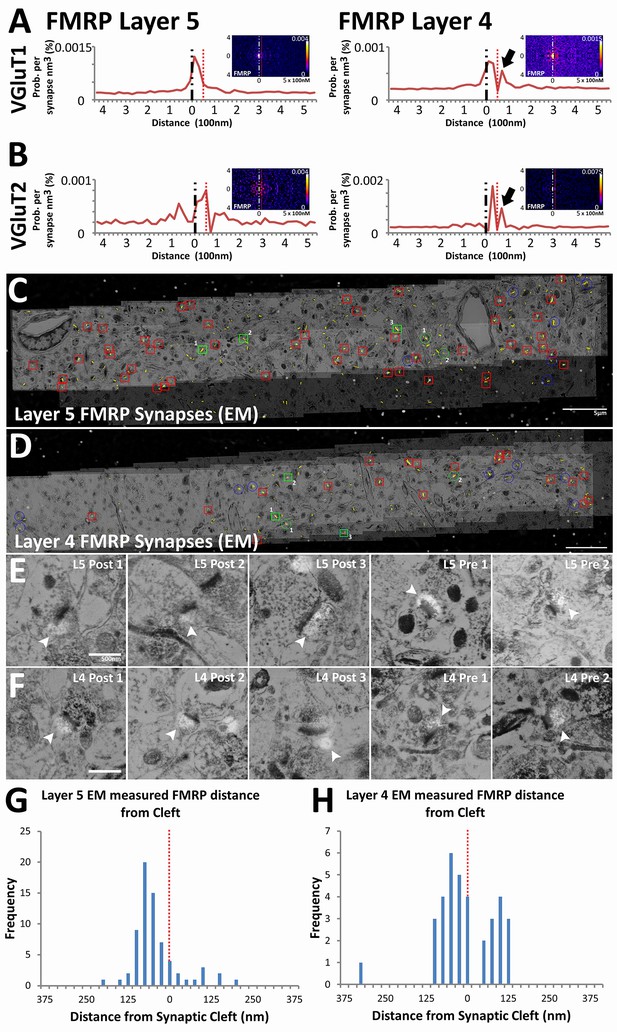

Presynaptic localization of FMRP is synapse class dependent.

(A) Synaptic distribution of FMRP in VGluT1 synapses of Layers 5 (n = 6877) and 4 (n = 11,346). FMRP peaks in the post-synapse for both Layer 5 and 4 VGluT1 class synapses, but only Layer 4 has a presynaptic peak too (black arrow). (B) Synaptic distribution of FMRP in VGluT2 synapses of Layers 5 (n = 487) and 4 (n = 1797). FMRP also peaks in the post-synapse in both Layer 5 and Layer 4 VGluT2 synapses. (C, D) Single-section images of EM micrographs aligned with single-section images of fluorescent FMRP staining. Red boxes are hand classified synapses with an associated FMRP punctum. Green boxes are exemplar synapses that are shown below in (E) and (F). (E, F) Example EM synapses with fluorescent FMRP labeling. Note the synaptic vesicles and PSD that allows for the delineation of the pre- and post-synapse. All images are single sections for both EM and fluorescence images. (G, H) Histograms of FMRP distance from the synaptic cleft (at 0), the presynaptic side is on the right and the postsynaptic side is on the left. (G) FMRP in Layer 5 is highly post-synaptic. (H) FMRP in Layer 4 is more evenly split between pre- and postsynapses. The EM histograms are also narrower, because of the z direction clipping of the EM dataset (210 nm in this figure), as compared to the light level dataset (2.8 µm in previous figures). Source data for the histograms in this figure can be found in Figure 6—source data 1 and 2.

https://doi.org/10.7554/eLife.20560.013

Validation of this result was confirmed using EM conjugate AT (Collman et al., 2015). Four datasets were generated (for Layers 4 and 5 of both WT and Fmr1 KO mice), each covering a volume of 60 µm x 10 µm x 210 nm and consisting of both EM and light level immunohistochemistry (VGluT1, FMRP and FXR2). Using hand classification, we identified 115 WT Layer 4 synapses, 199 WT Layer 5 synapses, 113 KO Layer 4 synapses and 118 KO Layer 5 synapses. After the alignment of EM and light level data (Figure 6C and D), pre- and post-synapses are identified in EM using the presence of synaptic vesicles and the PSD (Figure 6E F). Using conjugate FMRP light level data in combination with hand-classified synapses, FMRP-containing synapses were identified (Figure 6E and F). The distance to cleft from the FMRP punctum center was measured and graphed on a histogram (Figure 6G and H). The histogram of FMRP distance to cleft in EM (Figure 6G and H) clearly reproduces the wide-field, synapse alignment result (Figure 6A). The EM histograms are narrower in distance because the EM volumes in the z-axis are significantly smaller than an actual synapse (210 nm), whereas this is not the case in the wide-field dataset (EM volumes are 2.8 µm). In our EM data, Layer 4 clearly has more presynaptic FMRP (230% more) than layer 5, which corroborates our SubSynMAP analysis.

FMRP-dependent localization of FXR2P

Fragile X related proteins 1 and 2 (FXR1P and FXR2P) are nearly structurally identical autosomal homologs of FMRP (Tamanini, 1997). Yet, their involvement in FXS and their synaptic localization and function is mostly unknown. The application of our synapse analysis method demonstrates that, across synapse classes and cortical layers, FXR1P and FXR2P unlike FMRP are preferentially localized to the post-synaptic region (Figure 7A–D, Figure 7—figure supplement 1A–D); but like FMRP, the distributions of FXR1P and FXR2P peak away from the synaptic cleft (Figure 7A–D and Figure 7—figure supplement 1A–D). Furthermore, by assessing the distributions of these proteins in Fmr1 KO animals, we reveal that the loss of FMRP does not affect the synaptic localization of FXR1P (Figure 7—figure supplement 1, p > 0.01), but causes a significant depletion of post-synaptic FXR2P in both Layers 4 and 5, as measured both in SubSynMAP (Figure 7A–D, p < 0.01) and EM (Figure 7E and F, Figure 7—figure supplement 2). This suggests that the synaptic localization of FXR2P depends on FMRP. However, we do not know whether this coupling of expression proceeds through the FXR2P–FMRP heteromeric complexes (Christie et al., 2009; Tamanini et al., 1999; Ceman et al., 1999) or through FMRP regulation of FXR2P mRNA (Ascano et al., 2012). Importantly, it suggests that FXR2P localization could contribute to the synaptic pathology seen in FXS.

Figure 7 with 2 supplements see all

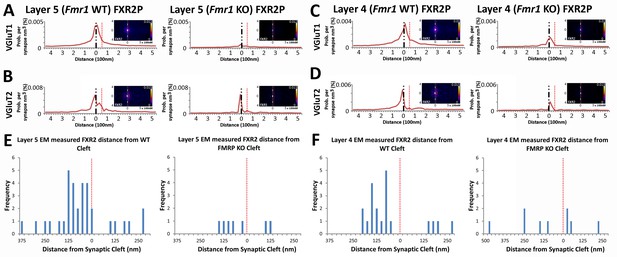

FXR2P synaptic localization is FMRP dependent.

(A) Synapse distribution of FXR2P in Layer 5 VGluT1 class synapses in both KO (n = 5381) and WT (n = 9481). FXR2P post-synaptic localization is dramatically reduced in Layer 5. (B) Synapse distribution of FXR2P in Layer 5 VGluT2 synapses in both KO (n = 563) and WT (n = 1483). FXR2P post-synaptic localization is reduced. (C) Synapse distribution of FXR2P in Layer 4 VGluT1 synapses in both KO (n = 5341) and WT (n = 9917). (D) Synapse distribution of FXR2P in Layer 4 VGluT2 synapses in both KO (n = 1207) and WT (n = 1783). Significance of distribution difference is tested via chi-squared two-sample tests (see 'Methods', p < 0.01). (E, F) EM distance histograms of FXR2 from synaptic cleft (at 0). Both Layers 4 and 5 show dramatic reduction of synaptic FXR2P. Source data for the histograms in this figure can be found in Figure 7—source data 1 and 2.

https://doi.org/10.7554/eLife.20560.016

Discussion

We demonstrated a highly multiplexed method (SubSynMAP) for the visualization and quantification of the nanometer-resolution distribution of proteins within synapse populations. SubSynMAP uses the statistical power of large datasets to reveal discrete variations in the sub-synaptic distribution of synaptic proteins. For example, we can differentiate presynaptic vesicular proteins (such as SYNPH, VGluT1) from presynaptic active zone proteins (such as BSN). The comparison of these distributions can provide meaningful insight into the potential function of these proteins. For example, the greater localization to the synaptic cleft region of GLAST as compared to GLT1 suggests that GLAST plays a more important role in the direct clearing of glutamate in the cleft, whereas GLT1 localization reflects its known function as a peri-synaptic regulator of metabotropic glutamate receptor signaling (Bar-Peled et al., 1997; Tzingounis and Wadiche, 2007; Reichelt and Knöpfel, 2002). Furthermore, our method is dramatically faster and more cost effective than traditional sub-synaptic protein analysis. Our work using EM to optimize, image and analyze 545 synapses for two proteins (FMRP and FXR2P) took over a year and tens of thousands of dollars , whereas the optimization, imaging and analysis of over 500,000 synapses for 15 proteins, took less than 1 month using SubSynMAP.

SubSynMAP is easier and faster than traditional super-resolution methods, such as EM, but its goal is to complement those methods, not to replace them. Methods such as EM provide detailed visualization of sub-synaptic proteins with exceptional resolution (<5 nm), SubSynMAP cannot be measured along those traditional resolution metrics, nor can its data be interpreted along those lines. In SubSynMAP, the resolution does not come from a single high-resolution snap shot, but rather from the combined distribution of tens of thousands of observations at lower resolution (100 nm3). The distributions in SubSynMAP are not meant to represent the location of any one protein at any one time, which is information that EM can provide. Instead, it represents the likelihood of finding that protein in that location of the prototypical synapse of a specific class if you make many observations. Thus, it does not resolve a protein’s location per se, as one would in immunoEM, which can be used to resolve a protein on synaptic vesicles. SubSynMAP can, however, tell you, by comparing the distribution of a particular protein with that of known vesicle proteins, whether a protein is likely to be a vesicle protein.

Another feature that warrants thought is the selection of the protein markers that are used to generate the synaptic axis. In this paper, all excitatory synapses use an axis described by a line drawn from the center of a PSD95 puncta to a synapsin puncta, whereas inhibitory synapses use a line from gephyrin to VGAT. In practice, we found no difference in resultant SubSynMAP histograms from axes generated from PSD95 to vesicle proteins; for example, there are no differences in the histogram for synaptic vesicle protein 2 (SV2) and that for vesicle pool related structural proteins such as synapsin. Nevertheless, one cannot fully rule out the possibility that data generated from different synaptic axes are not identical. Thus, comparison across such different axes should be verified with EM when possible.

This approach to the description of the substructure of a synapse not only provides protein localization data but also observational power. Traditional super-resolution or ultra-structural analysis routinely involves small sample sizes in terms of animals, synapse number and imaged volume. In this study, over a half million synapses from 20 animals across two cortical layers were analyzed, creating an overall image that is more likely to reflect the reality of the synapses studied. The extent of the coverage, both in numbers and in space, allows the analysis of synapse classes that are rare in relation to the total synapse population. For example, Layer 5 VGluT2 synapses only represent about eight percent of the total synapse population, and of that eight percent, only about a quarter have FMRP in them. Thus, a direct sample of 100 synapses in Layer 5 using traditional methods will yield, at most, two VGluT2 synapses with FMRP, a quantity that is mostly anecdotal. In our study, we are able to analyze a total of 487 Layer 5 VGluT2 FMRP synapses, which provides a more robust measure of their structure.

Structural modification of synaptic proteins is hypothesized to be an integral part of most neurological diseases, yet there is little actual structural data supporting this. This data gap is caused by the potential diversity of synapse modifications in neurological diseases, which requires large sample sizes to obtain significant numbers of similarly perturbed synapses. This is extremely challenging for current methods of structural analysis. Our method can fill this data gap. We demonstrated in Fmr1 KO mice that we are able to reveal specific changes in protein locations mediated by FMRP loss within defined synapse classes. We localized proteins (FXR1P and FXR2P), within normal and diseased contexts, whose synapse localization was previously unknown. Finally, the large-scale quantification of small, complex, stereotypically structured protein complexes is not just a problem in neuroscience, but in biology in general. SubSynMAP, while designed for synapse analysis, can be generalized to a much wider array of cellular structures and should provide a new level of analytical power for other disciplines such as immunology and cancer studies that require subcellular resolution investigations of large tissues.

Methods

Preparation of ATD ribbon arrays

Tissue preparation, array creation and immunohistochemistry are described in detail in a previous publication (Micheva and Smith, 2007). In short, a small piece of cortical tissue (~2 mm high x 1 mm wide x 1 mm deep) from the somatosensory cortex of the mouse brain is microwave-fixed in 4% paraformaldehyde. The fixed tissue is then dehydrated in graded steps of ethanol, and then embedded in LR White resin overnight at 50°C. The embedded tissue is sectioned on an ultramicrotome at a thickness of 70 nm and placed as a ribbon array directly on gelatin- or carbon-coated glass coverslips. For conjugate EM and array tomography, tissues are embedded in Lowicryle instead of LR White. The Lowicryle embedding is further described in a previous publication (Collman et al., 2015). Also, in Lowicryle, not all antibodies work as in LR White, specifically the VGluT2 antibody used in this study does not work in Lowicryle.

Immunohistochemistry is then carried out on the arrays using primary antibodies targeting the antigens of choice (Synapsin Cell Signaling Technology 5297S, VGluT2 Millipore AB2251, VGluT1 Millipore AB5905, Synaptophysin Abcam ab8049, PSD-95 Cell Signaling 3450, NR2B NeuroMabs 75–101, NR2A Millipore MAB5216, NR1 Milipore MAB363, GluR2 Millipore MAB397, EAAT2/GLT1 and EAAT1/GLAST gifts from Dr. Jeffrey Rothstein (Johns Hopkins Univeristy), GS BD Biosciences 610517, Gephyrin BD Biosciences 612632, GAD65 Cell Signaling 3988S, Gabra1 NeuroMabs 75–136, Bassoon Abcam ab13249, VGAT SYSY 131 011, FMRP Dr. Justin Fallon (Brown University), FXR1P ProteinTech 13194–1-AP, FXR2P Dr. Rob Willemsen and DSHB 1G2). The primary antibodies are visualized using fluorescently labeled secondary antibodies (Alexa 594, Invitrogen A11037, Alexa 488, Invitrogen A11034, and Alexa 647, Invitrogen A21245), and mounted in SlowFade Gold antifade with DAPI (Invitrogen).

Data collection

Data for Figures 15 and Figures 1, 3 and 5 supplements were newly collected from WT C57BL/6 Layer 4 and 5 somatosensory cortices in volumes of 140 µm × 100 µm x 5 µm). Data for Figures 6 and 7 and supplemental Figures 4 and 5 were generated from pooled data collected from six WT and six Fmr1KO mice that were imaged for a previous study (Wang et al., 2014). Fmr1KO mice were derived from Fmr1 KO2 animals originally from the FRAXS-sponsored distribution facility at Baylor College headed by Dr. David Nelson. Data volumes ranged from 140 × 100 µm x 0.5 µm to 140 × 100 µm x 2 µm. The antibody staining sequence for the tissue is: GAD 594 VGAT 488 VGluT2 647; Synpod 594 GEPH 488 VGluT1 647; FXR1 594, SYNPH 488; EAAT2 594 Bassoon 488; PSD95 594 GABAa1alpha 588; Synapsin 594 FMRP 488.

Microscopy

Wide-field imaging of ribbons were accomplished on a Zeiss Axio Imager.Z1 Upright Fluorescence Microscope with motorized stage and Axiocam HR Digital Camera as previously described (Micheva and Smith, 2007). A position list was generated for each ribbon array of ultrathin sections using software modules for Axiovision. Single fields of view were imaged for each position in the position list using a Zeiss 63 ×/ 1.4 NA Plan Apochromat objective.

Image registration and processing

Image stacks from ATD were imported into FIJI and aligned using both rigid and affine transformations with the Register Virtual Stacks plugin. The aligned image stacks were further registered across image sessions using FIJI and TrackEM.

The aligned and registered image stacks were imported into Matlab (Mathworks) and deconvolved using the native implementation of Richardson-Lucy deconvolution with empirical PSF through ten iterations (Wang and Smith, 2012). Custom functions were written to automate and facilitate this work flow (all custom Matlab functions are included in the publication). Empirical PSF were measured using 110 nm beads mounted on slides in the actual imaging system (Wang and Smith, 2012).

Center of mass calculations for protein puncta

Matlab native function (regionprops) was used to calculate the centers of mass of puncta in the image volumes using 26 neighborhood 3D connected component analyses with an assumed background threshold that is 0.1 of the total dynamic range, which is 6553.5 for a 16-bit image, and is in line with previous background thresholds used for ATD analysis (Wang and Smith, 2012). Custom functions in Matlab were implemented to facilitate the handling and processing of the data (all custom Matlab functions are included in the publication).

Custom software

Matlab software written for the synapse analysis, histogram generation and image deconvolution are included in the submission as a single archive titled 'Image Analysis Suite'.

Resolution beyond 100 nm pixel resolution of the images

The pixel resolution of each single image used to generate the image volume is 100 nm. The section thickness is ~100 nm thus creating nearly 100 nm isotropic voxels. The resolutions in the distribution histograms are better than the 100 nm voxel resolution. This improved resolution arises from the statistics that combine tens of thousands of centers of mass calculations, which introduces sub-pixel jitter into the dataset which, over the large population, creates a dithering effect that provides sub-100 nm localization seen in our probability distributions.

Discretization effects mediated by aliasing and ringing in 3D histograms

Halos are present in every distribution generated by SubSynMAP. These are caused by the discretization of the protein structures through pixilation. While the 3D weighted centroid calculations do provide sub-pixel coordinates, the very nature of the calculation being made on a discrete dataset increases the probability of certain sub pixel distances. The reason why these halos are more apparent in some instances is because the background is higher for those proteins; and the reason for a higher background is caused by: (1) fewer pooled synapses, some synapses are rarer and thus their histograms involve smaller protein numbers; and (2) some proteins have more background, because all protein centers within a 1 µm radius sphere are incorporated into the histogram. This means that even protein puncta not associated with that particular synapse can be included. As our synapses are aligned, the random non-synaptic signals will reduce to an even background (see randomized data), but the coherent signal (the protein localization within the aligned synapses) will rise from that homogenous noise.

Synapse classification and rotations

The classification method has been published previously (Wang et al., 2014; Allen et al., 2012; Hiu et al., 2016). In short, classification occurs in a 1 µm radius sphere centered on the origin (PSD95 for excitatory synapses and gephyrin for inhibitory synapses). For example, a VGluT1 synapse will have PSD95 at the postsynaptic termini and synapsin at the presynaptic termini. Moreover, VGluT1 will be closer to synapsin than to PSD95. Thus, the algorithm will require the third point (VGluT1) to be closer to synapsin by a specified factor than it is to PSD95 in order for it to classify the grouping as a synapse. In some instances, after this initial classification step, a synaptic axis still retains more than one third point (VGluT1 puncta). If that is the case, then the algorithm looks through the entire dataset and removes sharing of the third point in a manner that maximizes the number of possible synaptic axis with third points. If a decision must be made regarding a single third point that is shared by two synaptic axes, then the axis that is the closest to the third point is selected. Finally, once the ownership of the third point has reached parsimony, a final check is applied to ensure that there is no duplication of the synaptic axis. This situation is rare in practice, but if it does occur, the axis with the smallest magnitude is preferred.

The output of the classified data is a set of synaptic axes defined by two points. These synaptic axes are then aligned. For the alignment of the synapses, the first step is to translate all of the synaptic axes so that the origin lies at 0, 0, 0 of the coordinate system. Then all the axes are aligned using a 3D rotation matrix as defined by:

RxRyRz=[cosαcosβcosγsinα+cosαsinβsinγcosαcosγsinβ+sinαsinγ0cosβsinαcosαcosγ+sinαsinβsinγcosγsinαsinβcosαsinγ0sinβcosβsinγcosβcosγ00001]

where the rotation R is rotated by α around the x-axis, β around the y-axis, and γ around the z-axis.

We rotate the synaptic axis to a position on the x-axis so that the coordinates of all the termini is x, 0, 0. We then use the rotation defined by this axis to rotate all associated third points for all channels in the dataset. For the distributional histograms, the dataset in which all of the protein centers across all imaged protein channels within a radius of 1 µm from the origin of the axis is used. This is done to ensure that the volume normalization is correct. The volume normalization assumes that there is some baseline probability that a punctum will co-localize with a synaptic axis, and that that probability increases as the volume increases, which is exactly what happens as you extend the distance from the origin to the termini of the axis. Thus, for the volume normalization to work properly, one must take all of the points scattered around the synaptic axis. This creates a 3D histogram, which can be rotationally reduced to 2D, in which the volumes of each bin are half slices of a spherical shell or a simpler approximation as a half slice of a cylindrical shell that can be described by the equation:

V=πh(r12r22)2

where V= volume of the half cylindrical shell, h = the y length of the bin, and (r1r2) = the x length of the bin.

Proteins associated with synaptic axis

An important note is that for every synaptic axis, all protein centers within a 1 µm radius sphere are incorporated into the histogram. This means that even protein puncta that are not associated with that particular synapse can be included. However, as our synapses are aligned, the random non-synaptic signals will reduce to an even background (see randomized data), but the coherent signal (the protein localization within the aligned synapses) will rise from that homogenous noise.

Synapse histogram workflow

The synaptic vectors formed by connecting the centroids of PSD95 staining or of gephyrin staining and the centroids of staining for a vesicle protein were aligned in an x,y,z coordinate system. All PSD95 or gephyrin centroids were placed at the origin of the x,y,z coordinate system, and the centroids of a synaptic vesicle protein in each synapse were each placed at an appropriate position x, along the x-axis. Thus, the x axis is equivalent to the 'synaptic axis' in the coordinate system. The positions of other protein centroids within a 1 µm sphere of the origin of each synapse were rotated in the same way to appropriate positions in the x,y,z coordinate system. To provide a visual representation of the 2D distributions of these proteins in the x,y plane, with respect to the synaptic axis, the centroids of proteins were binned in the x,y plane as follows. The x coordinate of a centroid was given as its distance from the origin along the x-axis (Figure 3A). The y coordinate was given as its distance from the origin along the y-axis. The x coordinates of the centroids were binned within semi-circular bins of fixed width centered on the y-axis, and the y-coordinates were binned within semi-circular bins of the same fixed width centered on the x-axis. The semi-circular bins were mirrored along the x-axis (synaptic axis) to produce a circular image (Figure 3B). This creates a projection of centroids with x,y coordinates that are binned into circular bins of fixed width centered on the origin. To correct for the fact that the circular bins effectively draw from spherical bins in 3D, the number of centroids in each bin is divided by the volume of the corresponding spherical bin to give the density of centroids in each bin. This normalization ensures that the random probability of a centroid falling within each bin is equal.

Chi-squared two-sample test

Generating a statistical comparison of both 2D and 1D non-parametric distributions was not trivial. We, with the help of the Stanford statistics department, settled upon the chi-square two-sample test (below) as the best solution. This is defined as follows:

H0: The two samples come from a common distribution.

Ha: The two samples do not come from a common distribution.

Test statistic: For the chi-square two-sample test, the data are divided into k bins and the test statistic is defined as:

χ2=i=1k(K1Ri K2Si)2Ri+Si

Where the summation for bins 1 to k , Ri is the observed frequency for bin i for sample 1, and Si is the observed frequency for bin i for sample 2. K1 and K2 are scaling constants that are used to adjust for unequal sample sizes. Specifically,

K1=i=1kSii=1kRiK2=i=1kRii=1kSi

Sample size and replication

We used estimates derived from previous studies (Wang et al., 2014; Allen et al., 2012; Hiu et al., 2016), coupled with empirical tests to determine our sample size and replication. In this paper, synapses were pooled from six different animals per brain region (Layers 4 and 5) per genotype (WT and KO). Each animal was separately imaged and synapse classification was also done separately. These computationally generated synapses were then aligned and pooled to create average synapse protein data distributions.

Synapse axes metrics

For 116592 Layer 5 cortical synapse axes: mean = 675.32 nm, median = 706.00 nm and standard deviation = 216.18. For 102886 Layer 4 cortical synapse axes: mean = 677.04, median = 704.50, standard deviation = 214.09. All these numbers are in line with published literature regarding the average size of a mouse cortical synapse (Chen et al., 2008; Dani et al., 2010; Mineur et al., 2002; Chen et al., 2005; Tao-Cheng et al., 2014; Coleman et al., 2010).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    The existence of a second vesicular glutamate transporter specifies subpopulations of glutamatergic neurons
    1. E Herzog
    2. GC Bellenchi
    3. C Gras
    4. V Bernard
    5. P Ravassard
    6. C Bedet
    7. B Gasnier
    8. B Giros
    9. S El Mestikawy
    (2001)
    Journal of Neuroscience 21:RC181.
  25. 25
    Synapse
    1. J Heuser
    2. T Reese
    (1977)
    261–294, Structure of the synapse, Synapse.
  26. 26
  27. 27
  28. 28
    PSD-95 is associated with the postsynaptic density and not with the presynaptic membrane at forebrain synapses
    1. CA Hunt
    2. LJ Schenker
    3. MB Kennedy
    (1996)
    Journal of Neuroscience 16:1380–1388.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52

Decision letter

  1. Mary B Kennedy
    Reviewing Editor; California Institute of Technology, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "SUB-SYNaptic, Multiplexed Analysis of Proteins (SubSynMAP): Reveals FXR2P Localization deficits in Fmr1 KO synapses" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Eve Marder as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Shigeki Watanabe (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors have developed a technique that maps the probability of protein distributions from array tomography data to infer the average localization of particular proteins over thousands of synaptic terminals. Array tomography uses conventional fluorescence microscopy but achieves super-resolution by physical sectioning of tissues, deconvolution and reconstruction of the arrays. Multiple proteins can be probed simply by repeating antibody staining against proteins of interest and the subsequent elution of the antibody. In brief, the new technique works as follows.

1) The synaptic vector is determined by connecting the centroid of fluorescence from a post-synaptic marker with the centroid of fluorescence from a vesicle marker. Another synaptic vesicle marker (synapse type specific) is used to ensure that the connected puncta represent a synapse. 2. The centroids of fluorescence puncta from other proteins are mapped relative to the synaptic vector, and histograms or density maps, are generated.

Using this method, the authors have demonstrated that: 1. Proteins with known localization are found at the appropriate locations relative to post-synaptic markers (PSD95 for glutamatergic neurons and gephyrin for GABAergic neurons). 2. FMRP is located mostly postsynaptically in Layer 5 neurons, but it is found both presynaptically and postynaptically in Layer 4 neurons. 3. These data are confirmed by mapping fluorescence data on underlying ultrastructure. 3. The FXR2P distribution, but not the FXR1P distribution, is altered in FMR1 KO mice via an unknown mechanism.

Essential revisions:

The reviewers felt that the method reported here as an extension of array tomography, and analysis methods already published is interesting and the data are compelling. It would be useful to researchers wanting to detect changes in protein distribution of synaptic proteins throughout brain regions caused by disease mutations, or other manipulations. However, for publication in eLife, the manuscript needs to be much more clearly written; it needs to provide more background information; and it needs to address several technical points.

The following major revisions will be necessary:

1) It is not made clear in the Abstract or Introduction what parts of the method have already been published and what parts are newly introduced in this manuscript. The authors should state in the Abstract that the method builds on data and analyses provided by ATD. Because the RL deconvolution is used here, and this was referred to as ATD in the authors' previous 2012 publication, the ATD terminology should be used here to avoid confusion. The newly introduced computational method supports alignment of all the synaptic vectors in such a way that the positions of additional proteins can be mapped and averaged over the thousands of synaptic axes identified in a sample.

2) The reviewers had quite a bit of confusion about the axes along which the projections to 2D were made. This is because the explanations in the Results and Materials and methods section are unclear and often ambiguous. The verbal descriptions of Figures 2, 3, and 4, their respective figure legends, and the work flow described in the methods section all must be thoroughly revised to make more clear the nature of the coordinate systems and the axes along which projections are made. After much re-reading, here is our understanding of what was done. The synaptic vectors formed by connecting the centroids of PSD-95 staining, or gephyrin staining and the centroids of staining for a vesicle protein were aligned in an x,y,z coordinate system. All PSD-95 or gephyrin centroids were placed at the origin of the x,y,z coordinate system, and the centroids of a synaptic vesicle protein in each synapse were each placed at an appropriate position x, along the x-axis. Thus, the x axis is equivalent to the "synaptic axis" in the coordinate system. The positions of other protein centroids within a 1 µm sphere of the origin of each synapse were rotated in the same way to appropriate positions in the x,y,z coordinate system. To provide a visual representation of the 2D distributions of these proteins in the x, y plane, with respect to the synaptic axis, the centroids of proteins were binned in the x-y plane as follows. The x coordinate of a centroid was given as its distance from the origin along the x-axis (Figure 3A). The y coordinate was given as its distance from the origin along the y-axis. The x coordinates of the centroids were binned within semi-circular bins of fixed width centered on the y-axis, and the y-coordinates were binned within semi-circular bins of the same fixed width centered on the x-axis. The semi-circular bins were mirrored along the x-axis (synaptic axis) to produce a circular image (Figure 3B). This creates a projection of centroids with x,y coordinates that are binned into circular bins of fixed width centered on the origin. To correct for the fact that the circular bins effectively draw from spherical bins in 3D, the number of centroids in each bin is divided by the volume of the corresponding spherical bin to give the density of centroids in each bin. This normalization ensures that the random probability of a centroid falling within each bin is equal. If the above description is not correct, the authors need to clarify the work flow further. In several figures, the density distributions are represented on a percentage scale, but the exact calculation by which the percentages were determined needs to be stated explicitly. The explanation of this process in a revised manuscript needs to be as clearly written as explanations of other methods were in earlier papers by the same authors.

3) The authors need to clarify and quantify the rate of false positives and negatives. The authors define a synapse by the presence of two synaptic vesicle markers close to the post-synaptic marker. However, this definition may not always be accurate. For example, in Figure 1D, there is a pair of upper left signals containing juxtaposed PSD95 and vGlut1. However, this pair does not appear to be defined as a synapse because the SYN marker is not present. Since both vGlut1 and synapsin are vesicle markers, how do the authors explain this? Alternatively, the signals in the middle have all three markers, but the presynaptic markers are further away from the PSD95 marker. How well have the authors confirmed their definition of a synapse by the EM conjugate AT method? Is the pair of signals for PSD-95 and vGlut1 at the upper left, a false negative; that is a true synapse that has not been identified by the classification? Approximately what percentage of the synaptic vectors identified using this method actually represents synapses by morphology? If the algorithm used by the authors has been fully verified by the EM conjugate method in a previous publication, the authors need to state this in the Introduction, and give the calculated rate of false positive and false negative synapses identified by the algorithm. They need to summarize their previous studies with respect to choice of antibodies and the percentage of synapses that are actually labeled by the antibodies in the plastic sections. Is there a failure rate for labeling, for example, because of inadequate penetration of the antibody into the center of a section? A discussion of these issues, which may have been resolved in earlier papers, would be important for a tools and methods paper.

4) Supplemental Figure 1 is composed of portions of figures that were originally published in Wang and Smith, 2012 (PLoS Computational Biology 8(8): e1002671. doi:10.1371/journal.pcbi.1002671). That supplemental figure could be removed. If the authors feel strongly that it is necessary, all panels need to be properly attributed. The other supplemental figures must be associated with a regular figure, and appropriately named according to eLife instructions to authors.

5) The authors need to clarify and quantify the actual resolution of this method. The pixel dimensions are stated as 100 nm voxels in methods. Earlier papers indicate that an actual resolution of about 100 nm is achieved by the RL deconvolution. In the methods section, the authors indicate that statistics and dithering effect create a resolution "considerably better than 100 nm". The authors should discuss this issue more thoroughly in the Discussion section and provide an estimate of the actual resolution that is achievable. Is it ~10 nm? ~50 nm? Can this number be calculated?

6) It is difficult to assess the full extent of the 3D distribution of the signals from the 2D max projection. Please provide the 3D volumes as supplementary figures to Figure 3. The authors should also discuss how they exclude the possibility that the defining markers may be located outside of the reconstructed volume. For example, in Figure 1D, would it be possible that the post-synaptic marker is actually outside the imaged volume (vice versa, the presynaptic markers are outside of the imaged volume)? This last question is related to the issue of false negatives.

7) There are some puzzling disparities in the data. The probability/ nm^3 is much higher in the 2D density plots than in the corresponding 1D distributions. Why? For example, in Figure 4B, the 2D plot shows a 17% peak, but the 1D plot shows the peak is only ~3.3%. Please explain this.

8) In several of the 2D projections, there are periodic "halo" bins separated by bins with low density. These are particularly evident for bassoon and synaptophysin in Figure 5C. What is the origin of these apparent artifacts? Could they be coming from inadvertent assigning of signals from neighboring synapses?

9) The criteria and accuracy of the EM conjugate AT experiment in Figure 6 need to be better explained. In Figure 6 E and F, there appear to be fluorescent signals that are not marked by arrows. For example, the middle panel in 6E shows both presynaptic and postsynaptic signals. The second panel from the left in 6F shows a second signal just outside of the synapses. What are the criteria that the authors use to decide which signals are associated with the particular synapse?

In the middle figure in 6F, the signal indicated by the arrow does not seem to be in the postsynaptic spine (the smear of the signal is in the post-synaptic terminal, but the bright spot is outside the boundary). In SubSynMAP, this signal will be counted into the postsynaptic bin; how would this affect the rate of false positives and negatives? (Note that the labels in Figure 6F all say L5, but should say L4. Please fix the typos.)

In general, the figure legend and description of this figure is not detailed enough. Are the fluorescence signals max projections of the same volume (210 nm in z) or 2.8 µm? If 2.8 µm, some of the signals observed may be from synapses located at a different location in z. The signals should be correlated from the same volume.

10) In Figure 7—figure supplement 2, Why is there no signal from vGlut2 in this condition?

https://doi.org/10.7554/eLife.20560.022

Author response

[…] Essential revisions:

The reviewers felt that the method reported here as an extension of array tomography, and analysis methods already published is interesting and the data are compelling. It would be useful to researchers wanting to detect changes in protein distribution of synaptic proteins throughout brain regions caused by disease mutations, or other manipulations. However, for publication in eLife, the manuscript needs to be much more clearly written; it needs to provide more background information; and it needs to address several technical points.

The following major revisions will be necessary:

1) It is not made clear in the Abstract or Introduction what parts of the method have already been published and what parts are newly introduced in this manuscript. The authors should state in the Abstract that the method builds on data and analyses provided by ATD. Because the RL deconvolution is used here, and this was referred to as ATD in the authors' previous 2012 publication, the ATD terminology should be used here to avoid confusion. The newly introduced computational method supports alignment of all the synaptic vectors in such a way that the positions of additional proteins can be mapped and averaged over the thousands of synaptic axes identified in a sample.

We now mention that our method builds on ATD data in paragraph 1 of the Introduction. The novel and old parts of the method are more succinctly described in the first sentence of the second paragraph of the Introduction. ATD is now referenced throughout the text.

2) The reviewers had quite a bit of confusion about the axes along which the projections to 2D were made. This is because the explanations in the Results and Materials and methods section are unclear and often ambiguous. The verbal descriptions of Figures 2, 3, and 4, their respective figure legends, and the work flow described in the methods section all must be thoroughly revised to make more clear the nature of the coordinate systems and the axes along which projections are made. After much re-reading, here is our understanding of what was done. The synaptic vectors formed by connecting the centroids of PSD-95 staining, or gephyrin staining and the centroids of staining for a vesicle protein were aligned in an x,y,z coordinate system. All PSD-95 or gephyrin centroids were placed at the origin of the x,y,z coordinate system, and the centroids of a synaptic vesicle protein in each synapse were each placed at an appropriate position x, along the x-axis. Thus, the x axis is equivalent to the "synaptic axis" in the coordinate system. The positions of other protein centroids within a 1 µm sphere of the origin of each synapse were rotated in the same way to appropriate positions in the x,y,z coordinate system. To provide a visual representation of the 2D distributions of these proteins in the x, y plane, with respect to the synaptic axis, the centroids of proteins were binned in the x-y plane as follows. The x coordinate of a centroid was given as its distance from the origin along the x-axis (Figure 3A). The y coordinate was given as its distance from the origin along the y-axis. The x coordinates of the centroids were binned within semi-circular bins of fixed width centered on the y-axis, and the y-coordinates were binned within semi-circular bins of the same fixed width centered on the x-axis. The semi-circular bins were mirrored along the x-axis (synaptic axis) to produce a circular image (Figure 3B). This creates a projection of centroids with x,y coordinates that are binned into circular bins of fixed width centered on the origin. To correct for the fact that the circular bins effectively draw from spherical bins in 3D, the number of centroids in each bin is divided by the volume of the corresponding spherical bin to give the density of centroids in each bin. This normalization ensures that the random probability of a centroid falling within each bin is equal. If the above description is not correct, the authors need to clarify the work flow further. In several figures, the density distributions are represented on a percentage scale, but the exact calculation by which the percentages were determined needs to be stated explicitly. The explanation of this process in a revised manuscript needs to be as clearly written as explanations of other methods were in earlier papers by the same authors.

We found the description of the workflow above so compelling that we decided to include the italicized section above directly in our methods under the heading “Synapse histogram workflow”. We hope the reviewers and editors do not mind this. We have cited the reviewers and editors in the acknowledgement section for this. The Y axis scale is in percentage points in the figures because density is converted to percent probability by dividing the number of protein centers per bin by the number of synapses. This generates an estimated percent probability that a protein center can be found at a position in space in the average synapse of that class. This is stated in the text and is now reiterated in Figure 4 legend.

3) The authors need to clarify and quantify the rate of false positives and negatives. The authors define a synapse by the presence of two synaptic vesicle markers close to the post-synaptic marker. However, this definition may not always be accurate. For example, in Figure 1D, there is a pair of upper left signals containing juxtaposed PSD95 and vGlut1. However, this pair does not appear to be defined as a synapse because the SYN marker is not present. Since both vGlut1 and synapsin are vesicle markers, how do the authors explain this? Alternatively, the signals in the middle have all three markers, but the presynaptic markers are further away from the PSD95 marker. How well have the authors confirmed their definition of a synapse by the EM conjugate AT method? Is the pair of signals for PSD-95 and vGlut1 at the upper left, a false negative; that is a true synapse that has not been identified by the classification? Approximately what percentage of the synaptic vectors identified using this method actually represents synapses by morphology? If the algorithm used by the authors has been fully verified by the EM conjugate method in a previous publication, the authors need to state this in the Introduction, and give the calculated rate of false positive and false negative synapses identified by the algorithm. They need to summarize their previous studies with respect to choice of antibodies and the percentage of synapses that are actually labeled by the antibodies in the plastic sections. Is there a failure rate for labeling, for example, because of inadequate penetration of the antibody into the center of a section? A discussion of these issues, which may have been resolved in earlier papers, would be important for a tools and methods paper.

The false positive and negative rate for the individual synapse classification is now included in the Introduction. A more detailed discussion of antibody testing and error rates is included in the methods. The error rate was first measured using computer to hand classification comparisons (Wang et al., 2014)[Supplemental Figure 1 – of that paper], and then reconfirmed using EM fiducials (Author response image 1). In terms of marker colocalization, having looked at thousands of multiplexed images in 3D, it is not uncommon to find a VGluT1 and Synapsin colocalization without it being at a synapse. This due to the nature of the proteins where VGluT1 and Synapsin are more broadly expressed in neurons while a protein such as PSD95 are mostly localized to the synapse. This would biologically suggest two things, the site of production of these proteins (produced in the cell body and shipped to the synapses) and that biologically transport vesicles might harbor both proteins. The causes of false positive and negatives for the PSD95 and Synapsin antibodies used in this study have been explored using conjugate AT and EM (Collman et al., 2015)[Figures 9 and 10 – of that paper]. In short, false negative rates are due to failure of antibody detection, and false positives are due to circumstantial colocalization which occurs at low probability.

4) Supplemental Figure 1 is composed of portions of figures that were originally published in Wang and Smith, 2012 (PLoS Computational Biology 8(8): e1002671. doi:10.1371/journal.pcbi.1002671). That supplemental figure could be removed. If the authors feel strongly that it is necessary, all panels need to be properly attributed. The other supplemental figures must be associated with a regular figure, and appropriately named according to eLife instructions to authors.

The figure was originally included to explain certain aspects of ATD that was later removed for clarity. We are now removing this supplemental figure, as it is no longer necessary.

5) The authors need to clarify and quantify the actual resolution of this method. The pixel dimensions are stated as 100 nm voxels in methods. Earlier papers indicate that an actual resolution of about 100 nm is achieved by the RL deconvolution. In the methods section, the authors indicate that statistics and dithering effect create a resolution "considerably better than 100 nm". The authors should discuss this issue more thoroughly in the Discussion section and provide an estimate of the actual resolution that is achievable. Is it ~10 nm? ~50 nm? Can this number be calculated?

This is an important point and we have thought much about this. “Considerably better” was an overstatement, and it is toned down. We believe the idea of resolution and the interpretation of the data needed more discussion thus we added a new paragraph in the Discussion section to better explore the concepts. In short, in these distributions we are not resolving individual proteins at high resolution, as one would with EM, we are combining tens of thousands of observations that each individually have an amount of uncertainty attached (the original resolution is 100 nm3) but together provides an unequivocal localization map of that protein within the synapse. Thus, it would be difficult to place an exact number on the resolution, as traditional methods of visualizing a standard or ruler does not apply here. Thus, throughout the paper we have toned down the nanometer claims, e.g., first sentence of paragraph three in Discussion section “description of the nanometer substructure…” is now “description of the substructure”.

Author response image 1
EM verification of excitatory synapse classification fidelity.

(AD) Single large frame EM micrograph of mouse somatosensory cortex. (A) Raw PSD95 puncta from light level data superimposed on EM. (B) Hand traced synaptic clefts superimposed on EM. (C) Computer classified VGluT1 synapse post synaptic densities superimposed on EM. (D) Combination of B and C. (A’D’) Zoomed in portions of the single EM micrograph. (D’) Black arrow point to a false positive and the white arrow point to a false negative. Note that the dataset is 3D thus some puncta not associated with clefts are associated in the z plane. Also due to the lack of a working VGluT2 antibody VGluT1 classified synapses are compared to all EM classified excitatory synapses, thus the false negative rate of VGluT1 is lower than the measured 12%.

https://doi.org/10.7554/eLife.20560.021

6) It is difficult to assess the full extent of the 3D distribution of the signals from the 2D max projection. Please provide the 3D volumes as supplementary figures to Figure 3. The authors should also discuss how they exclude the possibility that the defining markers may be located outside of the reconstructed volume. For example, in Figure 1D, would it be possible that the post-synaptic marker is actually outside the imaged volume (vice versa, the presynaptic markers are outside of the imaged volume)? This last question is related to the issue of false negatives.

We have generated 3D histograms with equal volume 10nm3 bins. The 3D histograms are displayed in Figure 3—figure supplement 1 and Video 1. As to the question regarding the post-synaptic marker being outside of the imaged volume, there are two answers. In terms of synapse classification, this is not possible, without post-synaptic PSD95 the algorithm will not classify a synapse. Thus, if there is a synapse with a PSD label outside of the search area then it will be a false negative that would be revealed in the above error analysis (Author response image 1). However, outside of the definition of the synapse and the synaptic axis there is the possibility that a PSD protein lies outside of the 1um radius sphere we are focusing on. This would be a false negative in the sense that it won’t contribute to the 3D histogram, but in our tests using larger spheres, this does not contribute to the signal we see. For a more detailed description of signal and background see our answers to questions 8 and 9 below.

7) There are some puzzling disparities in the data. The probability/ nm^3 is much higher in the 2D density plots than in the corresponding 1D distributions. Why? For example, in Figure 4B, the 2D plot shows a 17% peak, but the 1D plot shows the peak is only ~3.3%. Please explain this.

The reason is that the 1D bins are much bigger than the 2D bins. The 1D bins sweep a half halo through the 2D distribution thus it will cover dense 2D bins and less dense 2D bins. Thus the 1D bin is the average of those 2D bins, which can be lower.

8) In several of the 2D projections, there are periodic "halo" bins separated by bins with low density. These are particularly evident for bassoon and synaptophysin in Figure 5C. What is the origin of these apparent artifacts? Could they be coming from inadvertent assigning of signals from neighboring synapses?

If you look carefully these halos are present in every distribution not just those in 5C. This is caused by the discretization of the signal cause by the pixels. While the 3D weighted centroid calculations do provide sub-pixel coordinates the very nature of the calculation being made on a discrete dataset increases the probability of certain sub pixel distances. The reason why these halos are more apparent in the inhibitory synapses is because the background is higher which is due to: 1) there are fewer inhibitory synapses, and 2) some proteins have more background. The cause of the background is described below in 9.

9) The criteria and accuracy of the EM conjugate AT experiment in Figure 6 need to be better explained. In Figure 6 E and F, there appear to be fluorescent signals that are not marked by arrows. For example, the middle panel in 6E shows both presynaptic and postsynaptic signals. The second panel from the left in 6F shows a second signal just outside of the synapses. What are the criteria that the authors use to decide which signals are associated with the particular synapse?

In fact, all protein centers within a 1um radius are considered for the histogram. We realize we did a poor job of describing this, and this actually informs the idea of background in the previous question (8). Thus, we have included the below section in the Materials and methods:

“Proteins associated with synaptic axis

An important note is that for every synaptic axis all protein centers within a 1um radius sphere is incorporated into the histogram. This means that even protein puncta not associated with that particular synapse can be included. However, since our synapses are aligned, the random non-synaptic signals will reduce to an even background (see randomized data), but the coherent signal (the protein localization within the aligned synapses) will rise from that homogenous noise.”

In the middle figure in 6F, the signal indicated by the arrow does not seem to be in the postsynaptic spine (the smear of the signal is in the post-synaptic terminal, but the bright spot is outside the boundary). In SubSynMAP, this signal will be counted into the postsynaptic bin; how would this affect the rate of false positives and negatives? (Note that the labels in Figure 6F all say L5, but should say L4. Please fix the typos.)

In general, the figure legend and description of this figure is not detailed enough. Are the fluorescence signals max projections of the same volume (210 nm in z) or 2.8 µm? If 2.8 µm, some of the signals observed may be from synapses located at a different location in z. The signals should be correlated from the same volume.

FMRP is not used for the classification of that synapse, thus it does not affect the error rates of synapse classification. That signal in 6F looks like it would in fact be segmented into two objects and they would contribute to both pre and post-synaptic bins. The error in Figure 6 is now fixed. The figure legend is also updated. The fluorescence signals are not max projections; they are aligned section by section with the EM.

10) In Figure 7—figure supplement 2, Why is there no signal from vGlut2 in this condition?

Unfortunately we could not find a VGluT2 antibody that work in lowicryle for conjugate AT/EM (This point is now noted in the methods). VGluT2 data at light level is from tissue embedded in LR White. This is why we could not assess the false positive and negative rates of VGluT2 synapse classification using EM, and why the false negative rate (Author response image 1) for excitatory synapses is likely lower than the reported 12%.

https://doi.org/10.7554/eLife.20560.023

Article and author information

Author details

  1. Gordon X Wang

    1. Department of Psychiatry and Behavioral Sciences, Stanford University School of Medicine, Stanford, United States
    2. Center for Sleep Sciences and Medicine, Stanford University School of Medicine, Stanford, United States
    3. Department of Molecular and Cellular Physiology, Stanford University School of Medicine, Stanford, United States
    Contribution
    GXW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    drwonder@stanford.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-2707-7118
  2. Stephen J Smith

    1. Department of Molecular and Cellular Physiology, Stanford University School of Medicine, Stanford, United States
    2. Allen Institute for Brain Science, Seattle, USA
    Contribution
    SJS, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Philippe Mourrain

    1. Department of Psychiatry and Behavioral Sciences, Stanford University School of Medicine, Stanford, United States
    2. Center for Sleep Sciences and Medicine, Stanford University School of Medicine, Stanford, United States
    3. INSERM 1024, Ecole Normale Supérieure, Paris, France
    Contribution
    PM, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

Funding

John Merck Fund

  • Gordon X Wang
  • Philippe Mourrain

FRAXA Research Foundation

  • Gordon X Wang

National Institute of Neurological Disorders and Stroke (1R01NS092474)

  • Stephen J Smith

National Institute of Mental Health (1R01MH099647)

  • Philippe Mourrain

National Institute of Neurological Disorders and Stroke (1R01NS062798)

  • Philippe Mourrain

National Institute of Diabetes and Digestive and Kidney Diseases (1R01DK090065)

  • Philippe Mourrain

Allen Institute for Brain Science

  • Stephen J Smith

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs. Michael Tranfaglia, Louis Leung and Logan Grosenick for helpful discussion and edits on the manuscript. We thank Drs. Yi Zuo and Xinzhu Yu for providing the FXS KO mice for the experiments. We thank Drs. Jeffrey D Rothstein, Justin Fallon, and Rob Willemsen for providing antibodies. Finally, we are grateful to the reviewers and editors for writing an excellent synopsis of our workflow, which is included in the 'Methods' under the heading 'Synapse histogram workflow'. We also thank Dr. Juan Cueva from Aratome, LLC. for providing the electron microscopy in this manuscript.

Ethics

Animal experimentation: Animals were studied in accordance with animal use guide lines issued by the National Institutes of Health. All animals were handled with care in accordance with IACUC protocols at Stanford University. A minimum number of animal was used as necessitated by the experiments, and all animals were anesthetized using isofluorane to minimize suffering.

Reviewing Editor

  1. Mary B Kennedy, Reviewing Editor, California Institute of Technology, United States

Publication history

  1. Received: August 12, 2016
  2. Accepted: October 20, 2016
  3. Accepted Manuscript published: October 22, 2016 (version 1)
  4. Accepted Manuscript updated: October 26, 2016 (version 2)
  5. Version of Record published: November 7, 2016 (version 3)

Copyright

© 2016, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 752
    Page views
  • 215
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Scopus, Crossref.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
