Three dimensional reconstruction of energy stores for jumping in planthoppers and froghoppers from confocal laser scanning microscopy

  1. Igor Siwanowicz  Is a corresponding author
  2. Malcolm Burrows
  1. Howard Hughes Medical Institute/Janelia Research Campus, United States
  2. University of Cambridge, United Kingdom
Research Article
  • Cited 5
  • Views 870
  • Annotations
Cite this article as: eLife 2017;6:e23824 doi: 10.7554/eLife.23824

Abstract

Jumping in planthopper and froghopper insects is propelled by a catapult-like mechanism requiring mechanical storage of energy and its quick release to accelerate the hind legs rapidly. To understand the functional biomechanics involved in these challenging movements, the internal skeleton, tendons and muscles involved were reconstructed in 3-D from confocal scans in unprecedented detail. Energy to power jumping was generated by slow contractions of hind leg depressor muscles and then stored by bending specialised elements of the thoracic skeleton that are composites of the rubbery protein resilin sandwiched between layers of harder cuticle with air-filled tunnels reducing mass. The images showed that the lever arm of the power-producing muscle changed in magnitude during jumping, but at all joint angles would cause depression, suggesting a mechanism by which the stored energy is released. This methodological approach illuminates how miniaturized components interact and function in complex and rapid movements of small animals.

https://doi.org/10.7554/eLife.23824.001

Introduction

Jumping is one of the fastest and most powerful movements generated by animals. Consequently it places great demands on the nervous system, muscles and the skeleton to ensure that it can be performed successfully and repeatedly. These movements are frequently used to escape from predators so that the cost of failure is high. In insects different jumping mechanisms have evolved independently several times, but all that use the legs for propulsion fall into two broad types. First, contractions of the muscles act directly on long levers. Examples of insects which use this mechanism are bush crickets, the propulsive hind legs of which can be up to 2.6 times the body length (Burrows and Morris, 2003). The length of the levers enables them to generate the necessary leverage, but take 20–30 ms to be moved to full extension and accelerate the insect to take-off.

In the second jumping mechanism, the propulsive legs are short relative the body and deliver their power in a few milliseconds by using a catapult-like mechanism (Bennet-Clark, 1975a1975; Bennet-Clark and Lucey, 1967). The champion jumping insects, as judged by their take-off velocities, all use a catapult mechanism and belong to two groups of the true bugs (Hemiptera), the closely related planthoppers (Fulgoroidea) and froghoppers or spittle bugs (Cercopoidea). The refinements of the body for this mechanism are thus likely to be developed the most in these insects. The adults of both may live in similar habitats feeding on the sap of plants which they suck with piercing mouthparts. They jump prodigiously propelled by their hind legs. Planthoppers nymphs live freely alongside the adults and are also very able jumpers. By contrast, the nymphs of froghoppers do not jump and instead live a rather restricted life either underground, or on plant leaves, surrounding themselves with a protective froth which they make by blowing air into their urine. The adults generate take-off velocities ranging from 4 to 5.8 m s−1 in their best jumps (Burrows, 2006a, 2009, 2014). They achieve these remarkable velocities by accelerating their bodies in about 1 ms and in so doing experience forces that can reach 700 g; most humans pass out with forces 100 times less. The power needed to generate such rapid and powerful movements can be 1000 times greater than the contractile limits of normal muscle (Askew and Marsh, 2002; Ellington, 1985; Josephson, 1993; Weis-Fogh and Alexander, 1977). A complex motor pattern is fashioned by the nervous system and delivered to the muscles so that they build up the required force slowly and without moving the two propulsive hind legs (Burrows, 2007; Burrows and Bräunig, 2010). The energy of these slow contractions is stored in mechanical distortions of specialised cuticular structures of the thoracic skeleton associated only with the hind legs (Burrows et al., 2008). The energy is then released suddenly, by mechanisms that are not yet fully understood, to generate rapid propulsive movements of the hind legs. These energy storage devices must be able to deliver the necessary power repeatedly and reliably without fracturing. The insects must also ensure that the starting point for the movements is always the same so that they can perform jumps with predictable outcomes (Brackenbury, 1996). This requires that the stores must be both strong and elastic, properties that come from their constituent composite materials, hard cuticle and cuticle containing resilin (Burrows et al., 2008).

The elastic protein resilin was initially discovered in the tendons of flight muscles that must reliably generate many repetitive cycles of movement during the lifetime of an insect (Weis-Fogh, 1960), but has since been found in many different places in the cuticle of arthropods. In particular, it is associated with energy storage devices in a range of insects from fleas (Bennet-Clark and Lucey, 1967), froghoppers (Burrows et al., 2008) and planthoppers (Burrows, 2010). The latter two examples have some of the largest volumes of resilin relative to body size in any insect.

The great speed and power of the jumping movements also requires close interactions between the neurons, muscles and the skeleton. This is particularly important in synchronising the movements of the two propulsive legs to within 30 µs of each other in planthoppers (Burrows, 2009). Without this synchrony, the body will spin with little accompanying forward movement, as much of the mechanical energy acts to rotate the body. Such levels of synchronisation are beyond the limits of neural control but are accomplished by mechanical means such as the interactions between functional gear wheels on each propulsive hind leg of nymphal planthoppers (Burrows and Sutton, 2013). These enmeshed gears ensure that when one hind leg moves, the other also moves at the same time.

To understand how these fast jumping movements are generated, we have reconstructed from confocal scans the 3-D structure of three elements of the jumping mechanism to address three questions. First, what is the structure of the thorax that enables the energy generated by the muscle contractions to be stored and power a jump? Second, what is the distribution of resilin in these structures? Third, how do the muscles and their mechanical advantages change during jumping movements? We then analysed different species of planthoppers and froghoppers to seek common features or differences in these mechanisms. This approach has given insights into the functional design of the energy stores, how energy is stored and then released, and how the rapid propulsive movements of the hind legs are generated.

Results

General thoracic structure for jumping in planthoppers

The adults and nymphs (Figure 1A) of planthoppers are all adept at jumping, propelled by the synchronous, rapid depression movements of the two hind legs. The front and middle legs set the attitude of the body but apparently contribute little to propulsion. The metathorax of both adults (Figure 1B,C) and nymphs (Figure 1D,E) is reinforced internally by large, paired pleural arches (apodemes) that are substantial and complex structures in comparison to those in the other thoracic segments. From their ventral articulations with the two hind coxae, these arches run anteriorly and dorsally to articulate with the hinges of the hind wings. In adults (Figure 1B,C) each enlarged pleural arch forms a tight linkage with an anterior and dorsal extension of a hind coxa. By contrast, a pleural arch in a nymph has a more blade-like structure and its articulation with a coxa is clearly delineated by a flange that allows some movement between the two elements (Figure 1D,E). In the images of the nymphs, the lateral and dorsal outer layers of thoracic cuticle and the dorsal walls of the coxae have been removed to show these features more clearly.

Structure of the skeletal elements in the metathorax of planthoppers associated with jumping.

(A) Side view of an intact nymph of Metcalfa pruinosa. The right pleural arch of the metathoracic segment is visible through the external cuticle. (B) Two dimensional ventral view of the thorax of an adult Delphacid planthopper, Stenocranus acutus. The large trochanteral depressor muscle (M133b/c) and parts of other muscles are shown in yellow and resilin in the pleural arches is shown in blue. All other soft tissue was removed. (C) Three dimensional rendering (indicated by the symbol of coloured glasses) of the same ventral view of the adult. Muscle M133b/c is again shown in yellow. The scale bar in (C) also refers to (B). (D) Two dimensional dorsal view of the thorax of a nymph of S. acutus. E. Three dimensional ventral view of the nymph. The scale bar in (E) also refers to (D). In (D,E) all soft tissue in the thorax was digested away to leave only the skeletal structures. Some cuticle on each coxa was also removed to reveal the articulation of a coxa with a pleural arch on each side.

https://doi.org/10.7554/eLife.23824.002

Part of the ventral surface of the metathorax in both adults and nymphs is made of flexible, transparent membrane through which the large, paired trochanteral depressor muscles are visible (Figure 1B,C). These muscles fill most of the internal thoracic space, and power the rapid movements of the hind legs in jumping. In nymphs the anterior origins of these paired muscles are continuous with and a part of metathoracic pleural arches. The mesothoracic pleural arches form a support for the middle legs and do not contribute to the structures of the jumping apparatus of the hind legs (Figure 2A inset). In adults, however, the anterior ends of the metathoracic pleural arches articulate laterally with flattened expansions of the mesothoracic arches to form the origins of the trochanteral depressor muscles (Figure 2B–D. For each Figure shown in 3D, we provide a 2D version). Each trochanteral depressor muscle then inserts onto a prominent funnel-shaped tendon in the thorax that tapers to a stout rod as it passes through a coxa to insert on the medial wall of a trochanter (Figure 1B–D).

Figure 2 with 1 supplement see all
Comparison of the structure of the pleural arches in nymphs of five families of planthoppers.

(Ai) Delphacidae, Stenocranus acutus. (Aii) Issidae, Thionia bullata. (Aiii) Acanaloniidae, Acanalonia conica. (Aiv) Flatidae, Metcalfa pruinosa. (Av) Caliscelidae, Bruchomorpha oculata. In each of these nymphs the right pleural arch is viewed dorsally to show its articulation with the coxa, the tendon of the trochanteral muscle, and the gears on the trochanter. Inset: mesothoracic struts of A. conica that give rise to the mesothoracic pleural arch in the adult. (B) Mesothoracic arches of an adult Flatormenis proxima viewed dorsally, imaged using red autofluorescence (C). Metathoracic arches of F. proxima viewed ventrally. Arrows denote articulation sites of the arches; arrowheads, articulations with a wing hinge. (D) Schematic representation based on confocal data showing relative the positions of the meso- and metathoracic pleural arches viewed medially.

https://doi.org/10.7554/eLife.23824.003

The paired trochanteral depressor muscles (M133b/c shown in yellow in Figure 1B,C) contract before a jump but the hind legs remain stationary in their fully cocked (levated) positions (Burrows, 2007; Burrows and Bräunig, 2010). This action pulls on the trochantera with the result that the pleural arches are bent and their curvature increased (Video 1, Supplementary material). The positions of the most anterior articulations of the pleural arches with the wing hinges stay constant but the posterior articulations with the coxae, and the coxae themselves, move forwards as a unit. Then, as the pleural arches unfurl, the coxae move rapidly backwards and the hind legs straighten by depression at the coxo-trochanteral joints and extension at the femoro-tibial joints to propel the jump. The coxae thus form a stable base which allows cocking (levation) and propulsive (depression) movements of the trochantera about their dorsal and ventral articulations with the coxae. This stability enables the femora and tibiae to straighten and transmit the propulsive forces for a jump to the ground through the tarsi.

Video 1
Bending of the pleural arches of a planthopper during natural jumping.

High speed movie taken at 30 000 frames per second and with an exposure time of 0.03 ms of the jumping movements of an adult planthopper Issus coleoptratus. Before a jump, the hind legs are moved into their fully levated position so that the coxae are located anteriorly within the metathorax. The large trochanteral depressor muscles then contract without moving the hind legs, resulting in the pleural arches being bent. As the jump is released, the pleural arches unfurl and both coxae move backwards rapidly as a unit. The more distal parts of the two hind legs also move rapidly in unison.

https://doi.org/10.7554/eLife.23824.005

To withstand these forces, a hind trochanter is reinforced by internal struts (Figure 1D) and its medial and lateral walls are thickened. In nymphs, but not adults, the external medial surface of a trochanter has a gear wheel (Figure 1D,E). The gears on each trochanter intermesh during cocking movements in preparation for a jump (levation) and during the propulsive jumping movements themselves (depression) of the hind legs (Burrows and Sutton, 2013). These features of the pleural arches, thoracic structures and proximal leg joints described above are also common to the five other families of planthoppers analysed with some differences in relative sizes (Figure 2Ai–v).

Distribution of resilin in the energy stores of adult planthoppers

An integral material element of the metathoracic energy stores (pleural arches) is the rubber-like protein resilin as revealed by staining with acridine orange, but shown in blue (Figures 1B and 3, Table 1). In a ventral view of the right pleural arch of an Issid planthopper, the resilin is seen as an elongated region 500 µm wide, 200 µm thick and 1250 µm long which curves laterally at its posterior end near its articulation with the coxa (Figure 3Ai,ii; Table 2). In sections the resilin is surrounded on three sides by cuticle of a pleural arch which contains little or no resilin. On the lateral surface the cuticle is permeated by two antero-posterior longitudinal holes (Figure 3Aii, white arrowheads in sections 2,3). The almost complete encirclement by cuticle means that in a dorsal view of a pleural arch, most of this resilin is hidden with only a small part protruding anteriorly close to the articulation with the wing hinge and the site of origin of the trochanteral depressor muscle (Figure 3Aiii). From these images, the volume of resilin in a pleural arch was calculated to be 0.138 mm3. The ratio of the volume of resilin in both pleural arches relative to body mass was 12.82 mm3 g−1 (Table 2). In adult planthoppers, resilin was also found in a medial protrusion of a hind trochanter which pressed against a similar protrusion from the other trochanter when the hind legs were cocked (levated) in readiness for jumping (Burrows, 2010) (Figure 3Aiii).

Figure 3 with 1 supplement see all
Resilin in the thorax of adult planthoppers.

(A) The skeletal elements of the right side of the metathorax of the Issid planthopper Thionia bullata after all soft tissue and soft cuticle was removed. The resilin, visualized using Acridine Orange staining, is shown in blue. (Ai) Ventral view. (Aii) Sections cut at the five levels indicated in (Ai). The white arrowheads in sections 2 and 3 indicate the holes. (Aiii) Dorsal view. (B) The same skeletal elements of the right thorax of the Derbid planthopper Apache degeeri. (Bi) Ventral view. (Bii) Sections cut at the five levels indicated in (Bi). (Biii) Dorsal view.

https://doi.org/10.7554/eLife.23824.006
Table 1

Summary of the stains and the excitation and emission wavelengths used when imaging specimens.

https://doi.org/10.7554/eLife.23824.008
TissueStainingExcitation wavelengths, nmEmission wavelengths, nm
ChitinAutofluorescence561568–683
Chitin and
Muscles (nymphs)
Calcofluor White405410–570
Texas Red Phalloidin594599–660
Chitin and
Muscles (adults)
Autofluorescence405410–465
Texas Red Phalloidin594599–660
Chitin and
Resilin
Autofluorescence405410–465
Acridine Orange488520–580
Table 2

Volumes of resilin in a pleural arch, and ratios of both arches relative to body mass in the planthopper Thionia bulllata and the froghopper Lepyronia quadrangularis. See Figure 3Ai, ii for definitions of width, thickness and length and Figure 9A–C for definitions of the two resilin regions in froghoppers.

https://doi.org/10.7554/eLife.23824.009
Width, µmThickness, µmLength, µmVolume one arch, mm3Ratio, both arches: body mass, mm3 g−1
Planthopper50020012500.13812.8
Froghopper
Large region71029014500.121
Ovoid region4401507100.044
Total0.16518.7

A similar pattern to the distribution of resilin was also seen in other families of planthoppers. For example, in Derbid planthoppers the region of resilin was somewhat shorter but broader and the lateral cuticle of the pleural arch was not hollowed, but all other features were similar (Figure 3Bi–iii). In three dimensional views of a pleural arch of both Acanaloniid planthoppers and Derbid planthoppers, the region containing resilin was encased by medial and lateral plates of cuticle (Figure 4A,B). This surrounding cuticle was reinforced laterally with antero-posterior folds while its medial surface was thinner and flatter. An apparent oval hole that was normally covered by a thin cuticular membrane was revealed in both families toward the lateral edge of the arch at its articulation with the coxa (Figures 3A,B and 4A,B).

Figure 4 with 1 supplement see all

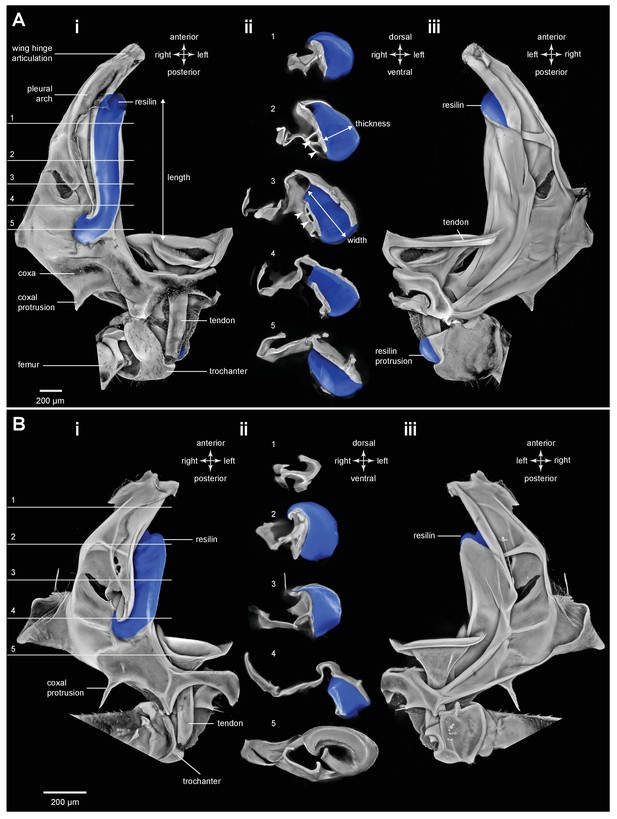

Three dimensional structure of a pleural arch.

(A) The right pleural arch of the Acanaloniid planthopper Acanalonia conica viewed ventrally. The lateral plate of the arch is reinforced by antero-posterior infoldings, and the medial plate is thin but curved. The region between these two plates is normally filled with resilin. (B) The right pleural arch of the Derbid Apache degeeri viewed ventrally and in which edges have been emphasised (using ‘find edges’ filter in ImageJ). Again the region delineated by the two plates is normally filled with resilin. The arches were imaged using red autofluorescence.

https://doi.org/10.7554/eLife.23824.010

Bending of the energy stores of adult planthoppers

To simulate the bending movements of the pleural arches that have been observed during the preparation for a jump, isolated thoraces were gently squeezed between two coverslips by applying increasing forces while scans were made of any resulting movements of an arch (Figure 5A). The forces acted in the same direction as would be experienced during a natural jump. Successive images were then linked together into a movie (Video 2, Supplementary material) that allowed the displacements of an arch to be determined. From such movies the main bending region was identified as in the middle of the arch (Figure 5A–C). Here, and close to the hole, a small tendon inserts on the inner dorsal part of the pleural arch and runs anteriorly (Figure 5B,C). There are also two curved cuticular parts of the pleural arch, one lateral and one more medial, that will be subject to the maximal bending forces, suggesting that they might act as springs in additional to those in the pleural arches (Figure 5B,C).

Figure 5 with 1 supplement see all

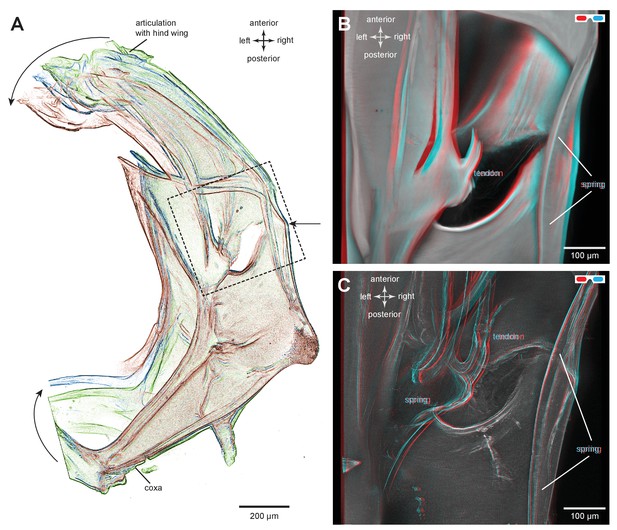

Structures associated with the bending of the pleural arches in planthoppers.

(A) Outlines of the right pleural arch viewed dorsally of the Flatid planthopper Flatormenis proxima taken from three individual frames of a movie (Supplementary material, Video 2) whilst a bending force was applied. The straight arrow points to the position of the region about which bending occurred and the curved arrows indicate the direction of bend at the anterior and posterior ends. (B) An expanded dorsal view of the area in (A) marked by the dashed box, showing the insertion of a tendon from a small muscle and the hinge region of the pleural arch. (C) The same image in which edges are emphasised to reveal a potential spring underneath the tendon insertion and a second potential curved spring on the right edge. These images can be seen in 3-D rotational views in Supplementary Material, Video 3.

https://doi.org/10.7554/eLife.23824.012
Video 2
Imposed bending movements of a pleural arch of a planthopper.

The isolated pleural arch of the planthopper Flatormenis proxima was restrained between coverslips and a sustained force was applied to the top coverslip while a scan was made. The movie consists of three frames showing the pleural arch in a relaxed state and two compressed conformations.

https://doi.org/10.7554/eLife.23824.014

Muscle tendons in planthoppers

The tendons of the trochanteral depressor muscles that generate the power for jumping have a complex funnel shape, made of cuticle in both adults and nymphs (Figure 6A–D). Through the transparent ventral cuticle of the thorax, the tendons of these bilateral muscles could be seen to move anteriorly in unison within the metathorax as the hind legs were depressed to propel a jump, and then posteriorly as the legs were levated in preparation for the next anticipated jump. The rim of cuticle that forms the mouth of the funnel is not a complete circle and this shape suggests that when the muscle contracts it may be distorted and thus store additional energy. More posteriorly, the tendon tapers markedly so that as it passes through the coxa it is a narrower and rigid, rod-like structure (Figure 6B,C). In specific places the wall of this narrow part of the tendon is indented at the insertion point of a group of fibres that constitute a small part (M133a) of the trochanteral depressor muscle (Figure 6D). The tendon then flares into broader but flexible membrane at its insertion on the medial ventral wall of the trochanter (Figure 6D).

Figure 6 with 1 supplement see all

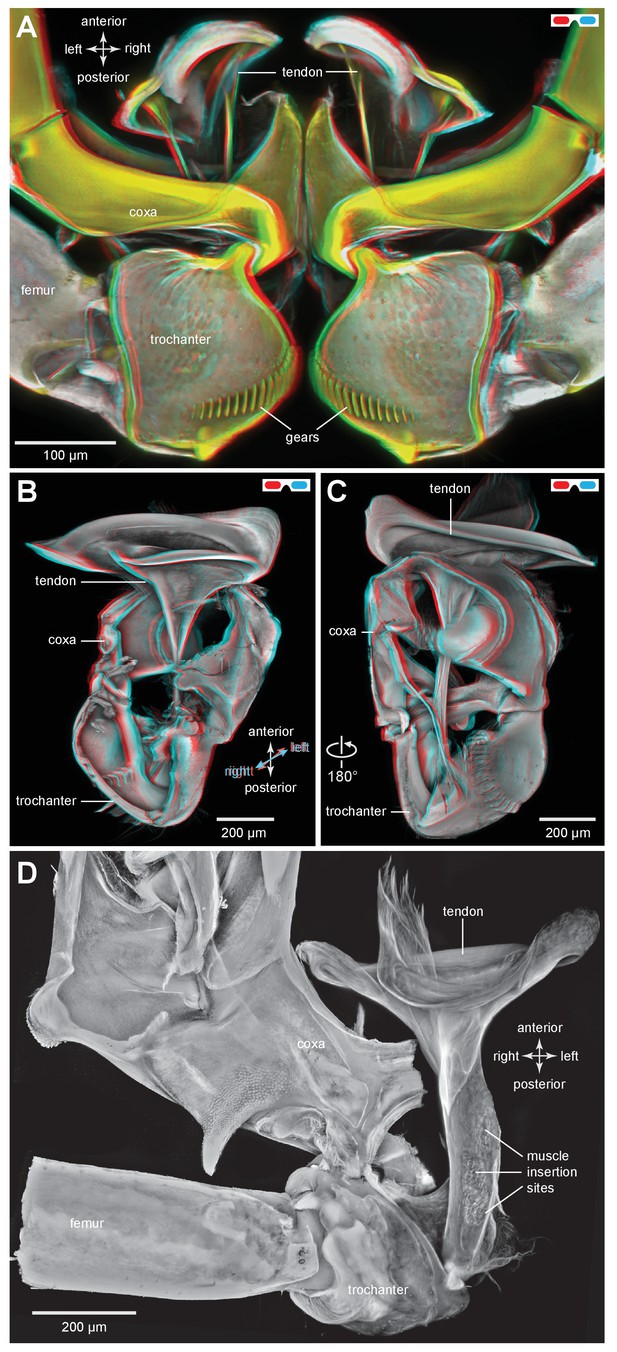

The tendon of the trochanteral depressor muscle in planthoppers.

(A) Three dimensional image, viewed dorsally, of the depressor tendons and proximal hind leg joints of a nymph of Stenocranus acutus. The helical end of the tendon on which the main body of fibres of the trochanteral depressor muscle (M133b/c) insert, protrudes in the thorax beyond the anterior edge of the coxa. The trochantera and femora of both hind legs are in their almost fully levated position so that the external coxal protrusions are close to engaging with the femora. The trochantera were displaced laterally so that their cog wheels are not engaged. (B) The tendon and proximal joints of the right side of the thorax of a nymph of Metcalfa pruinosa viewed medially. (C) The tendon and proximal joints of the right side of the thorax of a nymph of Acanalonia conica viewed ventrally. (D) The ventral wall of the right coxa of an adult Metcalfa pruinosa was removed to reveal the tendon and its insertion on the trochanter. Insertion sites of a small muscle along the straight part of the tendon are visible.

https://doi.org/10.7554/eLife.23824.015

To store energy in advance of a jump a trochanteral depressor muscle (Figure 7A,B) must contract without depressing the trochanter. A possible mechanism by which this might be achieved is for the lever arm of the tendon to change in sign relative to the pivot of the coxo-trochanteral joint (Gorb, 2004a2004). In this way, when the hind leg is fully cocked in readiness for a jump, the tendon would be to one side of the pivot axis so that the action of the muscle would be to levate rather than depress the leg. If another muscle were to move the loaded tendon to the other side of the pivot axis, the action of the depressor muscle would then be to depress the trochanter and propel a jump. To determine whether the lever arm of the depressor muscle does reverse in this way relative to the pivot axis, the images making up the three dimensional stacks were analysed individually and the positions of the tendon and the ventral and dorsal pivots of the joint were marked. This enabled the lever arm of the depressor tendon to be determined relative to the axis of rotation of the trochanter about the coxa (lines drawn in Figure 7B,C). The whole process was then repeated with the trochanter held at different angles relative to the coxa throughout its whole range of levation and depression movements. Two examples are shown; first with the trochanter almost fully depressed about the coxa (Figure 7B); second with the trochanter fully levated (cocked) (Figure 7C). When the joint was fully depressed the lever arm of the tendon was at it furthest (medial) position relative to the axis of rotation of the joint and thus had its greatest mechanical advantage (Figure 7B). At its most levated position, the lever arm was close to the axis of rotation of the joint but was still medial to it (Figure 7C). The lever arm thus became smaller as the joint was levated but its sign always remained the same. Thus throughout the entire range of trochanteral movements, the depressor muscle always acted to depress the trochanter.

Figure 7 with 1 supplement see all

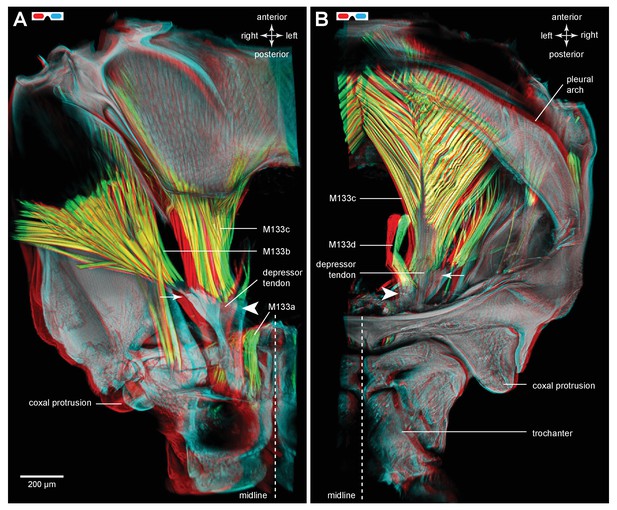

Muscles controlling movements of the hind trochantera of planthoppers.

(A) Medial view of a whole nymph of Metcalfa pruinosa. The muscles are shown in yellow. (B) Dorsal view of the right metathorax of a nymph with the right hind leg almost fully depressed, showing: the large trochanteral depressor muscle (M133b/c) with its origin in the anterior metathorax, the smaller part of this muscle (M133a) originating on the medial wall of the coxa, and a trochanteral levator muscle (M132). The two parts of the depressor muscle insert on different regions of the same tendon. The white arrowhead here (and in C) shows the insertion of the tendon on the medial wall of the trochanter. The line between the dorsal and ventral pivots of the trochanter indicates the axis of its rotation about the coxa. (C) The right half of the thorax viewed ventrally and with the hind leg fully levated. The axis of trochanteral rotation is again indicated by the line between the pivots. (D) Dorsal view of the insertions, by narrower tendrils, of fibres from the small part of the muscle (M133a) onto the main tendon in an adult. The hind leg was depressed as in (B). (E) Ventral view of these same insertions.

https://doi.org/10.7554/eLife.23824.017

Muscles in planthoppers

The main body of the trochanteral depressor muscle (M133b/c) in the metathorax is very much larger than the equivalent muscles in the other two thoracic segments (Figure 7A). The fibres of the main body insert on the rim of the tendon, with some central fibres extending further to insert on the interior of the tapering region of the tendon (Figures 6A and 7B,C; Video 3, Supplementary material). A small part of the depressor muscle (M133a) originates on the medial wall of the coxa and inserts on the straight part of the tendon within the coxa itself (Figure 7B,C). When viewed at higher magnification the insertions on the tendon are made by an array of fibrils similar in number to the constituent muscle fibres (Figure 7D,E). As the trochanter rotates from its fully levated position to a fully depressed one, the orientation of the fibres of this small muscle changes markedly in accord with the movements of its insertion site on the main tendon and the fixed origin of the fibres on the coxal wall (Figure 7D,E).

Video 3
Three dimensional rotational view of the jumping muscles in an adult planthopper Stenocranus acutus.

Both hind legs are in the fully levated position. The small parts of the trochanteral depressor muscles (M133a and M133d) are best viewed during the ventral portion of the rotation and the levator muscles (M131, M132) during the dorsal part.

https://doi.org/10.7554/eLife.23824.019

The two levator muscles are much smaller than the whole depressor muscle; the fibres of the larger levator muscle (M132) originate on a lateral, anterior and dorsal coxal process fused with the pleural arch, while the smaller levator muscle (M131) originates on the ventral coxal wall (Figure 7B,C). Their tendons insert on the anterior wall of the trochanter.

General thoracic structure of froghoppers

Nymphal froghoppers do not jump and their metathorax lacks the enlarged muscles that power the movements of the hind legs in jumping (Figure 8A). The nymphs also lack functional wings and do not fly. They also lack the large thoracic muscles that would power flying. By contrast, the metathorax of adult froghoppers is dominated by the pair of large trochanteral depressor muscles that propel jumping and the mesothorax by large muscles that power flying (Figure 8B). The origins of the froghopper trochanteral depressor muscles are larger and more ventral than in planthoppers. Enlarged pleural arches extend from the coxae to the articulation of the hind wings (Figure 8C), but the articulation of each coxa with a pleural arch allows rotation through a greater range of angles. As in adult planthoppers, the origins of the trochanteral depressor muscles include part of the mesothoracic pleural arches. These origins run dorso-ventrally as a thin curved sheet of cuticle and serve the dual function of supporting the metathoracic trochanteral muscles posteriorly and the mesothoracic flight muscles anteriorly (Figure 8B,C). Each coxa has a prominent external protrusion that projects laterally and posteriorly and which is covered in numerous much smaller protrusions (microtrichia) (Figure 9A,D). The ventral wall of the metathorax is made of opaque cuticle so that the underlying jumping muscles are not visible from the outside.

Figure 8 with 1 supplement see all
Thoracic muscles in nymphal and adult froghoppers.

(A) Medial view of a nymph of the froghopper Clastoptera obtusa. (B) Medial view of an adult of this species showing the large metathoracic trochanteral depressor muscle, and large mesothoracic flight muscles. (C) The same specimen as in (B) to show the internal skeleton of the thorax after removal of the soft tissues. The articulation of the metathoracic pleural arch with the mesothoracic pleural arch at the origin of the trochanteral depressor M133c is marked with a white arrowhead.

https://doi.org/10.7554/eLife.23824.020
Resilin and the pleural arches of an adult froghopper.

(A) Ventral view of the right pleural arch of Lepyronia quadrangularis. The large region of resilin (blue) is sandwiched between an inner and an outer layer of cuticle. (B) Sections cut at the five levels indicated by the lines and numbers in (A). The asterisks indicate a tunnel-like space in the pleural arch. (C) Dorsal view of the right pleural arch in which two regions of resilin are visible; the first, long and medial strip is the edge of the large region visible ventrally in (A); the second, ovoid region is more lateral and posterior, and is separated from the first by a thin central layer of cuticle and is bounded by an outer layer of cuticle. The dashed outline indicates the path of the tunnel from its entrance near the coxal protrusion (curved white arrow) to its blind ending at the level where the groove forms in the medial plate of the pleural arch. (D) Photograph of the ventral surface of the right side of the metathorax to show the external entrance to the tunnel (curved white arrow) relative to the coxal protrusion and the right hind coxa.

https://doi.org/10.7554/eLife.23824.022

Distribution of resilin in the energy stores of adult froghoppers

Froghoppers have two separate regions of resilin associated with each metathoracic pleural arch (Figure 9). The large region, which is comparable in its location to the single region in planthoppers, measures 710 µm wide x 290 µm thick x 1450 µm long at its maximum dimensions in Lepyronia quadrangularis (Table 2), and is sandwiched between lateral and medial plates of cuticle of a pleural arch (Figures 9A,B and 10A). At the anterior end the cuticular plates are thrown into a series of folds, one long and one shorter, which would be expected to stiffen the overall structure (Figure 9B,C). The second smaller and ovoid region of resilin overlaps with the larger region but extends more posteriorly and toward the articulation with a coxa. This region, which is not present in planthoppers, measures 440 µm wide x 150 µm thick x 710 µm long at its maximum dimensions (Figures 9B,C and 10B). Posteriorly, where these two regions of resilin overlap, they are separated from each other by a thin layer of cuticle and are bounded dorsally, ventrally and medially by plates of cuticle. From these images the volume of resilin in a froghopper pleural arch was calculated to be 0.165 mm3 made up from a volume of 0.121 mm3 in the larger region and 0.044 mm3 in the smaller ovoid region (Table 2). The ratio of the volume of resilin in both pleural arches relative to body mass was 18.74 mm3 g−1.

Figure 10 with 1 supplement see all
Cuticular plates of a pleural arch that surround the resilin in an adult froghopper.

(A) Three dimensional ventral view of a right pleural arch of Lepyronia quadrangularis showing the medial and lateral plates of cuticle that normally encase the large region of resilin. (B) Three dimensional dorsal view of the right pleural arch showing the more posterior plates that normally encase the smaller ovoid region of resilin. A drawing of the tunnel that connects with the outside air (curved white arrows) near the coxal protrusion is superimposed on both (A) and (B). The structures were imaged using red autofluorescence.

https://doi.org/10.7554/eLife.23824.023

Anterior to a coxal protrusion on either side of the thorax, the external cuticle is invaginated to form an entrance (curved white arrows in Figure 9A,C,D) to a tunnel within the pleural arch. This extends as far anteriorly as the start of the groove and the anterior part of the ovoid region of resilin. This tunnel is thus open to the outside and provides an air-filled space (asterisks in Figure 9B) alongside the resilin and cuticle for about 40% of the length of a pleural arch (Figure 10A,B).

Tendons and muscles in adult froghoppers

The tendon of the trochanteral depressor muscle (M133), which also powers the jump in froghoppers, has a different shape to that in planthoppers (Figure 11A,B). The muscle itself consists of four parts, the two larger parts (M133b/c) of which fill most of the space in the metathorax and two smaller parts (M133a, M133d) which attach to the tendon in the coxa (Figure 12A,B; Video 4, Supplementary material).

Figure 11 with 1 supplement see all
The tendon of the trochanteral depressor muscle in an adult froghopper.

(A) Three dimensional ventral view of the tendon of Lepyronia quadrangularis as it passes from the thorax, through the coxa to insert on the medial wall of the trochanter. Within the thorax the tendon bifurcates into a thick branch (arrowhead) onto which the fibres of the depressor muscle (M133c) inserts and a thinner lateral branch (arrow) on which the pinnate fibres of M133b insert. (B) Three dimensional dorsal view of the same preparation as in (A). Shorter tendons of the trochanteral levator muscles are also shown. The midline is close to the right of the image in (A) and to the left of the image in (B).

https://doi.org/10.7554/eLife.23824.025
Figure 12 with 1 supplement see all
Muscles controlling movement of the hind trochantera of adult froghoppers.

(A) Ventral view of the right side of the metathorax of Clastoptera obtusa. The insertion site of muscle M133b is occluded by darkly-pigmented cuticle. (B) Dorsal view of the right side showing the insertion of M133d and the pinnate arrangement of fibres in M133b.

https://doi.org/10.7554/eLife.23824.027
Video 4
Three dimensional rotational view of the jumping muscles in an adult froghopper Clastoptera obtusa.

Right half of the metathorax with the leg fully extended. The origins of depressor muscle (M133b) are obscured by dark, opaque cuticle.

https://doi.org/10.7554/eLife.23824.029

The insertion site for the main medial bundle of fibres that constitute M133c is a surface with edges that curve anteriorly. Close to these insertions and still within the thoracic cavity, the tendon branches into a thinner lateral and anteriorly directed part to which the pinnately arranged fibres of M133b insert along its length. As the combined tendon enters the coxa it tapers gradually to assume a dorso-ventrally flattened shape. Along its medial side is the insertion site of a small part of the muscle (M133a) that originates on the ventral medial wall of the coxa (Figure 12A). As in planthoppers, the tendon flares and becomes more flexible close to its insertion on the medial wall of the trochanter. M133d is an even smaller bundle of longer fibres that originates in the ventral thorax just lateral and posterior to the metathoracic ganglion and inserts on the tendon within the coxa (Figure 12B).

Discussion

Three dimensional reconstruction of images of the skeletal structures, the muscles and their tendons that generate the rapid propulsive movements of the hind legs, have revealed three features that meet the extraordinary mechanical demands of jumping. First, the substantially enlarged pleural arches act as energy stores for jumping and provide the necessary rigidity to withstand the forces that are generated. Second, large volumes of resilin are intimately bonded in complex ways with regions of the pleural arches that apparently contain no resilin. These composite structures store and release energy to power repeated jumping. Third, large, paired trochanteral depressor muscles occupy most of the internal volume of the metathorax. The changing lever arms of these muscles suggest a possible mechanism for the release of the stored energy to power a jump. By contrast, the other two pairs of legs which do not contribute propulsion for jumping have smaller pleural arches without resilin and smaller trochanteral depressor muscles.

Structure of energy stores

In nymphal planthoppers and adult planthoppers and froghoppers, the metathoracic pleural arches are curved bow-like structures with folds and grooves that apparently give increased strength. When the large trochanteral depressor muscles contract slowly before a jump, the pleural arches are bent like archery bows and store elastic energy, but the legs do not move. Sudden release of this stored energy powers the rapid movements of the hind legs in a catapult-like action and drives the insect to a high take-off velocity.

The metathoracic pleural arches of all six families of planthoppers analysed had similar common features. A region was identified in the middle of a pleural arch close to where a small laterally placed muscle tendon attaches and two small curved plates also occur. At this point these plates are likely to be subject to the greatest bending forces and might therefore act as additional springs. In planthoppers longitudinal holes are present in the pleural arches and in froghoppers an invagination of the external cuticle forms an air-filled tunnel that extends for some 40% of their length of each arch alongside the cuticular wrapped regions of resilin. These spaces may be a consequence of developmental processes, but functionally they should reduce the mass of the arches and their juxtaposition to the resilin suggests that they may allow easier bending and room for local bulging during energy storage.

Resilin and energy stores

The protein resilin has previously been detected by its characteristic blue fluorescence under specific wavelengths of UV light (Andersen, 1963; Andersen and Weis-Fogh, 1964; Malencik et al., 1996), the dependence of the fluorescence on pH (Neff et al., 2000), its staining with very dilute solutions of Methylene Blue or Toluidine Blue (Weis-Fogh, 1960; Young and Bennet-Clark, 1995) and immunostaining with an anti-Rec1 resilin polyclonal antibody (Elvin et al., 2005; Burrows et al., 2011; Lyons et al., 2011). We find here that resilin also stains with acridine orange and has a distribution which matches that revealed by all the preceding methods including wide field microscopy with DAPI filters (Figures 3 and 9 and Figure 3—figure supplement 1).

In planthoppers and froghoppers the resilin forms an elongated region in each pleural arch sandwiched between two plates of cuticle with folds and grooves for increased strength. In froghoppers there is a second region of resilin and where it overlaps with the first, a pleural arch in sections appears like a double-decker sandwich. The two fillings of resilin are separated from each other by a middle layer and bounded by two outside layers of cuticle. Relative to body mass, the volume of resilin in froghoppers is 50% higher than in planthoppers. The large regions of resilin are of comparable volume in the two groups so that the increase in volume in froghoppers is explained by the presence of the second region. In its best jumps an adult male planthopper, Issus coleoptratus (Burrows, 2006a, 2009), that is 22% heavier than a froghopper, Lepyronia quadrangularis, expends 55% more energy and requires a power output that is 213% larger to achieve a take-off velocity that is 20% higher. Why then do froghoppers have more resilin when their energy requirements for jumping are less? The answer may lie in the fact that the composite material from which the energy stores are made endows the jumping mechanism with three key features. First, the pleural arches do not fracture when bent by the considerable force generated by the powerful muscle contractions. Second, the elasticity of the resilin enables the original body shape to be restored rapidly after each jump, so that subsequent jumps can performed quickly. Third, the same muscle contractions will produce the same distortion of the energy stores and hence enable predictable jumping performances. The different volume and distribution of resilin in the two groups may thus reflect possible differences in the distribution of bending forces within their complex pleural arches.

Muscles, tendons and the storage and release of energy

The three dimensional images of the depressor tendon of planthoppers reveal dramatic changes in its mechanical advantage relative to the joint between the trochanter and the coxa as it moves from its most levated position before a jump to its most depressed position after propelling the jump. As the joint is depressed, the depressor lever arm becomes larger thus increasing its mechanical advantage over the smaller levator muscle. Likewise, as the joint is levated the lever arm of the depressor becomes smaller but does not change sign. Thus when fully levated and cocked in advance of a jump the action of the depressor muscle would still be to cause depression. The same conclusion based on physiological experiments has been drawn for the actions of the depressor muscle in froghoppers (Burrows, 2006b). These observations thus do not support the model that has been proposed for jumping in froghoppers (Gorb, 2004a2004). In Gorb’s model the initial action of the depressor muscle is proposed to levate the trochanter into its fully cocked position before the jump. The sign of the lever arm is then changed by a trigger muscle called M5 (possibly the same as small depressor muscle M133a described here) so that the action of the main depressor is now to depress the hind leg in its movements that propel a jump. In other words the tendon is initially on one side of the axis of rotation of the joint so that it causes levation and the contraction of the trigger muscle then pulls it to the other side so that it now causes depression and propulsion of the jump. Similar kinds of triggering mechanisms have been proposed for jumping in fleas (Bennet-Clark and Lucey, 1967), the strike of mantis shrimps (Cox et al., 2014a2014) and the snapping movements of alpheid shrimps (Ritzmann, 1974a1974), but no definitive evidence has been provided for lever arms changing in sign. Were such a trigger mechanism to exist in planthoppers and froghoppers it would require close neural synchronisation between the muscles of both hind legs to ensure that an uncontrolled spin of the body does not result (Sutton and Burrows, 2010a). Evidence from both adult (Burrows, 2010) and larval (Burrows and Sutton, 2013) planthoppers suggests the accuracy of the synchrony that would be required can only be achieved mechanically, but no evidence for such a mechanism has been revealed here that could trigger the release of the two hind legs.

Our results suggest a different mechanism. In preparation for a jump the hind legs are levated by the contractions of the levator muscles, an action confirmed by recordings from these muscles in both planthoppers and froghoppers (Burrows, 2007; Burrows and Bräunig, 2010). At the fully levated or cocked position of the joint, the small levator muscle has a big mechanical advantage and could thus restrain the large depressor which now has its smallest mechanical advantage. When the levator muscle starts to relax, the joint will begin to depress and with further movement the mechanical advantage of the levator will decrease while that of the depressor increases. The changes in mechanical advantages will quickly reach a point where the energy stored by the depressor will result in a rapid depression of the leg to propel a jump. This suggests that in natural jumps by planthoppers there is no need to invoke the action of a trigger muscle. This indicates that the functional role of the small part (M133a) of the depressor muscle is not to effect a change in the sign of the lever arms, but possibly to stabilise the tendon while it delivers the enormous force for jumping.

Support for the release of stored energy in this way also comes from experiments on other insects and from modelling studies. In locusts, jumping is propelled by a large power producing extensor muscle that operates with a smaller flexor muscle and with energy stored in distortions of specialised cuticular structures (Bennet-Clark, 1975a1975; Heitler, 1974) also made of composites of resilin and hard cuticle (Burrows and Sutton, 2012). When flexed in preparation for a jump, the contraction of the small flexor can restrain the joint from moving while both it and the larger extensor co-contract to store energy. When the flexor relaxes the tibia starts to extend and the increasing mechanical advantage of the extensor is expressed in rapid movements of the tibia. Theoretical modelling has also suggested a similar mechanism for jumping in bullfrogs that also involves elastic elements and increasing mechanical advantage during the muscle contractions (Roberts and Marsh, 2003), and more generally for muscular systems with these features (Galantis and Woledge, 2003a2003).

Insights into the functional mechanisms underlying jumping have been gained by revealing the three dimensional structure of the energy storage devices, muscles, and tendons. These emphasise the important interplay between brain and body in producing an adaptive movement. The storage of energy for jumping is only possible because of the mechanics of the changing lever arms of the controlling muscles, the composite materials of the skeletal energy stores and the actions of the muscles that are controlled by the nervous system. These powerful insights suggest that the same methods may be of wider application in the study of complex yet miniaturised mechanisms in small animals.

Materials and methods

Insects

The Hemipteran insects, suborder Auchenorrhyncha, studied in this paper were collected from similar habitats containing a variety of grasses, wild flowers and shrubs around Ashburn, Virginia, USA and Cambridge, UK in 2014- 2016. They belong to two groups: first, the Fulgoroidea, the planthoppers, of which there are some 20 families; members of six families which are all adept jumpers with similar thoracic anatomies were studied here: 1. Acanaloniidae, Acanalonia conica (Say 1830). 2. Caliscelidae, Bruchomorpha oculata (Newman 1838). 3. Delphacidae, Stenocranus acutus (Beamer 1946), and Pissonotus sp. 4. Derbidae, Apache degeeri (Kirby 1821). 5. Flatidae, Metcalfa pruinosa (Say 1830) and Flatormenis proxima (Walker 1851). 6. Issidae, Thionia bullata (Say 1830), and Issus coleoptratus (Fabricius 1781). Second, the Cercopoidea, (froghoppers) of which there are three families. The froghopper species used here were from the Cercopidae, Lepyronia quadrangularis (Say 1825) and Clastopteridae, Clastoptera obtusa (Say 1825). Both are adept jumpers with similar thoracic anatomies.

Sample preparation

Request a detailed protocol

For the imaging of cuticle, an insect was anaesthetized on ice and its thorax was isolated in phosphate buffered saline (PBS). The muscles were then digested away with a mixture of hyaluronidase/trypsin at 0.5 mg/ml for 5 hr at 37°C. Resilin of planthoppers and froghoppers was resistant to trypsin, but not to protease K or collagenase. To speed digestion and produce clean cuticle an ultrasonic bath was used towards the end of the process. To render thick samples transparent for imaging it was necessary to match the refractive index of the tissue with that of the mounting medium. The specimens were washed with ethanol and mounted in methyl salicylate (Sigma-Aldrich, M6752). Energy stores prepared in this way were also embedded in 8% agarose and sectioned on Leica Vibratome (VT1000s) at 0.3 mm using the slowest settings for progression of the blade. The sections were mounted in Tris-buffered (50 mM, pH 8.4) 50% glycerol.

To image cuticle and muscles, the thorax was fixed in 2% paraformaldehyde/PBS for 24–48 hr at room temperature. After washing in PBS containing 1% triton X-100, samples were treated with 0.5 mg/ml hyaluronidase for 2–3 hr at 37°C and briefly sonicated in an ultrasound bath to remove other tissue – mostly fat bodies – in the body cavity. This tissue caused much light scattering so that its removal was essential to obtain clear images of muscles and cuticle. The samples were then stained with Texas Red-X Phalloidin (1:50, Life Technologies #T7471) in PBS with 1% triton X-100, 0.5% DMSO and Escin (0.05 mg/ml, Sigma-Aldrich, E1378) at room temperature with agitation for 4–5 days. Long incubation times and the presence of surfactants assured better penetration of phalloidin into the large muscles. In preparations where the 405 nm laser-induced autofuorescence of exoskeletal elements, such as fine tendons in nymphs, was not strong, a chitin-binding dye Calcofluor White (0.1 mg/ml, Sigma-Aldrich, F3543-1G) was included in the staining procedure. Acridine orange and Calcofluor White were never used in the same preparation. The samples were then washed in PBS/1% triton and fixed for 4 hr in 2% paraformaldehyde to reduce leaching of bound phalloidin from muscles during the subsequent ethanol dehydration step. To avoid artefacts caused by osmotic shrinkage of soft tissue, samples were gradually dehydrated in glycerol (2–80%) and then ethanol (20% to 100%) (Ott, 2008) and mounted in methyl salicylate for imaging.

We attempted to apply the imaging regime/method for visualization of resilin in the exoskeleton of insects as described by Michels and Gorb (Michels and Gorb, 2012) but failed to obtain satisfactory separation of the resilin and chitin autofluorescence in adult plant- and froghopper energy stores (Figures 3 and 9). The lack of satisfactory contrast necessitated the use of staining. To reveal the distribution of the elastic protein resilin, samples were stained overnight with Acridine Orange (0.01 mg/ml, Sigma, A-6014) in PBS with 1% triton X-100. The distribution of this staining was then compared with the characteristic blue fluorescence of resilin seen under an Olympus MVX10 Microscope equipped with DP70 color camera and DAPI filter set (excitation: 352–402 nm, emission: 414–477 nm) (Figure 3—figure supplement 1) (Burrows et al., 2011, 2008). The distribution of resilin revealed by both methods were the same.

Imaging and rendering

Request a detailed protocol

Serial optical sections were obtained at 2 µm intervals on a Zeiss 710 confocal microscope with a Plan-Apochromat 10x/0.45 NA objective, or at 1 µm with a LD-LCI 25x/0.8 NA objective For the imaging of Acridine Orange-stained cuticle, laser lines of 405 and 488 nm were used. Autofluorescence of chitin was recorded in the 410–465 nm range whereas fluorescence of Acridine Orange was recorded in the 520–580 nm range. The dye exhibits a more red-shifted fluorescence compared to chitin so that collecting emitted light in the 520–580 nm range reduced the chitin autofluorescence component in the registered images. To reduce further the contribution of chitin autofluorescence, we adjusted the offset during recording. Calcofluor White and Texas Red phalloidin-treated samples were imaged using a 405 and 594 nm lasers, respectively. Using these wavelengths for visualization of Calcofluor white-stained exoskeleton and Acridine Orange (AO) -stained resilin creates the possibility of crosstalk. The autofluorescence of resilin would have been included in the visualization; we avoided that by applying Calcofluor White staining only to the nymphs that lack resilin in their energy stores. The settings used to image AO-resilin are appropriate for visualization of exoskeleton structures with large proportions of chitin (Michels and Gorb, 2012). The intensity of AO fluorescence is much stronger than autofluorescence of chitin, however, so that any crosstalk did not play an important role in our analysis of the distribution of resilin and did not impact the results.

We did not notice substantial differences in the distribution of blue, green and red autofluorescence in cuticular samples. Red autofluorescence was preferentially used for visualization of chitinous elements of the energy stores alone (i.e. when muscles and resilin were not simultaneously imaged), as longer wavelengths are less affected by cuticle pigmentation and thickness, yielding more uniform signal throughout the sample. Autofluorescence of cuticle was excited with a 561 nm laser line and recorded in the 568–683 nm range. The stains and excitation and emission wavelengths used for imaging specimens are listed in Table 1. For the 10x air objective, the Z-spacing was corrected for the refractive index of the mounting medium (Ott, 2008). Images were processed in Fiji (http://fiji.sc/), Icy (http://icy.bioimageanalysis.org/) and Photoshop (Adobe Systems Inc.). Red/cyan anaglyphs (three dimensional representations) of the confocal stacks were created using the stereo pair plug-in of ImageJ. The 3-D images should be viewed with glasses in which the left eye has a red filter and the right eye a cyan filter. Images which should be viewed in this way are indicated in the Figures by the symbol of a pair of coloured glasses. 2-D versions of these Figures are also given. In the renderings of confocal images we use blue to indicate resilin (reflecting its characteristic blue fluorescence in UV light), yellow for muscles (it is the only colour showing good contrast in red-cyan anaglyphs) and shades of grey for cuticle.

The metathoracic muscles involved in jumping are given the same names and numbers (e.g. trochanteral depressor muscle M133 a-d, indicating four different parts of the same muscle) as those used for locusts (Snodgrass, 1929, Snodgrass, 1935), because of the strong similarities found between these insects (Bräunig and Burrows, 2008).

Sequential images of jumping movements of Issus coleoptratus were captured by a Photron Fastcam SA3 high speed camera (Photron (Europe), Marlow, Buckinghamshire, UK) at rates of 30 000 frames s–1 and with an exposure time of 0.03 ms. The camera was mounted on a Zeiss Stemi SV6 stereo microscope.

References

  1. 1
  2. 2
  3. 3
    Muscle designed for maximum short-term power output: quail flight muscle
    1. GN Askew
    2. RL Marsh
    (2002)
    The Journal of Experimental Biology 205:2153–2160.
  4. 4
    The jump of the flea: a study of the energetics and a model of the mechanism
    1. HC Bennet-Clark
    2. EC Lucey
    (1967)
    The Journal of Experimental Biology 47:59–76.
  5. 5
    The energetics of the jump of the locust Schistocerca gregaria
    1. HC Bennet-Clark
    (1975)
    The Journal of Experimental Biology 63:53–83.
  6. 6
    Targetting and optomotor space in the leaf-hopper Empoasca vitis (Gothe) (Hemiptera: cicadellidae)
    1. J Brackenbury
    (1996)
    The Journal of Experimental Biology 199:731–740.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    Power and efficiency of insect flight muscle
    1. CP Ellington
    (1985)
    The Journal of Experimental Biology 115:293–304.
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    The thoracic mechanism of a Grasshopper, and its antecedents
    1. RE Snodgrass
    (1929)
    Smithsonian Miscellaneous Collections 82:1–111.
  35. 35
    Principles of Insect Morphology
    1. RE Snodgrass
    (1935)
    New York, USA: McGraw-Hill.
  36. 36
  37. 37
    The sustained power output from striated muscle
    1. T Weis-Fogh
    2. RM Alexander
    (1977)
    In: T. J Pedley, editors. Scale Effects in Animal Locomotion. London: Academic Press. pp. 511–525.
  38. 38
    A rubber-like protein in insect cuticle
    1. T Weis-Fogh
    (1960)
    The Journal of Experimental Biology 37:889–907.
  39. 39
    The role of the tymbal in Cicada sound production
    1. D Young
    2. H Bennet-Clark
    (1995)
    The Journal of Experimental Biology 198:1001–1019.

Decision letter

  1. Jake Socha
    Reviewing Editor; Virginia Tech, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "3-D reconstruction of energy stores for jumping in planthoppers and froghoppers from confocal scanning microscopy" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and K VijayRaghavan as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This study on planthoppers and froghoppers presents a new functional understanding of jumping that is mechanically insightful, and new, highly detailed anatomy with fantastically rendered images. Using confocal microscopy, physical manipulation, and staining, the authors provide a mechanistic understanding of the interaction of muscle, tendon, and exoskeletal elements, which together conspire to produce synchronous actuation in one of nature's fastest movements.

Essential revisions:

There are a few key concerns that require revision to the manuscript, summarized below.

1) The manuscript suffers a bit by focusing on both new methods (emphasized in the Abstract) and scientific results. The only new method is the staining of resilin with acridine orange, suggesting that the manuscript would benefit most from a stronger focus on the research results. Reviewer #1 has some nice suggestions on how to accomplish such a re-focusing.

2) Further details are required to understand the effectiveness of the use of acridine orange for identifying resilin and to justify why this was required compared to autofluorescence (see reviewer #2).

3) The more familiar language of levers and mechanical advantage when discussing the findings (see reviewer #3).

Reviewer #1:

This paper provides an interesting and necessary contribution to current work on the jumping of insects, specifically those who use gears. The image quality, detail, and presentation is stunning.

I did find the results difficult to read because the Introduction does not prepare the reader for the topics investigated. Specifically, in the Introduction there are three rough hypotheses which are too vague to actually test. I suggest making predictions here instead. Then use these specific predictions to organize your Results and Discussion. For instance, in the first point you mention the thorax, where power generating muscles are located, must be strong enough to withstand high forces. This suggests you will measure strength, perhaps of the exoskeleton? Instead, a prediction related to the anatomical structure of the thorax would be more appropriate based on your results.

It also needs to be clearer why you looked at adults and nymphs and what their differences are. Furthermore, what are the expected differences between planthoppers and froghoppers? Why use multiple species within each? Where are the images of these other species? Are there ecological/behavioral differences that make these comparisons interesting/important?

Related to the first two points, certain definitions and details are left out of the Introduction, like resilin, or the ecology of froghoppers, and are included in later sections. Likewise, information on jumping from Burrows would have been useful in the Introduction and would perhaps help formulate predictions (i.e., planthoppers are heavier than froghoppers, expend more energy, etc.).

In the Abstract you mention 3D printing of the components, but don't mention this in the manuscript. You are correct that your work could be used for this, but it is not clear how. This paper reads a bit like a methods paper (i.e., lacks clear biological predictions), but it has too much detail with regards to the subject (e.g., insect anatomy and structure/function relationships) to be a clear methods paper. Given the data collected, I would prefer this work be focused on structure/function relationships focused around clear predictions.

Finally, although the 3D image rendering is impressive, not every reader has the ability to view these with 3D glasses. Can you make 2D images available, perhaps in the supporting information files?

Reviewer #2:

This manuscript describes the structures involved in the energy storage for jumping of planthoppers and froghoppers in great detail. The 3D reconstructions based on confocal laser scanning microscopy (CLSM) analyses are impressive and provide in fact, as stated by the authors, 'unprecedented detail'. The manuscript is well written and clearly comprehensible, and it adds significant information to the already existing knowledge of the respective structures published in earlier work of Professor Burrows. However, the following aspects and comments have to be considered in the review process:

1) The authors stained the exoskeleton structures with large proportions of resilin using the fluorescence dye Acridine Orange. This dye is well-known and typically applied to stain nucleic acids. The finding that Acridine Orange also stains the protein resilin is surprising and very interesting. Unfortunately, the authors only state that 'The distribution of this staining was then confirmed to be the same as that revealed by the characteristic blue fluorescence of resilin when examined with a sharp-edged (1% transmission limits) excitation band of ultraviolet (UV) light.…' but they do not show this. It is absolutely essential that they clearly demonstrate that resilin can be specifically stained with Acridine Orange. For this purpose, the authors definitely have to show the results of precise analyses revealing that the typical resilin autofluorescence and the fluorescence of Acridine Orange are absolutely colocalised in test samples.

2) The authors have to convincingly explain why they decided to fluorescently stain resilin with Acridine Orange. This seems to be not very appropriate because the excitation and emission peaks of the Acridine Orange fluorescence are in the ranges of those of an autofluorescence that is typically exhibited by arthropod exoskeleton structures with large proportions of chitin. Accordingly, it is very likely that because of crosstalk the exclusive visualization of the Acridine Orange fluorescence and thereby the specific visualization of the structures with large proportions of resilin within exoskeleton samples (which is necessary if exoskeleton structures with large proportions of resilin and exoskeleton structures with large proportions of chitin have to be visualized and 3D reconstructed separately as described in the manuscript) are only possible when a precise emission fingerprinting with detailed λ scans and linear unmixing is performed. Why did the authors not use the resilin autofluorescence? In a relatively large number of earlier studies this autofluorescence has been efficiently used to visualize exoskeleton structures with large proportions of resilin, and it was even demonstrated that a combination of CLSM and an excitation wavelength of 405 nm can be successfully applied to reliably visualize exoskeleton structures with large proportions of resilin (Michels and Gorb, 2012).

3) The crosstalk problem mentioned above is also present (and even particularly pronounced) in the case of Fluorescent Brightener 28 (synonym: Calcofluor White M2R) that was applied by the authors to stain chitin in the exoskeleton and to separately visualize the exoskeleton structures with large proportions of chitin. The excitation and emission properties of the fluorescence of Fluorescent Brightener 28 are comparable to those of the autofluorescence of resilin. Accordingly, it is not easy to separate the different fluorescence signals obtained from Fluorescent Brightener 28 and resilin from each other. Such a separation requires a very precise spectral detection system and a rather precise emission fingerprinting with very detailed λ scans and linear unmixing. In case the particular ZEISS LSM 710 applied by the authors for their study is equipped with a 34-channel QUASAR detection unit, the authors had the opportunity to perform such an emission fingerprinting. Unfortunately, in the manuscript they do not explain at all how the fluorescences were detected. (Which emission wavelength ranges were detected?) Why did the authors decide to apply Fluorescent Brightener 28? They could have used an autofluorescence to visualize the exoskeleton structures with large proportions of chitin. For example, many of such exoskeleton structures exhibit a relatively intense autofluorescence when they are exposed to the light of a 561 nm laser. (Many ZEISS LSM 710 systems are equipped with such a laser.) In this context, another question arises: in the Materials and methods section, the authors mention 'Autofluorescence of cuticle was excited with a 562 nm laser line.' (This must be a mistake because such a laser line is definitely not offered by Carl Zeiss Microscopy. I assume that the authors used a 561 nm laser.), however, this autofluorescence is not mentioned anywhere else in the manuscript. What has happened to the results of this autofluorescence visualization?

In conclusion, the authors have to convincingly explain (1) why they did not perform their study using the autofluorescence of resilin and either an autofluorescence of the exoskeleton structures with large proportions of chitin or a fluorescence dye staining chitin and featuring excitation and emission properties that are clearly different from those of the autofluorescence of resilin and, therefore, enable to absolutely reliably visualize exoskeleton structures with large proportions of chitin and exoskeleton structures with large proportions of resilin separately and (2) how they coped with the crosstalk problem.

4) In the Discussion section of the manuscript, the authors should clearly highlight which advances their 'new methodological approach' made possible. For this purpose, they should properly discuss the new insights into the energy storage structures important for jumping of planthoppers and froghoppers with respect to the knowledge of the respective structures obtained in earlier studies of Professor Burrows.

5) In my opinion, the end of the Discussion section of the manuscript is too abrupt. The authors should add a paragraph with concluding remarks.

6) In the Abstract, the authors write 'This new methodological approach can illuminate how miniaturized components interact and function in complex movements of small animals with the potential for 3-D printing of relevant structures.' The potential for 3D printing is not mentioned anywhere else in the manuscript. This topic should be included in the Discussion section of the manuscript.

Reference

Michels J, Gorb SN (2012) Detailed three-dimensional visualization of resilin in the exoskeleton of arthropods using confocal laser scanning microscopy. Journal of Microscopy 245, 1-16

Reviewer #3:

The manuscript entitled "3-D reconstruction of energy stores for jumping in planthoppers and froghoppers from confocal scanning microscopy" describes the detailed structural features that function to store elastic energy and amplify mechanical power in two groups of jumping insects. This work is stunningly beautiful. The level of anatomical detail is indeed unprecedented and set a new standard for future work aiming to derive functional mechanisms from a structural framework. I believe the methods developed here will be of interest to broad audience and likely represents an important contribution to the field. The one potential shortcoming of the paper is that the work is presented in a descriptive way rather than developed hypotheses. In addition, given that the methodology used and developed here is an important aspect of the contribution it may be worth providing the readers with an assessment of the strengths and weaknesses of the approach in the Discussion section. I have also made some stylistic suggestions as well as highlighted a few places where the language could be more precise.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Three dimensional reconstruction of energy stores for jumping in planthoppers and froghoppers from confocal laser scanning microscopy" for further consideration at eLife. Your revised article has been favorably evaluated by K VijayRaghavan (Senior editor), a Reviewing editor, and three reviewers.

Please find the reviewers' specific comments below. As you can see, the manuscript has been greatly improved, but there are some remaining issues that need to be addressed before acceptance. For reviewer #1's comments, please try to condense the Discussion further if possible, but more importantly, it would be nice to see a brief conclusion to wrap up the paper. Reviewer #2's comments are more technical in nature and require careful consideration. Reviewer #3 is fully satisfied.

Reviewer #1:

This manuscript has greatly improved. I appreciate the level of detail the authors used to incorporate reviewer suggestions. In particular, the Introduction now prepares the readers for work discussed in the following sections. I feel the Discussion section is still a bit long and abruptly ends, however I recommend this manuscript for publication. One small note, in subsection “Distribution of resilin in the energy stored of adult planthoppers”, family names are used, rather than the common names used prior to these sentences. It would be helpful to add the common names here so readers not versed in insect taxonomy can follow.

Reviewer #2:

The authors clearly improved the manuscript. However, there are still a few inconsistencies in the context of the confocal laser scanning microscopy (CLSM) visualizations. These are described below.

1) In the first version of the manuscript, the authors wrote “For the imaging of Calcofluor white and Acridine Orange- stained cuticle, laser lines of 405 and 488 nm were used, respectively.” Based on this description, I assumed that the exoskeleton parts with large proportions of chitin had in all cases been visualized by using Calcofluor White M2R and that the exoskeleton parts with large proportions of resilin had in all cases been visualized by using Acridine Orange. And I was already wondering for which visualization the authors had used the autofluorescence that was mentioned in the sentence (but mentioned nowhere else). In the current version of the manuscript, the description is different. The authors now write “For the imaging of Acridine Orange- stained cuticle, laser lines of 405 and 488 nm were used. Autofluorescence of chitin was recorded in the 410-465 nm range;.…” And Calcofluor White M2R is now mentioned (1) in the context of the visualization of muscles and exoskeleton parts with large proportions of chitin (subsection “Imaging and rendering) and (2) in the lines where the authors write 'In preparations where the 405 nm laser-induced autofuorescence of exoskeletal elements, such as fine tendons in nymphs, was not strong, a chitin-binding dye Calcofluor White (0.1 mg/ml, Σ-Aldrich, F3543-1G) was included in the staining procedure.' These descriptions make the reader think that the exoskeleton parts with large proportions of chitin were visualized mainly by using autofluorescence and only in the case of too low autofluorescence intensities by using Calcofluor White M2R. Which version is correct? In this context, I have the following questions:

a) Why did the authors use an excitation wavelength of 405 nm and why did they detect fluorescence light with wavelengths of 410-465 nm to visualize exoskeleton parts with large proportions of chitin? The application of quite similar settings (405 nm and 420-480 nm) had been demonstrated to result in the visualization of exoskeleton parts with large proportions of resilin (see Michels and Gorb 2012) but not in the visualization of exoskeleton parts with large proportions of chitin. (In a comparable way, the authors used excitation wavelengths of 352-402 nm and detected fluorescence light with wavelengths of 417-477 nm for their wide-field fluorescence microscopy visualization of the resilin autofluorescence (Subsection “Sample preparation”).) Accordingly, with these settings, the authors did very likely not visualize exoskeleton parts with large proportions of chitin.

b) In subsection “Imaging and rendering”, the authors write 'Autofluorescence of cuticle was excited with a 561 nm laser line.' This autofluorescence is also mentioned in the Table 1. However, it is mentioned nowhere else, and the authors do not describe for which visualization this autofluorescence was used.

2) The authors did not really be responsive to my concerns about the large probability of crosstalk having occurred during the CLSM visualizations. They included information about the detected fluorescence wavelengths in the manuscript, and it is now obvious that the applied detection settings had very likely resulted in the occurrence of crosstalk during the CLSM analyses. For example, the Acridine Orange fluorescence, which was used to visualize the exoskeleton structures with large proportions of resilin, was visualized by applying an excitation wavelength of 488 nm and by detecting fluorescence light with wavelengths of 520-580 nm. However, these settings are very appropriate to also visualize an autofluorescence that is typically excited by weakly or non-sclerotised exoskeleton structures with large proportions of chitin (see Michels and Gorb 2012). Accordingly, the authors cannot be sure that they only visualized structures with large proportions of resilin. In the case of the Calcofluor White M2R fluorescence, which was used to visualize the exoskeleton structures with large proportions of chitin, a similar problem exists: this fluorescence was visualized by applying an excitation wavelength of 405 nm and by detecting fluorescence light with wavelengths of 410-570 nm. With these settings, the autofluorescence of resilin was included in the visualization (see above), and the authors cannot be sure that they only visualized structures with large proportions of chitin.

It is now of course not possible to get rid of this 'crosstalk problem' anymore. The fluorescences of fluorescence dyes are often much more intense than autofluorescences. In such situations, the proportions of autofluorescences within the fluorescence signal can be minor, and it can happen that the autofluorescences do not negatively affect the analyses. In my opinion, it seems that this was the case in the present study. The results are convincing, and it seems that crosstalk did not play an important role and have a negative effect. However, the authors should mention crosstalk. They should include a statement saying that with the CLSM settings that they applied crosstalk might have occurred but, because of the relatively high intensities of the dye fluorescences compared to those of the autofluorescences, very likely did not negatively influence the results.

3) The authors should remove the sub-figures Aiii and Biii from the Figure 3—figure supplement 1 because of the inconsistencies regarding the correct visualization of the resilin autofluorescence (see above). Based on the appearance of these sub-figures, I cannot imagine that the respective results are correct.

4) In the subsection “Imaging and rendering”, the authors should not use the term 'contamination'.

Reference

Michels J, Gorb SN (2012) Detailed three-dimensional visualization of resilin in the exoskeleton of arthropods using confocal laser scanning microscopy. Journal of Microscopy 245, 1-16

Reviewer #3:

The main shortcoming of the original submission was that the text was rather dry and written in a mostly descriptive context based on the visualized morphology. It is worth noting the morphology is some of the most visually stunning, cutting edge, high-resolution imaging I've seen at this scale and therefore is a substantial contribution on its own. However, the paper is now much improved. In particular the new sections in the Discussion elevate the paper beyond descriptive morphology and begin to contextualized the anatomical features in a more mechanical and functional framework. The authors have addressed all of my concerns. I am confident that this paper is a substantial and important contribution.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Three dimensional reconstruction of energy stores for jumping in planthoppers and froghoppers from confocal laser scanning microscopy" for further consideration at eLife. Your revised article has been favorably evaluated by K VijayRaghavan (Senior editor) and a Reviewing editor.

The manuscript has been improved sufficiently, but there is one remaining issue that needs to be addressed before acceptance, as described below:

Perhaps there was some confusion about reviewer 1's suggestion to provide 2D renderings of 3D images. In your February submission, you suggested that you could provide the images as supplementary material. (Note that this wasn't posed as a question.) Our assumption was that this would be done. Although it is true that 3D glasses are cheap and readily available online, the reality is that some (likely many) readers will not have them on hand, and perhaps won't take the time to order them for a single usage. Thus, providing the images will increase the accessibility of the article. Appendices are allowed by the journal, so it should be straightforward to add an Appendix that includes these images.

In particular, please provide 2D versions of each 3D image that hasn't already been provided in the main text. For example, Figure 1 includes both 3D and 2D versions, but Figure 2 does not. So, Figure 2B-D should be provided as two-dimensional versions in the Appendix. Please amend the figure legends accordingly, to indicate that 2D versions can be found in the Appendix. Correspondingly, please indicate in the Appendix which figure in the main text the 2D versions refer to.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Three dimensional reconstruction of energy stores for jumping in planthoppers and froghoppers from confocal laser scanning microscopy" for further consideration at eLife. Your revised article has been favorably evaluated by K VijayRaghavan (Senior editor) and a Reviewing editor.

The manuscript has been improved sufficiently, but there is one remaining issue that needs to be addressed before acceptance, as described below:

The new 2D figures in Appendix 1 look great. (In fact, it must be emphasized that the images in this paper are stunning, worthy of textbooks.) But, all 9 of these figures include 3D glasses icons, which indicates to the reader to use 3D glasses. Was that intended? In the figures in the main body, the glasses icon is only used for 3D-colored images, and not for the 2D images, so the assumption is that this convention holds in the Appendix as well.

https://doi.org/10.7554/eLife.23824.030

Author response

Essential revisions:

There are a few key concerns that require revision to the manuscript, summarized below.

1) The manuscript suffers a bit by focusing on both new methods (emphasized in the Abstract) and scientific results. The only new method is the staining of resilin with acridine orange, suggesting that the manuscript would benefit most from a stronger focus on the research results. Reviewer #1 has some nice suggestions on how to accomplish such a re-focusing.

We have revised the paper so that it is now focused on the scientific results concerning how energy is stored for jumping and have followed the very helpful comments of reviewer 1. We have removed all comments about new techniques. The Introduction now poses three questions about how the storage devices for jumping store and release energy that are then followed through in the same order in Results and the Discussion.

2) Further details are required to understand the effectiveness of the use of acridine orange for identifying resilin and to justify why this was required compared to autofluorescence (see reviewer #2).

We have included a supplementary figure that directly addresses this issue. It shows a lack of sufficient dominance of blue fluorescence from resilin over chitin autofluorescence in planthopper and froghopper pleural arches when using the imaging regime suggested by the reviewer and described in Michels and Gorb, 2012. The absence of contrast between those structural elements necessitated the use of staining. The figure also shows side-by-side comparison of wide-field fluorescence micrograph of the resilin autofluorescence in planthopper and froghopper energy stores and the results of Acridine Orange staining imaged with CLSM. We hope the figure convincingly demonstrates colocalization of the characteristic autofluorescence signal and Acridine Orange staining.

3) The more familiar language of levers and mechanical advantage when discussing the findings (see reviewer #3).

We have changed the language we have used in describing lever arms and mechanical advantages to that suggested by reviewer 3 throughout the paper. We have consulted a mechanical engineer to ensure that our descriptions are correct, and have checked carefully for consistency.

Reviewer #1:

This paper provides an interesting and necessary contribution to current work on the jumping of insects, specifically those who use gears. The image quality, detail, and presentation is stunning.

I did find the results difficult to read because the Introduction does not prepare the reader for the topics investigated. Specifically, in the Introduction there are three rough hypotheses which are too vague to actually test. I suggest making predictions here instead. Then use these specific predictions to organize your Results and Discussion. For instance, in the first point you mention the thorax, where power generating muscles are located, must be strong enough to withstand high forces. This suggests you will measure strength, perhaps of the exoskeleton? Instead, a prediction related to the anatomical structure of the thorax would be more appropriate based on your results.

It also needs to be clearer why you looked at adults and nymphs and what their differences are. Furthermore, what are the expected differences between planthoppers and froghoppers? Why use multiple species within each? Where are the images of these other species? Are there ecological/behavioral differences that make these comparisons interesting/important?

The biology that we have added to the Introduction now explains that nymphal planthoppers but not nymphal froghoppers are adept at jumping like the adults. We have used different species from different families to demonstrate the generalities of the structures and mechanisms within the two groups. The species illustrated are named in each of the figures. The insects analysed were found in similar habitats (but we can’t assume that this is true for the many species that belong to these two groups) and show broadly similar behaviour – particularly as far as jumping – but detailed knowledge is not available in the literature.

Related to the first two points, certain definitions and details are left out of the Introduction, like resilin, or the ecology of froghoppers, and are included in later sections. Likewise, information on jumping from Burrows would have been useful in the Introduction and would perhaps help formulate predictions (i.e., planthoppers are heavier than froghoppers, expend more energy, etc.).

We have moved all these points to the Introduction and have expanded some to give the reader a broader background to this study.

In the Abstract you mention 3D printing of the components, but don't mention this in the manuscript. You are correct that your work could be used for this, but it is not clear how.

We have deleted this superfluous mention of 3D printing.

This paper reads a bit like a methods paper (i.e., lacks clear biological predictions), but it has too much detail with regards to the subject (e.g., insect anatomy and structure/function relationships) to be a clear methods paper. Given the data collected, I would prefer this work be focused on structure/function relationships focused around clear predictions.

We have refocused the paper so that we hope it no longer reads a bit like a methods paper. It was always our intention that the focus was on answering specific questions of how the energy for jumping was stored. We would hope that readers will be encouraged by the power of the methodology we have used when applied to functional analyses of movement.

Finally, although the 3D image rendering is impressive, not every reader has the ability to view these with 3D glasses. Can you make 2D images available, perhaps in the supporting information files?

We have agonized over this problem (although the glasses cost only a few pennies from Amazon) but did not know how to resolve it. Your suggestion is very helpful and if the journal would allow us to do this, we would be happy to duplicate the 3D figures in 2D for the supplementary material. But there would of course be a loss of some information that only the glasses could bring out.

Reviewer #2:

This manuscript describes the structures involved in the energy storage for jumping of planthoppers and froghoppers in great detail. The 3D reconstructions based on confocal laser scanning microscopy (CLSM) analyses are impressive and provide in fact, as stated by the authors, 'unprecedented detail'. The manuscript is well written and clearly comprehensible, and it adds significant information to the already existing knowledge of the respective structures published in earlier work of Professor Burrows. However, the following aspects and comments have to be considered in the review process:

1) The authors stained the exoskeleton structures with large proportions of resilin using the fluorescence dye Acridine Orange. This dye is well-known and typically applied to stain nucleic acids. The finding that Acridine Orange also stains the protein resilin is surprising and very interesting. Unfortunately, the authors only state that 'The distribution of this staining was then confirmed to be the same as that revealed by the characteristic blue fluorescence of resilin when examined with a sharp-edged (1% transmission limits) excitation band of ultraviolet (UV) light.…' but they do not show this. It is absolutely essential that they clearly demonstrate that resilin can be specifically stained with Acridine Orange. For this purpose, the authors definitely have to show the results of precise analyses revealing that the typical resilin autofluorescence and the fluorescence of Acridine Orange are absolutely colocalised in test samples.

We have included a supplementary figure showing side-by-side comparison of wide-field fluorescence micrograph of the resilin autofluorescence in planthopper and froghopper pleural arches and the results of Acridine Orange staining imaged with CLSM. In this comparison the natural fluorescence of the resilin matches exactly with the staining with AO. Please note that the differences in the distribution of resilin in planthoppers and froghoppers is also visible in both the autofluorescence images and the AO staining. We hope the figure convincingly demonstrate colocalization of the characteristic autofluorescence signal and Acridine Orange staining.

2) The authors have to convincingly explain why they decided to fluorescently stain resilin with Acridine Orange. This seems to be not very appropriate because the excitation and emission peaks of the Acridine Orange fluorescence are in the ranges of those of an autofluorescence that is typically exhibited by arthropod exoskeleton structures with large proportions of chitin. Accordingly, it is very likely that because of crosstalk the exclusive visualization of the Acridine Orange fluorescence and thereby the specific visualization of the structures with large proportions of resilin within exoskeleton samples (which is necessary if exoskeleton structures with large proportions of resilin and exoskeleton structures with large proportions of chitin have to be visualized and 3D reconstructed separately as described in the manuscript) are only possible when a precise emission fingerprinting with detailed λ scans and linear unmixing is performed. Why did the authors not use the resilin autofluorescence? In a relatively large number of earlier studies this autofluorescence has been efficiently used to visualize exoskeleton structures with large proportions of resilin, and it was even demonstrated that a combination of CLSM and an excitation wavelength of 405 nm can be successfully applied to reliably visualize exoskeleton structures with large proportions of resilin (Michels and Gorb, 2012).

We have indeed tried to use the imaging procedure described by Michels and Gorb in their beautiful 2012 work, but we were unable to observe a pronounced dominance of blue fluorescence from resilin. We therefore did not obtain satisfactory contrast between highly sclerotized cuticle and resilin in these energy stores. We included the examples of our attempts in the supplementary figure (panel ii). Instead we found out that resilin stains very strongly with relatively dilute solution of Acridine Orange and the emitted fluorescence is overwhelmingly stronger than that of the surrounding chitinous structures. We now show in Figure 1 in the supplementary material (see above response to point 1) a very strong correspondence between the distribution of resilin as revealed by its autofluorescence and its staining with AO. It is also advantageous that AO exhibits a more red-shifted fluorescence compared to chitin; collecting emitted light in the 520-580 nm range reduced the chitin autofluorescence component in the registered images. To further reduce the contamination of AO-resilin signal from chitin autofluorescence we adjusted the offset during recording. We have added this further information to the Methods section.

3) The crosstalk problem mentioned above is also present (and even particularly pronounced) in the case of Fluorescent Brightener 28 (synonym: Calcofluor White M2R) that was applied by the authors to stain chitin in the exoskeleton and to separately visualize the exoskeleton structures with large proportions of chitin. The excitation and emission properties of the fluorescence of Fluorescent Brightener 28 are comparable to those of the autofluorescence of resilin. Accordingly, it is not easy to separate the different fluorescence signals obtained from Fluorescent Brightener 28 and resilin from each other. Such a separation requires a very precise spectral detection system and a rather precise emission fingerprinting with very detailed λ scans and linear unmixing. In case the particular ZEISS LSM 710 applied by the authors for their study is equipped with a 34-channel QUASAR detection unit, the authors had the opportunity to perform such an emission fingerprinting. Unfortunately, in the manuscript they do not explain at all how the fluorescences were detected. (Which emission wavelength ranges were detected?) Why did the authors decide to apply Fluorescent Brightener 28? They could have used an autofluorescence to visualize the exoskeleton structures with large proportions of chitin. For example, many of such exoskeleton structures exhibit a relatively intense autofluorescence when they are exposed to the light of a 561 nm laser. (Many ZEISS LSM 710 systems are equipped with such a laser.) In this context, another question arises: in the Materials and methods section, the authors mention 'Autofluorescence of cuticle was excited with a 562 nm laser line.' (This must be a mistake because such a laser line is definitely not offered by Carl Zeiss Microscopy. I assume that the authors used a 561 nm laser.), however, this autofluorescence is not mentioned anywhere else in the manuscript. What has happened to the results of this autofluorescence visualization?

In conclusion, the authors have to convincingly explain (1) why they did not perform their study using the autofluorescence of resilin and either an autofluorescence of the exoskeleton structures with large proportions of chitin or a fluorescence dye staining chitin and featuring excitation and emission properties that are clearly different from those of the autofluorescence of resilin and, therefore, enable to absolutely reliably visualize exoskeleton structures with large proportions of chitin and exoskeleton structures with large proportions of resilin separately and (2) how they coped with the crosstalk problem.

We were not able to obtain satisfactory separation of the resilin and chitin autofluorescence in adult plant- and froghopper energy stores. The autofluorescence of their highly sclerotised exoskeleton of the adults was intense enough when either excitatory light of 405, 488 or 561 nm was used; when imaging chitinous elements of the pleural arches alone we did use 561 nm laser line (we have corrected our mislabeling of this wavelength). In contrast to the adults, 405 nm laser-induced autofuorescence of exoskeletal elements such as fine tendons in nymphs was not strong enough and we decided to augment it with Calcofluor. The blue-green fluorescence of Clacofluor does not bleed into Texas Red Phalloidin channel and we successfully used this combination of dyes for simultaneous 3-D imaging of exoskeleton and muscles. We did not combine Acridine Orange and Calcofluor, opting instead for 405 nm- excited autofluorescence of chitin (see above). To make our methodology clear we have added a table in the Materials and methods section, listing the stains and wavelengths used to image different tissues.

4) In the Discussion section of the manuscript, the authors should clearly highlight which advances their 'new methodological approach' made possible. For this purpose, they should properly discuss the new insights into the energy storage structures important for jumping of planthoppers and froghoppers with respect to the knowledge of the respective structures obtained in earlier studies of Professor Burrows.

We have now deleted all suggestions that this is a new methodological approach and instead focus on the answers that we pose in the Introduction and how these relate to the problems of jumping with such speed and power.

5) In my opinion, the end of the Discussion section of the manuscript is too abrupt. The authors should add a paragraph with concluding remarks.

We have rewritten the last section of the Discussion to avoid this abrupt ending. Please see our response to reviewer 2 comment.

6) In the Abstract, the authors write 'This new methodological approach can illuminate how miniaturized components interact and function in complex movements of small animals with the potential for 3-D printing of relevant structures.' The potential for 3D printing is not mentioned anywhere else in the manuscript. This topic should be included in the Discussion section of the manuscript.

We have deleted the mention of 3D printing.

Reference

Michels J, Gorb SN (2012) Detailed three-dimensional visualization of resilin in the exoskeleton of arthropods using confocal laser scanning microscopy. Journal of Microscopy 245, 1-16

We have added this reference.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Reviewer #1:

This manuscript has greatly improved. I appreciate the level of detail the authors used to incorporate reviewer suggestions. In particular, the Introduction now prepares the readers for work discussed in the following sections. I feel the Discussion section is still a bit long and abruptly ends, however I recommend this manuscript for publication. One small note, in subsection “Distribution of resilin in the energy stored of adult planthoppers”, family names are used, rather than the common names used prior to these sentences. It would be helpful to add the common names here so readers not versed in insect taxonomy can follow.

Our problem is that there are no common names for these two families or their members. A compromise that we have adopted is to call them Derbid planthoppers and Acanaloniid planthoppers which thus includes the family name and the general group name of planthoppers.

Reviewer #2:

The authors clearly improved the manuscript. However, there are still a few inconsistencies in the context of the confocal laser scanning microscopy (CLSM) visualizations. These are described below.

1) In the first version of the manuscript, the authors wrote “For the imaging of Calcofluor white and Acridine Orange- stained cuticle, laser lines of 405 and 488 nm were used, respectively.” Based on this description, I assumed that the exoskeleton parts with large proportions of chitin had in all cases been visualized by using Calcofluor White M2R and that the exoskeleton parts with large proportions of resilin had in all cases been visualized by using Acridine Orange. And I was already wondering for which visualization the authors had used the autofluorescence that was mentioned in the sentence (but mentioned nowhere else). In the current version of the manuscript, the description is different. The authors now write “For the imaging of Acridine Orange- stained cuticle, laser lines of 405 and 488 nm were used. Autofluorescence of chitin was recorded in the 410-465 nm range;.…” And Calcofluor White M2R is now mentioned (1) in the context of the visualization of muscles and exoskeleton parts with large proportions of chitin (subsection “Imaging and rendering) and (2) in the lines where the authors write 'In preparations where the 405 nm laser-induced autofuorescence of exoskeletal elements, such as fine tendons in nymphs, was not strong, a chitin-binding dye Calcofluor White (0.1 mg/ml, Σ-Aldrich, F3543-1G) was included in the staining procedure.' These descriptions make the reader think that the exoskeleton parts with large proportions of chitin were visualized mainly by using autofluorescence and only in the case of too low autofluorescence intensities by using Calcofluor White M2R. Which version is correct? In this context, I have the following questions:

We agree that the first version of our manuscript lacked precision about the imaging procedure of Acridine Orange-stained samples and a different set of samples stained with phalloidin and Calcofluor White. We amended that in the second version, explaining that Acridine Orange and Calcofluor white were never used simultaneously. To make this even clearer we have done three things:

1) We have reformatted Table 1 to make clearer the distinction between the staining methods.

2) We say “In preparations where the 405 nm laser-induced autofuorescence of exoskeletal elements, such as fine tendons in nymphs, was not strong, a chitin-binding dye Calcofluor White (0.1 mg/ml, Σ-Aldrich, F3543-1G) was included in the staining procedure. Acridine orange and Calcofluor White were never used in the same preparation.”

3) We say “Autofluorescence of chitin was recorded in the 410-465 nm range whereas fluorescence of Acridine Orange was recorded in the 520-580 nm range.”

a) Why did the authors use an excitation wavelength of 405 nm and why did they detect fluorescence light with wavelengths of 410-465 nm to visualize exoskeleton parts with large proportions of chitin? The application of quite similar settings (405 nm and 420-480 nm) had been demonstrated to result in the visualization of exoskeleton parts with large proportions of resilin (see Michels and Gorb 2012) but not in the visualization of exoskeleton parts with large proportions of chitin. (In a comparable way, the authors used excitation wavelengths of 352-402 nm and detected fluorescence light with wavelengths of 417-477 nm for their wide-field fluorescence microscopy visualization of the resilin autofluorescence (Subsection “Sample preparation”).) Accordingly, with these settings, the authors did very likely not visualize exoskeleton parts with large proportions of chitin.

We did not notice substantial differences in the distribution of blue, green and red autofluorescence in cuticular samples. Similarly, the boundaries of the detected wavelengths did not have a marked effect on visualization of the energy stores.

We now say: “We did not notice substantial differences in the distribution of blue, green and red autofluorescence in cuticular samples.”

b) In subsection “Imaging and rendering”, the authors write 'Autofluorescence of cuticle was excited with a 561 nm laser line.' This autofluorescence is also mentioned in the Table 1. However, it is mentioned nowhere else, and the authors do not describe for which visualization this autofluorescence was used.

We added a sentence clarifying that red autofluorescence was used for visualization of chitinous elements of energy stores alone (i.e. when muscles and resilin were not simultaneously imaged).

“Red autoflorescence was preferentially used for visualization of chitinous elements of the energy stores alone (i.e. when muscles and resilin were not simultaneously imaged), as longer wavelengths are less affected by cuticle pigmentation and thickness, yielding a more uniform signal throughout the sample. Autofluorescence of cuticle was excited with a 561 nm laser line and recorded in the 568-683 nm range.”

We also included the information about using red autofluorescence in relevant figure legends.

2) The authors did not really be responsive to my concerns about the large probability of crosstalk having occurred during the CLSM visualizations. They included information about the detected fluorescence wavelengths in the manuscript, and it is now obvious that the applied detection settings had very likely resulted in the occurrence of crosstalk during the CLSM analyses. For example, the Acridine Orange fluorescence, which was used to visualize the exoskeleton structures with large proportions of resilin, was visualized by applying an excitation wavelength of 488 nm and by detecting fluorescence light with wavelengths of 520-580 nm. However, these settings are very appropriate to also visualize an autofluorescence that is typically excited by weakly or non-sclerotised exoskeleton structures with large proportions of chitin (see Michels and Gorb 2012). Accordingly, the authors cannot be sure that they only visualized structures with large proportions of resilin. In the case of the Calcofluor White M2R fluorescence, which was used to visualize the exoskeleton structures with large proportions of chitin, a similar problem exists: this fluorescence was visualized by applying an excitation wavelength of 405 nm and by detecting fluorescence light with wavelengths of 410-570 nm. With these settings, the autofluorescence of resilin was included in the visualization (see above), and the authors cannot be sure that they only visualized structures with large proportions of chitin.

It is now of course not possible to get rid of this 'crosstalk problem' anymore. The fluorescences of fluorescence dyes are often much more intense than autofluorescences. In such situations, the proportions of autofluorescences within the fluorescence signal can be minor, and it can happen that the autofluorescences do not negatively affect the analyses. In my opinion, it seems that this was the case in the present study. The results are convincing, and it seems that crosstalk did not play an important role and have a negative effect. However, the authors should mention crosstalk. They should include a statement saying that with the CLSM settings that they applied crosstalk might have occurred but, because of the relatively high intensities of the dye fluorescences compared to those of the autofluorescences, very likely did not negatively influence the results.

We agree that some crosstalk may occur in visualizing the cuticular elements of the energy stores. We already described our approach to reducing the chitin autofluorescence component during visualization of Acridine Orange-stained resilin. We now added the following text for further clarification:

“Using these wavelengths for visualization of calcofluor white-stained exoskeleton and Acridine Orange (AO) -stained resilin creates the possibility of crosstalk. […]The intensity of AO fluorescence is much stronger than autofluorescence of chitin, however, so that the crosstalk did not play an important role in our analysis of the distribution of resilin and did not impact the results.”

Our conclusion is thus in agreement with that of the reviewer “because of the relatively high intensities of the dye fluorescences compared to those of the autofluorescences, very likely did not negatively influence the results.”

3) The authors should remove the sub-figures Aiii and Biii from the 'Figure 3—figure supplement 1' because of the inconsistencies regarding the correct visualization of the resilin autofluorescence (see above). Based on the appearance of these sub-figures, I cannot imagine that the respective results are correct.

We have removed panels Aiii and Biii from the supplementary figure and all references to them in the text.

4) In the subsection “Imaging and rendering”, the authors should not use the term 'contamination'.

We replaced “contamination” with “contribution”.
