Analysis of the structure of different YAP:TEAD complexes (pdb 3KYS and 3JUA) (Chen et al., 2010a; Li et al., 2010), the data from cellular assays (Chen et al., 2010a; Li et al., 2010; Tian et al., 2010) and the results obtained from structure function studies carried out with synthetic peptides (Hau et al., 2013; Zhang et al., 2014; Mesrouze et al., 2016) allowed us to select several YAP residues that should contribute significantly to the interaction with TEAD. In the α-helix (hYAP^61-73) region, hYAP Leu65, Leu68, and Phe69 belong to the LxxLF motif, which is known to bind to hydrophobic grooves (Santucci et al., 2015; Li et al., 2010). In the YAP:TEAD complex, these three residues are located on the same side of the α-helix making hydrophobic interactions with TEAD (Figure 1A). In the Ω-loop region (hYAP^85-99), hYAP Met86, Leu91, and Phe95 are involved in hydrophobic interactions with TEAD, and they interact with each other to form a hydrophobic core within the bound Ω-loop (Figure 1B). hYAP Arg89 interacts with hTEAD4 Asp272 and Gln269 (Figure 1C) while hYAP Ser94 is within hydrogen bond distance from hTEAD4 Glu263 and Tyr429 (Figure 1D). The amino acid hYAP Phe96 does not provide any direct interaction with TEAD. It is located above the hydrophobic core formed by hYAP Met86, Leu91 and Phe95 (Figure 1B) and it interacts also with the guanidinium group of hYAP Arg87 (not shown, but see Zhang et al. [2014]). This residue was included in this study because it may contribute to the stabilization of the bound Ω-loop.

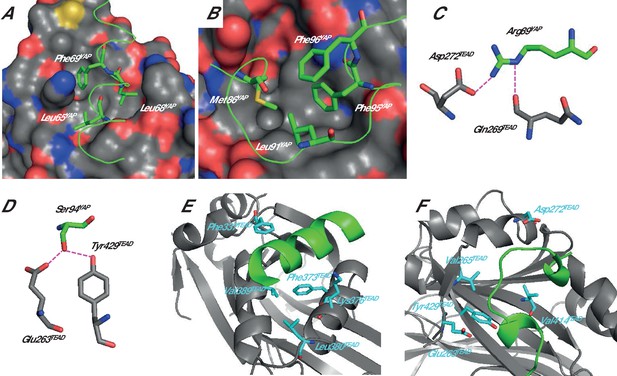

Figure 1

Download asset Open asset

These 9 YAP residues were mutated to alanine. The mutations were carried out in hYAP^50-171, which contains the TEAD-binding domain and shows a good affinity for TEAD (Li et al., 2010; Hau et al., 2013). The affinity (dissociation constant, K_d) of these proteins was measured by Surface Plasmon Resonance (SPR) in experiments where N-Avitagged hTEAD4^217-434 was immobilized on sensor chips. The K_d of wt hYAP^50-171 (18 nM, Table 1) is similar to the affinity of the longer hYAP^2-268 (K_d = 33 nM, [Tian et al., 2010]) showing that all the residues needed for the interaction with TEAD are probably present in hYAP^50-171.

Each of the nine single alanine mutations of hYAP^50-171 significantly destabilizes the YAP:TEAD complex (Table 1) confirming the role of the studied residues in the interaction. The hYAP Leu68Ala mutation is the least destabilizing (ΔΔG = ΔG_mutant – ΔG_wt = 1.92 kcal/mol) and the Leu91Ala mutation is the most destabilizing (ΔΔG = 4.4 kcal/mol). In the α-helix region, the hYAP Phe69Ala mutation has the greatest effect on binding (ΔΔG = 3.48 kcal/mol). This residue, which is strictly conserved both in the YAP proteins and in the other TEAD coactivators TAZ and VGLL, is therefore key for the interaction between the α-helix region of YAP and TEAD. All the mutations in the Ω-loop region have a major effect on the YAP:TEAD interaction, reducing the binding energy by more than 2.5 kcal/mol. However, great caution is warranted in interpreting these data. In contrast to hYAP Leu65, Leu68 and Phe69, which show few (if any) intramolecular interactions with each other in the bound α-helix (Figure 1A), hYAP Met86, Leu91, Phe95, and Phe96 show intramolecular hydrophobic interactions that may help in stabilizing the bound Ω-loop. Alanine mutations of these residues may disturb these stabilizing interactions in addition to disrupting contacts with TEAD. The results obtained with hYAP Phe96 are a good example of the impact that intramolecular interactions have on the binding of the Ω-loop. This residue is not in direct contact with TEAD, and it is above the hydrophobic core of the bound Ω-loop formed by hYAP Met86, Leu91, and Phe95 (Figure 1B). The large decrease in binding (ΔΔG > 3 kcal/mol, Table 1) measured for hYAP Phe96Ala is therefore due not to the loss of interactions with TEAD, but most probably to a destabilization of the bound Ω-loop. Mutations of residues located in the hydrophobic core of the Ω-loop may therefore affect both intramolecular and intermolecular interactions, explaining why they are often more destabilizing than the mutations in the α-helix. The hYAP Arg89Ala and Ser94Ala mutations trigger a large decrease in affinity (ΔΔG > 3 kcal/mol). This is in agreement with earlier work showing the importance of the interactions made between these two amino acids and TEAD (Li et al., 2010; Hau et al., 2013; Zhang et al., 2014).

The structure of the YAP:TEAD complex (pdb 3KYS) was analyzed to find the TEAD residues that are located in the surrounding (within 5 Å) and have the potential to interact with the 9 YAP amino acids studied above. This led to the identification of 15 TEAD residues (Table 2) that were mutated to determine their role in the formation of the YAP:TEAD complex. In contrast to the TEADbinding domain of YAP, which is natively unfolded in solution, the free form of TEAD is folded. Mutations of TEAD may therefore affect its structure, making an analysis of the role played in the interaction by the mutated residues more challenging. To estimate the impact of the mutations on hTEAD4^217-434, the mutant proteins were studied in a fluorescence-based thermal shift assay, a technique commonly used to assess the effect of mutations on proteins (see for example, [Lavinder et al., 2009; Bultema et al., 2014; Decroos et al., 2015; Rumora et al., 2016]). The melting temperature (T_m) of the 15 TEAD mutant proteins was measured, and their difference in thermal stability compared with that of wt hTEAD4^217-434 was calculated: ΔT_m = T_m^wt – T_m^mutant (Table 2). The mutations reduced the thermal stability of hTEAD4^217-434 between 0.1°C and 6.6°C. Using ΔT_m >4°C as cut-off value, the five mutations hTEAD4 Lys273Ala, Leu295Ala, Lys297Ala, Tyr369Ala, and Leu377Ala were considered too destabilizing, and the corresponding proteins were not further studied. We shall assume in the following that the other mutations did not substantially affect the overall TEAD structure. The affinity of these proteins for wt hYAP^50-171 was measured by SPR. The localization of these residues at TEAD surface is given on Figure 1E and F.

The hTEAD4 Phe373Ala (α-helix pocket) and Val414Ala (Ω-loop pocket) mutations lead to a less than twofold reduction in the affinity of hYAP^50-171, showing that the contribution of these residues to the interaction is minimal (Table 2). The corresponding mutations in hTEAD1 or mTEAD4 also have a modest effect in cell-based assays (Li et al., 2010; Chen et al., 2010b).

Within the Ω-loop binding pocket, hYAP Ser94 makes a hydrogen bond with hTEAD4 Glu263 and Tyr429 (Figure 1D) and the hTEAD4 Glu263Ala and Tyr429Phe mutations destabilize binding with ΔΔG = 1.48 and 0.81 kcal/mol, respectively (Table 2). This reveals that the loss of the hydrogen bond between hYAP Ser94 and hTEAD4 Glu263 has a greater impact on binding than the loss of the hydrogen bond between hYAP Ser94 and hTEAD4 Tyr429. The mutation corresponding to hTEAD4 Glu263Ala in hTEAD1 (Glu240) also has a significant effect on the YAP:TEAD interaction in cell-based assays (Li et al., 2010). In cells, the change to alanine/histidine in hTEAD1-2 or mTEAD4 of the tyrosine residue corresponding to hTEAD4 Tyr429 markedly reduces the interaction between YAP and TEAD (Chen et al., 2010a; Li et al., 2010; Tian et al., 2010). These alanine/histidine mutations are therefore more destabilizing than the phenylalanine mutation studied here. The hTEAD1 Tyr421His mutation (equivalent to hTEAD4 Tyr429His) is also detrimental in a more physiologic context, since it is associated with Sveinsson’s chorioretinal atrophy (Fossdal et al., 2004). Bringing together the published data with our results suggests that the histidine mutation probably has additional effects on the YAP:TEAD interaction beyond just preventing the formation of a hydrogen bond with hYAP Ser94.

The residues hTEAD4 Phe337, Lys376, Leu380, and Val389 are located in the α-helix binding pocket of TEAD, making hydrophobic contacts with bound YAP. hTEAD4 Phe337 is in the vicinity of hYAP Leu68. hTEAD4 Lys376 is close to hYAP Leu65 and Phe69. hTEAD4 Leu380 and Val389 are within van de Waals distance from hYAP Phe69. The mutation of these residues to alanine decreases ΔG by more than one kcal/mol (Table 2), showing that they contribute to the formation of the YAP:TEAD complex. Some of these mutations (Phe337Ala and Leu380Ala) also affect the interaction between YAP and TEAD in cell-based assays when carried out at equivalent positions in mTEAD4 (Chen et al., 2010a).

In the Ω-loop binding pocket, the mutation of hTEAD4 Val265, which is in the vicinity of hYAP Leu91, has a significant effect on YAP binding (ΔΔG ~ 1 kcal/mol, Table 2). The mutation of the equivalent residue in hTEAD1 has a modest effect in cells on the YAP:TEAD interaction (Li et al., 2010). The Asp272Ala mutation has a major impact on the formation of the YAP:TEAD complex with ΔΔG > 3.5 kcal/mol (Table 2). Similar results were obtained with different hTEAD4 Asp272Ala protein preparations (data not shown). The mutation does not modify the T_m of hTEAD4^217-434 (ΔT_m = 0.1°C, Table 2) and it does not significantly affect hTEAD4 structure since the circular dichroism spectra of hTEAD4 Asp272Ala and wt hTEAD4 are identical (Figure 2—figure supplement 1). In the available structures of unbound TEAD (pdb 3L15 [Tian et al., 2010], pdb 5EMV and 5EMW [Noland et al., 2016], pdb 5HGU [Chan et al., 2016]), this residue is exposed to the solvent and does not seem to be involved in well-defined intramolecular interactions (data not shown). In the YAP:TEAD complex, it only interacts via its carboxylic group with the guanidinium moiety of hYAP Arg89 (Figure 1C). Since the hYAP Arg89Ala mutation also significantly reduces binding (Table 1 and [Hau et al., 2013]), the interaction between these two residues appears to be key for the formation of the YAP:TEAD complex. The role of hYAP Arg89 in the formation of the YAP:TEAD complex has been demonstrated in cell-based assays (Li et al., 2010). However, hTEAD4 Asp272 (or the corresponding residue in the TEAD 1–3) has not been studied in the different structure-function analyses known to us (Chen et al., 2010a; Li et al., 2010; Tian et al., 2010). To determine if this residue is also important for formation of the YAP:TEAD complex in cells in the context of the full length proteins, we used two different cellular assays. The effect of the hTEAD4 Asp272Ala mutation was assessed in co-immunoprecipitation experiments (Figure 2A). N-terminally V5-tagged hTEAD4 (wt or Asp272Ala) and wt hYAP were co-transfected into HEK293FT cells. YAP was immunoprecipitated and the TEAD4 protein complexed to it was detected by Western blot. While wt TEAD4 co-immunoprecipitates with YAP, the hTEAD4 Asp272Ala mutant does not to detectable levels. This shows that the hTEAD4 Asp272Ala mutation prevents the formation of the YAP:TEAD complex in cells. To confirm this result in a more functional assay, we used a YAP:TEAD-responsive gene reporter assay where the expression of the luciferase gene is under the control of multiple MCAT sites, which function as TEAD recognition sequences (Michaloglou et al., 2013) (Figure 2B). The transfection of wt hYAP together with wt TEAD4 in HEK293::MCAT cells stimulates the MCAT-based reporter, leading to marked luciferase activity. Under the same conditions, induction of luciferase activity is significantly reduced when hYAP is co-transfected with hTEAD4 Asp272Ala. This indicates that the mutation compromises the ability of YAP to stimulate TEAD4 transcriptional activity. These cellular data demonstrate that the hTEAD4 Asp272 mutation affects the interaction between the full-length YAP and TEAD4 proteins in a cellular context. Together with the published data on hYAP Arg89 (Li et al., 2010) this demonstrates that the hYAP Arg89:hTEAD4 Asp272 interaction is also key for the formation of the YAP:TEAD complex in a cellular environment.

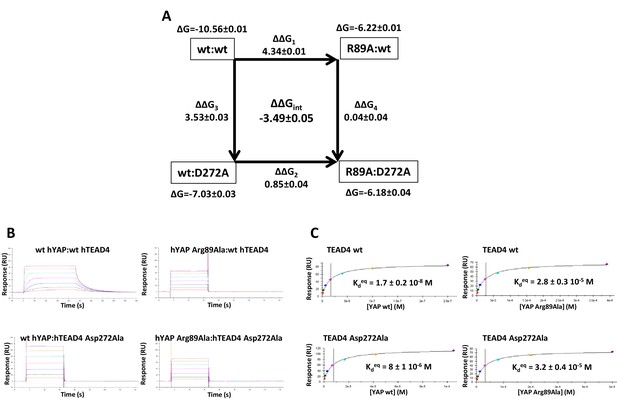

Figure 2 with 1 supplement see all

Download asset Open asset

Single mutations allow the identification of key residues involved in the interaction between two proteins (DeLano, 2002; Kortemme and Baker, 2002). However, they do not serve to determine whether (or not) two residues act in a cooperative manner in the interaction (Kortemme et al., 2004). This information is provided by double mutant cycle analyses (DMCAs) (Mildvan et al., 1992; Horovitz, 1996). DMCAs, which were initially conducted to study interactions within a protein (Carter et al., 1984), have been extended to study protein-protein interactions (for example, [Schreiber and Fersht, 1995; Goldman et al., 1997; Bradshaw and Waksman, 1999; Kiel et al., 2004; Naider et al., 2007; Elliot-Smith et al., 2007; Gianni et al., 2011; Jemth et al., 2014]). They allow the coupling (or interaction) energy, ΔΔG_int (see Materials and methods section for details), between two residues at the interface of a protein complex to be calculated. The two residues are independent, and their effect on binding energy is additive when ΔΔG_int = 0. In the other cases (ΔΔG_int ≠ 0), they are energetically coupled (they exert an energetic effect on each other), and coupling is favorable when ΔΔG_int < 0 or unfavorable when ΔΔG_int > 0.

The YAP:TEAD interface is a particularly attractive model to carry out DMCA since it is formed of two distant elements. DMCA should allow us not only to gain more insight into the interactions taking place within each of these pockets, but also to determine whether residues from the two different pockets are energetically coupled. The YAP and TEAD mutations that destabilize the hYAP^50-171:hTEAD4^217-434 interaction by more than 1 kcal/mol were selected for this analysis. The pairwise study of these different YAP and TEAD proteins led to the measurement of 80 different K_d values (Supplementary file 1), which enabled us to construct 63 double mutant cycles (Figure 4—source data 1).

The ΔΔG_int values obtained from this analysis are given in Table 3. We shall start by studying pairs of residues that are not located at the same binding interface. ΔΔG_int could not be determined for 7 of such pairs (n. m. in Table 3) because the K_d values for the mutantYAP:mutant TEAD interaction fall outside the scope of our experiment (>200 µM, Supplementary file 1). For the remaining pairs, most of the ΔΔG_int values are within experimental error (ΔΔG_int = 0 ± 0.5 kcal/mol, see Materials and methods). This means that the residues in these pairs are not energetically coupled and that they act independently of the formation of the YAP:TEAD complex. Earlier work on long-range effects on the additivity of mutations showed that ΔΔG_int decreases with the distance between the two mutated residues with no coupling above 7 Å (Schreiber and Fersht, 1995) and that additivity is observed for distant mutations at rigid protein-protein interfaces (Wells, 1990). Our results agree with these findings since the residues in these YAP:TEAD pairs are distant from each other by more than 9 Å and TEAD is rigid and does not change conformation upon YAP binding.

We also measured ΔΔG_int < −0.5 kcal/mol for one pair with residues belonging to each binding interface – hYAP Arg89:hTEAD4 Lys376 (−0.62 kcal/mol). This coupling energy, though moderate, is significant. Non-additivity in long-range interactions has also been observed in other systems (Gianni et al., 2011; Jemth et al., 2014; LiCata and Ackers, 1995; Istomin et al., 2008). This ΔΔG_int value is not linked to a specific protein preparation of hYAP Arg89 or hTEAD4 Lys376, as similar results were obtained with different batches of these proteins (data not shown). While they are located in two distant pockets at the YAP:TEAD interface, these two residues appear to act in a synergistic manner (ΔΔG_int < 0) on the formation of the YAP:TEAD complex. There is no straightforward explanation for this result, but this pair is the only one that involves two charged residues (of the same charge) located at the two binding pockets. Since electrostatic interactions have a long-distance effect, an electrostatic component may explain the ΔΔG_int value measured between these amino acids. Using ΔΔG_int = −0.5 kcal/mol as the minimum value for significant energetic coupling between two residues, we calculated the K_d (K_d^calc) of the mutant YAP:mutant TEAD interaction for the seven pairs for which no ΔΔG_int could be measured (n. m. in Table 3). For 3 of these pairs (hYAP Leu91:hTEAD4 Phe337, hYAP Phe95:hTEAD4 Phe337 and hYAP Leu65:hTEAD4 Asp272), we arrived at K_d^calc <150 µM (Supplementary file 2), suggesting that if these residues had been coupled with ΔΔG_int ≤ −0.5 kcal/mol, it would have been possible to measure the K_d for the interaction between the two mutant proteins. For the remaining pairs – hYAP Phe69:hTEAD4 Asp272, hYAP Arg89:hTEAD4 Val389, hYAP Leu91:hTEAD4 Val389, and hYAP Phe95:hTEAD4 Val389 – it is not possible to draw a conclusion, since the K_d^calc values are either just below or >200 µM, our upper limit for K_d determination (Supplementary file 2).

We shall now look at the coupling energy between YAP and TEAD residues located in the same binding pocket. ΔΔG_int values larger than the experimental error limit were obtained with several pairs of residues. These values are all negative, indicating a favorable energetic coupling between these residues (Table 3). Within the α-helix, 5 ΔΔG_int values below −0.5 kcal/mol were measured for residues located in close proximity: hYAP Leu65:hTEAD4 Lys376 (−0.65 kcal/mol), hYAP Leu68:hTEAD4 Phe337 (−0.65 kcal/mol), hYAP Phe69:hTEAD4 Lys376 (−1.28 kcal/mol), Leu380 (−1.01 kcal/mol) and Val389 (−1.11 kcal/mol) (Figure 3A). These low to moderate ΔΔG_int values may reflect the van der Waals nature of the interactions between these residues, since such interactions usually give lower coupling energies (Schreiber and Fersht, 1995; Goldman et al., 1997). hYAP Phe69 is significantly coupled (ΔΔG_int < −0.95 kcal/mol) to the 4 TEAD residues studied (Table 2), highlighting once more the importance of this residue at the α-helix binding interface. Significant ΔΔG_int values were also measured between residues that are not directly in contact: hYAP Leu65:hTEAD4 Val389 (−0.52 kcal/mol) and hYAP Phe69:hTEAD4 Phe337 (−0.95 kcal/mol). Experimental bias (e.g. effect of the mutations on the unbound conformation of the proteins) cannot be ruled out, but, |ΔΔG_int| values below 0.5 kcal/mol were measured in other pairs involving hYAP Leu65 or Phe69 and hTEAD4 Phe337 or Val389 (Table 3), suggesting the mutation of these residues does not systematically lead to high ΔΔG_int values. Therefore the residues of these two pairs are likely to be energetically coupled. ΔΔG_int is high (~1 kcal/mol) between the two hydrophobic residues hYAP Phe69 and hTEAD4 Phe337 that are not in direct contact. hYAP Phe69 and hTEAD4 Phe337, which are located at each side of the bound α-helix (Figure 4—figure supplement 1), may act synergistically in holding/orienting the hYAP α-helix in its correct bound orientation.

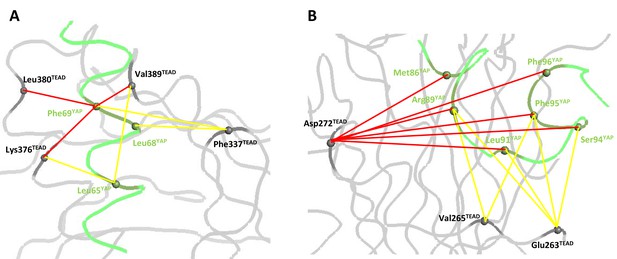

Figure 3

Download asset Open asset

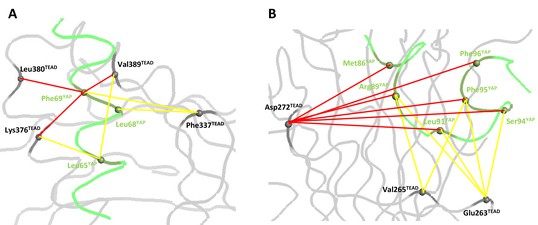

In the Ω-loop interface, 12 ΔΔG_int values below −0.5 kcal/mol were measured (Table 3, Figure 3B). Significant coupling (−0.96 kcal/mol) was observed between hYAP Ser94 and hTEAD4 Glu263, two residues within hydrogen bond distance (Figure 1D). hYAP Arg89, Leu91, and Phe95 are also coupled to hTEAD4 Glu263, albeit to a lesser extent. Since these 3 YAP residues are not in contact with hTEAD4 Glu263, coupling might be indirect and mediated via hYAP Ser94. Secondary coupling via a third side chain was previously described in other systems (Schreiber and Fersht, 1995). Moderate ΔΔG_int values were also obtained between hTEAD4 Val265 and hYAP Arg89 (−0.58 kcal/mol) and Phe95 (−0.61 kcal/mol) residues that are also not in direct contact. The largest coupling energy was observed between hYAP Arg89 and hTEAD4 Asp272, ΔΔG_int = −3.49 kcal/mol (Table 3). The double mutant cycle shows that, once hYAP Arg89 is mutated, the hTEAD4 Asp272Ala mutation has little effect on binding (ΔΔG₄ = 0.04 kcal/mol, Figure 4A). This is in agreement with the structural data showing that hYAP Asp272 interacts only with hYAP Arg89 (Figure 1C). The larger effect on binding of the hYAP Arg89Ala mutation against an hTEAD4 Asp272Ala background (ΔΔG₂ = 0.85 kcal/mol, Figure 4A) can be explained by the loss of both additional intermolecular interactions with TEAD (Figure 1C) and intramolecular stabilizing interactions in the bound YAP (Hau et al., 2013). hTEAD4 Asp272 is also strongly coupled (ΔΔG_int < −1.6 kcal/mol, Table 3) to each of the hYAP Ω-loop residues studied. This effect is limited to these amino acids, since no significant coupling energy was measured between hTEAD4 Asp272 and hYAP Leu68, which is located in the α-helix region (ΔΔG_int = −0.02 kcal/mol, Table 3). These hydrophobic/polar Ω-loop residues are therefore indirectly coupled to hTEAD4 Asp272 via hYAP Arg89, because they make no direct contact with this amino acid. The hYAP Arg89:hTEAD4 Asp272 interaction is thus crucial for the binding of the Ω-loop, since it allows several residues to act in a synergistic manner on the formation of the YAP:TEAD complex. Several proline residues – hYAP Pro85, Pro92, Pro98, and Pro99 – are also present in the Ω-loop, where they play a role in complex formation (Hau et al., 2013; Zhang et al., 2014). However, these residues are difficult to study with the techniques used in this report, because their mutation may affect the local structure of YAP in addition to disrupting interactions with TEAD.

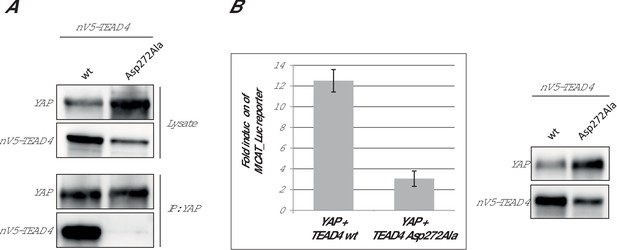

Figure 4 with 1 supplement see all

Download asset Open asset

Figure 4—source data 1

The double mutant cycles established in this study.

The double mutant cycles have been grouped by hYAP residues. For explanations, see Figure 3 legend in the main text. The binding energies are in cal/mol and the standard errors (SE) are indicated.

https://doi.org/10.7554/eLife.25068.010

Download elife-25068-fig4-data1-v1.pdf

In conclusion, we have studied the interaction between YAP and TEAD via single site-directed mutagenesis and multiple DMCAs. Our analysis, which was focused on a subset of key residues located at the YAP:TEAD interface, provides the first quantitative mapping on the individual contribution of these amino acids to the formation of the YAP:TEAD complex. We show that hYAP Phe69 is a ‘hot-spot’ residue at the α-helix interface. We find that hYAP Arg89 and hTEAD4 Lys376, which are not located at the same binding interface, act in a synergistic manner in the formation of the YAP:TEAD complex. We reveal that the hYAP Arg89:hTEAD4 Asp272 interaction is essential for the interaction between the Ω-loop region of YAP and TEAD. We provide evidence for the key role of hTEAD4 Asp272 in the interaction between YAP and TEAD both in vitro and in a cellular context. Overall, our study provides a set of new information on the YAP:TEAD interaction, which is a key effector node in the Hippo pathway.

The MCAT_Luc reporter construct in pLENTI6TR backbone has been described (Michaloglou et al., 2013). The derivation of the stable HEK293T::MCAT_Luc model by lentiviral transduction was conducted as previously described for other cell lines (Michaloglou et al., 2013); a representative clone (#11) was used in this study. The wt hYAP construct (Michaloglou et al., 2013) was cloned into Gateway-compatibilized pcDNA3.1_hygro (Invitrogen, Carlsbad, CA) according to the manufacturer’s protocol. The pCMVSport6::TEAD4 full-length cDNA clone was obtained from imaGenes (now Source BioScience, United Kingdom) and transferred by standard PCR and consecutive Gateway reactions into pcDNA3.1/nV5-DEST expression vector (Invitrogen, Carlsbad, CA). The Asp272Ala mutation in hTEAD4 was introduced by use of the QuikChange Lightning Site-Directed Mutagenesis kit (Agilent Technologies, Germany) and sequence-verified.

Human N-Avitagged hTEAD4^217-434 protein was cloned, expressed and purified as previously described (Hau et al., 2013). The purified hTEAD4 protein is 100% acylated at hTEAD4 Cys367. YAP^50-171 (NM_001130145.2) with an N-terminal hexa-histidine-tag followed by a HRV 3C protease cleavage site was expressed from a pACYCDuet-1 vector. Mutations in TEAD4 and YAP proteins were introduced with the QuikChange II Lightning site-directed mutagenesis kit (Agilent Technologies, Germany) according to the manufacturer’s instructions and confirmed by Sanger sequencing.

For expression of the YAP proteins, a pre-culture of LB medium containing 34 µg/ml chloramphenicol was inoculated with Escherichia coli NiCo21 (DE3) cells (New England Biolabs, Ipswich, MA) transformed with the expression plasmid and grown overnight at 37°C. A 1:1 mixture of LB and TB medium supplemented with 50 mM MOPS and chloramphenicol was inoculated with the pre-culture. At OD₆₀₀ = 0.8 the culture was chilled to 18°C, and the protein expression was induced by addition of 0.2 mM IPTG and run overnight. Bacterial cells were harvested by centrifugation at 6000 g for 20 min and frozen on dry ice. Cell pellets were thawed and suspended in 50 mM TRIS.HCl, 300 mM NaCl, 30 mM imidazole, pH 7.8 supplemented with Complete Protease Inhibitor (Roche, Switzerland) and Benzonase (Merck, Germany). The cells were then mechanically lysed by an EmulsiFlex C3 homogenizer (Avestin, Canada). Insoluble cell debris was removed by centrifugation for 50 min at 48000 g. The clarified cell lysate was loaded onto a 5 ml HisTrap HP column (GE Healthcare, United Kingdom) mounted on an ÄKTA Pure system (GE Healthcare, United Kingdom) and the column washed with 10 column volumes of 50 mM TRIS.HCl, 300 mM NaCl, 30 mM imidazole, pH 7.8. The YAP protein was proteolytically cleaved from the bound affinity tag by GST-tagged HRV 3C protease overnight at 4°C. YAP was eluted with wash buffer and dialyzed overnight at 5°C against an excess of 20 mM PIPES, 20 mM NaCl, 0.1 mM TCEP, pH 6.1 (Buffer A). The dialyzed protein was then loaded onto a 1 ml Resource S column (GE Healthcare, United Kingdom) and eluted with a linear gradient of Buffer A with 300 mM NaCl. The protein was pooled and concentrated with Amicon Ultra 4 Ultracell 3K columns (Millipore, Billerica, MA) and loaded onto a Superdex 75 10/300 GL size exclusion column (GE Healthcare, United Kingdom) equilibrated with 50 mM HEPES.NaOH, 100 mM KCl, 0.25 mM TCEP, 1 mM EDTA, 0.05% (v/v) Tween 20. Pure protein was finally concentrated to about 10 mg/ml in an Amicon concentrator. The final yield of pure protein was between 3 and 5 mg per liter expression culture.

The purity and the molecular weight of all the purified proteins were assessed by LC-MS. The concentration of the different protein preparations was determined by reverse phase (RP) HPLC measuring the absorbance at 210 nm and using calibration curves made with BSA.

HEK293T (RRID:CVCL_0063) and HEK293FT (RRID:CVCL_6911) cell lines were obtained from Sigma-Aldrich (Saint Louis, MO) and Invitrogen (Carlsbad, CA)/ThermoFisher Scientific (Waltham, MA), respectively. The identity of cell lines was authenticated by internal SNP genotype profiling. The absence of mycoplasma contamination was regularly verified (Venor GeM Mycoplasma PCR Detection kit, Minerva Biolabs, Germany). Both cell lines were maintained in DMEM supplemented with 10% (v/v) fetal calf serum (AMIMED, United Kingdom), 2 mM L-glutamine, 1 mM sodium pyruvate and 0.1 mM MEM non-essential amino acids. Transient transfections were performed with a DNA mix containing the plasmids of interest using Lipofectamine 2000 (Invitrogen, Carlsbad, CA), according to the manufacturer's protocol.

For IP experiments, HEK293FT cells were transfected with 500 ng each of YAP and nV5-TEAD4 cDNA constructs, and lysed in RIPA buffer (derived from 10x stock (Millipore, Billerica, MA); final concentration of components: 50 mM TRIS.HCl pH 7.2, 120 mM NaCl, 1% Nonidet P40 (v/v), 1 mM EDTA and 0.1% (v/v) SDS; supplemented with 2 mM sodium orthovanadate, 6 mg/ml sodium pyrophosphate and PhosSTOP and Protease Inhibitor Cocktail (both from Roche, Switzerland)) 48 hr afterwards. Lysates (250 µg) were then incubated with YAP1 antibody overnight under rotation at 4°C, followed by incubation with Dynabeads Protein G (Invitrogen, Carlsbad, CA) for 2 hr under rotation at 4°C. Immunoprecipitates were washed three times with RIPA buffer lacking SDS, eluted with Laemmli Sample Buffer (BioRad, Hercules, CA) by incubation at 95°C for 5 min and resolved by standard SDS-PAGE gel electrophoresis and Western Blotting. The following antibodies were used. For IP: YAP1 (EP1674Y; Abcam (United Kingdom),ab52771). For Western Blot analysis: YAP1 (D8H1X XP; Cell Signaling Technology (Danvers, MA), #14074) and V5 (Invitrogen (Carlsbad, CA), R96025) as primary antibodies; HRP-anti-rabbit (Cell Signaling Technology (Danvers, MA), #7074) and HRP anti-mouse ( GE Healthcare (United Kingdom), NA931V) as secondary antibodies.

HEK293T cells stably expressing the MCAT_Luc reporter (clone #11) were transfected with 100 ng each of YAP and nV5-TEAD4 cDNA constructs, and processed for lysate derivation and luciferase assay as described in Michaloglou et al. (2013). All luciferase readings were normalized to resazurin and are depicted as the average of 3 independent experiments ± STDEV.

The N-Avitagged hTEAD4^217-434 proteins were diluted at 2 µM in assay buffer (50 mM HEPES, 100 mM KCl, 0.25 mM TCEP, 1 mM EDTA, 2% (v/v) DMSO, pH 7.4) in the presence of 2x SYPRO Orange dye (ThermoFisher Scientific, Waltham, MA). This mix was added to 384-well, thin-walled Hard-Shell PCR microplates (BioRad, Hercules, CA). Before reading, the plates were covered by optically clear adhesive seals. Measurements were carried out with a CFX384 Real-Time PCR Detection System (BioRad, Hercules, CA). The temperature was increased from 25°C to 85°C at 0.5°C / 30 s and the fluorescence intensity was measured with the excitation and emission filters set to 465 and 590 nm, respectively. The melting temperatures (T_m) were determined by analyzing the thermal denaturation curves with CFX Manager (BioRad, Hercules, CA).

All the experiments were carried out with a Biacore T200 optical biosensor and Series S sensor Chip SA (Biacore AB, GE Healthcare, United Kingdom). The chips were washed three times with 1 M NaCl/50 mM NaOH, and the N-Avitagged hTEAD4^217-434 proteins were injected at a flow rate of 5 μl/min in SPR immobilization buffer (50 mM HEPES, 100 mM KCl, 0.25 mM TCEP, 1 mM EDTA, 0.05% (v/v) Tween 20, 0.05% (w/v) BSA, pH 7.4). Kinetic experiments were performed at 25°C with a flow rate of 50 μl/min in SPR running buffer (SPR immobilization buffer containing 2% (v/v) DMSO). The YAP proteins were diluted in SPR running buffer. After baseline equilibration with a series of buffer blanks, a DMSO correction series was performed from 1% to 3%. Each cycle consisted of an injection phase of YAP^50-171 (25 to 230 s) and a dissociation phase (75 to 450 s). All data were referenced for a blank streptavidin reference surface and blank injections of running buffer to minimize the influence of baseline drift upon binding.

A 6-step workflow was applied to obtain the dissociation constants measured at equilibrium (K_d^eq). Steps 1 to 3 ensure that only high-quality sensorgrams are selected for K_d^eq determination. Steps 4 to 6 ensure that K_d^eq is measured in experimental conditions at or near to TEAD saturation.

Step 1. The sensorgrams were globally fitted with a 1:1 interaction model using the Biacore T200 evaluation software.

Step 2. Each sensorgram was visually inspected and low-quality experiments (e.g. large bulk effects, unstable signal at equilibrium, inappropriate YAP concentration range, etc.) were not further analyzed.

Step 3. Experiments with a standard error on fitted K_d^eq higher than 20% K_d^eq or a fitted maximum binding capacity (R_max^fitted) <70% theoretical R_max (R_max^theo) (R_max^theo = (MW^YAP/ MW^TEAD) x R_TEAD x n with MW^YAP and MW^TEAD molecular weight of YAP and TEAD4, respectively, R_TEAD level of immobilization of TEAD4 in response unit (RU) and in stoichiometry here n = 1) were discarded.

Step 4. K_d^eq values from experiments meeting criteria of steps 1–3 for which at least the highest YAP concentration used in the dose response was >10 K_d^eq (saturation or near saturation conditions) are reported in the text.

Step 5. For the experiments that did not meet step four criteria, R_max at saturation (R_max^sat) were calculated. R_max^sat values correspond to the signal that should be measured for a YAP:TEAD pair when all the reactive immobilized TEAD molecules are bound to YAP (saturation conditions). R_max^sat = R_max^theo x (R_max^meas* / R_max^theo*). R_max^theo values were calculated for each YAP:TEAD pair as defined above. R_max^theo* and R_max^meas* values were obtained from measurements done with exactly the same TEAD protein preparation but using wt hYAP^50-171 as analyte. The ratio R_max^meas* / R_max^theo* is an experimental estimate of the fraction of TEAD available for binding in conditions where saturation is achieved, since it was always obtained with wt hYAP^50-171 used as analyte. Experiments for which the signal measured at equilibrium (R_eq) at the highest YAP concentration (500 µM) did not exceed 75% of R_max^sat were considered not suitable for accurate K_d^eq determination because they were too far from saturation conditions. These experiments are not reported.

Step 6. For the experiments meeting step five criteria, the R_eq determined at different YAP concentrations with the Biacore T200 evaluation software were fitted using a one site binding with background equation with Prism v7 (GraphPad Software) including in the analysis the additional point: [YAP] = 50 K_d^eq (estimated from initial global fits of the sensorgram); R_eq = R_max^sat. Simulations made on several experimental data sets show that the inclusion of this point significantly improves the accuracy of the fit, and the standard error of the fitted K_d^eq was always lower than 10% K_d^eq. The dissociation constants determined under such conditions are reported in the text.

Within our experimental conditions, the limit for accurate K_d^eq determination is 200 µM. All the pairs with a lower affinity are reported in the text as K_d^eq > 200 µM.

The double mutant cycles were constructed measuring K_d^eq for four different pairwise interactions: wtYAP:wtTEAD (wY:wT), mutantYAP:wtTEAD (mY:wT), wtYAP:mutantTEAD (wY:mT) and mutantYAP:mutantTEAD (mY:mT). The binding-free energies were calculated from K_d^eq with the formula ΔG = RTLn K_d^eq (R = 1.986 cal.mol⁻¹K⁻¹, T = 298°K). The interaction energy between two residues, ΔΔG_int, were calculated according to the formula ΔΔG_int = ΔG_mY:mT + ΔG_wY:wT – ΔG_mY:wT – ΔG_wY:mT. Standard errors (SE) on ΔΔG_int were derived from SE_ΔΔGint = (SE_ΔGmY:mT² + SE_ΔGwY:wT² + SE_ΔGmY:wT² + SE_ΔGwY:mT²)^1/2, where SE is the standard error. Large experimental errors in K_d^eq determination are a source of considerable uncertainty on ΔΔG_int because of error propagation in the calculations. As a consequence, only high ΔΔG_int values may become significant (Pons et al., 1999). Within our experimental conditions, the SE for K_d^eq did not exceed 15% K_d^eq (see Tables 1 and 2 and Supplementary file 1). Since SE_ΔG = RT (SE_Kdeq / K_d^eq), the maximum SE_ΔG = 0.09 kcal/mol and as a consequence the maximum SE_ΔΔGint is 0.18 kcal/mol. Using a 2SE threshold (95% confidence interval), |ΔΔG_int| > 0.36 kcal/mol should be significant. However, we shall only consider |ΔΔG_int| > 0.5 kcal/mol to be high enough to reflect an energy coupling between two residues.
