CD40 is a major regulator of dendrite growth from developing excitatory and inhibitory neurons

  1. Paulina Carriba
  2. Alun M Davies  Is a corresponding author
  1. Cardiff University, United Kingdom
Research Article
  • Cited 15
  • Views 1,463
  • Annotations
Cite this article as: eLife 2017;6:e30442 doi: 10.7554/eLife.30442

Abstract

Dendrite size and morphology are key determinants of the functional properties of neurons and neural circuits. Here we show that CD40, a member of the TNF receptor superfamily, is a major regulator of dendrite growth and elaboration in the developing brain. The dendrites of hippocampal excitatory neurons were markedly stunted in Cd40-/- mice, whereas those of striatal inhibitory neurons were much more exuberant. These striking and opposite phenotypic changes were also observed in excitatory and inhibitory neurons cultured from Cd40-/- mice and were rescued by soluble CD40. The changes in excitatory and inhibitory neurons cultured from Cd40-/- mice were mimicked in neurons of Cd40+/+ mice by treatment with soluble CD40L and were dependent on PKC-β and PKC-γ, respectively. These results suggest that CD40-activated CD40L reverse signalling has striking and opposite effects on the growth and elaboration of dendrites among major classes of brain neurons by PKC-dependent mechanisms.

https://doi.org/10.7554/eLife.30442.001

Introduction

The regulation of dendrite growth and elaboration during development has a major bearing on the functional properties of neurons and neural circuits, and many neurodevelopmental and acquired disorders of neural function are due primarily to structural abnormalities of dendrites and their connections (Penzes et al., 2011). In addition to intrinsic developmental programmes and the pattern of electrical activity, a wide variety of extrinsic signals orchestrate the growth and remodeling of dendrites during development and maturation, including delta-notch, Eph-Ephrins, cell adhesion molecules, neurotrophins, semaphorins and slits (Metzger, 2010; Valnegri et al., 2015). One of the latest groups of proteins recognized to modulate growth of neural processes during development is the tumor necrosis factor superfamily (TNFSF), the 19 members of which are best understood for their many roles in the immune system (Hehlgans and Pfeffer, 2005). They are active both as membrane-integrated ligands and as soluble ligands following cleavage from the cell membrane, and bind to one or more members of the TNF receptor superfamily (TNFRSF). In addition, several TNFRSF members can also function as ligands for membrane-integrated TNFSF binding partners and initiate reverse signalling (Sun and Fink, 2007). Most of the work on the TNFSF and TNFRSF on the regulation of neural process growth has focused on PNS neurons, where several members of these superfamilies act on different kinds of neurons during circumscribed phases of development, either enhancing or inhibiting axon growth (Desbarats et al., 2003; Gavaldà et al., 2009; Gutierrez et al., 2013; Kisiswa et al., 2013, 2017; McWilliams et al., 2015; O'Keeffe et al., 2008; Wheeler et al., 2014). In addition, several studies have implicated TNFSF members in regulating the growth of neural processes in the developing CNS (Neumann et al., 2002; Osório et al., 2014; Zuliani et al., 2006; McWilliams et al., 2017).

We have investigated whether CD40 (TNFRSF5) plays a role in regulating the growth and elaboration of dendrites in the developing CNS. CD40 and its ligand CD40L play key roles in immune responses and in the pathogenesis of autoimmune disease (Peters et al., 2009). CD40 and CD40L have also recently been implicated in regulating sympathetic axon growth and are required for establishing the innervation of particular tissues in the developing PNS (McWilliams et al., 2015). Here, we focused on the two most extensively characterized populations of excitatory and inhibitory projection neurons in the mouse brain, the excitatory glutamatergic pyramidal neurons of the hippocampus and the inhibitory GABA-ergic medium spiny neurons (MSNs) of the striatum. Hippocampal pyramidal neurons are one of the best-characterized models for studying the differentiation and growth of axons and dendrites during development (Kaech and Banker, 2006). MSNs comprise the majority of neurons in the striatum, have extensive dendritic arbors, project to the surrounding nuclei of the basal ganglia and their degeneration is the pathognomonic feature of Huntington’s disease (Reiner et al., 1988). Both kinds of neurons are easily recognized by their distinctive morphologies in vivo and can be cultured at a stage when they are elaborating dendrites and are the major cell type in culture. Our demonstration that CD40-activated CD40L reverse signaling has pronounced and distinctive effects on the growth and elaboration of dendrites from different classes of neurons in vitro and in vivo has important implications for neural development and the establishment and function of neural circuits.

Results

Phenotypic changes in the dendrites of excitatory and inhibitory neurons of Cd40-/- mice

Golgi preparations carried out on Cd40+/+ and Cd40-/- mice at postnatal day 10 (P10) revealed that the size and complexity of the dendritic arbors of hippocampal pyramidal neurons and striatal MSNs were markedly affected in the absence of CD40, but in opposite ways. The dendritic arbors of the excitatory pyramidal neurons of the CA fields of the hippocampus of Cd40-/- mice were dramatically stunted compared with those of Cd40+/+ littermates (Figure 1A). Representative high power images show that the reduction of dendrite size and complexity in Cd40-/- mice affected both apical and basal dendrite compartments of these excitatory neurons (Figure 1B). Because the dendrite arbors of pyramidal neurons in CA1 are normally less exuberant than those of other CA regions, CA1 pyramidal dendrites were especially amenable to analysis, which was carried out separately on the apical and basal compartments. This revealed marked and highly significant reductions in total dendrite length in both apical (p=6.02×10−16) and basal (p=4.75×10−14) compartments of Cd40-/- mice compared with Cd40+/+ littermates (Figure 1C). These reductions were in reflected in the Sholl analyses (Figure 1D), which plot branching in the dendrite arbors with distance from the cell body (two-way ANOVA Cd40+/+ versus Cd40-/-, p=1.67×10−14, apical dendrites and p=4.75×10−5, basal dendrites). Accordingly, quantification of the number of branch points in these dendrite compartments showed clear statistically significant reductions in Cd40-/- mice (p=8.85×10−7, apical and p=6.48×10−8, basal), however there was no significant difference (p=0.82) in the number of primary dendrites between the pyramidal neurons of Cd40-/- and Cd40+/+ mice (Figure 1—figure supplement 1). Taken together, these findings indicate that CD40 plays a major role in promoting the growth and elaboration of hippocampal pyramidal neuron dendrites.

Figure 1 with 2 supplements see all

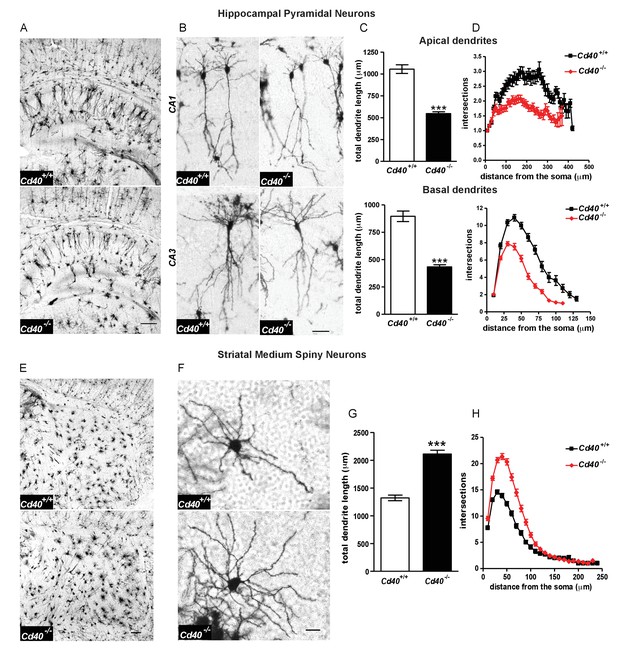

Phenotypic changes in hippocampal pyramidal neurons and striatal MSNs in P10 Cd40-/- mice.

(A) Representative low-power images of Golgi preparations of the hippocampal CA regions and dentate gyrus of Cd40+/+ and Cd40-/- mice. Scale bar, 250 μm. (B) High-power images of CA1 and CA3 pyramidal neurons of Cd40+/+ and Cd40-/- mice. Scale bar, 50 μm. (C) Quantification of the total apical dendrite lengths (Cd40+/+, n = 74 and Cd40-/-, n = 67) and total basal dendrite lengths (Cd40+/+, n = 51 and Cd40-/-, n = 49) of CA1 pyramidal neurons of Cd40+/+ and Cd40-/- mice. (D) Sholl plots of the apical (Cd40+/+, n = 86 and Cd40-/-, n = 71) and basal (Cd40+/+, n = 64 and Cd40-/-, n = 53) dendrites of CA1 pyramidal neurons. (E) Representative low-power images of Golgi preparations of the striatum of Cd40+/+ and Cd40-/- mice. Scale bar, 250 μm. (F) Representative high-power images of MSNs of Cd40+/+ and Cd40-/- mice. Scale bar, 20 μm. (G) Quantification of the total dendrite lengths of MSNs (Cd40+/+, n = 85 and Cd40-/-, n = 89). (H) Sholl plots of MSN dendrites (Cd40+/+, n = 85 and Cd40-/-, n = 89). The means ± s.e.m are shown in C, D, G and H. Data were obtained from neurons analysed in at least three mice of each genotype, ***p<0.0001 t-test (actual p values provided in the text). Sholl plots were analysed by two-way ANOVA with Bonferroni post tests. The statistical significances for each distance from the soma are included in Figure 1—source data 3.

https://doi.org/10.7554/eLife.30442.002
Figure 1—source data 1

Data of individual Golgi-stained pyramidal neurons in Cd40+/+ and Cd40-/- mice.

https://doi.org/10.7554/eLife.30442.005
Figure 1—source data 2

Data of individual Golgi-stained medium spiny neurons in Cd40+/+ and Cd40-/- mice.

https://doi.org/10.7554/eLife.30442.006
Figure 1—source data 3

2-way ANOVA for pyramidal neurons and medium spiny neurons in Cd40+/+ and Cd40-/- mice.

https://doi.org/10.7554/eLife.30442.007

In marked contrast to hippocampal excitatory neurons, the dendritic arbors of the striatal MSNs of Cd40-/- mice were very much larger and more profuse than those of Cd40+/+ littermates (Figure 1E and F). Quantification of total dendrite length revealed a marked and highly significant increase in Cd40-/- mice compared with Cd40+/+ littermates (p=6.87×10−17) (Figure 1G). This increase in dendrite size was in reflected in the Sholl analysis (Figure 1H) (two-way ANOVA Cd40+/+ versus Cd40-/-, p=6.68×10−4). Quantification of the number of branch points in these dendrite compartments showed clear statistically significant increase in Cd40-/- mice (49% increase, p=1.13×10−13), and as with hippocampal pyramidal neurons, there was no significant difference in the number of primary dendrites in the MSNs of Cd40-/- and Cd40+/+ mice (Figure 1—figure supplement 1). These findings indicate that CD40 plays a major role in restricting the growth and elaboration of MSN dendrites in the developing striatum.

To ascertain whether the striking phenotypic changes observed in the hippocampus and striatum of early postnatal Cd40-/- mice are maintained in older mice, we compared Cd40-/- and Cd40+/+ littermates in P30 and adult mice. Golgi preparations revealed that hippocampal pyramidal neuron dendrite arbors were clearly stunted in Cd40-/- mice compared with Cd40+/+ littermates whereas striatal MSN dendrite arbors of Cd40-/- mice were much larger and more complex than those of Cd40+/+ littermates both ages (Figure 1—figure supplement 2). This shows that the distinctive phenotypic changes evident in the dendrite arbors of both kinds neurons observed in the early postnatal period are maintained throughout life.

Dendrite growth and elaboration is regulated by CD40-activated CD40L reverse signalling

Interaction of CD40 and membrane-integrated CD40L can initiate bi-directional signaling: CD40L-activated CD40-mediated forward signaling and CD40-activated CD40L-mediated reverse signaling (Sun and Fink, 2007). To determine which signaling mechanism is responsible for the effects of CD40 on dendrite growth and elaboration in hippocampal pyramidal neurons and striatal MSNs, we established cultures of these neurons from Cd40-/- and Cd40+/+ mice and studied the effect of soluble CD40L and soluble CD40.

Hippocampal pyramidal neuron cultures were established from E18 mice. By 9 days in vitro, MAP-2-positive dendrites can be unambiguously identified and quantified (Kaech and Banker, 2006; Osório et al., 2014). Similar to the phenotypic changes observed in Golgi preparations of Cd40-/- mice, pyramidal neurons cultured from Cd40-/- mice were smaller than those cultured from Cd40+/+ mice (Figure 2A). Measurement of the total dendrite length in the dendrite arbors of individual neurons revealed a highly significant reduction in cultures established from Cd40-/- mice compared with those cultured from Cd40+/+ mice (p=2.9×10−6) (Figure 2B), but no significant difference in the number of primary dendrites (Figure 2—figure supplement 1). These data suggest that the morphologies of hippocampal pyramidal neurons cultured from Cd40+/+ and Cd40-/- mice reflect the phenotypic differences observed in vivo.

Figure 2 with 1 supplement see all

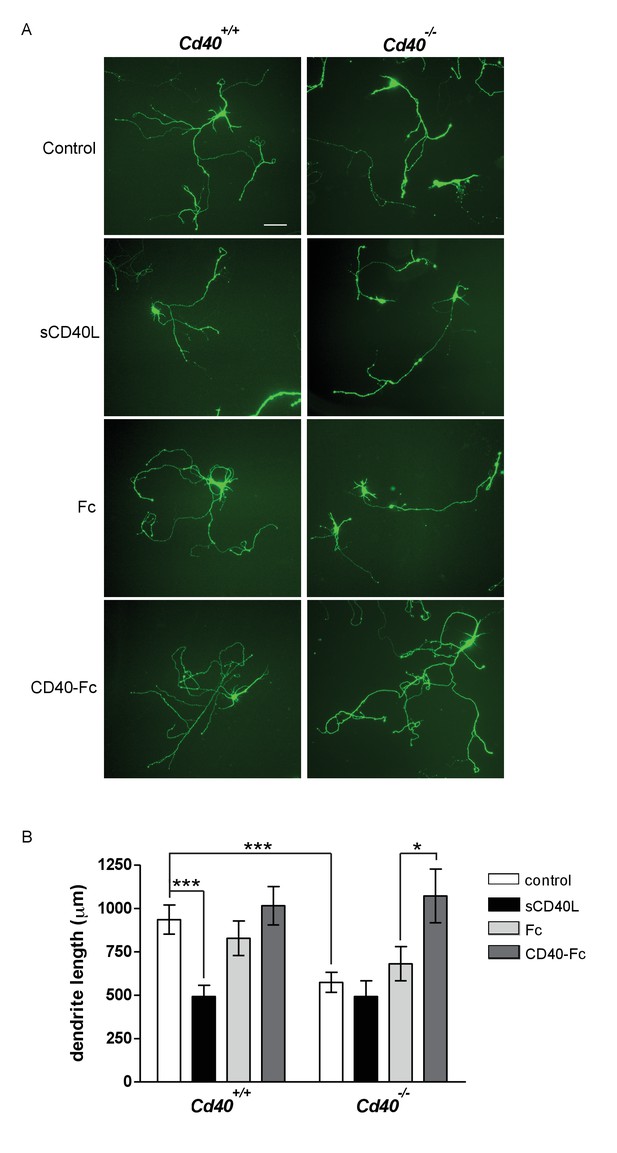

CD40-activated CD40L reverse signalling enhances dendrite growth from cultured hippocampal pyramidal neurons.

(A) Representative photomicrographs of hippocampal neurons of Cd40+/+ and Cd40-/- E18 embryos cultured for 9 days and treated 24 hr after plating with either soluble CD40L (sCD40L), CD40-Fc or Fc protein (each at 1 μg/ml) or untreated (control). Scale bar, 100 μm. (B) Quantification of total dendrite lengths of neurons in these cultures after 9 days in vitro. Mean ± s.e.m of data collected from three independent experiments from Cd40+/+ (control, n = 70; sCD40L, n = 51; Fc, n = 55; CD40-Fc, n = 61) and Cd40-/- (control, n = 60; sCD40L, n = 57; Fc, n = 61; CD40-Fc, n = 59). One-way ANOVA with multiple Newman-Keuls statistical comparison with control, *p<0.01, and ***p<0.0001 (actual p values provided in the text).

https://doi.org/10.7554/eLife.30442.008
Figure 2—source data 1

Means, s.e.m. and n numbers for bar charts.

https://doi.org/10.7554/eLife.30442.010

Treatment of pyramidal neurons cultured from Cd40+/+ mice with soluble CD40L significantly reduced dendrite length to the same extent as that observed in untreated pyramidal neurons cultured from Cd40-/- mice (p=1.1×10−8) (Figure 2B). Neither soluble CD40 (CD40-Fc chimera, in which the extracellular domain of CD40 is linked to the Fc part of human IgG1) nor control Fc protein had any significant effect on dendrite growth from pyramidal neurons cultured from Cd40+/+ mice. While CD40L reduced dendrite growth from wild type neurons, it did not significantly affect dendrite growth from pyramidal neurons of Cd40-/- mice (Figure 2B), suggesting that CD40L does not exert a non-specific suppressive effect on dendrite growth. The most parsimonious explanation for these results is that addition of CD40L to pyramidal neurons cultured from Cd40+/+ mice competes with endogenous membrane integrated CD40L for binding to endogenous CD40, thereby blocking CD40-activated CD40L-mediated reverse signalling. Further support for CD40-activated CD40L-mediated reverse signaling came from phenotype rescue experiments. CD40-Fc, but not Fc control protein, fully restored the reduced dendrite growth phenotype of pyramidal neurons cultured from Cd40-/- mice (p=6.5×10−3) (Figure 2B). Taken together, these observations suggest that CD40-activated CD40L mediated reverse signalling promotes dendrite growth from developing hippocampal pyramidal neurons.

In addition to dendrites, axons are clearly identifiable in cultures of developing hippocampal pyramidal neurons (Dotti et al., 1988; Kaech and Banker, 2006). Axons are the first processes to emerge from the cell body and remain the longest process in longer-term cultures. This permitted us to investigate the potential influence of CD40 signalling on pyramidal axon growth (Figure 3). The axons of pyramidal neurons cultured from Cd40-/- mice were significantly shorter than the axons of neurons cultured from Cd40+/+ mice in both 3 day and 9 day cultures (p=7.8×10−12, 3 days; p=1.3×10−4, 9 days). The effects of CD40L and CD40-Fc on axon growth were very similar to the effects of these reagents on dendrite growth. CD40L, but not CD40-Fc, suppressed axon growth from Cd40+/+ neurons to the same extend as that observed in untreated Cd40-/- neurons (p=6.4×10−11, 3 days; p=1.2×10−5, 9 days). The reduced axon growth phenotype of neurons of Cd40-/- mice was completely rescued by CD40-Fc (p=2.6×10−5, 3 days; p=4.9×10−6, 9 days). These results suggest that CD40-activated CD40L-mediated reverse signalling also enhances axon growth from developing hippocampal pyramidal neurons in culture. However, because the full extent of these axons cannot be reliably discerned in Golgi preparations, we cannot definitively conclude that CD40L reverse signalling enhances the growth of pyramidal axons in vivo.

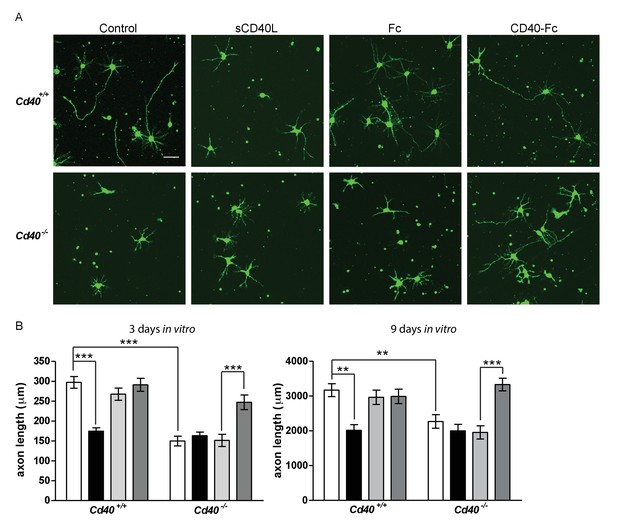

CD40-activated CD40L reverse signalling enhances axon growth from cultured hippocampal pyramidal neurons.

(A) Representative photomicrographs of neurons of Cd40+/+ and Cd40-/- E18 embryos cultured for 3 days and treated 24 hr after plating with either soluble CD40L (sCD40L), CD40-Fc or Fc protein (each at 1 μg/ml) or untreated (control). Scale bar, 50 μm. (B) Quantification of axon length from hippocampal pyramidal neurons of Cd40+/+ and Cd40-/- E18 embryos cultured for 3 and 9 days. Mean ± s.e.m of data collected from at least three independent experiments at 3 days from Cd40+/+ (control, n = 74; sCD40L, n = 68; Fc, n = 72; CD40-Fc, n = 77) and Cd40-/- (control, n = 61; sCD40L, n = 64; Fc, n = 56; CD40-Fc, n = 81); and at 9 days from Cd40+/+ (control, n = 70; sCD40L, n = 51; Fc, n = 55; CD40-Fc, n = 61) and Cd40-/- (control, n = 60; sCD40L, n = 57; Fc, n = 61; CD40-Fc, n = 59). One-way ANOVA with multiple Newman-Keuls statistical comparisons test between the conditions indicated, **p<0.001 and ***p<0.0001 (actual p values provided in the text).

https://doi.org/10.7554/eLife.30442.011
Figure 3—source data 1

Means, s.e.m. and n numbers for bar charts.

https://doi.org/10.7554/eLife.30442.012

MSN cultures were established from E14 striatal primordia. Although MSNs comprise the vast majority of neurons in the striatum, some contamination by adjoining regions is inevitable when dissecting striatal primordia from the E14 brain. For this reason, we positively identified MSNs using an antibody to dopamine and cyclic AMP-regulated protein (DARPP-32), which is expressed by more than 95% of MSNs (Ouimet et al., 1998). Similar to the phenotypic changes observed in Golgi preparations of Cd40-/- mice, the neurite arbors of MSNs cultured from Cd40-/- mice were larger than those of MSNs cultured from Cd40+/+ mice (Figure 4A). Although dendrites and axons cannot be easily distinguished in these cultures, measurement of total neurite length confirmed highly significant increases in neurons cultured from Cd40-/- mice compared with those cultured from Cd40+/+ littermates (p=7.2×10−10) (Figure 4B). This suggests, as with hippocampal pyramidal neurons, that the morphologies of MSNs cultured from Cd40+/+ and Cd40-/- mice reflect the phenotypic differences observed in vivo.

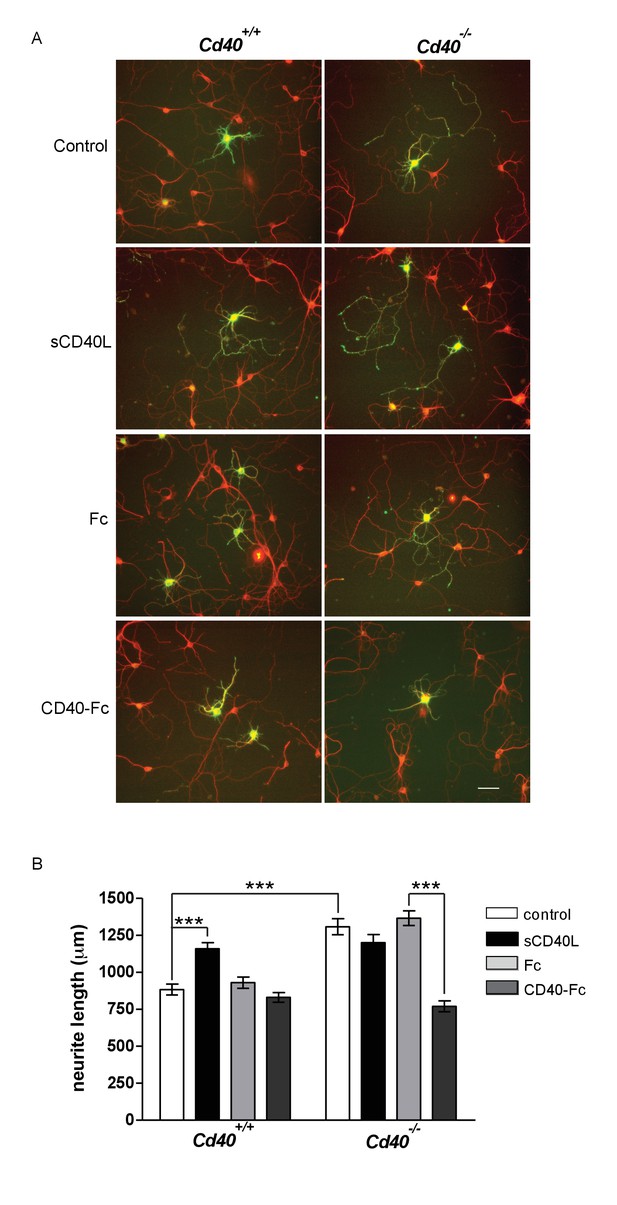

CD40-activated CD40L reverse signalling reduces neurite growth from cultured MSNs.

(A) Representative photomicrographs of MSNs of Cd40+/+ and Cd40-/- E14 embryos cultured for 10 days and treated with either soluble CD40L (sCD40L) at 0.5 μg/ml, CD40-Fc or Fc protein (each at 1 μg/ml) or untreated (control). Neurons were double labelled for βIII tubulin (red) and DARPP-32 (green) to identify MSNs. Scale bar, 50 μm. (B) Quantification of total neurite lengths of MSNs after 10 days in vitro. Mean ± s.e.m of data collected from three independent experiments from Cd40+/+ (control, n = 69; sCD40L, n = 65; Fc, n = 63; CD40-Fc, n = 62) and Cd40-/- (control, n = 60; sCD40L, n = 62; Fc, n = 52; CD40-Fc, n = 73). One-way ANOVA with multiple Newman-Keuls statistical comparisons with control. ***p<0.0001 (actual p values provided in the text).

https://doi.org/10.7554/eLife.30442.013
Figure 4—source data 1

Means, s.e.m. and n numbers for bar charts.

https://doi.org/10.7554/eLife.30442.014

Treatment of MSNs cultured from Cd40+/+ mice with soluble CD40L caused a significant increase in total neurite length (p=1.57×10−6) that was similar to the total neurite length observed in untreated MSNs cultured from Cd40-/- mice (Figure 4B). CD40-Fc did not affect neurite growth from MSNs cultured from Cd40+/+ mice, but significantly reduced the more exuberant neurite growth of MSNs cultured from Cd40-/- mice (p=3.6×10−14) to the level observed in untreated MSNs cultured from Cd40+/+ mice (Figure 4B). These observations suggest that CD40 normally restricts the growth of neural processes from developing MSNs by a CD40L-mediated reverse signalling mechanism.

PKC mediates both the enhancing and inhibitory effects of CD40-activated CD40L reverse signalling on Dendrite growth

Because we have shown that activation of protein kinase C (PKC) is an essential step in the axon growth response of developing sympathetic neurons to TNFR1-activated TNFα-mediated reverse signaling (Kisiswa et al., 2017), we investigated whether PKC plays a role in mediating the divergent effects CD40-activated CD40L reverse signalling on dendrite growth in excitatory and/or inhibitory neurons. PKC is a family of at least 12 serine/threonine kinases that play key roles in several signaling pathways that regulate a diversity of cellular functions (Mellor and Parker, 1998). In these studies, we asked whether pharmacological manipulation of PKC activity in CD40-deficient neurons could inhibit or mimic the effect of CD40-Fc on dendrite growth on hippocampal pyramidal neurons and striatal MSNs cultured from Cd40-/- mice. PCK activity was inhibited by the pan-PKC inhibitor Go6983 (Gschwendt et al., 1996) and PKC activation was mimicked by phorbol-12-myristate 13-acetate (PMA), an analogue of diacylglycerol which participates in the activation of conventional PKCs (PKCα, PKCβ and PKCγ) and novel PKCs (PKCδ, PKCε, PKCθ and PKCη) (Liu and Heckman, 1998).

In cultures of hippocampal pyramidal neurons established from E18 Cd40-/- mice, the significant restoration of dendrite growth by CD40-Fc (p=3.8×10−4, Fc treatment compared with CD40-Fc treatment) was completely prevented by Go6983 (p=1.6×10−5, CD40-Fc treatment compared with CD40-Fc plus Go6983 treatment), although Go6983 had no effect on dendrite growth on its own (Figure 5A and B). PMA significantly rescued the stunted dendrite phenotype of hippocampal pyramidal neurons established from Cd40-/- mice (p=1.6×10−2) almost as effectively as CD40-Fc (Figure 5A and B). DMSO, the vehicle for Go6983 and PMA, had no significant effect on dendrite growth (not shown). Neither Go6983 nor PMA had any significant effect on the number of pyramidal neuron primary dendrites (not shown). These results suggest that PKC activation mediates the effect of CD40-activated CD40L-mediated reverse signalling on dendrite growth from developing hippocampal pyramidal neurons.

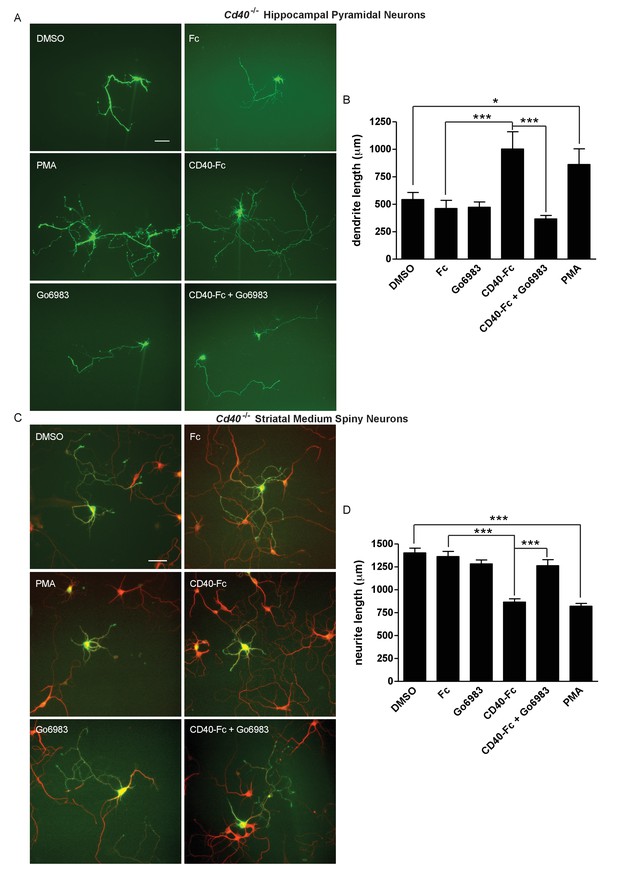

PKC mediates the effect of CD40-activated CD40L reverse signalling on dendrite growth.

(A) Representative photomicrographs of hippocampal neurons of Cd40-/- E18 embryos cultured for 9 days and treated 24 hr after plating with either 1 μg/ml CD40-Fc, 1 μg/ml Fc protein, 500 nM Go6983, 500 nM PMA or the equivalent level of vehicle DMSO. Scale bar, 100 μm. (B) Quantification of total dendrite lengths of neurons in these cultures after 9 days in vitro. Mean ± s.e.m of data collected from three independent experiments in Cd40-/- (control, n = 43; DMSO, n = 43; Go6983, n = 34; Fc, n = 33; CD40-Fc, n = 37; CD40-Fc + Go6983, n = 37; PMA, n = 34). (C). Representative photomicrographs of MSNs of Cd40-/- E14 embryos cultured for 10 days and treated as indicated. MSNs were identified by double labelling for βIII tubulin (red) and DARPP-32 (green). Scale bar, 50 μm. (D) Quantification of total neurite lengths of MSNs after 10 days in vitro. Mean ± s.e.m of data collected from three independent experiments in Cd40-/- (control, n = 56; DMSO, n = 46; Go6983, n = 49; Fc, n = 50; CD40-Fc, n = 61; CD40-Fc + Go6983, n = 48; PMA, n = 58). *p<0.01 and ***p<0.0001, statistical comparison with the equivalent control (Fc for CD40-Fc and DMSO for PMA, actual p values provided in the text), one-way ANOVA with multiple Newman-Keuls tests.

https://doi.org/10.7554/eLife.30442.015
Figure 5—source data 1

Means, s.e.m. and n numbers for pyramidal neuron bar charts.

https://doi.org/10.7554/eLife.30442.016
Figure 5—source data 2

Means, s.e.m. and n numbers for medium spiny neuron bar charts.

https://doi.org/10.7554/eLife.30442.017

In cultures of striatal MSNs established from E14 Cd40-/- mice, the significant suppression of dendrite growth by CD40-Fc (p=9.3×10−13, Fc treatment compared with CD40-Fc treatment) was completely inhibited by Go6983 (p=2.5×10−7, CD40-Fc treatment compared with CD40-Fc plus Go6983 treatment) and as in hippocampal neuron cultures, Go6983 had no effect on MSN dendrite growth on its own (Figure 5C and D). PMA significantly suppressed dendrite growth from MSNs (p=4.5×10−17) to the same extent as CD40-Fc. Neither Go6983 nor PMA had any significant effect on the number of MSN primary dendrites (not shown). These results suggest that PKC activation mediates the effect of CD40-activated CD40L on dendrite growth suppression from developing MSNs.

PKC-β and PKC-γ mediate the opposite effects of CD40-activated CD40L reverse signalling on hippocampal and striatal neurons, respectively

To investigate whether particular PKC isoforms selectively participate in mediating the effects of CD40-activated CD40L reverse signalling on dendrite growth, we studied the effects of siRNA knock down of selected PKC isoforms. Because PMA strongly activates conventional and novel PKC isoforms (Wu-Zhang and Newton, 2013), we first checked expression of the conventional and novel PKC isoforms that have been reported to be abundantly expressed in whole brain. Using western blotting, we showed abundant expression of PKC-α, β, γ and ε in both the hippocampus and striatum (Figure 6—figure supplement 1). We subsequently transfected cultures of hippocampal and striatal neurons with siRNA oligonucleotides directed to each of these isoforms and with a control RNA that has a scrambled sequence, and used western blotting to ascertain whether knockdown was successful. Because we were able to consistently and efficiently knock down PKC-β and PKC-γ expression with specific siRNA in these cultures (Figure 6—figure supplement 1), we focused subsequent experiments on these isoforms.

Initial siRNA experiments were carried out on neurons cultured from Cd40+/+ mice. Compared with dendrite growth from hippocampal pyramidal neurons transfected with control siRNA, dendrite growth was significantly decreased by PKC-β siRNA (p=4.9×10−3) but not by PKC-γ siRNA (Figure 6A and B). Conversely, PKC-γ siRNA but not PKC-β siRNA significantly increased dendrite growth from MSNs compared with control siRNA (p=1.6×10−4) (Figure 6C and D). This suggests that PKC-β and PKC-γ participate in regulating dendrite growth from developing hippocampal pyramidal neurons and MSNs, respectively.

Figure 6 with 1 supplement see all

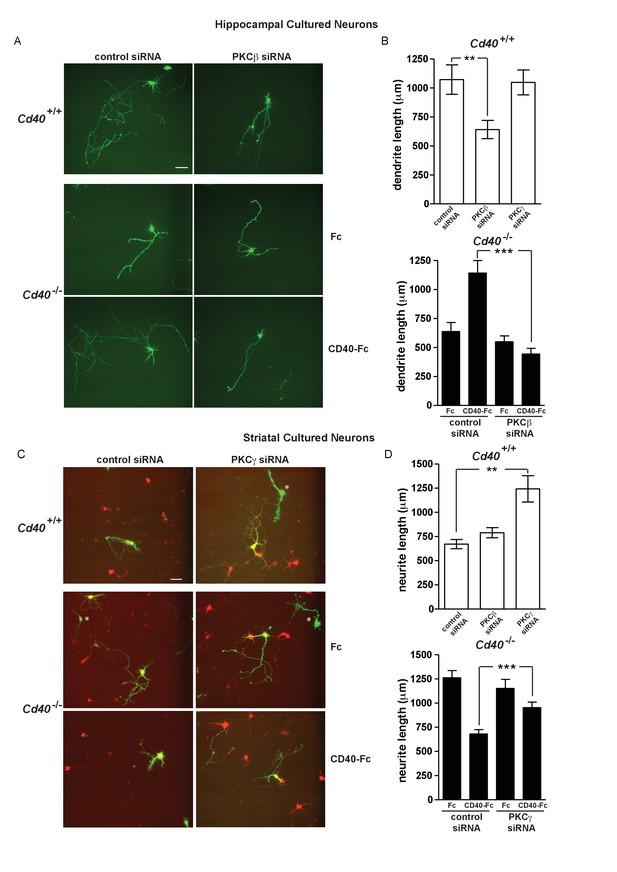

PKC-β and PKC-γ selectively participate in mediating the effects of CD40-activated CD40L reverse signalling on dendritic growth.

(A) Representative photomicrographs of hippocampal neurons of Cd40+/+ and Cd40-/- E18 embryos transfected with either control siRNA or PKC-β siRNA and cultured for 9 days. The Cd40-/- neurons were treated with either 1 μg/ml Fc protein or 1 μg/ml CD40-Fc. Scale bar, 100 μm. (B) Quantification of dendrite length from hippocampal pyramidal neurons of Cd40+/+ and Cd40-/- E18 embryos cultured for 9 days. Mean ± s.e.m of data collected from four separate experiments of Cd40+/+ neurons (control siRNA transfected, n = 32; PKC-β siRNA transfected, n = 33; PKC-γ siRNA transfected, n = 27) and Cd40-/- neurons (control siRNA transfected, Fc treated, n = 39; control siRNA transfected, CD40-Fc treated, n = 35; PKC-β siRNA transfected, Fc treated, n = 39; PKC-β siRNA transfected, CD40-Fc treated, n = 39). (C) Representative photomicrographs of MSNs of Cd40+/+ and Cd40-/- E14 embryos transfected with either control siRNA or PKC-γ siRNA and cultured for 10 days. The Cd40-/- neurons were treated with either 1 μg/ml Fc protein or 1 μg/ml CD40-Fc. MSNs were identified by DARPP-32 (red) and transfected neurons by the expression of GFP (green). * indicates transfected neurons that were not positive for DARPP-32. Scale bar, 50 μm. (D) Quantification of neurite length from MSNs of Cd40+/+ and Cd40-/- E14 embryos cultured for 10 days. Mean ± s.e.m of data collected from four separate experiments of Cd40+/+ neurons (control siRNA transfected, n = 27; PKC-β siRNA transfected, n = 26; PKC-γ siRNA transfected, n = 25) and Cd40-/- neurons (control siRNA transfected, Fc treated, n = 34; control siRNA transfected, CD40-Fc treated, n = 26; PKC-γ siRNA transfected, Fc treated, n = 29; PKC-γ siRNA transfected, CD40-Fc treated, n = 24). **p<0.01 and ***p<0.001, actual p values provided in the text, one-way ANOVA with multiple Newman-Keuls tests.

https://doi.org/10.7554/eLife.30442.018
Figure 6—source data 1

Means, s.e.m. and n numbers for Cd40+/+ pyramidal neuron bar charts.

https://doi.org/10.7554/eLife.30442.020
Figure 6—source data 2

Means, s.e.m. and n numbers for Cd40+/+ medium spiny neuron bar charts.

https://doi.org/10.7554/eLife.30442.021
Figure 6—source data 3

Means, s.e.m. and n numbers for Cd40-/- pyramidal neuron bar charts.

https://doi.org/10.7554/eLife.30442.022
Figure 6—source data 4

Means, s.e.m. and n numbers for Cd40-/- medium spiny neuron bar charts.

https://doi.org/10.7554/eLife.30442.023

We subsequently tested whether these siRNAs selectively inhibited the rescue of the dendrite growth phenotype of neurons cultured Cd40-/- mice by CD40-Fc. Whereas CD40-Fc rescued the impaired dendrite growth of CD40-deficient hippocampal pyramidal neurons transfected with control siRNA, PKC-β siRNA completely prevented CD40-Fc rescue (p=5.7×10−8) (Figure 6A and B). Whereas CD40-Fc reduced the exuberant dendrite growth of CD40-deficient MSNs transfected with control siRNA, PKC-γ siRNA significantly impaired this effect of CD40-Fc (p=7.4×10−4) (Figure 6C and D). Taken together, these results implicate PKC-β and PKC-γ in mediating the effects of CD40L reverse signaling in hippocampal pyramidal neurons and MSNs, respectively.

Expression of CD40 and CD40L

The striking and opposite effects of CD40-activated CD40L-mediated reverse signalling on the growth and elaboration of the dendritic arbors of excitatory hippocampal pyramidal neurons and inhibitory striatal MSNs raised the question of the cellular source of CD40 and how it activates CD40L in vivo. To address this question, we used western blotting and immunochemistry to ascertain the timing of CD40 and CD40L expression in the hippocampus and striatum. Western blotting revealed that both CD40 and CD40L are expressed in the hippocampus and striatum throughout development and in the adult, with highest levels of both proteins postnatally (Figure 7—figure supplement 1). CD40 immunoreactivity was lost in tissue obtained from Cd40-/- mice (Figure 7—figure supplement 1A), confirming antibody specificity. Immunohistochemisty revealed that CD40 and CD40L are widely expressed in the hippocampus (Figure 7) and striatum (Figure 8). Double labelling with anti-MAP2, which labels dendrites, showed that CD40 and CD40L are expressed throughout the dendrite fields of pyramidal and striatal neurons and double labelling with anti-GFAP, which labels astrocytes, showed that CD40 and CD40L are also expressed by these cells. CD40 immunoreactivity was not observed in hippocampal and striatal sections of Cd40-/- mice and no labelling was observed when the primary antibody was omitted (Figures 7 and 8). Double labelling for CD40 and CD40L in dissociated hippocampal and striatal cultures suggest that the great majority of pyramidal neurons and MSNs co-express CD40 and CD40L (Figure 9).

Figure 7 with 1 supplement see all

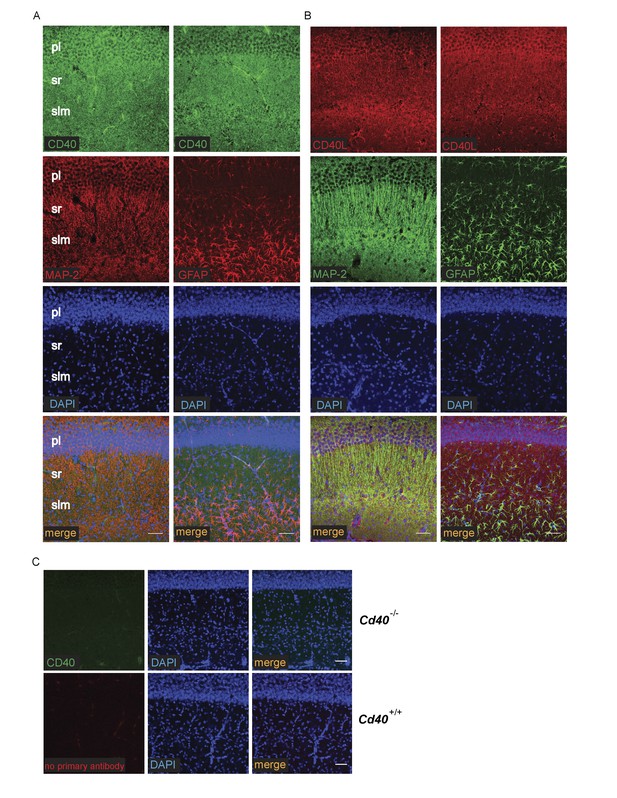

Localization of CD40 and CD40L in the developing hippocampus.

Representative images of sections of the CA1 region of P9 hippocampi labelled with either anti-CD40 (A) or anti-CD40L (B) together with DAPI and either anti-MAP-2 or anti-GFAP (pl, pyramidal layer; sr, stratum radiatum; slm, stratum lacunosum moleculare). (C) Antibody specificity controls: sections of the hippocampus of P9 Cd40-/- mice incubated with the anti-CD40 antibody and sections of the hippocampus of P9 Cd40+/+ mice that received no primary antibody. Scales bar, 50 μm.

https://doi.org/10.7554/eLife.30442.024

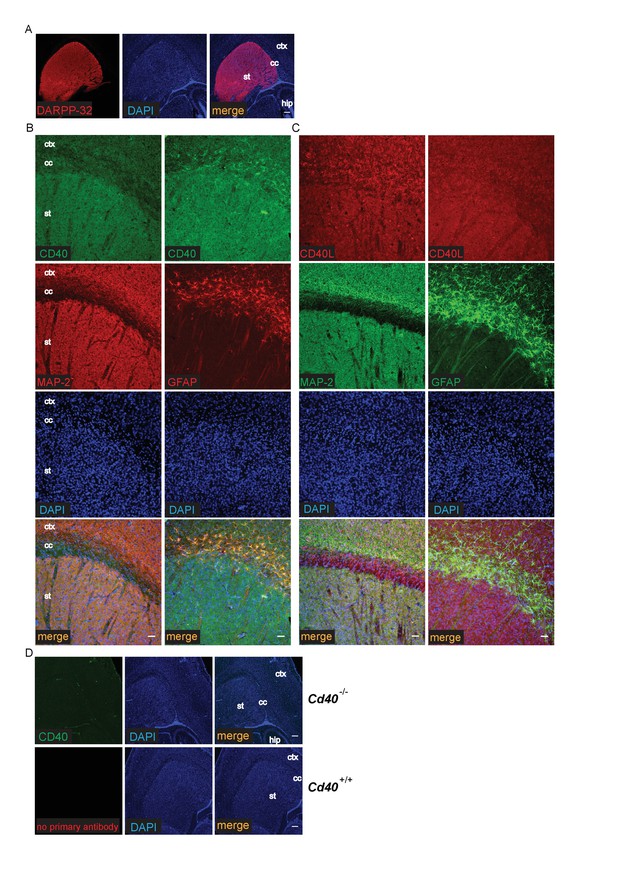

Localization of CD40 and CD40L in the developing striatum.

(A) Low-power images of the expression of striatal MSNs labelled with DARPP-32 and double labelled with DAPI. Scale bar, 250 μm. Representative higher power images of sections of the striatum labelled with either anti-CD40 (B) or anti-CD40L (C) together with DAPI and either anti-MAP-2 or anti-GFAP. (D) Antibody specificity controls: sections of the striatum of P9 Cd40-/- mice incubated with the anti-CD40 antibody and sections of the striatum of P9 Cd40+/+ mice that received no primary antibody (st, striatum; hip, hippocampus; ctx, cortex; cc, corpus callosum). Scale bar, 50 μm.

https://doi.org/10.7554/eLife.30442.026

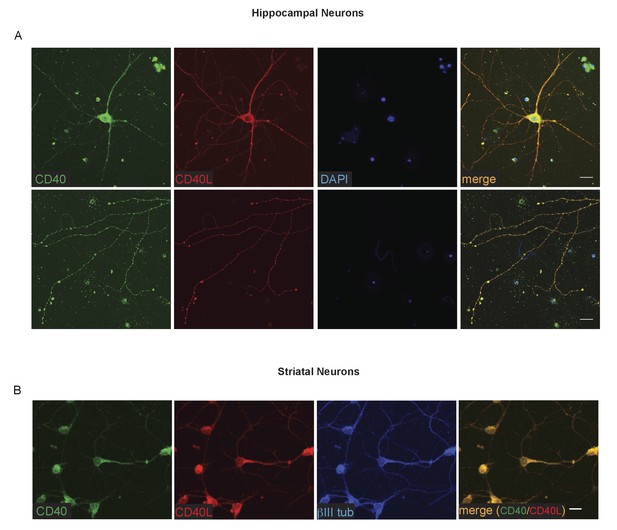

Co-localization of CD40 and CD40L in the cultured hippocampal pyramidal neurons and striatal MSNs.

(A) Representative images of dissociated E18 hippocampal cultures after 9 days in vitro triple labelling with anti-CD40, anti-CD40L and DAPI. The upper panels show images of neuronal cell bodies and proximal neural processes. The lower panels show distal neural processes. (B) Representative images of dissociated E14 striatal cultures after 10 days in vitro triple labelling with anti-CD40, anti-CD40L and βIII tubulin. Scale bar, 20 μm.

https://doi.org/10.7554/eLife.30442.027

Discussion

We have discovered that CD40 is a major novel regulator of dendrite arborisation in the developing brain that exerts prominent disparate effects on major populations of excitatory and inhibitory neurons. Analysis of Golgi preparations of CD40-deficient postnatal mice revealed that the apical and basal dendrite arbors of excitatory hippocampal pyramidal neurons were very much smaller and less branched than those of wild type littermates whereas the dendrite arbors of inhibitory striatal medium spiny neurons were greatly increased in size and more branched in the absence of CD40. These pronounced and opposite in vivo phenotypic changes were replicated in excitatory and inhibitory neurons cultured from Cd40-/- mice. In both cases, these distinctive in vitro phenotypes were completely rescued in neurons cultured from Cd40-/- mice by soluble CD40 (CD40-Fc), and were mimicked in neurons cultured from Cd40+/+ mice by soluble CD40L treatment. These observations together with our demonstration that both hippocampal excitatory and striatal inhibitory neurons display CD40L immunoreactivity, suggests that CD40 exerts its distinctive effects on dendrite arborisation in both excitatory and inhibitory neurons by a reverse signalling mechanism.

Our demonstration that both hippocampal excitatory pyramidal neurons and striatal inhibitory medium spiny neurons co-express CD40L and CD40 raise the possibility that CD40 activates CD40L in both kinds of neurons by an autocrine mechanism. We have previously reported that CD40-activated CD40L reverse signaling enhances axon growth from developing sympathetic neurons in vitro and contributes to the establishment of the sympathetic innervation of a specific subset of tissues in vivo (McWilliams et al., 2015). Because sympathetic neurons co-express CD40 and CD40L and can be cultured at exceptionally low density, it was possible to demonstrate that CD40-activates CD40L in sympathetic neurons by an autocrine mechanism. Because pyramidal neurons and MSNs have to be grown at much higher density and because these cultures contain a variety of cell types, including glial cells, it has not been possible to exclude the possibility that CD40L is also activated by paracrine mechanism in CNS neurons. Our demonstration that GFAP-positive astrocytes express CD40 and reports that microglia express low levels of CD40 (Carson et al., 1998; Nguyen et al., 1998) raise the possibility that CNS glia may play a role in activating CD40L in neurons. However, since CD40L and CD40 play a central role in immune responses (Peters et al., 2009), it is possible that microglial CD40 is related primarily to immune function, especially as CD40 is upregulated in these cells by proinflammatory cytokines (Carson et al., 1998; Nguyen et al., 1998).

A growing body of evidence has implicated several members of the TNFSF in the regulation of axon growth and tissue innervation in developing PNS by either forward or reverse signalling mechanisms. Typically, individual TNFSF members act on restricted populations of PNS neurons and either promote axon growth or inhibit axon growth-promoting effects of neurotrophins (Desbarats et al., 2003; Gavaldà et al., 2009,2013; Kisiswa et al., 2013, 2017; McWilliams et al., 2015; O'Keeffe et al., 2008; Wheeler et al., 2014). Here we not only demonstrate marked physiologically relevant effects of CD40L reverse signalling on dendrite growth and branching in functionally different kinds of CNS neurons but show that CD40-activated CD40L reverse signalling can either promote or inhibit dendritic arborisation in different kinds of neurons. Our work reveals that a particular TNFSF member exerts distinctive, neuron-specific effects on CNS dendrite growth. In addition to the hippocampal and striatal neurons studied here, it is clear that CD40 and CD40L are widely expressed in the developing brain neurons (not shown). Thus, it is possible that CD40 has more widespread effects on the growth of neural processes in the developing brain than those documented here.

In addition to our demonstration that CD40 is physiologically relevant regulator of dendrite growth in the developing brain in vivo, we showed that CD40-activated CD40L-mediated reverse signalling promotes hippocampal pyramidal axon growth in vitro. This raises the possibility that CD40-activated CD40L-mediated reverse signalling may be a physiologically important regulator of pyramidal neuron axon growth in vivo. However, because the full extent of hippocampal pyramidal axons cannot be reliably discerned in Golgi preparations, we were not able to establish whether CD40L reverse signalling is physiological relevant for pyramidal axon growth in vivo. We have reported that the TNFSF member APRIL enhances the axon growth, but not dendrite growth, from cultured hippocampal pyramidal neurons (Osório et al., 2014), although the physiological relevance of this observation is unclear. However, we have recently shown that APRIL enhances axon growth from cultured midbrain dopaminergic neurons and that the initial nigrostriatal projection is significantly compromised in April-/- embryos (McWilliams et al., 2017)

It has been reported that CD40 expression is retained in the adult brain, with most of the neurons of the dentate gyrus, hippocampal pyramidal layer and 60% of neurons in cerebral neocortex retaining expression (Tan et al., 2002). There is also some evidence for a neurodegenerative phenotype in aged CD40-deficient mice, with TUNEL-positive cells in the dentate gyrus, hippocampal pyramidal cell layer and neocortex and decreased level of neurofilament isoforms in whole brain lysates (Tan et al., 2002). Although the reason for these late degenerative changes is unclear, it is possible that the marked reduction in the size and complexity of pyramidal neuron dendritic arbors that we have documented in the postnatal and adult brain may contribute by impairing trophic maintenance of the degenerating neurons.

Our demonstration that pharmacological inhibition of PKC completely prevented the rescue of the distinctive dendrite phenotypes of CD40-deficient hippocampal and striatal neurons by soluble CD40-Fc and that pharmacological activation of PKC was as effective as CD40-Fc in rescuing these phenotypes suggests that PKC activation is an essential step in the effect of CD40-activated CD40L reverse signalling on dendrite growth in both kinds of neurons. This finding extends the importance of PKC in mediating the axon growth response of developing sympathetic neurons to TNFR1-activated TNF reverse signaling (Kisiswa et al., 2017) to another example of TNFSF reverse signaling affecting neural process growth. Moreover, it shows that PKC activation mediates both the growth-promoting and growth-inhibitory effects of reverse signaling in different kinds of neurons. PKC inhibition also prevents enhanced neurite growth from cultured embryonic hippocampal neurons by neuregulin-1 (Gerecke et al., 2004), whereas PKC activation increases dendrite growth and branching from these neurons by modulating neurotrophin synthesis (Lim and Alkon, 2012).

Using specific siRNA to knockdown the expression of different PKC isoforms, we have implicated the selective participation of PKC-β and PKC-γ in mediating the opposite effects of CD40L reverse signaling on dendrite growth from hippocampal pyramidal neurons and MSNs, respectively. While our findings do to exclude the participation of additional PKC isoforms in the signaling networks leading to increases or decreases in dendrite growth and branching, it will be intriguing in future work to ascertain how PKC-β and PKC-γ play these distinctive roles in neurons.

Our current study extends the role of CD40L reverse signalling from modulating the growth of a subset of sympathetic axons in the PNS to that of a major, physiologically relevant regulator of dendrite growth and elaboration in the developing CNS, having distinctive and opposite effects on excitatory and inhibitory neurons. This work raises a host of important questions for future work, including how extensively CD40L reverse signalling regulates neuronal morphology and the functional properties of neural circuits, what are behavioural consequences of the major cellular phenotypes observed in CD40-deficient mice, its role in neural plasticity in the adult and what its contribution to the neurological sequelae of CNS inflammatory conditions might be.

Materials and methods

Mice

Mice were housed in a 12 hr light-dark cycle with access to food and water ad libitum. Breeding was approved by the Cardiff University Ethical Review Board and was performed within the guidelines of the Home Office Animals (Scientific Procedures) Act, 1986. Cd40 null mutant mice in a C57BL6/J background were purchased from The Jackson Laboratory (Bar Harbor, Maine, USA). These mice were back-crossed for at least 10 generations into a CD1 background before undertaking any of the current experimental work. Cd40+/- mice were crossed to generate Cd40+/+ and Cd40-/- littermates.

Neuron culture

Request a detailed protocol

Primary hippocampal neuron cultures were prepared as described previously (Kaech and Banker, 2006), with modifications. Briefly, hippocampi were dissected from embryonic day 18 (E18) mouse fetuses and were triturated to produce a single cell suspension following trypsin digestion (Worthington, Lakewood, NJ, USA) and DNase I treatment (Roche Applied Science, UK). The neurons were plated in of 35 mm plastic dishes coated with poly-L-lysine (Sigma-Aldrich, UK) at a density of 15,000 cells/cm2 and were cultured in Neurobasal A (Invitrogen, UK) supplemented with 2% B27 (Invitrogen, UK), 0.5 mM GlutaMAX I (Invitrogen, UK), 100 units/ml penicillin and 100 μg/ml streptomycin (Gibco BRL, UK).

Medium spiny neuron (MSN) cultures were prepared from E14 striatal primordia that were triturated to produce a single cell suspension following trypsin digestion (Worthington, Lakewood, NJ, USA) and DNase I treatment (Roche Applied Science, UK). Neurons were plated at a density of 15,000 cells/cm2 at the center of 35 mm dishes coated with poly-L-lysine (Sigma-Aldrich, UK). Cells were cultured with Neurobasal A (Invitrogen, UK) supplemented with 2% B27 (Invitrogen, UK), 1% Foetal Calf Serum (FCS) (Sigma-Aldrich, UK), 100 units/ml penicillin and 100 μg/ml streptomycin (Gibco BRL, UK). To avoid extensive astrocyte proliferation, the medium was changed to medium without FCS after 7 days in vitro.

Hippocampal and striatal cultures were incubated at 37°C in a humidified atmosphere containing 5% CO2 and in both cases were treated the day after plating. The culture medium was partially replaced with fresh medium with the treatments every 4–5 days. The cultures were treated with the following reagents as indicated in the text: soluble CD40L (sCD40L) (Enzo Life Sciences, Farmingdale, NY, USA, ALX-522–120 C010), CD40-Fc (Enzo Life Sciences, ALX-522–016 C050), Fc protein (Enzo Life Sciences, ALX-203–004 C050), Go6983 (Tocris Biosciences, UK, cat. no. 2285) and phorbol-12-myristate-13-acetate (PMA) (MERCK, UK, cat. no. 524400). Go6983 and PMA were reconstituted in DMSO and diluted in culture medium to the concentration indicated. Control cultures received an equivalent amount of DMSO. For PKC experiments, the cells were plated in 24 well dishes.

Analysis of dendrite morphology

Request a detailed protocol

In hippocampal cultures, the neurite arbors of a proportion of the neurons were visualised in 3 day cultures by the fluorescent vital dye calcein-AM added at the end of the experiment and in 9 days cultures by transfecting the neurons with a GFP expression plasmid after 7 days in vitro using lipofectamine 2000 (Invitrogen, UK) according to the manufacturer’s instructions with modifications. Briefly, the cultures were treated for 3 hr with a mixture of the expression vector and lipofectamine, after which they were washed with medium and cultured for a further 48 hr. The neurons were fixed for 30 min with 4% paraformaldehyde. MSN cultures were fixed with 4% paraformaldehyde after 10 days in vitro, after which they were permeabilizated with 0.1% Triton-X100 and blocked with 0.5% BSA before labeling with anti-DARPP-32 (1:400 Cell Signaling Technology, Danvers, MA, USA) to identify MSNs. Analysis of neuronal morphology was studied after double labeling with anti-βIII tubulin (1:1500; chicken ab41489, AbCam, UK). After washing, the cultures were incubated with the appropriate fluorescent Alexa secondary antibodies (1:500; Thermofisher, UK, A-21206 and A-11042).

For the experiments of siRNA, 48 hr before fixing the neurons for the analysis of dendrite morphology, the neurons were co-transfected using lipofectamine with a GFP expression plasmid together with either of the following Silencer Select siRNA oligonucleotides at 10 nM: Silencer select negative control n.1, Prkcβ mouse and Prkcγ mouse (catalogue numbers 4390843, s71692 and s71693, respectively, Thermofisher, UK). For siRNA experiments on Cd40-/- neurons, the neurons were treated with either Fc or CD40-Fc after transfection.

Labelled neurons were visualized using a Zeiss LSM710 confocal microscope. Neurite arbors were assessed using Fiji (ImageJ) software with the semi-automated plugin Simple Neurite Tracer (Longair et al., 2011). All neurons labeled were counted without any criterion of exclusion. The mean and standard errors of the measurements from at least three independent experiments are plotted.

Golgi preparations

View detailed protocol

Modified Golgi-Cox impregnation was performed on 150 μm coronal sections for the hippocampus and 100 μm parasagittal sections for the striatum of P10, P30 and adult mouse brains of Cd40+/+ and Cd40-/- littermates using the FD Rapid GolgiStain kit (FD NeuroTechnologies, Ellicott City, MD, USA). Sholl analysis was carried out separately on the apical and basal dendritic arbors of pyramidal neurons in the CA1 hippocampal field and on the dendrite arbors of MSNs using the plugin Sholl Analysis of the Fiji software (Schindelin et al., 2012) after neuronal reconstruction with the plugin Simple Neurite Tracer (Longair et al., 2011).

Immunoblotting

Request a detailed protocol

Hippocampal and striatal tissue was placed in triton lysis buffer supplemented with protease and phosphatase inhibitor cocktail mix (Sigma-Aldrich, UK). Cultured neurons were first washed with ice-cold PBS and lysed with triton lysis buffer supplemented with protease and phosphatase inhibitor cocktail mix. For experiments to confirm siRNA knock down, the neurons were grown at very high density in 60 mm tissue culture dishes.

Insoluble debris was removed by centrifugation at 14,000 g for 10 min at 4°C. Equal quantities of protein were run on SDS-PAGE gels, and were transferred to PVDF membranes (Immobilon-P, Millipore, UK) that were incubated with blocking solution (5% non-fat dry milk in TBS with 0.1% tween-20, TBS-T). After washing with TBS-T the blots were probed with the following antibodies: anti-CD40 (1:450; rat MAB4401, R and D, UK), anti-CD40L (1:700; rabbit ab2391, AbCam, UK), anti-PKC-a (1:1000, mouse 610107, BD Transduction Laboratories, UK), anti-PKC-b (1:250, mouse 610127, BD Transduction Laboratories, UK), anti-PKC-γ (1:1000; rabbit 43806S, Cell Signaling Technology, Danvers, MA, USA), anti-PKC-ε (1:1000, mouse 610085, BD Transduction Laboratories, UK), anti-GAPDH (1:90,000; mouse G8795, Sigma, UK) or anti-actin (1;60,000: mouse ab3280, AbCam, UK). Bound primary antibodies were visualized with HRP-conjugated goat anti-rat (1:1000, 7077, Cell Signaling Technology, Danvers, MA, USA), donkey anti-rabbit or anti-mouse secondary antibodies (1:5000; rabbit W4011, mouse W4021, Promega, UK) and EZ-ECL kit Enhanced Chemiluminescence Detection Kit (Biological Industries, Geneflow Limited, UK).

Immunohistochemistry and immunocytochemistry

Request a detailed protocol

For immunohistochemistry, P9 brains were fixed in fresh 4% paraformaldehyde in 0.12 M phosphate buffer, pH 7.2 for 24 hr at 4°C. After washing in PBS, the tissue was cryoprotected in 30% sucrose before being frozen. Tissue was frozen in isopentene cooled with dry ice and was serially sectioned at 30 μm. After washing with PBS, the sections were permeabilizated with 0.1% Triton X-100 (Sigma-Aldrich, UK) for 1 hr and then blocked with 1% BSA and 0.1% Triton X-100 (Sigma-Aldrich, UK) in PBS for 2 hr at room temperature. Primary antibodies were prepared in PBS with 0.5% BSA and 0.1% Triton X-100, and incubated overnight at 4°C. Primary antibodies were: rabbit polyclonal anti-CD40L (1:150, AbCam, UK, catalogue number ab2391), rat monoclonal anti-CD40 (1:100, AbCam, UK, catalogue number ab22469), chicken anti-MAP2 (1:5000, AbCam, UK, catalogue number ab5392), chicken anti-GFAP (1:2000, AbCam, UK, catalogue number ab4674), rabbit monoclonal anti-DARPP-32 (1:400 Cell Signaling Technology, Danvers, MA, USA, catalogue number 2306) and chicken anti-βIII tubulin (1:1500, AbCam, UK, catalogue number ab41489). The sections were washed in PBS and were incubated for 1 hr with secondary fluorescent Alexa antibodies (1:500; Thermofisher, UK, A-21207; A-11006; A-11042; A-11039; AbCam, ab175674). Negative controls (no primary antibody and staining of tissues from Cd40-/- mice) were also set up. After washing with PBS, the sections were mounted on slices with Fluoromount-G (Cambridge Bioscience, UK). Images were obtained with Zeiss LSM710 confocal microscope.

For immunocytochemistry, cultures were fixed as above for 15 min at room temperature and were washed extensively with PBS before permeabilization and blocking of nonspecific binding for 1 hr at room temperature as above. The cultures were incubated overnight at 4°C with rabbit polyclonal anti-CD40L (1/200), rat monoclonal anti-CD40 (1/200) and for the striatal cultures also with anti-βIII tubulin (1/1500). After washing with PBS, the cultures were incubated with donkey anti-rabbit Alexa 594, goat anti-rat Alexa 488 and goat anti-chicken Alexa 405 (1:500, Thermofisher, UK; A-21207; A-11006; AbCam, ab175674). Images were obtained using a Zeiss LSM710 confocal microscope.

References

    1. Dotti CG
    2. Sullivan CA
    3. Banker GA
    (1988)
    The establishment of polarity by hippocampal neurons in culture
    Journal of Neuroscience 8:1454–1468.
    1. Neumann H
    2. Schweigreiter R
    3. Yamashita T
    4. Rosenkranz K
    5. Wekerle H
    6. Barde YA
    (2002)
    Tumor necrosis factor inhibits neurite outgrowth and branching of hippocampal neurons by a rho-dependent mechanism
    Journal of Neuroscience 22:854–862.

Decision letter

  1. Jeremy Nathans
    Reviewing Editor; Johns Hopkins University School of Medicine, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "CD40 is a major regulator of dendrite growth from developing excitatory and inhibitory neurons" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The following individual involved in review of your submission has agreed to reveal her identity: Bonnie Firestein (Reviewer #1).

Three expert reviewers have assessed the manuscript and their views, as well as my own, form the basis of this letter.

We were all impressed with the novelty and significance of your findings with CD40 and CD40L and with the combination of in vitro and in vivo approaches. The different dendritic responses of different neuronal types is especially intriguing.

We would like to invite you to submit a revised manuscript, taking into account the suggestions of the three reviewers (appended here). The most ambitious suggestion (relating to a behavioral phenotype; point 2 from reviewer 2) is likely outside of the scope of your current body of work.

Reviewer #1:

This manuscript reports a completely novel finding on the role of CD40 and CD40L on shaping the dendritic arbor. The work uses both in vivo and in vitro analysis and identifies PKC as a mediator of CD40 function. Since CD40 and CD40L have generally been studied in the immune system, this work will have a very high impact on both fields. Given that the authors uncover distinct effects on excitatory and inhibitory neurons, this work is distinct from the work on CD40 and CD40L in the PNS.

The manuscript is well-written and very easy to follow. The data are of high quality and appropriate controls were performed.

I have two questions.

1) Did the authors observe any changes to inhibitory neurons in the hippocampus in the knockout animals? Or in culture (although this may be difficult to study as only 10% of neurons are inhibitory)?

2) Please perform two-way ANOVA for Sholl curve statistics.

In sum, this is a complete story.

Reviewer #2:

Carriba and Davies report on a novel role of CD40/CD40 ligand signaling in developing CNS neurons. Interestingly, the effects of CD40 gene knockout on hippocampal pyramidal neurons and striatal medium spiny neurons (MSNs) are opposite, both in vivo and in vitro: Loss of CD40 decreased hippocampal neuron complexity, whereas MSN complexity increased. The authors then used soluble CD40L as dominantly-interfering agent to inhibit CD40/CD40L interaction in cultured wild-type neurons, and soluble CD40-Fc to activate CD40L reverse signaling in cultured CD40-/- neurons. The results suggest that CD40-induced CD40L reverse signaling promotes and restricts growth of hippocampal neurons and MSNs, respectively. In a first attempt to get at the underlying mechanism, the authors pharmacologically interfered with PKC activity and found, somewhat unsatisfactorily, that PKC activity mediates both the growth of hippocampal neurons and growth suppression of MSNs.

I find that the experiments were executed with care and competence, the results convincing and reasonably comprehensive, and most importantly unexpected and somewhat surprising, such that they may spark the interest of readers outside the immediate field of TNF superfamily cytokines.

1) The in vivo neuron complexity data were taken from only one time point (P10). To raise significance of their findings, the authors need to add at least one later time point (e.g. P30) to exclude that the effects of CD40 elimination on hippocampal neurons and MSNs are transient.

2) The observation of a morphological change in a mutant mouse brain is interesting and an excellent starting point; however, the description of a correlating alteration in physiological properties of the neurons or in a relevant behavioral paradigm would be so much more interesting and at the same time validate the observed morphological changes.

Reviewer #3:

The manuscript by Carriba and Davies examines the role of CD40, an integral membrane protein, in dendritic development. Several studies have demonstrated that activation of CD40 by its ligand CD40L or CD154 in T cells results in the activation of antigen presenting cells. However, the role of these proteins remains poorly understood in the nervous system.

By analysing CD40 knock out mutant mice the authors discovered the exciting find that this protein plays contrasting roles in dendritic arborisation in different neuronal cell types. Loss of function of CD40 in hippocampal neurons results in decreased dendritic branching. In contrast, in medium spiny neurons (MSNs) in the striatum deficiency in CD40 results in the formation of more elaborated dendrites. Intriguingly, the suppression or promotion of dendritic development is mediated through the ligand CD40L. Moreover, using pharmacological approaches, the authors demonstrated a role of PKC in mediating these effects.

The paper presents new and exciting data. Importantly, the experiments are well conducted and the phenotype is striking and clear. However, the authors need to examine in more detail the mechanisms by which CD40 promotes and suppresses dendritic arborisation in these different cell types. In summary, this paper reports a very exciting finding worth publishing in eLife. However, the authors should examine in more detail the mechanisms involved to begin to elucidate how CD40 elicits such contrasting effects.

1) Given that expression of CD40 in the CNS has not been well reported, the authors should explain why they focused their work on the hippocampus and striatum to examine the phenotype of the CD40 mutant mice.

2) The data presented in all the figures is clear, convincing and well quantified. However, it is not clear why the neurons in Figure 2 top panels (CD40+/+ and CD40-/-) are different from those represented in Figure 5 (DMSO and Fc). The neurons were isolated from the same stage and cultured for the same period of time.

3) In Figure 2, the authors present data demonstrating a role for PKC in mediating the effects of CD40 using pharmacological approaches. It would be important to also present complementary results using for example genetic approaches to validate the role of PKC.

4) Figure 6—figure supplement 1, the authors clearly demonstrate the specificity of the CD4 by western blots. A similar control using the brain slices should be used to corroborate the staining in Figure 6.

5) The authors indicated in the first paragraph of the Discussion that they demonstrated that both hippocampal and striatal neurons "display surface CD40L immunoreactivity". However, according to the Materials and methods section, the staining was done after treating the cells with detergents. Thus, the staining reflects the total levels of the protein but not just surface. This statement should be changed.

6) Regarding the mechanisms that could modulate the opposing effects of CD40. One possibility is that the authors explore the precise location of the CD40 and CD40L along the dendrites and whether Rho GTPases are differentially regulated in different neurons.

https://doi.org/10.7554/eLife.30442.029

Author response

Reviewer #1:

[…] I have two questions.

1) Did the authors observe any changes to inhibitory neurons in the hippocampus in the knockout animals? Or in culture (although this may be difficult to study as only 10% of neurons are inhibitory)?

As pointed out by the reviewer, inhibitory neurons comprise only very small proportion of neurons in the hippocampus. What’s more, there are many kinds of inhibitory neurons with different morphologies in the hippocampus, which further complicates addressing this question. For these and other reasons, we focused on the large population of well-characterized inhibitory neurons of the striatum that we have been able to study extensively in vivo and in vitro. While it is indeed an interesting question whether CD40 signaling affects dendrite growth from different kinds of inhibitory neurons, this would require very extensive work that is beyond the scope of our initial study.

2) Please perform two-way ANOVA for Sholl curve statistics.

Done.

In sum, this is a complete story.

Reviewer #2:

[…] 1) The in vivo neuron complexity data were taken from only one time point (P10). To raise significance of their findings, the authors need to add at least one later time point (e.g. P30) to exclude that the effects of CD40 elimination on hippocampal neurons and MSNs are transient.

We have studied the hippocampus and striatum of CD40-deficient mice and wild type littermates at two additional ages (P30 and adult) by the Golgi technique. We find very clear differences at both ages, similar to those observed in the developing hippocampus and striatum: the dendrites of hippocampal pyramidal were markedly stunted in CD40-deficient mice, whereas those striatal inhibitory neurons were much more exuberant. Representative images at these older stages are shown in Figure 1—figure supplement 2.

2) The observation of a morphological change in a mutant mouse brain is interesting and an excellent starting point; however, the description of a correlating alteration in physiological properties of the neurons or in a relevant behavioral paradigm would be so much more interesting and at the same time validate the observed morphological changes.

How the distinctive and widespread morphological changes observed in dendritic arbors of CD40-deficient mice affects behaviour is indeed a fascinating and important question. However, we agree with Editor’s comment “that this likely is outside the scope of our current body of work”. We are not a behavioral laboratory and have no expertise in this field. However, we have no doubt that our observations will be of great interest to behavioral laboratories and are likely to initiate studies to ascertain in which ways behavior is affected.

Reviewer #3:

The manuscript by Carriba and Davies examines the role of CD40, an integral membrane protein, in dendritic development. Several studies have demonstrated that activation of CD40 by its ligand CD40L or CD154 in T cells results in the activation of antigen presenting cells. However, the role of these proteins remains poorly understood in the nervous system.

By analysing CD40 knock out mutant mice the authors discovered the exciting find that this protein plays contrasting roles in dendritic arborisation in different neuronal cell types. Loss of function of CD40 in hippocampal neurons results in decreased dendritic branching. In contrast, in medium spiny neurons (MSNs) in the striatum deficiency in CD40 results in the formation of more elaborated dendrites. Intriguingly, the suppression or promotion of dendritic development is mediated through the ligand CD40L. Moreover, using pharmacological approaches, the authors demonstrated a role of PKC in mediating these effects.

The paper presents new and exciting data. Importantly, the experiments are well conducted and the phenotype is striking and clear. However, the authors need to examine in more detail the mechanisms by which CD40 promotes and suppresses dendritic arborisation in these different cell types. In summary, this paper reports a very exciting finding worth publishing in eLife. However, the authors should examine in more detail the mechanisms involved to begin to elucidate how CD40 elicits such contrasting effects.

1) Given that expression of CD40 in the CNS has not been well reported, the authors should explain why they focused their work on the hippocampus and striatum to examine the phenotype of the CD40 mutant mice.

There are numerous reasons why we focused on the hippocampus and striatum in our initial study. Hippocampal pyramidal and striatal medium spiny neurons are among the most extensively characterized major classes of neurons in the developing CNS. They have characteristic morphologies in vivo, facilitating studies of dendrite morphology in the intact animal. They can be easily cultured as the predominant cell type in cultures set up from particular embryonic stages, facilitating signaling studies. Because the stages of dendritogensis are very well-characterized in these neurons in vitro, cultures are especially suitable for studying the factors that influence dendrite growth and branching. We make these points in the revised text.

CD40 and CD40L are indeed widely expressed in CNS, and we have preliminary evidence that CD40 reverse signaling influences the growth of dendrites from cortical pyramidal neurons, but have not followed this up because dendritogenesis in hippocampal pyramidal neurons is a much better model system in which to study this.

2) The data presented in all the figures is clear, convincing and well quantified. However, it is not clear why the neurons in Figure 2 top panels (CD40+/+ and CD40-/-) are different from those represented in Figure 5 (DMSO and Fc). The neurons were isolated from the same stage and cultured for the same period of time.

There are two issues here. First, to match the size of the micrographs with the size of the bar charts in Figures 2 and 5, we used different magnifications, making the scale bars different lengths. This gives the impression that the neurons shown in Figure 2 are larger than the equivalent neurons shown in Figure 5. To avoid confusion, we have adjusted the magnification so the scale bars in these figures are the same length in both figures. Second, there is a good deal of variation in the morphology of individual neurons, making selection of “representative neurons” problematic. For this reason, we quantify a very large number of neurons in multiple experiments. So what’s really important is the quantification shown in the bar charts. Indeed, this is remarkably consistent given that the different kinds of experiments shown in Figures 2 and 5 were done over 3 years. We show micrographs only to give the reader some idea of what the cultured neurons look like. That said, we have selected a few different micrographs where necessary.

3) In Figure 2, the authors present data demonstrating a role for PKC in mediating the effects of CD40 using pharmacological approaches. It would be important to also present complementary results using for example genetic approaches to validate the role of PKC.

To address this issue, we studied the effects of siRNA knock down of selected PKC isoforms on dendrite growth from hippocampal pyramidal neurons and MSNs. Because PMA activates conventional and novel PKC isoforms, we first checked expression of the conventional and novel PKC isoforms that have been reported to be abundantly expressed in whole brain. Using Western blotting, we demonstrated expression of PKC-α, β, γ and ε in the developing hippocampus and striatum. Because we were able to consistently and efficiently knock down PKC-β and PKC-γ expression in hippocampal and striatal neuron cultures with specific siRNA, we focused subsequent experiments on these isoforms. We were able to show that these isoforms selectively participate in mediating the opposite effects of CD40L reverse signaling on dendrite growth from hippocampal and striatal neurons.

In initial experiments using wild type neurons, we showed that transfection of PKC-β siRNA but not PKC-γ siRNA significantly decreased dendrite growth from hippocampal neurons and that transfection of PKC-γ siRNA but not PKC-β siRNA significantly increased dendrite growth from MSNs. In subsequent experiments on CD40-deficient neurons, we showed that PKC-β siRNA completely prevented CD40-Fc from rescuing the stunted dendrite phenotype of CD40-deficient hippocampal pyramidal neurons and that PKC-γ siRNA significantly prevented CD40-Fc from rescuing the exuberant dendrite phenotype of CD40-deficient MSNs.

In summary, we have not only used an alternative experimental approach to validate the role of PKC, but have additionally shown that different PKC isoforms are selectively involved in hippocampal and striatal neurons. These data are reported in new Figure 6 and Figure 6—figure supplement 1.

4) Figure 6—figure supplement 1, the authors clearly demonstrate the specificity of the CD4 by western blots. A similar control using the brain slices should be used to corroborate the staining in Figure 6.

We include these specificity controls for sections of the hippocampus and striatum (Figures 7C and 8D).

5) The authors indicated in the first paragraph of the Discussion that they demonstrated that both hippocampal and striatal neurons "display surface CD40L immunoreactivity". However, according to the Materials and methods section, the staining was done after treating the cells with detergents. Thus, the staining reflects the total levels of the protein but not just surface. This statement should be changed.

This oversight has been corrected in the text.

6) Regarding the mechanisms that could modulate the opposing effects of CD40. One possibility is that the authors explore the precise location of the CD40 and CD40L along the dendrites and whether Rho GTPases are differentially regulated in different neurons.

To begin to explore this intriguing possibility, we used Western blotting to assess the relative levels of expression of RhoA/B/C, Rac1/2/3 and Cdc42 in developing hippocampus and striatum. While all proteins were expressed in these tissues, there were no obvious differences in the relative levels between these tissues. We used immunohistochemistry and immunocytochemistry in wild type and CD40-deficient neurons to ascertain whether there were differences in the distribution of these proteins, but we did not observe any obvious differences between hippocampal and striatal neurons. Finally, considering that there is a redistribution of these proteins when they are activated, we also tried to detect changes in the distribution after treating CD40-deficient neurons with CD40-Fc, but again, we did not observe any clear differences in distribution. Although these results do not exclude that possibility that Rho GTPases play a role in the differential response of pyramidal and medium spiny neurons to CD40 reverse signaling, these results do not give us sufficient reason to pursue this line of enquiry at this stage.

https://doi.org/10.7554/eLife.30442.030

Article and author information

Author details

  1. Paulina Carriba

    School of Biosciences, Cardiff University, Cardiff, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6980-2277
  2. Alun M Davies

    School of Biosciences, Cardiff University, Cardiff, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    DaviesAlun@cardiff.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5841-8176

Funding

Wellcome Trust (103852)

  • Alun M Davies

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the Wellcome Trust (grant number 103852). Our thanks to Dr Suppalak Lewis for help in optimising the immunohistochemistry conditions.

Ethics

Animal experimentation: Mouse breeding and housing was approved by the Cardiff University Ethical Review Board and was performed within the remit of Home Office Licence PPL303081.

Reviewing Editor

  1. Jeremy Nathans, Johns Hopkins University School of Medicine, United States

Publication history

  1. Received: July 14, 2017
  2. Accepted: November 6, 2017
  3. Accepted Manuscript published: November 7, 2017 (version 1)
  4. Version of Record published: November 15, 2017 (version 2)

Copyright

© 2017, Carriba et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,463
    Page views
  • 252
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Immunology and Inflammation
    2. Neuroscience
    Ibrahim T Mughrabi et al.
    Tools and Resources Updated

    Vagus nerve stimulation (VNS) suppresses inflammation and autoimmune diseases in preclinical and clinical studies. The underlying molecular, neurological, and anatomical mechanisms have been well characterized using acute electrophysiological stimulation of the vagus. However, there are several unanswered mechanistic questions about the effects of chronic VNS, which require solving numerous technical challenges for a long-term interface with the vagus in mice. Here, we describe a scalable model for long-term VNS in mice developed and validated in four research laboratories. We observed significant heart rate responses for at least 4 weeks in 60–90% of animals. Device implantation did not impair vagus-mediated reflexes. VNS using this implant significantly suppressed TNF levels in endotoxemia. Histological examination of implanted nerves revealed fibrotic encapsulation without axonal pathology. This model may be useful to study the physiology of the vagus and provides a tool to systematically investigate long-term VNS as therapy for chronic diseases modeled in mice.

    1. Neuroscience
    Shinya Ohara et al.
    Research Article Updated

    The entorhinal cortex, in particular neurons in layer V, allegedly mediate transfer of information from the hippocampus to the neocortex, underlying long-term memory. Recently, this circuit has been shown to comprise a hippocampal output recipient layer Vb and a cortical projecting layer Va. With the use of in vitro electrophysiology in transgenic mice specific for layer Vb, we assessed the presence of the thus necessary connection from layer Vb-to-Va in the functionally distinct medial (MEC) and lateral (LEC) subdivisions; MEC, particularly its dorsal part, processes allocentric spatial information, whereas the corresponding part of LEC processes information representing elements of episodes. Using identical experimental approaches, we show that connections from layer Vb-to-Va neurons are stronger in dorsal LEC compared with dorsal MEC, suggesting different operating principles in these two regions. Although further in vivo experiments are needed, our findings imply a potential difference in how LEC and MEC mediate episodic systems consolidation.
