Osteocalcin expressing cells from tendon sheaths in mice contribute to tendon repair by activating Hedgehog signaling

  1. Yi Wang
  2. Xu Zhang
  3. Huihui Huang
  4. Yin Xia
  5. YiFei Yao
  6. Arthur Fuk-Tat Mak
  7. Patrick Shu-Hang Yung
  8. Kai-Ming Chan
  9. Li Wang
  10. Chenglin Zhang
  11. Yu Huang
  12. Kingston King-Lun Mak  Is a corresponding author
  1. The Chinese University of Hong Kong, Hong Kong
  2. The Chinese University of Hong Kong, Prince of Wales Hospital, Hong Kong
Research Article
  • Cited 3
  • Views 1,037
  • Annotations
Cite this article as: eLife 2017;6:e30474 doi: 10.7554/eLife.30474

Abstract

Both extrinsic and intrinsic tissues contribute to tendon repair, but the origin and molecular functions of extrinsic tissues in tendon repair are not fully understood. Here we show that tendon sheath cells harbor stem/progenitor cell properties and contribute to tendon repair by activating Hedgehog signaling. We found that Osteocalcin (Bglap) can be used as an adult tendon-sheath-specific marker in mice. Lineage tracing experiments show that Bglap-expressing cells in adult sheath tissues possess clonogenic and multipotent properties comparable to those of stem/progenitor cells isolated from tendon fibers. Transplantation of sheath tissues improves tendon repair. Mechanistically, Hh signaling in sheath tissues is necessary and sufficient to promote the proliferation of Mkx-expressing cells in sheath tissues, and its action is mediated through TGFβ/Smad3 signaling. Furthermore, co-localization of GLI1+ and MKX+ cells is also found in human tendinopathy specimens. Our work reveals the molecular function of Hh signaling in extrinsic sheath tissues for tendon repair.

https://doi.org/10.7554/eLife.30474.001

Introduction

Tendon injuries, commonly caused by overuse or age-related degeneration, are hard to repair and represent a major clinical challenge. Mechanisms responsible for the reparative process remain elusive. It has been hypothesized that tendon heals through both intrinsic and extrinsic mechanisms in which cells from both within the tendons and the surrounding tissues are necessary for the healing process (Chang et al., 1997; de Mos et al., 2007; Gelberman et al., 1984; Harrison et al., 2003; Jones et al., 2003; Manske and Lesker, 1984; Peacock, 1965; Potenza, 1962; Salingcarnboriboon et al., 2003). However, molecular evidence for the contribution of extrinsic tissues to support such notion is missing.

Tendon fibers are enveloped by a dense membrane of connective tissues that are composed of epitenon and tendon sheaths, bridging blood vessels, lymphatics and nerves to tendon fibers (Elliott, 1965; Hess et al., 1989). Tendon sheaths are classified as extrinsic tissues in contrast to tendon fibers and epitenons, which are intrinsic structures (Kannus, 2000). Tendon sheath only covers tendon fibers in high friction areas where it provides lubrication for the functions of fibers comprising, for examples, the Tibialis anterior tendon, the peroneus longus and brevis tendon, and the flexor and extensor tendons. Tubulin polymerization-promoting protein family member 3 (Tppp3) is the first and only molecular marker to be identified that is expressed in developing epitenon and tendon sheath (Staverosky et al., 2009). However, Tppp3 expression is also found in developing muscles and forming joints. It is not clear whether Tppp3 is also expressed in adult tendon sheaths. Additional molecular markers are therefore needed to investigate the function of sheath tissues in adult tendon remodeling and repair.

Hedgehog (Hh) signaling plays important roles in the skeletal system, in both bone and cartilage development and homeostasis (Karp et al., 2000; Vortkamp et al., 1996; Mak et al., 2006, 2008a, 2008b). Apart from bones and cartilages, it has been recently demonstrated that Hh signaling is also involved in tendon development (Liu et al., 2012, 2013; Schwartz et al., 2015). Hh-responding cells were found in the tendon insertion sites but not in the mid-substances during the perinatal stage (Liu et al., 2012; Schwartz et al., 2015), suggesting that Hh signaling plays a role in the process that transitions fibrocartilage to tendon fibers. In addition, the removal of Hh signaling in Scleraxis (Scx)-expressing cells reduces the biomechanical strength of the adult mouse tendons (Liu et al., 2013). This suggests that Hh signaling regulates early events in tendon fiber formation and remodeling. These accumulating evidence sources prompted us to hypothesize that Hh signaling is implicated in tendon repair. Here, we identified a new adult tendon sheath specific marker Osteocalcin, which is encoded by the Bglap gene. We established that Bglap-expressing cells from sheath tissues possess stem/progenitor cell properties and that they participate in tendon repair. More importantly, Hh signaling mediates its effect through TGFβ signaling to regulate the expression of Mkx and collagen I. Our studies demonstrate the first molecular evidence for the contribution of extrinsic sheath tissues during tendon healing and that manipulation of Hh signaling may be a therapeutic target for tendon repair.

Results

Osteocalcin as a tendon sheath marker

The molecular evidence of extrinsic tissues in tendon repair is unclear. This is partly due to the lack of specific markers for molecular tracing of these cell populations during the repair process. To access the biology of tendon sheath tissues during tendon repair, we first determined markers that are specifically expressed in mouse adult tendon sheaths. Tppp3 is the only marker reported that is expressed in developing sheath tissues, epitenon and paratenon (Staverosky et al., 2009). Consistent with this work in mouse embryos, we found that Tppp3 was also specifically expressed in adult tendon sheaths (Figure 1A). Interestingly, Osteocalcin, which is encoded by the Bglap gene also showed a specific expression pattern similar to that of Tppp3 in the sheath tissues. QRT-PCR analysis revealed that Tppp3 and Bglap were highly expressed in sheath tissues as compared to tendon fibers (Figure 1B). Thus, we asked whether Bglap can be used as an adult tendon sheath specific marker. We crossed BGLAP-Cre transgenic mice, a Cre line driven by the human BGLAP promoter (Zhang et al., 2002; Mak et al., 2008a), with a Rosa26mT/mG mouse line (Muzumdar et al., 2007) for lineage tracing of Bglap-expressing cells in tendon tissues. As expected, strong and specific GFP signals were detected in tissues surrounding the tendon fibers of the BGLAP-Cre;Rosa26mT/mG mice (Figure 1C). Cross-sections of tendon tissues displayed highly specific GFP signals in the sheath tissues but not in tendon fibers (Figure 1D). To further verify that the GFP+ cells are highly specific to tendon sheaths but not tendon fibers, the sheath and fiber tissues of the BGLAP-Cre;Rosa26mT/mG mice were dissected separately and subjected to cell-sorting for green fluorescence. We found that about 80% of the cells isolated from the sheath tissues were GFP+, of which approximately 1.5% had clonogenic capacity as shown by a colony-formation assay (Figure 1—figure supplement 1). Consistently, both Tppp3 and Bglap were strongly expressed in the sorted GFP+ cells of the sheath tissues but poorly expressed in GFP cells in the tendon fiber tissues (Figure 1E). Thus, our data indicate that Bglap is specifically expressed in adult tendon sheaths and can be used as a tendon sheath specific marker.

Figure 1 with 1 supplement see all

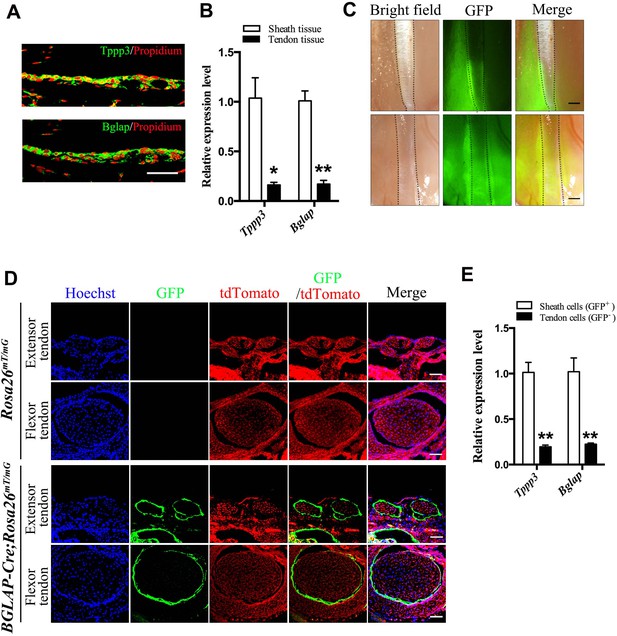

Bglap as a tendon sheath specific marker.

(A) Fluorescent immunohistochemistry of mouse sheath tissues of the adult Tibialis anterior tendon at 2 months old (n = 5 mice per group). Scale bar, 40 μm. (B) QRT-PCR analysis of sheath-specific markers using adult mouse sheath and tendon tissues as shown. Relative expression levels were normalized to β-tubulin and the sheath tissues. Data are means ± s.e.m and were analyzed using Student’s t-tests. *p≤0.013; **p≤0.0014. n = 3 mice per group. (C) Images of peroneus longus and brevis tendon (upper panel) and Tibialis anterior tendon (lower panel) of the BGLAP-Cre;Rosa26mT/mG mice at 2 months old. Dotted lines depict the boundaries of the tendon fibers. GFP signals are observed in the tendon sheath tissues (n = 5 mice per group). Scale bar, 250 μm. (D) Cross-sections of fluorescent microscopic analysis of the extensor tendons and flexor tendons of Rosa26mT/mG and BGLAP-Cre;Rosa26mT/mG mice. Scale bar, 50 μm (n = 5). (E) QRT-PCR analysis of sheath-specific markers using sheath and tendon cells isolated from the BGLAP-Cre;Rosa26mT/mG mice after cell-sorting for green fluorescence (GFP). Relative expression levels were normalized to Gapdh and the sheath cells. Data are means ± s.e.m and were analyzed using a Student’s t-tests. **p≤0.0062. n = 3 biological replicates per group. Additional data for this figure are provided in Figure 1—figure supplement 1.

https://doi.org/10.7554/eLife.30474.002

Tendon sheath-derived cells are clonogenic and multi-potent

To determine whether tendon-sheath-derived cells possess stem/progenitor properties, we performed a single-colony assay using cells isolated from the tendon sheaths (GFP+) and tendon fibers (tdTomato+) of the BGLAP-Cre;Rosa26mT/mG mice after cell-sorting. After 14 days, colonies derived from a single cell were visualized by fluorescence imaging and crystal violet staining (Figure 2A,B). Like tdTomato+ tendon fiber-derived cells that possess stem-cell-like properties (Bi et al., 2007), GFP+ sheath-derived cells also showed colonies of heterogeneous size and cell density. BMP2 and TGF-β1 are important factors in regulating bone and tendon formation (Rodeo et al., 1999; Liu et al., 2015; Gori et al., 1999; Pryce et al., 2009). Thus, we examined how sheath-derived cells responded to these treatments (Figure 2—figure supplement 1A–C). BMP2 and TGF-β1 induced the expression of tendon progenitor markers Mkx (Ito et al., 2010) and Scx (Schweitzer et al., 2001) (Figure 2—figure supplement 1A). However, only BMP2 but not TGF-β1 induced the osteoblast markers Runx2 (Komori et al., 1997) and Sp7 (Nakashima et al., 2002) (Figure 2—figure supplement 1B). Both BMP2 and TGF-β1 induced the expression of chondrocyte markers Col2a1 (Cheah et al., 1995) and Sox9 expression (Lefebvre et al., 1997) (Figure 2—figure supplement 1C). These responses were highly similar to those of tendon fiber-derived stem/progenitor cells (Bi et al., 2007).

Next, we tested the multipotent differentiation potentials of the sheath-derived cells toward osteogenesis, adipogenesis and chondrogenesis as compared to tendon-fiber-derived cells (Figure 2C–H). We found that sheath-derived cells differentiated into all three lineages with differentiating potential comparable to that of tendon stem/progenitor cells. All the lineage-specific markers were significantly increased under lineage-specific differentiation conditions (Figure 2D,F,H). To further determine the multipotent differentiation potential of sheath-derived cells in vivo, we subcutaneously transplanted the GFP+ sheath cell sheets into the dorsal surface of the immunocompromised mice. After 8 weeks, the transplanted GFP+ cell sheets formed tendon-like structures (Figure 2I–L). In some regions of the transplanted tissues, cells were stained positively for Alcian blue or Alizarin Red S (Figure 2M,N), suggesting that these cells also differentiated into chondrocytes and mineralized bone tissues. Similar results were observed using GFP+ sheath cells mixed with matrix gels and subcutaneously injected into the calvaria of immunocompromised mice (Figure 2—figure supplement 1D–I). Collectively, our data reveal that Bglap+ sheath cells harbor clonogenicity and multipotency similar to that of the tendon-fiber-derived stem/progenitor cells both in vitro and in vivo.

Figure 2 with 1 supplement see all

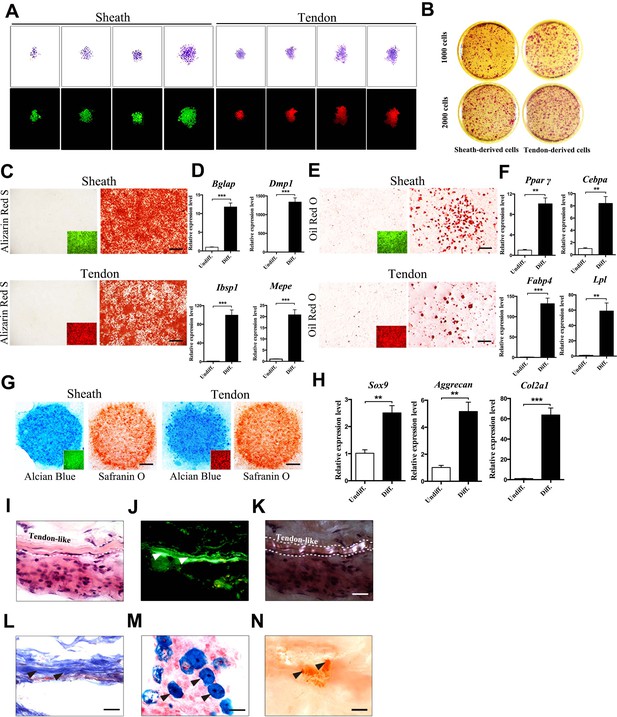

Multipotent differentiation potential of sheath-derived cells.

(A) Colony formation assay using sheath-derived cells (GFP+) or tendon-derived cells (tdTomato+) isolated from the adult tendon tissues of BGLAP-Cre;Rosa26mT/mG mice. Colonies were stained with crystal violet (upper panel) or by fluorescence (lower panel) after 14 days of culture (n = 5). (B) Primary cells were seeded with two different initial cell densities of 1000 or 2000 for 14 days as shown. (CEG) Lineage differentiation assay under (C) osteogenic (scale bar, 1000 μm), (E) adipogenic (scale bar, 200 μm), and (G) chondrogenic conditions (scale bar, 1000 μm) using primary cells isolated from the tendon tissues of BGLAP-Cre;Rosa26mT/mG mice after cell-sorting. Insets represent the fluorescence signals of the respective primary cells before differentiation. GFP+ cells represent cells from sheath tissues; tdTomato+ cells represent cells from tendon fibers (n = 3). (D, F, H) QRT-PCR analysis of gene markers for (D) osteogenesis, (F) adipogenesis and (H) chondrogenesis. Relative expression levels were normalized to Gapdh and the undifferentiated condition. Data are means ± s.e.m and were analyzed using Student’s t-tests. **p≤0.0074; ***p≤0.001. n = 3 biological replicates per group. (I–N) Histologic analysis of tendon-like structures using GFP+ sheath cell sheets transplanted into the dorsal surface of immunocompromised mice after 8 weeks. Tendon-like tissues were identified under (I) H&E staining, (J) Green fluorescence, (K) polarized light, and (L) Masson’s trichrome staining. Arrowheads point to regions of (J) tendon-like structure, (M) chondrocytes as shown by Alcian blue staining or (N) mineralized bone as shown by Alizarin Red S staining. Dashed lines indicate the boundaries of tendon-like tissues (n = 5 mice). Scale bar, 20 μm. Additional data for this figure are provided in Figure 2—figure supplement 1.

https://doi.org/10.7554/eLife.30474.007

Tendon-sheath-derived cells contribute to tendon repair

The mesenchymal properties of putative sheath stem/progenitor cells suggest that these cells contribute to tendon repair and regeneration. To investigate the repair capacity of tendon sheath in vivo, a full-thickness medial edge of the defect was created along the Tibialis anterior tendon of the BGLAP-Cre;Rosa26mT/mG mice where true tendon sheath tissues surrounded the tendon fibers. At Day 14, GFP+ cells appeared in the areas of injured tendon fibers as shown in both cross- and longitudinal-sections (Figure 3A, Figure 3—figure supplement 1A). Furthermore, these GFP+ cells also co-expressed the tendon progenitor marker Mkx (Figure 3B, Figure 3—figure supplement 1B). These results suggest that sheath tissues possess stem/progenitor cells that differentiate into tenocytes for tendon repair. To further demonstrate the repair ability of sheath-derived cells, we isolated GFP+ tendon sheaths from the BGLAP-Cre;Rosa26mT/mG mice and transplanted them into the injured Achilles tendon of the left hind leg of immunocompromised mice in which the tendon is not surrounded by true tendon sheaths (Kannus, 2000). A full-thickness medial edge of the defect was created along the entire Achilles tendon and the sheath tissues transplants were placed in close proximity underneath the injured tendon. Two days after injury, most of the GFP+ sheath tissues were still localized at the implanted position (Figure 3C). At Day 14, GFP+ sheath tissues migrated towards the injured tendon fibers. By Day 45, GFP+ cells were markedly found within the injured tendon fibers and had differentiated into tendon-fiber-like structures. Close examination revealed that the GFP+ cells were morphologically, molecularly and biomechanically similar to tendon-like fibers (Figure 3D–I). The GFP+ cells were polarized (Figure 3D) and thetendon progenitor markers Mkx and Scx (Figure 3E) as well as tendon extracellular matrix (ECM) components (Figure 3F) were strongly unregulated in the sheath-transplanted tendons. Furthermore, the overall collagen content was significantly increased in the sheath-transplanted group after injury (Figure 3G). Biomechanical testing of peak force, peak stress and stiffness was also significantly improved in the sheath-transplanted group (Figure 3H and I). Co-localization of Mkx expression with GFP+ cells was also observed at the injured sites (Figure 3J, Figure 3—figure supplement 2A). In addition, FACS-sorted GFP+ cells that were isolated from the grafts 14 days after the injury also displayed a molecular tendon signature (Figure 3K). Altogether, our results indicate that Bglap-expressing sheath cells contribute to tendon repair.

Figure 3 with 2 supplements see all

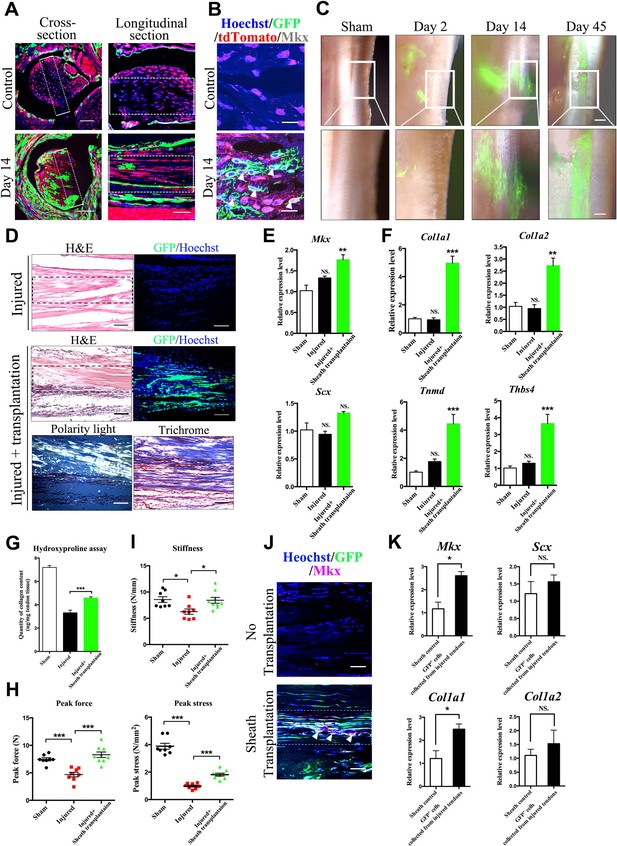

Tendon sheath tissues contribute to tendon repair.

(A) Fluorescence analysis in cross- and longitudinal sections of the Tibialis anterior tendon of BGLAP-Cre;Rosa26mT/mG mice at Day 0 (Control) and Day 14 after injury(without grafting) (n = 3 mice per group). Boxed areas indicate the regions of the injury sites (dashed line). Scale bar, 100 μm. (B) Fluorescence analysis of Mkx in the BGLAP-Cre;Rosa26mT/mG mice Tibialis anterior tendon tissues at Day 0 (Control) and Day 14 after injury (n = 3 mice per group). White arrowheads point to GFP+/Mkx+ cells at the injured site of the BGLAP-Cre;Rosa26mT/mG mouse tendon tissues. Scale bar, 20 μm. (C) GFP+ Tibialis anterior tendon sheath tissues isolated from the BGLAP-Cre;Rosa26mT/mG mice formed tendon-like fibers at the injured Achilles tendon of immunocompromised mice after transplantation. Scale bar, 250 μm. Boxed regions of higher magnification are shown in the lower panel. Scale bar, 100 μm (n = 5 mice per group). (D) Histologic analysis of consecutive sections at the injured sites of the sheath transplantation group (bottom) and the no transplantation group (top) at Day 14 after injury (n = 5 mice). Boxed areas indicate the regions of the injury sites (dashed line). (E, F) Gene expression profiles of (E) tendon progenitor markers and (F) tendon extracellular matrix (ECM) components of the injured tendon at Day 14. Relative expression levels were normalized to Gapdh and the sham group. Data are means ± s.e.m and were analyzed using one-way analysis of variance (ANOVA) followed by Tukey’s multiple comparison test. **p≤0.0021; ***p≤0.0008; NS, not significant. n = 4 mice per group. (G) Hydroxyproline assay of Achilles tendon tissues 4 weeks after injury. Data are means ± s.e.m and were analyzed using one-way analysis of variance (ANOVA) followed by Tukey’s multiple comparison test. ***p≤0.0007. n = 5 mice per group. (H, I) Parameters of mechanical testing of tendon tissues in the sham, tendon-injured and tendon=injured with BGLAP-Cre;Rosa26mT/mG sheath transplantation groups at 4 weeks after surgery. Sheath transplantation represents GFP+ sheath-derived cells sorted from the BGLAP-Cre;Rosa26mT/mG mice. Data are means ± s.e.m and were analyzed using one-way analysis of variance (ANOVA) followed by Tukey’s multiple comparison test. ***p≤0.001, *p≤0.0228. n ≥ 8 mice per group. (J) Co-localization of Mkx and BGLAP-Cre/GFP at the injured sites of the nude mice tendon tissues with or without the sheath transplantation at Day 14 after injury (n = 5 mice per group). White arrowheads point to GFP+/Mkx+ cells at the injured site of the nude mice tendon tissues with BGLAP-Cre;Rosa26mT/mG sheath transplantation. Boxed areas indicate the regions of the injury sites (dashed line). Scale bar, 20 μm. (K) Gene-expression profiles of tendon progenitor markers and ECM components of FACS-sorted GFP+ cells from the nude mice injured tendons with BGLAP-Cre;Rosa26mT/mG sheath transplantation at Day 14. Sheath controls were the FACS-sorted GFP+ cells directly from BGLAP-Cre;Rosa26mT/mG sheath tissues. Relative expression levels were normalized to β-tubulin and the sheath control group. Data are means ± s.e.m and were analyzed using Student’s t-tests. *p≤0.0383; NS, not significant. n = 3 replicates per group.

https://doi.org/10.7554/eLife.30474.015

Hh signaling promotes the proliferation of sheath progenitor cells

To dissect the mechanistic regulation that activates sheath stem/progenitor cells for tendon repair, we searched for signaling pathways that are implicated during early tendon cell differentiation. It has been previously reported that Hh signaling is activated for tissue regeneration (Wang et al., 2015; Zhao et al., 2015). In addition, Hh signaling is also active at the insertion site and in tendon cells during tendon development (Liu et al., 2012, 2013). Its activity correlates with cell proliferation rate in tendon tissues. These data suggest that Hh signaling may control the early differentiation process in tendon progenitor cells. Thus, we examined the gene profiles of tendon markers in wild-type mice after injury (Figure 4A–C). We found that tendon progenitor markers and tendon ECM markers were all significantly upregulated after injury (Figure 4A,B). We also noticed that Hh ligand Shh, but not Dhh and Ihh, was significantly upregulated in the sheath tissues after injury (Figure 4C). Thus, we tested the Hh signaling activity after injury in vivo by using a Ptch1lacZ/+ mouse model, which is derived from a floxed allele of Ptch1 (Mak et al., 2006). Ptch1 is a transcriptional target of Hh signaling, and the expression of the LacZ gene represents the activity of Hh signaling. Conditional loss of Ptch1 by crossing with Stra8-Cre mice leads to gain of LacZ expression in the germline embryowide. A full-thickness medial edge of the defect was introduced into the Tibialis anterior tendon of the left hind limb of the Ptch1lacZ/+ mice; the tendon fibers in this region were surrounded by true tendon sheaths. Interestingly, strong X-gal staining was observed at 2 weeks after injury in the surrounding sheath tissues (Figure 4D,E). Hh target gene Gli1, as well as the tendon-sheath markers Tppp3 and Bglap, were strongly induced in the injured tissues (Figure 4F). To further demonstrate that cells with activated Hh signaling from the sheath tissues contribute to tendon repair, we isolated sheath tissues from the Ptch1lacZ/+ mice and transplanted them into immunocompromised mice with injuries in the Achilles tendon, where no true tendon sheaths were present (Figure 4G). Two weeks after transplantation, X-gal signals were found in the injured tendon fibers and LacZ+ cells were detected within the injured regions (Figure 4H).

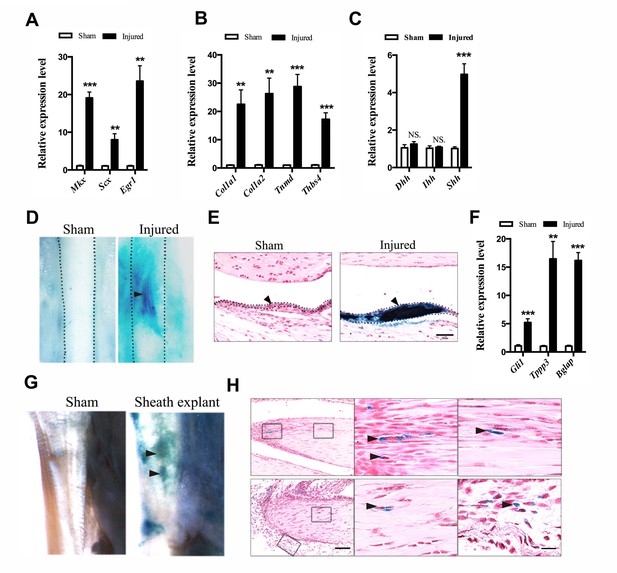

Activation of Hh signaling in sheath tissues upon injury.

(A, B) Gene expression profiles of (A) tendon progenitor markers and (B) ECM components in the tendon sheath tissues of wild-type mice two weeks after injury. Relative expression levels were normalized to β-tubulin and the sham group. Data are means ± s.e.m and were analyzed using Student’s t-tests. **p≤0.0055; ***p≤0.0006. n = 4 mice per group. (C) Gene expression profiles of Hh ligands in the sheath tissues one week after injury. Relative expression levels were normalized to Gapdh and the sham group. Data are means ± s.e.m and were analyzed using Student’s t-tests. ***p≤0.0001; NS, not significant. n = 6 mice per group. (D) X-gal (USB Corporation, USA) staining of the Tibialis anterior tendon of Ptch1LacZ/+ mice two weeks after injury. Strong signals were observed in the sheath tissues of the injured site (arrowhead). Dotted lines depict the boundaries of tendon tissues (n = 5 mice per group). (E) Cross-section of the injured sheath tissues as shown in (D) (n = 5 mice per group). Dotted lines depict the boundaries of the sheath tissues. Scale bar, 50 μm. (F) Gene expression profiles in the tendon sheath tissues of wild-type mice two weeks after injury. Relative expression levels were normalized to β-tubulin and the sham group. Data are means ± s.e.m and were analyzed using Student’s t-tests. **p≤0.0025; ***p≤0.001. n = 4 mice per group. (G) Ptch1LacZ/+ sheath tissues transplanted to the injured Achilles tendon of immunocompromised mice after two weeks (n = 5 mice per group). (H) Histologic analysis of the injured tendon fibers as shown in (G). Scale bar, 100 μm. Boxed areas are shown in high magnification on the right. The lower right panel depicts the boxed area from the surrounding tissues. Arrowheads point to LacZ+ cells within the tendon fibers (n = 5 mice per group). Scale bar, 20 μm.

https://doi.org/10.7554/eLife.30474.023

To further elucidate the biological roles of Hh signaling in sheath tissues, we generated the Ptch1c/c;BGLAP-Cre mutant mice to upregulate Hh signaling in the tendon sheath tissues. Histologic examination revealed that the sheath tissues in the mutant mice were significantly thicker than those of the control littermates (Figure 5A,B). These data suggest that the sheath cells were highly proliferative. As expected, strong X-gal signals were detected in the sheath tissues of the Ptch1c/c;BGLAP-Cre mutant mice, indicating that Hh signaling activity was strongly induced (Figure 5C–E). Indeed, the thickened tendon sheaths of the Ptch1c/c;BGLAP-Cre mutant mice showed strong expression of phospho-H3 and there were very few apoptotic cells (Figure 5F). We also found that tendon sheath tissues were normally more proliferative than tendon fiber tissues in adult tissues (Figure 5—figure supplement 1A). Strikingly, the highly proliferative sheath cells also co-expressed Gli and Mkx in the sheath tissues (Figure 5G,H), suggesting that Hh signaling promotes the proliferation of tendon sheath progenitor cells. Indeed, Mkx has been previously shown to be strongly expressed in the sheath tissues (Liu et al., 2010) and implicated in both tendon repair (Liu et al., 2015) and type I collagen production in tendon tissues (Ito et al., 2010). Similarly, primary tendon sheath cells isolated from the Ptch1c/c;BGLAP-Cre mutant mice also displayed positive X-gal signals and increased cell proliferation (Figure 5—figure supplement 1B–F). Together, our data indicate that Hh signaling promotes the proliferation of Mkx-expressing sheath stem/progenitor cells.

Figure 5 with 1 supplement see all

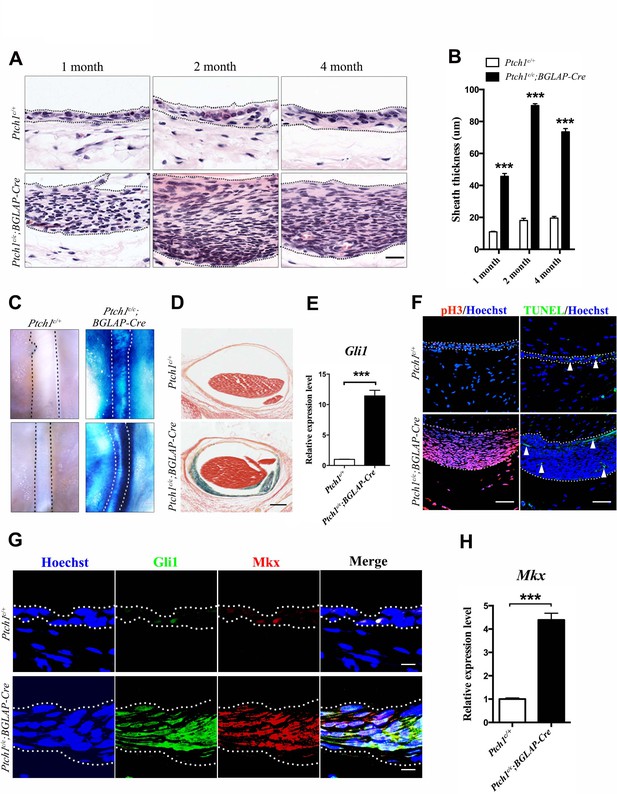

Activated Hh signaling increases cell proliferation in sheath tissues.

(A) Histologic analysis of the sheath tissues of the Tibialis anterior tendon of different mice genotypes at multiple time points. Scale bar, 20 μm. (B) Statistical analyses of the sheath thickness data illustrated in (A). Data are means ± s.e.m and were analyzed using Student’s t-tests. ***p<0.0001. n = 10 biological replicates per group. (C) X-gal staining of the sheath tissues of the Tibialis anterior tendon (upper panel) and the Peroneus longus tendon (lower panel) of mice of different genotypes at 3 months old (n = 6 mice per group). (D) Cross-sections of the Tibialis anterior tendon sheath tissues at Day 21 with X-gal staining (n = 6 mice per group). Scale bar, 100 μm. (E) QRT-PCR analysis of Hh activity in the sheath tissues. Relative expression levels were normalized to Gapdh and the Ptch1c/+ group. Data are means ± s.e.m and were analyzed using a Student’s t-test. ***p≤0.0004. n = 3 mice per group. (F) Fluorescent immunohistochemistry of cell proliferation (pH3) and apoptosis (TUNEL) of the sheath tissues at 2 months old of mice with genotypes as shown (n = 3 mice per group). White arrowheads point to apoptotic cells in the sheath tissues. Scale bar, 40 μm. (G) Co-localization of Gli1 and Mkx expression in the sheath tissues of mice with genotypes as shown (n = 3 mice per group). Scale bar, 10 μm. (H) Gene expression analysis of Mkx in the sheath tissues illustrated in (G). Relative expression levels were normalized to Gapdh and the Ptch1c/+ group. Data are means ± s.e.m and were analyzed using a Student’s t-test. ***p≤0.0007. n = 3 mice per group. Dotted lines depict the boundaries of sheath tissues. Additional data for this figure are provided in Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.30474.028

Hh signaling in tendon sheath is required for tendon repair

Next, to test whether Hh signaling in the tendon sheath is required for tendon repair, we genetically removed Hh signaling by generating Smoc/c;BGLAP-Cre mutant mice. In contrast to those of the Ptch1c/c;BGLAP-Cre mutant mice, the tendon sheaths of the Smoc/c;BGLAP-Cre mutant mice were much thinner than those of control littermates (Figure 6A,B). Sheath cell proliferation was significantly reduced while the frequency of apoptotic cells was slightly increased (Figure 6C). Mkx and Gli1 expression were minimally expressed in normal but not in mutant sheath tissues (Figure 6D).

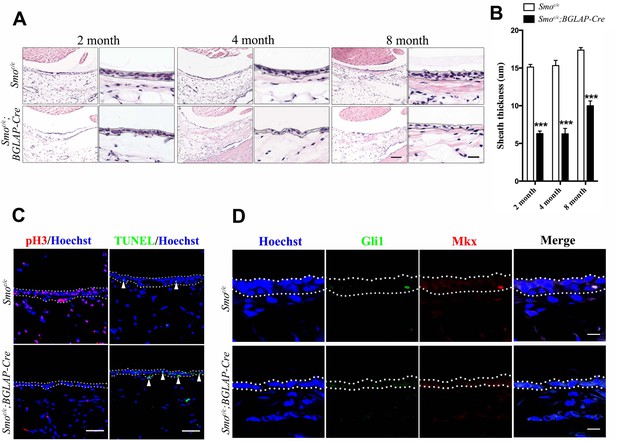

Hh signaling is necessary for sheath cell proliferation.

(A) Histologic analysis of the sheath tissues of the Tibialis anterior tendon of mice with genotypes as shown. Scale bar, 100 μm. Higher magnification is shown on the right. Scale bar, 20 μm. (B) Statistical analysis of sheath thickness as shown in (A). Data are means ± s.e.m and were analyzed using Student’s t-tests. ***p<0.0001. n = 10 biological replicates per group. (C) Fluorescent immunohistochemistry of sheath tissues showing the cell proliferation (pH3) and apoptosis (TUNEL) of mice with genotypes as shown. White arrowheads point to apoptotic cells in sheath tissues (n = 3 mice per group). Scale bar, 40 μm. (D) Immunohistochemistry of Gli1 and Mkx expression in the sheath tissues of mice with genotypes as shown (n = 3 mice per group). Scale bar, 10 μm. Dotted lines depict the boundaries of sheath tissues.

https://doi.org/10.7554/eLife.30474.034

Under tendon-injured conditions, the tendon sheath tissues around the injured site in the control group were markedly thickened (Figure 7A). Both Gli1 and Mkx were strongly expressed in the sheath tissues (Figure 7B). These observations were highly similar to those in the Ptch1c/c;BGLAP-Cre mutant mice. However, these phenotypic changes were not observed in the Smoc/c;BGLAP-Cre mutant mice upon injury (Figure 7A,B). Tendon repair was significantly impaired in the Smoc/c;BGLAP-Cre mutant mice and cell proliferation was inhibited in the injured tendon fibers of these mice (Figure 7C,D). Total collagen content was significantly reduced (Figure 7E) and co-expression of Mkx and Gli1 in the mutant tendon fibers was nearly missing (Figure 7F). Gene expression levels of Mkx, Scx and all the tendon ECM markers were similarly reduced (Figure 7—figure supplement 1). In summary, our data indicate that Hh signaling is necessary to promote the proliferation of sheath progenitor cells for tendon repair.

Figure 7 with 1 supplement see all

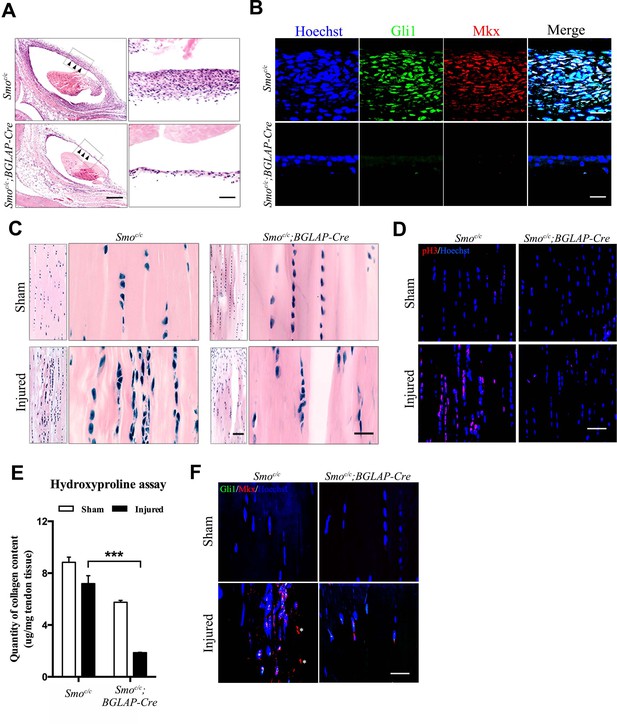

Hh signaling is required for sheath-mediated tendon repair.

(A) Histologic analysis of the Tibialis anterior tendon of mice with genotypes as shown 4 weeks after injury (n = 4 mice per group). Scale bar, 400 μm. Higher magnifications of the boxed regions are shown on the right. Scale bar, 50 μm. Arrowheads point to the sheath tissues. (B) Fluorescent immunohistochemistry of Gli1 and Mkx expression in the sheath tissues as shown in (A) (n = 4 mice per group). Scale bar, 20 μm. (C) Histologic analysis of Tibialis anterior tendon fibers of mice with genotypes as shown 4 weeks after injury. Scale bar, 50 μm. Higher magnification is shown on the right (n = 4 mice per group). Scale bar, 20 μm. (D) Fluorescent immunohistochemistry of cell proliferation (pH3) of the tendons of mice with genotypes as shown in (C) (n = 4 mice per group). Scale bar, 40 μm. (E) Hydroxyproline assay using Tibialis anterior tendon tissues 4 weeks after injury. Data are means ± s.e.m and were analyzed using one-way analysis of variance (ANOVA) followed by Tukey’s multiple comparison test. ***p≤0.0001. n = 4 mice per group. (F) Fluorescent immunohistochemistry of Gli1 and Mkx of the Tibialis anterior tendon fibers of mice with genotypes as shown 4 weeks after injury (n = 4 mice per group). *, non-specific signals. Scale bar, 20 μm. Additional data for this figure are provided in Figure 7—figure supplement 1.

https://doi.org/10.7554/eLife.30474.036

Hh signaling induces Mkx and Collagen I expression through TGFβ/Smad3 signaling

To dissect the mechanism through which Hh activation promotes the proliferation of tendon progenitor cells for tendon repair, we first infected primary Ptch1c/c sheath cells with Cre adenovirus (Figure 8A), or treated GFP+ tendon sheath cells from BGLAP-Cre;Rosa26mT/mG mice with the Hh agonist purmorphamine (Figure 8B). Both sets of results showed significant upregulation of gene expression for sheath, tendon progenitor and ECM markers. Interestingly, the expression of TGF-β1, -β2, -β3 and the TGFβ-signaling target gene Smad7 were also greatly induced (Figure 8C,D), suggesting that Hh signaling activates TGFβ signaling in tendon sheath cells. Furthermore, Smad3 was also strongly phosphorylated in Ptch1c/c;BGLAP-Cre mutant sheath tissues (Figure 8E). Next, we searched for Smad-binding sites in the promoter regions of Mkx. As expected, we found putative Smad3 binding sites at positions −4060 bp,–714 bp and −156 bp of the Mkx promoter regions (Figure 9A). We cloned the promoter regions containing the putative binding sites and examined Smad binding using a luciferase assay. Our results showed that only Smad3 but not Smad2 significantly induced luciferase activities in both the 0.8 kb and 4.1 kb promoter regions of Mkx, indicating that Smad3 is responsible for the induction of Mkx expression. To demonstrate the specificity of the Hh-induced activation of TGFβ signaling in inducing Mkx and Col1a1 expression, we co-treated the primary sheath cells with purmorphamine and a specific inhibitor of the type I TGFβ receptor SB431542 (Figure 9B,C). In the presence of the SB431542 inhibitor, the effects of Hh agonists were greatly diminished. Together, our data indicate that TGFβ signaling mediates the effect of Hh signaling in regulating Mkx and Col1a1 expression.

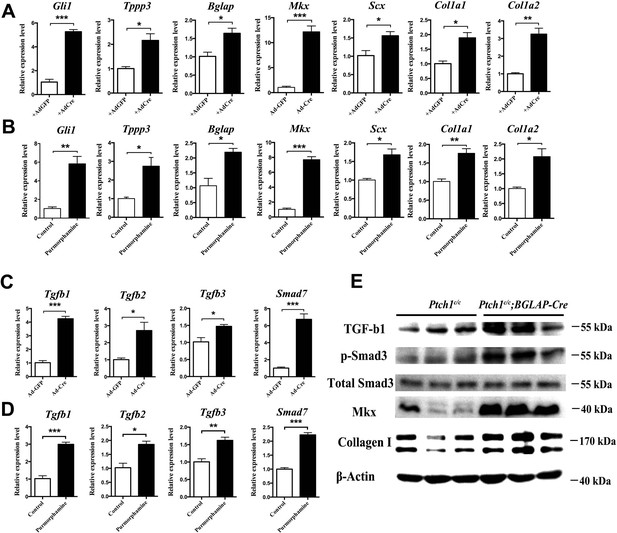

Hh activation upregulates Mkx and Collagen I via TGFβ/Smad3 signaling.

(A, C) Gene expression profiling using primary Ptch1c/c sheath cells infected with Cre-adenovirus for 48 hr. Relative expression levels were normalized to β-tubulin and the Ad-GFP group. Data are means ± s.e.m and were analyzed using Student’s t-tests. *p≤0.0394; **p≤0.0028; ***p≤0.0009. n = 3 biological replicates per group. (B, D) Gene expression profiling using BGLAP-Cre;Rosa26mT/mG sorted GFP+ primary sheath cells treated with the Hh agonist purmorphamine (1000 nM, Millipore, USA) for 48 hr. Relative expression levels were normalized to β-tubulin and the control group. Data are means ± s.e.m and were analyzed using Student’s t-tests. *p≤0.0213; **p≤0.0085; ***p≤0.0007. n = 3 biological replicates per group. (E) Western blot analysis of protein expression in primary sheath cells of Ptch1c/c and Ptch1c/c;BGLAP-Cre mice (n = 3 per group).

https://doi.org/10.7554/eLife.30474.041

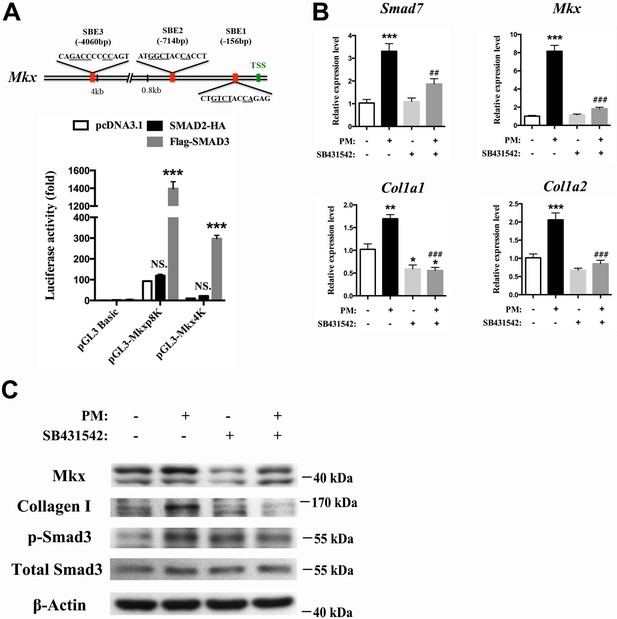

Hh activation upregulates Mkx and Collagen I via TGFβ/Smad3 signaling.

(A) (Upper panel) Schematic diagram of putative Smad-binding element (SBE) motifs in the promoter region of Mkx. (TSS, transcription start site; the canonical Smad-binding conserved sequence GT/GCTNNCA is underlined). (Lower panel) Dual-luciferase assay of Mkx activities using reporter plasmids with 0.8 kb (pGL3-Mkxp8K with two Smad binding sites) or 4060 bp (pGL3-Mkx4K with three Smad binding sites) of Mkx promoter regions with SMAD2 or SMAD3 overexpression, respectively, in HEK293T cells. Data are means ± s.e.m and were analyzed using two-way analysis of variance (ANOVA) followed by Tukey’s multiple comparison test. ***p≤0.0001; NS, not significant. n = 3 biological replicates per group. (B) QRT-PCR analysis of the TGFβ/Smad3 signaling target gene Smad7, the tendon progenitor Mkx and the main ECM components Col1a1 and Col1a2 in primary sheath cells treated with purmorphamine (PM) (1000 nM), with or without specific type I TGFβ receptor inhibitor SB431542 pre-treatment (10 μM, 1 hr). Relative expression levels were normalized to β-tubulin and the control group. Data are means ± s.e.m and were analyzed using one-way analysis of variance (ANOVA) followed by Tukey’s multiple comparison test. *p≤0.0293; **p≤0.0012; ***p≤0.0003; ## p≤0.0045; ### p≤0.0001. (*, comparison with control group; #, comparison with PM treatment). n = 3 biological replicates per group. (C) Western blot analysis of protein expression in sheath primary cells (n = 3 per group).

https://doi.org/10.7554/eLife.30474.046

To elucidate the relevance of Hh signaling activation in human tendon injury, we also examined the expression of GLI1 and MKX in human tendinopathy specimens (Figure 10). We found that only regions with tendinopathy showed strong expression of GLI1 and MKX. These proteins were expressed at low levels in adjacent tendon regions where the integrity of the tendon fibers was relatively normal. Thus, our data suggest that Hh signaling is activated in human tendinopathy patients. However, it remains unclear whether GLI1/MKX expression represents a scarring and/or tendon repair process.

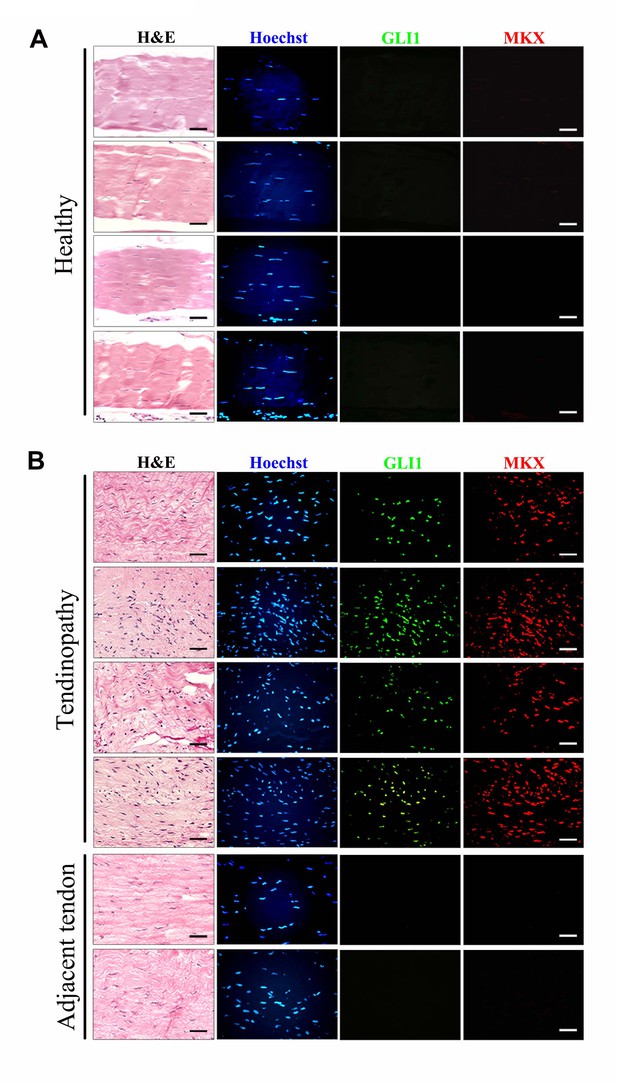

Upregulation of GLI1 and MKX expression in human tendinopathy specimens.

(A, B) Fluorescent immunohistochemistry of GLI1 and MKX in (A) healthy patellar tendon tissues or (B) patellar tendinopathy tissues. The bottom images show two regions adjacent to the injured tissues and are representative of the tendon tissues of ‘tendinopathy’ patients. Different rows indicate samples from different healthy subjects or patients. (n = 7 healthy subjects or patients per group.)

https://doi.org/10.7554/eLife.30474.049

Discussion

To delineate the contribution of extrinsic sheath tissues in tendon repair, we need to identify specific adult tendon sheath markers for molecular and cellular tracing during the healing process. Our findings indicate that Osteocalcin (Bglap) is specifically expressed in adult tendon sheath tissues but not in tendon fibers, and therefore is an ideal sheath tissue marker. Previously, Bglap was thought to be expressed only in mature osteoblasts and odontoblasts, contributing to the composition of the extracellular matrix (ECM) of the bones (Butler et al., 1992; Ducy et al., 1996). More recently, Bglap was also found to be a secreted protein that binds to its receptor GPRC6A and shows broad paracrine effects on pancreatic islets, fat, muscle, brain and testes in mice (Ferron et al., 2008; Oury et al., 2011, 2013; Wei et al., 2014; Mera et al., 2016). Although the function of Bglap in sheath tissues remains to be determined, it is conceivable that it serves at least in part as an ECM component of the sheath tissues and potentially regulates the metabolism of local tissues that contribute to tendon repair via autocrine or paracrine mechanisms.

Our studies showed that extrinsic sheath tissues possess stem/progenitor cells and contribute to tendon repair. It remains to be determined, however, whether these sheath-derived Bglap+ lineage cells differentiate into genuine tenocytes or just scarring sheath cells that invade into the tendon proper after tendon injury. Our data show that the co-expression of Mkx and Col1a1 in the Bglap+ cells is indistinguishable between tenocytes and sheath cells. More specific markers may be required to address this question definitively.

Interestingly, true tendon sheath does not continuously envelope the tendon fibers entirely. It covers only areas that are subjected to high levels of fiction, and is believed to lubricate the surrounding tissues during movement. Our findings unravel an additional novel function of sheath tissues that is specific for tendon remodeling and repair. As tendon fibers in regions of high fiction are more vulnerable to wearing and injuries, the proximity of progenitor cells in the sheath tissues provides an efficient source of cells for local or short-range migration for tendon fiber repair.

Our findings demonstrate that Hh signaling is strongly activated upon injury, possibly due to the strong induction and secretion of Shh (Figure 4C). In fact, activation of Hh signaling in sheath tissues triggers the proliferation of sheath progenitor cells. This generates a pool of progenitor cells for tendon differentiation and tendon fiber repair. It has been shown previously that Hh signaling regulates the early differentiation of progenitor cells at the tendon insertion site during embryonic development (Liu et al., 2012, 2013). Our results further reveal the importance of activation of Hh signaling in early events during adult tendon repair. In addition, the activation of Hh signaling results in significant upregulation of Mkx expression. Mkx plays an important role in the differentiation of tendon progenitor cells (Ito et al., 2010; Liu et al., 2010; Suzuki et al., 2016). It has been shown that Mkx-expressing mesenchymal stem cells (MSCs) significantly promote tendon healing by activation of TGFβ signaling (Liu et al., 2015). Our results also show that Hh signaling activates TGFβ signaling. TGFβ signaling is a major regulatory pathway for tenogenesis. It is essential for the recruitment and maintenance of tendon progenitors for tendon formation (Pryce et al., 2009). It also induces collagen formation and matrix remodeling during tendon healing (Hou et al., 2009; Lu et al., 2017; Potter et al., 2017; Kayama et al., 2016). Thus, activation of Hh signaling plays at least two roles. First, as an early event after injury, it ensures the availability of a sufficient pool of progenitor cells for repair. Second, it activates signaling cues for further cell differentiation and ECM production for tendon fiber regeneration. Our work suggests that activation of Hh signaling in sheath tissues may be a therapeutic intervention for tendon injury.

In conclusion, we have identified Bglap as a new marker for adult sheath tissues. Bglap-expressing sheath cells possess stem cell properties and contribute to tendon repair in which Hh signaling is necessary and sufficient to promote the proliferation of Mkx+ cells. Our results reveal important molecular evidence that Hh signaling is required for tendon repair that is mediated by extrinsic tendon sheath tissue.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiers
Genetic reagent
(Mus musculus)
BGLAP-Cre;Rosa26mT/mGThis paperNA
Genetic reagent
(M. musculus)
Ptch1c/c;BGLAP-CreMak et al. (2006)PMID: 16936073;
DOI: 10.1242/dev.02546
RRID:MGI:3687744
Genetic reagent
(M. musculus)
Smoc/c;BGLAP-CreMak et al. (2008a)PMID: 18434416;
DOI: 10.1242/dev.018044
RRID:MGI:5311416
Genetic reagent
(M. musculus)
Ptch1LacZ/+This paperNA
Recombinant DNA reagentpGL3-Mkxp8KThis paperNA
Recombinant DNA reagentpGL3-Mkx4KThis paperNA
Recombinant DNA reagentpCMV5 SMAD2-HAAddgene, USAplasmid # 14930
Recombinant DNA reagentpCMV5B-Flag-SMAD3Addgene, USAplasmid # 11742
AntibodyOsteolcalcin/BglapAbcam, USAab93876, 5 ug/ml
RRID: AB_10675660
AntibodyTppp3Abcam, USAab150998, 1:50
RRID: AB_2716739
AntibodyMkxLifespan Biosciences Inc., USALS-B8063, 1 ug/ml
RRID: AB_2716740
AntibodyMkxAbcam, USAab179597, 1 ug/ml
RRID: AB_2716741
AntibodyGli1R&D, USAMAB3324, 10 ug/ml
RRID:AB_2111775
AntibodyGli2R&D, USAAF3635, 5 ug/ml
RRID:AB_2111902
AntibodypH3SantaCruz, USAsc-8656-R, 1:200
RRID:AB_653256
AntibodyCollagen IAbcam, USAab292, 1:1000
RRID:AB_303415
AntibodyTGF-b1Abcam, USAab64715, 1:500
RRID:AB_1144265
AntibodySmad3CST, USA#9523, 1:1000
RRID:AB_2193182
Antibodyp-Smad3CST, USA#9520, 1:1000
RRID:AB_2193207
Antibodyβ-ActinCST, USA#8457, 1:10000
RRID:AB_10950489
Commercial assay or kitApoptosis Fluorescein Detection KitMillipore, USAs7111
Commercial assay or kitHydroxyproline Assay KitSigma-Aldrich, USAMAK008
Commercial assay or kitDual-luciferase reporter assay systemPromega, USAE1980
Chemical compound, drugBMP2CST, USA#4697
Chemical compound, drugTGF-β1Peprotech, USA100–21
Chemical compound, drugPurmorphamineMillipore, USA540220
Chemical compound, drugSB431542Sigma-Aldrich, USAS4317

Mice

The human BGLAP-Cre mice (Zhang et al., 2002) were crossed with the Rosa26mT/mG mouse line (Muzumdar et al., 2007), Ptch1c/c mice (Mak et al., 2006) or Smoc/c mice (Long et al., 2001) to generate the BGLAP-Cre;Rosa26mT/mG mice, Ptch1c/c;BGLAP-Cre mice and Smoc/c;BGLAP-Cre mice. The Ptch1c/c mice were crossed with the Stra8-Cre mice (Sadate-Ngatchou et al., 2008) to generate Ptch1LacZ/+ mice. All experiments were approved by the Animal Experimentation Ethics Committee of the Chinese University of Hong Kong (16-637).

Tendon injury mouse model

Request a detailed protocol

Tendon injury mouse models were generated as previously described (Guerquin et al., 2013). Briefly, 8–12 week-old male wild-type mice (C57BL/6), Ptch1LacZ/+ mice, Smoc/c;BGLAP-Cre mice, BGLAP-Cre;Rosa26mT/mG mice and control littermates were anesthetized and the left-leg Tibialis anterior tendon was accessed through the skin. longitudinal incisions were made along the medial and lateral borders of the tendon. Jewelers forceps were then slid under the tendon and spread to tension the tendon. The lateral edge of the defect was created with a scalpel and then jewelers forceps were placed into the incision and pushed through the tendon to create a full-thickness medial edge of the defect. Incisions were closed with prolene suture (Ethicon, USA). For the sham procedure in the contralateral limb, longitudinal incisions along the border were made and forceps were placed under the tendon but no defect was made. The animals were sacrificed 1, 2 or 4 weeks after injury.

Sheath transplantation

Request a detailed protocol

The left-leg Achilles tendons of 4 month-old female immunocompromised mice were injured as described above except that this tendon was not surrounded by true sheath tissue. Immediately after injury, 2 mg Tibialis anterior tendon sheath tissues (approximately two pieces of sheath tissues) were harvested from the BGLAP-Cre;Rosa26mT/mG mice or the Ptch1LacZ/+ mice and placed underneath the injured Achilles tendon of the immunocompromised mice. The animals were sacrificed for BGLAP-Cre lineage tracing analysis at specific time points from 2 days to 45 days. The tendon tissues were harvested for FACS-sorting and for molecular, histological, and biomechanical analysis at day 14. Sham operation was performed without transplantation.

In vivo differentiation

Request a detailed protocol

Sheath-derived cells were transplanted subcutaneously to the dorsal surface or calvaria of 16-week-old female immunocompromised mice. Approximately 1 × 106 cells were cultured until confluent to form a continuous sheet in a 10 cm culture dish. The cell sheets were lifted by tweezers and rolled up to form a transplant. The transplants were then deposited subcutaneously to the dorsal surface of the mice for 8 weeks. For calvaria transplantation, approximately 1 × 106 cells were cultured until confluent. After trypsinization, the cells were mixed with Matrix gel (BD Biosciences, USA) and subcutaneously injected into the calvaria. The animals were sacrificed and analyzed 8 weeks after transplantation.

Collagen content analysis

Request a detailed protocol

Procedures were followed as described previously (Guerquin et al., 2013) using the Hydroxyproline Assay Kit (Sigma-Aldrich, USA, MAK008). Briefly, mouse Tibialis anterior tendons or Achilles tendons were collected and homogenized. A hydroxyproline assay kit was used to measure the production of hydroxyproline in xenografted or non-grafted tendons by the reaction of oxidized hydroxyproline with dimethylaminobenzaldehyde (DMAB), which resulted in a colorimetric product (560 nm) that was proportional to the hydroxyproline quantity. Four independent samples per group were collected and analyzed.

Immunohistochemistry and immunocytochemistry

Request a detailed protocol

Tissue sections or primary cells were fixed and blocked with 5% Donkey serum (Sigma-Aldrich, USA). Samples were then incubated with primary antibodies at 4°C overnight. The following antibodies were used for staining: Bglap (Abcam, USA, ab93876, 5 ug/ml); Tppp3 (Abcam, USA, ab150998, 1:50); Mkx (Lifespan Biosciences Inc., USA, LS-B8063, 1 ug/ml); Gli1 (R&D, USA, MAB3324, 10 ug/ml); Gli2 (R&D, USA, AF3635, 5 ug/ml); pH3 (Santa Cruz, USA, sc-8656-R, 1:200); Donkey anti-rabbit IgG (H + L), Alexa Fluor 594 conjugate (Thermo Fisher Scientific, USA, A21207, 1:500); Donkey anti-rat IgG (H + L), Alexa Fluor 488 conjugate (Thermo Fisher Scientific, USA, A21208, 1:500); Donkey anti-goat IgG (H + L), Alexa Fluor 488 conjugate (Thermo Fisher Scientific, USA, A11055, 1:500); and Goat anti-rabbit IgG (H + L), Alexa Fluor 633 conjugate (Thermo Fisher Scientific, USA, A21072, 1:500). Samples were washed with PBS and incubated with secondary antibodies at room temperature for 1 hr. Nuclei were stained with Hoechst 33342 (Thermo Fisher Scientific, USA). Signals were detected under fluorescence microscopy. For TUNEL assay, procedures were followed as described by the manufacturer using the ApopTag Plus In Situ Apoptosis Fluorescein Detection Kit (Millipore, USA, s7111).

Cell isolation and culture

Request a detailed protocol

Mouse Tibialis anterior sheaths and tendons from 8–10-week-old mice were dissected separately, minced and digested with 3 mg/ml collagenase type I (Worthington, USA) and 4 mg/ml dispase (Thermo Fisher Scientific, USA) in PBS for 1 hr at 37°C. Single cell suspension was then cultured in 20% FBS, 100 mM 2-mercaptoethanol and 1% penicillin-streptomycin (Thermo Fisher Scientific, USA) in α-MEM (Thermo Fisher Scientific, USA) for 8–10 days. All the experiments were performed with primary cells of passage one.

FACS analysis

Request a detailed protocol

Primary cells isolated from the tendon and sheath tissues of the BGLAP-Cre;Rosa26mT/mG mice and primary cells from the tendon tissues of the immunocompromised mice with BGLAP-Cre;Rosa26mT/mG sheath transplantation were sorted and analyzed for GFP or tdTomato fluorescence using FACS Aria Fusion flow cytometer (BD Biosciences, USA). Data were calculated using the FACSDiva Software (Histogram) (BD Biosciences, USA).

Colony formation assay and in vitro multipotent differentiation

Request a detailed protocol

For colony formation assay, single cell suspensions of sorted tendon sheath-derived cells (GFP+) or tendon fiber-derived cells (tdTomato+) from the BGLAP-Cre;Rosa26mT/mG mice were cultured in a 60-mm dish for 14 days at two different cell densities (1000 or 2000). In vitro multipotent differentiation towards osteogenesis and adipogenesis was performed as previously described (Mak et al., 2008a; Rutigliano et al., 2013). Briefly, approximately 1 × 105 cells were seeded per well in 24-well plates in α-MEM supplemented with 20% FBS and 1% penicillin-streptomycin (Thermo Fisher Scientific, USA). 12~24 hr later, the medium was switched to osteogenic/adipogenic differentiation medium after reaching superconfluence. For osteogenesis, the differentiation cocktail includes 100 ug/ml ascorbic acid and 10 mM glycerophosphate (Sigma-Aldrich, USA). For adipogenesis, the differentiation cocktail contains 10 μg/ml insulin, 100 nM dexamethasone, 250 μM IBMX and 200 μM indomethacin (Sigma-Aldrich, USA). The medium was changed every 3 days. The cells were examined for osteogenic or adipogenic differentiation 12 days after the induction. Osteogenic differentiation was stained by Alizarin Red S staining. Adipogenic differentiation was stained by 0.3% Oil Red O staining (Sigma-Aldrich, USA). For chondrogenesis, a high-density micromass culture system was applied as described previously with modification (Zhang et al., 2010; Guzzo et al., 2013; Thakor et al., 2011; Neupane et al., 2008). Briefly, cells were harvested and resuspended in chondrogenic medium at 2.5 × 106 cells/50 μl. Droplets (10 μl) were carefully placed in each well of a 24-well plate. Cells were allowed to adhere at 37°C for 2~4 hr, followed by the addition of 500 μl chondrogenic medium. The medium was changed every 3 days. Micromass cultures were stained or harvested for molecular analysis at day 21. Chondrogenic differentiation cocktail includes 1% insulin-transferrin-selenium solution (ITS, Thermo Fisher Scientific, USA), 10 ng/ml TGF-β1 (Peprotech, USA), 100 nM dexamethasone (Sigma-Aldrich, USA), 50 μg/ml ascorbic acid (Sigma-Aldrich, USA), and 1 mM sodium pyruvate (Thermo Fisher Scientific, USA). Chondrogenic differentiation was stained by Alcian Blue or Safranin O staining.

Quantitative RT-PCR

Request a detailed protocol

RNA was reverse-transcribed to cDNA using the M-MLV Reverse Transcriptase (Thermo Fisher Scientific, USA). cDNA was analyzed by qPCR using Power SYBR Green PCR Master Mix (Applied Biosystems, USA). Relative mRNA levels were calculated using the comparative CT method and normalized to beta-tubulin or Gapdh mRNA. Primer sequences for QRT-PCR were shown in Supplementary file 1.

Dual-luciferase reporter assay

Request a detailed protocol

The 0.8 kb and 4060 bp Mkx promoter sequence were amplified from mouse genomic DNA by PCR using the following primers: Mkxp8K forward primer, 5′- GGGGTACCACTGGAAATGGCTTTATTGTAT-3′; Mkxp8K reverse primer, 5′- CTAGCTAGCGCGGCTGACACTCCTGT-3′; Mkx4K forward primer, 5′- CTAGCTAGCGGATGGAGGCTGGAGAACTTG-3′; and Mkx4K reverse primer, 5′- CCCAAGCTTGCGGCTGACACTCCTGTC-3′. The wild-type Mkx promoter regions were cloned into a pGL3-basic reporter vector using the KpnI and NheI sites for the 855-bp fragment and the XhoI and HindIII sites for the 4060-bp fragment. HEK-293T cells were co-transfected with 100 ng pcDNA3.1(+)/myc-His A (Thermo Fisher Scientific, USA), pCMV5SMAD2-HA or pCMV5B-Flag-SMAD3, 100 ng reporter plasmids and 5 ng pRL-TK plasmid (Promega, USA) using Lipofectamine 2000 (Thermo Fisher Scientific, USA) according to the manufacturer’s instructions. 48 hr after transfection, firefly and Renilla luciferase activities were assayed using the Dual-luciferase reporter assay system (Promega, USA) according to the manufacturer’s protocol. pCMV5 SMAD2-HA was a gift from Joan Massague (Addgene plasmid # 14930) (Hata et al., 1997). pCMV5B-Flag-SMAD3 was a gift from Jeff Wrana (Addgene plasmid # 11742) (Labbé et al., 1998). The activity of the firefly luciferase was normalized to Renilla luciferase activity.

Western blotting

Request a detailed protocol

Sheath tissues or cells were homogenized in cold RIPA lysis buffer supplemented with protease inhibitor cocktails (Roche, Switzerland) and phosSTOP phosphatase inhibitor (Roche, Switzerland). Protein concentration was determined by BCA assay (Thermo Fisher Scientific, USA). 20 μg protein samples were separated by SDS-PAGE and transferred to PVED membrane. After blocking with 5% BSA in 1 × TBST buffer, membranes were hybridized with the respective primary antibodies: Mkx (Abcam, USA, ab179597, 1 ug/ml), Collagen I (Abcam, USA, ab292, 1:1000), TGF-b1 (Abcam, USA, ab64715, 1:500), Smad3 (CST, USA, #9523, 1:1000), p-Smad3 (CST, USA, #9520, 1:1000), or β-Actin (CST, USA, #8457, 1:10000) overnight. Then, the membranes were incubated with HRP-conjugated secondary anti-rabbit IgG (1 : 5000), anti-mouse IgG (1 : 5000) or anti-rat IgG (1 : 5000) for 2 hr at room temperature. Signals were visualized with the ECL system (PerkinElmer, Waltham, MA, USA).

Biomechanical testing

Request a detailed protocol

Biomechanical testing was performed as previously described with modifications (Chan et al., 1998; Ni et al., 2012, 2013). The Achilles tendon-foot composite was prepared and isolated from the hind limb. The composite was fixed on the testing jig with two clamps. The lower clamp was used to fix the Achilles tendon while the upper one was used to fix the distal foot. The Achilles tendon-foot composite was then loaded to a Mach-1 micromechanical system (Biomomentum Inc., Canada) for testing. The ‘test to failure’ was performed at a testing speed of 0.1 mm/s and preload of 0.5N using a 70 N load cell. The load-displacement curve of the healing tendon tissue was recorded. Peak stress (N/mm2) was calculated based on Peak load divided by the cross-sectional area (Peak stress (N/mm2) = Peak force (N)/ [π *(diameter/2)2] (mm2)). Tendon stiffness was calculated by dividing load to failure by tendon deflection [N/mm] (Palmes et al., 2002).

Statistical analysis

Request a detailed protocol

No statistical methods were used to predetermine sample size. The experiments were not randomized and the investigators were not blinded to allocation during experiments and outcome assessment. Prism software (GraphPad, USA) was used for all statistical analyses. Statistical comparisons were performed using an unpaired two-tailed Student’s t-test. P values were considered significant when less than 0.05. One-way or two-way ANOVA followed by Tukey’s test was used for multiple groups’ comparison as discussed for specific experiments. Results represent means and error bars indicate s.e.m. Equal variances were assumed. At least three independent experiments were performed for all biochemical experiments and representative images were shown.

Human specimens

Request a detailed protocol

Tendon grafts were collected from young adults (aged between 18–40, both sexes) with patellar tendinopathy or from control subjects undergoing anterior cruciate ligament reconstruction with no previous history or clinical signs of patellar tendon injury and tendinopathy. Specimen collection was approved by the Clinical Research Ethics Committee of the Chinese University of Hong Kong (2013.479). Informed consents were obtained from all participants.

References

  1. 1
  2. 2
    Recent investigations on dentin specific proteins
    1. WT Butler
    2. RN D'Souza
    3. AL Bronckers
    4. RP Happonen
    5. MJ Somerman
    (1992)
    Proceedings of the Finnish Dental Society. Suomen Hammaslaakariseuran toimituksia 88 Suppl 1:369–376.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
    Structure of the tendon connective tissue
    1. P Kannus
    (2000)
    Scandinavian Journal of Medicine and Science in Sports 10:312–320.
    https://doi.org/10.1034/j.1600-0838.2000.010006312.x
  21. 21
    Indian hedgehog coordinates endochondral bone growth and morphogenesis via parathyroid hormone related-protein-dependent and -independent pathways
    1. SJ Karp
    2. E Schipani
    3. B St-Jacques
    4. J Hunzelman
    5. H Kronenberg
    6. AP McMahon
    (2000)
    Development 127:543–548.
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    Genetic manipulation of hedgehog signaling in the endochondral skeleton reveals a direct role in the regulation of chondrocyte proliferation
    1. F Long
    2. XM Zhang
    3. S Karp
    4. Y Yang
    5. AP McMahon
    (2001)
    Development 128:5099–5108.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    Analysis of the tendon cell fate using Scleraxis, a specific marker for tendons and ligaments
    1. R Schweitzer
    2. JH Chyung
    3. LC Murtaugh
    4. AE Brent
    5. V Rosen
    6. EN Olson
    7. A Lassar
    8. CJ Tabin
    (2001)
    Development 128:3855–3866.
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63

Decision letter

  1. J Gage Crump
    Reviewing Editor; Keck School of Medicine of University of Southern California, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Osteocalcin expressing cells from tendon sheaths contribute to tendon repair by activating Hedgehog signaling" for consideration by eLife. Your article has been favorably evaluated by Didier Stainier (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal his identity: Henry Kronenberg (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The reviewers agree that this is an interesting paper showing that tendon sheath cells express osteocalcin and have stem-like properties in vitro, including differentiation into cells with tendon-like gene expression. After transplantation, these cells clearly associate with the tendon, which correlates with upregulation of tendon-associated genes and improved mechanical properties of the injured tendon. While the reviewers note the many strengths of this substantial study, a major and unanimous concern was that the assertion that tendon sheath cells contribute to new tenocytes was not well enough substantiated. For example, the data in Figure 3 do not conclusively show that GFP+ sheath cells are expressing a molecular tendon signature, as opposed to inducing neighboring host cells to induce these markers. An alternative explanation that cannot be excluded is that sheath cells contribute instead to scarring around the tendon, as sheath-mediated scarring is frequently considered a major clinical problem after laceration injuries (see studies by the labs of Richard Gelberman, Hani Awad, and Regis O'Keefe). Additional experiments are therefore required to demonstrate that HOC-Cre/GFP+ sheath cells are differentiating into tenocytes after injury. This may involve FACS-sorting GFP+ cells after the graft in Figure 3 and performing molecular analysis and/or co-staining GFP+ cells in sections with tendon markers (e.g. Mkx). It would also be helpful to demonstrate that HOC-Cre/GFP+ cells contribute to new tenocytes after tendon injury (without grafting), for example by showing GFP+ cells within the tendon in cross-section (i.e. Figure 1D) and/or co-staining anti-GFP with anti-Mkx or other tendon markers after tendon repair following injury.

The reviewers also identified a number of more minor issues that should be addressed to improve the manuscript - listed below. The manuscript would also benefit from careful proofreading as there are a number of grammatical and spelling errors. Given that these new experiments may take some time, it may be helpful to hear what your plan will be to address these concerns and your expected time-frame, especially related to the major concern about HOC-Cre lineage tracing mentioned above.

1. The Mohawk antibody appears to stain beyond the nucleus, which is not typical for transcription factors (Figures 6 and 7). It is also curious that Mkx is not observed in tendon cells since this is typically considered a tendon differentiation marker. Please explain. Mohawk in situ hybridization data for at least some of these experiments could help confirm results.

2. For histology (Figure 1D-F, Figure 3B), native tendon controls should be included for comparison.

3. In their Discussion, the authors talk about how osteocalcin protein is likely to contribute to the tendon matrix proteins. While this is likely to be true, the authors should mention that osteocalcin is a secreted hormone that binds to receptors (one of which is called GPRC6A) and has been shown to have effects in mice on islets secreting insulin, and on fat, muscle, and nerve cells (see for example, Mera et al, Cell Metabolism 23:1078(16)). It would be useful (but not required here) to see if tendon cells, particularly after injury, express receptors for osteocalcin, and, of course, it would be of interest to know if osteocalcin KO mice have normal tendon repair. None of this needs to be shown for this paper, however. But the possible paracrine actions of osteocalcin should be mentioned.

4. The authors show that 80% of cells isolated from sheath tissues are HOC-Cre labeled and then use these cells to derive colonies. What percentage of these cells actually have clonogenic capacity? The authors also show considerable proliferation in sheath cells even at adult stages, yet no apoptosis - where are these cells going and how are they turned over?

5. The methods for their multipotency assays should be described in more detail since the papers referenced do not actual give sufficient detail about this (in the Mak paper only chondrogenic differentiation of micromass is described and this protocol would not work for adult stem cell sources such as MSCs). The authors show that TGFβ does not induce Sox9 or Col2 in Figure 2—figure supplement 1; TGFβ is the typical growth factor used to induce chondrogenesis in multipotency assays so it is unclear how this was done in Figure 2G and H.

6. Methods for transplantation of sheath tissue should be described in more detail - how much tissue was transplanted (how many pieces? what size pieces?), how was this kept consistent between experiments?

7. What were the stiffness or modulus values (Figure 3)? Were these also improved with transplantation?

8. Transient increase in control sheath thickness between 2-4 months seems strange, please explain (Figure 6B). Representative histology in Figure 6A does not show this jump.

9. This point in the discussion on osteocalcin is not quite logical: "The tendon/ligament and bone are in close proximity with each other and they are integral parts of the skeletal system, it is not surprising that Osteocalcin is also found in tendon-related tissues." There are many tissues in close proximity that do not share markers.

10. The human tendinopathy results in Figure 9 seem to contradict the notion that activation of HH signaling and Mkx are indicators of a regenerative response since human tendons do not regenerate after tendinopathy/degeneration or acute injury. While they may be mounting a 'repair' response, it is not regeneration and perhaps shows that these are indicators of disease.

11. Figure 8F-H should be a separate figure. Panel F is too small. Also, its unclear how the -714 and -156bp regions correspond to the 4bk and 0.8kb regions discussed below. This was confusing.

12. The discussion of the inflammatory response is speculative and should be justified or removed. Hh activation could also be due to cell death, mechanical forces, etc.

13. In many instances, "duplicates" should be replaced by "replicates" (i.e. when n is greater than 2).

14. In Figure 2—figure supplement 1, panels D-G are not obviously tendon-like as in Figure 2I-L.

15. Need to explain more clearly that conditional loss of Ptch1 leads to gain of LacZ.

16. Figure 5—figure supplement 1, would be helpful to show individual green/red channels in (C).

17. Its unclear whether Mkx protein is up in Ptch1-c/c in Figure 8E.

18. Figure 9 - What do the different rows means? Is each from a separate patient? Do the "adjacent tendon" domains in B correspond to the same "tendinopathy" patients? Does n=7 refer to 7 healthy and 7 tendinopathy patients?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Osteocalcin expressing cells from tendon sheaths in mice contribute to tendon repair by activating Hedgehog signaling" for further consideration at eLife. Your revised article has been favorably evaluated by Didier Stainier (Senior Editor) and a Reviewing Editor.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1. The new data in Figure 3—figure supplement 1 and 2 now show convincingly that Bglap+ cells are located in the tendon proper following injury. While these cells express Mkx and Col1a1, the experiments fall short of showing that these are bona fide tenocytes. Mkx is also highly expressed in the tendon sheath in un-injured controls, and thus it is unclear whether Mkx is solely a marker for tendon progenitor cells, or alternatively also for non-tenocyte sheath cells. Likewise, Col1a1 is a widely expressed collagen gene and not a very specific marker. It therefore seems premature to conclude that the Mkx+, Col1a1+ cells within the tendon after injury are bona fide tenocytes, as they may alternatively be scarring sheath cells that migrate into the tendon proper. While new experiments are not required, this caveat should be well described in the Discussion – i.e. acknowledging that it remains to be determined the extent to which these sheath-derived Bglap+ lineage cells are bona fide tenocytes, as opposed to scarring sheath cells that have invaded into the injured tendon.

2) The conclusions of the human data in Figure 10 should be further toned down, acknowledging that it remains unclear whether Mkx/Gli1 expression represents a scarring and/or tendon repair process.

3) The new data in Figure 3—figure supplement 1 and 2 are critical to the paper and should be included in the main Figure 3. It would be sufficient to move only the merged images to main Figure 3, with the individual channels remaining as supplements. The expression data in Figure 3—figure supplement 2B should also be moved to main Figure 3. It would also be helpful to show a merged image of just the GFP and Mkx channels (Figure 3—figure supplement 1B) as the merge of all channels is not easy to appreciate the overlap of GFP and Mkx.

4) In Figure 3—figure supplement 2B, "Relative expression level" is relative to what? A source data file should be included for this supplement, and what is meant by the "relative expression level" should be better described in the figure legend.

5) "It has been previously shown that Mkx promotes tenogenesis through activation of TGFβ signaling (Liu et al., 2015), thus we searched for Smad binding sites in the promoter regions of Mkx." This sentence is confusing as first part implies Mkx upstream of Tgfβ, but then experiment addresses Tgfβ/Smad3 upstream of Mkx.

6) "Conditional loss of Ptch1 leads to gain of LacZ expression." Need to further clarify what "conditional loss" means in this context. In the germline – i.e. embryowide?

7) "We established that Bglap-expressing cells from sheath tissues possess stem/progenitor cell properties and they are required for tendon repair." The data do not formally show a requirement for Bglap+ cells in tendon repair, as this would require their ablation. It may be better to say that the data show that they participate in tendon repair.

https://doi.org/10.7554/eLife.30474.052

Author response

The reviewers agree that this is an interesting paper showing that tendon sheath cells express osteocalcin and have stem-like properties in vitro, including differentiation into cells with tendon-like gene expression. After transplantation, these cells clearly associate with the tendon, which correlates with upregulation of tendon-associated genes and improved mechanical properties of the injured tendon. While the reviewers note the many strengths of this substantial study, a major and unanimous concern was that the assertion that tendon sheath cells contribute to new tenocytes was not well enough substantiated. For example, the data in Figure 3 do not conclusively show that GFP+sheath cells are expressing a molecular tendon signature, as opposed to inducing neighboring host cells to induce these markers. An alternative explanation that cannot be excluded is that sheath cells contribute instead to scarring around the tendon, as sheath-mediated scarring is frequently considered a major clinical problem after laceration injuries (see studies by the labs of Richard Gelberman, Hani Awad, and Regis O'Keefe). Additional experiments are therefore required to demonstrate that HOC-Cre/GFP+sheath cells are differentiating into tenocytes after injury. This may involve FACS-sorting GFP+cells after the graft in Figure 3 and performing molecular analysis and/or co-staining GFP+cells in sections with tendon markers (e.g. Mkx).

We thank the reviewers for these comments and suggestions. The expression of tendon progenitor marker Mkx was examined in the injured tendon sections (with/without sheath transplantation groups) as shown in newly added Figure 3—figure supplement 2A. The Mkx expression was detected with the secondary antibody with far-red fluorescence (Excitation Maximum 633nm, A-21072, Thermo Fisher Scientific, USA) to avoid the confusion with tdTomato signals (Excitation Maximum, 554nm). Our results showed that some of the GFP+ cells expressed Mkx in the areas of the injured Achilles tendon tissues. Furthermore, FACS-sorted GFP+ cells isolated from the graft in Figure 3A by qRT-PCR as shown in newly added Figure 3—figure supplement 2B also showed upregulation of tendon progenitor marker Mkx and main ECM component Col1a1 as compared to the control sheaths. These results indicate that sheath cells at least in part differentiate into tenocytes after injury, contributing to tendon repair. We do agree that sheath cells may also contribute to scarring around the injured tendons, which cannot be excluded from our data.

It would also be helpful to demonstrate that HOC-Cre/GFP+cells contribute to new tenocytes after tendon injury (without grafting), for example by showing GFP+cells within the tendon in cross-section (i.e. Figure 1D) and/or co-staining anti-GFP with anti-Mkx or other tendon markers after tendon repair following injury.

The distribution of the GFP+ cells has been examined within tendon tissues during tendon repair following injury in BGLAP-Cre;Rosa26mT/mGmice (without grafting). Both cross-section and longitudinal-section were provided in the newly added Figure 3—figure supplement 1A. Noticeably, we found considerable GFP+ cells appeared in the injured tendon fibers as shown from both cross- and longitudinal sections. Furthermore, the GFP+ cells co-expressed tendon progenitor marker Mkx according to the immunofluorescent staining as shown in the newly added Figure 3—figure supplement 1B. These data suggest that sheath tissues differentiate into Mkx-expressing progenitor cells and contribute to tendon repair.

[…] 1. The Mohawk antibody appears to stain beyond the nucleus, which is not typical for transcription factors (Figures 6 and 7). It is also curious that Mkx is not observed in tendon cells since this is typically considered a tendon differentiation marker. Please explain. Mohawk in situ hybridization data for at least some of these experiments could help confirm results.

To improve the specificity of Mkx expression, we purchased new Mkx antibodies from two companies (LS B8063, Lifespan Biosciences Inc, USA; ab179597, Abcam, USA). We optimized the condition with new dilution of antibodies (LS B8063, 1 ug/ml; ab179597, 1μg/ml) as mentioned in the revised Materials and methods. The specificity of Mkx antibody was greatly improved and the Mkx signals mainly appeared in the nucleus as shown in the revised Figure 5G, 6D, 7B and F. Our data indicate that the expression of tendon progenitor marker Mkx was positively correlated with the activation of Hh signaling in sheath cells in injured condition as shown by our gain-of-function and loss-of-function knockout mouse models.

As a progenitor marker, the expression of Mkx is relatively low in postnatal tendon tissues as previously described (Liu, Watson et al. 2010). Strong Mkx expression is observed in the tendon progenitors at E13.5 and E14.5 (Anderson, Arredondo et al. 2006, Liu, Watson et al. 2010) and subsequently declined in differentiated tendon cells in the limb and tail tendons at E16.5. The expression of Mkx is very weak in tendon cells at postnatal stages P0 and P14. These findings are consistent with our observations that the expression level of Mkx in mature tendon tissues is very low as compared to the newly differentiated tendon progenitor cells.

2. For histology (Figure 1D-F, Figure 3B), native tendon controls should be included for comparison.

We included the native tendon controls in the revised Figure 1D and Figure 3B as suggested.

3. In their Discussion, the authors talk about how osteocalcin protein is likely to contribute to the tendon matrix proteins. While this is likely to be true, the authors should mention that osteocalcin is a secreted hormone that binds to receptors (one of which is called GPRC6A) and has been shown to have effects in mice on islets secreting insulin, and on fat, muscle, and nerve cells (see for example, Mera et al, Cell Metabolism 23:1078(16)). It would be useful (but not required here) to see if tendon cells, particularly after injury, express receptors for osteocalcin, and, of course, it would be of interest to know if osteocalcin KO mice have normal tendon repair. None of this needs to be shown for this paper, however. But the possible paracrine actions of osteocalcin should be mentioned.

We thank for the comments. We have included the paracrine actions of Osteocalcin in the first paragraph of the Discussion.

4. The authors show that 80% of cells isolated from sheath tissues are HOC-Cre labeled and then use these cells to derive colonies. What percentage of these cells actually have clonogenic capacity? The authors also show considerable proliferation in sheath cells even at adult stages, yet no apoptosis - where are these cells going and how are they turned over?

We found that approximately 1.5% of BGLAP-Cre labeled cells have clonogenic capacity according to colony formation assay as shown in the revised Figure 1figure supplement 1B. We repeated the staining of sheath sections of the Ptch1c/c; BGLAP-Cre and their 4 littermates with a new ApopTag Plus Fluorescein In Situ Kit (S7111) (Millipore, USA). There were only very few apoptotic cells in the sheaths of the Ptch1c/c; BGLAP-Cre mice as shown in the revised Figure 5F. Both high proliferation and low apoptotic rates contribute the increase sheath thickness observed in the Ptch1c/c; BGLAP-Cre mice. The turnover of these cells is expected to be relatively long as compared to other tissues.

5. The methods for their multipotency assays should be described in more detail since the papers referenced do not actual give sufficient detail about this (in the Mak paper only chondrogenic differentiation of micromass is described and this protocol would not work for adult stem cell sources such as MSCs). The authors show that TGFβ does not induce Sox9 or Col2 in Figure 2—figure supplement 1; TGFβ is the typical growth factor used to induce chondrogenesis in multipotency assays so it is unclear how this was done in Figure 2G and H.

The details of multipotent differentiation are as follows and we have added a more detailed description to the revised Materials and methods section “Colony formation assay and in vitro multipotent differentiation”:

“In vitro multipotent differentiation towards osteogenesis and adipogenesis was performed as described (Mak, Bi et al. 2008, Rutigliano, Corradetti et al. 2013). […] Chondrogenic differentiation cocktail includes 1% insulin-transferrin-selenium solution (ITS, Thermo Fisher Scientific, USA), 10ng/ml TGF-β1 (Peprotech, USA), 100nM dexamethasone (Sigma-Aldrich, USA), 50μg/ml ascorbic acid (Sigma-Aldrich, USA), 1 mM sodium pyruvate (Thermo Fisher Scientific, USA).”

In our study, higher cell density at 2.5x106 cells/50μl was used. Our results showed that this micromass culture system also works in chondrogenesis using sheath-derived stem/progenitor cells.

For BMP2 and TGF-β1 treatment, primary sheath cells were serum starved with 2% FBS overnight, then treated with 100 ng/ml BMP2 (CST, USA) or 2ng/ml TGF-β1 (PeproTech, USA). Cells were collected after 48 h treatment. We agree that TGF-β1 should induce Sox9 or Col2a1 expression as a typical growth factor used for chondrogenesis. We repeated the experiment with the treatment of new aliquots of the recombinant proteins (BMP2 and TGF-β1) and re-examined the gene expression profiles of Sox9 and Col2a1. TGF-β1 indeed induced the expression of Sox9 and Col2a1 after such refinement as shown in the revised Figure 2figure supplement 1.

6. Methods for transplantation of sheath tissue should be described in more detail - how much tissue was transplanted (how many pieces? what size pieces?), how was this kept consistent between experiments?

A more detail description has been added to the revised Materials and methods. Sheath tissue with same weight was transplanted for consistency among animals. We transplanted 2mg sheath tissue (approximately two pieces of sheath tissue) per injured tendon for the examination of tendon repair process. We have included this information to the Sheath Transplantation section of the revised Materials and methods.

7. What were the stiffness or modulus values (Figure 3)? Were these also improved with transplantation?

We analyzed the stiffness in the sheath transplantation experiment and added the data in the revised Figure 3F. Briefly, the stiffness was decreased in the injured group as compared to the sham group. Importantly, this reduction was significantly rescued in the injured + sheath transplantation group. This data indicate that tendon repair is improved with sheath transplantation, which is consistent with our previous conclusion.

8. Transient increase in control sheath thickness between 2-4 months seems strange, please explain (Figure 6B). Representative histology in Figure 6A does not show this jump.

We re-examined the thickness of sheath tissues in all mutant mice and their littermates with new samples. We provided the new sheath thickness data in the revised Figure 6B. The results were now consistent for Figure 6A and B.

9. This point in the discussion on osteocalcin is not quite logical: "The tendon/ligament and bone are in close proximity with each other and they are integral parts of the skeletal system, it is not surprising that Osteocalcin is also found in tendon-related tissues." There are many tissues in close proximity that do not share markers.

We thank the reviewers for the suggestion. We agreed to remove this statement from the revised manuscript.

10. The human tendinopathy results in Figure 9 seem to contradict the notion that activation of HH signaling and Mkx are indicators of a regenerative response since human tendons do not regenerate after tendinopathy/degeneration or acute injury. While they may be mounting a 'repair' response, it is not regeneration and perhaps shows that these are indicators of disease.

We thank the reviewers for the comments. In this manuscript, all tendinopathy samples were collected from patients after surgery with acute injuries or ruptures. The expression of Mkx is significantly increased during tendon repair according to previous studies (Juneja 2013) and our data in this manuscript. We found that Hh signaling is activated after tendon injury and activation of Hh signaling upregulates the expression of Mkx. Co-localization of GLI1+MKX+

cells was observed in the human acute tendon injury specimen. Therefore,

activation of Hh signaling and induction of Mkx expression are closely associated with a 'repair' response after acute injury. We agree that the co-localization of GLI1+MKX+ cells is not an indicator of a regenerative response but indicates a 'repair' response in the human specimen after acute injury.

11. Figure 8F-H should be a separate figure. Panel F is too small. Also, its unclear how the -714 and -156bp regions correspond to the 4bk and 0.8kb regions discussed below. This was confusing.

We have re-arranged Figure 8F-H as a separate figure and adjusted the size of Panel F in the revised Figure 9 accordingly. There are three putative Smad binding element (SBE) motifs in the Mkx promoter: -4060, -714 and -156bp sites. For better presentation, we redrew the diagram corresponding to the three promoter regions of Mkx gene in the revised Figure 9A.

12. The discussion of the inflammatory response is speculative and should be justified or removed. Hh activation could also be due to cell death, mechanical forces, etc.

We thank the reviewers for their comments. We have removed this part in the revised manuscript.

13. In many instances, "duplicates" should be replaced by "replicates" (i.e. when n is greater than 2).

We are sorry for the mistakes. We have replaced all misused "duplicates" with "replicates" in the figure legends and source data respectively.

14. In Figure 2—figure supplement 1, panels D-G are not obviously tendon-like as in Figure 2I-L.

We agree with the reviewers that in Figure 2figure supplement 1, panels D-G are not obviously tendon-like as in Figure 2I-L. However, these tissues have indeed differentiated to some collagen-rich tissues according to (F) polarized light view and (G) Masson’s trichrome staining. Therefore, we replaced “tendon-like tissues” to “collagen-rich tissues” for a more appropriate description in the revised figure legend of Figure 2figure supplement 1.

15. Need to explain more clearly that conditional loss of Ptch1 leads to gain of LacZ.

We validated the Hh signaling activity in vivo by using the Ptch1lacZ/+ mouse models as described (Mak, Chen et al. 2006). A knockin sequence with LacZ reporter replaces the Ptch1 gene sequence at the translation initiation site. Since Ptch1 is a transcriptional target gene of Hh signaling, the expression of the LacZ reporter represents the activity of Hh signaling. This information is added to the Results section “Hh signaling promotes proliferation of sheath progenitor cells”.

16. Figure 5—figure supplement 1, would be helpful to show individual green/red channels in (C).

We added individual green/red channels to the revised Figure 5—figure supplement 1C, 1D and 1E as suggested.

17. Its unclear whether Mkx protein is up in Ptch1-c/c in Figure 8E.

We have repeated the experiment with a new Mkx antibody (ab179597, 1 μg/ml, Abcam, USA). The expression of Mkx was more obviously increased in the revised Figure 9E.

18. Figure 9 - What do the different rows means? Is each from a separate patient? Do the "adjacent tendon" domains in B correspond to the same "tendinopathy" patients? Does n=7 refer to 7 healthy and 7 tendinopathy patients?

Each row is a separate subject. The two "adjacent tendon" domains in B were representative images of tendon tissues of individual "tendinopathy" patients. n=7 refers to 7 healthy subjects and 7 tendinopathy patients. We have revised this information in the figure legend of the revised Figure 10.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

1. The new data in Figure 3—figure supplement 1 and 2 now show convincingly that Bglap+ cells are located in the tendon proper following injury. While these cells express Mkx and Col1a1, the experiments fall short of showing that these are bona fide tenocytes. Mkx is also highly expressed in the tendon sheath in un-injured controls, and thus it is unclear whether Mkx is solely a marker for tendon progenitor cells, or alternatively also for non-tenocyte sheath cells. Likewise, Col1a1 is a widely expressed collagen gene and not a very specific marker. It therefore seems premature to conclude that the Mkx+, Col1a1+ cells within the tendon after injury are bona fide tenocytes, as they may alternatively be scarring sheath cells that migrate into the tendon proper. While new experiments are not required, this caveat should be well described in the Discussion – i.e. acknowledging that it remains to be determined the extent to which these sheath-derived Bglap+ lineage cells are bona fide tenocytes, as opposed to scarring sheath cells that have invaded into the injured tendon.

We thank the reviewers for the comments. We have acknowledged such a possibility in our revised Discussion (second paragraph).

2) The conclusions of the human data in Figure 10 should be further toned down, acknowledging that it remains unclear whether Mkx/Gli1 expression represents a scarring and/or tendon repair process.

We have toned down our conclusion in the Results section as suggested (subsection “Hh signaling induces Mkx and Collagen I expression through TGFβ/Smad3 signaling”, last paragraph).

3) The new data in Figure 3—figure supplement 1 and 2 are critical to the paper and should be included in the main Figure 3. It would be sufficient to move only the merged images to main Figure 3, with the individual channels remaining as supplements. The expression data in Figure 3—figure supplement 2B should also be moved to main Figure 3. It would also be helpful to show a merged image of just the GFP and Mkx channels (Figure 3—figure supplement 1B) as the merge of all channels is not easy to appreciate the overlap of GFP and Mkx.

The new data of Figure 3—figure supplement 1 and 2 have been rearranged to main Figure 3 as suggested. The expression data in Figure 3—figure supplement 2B is also moved to main Figure 3. We also added the merged images of GFP/Mkx channels in Figure 3—figure supplement 1B.

4) In Figure 3—figure supplement 2B, "Relative expression level" is relative to what? A source data file should be included for this supplement, and what is meant by the "relative expression level" should be better described in the figure legend.

In Figure 3—figure supplement 2B, "Relative expression level" is relative to the expression level of β-tubulin. The source data file has been added for the supplement 2B in the revised version (Figure 3—source data 5). Internal controls have been added to all related figure legends.

5) "It has been previously shown that Mkx promotes tenogenesis through activation of TGFβ signaling (Liu et al., 2015), thus we searched for Smad binding sites in the promoter regions of Mkx." This sentence is confusing as first part implies Mkx upstream of Tgfβ, but then experiment addresses Tgfβ/Smad3 upstream of Mkx.

This confusing statement is deleted in the revised manuscript.

6) "Conditional loss of Ptch1 leads to gain of LacZ expression." Need to further clarify what "conditional loss" means in this context. In the germline – i.e. embryowide?

We have added more details to clarify the conditional loss of Ptch1. Mouse with floxed Ptch1 is crossed with the Stra8-Cre mouse line that will result in germline loss of Ptch1 expression and gain of LacZ expression. The revised content can be found in the first paragraph of the subsection “Hh signaling promotes proliferation of sheath progenitor cells”.

7) "We established that Bglap-expressing cells from sheath tissues possess stem/progenitor cell properties and they are required for tendon repair." The data do not formally show a requirement for Bglap+ cells in tendon repair, as this would require their ablation. It may be better to say that the data show that they participate in tendon repair.

We have revised the statement as suggested in the last paragraph of the Introduction.

https://doi.org/10.7554/eLife.30474.053

Article and author information

Author details

  1. Yi Wang

    Developmental and Regenerative Biology, School of Biomedical Sciences, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0291-5314
  2. Xu Zhang

    Developmental and Regenerative Biology, School of Biomedical Sciences, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Visualization, Methodology, Writing—original draft, Project administration
    Competing interests
    No competing interests declared
  3. Huihui Huang

    Developmental and Regenerative Biology, School of Biomedical Sciences, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Data curation, Formal analysis, Methodology
    Competing interests
    No competing interests declared
  4. Yin Xia

    Developmental and Regenerative Biology, School of Biomedical Sciences, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  5. YiFei Yao

    Division of Biomedical Engineering, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Resources, Methodology
    Competing interests
    No competing interests declared
  6. Arthur Fuk-Tat Mak

    Division of Biomedical Engineering, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Resources, Data curation, Methodology
    Competing interests
    No competing interests declared
  7. Patrick Shu-Hang Yung

    Department of Orthopaedics and Traumatology, The Chinese University of Hong Kong, Prince of Wales Hospital, Sha Tin, Hong Kong
    Contribution
    Resources
    Competing interests
    No competing interests declared
  8. Kai-Ming Chan

    Department of Orthopaedics and Traumatology, The Chinese University of Hong Kong, Prince of Wales Hospital, Sha Tin, Hong Kong
    Contribution
    Resources
    Competing interests
    No competing interests declared
  9. Li Wang

    Neural, Vascular and Metabolic Biology, School of Biomedical Sciences, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Resources
    Competing interests
    No competing interests declared
  10. Chenglin Zhang

    Neural, Vascular and Metabolic Biology, School of Biomedical Sciences, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Resources, Data curation
    Competing interests
    No competing interests declared
  11. Yu Huang

    Neural, Vascular and Metabolic Biology, School of Biomedical Sciences, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Resources, Data curation
    Competing interests
    No competing interests declared
  12. Kingston King-Lun Mak

    Developmental and Regenerative Biology, School of Biomedical Sciences, The Chinese University of Hong Kong, Shatin, Hong Kong
    Contribution
    Resources
    For correspondence
    kingstonmak@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4733-9146

Funding

Chinese University of Hong Kong (4620504)

  • Kingston King-Lun Mak

Lui Che Woo Foundation

  • Kingston King-Lun Mak

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Mr. Bruma Fu, Department of Orthopaedics and Traumatology, The Chinese University of Hong Kong for coordination of human specimen collection. This work is supported by the Seed Fund of the School of Biomedical Sciences, The Chinese University of Hong Kong (4620504) and a donation made by Lui Che Woo Foundation Limited to KKM.

Ethics

Human subjects: Specimen collection was approved by the Clinical Research Ethics Committee of the Chinese University of Hong Kong (2013.479). Informed consents were obtained from all participants.

Animal experimentation: All experiments were approved by the Animal Experimentation Ethics Committee of the Chinese University of Hong Kong (16-637).

Reviewing Editor

  1. J Gage Crump, Keck School of Medicine of University of Southern California, United States

Publication history

  1. Received: July 17, 2017
  2. Accepted: December 5, 2017
  3. Version of Record published: December 15, 2017 (version 1)

Copyright

© 2017, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,037
    Page views
  • 210
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Microbiology and Infectious Disease
    Paola Bardetti et al.
    Research Article
    1. Cell Biology
    2. Developmental Biology
    Julia Sauerwald et al.
    Research Article Updated
