Hypoexcitability precedes denervation in the large fast-contracting motor units in two unrelated mouse models of ALS

  1. María de Lourdes Martínez-Silva
  2. Rebecca D Imhoff-Manuel
  3. Aarti Sharma
  4. CJ Heckman
  5. Neil A Shneider
  6. Francesco Roselli
  7. Daniel Zytnicki
  8. Marin Manuel  Is a corresponding author
  1. CNRS, Université Paris Descartes, France
  2. Columbia University, United States
  3. Northwestern University, Feinberg School of Medicine, United States
  4. Ulm University, Germany
8 figures, 5 tables and 1 additional file

Figures

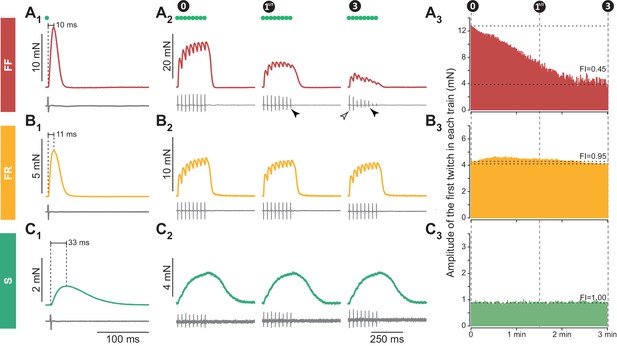

Examples of 3 motor units with different contractile properties.

(A) FF motor unit. (A1) Twitch (top trace), and motor unit action potential (MUAP, bottom trace) elicited by a spike generated in the cell body of the investigated motoneuron (green dot indicates the time the spike was generated). (A2) Examples of unfused tetani recorded at the beginning (0 min) the middle (11/2 min) and the end (3 min) of the fatigue test. Note that, in this particular motor unit, the MUAP tended to decrease during the train (filled arrowhead), but the amplitude of the first MUAP stayed constant during the fatigue test (empty arrowhead). (A3) Time course of the decline in amplitude of the first twitch in each train over the duration of the fatigue test. Horizontal dotted lines indicate the amplitude of the first twitch in the first train and the amplitude of the first twitch in the last train, used to calculate the Fatigue Index (FI; see Materials and methods). (B) FR unit, same arrangement as in A. (C) S motor unit, same arrangement as in A. Traces in A1, B1 and C1 are averages of 5–10 sweeps.

https://doi.org/10.7554/eLife.30955.003

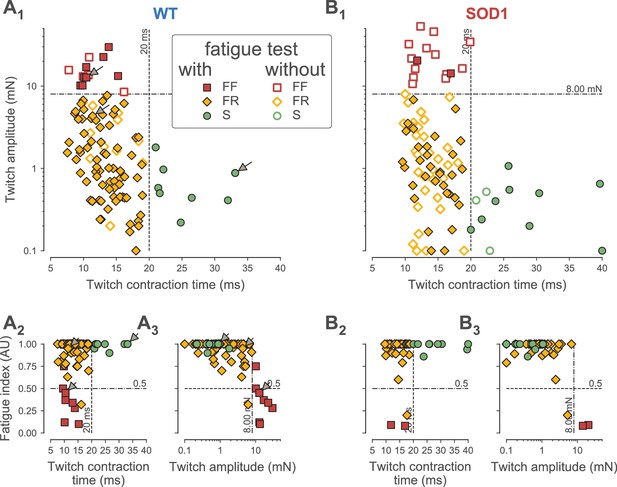

Classification of motor units.

(A) Contractile properties of WT motor units. (A1) Distribution of the twitch amplitude (logarithmic scale) vs. twitch contraction time. The motor units indicated by an arrow correspond to the three motor units of Figure 1. The vertical dashed line at 20 ms represents the limit between the fast and slow-contracting motor units. The horizontal dash-dotted line at 8 mN represents the limit between FR and FF motor units. The filled markers correspond to the motor units in which the fatigue index was measured, while the empty markers correspond to the motor units for which the fatigability was not measured. (A2) Distribution of the Fatigue Index vs. the twitch contraction time. The dash-dotted line at 0.5 represents the limit between fatigue-resistant and fatigable motor units. (A3) Distribution of the Fatigue Index vs. twitch amplitude (logarithmic scale). (B) Contractile properties of SOD1G93A motor units. Same organization as in A.

https://doi.org/10.7554/eLife.30955.004

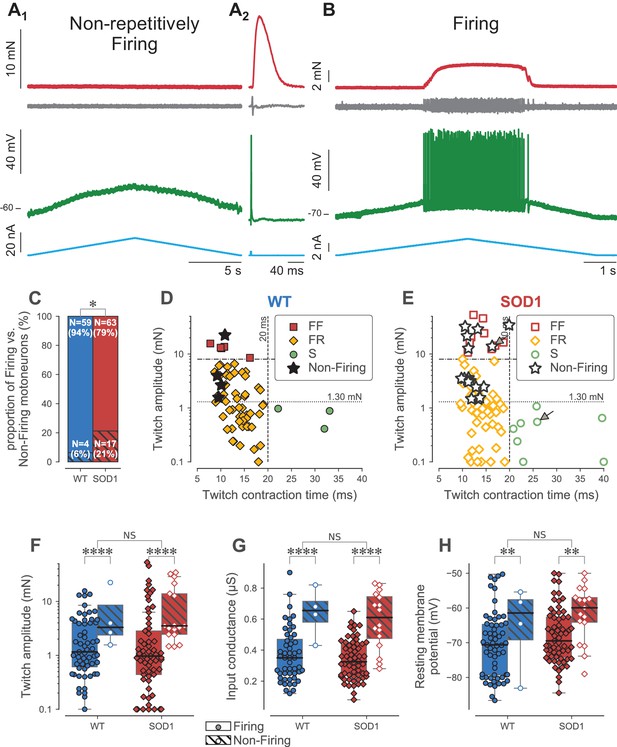

Loss of repetitive firing in a subpopulation of large motor units.

(A) Example of an FF-type SOD1G93A motoneuron that was unable to fire repetitively in response to a slow ramp of current (A1), despite being able to generate a single spike in response to a short pulse of current (A2), and despite being still connected to its muscle fibers, as shown by the presence of a motor unit action potential and a motor unit twitch following the spike. Top red trace: force developed by the motor unit. Grey trace, second from the top: EMG recording showing the motor unit action potentials. Green trace, second from bottom: membrane potential. Bottom blue trace: injected current. A2 is an average of 10 sweeps. (B) Example of a S-type SOD1G93A motoneuron that was able to fire repetitively in response to a slow ramp of current. Same organization as in A. (C) Comparison of the proportion of Firing (filled bar) and Non-Firing (hatched bar) motoneurons in WT (blue) vs. SOD1G93A mice (red). (D) Contractile properties of WT motor units in which we tested the ability to fire repetitively. The motoneurons that were unable to fire repetitively are indicated by a star. The dashed lines at 8 mN and 20 ms represent the limits used to classify the motor units, and the dotted line and 1.3 mN represent the separation line between Large and Small motor units. (E) Contractile properties of SOD1G93A motoneurons in which we tested the ability to fire repetitively. Motoneurons indicated by an arrow correspond to the two examples in panels A and B. Same legend as in D. Comparison of the twitch amplitude (F), input conductance (G) and resting membrane potential (H) of WT (blue circles) and SOD1G93A (red diamonds) motoneurons based on whether they were able (filled symbols, empty box-and-whisker plot) or unable (empty symbols, hatched box-and-whisker plot) to fire, repetitively. The box-and-whisker plots are defined as follows: the boxes extend from the first to third quartile values of the data, with a line at the median. The whiskers extend from the box up to 1.5 times the interquartile range to show the range of the data.

https://doi.org/10.7554/eLife.30955.005

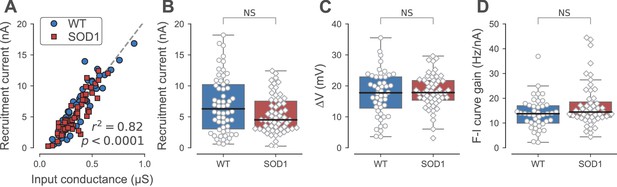

Firing properties of WT and SOD1G93A motoneurons.

(A) Relationship between recruitment current and input conductance of WT (blue circles) vs. SOD1G93A (red diamonds) motoneurons. (B) Comparison of the current required to elicit the first spike on a ramp of current (recruitment current) of WT (blue box, circles) vs. SOD1G93A (red box, diamonds) motoneurons. (C) Comparison of the distance between the resting membrane potential and the voltage threshold for spiking (∆V) of WT (blue box, circles) vs. SOD1G93A (red box, diamonds) motoneurons. (D) Comparison of the F-I curve gains (slope of the frequency versus injected current curve measured in the primary range) of WT (blue box, circles) vs. SOD1G93A (red box, diamonds) motoneurons. In all panels, the definition of the box-and-whisker plots is the same as in Figure 3.

https://doi.org/10.7554/eLife.30955.008

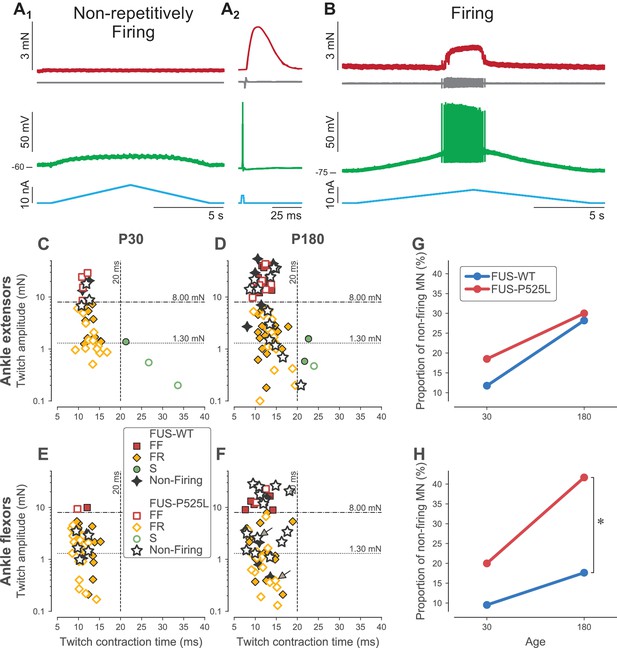

Loss of repetitive firing in a subpopulation of cells of FUS mice.

(A) Example of an ankle flexor FUSP525L motoneuron (recorded at P180) that was unable to fire repetitively in response to a slow ramp of current (A1), despite being able to generate a single spike in response to a short pulse of current (A2), and despite being still connected to its muscle fibers, as shown by the presence of a motor unit action potential and a motor unit twitch following the spike. Top red trace: force developed by the motor unit. Grey trace, second from the top: EMG recording showing the motor unit action potentials. Green trace, second from bottom: membrane potential. Bottom blue trace: injected current. A2 is an average of 15 sweeps. (B) Example of an ankle flexor FUSP525L motoneuron (recorded at P180) that was able to fire repetitively in response to a slow ramp of current. Same organization as in A. (C) Contractile properties of motor units innervating ankle extensor muscles at P30. Filled symbols represent motor units recorded in FUSWT mice, colored according to their physiological type (FF: red squares; FR: yellow diamonds, S: green circles). WT motor units that were unable to fire repetitively are represented with a black four-pointed star. Empty symbols represent motor units recorded in FUSP525L, colored according to their physiological type (FF: red squares; FR: yellow diamonds, S: green circles). Mutant motor units that were unable to fire repetitively are represented with a black empty five-pointed star. The dashed lines at 8 mN and 20 ms represent the limits used to classify the motor units, and the dotted line and 1.3 mN represent the separation line between Large and Small motor units. (D) Contractile properties of motor units innervating ankle extensor muscles at P180. Same legend as in C. (E) Contractile properties of motor units innervating ankle flexor muscles at P30. Same legend as in C. (F) Contractile properties of motor units innervating ankle flexor muscles at P180. Same legend as in C. Motoneurons indicated by an arrow correspond to the two examples in panels A and B. (G) Comparison between FUSWT (blue) and FUSP525L (red) mice of the proportion of non-firing cells innervating ankle extensor muscles at P30 and P180. (H) Comparison between FUSWT (blue) and FUSP525L (red) mice of the proportion of non-firing cells innervating ankle flexor muscles at P30 and P180.

https://doi.org/10.7554/eLife.30955.009

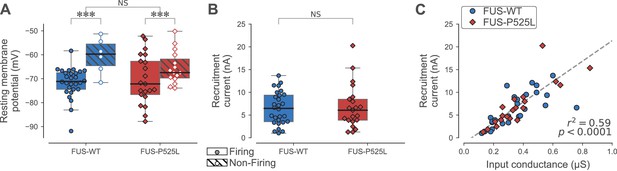

Electrical properties of FUSWT and FUSP525L motoneurons innervating ankle flexor muscles at P180.

(A) Comparison of the resting membrane potential of FUSWT (blue box, circles) vs. FUSP525L (red box, diamonds) motoneurons innervating ankle flexor muscles at P180, split according to whether they were able (filled symbols) to fire repetitively or not (empty symbols, hatched box-and-whisker plot). (B) Comparison of the current required to elicit the first spike on a ramp of current (recruitment current) of FUSWT (blue box, circles) vs. FUSP525L (red box, diamonds) motoneurons. (C) Relationship between recruitment current and input conductance of FUSWT (blue circles) vs. FUSP525L (red diamonds) motoneurons. In all panels, the definition of the box-and-whisker plots is the same as in Figure 3.

https://doi.org/10.7554/eLife.30955.012
Chondrolectin expression in TS motor units.

(A) Two examples of intracellular-labeled (NB, green) motoneurons, coupled with ISH revelation of Chodl RNA (Chodl, red). Left panel: Chodl− small FR motoneuron; Right panel: Chodl +FF motoneuron. Scale bars: 15 µm. (B) Contractile properties of the motor units tested for chondrolectin expression. The motoneurons indicated with arrows correspond to the two cells in A. Red circles are the motoneurons that expressed chondrolectin, while green squares are those that did not. The dashed lines at 8 mN and 20 ms represent the limits used to classify the motor units, and the dotted line at 1.3 mN represent the separation line between Large and Small motor units. (C) Comparison of the average twitch amplitude of motor units split according to their expression of chondrolectin. Same legend as in B. The definition of the box-and-whisker plots is the same as in Figure 3. (D) Comparison of the proportion of cells expressing chondrolectin in the population of tested cells, split in two categories, large and small, according to a limit set to 1.3 mN.

https://doi.org/10.7554/eLife.30955.013
Figure 8 with 1 supplement
p-eIF2α and p62 burden in firing and non-firing SOD1G93A motoneurons.

(A) Example of a neurobiotin-labeled repetitively firing motoneuron. (A1) shows the overlay of the neurobiotin (green), p62 (red), p-eIF2α (orange) and VAChT (blue). (A2) and A3) show the p62 and p-eIF2α labeling, respectively. The labeled motoneuron is indicated with a filled arrowhead. Empty arrowheads point to neighboring motoneurons with higher p62 burden but lower p-eIF2α fluorescence. (B) Example of a neurobiotin-labeled non-repetitively-firing motoneuron. Same organization as in A. The labeled motoneuron is indicated with a filled arrowhead. The double arrow point to a neighboring motoneuron with a similar p62 and p-eIF2α burden. The asterisks indicate other motoneurons with high p-eIF2α labeling but no p62 aggregates.

https://doi.org/10.7554/eLife.30955.014
Figure 8—figure supplement 1
Small motoneurons express low levels of disease markers.

(A) Small α-motoneurons (filled arrowheads), identified by the presence of C-boutons (VAChT, blue) do not display p62 aggregates (red). (B) The same small motoneurons (filled arrowheads) express little to no p-eIF2α (orange). Scale bars: 35 µm.

https://doi.org/10.7554/eLife.30955.015

Tables

Table 1
Contractile properties of the different types of motor units in WT and SOD1G93A mice.

For each property, we report the mean ± SD as well as the range (in brackets), and the sample size for each genotype, and for each physiological type (FF, FR and S). In addition, we report the values in the large motor units (FF and large FR with a twitch force larger than 1.3 mN), and the small motor units (small FR with a twitch force smaller than 1.3 mN and S). The column diff shows the result of a Mann-Whitney test between WT and SOD1G93A mice. The test could only be performed if both samples contained at least five motoneurons.

https://doi.org/10.7554/eLife.30955.006
PropertyMotor unit typeWTSOD1G93ADiff.
Twitch amplitudeLarge units6.4 ± 6.1 mN; [1.3–29.8 mN]; N = 5410.7 ± 12.5 mN; [1.4–53.1 mN]; N = 42NS
Small units0.6 ± 0.4 mN; [0.1–1.8 mN]; N = 520.6 ± 0.4 mN; [0.1–1.3 mN]; N = 50NS
FF15.5 ± 6.1 mN; [8.5–29.8 mN]; N = 1323.8 ± 12.8 mN; [10.6–53.1 mN]; N = 15NS
FR2.0 ± 2.0 mN; [0.1–7.7 mN]; N = 851.8 ± 1.8 mN; [0.1–8.0 mN]; N = 65NS
S0.7 ± 0.5 mN; [0.2–1.8 mN]; N = 80.4 ± 0.3 mN; [0.1–1.1 mN]; N = 12NS
Twitch contraction timeLarge units12.1 ± 2.8 ms; [7.5–18.4 ms]; N = 5413.2 ± 2.7 ms; [9.8–19.9 ms]; N = 42∗ (p=0.033)
Small units16.2 ± 5.0 ms; [8.9–33.1 ms]; N = 5217.4 ± 6.6 ms; [9.6–40.0 ms]; N = 50NS
FF11.4 ± 2.4 ms; [7.8–16.2 ms]; N = 1314.0 ± 3.0 ms; [10.6–19.9 ms]; N = 15∗∗ (p=0.005)
FR13.5 ± 3.0 ms; [7.5–19.0 ms]; N = 8513.8 ± 2.6 ms; [9.6–19.0 ms]; N = 65NS
S25.3 ± 4.8 ms; [21.0–33.1 ms]; N = 826.8 ± 6.8 ms; [20.0–40.0 ms]; N = 12NS
Fatigue IndexLarge units0.8 ± 0.3; [0.1–1.0]; N = 400.7 ± 0.4; [0.1–1.0]; N = 13NS
Small units1.0 ± 0.1; [0.7–1.0]; N = 501.0 ± 0.1; [0.8–1.0]; N = 30NS
FF0.4 ± 0.2; [0.1–0.8]; N = 80.1 ± 0.0; [0.1–0.1]; N = 2-
FR1.0 ± 0.1; [0.3–1.0]; N = 740.9 ± 0.2; [0.2–1.0]; N = 32NS
S1.0 ± 0.0; [0.9–1.0]; N = 81.0 ± 0.0; [0.9–1.0]; N = 9NS
Table 2
Electrophysiological properties of the different types of motoneurons in WT and SOD1G93A mice.

Same organization as in Table 1. ∆V: voltage excursion between resting membrane potential and firing threshold, measured as described in the Materials and methods section. Note that ∆V, recruitment current and F-I curve slope values could only be measured in repetitively firing motoneurons.

https://doi.org/10.7554/eLife.30955.007
PropertyMotor unit typeWTSOD1G93ADiff.
Resting membrane potentialLarge units−71 ± 9 mV; [−83–−50 mV]; N = 32−65 ± 9 mV; [−84–−50 mV]; N = 39∗ (p=0.013)
Small units−69 ± 10 mV; [−87–−51 mV]; N = 31−68 ± 7 mV; [−78–−50 mV]; N = 39NS
FF−73 ± 8 mV; [−83–−62 mV]; N = 6−67 ± 10 mV; [−84–−54 mV]; N = 15NS
FR−70 ± 10 mV; [−87–−50 mV]; N = 54−66 ± 8 mV; [−79–−50 mV]; N = 55∗ (p=0.029)
S−67 ± 4 mV; [−71–−62 mV]; N = 3−68 ± 9 mV; [−76–−50 mV]; N = 8-
Input conductanceLarge units0.6 ± 0.2 µS; [0.2–0.9 µS]; N = 360.5 ± 0.2 µS; [0.2–0.8 µS]; N = 38NS
Small units0.3 ± 0.1 µS; [0.1–0.4 µS]; N = 330.3 ± 0.1 µS; [0.1–0.5 µS]; N = 43NS
FF0.7 ± 0.1 µS; [0.4–0.9 µS]; N = 110.6 ± 0.2 µS; [0.3–0.8 µS]; N = 15NS
FR0.4 ± 0.2 µS; [0.1–0.8 µS]; N = 550.4 ± 0.1 µS; [0.1–0.8 µS]; N = 57NS
S0.2 ± 0.0 µS; [0.2–0.2 µS]; N = 30.2 ± 0.1 µS; [0.1–0.3 µS]; N = 9-
∆VLarge units18 ± 7 mV; [4–30 mV]; N = 1921 ± 4 mV; [13–28 mV]; N = 17NS
Small units17 ± 8 mV; [4–36 mV]; N = 2917 ± 6 mV; [3–30 mV]; N = 37NS
FF[29.90 mV]; N = 122 ± 5 mV; [13–28 mV]; N = 8-
FR17 ± 7 mV; [4–36 mV]; N = 4518 ± 5 mV; [3–30 mV]; N = 38NS
S11 ± 8 mV; [5–17 mV]; N = 216 ± 5 mV; [9–23 mV]; N = 8-
Recruitment currentLarge units10 ± 4 nA; [2–18 nA]; N = 278 ± 3 nA; [3–12 nA]; N = 19NS
Small units4 ± 3 nA; [1–17 nA]; N = 314 ± 2 nA; [0–9 nA]; N = 39NS
FF13 ± 3 nA; [9–17 nA]; N = 410 ± 3 nA; [5–12 nA]; N = 7-
FR7 ± 4 nA; [1–18 nA]; N = 515 ± 3 nA; [0–11 nA]; N = 43NS
S2 ± 2 nA; [1–4 nA]; N = 33 ± 1 nA; [0–4 nA]; N = 8-
F-I curve slopeLarge units11 ± 6 Hz/nA; [2–25 Hz/nA]; N = 1513 ± 5 Hz/nA; [4–26 Hz/nA]; N = 17NS
Small units15 ± 6 Hz/nA; [2–37 Hz/nA]; N = 2819 ± 10 Hz/nA; [7–44 Hz/nA]; N = 35NS
FF[13.98 Hz/nA]; N = 114 ± 6 Hz/nA; [6–26 Hz/nA]; N = 6-
FR14 ± 7 Hz/nA; [2–37 Hz/nA]; N = 3918 ± 9 Hz/nA; [4–44 Hz/nA]; N = 38NS
S13 ± 5 Hz/nA; [11–19 Hz/nA]; N = 317 ± 8 Hz/nA; [9–34 Hz/nA]; N = 8-
Table 3
Contractile properties of the different types of ankle flexor motor units in the in 180 days-old FUSWT and FUSP525L mice.

Same organization as in Table 1.

https://doi.org/10.7554/eLife.30955.010
PropertyMotor unit typeFUSWTFUSP525LDiff.
Twitch amplitudeLarge units6.8 ± 5.9 mN; [1.3–22.0 mN]; N = 2810.6 ± 9.7 mN; [1.3–28.4 mN]; N = 22NS
Small units0.8 ± 0.3 mN; [0.2–1.3 mN]; N = 180.7 ± 0.3 mN; [0.1–1.3 mN]; N = 16NS
FF14.7 ± 5.1 mN; [8.9–22.0 mN]; N = 820.0 ± 6.0 mN; [11.8–28.4 mN]; N = 10NS
FR2.3 ± 2.0 mN; [0.2–8.0 mN]; N = 381.5 ± 1.4 mN; [0.1–6.7 mN]; N = 28NS
S---
Twitch contraction timeLarge units11.0 ± 2.6 ms; [7.7–18.9 ms]; N = 2811.6 ± 2.9 ms; [7.5–18.1 ms]; N = 22NS
Small units12.4 ± 2.4 ms; [8.0–16.6 ms]; N = 1811.4 ± 2.3 ms; [9.1–15.3 ms]; N = 16NS
FF10.9 ± 2.4 ms; [7.7–14.2 ms]; N = 812.2 ± 2.5 ms; [9.5–18.1 ms]; N = 10NS
FR11.7 ± 2.7 ms; [7.7–18.9 ms]; N = 3811.3 ± 2.7 ms; [7.5–17.6 ms]; N = 28NS
S---
Fatigue IndexLarge units0.9 ± 0.1; [0.8–1.0]; N = 50.8 ± 0.2; [0.4–1.0]; N = 6-
Small units1.0 ± 0.1; [0.9–1.0]; N = 101.0 ± 0.0; [0.9–1.0]; N = 12NS
FF0.9 ± 0.1; [0.9–1.0]; N = 20.7 ± 0.3; [0.4–0.9]; N = 2-
FR0.9 ± 0.1; [0.8–1.0]; N = 130.9 ± 0.1; [0.7–1.0]; N = 16NS
S---
Table 4
Electrophysiological properties of the different types of ankle flexor motoneurons in the in 180 days-old FUSWT and FUSP525L mice.

Same organization as in Table 2.

https://doi.org/10.7554/eLife.30955.011
PropertyMotor unit typeFUSWTFUSP525LDiff.
Resting membrane potentialLarge units−71 ± 9 mV; [−92–−58 mV]; N = 19−67 ± 9 mV; [−82–−50 mV]; N = 19NS
Small units−67 ± 8 mV; [−76–−51 mV]; N = 10−69 ± 10 mV; [−86–−54 mV]; N = 12NS
FF−75 ± 11 mV; [−92–−61 mV]; N = 6−66 ± 7 mV; [−77–−52 mV]; N = 9NS
FR−68 ± 7 mV; [−83–−51 mV]; N = 23−69 ± 10 mV; [−86–−50 mV]; N = 22NS
S---
Input conductanceLarge units0.5 ± 0.2 µS; [0.2–1.1 µS]; N = 190.5 ± 0.2 µS; [0.2–0.8 µS]; N = 17NS
Small units0.2 ± 0.1 µS; [0.1–0.4 µS]; N = 100.3 ± 0.1 µS; [0.1–0.5 µS]; N = 11NS
FF0.6 ± 0.2 µS; [0.3–1.1 µS]; N = 80.5 ± 0.2 µS; [0.2–0.8 µS]; N = 9NS
FR0.3 ± 0.2 µS; [0.1–0.8 µS]; N = 210.3 ± 0.1 µS; [0.1–0.7 µS]; N = 19NS
S---
∆VLarge units20 ± 7 mV; [12–34 mV]; N = 1324 ± 5 mV; [20–33 mV]; N = 6NS
Small units15 ± 6 mV; [10–26 mV]; N = 916 ± 6 mV; [8–24 mV]; N = 9NS
FF24 ± 7 mV; [15–34 mV]; N = 527 ± 9 mV; [21–33 mV]; N = 2-
FR17 ± 6 mV; [10–30 mV]; N = 1718 ± 6 mV; [8–27 mV]; N = 13NS
S---
Recruitment currentLarge units9 ± 3 nA; [4–14 nA]; N = 1410 ± 4 nA; [5–15 nA]; N = 6NS
Small units4 ± 2 nA; [1–7 nA]; N = 86 ± 5 nA; [1–20 nA]; N = 11NS
FF10 ± 3 nA; [7–14 nA]; N = 514 ± 2 nA; [12–15 nA]; N = 2-
FR6 ± 3 nA; [1–12 nA]; N = 177 ± 5 nA; [1–20 nA]; N = 15NS
S---
F-I curve slopeLarge units9 ± 5 Hz/nA; [4–21 Hz/nA]; N = 1111 ± 5 Hz/nA; [5–17 Hz/nA]; N = 5-
Small units29 ± 13 Hz/nA; [7–48 Hz/nA]; N = 717 ± 15 Hz/nA; [4–43 Hz/nA]; N = 9NS
FF6 ± 1 Hz/nA; [5–7 Hz/nA]; N = 3[14.18 Hz/nA]; N = 1-
FR19 ± 14 Hz/nA; [4–48 Hz/nA]; N = 1515 ± 13 Hz/nA; [4–43 Hz/nA]; N = 13NS
S---
Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain, strain background (Mus musculus B6SJL)SOD1-G93APMID:8209258RRID:IMSR_JAX:002726
Strain, strain background (Mus musculus C57BL/6)FUS-P525L; FUS-WTPMID:26842965
Gene (Mus musculus)ChondrolectinPMID:20437528NM_139134.3
Antibodyanti-digoxigenin alkaline phosphatase-conjugated antibodyPMID:25313866RRID:AB_5144971:5000
AntibodyCy2-conjugated Streptavidin antibodyPMID:25313866RRID:AB_23372467.5 µg/mL
AntibodyNeurobiotinPMID:29256865RRID:AB_23366062% in KCl 3M
AntibodyDextran-TMRPMID:14566947Invitrogen Cat# D18172% in KCl 3M
AntibodyDextran-FITCPMID:14566947Invitrogen Cat# D18202% in KCl 3M
Antibodyguinea-pig anti-VAChTPMID:24094105RRID:AB_108939791:500
Antibodyrabbit anti-Phospho-eIF2αPMID:28131822RRID:AB_3309511:50
Antibodymouse anti-p62PMID:28941811RRID:AB_9456261:200
Software, algorithmImageJPMID:22930834RRID:SCR_003070
Software, algorithmSpike2ced.co.ukRRID:SCR_000903v7.16
